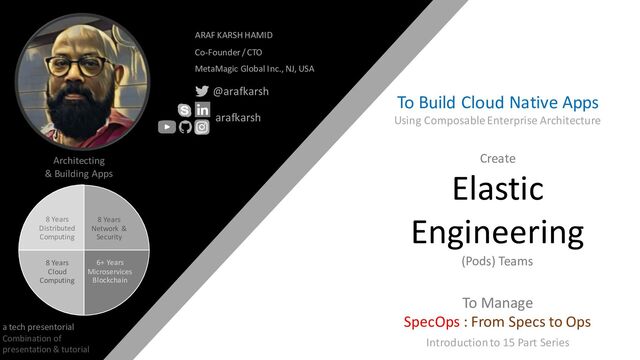

Elastic Engineering

Elastic Engineering

To Build Cloud-Native Apps
Using Composable Enterprise Architecture
Create Elastic Engineering (Pods) Teams

To Manage
SpecOps: From Specs to Ops

Araf Karsh Hamid

June 01, 2022
Tweet

More Decks by Araf Karsh Hamid

Other Decks in Technology

Transcript

  1. @arafkarsh arafkarsh 8 Years Network & Security 6+ Years Microservices

    Blockchain 8 Years Cloud Computing 8 Years Distributed Computing Architecting & Building Apps a tech presentorial Combination of presentation & tutorial ARAF KARSH HAMID Co-Founder / CTO MetaMagic Global Inc., NJ, USA @arafkarsh arafkarsh 1 Create Elastic Engineering (Pods) Teams To Build Cloud Native Apps Using Composable Enterprise Architecture To Manage SpecOps : From Specs to Ops Introduction to 15 Part Series
  2. @arafkarsh arafkarsh Objectives / Goals of Engineering Pods 2 •

    Train and Build Cloud Native App Engineering Team • Team Structure Follows Capability Centric Model and Microservices based Architecture • Optimum Team Size for Engineering Pod • Identify Key Roles within Engineering Pod • Define Roles and Responsibilities • Faster GoTo Market Capabilities (4-6 Weeks to 1-Day to Hours) • Fully Automated DevOps Culture
  3. @arafkarsh arafkarsh 3 Design Thinking Lean Startup / Agile User

    Stories / MVP 1 Architecture Kafka, Containers, Kubernetes, Istio 2 Testing Strategies, BDD & Automation Network / Security 3 CI/CD Observability DevSecOps 4 Setting up the Context For Elastic Engineering A Define Elastic Engineering Pods B How
  4. @arafkarsh arafkarsh 6 Cloud Native Apps Technology Landscape 1999 Commercial

    Virtual Machine 2003 VM Monitor Hypervisor 2004 Architecture Pattern Domain Driven Design 2006 Cloud Services Amazon AWS 2013 Containers Docker 2014 Container Orchestrator Kubernetes 2005 Architecture Pattern Event Sourcing & CQRS 1995s 2020s 2000s Cloud Native Apps Infrastructure Evolution 1. Virtual Machines 2. Containers 3. Kubernetes (Orchestrator) 4. Istio (Service Mesh) 5. Kafka (Messaging) Architecture Patterns 1. API Gateways / LB 2. Service Discovery 3. Event Driven 4. Service Mesh 5. Domain Driven Design 6. Event Sourcing & CQRS 7. Reactive Programming 8. Distributed Tx 2015 Service Mesh Istio 2011 Messaging Kafka 1998 Architecture Style 3 Tier Architecture 2003 Architecture Style SOA 2020 Service Mesh Open Service Mesh 2007 Linux Kernel cgroups 2008 Cloud Services Google Cloud 2010s 2010 Cloud Services Microsoft Azure 2011 Hybrid Cloud Services RedHat OpenShift 1999 Software Process XP (Agile) 1987 Design Pattern Saga Pattern 2005s 2015s 2004 Software Process Kanban 1985s 2010 Cloud Services OpenStack 2009 PaaS Services Cloud Foundry 2019 Data Mesh Kafka / Rising Wave
  5. @arafkarsh arafkarsh Cloud Native Architecture 8 Amazon – What is

    Cloud Native App Development? Google – What is Cloud Native? Microsoft – What is Cloud Native? Oracle – What is Cloud Native? IBM – What is Cloud Native? IEEE – Cloud Native Architecture The Cloud Native Computing Foundation provides the official definition: Cloud-native technologies empower organizations to build and run scalable applications in modern, dynamic environments such as public, private, and hybrid clouds. Containers, service meshes, microservices, immutable infrastructure, and declarative APIs exemplify this approach. These techniques enable loosely coupled systems that are resilient, manageable, and observable. Combined with robust automation, they allow engineers to make high-impact changes frequently and predictably with minimal toil. https://github.com/cncf/toc/blob/main/DEFINITION.md Source: https://www.cncf.io/
  6. @arafkarsh arafkarsh Cloud Native Architecture Adoption on the rise 9

    https://www.computerweekly.com/news/252518356/Adoption-of-cloud-native-architectures-on-the-rise Research from SlashData for the Cloud Native Computing Forum (CNCF) has found that the global number of cloud-native developers has grown by one million in the past 12 months to reach 7.1 million. 1.0 7.1 Source: Microsoft – https://learn.microsoft.com/en-us/dotnet/architecture/cloud-native/definition With Agile / Scrum / Sprint (2-4 Weeks) and CI/CD pipelines: How do Companies like NetFlix, Uber, and WeChat do 100+ releases per day?
  7. @arafkarsh arafkarsh Architecting Cloud Native .Net Apps for Azure 10

    Source Microsoft Cloud Native eBook – https://dotnet.microsoft.com/en-us/download/e-book/cloud-native-azure/pdf Write the answer (How 100+ releases per Day done by NetFlix, Uber, WeChat) under the following heads. o Specs o Design o Develop o Deploy o Ops
  8. @arafkarsh arafkarsh Agile Scrum (4-6 Weeks) Developer (Migration – Brown

    Field or Green Field) Journey Monolithic Domain Driven Design Event Sourcing and CQRS Waterfall Optional Design Patterns Continuous Integration (CI) 6/12+ Months Enterprise Service Bus Relational Database [SQL] / NoSQL Development QA / QC Ops 11 Microservices Domain Driven Design Event Sourcing and CQRS Scrum / Kanban (1-5 Days) Mandatory Design Patterns Infrastructure Design Patterns Continuous Integration - CI DevOps Event Streaming / Replicated Logs SQL NoSQL Continuous Delivery - CD Container Orchestrator Service Mesh
  9. @arafkarsh arafkarsh Application Modernization – 3 Transformations 12 Monolithic SOA

    Microservice Physical Server Virtual Machine Cloud Waterfall Agile DevOps Source: IBM: Application Modernization > https://www.youtube.com/watch?v=RJ3UQSxwGFY Architecture Infrastructure Delivery
  10. @arafkarsh arafkarsh Application Modernization – 3 Transformations 13 Monolithic SOA

    Microservice Physical Server Virtual Machine Cloud Waterfall Agile DevOps Architecture Infrastructure Delivery Modernization 1 2 3 Source: IBM: Application Modernization > https://www.youtube.com/watch?v=RJ3UQSxwGFY
  11. @arafkarsh arafkarsh Maturation of SDLC Best Practices 14 Source: Page

    16 US DoD Enterprise DevSecOps 2.0 Fundamentals
  12. @arafkarsh arafkarsh DevSecOps 15 DevSecOps is a culture and philosophy

    that must be practiced across the organization, realized through the unification of a set of Software development (Dev), Security (Sec) and Operations (Ops) personnel into a singular team. Source: Page 17. US DoD Enterprise DevSecOps Fundamentals
  13. @arafkarsh arafkarsh Summary: Why do we need Elastic Engineering? 16

    1. Scalability: Example Walmart Black Friday Sales, Uber, NetFlix etc.. 2. Application Modernization Benefits / Composable 3. Diverse Technology Stack 4. Near Realtime Data Streaming / Analytics 5. Continuous Delivery Pipelines 6. Faster Go To Market – Adaptive
  14. @arafkarsh arafkarsh Elastic Engineering • Business Capability Centric Design •

    Shift Left Operations • SpecOps Workflow for Green Field / Brown Field Apps • Engineering Pods • Roles and Responsibilities 17 B
  15. @arafkarsh arafkarsh Composable Enterprise Architecture 18 A composable enterprise is

    an organisation that delivers business outcomes and adapts to the pace of business change. It does this through the assembly and combination of Packaged Business Capabilities (PBCs). PBCs are application building blocks that have been purchased or developed. Source: Gartner: Future of Applications: Delivering the Composable Enterprise | Why does it matter? APIs Event Channels Composable Enterprise Business Capabilities Business Capabilities Business Ecosystems My Application Experience Digital Business Technology Platform Source: Gartner Future of Applications
  16. @arafkarsh arafkarsh Business Capability Centric Design 19 Business Centric Development

    • Focus on Business Capabilities • Entire team is aligned towards Business Capability. • From Specs to Operations – The team handles the entire spectrum of Software development. • Every vertical will have its own Code Pipeline, Build Pipeline Front-End-Team Back-End-Team Database-Team In a typical Monolithic way, the team is divided based on technology / skill set rather than business functions. This leads to not only bottlenecks but also lack of understanding of the Business Domain. QA Team QA = Quality Assurance PO = Product Owner Vertically sliced Product Team Front-End Back-End Database Business Capability 1 QA PO Ops Front-End Back-End Database Business Capability 2 QA PO Ops Front-End Back-End Database Business Capability - n QA PO Ops
  17. @arafkarsh arafkarsh Production Environment Continuous Monitoring Fully Automated Continuous Deployment

    Shift Left – Operational Concerns 20 • Operations Concerns move earlier in software delivery life cycle, towards development. • The Goal is to enable Developers and QC Team to Develop and Test the software that behave like Production System in fully automated way. Development Environment Build Build Build Test Environment Continuous Integration Unit Testing Component Testing Contract Testing Integration Testing Continuous Testing Shift Left moves operations earlier in development cycle. Stage Environment Acceptance Testing Pull Request / Merge Continuous Delivery GitOps – CD/CD
  18. @arafkarsh arafkarsh Management Pipeline Automation Architecture SpecOps Workflow - SDLC

    21 Green Field Brown Field Domain Driven Design Event Sourcing / CQRS Migration Patterns Strangler Fig, CDC… Build Design Develop Test Stage Ops Cloud • Fault Tolerance • Reliability • Scalability • Traffic Routing • Security • Policies • Observability • Unit Testing • Component • Integration • Contract • Package Repositories • Mvn, npm, docker hub • Containers • Orchestration • Serverless • Traffic Routing • Security (mTLS, JWT) • Policies (Network / Security • Observability Infra Code • Feature Code • Configs Source Code Specs
  19. @arafkarsh arafkarsh Management Pipeline Automation Architecture Engineering Pods 22 Build

    Design Develop Test Stage Production Specs Cloud Manager Cloud Architect Cloud Sr. Engineer Cloud Engineers Product Owner Elastic Engineering Pod 2-6 Engineers Customer 1-3 Engineers
  20. @arafkarsh arafkarsh Engineering Pod (Team) Size 23 5 7 Manager

    Architect Sr. Engineer Manager Architect Sr. Engineer Engineers Engineers Engineering Pods are created based on Various Team Size Configurations As per Business Capability Requirement • 5 Members • 7 Members • 9 Members
  21. @arafkarsh arafkarsh Engineering Pod (Team) Size 24 9 9 Manager

    Architect Sr. Engineer Manager Architect Sr. Engineer Engineers Engineers 9 Manager Architect Sr. Engineer Engineers
  22. @arafkarsh arafkarsh Roles & Responsibilities and Tech Stack 25 Category

    Role Type Responsibilities Tech Stack 1 Customer Product Owner External • Complete Product Vision • Specifications (User Stories, Acceptance Criteria) • User Stories • BDD – Acceptance Criteria 2 Engineering Pod Cloud Manager / Analyst Internal • Analyst & Specifications (User Stories, Acceptance Criteria) • Feature Management in Production & Focused on Outcome • Scrum Master & Team Management • Design Thinking • Lean Startup • Agile (Kanban) 3 Engineering Pod Cloud Architect Internal • Technology Stack, Mentor / Guiding Team on Technology • Data Models and Interface Definitions (Hexagonal Architecture) • Research & Coding (Feature and Infra Code) • Mentoring the team • Code Reviews (Functional / Infra Codes) • Deeper Understanding of Infra Stack • Event-Driven Architecture • Domain Driven Design • Data Flow Diagrams • Microservices Architecture • Data Mesh, Polyglot DB / Lang • Terraform, K8s, Service Mesh 4 Engineering Pod Cloud Sr. Engineer Internal • Mentor / Guiding Team on Technology • Product Development / Testing / Deployment • All the above • DevSecOps 5 Engineering Pod Cloud Engineer / SRE Internal • Feature Coding (Open API Specs) • Feature Test Cases (Unit, Component, Contract, Integration) • Infra Coding (Infra, Security, Network) • Build Pipeline Automation • All the above • DevSecOps 6 Engineering Pod Cloud Network / Security Lead External • Define Network Policies • Define Security Policies • Review Infra Code for Network & Security Policies • Terraform / Kubernetes • Zero Trust / Service Mesh • DevSecOps 7 Engineering Pod Cloud User Experience Lead External • Usability Guidelines • Data Flow Guidelines • Human-Computer Interface • Material Design Guidelines
  23. @arafkarsh arafkarsh Summary Elastic Engineering 26 1. Team Built around

    Business Capabilities 2. Smaller Team with Full Stack Developers 3. Fully Automated SDLC Pipeline 4. Shift Left: All Coding done at Development time 5. Easily Add More Elastic Engineering Pods to Scale Up the team size.
  24. @arafkarsh arafkarsh 27 Design Thinking Lean Startup / Agile User

    Stories / MVP 1 Architecture Kafka, Containers, Kubernetes, Istio 2 Testing Strategies, BDD & Automation Networking / Security 3 DevSecOps & SRE Observability Case Studies 4 How Cloud Manager / Analyst Cloud Architect / Engineer Cloud Architect / Cloud Engineer Cloud Architect / Cloud Engineer
  25. @arafkarsh arafkarsh Workshop Plan 28 Day Topic Day 1 Design

    Thinking, Lean Startup & Agile Epics, User Stories, MVP, Release Plans Day 2 Domain Driven Design Day 3 Event Sourcing and CQRS Kafka – Pub / Sub and Streaming Day 4 Big Data and Design Patterns Replication and Sharding Day 5 Microservices Architecture Migration Design Patterns Day Topic Day 6 Microservices Testing Strategies Unit, Component, Contract, Integration Day 7 Docker and Containers Kubernetes Day 8 Advanced Kubernetes, Service Mesh (Istio), Security Day 9 Cloud Architecture / Terraform Day 10 CI/CD Pipeline, Observability, DevOps Day 11 Zero Trust, SASE, DevSecOps All the section contains real-world examples with more than 10 GitHub Repositories as Reference Implementation for all the theoretical concepts. Fully Functional e-Commerce Application available Reference Implementation based on Microservices architecture, Kafka and Big Data (MongoDB) Deployed using Containers, Kubernetes and Istio.
  26. @arafkarsh arafkarsh Specs, Architecture, Design, Packaging 29 EPIC Bounded Context

    Micro Service Pod User Stories MVP Domain Driven Design Service Architecture Container Orchestration Design Thinking Lean Startup Agile (Kanban) CI/CD/CD, DevSecOps Specs Deploy Design / Develop Code Process Test Automation Code, Infra Code, Continuous Integration, Continuous Delivery, Continuous Deployment DFD L1 Data Flow Diagrams
  27. @arafkarsh arafkarsh 1 Outcome oriented o Design Thinking / Lean

    Startup / Agile o Measurable Outcomes o Specs: Themes, Epics and User Stories o Story Map, Minimum Viable Product & Agile Scrum / Kanban 30
  28. @arafkarsh arafkarsh Three Mindsets of Product Development 31 Design Thinking

    Lean Startup Agile Source: Jonny Schneider, Thought Works Explore the Problem Build the right things Build the things right Hypothesis Validation New Business Requirements Product Evolutions Agile MVP
  29. @arafkarsh arafkarsh Discovery Vs. Delivery 32 Increasing level of Evidence

    of Value Increasing level of Effort Developing a product without finding evidence of its value is a waste of time and resources. Observe & Interact Protypes Explainer Videos Landing Pages Concierge MVP Wizard of OZ MVP Beta Release Product Launch Design Thinking Lean Agile Explore the Problem Build the right things Build the things right If You are NOT doing these Then this is waste Single Customer Example Amazon had Human Book Reviewers before they automated it Example Dropbox: Customer interests went up from 5K to 70K
  30. @arafkarsh arafkarsh From Project Based Activity Oriented To Product Based

    Outcome Oriented Source: Sriram Narayan– https://martinfowler.com/bliki/BusinessCapabilityCentric.html 33
  31. @arafkarsh arafkarsh ShopEasy – eCommerce Portal 34 Theme Epic User

    Story Sprint ShopEasy – eCommerce Application 1. Customer Management 2. Search Product 3. Catalogue 4. Shopping Cart 5. Order Processing 6. Payments 2. Search Product Release 1 1. Global Search Release 2 1. Search by Brand 2. Search by Price Range Release 3 1. Search by Model 2. Search by Rating Stories 1. Global Search 2. Search by Brand 3. Search by Price Range 4. Search by Model 5. Search by Rating
  32. @arafkarsh arafkarsh Epic – Customer 35 As a Consumer I

    want to register eCommerce Portal So that I can buy products Role-Feature-Reason Matrix User Story – 1 : Registration BDD Acceptance Criteria – 1: Save User Given The fields First Name, Last Name, DOB Address, Email Address, Phone No. When User enters values in the fields First Name, Last Name, DOB Address, Email Address, Phone No. Then If the following fields contains values First Name, Last Name, Address, Email Address and Phone No. AND Age is greater than 18 Save the Data. BDD Acceptance Criteria – 2 : Generate Password Given User Info Available When Email Address is a valid email Then Generate the password AND Send mail with user email address as login id the URL of the portal AND Send Password in a separate email address. AND Store data on mail status as mail send or failed. BDD Acceptance Criteria – 3 : Resend Mail Given User Registration mail status is available When The Mail status is failed. Then Send the mail again AND stored the attempt number.
  33. @arafkarsh arafkarsh What exactly is a Minimum Viable Product 36

    Let us understand this with a case study on eCommerce Shopping Portal.
  34. @arafkarsh arafkarsh Microservices / User Journey / Story Map &

    Release Cycles 37 Browse Products Add to Shopping Cart Select Shipping Address Confirm Order Make Payment Catalogue Shopping Cart Order Payment Customer View Product Search User Journey Search by Price Image Gallery Update Qty Use PayPal R2 Global Search Product Details Add to Cart Delete Item Select Address Confirm Order Pay Credit Card Make Payment R1 Registration Minimum Viable Product Scrum Sprint Cycle Search by Price Image Gallery Update Qty Use PayPal Kanban Cycle: Each of the Story can be released without waiting for other stories to be completed resulting in Shorter Releases as all the stories are independent!
  35. @arafkarsh arafkarsh Summary: Outcome Oriented 38 1. Iterative model based

    on Design Thinking 2. Specs as User Stories with Acceptance Criteria 3. Create Minimum Viable Product with User Journey 4. Agile with Sprint and Kanban for Faster Releases
  36. @arafkarsh arafkarsh 2 Architecture & Design o Composable Enterprise Architecture

    o Domain Driven Design o Event Sourcing and CQRS o Monolithic to Microservices o Event Streaming & Pub / Sub – Apache Kafka o Event Streaming & Analytics – Apache Flink o Container Orchestration o Hybrid with Edge and Multi Cloud Auto Scaling 39
  37. @arafkarsh arafkarsh Architecture Styles, Patterns & Design Patterns 40 •

    Component-based • Client-server • Event-driven • Layered Architecture • Monolithic application • Plug-ins • Publish-subscribe • Service Based • Service-Oriented • Microservices Architecture Style: 1. How to Organize the Code, 2. Creating high-level modules & layers and how they interact each other. Architecture Patterns: A Recurring solution to a recurring problem. Providing the Solution to an Architecture Style. Ex. How a request is processed from the outer layer to inner layer. • Three Tier • Micro Kernel • Model View Controller • Event Sourcing and CQRS • Domain Driven Design Design Patterns: Scope of the Design Patterns is much narrower compared to an Architecture Pattern. It focuses on instantiating an object, behavior of the object. • Adapter • Builder / Factory • Saga • Repository • Aggregate Root Wider Scope Narrow Scope
  38. @arafkarsh arafkarsh Composable Enterprise Architecture 41 Source: Gartner: Future of

    Applications: Delivering the Composable Enterprise | Why does it matter? On Demand Scalability Service & Apps Integrated with Clients & Devices Automated On Demand Services Self Service Options for App & Data MASA Mesh App & Service Architecture Enterprise Data Available, Accessible, & Integrated into Data Flow Delivers > Packaged Business Capabilities
  39. @arafkarsh arafkarsh 43 Process • Define your Business Processes. Eg.

    Various aspects of Order Processing in an E-Commerce Site, Movie Ticket Booking, Patient visit in Hospital. 1 Commands • Define the Commands (End-User interaction with your App) to execute the Process. Eg. Add Item to Cart is a Command. 2 Event Sourced Aggregate • Current state of the Aggregate is always derived from the Event Store. Eg. Shopping Cart, Order etc. This will be part of the Rich Domain Model (Bounded Context) of the Micro Service. 4 Projections • Projections focuses on the View perspective of the Application. As the Read & Write are different Models, you can have different Projections based on your View perspective. 5 Write Data Read Data Events • Commands generates the Events to be stored in Event Store. Eg. Item Added Event (in the Shopping Cart). 3 Event Storming – Concept
  40. @arafkarsh arafkarsh Event Sourcing Intro 44 Standard CRUD Operations –

    Customer Profile – Aggregate Root Profile Address Title Profile Created Profile Address New Title Title Updated Profile New Address New Title New Address added Derived Profile Address Notes Notes Removed Time T1 T2 T4 T3 Event Sourcing and Derived Aggregate Root Commands 1. Create Profile 2. Update Title 3. Add Address 4. Delete Notes 2 Events 1. Profile Created Event 2. Title Updated Event 3. Address Added Event 4. Notes Deleted Event 3 Profile Address New Title Current State of the Customer Profile 4 Event store Single Source of Truth Greg Young
  41. @arafkarsh arafkarsh Summary User Journey: CCD / DDD / Event

    Sourcing & CQRS 45 User Journey Bounded Context 1 Bounded Context 2 Bounded Context 3 1. Bounded Contexts 2. Entity 3. Value Objects 4. Aggregate Roots 5. Domain Events 6. Repository 7. Service 8. Factory Process 1 Commands 2 Projections 5 ES Aggregate 4 Events 3 Event Sourcing & CQRS Product Owner Cloud Manager Cloud Architect Cloud Engineer Epics / User Stories Acceptance Criteria Automated Test Cases Source / Infra Code Cloud Sr. Engineer DDD – Domain Driven Design Ubiquitous Language Core Domain Sub Domain Generic Domain Vertically sliced Product Team FE BE DB Business Capability 1 QA Team PO FE BE DB Business Capability 2 QA Team PO FE BE DB Business Capability n QA Team PO CCD – Capability Centric Design
  42. @arafkarsh arafkarsh Design Pattern 1 Decomposition Identify the Modules and

    Boundaries 2 Strangler Fig Product Service (Query Only with Apache Solr) 3 Branch By Abstraction Shopping Cart as Service using Monolithic DB 4 Decorating Collaborator New Shipping Service with Database 5 Change Data Capture Enhance Loyalty Module as a new Service 6 Aggregate API Expose Customer API on Monolith 7 Split Table Product Split into 2 Services as Product Management and Warehouse 8 Change Data Ownership Order Service using Monolithic DB 9 Move Foreign Key to Code Foreign Key in Order (item) with Product Table moved to Order Service Code 10 Strangler Fig Move out Customer Module and decommission the Monolith Legacy Migration - Design Patterns 46 • Prioritize the Modules / Services For Implementation & Deployment Setup Transition Plan UI Layer WS BL DL Database Cart Order Customer Product Monolith
  43. @arafkarsh arafkarsh Strangler Fig Pattern 47 API Gateway / Proxy

    Web Services Business Logic Database Layer Product Micro Service Product SE 8 UI Layer WS BL DL Database Cart Order Customer Product UI Layer WS BL DL Database Cart Order Customer Product UI Layer WS BL DL Database Cart Order Customer Product Web Services Business Logic Database Layer Product Micro Service Product SE 8 API Gateway / Proxy Step 1 Identity the Module Step 2 Move the Service Step 3 Redirect the Calls to New Service Source: Monolith to Microservices By Sam Newman 1. New Service (Code) 2. Better Search Capabilities Product DB will be used by other modules in Monolithic App Monolith Monolith Monolith Only used for Search Capabilities and Scalability.
  44. @arafkarsh arafkarsh Async Calls : Kafka – Scalable Multi Subscribers

    48 Check Out Cart 4. Data Durability (Replication) 5. Ordering Guarantee (Per Partition) Use Partition Key Kafka Producer API Kafka Consumer API 1 2 3 4 1 2 3 4 3 4 Service Instances Order Topic (Total Partitions 6) Kafka Storage Replicated Logs Kafka Cluster 5 6 7 8 7 8 What will happen to Inventory Instance 7 and 8? Order Consumer Group Inv Consumer Group Multiple Subscriber As there are only 6 Partitions Kafka can serve ONLY 6 consumers within a partition 2 5 1 Broadcast Orders to following Consumers All the above Consumers will get same orders available in the Order Topic 1. Highly Scalable 2. Multi Subscriber 3. Loosely Coupled Systems
  45. @arafkarsh arafkarsh Servers / Virtual Machines / Containers 50 Hardware

    Host OS HYPERVISOR App 1 App 1 App 1 Guest OS BINS / LIB Guest OS BINS / LIB Guest OS BINS / LIB Type 2 Hypervisor App 2 App 3 App 2 OS Hardware Desktop / Laptop BINS / LIB App BINS / LIB App Container 1 Container 2 Type 1 Hypervisor Hardware HYPERVISOR App 1 App 1 App 1 Guest OS BINS / LIB Guest OS BINS / LIB Guest OS BINS / LIB App 2 App 3 App 2 Guest OS Hardware Type 1 Hypervisor BINS / LIB App BINS / LIB App BINS / LIB App Container 1 Container 2 Container 3 HYPERVISOR Virtualizes the OS Create Secure Sandboxes in OS Virtualizes the Hardware Creates Virtual Machines Hardware OS BINS / LIB App 1 App 2 App 3 Server Data Center No Virtualization Cloud Elastic Computing
  46. @arafkarsh arafkarsh Deployment – Updates and rollbacks, Canary Release D

    ReplicaSet – Self Healing, Scalability, Desired State R Worker Node 1 Master Node (Control Plane) Kubernetes Architecture 51 POD POD itself is a Linux Container, Docker container will run inside the POD. PODs with single or multiple containers (Sidecar Pattern) will share Cgroup, Volumes, Namespaces of the POD. (Cgroup / Namespaces) Scheduler Controller Manager Using yaml or json declare the desired state of the app. State is stored in the Cluster store. Self healing is done by Kubernetes using watch loops if the desired state is changed. POD POD POD BE 1.2 10.1.2.34 BE 1.2 10.1.2.35 BE 1.2 10.1.2.36 BE 15.1.2.100 DNS: a.b.com 1.2 Service Pod IP Address is dynamic, communication should be based on Service which will have routable IP and DNS Name. Labels (BE, 1.2) play a critical role in ReplicaSet, Deployment, & Services etc. Cluster Store etcd Key Value Store Pod Pod Pod Label Selector selects pods based on the Labels. Label Selector Label Selector Label Selector Node Controller End Point Controller Deployment Controller Pod Controller …. Labels Internet Firewall K8s Virtual Cluster Cloud Controller For the cloud providers to manage nodes, services, routes, volumes etc. Kubelet Node Manager Container Runtime Interface Port 10255 gRPC ProtoBuf Kube-Proxy Network Proxy TCP / UDP Forwarding IPTABLES / IPVS Allows multiple implementation of containers from v1.7 RESTful yaml / json $ kubectl …. Port 443 API Server Pod IP ...34 ...35 ...36 EP • Declarative Model • Desired State Key Aspects N1 N2 N3 Namespace 1 N1 N2 N3 Namespace 2 • Pods • ReplicaSet • Deployment • Service • Endpoints • StatefulSet • Namespace • Resource Quota • Limit Range • Persistent Volume Kind Secrets Kind • apiVersion: • kind: • metadata: • spec: Declarative Model • Pod • ReplicaSet • Service • Deployment • Virtual Service • Gateway, SE, DR • Policy, MeshPolicy • RbaConfig • Prometheus, Rule, • ListChekcer … @ @ Annotations Names Cluster IP Node Port Load Balancer External Name @ Ingress
  47. @arafkarsh arafkarsh Shopping Portal 52 /ui /productms /auth /order Gateway

    Virtual Service Deployment / Replica / Pod Nodes Istio Sidecar - Envoy Load Balancer Kubernetes Objects Istio Objects Firewall P M C Istio Control Plane UI Pod N5 v2 Canary v2 User X = Canary Others = Stable A / B Testing using Canary Deployment v1 UI Pod UI Pod UI Pod UI Service N1 N2 N2 Destination Rule Stable / v1 EndPoints Internal Load Balancers Source: https://github.com/meta-magic/kubernetes_workshop Users Product Pod Product Pod Product Pod Product Service MySQL Pod N4 N3 Destination Rule EndPoints Review Pod Review Pod Review Pod Review Service N1 N4 N3 Service Call Kube DNS EndPoints
  48. @arafkarsh arafkarsh Hybrid Cloud with Edge 53 Customer Data Financials

    App On Premise GDPR On Cloud IaaS SaaS PaaS E-Comm Portal Notification Service Inventory App Lift & Shift Edge K8s K8s Delivery & Shipping
  49. @arafkarsh arafkarsh Multi cluster Multi / Hybrid / Edge cloud

    54 Gateway Service-1 Service-3 Service-6 Service-8 Service-3 Service-1 Cluster 1 Secure Communication Container (Pod), Deployment Strategy, Replicas Hardware Specs: Memory, CPU, GPU, QoS K8s Cluster Multi Cloud Auto Scaling (Clone Cluster 1) Commit Infra Code to Service Infra Code Repository Service as Serverless Service Definitions, Ports, Load Balancing Algo GW Horizontal Scaling within cluster or across cluster Gateway and Routing Rules North-South Communication Auto Scaling across cluster Service-3 Service-1 Cluster 2 GW Service-7 Service-6 Cluster 3 Service-9 Service-8 Cluster 4 On-Premise Edge
  50. @arafkarsh arafkarsh Microservices Characteristics 55 We can scale our operation

    independently, maintain unparalleled system availability, and introduce new services quickly without the need for massive reconfiguration. — Werner Vogels, CTO, Amazon Web Services Modularity ... is to a technological economy what the division of labor is to a manufacturing one. W. Brian Arthur, author of e Nature of Technology The key in making great and growable systems is much more to design how its modules communicate rather than what their internal properties and behaviors should be. Alan Kay, 1998 email to the Squeak-dev list Components via Services Organized around Business Capabilities Products NOT Projects Smart Endpoints & Dumb Pipes Decentralized Governance & Data Management Infrastructure Automation Design for Failure Evolutionary Design
  51. @arafkarsh arafkarsh Summary: Cloud Native Apps (Microservices) 56 Pros 1.

    Adds Complexity 2. Skillset shortage 3. Confusion on getting the right size 4. Team need to manage end-to-end of the Service (From UI to Backend to Running in Production). 1. Robust 2. Scalable 3. Testable (Local) 4. Easy to Change and Replace 5. Easy to Deploy 6. Cloud & Technology Agnostic Cons
  52. @arafkarsh arafkarsh 3 Test Automation / Security o Testing Pyramid

    / Test Categories o Test Tools o Cloud Security Architecture o Perimeter Security Vs Zero Trust o NIST 800-207, SDP 57
  53. @arafkarsh arafkarsh Microservices Testing Strategies 58 E2E Testing Integration Testing

    Contract Testing Component Testing Unit Testing Number of Tests Speed Cost Time Mike Cohen’s Testing Pyramid Test Pyramid: https://martinfowler.com/bliki/TestPyramid.html 70% 20% 10% Ubiquitous Language Product Owner Cloud Manager Cloud Architect Cloud Engineer Design Docs Test Cases Code Cloud Sr. Engineer
  54. @arafkarsh arafkarsh Microservices Testing Strategy 59 Unit Testing A unit

    test exercises the smallest piece of testable software in the application to determine whether it behaves as expected. Source: https://martinfowler.com/articles/microservice-testing/#agenda Component Testing A component test limits the scope of the exercised software to a portion of the system under test, manipulating the system through internal code interfaces and using test doubles to isolate the code under test from other components. Integration Testing An integration test verifies the communication paths and interactions between components to detect interface defects Integration Contract Testing An Integration Contract test is a test at the boundary of an external service verifying that it meets the contract expected by a consuming service. End 2 End Testing An end-to-end test verifies that a system meets external requirements and achieves its goals, testing the entire system, from end to end Say NO to More End 2 End Tests - Mike Walker April 22, 2015. Google Test Blog
  55. @arafkarsh arafkarsh Microservices Testing Scenarios / Tools 60 Testing Tools

    Contract Testing Scope Integration Testing Verifies the communication paths and interactions between components to detect interface defects Contract Testing It is a test at the boundary of an external service verifying that it meets the contract expected by a consuming service. Payment Mock Integration Contract Testing Scope Test Double Montebank Cart Component Testing Unit Testing Integration Testing Scope Order REST / HTTP or Events / Kafka Item ID, Quantity, Address.. Mock Order Component Testing A component test limits the scope of the exercised software to a portion of the system under test. Order Payment Unit Testing Firewall Integration Testing Scope REST / HTTP Payment Sandbox Component Testing U
  56. @arafkarsh arafkarsh Summary: Microservices Testing Strategy 61 1. Unit Testing

    A unit test exercises the smallest piece of testable software. 2. Component Testing A component test limits the scope of the exercised software to a portion of the system under test. 3. Contract Testing It is a test at the boundary of an external service verifying that it meets the contract expected by a consuming service 4. Integration Testing It verifies the communication paths and interactions between components to detect interface defects.
  57. @arafkarsh arafkarsh Security o SANS: Cloud Security Architecture o Perimeter

    Security Vs. Zero Trust o Software Defined Perimeter o Service Mesh 62
  58. @arafkarsh arafkarsh SANS Cloud Security Architecture Principles 63 Source: RSA

    Conference 2019 – A Cloud Security Architecture workshop. Dave Shackleford Sr. Instructor SANS Institute Think Components Design for Failure Always Think of Feedback Loops Use Different Storages Options Built-In Security at every Layer CENTRALIZATION Focus on Centralization Standards & Automation Design for Elasticity
  59. @arafkarsh arafkarsh Perimeter Security Vs. Zero Trust 64 Zero Trust

    Security Model Classic Security Model Perimeter Security • Location Based (External / Internal) • Anyone inside the network is always trusted. • Based on Layered Security Never Trust, Always Verify 1 Implement Least Privilege 2 (Always) Assume Breach 3 Forrester's John Kindervag 2010: No More Chewy Centers: Introducing The Zero Trust Model Of Information Security Inspired from Jericho Forum Commandments v1.2 May 2007 Source: Microsoft: Jericho & Modern Security Restrict everything to a secure Network Zero Trust Protect Assets anywhere with Central Policy
  60. @arafkarsh arafkarsh NIST 800-207: Zero Trust Architecture 65 Source: NIST

    SP 800-207:Zero Trust Architecture https://csrc.nist.gov/publications/detail/sp/800-207/final A User, An Application, or a Device – Operating on (or with) a Computer System which has access to an Enterprise Resource Subject Is an Application, Document, Data, Database, Workload that’s under the Enterprise Control protected by the Zero Trust System Resource Policy Enforcement Point Policy Engine Policy Administrator Policy Decision Point Control Plane Data Plane Resource Subject User App Device UnTrusted Trusted CDM System GRC System Threat Intelligence Activity Logs Data Access Policy PKI IAM SIEM 1 2 3
  61. @arafkarsh arafkarsh Software Defined Perimeter: Architecture 66 Cloud Security Alliance:

    May 27, 2020: SDP and Zero Trust Policy Enforcement Point SDP Gateway SDP Controller Policy Decision Point Control Plane Data Plane Resource Subject User App Device SDP Client Source: https://cloudsecurityalliance.org/artifacts/sdp-architecture-guide-v2/ IH: Initiating Host Control Messages Data SDP requires 2 Security modules 1. mTLS 2. SPA AH AH: Accepting Host The model depicted below is Similar to Enclave Resource model from NIST 800-207 Architecture. NIST team defined that based on Cloud Security Alliance SDP Architecture.
  62. @arafkarsh arafkarsh Istio Security Architecture – Defense in Depth 67

    Source: https://istio.io/docs/concepts/security/ • Citadel for key and certificate management • Sidecar and perimeter proxiesto implement secure communication between clients and servers • Pilot to distribute authentication policies and secure naming information to the proxies • Mixer to manage authorization and auditing
  63. @arafkarsh arafkarsh 4 DevOps & SRE / Observability o DevOps

    Principles o Site Reliability Engineering o Benefits of DevOps o DevSecOps 68
  64. @arafkarsh arafkarsh Is DevOps - A Technology or Collection of

    technologies? Answer: NO Is DevOps - A way of programming? Answer: NO is DevOps - A Process? Answer: NO Can you become a DevOps Engineer? Answer: NO - its not a skill set It’s the Journey What is DevOps? @arafkarsh arafkarsh
  65. @arafkarsh arafkarsh What Dev & Ops want? 70 Development Team

    Agility Operations Team Stability Developers Keep throwing releases over the wall and get pushed back by the operations team.
  66. @arafkarsh arafkarsh 5 DevOps Principles – CALMS Framework 71 Source:

    https://www.atlassian.com/devops/frameworks/calms-framework DevOps isn’t a process, or a different approach to development. It’s a culture change. DevOps culture is collaboration. Build, Test, Deploy, and Provisioning automation are typical starting points for teams. Another major contribution of DevOps is “configuration as code.” Developers strive to create modular, composable applications because they are more reliable and maintainable. CULTURE AUTOMATION LEAN MEASUREMENT SHARING Continuous Improvement with Canary Releases and A/B Testing Continuous Improvement requires Data to measure the changes Sharing responsibility, success, failure goes a long way toward bridging that divide between Dev and Ops. You built it, You run it.
  67. @arafkarsh arafkarsh Implementing CALMS – DevOps Principles 72 Capability Centric

    Design Reduce Organization Silos CULTURE Leverage Tooling & Automation CI/CD Pipeline & Container Orchestration AUTOMATION Implement Gradual Change Microservices Architecture & Agile: Kanban LEAN Measure Everything Service Mesh: Observability MEASUREMENT Accept Failure as Normal Design for Failure SHARING Source: IBM DevOps Vs. SRE https://www.youtube.com/watch?v=KCzNd3StIoU Google: https://www.youtube.com/watch?v=uTEL8Ff1Zvk
  68. @arafkarsh arafkarsh class SRE implements DevOps – CALMS 73 Capability

    Centric Design Reduce Organization Silos CULTURE Leverage Tooling & Automation Tests, CI/CD Pipeline & Container Orchestration AUTOMATION Implement Gradual Change Microservices Architecture & Agile: Kanban LEAN Measure Everything Service Mesh: Observability MEASUREMENT Accept Failure as Normal Design for Failure SHARING ✓ Share Ownership ✓ SLOs & Blameless PM ✓ Canary Deployment, A/B Testing ✓ Automate this years Job ✓ Measure toil & reliability SRE – Site Reliability Engineering
  69. @arafkarsh arafkarsh Pillars of Observability 74 Immutable records of discrete

    events that happen over time Logs/events Numbers describing a particular process or activity measured over intervals of time Metrics Data that shows, for each invocation of each downstream service, which instance was called, which method within that instance was invoked, how the request performed, and what the results were Traces Source: A Beginners guide to Observability by Splunk
  70. @arafkarsh arafkarsh Observability in Kubernetes Worker Node 75 eBPF Programs

    Network Flow Log K-Probe Connection Tracker Linux Kernel Prometheus Envoy Proxy Log Collector FluentD Pods Pods Pods Pods Pods Pods Service Pods Pods Pods Pods Pods Pods Service Namespace Pods Pods Pods Pods Pods Pods Service Namespace Observability Tools
  71. @arafkarsh arafkarsh Summary: Benefits of DevOps 77 ✓ Velocity o

    Agile / Kanban, o Capability Centric Design o Domain Driven Design o Event Sourcing & CQRS o Microservices Architecture Code Build Manage Learn Idea ✓ Quality / Stability o Test Automation o Build Pipeline Automation o Continuous Integration o Continuous Delivery o Continuous Deployment o Observability People Process Tools
  72. @arafkarsh arafkarsh DevSecOps 79 Recommended by US DoD DevSecOps Best

    Practices Source: Page 17 US DoD Enterprise DevSecOps Fundamentals
  73. @arafkarsh arafkarsh 6 DevSecOps Playbook 80 1 Adopt a DevSecOps

    Culture 2 Adopt Infrastructure as Code 3 Adopt Containerized Microservices 4 Adopt a Capability Model, not a Maturity Model 5 Drive Continuous Improvement through Key Capabilities Establish a Software Factory 7 Define a meaningful DevSecOps pipeline 8 Adapt an Agile Acquisition Policy for Software 9 Tirelessly Pursue Cyber Resilience 10 Shift Left: Operational Test & Eval Source: US DoD DevSecOps Fundamentals Playbook
  74. @arafkarsh arafkarsh SecOps / DevOps 81 Source: SCI – Your

    Eyes in the Sky By AI Huger, Nov 15, 2021 While SecOps starts on the left with security posture and attack surface management as its entry point, DevOps start at the far right with continuous integration and continuous delivery (CI/CD) pipeline and application/API security as their main care about. As SecOps moves right and begins to influence the other stakeholders within a mature organization, DevOps shifts left to include pre-deploy checks by using runtime security inputs.
  75. @arafkarsh arafkarsh 83 100s Microservices 1,000s Releases / Day 10,000s

    Virtual Machines 100K+ User actions / Second 81 M Customers Globally 1 B Time series Metrics 10 B Hours of video streaming every quarter 10s OPs Engineers 0 NOC 0 Data Centers So, what do NetFlix think about DevOps? No DevOps Don’t do lot of Process / Procedures Freedom for Developers & be Accountable Trust people you Hire No Controls / Silos / Walls / Fences Ownership – You Build it, You Run it. Source: NetFlix: : https://www.youtube.com/watch?v=UTKIT6STSVM
  76. @arafkarsh arafkarsh 50M+ Paid Subscribers 100M Active Users 60 Countries

    Cross Functional Team Full, End to End ownership of features Autonomous 1000+ Microservices Source: https://microcph.dk/media/1024/conference-microcph-2017.pdf 1000+ Tech Employees 120+ Teams 84
  77. @arafkarsh arafkarsh Implementing Elastic Engineering (Day wise) 85 2. Domain

    Driven Design Deep Dive into Domain-Driven Design for Design & Development of the Software. Understand how to Create Bounded Context based on Epics and User Stories. How create Entities and Value Objects. How to refactor monolithic Entity into Service Specific Entities. 3. Event Sourcing & Kafka Event Sourcing is based on Commands and (Immutable) Events combined with CQRS it's a very powerful pattern to create asynchronous Event based services. Kafka can be used to fully implement an Event Sourced system. Kafka is a distributed Fault- Tolerant replicated log. 4. Big Data - Redis, MongoDB, Data Lakes This section focuses on a Comparison between SQL and NoSQL Databases and shows various design patterns for Redis and MongoDB. It dives deep into the concept of Partitions and Sharding and Geo Partitions. It shows examples of Distributed Transactions in Event based system. 1. Design Thinking, Lean Startup & Agile This section focuses on Design Thinking, Lean Startup and Agile (Scrum / Kanban). Write Specs using Epics, User Stories, Acceptance Criteria, Concept of Minimum Viable Product (MVP) and release plans and write test cases based on the Acceptance Criteria defined.
  78. @arafkarsh arafkarsh Implementing Elastic Engineering (Day wise) 86 6. Microservices

    Testing Strategies Microservices Testing Strategies includes examples from • JUnit 5 / Springboot Test • Cucumber • Selenium • Mockito • WireMock • Pact 7. Docker, Kubernetes Containers are the de-facto standard for deploying the services. Kubernetes is the cloud-agnostic container Orchestration solution. Kubernetes focuses on Container deployment, Multi Version Rollouts, Traffic Routing, Auto Pod Scaling, Application Setup using Secrets, Config Maps etc. 5. Microservices Architecture Microservices Architecture focuses on various infra structure patterns like API Gateway, Service Discovery apart from the fundamental principles. Migration from Monolithic shows 10+ Design patterns (strangler Fig, Change Data Capture, etc.,) for the transformation into Microservices. 8. Service Mesh (Istio) & Security Istio is one of the popular Service mesh implementations that run on top of Kubernetes. It addresses the following functionality - Advanced Traffic routing, Security, Policy, & Observability.
  79. @arafkarsh arafkarsh Implementing Elastic Engineering (Day wise) 87 10. DevOps

    & SRE / DevSecOps DevOps is the 3rd phase of the Application Modernization • Architecture • Infrastructure • Delivery Continuous Delivery is a critical requirement in DevOps. Without CD what you have is a bunch of tools deployed. 10. Observability Observability is a critical feature in a container- based deployment. Following are the key tools that can be enabled in Istio (Service Mesh). • Prometheus • Zipkin / Jaeger • Kiali • Grafana / Kibana 10. CI/CD Pipeline CI/CD Pipeline is critical in fully automated development cycles. Building software, running test cases, Building infrastructure, packaging, and deploying the App/Service in the Kubernetes cluster. Jenkins, GitHub Actions and Tekton are popular tools for CI/CD pipeline automation 9. Cloud Architecture & Terraform Cloud Architecture focuses on various Cloud solutions like IaaS, PaaS, SaaS, FaaS, and multi- cloud environments. Connecting On-Premise, Edge, and Multi-Cloud Environments and the challenges and network routing and security policies. Use Terraform to build cloud infrastructures.
  80. @arafkarsh arafkarsh Implementing Elastic Engineering (Day wise) 88 11. Networking

    / Security & Zero Trust Understand the Concepts of Overlay Networking along with Software Defined Networking, & SD- WAN. Understand the Concepts of classic Perimeter based Security and Security based on Zero Trust principles and how DevOps needs to be extended with Security – DevSecOps.
  81. @arafkarsh arafkarsh 90 Thank you DREAM | AUTOMATE | EMPOWER

    Araf Karsh Hamid : India: +91.999.545.8627 https://speakerdeck.com/arafkarsh http://www.slideshare.net/arafkarsh https://www.linkedin.com/in/arafkarsh/ https://www.youtube.com/user/arafkarsh/playlists http://www.arafkarsh.com/ @arafkarsh arafkarsh
