1. September 2011 www.nasaiboats.com NASAI marine services

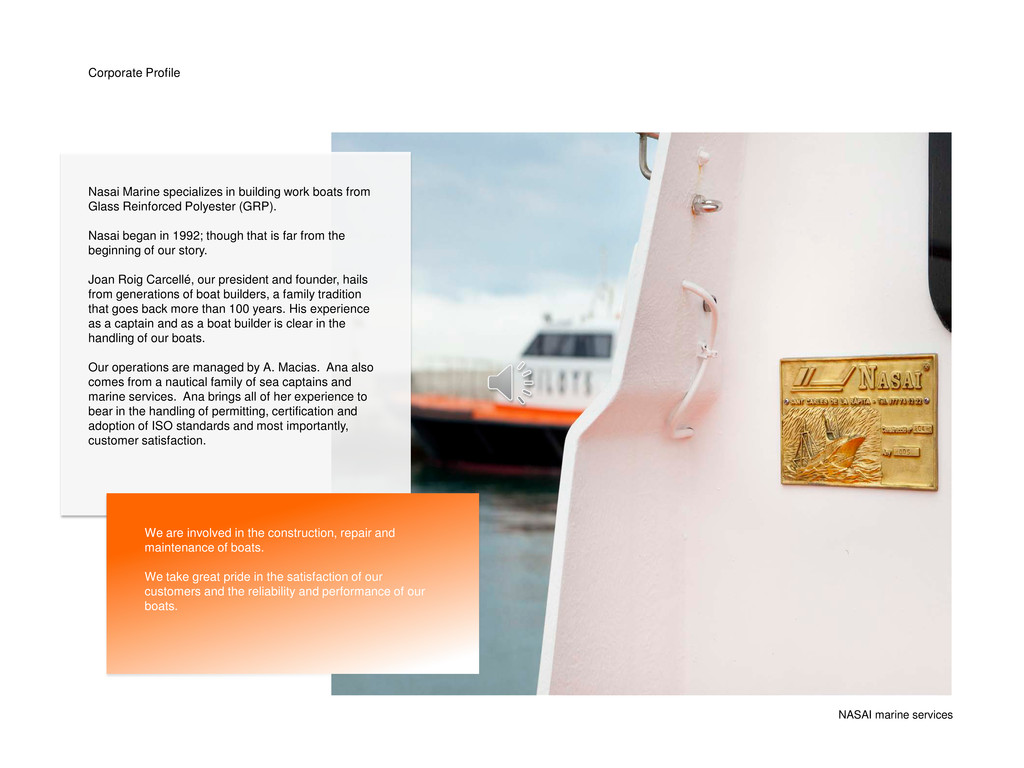

2. Nasai Marine specializes in building work boats from Glass Reinforced Polyester (GRP). Nasai began in 1992; though that is far from the beginning of our story. Joan Roig Carcellé, our president and founder, hails from generations of boat builders, a family tradition that goes back more than 100 years. His experience as a captain and as a boat builder is clear in the handling of our boats. Our operations are managed by A. Macias. Ana also comes from a nautical family of sea captains and marine services. Ana brings all of her experience to bear in the handling of permitting, certification and adoption of ISO standards and most importantly, customer satisfaction. Corporate Profile We are involved in the construction, repair and maintenance of boats. We take great pride in the satisfaction of our customers and the reliability and performance of our boats. NASAI marine services

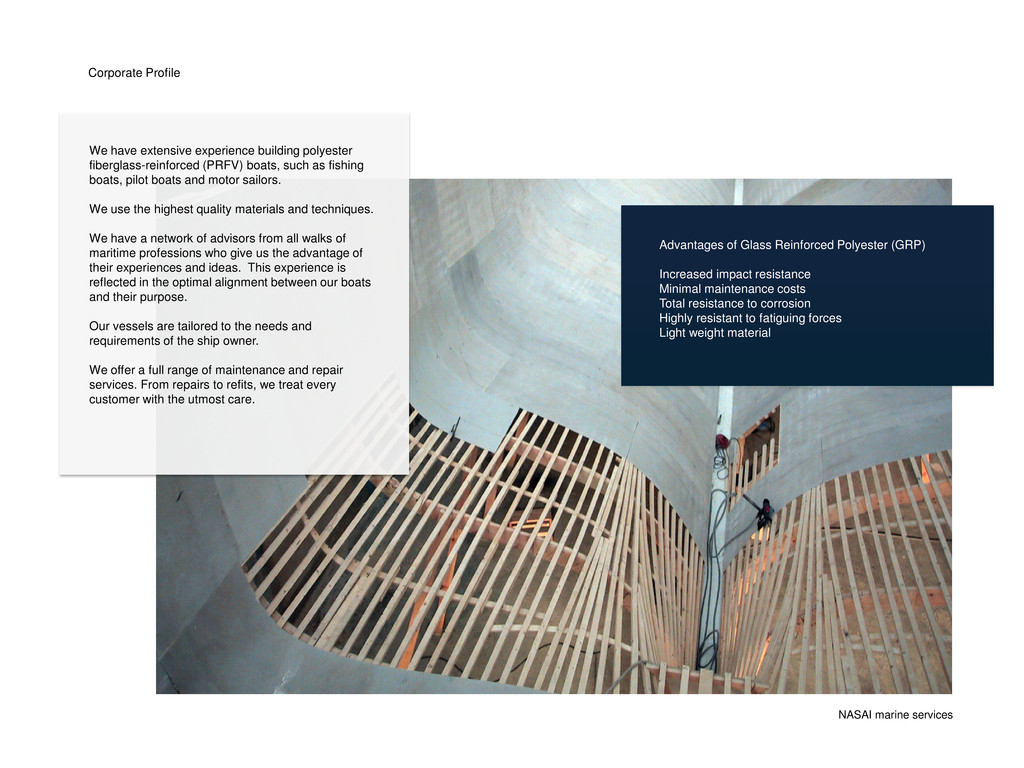

3. We have extensive experience building polyester fiberglass-reinforced (PRFV) boats, such as fishing boats, pilot boats and motor sailors. We use the highest quality materials and techniques. We have a network of advisors from all walks of maritime professions who give us the advantage of their experiences and ideas. This experience is reflected in the optimal alignment between our boats and their purpose. Our vessels are tailored to the needs and requirements of the ship owner. We offer a full range of maintenance and repair services. From repairs to refits, we treat every customer with the utmost care. Advantages of Glass Reinforced Polyester (GRP) Increased impact resistance Minimal maintenance costs Total resistance to corrosion Highly resistant to fatiguing forces Light weight material NASAI marine services Corporate Profile

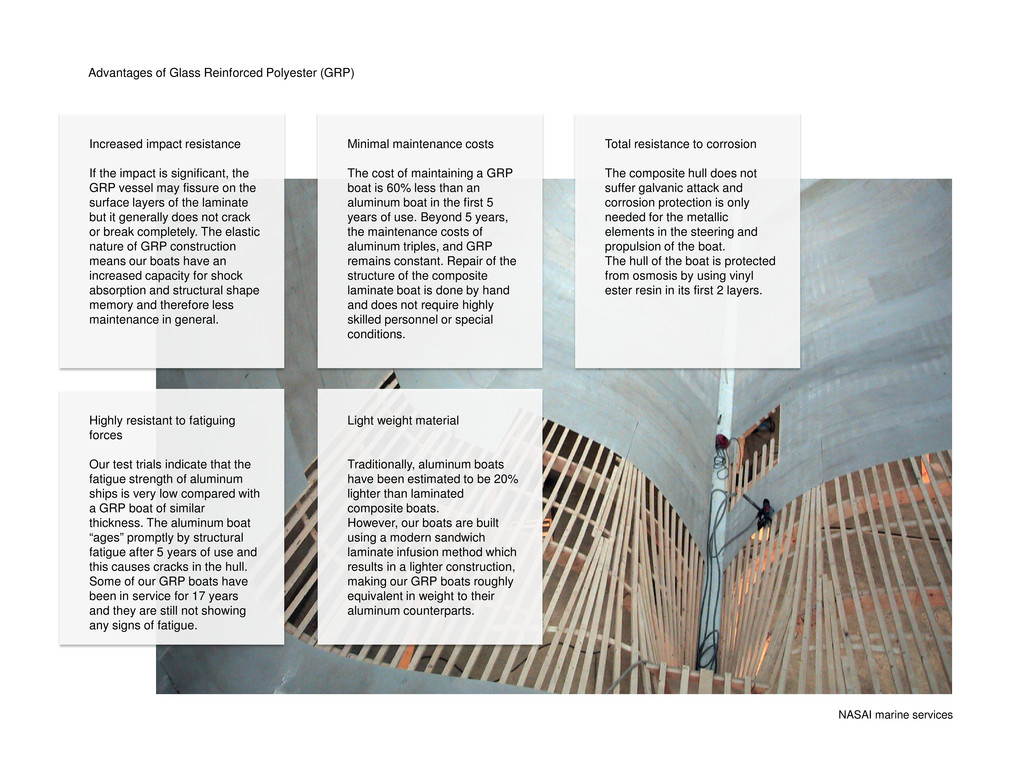

4. Increased impact resistance If the impact is significant, the GRP vessel may fissure on the surface layers of the laminate but it generally does not crack or break completely. The elastic nature of GRP construction means our boats have an increased capacity for shock absorption and structural shape memory and therefore less maintenance in general. NASAI marine services Advantages of Glass Reinforced Polyester (GRP) Minimal maintenance costs The cost of maintaining a GRP boat is 60% less than an aluminum boat in the first 5 years of use. Beyond 5 years, the maintenance costs of aluminum triples, and GRP remains constant. Repair of the structure of the composite laminate boat is done by hand and does not require highly skilled personnel or special conditions. Total resistance to corrosion The composite hull does not suffer galvanic attack and corrosion protection is only needed for the metallic elements in the steering and propulsion of the boat. The hull of the boat is protected from osmosis by using vinyl ester resin in its first 2 layers. Highly resistant to fatiguing forces Our test trials indicate that the fatigue strength of aluminum ships is very low compared with a GRP boat of similar thickness. The aluminum boat “ages” promptly by structural fatigue after 5 years of use and this causes cracks in the hull. Some of our GRP boats have been in service for 17 years and they are still not showing any signs of fatigue. Light weight material Traditionally, aluminum boats have been estimated to be 20% lighter than laminated composite boats. However, our boats are built using a modern sandwich laminate infusion method which results in a lighter construction, making our GRP boats roughly equivalent in weight to their aluminum counterparts.

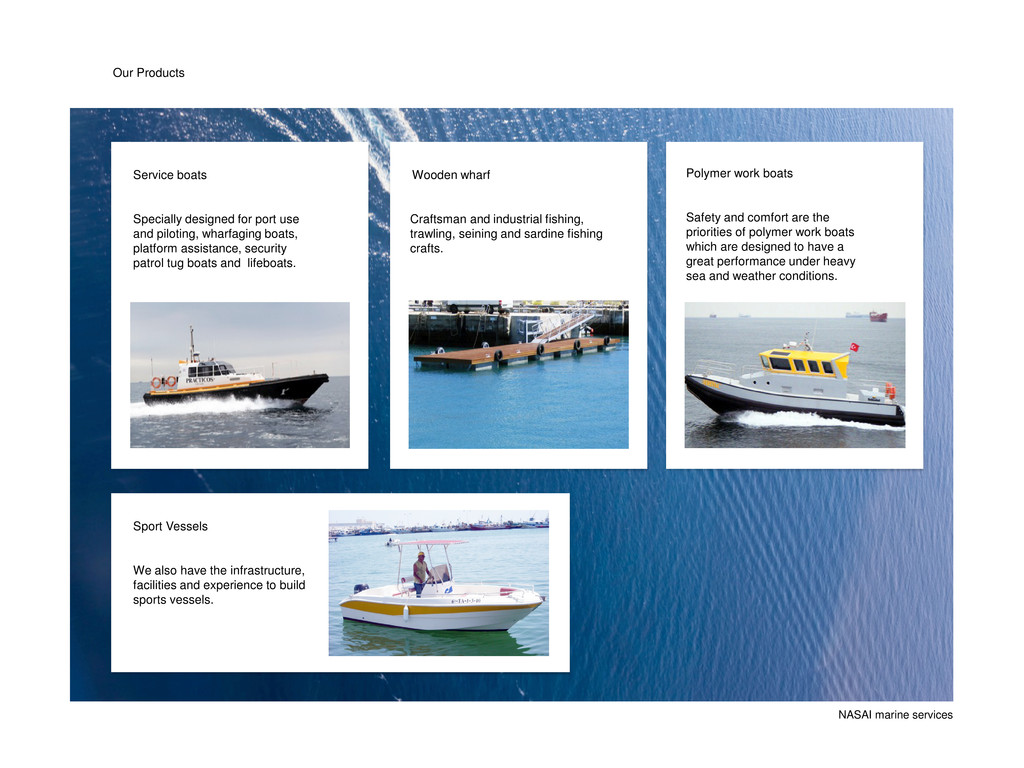

5. Our Products Specially designed for port use and piloting, wharfaging boats, platform assistance, security patrol tug boats and lifeboats. Service boats Craftsman and industrial fishing, trawling, seining and sardine fishing crafts. Safety and comfort are the priorities of polymer work boats which are designed to have a great performance under heavy sea and weather conditions. Wooden wharf Polymer work boats NASAI marine services We also have the infrastructure, facilities and experience to build sports vessels. Sport Vessels

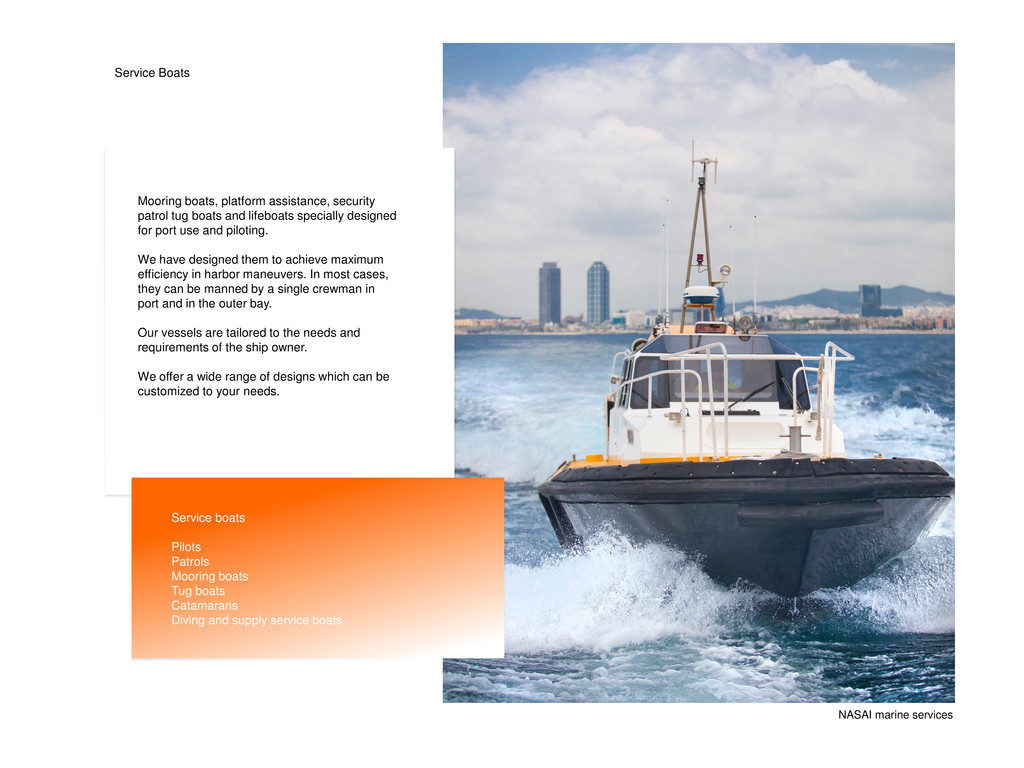

6. Mooring boats, platform assistance, security patrol tug boats and lifeboats specially designed for port use and piloting. We have designed them to achieve maximum efficiency in harbor maneuvers. In most cases, they can be manned by a single crewman in port and in the outer bay. Our vessels are tailored to the needs and requirements of the ship owner. We offer a wide range of designs which can be customized to your needs. Service Boats Service boats Pilots Patrols Mooring boats Tug boats Catamarans Diving and supply service boats NASAI marine services

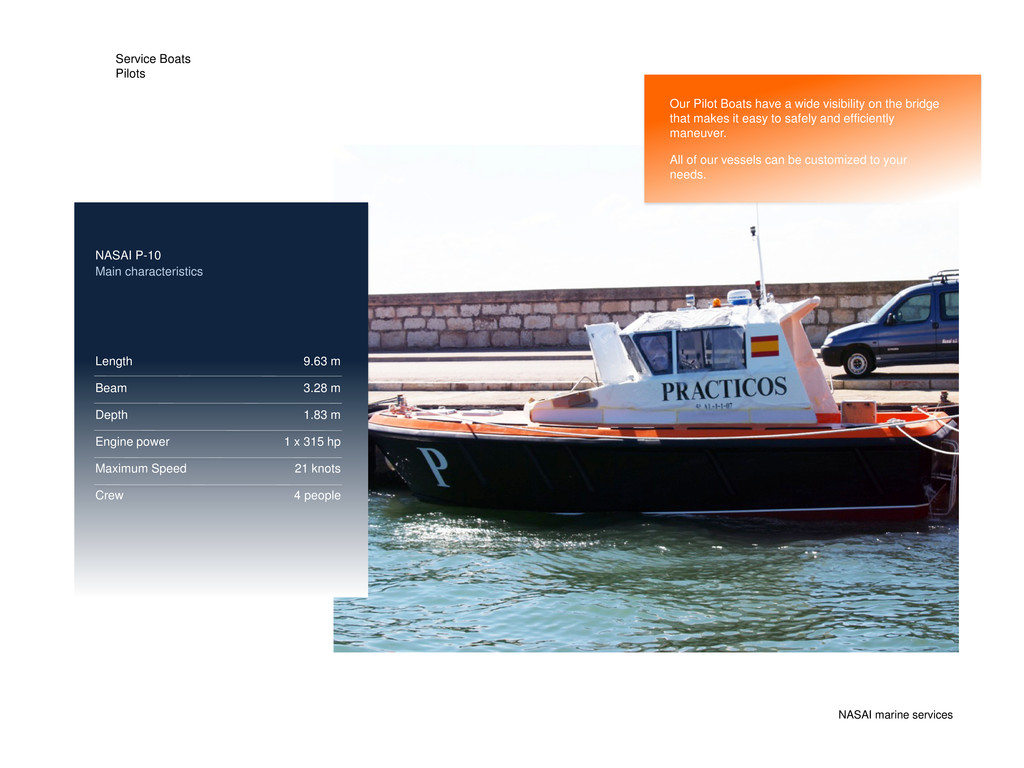

7. Service Boats Pilots NASAI P-10 Main characteristics Length Beam Depth Engine power Maximum Speed Crew 9.63 m 3.28 m 1.83 m 1 x 315 hp 21 knots 4 people Our Pilot Boats have a wide visibility on the bridge that makes it easy to safely and efficiently maneuver. All of our vessels can be customized to your needs. NASAI marine services

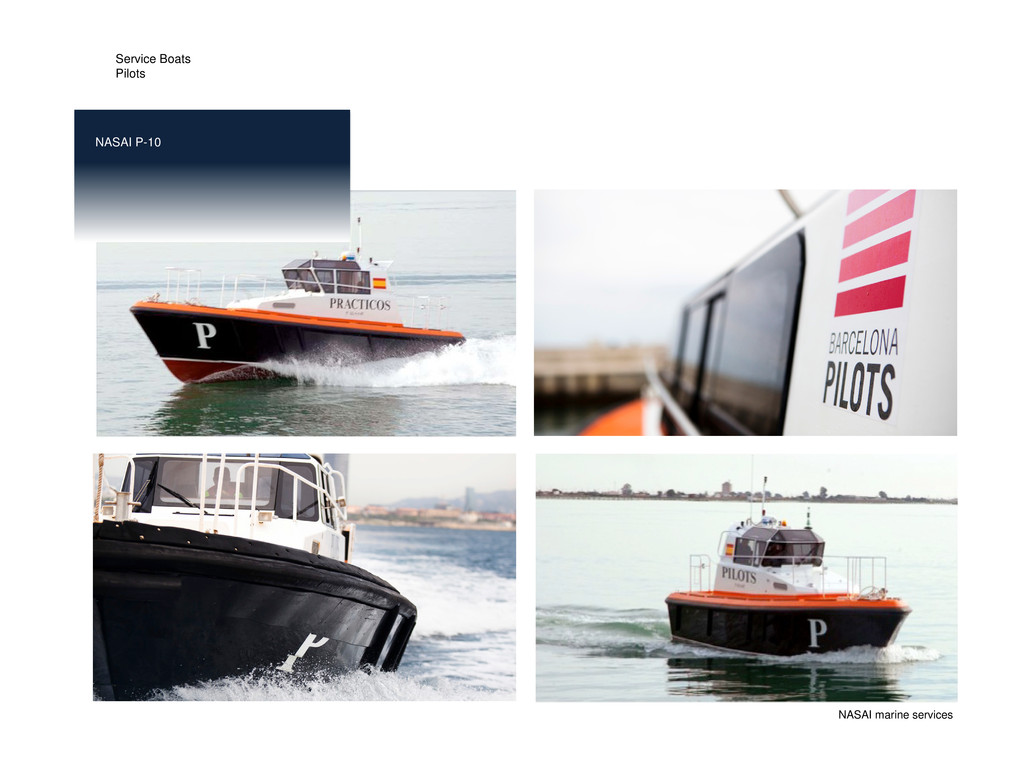

8. NASAI P-10 NASAI marine services Service Boats Pilots

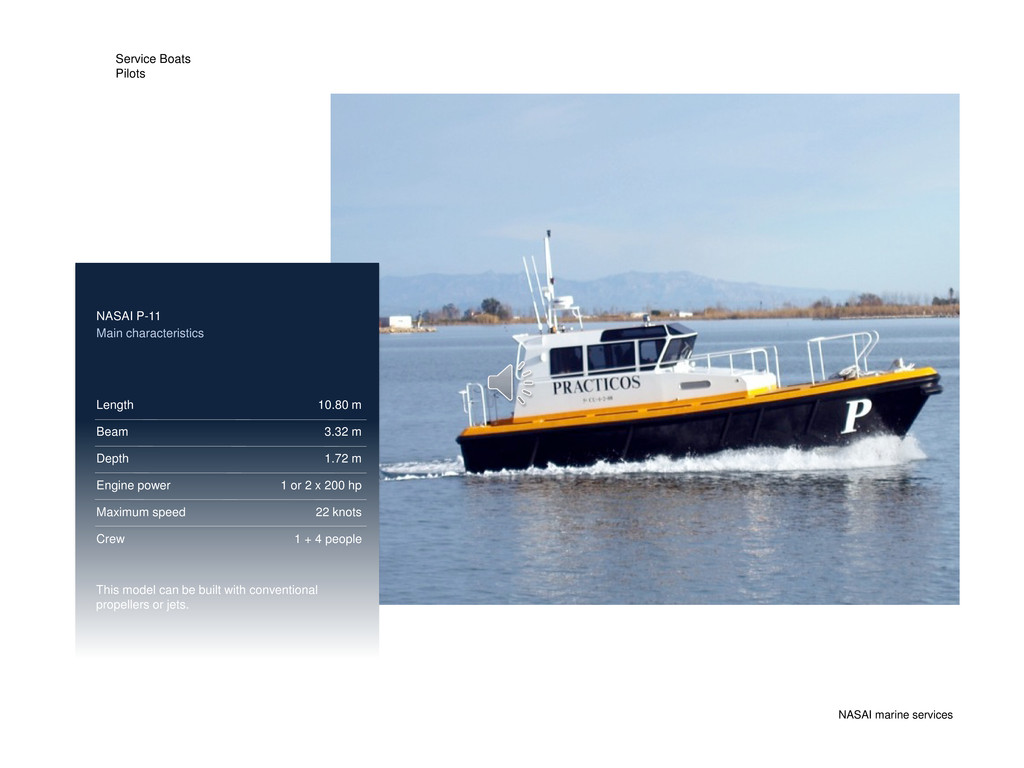

9. 10.80 m 3.32 m 1.72 m 1 or 2 x 200 hp 22 knots 1 + 4 people This model can be built with conventional propellers or jets. Length Beam Depth Engine power Maximum speed Crew NASAI P-11 Main characteristics NASAI marine services Service Boats Pilots

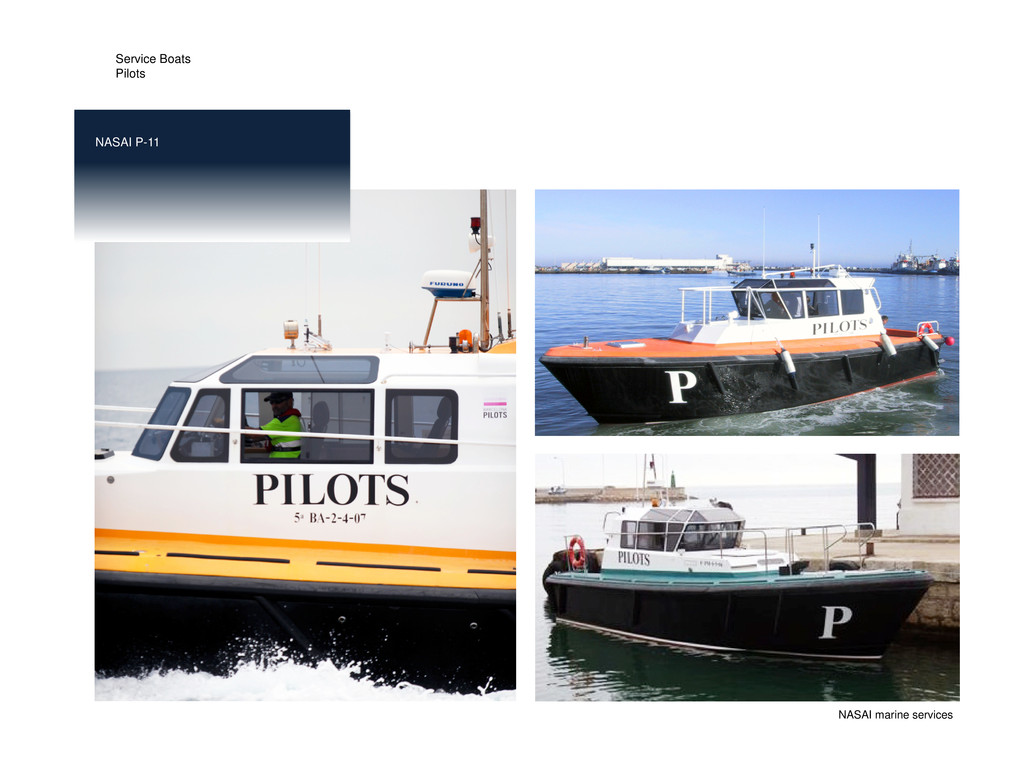

10. NASAI P-11 NASAI marine services Service Boats Pilots

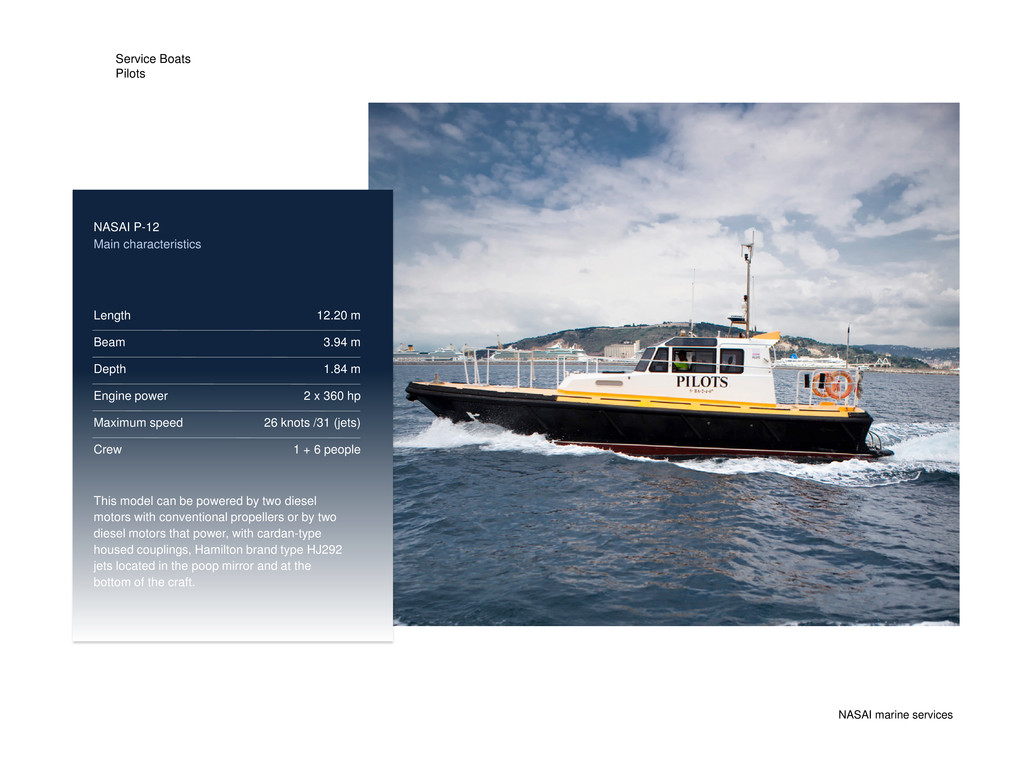

11. Length Beam Depth Engine power Maximum speed Crew 12.20 m 3.94 m 1.84 m 2 x 360 hp 26 knots /31 (jets) 1 + 6 people This model can be powered by two diesel motors with conventional propellers or by two diesel motors that power, with cardan-type housed couplings, Hamilton brand type HJ292 jets located in the poop mirror and at the bottom of the craft. NASAI P-12 Main characteristics NASAI marine services Service Boats Pilots

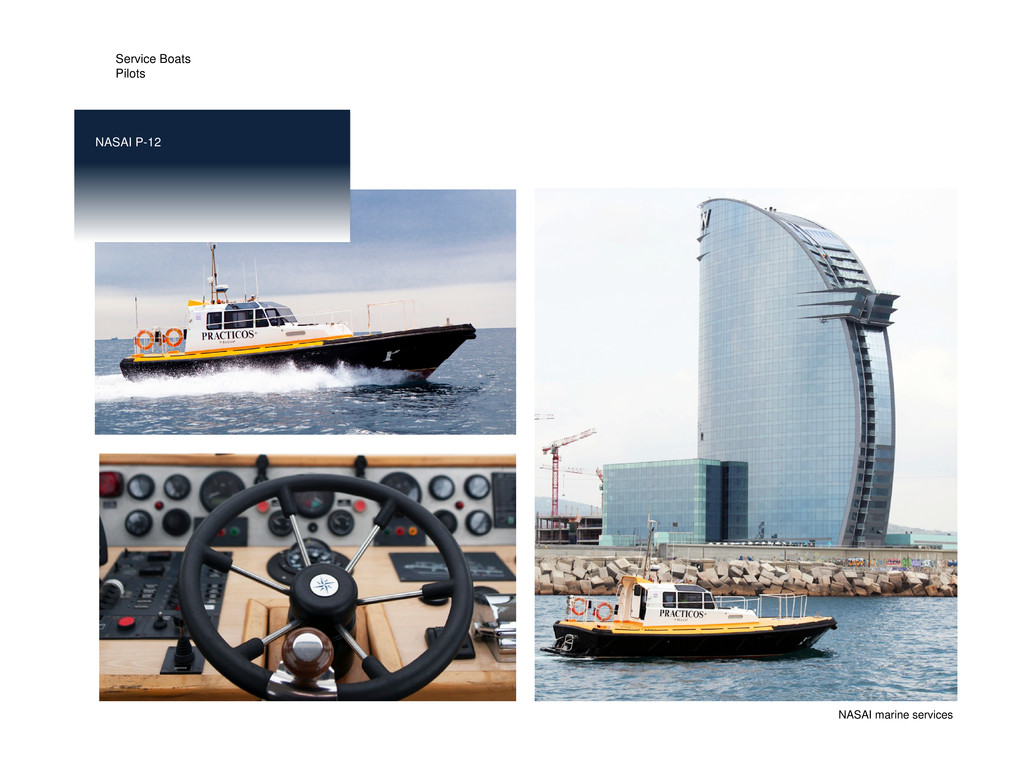

12. NASAI P-12 NASAI marine services Service Boats Pilots

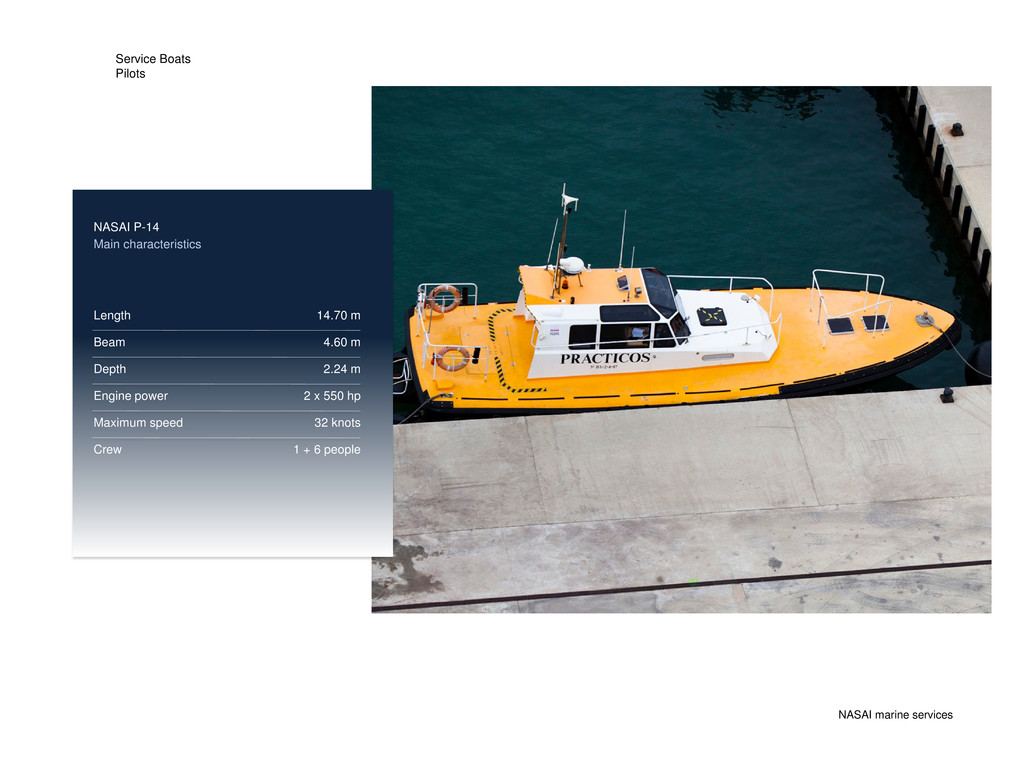

13. Length Beam Depth Engine power Maximum speed Crew 14.70 m 4.60 m 2.24 m 2 x 550 hp 32 knots 1 + 6 people NASAI P-14 Main characteristics NASAI marine services Service Boats Pilots

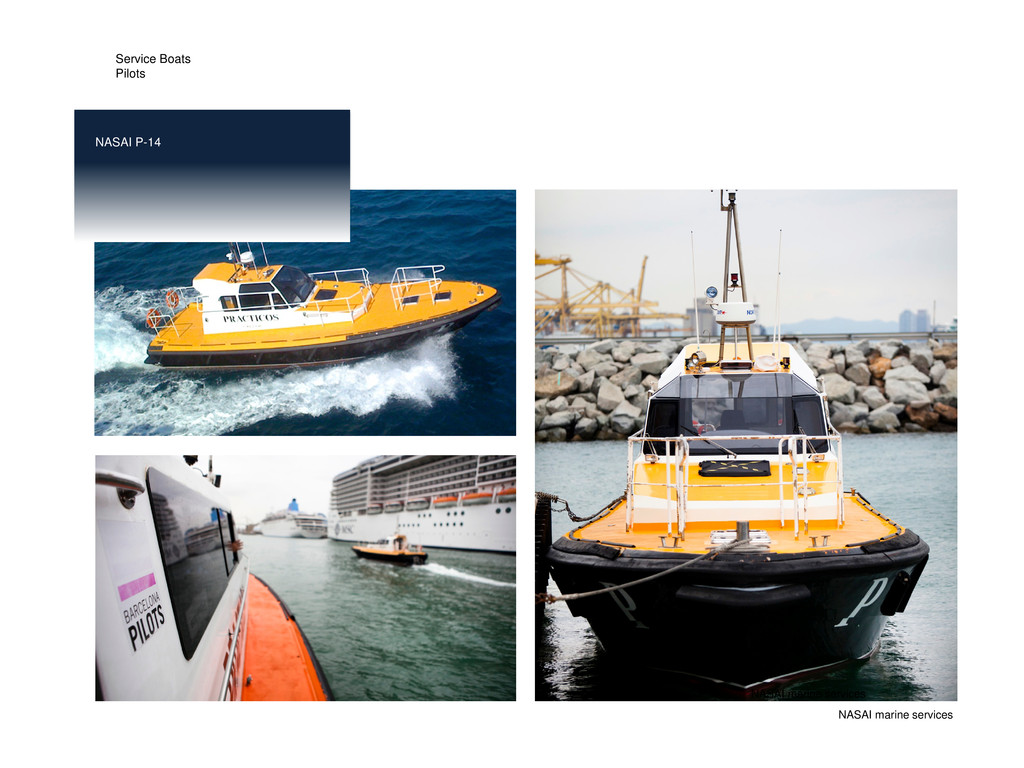

14. NASAI marine services NASAI marine services NASAI P-14 Service Boats Pilots

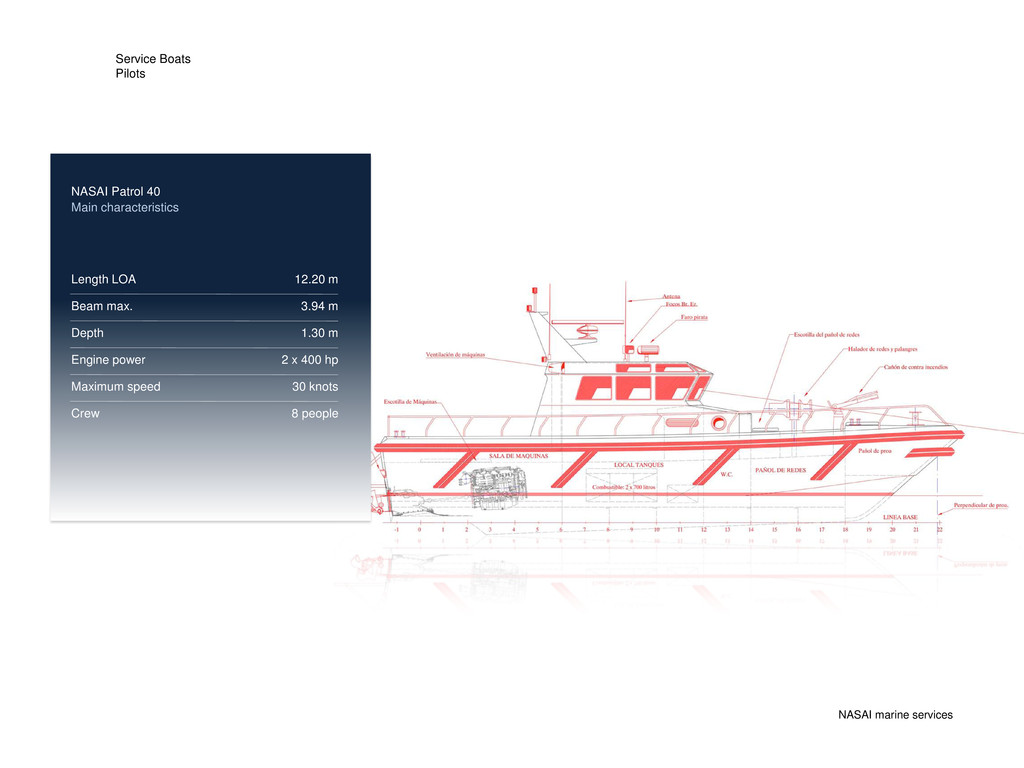

15. NASAI Patrol 40 Main characteristics NASAI marine services Length LOA Beam max. Depth Engine power Maximum speed Crew 12.20 m 3.94 m 1.30 m 2 x 400 hp 30 knots 8 people Service Boats Pilots

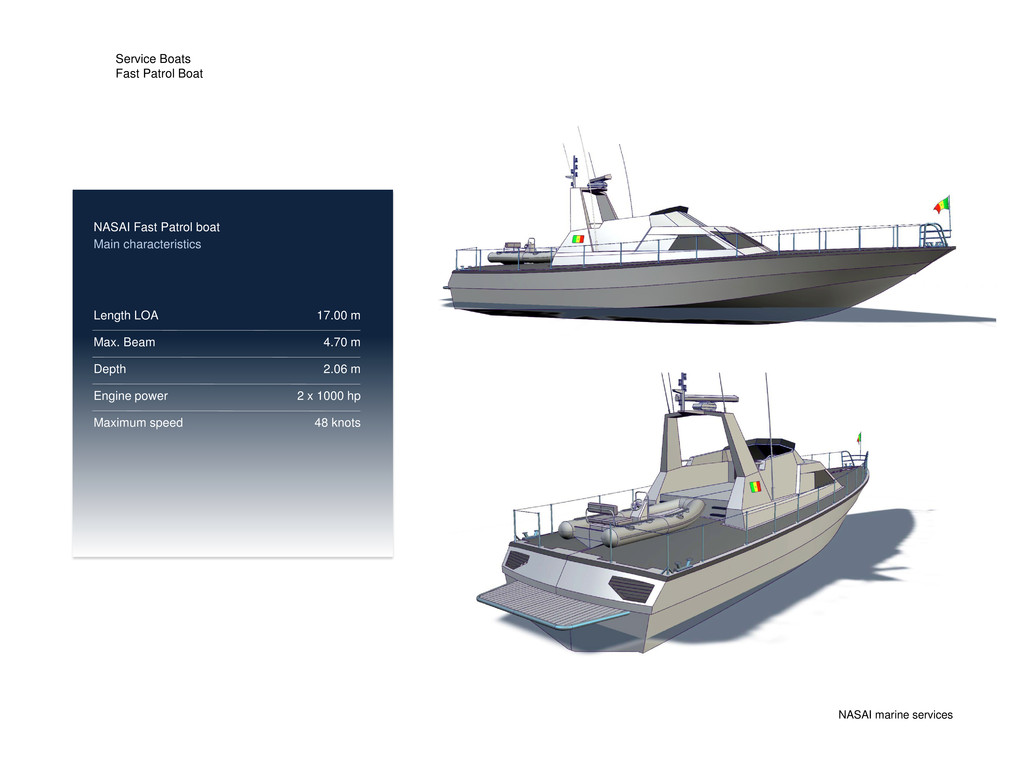

16. Length LOA Max. Beam Depth Engine power Maximum speed 17.00 m 4.70 m 2.06 m 2 x 1000 hp 48 knots NASAI Fast Patrol boat Main characteristics Service Boats Fast Patrol Boat NASAI marine services

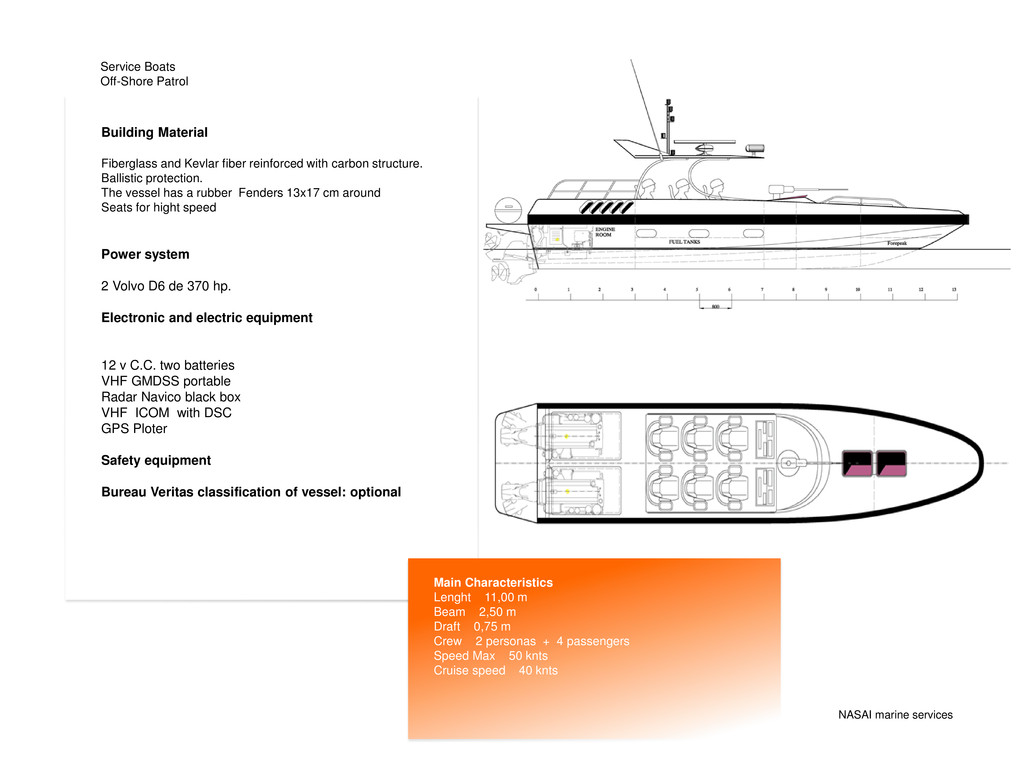

17. Building Material Fiberglass and Kevlar fiber reinforced with carbon structure. Ballistic protection. The vessel has a rubber Fenders 13x17 cm around Seats for hight speed Power system 2 Volvo D6 de 370 hp. Electronic and electric equipment 12 v C.C. two batteries VHF GMDSS portable Radar Navico black box VHF ICOM with DSC GPS Ploter Safety equipment Bureau Veritas classification of vessel: optional Main Characteristics Lenght 11,00 m Beam 2,50 m Draft 0,75 m Crew 2 personas + 4 passengers Speed Max 50 knts Cruise speed 40 knts NASAI marine services Service Boats Off-Shore Patrol

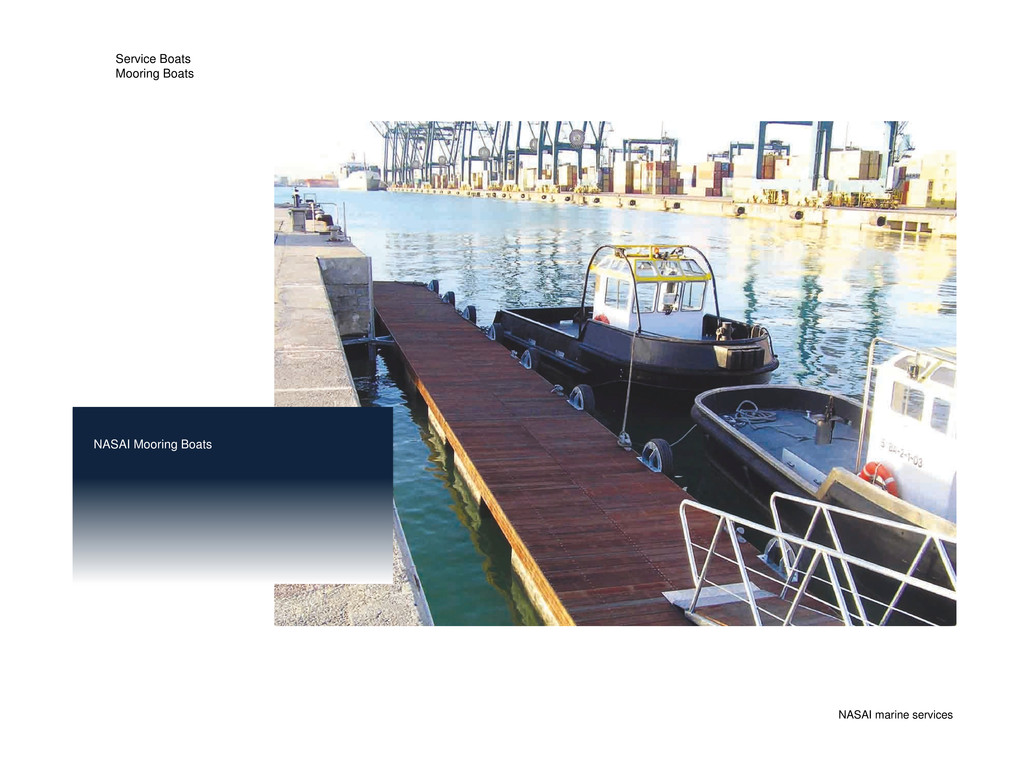

18. NASAI Mooring Boats Service Boats Mooring Boats NASAI marine services

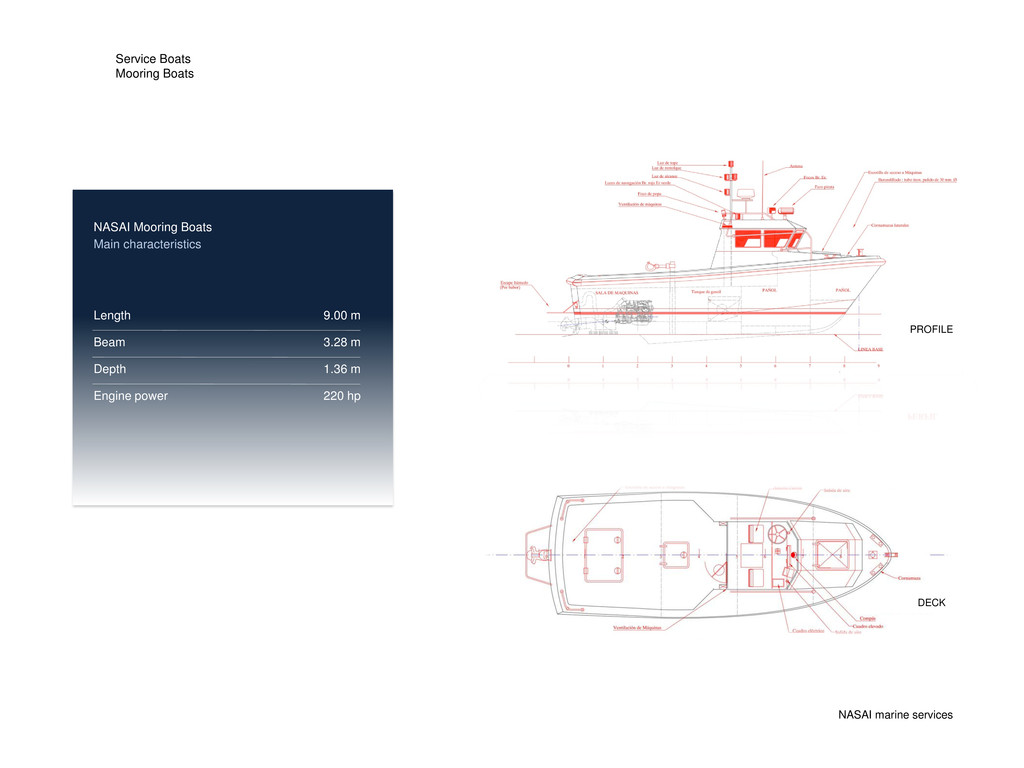

19. Length Beam Depth Engine power 9.00 m 3.28 m 1.36 m 220 hp NASAI Mooring Boats Main characteristics NASAI marine services Service Boats Mooring Boats PROFILE DECK

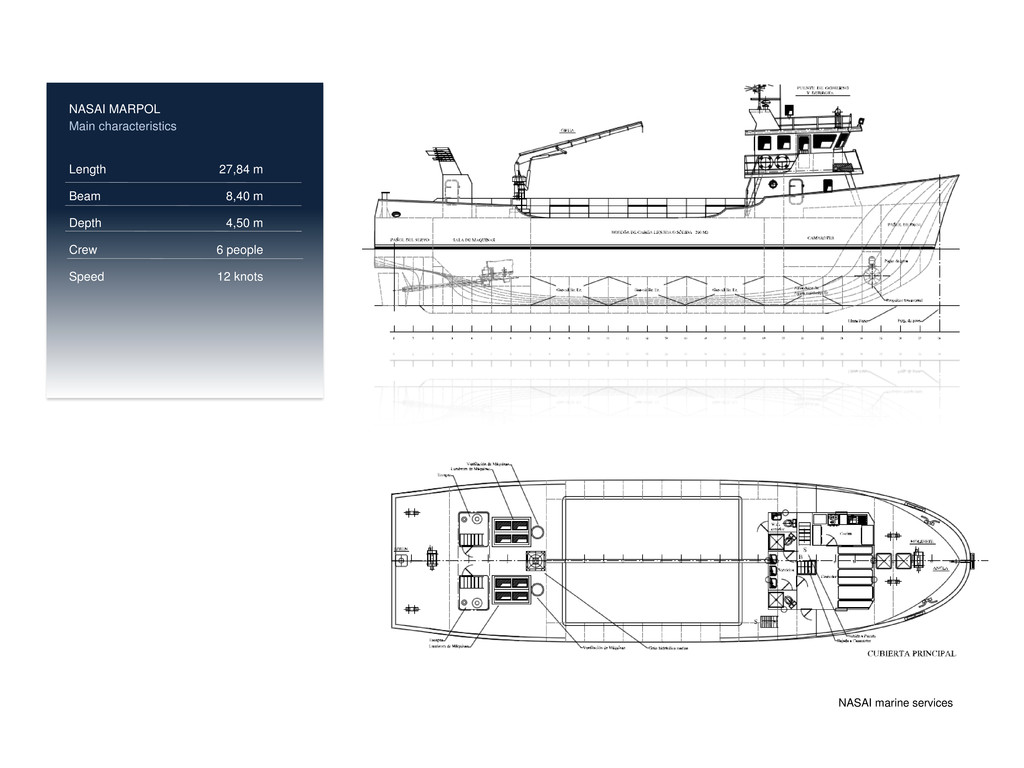

20. NASAI marine services Length Beam Depth Crew Speed 27,84 m 8,40 m 4,50 m 6 people 12 knots NASAI MARPOL Main characteristics

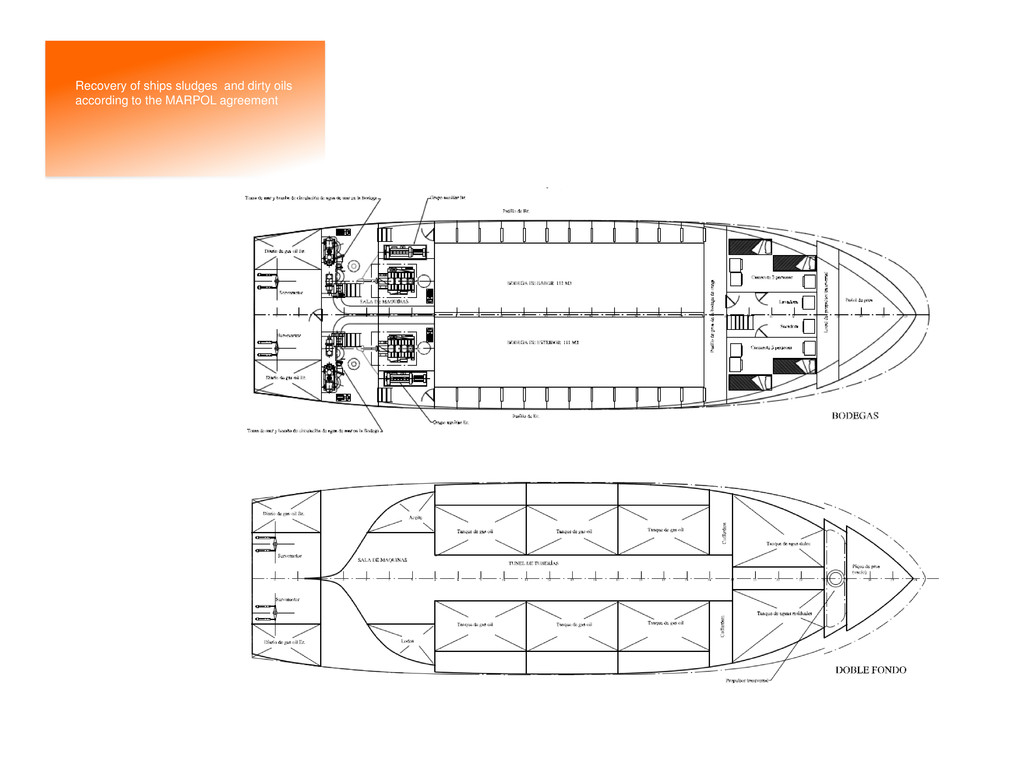

21. Recovery of ships sludges and dirty oils according to the MARPOL agreement

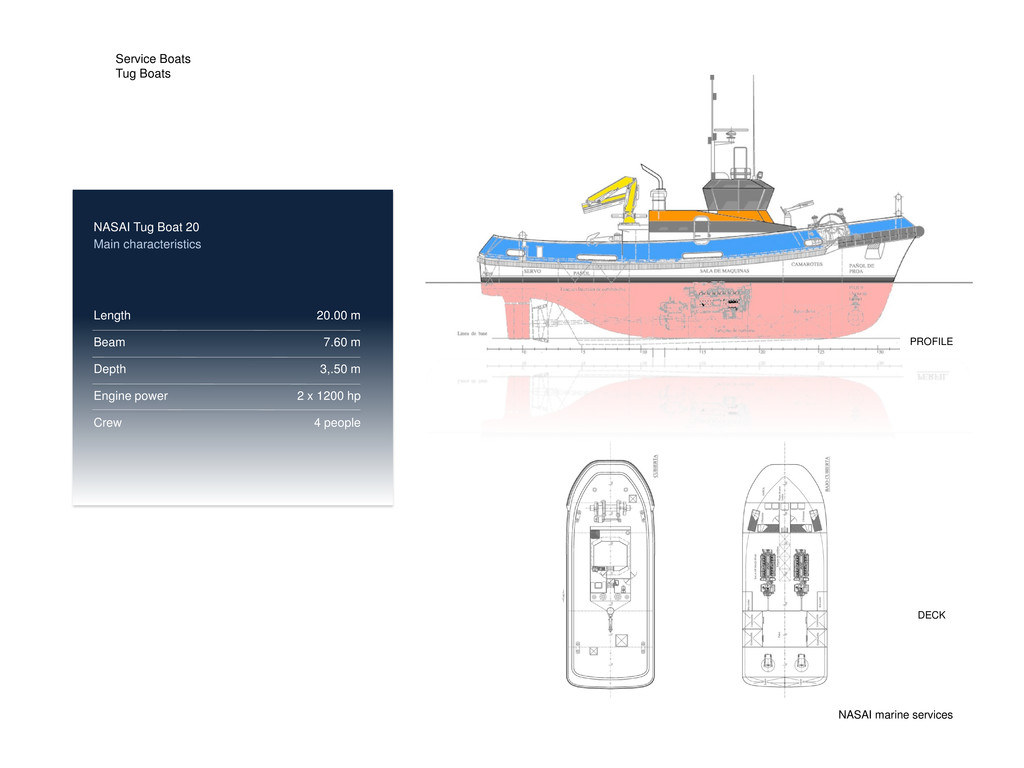

22. Length Beam Depth Engine power Crew 20.00 m 7.60 m 3,.50 m 2 x 1200 hp 4 people NASAI Tug Boat 20 Main characteristics Service Boats Tug Boats NASAI marine services PROFILE DECK

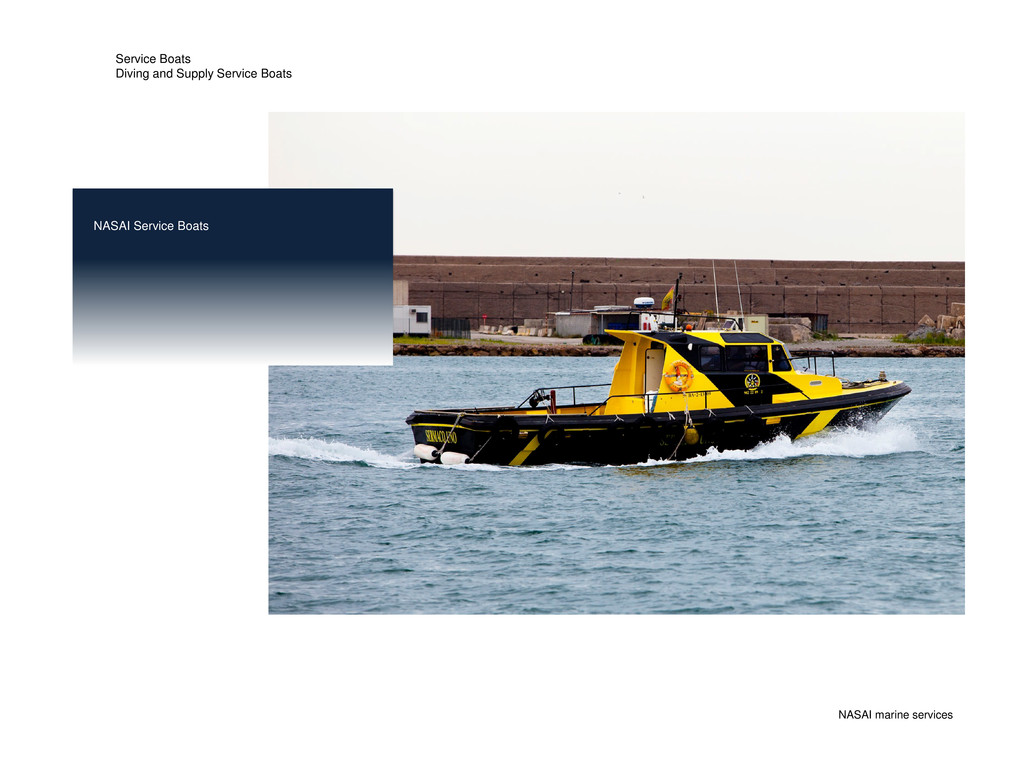

23. Service Boats Diving and Supply Service Boats NASAI marine services NASAI Service Boats

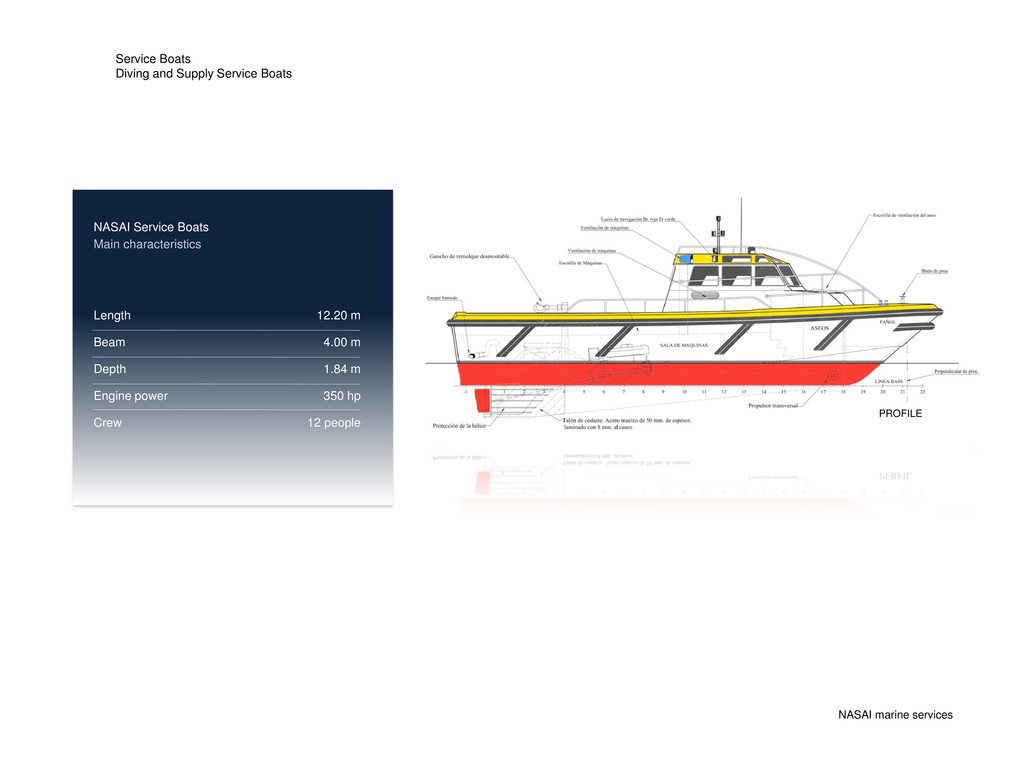

24. Length Beam Depth Engine power Crew 12.20 m 4.00 m 1.84 m 350 hp 12 people NASAI Service Boats Main characteristics NASAI marine services Service Boats Diving and Supply Service Boats PROFILE

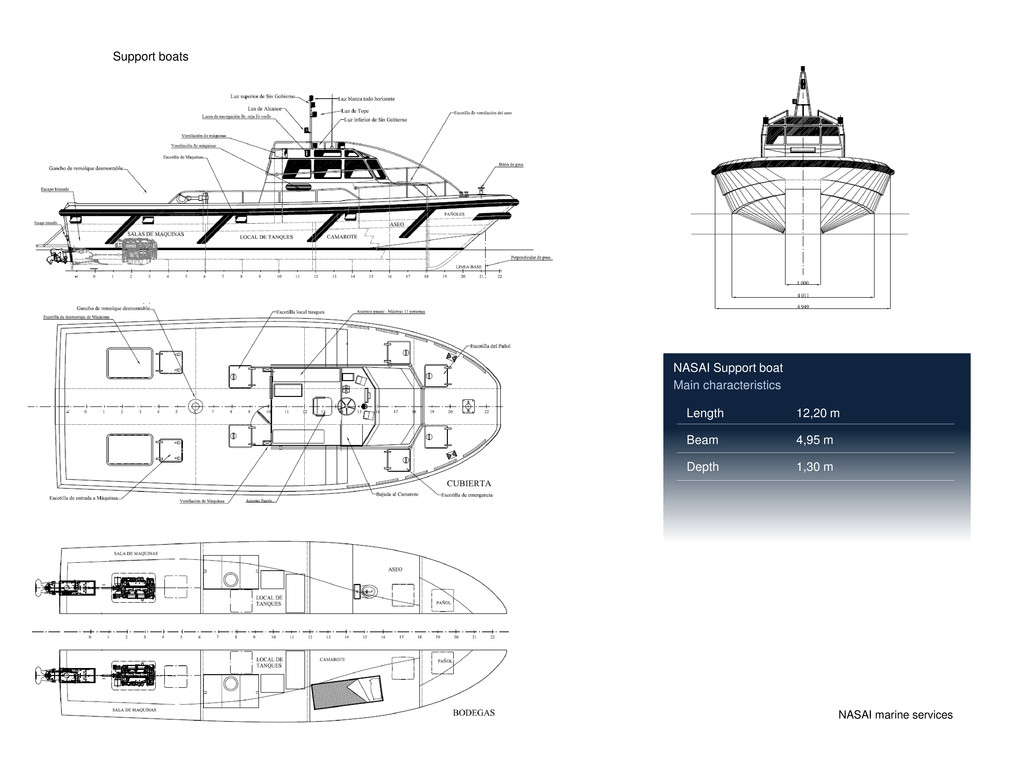

25. Support boats NASAI marine services Length Beam Depth 12,20 m 4,95 m 1,30 m NASAI Support boat Main characteristics

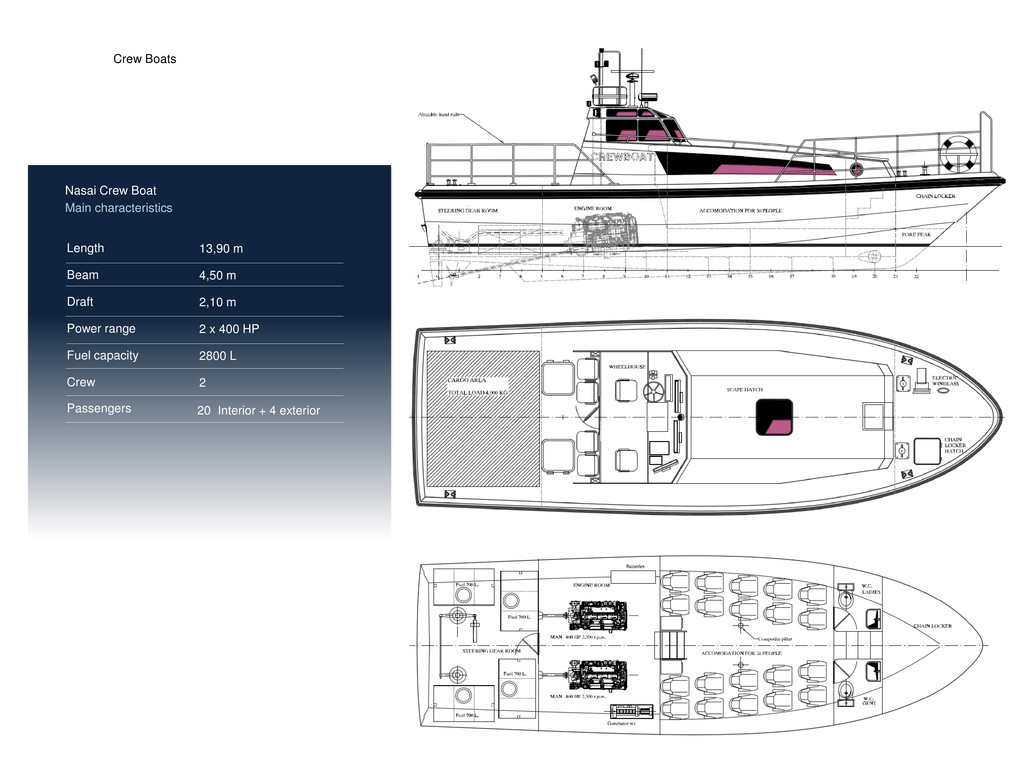

26. Crew Boats Length Beam Draft Power range Fuel capacity Crew The smallest model of our polymer work boats. Through an EPS filled double bottom hull and the main hull pipes, the boat becomes totally buoyant in any tough conditions, and assures the safety of the crew. NASAI marine services 13,90 m 4,50 m 2,10 m 2 x 400 HP 2800 L 2 Passengers 20 Interior + 4 exterior Nasai Crew Boat Main characteristics

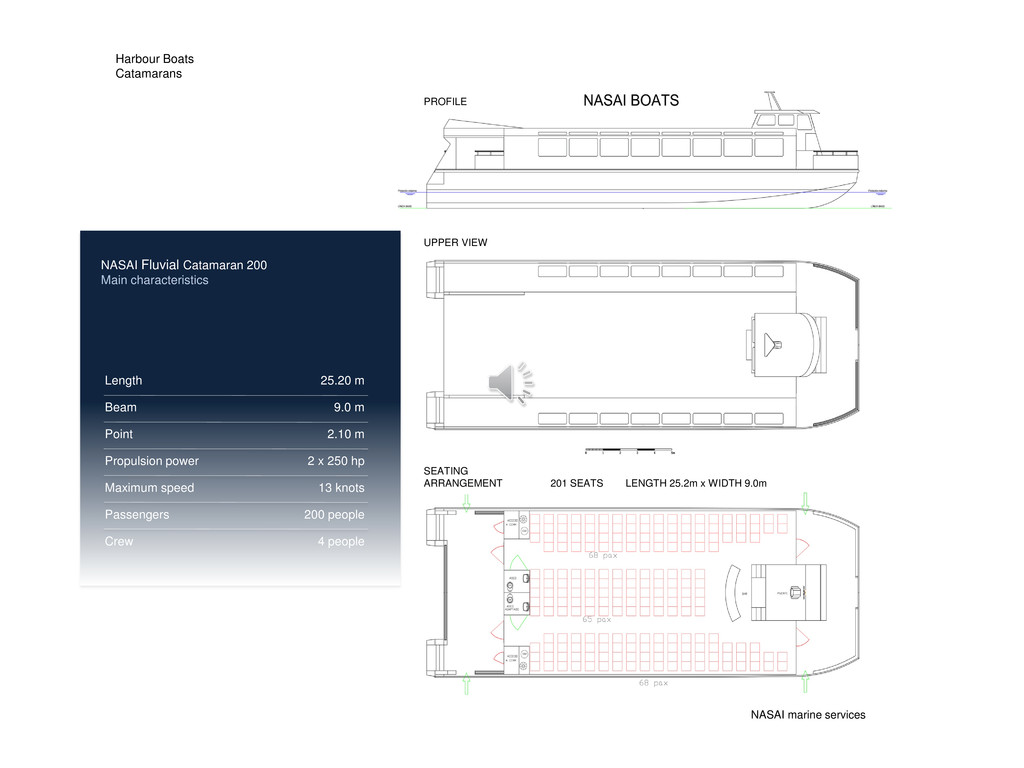

27. NASAI marine services NASAI Fluvial Catamaran 200 Main characteristics Length Beam Point Propulsion power Maximum speed Passengers Crew 25.20 m 9.0 m 2.10 m 2 x 250 hp 13 knots 200 people 4 people Harbour Boats Catamarans UPPER VIEW PROFILE SEATING ARRANGEMENT 201 SEATS LENGTH 25.2m x WIDTH 9.0m

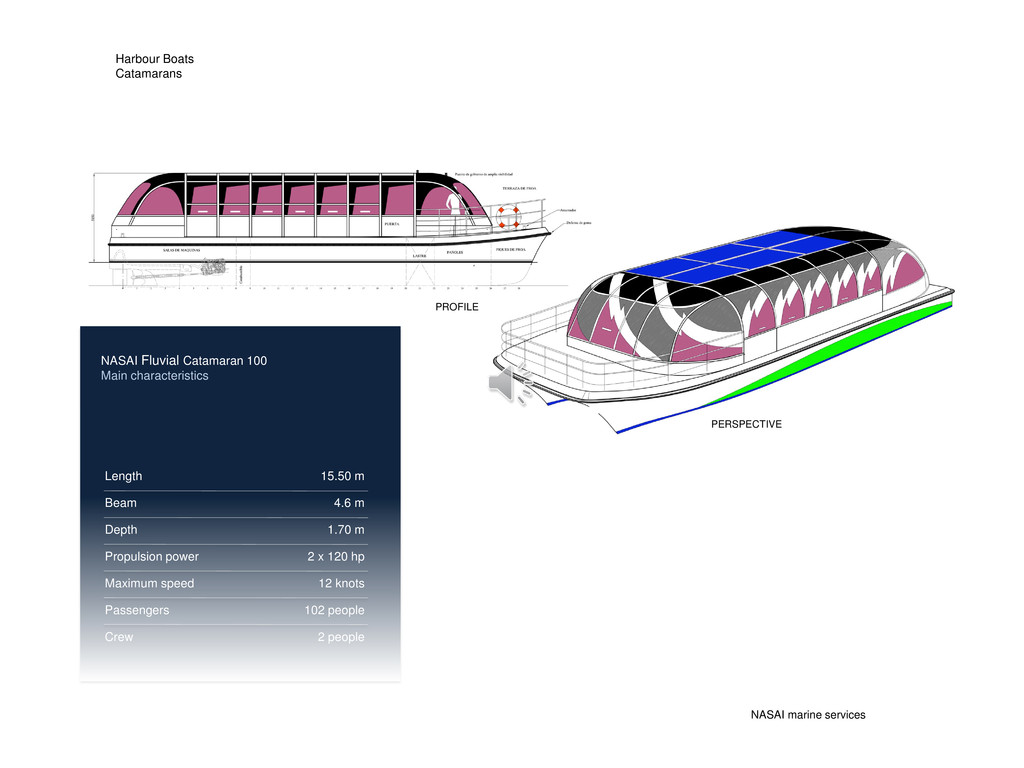

28. NASAI marine services Harbour Boats Catamarans NASAI Fluvial Catamaran 100 Main characteristics Length Beam Depth Propulsion power Maximum speed Passengers Crew 15.50 m 4.6 m 1.70 m 2 x 120 hp 12 knots 102 people 2 people PERSPECTIVE PROFILE

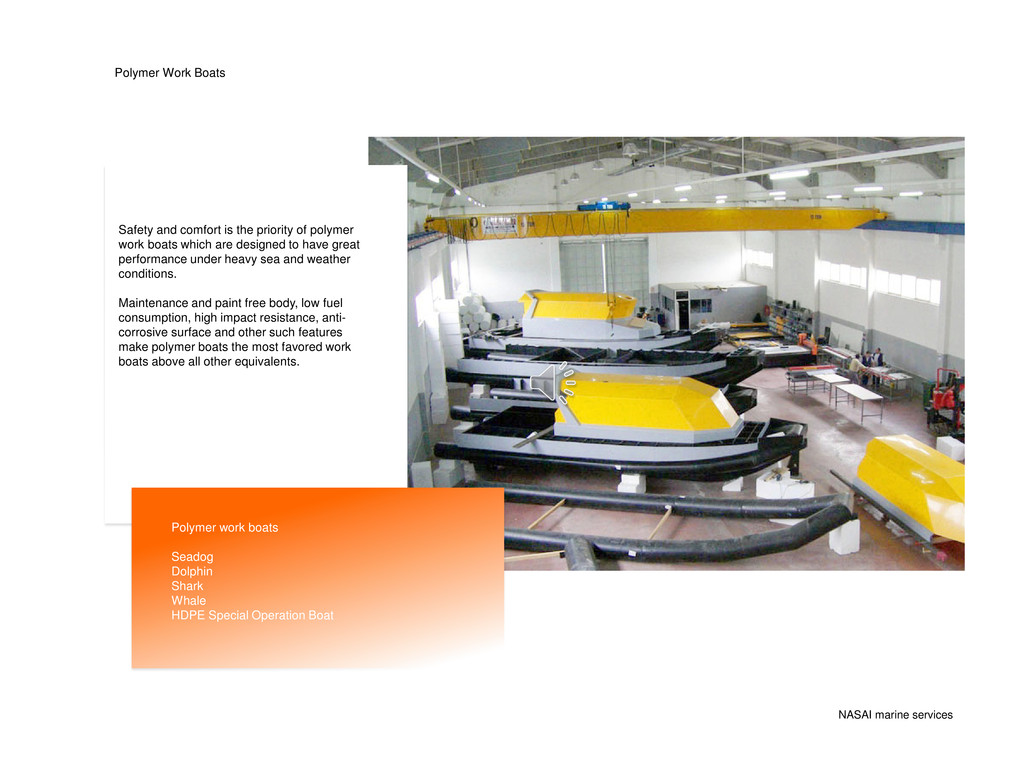

29. Safety and comfort is the priority of polymer work boats which are designed to have great performance under heavy sea and weather conditions. Maintenance and paint free body, low fuel consumption, high impact resistance, anti- corrosive surface and other such features make polymer boats the most favored work boats above all other equivalents. Polymer Work Boats Polymer work boats Seadog Dolphin Shark Whale HDPE Special Operation Boat NASAI marine services

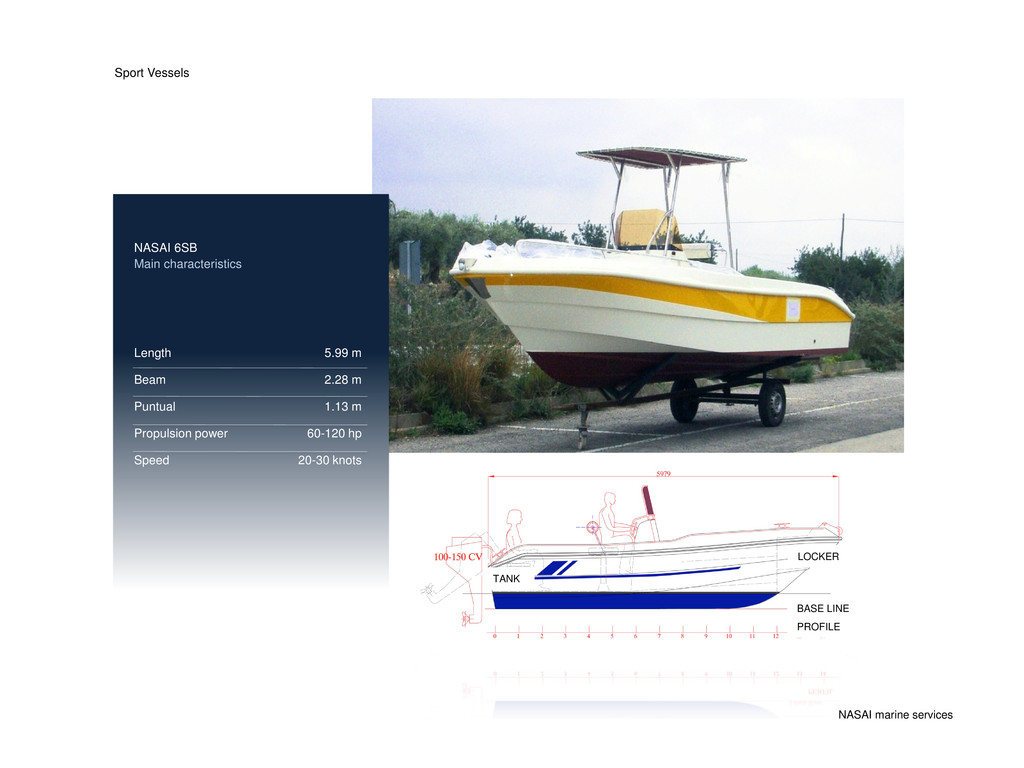

30. NASAI 6SB Main characteristics Length Beam Puntual Propulsion power Speed 5.99 m 2.28 m 1.13 m 60-120 hp 20-30 knots Sport Vessels NASAI marine services LOCKER BASE LINE PROFILE TANK

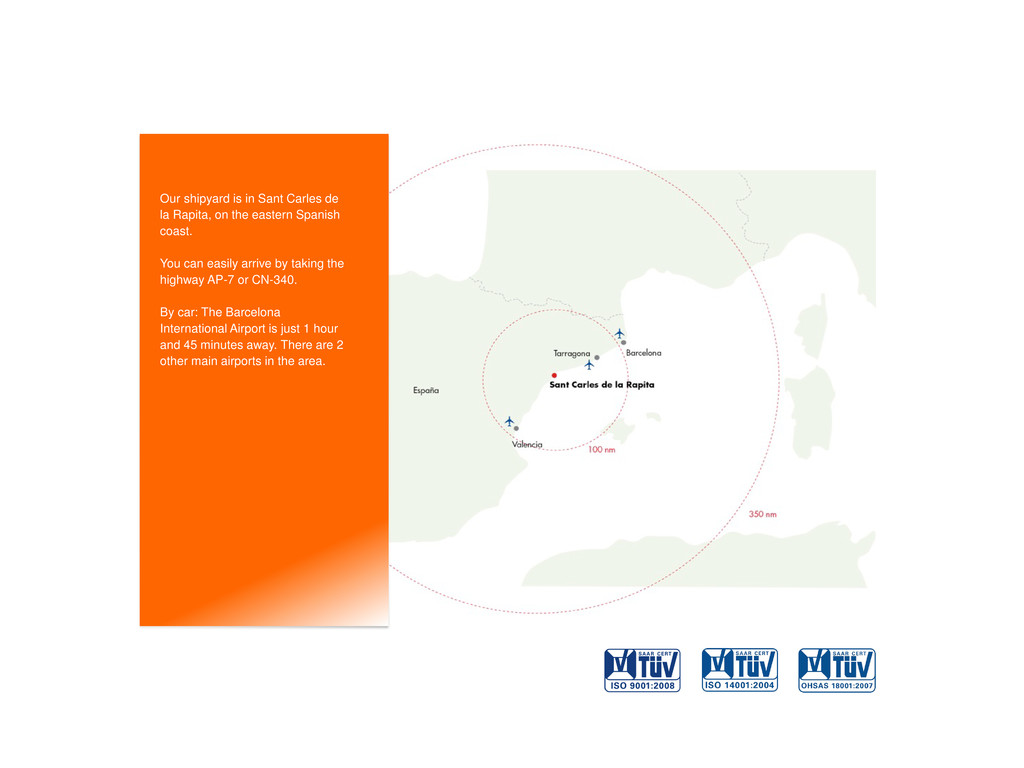

31. Our shipyard is in Sant Carles de la Rapita, on the eastern Spanish coast. You can easily arrive by taking the highway AP-7 or CN-340. By car: The Barcelona International Airport is just 1 hour and 45 minutes away. There are 2 other main airports in the area.
32. NASAI marine services www.nasaiboats.com Polígono Industrial El Salt, Nau 1/2 43540 Sant CarIes de la Rapita Tarragona (España) +34.650.142.525 +34.977.74.12.22 joanroig@nasaiboats.com anamacias@nasaiboats.com
