Flavors of Concurrency in Java [JavaZone`15]

Software has evolved so much that singlethreaded programs are rarely enough now. In this talks we'll cover several approaches to organising your concurrent Java code: from managing threads to actor frameworks, to software transactional memory.
Writing concurrent code that is also correct is unbelievably hard. Naturally, humanity has developed a number of approaches to handle concurrency in the code, starting from basic threads that follow the hardware way to do concurrency to higher level primitives like fibers and work-stealing solutions. But which approach is the best for you?

In this session, we'll take a look at a simple concurrent problem and solve it using different ways to manage concurrency: threads, executors, actors, fibers, monadic code with completable futures. All these approaches are different from the simplicity, readability, configuration and management point of view.

Some scenarios are better modelled with threads, while sometimes you're better off with actors. We'll discuss the benefits of each approach and figure out when it's worth pursuing in your project.

Transcript

1. Oleg Šelajev
   @shelajev
   ZeroTurnaround
   Flavors of Concurrency in Java


   View Slide

2. whoami
   @shelajev


   View Slide

3. View Slide

4. WHY DO WE CARE?


   View Slide

5. DEVS CHOOSING TECHNOLOGY


   View Slide

6. CONCURRENCY | PARALLELISM
   http://joearms.github.io/2013/04/05/concurrent-and-parallel-programming.html


   View Slide

7. CONCURRENCY | PARALLELISM
   https://davidandstan.files.wordpress.com/2015/05/max3.jpg
   http://pixel.nymag.com/imgs/daily/vulture/2015/05/15/15-mad-max.w529.h352.2x.jpg


   View Slide

8. CONCURRENCY
   Shared resources
   Multiple consumers & producers
   Out of order events
   Locks & Deadlocks


   View Slide

9. THEORY


   View Slide

10. PRACTICE


    View Slide

11. THREADS
    ORGANIZED THREADS
    FORK-JOIN FRAMEWORK
    COMPLETABLE FUTURES ACTORS FIBERS
    SOFTWARE TRANSACTIONAL MEMORY


    View Slide

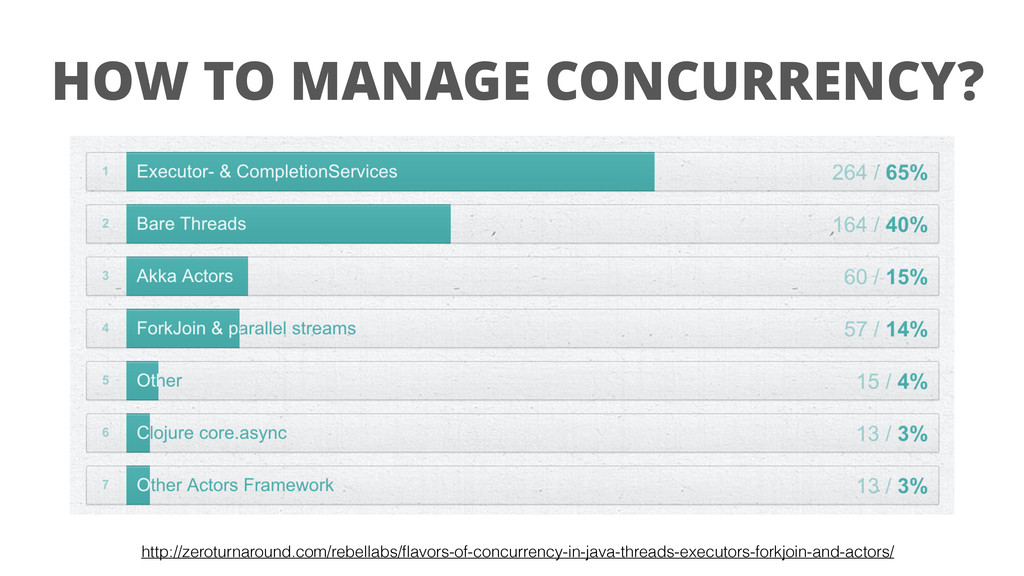

12. HOW TO MANAGE CONCURRENCY?
    http://zeroturnaround.com/rebellabs/flavors-of-concurrency-in-java-threads-executors-forkjoin-and-actors/


    View Slide

13. PROBLEM ORIENTED PROGRAMMING


    View Slide

14. PROBLEM
    private static String
    getFirstResult(String question,
    List engines)
    {
    // HERE BE DRAGONS, PARALLEL DRAGONS
    return null;
    }


    View Slide

15. View Slide

16. WHY THREADS
    Model Hardware
    Processes
    Threads


    View Slide

17. THREADS
    private static String getFirstResult(String question,
    List engines) {
    AtomicReference result = new AtomicReference<>();
    for(String base: engines) {
    String url = base + question;
    new Thread(() -> {
    result.compareAndSet(null, WS.url(url).get());
    }).start();
    }
    while(result.get() == null); // wait for the result to appear
    return result.get();
    }


    View Slide

18. THREAD SAFETY
    A piece of code is thread-safe if it only
    manipulates shared data structures in
    a manner that guarantees safe
    execution by multiple threads at the
    same time.
    https://en.wikipedia.org/wiki/Thread_safety


    View Slide

19. COMMUNICATION
    Objects & Fields
    Atomics*
    Queues
    Database


    View Slide

20. COMMUNICATION


    View Slide

21. COMMUNICATION


    View Slide

22. COMMUNICATION
    The Java Virtual
    Machine Specification
    17.4. Memory Model


    View Slide

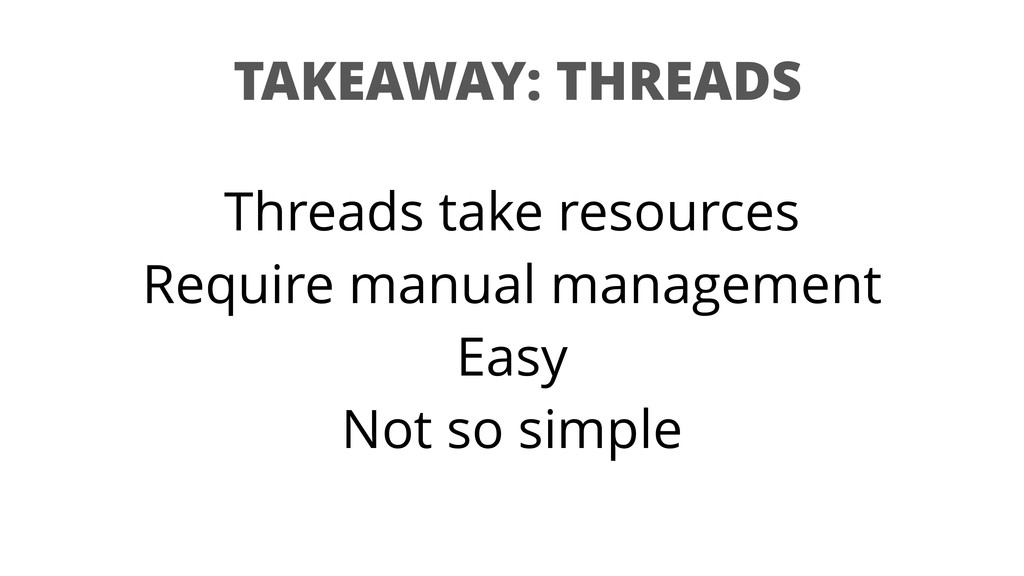

23. TAKEAWAY: THREADS
    Threads take resources
    Require manual management
    Easy
    Not so simple


    View Slide

24. View Slide

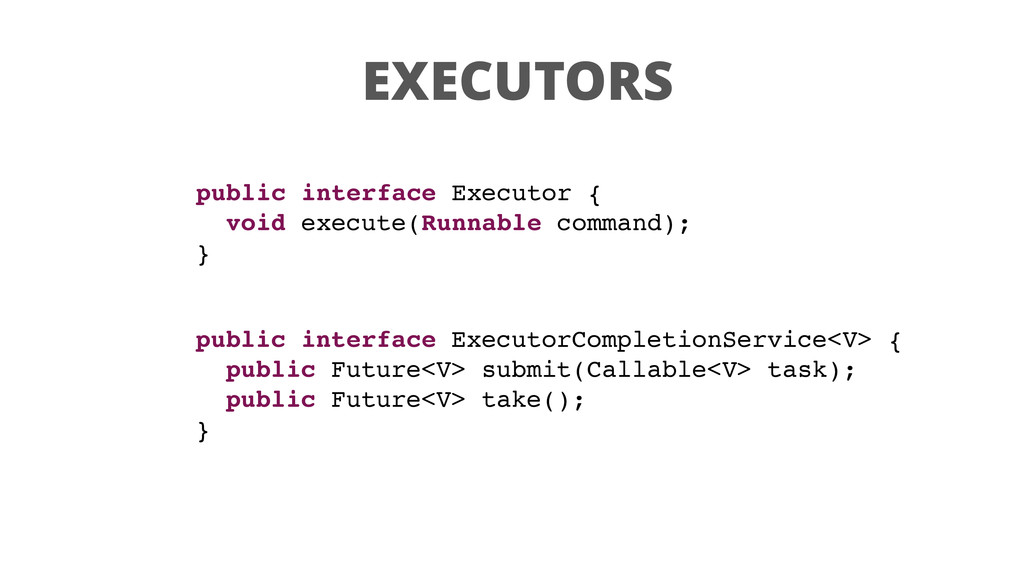

25. EXECUTORS
    public interface Executor {
    void execute(Runnable command);
    }
    public interface ExecutorCompletionService {
    public Future submit(Callable task);
    public Future take();
    }


    View Slide

26. EXECUTORS
    private static String getFirstResultExecutors(String question, List
    engines) {
    ExecutorCompletionService service = new
    ExecutorCompletionService(Executors.newFixedThreadPool(4));
    for(String base: engines) {
    String url = base + question;
    service.submit(() -> {
    return WS.url(url).get();
    });
    }
    try {
    return service.take().get();
    }
    catch(InterruptedException | ExecutionException e) {
    return null;
    }
    }


    View Slide

27. EXECUTORS
    private static String getFirstResultExecutors(String question, List
    engines) {
    ExecutorCompletionService service = new
    ExecutorCompletionService(Executors.newFixedThreadPool(4));
    for(String base: engines) {
    String url = base + question;
    service.submit(() -> {
    return WS.url(url).get();
    });
    }
    try {
    return service.take().get();
    }
    catch(InterruptedException | ExecutionException e) {
    return null;
    }
    }


    View Slide

28. EXECUTORS
    private static String getFirstResultExecutors(String question, List
    engines) {
    ExecutorCompletionService service = new
    ExecutorCompletionService(Executors.newFixedThreadPool(4));
    for(String base: engines) {
    String url = base + question;
    service.submit(() -> {
    return WS.url(url).get();
    });
    }
    try {
    return service.take().get();
    }
    catch(InterruptedException | ExecutionException e) {
    return null;
    }
    }


    View Slide

29. EXECUTORS
    private static String getFirstResultExecutors(String question, List
    engines) {
    ExecutorCompletionService service = new
    ExecutorCompletionService(Executors.newFixedThreadPool(4));
    for(String base: engines) {
    String url = base + question;
    service.submit(() -> {
    return WS.url(url).get();
    });
    }
    try {
    return service.take().get();
    }
    catch(InterruptedException | ExecutionException e) {
    return null;
    }
    }


    View Slide

30. CONCERNS: EXECUTORS
    Queue size
    Overflow strategy
    Cancellation strategy


    View Slide

31. TAKEAWAY: EXECUTORS
    Simple configuration
    Bounded overhead
    Pushing complexity deeper


    View Slide

32. http://i.ytimg.com/vi/6_W_xLWtNa0/maxresdefault.jpg


    View Slide

33. FORK JOIN FRAMEWORK
    Recursive tasks
    General parallel tasks
    Work stealing


    View Slide

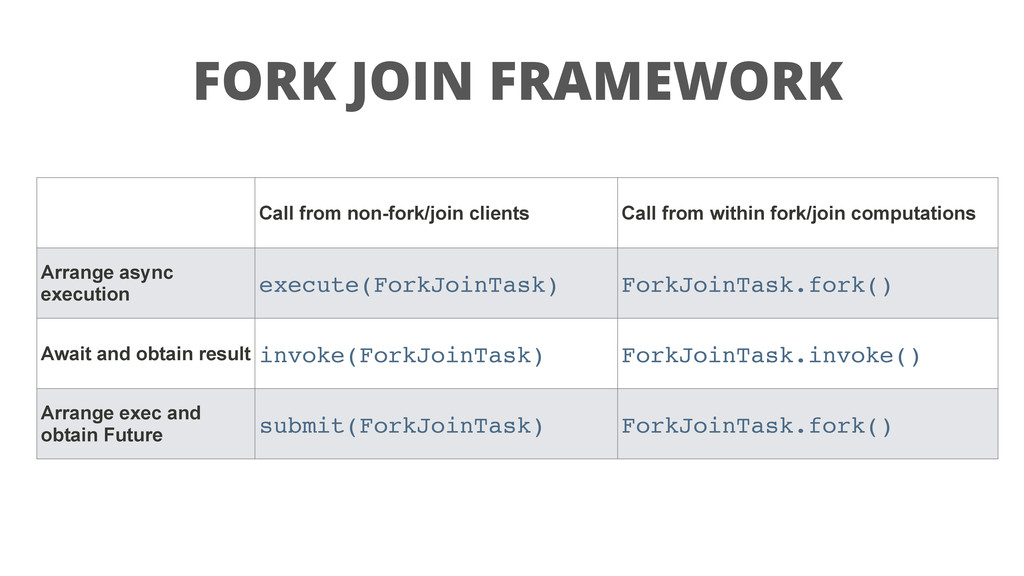

34. FORK JOIN FRAMEWORK
    Call from non-fork/join clients Call from within fork/join computations
    Arrange async
    execution execute(ForkJoinTask) ForkJoinTask.fork()
    Await and obtain result invoke(ForkJoinTask) ForkJoinTask.invoke()
    Arrange exec and
    obtain Future submit(ForkJoinTask) ForkJoinTask.fork()


    View Slide

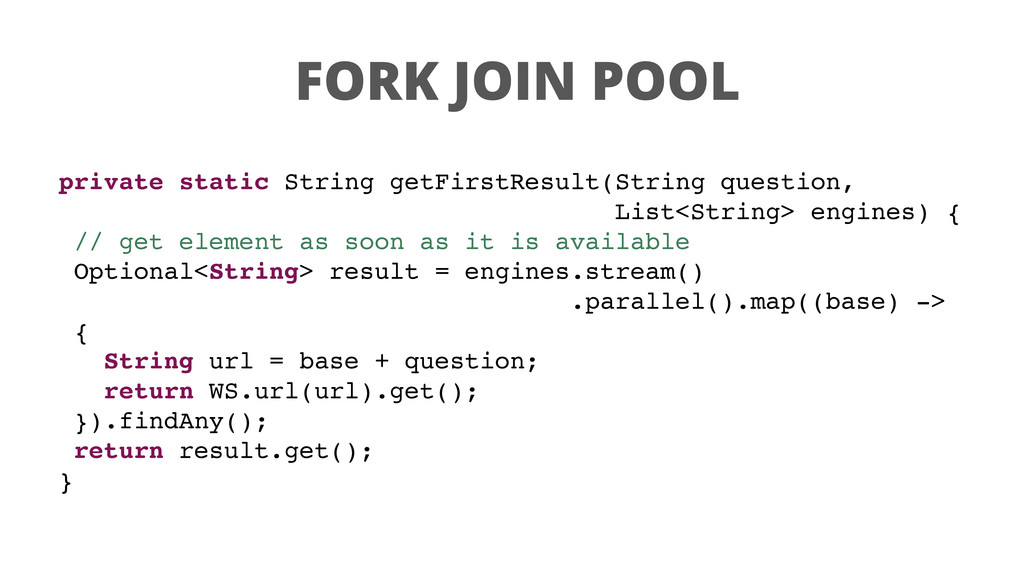

35. FORK JOIN POOL
    private static String getFirstResult(String question,
    List engines) {
    // get element as soon as it is available
    Optional result = engines.stream()
    .parallel().map((base) ->
    {
    String url = base + question;
    return WS.url(url).get();
    }).findAny();
    return result.get();
    }


    View Slide

36. TAKEAWAY: FORK JOIN POOL
    Efficient
    Preconfigured
    Easy to get right
    Easy to get wrong


    View Slide

37. View Slide

38. COMPLETABLE FUTURES
    private static String getFirstResultCompletableFuture(String question, List
    engines) {
    CompletableFuture result = CompletableFuture.anyOf(engines.stream().map(
    (base) -> {
    return CompletableFuture.supplyAsync(() -> {
    String url = base + question;
    return WS.url(url).get();
    });
    }
    ).collect(Collectors.toList()).toArray(new CompletableFuture[0]));
    try {
    return (String) result.get();
    }
    catch (InterruptedException | ExecutionException e) {
    return null;
    }
    }


    View Slide

39. COMPLETABLE FUTURES
    private static String getFirstResultCompletableFuture(String question, List
    engines) {
    CompletableFuture result = CompletableFuture.anyOf(engines.stream().map(
    (base) -> {
    return CompletableFuture.supplyAsync(() -> {
    String url = base + question;
    return WS.url(url).get();
    });
    }
    ).collect(Collectors.toList()).toArray(new CompletableFuture[0]));
    try {
    return (String) result.get();
    }
    catch (InterruptedException | ExecutionException e) {
    return null;
    }
    }


    View Slide

40. Using types
    java.util.concurrent.CompletableFuture
    thenApply(Function / Consumer / etc)
    thenApplyAsync(Function / etc)


    View Slide

41. View Slide

42. ACTORS
    static class Message {
    String url;
    Message(String url) {this.url = url;}
    }
    static class Result {
    String html;
    Result(String html) {this.html = html;}
    }


    View Slide

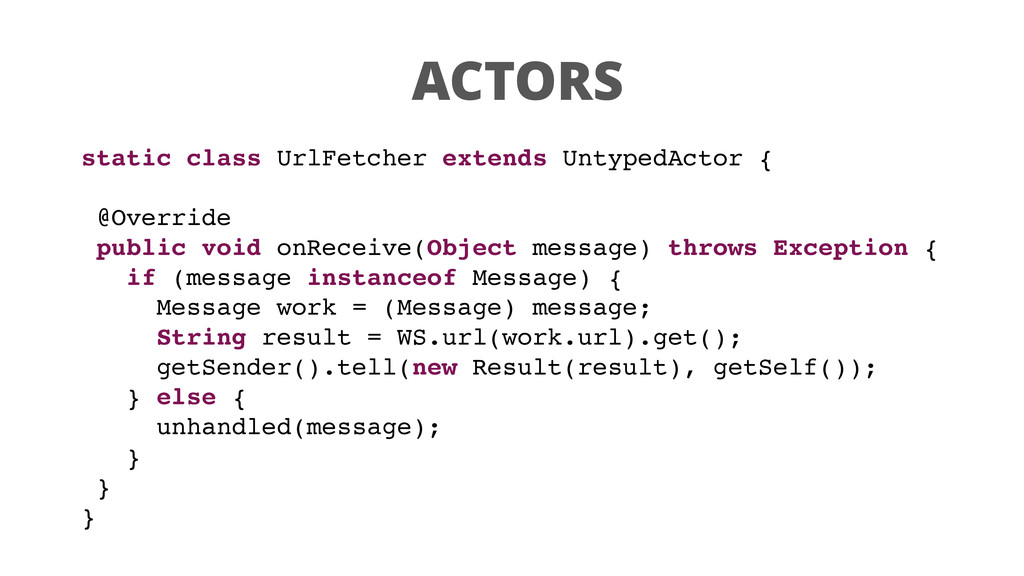

43. ACTORS
    static class UrlFetcher extends UntypedActor {
    @Override
    public void onReceive(Object message) throws Exception {
    if (message instanceof Message) {
    Message work = (Message) message;
    String result = WS.url(work.url).get();
    getSender().tell(new Result(result), getSelf());
    } else {
    unhandled(message);
    }
    }
    }


    View Slide

44. ACTORS
    public static interface Squarer {
    //fire-forget
    void squareDontCare(int i);
    //non-blocking send-request-reply
    Future square(int i);
    //blocking send-request-reply
    Option squareNowPlease(int i);
    //blocking send-request-reply
    int squareNow(int i);
    }


    View Slide

45. TAKEAWAY: ACTORS
    OOP is about messages
    Multiplexing like a boss
    Supervision & Fault tolerance


    View Slide

46. http://static1.squarespace.com/static/50aa813ce4b0726ad3f3fdb0/51e1e393e4b0180cf3bcbb46/51e1e39ae4b0fa94cee721f9/1373758363472/forest-by-marshmallow-laser-feast-the-tree-mag-30.jpg


    View Slide

47. FIBERS
    Lightweight threads


    View Slide

48. View Slide

49. TAKEAWAY: FIBERS
    Continuations
    Progress all over the place
    Bytecode modification
    Highly scalable


    View Slide

50. View Slide

51. TRANSACTIONAL MEMORY


    View Slide

52. TAKEAWAY: TX MEMORY
    Optimistic writes
    Retry / Fail
    ACID


    View Slide

53. THREADS
    ORGANIZED THREADS
    FORK-JOIN FRAMEWORK
    COMPLETABLE FUTURES ACTORS FIBERS
    SOFTWARE TRANSACTIONAL MEMORY


    View Slide

54. CONCLUSION


    View Slide

55. Seven Concurrency
    Models in Seven
    Weeks:
    When Threads Unravel
    by Paul Butcher
    https://pragprog.com/book/pb7con/seven-concurrency-models-in-seven-weeks


    View Slide

56. http://www.amazon.com/The-Multiprocessor-Programming-Revised-Reprint/dp/0123973376
    The Art of
    Multiprocessor
    Programming
    by Maurice Herlihy, Nir Shavit


    View Slide

57. http://0t.ee/javazone15


    View Slide

58. oleg@zeroturnaround.com
    @shelajev
    Contact me


    View Slide
