Functional data structures in Java [Voxxed Zurich `17]

Developers know and love data structures. Applications are often full of maps, trees, heaps, queues and much more. And we rarely bother to look under the hood to understand the tradeoffs between each of the data structures.

We'll briefly discuss what makes data structures persistent, and why making persistent data structures perform well is a challenging task to do well. You'll understand what the amortized performance is, and how lazy evaluation can turn the tables on performance, making persistent data structures fast again.

We'll look at several purely functional data structures implemented in Java 8 and will discuss why are they efficient and when you maybe want to prefer these to the data structure built-in into the JDK. By attending this session, you'll feel more comfortable with functional data structures and will be more likely to succeed using functional programming for problems that involve data crunching in the future.

Transcript

1. Oleg Šelajev
   @shelajev
   ZeroTurnaround
   Functional Data Structures
   in Java


   View Slide

2. @shelajev


   View Slide

3. View Slide

4. WHAT DOES FUNCTIONAL MEAN?


   View Slide

5. View Slide

6. View Slide

7. https://courses.csail.mit.edu/6.851/spring12/illus.png


   View Slide

8. MUTABLE DATA STRUCTURES
   interface Collection {
   …

   void clear();
   boolean addAll(Collection extends E> c);
   …

   }


   View Slide

9. IMMUTABLE DATA STRUCTURES
   List list =
   Collections.unmodifiableList(otherList);



   // Hurray!

   list.add("why so serious? :)”);


   View Slide

10. PERSISTENT DATA STRUCTURES


    View Slide

11. FUNCTIONAL DATA STRUCTURES


    View Slide

12. (›°□°ʣ›ớ ᵲᴸᵲ
    NO ASSIGNMENTS
    PERSISTENCE


    View Slide

13. HOW TO BUILD A LIST
    final class Cons implements List{



    private final T head;

    private final List tail;

    private final int length;
    }


    View Slide

14. HOW TO PREPEND A LIST
    @Override

    default List prepend(T element) {

    return new Cons<>(element, this);

    }


    View Slide

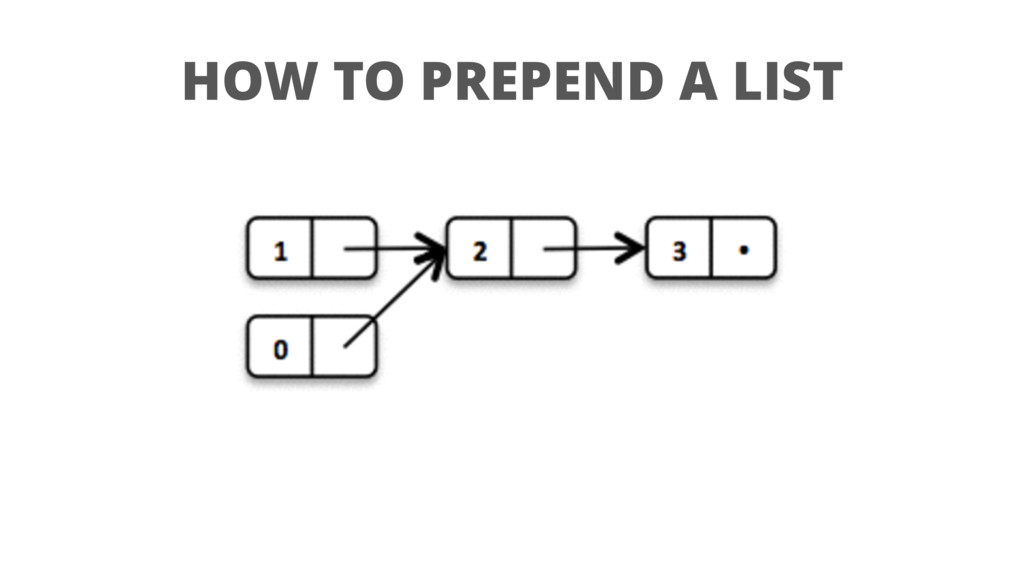

15. HOW TO PREPEND A LIST


    View Slide

16. HOW TO FOLD A LIST
    @Override

    default U foldLeft(U zero,
    BiFunction super U, ? super T, ? extends U> f) {

    U xs = zero;

    for (T x : this) {

    xs = f.apply(xs, x);

    }

    return xs;

    }


    View Slide

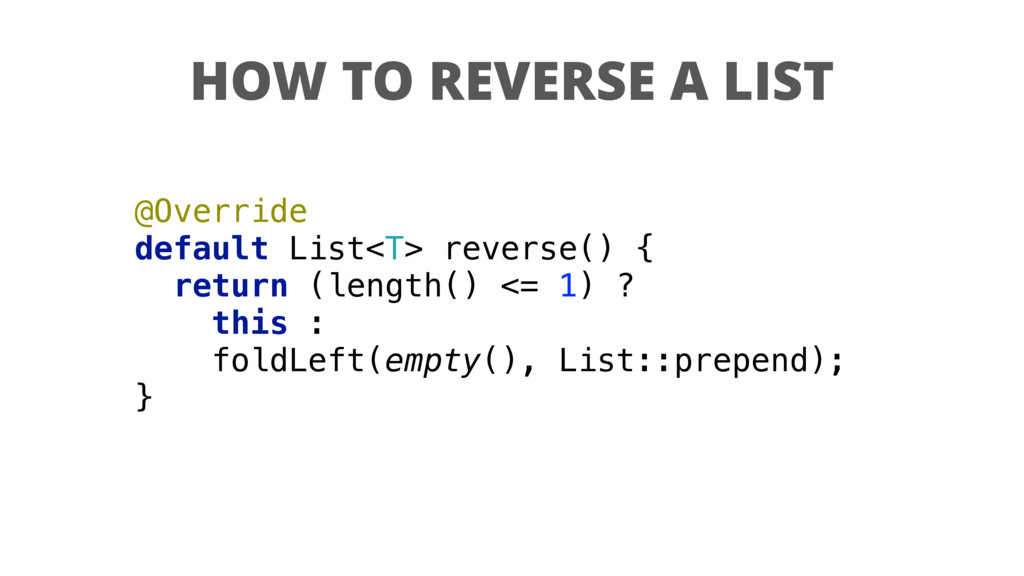

17. HOW TO REVERSE A LIST
    @Override

    default List reverse() {

    return (length() <= 1) ?
    this :
    foldLeft(empty(), List::prepend);

    }


    View Slide

18. HOW TO APPEND TO A LIST
    @Override

    default List append(T element) {

    return foldRight(Cons.of(element),
    (x, xs) -> xs.prepend(x));

    }


    View Slide

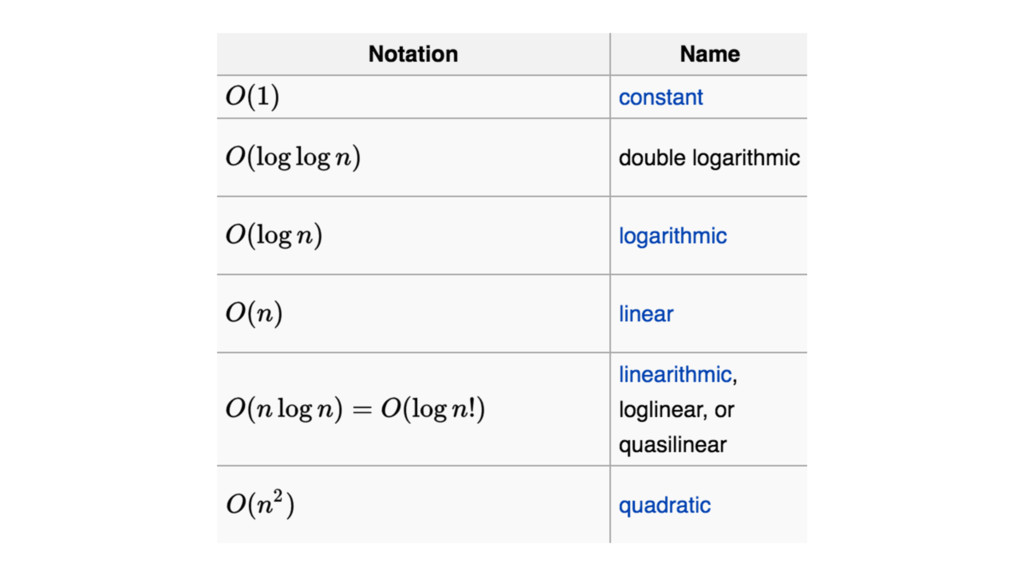

19. ALGORITHMIC COMPLEXITY


    View Slide

20. View Slide

21. Amortized complexity is the total expense per operation,
    evaluated over a sequence of operations.
    The idea is to guarantee the total expense of the entire sequence,
    while permitting individual operations to be much more expensive
    than the average.
    AMORTIZED COMPLEXITY


    View Slide

22. AMORTIZED COMPLEXITY
    Cons cons = Cons.of(1);
    cons.prepend(2);

    cons.prepend(3);

    ...

    cons.prepend(n);

    cons.reverse();


    View Slide

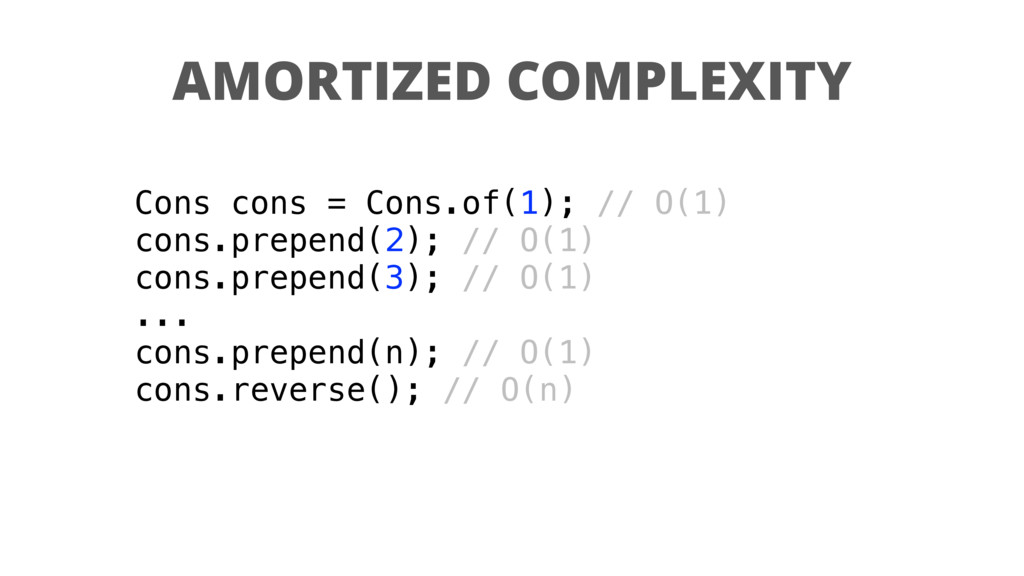

23. AMORTIZED COMPLEXITY
    Cons cons = Cons.of(1); // O(1)

    cons.prepend(2); // O(1)

    cons.prepend(3); // O(1)

    ...

    cons.prepend(n); // O(1)

    cons.reverse(); // O(n)


    View Slide

24. BANKER’S METHOD
    Cons cons = Cons.of(1); // O(1 + ⍺)

    cons.prepend(2); // O(1 + ⍺)

    cons.prepend(3); // O(1 + ⍺)

    ...

    cons.prepend(n); // O(1 + ⍺)

    cons.reverse(); // O(n)
    TOTAL: O(2N + N*⍺)


    View Slide

25. BANKER’S METHOD
    Cons cons = Cons.of(1); // O(1 + ⍺)

    cons.prepend(2); // O(1 + ⍺)

    cons.prepend(3); // O(1 + ⍺)

    ...

    cons.prepend(n); // O(1 + ⍺)

    cons.reverse(); // O(n)
    TOTAL: O(N*(2+⍺))


    View Slide

26. BANKER’S METHOD
    Cons cons = Cons.of(1); // O(1 + ⍺)

    cons.prepend(2); // O(1 + ⍺)

    cons.prepend(3); // O(1 + ⍺)

    ...

    cons.prepend(n); // O(1 + ⍺)

    cons.reverse(); // O(n)
    TOTAL: O(N*(2+⍺))
    PER OPERATION: O(1+⍺)


    View Slide

27. (›°□°ʣ›ớ ᵲᴸᵲ
    PERSISTENCE ALLOWS CALLING
    EXPENSIVE OPS
    OFTEN


    View Slide

28. MODES
    STRICT
    LAZY WITHOUT MEMOIZATION
    LAZY WITH MEMOIZATION


    View Slide

29. HOW TO BUILD A QUEUE?


    View Slide

30. HOW TO BUILD A QUEUE?
    WHEN YOU HAVE A LIST?


    View Slide

31. HOW TO BUILD A QUEUE
    public final class Queue {


    private final List queue;
    }


    View Slide

32. HOW TO BUILD A QUEUE
    public final class Queue {


    private static final Queue> EMPTY =
    new Queue<>(List.empty(), List.empty());



    private final List front;

    private final List rear;
    }


    View Slide

33. HOW TO BUILD A QUEUE


    View Slide

34. HOW TO ENQUEUE
    @Override

    public Queue enqueue(T element) {

    return new Queue<>(front,rear.prepend(element));

    }


    View Slide

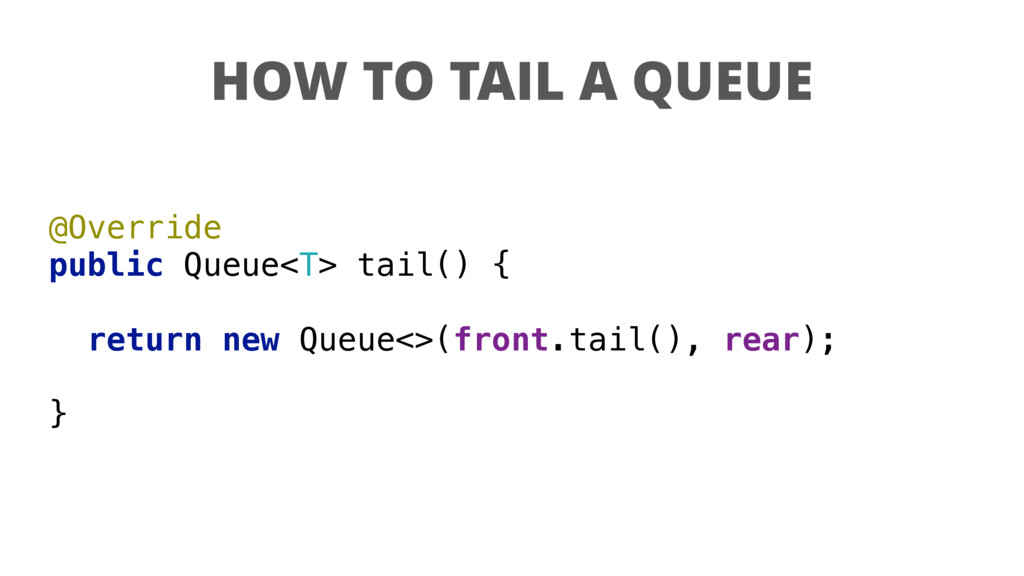

35. HOW TO TAIL A QUEUE
    @Override

    public Queue tail() {



    return new Queue<>(front.tail(), rear);


    }


    View Slide

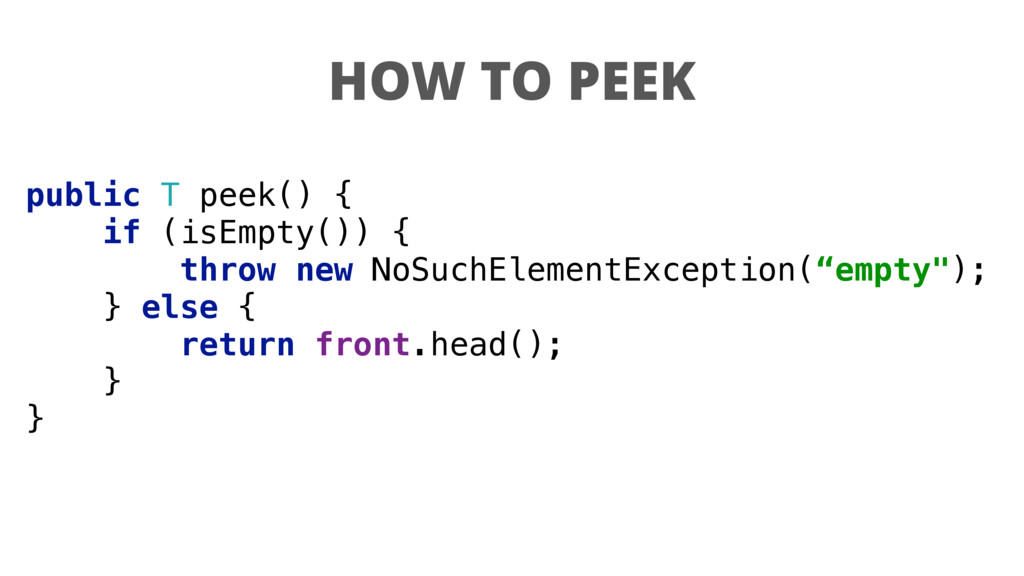

36. HOW TO PEEK
    public T peek() {

    if (isEmpty()) {

    throw new NoSuchElementException(“empty");

    } else {

    return front.head();
    }

    }


    View Slide

37. HOW TO DEQUEUE
    Queue queue = Queue.of(1, 2, 3);



    // = (1, Queue(2, 3))

    Tuple2 dequeued = queue.dequeue();


    View Slide

38. HOW TO DEQUEUE
    @Override
    public Tuple2 dequeue() {

    if (isEmpty()) {

    throw new NoSuchElementException("empty");

    } else {

    return Tuple.of(head(), tail());

    }

    }


    View Slide

39. WHAT IF ONLY FRONT IS EMPTY?
    front.isEmpty() => rear.isEmpty()


    View Slide

40. WHAT IF FRONT IS EMPTY?
    private Queue(List front, List rear) {

    final boolean frontIsEmpty = front.isEmpty();

    this.front = frontIsEmpty ?
    rear.reverse() : front;

    this.rear = frontIsEmpty ? front : rear;

    }


    View Slide

41. ISN’T REVERSE EXPENSIVE?


    View Slide

42. HOW TO BUILD A MAP?
    http://www.eso-schatzsucher.de/teso/wbb/index.php/Attachment/4046-alikr-3-karte-png/


    View Slide

43. HOW TO BUILD A MAP?
    YOU HAVE A LIST AND A QUEUE
    http://www.eso-schatzsucher.de/teso/wbb/index.php/Attachment/4046-alikr-3-karte-png/


    View Slide

44. HOW TO BUILD A MAP


    View Slide

45. HOW TO BUILD A MAP


    View Slide

46. HOW TO BUILD A MAP
    slide by Rich Hickey


    View Slide

47. UPDATING THE MAP
    slide by Rich Hickey


    View Slide

48. NORMAL TREES


    View Slide

49. View Slide

50. View Slide

51. View Slide

52. View Slide

53. View Slide

54. View Slide

55. http://www.javaslang.io/


    View Slide

56. View Slide

57. java.util.PriorityQueue
    java.util.concurrent.PriorityBlockingQueue
    scala.collection.mutable.PriorityQueue
    scalaz.Heap
    javaslang.collection.PriorityQueue
    BENCHMARKS


    View Slide

58. BENCHMARKS
    @State(Scope.Benchmark)

    public static class Base {



    @Param({ "10", "1000", "100000" })

    public int CONTAINER_SIZE;



    public Integer[] ELEMENTS;

    int expectedAggregate = 0;



    @Setup

    public void setup() {

    ELEMENTS = getRandomValues(CONTAINER_SIZE, 0);



    for (int element : ELEMENTS) {

    expectedAggregate ^= element;

    }

    }

    }


    View Slide

59. ENQUEUE
    @Benchmark

    public void slang_persistent() {

    PriorityQueue q = PriorityQueue.empty();

    for (Integer element : ELEMENTS) {

    q = q.enqueue(element);

    }

    assertEquals(q.size(), CONTAINER_SIZE);

    }


    View Slide

60. DEQUEUE
    @Benchmark

    public void slang_persistent(Initialized state) {

    PriorityQueue values = state.slangPersistent;



    int aggregate = 0;

    while (!values.isEmpty()) {

    Tuple2> dequeue =
    values.dequeue();

    aggregate ^= dequeue._1;

    values = dequeue._2;

    }

    assertEquals(values.size(), 0);

    assertEquals(aggregate, expectedAggregate);

    }


    View Slide

61. SORT
    @Benchmark

    public void slang_persistent() {

    PriorityQueue values = PriorityQueue.empty();

    for (Integer element : ELEMENTS) {

    values = values.enqueue(element);

    }

    assertEquals(values.size(), CONTAINER_SIZE);



    int aggregate = 0;

    while (!values.isEmpty()) {

    final Tuple2> dequeue = values.dequeue();

    aggregate ^= dequeue._1;

    values = dequeue._2;

    }

    assertEquals(values.size(), 0);

    assertEquals(aggregate, expectedAggregate);

    }


    View Slide

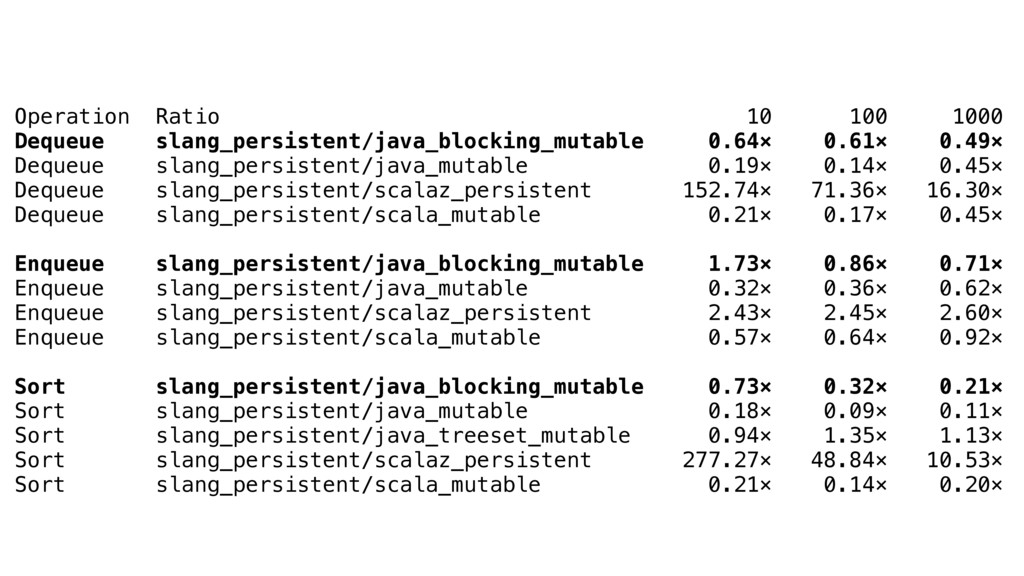

62. Operation Ratio 10 100 1000
    Dequeue slang_persistent/java_blocking_mutable 0.64× 0.61× 0.49×
    Dequeue slang_persistent/java_mutable 0.19× 0.14× 0.45×
    Dequeue slang_persistent/scalaz_persistent 152.74× 71.36× 16.30×
    Dequeue slang_persistent/scala_mutable 0.21× 0.17× 0.45×
    Enqueue slang_persistent/java_blocking_mutable 1.73× 0.86× 0.71×
    Enqueue slang_persistent/java_mutable 0.32× 0.36× 0.62×
    Enqueue slang_persistent/scalaz_persistent 2.43× 2.45× 2.60×
    Enqueue slang_persistent/scala_mutable 0.57× 0.64× 0.92×
    Sort slang_persistent/java_blocking_mutable 0.73× 0.32× 0.21×
    Sort slang_persistent/java_mutable 0.18× 0.09× 0.11×
    Sort slang_persistent/java_treeset_mutable 0.94× 1.35× 1.13×
    Sort slang_persistent/scalaz_persistent 277.27× 48.84× 10.53×
    Sort slang_persistent/scala_mutable 0.21× 0.14× 0.20×


    View Slide

63. RESULTS (SAFE HARBOR)
    ~ 2-4x slower than the mutable blocking Java version
    ~ 3x slower than the mutable Scala version
    ~ 10x faster than the persistent Scalaz version.
    SLANG PRIORITY QUEUE MIGHT BE


    View Slide

64. View Slide

65. https://www.amazon.com/Purely-Functional-Structures-Chris-Okasaki/dp/0521663504


    View Slide

66. What's new in purely functional data
    structures since Okasaki?
    http://cstheory.stackexchange.com/a/1550


    View Slide

67. http://bit.ly/xrebel-vdz17


    View Slide

68. oleg@zeroturnaround.com
    @shelajev
    Find me and chat with me!


    View Slide
