  1. SWEBOK Evolution and Machine Learning SE including ML Design Patterns

    Hironori Washizaki Waseda University / National Institute of Informatics / SYSTEM INFORMATION / eXmotion Twitter: @Hiro_Washi washizaki@waseda.jp http://www.washi.cs.waseda.ac.jp/ V20220920 2022 September 20-21 Montreal
  2. Prof. Dr. Hironori Washizaki • Professor and the Associate Dean

    of the Research Promotion Division at Waseda University in Tokyo • Visiting Professor at the National Institute of Informatics • Outside Directors of SYSTEM INFORMATION and eXmotion • Research and education projects • Leading a large-scale grant at MEXT enPiT-Pro Smart SE • Leading framework team of JST MIRAI eAI project • Professional contributions • IEEE Computer Society, Vice President for Professional and Educational Activities 2022, 1st Vice President 2023 • IEEE Conference on Software Engineering Education and Training (CSEE&T), Steering Committee • IEEE-CS COMPSAC, Advisory Committee • Asia-Pacific Software Engineering Conference (APSEC), Steering Committee • Convener of ISO/IEC/JTC1 SC7/WG20
  3. Agenda • SWEBOK Evolution • Machine Learning Software Engineering •

    Machine Learning Design Patterns • Multi-view ML system modeling 3
  4. Guide to the Software Engineering Body of Knowledge (SWEBOK) http://swebokwiki.org

    • History: 2001 v1, 2004 v2, 2005 ISO/IEC Technical Report, 2014 v3, 2022 v4 • Objective – Guiding learners, researchers and practitioners to identify and have common understanding on “generally-accepted-knowledge” in software engineering – Defining boundary of software engineering and related disciplines – Providing foundations for certifications and educational curriculum • Adoption – IEEE-CS software professional certification programs based on SWEBOK (Associate Software Developer, Professional Software Developer, Professional Software Engineering Master) – ISO/IEC 24773-4: Certification of software and systems engineering professionals - Part 4: Software engineering – Software Engineering Competency Model (SWECOM) Activities (and practices) Body of Knowledge Islands of Knowledge Tasks (and activities) To Do Doing Done
  5. SWEBOK Evolution from V3 to V4 • Modern software engineering,

    practice change and update, BOK grows and recently developed areas • Public review is ongoing! https://www.computer.org/volunteering/boards-and-committees/professional-educational-activities/software- engineering-committee/swebok-evolution Requirements Design Construction Testing Maintenance Configuration Management Engineering Management Process Models and Methods Quality Professional Practice Economics Computing Foundations Mathematical Foundations Engineering Foundations Requirements Architecture Design Construction Testing Operations Maintenance Configuration Management Engineering Management Process Models and Methods Quality Security Professional Practice Economics Computing Foundations Mathematical and Engineering Foundations SWEBOK V3 SWEBOK V4 Agile, DevOps Agile testing ・・・ Agile security ・・・ Restructuring foundation areas incl. IoT, AI/ML
  6. Agenda • SWEBOK Evolution • Machine Learning Software Engineering •

    Machine Learning Design Patterns • Multi-view ML system modeling 6
  7. ML meets SE: Induction (and abduction) 7 Goal Data Model

    Behavior Goal Model Behavior Data Conventional software engineering: Deduction ML software engineering: Induction (and abduction) – The probabilistic behaviors derive emerging quality or validation concerns. Quality aspects including data quality are active research topics. – ML system development challenges are discussed by conducting empirical case studies. – It is needed to organize practices and patterns. H. Maruyama, “Machine Learning Engineering and Reuse of AI Work Products,” The First International Workshop on Sharing and Reuse of AI Work Products, 2017 Hironori Washizaki, “Towards Software Value Co-Creation with AI”, The 44th IEEE Computer Society Signature Conference on Computers, Software, and Applications (COMPSAC 2020), Fast Abstract
  8. Techniques specific or particularly useful for ML quality assurance Training

    data Trained model Prediction, inference Infrastructure software system New data ML model debugging Monitoring, goal-oriented modeling Testing oracle problem, balanced dataset and coverage Performance, robustness and explainability Architecture validity and quality assurance Suitability with objective, handling unexpected situations N. Uchihira, AI and Software Engineering, JUSE SQiP 2017 Eric Breck et al., The ML Test Score: A Rubric for ML Production Readiness and Technical Debt Reduction, IEEE Big Data 2017 Metamorphic testing Search-based testing Practices and patterns Quality measurement 8
  9. AI system and data quality Training data Trained model Prediction,

    inference Infrastructure software system New data N. Uchihira, AI and Software Engineering, JUSE SQiP 2017 Eric Breck et al., The ML Test Score: A Rubric for ML Production Readiness and Technical Debt Reduction, IEEE Big Data 2017 9 ISO/IEC DIS 25059 AI System Product Quality ISO/IEC DIS 25059 AI System Quality in Use ISO/IEC AWI 5259-2 Data quality measures
  10. Preliminary study on practitioners’ insights on quality • Surveyed 300+

    developers, 46 answered in ML development • What product quality attributes considered? – Maintainability, reliability, security, and usability • What model and prediction quality attributes? – Robustness, accuracy, and explainability 10 3 3 4 13 19 20 20 21 28 0 20 40 (not considered) Compatibility Portability Performance efficiency Usability Reliability Security Maintainability Functional suitability 10 4 20 21 26 0 10 20 30 (not considered) Fairness Accuracy Explainability Robustness H. Washizaki, et al., Practitioners’ insights on machine-learning software engineering design patterns: a preliminary study, ICSME 2020
  11. Metamorphic testing • Testing based on metamorphic relations: Relationship whereby

    changes to the input can predict changes to the output. • System quality: Functional correctness, reliability, … • Data quality: Completeness, context coverage, effectiveness of a data set, … 11 Change in input ( t ) Change in output ( g ) Sorting None Adding noise Semantically identical Statistically identical Similar Slight change Constant addition and multiplication Constant addition and multiplication Narrowing Subset Completely different Disjoint x t(x) f(x) g(f(x)) Transformation t g 参考: S. Segura et al., "Metamorphic Testing of RESTful Web APIs," IEEE Transactions on Software Engineering, 2017 参考: C. Murphy, “Applications of Metamorphic Testing”, http://www.cis.upenn.edu/~cdmurphy/pubs/MetamorphicTesting-Columbia-17Nov2011.ppt f(t(x)) = Transformation f f Y Tian, et al., DeepTest: Automated Testing of Deep-Neural-Network-driven Autonomous Cars, ICSE 2018 https://arxiv.org/pdf/1708.08559.pdf
  12. Neural network model fixing (repair) • System quality: Functional correctness,

    reliability • Retraining and online learning – A straightforward method, but time-consuming and costly – Possible side effects of performance degradation • Data augmentation: generation [a], selection [b], expansion [c], etc. – Trial and error without directly modifying model parameters – Potential vulnerability to adversarial examples • Direct modification of parameters according to specific samples – Correction for specific labels for adversarial examples [d]. – Finding and correcting impacted areas in failed data [e]. [a] Generative adversarial nets, NIPS 2014 [b] MODE: automated neural network model debugging via state differential analysis and input selection, ESEC/FSE 2018 [c] Autoaugment: Learning augmentation policies from data, arXiv:1805.09501, 2019 [d] Unlearned Modification of Neural Network Models for Adversarial Examples and Its Evaluation, JSSST 2019 [e] Search Based Repair of Deep Neural Networks, arXiv:1912.12463, 2019 Average of neuron’s output values for successful data Average of neuron’s output values for misrecognition data Neurons with high priority for fixing 12
  13. Summary of this part • ML meets SE. • It

    is recommended to refer to quality model to clarify quality requirements and evaluation measures, – ISO/IEC DIS 25059 AI System Quality Product Quality, Quality in Use – ISO/IEC AWI 5259-2 Data quality measures • Followed by quality techniques – such as metamorphic testing and DNN fixing/repair • Practitioners concern various quality attributes – Need to have practices and patterns that handle multiple attributes! 13
  14. Agenda • SWEBOK Evolution • Machine Learning Software Engineering •

    Machine Learning Design Patterns • Multi-view ML system modeling 14
  15. 15 Street Cafe Problem: Needs to have a place where

    people can sit lazily, legitimately, be on view, and watch the world go by… Solution: Encourage local cafes to spring up in each neighborhood. Make them intimate places, with several rooms, open to a busy path … Alexander, Christopher, et al. A Pattern Language. Oxford University Press, 1977. https://unsplash.com/photos/8IKf54pc3qk https://unsplash.com/photos/zACLEreWKXE
  16. Towards a pattern language … OK, so, to attract many

    people to our city, Small Public Squares should be located in the center. At the SMALL PUBLIC SQUARE, make Street Cafes be Opening to the Street ... 16 Small Public Square Street Cafe Opening to the Street https://unsplash.com/photos/EdpbTj3Br-Y https://unsplash.com/photos/GqurqYbj7aU https://unsplash.com/photos/zFoRwZirFvY
  17. Example of designing ML system • We wish to identify

    the type of instrument for the sound picked up by the phone and achieve recording and response according to the type. • However, the memory and performance of the phone is limited, and a large deep learning model is unlikely to be loaded. How can we do this? 17 Pretrained Model Pretrained Model • Let's use Two-stage predictions where a small model on the phone determines if a sound is a musical instrument, and a large model on the cloud classifies the type of sound only if it is a musical instrument. • For the large model, we will adopt Transfer Learning to achieve precise classification. Machine Learning Design Patterns (V. Lakshmanan, et al. 2020)
  18. ML software engineering needs patterns! • Bridge between abstract paradigms

    and concrete cases/tools – Documenting Know-Why, Know-What and Know-How – Reusing solutions and problems – Getting consistent architecture • Common language among stakeholders – Software engineers, data scientist, domain experts, network engineers, … • Researchers and practitioners studying best practices strive to design ML systems and software. – ML system architecture and design patterns at different abstraction levels are not well classified and studied. – Thus, we conducted a survey of software developers and a Systematic Literature Review. 18 Paradigm Case Tool FW Instruction ? ? Hironori Washizaki, Foutse Khomh, Yann-Gael Gueheneuc, Hironori Takeuchi, Naotake Natori, Takuo Doi, Satoshi Okuda, “Software Engineering Design Patterns for Machine Learning Applications,” IEEE Computer, Vol. 55, No. 3, pp. 30-39, 2022.
  19. Software Engineering Patterns for ML applications (SEP4MLA) • Academic and

    gray literature address the design of ML systems and software – 19 scholarly and 19 gray documents identified. 15 SE patterns were extracted. 19 Hironori Washizaki, Foutse Khomh, Yann-Gael Gueheneuc, Hironori Takeuchi, Naotake Natori, Takuo Doi, Satoshi Okuda, “Software Engineering Design Patterns for Machine Learning Applications,” IEEE Computer, Vol. 55, No. 3, pp. 30-39, 2022. Training data Trained model Prediction Training Infrastructure Input data Programming patterns Serving Infrastructure Model operation patterns Topology patterns • Data Lake for ML • Separation of Concerns and Modularization of ML Components • Encapsulate ML Models within Rule-base Safeguards • Discard PoC Code • Different Workloads in Different Computing Environments • Distinguish Business Logic from ML Models • ML Gateway Routing Architecture • Parameter-Server Abstraction • Data Flows Up, Model Flows Down • Secure Aggregation • Deployable Canary Model • ML Versioning • Microservice Architecture for ML • Lambda Architecture for ML • Kappa Architecture for ML
  20. 20 Category Pattern Perfor mance Compa tibility Reliab ility Securi

    ty Maintai nability Portabi lity Robust ness Explaina bility Accur acy Topology Different Workloads in Different Computing Environments X X Distinguish Business Logic from ML Models X ML Gateway Routing Architecture X X Microservice Architecture for ML X X X Lambda Architecture for ML X X Kappa Architecture for ML X X Programming Data Lake for ML X X X Separation of Concerns and Modularization of ML Components X Encapsulate ML Models within Rule-based Safeguards X Discard PoC Code X Model operation Parameter-Server Abstraction X X Data Flows Up, Model Flows Down X X X Secure Aggregation X X X Deployable Canary Model X X ML Versioning X X X

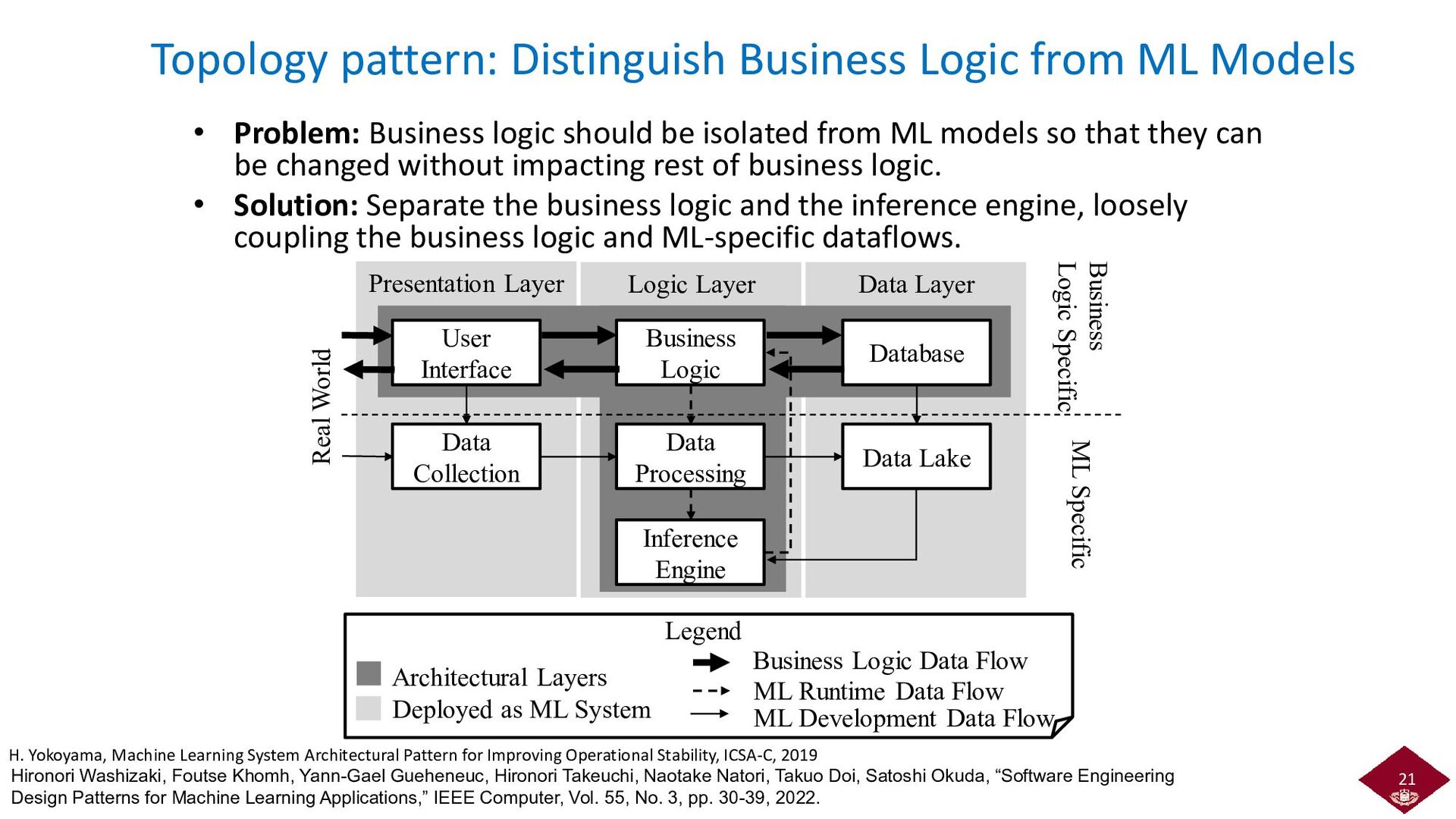

  21. Topology pattern: Distinguish Business Logic from ML Models • Problem:

    Business logic should be isolated from ML models so that they can be changed without impacting rest of business logic. • Solution: Separate the business logic and the inference engine, loosely coupling the business logic and ML-specific dataflows. 21 H. Yokoyama, Machine Learning System Architectural Pattern for Improving Operational Stability, ICSA-C, 2019 Data Layer Logic Layer Presentation Layer User Interface Database Data Collection Data Lake Business Logic Data Processing Inference Engine Real World Business Logic Specific ML Specific Architectural Layers Deployed as ML System Business Logic Data Flow ML Runtime Data Flow ML Development Data Flow Legend Hironori Washizaki, Foutse Khomh, Yann-Gael Gueheneuc, Hironori Takeuchi, Naotake Natori, Takuo Doi, Satoshi Okuda, “Software Engineering Design Patterns for Machine Learning Applications,” IEEE Computer, Vol. 55, No. 3, pp. 30-39, 2022.
  22. Programming pattern: Encapsulate ML Models within Rule-based Safeguards • Problem:

    ML models are known to be unstable and vulnerable to adversarial attacks, noise, and data drift. • Solution: Encapsulate functionality provided by ML models and deal with the inherent uncertainty in the containing system using deterministic and verifiable rules. • Know usage: E.g. Apollos’s object detection [Peng20] 22 Business Logic API Rule-based Safeguard Inference (Prediction) Encapsulated ML model Input Output Rule Z. Peng, et al., A First Look at the Integration of Machine Learning Models in Complex Autonomous Driving Systems, ESEC/FSE’20 Hironori Washizaki, Foutse Khomh, Yann-Gael Gueheneuc, Hironori Takeuchi, Naotake Natori, Takuo Doi, Satoshi Okuda, “Software Engineering Design Patterns for Machine Learning Applications,” IEEE Computer, Vol. 55, No. 3, pp. 30-39, 2022.
  23. Model operation pattern: Deployable Canary Model • Problem: A surrogate

    ML that approximates the behavior of the best ML model must be built to provide explainability. • Solution: Run the explainable inference pipeline in parallel with the primary inference pipeline to monitor prediction differences. • Known usage: Image-based anomaly detection at factory 23 S. Ghanta et al., Interpretability and reproducibility in production machine learning applications, ICMLA 2018 Input Decoy model Data lake Canary model (E.g., Decision tree) Production model (E.g., DNN) Monitoring and comparison Output Output Reproduce and retraining Hironori Washizaki, Foutse Khomh, Yann-Gael Gueheneuc, Hironori Takeuchi, Naotake Natori, Takuo Doi, Satoshi Okuda, “Software Engineering Design Patterns for Machine Learning Applications,” IEEE Computer, Vol. 55, No. 3, pp. 30-39, 2022.

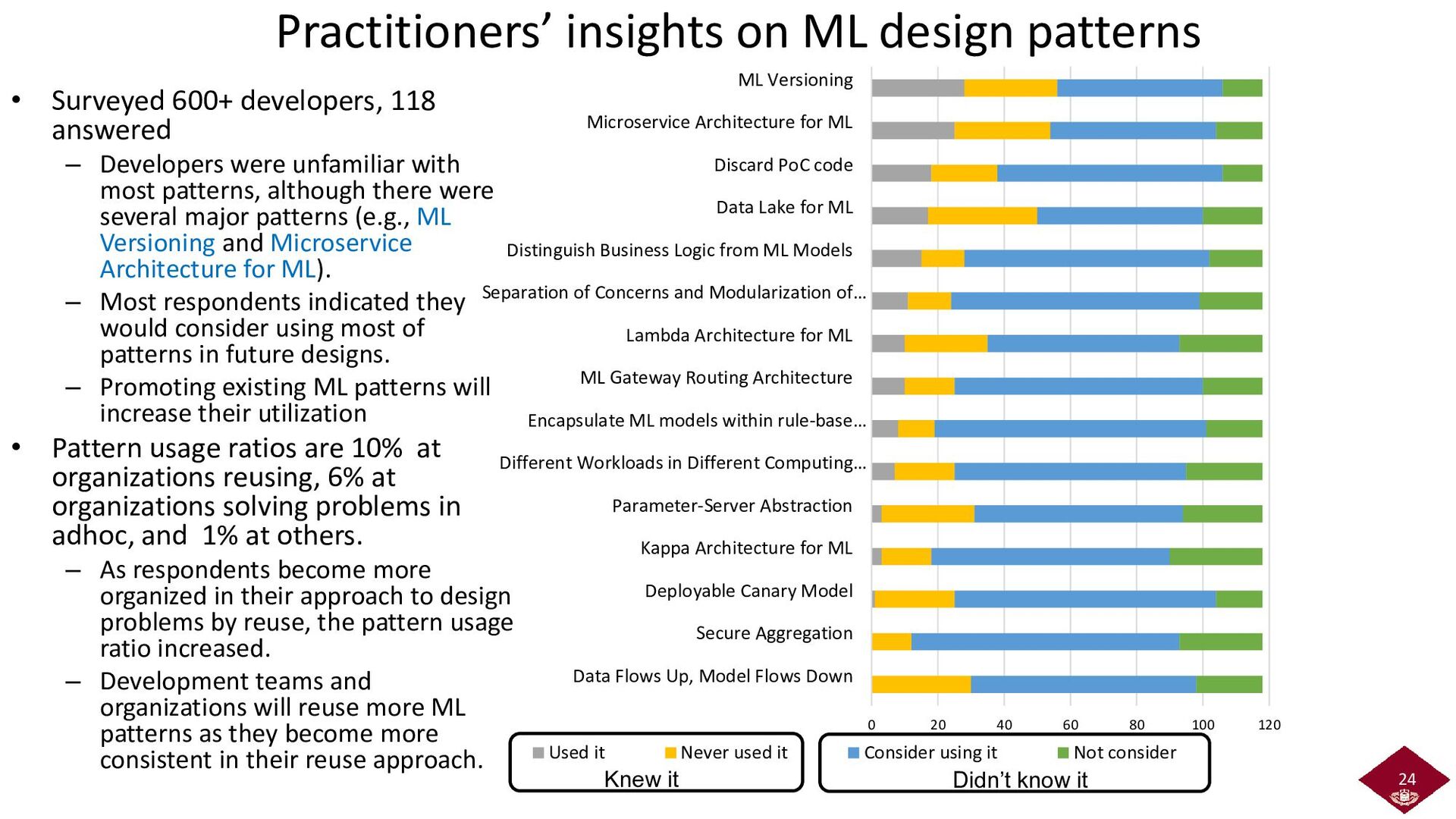

  24. Practitioners’ insights on ML design patterns • Surveyed 600+ developers,

    118 answered – Developers were unfamiliar with most patterns, although there were several major patterns (e.g., ML Versioning and Microservice Architecture for ML). – Most respondents indicated they would consider using most of patterns in future designs. – Promoting existing ML patterns will increase their utilization • Pattern usage ratios are 10% at organizations reusing, 6% at organizations solving problems in adhoc, and 1% at others. – As respondents become more organized in their approach to design problems by reuse, the pattern usage ratio increased. – Development teams and organizations will reuse more ML patterns as they become more consistent in their reuse approach. 24 Knew it Didn’t know it 0 20 40 60 80 100 120 Data Flows Up, Model Flows Down Secure Aggregation Deployable Canary Model Kappa Architecture for ML Parameter-Server Abstraction Different Workloads in Different Computing… Encapsulate ML models within rule-base… ML Gateway Routing Architecture Lambda Architecture for ML Separation of Concerns and Modularization of… Distinguish Business Logic from ML Models Data Lake for ML Discard PoC code Microservice Architecture for ML ML Versioning Used it Never used it Consider using it Not consider
  25. More primitive ML design patterns • Machine Learning Design Patterns

    (Google, V. Lakshmanan, et al. 2020) 25 Training data Trained model Prediction Training Infrastructure Input data Serving Infrastructure Data Representation patterns Problem representation patterns Model Training patterns Resilience patterns Reproducibility patterns Responsible AI patterns Machine Learning Design Patterns (V. Lakshmanan, et al. 2020)
  26. Primitive ML design patterns 26 Data Representation Problem representation Model

    Training Hashed Feature Embeddings Feature Cross Multimodal Input Reframing Multilabel Ensembles Cascade Neutral Class Rebalancing Useful Overfitting Checkpoints Transfer Learning Distribution Strategy Hyperparameter Tuning Machine Learning Design Patterns (V. Lakshmanan, et al. 2020)
  27. Primitive ML design patterns (cont.) 27 Resilience Reproducibility Responsible AI

    Stateless Serving Function Batch Serving Continued Model Evaluation Two-Phase Predictions Keyed Predictions Transform Repeatable Splitting Bridged Schema Windowed Inference Workflow Pipeline Feature Store Model Versioning Heuristic Benchmark Explainable Predictions Fairness Lens Machine Learning Design Patterns (V. Lakshmanan, et al. 2020)
  28. Summary of this part • ML needs patterns! • Identify

    ML patterns addressing specific quality attributes that are not handled well now – Security, usability, and explainability • Future works – Detection of ML patterns – Investigate the impact of patterns on quality attributes of systems – Analyze relationships among patterns including related ones towards a pattern language – Integration into framework to handle from requirements ton implementations and testing/debugging 28 Jati H. Husen, Hnin Thandar Tun, Nobukazu Yoshioka, Hironori Washizaki and Yoshiaki Fukazawa, “Goal-Oriented Machine Learning-Based Component Development Process,” ACM/IEEE 24th International Conference on Model Driven Engineering Languages and Systems (MODELS), Poster Hironori Washizaki, Foutse Khomh, Yann-Gael Gueheneuc, Hironori Takeuchi, Naotake Natori, Takuo Doi, Satoshi Okuda, “Software Engineering Design Patterns for Machine Learning Applications,” IEEE Computer, Vol. 55, No. 3, pp. 30-39, 2022.
  29. Agenda • SWEBOK Evolution • Machine Learning Software Engineering •

    Machine Learning Design Patterns • Multi-view ML system modeling 29
  30. Multi-view modeling of ML systems with patterns • Iterative, compliance

    with standards, traceable and consistent 30 Goal ML Ops Safety Architecture Value • AI Project Canvas KAOS Goal Model ML Canvas STAMP/STPA Safety Case Architecture Diagram Jati H. Husen, Hironori Washizaki, Hnin Thandar Tun, Nobukazu Yoshioka and Yoshiaki Fukazawa, “Modeling Tool for Managing Canvas-Based Models Traceability in ML System Development,” ACM/IEEE 25th International Conference on Model Driven Engineering Languages and Systems (MODELS 2022) Poster
  31. Consistency based on metamodel • Goal-oriented approach to align and

    rationalize multiple models and patterns with higher-level development goals 31 Jati H. Husen, Hironori Washizaki, Hnin Thandar Tun, Nobukazu Yoshioka and Yoshiaki Fukazawa, “Modeling Tool for Managing Canvas-Based Models Traceability in ML System Development,” ACM/IEEE 25th International Conference on Model Driven Engineering Languages and Systems (MODELS 2022) Poster ML Design Patterns
  32. 32 Traceability Function ML Canvas KAOS goal model Jati H.

    Husen, Hironori Washizaki, Hnin Thandar Tun, Nobukazu Yoshioka and Yoshiaki Fukazawa, “Modeling Tool for Managing Canvas-Based Models Traceability in ML System Development,” ACM/IEEE 25th International Conference on Model Driven Engineering Languages and Systems (MODELS 2022) Poster
  33. Conclusion • Software engineering and SWEBOK evolution from V3 to

    V4 – Modern software engineering, practice change and update, BOK grows and recently developed areas – Architecture, operations, security, agile, AI/IoT – Public review of V4 draft is ongoing! • Machine Learning Software Engineering – Paradigm shifts in “new” software engineering – ML learning SE as induction – Traditional and ML-specific practices – SE techniques particularly useful for ML quality assurance: Metamorphic testing, neural network model debugging, multi-view (goal) modeling • Machine Learning Design Patterns – ML software engineering needs patterns as common language – Developers were unfamiliar with most ML patterns, although there were several major patterns used by 20+% of the respondents. – Promoting existing ML patterns will increase their utilization 33
