Designing for Change: ​ Extensibility points in practice​ ​

Transcript

1. Designing for Change: Extensibility points in practice SymfonyCon Vienna 2024
2. $ whoami Adam Wójs • Director of Engineering @ Ibexa • > 14 years of experience • Working with PHP ecosystem /adamwojs /adamwojs /adamwojs
3. Who is Ibexa ?

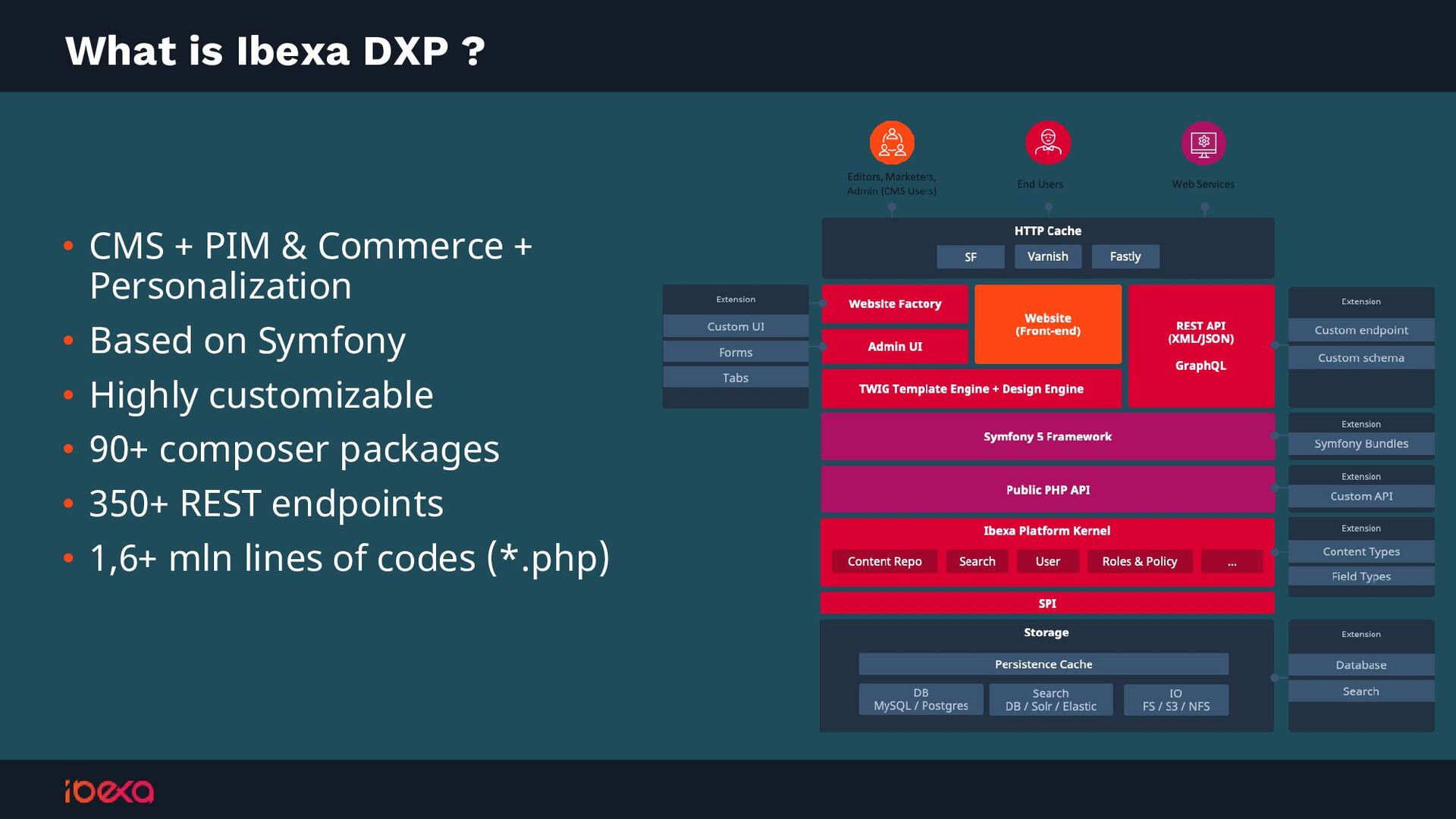

4. What is Ibexa DXP ? • CMS + PIM & Commerce + Personalization • Based on Symfony • Highly customizable • 90+ composer packages • 350+ REST endpoints • 1,6+ mln lines of codes (*.php)

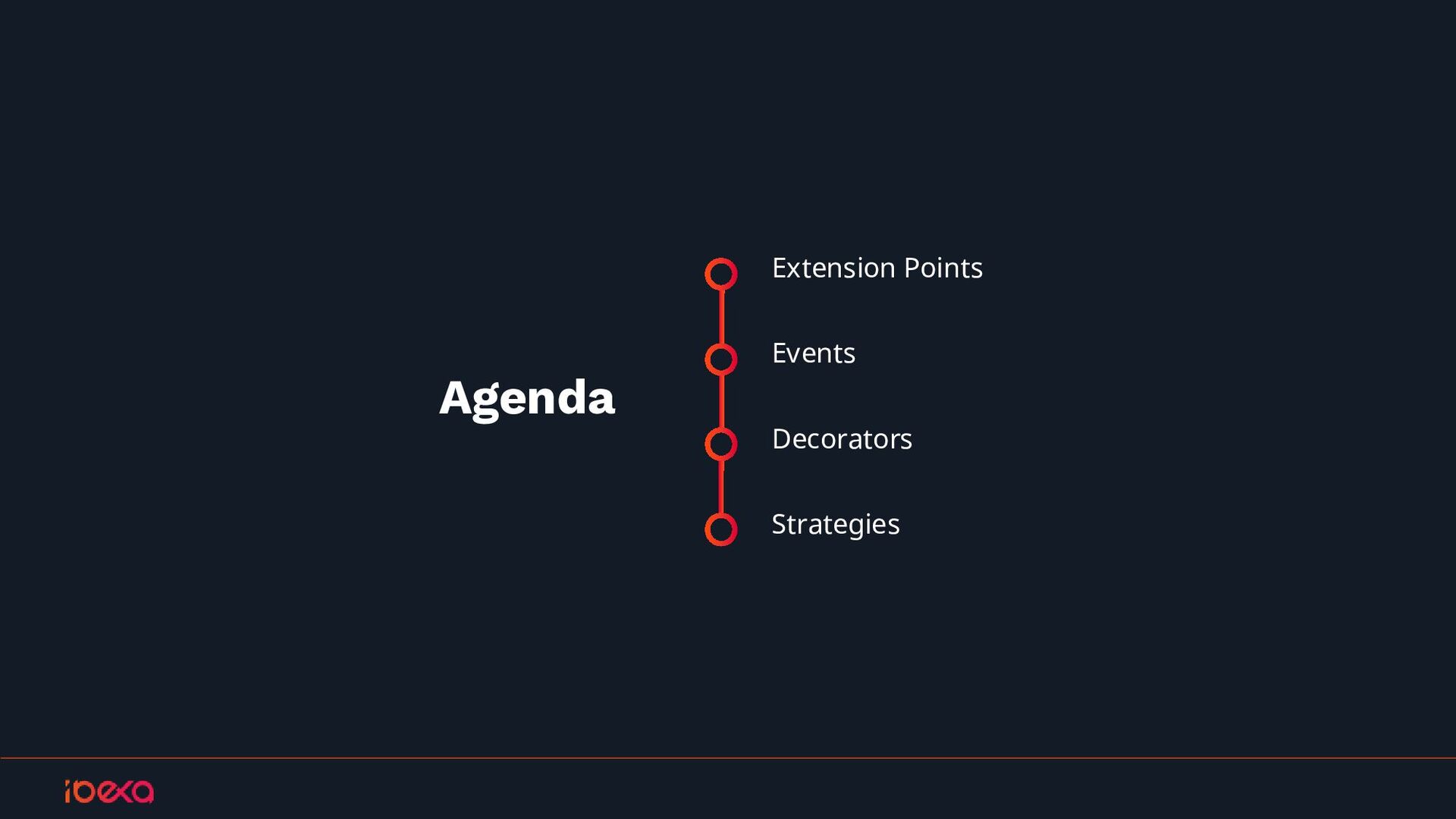

5. Agenda Extension Points Events Decorators Strategies
6. Extension points

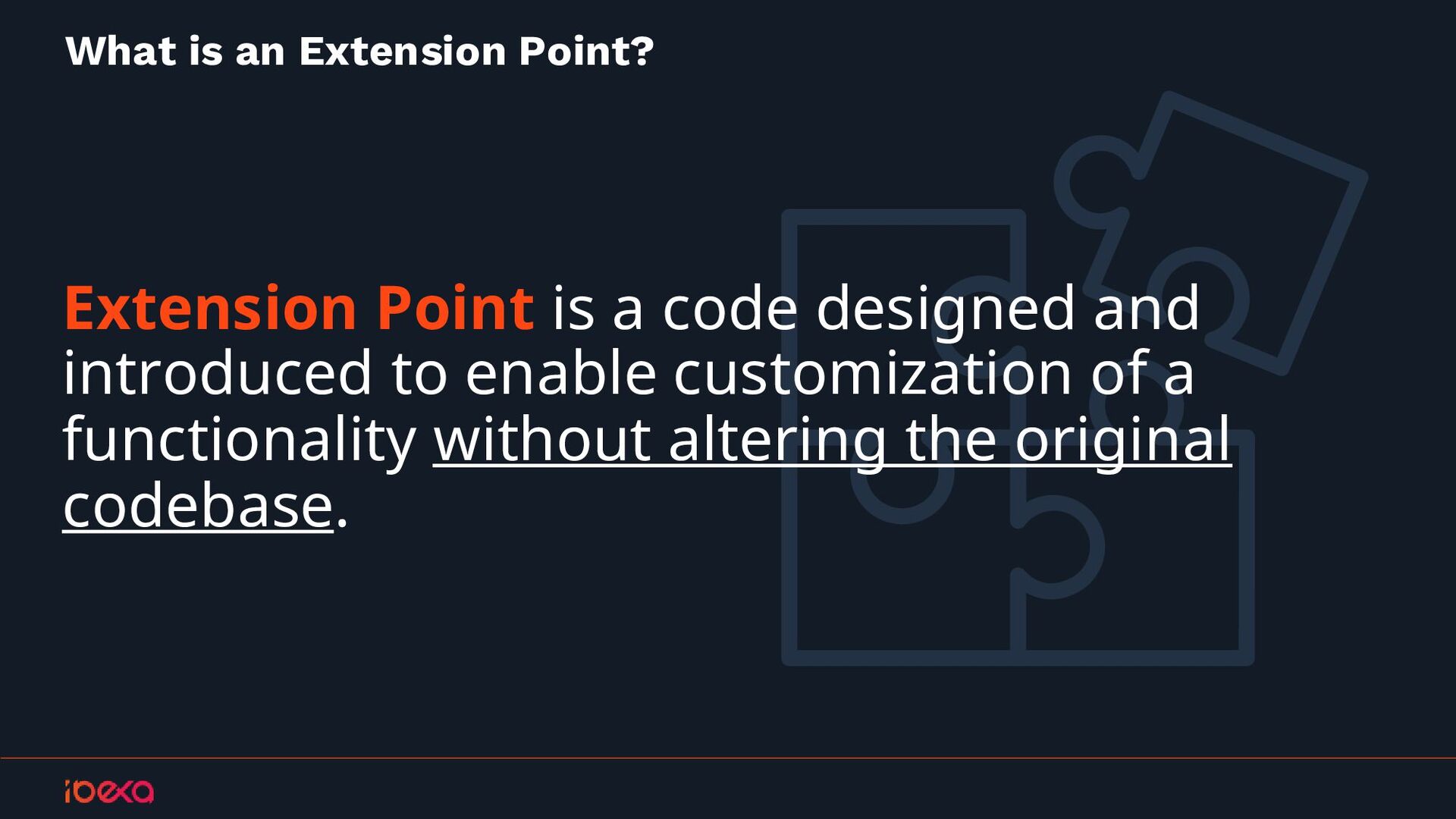

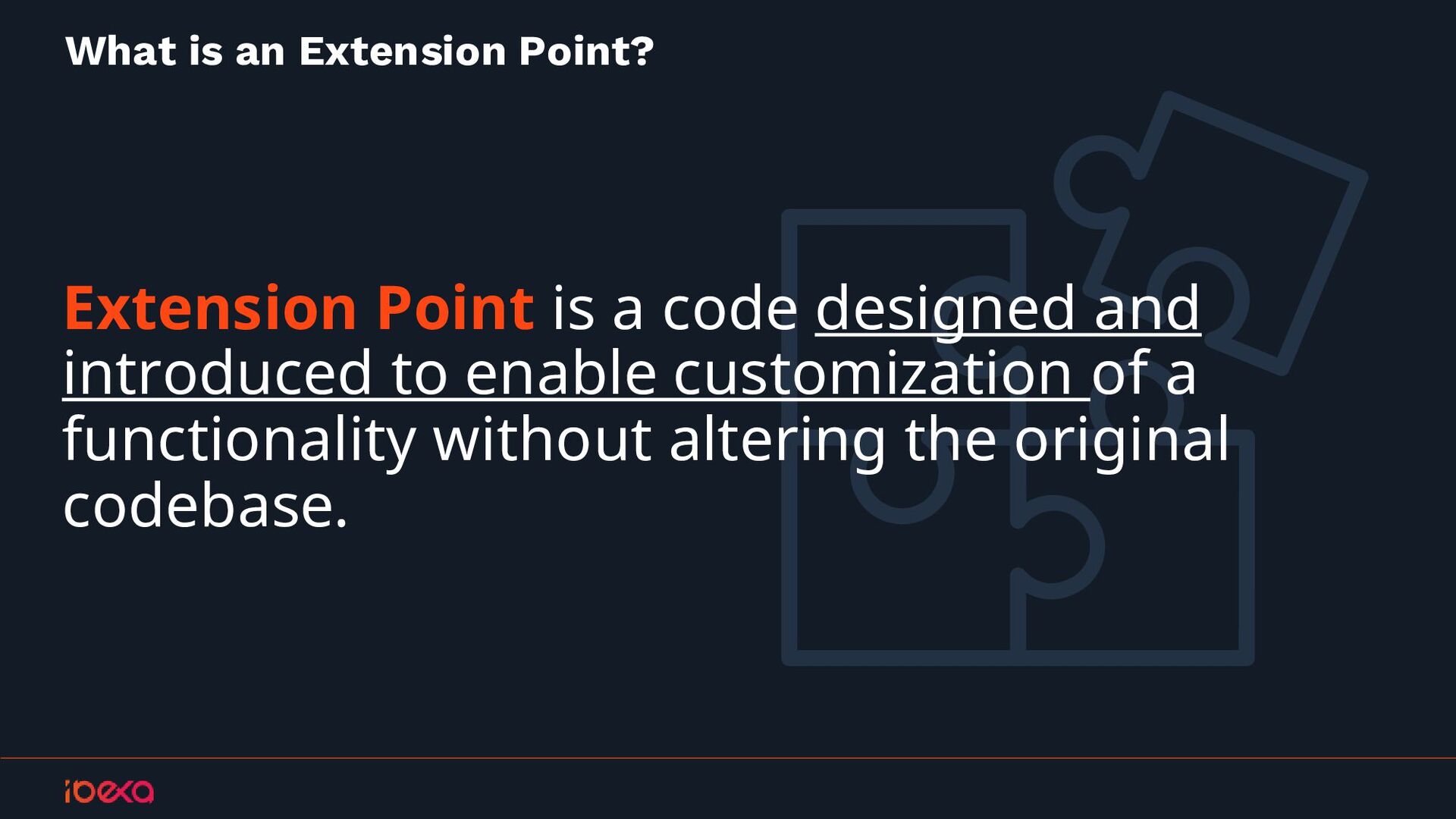

7. What is an Extension Point? Extension Point is a code designed and introduced to enable customization of a functionality without altering the original codebase.
8. What is an Extension Point? Extension Point is a code designed and introduced to enable customization of a functionality without altering the original codebase.
9. What is an Extension Point? Extension Point is a code designed and introduced to enable customization of a functionality without altering the original codebase.
10. How to provide extensibility points ?
11. Events

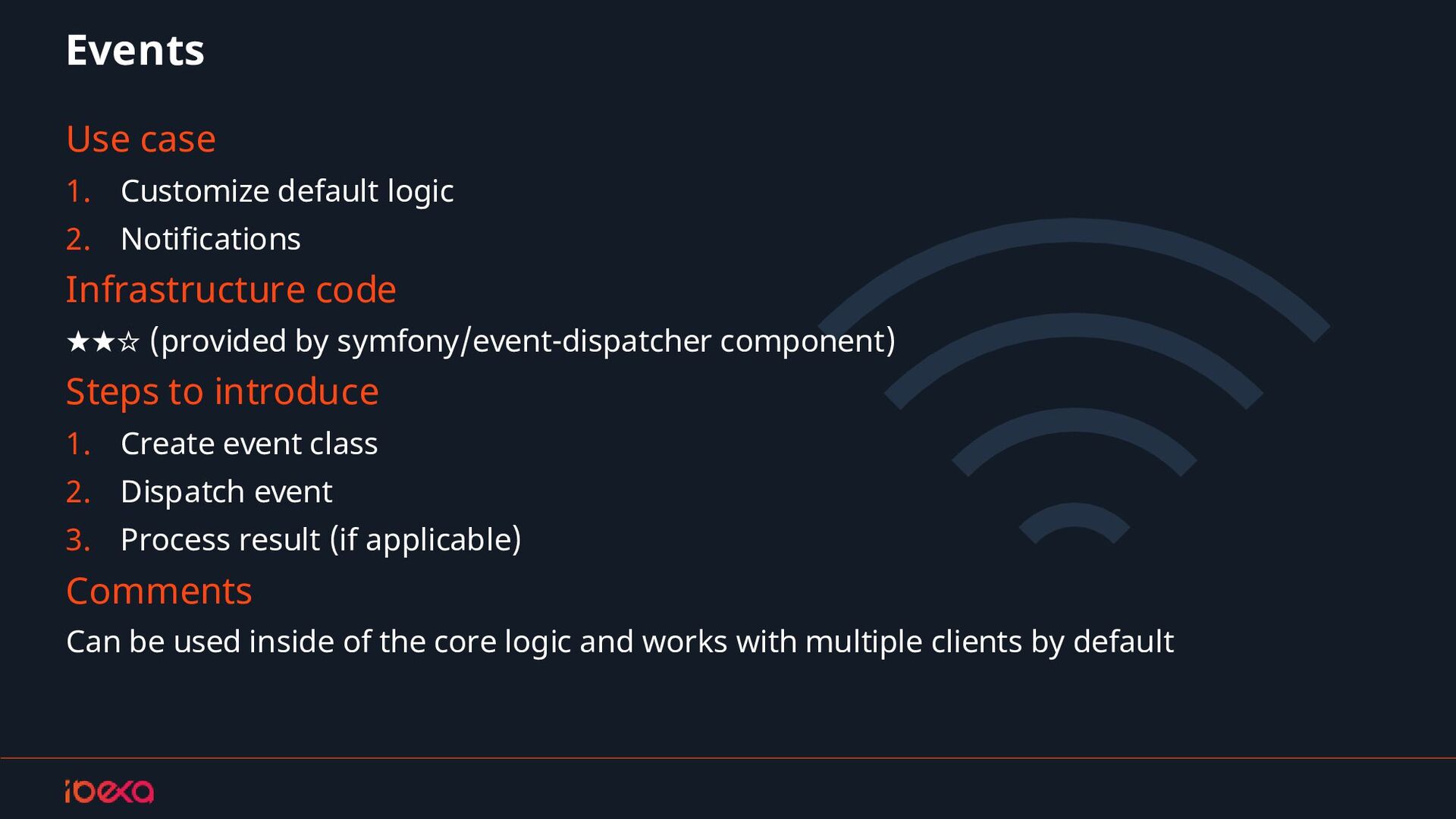

12. Events Use case 1. Customize default logic 2. Notifications Infrastructure code ★★☆ (provided by symfony/event-dispatcher component) Steps to introduce 1. Create event class 2. Dispatch event 3. Process result (if applicable) Comments Can be used inside of the core logic and works with multiple clients by default

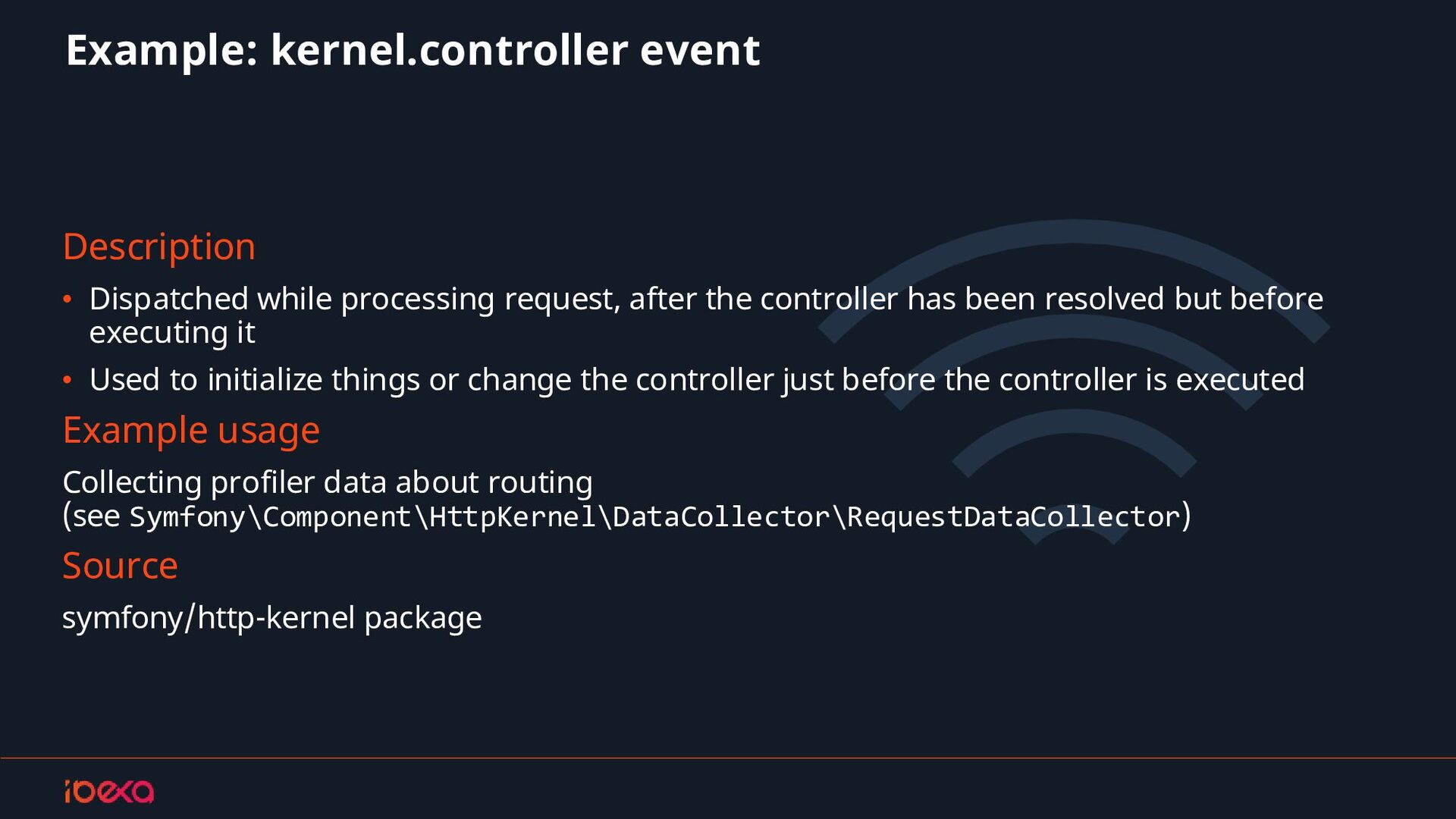

13. Example: kernel.controller event Description • Dispatched while processing request, after the controller has been resolved but before executing it • Used to initialize things or change the controller just before the controller is executed Example usage Collecting profiler data about routing (see Symfony\Component\HttpKernel\DataCollector\RequestDataCollector) Source symfony/http-kernel package

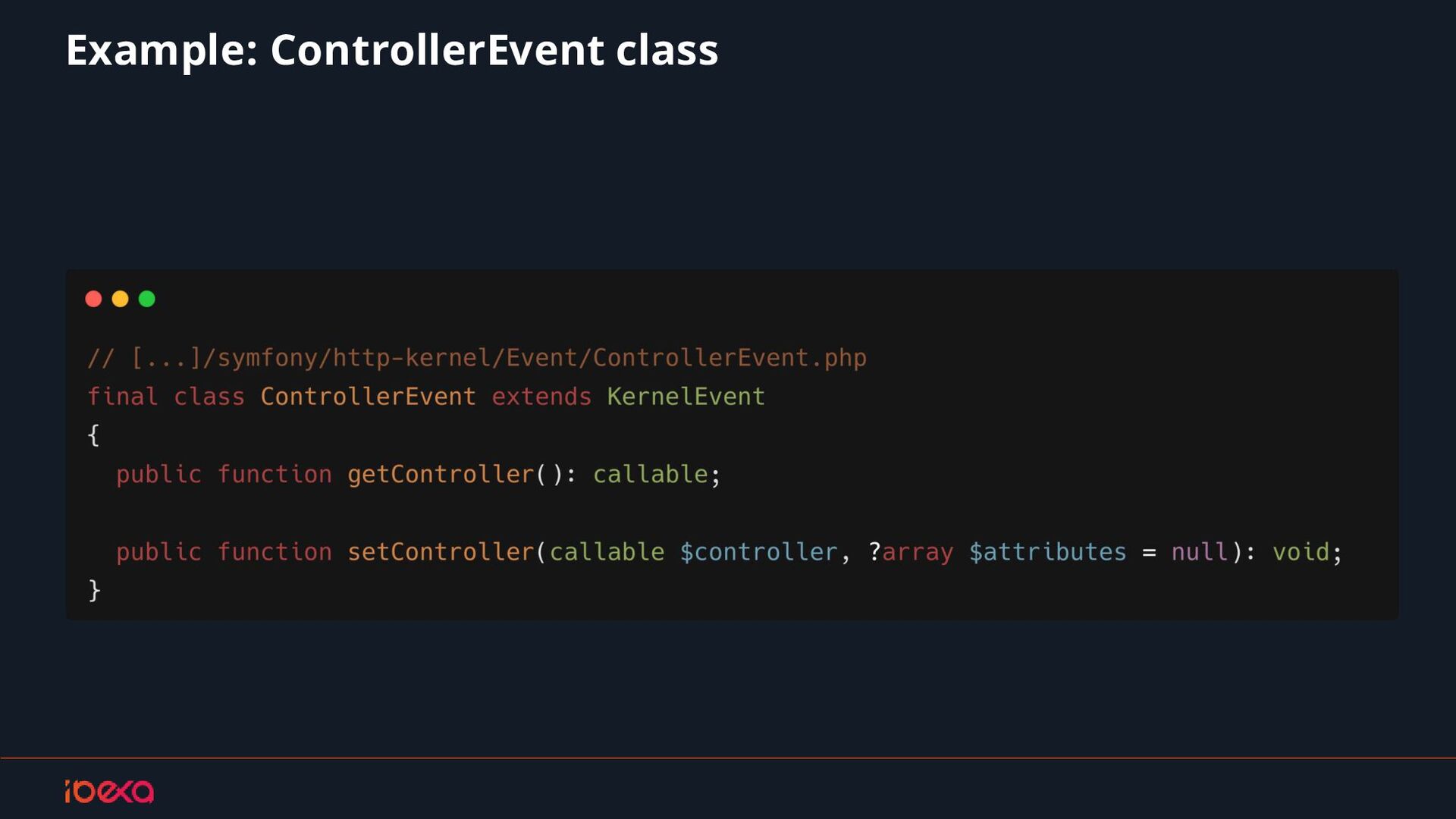

14. Example: ControllerEvent class

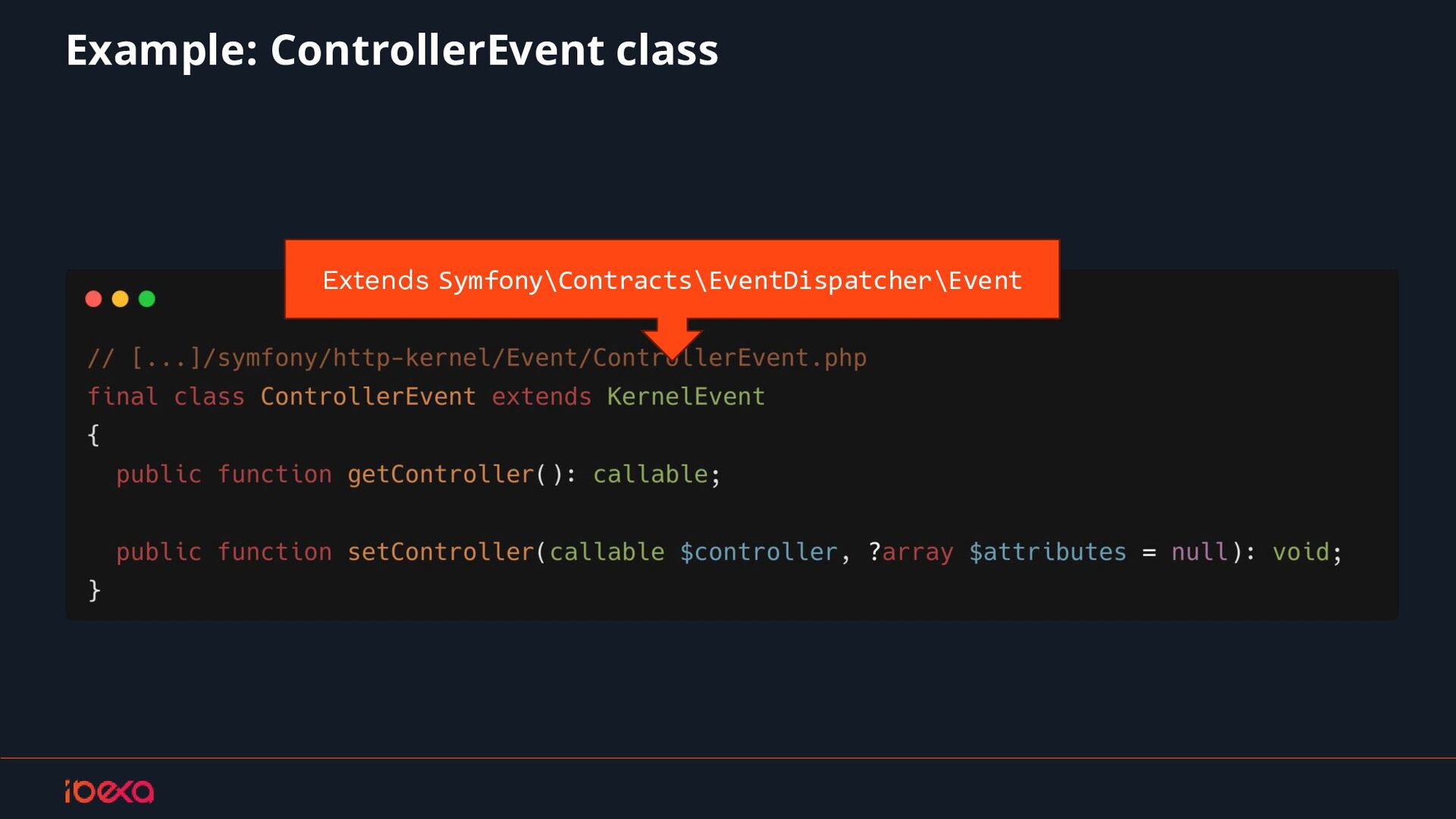

15. Example: ControllerEvent class Extends Symfony\Contracts\EventDispatcher\Event

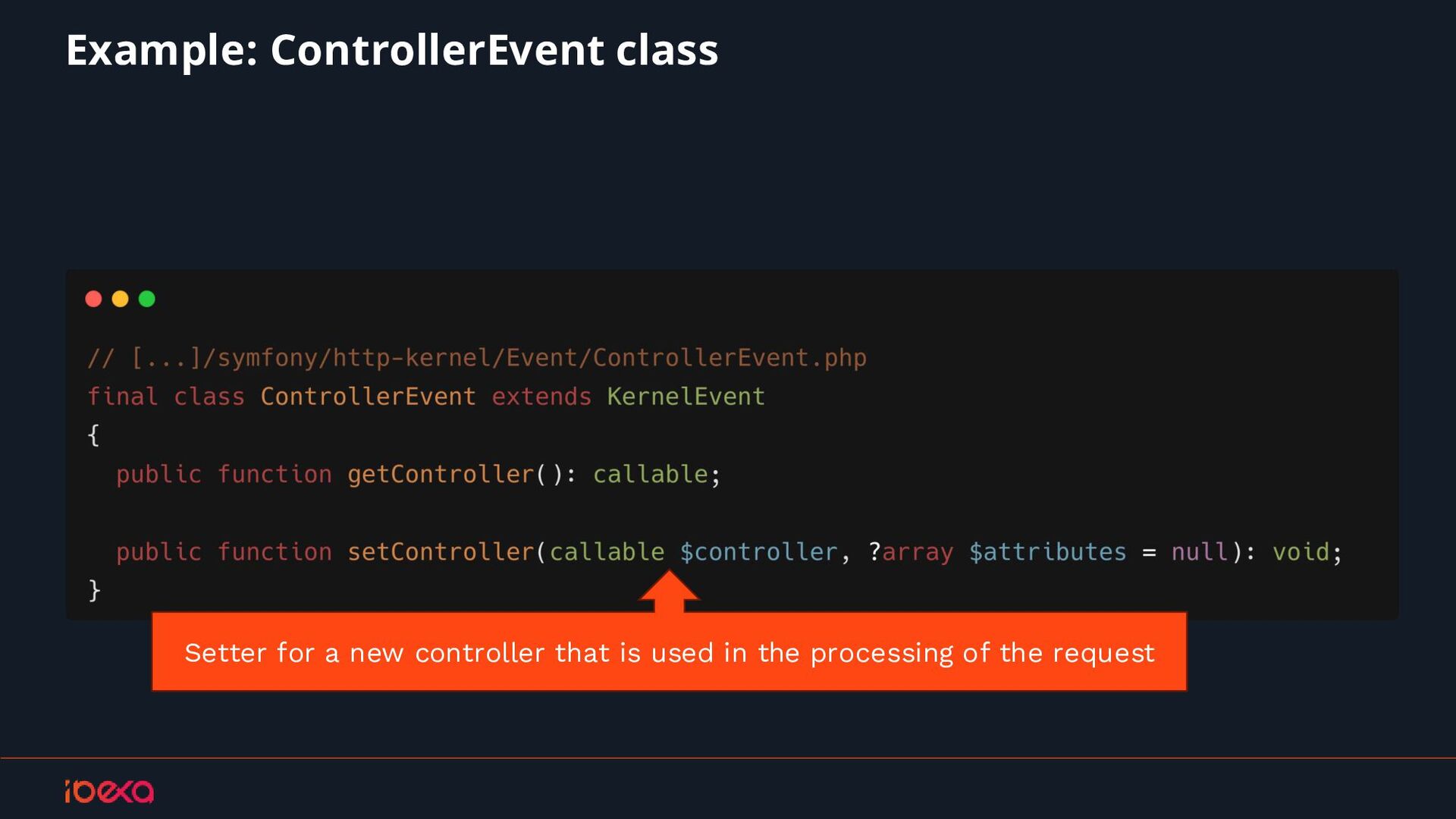

16. Example: ControllerEvent class Setter for a new controller that is used in the processing of the request

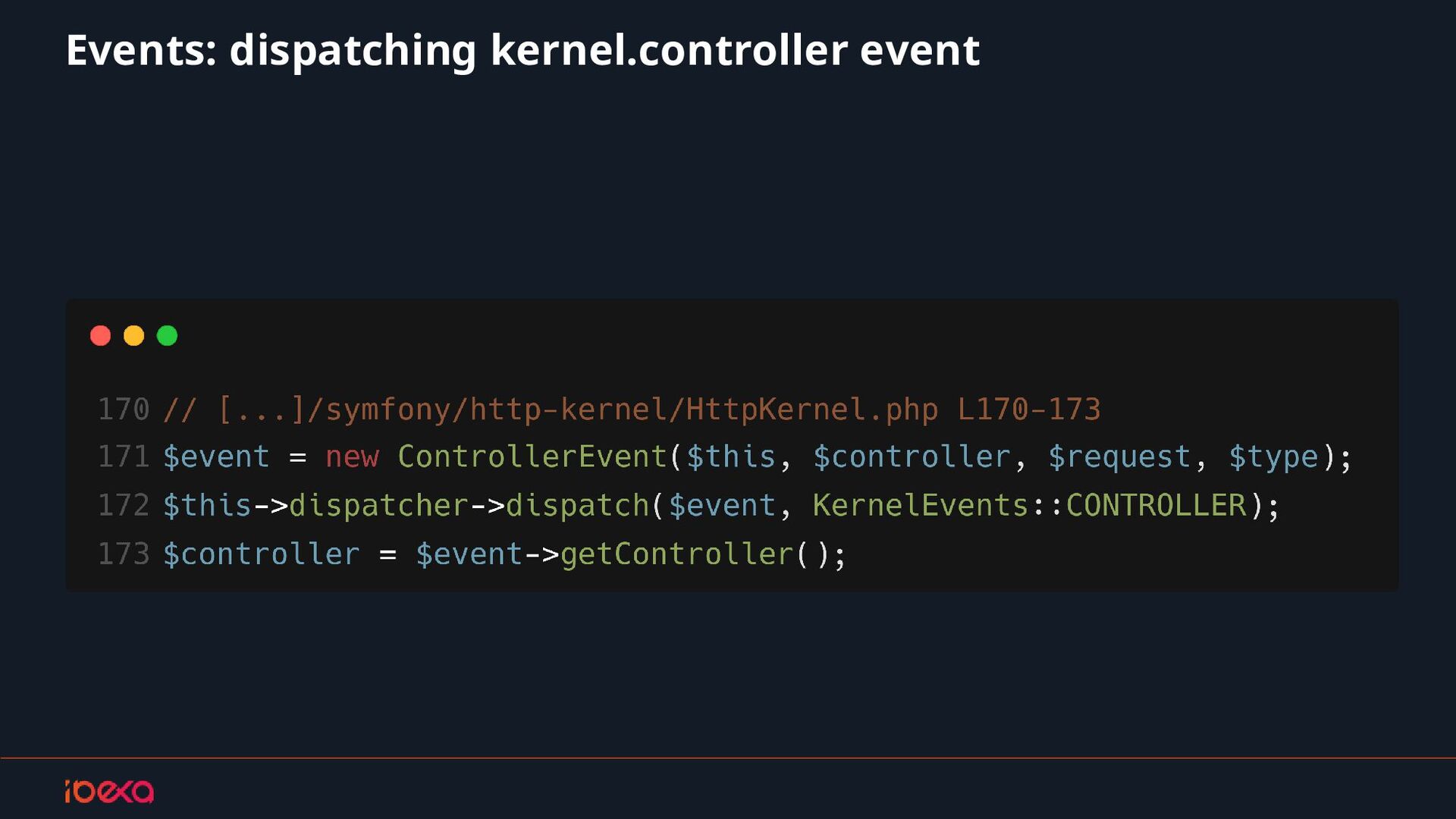

17. Events: dispatching kernel.controller event

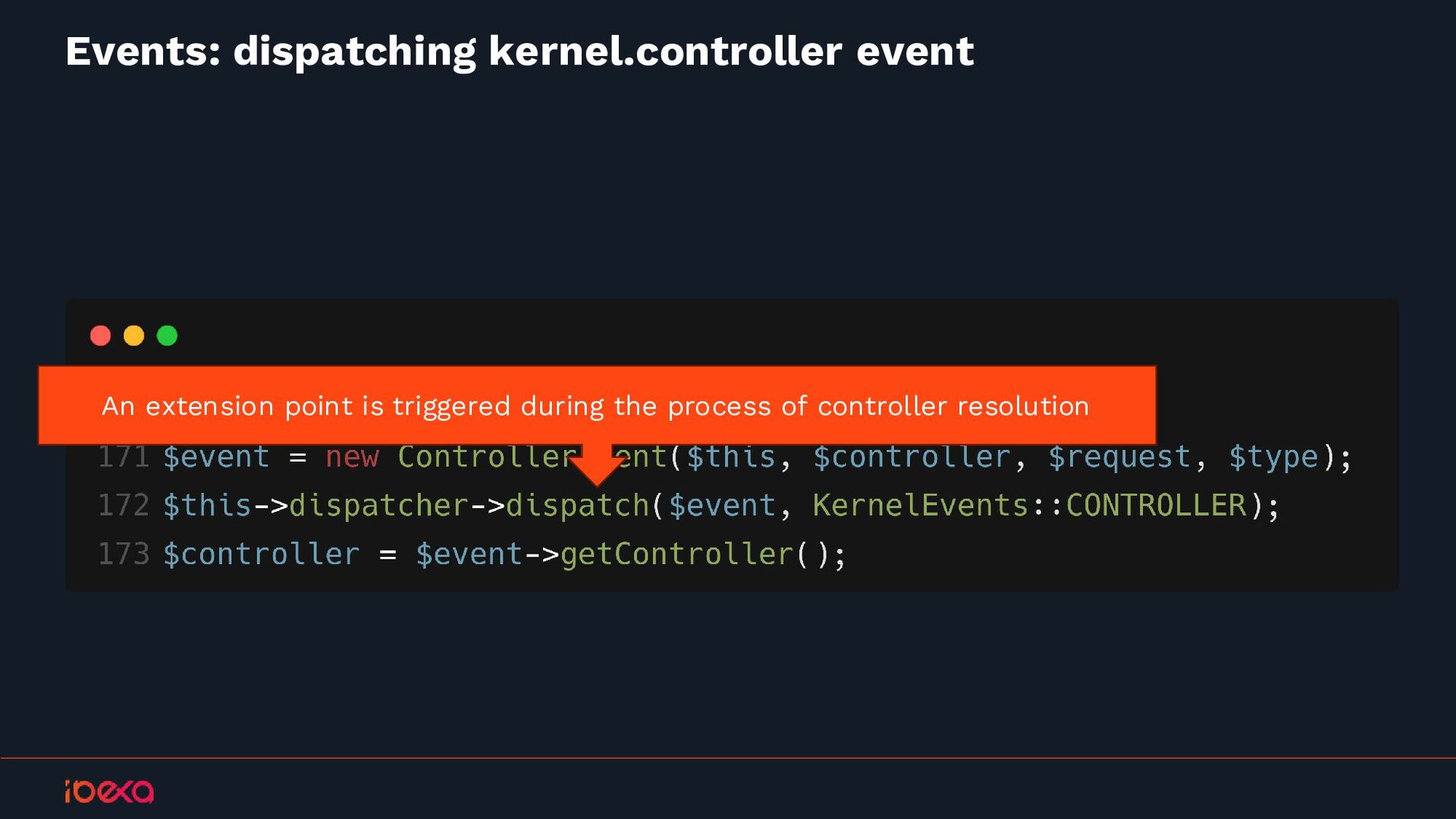

18. Events: dispatching kernel.controller event An extension point is triggered during the process of controller resolution

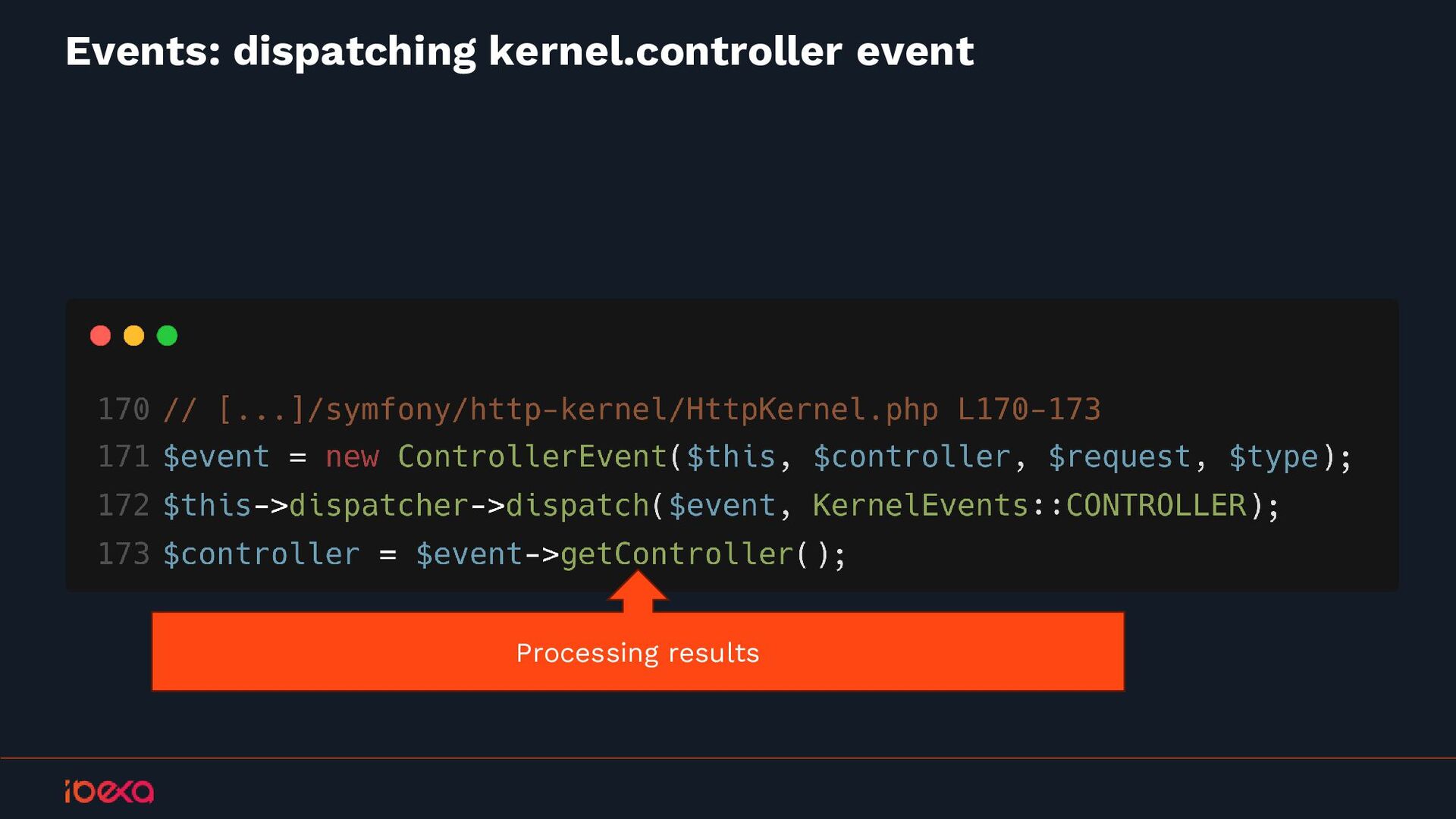

19. Events: dispatching kernel.controller event Processing results

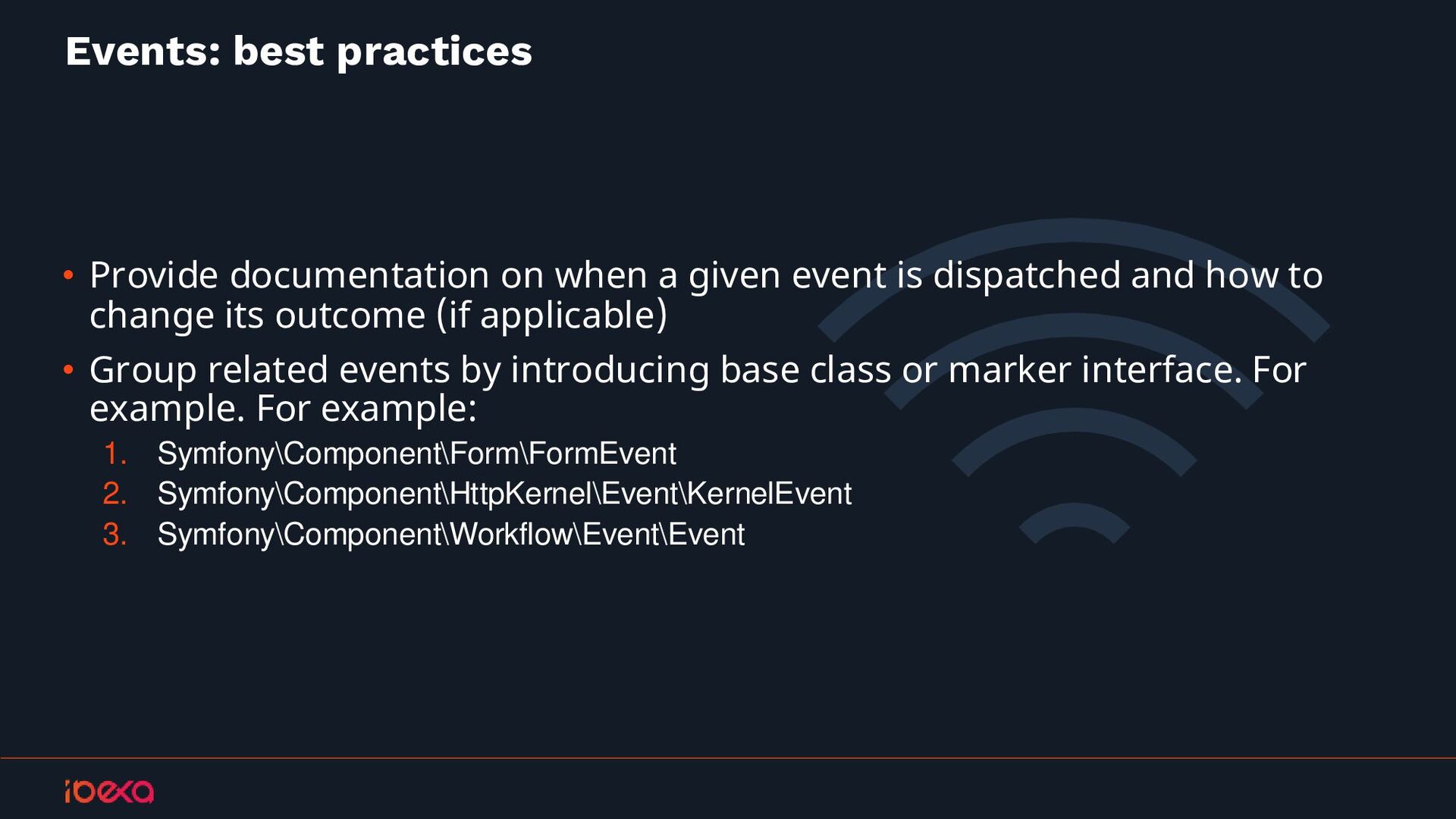

20. Events: best practices • Provide documentation on when a given event is dispatched and how to change its outcome (if applicable) • Group related events by introducing base class or marker interface. For example. For example: 1. Symfony\Component\Form\FormEvent 2. Symfony\Component\HttpKernel\Event\KernelEvent 3. Symfony\Component\Workflow\Event\Event
21. Decorators

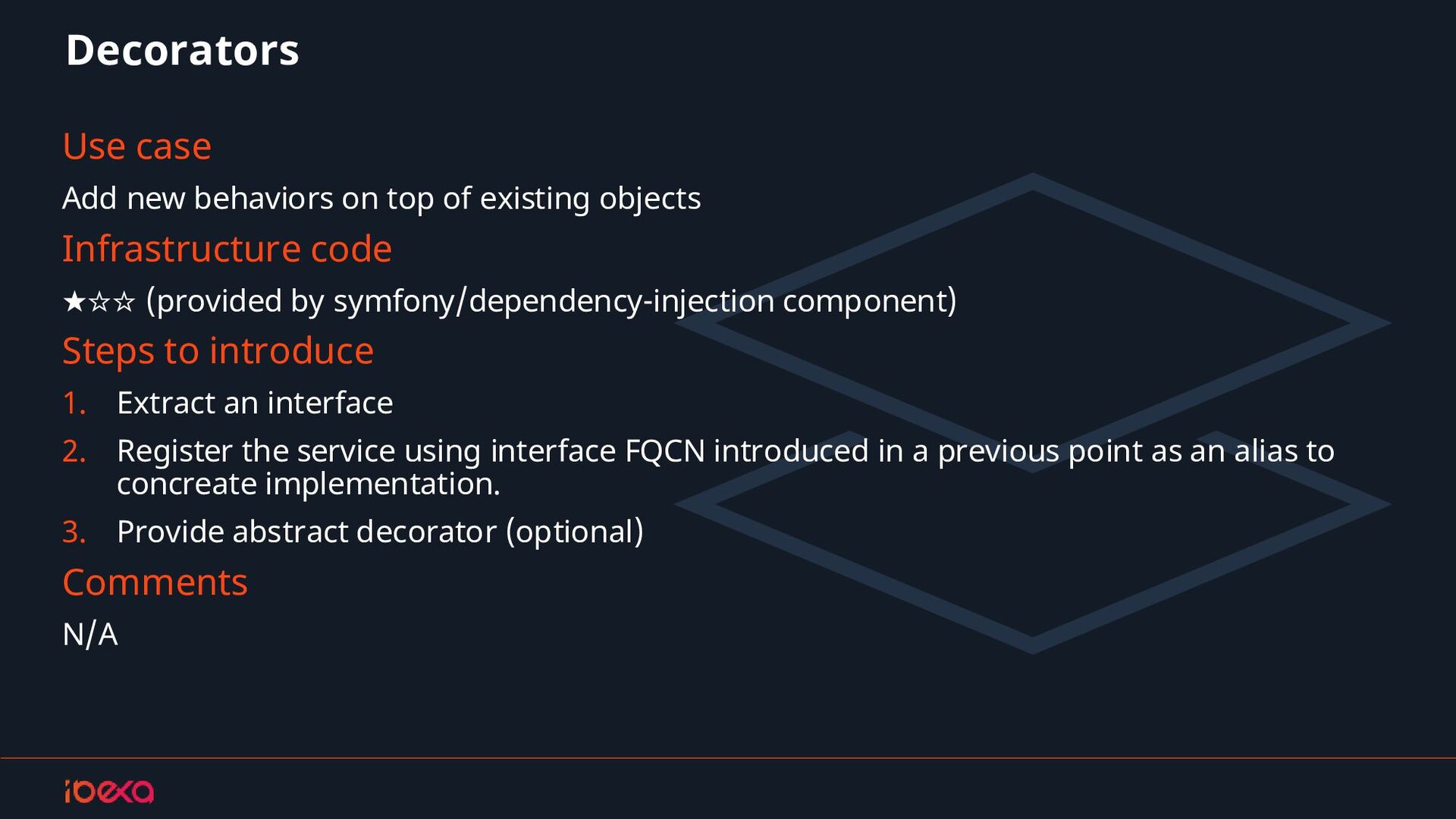

22. Decorators Use case Add new behaviors on top of existing objects Infrastructure code ★☆☆ (provided by symfony/dependency-injection component) Steps to introduce 1. Extract an interface 2. Register the service using interface FQCN introduced in a previous point as an alias to concreate implementation. 3. Provide abstract decorator (optional) Comments N/A

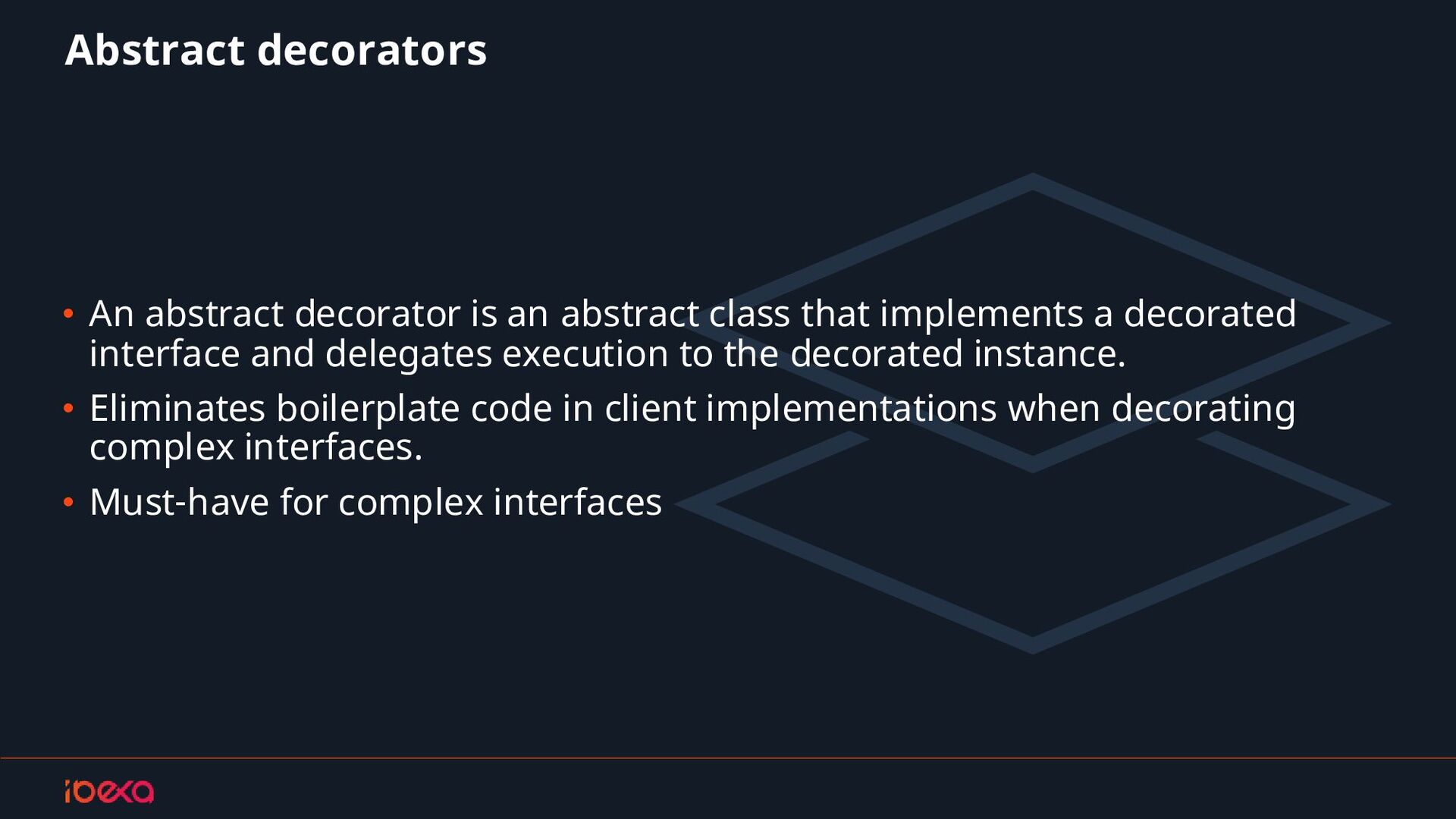

23. Abstract decorators • An abstract decorator is an abstract class that implements a decorated interface and delegates execution to the decorated instance. • Eliminates boilerplate code in client implementations when decorating complex interfaces. • Must-have for complex interfaces

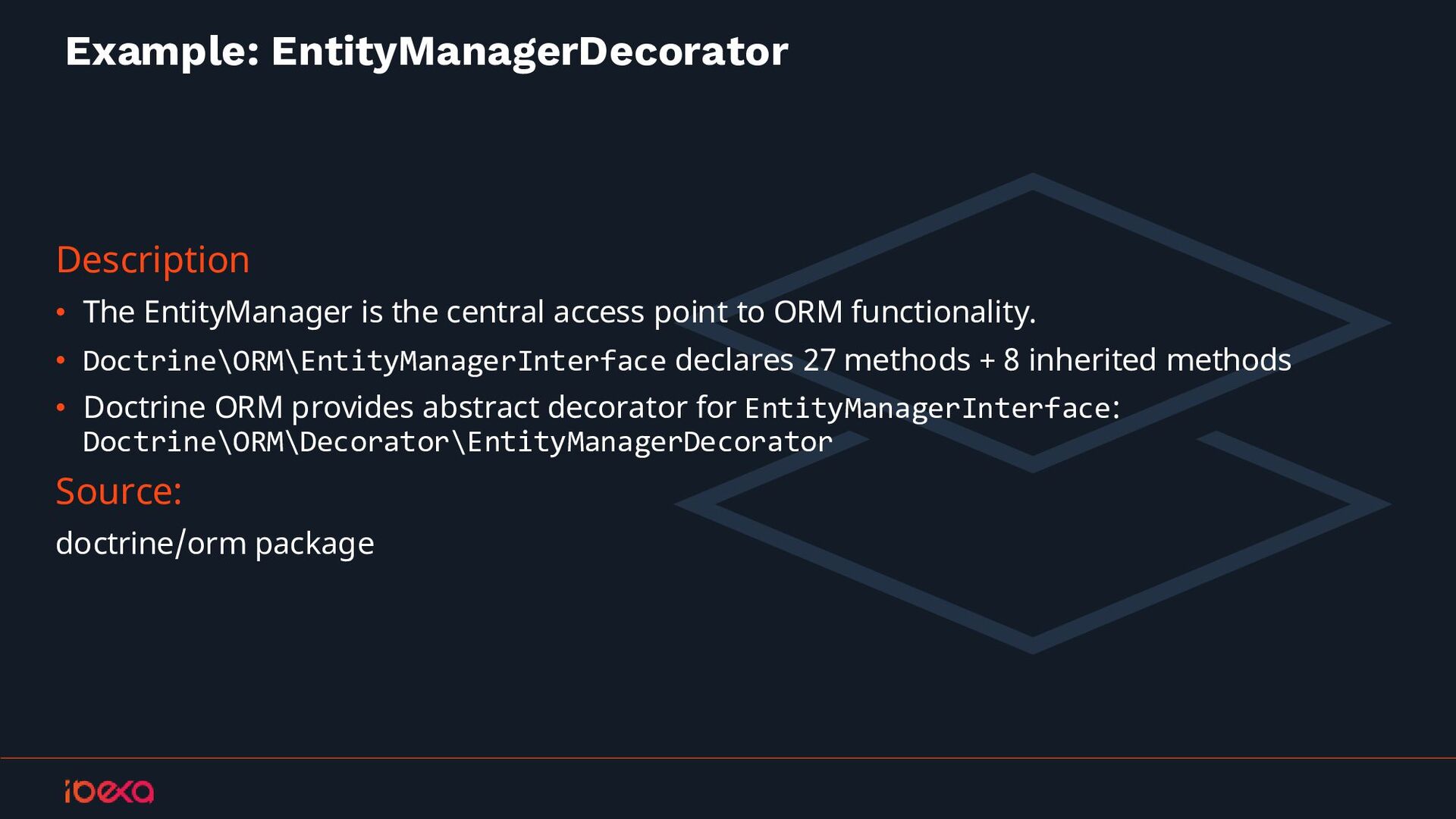

24. Example: EntityManagerDecorator Description • The EntityManager is the central access point to ORM functionality. • Doctrine\ORM\EntityManagerInterface declares 27 methods + 8 inherited methods • Doctrine ORM provides abstract decorator for EntityManagerInterface: Doctrine\ORM\Decorator\EntityManagerDecorator Source: doctrine/orm package

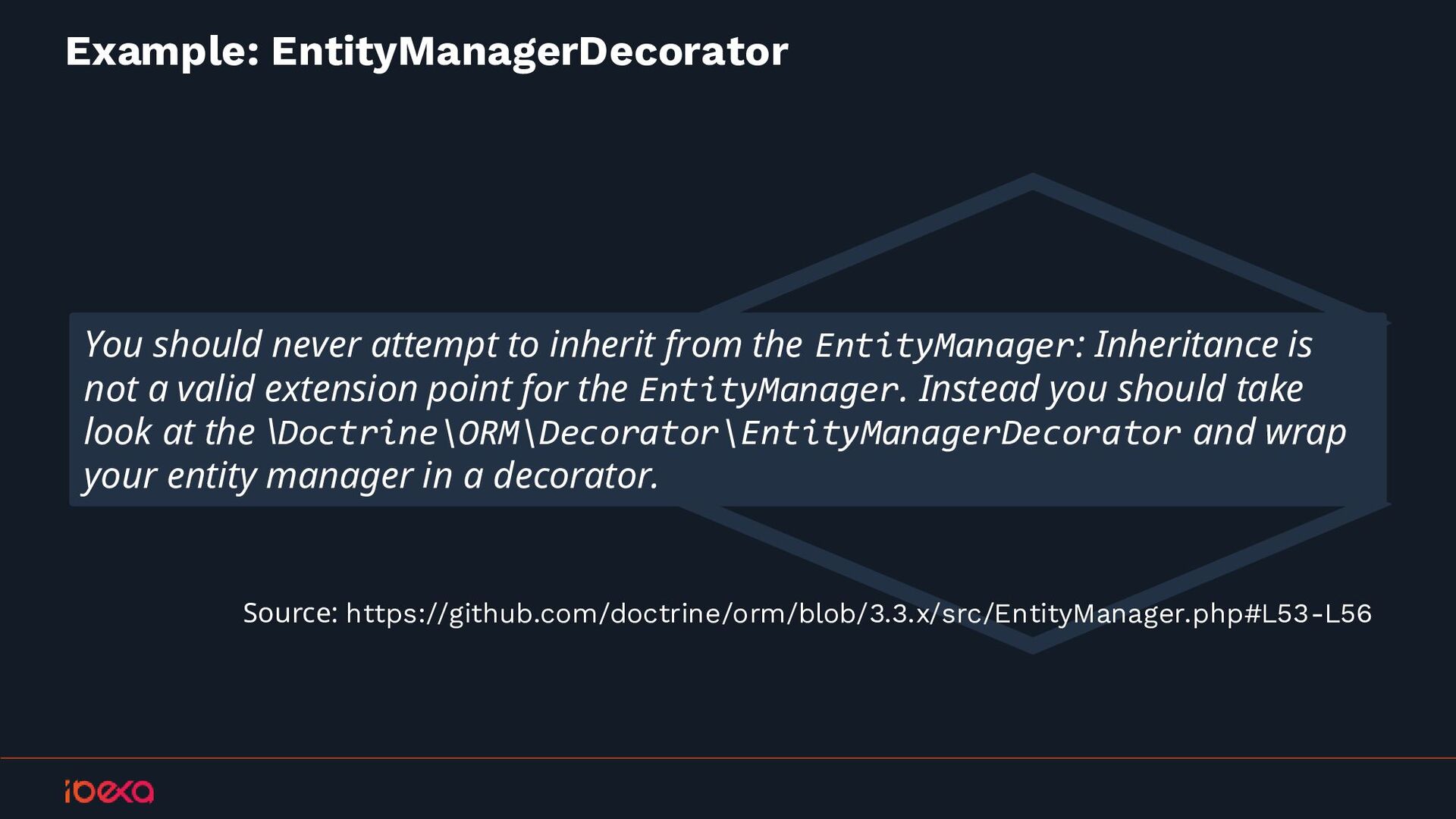

25. Example: EntityManagerDecorator You should never attempt to inherit from the EntityManager: Inheritance is not a valid extension point for the EntityManager. Instead you should take look at the \Doctrine\ORM\Decorator\EntityManagerDecorator and wrap your entity manager in a decorator. Source: https://github.com/doctrine/orm/blob/3.3.x/src/EntityManager.php#L53-L56

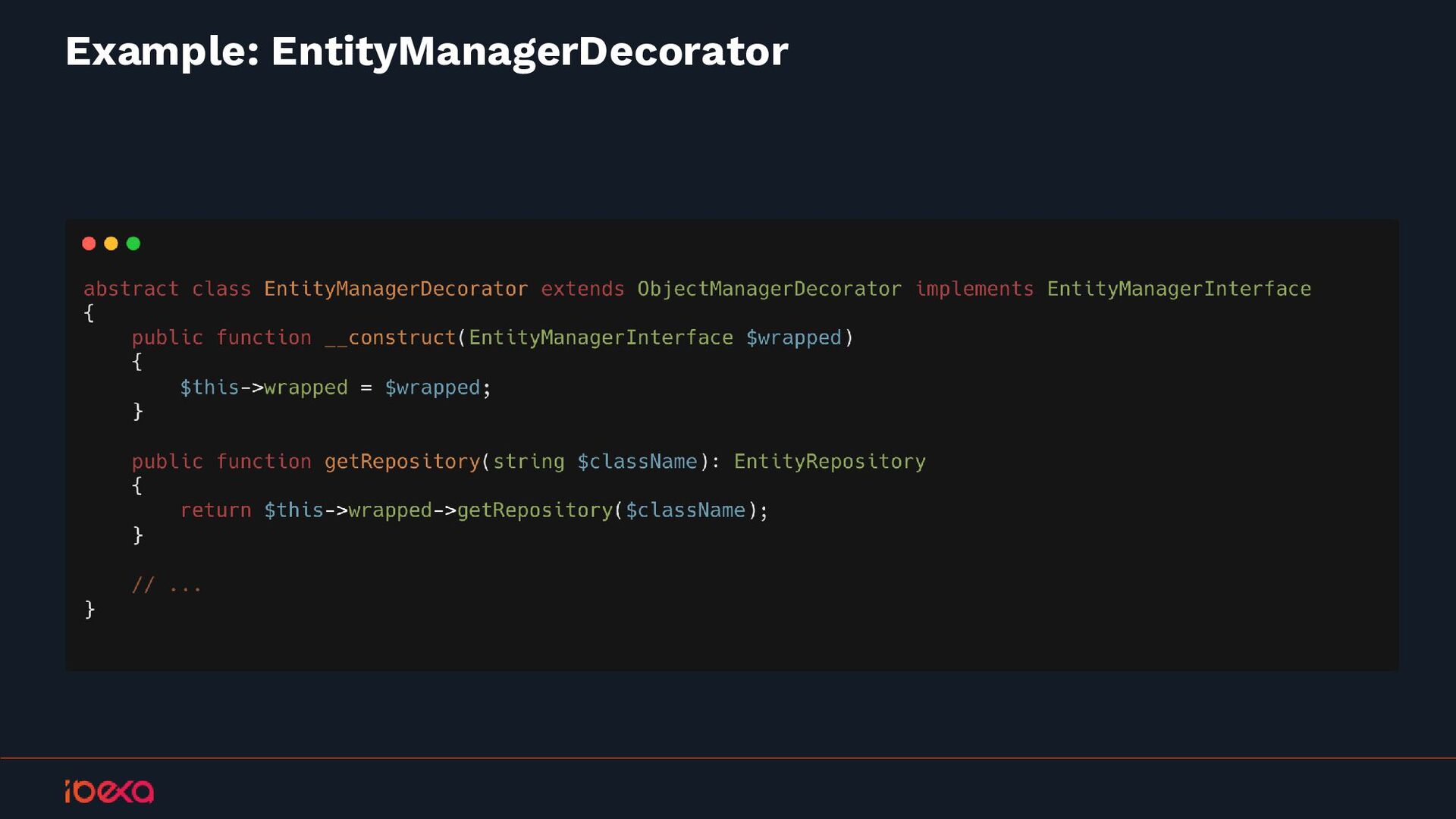

26. Example: EntityManagerDecorator

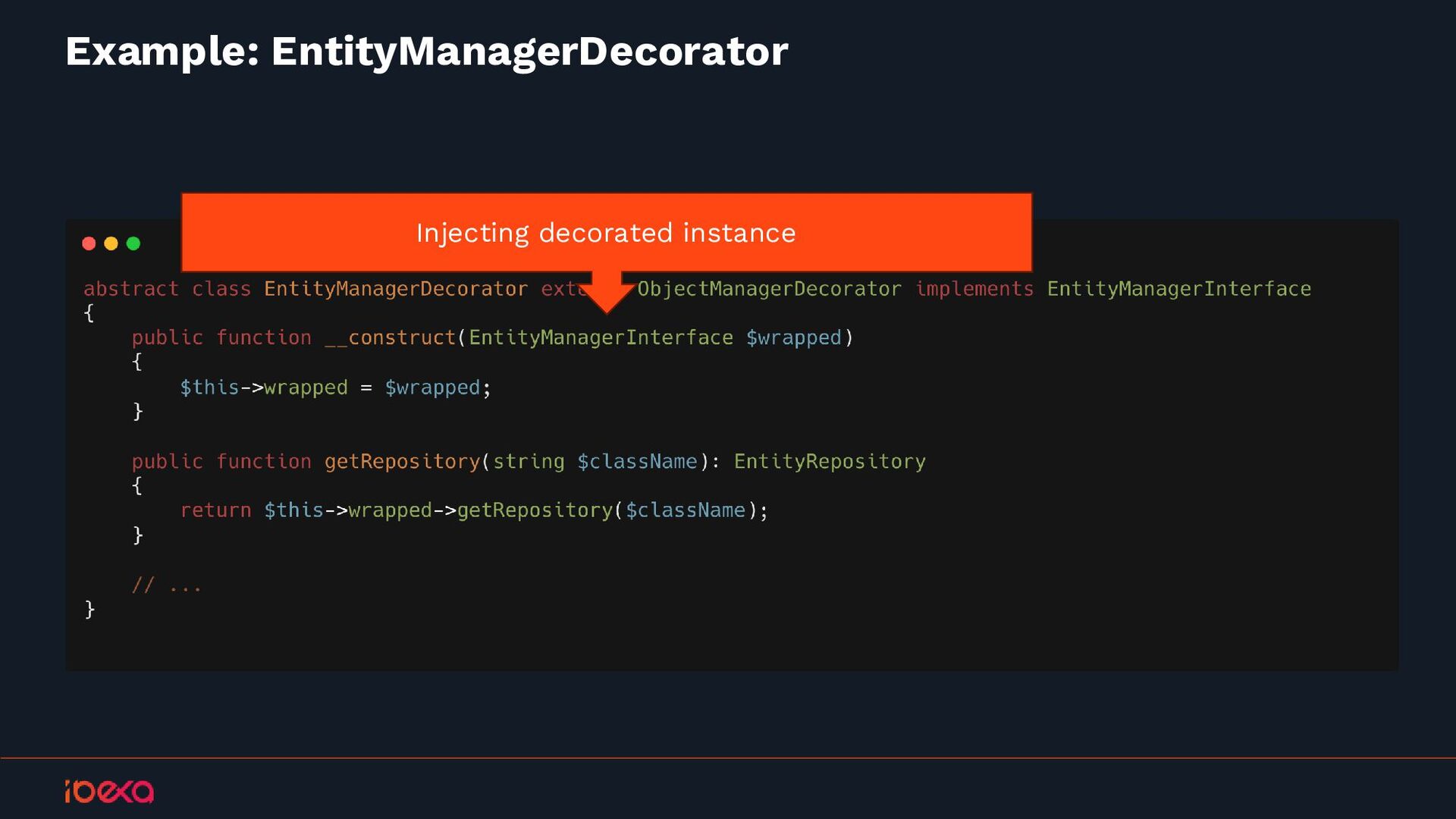

27. Example: EntityManagerDecorator Injecting decorated instance

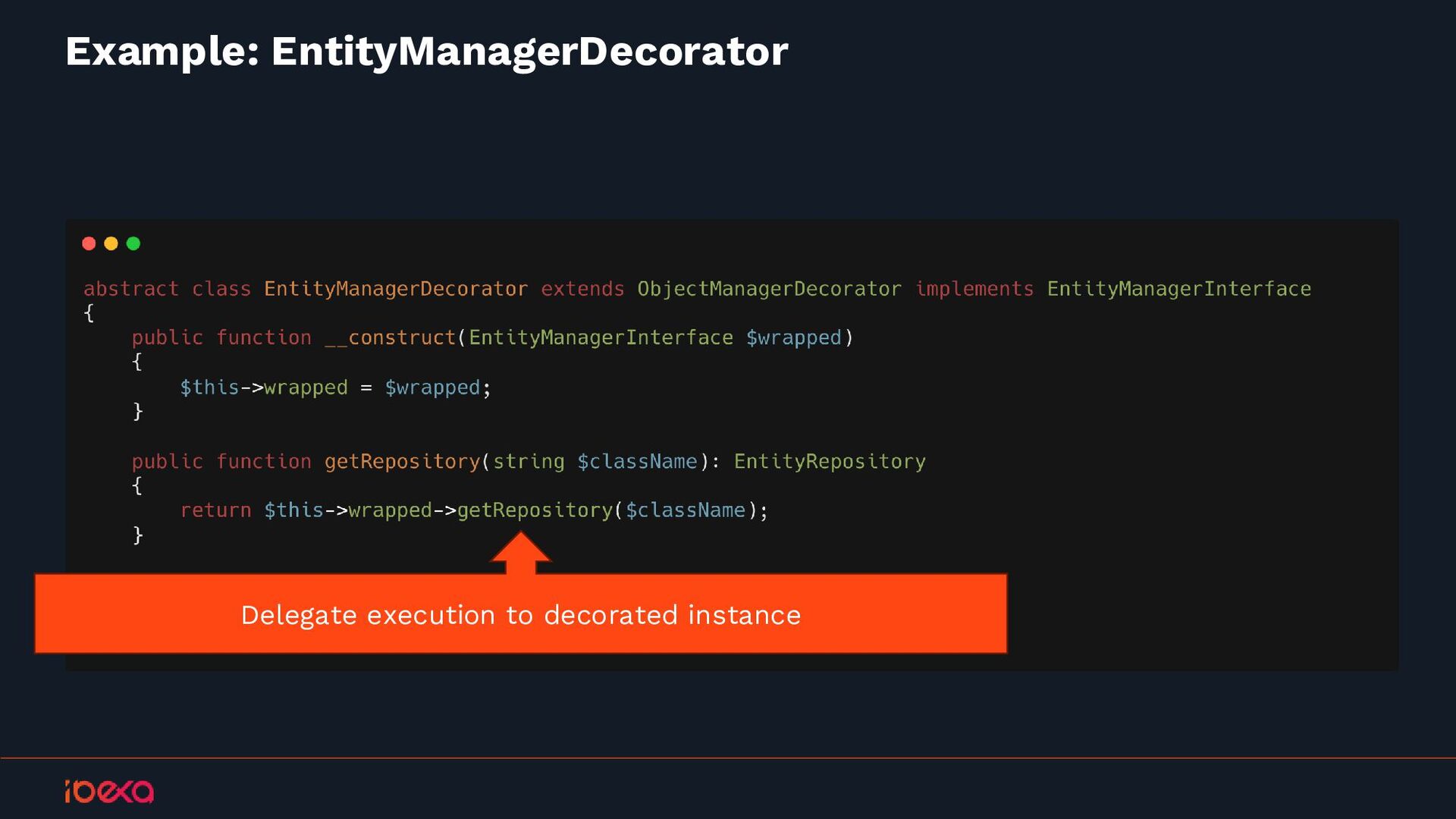

28. Example: EntityManagerDecorator Delegate execution to decorated instance

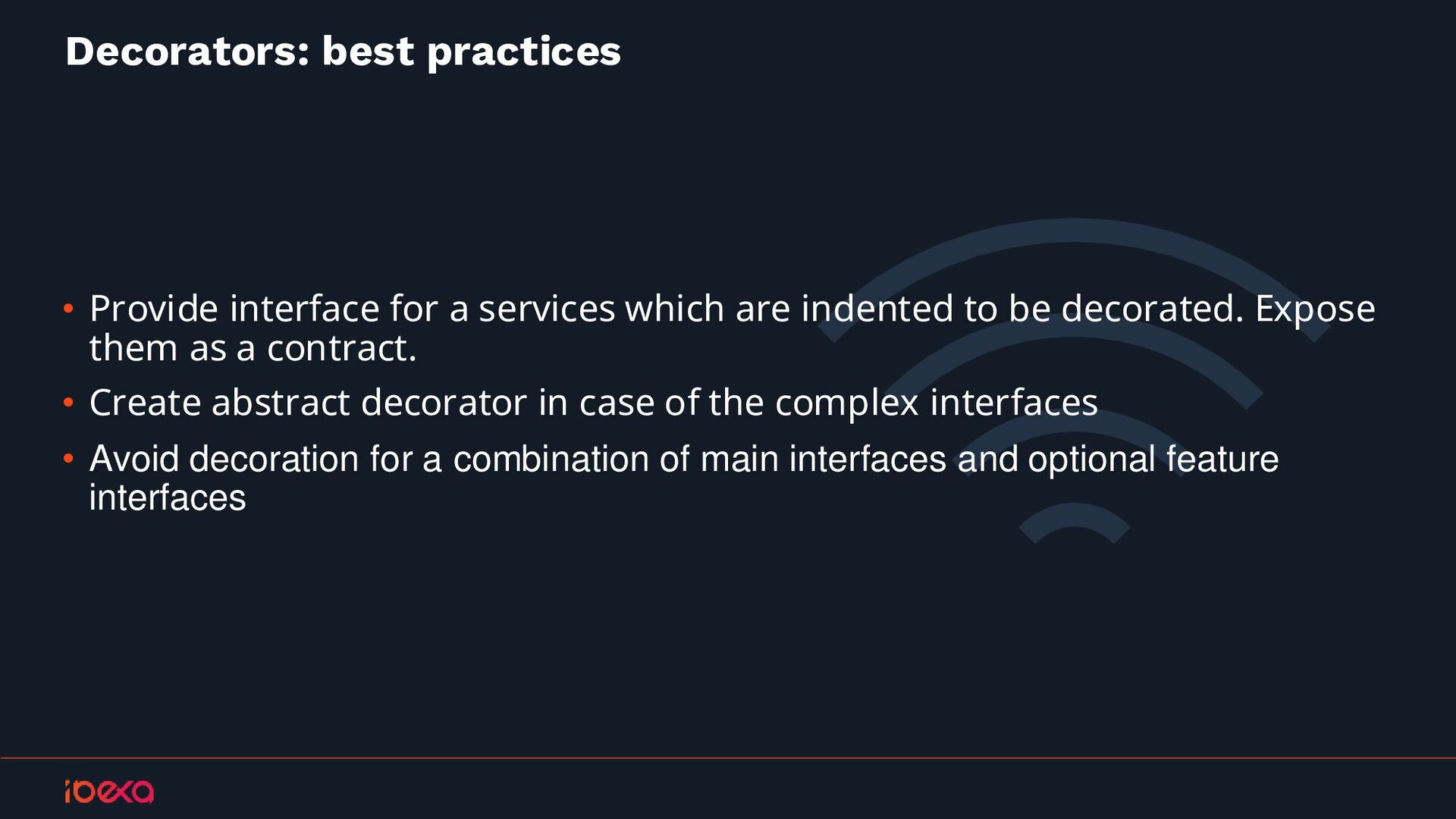

29. Decorators: best practices • Provide interface for a services which are indented to be decorated. Expose them as a contract. • Create abstract decorator in case of the complex interfaces • Avoid decoration for a combination of main interfaces and optional feature interfaces
30. Strategy
31. Strategy Use case Define a family of interchangeable algorithms Infrastructure code ★★☆ (provided by symfony/dependency-injection component) Steps to introduce 1. Introduce strategy interface 2. Implement out-of-the-box implementations (optional) 3. Register service with tag of your choice 4. Use the right strategy Comments N/A

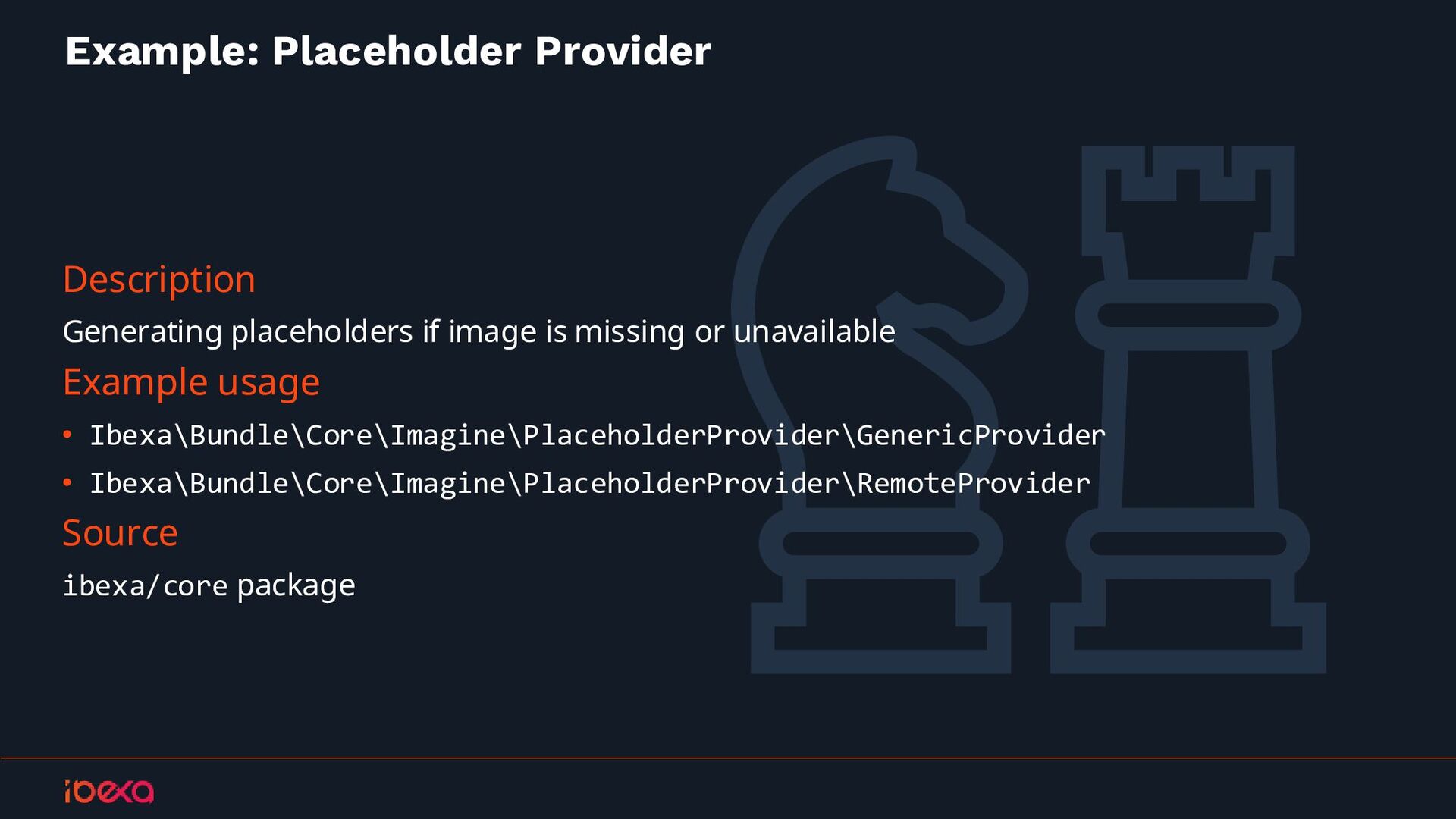

32. Example: Placeholder Provider Description Generating placeholders if image is missing or unavailable Example usage • Ibexa\Bundle\Core\Imagine\PlaceholderProvider\GenericProvider • Ibexa\Bundle\Core\Imagine\PlaceholderProvider\RemoteProvider Source ibexa/core package
33. Example: Placeholder Provider Generic provider Remote provider (with placekitten.com) vs

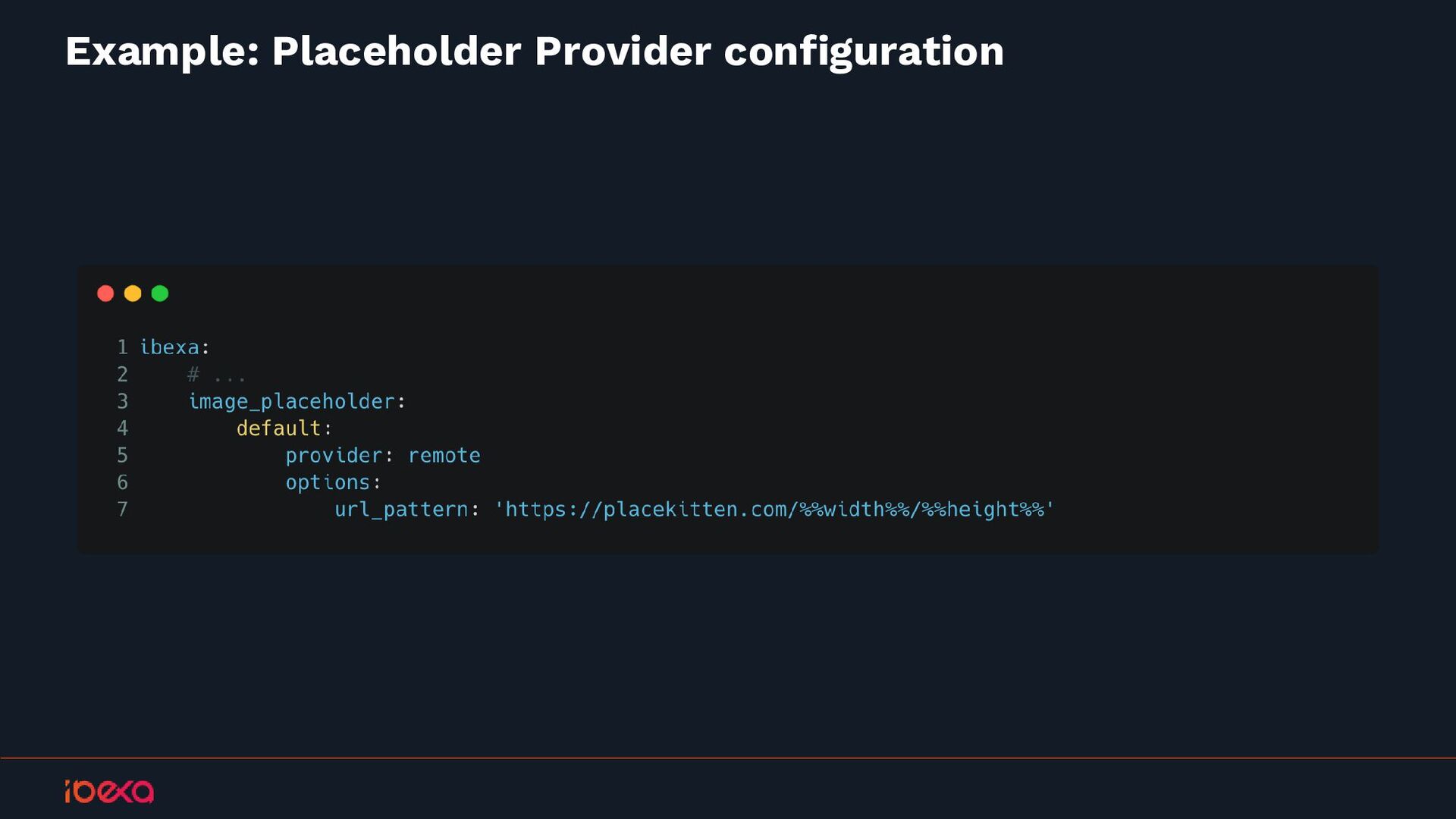

34. Example: Placeholder Provider configuration
35. Example: Placeholder Provider

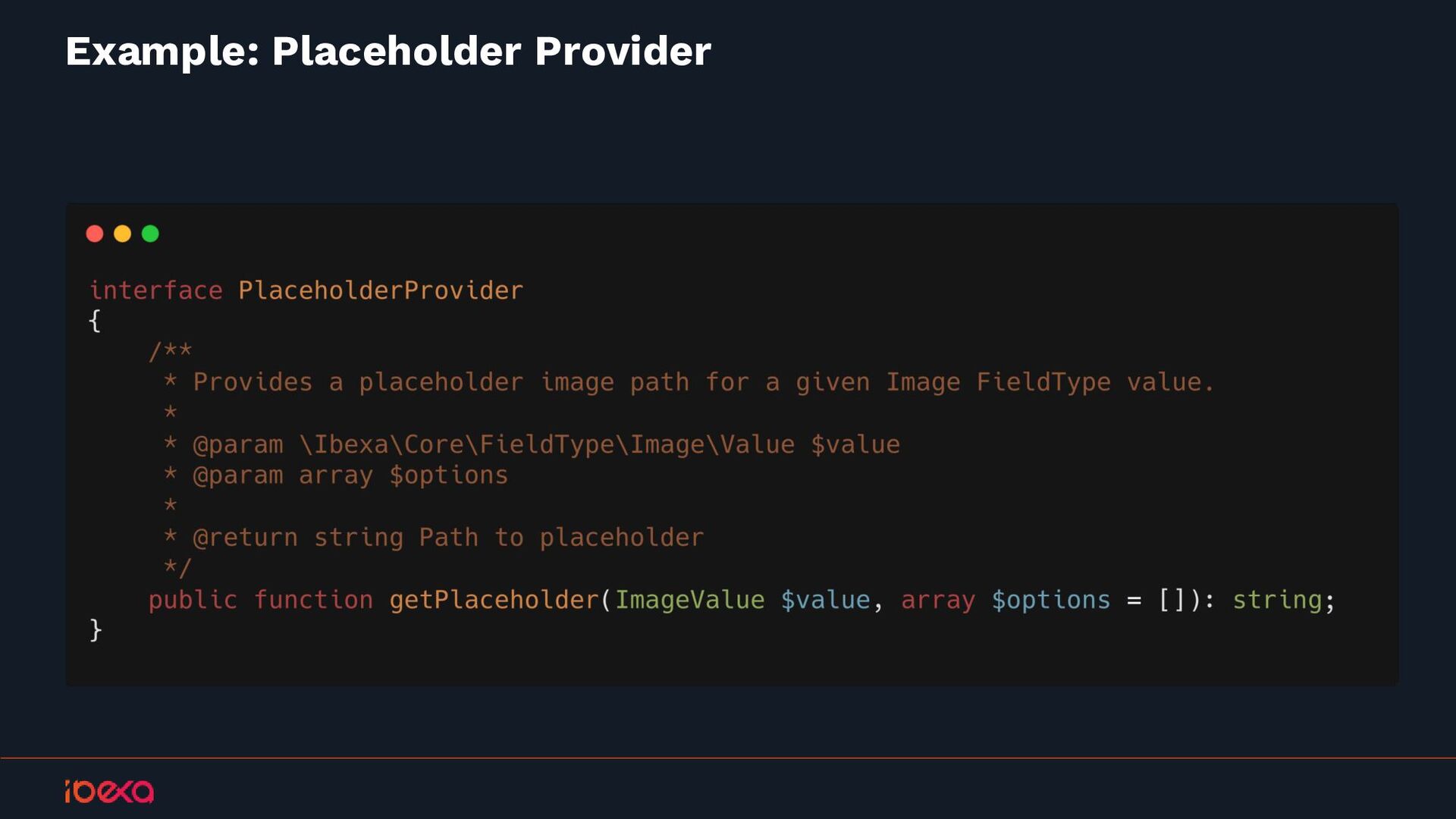

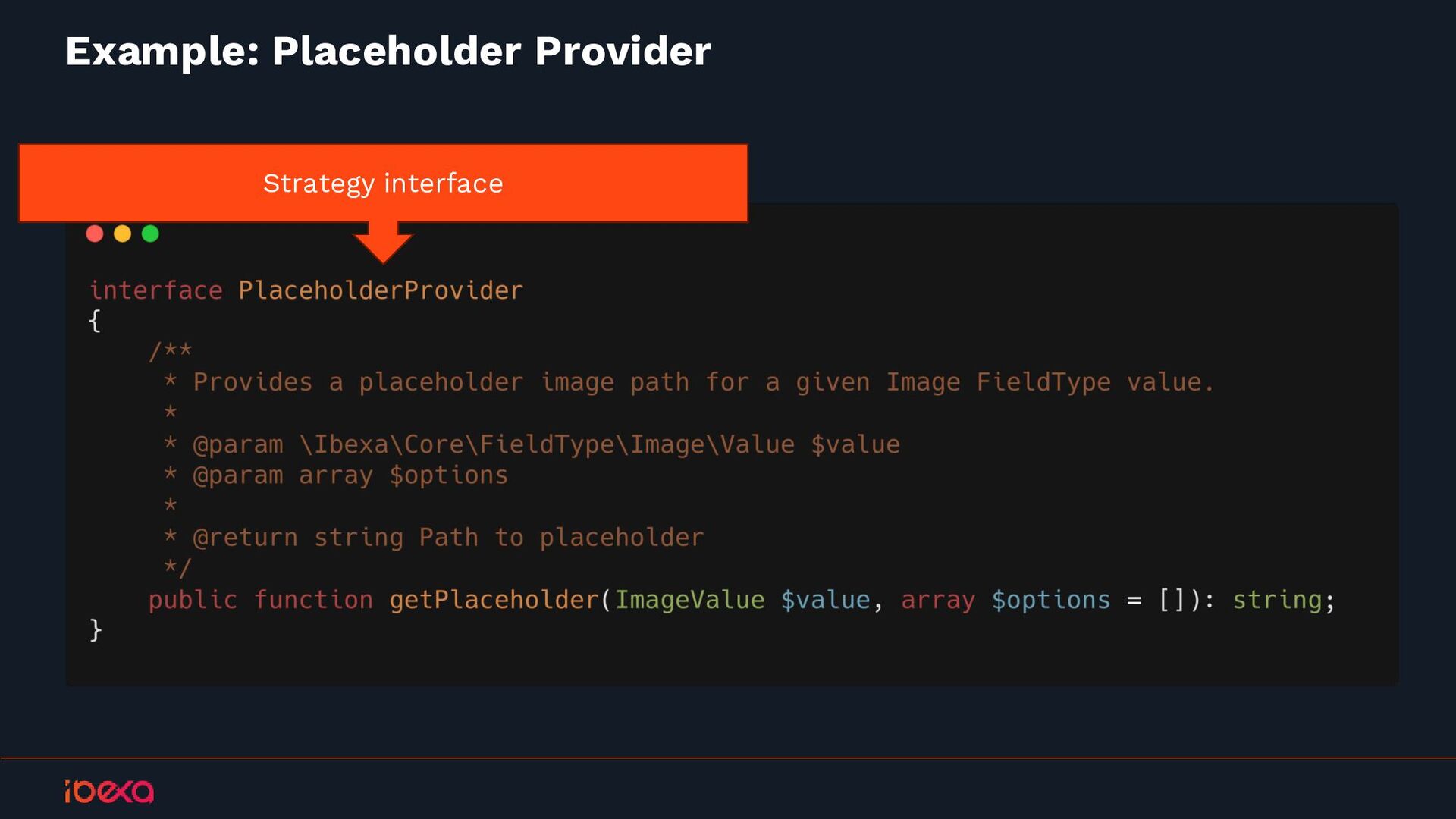

36. Example: Placeholder Provider Strategy interface
37. Example: Placeholder Provider

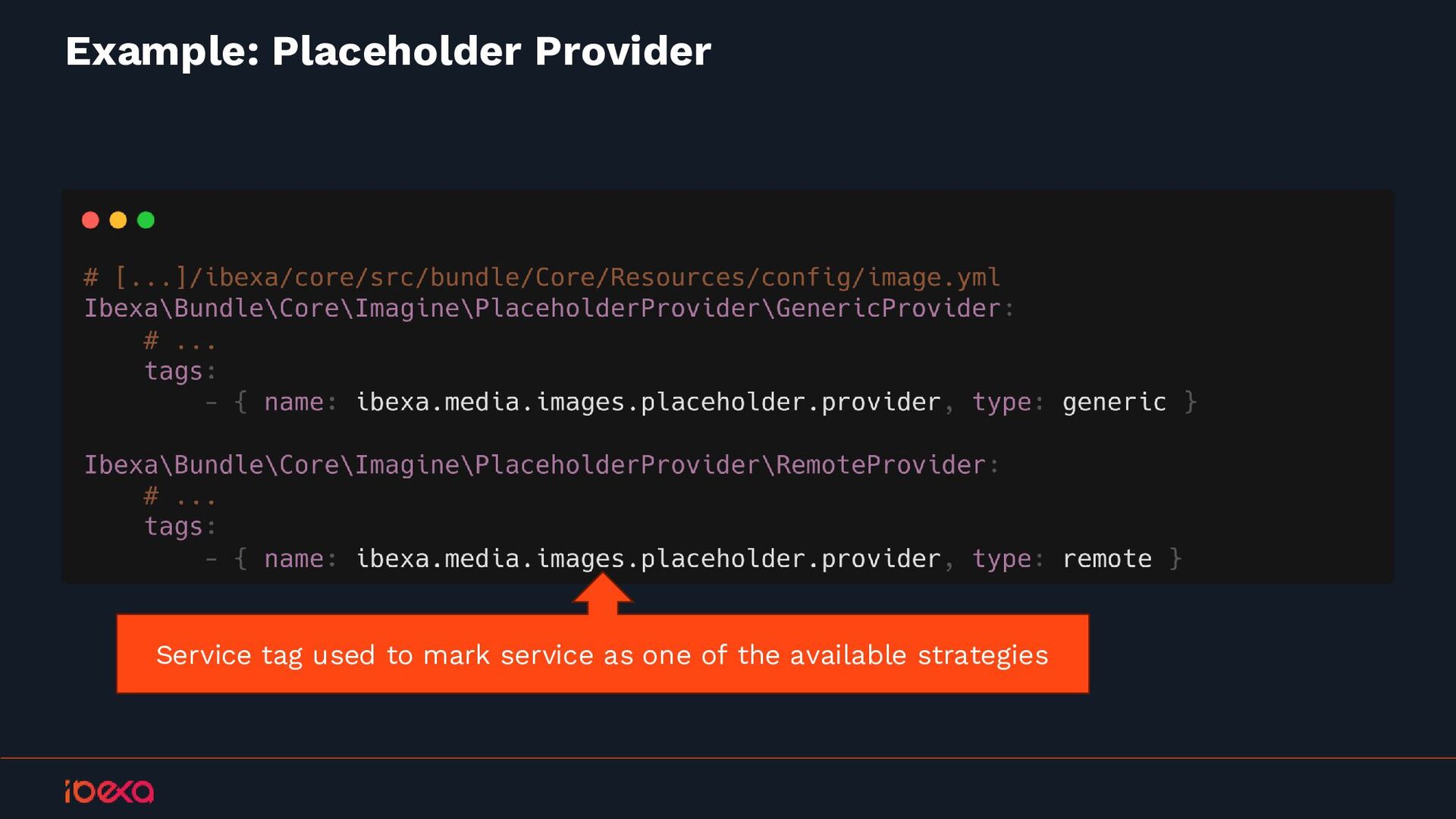

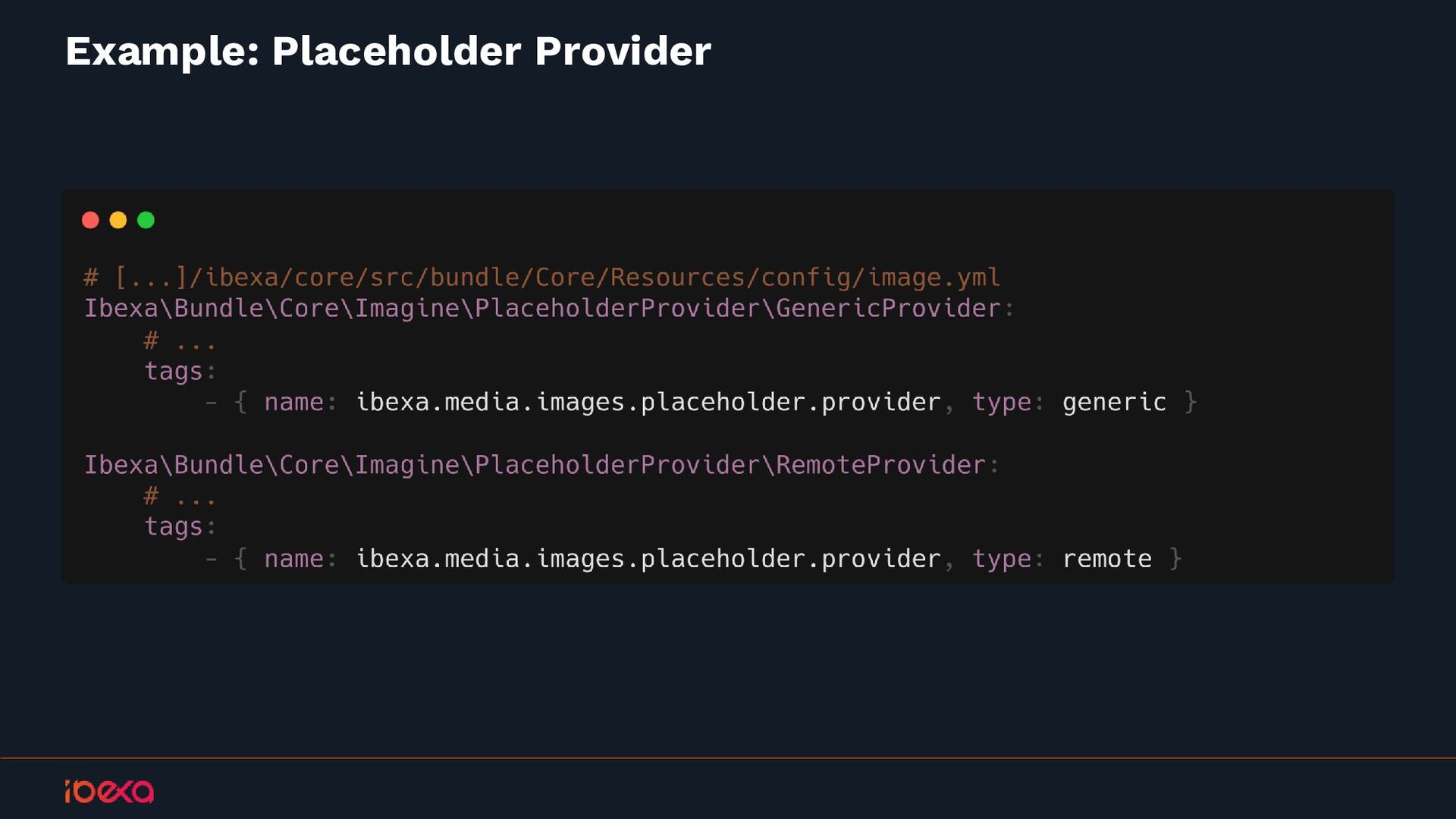

38. Example: Placeholder Provider Service tag used to mark service as one of the available strategies

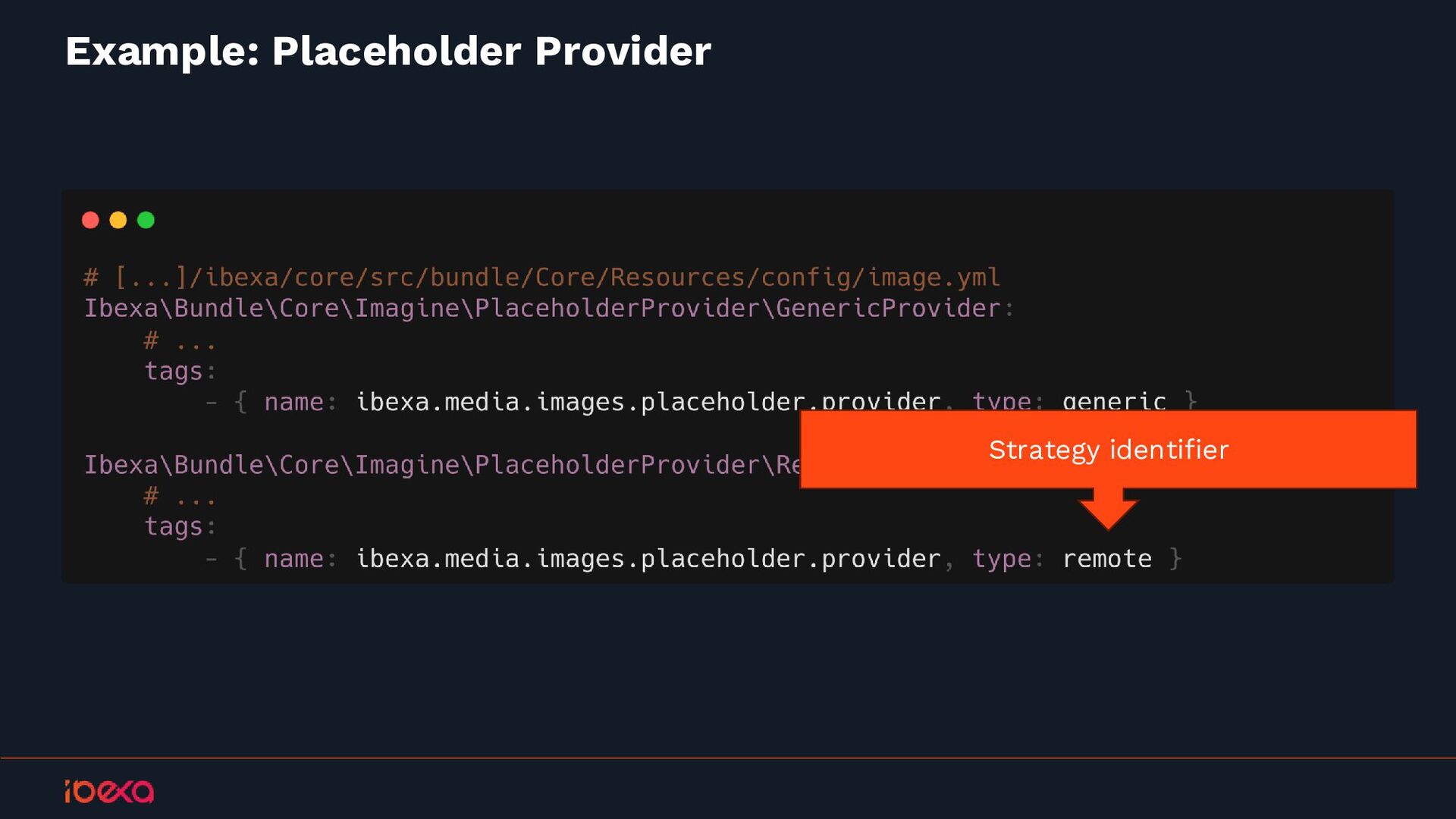

39. Example: Placeholder Provider Strategy identifier

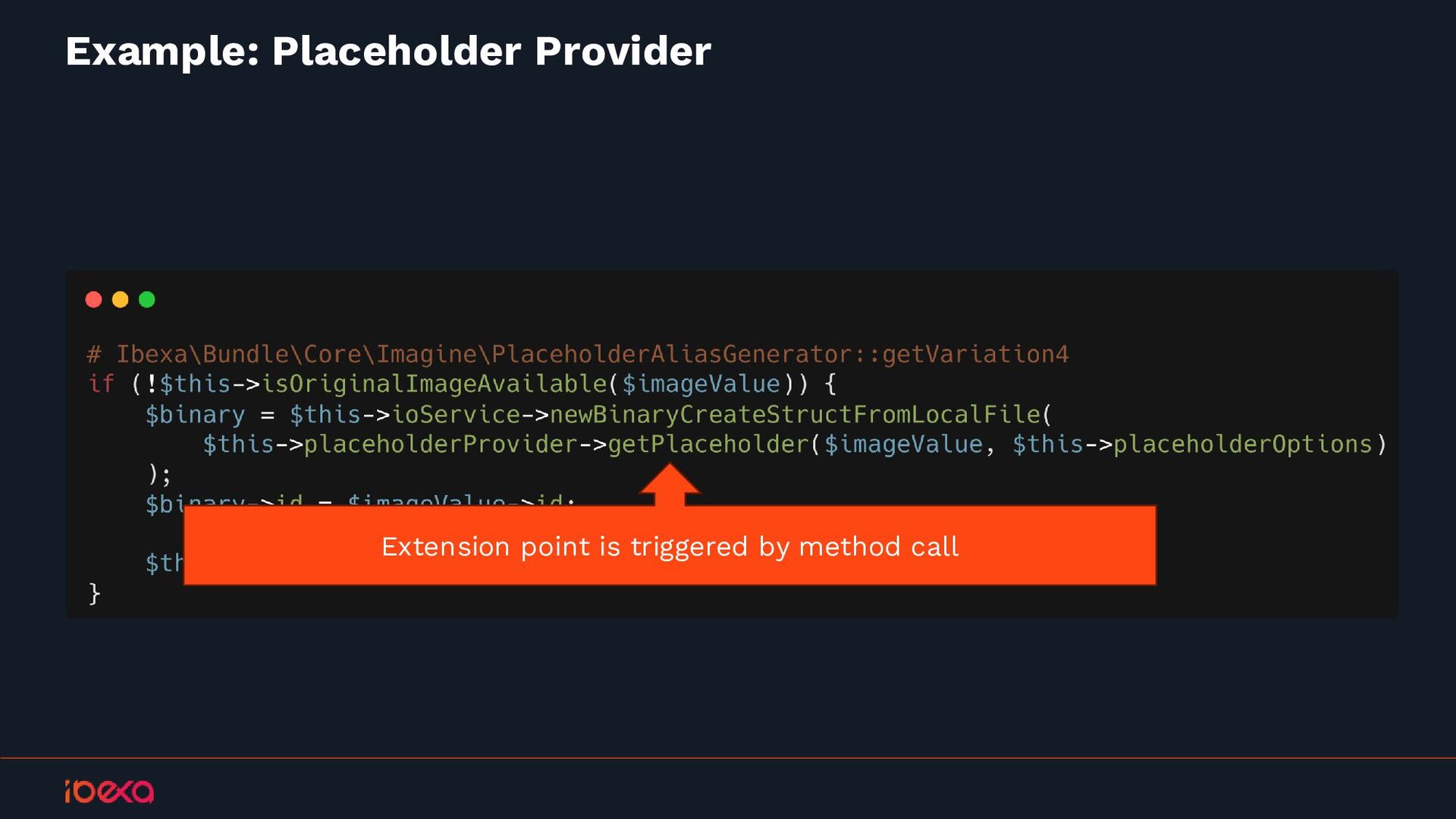

40. Example: Placeholder Provider Extension point is triggered by method call

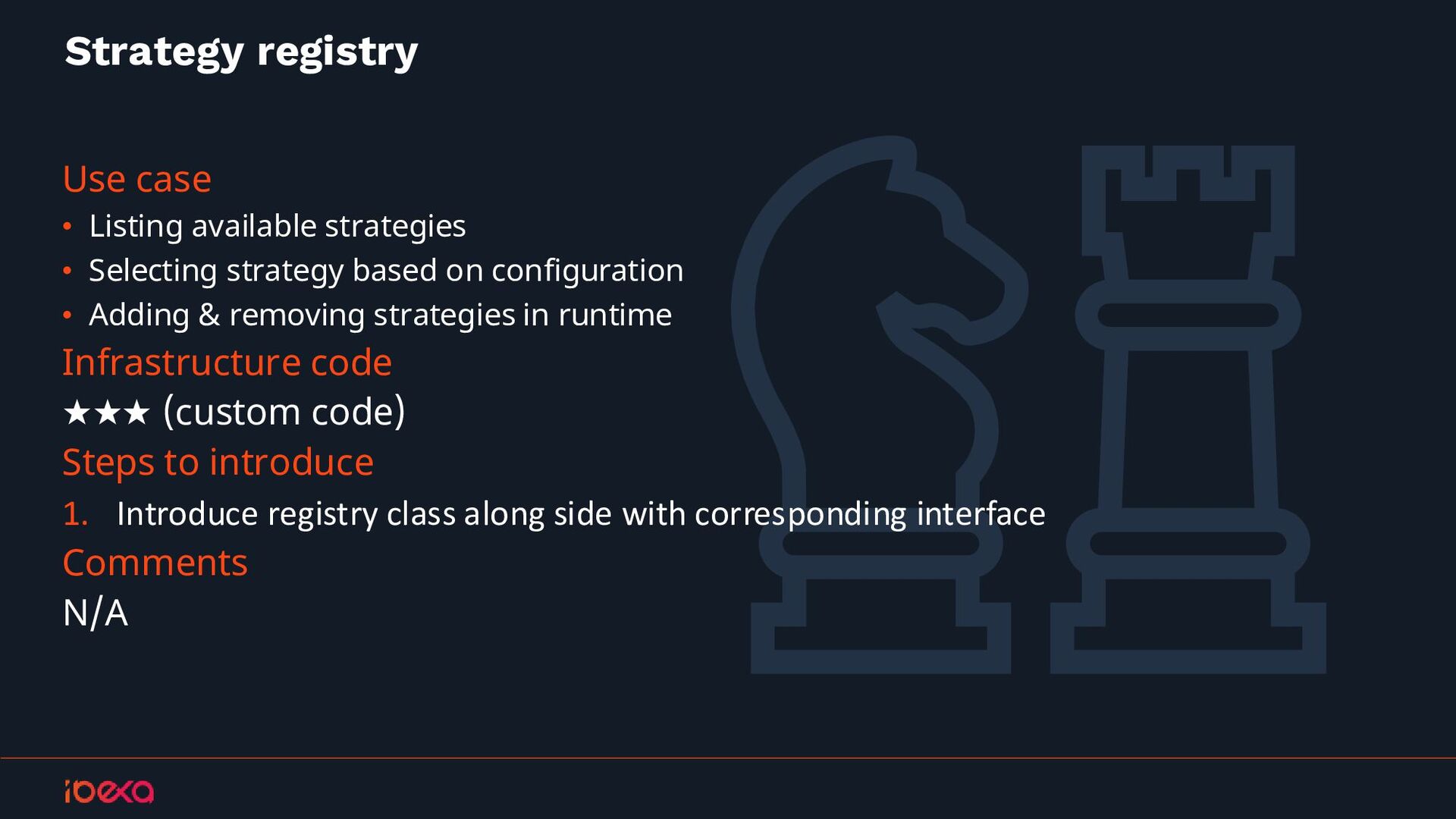

41. Strategy registry Use case • Listing available strategies • Selecting strategy based on configuration • Adding & removing strategies in runtime Infrastructure code ★★★ (custom code) Steps to introduce 1. Introduce registry class along side with corresponding interface Comments N/A

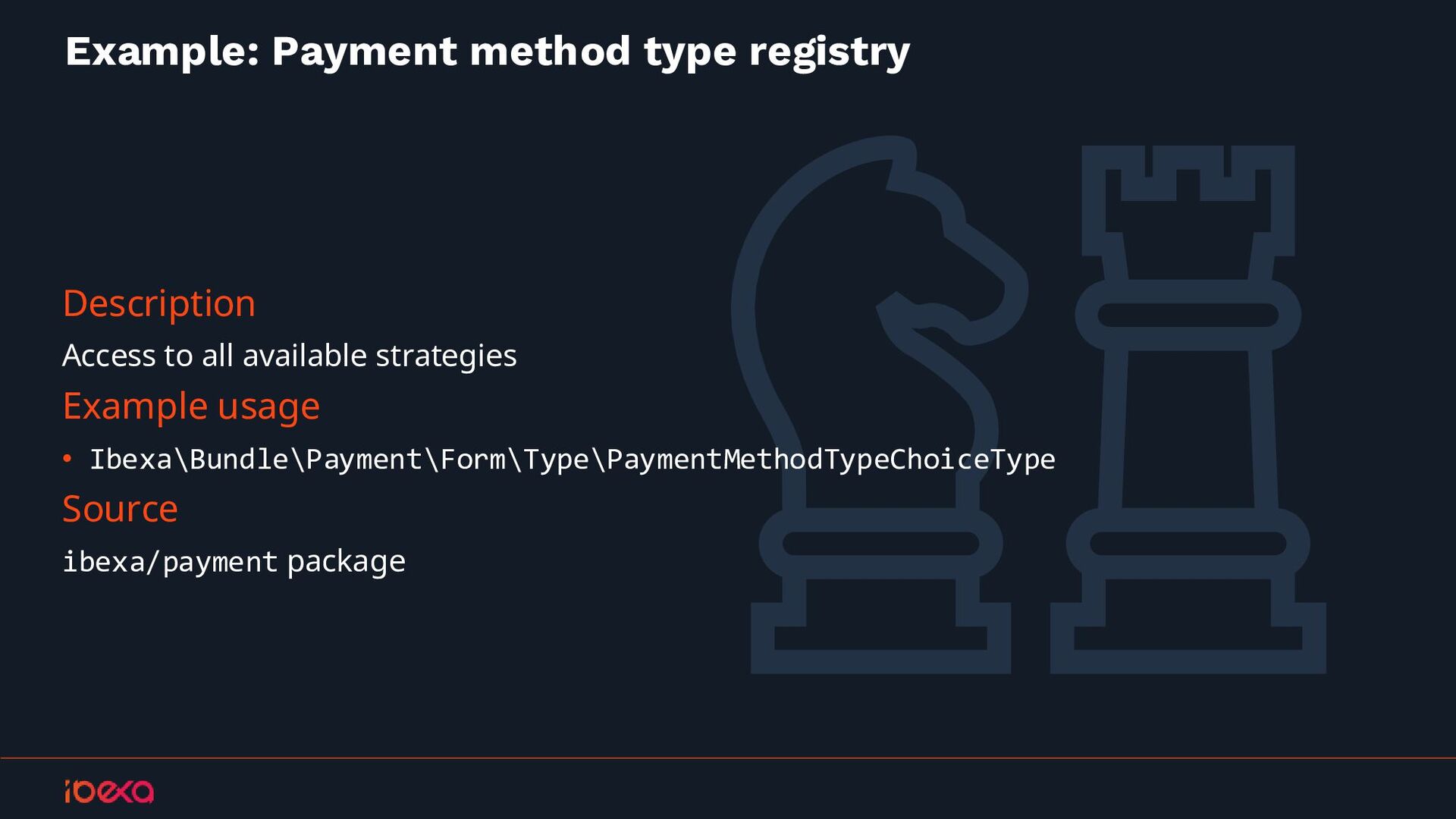

42. Example: Payment method type registry Description Access to all available strategies Example usage • Ibexa\Bundle\Payment\Form\Type\PaymentMethodTypeChoiceType Source ibexa/payment package

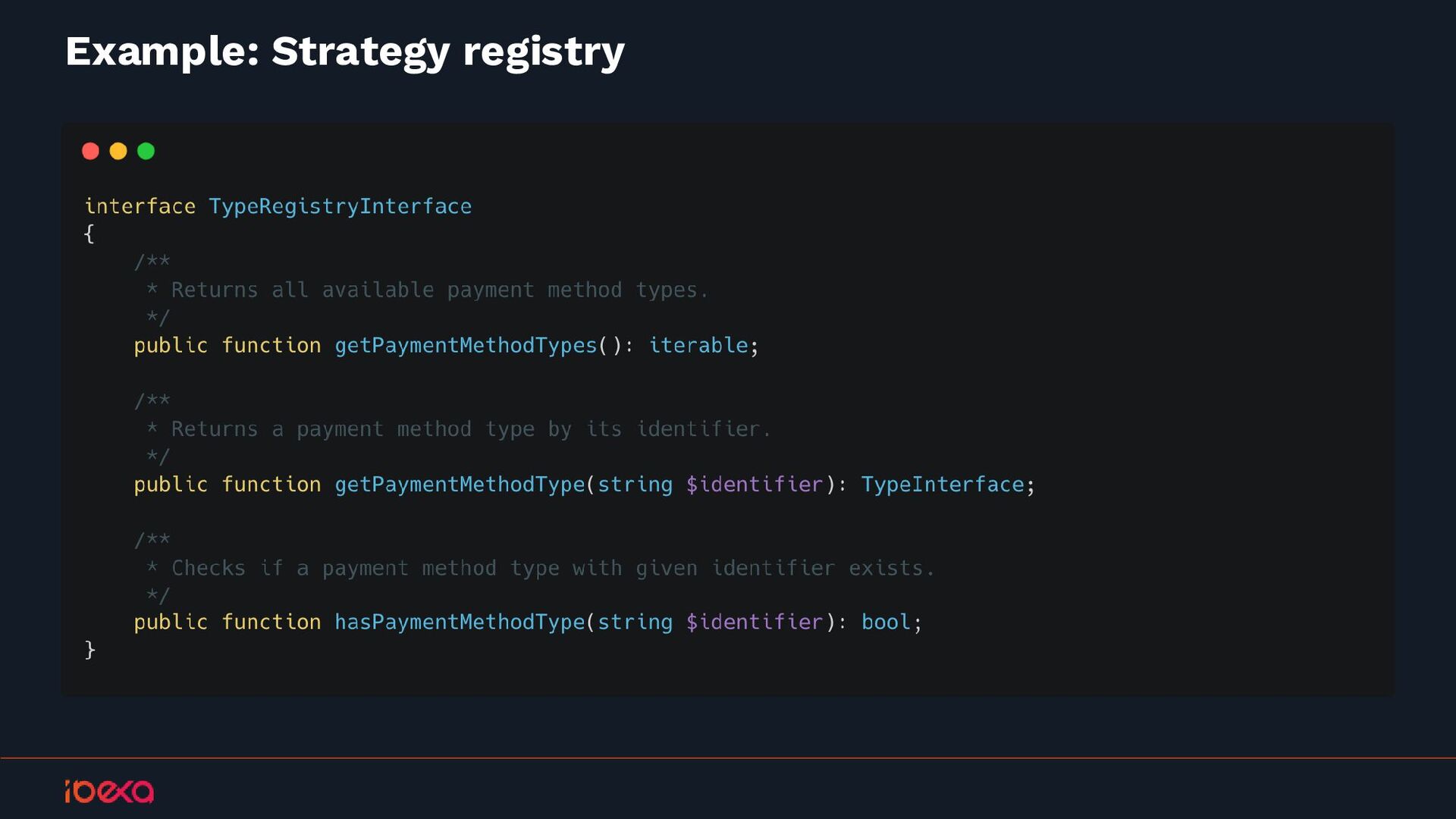

43. Example: Strategy registry

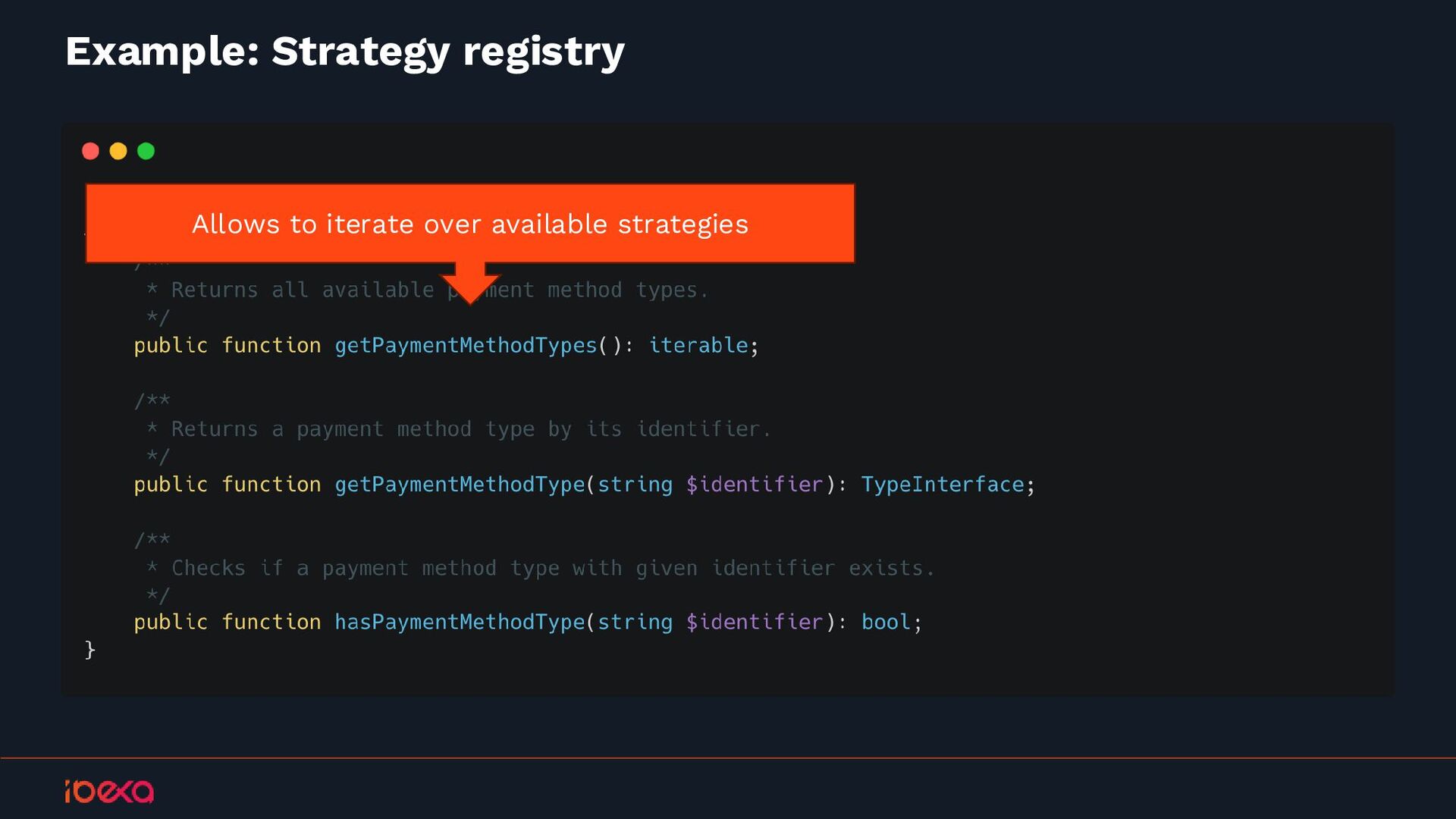

44. Example: Strategy registry Allows to iterate over available strategies

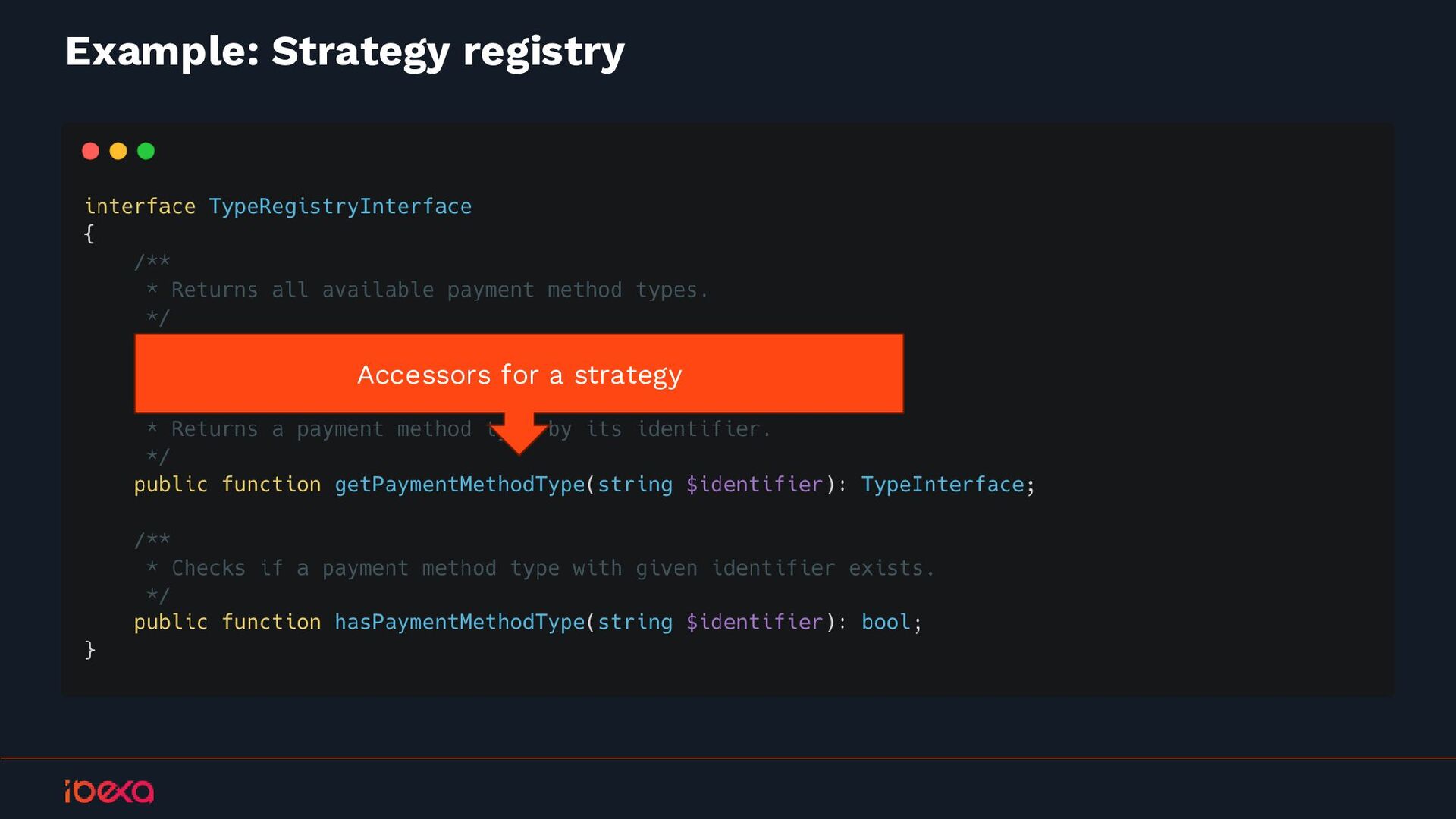

45. Example: Strategy registry Accessors for a strategy

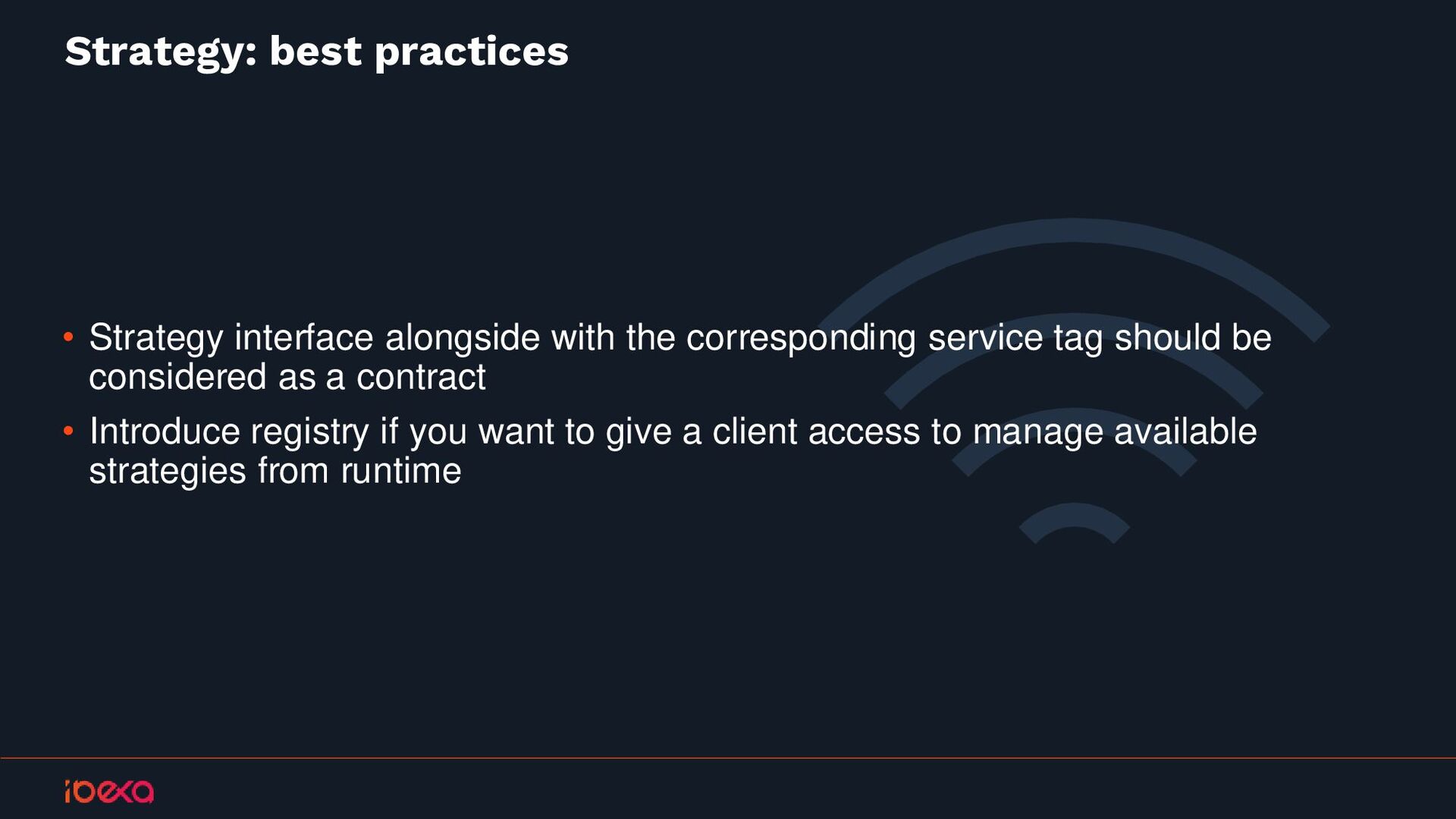

46. Strategy: best practices • Strategy interface alongside with the corresponding service tag should be considered as a contract • Introduce registry if you want to give a client access to manage available strategies from runtime
47. Extension points
48. Extension points are easy to introduce, but…

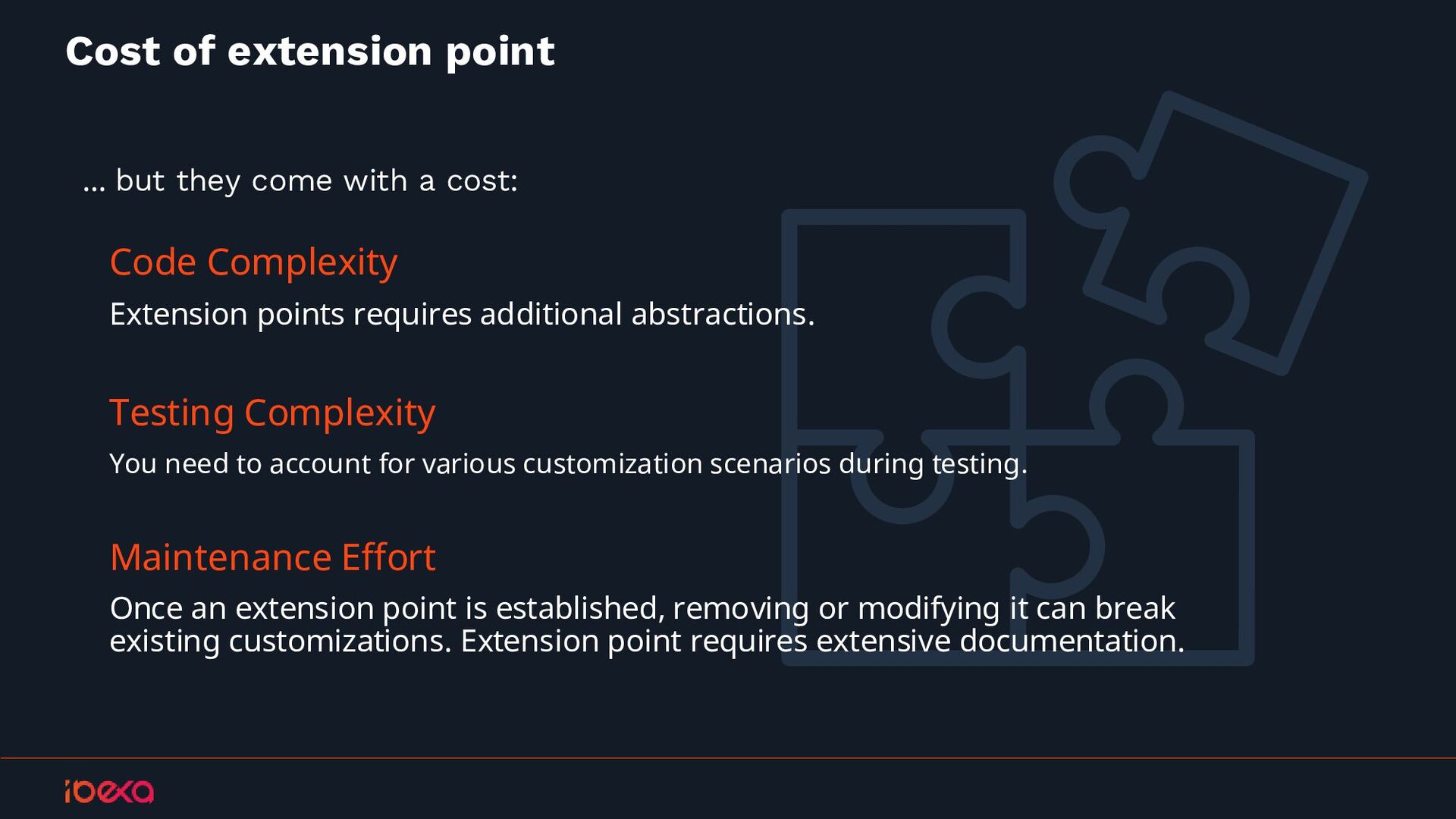

49. Cost of extension point Code Complexity Extension points requires additional abstractions. Testing Complexity You need to account for various customization scenarios during testing. Maintenance Effort Once an extension point is established, removing or modifying it can break existing customizations. Extension point requires extensive documentation. … but they come with a cost:

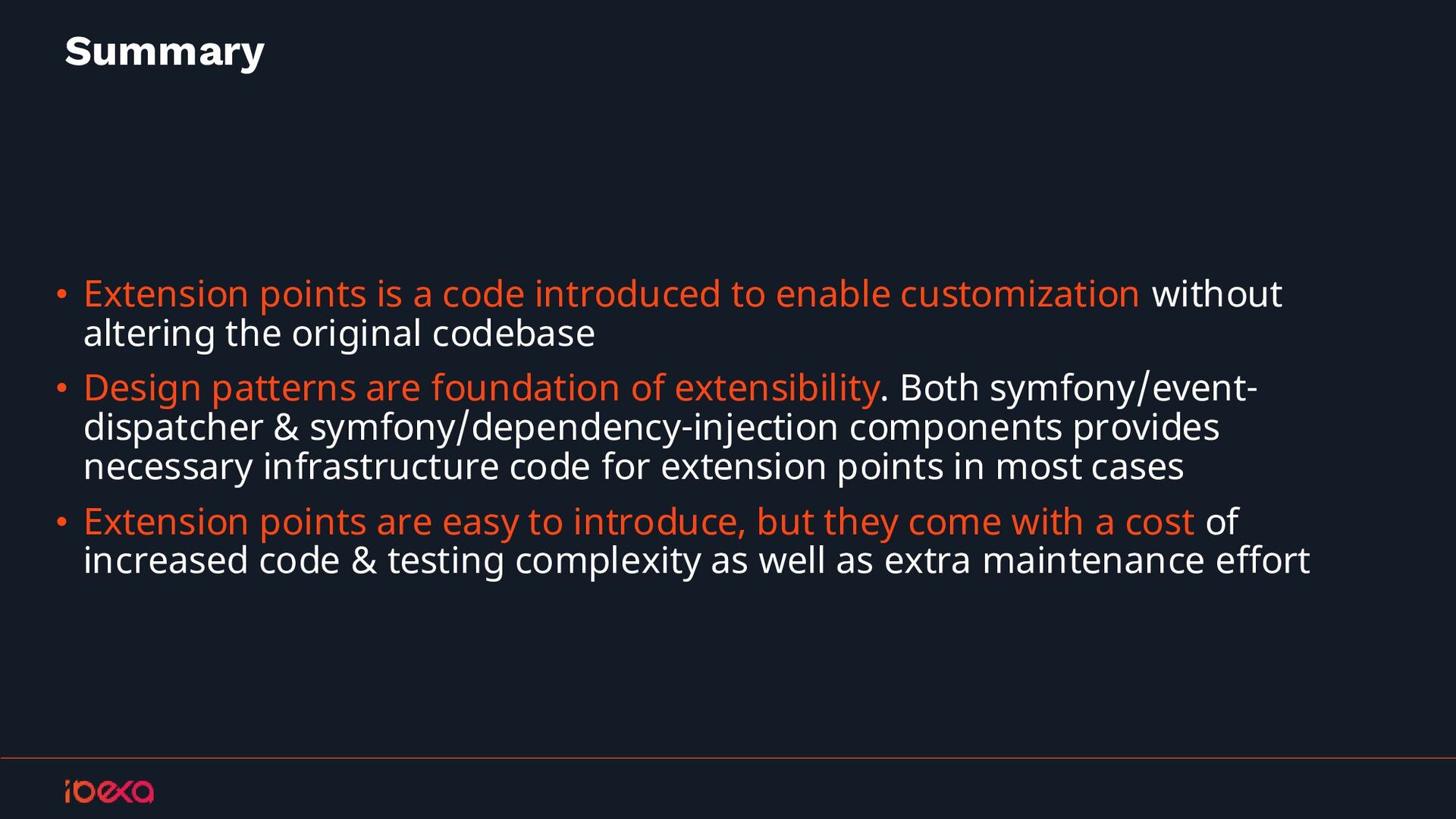

50. Summary • Extension points is a code introduced to enable customization without altering the original codebase • Design patterns are foundation of extensibility. Both symfony/event- dispatcher & symfony/dependency-injection components provides necessary infrastructure code for extension points in most cases • Extension points are easy to introduce, but they come with a cost of increased code & testing complexity as well as extra maintenance effort
51. PLAY NOW! Win a pair of headphones with Ibexa Developing the digital experience
52. Q&A
53. Thank you!
