Clean Architecture on Android

Transcript

1. Clean Architecture on Android 2016/11/22 shibuya.apk#11 Kyo Tenmei @_tenmei

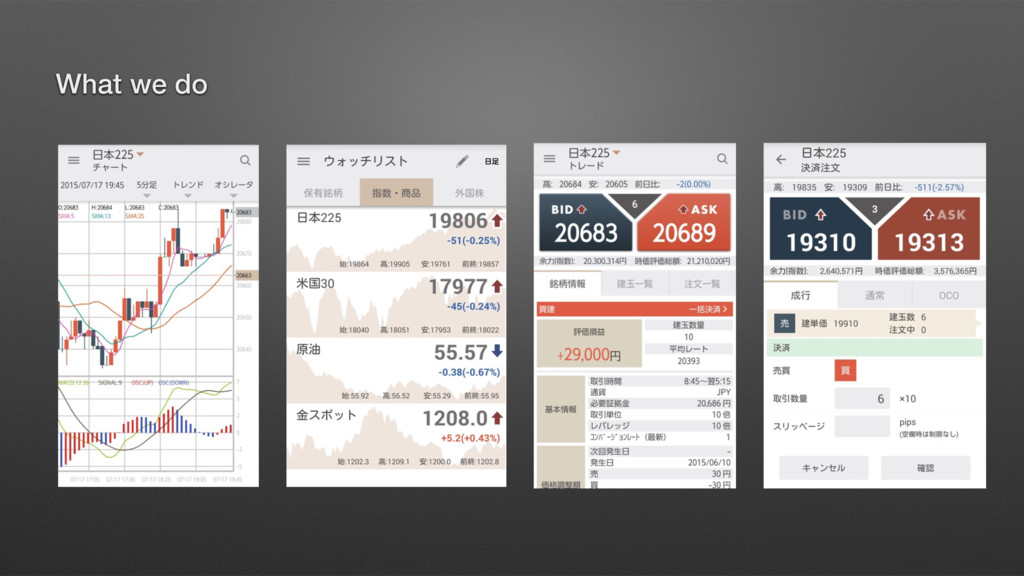

2. What we do
3. Activity Fragment Service Remote Data Source Event Bus Local Data Source Straightforward Way (Without Architecture)
4. This is a disaster
5. keep it clean Robert Martin (Uncle Bob)
6. Clean Architecture https://8thlight.com/blog/uncle-bob/2012/08/13/the-clean-architecture.html Robert Martin (Uncle Bob) Independent of Frameworks. Testable. Independent of UI. Independent of Database. Independent of any external agency.
7. UI Presenter Use Case Dependency Inversion of Control DB/Network Gateway
8. Use Cases Models Capture business logic Data Model Use Case Model View Model
9. MVP Clean
10. How to implement?
11. Android Architecture Blueprint • todo-mvp/ - Basic Model-View-Presenter architecture. • todo-mvp-loaders/ - Based on todo-mvp, fetches data using Loaders. • todo-databinding/ - Based on todo-mvp, uses the Data Binding Library. • todo-mvp-clean/ - Based on todo-mvp, uses concepts from Clean Architecture. • todo-mvp-dagger/ - Based on todo-mvp, uses Dagger2 for Dependency Injection • todo-mvp-contentproviders/ - Based on todo-mvp-loaders, fetches data using Loaders and uses Content Providers • todo-mvp-rxjava/ - Based on todo-mvp, uses RxJava for concurrency and data layer abstraction. https://github.com/googlesamples/android-architecture
12. public interface TasksDataSource {

 interface LoadTasksCallback {

 void onTasksLoaded(List<Task> tasks);

 void onDataNotAvailable();
 }

 interface GetTaskCallback {

 void onTaskLoaded(Task task);

 void onDataNotAvailable();
 }

 void getTasks(@NonNull LoadTasksCallback callback);

 void getTask(@NonNull String taskId, @NonNull GetTaskCallback callback);
 ...
 }
 Data Layer (Repository Pattern)
13. public abstract class UseCase<Q extends UseCase.RequestValues, P extends UseCase.ResponseValue> {

 private Q mRequestValues;

 private UseCaseCallback<P> mUseCaseCallback;
 ...
 void run() {
 executeUseCase(mRequestValues);
 }

 protected abstract void execute(Q requestValues); ...
 public interface UseCaseCallback<R> {
 void onSuccess(R response);
 void onError();
 }
 } Use Case
14. public class GetTasks extends UseCase<GetTasks.RequestValues, GetTasks.ResponseValue> {
 ...
 @Override
 protected void executeUseCase(final RequestValues values) {

 mTasksRepository.getTasks(new TasksDataSource.LoadTasksCallback() {
 @Override
 public void onTasksLoaded(List<Task> tasks) {
 TasksFilterType currentFiltering = values.getCurrentFiltering();
 TaskFilter taskFilter = mFilterFactory.create(currentFiltering);

 List<Task> tasksFiltered = taskFilter.filter(tasks);
 ResponseValue responseValue = new ResponseValue(tasksFiltered);
 getUseCaseCallback().onSuccess(responseValue);
 }

 @Override
 public void onDataNotAvailable() {
 getUseCaseCallback().onError();
 }
 });

 }

 } Use Case
15. public class TasksPresenter implements TasksContract.Presenter { ... private void loadTasks(boolean forceUpdate, final boolean showLoadingUI)

 mUseCaseHandler.execute(mGetTasks, requestValue,
 new UseCase.UseCaseCallback<GetTasks.ResponseValue>() {
 @Override
 public void onSuccess(GetTasks.ResponseValue response) {
 List<Task> tasks = response.getTasks();
 // The view may not be able to handle UI updates anymore
 if (!mTasksView.isActive()) {
 return;
 }
 if (showLoadingUI) {
 mTasksView.setLoadingIndicator(false);
 }

 processTasks(tasks);
 }

 @Override
 public void onError() {
 // The view may not be able to handle UI updates anymore
 if (!mTasksView.isActive()) {
 return;
 }
 mTasksView.showLoadingTasksError();
 }
 });
 }
 ...
 } Presenter
16. MVP-Clean-Rxjava?

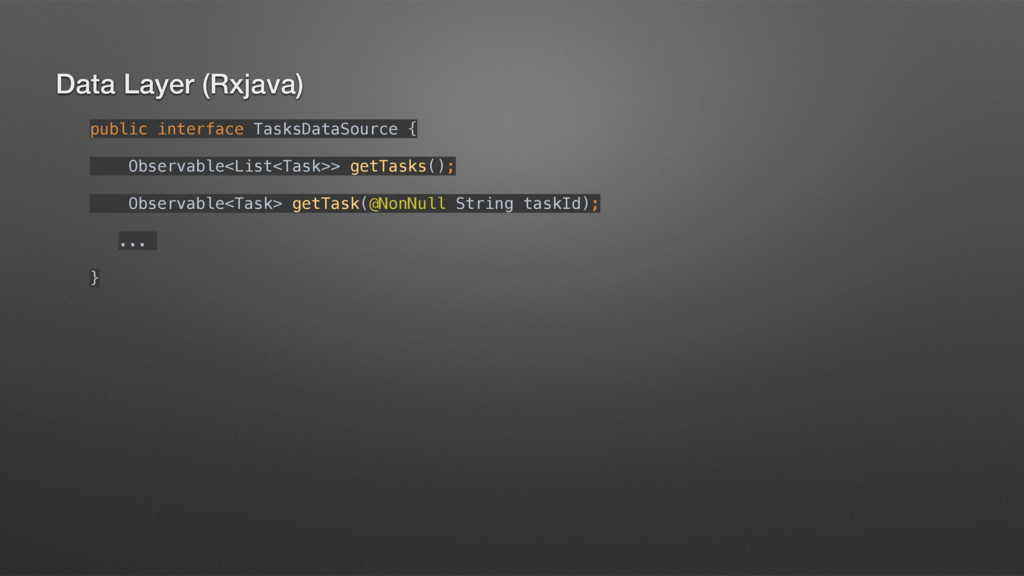

17. Data Layer (Rxjava) public interface TasksDataSource {

 Observable<List<Task>> getTasks();

 Observable<Task> getTask(@NonNull String taskId);
 ...
 }


18. Use Case Rxjava public abstract class RxUseCase<Q extends RxUseCase.RequestValues, P extends RxUseCase.ResponseValues> {

 protected abstract Observable<P> buildUseCase(Q requestValues);

 /**
 * Data passed to a request.
 */
 public interface RequestValues {
 }

 /**
 * Data received from a response.
 */
 public interface ResponseValues {
 }
 }

19. public abstract class SimpleUseCase<Q extends RxUseCase.RequestValues,
 P extends RxUseCase.ResponseValues> extends RxUseCase<Q, P> {

 protected Scheduler mSubscribeOn;
 protected Scheduler mObserveOn;
 protected Subscription mSubscription;

 public SimpleUseCase(Scheduler subscribeOn, Scheduler observeOn) {
 mSubscribeOn = checkNotNull(subscribeOn, "subscribeOn cannot be null!");
 mObserveOn = checkNotNull(observeOn, "observeOn cannot be null!");
 mSubscription = Subscriptions.empty();
 }

 public void execute(Q requestValues, Subscriber<P> subscriber) {
 unsubscribe();
 mSubscription = buildUseCase(requestValues)
 .subscribeOn(mSubscribeOn)
 .observeOn(mObserveOn)
 .subscribe(subscriber);
 }

 public void unsubscribe() {
 if (!mSubscription.isUnsubscribed()) {
 mSubscription.unsubscribe();
 }
 }
 } Base Use Case (Rxjava)
20. Use Case(Rxjava) public class GetTasks extends SimpleUseCase<GetTasks.RequestValues, GetTasks.ResponseValues> { ...
 @Override
 public Observable<ResponseValues> buildUseCase(final RequestValues values) {

 return mTasksRepository.getTasks()
 .flatMap(new Func1<List<Task>, Observable<Task>>() {
 @Override
 public Observable<Task> call(List<Task> tasks) {
 return Observable.from(tasks);
 }
 })
 .filter(new Func1<Task, Boolean>() {
 @Override
 public Boolean call(Task task) {
 switch (values.getCurrentFiltering()) {
 case ACTIVE_TASKS:
 return task.isActive();
 case COMPLETED_TASKS:
 return task.isCompleted();
 case ALL_TASKS:
 default:
 return true;
 }
 }
 })
 .toList()
 .map(new Func1<List<Task>, ResponseValues>() {
 @Override
 public ResponseValues call(List<Task> tasks) {
 return new ResponseValues(tasks);
 }
 });
 } }
21. public class TasksPresenter implements TasksContract.Presenter { ... private void loadTasks(boolean forceUpdate, final boolean showLoadingUI) {

 mGetTasks.unsubscribe();
 GetTasks.RequestValues requestValue = new GetTasks.RequestValues(forceUpdate,
 mCurrentFiltering);
 mGetTasks.execute(requestValue, new Subscriber<GetTasks.ResponseValues>() {
 @Override
 public void onCompleted() {
 mTasksView.setLoadingIndicator(false);
 }

 @Override
 public void onError(Throwable e) {
 mTasksView.showLoadingTasksError();
 }

 @Override
 public void onNext(GetTasks.ResponseValues values) {
 processTasks(values.getTasks());
 }
 });
 }
 ...
 } Presenter (Rxjava)
22. MVP-Clean-Rxjava-Dagger?
23. Dagger2 public class SaveTask extends SimpleUseCase<SaveTask.RequestValues, SaveTask.ResponseValues> {
 Inject public SaveTask(@NonNull TasksRepository tasksRepository,
 @NonNull BaseSchedulerProvider schedulerProvider) {
 super(schedulerProvider.io(), schedulerProvider.ui());
 mTasksRepository = tasksRepository;
 }

24. Dagger2 public class AddEditTaskPresenter implements AddEditTaskContract.Presenter {

 private final AddEditTaskContract.View mAddTaskView;

 private final GetTask mGetTask;

 private final SaveTask mSaveTask;

 @Inject
 public AddEditTaskPresenter(@Nullable String taskId,
 @NonNull AddEditTaskContract.View addTaskView,
 @NonNull GetTask getTask, @NonNull SaveTask saveTask) {
 mTaskId = taskId;
 mAddTaskView = addTaskView;
 mGetTask = getTask;
 mSaveTask = saveTask;
 } }
25. Turns out: Testability : Super high. Maintainability : High. Ease of amending or adding a feature Boilerplate : Lots of classes
27. MVP-Clean-Rxjava-Dagger2 https://github.com/clickxu/android-architecture/tree/todo-mvp-clean-rxjava-dagger Thank you! References https://github.com/googlesamples/android-architecture https://skillsmatter.com/skillscasts/8898-londroid-meetup https://8thlight.com/blog/uncle-bob/2012/08/13/the-clean-architecture.html
