IoT(Internet of Things) era will arrive. How to solve each equipment communication will become an important problem. MQTT can solve it. It was designed as an extremely lightweight publish/subscribe messaging transport. It is useful for connections with remote locations where a small code footprint is required and/or network bandwidth is at a premium. For example, it has been used in sensors communicating to a broker via satellite link, over occasional dial-up connections with healthcare providers, and in a range of home automation and small device scenarios.

Transcript

1. Introduction MQTT eric.xiao ericssonxiao@gmail.com
2. Internet of Things (IoT) MQTT and MQTT-S is just really small thing in Internet of Things !
3. Internet of Things (IoT)
4. What Is MQTT? MQTT stands for Message Queueing Telemetry Transport. • lightweight broker-based pub/sub messaging protocol • open • simple • easy to implement So It can be use in constrained environments. For examples: • sensors • mobile • The Internet of Things (IoT)

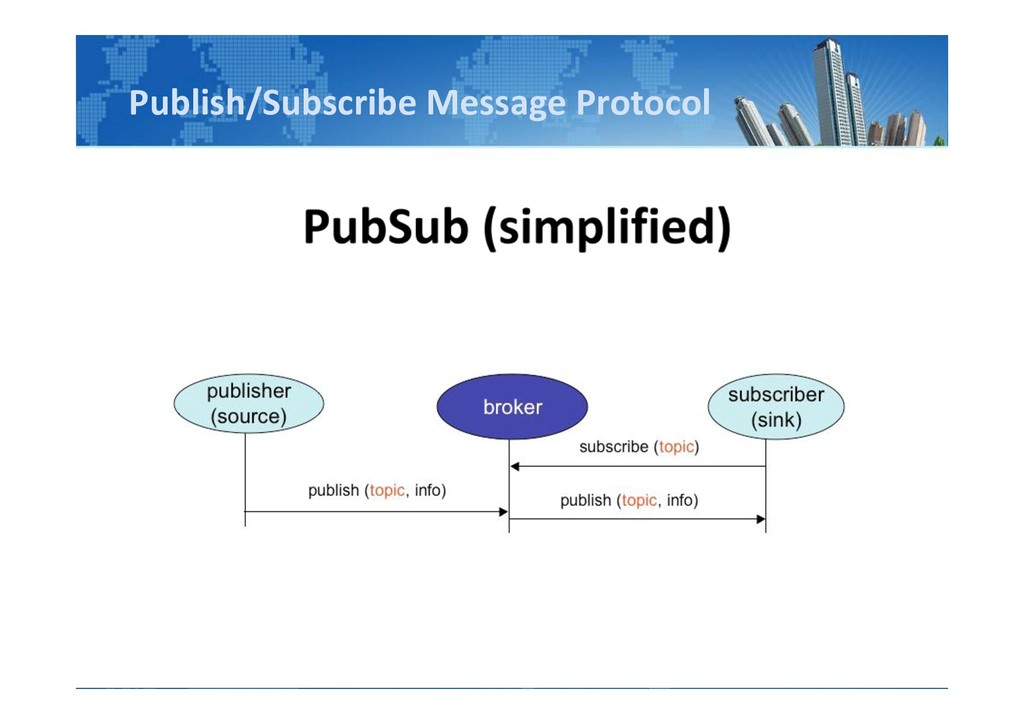

5. Publish/Subscribe Message Protocol

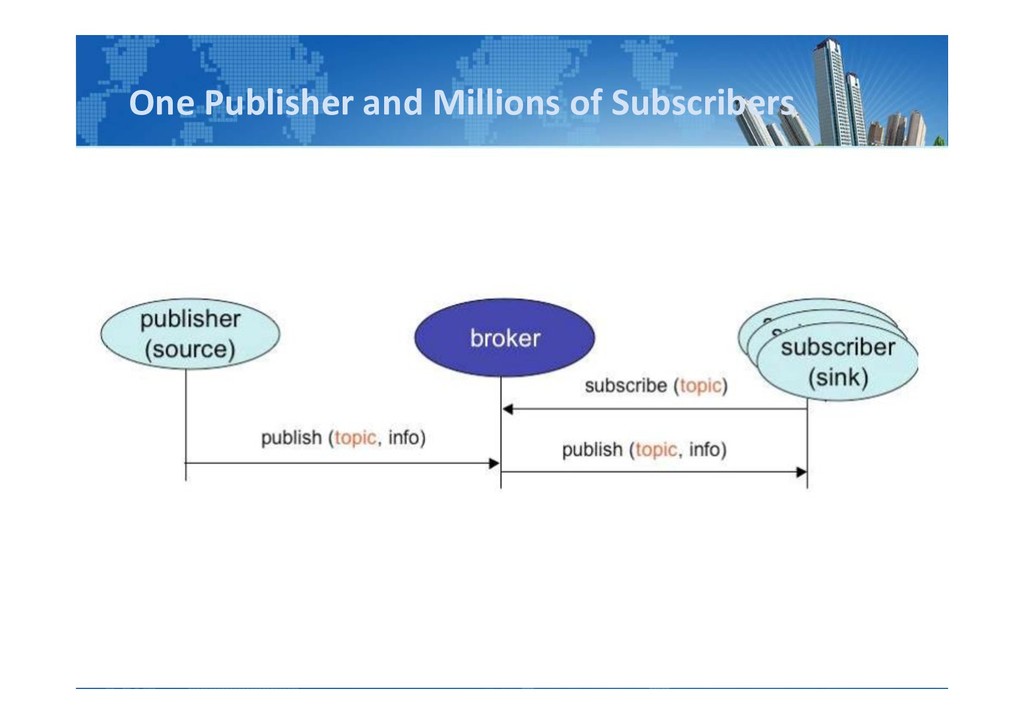

6. One Publisher and Millions of Subscribers
7. Millions of Publishers and Millions of Subscribers
8. Publish/Subscribe Supports Broadcast
9. Who Invented MQTT? MQTT was invented by Dr Andy Stanford-Clark of IBM, and Arlen Nipper of Arcom (now Eurotech), in 1999. Dr Andy Stanford-Clark Arlen Nipper
10. MQTT TimeLine
11. Design Principles and Assumptions • Simplicity, simplicity, simplicity! • Publish/subscribe messaging. • Zero administration (or as close as possible). • Minimise the on-the-wire footprint. • Expect and cater for frequent network disruption (for low bandwidth, high latency, unreliable, high cost-to-run networks)… → Last Will and Testament • Continuous session awareness → Last Will and Testament • Expect that client applications may have very limited processing resources available. • Provide traditional messaging qualities of service where the environment allows. Provide “quality of service” • Data agnostic.
12. Standard Organization • As of March 2013, MQTT is in the process of undergoing standardisation at OASIS. • The protocol specification has been openly published with a royalty-free license for many years, and companies such as Eurotech (formerly known as Arcom) have implemented the protocol in their products. • In November 2011 IBM and Eurotech announced their joint participation in the Eclipse M2M Industry Working Group and donation of MQTT code to the proposed Eclipse Paho project.
13. MQTT Specifications

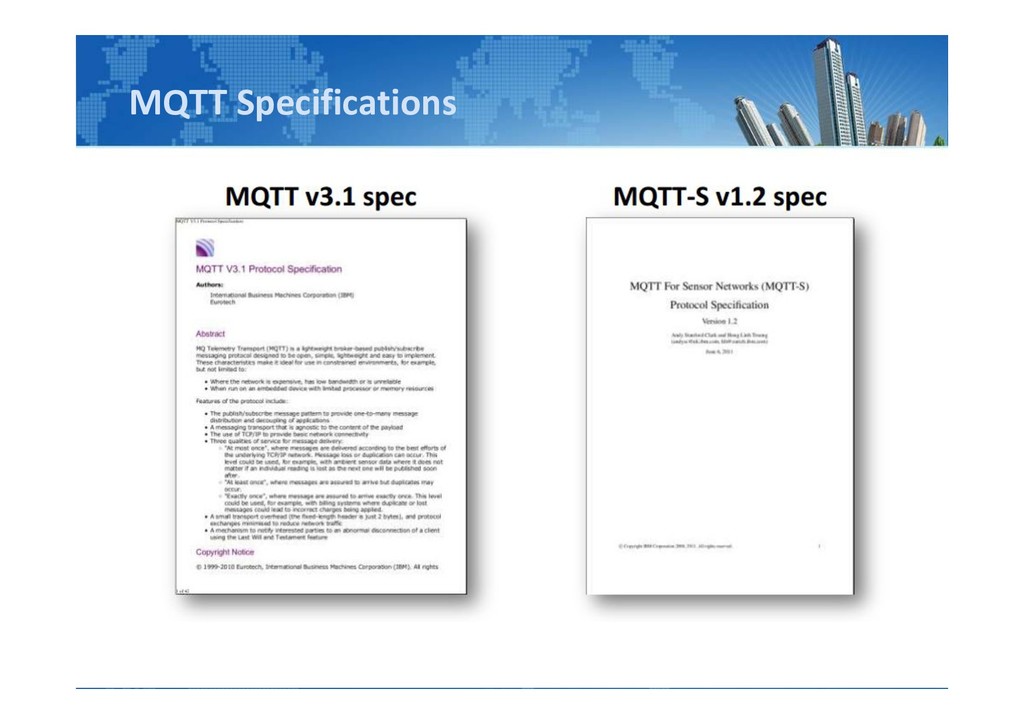

14. MQTT Specifications • MQTT v3.1 -- MQTT V3.1 Protocol Specification It is a Light weight messaging protocol on top of the TCP/IP protocol with a publish/subscribe messaging model. • MQTT v3.0 -- MQTT V3.0 Protocol Specification It is a Light weight messaging protocol on top of the TCP/IP protocol with a publish/subscribe messaging model. • MQTT-SN v1.2 -- MQTT for Sensor Networks V1.2 Protocol Specification It is a variation of the main protocol aimed at embedded devices on non- TCP/IP networks, such as ZigBee.
15. Both MQTT Spec Combined Only 70 Pages!
16. MQTT vs CoAP CoAP Spec 60 Pages Longer !
17. What's The Feature About MQTT? • The publish/subscribe message pattern to provide one-to-many message distribution and decoupling of applications • A messaging transport that is agnostic to the content of the payload • The use of TCP/IP to provide basic network connectivity • Three Qualities of Service for message delivery: a. At most once b. At least once c. Exactly once • A small transport overhead (the fixed-length header is just 2 bytes), and protocol exchanges minimised to reduce network traffic • A mechanism to notify interested parties to an abnormal disconnection of a client using the Last Will and Testament feature
18. Three Qualities of Service For Message Delivery Qualities of Service
19. In What Scenario MQTT Should be Used? • connectivity is intermittent • bandwidth is at a premium • an enterprise application needs to interact with one or more phone apps • phone or tablet apps need to send data reliably without requiring code retry logic • low latency • assured messaging and efficient distribution
20. At Present, Who Is Using MQTT? Enterprise-Level Applications : 1. WebSphere MQ By IBM Features: It can transport any type of data as messages, enabling businesses to build flexible, reusable architectures such as service-oriented architecture (SOA) environments. 2. GaianDB Features: A distributed federated database using a biologically inspired self-organization principle to minimize management. 3. LAMA By IBM Extreme Blue Project Full Name: Location Aware Messaging for Accessibility Features: Developed as a part of IBM’s Extreme Blue projects in 2006, LAMA is a system for making information available to people in a way that is relevant to their interests and location. 4. SiSi By IBM Extreme Blue Project Full Name: Say It, Sign It Features: Developed as a part of IBM’s Extreme Blue projects in 2007, SiSi helps deaf people by converting speech into British Sign Language (BSL), rendered via an MQTT-attached Java avatar.
21. At Present, Who Is Using MQTT? Home Automation: 1. Andy SC's Twittering / Automated House 2. Power Monitoring 3. Lighting Control 4. Gardening 5. Energy monitoring with an old-style analog ammeter 6. Android/TV/Burglar detection system 7. Ciseco OpenKontrol Gateway 8. WarmDirt 9. homA 10. St Jude Medical Ciseco OpenKontrol Gateway
22. At Present, Who Is Using MQTT? University & Research: 1. Southampton University LEGO microscope controller 2. CEIT, University of Queensland 3. FloodNet Monitoring river levels and environmental information to provide early warning of flooding 4. Smart Lab Monitoring experiments at the University of Southampton's chemistry lab 5. mobile4D mobile4D is a student project at the University of Bremen. We are developing a disaster alerting system based upon smartphone and web technology.
23. At Present, Who Is Using MQTT? Mobile Software: 1. Facebook Messenger • Facebook stated that they adopted MQTT to have faster phone to phone messaging while using less battery and bandwidth. • MQTT can be used in iOS iPhone and iPad, Android, and Windows apps.
24. MQTT For Sensor Networks

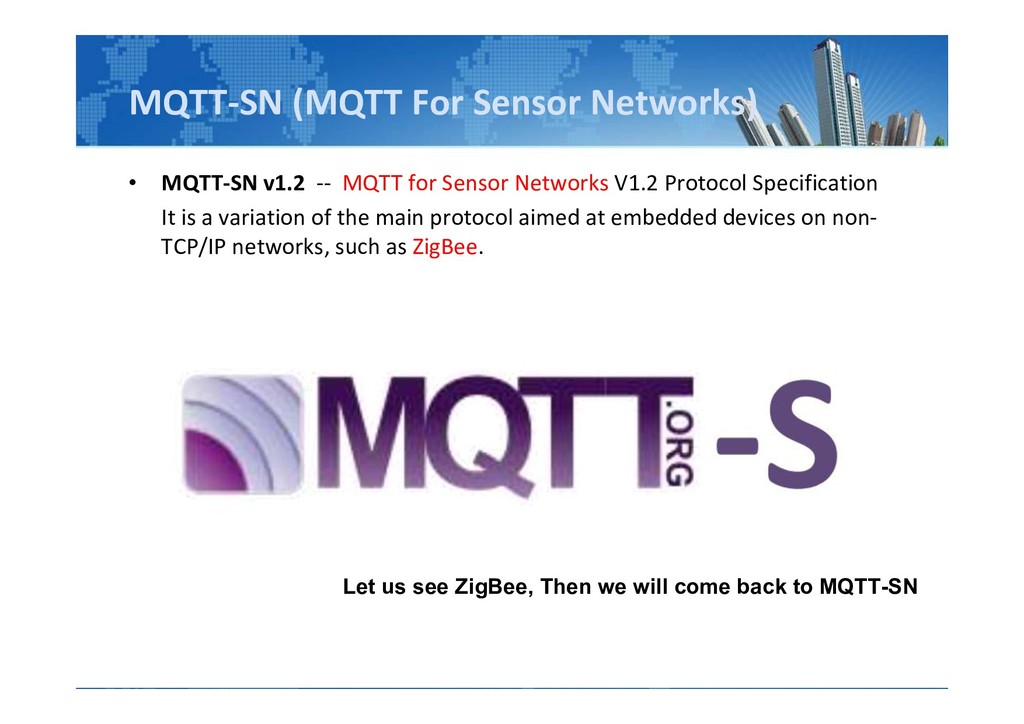

25. MQTT-SN (MQTT For Sensor Networks) • MQTT-SN v1.2 -- MQTT for Sensor Networks V1.2 Protocol Specification It is a variation of the main protocol aimed at embedded devices on non- TCP/IP networks, such as ZigBee. Let us see ZigBee, Then we will come back to MQTT-SN
26. What is ZigBee? Mesh Communication Protocol For Wireless Sensor Networks
27. Many Different Profiles
28. The Devices For ZigBee
29. How to use this devices? • 1 Coordinator • 1+ Routers • 1+ End devices You change device type by loading corresponding firmware.

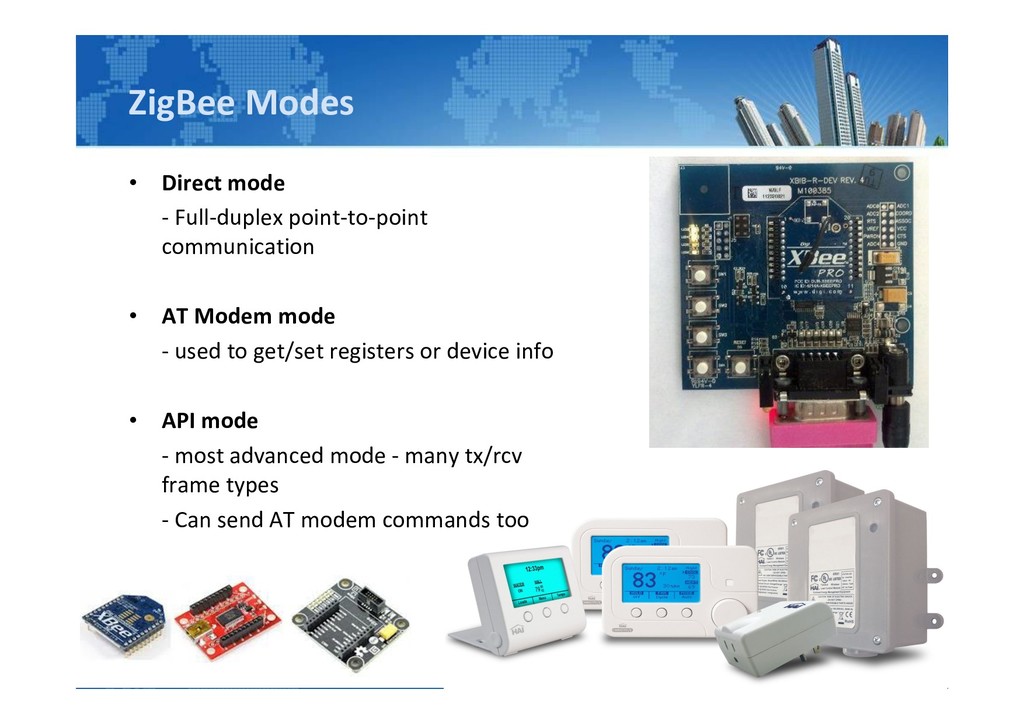

30. ZigBee Modes • Direct mode - Full-duplex point-to-point communication • AT Modem mode - used to get/set registers or device info • API mode - most advanced mode - many tx/rcv frame types - Can send AT modem commands too
31. Example : Nike + iPod
32. Example : Nike + iPod
33. Example : Robot
34. How to study ZigBee? BWSN: Book + Kit
35. How to study ZigBee?
36. Arduino, RPi, BeagleBone specs Let's go back to MQTT-SN
37. MQTT-S Overview • Designed to be very similar to MQTT. - i.e. Use MQTT Semamtics • Clients are WSN nodes, which communicate via a Gateway to a Broker on IP network. • The Gateway may just translate messages between MQTT-S and MQTT, so the broker is a normal MQTT broker. • Designed to work on any WSN Architecture/transport.

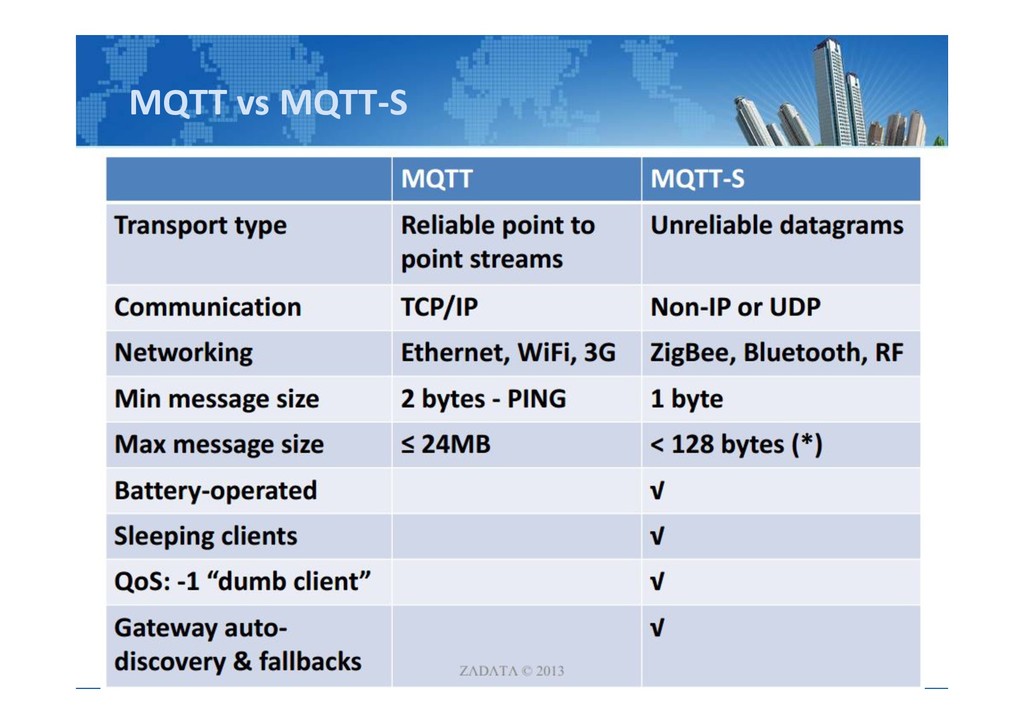

38. MQTT vs MQTT-S
39. "Simple Client" QoS = -1

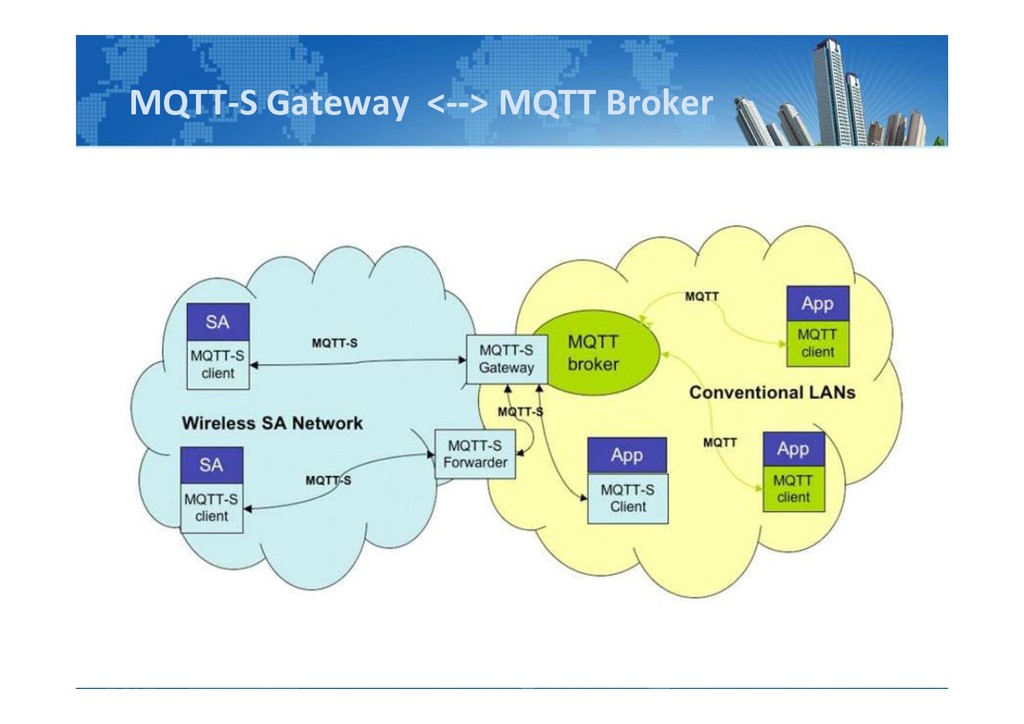

40. MQTT-S Gateway <--> MQTT Broker
41. MQTT-S Gateway <--> MQTT Broker
42. Implementing IoT with WSNs and MQTT-S Protocol
43. WSN node = Arduino + XBee Single Node
44. WSN with 3 Nodes
45. MQTT-S Gateway on Raspberry Pi
46. MQTT-S Gateway on BeagleBoard
47. MQTT Devices
48. MQTT Servers/Brokers • IBM Websphere MQ Telemetry • IBM MessageSight • IBM Integration Bus • Mosquitto • Eclipse Paho • Eurotech Everywhere Device Cloud • Xively • eMQTT • m2m.io • webMethods Nirvana Messaging • RabbitMQ • Apache ActiveMQ • Apache Apollo • Moquette • HiveMQ • Mosca • Litmus Automation Loop
49. What's Capabilities In Many of MQTT Server?
50. MQTT Clients Librarys Device-Specific : • Arduino (more information) • mbed (more information) • mbed (simple port of the Arduino pubsubclient) • Nanode • Netduino • M2MQTT (works with .Net Micro Framework) Actionscript : • as3MQTT C : • Eclipse Paho • libmosquitto • libemqtt - an embedded C client C++ : • libmosquittopp Clojure : • Machine Head Dart : • mqtt.dart Delphi : • TMQTTClient Erlang : • erlmqtt • mqtt4erl • my-mqtt4erl - updated fork of mqtt4erl
51. MQTT Clients Librarys Java : • Eclipse Paho • Xenqtt Includes a client library, mock broker for unit/integration testing, and applications to support enterprise needs like using a cluster of servers as a single client, an HTTP gateway, etc. • MeQanTT • Fusesource mqtt-client • moquette • "MA9B" zip of 1/2 dozen mobile clients source code. Includes Android-optimized Java source that works with Android notifications, based on Paho • IA92 - deprecated IBM IA92 support pack, use Eclipse Paho GUI client instead. A useful MQTT Java swing GUI for publishing & subscribing. The Eclipse Paho GUI is identical but uses newer client code
52. MQTT Clients Librarys Javscript / Node.js : • Eclipse Paho HTML5 JavaScript for MQTT over WebSocket. • mqtt.js • node_mqtt_client • IBM-provided PhoneGap / Apache Cordova MQTT plug-in for Android - JavaScript API is identical to Eclipse Paho HTML5 JavaScript • mosquitto websocket client (deprecated, use Eclipse Paho) • Ascoltatori - a node.js pub/sub library that allows access to Redis, AMQP, MQTT and ZeroMQ with the same API. LotusScript : • MQTT from LotusScript Lua : • Eclipse Paho Lua client • mqtt_lua (deprecated use Paho)
53. MQTT Clients Librarys .NET / dotNET : • MqttDotNet • nMQTT • M2MQTT Perl : • net-mqtt-perl • anyevent-mqtt-perl • WebSphere-MQTT-Client PHP : • phpMQTT • Mosquitto-PHP Objective-C : • mqttIO-objC • libmosquitto - via wrappers • MQTTKit • "MA9B" zip of 1/2 dozen mobile clients source code including Objective-C Python : • Eclipse Paho Python client - originally the mosquitto Python client • python-mosquitto (deprecated use Paho code) • nyamuk • MQTT for twisted python Ruby : • ruby-mqtt • em-mqtt
54. Message Format
55. Command List
57. MQTT QoS Levels
58. CONNECT command
59. CONNACK command
60. PUBLISH command
61. PUBACK command
62. PUBREC command
63. PUBREL command
64. PUBCOMP command
65. SUBSCRIBE command
66. SUBACK command
67. UNSUBSCRIBE command
68. UNSUBACK command
69. PINGREQ command
70. PINGRESP command
71. DISCONNECT command
72. A Simple Demo
73. A Simple Demo
74. A Simple Demo
75. MQTT Books
76. Related Protocol • IEEE 802.15.4
77. References
78. References
79. Thanks! Questions? Contact: Eric Xiao Email: ericssonxiao@gmail.com Twitter: @ericssonxiao Facebook:
