Introduction to ECS

Learning Entity Component System

Transcript

1. Gen Ichino Introduction to ECS Entity Component System
2. IAM Short introduction • Frontend engineer • Experience in browser based mini games • Typed Language FTW • Rust beginner @zenoplex

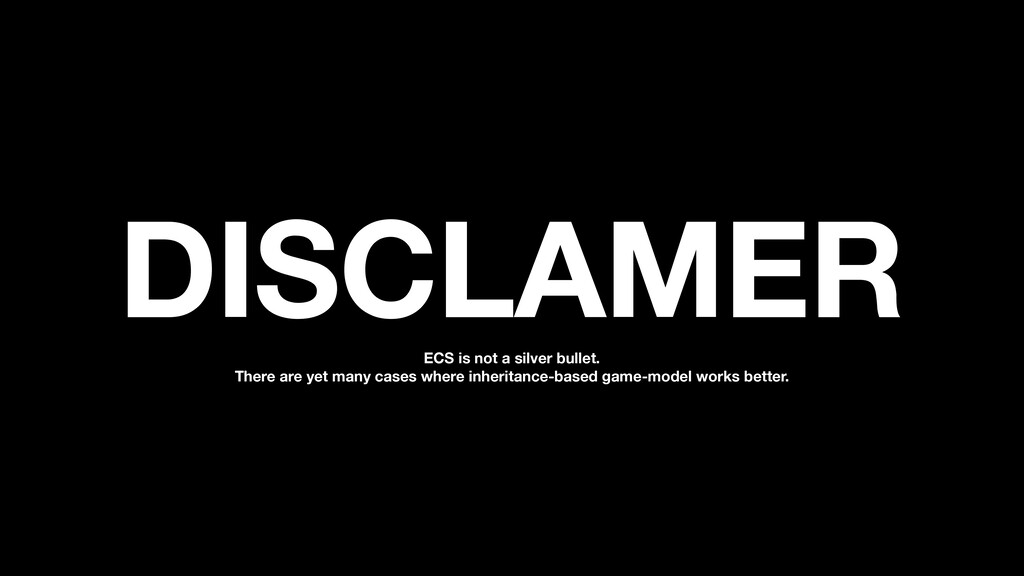

3. ECS is not a silver bullet. There are yet many cases where inheritance-based game-model works better. DISCLAMER

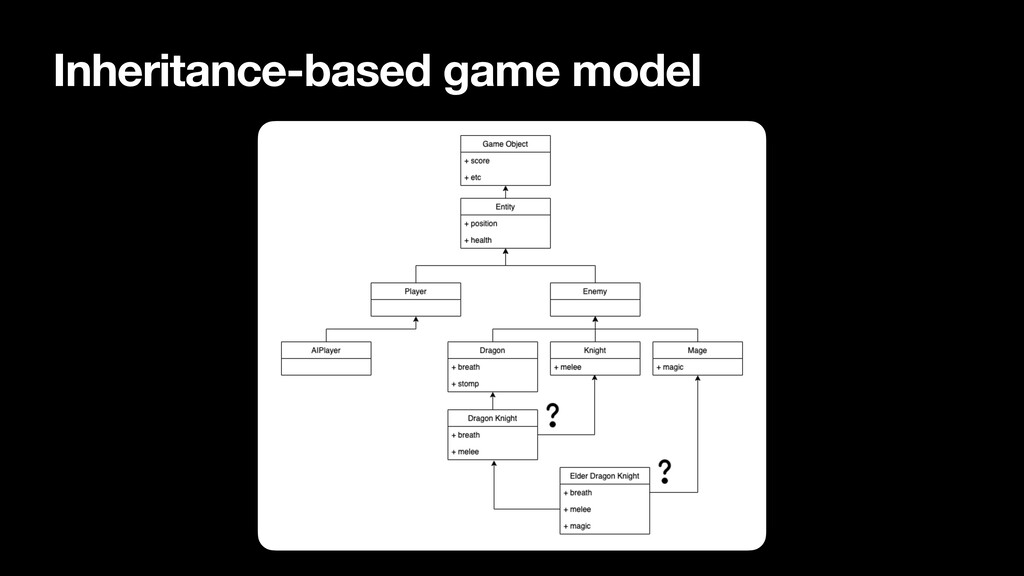

4. Inheritance-based game model

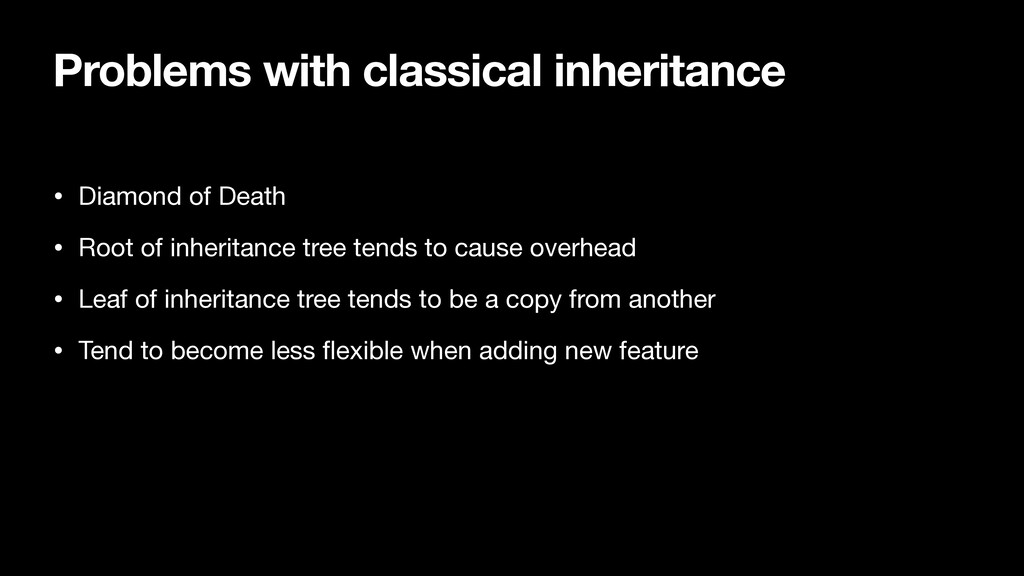

5. Problems with classical inheritance • Diamond of Death • Root of inheritance tree tends to cause overhead • Leaf of inheritance tree tends to be a copy from another • Tend to become less flexible when adding new feature
6. OOP is hard
7. ECS Terminology

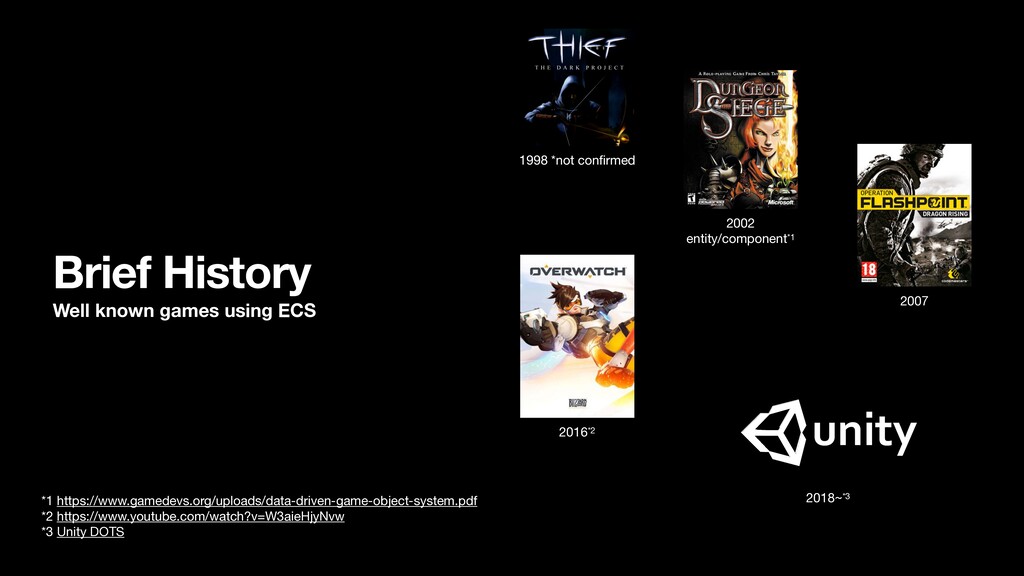

8. Brief History Well known games using ECS 1998 *not confirmed *1 https://www.gamedevs.org/uploads/data-driven-game-object-system.pdf *2 https://www.youtube.com/watch?v=W3aieHjyNvw *3 Unity DOTS 2007 2002 entity/component*1 2018~*3 2016*2

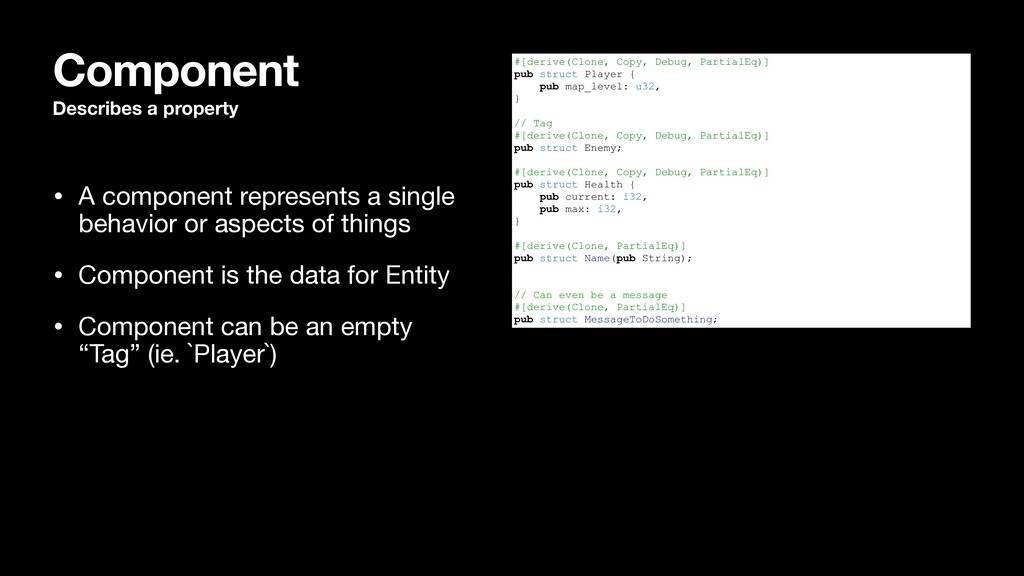

9. Component Describes a property • A component represents a single behavior or aspects of things • Component is the data for Entity • Component can be an empty “Tag” (ie. `Player`) #[derive(Clone, Copy, Debug, PartialEq)] pub struct Player { pub map_level: u32, } // Tag #[derive(Clone, Copy, Debug, PartialEq)] pub struct Enemy; #[derive(Clone, Copy, Debug, PartialEq)] pub struct Health { pub current: i32, pub max: i32, } #[derive(Clone, PartialEq)] pub struct Name(pub String); // Can even be a message #[derive(Clone, PartialEq)] pub struct MessageToDoSomething;

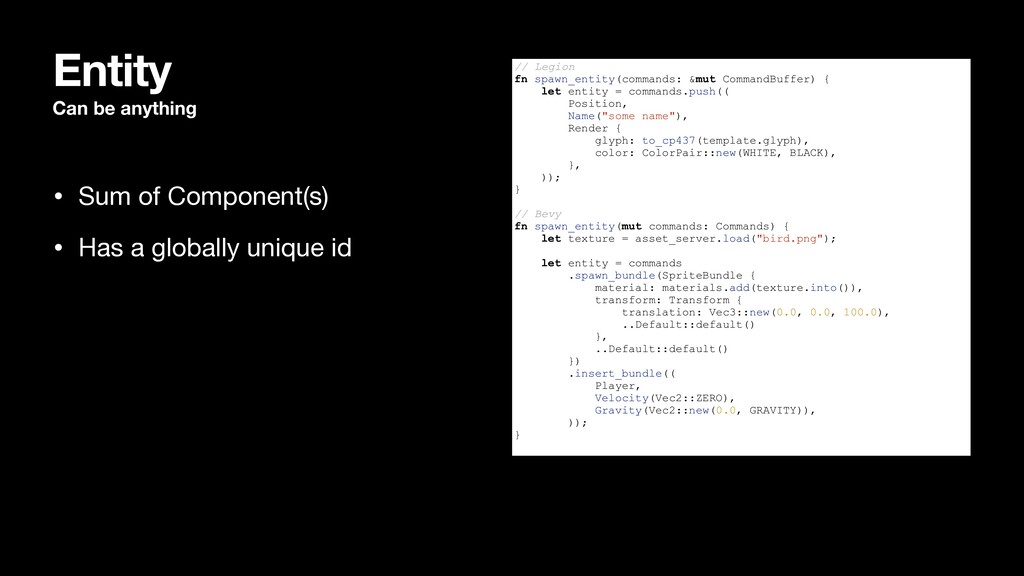

10. Entity Can be anything • Sum of Component(s) • Has a globally unique id // Legion fn spawn_entity(commands: &mut CommandBuffer) { let entity = commands.push(( Position, Name("some name"), Render { glyph: to_cp437(template.glyph), color: ColorPair::new(WHITE, BLACK), }, )); } // Bevy fn spawn_entity(mut commands: Commands) { let texture = asset_server.load("bird.png"); let entity = commands .spawn_bundle(SpriteBundle { material: materials.add(texture.into()), transform: Transform { translation: Vec3::new(0.0, 0.0, 100.0), ..Default::default() }, ..Default::default() }) .insert_bundle(( Player, Velocity(Vec2::ZERO), Gravity(Vec2::new(0.0, GRAVITY)), )); }

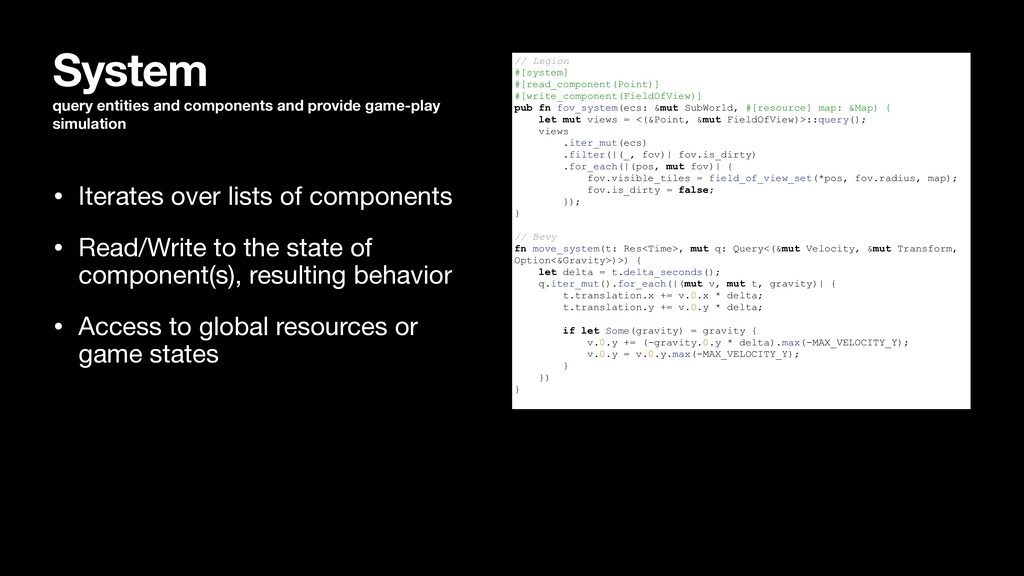

11. System query entities and components and provide game-play simulation • Iterates over lists of components • Read/Write to the state of component(s), resulting behavior • Access to global resources or game states // Legion #[system] #[read_component(Point)] #[write_component(FieldOfView)] pub fn fov_system(ecs: &mut SubWorld, #[resource] map: &Map) { let mut views = <(&Point, &mut FieldOfView)>::query(); views .iter_mut(ecs) .filter(|(_, fov)| fov.is_dirty) .for_each(|(pos, mut fov)| { fov.visible_tiles = field_of_view_set(*pos, fov.radius, map); fov.is_dirty = false; }); } // Bevy fn move_system(t: Res<Time>, mut q: Query<(&mut Velocity, &mut Transform, Option<&Gravity>)>) { let delta = t.delta_seconds(); q.iter_mut().for_each(|(mut v, mut t, gravity)| { t.translation.x += v.0.x * delta; t.translation.y += v.0.y * delta; if let Some(gravity) = gravity { v.0.y += (-gravity.0.y * delta).max(-MAX_VELOCITY_Y); v.0.y = v.0.y.max(-MAX_VELOCITY_Y); } }) }

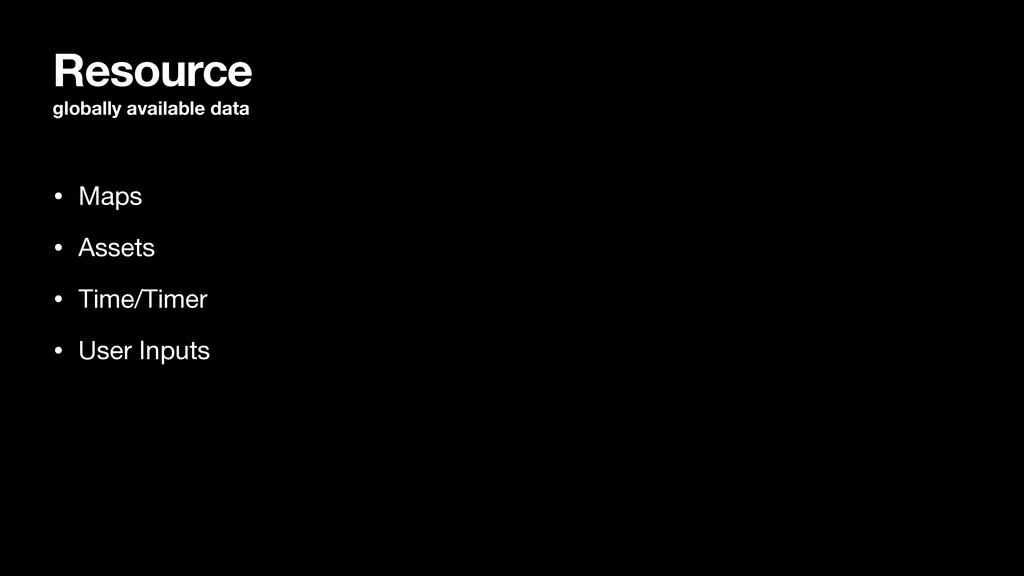

12. Resource globally available data • Maps • Assets • Time/Timer • User Inputs

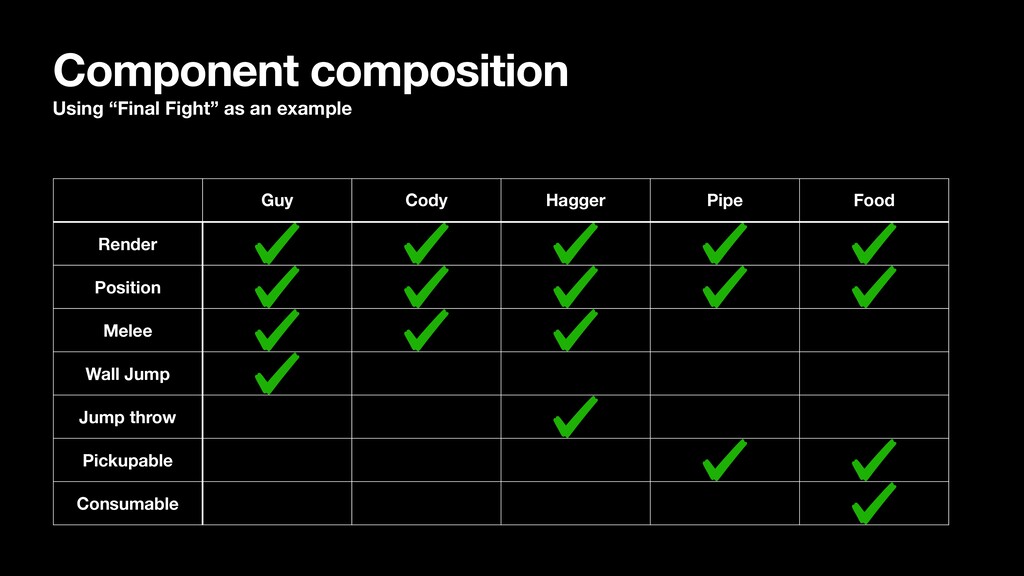

13. Component composition Using “Final Fight” as an example Guy Cody Hagger Pipe Food Render Position Melee Wall Jump Jump throw Pickupable Consumable

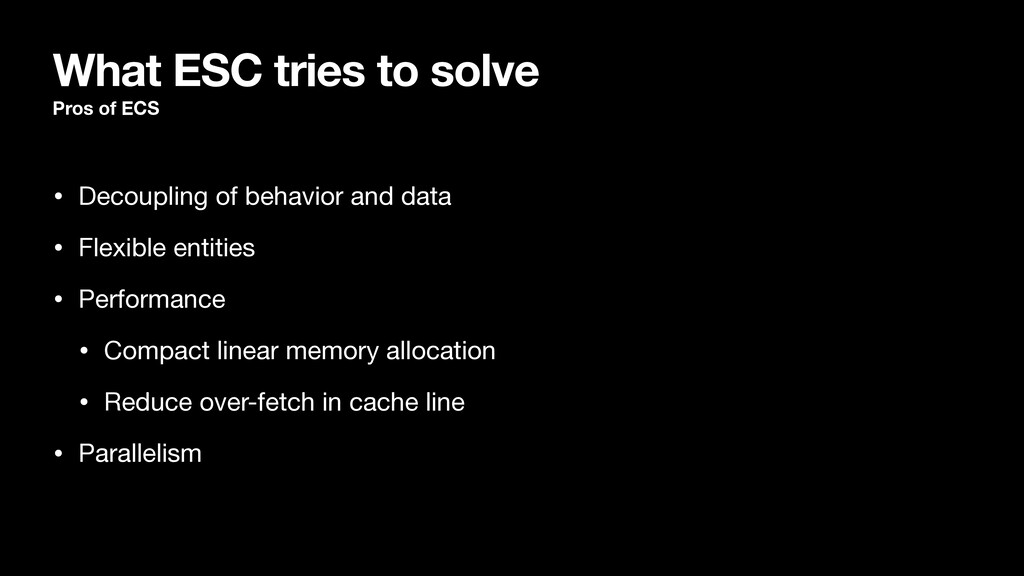

14. What ESC tries to solve Pros of ECS • Decoupling of behavior and data • Flexible entities • Performance • Compact linear memory allocation • Reduce over-fetch in cache line • Parallelism

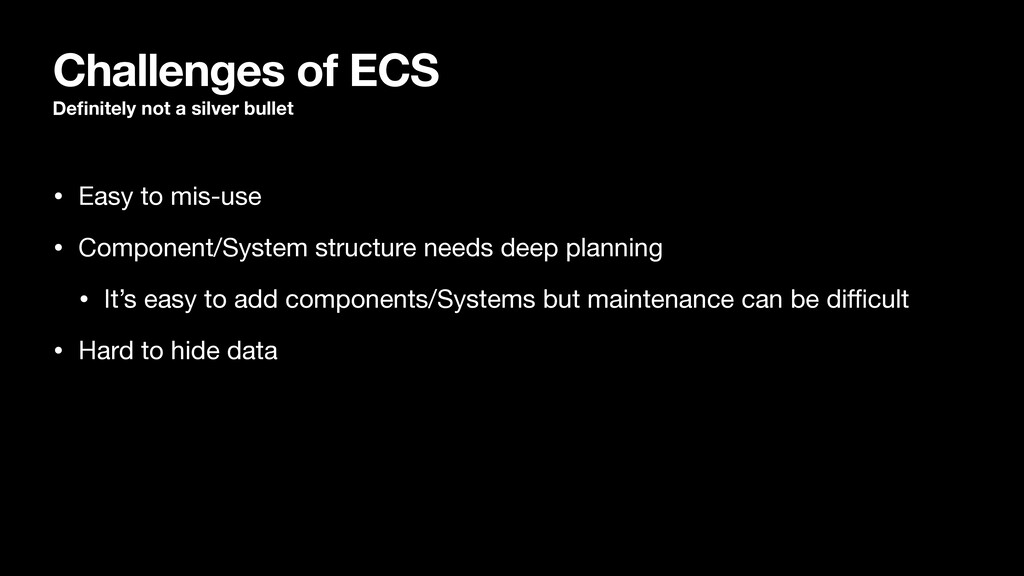

15. Challenges of ECS Definitely not a silver bullet • Easy to mis-use • Component/System structure needs deep planning • It’s easy to add components/Systems but maintenance can be difficult • Hard to hide data

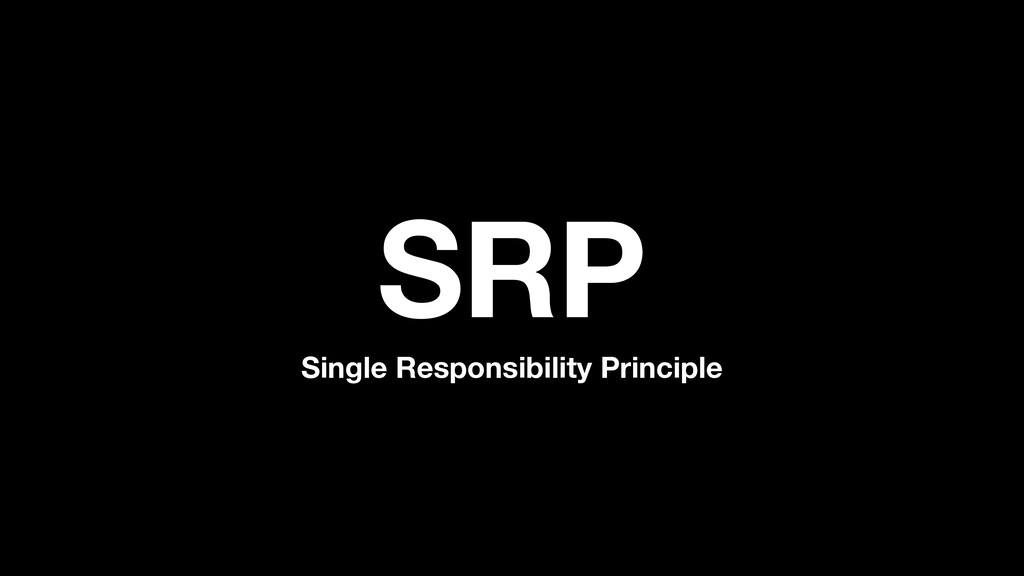

16. Single Responsibility Principle SRP

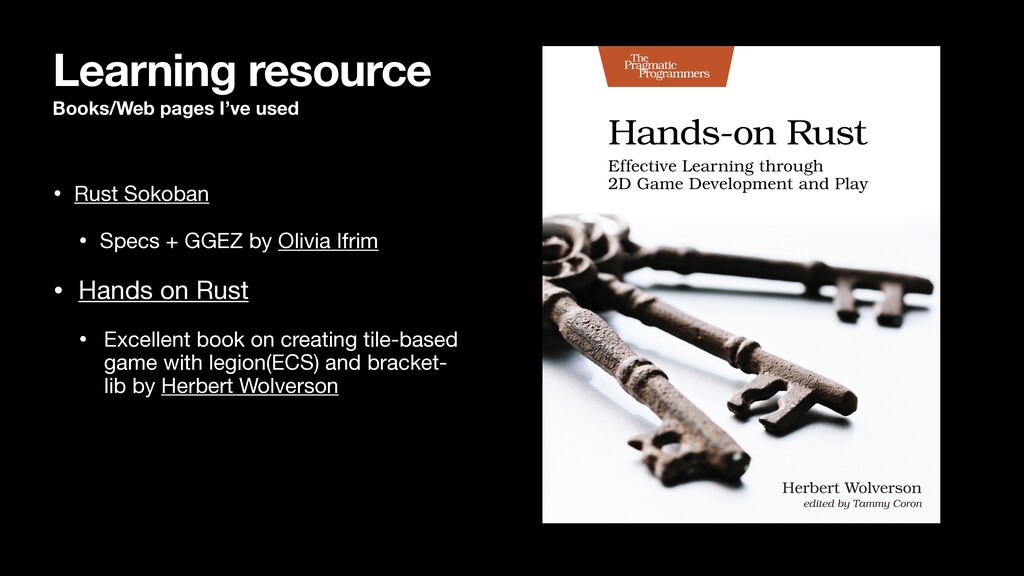

17. Learning resource Books/Web pages I’ve used • Rust Sokoban • Specs + GGEZ by Olivia Ifrim • Hands on Rust • Excellent book on creating tile-based game with legion(ECS) and bracket- lib by Herbert Wolverson
18. DEMO?

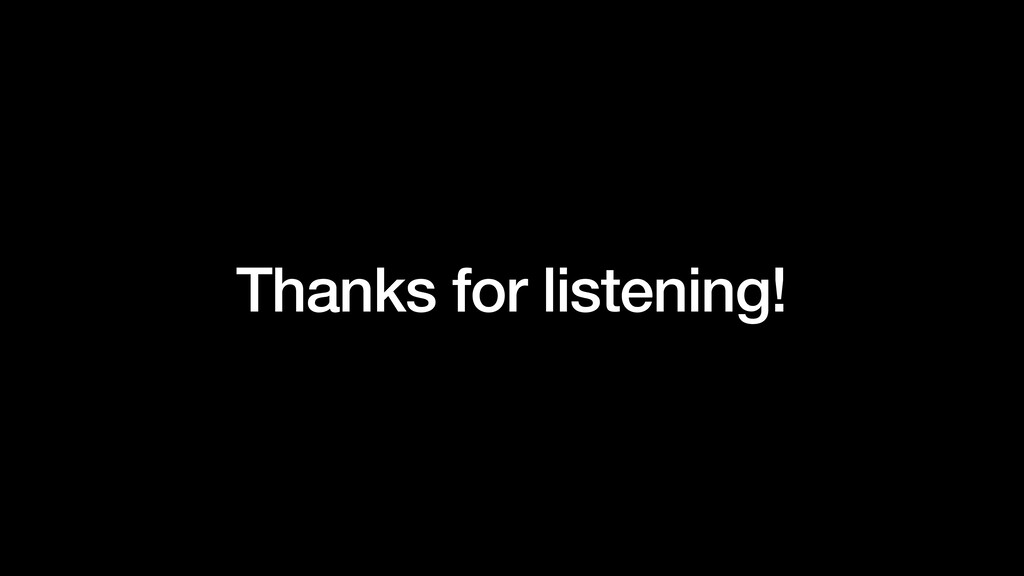

19. Thanks for listening!
