DroidKnights 2025 - 나도 edgeToEdge 적용하기 싫어. 근데 누군가는 해야 하잖아?

targetSdk35의 가장 큰 변경사항인 EdgeToEdge에 대해서 알아보았습니다.

Transcript

1. 나 도 edgeToEdge 저 ᆨ 요 ᆼ 하 기 시 ᆶ 어 . 근 데 누 구 ᆫ 가 는 해 야 하 자 ᆭ 아 ? 이지훈 SOOP
2. Slido
3. 목차 1 EdgeToEdge 톺아보자 2 EdgeToEdge 적용기 3 Inset은 어떻게 다뤄야 하는가? 4 적용하면서 생겼던 이슈들
4. 1 EdgeToEdge 톺아보자

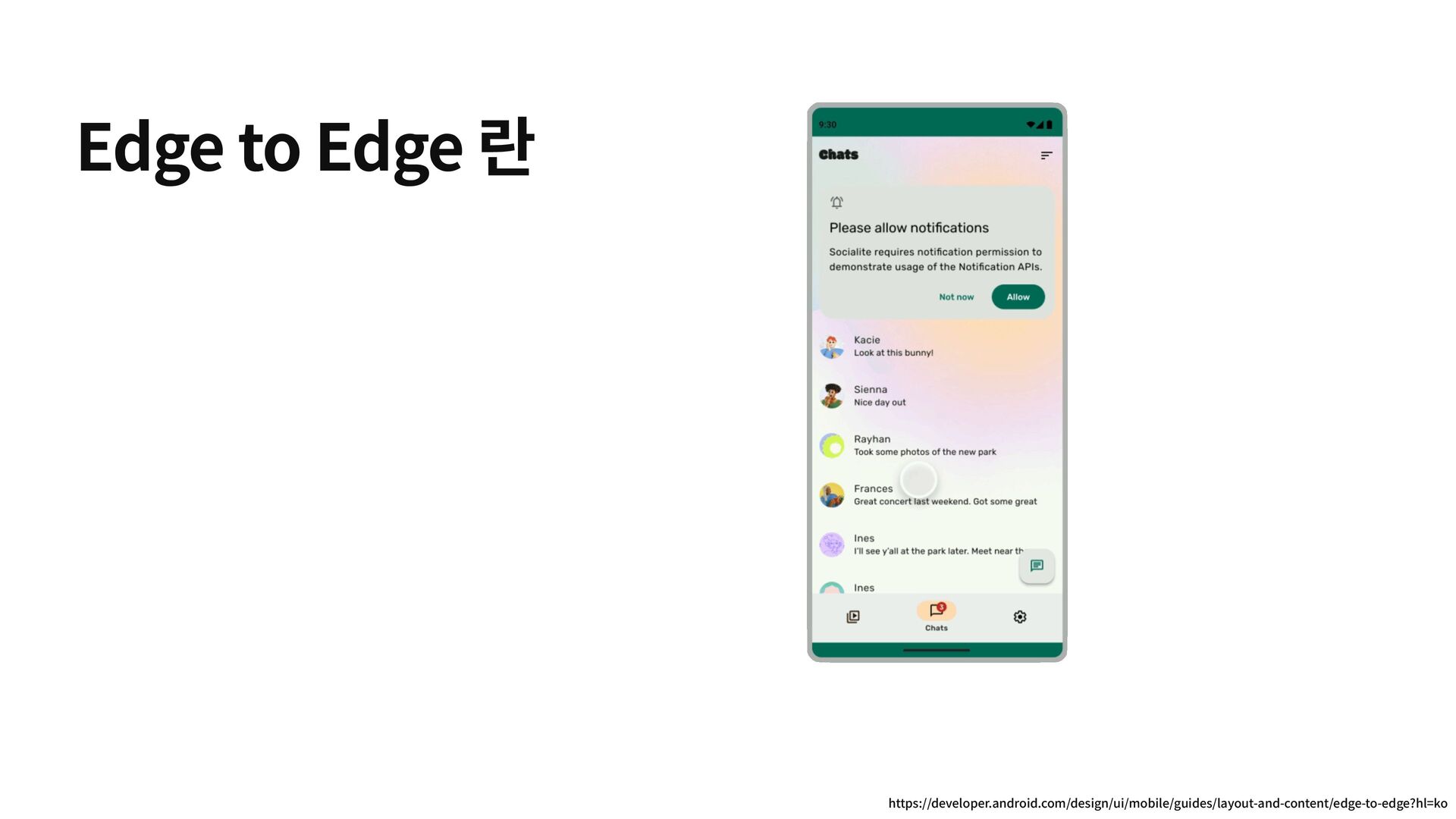

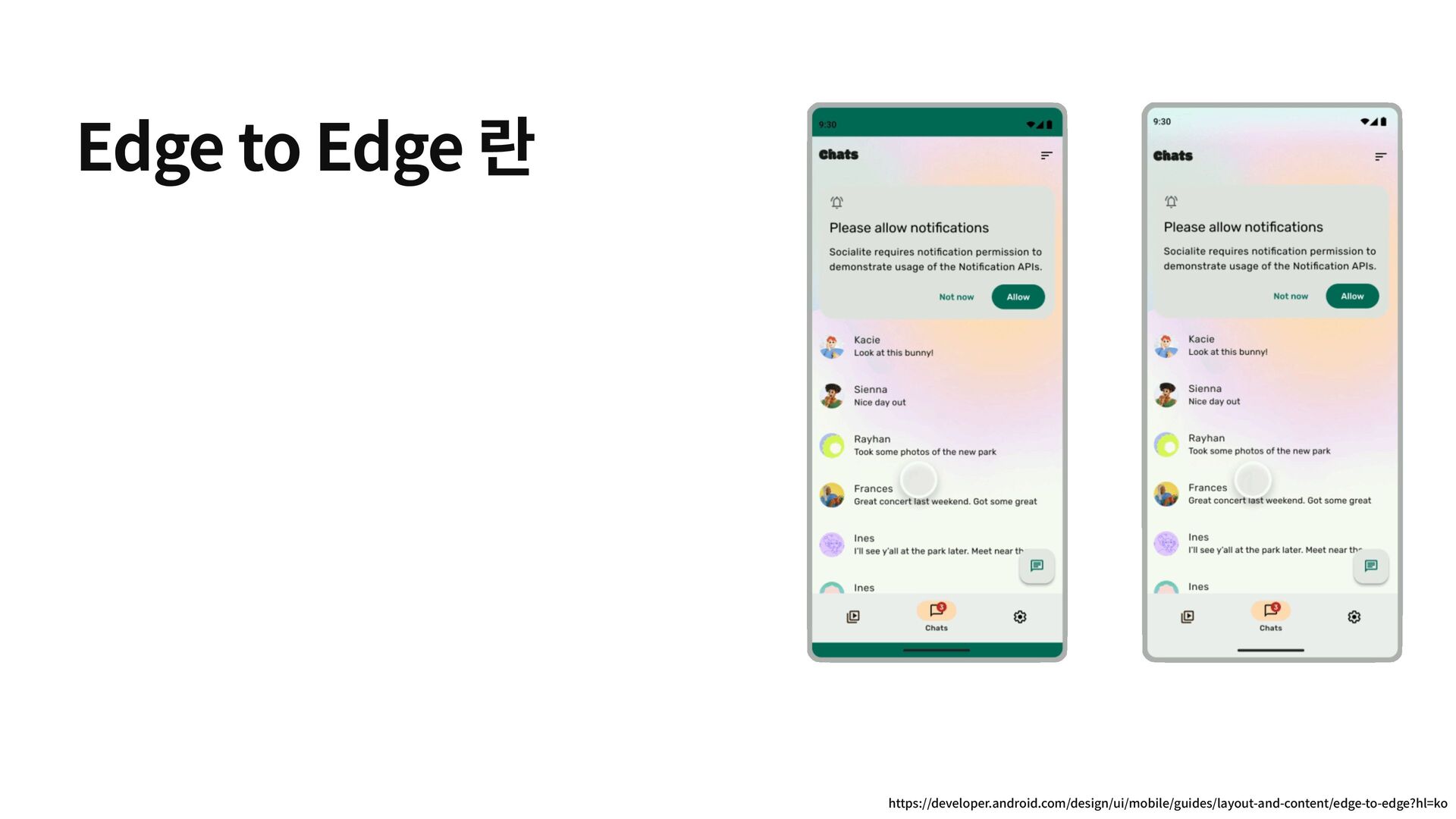

5. Edge to Edge 란 https://developer.android.com/design/ui/mobile/guides/layout-and-content/edge-to-edge?hl=ko
6. Edge to Edge 란 https://developer.android.com/design/ui/mobile/guides/layout-and-content/edge-to-edge?hl=ko

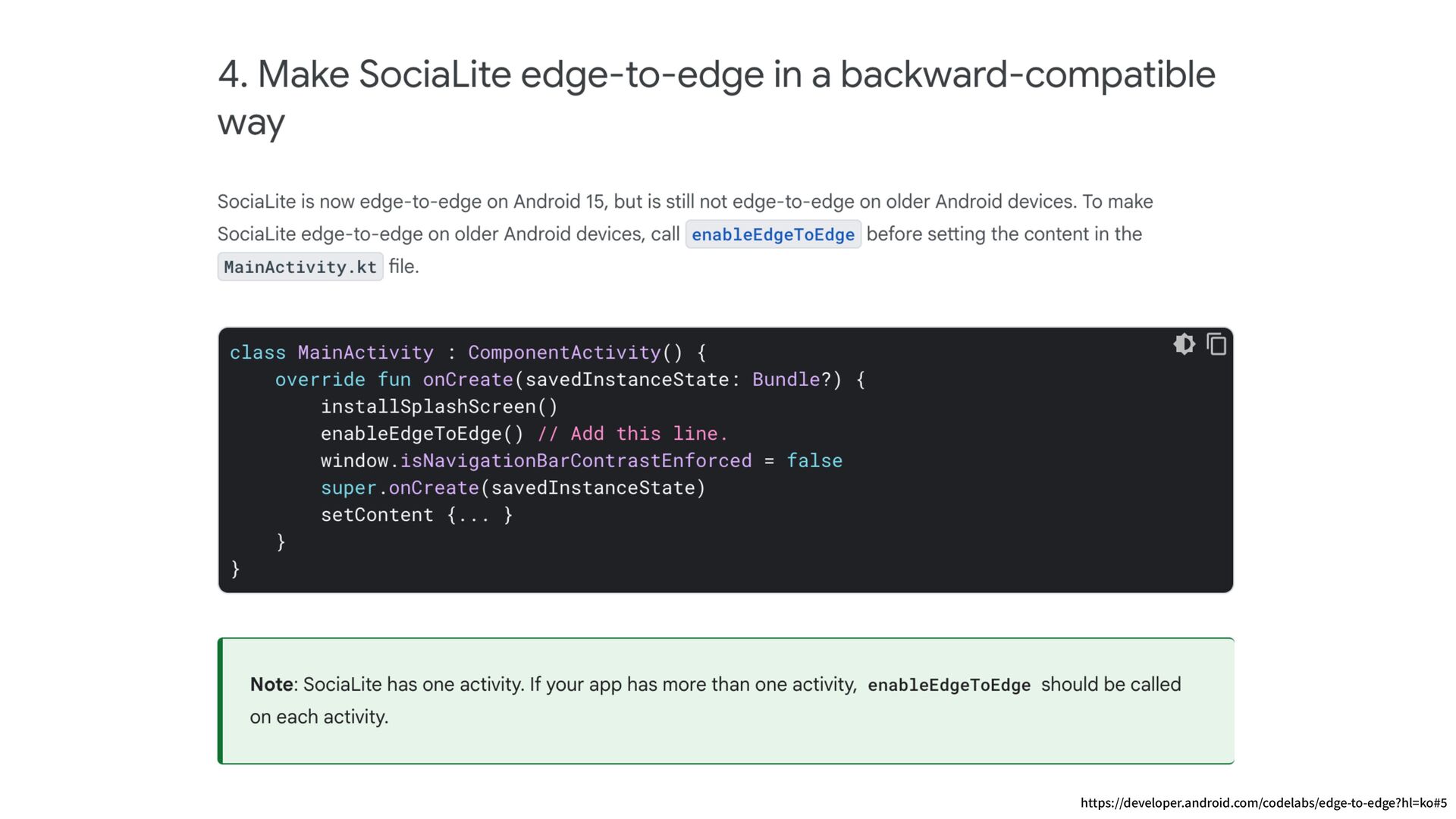

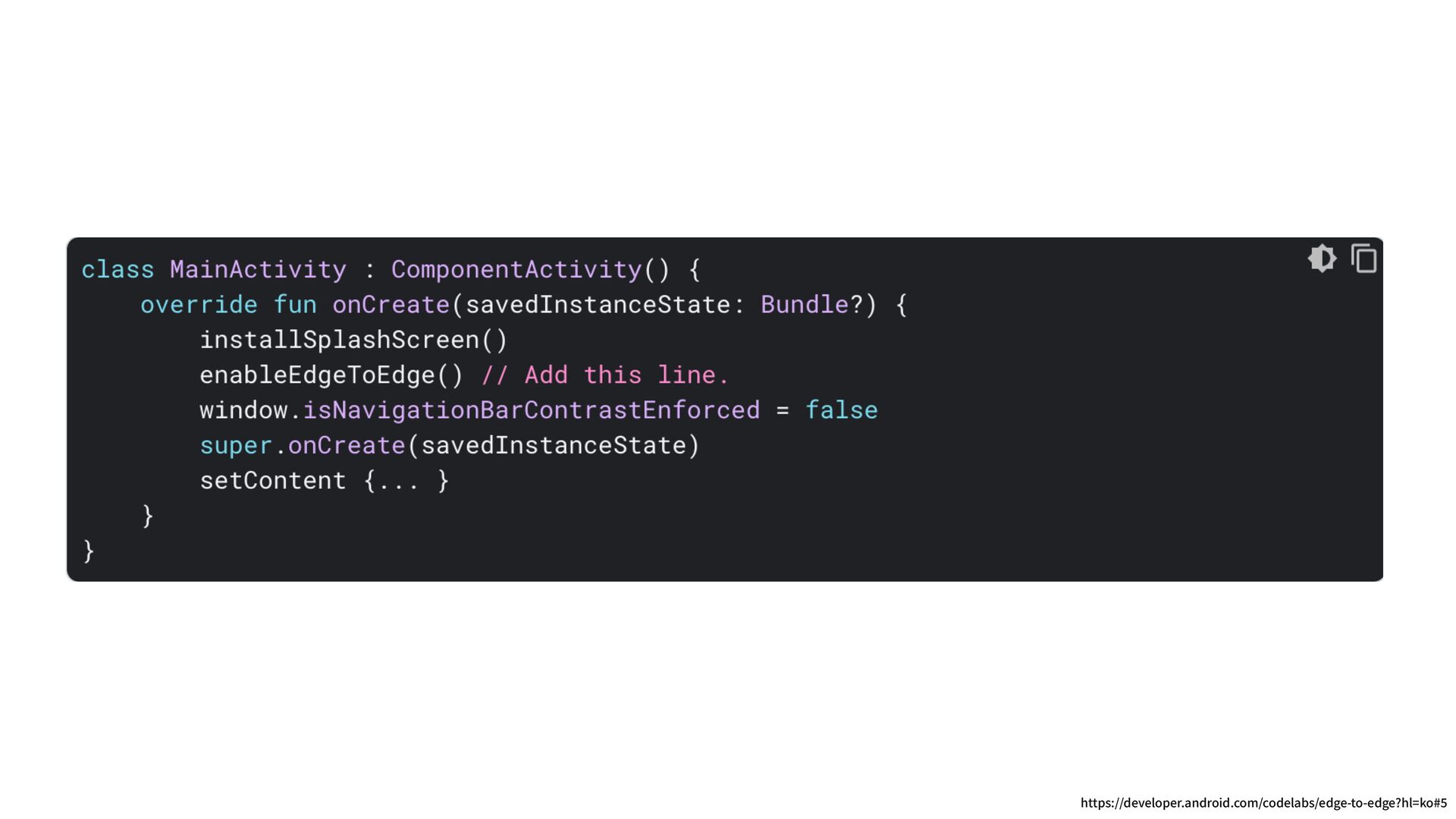

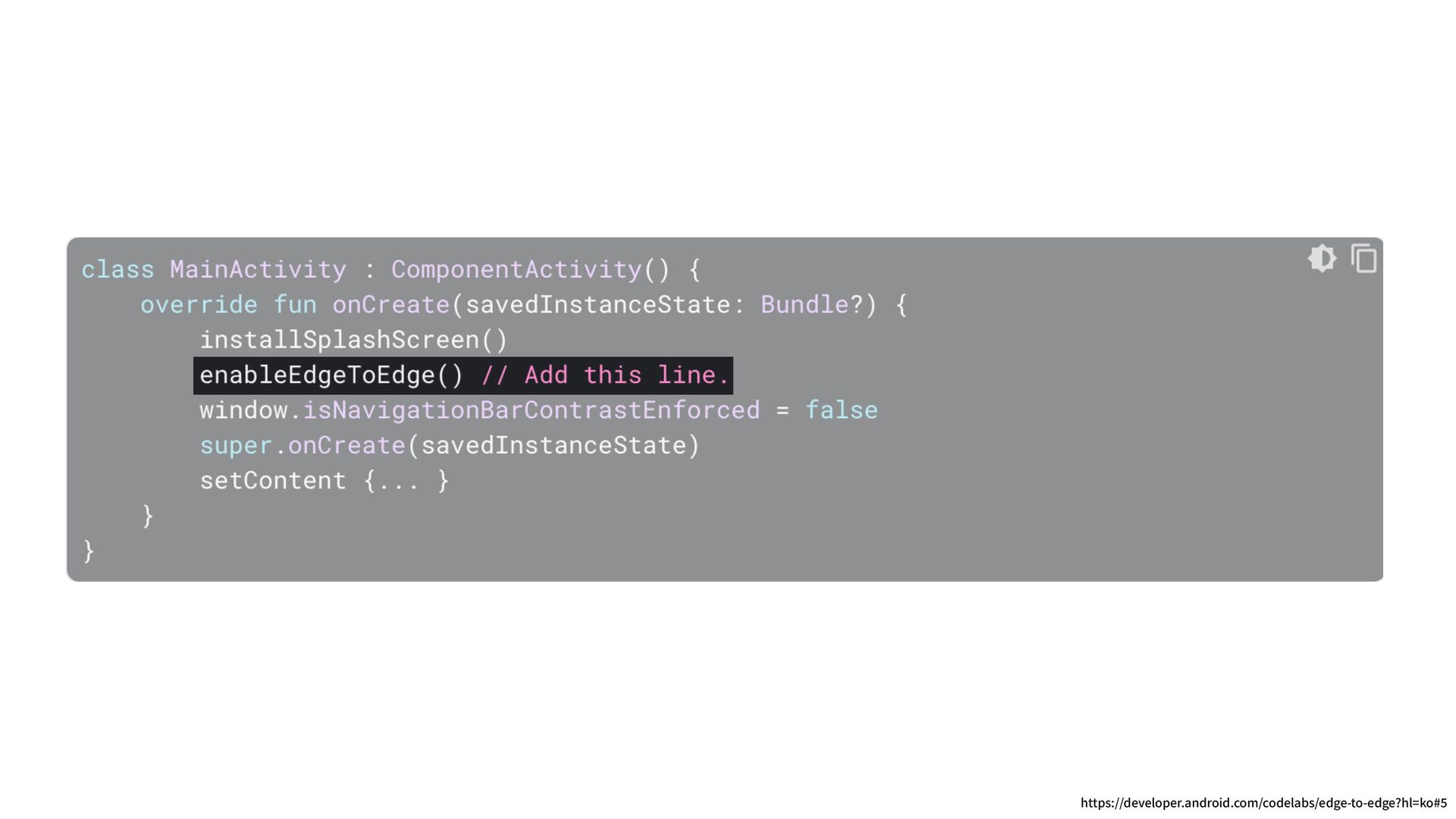

7. https://developer.android.com/codelabs/edge-to-edge?hl=ko# 5
8. https://developer.android.com/codelabs/edge-to-edge?hl=ko# 5
9. https://developer.android.com/codelabs/edge-to-edge?hl=ko# 5

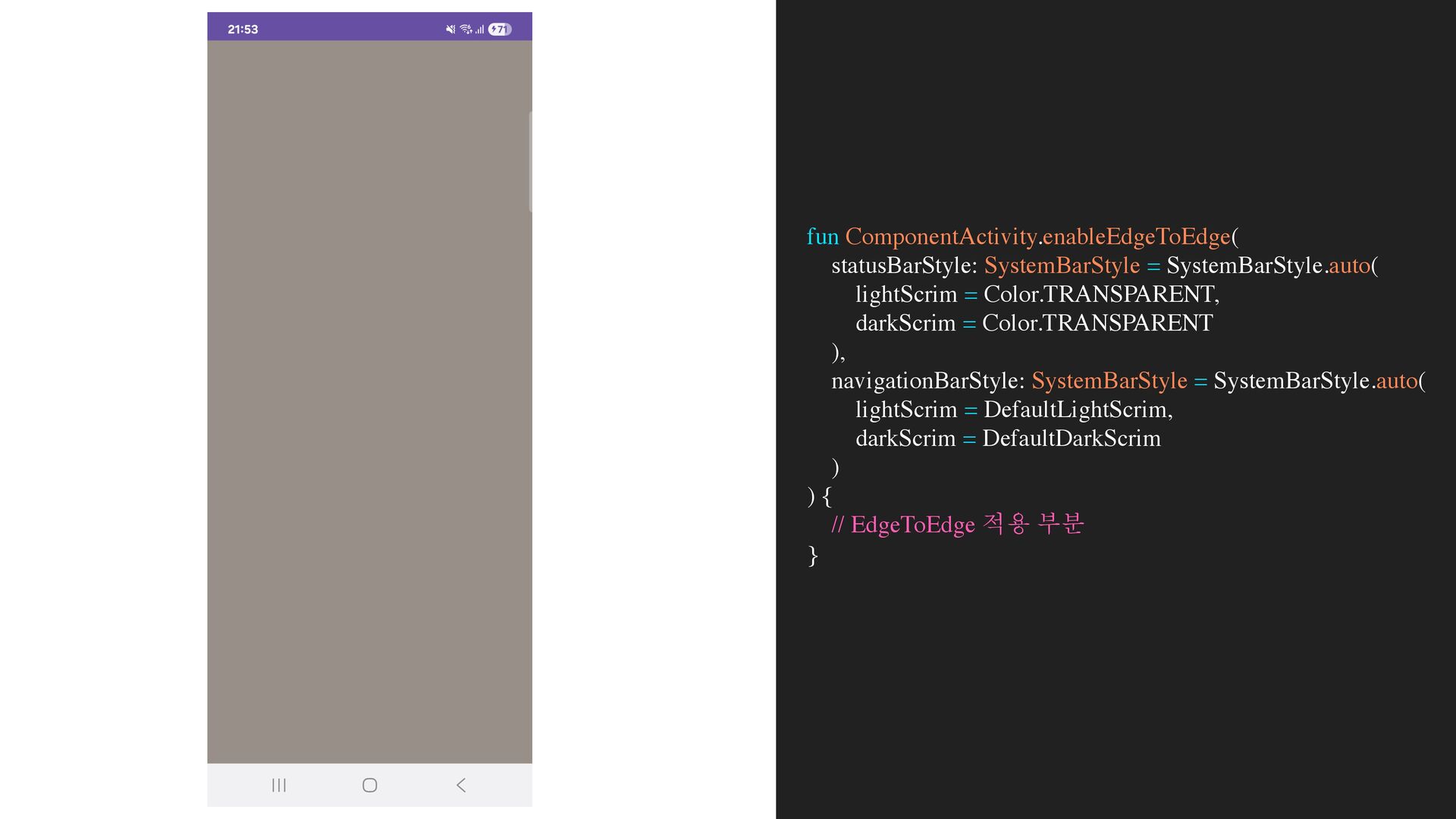

10. fun ComponentActivity.enableEdgeToEdge( statusBarStyle: SystemBarStyle = SystemBarStyle.auto( lightScrim = Color.TRANSPARENT, darkScrim = Color.TRANSPARENT ), navigationBarStyle: SystemBarStyle = SystemBarStyle.auto( lightScrim = DefaultLightScrim, darkScrim = DefaultDarkScrim ) ) { // EdgeToEdge 적용 부분 }
11. fun ComponentActivity.enableEdgeToEdge( statusBarStyle: SystemBarStyle = SystemBarStyle.auto( lightScrim = Color.TRANSPARENT, darkScrim = Color.TRANSPARENT ), navigationBarStyle: SystemBarStyle = SystemBarStyle.auto( lightScrim = DefaultLightScrim, darkScrim = DefaultDarkScrim ) ) { // EdgeToEdge 적용 부분 }
12. fun ComponentActivity.enableEdgeToEdge( statusBarStyle: SystemBarStyle = SystemBarStyle.auto( lightScrim = Color.TRANSPARENT, darkScrim = Color.TRANSPARENT ), navigationBarStyle: SystemBarStyle = SystemBarStyle.auto( lightScrim = DefaultLightScrim, darkScrim = DefaultDarkScrim ) ) { // EdgeToEdge 적용 부분 }

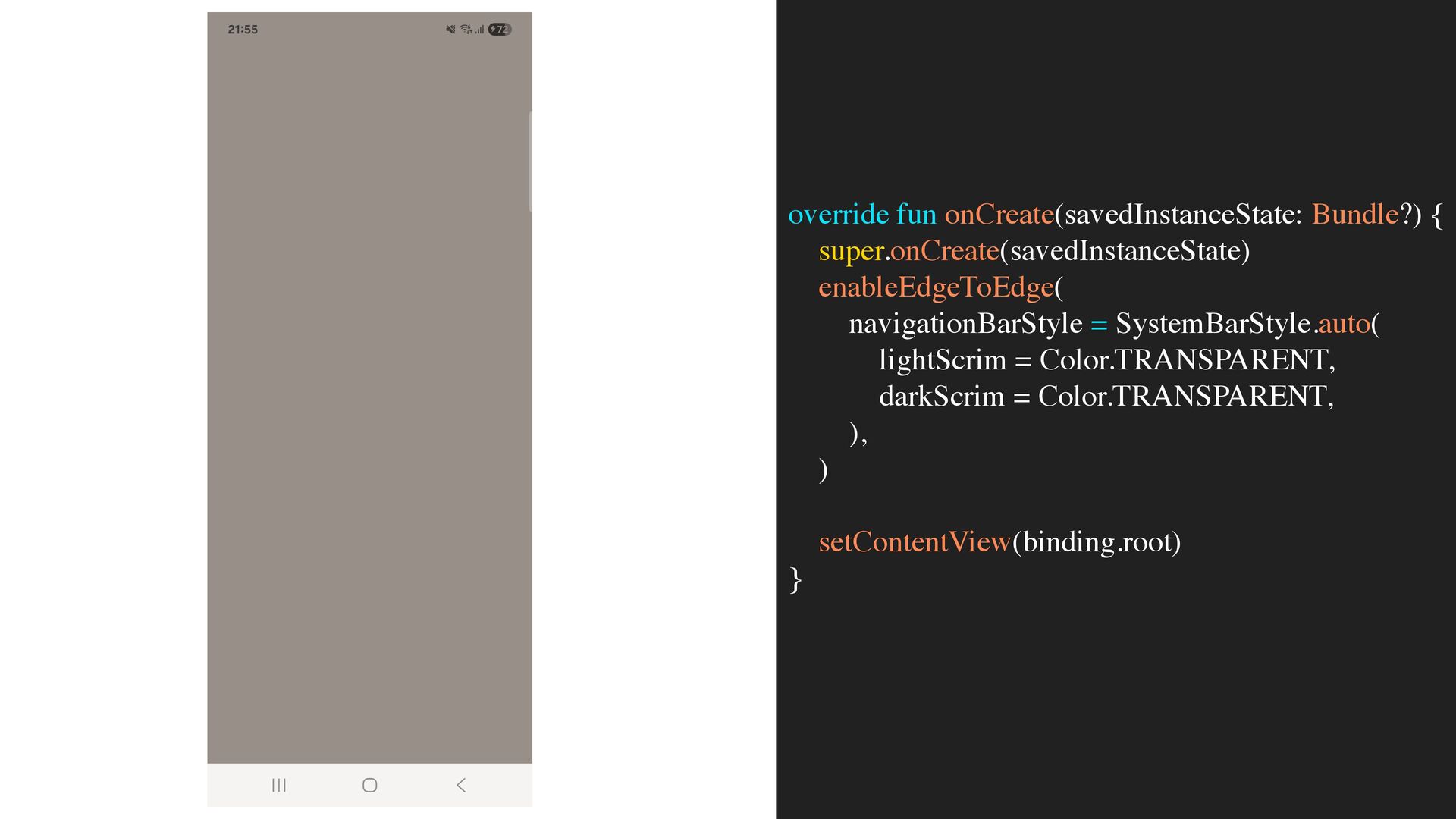

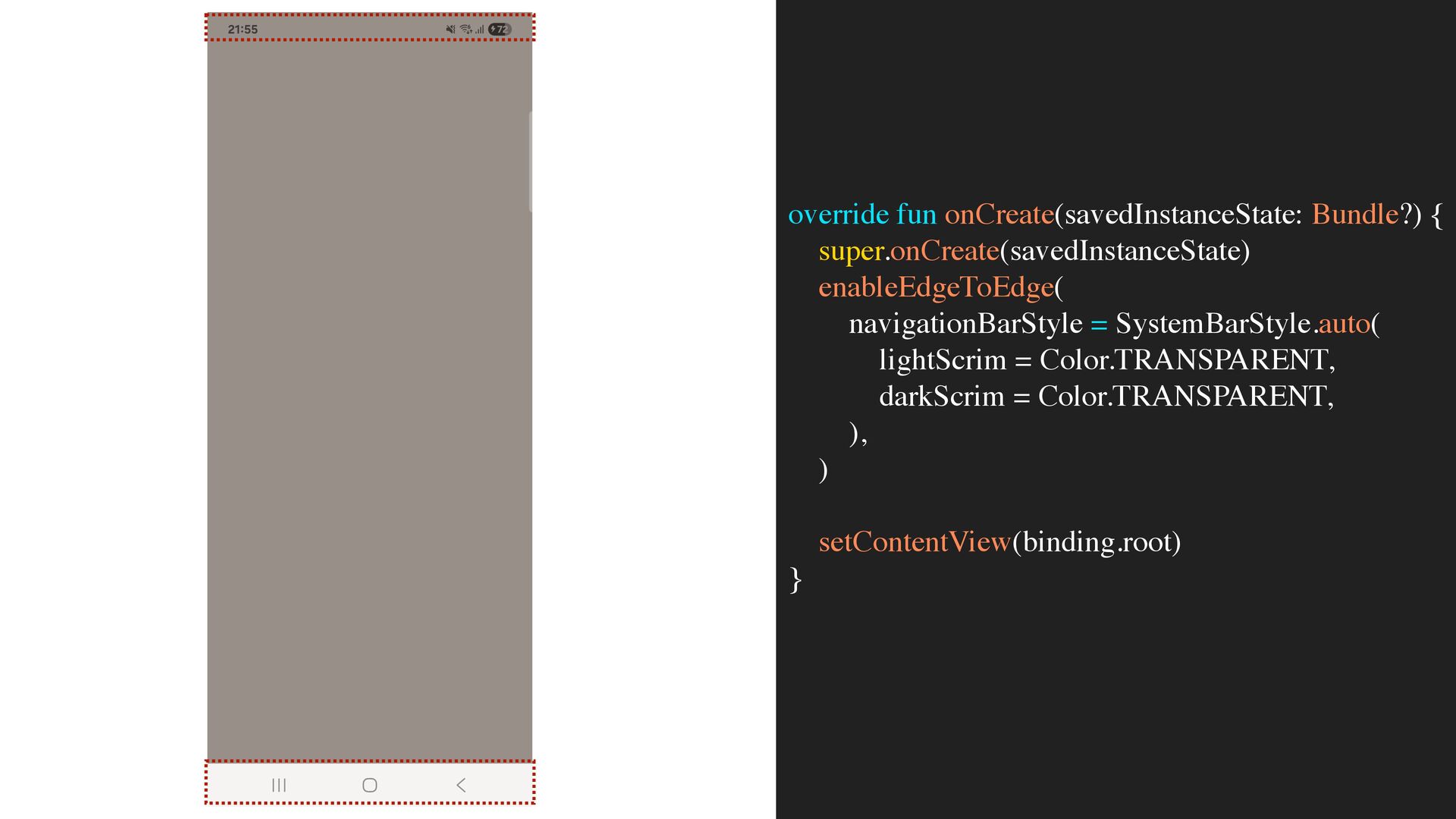

13. override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) enableEdgeToEdge( navigationBarStyle = SystemBarStyle.auto( lightScrim = Color.TRANSPARENT, darkScrim = Color.TRANSPARENT, ), ) setContentView(binding.root) }

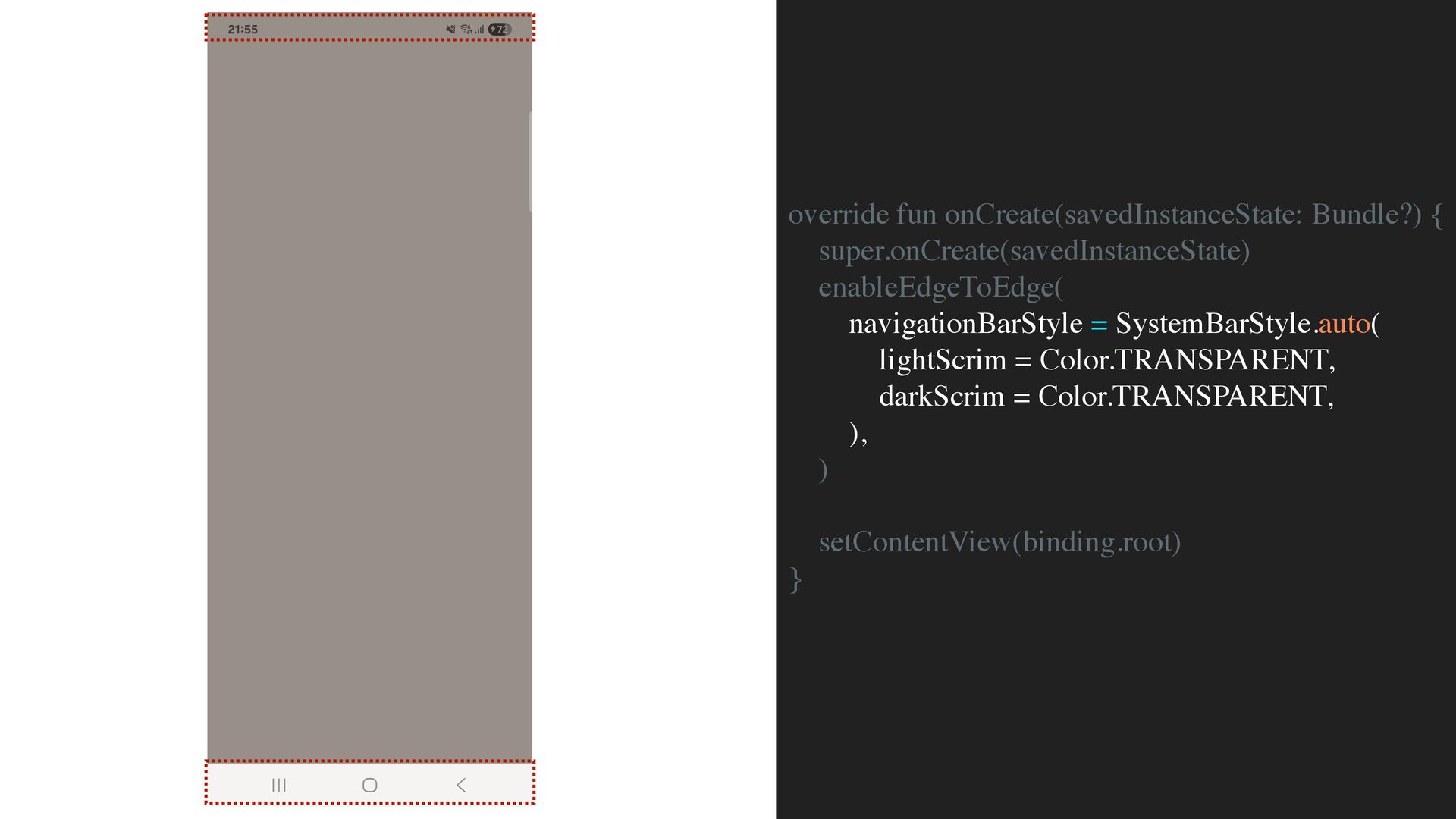

14. override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) enableEdgeToEdge( navigationBarStyle = SystemBarStyle.auto( lightScrim = Color.TRANSPARENT, darkScrim = Color.TRANSPARENT, ), ) setContentView(binding.root) }
15. override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) enableEdgeToEdge( navigationBarStyle = SystemBarStyle.auto( lightScrim = Color.TRANSPARENT, darkScrim = Color.TRANSPARENT, ), ) setContentView(binding.root) }

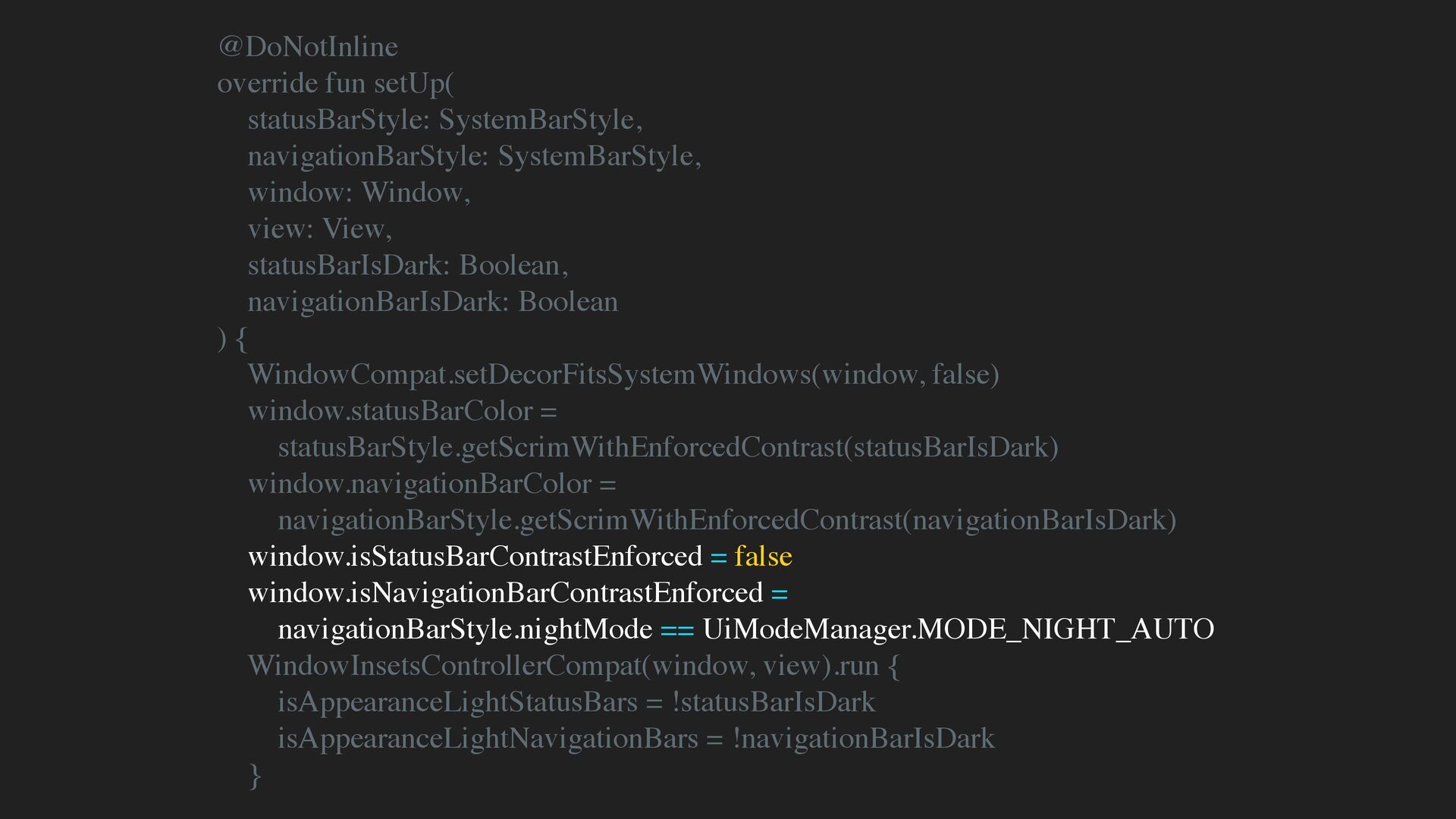

16. @DoNotInline override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) window.statusBarColor = statusBarStyle.getScrimWithEnforcedContrast(statusBarIsDark) window.navigationBarColor = navigationBarStyle.getScrimWithEnforcedContrast(navigationBarIsDark) window.isStatusBarContrastEnforced = false window.isNavigationBarContrastEnforced = navigationBarStyle.nightMode == UiModeManager.MODE_NIGHT_AUTO WindowInsetsControllerCompat(window, view).run { isAppearanceLightStatusBars = !statusBarIsDark isAppearanceLightNavigationBars = !navigationBarIsDark }

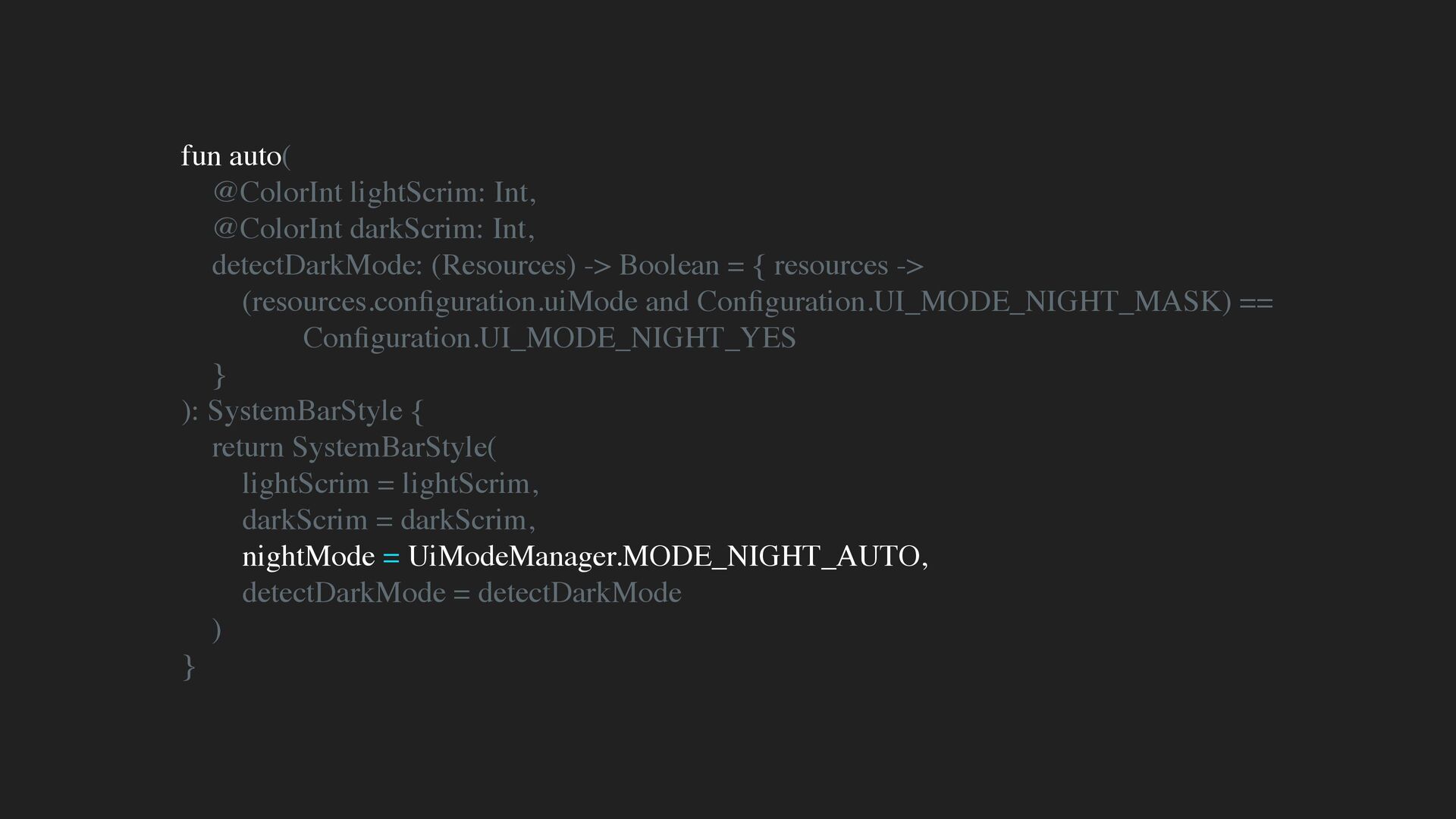

17. fun auto( @ColorInt lightScrim: Int, @ColorInt darkScrim: Int, detectDarkMode: (Resources) -> Boolean = { resources -> (resources.con fi guration.uiMode and Con fi guration.UI_MODE_NIGHT_MASK) == Con fi guration.UI_MODE_NIGHT_YES } ): SystemBarStyle { return SystemBarStyle( lightScrim = lightScrim, darkScrim = darkScrim, nightMode = UiModeManager.MODE_NIGHT_AUTO, detectDarkMode = detectDarkMode ) }

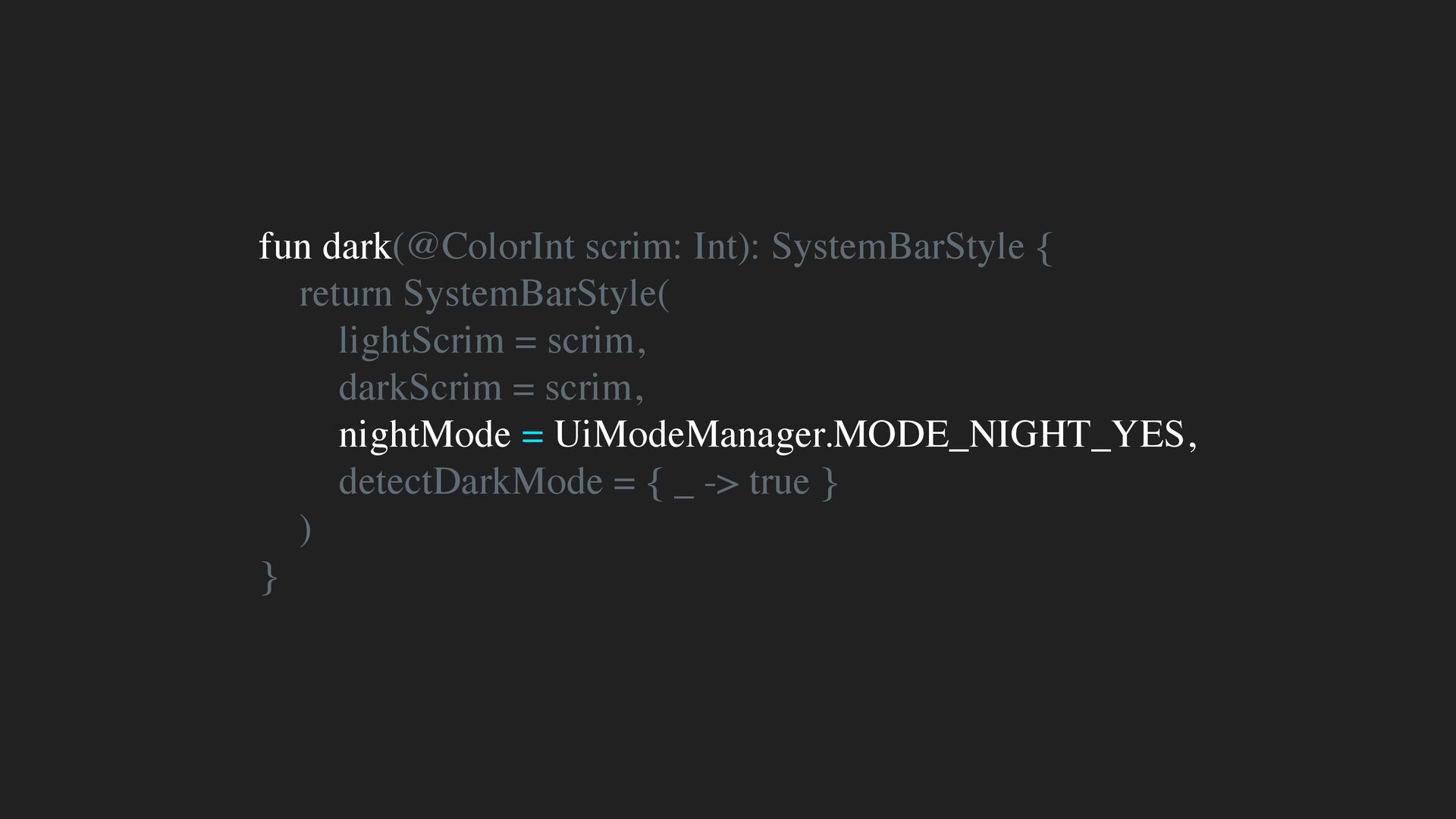

18. fun dark(@ColorInt scrim: Int): SystemBarStyle { return SystemBarStyle( lightScrim = scrim, darkScrim = scrim, nightMode = UiModeManager.MODE_NIGHT_YES, detectDarkMode = { _ -> true } ) }

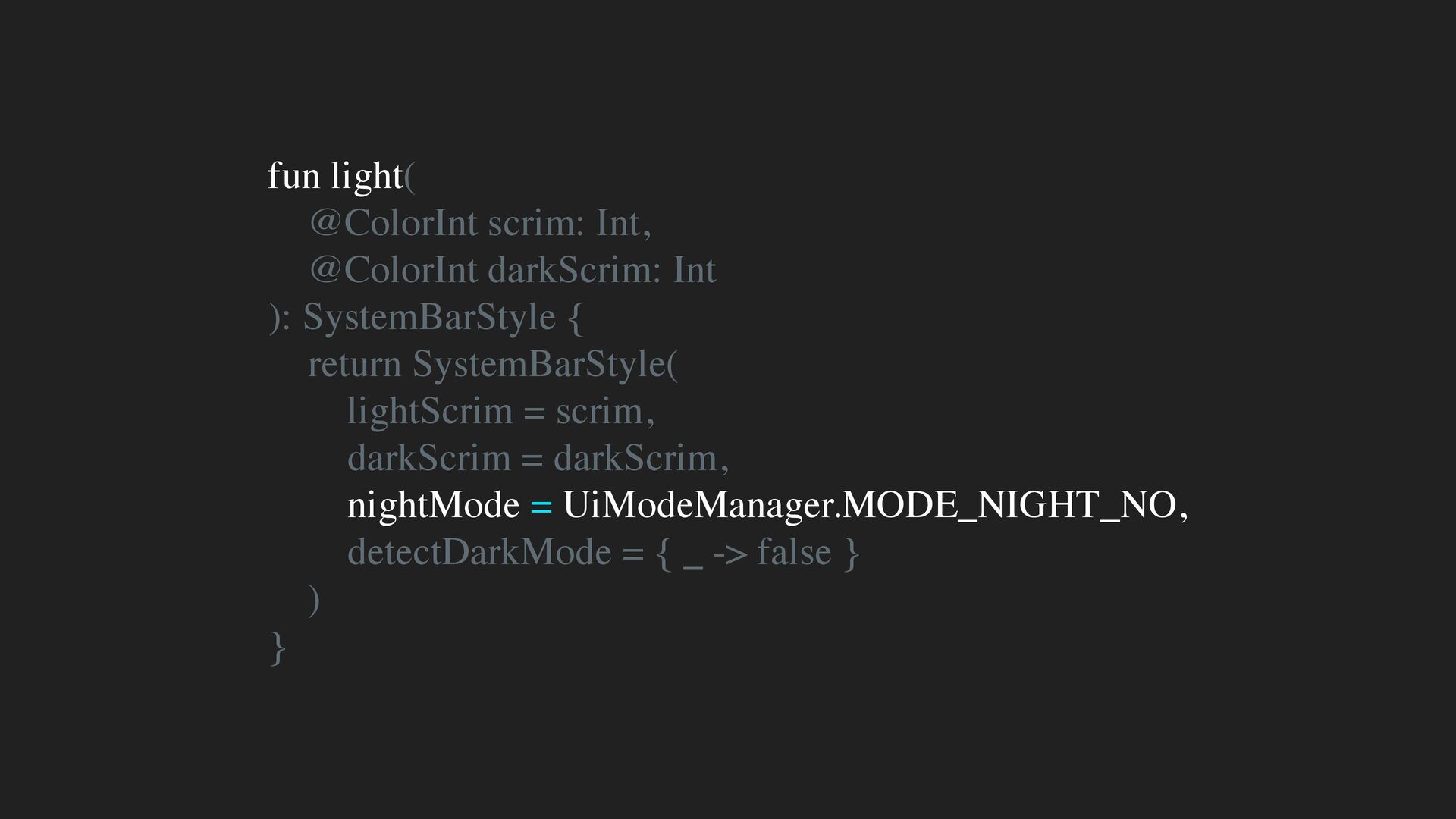

19. fun light( @ColorInt scrim: Int, @ColorInt darkScrim: Int ): SystemBarStyle { return SystemBarStyle( lightScrim = scrim, darkScrim = darkScrim, nightMode = UiModeManager.MODE_NIGHT_NO, detectDarkMode = { _ -> false } ) }
20. fun light( @ColorInt scrim: Int, @ColorInt darkScrim: Int ): SystemBarStyle { return SystemBarStyle( lightScrim = scrim, darkScrim = darkScrim, nightMode = UiModeManager.MODE_NIGHT_NO, detectDarkMode = { _ -> false } ) }

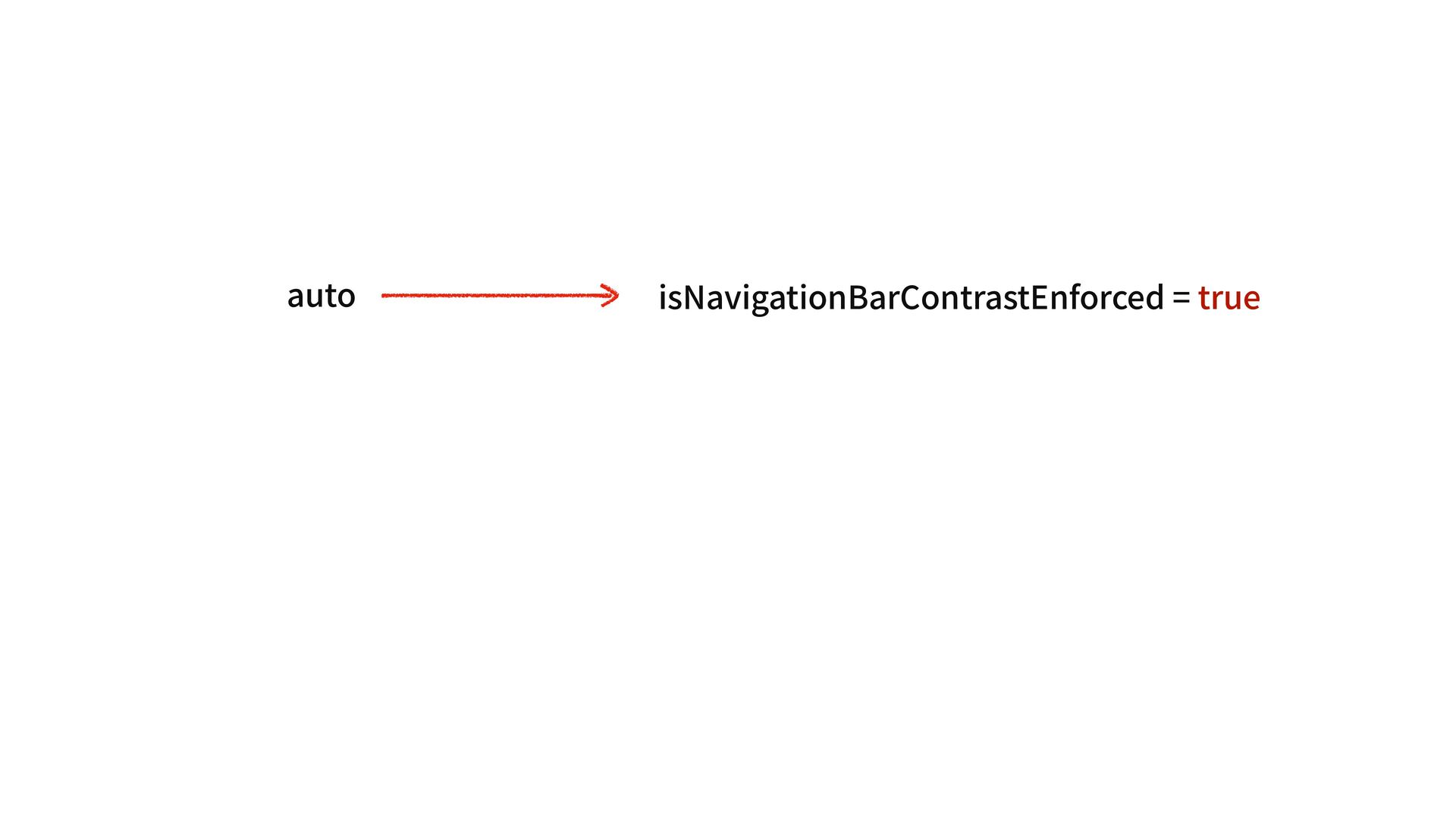

21. auto isNavigationBarContrastEnforced = true

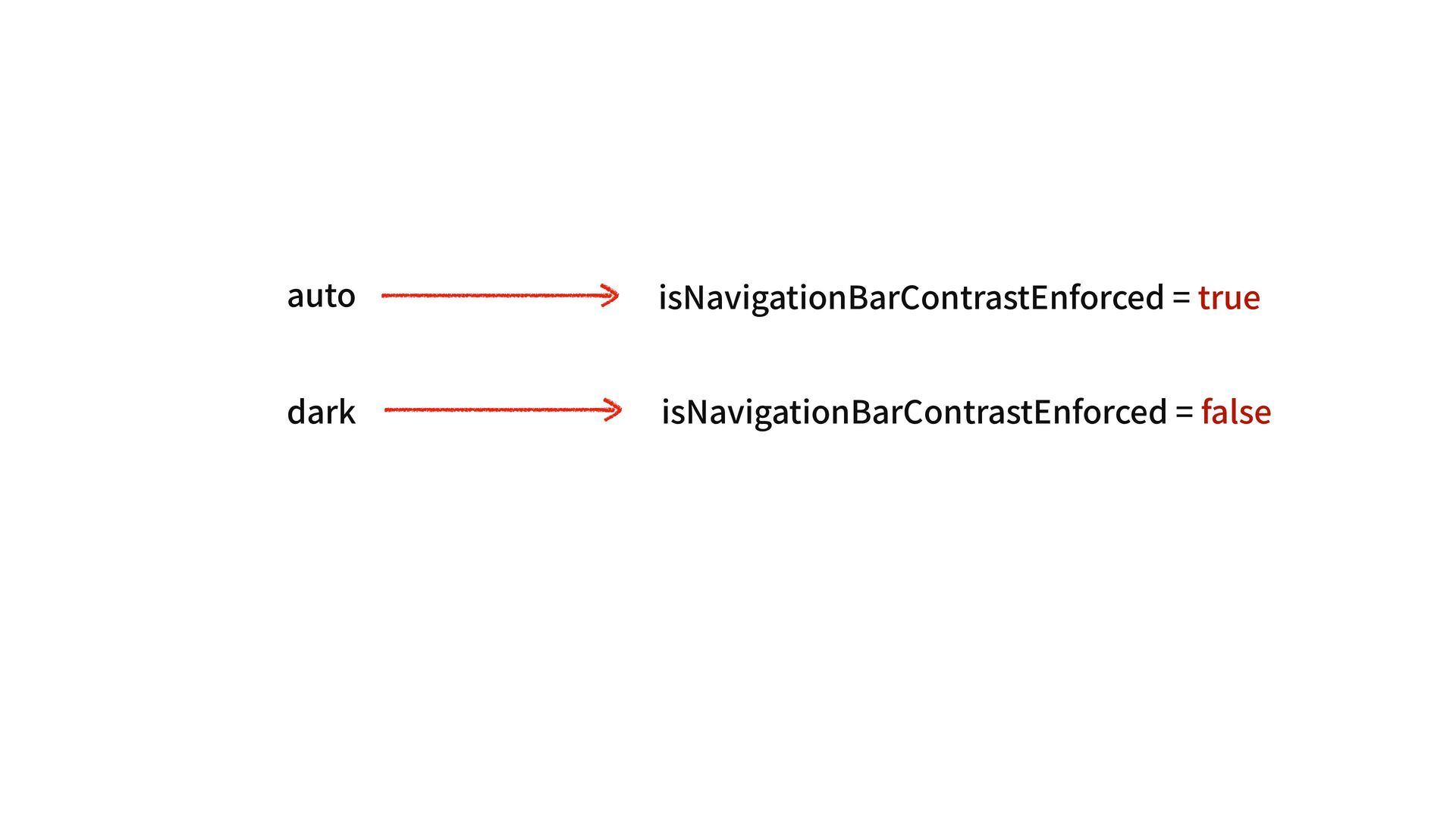

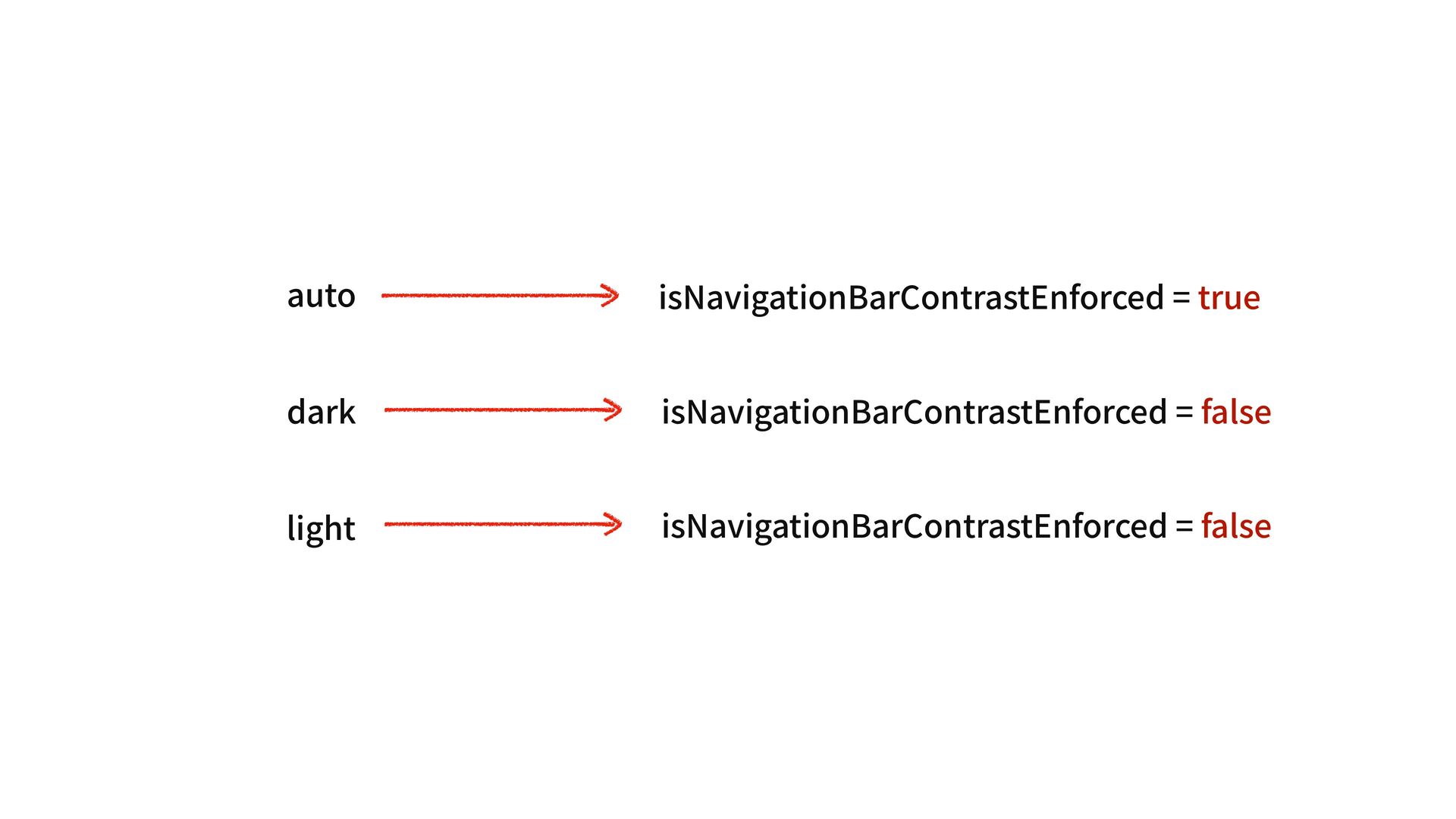

22. auto isNavigationBarContrastEnforced = true dark isNavigationBarContrastEnforced = false
23. auto isNavigationBarContrastEnforced = true dark isNavigationBarContrastEnforced = false light isNavigationBarContrastEnforced = false

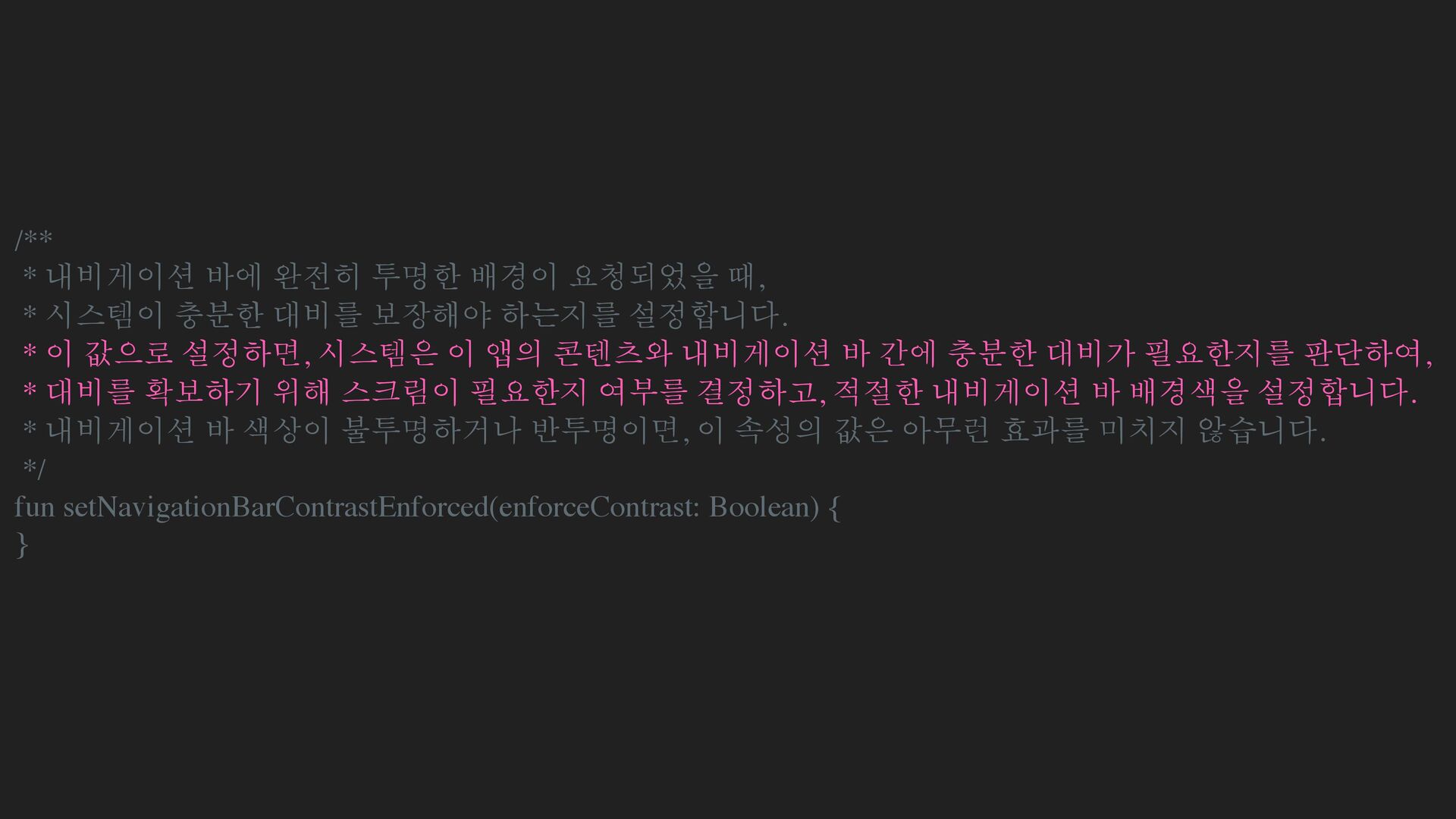

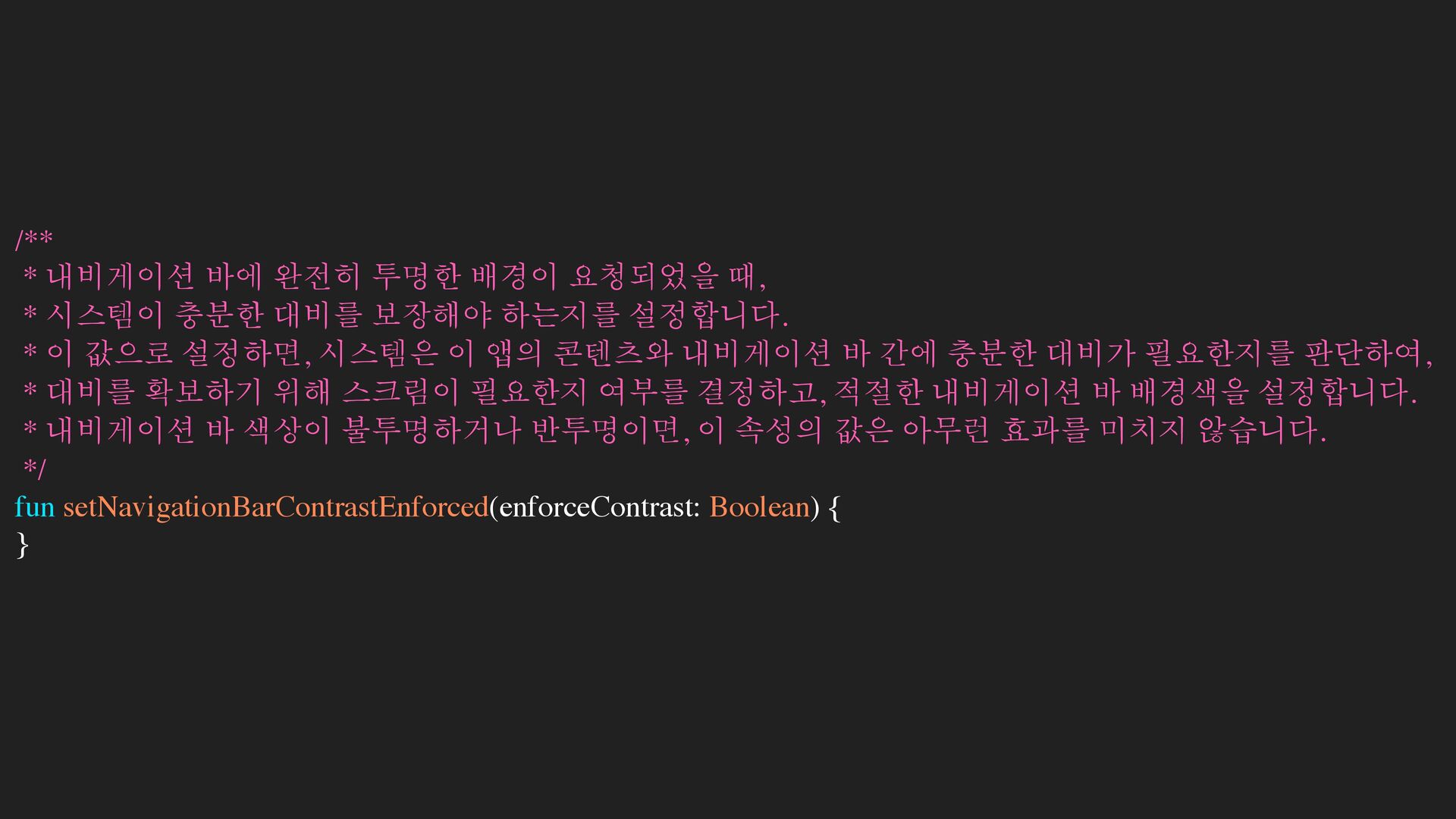

24. /** * 내비게이션 바에 완전히 투명한 배경이 요청되었을 때, * 시스템이 충분한 대비를 보장해야 하는지를 설정합니다. * 이 값으로 설정하면, 시스템은 이 앱의 콘텐츠와 내비게이션 바 간에 충분한 대비가 필요한지를 판단하여, * 대비를 확보하기 위해 스크림이 필요한지 여부를 결정하고, 적절한 내비게이션 바 배경색을 설정합니다. * 내비게이션 바 색상이 불투명하거나 반투명이면, 이 속성의 값은 아무런 효과를 미치지 않습니다. */ fun setNavigationBarContrastEnforced(enforceContrast: Boolean) { }

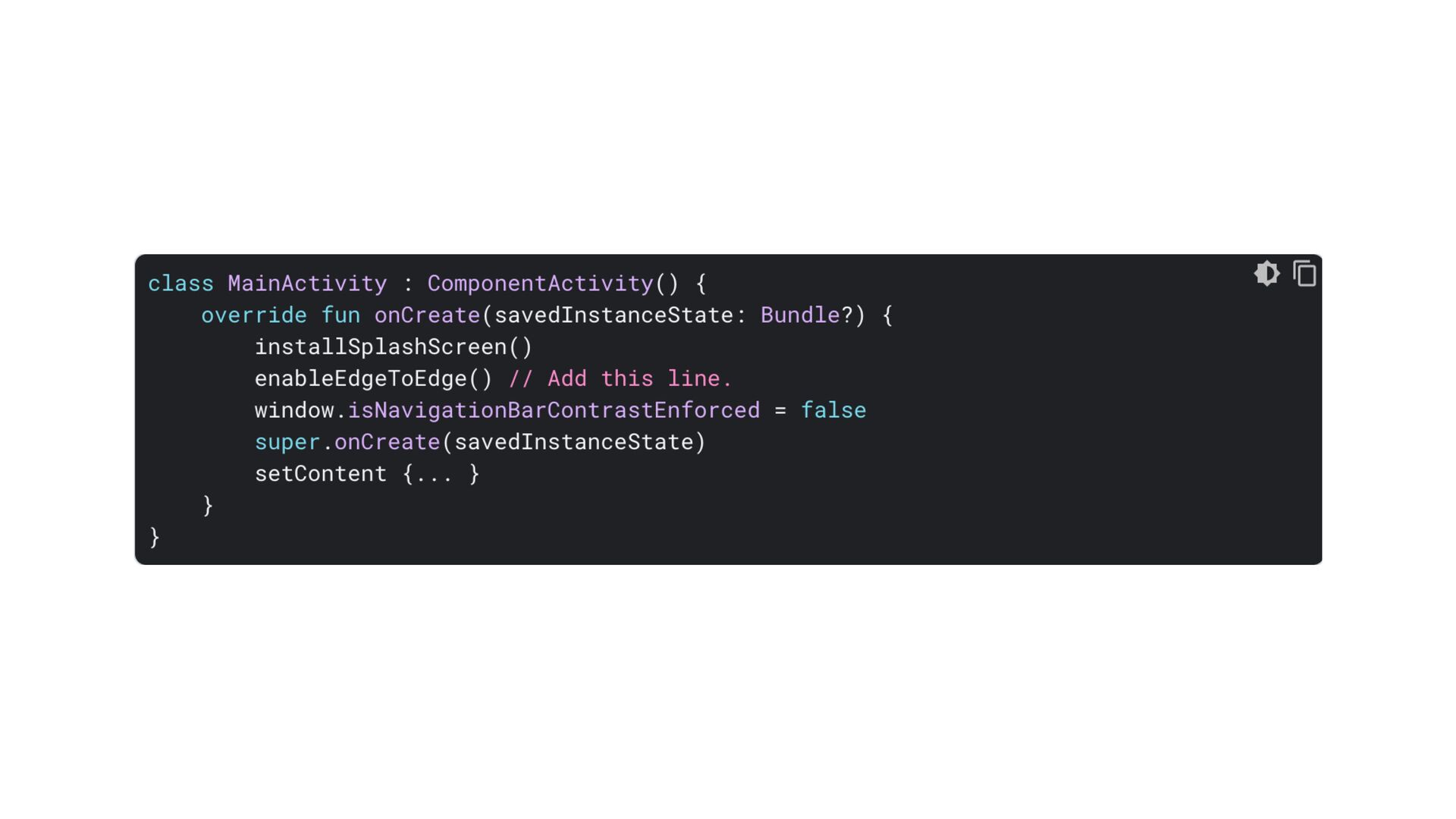

25. /** * 내비게이션 바에 완전히 투명한 배경이 요청되었을 때, * 시스템이 충분한 대비를 보장해야 하는지를 설정합니다. * 이 값으로 설정하면, 시스템은 이 앱의 콘텐츠와 내비게이션 바 간에 충분한 대비가 필요한지를 판단하여, * 대비를 확보하기 위해 스크림이 필요한지 여부를 결정하고, 적절한 내비게이션 바 배경색을 설정합니다. * 내비게이션 바 색상이 불투명하거나 반투명이면, 이 속성의 값은 아무런 효과를 미치지 않습니다. */ fun setNavigationBarContrastEnforced(enforceContrast: Boolean) { }

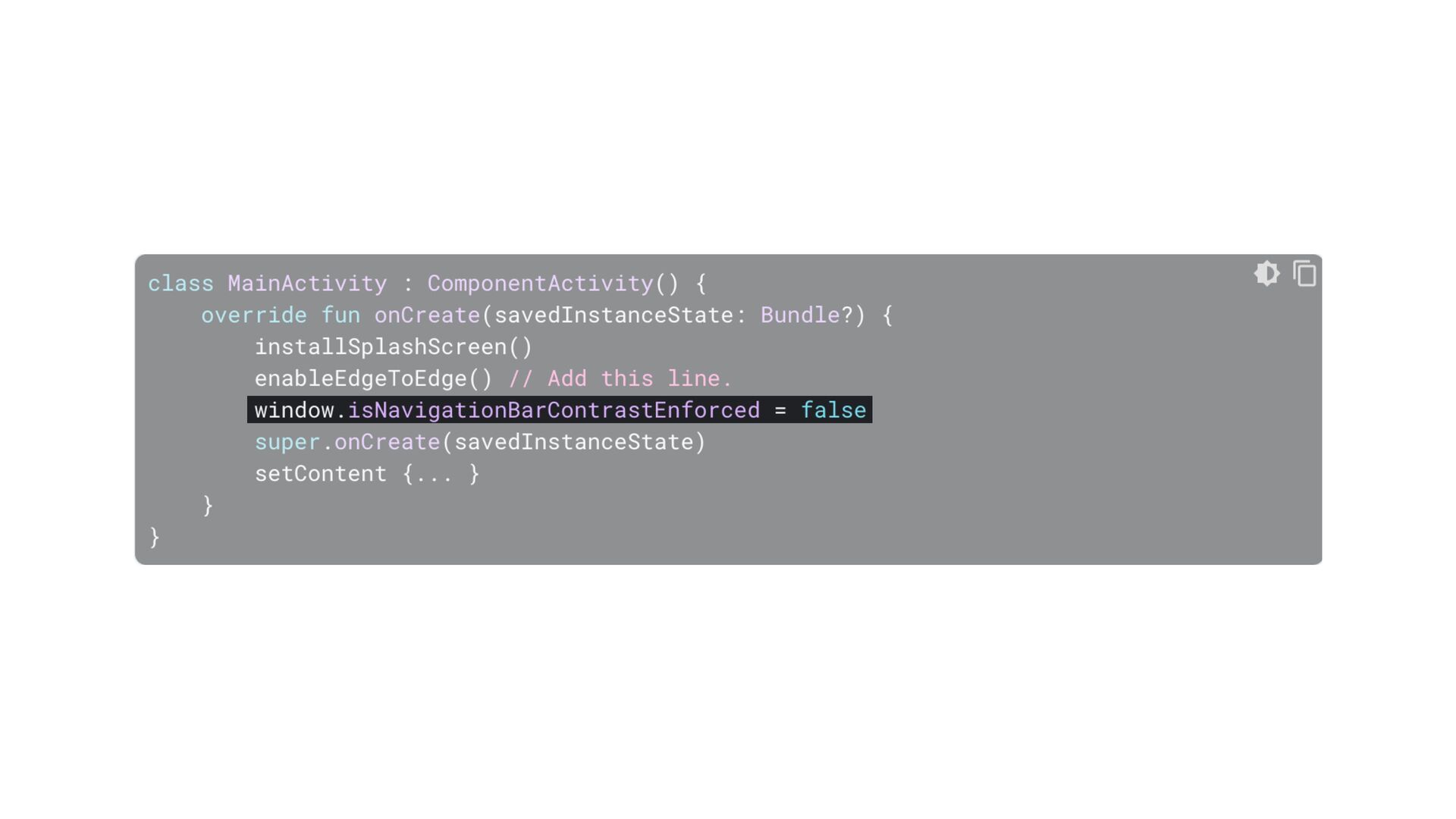

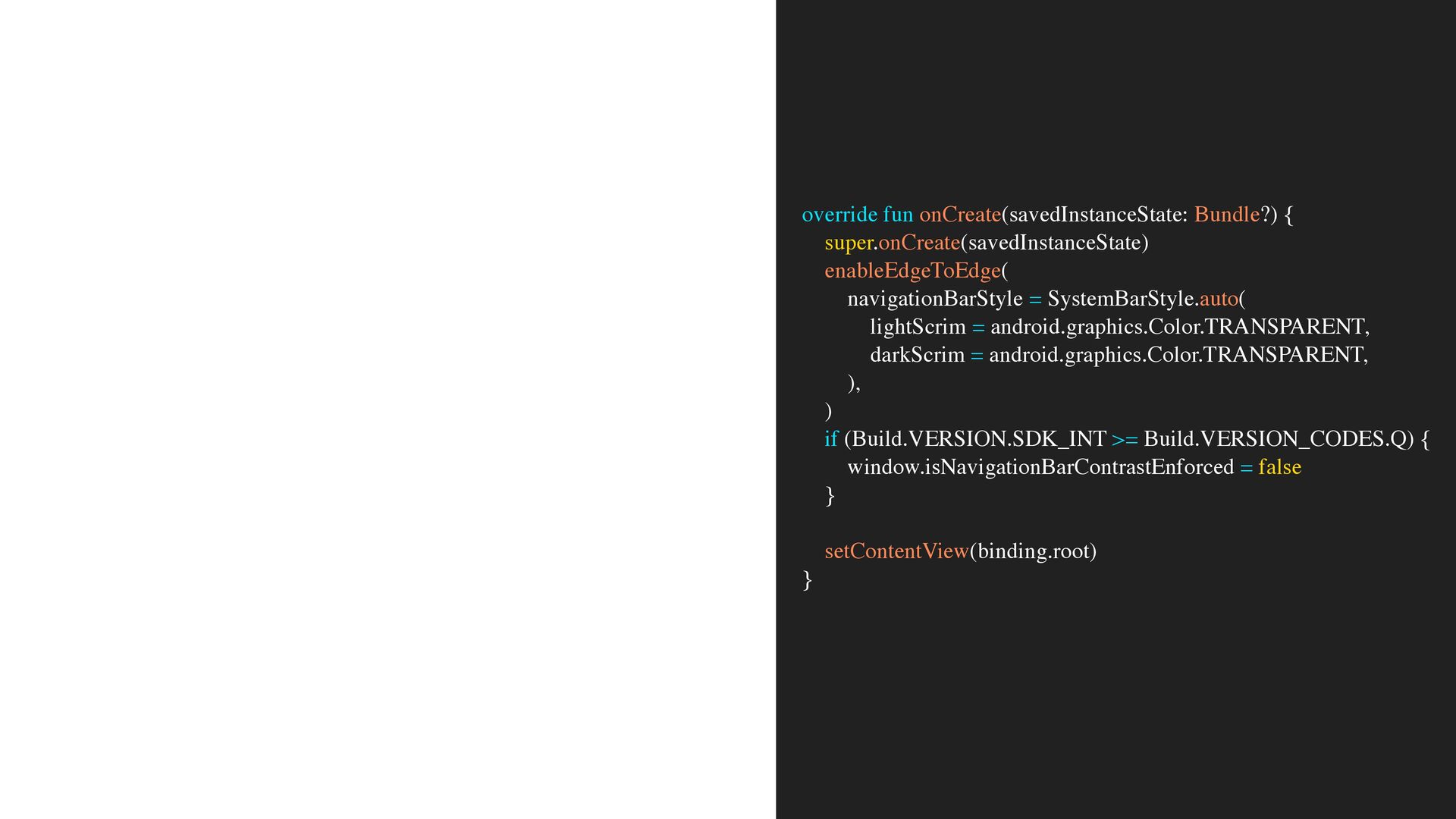

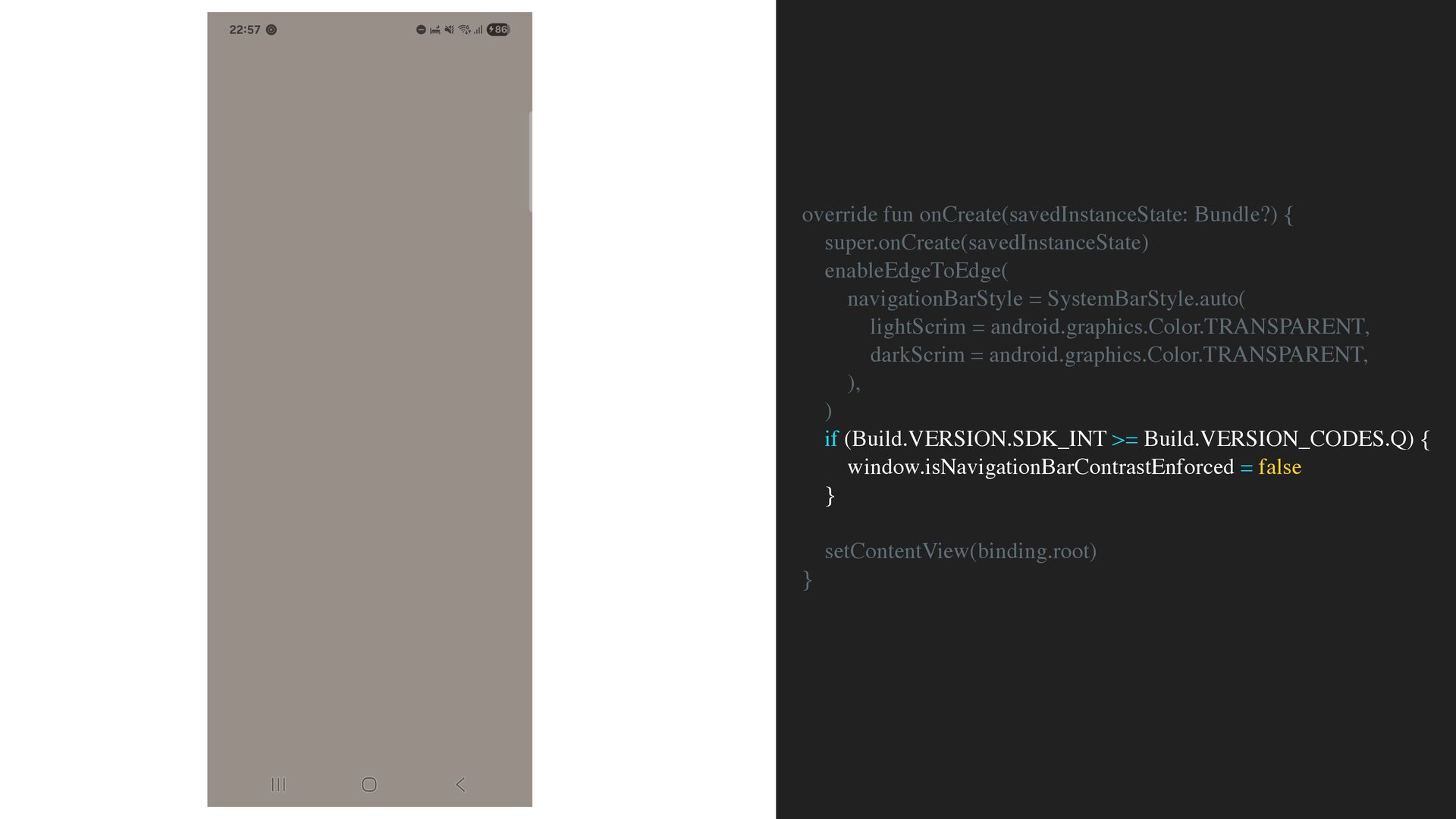

28. override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) enableEdgeToEdge( navigationBarStyle = SystemBarStyle.auto( lightScrim = android.graphics.Color.TRANSPARENT, darkScrim = android.graphics.Color.TRANSPARENT, ), ) if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.Q) { window.isNavigationBarContrastEnforced = false } setContentView(binding.root) }
29. override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) enableEdgeToEdge( navigationBarStyle = SystemBarStyle.auto( lightScrim = android.graphics.Color.TRANSPARENT, darkScrim = android.graphics.Color.TRANSPARENT, ), ) if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.Q) { window.isNavigationBarContrastEnforced = false } setContentView(binding.root) }

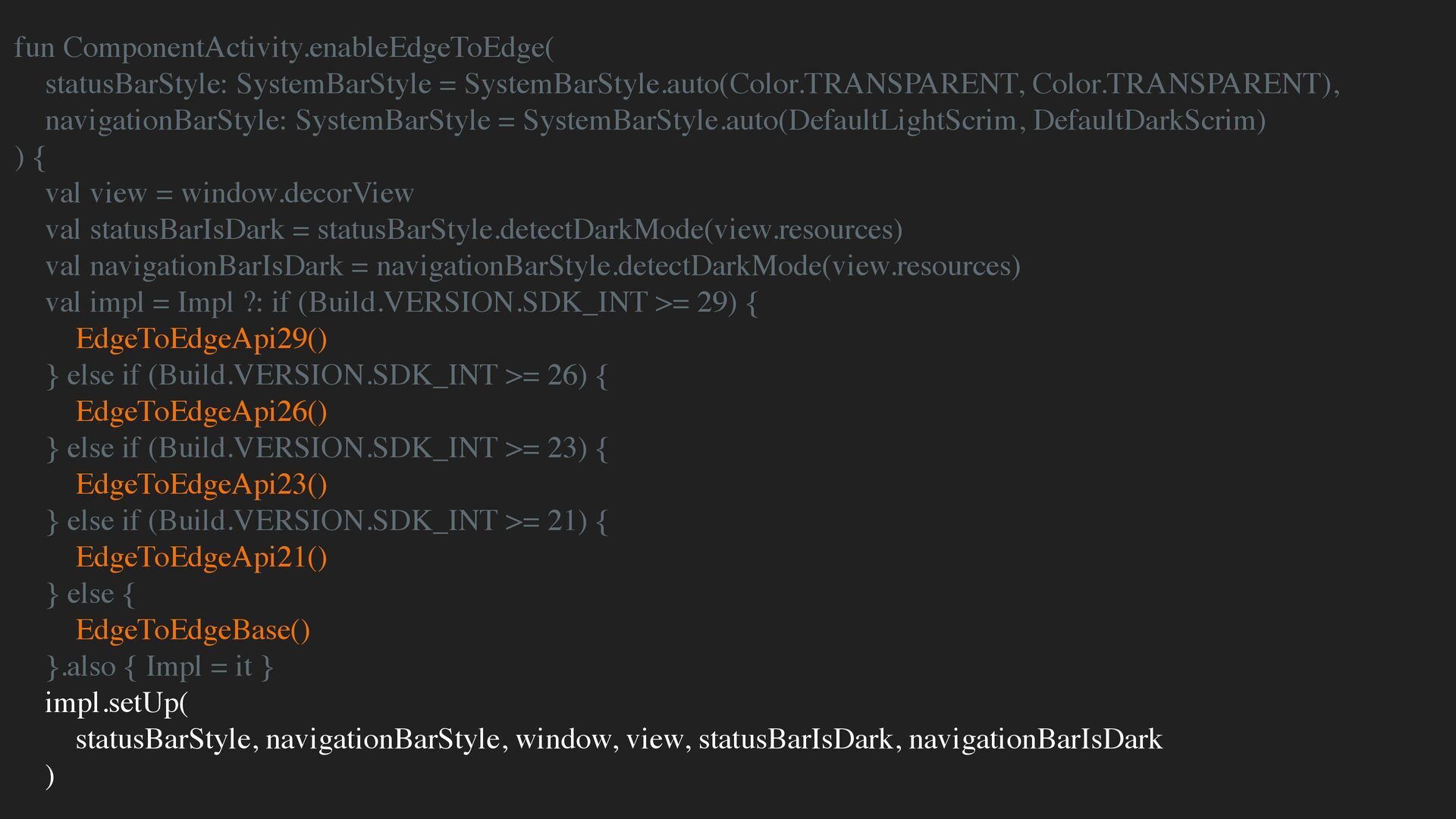

30. fun ComponentActivity.enableEdgeToEdge( statusBarStyle: SystemBarStyle = SystemBarStyle.auto(Color.TRANSPARENT, Color.TRANSPARENT), navigationBarStyle: SystemBarStyle = SystemBarStyle.auto(DefaultLightScrim, DefaultDarkScrim) ) { val view = window.decorView val statusBarIsDark = statusBarStyle.detectDarkMode(view.resources) val navigationBarIsDark = navigationBarStyle.detectDarkMode(view.resources) val impl = Impl ?: if (Build.VERSION.SDK_INT >= 29) { EdgeToEdgeApi29() } else if (Build.VERSION.SDK_INT >= 26) { EdgeToEdgeApi26() } else if (Build.VERSION.SDK_INT >= 23) { EdgeToEdgeApi23() } else if (Build.VERSION.SDK_INT >= 21) { EdgeToEdgeApi21() } else { EdgeToEdgeBase() }.also { Impl = it } impl.setUp( statusBarStyle, navigationBarStyle, window, view, statusBarIsDark, navigationBarIsDark )

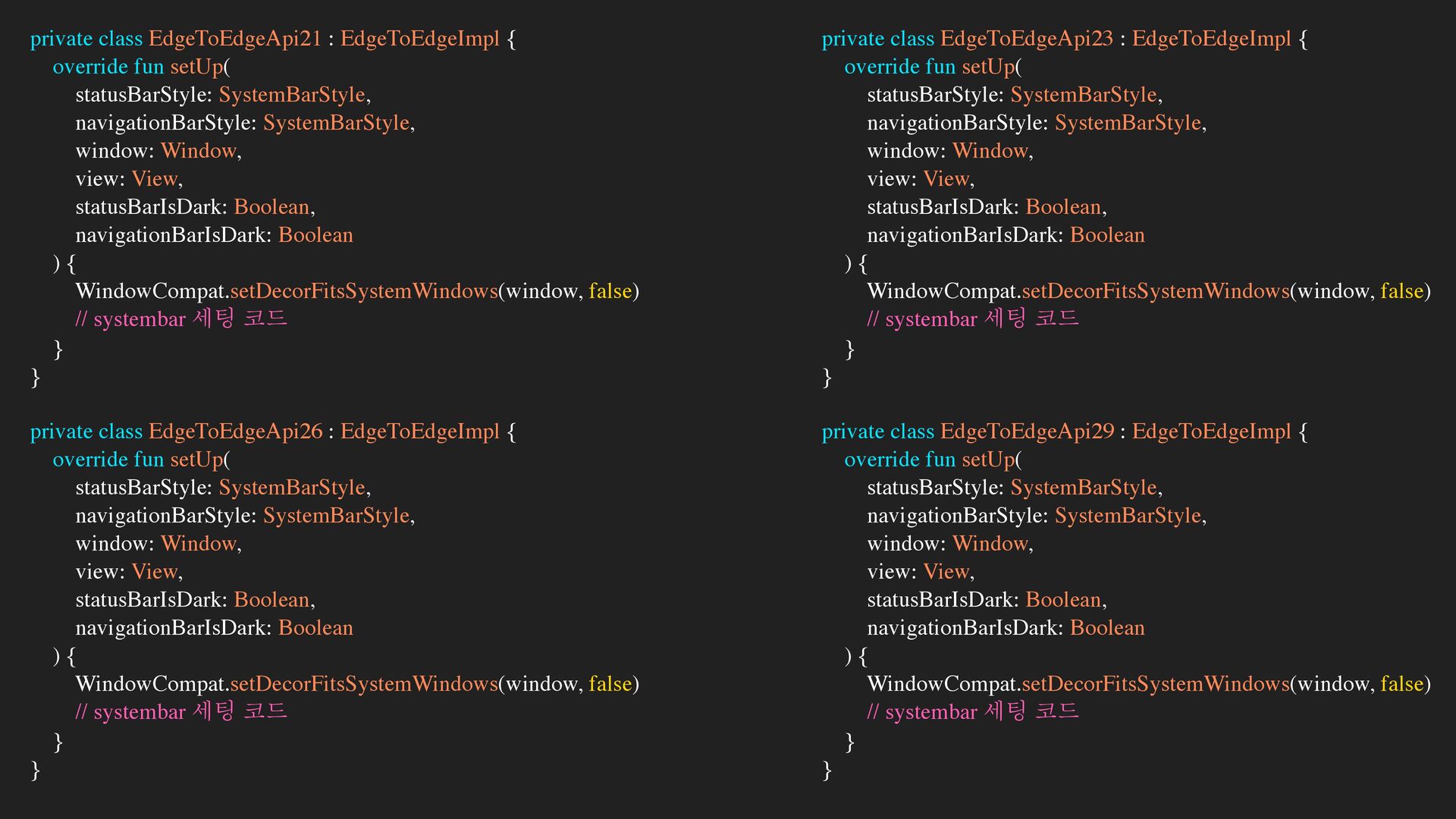

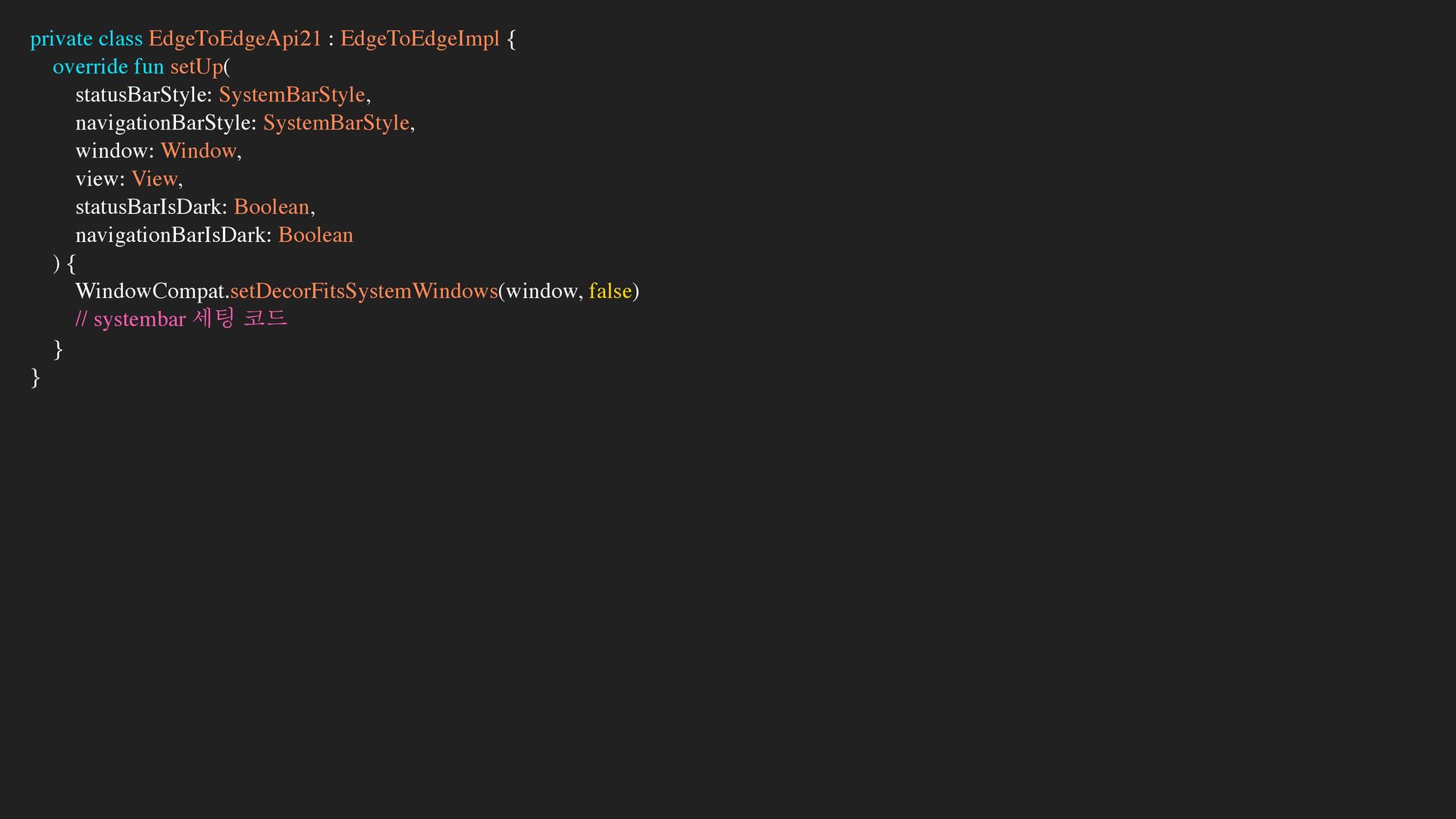

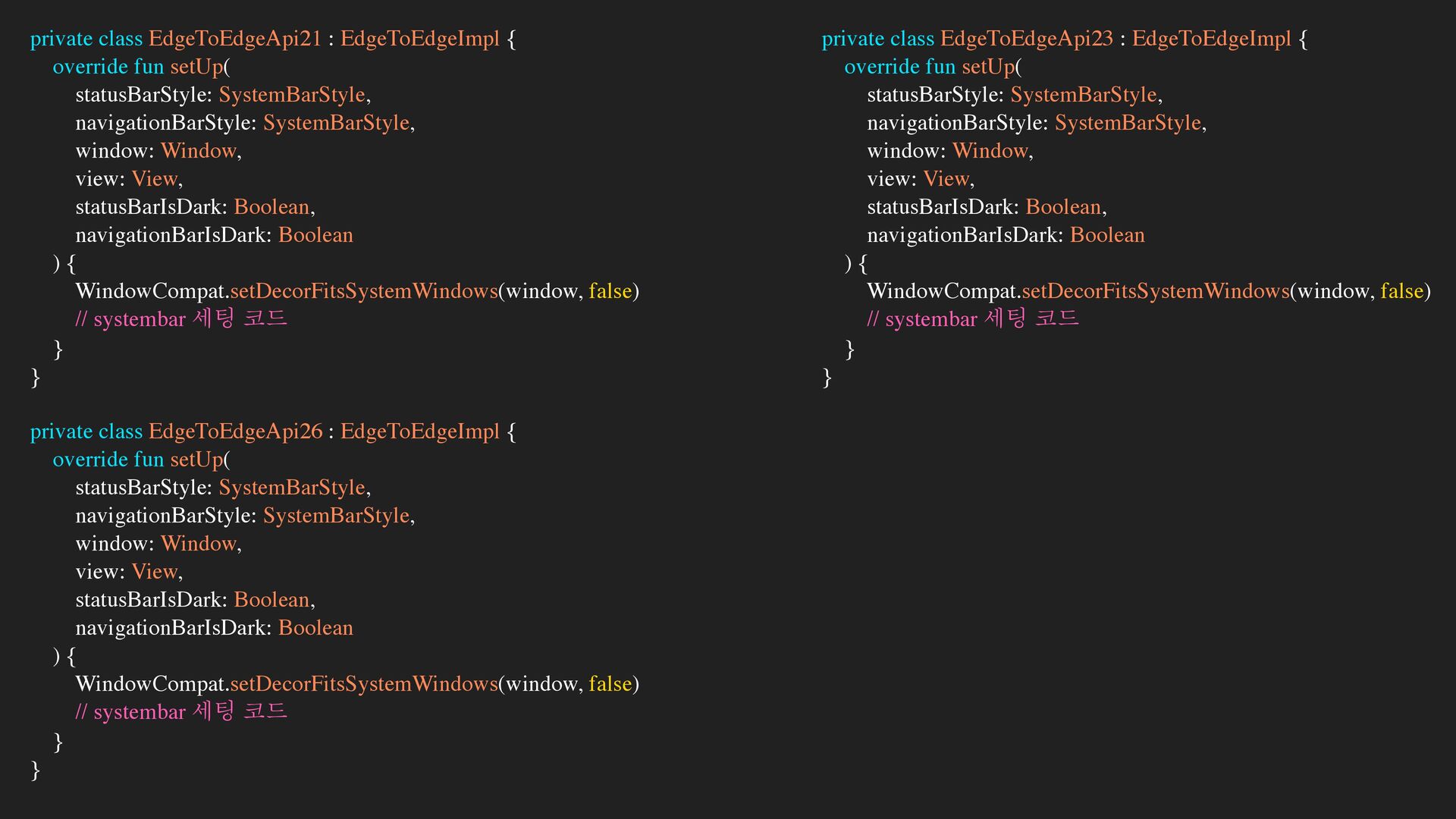

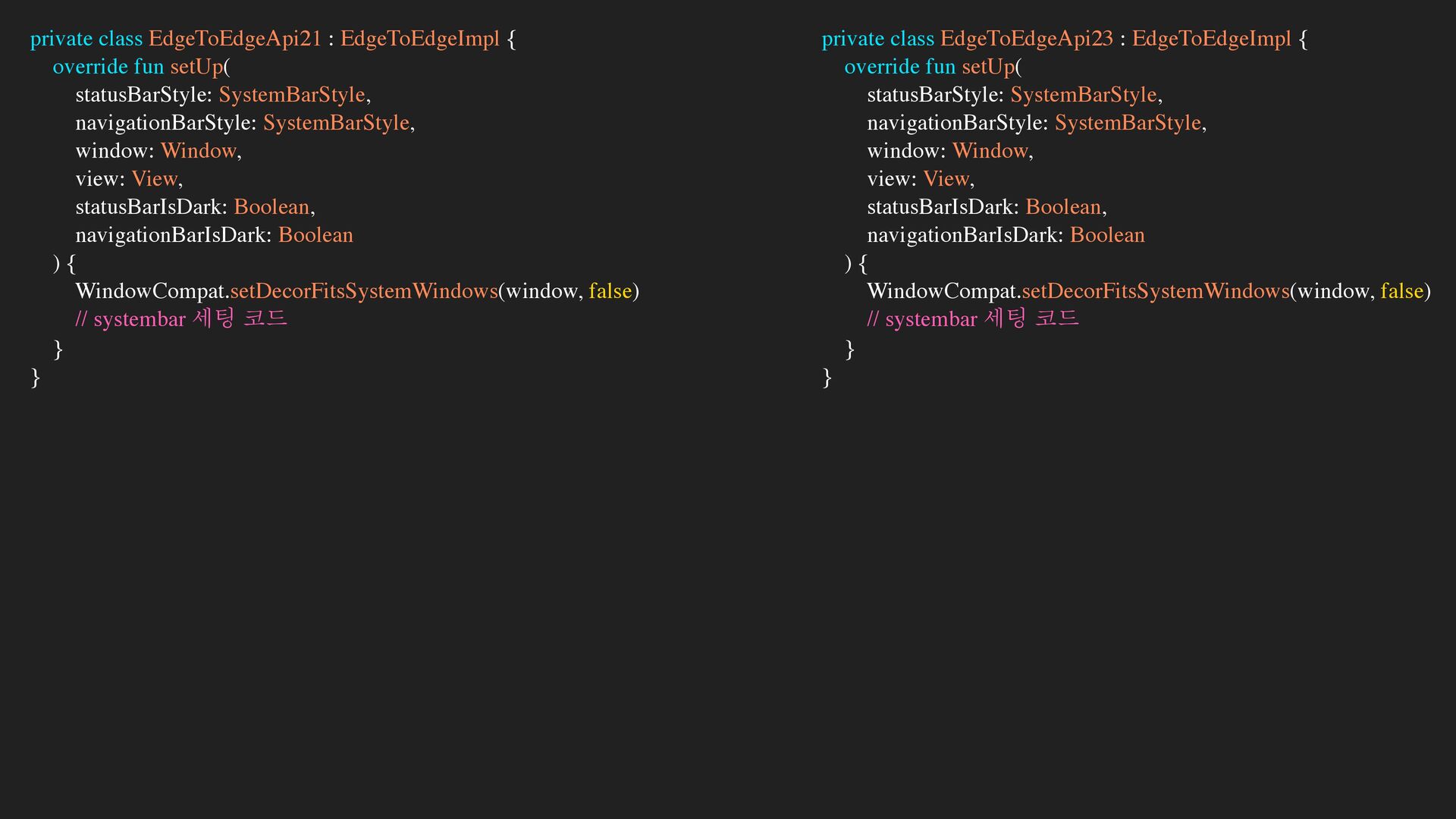

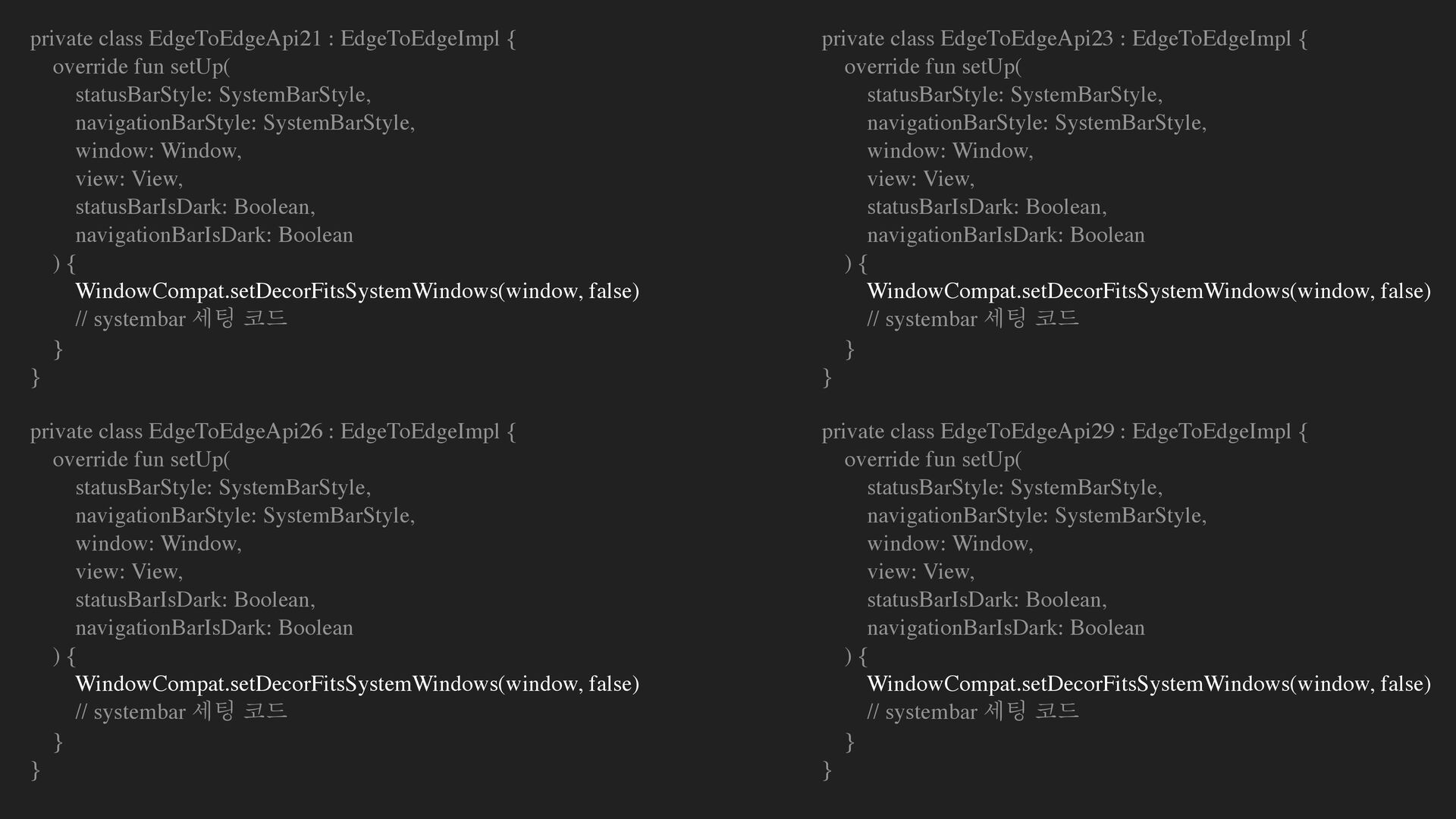

31. private class EdgeToEdgeApi21 : EdgeToEdgeImpl { override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) // systembar 세팅 코드 } }
32. private class EdgeToEdgeApi23 : EdgeToEdgeImpl { override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) // systembar 세팅 코드 } } private class EdgeToEdgeApi21 : EdgeToEdgeImpl { override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) // systembar 세팅 코드 } }
33. private class EdgeToEdgeApi26 : EdgeToEdgeImpl { override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) // systembar 세팅 코드 } } private class EdgeToEdgeApi23 : EdgeToEdgeImpl { override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) // systembar 세팅 코드 } } private class EdgeToEdgeApi21 : EdgeToEdgeImpl { override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) // systembar 세팅 코드 } }
34. private class EdgeToEdgeApi29 : EdgeToEdgeImpl { override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) // systembar 세팅 코드 } } private class EdgeToEdgeApi26 : EdgeToEdgeImpl { override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) // systembar 세팅 코드 } } private class EdgeToEdgeApi23 : EdgeToEdgeImpl { override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) // systembar 세팅 코드 } } private class EdgeToEdgeApi21 : EdgeToEdgeImpl { override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) // systembar 세팅 코드 } }
35. private class EdgeToEdgeApi29 : EdgeToEdgeImpl { override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) // systembar 세팅 코드 } } private class EdgeToEdgeApi26 : EdgeToEdgeImpl { override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) // systembar 세팅 코드 } } private class EdgeToEdgeApi23 : EdgeToEdgeImpl { override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) // systembar 세팅 코드 } } private class EdgeToEdgeApi21 : EdgeToEdgeImpl { override fun setUp( statusBarStyle: SystemBarStyle, navigationBarStyle: SystemBarStyle, window: Window, view: View, statusBarIsDark: Boolean, navigationBarIsDark: Boolean ) { WindowCompat.setDecorFitsSystemWindows(window, false) // systembar 세팅 코드 } }
36. setDecorFitsSystemWindows?

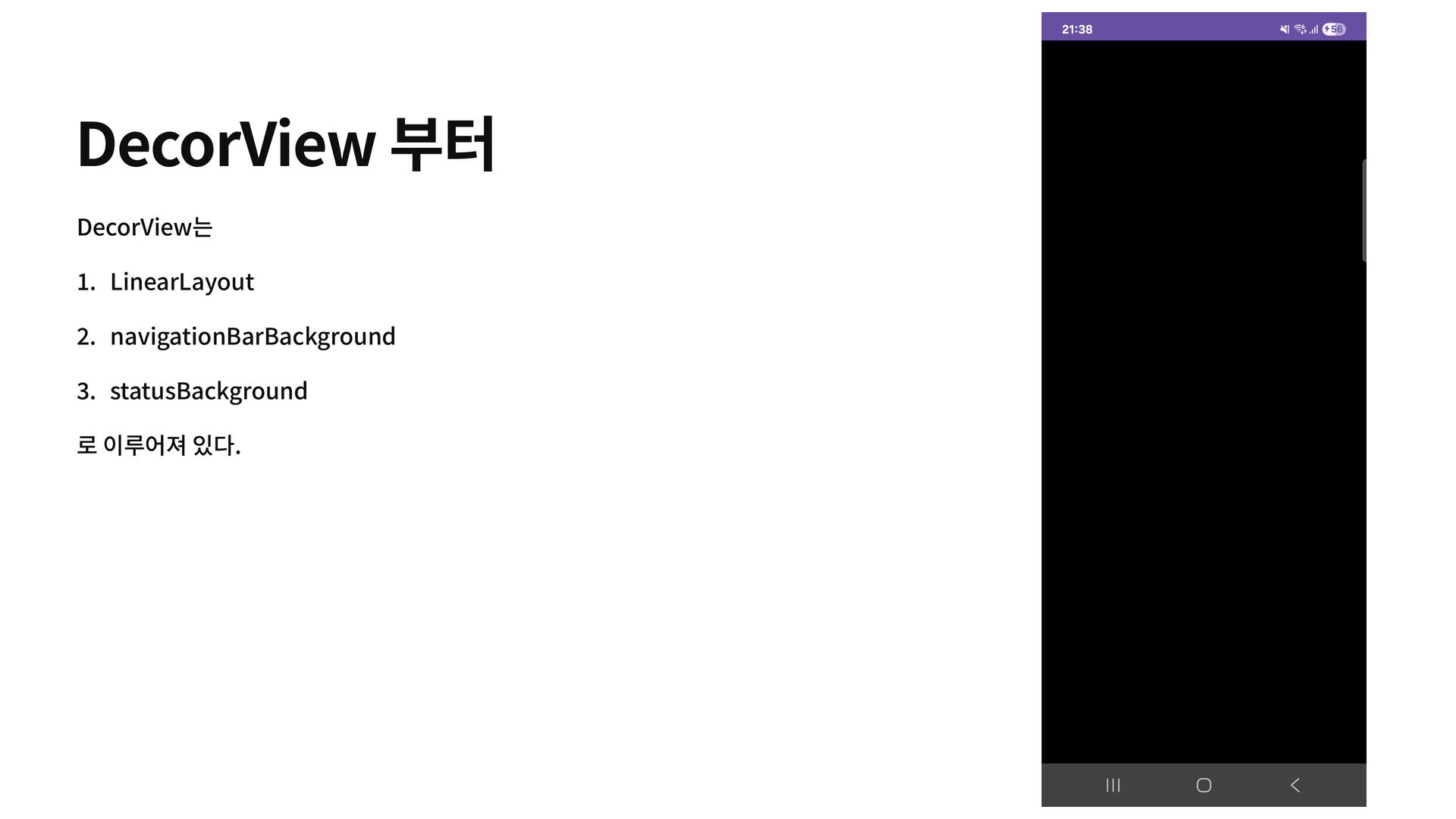

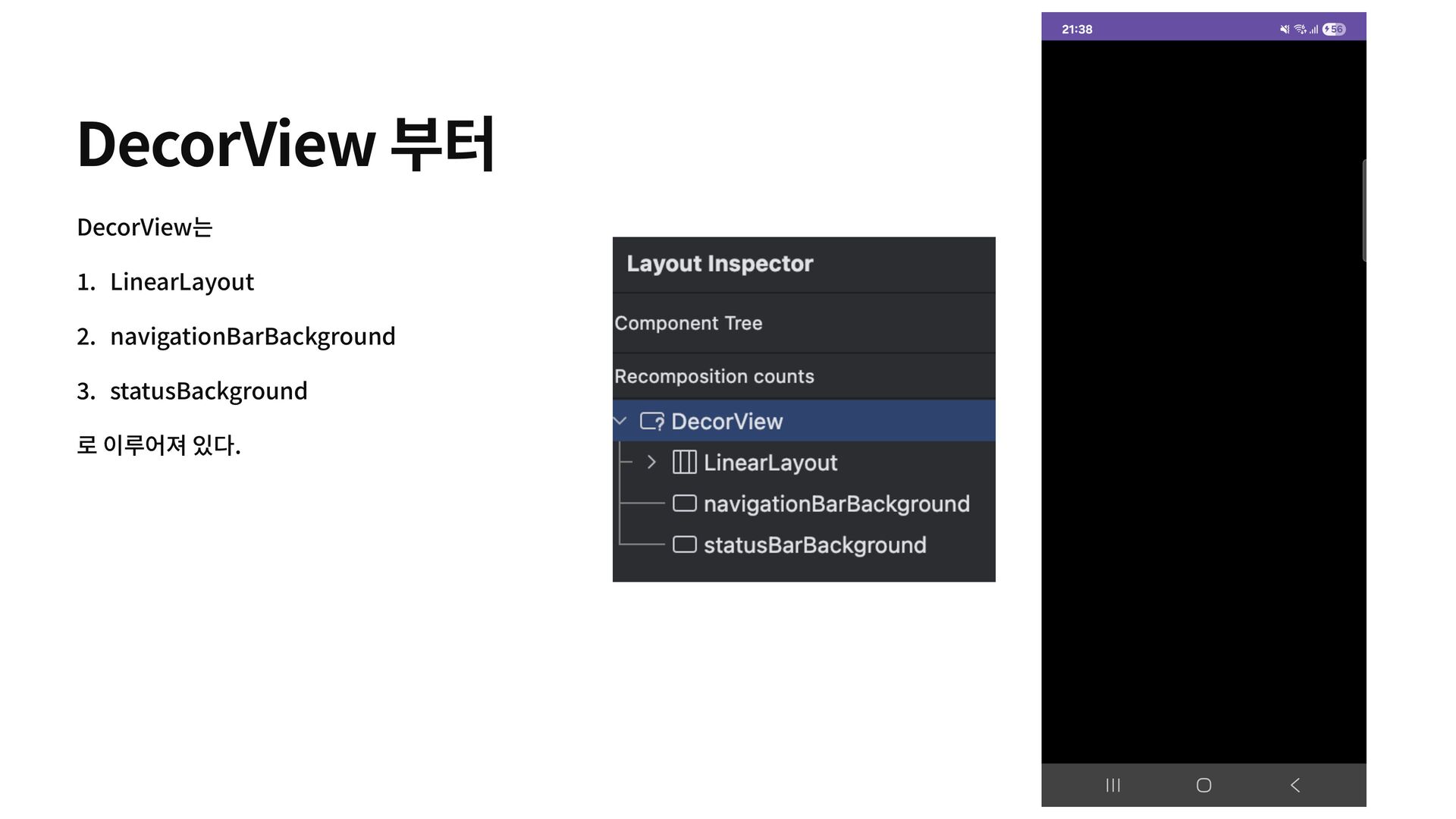

37. DecorView는 1 . LinearLayout 2 . navigationBarBackground 3 . statusBackground 로 이루어져 있다. DecorView 부터

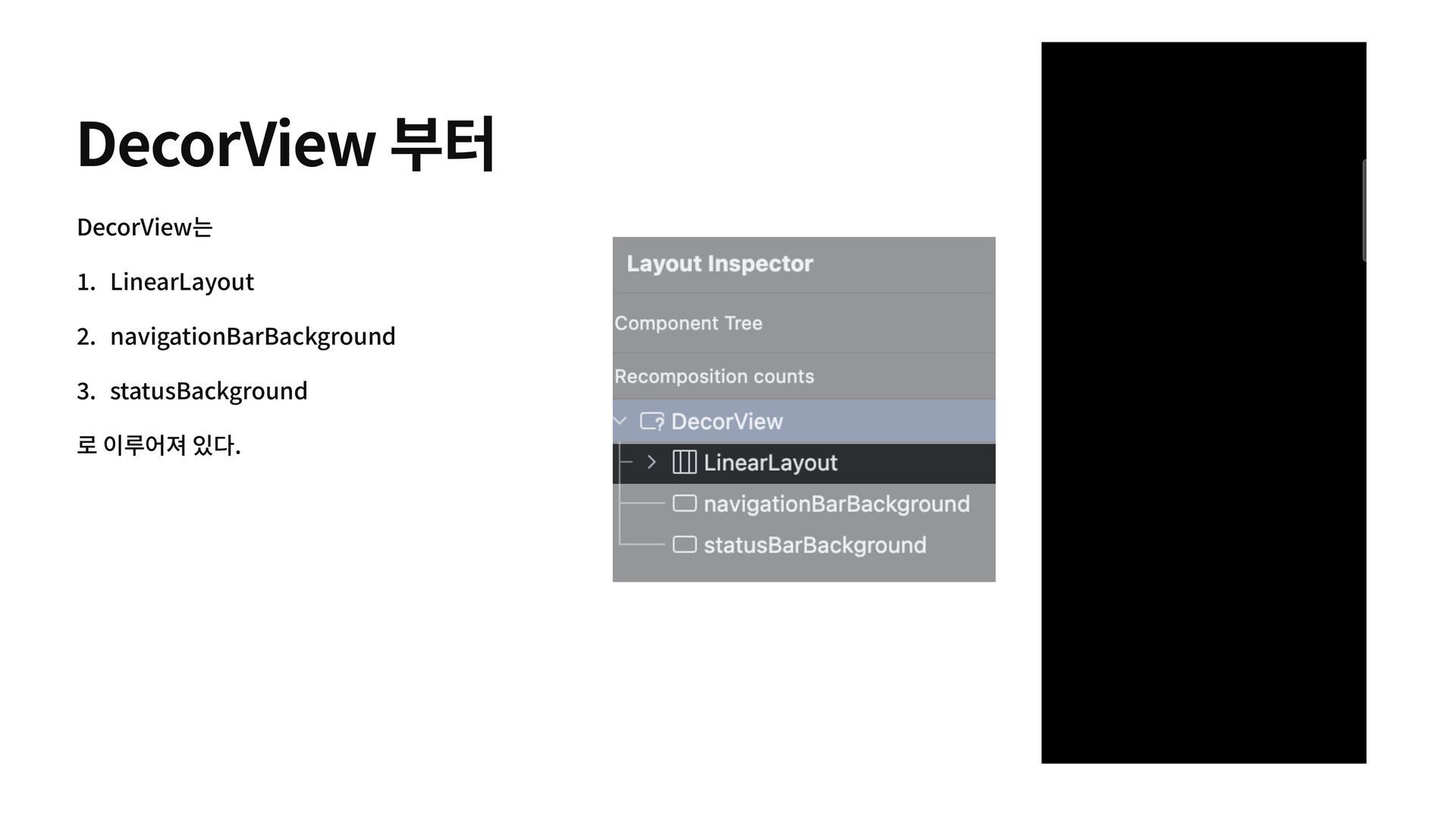

38. DecorView는 1 . LinearLayout 2 . navigationBarBackground 3 . statusBackground 로 이루어져 있다. DecorView 부터

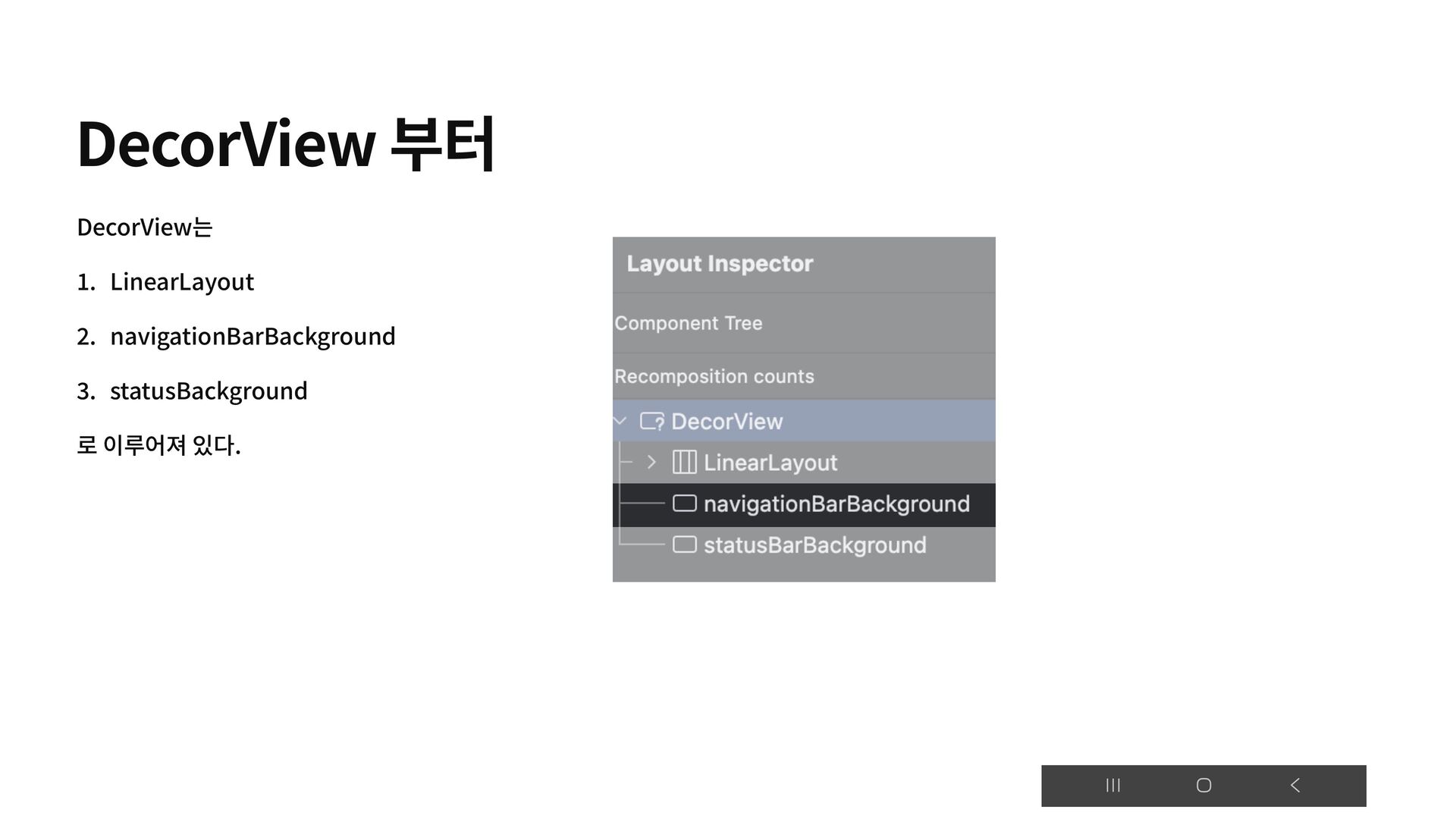

39. DecorView는 1 . LinearLayout 2 . navigationBarBackground 3 . statusBackground 로 이루어져 있다. DecorView 부터
40. DecorView는 1 . LinearLayout 2 . navigationBarBackground 3 . statusBackground 로 이루어져 있다. DecorView 부터
41. DecorView는 1 . LinearLayout 2 . navigationBarBackground 3 . statusBackground 로 이루어져 있다. DecorView 부터

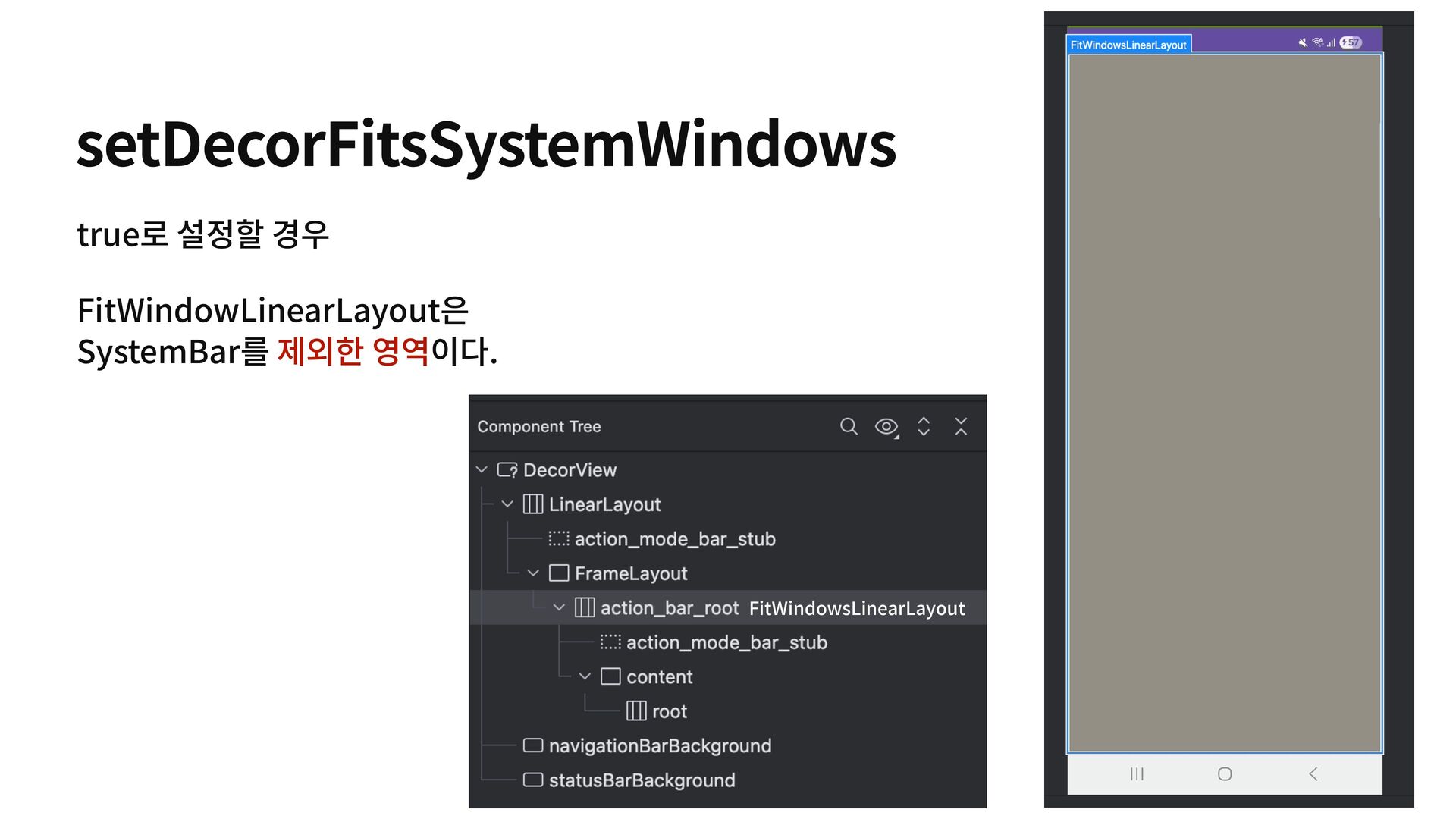

42. setDecorFitsSystemWindows true로 설정할 경우 FitWindowLinearLayout은 SystemBar를 제외한 영역이다. FitWindowsLinearLayout

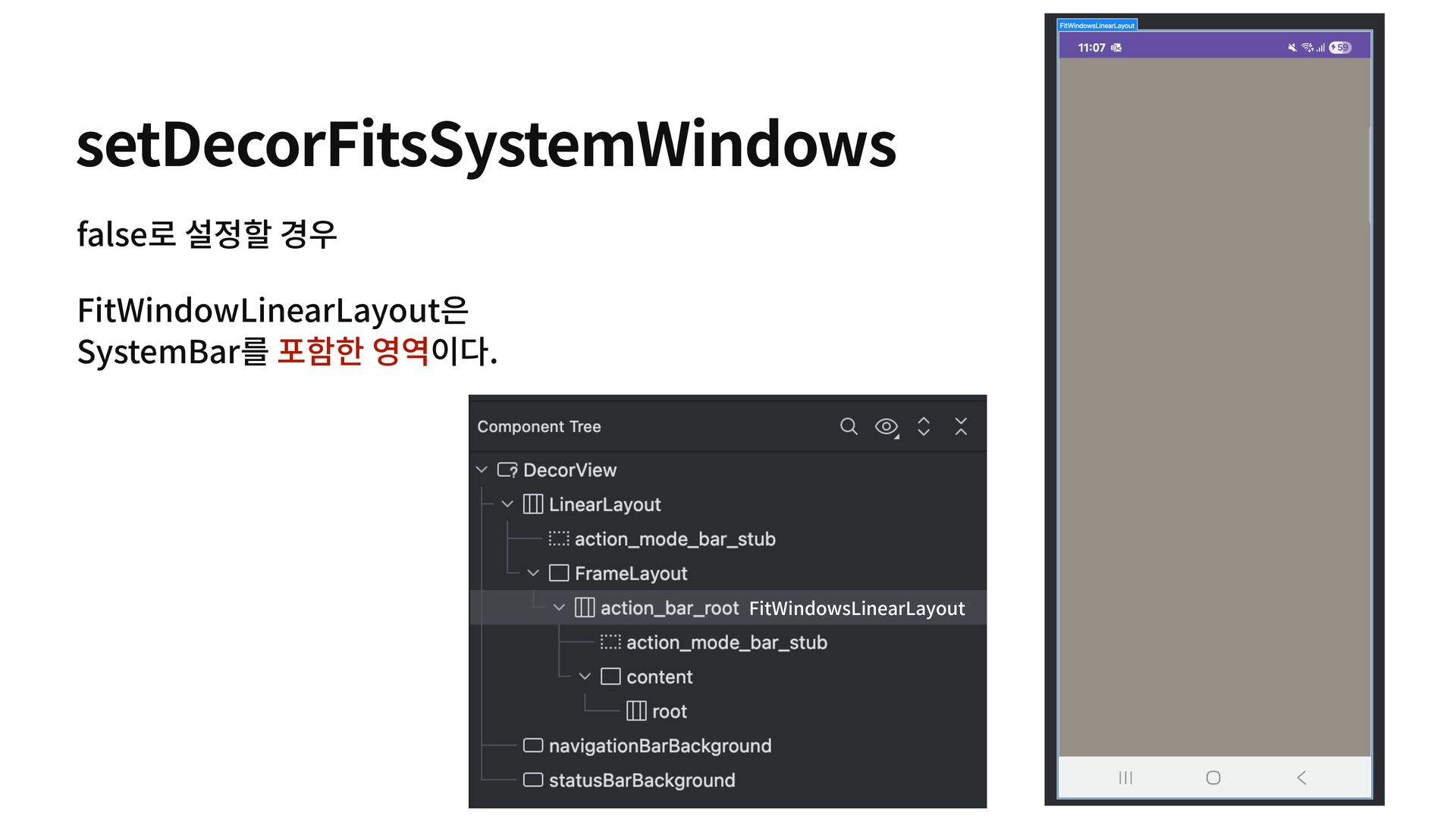

43. setDecorFitsSystemWindows false로 설정할 경우 FitWindowLinearLayout은 SystemBar를 포함한 영역이다. FitWindowsLinearLayout

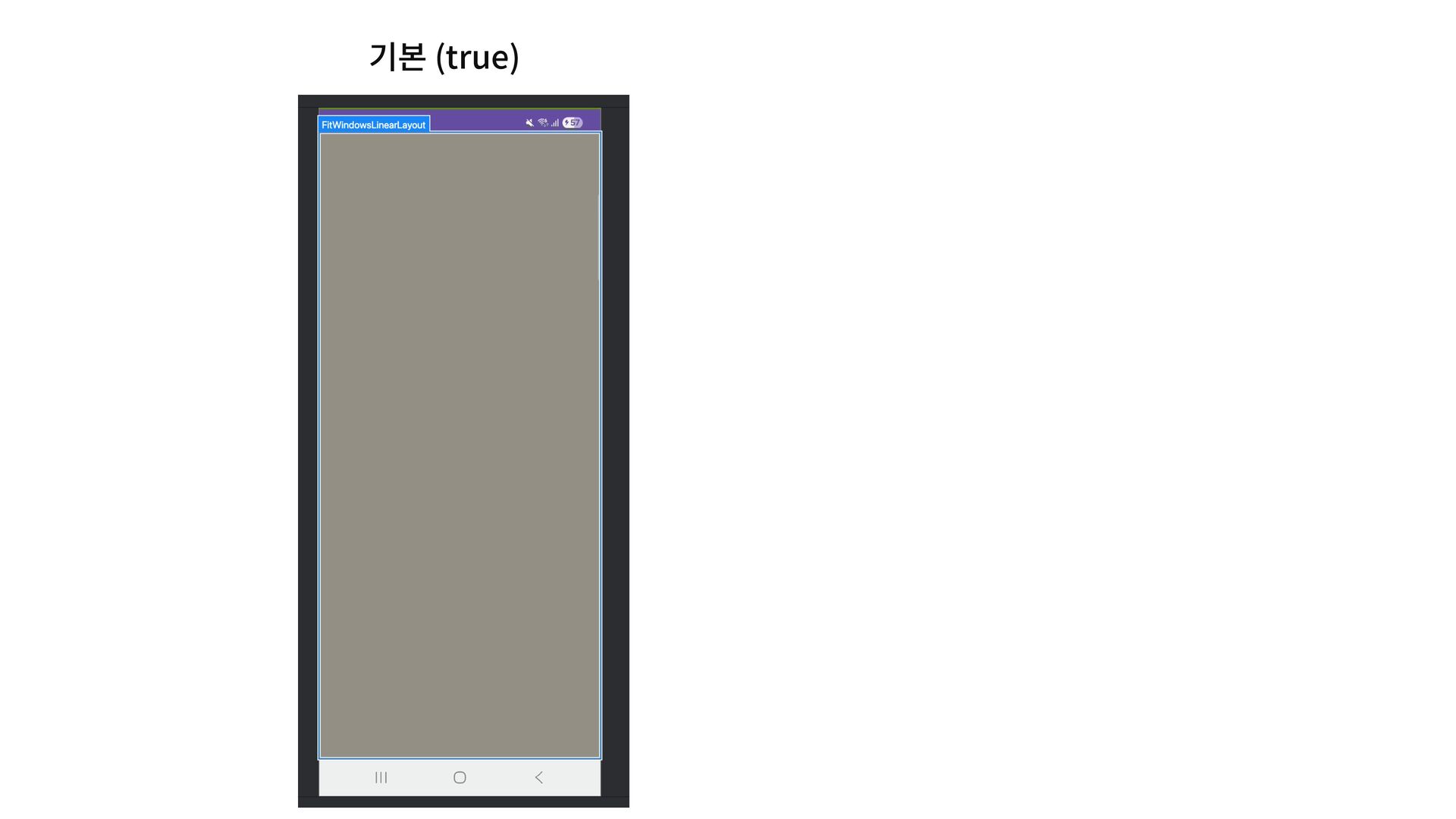

44. 기본 (true)

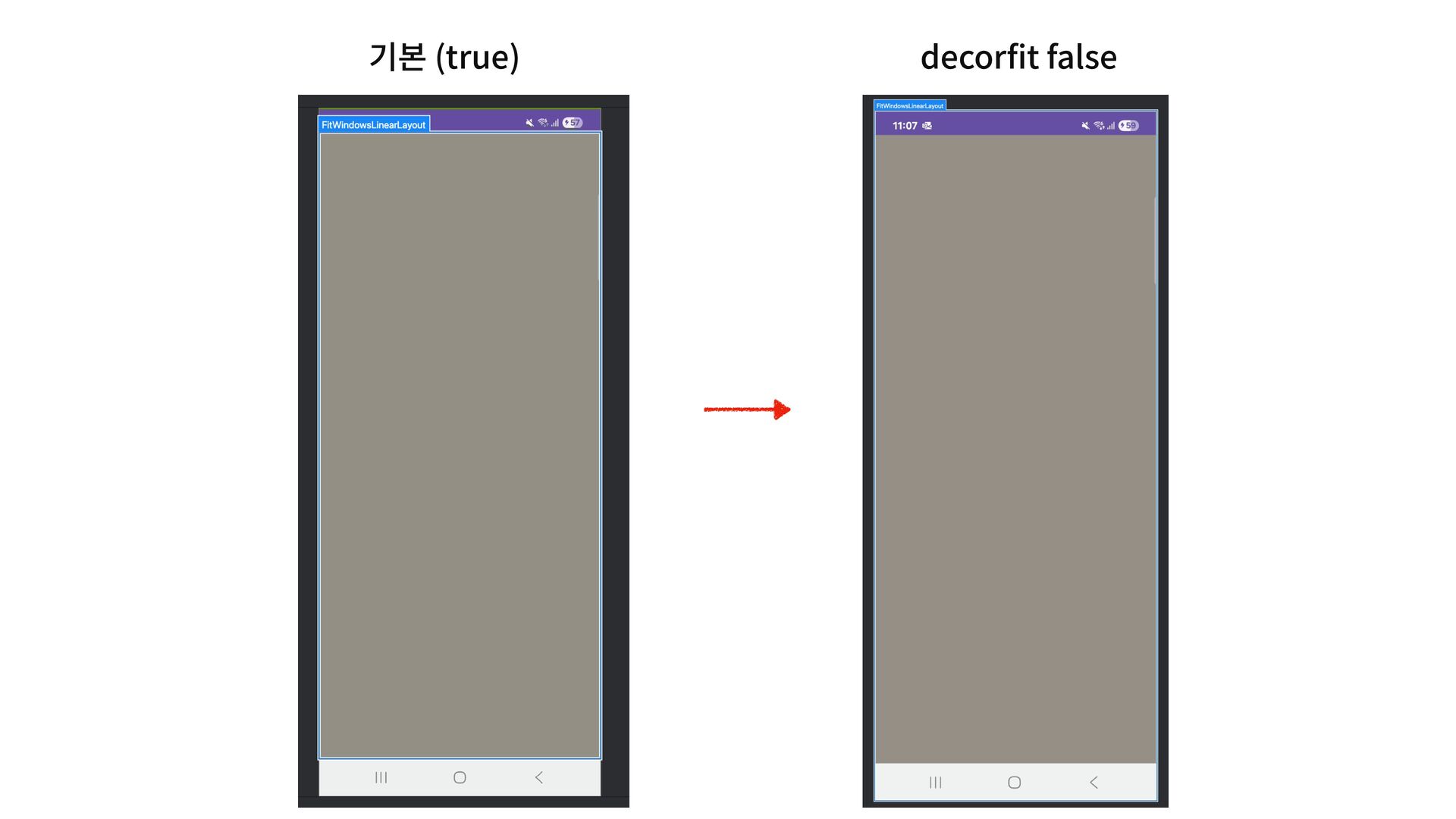

45. 기본 (true) decor fi t false
46. 2 EdgeToEdge 적용기

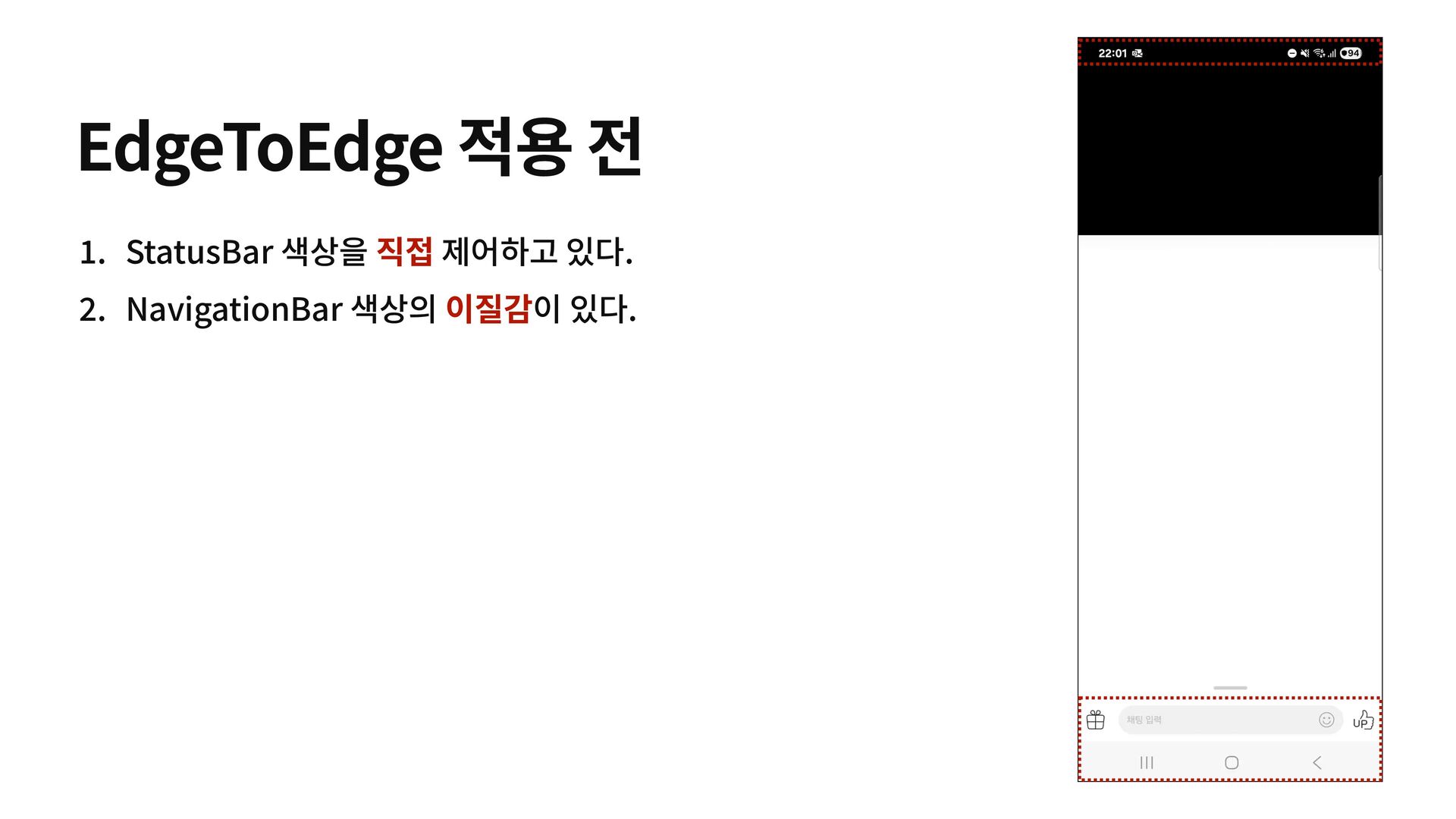

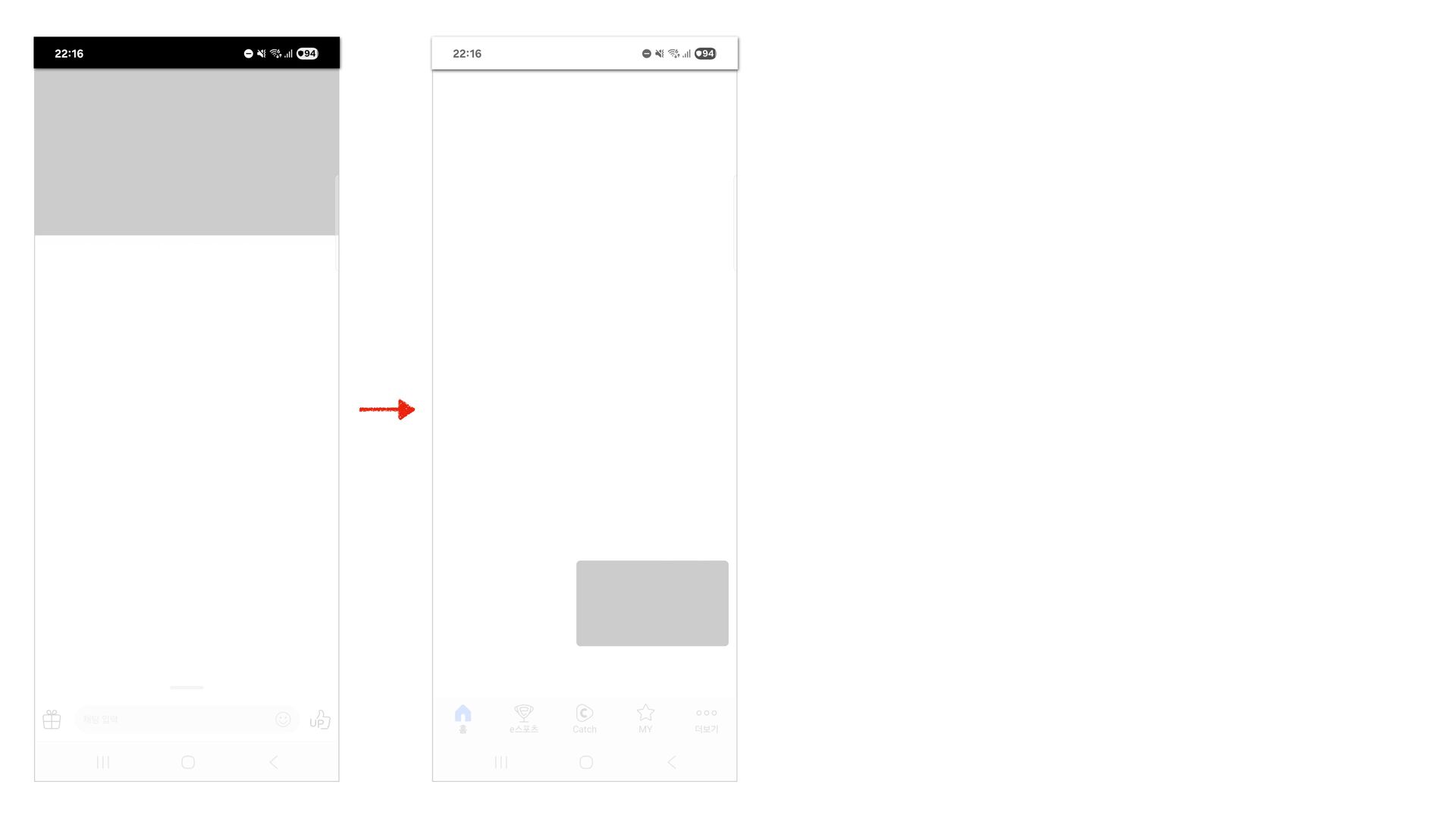

47. EdgeToEdge 적용 전 1 . StatusBar 색상을 직접 제어하고 있다. 2 . NavigationBar 색상의 이질감이 있다.

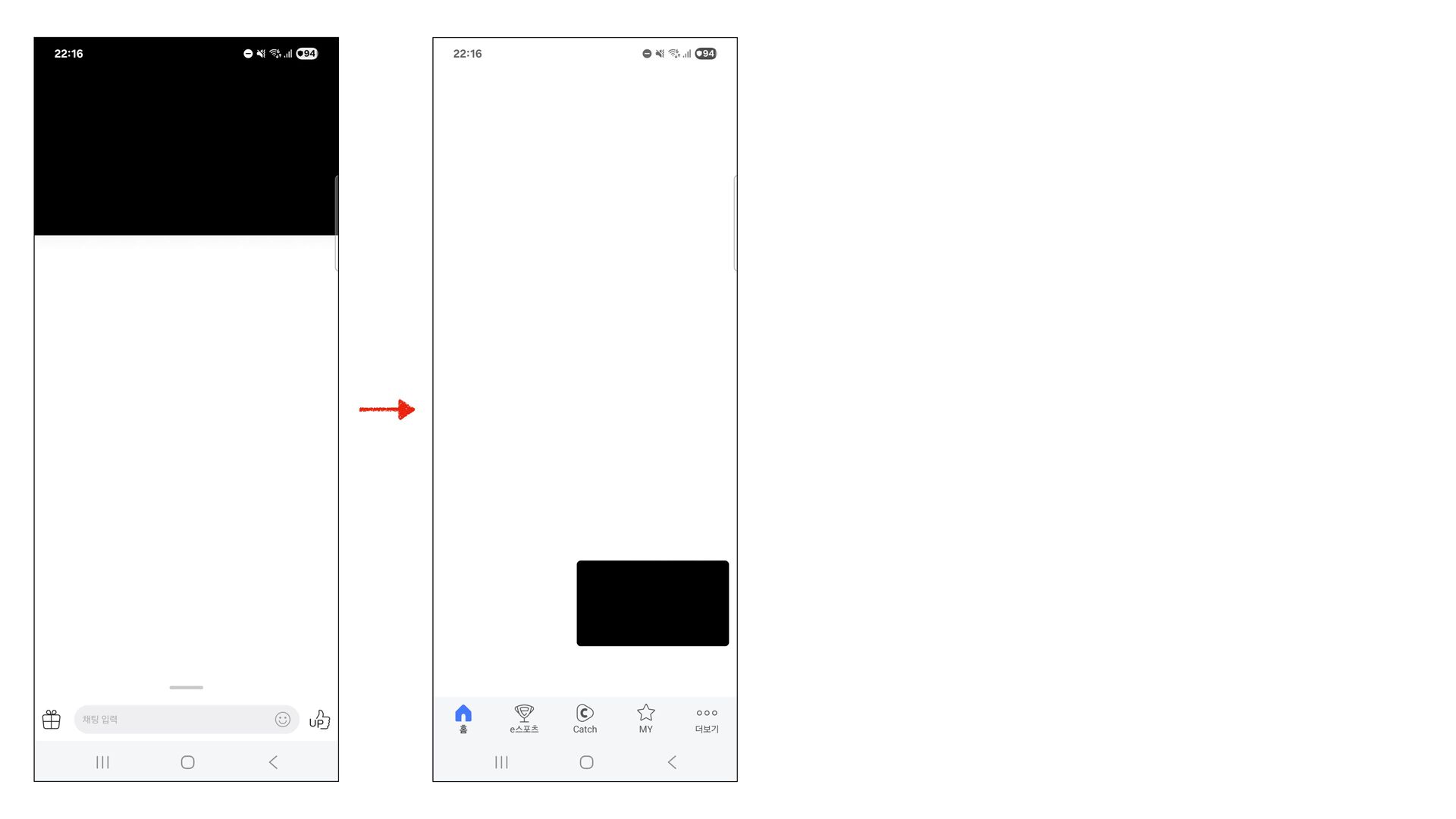

48. EdgeToEdge 적용 전 1 . StatusBar 색상을 직접 제어하고 있다. 2 . NavigationBar 색상의 이질감이 있다.

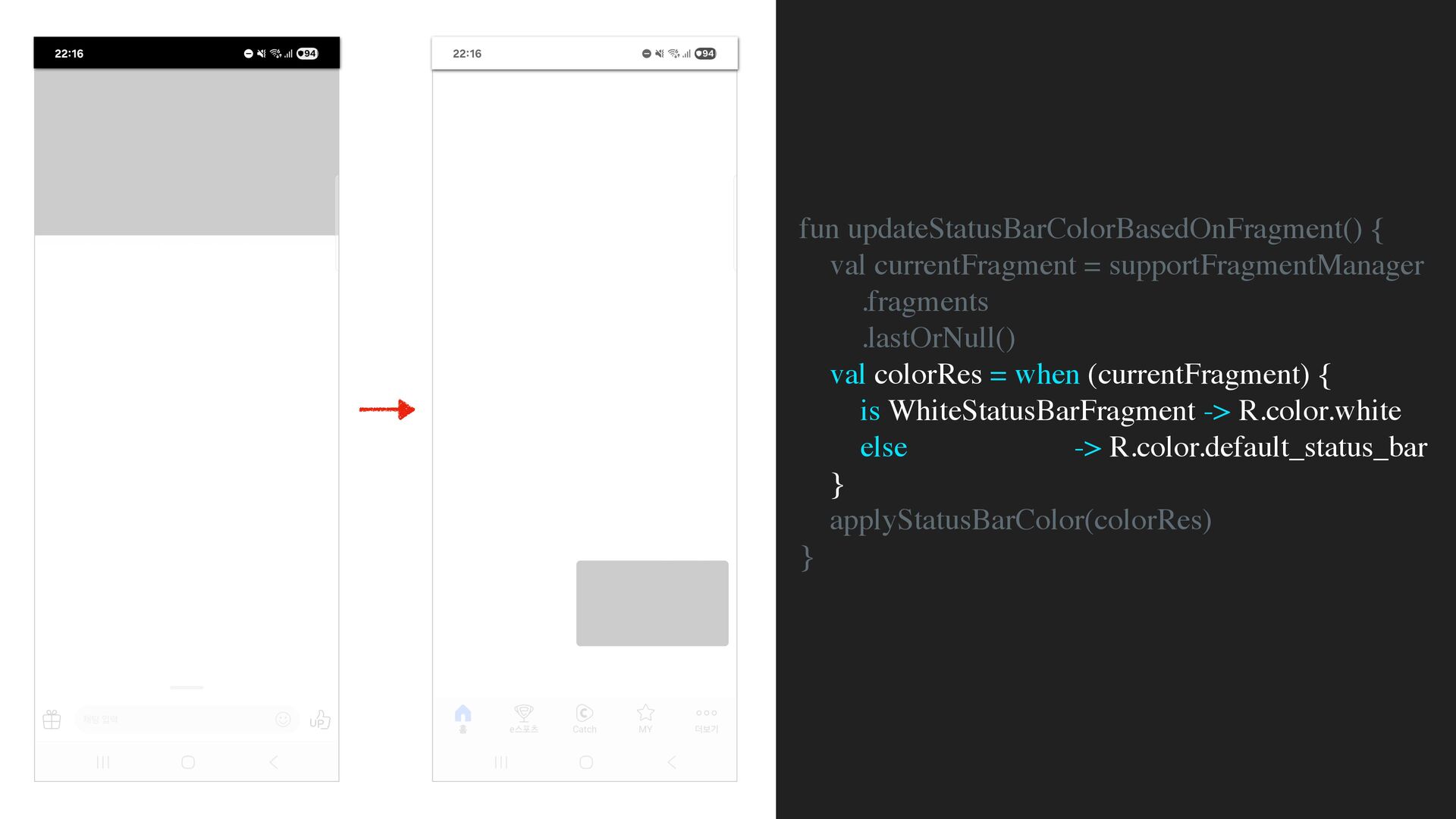

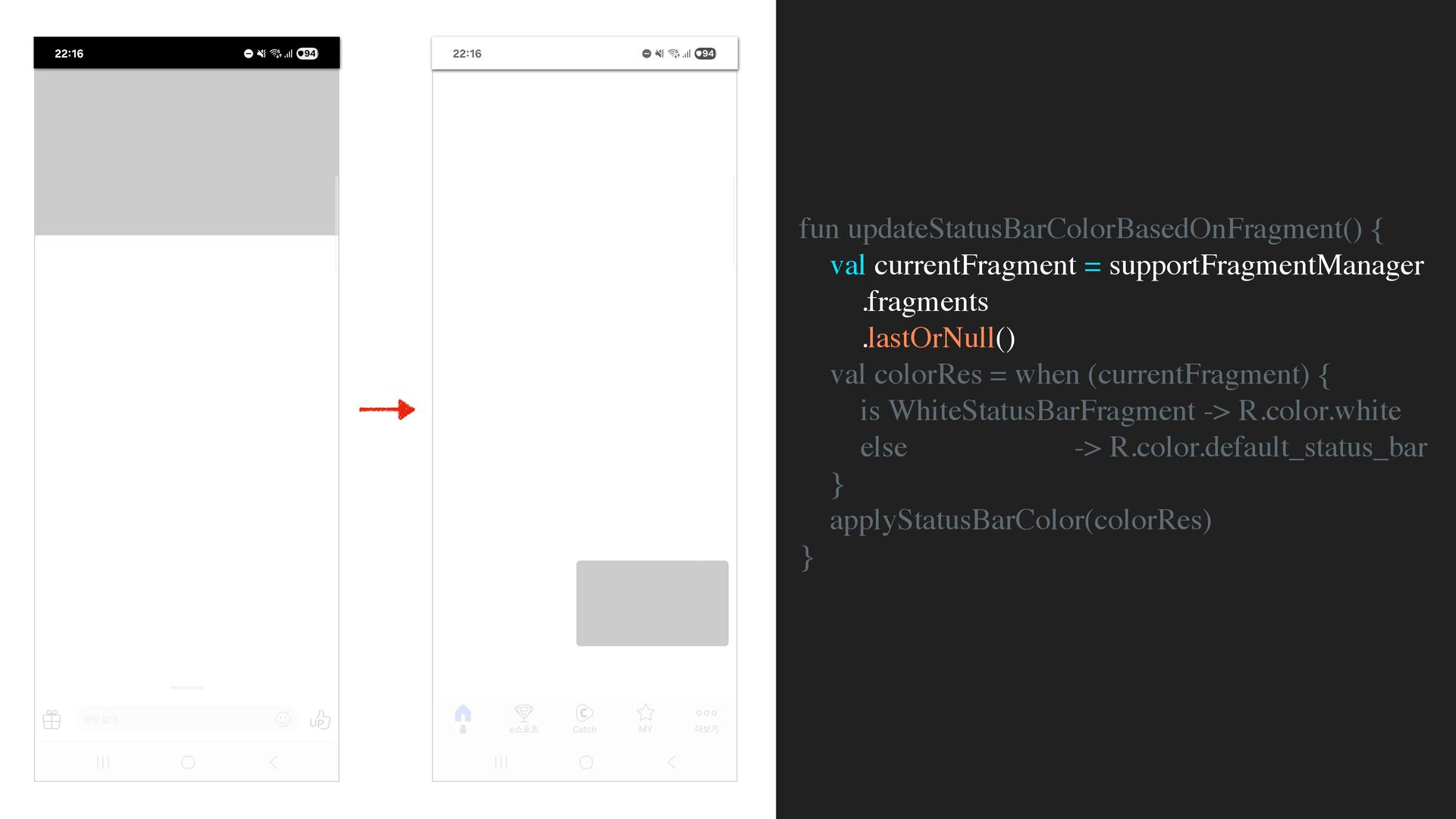

51. fun updateStatusBarColorBasedOnFragment() { val currentFragment = supportFragmentManager .fragments .lastOrNull() val colorRes = when (currentFragment) { is WhiteStatusBarFragment -> R.color.white else -> R.color.default_status_bar } applyStatusBarColor(colorRes) }
52. fun updateStatusBarColorBasedOnFragment() { val currentFragment = supportFragmentManager .fragments .lastOrNull() val colorRes = when (currentFragment) { is WhiteStatusBarFragment -> R.color.white else -> R.color.default_status_bar } applyStatusBarColor(colorRes) } fun updateStatusBarColorBasedOnFragment() { val currentFragment = supportFragmentManager .fragments .lastOrNull() val colorRes = when (currentFragment) { is WhiteStatusBarFragment -> R.color.white else -> R.color.default_status_bar } applyStatusBarColor(colorRes) }

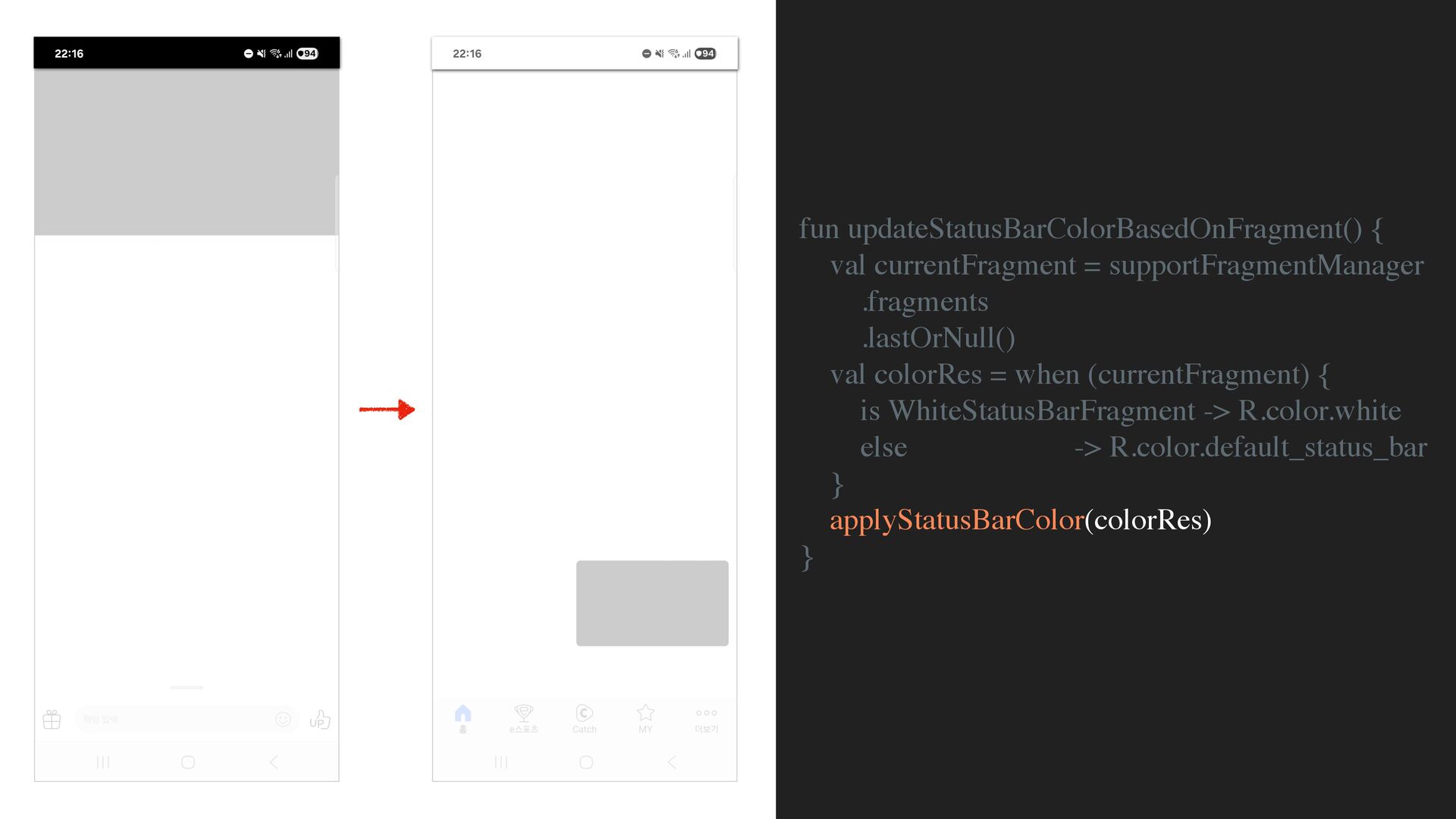

53. fun updateStatusBarColorBasedOnFragment() { val currentFragment = supportFragmentManager .fragments .lastOrNull() val colorRes = when (currentFragment) { is WhiteStatusBarFragment -> R.color.white else -> R.color.default_status_bar } applyStatusBarColor(colorRes) } fun updateStatusBarColorBasedOnFragment() { val currentFragment = supportFragmentManager .fragments .lastOrNull() val colorRes = when (currentFragment) { is WhiteStatusBarFragment -> R.color.white else -> R.color.default_status_bar } applyStatusBarColor(colorRes) } fun updateStatusBarColorBasedOnFragment() { val currentFragment = supportFragmentManager .fragments .lastOrNull() val colorRes = when (currentFragment) { is WhiteStatusBarFragment -> R.color.white else -> R.color.default_status_bar } applyStatusBarColor(colorRes) }
54. ݅ড StatusBar ࢚࢝ী ா੉झо ୶оо ػ׮ݶ?

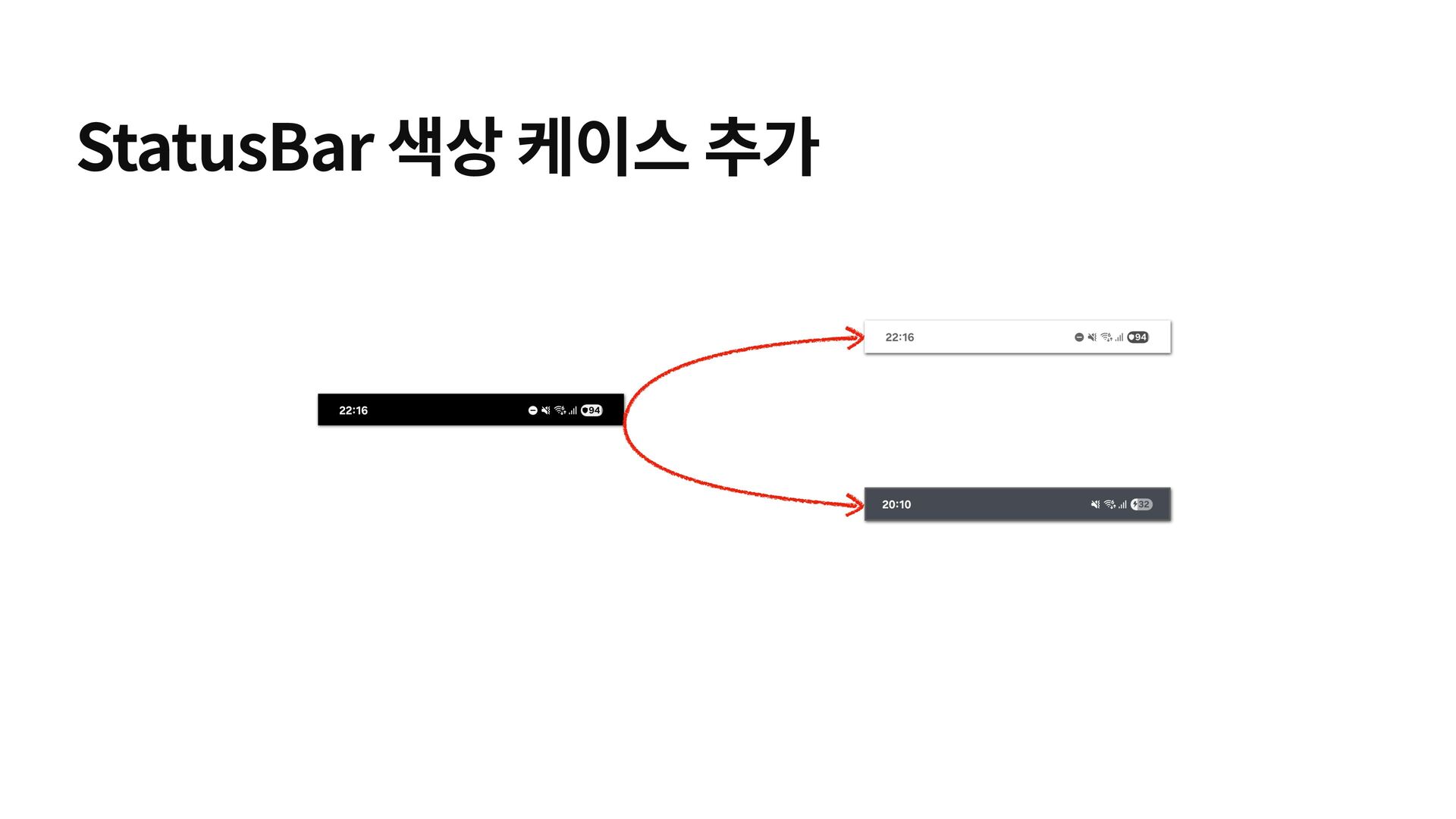

55. StatusBar 색상 케이스 추가
56. enableEdgeToEdge ܳ ੸ਊೞҊ ೧׼ ӝמ੄ ੄ب؀۽ ߸҃ਸ ೠ׮ݶ?

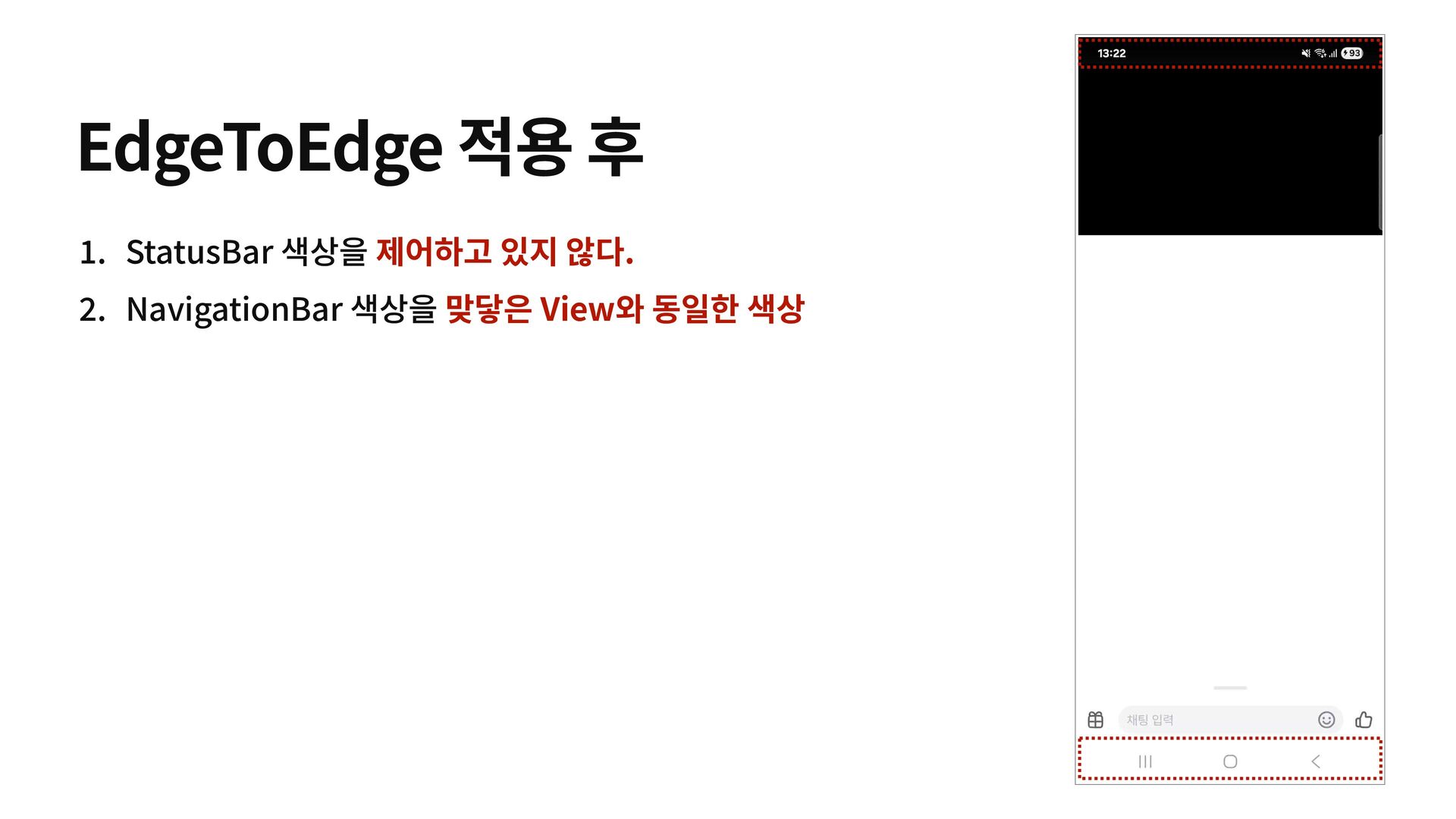

57. EdgeToEdge 적용 후 1 . StatusBar 색상을 제어하고 있지 않다. 2 . NavigationBar 색상을 맞닿은 View와 동일한 색상
58. EdgeToEdge 적용 후 1 . StatusBar 색상을 제어하고 있지 않다. 2 . NavigationBar 색상을 맞닿은 View와 동일한 색상

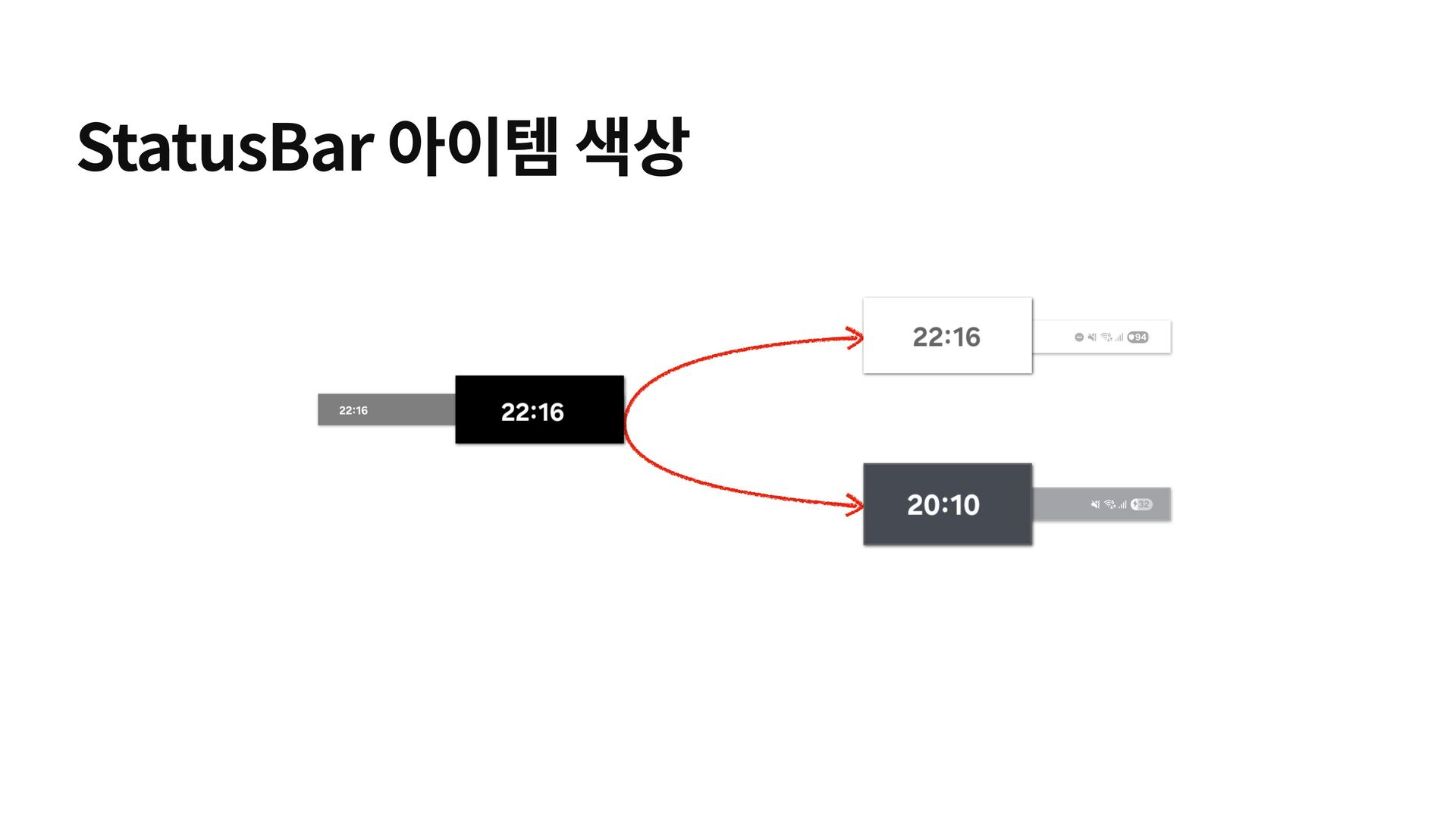

60. StatusBar 아이템 색상

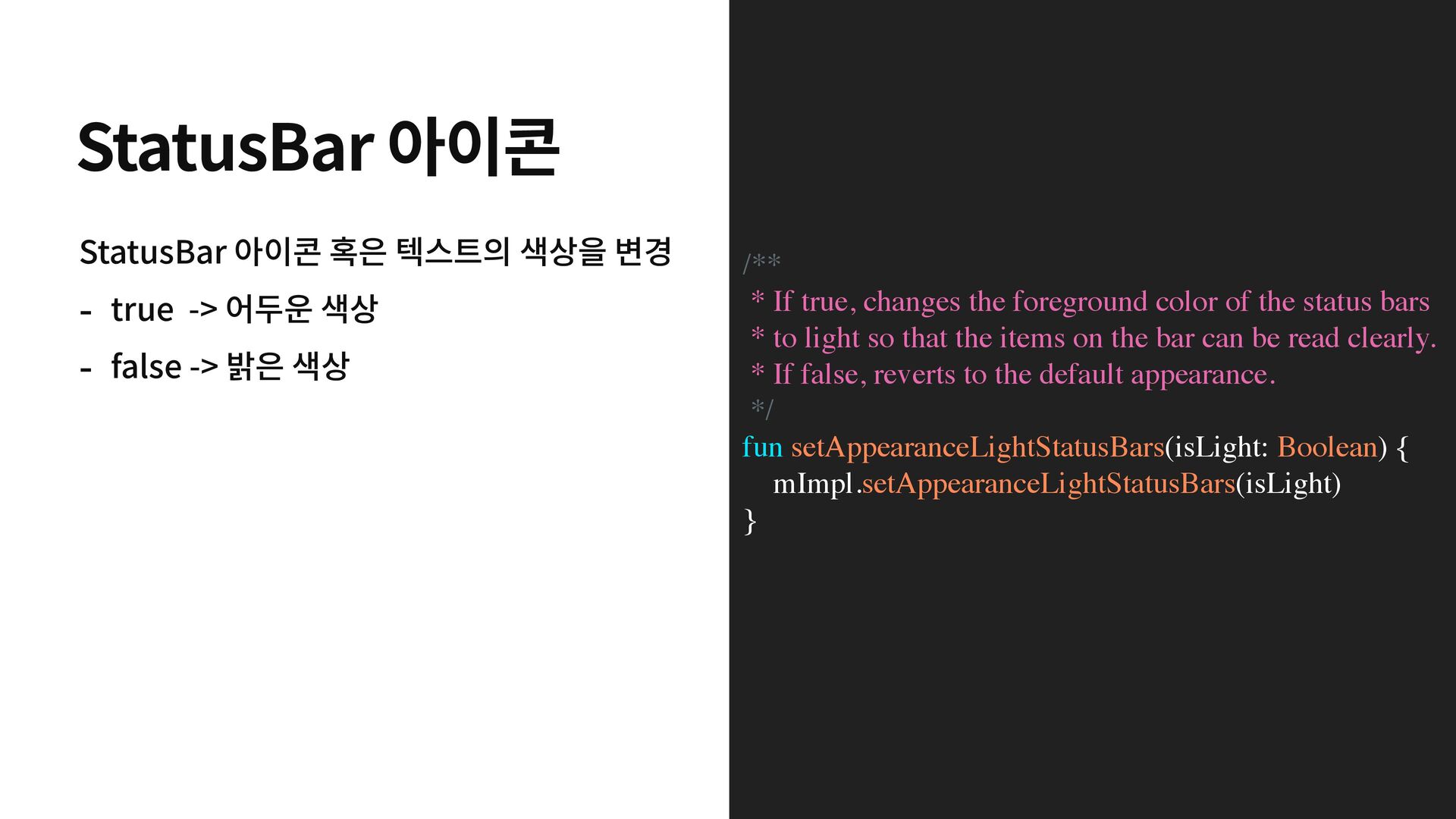

61. StatusBar 아이콘 /** * If true, changes the foreground color of the status bars * to light so that the items on the bar can be read clearly. * If false, reverts to the default appearance. */ fun setAppearanceLightStatusBars(isLight: Boolean) { mImpl.setAppearanceLightStatusBars(isLight) } StatusBar 아이콘 혹은 텍스트의 색상을 변경 - true -> 어두운 색상 - false -> 밝은 색상

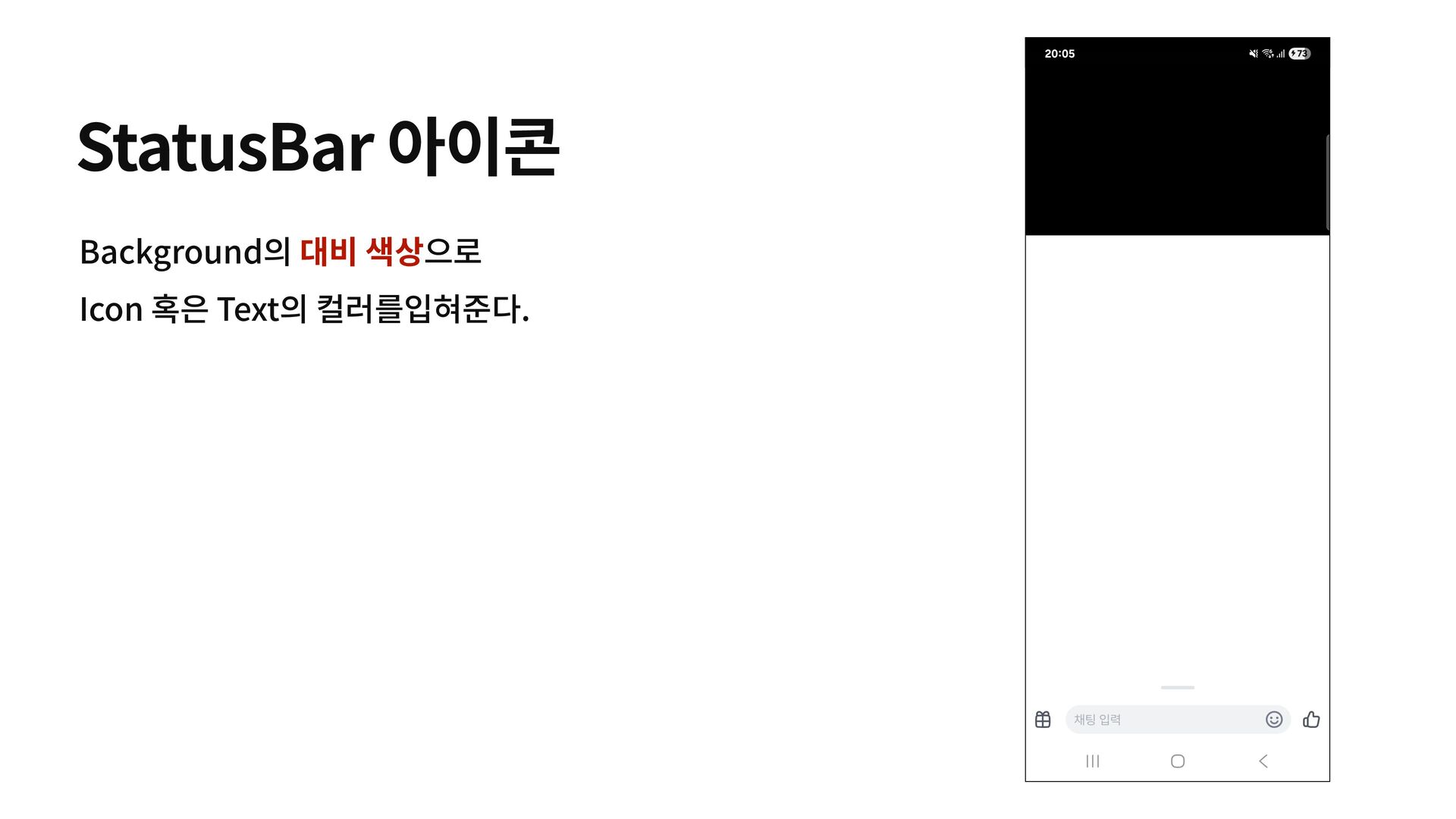

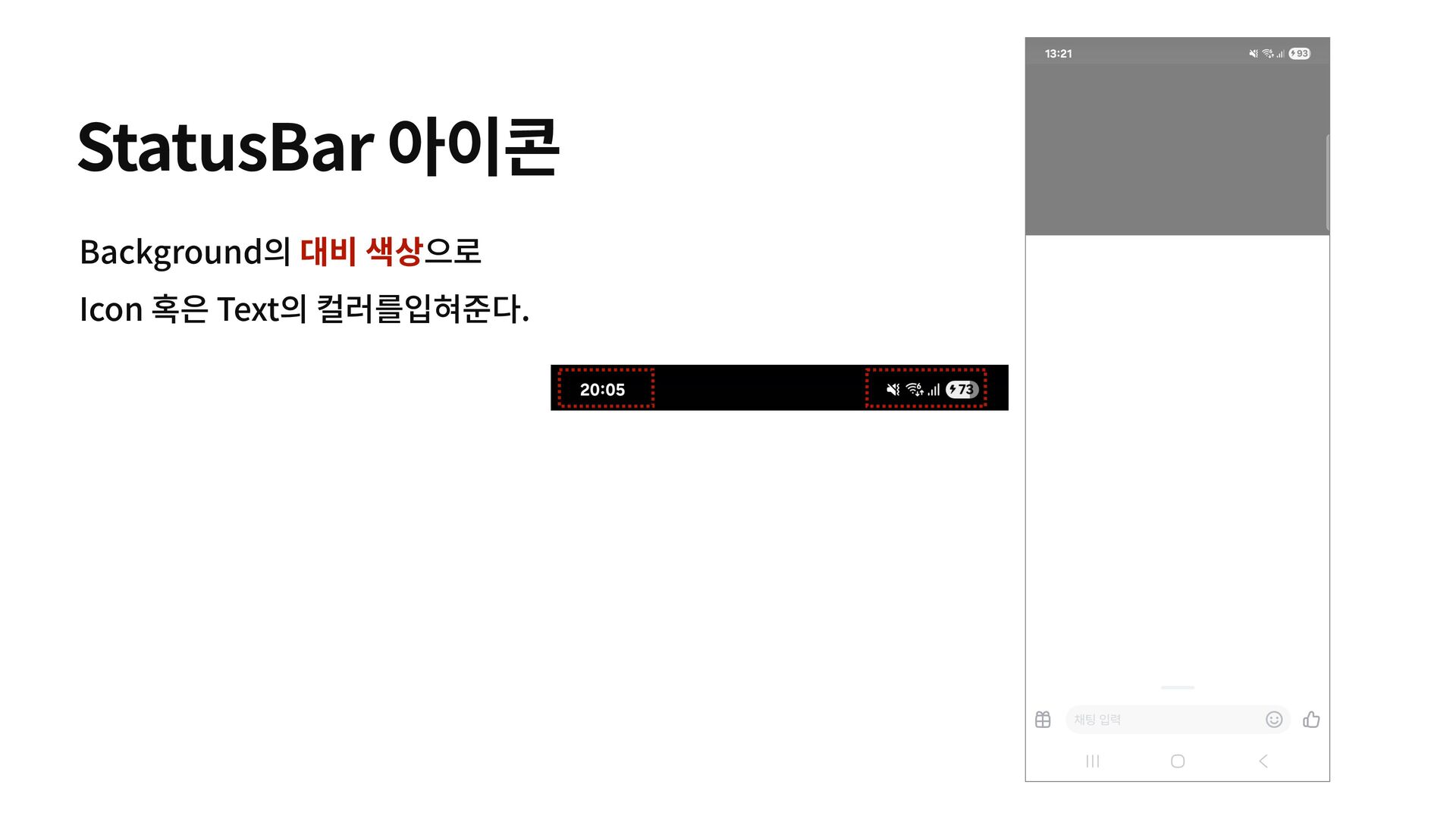

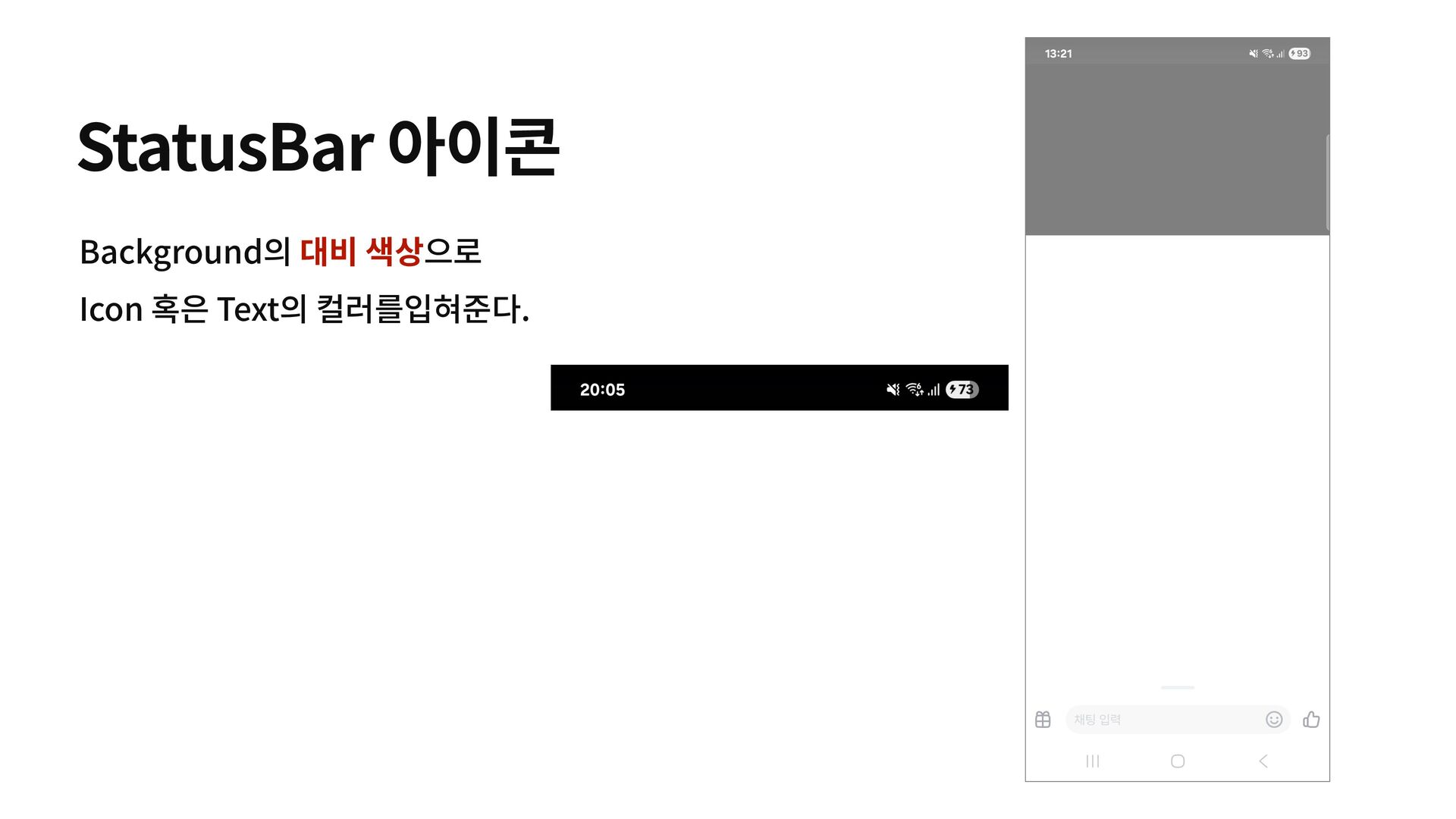

62. StatusBar 아이콘 Background의 대비 색상으로 Icon 혹은 Text의 컬러를입혀준다.

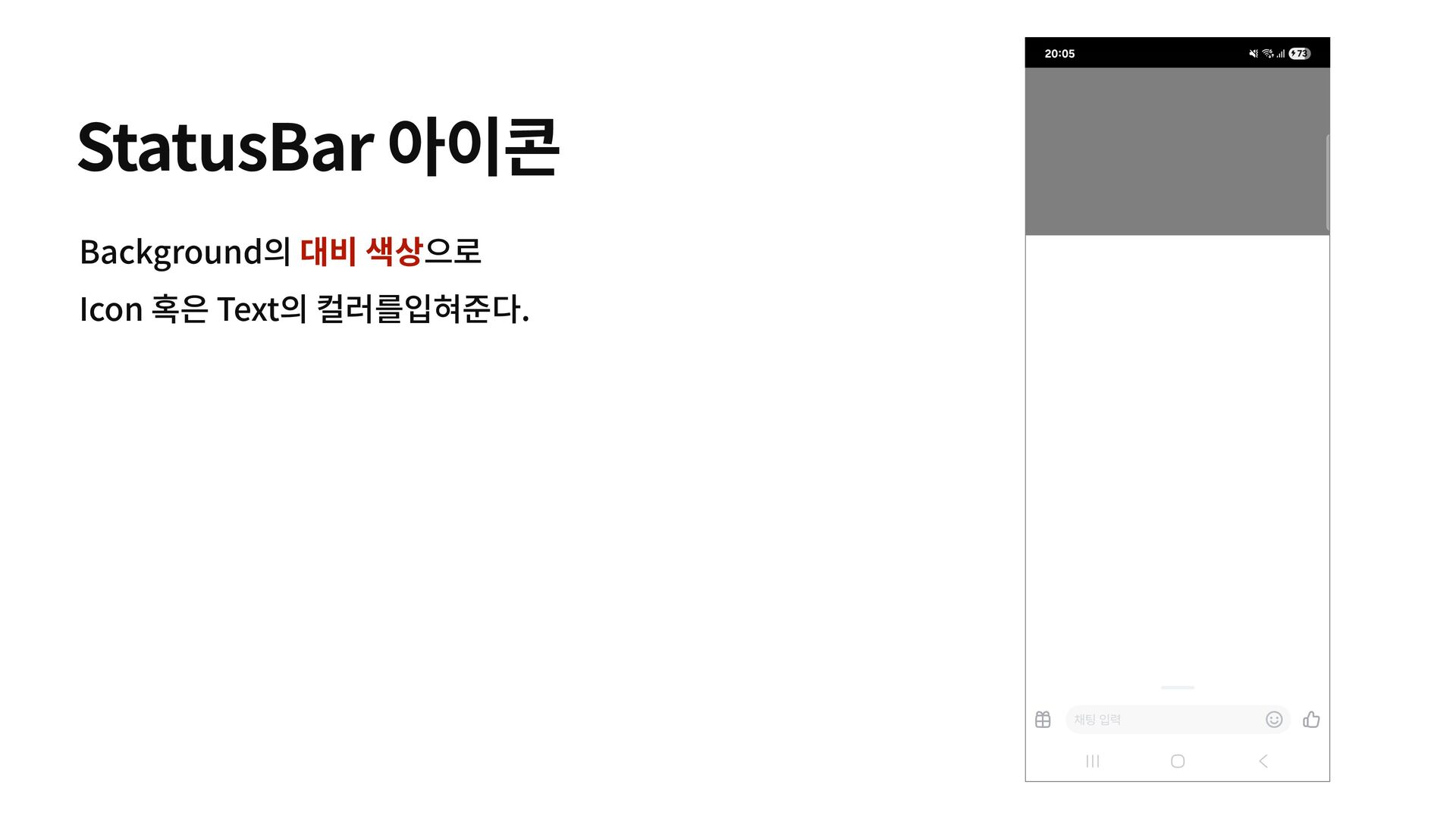

63. StatusBar 아이콘 Background의 대비 색상으로 Icon 혹은 Text의 컬러를입혀준다.
64. StatusBar 아이콘 Background의 대비 색상으로 Icon 혹은 Text의 컬러를입혀준다.

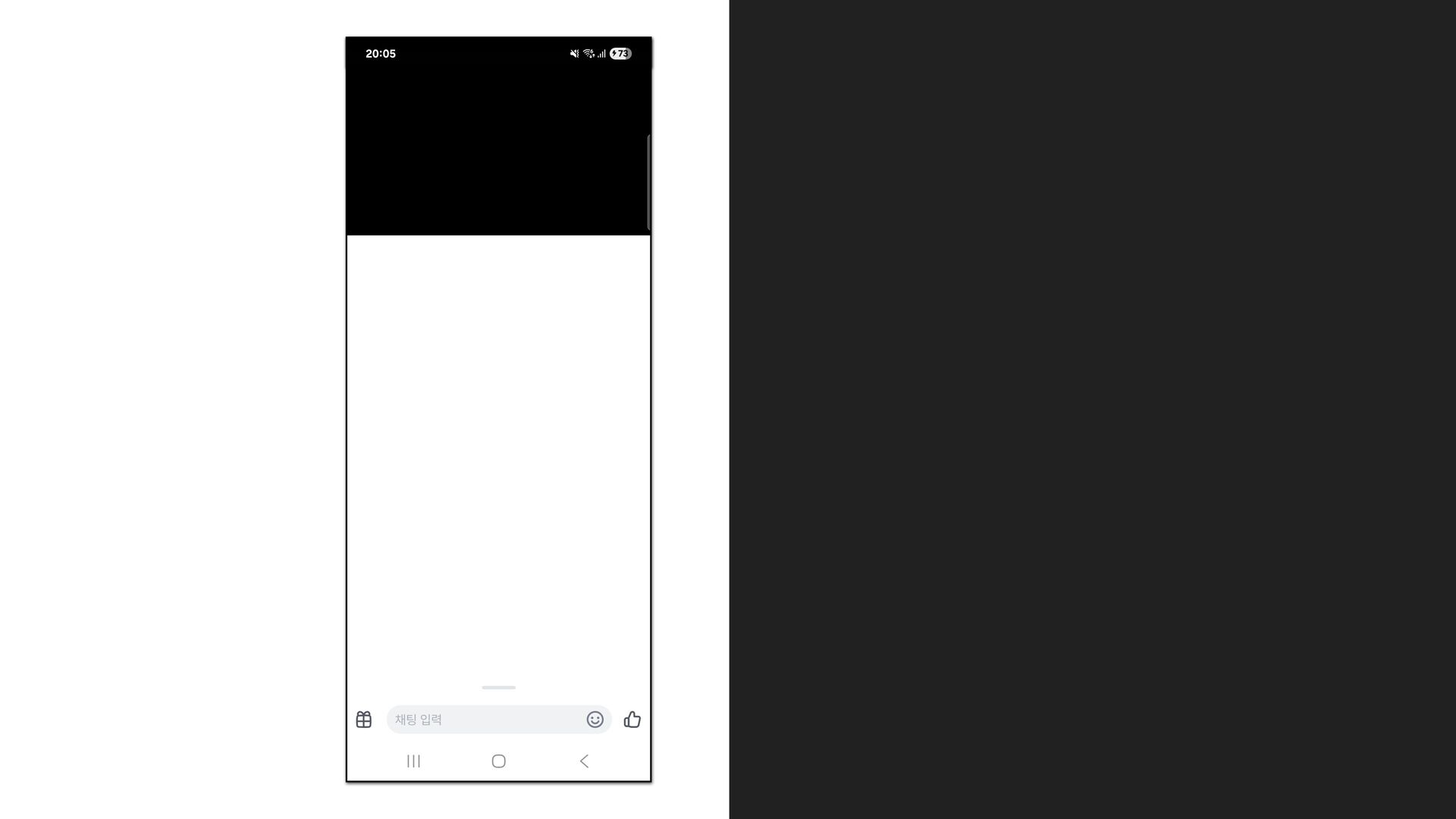

65. StatusBar 아이콘 Background의 대비 색상으로 Icon 혹은 Text의 컬러를입혀준다.

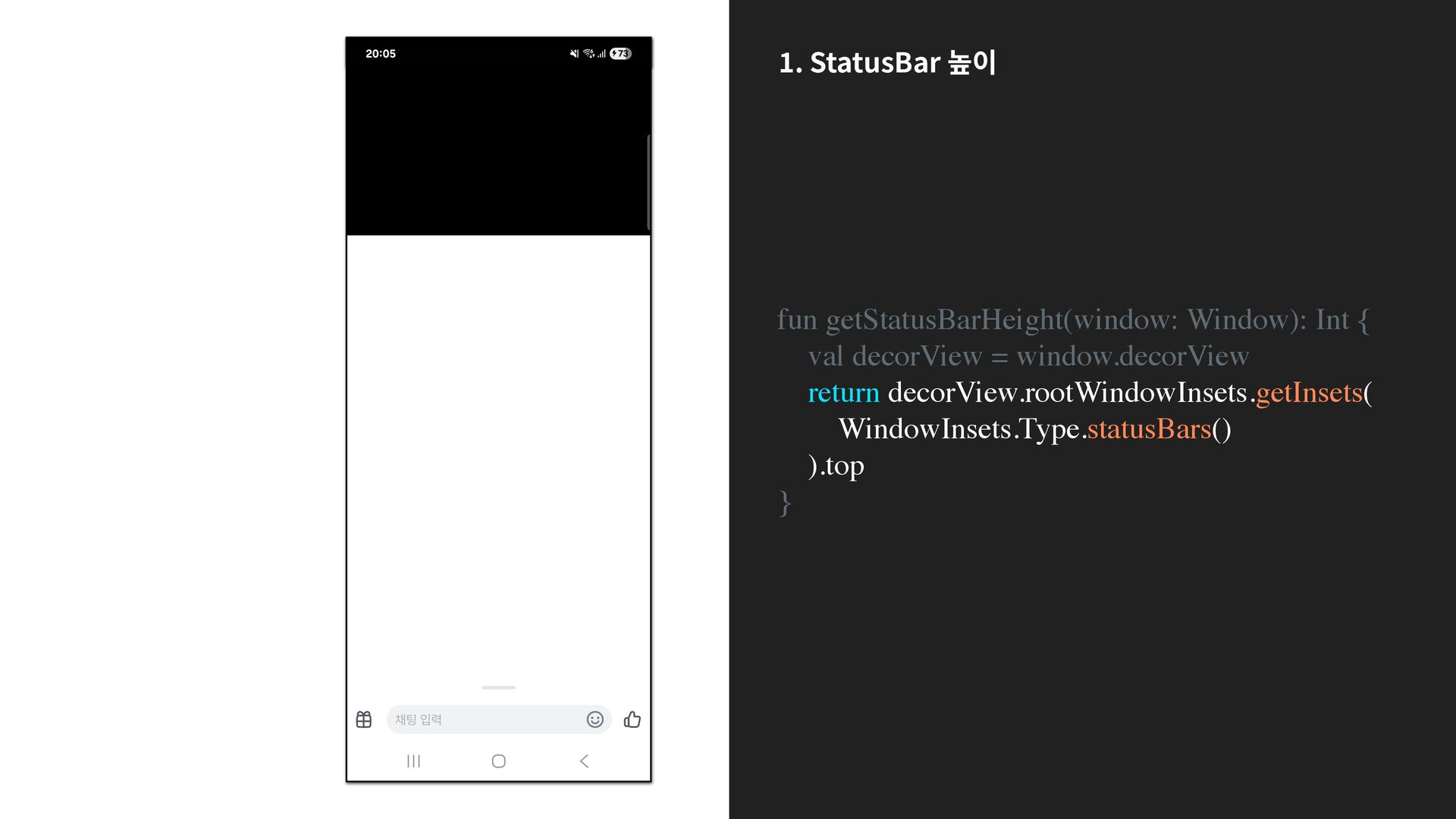

67. fun getStatusBarHeight(window: Window): Int { val decorView = window.decorView return decorView.rootWindowInsets.getInsets( WindowInsets.Type.statusBars() ).top } 1 . StatusBar 높이
68. fun getStatusBarHeight(window: Window): Int { val decorView = window.decorView return decorView.rootWindowInsets.getInsets( WindowInsets.Type.statusBars() ).top } 1 . StatusBar 높이

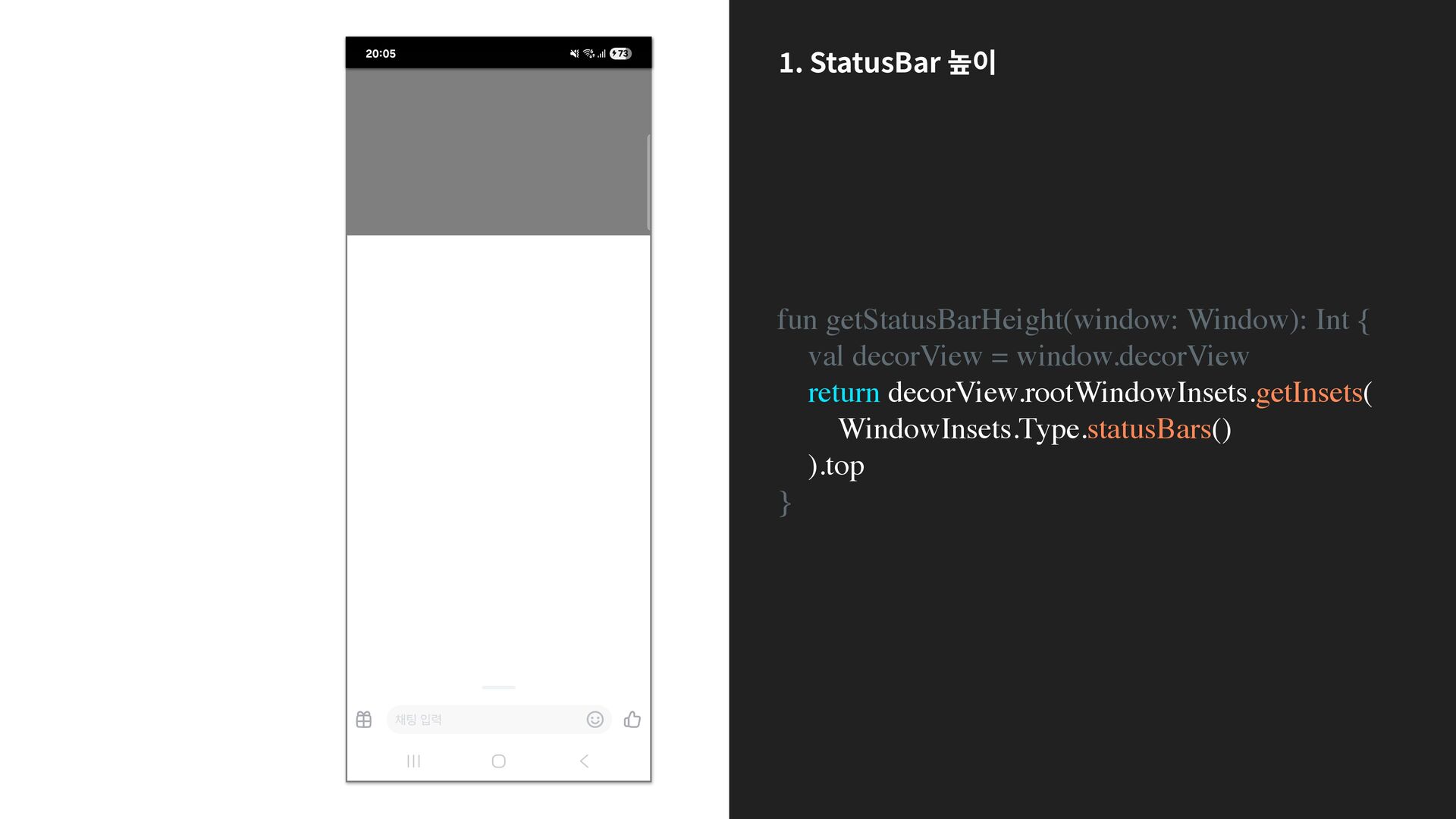

69. fun getStatusBarHeight(window: Window): Int { val decorView = window.decorView return decorView.rootWindowInsets.getInsets( WindowInsets.Type.statusBars() ).top } 1 . StatusBar 높이

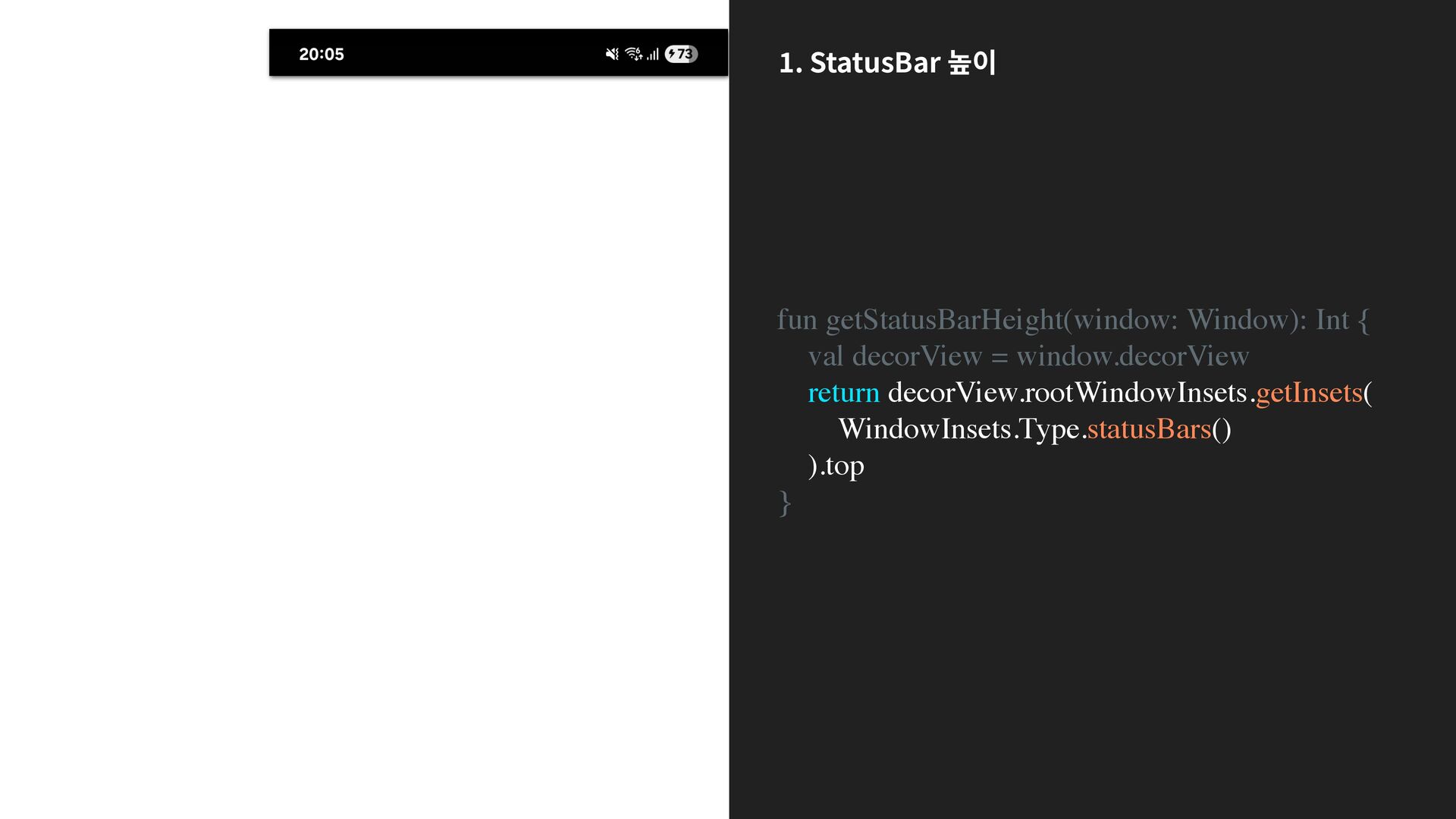

70. fun getStatusBarHeight(window: Window): Int { val decorView = window.decorView return decorView.rootWindowInsets.getInsets( WindowInsets.Type.statusBars() ).top } 1 . StatusBar 높이 fun captureStatusBarBitmap( window: Window, height: Int, onResult: (Bitmap?) -> Unit ) { val rect = Rect(0, 0, window.decorView.width, height) val bmp = createBitmap( width = rect.width(), height = rect.height() ) PixelCopy.request(window, rect, bmp, { _ -> onResult(bmp) }, Handler(Looper.getMainLooper())) } 2 . StatusBar 높이 만큼 캡쳐

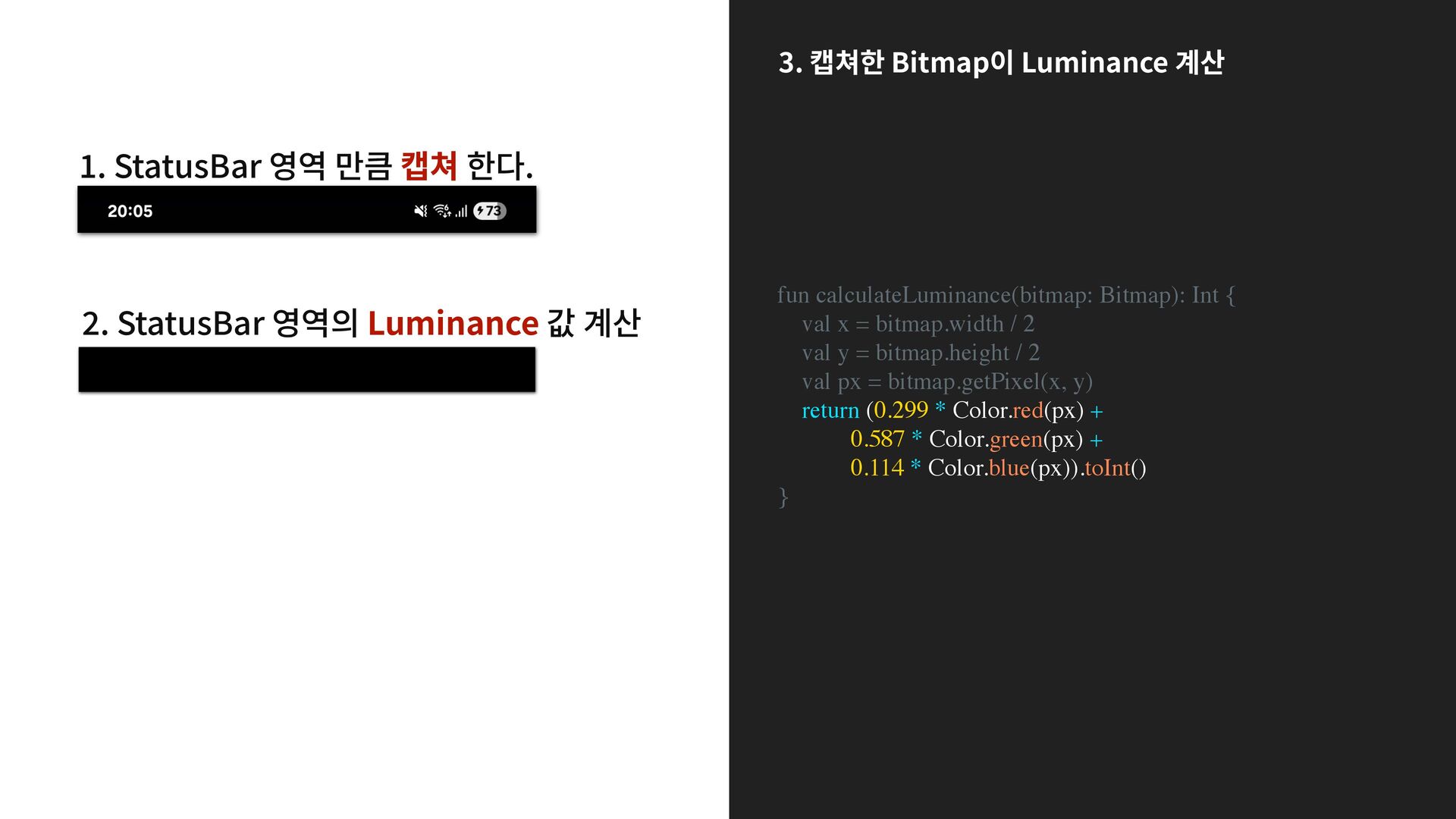

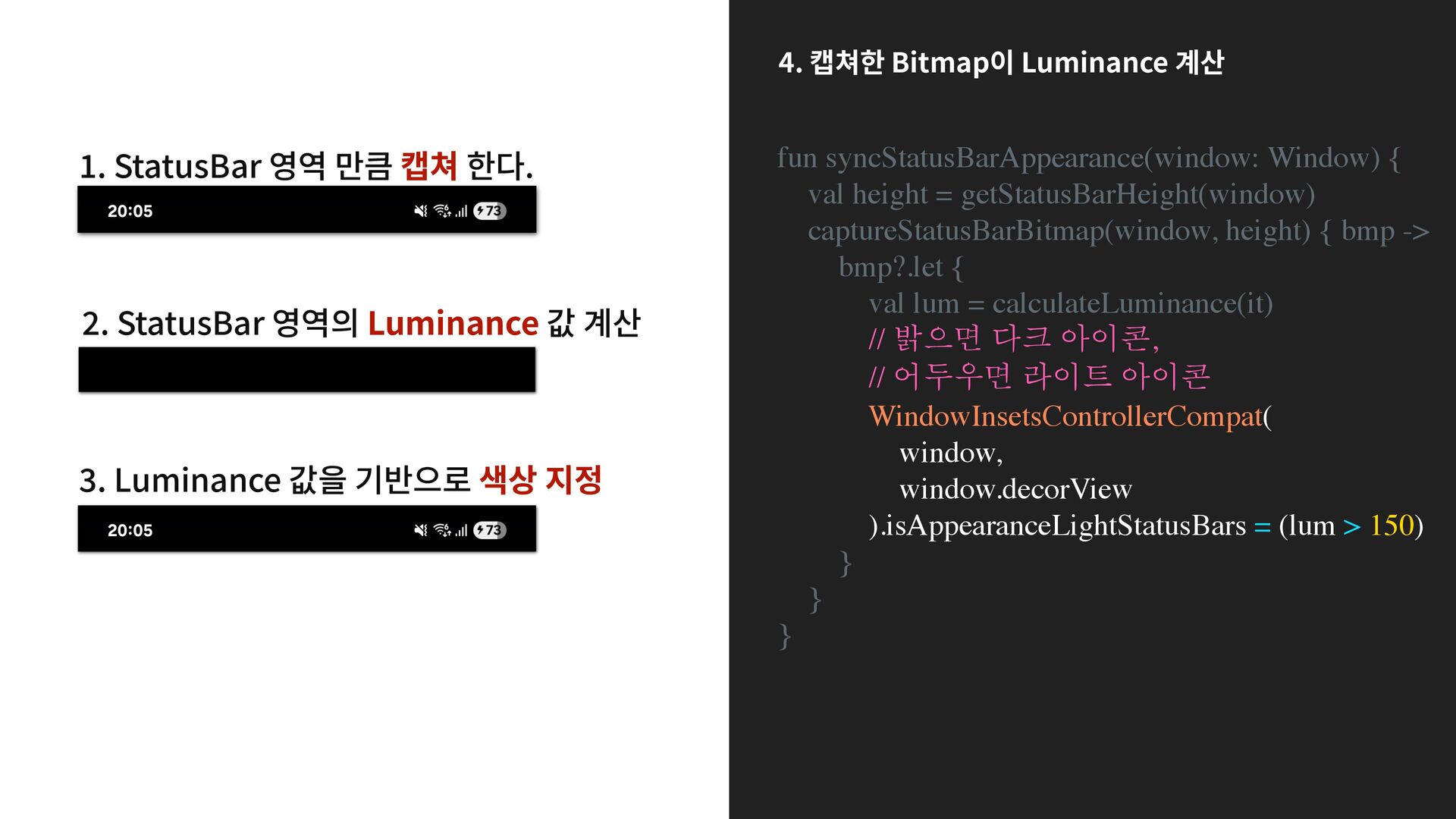

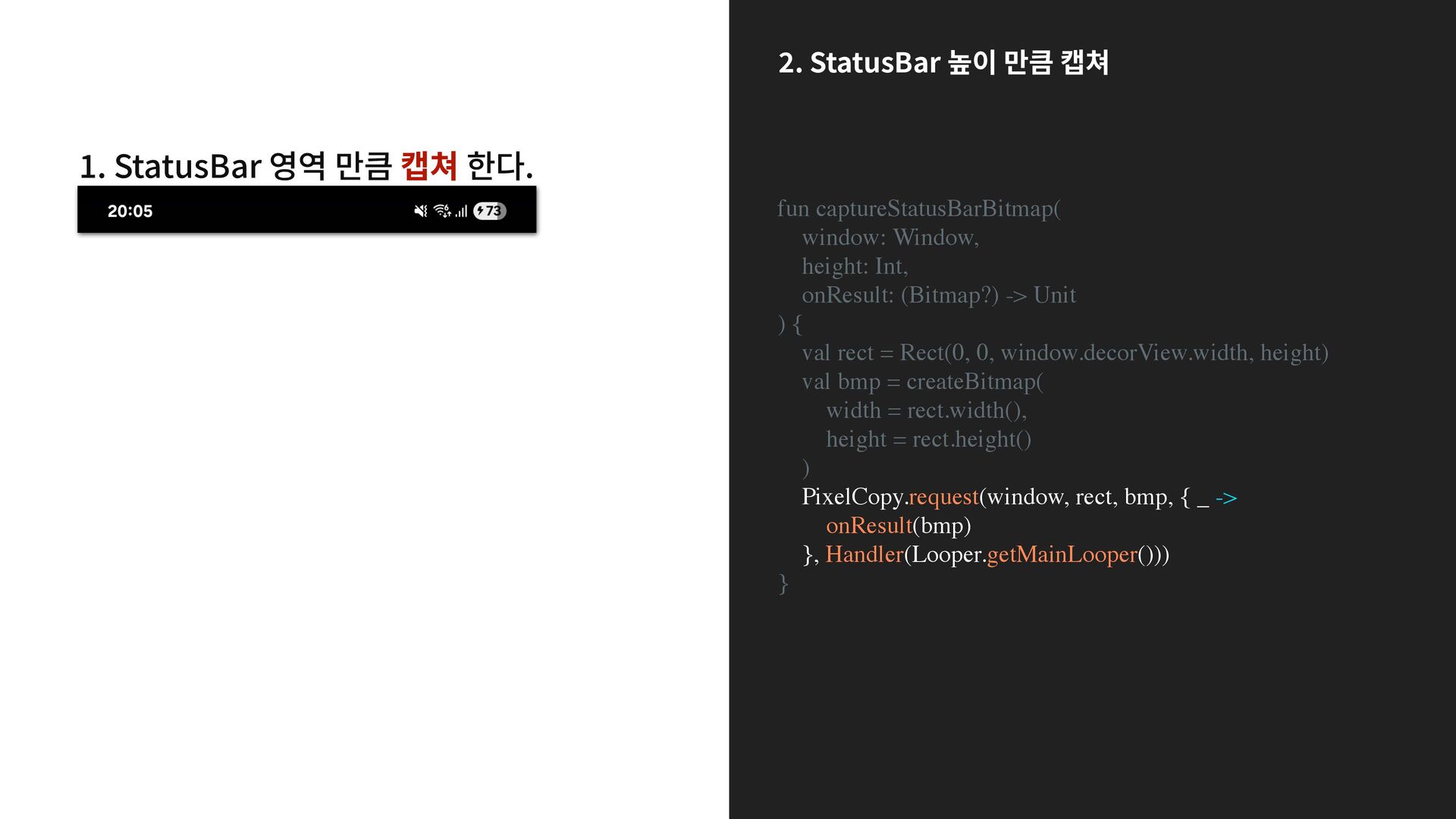

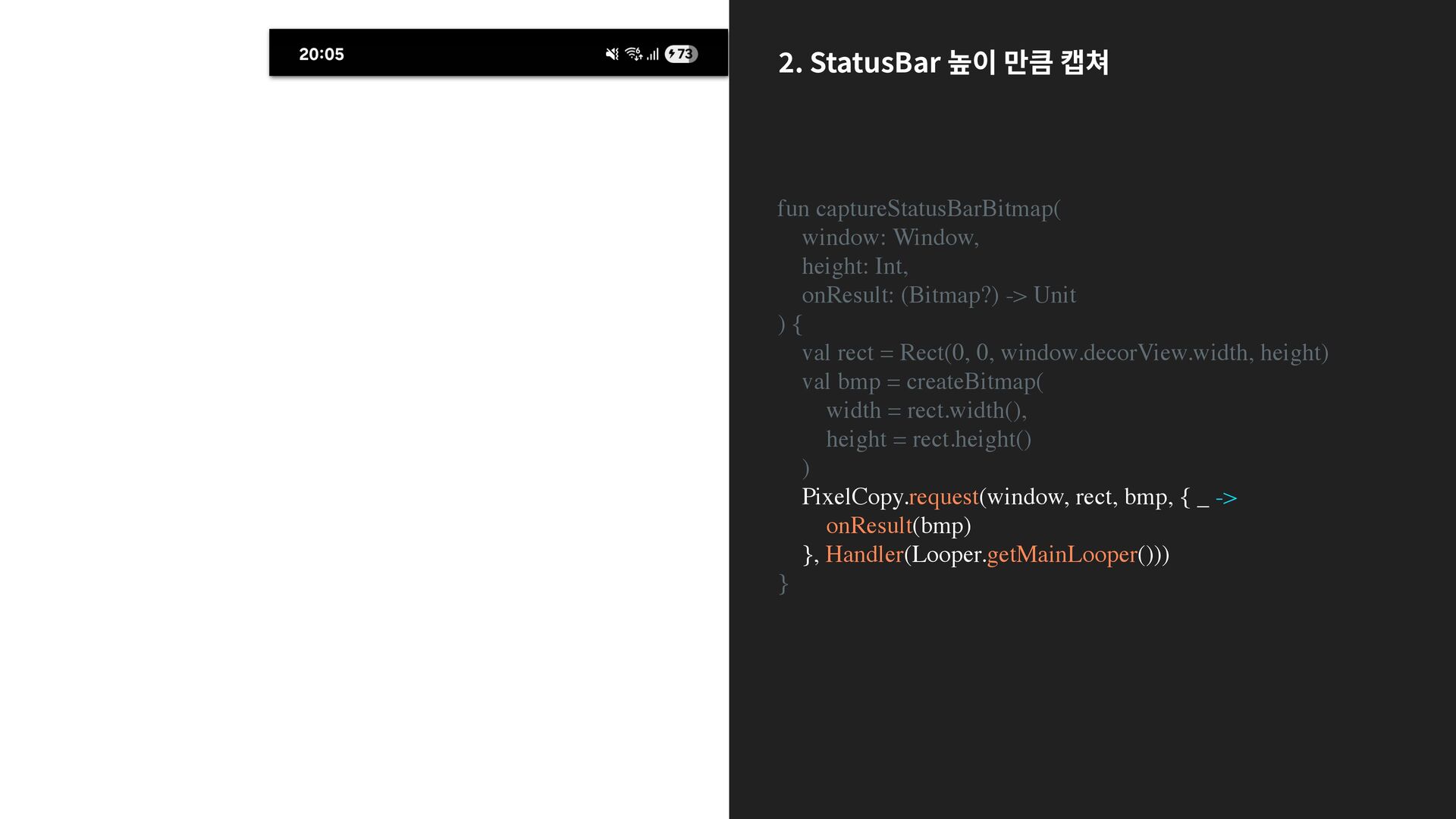

71. 1 . StatusBar 영역 만큼 캡쳐 한다. fun getStatusBarHeight(window: Window): Int { val decorView = window.decorView return decorView.rootWindowInsets.getInsets( WindowInsets.Type.statusBars() ).top } 1 . StatusBar 높이 fun captureStatusBarBitmap( window: Window, height: Int, onResult: (Bitmap?) -> Unit ) { val rect = Rect(0, 0, window.decorView.width, height) val bmp = createBitmap( width = rect.width(), height = rect.height() ) PixelCopy.request(window, rect, bmp, { _ -> onResult(bmp) }, Handler(Looper.getMainLooper())) } 2 . StatusBar 높이 만큼 캡쳐
72. 1 . StatusBar 영역 만큼 캡쳐 한다. fun getStatusBarHeight(window: Window): Int { val decorView = window.decorView return decorView.rootWindowInsets.getInsets( WindowInsets.Type.statusBars() ).top } 1 . StatusBar 높이 fun captureStatusBarBitmap( window: Window, height: Int, onResult: (Bitmap?) -> Unit ) { val rect = Rect(0, 0, window.decorView.width, height) val bmp = createBitmap( width = rect.width(), height = rect.height() ) PixelCopy.request(window, rect, bmp, { _ -> onResult(bmp) }, Handler(Looper.getMainLooper())) } 2 . StatusBar 높이 만큼 캡쳐 2 . StatusBar 영역의 Luminance 값 계산 fun calculateLuminance(bitmap: Bitmap): Int { val x = bitmap.width / 2 val y = bitmap.height / 2 val px = bitmap.getPixel(x, y) return (0.299 * Color.red(px) + 0.587 * Color.green(px) + 0.114 * Color.blue(px)).toInt() } 3. 캡쳐한 Bitmap이 Luminance 계산
73. 1 . StatusBar 영역 만큼 캡쳐 한다. fun getStatusBarHeight(window: Window): Int { val decorView = window.decorView return decorView.rootWindowInsets.getInsets( WindowInsets.Type.statusBars() ).top } 1 . StatusBar 높이 fun captureStatusBarBitmap( window: Window, height: Int, onResult: (Bitmap?) -> Unit ) { val rect = Rect(0, 0, window.decorView.width, height) val bmp = createBitmap( width = rect.width(), height = rect.height() ) PixelCopy.request(window, rect, bmp, { _ -> onResult(bmp) }, Handler(Looper.getMainLooper())) } 2 . StatusBar 높이 만큼 캡쳐 2 . StatusBar 영역의 Luminance 값 계산 fun calculateLuminance(bitmap: Bitmap): Int { val x = bitmap.width / 2 val y = bitmap.height / 2 val px = bitmap.getPixel(x, y) return (0.299 * Color.red(px) + 0.587 * Color.green(px) + 0.114 * Color.blue(px)).toInt() } 3. 캡쳐한 Bitmap이 Luminance 계산 fun syncStatusBarAppearance(window: Window) { val height = getStatusBarHeight(window) captureStatusBarBitmap(window, height) { bmp -> bmp?.let { val lum = calculateLuminance(it) // 밝으면 다크 아이콘, // 어두우면 라이트 아이콘 WindowInsetsControllerCompat( window, window.decorView ).isAppearanceLightStatusBars = (lum > 150) } } } 4. 캡쳐한 Bitmap이 Luminance 계산

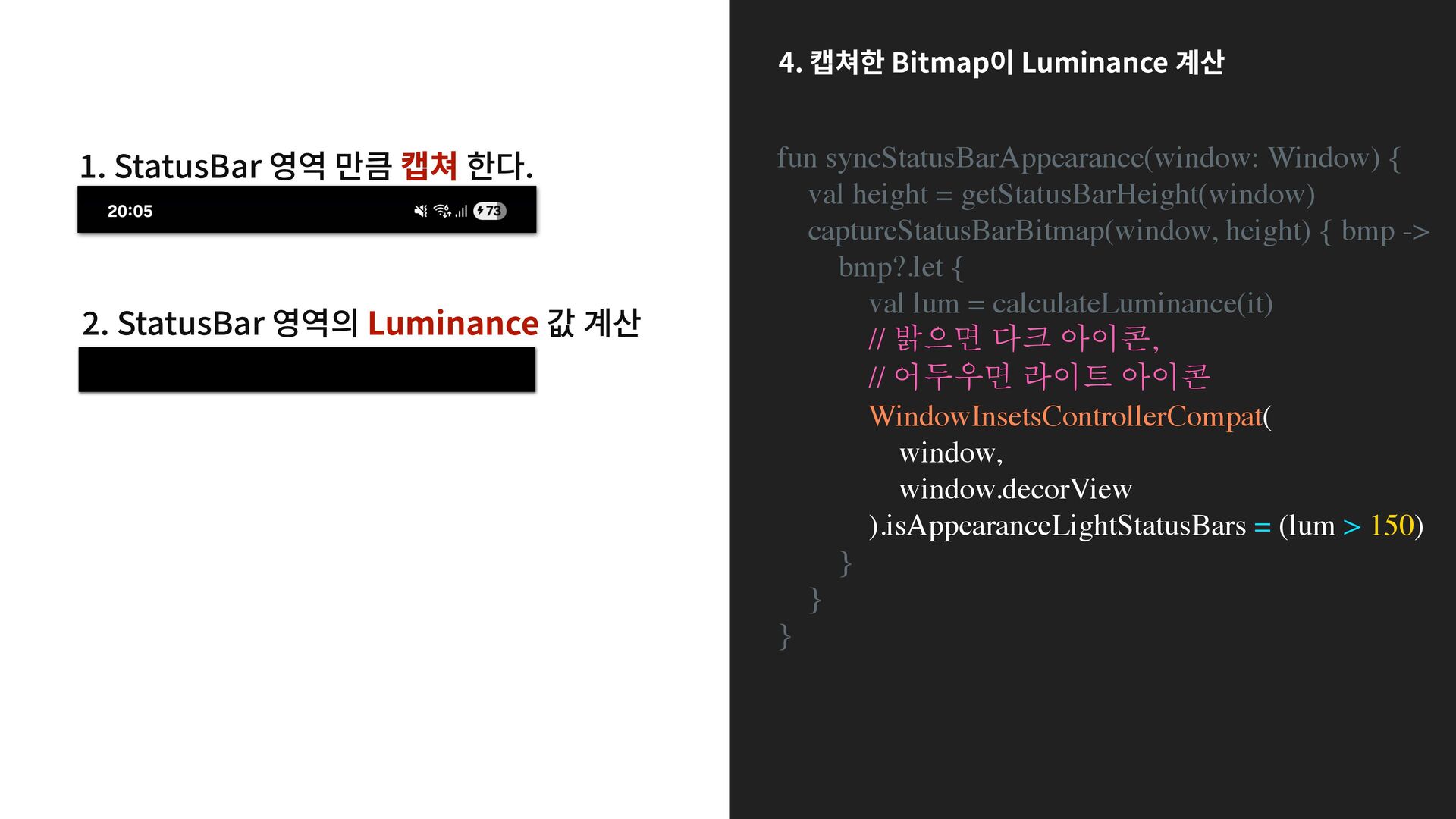

74. 1 . StatusBar 영역 만큼 캡쳐 한다. fun getStatusBarHeight(window: Window): Int { val decorView = window.decorView return decorView.rootWindowInsets.getInsets( WindowInsets.Type.statusBars() ).top } 1 . StatusBar 높이 fun captureStatusBarBitmap( window: Window, height: Int, onResult: (Bitmap?) -> Unit ) { val rect = Rect(0, 0, window.decorView.width, height) val bmp = createBitmap( width = rect.width(), height = rect.height() ) PixelCopy.request(window, rect, bmp, { _ -> onResult(bmp) }, Handler(Looper.getMainLooper())) } 2 . StatusBar 높이 만큼 캡쳐 2 . StatusBar 영역의 Luminance 값 계산 fun calculateLuminance(bitmap: Bitmap): Int { val x = bitmap.width / 2 val y = bitmap.height / 2 val px = bitmap.getPixel(x, y) return (0.299 * Color.red(px) + 0.587 * Color.green(px) + 0.114 * Color.blue(px)).toInt() } 3. 캡쳐한 Bitmap이 Luminance 계산 3 . Luminance 값을 기반으로 색상 지정 fun syncStatusBarAppearance(window: Window) { val height = getStatusBarHeight(window) captureStatusBarBitmap(window, height) { bmp -> bmp?.let { val lum = calculateLuminance(it) // 밝으면 다크 아이콘, // 어두우면 라이트 아이콘 WindowInsetsControllerCompat( window, window.decorView ).isAppearanceLightStatusBars = (lum > 150) } } } 4. 캡쳐한 Bitmap이 Luminance 계산
77. 3 Inset은 어떻게 다뤄야 하는가?

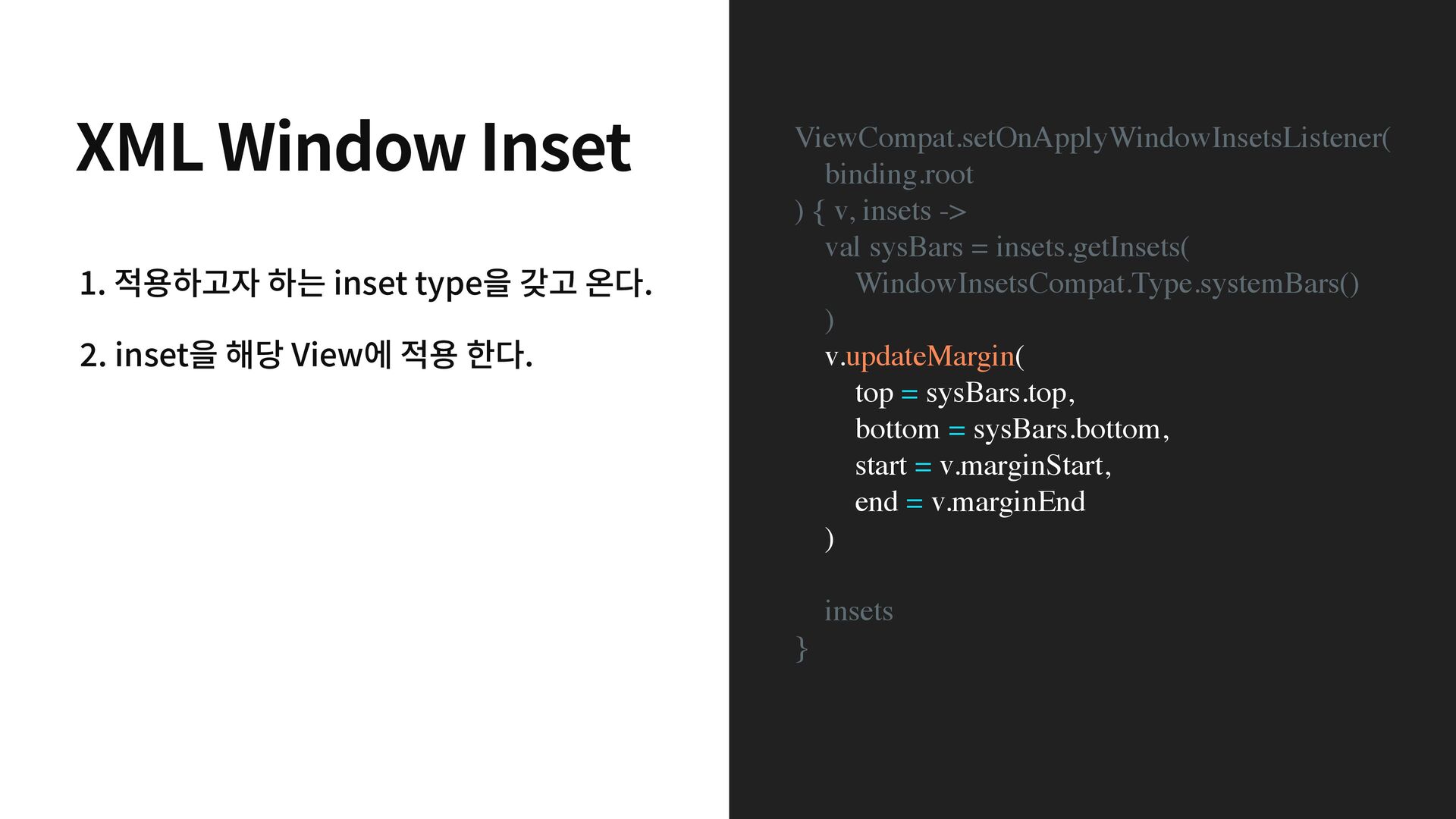

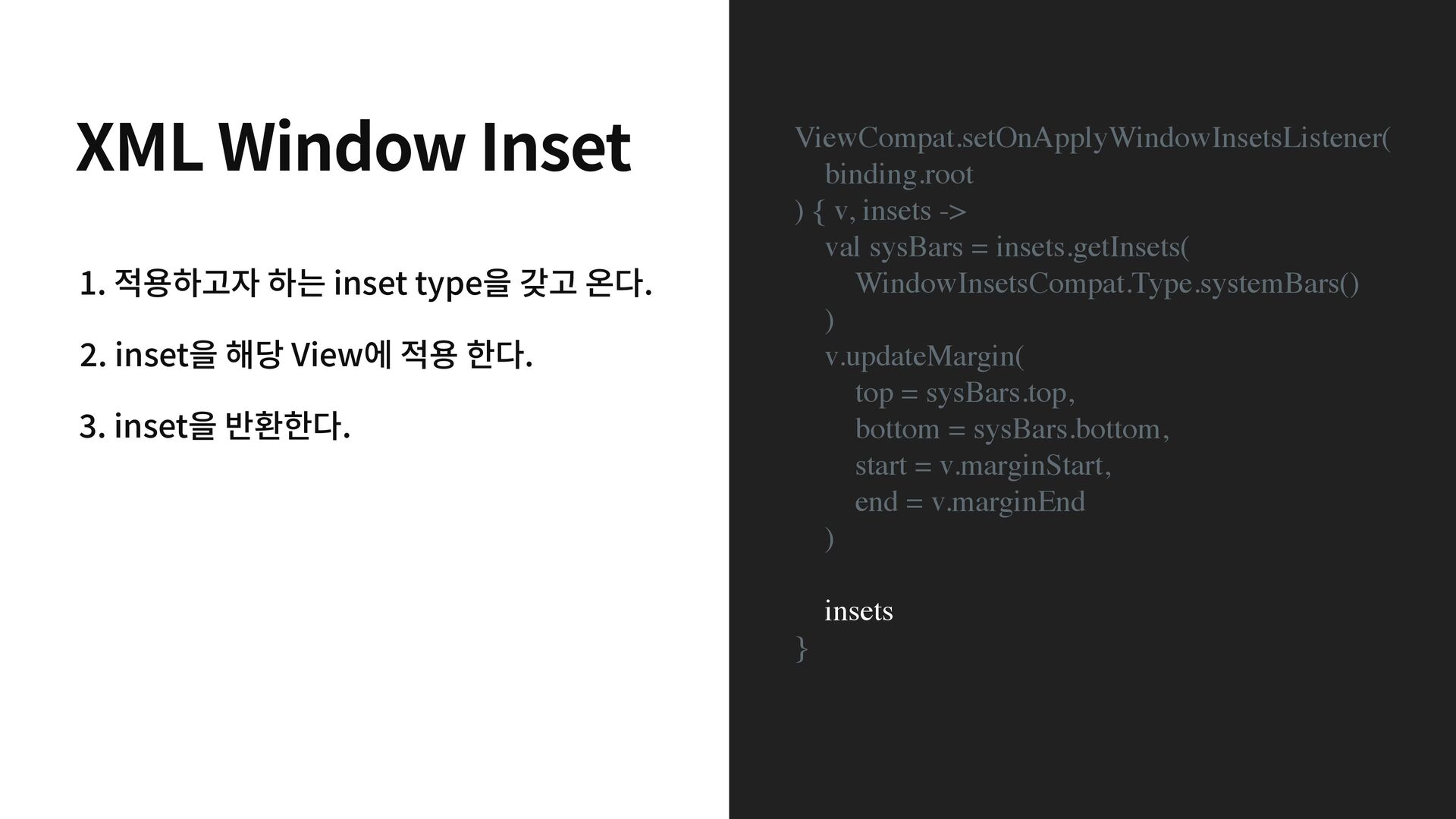

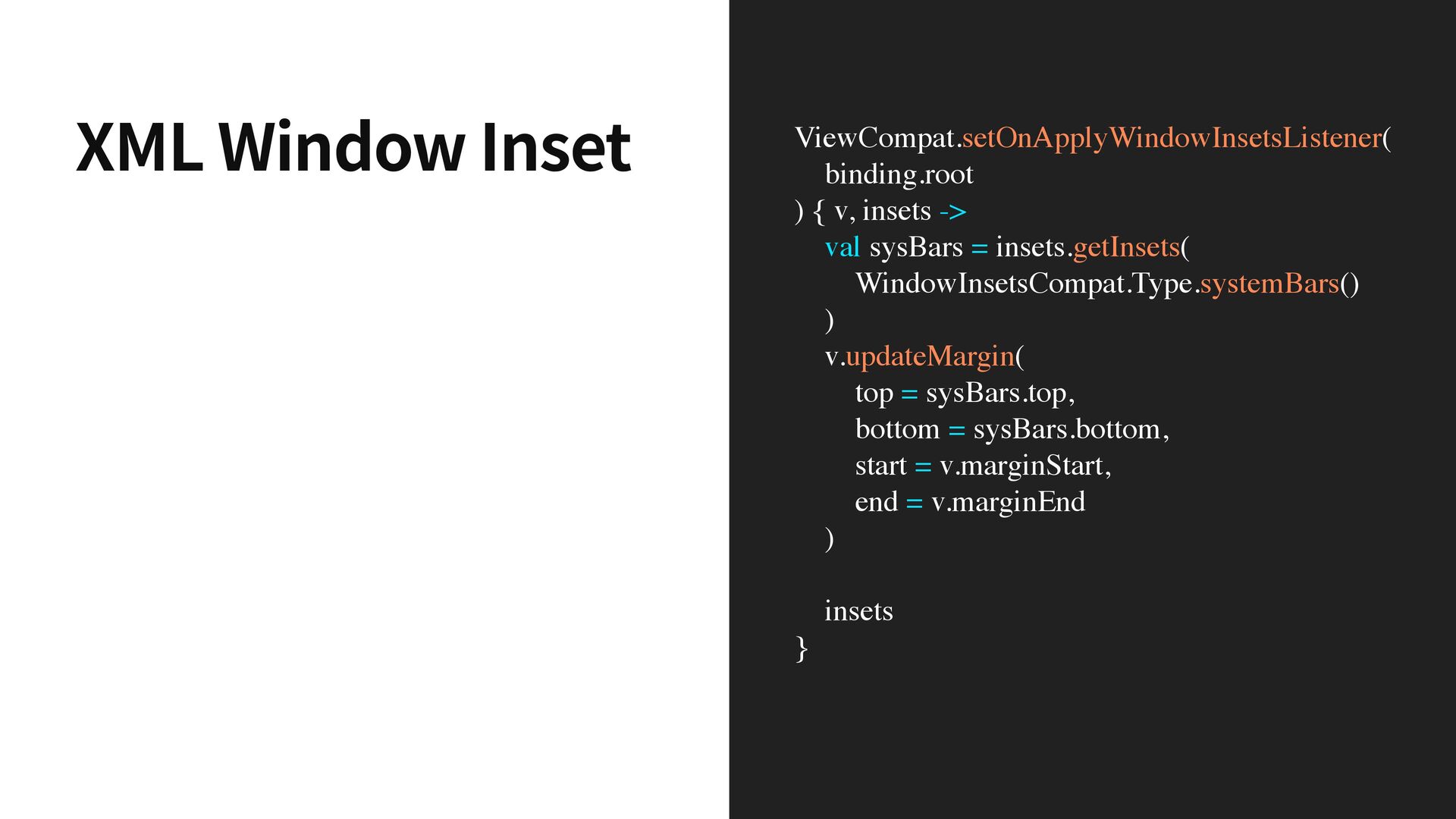

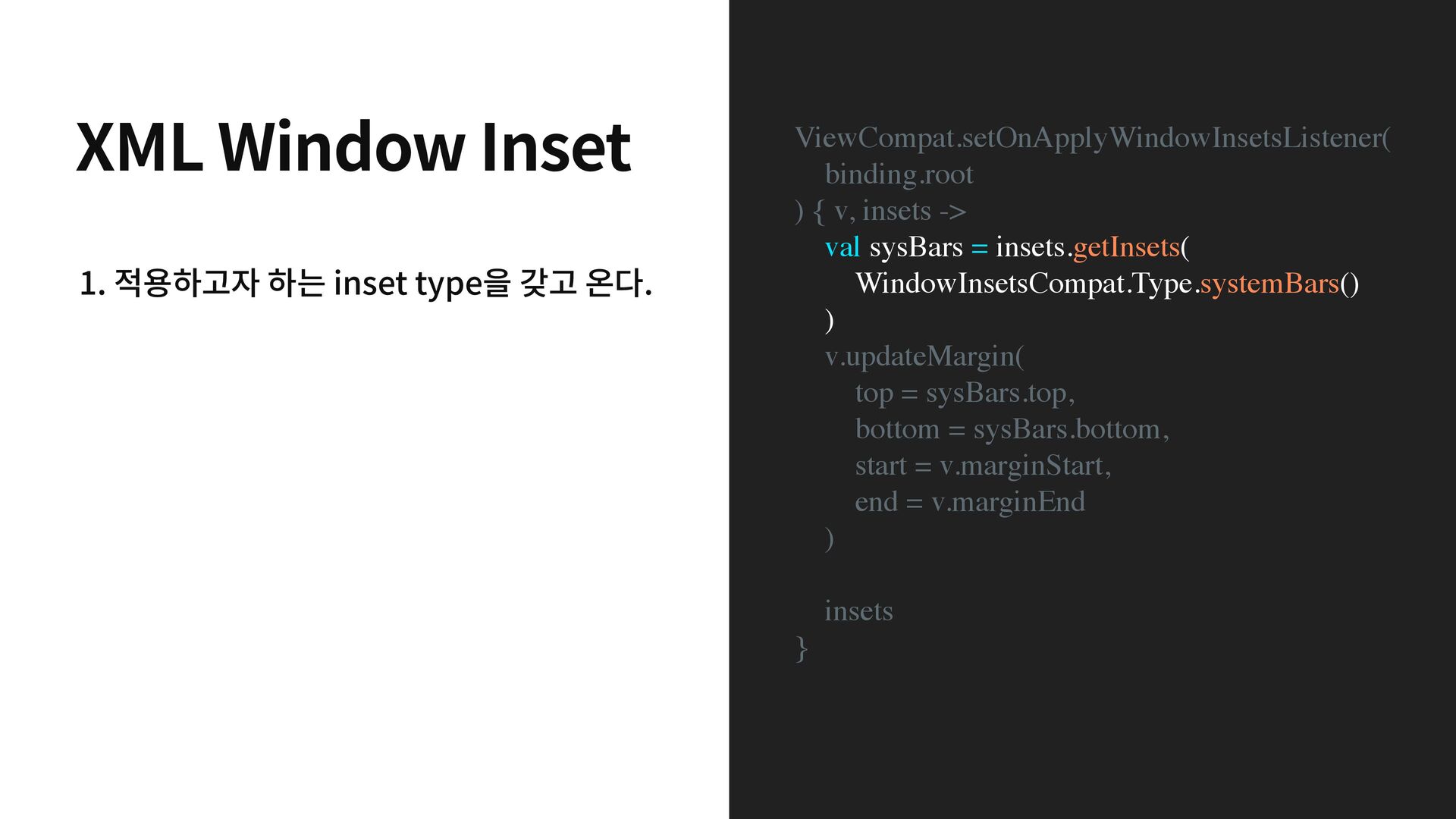

78. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } XML Window Inset
79. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } 1. 적용하고자 하는 inset type을 갖고 온다. XML Window Inset
80. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } 1. 적용하고자 하는 inset type을 갖고 온다. 2 . inset을 해당 View에 적용 한다. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } XML Window Inset
81. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } 1. 적용하고자 하는 inset type을 갖고 온다. 2 . inset을 해당 View에 적용 한다. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } 3 . inset을 반환한다. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } XML Window Inset
82. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } 1. 적용하고자 하는 inset type을 갖고 온다. 2 . inset을 해당 View에 적용 한다. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } 3 . inset을 반환한다. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } XML Window Inset

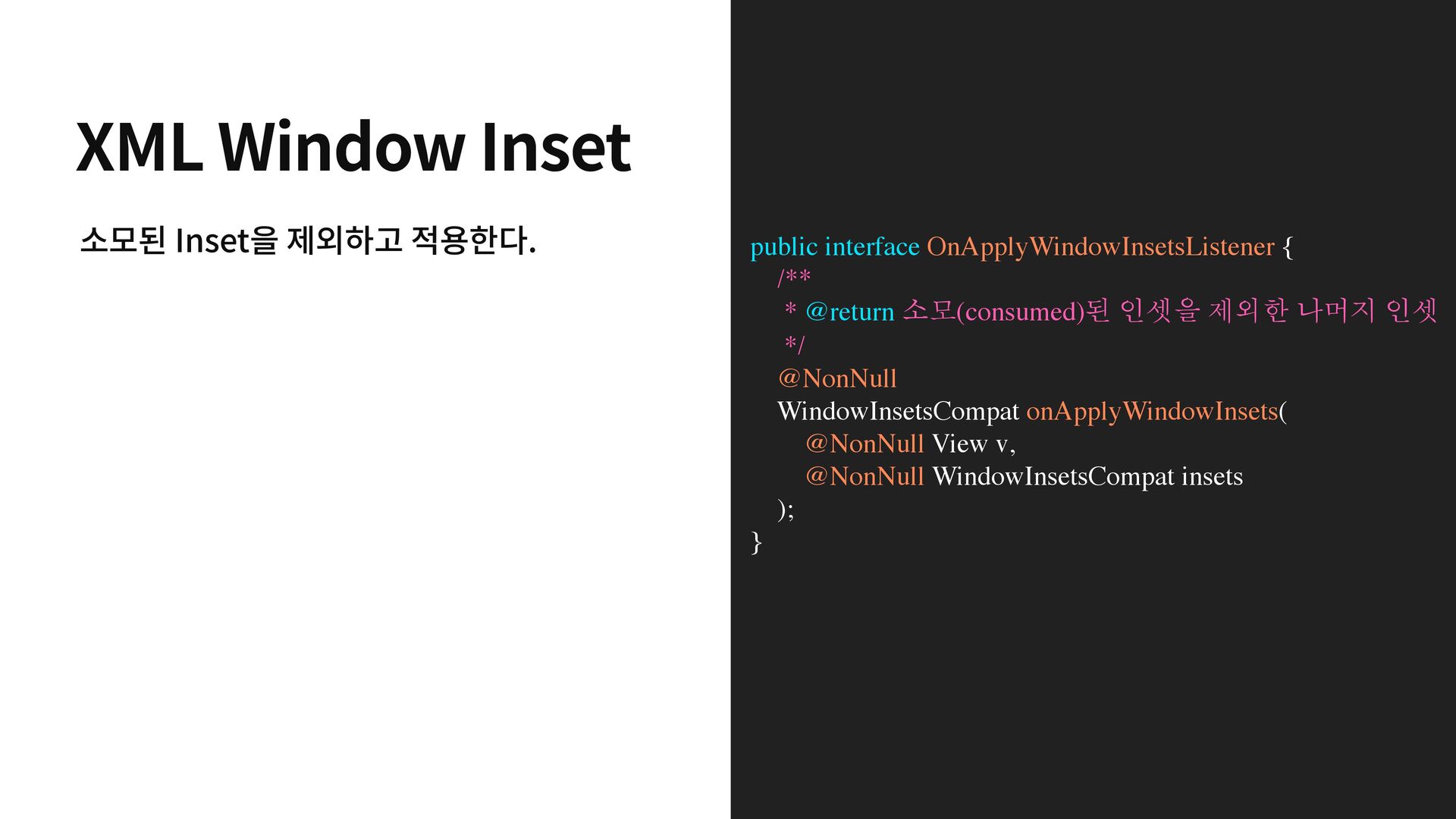

83. public interface OnApplyWindowInsetsListener { /** * @return 소모(consumed)된 인셋을 제외한 나머지 인셋 */ @NonNull WindowInsetsCompat onApplyWindowInsets( @NonNull View v, @NonNull WindowInsetsCompat insets ); } 소모된 Inset을 제외하고 적용한다. XML Window Inset
84. public interface OnApplyWindowInsetsListener { /** * @return 소모(consumed)된 인셋을 제외한 나머지 인셋 */ @NonNull WindowInsetsCompat onApplyWindowInsets( @NonNull View v, @NonNull WindowInsetsCompat insets ); } 소모(consumed)된 inset? XML Window Inset

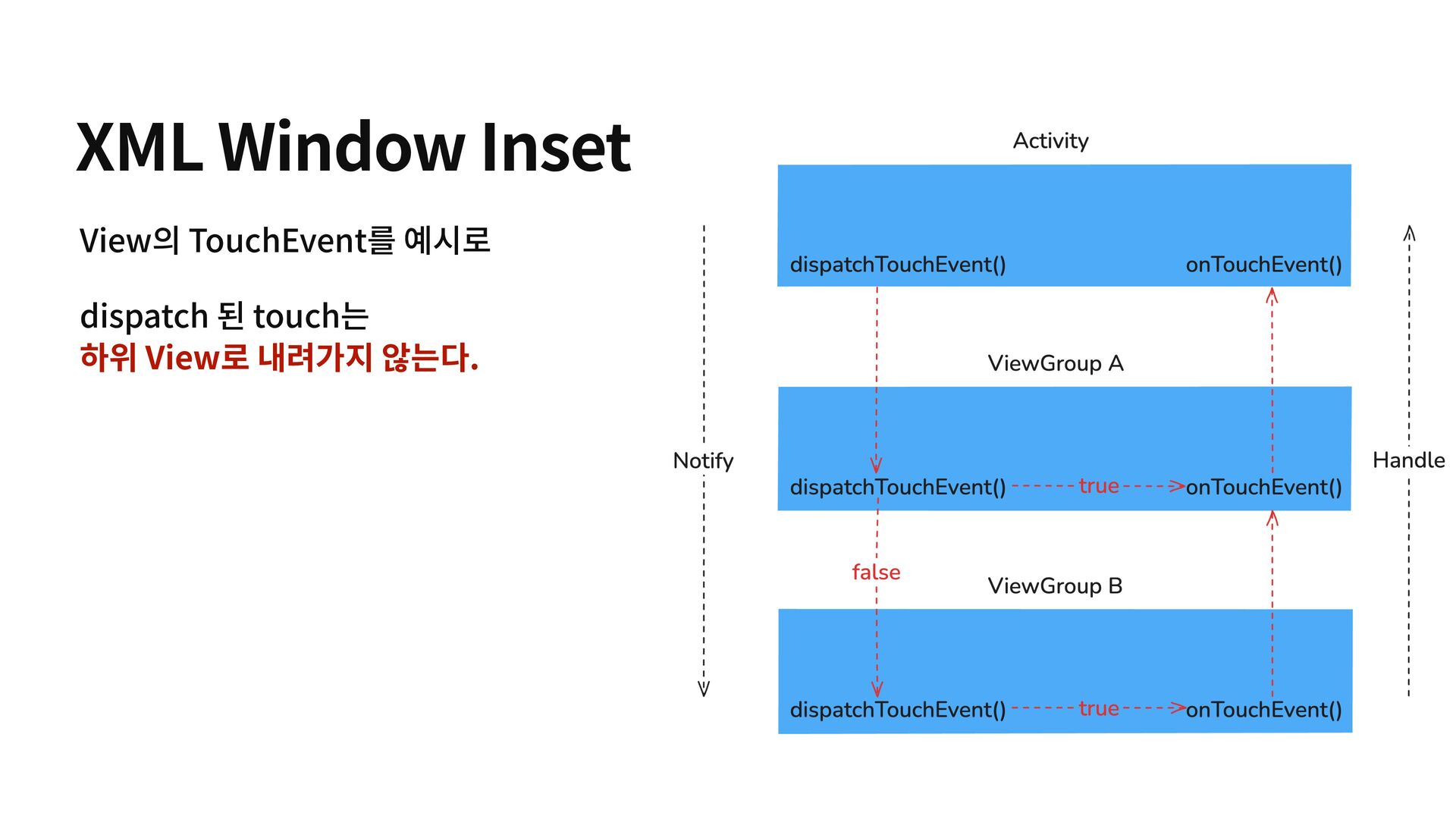

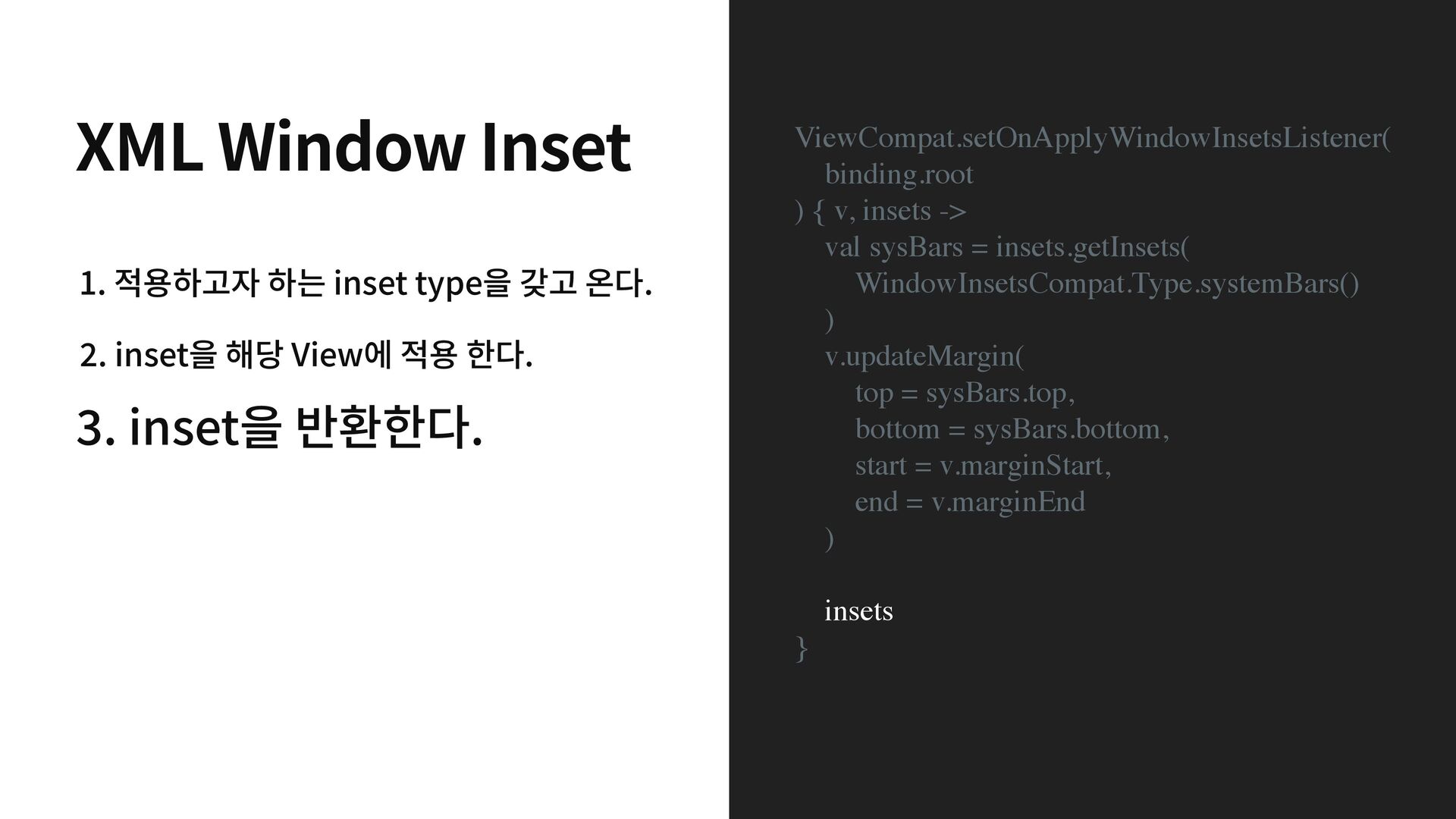

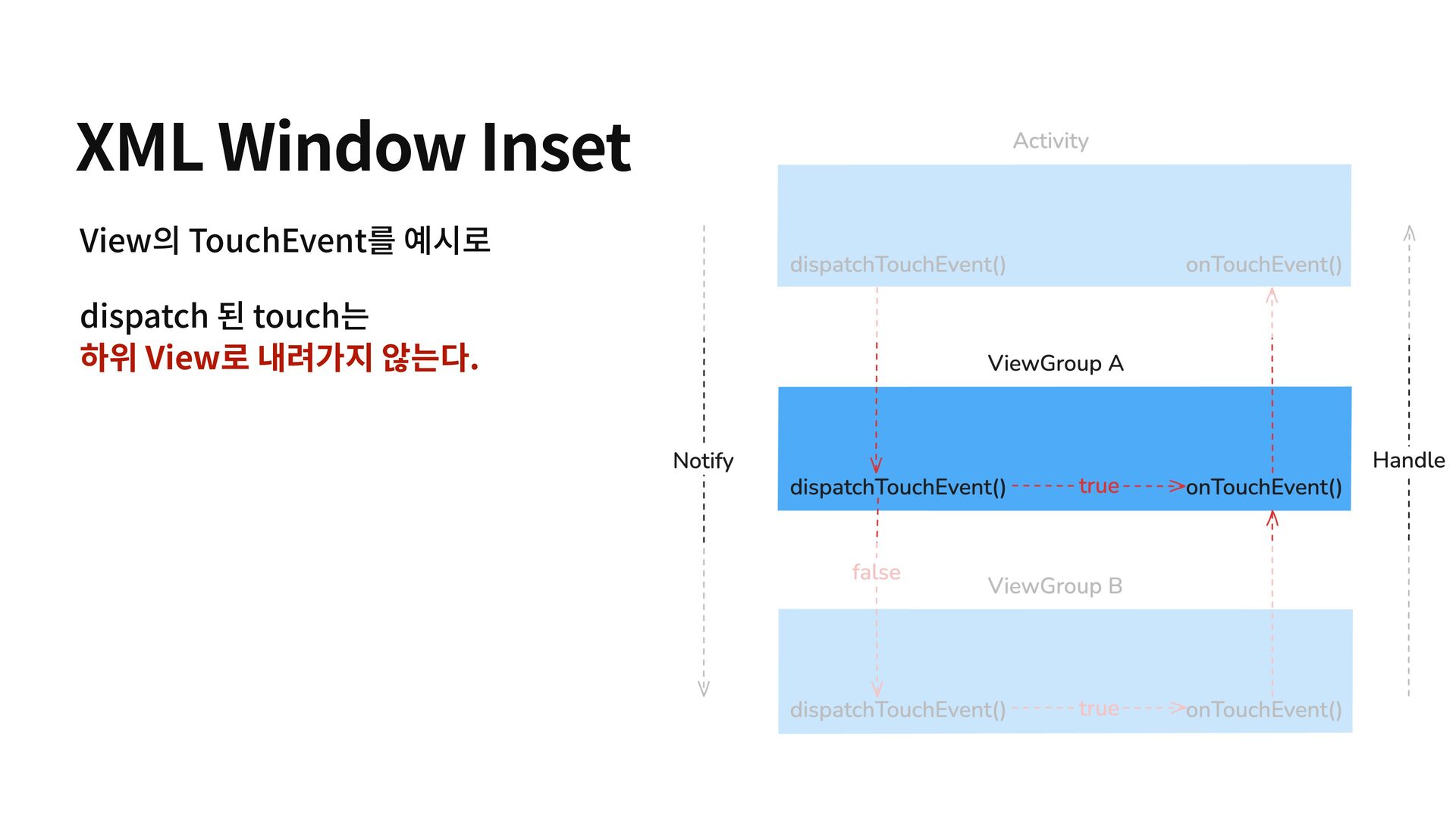

85. View의 TouchEvent를 예시로 dispatch 된 touch는 하위 View로 내려가지 않는다. XML Window Inset
86. View의 TouchEvent를 예시로 dispatch 된 touch는 하위 View로 내려가지 않는다. XML Window Inset

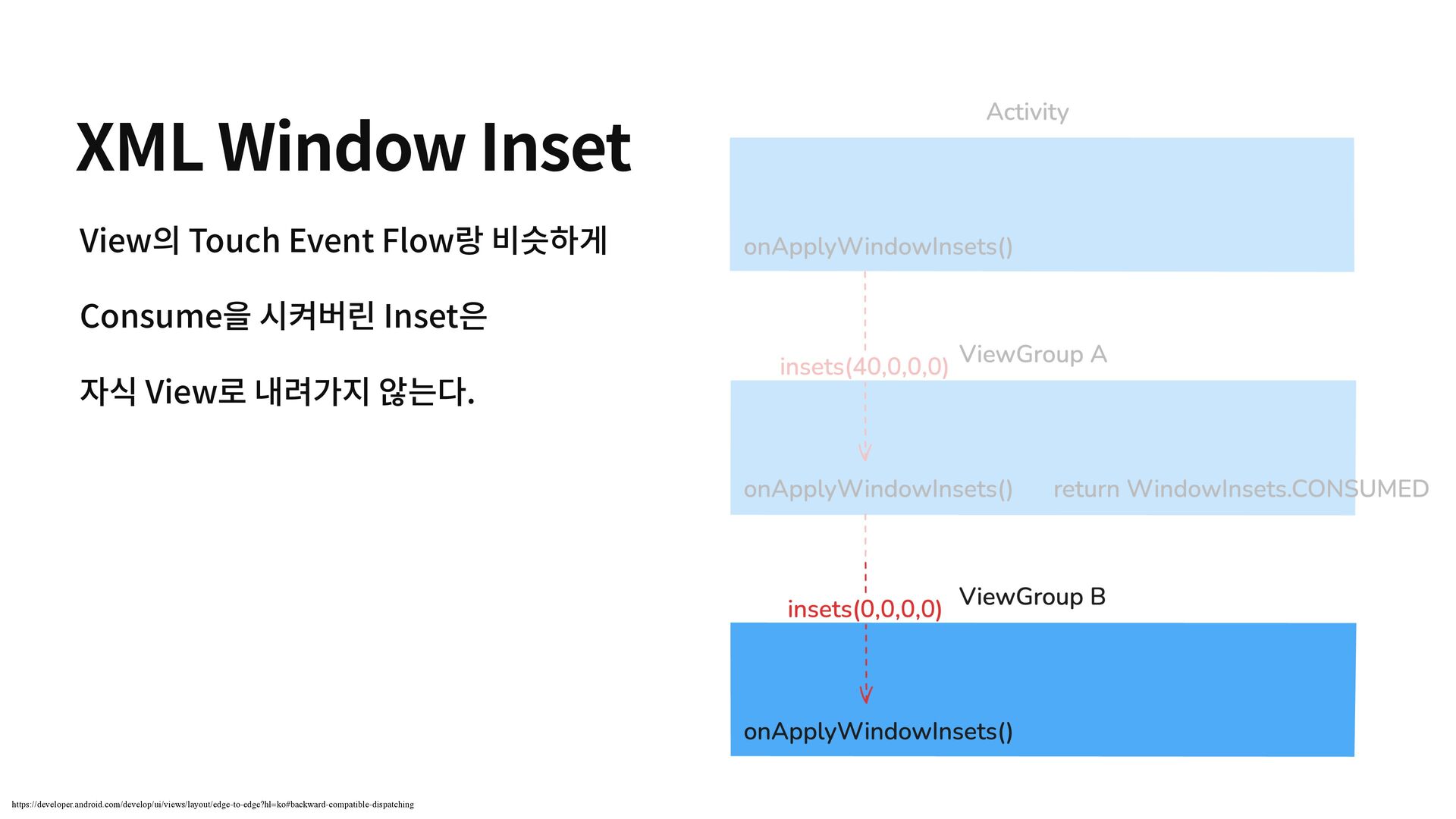

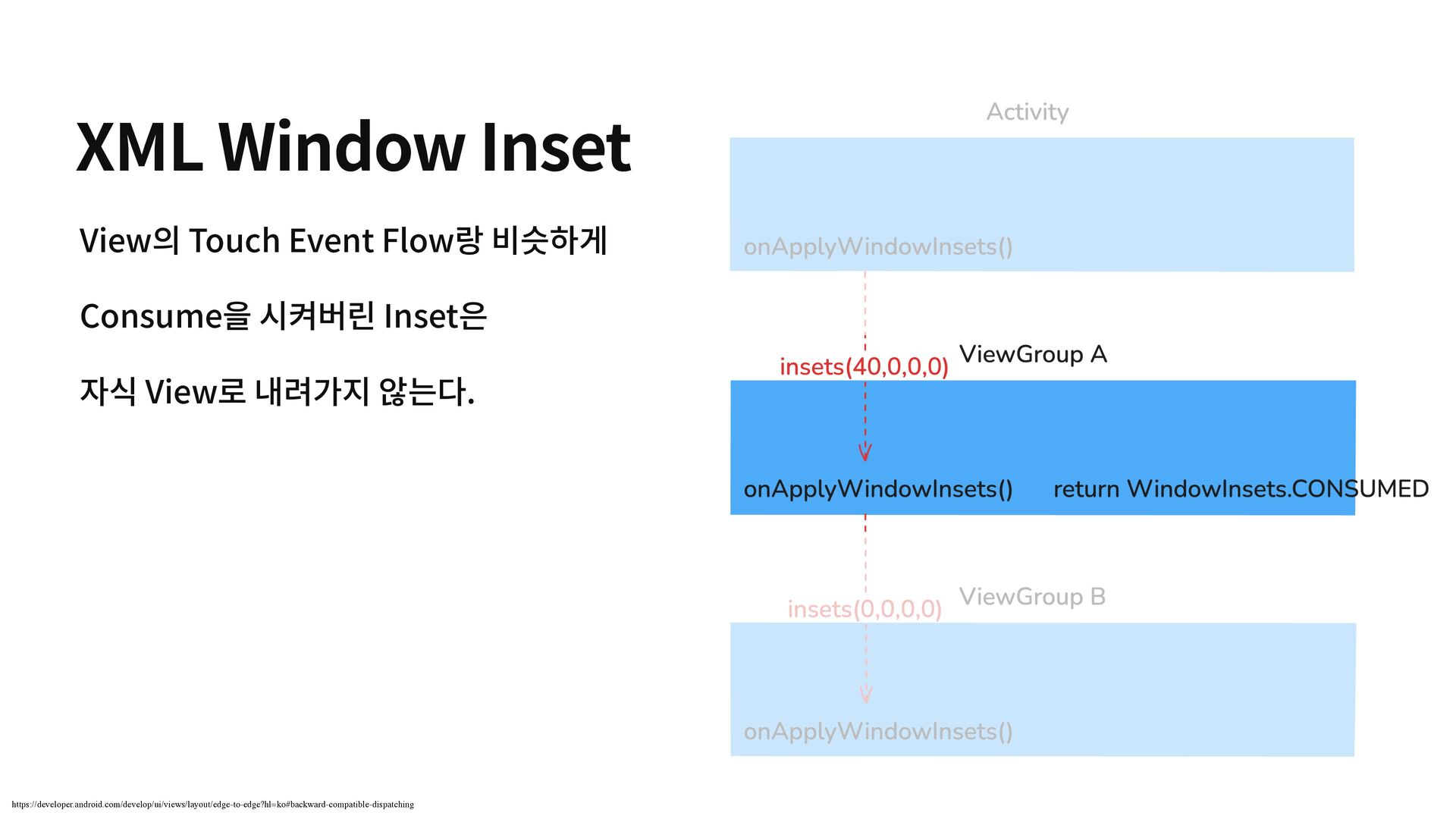

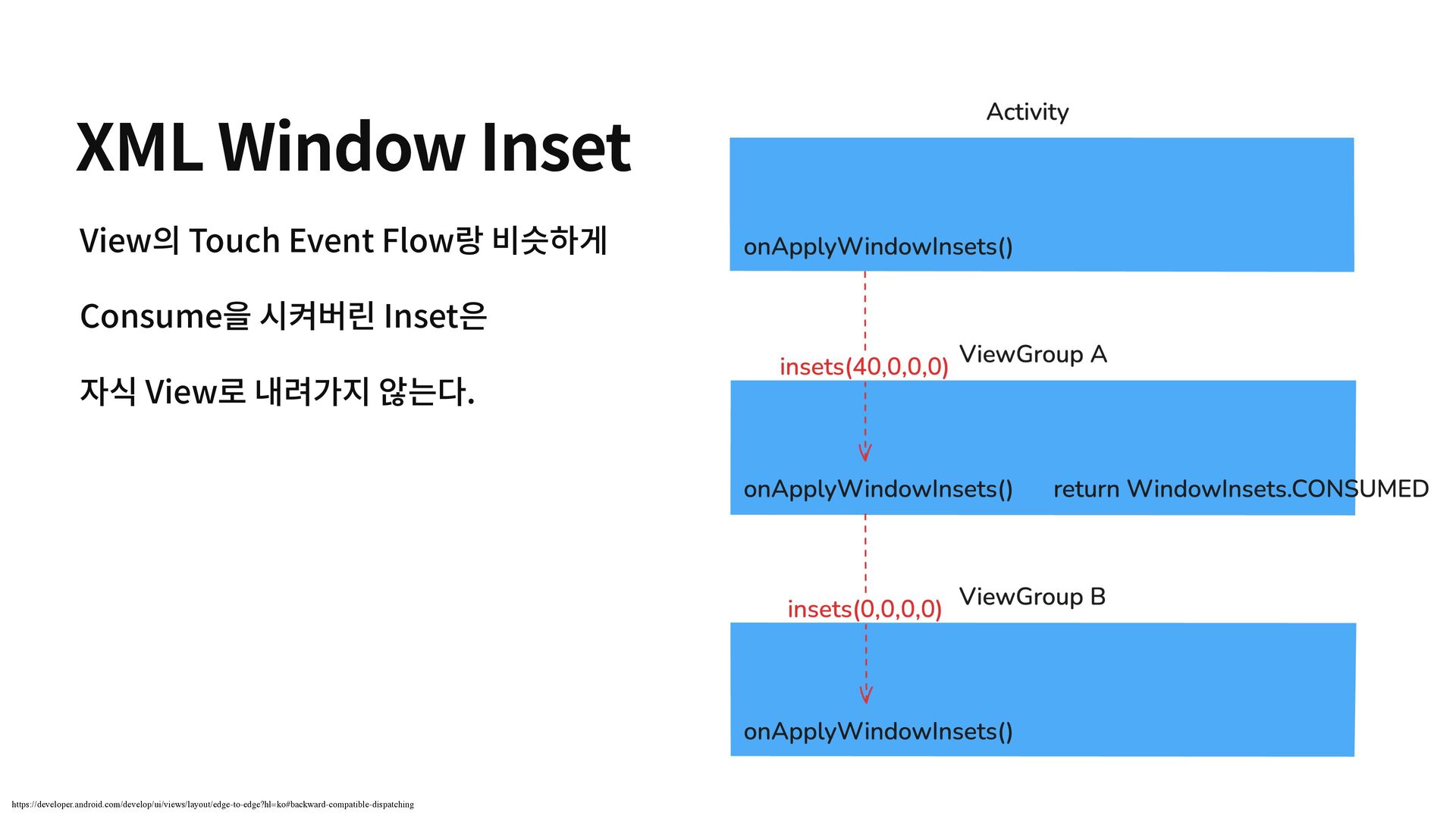

87. View의 Touch Event Flow랑 비슷하게 Consume을 시켜버린 Inset은 자식 View로 내려가지 않는다. XML Window Inset https://developer.android.com/develop/ui/views/layout/edge-to-edge?hl=ko#backward-compatible-dispatching
88. View의 Touch Event Flow랑 비슷하게 Consume을 시켜버린 Inset은 자식 View로 내려가지 않는다. XML Window Inset https://developer.android.com/develop/ui/views/layout/edge-to-edge?hl=ko#backward-compatible-dispatching
89. View의 Touch Event Flow랑 비슷하게 Consume을 시켜버린 Inset은 자식 View로 내려가지 않는다. XML Window Inset https://developer.android.com/develop/ui/views/layout/edge-to-edge?hl=ko#backward-compatible-dispatching

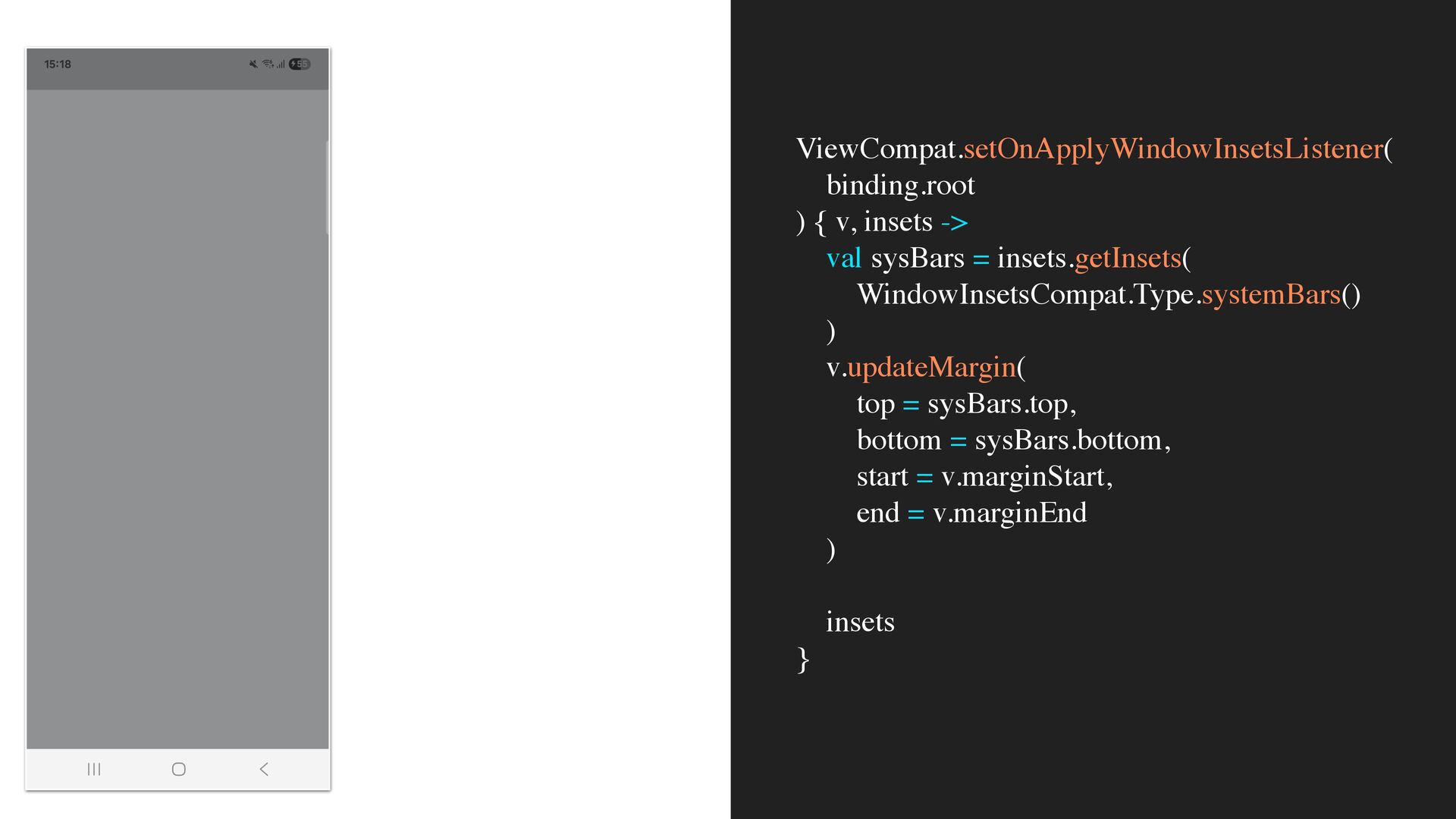

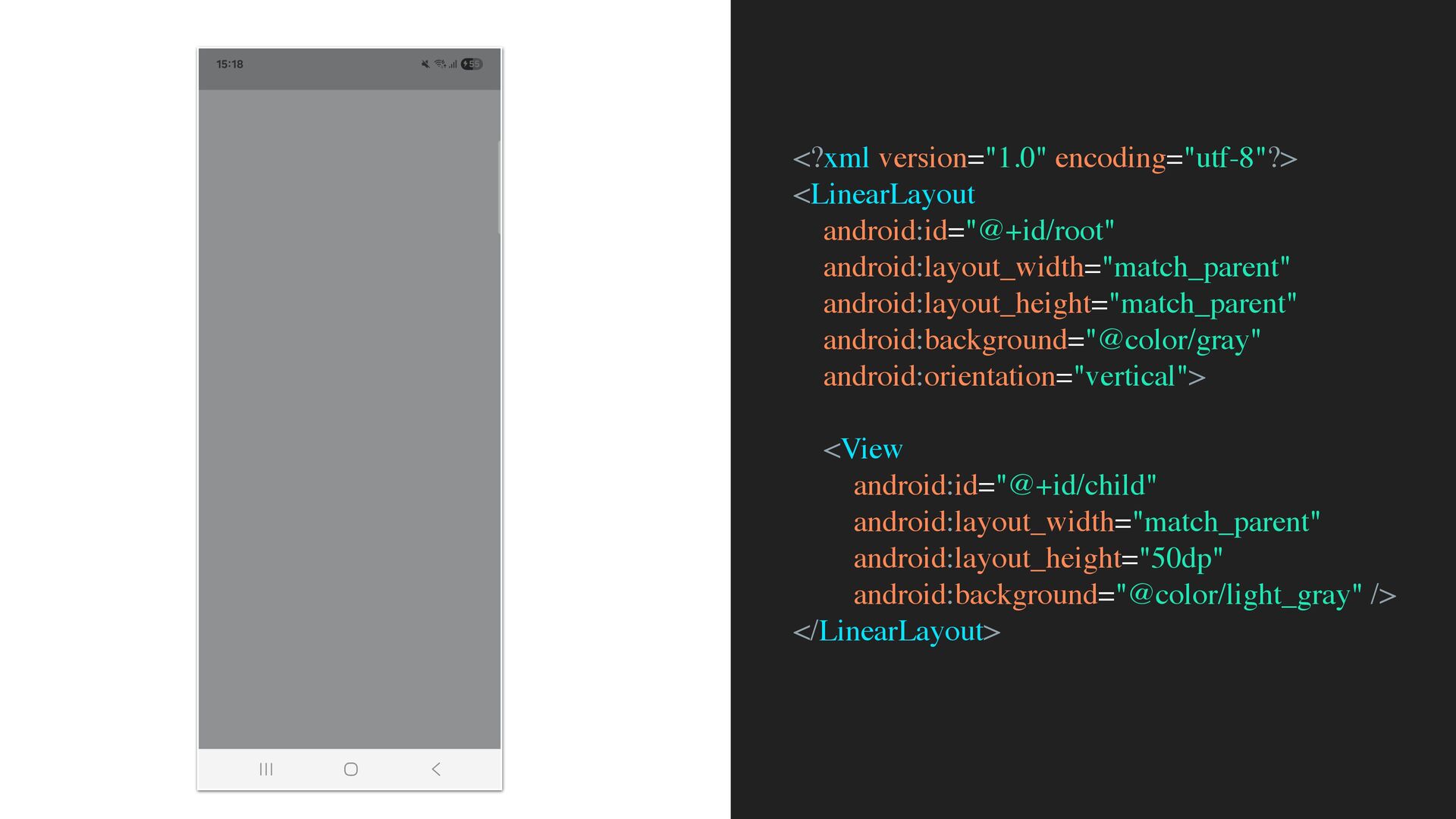

90. <?xml version="1.0" encoding="utf-8"?> <LinearLayout android:id="@+id/root" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@color/gray" android:orientation="vertical"> <View android:id="@+id/child" android:layout_width="match_parent" android:layout_height="50dp" android:background="@color/light_gray" /> </LinearLayout>

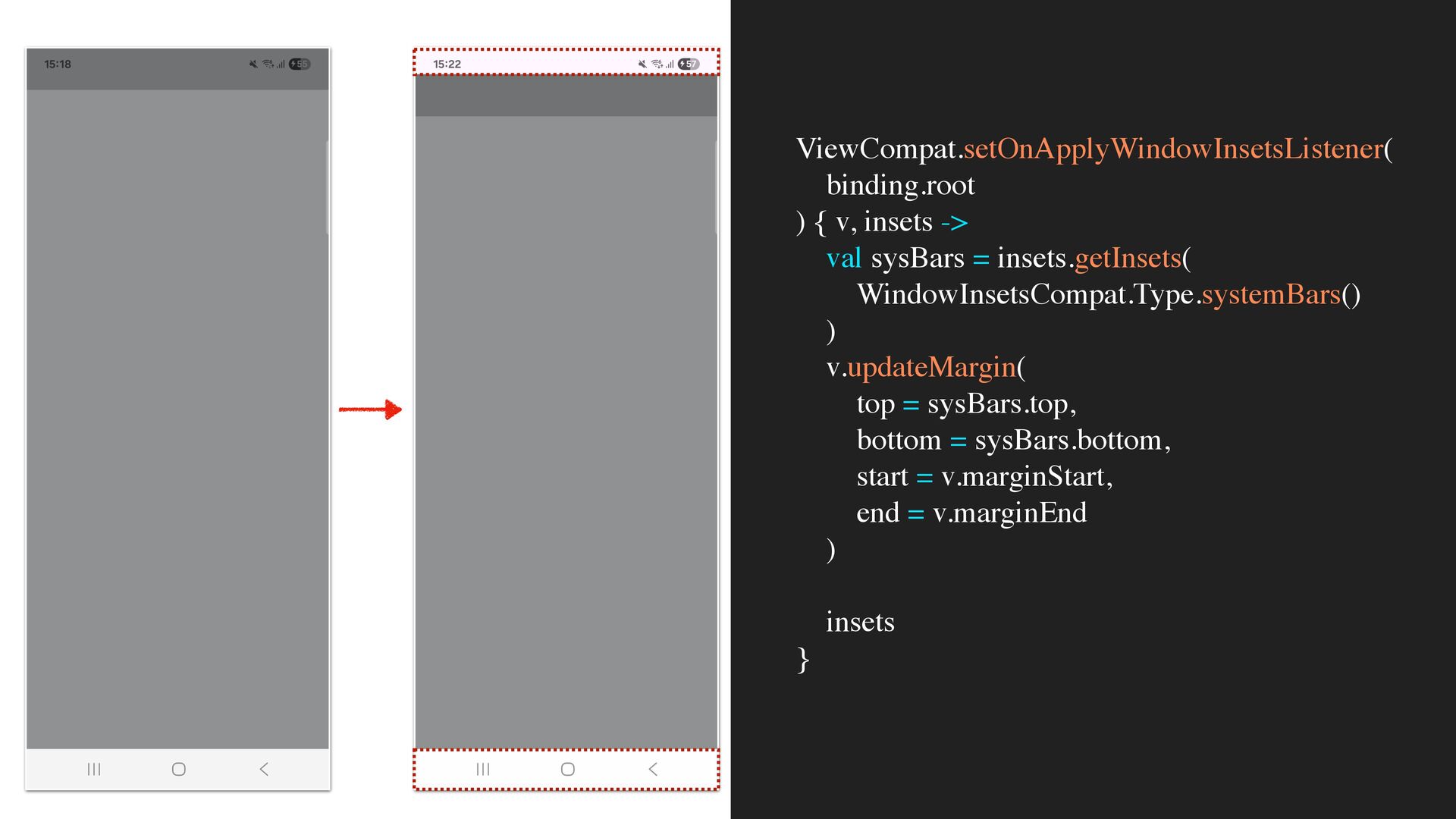

91. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets }
92. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets }

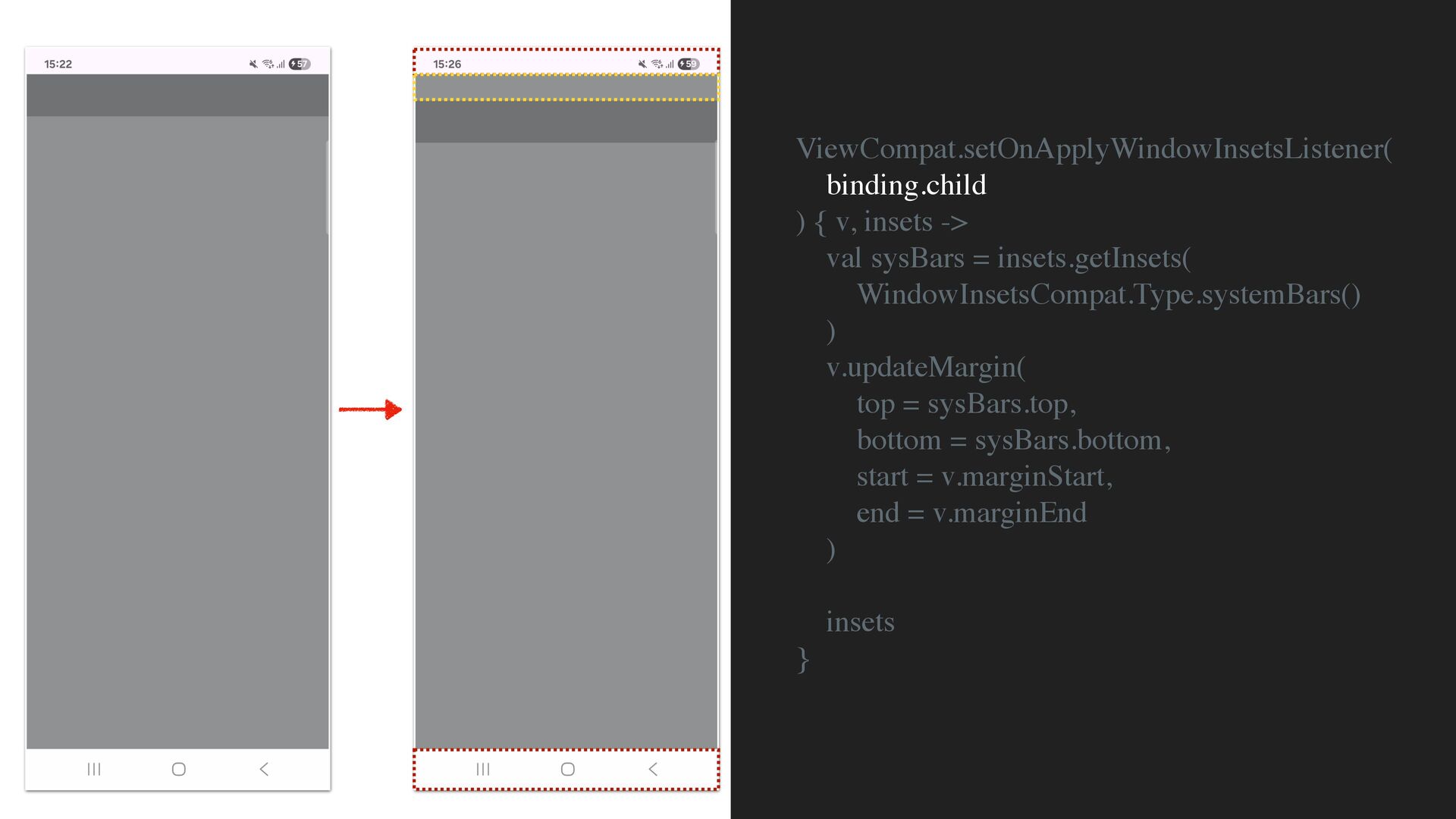

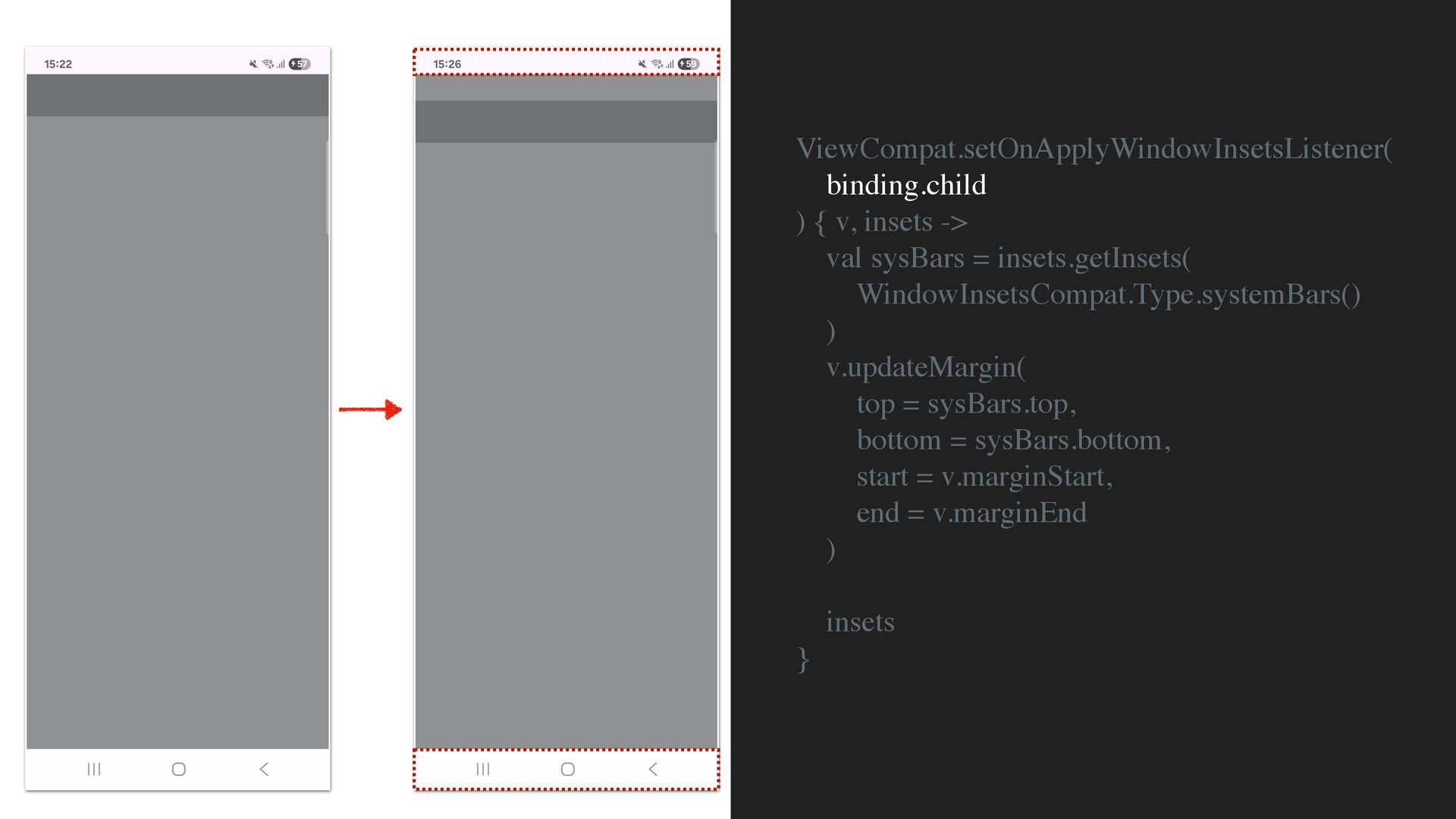

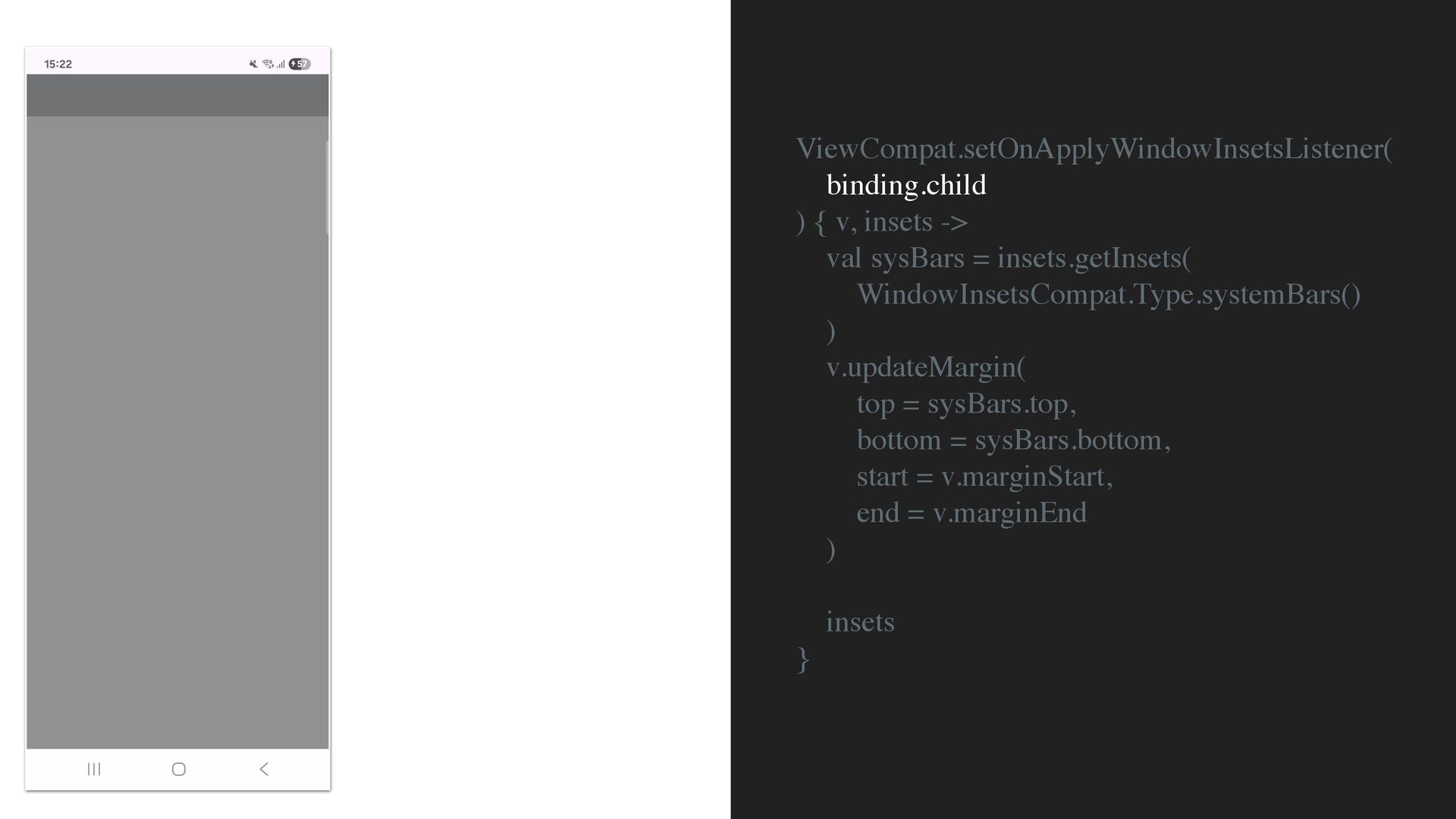

93. ViewCompat.setOnApplyWindowInsetsListener( binding.child ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets }
94. ViewCompat.setOnApplyWindowInsetsListener( binding.child ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets }
95. ViewCompat.setOnApplyWindowInsetsListener( binding.child ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets }

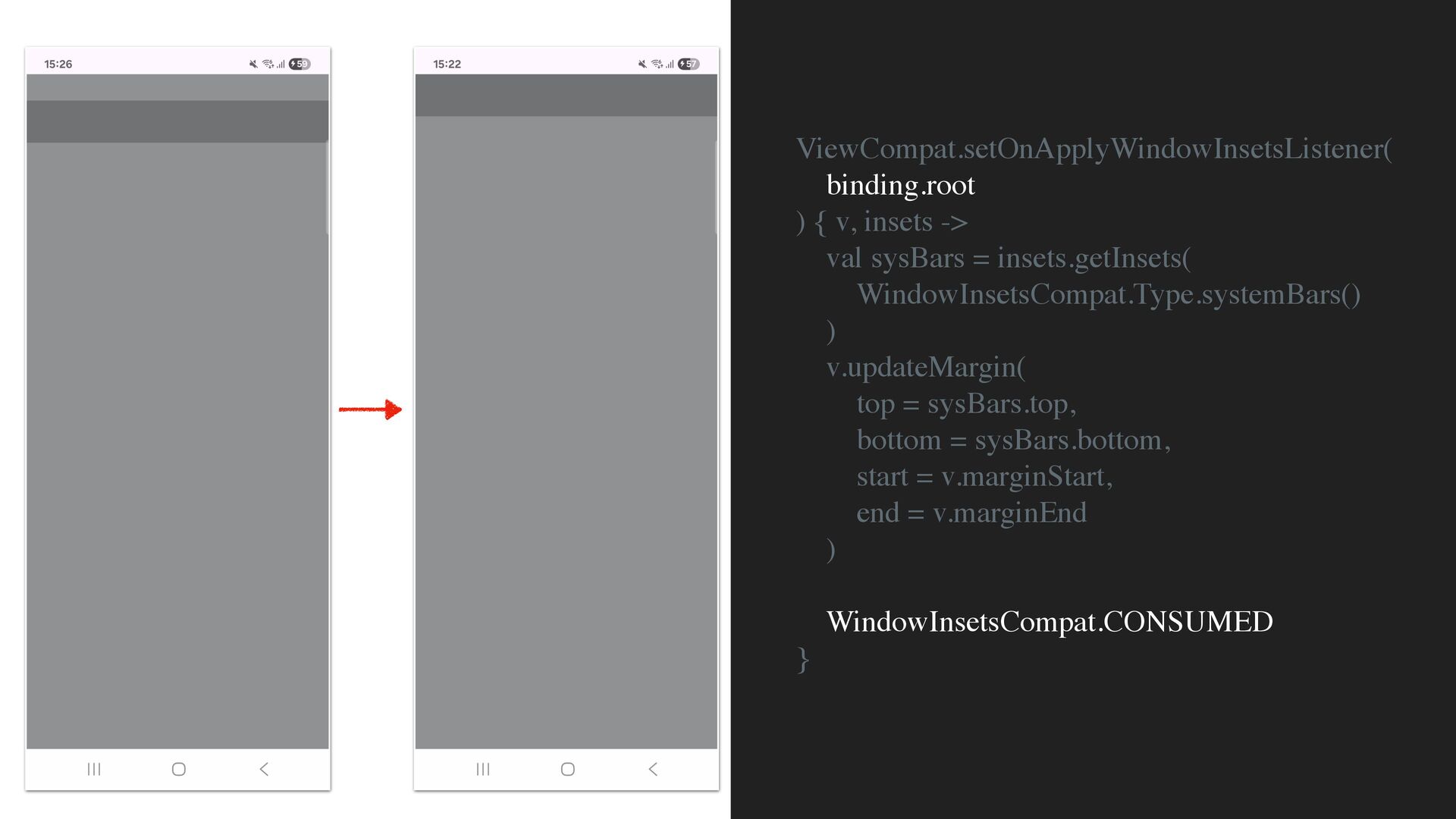

96. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) WindowInsetsCompat.CONSUMED }
97. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) WindowInsetsCompat.CONSUMED }

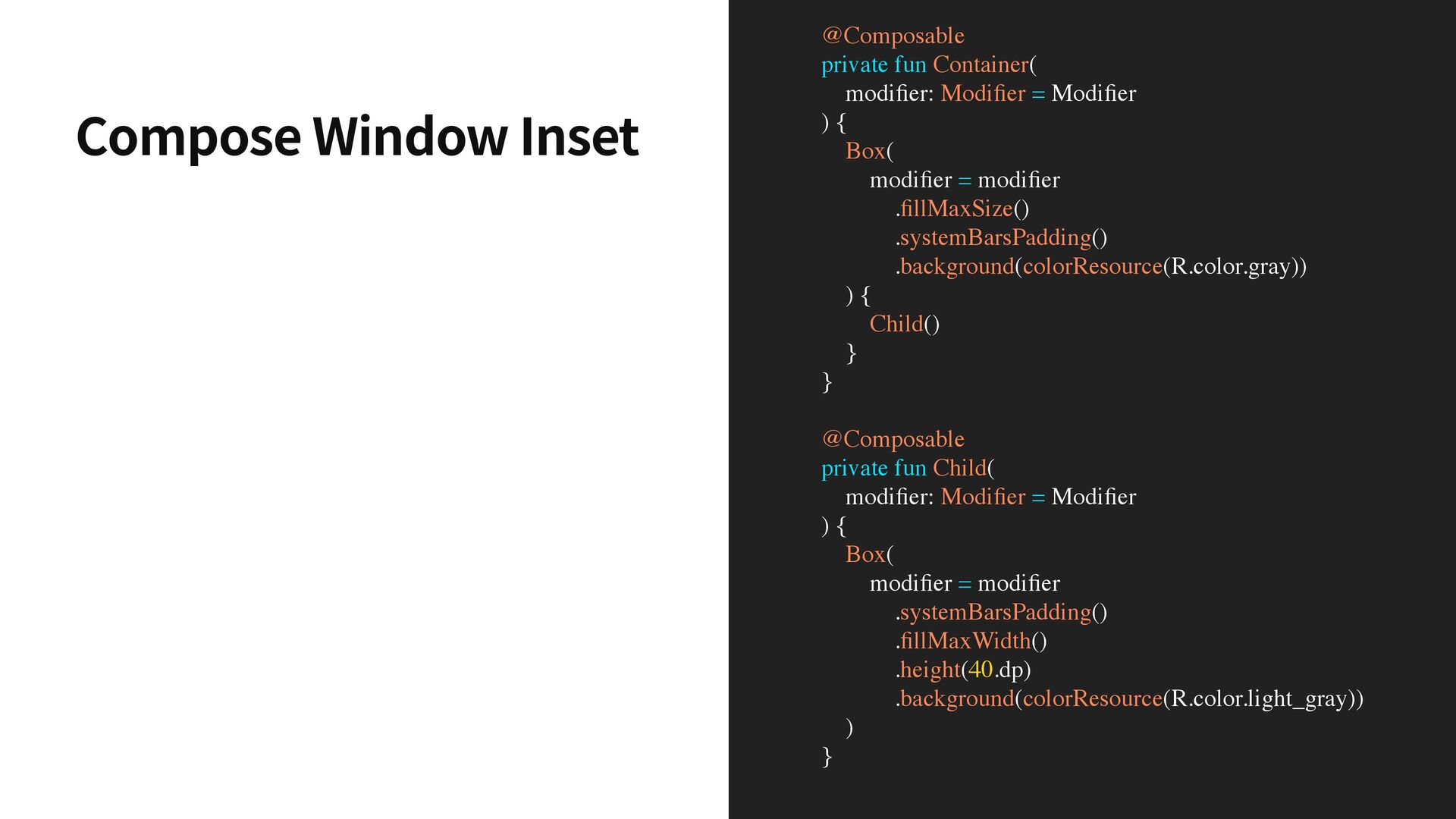

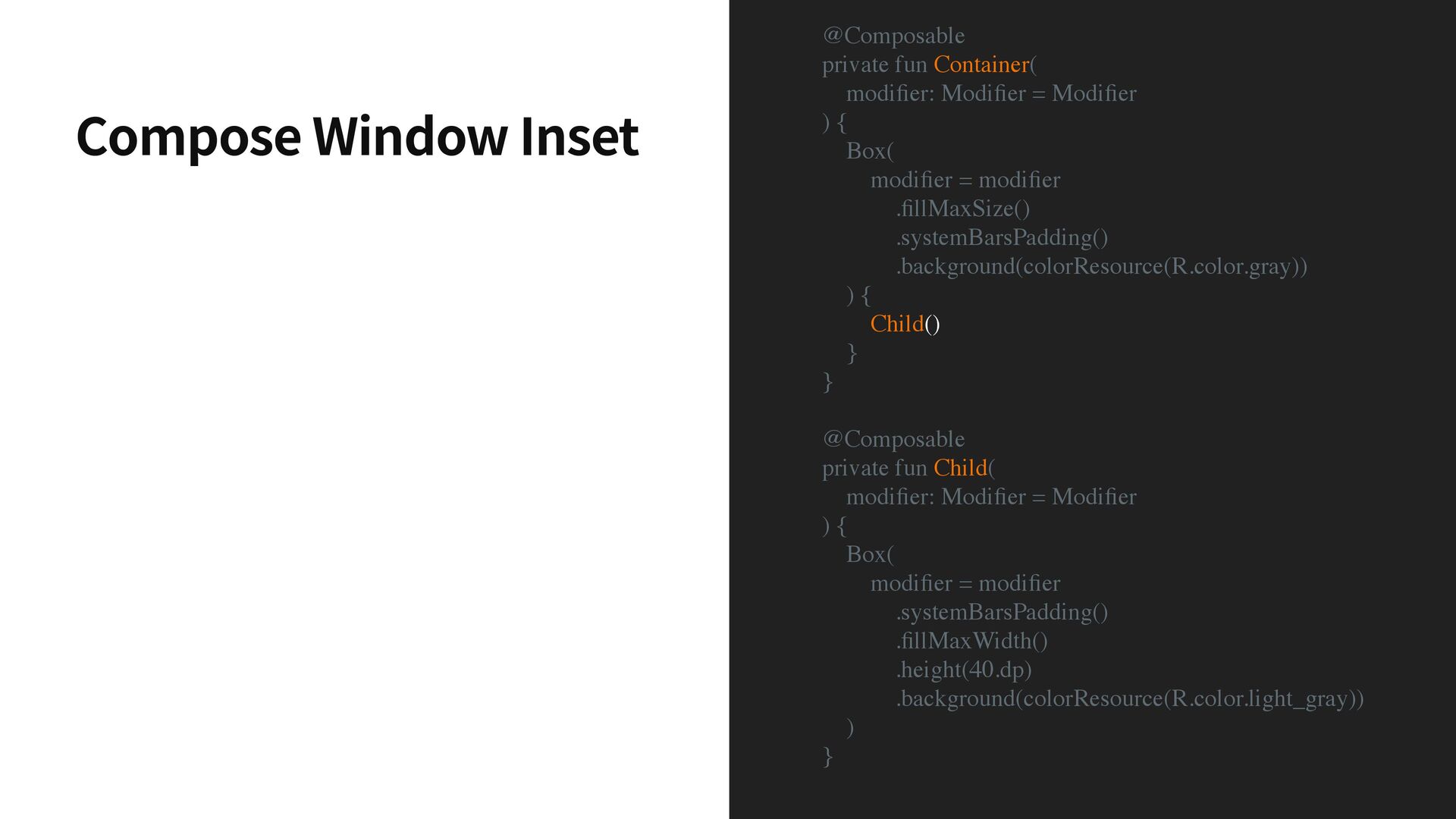

98. @Composable private fun Container( modi fi er: Modi fi er = Modi fi er ) { Box( modi fi er = modi fi er . fi llMaxSize() .systemBarsPadding() .background(colorResource(R.color.gray)) ) { Child() } } @Composable private fun Child( modi fi er: Modi fi er = Modi fi er ) { Box( modi fi er = modi fi er .systemBarsPadding() . fi llMaxWidth() .height(40.dp) .background(colorResource(R.color.light_gray)) ) } Compose Window Inset
99. @Composable private fun Container( modi fi er: Modi fi er = Modi fi er ) { Box( modi fi er = modi fi er . fi llMaxSize() .systemBarsPadding() .background(colorResource(R.color.gray)) ) { Child() } } @Composable private fun Child( modi fi er: Modi fi er = Modi fi er ) { Box( modi fi er = modi fi er .systemBarsPadding() . fi llMaxWidth() .height(40.dp) .background(colorResource(R.color.light_gray)) ) } Compose Window Inset
100. @Composable private fun Container( modi fi er: Modi fi er = Modi fi er ) { Box( modi fi er = modi fi er . fi llMaxSize() .systemBarsPadding() .background(colorResource(R.color.gray)) ) { Child() } } @Composable private fun Child( modi fi er: Modi fi er = Modi fi er ) { Box( modi fi er = modi fi er .systemBarsPadding() . fi llMaxWidth() .height(40.dp) .background(colorResource(R.color.light_gray)) ) } Compose Window Inset
101. @Composable private fun Container( modi fi er: Modi fi er = Modi fi er ) { Box( modi fi er = modi fi er . fi llMaxSize() .systemBarsPadding() .background(colorResource(R.color.gray)) ) { Child() } } @Composable private fun Child( modi fi er: Modi fi er = Modi fi er ) { Box( modi fi er = modi fi er .systemBarsPadding() . fi llMaxWidth() .height(40.dp) .background(colorResource(R.color.light_gray)) ) } Compose Window Inset
102. @Composable private fun Container( modi fi er: Modi fi er = Modi fi er ) { Box( modi fi er = modi fi er . fi llMaxSize() .systemBarsPadding() .background(colorResource(R.color.gray)) ) { Child() } } @Composable private fun Child( modi fi er: Modi fi er = Modi fi er ) { Box( modi fi er = modi fi er .systemBarsPadding() . fi llMaxWidth() .height(40.dp) .background(colorResource(R.color.light_gray)) ) } Compose Window Inset

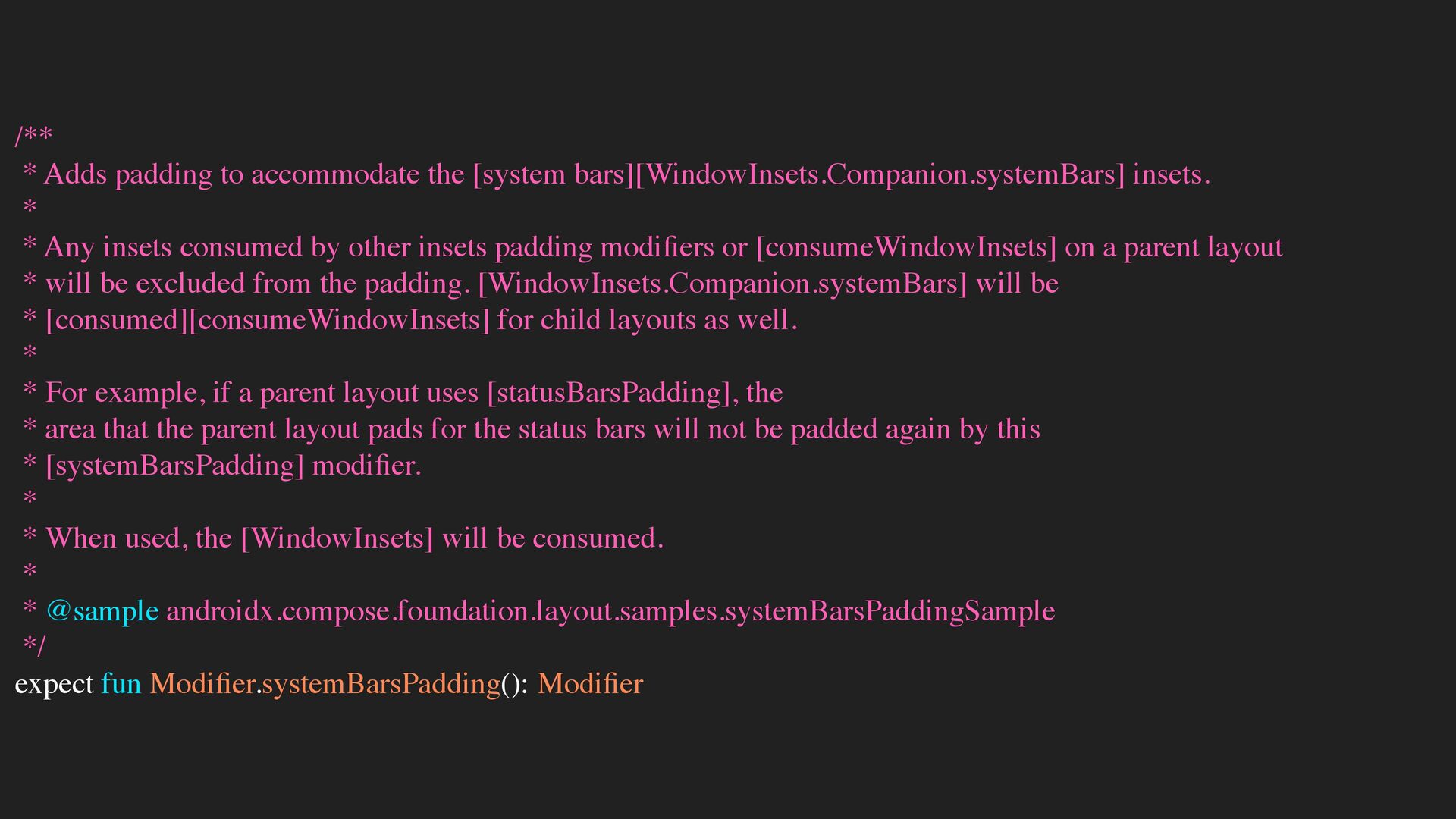

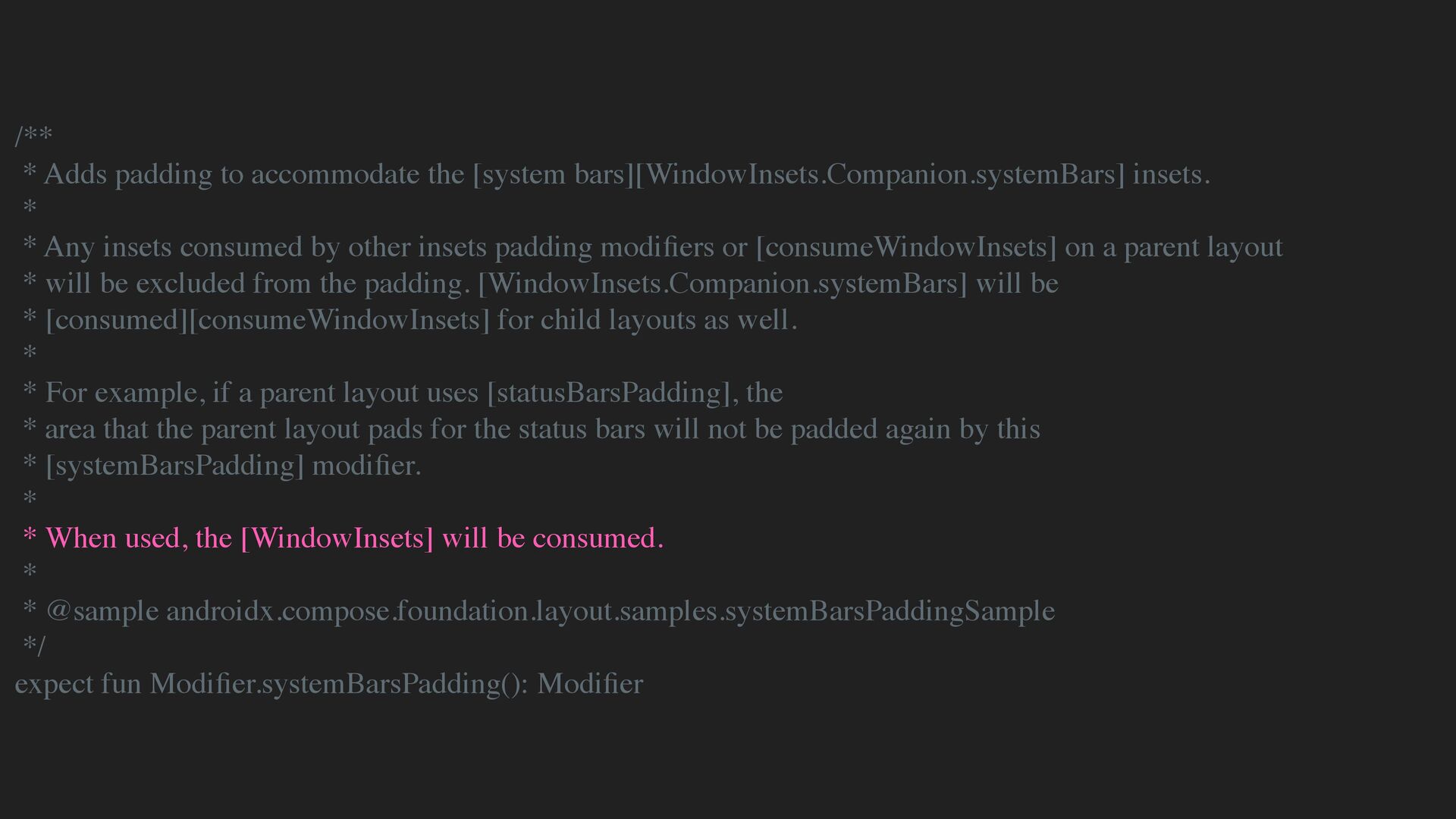

103. /** * Adds padding to accommodate the [system bars][WindowInsets.Companion.systemBars] insets. * * Any insets consumed by other insets padding modi fi ers or [consumeWindowInsets] on a parent layout * will be excluded from the padding. [WindowInsets.Companion.systemBars] will be * [consumed][consumeWindowInsets] for child layouts as well. * * For example, if a parent layout uses [statusBarsPadding], the * area that the parent layout pads for the status bars will not be padded again by this * [systemBarsPadding] modi fi er. * * When used, the [WindowInsets] will be consumed. * * @sample androidx.compose.foundation.layout.samples.systemBarsPaddingSample */ expect fun Modi fi er.systemBarsPadding(): Modi fi er
104. /** * Adds padding to accommodate the [system bars][WindowInsets.Companion.systemBars] insets. * * Any insets consumed by other insets padding modi fi ers or [consumeWindowInsets] on a parent layout * will be excluded from the padding. [WindowInsets.Companion.systemBars] will be * [consumed][consumeWindowInsets] for child layouts as well. * * For example, if a parent layout uses [statusBarsPadding], the * area that the parent layout pads for the status bars will not be padded again by this * [systemBarsPadding] modi fi er. * * When used, the [WindowInsets] will be consumed. * * @sample androidx.compose.foundation.layout.samples.systemBarsPaddingSample */ expect fun Modi fi er.systemBarsPadding(): Modi fi er

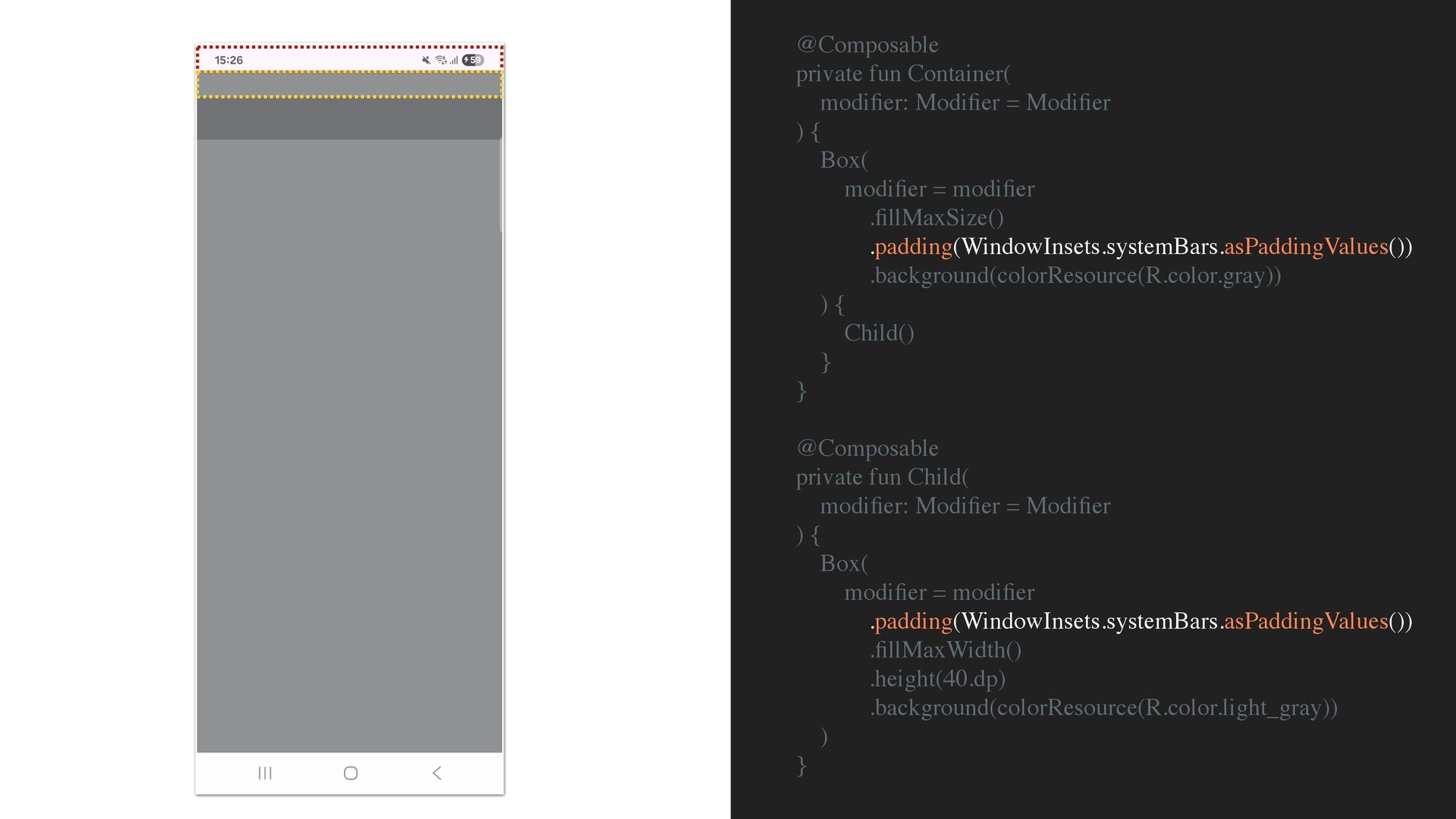

106. @Composable private fun Container( modi fi er: Modi fi er = Modi fi er ) { Box( modi fi er = modi fi er . fi llMaxSize() .padding(WindowInsets.systemBars.asPaddingValues()) .background(colorResource(R.color.gray)) ) { Child() } } @Composable private fun Child( modi fi er: Modi fi er = Modi fi er ) { Box( modi fi er = modi fi er .padding(WindowInsets.systemBars.asPaddingValues()) . fi llMaxWidth() .height(40.dp) .background(colorResource(R.color.light_gray)) ) }
107. 4 적용하면서 생겼던 이슈들

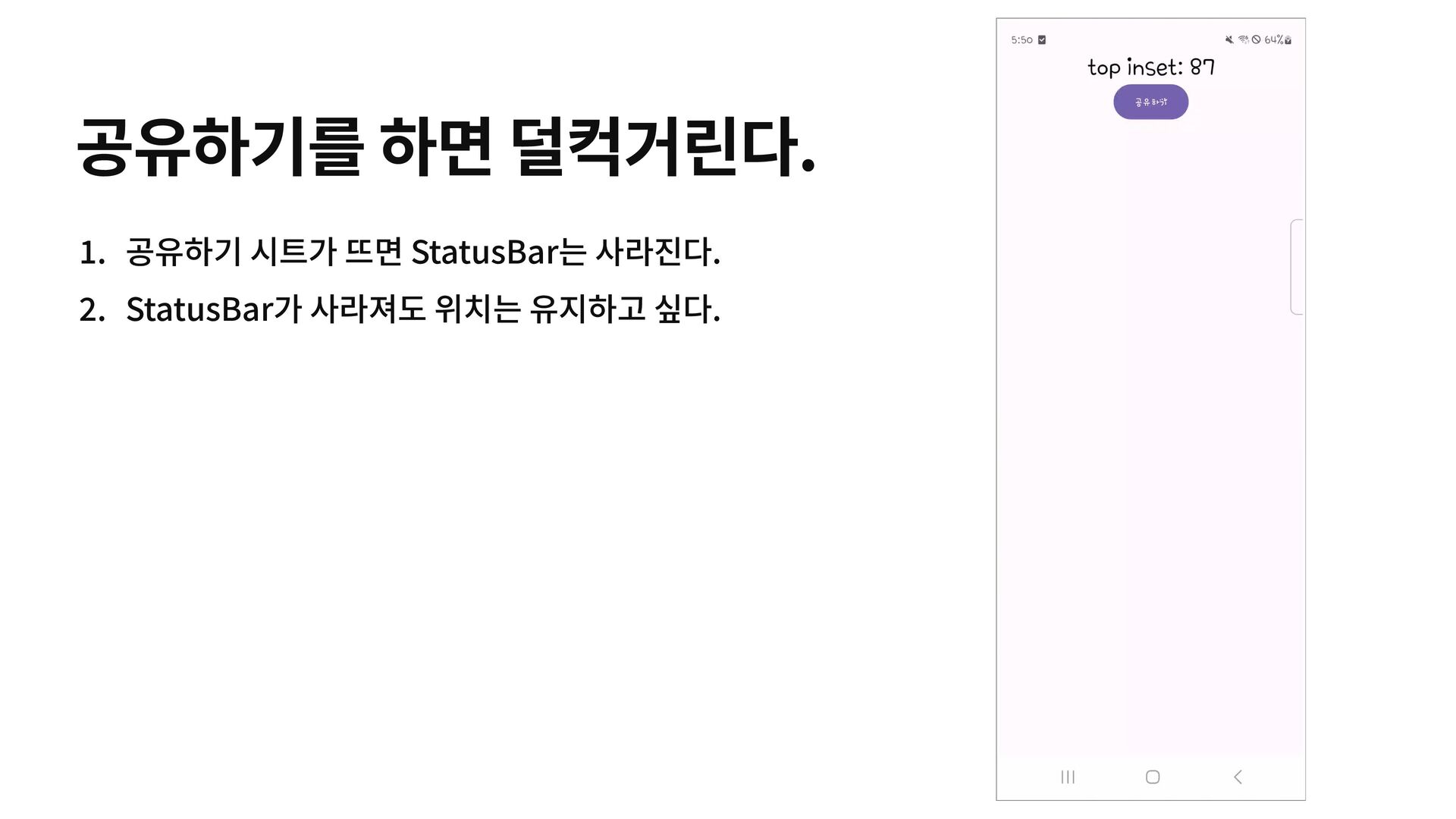

108. 공유하기를 하면 덜컥거린다. 1 . 공유하기 시트가 뜨면 StatusBar는 사라진다. 2 . StatusBar가 사라져도 위치는 유지하고 싶다.
109. 공유하기를 하면 덜컥거린다. 1 . 공유하기 시트가 뜨면 StatusBar는 사라진다. 2 . StatusBar가 사라져도 위치는 유지하고 싶다.

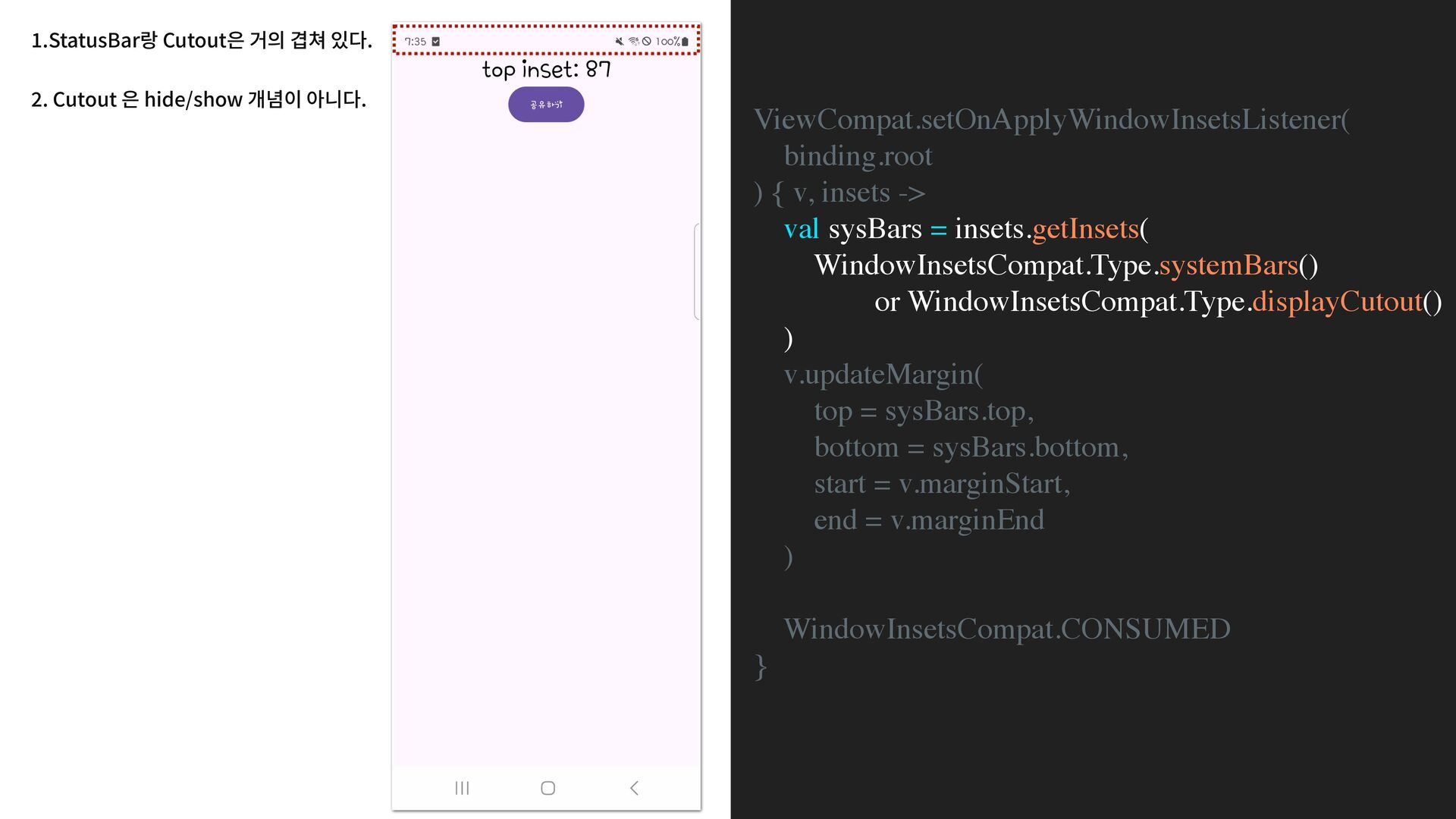

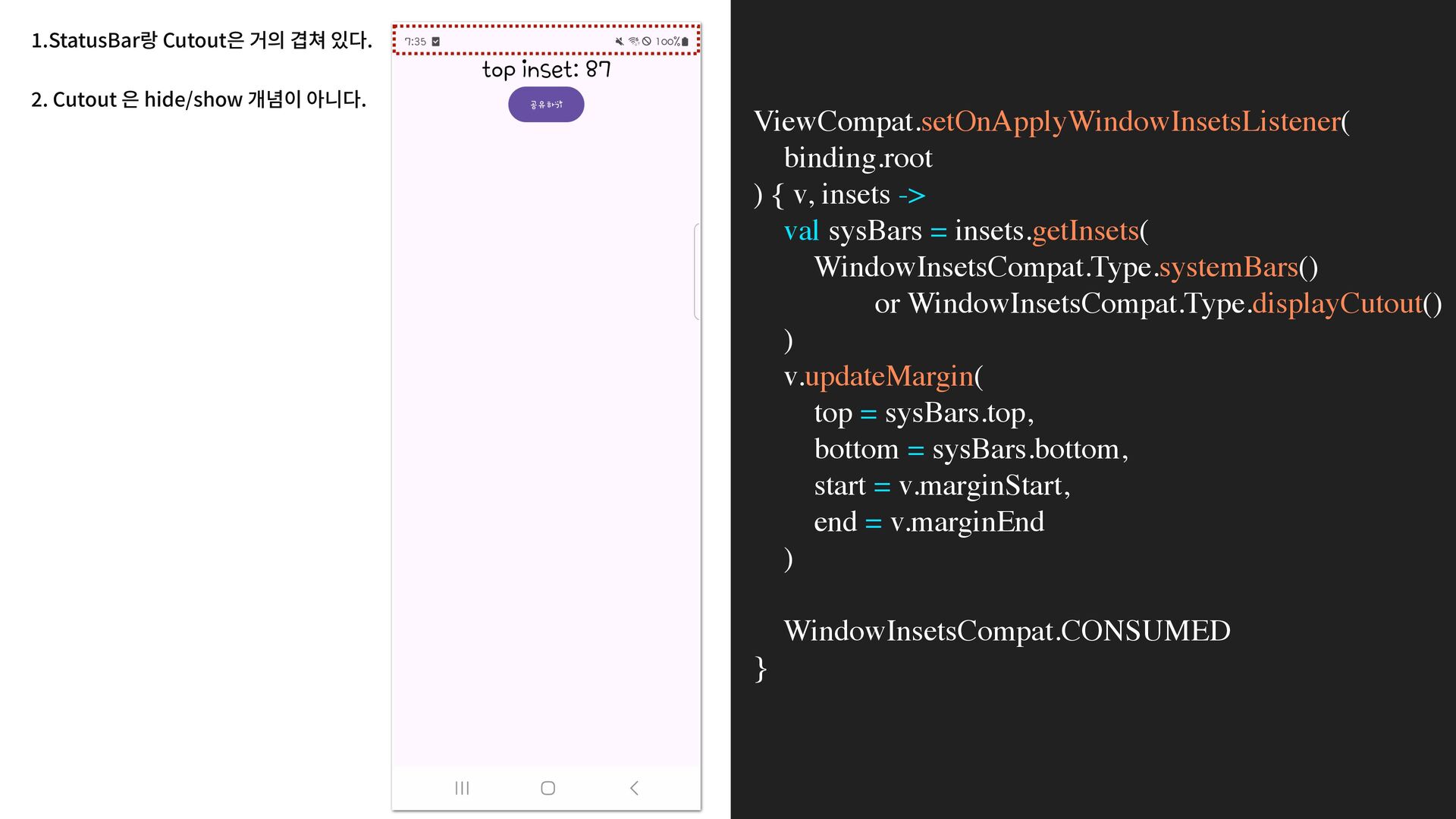

111. 1 .StatusBar랑 Cutout은 거의 겹쳐 있다. 2 . Cutout 은 hide/show 개념이 아니다.
112. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() or WindowInsetsCompat.Type.displayCutout() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) WindowInsetsCompat.CONSUMED } 1 .StatusBar랑 Cutout은 거의 겹쳐 있다. 2 . Cutout 은 hide/show 개념이 아니다.
113. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() or WindowInsetsCompat.Type.displayCutout() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) WindowInsetsCompat.CONSUMED } ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() or WindowInsetsCompat.Type.displayCutout() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) WindowInsetsCompat.CONSUMED } 1 .StatusBar랑 Cutout은 거의 겹쳐 있다. 2 . Cutout 은 hide/show 개념이 아니다.

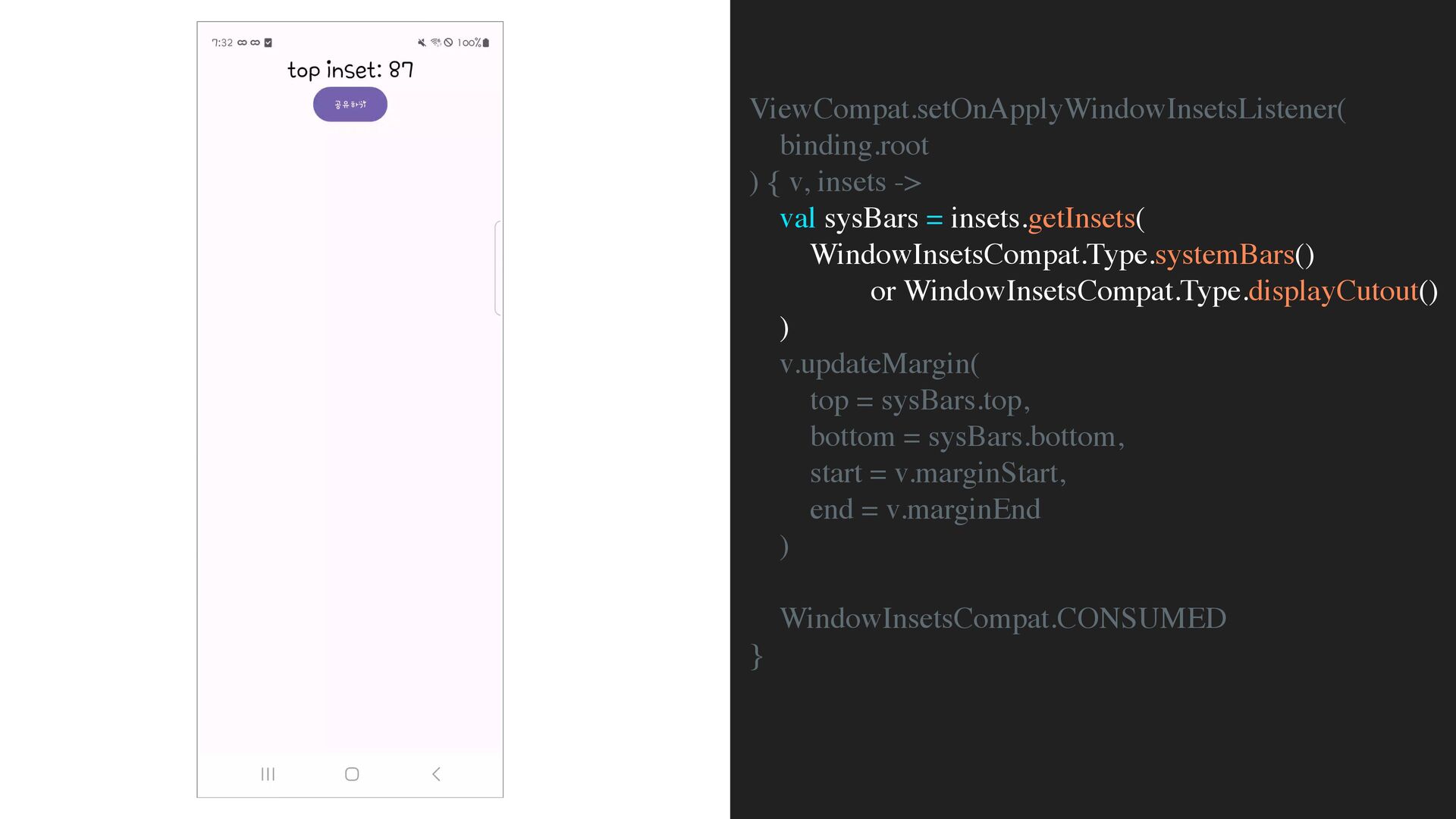

114. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() or WindowInsetsCompat.Type.displayCutout() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) WindowInsetsCompat.CONSUMED }
115. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.systemBars() or WindowInsetsCompat.Type.displayCutout() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) WindowInsetsCompat.CONSUMED }

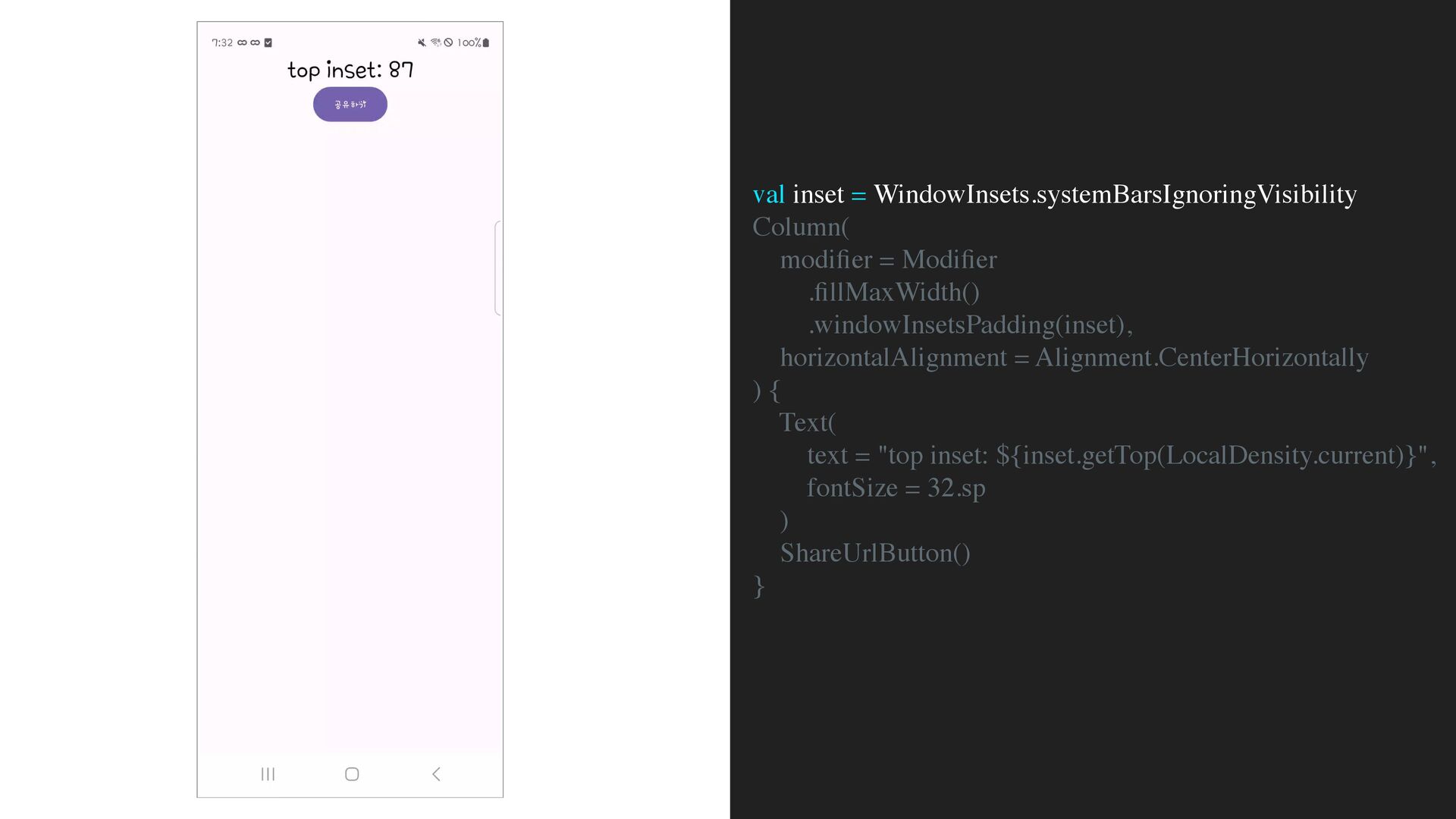

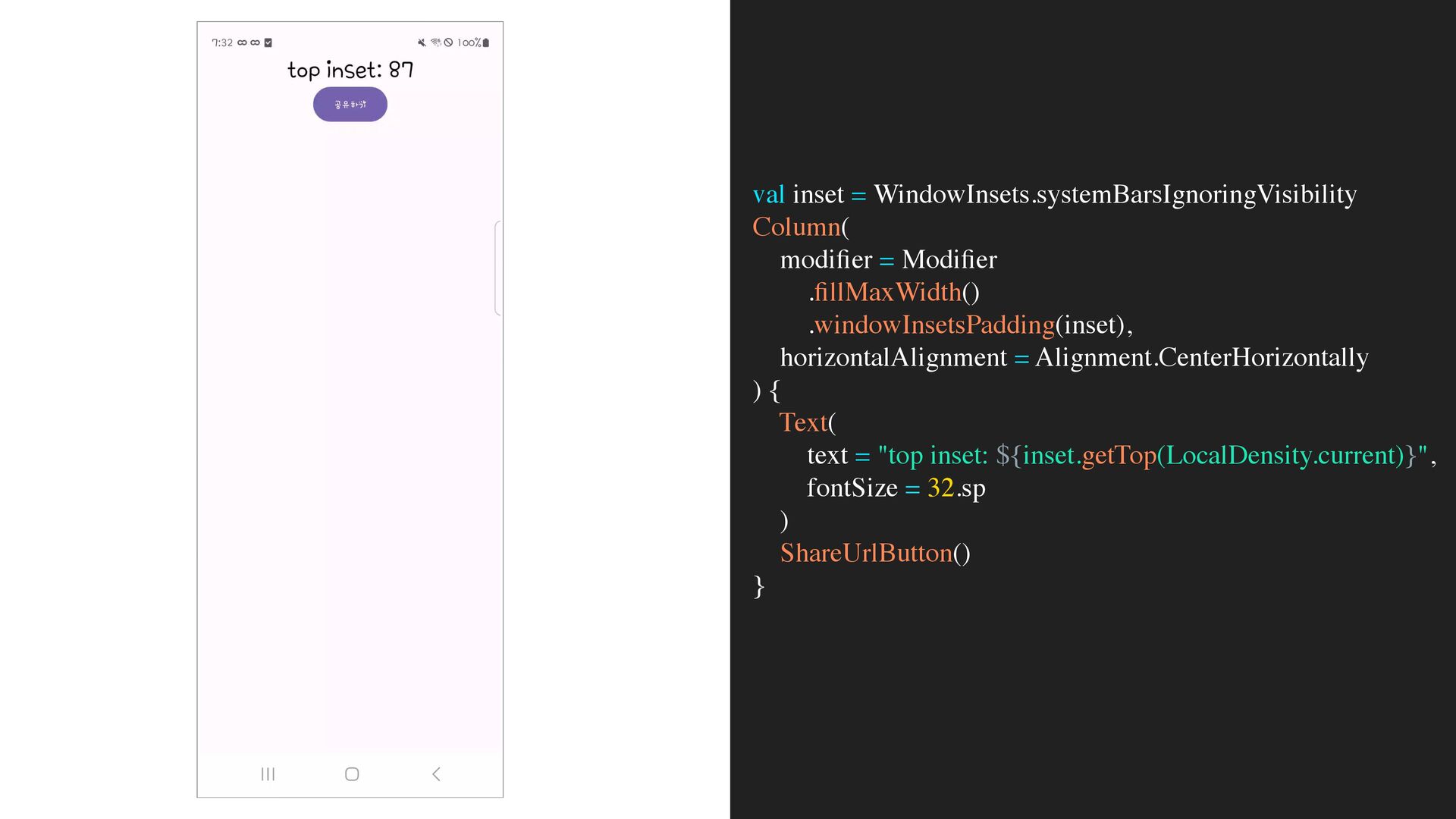

116. val inset = WindowInsets.systemBarsIgnoringVisibility Column( modi fi er = Modi fi er . fi llMaxWidth() .windowInsetsPadding(inset), horizontalAlignment = Alignment.CenterHorizontally ) { Text( text = "top inset: ${inset.getTop(LocalDensity.current)}", fontSize = 32.sp ) ShareUrlButton() }
117. val inset = WindowInsets.systemBarsIgnoringVisibility Column( modi fi er = Modi fi er . fi llMaxWidth() .windowInsetsPadding(inset), horizontalAlignment = Alignment.CenterHorizontally ) { Text( text = "top inset: ${inset.getTop(LocalDensity.current)}", fontSize = 32.sp ) ShareUrlButton() }
118. val inset = WindowInsets.systemBarsIgnoringVisibility Column( modi fi er = Modi fi er . fi llMaxWidth() .windowInsetsPadding(inset), horizontalAlignment = Alignment.CenterHorizontally ) { Text( text = "top inset: ${inset.getTop(LocalDensity.current)}", fontSize = 32.sp ) ShareUrlButton() } val inset = WindowInsets.systemBarsIgnoringVisibility Column( modi fi er = Modi fi er . fi llMaxWidth() .windowInsetsPadding(inset), horizontalAlignment = Alignment.CenterHorizontally ) { Text( text = "top inset: ${inset.getTop(LocalDensity.current)}", fontSize = 32.sp ) ShareUrlButton() }

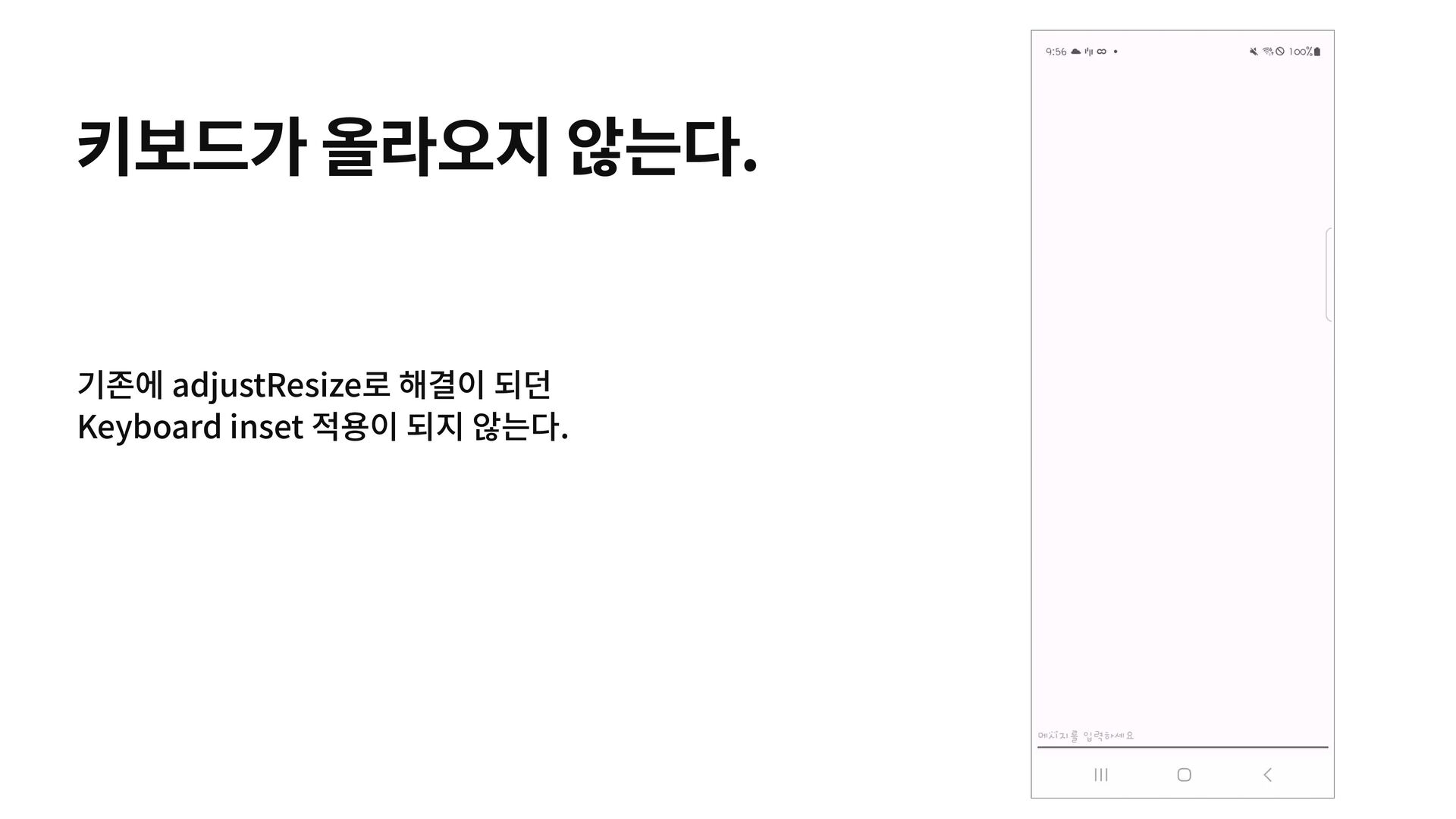

119. 기존에 adjustResize로 해결이 되던 Keyboard inset 적용이 되지 않는다. 키보드가 올라오지 않는다.
120. 기존에 adjustResize로 해결이 되던 Keyboard inset 적용이 되지 않는다. 키보드가 올라오지 않는다.

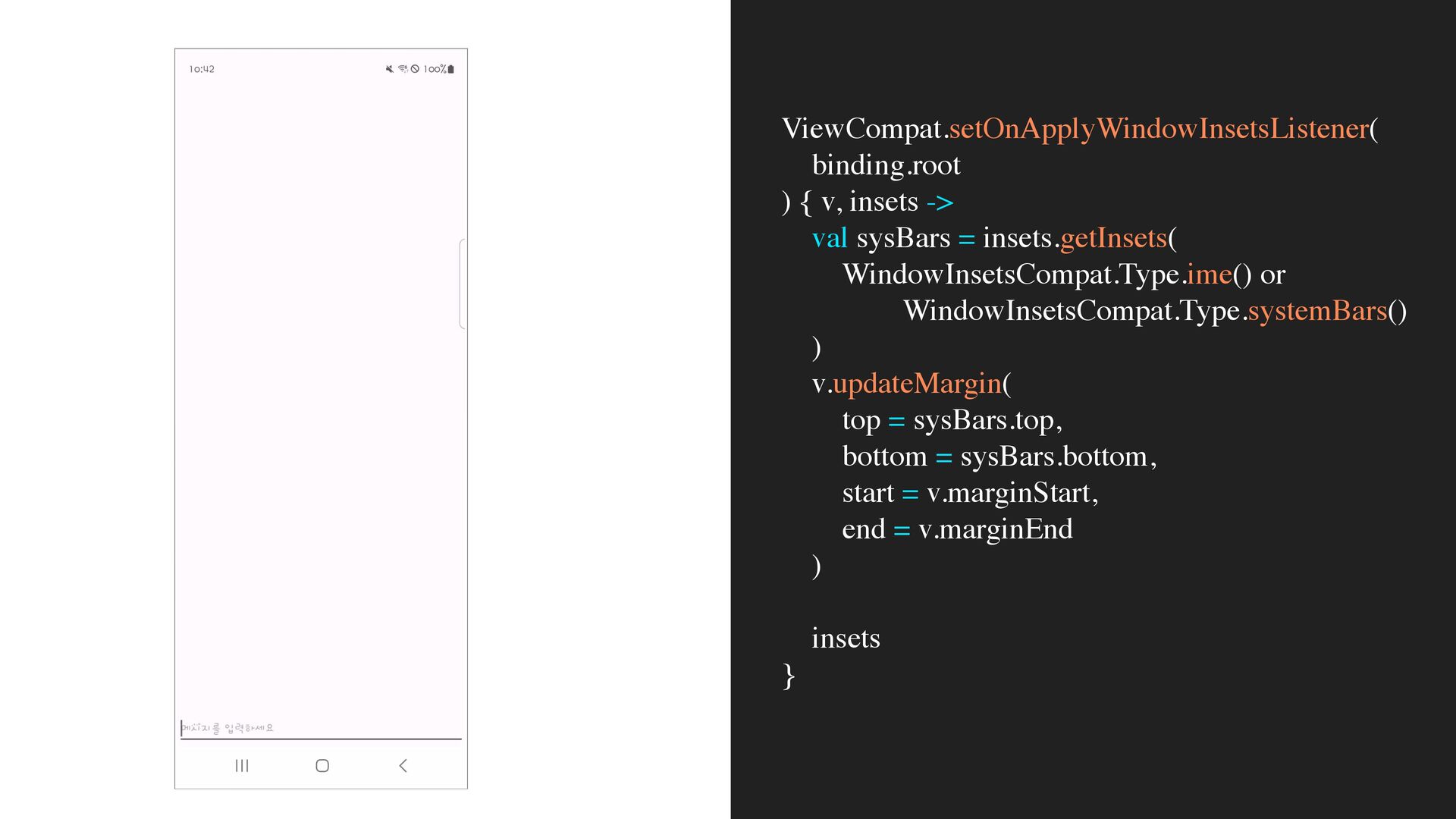

121. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets }
122. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets }
123. ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets } ViewCompat.setOnApplyWindowInsetsListener( binding.root ) { v, insets -> val sysBars = insets.getInsets( WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() ) v.updateMargin( top = sysBars.top, bottom = sysBars.bottom, start = v.marginStart, end = v.marginEnd ) insets }

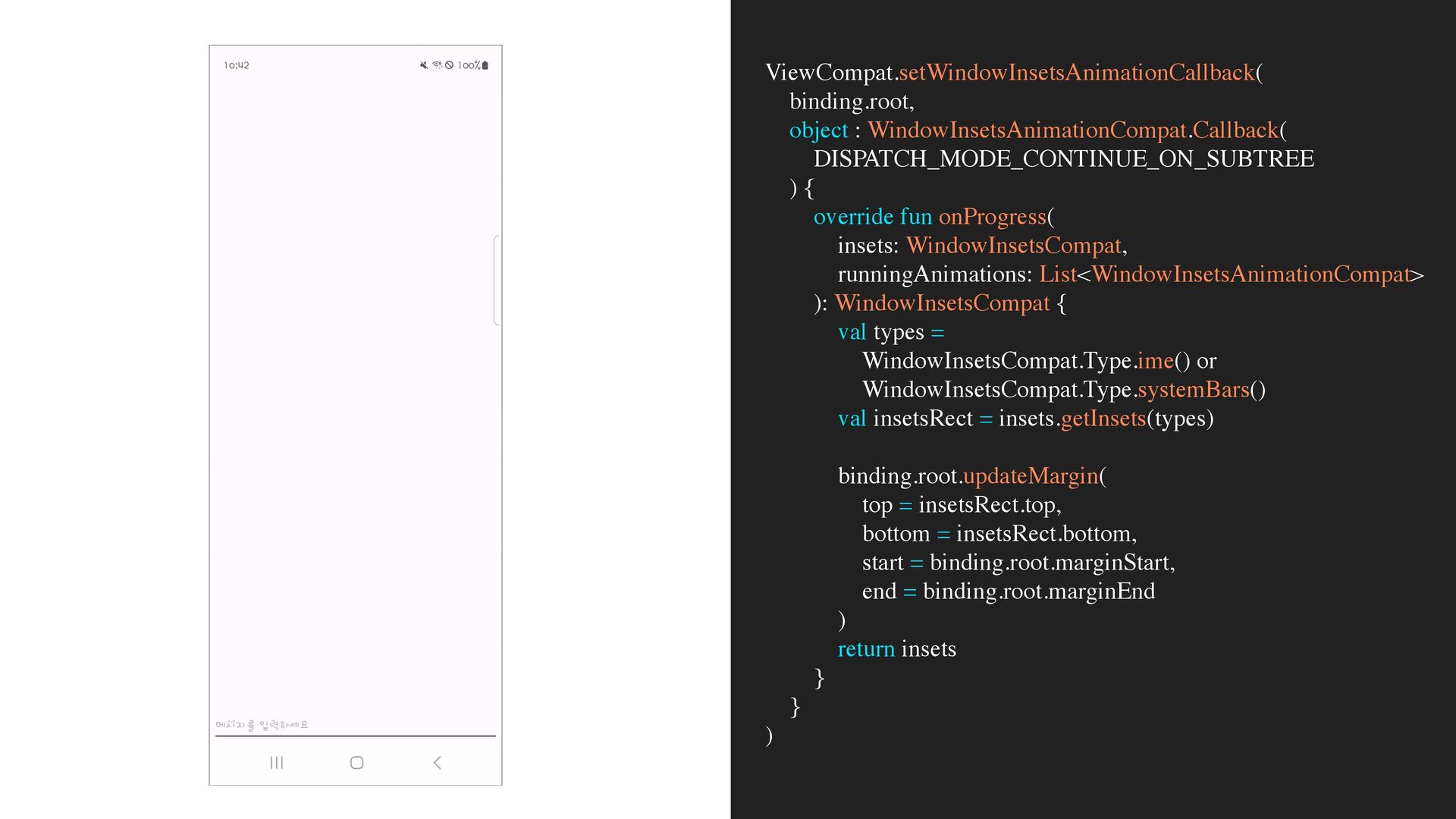

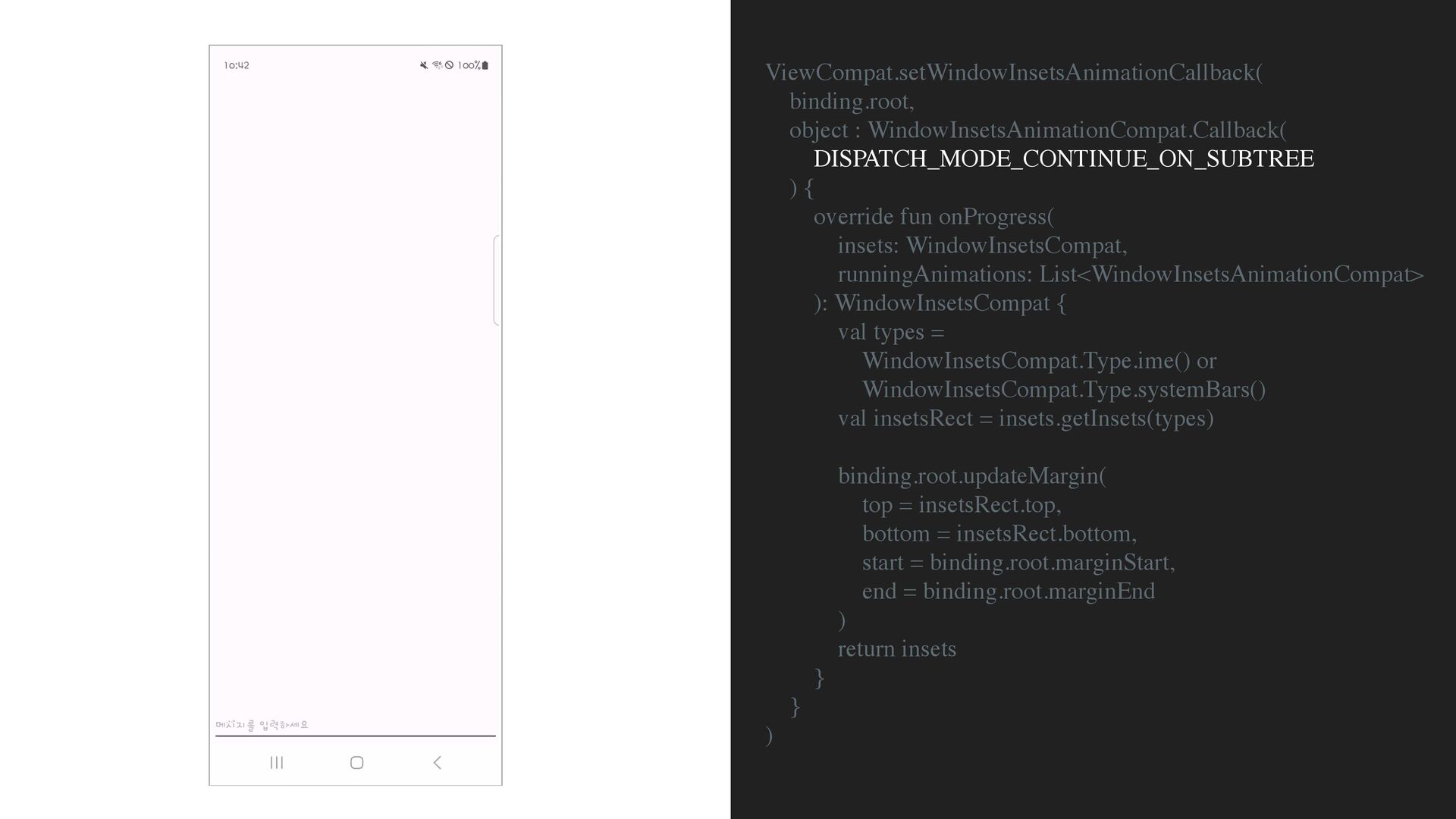

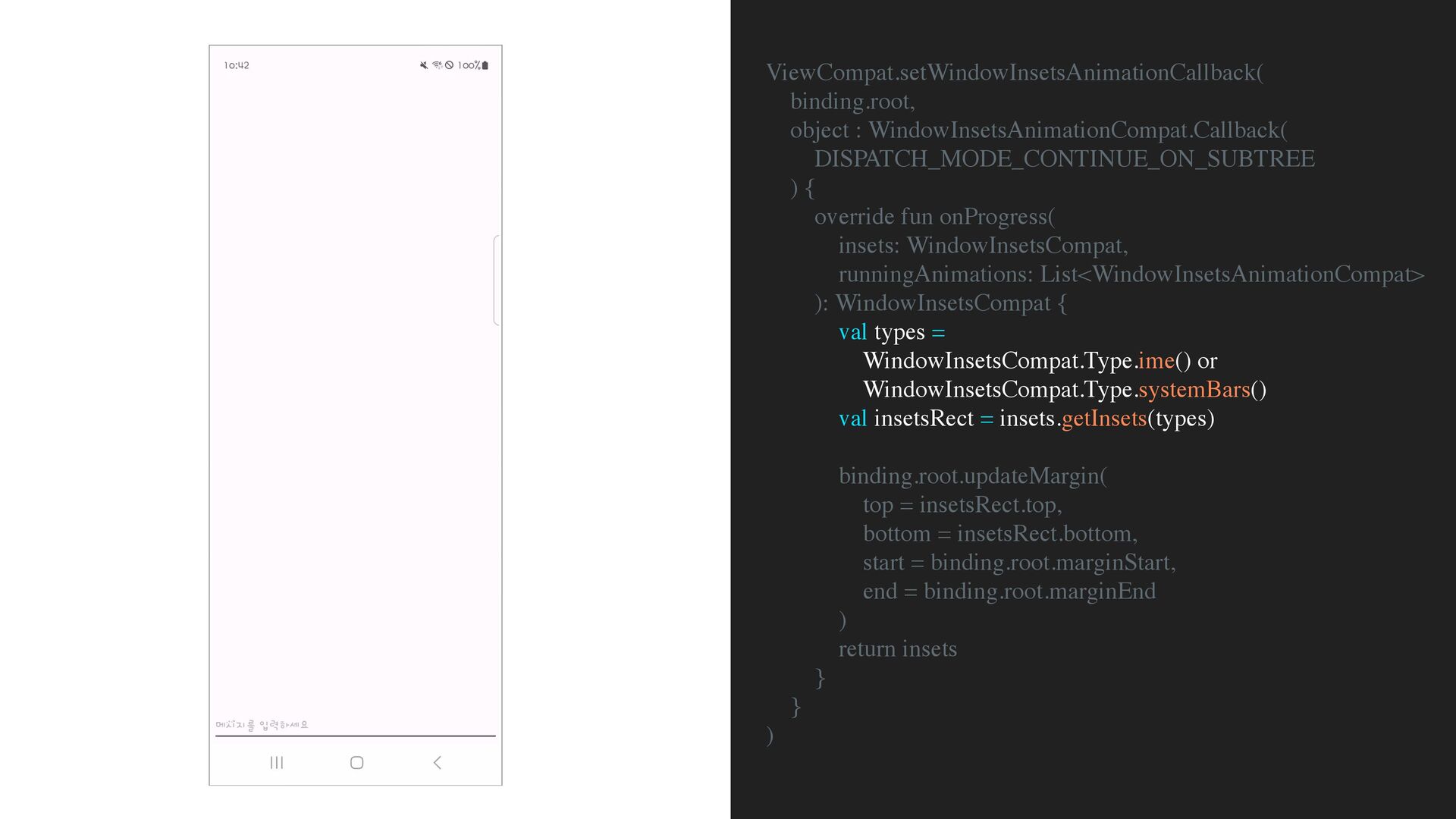

124. ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } )

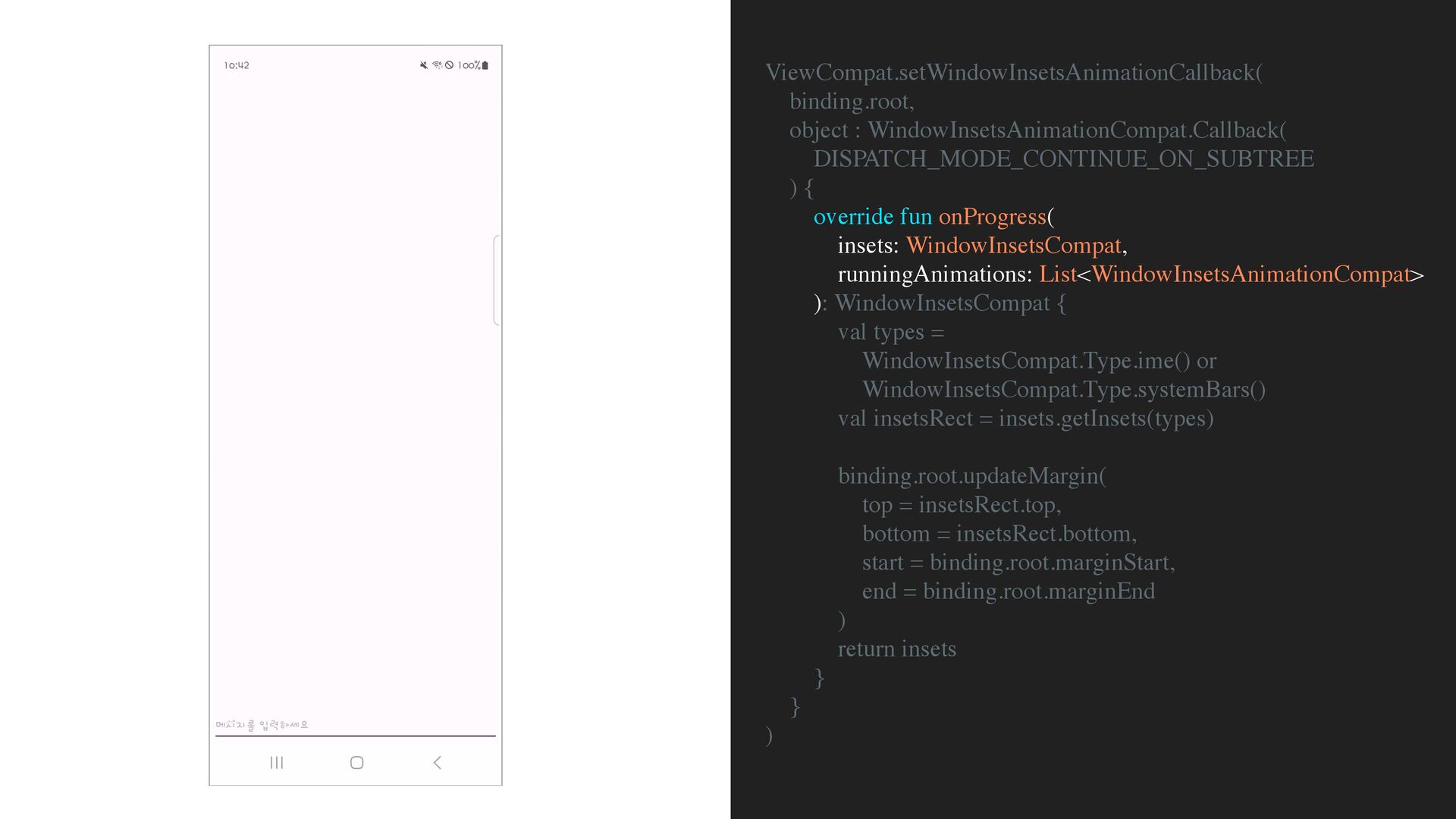

125. ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } ) ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } )
126. ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } ) ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } ) ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } )

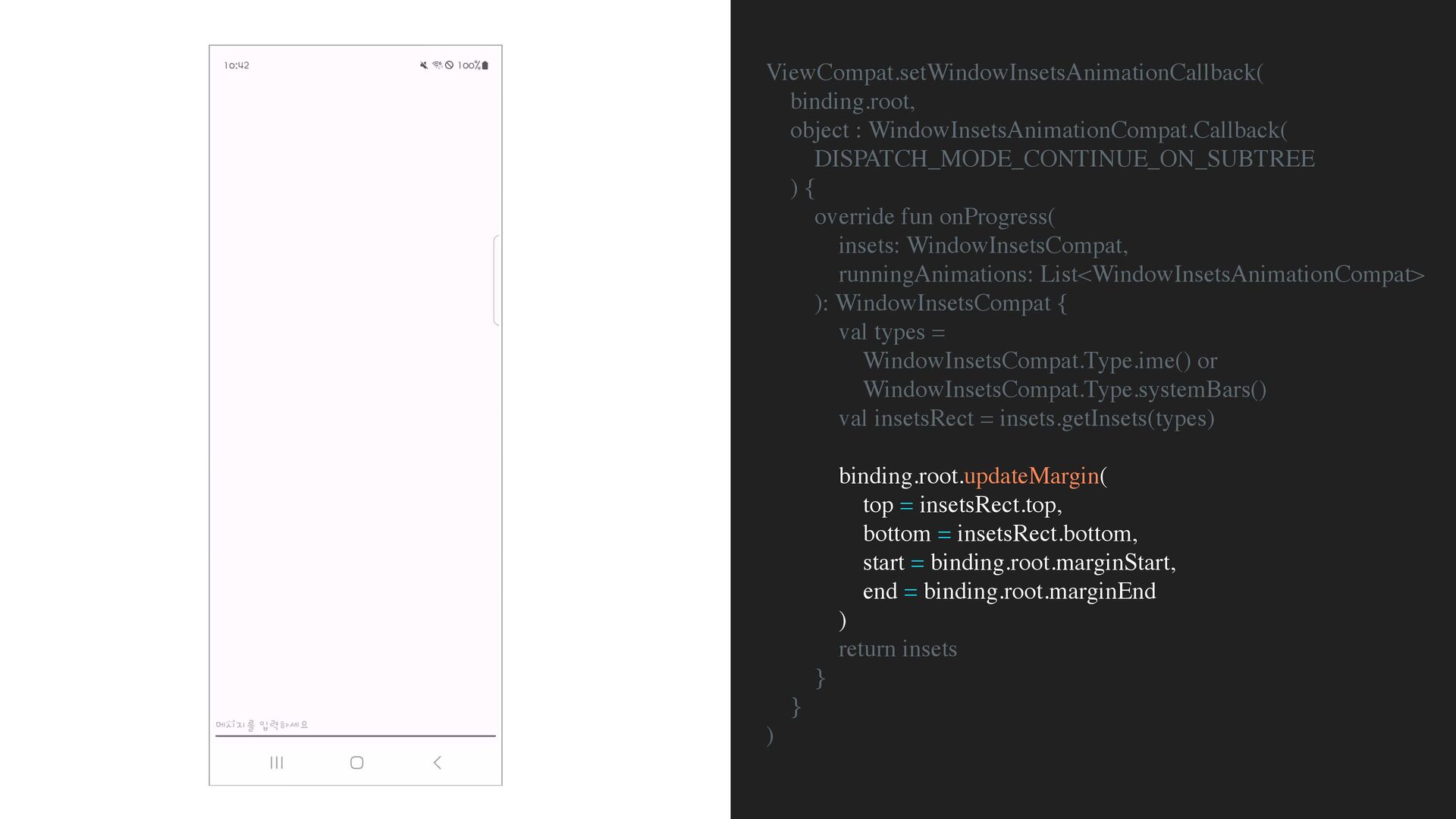

127. ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } ) ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } ) ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } ) ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } )
128. ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } ) ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } ) ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } ) ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } ) ViewCompat.setWindowInsetsAnimationCallback( binding.root, object : WindowInsetsAnimationCompat.Callback( DISPATCH_MODE_CONTINUE_ON_SUBTREE ) { override fun onProgress( insets: WindowInsetsCompat, runningAnimations: List<WindowInsetsAnimationCompat> ): WindowInsetsCompat { val types = WindowInsetsCompat.Type.ime() or WindowInsetsCompat.Type.systemBars() val insetsRect = insets.getInsets(types) binding.root.updateMargin( top = insetsRect.top, bottom = insetsRect.bottom, start = binding.root.marginStart, end = binding.root.marginEnd ) return insets } } )

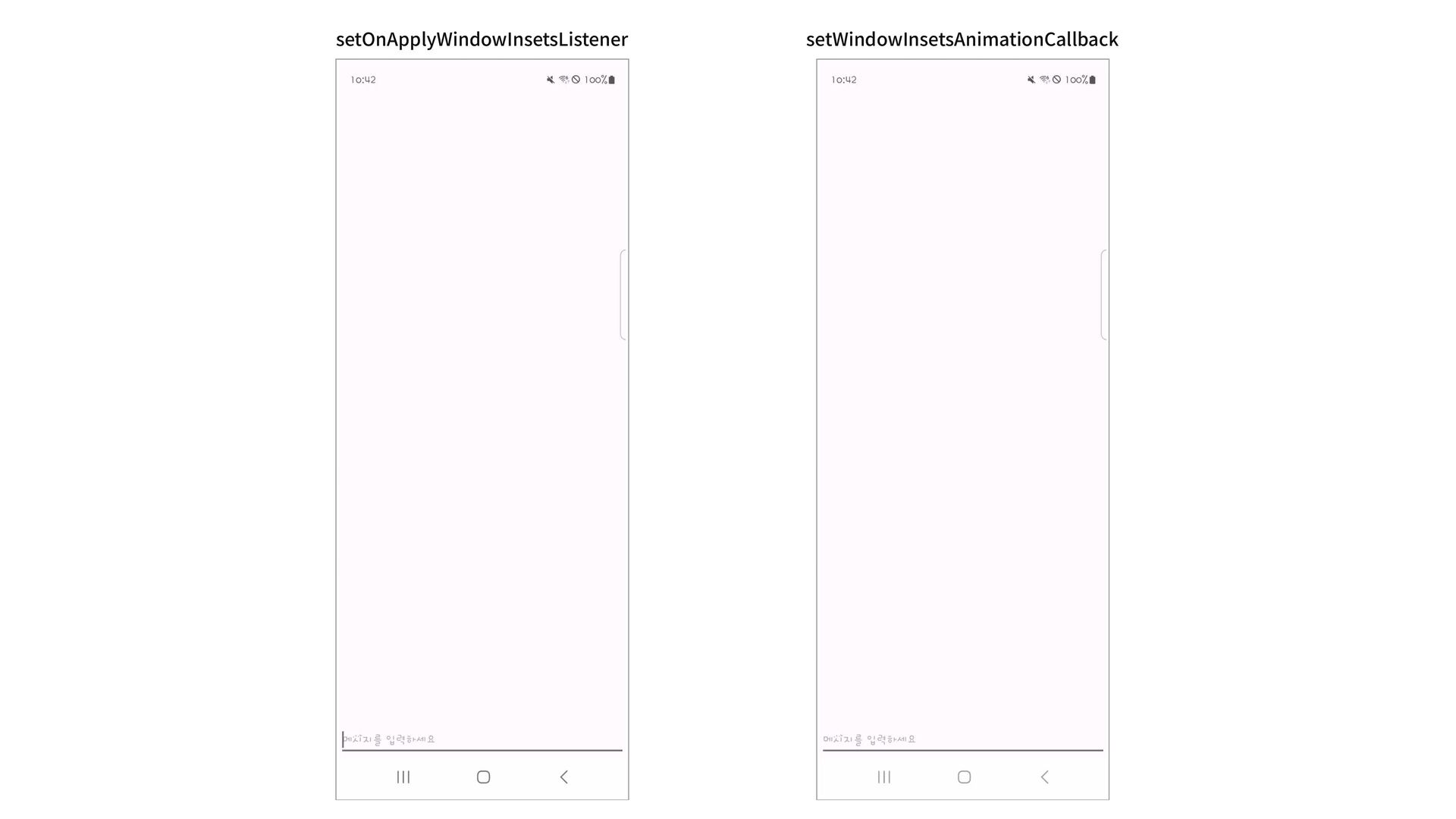

129. setOnApplyWindowInsetsListener setWindowInsetsAnimationCallback
130. setOnApplyWindowInsetsListener setWindowInsetsAnimationCallback

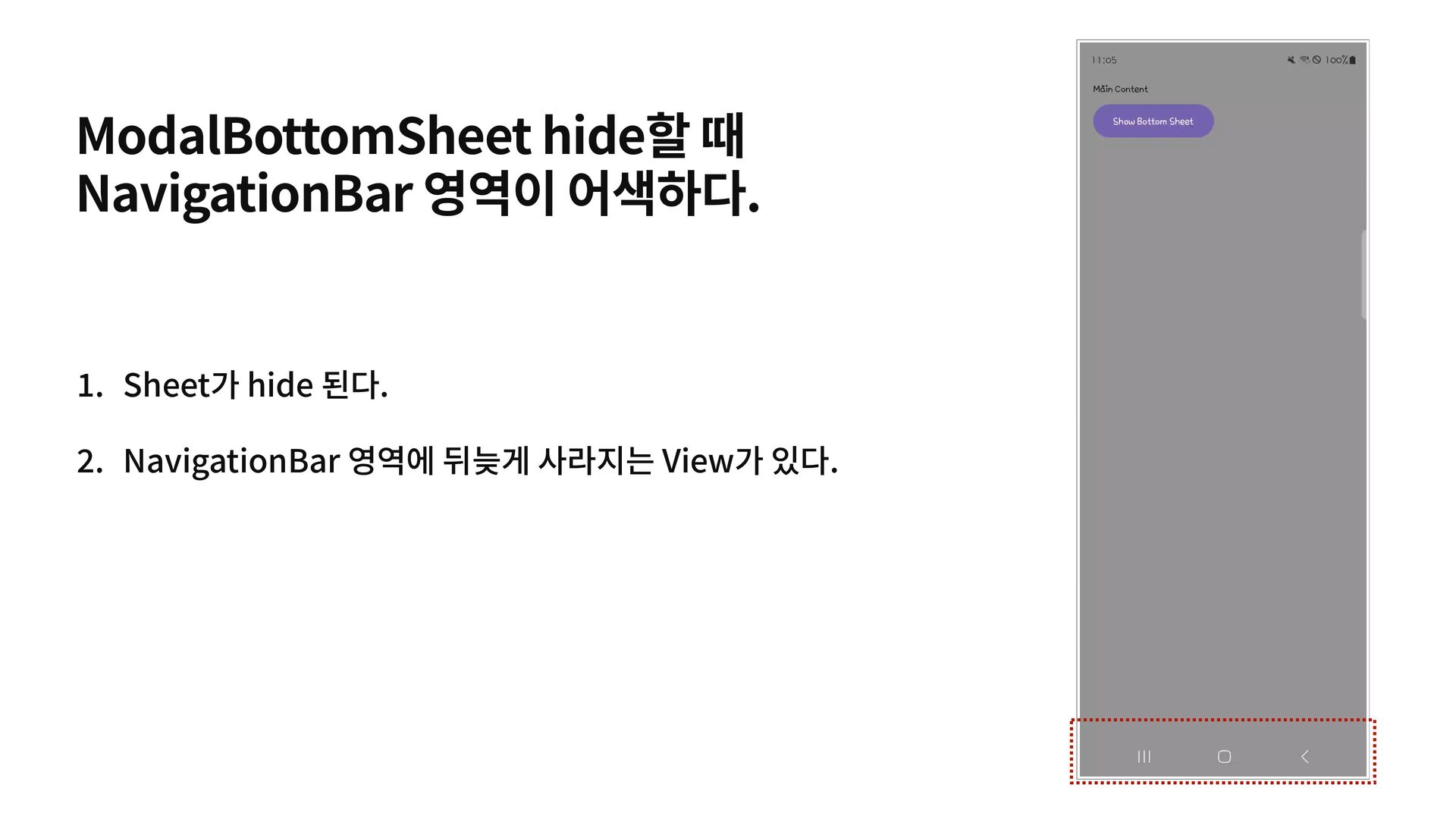

131. ModalBottomSheet hide할 때 NavigationBar 영역이 어색하다. 1 . Sheet가 hide 된다. 2 . NavigationBar 영역에 뒤늦게 사라지는 View가 있다.
132. ModalBottomSheet hide할 때 NavigationBar 영역이 어색하다. 1 . Sheet가 hide 된다. 2 . NavigationBar 영역에 뒤늦게 사라지는 View가 있다.

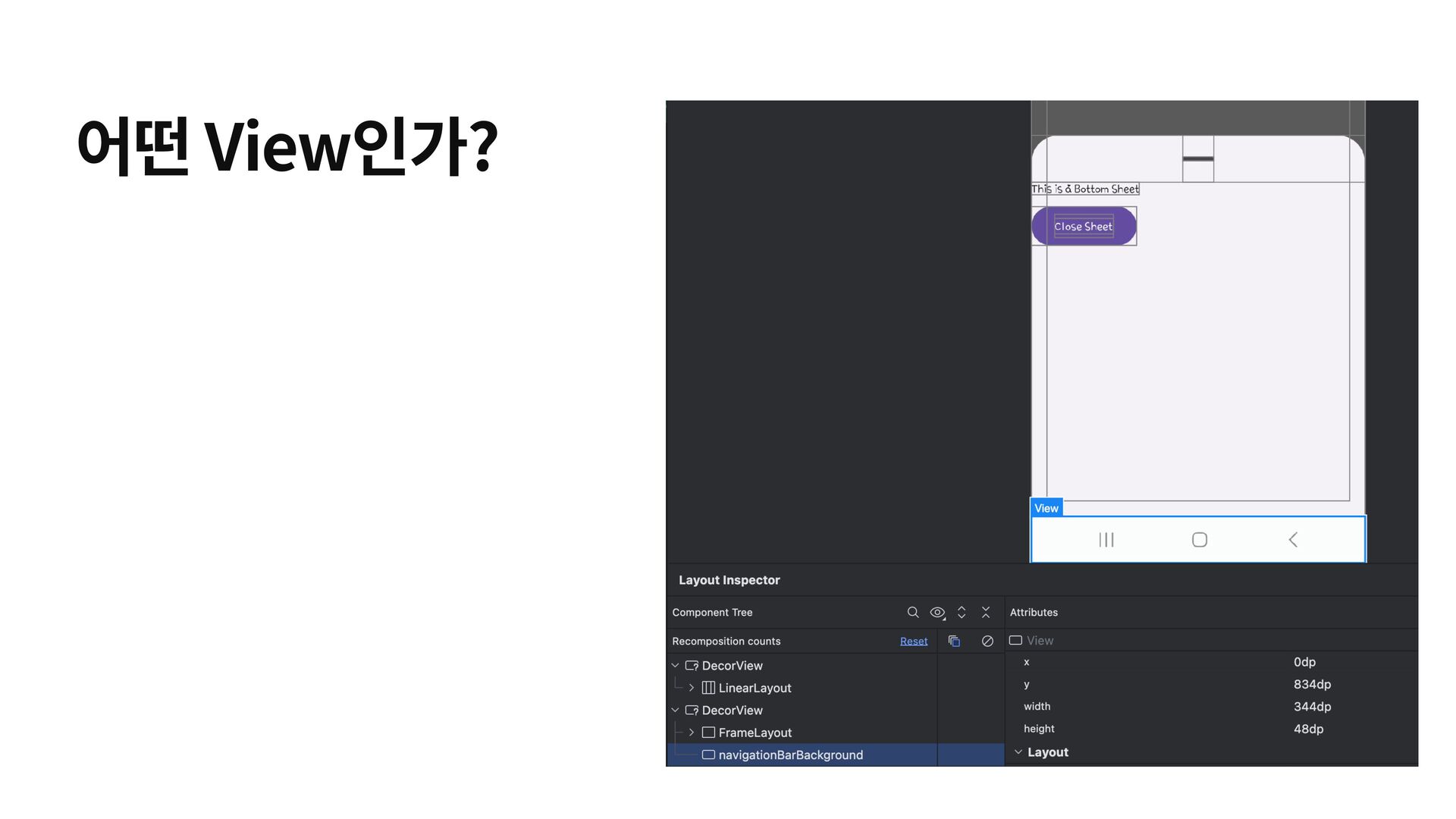

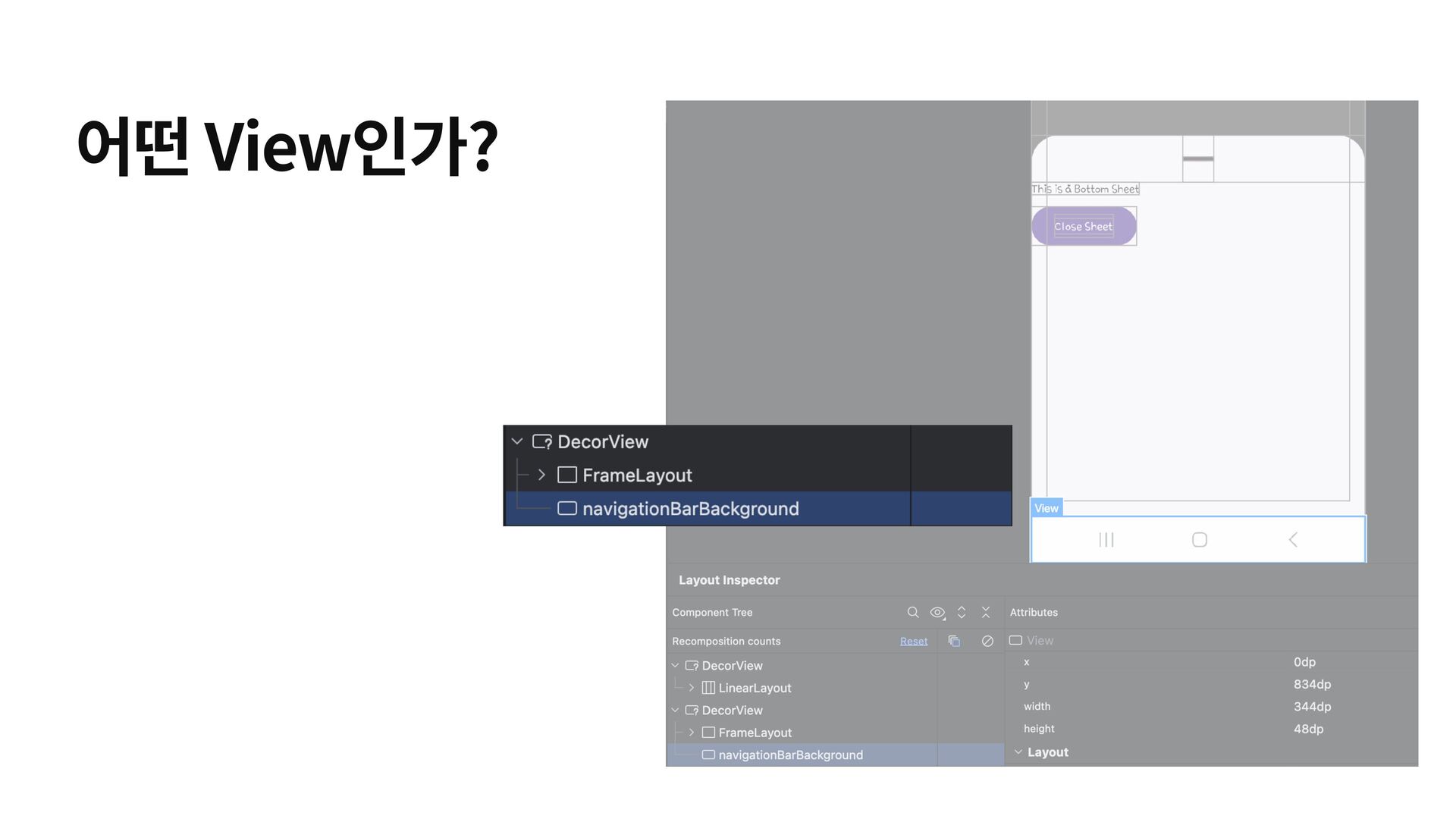

133. 어떤 View인가?
134. 어떤 View인가?

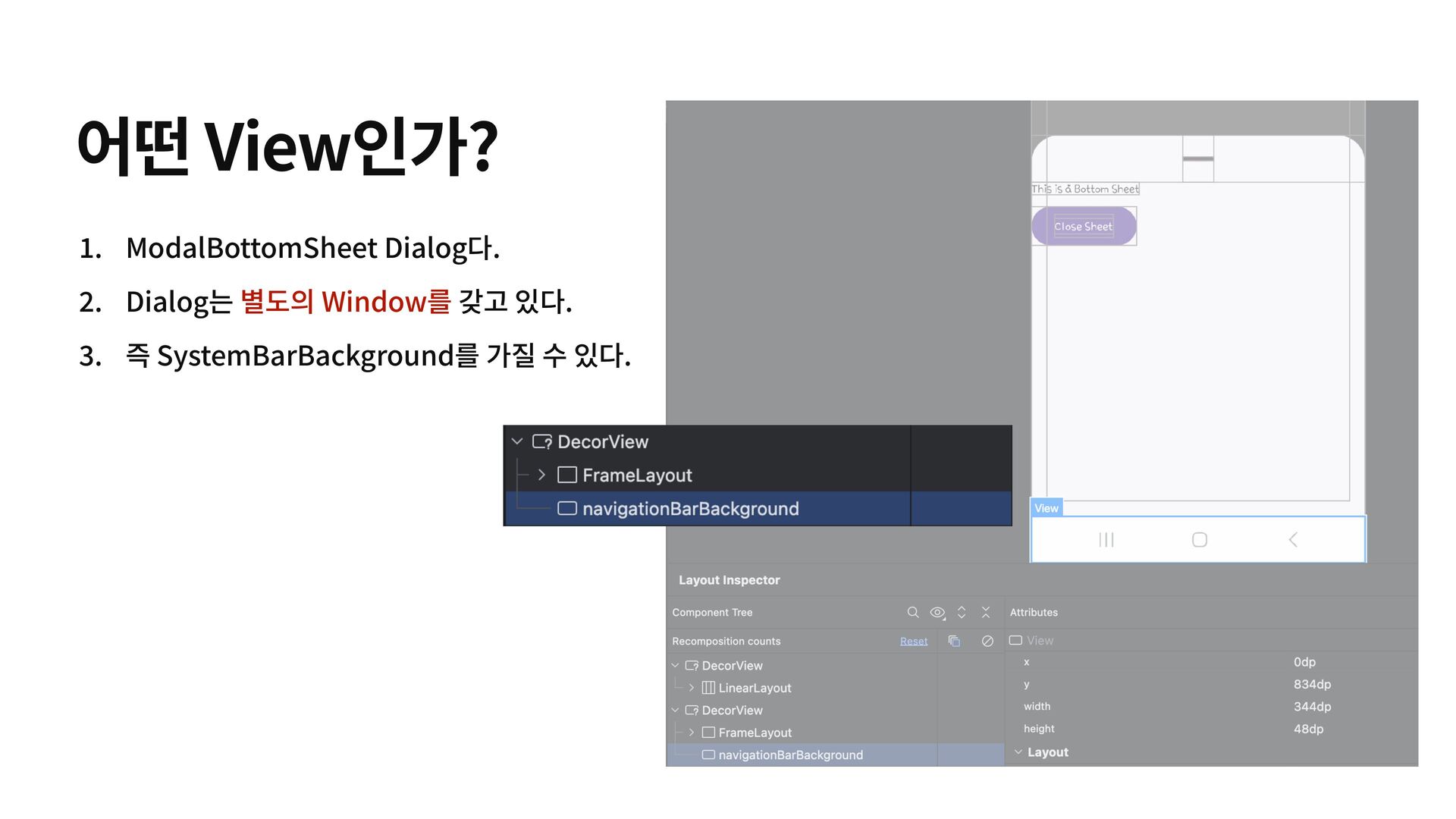

135. 어떤 View인가? 1 . ModalBottomSheet Dialog다. 2 . Dialog는 별도의 Window를 갖고 있다. 3 . 즉 SystemBarBackground를 가질 수 있다.

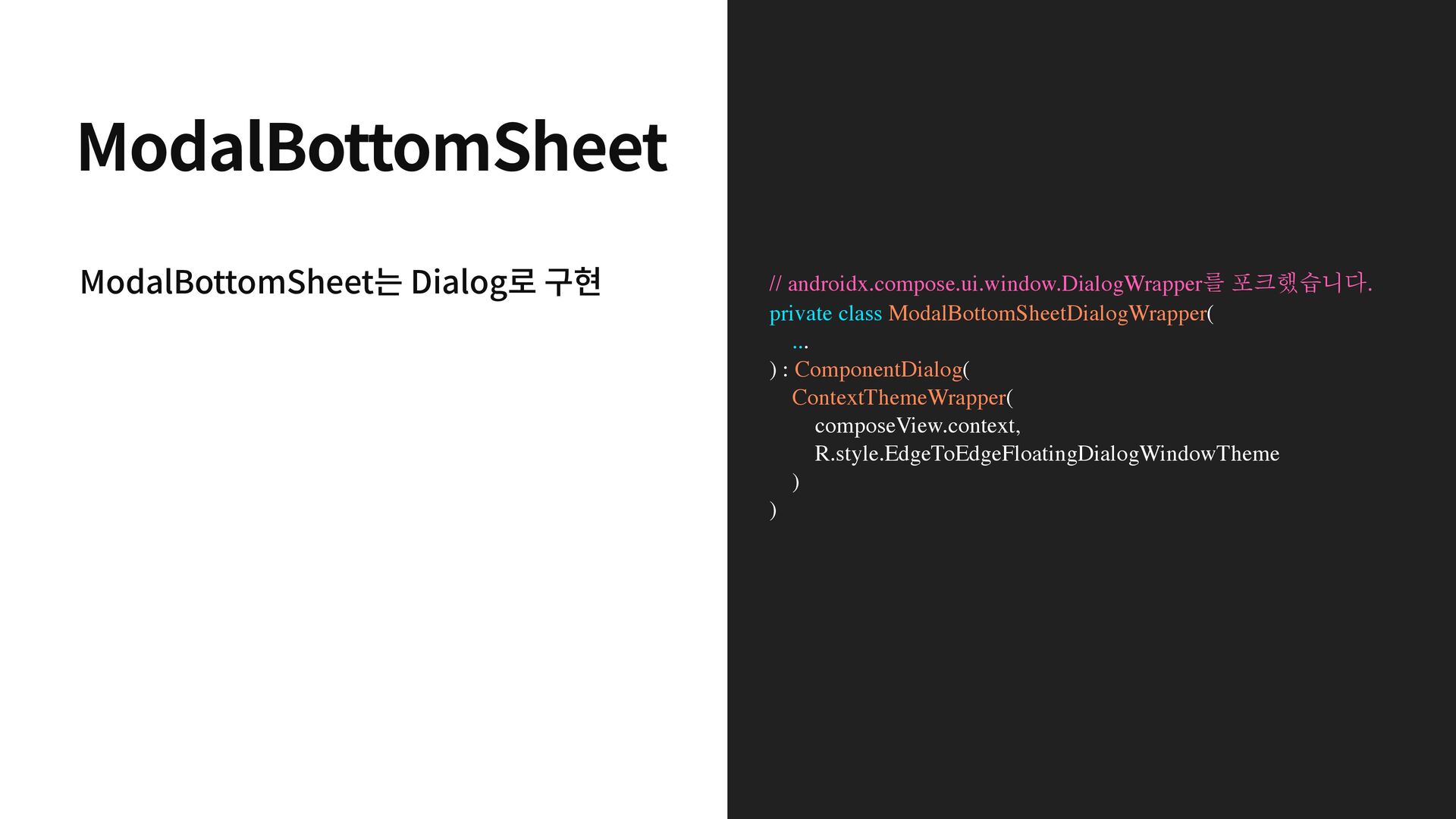

136. // androidx.compose.ui.window.DialogWrapper를 포크했습니다. private class ModalBottomSheetDialogWrapper( ... ) : ComponentDialog( ContextThemeWrapper( composeView.context, R.style.EdgeToEdgeFloatingDialogWindowTheme ) ) ModalBottomSheet ModalBottomSheet는 Dialog로 구현

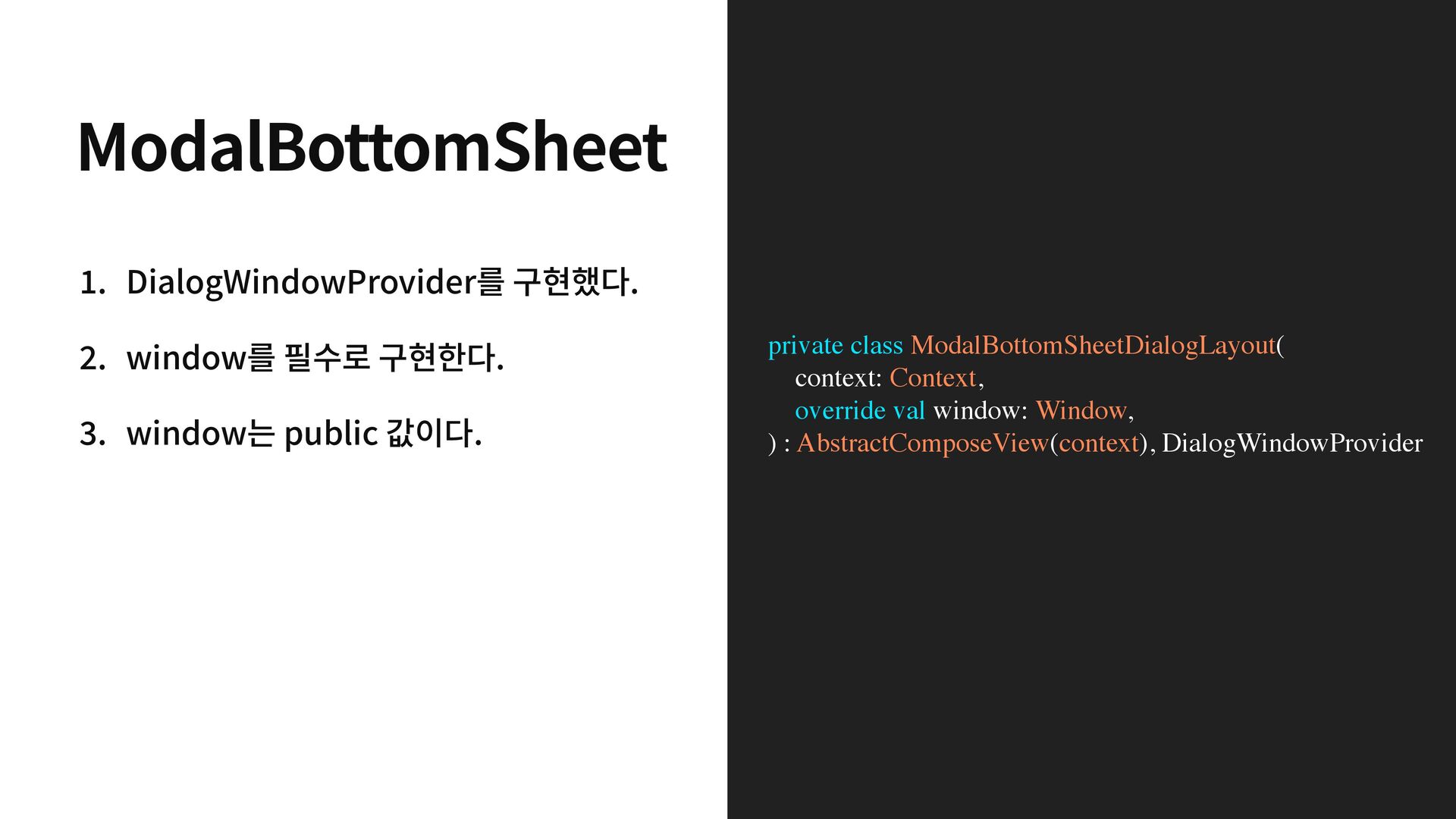

137. private class ModalBottomSheetDialogLayout( context: Context, override val window: Window, ) : AbstractComposeView(context), DialogWindowProvider ModalBottomSheet 1 . DialogWindowProvider를 구현했다. 2 . window를 필수로 구현한다. 3 . window는 public 값이다.
138. private class ModalBottomSheetDialogLayout( context: Context, override val window: Window, ) : AbstractComposeView(context), DialogWindowProvider ModalBottomSheet 1 . DialogWindowProvider를 구현했다. 2 . window를 필수로 구현한다. 3 . window는 public 값이다. private class ModalBottomSheetDialogLayout( context: Context, override val window: Window, ) : AbstractComposeView(context), DialogWindowProvider
139. private class ModalBottomSheetDialogLayout( context: Context, override val window: Window, ) : AbstractComposeView(context), DialogWindowProvider ModalBottomSheet 1 . DialogWindowProvider를 구현했다. 2 . window를 필수로 구현한다. 3 . window는 public 값이다. private class ModalBottomSheetDialogLayout( context: Context, override val window: Window, ) : AbstractComposeView(context), DialogWindowProvider interface DialogWindowProvider { val window: Window }

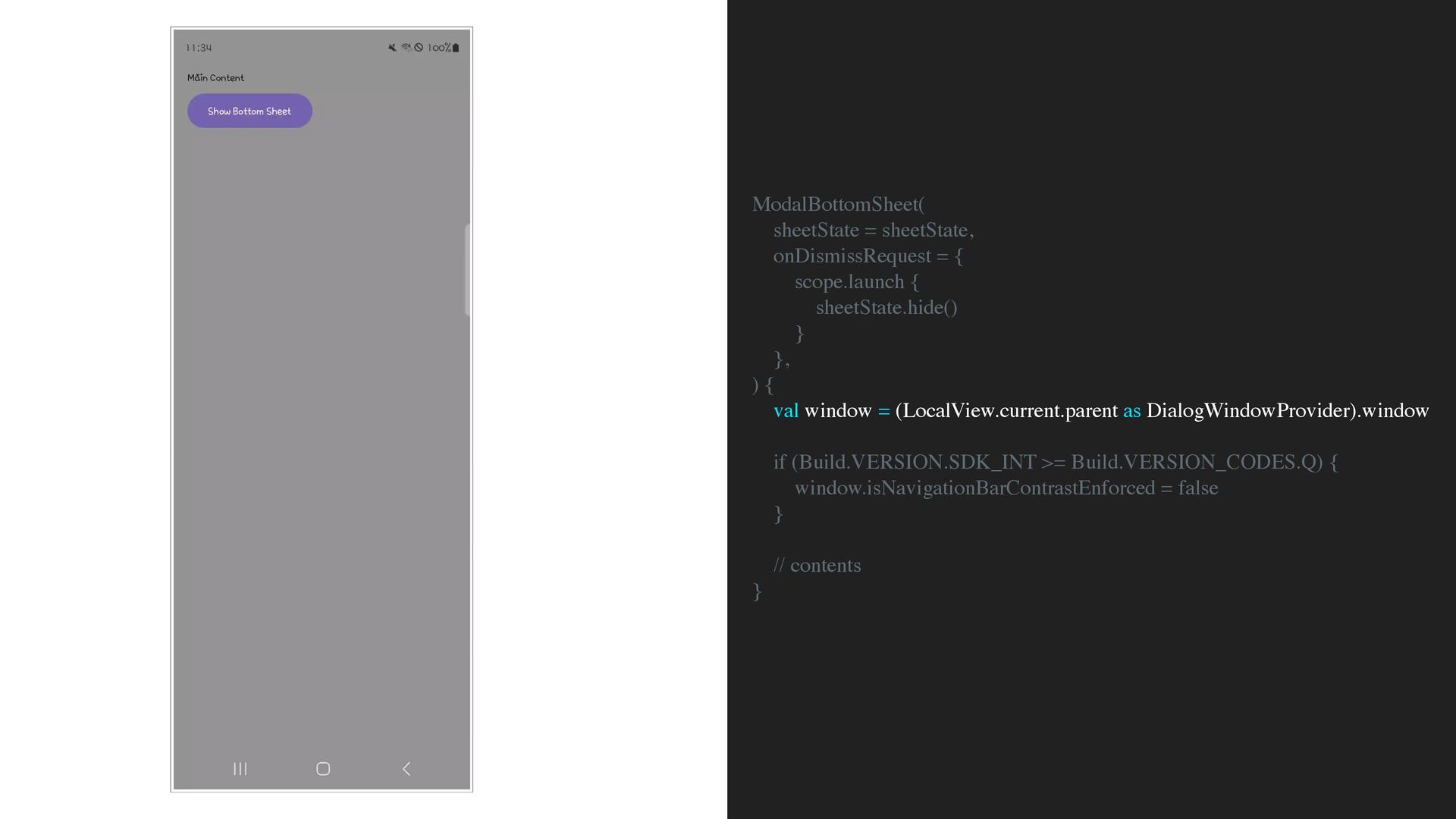

140. ModalBottomSheet( sheetState = sheetState, onDismissRequest = { scope.launch { sheetState.hide() } }, ) { val window = (LocalView.current.parent as DialogWindowProvider).window if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.Q) { window.isNavigationBarContrastEnforced = false } // contents }
141. ModalBottomSheet( sheetState = sheetState, onDismissRequest = { scope.launch { sheetState.hide() } }, ) { val window = (LocalView.current.parent as DialogWindowProvider).window if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.Q) { window.isNavigationBarContrastEnforced = false } // contents }
142. ModalBottomSheet( sheetState = sheetState, onDismissRequest = { scope.launch { sheetState.hide() } }, ) { val window = (LocalView.current.parent as DialogWindowProvider).window if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.Q) { window.isNavigationBarContrastEnforced = false } // contents } ModalBottomSheet( sheetState = sheetState, onDismissRequest = { scope.launch { sheetState.hide() } }, ) { val window = (LocalView.current.parent as DialogWindowProvider).window if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.Q) { window.isNavigationBarContrastEnforced = false } // contents }

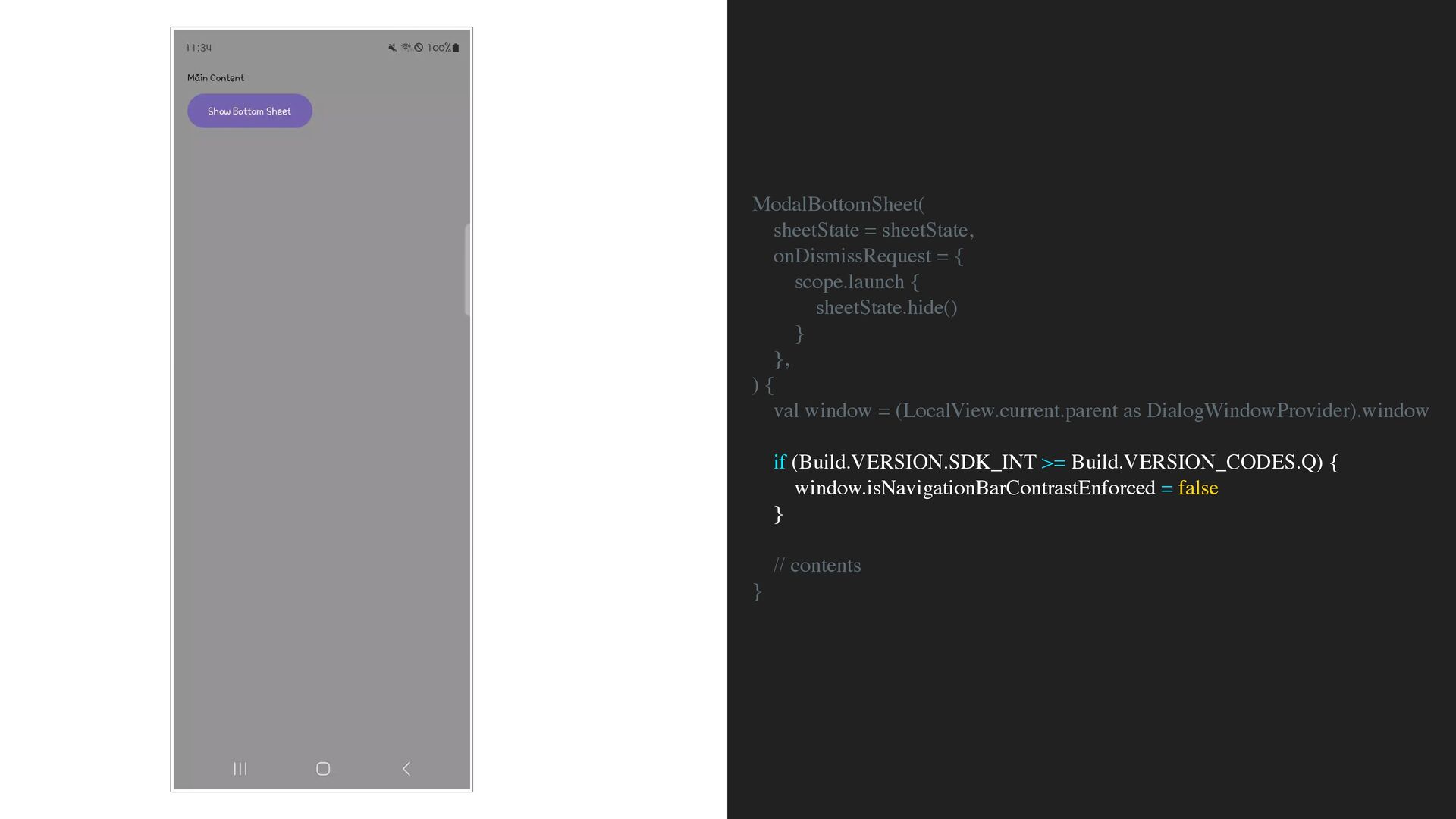

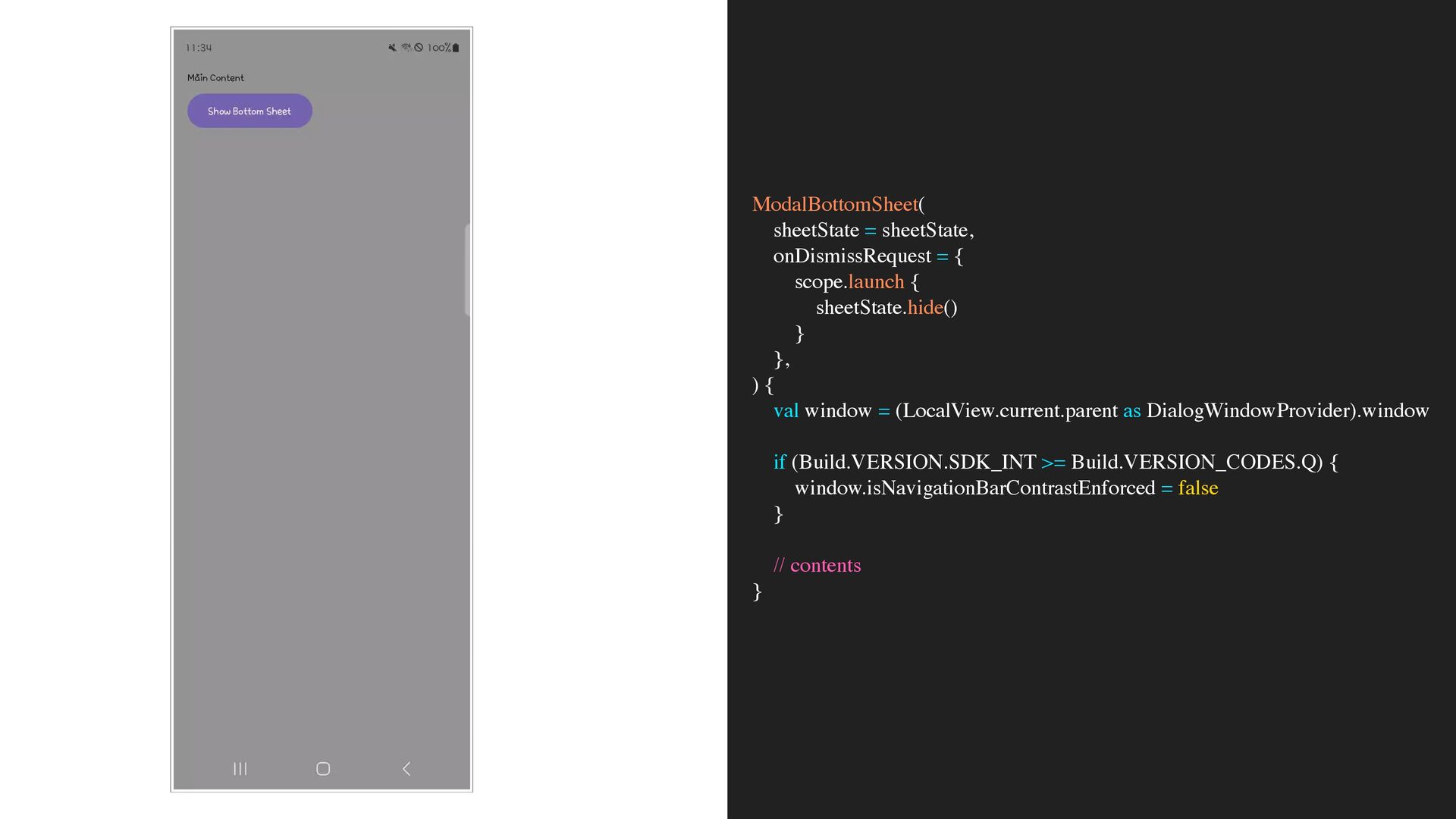

143. ModalBottomSheet( sheetState = sheetState, onDismissRequest = { scope.launch { sheetState.hide() } }, ) { val window = (LocalView.current.parent as DialogWindowProvider).window if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.Q) { window.isNavigationBarContrastEnforced = false } // contents } ModalBottomSheet( sheetState = sheetState, onDismissRequest = { scope.launch { sheetState.hide() } }, ) { val window = (LocalView.current.parent as DialogWindowProvider).window if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.Q) { window.isNavigationBarContrastEnforced = false } // contents } ModalBottomSheet( sheetState = sheetState, onDismissRequest = { scope.launch { sheetState.hide() } }, ) { val window = (LocalView.current.parent as DialogWindowProvider).window if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.Q) { window.isNavigationBarContrastEnforced = false } // contents }
144. 번외.

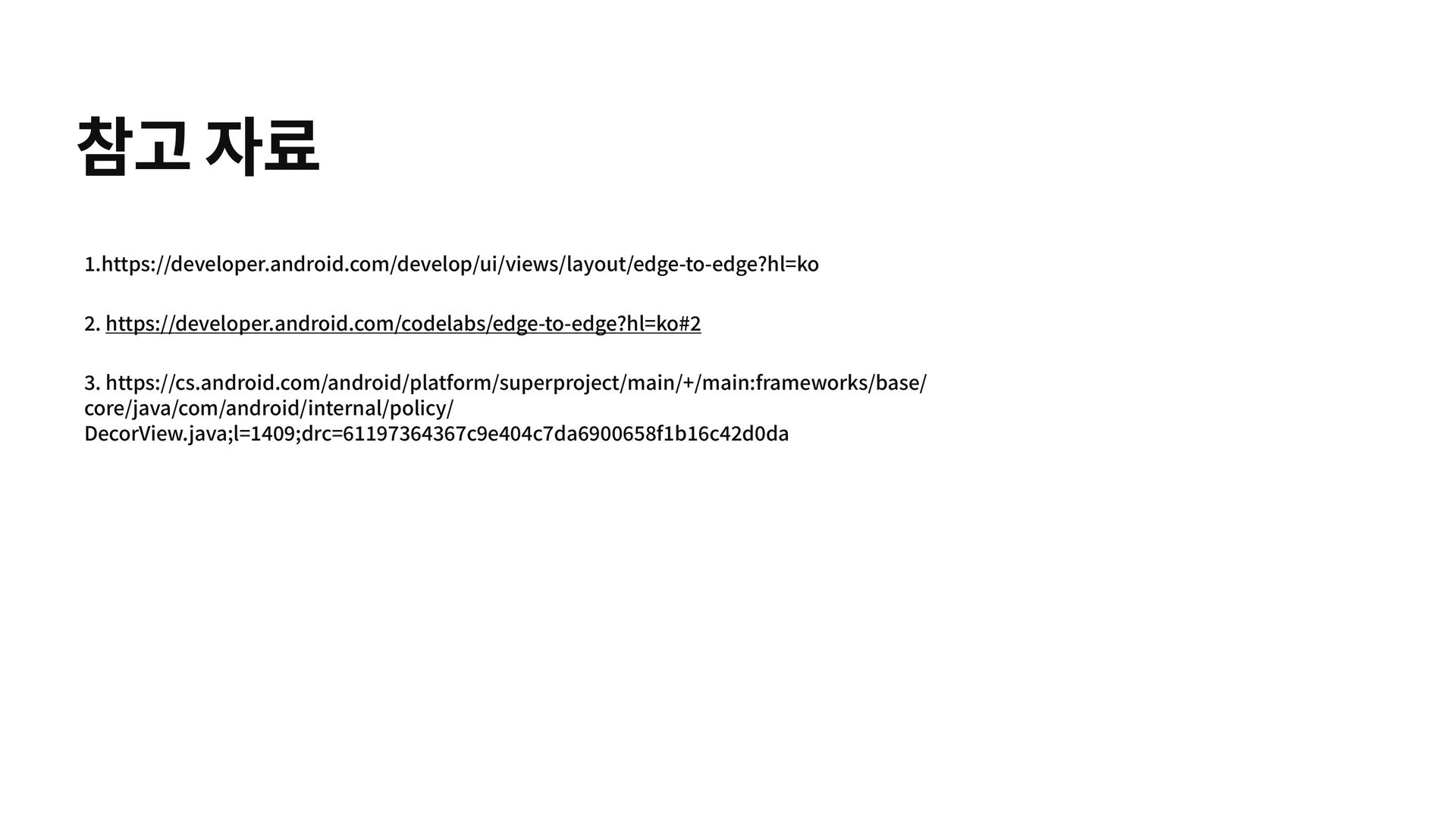

147. 참고 자료 1 .https://developer.android.com/develop/ui/views/layout/edge-to-edge?hl=ko 2 . https://developer.android.com/codelabs/edge-to-edge?hl=ko# 2 3 . https://cs.android.com/android/platform/superproject/main/+/main:frameworks/base/ core/java/com/android/internal/policy/ DecorView.java;l= 1 4 0 9 ;drc= 6 1 1 9 7 3 6 4 3 6 7 c 9 e 4 0 4 c 7 da 6 9 0 0 6 5 8 f 1 b 1 6 c 4 2 d 0 da
