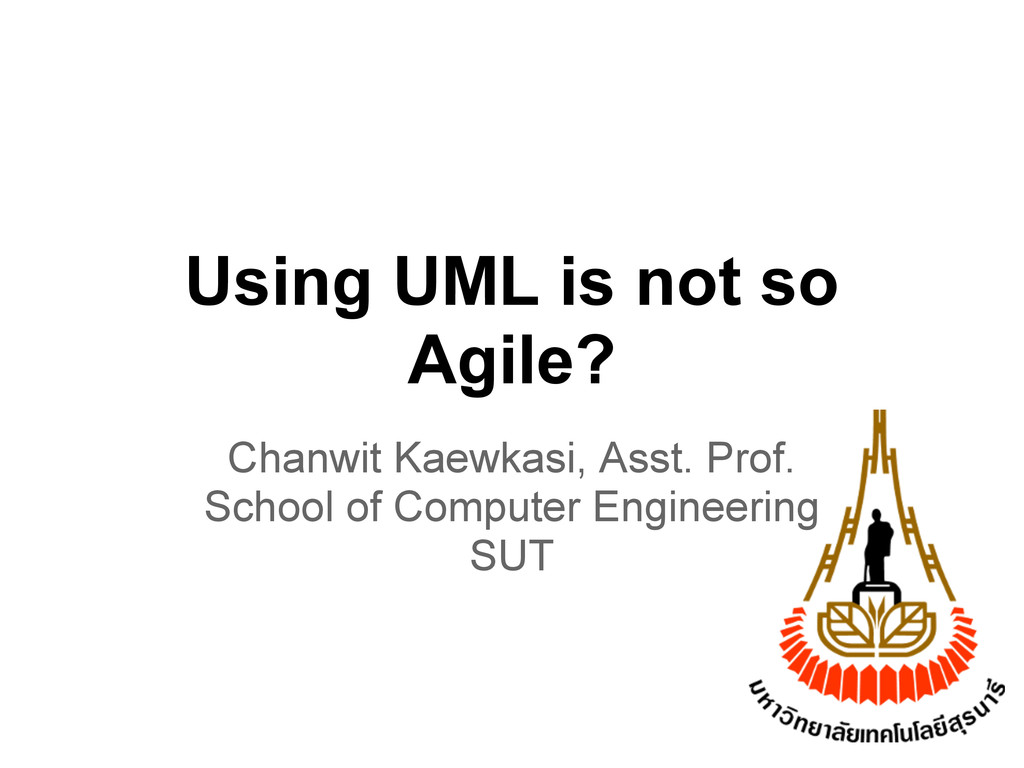

  1. Using UML is not so Agile? Chanwit Kaewkasi, Asst. Prof.

    School of Computer Engineering SUT

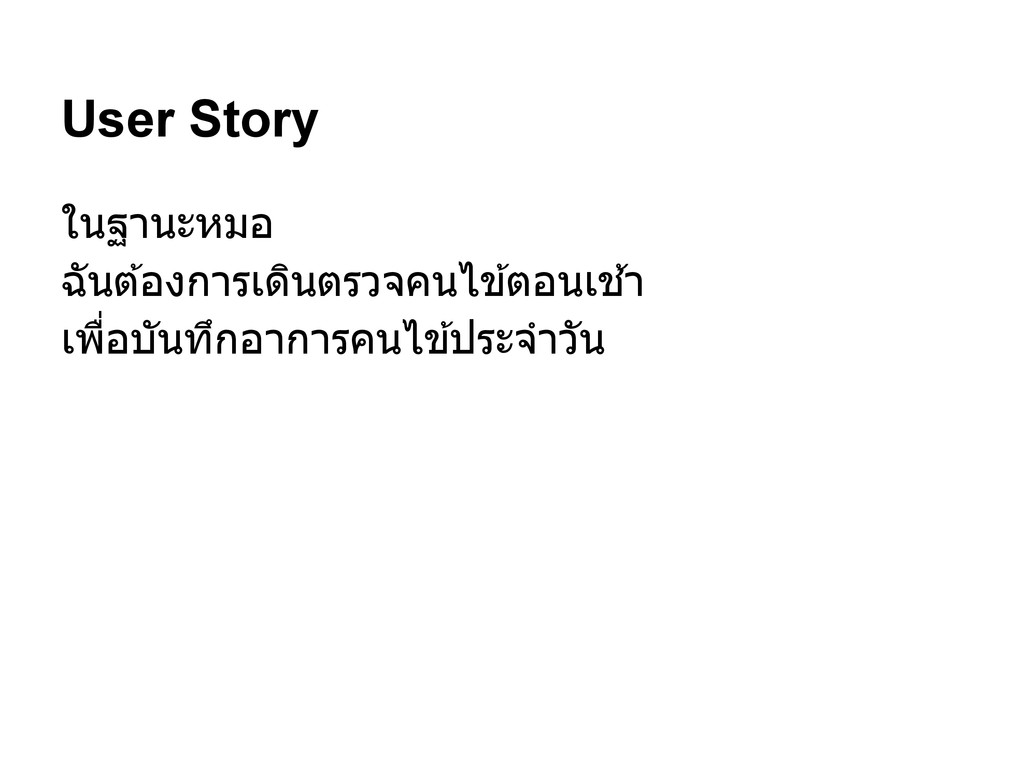

  2. User Story ในฐานะหมอ ฉันต ้องการเดินตรวจคนไข ้ตอนเช ้า เพือบันทึกอาการคนไข ้ประจําวัน

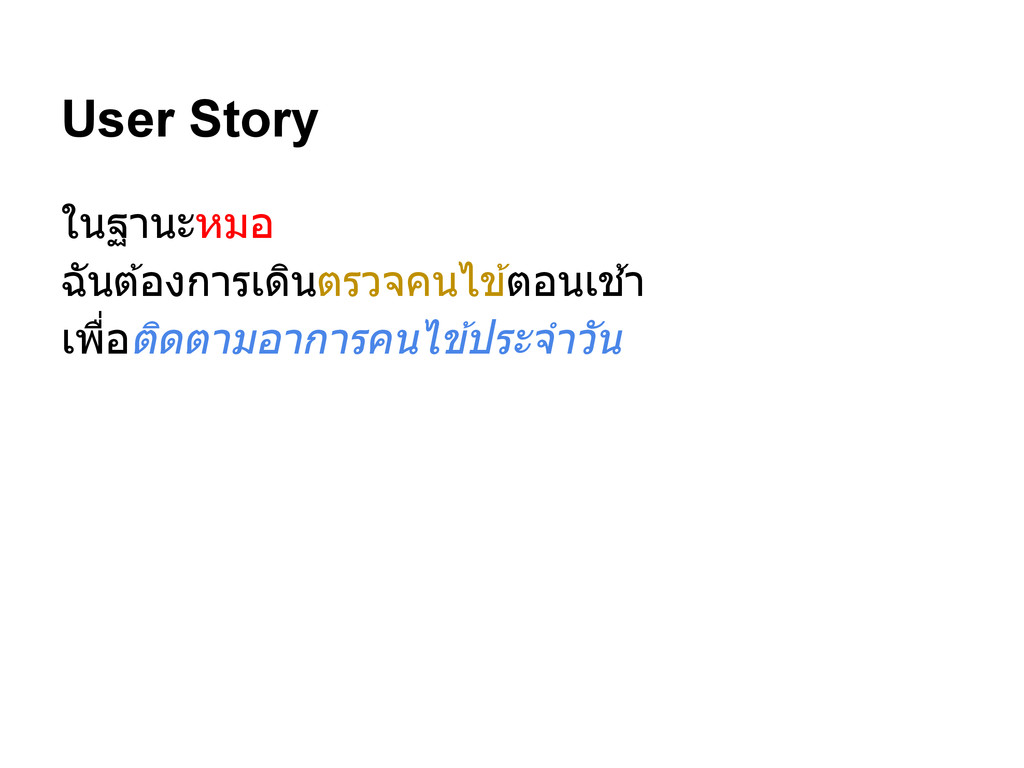

  3. User Story ในฐานะหมอ ฉันต ้องการเดินตรวจคนไข ้ตอนเช ้า เพือติดตามอาการคนไข ้ประจําวัน

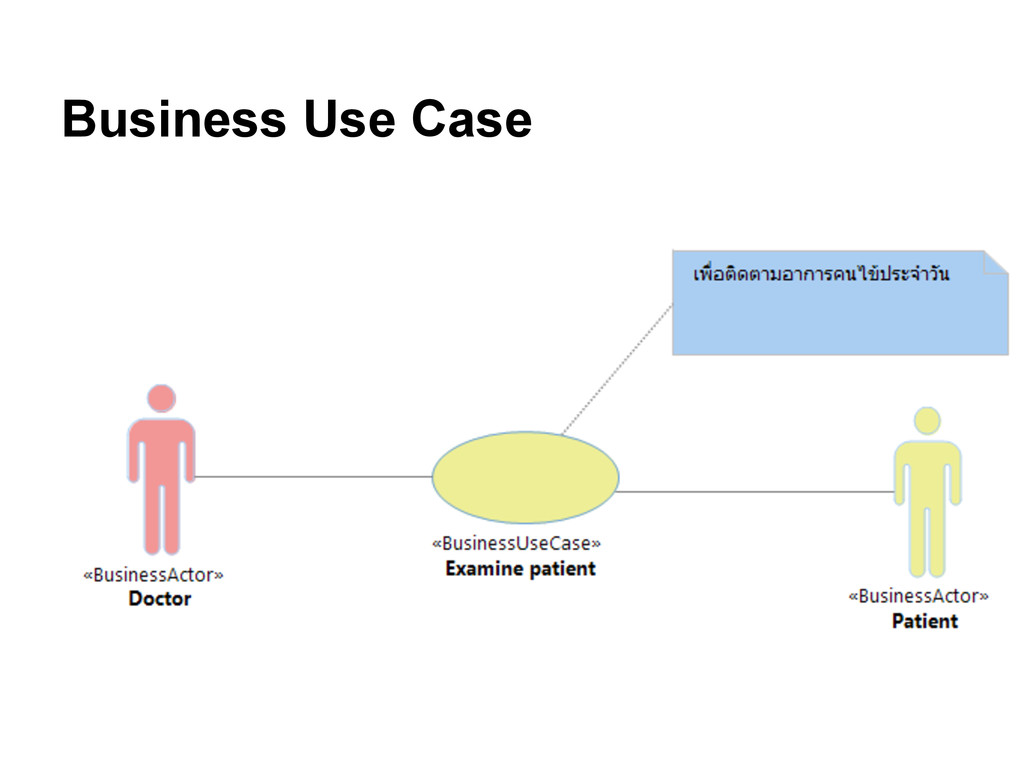

  4. Business Use Case

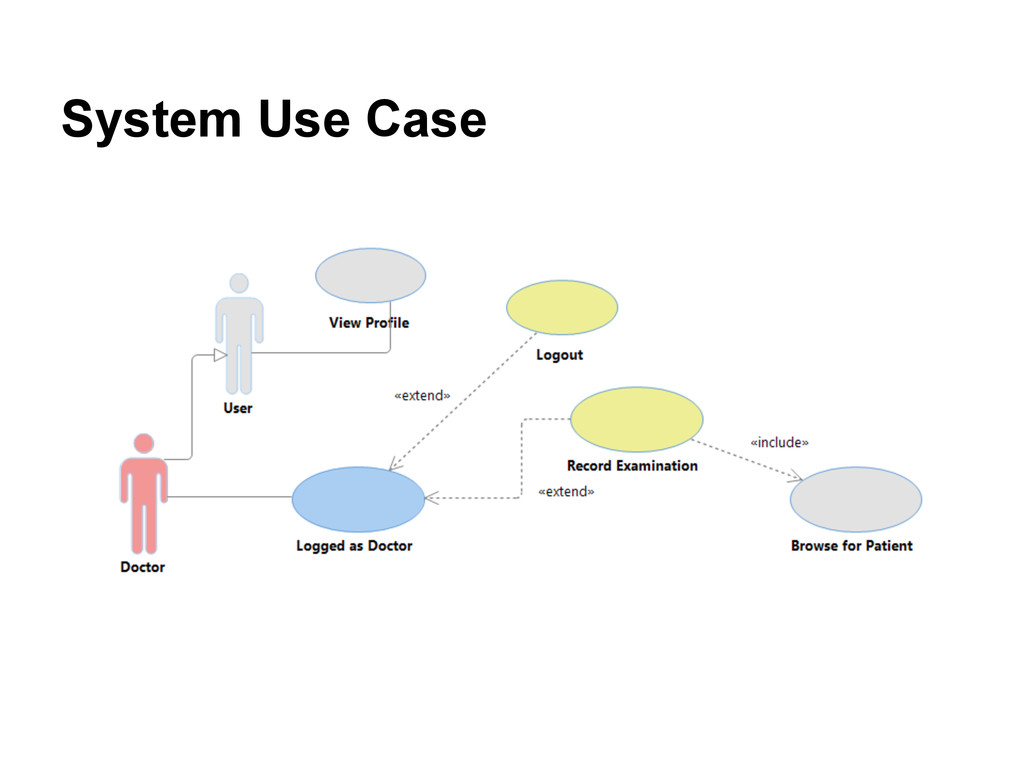

  5. System Use Case

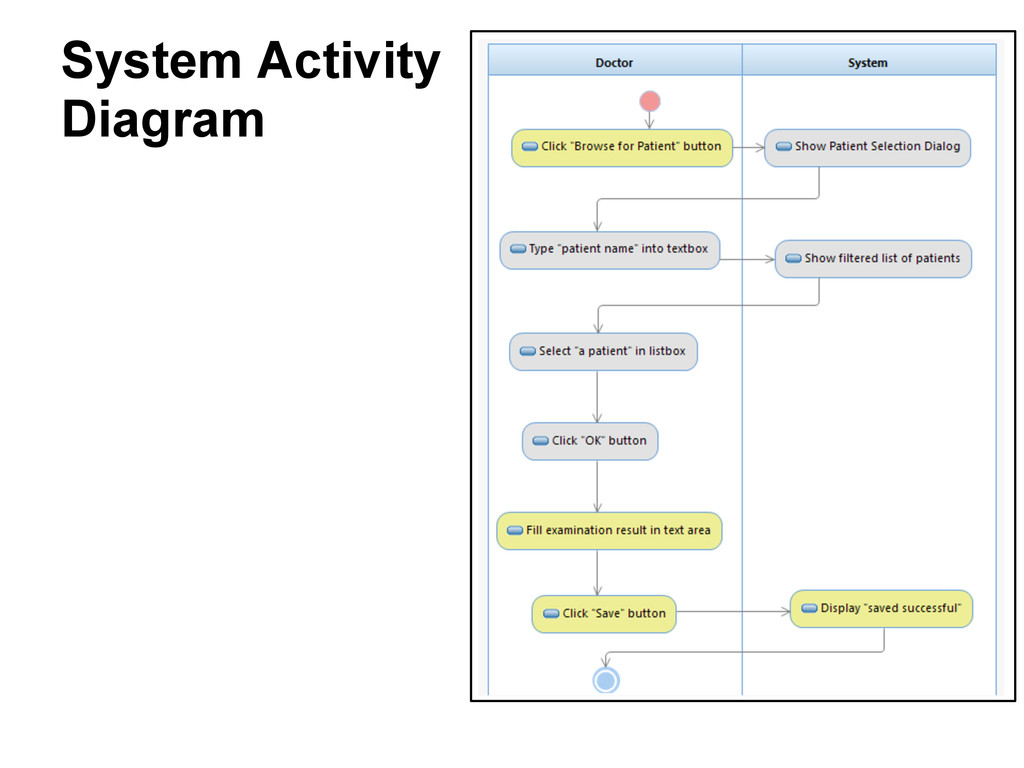

  6. System Activity Diagram

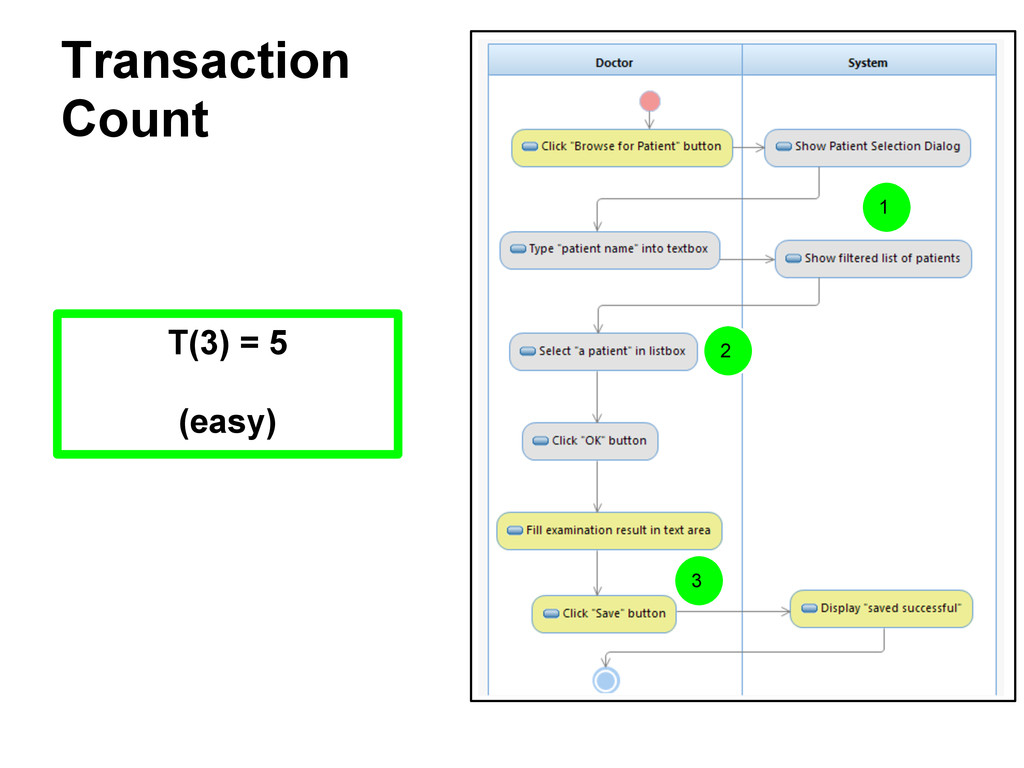

  7. Transaction Count 1 2 3 T(3) = 5 (easy)

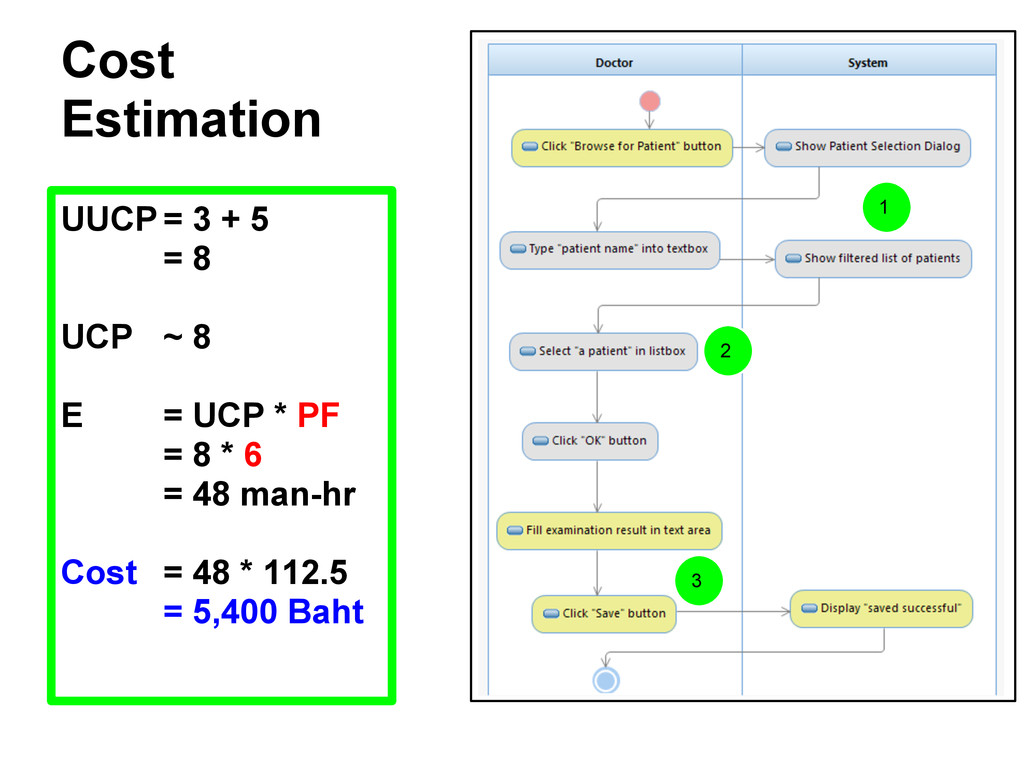

  8. Cost Estimation 1 2 3 UUCP = 3 + 5

    = 8 UCP ~ 8 E = UCP * PF = 8 * 6 = 48 man-hr Cost = 48 * 112.5 = 5,400 Baht

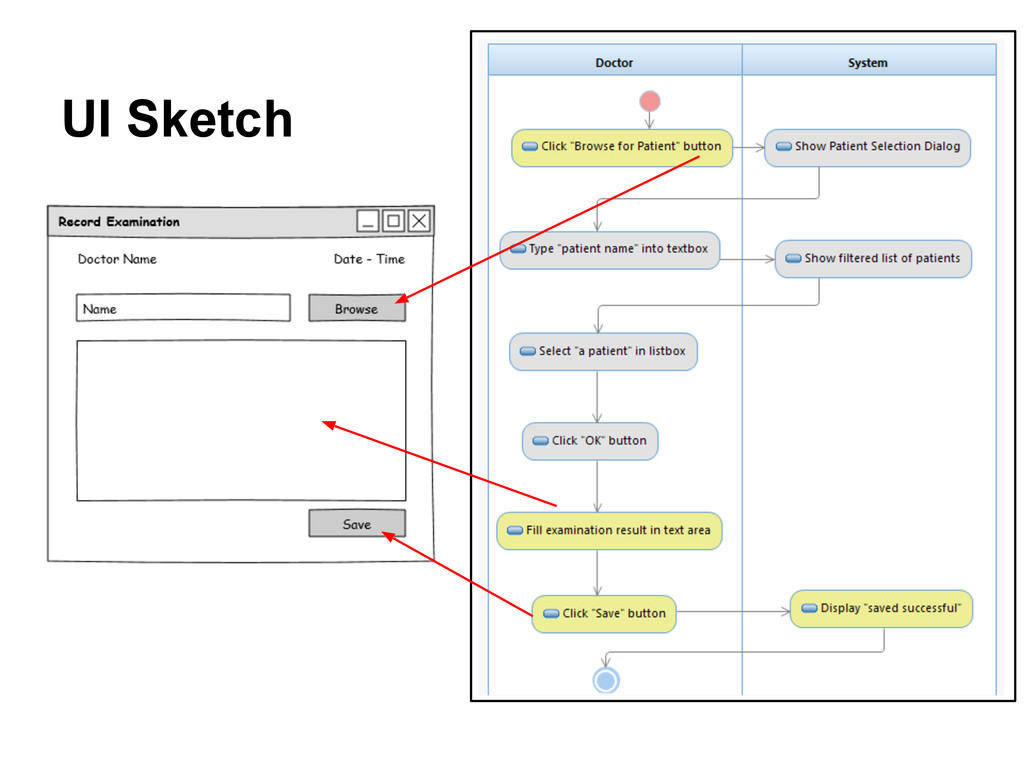

  9. UI Sketch

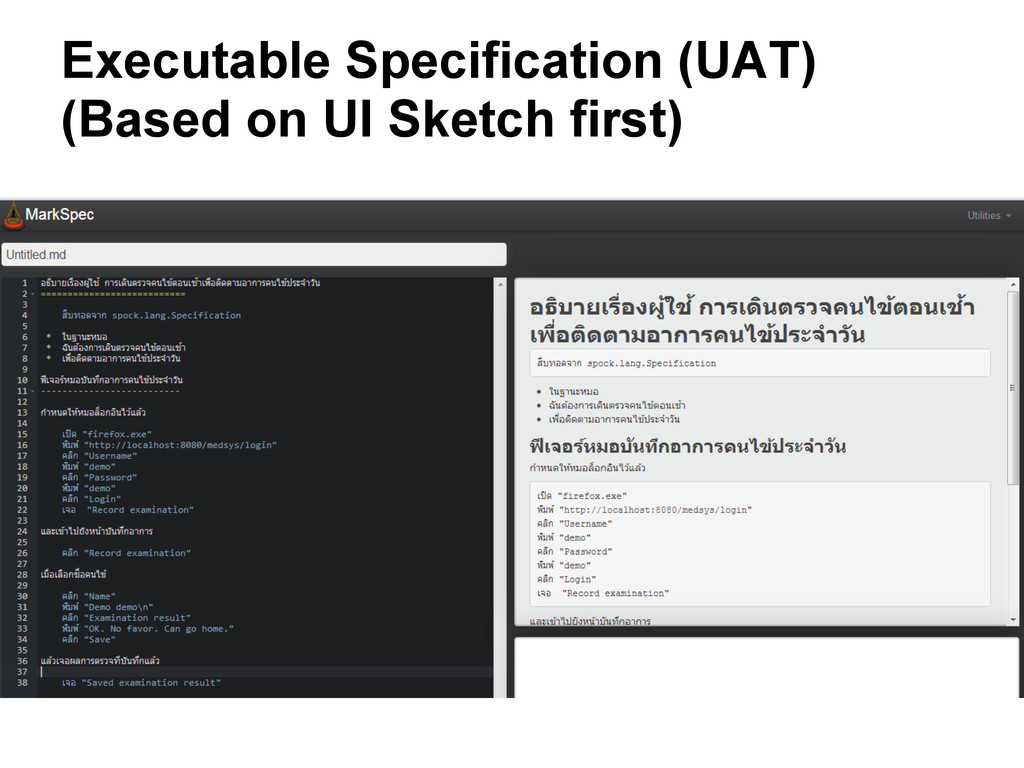

  10. Executable Specification (UAT) (Based on UI Sketch first)

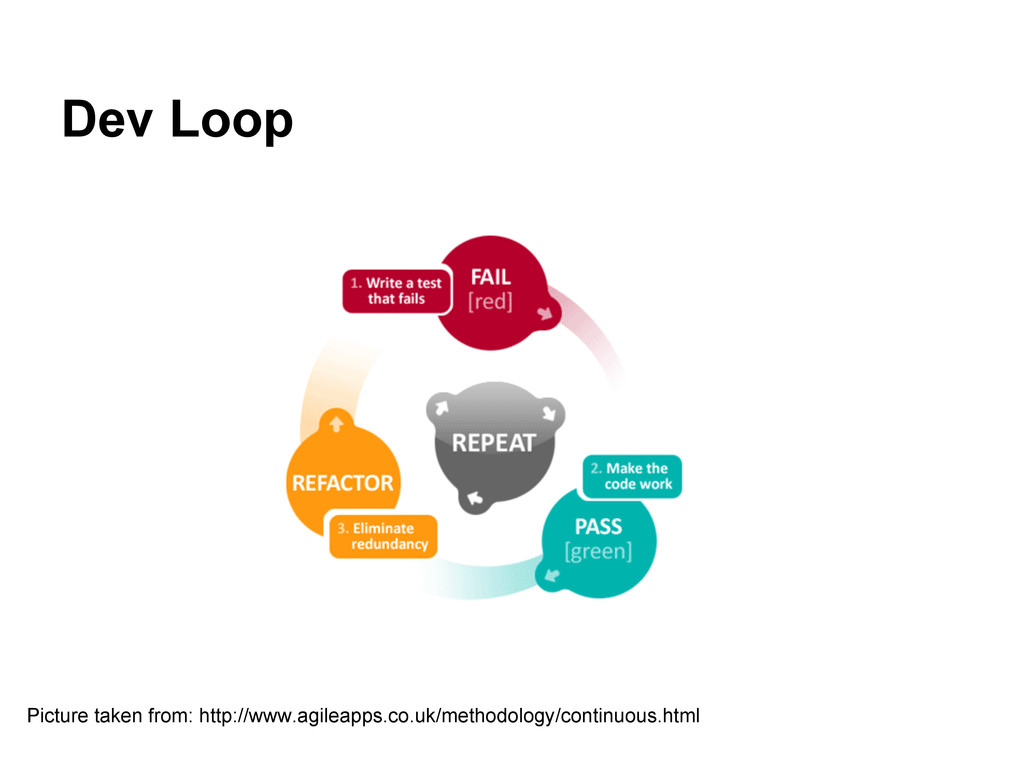

  11. Dev Loop Picture taken from: http://www.agileapps.co.uk/methodology/continuous.html

  12. Demo to Customer Picture taken from: http://www.northgate-salesnet.com/customer_account_management

  13. Question please?
