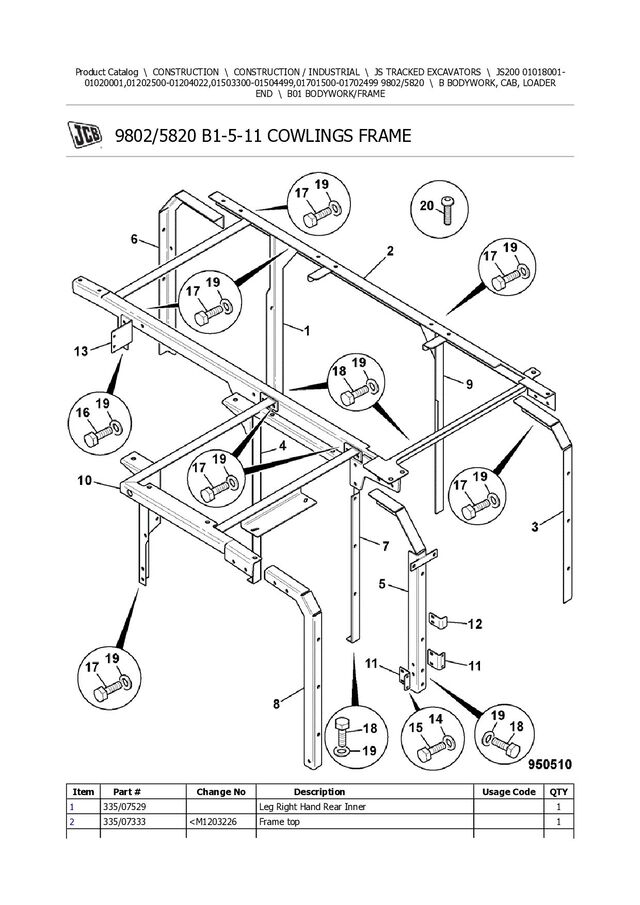

1. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 01018001- 01020001,01202500-01204022,01503300-01504499,01701500-01702499 9802/5820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/5820 B1-5-11 COWLINGS FRAME Item Part # Change No Description Usage Code QTY 1 335/07529 Leg Right Hand Rear Inner 1 2 335/07333 <M1203226 Frame top 1
2. 2 335/11021 Frame Wa Top Frame 1 3 335/07334 <M1203226 Leg left hand rear 1 3 335/11022 Leg Left Hand Rear 1 4 335/07335 Leg Right Hand Mid Centre 1 5 335/07336 Leg Left Hand Mid 1 6 335/07337 <M1203226 Leg right hand rear 1 6 335/11024 Bracket Right Hand Door Support 1 7 335/07421 <M1203227 Leg righthand mid inner 1 7 335/11025 Leg Left Hand Inner 1 8 335/07510 Leg left hand front 1 9 331/42872 Leg Left Hand Rear 1 10 335/08094 <M2103226 Frame rear JS200, 220 1 10 335/11325 Frame cab rear JS200, 220 1 10 335/08837 <M1203226 Frame cab rear JS220XD 1 10 335/11377 Frame cab rear See Note 1 1 11 331/34257 Bracket Door Latch 2 12 331/34260 Bracket Door Retainer 1 13 335/08267 Bracket Hydraulic Tank 1 14 1420/0007D Washer (M8) 6 15 1316/0307D Screw 6 16 1316/0505D Bolt M12 x 20mm 3 17 1316/0507D Setscrew M12 x 25 grade 10.9 20 18 1316/0508D Screw M12 X 30 14 19 1420/0009D Washer (M12) 37 20 826/11192 >M1203227 Screw Button Head 2 Note 1: JS220XD
3. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 01018001- 01020001,01202500-01204022,01503300-01504499,01701500-01702499 9802/5820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/5820 B1-5-20 COWLINGS, DOORS Item Part # Change No Description Usage Code QTY 1 215/11300 Superseded Door left hand rad bay This part is MSS use items marked A. 1
4. 1 M.S.S. <M1018458 Multi Supersession 1 1 :215/11604 <M1203226 Door left hand rad bay A 1 1 335/11293 Door left hand rear 1 1 :331/40677 Foam Upper Baffle Front A 1 1 :331/40679 Foam Lower Baffle Left Hand A 1 1 :331/35138 Foam door closure A 1 1 :331/35139 Foam door closure A 1 1 :826/01308 Button Fastener A 11 1 215/11604 >M1018458 Door left hand rad bay 1 1-1 :KRN1497 Hinge 2 2 215/11299 <M1203226 Door right hand pump bay 1 2 335/11292 Door right hand rear 1 2-1 **** None serviced part 1 3 826/11027 Latch Paddle 1 4 331/40677 Foam Upper Baffle Front 1 4-1 331/40679 Foam Lower Baffle Left Hand 1 4-2 331/34855 Panel Door Soundproofing 1 4-3 331/34864 Panel soundproofing cab rear door 1 4-4 331/35138 Foam door closure 1 4-5 331/35139 Foam door closure 1 4-6 331/34854 Panel Door Soundproofing 1 4-7 331/37686 Panel soundproofing back of cab 1 4-8 926/47800 Cushion foam seal 1 5 331/32706 Door left hand cab rear JS200, JS210, JS220 Auto JS235 Auto 1 5 335/06995 Door left hand front JS220 JS220XD Auto 1 5-1 :KRN1497 Hinge 2 6 331/34257 Bracket Door Latch 2 7 331/34260 Bracket Door Retainer 2 8 331/34370 Bracket Door Latch 3 9 331/34382 Bracket door buffer 1 10 331/35049 Bracket stop 2 11 KHN1395 Stop Rubber 3 12 KRN0363 Bracket 3 13 KRN0364 Stop 3 14 1420/0009Z Washer (M12) 9 15 1316/0508Z Screw M12 x 30mm 9 16 1420/0008Z Washer (M10) 4 17 1420/0007Z Washer (M8) 10 18 1420/0006Z Washer (M6) 12 19 1420/0005Z Washer (M5) 8 20 1370/0301Z Nut Plain, M10 3 21 1370/0001Z Nut (M5) 8 22 1316/0405Z Screw M10 X 20 4 23 1316/0305Z Bolt High Tensile 10 24 1316/0203Z Screw 12 25 826/01308 Button Fastener 34
5. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 01018001- 01020001,01202500-01204022,01503300-01504499,01701500-01702499 9802/5820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/5820 B1-5-30 COWLINGS, TOOLBOX & HANDRAIL Item Part # Change No Description Usage Code QTY 1 335/05462 <M1019560 Box tool side 1 1 335/08133 Box tool side 1
6. https://www.aservicemanualpdf.com/ My Dear Friend! Thank you very much for visiting. Full manual if required, please enter the following URL into your browser. https://www.aservicemanualpdf.com/
7. 2 335/05440 <M Cover tank 1 2 335/12504 Cover tank 1 3 335/05420 <M1019560 Box tool base 1 3 335/07155 Box tool base 1 4 904/20273 Seal strip, toolbox 1 5 331/35176 Washer square 2 6 1420/0009Z Washer (M12) 8 7 1420/0007Z Washer (M8) 2 8 1316/0508Z Screw M12 x 30mm 8 9 1316/0505Z Screw M12x20 2 10 1316/0303Z Setscrew M8 x 16mm 2 11 335/05862 <M Bracket handrail 1 11 335/12446 Bracket handrail 1 12 1315/0407Z Setscrew M10 x 25 mm 4 13 KHN1395 Stop Rubber 2 14 KRJ1588 Pin 2 15 KRN1418 Stay 1 16 KSN0939 Cushion rubber 1 17 331/34946 Hinge packer 2 18 335/05437 Cover toolbox 1 19 335/05439 Step 1 20 826/11027 Latch Paddle 1 21 1371/0001Z Nut 4 22 1420/0005D Washer (M5) 4 23 1316/0405D Screw M10 x 20 4 24 1420/0008D Washer (M10) 4 25 826/01327 Bolt domed M16 1 26 JHP0043 Washer M16 1 27 1316/0508Z Screw M12 x 30mm 2 28 1316/0510Z Screw 2 29 JHP0042 Washer M12 4 30 1316/0305Z Bolt High Tensile 1 31 1316/3315Z Bolt 1 32 **** 'See Remark' See C1-4-1 4 33 1371/0301Z Nut High Strength, M10 2
8. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 01018001- 01020001,01202500-01204022,01503300-01504499,01701500-01702499 9802/5820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/5820 B1-5-40 COWLINGS ENGINE BULKHEAD SOUNDPROOFING Item Part # Change No Description Usage Code QTY 1 331/33092 Panel soundproofing bulkhead 1
9. 2 331/35220 Panel soundproofing 1 3 331/33090 Panel soundfroofing bulkhead 1 4 331/33089 <M1018457 Panel soundproofing bulkhead 1 4 331/37012 Panel soundproofing bulkhead 1 5 331/35729 Foam anti recirculation 1 6 331/37009 Panel soundproofing bulkhead 1 7 331/38362 Foam anti recirculation 1 8 331/35730 Foam anti recirculation 1 10 331/36791 <M1019185 Foam radiator left hand 1 10 331/45366 Foam radiator left hand 1 11 331/36793 <M1019185 Foam radiator L/H top 1 11 331/45367 Foam radiator LH top 1 12 331/38405 Foam radiator top 1 13 331/38391 <M1019185 Foam radiator R/H top 1 13 331/45369 Foam radiator RH top 1 14 331/36776 <M1019185 Foam radiator R/H 1 14 331/45370 Foam radiator R/H 1 15 331/38404 <M1019185 Foam radiator R/H bottom 1 15 331/45371 Foam radiator RH bottom 1 16 331/38390 <M1019185 Foam radiator R/H bottom 1 16 331/45372 Foam radiator R/H bottom 1
10. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 01018001- 01020001,01202500-01204022,01503300-01504499,01701500-01702499 9802/5820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/5820 B1-5-41 COWLINGS ENGINE BULKHEAD SOUNDPROOFING Item Part # Change No Description Usage Code QTY 1 331/43280 Foam baffle 1
11. 2 331/44198 <M1203226 Foam bulkhead upper 1 2 331/57619 Foam bulkhead upper 1 3 331/44199 <M1203226 Foam bulkhead lower 1 3 331/57820 Foam bulkhead lower 1 4 331/44201 Foam bulkhead infill 1 5 331/47953 Foam centre outer baffle 1 6 331/50322 Foam hyd tank infill 1 7 331/50376 Foam forward box infill 1 8 331/50368 Foam hyd tank infill 1
12. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 01018001- 01020001,01202500-01204022,01503300-01504499,01701500-01702499 9802/5820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/5820 B1-5-50 COWLINGS ENGINE BULKHEAD Item Part # Change No Description Usage Code QTY 1 331/35652 <M1018457 Cover bulkhead anti recirculation 1 1 331/36970 <M1019185 Cover bulkhead anti recirculation 1
13. 1 335/08099 <M Cover bulkhead anti recirculation 1 1 335/09654 Cover bulkhead anti-recirculation 1 2 331/36933 >M1018458 Plate bulkhead 1 3 331/30421 <M1018457 Plate bulkhead left hand 1 3 331/36868 Plate bulkhead 1 4 331/30419 <M1019185 Plate bulkhead middle 1 4 331/39085 Plate centre bulkhead 1 5 331/33223 <M1019185 Plate bulkhead cab rear 1 5 331/39086 Plate middle bulkhead 1 6 331/30420 <M1019185 Plate bulkhead right hand 1 6 331/39084 Plate right hand bulkhead 1 7 331/35184 Plate valve access 1 8 331/34447 <M Cover hose firewall 1 8 331/55735 Cover hose firewall 1 9 331/33642 Plate lower firewall 1 10 331/33643 Plate upper firewall 1 11 1316/0505D Bolt M12 x 20mm 15 12 1316/0507D Setscrew M12 x 25 grade 10.9 27 13 1411/0005D Washer 42
14. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 01018001- 01020001,01202500-01204022,01503300-01504499,01701500-01702499 9802/5820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/5820 B1-5-51 COWLINGS ENGINE BULKHEAD Item Part # Change No Description Usage Code QTY 1 335/07691 <M1203226 Bracket firewall support 1 2 331/55795 Pressing 1
15. 3 331/46291 Bracket hydraulic tank 1 4 331/43645 Superseded Baffle lower 1 4 335/11160 <M1203226 Baffle lower 1 4 335/11295 Baffle lower 1 6 335/07437 Guide baffle 1 7 335/07450 <M1203226 Baffle right hand 1 7 335/11296 Baffle right hand 1 8 335/07588 <M1203226 Baffle middle 1 8 335/11297 Baffle middle 1 9 335/07563 <M1203227 Baffle induction 1 9 335/11298 Baffle induction 1 10 335/07576 <M1203226 Bracket inner baffle support 1 10 335/11299 Bracket inner baffle support 1 11 335/07577 <M1203226 Baffle left hand outer Standard build 1 11 335/11300 Baffle left hand outer 1 14 1316/0303D Screw M8 x 16mm 5 15 1316/0305D Screw M8 X 20 3 17 1316/0507D Setscrew M12 x 25 grade 10.9 22 18 1420/0007D Washer (M8) 8 19 1420/0009D Washer (M12) 31 20 1316/0505D Bolt M12 x 20mm 9
16. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 01018001- 01020001,01202500-01204022,01503300-01504499,01701500-01702499 9802/5820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/5820 B1-5-60 COWLINGS TOP COVERS Item Part # Change No Description Usage Code QTY 1 335/04911 <M1018457 Grille 1 1 335/06176 <M Grille 1
17. 1 335/08041 Grille 1 2 331/35440 Screw button head 5 2 1316/0401D Screw set screw M10x12 grade 10.9 Replaces 331/35440 5 3 335/04942 Plate tread cab 1 4 335/04946 Plate tread fuel tank 1 5 335/04945 Plate tread hyd tank 1 6 335/04936 <04/12/05 Grille top cab rear 1 6 335/08767 Grille left hand front 1 7 335/04914 <M Grille top right hand rear 1 7 335/08790 Grille right hand rear 1 8 1316/0507Z Screw 13 9 335/04951 Plate tread 1 10 1420/0008Z Washer (M10) 7 11 1316/0407Z Bolt High Strength 2 12 1411/0005Z <M Washer (1/2" Medium) 13 12 1420/0009D Washer (M12) 13
18. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 01018001- 01020001,01202500-01204022,01503300-01504499,01701500-01702499 9802/5820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/5820 B1-5-61 COWLINGS TOP COVERS C/W PRECLEANER Item Part # Change No Description Usage Code QTY 1 335/04911 <M1018457 Grille 1
19. 1 335/06176 <M Grille 1 1 335/08041 Grille 1 2 331/35440 Screw button head 7 3 335/05838 <M Plate tread cab 1 3 335/08823 Plate tread cab 1 4 335/11029 <M Plate tread fuel, hyd tank 1 5 335/04945 <9/06/2006 Plate tread hyd tank 1 5 335/11029 Plate tread fuel, hyd tank 1 6 335/05839 <M Grille top cab rear FOPS frame 1 6 335/08812 Grille top right hand rear 1 7 335/04914 <M Grille top right hand rear 1 7 335/08790 Grille right hand rear 1 8 1316/0507Z Screw 16 9 335/04951 Plate tread 1 10 1420/0008Z Washer (M10) 9 11 1316/0407Z Bolt High Strength 9 12 1411/0005Z <M Washer (1/2" Medium) 13 12 1420/0009D Washer (M12) 13
20. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 01018001- 01020001,01202500-01204022,01503300-01504499,01701500-01702499 9802/5820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/5820 B1-6-1 COUNTERWEIGHT REAR STANDARD & HEAVY DUTY Item Part # Change No Description Usage Code QTY Counterweight 3700Kg
21. 1 331/35416 JS200 1 1 331/30761 Counterweight rear standard 4350kg JS200NC, JS210 1 1 331/30762 Counterweight rear Heavy duty 5000kg JS220 1 1 335/06348 Counterweight JS220XD JS220XD 1 6 KRB0736 Shim t=0.8 2 6 KRB0737 Shim t=1.2 2 6 KRB0738 Shim t=2.3 2 6 KRB0739 Shim t=4.5 2 10 KBB0445 Bolt 4 11 KHB0063 Washer high strength M30 4 12 142/00680 Fastener fir tree 2 13 826/01405 Fastener Button,Fir Tree 7mm Hole 2
22. Please write to us. Our email: aservicemanualpdf@yahoo.com Please go to the homepage to get the full manual, or other brand PDF manuals. Home Site: aservicemanualpdf.com
23. Thank you very much for your reading. Please Click Here. Then Get COMPLETE MANUAL. NO WAITING NOTE: If there is no response to click on the link above, please download the PDF document first and then click on it.
24. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 01018001- 01020001,01202500-01204022,01503300-01504499,01701500-01702499 9802/5820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/5820 B1-6-10 COUNTERWEIGHT SOUNDPROOFING Item Part # Change No Description Usage Code QTY 1 331/33077 Panel soundproofing counterweight 1 2 331/33079 Panel soundproofing counterweight 1
25. 3 331/33082 Panel soundproofing counterweight 1 4 826/01308 Button Fastener 22
26. Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ JS TRACKED EXCAVATORS \ JS200 01018001- 01020001,01202500-01204022,01503300-01504499,01701500-01702499 9802/5820 \ B BODYWORK, CAB, LOADER END \ B01 BODYWORK/FRAME 9802/5820 B1-6-40 REAR MIRROR COUNTERWEIGHT Item Part # Change No Description Usage Code QTY 1 JHB0002 Mounting mirror 1 2 158/30491 Mirror 1
