1. PRODUCT CATALOGUE ACCESSIBILITY PRODUCTS ARCHITECTURAL PRODUCTS STREET FURNITURE ENGINEERING COMPONENTS Engineering That Exists For Excellence

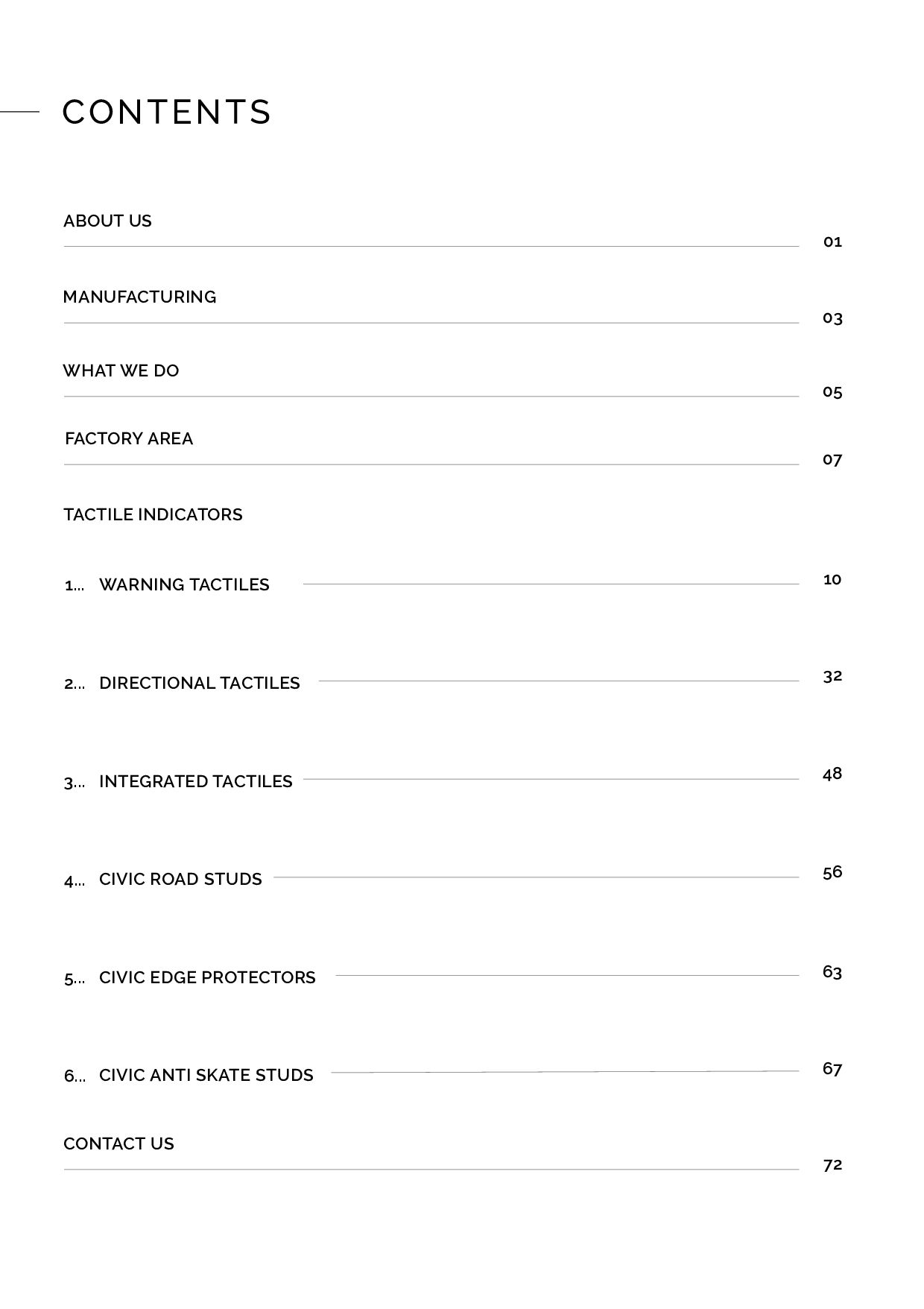

2. CONTENTS ABOUT US TACTILE INDICATORS WARNING TACTILES DIRECTIONAL TACTILES INTEGRATED TACTILES CIVIC ROAD STUDS CIVIC EDGE PROTECTORS CIVIC ANTI SKATE STUDS 1... 2... 3... 4... 5... 6... 01 CONTACT US 72 MANUFACTURING 03 WHAT WE DO 05 FACTORY AREA 07 10 32 48 56 63 67

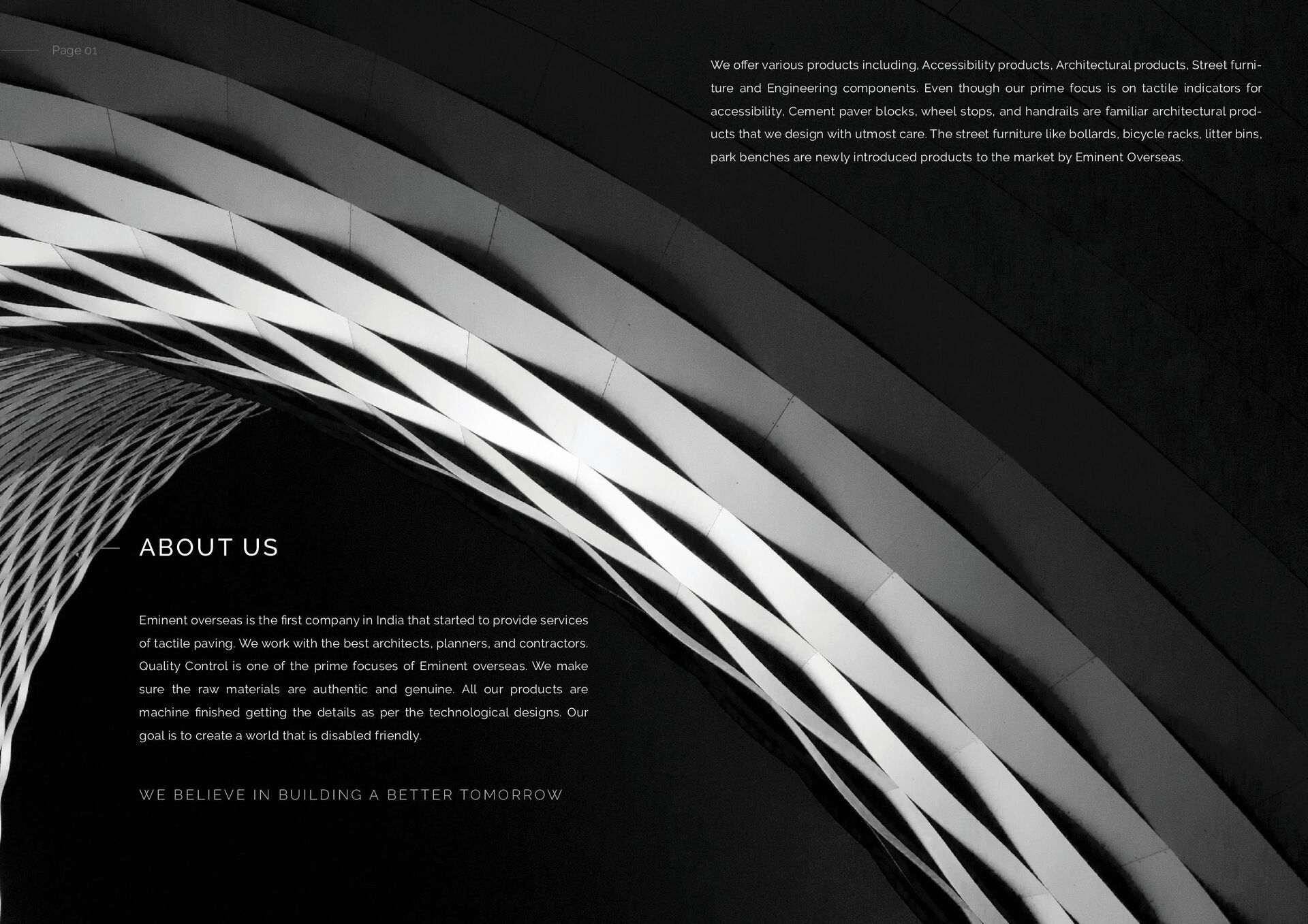

3. ABOUT US Eminent overseas is the first company in India that started to provide services of tactile paving. We work with the best architects, planners, and contractors. Quality Control is one of the prime focuses of Eminent overseas. We make sure the raw materials are authentic and genuine. All our products are machine finished getting the details as per the technological designs. Our goal is to create a world that is disabled friendly. We offer various products including, Accessibility products, Architectural products, Street furni- ture and Engineering components. Even though our prime focus is on tactile indicators for accessibility, Cement paver blocks, wheel stops, and handrails are familiar architectural prod- ucts that we design with utmost care. The street furniture like bollards, bicycle racks, litter bins, park benches are newly introduced products to the market by Eminent Overseas. W E B E L I E V E I N B U I L D I N G A B E T T E R TO M O R R OW Page 01

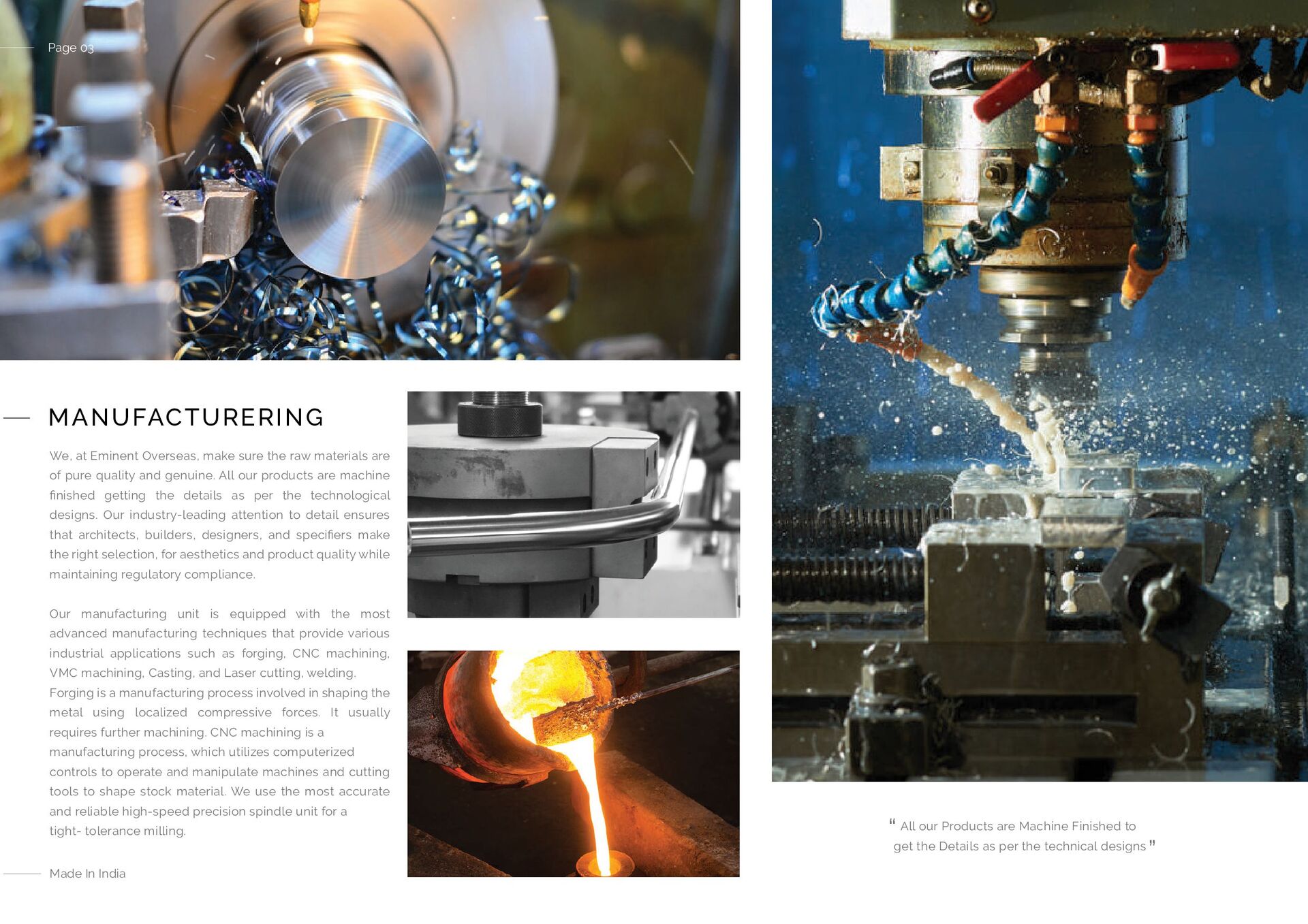

4. MANUFACTURERING Made In India We, at Eminent Overseas, make sure the raw materials are of pure quality and genuine. All our products are machine finished getting the details as per the technological designs. Our industry-leading attention to detail ensures that architects, builders, designers, and specifiers make the right selection, for aesthetics and product quality while maintaining regulatory compliance. Our manufacturing unit is equipped with the most advanced manufacturing techniques that provide various industrial applications such as forging, CNC machining, VMC machining, Casting, and Laser cutting, welding. Forging is a manufacturing process involved in shaping the metal using localized compressive forces. It usually requires further machining. CNC machining is a manufacturing process, which utilizes computerized controls to operate and manipulate machines and cutting tools to shape stock material. We use the most accurate and reliable high-speed precision spindle unit for a tight- tolerance milling. All our Products are Machine Finished to get the Details as per the technical designs “ ” Page 03

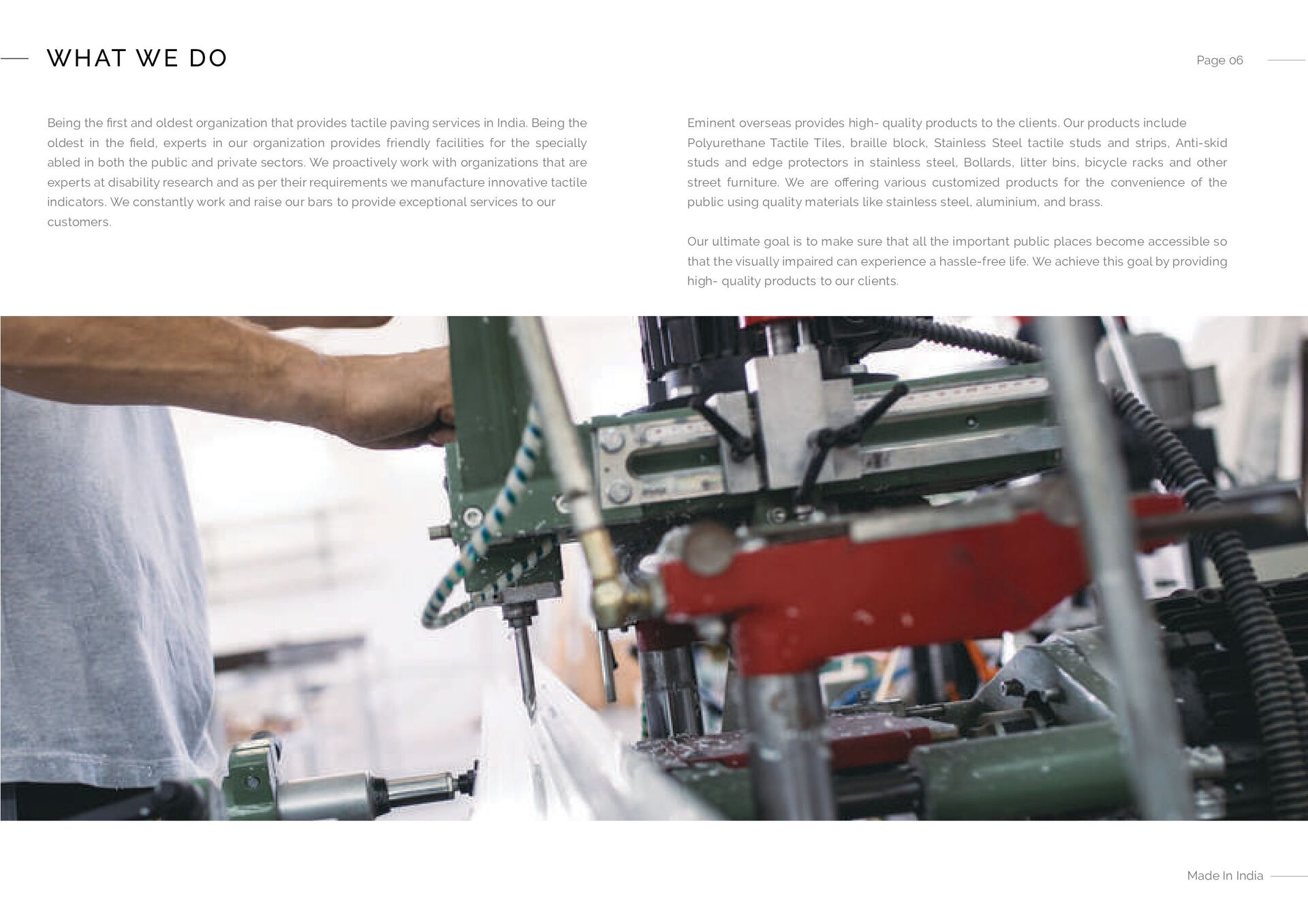

5. Made In India Being the first and oldest organization that provides tactile paving services in India. Being the oldest in the field, experts in our organization provides friendly facilities for the specially abled in both the public and private sectors. We proactively work with organizations that are experts at disability research and as per their requirements we manufacture innovative tactile indicators. We constantly work and raise our bars to provide exceptional services to our customers. Eminent overseas provides high- quality products to the clients. Our products include Polyurethane Tactile Tiles, braille block, Stainless Steel tactile studs and strips, Anti-skid studs and edge protectors in stainless steel, Bollards, litter bins, bicycle racks and other street furniture. We are offering various customized products for the convenience of the public using quality materials like stainless steel, aluminium, and brass. Our ultimate goal is to make sure that all the important public places become accessible so that the visually impaired can experience a hassle-free life. We achieve this goal by providing high- quality products to our clients. WHAT WE DO Page 06

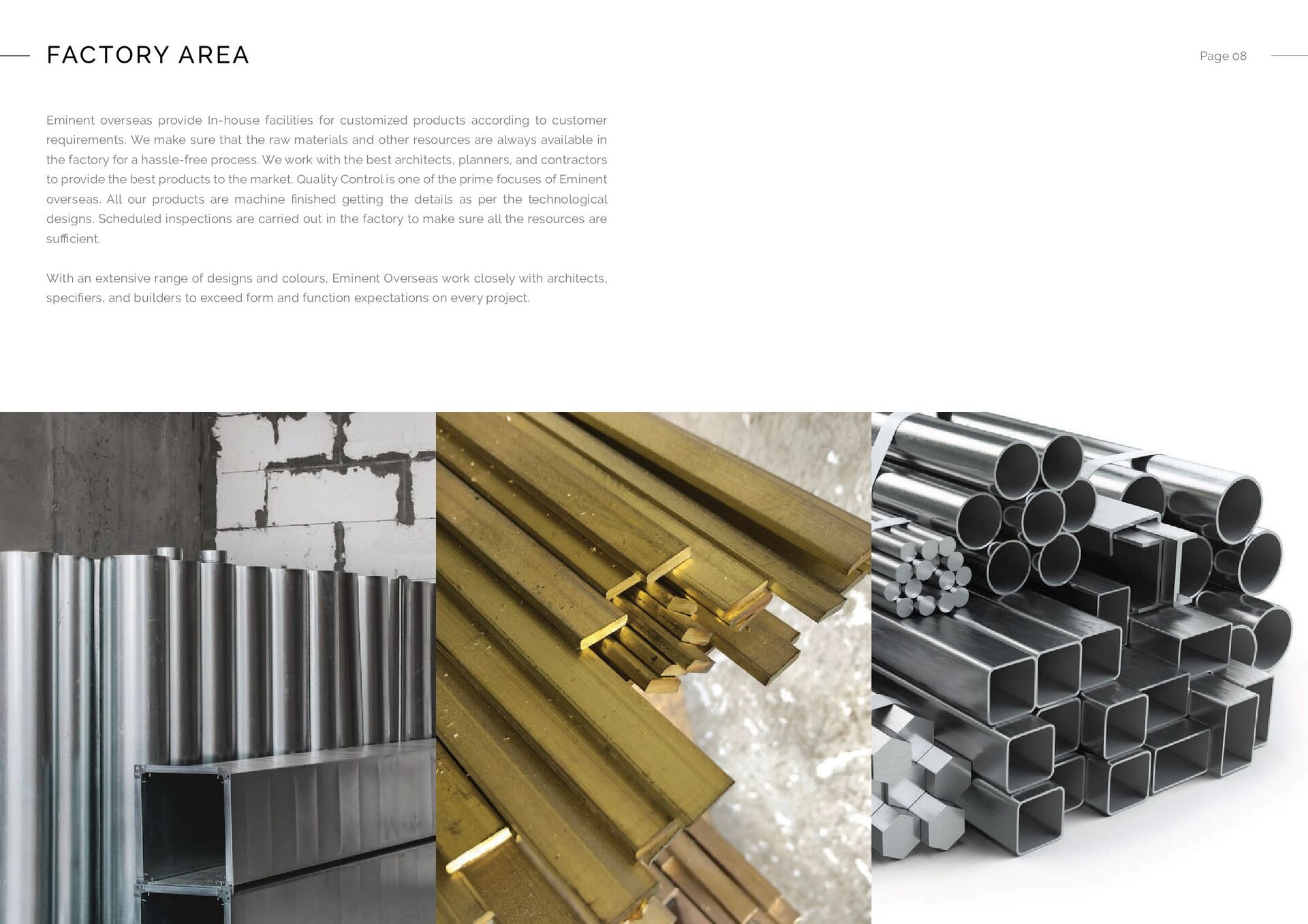

6. Made In India Eminent overseas provide In-house facilities for customized products according to customer requirements. We make sure that the raw materials and other resources are always available in the factory for a hassle-free process. We work with the best architects, planners, and contractors to provide the best products to the market. Quality Control is one of the prime focuses of Eminent overseas. All our products are machine finished getting the details as per the technological designs. Scheduled inspections are carried out in the factory to make sure all the resources are sufficient. With an extensive range of designs and colours, Eminent Overseas work closely with architects, specifiers, and builders to exceed form and function expectations on every project. FACTORY AREA Page 08

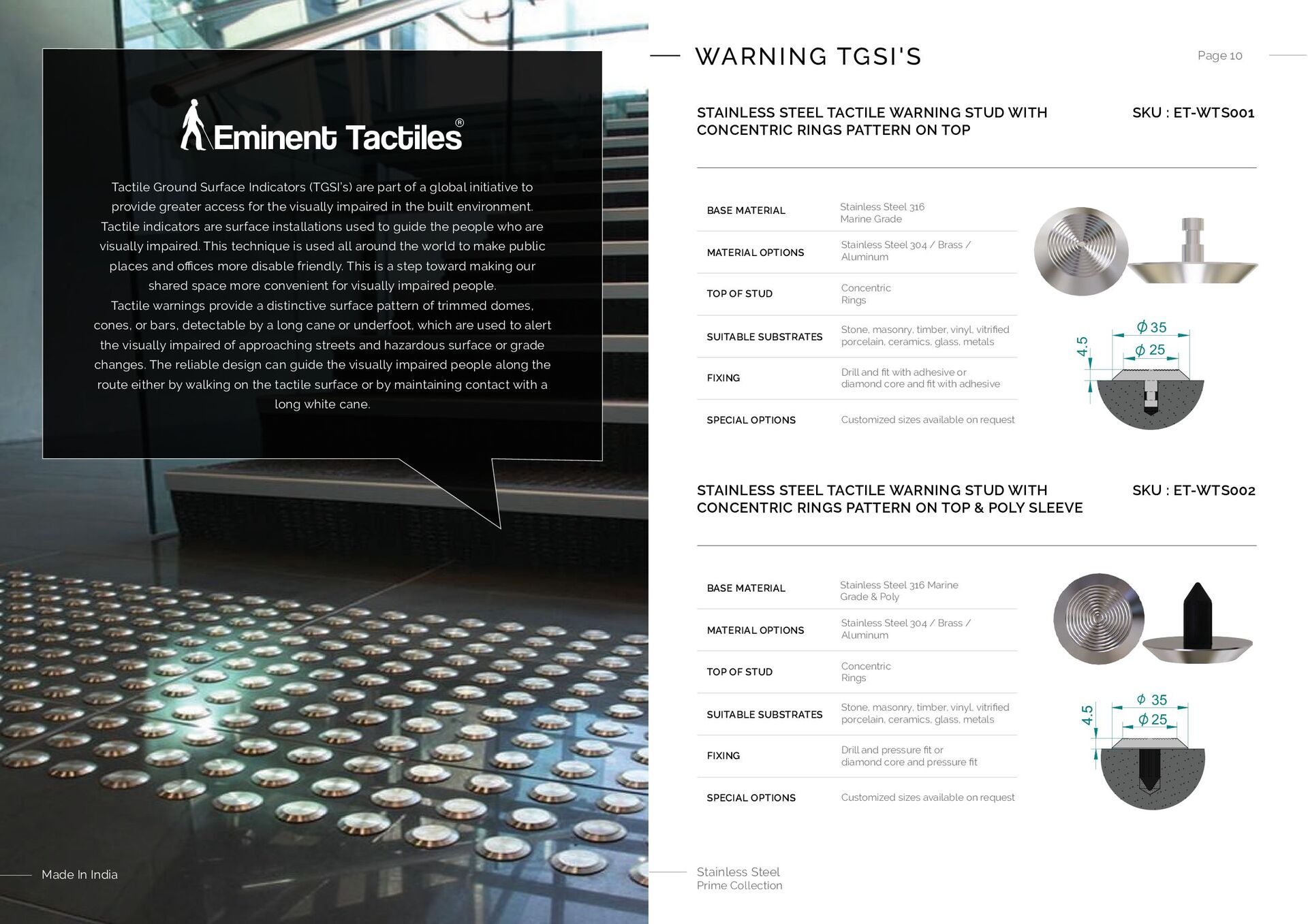

7. Made In India Stainless Steel Prime Collection WARNING TGSI'S SKU : ET-WTS001 STAINLESS STEEL TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP FIXING TOP OF STUD Concentric Rings BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS002 STAINLESS STEEL TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP & POLY SLEEVE FIXING TOP OF STUD Concentric Rings BASE MATERIAL Drill and pressure fit or diamond core and pressure fit MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade & Poly Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 10 Tactile Ground Surface Indicators (TGSI’s) are part of a global initiative to provide greater access for the visually impaired in the built environment. Tactile indicators are surface installations used to guide the people who are visually impaired. This technique is used all around the world to make public places and offices more disable friendly. This is a step toward making our shared space more convenient for visually impaired people. Tactile warnings provide a distinctive surface pattern of trimmed domes, cones, or bars, detectable by a long cane or underfoot, which are used to alert the visually impaired of approaching streets and hazardous surface or grade changes. The reliable design can guide the visually impaired people along the route either by walking on the tactile surface or by maintaining contact with a long white cane. 25 35 4.5 Eminent Tactiles ® 25 35

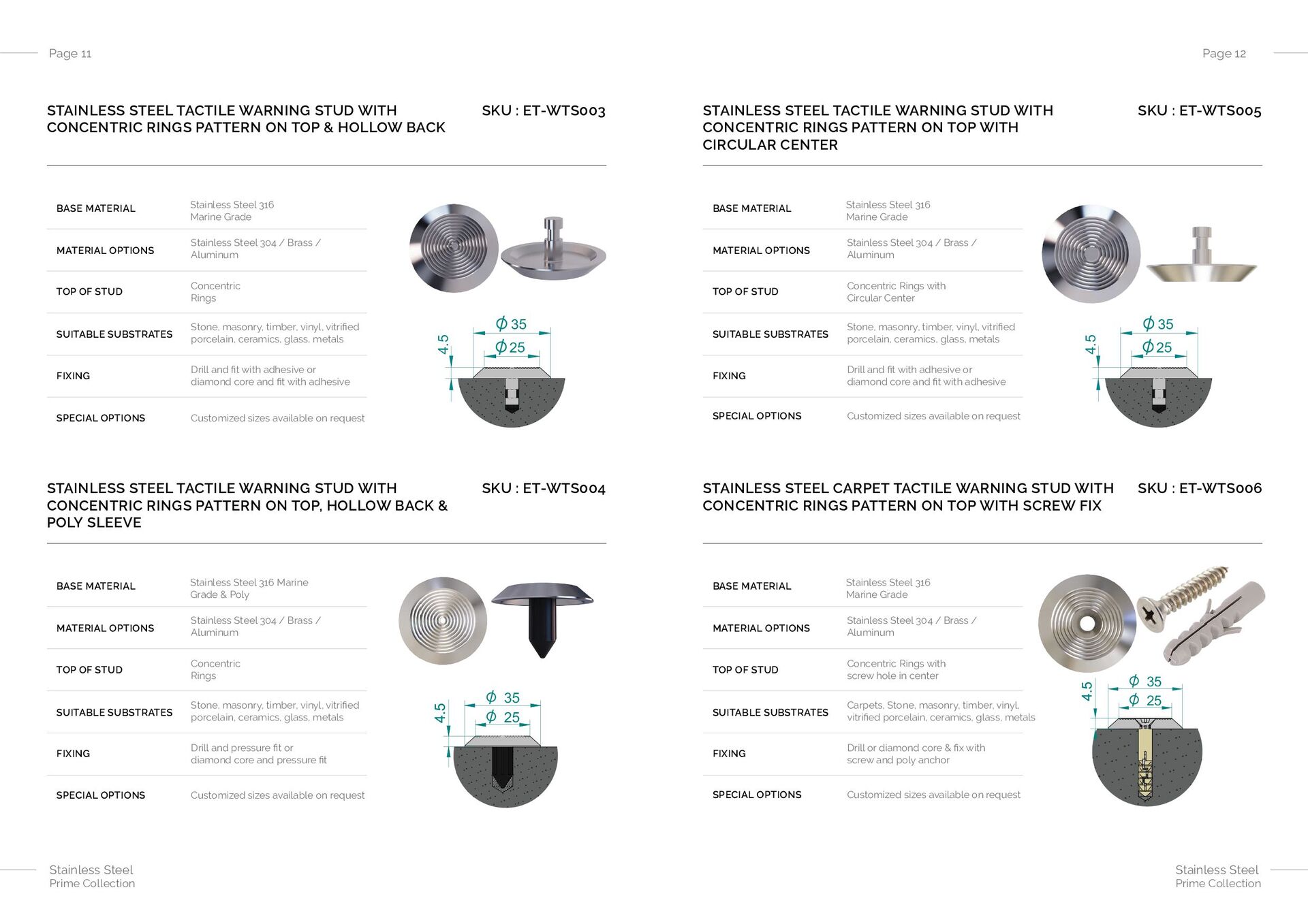

8. Stainless Steel Prime Collection Stainless Steel Prime Collection SKU : ET-WTS003 STAINLESS STEEL TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP & HOLLOW BACK FIXING TOP OF STUD Concentric Rings BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS004 STAINLESS STEEL TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP, HOLLOW BACK & POLY SLEEVE FIXING TOP OF STUD Concentric Rings BASE MATERIAL Drill and pressure fit or diamond core and pressure fit MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade & Poly Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS005 STAINLESS STEEL TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP WITH CIRCULAR CENTER FIXING TOP OF STUD Concentric Rings with Circular Center BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS006 STAINLESS STEEL CARPET TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP WITH SCREW FIX FIXING TOP OF STUD Concentric Rings with screw hole in center BASE MATERIAL Drill or diamond core & fix with screw and poly anchor MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Carpets, Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 12 Page 11 25 35 4.5 25 35 4.5 25 35 25 35

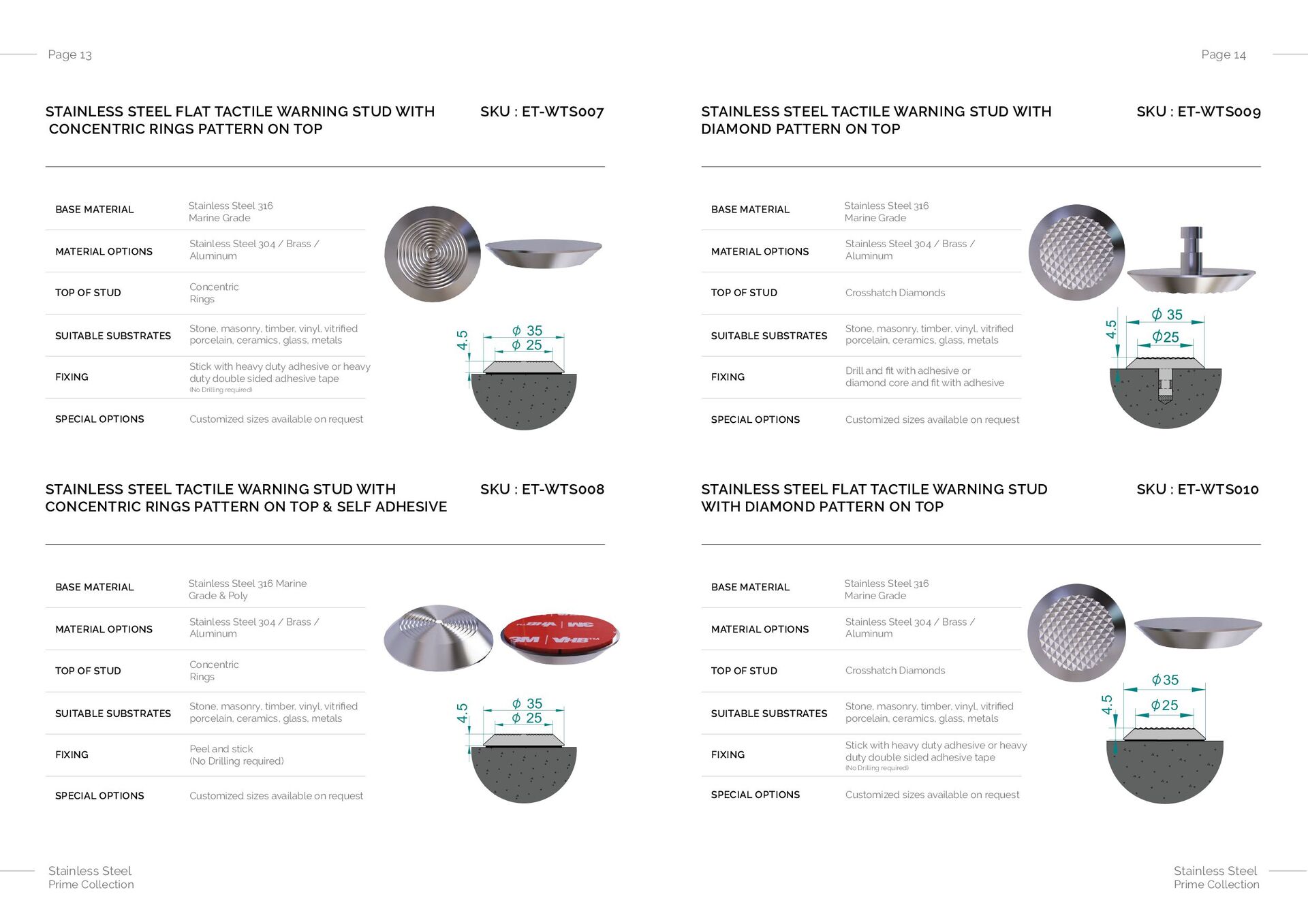

9. Stainless Steel Prime Collection Stainless Steel Prime Collection SKU : ET-WTS007 STAINLESS STEEL FLAT TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP FIXING TOP OF STUD Concentric Rings BASE MATERIAL Stick with heavy duty adhesive or heavy duty double sided adhesive tape MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS008 STAINLESS STEEL TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP & SELF ADHESIVE FIXING TOP OF STUD Concentric Rings BASE MATERIAL Peel and stick (No Drilling required) MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade & Poly Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS009 STAINLESS STEEL TACTILE WARNING STUD WITH DIAMOND PATTERN ON TOP FIXING TOP OF STUD Crosshatch Diamonds BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS010 STAINLESS STEEL FLAT TACTILE WARNING STUD WITH DIAMOND PATTERN ON TOP FIXING TOP OF STUD Crosshatch Diamonds BASE MATERIAL Stick with heavy duty adhesive or heavy duty double sided adhesive tape MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals (No Drilling required) (No Drilling required) Page 14 Page 13 25 35 4.5 25 35 4.5 25 35 4.5

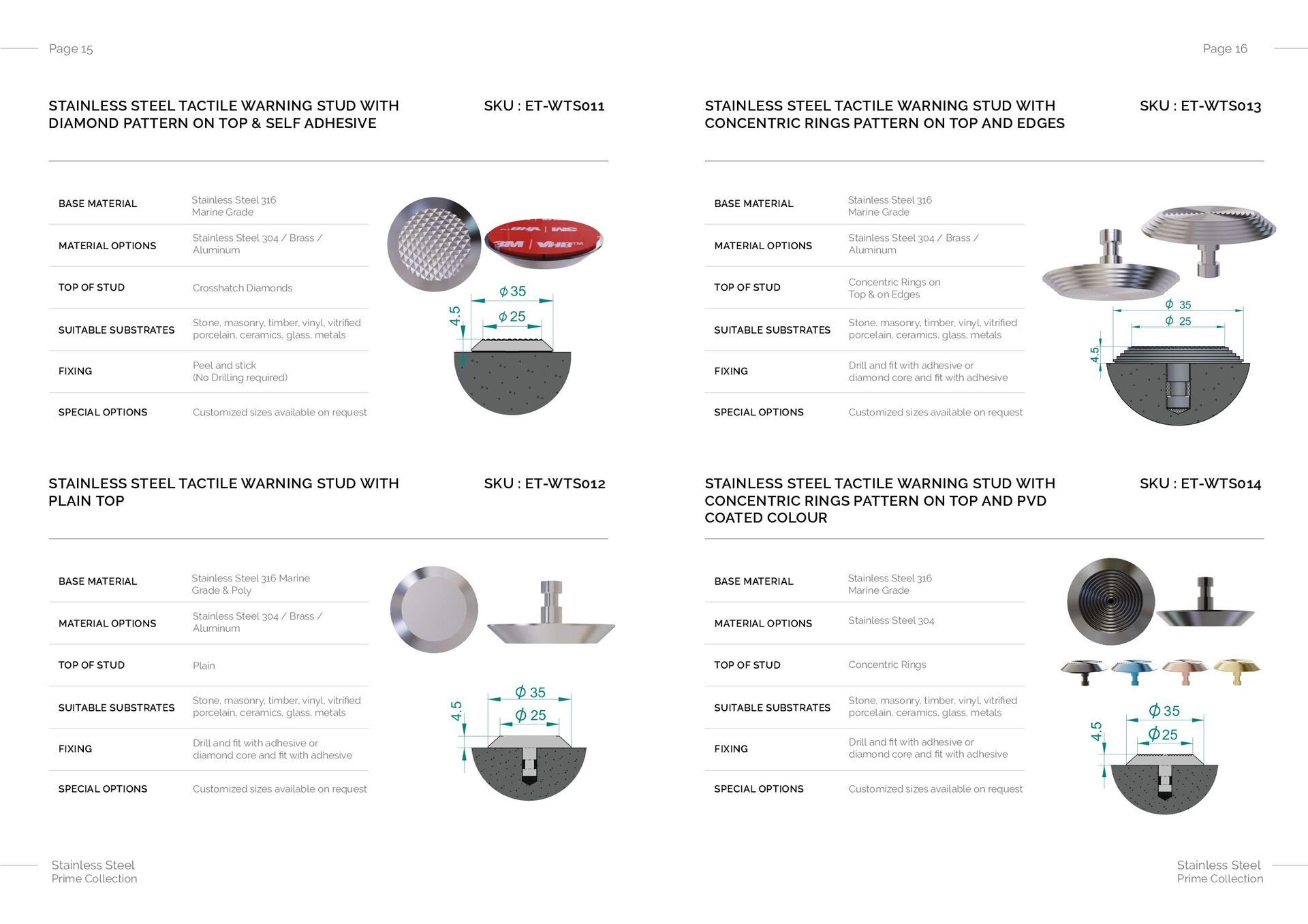

10. Stainless Steel Prime Collection Stainless Steel Prime Collection SKU : ET-WTS011 STAINLESS STEEL TACTILE WARNING STUD WITH DIAMOND PATTERN ON TOP & SELF ADHESIVE FIXING TOP OF STUD Crosshatch Diamonds BASE MATERIAL Peel and stick (No Drilling required) MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS012 STAINLESS STEEL TACTILE WARNING STUD WITH PLAIN TOP FIXING TOP OF STUD Plain BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade & Poly Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS013 STAINLESS STEEL TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP AND EDGES FIXING TOP OF STUD Concentric Rings on Top & on Edges BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS014 STAINLESS STEEL TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP AND PVD COATED COLOUR FIXING TOP OF STUD Concentric Rings BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 16 Page 15 25 35 4.5 25 35 4.5 35 25 25 35 4.5

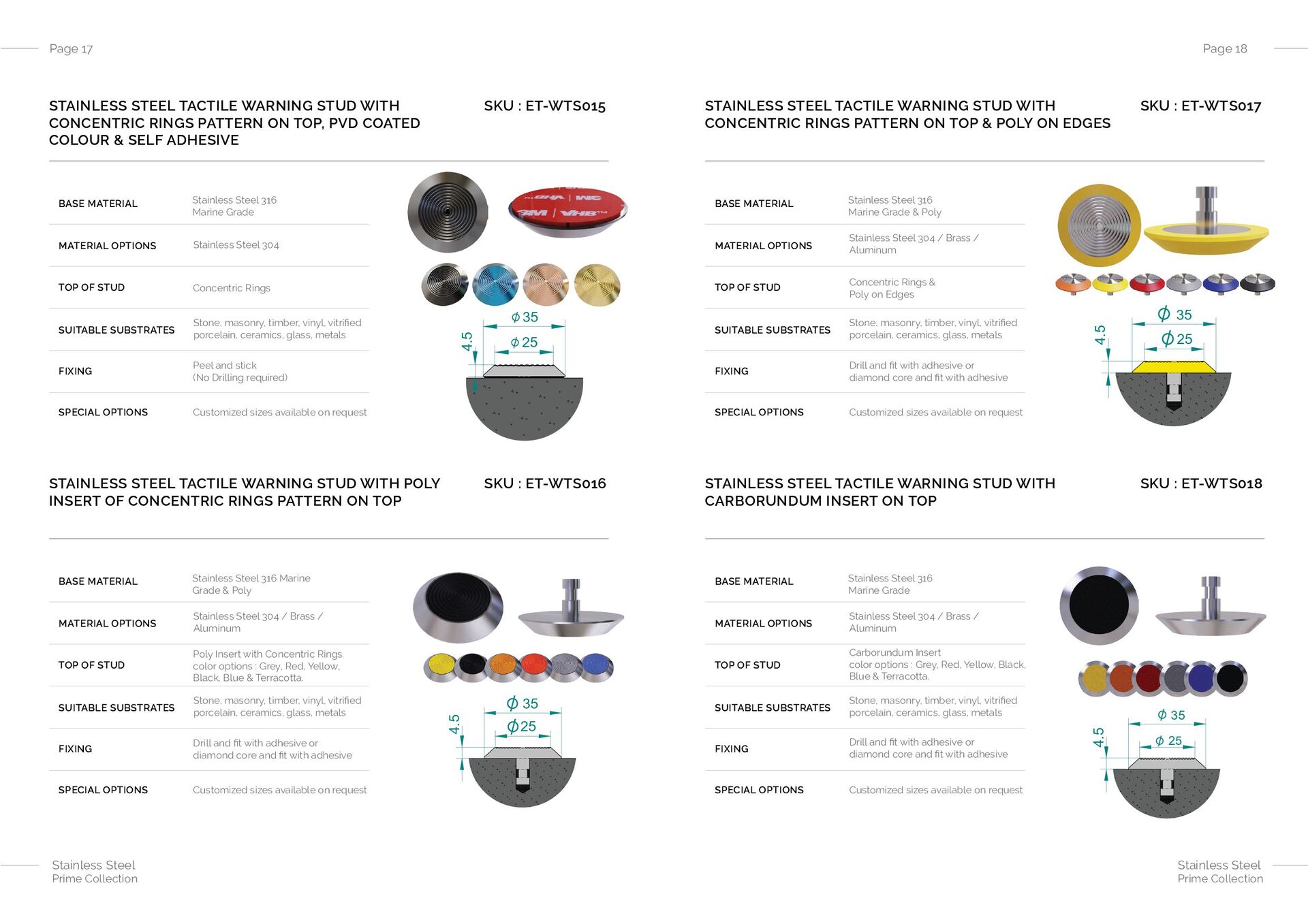

11. Stainless Steel Prime Collection Stainless Steel Prime Collection SKU : ET-WTS015 STAINLESS STEEL TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP, PVD COATED COLOUR & SELF ADHESIVE FIXING TOP OF STUD Concentric Rings BASE MATERIAL Peel and stick (No Drilling required) MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS016 STAINLESS STEEL TACTILE WARNING STUD WITH POLY INSERT OF CONCENTRIC RINGS PATTERN ON TOP FIXING TOP OF STUD Poly Insert with Concentric Rings. color options : Grey, Red, Yellow, Black, Blue & Terracotta. BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade & Poly Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS017 STAINLESS STEEL TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP & POLY ON EDGES FIXING TOP OF STUD Concentric Rings & Poly on Edges BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade & Poly Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS018 STAINLESS STEEL TACTILE WARNING STUD WITH CARBORUNDUM INSERT ON TOP FIXING TOP OF STUD Carborundum Insert color options : Grey, Red, Yellow, Black, Blue & Terracotta. BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 18 Page 17 25 35 4.5 25 35 4.5 25 35 4.5 25 35 4.5

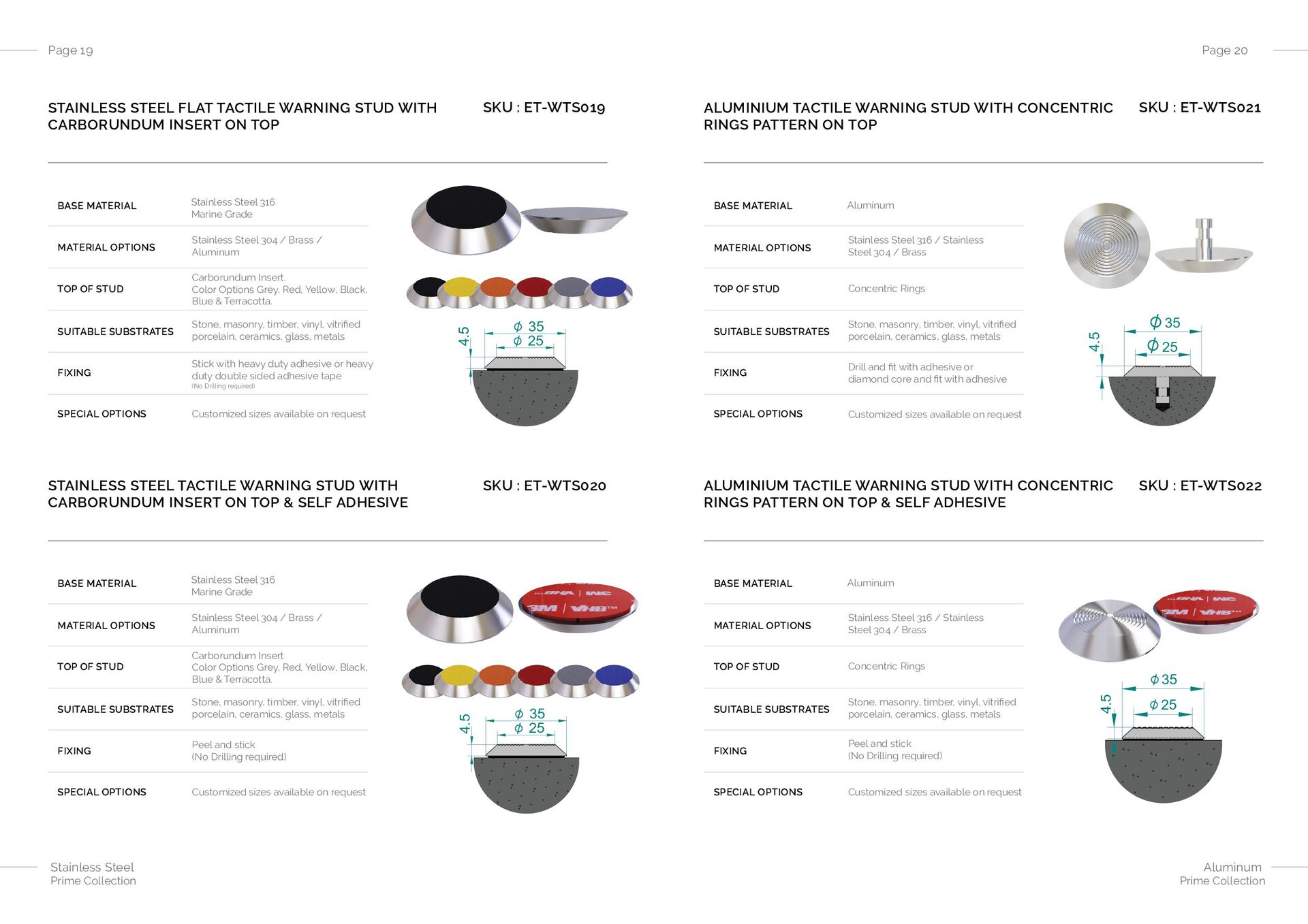

12. Aluminum Prime Collection Stainless Steel Prime Collection SKU : ET-WTS019 STAINLESS STEEL FLAT TACTILE WARNING STUD WITH CARBORUNDUM INSERT ON TOP FIXING TOP OF STUD Carborundum Insert. Color Options Grey, Red, Yellow, Black, Blue & Terracotta. BASE MATERIAL Stick with heavy duty adhesive or heavy duty double sided adhesive tape MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS020 STAINLESS STEEL TACTILE WARNING STUD WITH CARBORUNDUM INSERT ON TOP & SELF ADHESIVE FIXING TOP OF STUD Carborundum Insert Color Options Grey, Red, Yellow, Black, Blue & Terracotta. BASE MATERIAL Peel and stick (No Drilling required) MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS021 ALUMINIUM TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP FIXING TOP OF STUD Concentric Rings BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 316 / Stainless Steel 304 / Brass Aluminum Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS022 ALUMINIUM TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP & SELF ADHESIVE FIXING TOP OF STUD Concentric Rings BASE MATERIAL Peel and stick (No Drilling required) MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 316 / Stainless Steel 304 / Brass Aluminum Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals (No Drilling required) Page 20 Page 19 25 35 4.5 25 35 4.5 25 35 4.5 25 35 4.5

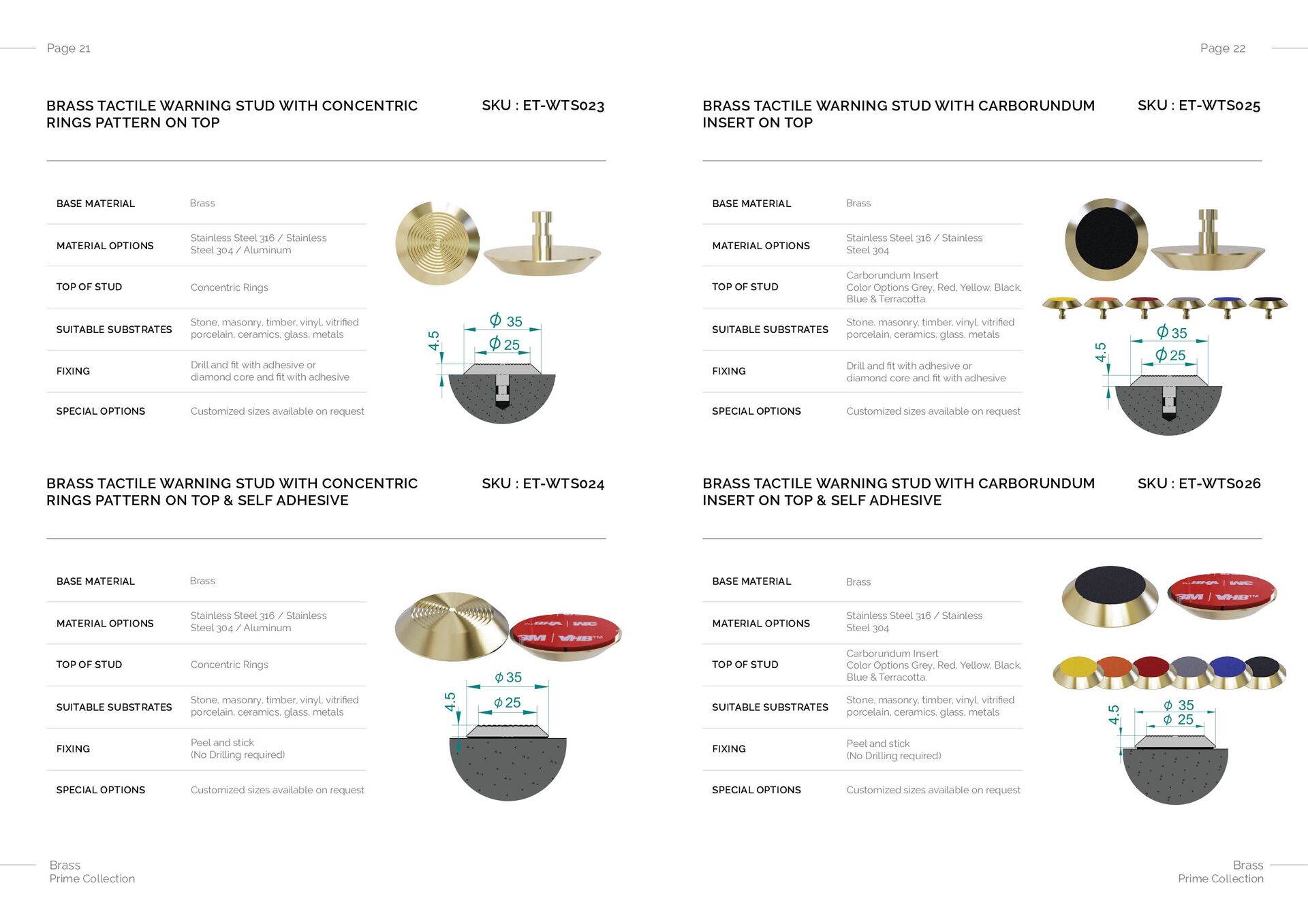

13. Brass Prime Collection Brass Prime Collection SKU : ET-WTS023 BRASS TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP FIXING TOP OF STUD Concentric Rings BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 316 / Stainless Steel 304 / Aluminum Brass Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS024 BRASS TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP & SELF ADHESIVE FIXING TOP OF STUD Concentric Rings BASE MATERIAL Peel and stick (No Drilling required) MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 316 / Stainless Steel 304 / Aluminum Brass Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS025 BRASS TACTILE WARNING STUD WITH CARBORUNDUM INSERT ON TOP FIXING TOP OF STUD Carborundum Insert Color Options Grey, Red, Yellow, Black, Blue & Terracotta. BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 316 / Stainless Steel 304 Brass Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS026 BRASS TACTILE WARNING STUD WITH CARBORUNDUM INSERT ON TOP & SELF ADHESIVE FIXING TOP OF STUD Carborundum Insert Color Options Grey, Red, Yellow, Black, Blue & Terracotta. BASE MATERIAL Peel and stick (No Drilling required) MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 316 / Stainless Steel 304 Brass Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 22 Page 21 25 35 4.5 25 35 4.5 25 35 4.5 25 35 4.5

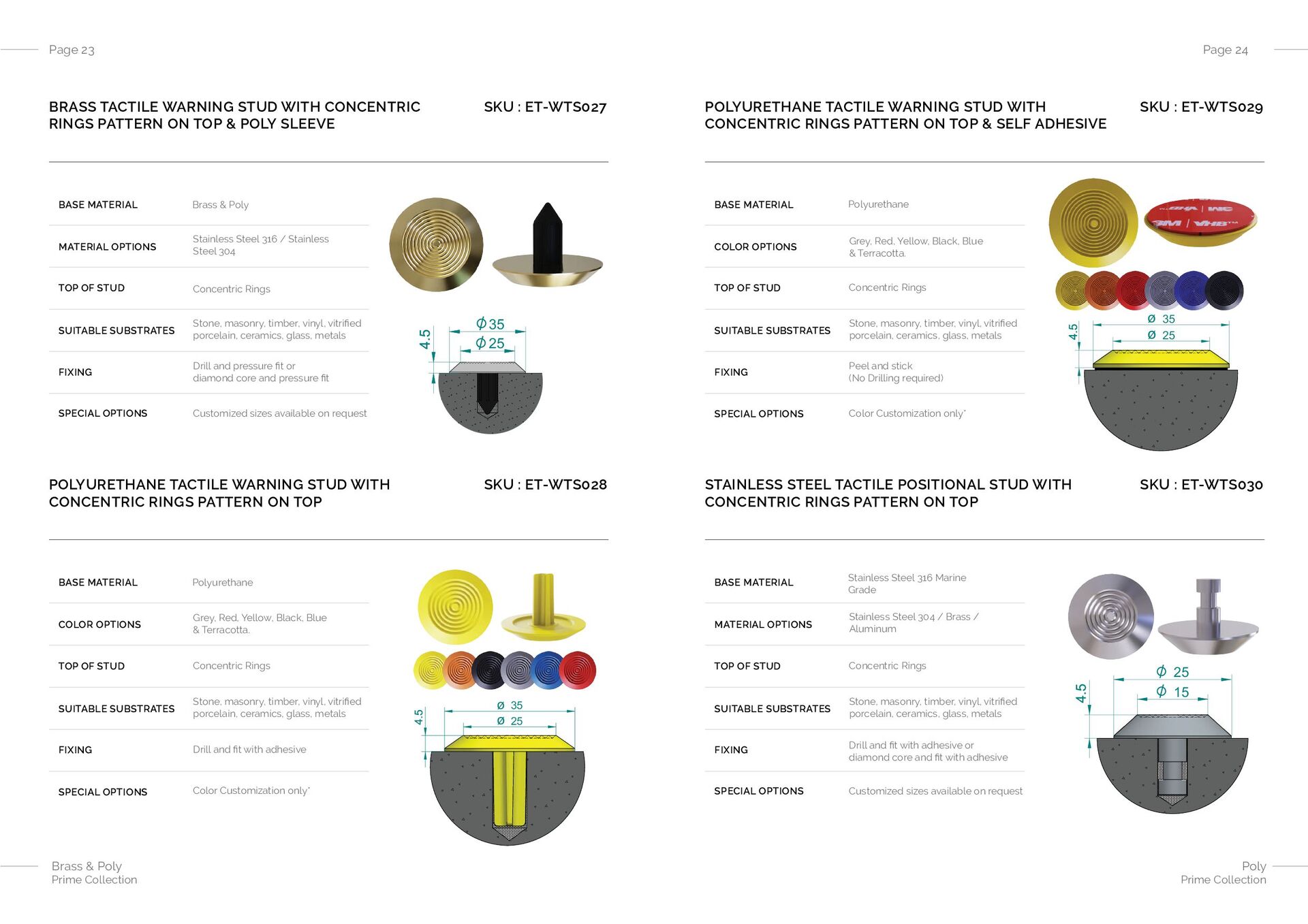

14. Poly Prime Collection Brass & Poly Prime Collection SKU : ET-WTS027 BRASS TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP & POLY SLEEVE FIXING TOP OF STUD Concentric Rings BASE MATERIAL Drill and pressure fit or diamond core and pressure fit MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 316 / Stainless Steel 304 Brass & Poly Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS028 POLYURETHANE TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP FIXING TOP OF STUD Concentric Rings BASE MATERIAL Drill and fit with adhesive COLOR OPTIONS SPECIAL OPTIONS Color Customization only* SUITABLE SUBSTRATES Grey, Red, Yellow, Black, Blue & Terracotta. Polyurethane Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS029 POLYURETHANE TACTILE WARNING STUD WITH CONCENTRIC RINGS PATTERN ON TOP & SELF ADHESIVE FIXING TOP OF STUD Concentric Rings BASE MATERIAL Peel and stick (No Drilling required) COLOR OPTIONS SPECIAL OPTIONS Color Customization only* SUITABLE SUBSTRATES Grey, Red, Yellow, Black, Blue & Terracotta. Polyurethane Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS030 STAINLESS STEEL TACTILE POSITIONAL STUD WITH CONCENTRIC RINGS PATTERN ON TOP FIXING TOP OF STUD Concentric Rings BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 24 Page 23 25 35 35 ø 25 ø 25 ø 35 ø 15 25

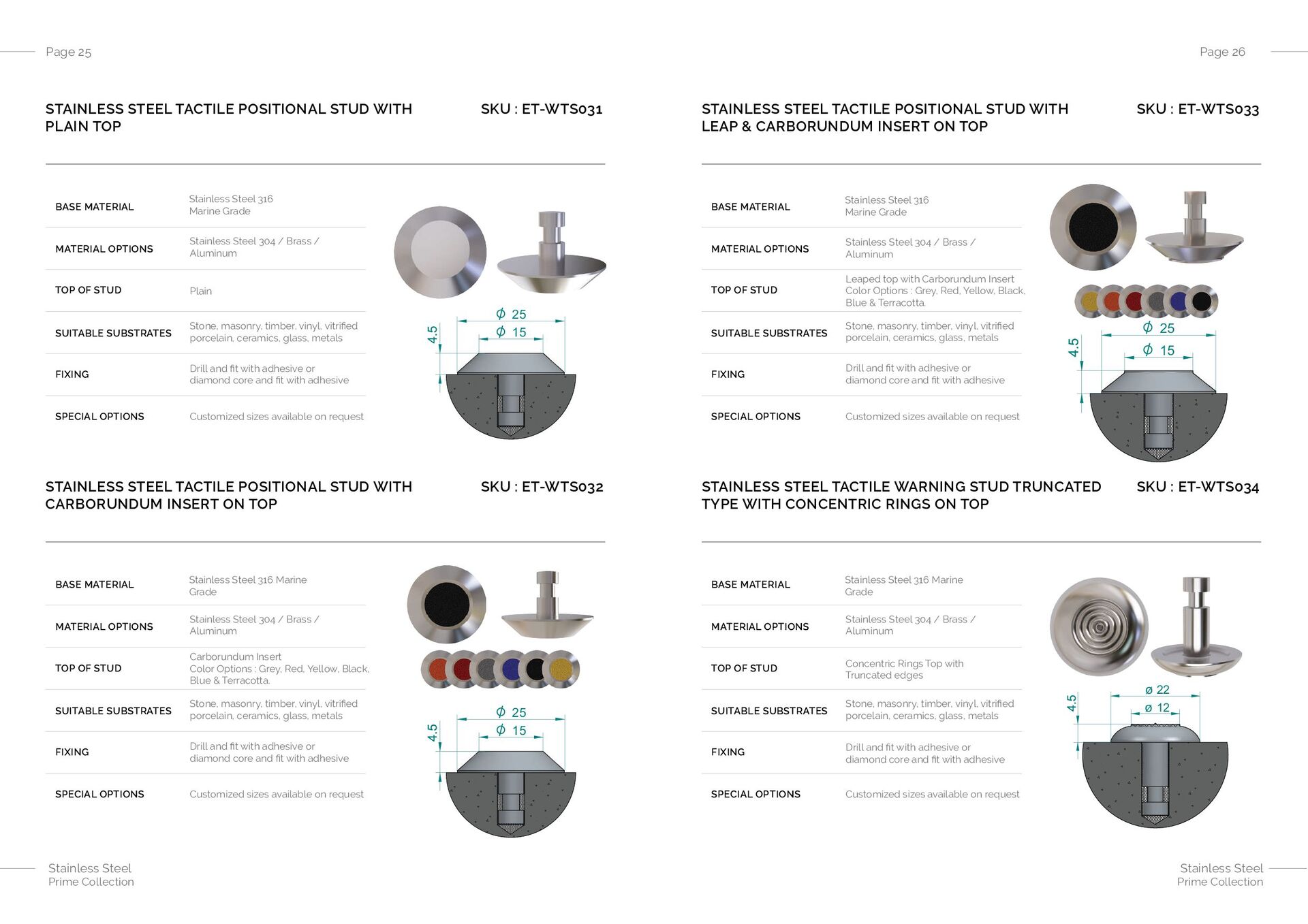

15. Stainless Steel Prime Collection Stainless Steel Prime Collection SKU : ET-WTS031 STAINLESS STEEL TACTILE POSITIONAL STUD WITH PLAIN TOP FIXING TOP OF STUD Plain BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS032 STAINLESS STEEL TACTILE POSITIONAL STUD WITH CARBORUNDUM INSERT ON TOP FIXING TOP OF STUD Carborundum Insert Color Options : Grey, Red, Yellow, Black, Blue & Terracotta. BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS033 STAINLESS STEEL TACTILE POSITIONAL STUD WITH LEAP & CARBORUNDUM INSERT ON TOP FIXING TOP OF STUD Leaped top with Carborundum Insert Color Options : Grey, Red, Yellow, Black, Blue & Terracotta. BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS034 STAINLESS STEEL TACTILE WARNING STUD TRUNCATED TYPE WITH CONCENTRIC RINGS ON TOP FIXING TOP OF STUD Concentric Rings Top with Truncated edges BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 26 Page 25 15 25 15 25 15 25 12 ø 22 ø

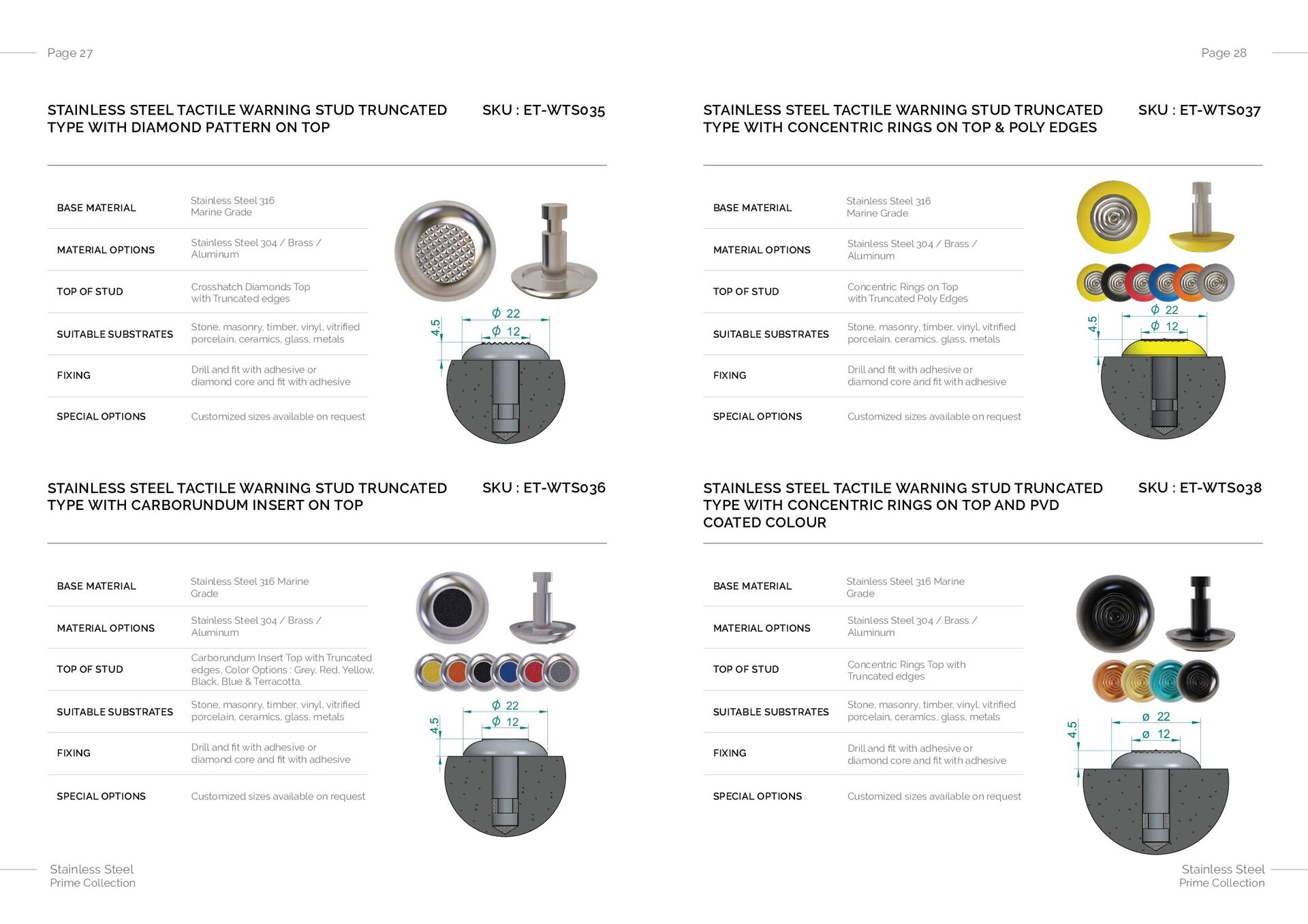

16. Stainless Steel Prime Collection Stainless Steel Prime Collection SKU : ET-WTS035 STAINLESS STEEL TACTILE WARNING STUD TRUNCATED TYPE WITH DIAMOND PATTERN ON TOP FIXING TOP OF STUD Crosshatch Diamonds Top with Truncated edges BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS036 STAINLESS STEEL TACTILE WARNING STUD TRUNCATED TYPE WITH CARBORUNDUM INSERT ON TOP FIXING TOP OF STUD Carborundum Insert Top with Truncated edges, Color Options : Grey, Red, Yellow, Black, Blue & Terracotta. BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS037 STAINLESS STEEL TACTILE WARNING STUD TRUNCATED TYPE WITH CONCENTRIC RINGS ON TOP & POLY EDGES FIXING TOP OF STUD Concentric Rings on Top with Truncated Poly Edges BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS038 STAINLESS STEEL TACTILE WARNING STUD TRUNCATED TYPE WITH CONCENTRIC RINGS ON TOP AND PVD COATED COLOUR FIXING TOP OF STUD Concentric Rings Top with Truncated edges BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 28 Page 27 12 ø 22 ø 12 22 12 22 12 22

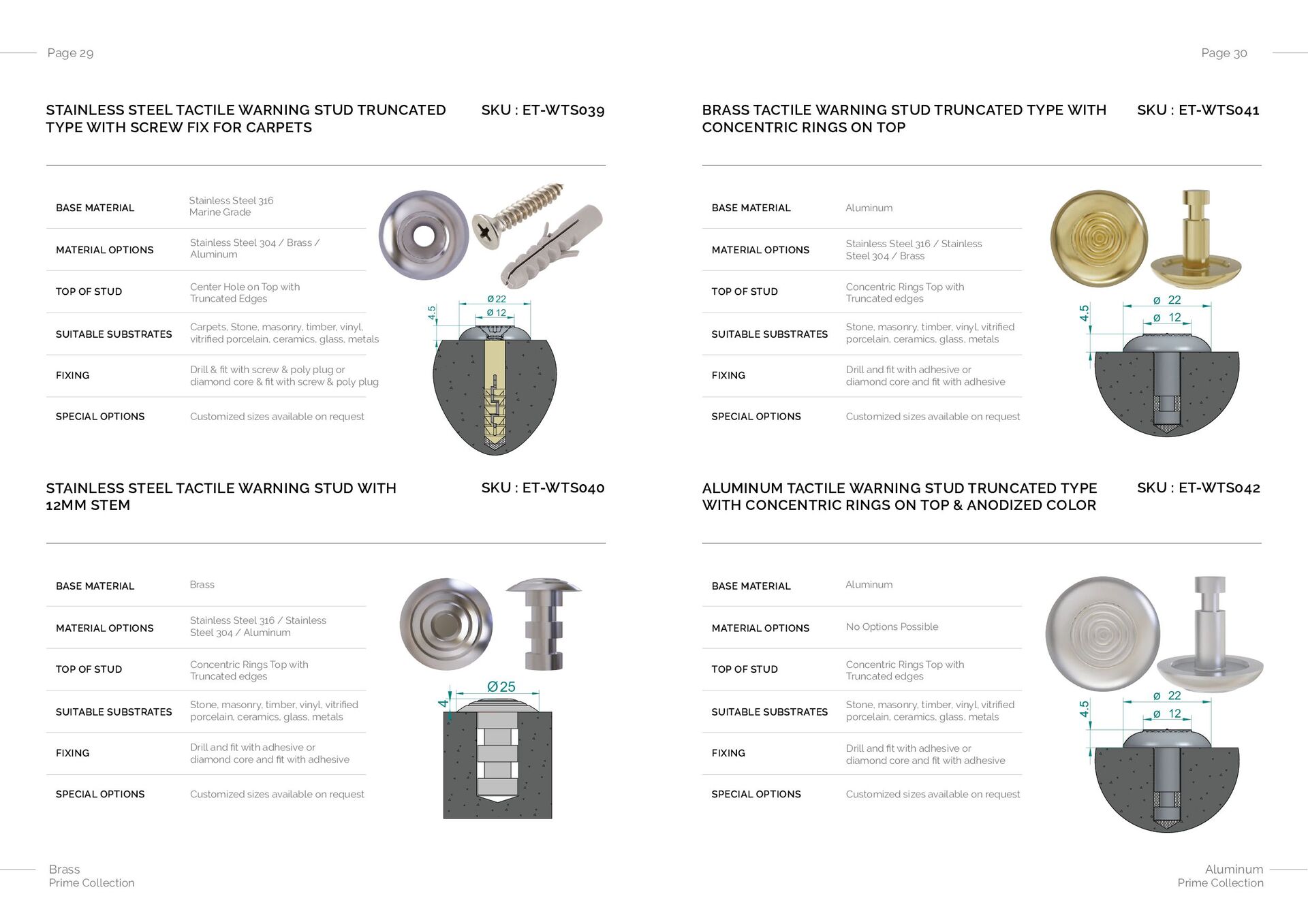

17. Aluminum Prime Collection Brass Prime Collection SKU : ET-WTS039 STAINLESS STEEL TACTILE WARNING STUD TRUNCATED TYPE WITH SCREW FIX FOR CARPETS FIXING TOP OF STUD Center Hole on Top with Truncated Edges BASE MATERIAL Drill & fit with screw & poly plug or diamond core & fit with screw & poly plug MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 304 / Brass / Aluminum Stainless Steel 316 Marine Grade Carpets, Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS040 STAINLESS STEEL TACTILE WARNING STUD WITH 12MM STEM FIXING TOP OF STUD Concentric Rings Top with Truncated edges BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 316 / Stainless Steel 304 / Aluminum Brass Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS041 BRASS TACTILE WARNING STUD TRUNCATED TYPE WITH CONCENTRIC RINGS ON TOP FIXING TOP OF STUD Concentric Rings Top with Truncated edges BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES Stainless Steel 316 / Stainless Steel 304 / Brass Aluminum Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-WTS042 ALUMINUM TACTILE WARNING STUD TRUNCATED TYPE WITH CONCENTRIC RINGS ON TOP & ANODIZED COLOR FIXING TOP OF STUD Concentric Rings Top with Truncated edges BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES No Options Possible Aluminum Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals 25 Ø 4 Page 30 Page 29 12 ø 22 ø 12 ø 22 ø 4.5 12 ø 22 ø

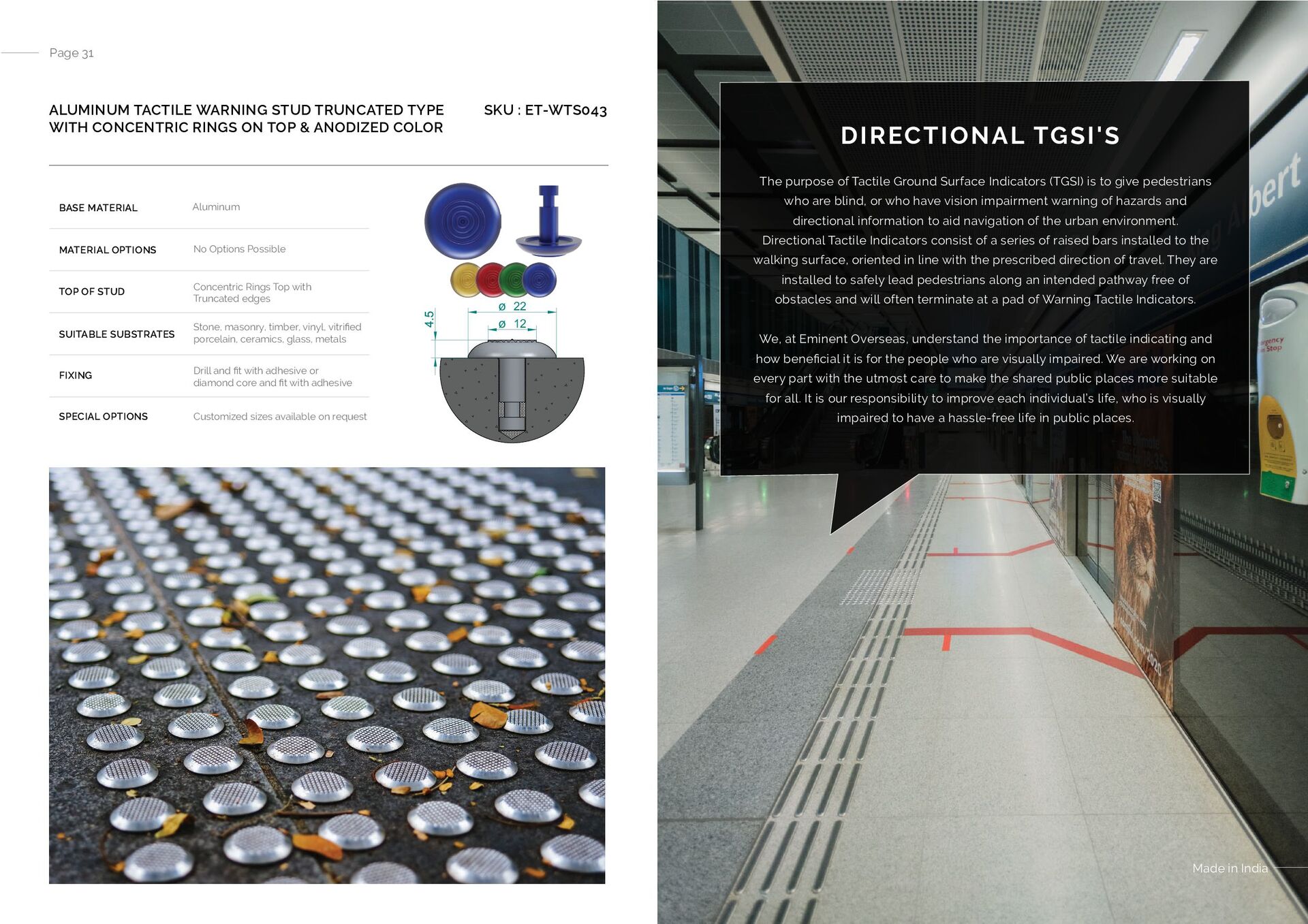

18. SKU : ET-WTS043 ALUMINUM TACTILE WARNING STUD TRUNCATED TYPE WITH CONCENTRIC RINGS ON TOP & ANODIZED COLOR FIXING TOP OF STUD Concentric Rings Top with Truncated edges BASE MATERIAL Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS SPECIAL OPTIONS Customized sizes available on request SUITABLE SUBSTRATES No Options Possible Aluminum Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals The purpose of Tactile Ground Surface Indicators (TGSI) is to give pedestrians who are blind, or who have vision impairment warning of hazards and directional information to aid navigation of the urban environment. Directional Tactile Indicators consist of a series of raised bars installed to the walking surface, oriented in line with the prescribed direction of travel. They are installed to safely lead pedestrians along an intended pathway free of obstacles and will often terminate at a pad of Warning Tactile Indicators. We, at Eminent Overseas, understand the importance of tactile indicating and how beneficial it is for the people who are visually impaired. We are working on every part with the utmost care to make the shared public places more suitable for all. It is our responsibility to improve each individual’s life, who is visually impaired to have a hassle-free life in public places. Made in India DIRECTIONAL TGSI'S Page 31 12 ø 22 ø

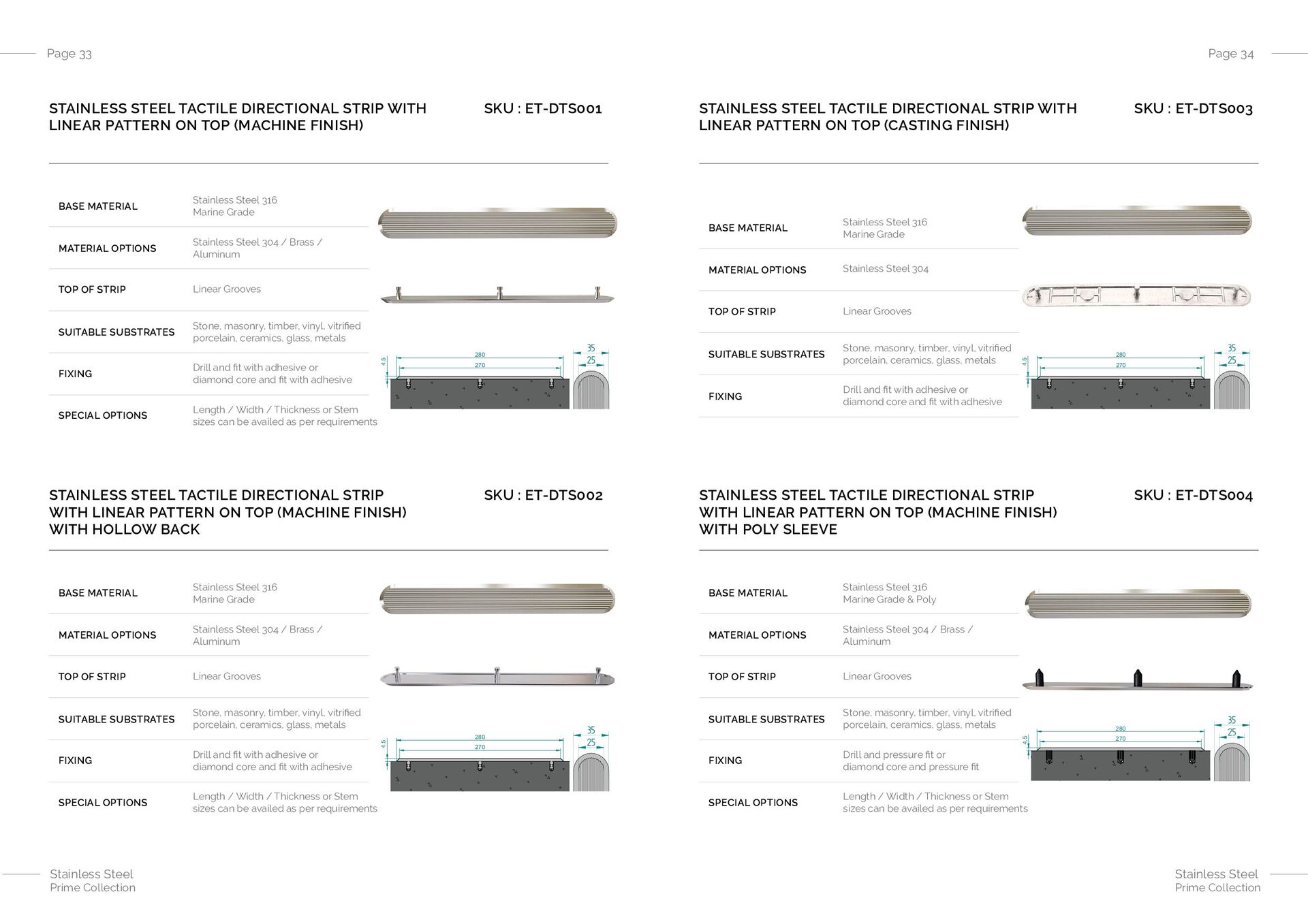

19. Stainless Steel Prime Collection SKU : ET-DTS001 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH LINEAR PATTERN ON TOP (MACHINE FINISH) FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Stainless Steel 316 Marine Grade Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES SKU : ET-DTS002 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH LINEAR PATTERN ON TOP (MACHINE FINISH) WITH HOLLOW BACK FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Stainless Steel 316 Marine Grade Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stainless Steel Prime Collection SKU : ET-DTS003 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH LINEAR PATTERN ON TOP (CASTING FINISH) FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Stainless Steel 316 Marine Grade Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS Stainless Steel 304 SUITABLE SUBSTRATES SKU : ET-DTS004 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH LINEAR PATTERN ON TOP (MACHINE FINISH) WITH POLY SLEEVE FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Stainless Steel 316 Marine Grade & Poly Drill and pressure fit or diamond core and pressure fit MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 34 Page 33 270 280 4.5 270 280 4.5 270 280 4.5 270 280 4.5

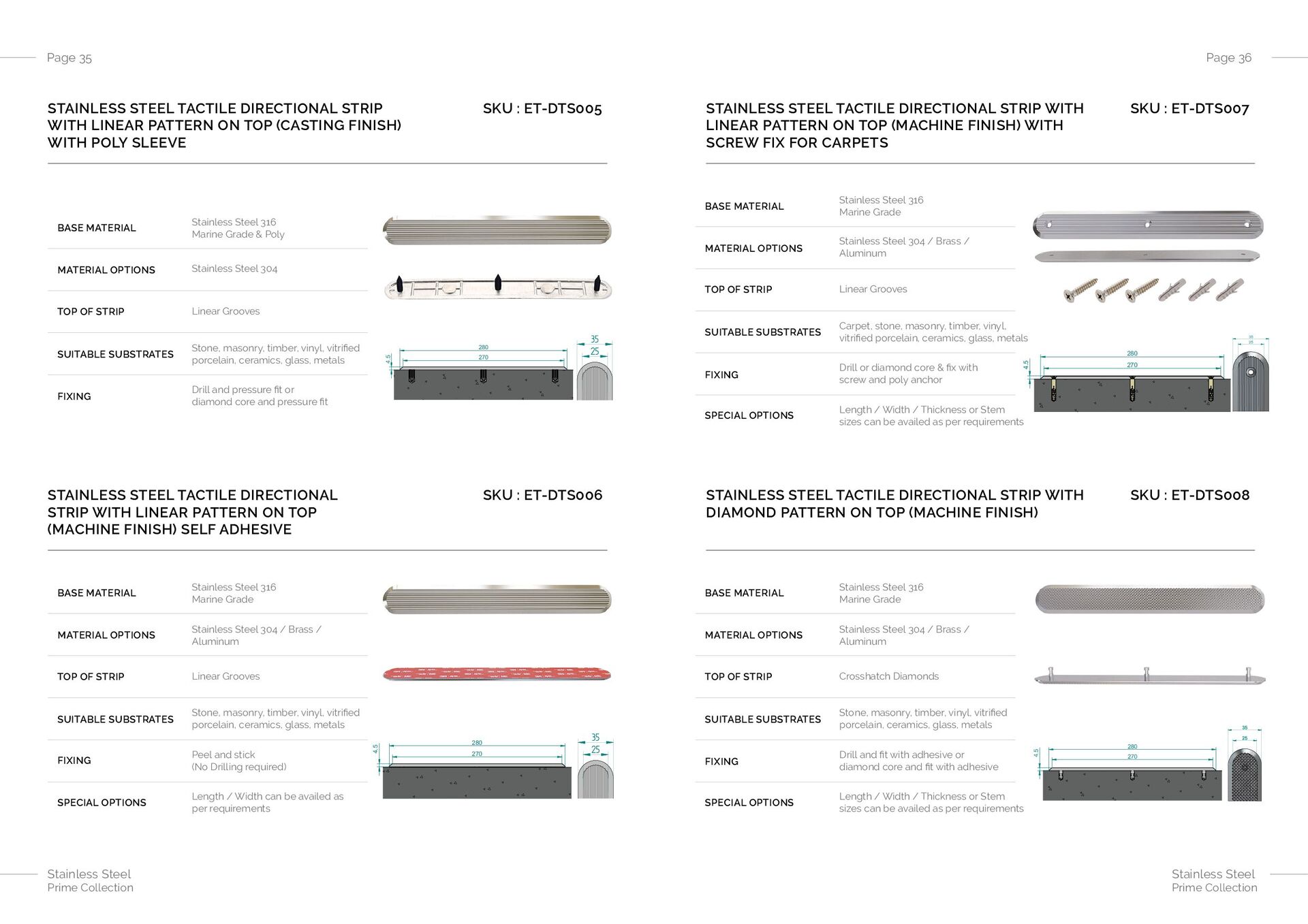

20. Stainless Steel Prime Collection SKU : ET-DTS005 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH LINEAR PATTERN ON TOP (CASTING FINISH) WITH POLY SLEEVE FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Stainless Steel 316 Marine Grade & Poly Drill and pressure fit or diamond core and pressure fit MATERIAL OPTIONS Stainless Steel 304 SUITABLE SUBSTRATES SKU : ET-DTS006 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH LINEAR PATTERN ON TOP (MACHINE FINISH) SELF ADHESIVE FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Stainless Steel 316 Marine Grade Peel and stick (No Drilling required) MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width can be availed as per requirements SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stainless Steel Prime Collection SKU : ET-DTS007 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH LINEAR PATTERN ON TOP (MACHINE FINISH) WITH SCREW FIX FOR CARPETS FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Stainless Steel 316 Marine Grade Drill or diamond core & fix with screw and poly anchor MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES SKU : ET-DTS008 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH DIAMOND PATTERN ON TOP (MACHINE FINISH) FIXING TOP OF STRIP Crosshatch Diamonds BASE MATERIAL Stainless Steel 316 Marine Grade Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES Carpet, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 36 Page 35 270 280 4.5 270 280 4.5 270 280 4.5 280 270 4.5 25 35

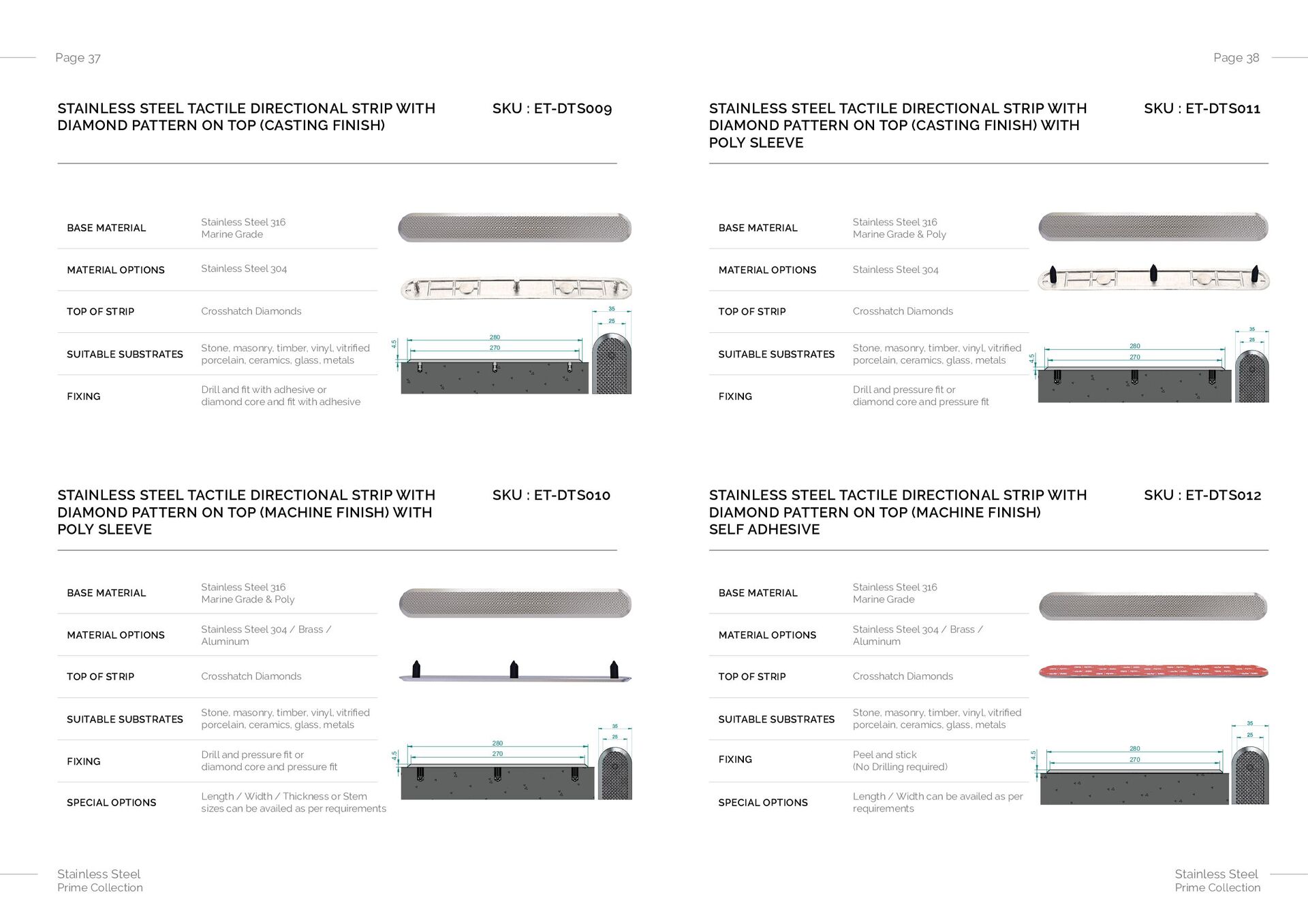

21. SKU : ET-DTS011 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH DIAMOND PATTERN ON TOP (CASTING FINISH) WITH POLY SLEEVE FIXING TOP OF STRIP Crosshatch Diamonds BASE MATERIAL Stainless Steel 316 Marine Grade & Poly Drill and pressure fit or diamond core and pressure fit MATERIAL OPTIONS Stainless Steel 304 SUITABLE SUBSTRATES SKU : ET-DTS012 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH DIAMOND PATTERN ON TOP (MACHINE FINISH) SELF ADHESIVE FIXING TOP OF STRIP Crosshatch Diamonds BASE MATERIAL Stainless Steel 316 Marine Grade Peel and stick (No Drilling required) MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width can be availed as per requirements SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stainless Steel Prime Collection SKU : ET-DTS009 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH DIAMOND PATTERN ON TOP (CASTING FINISH) FIXING TOP OF STRIP Crosshatch Diamonds BASE MATERIAL Stainless Steel 316 Marine Grade Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS Stainless Steel 304 SUITABLE SUBSTRATES SKU : ET-DTS010 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH DIAMOND PATTERN ON TOP (MACHINE FINISH) WITH POLY SLEEVE FIXING TOP OF STRIP Crosshatch Diamonds BASE MATERIAL Stainless Steel 316 Marine Grade & Poly Drill and pressure fit or diamond core and pressure fit MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stainless Steel Prime Collection Page 38 Page 37 270 280 4.5 270 280 4.5 270 280 4.5 270 280 4.5

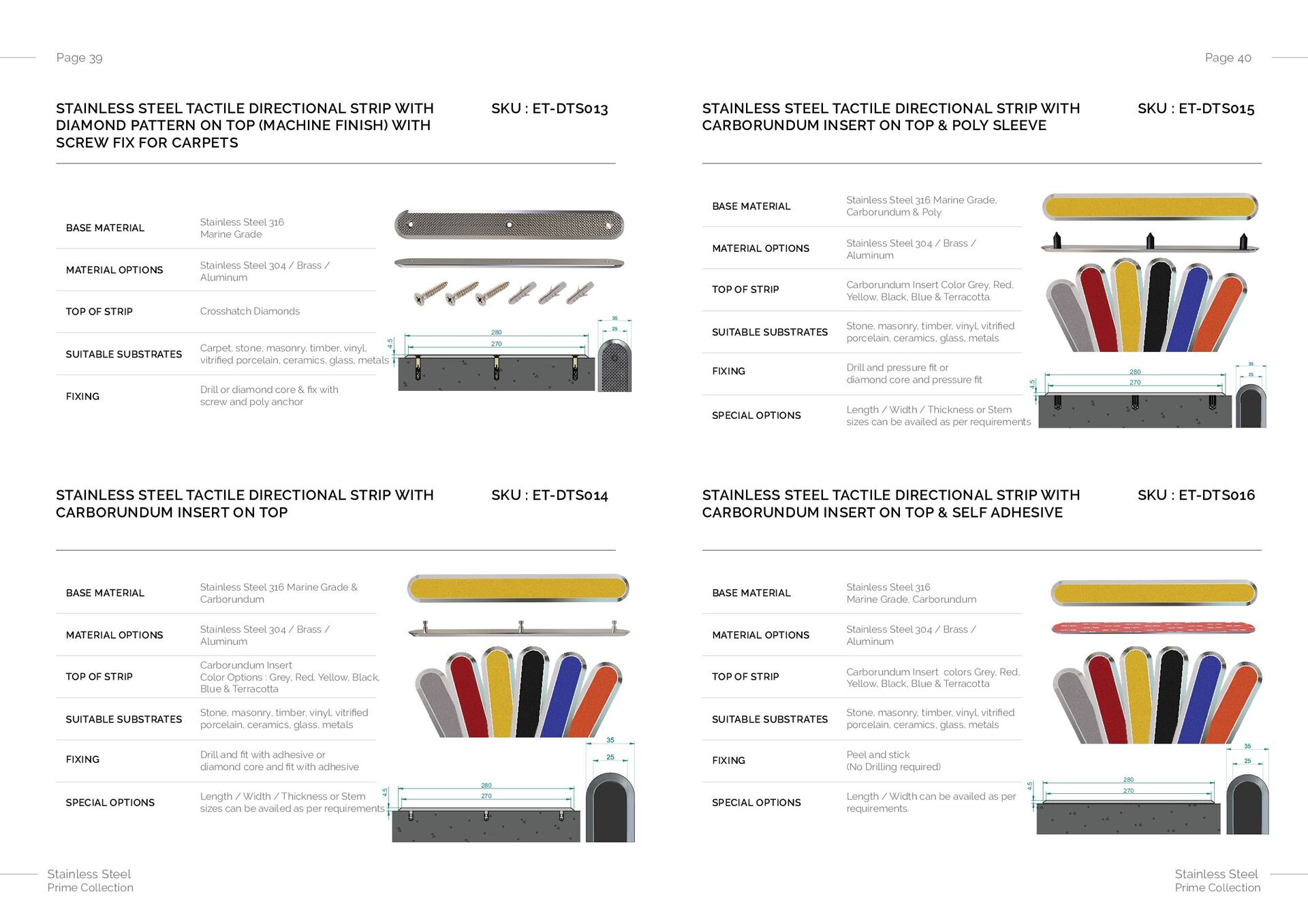

22. SKU : ET-DTS015 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH CARBORUNDUM INSERT ON TOP & POLY SLEEVE FIXING TOP OF STRIP Carborundum Insert Color Grey, Red, Yellow, Black, Blue & Terracotta. BASE MATERIAL Stainless Steel 316 Marine Grade, Carborundum & Poly Drill and pressure fit or diamond core and pressure fit MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES SKU : ET-DTS016 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH CARBORUNDUM INSERT ON TOP & SELF ADHESIVE FIXING TOP OF STRIP Carborundum Insert colors Grey, Red, Yellow, Black, Blue & Terracotta BASE MATERIAL Stainless Steel 316 Marine Grade, Carborundum Peel and stick (No Drilling required) MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width can be availed as per requirements. SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stainless Steel Prime Collection SKU : ET-DTS013 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH DIAMOND PATTERN ON TOP (MACHINE FINISH) WITH SCREW FIX FOR CARPETS FIXING TOP OF STRIP Crosshatch Diamonds BASE MATERIAL Stainless Steel 316 Marine Grade Drill or diamond core & fix with screw and poly anchor MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SUITABLE SUBSTRATES SKU : ET-DTS014 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH CARBORUNDUM INSERT ON TOP FIXING TOP OF STRIP Carborundum Insert Color Options : Grey, Red, Yellow, Black, Blue & Terracotta BASE MATERIAL Stainless Steel 316 Marine Grade & Carborundum Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES Carpet, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stainless Steel Prime Collection Page 40 Page 39 270 280 4.5 270 280 4.5 270 280 4.5 280 270 4.5

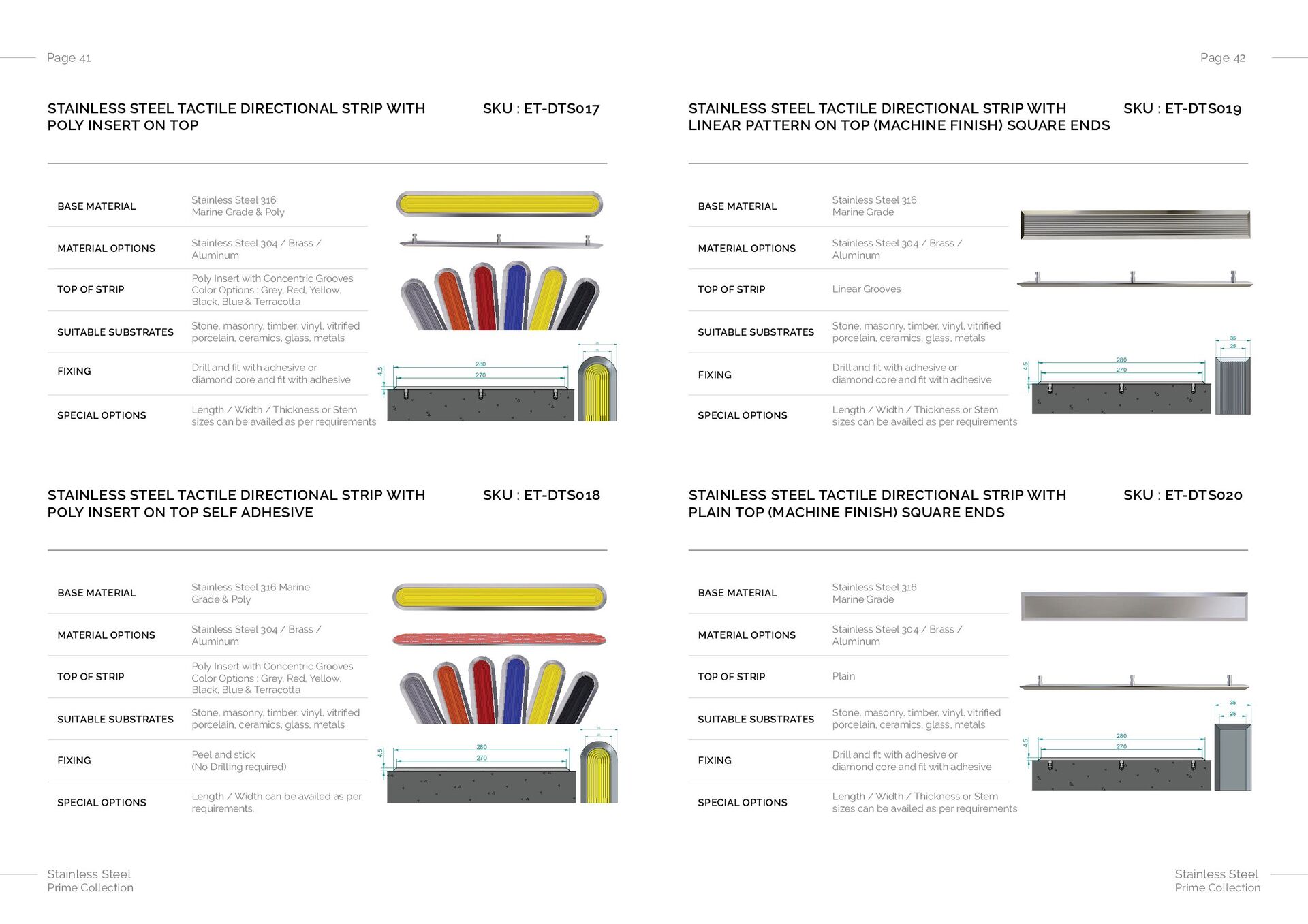

23. SKU : ET-DTS019 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH LINEAR PATTERN ON TOP (MACHINE FINISH) SQUARE ENDS FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Stainless Steel 316 Marine Grade Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES SKU : ET-DTS020 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH PLAIN TOP (MACHINE FINISH) SQUARE ENDS FIXING TOP OF STRIP Plain BASE MATERIAL Stainless Steel 316 Marine Grade Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stainless Steel Prime Collection SKU : ET-DTS017 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH POLY INSERT ON TOP FIXING TOP OF STRIP Poly Insert with Concentric Grooves Color Options : Grey, Red, Yellow, Black, Blue & Terracotta BASE MATERIAL Stainless Steel 316 Marine Grade & Poly Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES SKU : ET-DTS018 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH POLY INSERT ON TOP SELF ADHESIVE FIXING TOP OF STRIP Poly Insert with Concentric Grooves Color Options : Grey, Red, Yellow, Black, Blue & Terracotta BASE MATERIAL Stainless Steel 316 Marine Grade & Poly Peel and stick (No Drilling required) MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width can be availed as per requirements. SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stainless Steel Prime Collection Page 42 Page 41 270 280 4.5 270 280 4.5 270 280 4.5 270 280 4.5 25 35 25 35
24. SKU : ET-DTS023 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH LINEAR PATTERN ON TOP FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Stainless Steel 316 Marine Grade Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES SKU : ET-DTS024 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH CARBORUNDUM INSERT ON TOP FIXING TOP OF STRIP Carborundum Insert colors Grey, Red, Yellow, Black, Blue & Terracotta BASE MATERIAL Stainless Steel 316 Marine Grade & Carborundum Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stainless Steel Prime Collection SKU : ET-DTS021 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH PVD COATING FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Stainless Steel 316 Marine Grade Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES SKU : ET-DTS022 STAINLESS STEEL TACTILE DIRECTIONAL STRIP WITH PVD COATING & SELF ADHESIVE FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Stainless Steel 316 Marine Grade Peel and stick (No Drilling required) MATERIAL OPTIONS Stainless Steel 304 / Brass / Aluminum SPECIAL OPTIONS Length / Width can be availed as per requirements. SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stainless Steel Prime Collection Page 44 Page 43 270 280 4.5 270 280 4.5 280 270 4.5 280 270 4.5

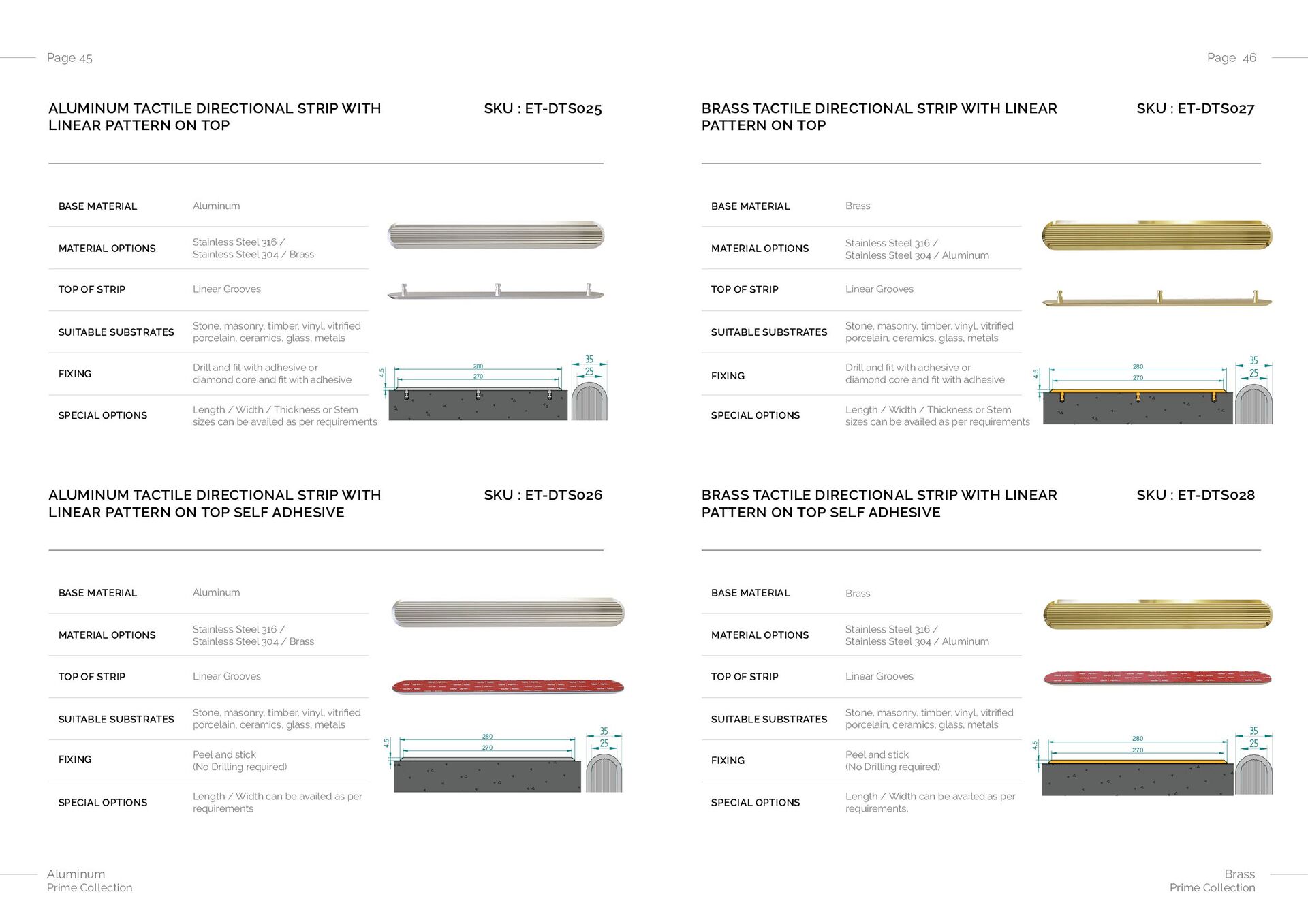

25. Brass Prime Collection SKU : ET-DTS027 BRASS TACTILE DIRECTIONAL STRIP WITH LINEAR PATTERN ON TOP FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Brass Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS Stainless Steel 316 / Stainless Steel 304 / Aluminum SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES SKU : ET-DTS028 BRASS TACTILE DIRECTIONAL STRIP WITH LINEAR PATTERN ON TOP SELF ADHESIVE FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Brass Peel and stick (No Drilling required) MATERIAL OPTIONS Stainless Steel 316 / Stainless Steel 304 / Aluminum SPECIAL OPTIONS Length / Width can be availed as per requirements. SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Aluminum Prime Collection SKU : ET-DTS025 ALUMINUM TACTILE DIRECTIONAL STRIP WITH LINEAR PATTERN ON TOP FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Aluminum Drill and fit with adhesive or diamond core and fit with adhesive MATERIAL OPTIONS Stainless Steel 316 / Stainless Steel 304 / Brass SPECIAL OPTIONS Length / Width / Thickness or Stem sizes can be availed as per requirements SUITABLE SUBSTRATES SKU : ET-DTS026 ALUMINUM TACTILE DIRECTIONAL STRIP WITH LINEAR PATTERN ON TOP SELF ADHESIVE FIXING TOP OF STRIP Linear Grooves BASE MATERIAL Aluminum Peel and stick (No Drilling required) MATERIAL OPTIONS Stainless Steel 316 / Stainless Steel 304 / Brass SPECIAL OPTIONS Length / Width can be availed as per requirements SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 46 Page 45 270 280 4.5 270 280 4.5 270 280 4.5 270 280 4.5

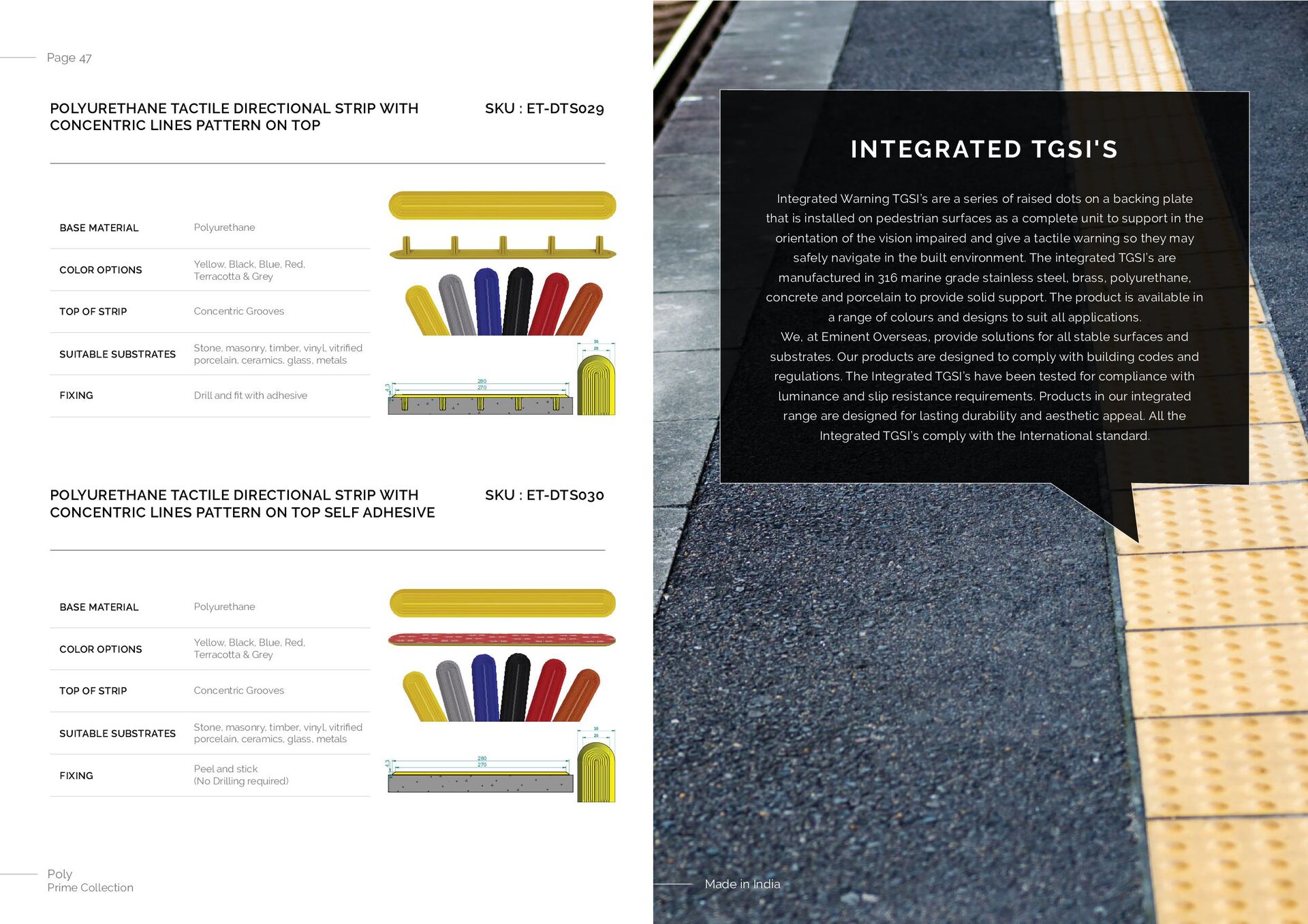

26. Poly Prime Collection SKU : ET-DTS029 POLYURETHANE TACTILE DIRECTIONAL STRIP WITH CONCENTRIC LINES PATTERN ON TOP FIXING TOP OF STRIP Concentric Grooves BASE MATERIAL Polyurethane Drill and fit with adhesive COLOR OPTIONS Yellow, Black, Blue, Red, Terracotta & Grey SUITABLE SUBSTRATES SKU : ET-DTS030 POLYURETHANE TACTILE DIRECTIONAL STRIP WITH CONCENTRIC LINES PATTERN ON TOP SELF ADHESIVE FIXING TOP OF STRIP Concentric Grooves BASE MATERIAL Polyurethane Peel and stick (No Drilling required) COLOR OPTIONS Yellow, Black, Blue, Red, Terracotta & Grey SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Poly Prime Collection Integrated Warning TGSI’s are a series of raised dots on a backing plate that is installed on pedestrian surfaces as a complete unit to support in the orientation of the vision impaired and give a tactile warning so they may safely navigate in the built environment. The integrated TGSI’s are manufactured in 316 marine grade stainless steel, brass, polyurethane, concrete and porcelain to provide solid support. The product is available in a range of colours and designs to suit all applications. We, at Eminent Overseas, provide solutions for all stable surfaces and substrates. Our products are designed to comply with building codes and regulations. The Integrated TGSI’s have been tested for compliance with luminance and slip resistance requirements. Products in our integrated range are designed for lasting durability and aesthetic appeal. All the Integrated TGSI’s comply with the International standard. Made in India INTEGRATED TGSI'S Page 47 4.3 270 280 280 270 4.3

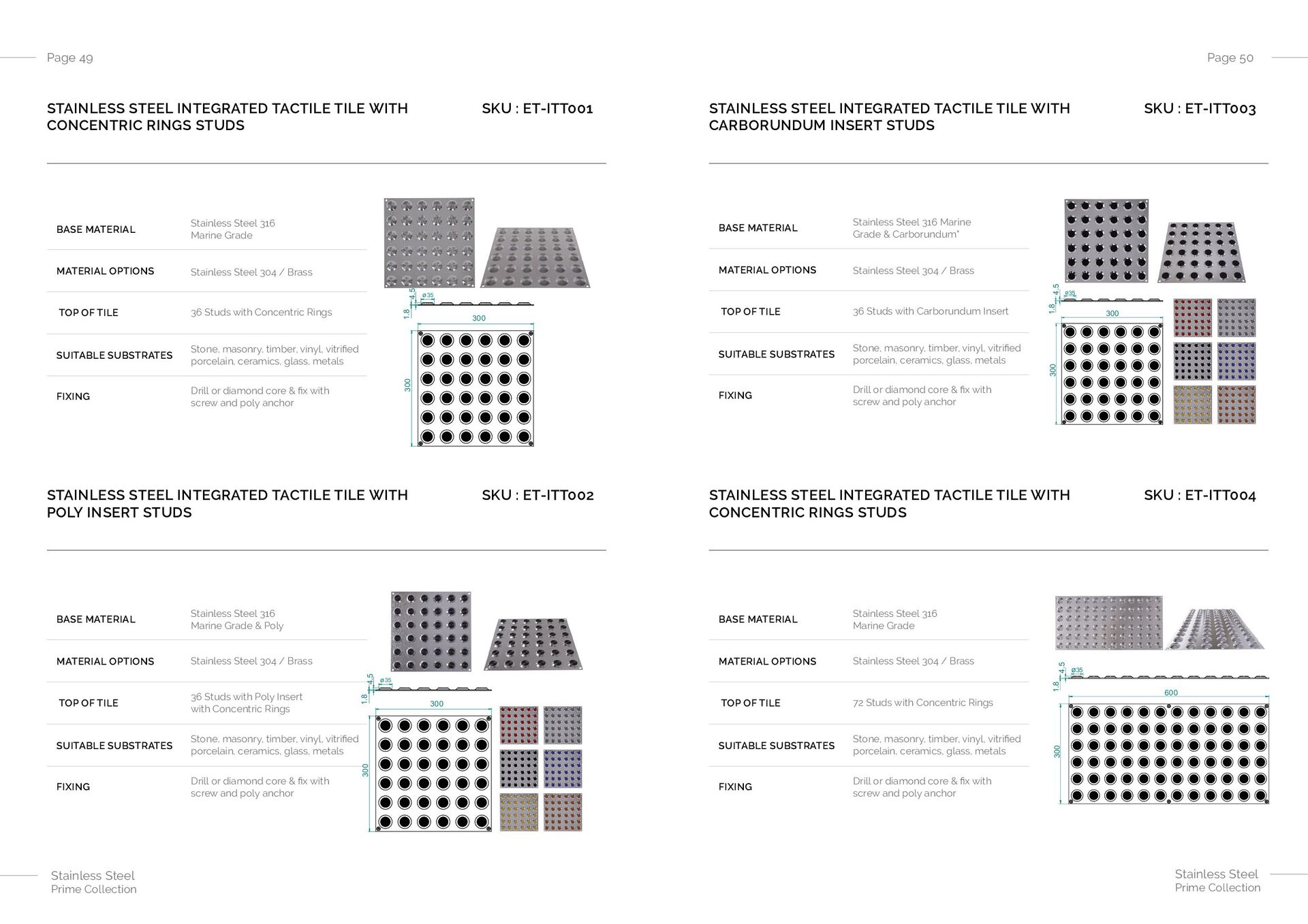

27. Stainless Steel Prime Collection SKU : ET-ITT003 STAINLESS STEEL INTEGRATED TACTILE TILE WITH CARBORUNDUM INSERT STUDS FIXING TOP OF TILE 36 Studs with Carborundum Insert BASE MATERIAL Stainless Steel 316 Marine Grade & Carborundum" Drill or diamond core & fix with screw and poly anchor MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES SKU : ET-ITT004 STAINLESS STEEL INTEGRATED TACTILE TILE WITH CONCENTRIC RINGS STUDS FIXING TOP OF TILE 72 Studs with Concentric Rings BASE MATERIAL Stainless Steel 316 Marine Grade Drill or diamond core & fix with screw and poly anchor MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stainless Steel Prime Collection SKU : ET-ITT001 STAINLESS STEEL INTEGRATED TACTILE TILE WITH CONCENTRIC RINGS STUDS FIXING TOP OF TILE 36 Studs with Concentric Rings BASE MATERIAL Stainless Steel 316 Marine Grade Drill or diamond core & fix with screw and poly anchor MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES SKU : ET-ITT002 STAINLESS STEEL INTEGRATED TACTILE TILE WITH POLY INSERT STUDS FIXING TOP OF TILE 36 Studs with Poly Insert with Concentric Rings BASE MATERIAL Stainless Steel 316 Marine Grade & Poly Drill or diamond core & fix with screw and poly anchor MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 50 Page 49 1.8 4.5 35 ø 300 300 1.8 4.5 35 ø 300 300 1.8 4.5 35 ø 300 300 35 ø 4.5 1.8 300 600

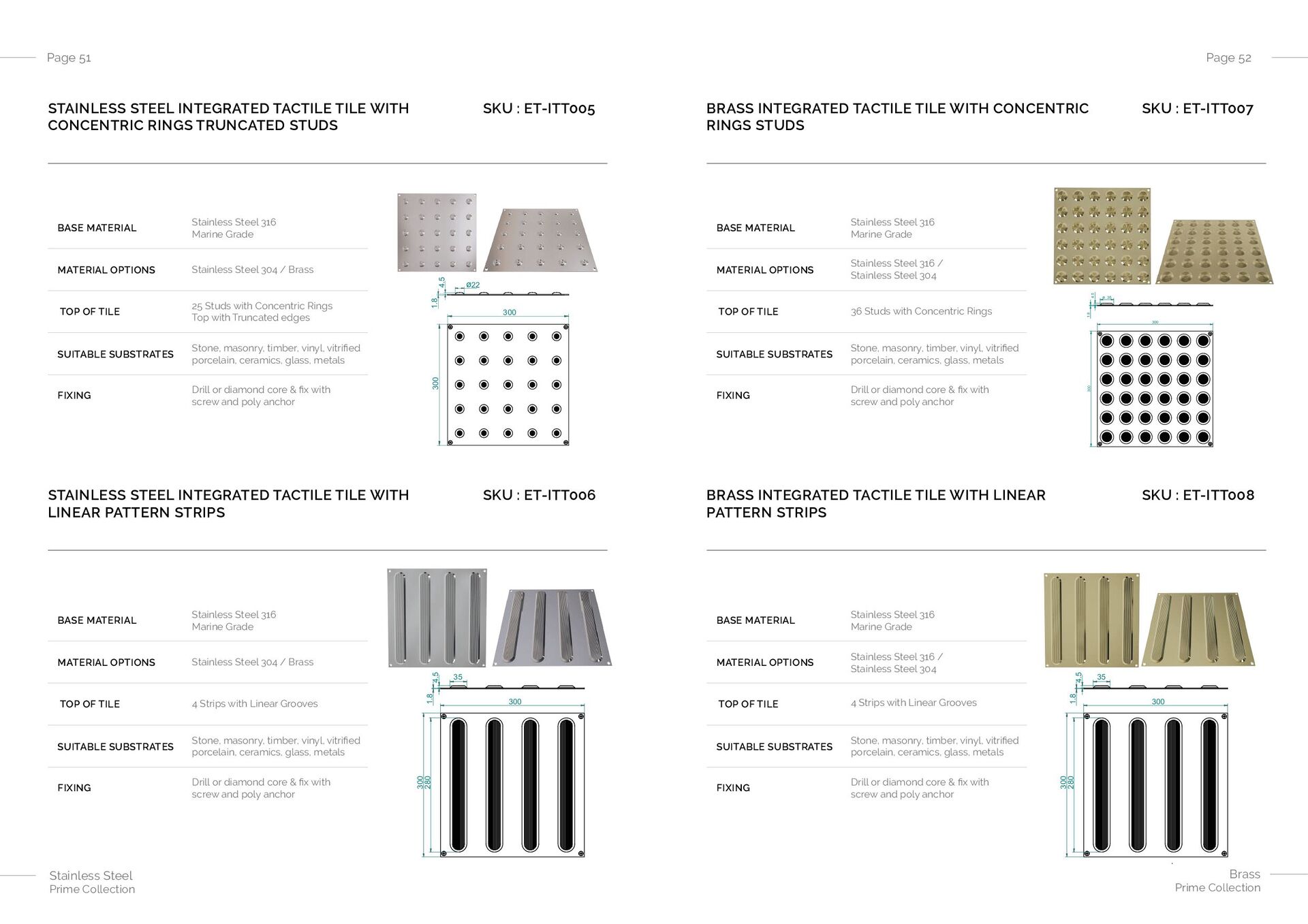

28. Stainless Steel Prime Collection SKU : ET-ITT007 BRASS INTEGRATED TACTILE TILE WITH CONCENTRIC RINGS STUDS FIXING TOP OF TILE 36 Studs with Concentric Rings BASE MATERIAL Stainless Steel 316 Marine Grade Drill or diamond core & fix with screw and poly anchor MATERIAL OPTIONS Stainless Steel 316 / Stainless Steel 304 SUITABLE SUBSTRATES SKU : ET-ITT008 BRASS INTEGRATED TACTILE TILE WITH LINEAR PATTERN STRIPS FIXING TOP OF TILE 4 Strips with Linear Grooves BASE MATERIAL Stainless Steel 316 Marine Grade Drill or diamond core & fix with screw and poly anchor MATERIAL OPTIONS Stainless Steel 316 / Stainless Steel 304 SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Brass Prime Collection SKU : ET-ITT005 STAINLESS STEEL INTEGRATED TACTILE TILE WITH CONCENTRIC RINGS TRUNCATED STUDS FIXING TOP OF TILE 25 Studs with Concentric Rings Top with Truncated edges BASE MATERIAL Stainless Steel 316 Marine Grade Drill or diamond core & fix with screw and poly anchor MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES SKU : ET-ITT006 STAINLESS STEEL INTEGRATED TACTILE TILE WITH LINEAR PATTERN STRIPS FIXING TOP OF TILE 4 Strips with Linear Grooves BASE MATERIAL Stainless Steel 316 Marine Grade Drill or diamond core & fix with screw and poly anchor MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 52 Page 51 1.8 4.5 35 ø 300 300 22 ø 1.8 300 300 4.5 1.8 4.5 35 280 300 300 1.8 4.5 35 280 300 300

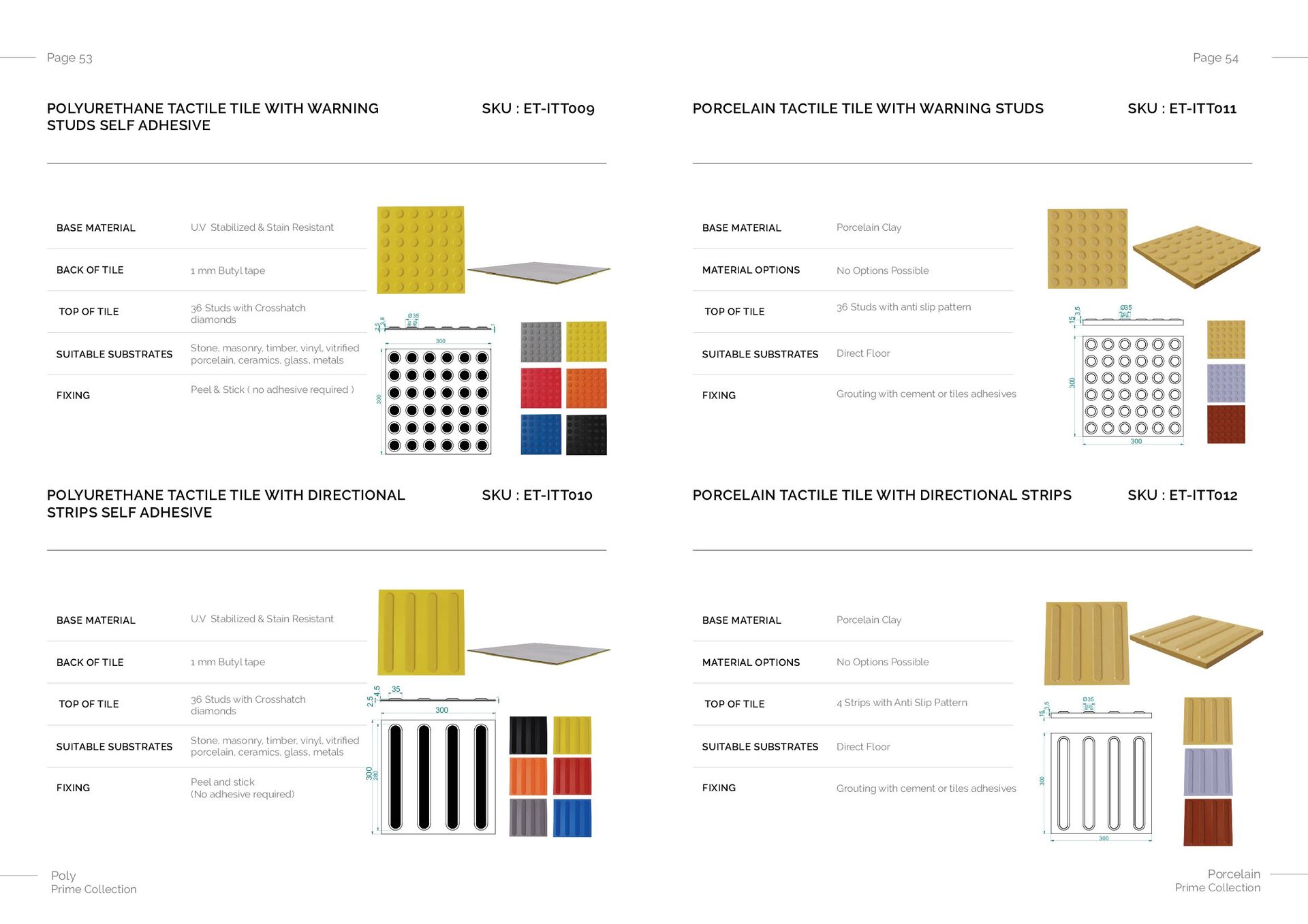

29. Poly Prime Collection SKU : ET-ITT011 PORCELAIN TACTILE TILE WITH WARNING STUDS FIXING TOP OF TILE 36 Studs with anti slip pattern BASE MATERIAL Porcelain Clay Grouting with cement or tiles adhesives MATERIAL OPTIONS No Options Possible SUITABLE SUBSTRATES SKU : ET-ITT012 PORCELAIN TACTILE TILE WITH DIRECTIONAL STRIPS FIXING TOP OF TILE 4 Strips with Anti Slip Pattern BASE MATERIAL Porcelain Clay Grouting with cement or tiles adhesives MATERIAL OPTIONS No Options Possible SUITABLE SUBSTRATES Direct Floor Direct Floor Porcelain Prime Collection SKU : ET-ITT009 POLYURETHANE TACTILE TILE WITH WARNING STUDS SELF ADHESIVE FIXING TOP OF TILE 36 Studs with Crosshatch diamonds BASE MATERIAL U.V Stabilized & Stain Resistant Peel & Stick ( no adhesive required ) BACK OF TILE 1 mm Butyl tape SUITABLE SUBSTRATES SKU : ET-ITT010 POLYURETHANE TACTILE TILE WITH DIRECTIONAL STRIPS SELF ADHESIVE FIXING TOP OF TILE 36 Studs with Crosshatch diamonds BASE MATERIAL U.V Stabilized & Stain Resistant Peel and stick (No adhesive required) BACK OF TILE 1 mm Butyl tape SUITABLE SUBSTRATES Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals 3,8 2,5 25 Ø 35 Ø 1 300 300 300 300 15 3,5 35 Ø 25 Ø 300 300 15 3,5 25 Ø 35 Ø Page 54 Page 53 35 4.5 300 300 280 2.5 1

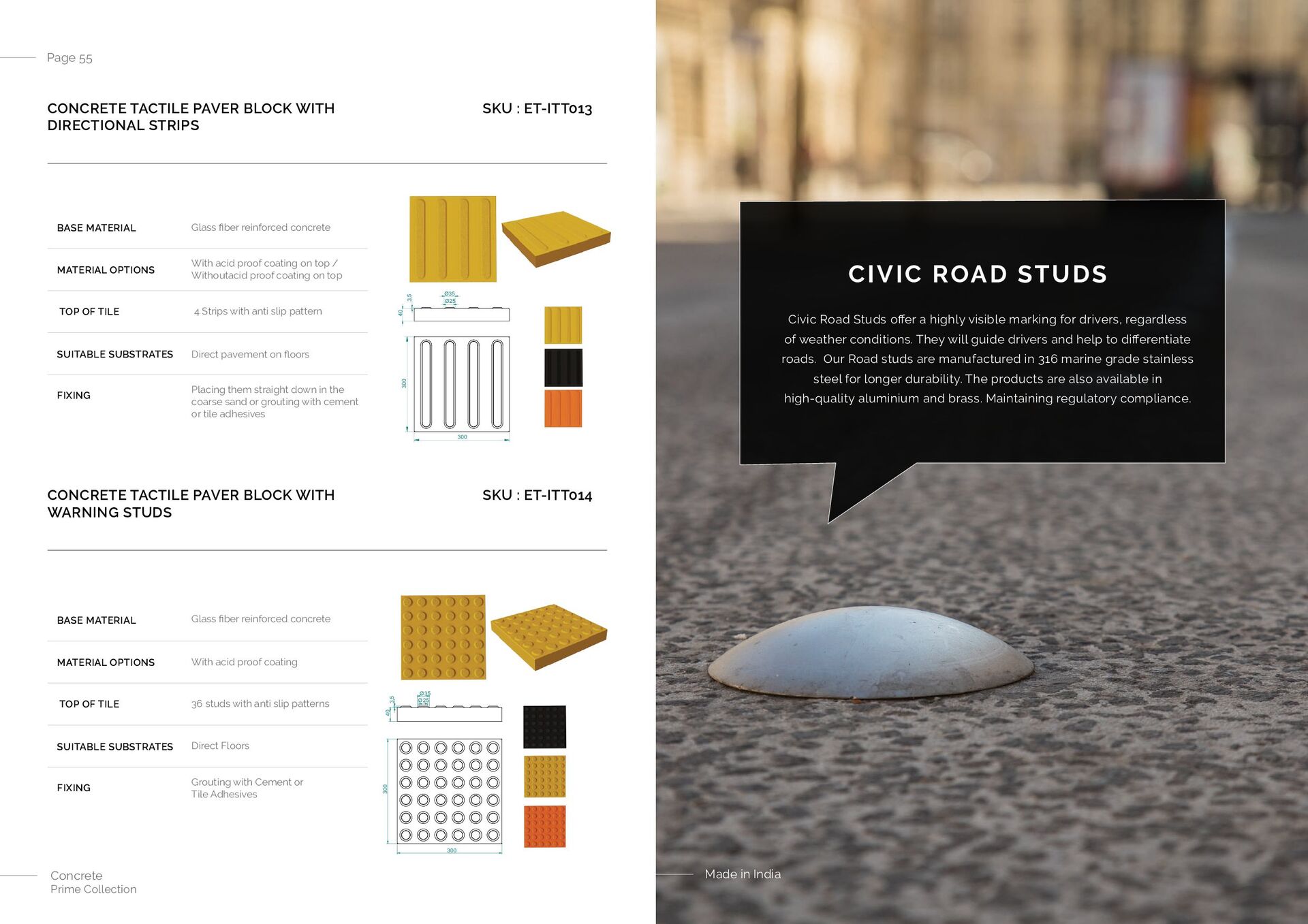

30. Concrete Prime Collection Porcelain Prime Collection SKU : ET-ITT013 CONCRETE TACTILE PAVER BLOCK WITH DIRECTIONAL STRIPS FIXING TOP OF TILE 4 Strips with anti slip pattern BASE MATERIAL Glass fiber reinforced concrete Placing them straight down in the coarse sand or grouting with cement or tile adhesives MATERIAL OPTIONS With acid proof coating on top / Withoutacid proof coating on top SUITABLE SUBSTRATES SKU : ET-ITT014 CONCRETE TACTILE PAVER BLOCK WITH WARNING STUDS FIXING TOP OF TILE 36 studs with anti slip patterns BASE MATERIAL Glass fiber reinforced concrete Grouting with Cement or Tile Adhesives MATERIAL OPTIONS With acid proof coating SUITABLE SUBSTRATES Direct pavement on floors Direct Floors Civic Road Studs offer a highly visible marking for drivers, regardless of weather conditions. They will guide drivers and help to differentiate roads. Our Road studs are manufactured in 316 marine grade stainless steel for longer durability. The products are also available in high-quality aluminium and brass. Maintaining regulatory compliance. Made in India CIVIC ROAD STUDS 300 300 40 3,5 35 Ø 25 Ø 300 300 40 3,5 35 Ø 25 Ø Page 55

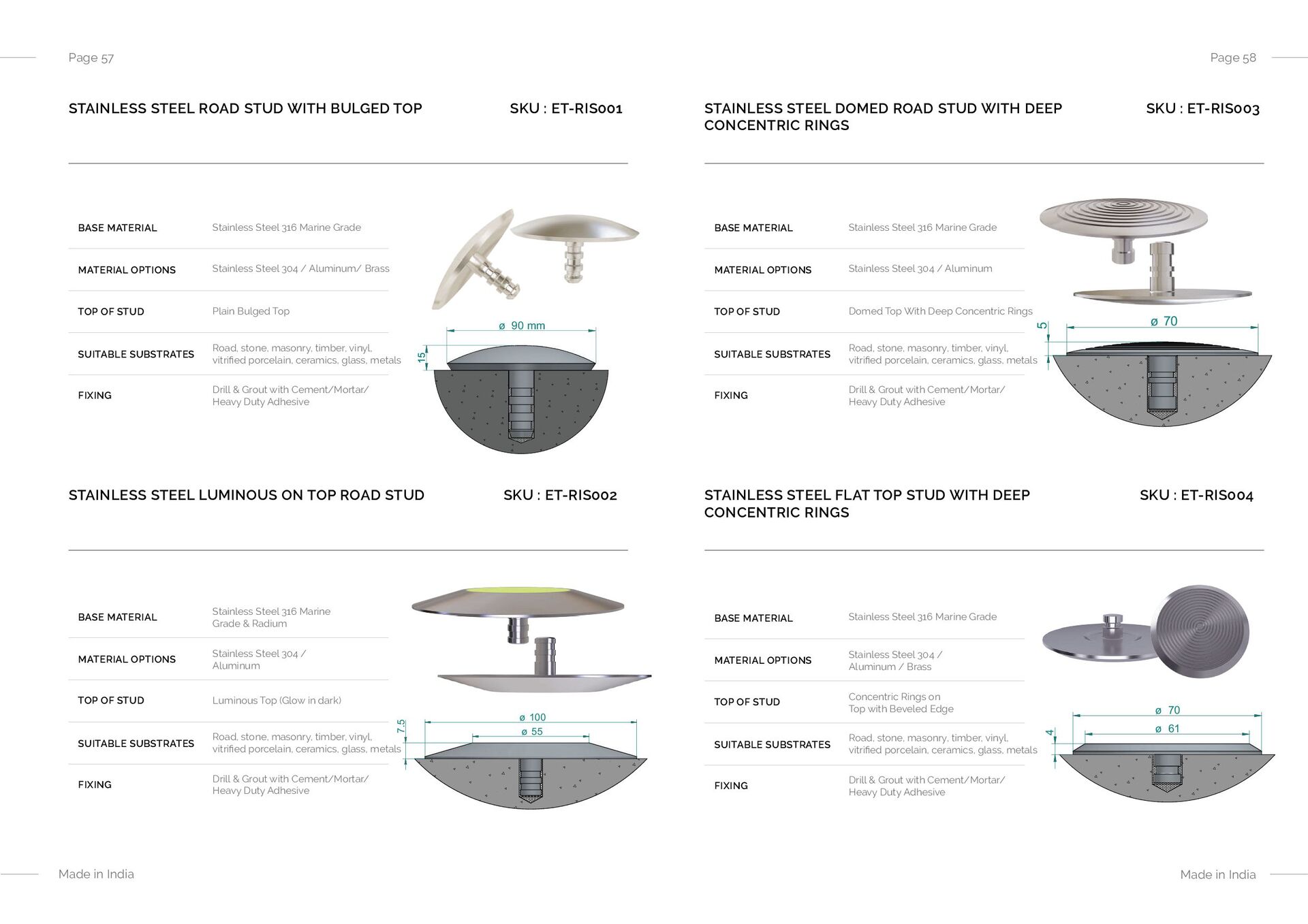

31. Made in India SKU : ET-RIS003 STAINLESS STEEL DOMED ROAD STUD WITH DEEP CONCENTRIC RINGS FIXING TOP OF STUD Domed Top With Deep Concentric Rings BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Aluminum SUITABLE SUBSTRATES SKU : ET-RIS004 STAINLESS STEEL FLAT TOP STUD WITH DEEP CONCENTRIC RINGS FIXING TOP OF STUD Concentric Rings on Top with Beveled Edge BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Aluminum / Brass SUITABLE SUBSTRATES Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Made in India SKU : ET-RIS001 STAINLESS STEEL ROAD STUD WITH BULGED TOP FIXING TOP OF STUD Plain Bulged Top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Aluminum/ Brass SUITABLE SUBSTRATES SKU : ET-RIS002 STAINLESS STEEL LUMINOUS ON TOP ROAD STUD FIXING TOP OF STUD Luminous Top (Glow in dark) BASE MATERIAL Stainless Steel 316 Marine Grade & Radium Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Aluminum SUITABLE SUBSTRATES Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 58 Page 57 90 ø mm 100 ø 55 ø 7.5 70 ø 5 4 70 ø 61 ø

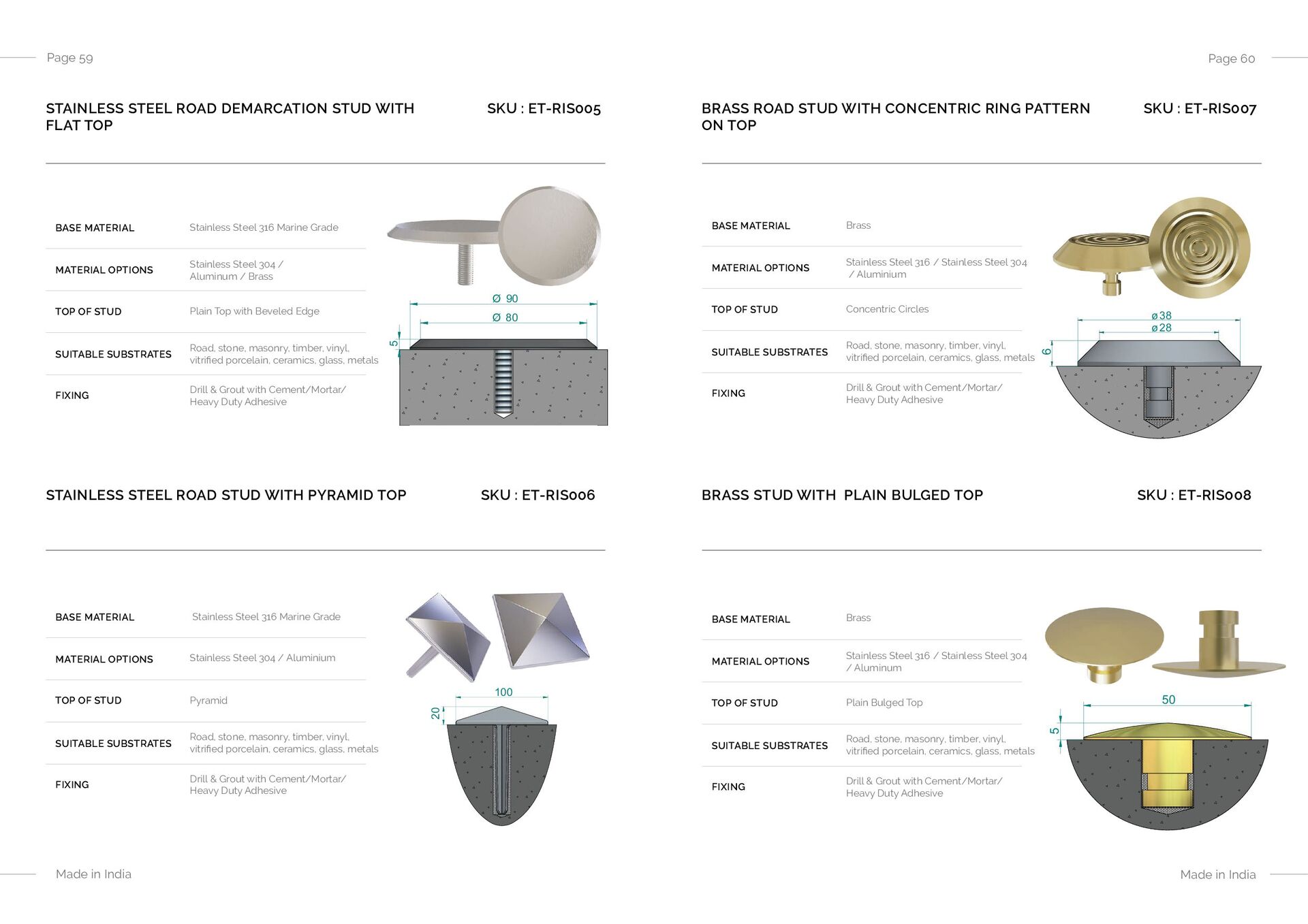

32. Made in India Made in India SKU : ET-RIS005 STAINLESS STEEL ROAD DEMARCATION STUD WITH FLAT TOP FIXING TOP OF STUD Plain Top with Beveled Edge BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Aluminum / Brass SUITABLE SUBSTRATES SKU : ET-RIS006 STAINLESS STEEL ROAD STUD WITH PYRAMID TOP FIXING TOP OF STUD Pyramid BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Aluminium SUITABLE SUBSTRATES Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals 80 Ø 90 Ø 5 SKU : ET-RIS007 BRASS ROAD STUD WITH CONCENTRIC RING PATTERN ON TOP FIXING TOP OF STUD Concentric Circles BASE MATERIAL Brass Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 316 / Stainless Steel 304 / Aluminium SUITABLE SUBSTRATES SKU : ET-RIS008 BRASS STUD WITH PLAIN BULGED TOP FIXING TOP OF STUD Plain Bulged Top BASE MATERIAL Brass Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 316 / Stainless Steel 304 / Aluminum SUITABLE SUBSTRATES Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 60 Page 59 100 20 38 ø 28 ø 6 50 5

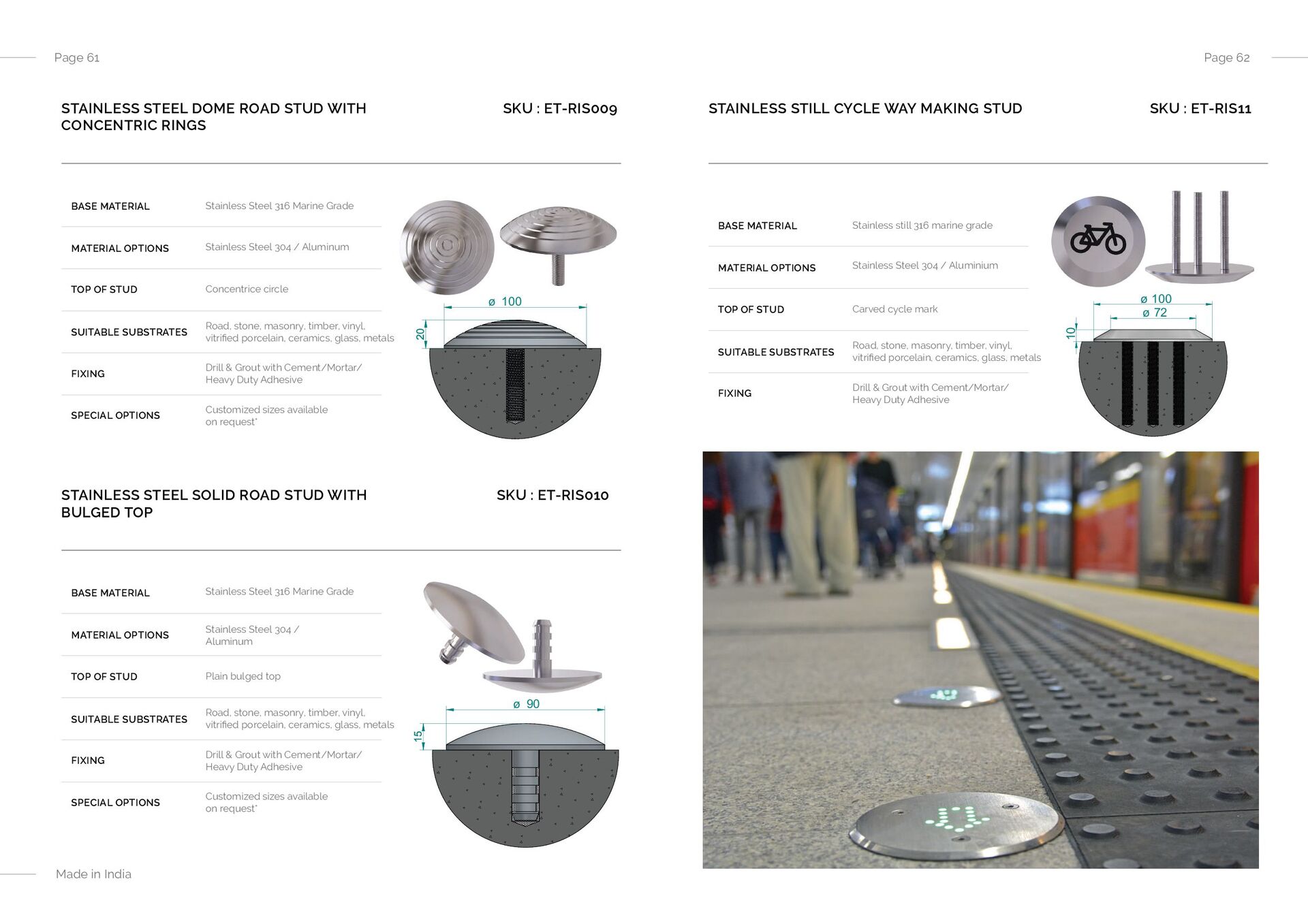

33. SKU : ET-RIS11 STAINLESS STILL CYCLE WAY MAKING STUD FIXING TOP OF STUD Carved cycle mark BASE MATERIAL Stainless still 316 marine grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Aluminium SUITABLE SUBSTRATES Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Made in India SKU : ET-RIS009 STAINLESS STEEL DOME ROAD STUD WITH CONCENTRIC RINGS FIXING TOP OF STUD Concentrice circle BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Aluminum SPECIAL OPTIONS Customized sizes available on request* SUITABLE SUBSTRATES SKU : ET-RIS010 STAINLESS STEEL SOLID ROAD STUD WITH BULGED TOP FIXING TOP OF STUD Plain bulged top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Aluminum SPECIAL OPTIONS Customized sizes available on request* SUITABLE SUBSTRATES Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 62 Page 61 100 ø 90 ø 10 72 ø 100 ø

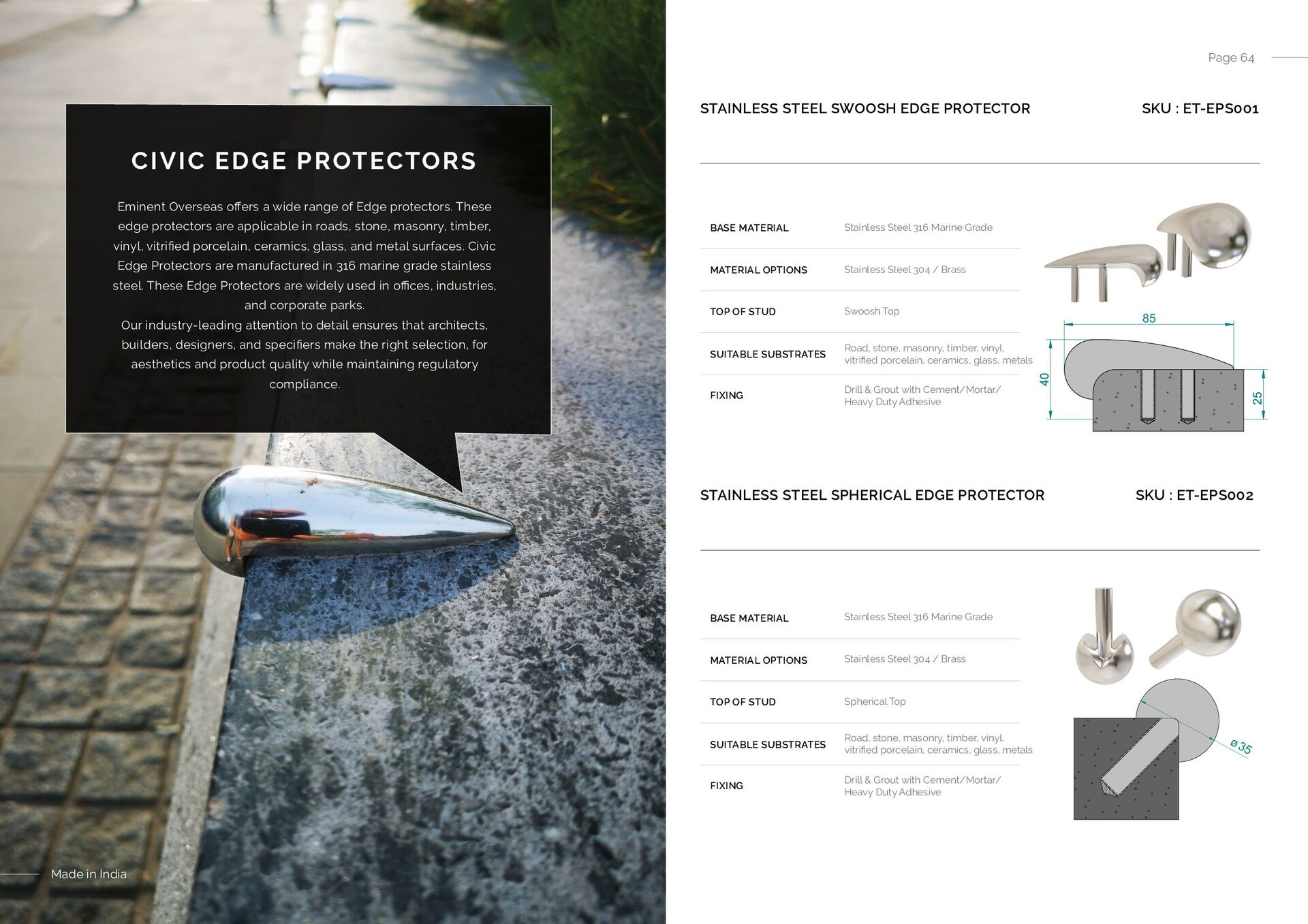

34. Made in India Eminent Overseas offers a wide range of Edge protectors. These edge protectors are applicable in roads, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, and metal surfaces. Civic Edge Protectors are manufactured in 316 marine grade stainless steel. These Edge Protectors are widely used in offices, industries, and corporate parks. Our industry-leading attention to detail ensures that architects, builders, designers, and specifiers make the right selection, for aesthetics and product quality while maintaining regulatory compliance. CIVIC EDGE PROTECTORS SKU : ET-EPS001 STAINLESS STEEL SWOOSH EDGE PROTECTOR FIXING TOP OF STUD Swoosh Top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES SKU : ET-EPS002 STAINLESS STEEL SPHERICAL EDGE PROTECTOR FIXING TOP OF STUD Spherical Top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 64 85 ø35

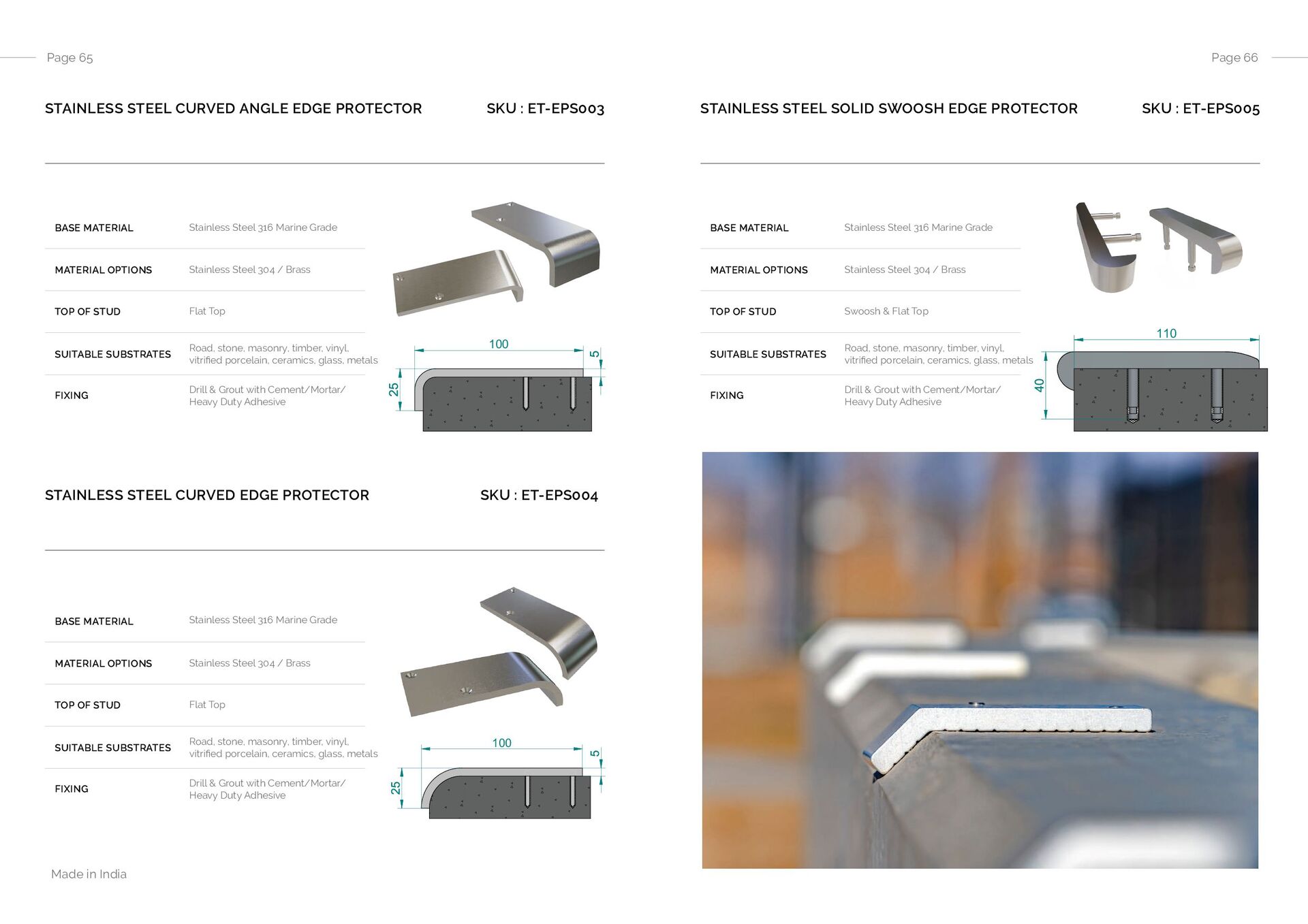

35. Made in India SKU : ET-EPS005 STAINLESS STEEL SOLID SWOOSH EDGE PROTECTOR FIXING TOP OF STUD Swoosh & Flat Top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-EPS003 STAINLESS STEEL CURVED ANGLE EDGE PROTECTOR FIXING TOP OF STUD Flat Top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES SKU : ET-EPS004 STAINLESS STEEL CURVED EDGE PROTECTOR FIXING TOP OF STUD Flat Top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 66 Page 65 100 100 110

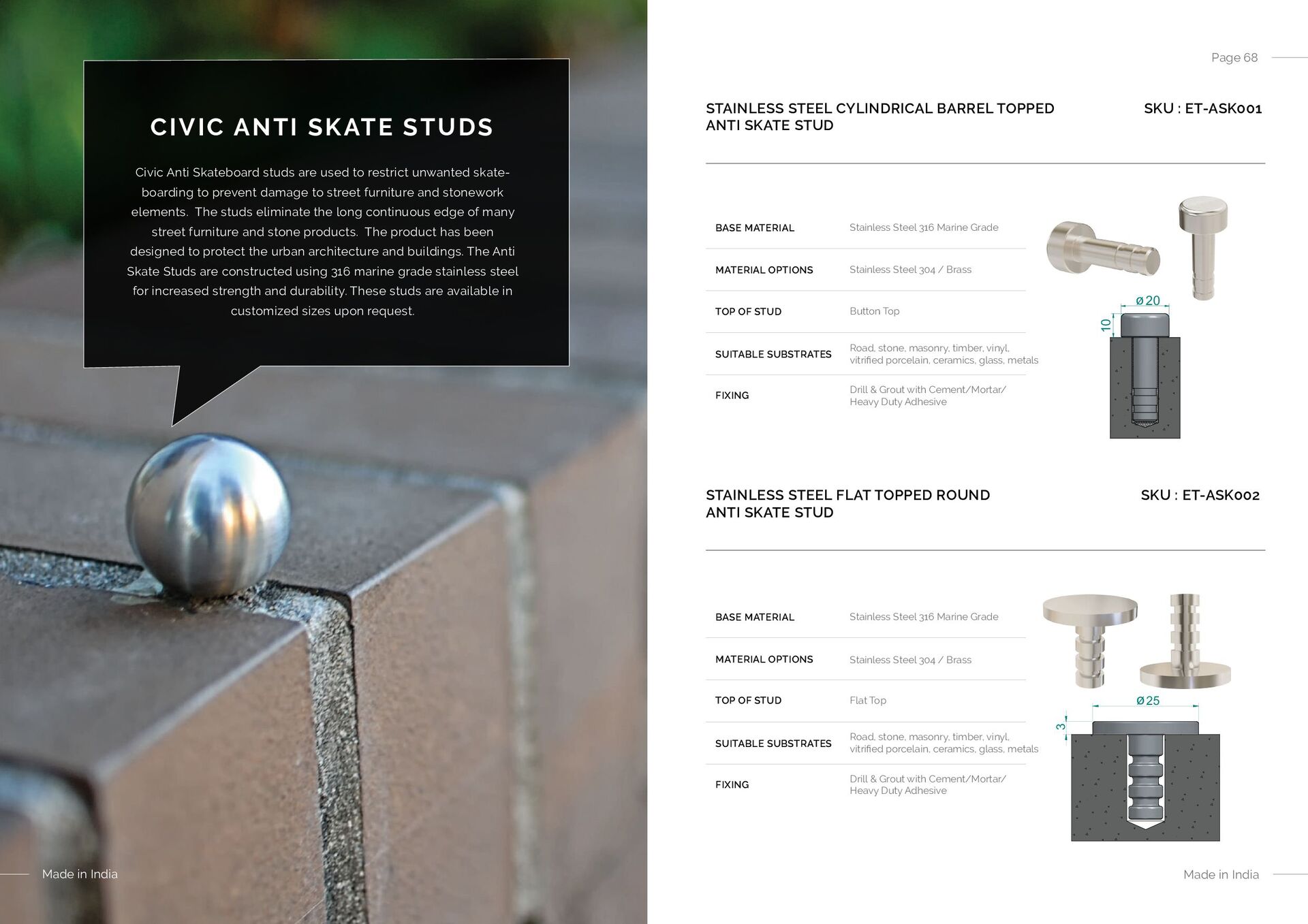

36. Civic Anti Skateboard studs are used to restrict unwanted skate- boarding to prevent damage to street furniture and stonework elements. The studs eliminate the long continuous edge of many street furniture and stone products. The product has been designed to protect the urban architecture and buildings. The Anti Skate Studs are constructed using 316 marine grade stainless steel for increased strength and durability. These studs are available in customized sizes upon request. Made in India Made in India CIVIC ANTI SKATE STUDS SKU : ET-ASK001 STAINLESS STEEL CYLINDRICAL BARREL TOPPED ANTI SKATE STUD FIXING TOP OF STUD Button Top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES SKU : ET-ASK002 STAINLESS STEEL FLAT TOPPED ROUND ANTI SKATE STUD FIXING TOP OF STUD Flat Top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 68 10 20 ø 25 ø 3

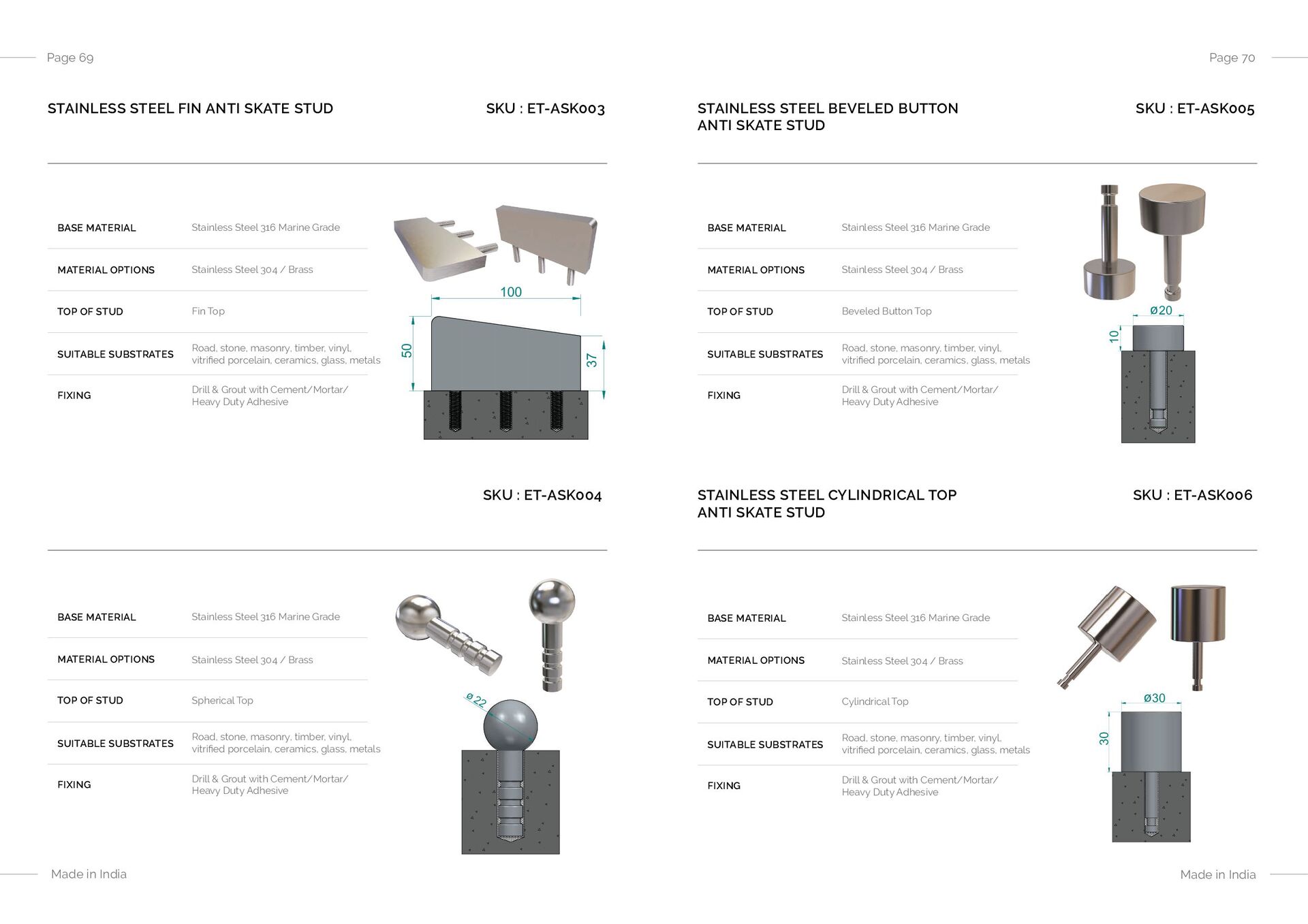

37. Made in India Made in India SKU : ET-ASK005 STAINLESS STEEL BEVELED BUTTON ANTI SKATE STUD FIXING TOP OF STUD Beveled Button Top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES SKU : ET-ASK006 STAINLESS STEEL CYLINDRICAL TOP ANTI SKATE STUD FIXING TOP OF STUD Cylindrical Top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals SKU : ET-ASK003 STAINLESS STEEL FIN ANTI SKATE STUD FIXING TOP OF STUD Fin Top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES SKU : ET-ASK004 FIXING TOP OF STUD Spherical Top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Page 70 Page 69 50 37 100 ø 22 20 ø 10 30 ø 30

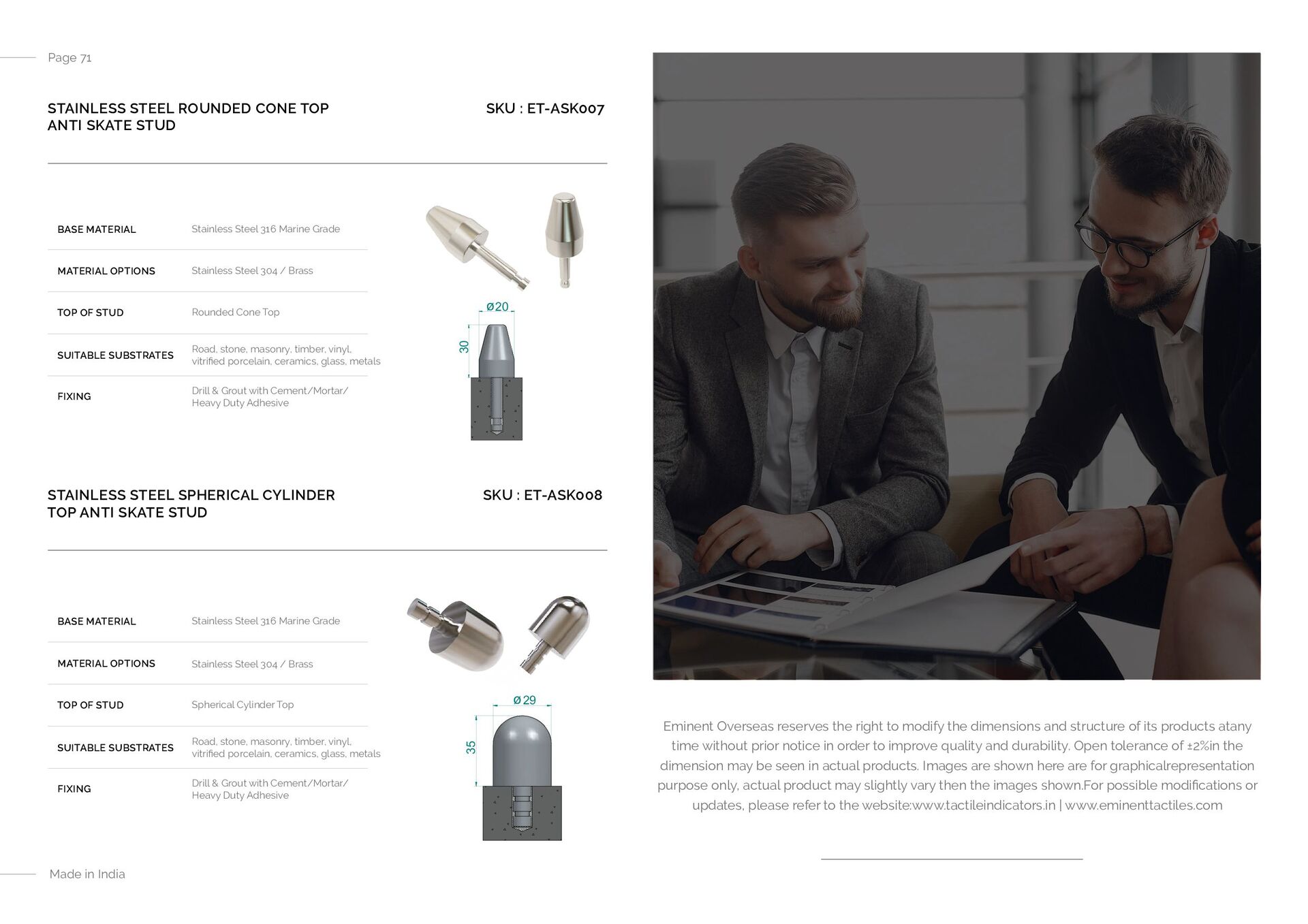

38. SKU : ET-ASK007 STAINLESS STEEL ROUNDED CONE TOP ANTI SKATE STUD FIXING TOP OF STUD Rounded Cone Top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES SKU : ET-ASK008 STAINLESS STEEL SPHERICAL CYLINDER TOP ANTI SKATE STUD FIXING TOP OF STUD Spherical Cylinder Top BASE MATERIAL Stainless Steel 316 Marine Grade Drill & Grout with Cement/Mortar/ Heavy Duty Adhesive MATERIAL OPTIONS Stainless Steel 304 / Brass SUITABLE SUBSTRATES Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Road, stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals Made in India Page 71 20 ø 30 29 ø 35 Eminent Overseas reserves the right to modify the dimensions and structure of its products atany time without prior notice in order to improve quality and durability. Open tolerance of ±2%in the dimension may be seen in actual products. Images are shown here are for graphicalrepresentation purpose only, actual product may slightly vary then the images shown.For possible modifications or updates, please refer to the website:www.tactileindicators.in | www.eminenttactiles.com

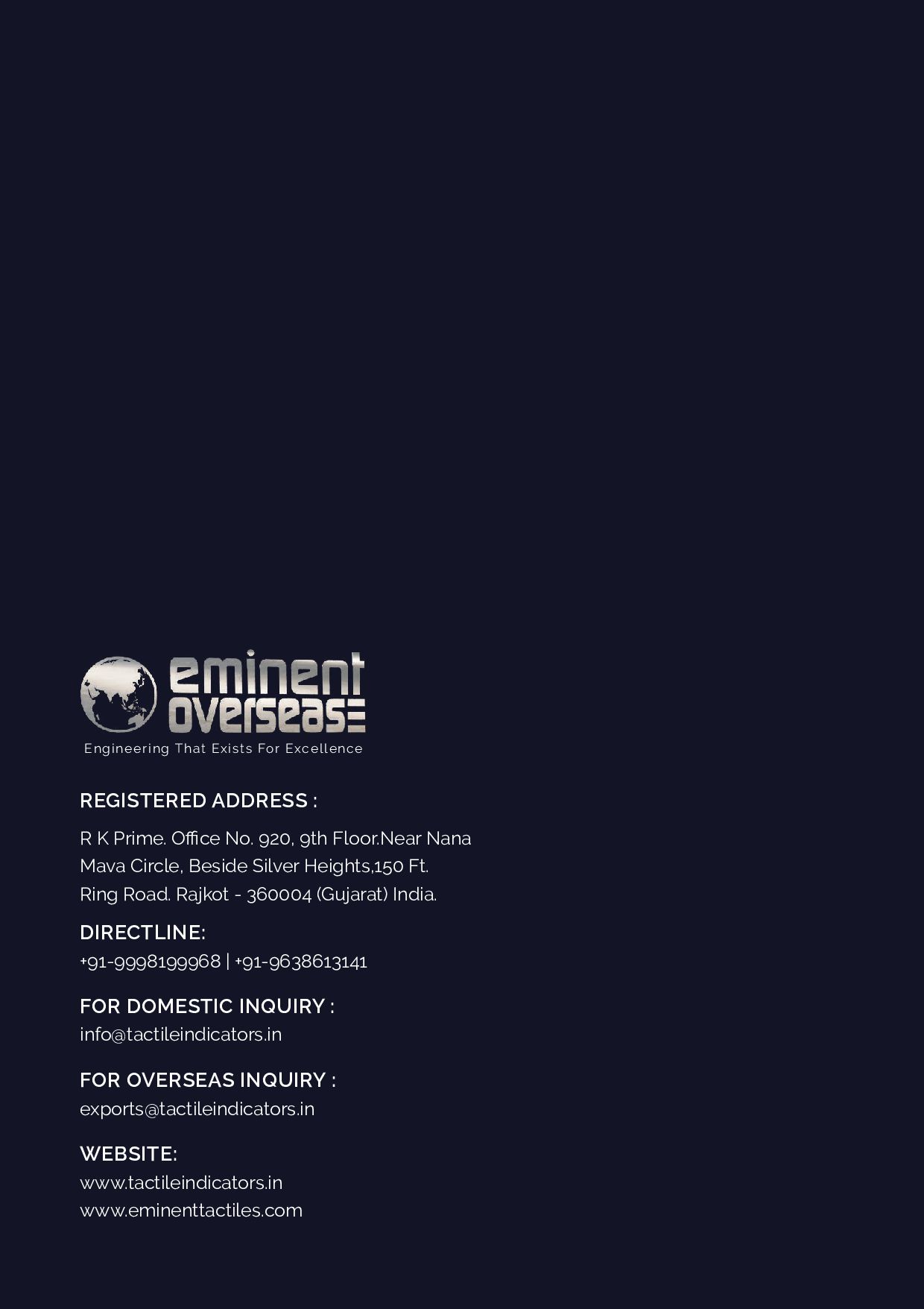

39. Made in India Made in India Engineering That Exists For Excellence FOR DOMESTIC INQUIRY : info@tactileindicators.in R K Prime. Office No. 920, 9th Floor.Near Nana Mava Circle, Beside Silver Heights,150 Ft. Ring Road. Rajkot - 360004 (Gujarat) India. REGISTERED ADDRESS : DIRECTLINE: +91-9998199968 | +91-9638613141 WEBSITE: www.tactileindicators.in www.eminenttactiles.com FOR OVERSEAS INQUIRY : exports@tactileindicators.in
