Rendering beautiful text using MSDFs and Metal

Slides for my talk given at try! Swift Tokyo in April 2025. For the original keynote presentation, containing video, please go here: https://www.icloud.com/keynote/023sg8naQpfLzL5UYhThho3zQ#kapsy%5Ftry%5Fswift%5F2025%5Ffinal

Transcript

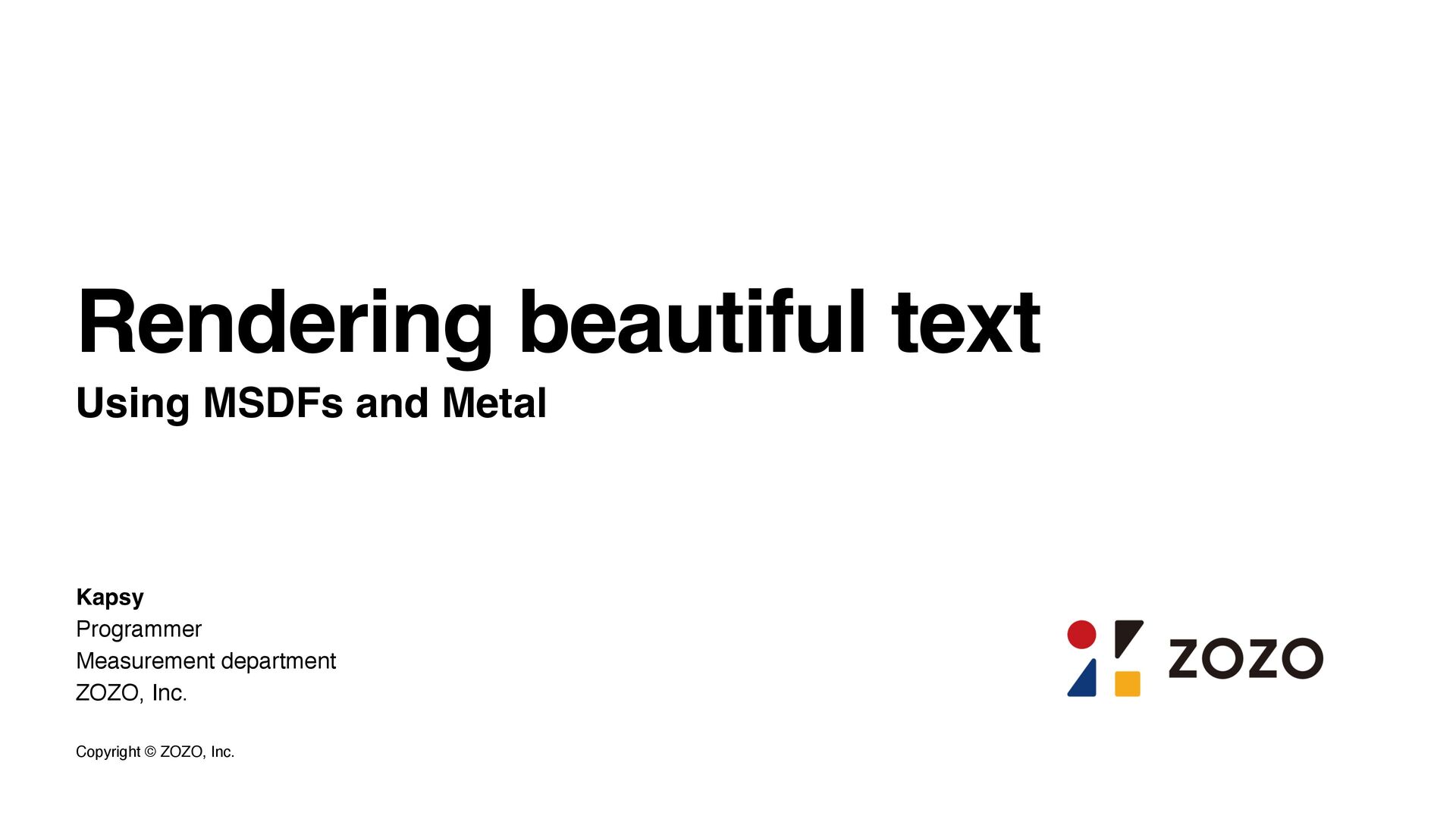

1. Using MSDFs and Metal Rendering beautiful text Kapsy Programmer Measurement department ZOZO, Inc. Copyright © ZOZO, Inc.

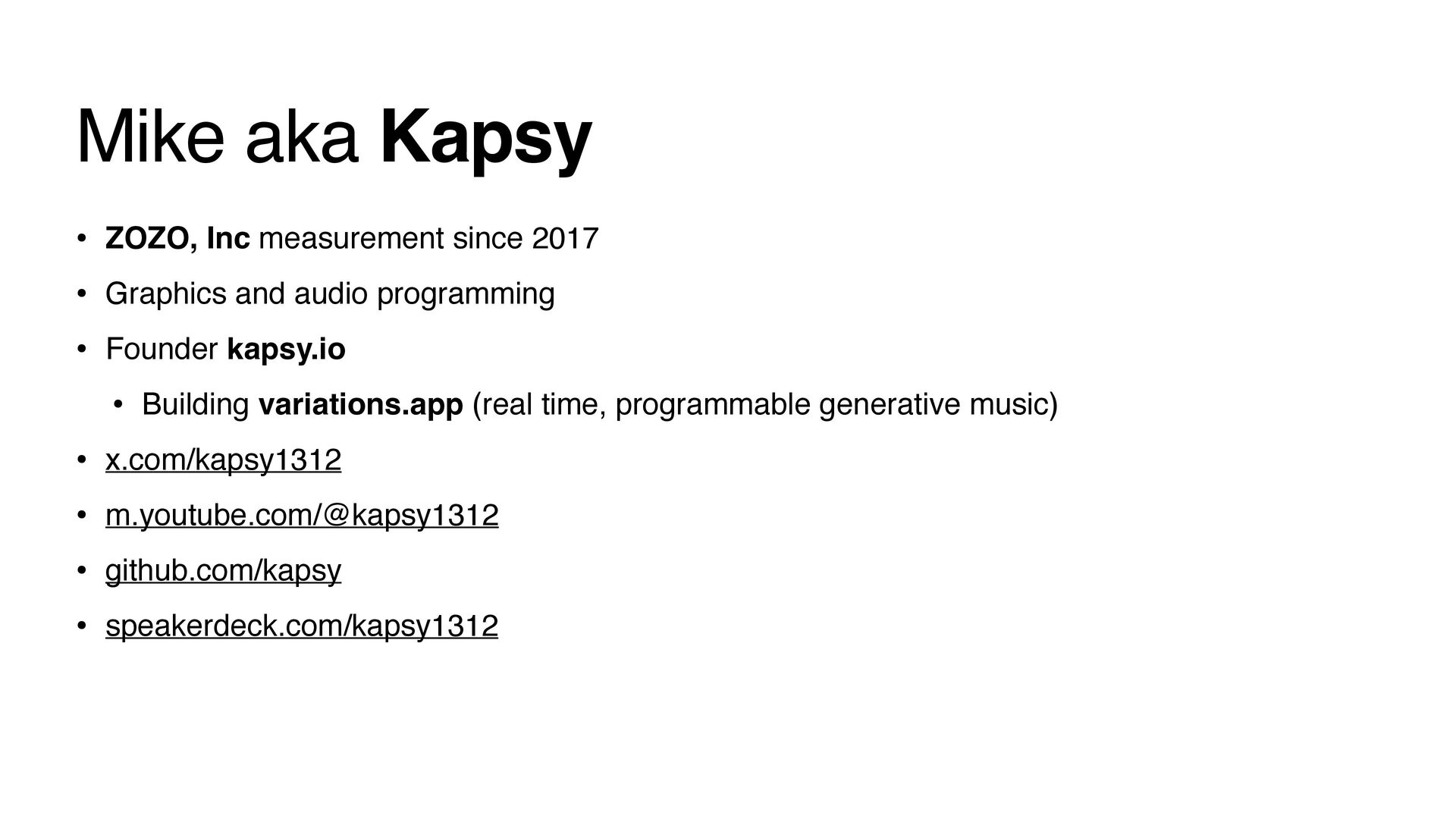

2. • ZOZO, Inc measurement since 2017 • Graphics and audio programming • Founder kapsy.io • Building variations.app (real time, programmable generative music) • x.com/kapsy1312 • m.youtube.com/@kapsy1312 • github.com/kapsy • speakerdeck.com/kapsy1312 Mike aka Kapsy
3. variations.app

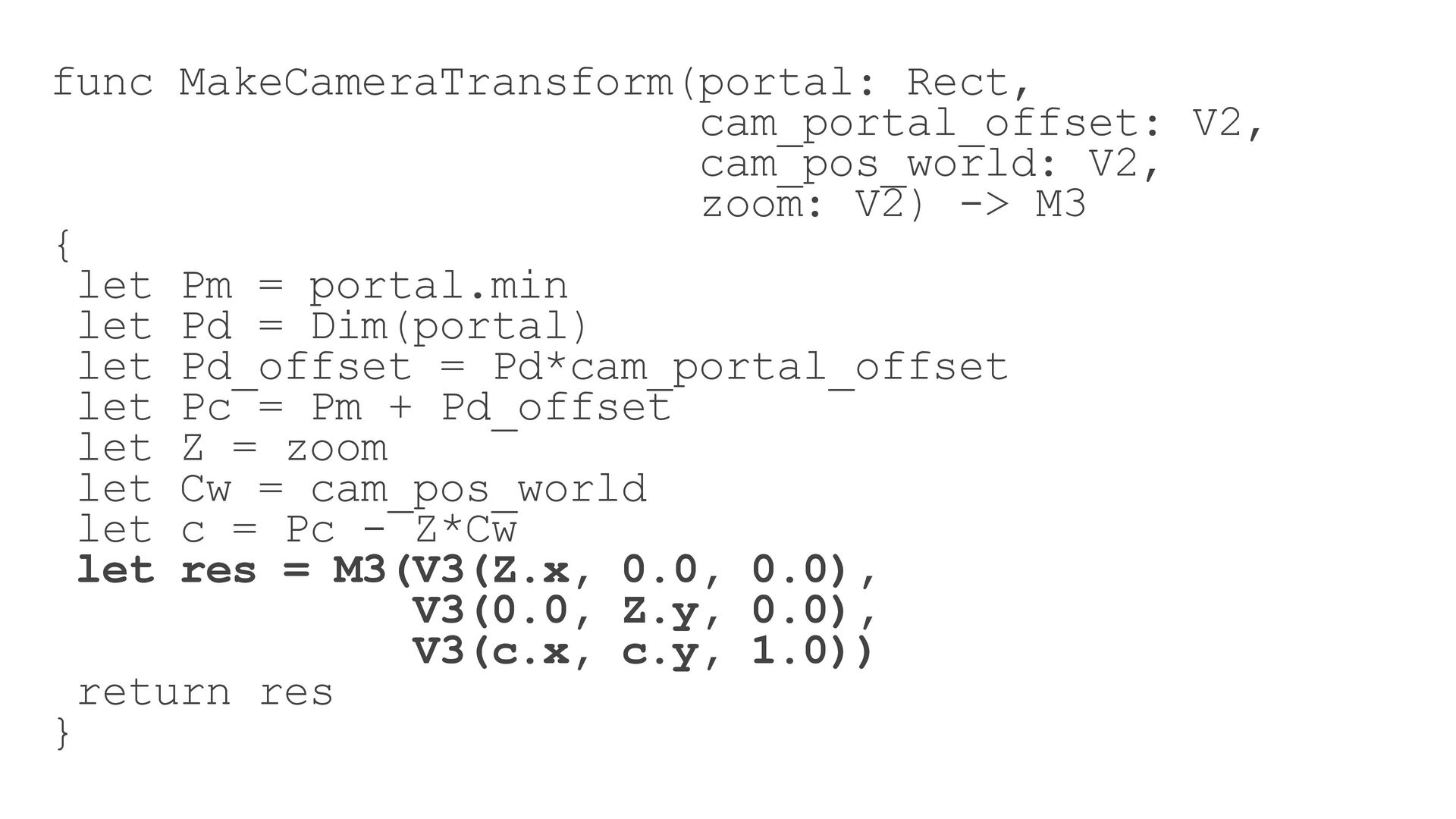

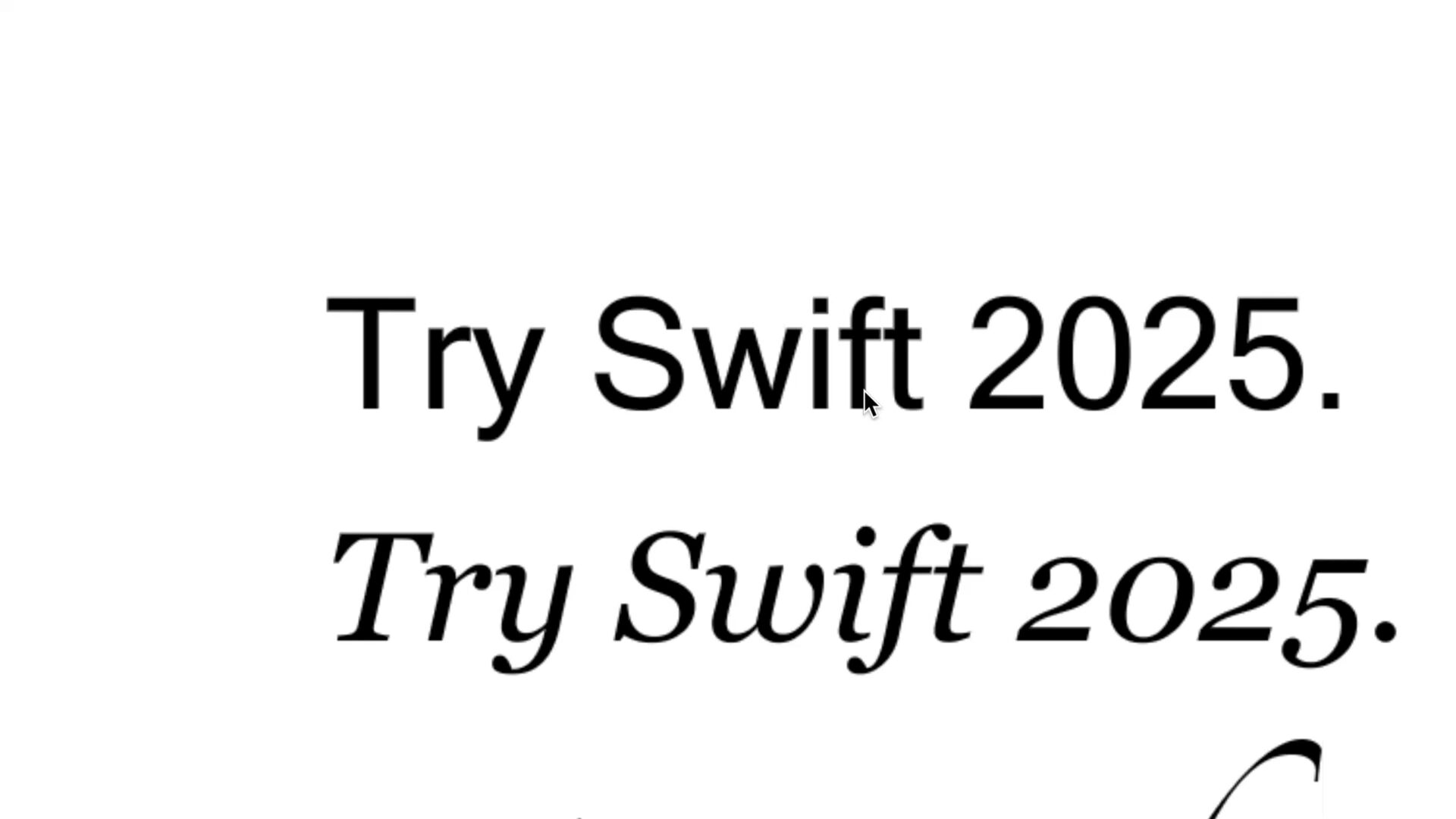

4. func MakeCameraTransform(portal: Rect, cam_portal_offset: V2, cam_pos_world: V2, zoom: V2) -> M3 { let Pm = portal.min let Pd = Dim(portal) let Pd_offset = Pd*cam_portal_offset let Pc = Pm + Pd_offset let Z = zoom let Cw = cam_pos_world let c = Pc - Z*Cw let res = M3(V3(Z.x, 0.0, 0.0), V3(0.0, Z.y, 0.0), V3(c.x, c.y, 1.0)) return res }

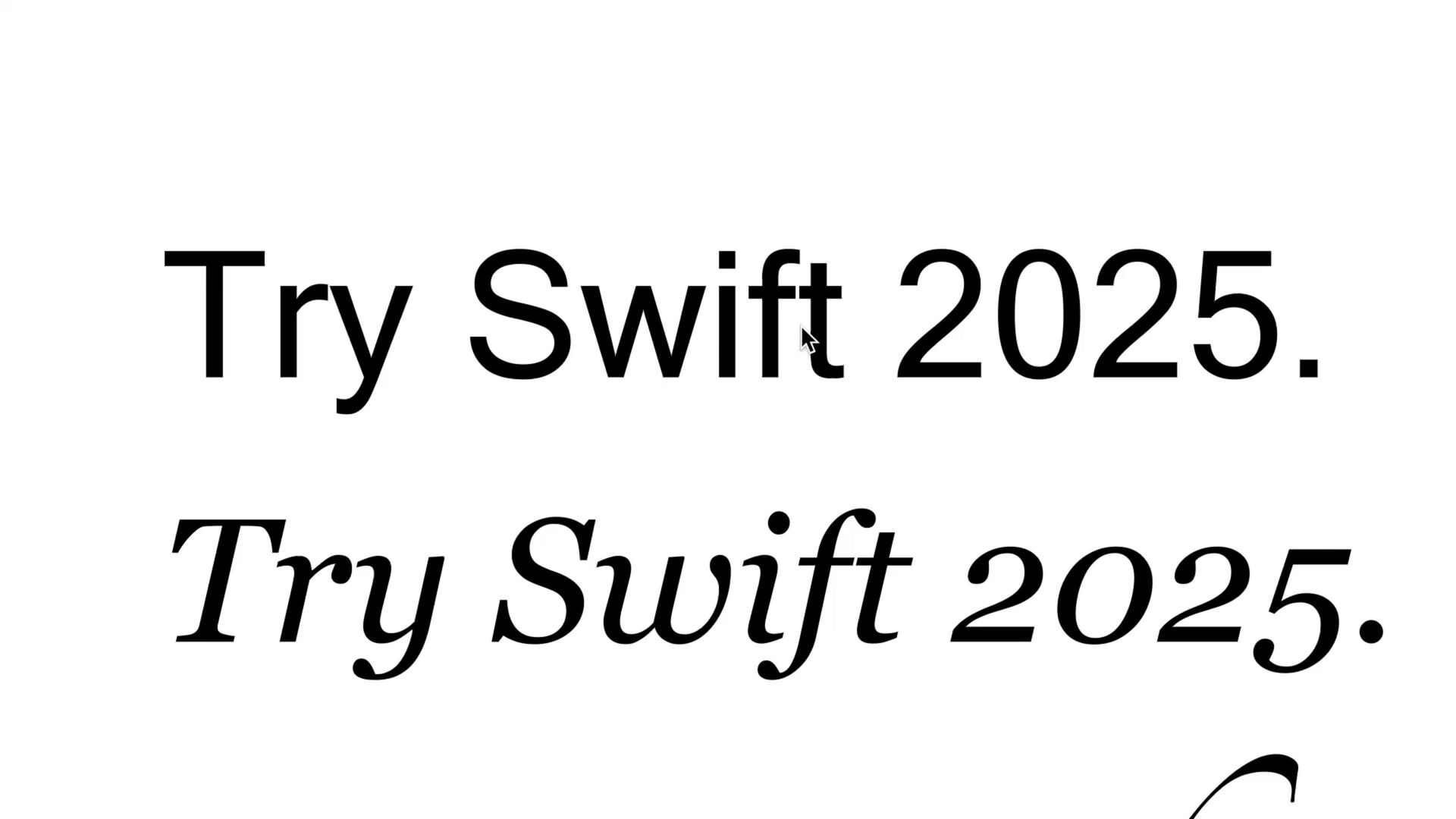

6. www.github.com/kapsy/ic_msdf_demo

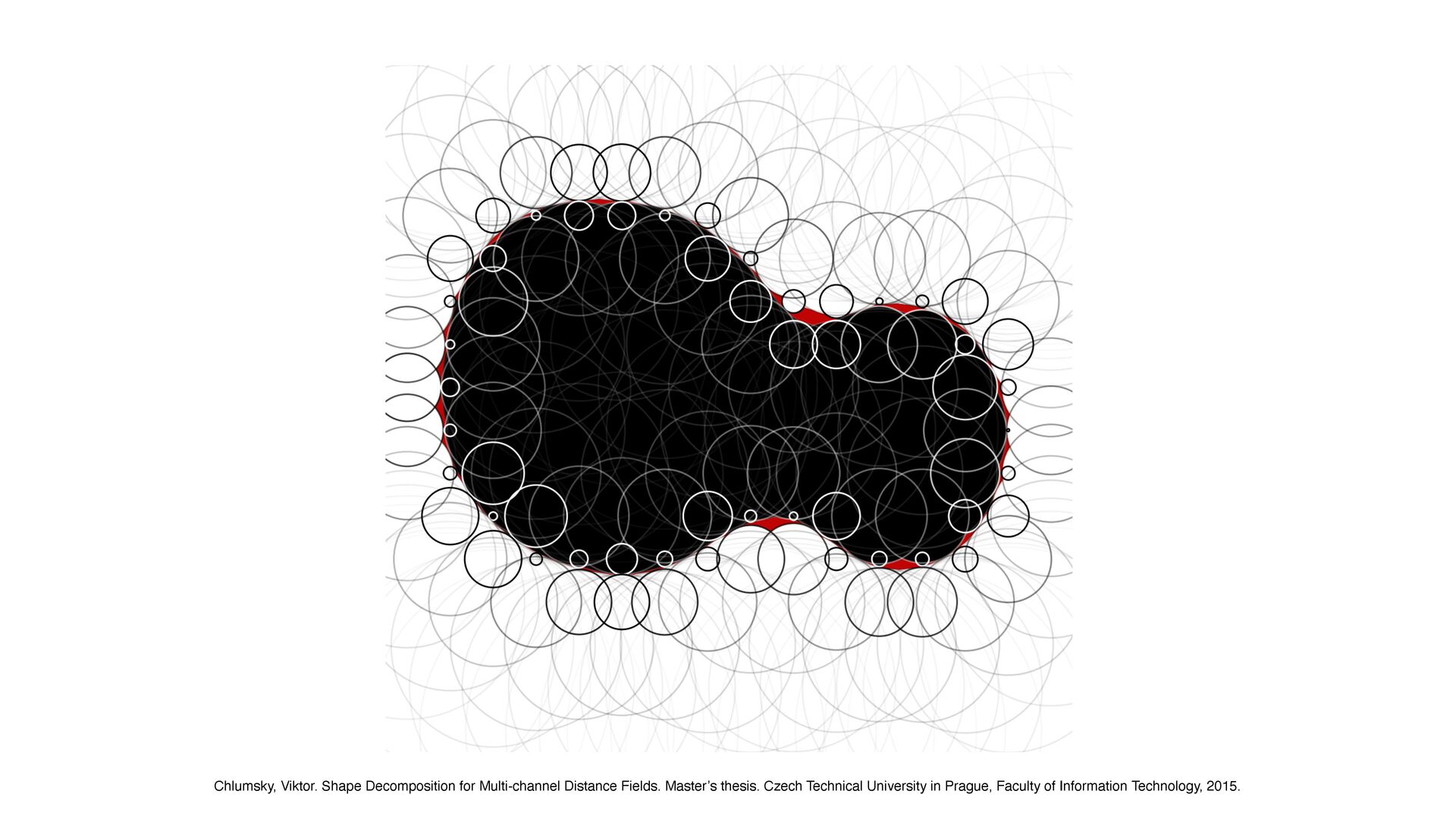

7. Chlumsky, Viktor. Shape Decomposition for Multi-channel Distance Fields. Master’s thesis. Czech Technical University in Prague, Faculty of Information Technology, 2015.

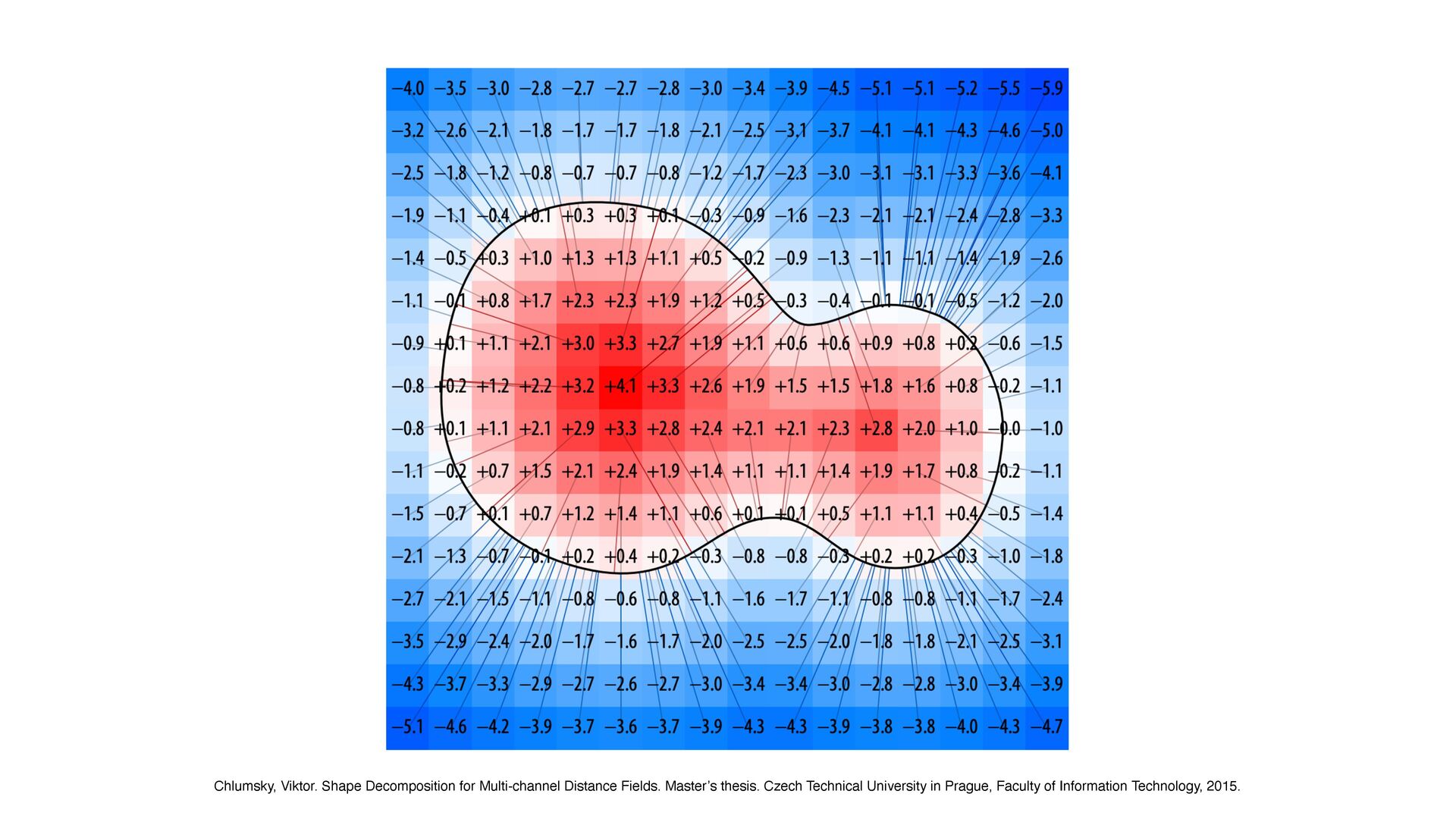

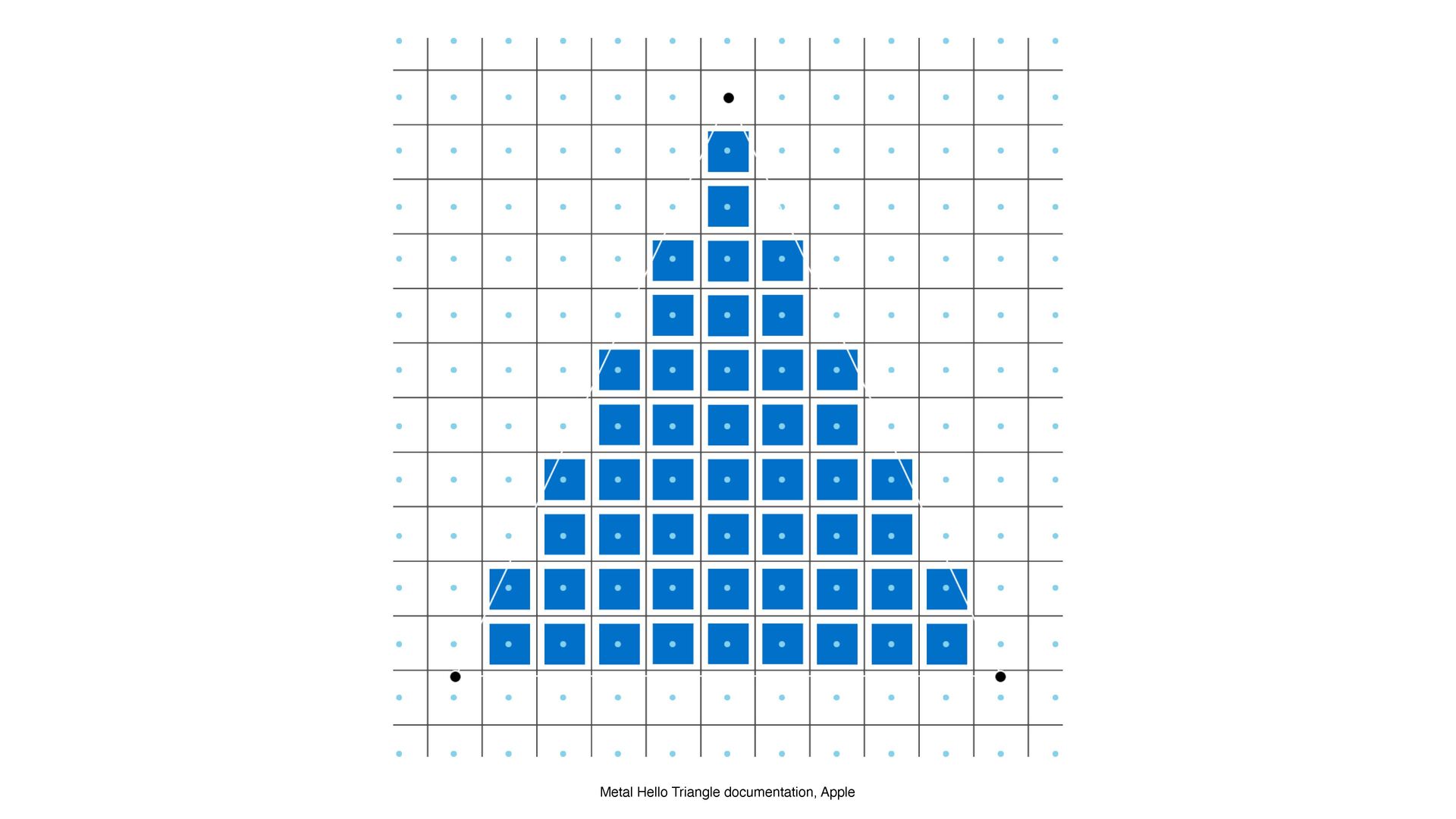

8. Metal Hello Triangle documentation, Apple
9. Chlumsky, Viktor. Shape Decomposition for Multi-channel Distance Fields. Master’s thesis. Czech Technical University in Prague, Faculty of Information Technology, 2015.
10. Chlumsky, Viktor. Shape Decomposition for Multi-channel Distance Fields. Master’s thesis. Czech Technical University in Prague, Faculty of Information Technology, 2015.

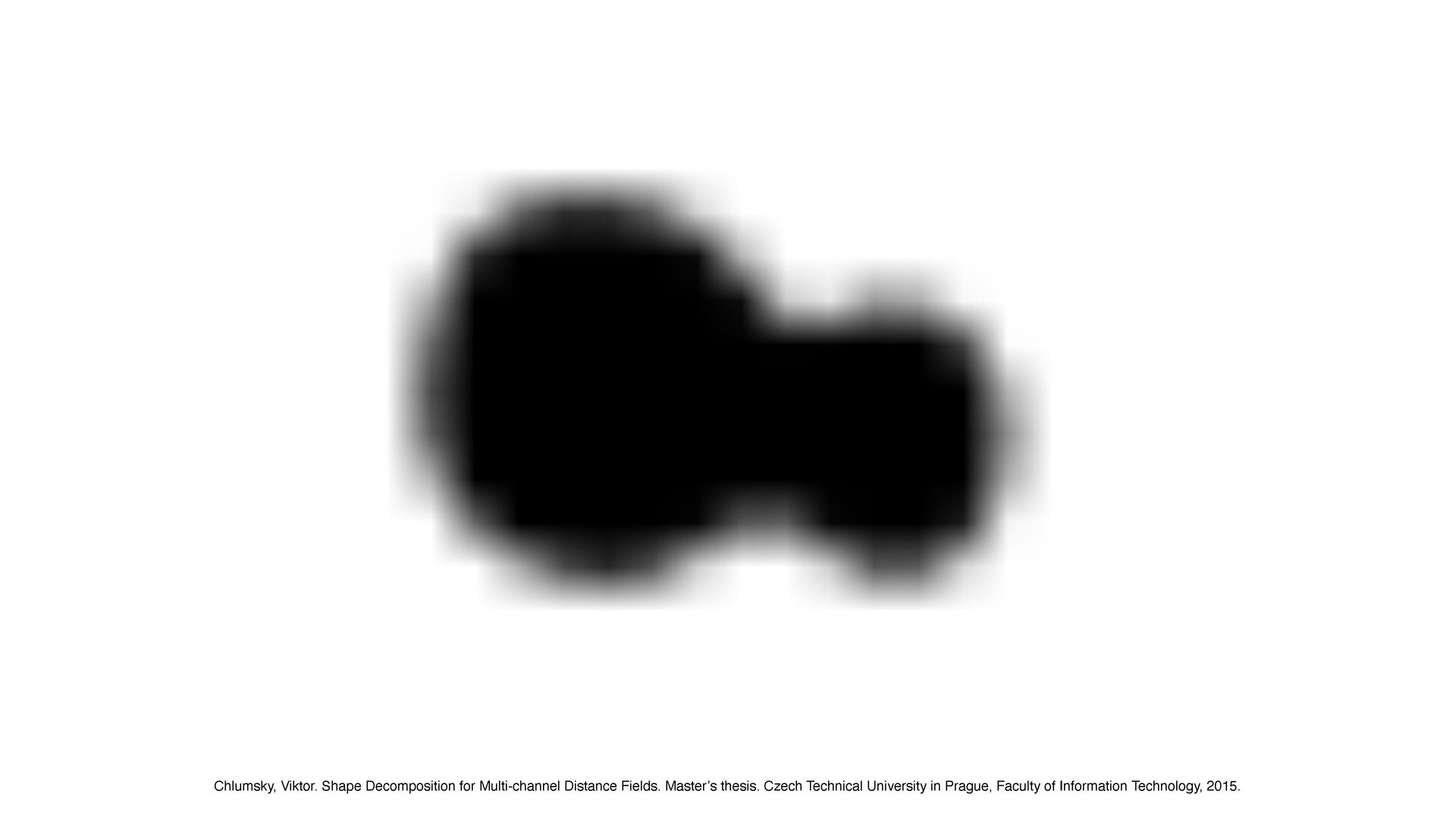

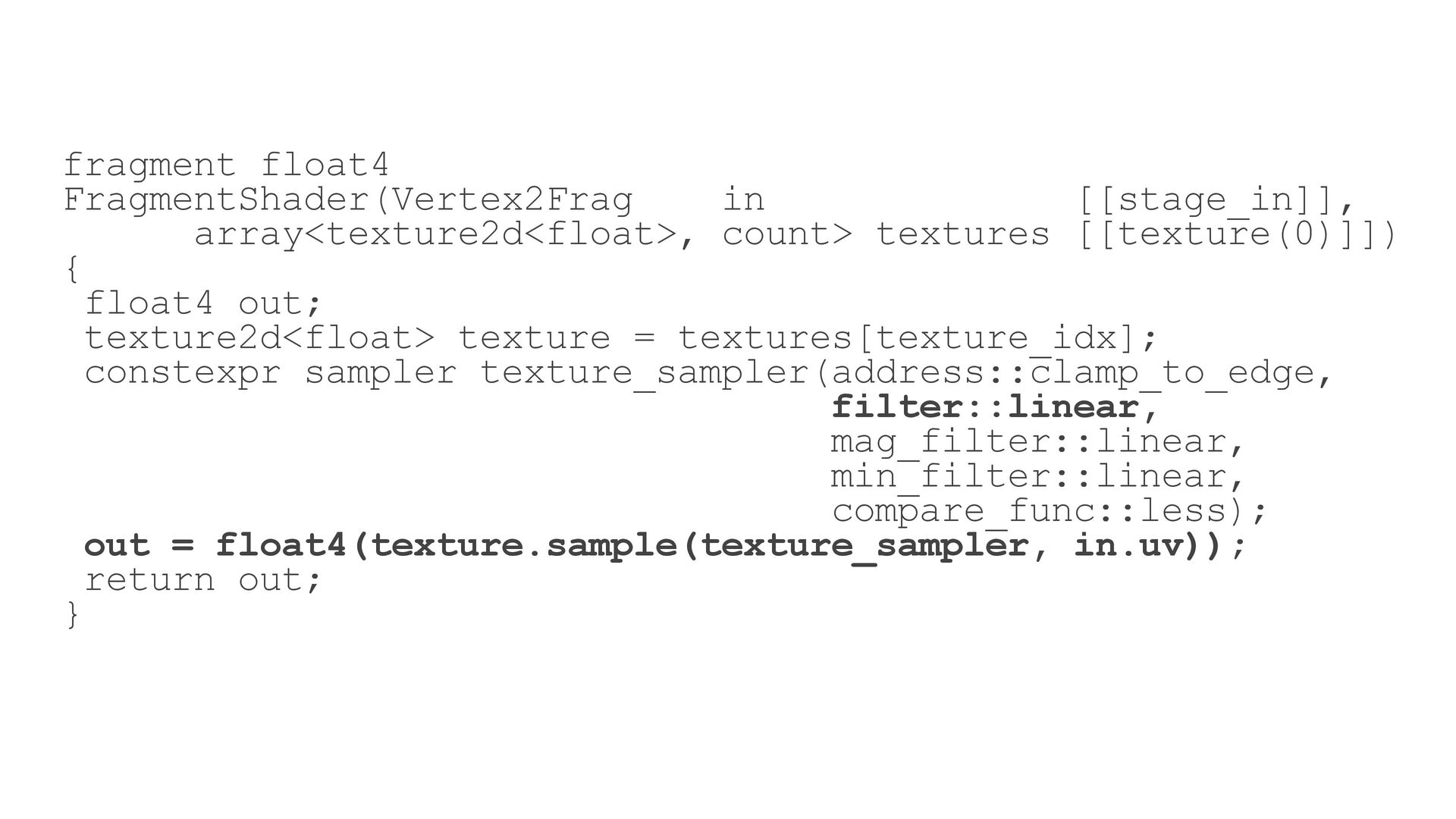

11. fragment float4 FragmentShader(Vertex2Frag in [[stage_in]], array<texture2d<float>, count> textures [[texture(0)]]) { float4 out; texture2d<float> texture = textures[texture_idx]; constexpr sampler texture_sampler(address::clamp_to_edge, filter::linear, mag_filter::linear, min_filter::linear, compare_func::less); out = float4(texture.sample(texture_sampler, in.uv)); return out; }

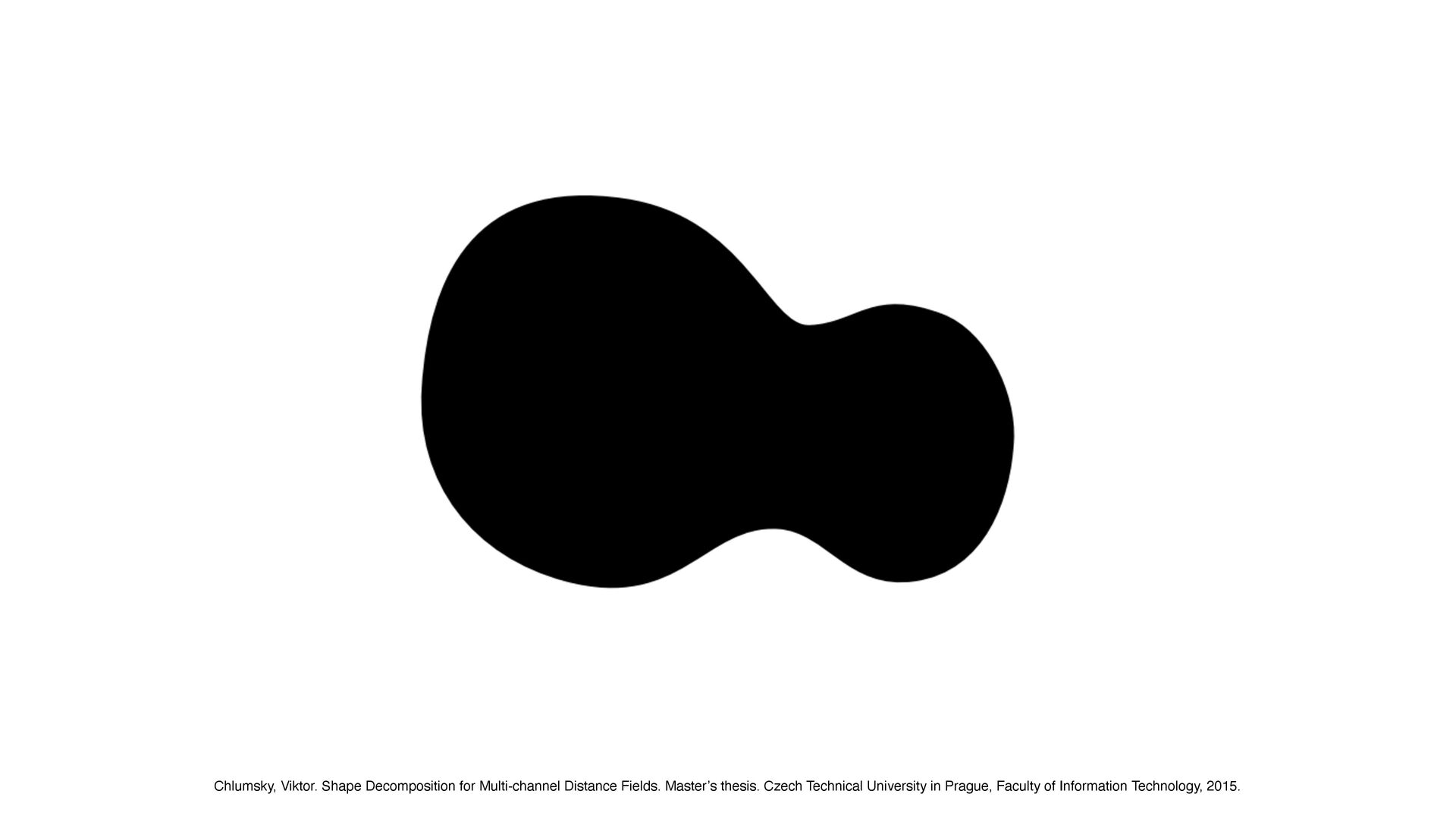

12. Chlumsky, Viktor. Shape Decomposition for Multi-channel Distance Fields. Master’s thesis. Czech Technical University in Prague, Faculty of Information Technology, 2015.
13. Chlumsky, Viktor. Shape Decomposition for Multi-channel Distance Fields. Master’s thesis. Czech Technical University in Prague, Faculty of Information Technology, 2015.

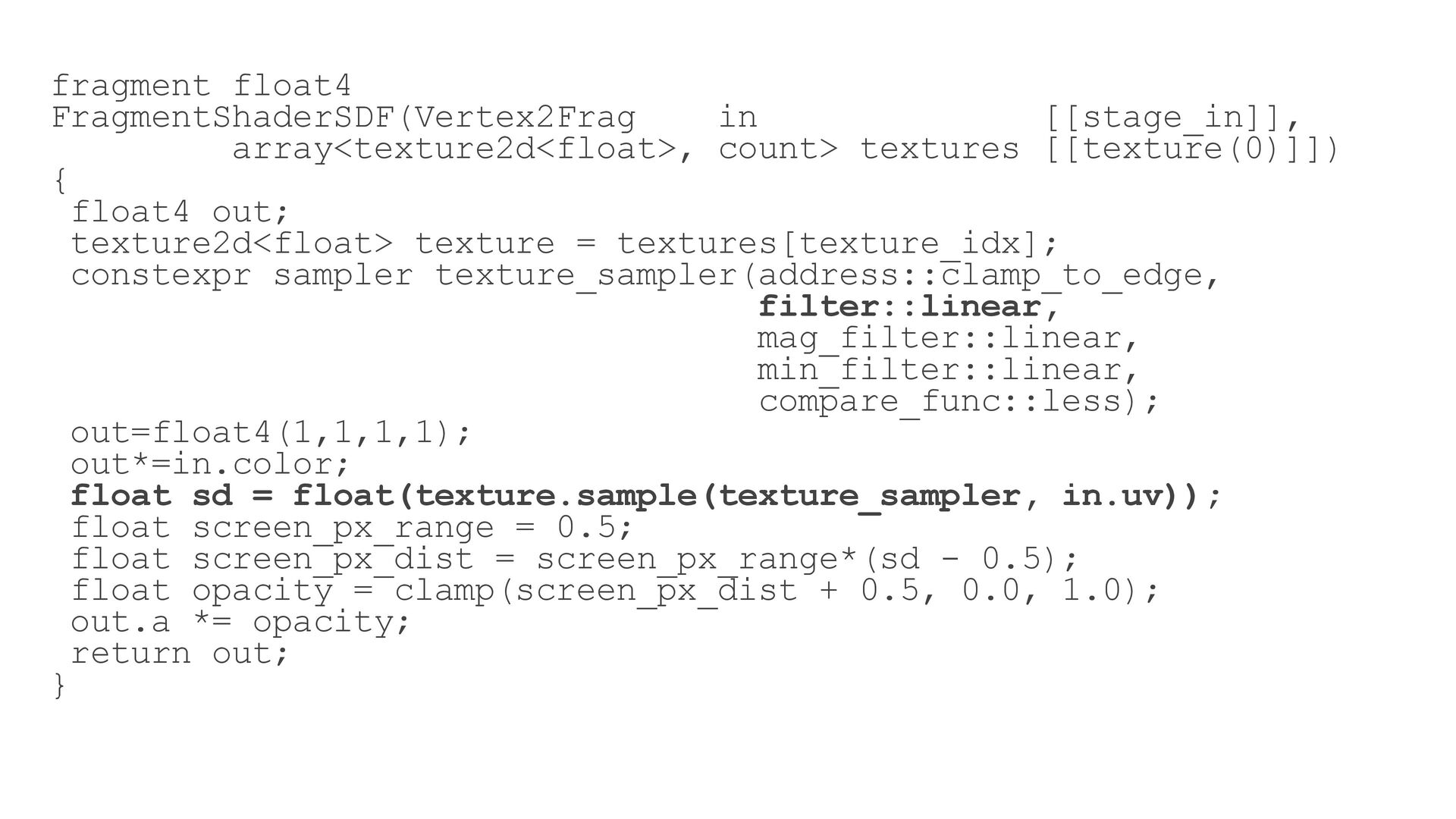

14. fragment float4 FragmentShaderSDF(Vertex2Frag in [[stage_in]], array<texture2d<float>, count> textures [[texture(0)]]) { float4 out; texture2d<float> texture = textures[texture_idx]; constexpr sampler texture_sampler(address::clamp_to_edge, filter::linear, mag_filter::linear, min_filter::linear, compare_func::less); out=float4(1,1,1,1); out*=in.color; float sd = float(texture.sample(texture_sampler, in.uv)); float screen_px_range = 0.5; float screen_px_dist = screen_px_range*(sd - 0.5); float opacity = clamp(screen_px_dist + 0.5, 0.0, 1.0); out.a *= opacity; return out; }

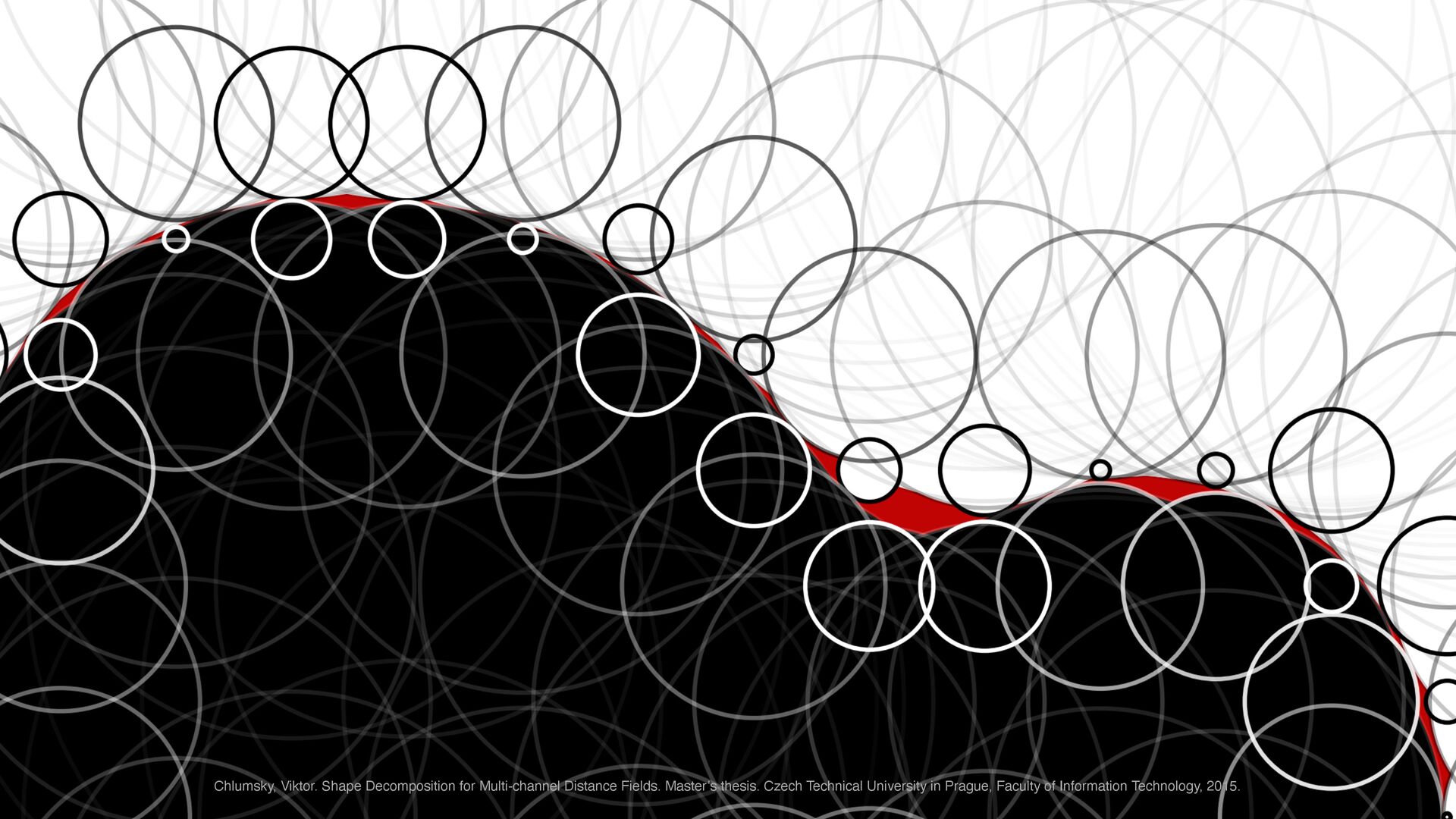

15. Chlumsky, Viktor. Shape Decomposition for Multi-channel Distance Fields. Master’s thesis. Czech Technical University in Prague, Faculty of Information Technology, 2015.

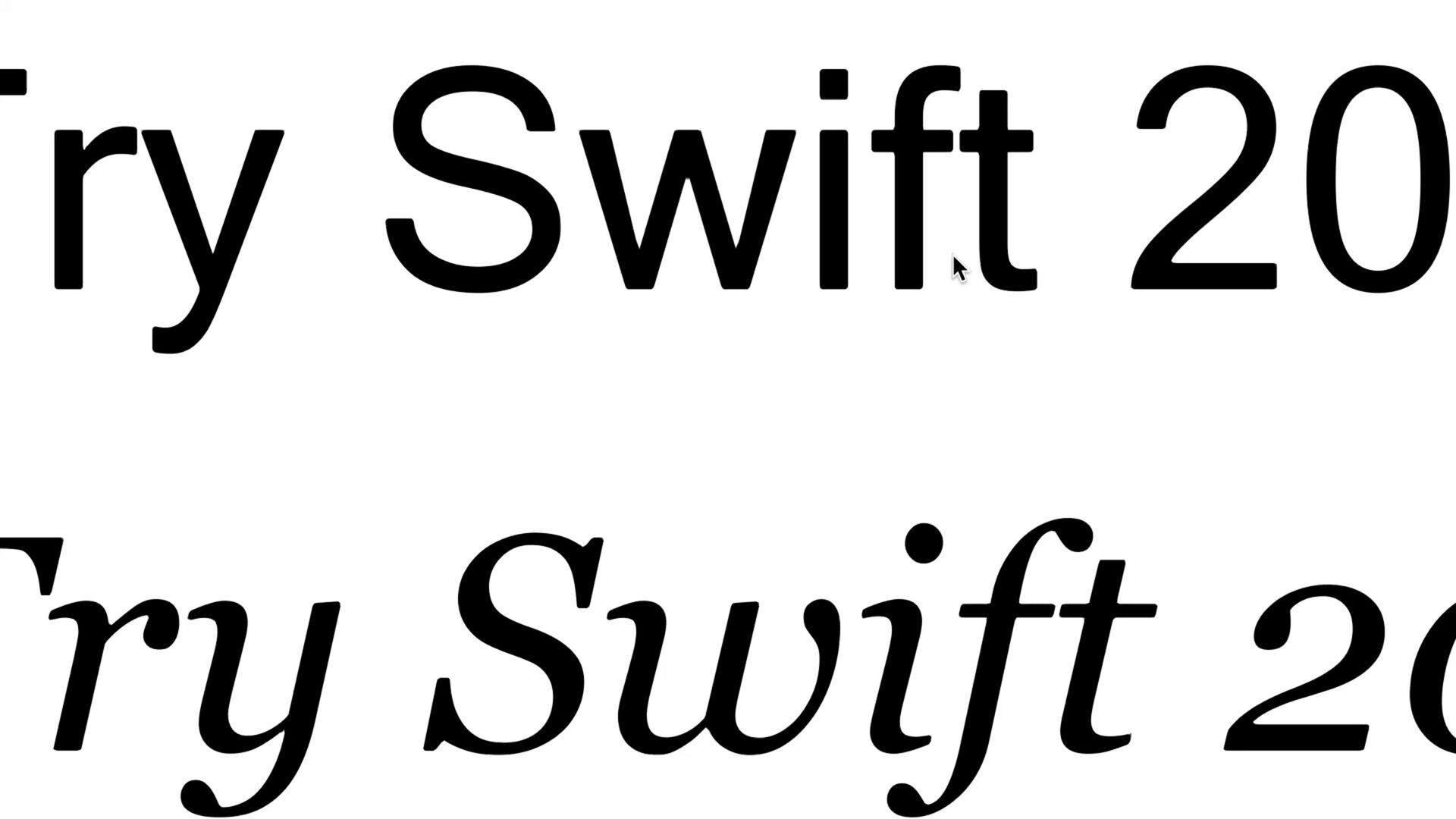

16. Chlumsky, Viktor. Shape Decomposition for Multi-channel Distance Fields. Master’s thesis. Czech Technical University in Prague, Faculty of Information Technology, 2015.

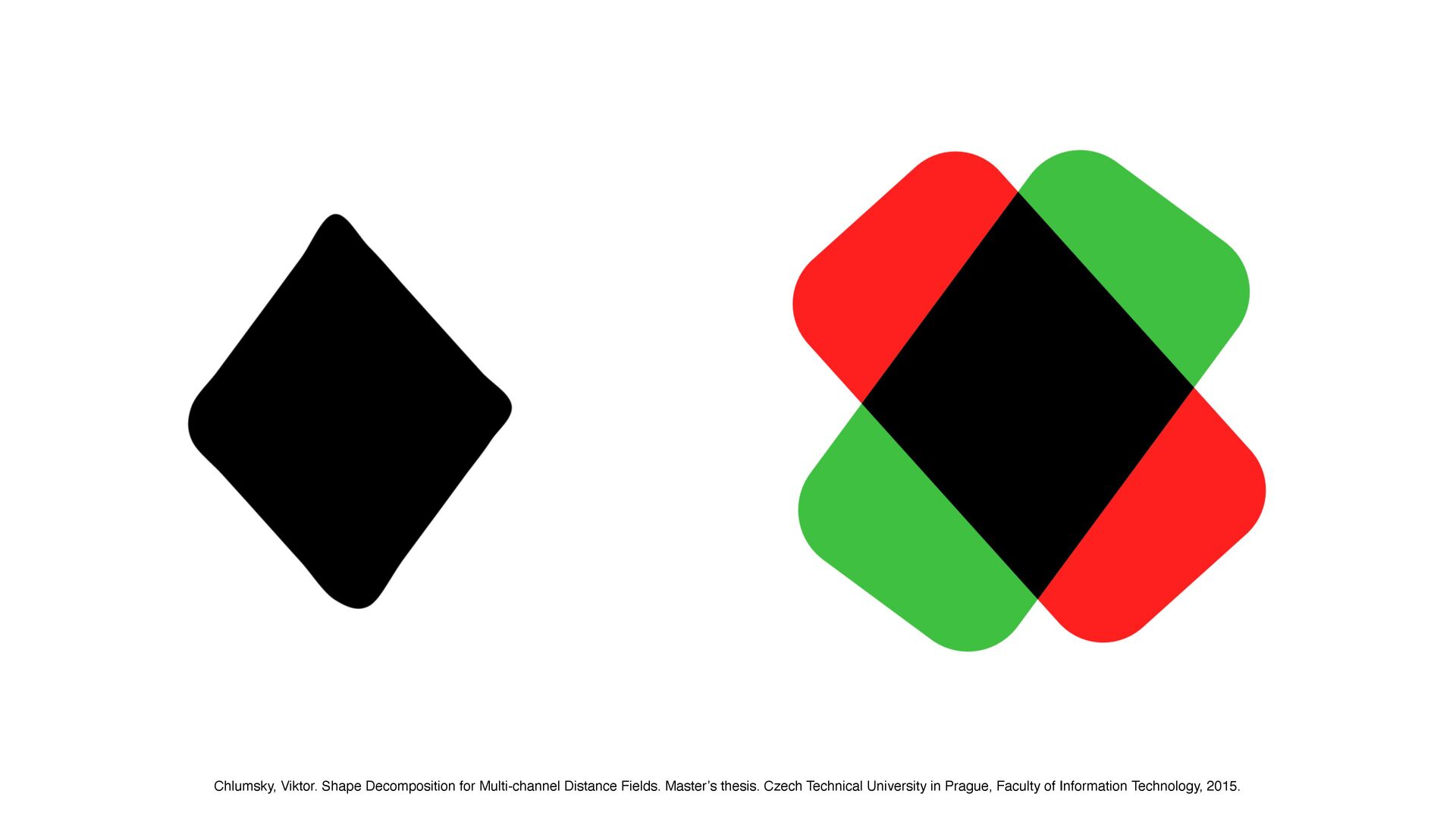

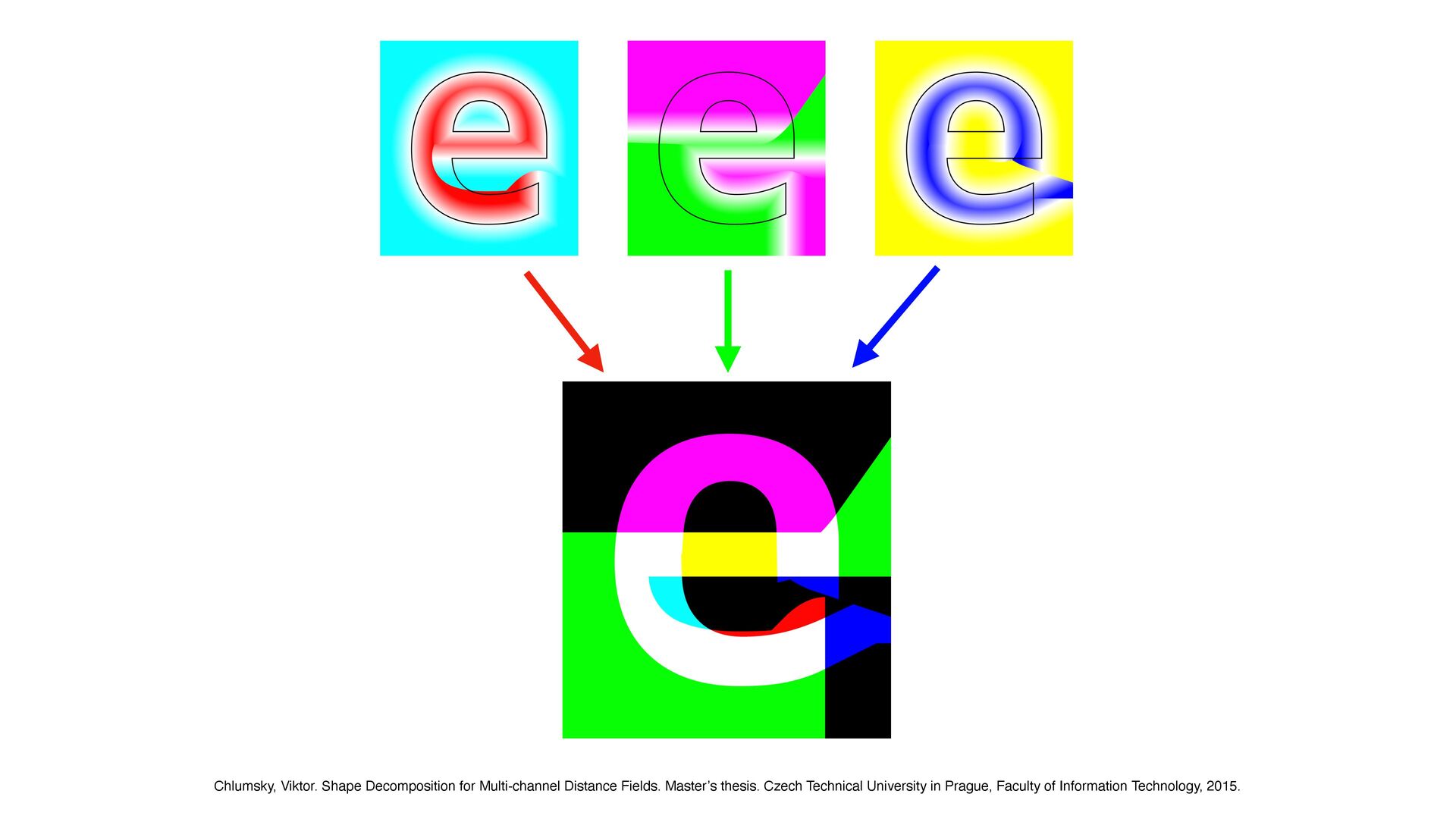

18. Chlumsky, Viktor. Shape Decomposition for Multi-channel Distance Fields. Master’s thesis. Czech Technical University in Prague, Faculty of Information Technology, 2015.
19. Chlumsky, Viktor. Shape Decomposition for Multi-channel Distance Fields. Master’s thesis. Czech Technical University in Prague, Faculty of Information Technology, 2015.

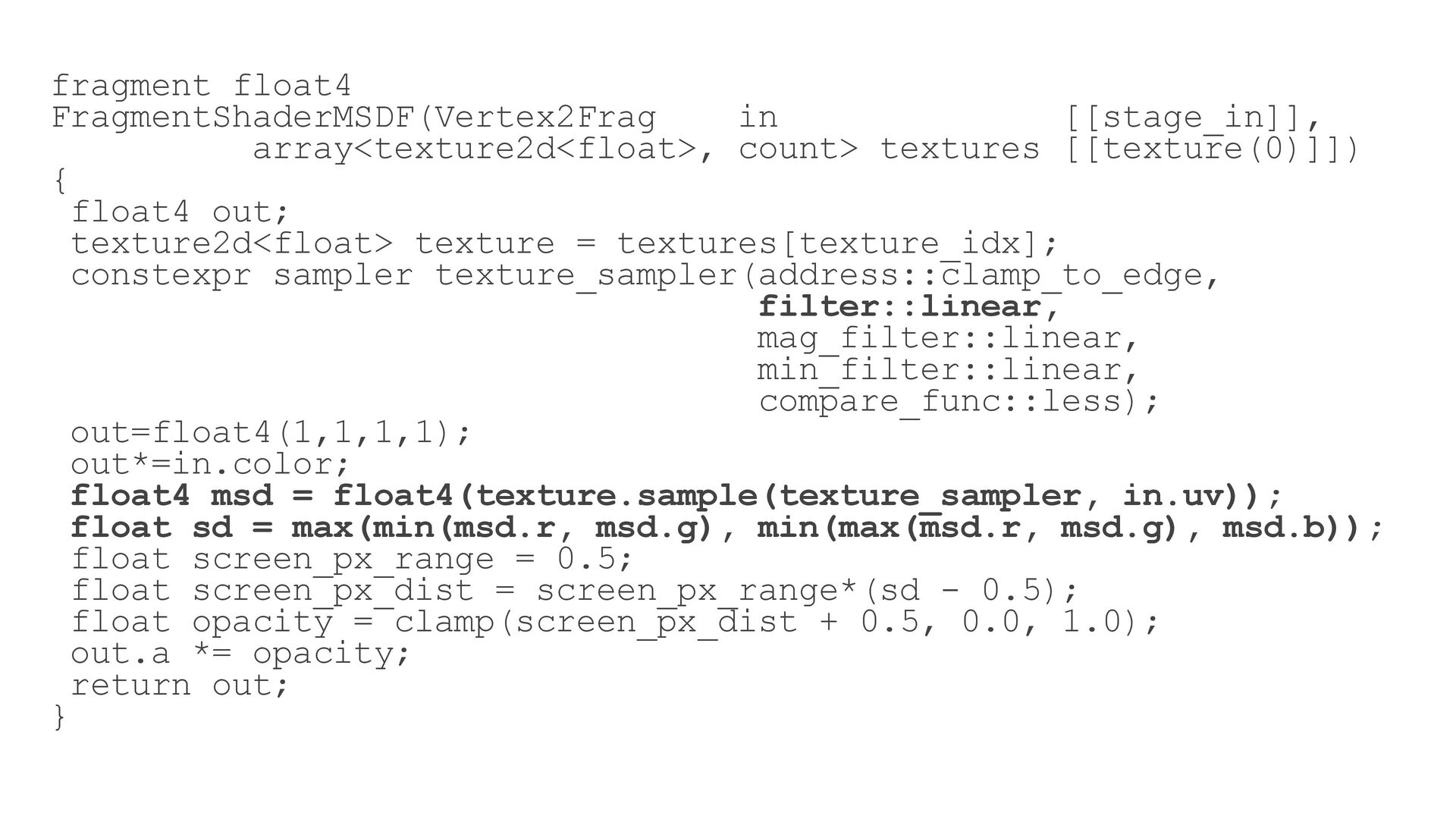

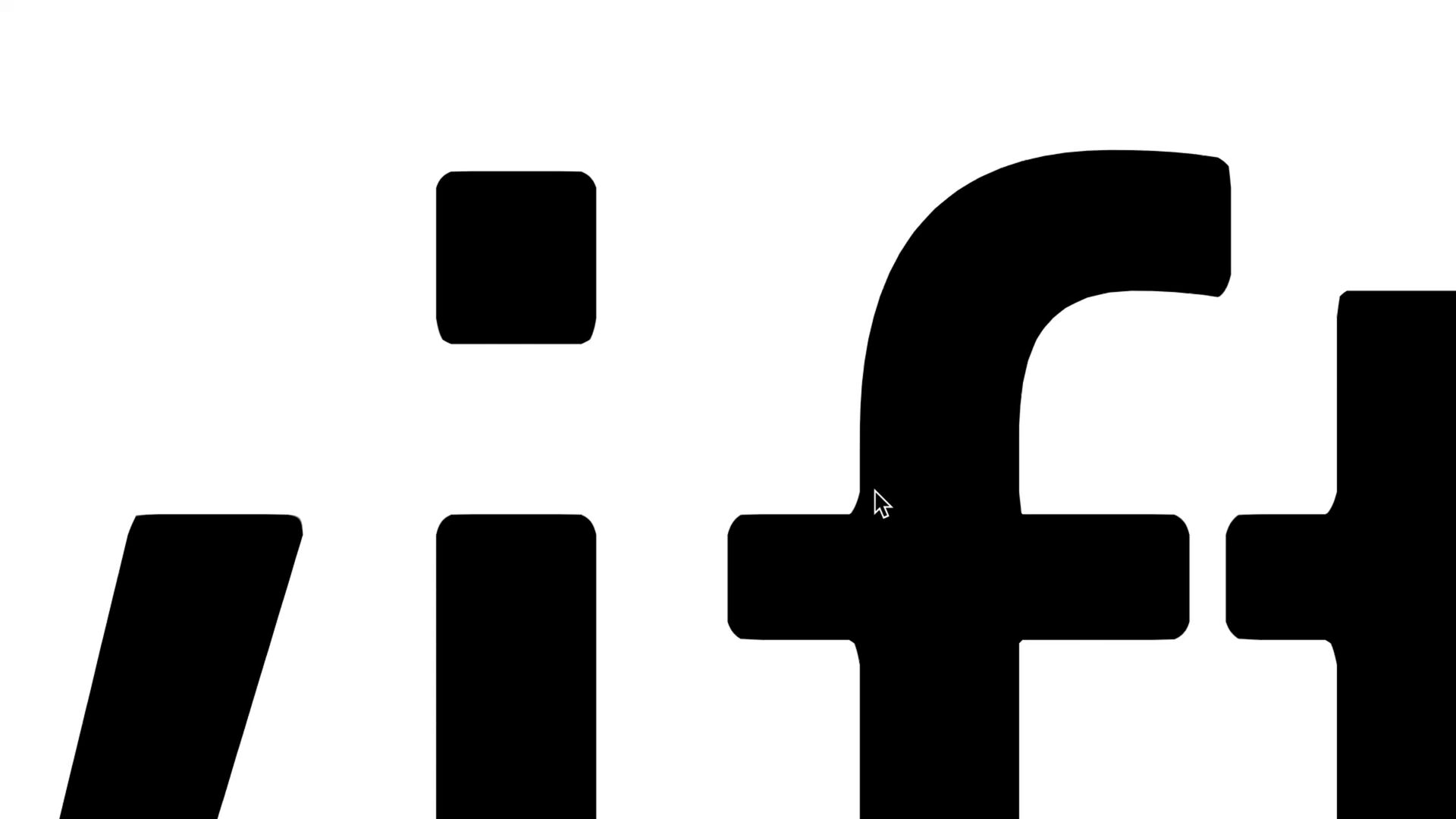

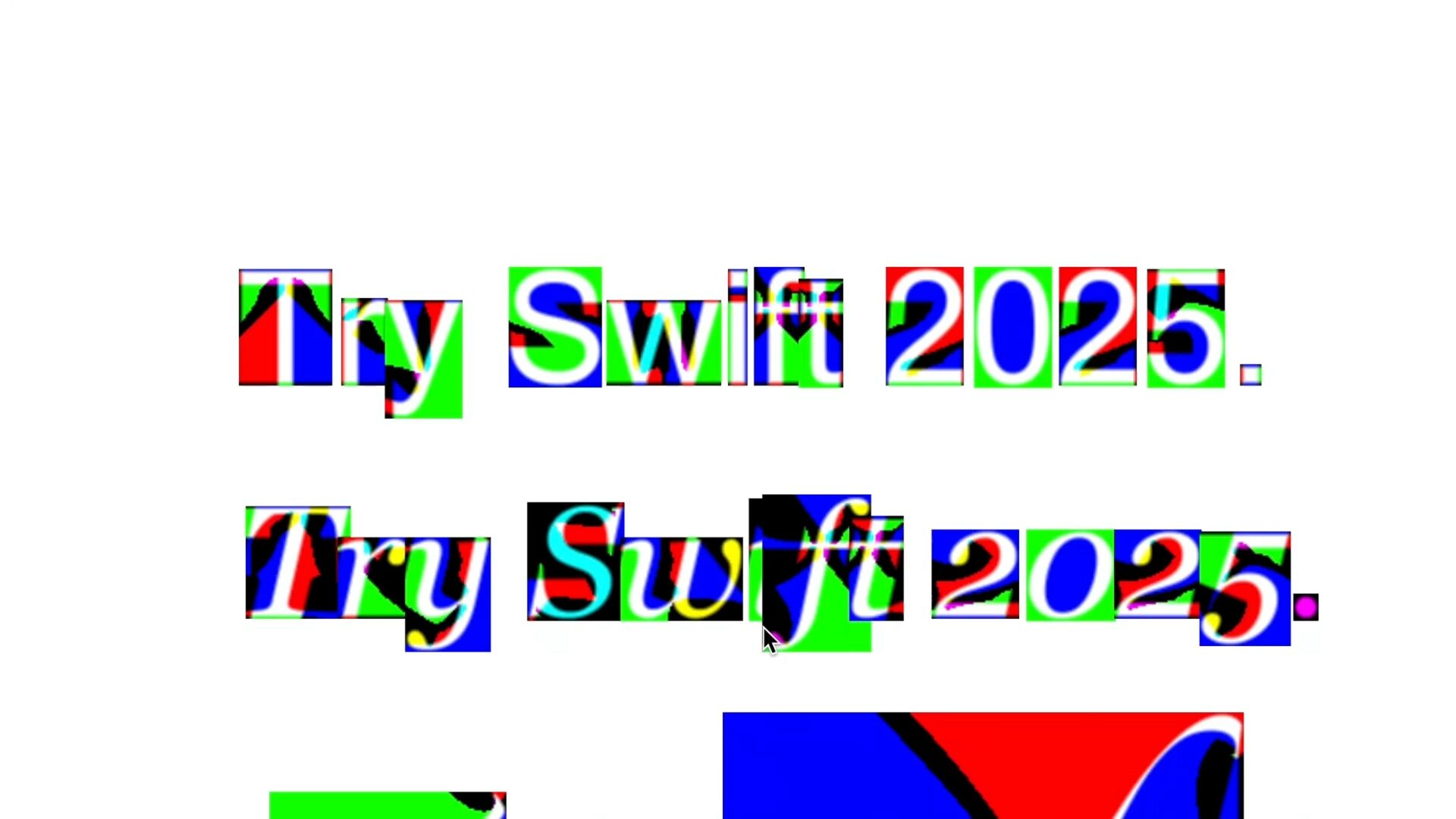

20. fragment float4 FragmentShaderMSDF(Vertex2Frag in [[stage_in]], array<texture2d<float>, count> textures [[texture(0)]]) { float4 out; texture2d<float> texture = textures[texture_idx]; constexpr sampler texture_sampler(address::clamp_to_edge, filter::linear, mag_filter::linear, min_filter::linear, compare_func::less); out=float4(1,1,1,1); out*=in.color; float4 msd = float4(texture.sample(texture_sampler, in.uv)); float sd = max(min(msd.r, msd.g), min(max(msd.r, msd.g), msd.b)); float screen_px_range = 0.5; float screen_px_dist = screen_px_range*(sd - 0.5); float opacity = clamp(screen_px_dist + 0.5, 0.0, 1.0); out.a *= opacity; return out; }

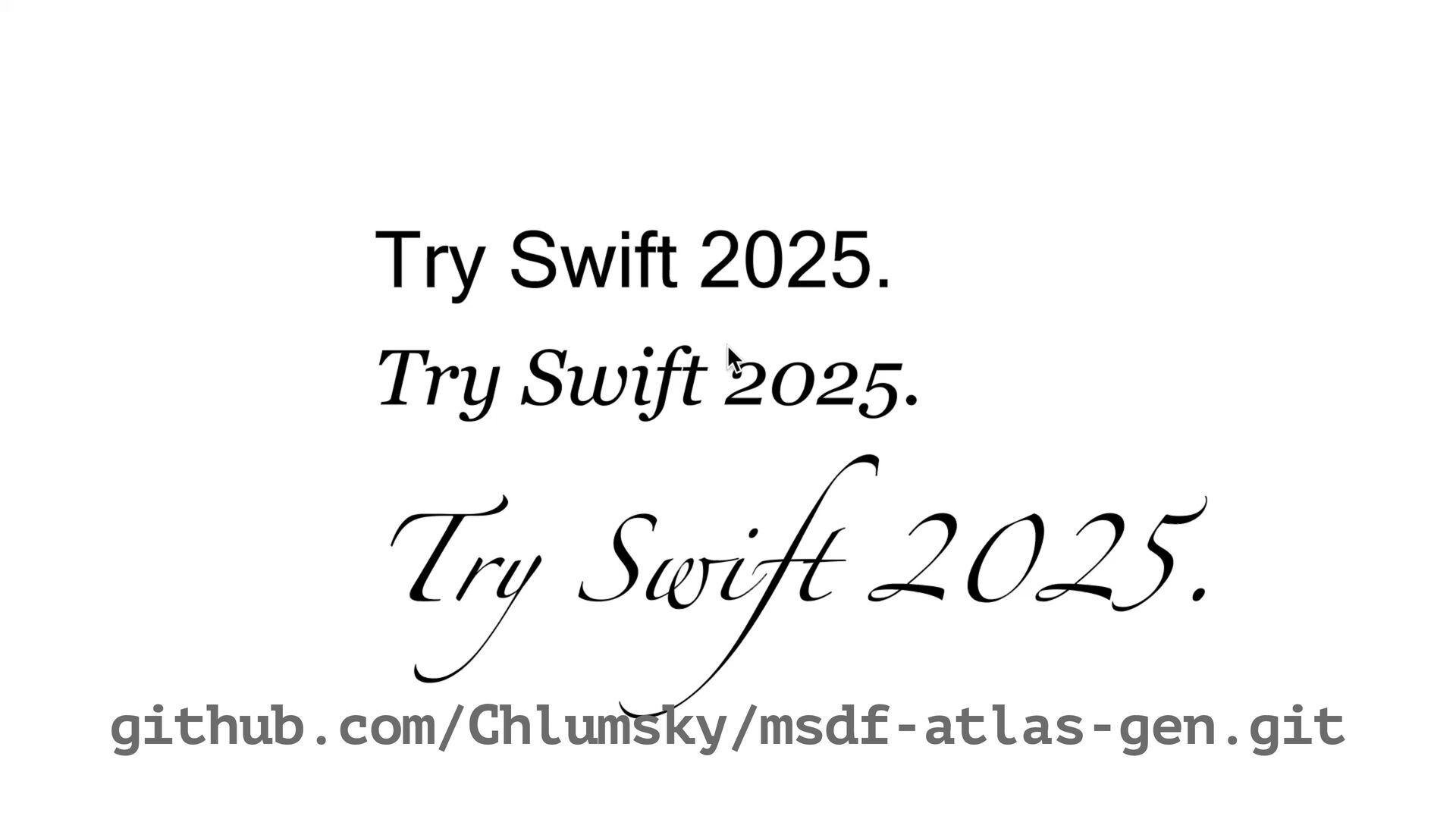

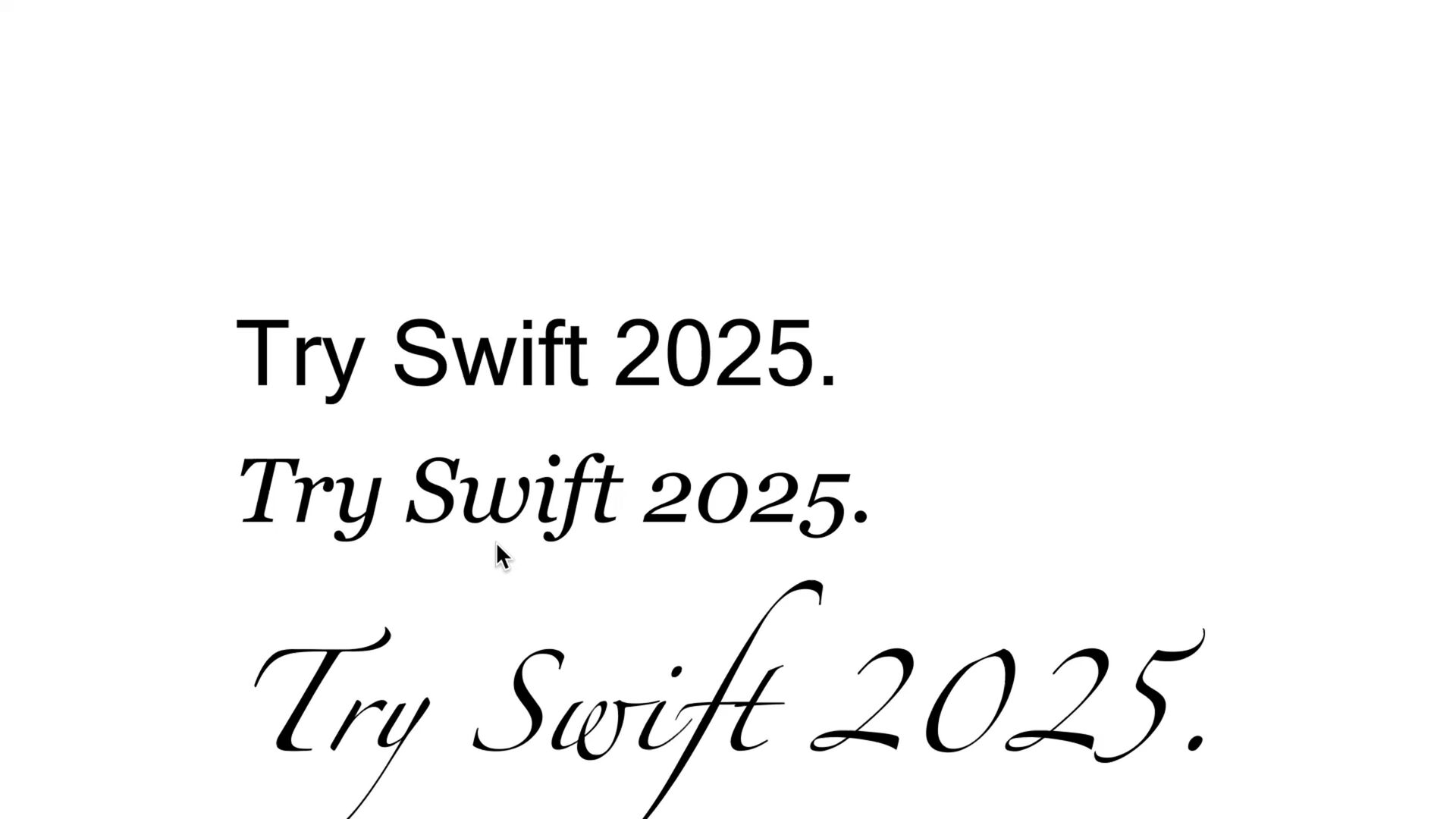

23. github.com/Chlumsky/msdf-atlas-gen.git
25. References Shape Decomposition for Multi-channel Distance Fields Chlumsky, Viktor. Master’s thesis. Czech Technical University in Prague, Faculty of Information Technology, 2015. Improved Alpha-Tested Magnification for Vector Textures and Special Effects Chris Green, Valve 2007 Legendary Font Rendering https://www.youtube.com/watch?v=_t3mtjoHuoQ Tsoding, 2023 Handmade Hero Chat 016 - Drawing a Circle on a 286 https://www.youtube.com/watch?v=kVtDEy1ndYg Casey Muratori, 2019
