Kotlin Fest 2025 - 内部実装から理解する Coroutines ― Continuation・Structured Concurrency・Dispatcher

Avatar for kaseken (Kent Kaseda)

kaseken (Kent Kaseda)

October 30, 2025
Tweet

Transcript

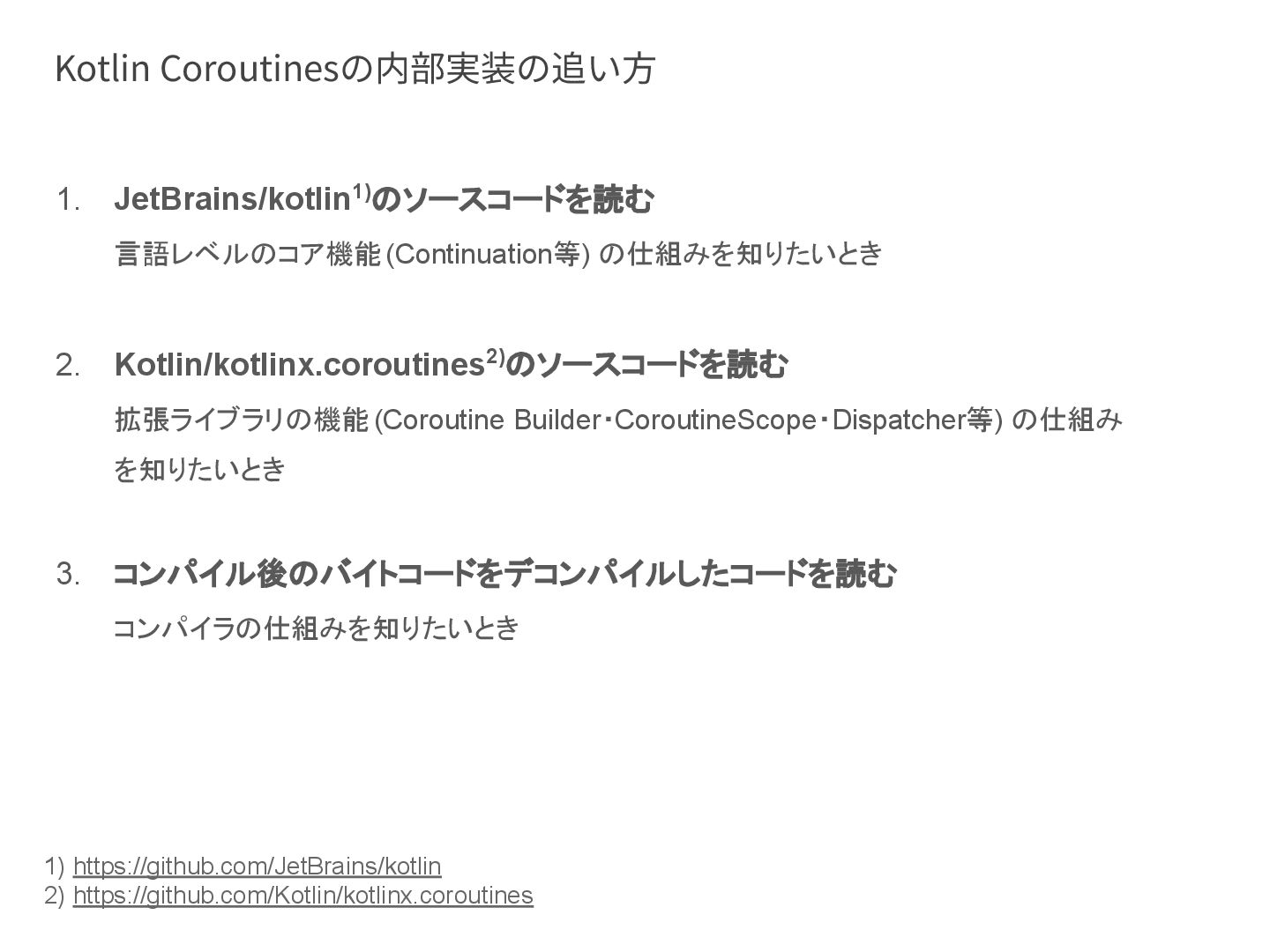

  1. Kotlin Coroutinesの内部実装の追い⽅ 1. JetBrains/kotlin1)のソースコードを読む 言語レベルのコア機能 (Continuation等) の仕組みを知りたいとき 2. Kotlin/kotlinx.coroutines2)のソースコードを読む 拡張ライブラリの機能

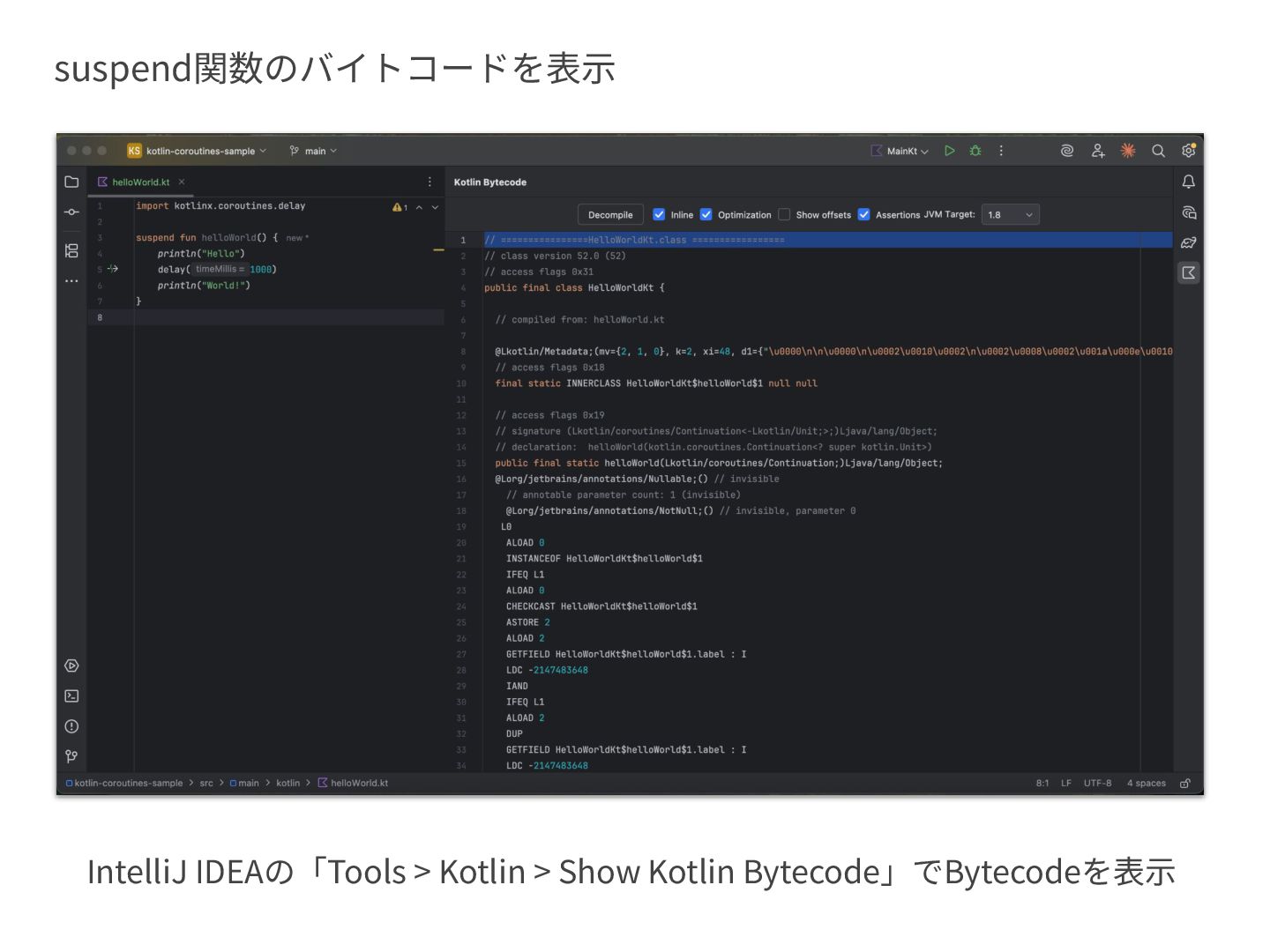

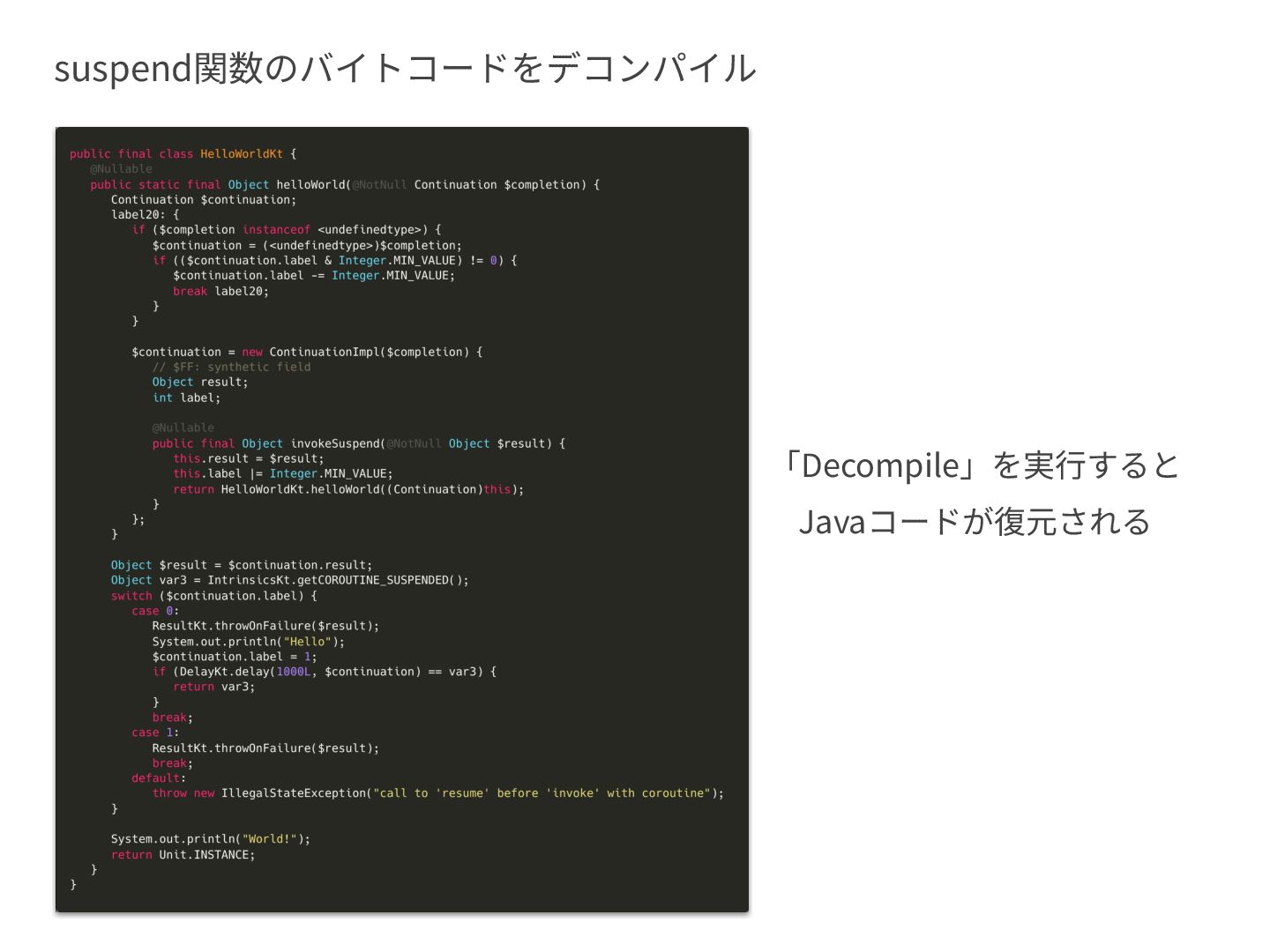

    (Coroutine Builder・CoroutineScope・Dispatcher等) の仕組み を知りたいとき 3. コンパイル後のバイトコードをデコンパイルしたコードを読む コンパイラの仕組みを知りたいとき 1) https://github.com/JetBrains/kotlin 2) https://github.com/Kotlin/kotlinx.coroutines

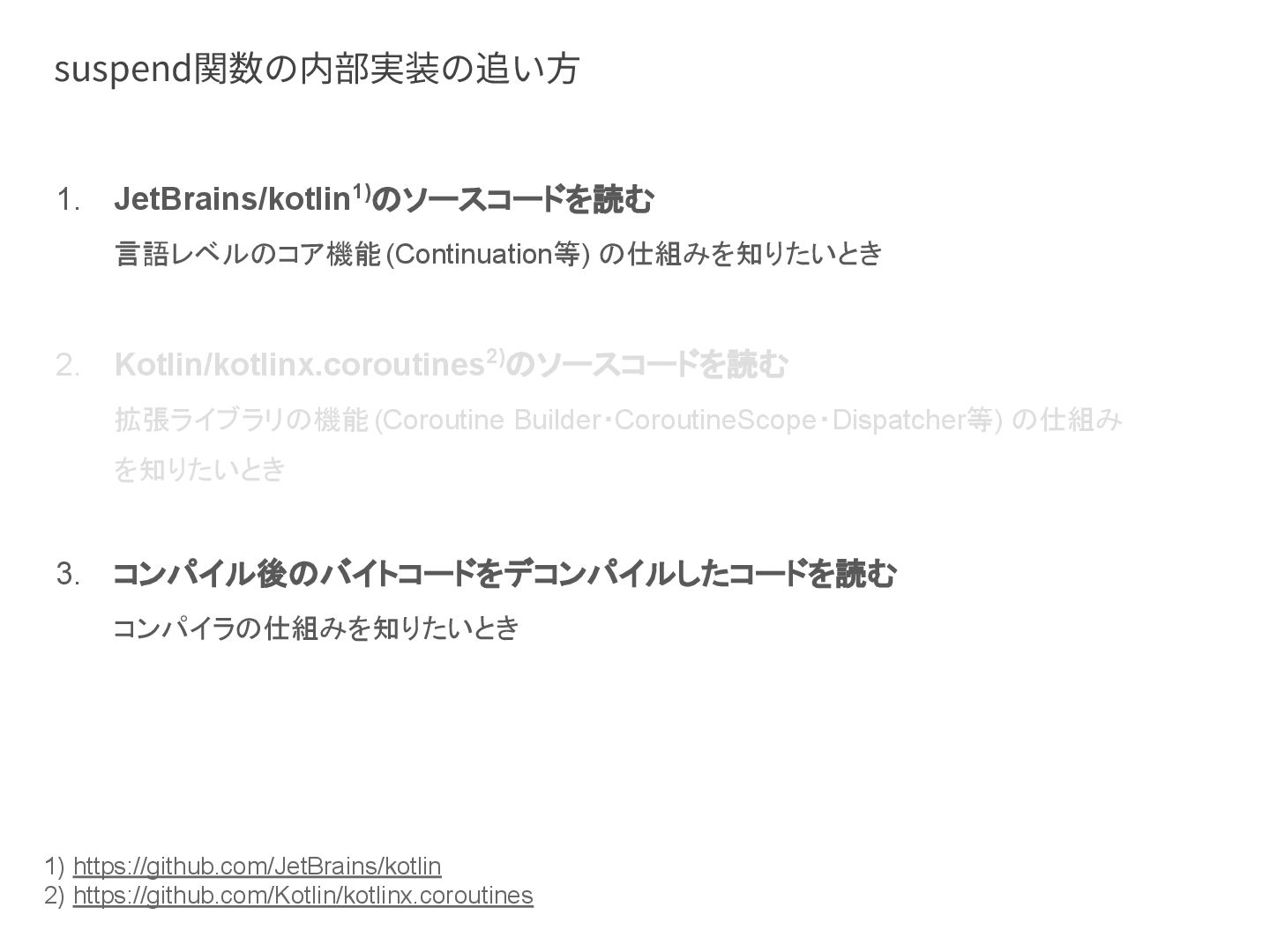

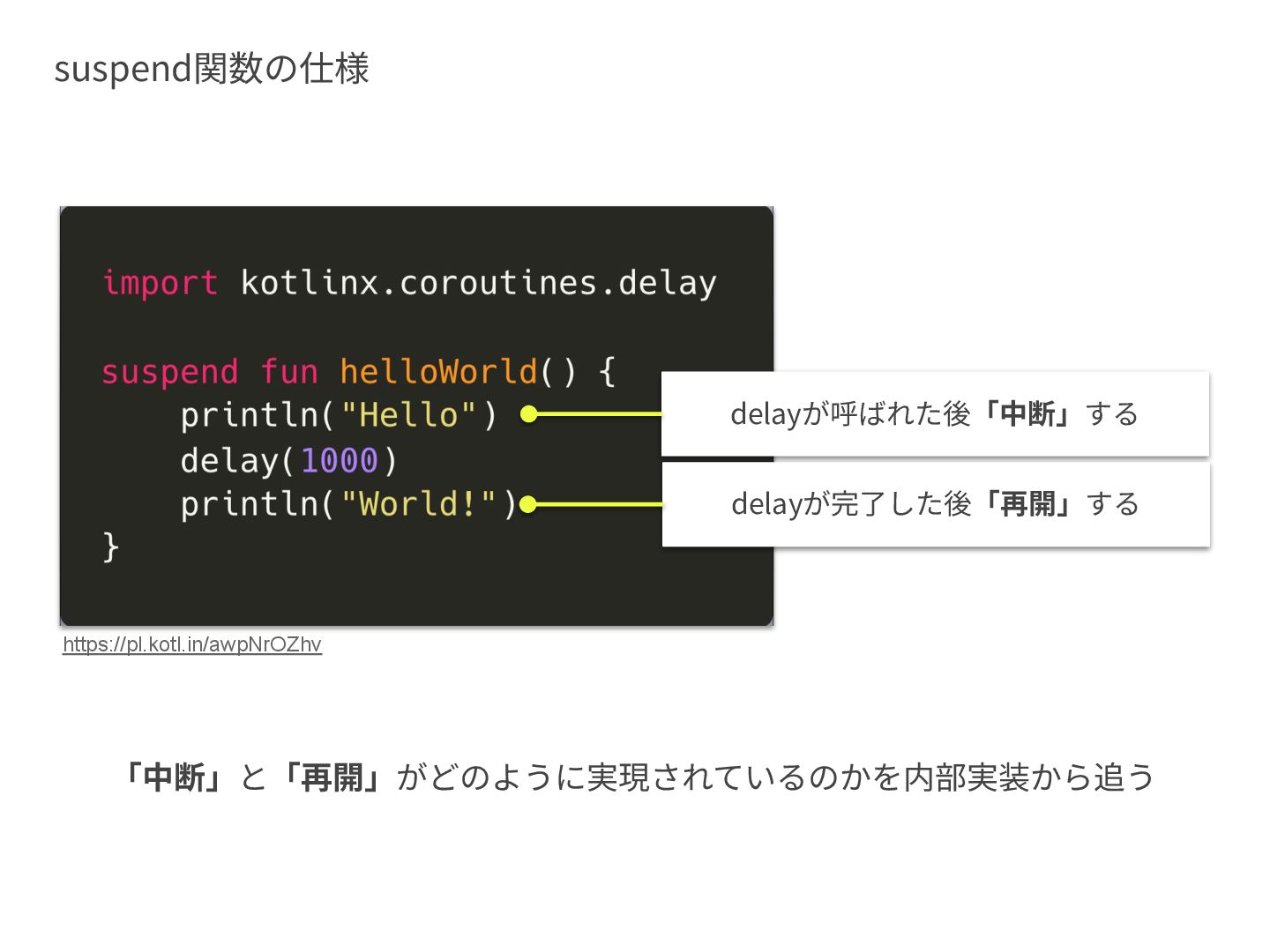

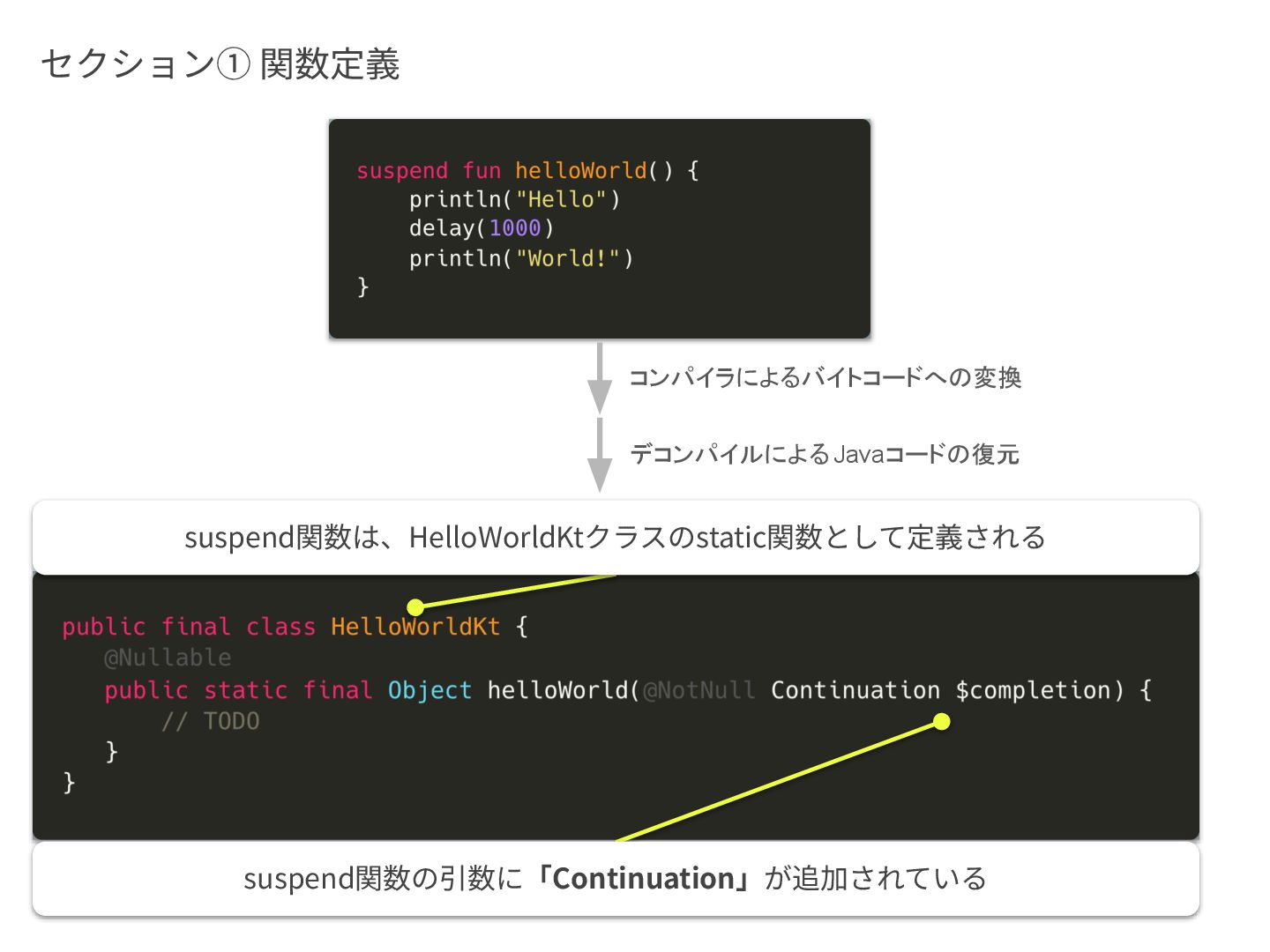

  2. suspend関数の内部実装の追い⽅ 1. JetBrains/kotlin1)のソースコードを読む 言語レベルのコア機能 (Continuation等) の仕組みを知りたいとき 2. Kotlin/kotlinx.coroutines2)のソースコードを読む 拡張ライブラリの機能 (Coroutine

    Builder・CoroutineScope・Dispatcher等) の仕組み を知りたいとき 3. コンパイル後のバイトコードをデコンパイルしたコードを読む コンパイラの仕組みを知りたいとき 1) https://github.com/JetBrains/kotlin 2) https://github.com/Kotlin/kotlinx.coroutines

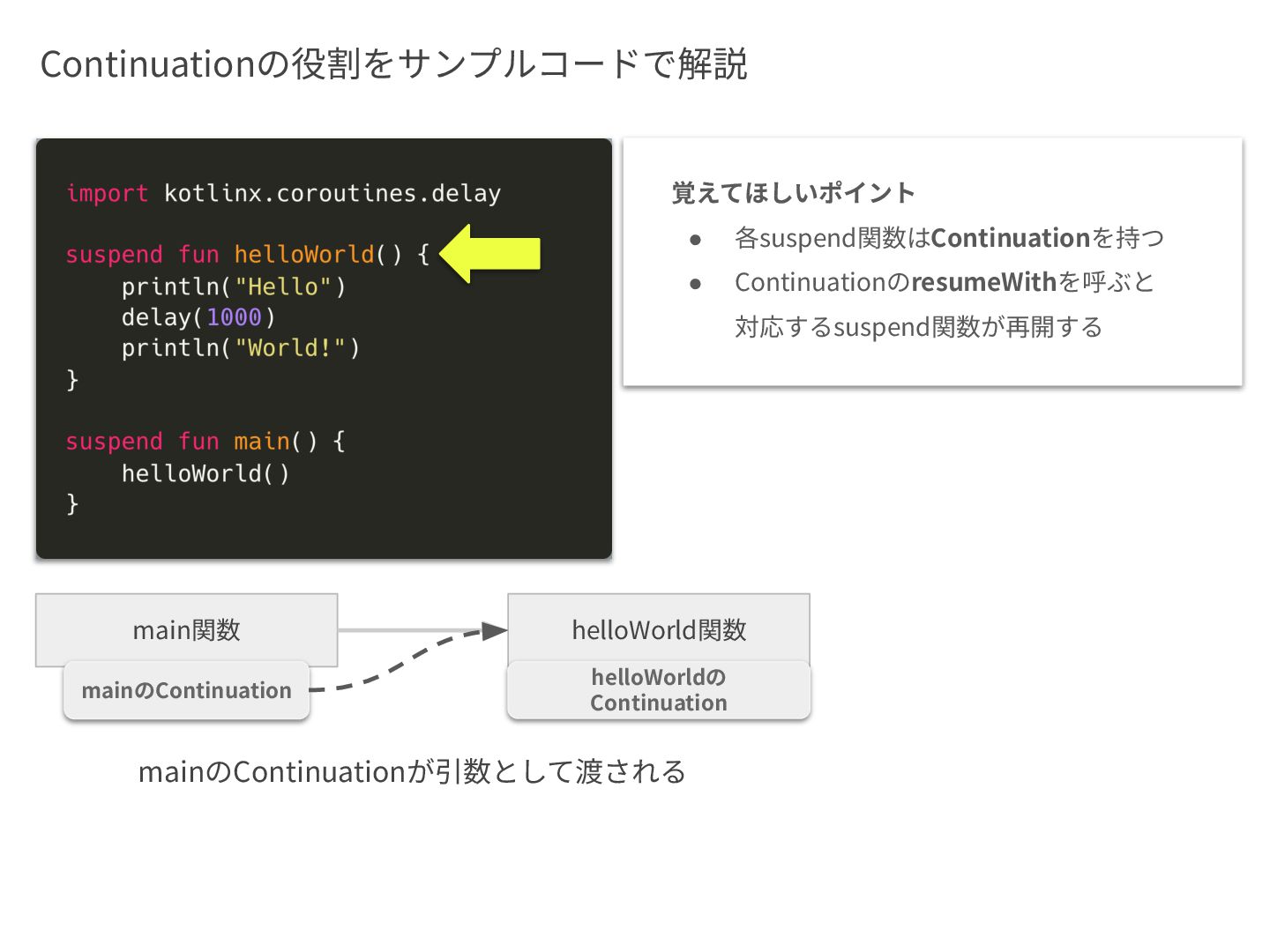

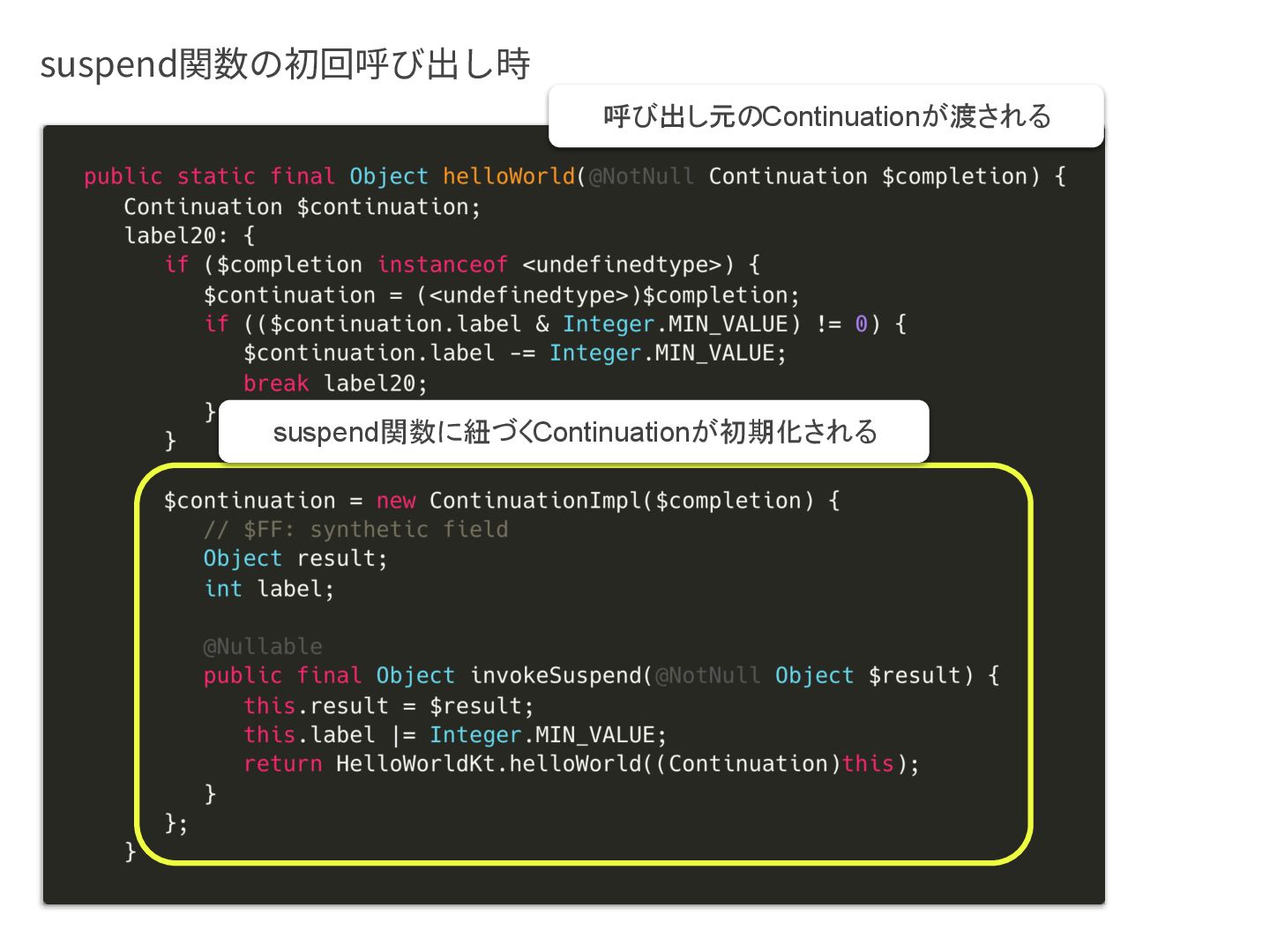

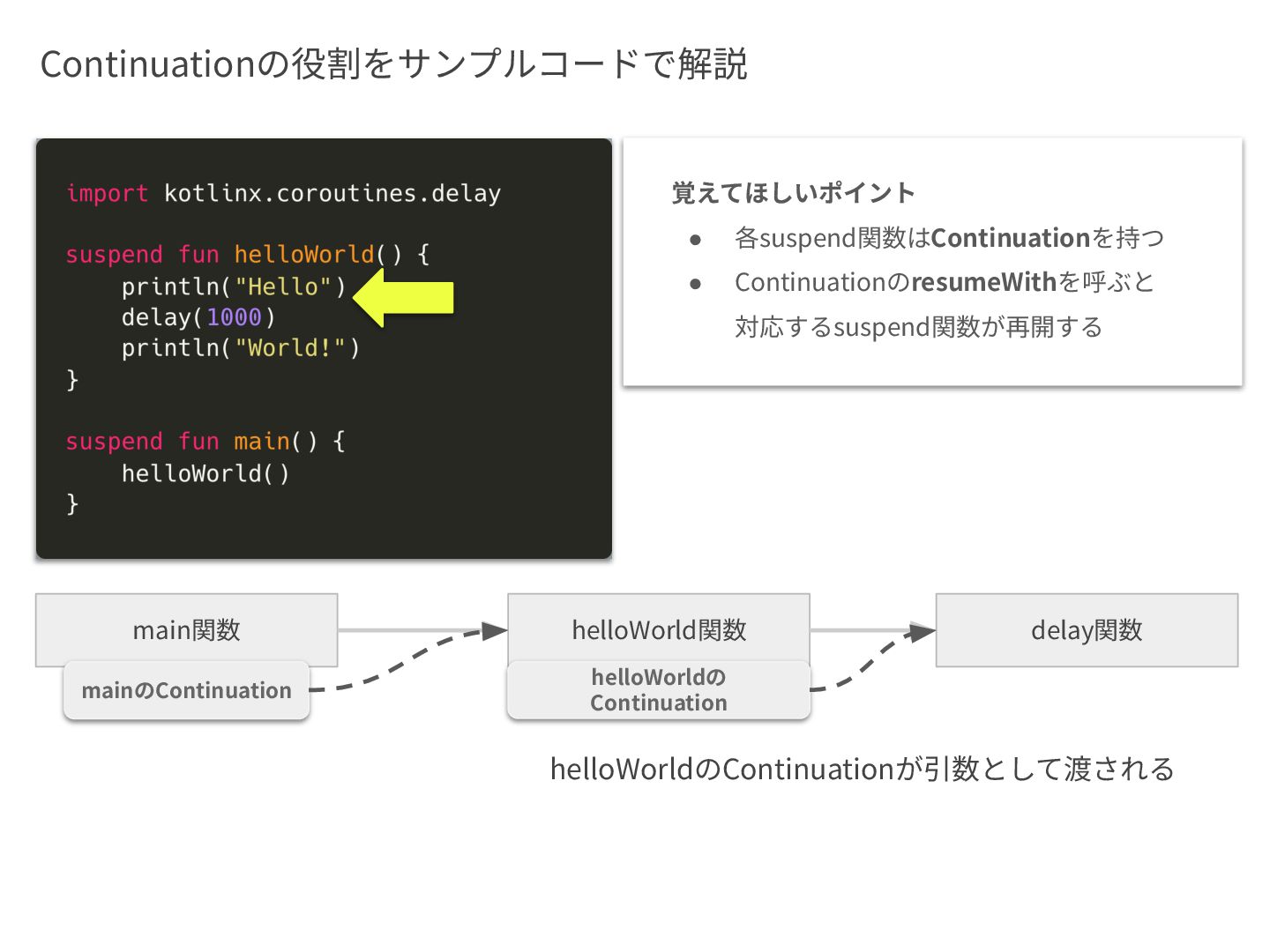

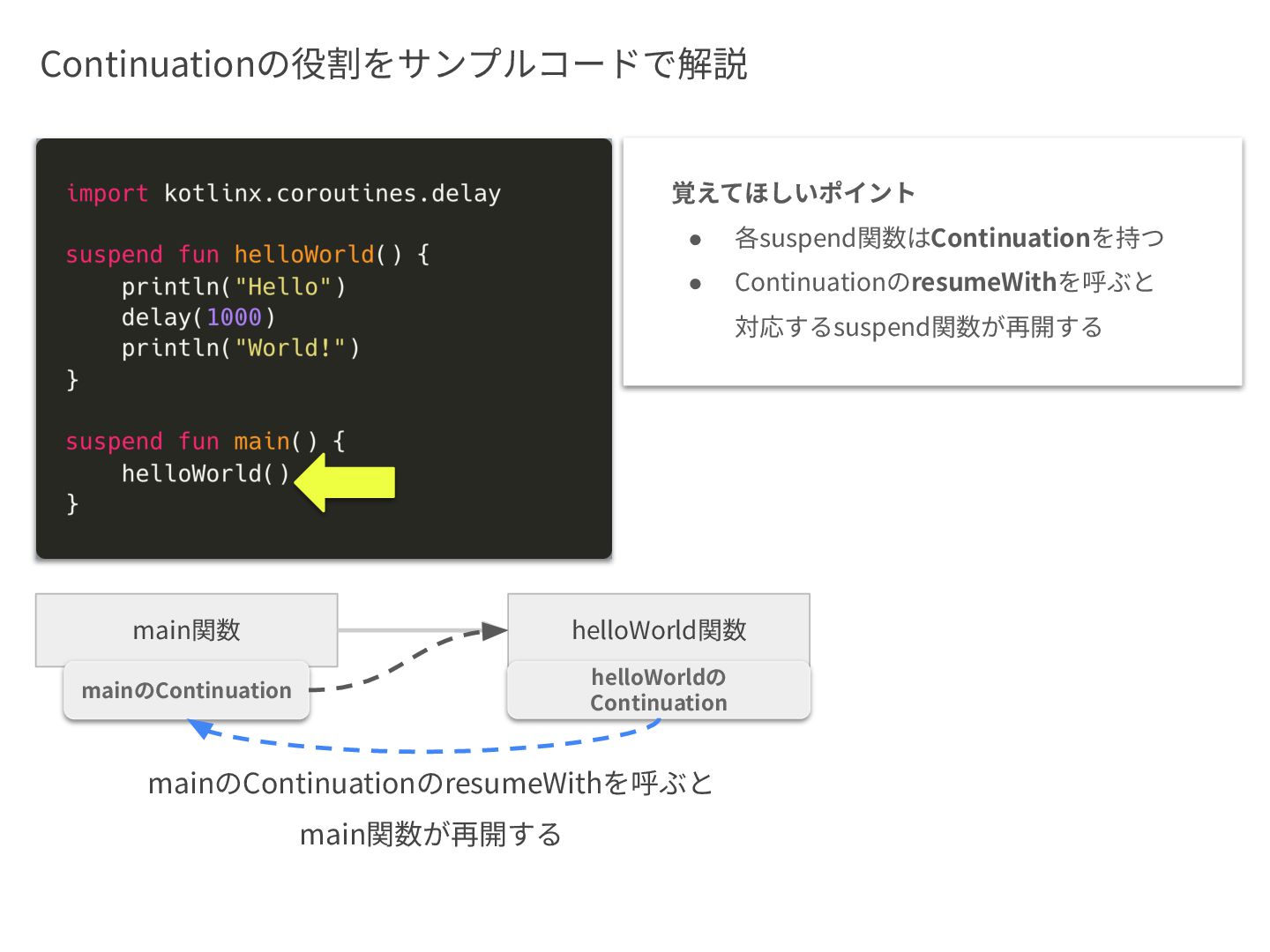

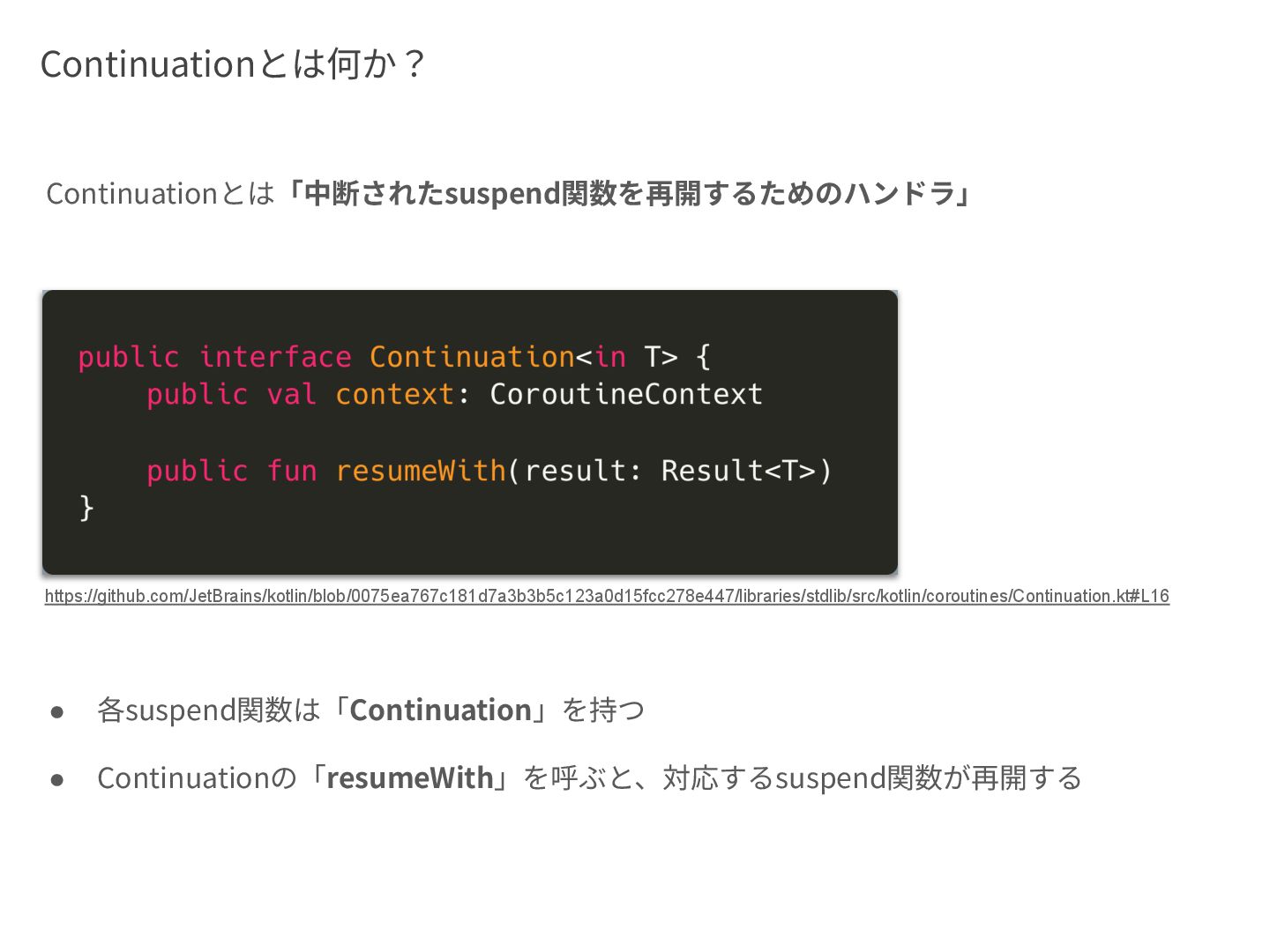

  3. main関数 helloWorld関数 mainのContinuation mainのContinuationが引数として渡される helloWorldの Continuation 覚えてほしいポイント • 各suspend関数はContinuationを持つ •

    ContinuationのresumeWithを呼ぶと 対応するsuspend関数が再開する Continuationの役割をサンプルコードで解説

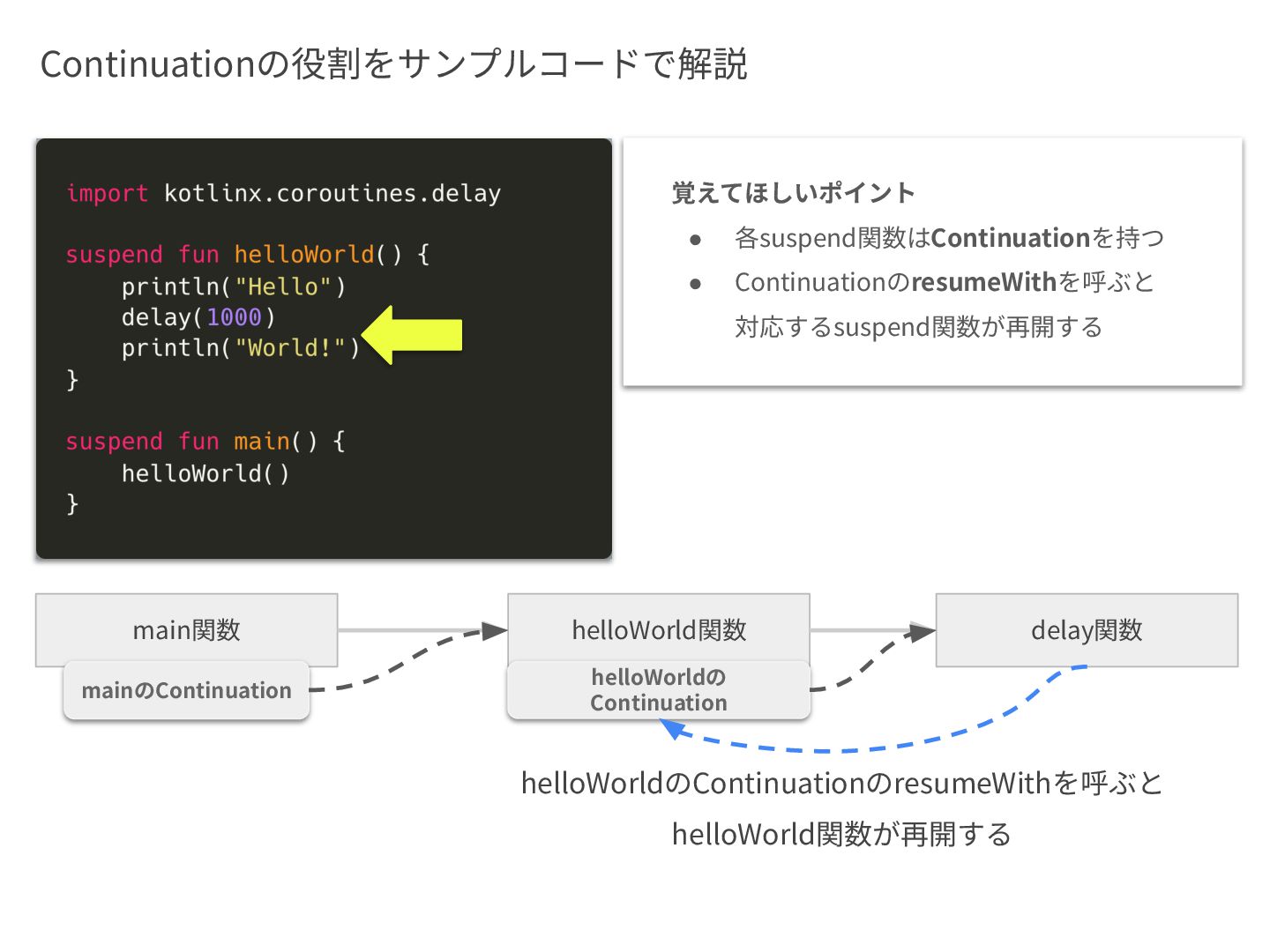

  4. main関数 helloWorld関数 mainのContinuation delay関数 helloWorldの Continuation helloWorldのContinuationのresumeWithを呼ぶと helloWorld関数が再開する 覚えてほしいポイント •

    各suspend関数はContinuationを持つ • ContinuationのresumeWithを呼ぶと 対応するsuspend関数が再開する Continuationの役割をサンプルコードで解説

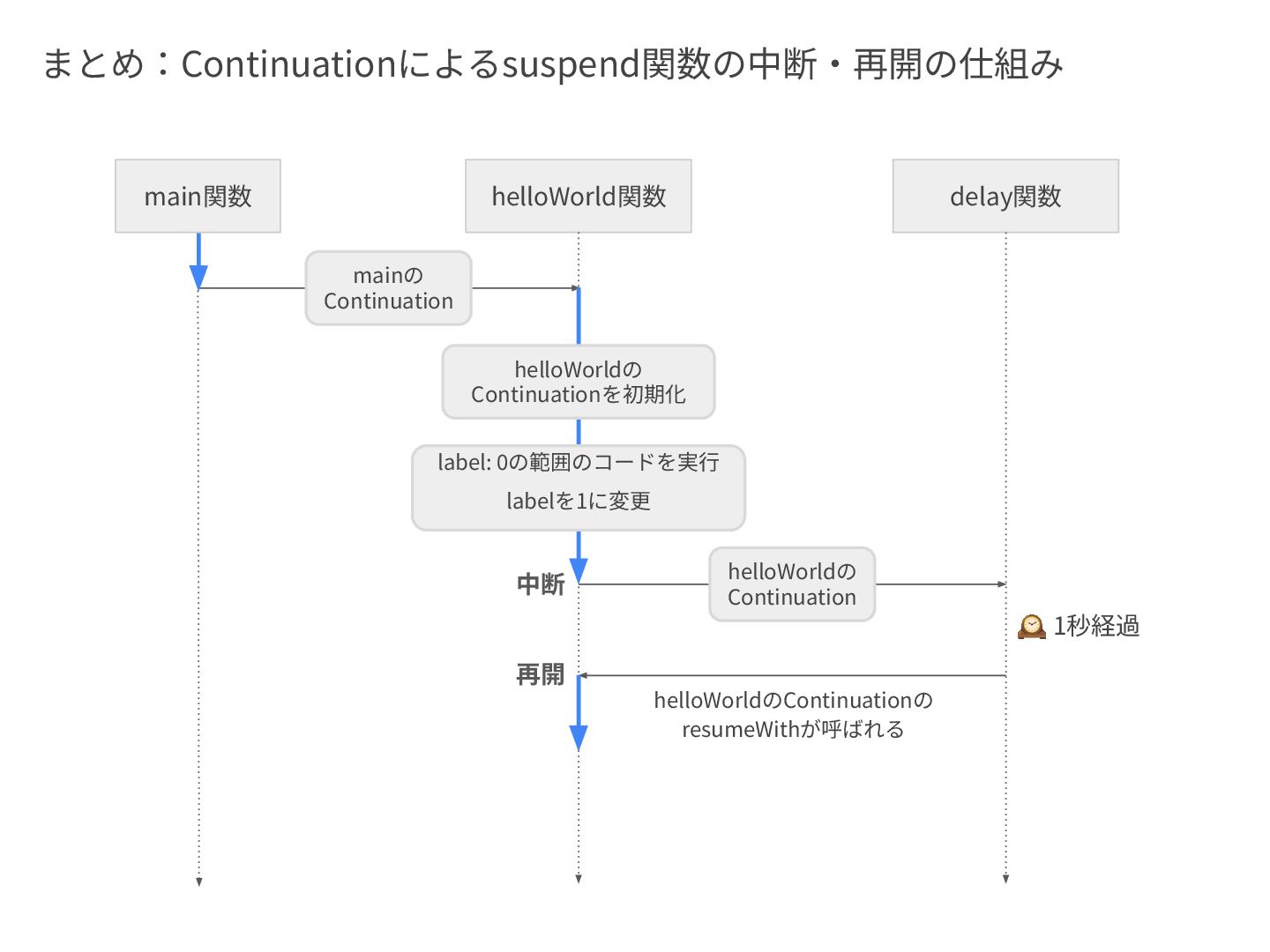

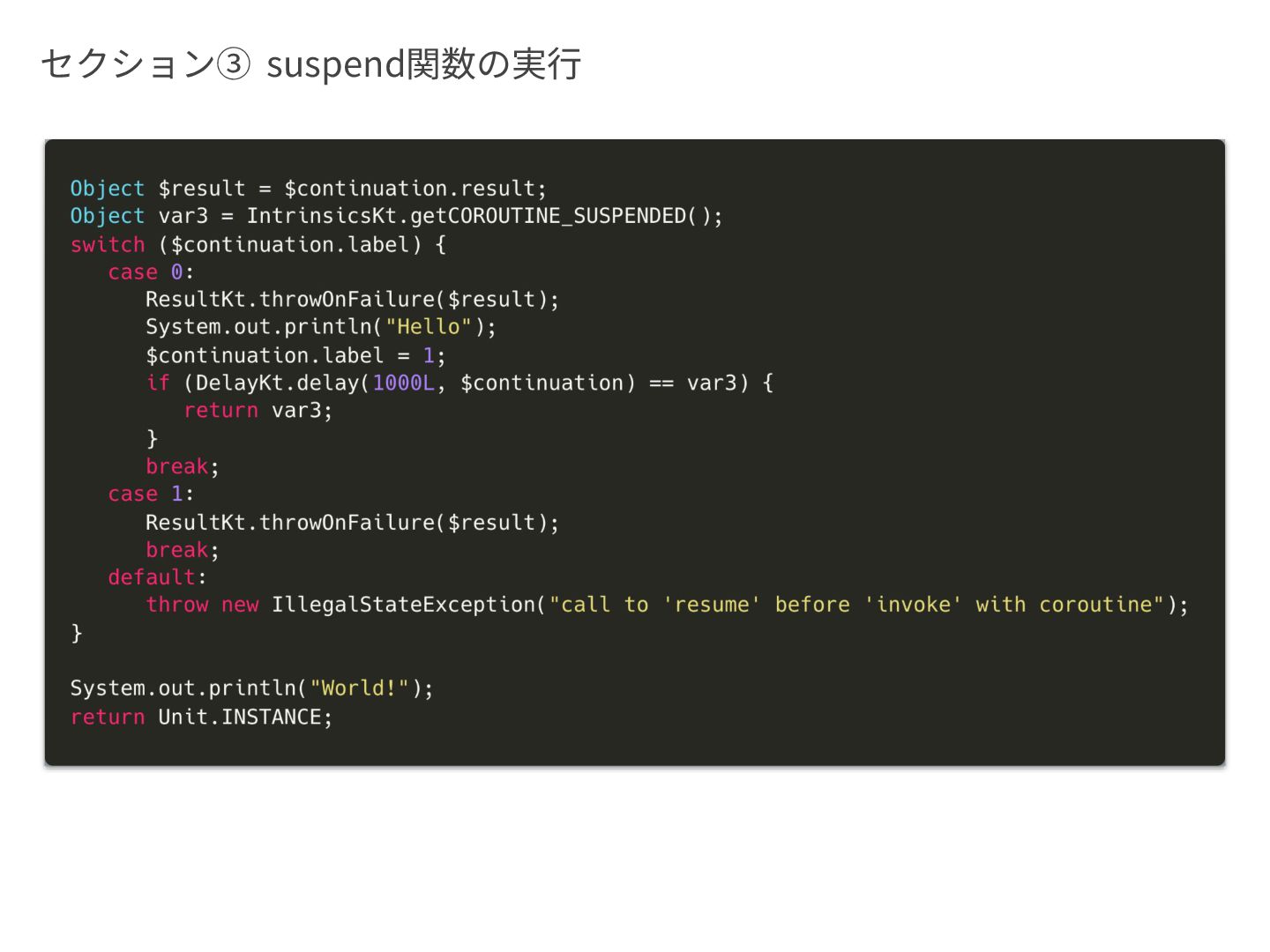

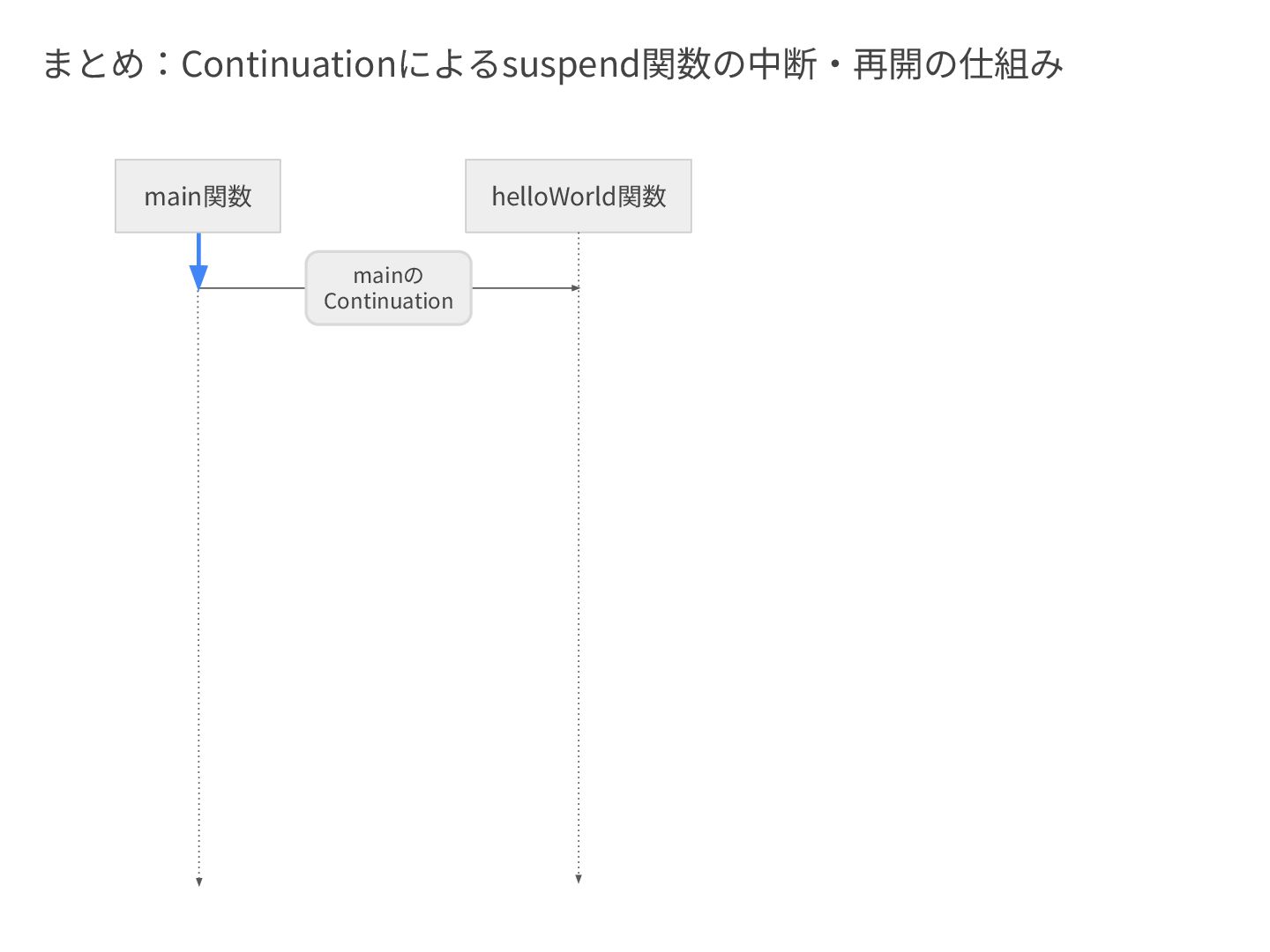

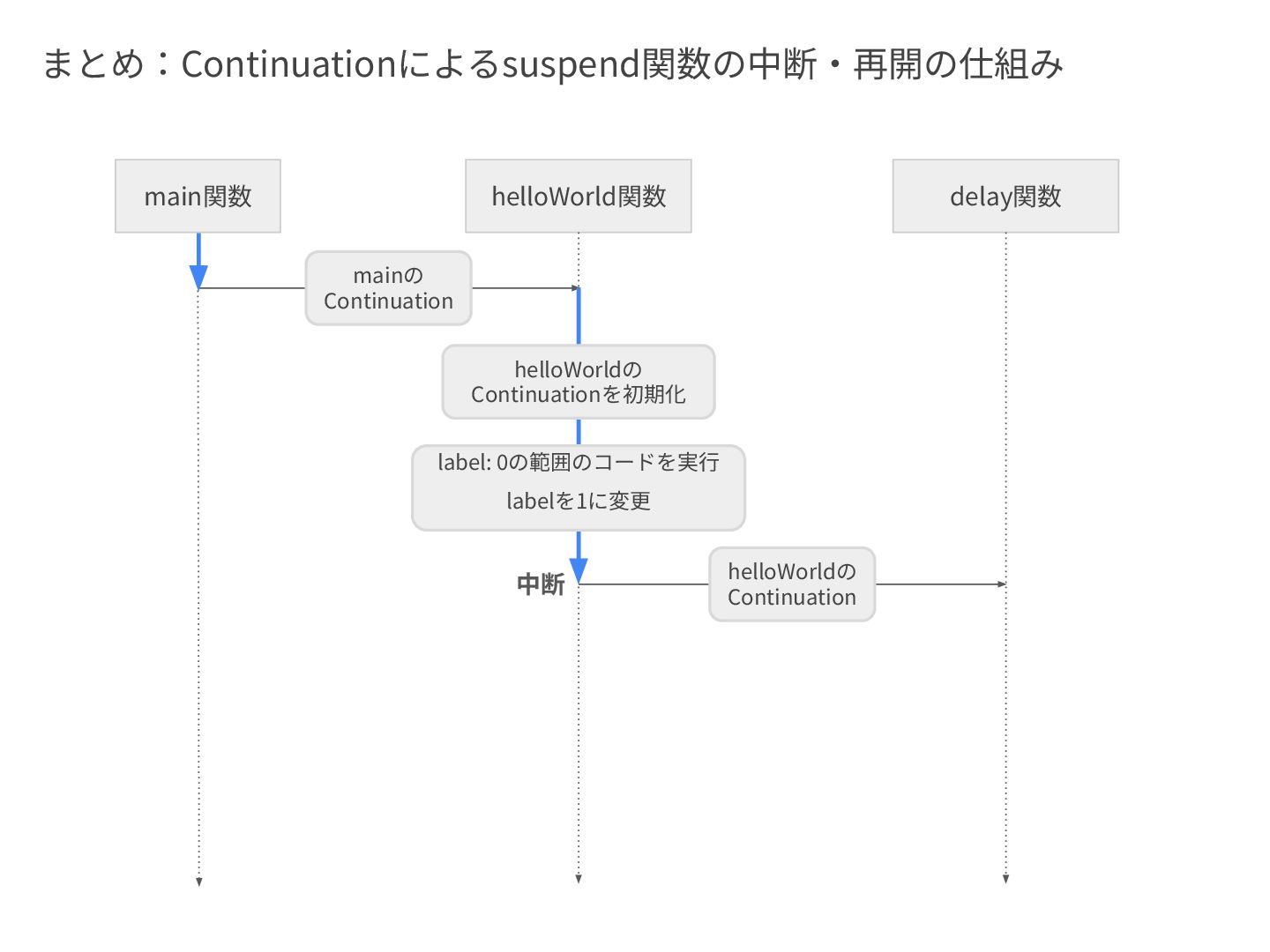

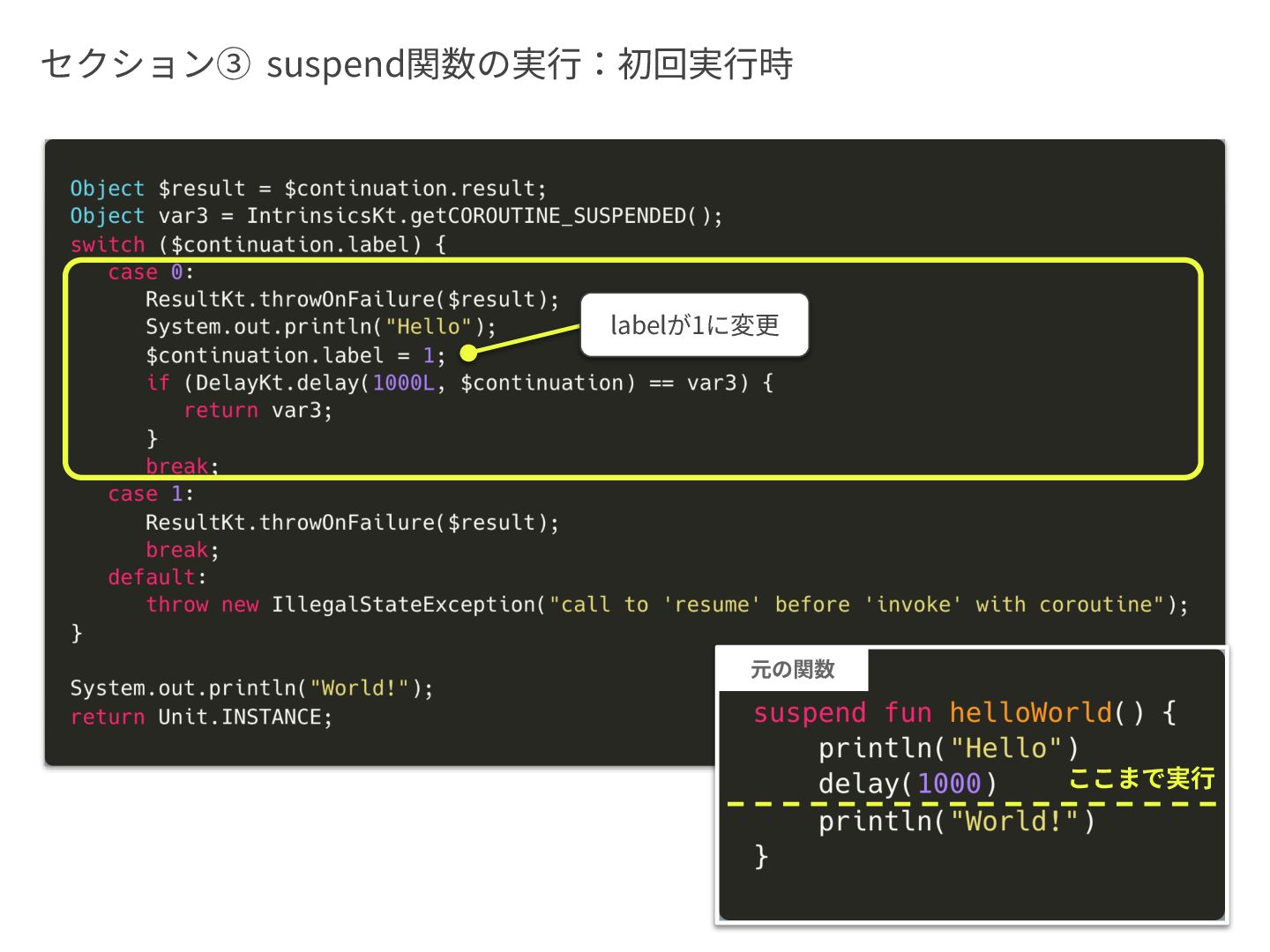

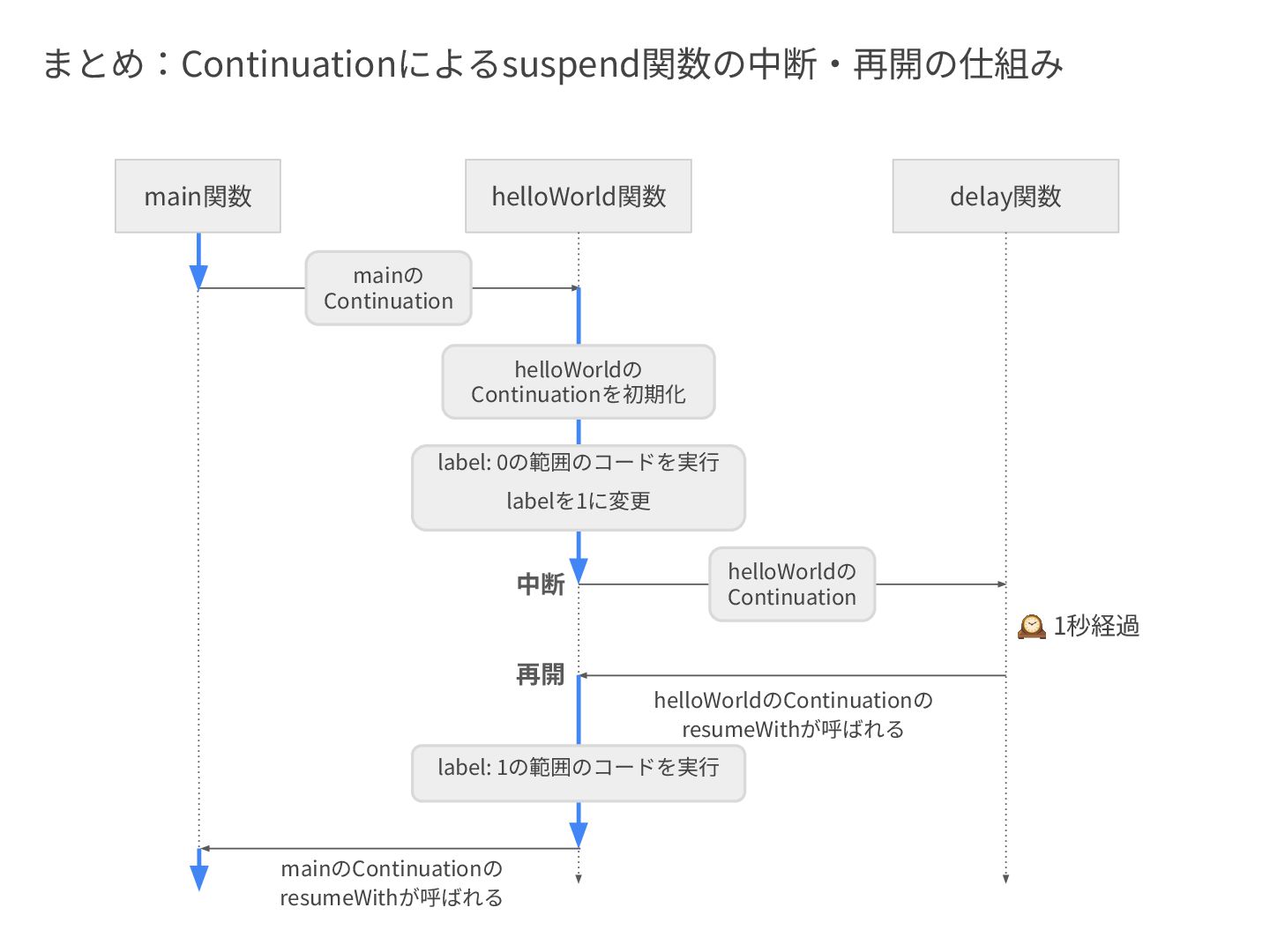

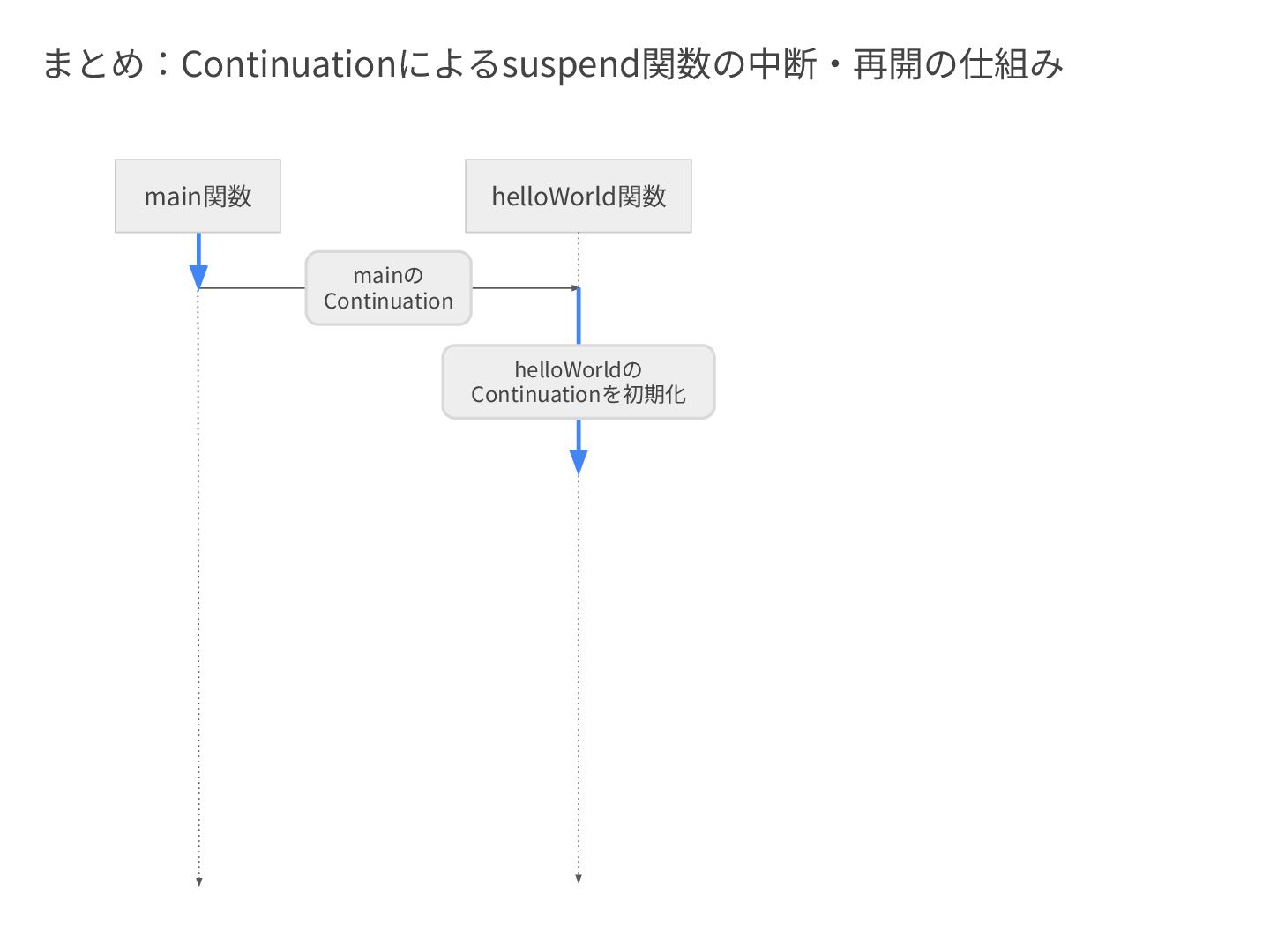

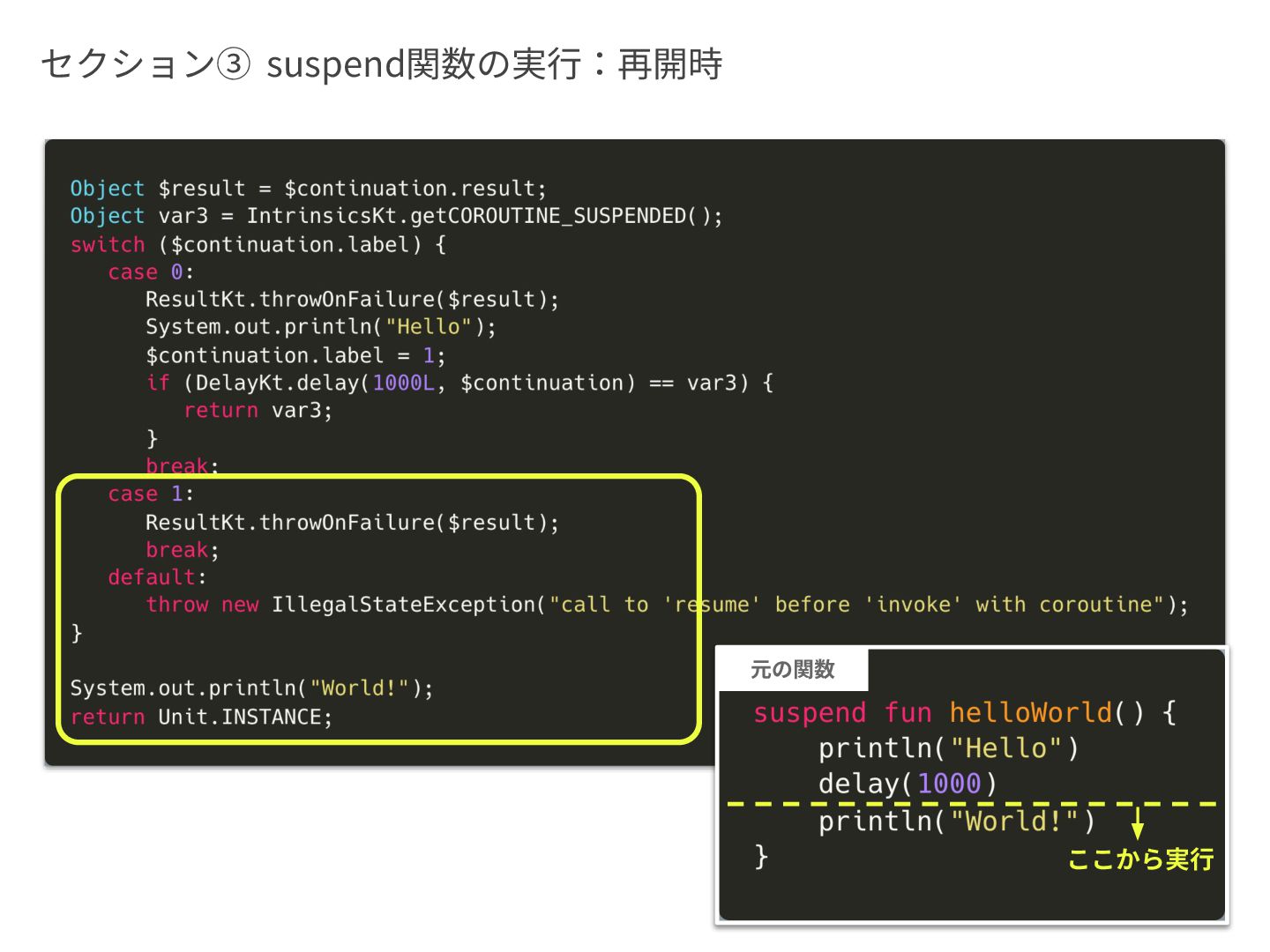

  5. まとめ:Continuationによるsuspend関数の中断‧再開の仕組み helloWorld関数 mainの Continuation main関数 helloWorldの Continuationを初期化 label: 0の範囲のコードを実⾏ labelを1に変更

    delay関数 helloWorldの Continuation 中断 🕰 1秒経過 再開 label: 1の範囲のコードを実⾏ helloWorldのContinuationの resumeWithが呼ばれる mainのContinuationの resumeWithが呼ばれる

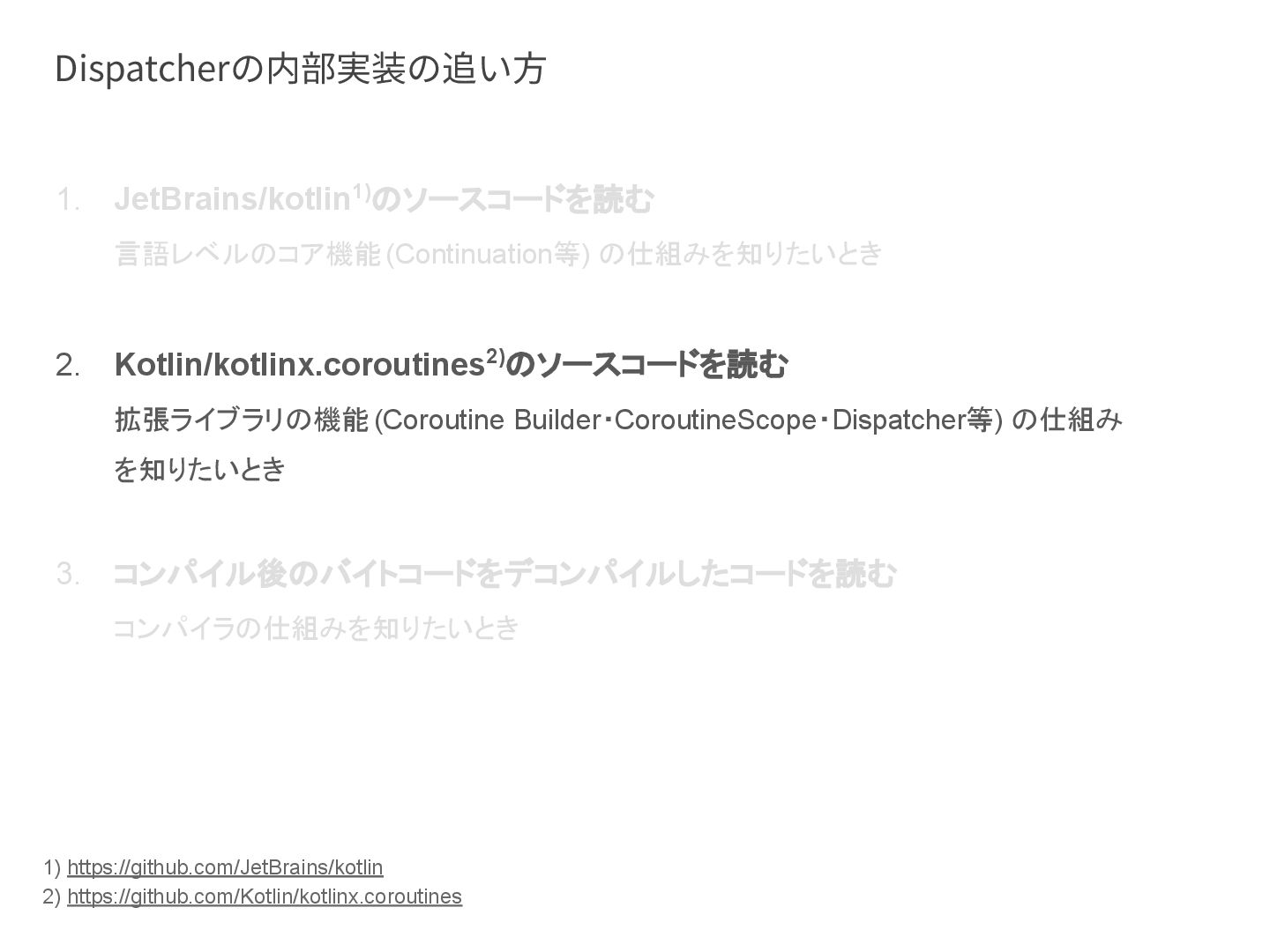

  6. Dispatcherの内部実装の追い⽅ 1. JetBrains/kotlin1)のソースコードを読む 言語レベルのコア機能 (Continuation等) の仕組みを知りたいとき 2. Kotlin/kotlinx.coroutines2)のソースコードを読む 拡張ライブラリの機能 (Coroutine

    Builder・CoroutineScope・Dispatcher等) の仕組み を知りたいとき 3. コンパイル後のバイトコードをデコンパイルしたコードを読む コンパイラの仕組みを知りたいとき 1) https://github.com/JetBrains/kotlin 2) https://github.com/Kotlin/kotlinx.coroutines

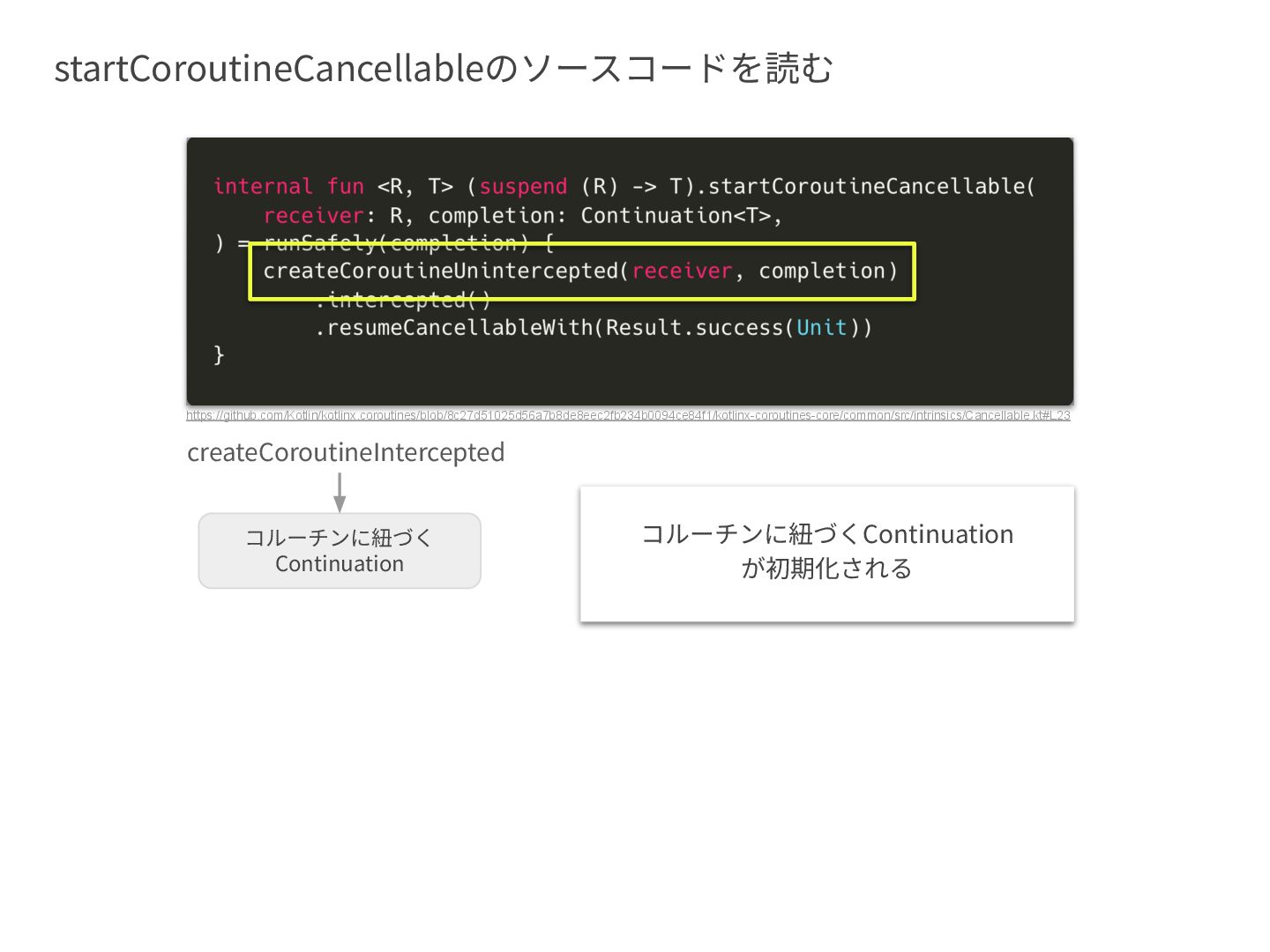

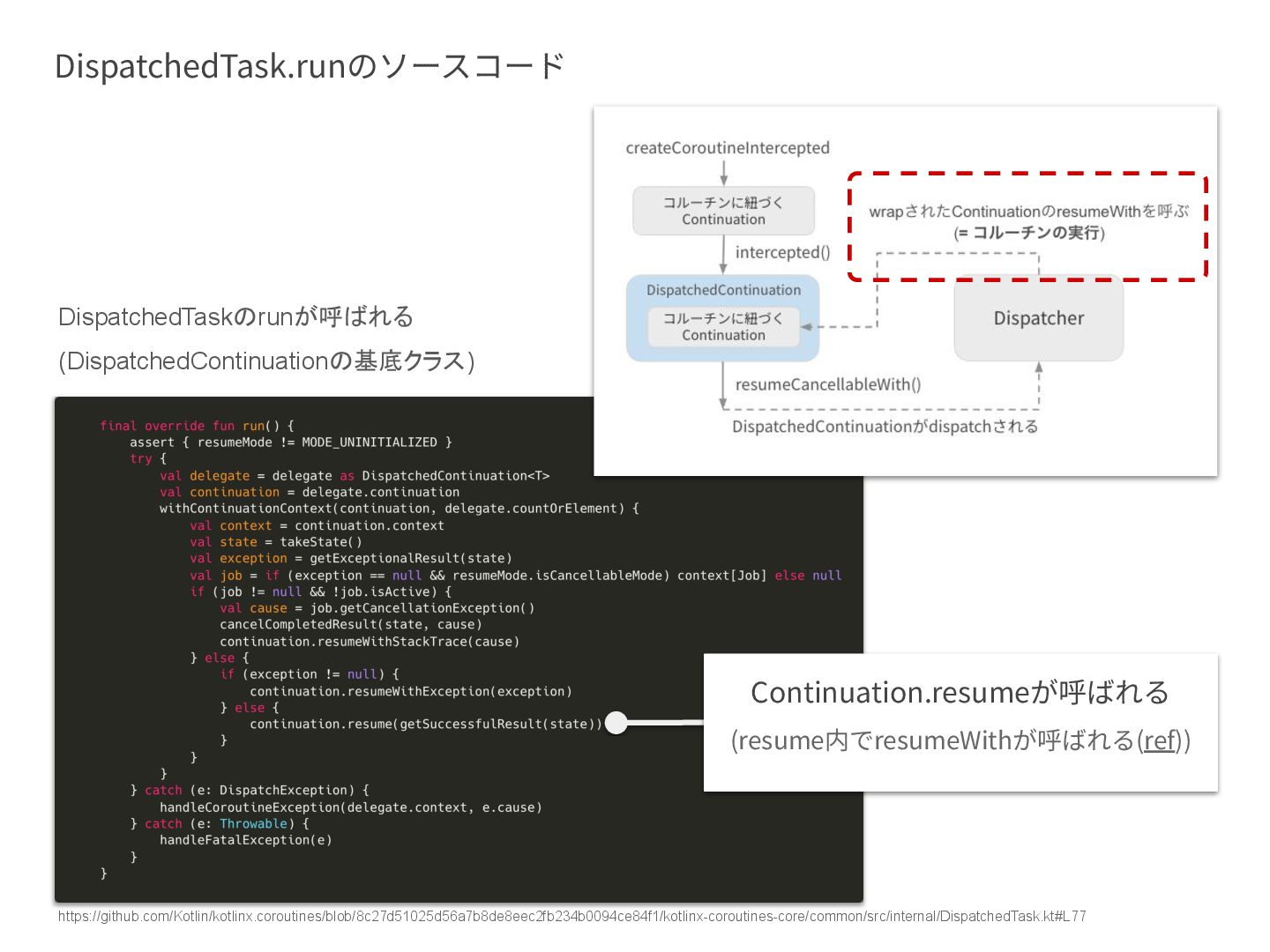

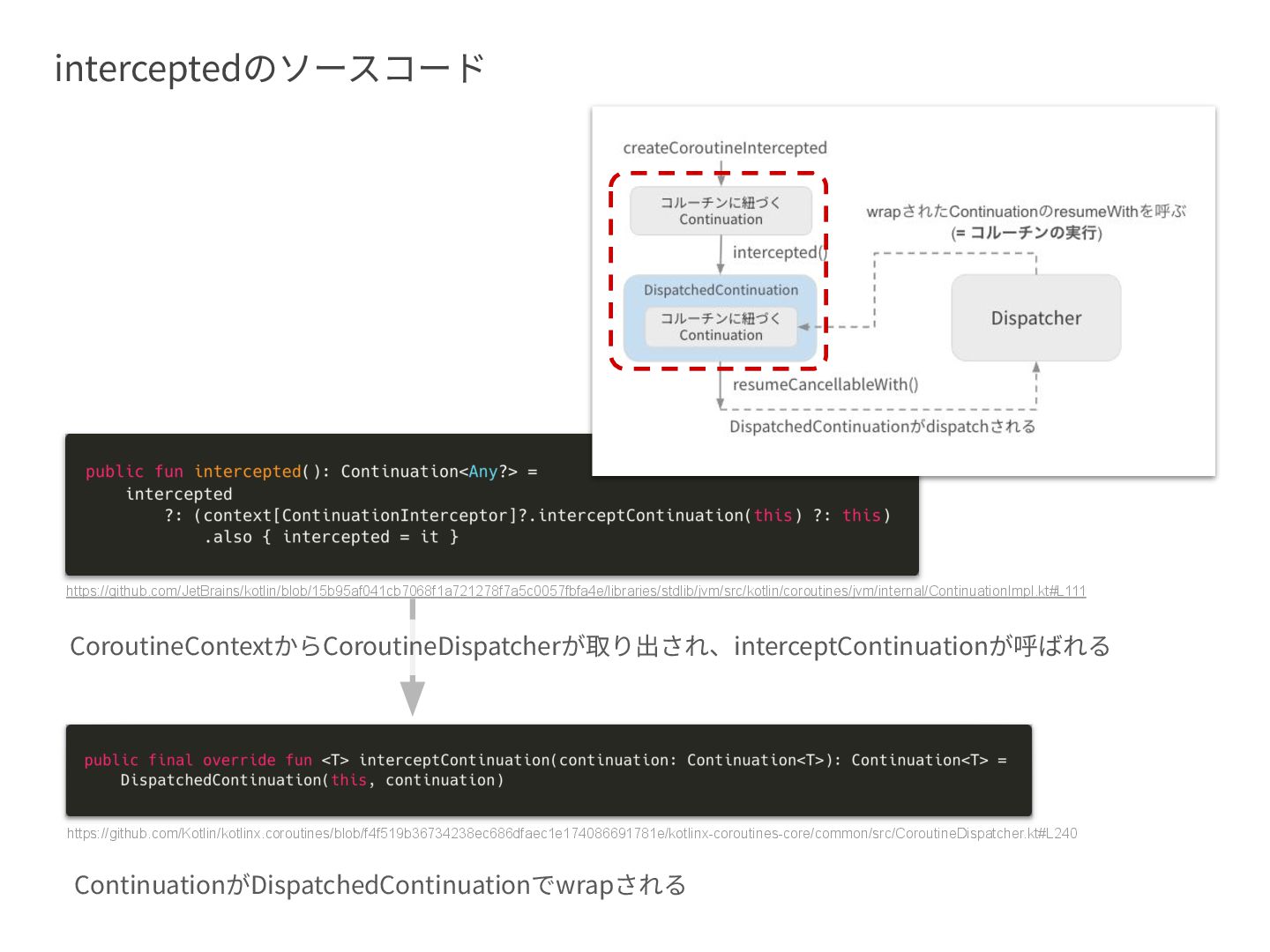

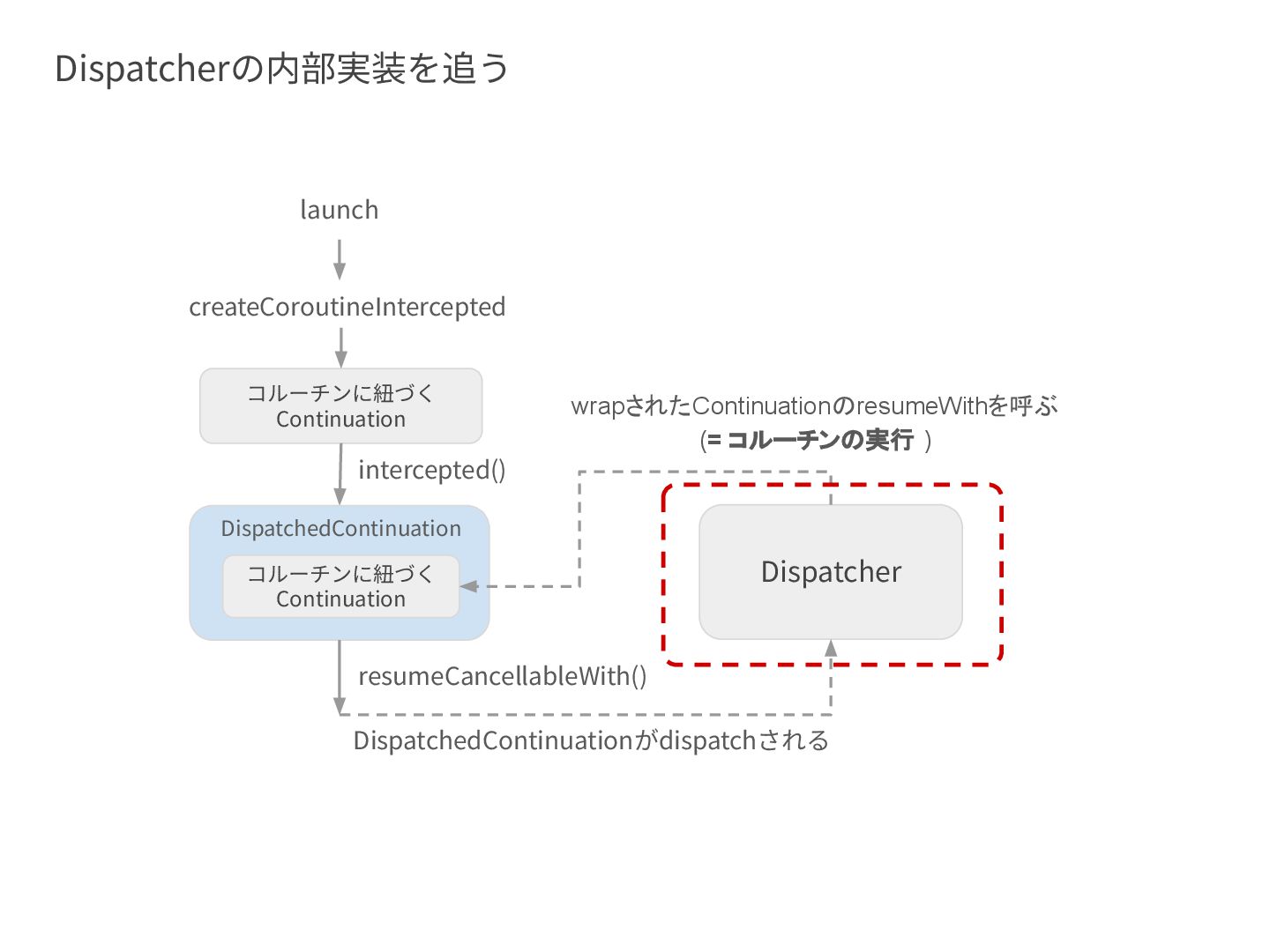

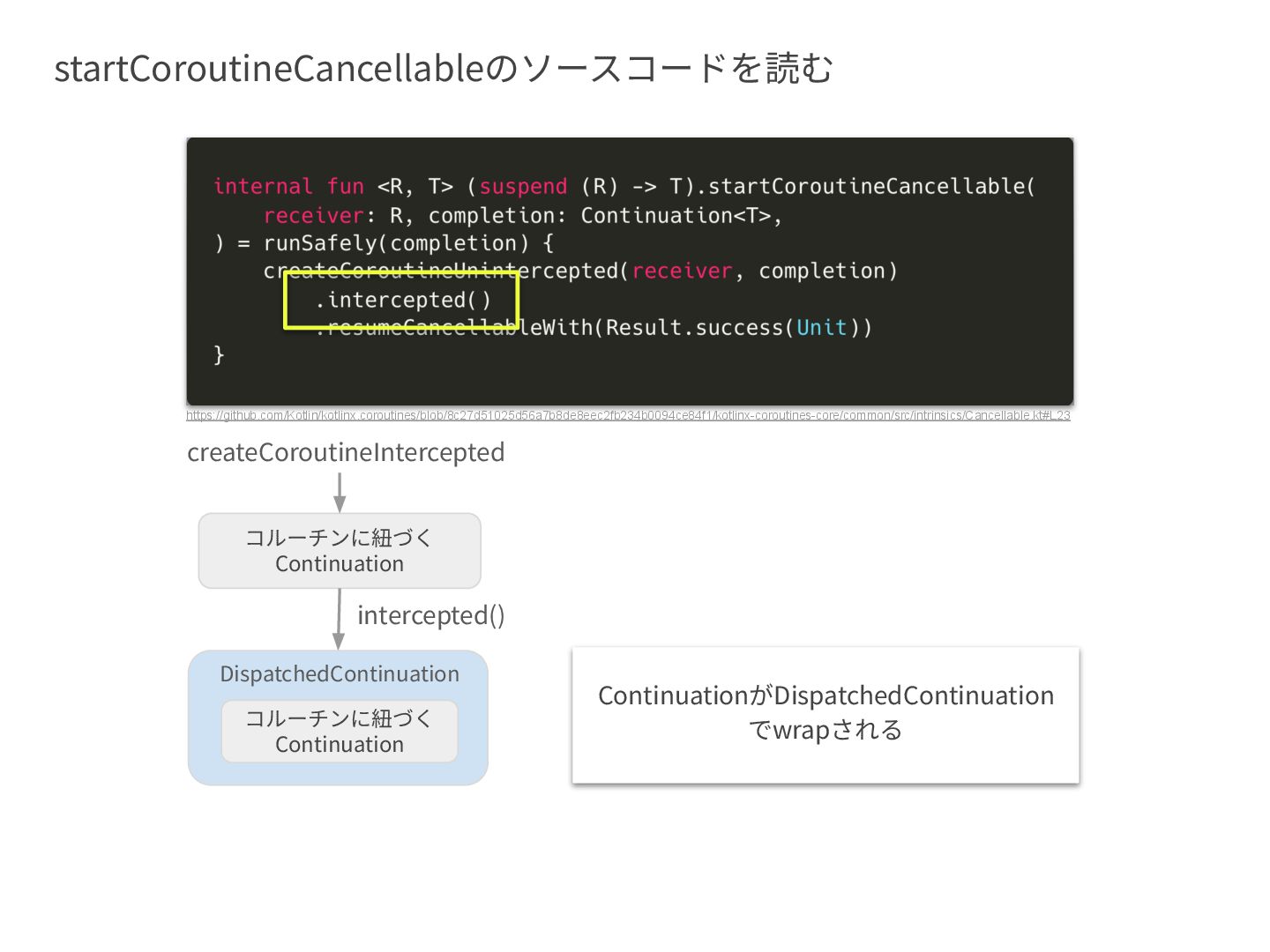

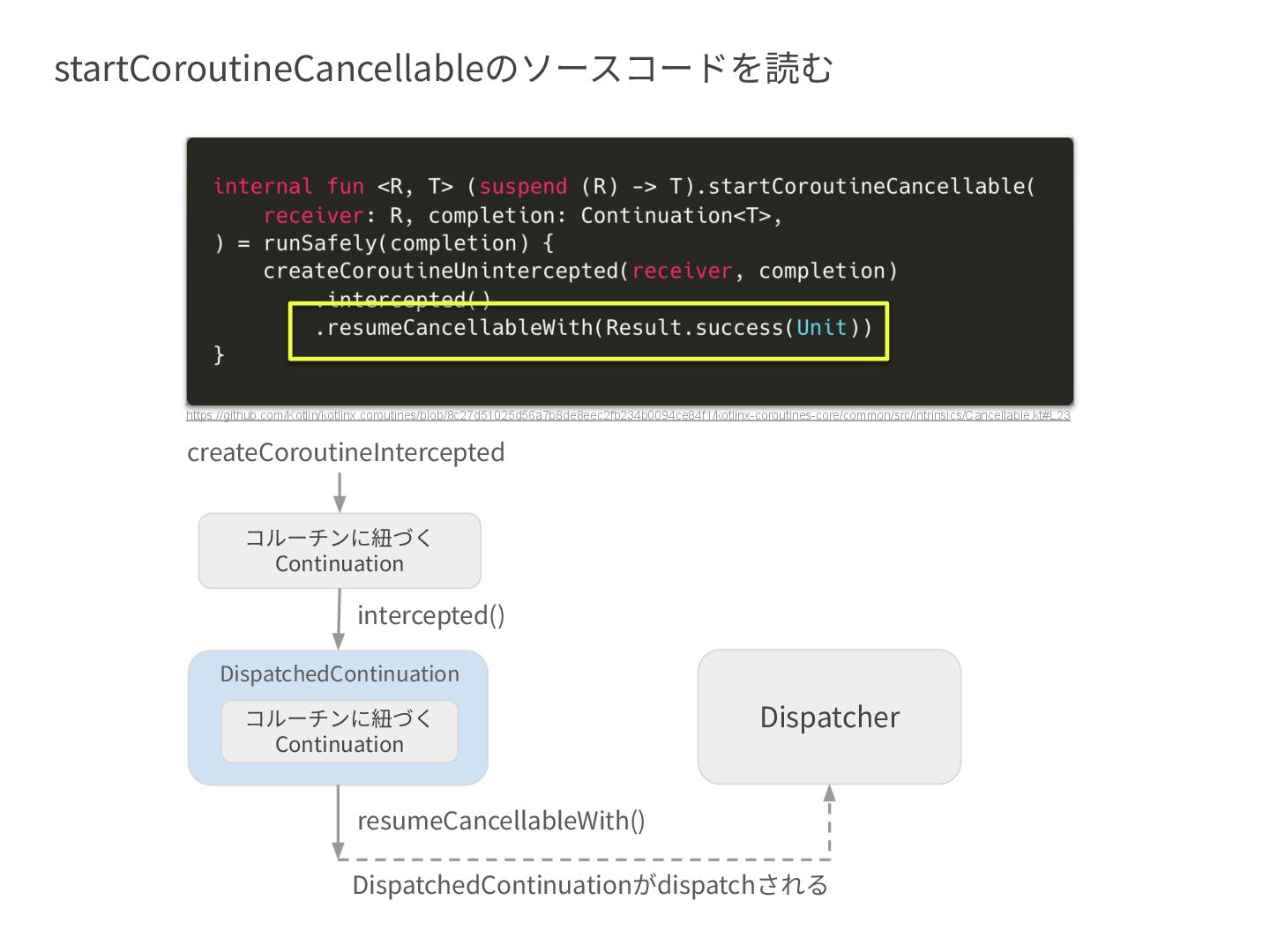

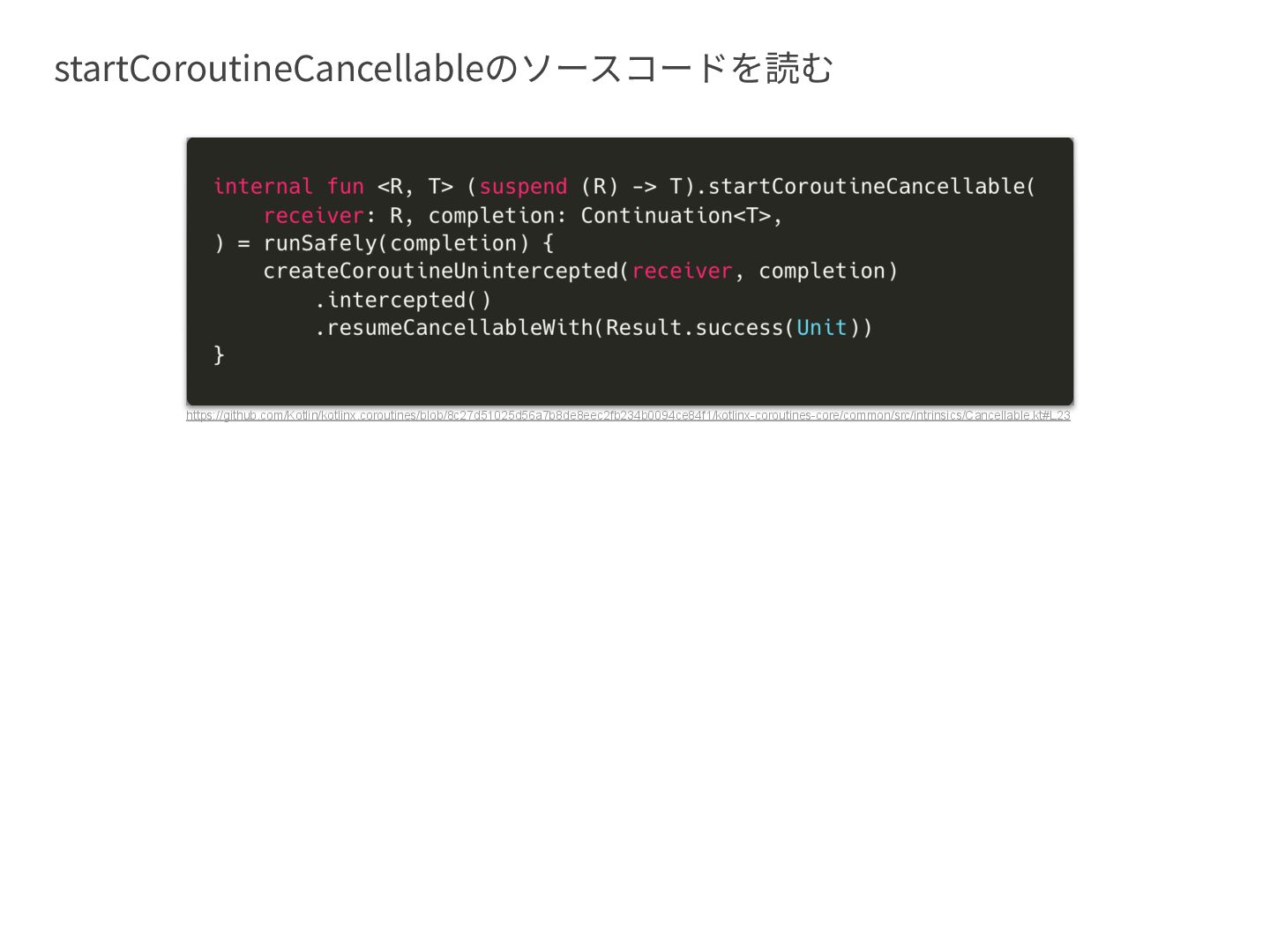

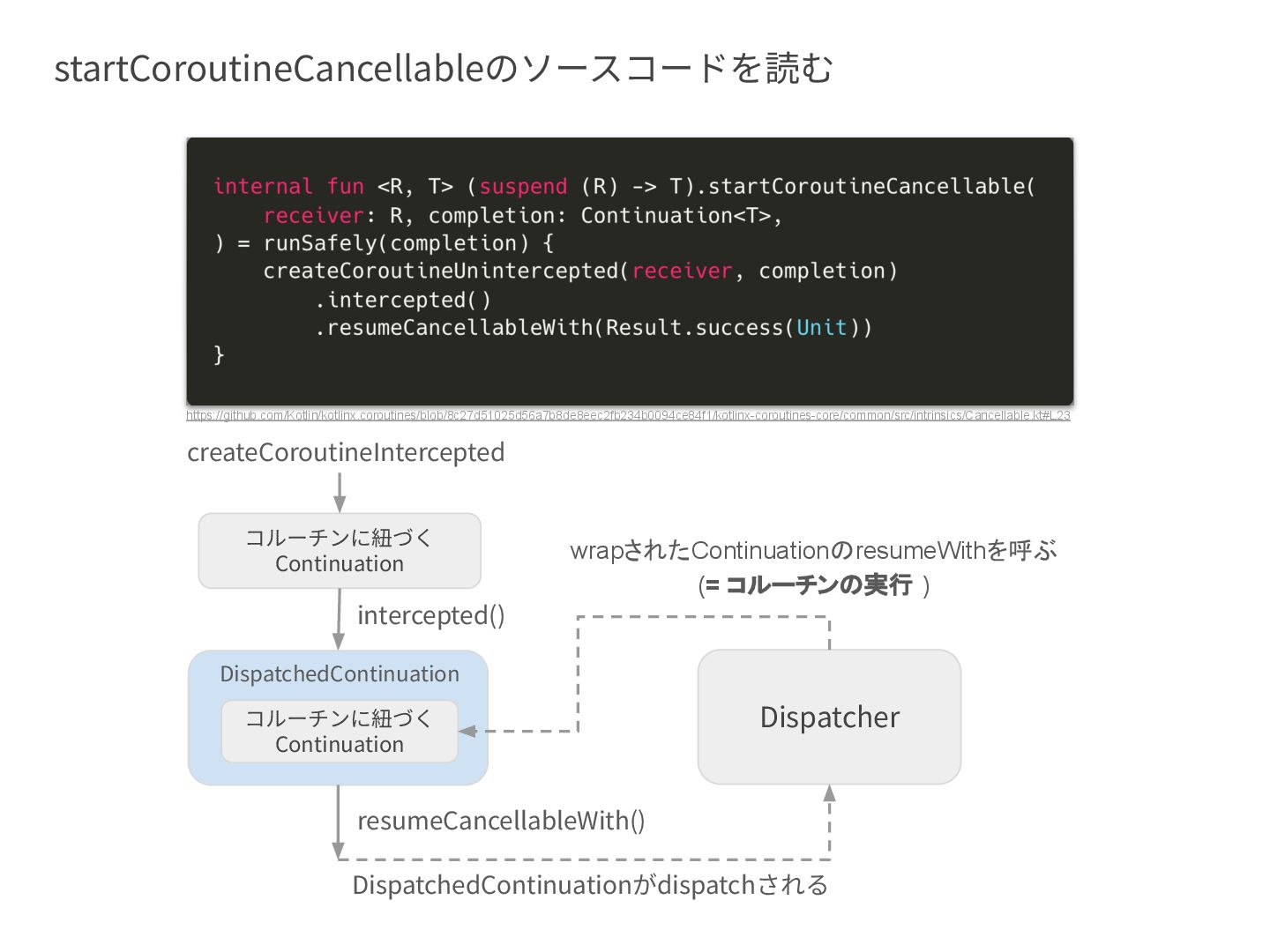

  7. startCoroutineCancellableのソースコードを読む コルーチンに紐づく Continuation createCoroutineIntercepted intercepted() コルーチンに紐づく Continuation DispatchedContinuation resumeCancellableWith() Dispatcher

    DispatchedContinuationがdispatchされる wrapされたContinuationのresumeWithを呼ぶ (= コルーチンの実行 ) https://github.com/Kotlin/kotlinx.coroutines/blob/8c27d51025d56a7b8de8eec2fb234b0094ce84f1/kotlinx-coroutines-core/common/src/intrinsics/Cancellable.kt#L23

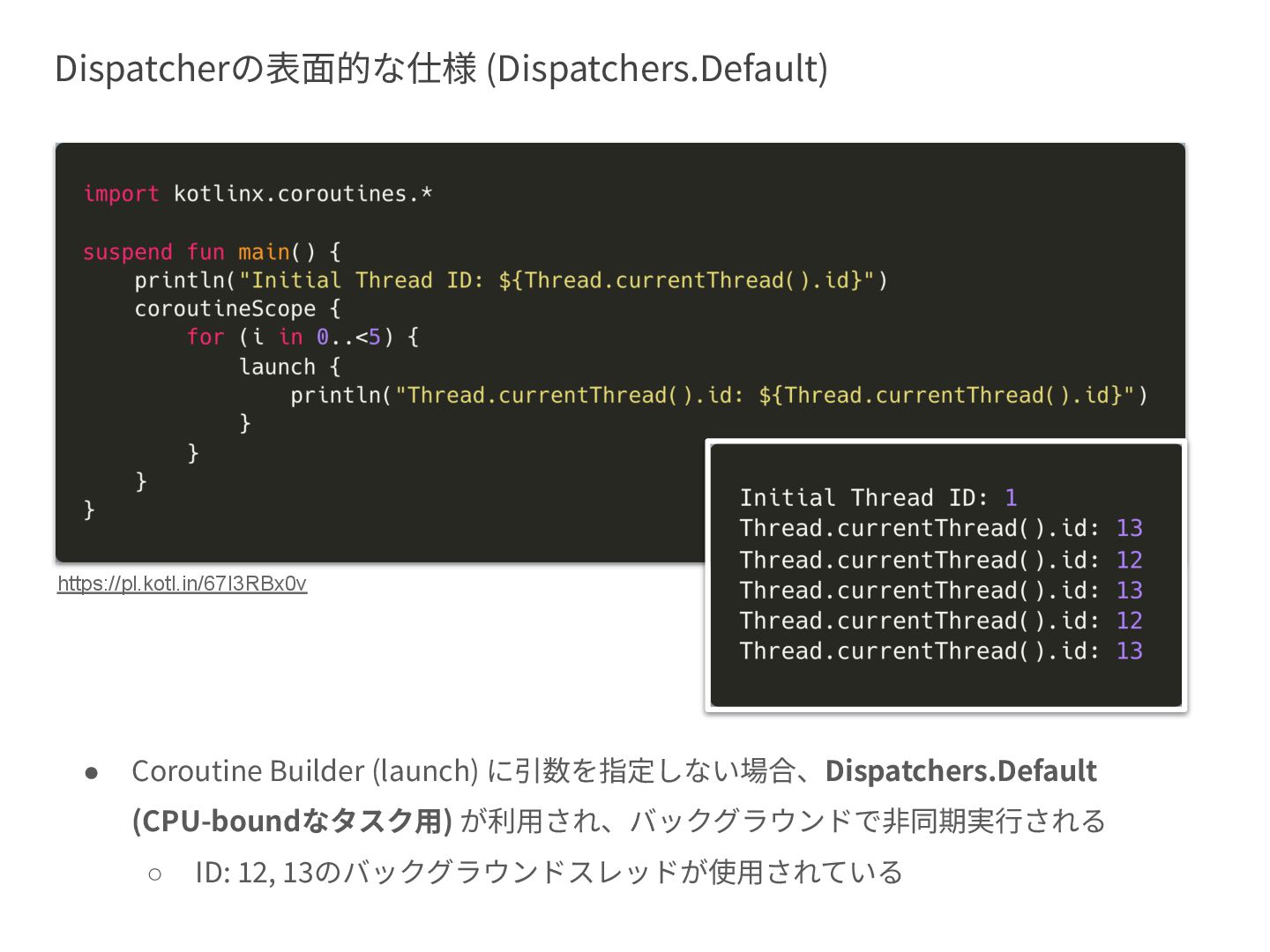

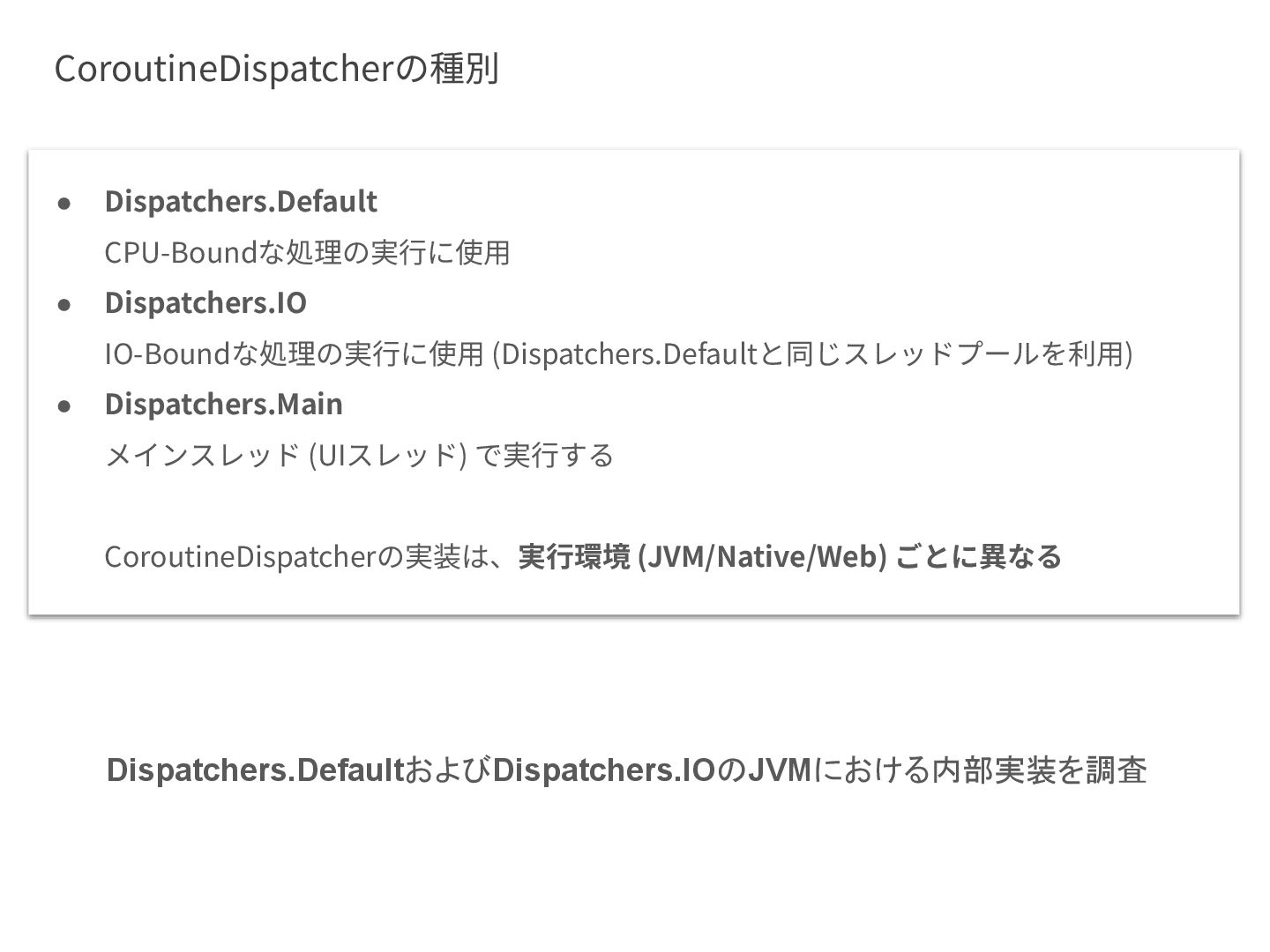

  8. CoroutineDispatcherの種別 • Dispatchers.Default CPU-Boundな処理の実⾏に使⽤ • Dispatchers.IO IO-Boundな処理の実⾏に使⽤ (Dispatchers.Defaultと同じスレッドプールを利⽤) • Dispatchers.Main

    メインスレッド (UIスレッド) で実⾏する CoroutineDispatcherの実装は、実⾏環境 (JVM/Native/Web) ごとに異なる Dispatchers.DefaultおよびDispatchers.IOのJVMにおける内部実装を調査

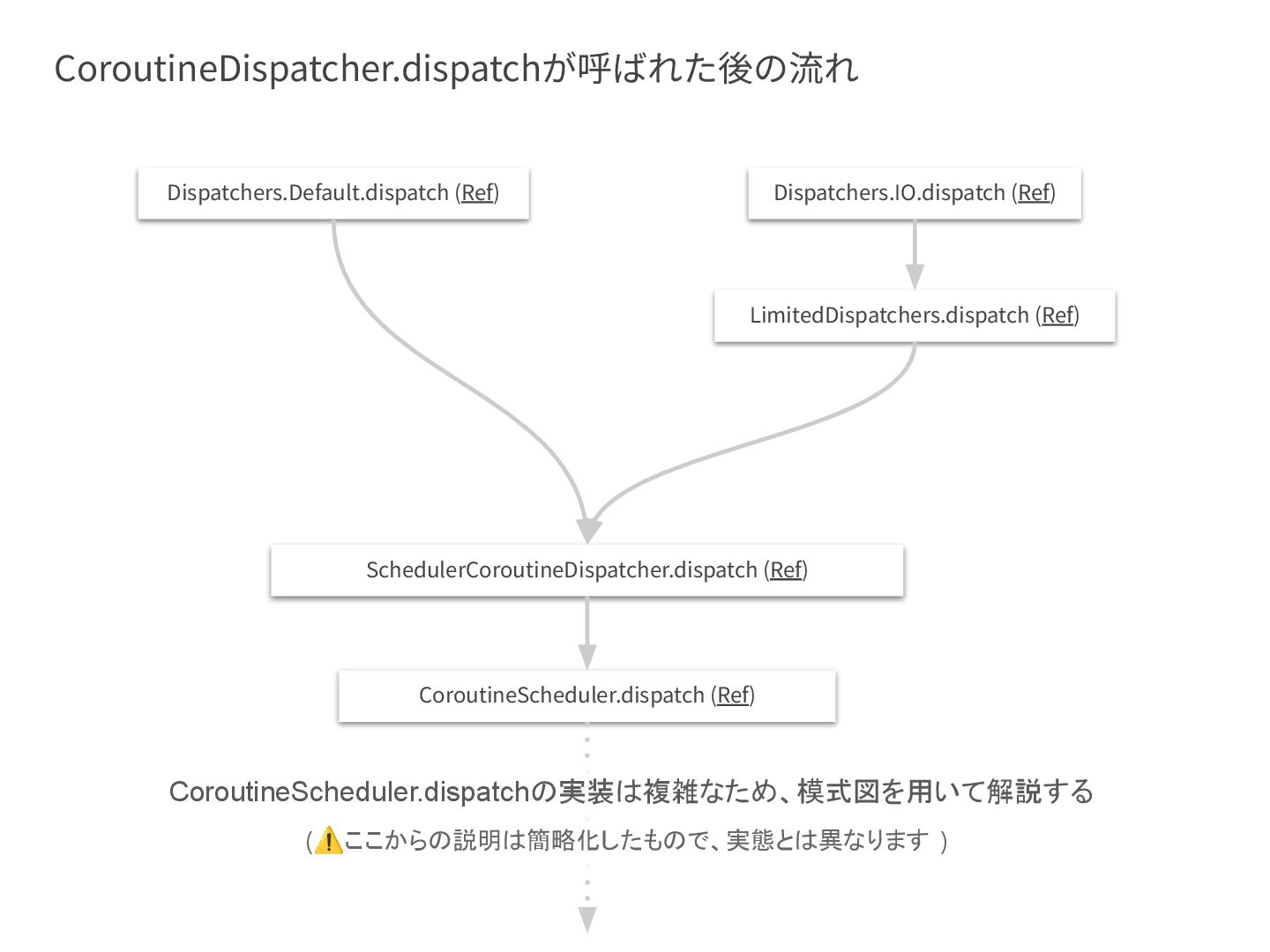

  9. CoroutineDispatcher.dispatchが呼ばれた後の流れ Dispatchers.Default.dispatch (Ref) CoroutineScheduler.dispatch (Ref) Dispatchers.IO.dispatch (Ref) LimitedDispatchers.dispatch (Ref) SchedulerCoroutineDispatcher.dispatch

    (Ref) CoroutineScheduler.dispatchの実装は複雑なため、模式図を用いて解説する (⚠ここからの説明は簡略化したもので、実態とは異なります )

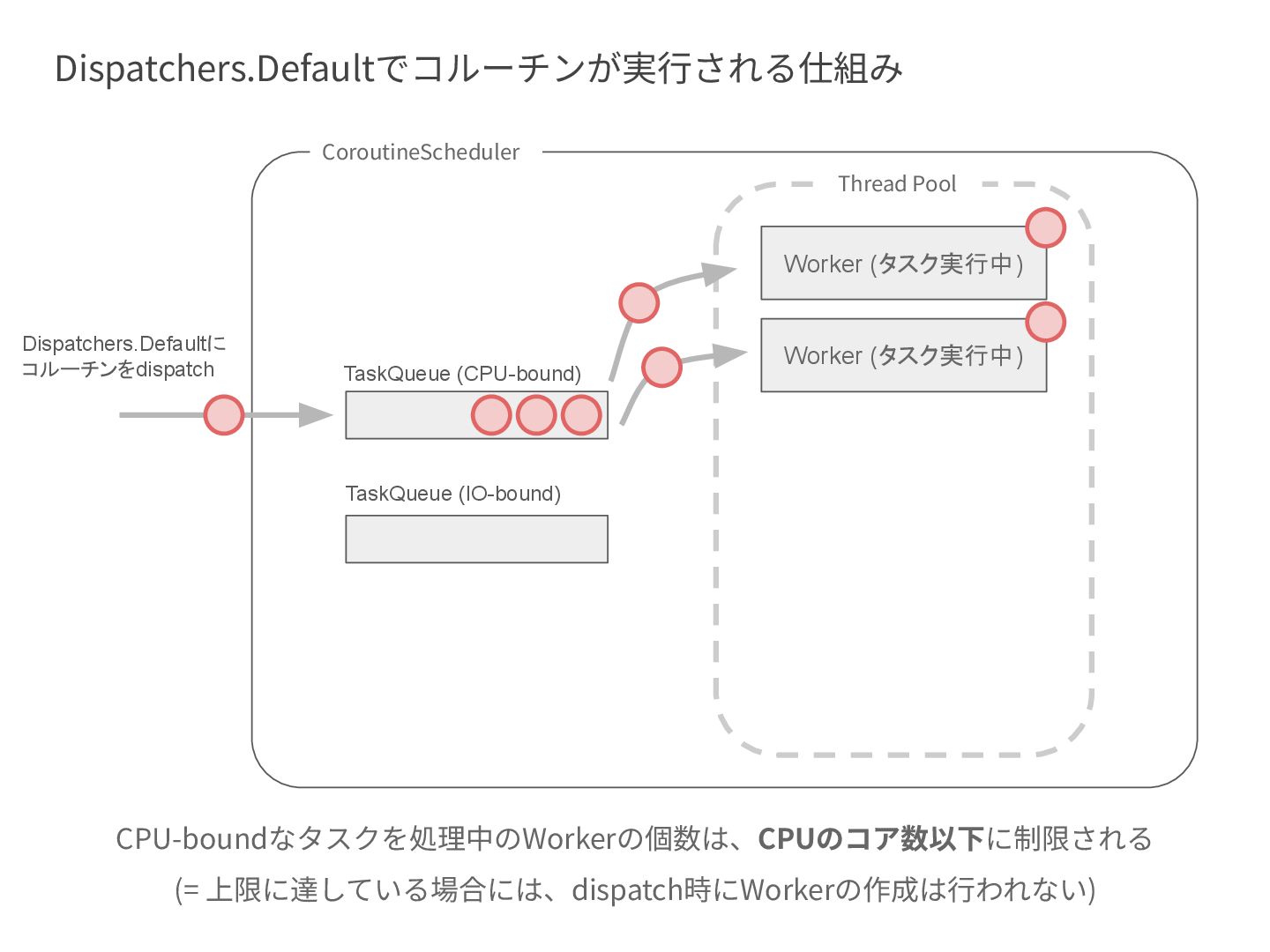

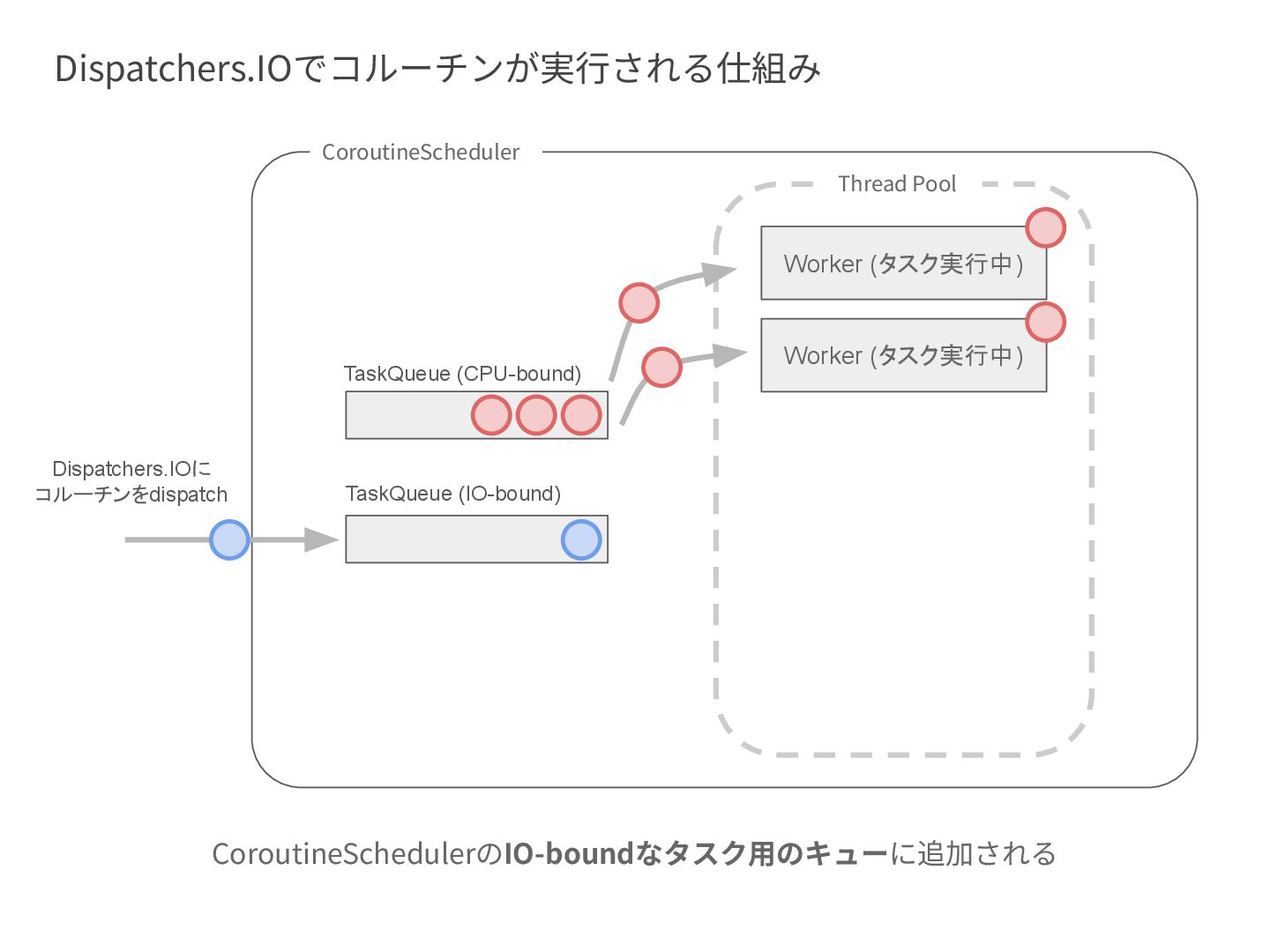

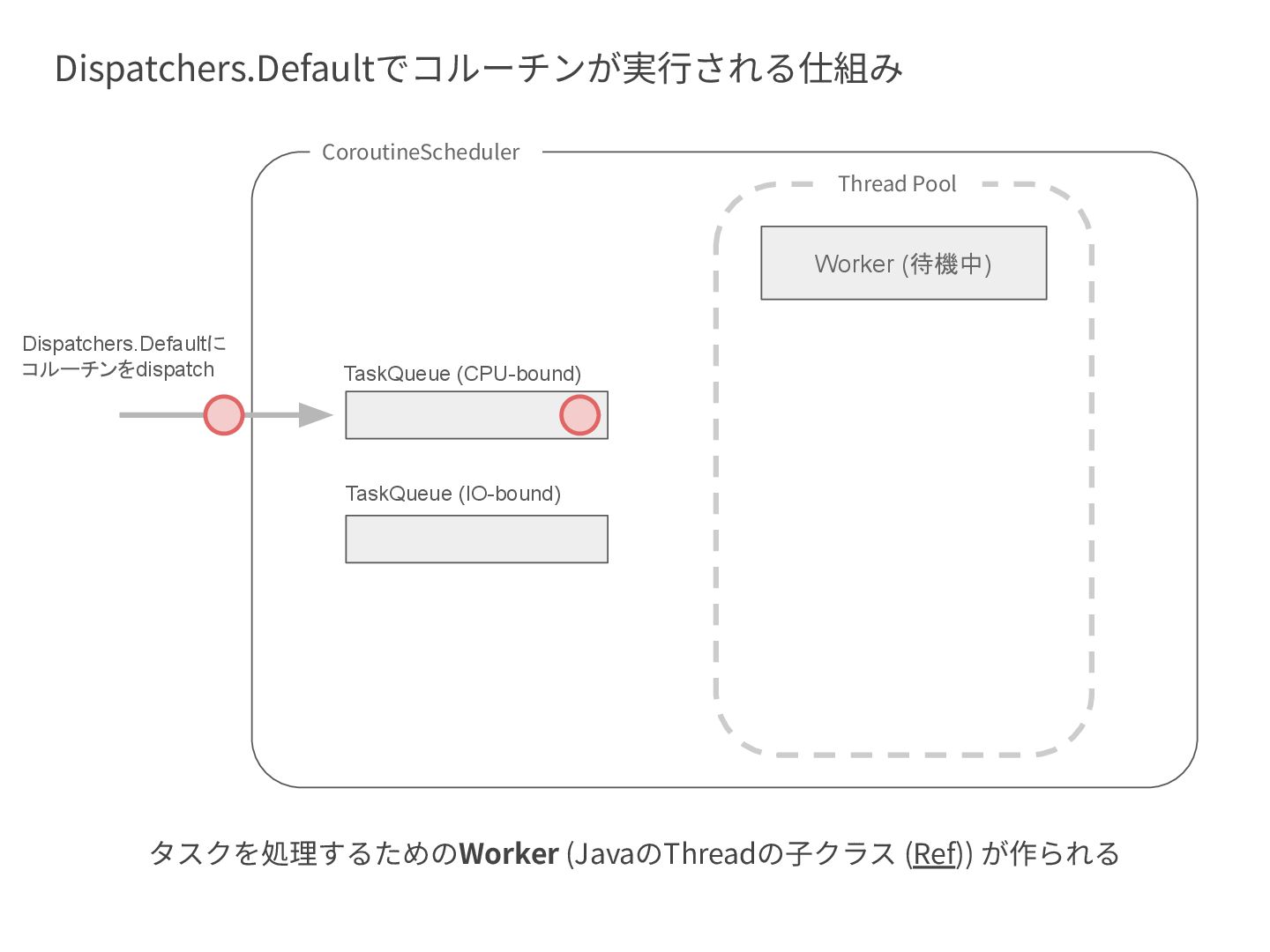

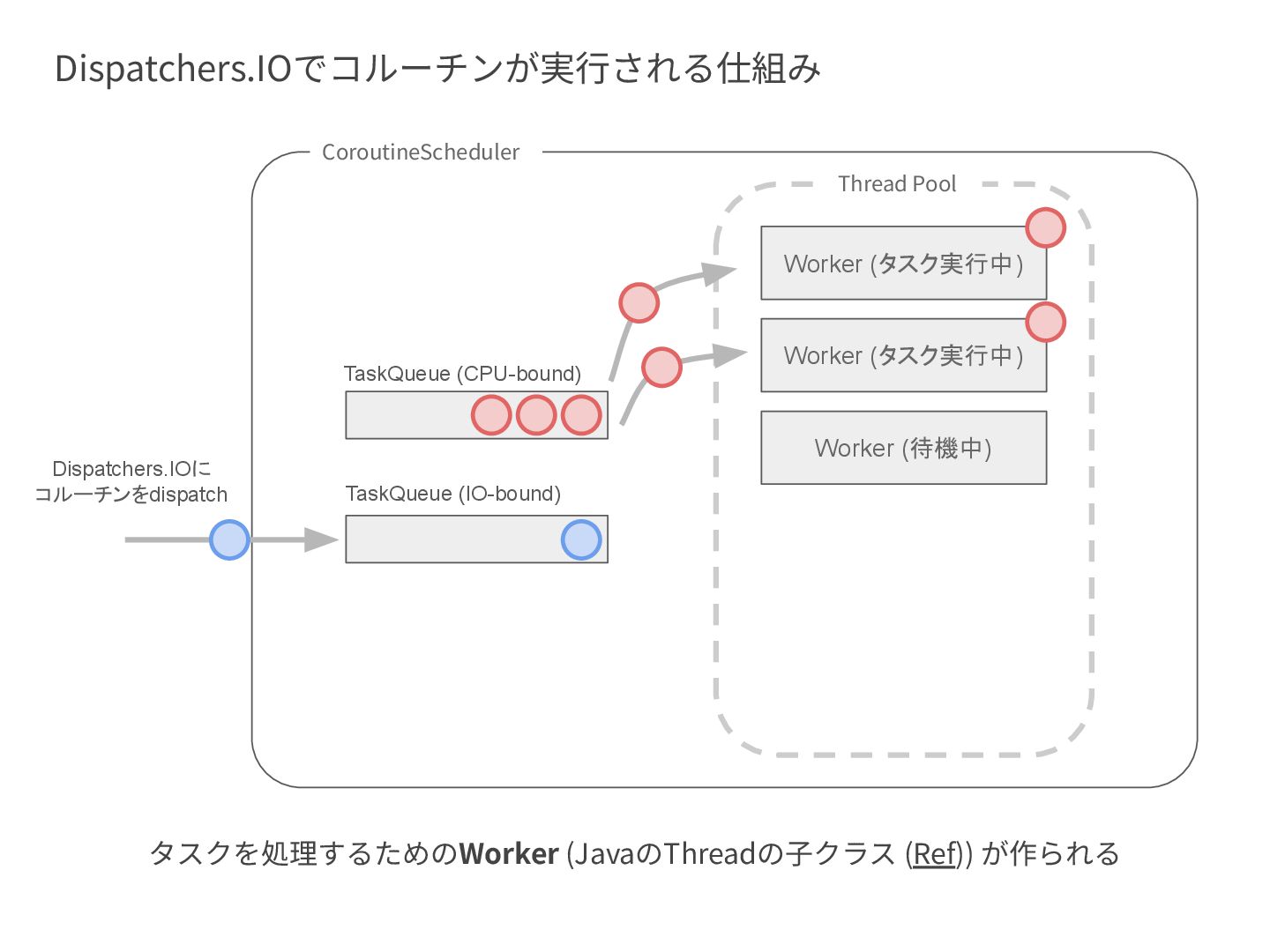

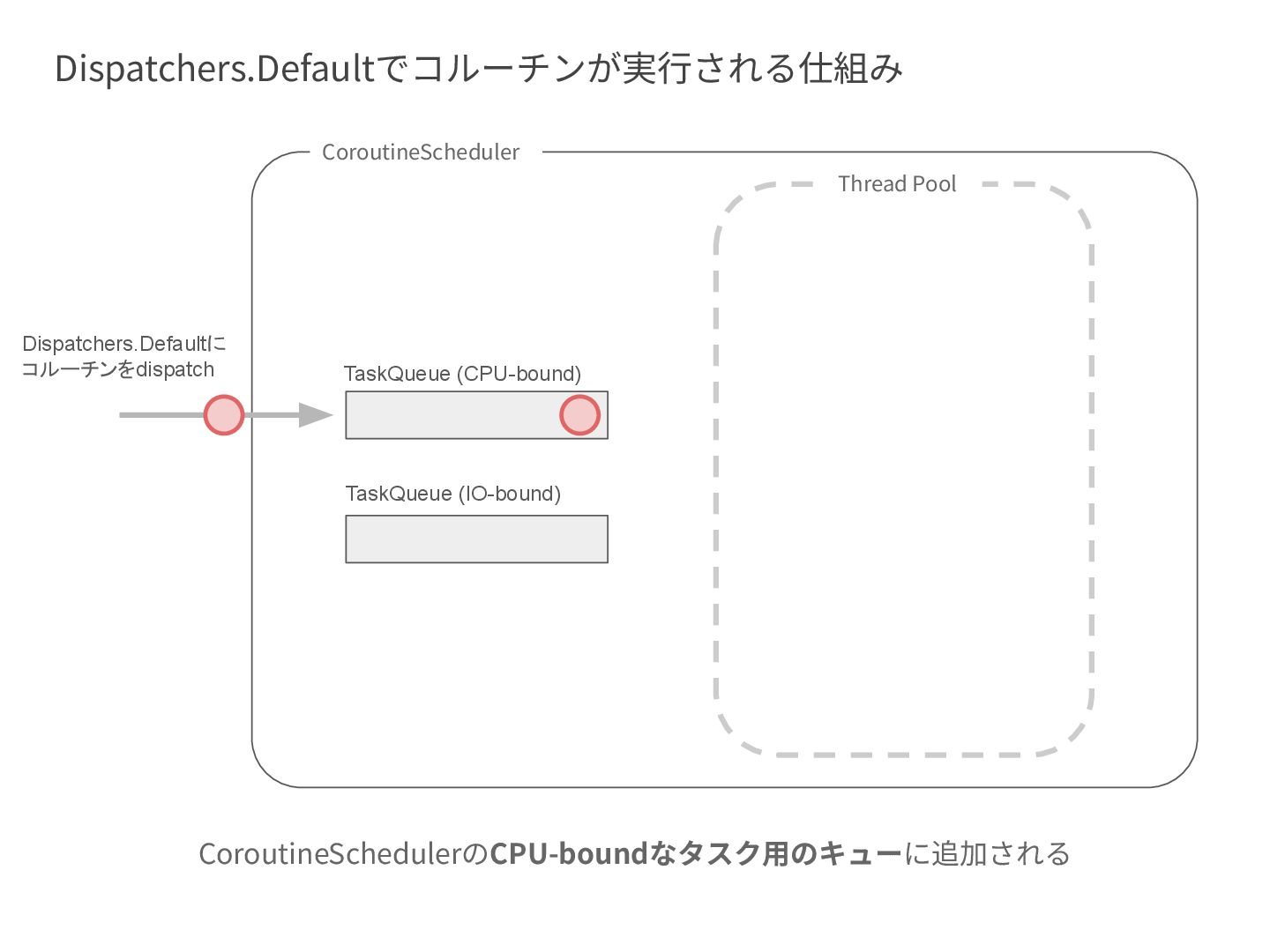

  10. CoroutineScheduler TaskQueue (CPU-bound) TaskQueue (IO-bound) Dispatchers.IOに コルーチンをdispatch Worker (タスク実行中) Worker

    (タスク実行中) Worker (待機中) Dispatchers.IOでコルーチンが実⾏される仕組み Thread Pool タスクを処理するためのWorker (JavaのThreadの⼦クラス (Ref)) が作られる

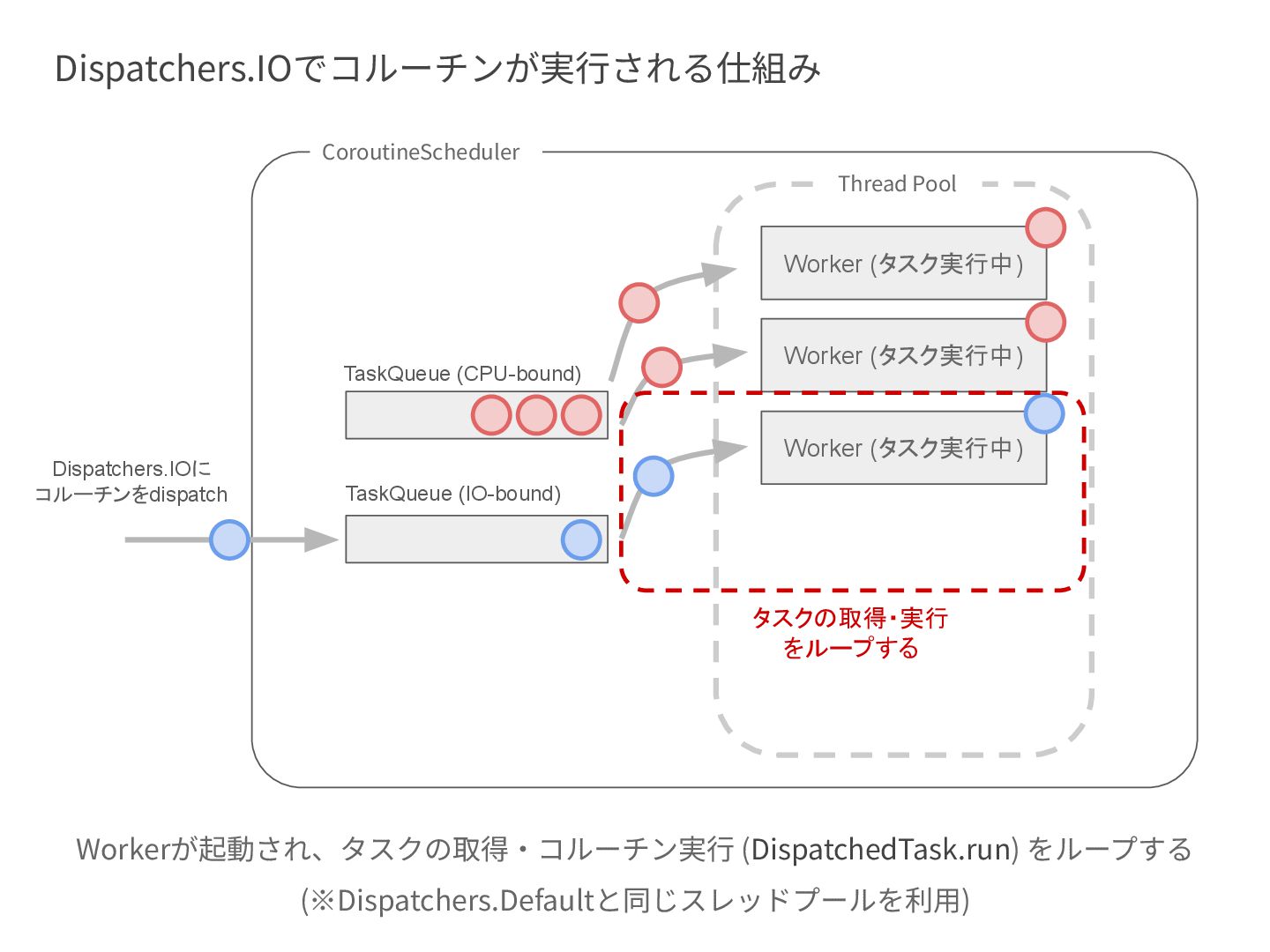

  11. CoroutineScheduler TaskQueue (CPU-bound) TaskQueue (IO-bound) Dispatchers.IOに コルーチンをdispatch Worker (タスク実行中) Worker

    (タスク実行中) Worker (タスク実行中) タスクの取得・実行 をループする Dispatchers.IOでコルーチンが実⾏される仕組み Thread Pool Workerが起動され、タスクの取得‧コルーチン実⾏ (DispatchedTask.run) をループする (※Dispatchers.Defaultと同じスレッドプールを利⽤)

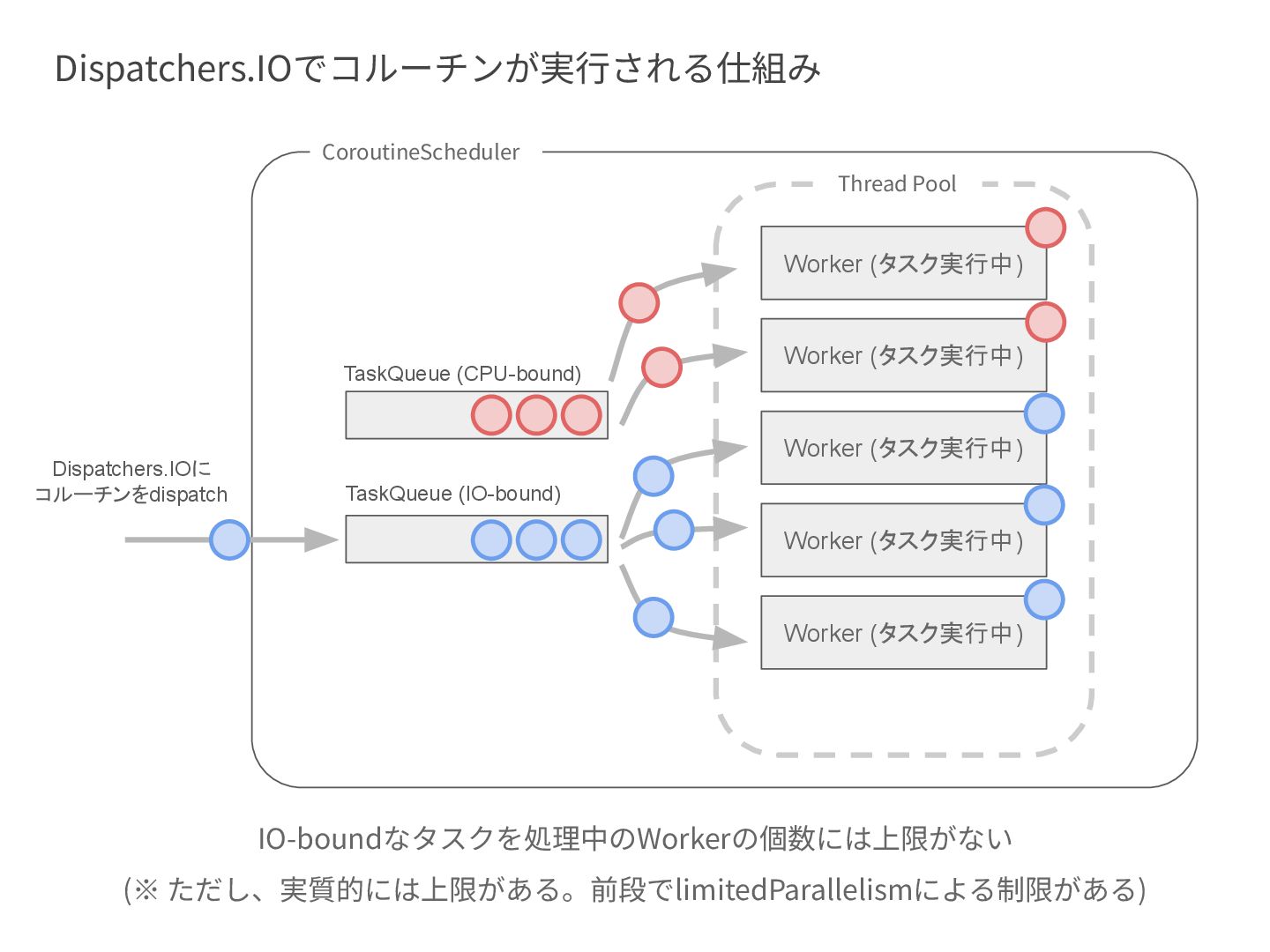

  12. CoroutineScheduler TaskQueue (CPU-bound) TaskQueue (IO-bound) Dispatchers.IOに コルーチンをdispatch Worker (タスク実行中) Worker

    (タスク実行中) Worker (タスク実行中) Worker (タスク実行中) IO-boundなタスクを処理中のWorkerの個数には上限がない (※ ただし、実質的には上限がある。前段でlimitedParallelismによる制限がある) Worker (タスク実行中) Dispatchers.IOでコルーチンが実⾏される仕組み Thread Pool

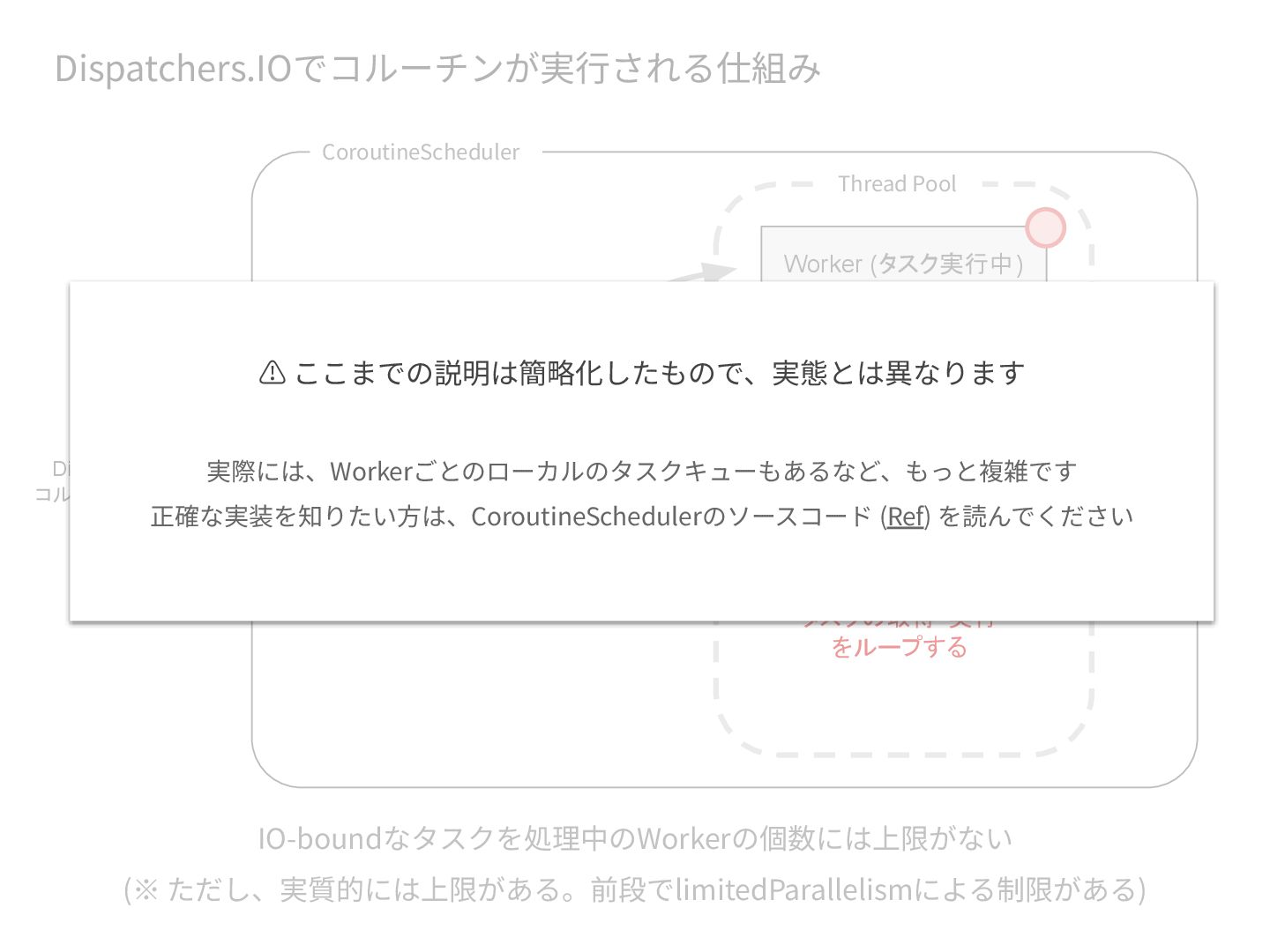

  13. IO-boundなタスクを処理中のWorkerの個数には上限がない (※ ただし、実質的には上限がある。前段でlimitedParallelismによる制限がある) CoroutineScheduler TaskQueue (CPU-bound) TaskQueue (IO-bound) Dispatchers.IOに コルーチンをdispatch

    Worker (タスク実行中) Worker (タスク実行中) Worker (タスク実行中) タスクの取得・実行 をループする Dispatchers.IOでコルーチンが実⾏される仕組み Thread Pool ⚠ ここまでの説明は簡略化したもので、実態とは異なります 実際には、Workerごとのローカルのタスクキューもあるなど、もっと複雑です 正確な実装を知りたい⽅は、CoroutineSchedulerのソースコード (Ref) を読んでください

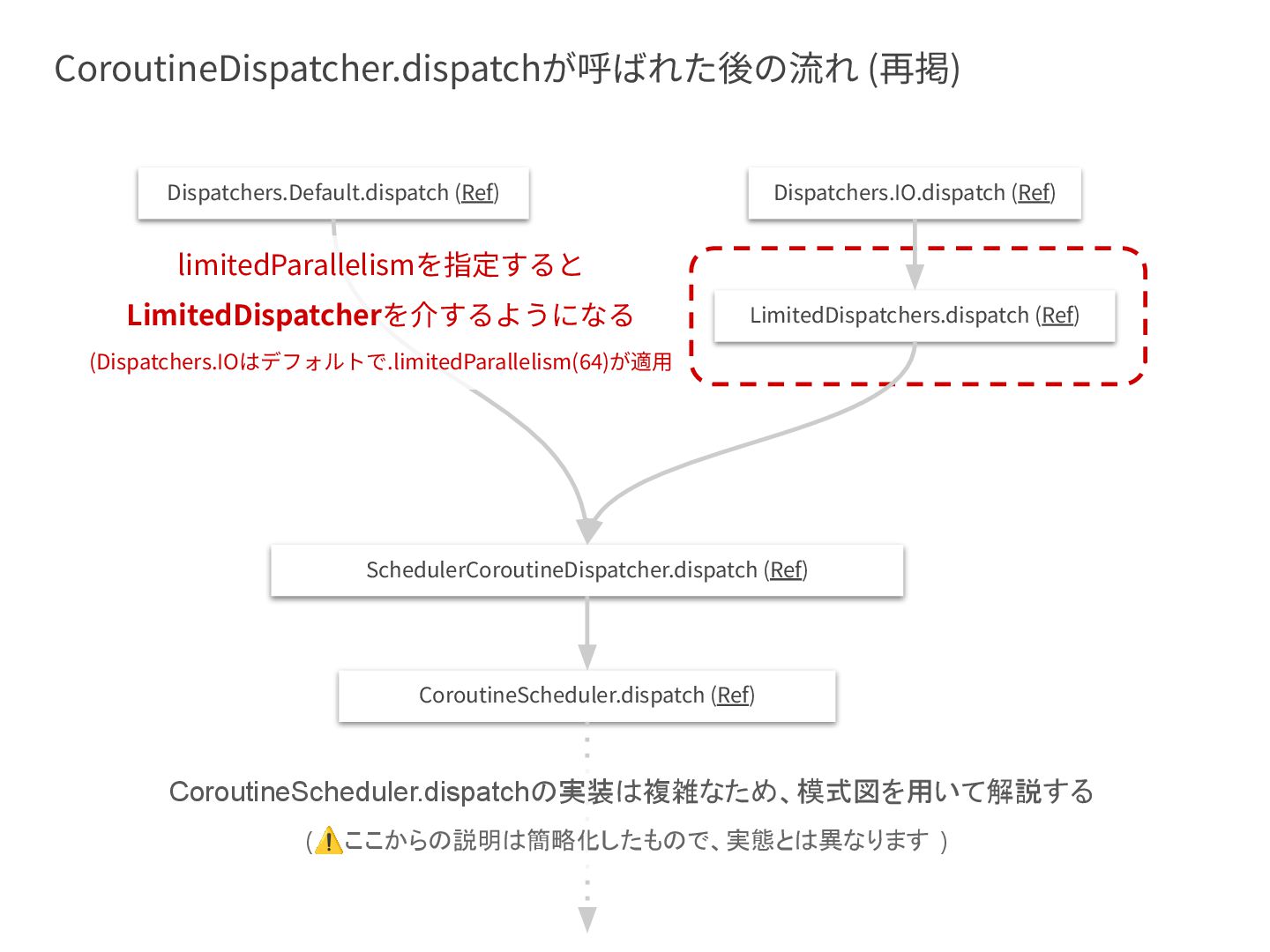

  14. CoroutineDispatcher.dispatchが呼ばれた後の流れ (再掲) Dispatchers.Default.dispatch (Ref) CoroutineScheduler.dispatch (Ref) Dispatchers.IO.dispatch (Ref) LimitedDispatchers.dispatch (Ref)

    SchedulerCoroutineDispatcher.dispatch (Ref) CoroutineScheduler.dispatchの実装は複雑なため、模式図を用いて解説する (⚠ここからの説明は簡略化したもので、実態とは異なります ) limitedParallelismを指定すると LimitedDispatcherを介するようになる (Dispatchers.IOはデフォルトで.limitedParallelism(64)が適⽤

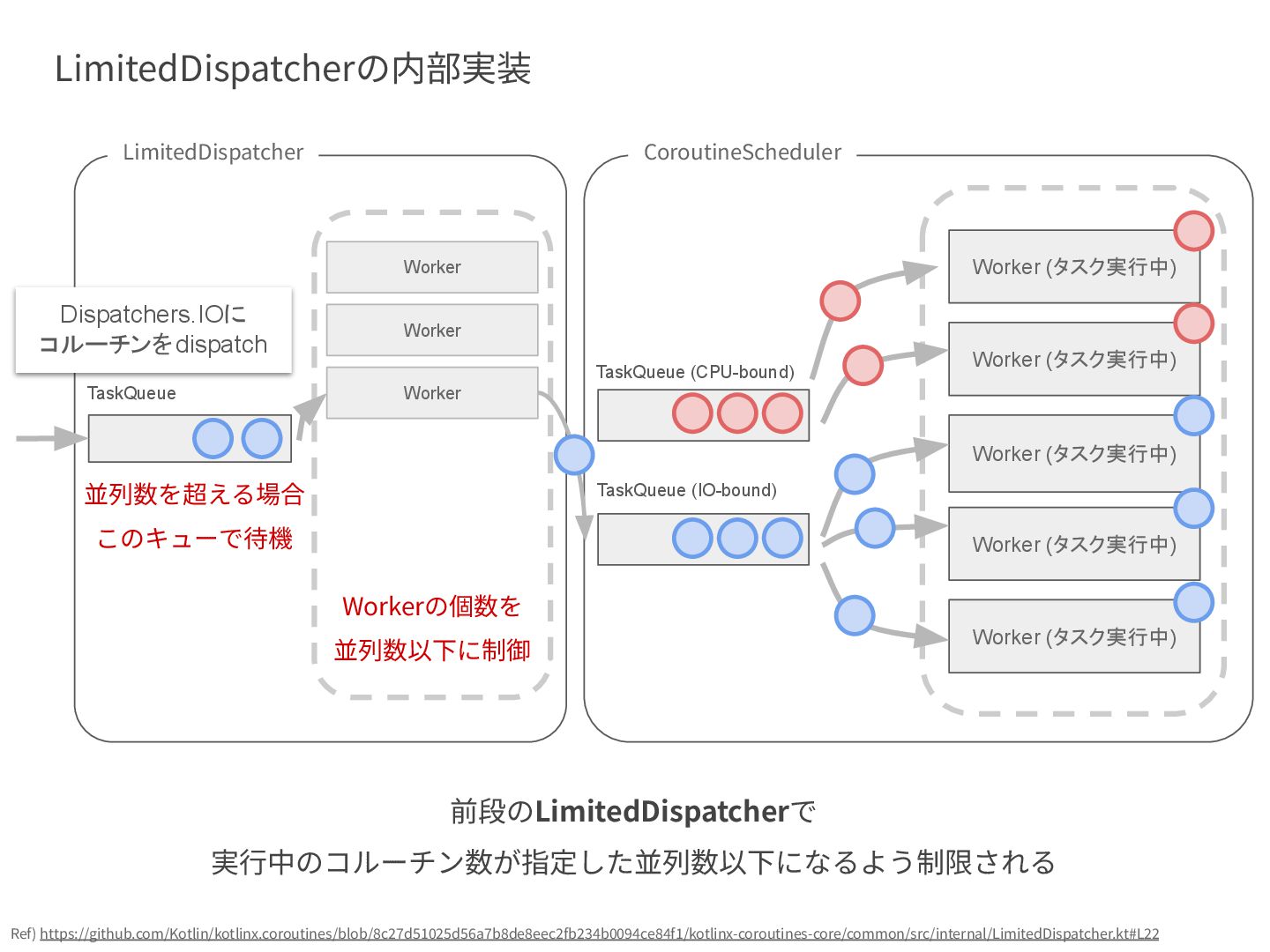

  15. LimitedDispatcherの内部実装 CoroutineScheduler TaskQueue (CPU-bound) TaskQueue (IO-bound) Worker (タスク実行中) Worker (タスク実行中)

    Worker (タスク実行中) Worker (タスク実行中) Worker (タスク実行中) TaskQueue LimitedDispatcher Worker Worker Worker Dispatchers.IOに コルーチンをdispatch 前段のLimitedDispatcherで 実⾏中のコルーチン数が指定した並列数以下になるよう制限される 並列数を超える場合 このキューで待機 Workerの個数を 並列数以下に制御 Ref) https://github.com/Kotlin/kotlinx.coroutines/blob/8c27d51025d56a7b8de8eec2fb234b0094ce84f1/kotlinx-coroutines-core/common/src/internal/LimitedDispatcher.kt#L22

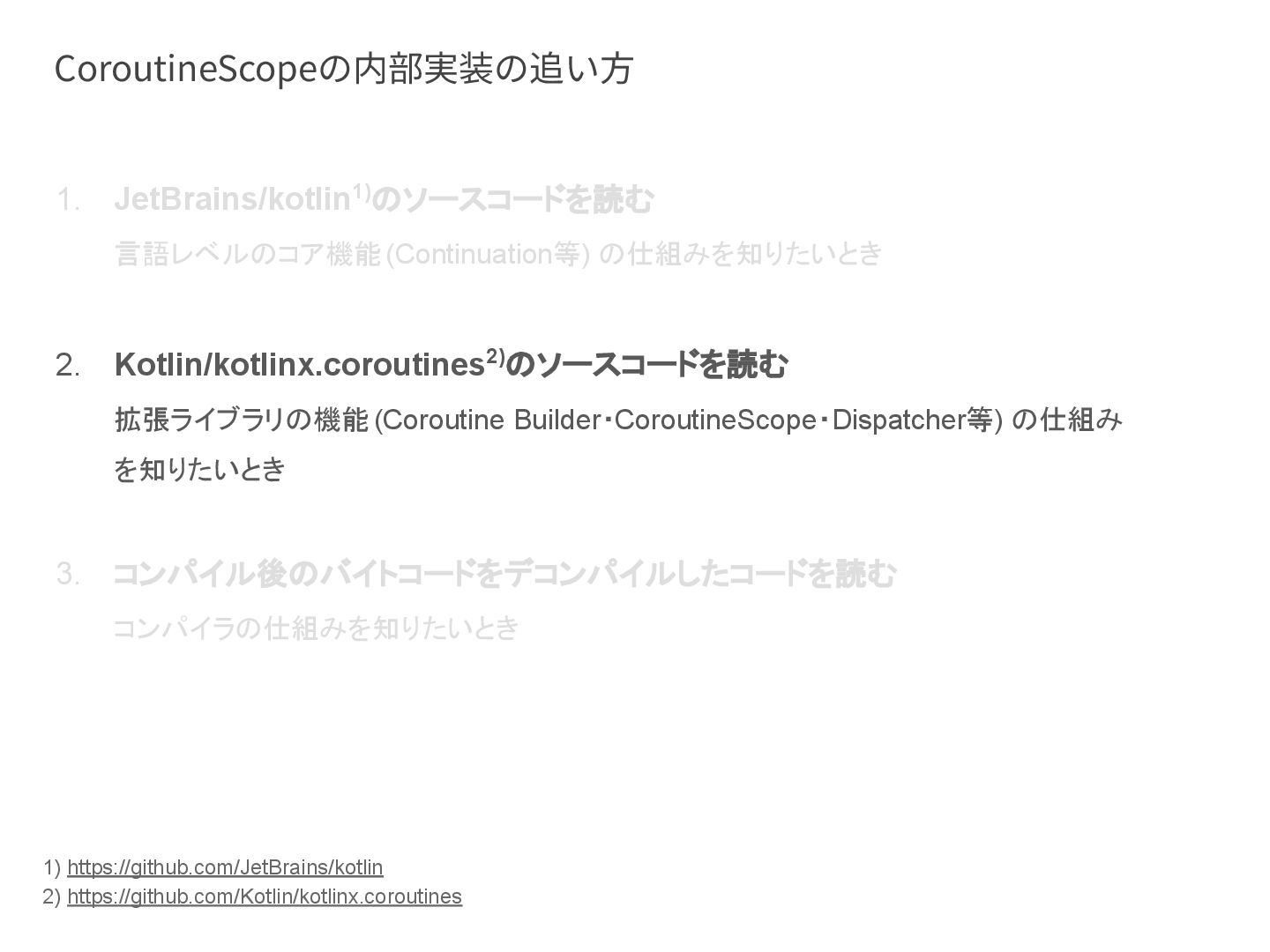

  16. CoroutineScopeの内部実装の追い⽅ 1. JetBrains/kotlin1)のソースコードを読む 言語レベルのコア機能 (Continuation等) の仕組みを知りたいとき 2. Kotlin/kotlinx.coroutines2)のソースコードを読む 拡張ライブラリの機能 (Coroutine

    Builder・CoroutineScope・Dispatcher等) の仕組み を知りたいとき 3. コンパイル後のバイトコードをデコンパイルしたコードを読む コンパイラの仕組みを知りたいとき 1) https://github.com/JetBrains/kotlin 2) https://github.com/Kotlin/kotlinx.coroutines

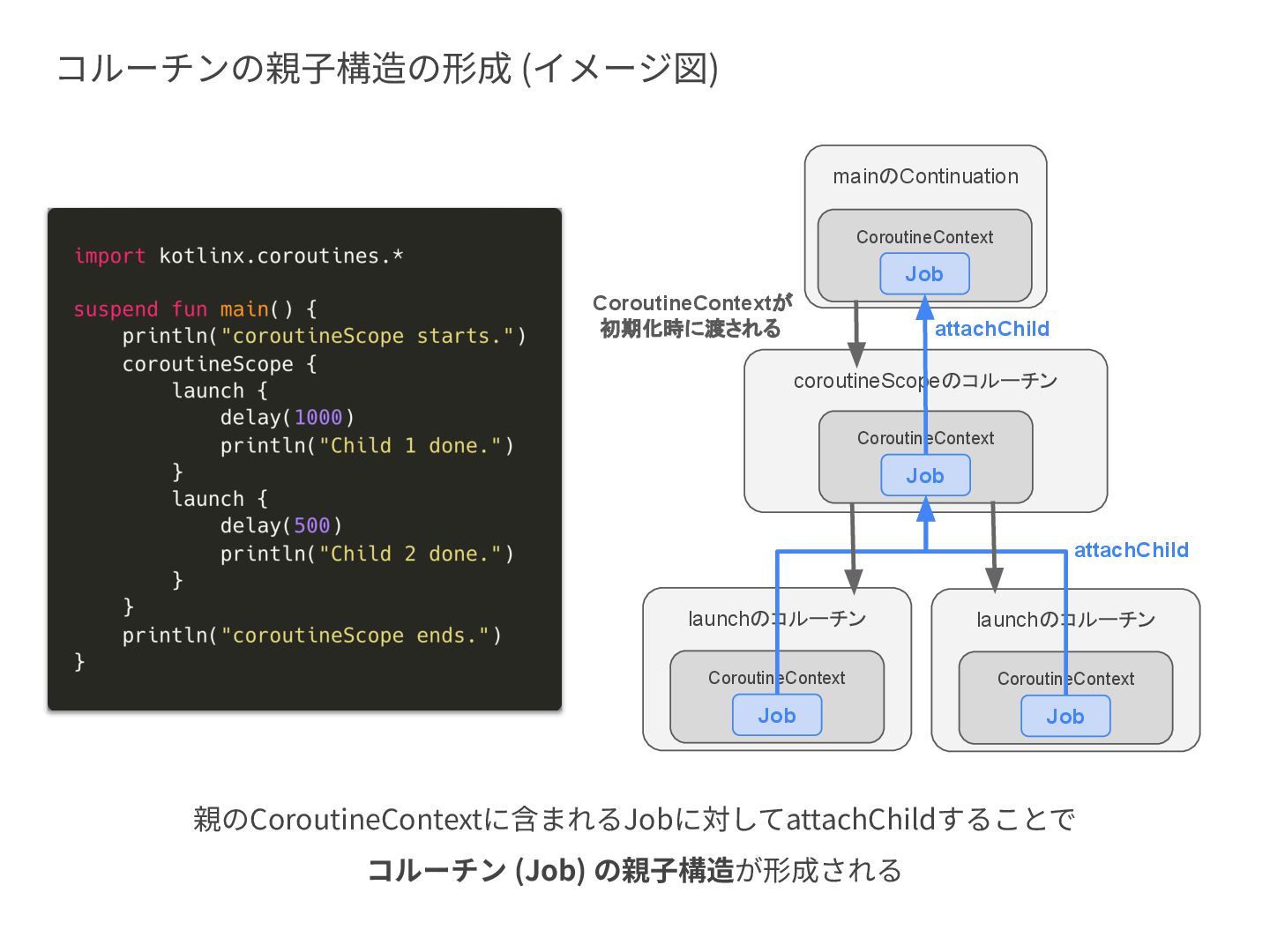

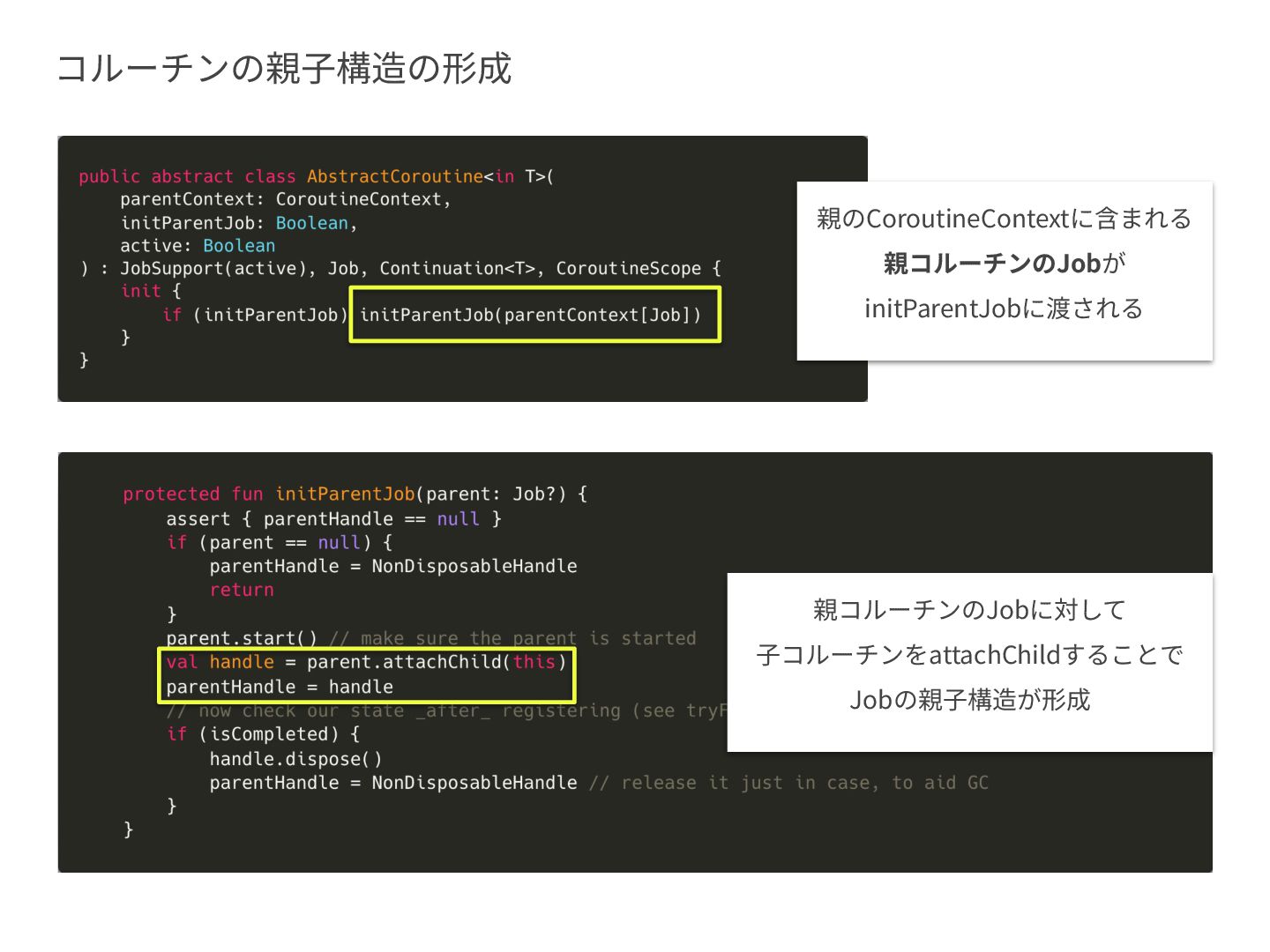

  17. コルーチンの親⼦構造の形成 (イメージ図) mainのContinuation CoroutineContext Job coroutineScopeのコルーチン CoroutineContext Job attachChild launchのコルーチン

    CoroutineContext Job launchのコルーチン CoroutineContext Job CoroutineContextが 初期化時に渡される 親のCoroutineContextに含まれるJobに対してattachChildすることで コルーチン (Job) の親⼦構造が形成される attachChild

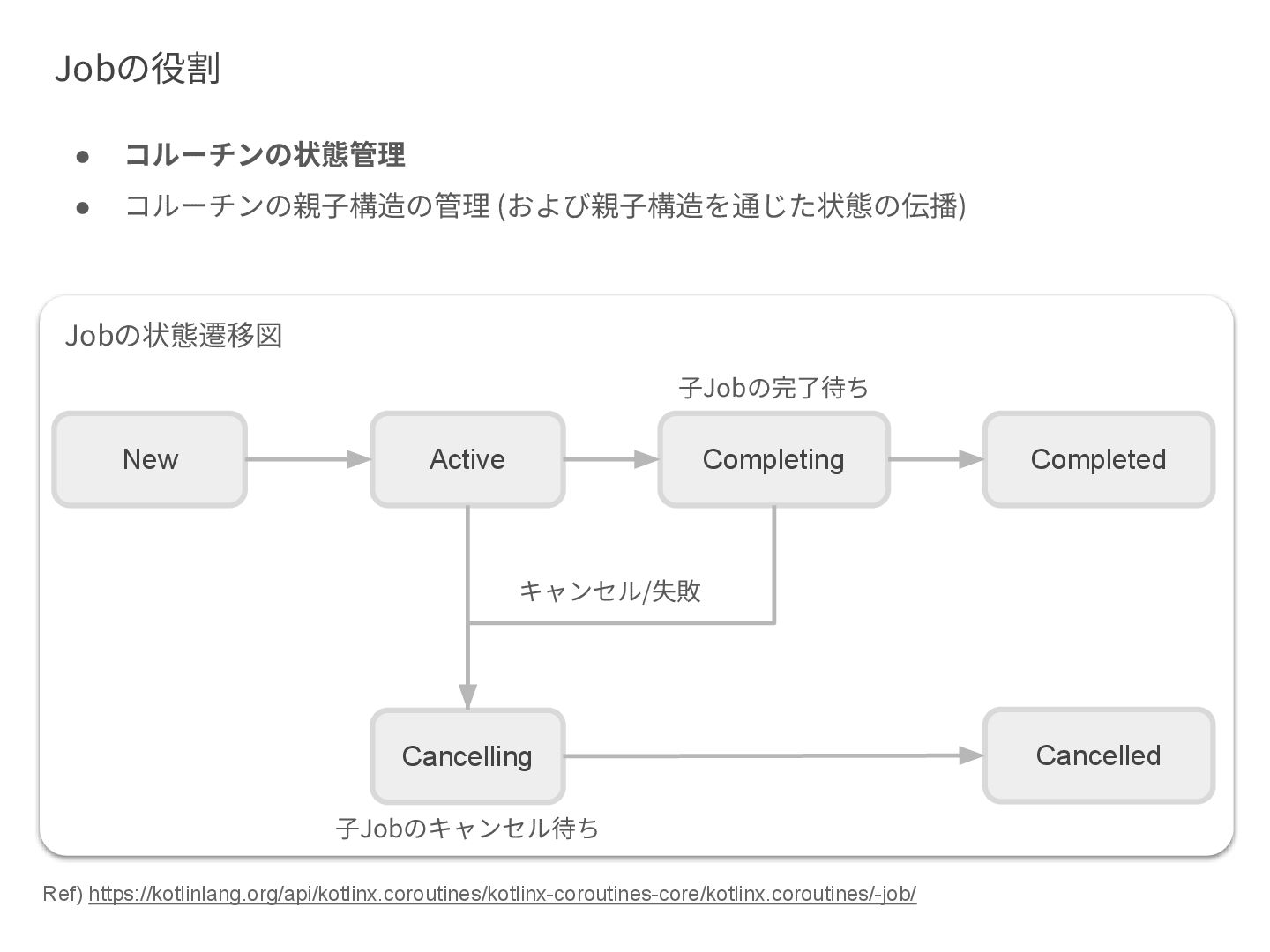

  18. Jobの役割 Ref) https://kotlinlang.org/api/kotlinx.coroutines/kotlinx-coroutines-core/kotlinx.coroutines/-job/ New Active Completing Completed ⼦Jobの完了待ち Cancelling キャンセル/失敗

    Cancelled • コルーチンの状態管理 • コルーチンの親⼦構造の管理 (および親⼦構造を通じた状態の伝播) Jobの状態遷移図 ⼦Jobのキャンセル待ち

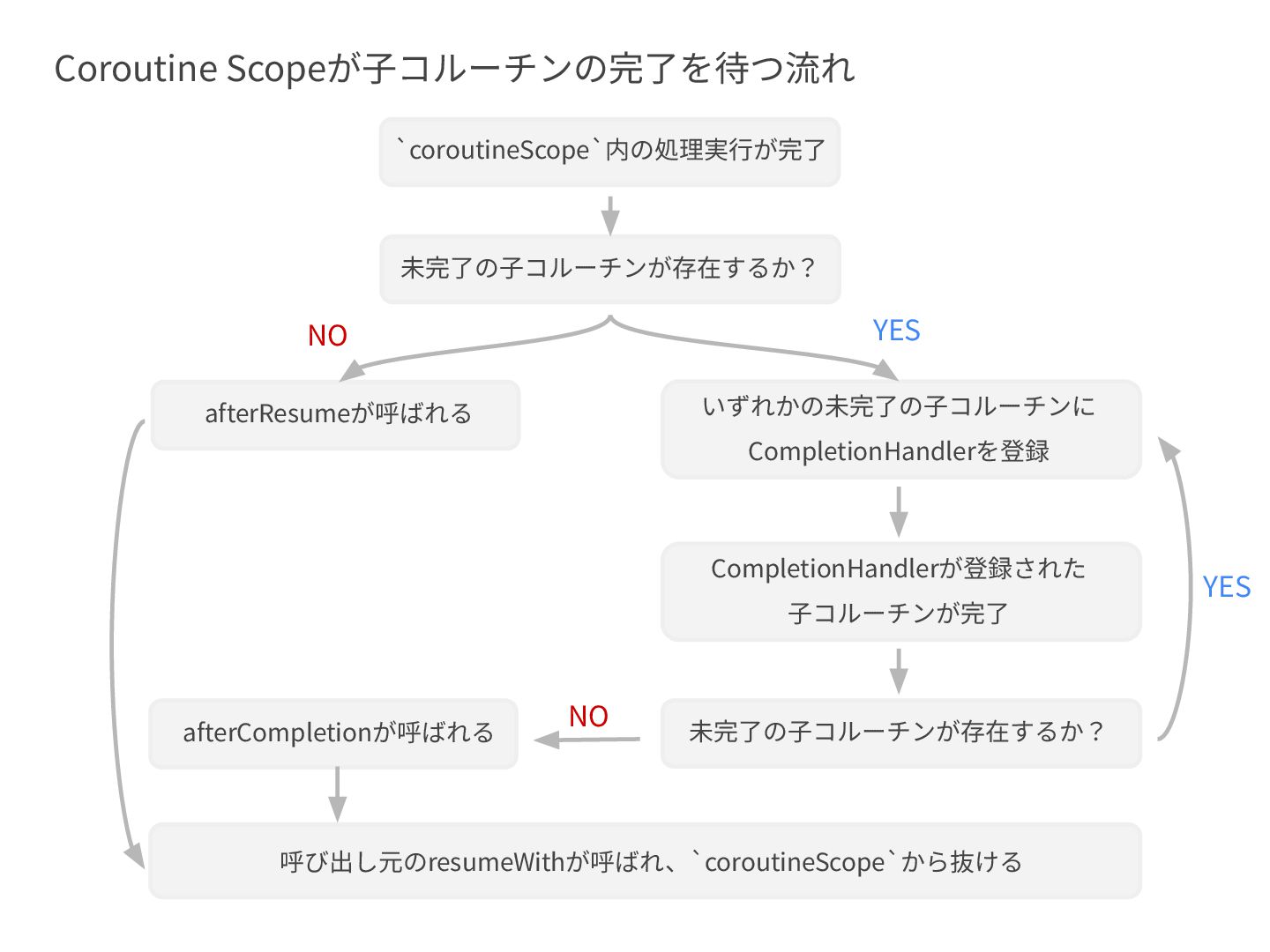

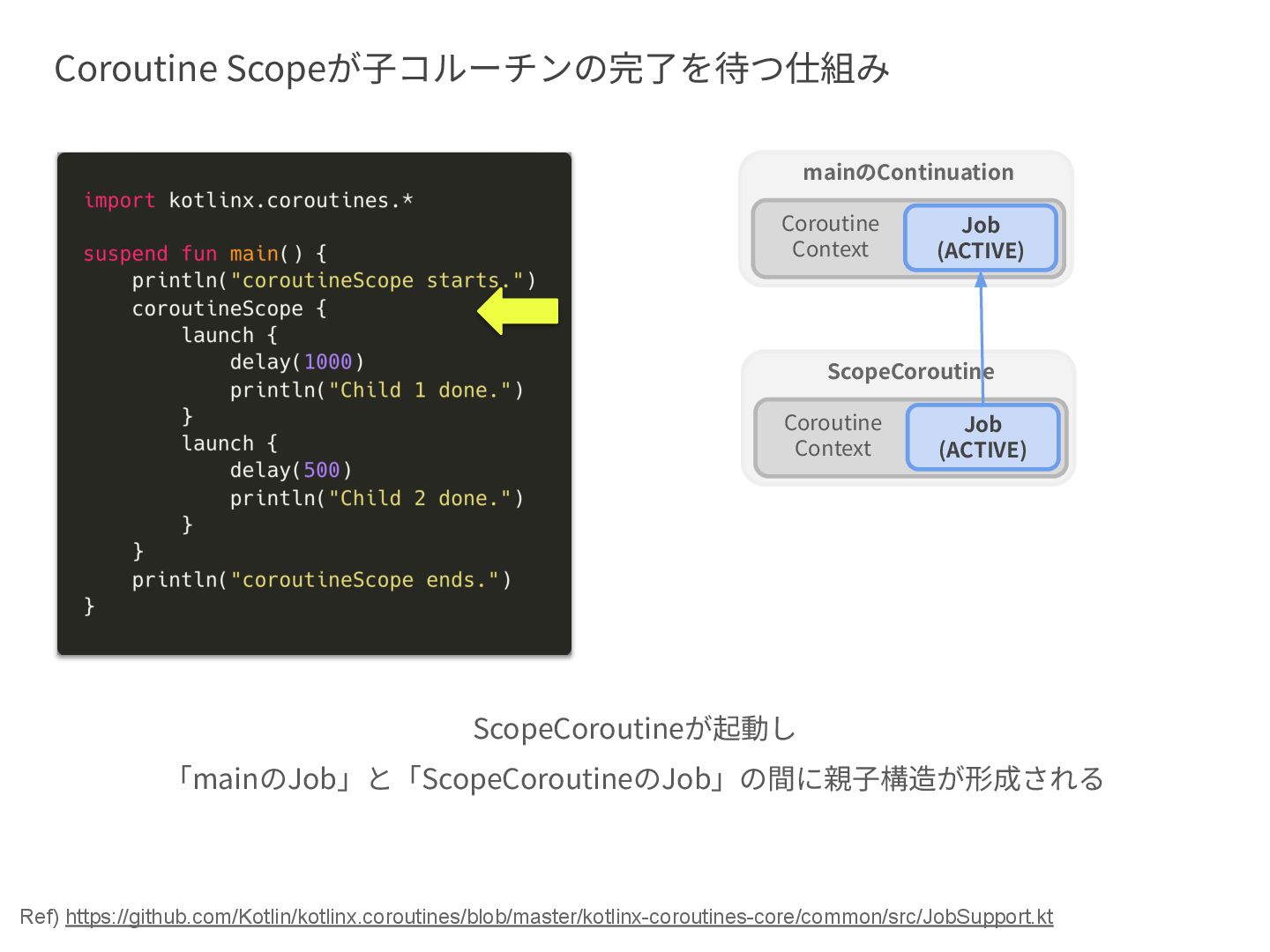

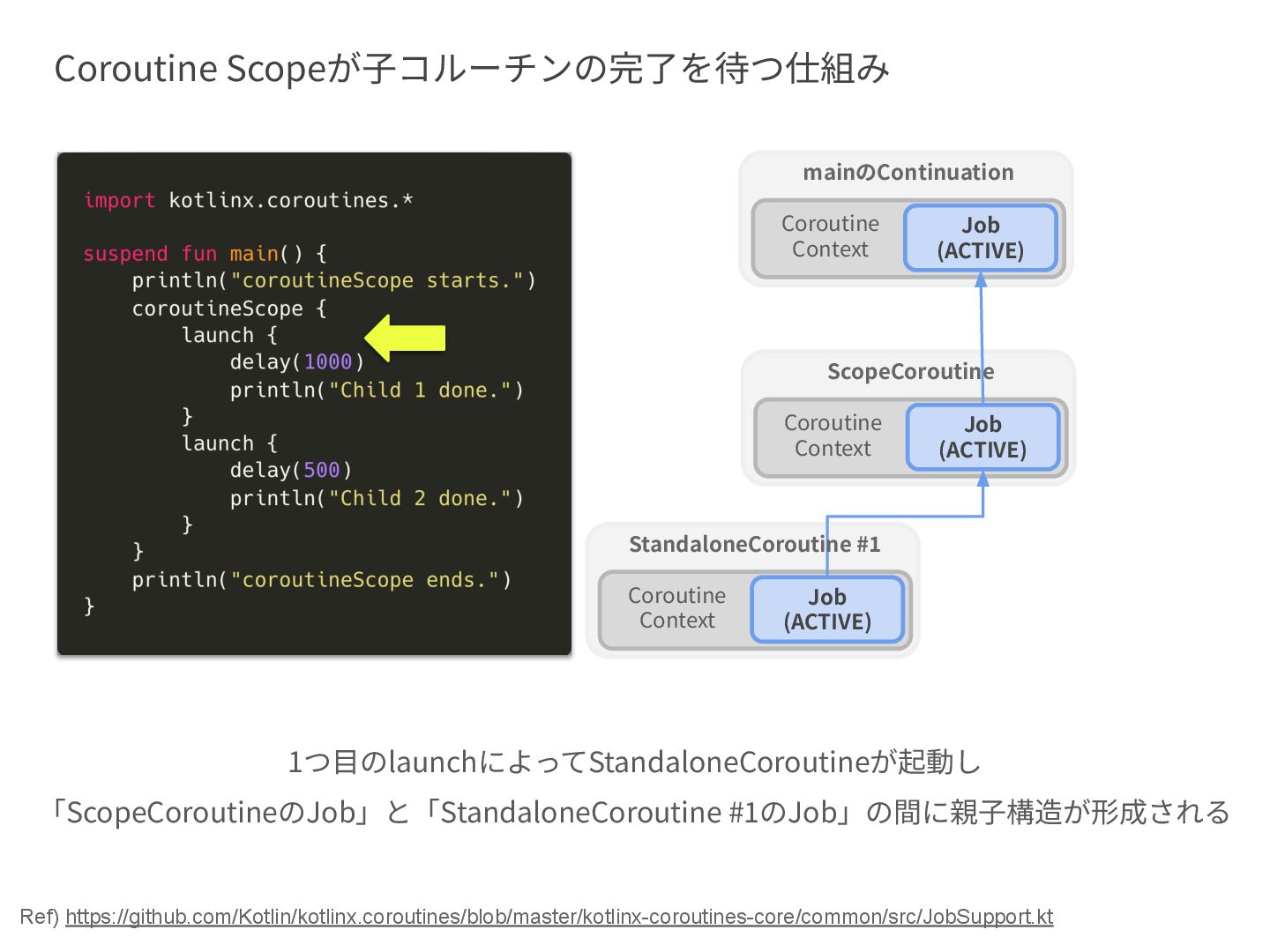

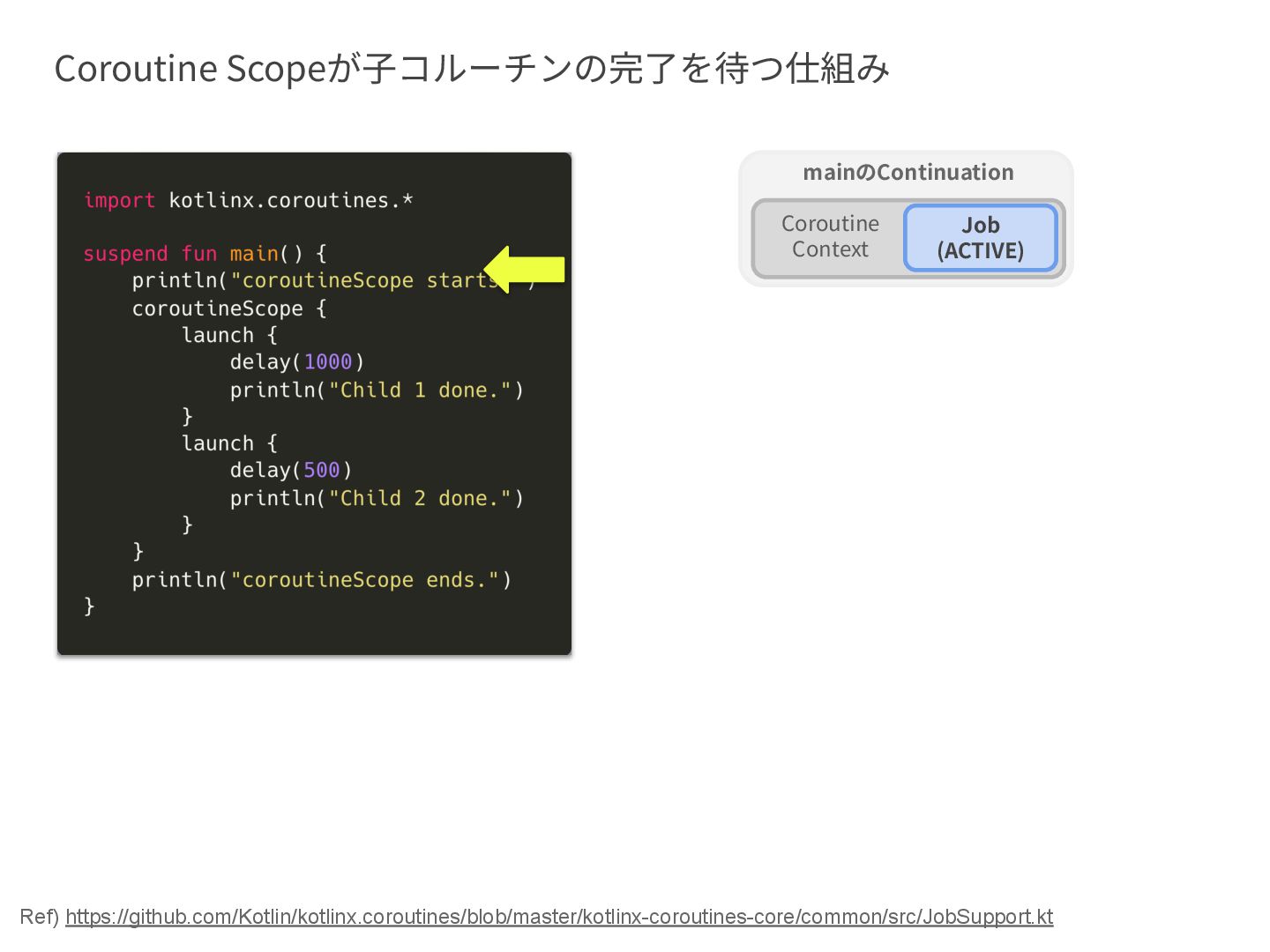

  19. Coroutine Scopeが⼦コルーチンの完了を待つ仕組み Ref) https://github.com/Kotlin/kotlinx.coroutines/blob/master/kotlinx-coroutines-core/common/src/JobSupport.kt Coroutine Context Job (ACTIVE) mainのContinuation Coroutine

    Context ScopeCoroutine Coroutine Context Job (ACTIVE) Job (ACTIVE) StandaloneCoroutine #1 1つ⽬のlaunchによってStandaloneCoroutineが起動し 「ScopeCoroutineのJob」と「StandaloneCoroutine #1のJob」の間に親⼦構造が形成される

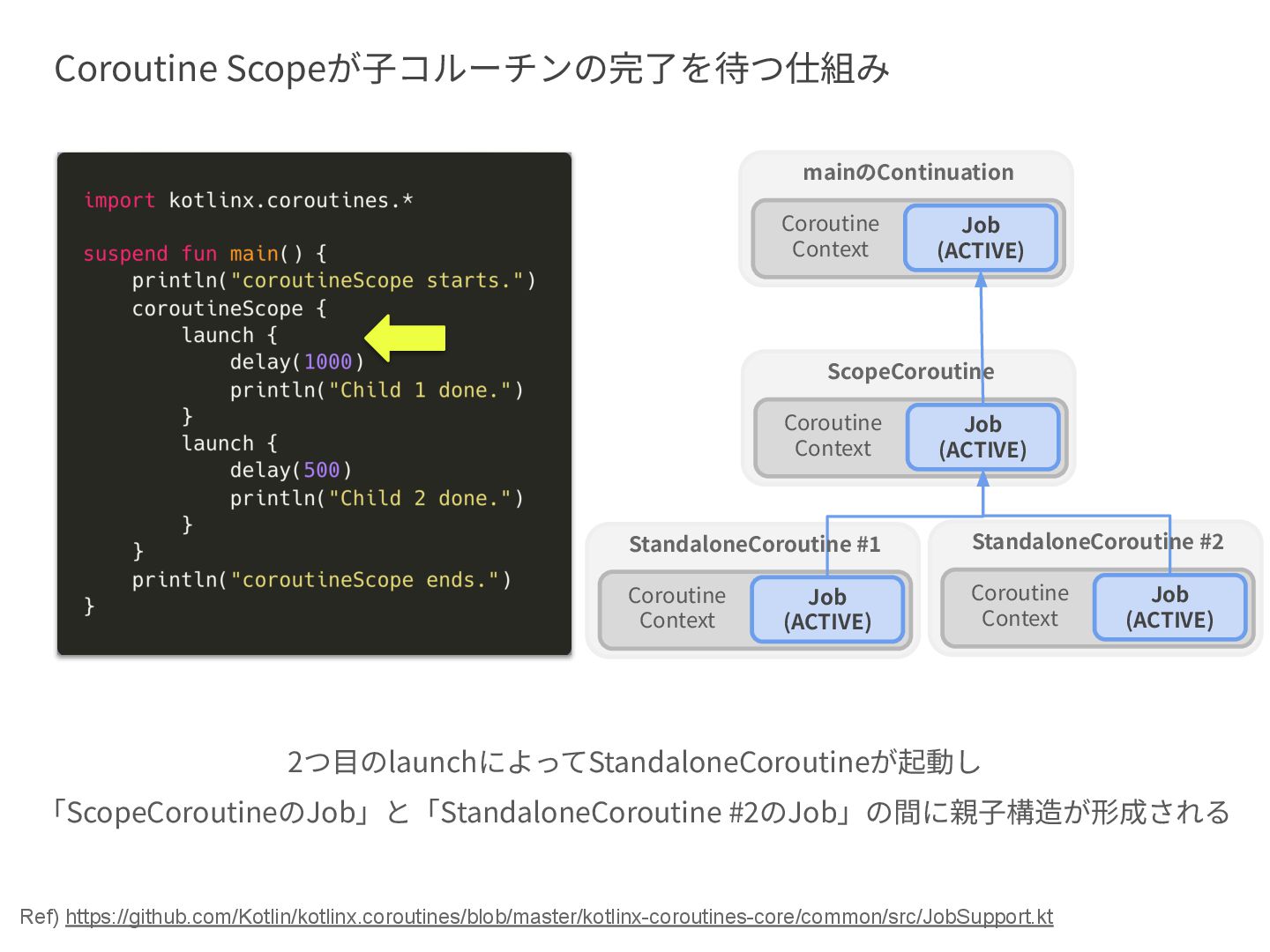

  20. Coroutine Scopeが⼦コルーチンの完了を待つ仕組み Ref) https://github.com/Kotlin/kotlinx.coroutines/blob/master/kotlinx-coroutines-core/common/src/JobSupport.kt Coroutine Context Job (ACTIVE) mainのContinuation Coroutine

    Context ScopeCoroutine Coroutine Context Job (ACTIVE) Job (ACTIVE) StandaloneCoroutine #1 2つ⽬のlaunchによってStandaloneCoroutineが起動し 「ScopeCoroutineのJob」と「StandaloneCoroutine #2のJob」の間に親⼦構造が形成される Coroutine Context Job (ACTIVE) StandaloneCoroutine #2

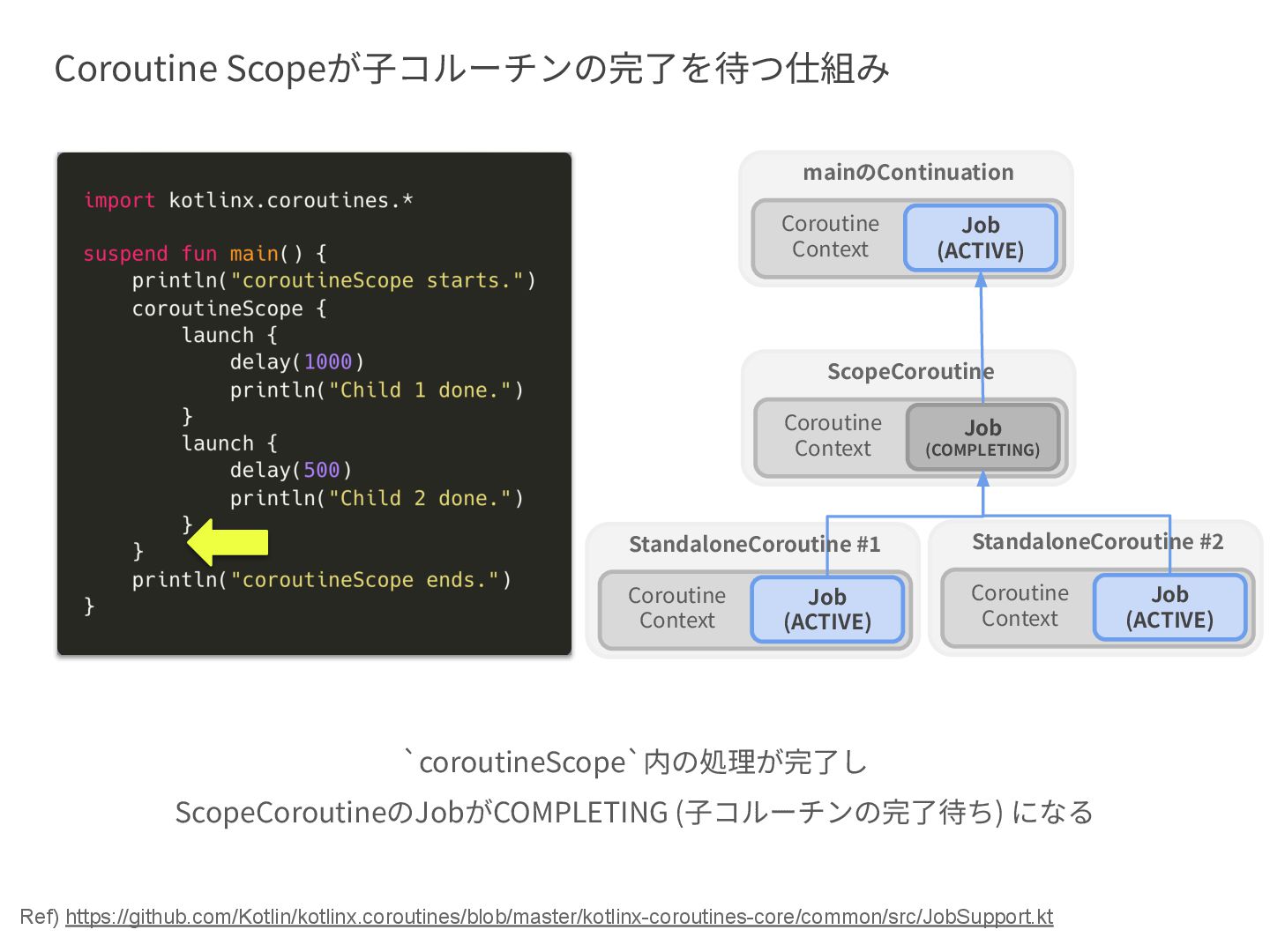

  21. Coroutine Scopeが⼦コルーチンの完了を待つ仕組み Ref) https://github.com/Kotlin/kotlinx.coroutines/blob/master/kotlinx-coroutines-core/common/src/JobSupport.kt Coroutine Context Job (ACTIVE) mainのContinuation Coroutine

    Context ScopeCoroutine Coroutine Context Job (ACTIVE) Job (COMPLETING) StandaloneCoroutine #1 `coroutineScope`内の処理が完了し ScopeCoroutineのJobがCOMPLETING (⼦コルーチンの完了待ち) になる Coroutine Context Job (ACTIVE) StandaloneCoroutine #2

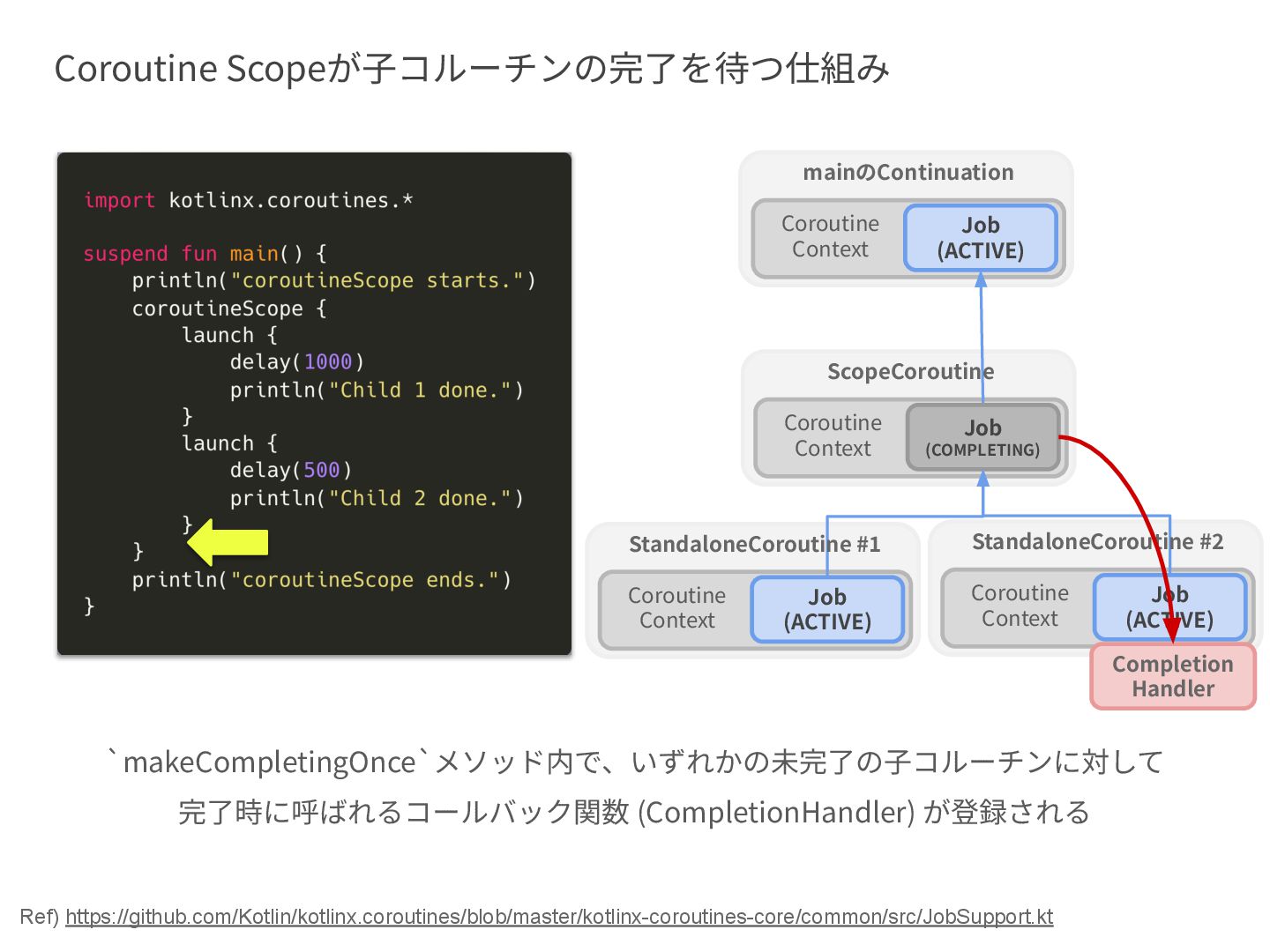

  22. Coroutine Scopeが⼦コルーチンの完了を待つ仕組み Ref) https://github.com/Kotlin/kotlinx.coroutines/blob/master/kotlinx-coroutines-core/common/src/JobSupport.kt Coroutine Context Job (ACTIVE) mainのContinuation Coroutine

    Context ScopeCoroutine Coroutine Context Job (ACTIVE) Job (COMPLETING) StandaloneCoroutine #1 `makeCompletingOnce`メソッド内で、いずれかの未完了の⼦コルーチンに対して 完了時に呼ばれるコールバック関数 (CompletionHandler) が登録される Coroutine Context Job (ACTIVE) StandaloneCoroutine #2 Completion Handler

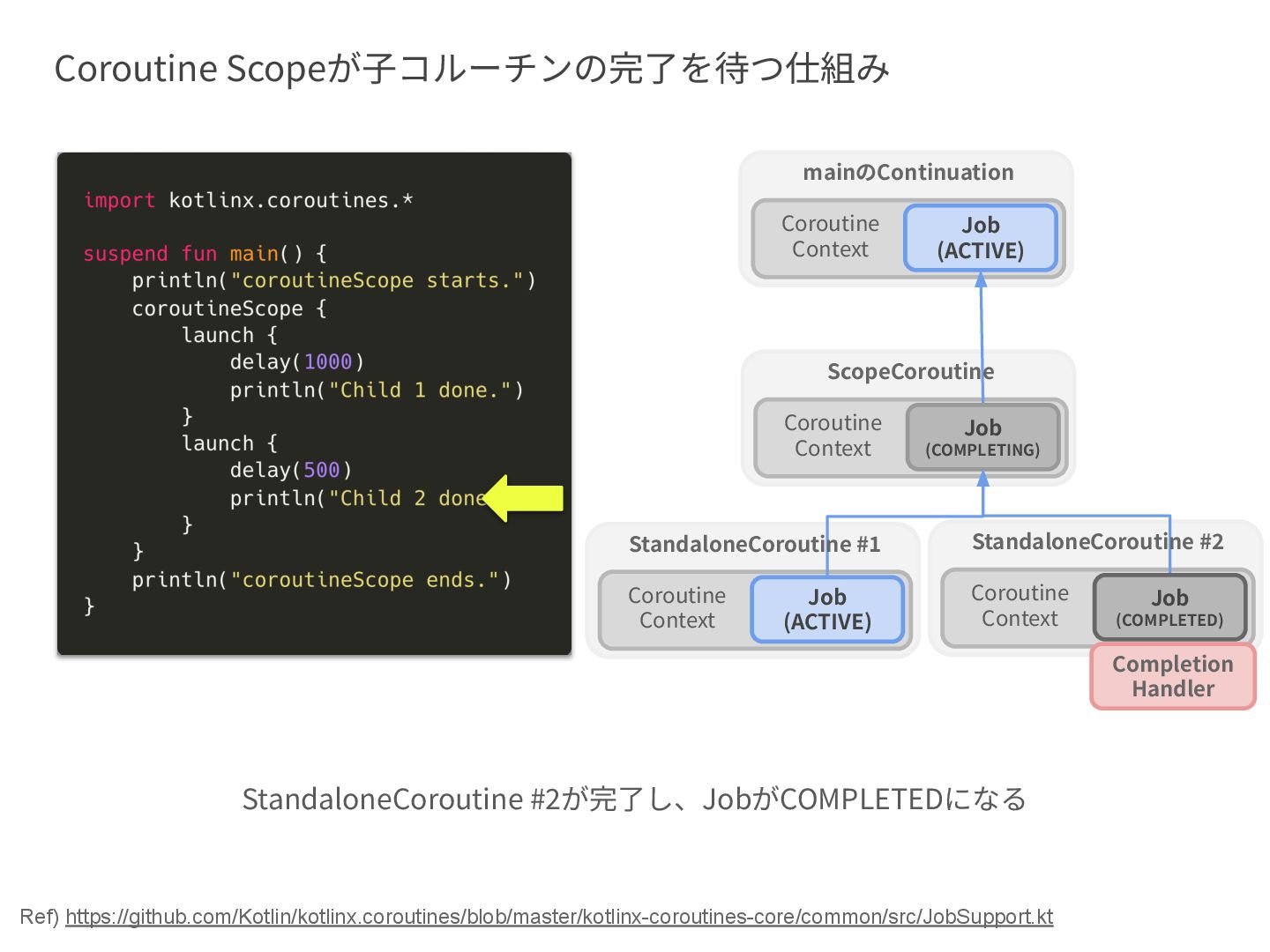

  23. Coroutine Scopeが⼦コルーチンの完了を待つ仕組み Ref) https://github.com/Kotlin/kotlinx.coroutines/blob/master/kotlinx-coroutines-core/common/src/JobSupport.kt Coroutine Context Job (ACTIVE) mainのContinuation Coroutine

    Context ScopeCoroutine Coroutine Context Job (ACTIVE) Job (COMPLETING) StandaloneCoroutine #1 StandaloneCoroutine #2が完了し、JobがCOMPLETEDになる Coroutine Context Job (COMPLETED) StandaloneCoroutine #2 Completion Handler

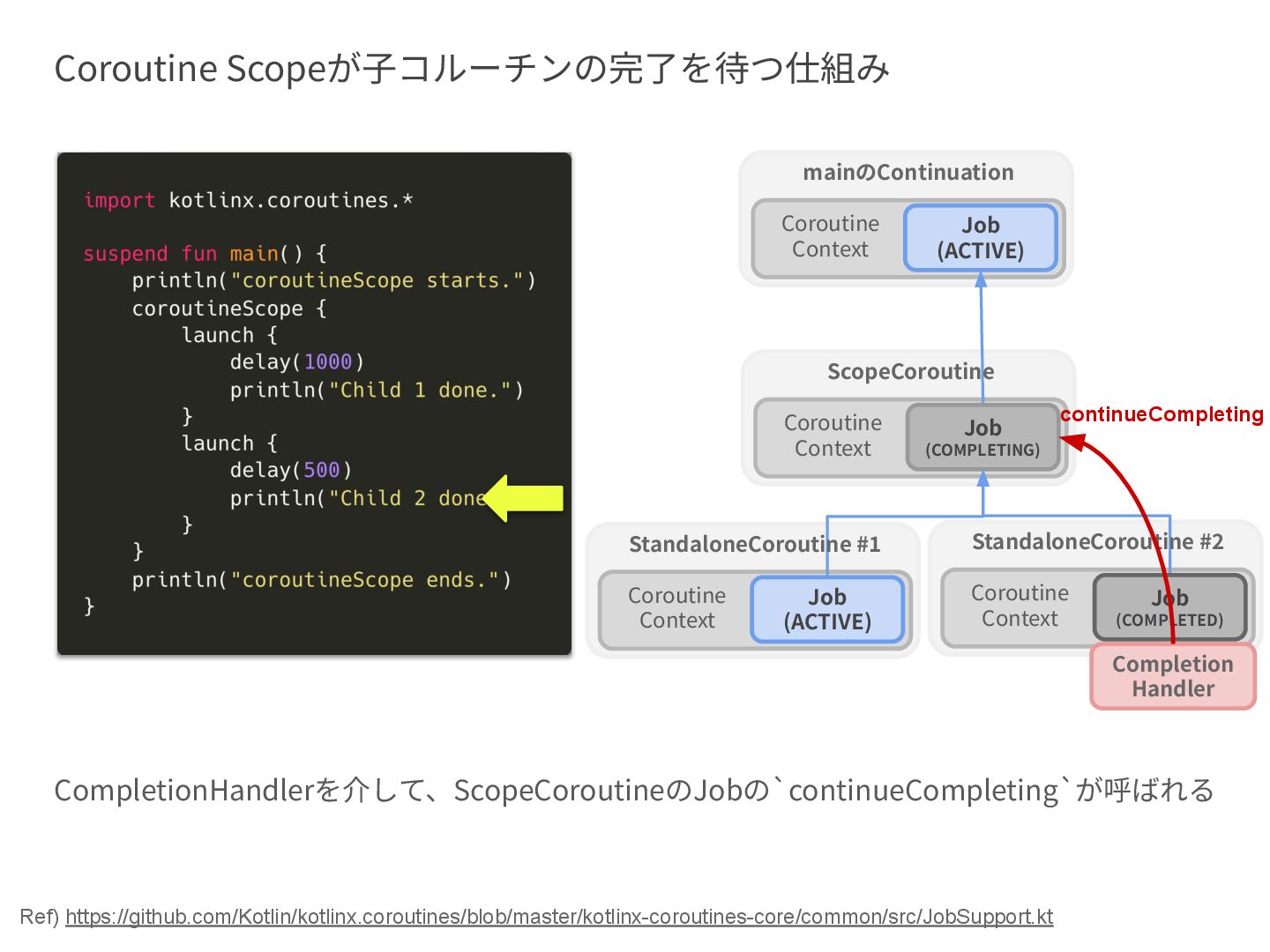

  24. Coroutine Scopeが⼦コルーチンの完了を待つ仕組み Ref) https://github.com/Kotlin/kotlinx.coroutines/blob/master/kotlinx-coroutines-core/common/src/JobSupport.kt Coroutine Context Job (ACTIVE) mainのContinuation Coroutine

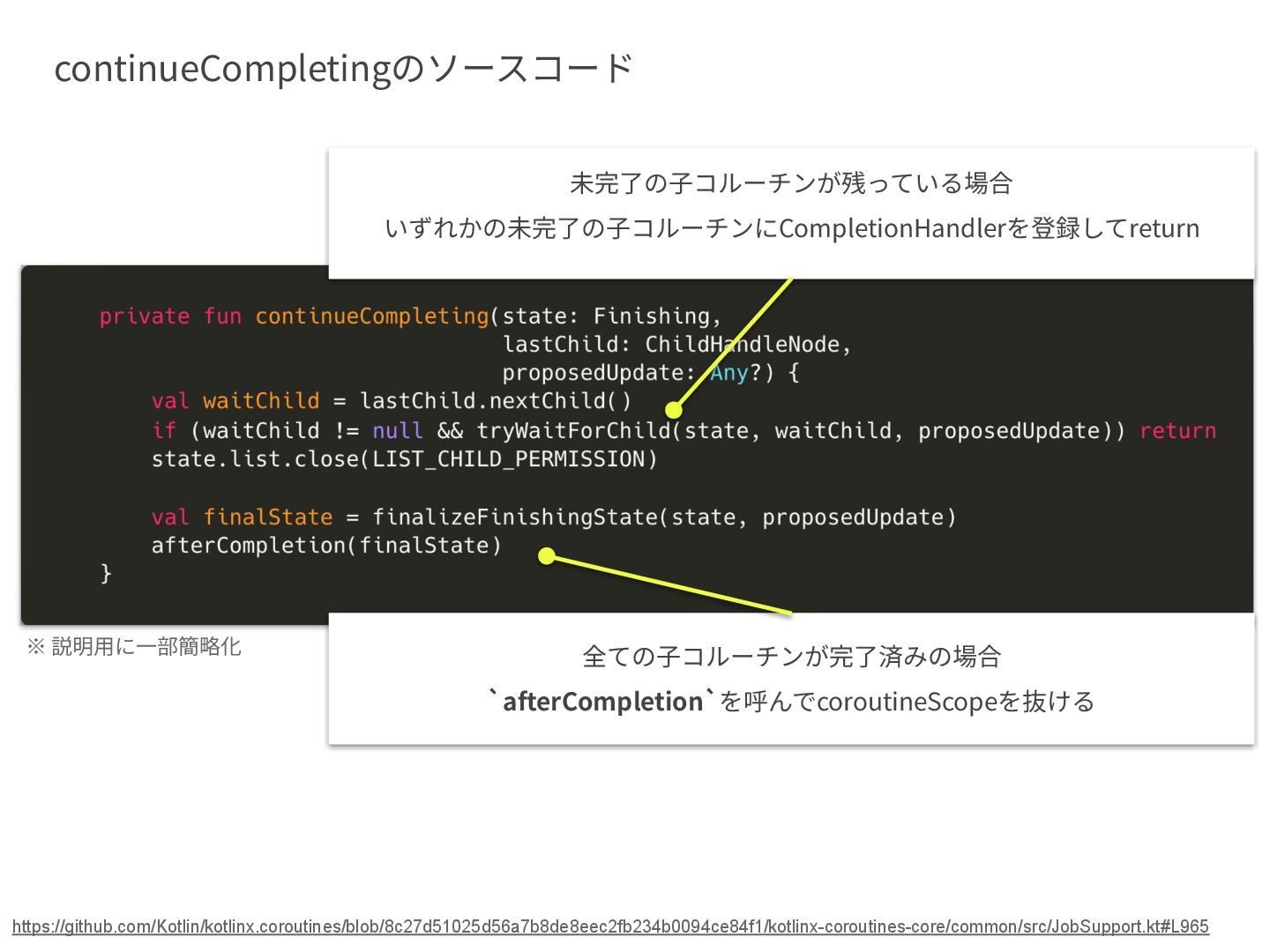

    Context ScopeCoroutine Coroutine Context Job (ACTIVE) Job (COMPLETING) StandaloneCoroutine #1 CompletionHandlerを介して、ScopeCoroutineのJobの`continueCompleting`が呼ばれる Coroutine Context Job (COMPLETED) StandaloneCoroutine #2 Completion Handler continueCompleting

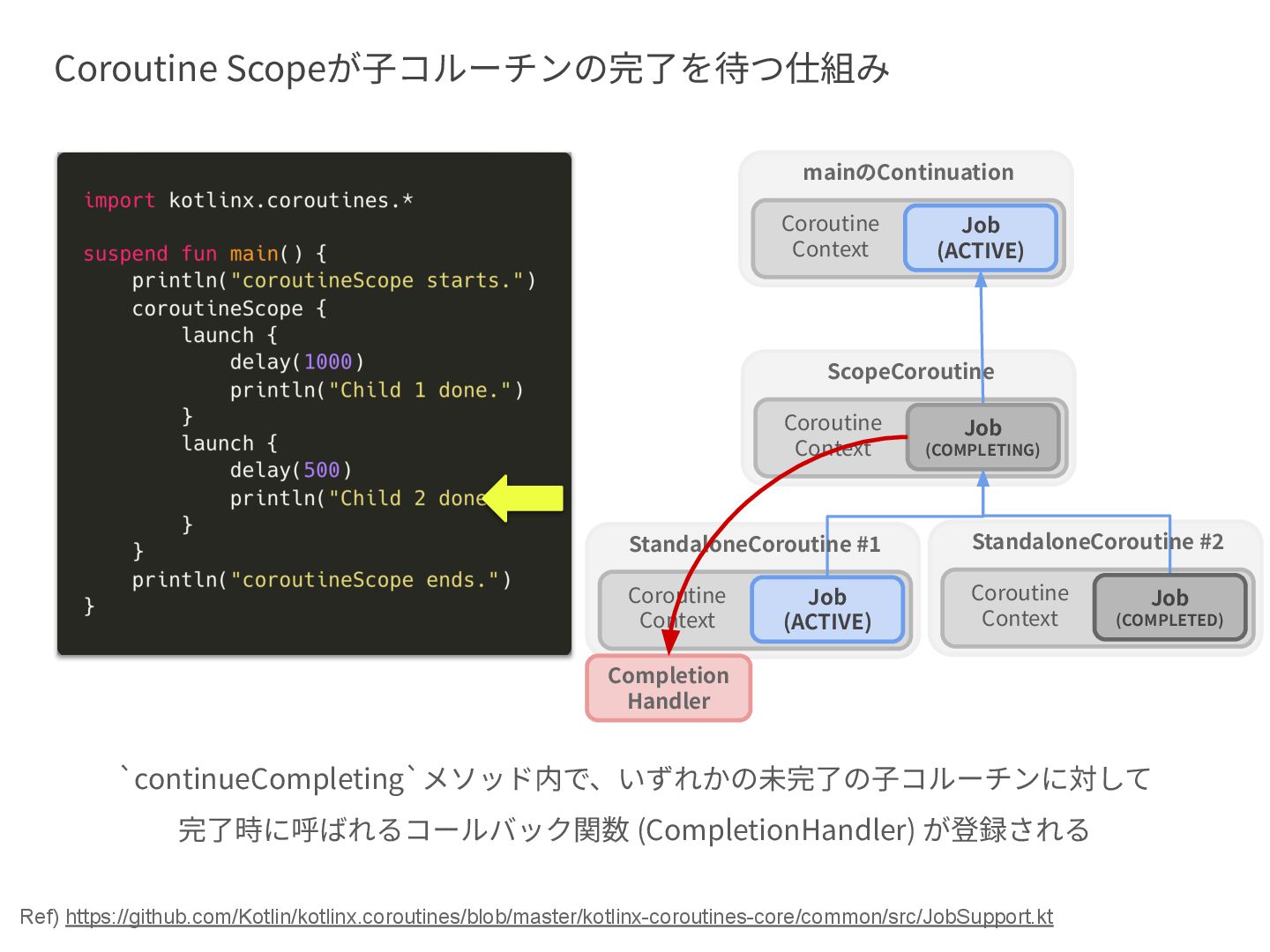

  25. Coroutine Scopeが⼦コルーチンの完了を待つ仕組み Ref) https://github.com/Kotlin/kotlinx.coroutines/blob/master/kotlinx-coroutines-core/common/src/JobSupport.kt Coroutine Context Job (ACTIVE) mainのContinuation Coroutine

    Context ScopeCoroutine Coroutine Context Job (ACTIVE) Job (COMPLETING) StandaloneCoroutine #1 Coroutine Context Job (COMPLETED) StandaloneCoroutine #2 Completion Handler `continueCompleting`メソッド内で、いずれかの未完了の⼦コルーチンに対して 完了時に呼ばれるコールバック関数 (CompletionHandler) が登録される

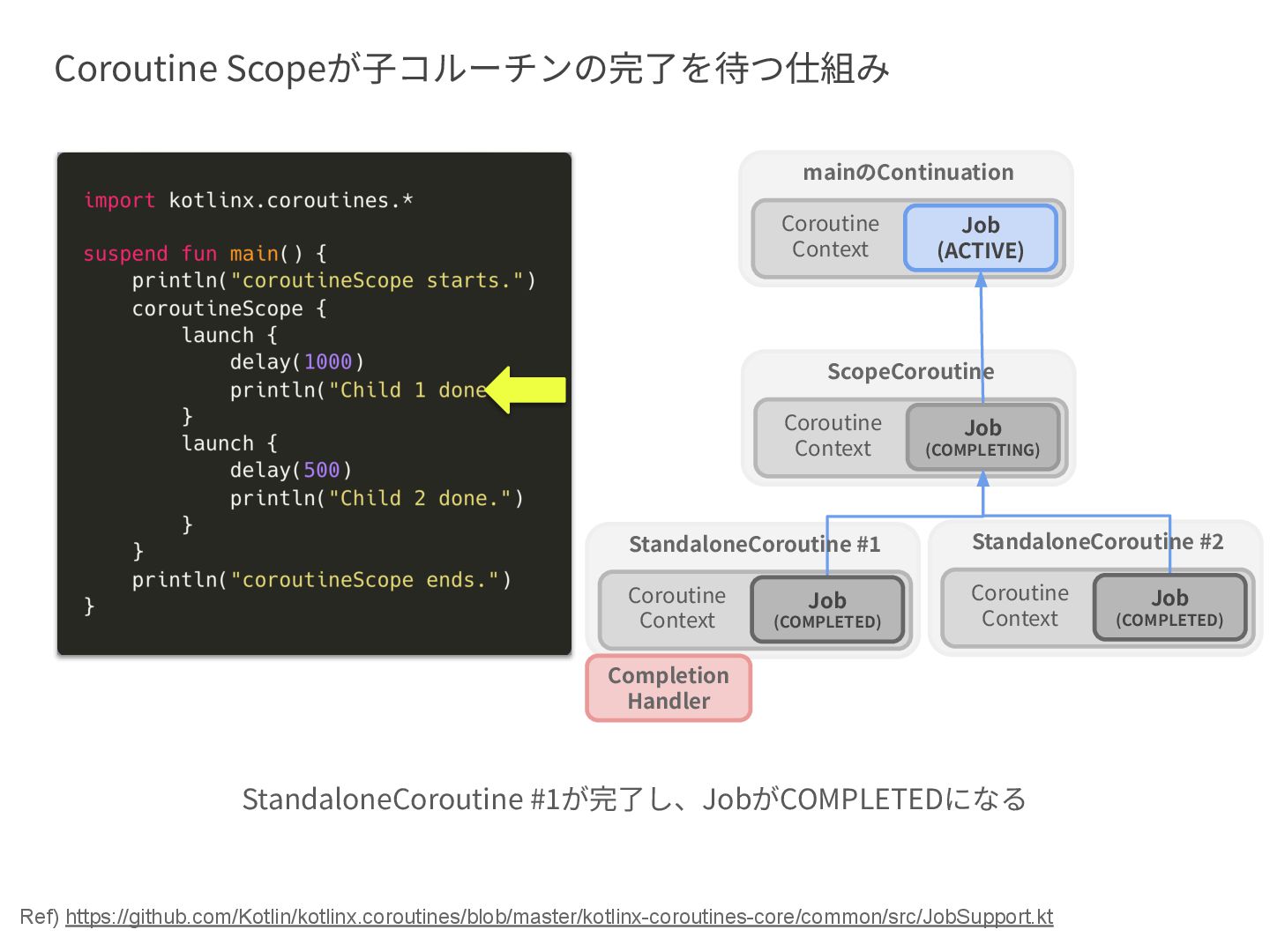

  26. Coroutine Scopeが⼦コルーチンの完了を待つ仕組み Ref) https://github.com/Kotlin/kotlinx.coroutines/blob/master/kotlinx-coroutines-core/common/src/JobSupport.kt Coroutine Context Job (ACTIVE) mainのContinuation Coroutine

    Context ScopeCoroutine Coroutine Context Job (COMPLETED) Job (COMPLETING) StandaloneCoroutine #1 Coroutine Context Job (COMPLETED) StandaloneCoroutine #2 Completion Handler StandaloneCoroutine #1が完了し、JobがCOMPLETEDになる

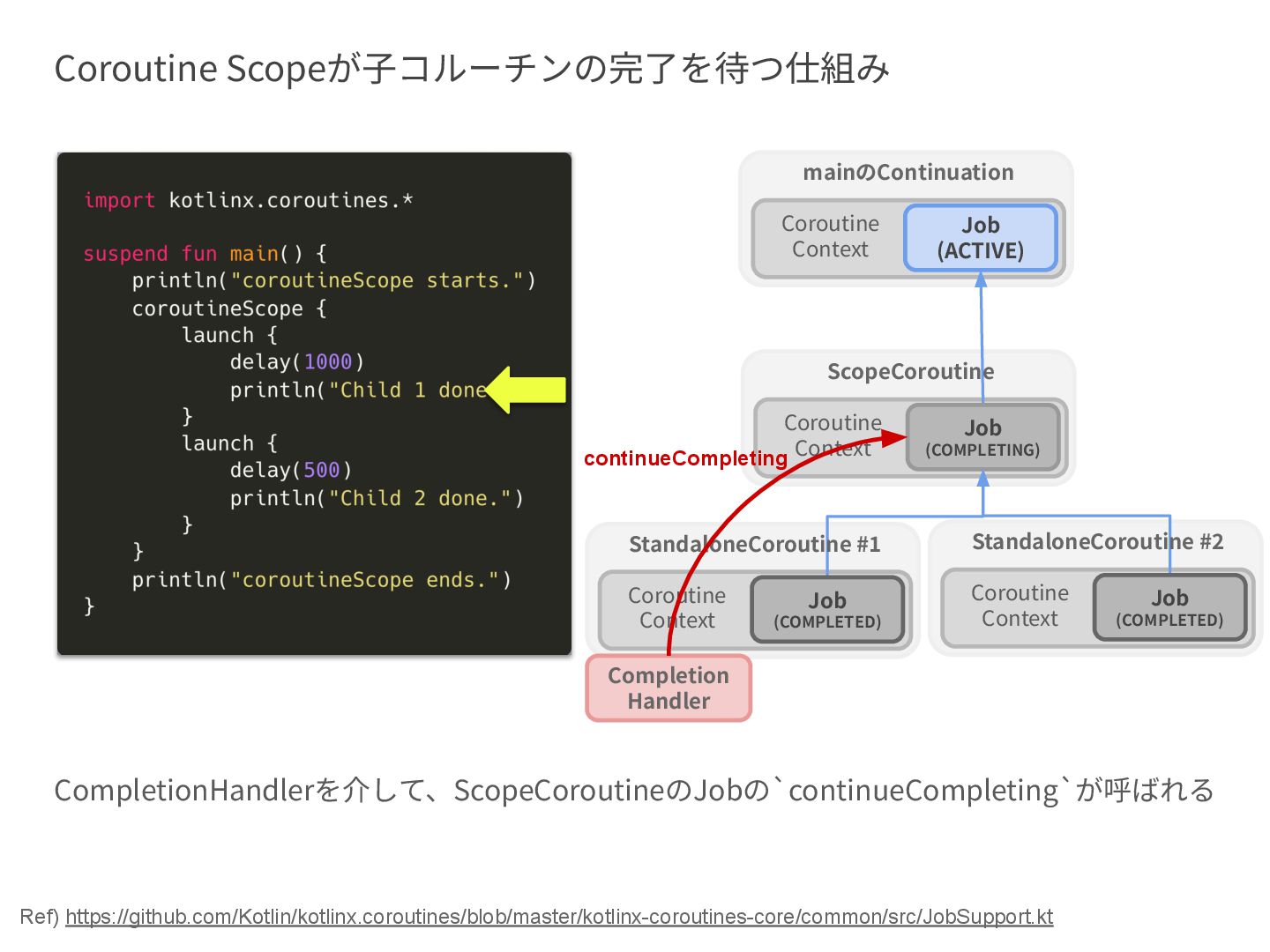

  27. Coroutine Scopeが⼦コルーチンの完了を待つ仕組み Ref) https://github.com/Kotlin/kotlinx.coroutines/blob/master/kotlinx-coroutines-core/common/src/JobSupport.kt Coroutine Context Job (ACTIVE) mainのContinuation Coroutine

    Context ScopeCoroutine Coroutine Context Job (COMPLETED) Job (COMPLETING) StandaloneCoroutine #1 Coroutine Context Job (COMPLETED) StandaloneCoroutine #2 Completion Handler CompletionHandlerを介して、ScopeCoroutineのJobの`continueCompleting`が呼ばれる continueCompleting

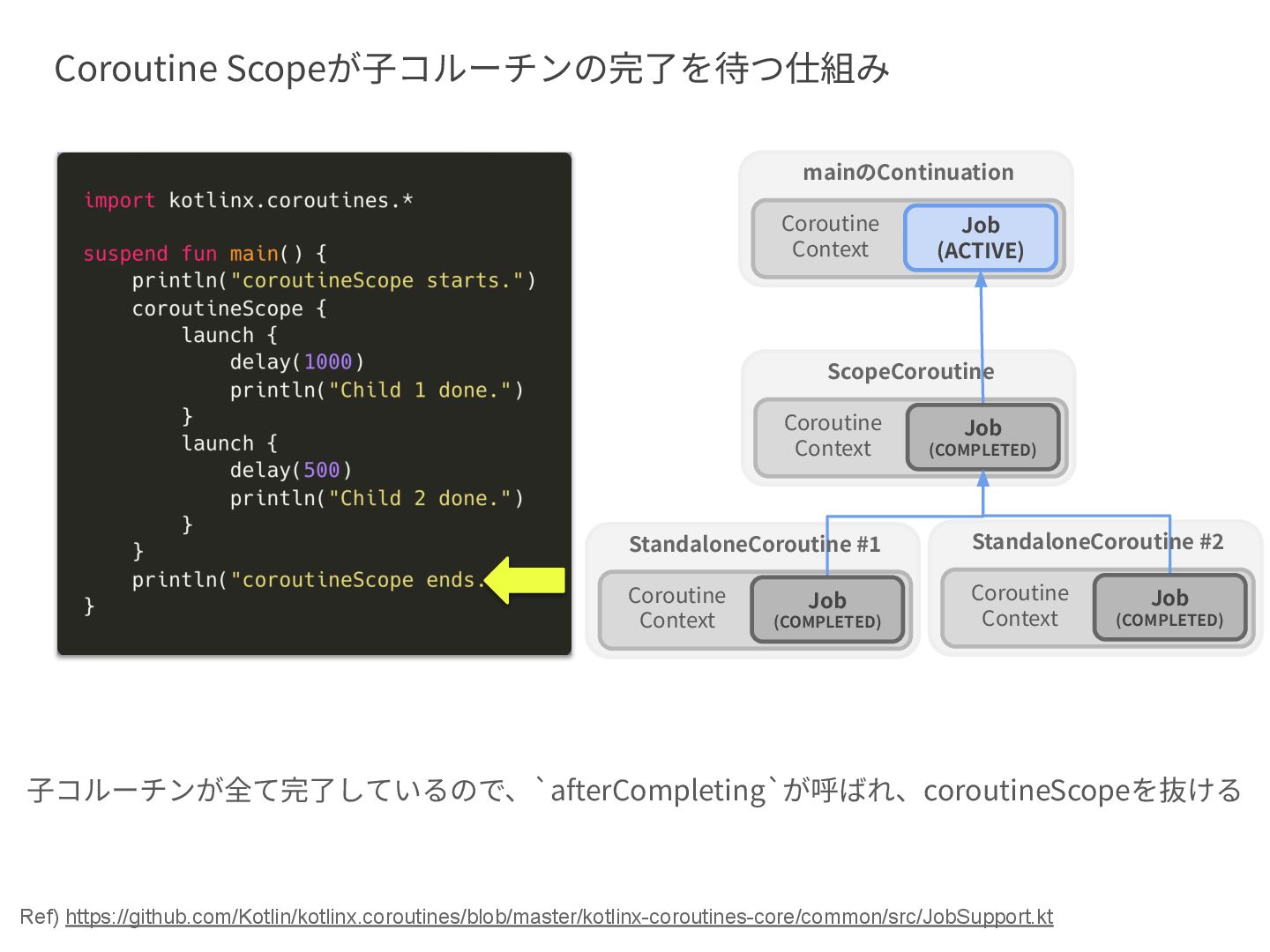

  28. Coroutine Scopeが⼦コルーチンの完了を待つ仕組み Ref) https://github.com/Kotlin/kotlinx.coroutines/blob/master/kotlinx-coroutines-core/common/src/JobSupport.kt Coroutine Context Job (ACTIVE) mainのContinuation Coroutine

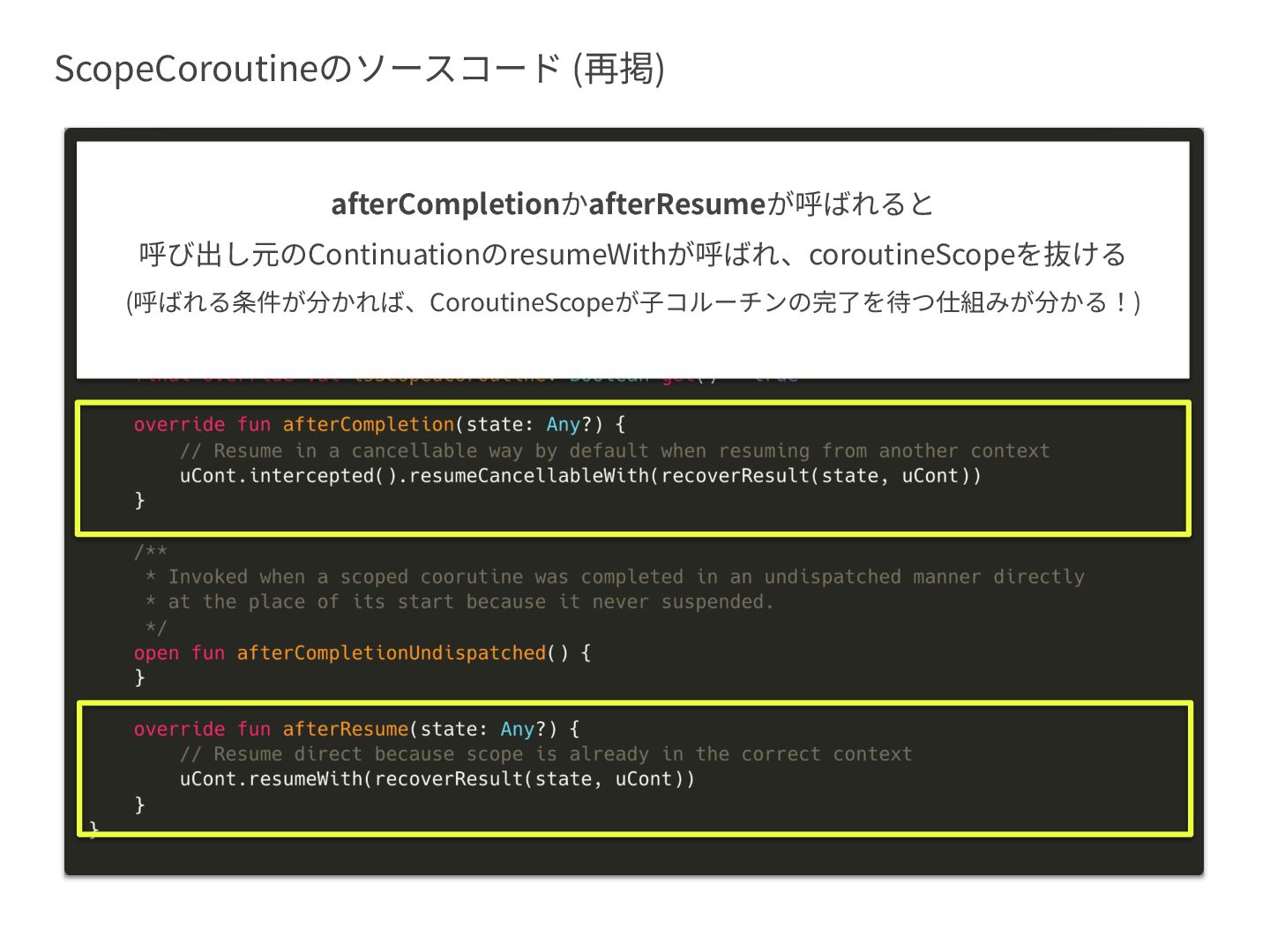

    Context ScopeCoroutine Coroutine Context Job (COMPLETED) Job (COMPLETED) StandaloneCoroutine #1 Coroutine Context Job (COMPLETED) StandaloneCoroutine #2 ⼦コルーチンが全て完了しているので、`afterCompleting`が呼ばれ、coroutineScopeを抜ける
