Why Are Semiconductor Fuses Important for Sensitive Electronics?

Semiconductor fuses are important for protecting sensitive electronics, as they offer overcurrent response and protection against short-circuit conditions. Unlike standard fuses, semiconductor fuses are specially designed to protect delicate components such as diodes, IGBTs, and MOSFETs, which may also be damaged by a brief electrical surge. Their low-late-lower energy and precise operating characteristics help prevent overheating, equipment failure, and expensive downtime.

Transcript

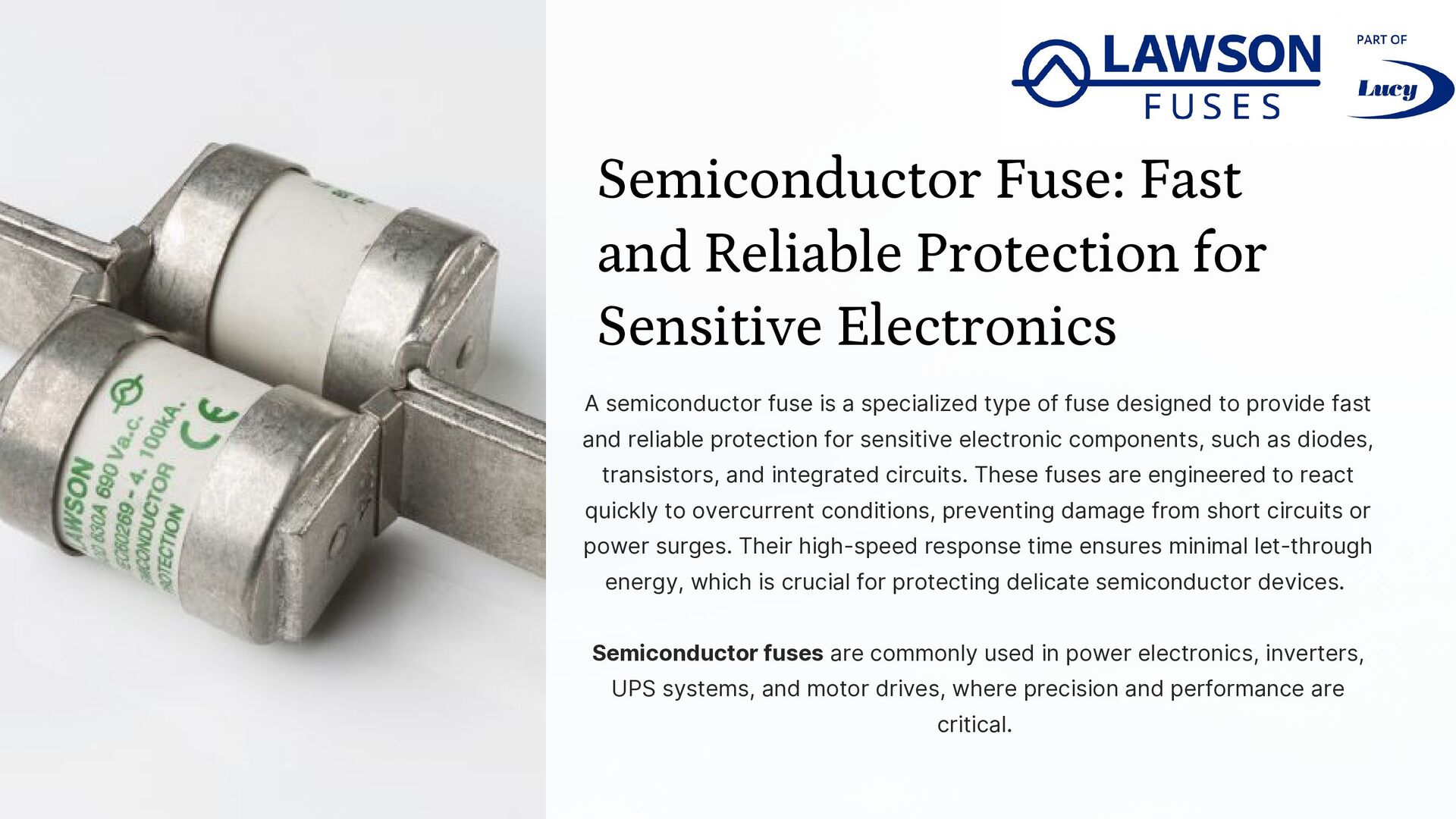

1. Semiconductor Fuse: Fast and Reliable Protection for Sensitive Electronics A semiconductor fuse is a specialized type of fuse designed to provide fast and reliable protection for sensitive electronic components, such as diodes, transistors, and integrated circuits. These fuses are engineered to react quickly to overcurrent conditions, preventing damage from short circuits or power surges. Their high-speed response time ensures minimal let-through energy, which is crucial for protecting delicate semiconductor devices. Semiconductor fuses are commonly used in power electronics, inverters, UPS systems, and motor drives, where precision and performance are critical.

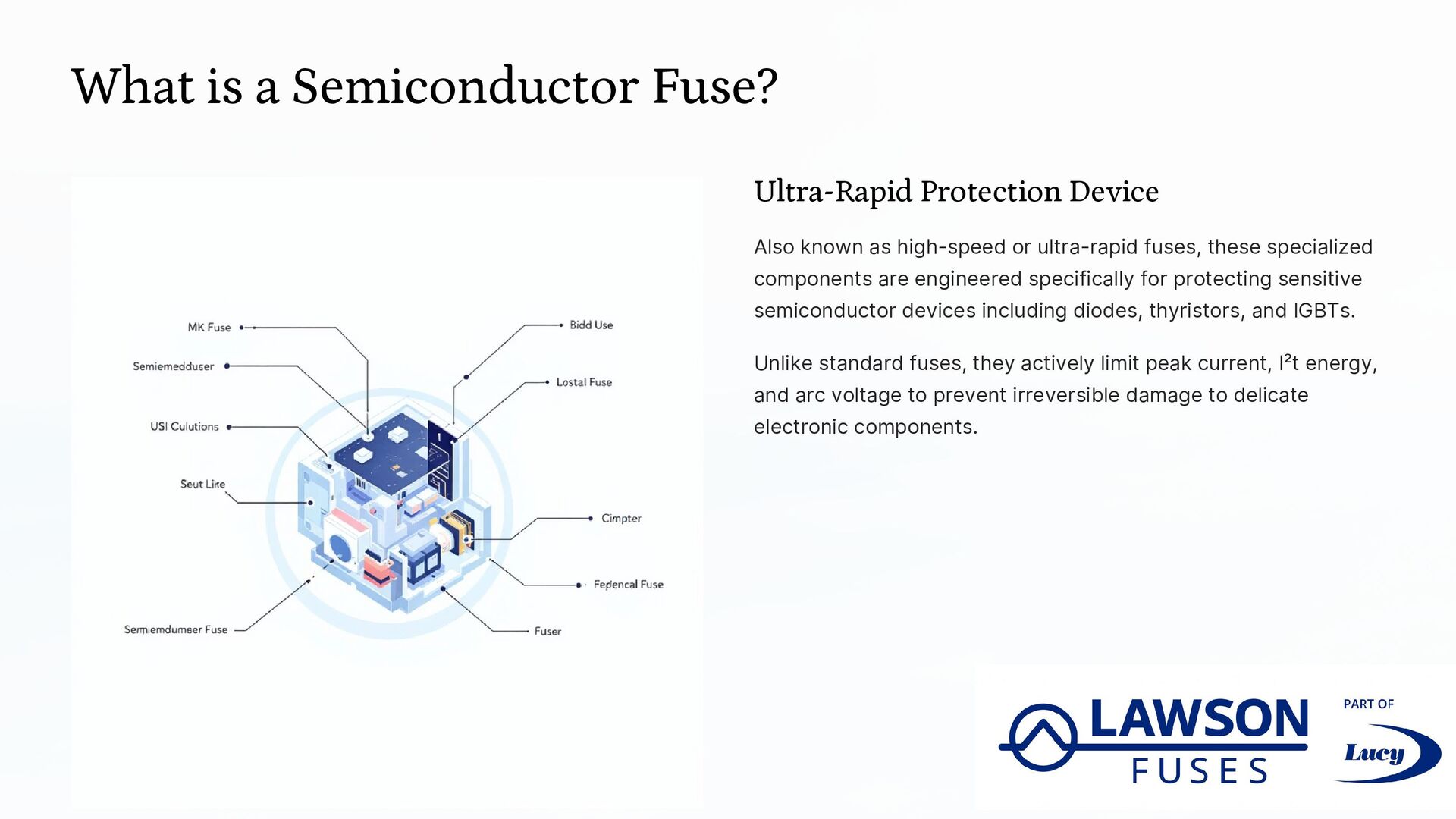

2. What is a Semiconductor Fuse? Ultra-Rapid Protection Device Also known as high-speed or ultra-rapid fuses, these specialized components are engineered specifically for protecting sensitive semiconductor devices including diodes, thyristors, and IGBTs. Unlike standard fuses, they actively limit peak current, I²t energy, and arc voltage to prevent irreversible damage to delicate electronic components.

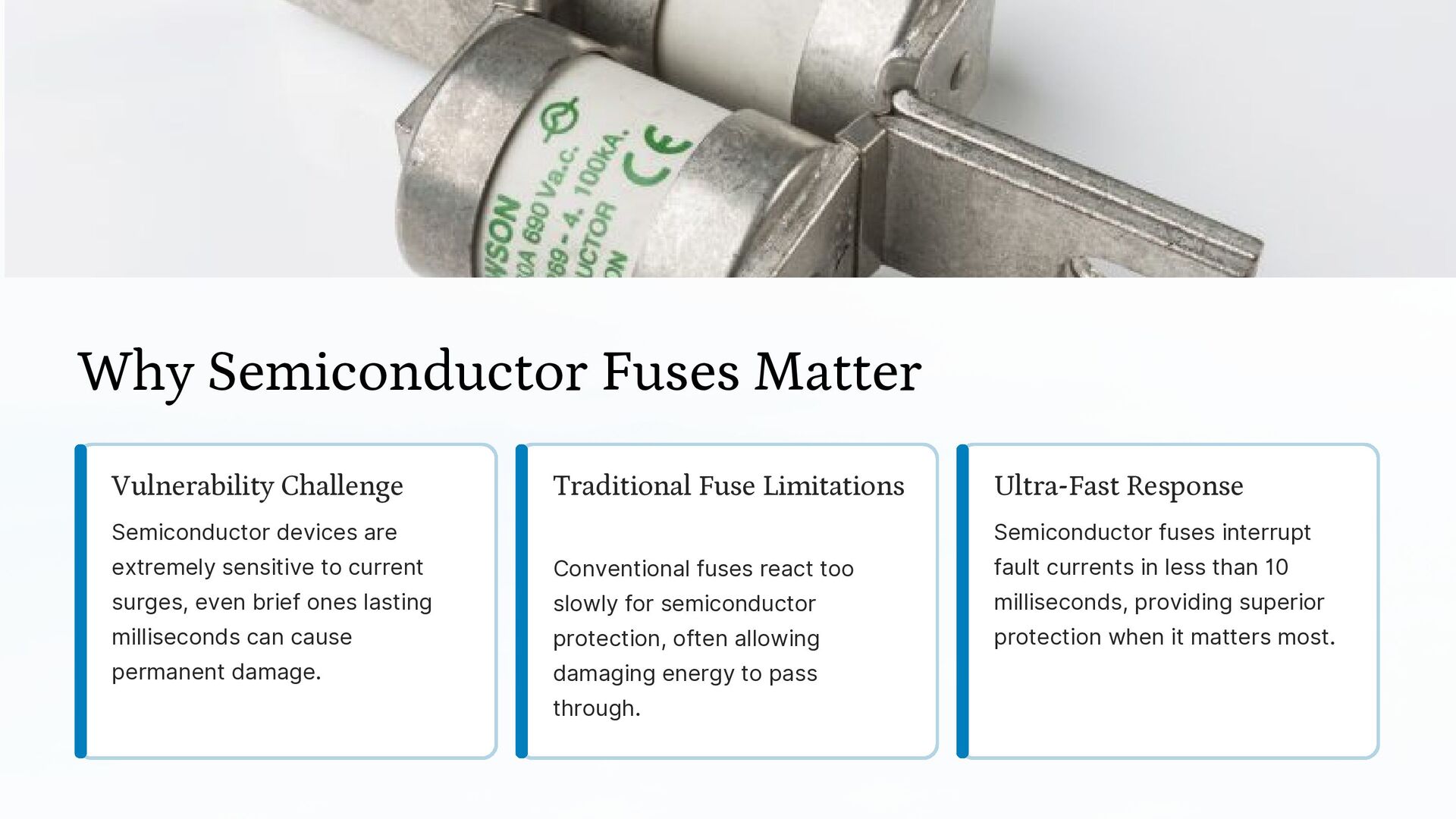

3. Why Semiconductor Fuses Matter Vulnerability Challenge Semiconductor devices are extremely sensitive to current surges, even brief ones lasting milliseconds can cause permanent damage. Traditional Fuse Limitations Conventional fuses react too slowly for semiconductor protection, often allowing damaging energy to pass through. Ultra-Fast Response Semiconductor fuses interrupt fault currents in less than 10 milliseconds, providing superior protection when it matters most.

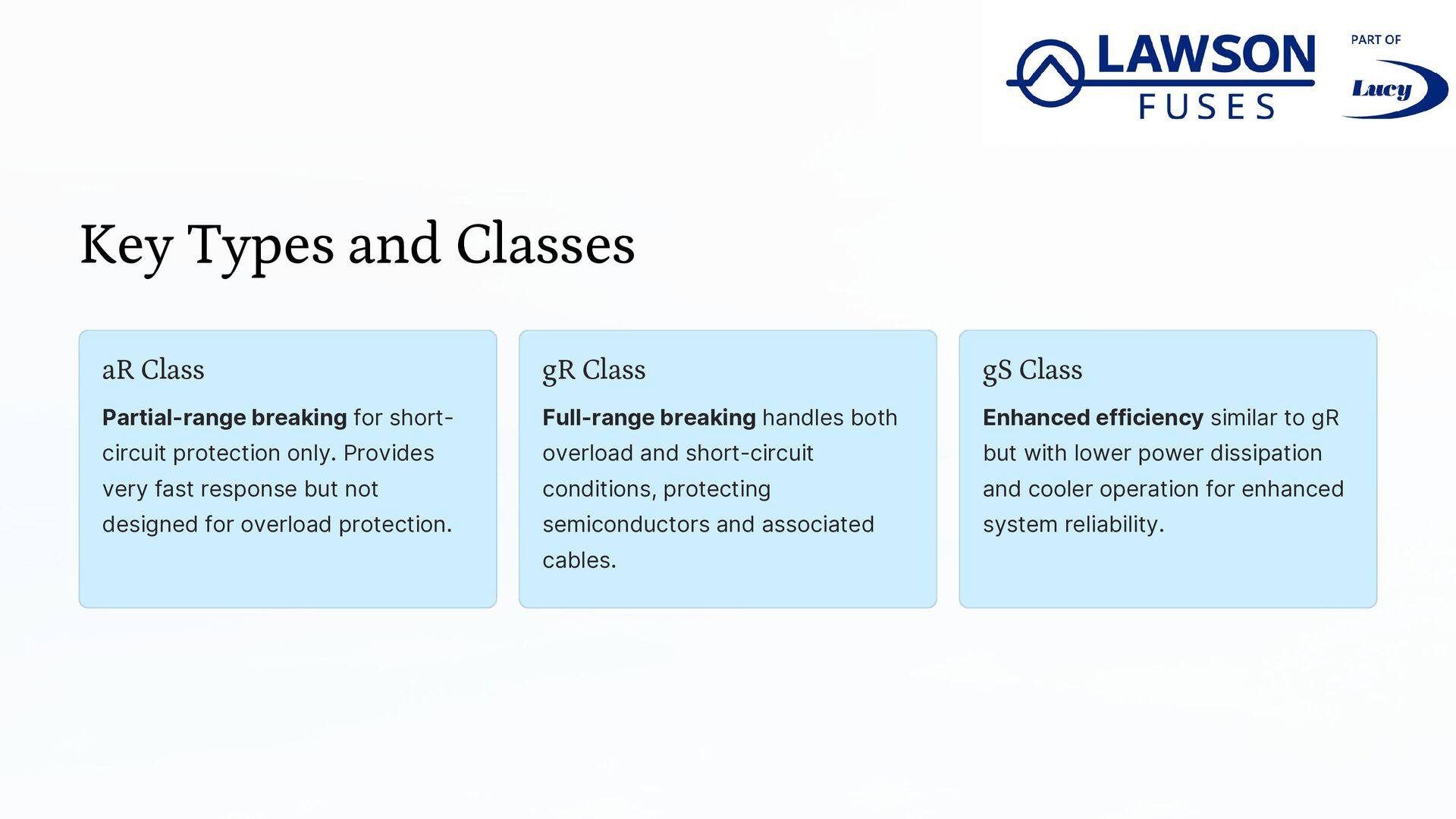

4. Key Types and Classes aR Class Partial-range breaking for short- circuit protection only. Provides very fast response but not designed for overload protection. gR Class Full-range breaking handles both overload and short-circuit conditions, protecting semiconductors and associated cables. gS Class Enhanced efficiency similar to gR but with lower power dissipation and cooler operation for enhanced system reliability.

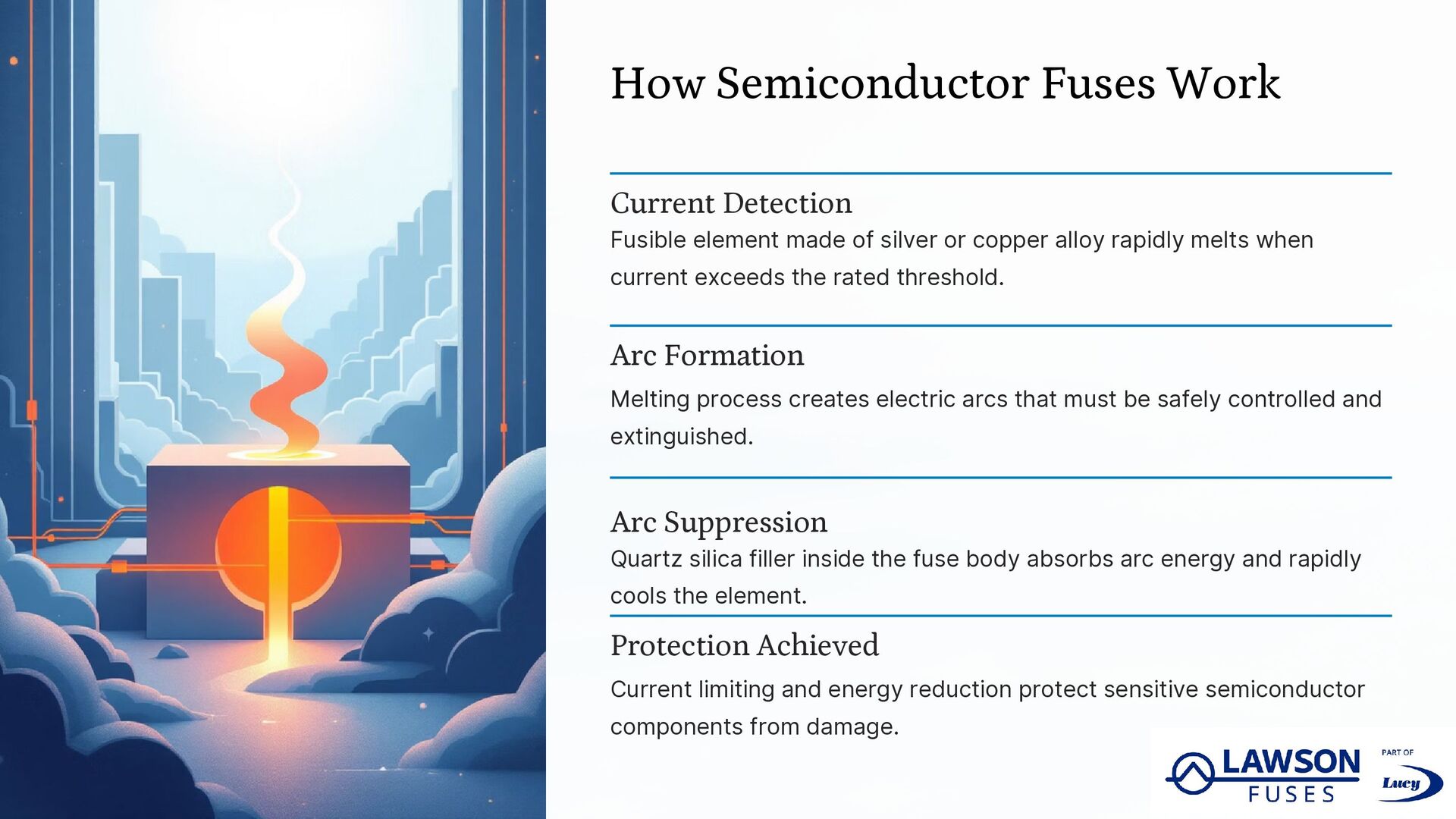

5. How Semiconductor Fuses Work Current Detection Fusible element made of silver or copper alloy rapidly melts when current exceeds the rated threshold. Arc Formation Melting process creates electric arcs that must be safely controlled and extinguished. Arc Suppression Quartz silica filler inside the fuse body absorbs arc energy and rapidly cools the element. Protection Achieved Current limiting and energy reduction protect sensitive semiconductor components from damage.

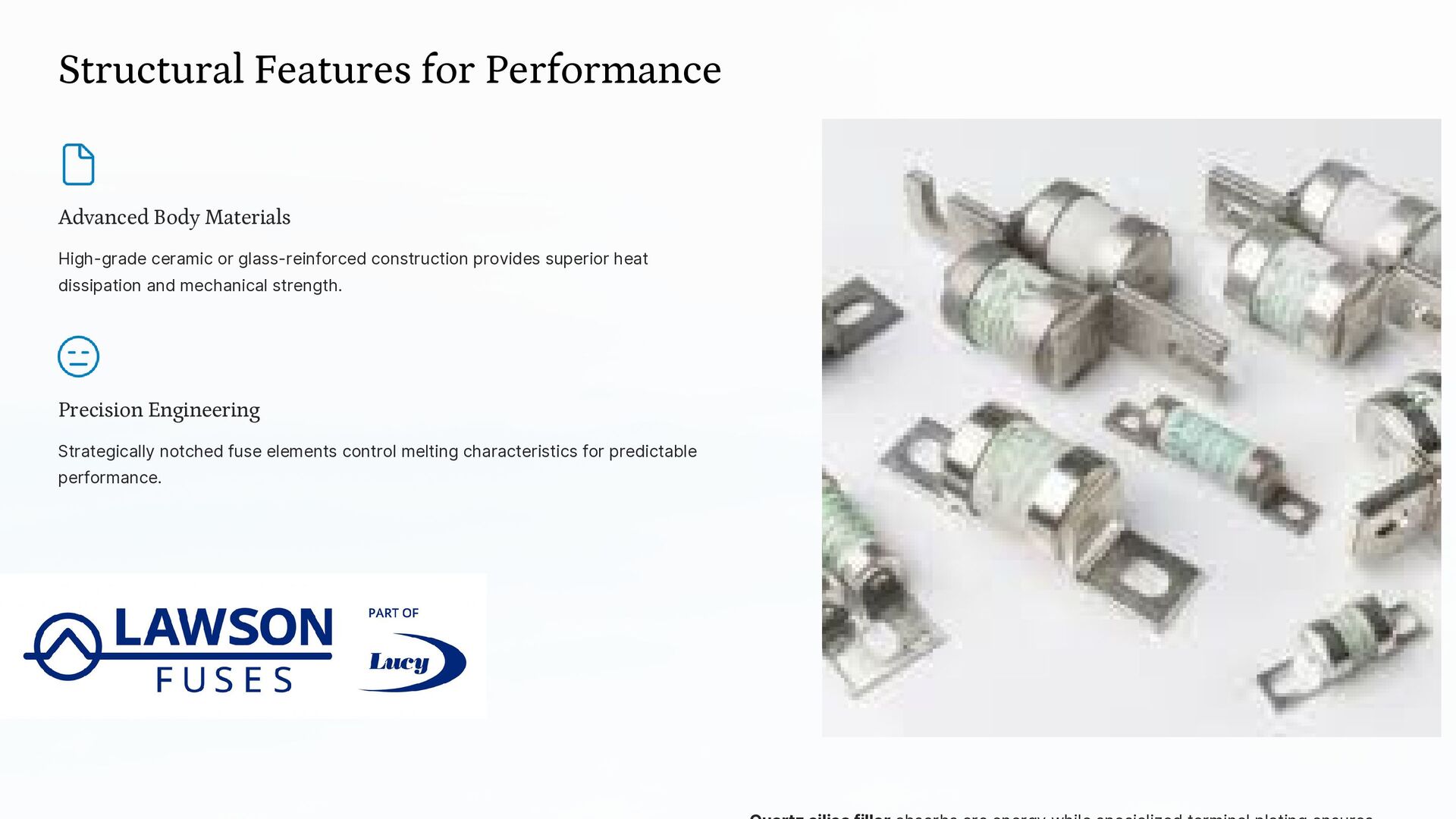

6. Structural Features for Performance Advanced Body Materials High-grade ceramic or glass-reinforced construction provides superior heat dissipation and mechanical strength. Precision Engineering Strategically notched fuse elements control melting characteristics for predictable performance.

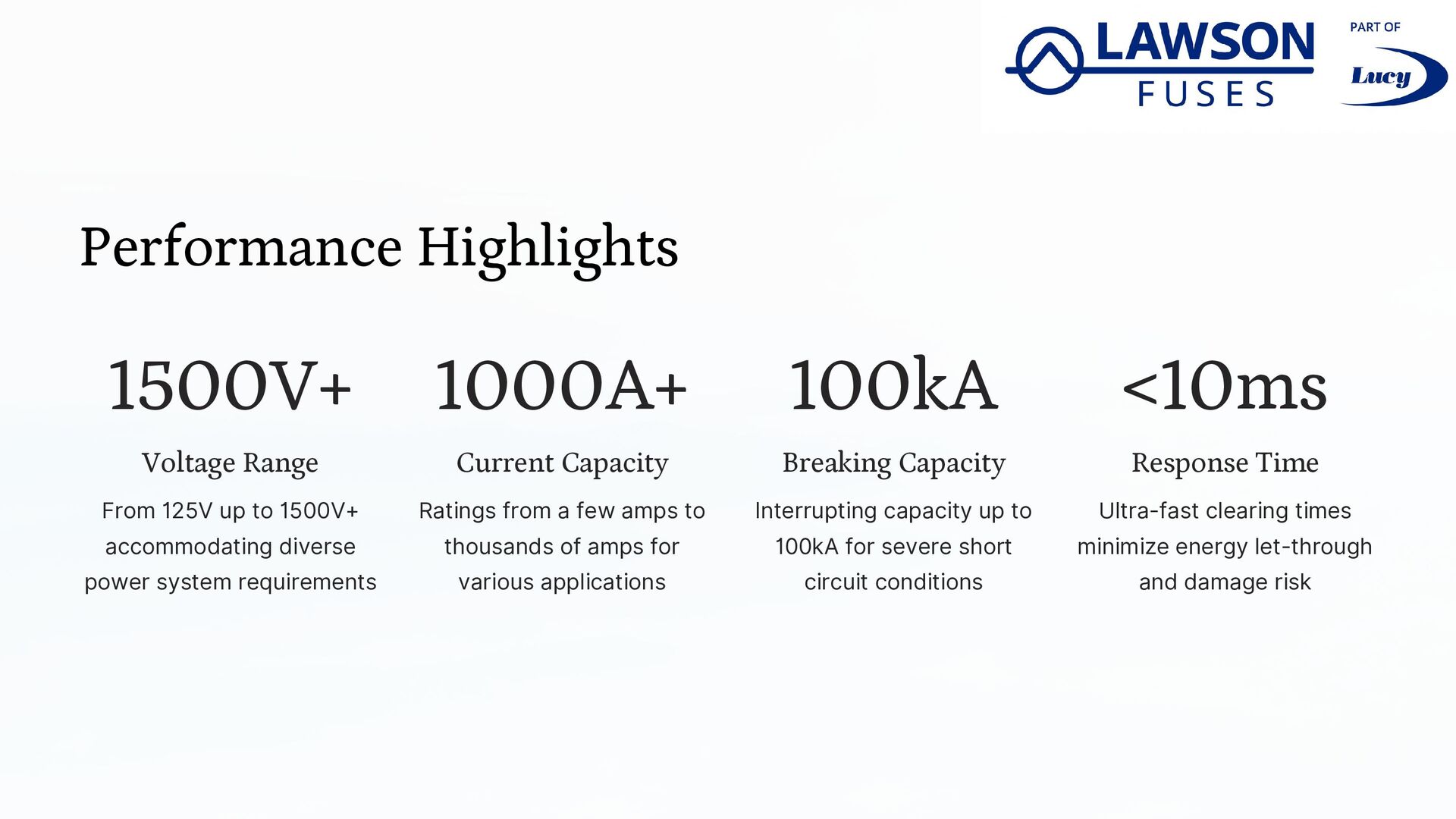

7. Performance Highlights 1500V+ Voltage Range From 125V up to 1500V+ accommodating diverse power system requirements 1000A+ Current Capacity Ratings from a few amps to thousands of amps for various applications 100kA Breaking Capacity Interrupting capacity up to 100kA for severe short circuit conditions <10ms Response Time Ultra-fast clearing times minimize energy let-through and damage risk

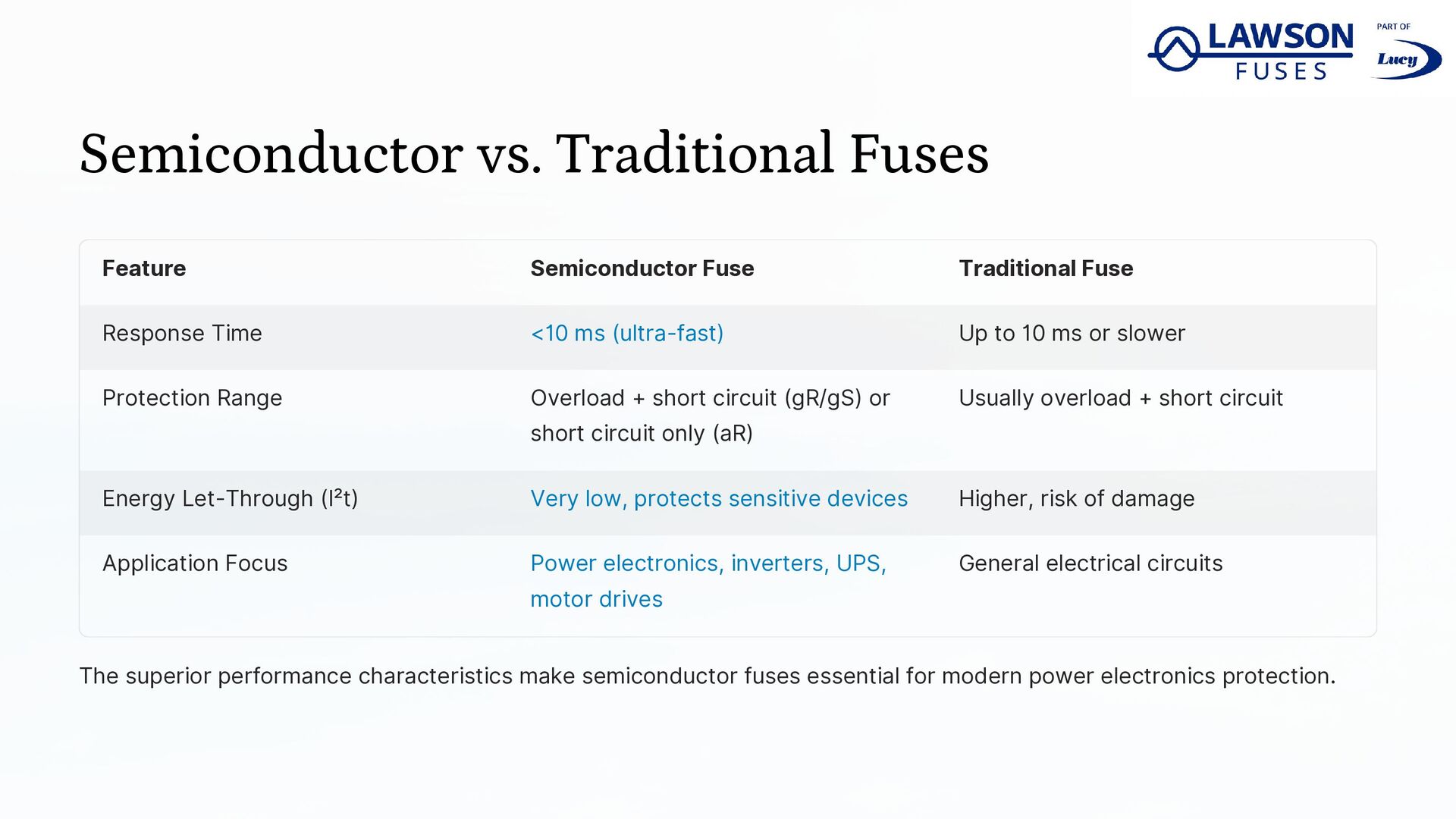

8. Semiconductor vs. Traditional Fuses Feature Semiconductor Fuse Traditional Fuse Response Time <10 ms (ultra-fast) Up to 10 ms or slower Protection Range Overload + short circuit (gR/gS) or short circuit only (aR) Usually overload + short circuit Energy Let-Through (I²t) Very low, protects sensitive devices Higher, risk of damage Application Focus Power electronics, inverters, UPS, motor drives General electrical circuits The superior performance characteristics make semiconductor fuses essential for modern power electronics protection.

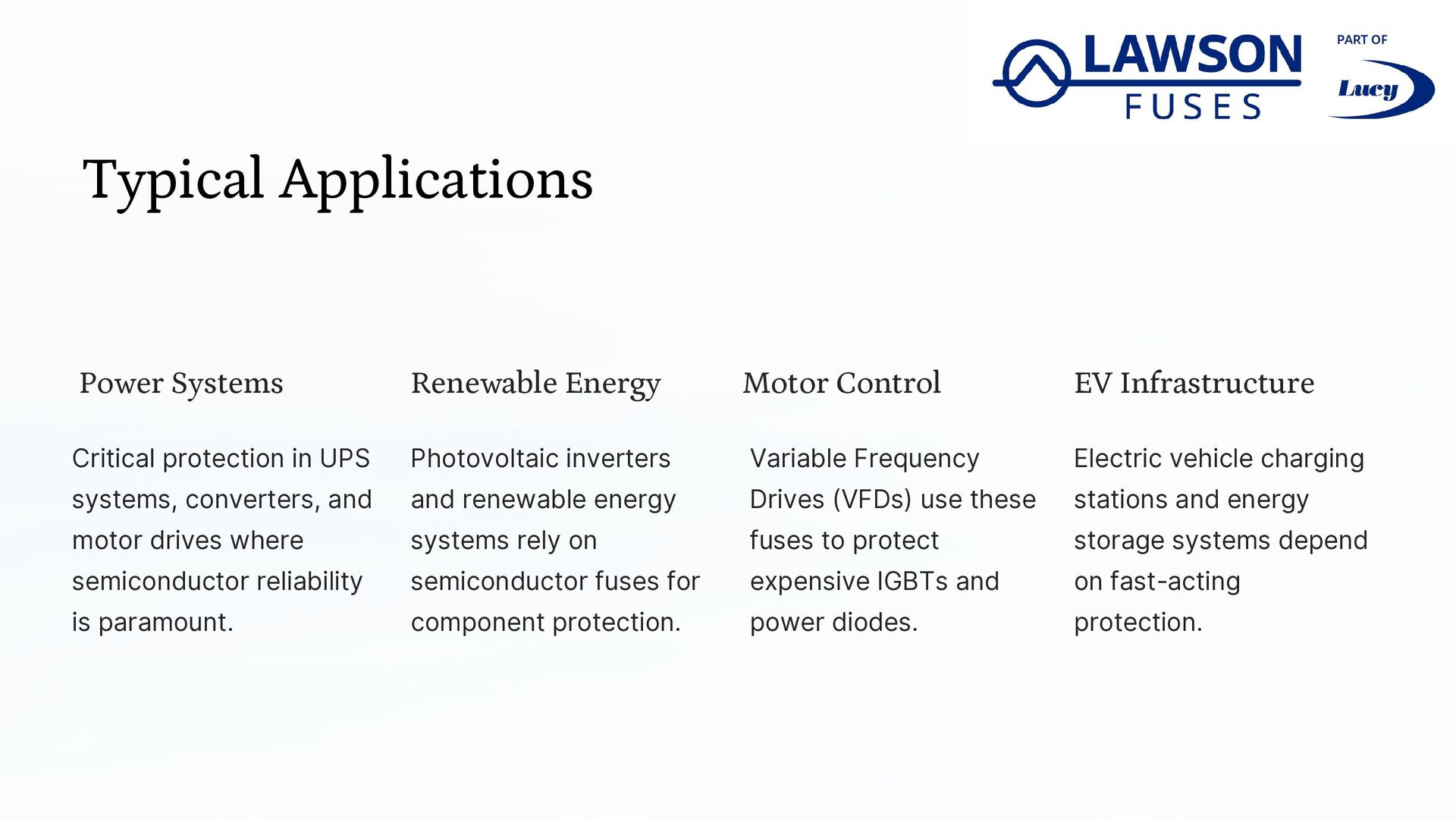

9. Typical Applications Power Systems Critical protection in UPS systems, converters, and motor drives where semiconductor reliability is paramount. Renewable Energy Photovoltaic inverters and renewable energy systems rely on semiconductor fuses for component protection. Motor Control Variable Frequency Drives (VFDs) use these fuses to protect expensive IGBTs and power diodes. EV Infrastructure Electric vehicle charging stations and energy storage systems depend on fast-acting protection.

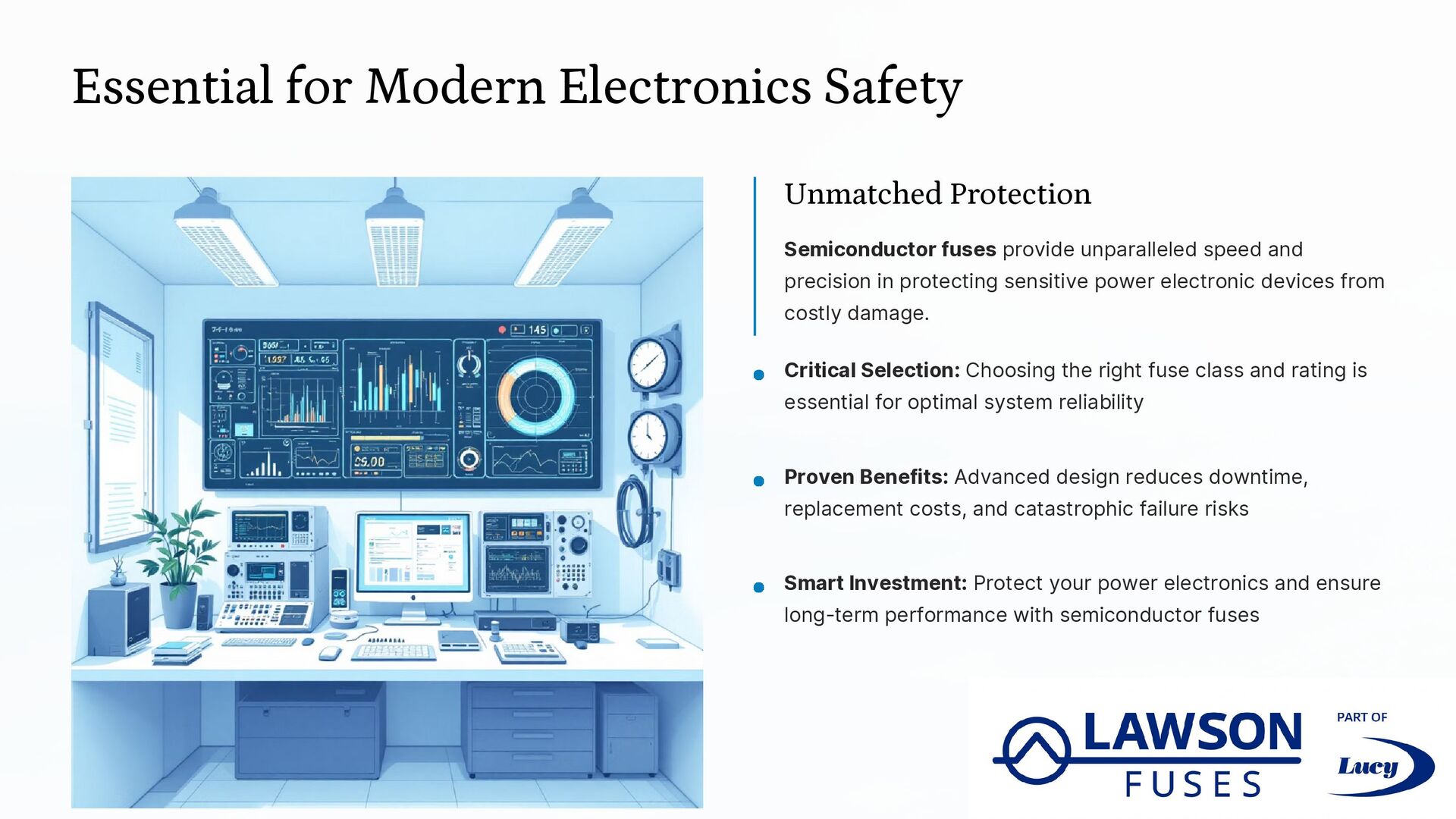

10. Essential for Modern Electronics Safety Unmatched Protection Semiconductor fuses provide unparalleled speed and precision in protecting sensitive power electronic devices from costly damage. Critical Selection: Choosing the right fuse class and rating is essential for optimal system reliability Proven Benefits: Advanced design reduces downtime, replacement costs, and catastrophic failure risks Smart Investment: Protect your power electronics and ensure long-term performance with semiconductor fuses
