Why Are HRC Fuses Used in Electrical Systems?

High Rupturing Capacity (HRC) fuses are a critical component in modern electrical systems, valued for their reliability, safety, and ability to protect equipment from damage caused by electrical faults. These specialized fuses are designed to handle high fault currents, making them indispensable in various applications, from industrial setups to residential installations.

Transcript

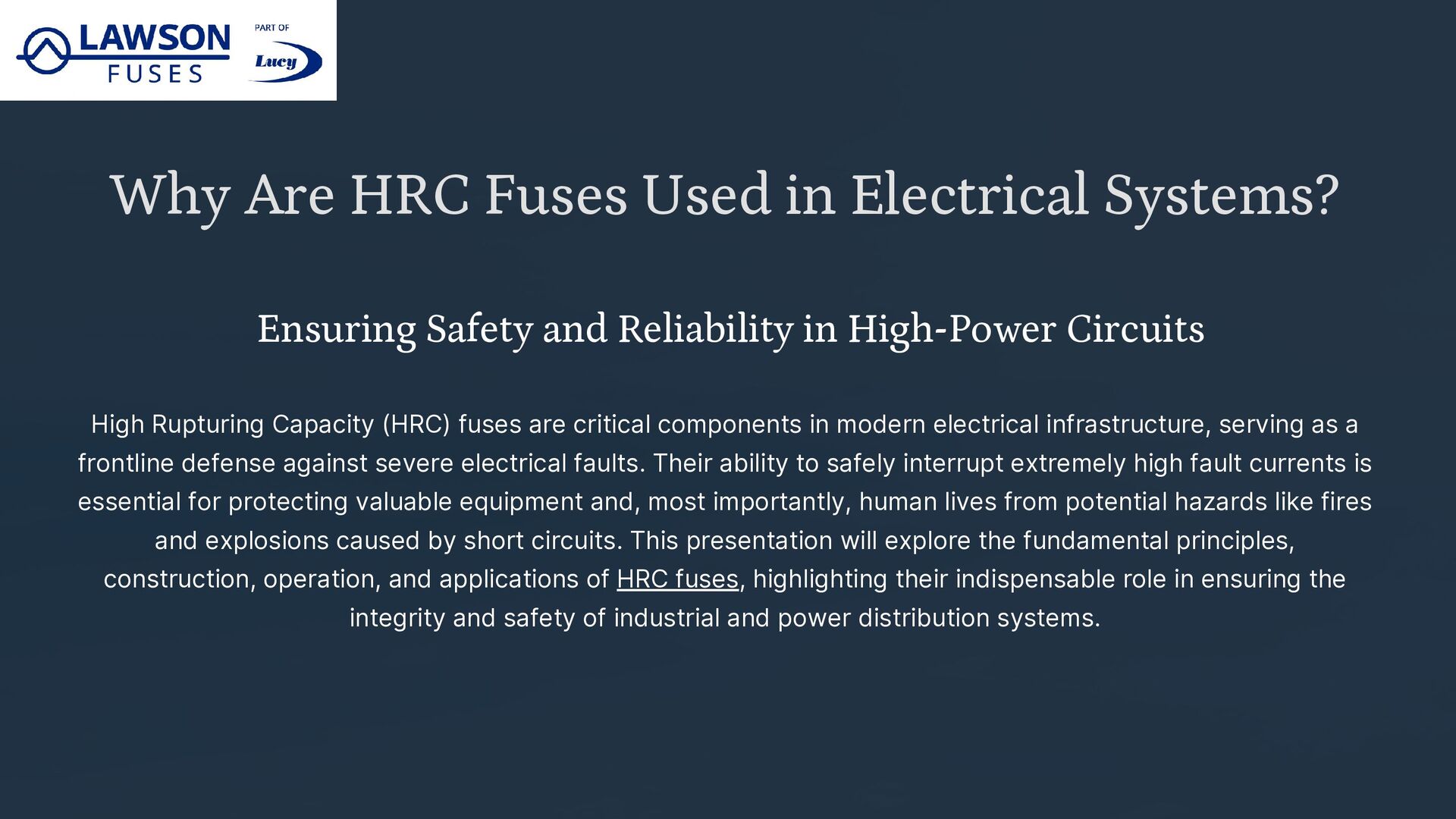

1. Why Are HRC Fuses Used in Electrical Systems? Ensuring Safety and Reliability in High-Power Circuits High Rupturing Capacity (HRC) fuses are critical components in modern electrical infrastructure, serving as a frontline defense against severe electrical faults. Their ability to safely interrupt extremely high fault currents is essential for protecting valuable equipment and, most importantly, human lives from potential hazards like fires and explosions caused by short circuits. This presentation will explore the fundamental principles, construction, operation, and applications of HRC fuses, highlighting their indispensable role in ensuring the integrity and safety of industrial and power distribution systems.

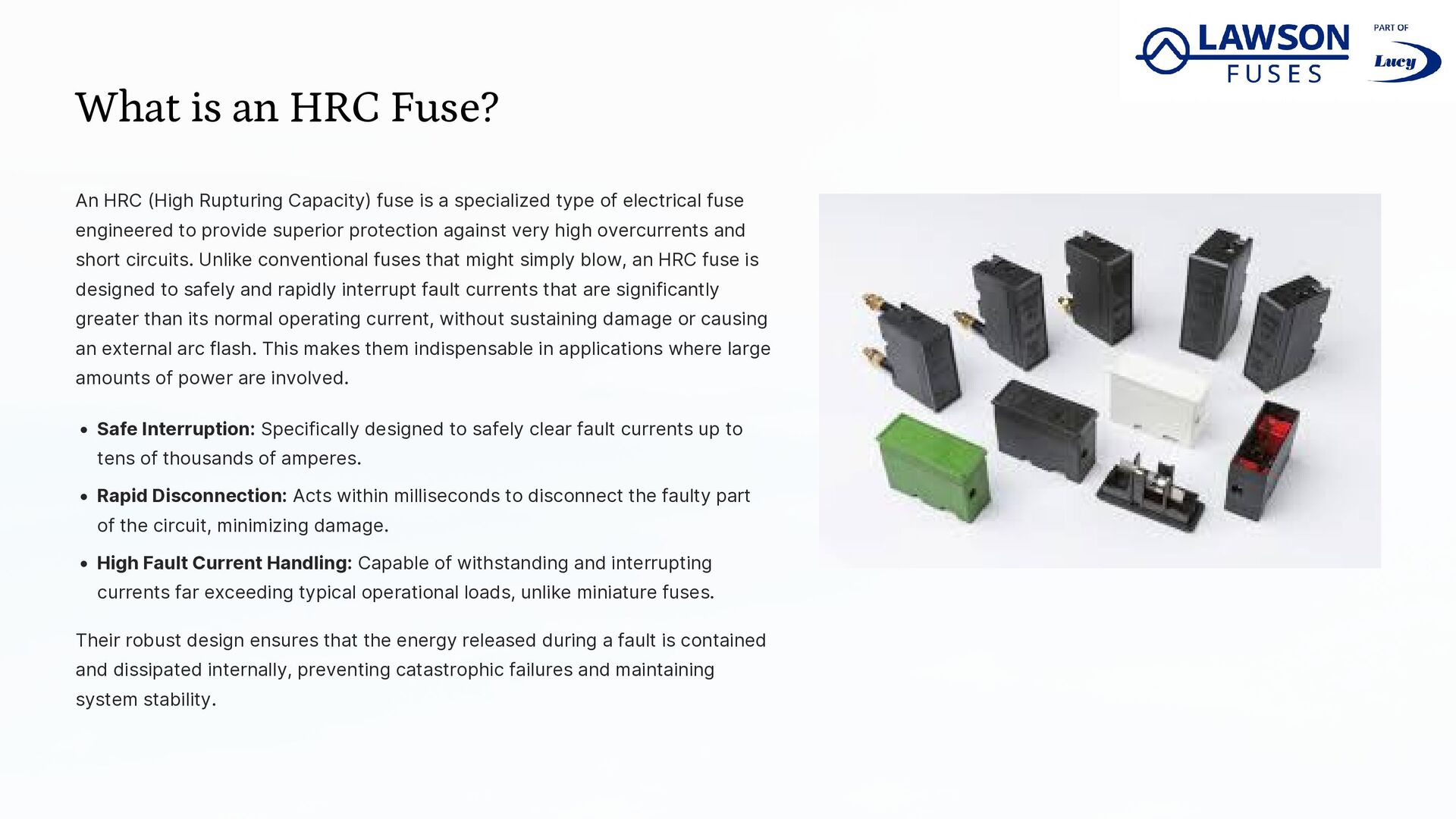

2. What is an HRC Fuse? An HRC (High Rupturing Capacity) fuse is a specialized type of electrical fuse engineered to provide superior protection against very high overcurrents and short circuits. Unlike conventional fuses that might simply blow, an HRC fuse is designed to safely and rapidly interrupt fault currents that are significantly greater than its normal operating current, without sustaining damage or causing an external arc flash. This makes them indispensable in applications where large amounts of power are involved. Safe Interruption: Specifically designed to safely clear fault currents up to tens of thousands of amperes. Rapid Disconnection: Acts within milliseconds to disconnect the faulty part of the circuit, minimizing damage. High Fault Current Handling: Capable of withstanding and interrupting currents far exceeding typical operational loads, unlike miniature fuses. Their robust design ensures that the energy released during a fault is contained and dissipated internally, preventing catastrophic failures and maintaining system stability.

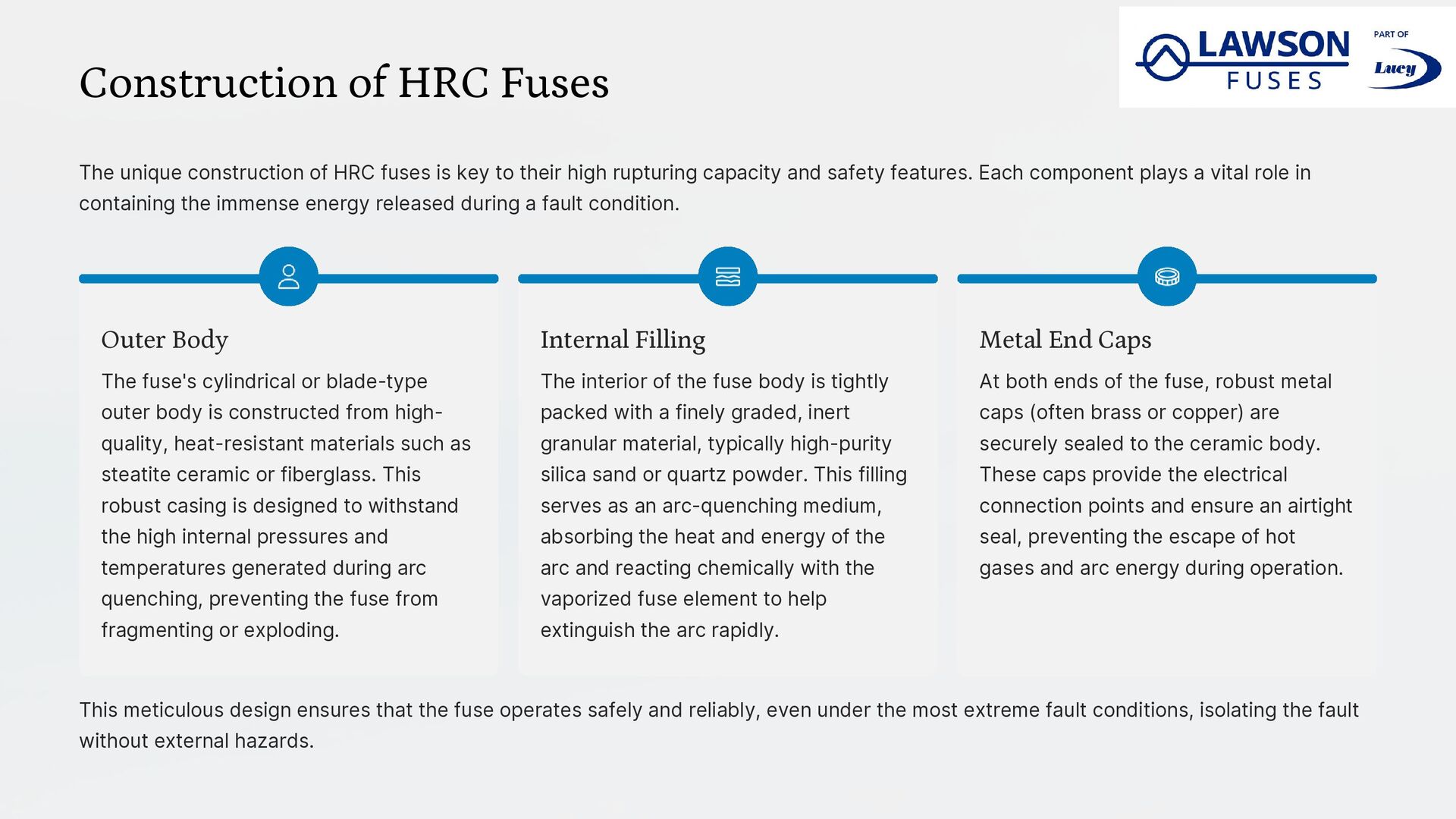

3. The interior of the fuse body is tightly packed with a finely graded, inert granular material, typically high-purity silica sand or quartz powder. This filling serves as an arc-quenching medium, absorbing the heat and energy of the arc and reacting chemically with the vaporized fuse element to help extinguish the arc rapidly. Construction of HRC Fuses The unique construction of HRC fuses is key to their high rupturing capacity and safety features. Each component plays a vital role in containing the immense energy released during a fault condition. Outer Body The fuse's cylindrical or blade-type outer body is constructed from high- quality, heat-resistant materials such as steatite ceramic or fiberglass. This robust casing is designed to withstand the high internal pressures and temperatures generated during arc quenching, preventing the fuse from fragmenting or exploding. Internal Filling Metal End Caps At both ends of the fuse, robust metal caps (often brass or copper) are securely sealed to the ceramic body. These caps provide the electrical connection points and ensure an airtight seal, preventing the escape of hot gases and arc energy during operation. This meticulous design ensures that the fuse operates safely and reliably, even under the most extreme fault conditions, isolating the fault without external hazards.

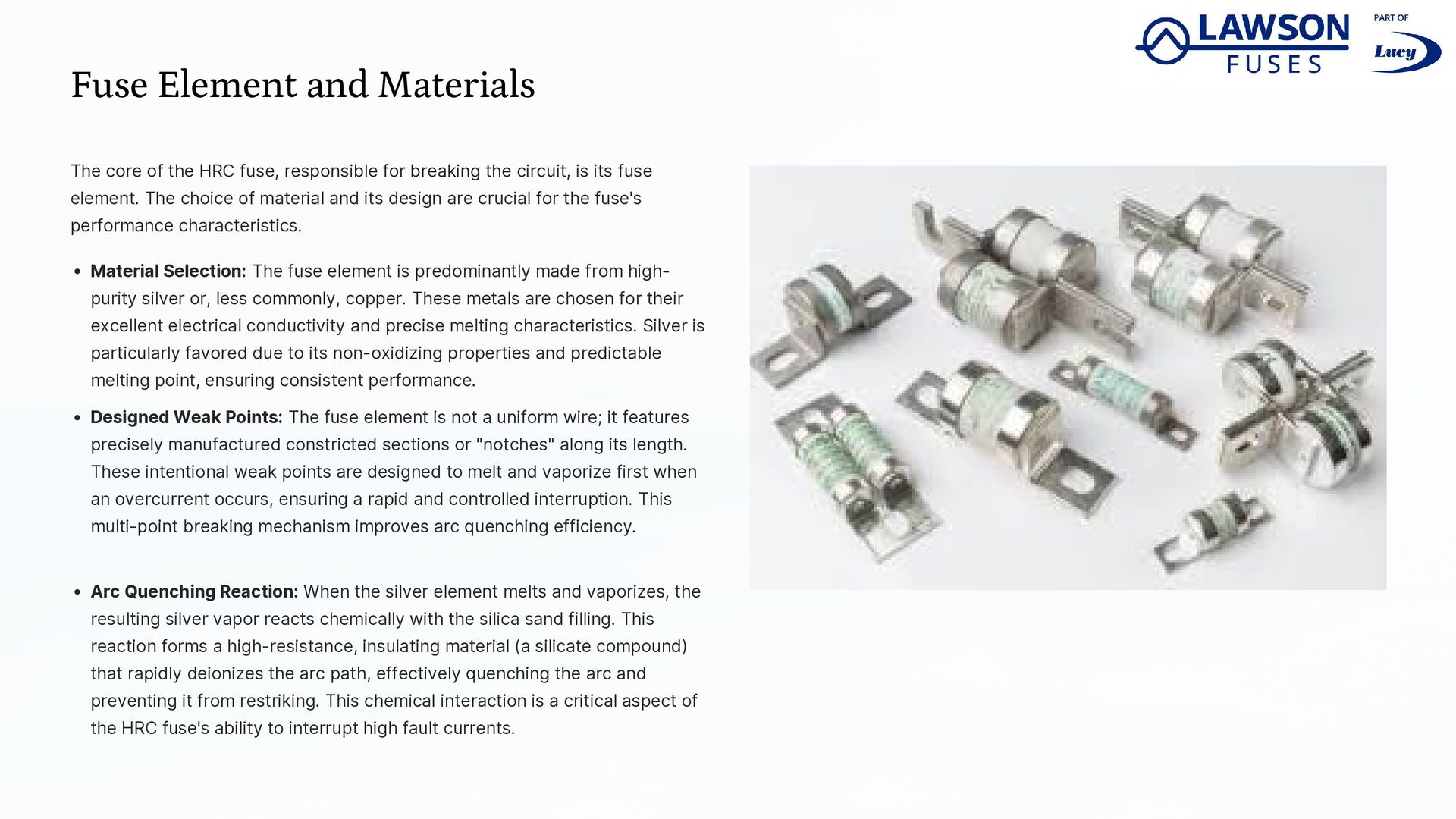

4. Fuse Element and Materials The core of the HRC fuse, responsible for breaking the circuit, is its fuse element. The choice of material and its design are crucial for the fuse's performance characteristics. Material Selection: The fuse element is predominantly made from high- purity silver or, less commonly, copper. These metals are chosen for their excellent electrical conductivity and precise melting characteristics. Silver is particularly favored due to its non-oxidizing properties and predictable melting point, ensuring consistent performance. Designed Weak Points: The fuse element is not a uniform wire; it features precisely manufactured constricted sections or "notches" along its length. These intentional weak points are designed to melt and vaporize first when an overcurrent occurs, ensuring a rapid and controlled interruption. This multi-point breaking mechanism improves arc quenching efficiency. Arc Quenching Reaction: When the silver element melts and vaporizes, the resulting silver vapor reacts chemically with the silica sand filling. This reaction forms a high-resistance, insulating material (a silicate compound) that rapidly deionizes the arc path, effectively quenching the arc and preventing it from restriking. This chemical interaction is a critical aspect of the HRC fuse's ability to interrupt high fault currents.

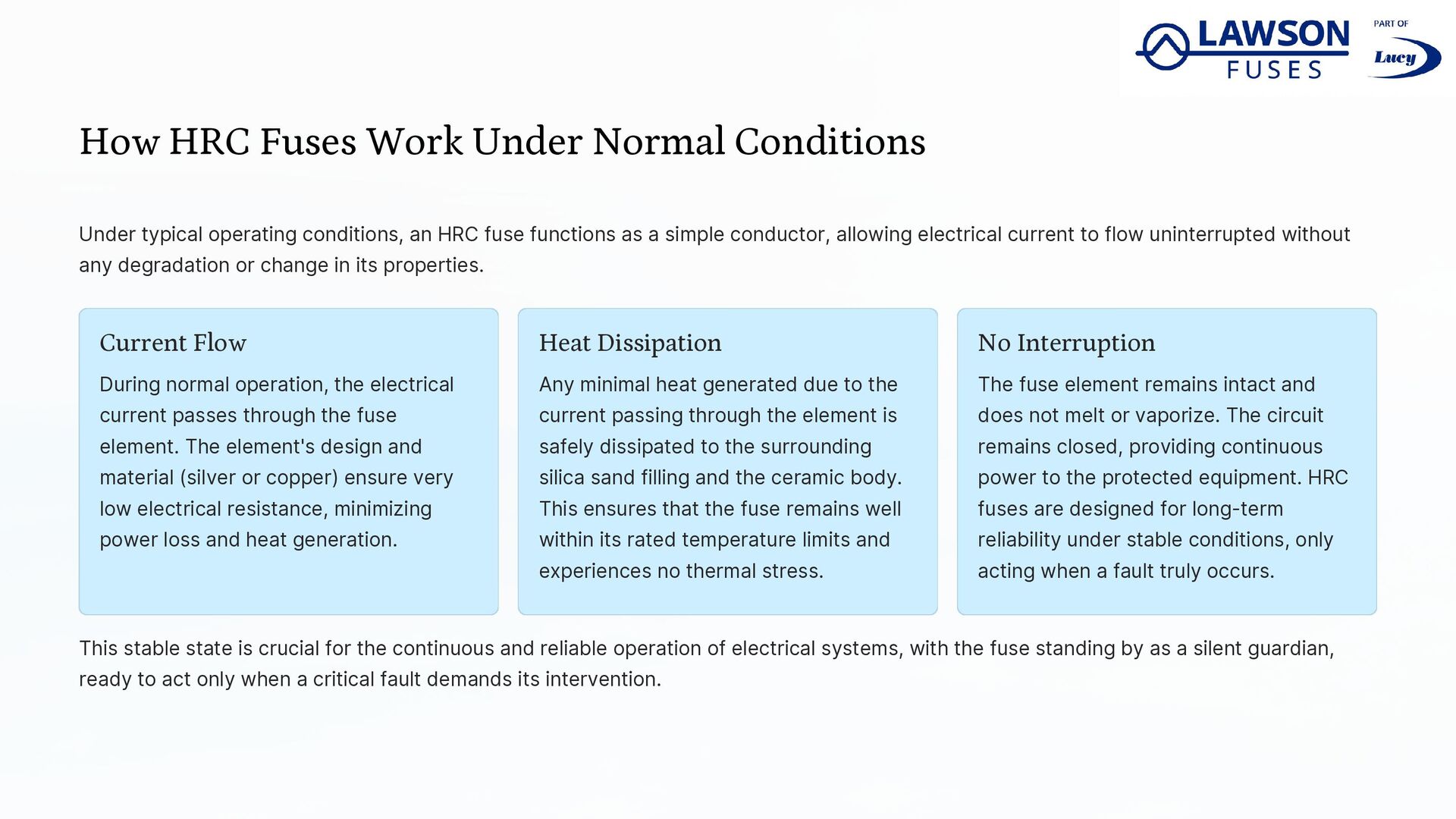

5. Any minimal heat generated due to the current passing through the element is safely dissipated to the surrounding silica sand filling and the ceramic body. This ensures that the fuse remains well within its rated temperature limits and experiences no thermal stress. How HRC Fuses Work Under Normal Conditions Under typical operating conditions, an HRC fuse functions as a simple conductor, allowing electrical current to flow uninterrupted without any degradation or change in its properties. Current Flow During normal operation, the electrical current passes through the fuse element. The element's design and material (silver or copper) ensure very low electrical resistance, minimizing power loss and heat generation. Heat Dissipation No Interruption The fuse element remains intact and does not melt or vaporize. The circuit remains closed, providing continuous power to the protected equipment. HRC fuses are designed for long-term reliability under stable conditions, only acting when a fault truly occurs. This stable state is crucial for the continuous and reliable operation of electrical systems, with the fuse standing by as a silent guardian, ready to act only when a critical fault demands its intervention.

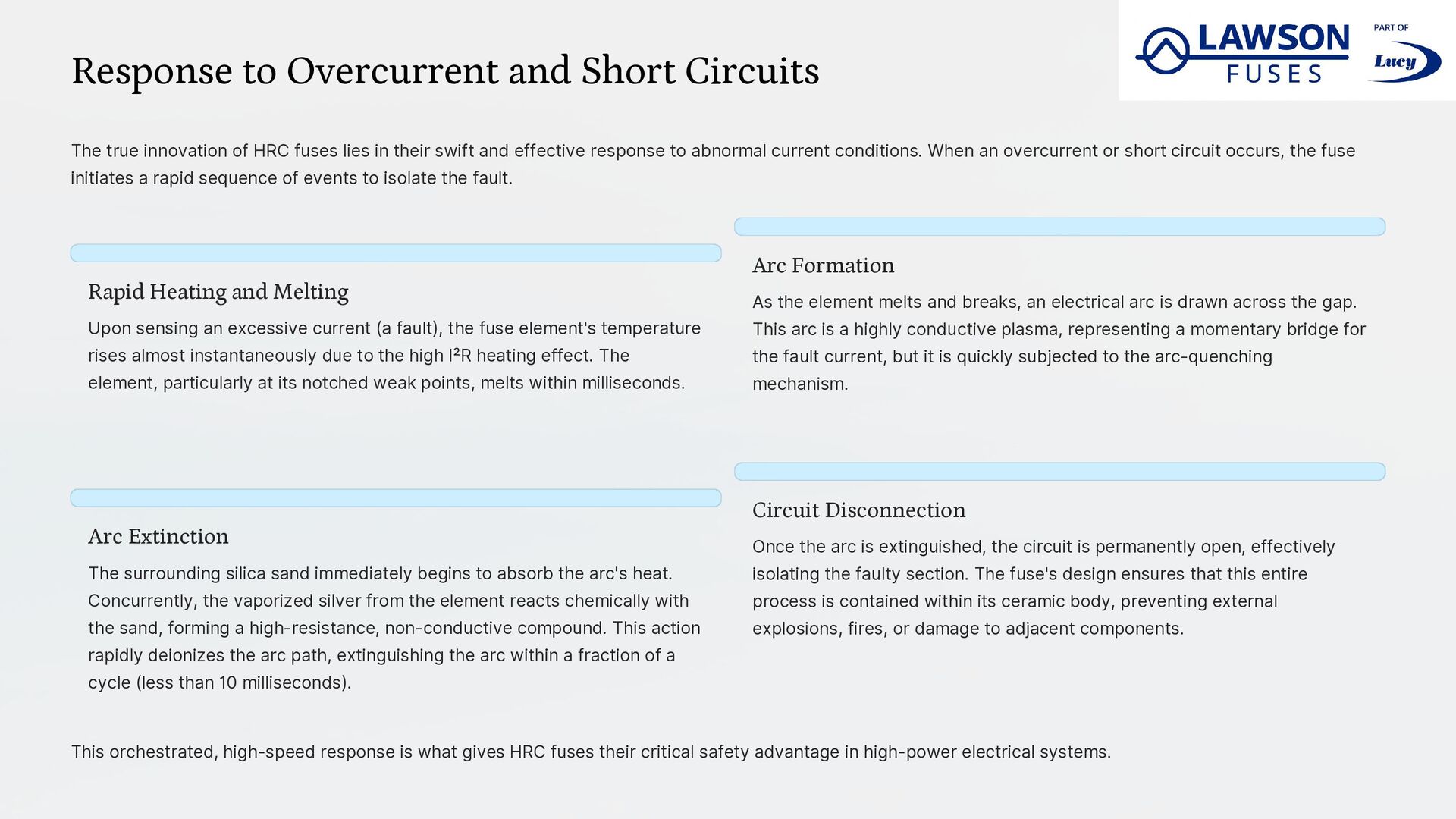

6. Response to Overcurrent and Short Circuits The true innovation of HRC fuses lies in their swift and effective response to abnormal current conditions. When an overcurrent or short circuit occurs, the fuse initiates a rapid sequence of events to isolate the fault. Rapid Heating and Melting Upon sensing an excessive current (a fault), the fuse element's temperature rises almost instantaneously due to the high I²R heating effect. The element, particularly at its notched weak points, melts within milliseconds. Arc Formation As the element melts and breaks, an electrical arc is drawn across the gap. This arc is a highly conductive plasma, representing a momentary bridge for the fault current, but it is quickly subjected to the arc-quenching mechanism. Arc Extinction The surrounding silica sand immediately begins to absorb the arc's heat. Concurrently, the vaporized silver from the element reacts chemically with the sand, forming a high-resistance, non-conductive compound. This action rapidly deionizes the arc path, extinguishing the arc within a fraction of a cycle (less than 10 milliseconds). Circuit Disconnection Once the arc is extinguished, the circuit is permanently open, effectively isolating the faulty section. The fuse's design ensures that this entire process is contained within its ceramic body, preventing external explosions, fires, or damage to adjacent components. This orchestrated, high-speed response is what gives HRC fuses their critical safety advantage in high-power electrical systems.

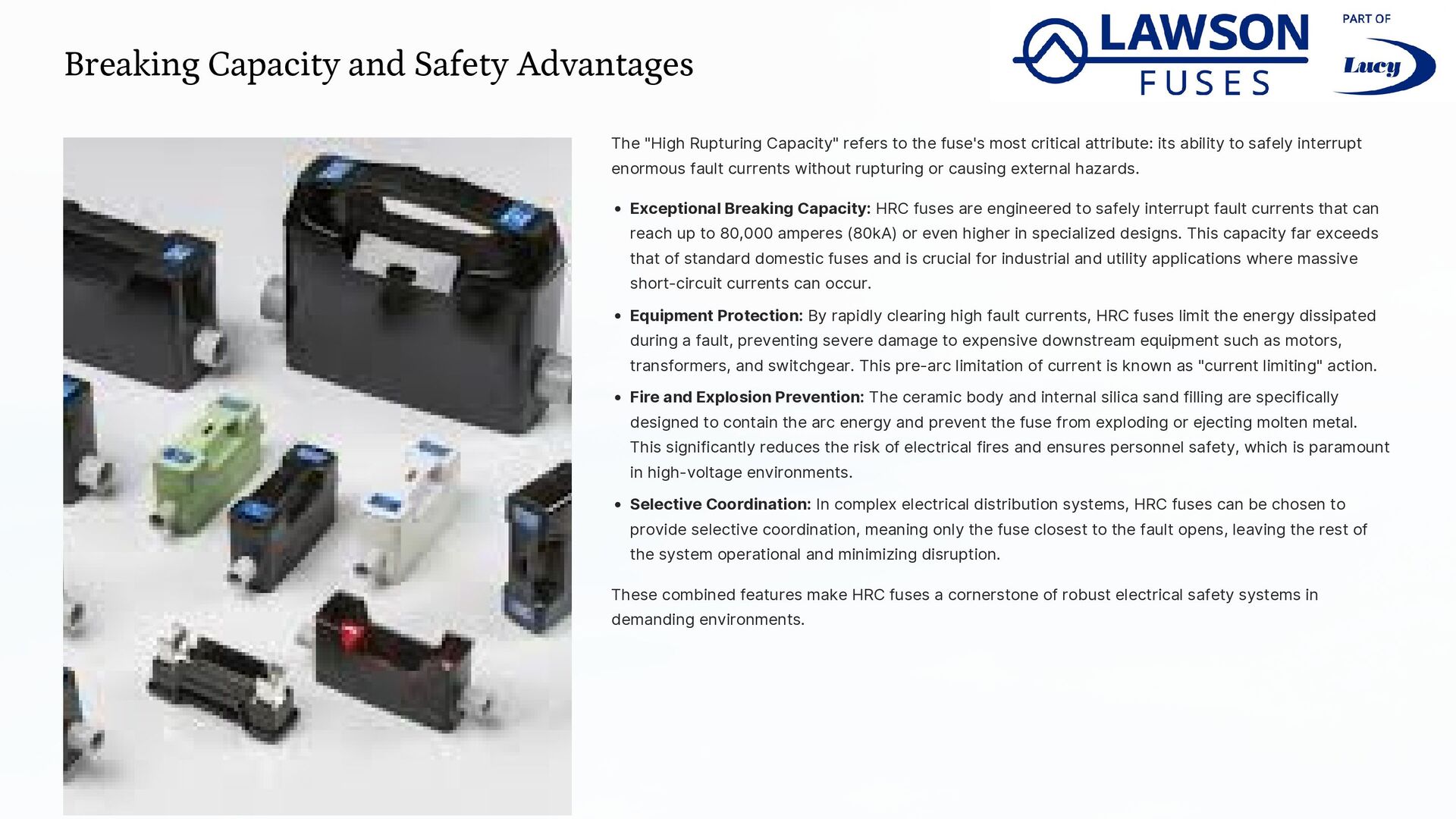

7. Breaking Capacity and Safety Advantages The "High Rupturing Capacity" refers to the fuse's most critical attribute: its ability to safely interrupt enormous fault currents without rupturing or causing external hazards. Exceptional Breaking Capacity: HRC fuses are engineered to safely interrupt fault currents that can reach up to 80,000 amperes (80kA) or even higher in specialized designs. This capacity far exceeds that of standard domestic fuses and is crucial for industrial and utility applications where massive short-circuit currents can occur. Equipment Protection: By rapidly clearing high fault currents, HRC fuses limit the energy dissipated during a fault, preventing severe damage to expensive downstream equipment such as motors, transformers, and switchgear. This pre-arc limitation of current is known as "current limiting" action. Fire and Explosion Prevention: The ceramic body and internal silica sand filling are specifically designed to contain the arc energy and prevent the fuse from exploding or ejecting molten metal. This significantly reduces the risk of electrical fires and ensures personnel safety, which is paramount in high-voltage environments. Selective Coordination: In complex electrical distribution systems, HRC fuses can be chosen to provide selective coordination, meaning only the fuse closest to the fault opens, leaving the rest of the system operational and minimizing disruption. These combined features make HRC fuses a cornerstone of robust electrical safety systems in demanding environments.

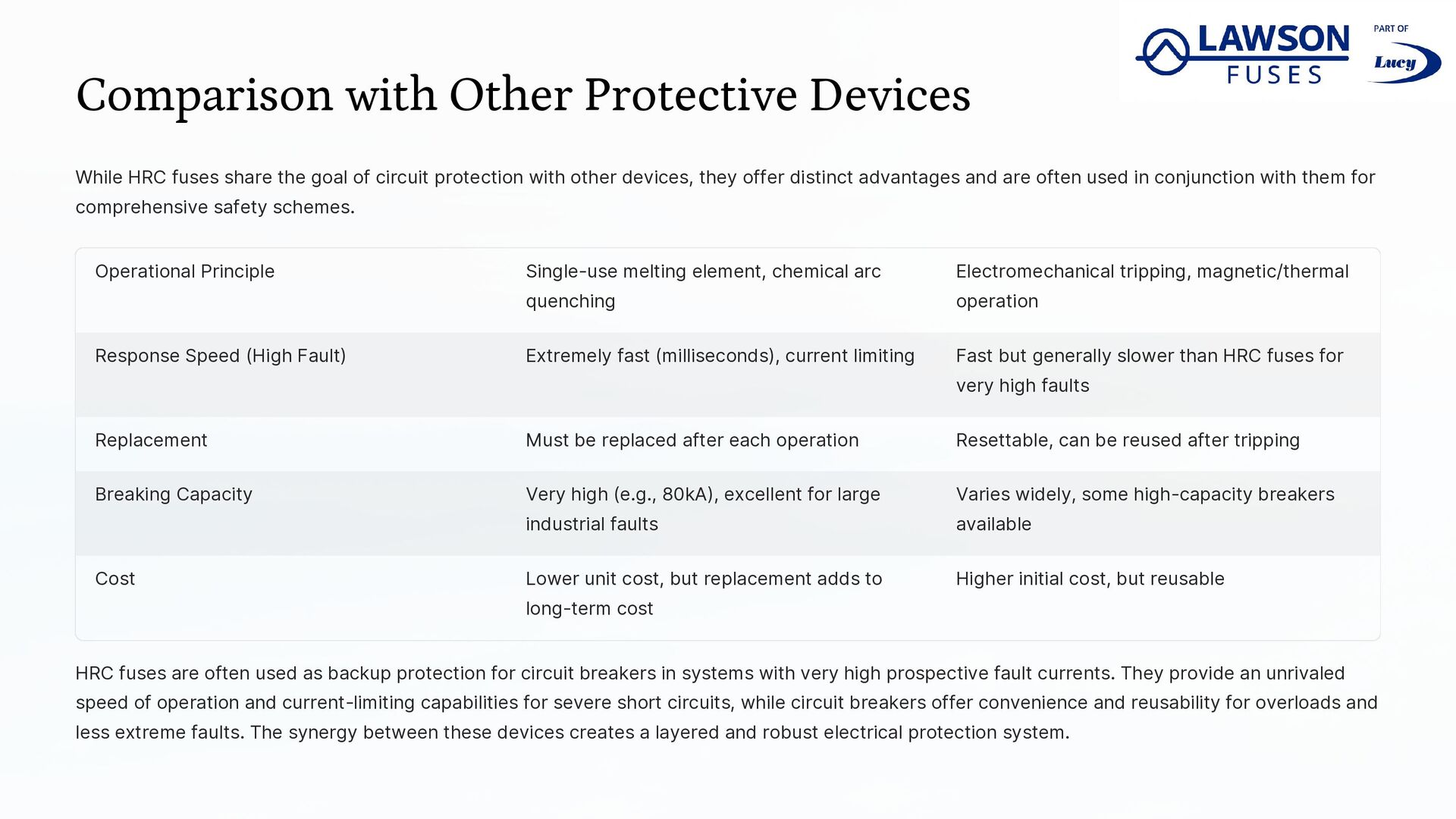

8. Comparison with Other Protective Devices While HRC fuses share the goal of circuit protection with other devices, they offer distinct advantages and are often used in conjunction with them for comprehensive safety schemes. Operational Principle Single-use melting element, chemical arc quenching Electromechanical tripping, magnetic/thermal operation Response Speed (High Fault) Extremely fast (milliseconds), current limiting Fast but generally slower than HRC fuses for very high faults Replacement Must be replaced after each operation Resettable, can be reused after tripping Breaking Capacity Very high (e.g., 80kA), excellent for large industrial faults Varies widely, some high-capacity breakers available Cost Lower unit cost, but replacement adds to long-term cost Higher initial cost, but reusable HRC fuses are often used as backup protection for circuit breakers in systems with very high prospective fault currents. They provide an unrivaled speed of operation and current-limiting capabilities for severe short circuits, while circuit breakers offer convenience and reusability for overloads and less extreme faults. The synergy between these devices creates a layered and robust electrical protection system.

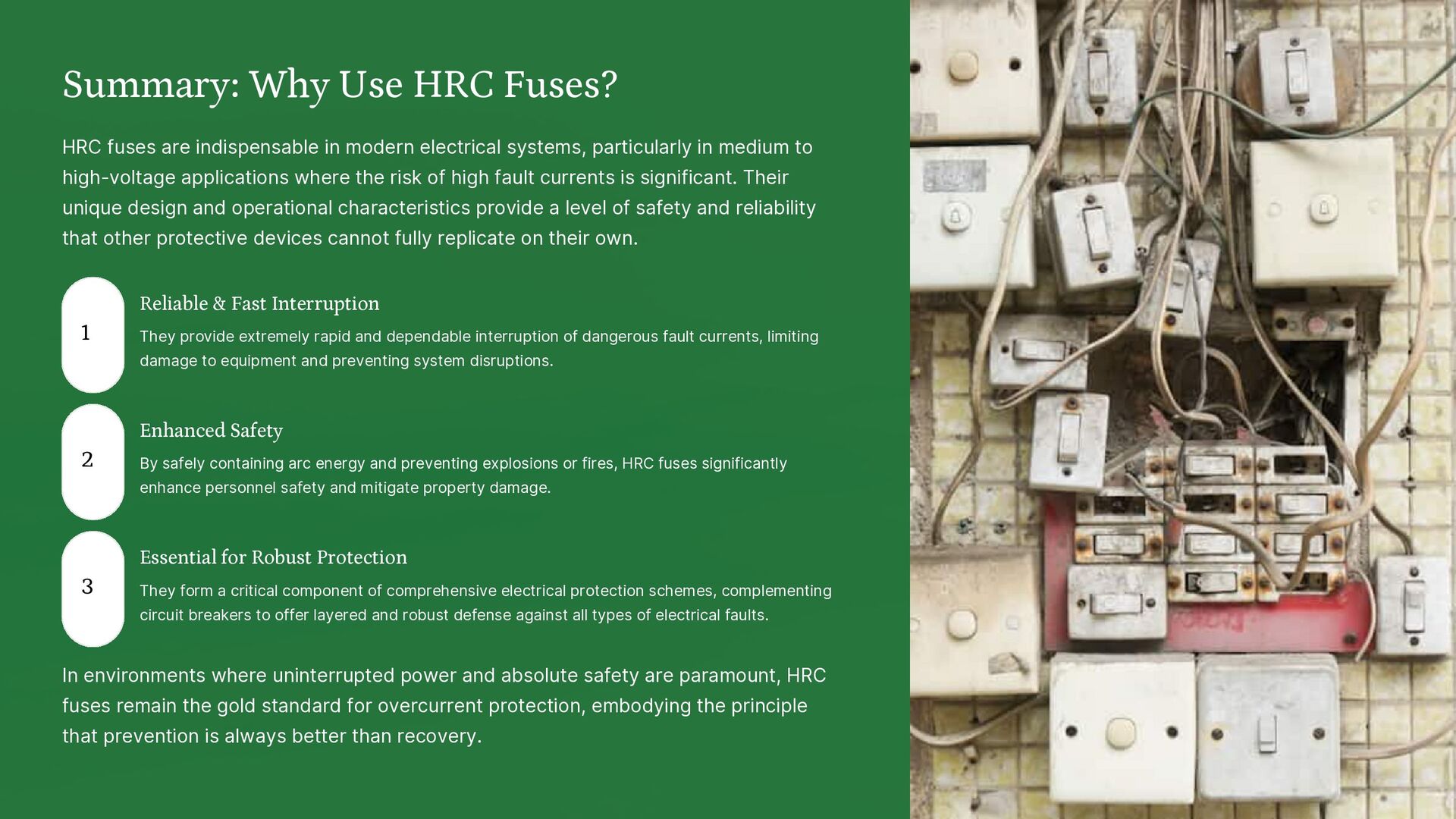

9. Summary: Why Use HRC Fuses? HRC fuses are indispensable in modern electrical systems, particularly in medium to high-voltage applications where the risk of high fault currents is significant. Their unique design and operational characteristics provide a level of safety and reliability that other protective devices cannot fully replicate on their own. 1 Reliable & Fast Interruption They provide extremely rapid and dependable interruption of dangerous fault currents, limiting damage to equipment and preventing system disruptions. 2 Enhanced Safety By safely containing arc energy and preventing explosions or fires, HRC fuses significantly enhance personnel safety and mitigate property damage. 3 Essential for Robust Protection They form a critical component of comprehensive electrical protection schemes, complementing circuit breakers to offer layered and robust defense against all types of electrical faults. In environments where uninterrupted power and absolute safety are paramount, HRC fuses remain the gold standard for overcurrent protection, embodying the principle that prevention is always better than recovery.
