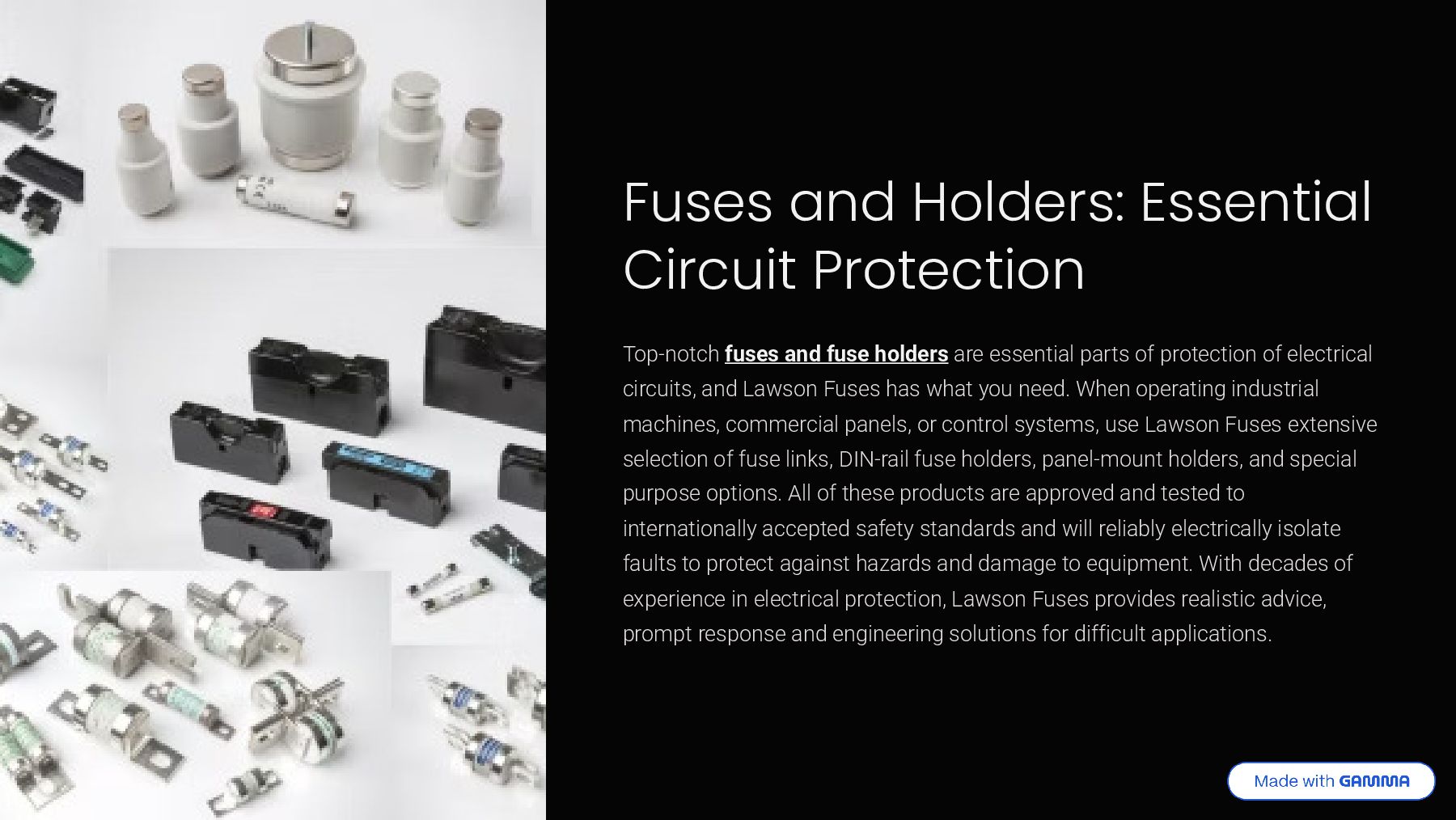

  1. Fuses and Holders: Essential Circuit Protection Top-notch fuses and fuse

    holders are essential parts of protection of electrical circuits, and Lawson Fuses has what you need. When operating industrial machines, commercial panels, or control systems, use Lawson Fuses extensive selection of fuse links, DIN-rail fuse holders, panel-mount holders, and special purpose options. All of these products are approved and tested to internationally accepted safety standards and will reliably electrically isolate faults to protect against hazards and damage to equipment. With decades of experience in electrical protection, Lawson Fuses provides realistic advice, prompt response and engineering solutions for difficult applications.

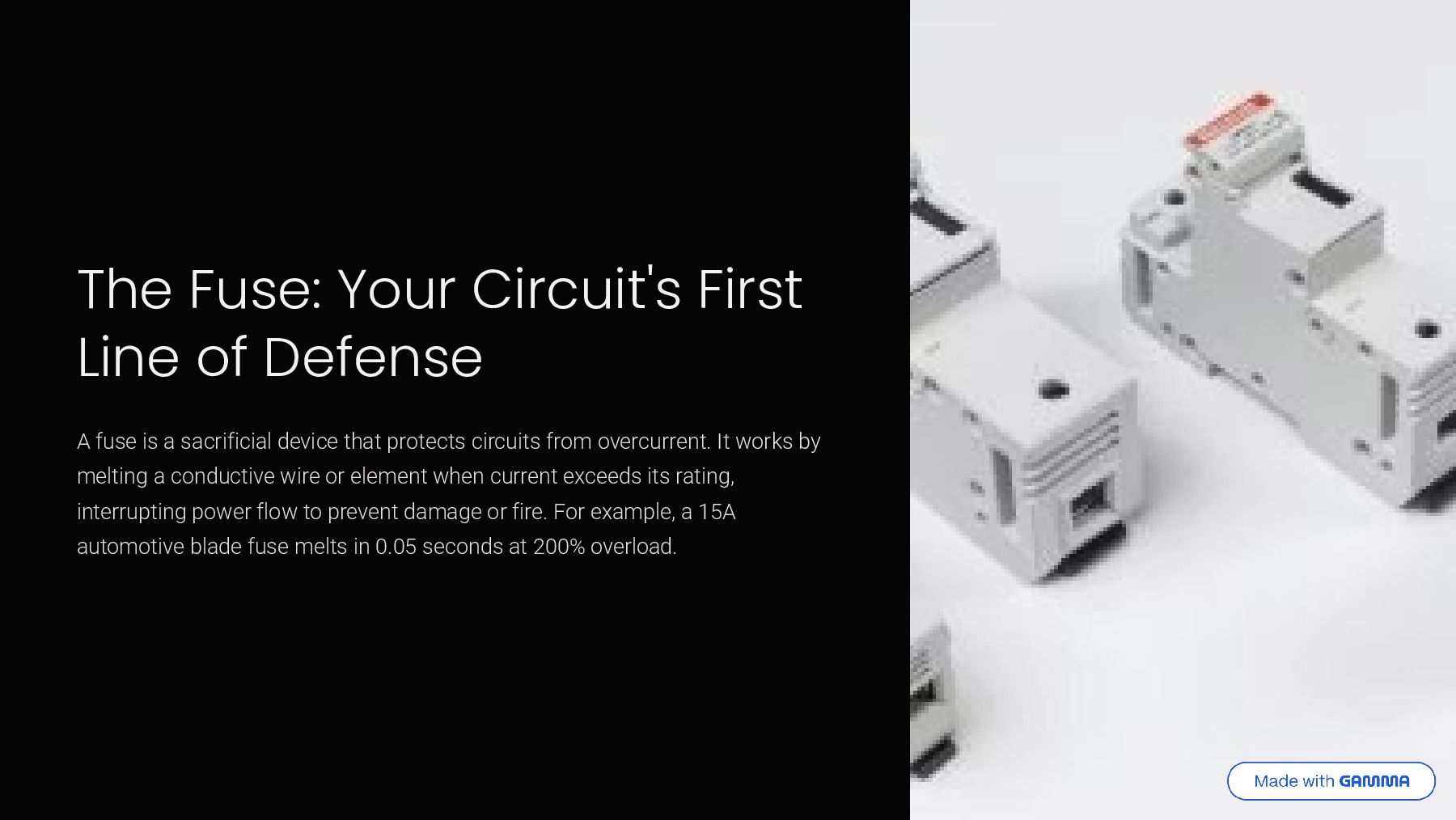

  2. The Fuse: Your Circuit's First Line of Defense A fuse

    is a sacrificial device that protects circuits from overcurrent. It works by melting a conductive wire or element when current exceeds its rating, interrupting power flow to prevent damage or fire. For example, a 15A automotive blade fuse melts in 0.05 seconds at 200% overload.

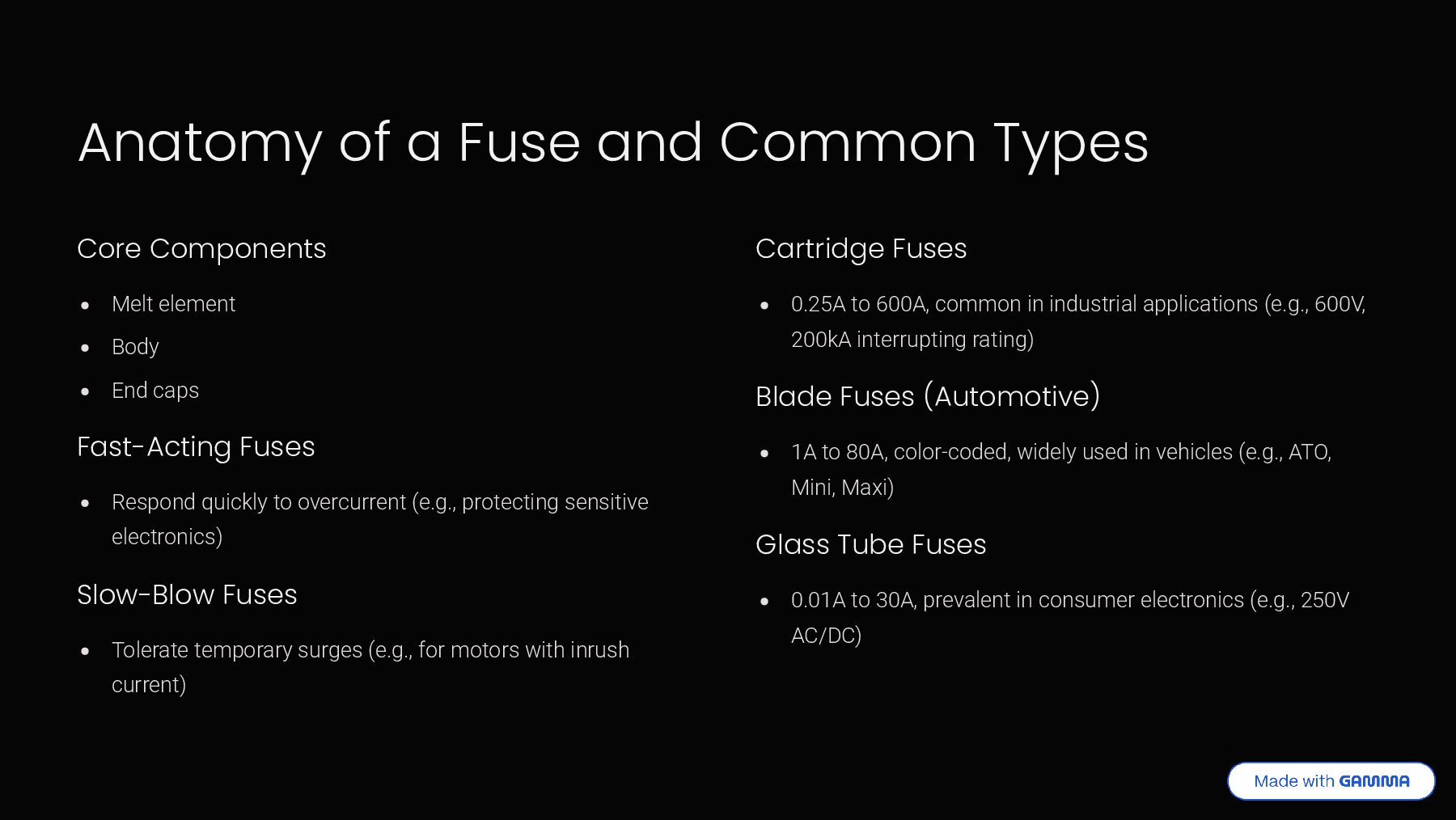

  3. Anatomy of a Fuse and Common Types Core Components Melt

    element Body End caps Fast-Acting Fuses Respond quickly to overcurrent (e.g., protecting sensitive electronics) Slow-Blow Fuses Tolerate temporary surges (e.g., for motors with inrush current) Cartridge Fuses 0.25A to 600A, common in industrial applications (e.g., 600V, 200kA interrupting rating) Blade Fuses (Automotive) 1A to 80A, color-coded, widely used in vehicles (e.g., ATO, Mini, Maxi) Glass Tube Fuses 0.01A to 30A, prevalent in consumer electronics (e.g., 250V AC/DC)

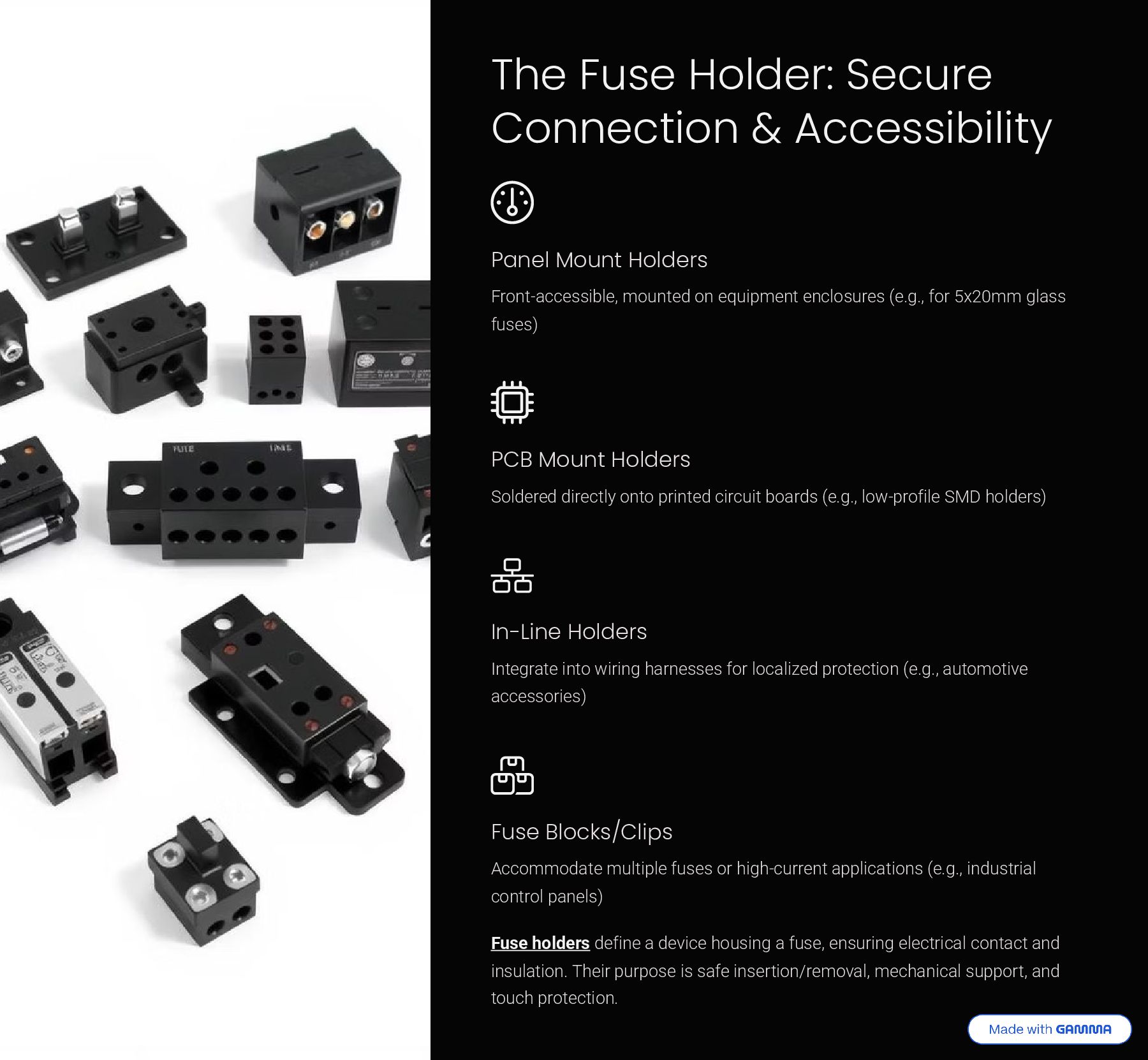

  4. The Fuse Holder: Secure Connection & Accessibility Panel Mount Holders

    Front-accessible, mounted on equipment enclosures (e.g., for 5x20mm glass fuses) PCB Mount Holders Soldered directly onto printed circuit boards (e.g., low-profile SMD holders) In-Line Holders Integrate into wiring harnesses for localized protection (e.g., automotive accessories) Fuse Blocks/Clips Accommodate multiple fuses or high-current applications (e.g., industrial control panels) Fuse holders define a device housing a fuse, ensuring electrical contact and insulation. Their purpose is safe insertion/removal, mechanical support, and touch protection.

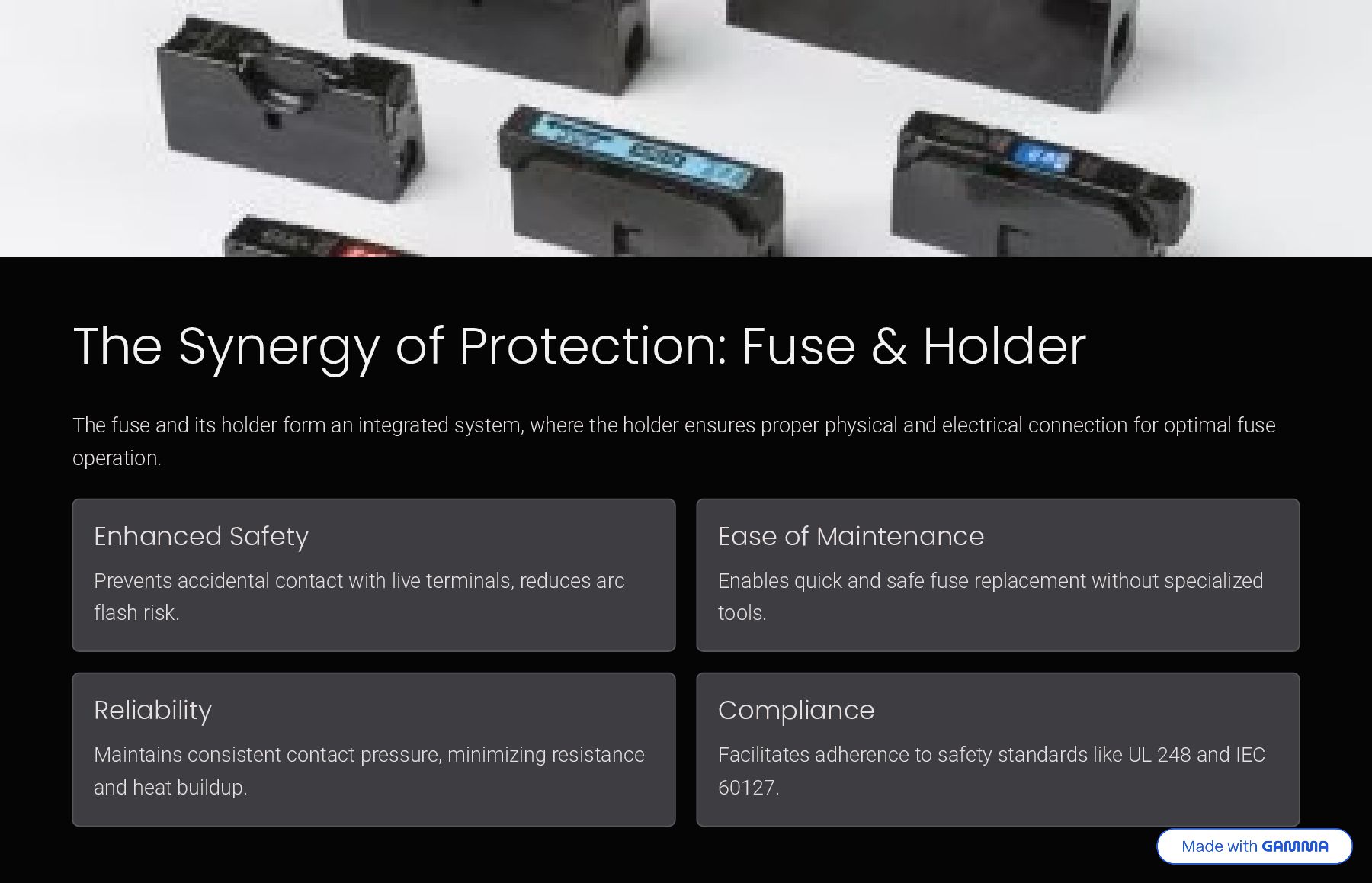

  5. The Synergy of Protection: Fuse & Holder The fuse and

    its holder form an integrated system, where the holder ensures proper physical and electrical connection for optimal fuse operation. Enhanced Safety Prevents accidental contact with live terminals, reduces arc flash risk. Ease of Maintenance Enables quick and safe fuse replacement without specialized tools. Reliability Maintains consistent contact pressure, minimizing resistance and heat buildup. Compliance Facilitates adherence to safety standards like UL 248 and IEC 60127.

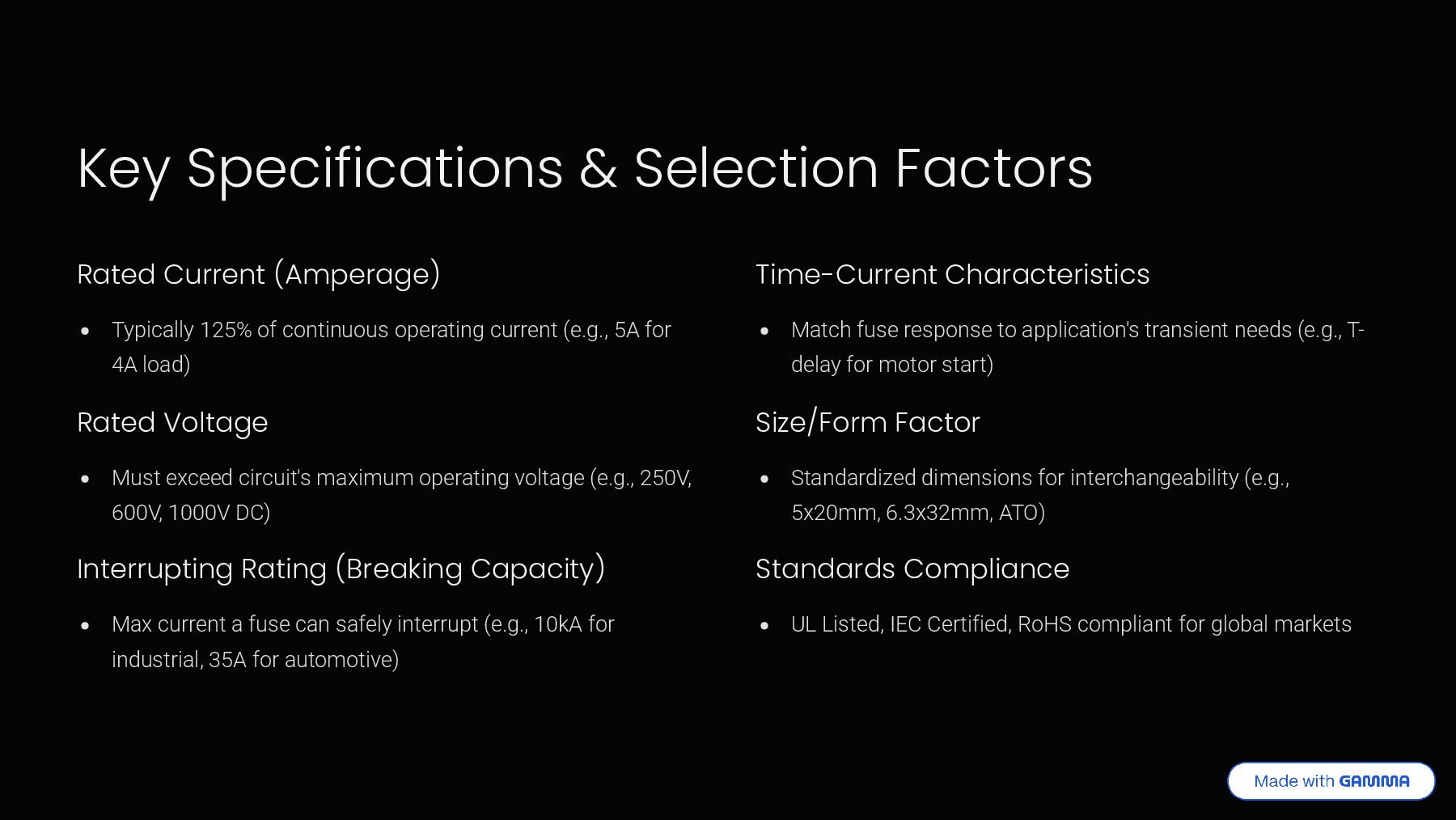

  6. Key Specifications & Selection Factors Rated Current (Amperage) Typically 125%

    of continuous operating current (e.g., 5A for 4A load) Rated Voltage Must exceed circuit's maximum operating voltage (e.g., 250V, 600V, 1000V DC) Interrupting Rating (Breaking Capacity) Max current a fuse can safely interrupt (e.g., 10kA for industrial, 35A for automotive) Time-Current Characteristics Match fuse response to application's transient needs (e.g., T- delay for motor start) Size/Form Factor Standardized dimensions for interchangeability (e.g., 5x20mm, 6.3x32mm, ATO) Standards Compliance UL Listed, IEC Certified, RoHS compliant for global markets

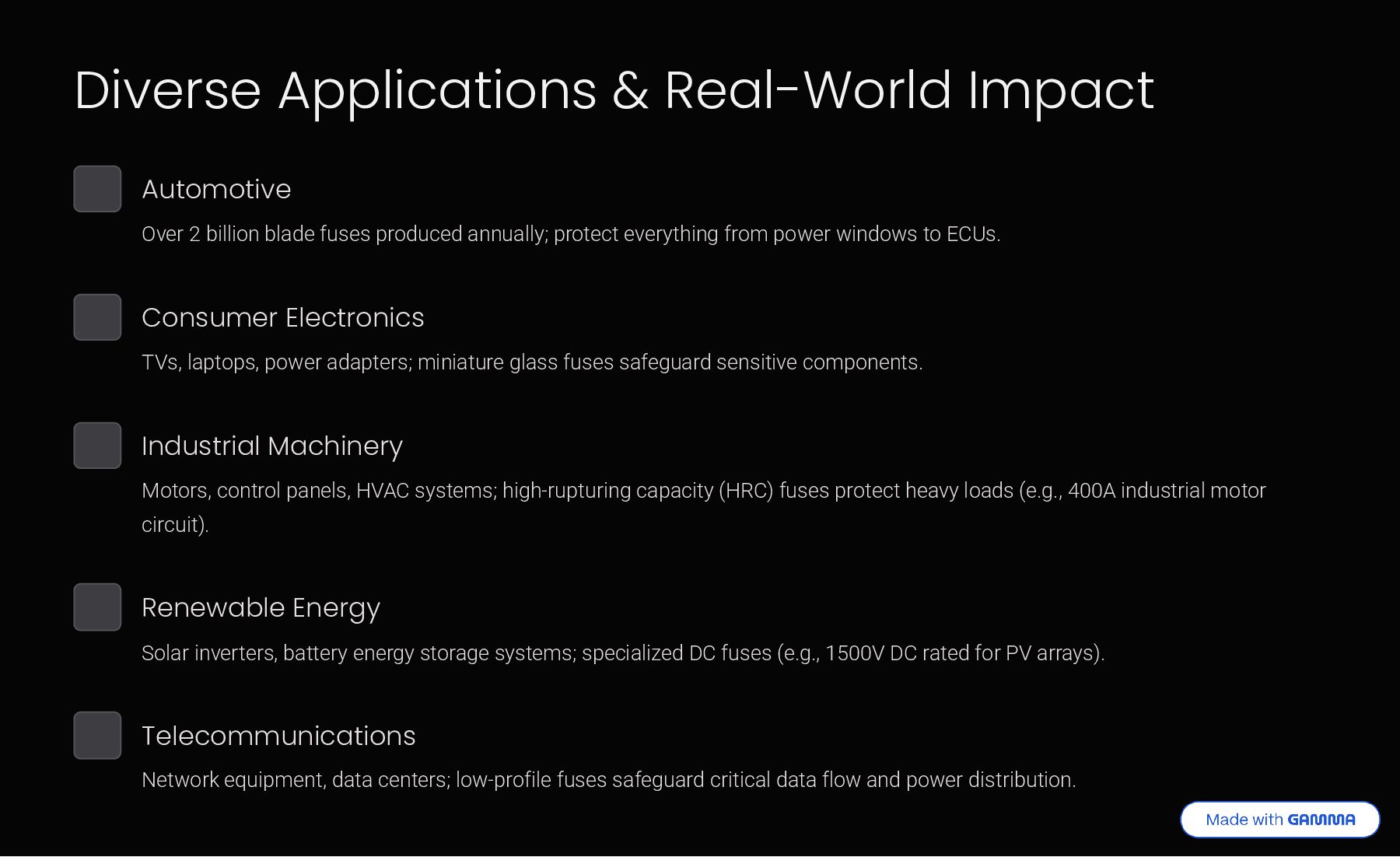

  7. Diverse Applications & Real-World Impact Automotive Over 2 billion blade

    fuses produced annually; protect everything from power windows to ECUs. Consumer Electronics TVs, laptops, power adapters; miniature glass fuses safeguard sensitive components. Industrial Machinery Motors, control panels, HVAC systems; high-rupturing capacity (HRC) fuses protect heavy loads (e.g., 400A industrial motor circuit). Renewable Energy Solar inverters, battery energy storage systems; specialized DC fuses (e.g., 1500V DC rated for PV arrays). Telecommunications Network equipment, data centers; low-profile fuses safeguard critical data flow and power distribution.

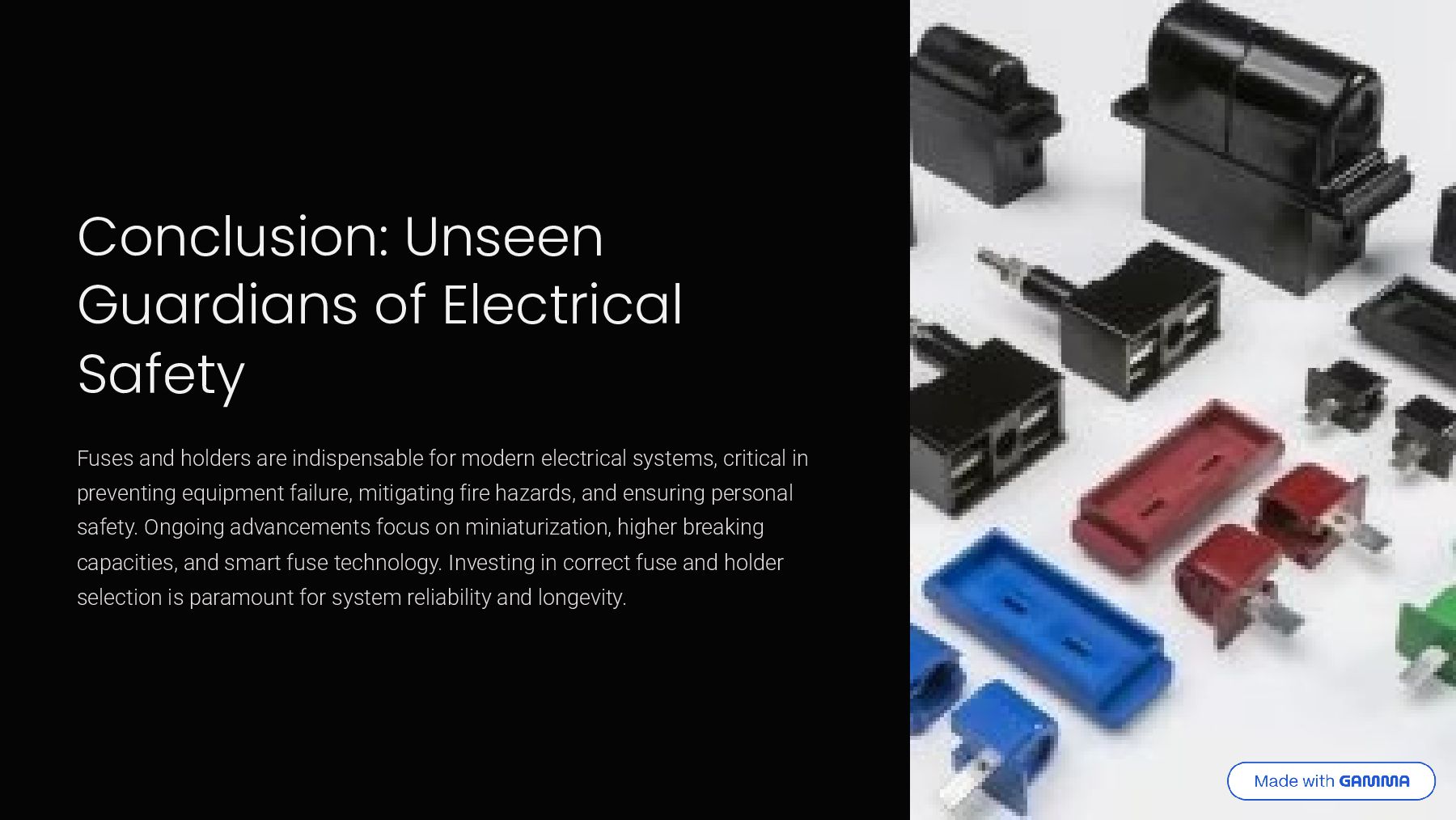

  8. Conclusion: Unseen Guardians of Electrical Safety Fuses and holders are

    indispensable for modern electrical systems, critical in preventing equipment failure, mitigating fire hazards, and ensuring personal safety. Ongoing advancements focus on miniaturization, higher breaking capacities, and smart fuse technology. Investing in correct fuse and holder selection is paramount for system reliability and longevity.
  9. Lawson Fuse Lawson Fuses is a trusted name in providing

    high-quality fuses and fuse holders for industrial and commercial electrical protection. Their products are designed to ensure safety, reliability, and compliance with international standards. Whether you need low-voltage fuse links, industrial fuse holders, or custom protection solutions, Lawson Fuses offers a wide range of options tailored to various applications. With decades of expertise, LawsonFuses.com is a go-to source for electricians, panel builders, and engineers looking for durable, efficient, and certified fuse technology. Explore their website to find the ideal protection devices for your electrical systems. Contact us: 6358937552 Mail: [email protected] Website: https://www.lawsonfuses.com
