速習 Spring AI Gemini CLIのようなLLM CLIを自作しよう
JJUG CCC 2025 Fallでの登壇資料です。
今年の5月に Spring AI が GA になりました。
Springユーザーとして、既存のSpringによる実装を再利用したMCPサーバー化や、JavaでのLLMアプリケーション開発について、気になっている人は多いのではないでしょうか。

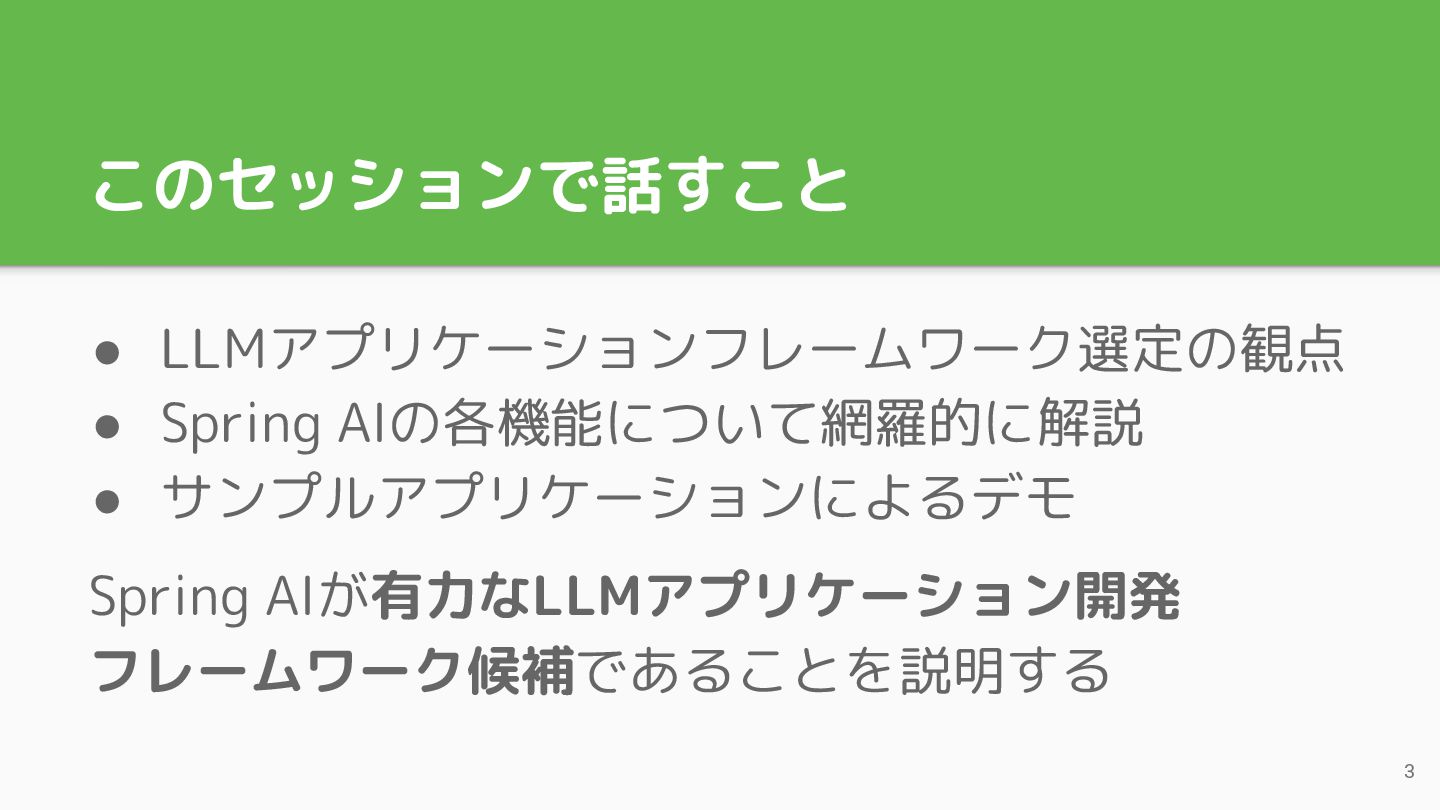

このセッションでは
・LLMアプリケーションフレームワーク選定の観点
・Spring AIの各機能について網羅的に解説
・サンプルアプリケーションによるデモ
について解説します。
roronya
November 14, 2025
Transcript
60 slides
-

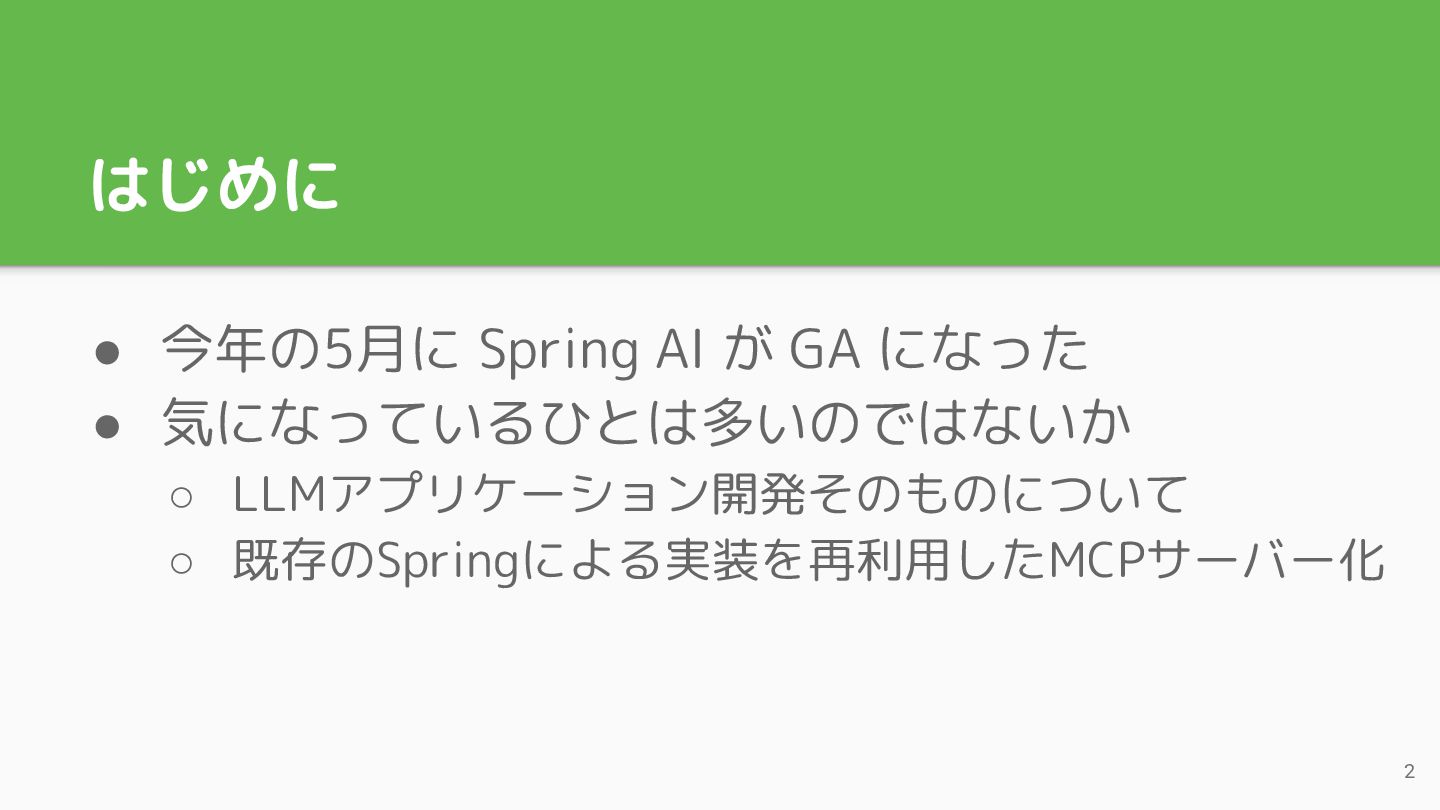

はじめに • 今年の5月に Spring AI が GA になった • 気になっているひとは多いのではないか
◦ LLMアプリケーション開発そのものについて ◦ 既存のSpringによる実装を再利用したMCPサーバー化 2 -

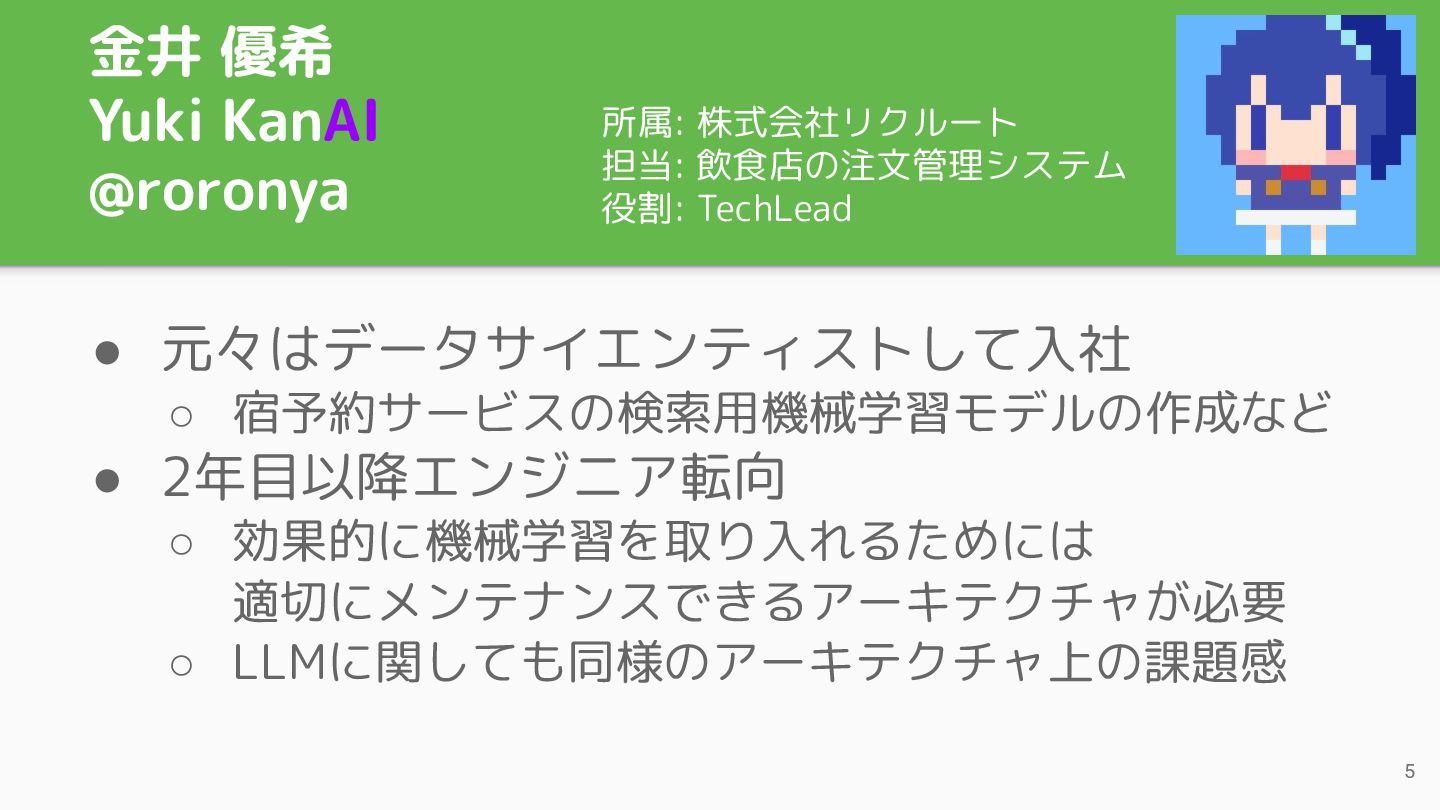

金井 優希 Yuki KanAI @roronya • 元々はデータサイエンティストして入社 ◦ 宿予約サービスの検索用機械学習モデルの作成など •
2年目以降エンジニア転向 ◦ 効果的に機械学習を取り入れるためには 適切にメンテナンスできるアーキテクチャが必要 ◦ LLMに関しても同様のアーキテクチャ上の課題感 5 所属: 株式会社リクルート 担当: 飲食店の注文管理システム 役割: TechLead -

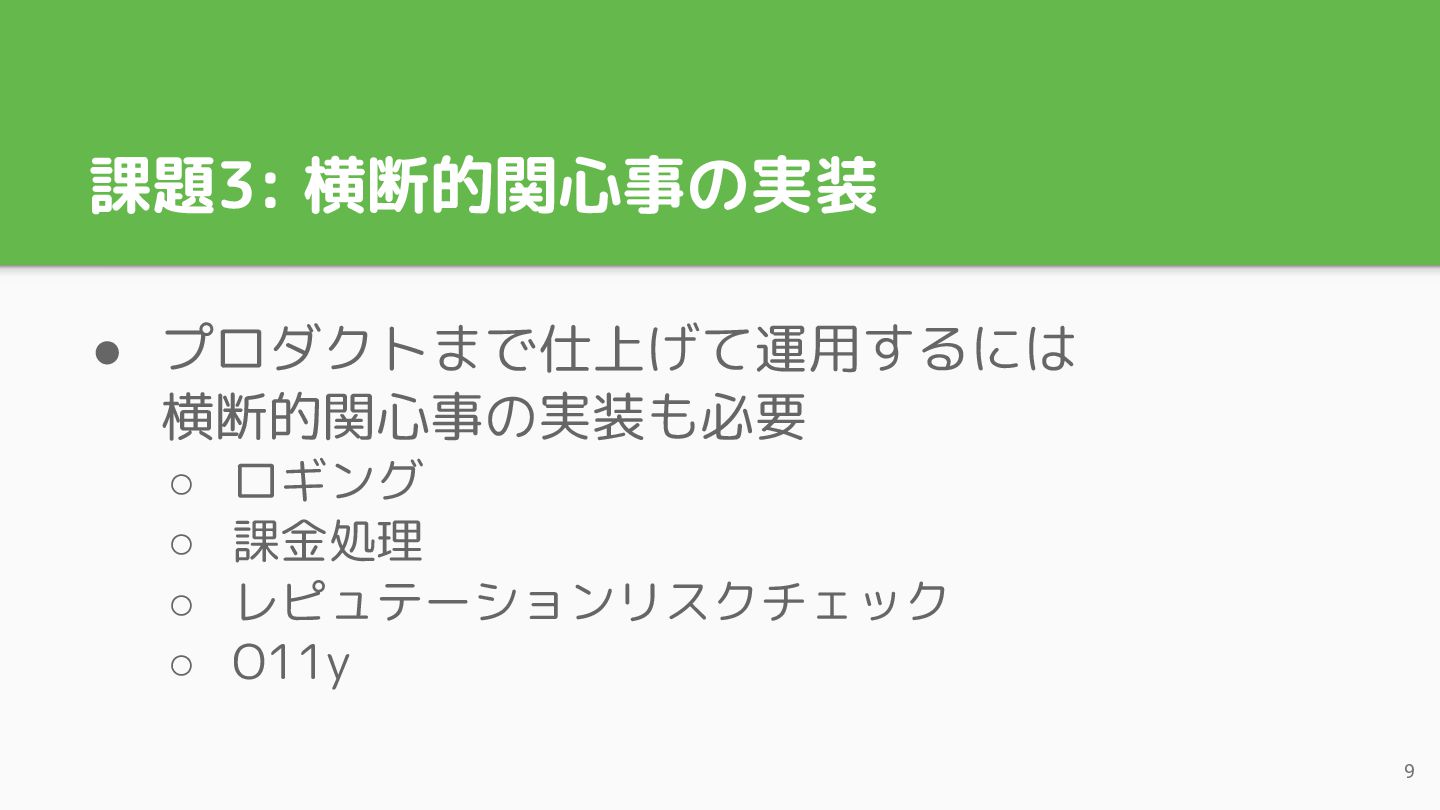

課題3: 横断的関心事の実装 • プロダクトまで仕上げて運用するには 横断的関心事の実装も必要 ◦ ロギング ◦ 課金処理 ◦
レピュテーションリスクチェック ◦ O11y 9 -
LLM FWの分布とSpring AIのポジショニング 12 Java実装では他にLangChain4jが有名 軽量 重量 LiteLLMなど 各LLMベンダーAPI汎用化 AWS
Bedrock クラウドインフラとの統合 (PaaS) LangChain LlamaIndex Spring AIなど より多機能なFW Python実装が多いが 他言語でも実装され始めている -

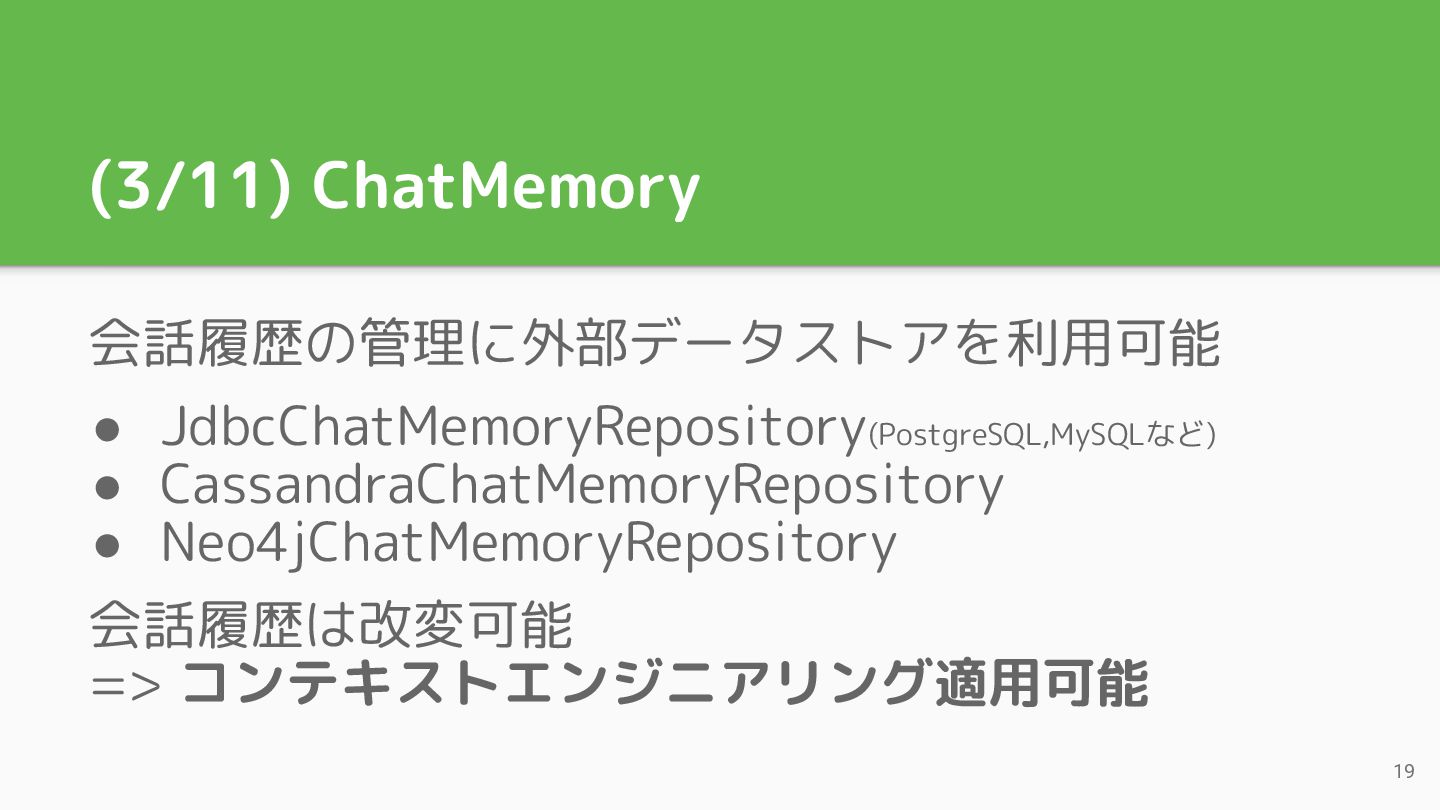

1. 基本的な使い方 2. 各LLMベンダーのChatModelの汎化 3. ChatMemory 4. PromptTemplate 5. Structured
Output 6. ToolCalling 7. MCP Client 8. MCP Server 9. Advisor 10. Observability 11. その他 14 -
(1/11) 基本的な使い方 15 private final List<Message> history = new ArrayList<>();
String response = chatClient .prompt() .system(systemPrompt) .user(userPrompt) .tools(new CommandTool(), new TimeTool()) .messages(history) .call() .content(); history.add(new UserMessage(userPrompt)); history.add(new AssistantMessage(response)); -
(2/11) 各LLMベンダのChatModelの汎化 16 ChatClient ChatModel OpenAIChatModel OllamaChatModel VertexAiGeminiChatModel etc... •
LLMベンダーごとの差異を ChatModelインターフェースで吸収 • ユーザーはChatClientの使い方のみ知れば良い -
各LLMベンダのChatModelの汎化: 使い方 17 • build.gradleにstarterの依存を追加 • 各LLMベンダー用の設定をapplication.ymlに書く implementation 'org.springframework.ai:spring-ai-starter-model-openai' ai:
openai: api-key: ${OPENAI_API_KEY} chat: options: model: gpt-4o-mini @Autowired private final OpenAiChatModel openAiChatModel; • 使いたいコンポーネントで@Autowiredする -
(4/11) PromptTemplate • Promptをテンプレートエンジンを使って書ける ◦ {}でくくって、Mapをわたす 20 String systemPrompt =
new PromptTemplate("{country}の首都はどこ?") .create(Map.of("country", "日本")) .getContents(); -
Structured Output: 動作例 23 LLMのレスポンスを内容と理由に構造化したい 理由まで説明させると回答精度が上がるCoTというテクニック public record Response( String
content, String reason ) { } -
Structured Output: 動作例 24 1. Response型を指定しConverterを作成 2. Converterが出力形式指定プロンプトを生成 3. PromptTemplateで埋め込む
BeanOutputConverter<Response> converter = new BeanOutputConverter<>(Response.class); String format = converter.getFormat(); String systemPrompt = new PromptTemplate(promptResource) .create(Map.of("format", format)) .getContents(); -

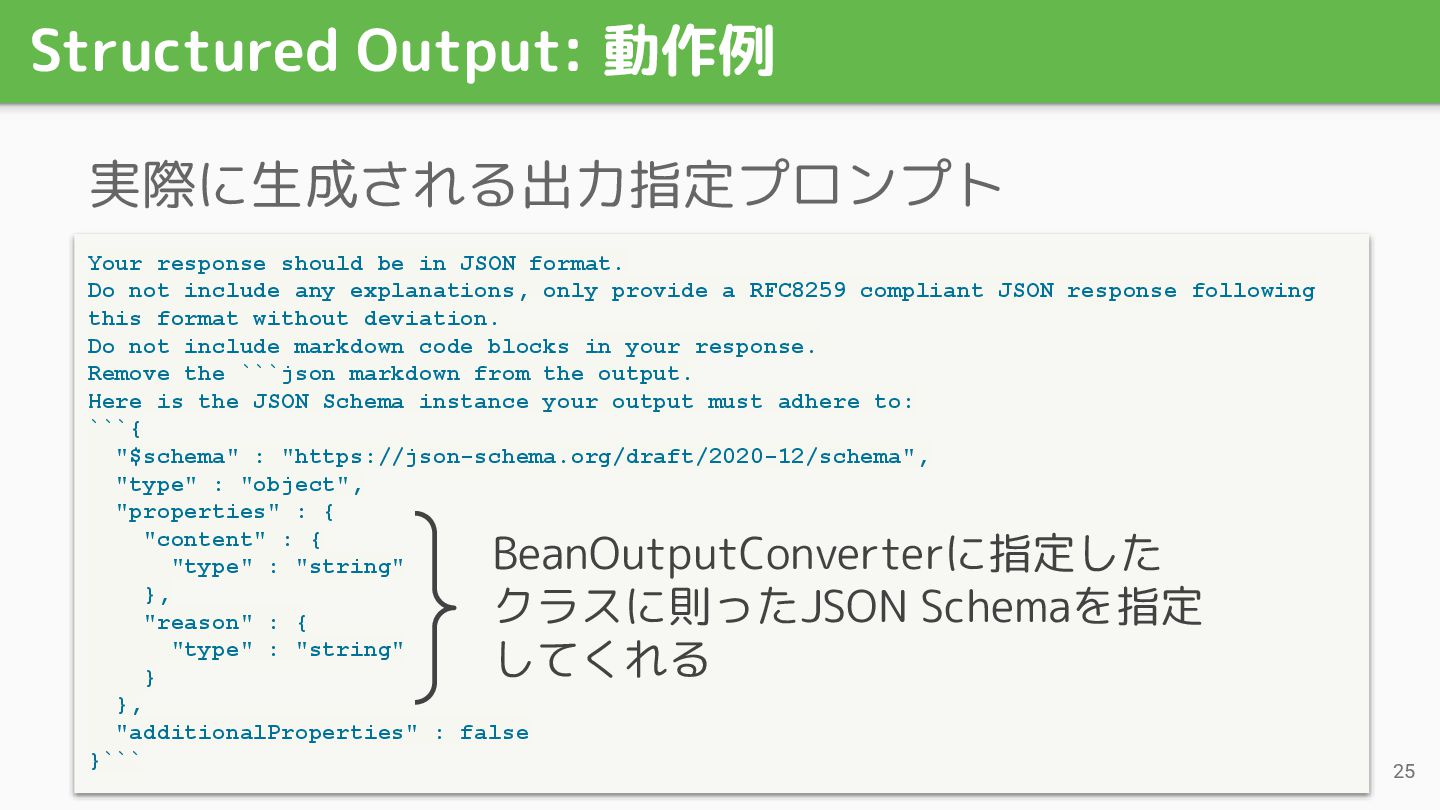

Structured Output: 動作例 25 実際に生成される出力指定プロンプト Your response should be in
JSON format. Do not include any explanations, only provide a RFC8259 compliant JSON response following this format without deviation. Do not include markdown code blocks in your response. Remove the ```json markdown from the output. Here is the JSON Schema instance your output must adhere to: ```{ "$schema" : "https://json-schema.org/draft/2020-12/schema", "type" : "object", "properties" : { "content" : { "type" : "string" }, "reason" : { "type" : "string" } }, "additionalProperties" : false }``` BeanOutputConverterに指定した クラスに則ったJSON Schemaを指定 してくれる -
Structured Output: 注意 26 • モデルが提供するStructured Outputとは異なる ◦ Structured Output機能を
持ってないLLMにもある程度有効 ◦ モデルが提供するStructured Outputも使える • 100%のJSON出力を保証するものではない ◦ プロンプトで指定しているだけなので > The StructuredOutputConverter is a best effort to convert the model output into a structured output. https://docs.spring.io/spring-ai/reference/api/structured-output-converter.html -
Tool Calling: 現在時刻を返すToolの例 28 @Tool( name = "get_now", description =
"return current date as String" ) public String getNow() { return LocalDateTime .now() .atZone(LocaleContextHolder.getTimeZone().toZoneId()) .toString(); } -
Tool Calling: 特定の日付の文字列から曜日を返す例 29 多少複雑な引数もLLMが指定してくれる formatPattern="yyyy/MM/dd"なども作ってくれる @Tool( name = "get_day_of_week",
description = """ return day of week. Arguments are dateString and formatPattern. """ ) public String getDayOfWeek(String dateString, String formatPattern) { DateTimeFormatter formatter = DateTimeFormatter.ofPattern(formatPattern); LocalDate date = LocalDate.parse(dateString, formatter); DayOfWeek dayOfWeek = date.getDayOfWeek(); return dayOfWeek.getDisplayName(TextStyle.FULL, Locale.JAPANESE); } -
(7/11) MCP Client • デフォルトではMCP Clientとしては機能しない • MCP Client用のstarterの依存を追加する •
• 設定ファイルにMCPサーバーのアドレス書くと アプリ起動時に問い合わせてToolとして登録してくれる (あとはTool Callingと一緒) 31 implementation 'org.springframework.ai:spring-ai-starter-mcp-client' -
(8/11) MCP Server • デフォルトではMCP Serverとしては機能しない • MCP Server用のstarterの依存を追加する 32
implementation 'org.springframework.ai:spring-ai-starter-mcp-server-webmvc' -
MCP Server: 現在時刻を返すMCPサーバー 33 ToolCallbackにロジックをラップし Beanに登録するだけでMCPサーバーが立つ @Bean // 現在時刻を返すだけの Tool
public ToolCallback getCurrentDateTime() { return FunctionToolCallback.builder( "getCurrentDateTime", () -> LocalDateTime .now() .atZone(LocaleContextHolder.getTimeZone().toZoneId()) .toString()) .description("Get the current date and time in the user's timezone") .build(); } -
Advisor 35 • Advisorの優先度を 決められる ◦ Springっぽい • デフォルトでAdvisor が提供されてる
◦ ChatMemoryへの 会話履歴の保存 ◦ ロギング -

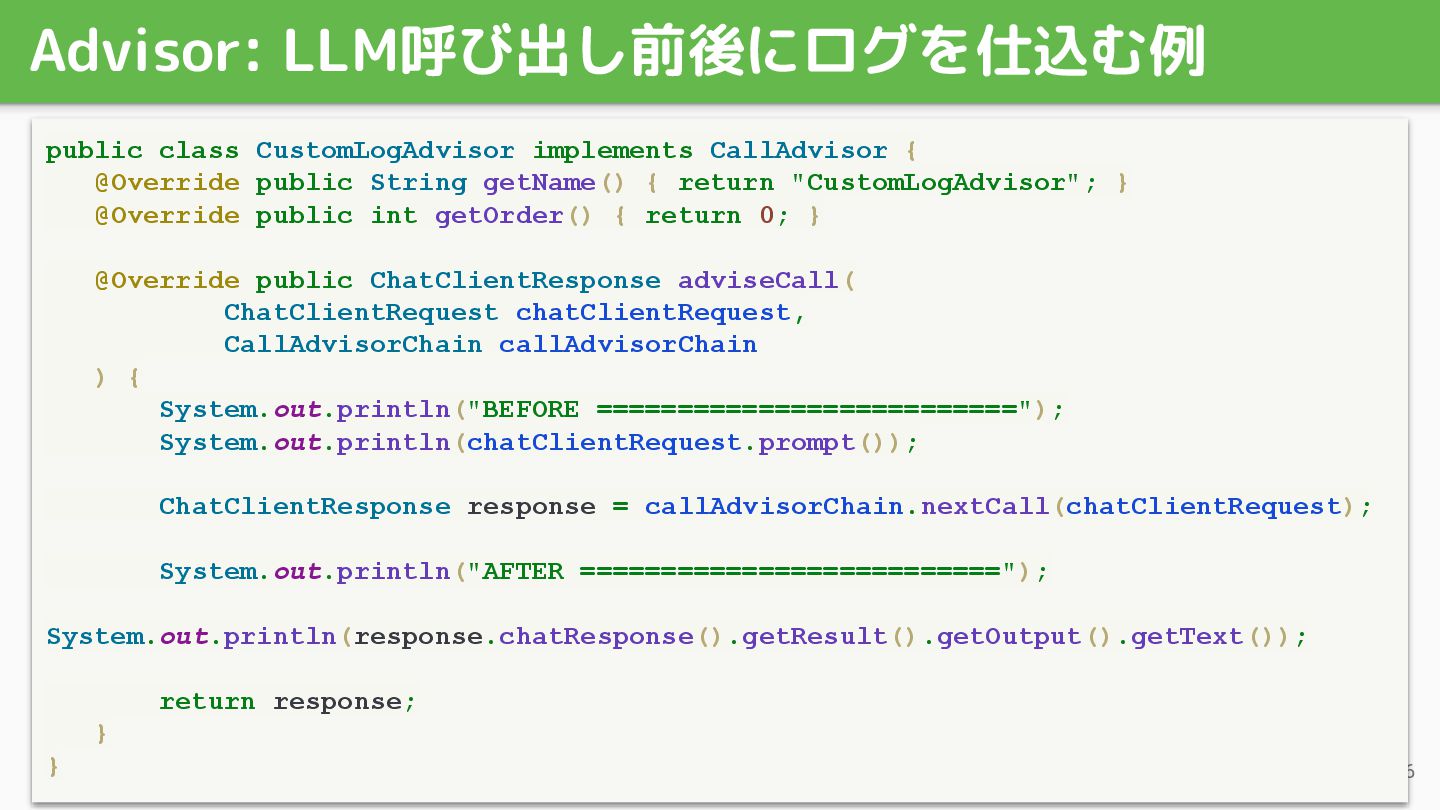

Advisor: LLM呼び出し前後にログを仕込む例 36 public class CustomLogAdvisor implements CallAdvisor { @Override
public String getName() { return "CustomLogAdvisor"; } @Override public int getOrder() { return 0; } @Override public ChatClientResponse adviseCall( ChatClientRequest chatClientRequest, CallAdvisorChain callAdvisorChain ) { System.out.println("BEFORE =========================="); System.out.println(chatClientRequest.prompt()); ChatClientResponse response = callAdvisorChain.nextCall(chatClientRequest); System.out.println("AFTER =========================="); System.out.println(response.chatResponse().getResult().getOutput().getText()); return response; } } -
Advisor: Recursive Advisor 37 11/13にリリースされた 1.1.0の目玉機能 • 再帰的にChatModelを呼び出せる • 使用例
◦ Structured OutputのValidate ◦ レピュテーションリスクチェック Advisorを仕込める粒度が細かくなり ToolCallAdvisorも仕込める -
(11/11) その他 • 音声・画像対応 ◦ モデルが対応してればChatClientで取り扱える • 埋め込みモデルの対応 ◦ CSVなどから特徴ベクトルに変換
• Vector Store対応 ◦ RAGに使える ◦ 主要なVector Databaseに対応済み 40 -

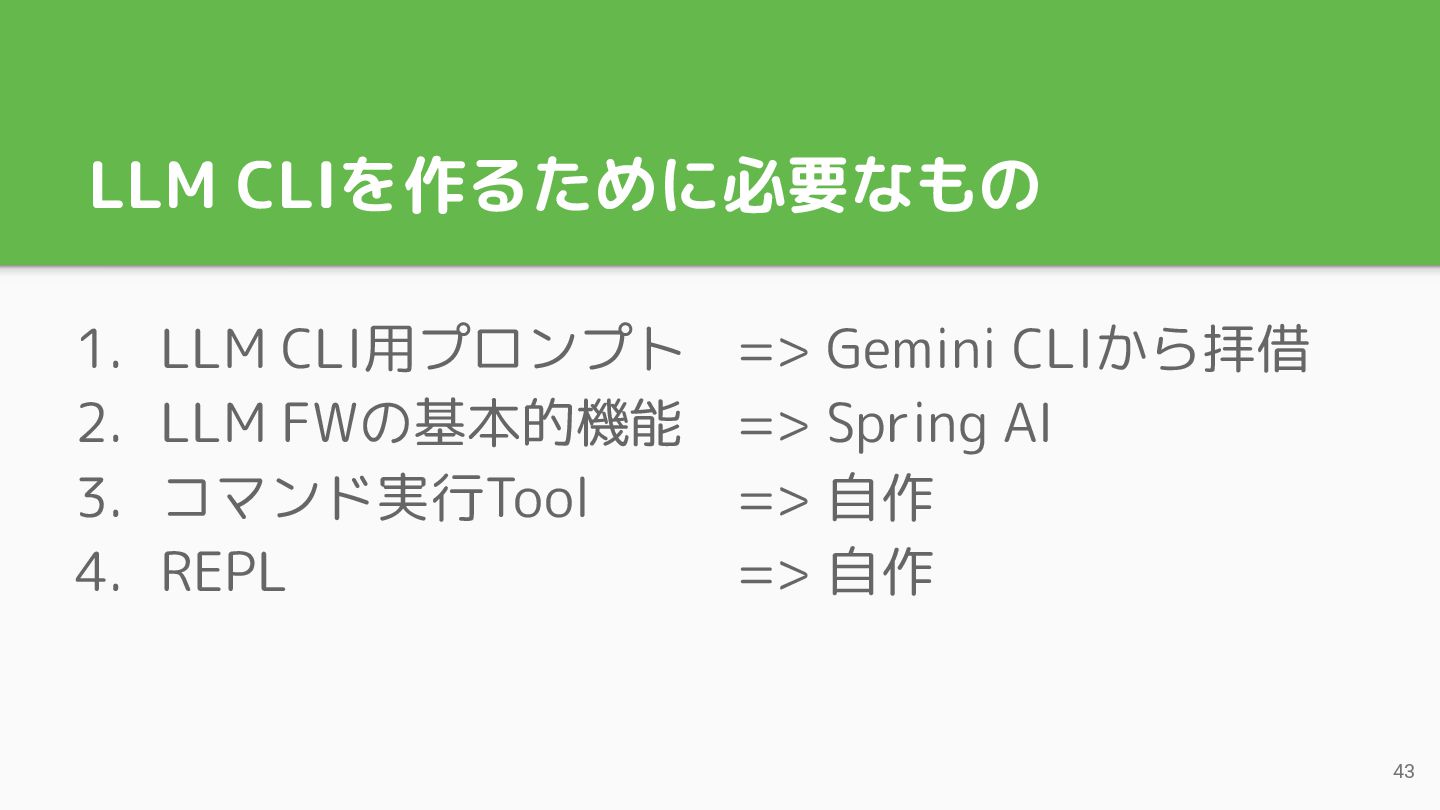

LLM CLIを作るために必要なもの 1. LLM CLI用プロンプト => Gemini CLIから拝借 2. LLM
FWの基本的機能 => Spring AI 3. コマンド実行Tool => 自作 4. REPL => 自作 43 -
LLM CLIを作るために必要なもの ①LLM CLI用プロンプト 44 • google-gemini/gemini-cliの packages/core/src/core/prompts.ts を参考にカスタマイズするのがおすすめ •
Coding Agentとして期待する振る舞いが書かれ ている ◦ 「コードの読解や修正を行う際は、必ず既存プロジェクトのコーディング規約を厳格に遵 守せよ。まずは周辺のコード、テストケース、および設定ファイルを確認すること。」 ◦ 「リクエストの明確な範囲を超えて重大な変更を加える場合は、必ずユーザーと確認を 取ってください。」 -
①LLM CLI用プロンプト: コツ 45 • 動作例を豊富に与える • Tool Callingの使い道を教える <例>
ユーザー: pythonでHello Worldを表示するプログラムを作成し実行せ よ モデル: [tool_call: command_executer echo -e "if __name__ == '__main__': print('Hello World')" > hello.py] [tool_call: command_executer python3 hello.py] </例> -

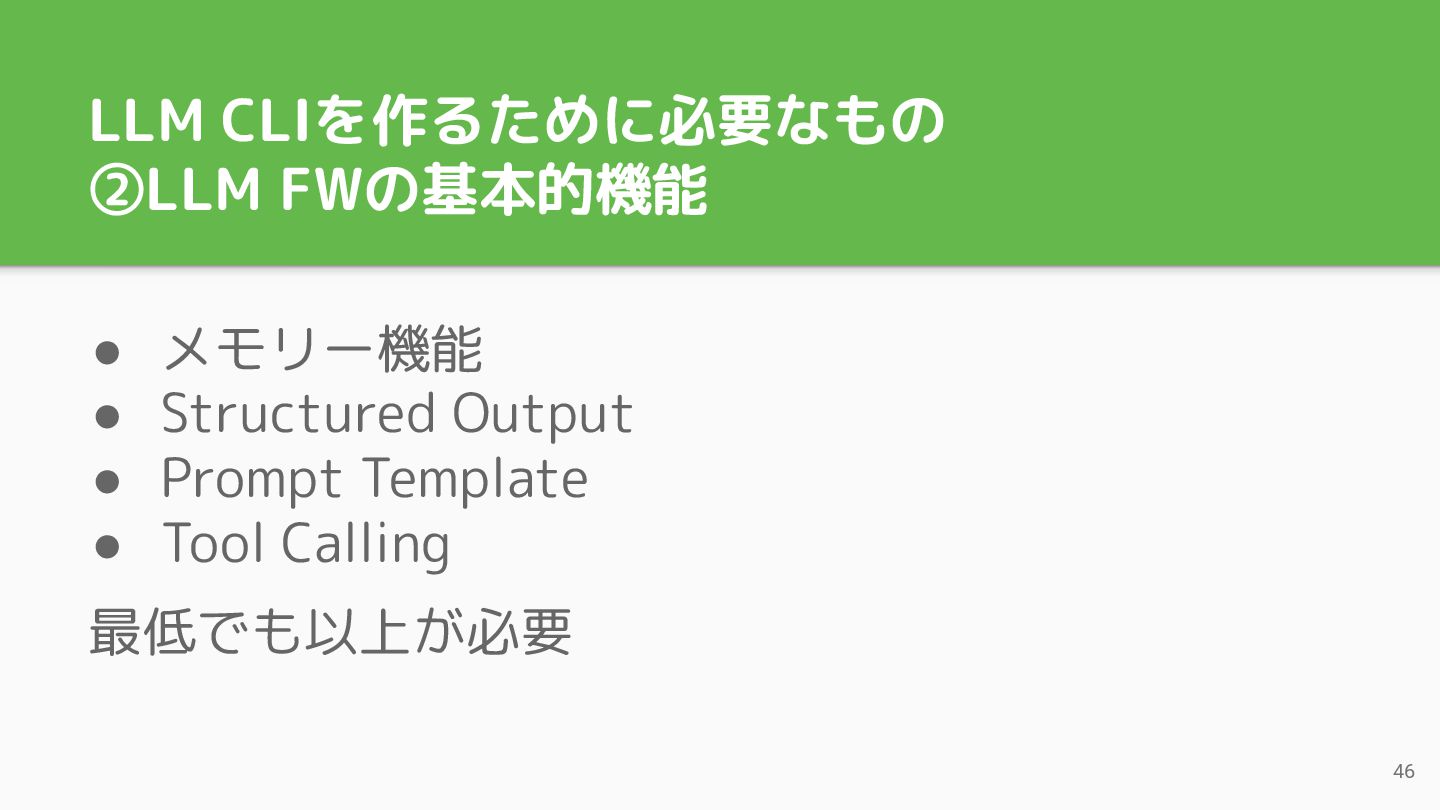

LLM CLIを作るために必要なもの ②LLM FWの基本的機能 • メモリー機能 • Structured Output •
Prompt Template • Tool Calling 最低でも以上が必要 46 -

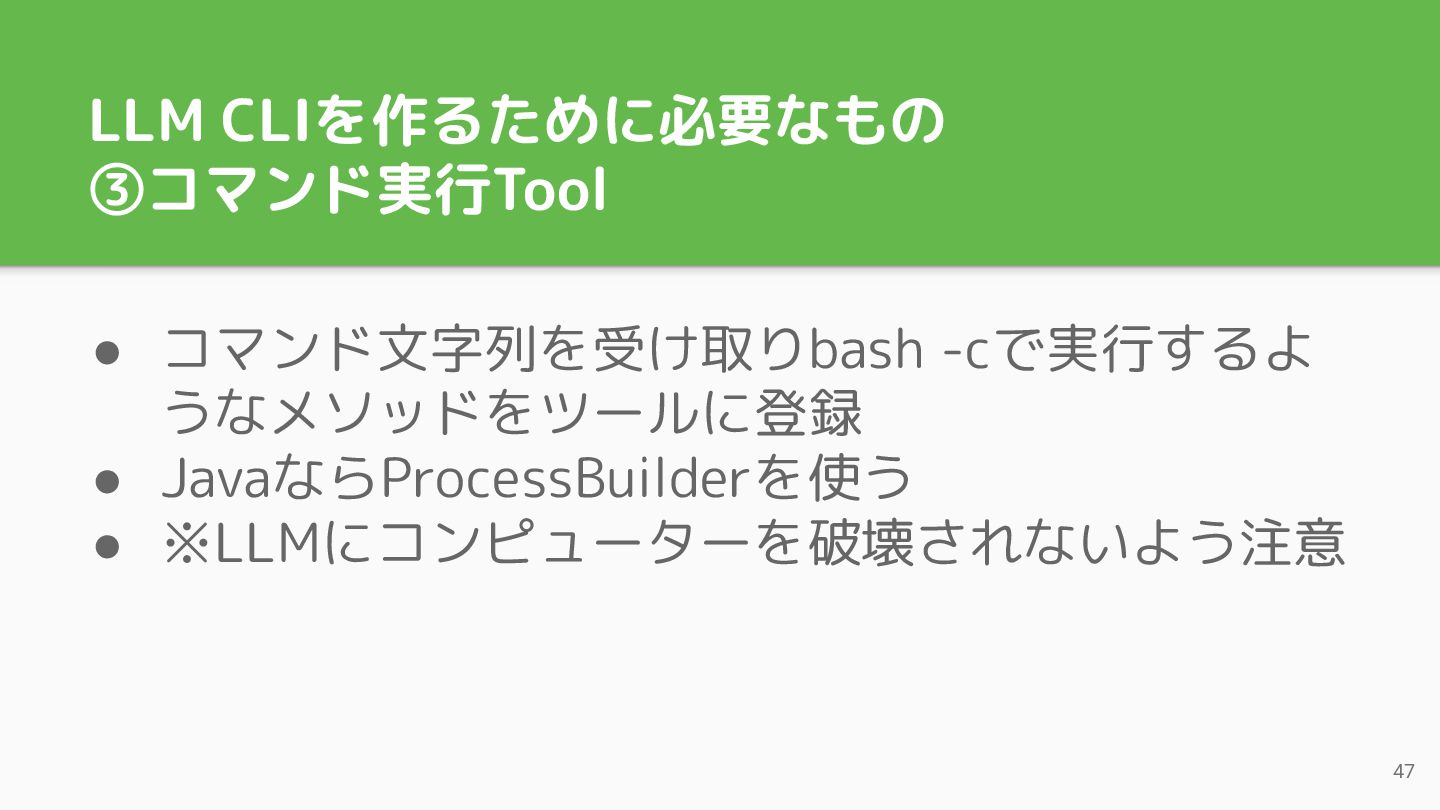

LLM CLIを作るために必要なもの ③コマンド実行Tool • コマンド文字列を受け取りbash -cで実行するよ うなメソッドをツールに登録 • JavaならProcessBuilderを使う •
※LLMにコンピューターを破壊されないよう注意 47 -
③コマンド実行Tool: 実装例 48 @Tool( name = "command_executor", description = "Executes
the given shell command as bash -c argument") public String execute(String command) { System.out.println("Executing command: bash -c " + command); try { ProcessBuilder processBuilder = new ProcessBuilder("bash", "-c", command); processBuilder.redirectErrorStream(true); Process process = processBuilder.start(); BufferedReader reader = new BufferedReader(new InputStreamReader(process.getInputStream())); String output = reader.lines() .collect(Collectors.joining(System.lineSeparator())); process.waitFor(); return output; } catch (IOException | InterruptedException e) { return errorMessage; } } -
③コマンド実行Tool: 注意点 49 LLMが危ないコマンドを実行する場合がある 対応策 • Allow-List方式 • chroot/コンテナ化 •
作業ディレクトリの隔離 • Auditログ • Cgroup • Human-in-the-Loop $ rm -rf / $ curl -X POST xxxx $ chmod 777 /etc/shadow -

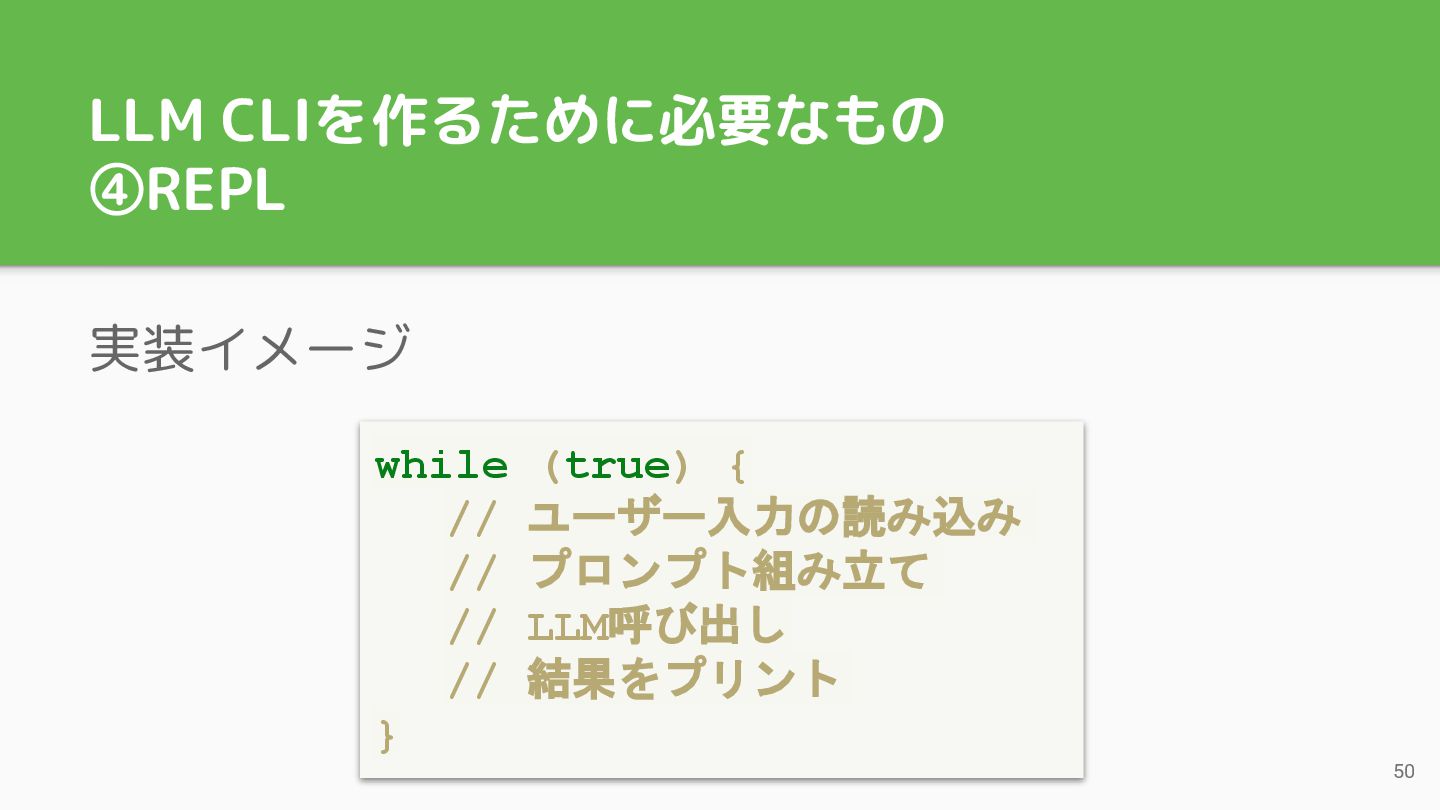

LLM CLIを作るために必要なもの ④REPL 実装イメージ 50 while (true) { // ユーザー入力の読み込み
// プロンプト組み立て // LLM呼び出し // 結果をプリント } -
感想 • ベンダー提供のものよりカスタマイズの幅が広く playgroundとして色々実験しやすい ◦ LLMハックの素振り(会話履歴の改変) ◦ モデル切り替えられる ◦ MCPサーバーを自由に使える
• プロンプトは拝借すれば、実装は意外に簡単 52 -

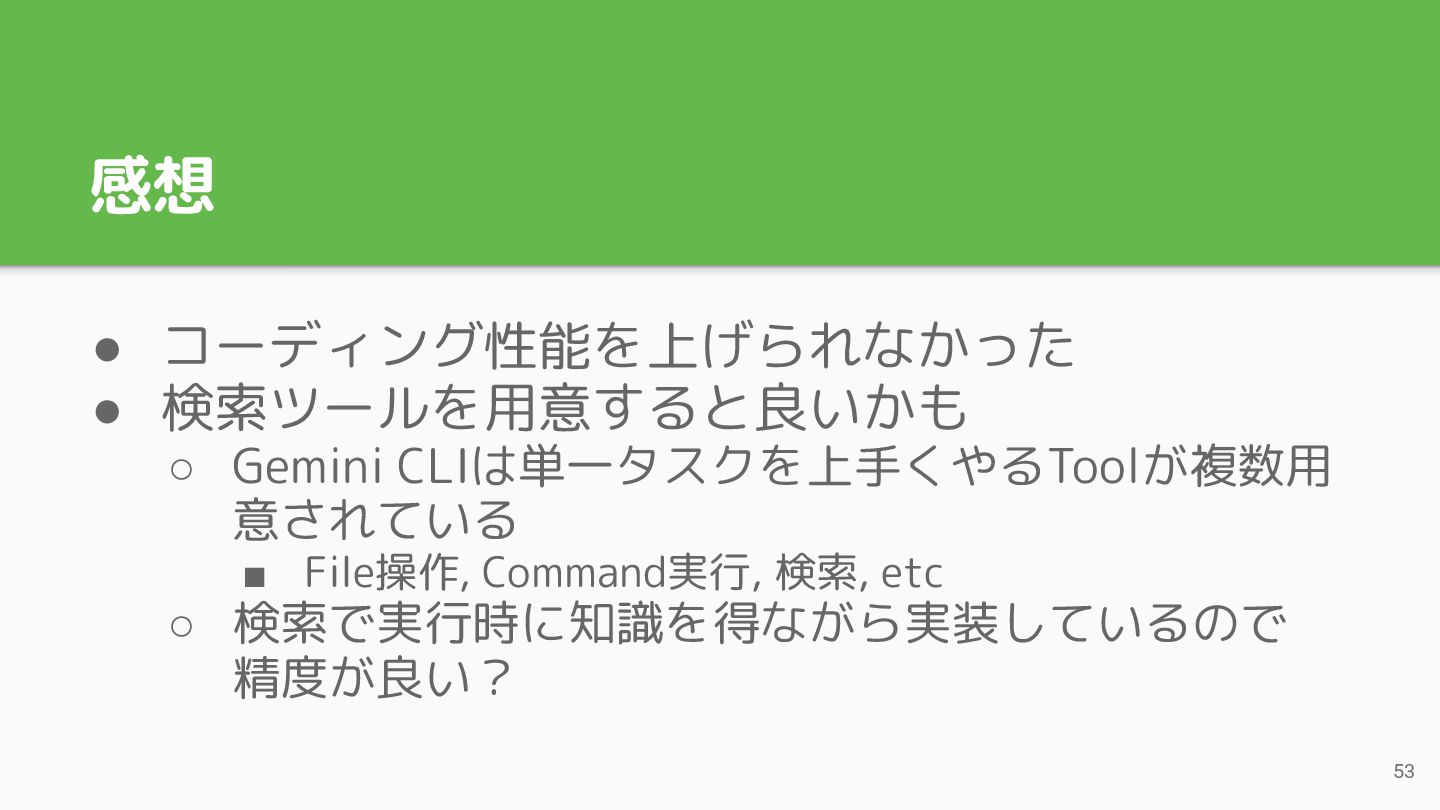

感想 • コーディング性能を上げられなかった • 検索ツールを用意すると良いかも ◦ Gemini CLIは単一タスクを上手くやるToolが複数用 意されている ▪
File操作, Command実行, 検索, etc ◦ 検索で実行時に知識を得ながら実装しているので 精度が良い? 53 -
サマリ 55 • Spring AIは中量級のLLM FW ◦ プロダクト実装のために必要な機能を提供 ◦ 既存実装を再利用したりMCPサーバー化可能
◦ オープンソースでコミット可能 • Spring AIの基本的機能を解説 • playgroundとしてのLLM CLI自作のすすめ -
つくったもの • KAN-AI-CLI ◦ github.com/roronya/kan-ai-cli • Datetime MCP Server ◦
github.com/roronya/spring-ai-datetime-mcp-server 56 -
参考文献 • Spring AI Reference ◦ https://docs.spring.io/spring-ai/reference/index.html • Spring AI
SourceCode ◦ https://github.com/spring-projects/spring-ai • Spring AI Examples ◦ https://github.com/spring-projects/spring-ai-examples • Spring I/O Keynote ◦ https://www.youtube.com/watch?v=oUK1Np4OvnM • IK.AM: Java on Azure Day 2025で"Spring AIで学ぶMCPの活用"について話してきました。 ◦ https://ik.am/entries/858 • Grafana Labs: Auto-instrumenting a Java Spring Boot application for traces and logs using OpenTelemetry and Grafana Tempo ◦ https://grafana.com/blog/2021/02/03/auto-instrumenting-a-java-spring-boot-application-for-traces-and-logs-using-op entelemetry-and-grafana-tempo/ • Google Gemini SourceCode ◦ https://github.com/google-gemini/gemini-cli 57
