NodeJS_API_Meetup_LA_SanDiego

Workshop: Develop, Deploy, Monitor and Scale REST APIs Built in Node.js. Framework used is Loopback.io from StrongLoop.

Transcript

1. Develop, Monitor and Scale REST APIs in Node.js Shubhra Kar | Director – Products twitter:@shubhrakar mail:skar@strongloop.com
2. The Frontend is changing fast (Mobile First !)

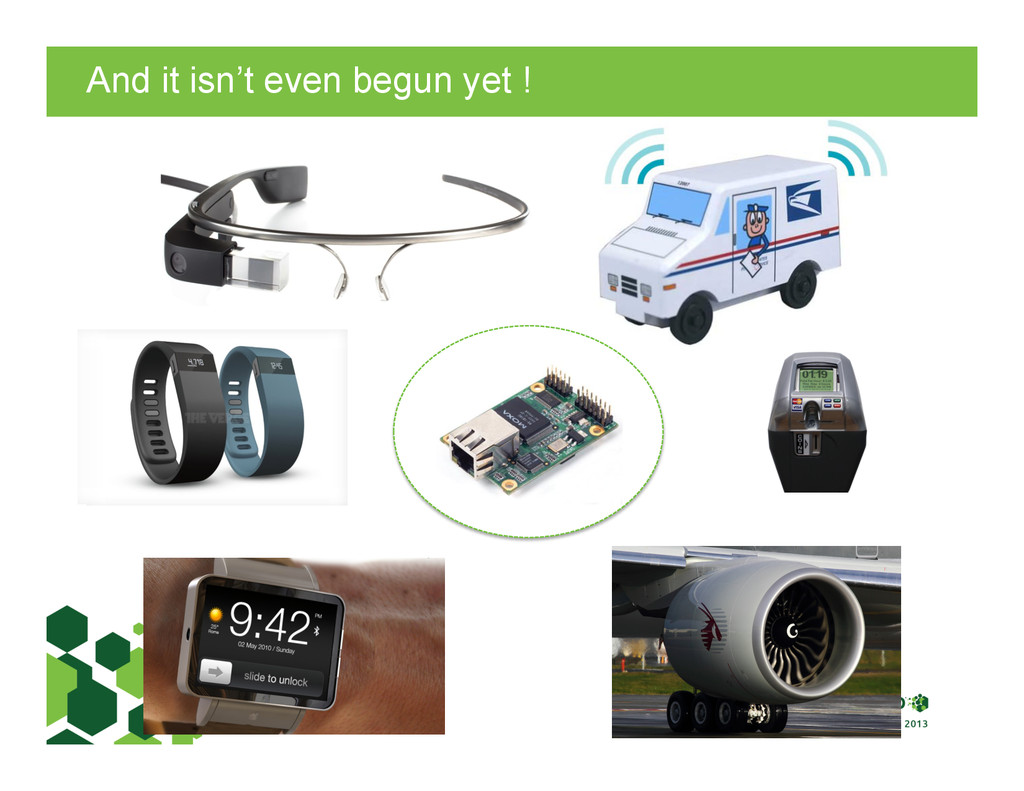

3. And it isn’t even begun yet !

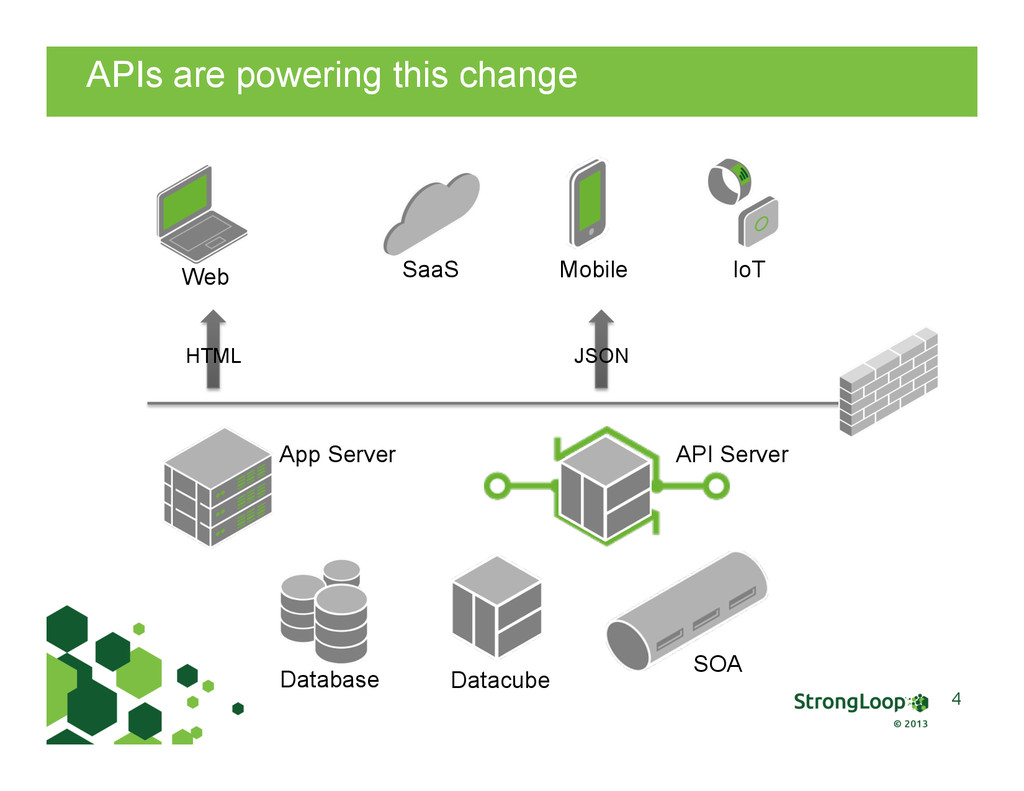

4. APIs are powering this change 4 SaaS Mobile IoT SOA Web App Server Database Datacube API Server HTML JSON

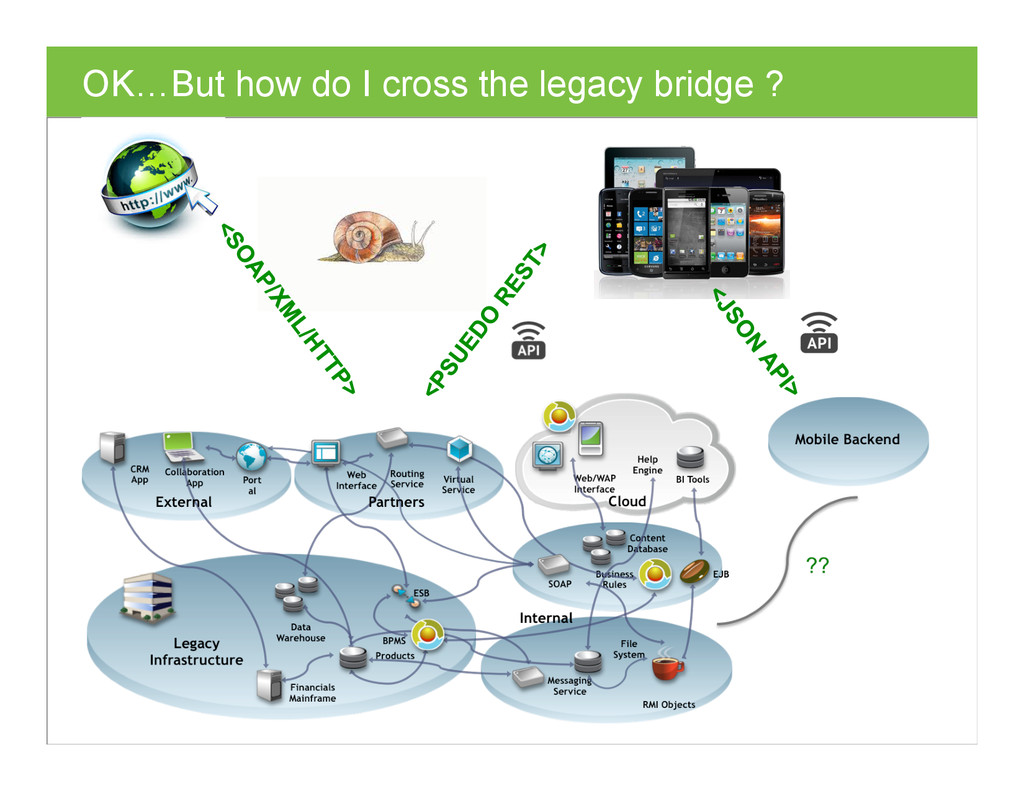

5. OK…But how do I cross the legacy bridge ?
6. Distinctly unique Approaches to solve the same problem Let’s just RESTify our current SOA to solve this Architect Developer

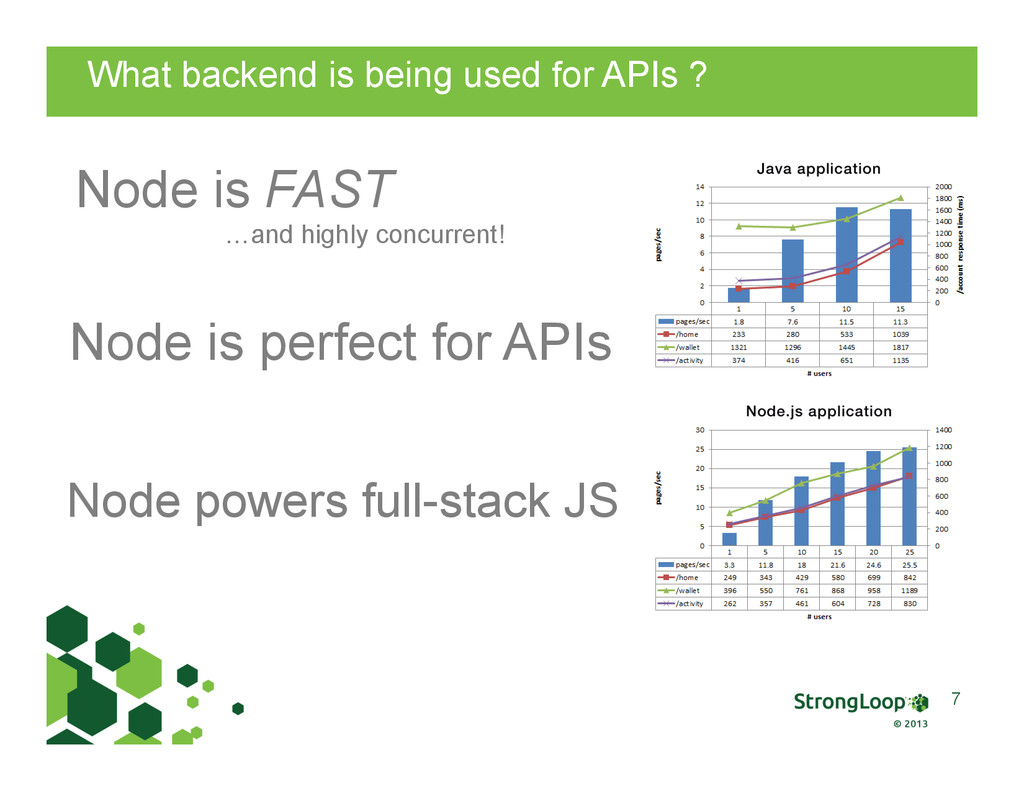

7. What backend is being used for APIs ? 7 Node is FAST Node is perfect for APIs Node powers full-stack JS …and highly concurrent!
8. What is Node.js? •  Asynchronous, event-driven, non-blocking I/O platform that is perfect for real- time, data-intensive applications. •  Single thread of execution •  Built on Chrome’s JavaScript runtime engine, V8 •  Uses Libuv, a high performance evented I/O library that works on Linux and Windows (faster than Libev) while there are still events to process: e = get the next event if there is a callback associated with e: call the callback

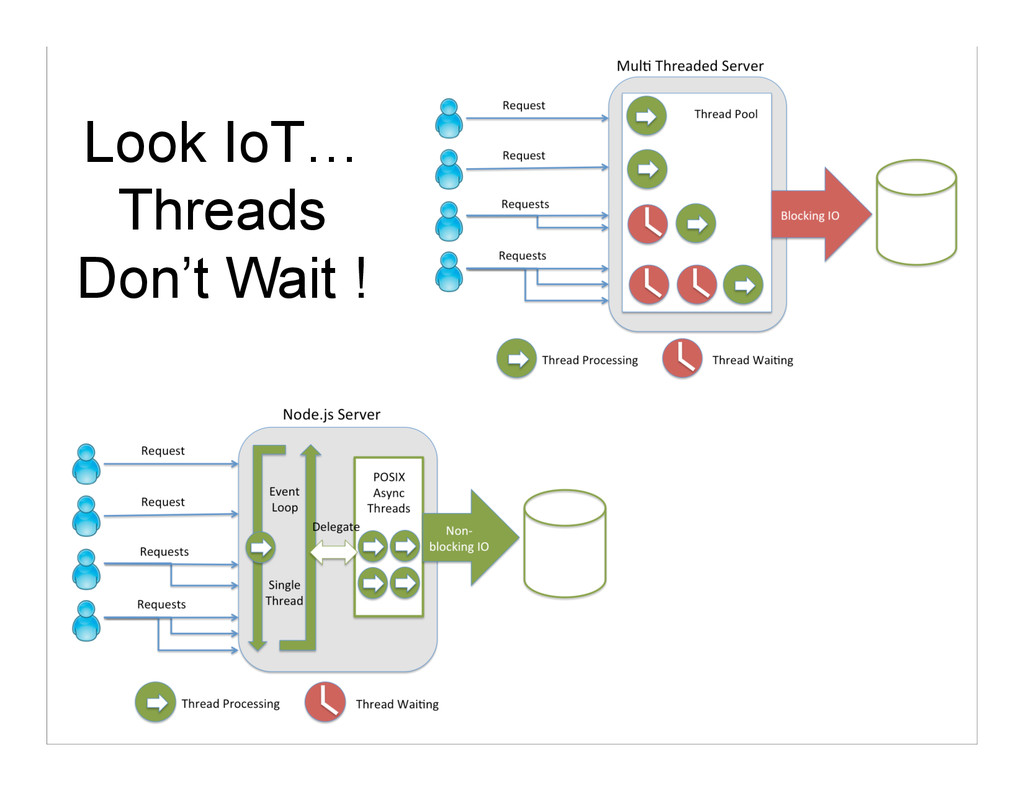

9. Look IoT… Threads Don’t Wait !

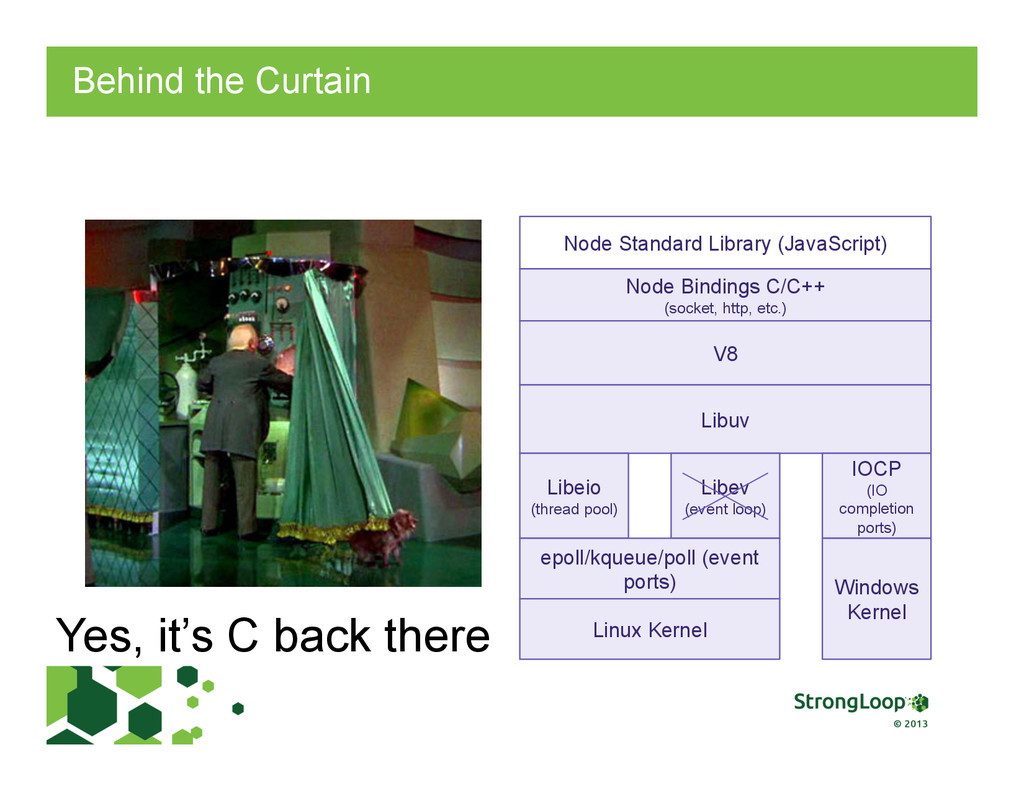

10. Behind the Curtain Node Bindings C/C++ (socket, http, etc.) V8 Libuv Libeio (thread pool) Libev (event loop) IOCP (IO completion ports) Node Standard Library (JavaScript) epoll/kqueue/poll (event ports) Linux Kernel Windows Kernel Yes, it’s C back there

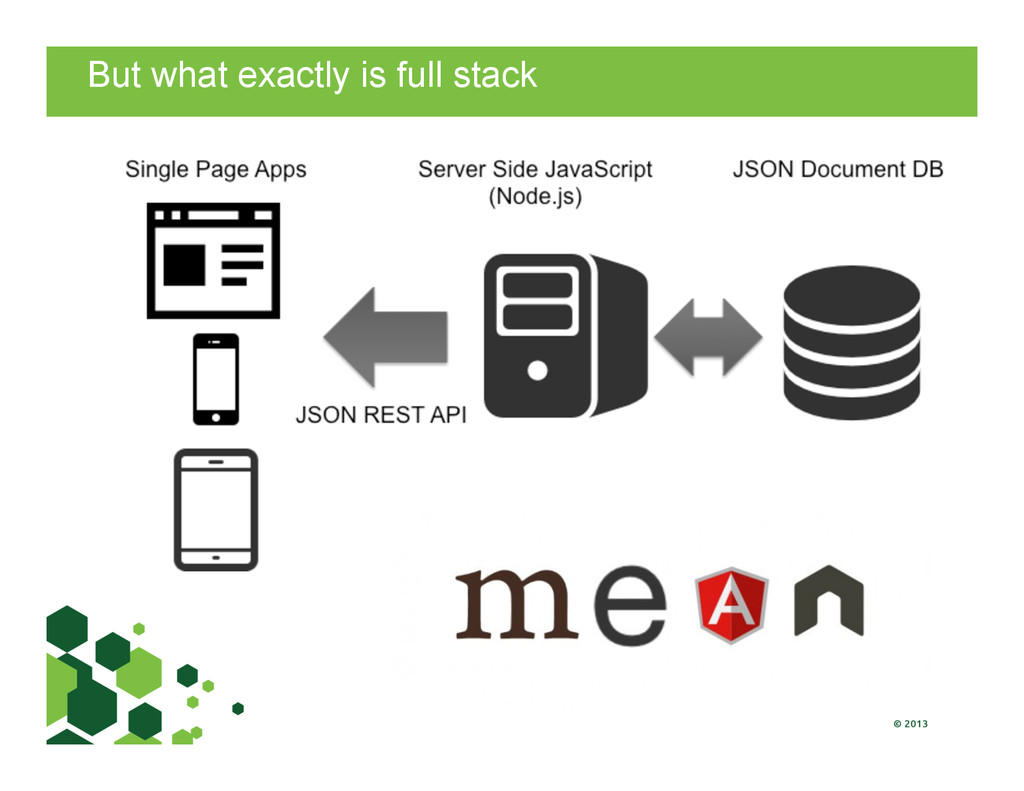

11. But what exactly is full stack
12. Full Stack JavaScript is powering mobility Angular Bootstrap Ionic Cordova A Compelling Option for Enterprise Mobility ü  Faster time to market vs. 100% native development ü  Reuse skills of existing web developer staff ü  Open Source stack / no vendor lock-in ü  For Enterprise apps, performance is comparable to native apps ü  Near “write once, run anywhere” UI: tablets, phones, smart TVs, smart watches, cars, etc. Gartner predicts by 2016 more than 50% of the apps deployed will be Hybrid apps. LoopBack API Server Node.js

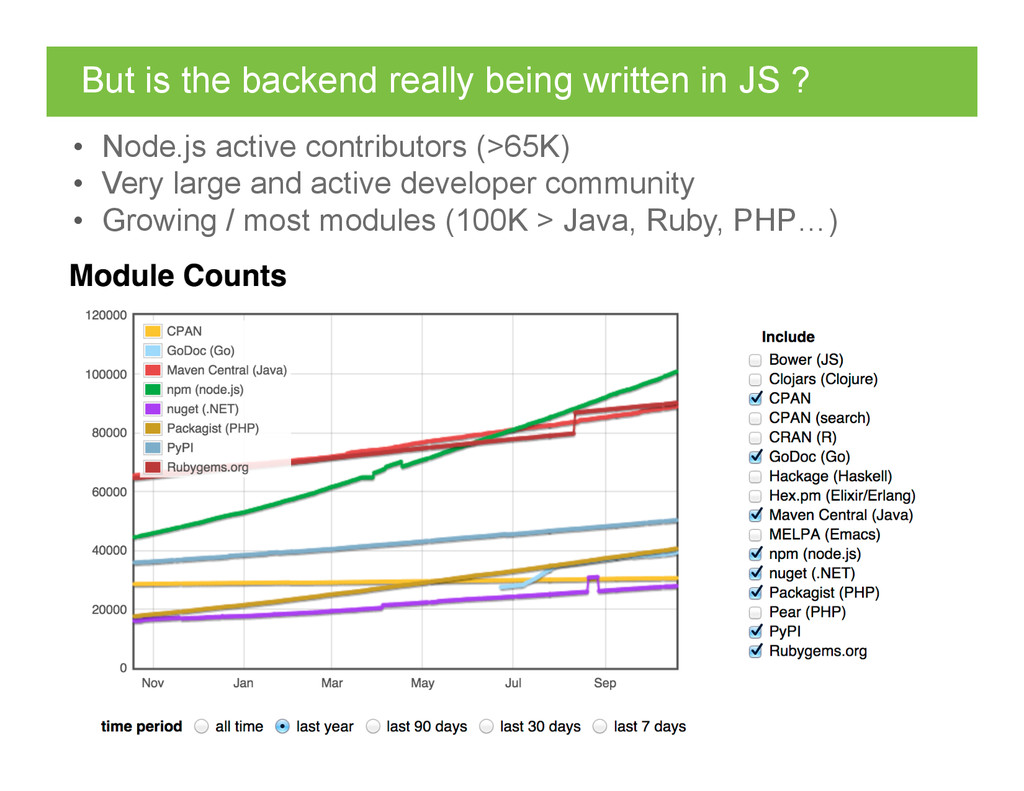

13. But is the backend really being written in JS ? •  Node.js active contributors (>65K) •  Very large and active developer community •  Growing / most modules (100K > Java, Ruby, PHP…)
14. Popular Frameworks

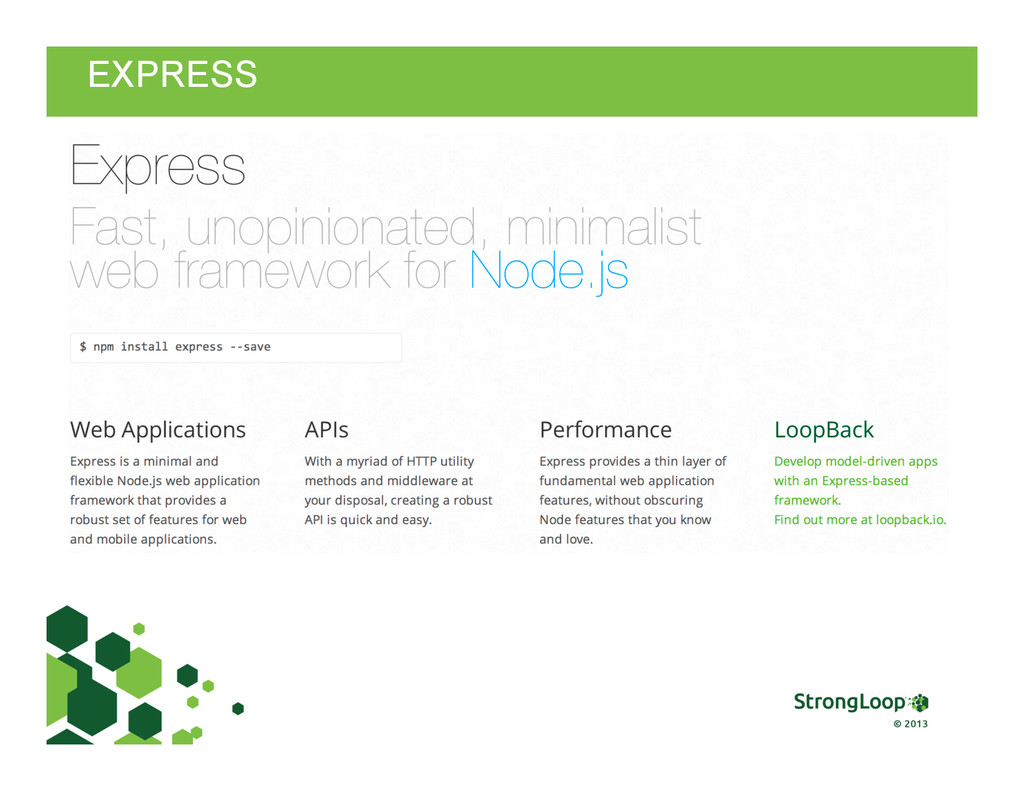

15. EXPRESS

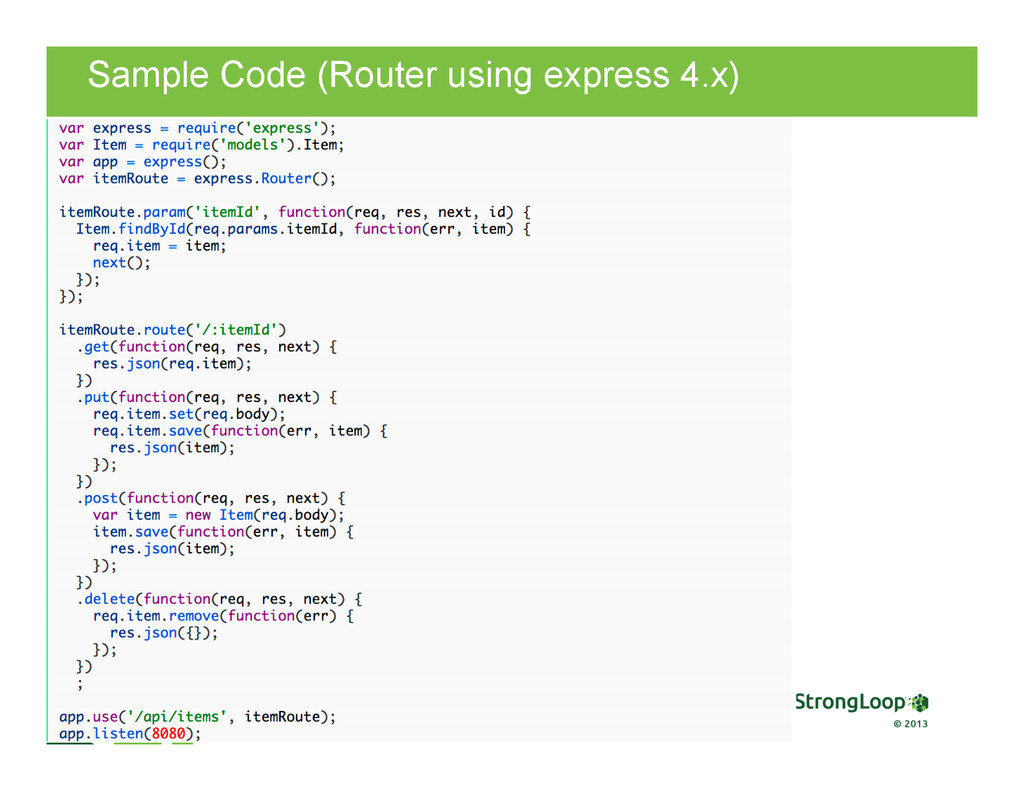

16. Sample Code (Router using express 4.x)

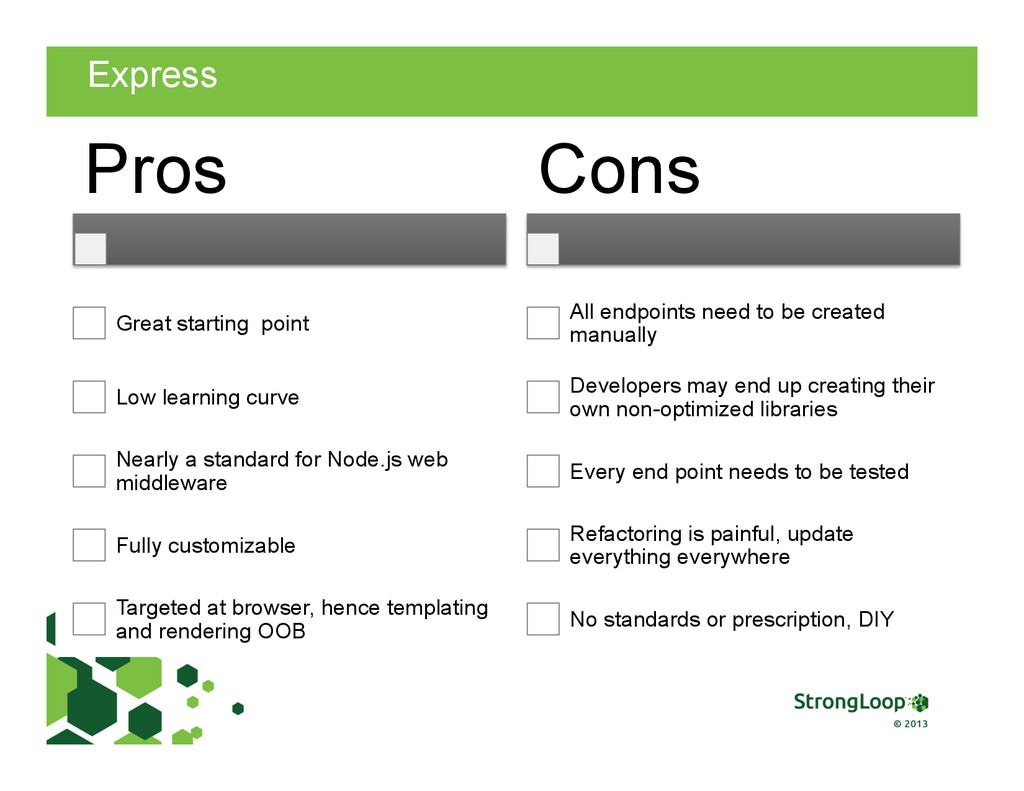

17. Pros Great starting point Low learning curve Nearly a standard for Node.js web middleware Fully customizable Targeted at browser, hence templating and rendering OOB Cons All endpoints need to be created manually Developers may end up creating their own non-optimized libraries Every end point needs to be tested Refactoring is painful, update everything everywhere No standards or prescription, DIY Express

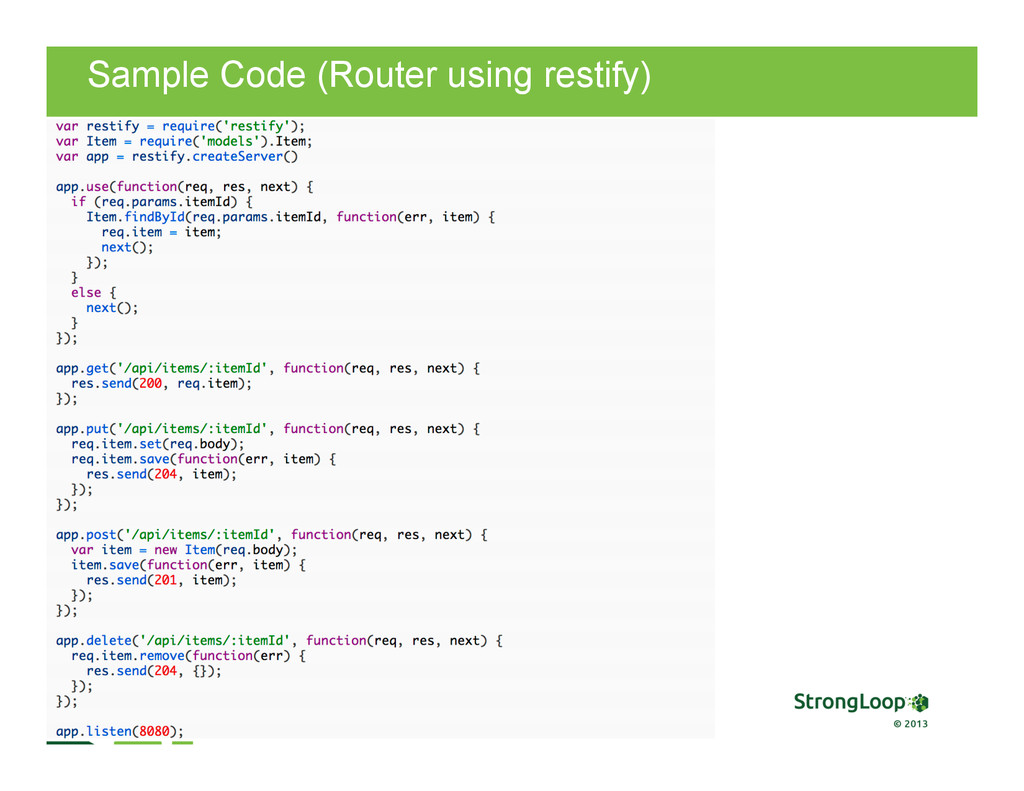

19. Sample Code (Router using restify)

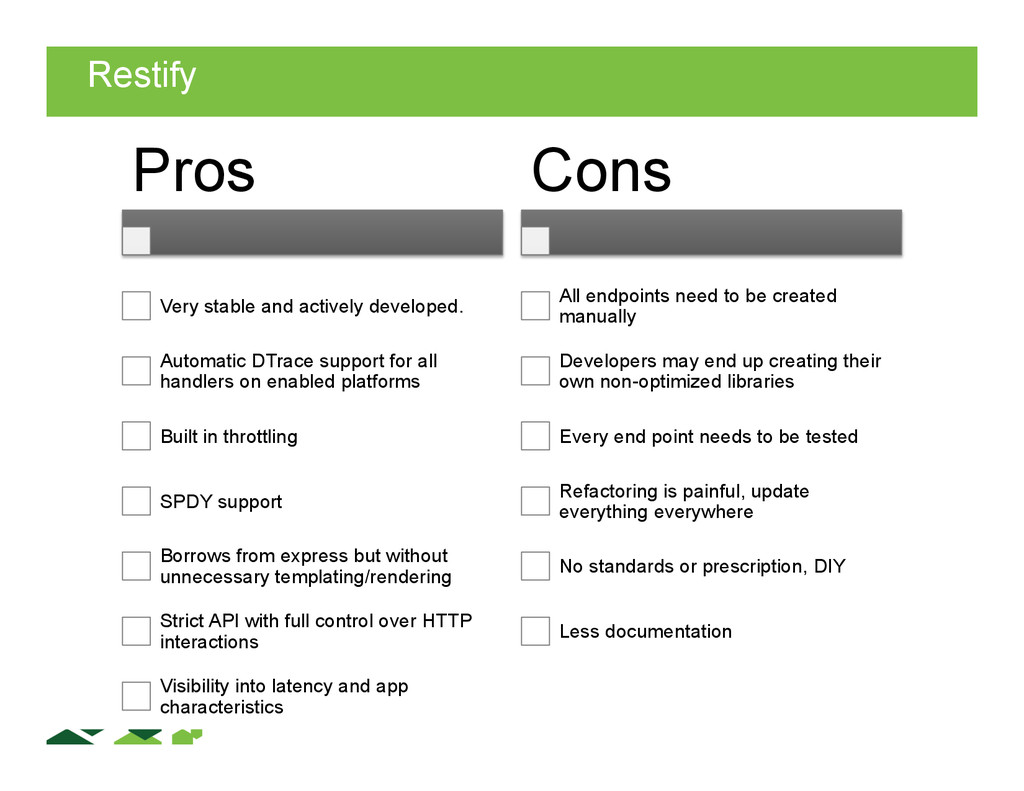

20. Pros Very stable and actively developed. Automatic DTrace support for all handlers on enabled platforms Built in throttling SPDY support Borrows from express but without unnecessary templating/rendering Strict API with full control over HTTP interactions Visibility into latency and app characteristics Cons All endpoints need to be created manually Developers may end up creating their own non-optimized libraries Every end point needs to be tested Refactoring is painful, update everything everywhere No standards or prescription, DIY Less documentation Restify

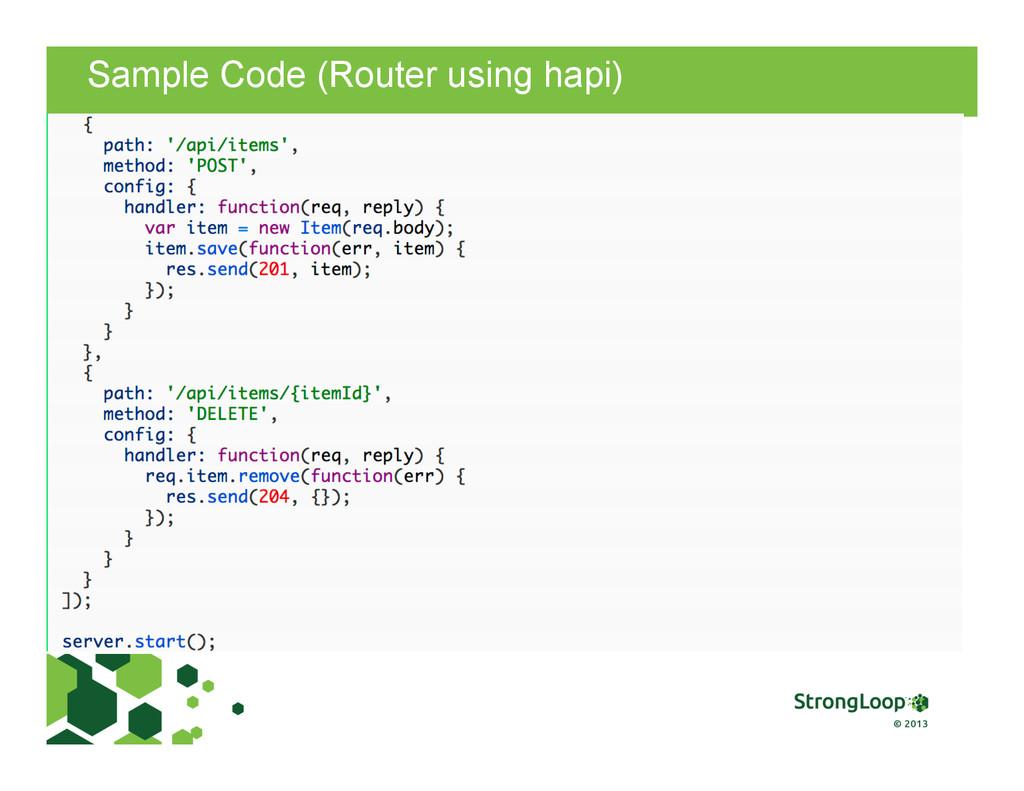

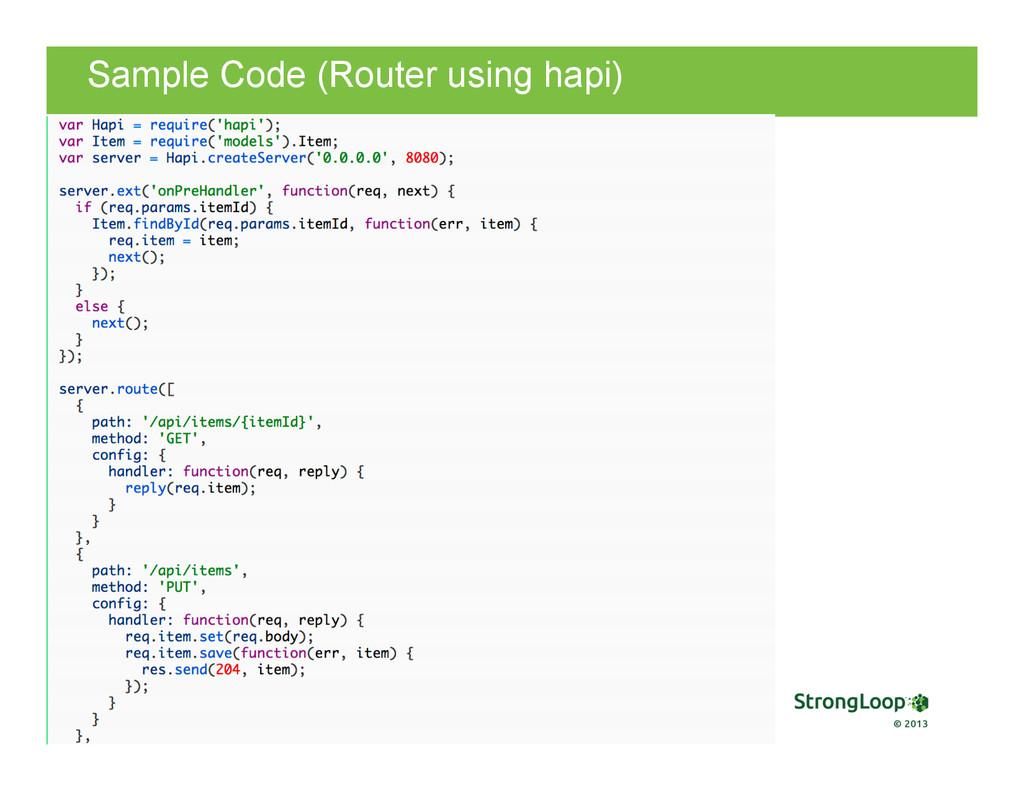

22. Sample Code (Router using hapi)
23. Sample Code (Router using hapi)

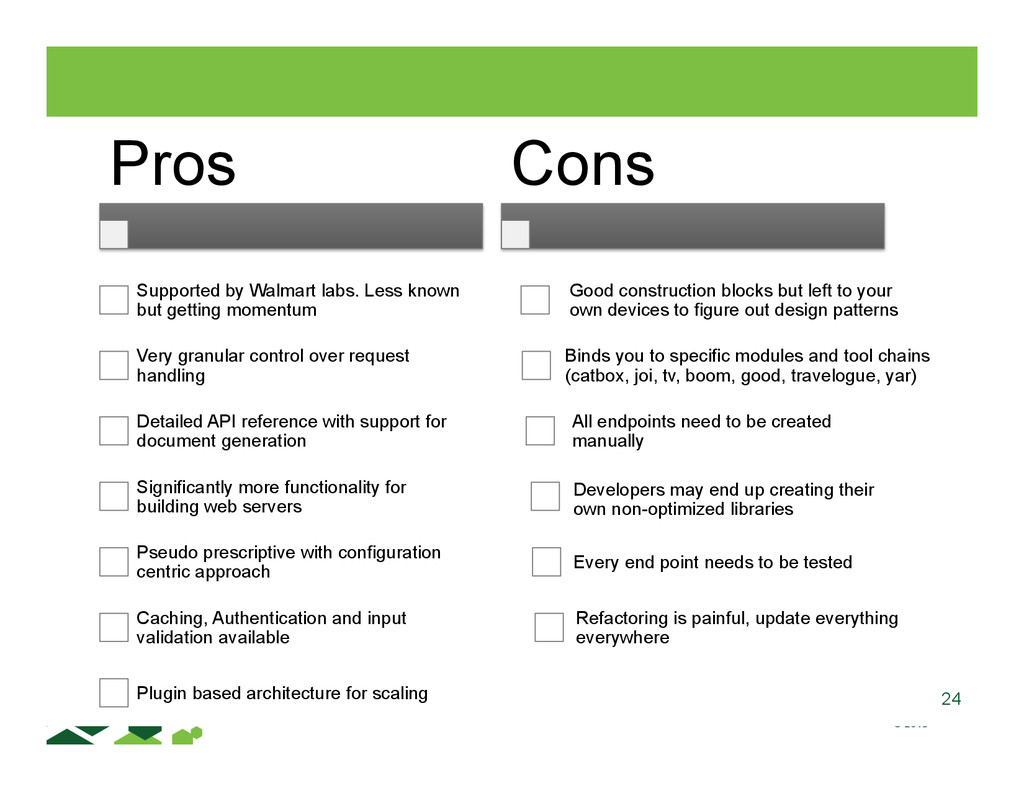

24. Pros Supported by Walmart labs. Less known but getting momentum Very granular control over request handling Detailed API reference with support for document generation Significantly more functionality for building web servers Pseudo prescriptive with configuration centric approach Caching, Authentication and input validation available Plugin based architecture for scaling Cons Good construction blocks but left to your own devices to figure out design patterns Binds you to specific modules and tool chains (catbox, joi, tv, boom, good, travelogue, yar) All endpoints need to be created manually Developers may end up creating their own non-optimized libraries Every end point needs to be tested Refactoring is painful, update everything everywhere 24

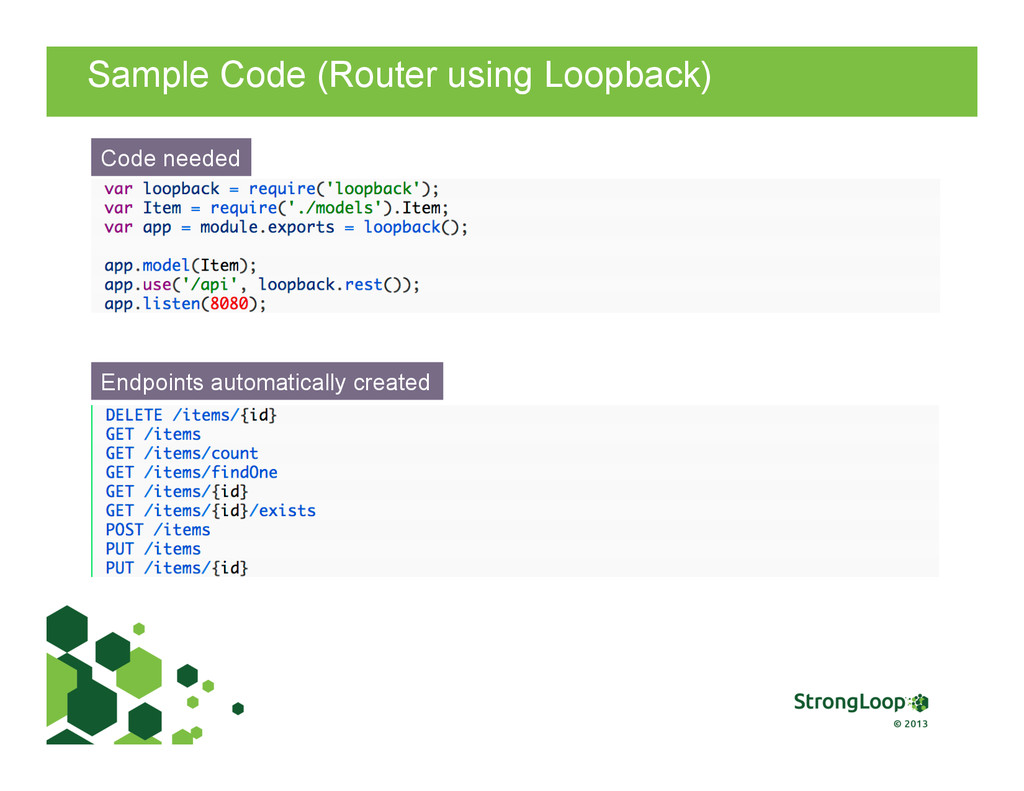

26. Sample Code (Router using Loopback) Code needed Endpoints automatically created

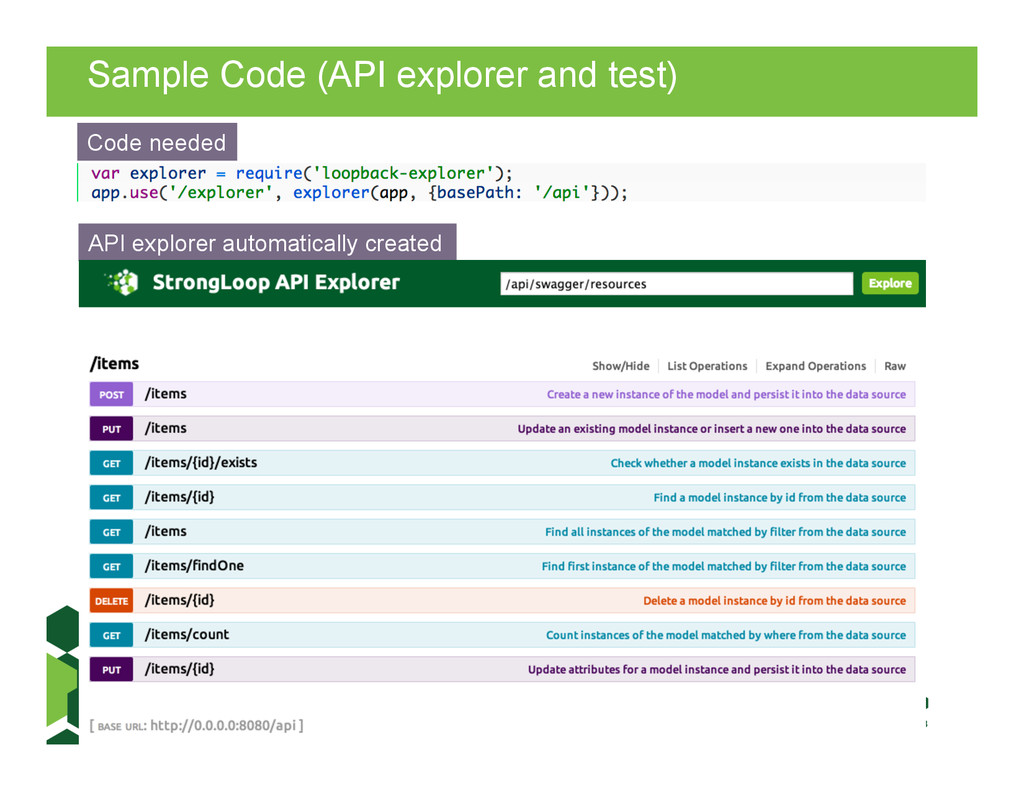

27. Sample Code (API explorer and test) Code needed API explorer automatically created

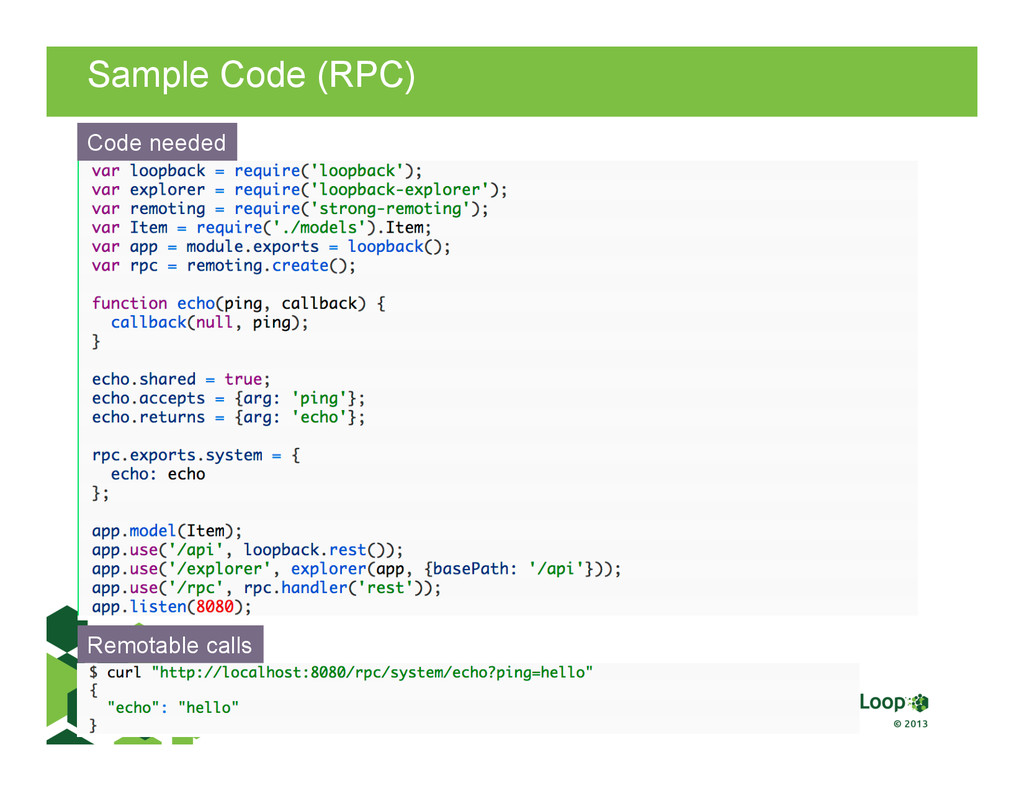

28. Sample Code (RPC) Code needed Remotable calls

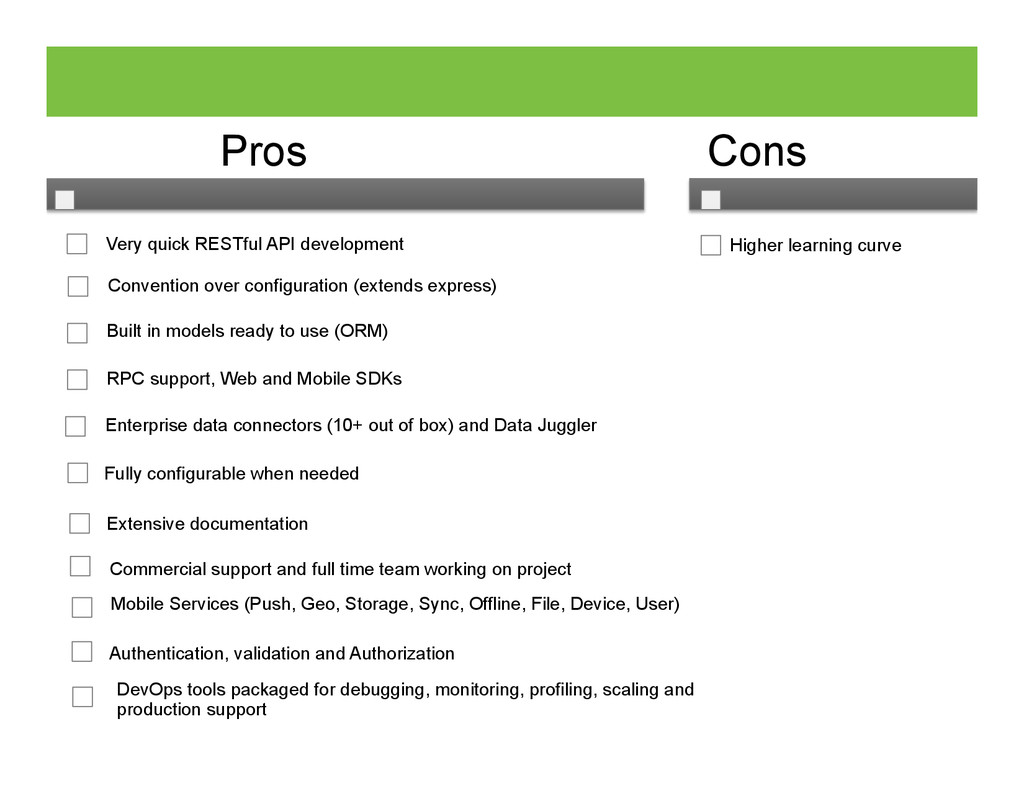

29. Pros Very quick RESTful API development Convention over configuration (extends express) Built in models ready to use (ORM) RPC support, Web and Mobile SDKs Enterprise data connectors (10+ out of box) and Data Juggler Fully configurable when needed Extensive documentation Commercial support and full time team working on project Mobile Services (Push, Geo, Storage, Sync, Offline, File, Device, User) Authentication, validation and Authorization DevOps tools packaged for debugging, monitoring, profiling, scaling and production support Cons Higher learning curve

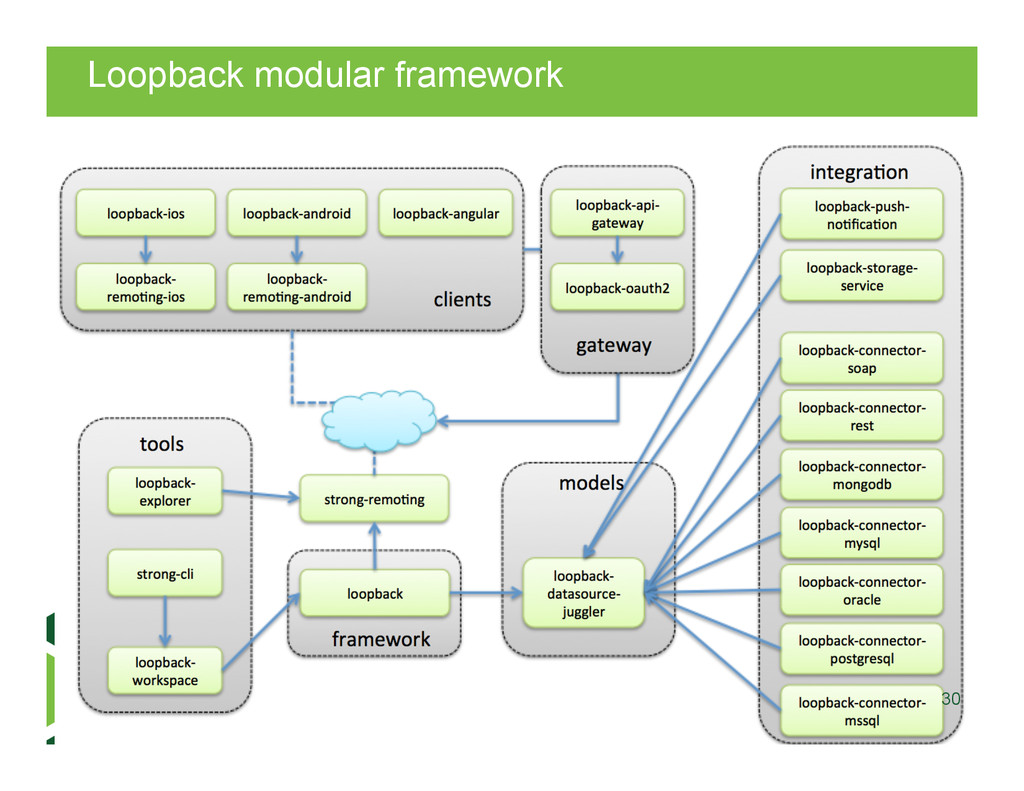

30. Loopback modular framework 30

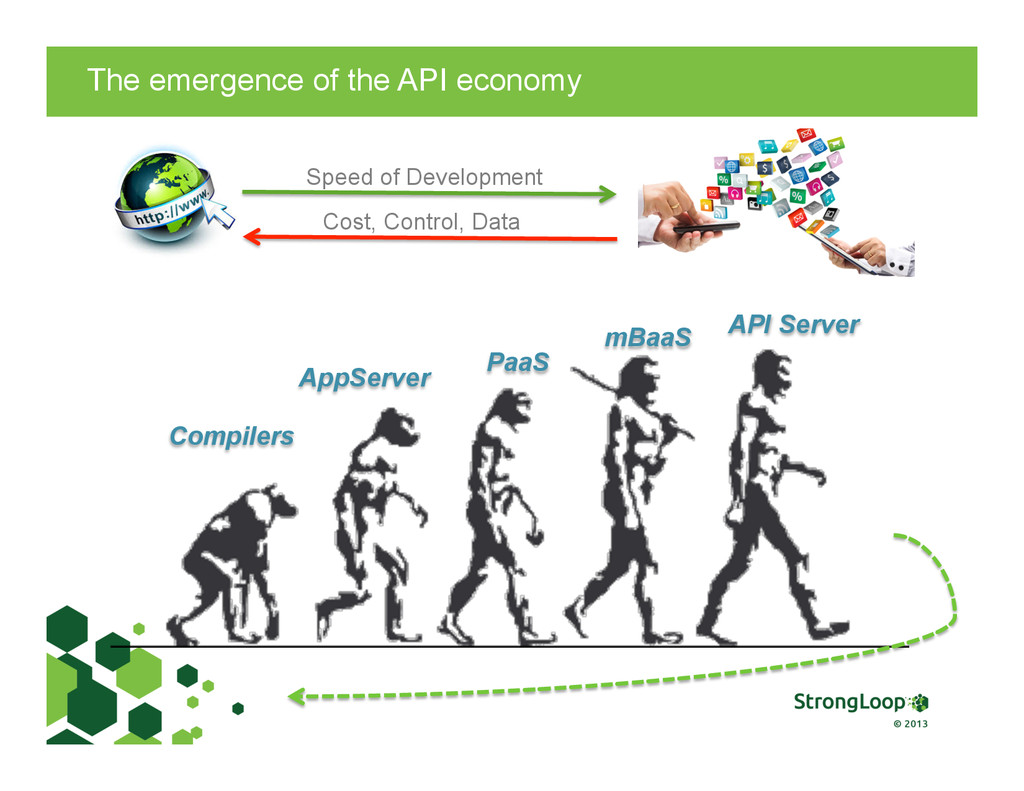

31. The emergence of the API economy Compilers AppServer PaaS mBaaS API Server Speed of Development Cost, Control, Data
32. Back to Basics before my head explodes ?
33. REST API PUSH GEO OFF SYNC DEVICE USER FILE Relational Database Clustered Database Security Gateway Cloud Laptop ( not requested but useful) Connections Tablet Phone IoT SDK API SERVER Quick Example of Use App S Add App Server Storage Relational Database Clustered Database Security Gateway Cloud Firewall SOA Bus ( not sure on this one) Laptop ( not requested but useful) Connections Tablet Phone IoT SDK API SERVER Items for ACL Quick Example of Use App Server Add On App Server REST API GATEWAY Channel SDKs ORM API ENGINE C O N N E C T O R s A P I S D K s So some developers wrote an Open source API server REST API atabase Security Gateway Cloud Firewall SOA Bus ( not sure on this one) Phone IoT SDK API SERVER Items for ACL Quick Example of Use App Server Add On App Server API Explorer Debugging, Provisioning, Scaling, Monitoring

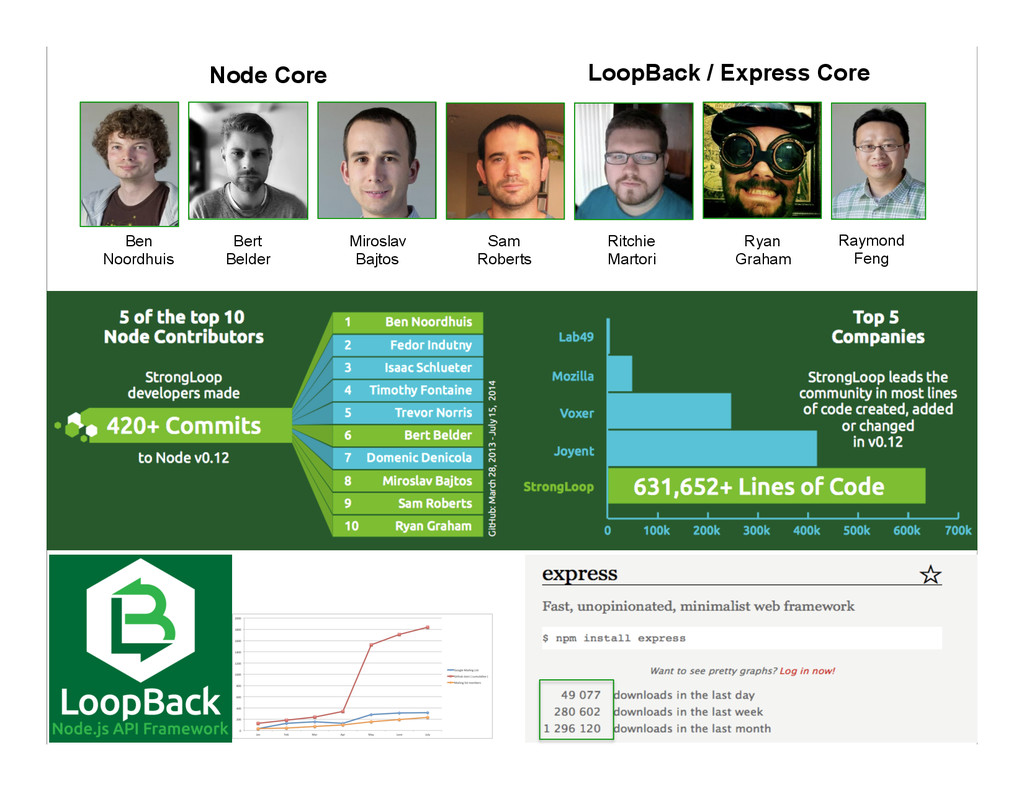

34. These guys sent me ! Bert Belder Ben Noordhuis Node Core Raymond Feng Ritchie Martori LoopBack / Express Core Sam Roberts Miroslav Bajtos Ryan Graham
35. So how can you contribute ? http://loopback.io http://expressjs.com Community contributions till date

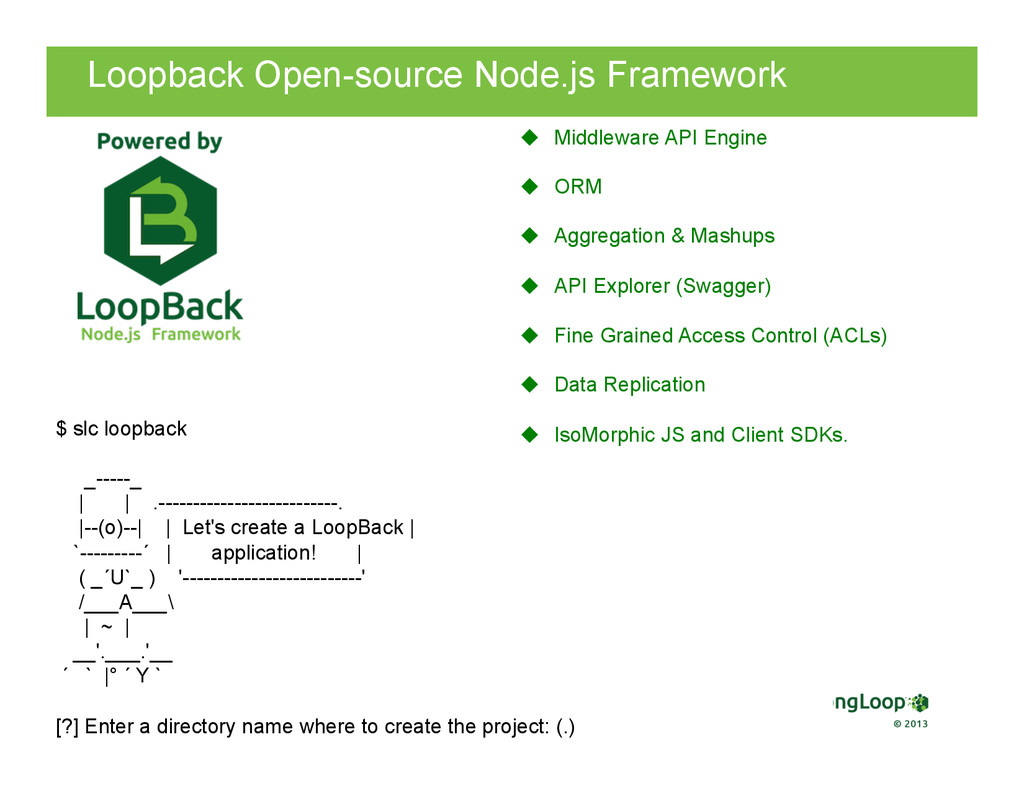

36. Loopback Open-source Node.js Framework $ slc loopback _-----_ | | .--------------------------. |--(o)--| | Let's create a LoopBack | `---------´ | application! | ( _´U`_ ) '--------------------------' /___A___\ | ~ | __'.___.'__ ´ ` |° ´ Y ` [?] Enter a directory name where to create the project: (.) u  Middleware API Engine u  ORM u  Aggregation & Mashups u  API Explorer (Swagger) u  Fine Grained Access Control (ACLs) u  Data Replication u  IsoMorphic JS and Client SDKs.

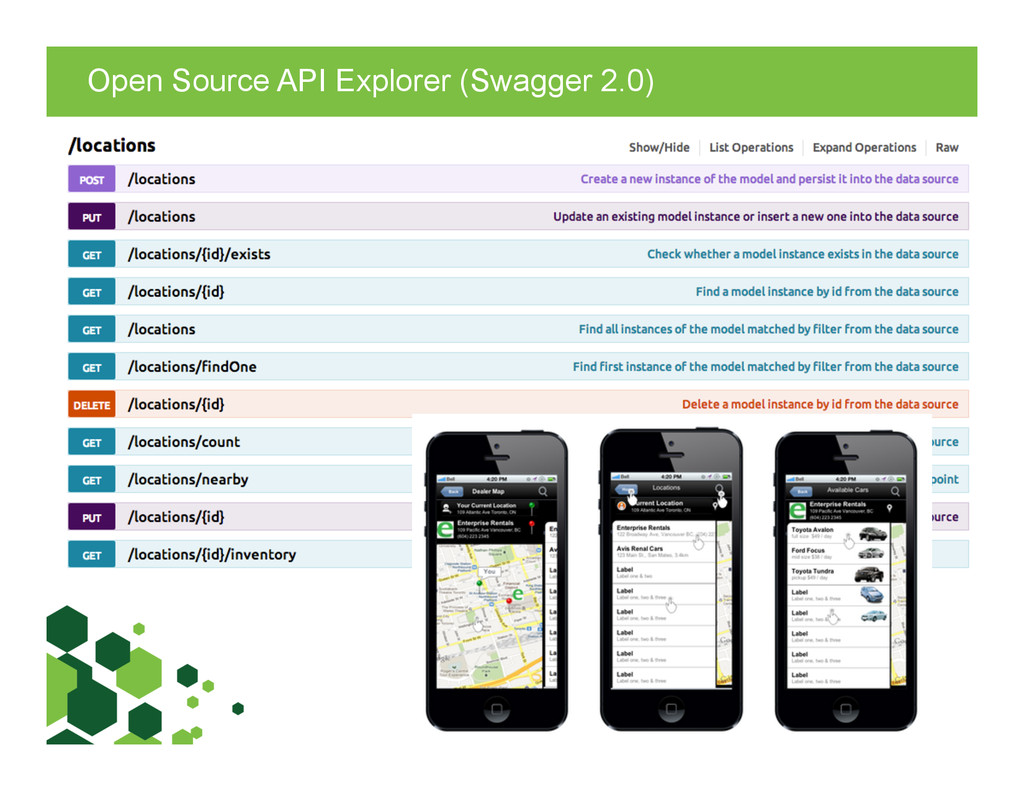

37. Open Source API Explorer (Swagger 2.0)

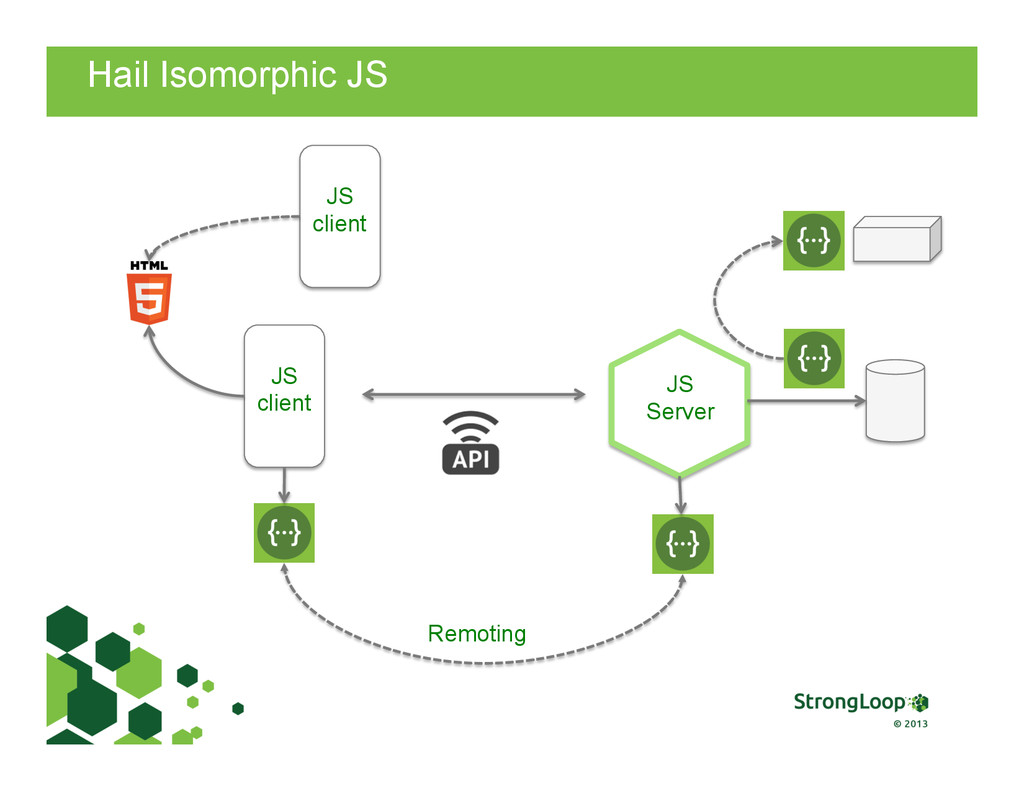

38. Hail Isomorphic JS JS client JS Server Remoting JS client

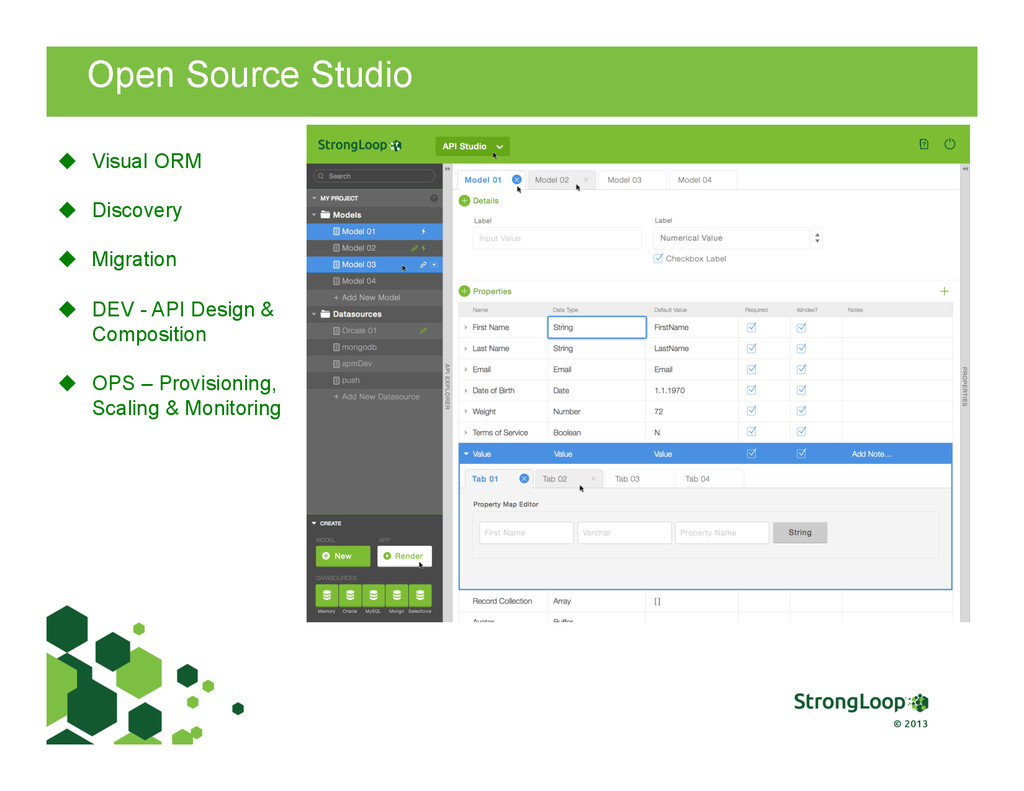

39. Open Source Studio u  Visual ORM u  Discovery u  Migration u  DEV - API Design & Composition u  OPS – Provisioning, Scaling & Monitoring

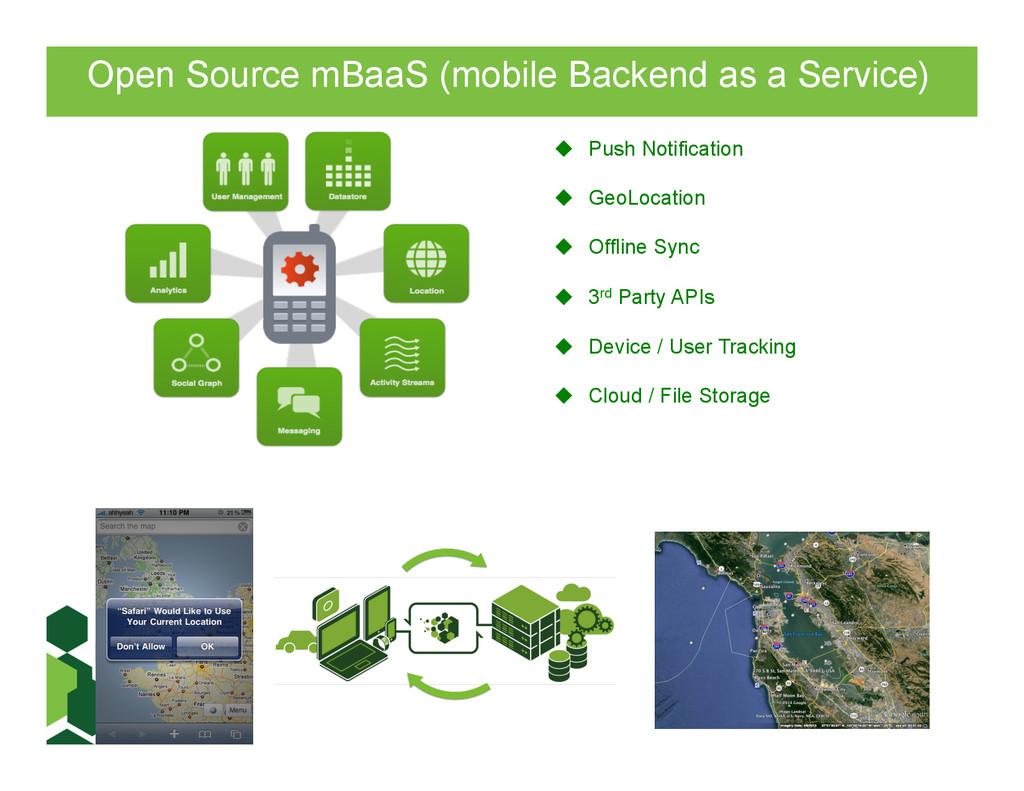

40. Open Source mBaaS (mobile Backend as a Service) u  Push Notification u  GeoLocation u  Offline Sync u  3rd Party APIs u  Device / User Tracking u  Cloud / File Storage

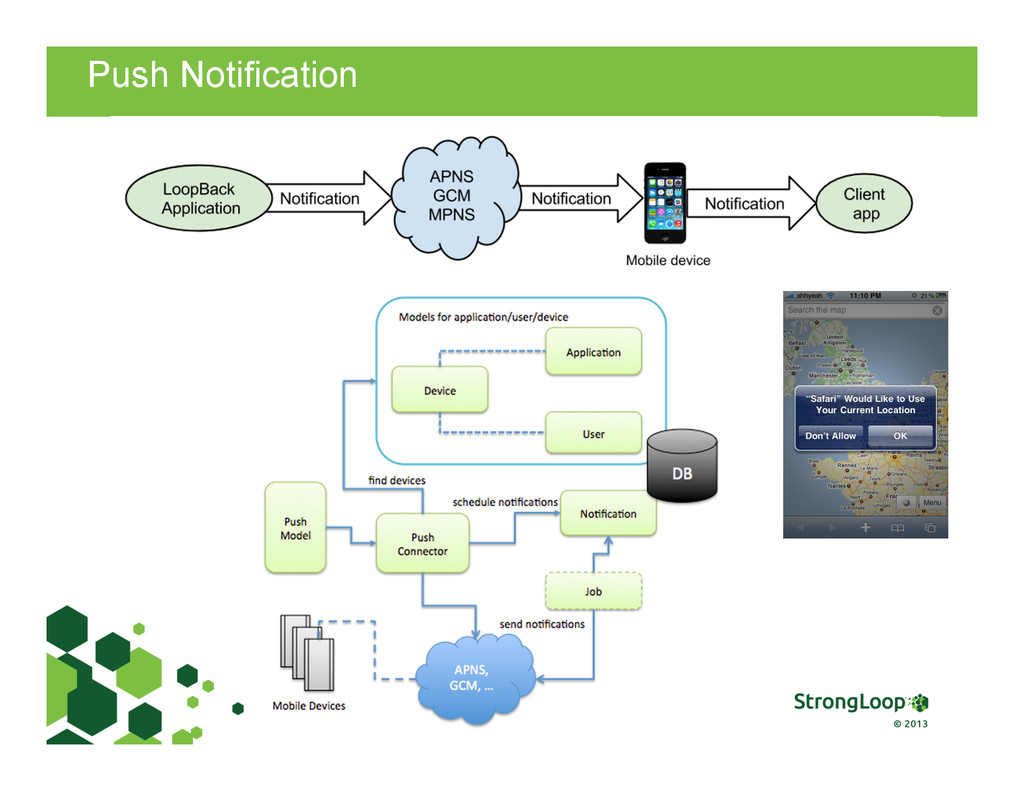

41. Push Notification

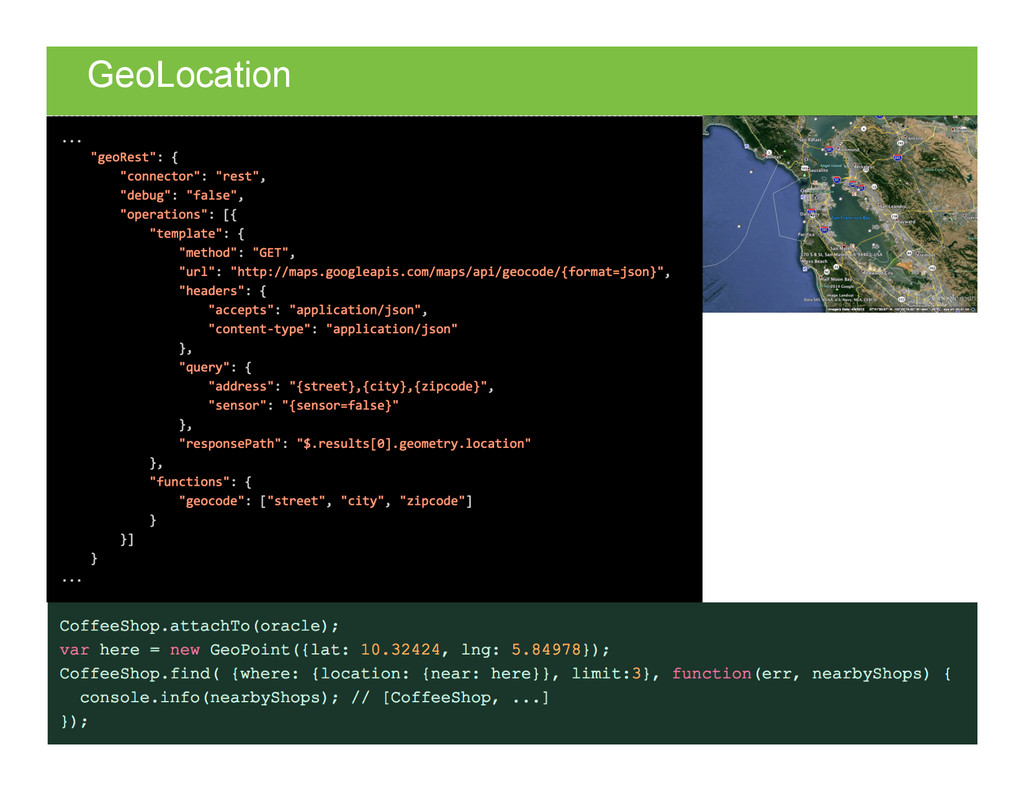

42. GeoLocation

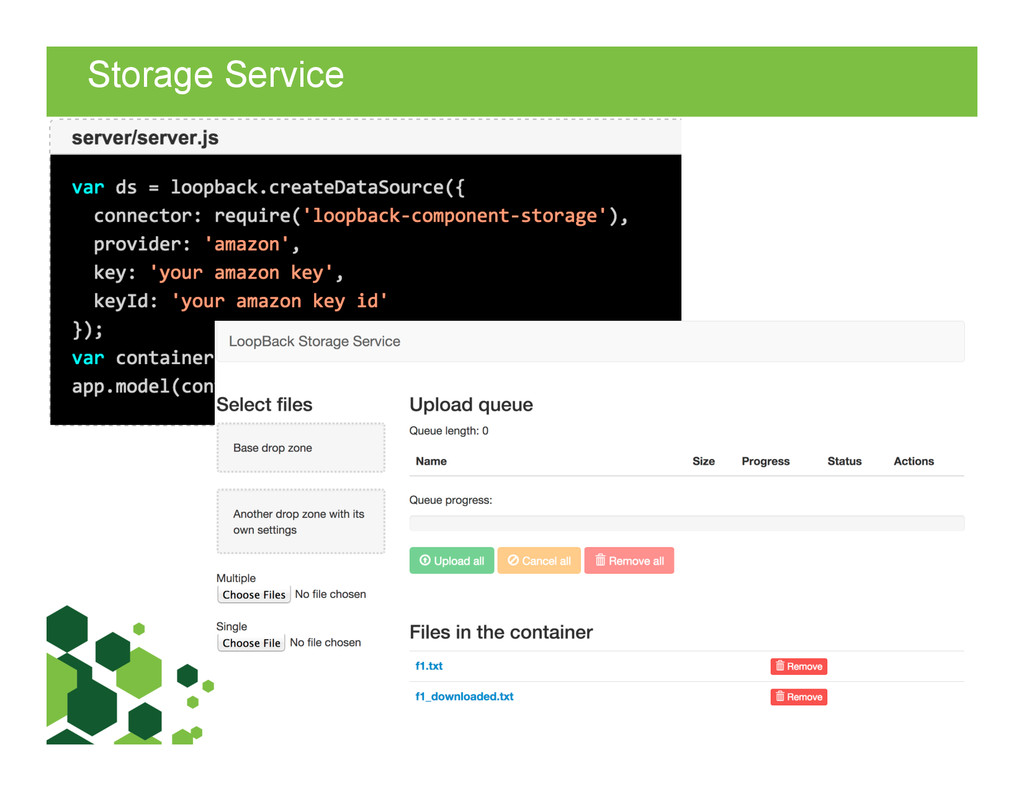

43. Storage Service 43

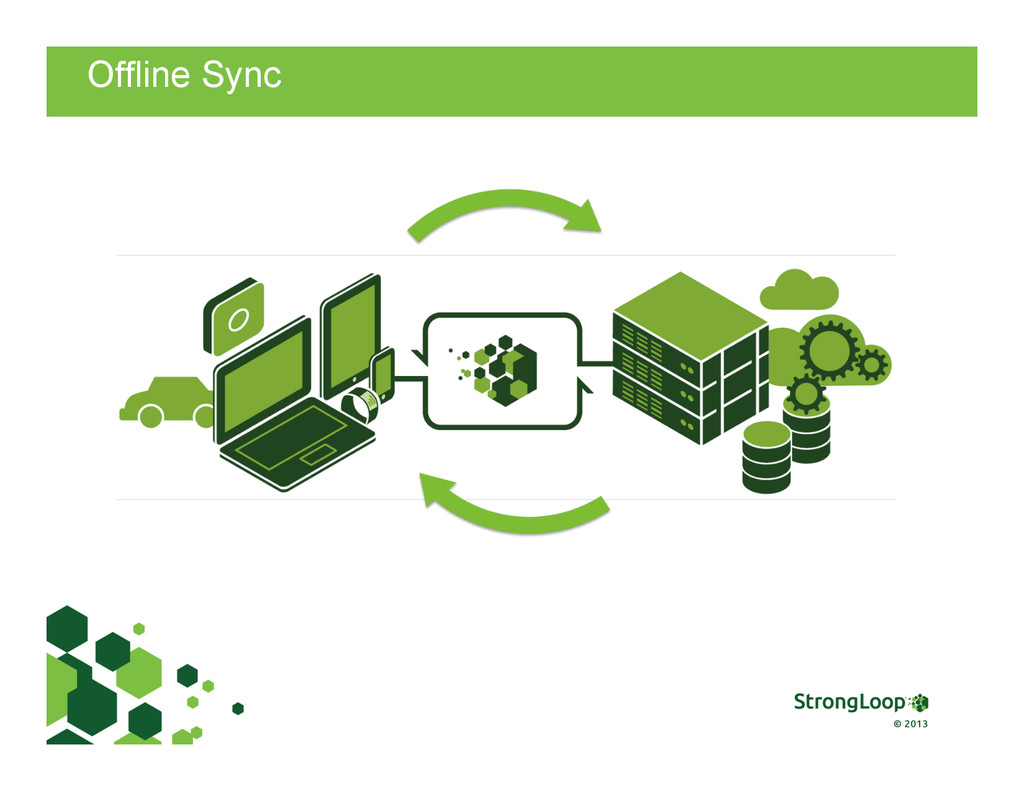

44. Offline Sync

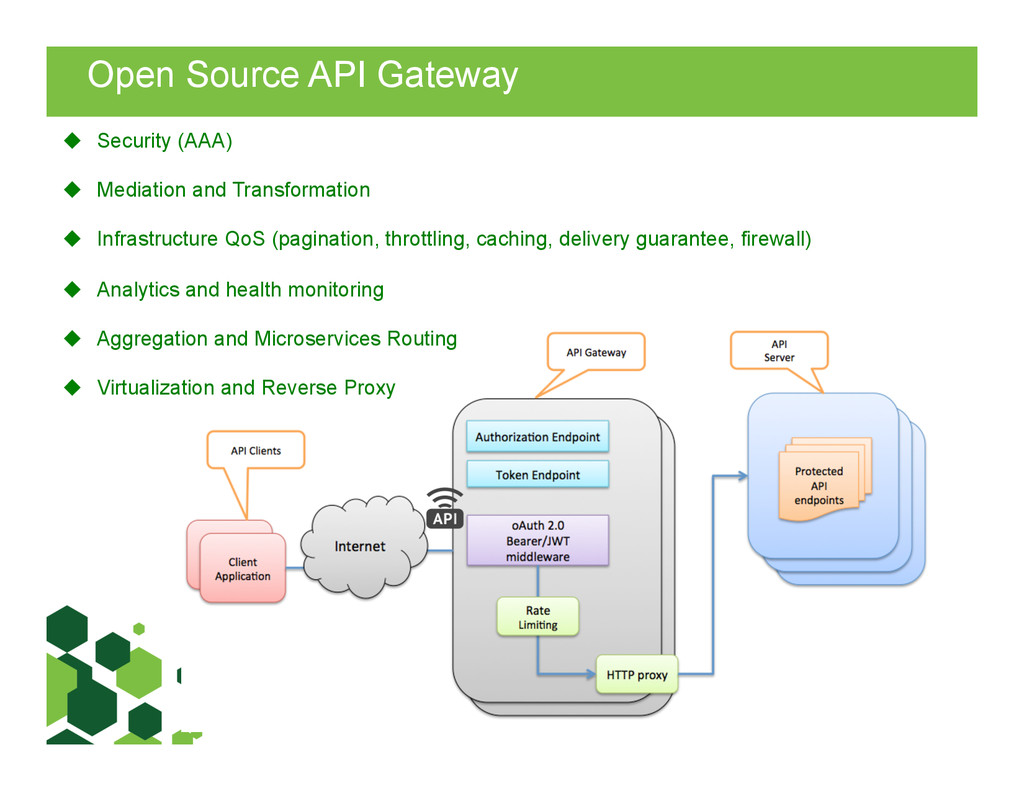

45. Open Source API Gateway u  Security (AAA) u  Mediation and Transformation u  Infrastructure QoS (pagination, throttling, caching, delivery guarantee, firewall) u  Analytics and health monitoring u  Aggregation and Microservices Routing u  Virtualization and Reverse Proxy

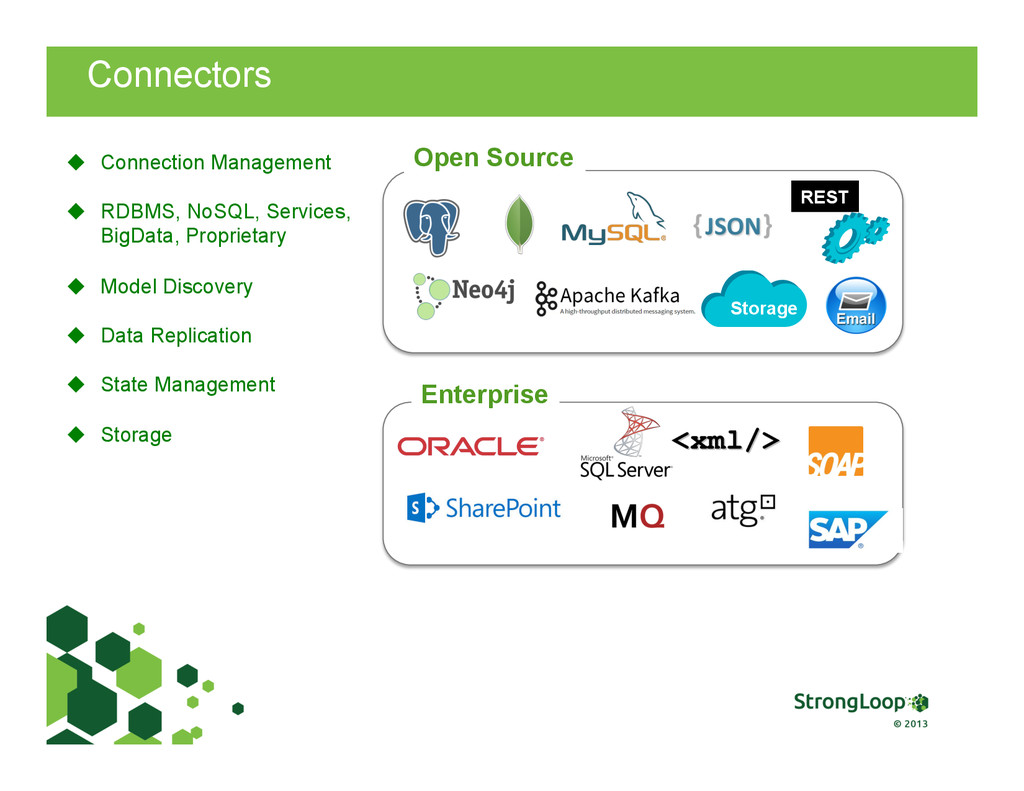

46. Connectors u  Connection Management u  RDBMS, NoSQL, Services, BigData, Proprietary u  Model Discovery u  Data Replication u  State Management u  Storage Open Source Enterprise Relational Database Clustered Database Security Gateway Cloud Firewall SOA Bus ( not sure on this o Laptop ( not requested but useful) Connections Tablet Phone IoT SDK API SERVER Items for ACL Quick Example of Use App Server Add On App Server Storage Relational Database Clustered Database Security Gateway Cloud Firewall SOA Bus ( not sure on this one) Laptop ( not requested but useful) Connections Tablet Phone IoT SDK API SERVER Items for ACL Quick Example of Use App Server Add On App Server REST

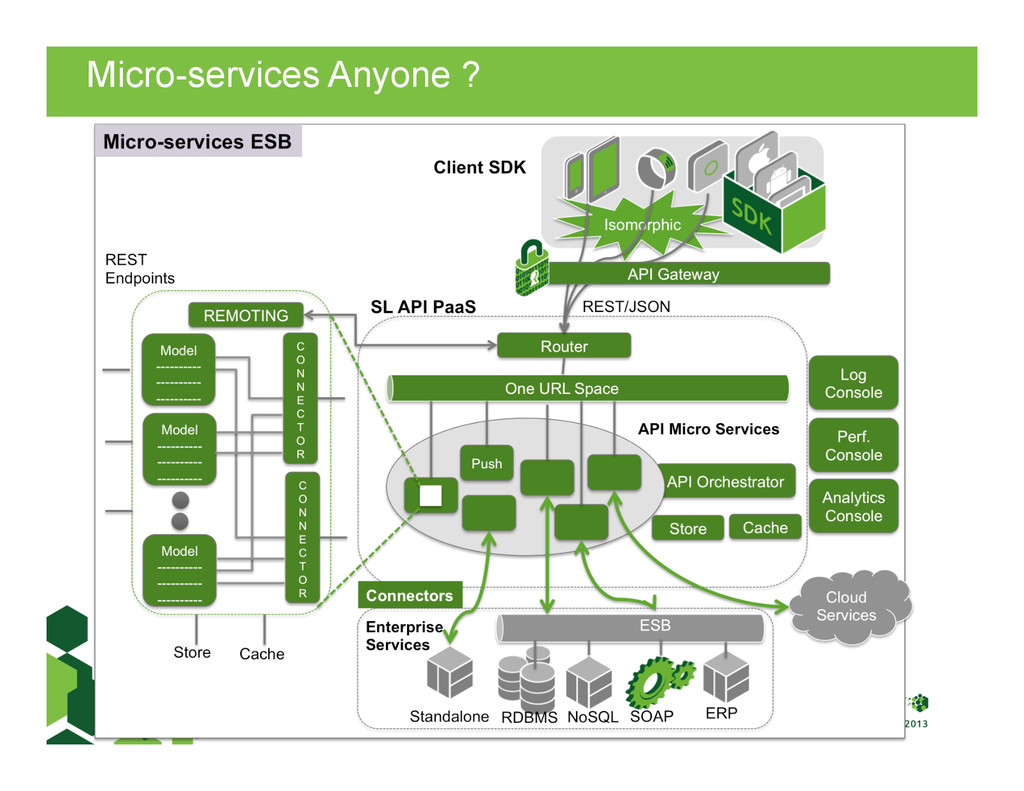

47. Micro-services Anyone ?
48. The boss does have valid questions L I recommend Node.js for our API strategy Architect The Boss Node is nerdy like systems programming !...Where are tools ? Do we have an IDE ?

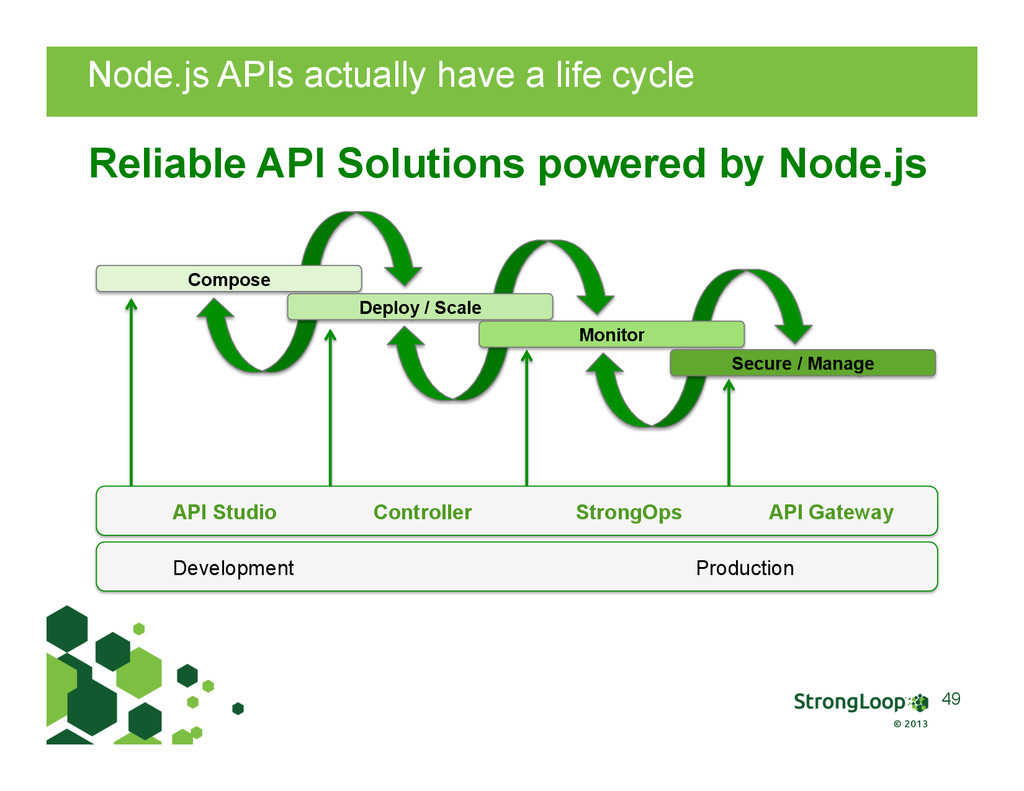

49. Node.js APIs actually have a life cycle 49 Compose Deploy / Scale Monitor Secure / Manage API Studio Controller StrongOps API Gateway Development Production Reliable API Solutions powered by Node.js

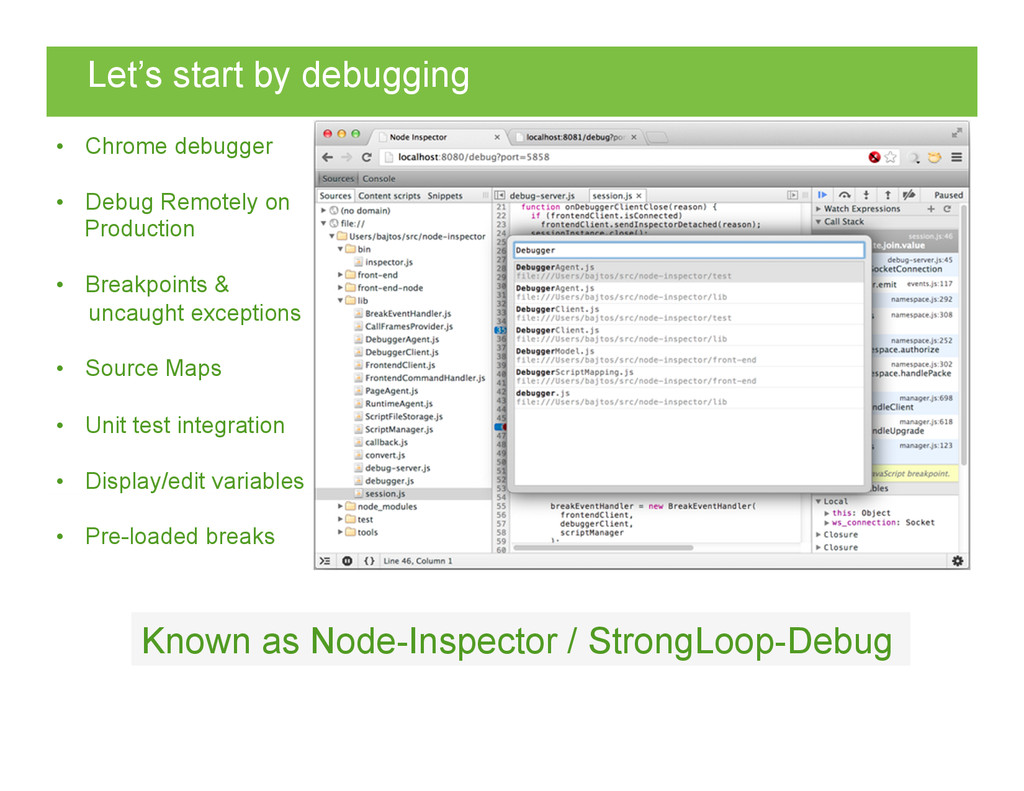

50. Let’s start by debugging •  Chrome debugger •  Debug Remotely on Production •  Breakpoints & uncaught exceptions •  Source Maps •  Unit test integration •  Display/edit variables •  Pre-loaded breaks Known as Node-Inspector / StrongLoop-Debug

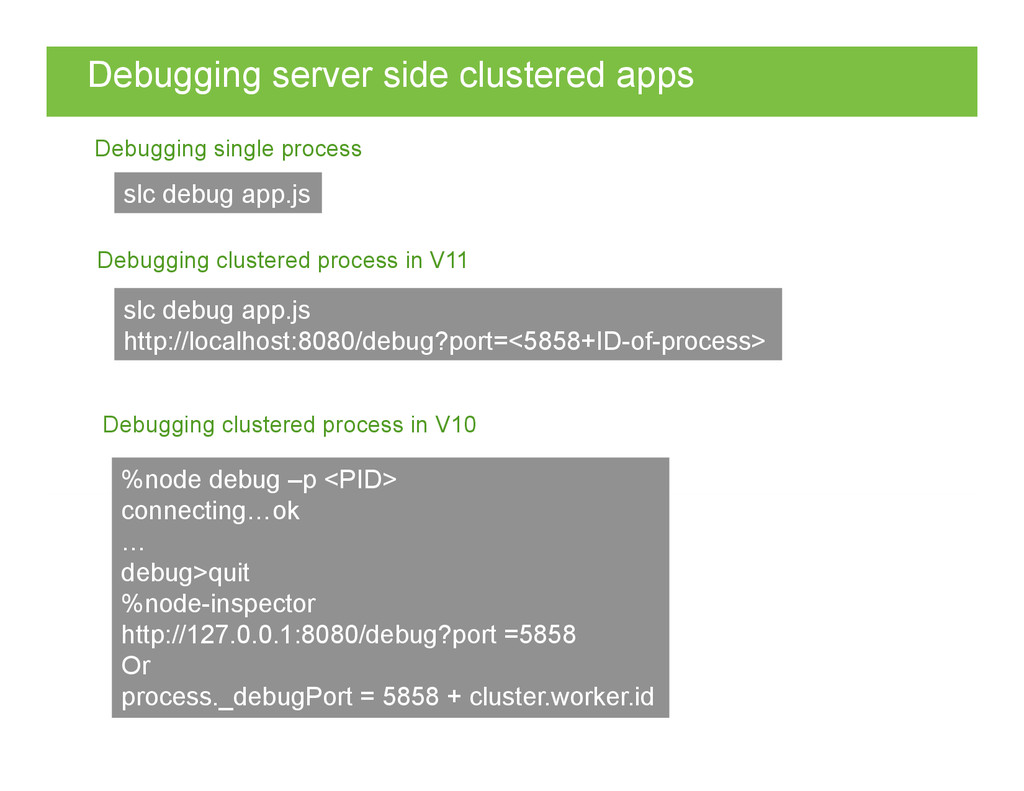

51. Debugging server side clustered apps slc debug app.js Debugging single process slc debug app.js http://localhost:8080/debug?port=<5858+ID-of-process> Debugging clustered process in V11 %node debug –p <PID> connecting…ok … debug>quit %node-inspector http://127.0.0.1:8080/debug?port =5858 Or process._debugPort = 5858 + cluster.worker.id Debugging clustered process in V10

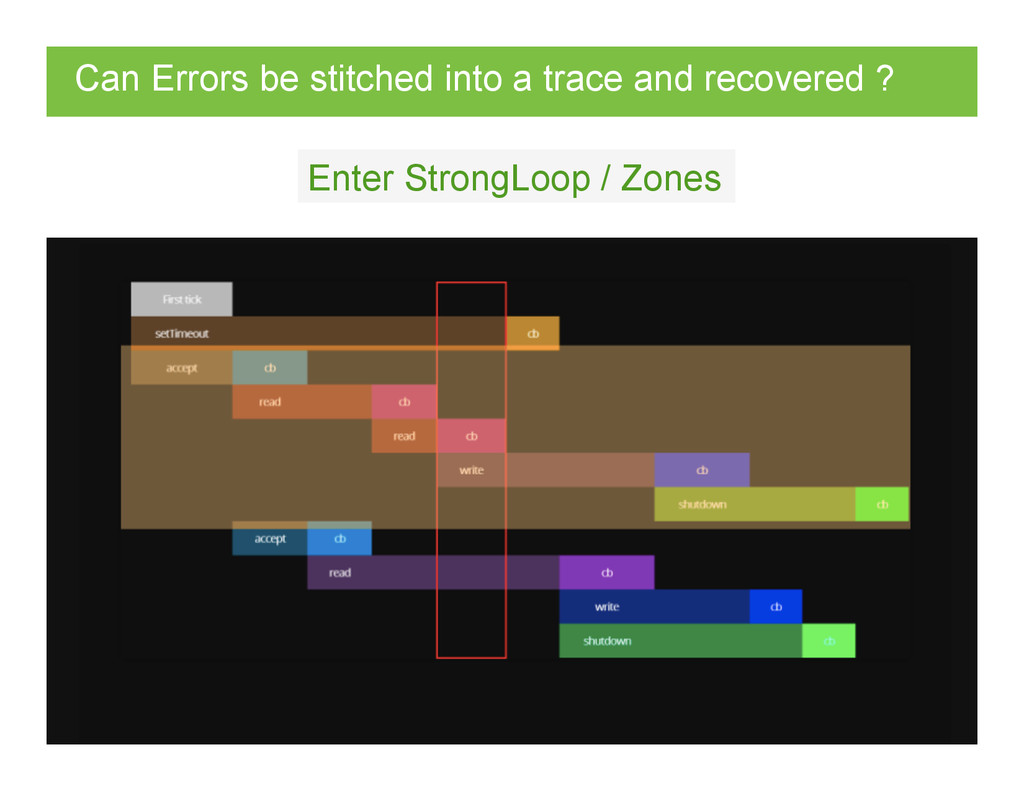

52. Can Errors be stitched into a trace and recovered ? Enter StrongLoop / Zones
53. But is it enough to convince him ? Plus I can now diagnose CPU hotspots and Memory Bottlenecks Architect The Boss Node is fast you said !...what bottlenecks and leaks ?

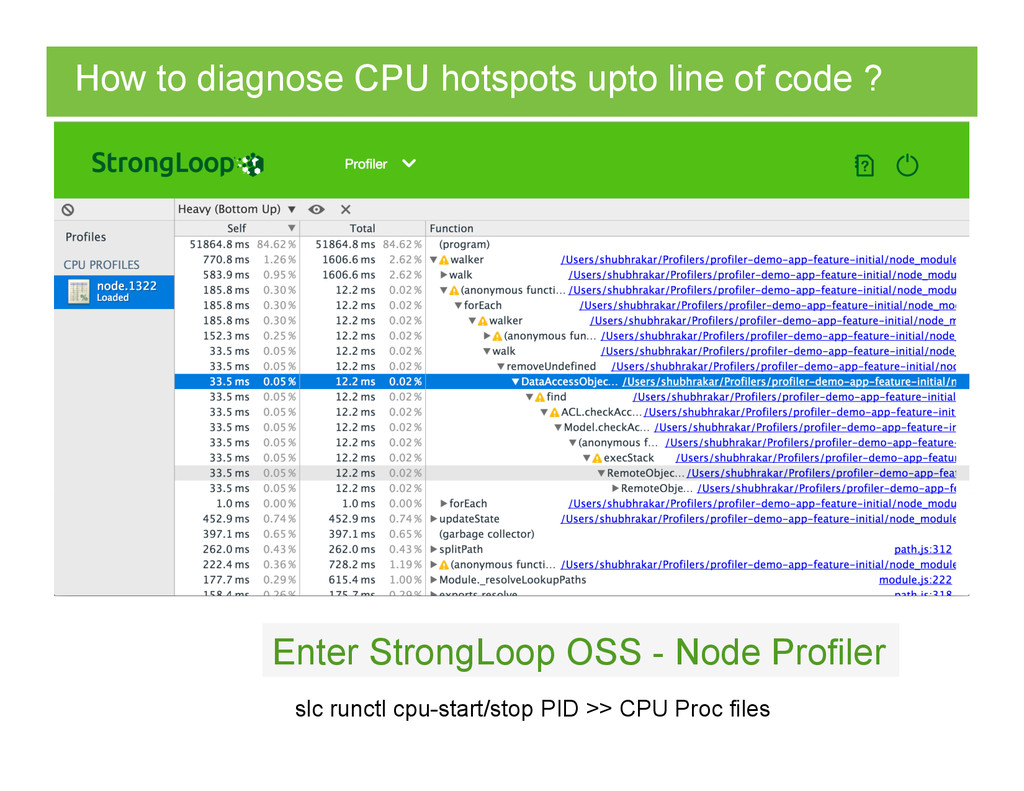

54. How to diagnose CPU hotspots upto line of code ? Enter StrongLoop OSS - Node Profiler slc runctl cpu-start/stop PID >> CPU Proc files

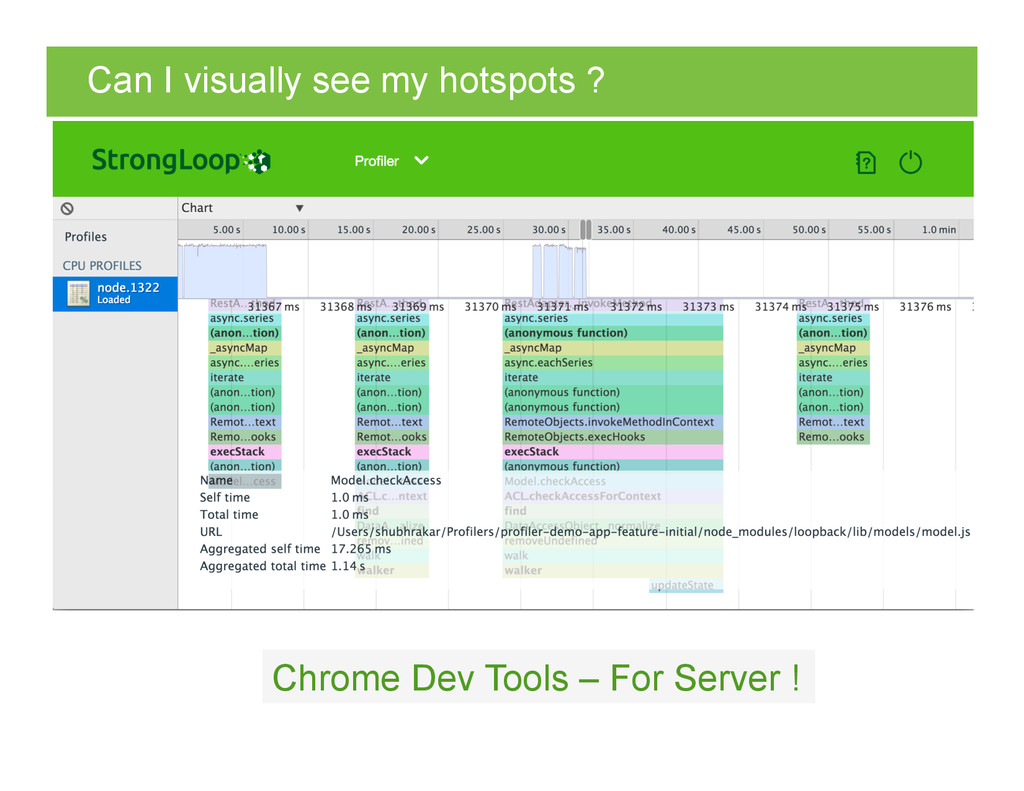

55. Can I visually see my hotspots ? Chrome Dev Tools – For Server !

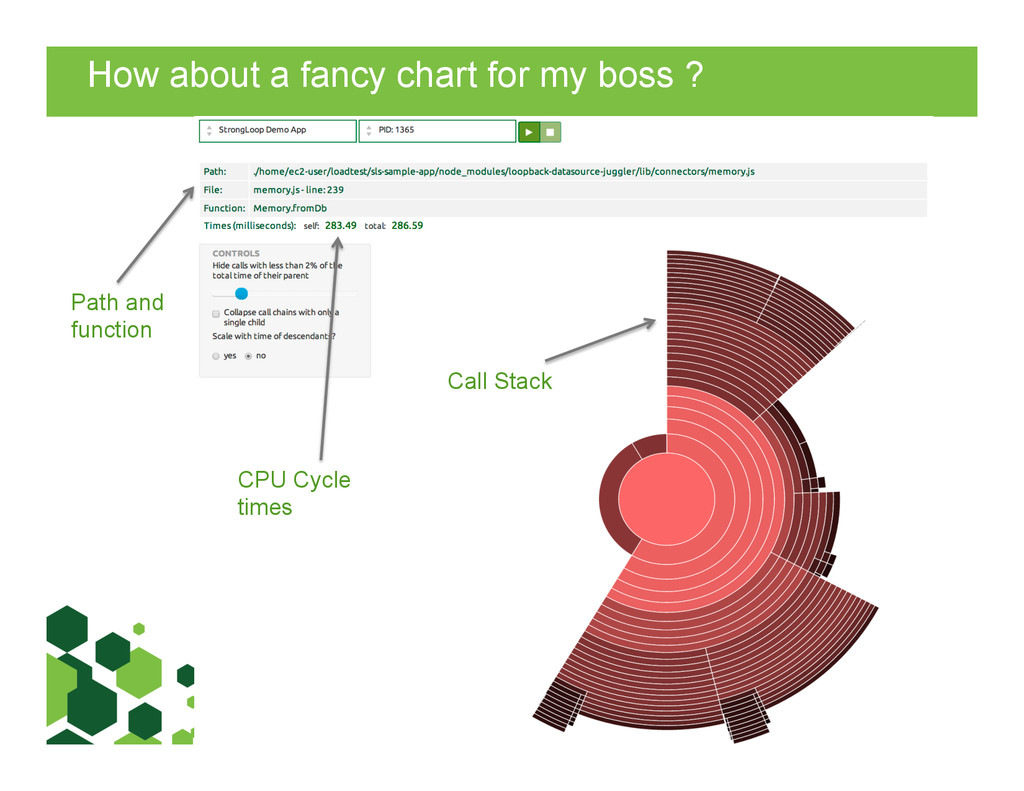

56. How about a fancy chart for my boss ? Call Stack Path and function CPU Cycle times

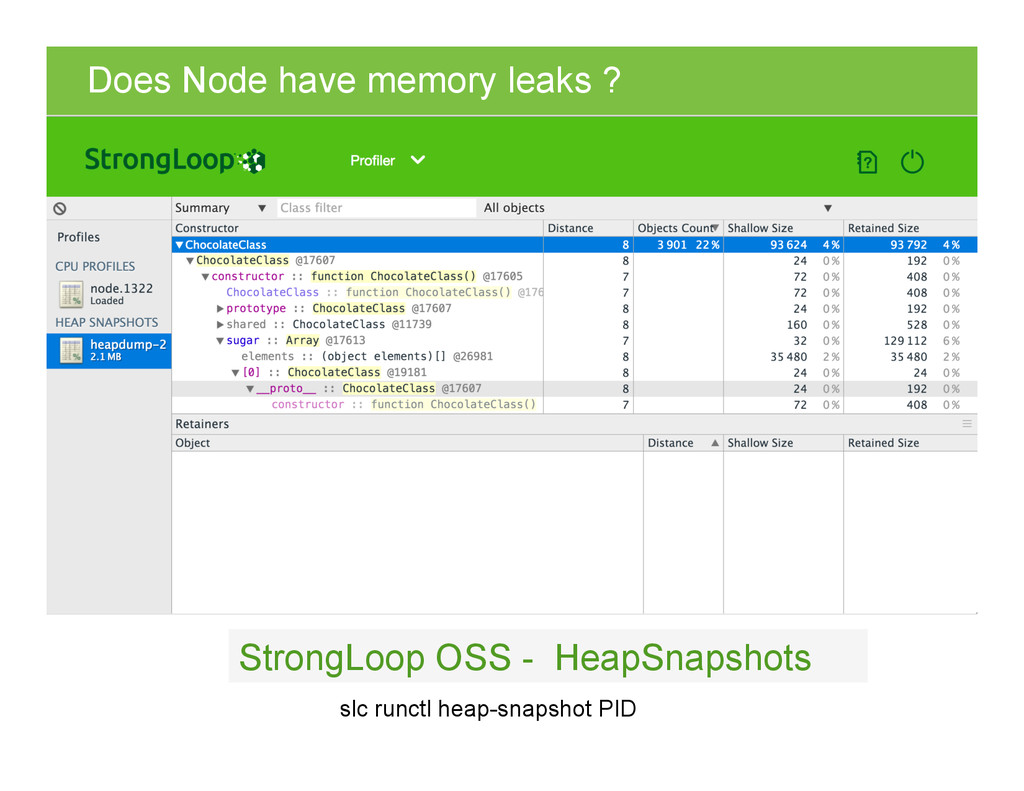

57. Does Node have memory leaks ? StrongLoop OSS - HeapSnapshots slc runctl heap-snapshot PID

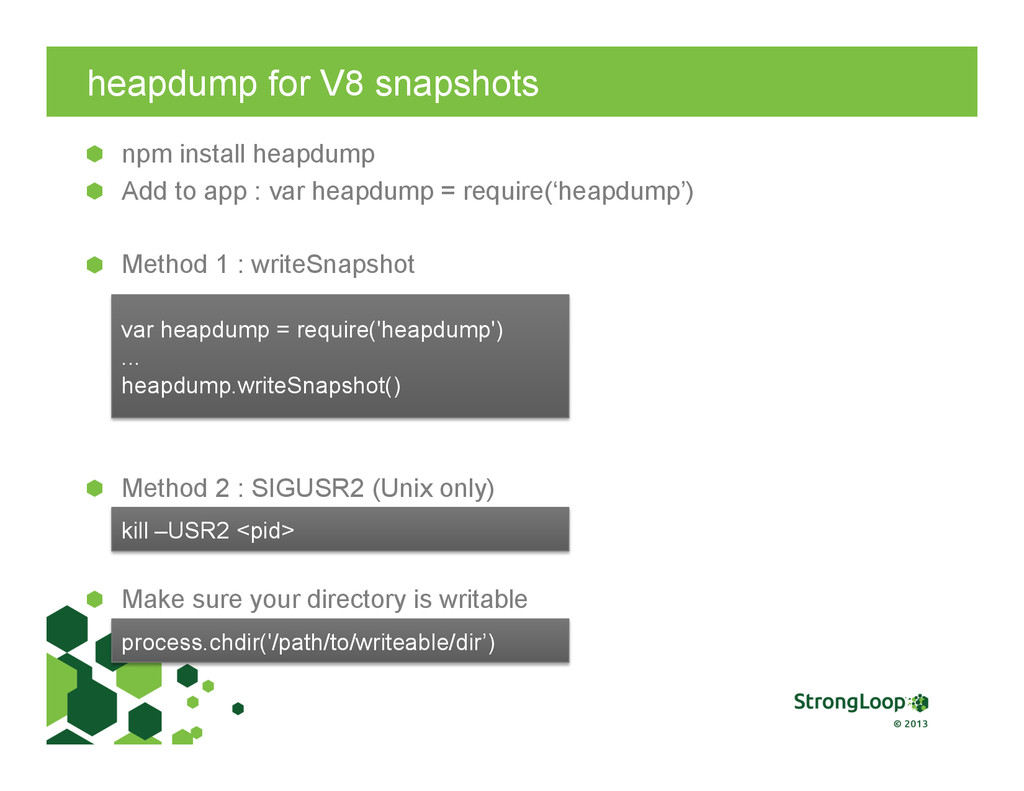

58. heapdump for V8 snapshots " npm install heapdump "   Add to app : var heapdump = require(‘heapdump’) "   Method 1 : writeSnapshot "   Method 2 : SIGUSR2 (Unix only) "   Make sure your directory is writable var heapdump = require('heapdump') ... heapdump.writeSnapshot() kill –USR2 <pid> process.chdir('/path/to/writeable/dir’)

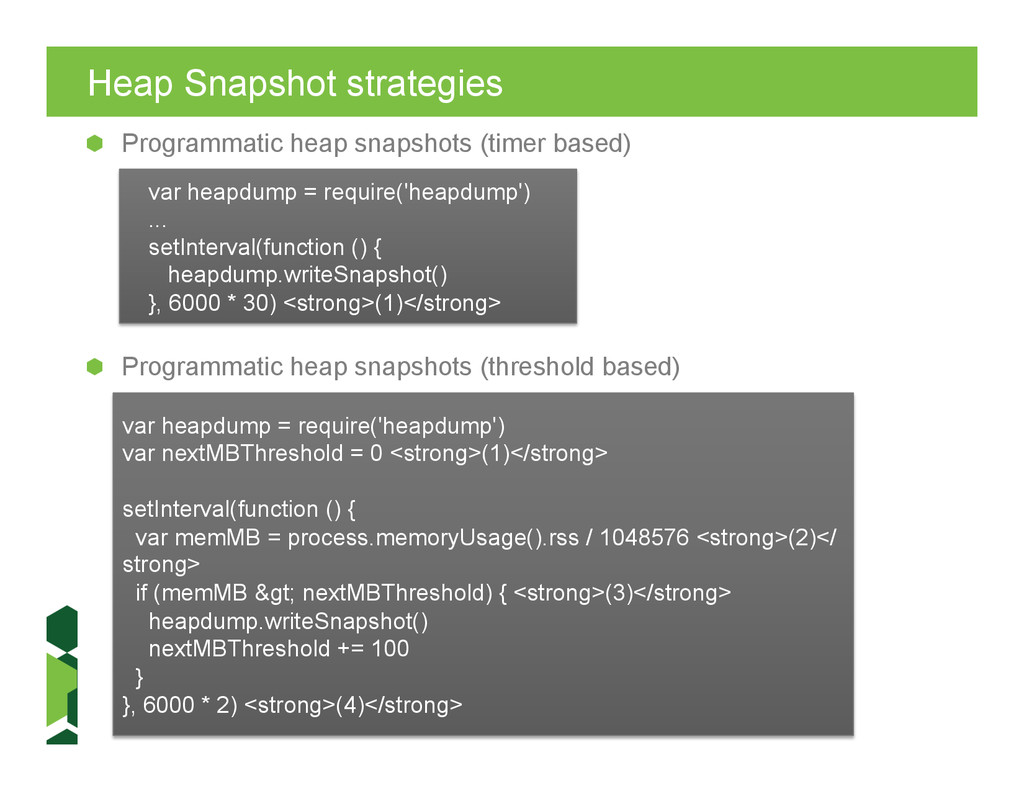

59. Heap Snapshot strategies "   Programmatic heap snapshots (timer based) "   Programmatic heap snapshots (threshold based) var heapdump = require('heapdump') ... setInterval(function () { heapdump.writeSnapshot() }, 6000 * 30) <strong>(1)</strong> var heapdump = require('heapdump') var nextMBThreshold = 0 <strong>(1)</strong> setInterval(function () { var memMB = process.memoryUsage().rss / 1048576 <strong>(2)</ strong> if (memMB &gt; nextMBThreshold) { <strong>(3)</strong> heapdump.writeSnapshot() nextMBThreshold += 100 } }, 6000 * 2) <strong>(4)</strong>

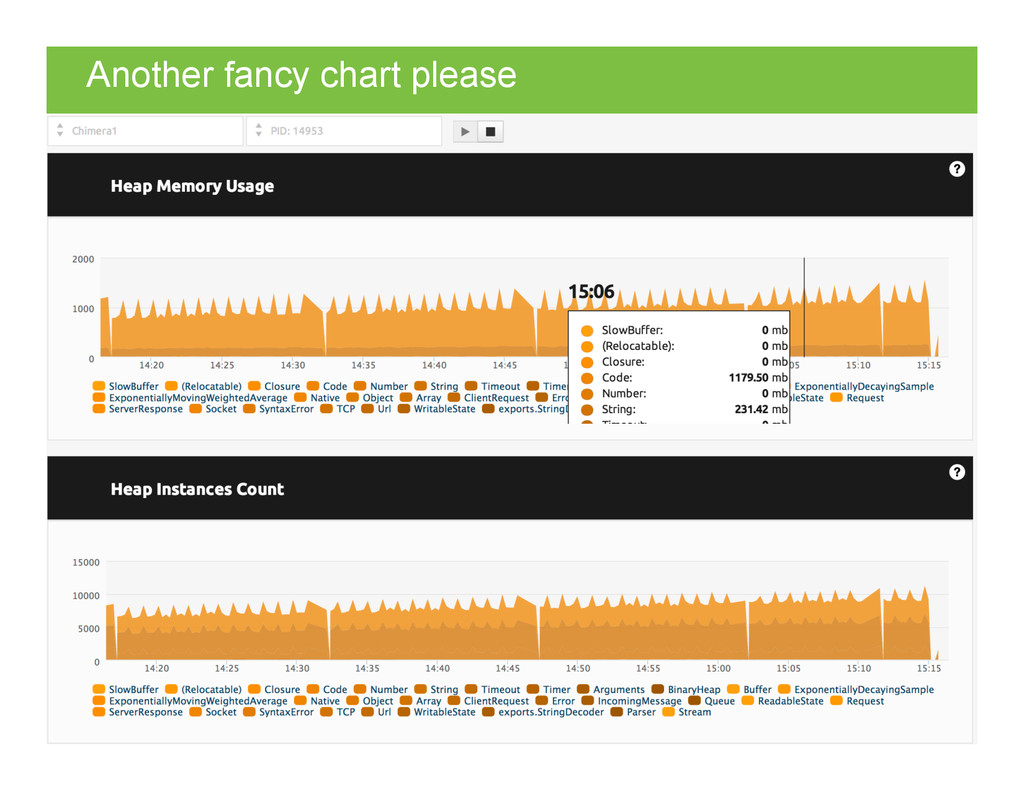

60. Another fancy chart please
61. We are getting there… See we have great Dev Tools Architect The Boss Not at 3:00 a.m. in the night !….Show me its Production ready

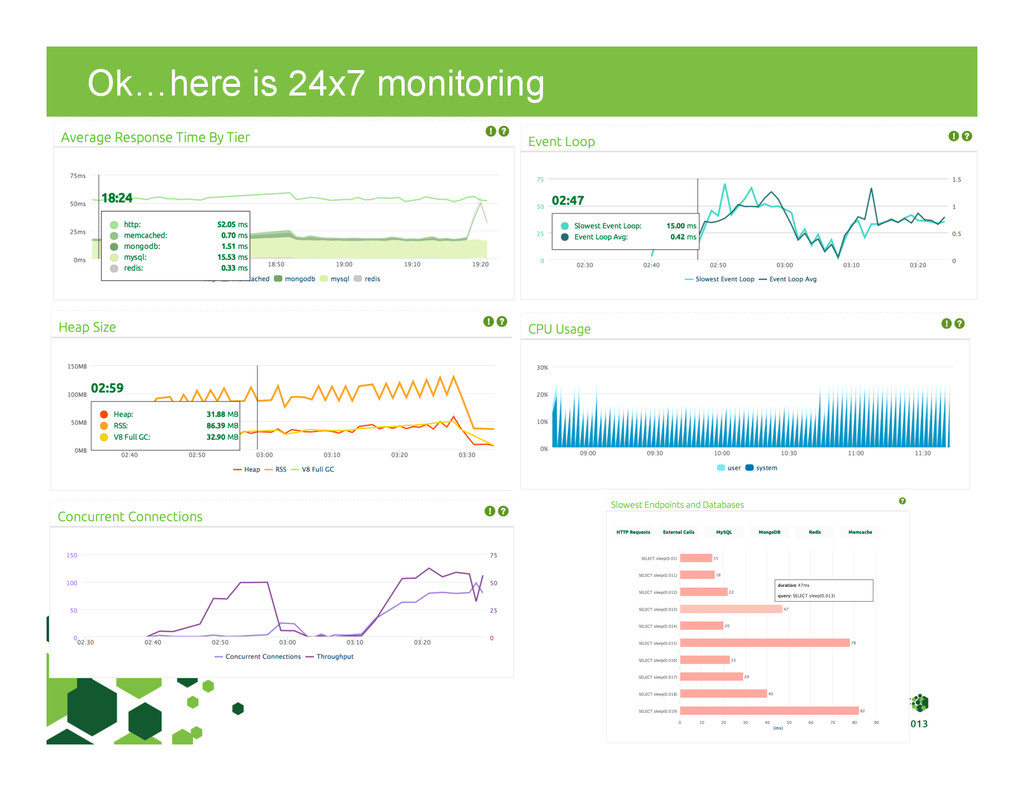

62. Ok…here is 24x7 monitoring

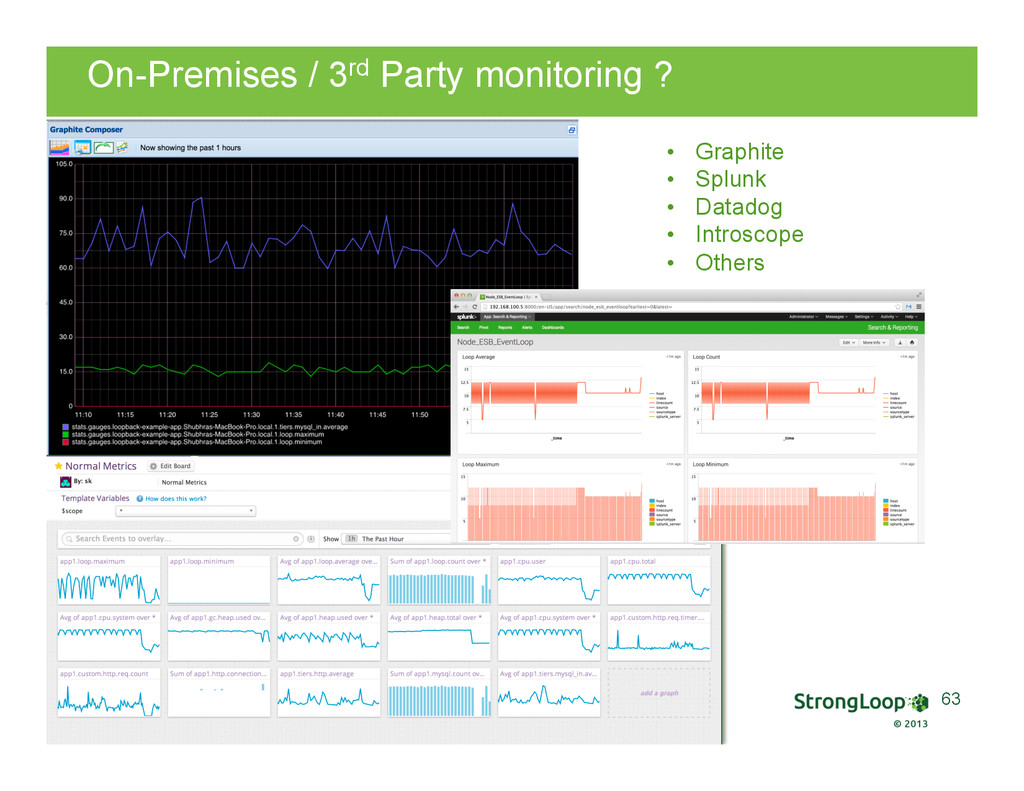

63. On-Premises / 3rd Party monitoring ? 63 •  Graphite •  Splunk •  Datadog •  Introscope •  Others

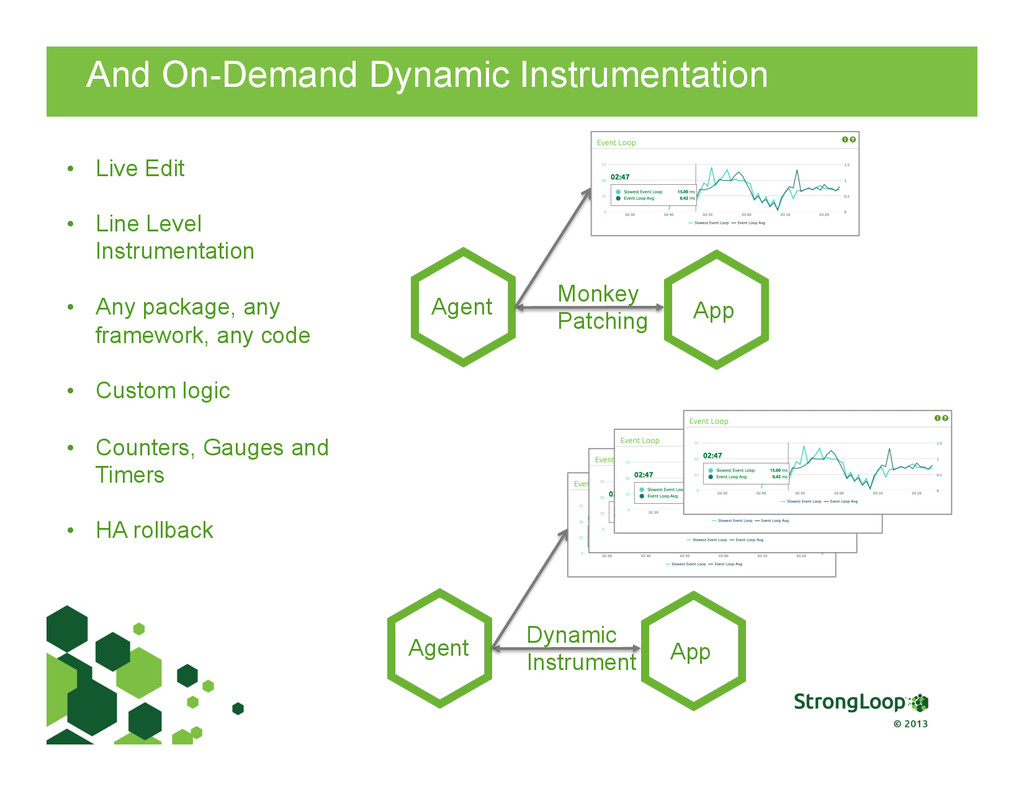

64. And On-Demand Dynamic Instrumentation Agent App Monkey Patching Agent App Dynamic Instrument •  Live Edit •  Line Level Instrumentation •  Any package, any framework, any code •  Custom logic •  Counters, Gauges and Timers •  HA rollback
65. Almost there … Look I got monitoring Architect The Boss Good…but before I promote you, show me some scale

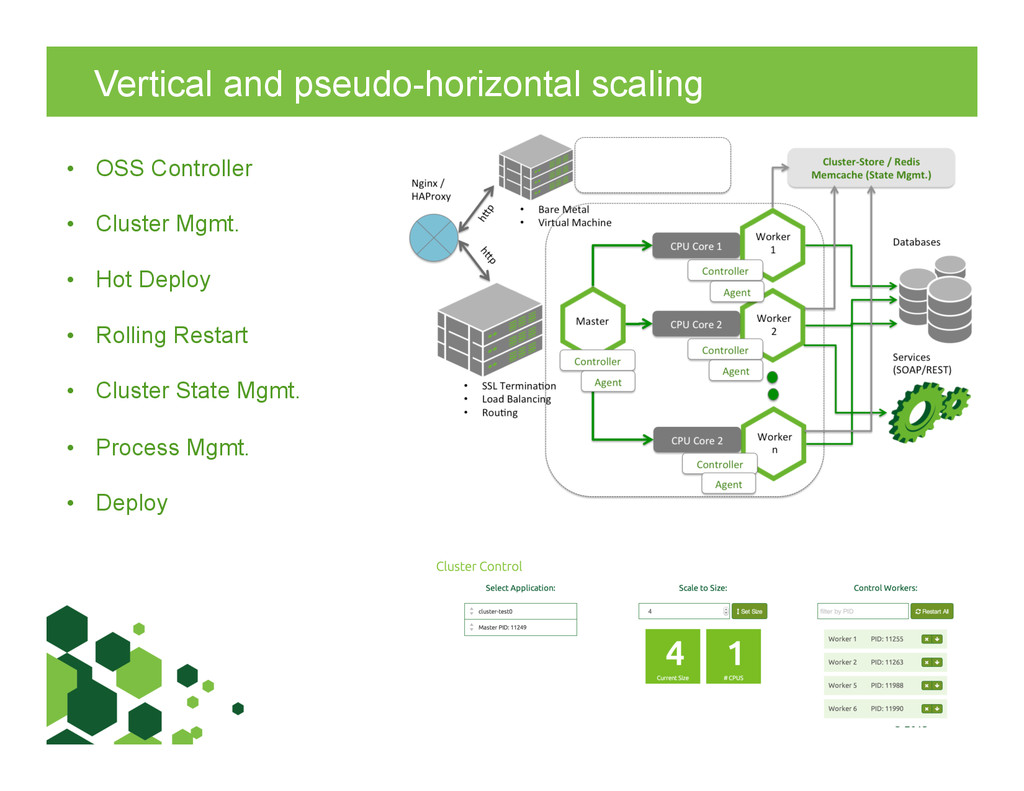

66. Vertical and pseudo-horizontal scaling •  OSS Controller •  Cluster Mgmt. •  Hot Deploy •  Rolling Restart •  Cluster State Mgmt. •  Process Mgmt. •  Deploy

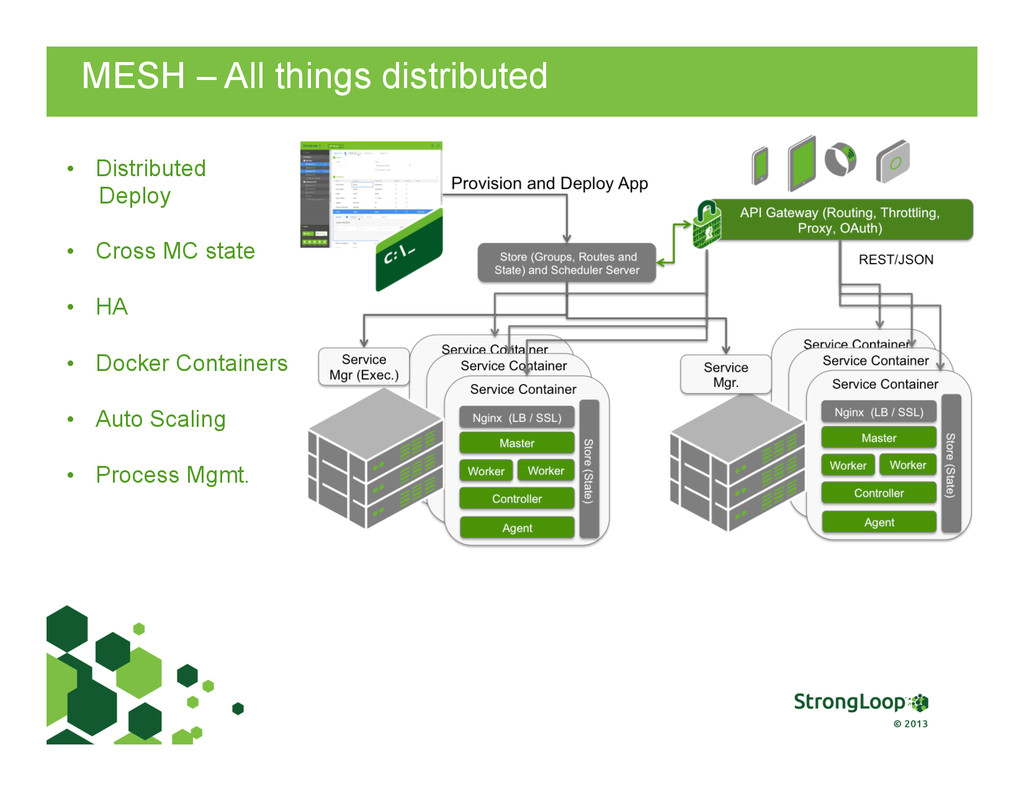

67. MESH – All things distributed •  Distributed Deploy •  Cross MC state •  HA •  Docker Containers •  Auto Scaling •  Process Mgmt.

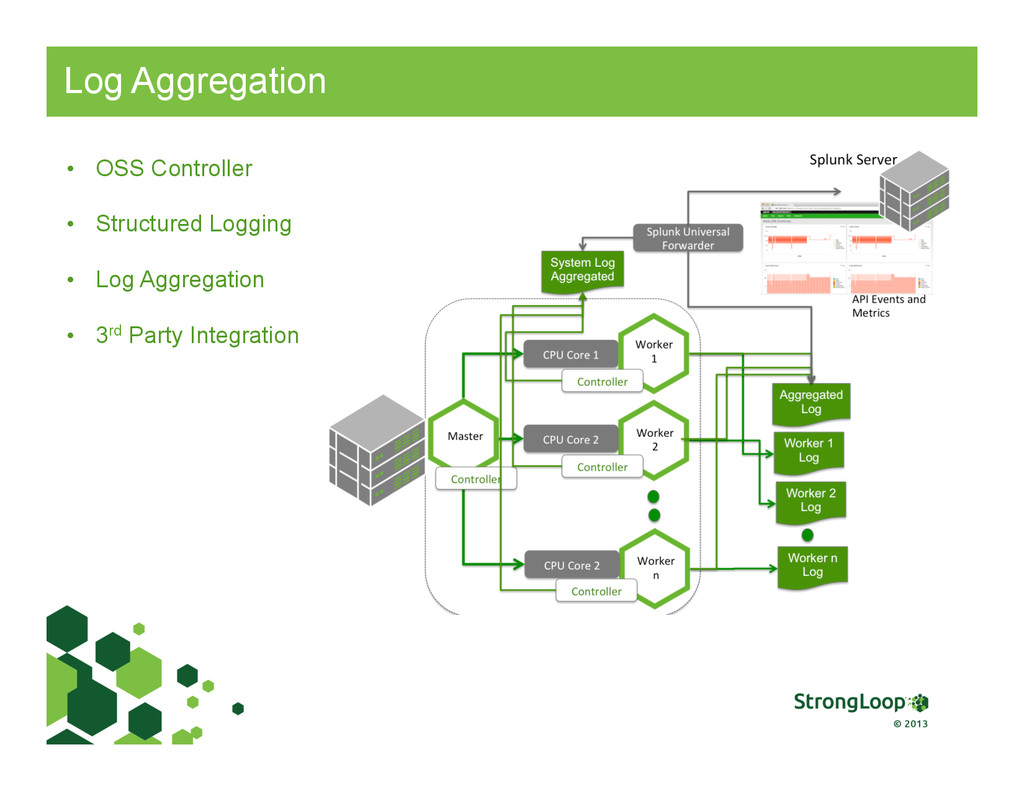

68. Log Aggregation •  OSS Controller •  Structured Logging •  Log Aggregation •  3rd Party Integration
69. That’s how we win. The Boss hehe…I am a Node API Hipster now !
70. Nodies are not just silicon valley hipsters ! And most recently…. #1 Retailer
71. First there was Node Thank you! JUST WIN, BABY!

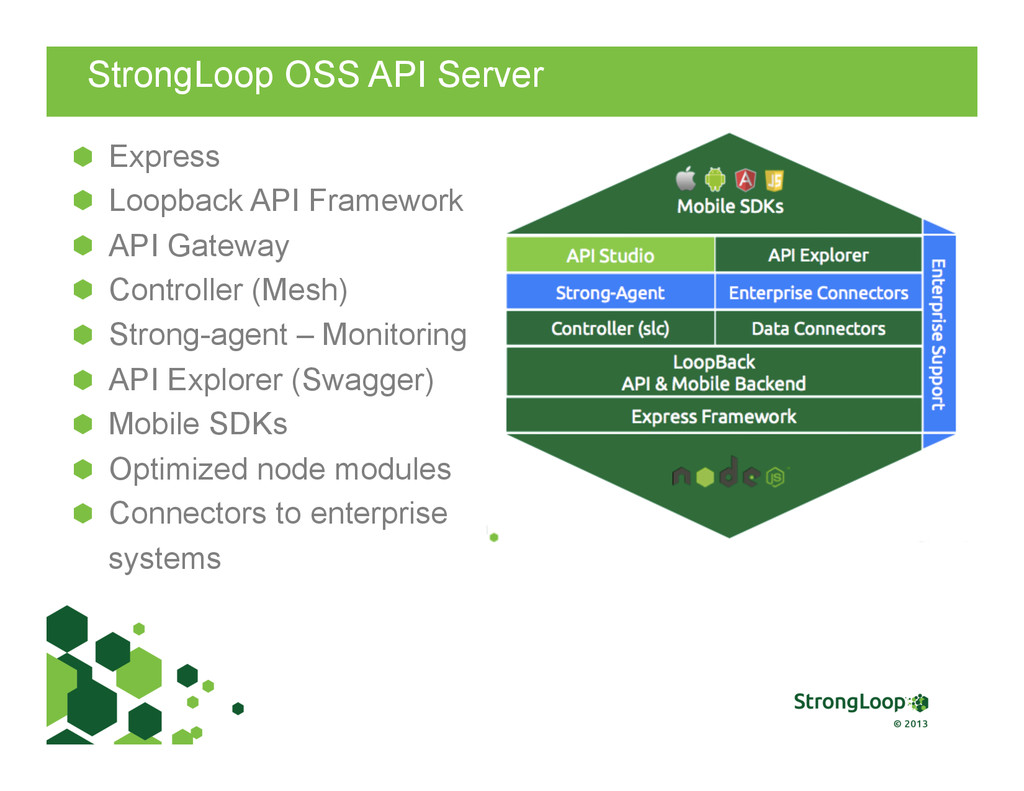

72. StrongLoop OSS API Server "   Express "   Loopback API Framework "   API Gateway "   Controller (Mesh) "   Strong-agent – Monitoring "   API Explorer (Swagger) "   Mobile SDKs "   Optimized node modules "   Connectors to enterprise systems
