1. Compose MultiplatformとSwiftUIで作る ハイブリッドモバイルアプリ： コード共有とUI融合の実践 Yena Hwang Assistant Manager @ Kinto Technologies
2. Introduction
3. Introduction @Yellow_yena @YenaHwang432434 @viviennehwang Yena Hwang Android Development Assistant Manager / KMP Team Lead KINTO Technologies ( a Toyota Group Company)
4. From Android to KMP-Evolution Our team started with Android development, and now we focus on Kotlin Multiplatform to deliver cross-platform experiences. Members Yao Xie – Android / Compose Multiplatform Yonghui Chen – Android / iOS / Kotlin Multiplatform Garamoi Choi– Android / Kotlin Multiplatform / API @hemoptysisheart KMP Team

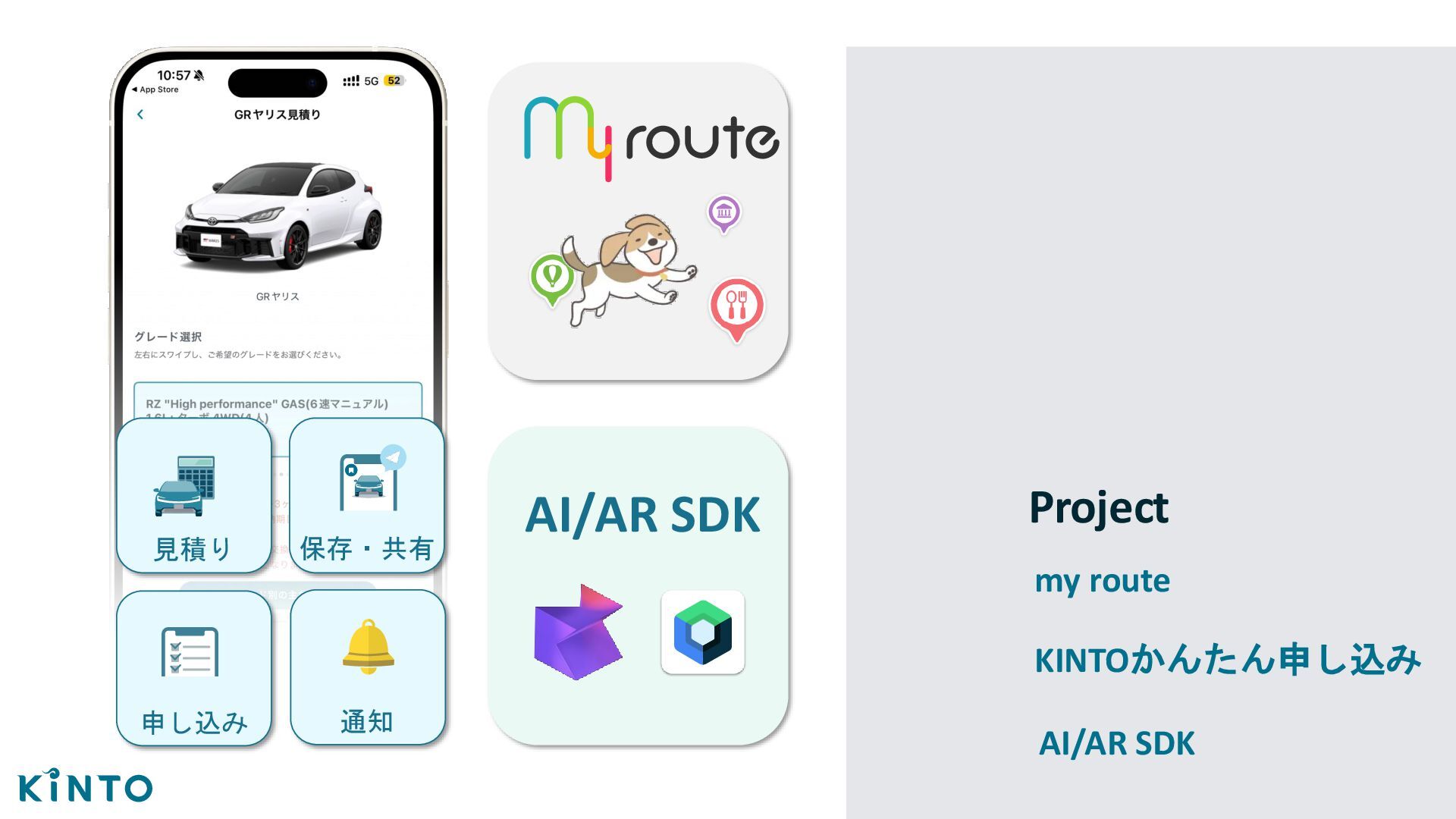

5. AI/AR SDK 見積り 申し込み 保存・共有 通知 my route KINTOかんたん申し込み AI/AR SDK Project
6. Scan QR Code & Ask your questions here! Slido code ＃67258131 https://app.sli.do/event/455CaD4m pV23uyVgNjT2CZ
7. Agenda Why Compose Multiplatform? Why Hybrid Architecture? Implementation Strategies Sample code Performance Comparison Pitfalls & Best Practices

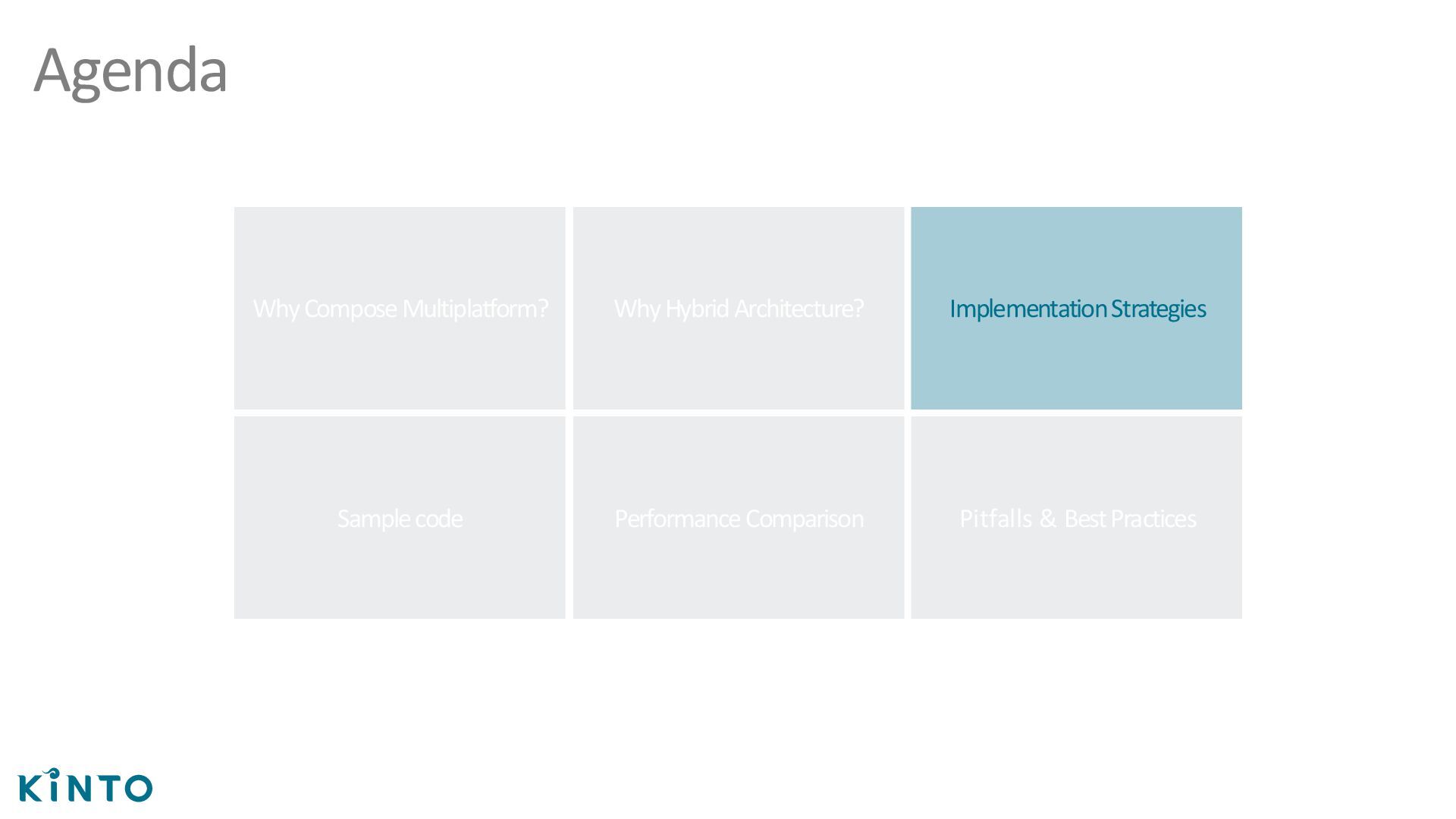

8. Agenda Why Compose Multiplatform? Why Hybrid Architecture? Implementation Strategies Sample code Performance Comparison Pitfalls & Best Practices
9. Agenda Why Compose Multiplatform? Why Hybrid Architecture? Implementation Strategies Sample code Performance Comparison Pitfalls & Best Practices

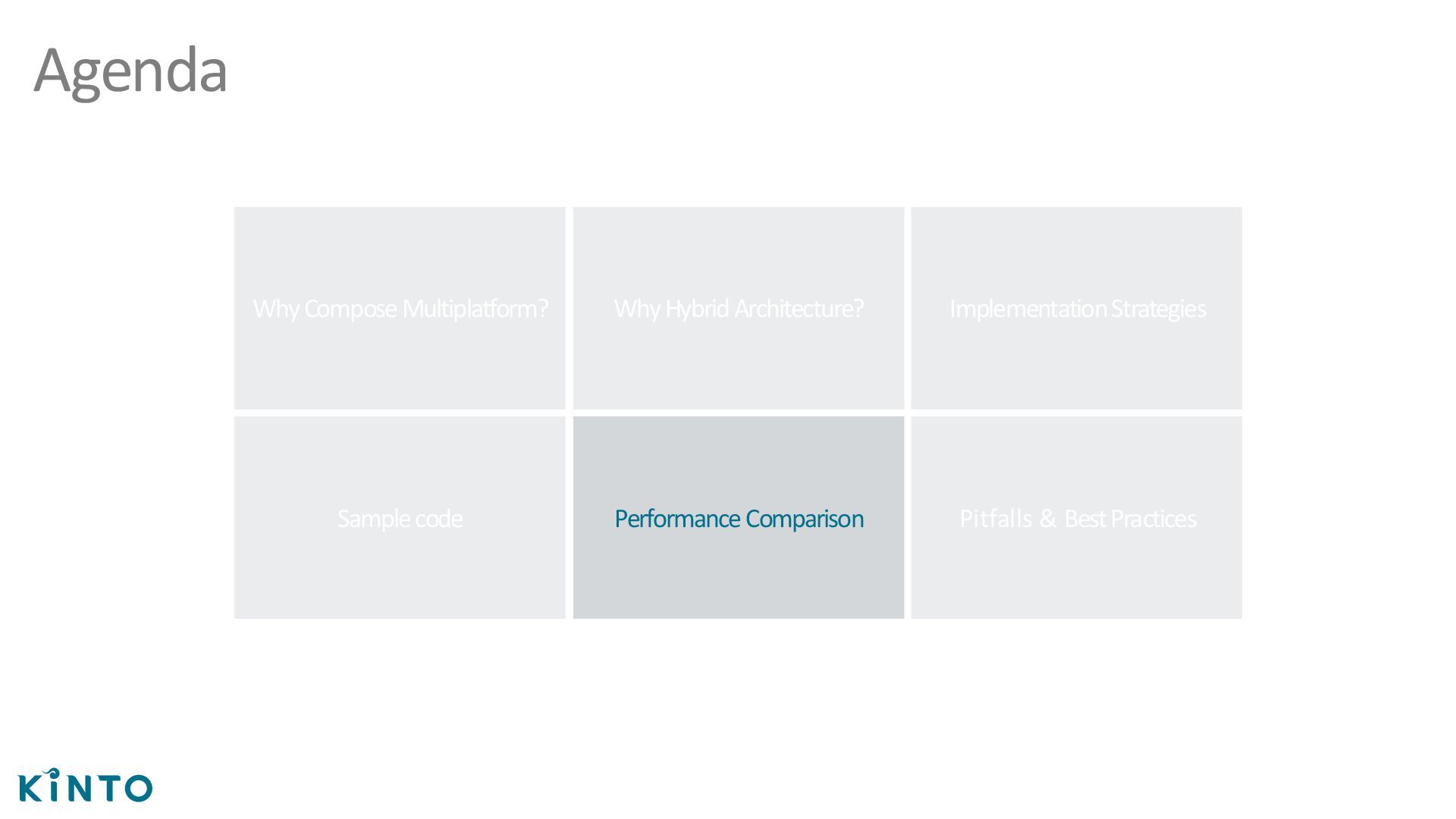

10. Agenda Why Compose Multiplatform? Why Hybrid Architecture? Implementation Strategies Sample code Performance Comparison Pitfalls & Best Practices
11. Agenda Why Compose Multiplatform? Why Hybrid Architecture? Implementation Strategies Sample code Performance Comparison Pitfalls & Best Practices
12. Agenda Why Compose Multiplatform? Why Hybrid Architecture? Implementation Strategies Sample code Performance Comparison Pitfalls & Best Practices
13. Agenda Why Compose Multiplatform? Why Hybrid Architecture? Implementation Strategies Sample code Performance Comparison Pitfalls & Best Practices

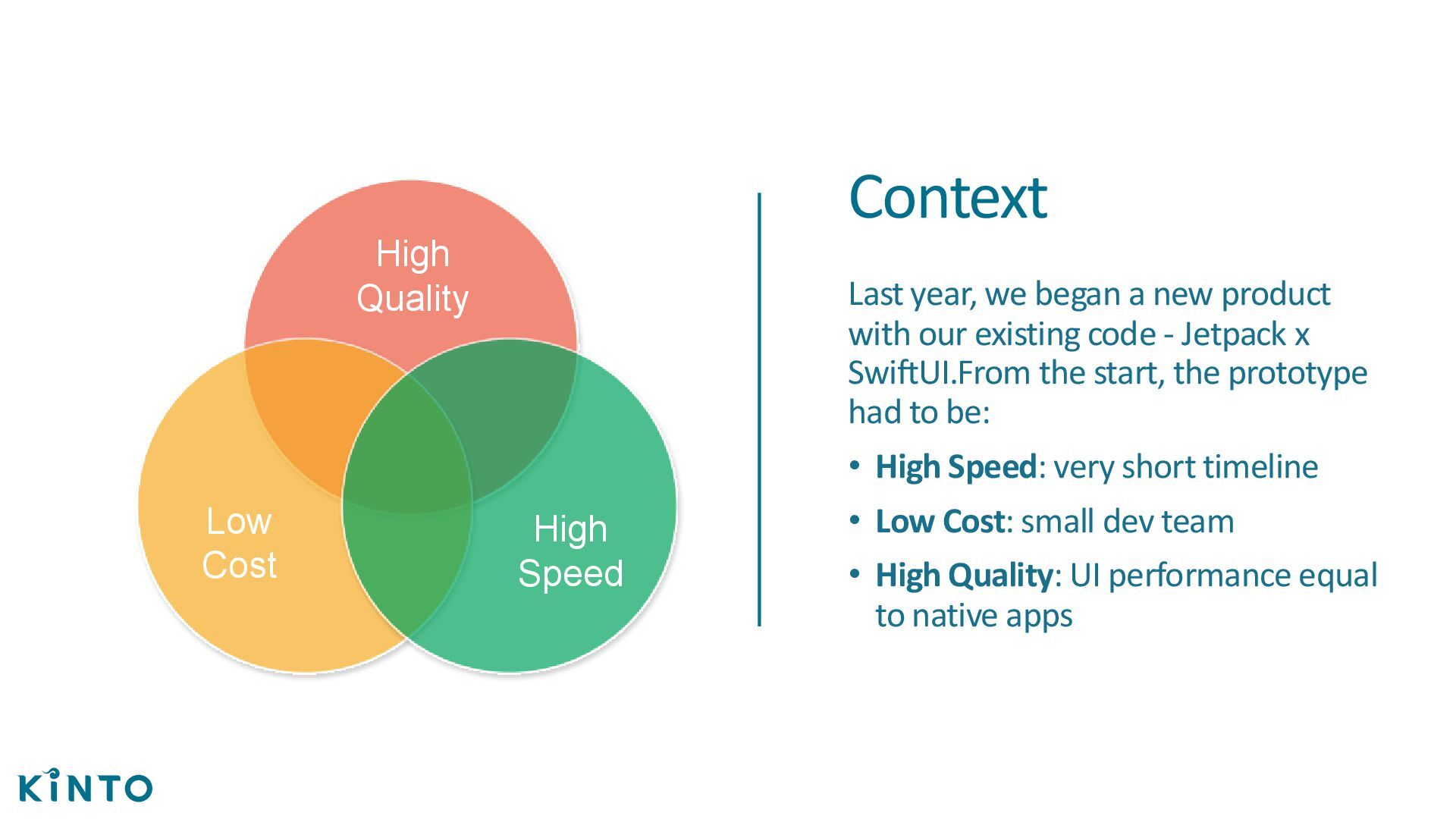

14. Context Last year, we began a new product with our existing code - Jetpack x SwiftUI.From the start, the prototype had to be: • High Speed: very short timeline • Low Cost: small dev team • High Quality: UI performance equal to native apps High Quality Low Cost High Speed

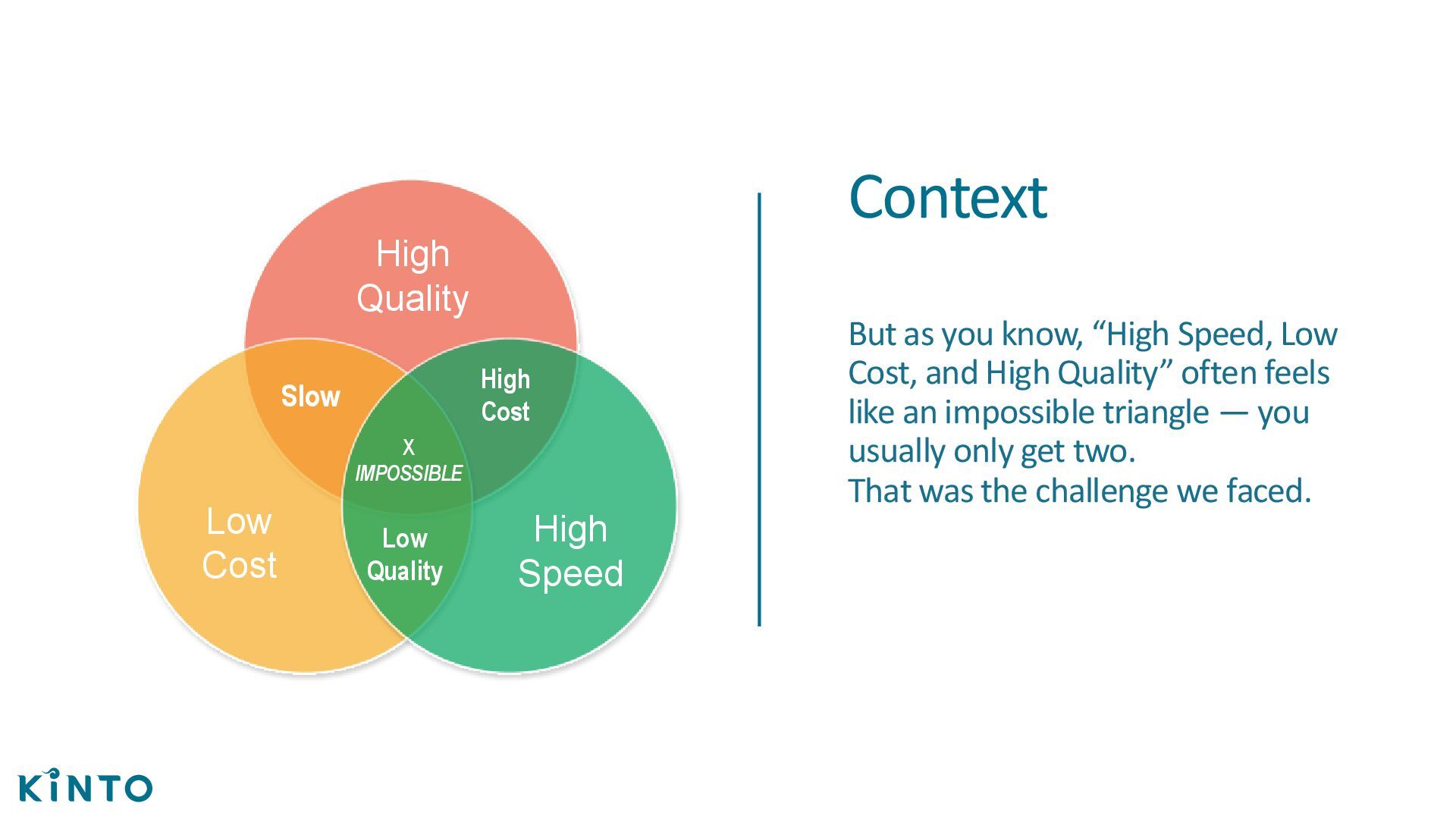

15. Context But as you know, “High Speed, Low Cost, and High Quality” often feels like an impossible triangle — you usually only get two. That was the challenge we faced. High Quality Low Cost High Speed Slow High Cost X IMPOSSIBLE Low Quality
16. KMP + CMP We saw an opportunity to go a step further – share both logic & UI layer across platforms. The solution?
17. This approach promised a rare mix: • Ship a prototype quickly with a small team • Native-level performance • Reuse Jetpack Compose components • Shared code for logic and UI • Higher efficiency to meet the deadline It looked like a practical way to break the “impossible triangle”.

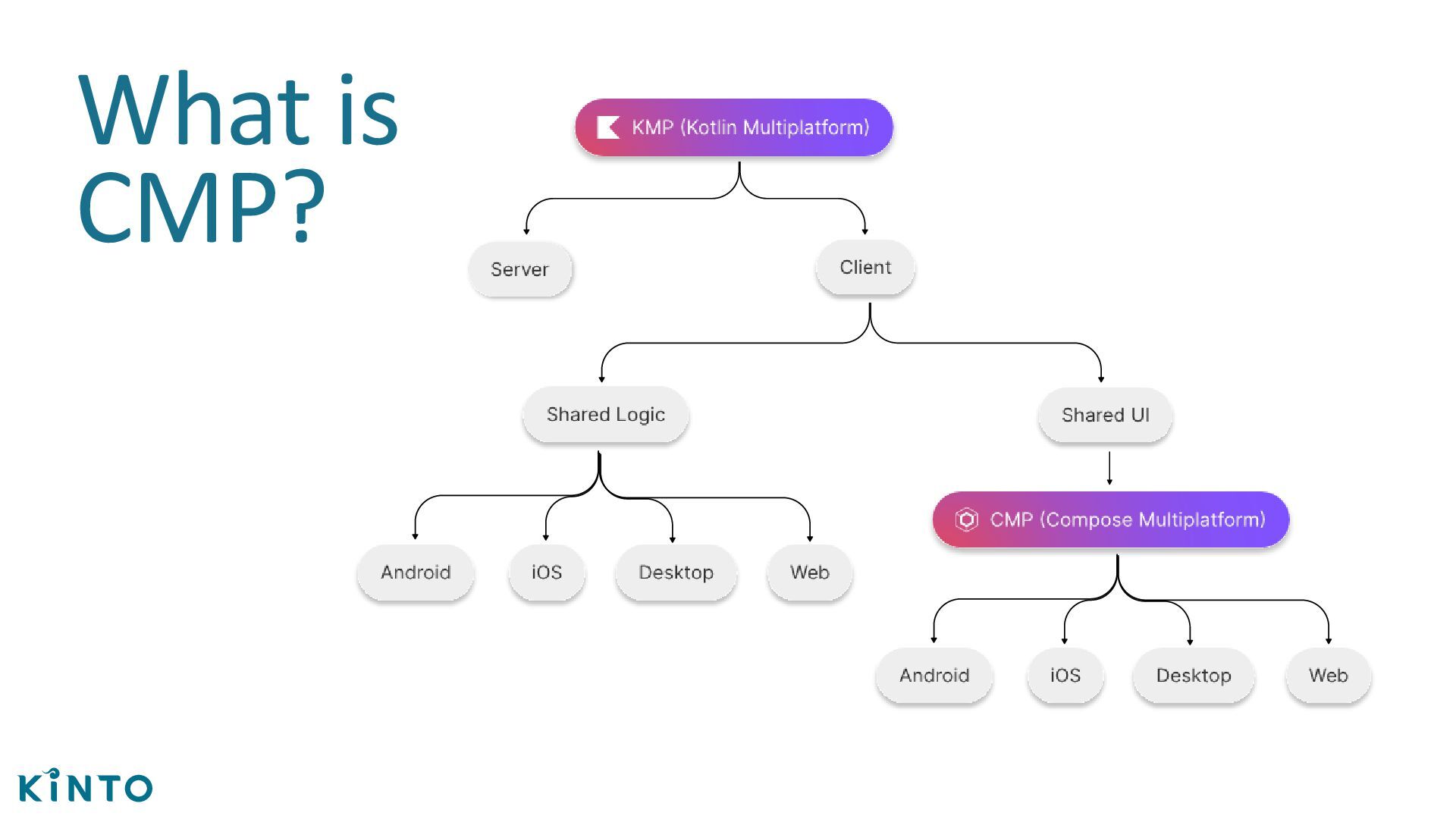

18. What is CMP?

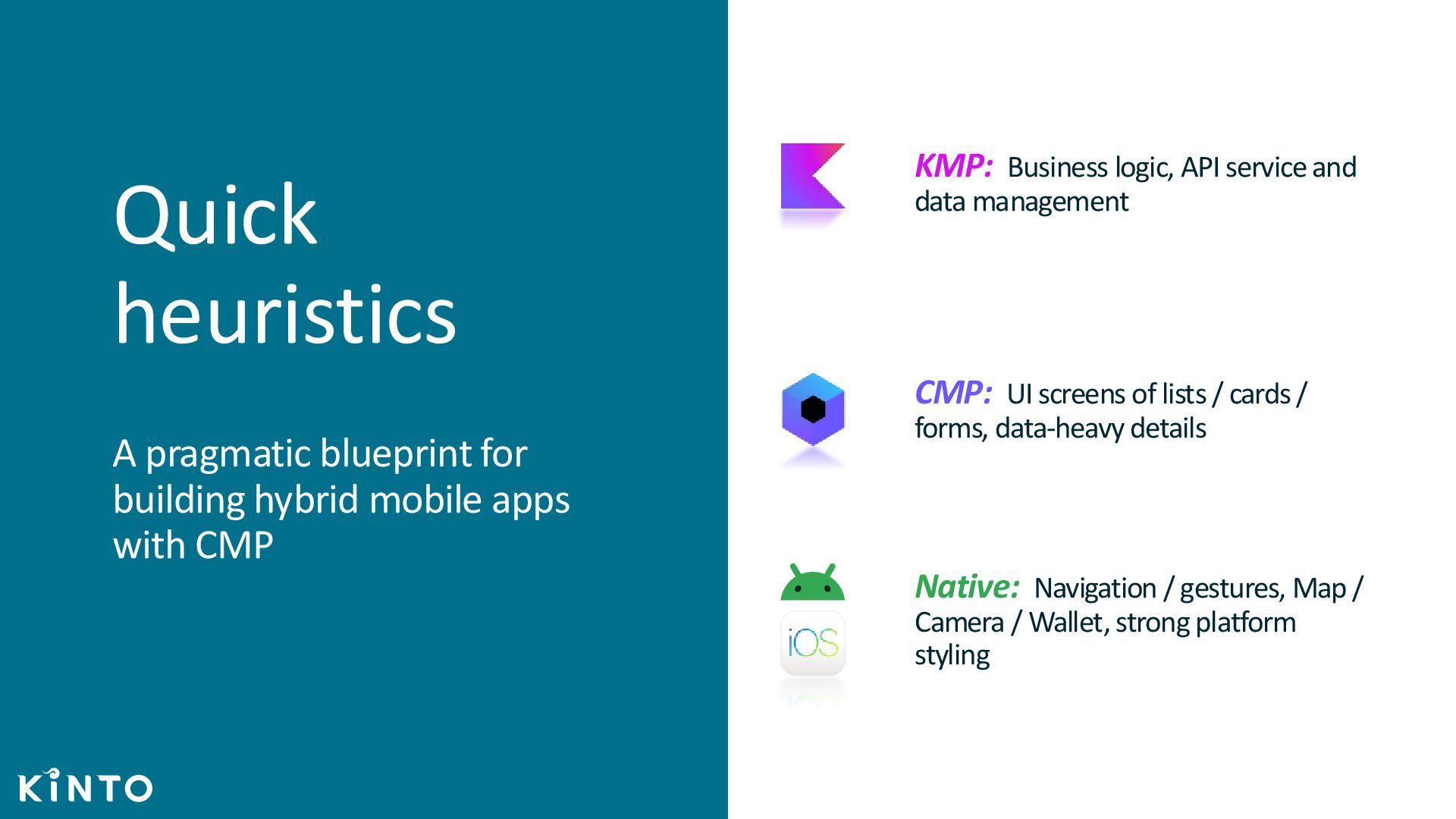

19. KMP: Business logic, API serviceand data management CMP: UI screens of lists / cards / forms, data-heavy details Native: Navigation / gestures, Map / Camera / Wallet, strong platform styling Quick heuristics A pragmatic blueprint for building hybrid mobile apps with CMP

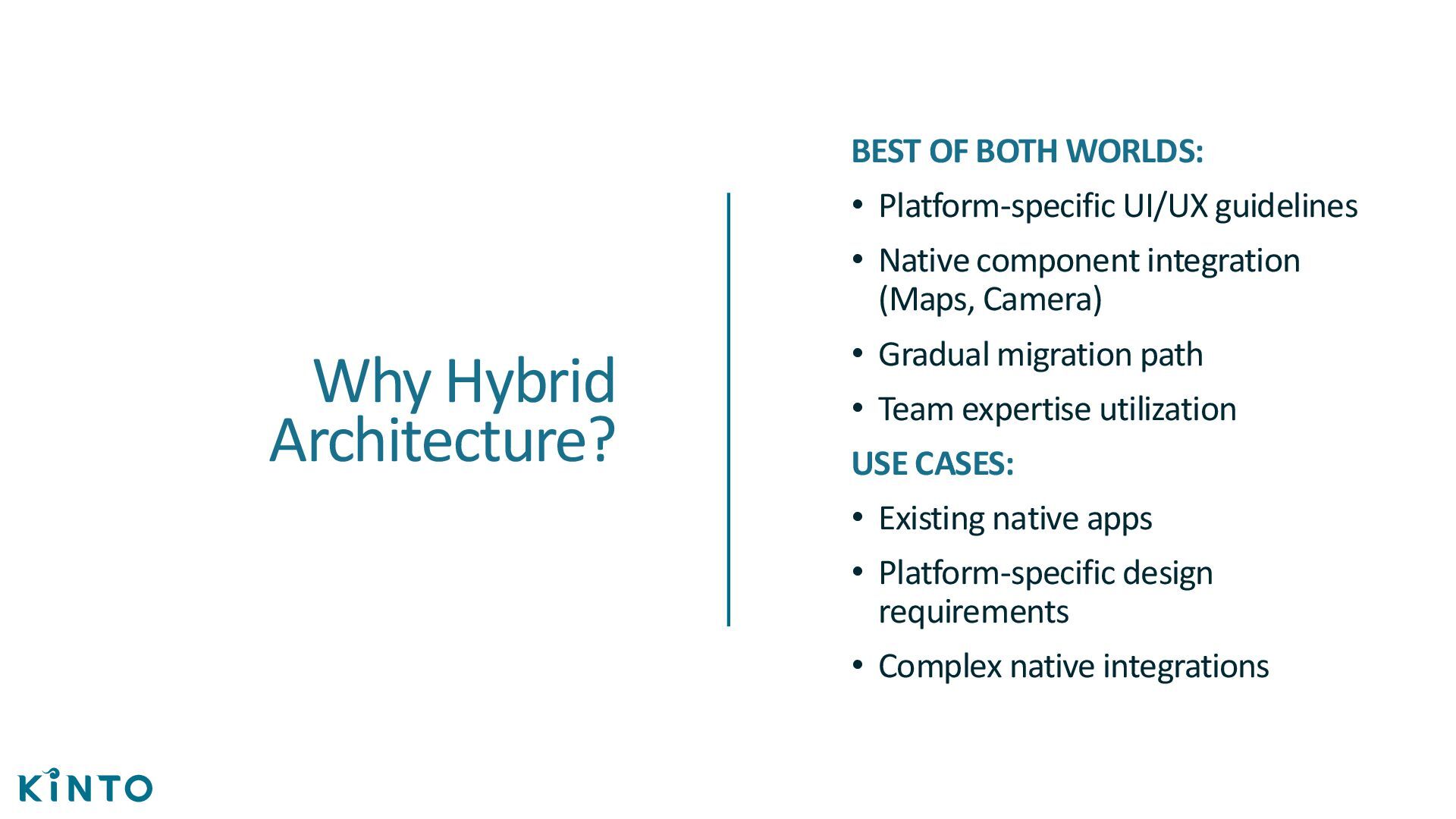

20. BEST OF BOTH WORLDS: • Platform-specific UI/UX guidelines • Native component integration (Maps, Camera) • Gradual migration path • Team expertise utilization USE CASES: • Existing native apps • Platform-specific design requirements • Complex native integrations Why Hybrid Architecture?

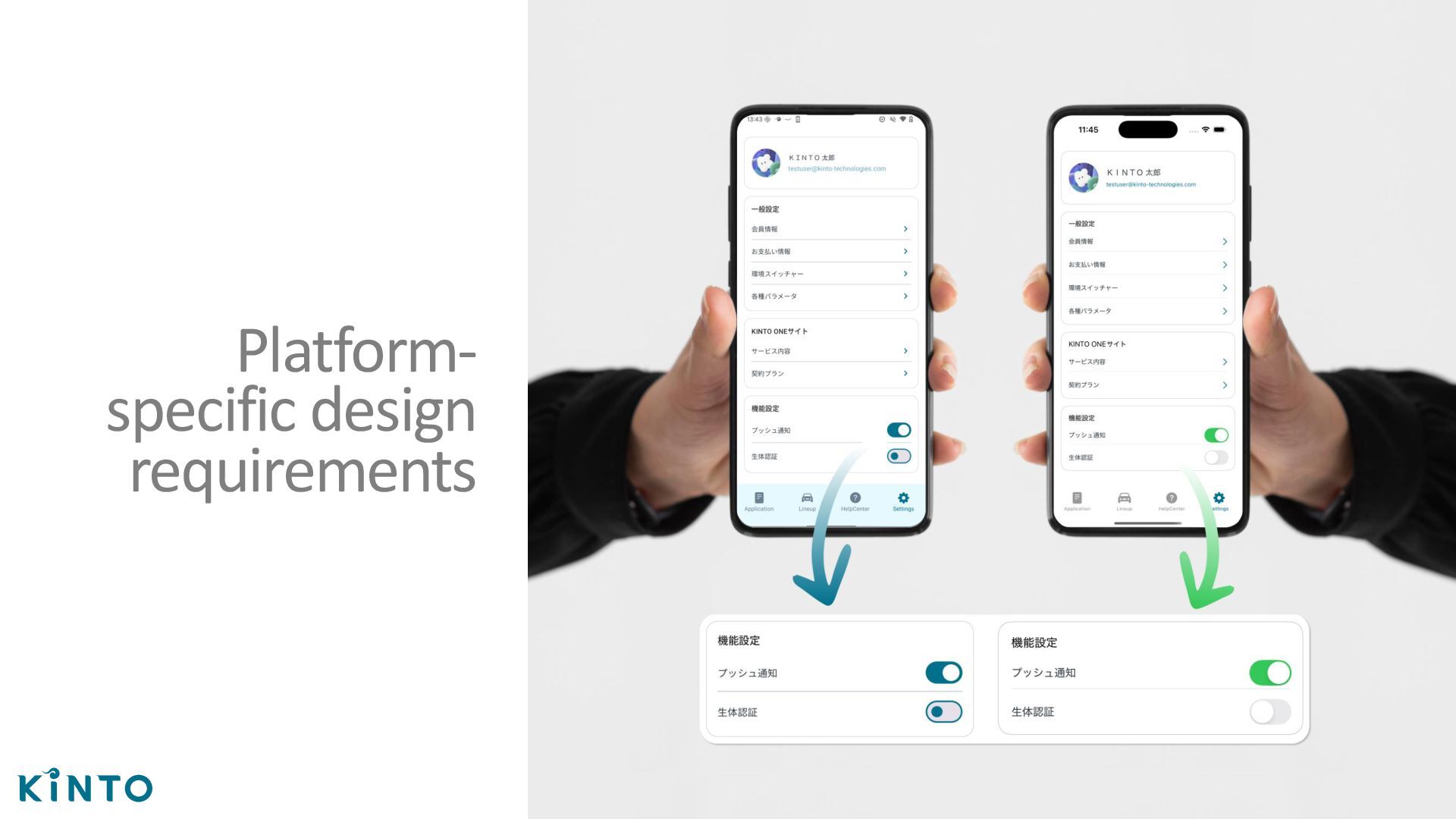

21. Platform- specific design requirements

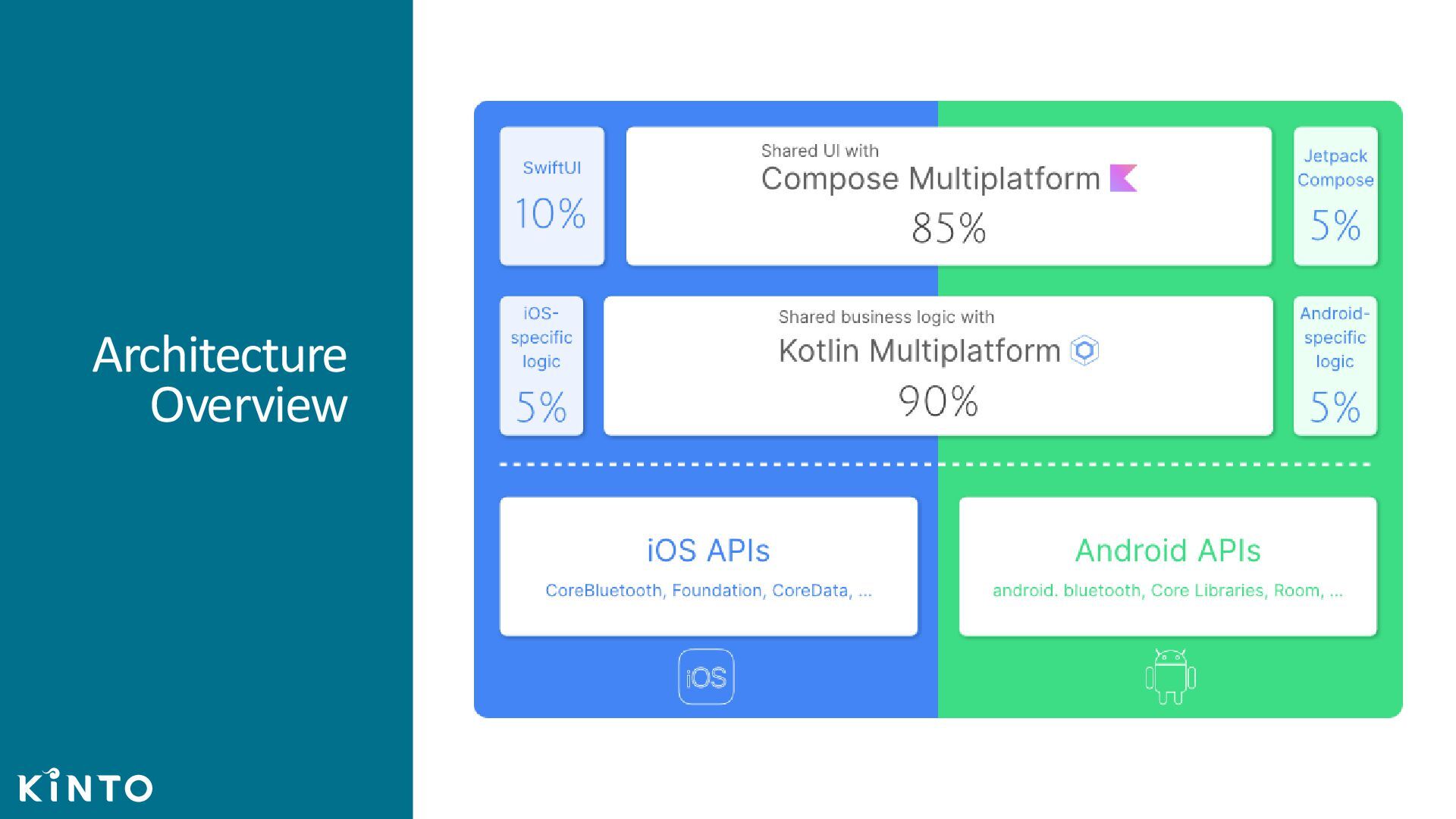

22. Architecture Overview

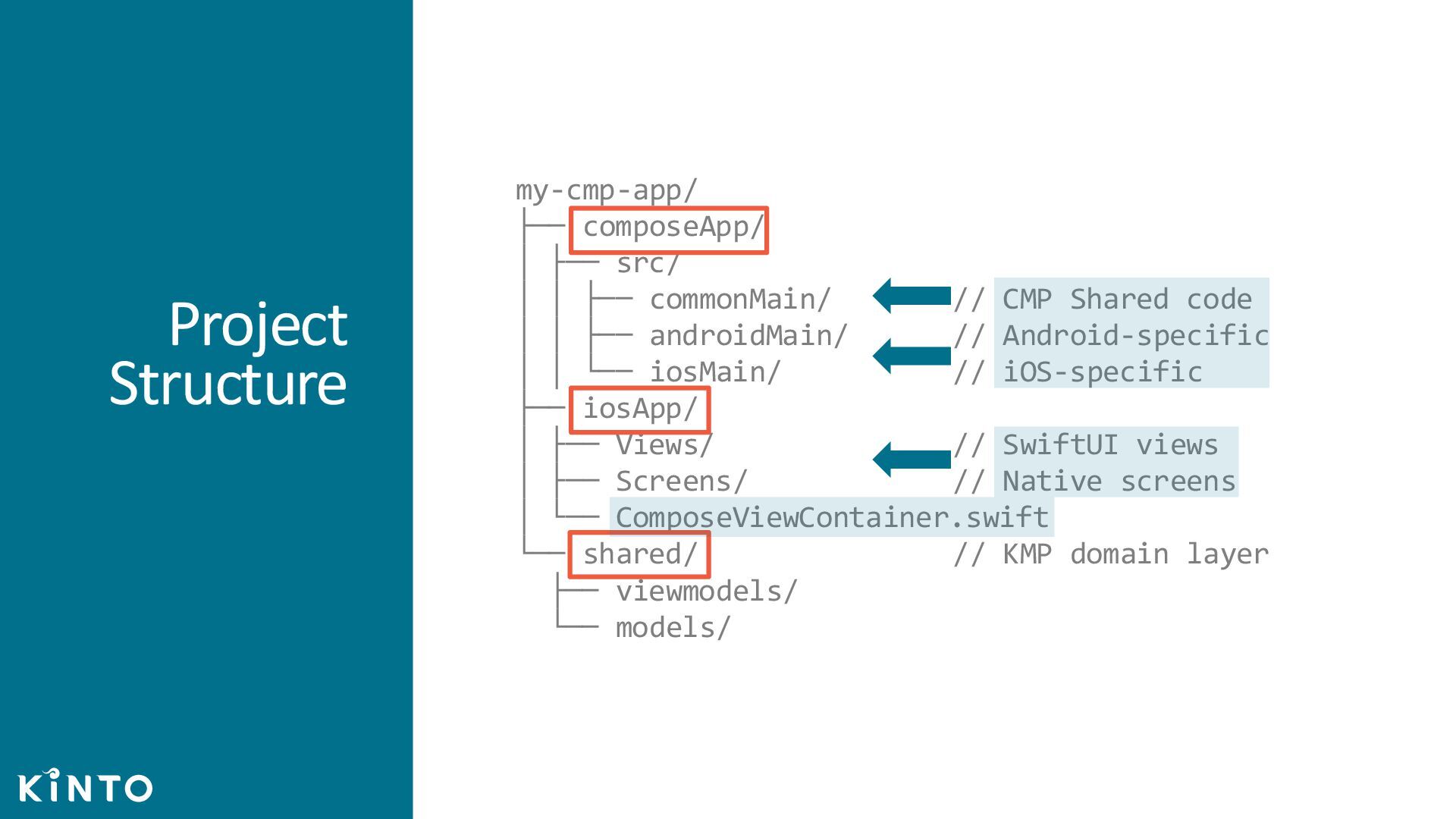

23. Project Structure my-cmp-app/ ├── composeApp/ │ ├── src/ │ │ ├── commonMain/ // CMP Shared code │ │ ├── androidMain/ // Android-specific │ │ └── iosMain/ // iOS-specific ├── iosApp/ │ ├── Views/ // SwiftUI views │ ├── Screens/ // Native screens │ └── ComposeViewContainer.swift └── shared/ // KMP domain layer ├── viewmodels/ └── models/

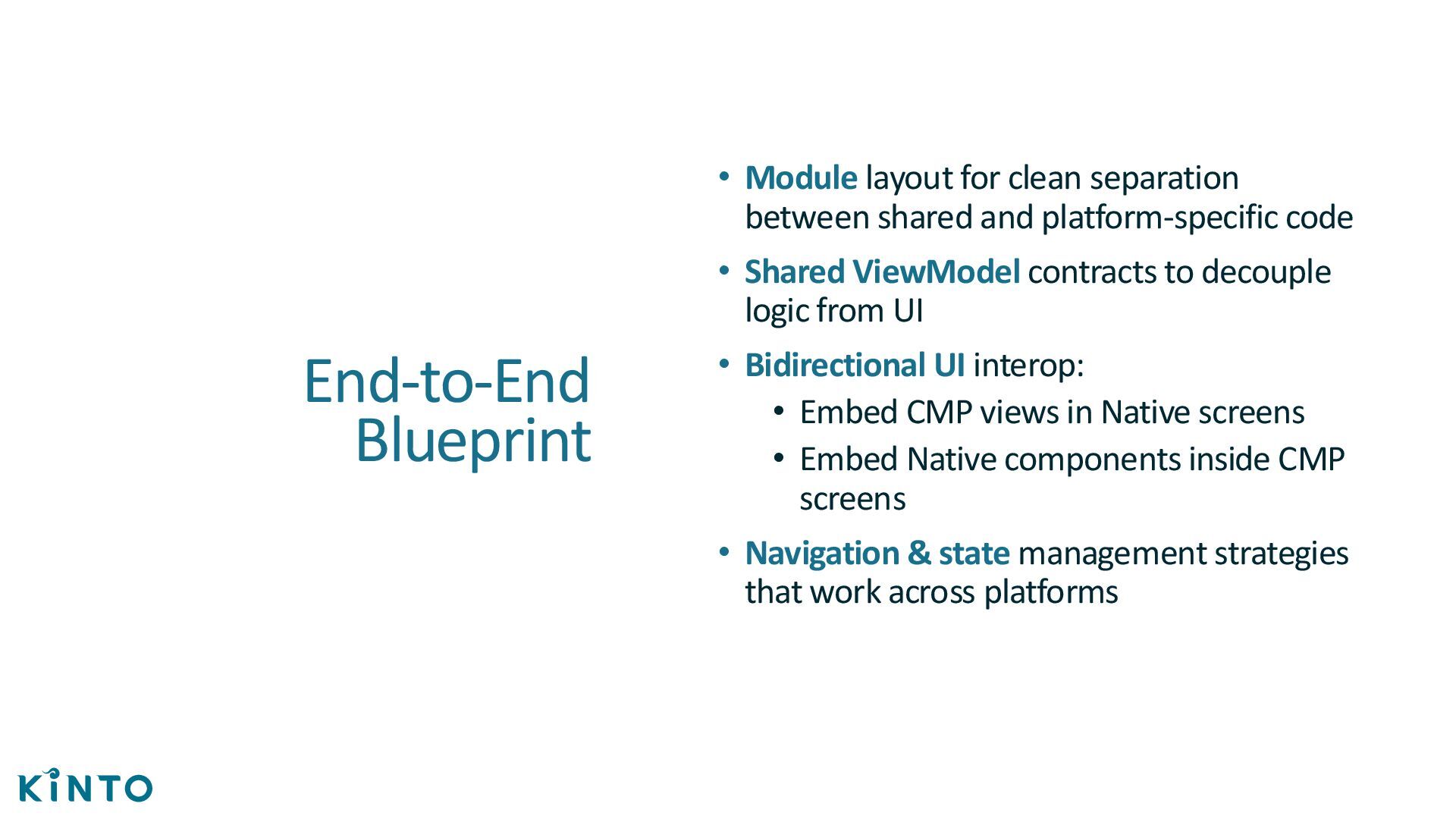

24. End-to-End Blueprint • Module layout for clean separation between shared and platform-specific code • Shared ViewModel contracts to decouple logic from UI • Bidirectional UI interop: • Embed CMP views in Native screens • Embed Native components inside CMP screens • Navigation & state management strategies that work across platforms

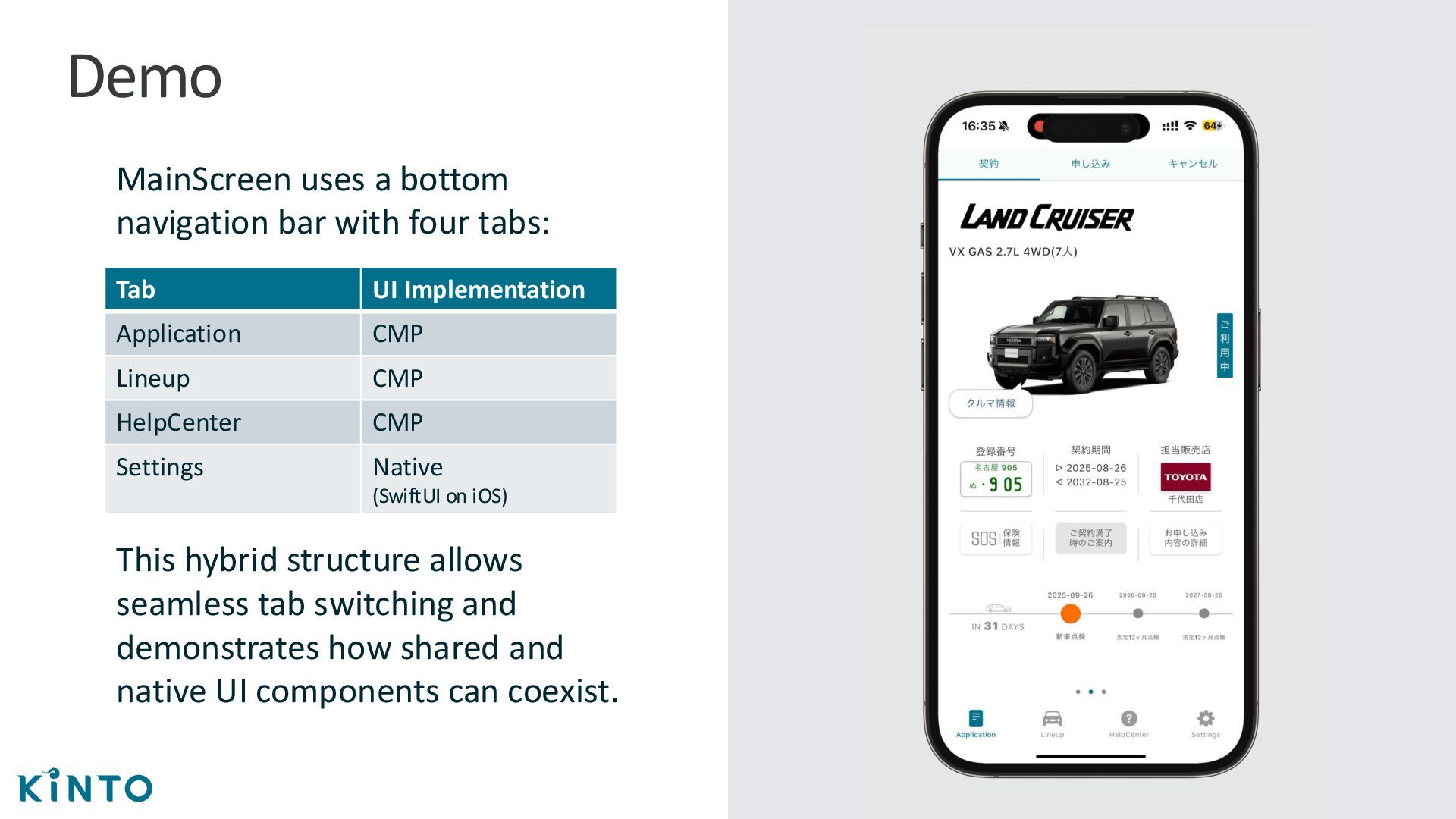

25. This hybrid structure allows seamless tab switching and demonstrates how shared and native UI components can coexist. MainScreen uses a bottom navigation bar with four tabs: Tab UI Implementation Application CMP Lineup CMP HelpCenter CMP Settings Native (SwiftUI on iOS) Demo
26. Migrating from Native Navigation to CMP-based Hybrid Navigation • Refactor existing navigation stacks to route between native & CMP • Abstract platform-specific navigation logic behind shared interfaces

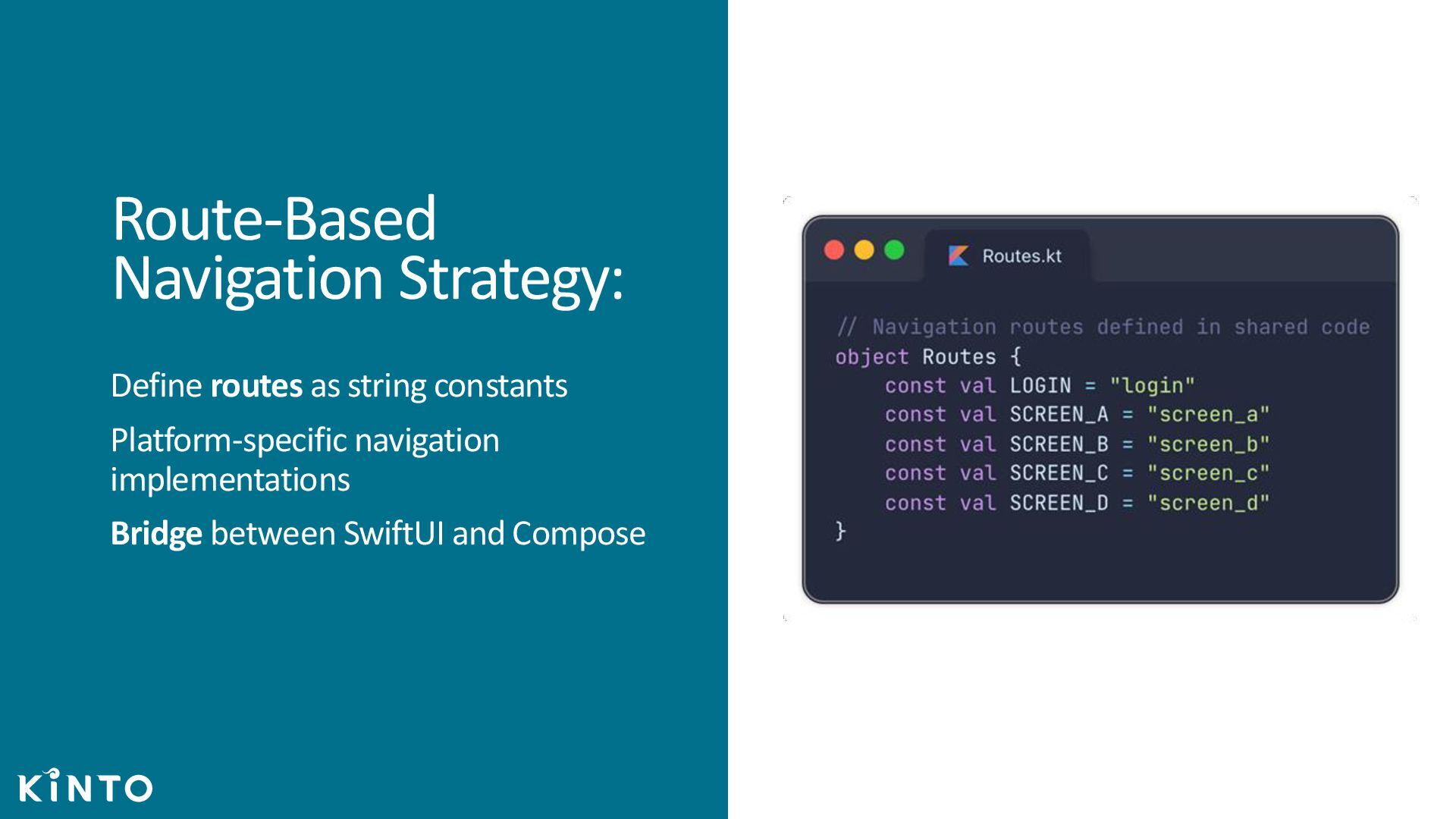

27. Route-Based Navigation Strategy: Define routes as string constants Platform-specific navigation implementations Bridge between SwiftUI and Compose

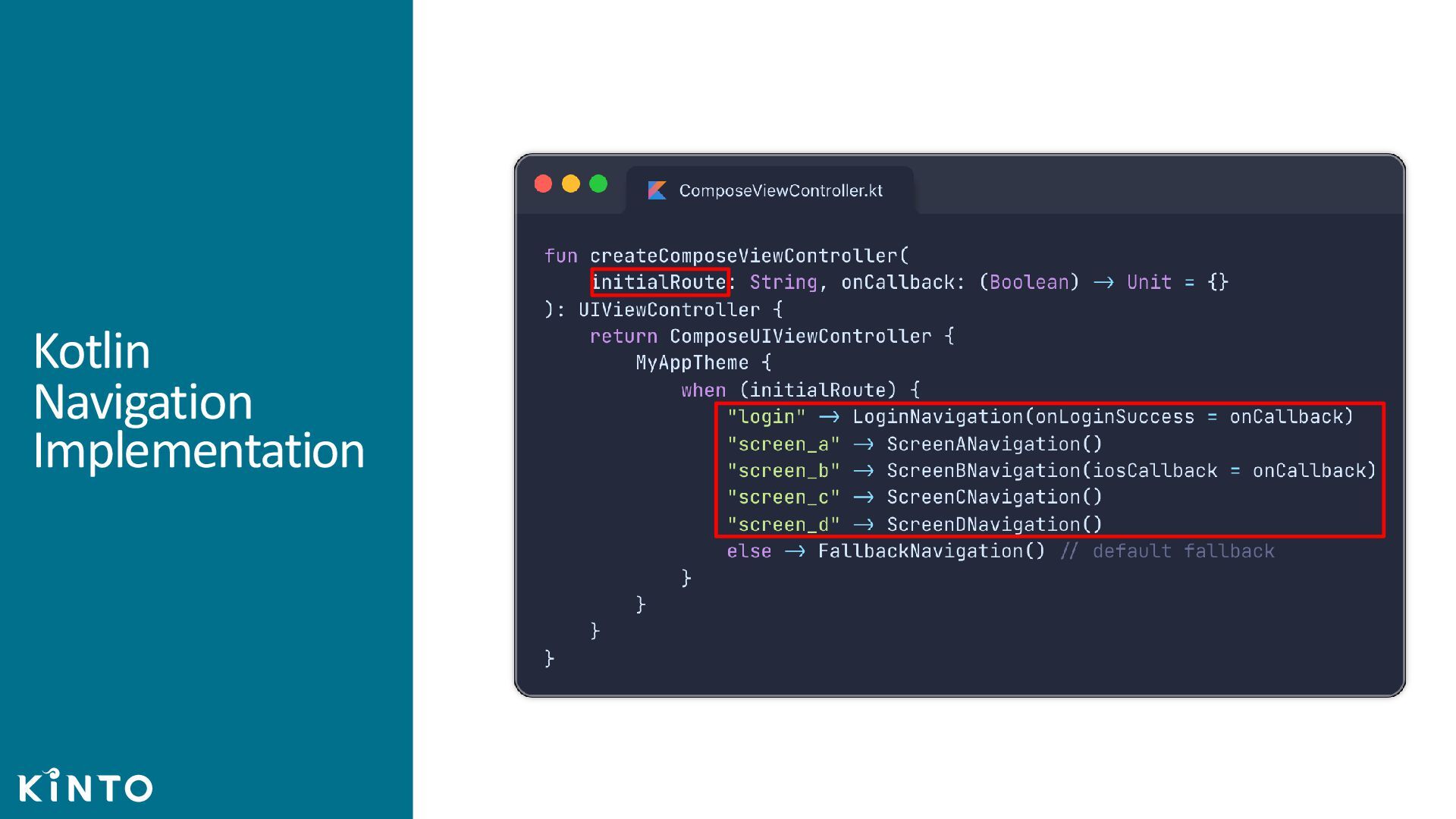

28. Kotlin Navigation Implementation

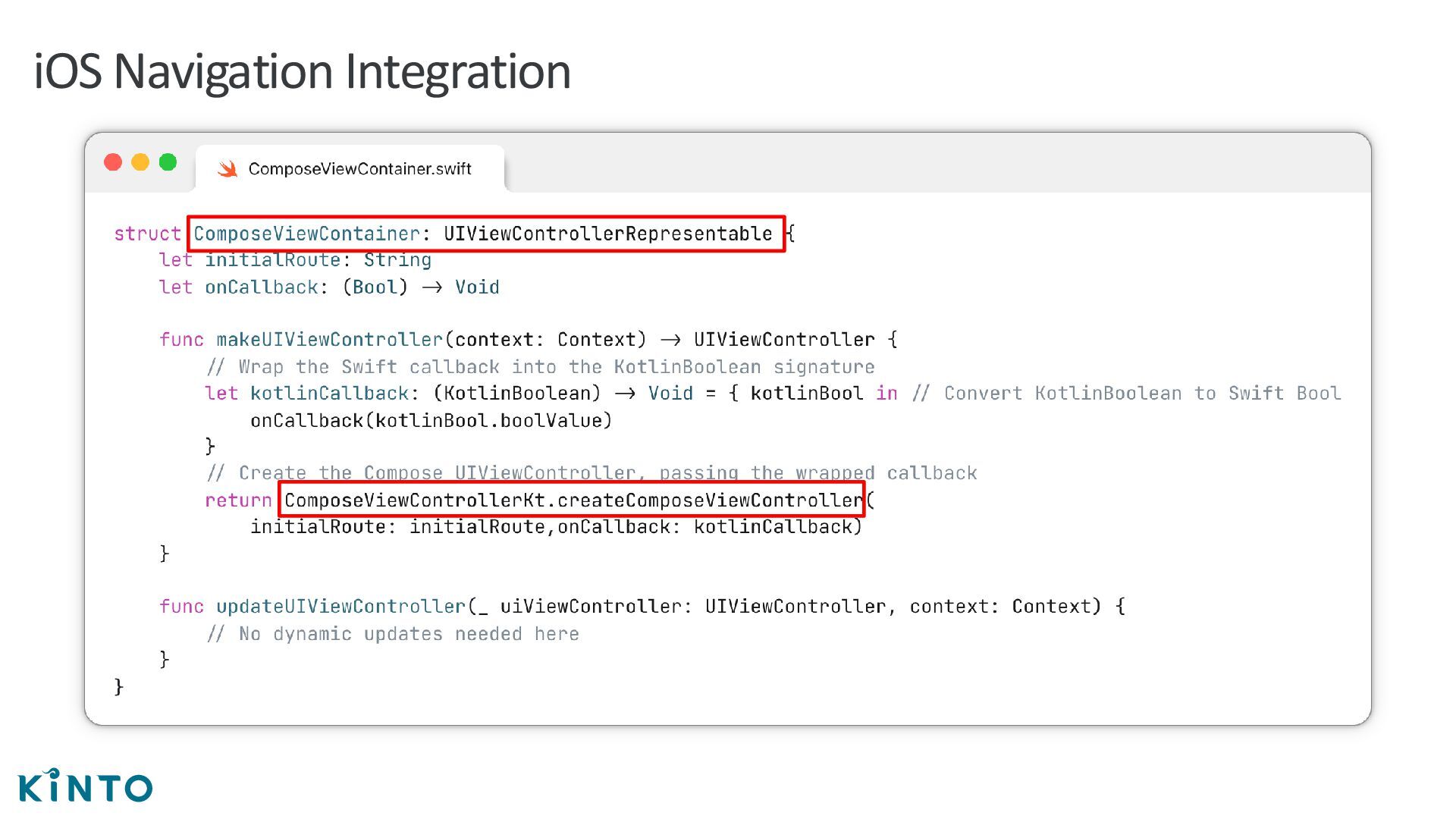

29. iOS Navigation Integration

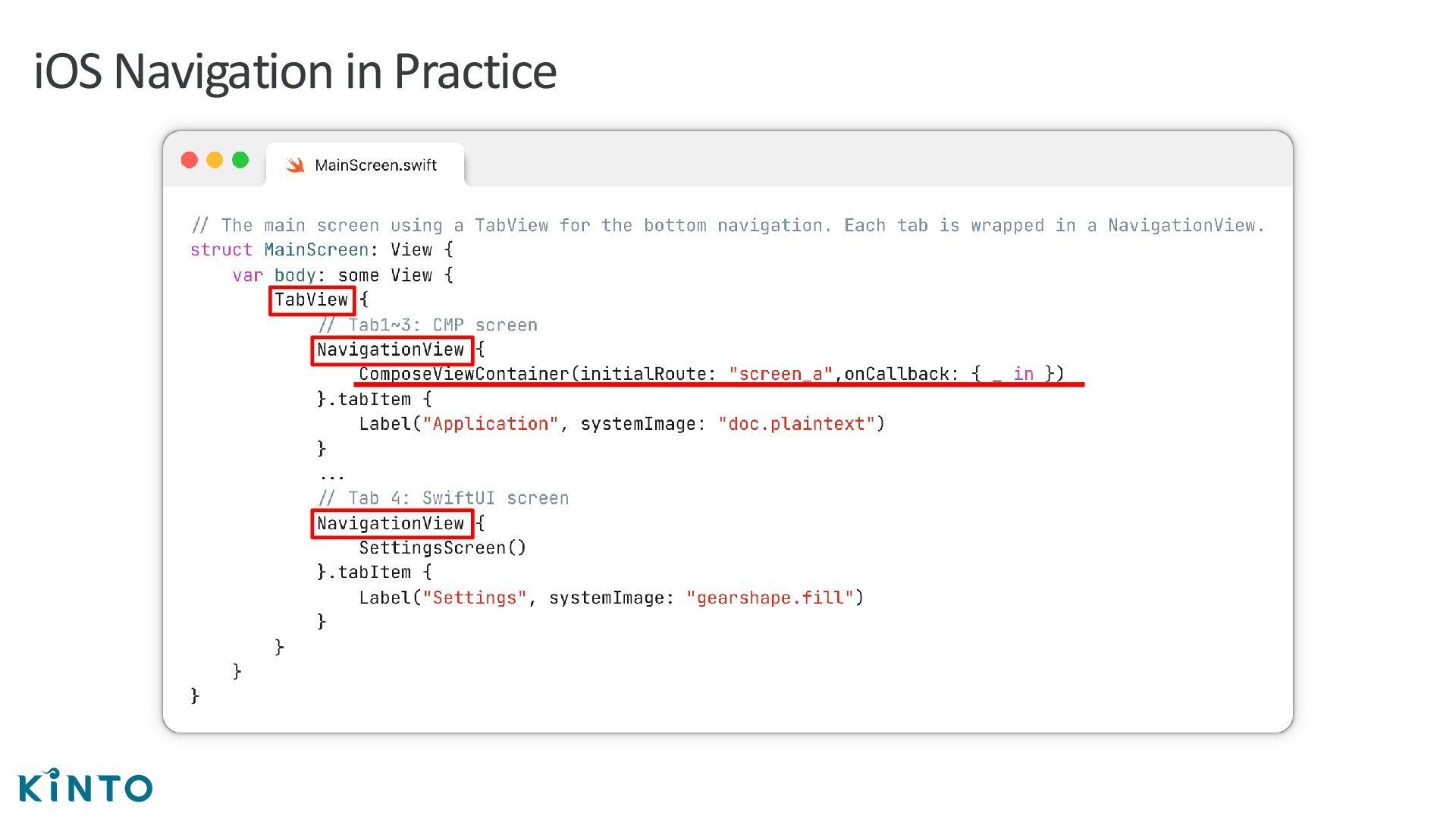

30. iOS Navigation in Practice

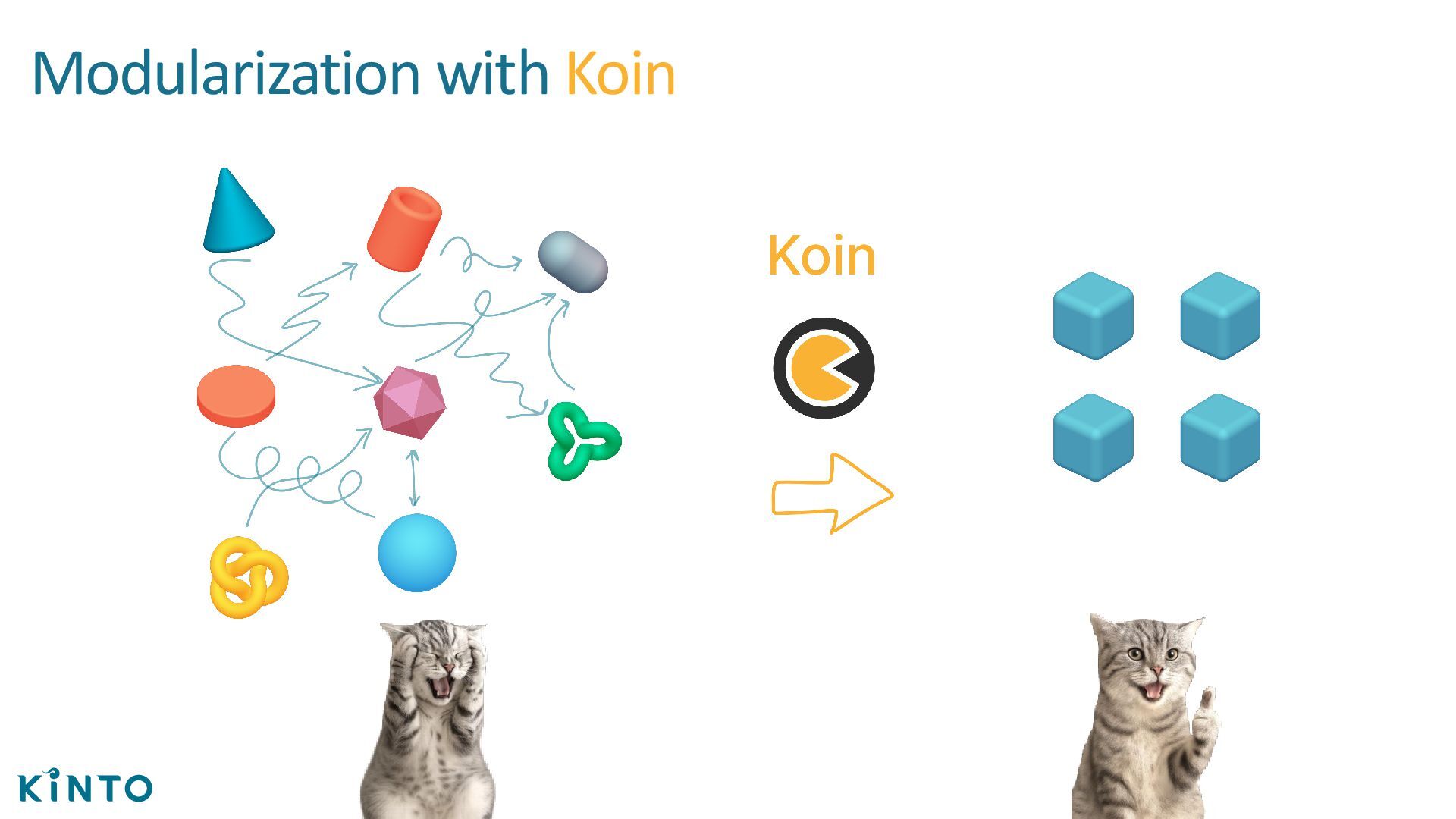

31. Modularization with Koin

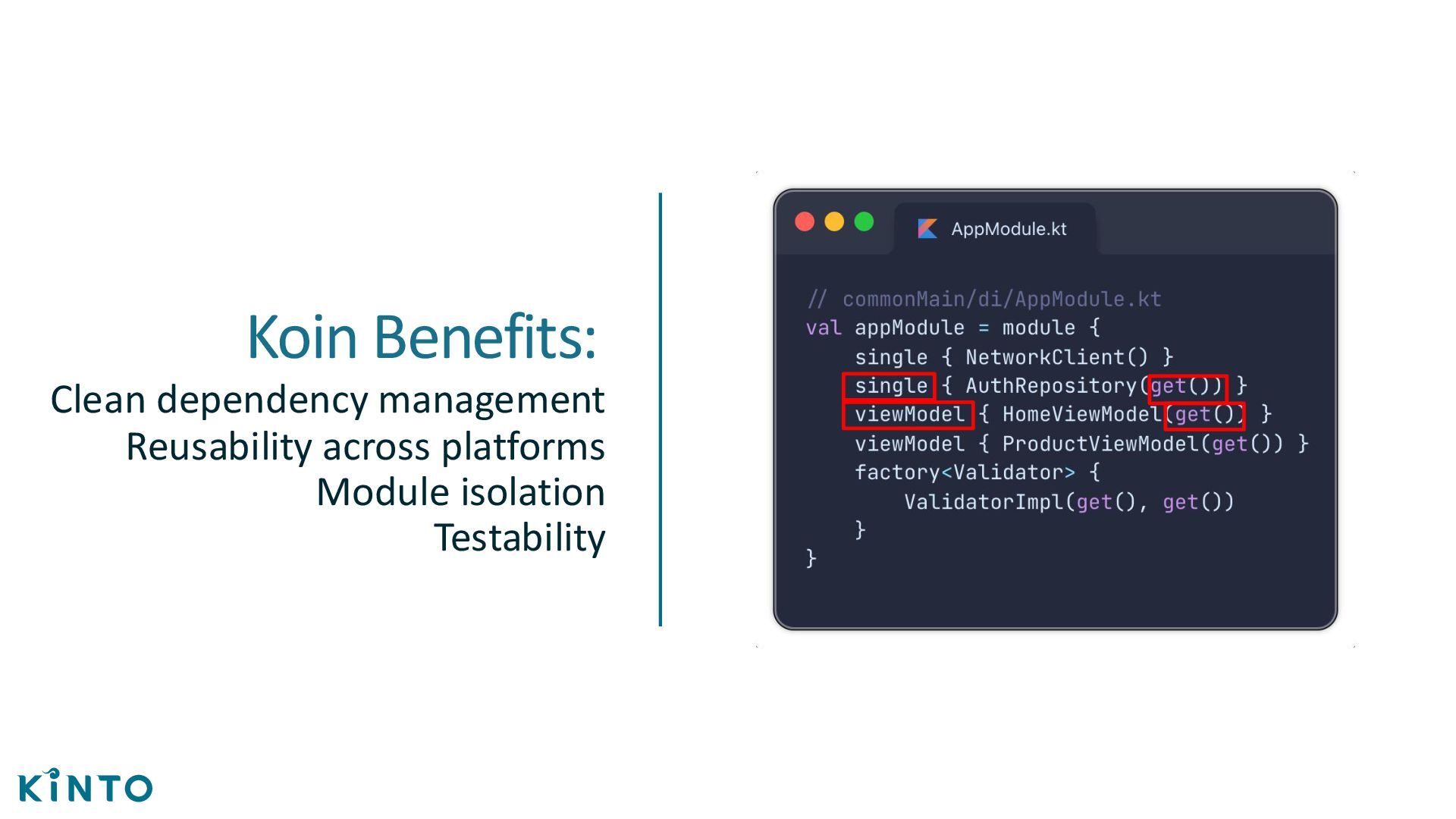

32. Koin Benefits: Clean dependency management Reusability across platforms Module isolation Testability

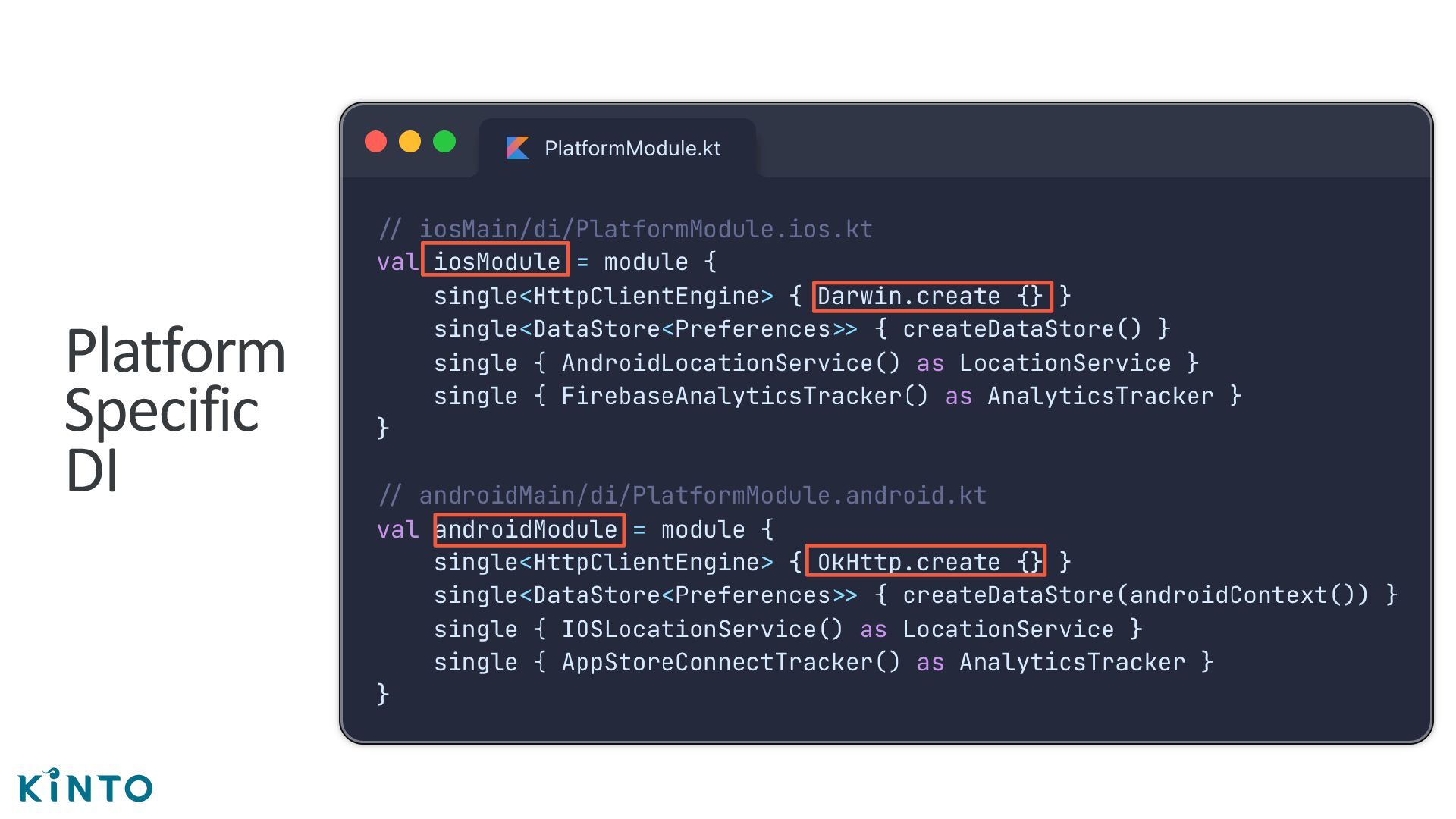

33. Platform Specific DI

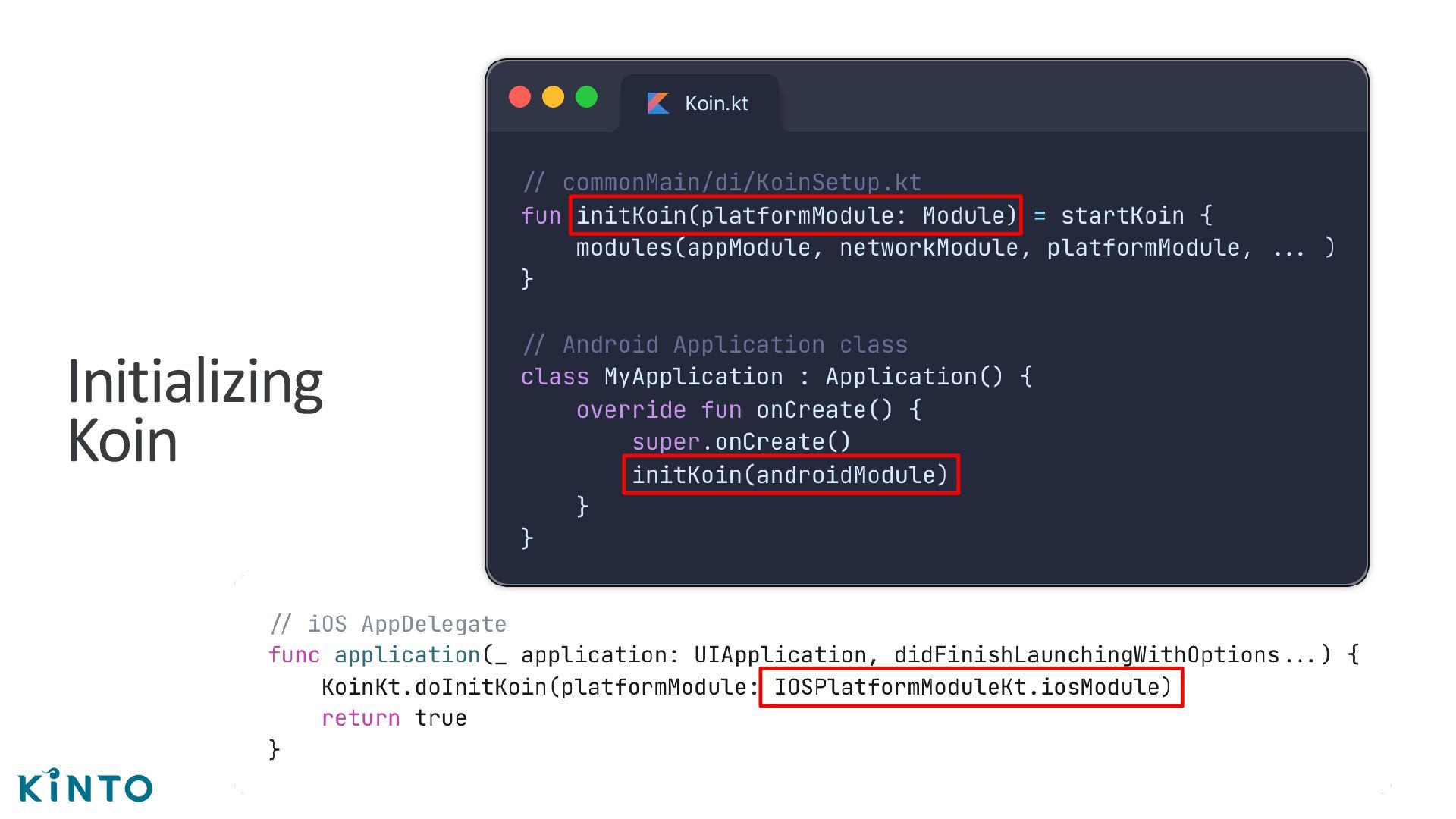

34. Initializing Koin

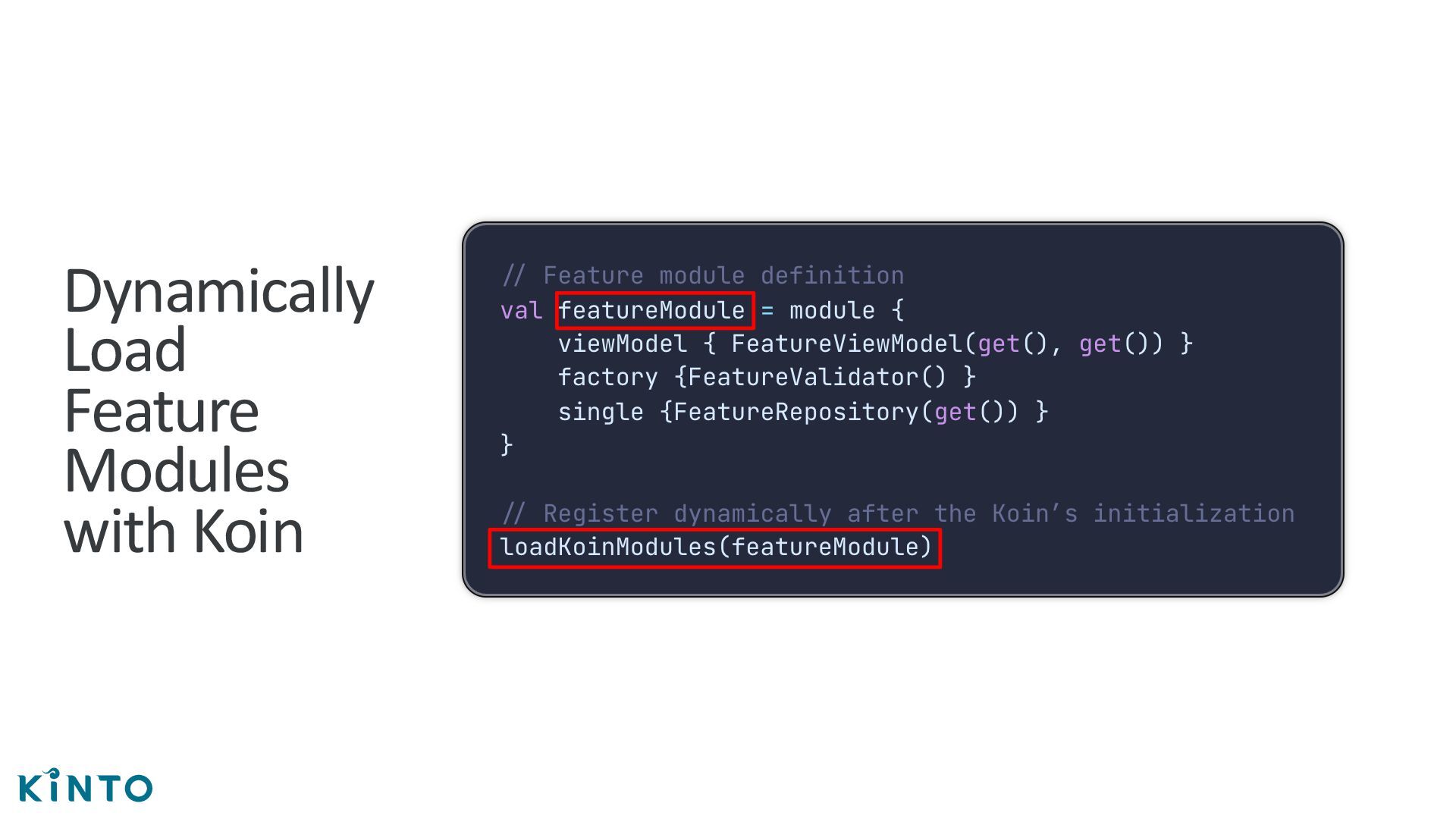

35. Dynamically Load Feature Modules with Koin

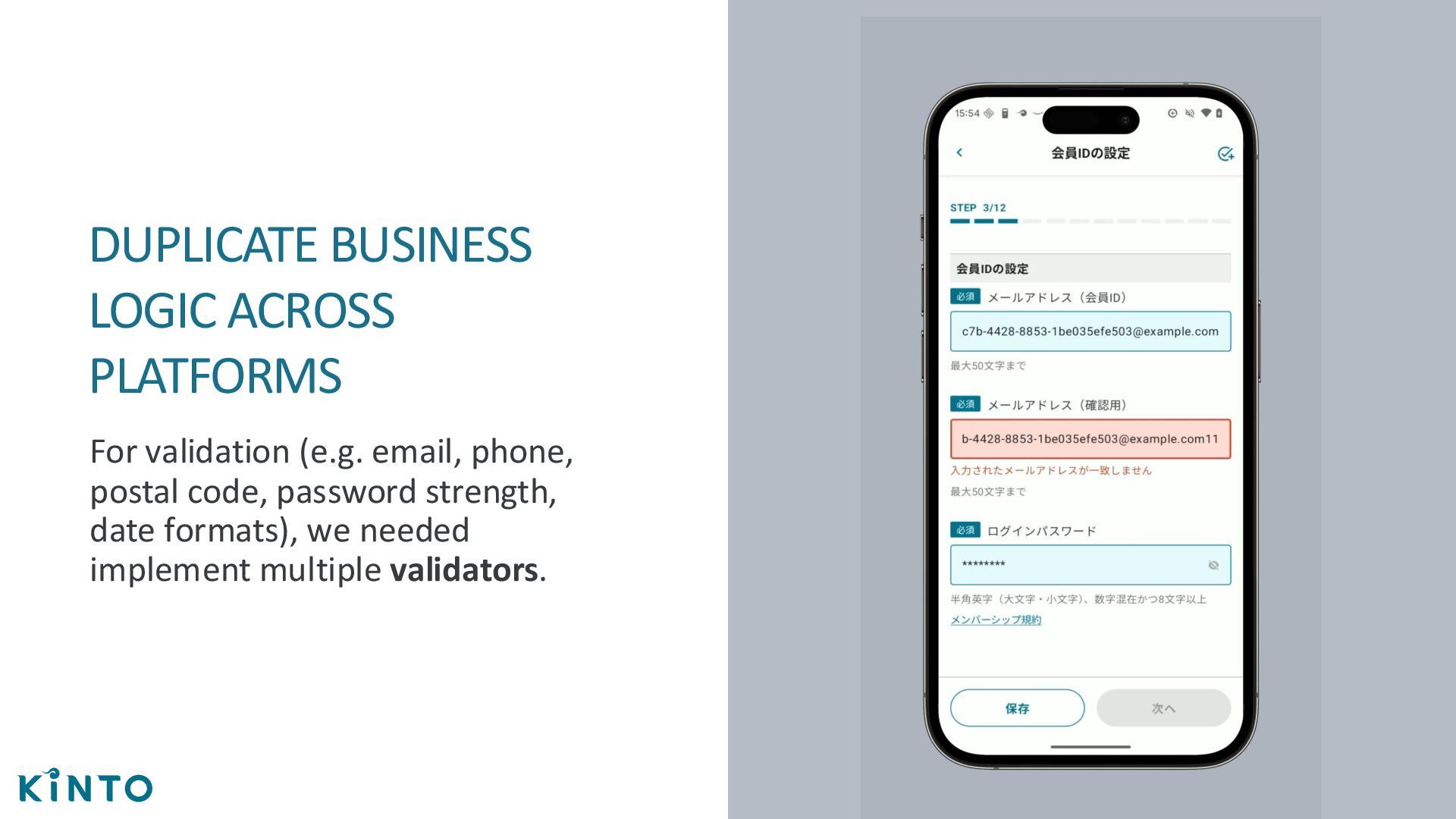

36. DUPLICATE BUSINESS LOGIC ACROSS PLATFORMS For validation (e.g. email, phone, postal code, password strength, date formats), we needed implement multiple validators.

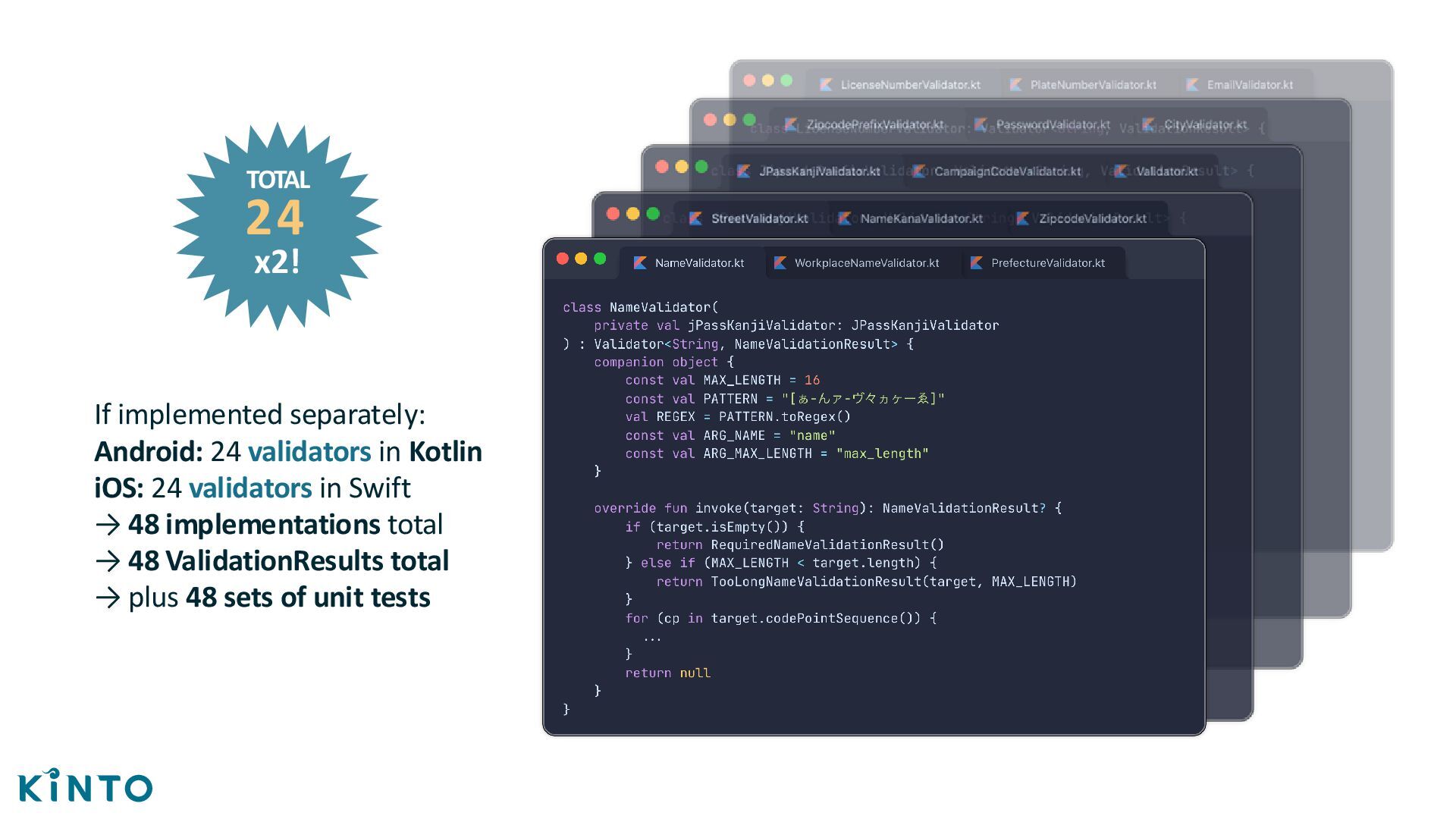

37. TOTAL 24 x2! If implemented separately: Android: 24 validators in Kotlin iOS: 24 validators in Swift → 48 implementations total → 48 ValidationResults total → plus 48 sets of unit tests

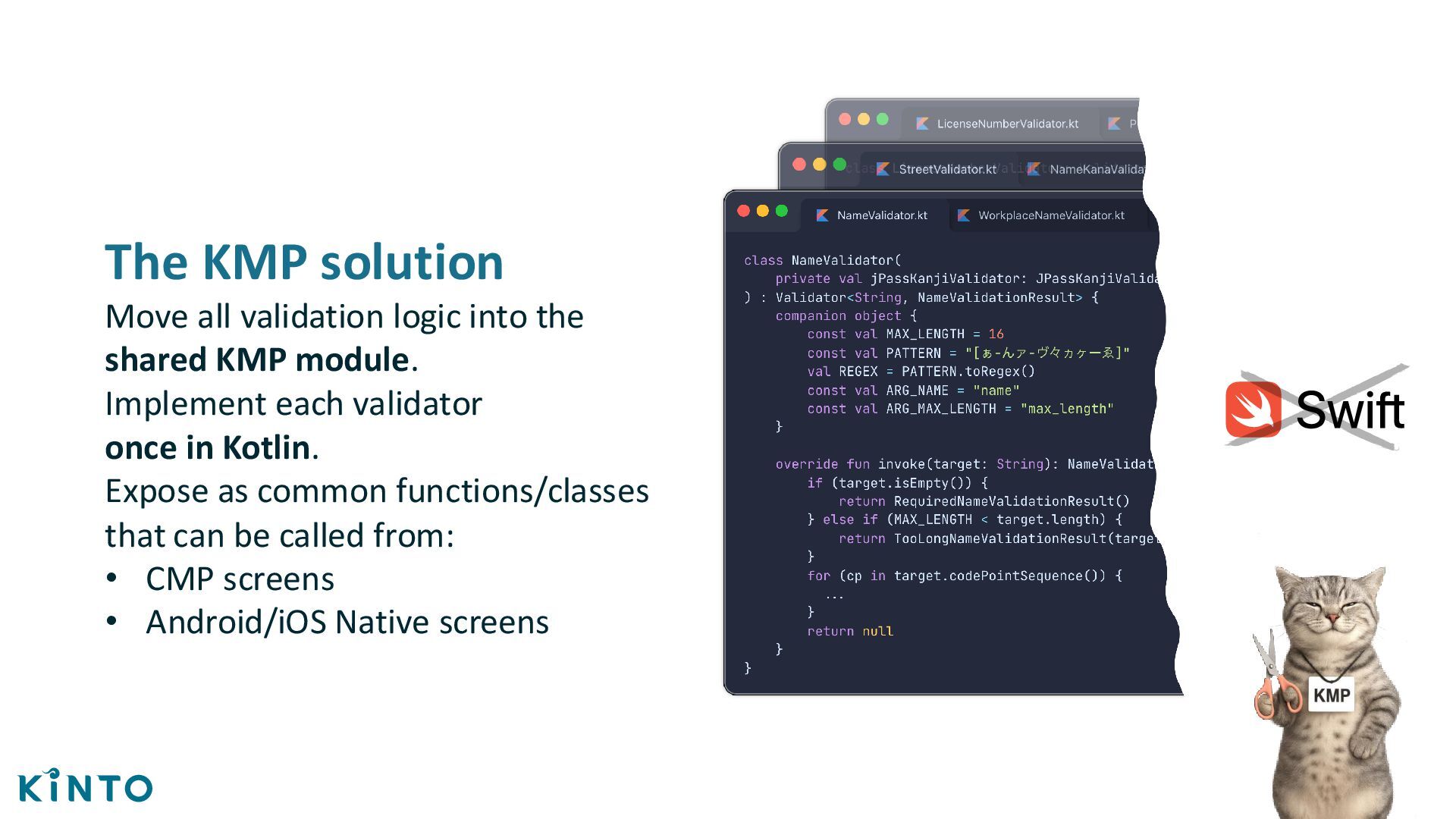

38. The KMP solution Move all validation logic into the shared KMP module. Implement each validator once in Kotlin. Expose as common functions/classes that can be called from: • CMP screens • Android/iOS Native screens

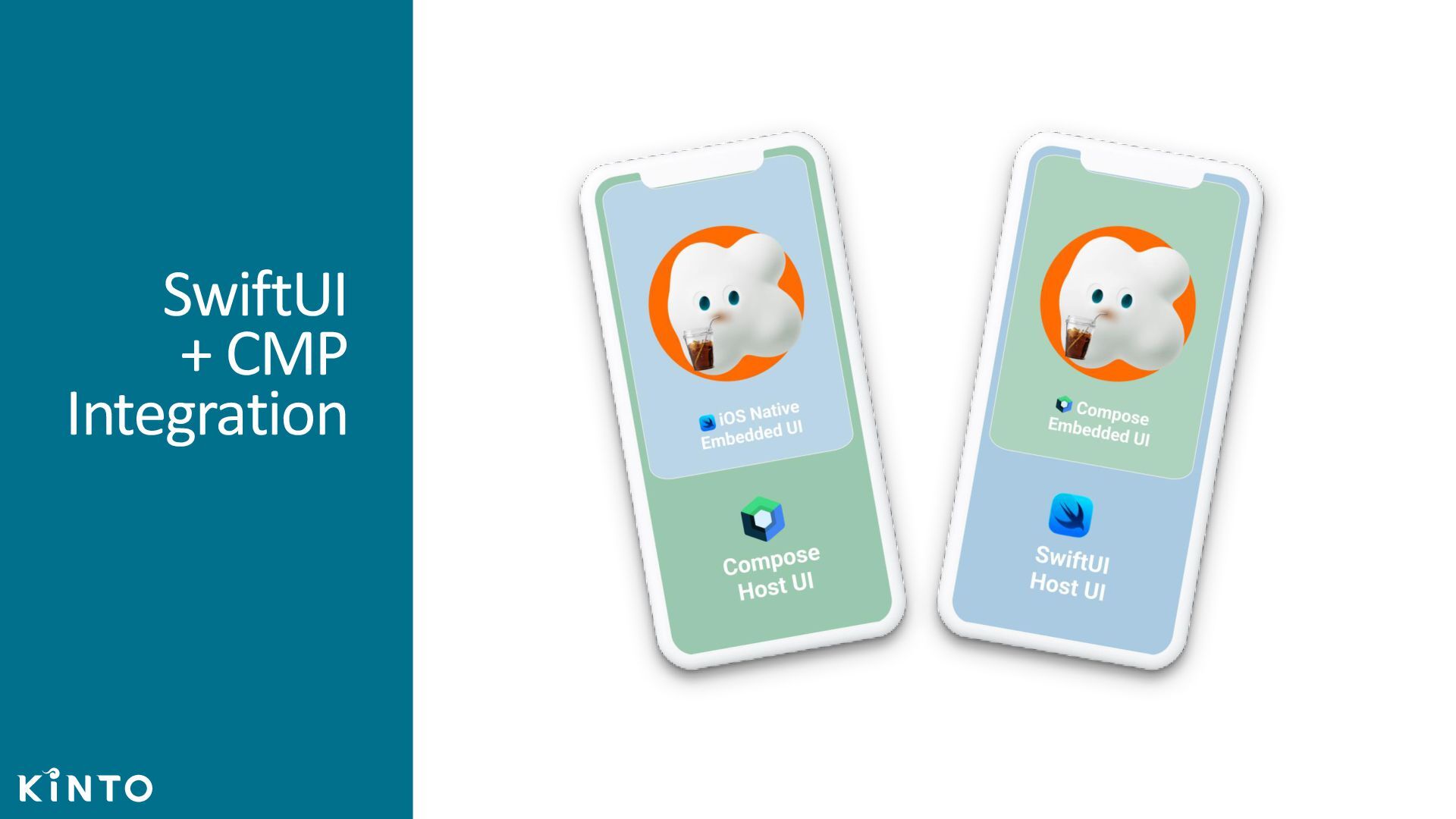

39. SwiftUI + CMP Integration

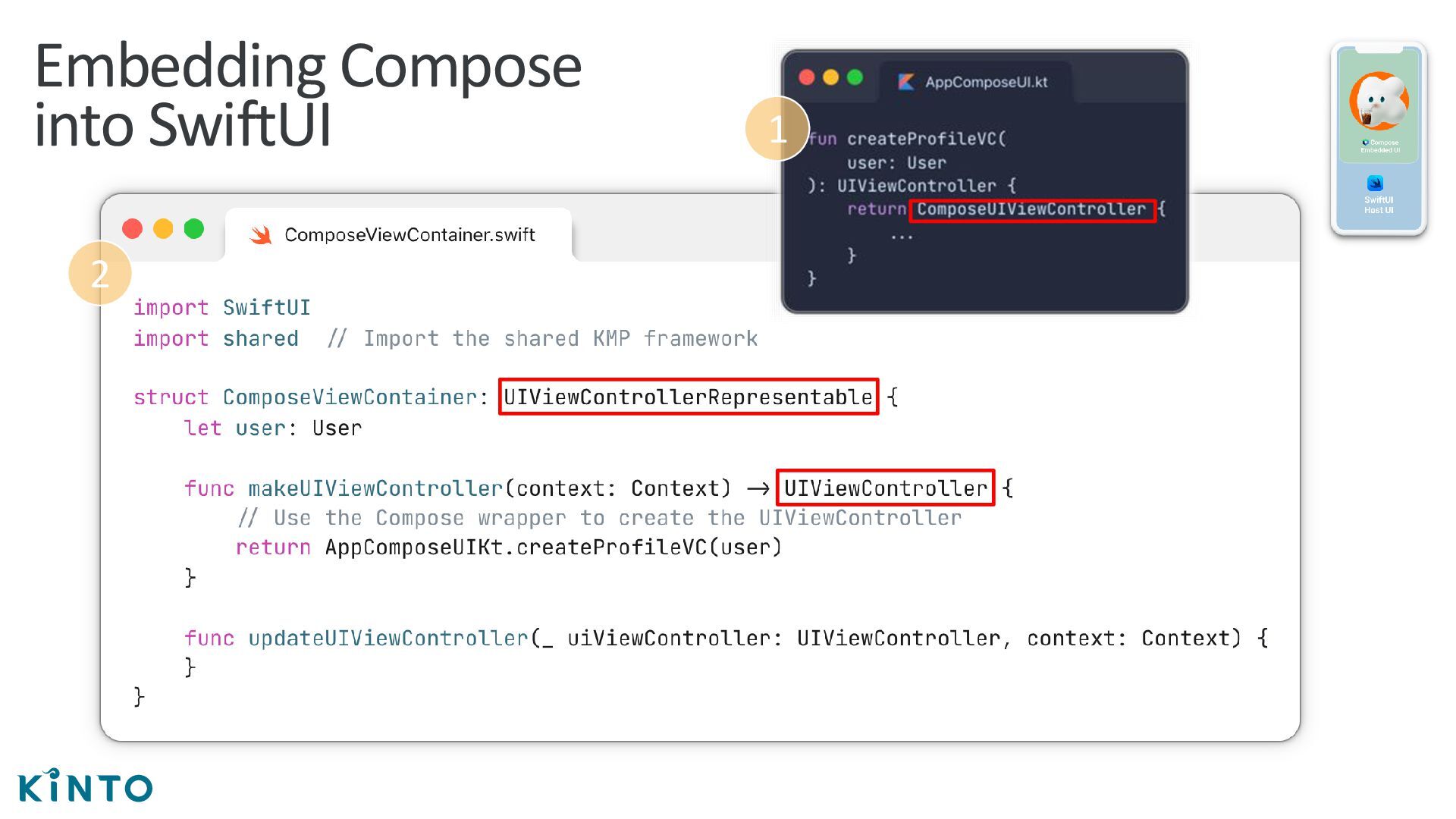

40. Embedding Compose into SwiftUI 1 2

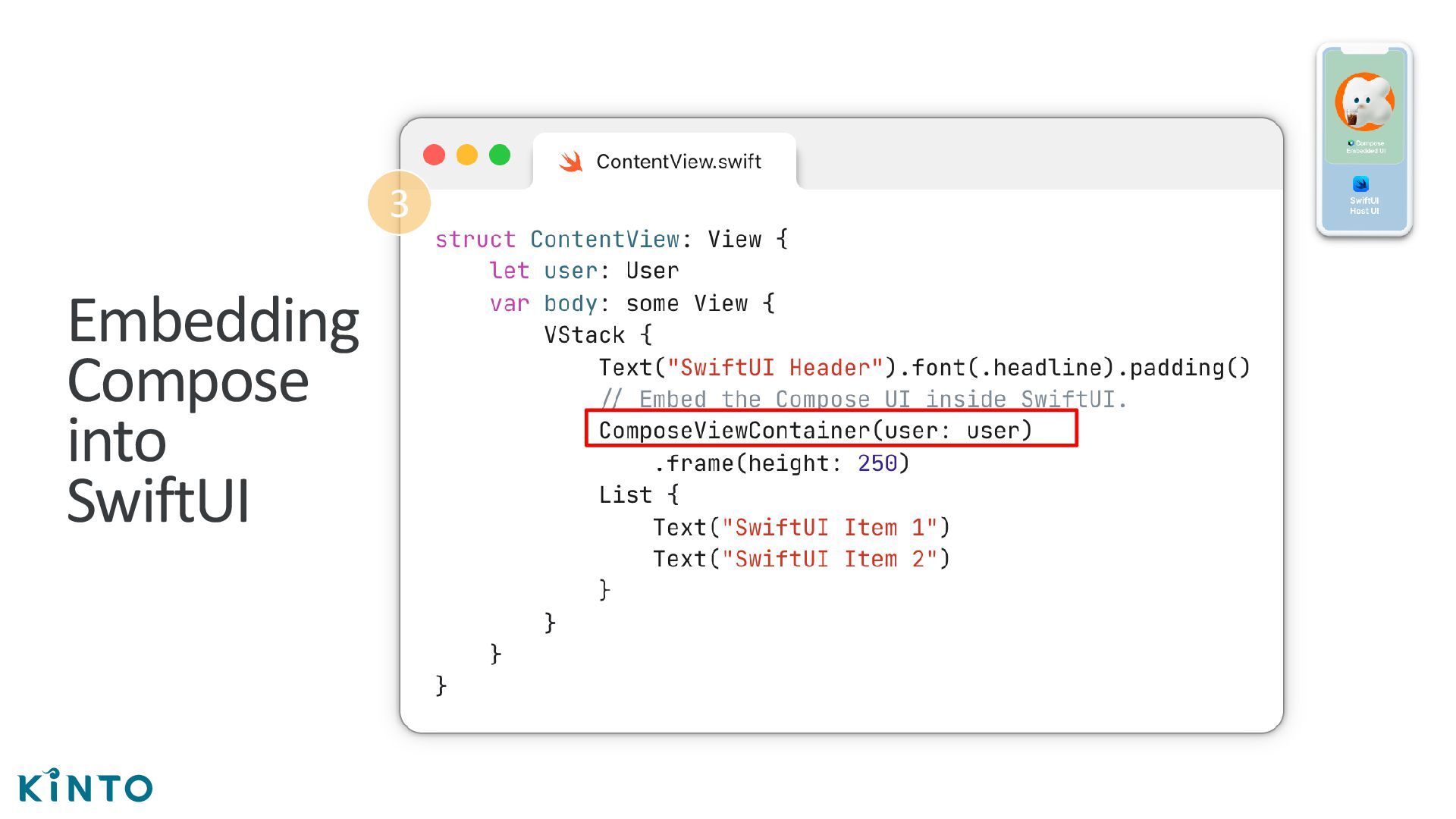

41. Embedding Compose into SwiftUI 3

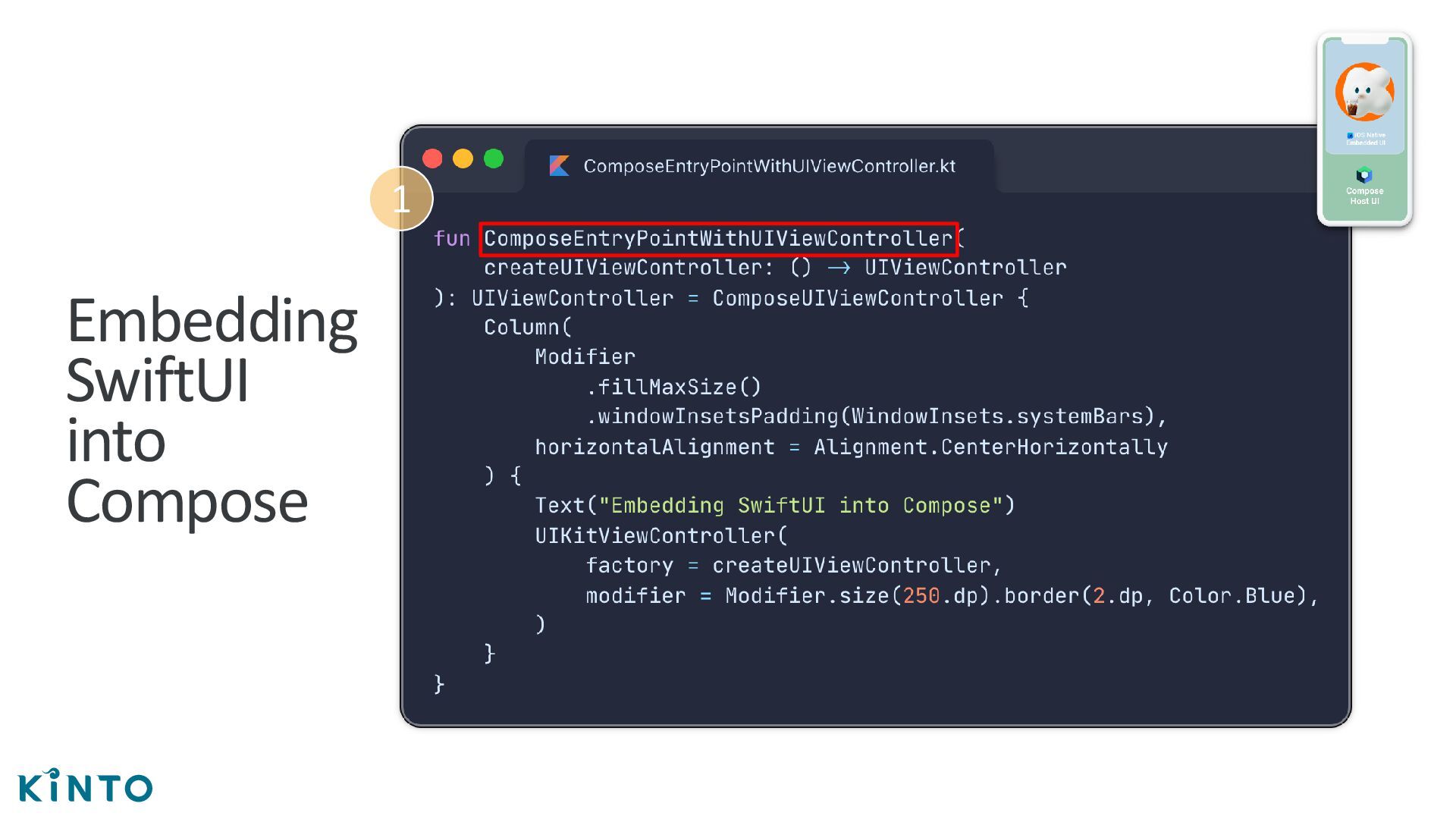

42. Embedding SwiftUI into Compose 1

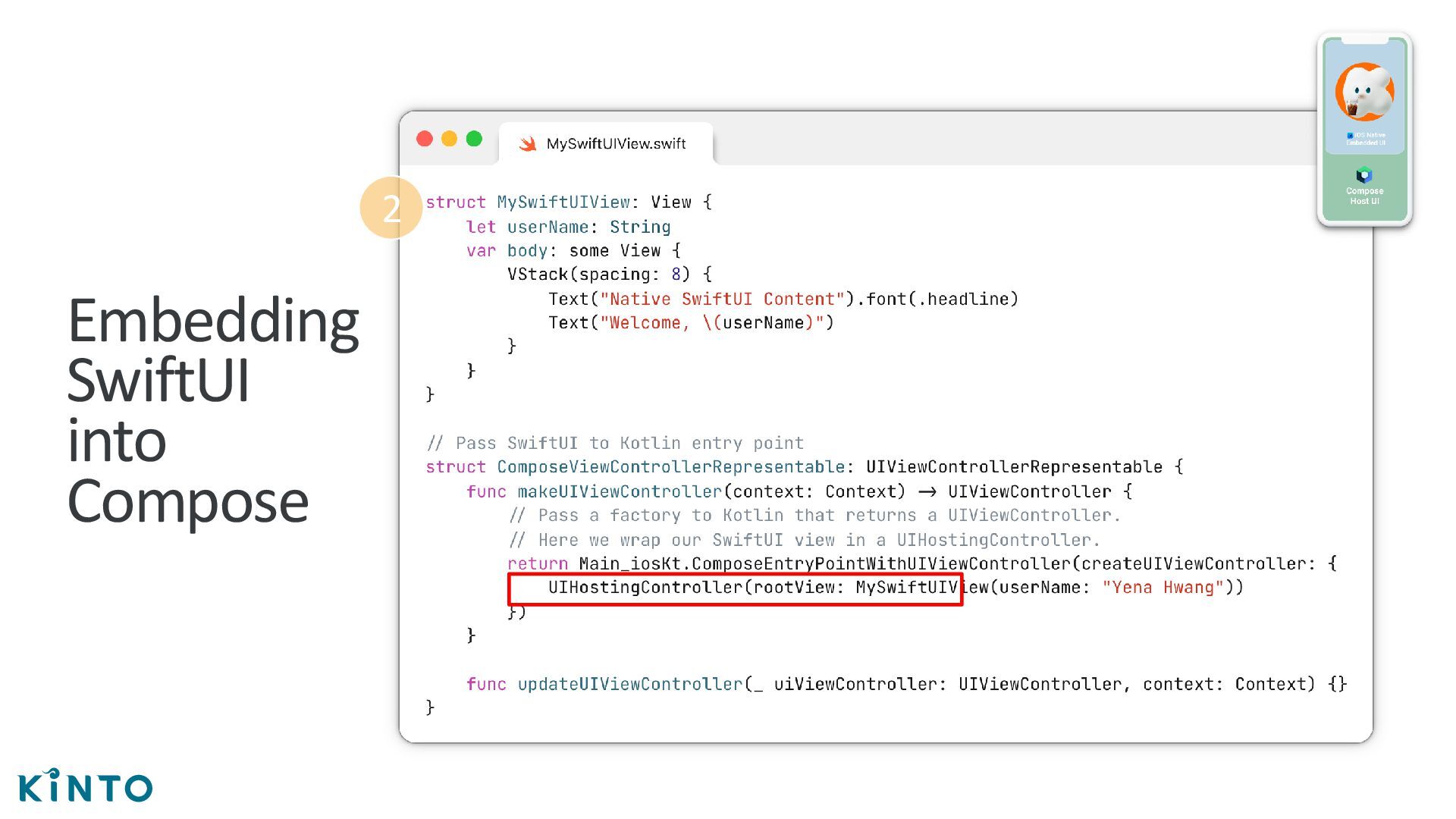

43. Embedding SwiftUI into Compose 2

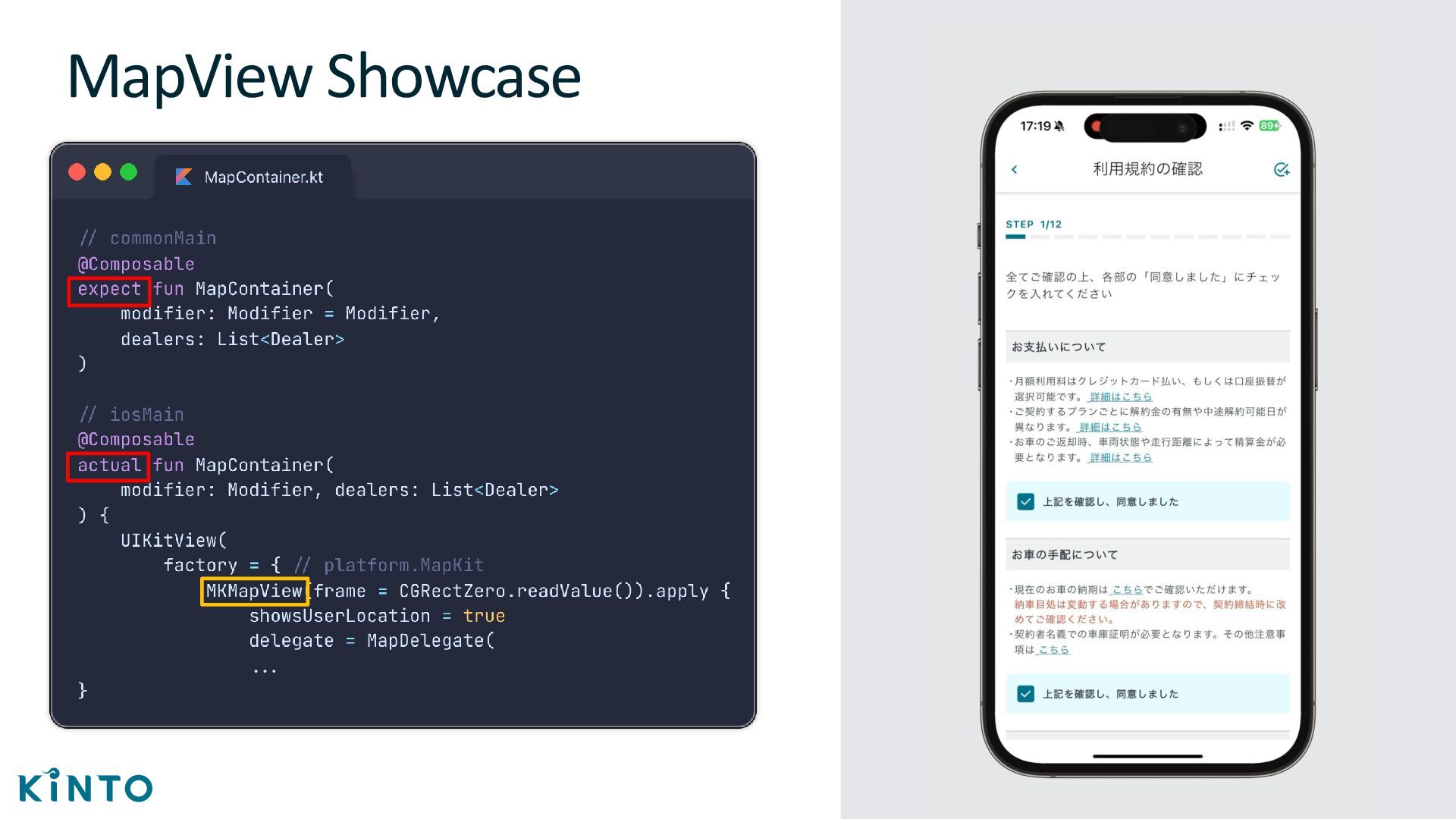

44. MapView Showcase

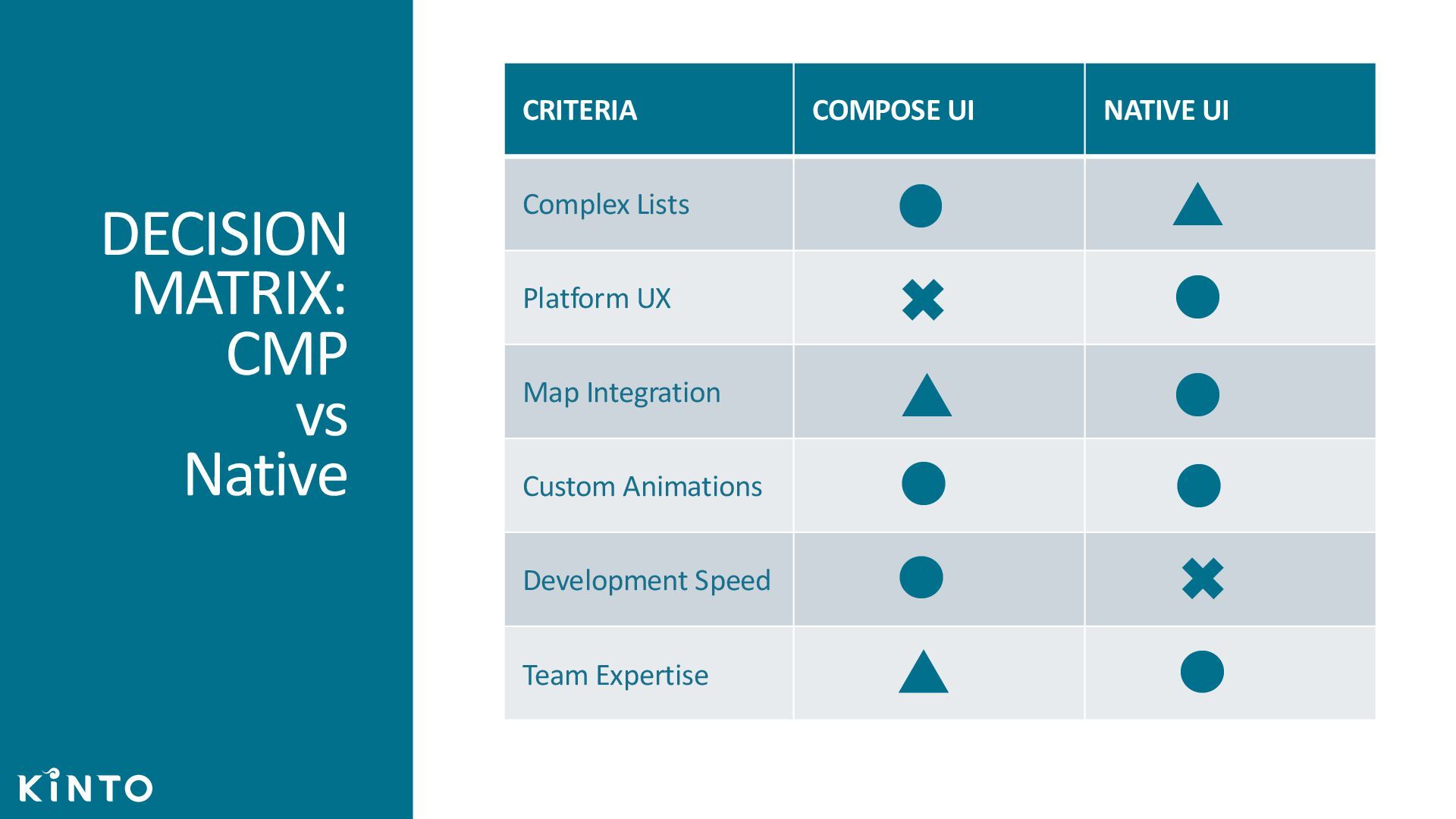

45. DECISION MATRIX: CMP vs Native CRITERIA COMPOSE UI NATIVE UI Complex Lists Platform UX Map Integration Custom Animations Development Speed Team Expertise
46. Platform views in Flutter come with performance trade-offs - Flutter documentation

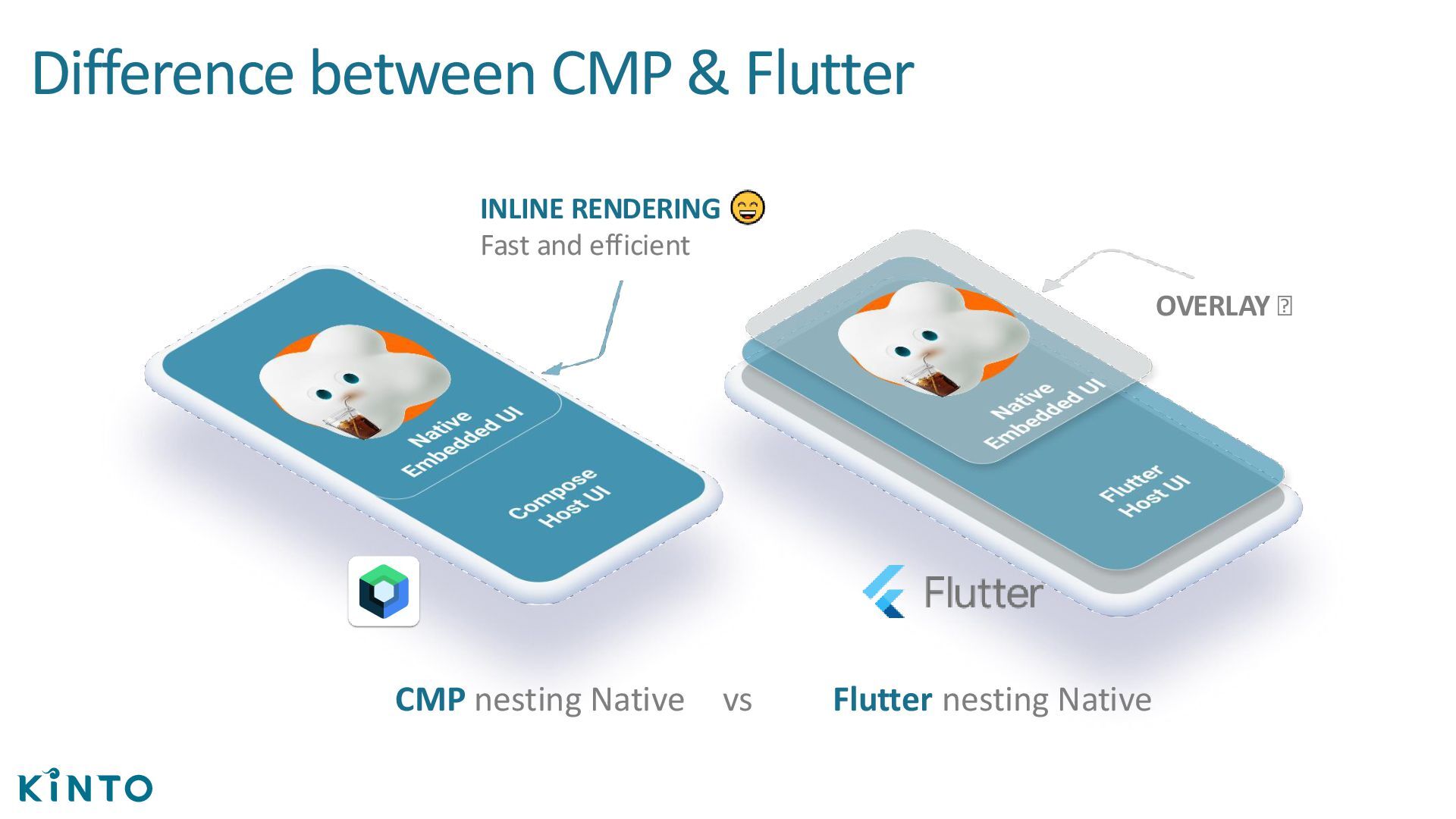

47. Difference between CMP & Flutter OVERLAY 🥲 INLINE RENDERING Fast and efficient CMP nesting Native vs Flutter nesting Native

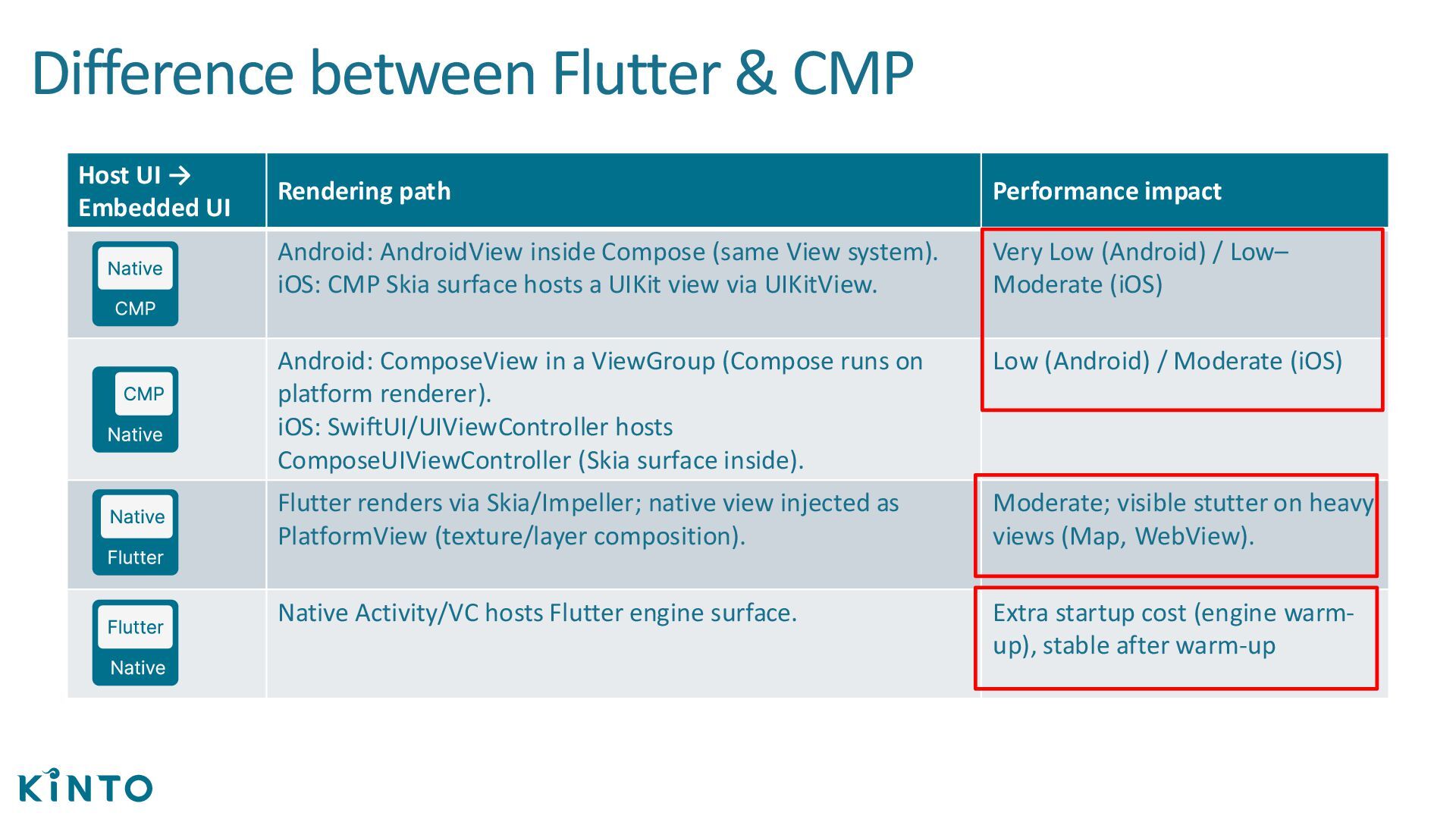

48. Difference between Flutter & CMP Host UI → Embedded UI Rendering path Performance impact Android: AndroidView inside Compose (same View system). iOS: CMP Skia surface hosts a UIKit view via UIKitView. Very Low (Android) / Low– Moderate (iOS) Android: ComposeView in a ViewGroup (Compose runs on platform renderer). iOS: SwiftUI/UIViewController hosts ComposeUIViewController (Skia surface inside). Low (Android) / Moderate (iOS) Flutter renders via Skia/Impeller; native view injected as PlatformView (texture/layer composition). Moderate; visible stutter on heavy views (Map, WebView). Native Activity/VC hosts Flutter engine surface. Extra startup cost (engine warm- up), stable after warm-up

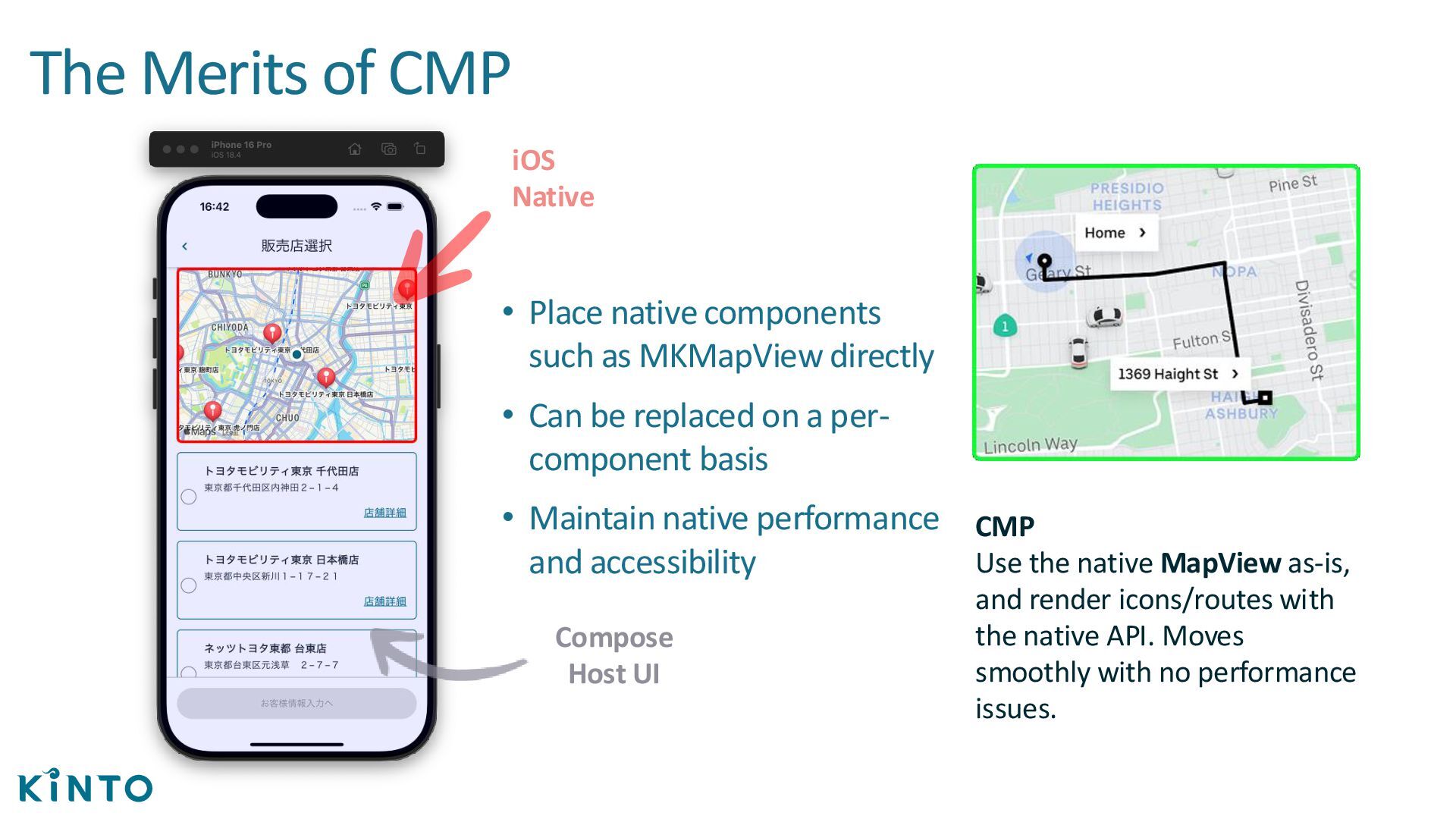

49. The Merits of CMP CMP Use the native MapView as-is, and render icons/routes with the native API. Moves smoothly with no performance issues. • Place native components such as MKMapView directly • Can be replaced on a per- component basis • Maintain native performance and accessibility iOS Native Compose Host UI

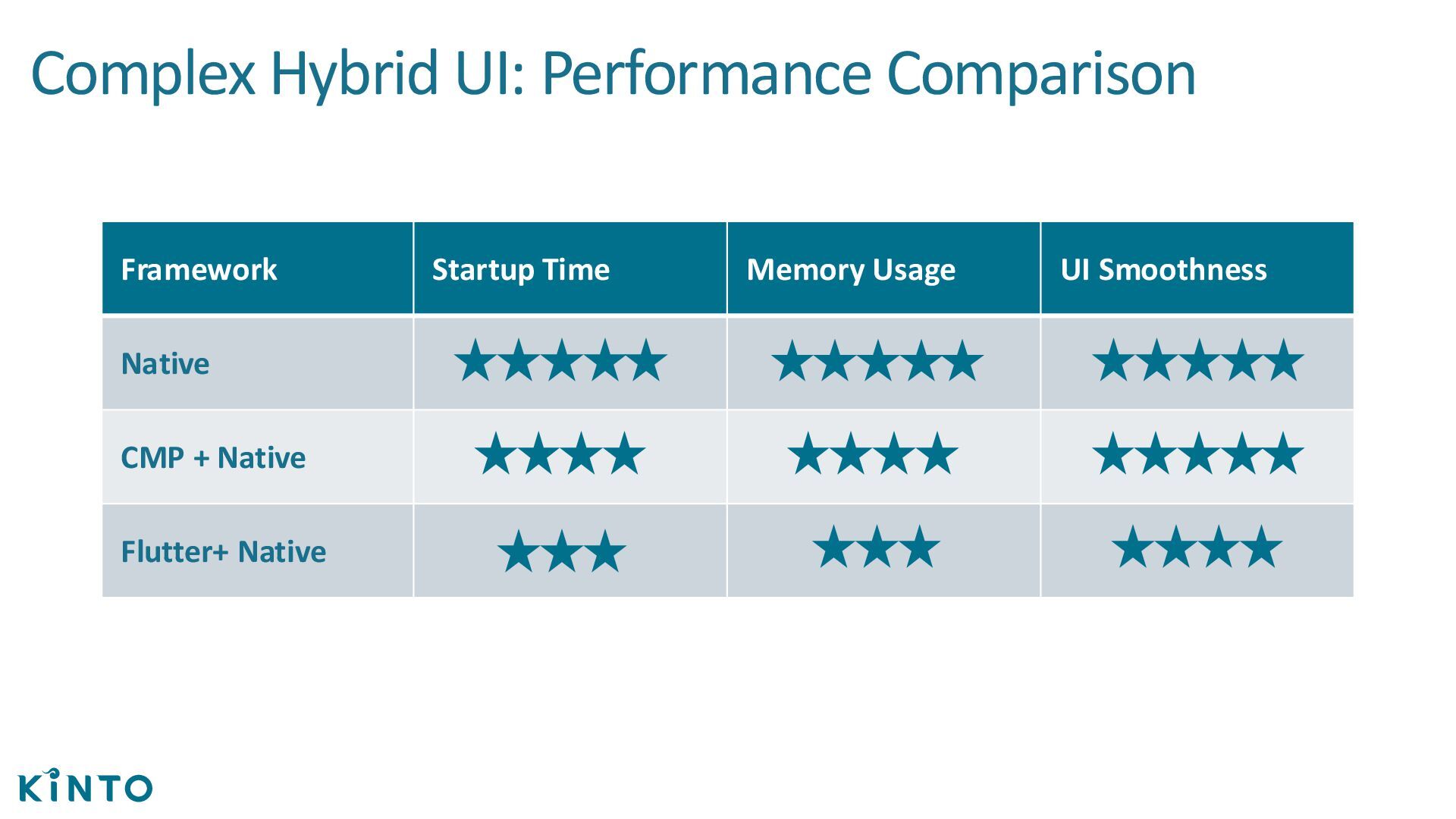

50. Complex Hybrid UI: Performance Comparison Framework Startup Time Memory Usage UI Smoothness Native CMP + Native Flutter+ Native
51. Every solution breeds new problems. — Arthur Bloch

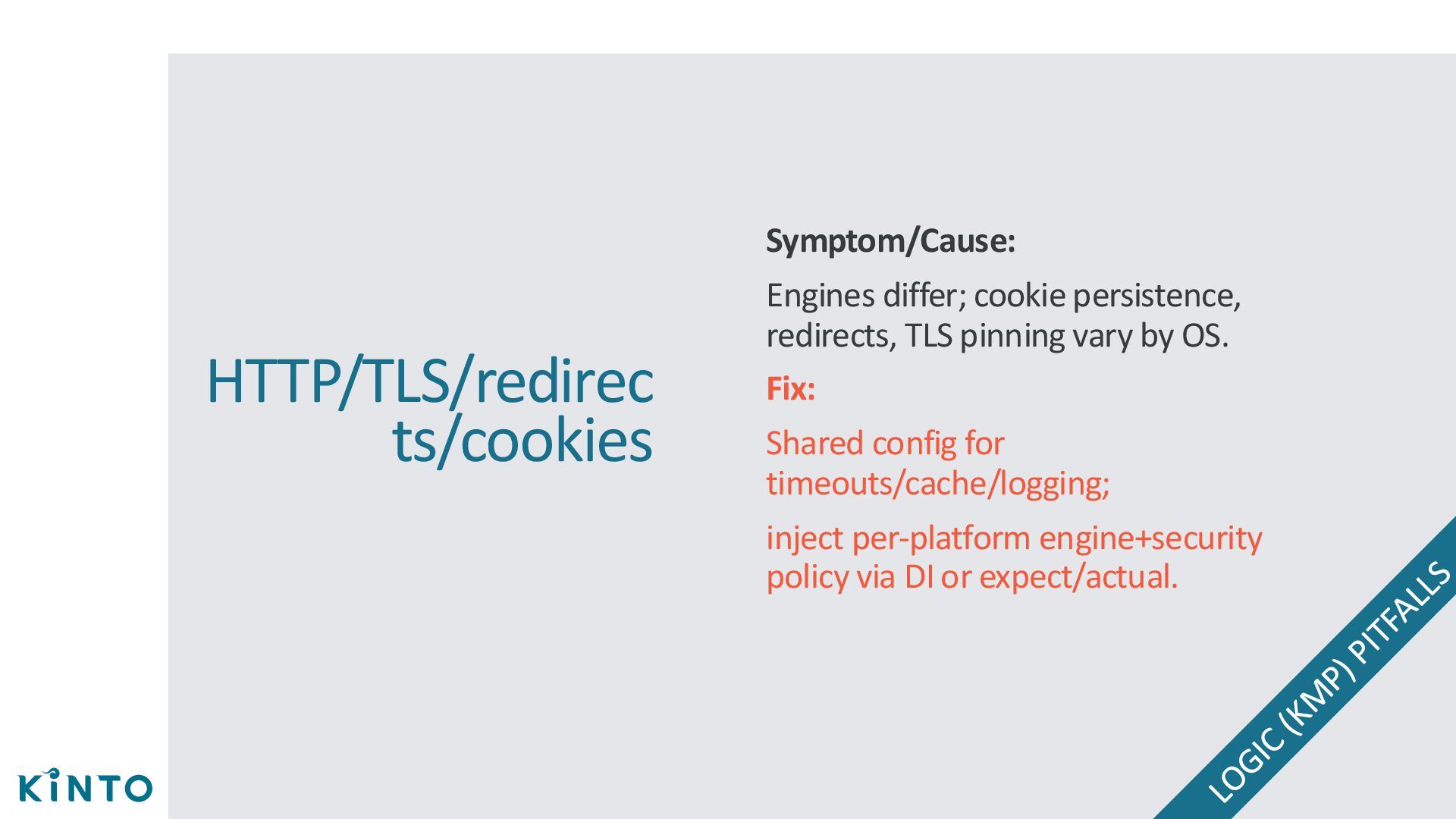

52. HTTP/TLS/redirec ts/cookies Symptom/Cause: Engines differ; cookie persistence, redirects, TLS pinning vary by OS. Fix: Shared config for timeouts/cache/logging; inject per-platform engine+security policy via DI or expect/actual.

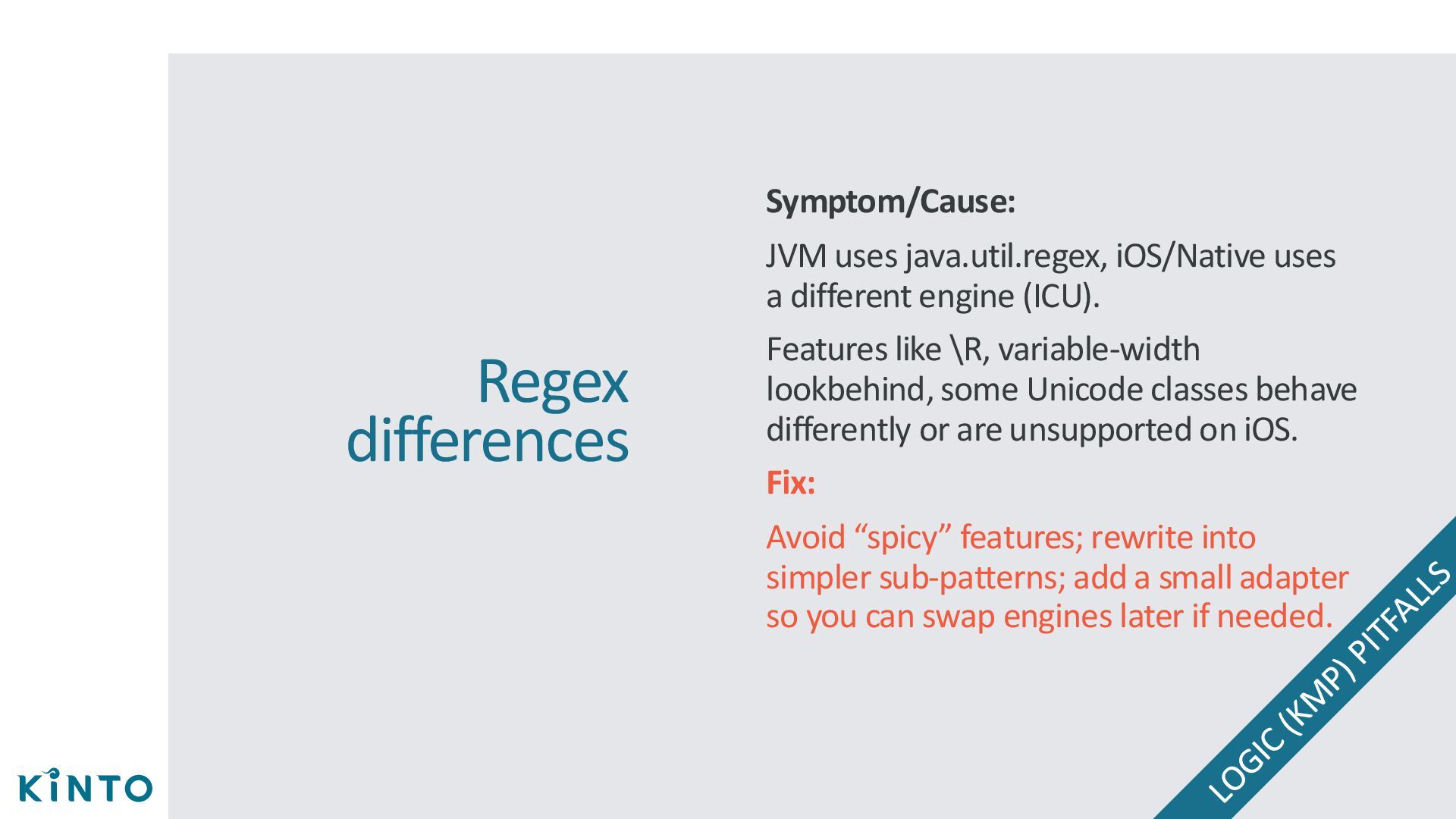

53. Regex differences Symptom/Cause: JVM uses java.util.regex, iOS/Native uses a different engine (ICU). Features like \R, variable-width lookbehind, some Unicode classes behave differently or are unsupported on iOS. Fix: Avoid “spicy” features; rewrite into simpler sub-patterns; add a small adapter so you can swap engines later if needed.

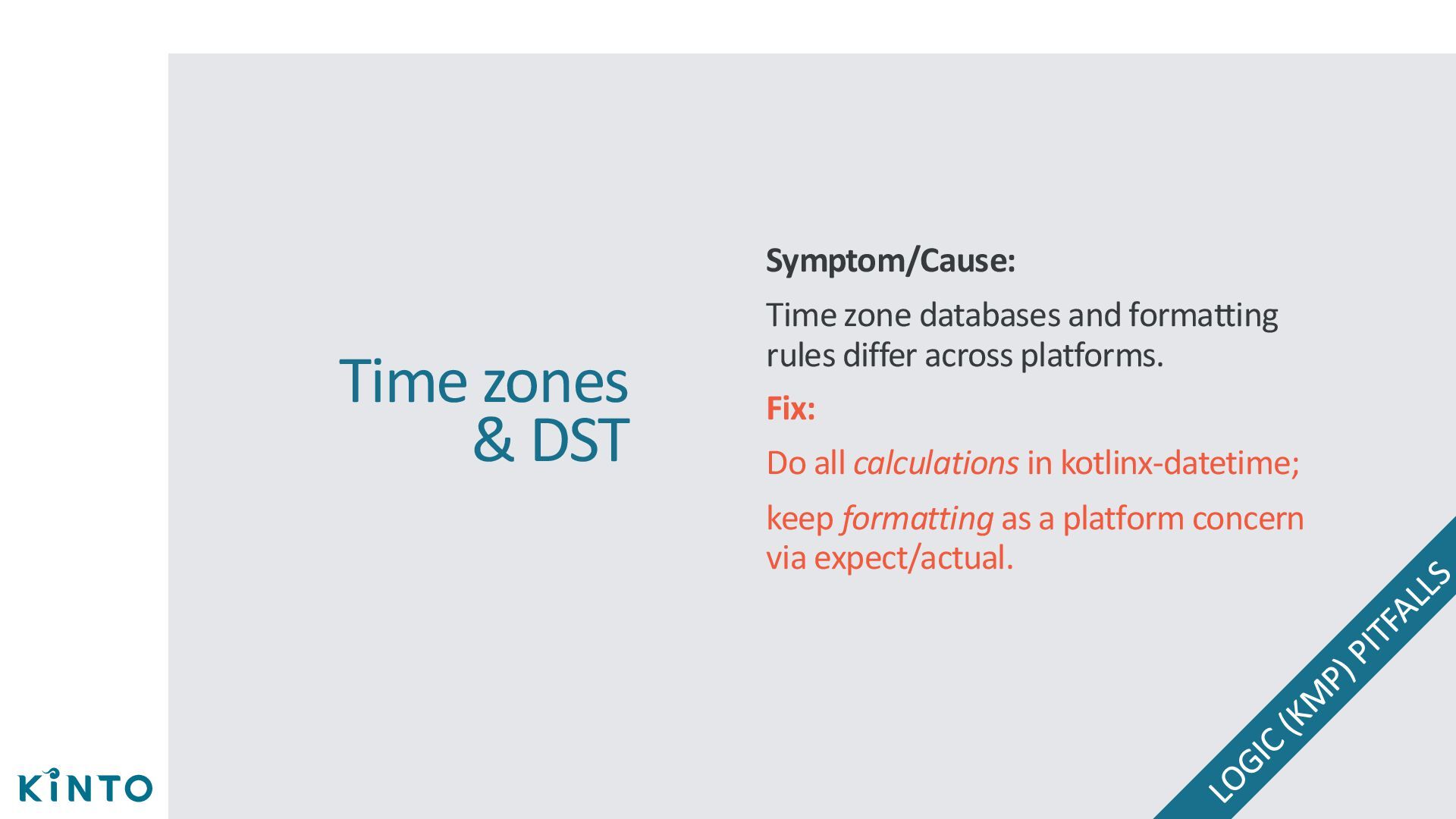

54. Time zones & DST Symptom/Cause: Time zone databases and formatting rules differ across platforms. Fix: Do all calculations in kotlinx-datetime; keep formatting as a platform concern via expect/actual.

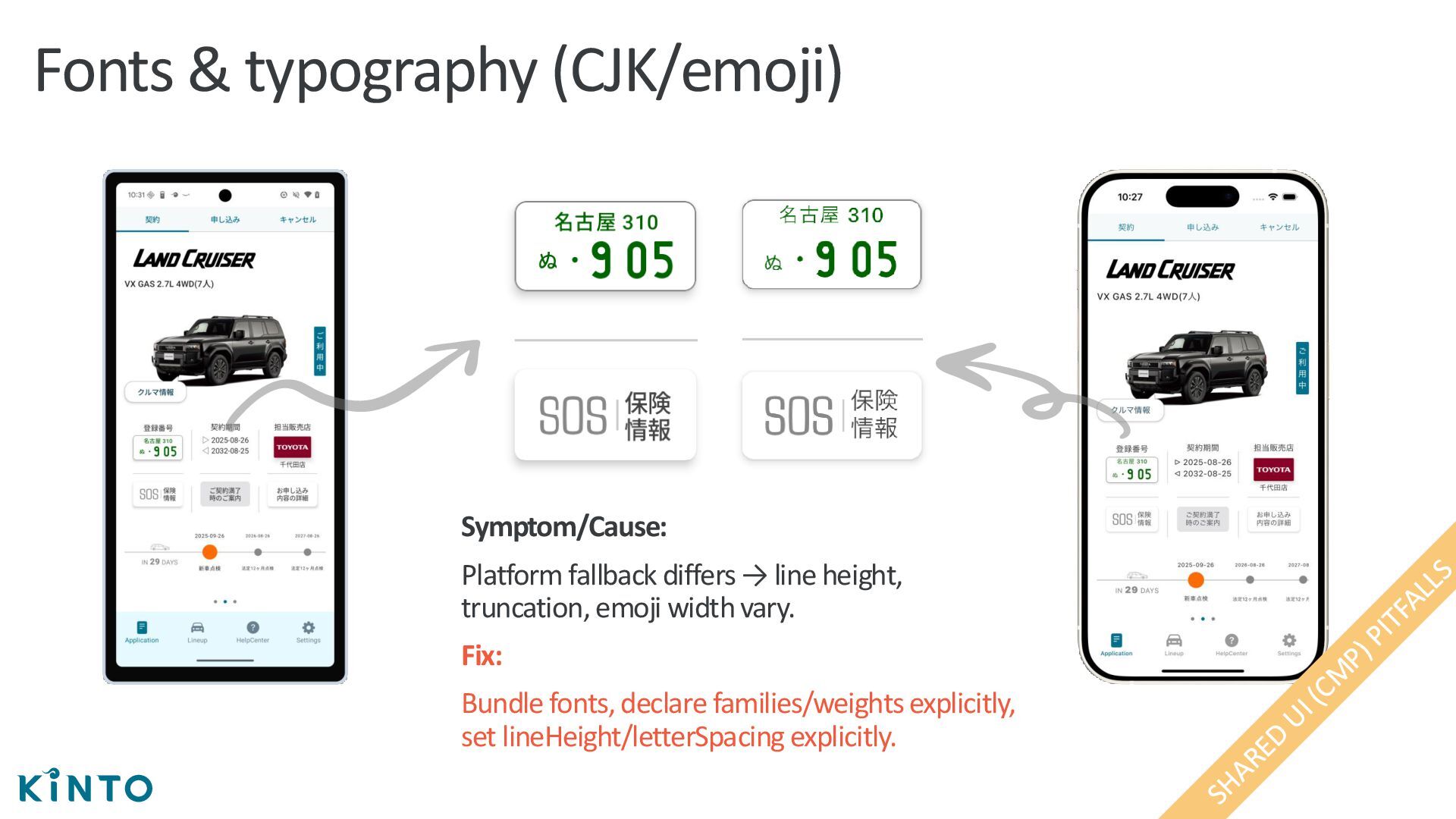

55. Fonts & typography (CJK/emoji) Symptom/Cause: Platform fallback differs → line height, truncation, emoji width vary. Fix: Bundle fonts, declare families/weights explicitly, set lineHeight/letterSpacing explicitly.

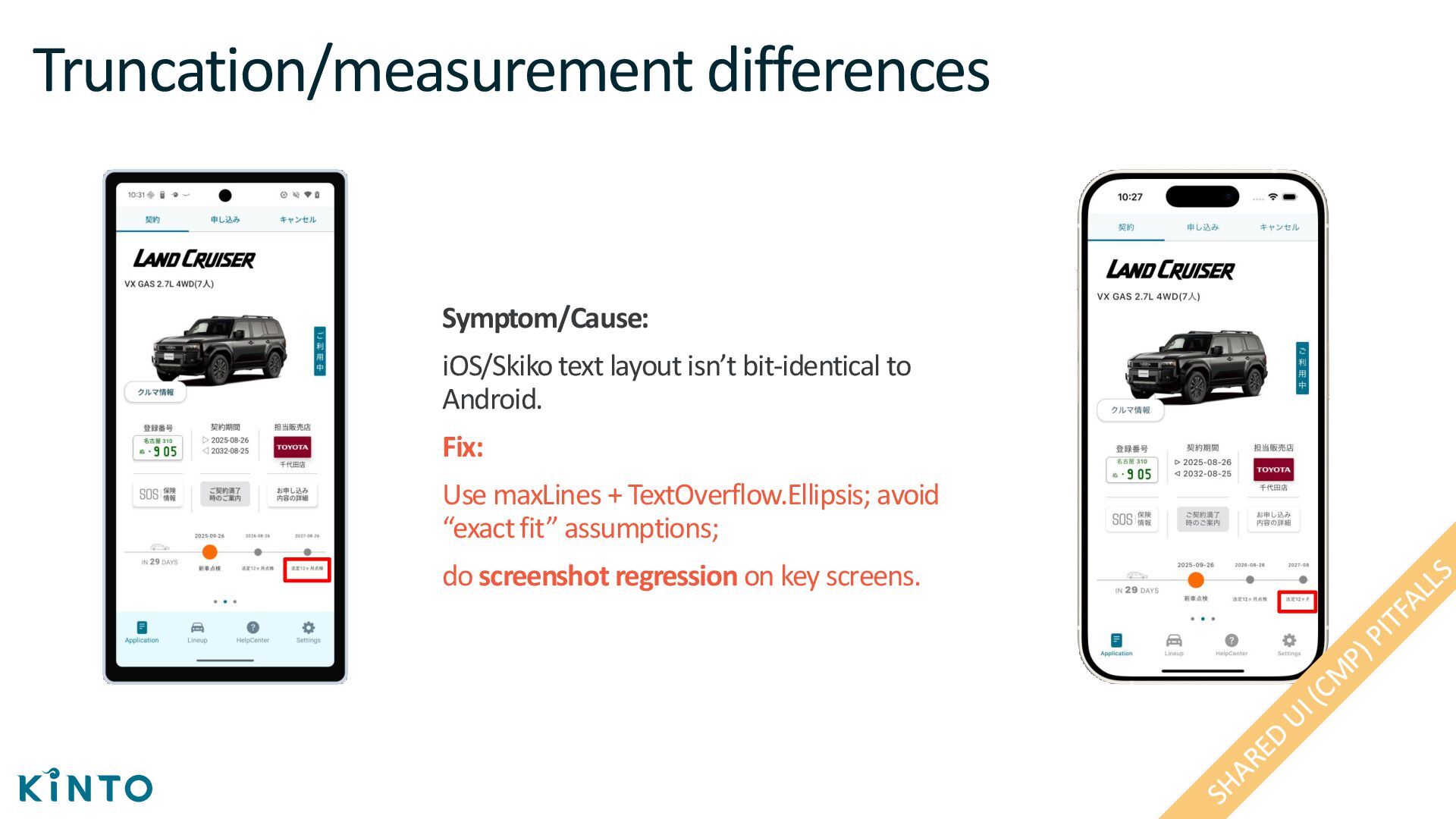

56. Truncation/measurement differences Symptom/Cause: iOS/Skiko text layout isn’t bit-identical to Android. Fix: Use maxLines + TextOverflow.Ellipsis; avoid “exact fit” assumptions; do screenshot regression on key screens.

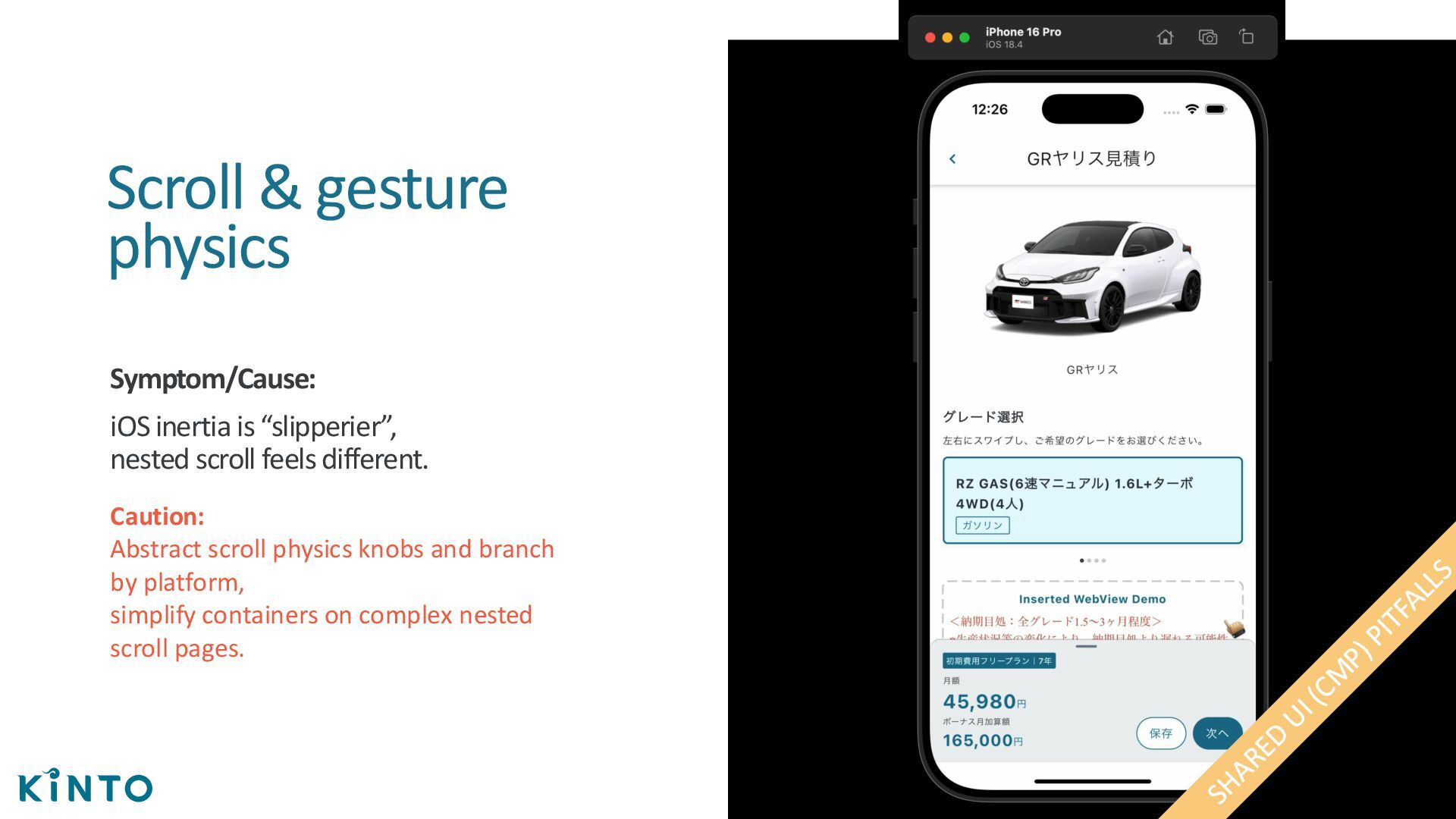

57. Scroll & gesture physics Symptom/Cause: iOS inertia is “slipperier”, nested scroll feels different. Caution: Abstract scroll physics knobs and branch by platform, simplify containers on complex nested scroll pages.

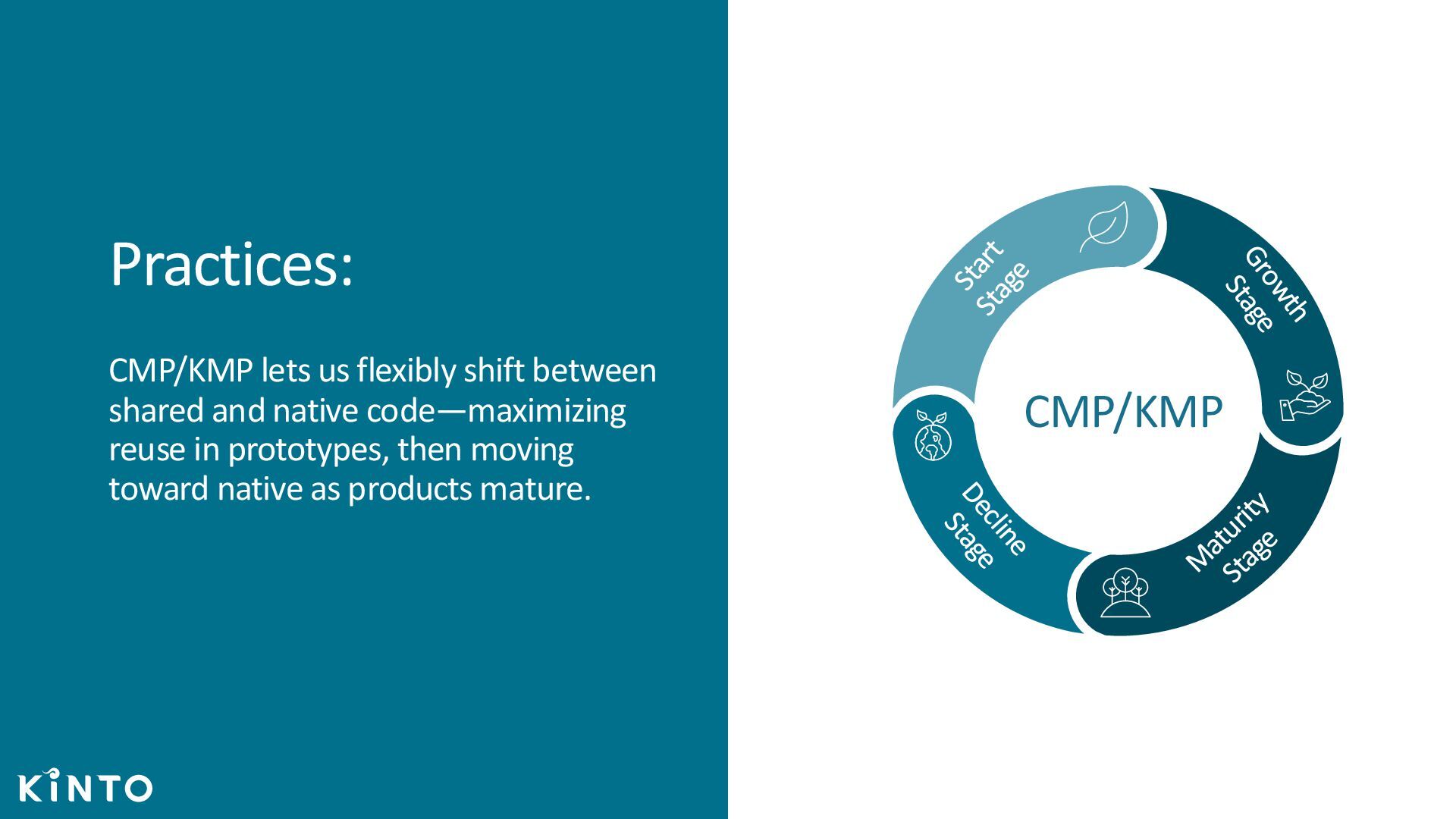

58. Practices: CMP/KMP lets us flexibly shift between shared and native code—maximizing reuse in prototypes, then moving toward native as products mature. CMP/KMP

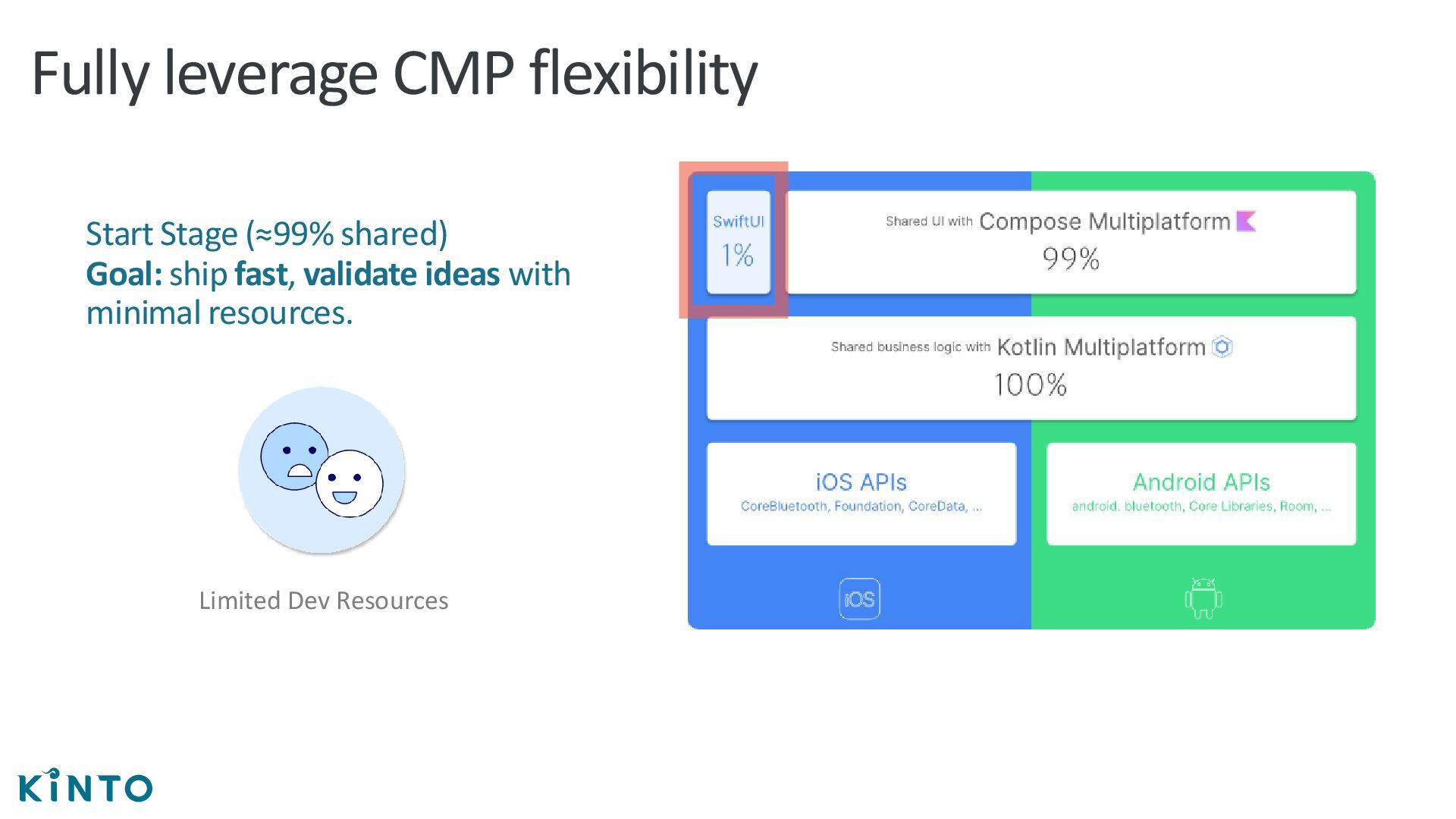

59. Fully leverage CMP flexibility Start Stage (≈99% shared) Goal: ship fast, validate ideas with minimal resources. Limited Dev Resources

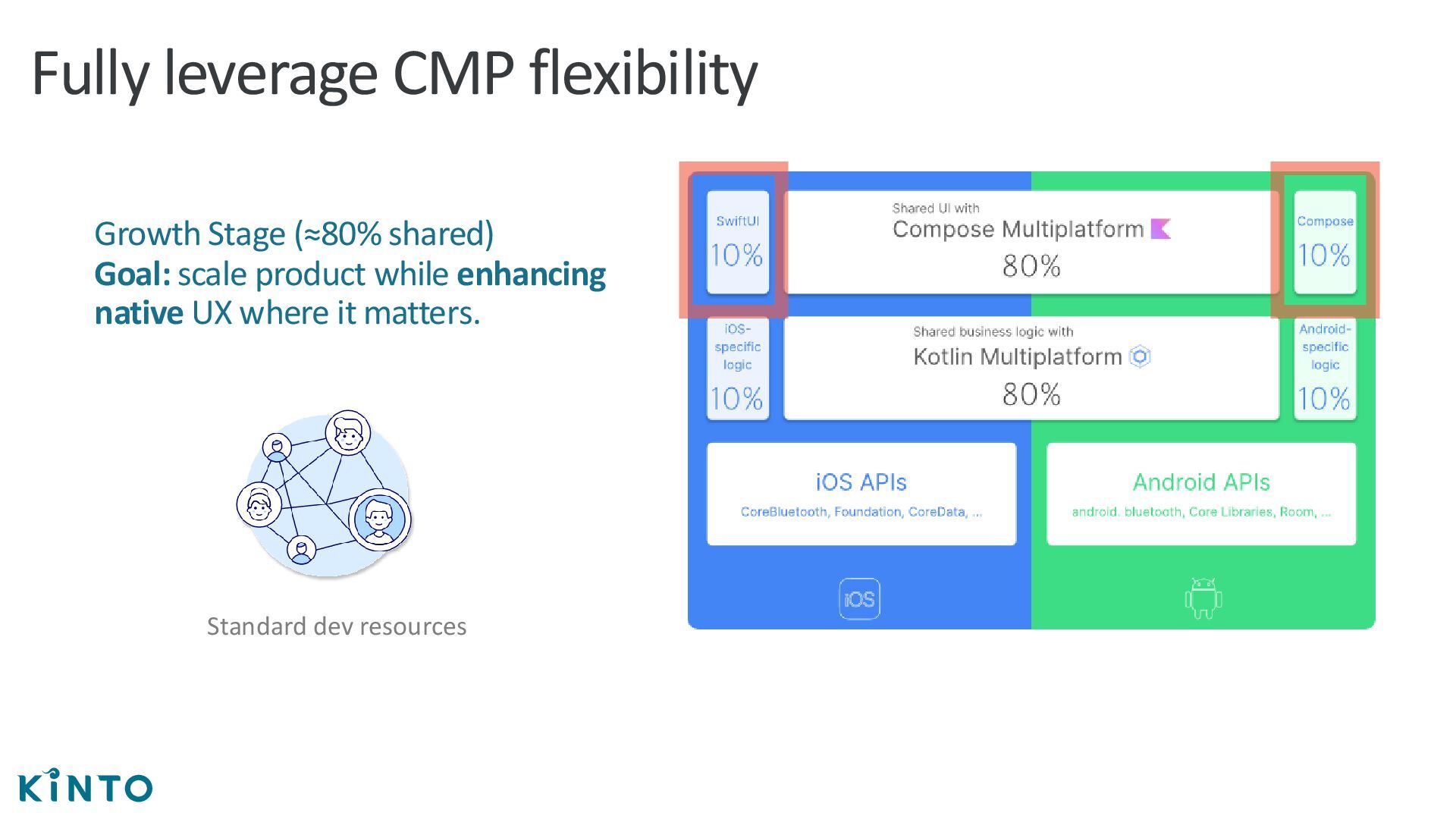

60. Fully leverage CMP flexibility Growth Stage (≈80% shared) Goal: scale product while enhancing native UX where it matters. Standard dev resources

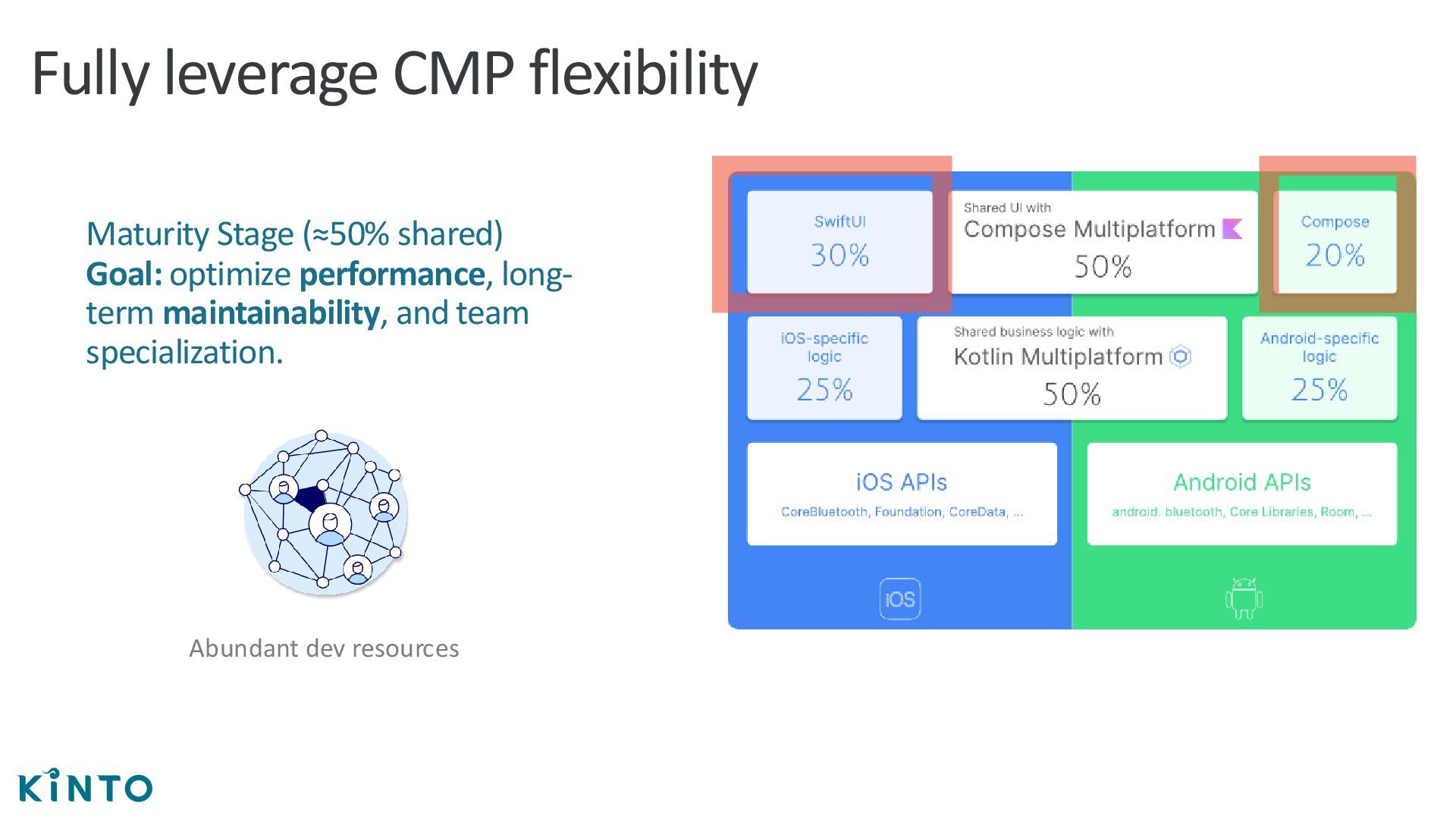

61. Fully leverage CMP flexibility Maturity Stage (≈50% shared) Goal: optimize performance, long- term maintainability, and team specialization. Abundant dev resources

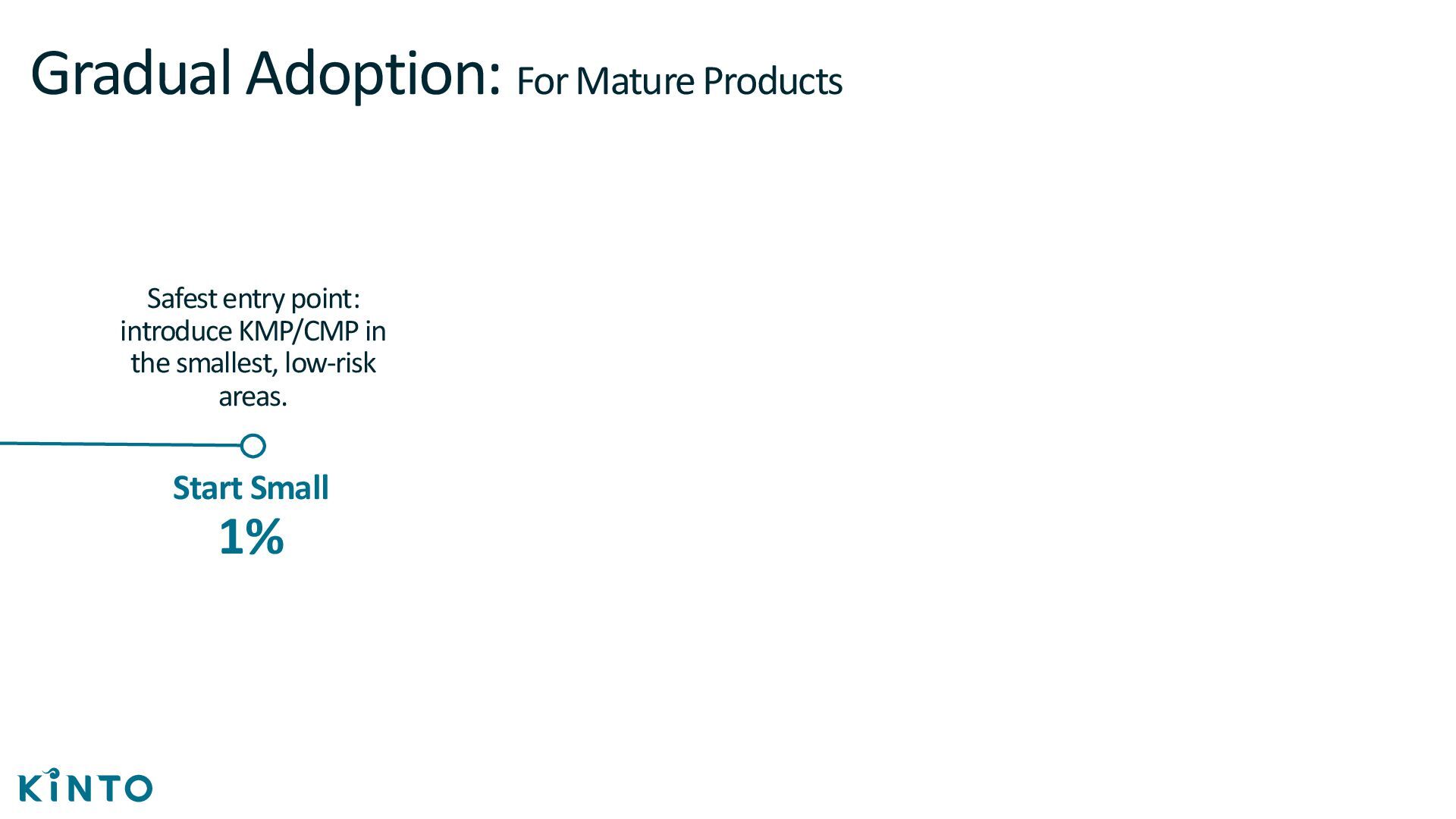

62. Gradual Adoption: For Mature Products Start Small 1% Safest entry point: introduce KMP/CMP in the smallest, low-risk areas.

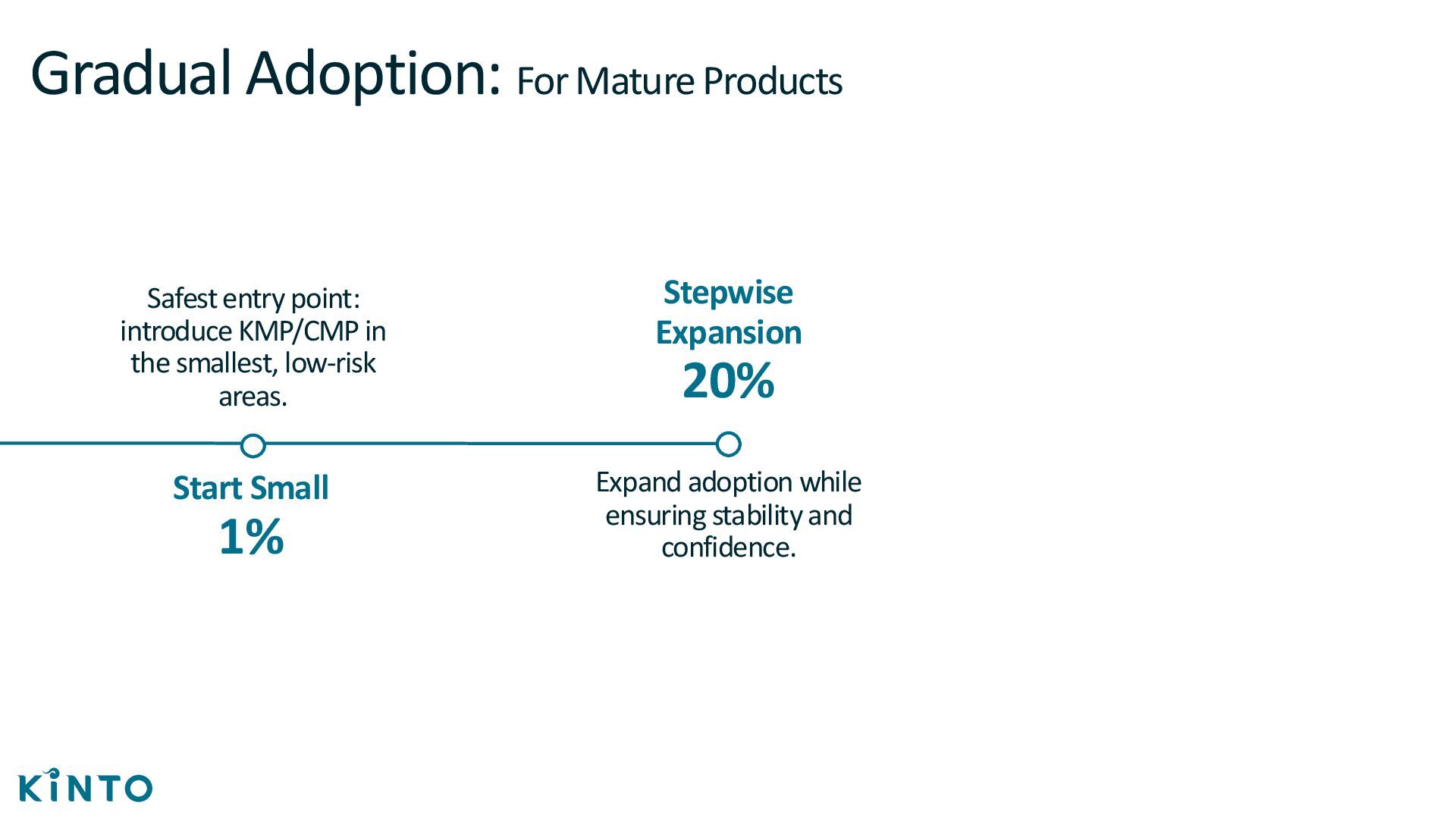

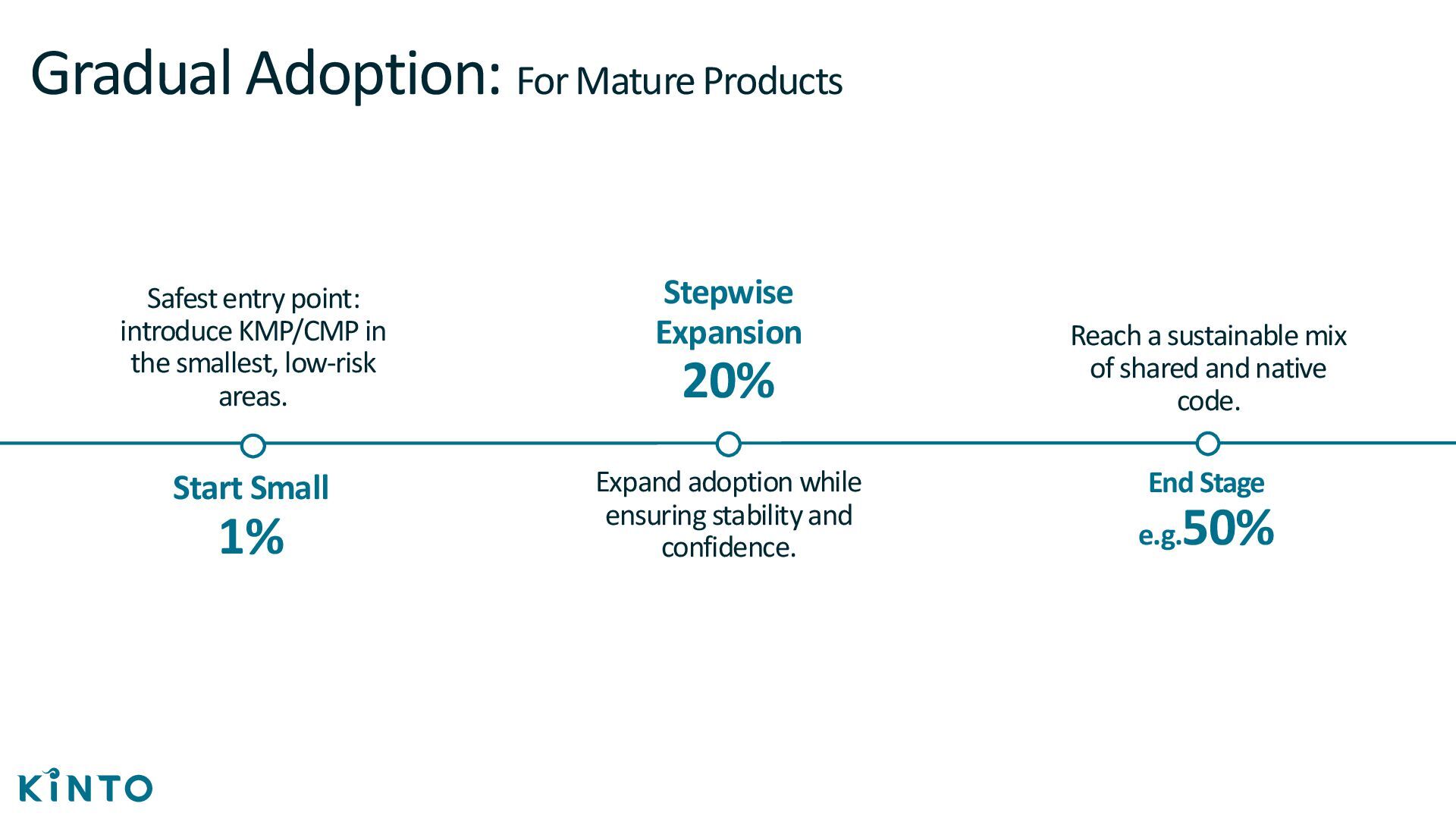

63. Gradual Adoption: For Mature Products Start Small 1% Safest entry point: introduce KMP/CMP in the smallest, low-risk areas. Stepwise Expansion 20% Expand adoption while ensuring stability and confidence.
64. Gradual Adoption: For Mature Products Start Small 1% Safest entry point: introduce KMP/CMP in the smallest, low-risk areas. Stepwise Expansion 20% Expand adoption while ensuring stability and confidence. End Stage e.g. 50% Reach a sustainable mix of shared and native code.
