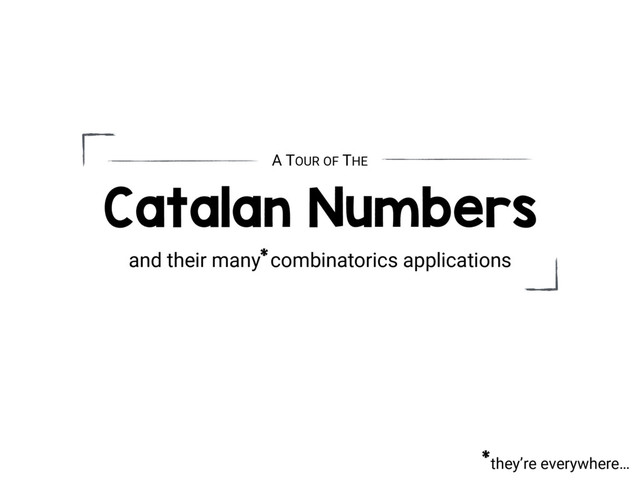

  1. they’re everywhere…
    *
    Catalan Numbers
    and their many combinatorics applications
    *
    A TOUR OF THE

    View Slide

  2. What are the Catalan numbers?
    a sequence of natural numbers
    that shows up as the solution to lots of counting problems
    1, 1, 2, 5, 14, 42, 132, 429, …
    see a pattern?
    it’s ok, I don’t
    either…

    View Slide

  3. What are the Catalan numbers?
    the recursive pattern:
    (this will make much more sense when we look at some example problems)
    C0 = 1 Cn+1 =
    n
    X
    i=0
    CiCn i
    and
    e.g. C4 = C0C3 + C1C2 + C2C1 + C3C0

    View Slide

  4. Problem 1: Parentheses
    the problem: # ways to add parentheses to a product of n+1 letters so
    that the order of operations is changed?
    n = 2
    order of ops should be explicit: (abc) => ((ab)c)
    an example: ((ab)c) (a(bc))
    n = 3 (((ab)c) d)
    ((a(bc)) d)
    ((ab) (cd))
    (a ((bc)d))
    (a (b(cd)))
    Catalan .
    recursion:
    C2 = 2
    C3 = 5
    C2C0
    C1C1
    C0C2
    +
    +
    split the n+1 letters into
    two, nonzero length
    sections. now you have
    two smaller problems that
    you know how to solve.

    View Slide

  5. Problem 2: Full Rooted Binary Trees
    the problem: # full rooted binary trees with n+1 leaves?
    binary tree where each vertex has either 0 or 2 leaves
    an example:
    n = 2
    C2 = 2
    n = 3
    Catalan .
    recursion: C2C0
    C3 = 5
    C1C1
    C0C2
    +
    +
    choose how many leaves
    will be to the right and left
    of the root vertex. now
    make all full trees with
    that # leaves.

    View Slide

  6. Problem 2: Full Rooted Binary Trees
    n = 3
    relation to .
    parentheses:
    (the trees are just
    flipped upside-down,
    and the edges are
    longer for visual effect)
    a b c d
    (ab)
    ((ab)c)
    (((ab)c)d)
    a b c d
    ((a(bc))d)
    (bc)
    (a(bc))
    a b c d
    ((ab)(cd))
    a b c d
    (a((bc)d))
    a b c d
    (a(b(cd)))

    View Slide

  7. Problem 3: Polygon Triangulation
    the problem: # ways to draw diagonals in a n+2 sided polygon to make
    n triangles?
    an example:
    n = 2
    n = 3
    Catalan .
    recursion:
    C2 = 2
    relation to .
    parentheses:
    a
    b c
    d a
    b c
    d
    a
    b c
    d
    a
    b c
    d a
    b c
    d
    (((ab)c)d) ((a(bc))d) ((ab)(cd)) (a((bc)d)) (a(b(cd)))
    full explanation
    tbd (b/c over
    counting is
    complicated)

    View Slide

  8. Example 4: Tiled Step Diagrams
    the problem: # ways to “tile” (divide) a step diagram with side length n
    into n rectangles?
    an example:
    n = 2
    n = 3
    Catalan .
    recursion:
    C2 = 2
    relation to .
    parentheses:
    ab
    bc
    cd
    ab
    bc
    cd
    ab
    bc
    cd
    ab
    bc
    cd
    ab
    bc
    cd
    (((ab)c)d) ((a(bc))d) ((ab)(cd)) (a((bc)d)) (a(b(cd)))
    choose the largest rectangle you can fit. now you have
    smaller step diagrams leftover that you know how to tile.

    View Slide

  9. Example 5: NE Lattice Paths
    the problem: # north-east lattice paths from (0,0) to (n,n) that don’t
    cross y=x line?
    an example:
    n = 2
    n = 3
    Catalan .
    recursion:
    C2 = 2
    choose point (i,i) where the path will first touch
    y=x line. now you have smaller path problems.
    relation to .
    parentheses:
    north = letter | east = “(“
    add “)” every time an added
    letter completes a product
    (((ab)c)d) ((a(bc))d) ((ab)(cd)) (a((bc)d)) (a(b(cd)))

    View Slide
