1. 1 YANGQI YANG Architecture & Design Computation

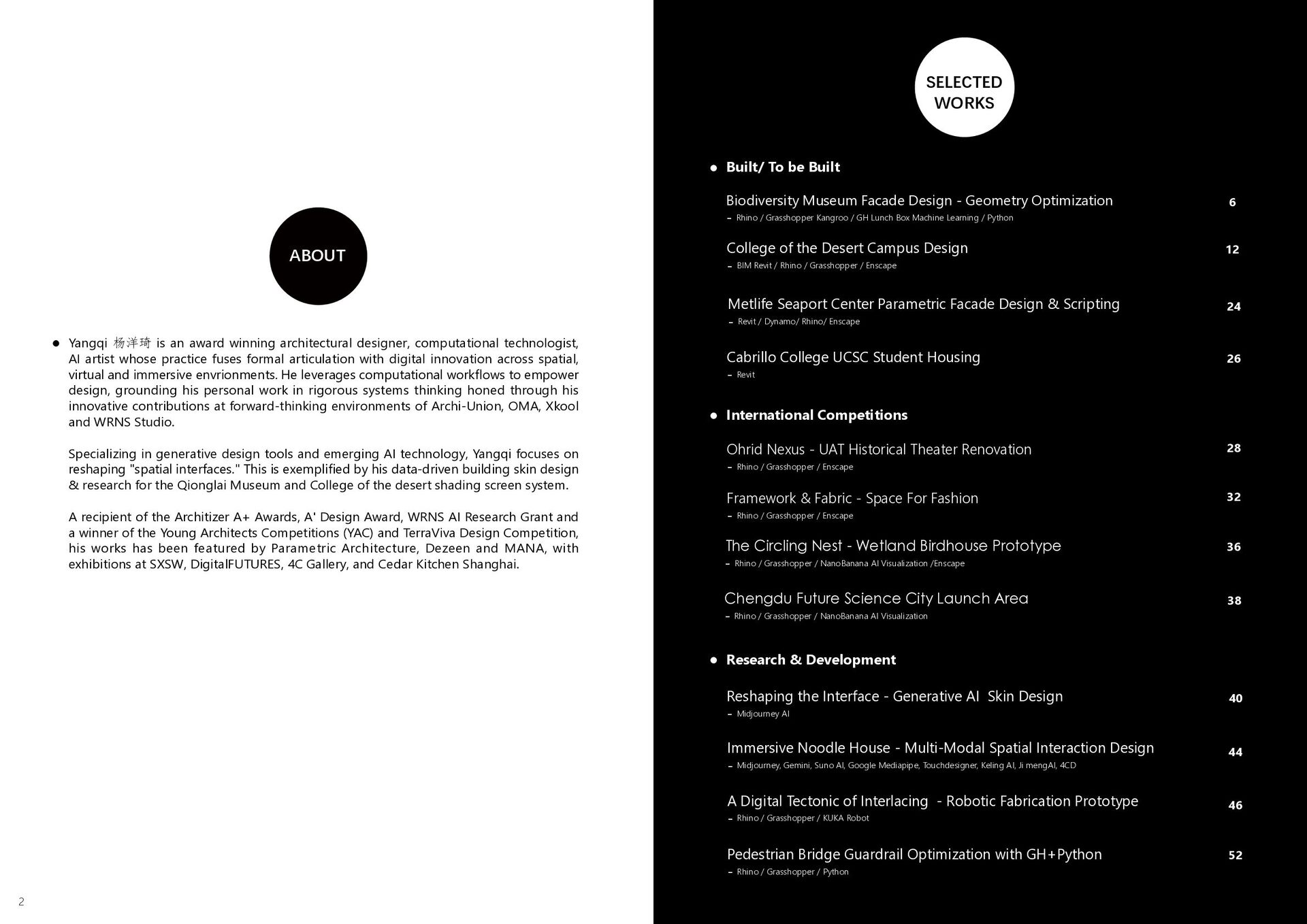

2. 2 3 40 52 44 Research & Development Reshaping the Interface - Generative AI Skin Design - Midjourney AI Immersive Noodle House - Multi-Modal Spatial Interaction Design - Midjourney, Gemini, Suno AI, Google Mediapipe, Touchdesigner, Keling AI, Ji mengAI, 4CD Pedestrian Bridge Guardrail Optimization with GH+Python - Rhino / Grasshopper / Python 38 28 32 36 International Competitions The Circling Nest - Wetland Birdhouse Prototype - Rhino / Grasshopper / NanoBanana AI Visualization /Enscape Chengdu Future Science City Launch Area - Rhino / Grasshopper / NanoBanana AI Visualization Ohrid Nexus - UAT Historical Theater Renovation - Rhino / Grasshopper / Enscape Framework & Fabric - Space For Fashion - Rhino / Grasshopper / Enscape SELECTED WORKS 12 6 24 26 Biodiversity Museum Facade Design - Geometry Optimization - Rhino / Grasshopper Kangroo / GH Lunch Box Machine Learning / Python Built/ To be Built College of the Desert Campus Design - BIM Revit / Rhino / Grasshopper / Enscape Cabrillo College UCSC Student Housing - Revit Metlife Seaport Center Parametric Facade Design & Scripting - Revit / Dynamo/ Rhino/ Enscape ABOUT Yangqi 杨洋琦 is an award winning architectural designer, computational technologist, AI artist whose practice fuses formal articulation with digital innovation across spatial, virtual and immersive envrionments. He leverages computational workflows to empower design, grounding his personal work in rigorous systems thinking honed through his innovative contributions at forward-thinking environments of Archi-Union, OMA, Xkool and WRNS Studio. Specializing in generative design tools and emerging AI technology, Yangqi focuses on reshaping "spatial interfaces." This is exemplified by his data-driven building skin design & research for the Qionglai Museum and College of the desert shading screen system. A recipient of the Architizer A+ Awards, A' Design Award, WRNS AI Research Grant and a winner of the Young Architects Competitions (YAC) and TerraViva Design Competition, his works has been featured by Parametric Architecture, Dezeen and MANA, with exhibitions at SXSW, DigitalFUTURES, 4C Gallery, and Cedar Kitchen Shanghai. A Digital Tectonic of Interlacing - Robotic Fabrication Prototype - Rhino / Grasshopper / KUKA Robot 46
3. 4 5 YANGQI YANG | ARCHITECTURE / DESIGN TECHNOLOGIST billyyq666@gmail.com | 4343270703(US) Education University of Virginia, School of Architecture Master of Architecture (STEM Degree) Beijing Forestry University, School of Landscape Architecture Bachelor of Engineering in Urban and Rural Planning Professional Experience WRNS Studio - Architectural Designer /Design Technologist Cabrillo Affodable Student Housing (SD-DD-CD) Role: Building Facade Design & Envelope BIM modeling Lead Develope modular sustainable panel systems, complex roof model- ing and conduct roof & facade detail documentation and applied on building information modeling process, documented in construction drawing set in a timely manner. Metlife Seaport Lab&Research Campus (Entitlement) Role: Building Interface Design + Automation Developed Grasshopper & AI workflow to automate facade geometry iterations with design intents Achievement: Deliver high quality design options for client meeting and save manual modeling times by 60% College of the Desert Palm Springs Campus(SD-DD-CD-50%CA) Role: Shading System Design + Automation Lead designer for complex roof+facade shading systems. Developed grasshopper tools to drive environmental analysis and mass geome- try customization Achievement: complex form customization via automation. Validat- ed form through performance simulation and 3D prototyping and advancing to construction Confidential Top-tier AI Office TI (SD-DD) Role: Developed a user-driven spatial framework for a top AI client based on behavior analysis Achievement: Secured immediate “Day 1” approval by accurately translating user workflows into physical solutions Xkool Technology - Design Technologist Qionglai Biodiversity Museum (SD) Role: Facade Geometry Optimization - Implemented an AI-driven Machine Learning workflow (K-Means) within Grasshopper+ Python to rationalize free-form panels into a set of standardized modules Achievement: Validated a geometric clustering strategy to approxi- mate 10,000 unique panels using only 30 standardized modules 2013-2018 2018-2022 2022-2026 San Francisco 2021 Shenzhen Skills Design & Computation Rhino Grasshopper+Python AutoCAD Robotics & Fabrication Kuka Robotics Fusion 360 3D Printing Visualization Adobe Creative Suite Enscape V-Ray Lumion Generative AI Agent Based Modeling Stable Diffusion ComfyUI AI-Assisted Coding Midjourney RunwayML Suno Creative Tech Three.js/WebGL (AI-Assisted) MediaPipe TouchDesigner HTML Language English Professional Proficiency Chinese Native Research & Development Experience WRNS Studio AI Research Grant Independent Research Pioneered a human-machine design methodology, defining a “Prompt, 2D sketch to 3D ” architectural design workflow Synthesized text, sketches, and conceptual AI imagery into complex, rationalized 3D architectural forms Computational Design Research: Cloud-Based Wood Voxel Cus- tomization Workflow Collaboration with Ecoform Integrated Grasshopper with ShapeDiver to visualize voxel data, translating 2D images into sustainable wood 3D printed prototypes Robotic Fabrication - Hybrid Concrete Column Structure Instructor: Ehsan Baharlou Engineered a hybrid column prototype based on dry-joint mechanics, utilizing Fusion 360 for structural load simulation and validation Generated interlocking morphologies and optimized robotic tool- paths via Grasshopper Fabricated precision PLA formwork with a Kuka robotic arm for multi-material casting Multimodal Based Immersive Dining Experience Design Collaboration with Tongji University DigitalFUTURES Developed a web-based Three.js system integrating MediaPipe for real-time synchronization of audio, gestures, and AI-generated graphics Led on-site testing and optimization, resulting in the design’s imme- diate deployment at a Shanghai music event Honor & Awards Architecture 2026 A’ Design Award 2026 DNA Paris Design Award 2026 Architizer A+ Award Finalist 2026 IAI Best Design & Best Creativity Award 2025 4C Gallery Exhibition 2025 WRNS AI Research Grant Recipient 2025 CCFC Professional Design Award – Award of Honor 2025 Terravivia International Design Competition Winner 2024 CCFC Professional Design Award – Award of Honor 2024 Young Architects Competi- tions Winner AI Immsersive Art 2026 Soulscape Global Top 200 AI Creator 2026 Soulscape AI Film Hackthon Top15 + Best Sound Design Nomination 2026 SXSW Official Artist 2025 GGAC Best Academic Design Award for Immersive Interaction Office for Metropolitan Architecture (OMA) - Designer Chengdu Future Science and Technology City Master Plan(CD-SD) Achievement: Competition Winner - Higher Education Campus Planning and Design - Lead the form finding study based on sus- tainable principle and design the student campus living area and the project is built based on this design effort. 2021 Hongkong

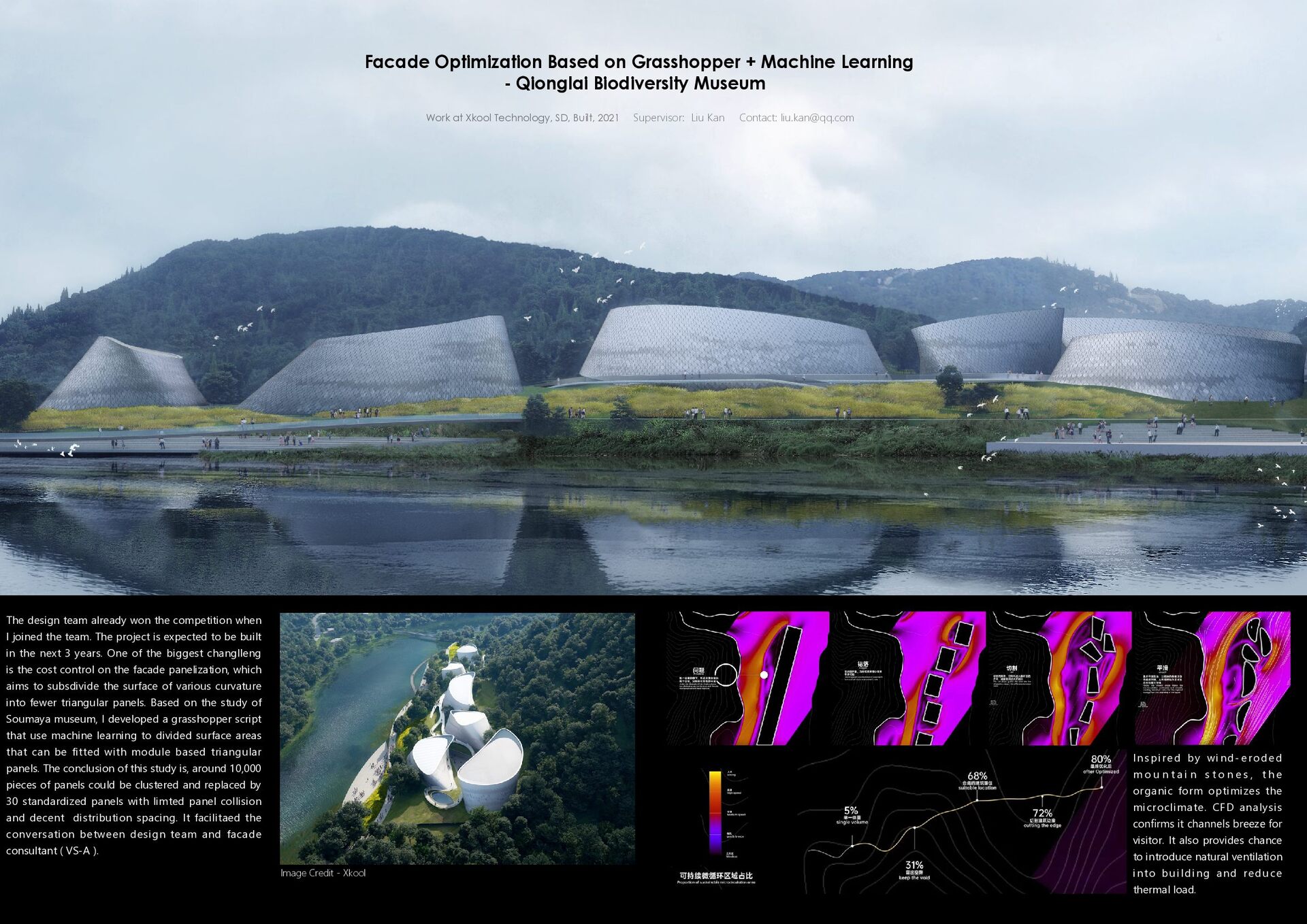

4. 6 7 Facade Optimization Based on Grasshopper + Machine Learning - Qionglai Biodiversity Museum The design team already won the competition when I joined the team. The project is expected to be built in the next 3 years. One of the biggest changlleng is the cost control on the facade panelization, which aims to subsdivide the surface of various curvature into fewer triangular panels. Based on the study of Soumaya museum, I developed a grasshopper script that use machine learning to divided surface areas that can be fitted with module based triangular panels. The conclusion of this study is, around 10,000 pieces of panels could be clustered and replaced by 30 standardized panels with limted panel collision and decent distribution spacing. It facilitaed the conversation between design team and facade consultant ( VS-A ). Image Credit - Xkooll Work at Xkool Technology, SD, Built, 2021 Supervisor: Liu Kan Contact: liu.kan@qq.com Inspired by wind-eroded m o u n t a i n s t o n e s , t h e organic form optimizes the microclimate. CFD analysis confirms it channels breeze for visitor. It also provides chance to introduce natural ventilation into building and reduce thermal load.

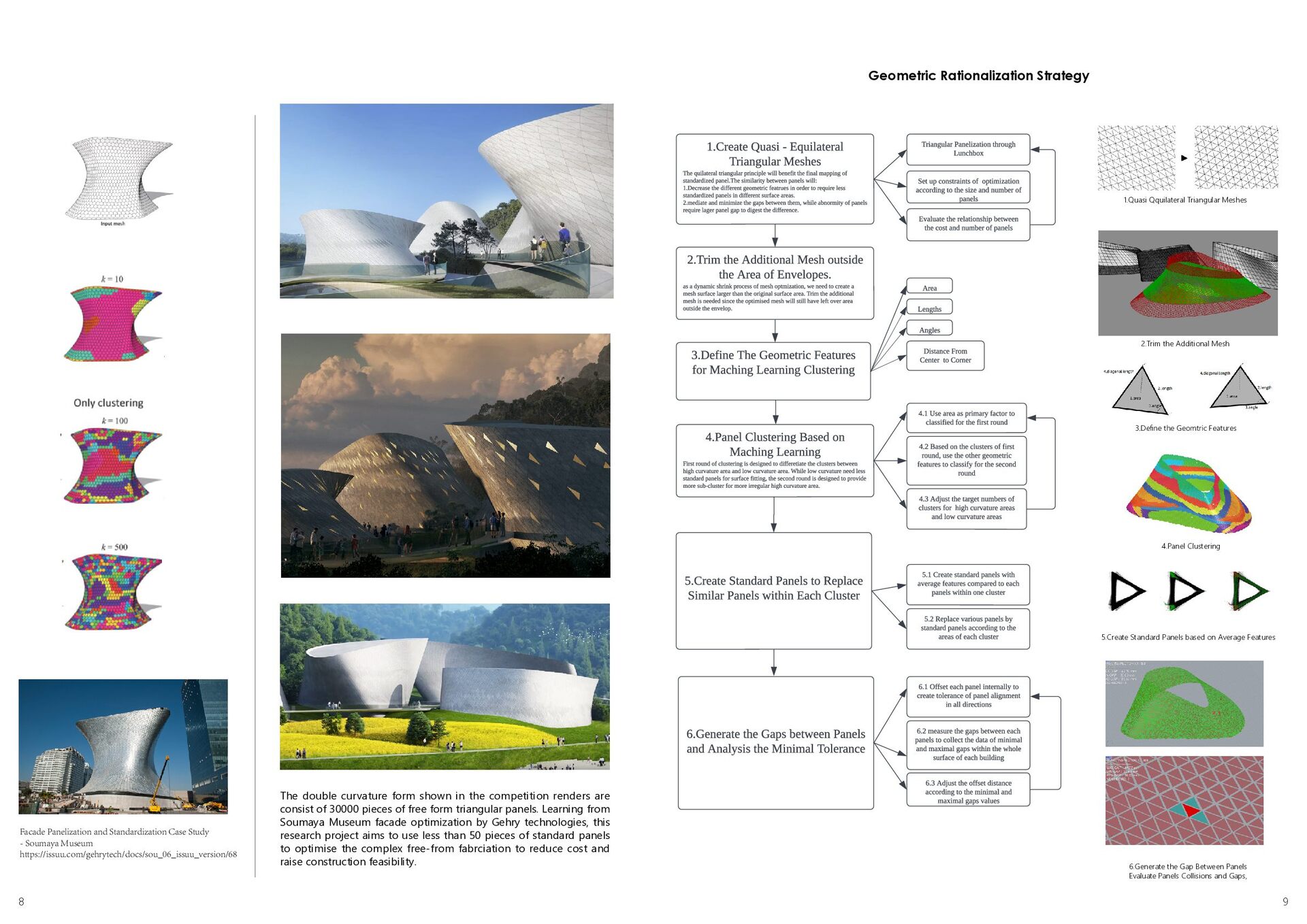

5. 8 9 1.Quasi Qquilateral Triangular Meshes 2.Trim the Additional Mesh 3.Define the Geomtric Features 4.Panel Clustering 5.Create Standard Panels based on Average Features 6.Generate the Gap Between Panels Evaluate Panels Collisions and Gaps, 1.Shape the Basic Equilateral Triangular Mesh Facade Panelization and Standardization Case Study - Soumaya Museum https://issuu.com/gehrytech/docs/sou_06_issuu_version/68 The double curvature form shown in the competition renders are consist of 30000 pieces of free form triangular panels. Learning from Soumaya Museum facade optimization by Gehry technologies, this research project aims to use less than 50 pieces of standard panels to optimise the complex free-from fabrciation to reduce cost and raise construction feasibility. Geometric Rationalization Strategy

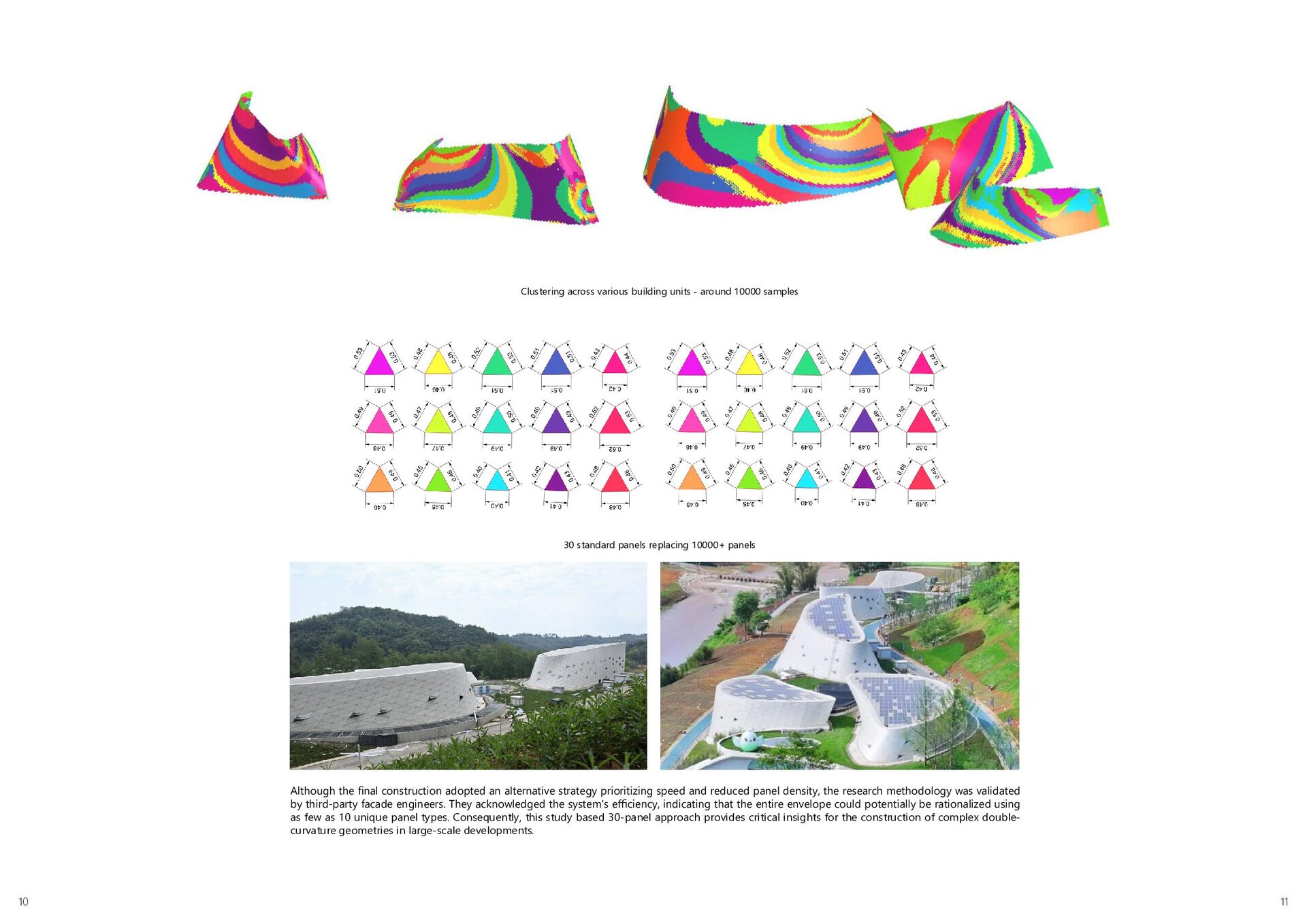

6. 10 11 Although the final construction adopted an alternative strategy prioritizing speed and reduced panel density, the research methodology was validated by third-party facade engineers. They acknowledged the system's efficiency, indicating that the entire envelope could potentially be rationalized using as few as 10 unique panel types. Consequently, this study based 30-panel approach provides critical insights for the construction of complex double- curvature geometries in large-scale developments. Clustering across various building units - around 10000 samples 30 standard panels replacing 10000+ panels

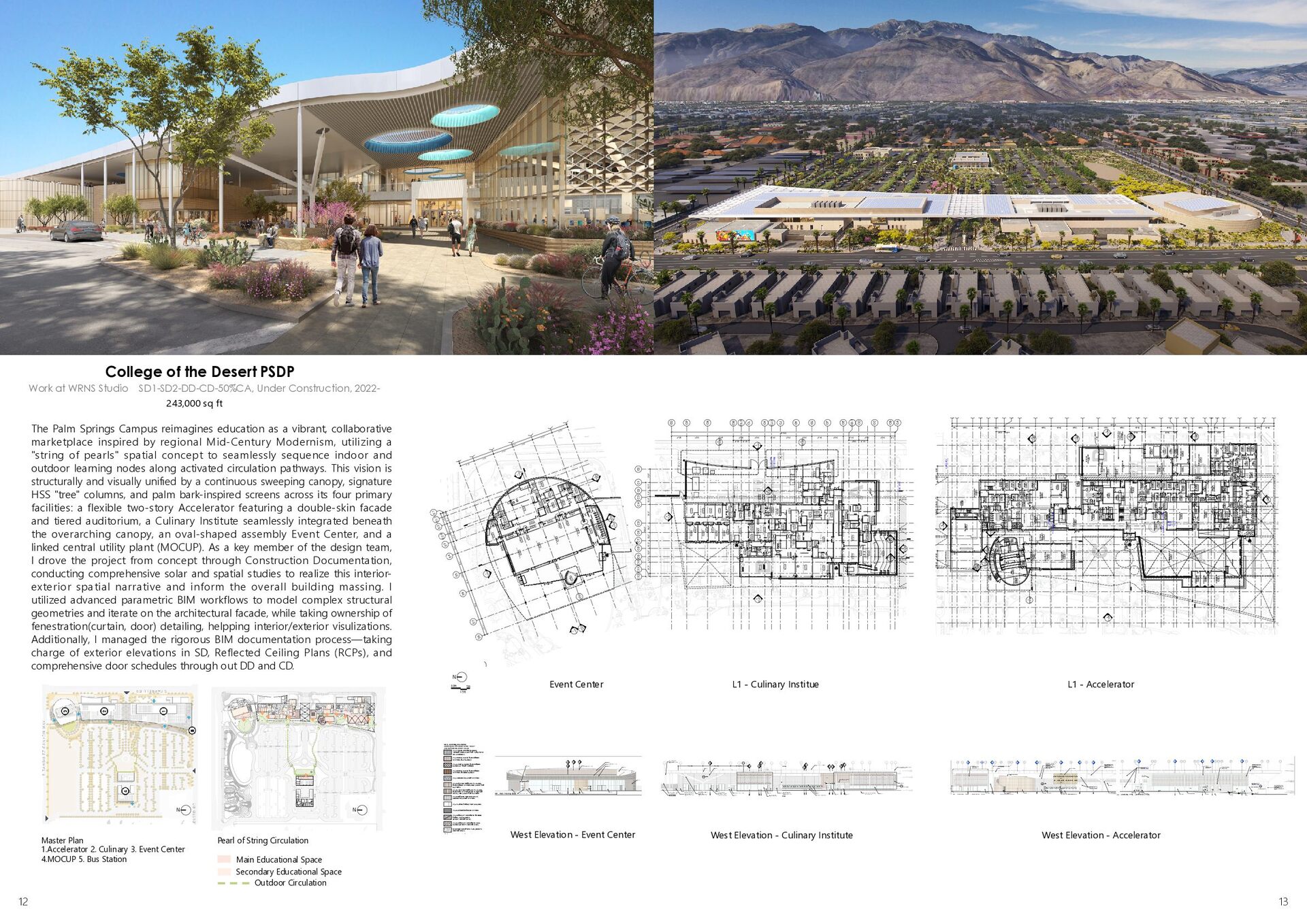

7. 12 13 College of the Desert PSDP The Palm Springs Campus reimagines education as a vibrant, collaborative marketplace inspired by regional Mid-Century Modernism, utilizing a "string of pearls" spatial concept to seamlessly sequence indoor and outdoor learning nodes along activated circulation pathways. This vision is structurally and visually unified by a continuous sweeping canopy, signature HSS "tree" columns, and palm bark-inspired screens across its four primary facilities: a flexible two-story Accelerator featuring a double-skin facade and tiered auditorium, a Culinary Institute seamlessly integrated beneath the overarching canopy, an oval-shaped assembly Event Center, and a linked central utility plant (MOCUP). As a key member of the design team, I drove the project from concept through Construction Documentation, conducting comprehensive solar and spatial studies to realize this interior- exterior spatial narrative and inform the overall building massing. I utilized advanced parametric BIM workflows to model complex structural geometries and iterate on the architectural facade, while taking ownership of fenestration(curtain, door) detailing, helpping interior/exterior visulizations. Additionally, I managed the rigorous BIM documentation process—taking charge of exterior elevations in SD, Reflected Ceiling Plans (RCPs), and comprehensive door schedules through out DD and CD. Work at WRNS Studio SD1-SD2-DD-CD-50%CA, Under Construction, 2022- Master Plan 1.Accelerator 2. Culinary 3. Event Center 4.MOCUP 5. Bus Station Pearl of String Circulation Main Educational Space Secondary Educational Space Outdoor Circulation 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 2 5 '- 0 " 2 5 '- 0 " 2 5 '- 0 " 2 5 '- 0 " 2 5 '- 0 " 2 5 '- 0 " 2 0 '-0" 2 0 '-0" 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 2 0 '-0" 2 0 '-0" 2 0 '-0" 2 0 '-0" 3 0 '-0" 2 5 '- 0 " 3 0 '-0" 2 5 '- 0 " 3 0 '-0" 2 5 '- 0 " 3 0 ' 3 0 ' 3 0 ' 6 ' 6 ' 2 5 ' 2 5 ' 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " UP 21'-0" 21'-3" 3'-4" CJ CK CN CP CG CF CD CA CQ C1 7'-6" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 41'-2" 33'-2" 24'-0" C11 C9 C12 4 A.2-304 355'-10" C6 BREAKOUT ROOM 2.153 LAUNDRY 2.150 HOUSEKEEPING STOR 2.151 ELEC 2.149 OFFICE 2.143 OFFICE 2.142 LOCKER ROOM 2.125 WORKFORCE INNOVATION IDEATION KITCHEN 2.120 STOR 2.114B CULINARY DINING 2.116 GN RR 2.119 GN RR 2.117 GN RR 2.137 LAC 2.139 CLASSROOM 2.102 CLASSROOM 2.101 CHOCOLATE/ PACKAGING KITCHEN 2.110 HOSPITALITY LOBBY 2.141 OUTDOOR COOKING AREA OUTDOOR DINING BREAKOUT PLAZA ELEC 2.136 SOCIAL MEDIA MAKER 2.138 ERRCS 2.128 CC CB C8 CL.5 C7 WARE WASH 2.109B CE CH 1 A.1-305 VESTIBULE 2.114 CIRCULATION 2.146 OFFICE 2.130 OFFICE 2.127 FIRE 2.135 PLBG 2.134 MV SUBSTATION 2.132 JAN 2.140 IDF 2.122 CIRCULATION 2.100 FRONT DESK 1 / A.2-101B 1 / A.2-101A 2 / AC.1-101 STOR 2.147 GN RR 2.148 FOOD TRUCK PARKING CL C10 C5 CD.7 12'-6" 12'-6" MAIN FOOD STOR 2.126 HALLWAY 2.133 STOR 2.152 STOR 2.102A (3) TRUCK BAY PARKING FOR MATERIALS MANAGEMENT AND TRASH TRUCK C2 C3 C4 CM 1 A.1-306 ? ? ROOF ACCESS CHANGING RM 2.125A GN RR 2.124 PASTRY/ BAKING KITCHEN 2.109 ADVANCED SKILLS KITCHEN 2.111 CHANGING RM 2.125B SHOWER RM 2.125C SHOWER RM 2.125D OFFICE 2.110A WARE WASH 2.111C DRY STOR 2.109A POT/PAN WASH 2.111B OFFICE 2.111A DINING KITCHEN 2.116A CIRCULATION 2.118 CIRCULATION 2.113 1 A.2-302 1 A.2-301 STOR 2.131 (COVERED AREA) DRY STOR 2.126A 1 A.2-303 5'-0" 17'-9" 9'-3" 13'-0" 12'-0" 13'-0" 15'-0" 30'-0" 12'-6" 9'-6" 13'-0" 21'-1" STOR 2.153A BREAKOUT ROOM 2.155 STOR 2.155A BREAKOUT ROOM 2.154 BREAKOUT ROOM 2.156 STOR 2.156A STOR 2.154A MVSG TRANSFORMER PME CP STAIR 1 2.1STR1 CLOSET 2.112 2 A.2-303 SERVICE YARD EQUIPMENT, SEE BUILDING ENVIRONMENTS COMPACTOR (EVENTS) COMPACTOR (CULINARY) REFRIG. STOR 2.132A DRY STOR 2.120A +417'-2" 150'-0" 16'-0" 13'-6" STOR 2.125E STOR 2.114A STORAGE 2.104B KING SUITE 2.145 QUEEN 2.144 RR 2.144A RR 2.145A STOR 2.144B STORAGE 2.115 C0 DEMONSTRATION THEATER KITCHEN 2.104 DEMONSTRATION THEATER VIEWING AREA 2.104A STOR 2.107 OFFICE 2.108B AV 2.105A CONTROL RM 2.105 WARE WASH 2.108C DRY STOR 2.108A HALLWAY 2.106 CJ.5 A.2-805 1 A.2-806 1 SHEET NOTES LEGEND NON-RATED PARTITION 1 HR RATED FIRE BARRIER 2 HR RATED FIRE BARRIER 3 HR RATED FIRE BARRIER SMOKE BARRIER ROOM TAG ROOM NAME 2508A SCHEDULED ROOFING ROOF DRAIN PRIMARY BUILDING ENTRY ROOF ACCESS HATCH MATCHLINE SOFFIT / ROOF OVERHEAD 1. COMPOSITE FLOOR PLANS ARE PROVIDED FOR INFORMATIONAL PURPOSES TO CONVEY OVERALL BUILDING LAYOUT AND DRAWING NAVIGATION. SEE SECTOR PLANS FOR SPECIFIC PLAN INFORMATION. ROOF FALL PROTECTION CABLE LICE NSED ARCHIT ECT STAT E OF CALIFO R NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District As indicated 8/16/2024 2:22:37 AM 20025.01 COMPOSITE FLOOR PLANS - CULINARY- LEVEL 1 AC.2-101 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3/64" = 1'-0" 1 COMPOSITE FLOOR PLAN - CULINARY - LEVEL 1 .1 .2 .3 .4 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 2 5 '- 0 " 3 0 ' 3 0 ' 3 0 ' 2 5 '- 0 " 2 5 '- 0 " 2 5 '- 0 " 2 5 '- 0 " 2 5 '- 0 " 2 0 '-0" 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 3 0 '-0" 2 5 '- 0 " 3 0 '-0" 2 5 '- 0 " 3 0 '-0" 2 5 '- 0 " 3 0 '-0" 2 5 '- 0 " 3 0 '-0" 2 5 '- 0 " 3 0 '-0" 2 5 '- 0 " 3 0 '-0" 2 5 '- 0 " 3 0 '-0" 2 5 '- 0 " 3 0 '-0" 2 5 '- 0 " 3 0 '-0" 2 5 '- 0 " 3 0 '-0" 2 5 '- 0 " 3 0 ' 3 0 ' 6 ' 6 ' 6 ' 6 ' 2 0 ' 2 0 ' 2 0 ' 2 0 ' 2 0 ' 2 0 ' 2 0 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 2 5 ' UP UP UP 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 0 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 6 ' 6 ' 6 ' 6 ' 6 ' 6 ' 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " 1 5 '- 0 " A5 A6 A3 A8 A10 A12 A4 A7 A2 AE AF AG AH AJ AK AL AM AN AP AQ AR AS AT AU AV AW AX.5 AD AC A9 A11 A1 AB AU.5 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 33'-2" FLAT FLOOR 1.101 FILM 1.110 FILM CONTROL 1.110D MAKER SPACE 1.126 WOODSHOP 1.125 IDF 1.113 STAIR 2 1.1STR2 ARCHITECTURE COHORT 2 1.129 ARCHITECTURE COHORT 3 1.130 OFFICE 1.122 STOR 1.101D ELEC 1.114 VEST. 1.101B OFFICE 1.121 OFFICE 1.116 OFFICE 1.123 ARCHITECTURE COHORT 1 1.128 20'-3" 9'-6" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 7'-6" FUTURE CAFE 1.135 CAFE SEATING 1.132 MV SUBSTATION 1.173 283'-2" ELEC 1.138 TELECOM MPOE 1.140 CONFERENCE 1.149 FOOD BANK 1.142 OFFICE (ADMIN) 1.146A OFFICE 1.146B BREAK RM 1.146G OFFICE 1.146M OFFICE 1.146L OFFICE 1.146K TRIO STOR 1.145A SUITE A 1.150A SUITE D 1.150D SUITE C 1.150C ACCELERATOR LAB 1.148 TESTING LAB 1.151 OFFICE 1.146E OFFICE (DIR) 1.145B INDIV. EDIT 1.184 ADR TRACKING 1.167A ISO 1.167B STOR 1.153A TEST MONITOR 1.153 TEST CHECK IN 1.152 TESTING LAB 1.154 PRINT 1.156 ACC EQUIP 1.157 ELEC 1.158 LIGHTING STUDIO 1.171 EQUIP. C/O 1.186 EQUIP. MGMT 1.187 OFFICE 1.192 OFFICE 1.193 OFFICE 1.194 ADR CTRL 1.167 FOLEY TRACKING 1.169 OFFICE 1.166 SH. EDIT 1.159 FOLEY CTRL 1.168A MACH RM 1.168B INDIV. EDIT 1.183 INDIV. EDIT 1.182 INDIV. EDIT 1.181 INDIV. EDIT 1.185 INDIV. EDIT 1.180 TV EQUIP 1.178B TV AUDIO 1.178A CONTROL ROOM 1.179 TELEVISION STUDIO 1.177 SH. EDIT 1.191 GREEN RM 1.188 LOADING AREA 1.172 PL 1.175 FIRE 1.174 TELEVISION LOAD IN 1.176 GREEN ROOM 1.102 STOR 1.154B ERRCS 1.160A ELEC 1.190 STAIR 5 1.1STR5 STAIRS 6 1.1STR6 OUTDOOR SERVICE YARD 3 A.1-307 4 A.1-307 1 A.1-307 1 A.1-305 AA MDF 1.139 SUITE B 1.150B CNC 1.125C SPRAY ROOM 1.125D WORKSTATIONS REST. 1.102B OFFICE 1.120 FUTURE CAFE BOH 1.136 RACK ROOM 1.179A 1 / A.1-101C 1 / A.1-101D 1 / A.1-101E ELEV B 1ELVB ENTRY VEST. 1.162 1 / AC.2-101 1 / A.1-101A 1 / A.1-101D 1 / A.1-101B 1 / A.1-101C STOR 1.170 OUTDOOR ARCHITECTURE YARD REST 1.137B REST 1.161 LIBRARY 1.125B OFFICE 1.125A IDF 1.189 REST 1.188A ELEV A 1ELVA AK.2 A2.5 AX AV.5 1 A.1-306 GROUP STUDY 1.148B GROUP STUDY 1.148A VEST. 1.110A VEST. 1.101C WELCOME DESK 1.147 VEST. 1.168 VEST. 1.178 STAIR 9 1.1STR9 ELEV C 1ELVC EQUIPMENT STORAGE 1.110C REST 1.137C A7.3 A4.8 A8.5 4 A.1-308 1 A.1-308 OFFICE (TRIO) 1.145 AE.8 ELEV CTRL RM 1.111 STOR 1.176A AH.2 TRASH BIN STORAGE AREA STOR 1.110E EXTERIOR CIRCULATION 1.127 HALLWAY 1.146 HALLWAY 1.155 HALLWAY 1.165 STAIR 3 1.1STR3 STAIR 1 1.1STR1 1 A.1-302 ELEV CTRL RM 1.134 STOR 1.146C STAIR 4 1.1STR4 ENTRY LOBBY 1.131 HALLWAY 1.133A 5 A.1-303 REST 1.163 VEST. 1.101A (2) TRUCK BAY PARKING FOR MATERIALS MANAGEMENT LOW HEIGHT WALL FENCE AROUND ARCHITECTURAL YARD CONCRETE CURB HALLWAY 1.133B REST. 1.146D HALLWAY 1.150 PUBLIC SAFETY 1.141 512'-3" 1 A.1-301 4 A.1-303 AT.8 JANITOR 1.137A PRINT ALCOVE 1.117 2 A.1-308 ENTRY VEST. 1.131A 6'-0" 19'-0" 12'-6" 12'-6" 15'-0" 5'-0" 5'-0" 5'-0" 20'-0" 5'-4" 19'-8" 1'-8" 12'-6" 12'-6" 15'-0" GN RR 1.137 STOR 1.126B AG.2 6'-0" AE.10 OFFICE 1.124 JAN 1.107 LACT. RM 1.104 SM GRP STUDY 1.118 SM GRP STUDY 1.105 SM GRP STUDY 1.106 STOR 1.115 GN RR 1.108 REST. 1.108A REST. 1.108B OFFICE 1.146H OFFICE 1.146J WORK RM 1.146F 3 A.1-308 STOR 1.153B SS COUNTER 1.143 REST 1.164D SOILED 1.164G MED STOR 1.164F OFFICE 1.164J OFFICE 1.164K EXAM 1.164P EXAM 1.164Q EXAM 1.164N OFFICE 1.164M BREAK RM 1.164L RECEPT 1.164B CORRIDOR 1.164 NURSE WORKSTATION 1.164E WAITING 1.164A TRIAGE 1.164C REST. 1.164H STOR 1.160B IT STOR 1.126G STOR 1.146N 2 A.1-307 HALLWAY 1.119 HALLWAY 1.112 HALLWAY 1.103 STOR 1.110B FILM 1.110 VEST 1.110F STOR 1.110E HALLWAY 1.195 HALLWAY 1.155B RAMP 1.155A STOR 1.143A +416'-0" +413'-10" A.1-113 1 SHEET NOTES LEGEND NON-RATED PARTITION 1 HR RATED FIRE BARRIER 2 HR RATED FIRE BARRIER 3 HR RATED FIRE BARRIER SMOKE BARRIER ROOM TAG ROOM NAME 2508A SCHEDULED ROOFING ROOF DRAIN PRIMARY BUILDING ENTRY ROOF ACCESS HATCH MATCHLINE SOFFIT / ROOF OVERHEAD 1. COMPOSITE FLOOR PLANS ARE PROVIDED FOR INFORMATIONAL PURPOSES TO CONVEY OVERALL BUILDING LAYOUT AND DRAWING NAVIGATION. SEE SECTOR PLANS FOR SPECIFIC PLAN INFORMATION. ROOF FALL PROTECTION CABLE 51'-9 1/2" A5 A6 A3 A8 A4 A7 AX.5 AZ AY 1 A.1-305 A2.5 AX 12'-6" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 12'-6" FLAT FLOOR VEST. 1 / AC.2-101 38'-0" 43'-9" 7'-6" 1 A.1-306 A7.3 A4.8 A8.5 5 A.1-303 150'-0" 15'-0" 10'-0" 6'-0" 19'-0" 1 / A.1-101E LICE NSED ARCHIT ECT STAT E OF CALIFO R NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 SAN FRAN CI SC O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 SAN FRAN CI SC O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District As indicated /16/2024 11:54:30 AM 20025.01 COMPOSITE FLOOR PLANS - ACCELERATOR - LEVEL 1 AC.1-101 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3/64" = 1'-0" 1 COMPOSITE FLOOR PLAN - ACCELERATOR - LEVEL 1 .1 .2 .3 .4 3/64" = 1'-0" 2 PART FLOOR PLAN - ACCELERATOR - LEVEL 1 SLIDING GATE 1 0 ' - 0 " 1 0 ' - 0 " 1 0 ' - 0 " 1 0 ' - 0 " 1 0 ' - 0 " 1 0 ' - 0 " 1 0 ' - 0 " 1 0 ' - 0 " 1 0 ' - 0 " 1 0 ' - 0 " 2 5 ' - 0 " 3 0 ' - 0 " 2 5 ' - 0 " 3 0 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 1 5 ' - 0 " 2 5 ' 2 5 ' FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA SHEET NOTES RCP LEGEND CL-01 - GYPSUM BOARD CEILING CL-02 - ACOUSTIC CEILING TILE 24"X24" CL-03 - HEALTH GRADE ACOUSTIC CEILING TILE 24"X24" CL-09 - LINEAR BAFFLE CEILING (ACOUSTIC FABRIC PROVIDED ABOVE WHERE INDICATED) CL-04 - LARGE FORMAT ACOUSTIC TILE 24"X96" CL-11 - TECTUM PANELS CEILING CL-12 - PERFORATED WOOD PANEL CEILING CL-16 - ACOUSTIC FELT 1. COMPOSITE FLOOR PLANS AND REFLCTED CELING PLAN ARE PROVIDED FOR INFORMATION PURPOSES TO CONVEY OVERALL BUILDING LAYOUT AND DRAWING NAVIGATION. SEE SECTOR PLANS/RCPS FOR SPECIFIC INFORMATION. PLAN LEGEND NON-RATED PARTITION 1 HR RATED FIRE BARRIER 2 HR RATED FIRE BARRIER 3 HR RATED FIRE BARRIER SMOKE BARRIER ROOM TAG ROOM NAME 2508A SCHEDULED ROOFING MATERIAL - SEE BOD ROOF DRAIN PRIMARY BUILDING ENTRY ROOF ACCESS HATCH MATCHLINE SOFFIT / ROOF OVERHEAD SF-01 - CEMENT PLASTER SOFFIT OPEN TO ABOVE OPEN WINDOW SHADE FABRIC INFORMATION SEE A.0-900 FINISH SCHEDULE RETURN DIFFUSTER SUPPLY DIFFUSTER EXHAUST DIFFUSTER RECESSED LIGHT FIXTURE, RECTANGULAR EXIT SIGN, WALL MOUNTED SPRINKLER HEAD, EXPOSED FIRE ALARM DEVICE FA PENDANT LIGHT FIXTURE SPRINKLER HEAD, HALF RECESSED RECESSED LIGHT FIXTURE, CIRCULAR CEILING ACCESS PANEL SPRINKLER HEAD, RECESSED W/ CAP EXIT SIGN, CEILNG OR PENDANT E4 E6 E7 E3 E.2 E1 EF.5 EF EE ED EC EB EA 2 A.3-303 1 A.3-303 18'-6" 30'-0" 20'-0" 31'-6" 31'-6" 48'-0" 25'-11" 26'-6" 33'-0" 33'-0" 33'-0" 33'-0" 23'-0" PLUMBING 3.111 MV ELEC RM 3.113 IDF 3.117 EVENT KITCHEN 3.121 ELEC RM 3.116 EVENTS SPACE A 3.103 EVENTS SPACE B 3.104 EVENTS SPACE C 3.105 EVENTS SPACE D 3.106 E1.1 6'-2" 12'-4" 15'-9" 14'-3" EQUIP 3.132 DRY STOR 3.128 ROLLING CARTS 3.123 CORRIDOR 3.109 HALLWAY 3.107 BEVERAGES 3.122 AV 3.119 E5 REST 3.125A GREEN ROOM 3.125 HALLWAY 3.115 PRE-FUNCTION 3.101 BEVERAGES 3.114 STOR. / ROOF ACCESS 3.118 JAN CL 3.127 GN RR 3.108 CLEAN 3.121A WARE WASH 3.121B DRY GOODS 3.121C CORRIDOR 3.126 BAR 3.102 VEST. 3.106A VEST. 3.105A VEST. 3.104A VEST. 3.103A LOCKER 3.112 MAIN ENTRY 181'-6" E8 VESTIBULE 3.124 GN RR 3.112B GN RR 3.112A HALLWAY 3.115A FIRE SERVICE 3.130 205'-5" E2.6 1 A.3-301 4 A.3-301 3 A.3-301 2 A.3-301 OFFICE 3.110 REST 3.129 ERRCS 3.131 4 A.3-803 A.3-112 1 E4 E6 E7 E3 E.2 E1 EF.5 EF EE ED EC EB EA E1.1 E5 E8 PLUMBING 3.111 MV ELEC RM 3.113 IDF 3.117 EVENT KITCHEN 3.121 ELEC RM 3.116 EVENTS SPACE A 3.103 EVENTS SPACE B 3.104 EVENTS SPACE C 3.105 EVENTS SPACE D 3.106 EQUIP 3.132 DRY STOR 3.128 ROLLING CARTS 3.123 CORRIDOR 3.109 HALLWAY 3.107 BEVERAGES 3.122 AV 3.119 REST 3.125A GREEN ROOM 3.125 HALLWAY 3.115 PRE-FUNCTION 3.101 BEVERAGES 3.114 STOR. / ROOF ACCESS 3.118 GN RR 3.108 CLEAN 3.121A WARE WASH 3.121B DRY GOODS 3.121C CORRIDOR 3.126 BAR 3.102 VEST. 3.106A VEST. 3.105A VEST. 3.104A VEST. 3.103A LOCKER 3.112 VESTIBULE 3.124 GN RR 3.112B GN RR 3.112A HALLWAY 3.115A FIRE SERVICE 3.130 E2.6 JAN CL 3.127 OFFICE 3.110 18'-6" 30'-0" 20'-0" 31'-6" 31'-6" 48'-0" 25'-11" 26'-6" 33'-0" 33'-0" 33'-0" 33'-0" 23'-0" 6'-2" 12'-4" 15'-9" 14'-3" 181'-6" 205'-5" SF-1 - CEMENT PLASTER SOFFIT, MATCH CP-01 SF-1 - CEMENT PLASTER SOFFIT, MATCH CP-01 SF-5 - EXTERIOR GRADE WOOD SOFFIT E4 E6 E7 E3 E.2 E1 EF.5 EF EE ED EC EB EA 2 A.3-303 1 A.3-303 E1.1 E5 18'-6" 30'-0" 20'-0" 31'-6" 31'-6" 48'-0" 25'-11" 26'-6" 33'-0" 33'-0" 33'-0" 33'-0" 23'-0" 6'-2" 12'-4" 15'-9" 14'-3" 181'-6" PV ARRAY AREA 1 208 PANELS E8 205'-5" E2.6 PV ARRAY AREA 6 82 PANELS PV ARRAY AREA 5 45 PANELS PV ARRAY AREA 2 250 PANELS 1 A.3-301 4 A.3-301 3 A.3-301 2 A.3-301 4 A.3-803 A.3-111 1 3/64" = 1'-0" 12 COMPOSITE FLOOR PLAN - EVENT CENTER LICENS ED ARCHITEC T S TATE OF CALI FORNIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 SAN FRAN CI SC O CALIFORNIA 94107 415.489.2224 TEL 415.358.9100 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 SAN FRAN CI SC O CALIFORNIA 94107 415.489.2224 TEL 415.358.9100 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 SAN FRAN CI SC O CALIFORNIA 94107 415.489.2224 TEL 415.358.9100 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE PROJECT NORTH EVENT CENTER DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District As indicated 8/16/2024 3:32:03 AM 20025.01 COMPOSITE FLOOR, ROOF PLANS & REFLECTED CEILING PLAN - EVENT CENTER AC.3-101 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3/64" = 1'-0" 20 REFLECTED CEILING PLAN - EVENT CENTER .1 .2 .3 .4 3/64" = 1'-0" 10 COMPOSITE ROOF PLAN - EVENT CENTER L1 - Accelerator West Elevation - Accelerator West Elevation - Culinary Institute West Elevation - Event Center L1 - Culinary Institue Event Center LEVEL 1 - ACC 416'-0" LEVEL 2 - ACC 433'-0" AE AF AG AH AJ AK AL AM AN AP AQ AR AS AT AU AV AW AX.5 AD AC AB TO ROOF DECK-DATUM 449'-0" HIGH ROOF 459'-6" AU.5 AZ AY 3 A.1-307 4 A.1-307 1 A.1-307 AA AK.2 AX AV.5 1 A.1-308 AE.8 A.1-302 3 A.1-302 4 AH.2 A.1-302 2 AT.8 AG.2 AE.10 2 A.1-307 LEVEL 1 - ACC 416'-0" LEVEL 2 - ACC 433'-0" AM AN AP AQ AR AS AT AU AV AW AX.5 TO ROOF DECK-DATUM 449'-0" HIGH ROOF 459'-6" AU.5 LEVEL 1 - ACC TO SLAB 413'-10" LEVEL 2 - ACC TO SLAB 431'-6" 1 A.1-307 AX AV.5 1 A.1-308 4 A.1-802 2 A.1-802 3 / A.1-306 FOR NOTES THIS AREA SEE GL-04 GL-01 CW-3A A.1-303 1 MT-03 MU-01 AT.8 FOR NOTES THIS AREA SEE MANUAL ALUMINUM SLAT GATE AND FENCE 3 / A.1-306 9'-0" STL PICKET GUARDRAIL, 1/2"X2", 4"O.C., PTD AESS "TREE" COLUMN WITH CUSTOM CAST NODES,SSD. INTUMESCENT 1HR FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 AESS COLUMN WITH CAST TAPERS, SSD. PROVIDE 1HR INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 SCRN-01 PRECAST CONCRETE COPING, MU-01 CORBEL COURSES, MU-01 GL-01 3 A.1-801 2'-10" 5'-0" 2'-6" 3'-4" 2'-6" 5'-0" 3'-4" 3'-4" 2'-6" 5'-0" 2'-6" 4'-11" 2'-6" 5'-0" 2'-6" 3'-4" 3'-4" 5'-0" 3'-4" 5'-0" 5'-10" 4'-10" 2'-0" 2 A.1-801 2 A.1-307 TC-01 GL-04A GL-04A MT-01 MT-01 3 EQ SPACES UON FASCIA PANELS MT-05 FORMED METAL COPING MT-05 CW-3A A.0-851 20 CW-3A CW-3A SEE SHEET A.0-845 FOR DETAILS T T T T T T T T T T T T T LEVEL 1 - ACC 416'-0" LEVEL 2 - ACC 433'-0" AE AF AG AH AJ AK AL AM AD AC AB TO ROOF DECK-DATUM 449'-0" HIGH ROOF 459'-6" LEVEL 1 - ACC TO SLAB 413'-10" LEVEL 2 - ACC TO SLAB 431'-6" 3 A.1-307 4 A.1-307 AA AK.2 AE.8 AH.2 1 A.1-803 2 A.1-803 AESS "TREE" COLUMN WITH CUSTOM CAST NODES,SSD. INTUMESCENT 1HR FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 AESS COLUMN WITH CAST TAPERS, SSD. PROVIDE 1HR INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 CW-2 GL-01 GL-01 GL-01 MU-01 FOR NOTES THIS AREA SEE 4 / A.1-306 PRECAST CONCRETE COPING, MU-01 SCRN-01 AG.2 AE.10 FOR NOTES THIS AREA SEE 4 / A.1-306 TYP 4'-8" 7'-4" EQ EQ 12'-0" AS.0-103 6 CW-2 GL-05 GL-05 3 A.1-803 DASHED LINE INDICATES WALL EXTENDS BELOW GRADE CW-1 CW-1 PLANTING AREA ACCESS DOOR BOLLARD MT-01 +2'-2 1/8" CW-2 BEYOND SEE SHEET A.0-845 FOR DETAILS T T T T T T T +414'-0" +413'-0" +411'-9 7/8" LEVEL 1 - ACC 416'-0" LEVEL 2 - ACC 433'-0" AX.5 TO ROOF DECK-DATUM 449'-0" LEVEL 1 - ACC TO SLAB 413'-10" LEVEL 2 - ACC TO SLAB 431'-6" AZ AY AX AESS "TREE" COLUMN WITH CUSTOM CAST NODES,SSD. INTUMESCENT 1HR FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 GAP BETWEEN BUILDINGS 9'-0" 9'-0" 5 EQ SPACES FASCIA PANELS 6 EQ SPACES FASCIA PANELS MU-01 SCRN-01 PRECAST CONCRETE COPING, MU-01 CW-3A MT-01 SCRN-01 CW-3A PRECAST CONCRETE COPING, MU-01 MU-01 SEE SHEET A.0-845 FOR DETAILS FOR EXT FINISH SCHEDULE SEE A.0-900 WA-2 METAL PANEL RAINSCREEN SYSTEM - FLAT PANELS WA-3 METAL PANEL RAINSCREEN SYSTEM - FOLDED PANELS WA-4 CEMENT PLASTER SYSTEM GL-04 - IGU WITH LAMINATED INTEGRAL METAL MESH LAYER WA-5 CUSTOM TERRACOTTA PANEL RAINSCREEN SYSTEM, SEE A.0-861 FOR PATTERN WA-1 SOLID CONCRETE BLOCK VENEER (SEE A.0-801 FOR VARIATIONS ON ASSEMBLY) GL-02 - SPANDREL GLASS WALL ASSEMBLIES LEGEND ASSEMBLIES ARE DESIGNATED "WA-X" AND DEFINED ON SHEET A.0-801 GL-01 - VISION GLAZING GL-01a - GL-01 WITH SHADOWBOX WA-6 CERAMIC TILE MOSAIC ON CEMENT PLASTER SYSTEM GLAZING ASSEMBLIES LEGEND CURTAINWALL ASSEMBLIES ARE DESIGNATED "CW-X" AND DEFINED ON SHEET A.0-801. SEE SPECIFICATION 08 8000 FOR GLAZING BELOW • • • CW-1 FULLY CAPTURED CURTAIN WALL CW-2 LONG SPAN CURTAIN WALL SYSTEM CW-3A & 3B 2-SIDED SSG CURTAIN WALL GL-05 - VISION GLAZING AT LONG SPAN SYSTEM GL-04a - GL-04 WITH SHADOWBOX WA-7 LARGE FORMAT METAL PANEL WA-9 PRECAST CONCRETE "FOLDED FORM" WALL PANELS (EVENT CENTER ONLY) WA-9A PRECAST CONCRETE WALL PANELS (EVENTS CENTER ONLY) WA-5A CUSTOM TERRACOTTA PANEL RAINSCRN SYSTEM (EVENTS CENTER ONLY), SEE A.0-861 FOR PATTERN FOR METAL PANEL COLORS, SEE A.0-900 EXPOSED CONCRETE WALL (EVENTS CENTER ONLY) GL-03 - FIRE RATED GLAZING WA-2A METAL PANEL RAINSCREEN PANELS AT ROOF SCREEN WA-8 ALUMINUM FENCE SYSTEM T = SAFETY GLAZING PER CBC T LEVEL 1 - ACC 416'-0" LEVEL 2 - ACC 433'-0" AX.5 CA LEVEL 1 - CUL 420'-0" TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" LEVEL 2 - ACC TO SLAB 431'-6" AZ AY ENTRY LEVEL DEMO 418'-0" CW-3A AESS "TREE" COLUMN WITH CUSTOM CAST NODES,SSD. INTUMESCENT 1HR FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 SCRN-01 SCRN-01 GAP BETWEEN BUILDINGS 9'-0" 9'-0" 10" 8'-4" TYP 10" PRECAST CONCRETE COPING, MU-01 CW-3A PRECAST CONCRETE COPING, MU-01 MU-01 MU-01 MT-01 SEE SHEET A.0-845 FOR DETAILS LIC ENSED ARCHIT ECT STA TE OF CALIFOR NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 08/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District 02/21/2025 BACKCHECK 1 04/11/2025 BACKCHECK 2 As indicated 4/11/2025 1:47:12 AM 20025.01 BUILDING ELEVATIONS - ACCELERATOR A.1-302 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3/64" = 1'-0" 1 ACCELERATOR - WEST ELEVATION 1/8" = 1'-0" 2 ACCELERATOR - WEST ELEVATION 1/8" = 1'-0" 3 ACCELERATOR - WEST ELEVATION 1/8" = 1'-0" 4 ACCELERATOR - WEST ELEVATION 1/8" = 1'-0" 5 ACCELERATOR - EAST ELEVATION 4 GENERAL COORDINATION 09/30/2024 A DSA BACKCHECK 1 02/21/2025 LEVEL 1 - ACC 416'-0" LEVEL 2 - ACC 433'-0" AE AF AG AH AJ AK AL AM AN AP AQ AR AS AT AU AV AW AX.5 AD AC AB TO ROOF DECK-DATUM 449'-0" HIGH ROOF 459'-6" AU.5 AZ AY 3 A.1-307 4 A.1-307 1 A.1-307 AA AK.2 AX AV.5 1 A.1-308 AE.8 A.1-302 3 A.1-302 4 AH.2 A.1-302 2 AT.8 AG.2 AE.10 2 A.1-307 LEVEL 1 - ACC 416'-0" LEVEL 2 - ACC 433'-0" AM AN AP AQ AR AS AT AU AV AW AX.5 TO ROOF DECK-DATUM 449'-0" HIGH ROOF 459'-6" AU.5 LEVEL 1 - ACC TO SLAB 413'-10" LEVEL 2 - ACC TO SLAB 431'-6" 1 A.1-307 AX AV.5 1 A.1-308 4 A.1-802 2 A.1-802 3 / A.1-306 FOR NOTES THIS AREA SEE GL-04 GL-01 CW-3A A.1-303 1 MT-03 MU-01 AT.8 FOR NOTES THIS AREA SEE MANUAL ALUMINUM SLAT GATE AND FENCE 3 / A.1-306 9'-0" STL PICKET GUARDRAIL, 1/2"X2", 4"O.C., PTD AESS "TREE" COLUMN WITH CUSTOM CAST NODES,SSD. INTUMESCENT 1HR FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 AESS COLUMN WITH CAST TAPERS, SSD. PROVIDE 1HR INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 SCRN-01 PRECAST CONCRETE COPING, MU-01 CORBEL COURSES, MU-01 GL-01 3 A.1-801 2'-10" 5'-0" 2'-6" 3'-4" 2'-6" 5'-0" 3'-4" 3'-4" 2'-6" 5'-0" 2'-6" 4'-11" 2'-6" 5'-0" 2'-6" 3'-4" 3'-4" 5'-0" 3'-4" 5'-0" 5'-10" 4'-10" 2'-0" 2 A.1-801 2 A.1-307 TC-01 GL-04A GL-04A MT-01 MT-01 3 EQ SPACES UON FASCIA PANELS MT-05 FORMED METAL COPING MT-05 CW-3A A.0-851 20 CW-3A CW-3A SEE SHEET A.0-845 FOR DETAILS T T T T T T T T T T T T T LEVEL 1 - ACC 416'-0" LEVEL 2 - ACC 433'-0" AE AF AG AH AJ AK AL AM AD AC AB TO ROOF DECK-DATUM 449'-0" HIGH ROOF 459'-6" LEVEL 1 - ACC TO SLAB 413'-10" LEVEL 2 - ACC TO SLAB 431'-6" 3 A.1-307 4 A.1-307 AA AK.2 AE.8 AH.2 1 A.1-803 2 A.1-803 AESS "TREE" COLUMN WITH CUSTOM CAST NODES,SSD. INTUMESCENT 1HR FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 AESS COLUMN WITH CAST TAPERS, SSD. PROVIDE 1HR INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 CW-2 GL-01 GL-01 GL-01 MU-01 FOR NOTES THIS AREA SEE 4 / A.1-306 PRECAST CONCRETE COPING, MU-01 SCRN-01 AG.2 AE.10 FOR NOTES THIS AREA SEE 4 / A.1-306 TYP 4'-8" 7'-4" EQ EQ 12'-0" AS.0-103 6 CW-2 GL-05 GL-05 3 A.1-803 DASHED LINE INDICATES WALL EXTENDS BELOW GRADE CW-1 CW-1 PLANTING AREA ACCESS DOOR BOLLARD MT-01 +2'-2 1/8" CW-2 BEYOND SEE SHEET A.0-845 FOR DETAILS T T T T T T T +414'-0" +413'-0" +411'-9 7/8" LEVEL 1 - ACC 416'-0" LEVEL 2 - ACC 433'-0" AX.5 TO ROOF DECK-DATUM 449'-0" LEVEL 1 - ACC TO SLAB 413'-10" LEVEL 2 - ACC TO SLAB 431'-6" AZ AY AX AESS "TREE" COLUMN WITH CUSTOM CAST NODES,SSD. INTUMESCENT 1HR FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 GAP BETWEEN BUILDINGS 9'-0" 9'-0" 5 EQ SPACES FASCIA PANELS 6 EQ SPACES FASCIA PANELS MU-01 SCRN-01 PRECAST CONCRETE COPING, MU-01 CW-3A MT-01 SCRN-01 CW-3A PRECAST CONCRETE COPING, MU-01 MU-01 SEE SHEET A.0-845 FOR DETAILS FOR EXT FINISH SCHEDULE SEE A.0-900 WA-2 METAL PANEL RAINSCREEN SYSTEM - FLAT PANELS WA-3 METAL PANEL RAINSCREEN SYSTEM - FOLDED PANELS WA-4 CEMENT PLASTER SYSTEM GL-04 - IGU WITH LAMINATED INTEGRAL METAL MESH LAYER WA-5 CUSTOM TERRACOTTA PANEL RAINSCREEN SYSTEM, SEE A.0-861 FOR PATTERN WA-1 SOLID CONCRETE BLOCK VENEER (SEE A.0-801 FOR VARIATIONS ON ASSEMBLY) GL-02 - SPANDREL GLASS WALL ASSEMBLIES LEGEND ASSEMBLIES ARE DESIGNATED "WA-X" AND DEFINED ON SHEET A.0-801 GL-01 - VISION GLAZING GL-01a - GL-01 WITH SHADOWBOX WA-6 CERAMIC TILE MOSAIC ON CEMENT PLASTER SYSTEM GLAZING ASSEMBLIES LEGEND CURTAINWALL ASSEMBLIES ARE DESIGNATED "CW-X" AND DEFINED ON SHEET A.0-801. SEE SPECIFICATION 08 8000 FOR GLAZING BELOW • • • CW-1 FULLY CAPTURED CURTAIN WALL CW-2 LONG SPAN CURTAIN WALL SYSTEM CW-3A & 3B 2-SIDED SSG CURTAIN WALL GL-05 - VISION GLAZING AT LONG SPAN SYSTEM GL-04a - GL-04 WITH SHADOWBOX WA-7 LARGE FORMAT METAL PANEL WA-9 PRECAST CONCRETE "FOLDED FORM" WALL PANELS (EVENT CENTER ONLY) WA-9A PRECAST CONCRETE WALL PANELS (EVENTS CENTER ONLY) WA-5A CUSTOM TERRACOTTA PANEL RAINSCRN SYSTEM (EVENTS CENTER ONLY), SEE A.0-861 FOR PATTERN FOR METAL PANEL COLORS, SEE A.0-900 EXPOSED CONCRETE WALL (EVENTS CENTER ONLY) GL-03 - FIRE RATED GLAZING WA-2A METAL PANEL RAINSCREEN PANELS AT ROOF SCREEN WA-8 ALUMINUM FENCE SYSTEM T = SAFETY GLAZING PER CBC T LEVEL 1 - ACC 416'-0" LEVEL 2 - ACC 433'-0" AX.5 CA LEVEL 1 - CUL 420'-0" TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" LEVEL 2 - ACC TO SLAB 431'-6" AZ AY ENTRY LEVEL DEMO 418'-0" CW-3A AESS "TREE" COLUMN WITH CUSTOM CAST NODES,SSD. INTUMESCENT 1HR FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 SCRN-01 SCRN-01 GAP BETWEEN BUILDINGS 9'-0" 9'-0" 10" 8'-4" TYP 10" PRECAST CONCRETE COPING, MU-01 CW-3A PRECAST CONCRETE COPING, MU-01 MU-01 MU-01 MT-01 SEE SHEET A.0-845 FOR DETAILS LIC ENSED ARCHIT STA TE OF CALIFO MITCHELL T. FIN NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 100% CONSTRUCTION DOCUME REVISION LIST # DSA #04-123274-2 INCREMENT College of the Desert Desert Community Colleg BACKCHECK 1 BACKCHECK 2 As indicated 4/11/2025 1:47:12 AM 20025.01 BUILDING ELEVA ACCELERATOR A 2363 Tahquitz Canyon Way, Palm S PALM SPRIN DEVELOPME PROJECT 3/64" = 1'-0" 1 ACCELERATOR - WEST ELEVATION 1/8" = 1'-0" 2 ACCELERATOR - WEST ELEVATION 1/8" = 1'-0" 3 ACCELERATOR - WEST ELEVATION 1/8" = 1'-0" 4 ACCELERATOR - WEST ELEVATION 1/8" = 1'-0" 5 ACCELERATOR - EAST ELEVATION 4 GENERAL COORDINATION A DSA BACKCHECK 1 LEVEL 1 - ACC 416'-0" LEVEL 2 - ACC 433'-0" AE AF AG AH AJ AK AL AM AN AP AQ AR AS AT AU AV AW AX.5 AD AC AB TO ROOF DECK-DATUM 449'-0" HIGH ROOF 459'-6" AU.5 AZ AY 3 A.1-307 4 A.1-307 1 A.1-307 AA AK.2 AX AV.5 1 A.1-308 AE.8 A.1-302 3 A.1-302 4 AH.2 A.1-302 2 AT.8 AG.2 AE.10 2 A.1-307 AM AN AP AQ AR AS AT AU AV AW AX.5 TO ROOF DECK-DATUM HIGH ROOF 459'-6" AU.5 1 A.1-307 AX AV.5 1 A.1-308 4 A.1-802 2 A.1-802 A.1-303 1 AT.8 AESS "TREE" COLUMN WITH CUSTOM CAST NODES,SSD. INTUMESCENT 1HR FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 AESS COLUMN WITH CAST TAPERS, SSD. PROVIDE 1HR INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 SCRN-01 PRECAST CONCRETE COPING, MU-01 3 A.1-801 2 A.1-801 2 A.1-307 MT-01 3 EQ SPACES UON FASCIA PANELS CW-3A SEE SHEET A.0-845 FOR DETAILS LEVEL 1 - ACC 416'-0" LEVEL 2 - ACC 433'-0" AX.5 TO ROOF DECK-DATUM 449'-0" LEVEL 1 - ACC TO SLAB 413'-10" LEVEL 2 - ACC TO SLAB 431'-6" AZ AY AX AESS "TREE" COLUMN WITH CUSTOM CAST NODES,SSD. INTUMESCENT 1HR FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 GAP BETWEEN BUILDINGS 9'-0" 9'-0" 5 EQ SPACES FASCIA PANELS 6 EQ SPACES FASCIA PANELS MU-01 SCRN-01 PRECAST CONCRETE COPING, MU-01 CW-3A MT-01 SCRN-01 CW-3A PRECAST CONCRETE COPING, MU-01 MU-01 SEE SHEET A.0-845 FOR DETAILS FOR EXT FINISH SCHEDULE SEE A.0-900 WA-2 METAL PANEL RAINSCREEN SYSTEM - FLAT PANELS WA-3 METAL PANEL RAINSCREEN SYSTEM - FOLDED PANELS WA-4 CEMENT PLASTER SYSTEM GL-04 - IGU WITH LAMINATED INTEGRAL METAL MESH LAYER WA-5 CUSTOM TERRACOTTA PANEL RAINSCREEN SYSTEM, SEE A.0-861 FOR PATTERN WA-1 SOLID CONCRETE BLOCK VENEER (SEE A.0-801 FOR VARIATIONS ON ASSEMBLY) GL-02 - SPANDREL GLASS WALL ASSEMBLIES LEGEND ASSEMBLIES ARE DESIGNATED "WA-X" AND DEFINED ON SHEET A.0-801 GL-01 - VISION GLAZING GL-01a - GL-01 WITH SHADOWBOX WA-6 CERAMIC TILE MOSAIC ON CEMENT PLASTER SYSTEM GLAZING ASSEMBLIES LEGEND CURTAINWALL ASSEMBLIES ARE DESIGNATED "CW-X" AND DEFINED ON SHEET A.0-801. SEE SPECIFICATION 08 8000 FOR GLAZING BELOW • • • CW-1 FULLY CAPTURED CURTAIN WALL CW-2 LONG SPAN CURTAIN WALL SYSTEM CW-3A & 3B 2-SIDED SSG CURTAIN WALL GL-05 - VISION GLAZING AT LONG SPAN SYSTEM GL-04a - GL-04 WITH SHADOWBOX WA-7 LARGE FORMAT METAL PANEL WA-9 PRECAST CONCRETE "FOLDED FORM" WALL PANELS (EVENT CENTER ONLY) WA-9A PRECAST CONCRETE WALL PANELS (EVENTS CENTER ONLY) WA-5A CUSTOM TERRACOTTA PANEL RAINSCRN SYSTEM (EVENTS CENTER ONLY), SEE A.0-861 FOR PATTERN FOR METAL PANEL COLORS, SEE A.0-900 EXPOSED CONCRETE WALL (EVENTS CENTER ONLY) GL-03 - FIRE RATED GLAZING WA-2A METAL PANEL RAINSCREEN PANELS AT ROOF SCREEN WA-8 ALUMINUM FENCE SYSTEM T = SAFETY GLAZING PER CBC T LEVEL 1 - ACC 416'-0" LEVEL 2 - ACC 433'-0" AX.5 CA LEVEL 1 - CUL 420'-0" TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" LEVEL 2 - ACC TO SLAB 431'-6" AZ AY ENTRY LEVEL DEMO 418'-0" CW-3A AESS "TREE" COLUMN WITH CUSTOM CAST NODES,SSD. INTUMESCENT 1HR FIREPROOFING W/ HIGH PERFORMANCE COATING UL X650 SCRN-01 SCRN-01 GAP BETWEEN BUILDINGS 9'-0" 9'-0" 10" 8'-4" TYP 10" PRECAST CONCRETE COPING, MU-01 CW-3A PRECAST CONCRETE COPING, MU-01 MU-01 MU-01 MT-01 SEE SHEET A.0-845 FOR DETAILS LIC ENSED ARCHIT ECT STA TE OF CALIFOR NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 DATE ISSUES 08/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE 02/21/2025 BACKCHECK 1 04/11/2025 BACKCHECK 2 3/64" = 1'-0" 1 ACCELERATOR - WEST ELEVATION 1/8" = 1'-0" 2 ACCELERATOR - WEST ELEVATION 1/8" = 1'-0" 5 ACCELERATOR - EAST ELEVATION 4 GENERAL COORDINATION 09/30/2024 A DSA BACKCHECK 1 02/21/2025 FOR EXT ASSEMBLIES LEGEND SEE SHEET A.0-801 FOR EXT FINISH SCHEDULE SEE A.0-900 WA-2 METAL PANEL RAINSCREEN SYSTEM - FLAT PANELS WA-3 METAL PANEL RAINSCREEN SYSTEM - FOLDED PANELS WA-4 CEMENT PLASTER SYSTEM GL-04 - IGU WITH LAMINATED INTEGRAL METAL MESH LAYER WA-5 CUSTOM TERRACOTTA PANEL RAINSCREEN SYSTEM, SEE A.0-861 FOR PATTERN WA-1 SOLID CONCRETE BLOCK VENEER (SEE A.0-801 FOR VARIATIONS ON ASSEMBLY) GL-02 - SPANDREL GLASS ASSEMBLIES LEGEND ASSEMBLIES ARE DESIGNATED "WA-X" AND DEFINED ON SHEET A.0-801 GL-01 - VISION GLAZING GL-01a - GL-01 WITH SHADOWBOX WA-6 CERAMIC TILE MOSAIC ON CEMENT PLASTER SYSTEM GLAZING ASSEMBLIES LEGEND ALSO SEE SPECIFICATION 08 8000 • CW-1 FULLY CAPTURED CURTAIN WALL • CW-2 LONG SPAN CURTAIN WALL SYSTEM • CW-3A & 3B 2-SIDED SSG CURTAIN WALL GL-05 - VISION GLAZING AT LONG SPAN SYSTEM GL-04a - GL-04 WITH SHADOWBOX WA-7 LARGE FORMAT METAL PANEL WA-9 PRECAST CONCRETE "FOLDED FORM" WALL PANELS (EVENT CENTER ONLY) WA-9A PRECAST CONCRETE WALL PANELS (EVENTS CENTER ONLY) WA-5A CUSTOM TERRACOTTA PANEL RAINSCRN SYSTEM (EVENTS CENTER ONLY), SEE A.0-861 FOR PATTERN FOR METAL PANEL COLORS, SEE A.0-900 EXPOSED CONCRETE WALL (EVENTS CENTER ONLY) GL-03 - FIRE RATED GLAZING WA-2A METAL PANEL RAINSCREEN PANELS AT ROOF SCREEN WA-8 ALUMINUM FENCE SYSTEM CJ CK CN CP CG CF CD CA LEVEL 1 - CUL 420'-0" CQ TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" AZ CC CB CL.5 CE CH EVENTS CENTER CL CD.7 CC.4 CM A.2-301 3 A.2-301 2 CJ.5 CJ CG CF CD CA LEVEL 1 - CUL 420'-0" TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" 2 A.2-305 3 A.2-305 AZ CC CB CE CH CD.7 CC.4 1 A.2-802 2 A.2-802 GL-01 CW-1 CW-3A A.2-301 5 1 A.2-306 GL-01 MT-03 AESS, INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING, SSD GAP BETWEEN ACCELERATOR AND CULINARY BUILDING 1'-0" 6'-4" 2'-8" 2'-8" 2'-7 1/2" 3'-4" 3'-4" 5'-0" 2'-6" 3'-4" 5'-0" 2'-6" 3'-4" 5'-0" 3'-4" 2'-6" 3'-4" 5'-0" 2'-6" 3'-4" 3'-4" 5'-0" 3'-4" 2'-6" 5'-0" 2'-6" 3'-10" MT-03 CORBEL COURSES, MU-01 DASHED LINE INDICATES EXENTS OF BUILDING BEYOND 3'-8" 4'-8" CJ.5 ACOUSTICAL SCREEN 3 EQ SPACES UON FASCIA PANELS MU-01 SCRN-01 BEHIND SCREEN 2 A.2-306 A.0-851 20 CW-3A CW-3A PRECAST CONCRETE COPING, MU-01 CJ CK CN CP LEVEL 1 - CUL 420'-0" CQ TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" CL.5 1 A.2-305 CL CM 2 A.2-801 3 A.2-801 1 A.2-804 CW-3A AESS, INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING, SSD AESS "TREE" COLUMN WITH CUSTOM CAST NODES, INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING, SSD AESS, INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING, SSD OD-01 - EXTERIOR FRAMELESS INSULATED MULTI-PANEL SLIDING WINDOWS, MOTORIZED GL-01 GL-01 GL-01 GL-01 GL-01 MU-01 ACCESS DOOR BOLLARD A.2-301 4 MU-01 MT-03 GL-01 EVENT CENTER AESS, INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING, SSD CORBEL COURSES, MU-01 CJ.5 4 EQ SPACES FASCIA PANELS 5 EQ SPACES FASCIA PANELS 3 EQ SPACES UON FASCIA PANELS CW-1 CW-1 WA-8 PAINTED ALUMINUM SLAT FENCE SYSTEM PTD ALUM SLAT INFILL MANUAL SWING GATE, AESS BACK UP STR W/ HIGH PERFORMCANCE COATING SSD MT-01 A.0-851 20 CK LEVEL 1 - CUL 420'-0" TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" CL.5 1 A.2-305 CL 3 A.2-801 CW-3A STRUCTURAL FRAMING, SSD GL-01 GL-01 CJ.5 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" MT-03 MT-03 GL-01 PV ARRAY CA LEVEL 1 - CUL 420'-0" TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" AZ CC CB LEVEL DEMO KITCHEN 416'-6" ENTRY LEVEL DEMO 418'-0" GL-01 GL-01 MU-01 CW-3A SCRN-01 9'-0" GL-01 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-2" 9'-11" 1'-6" 10'-0" 5'-11" MT-03 GL-01 MT-03 2'-9" 3'-10" LEVEL 1 - CUL 420'-0" TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" C11 C9 C12 1 A.2-304 C6 C8 C7 ENTRY LEVEL DEMO 418'-0" C10 1 A.2-803 GL-01 GL-01 MU-01 CW-3A SCRN-01 STRUCTURAL FRAMING, SSD 4'-8" 9'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 10'-0" GL-01 MT-03 MT-03 PRECAST CONCRETE COPING, MU-01 CD CA LEVEL 1 - CUL 420'-0" TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" AZ CC CB CE ENTRY LEVEL DEMO 418'-0" CD.7 CC.4 2 A.2-802 CW-3A MU-01 MU-01 CW-3A MT-03 CW-3A SCRN-01 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 6'-7" 4'-8" 9'-0" PLUMBING DRAIN OUTLET HOSE BIBB, SPD 1'-9" 6" 1'-6" GL-01 MT-03 GL-01 GL-01 MT-03 A.0-851 20 LIC ENSED ARCHIT ECT STA TE OF CALIFOR NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District As indicated 8/16/2024 2:37:46 AM 20025.01 BUILDING ELEVATIONS - CULINARY A.2-301 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3/64" = 1'-0" 1 CULINARY - WEST ELEVATION - OVERALL 1/8" = 1'-0" 2 CULINARY - WEST ELEVATION 1/8" = 1'-0" 3 CULINARY - WEST ELEVATION 1/8" = 1'-0" 7 CULINARY - EAST ELEVATION BEHIND SCREEN 1/8" = 1'-0" 5 CULINARY - WEST ELEVATION BEHIND SCREEN 1/8" = 1'-0" 6 CULINARY - SOUTH ELEVATION BEHIND SCREEN 1/8" = 1'-0" 4 CULINARY - WEST ELEVATION BEHIND SCREEN FOR EXT ASSEMBLIES LEGEND SEE SHEET A.0-801 FOR EXT FINISH SCHEDULE SEE A.0-900 WA-2 METAL PANEL RAINSCREEN SYSTEM - FLAT PANELS WA-3 METAL PANEL RAINSCREEN SYSTEM - FOLDED PANELS WA-4 CEMENT PLASTER SYSTEM GL-04 - IGU WITH LAMINATED INTEGRAL METAL MESH LAYER WA-5 CUSTOM TERRACOTTA PANEL RAINSCREEN SYSTEM, SEE A.0-861 FOR PATTERN WA-1 SOLID CONCRETE BLOCK VENEER (SEE A.0-801 FOR VARIATIONS ON ASSEMBLY) GL-02 - SPANDREL GLASS ASSEMBLIES LEGEND ASSEMBLIES ARE DESIGNATED "WA-X" AND DEFINED ON SHEET A.0-801 GL-01 - VISION GLAZING GL-01a - GL-01 WITH SHADOWBOX WA-6 CERAMIC TILE MOSAIC ON CEMENT PLASTER SYSTEM GLAZING ASSEMBLIES LEGEND ALSO SEE SPECIFICATION 08 8000 • CW-1 FULLY CAPTURED CURTAIN WALL • CW-2 LONG SPAN CURTAIN WALL SYSTEM • CW-3A & 3B 2-SIDED SSG CURTAIN WALL GL-05 - VISION GLAZING AT LONG SPAN SYSTEM GL-04a - GL-04 WITH SHADOWBOX WA-7 LARGE FORMAT METAL PANEL WA-9 PRECAST CONCRETE "FOLDED FORM" WALL PANELS (EVENT CENTER ONLY) WA-9A PRECAST CONCRETE WALL PANELS (EVENTS CENTER ONLY) WA-5A CUSTOM TERRACOTTA PANEL RAINSCRN SYSTEM (EVENTS CENTER ONLY), SEE A.0-861 FOR PATTERN FOR METAL PANEL COLORS, SEE A.0-900 EXPOSED CONCRETE WALL (EVENTS CENTER ONLY) GL-03 - FIRE RATED GLAZING WA-2A METAL PANEL RAINSCREEN PANELS AT ROOF SCREEN WA-8 ALUMINUM FENCE SYSTEM CJ CK CN CP CG CF CD CA LEVEL 1 - CUL 420'-0" CQ TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" AZ CC CB CL.5 CE CH EVENTS CENTER CL CD.7 CC.4 CM A.2-301 3 A.2-301 2 CJ.5 CJ CG CF CD CA LEVEL 1 - CUL 420'-0" TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" 2 A.2-305 3 A.2-305 AZ CC CB CE CH CD.7 CC.4 1 A.2-802 2 A.2-802 GL-01 CW-1 CW-3A A.2-301 5 1 A.2-306 GL-01 MT-03 AESS, INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING, SSD GAP BETWEEN ACCELERATOR AND CULINARY BUILDING 1'-0" 6'-4" 2'-8" 2'-8" 2'-7 1/2" 3'-4" 3'-4" 5'-0" 2'-6" 3'-4" 5'-0" 2'-6" 3'-4" 5'-0" 3'-4" 2'-6" 3'-4" 5'-0" 2'-6" 3'-4" 3'-4" 5'-0" 3'-4" 2'-6" 5'-0" 2'-6" 3'-10" MT-03 CORBEL COURSES, MU-01 DASHED LINE INDICATES EXENTS OF BUILDING BEYOND 3'-8" 4'-8" CJ.5 ACOUSTICAL SCREEN 3 EQ SPACES UON FASCIA PANELS MU-01 SCRN-01 BEHIND SCREEN 2 A.2-306 A.0-851 20 CW-3A CW-3A PRECAST CONCRETE COPING, MU-01 CJ CK CN CP LEVEL 1 - CUL 420'-0" CQ TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" CL.5 1 A.2-305 CL CM 2 A.2-801 3 A.2-801 1 A.2-804 CW-3A AESS, INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING, SSD AESS "TREE" COLUMN WITH CUSTOM CAST NODES, INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING, SSD AESS, INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING, SSD OD-01 - EXTERIOR FRAMELESS INSULATED MULTI-PANEL SLIDING WINDOWS, MOTORIZED GL-01 GL-01 GL-01 GL-01 GL-01 MU-01 ACCESS DOOR BOLLARD A.2-301 4 MU-01 MT-03 GL-01 EVENT CENTER AESS, INTUMESCENT FIREPROOFING W/ HIGH PERFORMANCE COATING, SSD CORBEL COURSES, MU-01 CJ.5 4 EQ SPACES FASCIA PANELS 5 EQ SPACES FASCIA PANELS 3 EQ SPACES UON FASCIA PANELS CW-1 CW-1 WA-8 PAINTED ALUMINUM SLAT FENCE SYSTEM PTD ALUM SLAT INFILL MANUAL SWING GATE, AESS BACK UP STR W/ HIGH PERFORMCANCE COATING SSD MT-01 A.0-851 20 CK LEVEL 1 - CUL 420'-0" TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" CL.5 1 A.2-305 CL 3 A.2-801 CW-3A STRUCTURAL FRAMING, SSD GL-01 GL-01 CJ.5 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" MT-03 MT-03 GL-01 PV ARRAY CA LEVEL 1 - CUL 420'-0" TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" AZ CC CB LEVEL DEMO KITCHEN 416'-6" ENTRY LEVEL DEMO 418'-0" GL-01 GL-01 MU-01 CW-3A SCRN-01 9'-0" GL-01 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-2" 9'-11" 1'-6" 10'-0" 5'-11" MT-03 GL-01 MT-03 2'-9" 3'-10" LEVEL 1 - CUL 420'-0" TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" C11 C9 C12 1 A.2-304 C6 C8 C7 ENTRY LEVEL DEMO 418'-0" C10 1 A.2-803 GL-01 GL-01 MU-01 CW-3A SCRN-01 STRUCTURAL FRAMING, SSD 4'-8" 9'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 10'-0" GL-01 MT-03 MT-03 PRECAST CONCRETE COPING, MU-01 CD CA LEVEL 1 - CUL 420'-0" TO ROOF DECK-DATUM 449'-0" MECH - CUL 439'-6" AZ CC CB CE ENTRY LEVEL DEMO 418'-0" CD.7 CC.4 2 A.2-802 CW-3A MU-01 MU-01 CW-3A MT-03 CW-3A SCRN-01 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 5'-0" 6'-7" 4'-8" 9'-0" PLUMBING DRAIN OUTLET HOSE BIBB, SPD 1'-9" 6" 1'-6" GL-01 MT-03 GL-01 GL-01 MT-03 A.0-851 20 LIC ENSED ARCHIT ECT STA TE OF CALIFOR NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District As indicated 8/16/2024 2:37:46 AM 20025.01 BUILDING ELEVATIONS - CULINARY A.2-301 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3/64" = 1'-0" 1 CULINARY - WEST ELEVATION - OVERALL 1/8" = 1'-0" 2 CULINARY - WEST ELEVATION 1/8" = 1'-0" 3 CULINARY - WEST ELEVATION 1/8" = 1'-0" 7 CULINARY - EAST ELEVATION BEHIND SCREEN 1/8" = 1'-0" 5 CULINARY - WEST ELEVATION BEHIND SCREEN 1/8" = 1'-0" 6 CULINARY - SOUTH ELEVATION BEHIND SCREEN 1/8" = 1'-0" 4 CULINARY - WEST ELEVATION BEHIND SCREEN LEVEL 1 - EVENTS 422'-6" E4 E6 E7 E3 E.2 E1 TO ROOF DECK - EVENTS 442'-6" 2 A.3-303 E1.1 E5 TO HIGH ROOF - EVENTS 452'-6" 3 A.3-303 3 A.3-802 GL-01 MT-02 GL-01 GL-01 E8 E2.6 MT-01 TC-02 CO-01 PC-01 MT-03 MT-01 FORMED METAL COPING A.0-831 8 FOR PRECAST PANEL LAYOUT DIAGRAM 12'-0" PC-01 MT-01 4'-4" 4'-0" 4'-4" 3'-8" 2 EQ SPACES METAL PANELS 5 EQUAL SPACES METAL PANELS 3'-10 1/2" 4'-0" 4'-0" 4'-0" 4'-0" 4'-0" 3'-10 1/2" ALIGN 8'-0" CONTINUES BEHIND LANDSCAPE LANDSCAPE AREA IN FOREGROUND 4 A.3-803 CW-3B CW-3B LEVEL 1 - EVENTS 422'-6" EF.5 EF EE ED EC EB TO ROOF DECK - EVENTS 442'-6" EA 1 A.3-303 TO HIGH ROOF - EVENTS 452'-6" 4 A.3-802 CULINARY BUILDING PC-01 FORMED METAL COPING A.0-833 4 FOR PRECAST PANEL LAYOUT DIAGRAM A.0-831 8 PC-01 CO-01 CONTINUES BEHIND LANDSCAPE LANDSCAPE AREA IN FOREGROUND LEVEL 1 - EVENTS 422'-6" E4 E6 E7 E3 E.2 E1 TO ROOF DECK - EVENTS 442'-6" 2 A.3-303 E1.1 E5 TO HIGH ROOF - EVENTS 452'-6" 3 A.3-303 3 A.3-802 GL-01 GL-01 E8 E2.6 A.0-833 13 A.0-833 4 A.0-831 8 FOR PRECAST PANEL LAYOUT DIAGRAM MT-03 PC-01 CO-01 FORMED METAL COPING 1 A.3-802 9 EQ SPACES CW-1 PANELS MT-03 TC-02 LINE INDICATES END OF WA-8 FENCE IN FOREGROUND CONTINUES BEHIND LANDSCAPE LANDSCAPE AREA IN FOREGROUND 4 A.3-803 CW-3B LEVEL 1 - EVENTS 422'-6" TO ROOF DECK - EVENTS 442'-6" 1 A.3-303 TO HIGH ROOF - EVENTS 452'-6" 1 A.3-801 3 A.3-801 GL-01 GL-01 GL-01 GL-01A MT-01 2 A.3-801 TC-02 PC-01 MT-03 FORMED METAL COPING FORMED METAL COPING COLUMN COVER, MT-01 4'-2" 2'-10" 5'-0" GL-01 GL-01 MT-03 SEE PLAN FOR DIMENSIONS CURVED SURFACE (CW) PC-01 CP-01 PC-01 3'-0" 3'-6" CULINARY BUILDING CW-3B CW-3B ACCESS DOOR BOLLARD CW-1 FOR EXT ASSEMBLIES LEGEND SEE SHEET A.0-801 FOR EXT FINISH SCHEDULE SEE A.0-900 WA-2 METAL PANEL RAINSCREEN SYSTEM - FLAT PANELS WA-3 METAL PANEL RAINSCREEN SYSTEM - FOLDED PANELS WA-4 CEMENT PLASTER SYSTEM WA-5 CUSTOM TERRACOTTA PANEL RAINSCREEN SYSTEM, SEE A.0-861 FOR PATTERN WA-1 SOLID CONCRETE BLOCK VENEER (SEE A.0-801 FOR VARIATIONS ON ASSEMBLY) ASSEMBLIES LEGEND ASSEMBLIES ARE DESIGNATED "WA-X" AND DEFINED ON SHEET A.0-801 GL-01 - VISION GLAZING GL-01a - GL-01 WITH SHADOWBOX WA-6 CERAMIC TILE MOSAIC ON CEMENT PLASTER SYSTEM GLAZING ASSEMBLIES LEGEND ALSO SEE SPECIFICATION 08 8000 • CW-1 FULLY CAPTURED CURTAIN WALL • CW-2 LONG SPAN CURTAIN WALL SYSTEM • CW-3A & 3B 2-SIDED SSG CURTAIN WALL WA-7 LARGE FORMAT METAL PANEL WA-9 PRECAST CONCRETE "FOLDED FORM" WALL PANELS (EVENT CENTER ONLY) WA-9A PRECAST CONCRETE WALL PANELS (EVENTS CENTER ONLY) WA-5A CUSTOM TERRACOTTA PANEL RAINSCRN SYSTEM (EVENTS CENTER ONLY), SEE A.0-861 FOR PATTERN FOR METAL PANEL COLORS, SEE A.0-900 EXPOSED CONCRETE WALL (EVENTS CENTER ONLY) WA-2A METAL PANEL RAINSCREEN PANELS AT ROOF SCREEN WA-8 ALUMINUM FENCE SYSTEM LIC ENSED ARCHIT ECT STA TE OF CALIFOR NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District 1/8" = 1'-0" 8/16/2024 3:34:03 AM 20025.01 BUILDING ELEVATIONS - EVENT CENTER A.3-301 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 1/8" = 1'-0" 1 EVENT CENTER - NORTH ELEVATION 1/8" = 1'-0" 2 EVENT CENTER - EAST ELEVATION 1/8" = 1'-0" 3 EVENT CENTER - SOUTH ELEVATION 1/8" = 1'-0" 4 EVENT CENTER - WEST ELEVATION N N N 5ft 15ft 30ft 243,000 sq ft

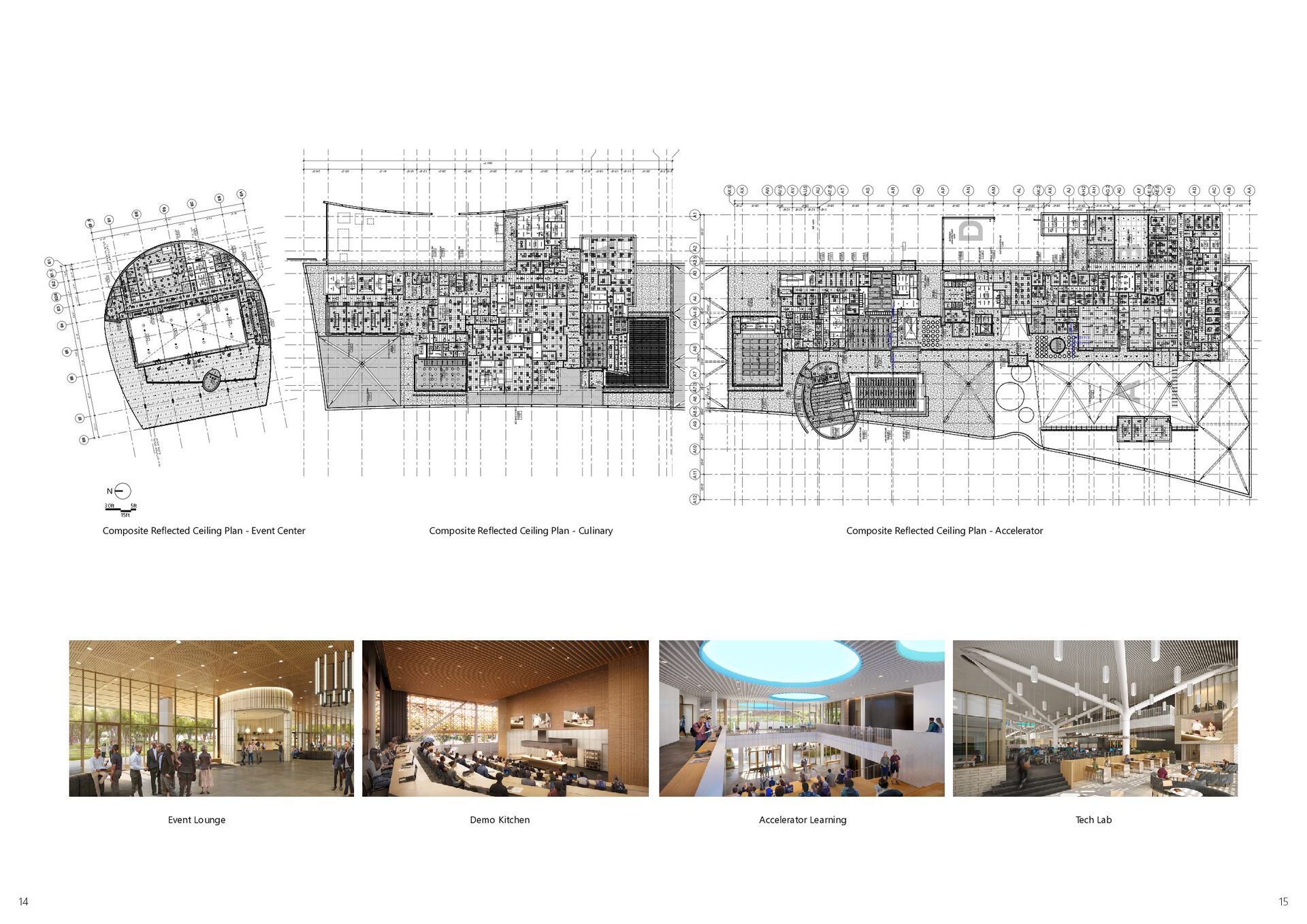

8. 14 15 FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA SHEET NOTES LEGEND CL-01 - GYPSUM BOARD CEILING CL-02 - ACOUSTIC CEILING TILE 24"X24" CL-08 - WOOD PANEL CEILING CL-03 - HEALTH GRADE ACOUSTIC CEILING TILE 24"X24" CL-05 - ACOUSTIC CEILING TILE FILM CONTROL AND FLAT FLOOR CL-09 - LINEAR BAFFLE CEILING (ACOUSTIC FABRIC PROVIDED ABOVE WHERE INDICATED) SF-01 - CEMENT PLASTER SOFFIT SF-02 - PAINTED LINEAR ALUMINUM TRELLIS SYSTEM CL-10 - ACOUSTIC BAFFLE CEILING CL-04 - LARGE FORMAT ACOUSTIC TILE 24"X96" CL-06 - STRETCHED FABRIC CEILING FILM SCREENING CL-07 - STRETCHED FABRIC CEILING SOCIAL STAIR WHITE CL-11 - TECTUM PANELS CEILING SF-03 - PAINTED ALUMINUM SOFFIT SYSTEM - PLANK PANELS SF-04 - NOT USED TBD SF-05 -EXTERIOR GRADE WOOD PANEL SOFFIT TO MATCH INTERIOR WOOD CEILING SEE CL-12 CL-12 - PERFORATED WOOD PANEL CEILING CL-13 - ACOUSTICAL BAFFLE WITH WOOD-LIKE FELT CL-14 - TOUNGUE & GROOVE WOOD CEILING CL-15 - METAL CEILING CL-16 - ACOUSTIC FELT 1. COMPOSITE REFLECTED CEILING PLANS ARE PROVIDED FOR INFORMATIONAL PURPOSES TO CONVEY OVERALL BUILDING LAYOUT AND DRAWING NAVIGATION. SEE SECTOR RCPS FOR SPECIFIC INFORMATION. CJ CK CN CP CG CF CD CA CQ C1 C11 C9 C12 AZ C6 CC CB C8 CL.5 C7 CE CH CL C10 C5 CD.7 CC.4 C2 C3 C4 CM OFFICE 2.130 OFFICE 2.142 OFFICE 2.143 GN RR 2.117 HOUSEKEEPING STOR 2.151 OFFICE 2.110A CULINARY DINING 2.116 HOSPITALITY LOBBY 2.141 MAIN FOOD STOR 2.126 OFFICE 2.127 CLASSROOM 2.101 CLASSROOM 2.102 LOCKER ROOM 2.125 FIRE 2.135 LAUNDRY 2.150 CHOCOLATE/ PACKAGING KITCHEN 2.110 PASTRY/ BAKING KITCHEN 2.109 OUTDOOR COOKING AREA 2.503 STOR 2.114A BREAKOUT ROOM 2.155 BREAKOUT ROOM 2.154 BREAKOUT ROOM 2.153 BREAKOUT ROOM 2.156 ADVANCED SKILLS KITCHEN 2.111 PLBG 2.134 MV SUBSTATION 2.132 GN RR 2.119 WORKFORCE INNOVATION IDEATION KITCHEN 2.120 OUTDOOR DINING 2.501 BREAKOUT PLAZA 2.502 ELEC 2.149 LAC 2.139 GN RR 2.137 ELEC 2.136 SOCIAL MEDIA MAKER 2.138 ERRCS 2.128 STOR 2.131 WARE WASH 2.109B JAN 2.140 HALLWAY 2.133 VESTIBULE 2.114 CIRCULATION 2.146 CIRCULATION 2.100 IDF 2.122 FRONT DESK 2.141A WARE WASH 2.111C DRY STOR 2.109A STOR 2.153A STOR 2.154A STOR 2.155A STOR 2.156A STOR 2.152 GN RR 2.148 STOR 2.147 STOR 2.102A CIRCULATION 2.121 CHANGING RM 2.125A CHANGING RM 2.125B SHOWER RM 2.125C SHOWER RM 2.125D GN RR 2.124 POT/PAN WASH 2.111B OFFICE 2.111A DINING KITCHEN 2.116A CIRCULATION 2.118 CIRCULATION 2.113 DRY STOR 2.126A REFRIG. STOR 2.132A DRY STOR 2.120A STAIR 1 2.1STR1 CLOSET 2.112 COMPACTOR (CULINARY) 150'-0" 5'-0" 17'-9" 9'-3" 13'-0" 12'-0" 13'-0" 15'-0" 30'-0" 12'-6" 9'-6" 13'-0" 361'-7" 5'-9" 7'-6" 25'-0" 11'-6" 13'-6" 16'-0" 9'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 12'-6" 12'-6" 41'-2" 33'-2" 24'-0" STOR 2.114B KING SUITE 2.145 QUEEN 2.144 RR 2.145A RR 2.144A STOR 2.125E STORAGE 2.104B STOR 2.144B C0 60'-0" CONTROL RM 2.105 AV 2.105A CJ.5 LICE NSED STAT E OF C MITCHEL NO. REN. 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 100% CONSTRUCTION D REVISION LIST # DSA #04-123274-2 INCREME College of the Deser Desert Community As indicated 8/16/2024 2:23:12 AM 20025.01 COMPOSITE CEILING PLA CULINARY - L CULINARY 2363 Tahquitz Canyon Way, PALM SP DEVELOP PROJECT .4 3/64" = 1'-0" 1 REFLECTED CEILING PLAN - LEVEL 1 & ROOF- CULINARY FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA A5 A6 A3 A8 A10 A12 A4 A7 A2 AE AF AG AH AJ AK AL AM AN AP AQ AR AS AT AU AV AW AX.5 AD AC A9 A11 A1 AB AU.5 AA SCE YARD GREEN RM 1.188 EQUIP. MGMT 1.187 OFFICE 1.192 OFFICE 1.193 OFFICE 1.194 SH. EDIT 1.191 EQUIP. C/O 1.186 REST 1.163 TESTING LAB 1.154 ADR CTRL 1.167 SH. EDIT 1.159 OFFICE 1.166 FOLEY TRACKING 1.169 PRINT 1.156 STOR 1.154B TESTING LAB 1.151 STOR 1.153A FOOD BANK 1.142 TELEVISION STUDIO 1.177 CONTROL ROOM 1.179 TELEVISION LOAD IN 1.176 LIGHTING STUDIO 1.171 ADR TRACKING 1.167A MACH RM 1.168B FOLEY CTRL 1.168A TEST MONITOR 1.153 GROUP STUDY 1.148B GROUP STUDY 1.148A OFFICE 1.146B OFFICE (DIR) 1.145B OFFICE 1.146L OFFICE 1.146K BREAK RM 1.146G MDF 1.139 CONFERENCE 1.149 TELECOM MPOE 1.140 OUTDOOR SERVICE YARD FUTURE CAFE BOH 1.136 ARCHITECTURE COHORT 3 1.130 WORKSTATIONS 1.126A CAFE SEATING 1.132 FUTURE CAFE 1.135 FILM CONTROL 1.110D IDF 1.113 OFFICE 1.120 OFFICE 1.121 ELEC 1.158 OFFICE 1.146E SUITE B 1.150B SUITE C 1.150C SUITE D 1.150D SUITE A 1.150A MV SUBSTATION 1.173 ACCELERATOR LAB 1.148 ISO 1.167B ELEV B 1ELVB WOODSHOP 1.125 STAIR 5 1.1STR5 ? ? SPRAY ROOM 1.125D INDIV. EDIT 1.182 INDIV. EDIT 1.181 INDIV. EDIT 1.183 RACK ROOM 1.179A INDIV. EDIT 1.180 ELEC 1.190 TV EQUIP 1.178B STAIR 9 1.1STR9 ELEC 1.114 OFFICE 1.123 OFFICE 1.116 ELEV A 1ELVA GREEN ROOM 1.102 (OPEN TO ABOVE) PL 1.175 FIRE 1.174 LOADING AREA 1.172 TEST CHECK IN 1.152 STAIRS 6 1.1STR6 OUTDOOR ARCHITECTURE YARD OFFICE 1.122 REST 1.188A INDIV. EDIT 1.184 INDIV. EDIT 1.185 TV AUDIO 1.178A ACC EQUIP 1.157 REST. 1.102B VEST. 1.101B VEST. 1.110A PUBLIC SAFETY 1.141 ELEC 1.138 GN RR 1.137 REST 1.137B REST 1.137C LIBRARY 1.125B OFFICE 1.125A AK.2 A2.5 AX AV.5 A7.3 A4.8 A8.5 AE.8 STOR 1.176A STAIR 2 1.1STR2 ELEV CTRL RM 1.111 FLAT FLOOR 1.101 STOR 1.101D VEST. 1.101A ELEV CTRL RM 1.134 TRIO STOR 1.145A OFFICE (TRIO) 1.145 OFFICE (ADMIN) 1.146A OFFICE 1.146M STOR 1.146C REST. 1.146D VEST. 1.168 ELEV C 1ELVC IDF 1.189 ENTRY VEST. 1.162 REST 1.161 AH.2 ARCHITECTURE COHORT 2 1.129 ARCHITECTURE COHORT 1 1.128 ERRCS 1.160A ENTRY LOBBY 1.131 FILM 1.110 AT.8 VEST. 1.101C WELCOME DESK 1.147 VEST. 1.178 STOR 1.170 EQUIPMENT STORAGE 1.110C HALLWAY 1.133B TRASH BIN STORAGE AREA 1.172A STOR 1.110E EXTERIOR CIRCULATION 1.127 HALLWAY 1.146 HALLWAY 1.155 HALLWAY 1.165 STAIR 3 1.1STR3 STAIR 1 1.1STR1 STAIR 4 1.1STR4 HALLWAY 1.133A HALLWAY 1.150 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 33'-2" 283'-2" 12'-6" 15'-0" 6'-0" 19'-0" 512'-3" 20'-3" 9'-6" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 7'-6" 1'-8" 12'-6" 12'-6" 12'-6" 5'-4" 19'-8" 5'-0" 20'-0" 15'-0" 10'-0" AG.2 AE.10 1 / A.1-201C 1 / A.1-201D 1 / A.1-201E 1 / A.1-201A 1 / A.1-201D 1 / A.1-201B 1 / A.1-201C SM GRP STUDY 1.106 SM GRP STUDY 1.118 PRINT ALCOVE 1.117 GN RR 1.108 SM GRP STUDY 1.105 REST. 1.108B OFFICE 1.124 JAN 1.107 LACT. RM 1.104 STOR 1.115 REST. 1.108A JANITOR 1.137A ENTRY VEST. 1.131A STOR 1.126B OFFICE 1.146H OFFICE 1.146J WORK RM 1.146F MAKER SPACE 1.126 STOR 1.126D HALLWAY 1.103 HALLWAY 1.119 CORRIDOR 1.164 WAITING 1.164A EXAM 1.164Q EXAM 1.164P EXAM 1.164N OFFICE 1.164M BREAK RM 1.164L OFFICE 1.164J OFFICE 1.164K NURSE WORKSTATION 1.164E REST 1.164D REST. 1.164H HALLWAY 1.195 ENTRY LOBBY 1.131 RECEPT 1.164B SS COUNTER 1.143 IT STOR 1.126G 6'-0" A5 A6 A3 A8 A10 A12 A4 A7 A2 AE AF AG AH AJ AK AL AM AN AP AQ AR AS AT AU AV AW AX.5 AD AC A9 A11 A1 AB AU.5 AA SM FLEX 1.249 LG FLEX 1.250 STOR 1.250C SCIENCE LAB 1.240 LAB PREP 1.240A SIMULATION LAB 1.244 DEBRIEF ROOM 1.245 SCIENCE LAB 1.239 CONTROL 1.244A CONTROL 1.243A STOR 1.243C SM GRP STUDY 1.226 OFFICE 1.207 ON-AIR 1.231A ON-AIR 1.231C ON-AIR 1.231B OFFICE 1.231F EQ/ENG 1.231E CHAPARREL PROD 1.231D GROUP STUDY 1.223 OFFICE 1.206 OFFICE 1.208 IT/RACK 1.222 IDF 1.210 LG FLEX 1.203 SM FLEX 1.202 GN RR 1.232 SM GRP STUDY 1.218A SM GRP STUDY 1.218B CONTROL 1.201 EL.A 1.2ELVA ELEC 1.211 ACCELERATOR LAB 1.148 ELEC 1.246 STAIR 9 1.2STR9 ELEV C 1.2ELVC ELEV B 1.2ELVB DEBRIEF ROOM 1.242 FLEX CLASSROOM 1.214 FLEX CLASSROOM 1.216 FLEX CLASSROOM 1.217 AK.2 A2.5 AX AV.5 A7.3 A4.8 A8.5 AE.8 AH.2 FLEX CLASSROOM 1.215 ELEV CTRL RM 1.251 CORRIDOR 1.252B CIRCULATION 1.236 OFFICE 1.205 HALLWAY 1.225 STAIR 5 1.2STR5 CORRIDOR 1.204 FLAT FLOOR 1.101 IDF 1.235 ELEC 1.234 REST. 1.232A REST. 1.232B JAN 1.233 RADIO PROD 1.231 STAIR 2 1.2STR2 SM GRP STUDY 1.248 AT.8 SHAFT 6 STOR 1.229 STAIR 6 1.2STR6 AMPHITHEATER 1.213 STAIR 1 1.2STR1 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 33'-2" 283'-2" 12'-6" 15'-0" 6'-0" 19'-0" 512'-3" 20'-3" 9'-6" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 25'-0" 7'-6" 1'-8" 12'-6" 12'-6" 12'-6" 5'-4" 19'-8" 5'-0" 20'-0" 15'-0" 10'-0" AG.2 AE.10 1 / A.1-202C 1 / A.1-202D 1 / A.1-202E 1 / A.1-202A 1 / A.1-202D 1 / A.1-202B 1 / A.1-202C GROUP STUDY 1.224 OFFICE 1.209 EXTERIOR TERRACE 1.218 DUCT CHASE 3 EXTERIOR CIRCULATION 1.227 SEATING 1.153D STOR 1.241 SCIENCE LAB 1.237 LAB PREP 1.238 STOR. 1.247 HALLWAY 1.252A VEST 1.243D AUTOCLAVE RM 1.239A HALLWAY 1.241A VEST 1.243B SIMULATION LAB 1.243 SHEET NOTES LEGEND CL-01 - GYPSUM BOARD CEILING CL-02 - ACOUSTIC CEILING TILE 24"X24" CL-08 - WOOD PANEL CEILING CL-03 - HEALTH GRADE ACOUSTIC CEILING TILE 24"X24" CL-05 - ACOUSTIC CEILING TILE FILM CONTROL AND FLAT FLOOR CL-09 - LINEAR BAFFLE CEILING (ACOUSTIC FABRIC PROVIDED ABOVE WHERE INDICATED) SF-01 - CEMENT PLASTER SOFFIT SF-02 - PAINTED LINEAR ALUMINUM TRELLIS SYSTEM CL-10 - ACOUSTIC BAFFLE CEILING CL-04 - LARGE FORMAT ACOUSTIC TILE 24"X96" CL-06 - STRETCHED FABRIC CEILING FILM SCREENING CL-07 - STRETCHED FABRIC CEILING SOCIAL STAIR WHITE CL-11 - TECTUM PANELS CEILING SF-03 - PAINTED ALUMINUM SOFFIT SYSTEM - PLANK PANELS SF-04 - NOT USED TBD SF-05 -EXTERIOR GRADE WOOD PANEL SOFFIT TO MATCH INTERIOR WOOD CEILING SEE CL-12 CL-12 - PERFORATED WOOD PANEL CEILING CL-13 - ACOUSTICAL BAFFLE WITH WOOD-LIKE FELT CL-14 - TOUNGUE & GROOVE WOOD CEILING CL-15 - METAL CEILING CL-16 - ACOUSTIC FELT 1. COMPOSITE REFLECTED CEILING PLANS ARE PROVIDED FOR INFORMATIONAL PURPOSES TO CONVEY OVERALL BUILDING LAYOUT AND DRAWING NAVIGATION. SEE SECTOR RCPS FOR SPECIFIC INFORMATION. LICE NSED ARCHIT ECT STAT E OF CALIFO R NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 SAN FRAN CI SC O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 SAN FRAN CI SC O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District As indicated 8/16/2024 3:31:42 PM 20025.01 COMPOSITE REFLECTED CEILING PLAN - ACCELERATOR - LEVEL 1 & 2 AC.1-201 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3/64" = 1'-0" 1 REFLECTED CEILING PLAN - ACCELERATOR - LEVEL 1 3/64" = 1'-0" 2 REFLECTED CEILING PLAN - ACCELERATOR - LEVEL 2 .1 .2 .3 .4 1 0 ' - 0 " 1 0 ' - 0 " 1 0 ' - 0 " 1 0 ' - 0 " 1 0 ' - 0 " 1 0 ' - 0 " 1 0 ' - 0 " 1 0 ' - 0 " 2 5 ' - 0 " 3 0' - 0 " 2 5 ' - 0 " 3 0 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 2 5 ' 1 5 ' - 0 " 2 5 ' 2 5 ' FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA FA E6 E7 2 A.3-303 1 A.3-303 30'- 20'-0" 31'-6" 31'-6" 48'-0" 25'-11" EVENTS SPACE A 3.103 EVENTS SPACE B 3.104 EVENTS SPACE C 3.105 EVENTS SPACE D 3.106 14'-3" ROLLING CARTS 3.123 CORRIDOR 3.109 HALLWAY 3.107 BEVERAGES 3.122 AV 3.119 E5 GREEN ROOM 3.125 PRE-FUNCTION 3.101 BEVERAGES 3.114 JAN CL 3.127 GN RR 3.108 CORRIDO 3.126 BAR 3.102 VEST. 3.106A VEST. 3.105A VEST. 3.104A VEST. 3.103A MAIN ENTRY E8 VESTIBULE 3.124 205'-5" 1 A.3-301 4 A.3-301 3 A.3-301 A.3-112 1 E4 E6 E7 E3 E.2 E1 EF.5 EF EE ED EC EB EA E1.1 E5 E8 PLUMBING 3.111 MV ELEC RM 3.113 IDF 3.117 EVENT KITCHEN 3.121 ELEC RM 3.116 EVENTS SPACE A 3.103 EVENTS SPACE B 3.104 EVENTS SPACE C 3.105 EVENTS SPACE D 3.106 EQUIP 3.132 DRY STOR 3.128 ROLLING CARTS 3.123 CORRIDOR 3.109 HALLWAY 3.107 BEVERAGES 3.122 AV 3.119 REST 3.125A GREEN ROOM 3.125 HALLWAY 3.115 PRE-FUNCTION 3.101 BEVERAGES 3.114 STOR. / ROOF ACCESS 3.118 GN RR 3.108 CLEAN 3.121A WARE WASH 3.121B DRY GOODS 3.121C CORRIDOR 3.126 BAR 3.102 VEST. 3.106A VEST. 3.105A VEST. 3.104A VEST. 3.103A LOCKER 3.112 VESTIBULE 3.124 GN RR 3.112B GN RR 3.112A HALLWAY 3.115A FIRE SERVICE 3.130 E2.6 JAN CL 3.127 OFFICE 3.110 18'-6" 30'-0" 20'-0" 31'-6" 31'-6" 48'-0" 25'-11" 26'-6" 33'-0" 33'-0" 33'-0" 33'-0" 23'-0" 6'-2" 12'-4" 15'-9" 14'-3" 181'-6" 205'-5" SF-1 - CEMENT PLASTER SOFFIT, MATCH CP-01 SF-1 - CEMENT PLASTER SOFFIT, MATCH CP-01 SF-5 - EXTERIOR GRADE WOOD SOFFIT 3/64" = 1'-0" 12 COMPOSITE FLOOR PLAN - EVENT CENTE All drawings and written material ap Architect/Engineer and may not be 8/16/2024 3:32:03 AM 3/64" = 1'-0" 20 REFLECTED CEILING PLAN - EVENT CENTER 3/64" = 1'-0" 10 COMPOSITE ROOF PLA N 5ft 15ft 30ft Composite Reflected Ceiling Plan - Culinary Composite Reflected Ceiling Plan - Accelerator Composite Reflected Ceiling Plan - Event Center Event Lounge Demo Kitchen Accelerator Learning Tech Lab

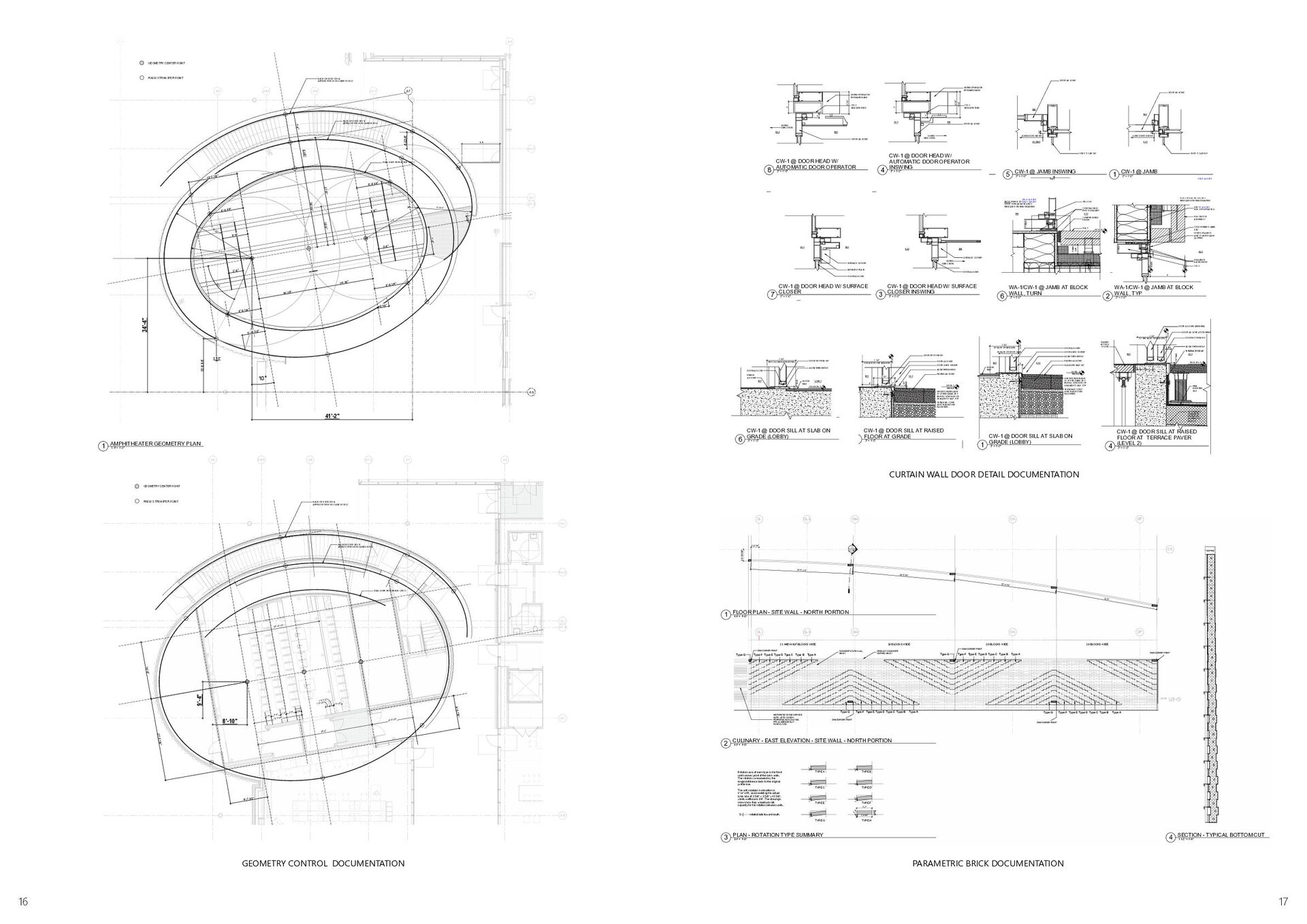

9. 16 17 EXT INT SCHD DOOR WIDTH DOOR AS SCHD 1/2" VERT 'T' CAP WO NOTE: REFER TO & FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING WA-1 / A.0-801 CONT BACKER ROD & SEALANT INT CW-1 / A.0-801 AIR 1" MIN EXT ALIGN WA-1 FR-1 CW COMPRESSIBLE FILLER FO BLK EXT/INT INT SCHD DOOR WIDTH DOOR AS SCHD 1/2" VERT 'T' CAP WO EXT INT SWING DIRECTION DOOR AS SCHD SURFACE CLOSER EXT INT 5 3/4" 1" SWING OPERATOR PER HARDWARE DOOR AS SCHD SWING DIRECTION CW-1 MULLION TUBE 3" SEALANT & BACKER ROD FO GLASS EXT WA-1 BLOCK ASSEMBLY 9" FO BLOCK NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING WA-1 / A.0-801 CW-1 / A.0-801 CW-1 SEE FOR TYP WP NOTES UV MTL FLASH O/ AWB O/ AWB FLASH @ OPNG 11 / A.0-851 COLD FORMED JAMB, SSD 1/2" EXT INT 5 3/4" 1" 6 3/4" SWING OPERATOR PER HARDWARE DOOR AS SCHD SWING DIRECTION CW-1 MULLION TUBE 3" EXT INT DOOR AS SCHD SURFACE CLOSER MOUNTED PLATE EXT INT SCHD DOOR WIDTH DOOR AS SCHD LOBBY INT 5 3/4" SWING OPERATOR PER HARDWARE DOOR AS SCHD CEILING WO, SEE RCP SWING DIRECTION COLD FORMED HEADER, SSD 1" EXT INT DOOR AS SCHD SURFACE CLOSER PANEL AS SCHD EXT/INT INT SCHD DOOR WIDTH DOOR AS SCHD 1/2" EXT INT DOOR AS SCHD BACK PAN PANEL AS SCHD 5 3/4" SWING OPERATOR PER HARDWARE SWING OPERATOR INWING WO DOOR AS SCHD INSWING WO LIC ENSED ARCHIT ECT STA TE OF CALIFOR NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District 3" = 1'-0" 8/16/2024 3:56:37 AM 20025.01 EXTERIOR DETAILS - CURTAINWALL A.0-843 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3" = 1'-0" 1 CW-1 @ JAMB 3" = 1'-0" 6 WA-1/CW-1 @ JAMB AT BLOCK WALL, TURN 3" = 1'-0" 5 CW-1 @ JAMB INSWING 3" = 1'-0" 3 CW-1 @ DOOR HEAD W/ SURFACE CLOSER INSWING 3" = 1'-0" 8 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR 3" = 1'-0" 2 WA-1/CW-1 @ JAMB AT BLOCK WALL, TYP 3" = 1'-0" 4 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR INSWING 3" = 1'-0" 7 CW-1 @ DOOR HEAD W/ SURFACE CLOSER 3" = 1'-0" 9 CW-1 @ JAMB SSG 3" = 1'-0" 16 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR (LOBBY) 3" = 1'-0" 11 CW-1 @ DOOR HEAD W/ SURFACE CLOSER METAL HEAD 3" = 1'-0" 13 CW-1 @ JAMB INSWING Copy 1 3" = 1'-0" 12 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR METAL HEAD EXT INT SCHD DOOR WIDTH DOOR AS SCHD 1/2" VERT 'T' CAP WO NOTE: REFER TO & FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING WA-1 / A.0-801 CONT BACKER ROD & SEALANT INT CW-1 / A.0-801 AIR 1" MIN EXT ALIGN WA-1 FR-1 CW COMPRESSIBLE FILLER FO BLK EXT/INT INT SCHD DOOR WIDTH DOOR AS SCHD 1/2" VERT 'T' CAP WO EXT INT SWING DIRECTION DOOR AS SCHD SURFACE CLOSER EXT INT 5 3/4" 1" SWING OPERATOR PER HARDWARE DOOR AS SCHD SWING DIRECTION CW-1 MULLION TUBE 3" SEALANT & BACKER ROD FO GLASS EXT WA-1 BLOCK ASSEMBLY 9" FO BLOCK NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING WA-1 / A.0-801 CW-1 / A.0-801 CW-1 SEE FOR TYP WP NOTES UV MTL FLASH O/ AWB O/ AWB FLASH @ OPNG 11 / A.0-851 COLD FORMED JAMB, SSD 1/2" EXT INT 5 3/4" 1" 6 3/4" SWING OPERATOR PER HARDWARE DOOR AS SCHD SWING DIRECTION CW-1 MULLION TUBE 3" EXT INT DOOR AS SCHD SURFACE CLOSER MOUNTED PLATE EXT INT SCHD DOOR WIDTH DOOR AS SCHD LOBBY INT 5 3/4" SWING OPERATOR PER HARDWARE DOOR AS SCHD CEILING WO, SEE RCP SWING DIRECTION COLD FORMED HEADER, SSD 1" EXT INT DOOR AS SCHD SURFACE CLOSER PANEL AS SCHD EXT/INT INT SCHD DOOR WIDTH DOOR AS SCHD 1/2" EXT INT DOOR AS SCHD BACK PAN PANEL AS SCHD 5 3/4" SWING OPERATOR PER HARDWARE SWING OPERATOR INWING WO DOOR AS SCHD INSWING WO LIC ENSED ARCHIT ECT STA TE OF CALIFOR NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District 3" = 1'-0" 8/16/2024 3:56:37 AM 20025.01 EXTERIOR DETAILS - CURTAINWALL A.0-843 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3" = 1'-0" 1 CW-1 @ JAMB 3" = 1'-0" 6 WA-1/CW-1 @ JAMB AT BLOCK WALL, TURN 3" = 1'-0" 5 CW-1 @ JAMB INSWING 3" = 1'-0" 3 CW-1 @ DOOR HEAD W/ SURFACE CLOSER INSWING 3" = 1'-0" 8 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR 3" = 1'-0" 2 WA-1/CW-1 @ JAMB AT BLOCK WALL, TYP 3" = 1'-0" 4 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR INSWING 3" = 1'-0" 7 CW-1 @ DOOR HEAD W/ SURFACE CLOSER 3" = 1'-0" 9 CW-1 @ JAMB SSG 3" = 1'-0" 16 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR (LOBBY) 3" = 1'-0" 11 CW-1 @ DOOR HEAD W/ SURFACE CLOSER METAL HEAD 3" = 1'-0" 13 CW-1 @ JAMB INSWING Copy 1 3" = 1'-0" 12 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR METAL HEAD EXT INT SCHD DOOR WIDTH 1/2" VERT 'T' CAP WO NOTE: REFER TO & FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING WA-1 / A.0-801 CONT BACKER ROD & SEALANT INT CW-1 / A.0-801 AIR 1" MIN EXT ALIGN WA-1 FR-1 CW COMPRESSIBLE FILLER FO BLK EXT/INT INT SCHD DOOR WIDTH 1/2" VERT 'T' CAP WO EXT INT SWING DIRECTION DOOR AS SCHD SURFACE CLOSER EXT INT 5 3/4" 1" SWING OPERATOR PER HARDWARE DOOR AS SCHD SWING DIRECTION CW-1 MULLION TUBE 3" SEALANT & BACKER ROD FO GLASS EXT WA-1 BLOCK ASSEMBLY 9" FO BLOCK NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING WA-1 / A.0-801 CW-1 / A.0-801 CW-1 SEE FOR TYP WP NOTES UV MTL FLASH O/ AWB O/ AWB FLASH @ OPNG 11 / A.0-851 COLD FORMED JAMB, SSD 1/2" EXT INT 5 3/4" 1" 6 3/4" SWING OPERATOR PER HARDWARE DOOR AS SCHD SWING DIRECTION CW-1 MULLION TUBE 3" EXT INT DOOR AS SCHD SURFACE CLOSER MOUNTED PLATE EXT INT SCHD DOOR WIDTH LOBBY INT 5 3/4" SWING OPERATOR PER HARDWARE DOOR AS SCHD CEILING WO, SEE RCP SWING DIRECTION COLD FORMED HEADER, SSD 1" EXT INT DOOR AS SCHD SURFACE CLOSER PANEL AS SCHD EXT/INT INT SCHD DOOR WIDTH 1/2" EXT INT DOOR AS SCHD BACK PAN PANEL AS SCHD 5 3/4" SWING OPERATOR PER HARDWARE SWING OPERATOR INWING WO DOOR AS SCHD INSWING WO LIC ENSED ARCHIT ECT STA TE OF CALIFOR NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District 3" = 1'-0" 8/16/2024 3:56:37 AM 20025.01 EXTERIOR DETAILS - CURTAINWALL A.0-843 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3" = 1'-0" 1 CW-1 @ JAMB 3" = 1'-0" 6 WA-1/CW-1 @ JAMB AT BLOCK WALL, TURN 3" = 1'-0" 5 CW-1 @ JAMB INSWING 3" = 1'-0" 3 CW-1 @ DOOR HEAD W/ SURFACE CLOSER INSWING 3" = 1'-0" 8 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR 3" = 1'-0" 2 WA-1/CW-1 @ JAMB AT BLOCK WALL, TYP 3" = 1'-0" 4 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR INSWING 3" = 1'-0" 7 CW-1 @ DOOR HEAD W/ SURFACE CLOSER 3" = 1'-0" 9 CW-1 @ JAMB SSG 3" = 1'-0" 16 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR (LOBBY) 3" = 1'-0" 11 CW-1 @ DOOR HEAD W/ SURFACE CLOSER METAL HEAD 3" = 1'-0" 13 CW-1 @ JAMB INSWING Copy 1 3" = 1'-0" 12 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR METAL HEAD INSULATION, W.O. CW-1 SOUND BARRIER MULLION TRIM CAP, STC 55. PTD TO MATCH CW-1 NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING CW-1 / A.0-801 COMPRESSIBLE GASKET AIR GAP 4" MIN PARTITION AS SCHD MIN 3/8" LAMINATED GL CONT ALUM SILL EXT BELOW EXT INT CW-1 NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING CW-1 / A.0-801 PTD WALL ENDCAP CONT ALUM SILL EXT BELOW PARTITION AS SCHD CLOSED CELL NEOPRENE FOAM TAPE EXT INT CW-1 NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING CW-1 / A.0-801 CONT ALUM SILL EXT BELOW PTD SOUND BARRIER MULLION TRIM CAP, STC 55. COMPRESSIBLE GASKET MIN 3/8" LAMINATED GL INT STOREFRONT SYSTEM EXT INT INT CORRIDOR TERM BAR, CONT AWB FLASH OVER FASTENER SHT MTL PAN FLASH W/ 4" END DAMS SET IN FULL CONT BED OF SEALANT O/ SAF, TYP ALUM THRESHOLD DOOR AS SCHD DOOR SHOE W/DRIP LEVEL 1 FIN FLR PAVING AS SCHD INT EXT FLOOR MAT FOG TO BACK OF MULLION 7 1/2" TO BACK OF DOOR JAMB 1" WALK-OFF MAT WO TERM BAR, CONT AWB FLASH OVER FASTENER SHT MTL PAN FLASH W/ 4" END DAMS SET IN FULL CONT BED OF SEALANT O/ SAF, TYP ALUM THRESHOLD DOOR AS SCHD MAX 1/2" DOOR SHOE W/DRIP LEVEL 1 FIN FLR PAVING AS SCHD 5 1/2" INT EXT FOG 1" TO BACK OF THE MULLION 7 1/2" 4" DOOR BOTTOM WO RAISED ACCESS FLOOR WO FF LEVEL 1 INT DOOR AS SCHD FOG ALUM THRESHOLD 1" FLOOR MAT LOBBY TO BACK OF MULLION 7 1/2" 1/2" MAX 4" DOOR BOTTOM WO SECONDARY CONCRETE POUR FOR SLOPING 1/8" PER 1'-0" TERMINATION BAR HRA ROOFING, SEE RAISED ACCESS FLOOR FF LEVEL 2 INT EXT DOOR AS SCHD (OUTSWING) DOOR AS SCHD (INSWING) FOG ALUM THRESHOLD TO THE BACK OF MULLION 7 1/2" 4" 1 1/4" 1/2" MAX DOOR BOTTOM WO TERM BAR, CONT AWB FLASH OVER FASTENER SHT MTL PAN FLASH W/ 4" END DAMS SET IN FULL CONT BED OF SEALANT O/ SAF, TYP ALUM THRESHOLD DOOR AS SCHD MAX 1/2" LEVEL 1 FIN FLR PAVING AS SCHD 5 1/2" DRAINAGE MAT O/ BELOW GRADE WP INT EXT FINISH AS SCHD FOG 1" 4" TO BACK OF THE MULLION 7 1/2" DOOR BOTTOM WO FF LEVEL 1 INT DOOR AS SCHD ALUM THRESHOLD FLOOR MAT LOBBY 1/2" MAX INT CW-1 MULLION DEPTH 7 1/2" FINISH AS SCHD DOOR BOTTOM WO LIC ENSED ARCHIT ECT STA TE OF CALIFOR NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District 3" = 1'-0" 8/16/2024 3:56:46 AM 20025.01 EXTERIOR DETAILS - CURTAINWALL A.0-844 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3" = 1'-0" 13 CW-1 @ INT ACOUST WALL 3" = 1'-0" 14 CW-1 @ INT PARTITION, TYP 3" = 1'-0" 15 CW-1 @ INT STOREFRONT 3" = 1'-0" 1 CW-1 @ DOOR SILL AT SLAB ON GRADE (LOBBY) 3" = 1'-0" 2 CW-1 @ DOOR SILL AT RAISED FLOOR AT GRADE 3" = 1'-0" 3 CW-1 @ DOOR SILL AT RAISED FLOOR AT GRADE (LOBBY) 3" = 1'-0" 4 CW-1 @ DOOR SILL AT RAISED FLOOR AT TERRACE PAVER (LEVEL 2) 3" = 1'-0" 5 CW-1 @ SILL AT SLAB ON GRADE 3" = 1'-0" 6 CW-1 @ DOOR SILL AT SLAB ON GRADE (LOBBY) INSULATION, W.O. CW-1 SOUND BARRIER MULLION TRIM CAP, STC 55. PTD TO MATCH CW-1 NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING CW-1 / A.0-801 COMPRESSIBLE GASKET AIR GAP 4" MIN PARTITION AS SCHD MIN 3/8" LAMINATED GL CONT ALUM SILL EXT BELOW EXT INT CW-1 NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING CW-1 / A.0-801 PTD WALL ENDCAP CONT ALUM SILL EXT BELOW PARTITION AS SCHD CLOSED CELL NEOPRENE FOAM TAPE EXT INT CW-1 NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING CW-1 / A.0-801 CONT ALUM SILL EXT BELOW PTD SOUND BARRIER MULLION TRIM CAP, STC 55. COMPRESSIBLE GASKET MIN 3/8" LAMINATED GL INT STOREFRONT SYSTEM EXT INT INT CORRIDOR TERM BAR, CONT AWB FLASH OVER FASTENER SHT MTL PAN FLASH W/ 4" END DAMS SET IN FULL CONT BED OF SEALANT O/ SAF, TYP ALUM THRESHOLD DOOR AS SCHD DOOR SHOE W/DRIP LEVEL 1 FIN FLR PAVING AS SCHD INT EXT FLOOR MAT FOG TO BACK OF MULLION 7 1/2" TO BACK OF DOOR JAMB 1" WALK-OFF MAT WO TERM BAR, CONT AWB FLASH OVER FASTENER SHT MTL PAN FLASH W/ 4" END DAMS SET IN FULL CONT BED OF SEALANT O/ SAF, TYP ALUM THRESHOLD DOOR AS SCHD MAX 1/2" DOOR SHOE W/DRIP LEVEL 1 FIN FLR PAVING AS SCHD 5 1/2" INT EXT FOG 1" TO BACK OF THE MULLION 7 1/2" 4" DOOR BOTTOM WO RAISED ACCESS FLOOR WO FF LEVEL 1 INT DOOR AS SCHD FOG ALUM THRESHOLD 1" FLOOR MAT LOBBY TO BACK OF MULLION 7 1/2" 1/2" MAX 4" DOOR BOTTOM WO SECONDARY CONCRETE POUR FOR SLOPING 1/8" PER 1'-0" TERMINATION BAR HRA ROOFING, SEE RAISED ACCESS FLOOR FF LEVEL 2 INT EXT DOOR AS SCHD (OUTSWING) DOOR AS SCHD (INSWING) FOG ALUM THRESHOLD TO THE BACK OF MULLION 7 1/2" 4" 1 1/4" 1/2" MAX DOOR BOTTOM WO TERM BAR, CONT AWB FLASH OVER FASTENER SHT MTL PAN FLASH W/ 4" END DAMS SET IN FULL CONT BED OF SEALANT O/ SAF, TYP ALUM THRESHOLD DOOR AS SCHD MAX 1/2" LEVEL 1 FIN FLR PAVING AS SCHD 5 1/2" DRAINAGE MAT O/ BELOW GRADE WP INT EXT FINISH AS SCHD FOG 1" 4" TO BACK OF THE MULLION 7 1/2" DOOR BOTTOM WO FF LEVEL 1 INT DOOR AS SCHD ALUM THRESHOLD FLOOR MAT LOBBY 1/2" MAX INT CW-1 MULLION DEPTH 7 1/2" FINISH AS SCHD DOOR BOTTOM WO LIC ENSED ARCHIT ECT STA TE OF CALIFOR NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District 3" = 1'-0" 8/16/2024 3:56:46 AM 20025.01 EXTERIOR DETAILS - CURTAINWALL A.0-844 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3" = 1'-0" 13 CW-1 @ INT ACOUST WALL 3" = 1'-0" 14 CW-1 @ INT PARTITION, TYP 3" = 1'-0" 15 CW-1 @ INT STOREFRONT 3" = 1'-0" 1 CW-1 @ DOOR SILL AT SLAB ON GRADE (LOBBY) 3" = 1'-0" 2 CW-1 @ DOOR SILL AT RAISED FLOOR AT GRADE 3" = 1'-0" 3 CW-1 @ DOOR SILL AT RAISED FLOOR AT GRADE (LOBBY) 3" = 1'-0" 4 CW-1 @ DOOR SILL AT RAISED FLOOR AT TERRACE PAVER (LEVEL 2) 3" = 1'-0" 5 CW-1 @ SILL AT SLAB ON GRADE 3" = 1'-0" 6 CW-1 @ DOOR SILL AT SLAB ON GRADE (LOBBY) INSULATION, W.O. CW-1 SOUND BARRIER MULLION TRIM CAP, STC 55. PTD TO MATCH CW-1 NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING CW-1 / A.0-801 COMPRESSIBLE GASKET AIR GAP 4" MIN PARTITION AS SCHD MIN 3/8" LAMINATED GL CONT ALUM SILL EXT BELOW EXT INT CW-1 NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING CW-1 / A.0-801 PTD WALL ENDCAP CONT ALUM SILL EXT BELOW PARTITION AS SCHD CLOSED CELL NEOPRENE FOAM TAPE EXT INT CW-1 NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING CW-1 / A.0-801 CONT ALUM SILL EXT BELOW PTD SOUND BARRIER MULLION TRIM CAP, STC 55. COMPRESSIBLE GASKET MIN 3/8" LAMINATED GL INT STOREFRONT SYSTEM EXT INT INT CORRIDOR TERM BAR, CONT AWB FLASH OVER FASTENER SHT MTL PAN FLASH W/ 4" END DAMS SET IN FULL CONT BED OF SEALANT O/ SAF, TYP ALUM THRESHOLD DOOR AS SCHD DOOR SHOE W/DRIP LEVEL 1 FIN FLR PAVING AS SCHD INT EXT FLOOR MAT FOG TO BACK OF MULLION 7 1/2" TO BACK OF DOOR JAMB 1" WALK-OFF MAT WO TERM BAR, CONT AWB FLASH OVER FASTENER SHT MTL PAN FLASH W/ 4" END DAMS SET IN FULL CONT BED OF SEALANT O/ SAF, TYP ALUM THRESHOLD DOOR AS SCHD MAX 1/2" DOOR SHOE W/DRIP LEVEL 1 FIN FLR PAVING AS SCHD 5 1/2" INT EXT FOG 1" TO BACK OF THE MULLION 7 1/2" 4" DOOR BOTTOM WO RAISED ACCESS FLOOR WO FF LEVEL 1 INT DOOR AS SCHD FOG ALUM THRESHOLD 1" FLOOR MAT LOBBY TO BACK OF MULLION 7 1/2" 1/2" MAX 4" DOOR BOTTOM WO SECONDARY CONCRETE POUR FOR SLOPING 1/8" PER 1'-0" TERMINATION BAR HRA ROOFING, SEE RAISED ACCESS FLOOR FF LEVEL 2 INT EXT DOOR AS SCHD (OUTSWING) DOOR AS SCHD (INSWING) FOG ALUM THRESHOLD TO THE BACK OF MULLION 7 1/2" 4" 1 1/4" 1/2" MAX DOOR BOTTOM WO TERM BAR, CONT AWB FLASH OVER FASTENER SHT MTL PAN FLASH W/ 4" END DAMS SET IN FULL CONT BED OF SEALANT O/ SAF, TYP ALUM THRESHOLD DOOR AS SCHD MAX 1/2" LEVEL 1 FIN FLR PAVING AS SCHD 5 1/2" DRAINAGE MAT O/ BELOW GRADE WP INT EXT FINISH AS SCHD FOG 1" 4" TO BACK OF THE MULLION 7 1/2" DOOR BOTTOM WO FF LEVEL 1 INT DOOR AS SCHD ALUM THRESHOLD FLOOR MAT LOBBY 1/2" MAX INT CW-1 MULLION DEPTH 7 1/2" FINISH AS SCHD DOOR BOTTOM WO LIC ENSED ARCHIT ECT STA TE OF CALIFOR NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District 3" = 1'-0" 8/16/2024 3:56:46 AM 20025.01 EXTERIOR DETAILS - CURTAINWALL A.0-844 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3" = 1'-0" 13 CW-1 @ INT ACOUST WALL 3" = 1'-0" 14 CW-1 @ INT PARTITION, TYP 3" = 1'-0" 15 CW-1 @ INT STOREFRONT 3" = 1'-0" 1 CW-1 @ DOOR SILL AT SLAB ON GRADE (LOBBY) 3" = 1'-0" 2 CW-1 @ DOOR SILL AT RAISED FLOOR AT GRADE 3" = 1'-0" 3 CW-1 @ DOOR SILL AT RAISED FLOOR AT GRADE (LOBBY) 3" = 1'-0" 4 CW-1 @ DOOR SILL AT RAISED FLOOR AT TERRACE PAVER (LEVEL 2) 3" = 1'-0" 5 CW-1 @ SILL AT SLAB ON GRADE 3" = 1'-0" 6 CW-1 @ DOOR SILL AT SLAB ON GRADE (LOBBY) INSULATION, W.O. CW-1 SOUND BARRIER MULLION TRIM CAP, STC 55. PTD TO MATCH CW-1 NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING CW-1 / A.0-801 COMPRESSIBLE GASKET AIR GAP 4" MIN PARTITION AS SCHD MIN 3/8" LAMINATED GL CONT ALUM SILL EXT BELOW EXT INT CW-1 NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING CW-1 / A.0-801 PTD WALL ENDCAP CONT ALUM SILL EXT BELOW PARTITION AS SCHD CLOSED CELL NEOPRENE FOAM TAPE EXT INT CW-1 NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING CW-1 / A.0-801 CONT ALUM SILL EXT BELOW PTD SOUND BARRIER MULLION TRIM CAP, STC 55. COMPRESSIBLE GASKET MIN 3/8" LAMINATED GL INT STOREFRONT SYSTEM EXT INT INT CORRIDOR TERM BAR, CONT AWB FLASH OVER FASTENER SHT MTL PAN FLASH W/ 4" END DAMS SET IN FULL CONT BED OF SEALANT O/ SAF, TYP ALUM THRESHOLD DOOR AS SCHD DOOR SHOE W/DRIP LEVEL 1 FIN FLR PAVING AS SCHD INT EXT FLOOR MAT FOG TO BACK OF MULLION 7 1/2" TO BACK OF DOOR JAMB 1" WALK-OFF MAT WO TERM BAR, CONT AWB FLASH OVER FASTENER SHT MTL PAN FLASH W/ 4" END DAMS SET IN FULL CONT BED OF SEALANT O/ SAF, TYP ALUM THRESHOLD DOOR AS SCHD MAX 1/2" DOOR SHOE W/DRIP LEVEL 1 FIN FLR PAVING AS SCHD 5 1/2" INT EXT FOG 1" TO BACK OF THE MULLION 7 1/2" 4" DOOR BOTTOM WO RAISED ACCESS FLOOR WO FF LEVEL 1 INT DOOR AS SCHD FOG ALUM THRESHOLD 1" FLOOR MAT LOBBY TO BACK OF MULLION 7 1/2" 1/2" MAX 4" DOOR BOTTOM WO SECONDARY CONCRETE POUR FOR SLOPING 1/8" PER 1'-0" TERMINATION BAR HRA ROOFING, SEE RAISED ACCESS FLOOR FF LEVEL 2 INT EXT DOOR AS SCHD (OUTSWING) DOOR AS SCHD (INSWING) FOG ALUM THRESHOLD TO THE BACK OF MULLION 7 1/2" 4" 1 1/4" 1/2" MAX DOOR BOTTOM WO TERM BAR, CONT AWB FLASH OVER FASTENER SHT MTL PAN FLASH W/ 4" END DAMS SET IN FULL CONT BED OF SEALANT O/ SAF, TYP ALUM THRESHOLD DOOR AS SCHD MAX 1/2" LEVEL 1 FIN FLR PAVING AS SCHD 5 1/2" DRAINAGE MAT O/ BELOW GRADE WP INT EXT FINISH AS SCHD FOG 1" 4" TO BACK OF THE MULLION 7 1/2" DOOR BOTTOM WO FF LEVEL 1 INT DOOR AS SCHD ALUM THRESHOLD FLOOR MAT LOBBY 1/2" MAX INT CW-1 MULLION DEPTH 7 1/2" FINISH AS SCHD DOOR BOTTOM WO LIC ENSED ARCHIT ECT STA TE OF CALIFOR NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District 3" = 1'-0" 8/16/2024 3:56:46 AM 20025.01 EXTERIOR DETAILS - CURTAINWALL A.0-844 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3" = 1'-0" 13 CW-1 @ INT ACOUST WALL 3" = 1'-0" 14 CW-1 @ INT PARTITION, TYP 3" = 1'-0" 15 CW-1 @ INT STOREFRONT 3" = 1'-0" 1 CW-1 @ DOOR SILL AT SLAB ON GRADE (LOBBY) 3" = 1'-0" 2 CW-1 @ DOOR SILL AT RAISED FLOOR AT GRADE 3" = 1'-0" 3 CW-1 @ DOOR SILL AT RAISED FLOOR AT GRADE (LOBBY) 3" = 1'-0" 4 CW-1 @ DOOR SILL AT RAISED FLOOR AT TERRACE PAVER (LEVEL 2) 3" = 1'-0" 5 CW-1 @ SILL AT SLAB ON GRADE 3" = 1'-0" 6 CW-1 @ DOOR SILL AT SLAB ON GRADE (LOBBY) EXT INT SWING DIRECTION DOOR AS SCHD SURFACE CLOSER EXT INT 5 3/4" 1" SWING OPERATOR PER HARDWARE DOOR AS SCHD SWING DIRECTION CW-1 MULLION TUBE 3" EXT INT 5 3/4" 1" 6 3/4" SWING OPERATOR PER HARDWARE DOOR AS SCHD SWING DIRECTION CW-1 MULLION TUBE 3" EXT INT DOOR AS SCHD SURFACE CLOSER MOUNTED PLATE LOBBY INT 5 3/4" SWING OPERATOR PER HARDWARE DOOR AS SCHD CEILING WO, SEE RCP SWING DIRECTION COLD FORMED HEADER, SSD 1" EXT INT DOOR AS SCHD SURFACE CLOSER EXT INT DOOR AS SCHD BACK PAN PANEL AS SCHD 5 3/4" SWING OPERATOR PER HARDWARE SWING OPERATOR INWING WO DOOR AS SCHD INSWING WO SHEET NO: SHEET TITLE: PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District 3" = 1'-0" 8/16/2024 3:56:37 AM 20025.01 EXTERIOR DETAILS - CURTAINWALL A.0-843 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 3" = 1'-0" 3 CW-1 @ DOOR HEAD W/ SURFACE CLOSER INSWING 3" = 1'-0" 8 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR 3" = 1'-0" 4 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR INSWING 3" = 1'-0" 7 CW-1 @ DOOR HEAD W/ SURFACE CLOSER 3" = 1'-0" 16 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR (LOBBY) 3" = 1'-0" 11 CW-1 @ DOOR HEAD W/ SURFACE CLOSER METAL HEAD 3" = 1'-0" 12 CW-1 @ DOOR HEAD W/ AUTOMATIC DOOR OPERATOR METAL HEAD CN CP LEVEL 1 - CUL 420'-0" CL.5 CL CM MOTORIZED SWING SERVICE GATE, AESS W/HIGH PERFORMANCE COATING, PTD ALUMINUM SLAT PANELS, SSD PRECAST CONCRETE COPING, MU-01 *CONCRETE SITE WALL, MU-01 21 AND HALF BLOCKS WIDE 20 BLOCKS WIDE 20 BLOCKS WIDE 20 BLOCKS WIDE DIM CORNER POINT DIM CORNER POINT DIM CORNER POINT DIM CORNER POINT DIM CORNER POINT Type A Type B Type C Type D Type E Type F Type G Type A Type B Type C Type D Type E Type F Type G Type A Type B Type C Type D Type E Type F Type G Type A Type B Type C Type D Type E Type F Type G CN CP CL.5 CL CM 2 A.2-804 C0 26'-8 1/16" 26'-8 3/8" 26'-8 3/8" 26'-8" 3'-0 63/256" 2'-0 7/8" G G G F F F F E E E E D D D D C C C C B B B B A A A A H H H H H H H H COPING 1 3/4" 3/4" 1/4" 1/2" 1" 1 1/4" 1 1/2" TYPE A TYPE B TYPE C TYPE D TYPE E TYPE F TYPE G TYPE H 1'-3 5/8" 3 5/8" Rotation axis of each type is the front north corner point of the brick units. The rotation is measured by the longest distance back to the original profile line. The unit modular in elevation is 4"x4"x16", accomodating the actual brick size of 3 5/8" x 3 5/8" x 15 5/8". Joints widths are 3/8" .The drawings shows how they wiould provide capacity for the rotation between units. 1'-4" 4" rotated side toward south S 3/8" LIC ENSED AR STA TE OF CA MITCHELL T NO. C28 REN. 8/3 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET TITLE: ISSUES PROJECT NO.: SCALE: KEYPLAN 100% CONSTRUCTION DOC REVISION LIST # DSA #04-123274-2 INCREMEN College of the Desert Desert Community Co As indicated 1 AM 20025.01 MODULAR SITE NORTH 2363 Tahquitz Canyon Way, Pa PALM SPRI DEVELOPM PROJECT .4 1/4" = 1'-0" 2 CULINARY - EAST ELEVATION - SITE WALL - NORTH PORTION 1/4" = 1'-0" 1 FLOOR PLAN - SITE WALL - NORTH PORTION 1 1/2" = 1'-0" 4 SECTION - TYPICAL BOTTOM CUT 3/4" = 1'-0" 3 PLAN - ROTATION TYPE SUMMARY +8'-0" +7'-5" FA DN A6 A8 A10 A7 AS AT AU AV A9 AU.5 A7.3 A8.5 AT.8 R 22'-7" 14'-10" 6'-6" 3'-8" 6'-6" 3'-8" 41'-2" 34'-4" 56.6° 8'-8 1/4" 8'-8 1/4" R 15'-9" 8'-8 1/4" R 15'-9" 8'-8 1/4" 10° 4'-2 3/4" 27'-8" 10'-0" 9'-9" R 16'-4" 20'-10" 6'-10" 7'-4" 7'-0" 2'-10" 5'-10 3/8" 1'-1 41/256" 13'-8 1/4" 3 5/8" 14'-10" 12'-7 1/8" GEOMETRY CENTER POINT RADIUS TRANSFER POINT BACK OF STUD CRV A APPILED FOR LEVEL1 AND LEVEL2 BACK OF STUD CRV B APPILED FOR LEVEL1 AND LEVEL2 WALL SURF REFERENCE CRV C LIC ENSED ARCHIT ECT STA TE OF CALIFOR NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District 1/4" = 1'-0" 8/16/2024 2:29:21 AM 20025.01 GEOMETRY CONTROL PLAN ACCELERATOR OUTDOOR THEATER A.1-112 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 1/4" = 1'-0" 1 AMPHITHEATER GEOMETRY PLAN SP01 SP03 SP03 SP01 SP01 SP01 SP01 SP02 SP02 SP02 SP02 SP02 SP02 SP02 +14 +14 +14 A6 A8 A7 AS AT AU AV A9 AU.5 A7.3 A8.5 AT.8 1'-5" 2'-6" 1'-5" 8'-10" 9'-4" 1'-5" 2'-6" 20'-10 1/2" 12'-4 5/8" 2'-0 1/2" 1'-0 1/2" 1'-0 1/2" 21'-2 7/8" 14'-9" 9'-7 1/2" 8'-5 7/8" 29'-8" 10'-8 1/8" GEOMETRY CENTER POINT RADIUS TRANSFER POINT BACK OF STUD CRV A APPILED FOR LEVEL1 AND LEVEL2 BACK OF STUD CRV B APPILED FOR LEVEL1 AND LEVEL2 WALL SURF REFERENCE CRV C LIC ENSED ARCHIT ECT STA TE OF CALIFOR NIA MITCHELL T. FINE NO. C28295 REN. 8/31/25 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 5 4 S AN FRAN CI S C O CALIFORNIA 94107 415. 489.2 224 TEL 415.358.91 00 FAX WWW W . RNSSTUDIO. O C M 01 SECOND STREET TH L F OR O STE. , 402 SHEET NO: SHEET TITLE: DATE ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 8/16/2024 100% CONSTRUCTION DOCUMENTS REVISION LIST # DATE DSA #04-123274-2 INCREMENT #2 College of the Desert Desert Community College District 1/4" = 1'-0" 8/16/2024 2:29:37 AM 20025.01 GEOMETRY CONTROL PLAN ACCELERATOR FILM SCREENING A.1-113 2363 Tahquitz Canyon Way, Palm Springs, CA 92262 PALM SPRINGS DEVELOPMENT PROJECT 1/4" = 1'-0" 1 FILM SCREENING GEOMETRY PLAN GEOMETRY CONTROL DOCUMENTATION PARAMETRIC BRICK DOCUMENTATION CURTAIN WALL DOOR DETAIL DOCUMENTATION

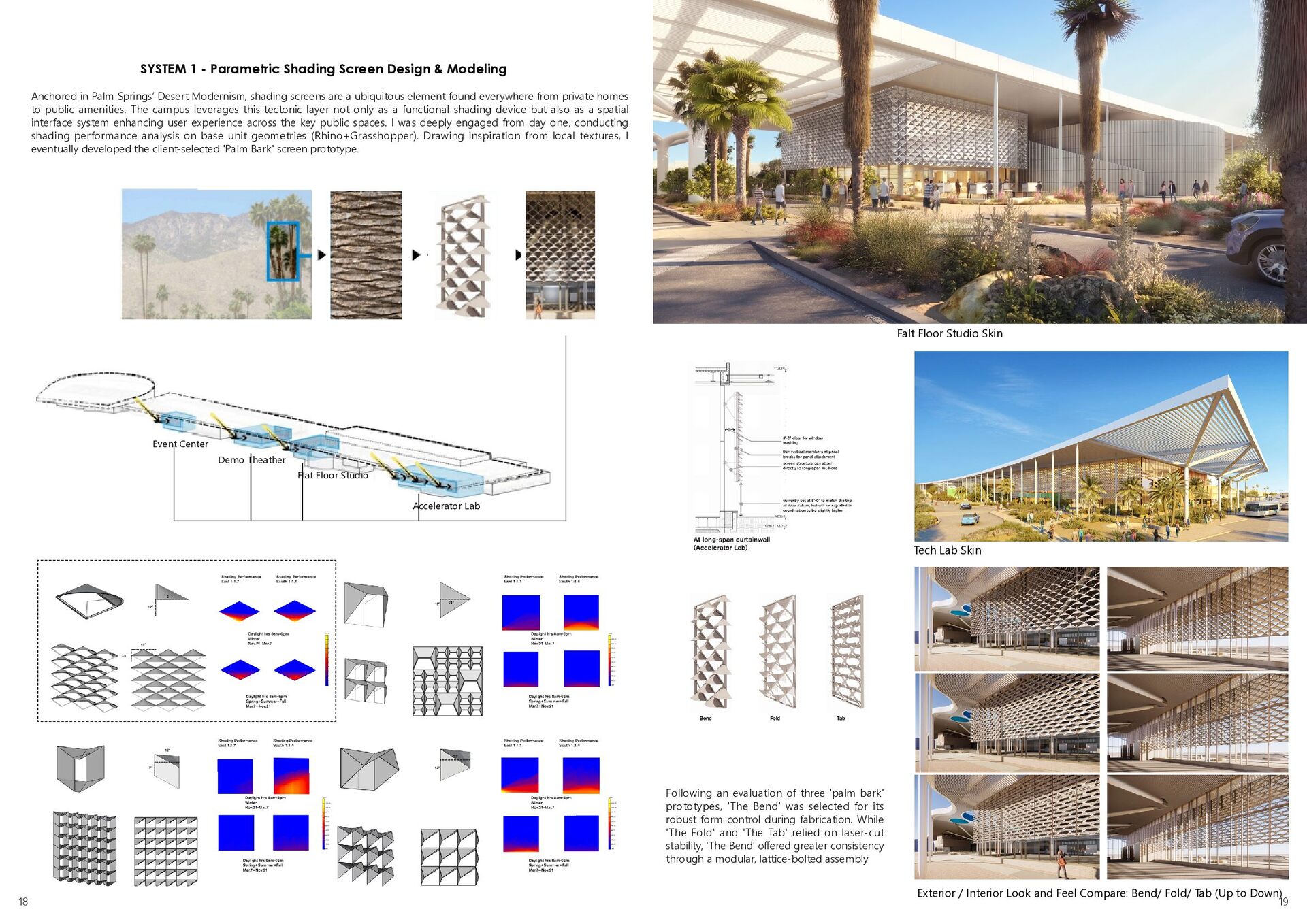

10. 18 19 SYSTEM 1 - Parametric Shading Screen Design & Modeling Anchored in Palm Springs’ Desert Modernism, shading screens are a ubiquitous element found everywhere from private homes to public amenities. The campus leverages this tectonic layer not only as a functional shading device but also as a spatial interface system enhancing user experience across the key public spaces. I was deeply engaged from day one, conducting shading performance analysis on base unit geometries (Rhino+Grasshopper). Drawing inspiration from local textures, I eventually developed the client-selected 'Palm Bark' screen prototype. Following an evaluation of three 'palm bark' prototypes, 'The Bend' was selected for its robust form control during fabrication. While 'The Fold' and 'The Tab' relied on laser-cut stability, 'The Bend' offered greater consistency through a modular, lattice-bolted assembly Exterior / Interior Look and Feel Compare: Bend/ Fold/ Tab (Up to Down) Falt Floor Studio Skin Tech Lab Skin Accelerator Lab Demo Theather Flat Floor Studio Event Center

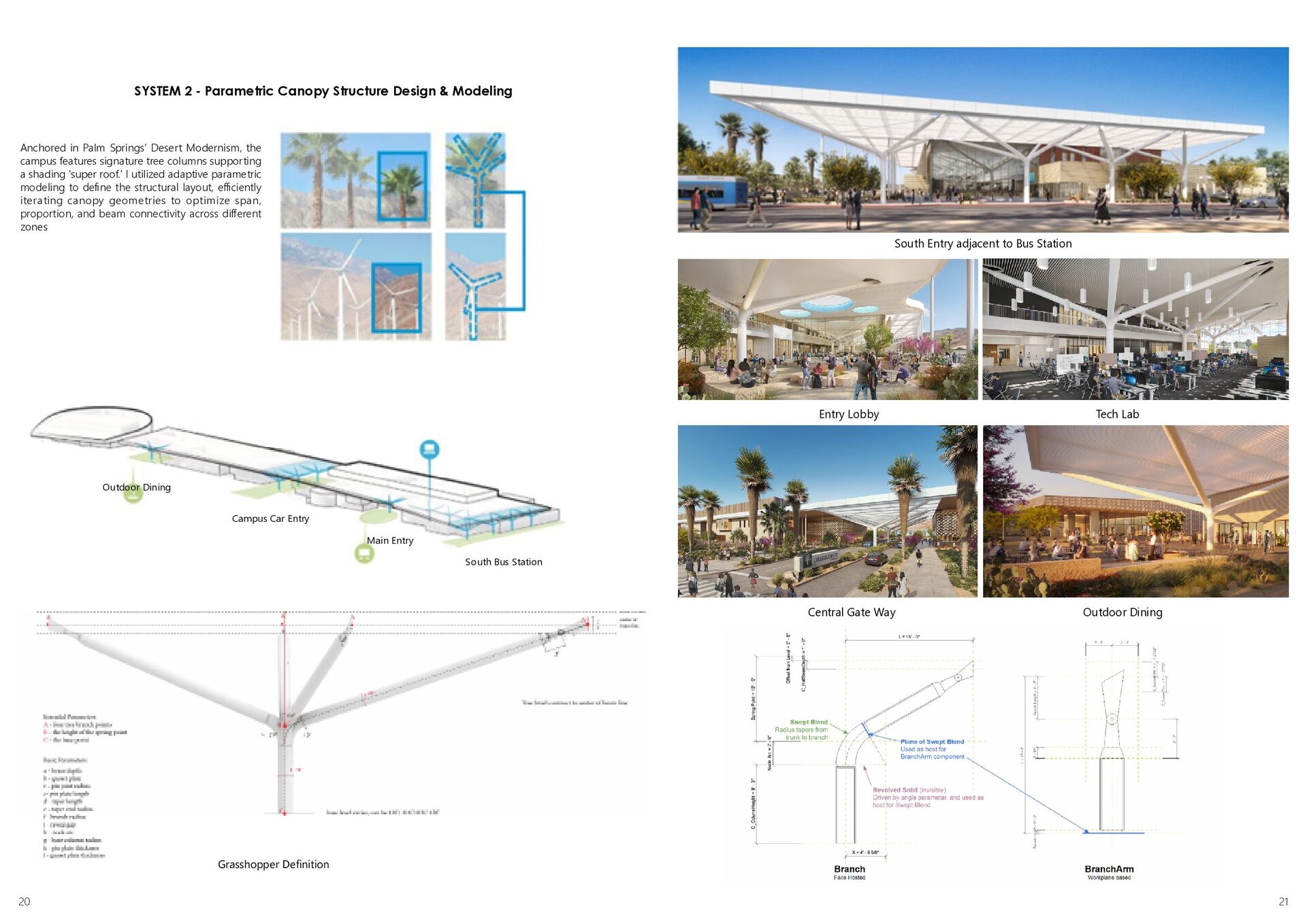

11. 20 21 SYSTEM 2 - Parametric Canopy Structure Design & Modeling Grasshopper Definition Anchored in Palm Springs’ Desert Modernism, the campus features signature tree columns supporting a shading 'super roof.' I utilized adaptive parametric modeling to define the structural layout, efficiently iterating canopy geometries to optimize span, proportion, and beam connectivity across different zones South Entry adjacent to Bus Station Entry Lobby Central Gate Way Tech Lab Outdoor Dining South Bus Station Main Entry Campus Car Entry Outdoor Dining

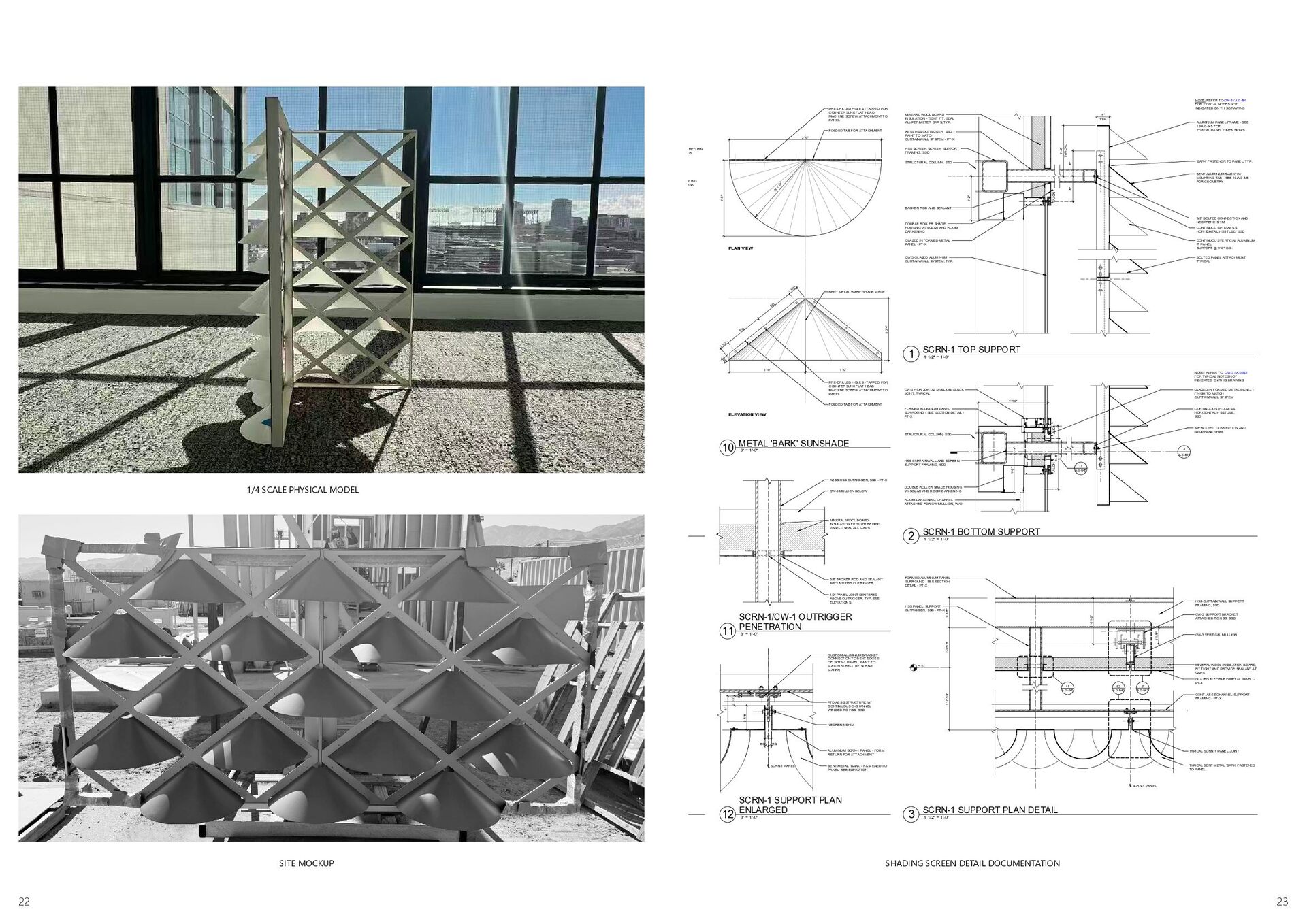

12. 22 23 1/4 SCALE PHYSICAL MODEL SITE MOCKUP SHADING SCREEN DETAIL DOCUMENTATION NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING CW-3 / A.0-801 GLAZED IN FORMED METAL PANEL - FINISH TO MATCH CURTAINWALL SYSTEM A.0-845 11 1'-2" HSS CURTAINWALL AND SCREEN SUPPORT FRAMING, SDD FORMED ALUMINUM PANEL SURROUND - SEE SECTION DETAIL - PT-X CW-3 HORIZONTAL MULLION STACK JOINT, TYPICAL DOUBLE ROLLER SHADE HOUSING W/ SOLAR AND ROOM DARKENING ROOM DARKENING CHANNEL ATTACHED FOR CW MULLION, W/O CONTINUOUS PTD AESS HORIZONTAL HSS TUBE, SSD 3 A.0-845 1'-10" 1'-8" ALIGN ALIGN STRUCTURAL COLUMN, SSD 3/8" BOLTED CONNECTION AND NEOPRENE SHIM NOTE: REFER TO FOR TYPICAL NOTES NOT INDICATED ON THIS DRAWING CW-3 / A.0-801 BACKER ROD AND SEALANT ALUMINUM PANEL FRAME - SEE 18/A.0-845 FOR TYPICAL PANEL DIMENSIONS CONTINUOUS VERTICAL ALUMINUM 'T' PANEL SUPPORT @ 5'-0" O.C. BENT ALUMINUM 'BARK' W/ MOUNTING TAB - SEE 10/A.0-845 FOR GEOMETRY 8" 8" TYPICAL 1'-4" AESS HSS OUTRIGGER, SSD. - PAINT TO MATCH CURTAINWALL SYSTEM - PT-X HSS SCREEN SCREEN SUPPORT FRAMING, SSD CONTINUOUS PTD AESS HORIZONTAL HSS TUBE, SSD 3/8" BOLTED CONNECTION AND NEOPRENE SHIM 'BARK' FASTENER TO PANEL, TYP. GLAZED IN FORMED METAL PANEL - PT-X BOLTED PANEL ATTACHMENT, TYPICAL MINERAL WOOL BOARD INSULATION - TIGHT FIT, SEAL ALL PERIMETER GAPS, TYP. CW-3 GLAZED ALUMINUM CURTAINWALL SYSTEM, TYP. DOUBLE ROLLER SHADE HOUSING W/ SOLAR AND ROOM DARKENING 1'-2" TYP. 4" ALIGN STRUCTURAL COLUMN, SSD 10'-0" 1'-3" 1'-3" 1'-3" 5'-0" 10 23/32" 1'-0" 1'-0" 1'-0" 1'-0" 1'-0" 1'-0" 1'-0" 1'-0" 1'-0" 1 9/32" 2" TYP. 2" TYP. 12 A.0-845 3/16" ALUMINUM PANEL W/ 4" RETURN PROVIDE SLOTTED HOLES FOR ADJUSTMENT BENT METAL 'BARK' W/ MOUNTING TABS - PROVIDE COUNTERSUNK MACHINE SCREW 38.66° 1'-3" 1'-9 7/16" 1'-0" A.0-845 10 SCRN-1 PANEL 1" EQ EQ PTD AESS STRUCTURE W/ CONTINUOUS C-CHANNEL WELDED TO HSS, SSD NEORENE SHIM CUSTOM ALUMINUM BRACKET CONNECTION TO BENT EDGES OF SCRN-1 PANEL, PAINT TO MATCH SCRN-1, BY SCRN-1 MANFR BENT METAL 'BARK' - FASTENED TO PANEL, SEE ELEVATION ALUMINUM SCRN-1 PANEL - FORM RETURN FOR ATTACHMENT 1/4" 3/8" 1 1/2" 4" 3 7/8" TYPICAL SCRN-1 PANEL JOINT A.0-845 12 SCRN-1 PANEL A.0-842 7 A.0-845 11 CONT. AESS CHANNEL SUPPORT FRAMING - PT-X FOG HSS CURTAINWALL SUPPORT FRAMING, SSD HSS PANEL SUPPORT OUTRIGGER, SSD - PT-X CW-3 SUPPORT BRACKET ATTACHED TO HSS, SSD CW-3 VERTICAL MULLION GLAZED IN FORMED METAL PANEL - PT-X MINERAL WOOL INSULATION BOARD, FIT TIGHT AND PROVIDE SEALANT AT GAPS TYPICAL BENT METAL 'BARK' FASTENED TO PANEL FORMED ALUMINUM PANEL SURROUND - SEE SECTION DETAIL - PT-X 5 1/8" 9 3/8" 1'-0 5/8" 1'-7 3/4" 1'-2 1/2" 3/8" BACKER ROD AND SEALANT AROUND HSS OUTRIGGER MINERAL WOOL BOARD INSULATION FIT TIGHT BEHIND PANEL - SEAL ALL GAPS 1/2" PANEL JOINT CENTERED ABOVE OUTRIGGER, TYP. SEE ELEVATIONS AESS HSS OUTRIGGER, SSD - PT-X CW-3 MULLION BELOW 1 1/2" EQ. EQ. 1 1/2" 3/4" 9 3/4" 1'-0" 1'-0" PRE-DRILLED HOLES - TAPPED FOR COUNTERSUNK FLAT HEAD MACHINE SCREW ATTACHMENT TO PANEL FOLDED TAB FOR ATTACHMENT BENT METAL 'BARK' SHADE PIECE 2'-0" 1'-0" R 1'-0" PRE-DRILLED HOLES - TAPPED FOR COUNTERSUNK FLAT HEAD MACHINE SCREW ATTACHMENT TO PANEL FOLDED TAB FOR ATTACHMENT ELEVATION VIEW PLAN VIEW LIC EN STA TE MIT N R 5 4 S AN FRAN CI S C O CALIFORNIA 9410 415. 489.2 224 TE 415.358.91 00 FA WWW W . RNSSTUDIO. O C 01 SECOND STREE TH L F OR O STE. , 40 5 4 S AN FRAN CI S C O CALIFORNIA 9410 415. 489.2 224 TE 415.358.91 00 FA WWW W . RNSSTUDIO. O C 01 SECOND STREE TH L F OR O STE. , 40 5 4 S AN FRAN CI S C O CALIFORNIA 9410 415. 489.2 224 TE 415.358.91 00 FA WWW W . RNSSTUDIO. O C 01 SECOND STREE TH L F OR O STE. , 40 SHEET NO: SHEET TITLE: ISSUES PROJECT NO.: SCALE: All drawings and written material appearing herein constitute original and unpublished work of the Architect/Engineer and may not be duplicated, used or disclosed without consent of Architect/Engineer. If this drawing is not 30"x42", then the drawing has been revised from its original size. Noted scales must be adjusted. This line should be equal to one inch KEYPLAN 100% CONSTRUCTI REVISION LIST # DSA #04-123274 INCREM College of the D Desert Commun As indicated 8/16/2024 3:57:08 AM 20025 EXTERIOR SCREEN W 2363 Tahquitz Canyon PALM SP DEVELO PROJEC 1 1/2" = 1'-0" 2 SCRN-1 BOTTOM SUPPORT 1 1/2" = 1'-0" 1 SCRN-1 TOP SUPPORT 1 1/2" = 1'-0" 18 SCRN-1 PANEL ELEVATON 20 SCRN-1 AXON 3" = 1'-0" 12 SCRN-1 SUPPORT PLAN ENLARGED 1 1/2" = 1'-0" 3 SCRN-1 SUPPORT PLAN DETAIL 3" = 1'-0" 11 SCRN-1/CW-1 OUTRIGGER PENETRATION 3" = 1'-0" 10 METAL 'BARK' SUNSHADE

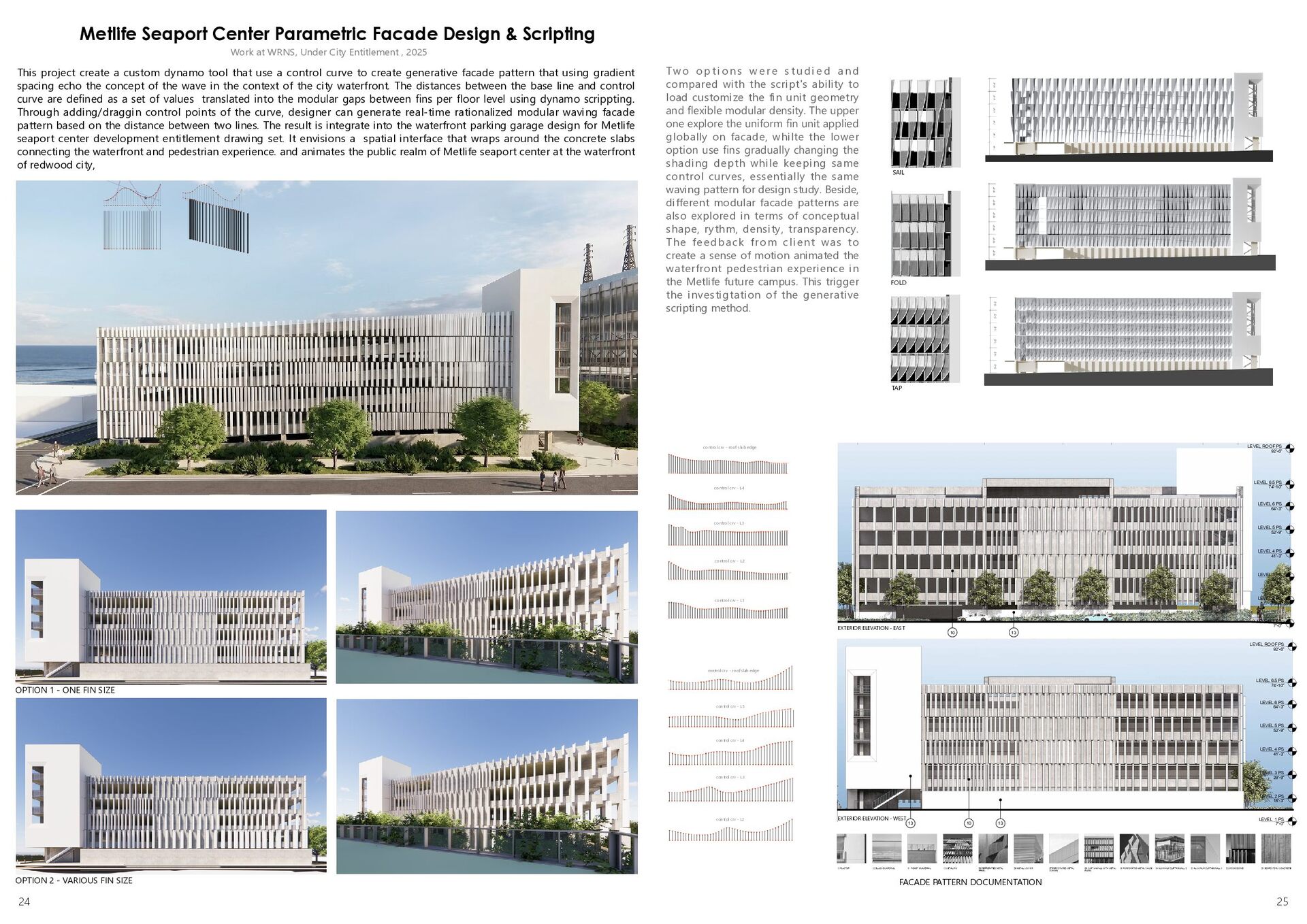

13. 24 25 Two options were studied and compared with the script's ability to load customize the fin unit geometry and flexible modular density. The upper one explore the uniform fin unit applied globally on facade, whilte the lower option use fins gradually changing the shading depth while keeping same control curves, essentially the same waving pattern for design study. Beside, different modular facade patterns are also explored in terms of conceptual shape, rythm, density, transparency. The feedback from client was to create a sense of motion animated the waterfront pedestrian experience in the Metlife future campus. This trigger the investigtation of the generative scripting method. SAIL FOLD TAP A* B* C* E* F* D* LEVEL 1 PS 7'-0" LEVEL 2 PS 18'-3" LEVEL 3 PS 29'-9" LEVEL 4 PS 41'-3" LEVEL 5 PS 52'-9" LEVEL 6 PS 64'-3" LEVEL 6.5 PS 74'-10" A* B* C* E* F* D* LEVEL ROOF PS 92'-6" 13 10 13 1/16" = 1'-0" 1 PARKING SOUTH - EXTERIOR ELEVATION - WEST LEVEL 1 PS 7'-0" LEVEL 2 PS 18'-3" LEVEL 3 PS 29'-9" LEVEL 4 PS 41'-3" LEVEL 5 PS 52'-9" LEVEL 6 PS 64'-3" LEVEL 6.5 PS 74'-10" A* B* C* E* F* D* LEVEL ROOF PS 92'-6" 10 13 LEVEL 1 PS 7'-0" LEVEL 2 PS 18'-3" LEVEL 3 PS 29'-9" LEVEL 4 PS 41'-3" LEVEL 5 PS 52'-9" LEVEL 6 PS 64'-3" LEVEL 6.5 PS 74'-10" A* B* C* E* F* D* LEVEL ROOF PS 92'-6" 13 10 13 07 PE SCRE 08 METAL LOUVER 09 PERFORATED METAL PANEL 10 METAL FIN 11 PICKET GUARDRAIL 12 GLASS GUARDRAIL 13 PLASTER 2/4/2026 8:05:14 AM 1/16" = 1'-0" 3 PARKING SOUTH - EXTERIOR ELEVATION - EAST 1/16" = 1'-0" 1 PARKING SOUTH - EXTERIOR ELEVATION - WEST control crv - roof slab edge control crv - L5 control crv - L4 control crv - L3 control crv - roof slab edge control crv - L4 control crv - L3 control crv - L2 control crv - L1 control crv - L2 EXTERIOR ELEVATION - EAST EXTERIOR ELEVATION - WEST This project create a custom dynamo tool that use a control curve to create generative facade pattern that using gradient spacing echo the concept of the wave in the context of the city waterfront. The distances between the base line and control curve are defined as a set of values translated into the modular gaps between fins per floor level using dynamo scrippting. Through adding/draggin control points of the curve, designer can generate real-time rationalized modular waving facade pattern based on the distance between two lines. The result is integrate into the waterfront parking garage design for Metlife seaport center development entitlement drawing set. It envisions a spatial interface that wraps around the concrete slabs connecting the waterfront and pedestrian experience. and animates the public realm of Metlife seaport center at the waterfront of redwood city, Metlife Seaport Center Parametric Facade Design & Scripting Work at WRNS, Under City Entitlement , 2025 OPTION 2 - VARIOUS FIN SIZE OPTION 1 - ONE FIN SIZE FACADE PATTERN DOCUMENTATION

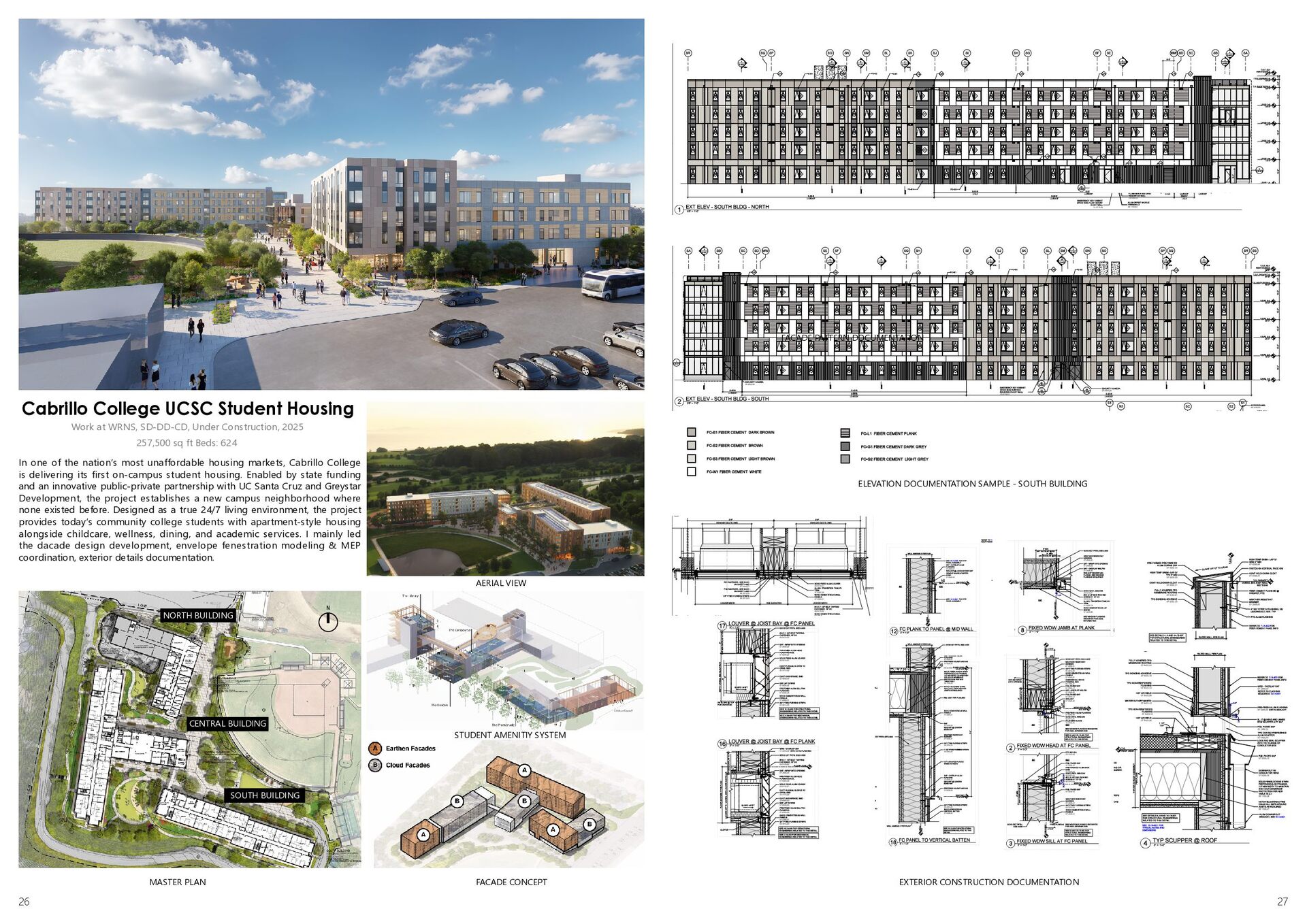

14. 26 27 Cabrillo College UCSC Student Housing Work at WRNS, SD-DD-CD, Under Construction, 2025 In one of the nation’s most unaffordable housing markets, Cabrillo College is delivering its first on-campus student housing. Enabled by state funding and an innovative public-private partnership with UC Santa Cruz and Greystar Development, the project establishes a new campus neighborhood where none existed before. Designed as a true 24/7 living environment, the project provides today’s community college students with apartment-style housing alongside childcare, wellness, dining, and academic services. I mainly led the dacade design development, envelope fenestration modeling & MEP coordination, exterior details documentation. 257,500 sq ft Beds: 624 FACADE PATTERN DOCUMENTATION ELEVATION DOCUMENTATION SAMPLE - SOUTH BUILDING EXTERIOR CONSTRUCTION DOCUMENTATION MASTER PLAN FACADE CONCEPT STUDENT AMENITIY SYSTEM AERIAL VIEW E L E V A T I O N E L E V A T I O N SOUTH BUILDING CENTRAL BUILDING E L E V A T I O N NORTH BUILDING N

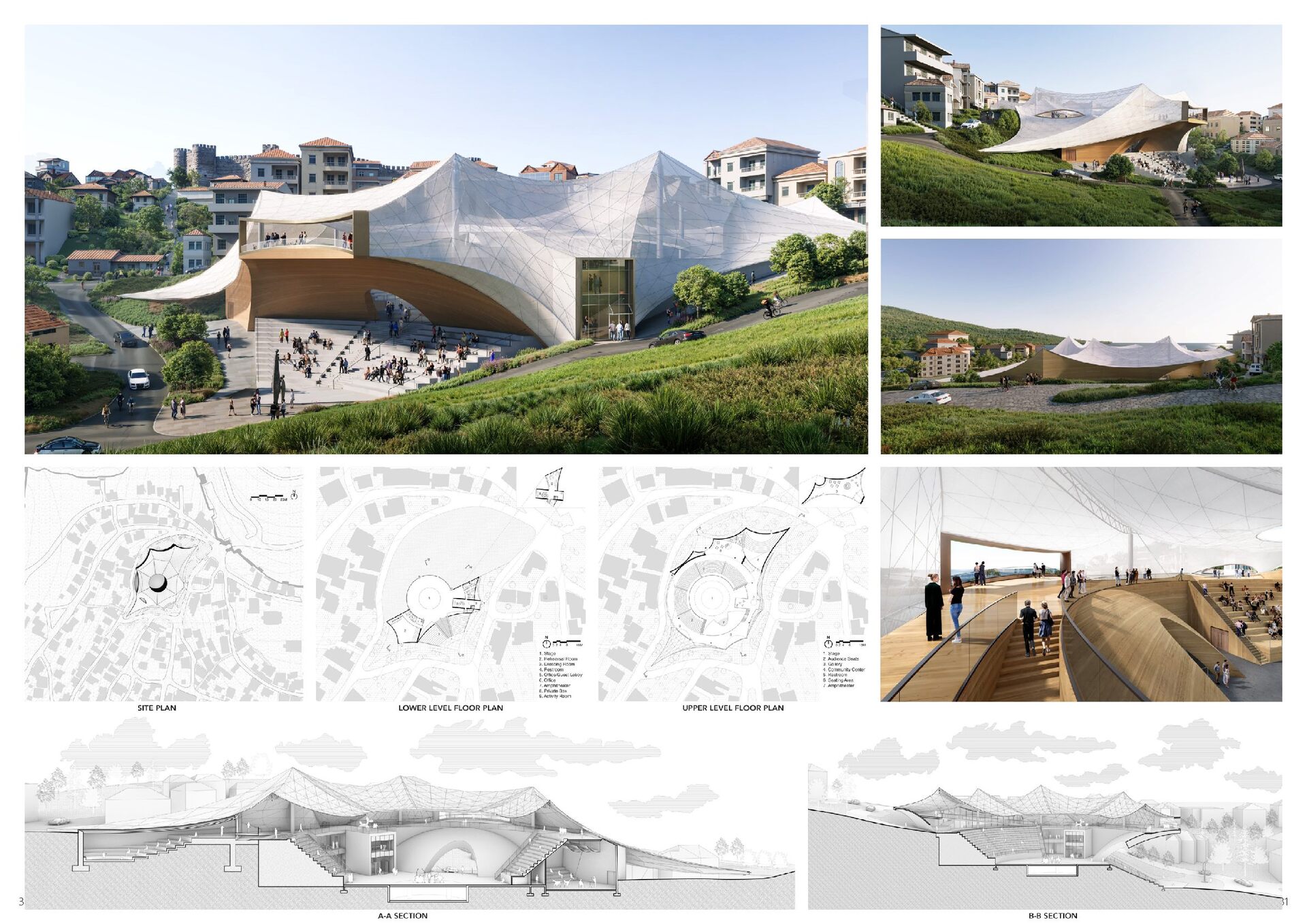

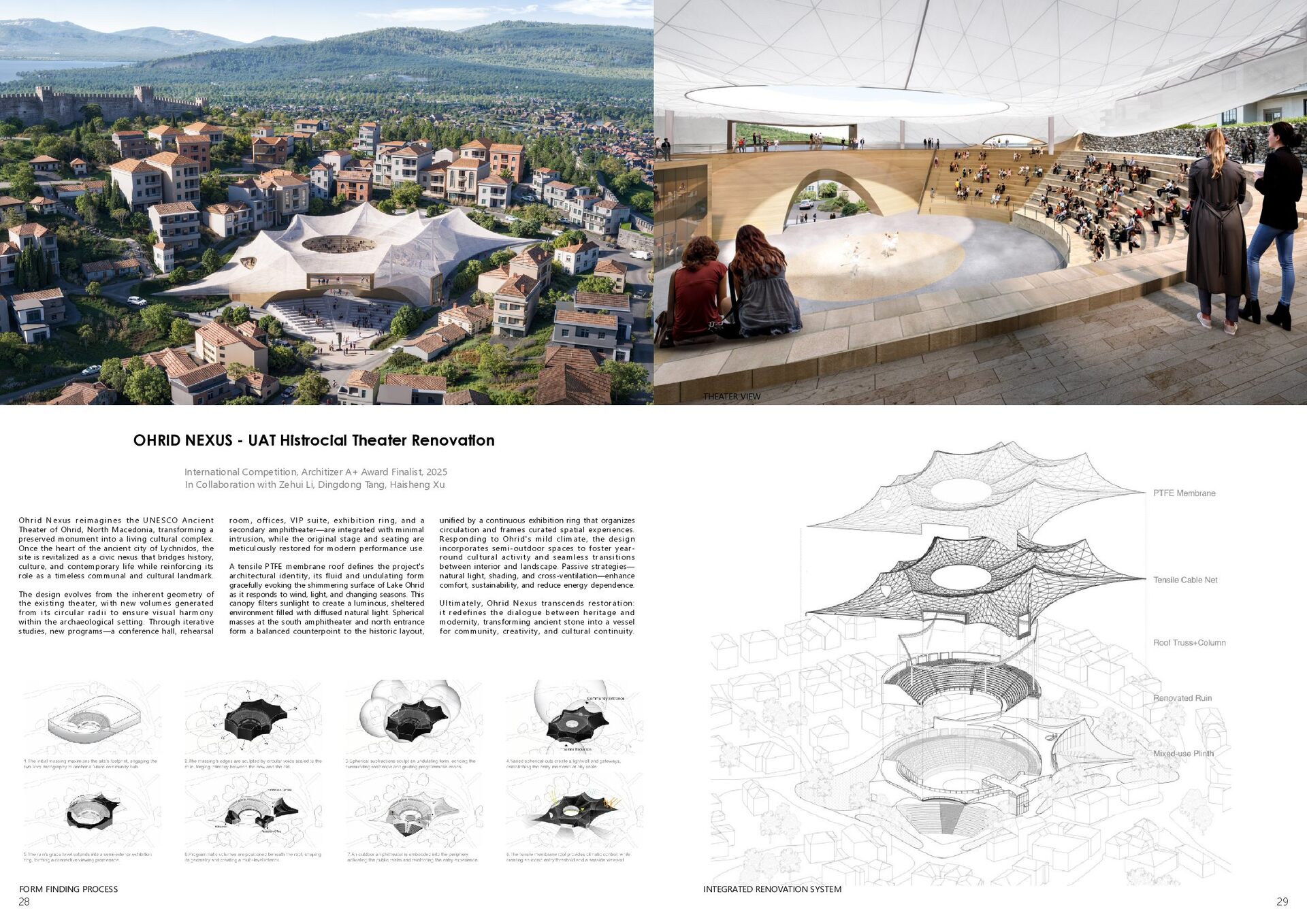

15. 28 29 OHRID NEXUS - UAT Histrocial Theater Renovation In Collaboration with Zehui Li, Dingdong Tang, Haisheng Xu International Competition, Architizer A+ Award Finalist, 2025 THEATER VIEW INTEGRATED RENOVATION SYSTEM FORM FINDING PROCESS Ohrid Nexus reimagines the UNESCO Ancient Theater of Ohrid, North Macedonia, transforming a preserved monument into a living cultural complex. Once the heart of the ancient city of Lychnidos, the site is revitalized as a civic nexus that bridges history, culture, and contemporary life while reinforcing its role as a timeless communal and cultural landmark. The design evolves from the inherent geometry of the existing theater, with new volumes generated from its circular radii to ensure visual harmony within the archaeological setting. Through iterative studies, new programs—a conference hall, rehearsal room, offices, VIP suite, exhibition ring, and a secondary amphitheater—are integrated with minimal intrusion, while the original stage and seating are meticulously restored for modern performance use. A tensile PTFE membrane roof defines the project's architectural identity, its fluid and undulating form gracefully evoking the shimmering surface of Lake Ohrid as it responds to wind, light, and changing seasons. This canopy filters sunlight to create a luminous, sheltered environment filled with diffused natural light. Spherical masses at the south amphitheater and north entrance form a balanced counterpoint to the historic layout, unified by a continuous exhibition ring that organizes circulation and frames curated spatial experiences. Responding to Ohrid's mild climate, the design incorporates semi-outdoor spaces to foster year- round cultural activity and seamless transitions between interior and landscape. Passive strategies— natural light, shading, and cross-ventilation—enhance comfort, sustainability, and reduce energy dependence. Ultimately, Ohrid Nexus transcends restoration: it redefines the dialogue between heritage and modernity, transforming ancient stone into a vessel for community, creativity, and cultural continuity.
16. 30 31

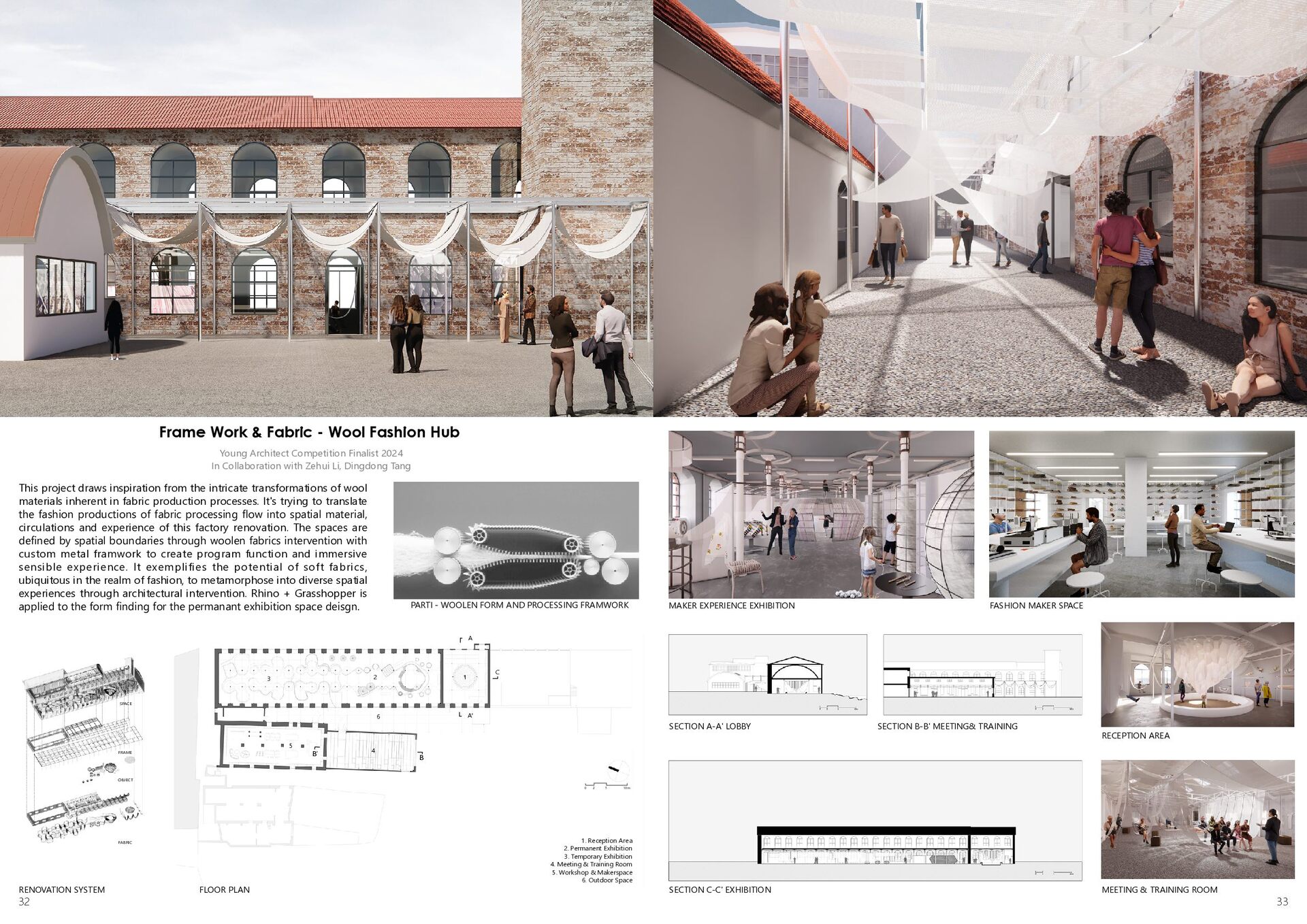

17. 32 33 Frame Work & Fabric - Wool Fashion Hub In Collaboration with Zehui Li, Dingdong Tang Young Architect Competition Finalist 2024 SECTION C-C' EXHIBITION SECTION A-A' LOBBY PARTI - WOOLEN FORM AND PROCESSING FRAMWORK SECTION B-B' MEETING& TRAINING MAKER EXPERIENCE EXHIBITION FASHION MAKER SPACE MEETING & TRAINING ROOM RECEPTION AREA C' SPACE This project draws inspiration from the intricate transformations of wool materials inherent in fabric production processes. It's trying to translate the fashion productions of fabric processing flow into spatial material, circulations and experience of this factory renovation. The spaces are defined by spatial boundaries through woolen fabrics intervention with custom metal framwork to create program function and immersive sensible experience. It exemplifies the potential of soft fabrics, ubiquitous in the realm of fashion, to metamorphose into diverse spatial experiences through architectural intervention. Rhino + Grasshopper is applied to the form finding for the permanant exhibition space deisgn. 1 2 3 4 5 6 1. Reception Area 2. Permanent Exhibition 3. Temporary Exhibition 4. Meeting & Training Room 5. Workshop & Makerspace 6. Outdoor Space 0 2 5 10m FLOOR PLAN A A' C B B' FRAME OBJECT FABRIC RENOVATION SYSTEM

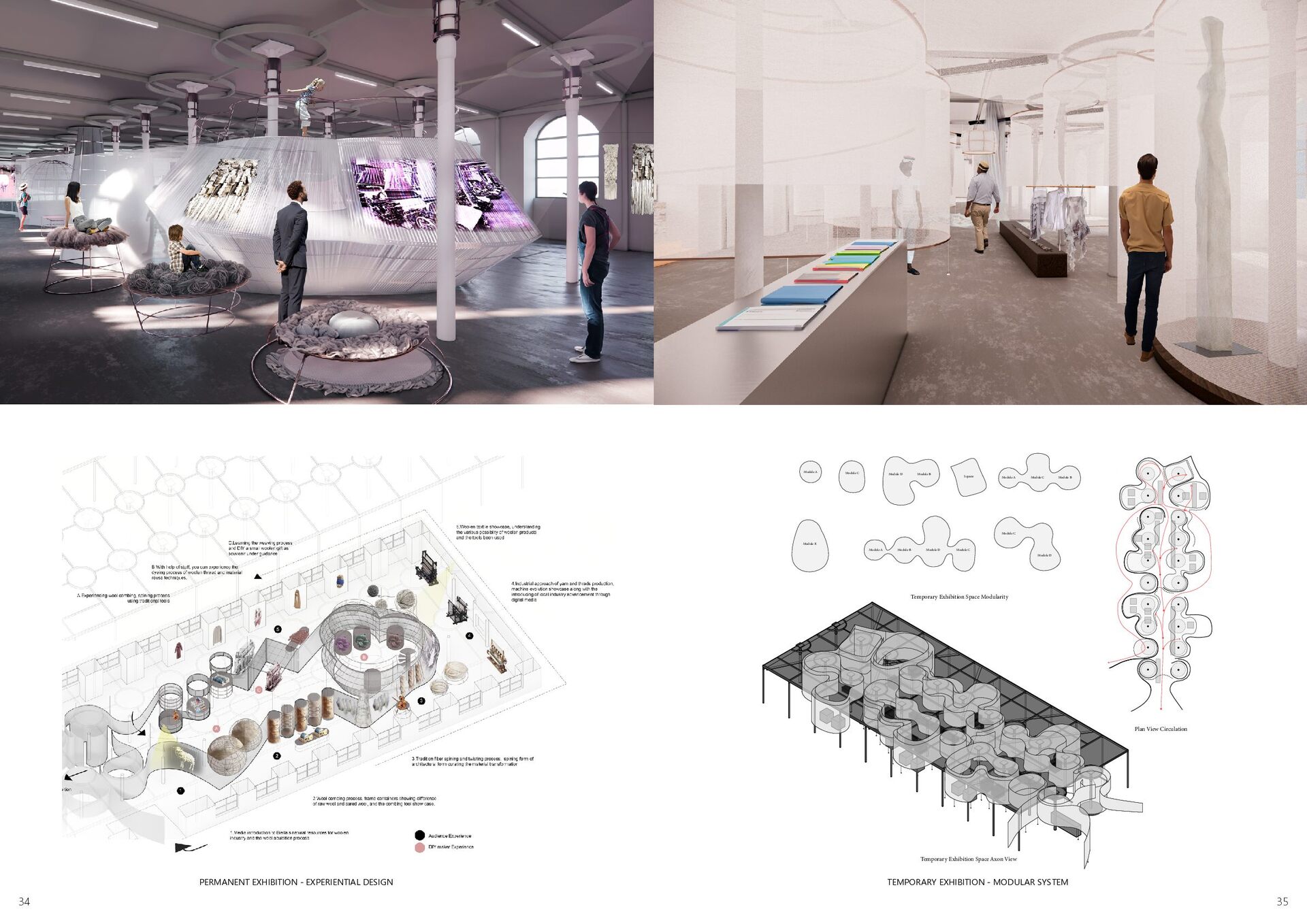

18. 34 35 PERMANENT EXHIBITION - EXPERIENTIAL DESIGN TEMPORARY EXHIBITION - MODULAR SYSTEM

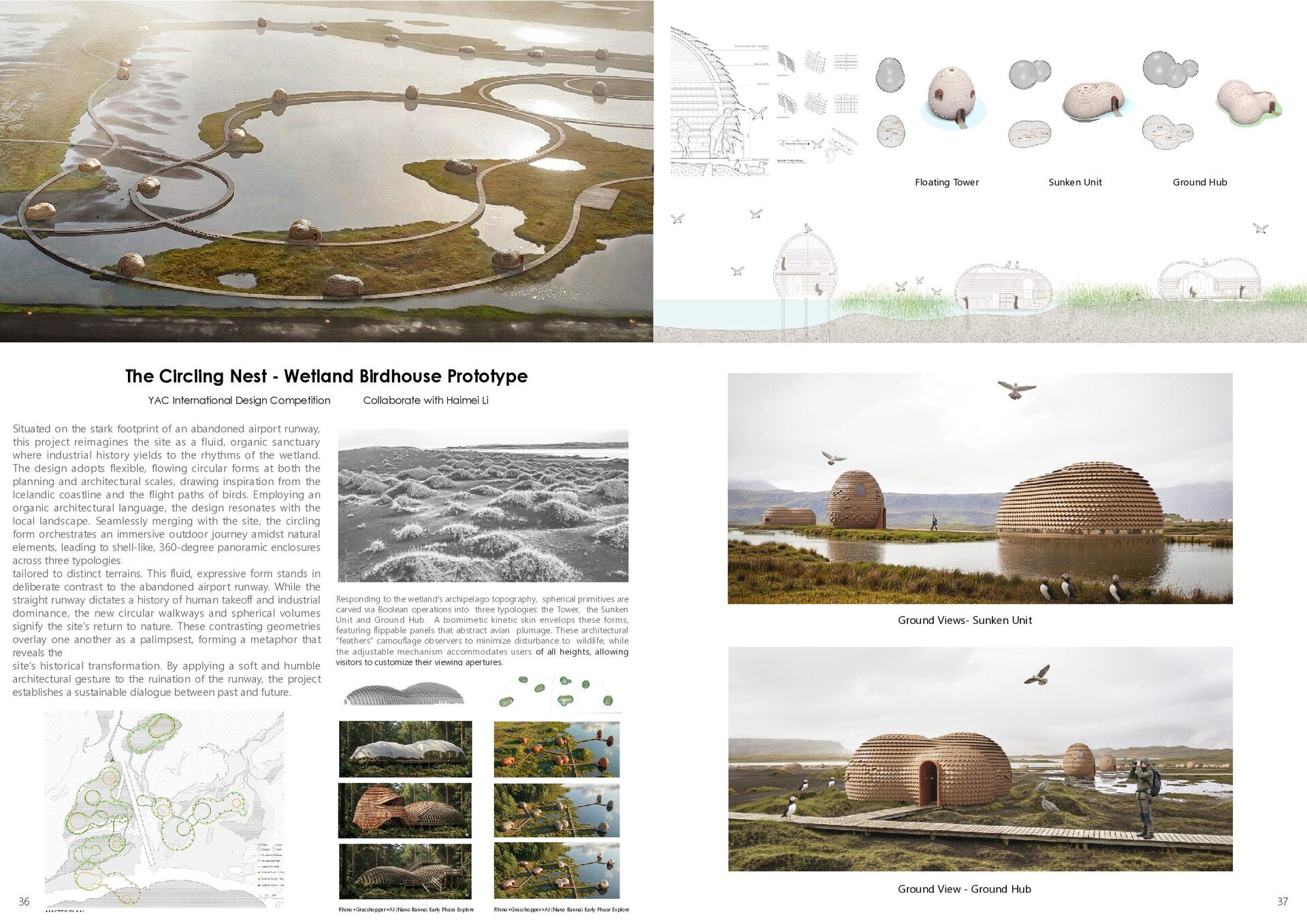

19. 36 37 Responding to the wetland’s a r c h i p e l a g o t o p o g r a p h y, spherical primitives are carved via Boolean operations into three typologies: the Tower, the Sunken Unit and Ground Hub. A biomimetic kinetic skin envelops these forms, featuring flippable panels that abstract avian plumage. These architectural “feathers” camouflage observers to minimize disturbance to wildlife, while the adjustable mechanism accommodates users of all heights, allowing visitors to customize their viewing apertures. WALL SECTION & DETAILS FORM FINDING TYPOLOGICAL SECTION Ground Hub Sunken Unit Floating Tower this project trial history ble, flowing s, drawing hs of birds. onates with ircling form nts, leading typologies abandoned y of human nd spherical geometries reveals the architectural sustainable Responding to the wetland’s a r c h i p e l a g o t o p o g r a p h y, spherical primitives are carved via Boolean operations into three typologies: the Tower, the Sunken Unit and Ground Hub. A biomimetic kinetic skin envelops these forms, featuring flippable panels that abstract avian plumage. These architectural “feathers” camouflage observers to minimize disturbance to wildlife, while the adjustable mechanism accommodates users of all heights, allowing visitors to customize their viewing apertures. MASTER PLAN WALL SECTION & DETAILS FORM FINDING TYPOLOGICAL SECTION Ground Hub Sunken Unit Floating Tower Situated on the stark footprint of an abandoned airport runway, this project reimagines the site as a fluid, organic sanctuary where industrial history yields to the rhythms of the wetland. The design adopts flexible, flowing circular forms at both the planning and architectural scales, drawing inspiration from the Icelandic coastline and the flight paths of birds. Employing an organic architectural language, the design resonates with the local landscape. Seamlessly merging with the site, the circling form orchestrates an immersive outdoor journey amidst natural elements, leading to shell-like, 360-degree panoramic enclosures across three typologies tailored to distinct terrains. This fluid, expressive form stands in deliberate contrast to the abandoned airport runway. While the straight runway dictates a history of human takeoff and industrial dominance, the new circular walkways and spherical volumes signify the site’s return to nature. These contrasting geometries overlay one another as a palimpsest, forming a metaphor that reveals the site’s historical transformation. By applying a soft and humble architectural gesture to the ruination of the runway, the project establishes a sustainable dialogue between past and future. YAC International Design Competition Collaborate with Haimei Li The Circling Nest - Wetland Birdhouse Prototype Responding to the wetland’s archipelago topography, spherical primitives are carved via Boolean operations into three typologies: the Tower, the Sunken Unit and Ground Hub. A biomimetic kinetic skin envelops these forms, featuring flippable panels that abstract avian plumage. These architectural “feathers” camouflage observers to minimize disturbance to wildlife, while the adjustable mechanism accommodates users of all heights, allowing visitors to customize their viewing apertures. Ground Hub Sunken Unit Floating Tower Rhino+Grasshopper+AI (Nano Banna) Early Phase Explore Rhino+Grasshopper+AI (Nano Banna) Early Phase Explore THE CIRCLING NEST Situated on the stark footprint of an abandoned airport runway, this project reimagines the site as a fluid, organic sanctuary where industrial history yields to the rhythms of the wetland. The design adopts flexible, flowing circular forms at both the planning and architectural scales, drawing inspiration from the Icelandic coastline and the flight paths of birds. Employing an organic architectural language, the design resonates with the local landscape. Seamlessly merging with the site, the circling form orchestrates an immersive outdoor journey amidst natural elements, leading to shell-like, 360-degree panoramic enclosures across three typologies tailored to distinct terrains. This fluid, expressive form stands in deliberate contrast to the abandoned airport runway. While the straight runway dictates a history of human takeoff and industrial dominance, the new circular walkways and spherical volumes signify the site’s return to nature. These contrasting geometries overlay one another as a palimpsest, forming a metaphor that reveals the site’s historical transformation. By applying a soft and humble architectural gesture to the ruination of the runway, the project establishes a sustainable dialogue between past and future. Responding to the wetland’s a r c h i p e l a g o t o p o g r a p h y, spherical primitives are carved via Boolean operations into three typologies: the Tower, the Sunken Unit and Ground Hub. A biomimetic kinetic skin envelops these forms, featuring flippable panels that abstract avian plumage. These architectural “feathers” camouflage observers to minimize disturbance to wildlife, while the adjustable mechanism accommodates users of all heights, allowing visitors to customize their viewing apertures. MASTER PLAN WALL SECTION & DETAILS FORM FINDING TYPOLOGICAL SECTION Ground Hub Sunken Unit Floating Tower TYPE 1 - FLOATING TOWER PLAN - L1 PLAN - L2 SECTION SECTION SECTION PLAN PLAN TYPE 2 - SUNKEN UNIT TYPE 3 - GROUND HUB This two-level tower allow visitors to observe flying birds from a raised floor. The round layout allow views from the vessel toward any direction. The drifted vessels are mainly located along the costal line and some specific watching points. This unit sinks 1.2m into the wetland and provides a unique perspective to observe foraging birds at water level. It consists of two merging balls, like a floating hut. The smaller ball provides the entrance with a spiral stairs, with cabinets. The bigger ball allows people to gather and stay. This unit is located on the ground and performs as a traditional “watch hut” with three spheres: the smallest one provides entrance and bathroom; the medium provides a lounge with bench, sofa, and a coffee table; the largest one provides chairs along the pheriphery for observors to sit and watch. Ground View - Ground Hub Ground Views- Sunken Unit

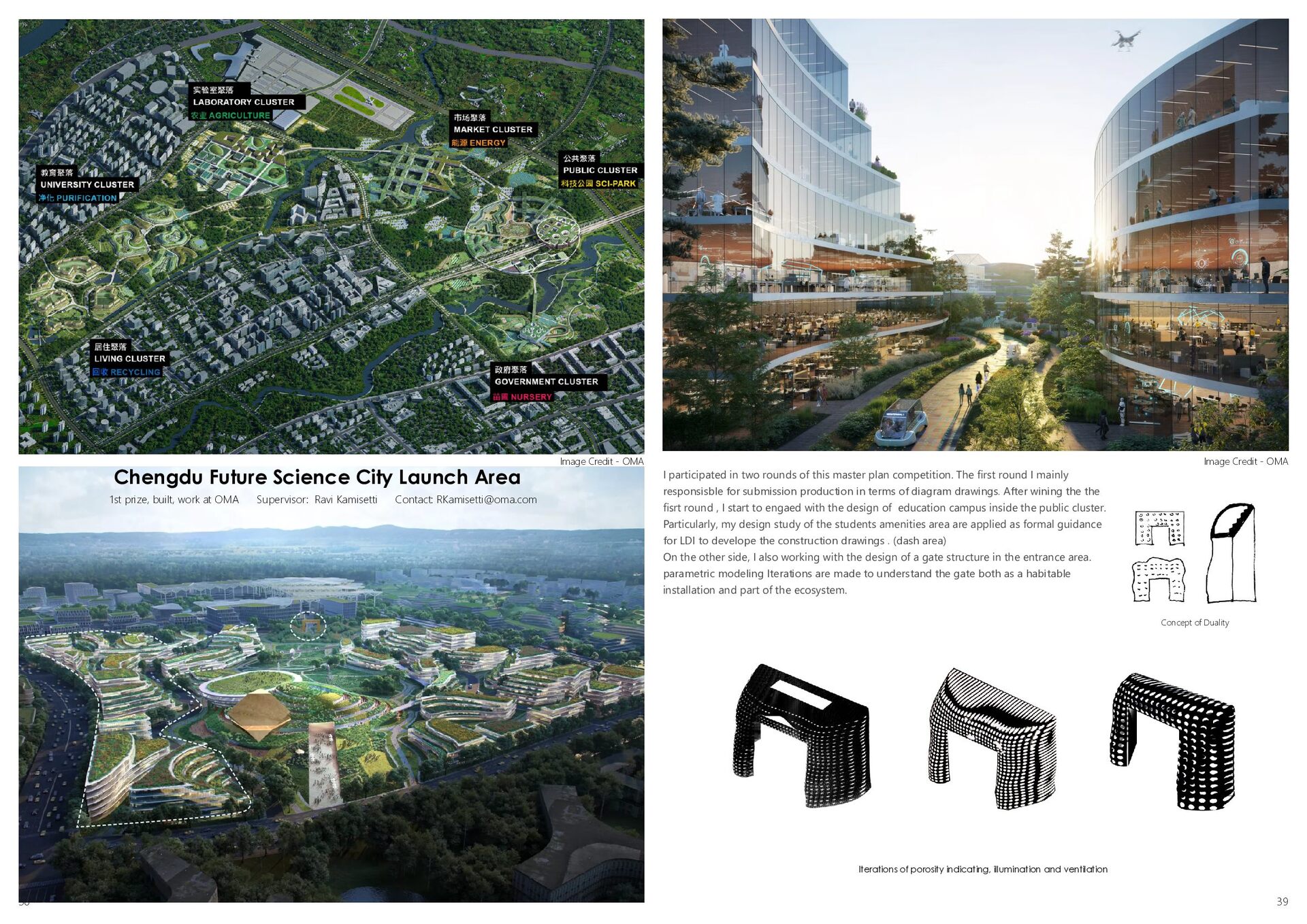

20. 38 39 Chengdu Future Science City Launch Area 1st prize, built, work at OMA Supervisor: Ravi Kamisetti Contact: RKamisetti@oma.com I participated in two rounds of this master plan competition. The first round I mainly responsisble for submission production in terms of diagram drawings. After wining the the fisrt round , I start to engaed with the design of education campus inside the public cluster. Particularly, my design study of the students amenities area are applied as formal guidance for LDI to develope the construction drawings . (dash area) On the other side, I also working with the design of a gate structure in the entrance area. parametric modeling Iterations are made to understand the gate both as a habitable installation and part of the ecosystem. Image Credit - OMA Iterations of porosity indicating, illumination and ventilation Concept of Duality Image Credit - OMA
21. 40 41 Reshaping the Interface Generative AI Sustainable Skin Design Independent Study, Exhibitied at 4C Gallery, LA The legacy of traditional sustainable design is monumental and indispensable. For decades, it estab- lished a paradigm of quantifiable performance, transforming architecture from a purely formal disci- pline into a measurable science of environmental responsibility. Through rigorous standards like LEED, data-driven analysis, and a focus on energy efficiency and passive strategies, this movement laid the essential groundwork for every environmentally conscious decision we make today. It taught us how to build with less impact, perfecting the art of mitigation and optimization. This approach, however, often resulted in a sustainability that was technically profound but culturally invisible, its successes hidden within high-performance wall assemblies or efficient mechanical systems. Building upon this essential foundation, our work seeks to continue and redefine the conversation. We ask a new ques- tion: What if we could also build with more meaning? This new philosophy extends our focus from the crucial, yet often unseen, metrics of performance to the visible, narrative potential of materials ‘after the end.’ I leverage artificial intelligence to add a new, expressive layer to them—exploring how discarded objects can be honestly reinstated into our buildings as a testament to their own history. Generative architectural interfaces through iridescent mosaic This study is powered by a symbiotic dialogue between human intuition and artificial intelligence. The tech is not a mere tool, but a creative collaborator. Through sophisticated prompt engineering, we guide the AI not just to arrange waste, but to perceive it as a complex design element, discov- ering emergent spatial rhythms and tectonic orders within its inherent chaos. The result is a hy- per-visible sustainable interface—a ‘tapestry’ of material stories that stands in stark contrast to the monolithic, pristine surfaces of conventional building. As a work of public art, this facade is kinetic and didactic; it shimmers and changes with the light, engaging the public in a constant dialogue about its origins and the realities of our material supply chains. This approach does not negate the need for high-performance systems; rather, it clothes them in a skin of cultural relevance. This pow- erful fusion—where reclaimed materials (sustainability) are transfigured by computational creativity (tech) into a new form of public expression (art)—marks an evolution. It adds a crucial dimension of public engagement and aesthetic expression to the foundational principles of technical efficiency. In this new order, we honor the legacy of our predecessors by taking their work to its next logical step: orchestrating a material’s rebirth into an order that is not only efficient, but also legible, reso- nant, and rich with meaning.
22. 42 43 Generative architectural interfaces through: 1. arcylic 2. metallic fabric 3. wheel Frame 4. tree branch 5. e -waste 6. dyed fabric 7. home appliance 8. matte fabric 1 5 2 6 3 7 4 8

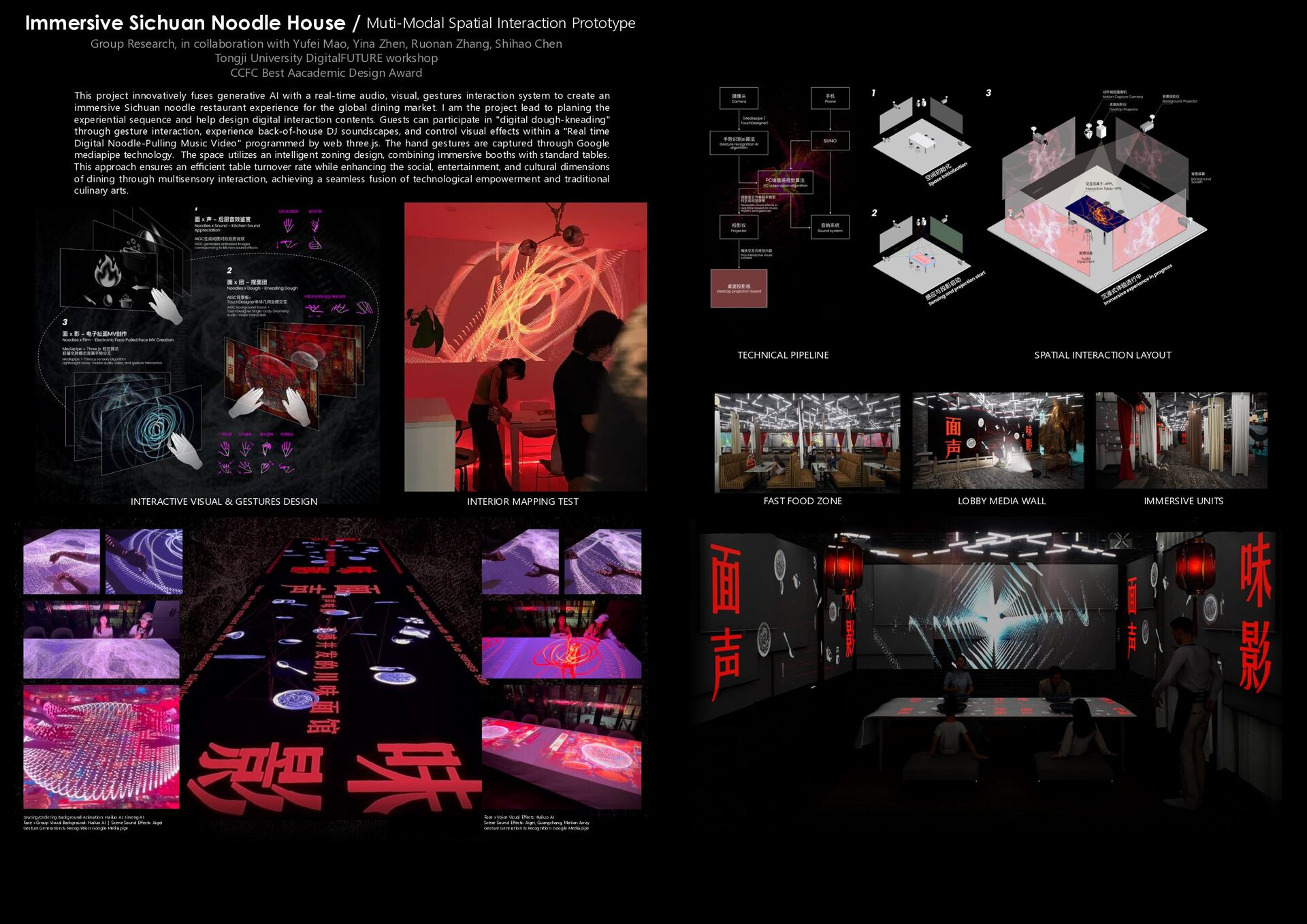

23. 44 45 Immersive Sichuan Noodle House / Muti-Modal Spatial Interaction Prototype Group Research, in collaboration with Yufei Mao, Yina Zhen, Ruonan Zhang, Shihao Chen Tongji University DigitalFUTURE workshop CCFC Best Aacademic Design Award This project innovatively fuses generative AI with a real-time audio, visual, gestures interaction system to create an immersive Sichuan noodle restaurant experience for the global dining market. I am the project lead to planing the experiential sequence and help design digital interaction contents. Guests can participate in "digital dough-kneading" through gesture interaction, experience back-of-house DJ soundscapes, and control visual effects within a "Real time Digital Noodle-Pulling Music Video" programmed by web three.js. The hand gestures are captured through Google mediapipe technology. The space utilizes an intelligent zoning design, combining immersive booths with standard tables. This approach ensures an efficient table turnover rate while enhancing the social, entertainment, and cultural dimensions of dining through multisensory interaction, achieving a seamless fusion of technological empowerment and traditional culinary arts. TECHNICAL PIPELINE INTERIOR MAPPING TEST INTERACTIVE VISUAL & GESTURES DESIGN SPATIAL INTERACTION LAYOUT FAST FOOD ZONE LOBBY MEDIA WALL IMMERSIVE UNITS Face x Voice Visual Effects: Hailuo AI Scene Sound Effects: Aigei, Guangchang, Motion Array Gesture Generation & Recognition: Google Mediapipe Seating/Ordering Background Animation: Hailuo AI, Jimeng AI Face x Group Visual Background: Hailuo AI | Scene Sound Effects: Aigei Gesture Generation & Recognition: Google Mediapipe

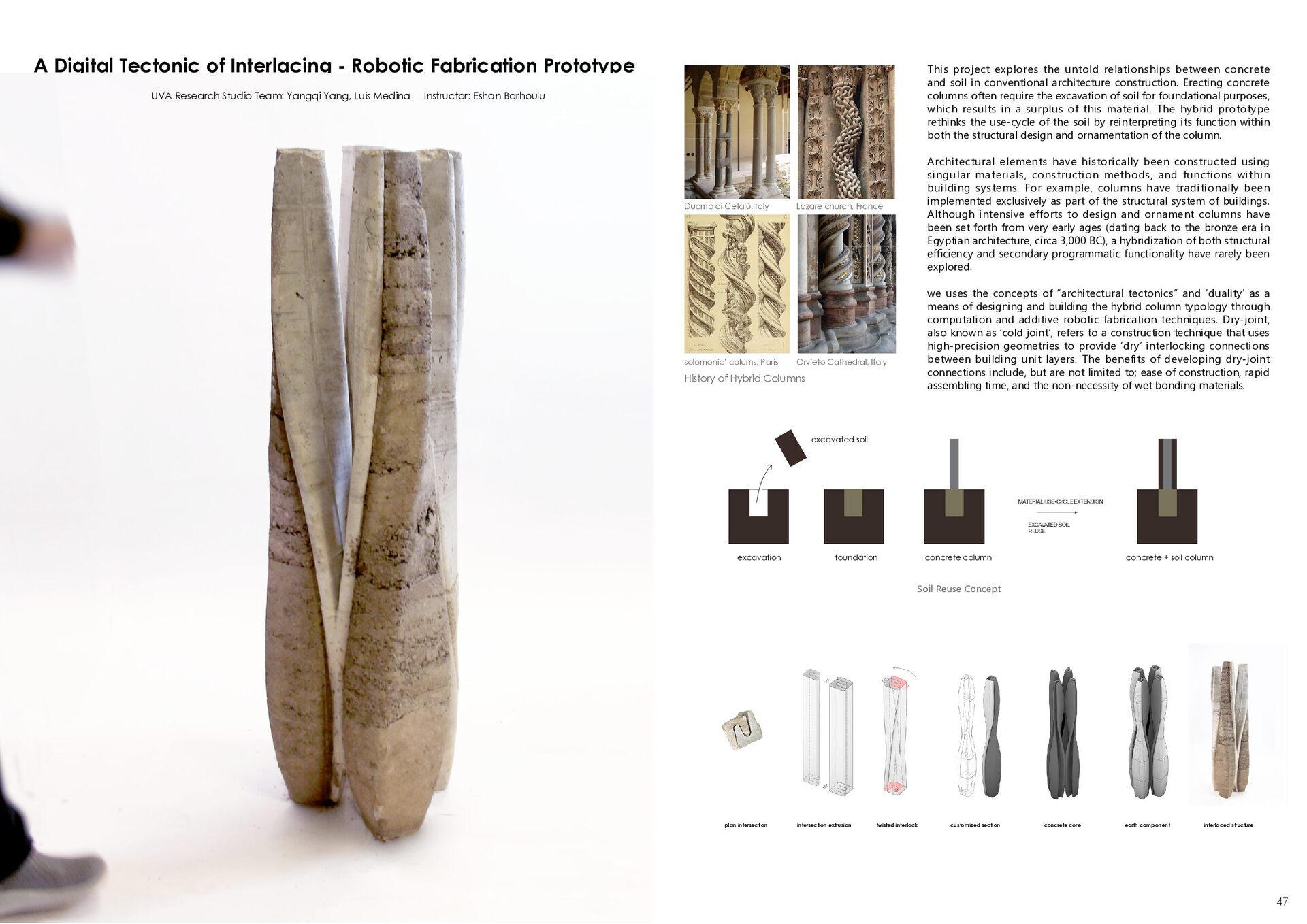

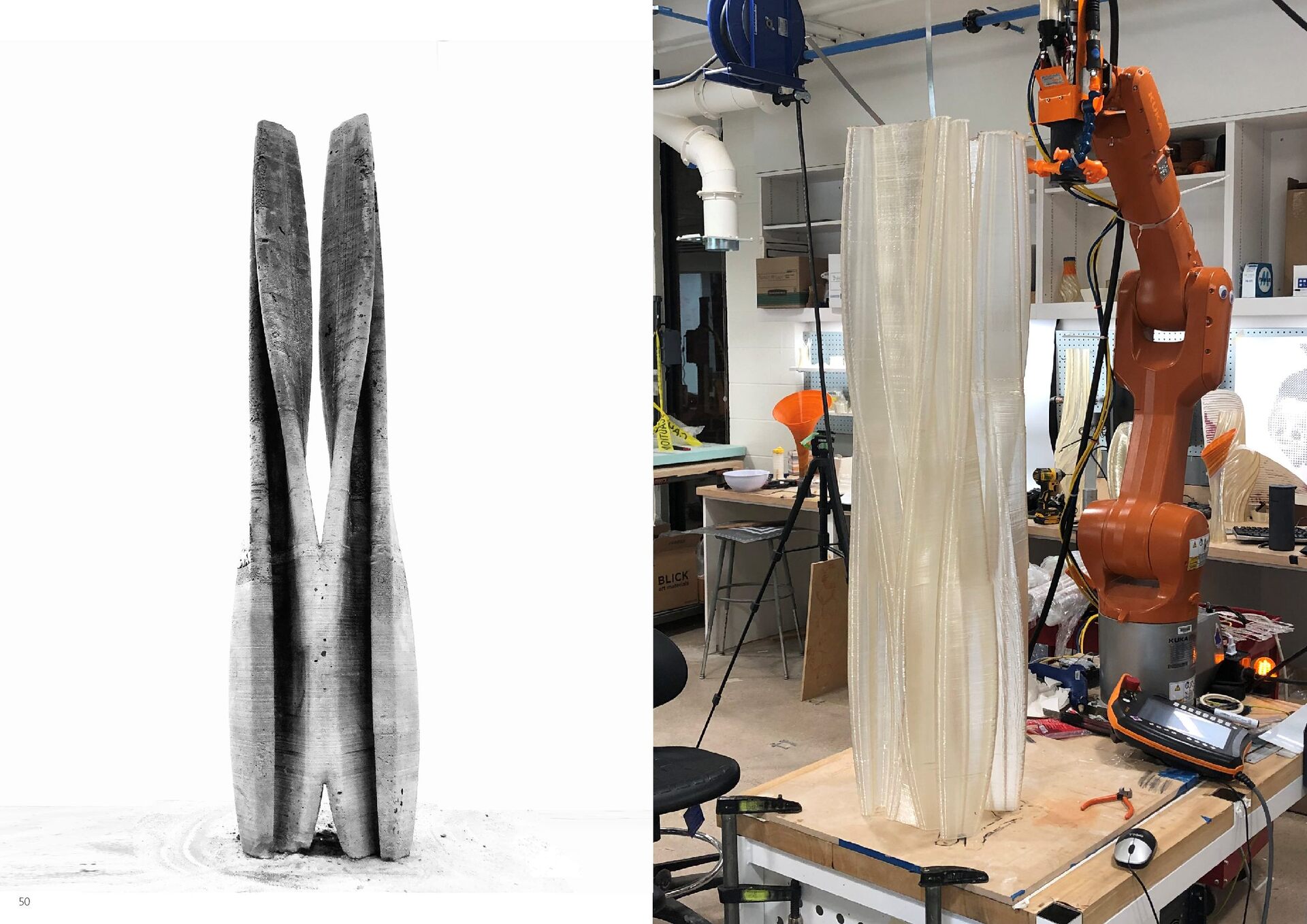

24. 47 A Digital Tectonic of Interlacing - Robotic Fabrication Prototype Partner: Luis Medina Insturctor: Ehsan Barharlou This project explores the untold relationships between concrete and soil in conventional architecture construction. Erecting concrete columns often require the excavation of soil for foundational purposes, which results in a surplus of this material. The hybrid prototype rethinks the use-cycle of the soil by reinterpreting its function within both the structural design and ornamentation of the column. Architectural elements have historically been constructed using singular materials, construction methods, and functions within building systems. For example, columns have traditionally been implemented exclusively as part of the structural system of buildings. Although intensive efforts to design and ornament columns have been set forth from very early ages (dating back to the bronze era in Egyptian architecture, circa 3,000 BC), a hybridization of both structural efficiency and secondary programmatic functionality have rarely been explored. we uses the concepts of “architectural tectonics“ and ‘duality’ as a means of designing and building the hybrid column typology through computation and additive robotic fabrication techniques. Dry-joint, also known as ‘cold joint’, refers to a construction technique that uses high-precision geometries to provide ‘dry’ interlocking connections between building unit layers. The benefits of developing dry-joint connections include, but are not limited to; ease of construction, rapid assembling time, and the non-necessity of wet bonding materials. Soil Reuse Concept excavated soil excavation foundation solomonic’ colums, Paris Duomo di Cefalù,Italy Orvieto Cathedral, Italy Lazare church, France concrete column concrete + soil column History of Hybrid Columns customized section twisted interlock intersection extrusion plan intersection concrete core earth component interlaced structure UVA Research Studio Team: Yangqi Yang, Luis Medina Instructor: Eshan Barhoulu

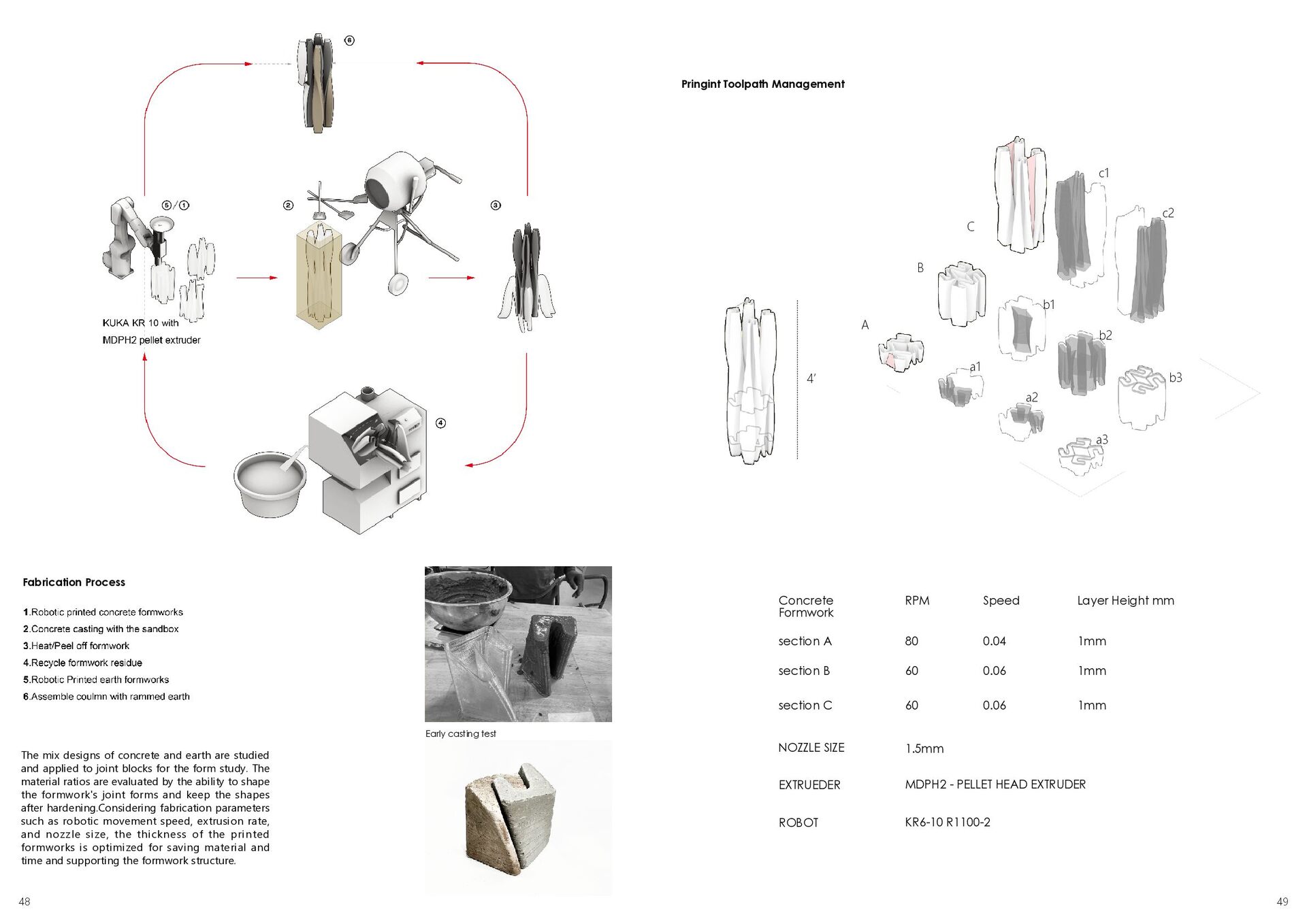

25. 48 49 Fabrication Process The mix designs of concrete and earth are studied and applied to joint blocks for the form study. The material ratios are evaluated by the ability to shape the formwork's joint forms and keep the shapes after hardening.Considering fabrication parameters such as robotic movement speed, extrusion rate, and nozzle size, the thickness of the printed formworks is optimized for saving material and time and supporting the formwork structure. Early casting test RPM Concrete Formwork Layer Height mm Speed section A section B section C NOZZLE SIZE ROBOT 80 60 60 1.5mm MDPH2 - PELLET HEAD EXTRUDER KR6-10 R1100-2 1mm 1mm 1mm 0.04 0.06 0.06 EXTRUEDER A 4’ a1 b1 c1 a2 b2 c2 a3 b3 B C Pringint Toolpath Management
