1. JAVALAND 2016 ALIENS UND ZITRONEN IM KAMPF GEGEN BUGS

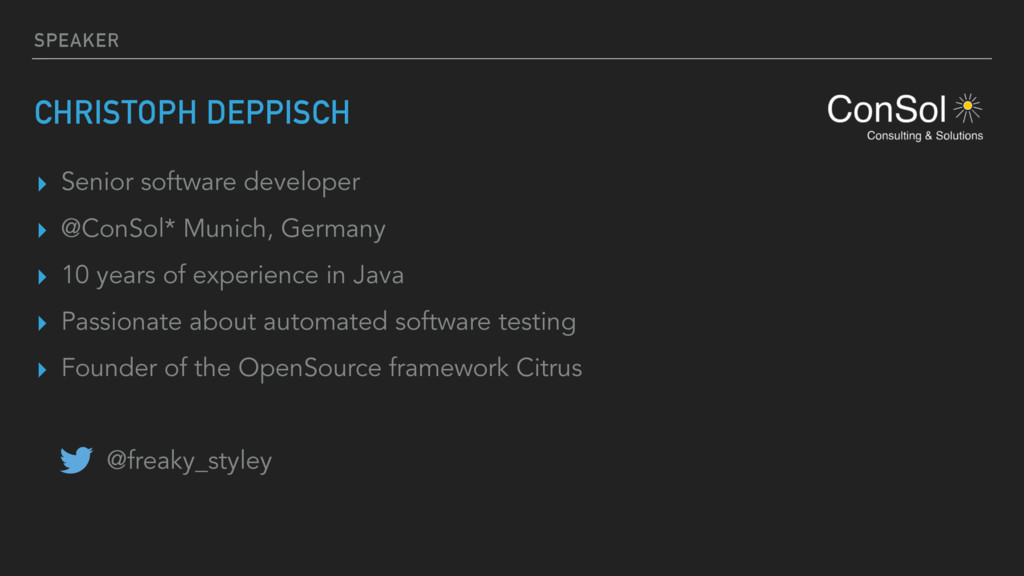

2. SPEAKER CHRISTOPH DEPPISCH ▸ Senior software developer ▸ @ConSol* Munich, Germany ▸ 10 years of experience in Java ▸ Passionate about automated software testing ▸ Founder of the OpenSource framework Citrus @freaky_styley
3. ALIENS UND ZITRONEN IM KAMPF GEGEN BUGS ▸ http://arquillian.org ▸ http://citrusframework.org

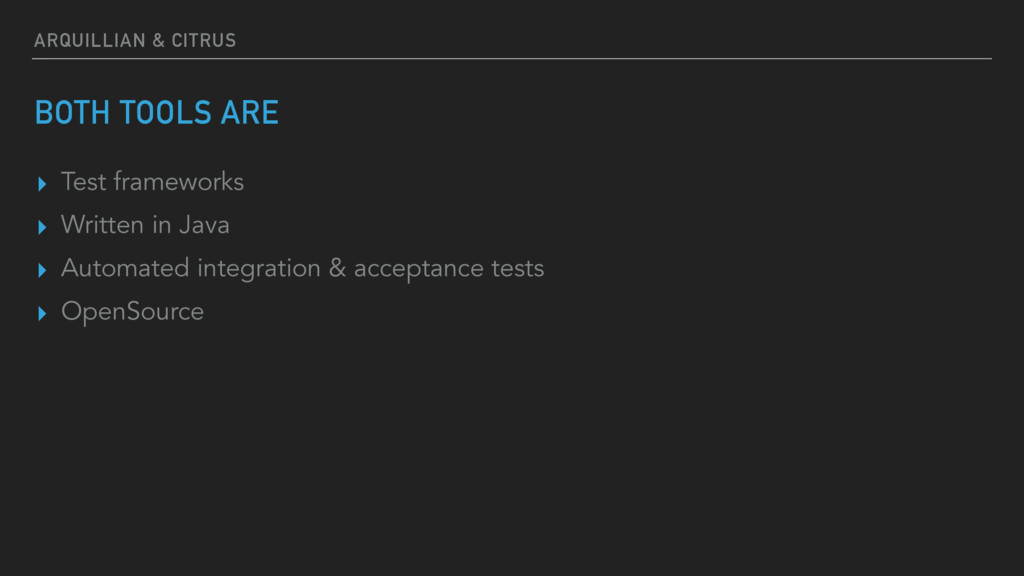

4. ARQUILLIAN & CITRUS BOTH TOOLS ARE ▸ Test frameworks ▸ Written in Java ▸ Automated integration & acceptance tests ▸ OpenSource
5. VS. Competitors or Companions?

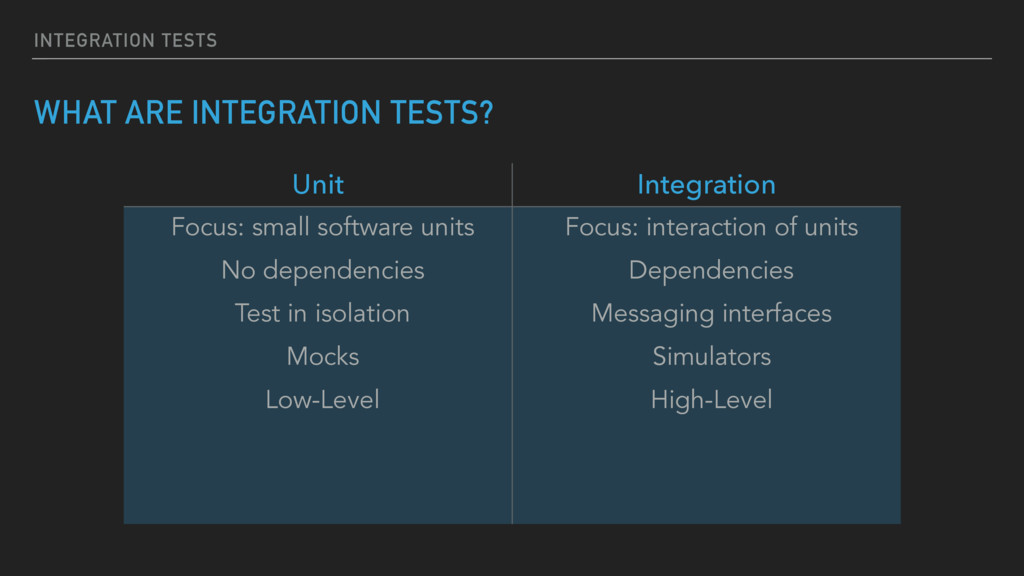

6. INTEGRATION TESTS WHAT ARE INTEGRATION TESTS? Unit Integration Focus: small software units No dependencies Test in isolation Mocks Low-Level Focus: interaction of units Dependencies Messaging interfaces Simulators High-Level

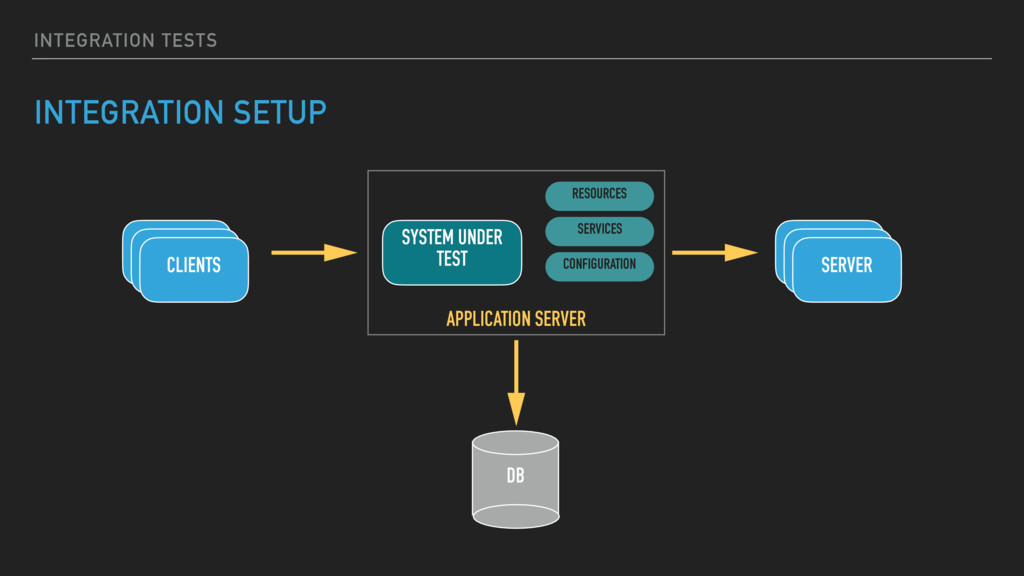

7. INTEGRATION TESTS INTEGRATION SETUP APPLICATION SERVER SYSTEM UNDER TEST CLIENTS SERVER CLIENTS CLIENTS SERVER SERVER RESOURCES SERVICES CONFIGURATION DB

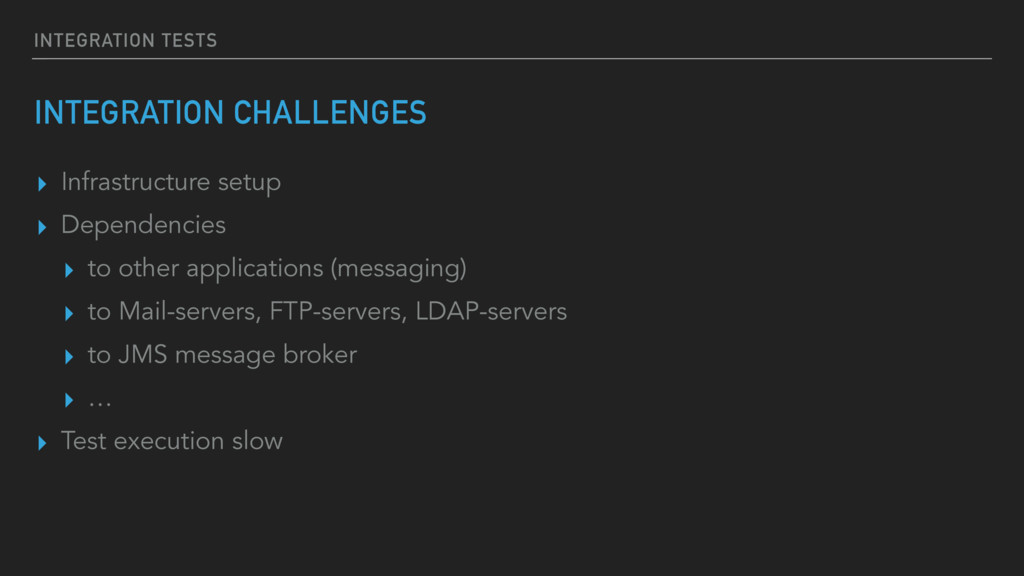

8. INTEGRATION TESTS INTEGRATION CHALLENGES ▸ Infrastructure setup ▸ Dependencies ▸ to other applications (messaging) ▸ to Mail-servers, FTP-servers, LDAP-servers ▸ to JMS message broker ▸ … ▸ Test execution slow

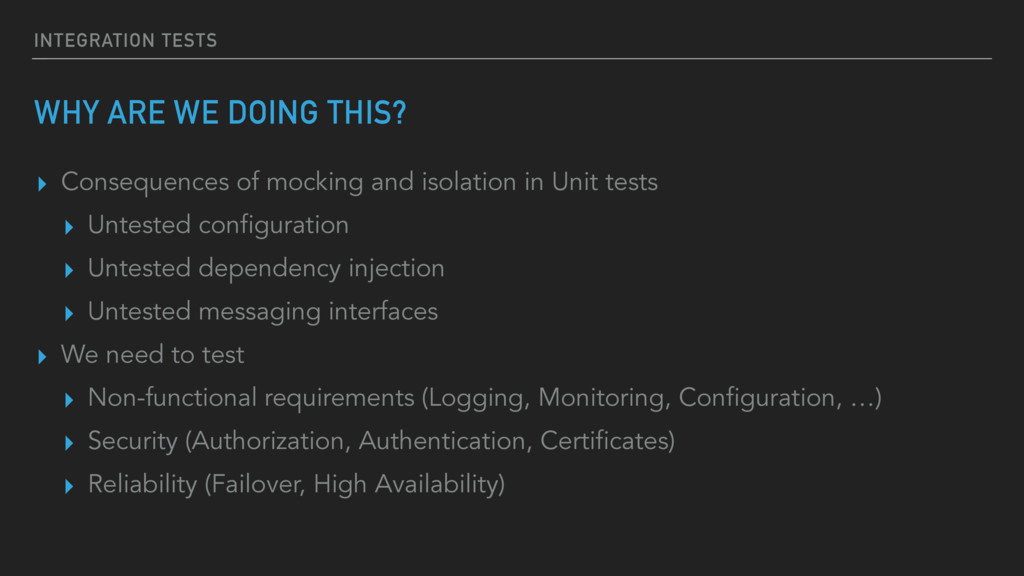

9. INTEGRATION TESTS WHY ARE WE DOING THIS? ▸ Consequences of mocking and isolation in Unit tests ▸ Untested configuration ▸ Untested dependency injection ▸ Untested messaging interfaces ▸ We need to test ▸ Non-functional requirements (Logging, Monitoring, Configuration, …) ▸ Security (Authorization, Authentication, Certificates) ▸ Reliability (Failover, High Availability)
10. YAY, ALL UNIT TESTS PASSING! @dave1010
 via Twitter
11. EVERY PROJECT NEEDS INTEGRATION TESTS!
12. MICROSERVICES

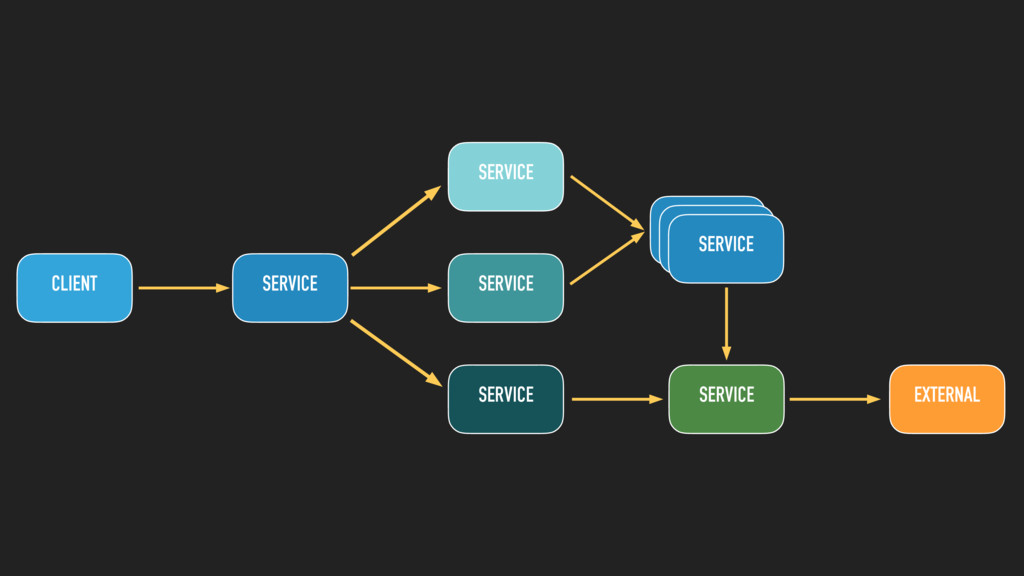

13. SERVICE SERVICE CLIENT SERVICE SERVICE SERVICE SERVICE SERVICE SERVICE EXTERNAL
14. CONTINUOUS DELIVERY
15. AUTOMATION
16. ARQUILLIAN

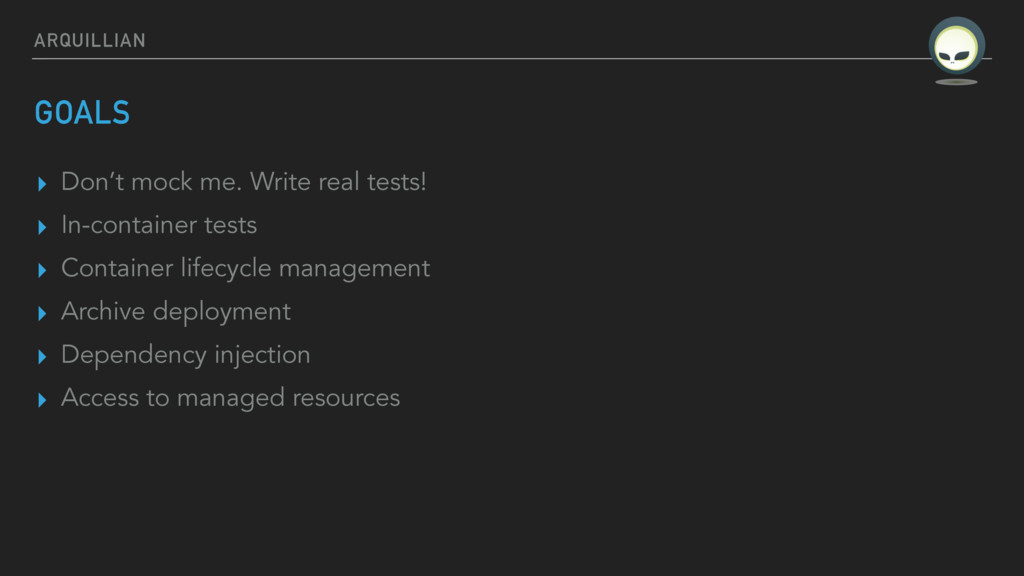

17. ARQUILLIAN GOALS ▸ Don’t mock me. Write real tests! ▸ In-container tests ▸ Container lifecycle management ▸ Archive deployment ▸ Dependency injection ▸ Access to managed resources
18. ARQUILLIAN CONTAINER AGNOSTIC

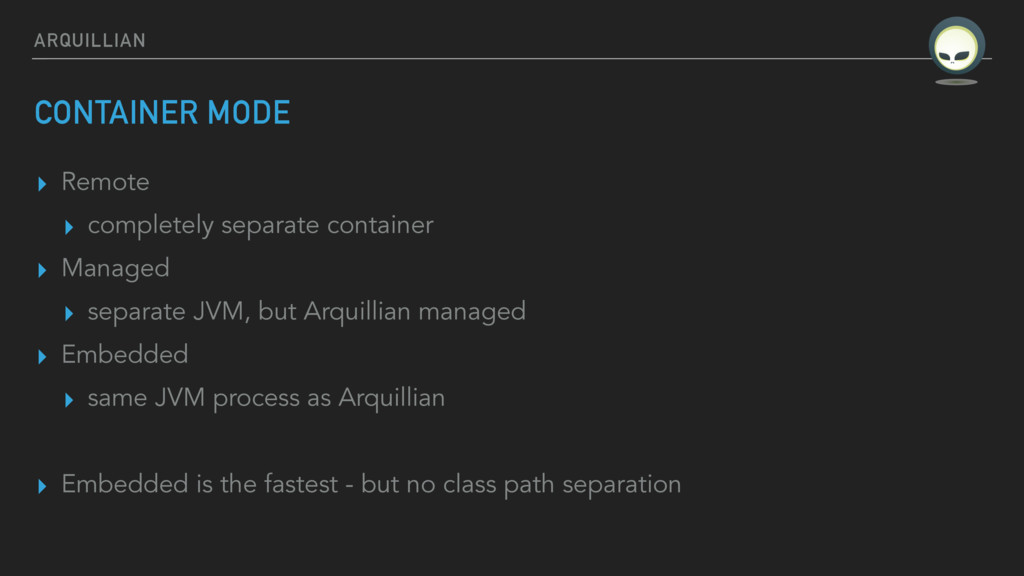

19. ARQUILLIAN CONTAINER MODE ▸ Remote ▸ completely separate container ▸ Managed ▸ separate JVM, but Arquillian managed ▸ Embedded ▸ same JVM process as Arquillian ▸ Embedded is the fastest - but no class path separation

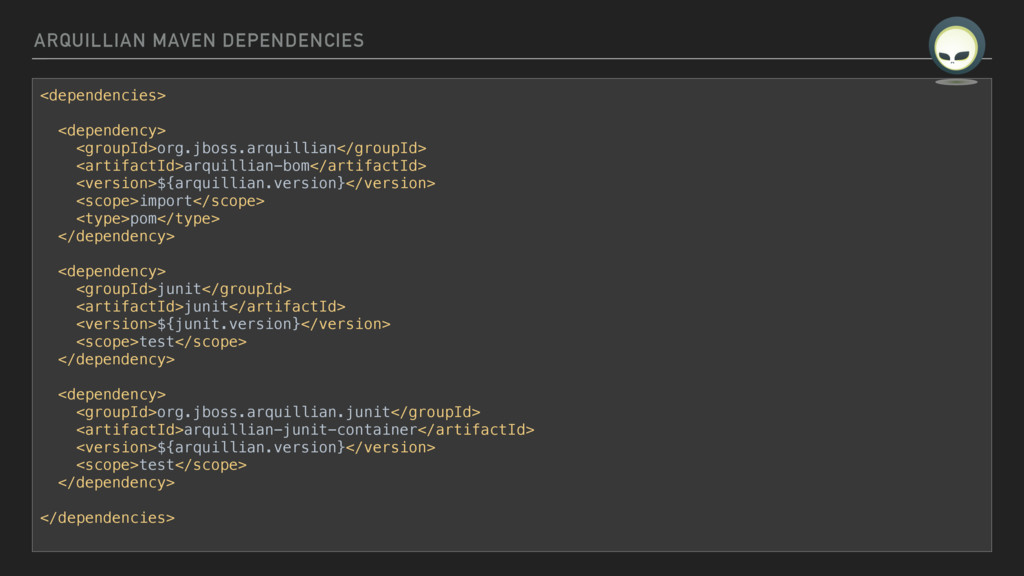

20. ARQUILLIAN MAVEN DEPENDENCIES <dependencies>
 <dependency>
 <groupId>org.jboss.arquillian</groupId>
 <artifactId>arquillian-bom</artifactId>
 <version>${arquillian.version}</version>
 <scope>import</scope>
 <type>pom</type>
 </dependency> <dependency>
 <groupId>junit</groupId>
 <artifactId>junit</artifactId>
 <version>${junit.version}</version>
 <scope>test</scope>
 </dependency>

 <dependency>
 <groupId>org.jboss.arquillian.junit</groupId>
 <artifactId>arquillian-junit-container</artifactId>
 <version>${arquillian.version}</version>
 <scope>test</scope>
 </dependency> </dependencies>

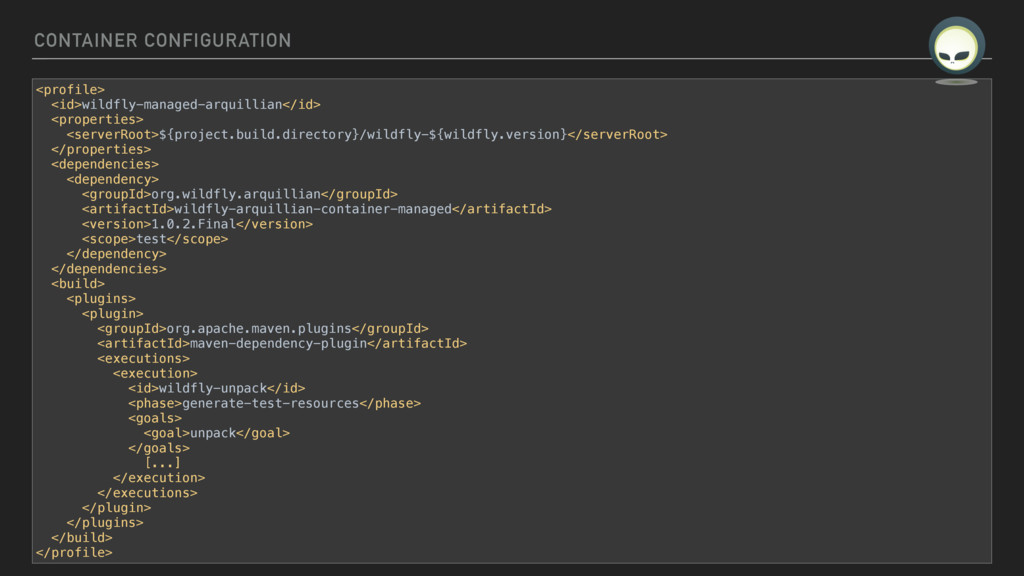

21. CONTAINER CONFIGURATION <profile>
 <id>wildfly-managed-arquillian</id>
 <properties>
 <serverRoot>${project.build.directory}/wildfly-${wildfly.version}</serverRoot>
 </properties>
 <dependencies>
 <dependency>
 <groupId>org.wildfly.arquillian</groupId>
 <artifactId>wildfly-arquillian-container-managed</artifactId>
 <version>1.0.2.Final</version>
 <scope>test</scope>
 </dependency>
 </dependencies>
 <build>
 <plugins>
 <plugin>
 <groupId>org.apache.maven.plugins</groupId>
 <artifactId>maven-dependency-plugin</artifactId>
 <executions>
 <execution>
 <id>wildfly-unpack</id>
 <phase>generate-test-resources</phase>
 <goals>
 <goal>unpack</goal>
 </goals>
 [...]
 </execution>
 </executions>
 </plugin>
 </plugins>
 </build>
 </profile>

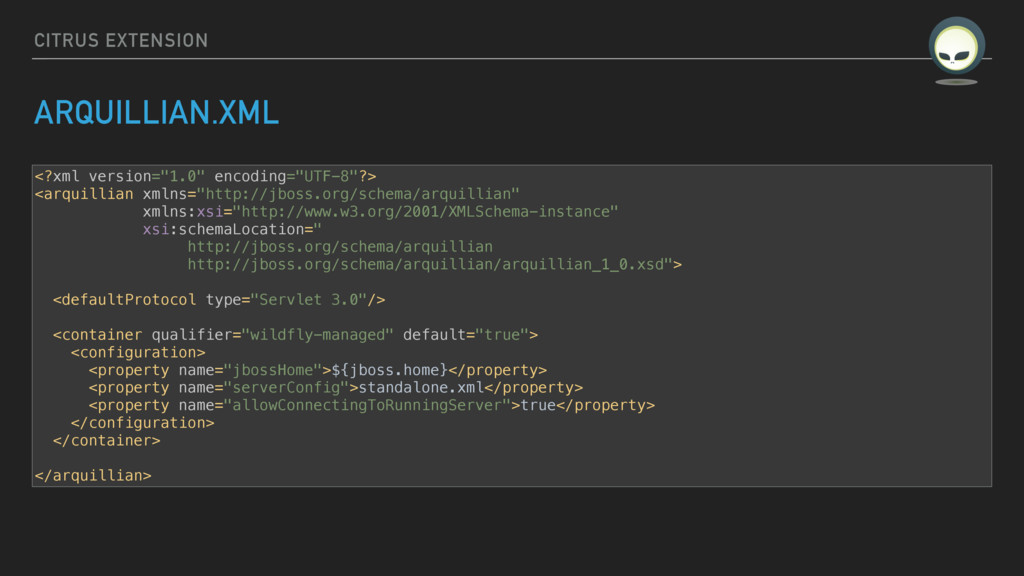

22. <?xml version="1.0" encoding="UTF-8"?>
 <arquillian xmlns="http://jboss.org/schema/arquillian" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation=" http://jboss.org/schema/arquillian http://jboss.org/schema/arquillian/arquillian_1_0.xsd">

 <defaultProtocol type="Servlet 3.0"/>

 <container qualifier="wildfly-managed" default="true">
 <configuration>
 <property name="jbossHome">${jboss.home}</property>
 <property name="serverConfig">standalone.xml</property>
 <property name="allowConnectingToRunningServer">true</property>
 </configuration>
 </container>

 </arquillian> CITRUS EXTENSION ARQUILLIAN.XML

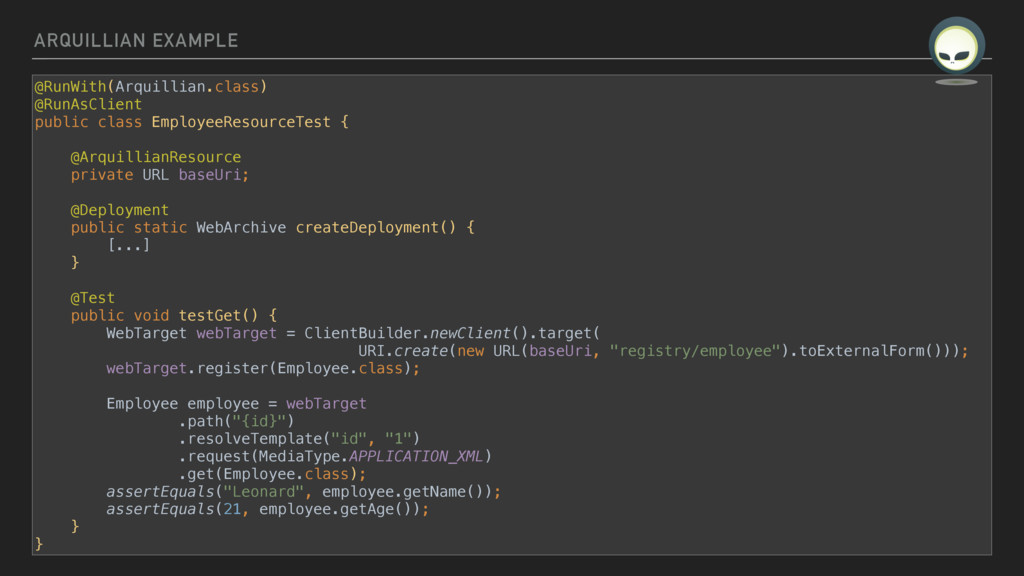

23. ARQUILLIAN EXAMPLE @RunWith(Arquillian.class)
 @RunAsClient
 public class EmployeeResourceTest {

 @ArquillianResource
 private URL baseUri;

 @Deployment
 public static WebArchive createDeployment() {
 [...]
 }

 @Test
 public void testGet() { WebTarget webTarget = ClientBuilder.newClient().target( URI.create(new URL(baseUri, "registry/employee").toExternalForm()));
 webTarget.register(Employee.class);
 Employee employee = webTarget
 .path("{id}")
 .resolveTemplate("id", "1")
 .request(MediaType.APPLICATION_XML)
 .get(Employee.class);
 assertEquals("Leonard", employee.getName());
 assertEquals(21, employee.getAge());
 }
 }

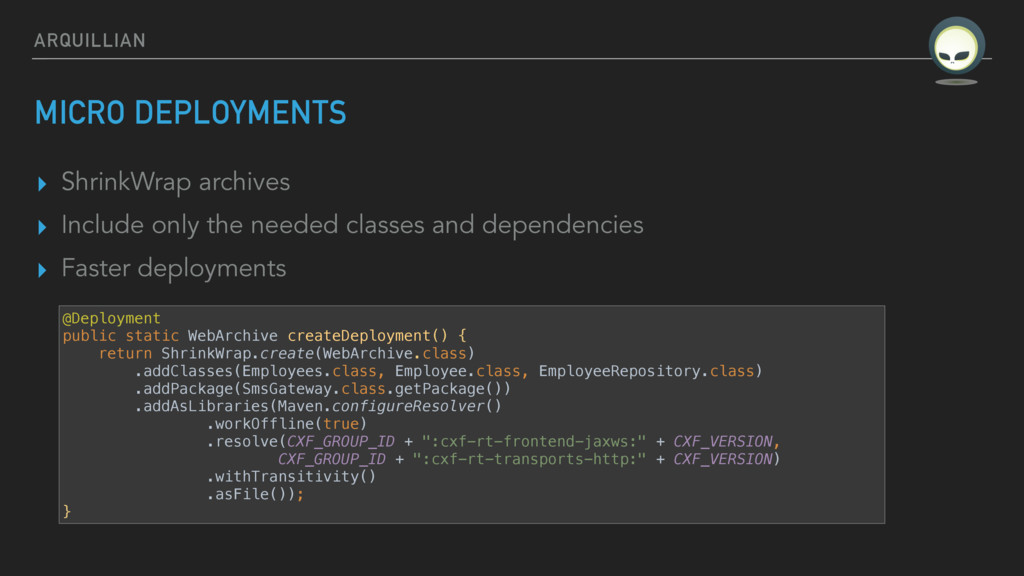

24. ARQUILLIAN MICRO DEPLOYMENTS ▸ ShrinkWrap archives ▸ Include only the needed classes and dependencies ▸ Faster deployments @Deployment
 public static WebArchive createDeployment() {
 return ShrinkWrap.create(WebArchive.class)
 .addClasses(Employees.class, Employee.class, EmployeeRepository.class)
 .addPackage(SmsGateway.class.getPackage())
 .addAsLibraries(Maven.configureResolver()
 .workOffline(true)
 .resolve(CXF_GROUP_ID + ":cxf-rt-frontend-jaxws:" + CXF_VERSION,
 CXF_GROUP_ID + ":cxf-rt-transports-http:" + CXF_VERSION)
 .withTransitivity()
 .asFile()); }

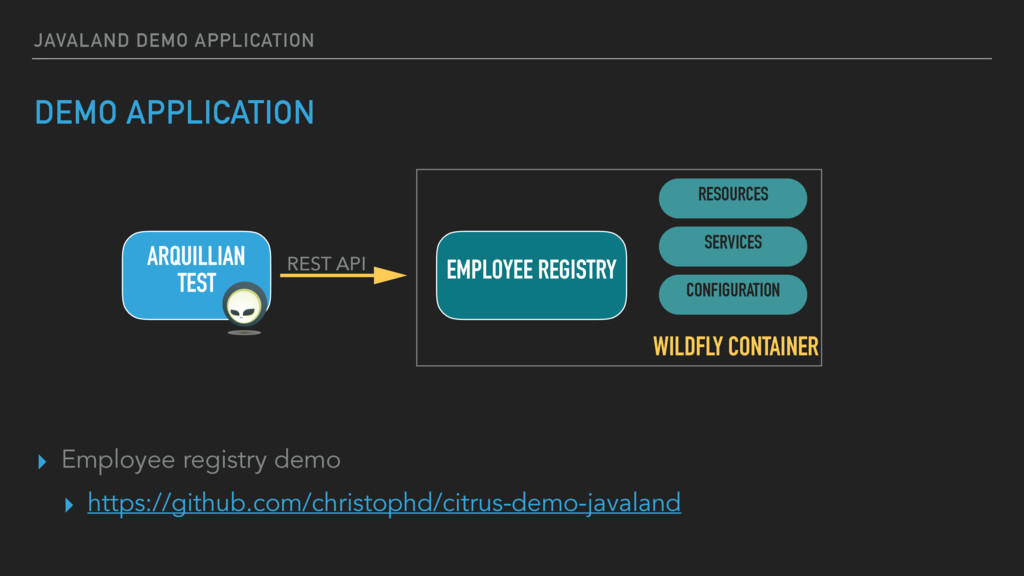

25. JAVALAND DEMO APPLICATION DEMO APPLICATION ▸ Employee registry demo ▸ https://github.com/christophd/citrus-demo-javaland WILDFLY CONTAINER EMPLOYEE REGISTRY ARQUILLIAN
 TEST RESOURCES SERVICES CONFIGURATION REST API
26. ARQUILLIAN DEMO

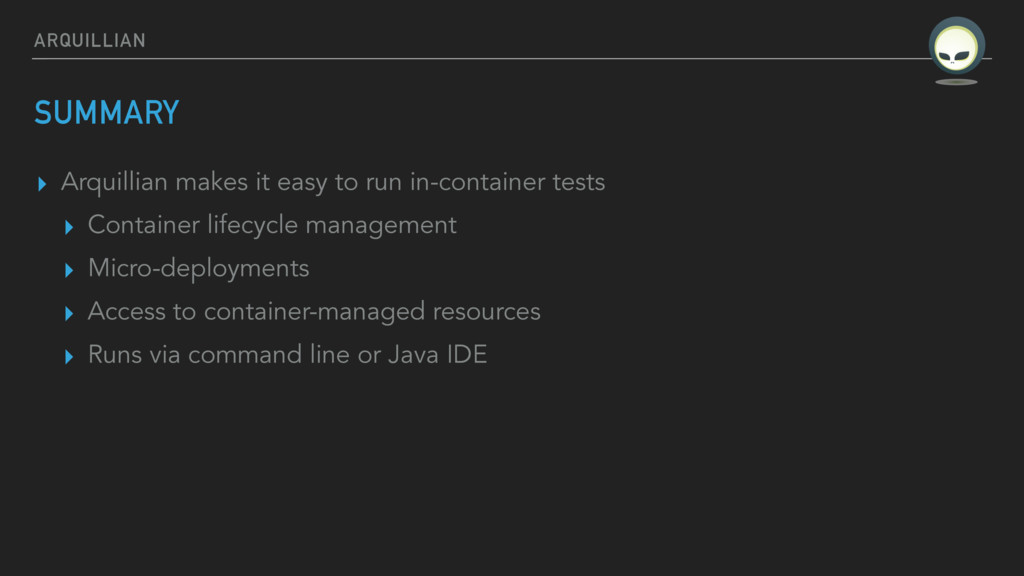

27. ARQUILLIAN SUMMARY ▸ Arquillian makes it easy to run in-container tests ▸ Container lifecycle management ▸ Micro-deployments ▸ Access to container-managed resources ▸ Runs via command line or Java IDE
28. CITRUS

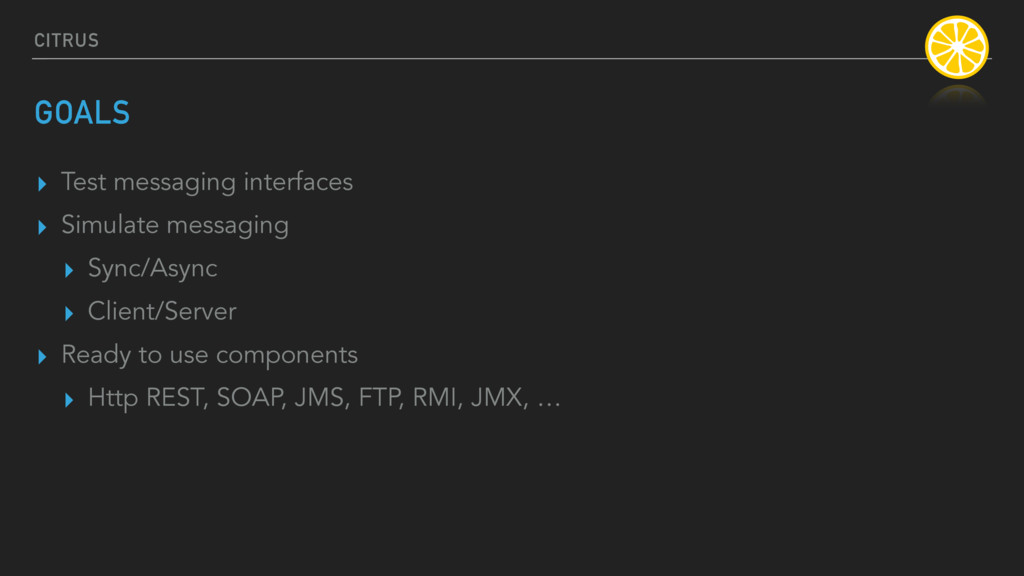

29. CITRUS GOALS ▸ Test messaging interfaces ▸ Simulate messaging ▸ Sync/Async ▸ Client/Server ▸ Ready to use components ▸ Http REST, SOAP, JMS, FTP, RMI, JMX, …
30. SERVICE B SERVICE A Interface REST, SOAP, JMS, …

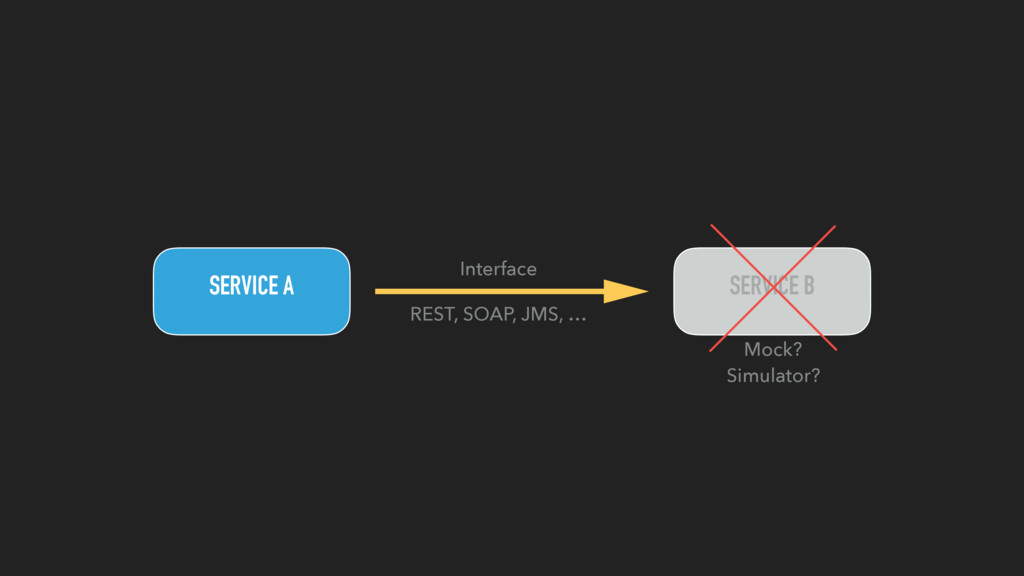

31. SERVICE B SERVICE A Interface REST, SOAP, JMS, … Mock?
 Simulator?

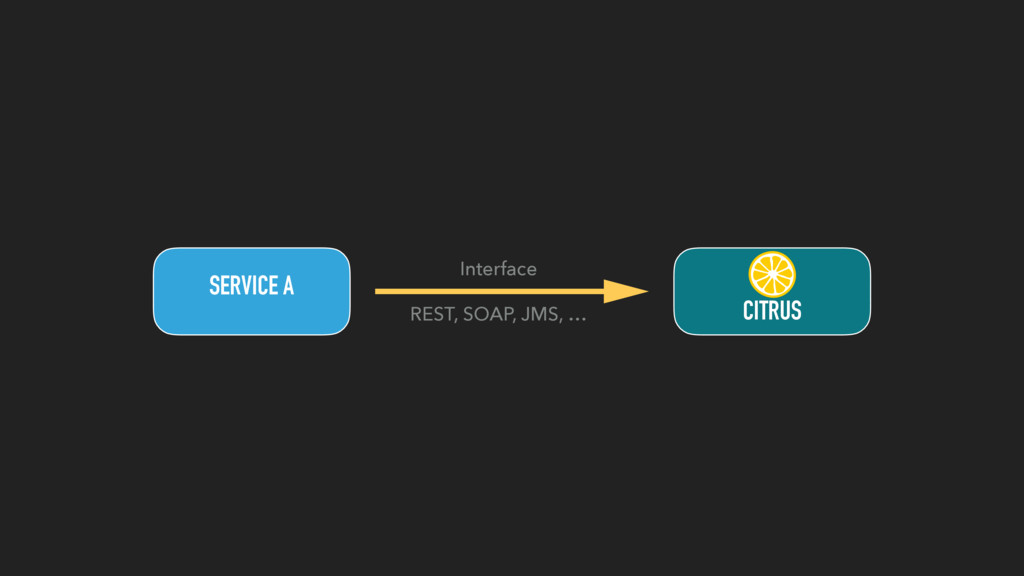

32. CITRUS SERVICE A Interface REST, SOAP, JMS, …

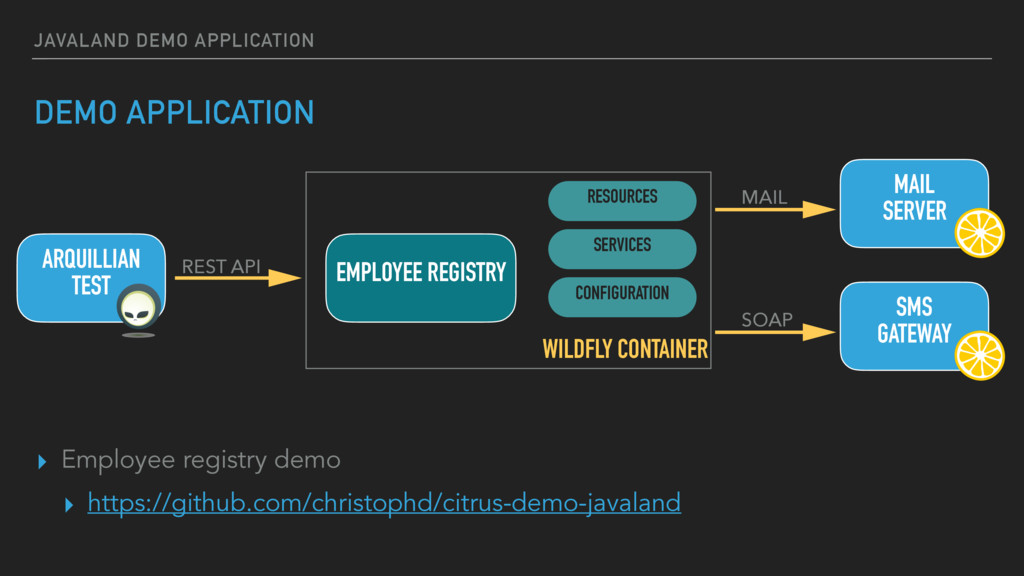

33. JAVALAND DEMO APPLICATION DEMO APPLICATION ▸ Employee registry demo ▸ https://github.com/christophd/citrus-demo-javaland MAIL SERVER WILDFLY CONTAINER EMPLOYEE REGISTRY ARQUILLIAN
 TEST RESOURCES SERVICES CONFIGURATION REST API MAIL SMS
 GATEWAY SOAP

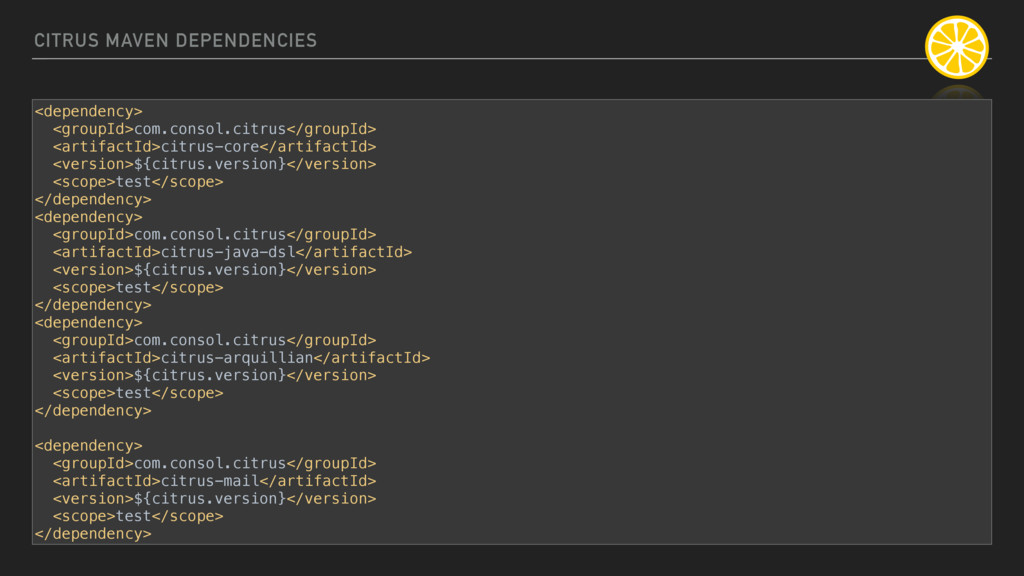

34. CITRUS MAVEN DEPENDENCIES <dependency>
 <groupId>com.consol.citrus</groupId>
 <artifactId>citrus-core</artifactId>
 <version>${citrus.version}</version>
 <scope>test</scope>
 </dependency>
 <dependency>
 <groupId>com.consol.citrus</groupId>
 <artifactId>citrus-java-dsl</artifactId>
 <version>${citrus.version}</version>
 <scope>test</scope>
 </dependency>
 <dependency>
 <groupId>com.consol.citrus</groupId>
 <artifactId>citrus-arquillian</artifactId>
 <version>${citrus.version}</version>
 <scope>test</scope>
 </dependency>
 <dependency>
 <groupId>com.consol.citrus</groupId>
 <artifactId>citrus-mail</artifactId>
 <version>${citrus.version}</version>
 <scope>test</scope>
 </dependency>

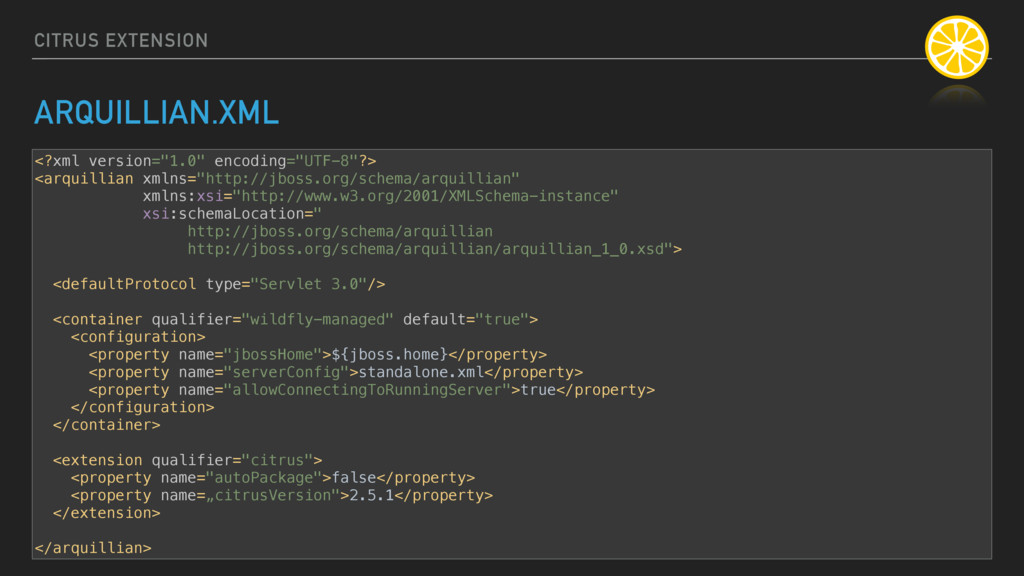

35. <?xml version="1.0" encoding="UTF-8"?>
 <arquillian xmlns="http://jboss.org/schema/arquillian" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation=" http://jboss.org/schema/arquillian http://jboss.org/schema/arquillian/arquillian_1_0.xsd">

 <defaultProtocol type="Servlet 3.0"/>

 <container qualifier="wildfly-managed" default="true">
 <configuration>
 <property name="jbossHome">${jboss.home}</property>
 <property name="serverConfig">standalone.xml</property>
 <property name="allowConnectingToRunningServer">true</property>
 </configuration>
 </container>

 <extension qualifier="citrus">
 <property name="autoPackage">false</property>
 <property name=„citrusVersion">2.5.1</property>
 </extension>
 </arquillian> CITRUS EXTENSION ARQUILLIAN.XML

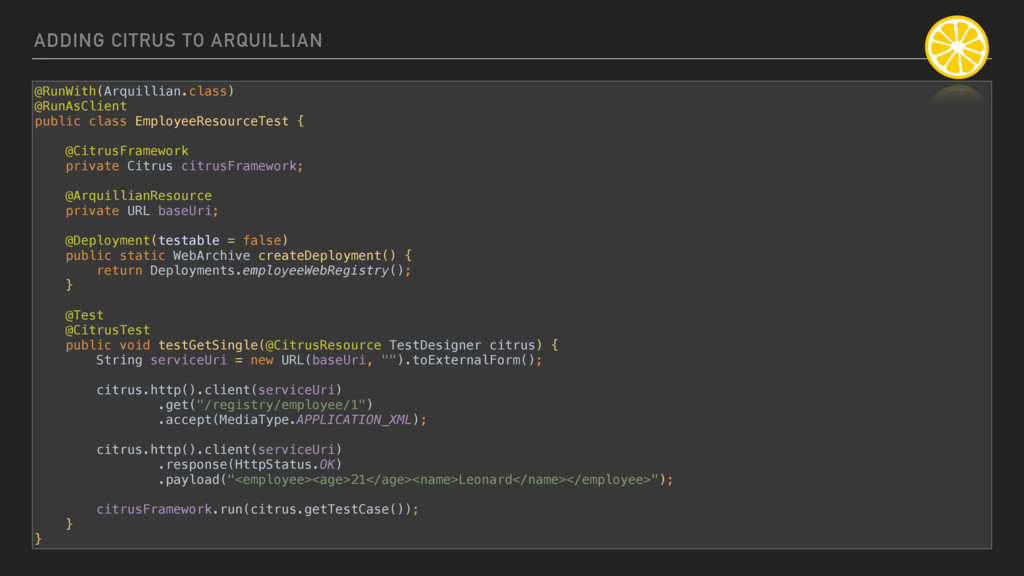

36. ADDING CITRUS TO ARQUILLIAN @RunWith(Arquillian.class)
 @RunAsClient
 public class EmployeeResourceTest {

 @CitrusFramework
 private Citrus citrusFramework;

 @ArquillianResource
 private URL baseUri;

 @Deployment(testable = false)
 public static WebArchive createDeployment() {
 return Deployments.employeeWebRegistry();
 }

 @Test
 @CitrusTest
 public void testGetSingle(@CitrusResource TestDesigner citrus) { String serviceUri = new URL(baseUri, "").toExternalForm();
 citrus.http().client(serviceUri)
 .get("/registry/employee/1")
 .accept(MediaType.APPLICATION_XML);

 citrus.http().client(serviceUri)
 .response(HttpStatus.OK)
 .payload("<employee><age>21</age><name>Leonard</name></employee>");

 citrusFramework.run(citrus.getTestCase());
 }
 }

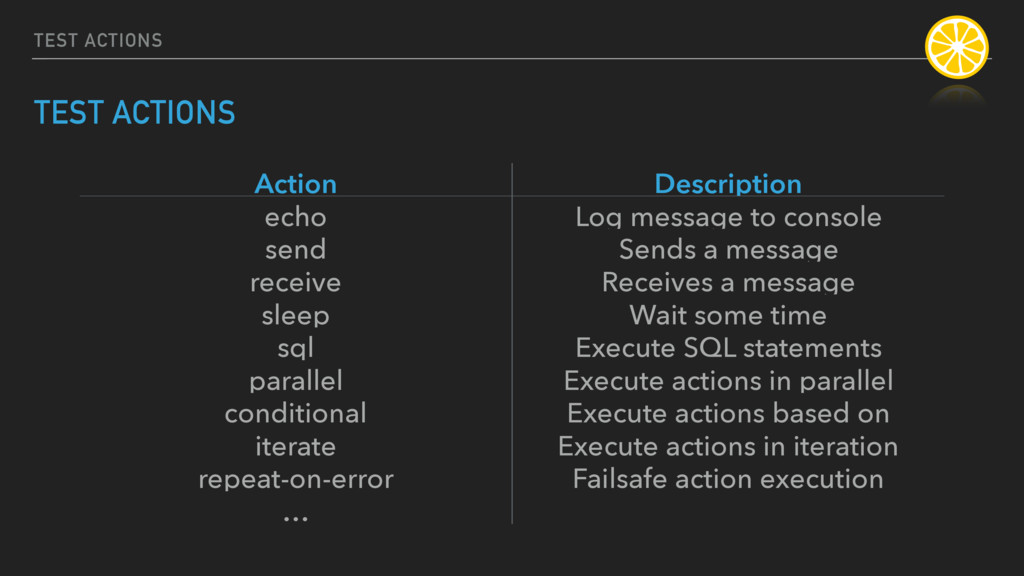

37. TEST ACTIONS TEST ACTIONS Action Description echo Log message to console send Sends a message receive Receives a message sleep Wait some time sql Execute SQL statements parallel Execute actions in parallel conditional Execute actions based on iterate Execute actions in iteration repeat-on-error Failsafe action execution …

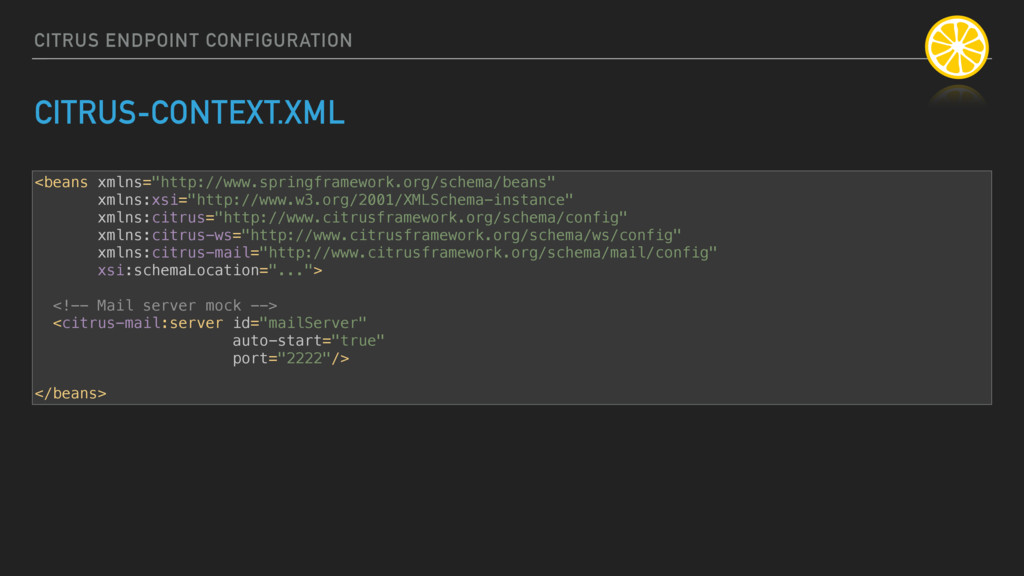

38. CITRUS ENDPOINT CONFIGURATION CITRUS-CONTEXT.XML <beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns:citrus="http://www.citrusframework.org/schema/config"
 xmlns:citrus-ws="http://www.citrusframework.org/schema/ws/config"
 xmlns:citrus-mail="http://www.citrusframework.org/schema/mail/config"
 xsi:schemaLocation="...">

 <!-- Mail server mock -->
 <citrus-mail:server id="mailServer"
 auto-start="true"
 port="2222"/>

 </beans>

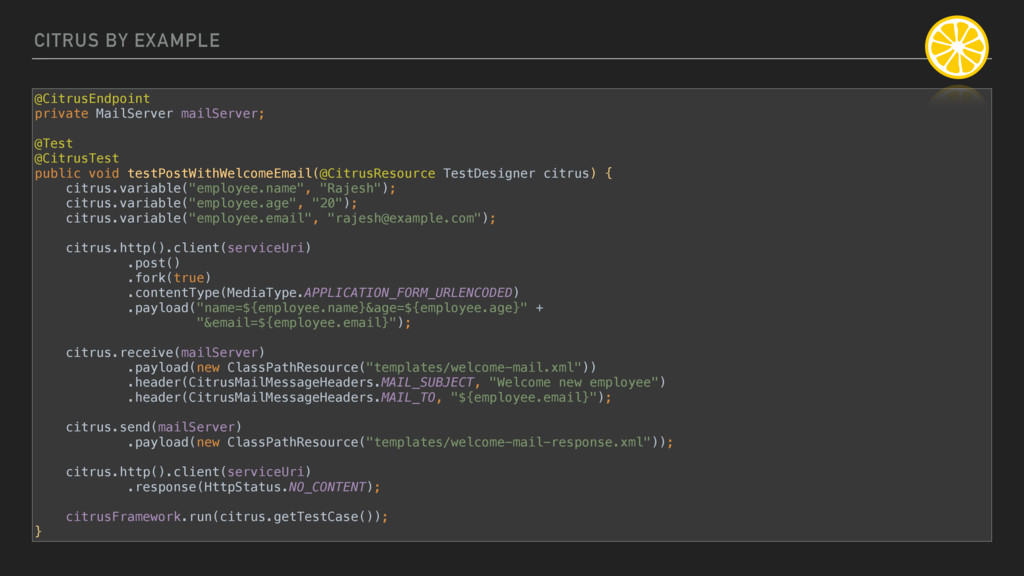

39. @CitrusEndpoint
 private MailServer mailServer;

 @Test
 @CitrusTest
 public void testPostWithWelcomeEmail(@CitrusResource TestDesigner citrus) {
 citrus.variable("employee.name", "Rajesh");
 citrus.variable("employee.age", "20");
 citrus.variable("employee.email", "rajesh@example.com");

 citrus.http().client(serviceUri)
 .post()
 .fork(true)
 .contentType(MediaType.APPLICATION_FORM_URLENCODED)
 .payload("name=${employee.name}&age=${employee.age}" + "&email=${employee.email}");

 citrus.receive(mailServer)
 .payload(new ClassPathResource("templates/welcome-mail.xml"))
 .header(CitrusMailMessageHeaders.MAIL_SUBJECT, "Welcome new employee")
 .header(CitrusMailMessageHeaders.MAIL_TO, "${employee.email}");

 citrus.send(mailServer)
 .payload(new ClassPathResource("templates/welcome-mail-response.xml"));

 citrus.http().client(serviceUri)
 .response(HttpStatus.NO_CONTENT);

 citrusFramework.run(citrus.getTestCase());
 } CITRUS BY EXAMPLE

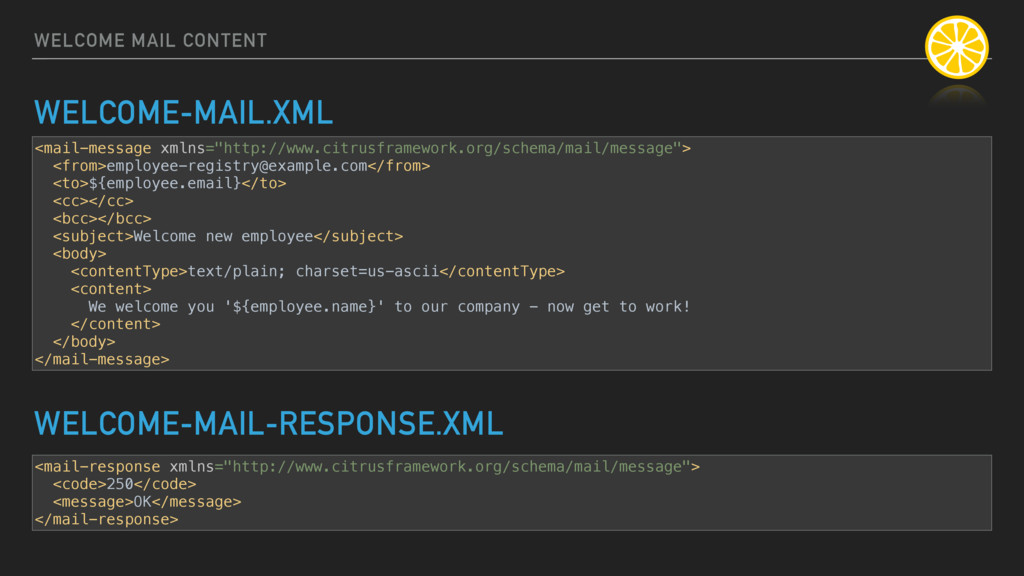

40. <mail-message xmlns="http://www.citrusframework.org/schema/mail/message">
 <from>employee-registry@example.com</from>
 <to>${employee.email}</to>
 <cc></cc>
 <bcc></bcc>
 <subject>Welcome new employee</subject>
 <body>
 <contentType>text/plain; charset=us-ascii</contentType>
 <content> We welcome you '${employee.name}' to our company - now get to work! </content>
 </body>
 </mail-message> WELCOME MAIL CONTENT WELCOME-MAIL.XML WELCOME-MAIL-RESPONSE.XML <mail-response xmlns="http://www.citrusframework.org/schema/mail/message">
 <code>250</code>
 <message>OK</message>
 </mail-response>

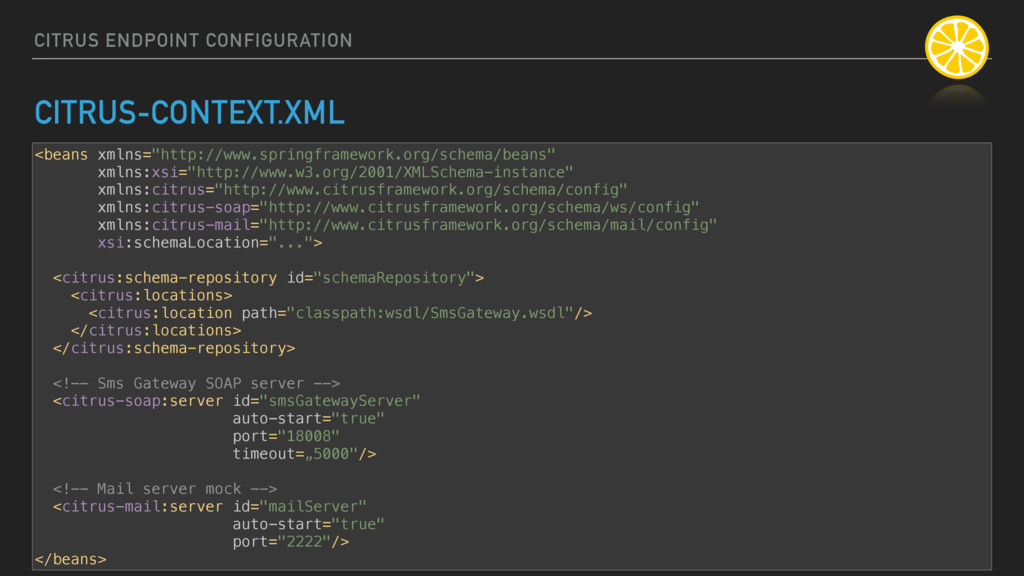

41. CITRUS ENDPOINT CONFIGURATION CITRUS-CONTEXT.XML <beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns:citrus="http://www.citrusframework.org/schema/config"
 xmlns:citrus-soap="http://www.citrusframework.org/schema/ws/config"
 xmlns:citrus-mail="http://www.citrusframework.org/schema/mail/config"
 xsi:schemaLocation="...">

 <citrus:schema-repository id="schemaRepository">
 <citrus:locations>
 <citrus:location path="classpath:wsdl/SmsGateway.wsdl"/>
 </citrus:locations>
 </citrus:schema-repository>
 <!-- Sms Gateway SOAP server -->
 <citrus-soap:server id="smsGatewayServer"
 auto-start="true"
 port="18008"
 timeout=„5000"/>
 <!-- Mail server mock -->
 <citrus-mail:server id="mailServer"
 auto-start="true"
 port="2222"/>
 </beans>

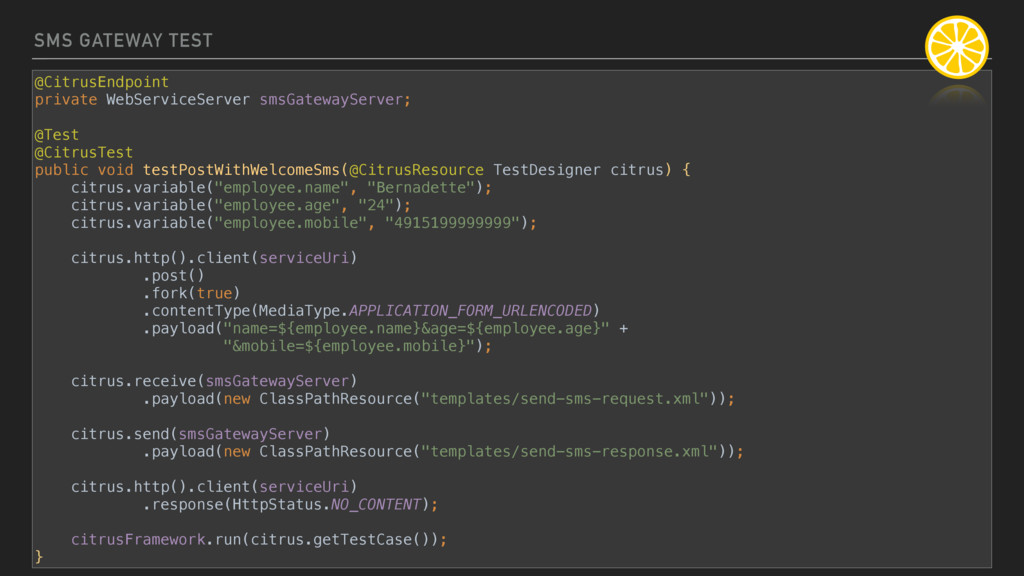

42. @CitrusEndpoint
 private WebServiceServer smsGatewayServer;

 @Test
 @CitrusTest
 public void testPostWithWelcomeSms(@CitrusResource TestDesigner citrus) {
 citrus.variable("employee.name", "Bernadette");
 citrus.variable("employee.age", "24");
 citrus.variable("employee.mobile", "4915199999999");

 citrus.http().client(serviceUri)
 .post()
 .fork(true)
 .contentType(MediaType.APPLICATION_FORM_URLENCODED)
 .payload("name=${employee.name}&age=${employee.age}" + "&mobile=${employee.mobile}");

 citrus.receive(smsGatewayServer)
 .payload(new ClassPathResource("templates/send-sms-request.xml"));

 citrus.send(smsGatewayServer)
 .payload(new ClassPathResource("templates/send-sms-response.xml"));

 citrus.http().client(serviceUri)
 .response(HttpStatus.NO_CONTENT);

 citrusFramework.run(citrus.getTestCase());
 } SMS GATEWAY TEST

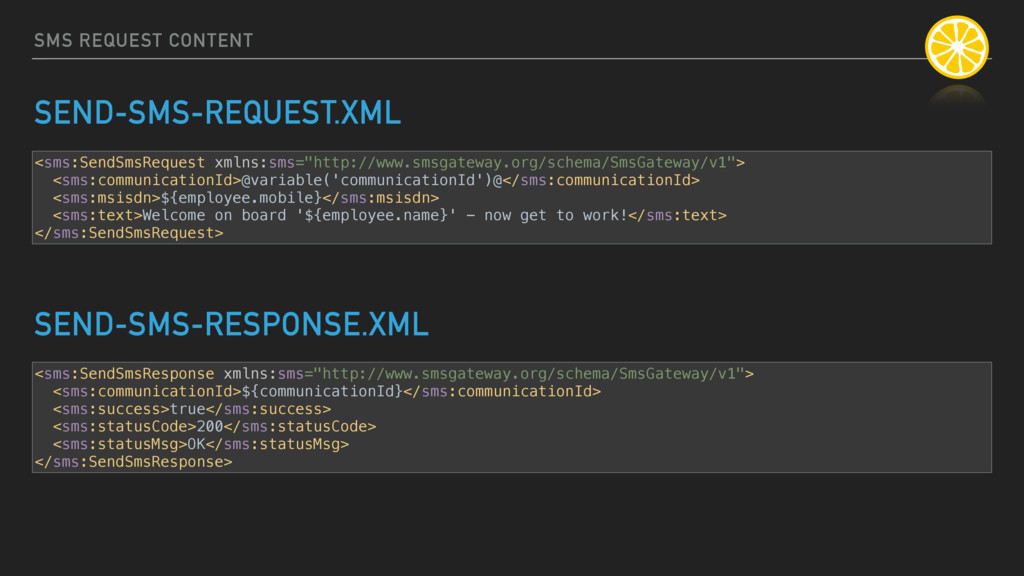

43. <sms:SendSmsRequest xmlns:sms="http://www.smsgateway.org/schema/SmsGateway/v1">
 <sms:communicationId>@variable('communicationId')@</sms:communicationId>
 <sms:msisdn>${employee.mobile}</sms:msisdn>
 <sms:text>Welcome on board '${employee.name}' - now get to work!</sms:text>
 </sms:SendSmsRequest> SMS REQUEST CONTENT SEND-SMS-REQUEST.XML SEND-SMS-RESPONSE.XML <sms:SendSmsResponse xmlns:sms="http://www.smsgateway.org/schema/SmsGateway/v1">
 <sms:communicationId>${communicationId}</sms:communicationId>
 <sms:success>true</sms:success>
 <sms:statusCode>200</sms:statusCode>
 <sms:statusMsg>OK</sms:statusMsg>
 </sms:SendSmsResponse>
44. CITRUS DEMO

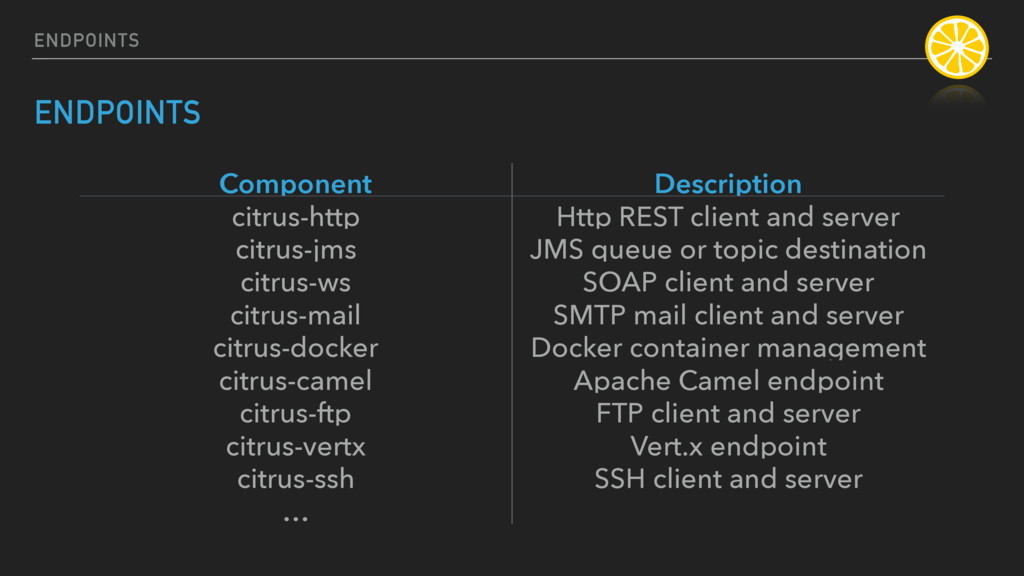

45. ENDPOINTS ENDPOINTS Component Description citrus-http Http REST client and server citrus-jms JMS queue or topic destination citrus-ws SOAP client and server citrus-mail SMTP mail client and server citrus-docker Docker container management citrus-camel Apache Camel endpoint citrus-ftp FTP client and server citrus-vertx Vert.x endpoint citrus-ssh SSH client and server …

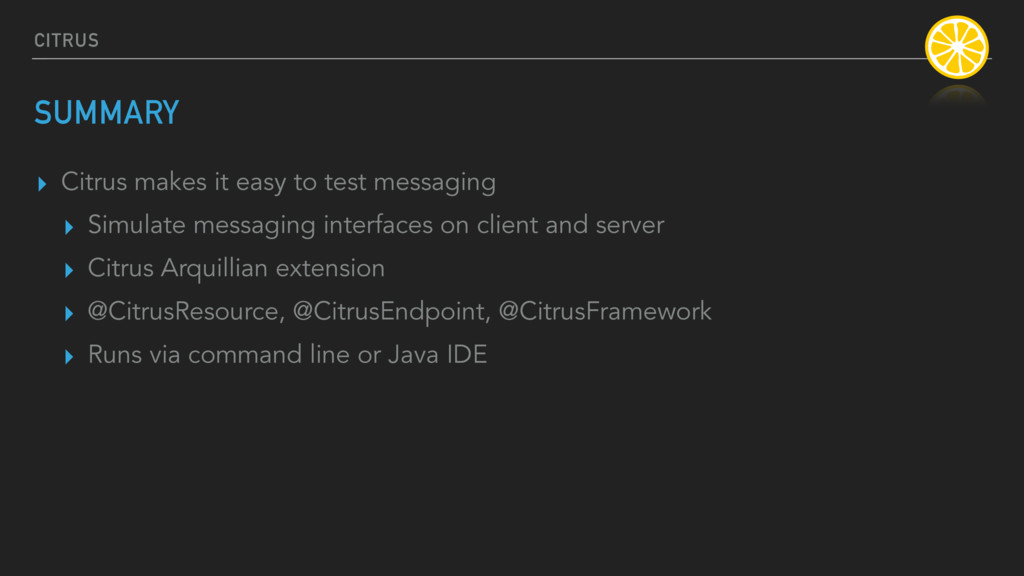

46. CITRUS SUMMARY ▸ Citrus makes it easy to test messaging ▸ Simulate messaging interfaces on client and server ▸ Citrus Arquillian extension ▸ @CitrusResource, @CitrusEndpoint, @CitrusFramework ▸ Runs via command line or Java IDE
47. QUESTIONS?
