Real-time packet analysis at scale [Monitorama PDX 2017]

Transcript

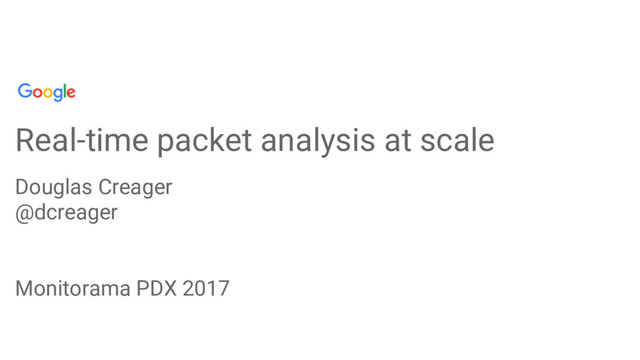

1. Real-time packet analysis at scale
   Douglas Creager
   @dcreager
   Monitorama PDX 2017


   View Slide

2. Packet captures are useful.
   You won’t need to change your monitoring stack.


   View Slide

3. song plz
   ♫
   ♫♫ ♩


   View Slide

4. song plz
   ♫
   ♫
   X


   View Slide

5. Throughput
   Throughput


   View Slide

6. View Slide

7. 10 MB / 320 second = 250 Kb/s
   ♫
   128 Kb/s


   View Slide

8. View Slide

9. ?


   View Slide

10. Vantage point
    Vantage point


    View Slide

11. View Slide

12. Flow data
    Flow data


    View Slide

13. X


    View Slide

14. captures
    captures


    View Slide

15. View Slide

16. What’s the throughput?


    View Slide

17. (seconds)
    (bytes)


    View Slide

18. View Slide

19. receive window
    sent
    acknowledged
    retransmits


    View Slide

20. individual
    sent packets
    individual
    ACK packets
    cumulative
    ACK
    retransmitted
    sent packets


    View Slide

21. View Slide

22. View Slide

23. View Slide

24. Bufferbloat
    Bufferbloat


    View Slide

25. View Slide

26. View Slide

27. Latency
    Latency


    View Slide

28. View Slide

29. Look for interesting patterns
    Look for interesting patterns


    View Slide

30. Collect some packets
    Collect some packets


    View Slide

31. LEVEL 1
    tcpdump
    LEVEL 1
    tcpdump


    View Slide

32. LEVEL 2
    libpcap
    LEVEL 2
    libpcap


    View Slide

33. Add to your existing
    monitoring stack
    Add to your existing
    monitoring stack


    View Slide

34. {"start_timestamp": "2017-05-22 13:23:00.325632Z",
    "end_timestamp": "2017-05-22 13:23:05.957626Z",
    "client_country": "US", "server_zone": "us-east1",
    "blackholed": true, "bufferbloat": true,
    "non_idle_throughput_mbps": 1.2}


    View Slide

35. {"start_timestamp": "2017-05-22 13:23:00.325632Z",
    "end_timestamp": "2017-05-22 13:23:05.957626Z",
    "client_country": "US", "server_zone": "us-east1",
    "blackholed": true, "bufferbloat": true,
    "non_idle_throughput_mbps": 1.2}


    View Slide

36. {"start_timestamp": "2017-05-22 13:23:00.325632Z",
    "end_timestamp": "2017-05-22 13:23:05.957626Z",
    "client_country": "US", "server_zone": "us-east1",
    "blackholed": true, "bufferbloat": true,
    "non_idle_throughput_mbps": 1.2}


    View Slide

37. {"start_timestamp": "2017-05-22 13:23:00.325632Z",
    "end_timestamp": "2017-05-22 13:23:05.957626Z",
    "client_country": "US", "server_zone": "us-east1",
    "blackholed": true, "bufferbloat": true,
    "non_idle_throughput_mbps": 1.2}


    View Slide

38. Conclusions
    Conclusions


    View Slide

39. Packet captures are useful.
    You won’t need to change your monitoring stack.


    View Slide
