Secure Peer-to-Peer Browser Communication

using webRTC and PGP to establish less scary connections between browsers

Transcript

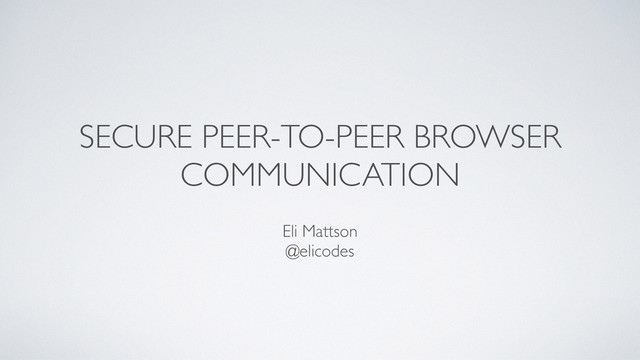

1. SECURE PEER-TO-PEER BROWSER COMMUNICATION Eli Mattson @elicodes
2. “SECURE P2P” What does that mean anyways?
3. SECURITY Anonymity Integrity Confidentiality
4. SECURITY Anonymity Integrity Confidentiality
5. SECURITY Anonymity Integrity Confidentiality ? ? ? ? ? ?
6. SECURITY Anonymity Integrity Confidentiality
7. PEER TO PEER NETWORKING VS
8. PEER TO PEER NETWORKING VS Real Time Higher Bandwidth Client Powered
9. simple-peer https://github.com/feross/simple-peer
10. let peer2 = new SimplePeer() peer2.on('stream', function (stream) { // got remote video stream, now let's show it in a video tag let video = document.querySelector('video') video.src = window.URL.createObjectURL(stream) video.play() }) }
11. A WALKTHROUGH
12. A WALKTHROUGH signaling signaling
13. A WALKTHROUGH signaling media signaling
14. A WALKTHROUGH signaling media signaling data
15. BUT SECURE?
16. signaling media signaling data
17. signaling media signaling data MAN IN THE MIDDLE
18. signaling signaling MAN IN THE MIDDLE
19. kbpgp.js
20. PGP Pretty Good Privacy
21. PGP
22. PGP Forward Secrecy
23. PGP RSA or ECC
24. KBPGP.JS and https://github.com/keybase/kbpgp
25. KBPGP.JS • Key Generation • Encryption • Decryption • Verification
26. KBPGP.JS var kbpgp = require('kbpgp'); kbpgp.KeyManager.generate_rsa({ userid : "Bo Jackson <user@example.com>" }, function(err, charlie) { charlie.sign({}, function(err) { console.log("done!"); }); }); Key Generation
27. KBPGP.JS var params = { msg: "Chuck chucky, bo-bucky!", encrypt_for: chuck }; kbpgp.box(params, function(err, result_string, result_buffer) { console.log(err, result_armored_string, result_raw_buffer); }); Encryption
28. KBPGP.JS var ring = new kbpgp.keyring.KeyRing; var pgp_msg = "---- BEGIN PGP MESSAGE ----- ...."; var asp = /* as in Encryption ... */ ; kbpgp.unbox({ keyfetch: ring, armored: pgp_msg, asp }, function(err, literals) { console.log("decrypted message"); console.log(literals[0].toString()); }); Decryption
29. THINGS TO PAY ATTENTION TO
30. • public key registry • verified through social media • command line tool • open API (.io)
31. STORING KEYS Keybase.io Pair •Not stored in app •keybase.io •local •Long lifetime •Nonce Session Pair Stored in app Short lifetime Linked to keybase.io pair
32. AUTHENTICATION TOKEN { id: "john doe", pub_key: "abc123DEF5678", exp: 1445234383122, nbf: 1445232272011, secret: "---- BEGIN PGP MESSAGE ----- ....", nonce: "f2AbcIjlkFJls123kdjf" } keybase sign -m "<auth-token message>"
33. http request
34. http request generate keys
35. http request generate keys generate / upload token
36. AUTHENTICATION TOKEN { id: "john doe", pub_key: "abc123DEF5678", exp: 1445234383122, nbf: 1445232272011, secret: "---- BEGIN PGP MESSAGE ----- ....", nonce: "f2AbcIjlkFJls123kdjf" } keybase sign -m "<auth-token message>" keybase.io id
37. AUTHENTICATION TOKEN { id: "john doe", pub_key: "abc123DEF5678", exp: 1445234383122, nbf: 1445232272011, secret: "---- BEGIN PGP MESSAGE ----- ....", nonce: "f2AbcIjlkFJls123kdjf" } keybase sign -m "<auth-token message>" app generated public key
38. AUTHENTICATION TOKEN { id: "john doe", pub_key: "abc123DEF5678", exp: 1445234383122, nbf: 1445232272011, secret: "---- BEGIN PGP MESSAGE ----- ....", nonce: "f2AbcIjlkFJls123kdjf" } keybase sign -m "<auth-token message>" from our app?
39. generate / upload token
40. generate / upload token media data
