BPF: evolution of a loop - by Anton Protopopov

Presented at eBPF Vienna

Transcript

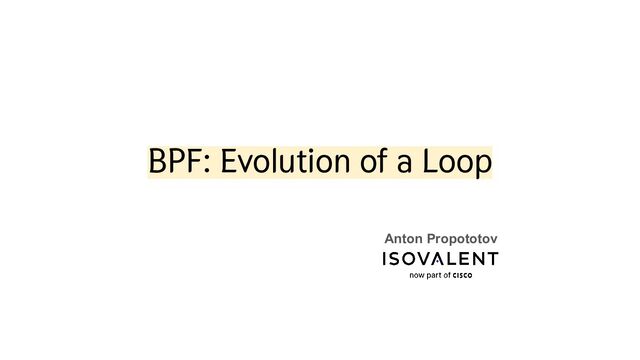

1. BPF: Evolution of a Loop Anton Propototov
2. OS Kernel • Hardware is… hard • So engineers designed the concept of OS–an abstraction layer Userspace Kernel process VM RAM
3. Running custom code Kernel • New use cases make us to patch the kernel • This could be hard to upgrade kernel => kernel modules • Modules are source of various problems and can easily crash the kernel
4. Enter BPF • BPF allows users to compile and run custom code inside kernel space • But, unlike modules, this is safe
5. BPF Core Use Cases Networking Security Observability
6. BPF Core Use Cases Networking Security Observability Scheduling
7. BPF • Let’s take a look on how eBPF evolved from more simple concepts
8. cBPF – good old days
9. eBPF – modern times Evolution: • 32bit architecture -> 64 bit architecture • More registers, more instructions Revolution: • Maps & Kernel helpers • Verifier the almighty • Compiler
10. eBPF – program load
11. eBPF – maps and helpers
12. eBPF verifier Static code analyzer walking in-kernel copy of BPF program instructions ➔ Ensuring program termination ◆ DFS traversal to check program is a DAG ◆ Preventing unbounded loops ◆ Preventing out-of-bounds or malformed jumps ➔ Ensuring memory safety ◆ Preventing out-of-bounds memory access ◆ Preventing use-after-free bugs and object leaks ◆ Also mitigating vulnerabilities in the underlying hardware (Spectre) ➔ Ensuring type safety ◆ Preventing type confusion bugs ◆ BPF Type Format (BTF) for access to (kernel’s) aggregate types ➔ Preventing hardware exceptions (division by zero) ◆ For unknown scalars, instructions rewritten to follow aarch64 spec [ this slide is copy/pasted/edited from eBPF - The Silent Platform Revolution from Cloud Native ]
13. Verifier: DFS search 0 1 2 3 0: r0 = 0 1: jneq r1, #0, +1 2: r0 = 2 3: exit
14. Verifier: DFS search 0 1 2 3 0: r0 = 0 1: jneq r1, #0, +1 2: r0 = 2 3: exit
15. Verifier: DFS search 0 1 2 3 0: r0 = 0 1: jneq r1, #0, +1 2: r0 = 2 3: exit
16. Verifier: DFS search 0 1 2 3 0: r0 = 0 1: jneq r1, #0, +1 2: r0 = 2 3: exit
17. Verifier: DFS search 0 1 2 3 0: r0 = 0 1: jneq r1, #0, +1 2: r0 = 2 3: exit
18. Verifier: DFS search 0 1 2 3 0: r0 = 0 1: jneq r1, #0, +1 2: r0 = 2 3: exit
19. Verifier: DFS search 0 1 2 3 0: r0 = 0 1: jneq r1, #0, +1 2: r0 = 2 3: exit
20. Verifier: DFS search 0 1 2 3 0: r0 = 0 1: jneq r1, #0, +1 2: r0 = 2 3: exit
21. Verifier: DFS search 0 1 2 3 0: r0 = 0 1: jneq r1, #0, +1 2: r0 = 2 3: exit
22. Verifier: DFS search 0 1 2 3 0: r0 = 0 1: jneq r1, #0, +1 2: r0 = 2 3: exit
23. Verifier: DFS search 0 1 2 3 0: r0 = 0 1: jneq r1, #0, +1 2: r0 = 2 3: exit
24. Verifier: DFS search 0 1 2 3 0: r0 = 0 1: jneq r1, #0, +1 2: r0 = 2 3: exit
25. eBPF verifier Works by simulating execution of all paths of the program ➔ Follows control flow graph ◆ For each instruction computes set of possible states (BPF register set & stack) ◆ Performs safety checks (e.g. memory access) depending on current instruction ◆ Register spill/fill tracking for program’s private BPF stack ➔ Back-edges in control flow graph ◆ Bounded loops by brute-force simulating all iterations up to a limit ➔ Dealing with potentially large number of states ◆ Path pruning logic compares current state vs prior states • Current path “equivalent” to prior paths with safe exit? ◆ Function-by-function verification for state reduction ◆ On-demand scalar precision (back-)tracking for state reduction ◆ Terminates with rejection upon surpassing “complexity” threshold [ this slide is copy/pasted/edited from eBPF - The Silent Platform Revolution from Cloud Native ]
26. eBPF verifier BPF register state tracking BPF reg type id off var_off s64min s64max u64min u64max s32min s32max u32min u32max u32 u32 s32 tnum s64 s64 u64 u64 s32 s32 u32 u32 uninit, scalar, ptr_to_* types. Types can be composable, e.g. or’ed with ptr_maybe_null. Fixed part of pointer offset (pointer types only). tnum value u64 mask u64 Represents knowledge of actual value for scalars (known and unknown bits). Determined signed and unsigned 64 and 32-bit (sub-register) bounds. Coupled to the var_off tnum, holding a lower and upper bound of the unknown value. Used to determine if any memory access using this register will result in a bad access. … Identifier for state propagation (e.g. learned bits from conditions) [ this slide is copy/pasted/edited from eBPF - The Silent Platform Revolution from Cloud Native ]
27. Execution simulation example • I will not do an example here. A full program walkthrough would be a long animation • In one of his talks, Daniel did an awesome visualisation of just a toy example, see the slides here struct { uint8_t index; int32_t value; int32_t array[256]; } s; s.array[s.index] = -s.value;
28. • Like in cBPF, no loops were allowed • (Back edges are allowed, but they need to lead to “explored” paths.) Loops, version 1: no loops
29. • “Fake loops” Loops, version 1a: fake loops
30. Finally, real bounded loops were added (after a few attempts, see e.g., John’s talk in 2018) by Alexey in 2019 The main idea of verification: • Allow loops in DFS search • Detect loops during abstract execution • … Brute force Loops, version 2: bounded loops
31. Bounded loops are ok, but easy to misuse. Consider this example (taken from great documentation resource on BPF started by our colleague Dylan Reimerink: https://ebpf-docs.dylanreimerink.nl) Loops, version 2: bounded loops
32. Bounded loops are ok, but easy to misuse. Consider this example (taken from great documentation resource on BPF started by our colleague Dylan Reimerink: https://ebpf-docs.dylanreimerink.nl) Loops, version 2: bounded loops ≤ 65535
33. • Maps can be big, and scanning a whole map can easily overflow the verifier state (limit for bounded loops is ~8K) • bpf_map_for_each_elem() helper to the rescue! • It takes a map, and a callback function as argument • From verifier’s point of view, this is for sure terminates (helper) • From user’s point of view: we now can iterate any maps! Safe and profit Loops, version 3: helpers to the rescue!
34. • The idea of bpf_map_for_each_elem() was later generalized • bpf_loop() takes #nr_loops as argument, and can execute a callback (up to ~8M times) • (Callback can, of course, break the loop earlier) Loops, version 4: more helpers
35. • The bpf_loop(), while useful, had its limitations, and the next version of loops support added “open-coded” iterators Loops, version 5: open-coded iterators
36. • The bpf_loop(), while useful, had its limitations, and the next version of loops support added “open-coded” iterators Loops, version 5: open-coded iterators
37. • A new BPF instruction, may_goto #label can be used to notify verifier that we expect a loop to break Loops, version 6: iterator, which doesn’t iterate
38. • A new BPF instruction, may_goto #label can be used to notify verifier that we expect a loop to break Loops, version 6: iterator, which doesn’t iterate
39. • A new BPF instruction, may_goto #label can be used to notify verifier that we expect a loop to break Loops, version 6: iterator, which doesn’t iterate
40. • Previously, all the code in verifier expected that there could be only up to two branches: fallthrough and a conditional jump • I am now working on adding indirect jumps in BPF, which will let programs to jump to more than two basic blocks More branches
41. • Safety is an Invariant of BPF infrastructure • BPF evolved from simple infrastructure to a pretty complex one (see, .e.g, BPF is Turing complete or Doom in BPF) while keeping the “safety” property on BPF Safety Invariant
