1. CS N373 · SUMMER 2026 RESTLESS REFEREES Connected end-to-end soccer data. RR — IDB Haroon · Austin · Vaughn · Ali · Victor · Edmond
2. 02 WHY IT EXISTS SOCCER DATA IS EASY TO FIND. CONTEXT IS NOT. Player statistics, team context, games, and trophies often live in separate places. RestlessReferees turns those fragments into one navigable system. 01 START a player 02 FOLLOW their team 03 DISCOVER games + trophies
3. 03 ROLES & RESPONSIBILITIES CLEAR OWNERSHIP. SHARED INTEGRATION. HA AU VA HAROON AUSTIN VAUGHN Lead · integration Data pipeline Backend · API AL VI ED ALI VICTOR EDMOND React · search UI Design · controls Tests · deployment

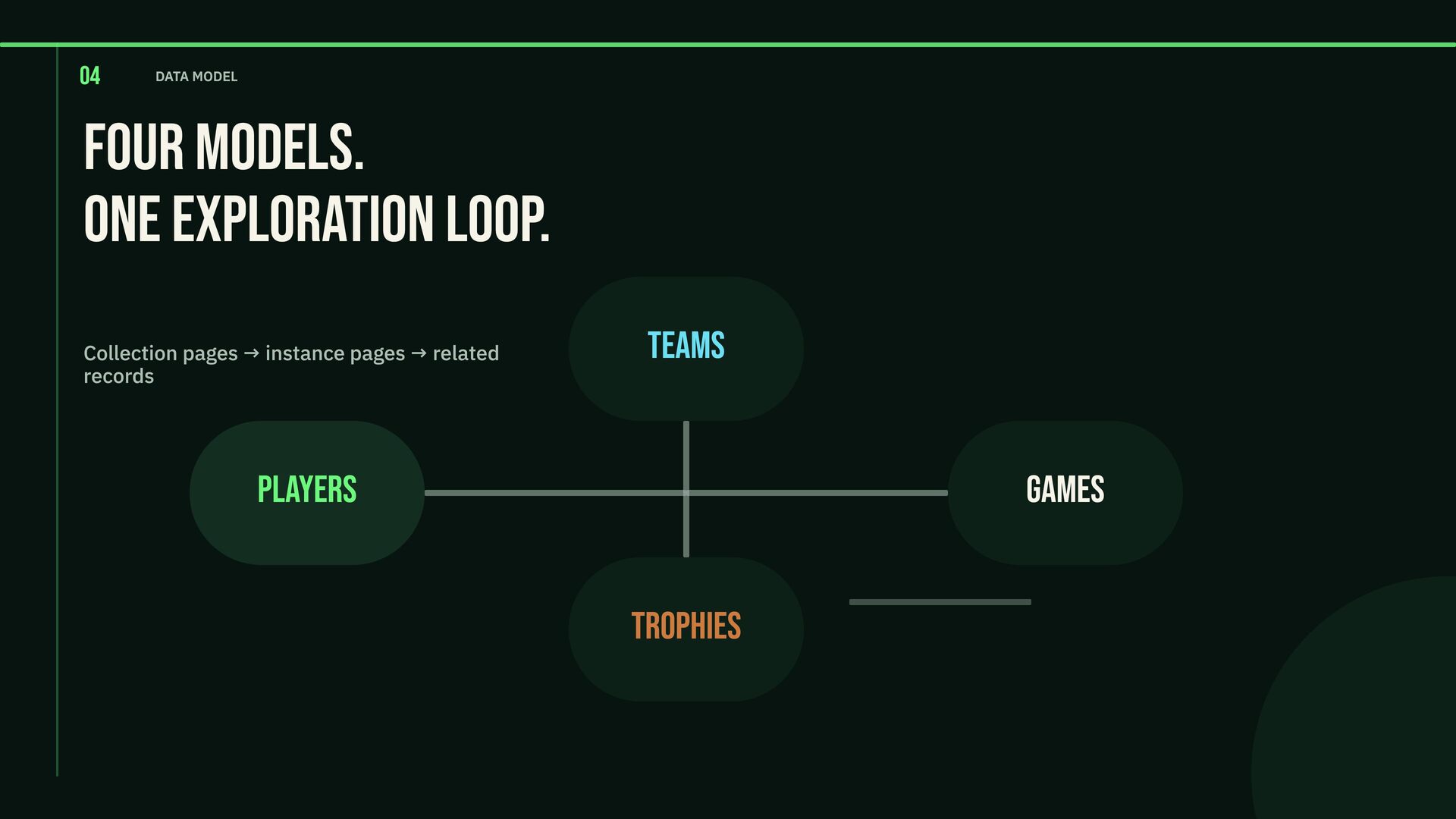

4. 04 DATA MODEL FOUR MODELS. ONE EXPLORATION LOOP. Collection pages → instance pages → related records TEAMS PLAYERS GAMES TROPHIES

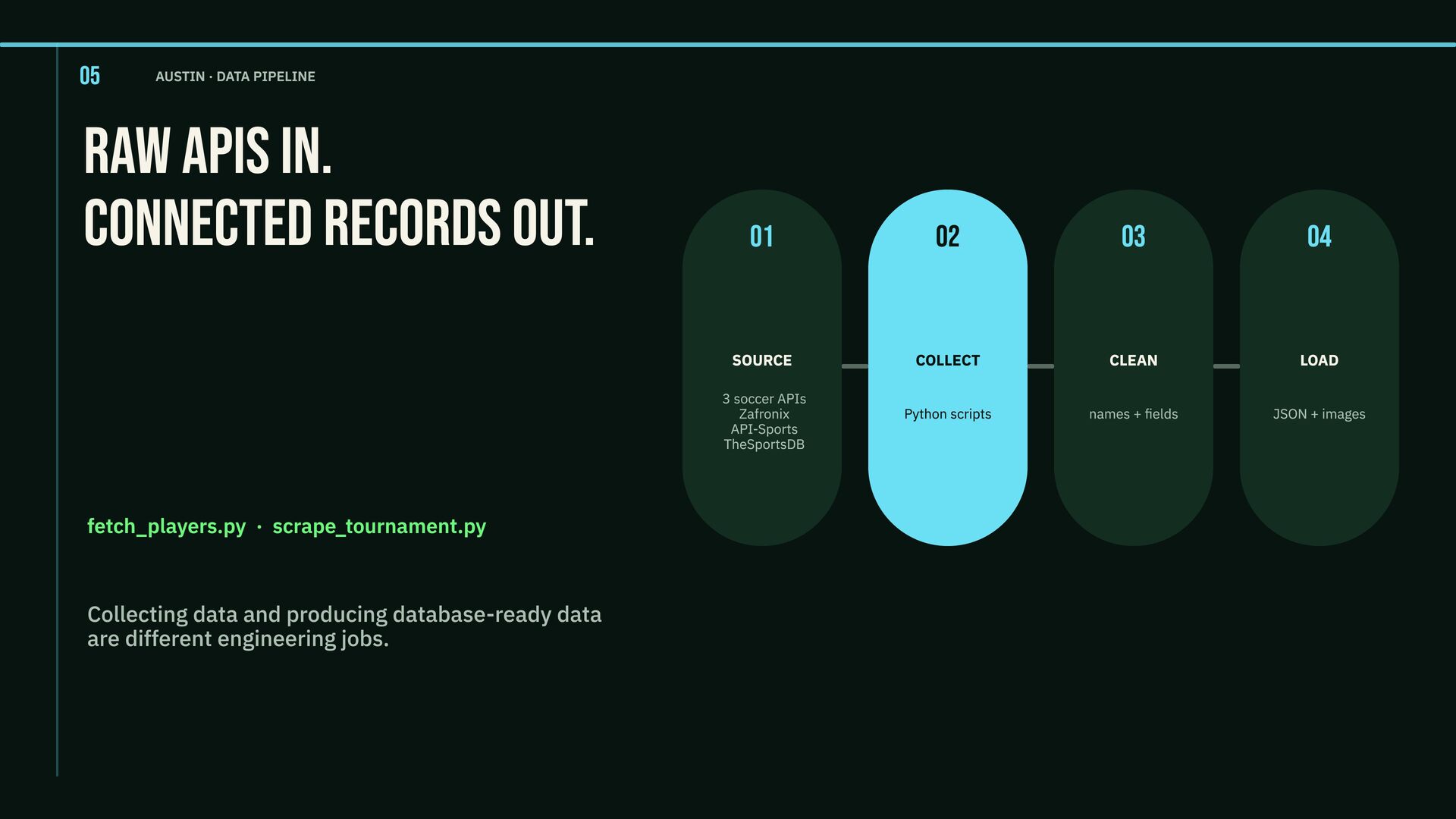

5. 05 AUSTIN · DATA PIPELINE RAW APIS IN. CONNECTED RECORDS OUT. 01 02 03 04 SOURCE COLLECT CLEAN LOAD Python scripts names + fields JSON + images 3 soccer APIs Zafronix API-Sports TheSportsDB fetch_players.py · scrape_tournament.py Collecting data and producing database-ready data are different engineering jobs.

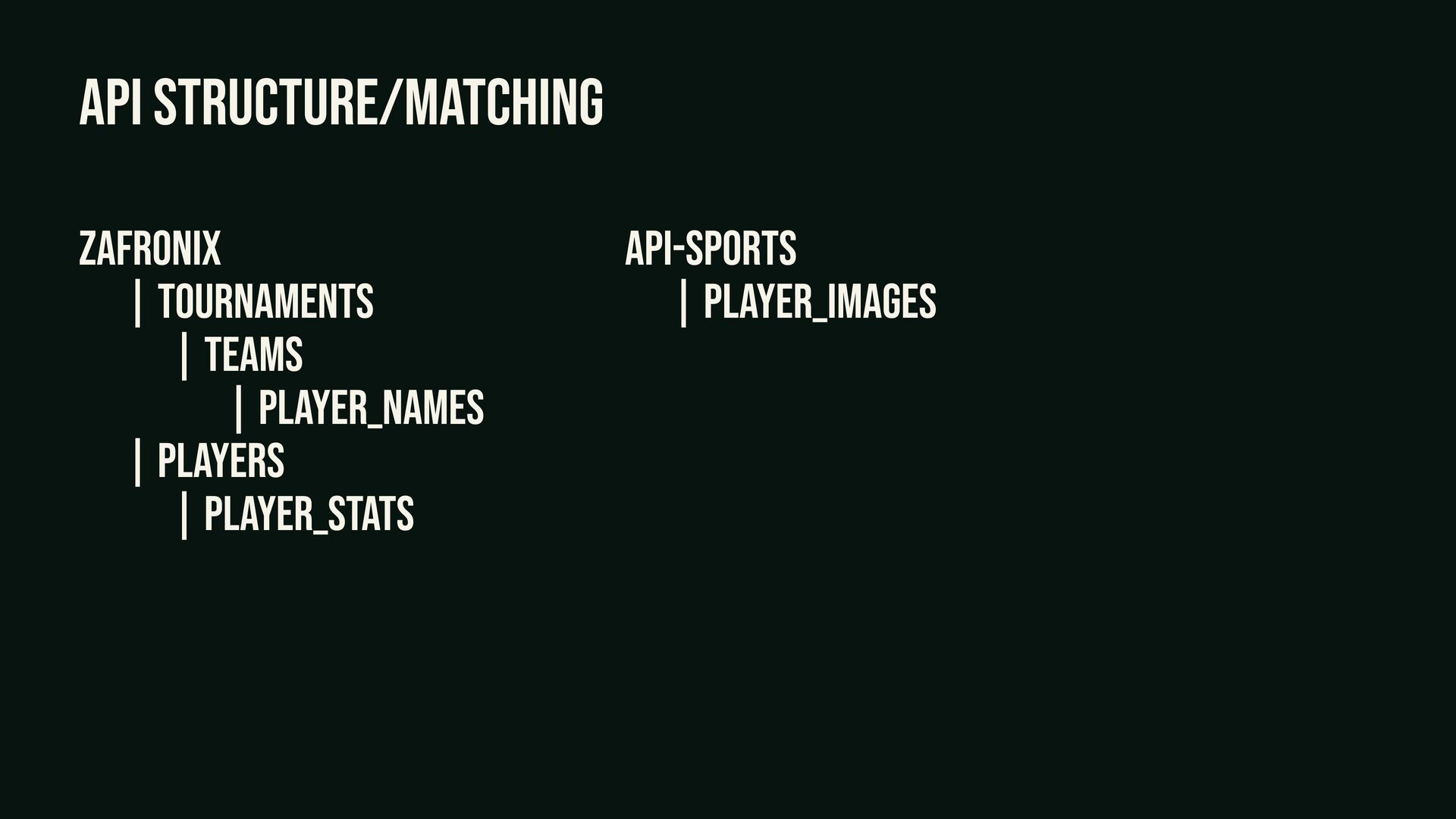

6. API Structure/Matching Zafronix | Tournaments | TeamS | Player_NAMES | players | Player_Stats API-SPORTS | Player_Images

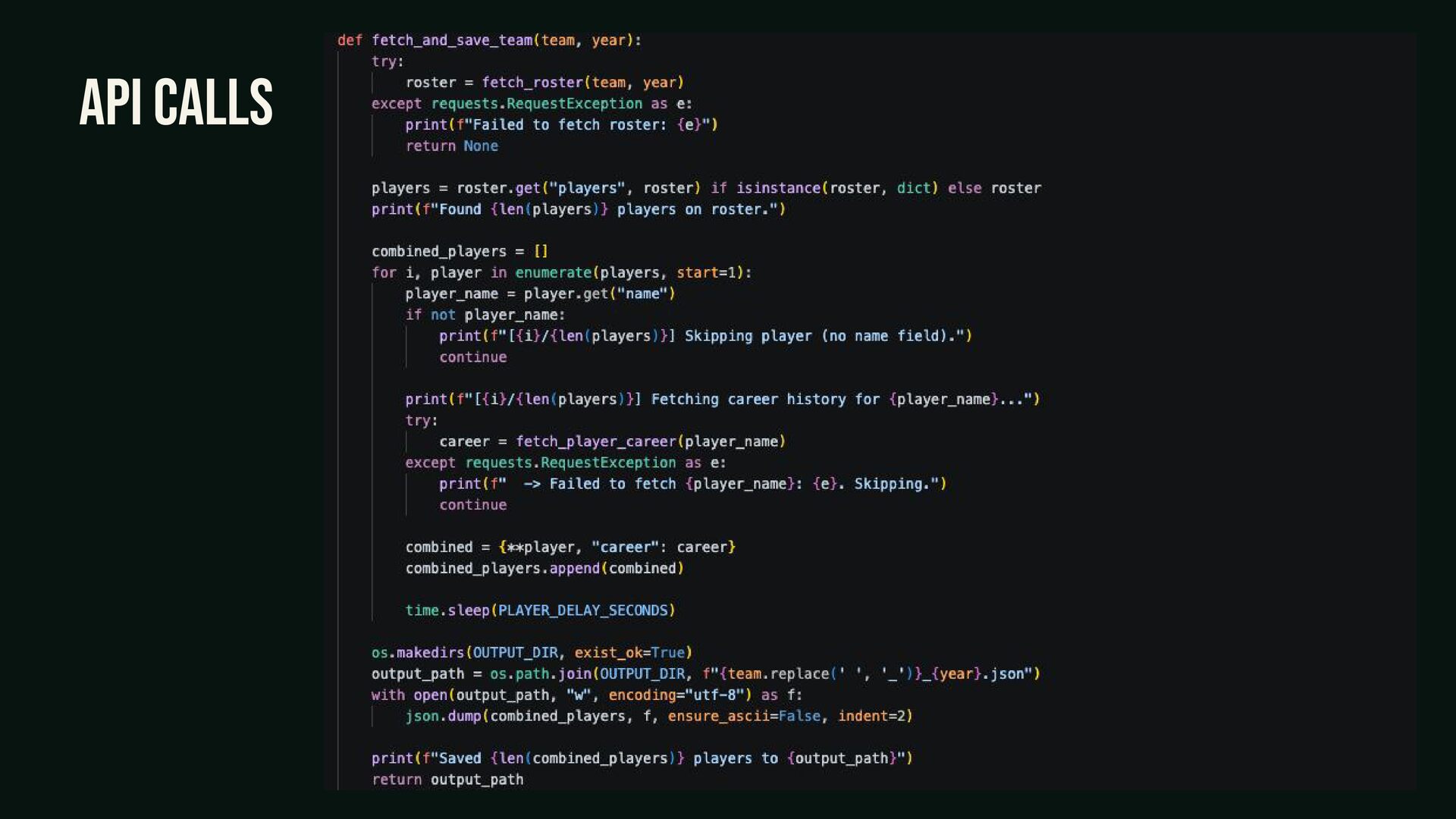

7. API Calls

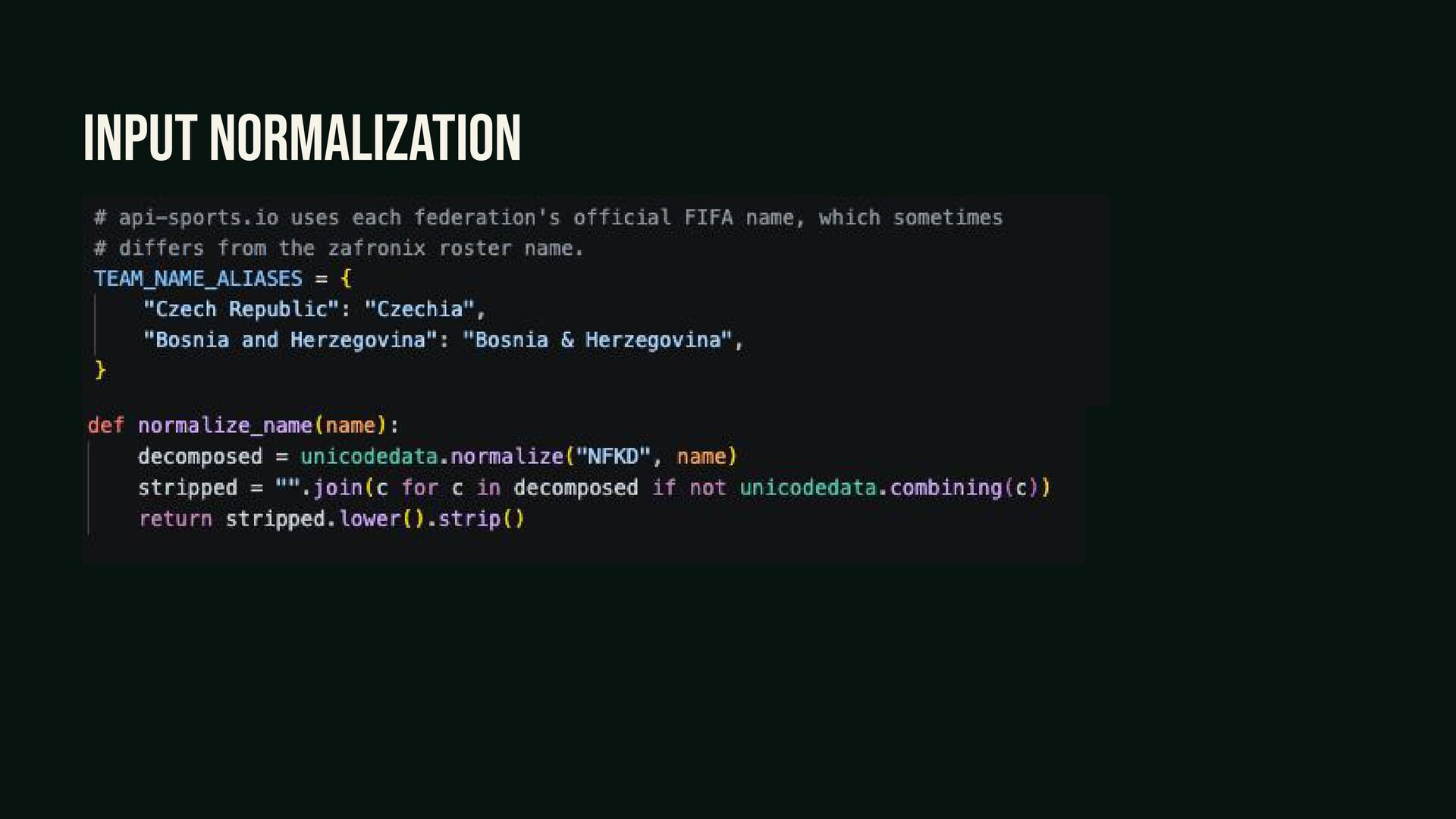

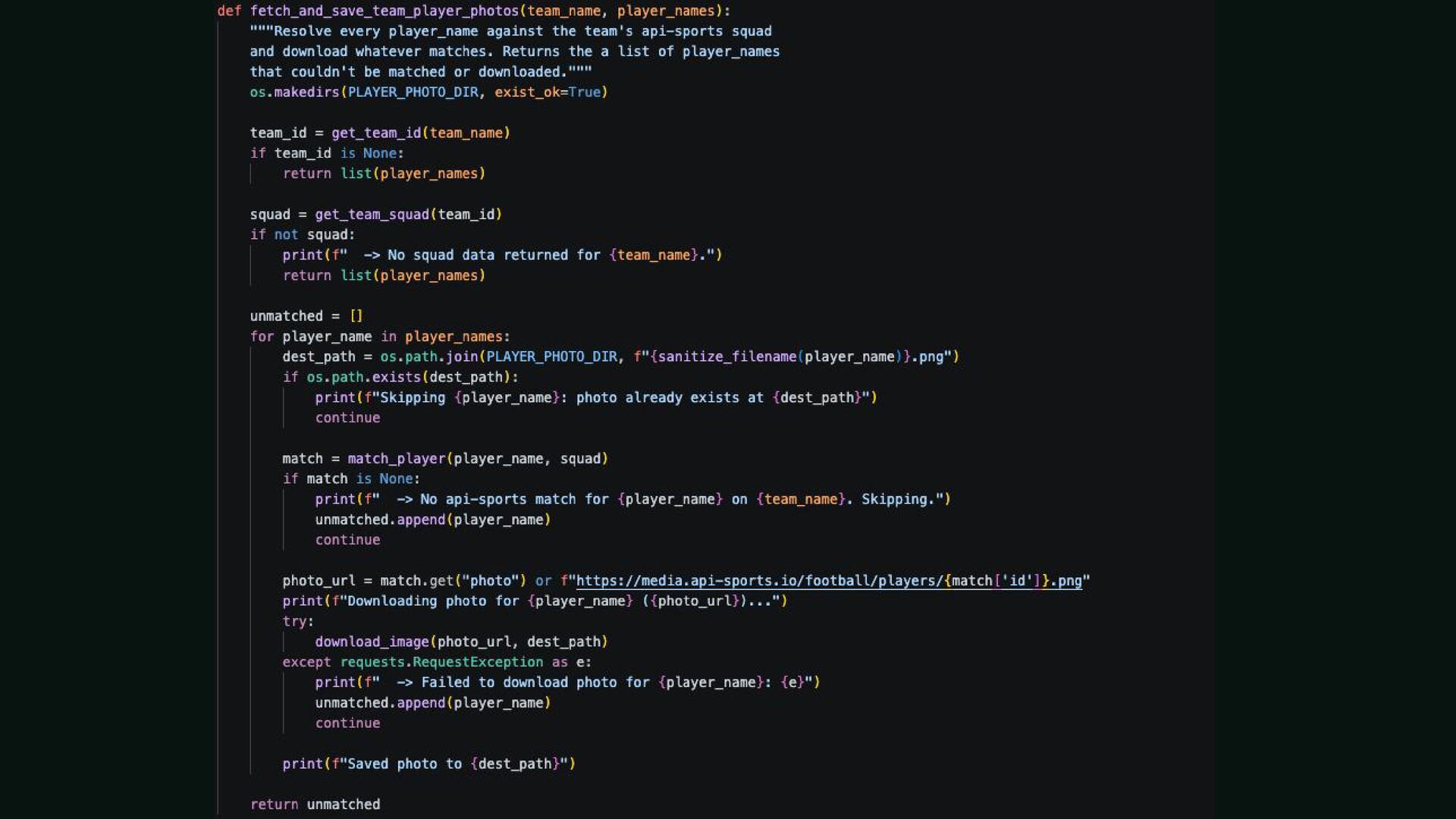

8. Input Normalization
10. 06 DATA REALITY THE API RESPONSE WAS ONLY THE START. 01 NAMES Special characters and inconsistent spelling 02 GAPS Missing images and unexpected null fields 03 LINKS Identifiers had to preserve model relationships

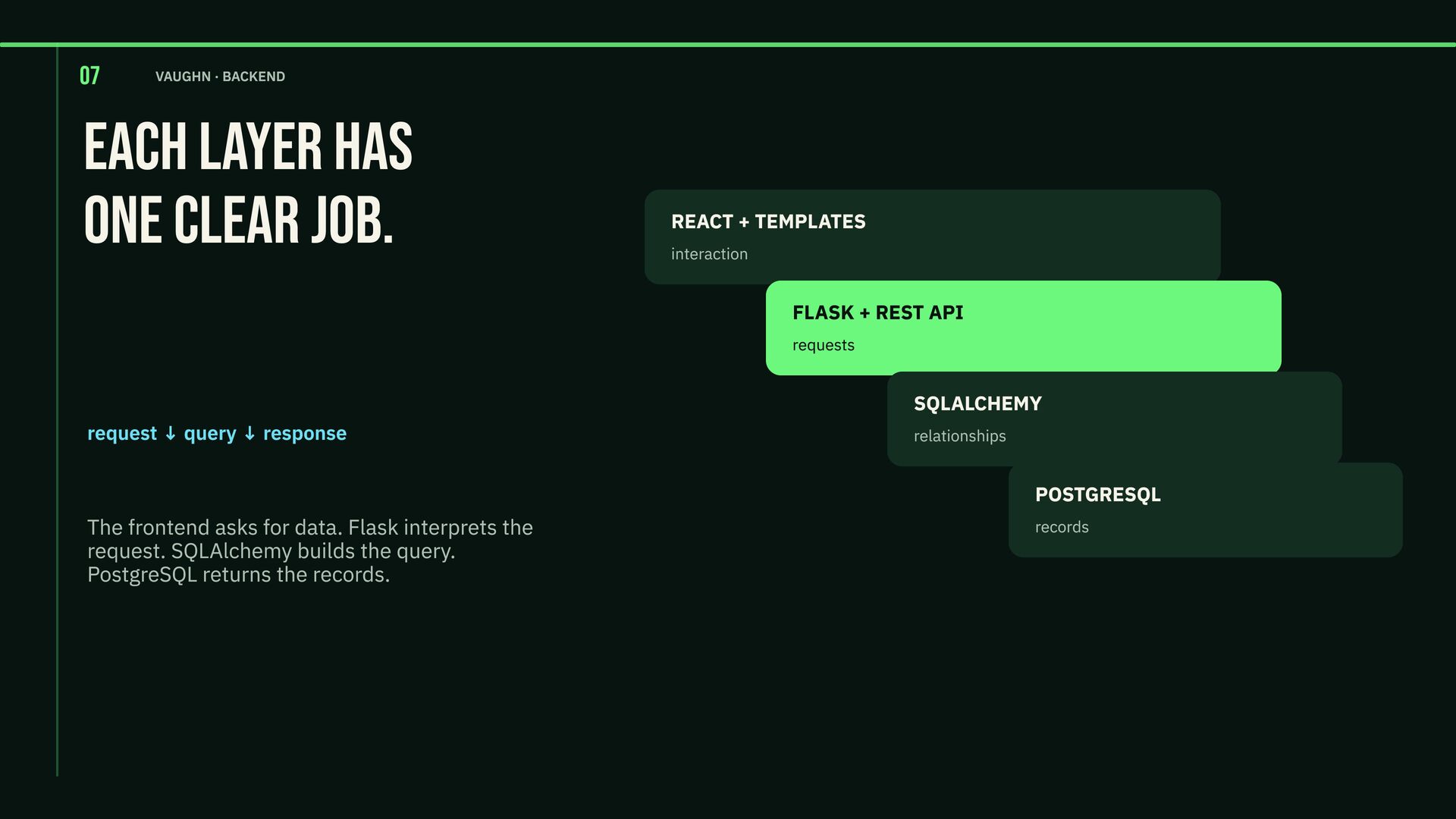

11. 07 VAUGHN · BACKEND EACH LAYER HAS ONE CLEAR JOB. REACT + TEMPLATES interaction FLASK + REST API requests SQLALCHEMY request ↓ query ↓ response relationships POSTGRESQL The frontend asks for data. Flask interprets the request. SQLAlchemy builds the query. PostgreSQL returns the records. records

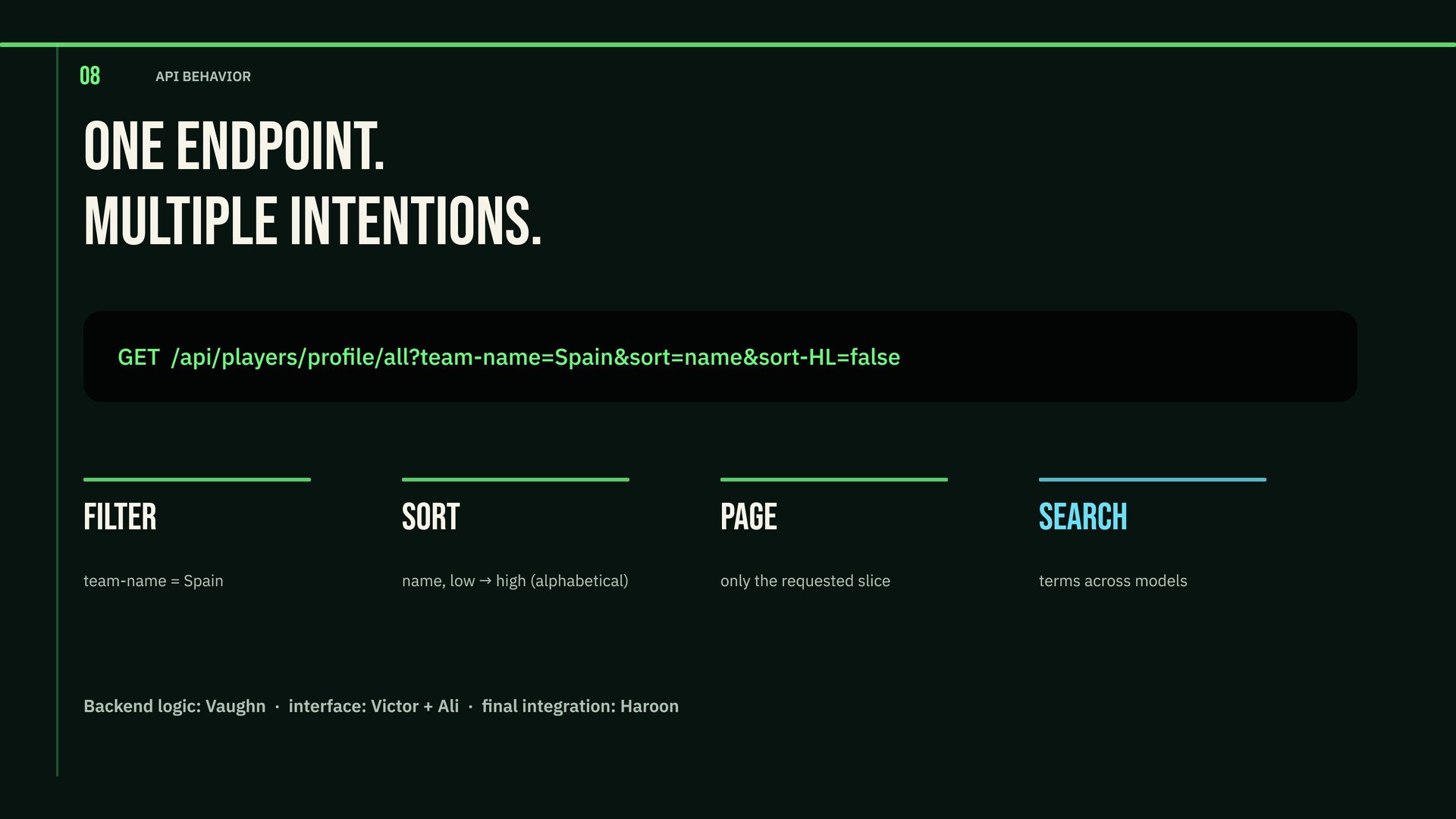

12. 08 API BEHAVIOR ONE ENDPOINT. MULTIPLE INTENTIONS. GET /api/players/profile/all?team-name=Spain&sort=name&sort-HL=false FILTER SORT PAGE SEARCH team-name = Spain name, low → high (alphabetical) only the requested slice terms across models Backend logic: Vaughn · interface: Victor + Ali · final integration: Haroon

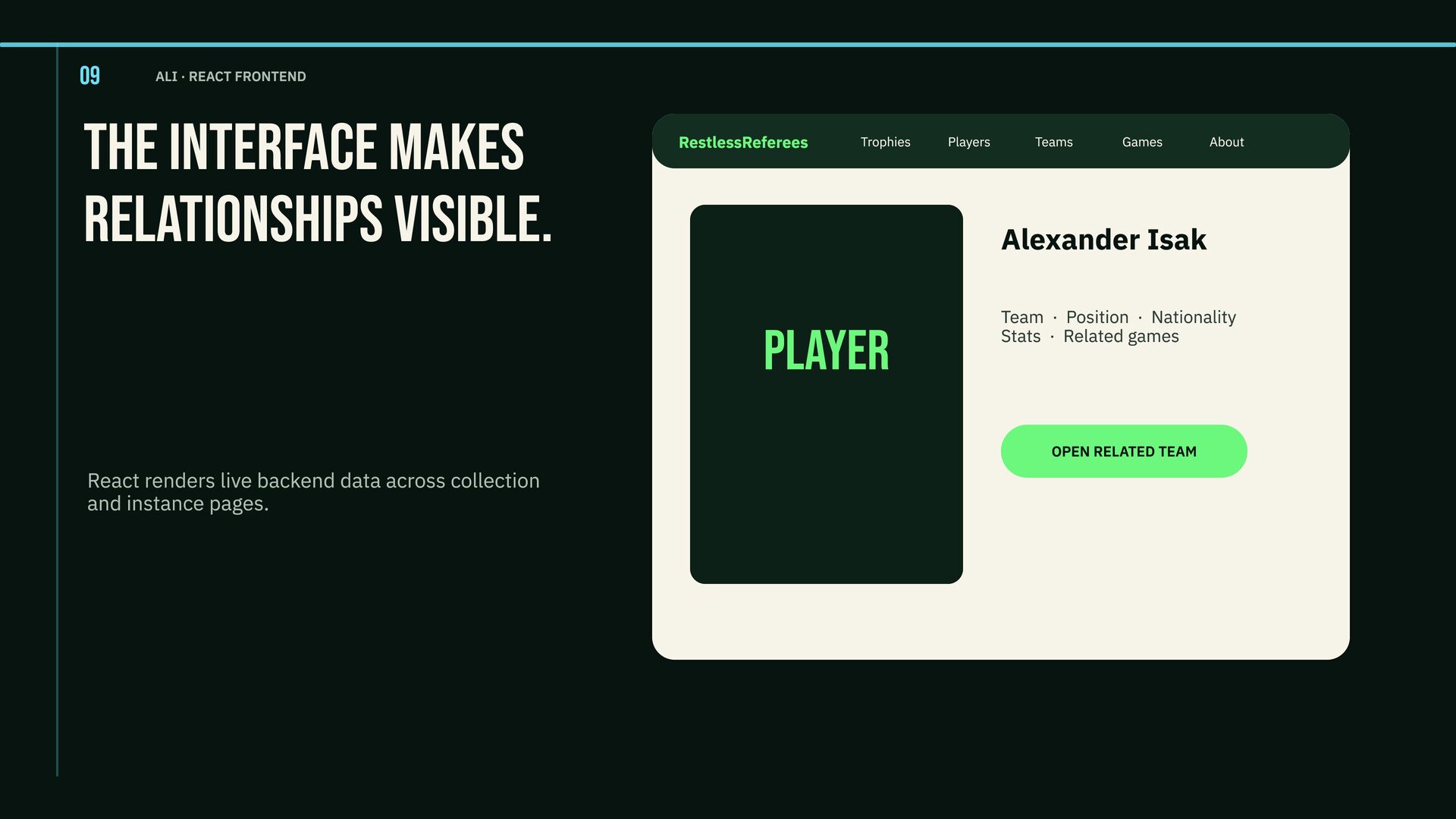

13. 09 ALI · REACT FRONTEND THE INTERFACE MAKES RELATIONSHIPS VISIBLE. RestlessReferees Trophies Players Teams Games Alexander Isak PLAYER Team · Position · Nationality Stats · Related games OPEN RELATED TEAM React renders live backend data across collection and instance pages. About

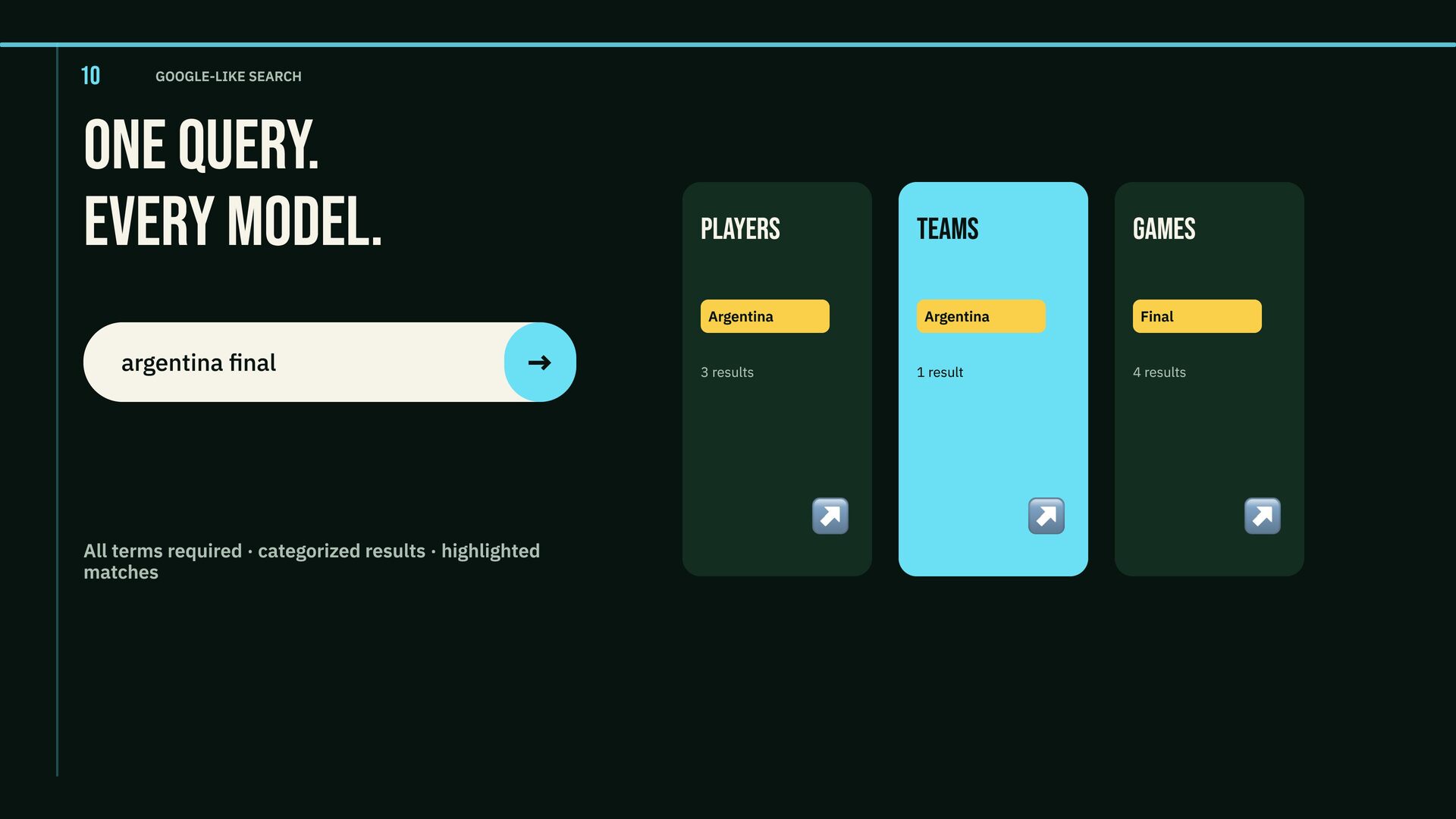

14. 10 GOOGLE-LIKE SEARCH ONE QUERY. EVERY MODEL. argentina final → PLAYERS TEAMS GAMES Argentina Argentina Final 3 results 1 result 4 results ↗ All terms required · categorized results · highlighted matches ↗ ↗

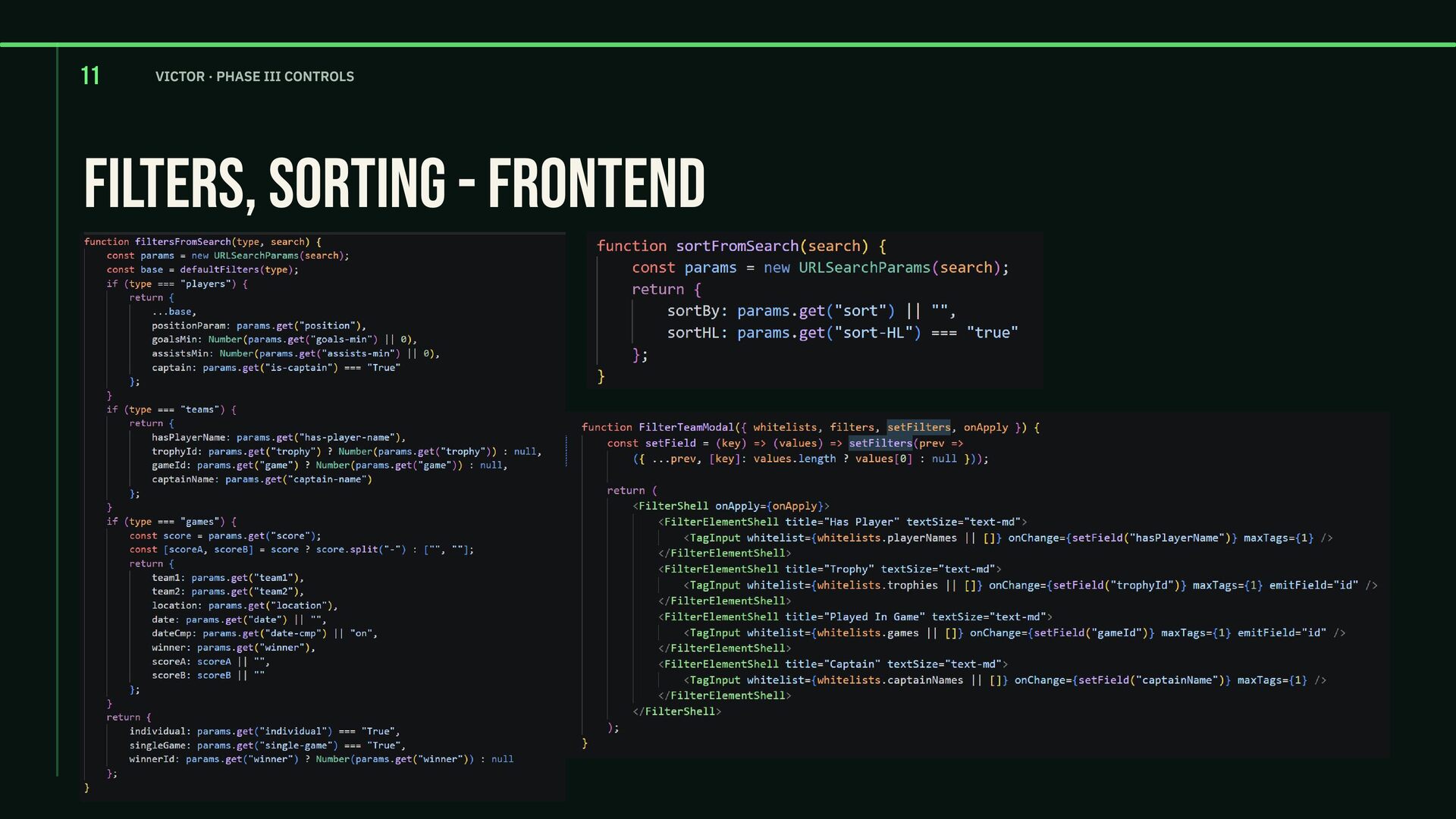

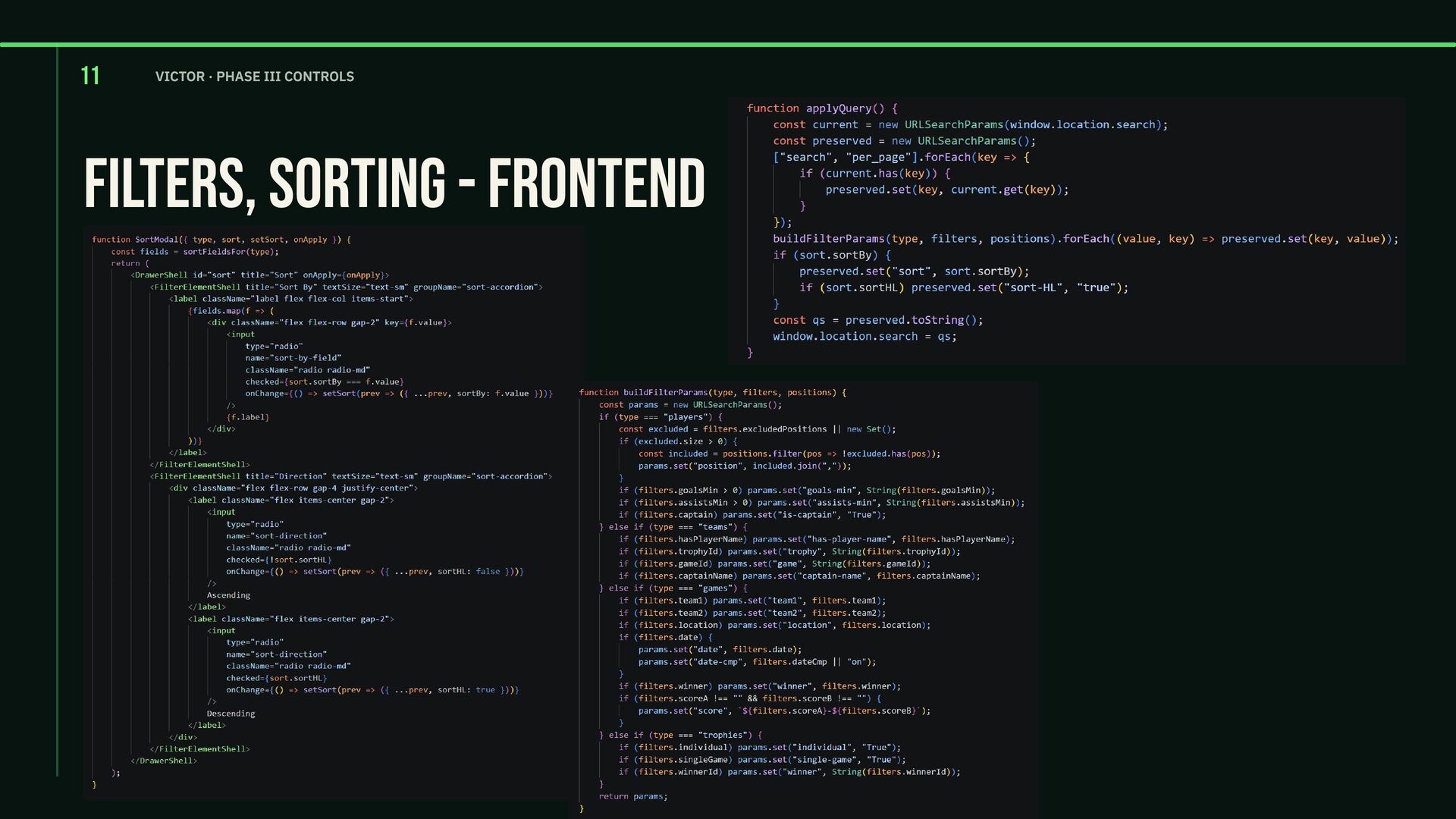

15. 11 VICTOR · PHASE III CONTROLS Filters, Sorting - frontend
16. 11 VICTOR · PHASE III CONTROLS Filters, Sorting - frontend

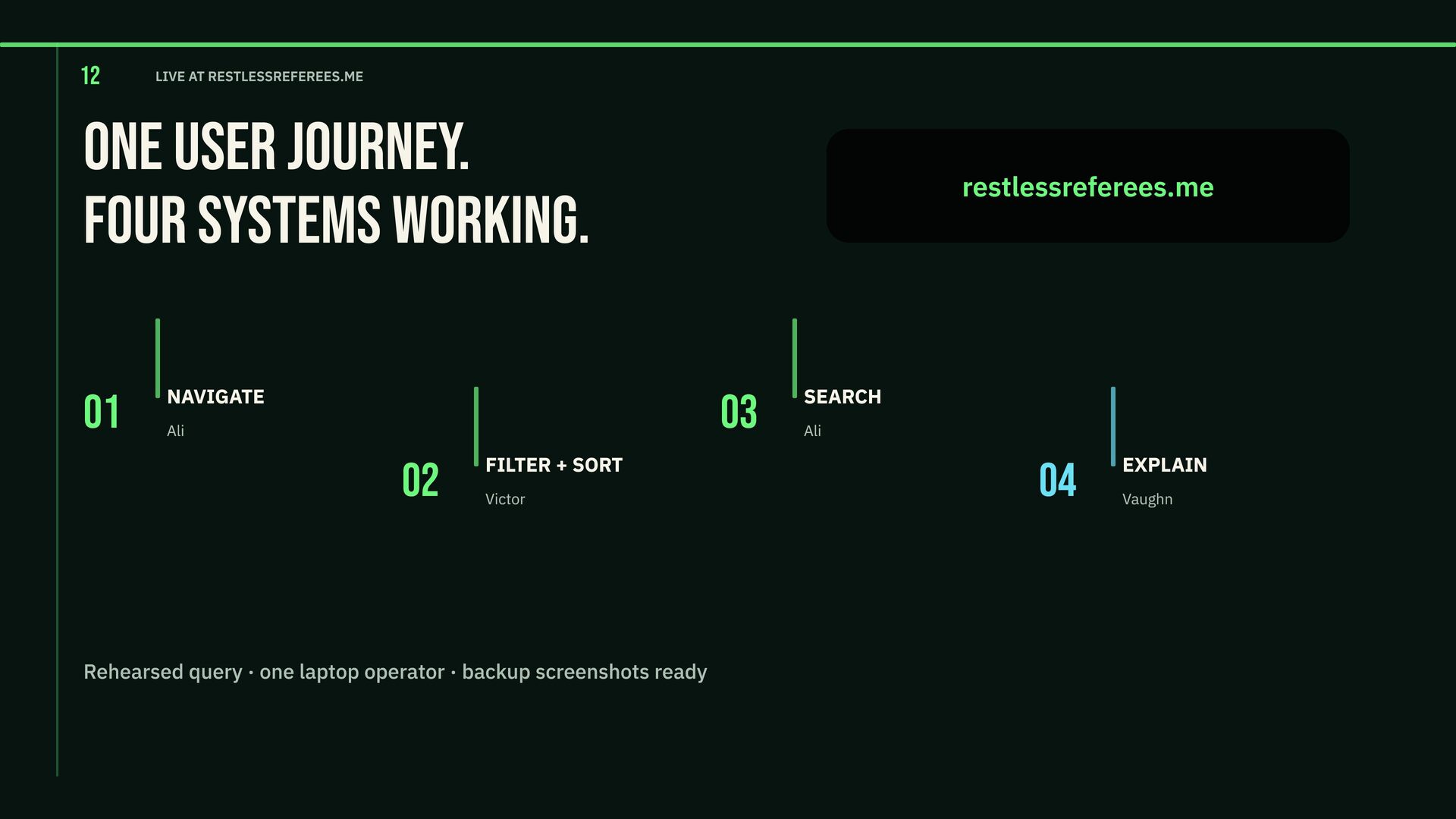

17. 12 LIVE AT RESTLESSREFEREES.ME ONE USER JOURNEY. FOUR SYSTEMS WORKING. 01 NAVIGATE restlessreferees.me 03 Ali 02 FILTER + SORT Victor Rehearsed query · one laptop operator · backup screenshots ready SEARCH Ali 04 EXPLAIN Vaughn

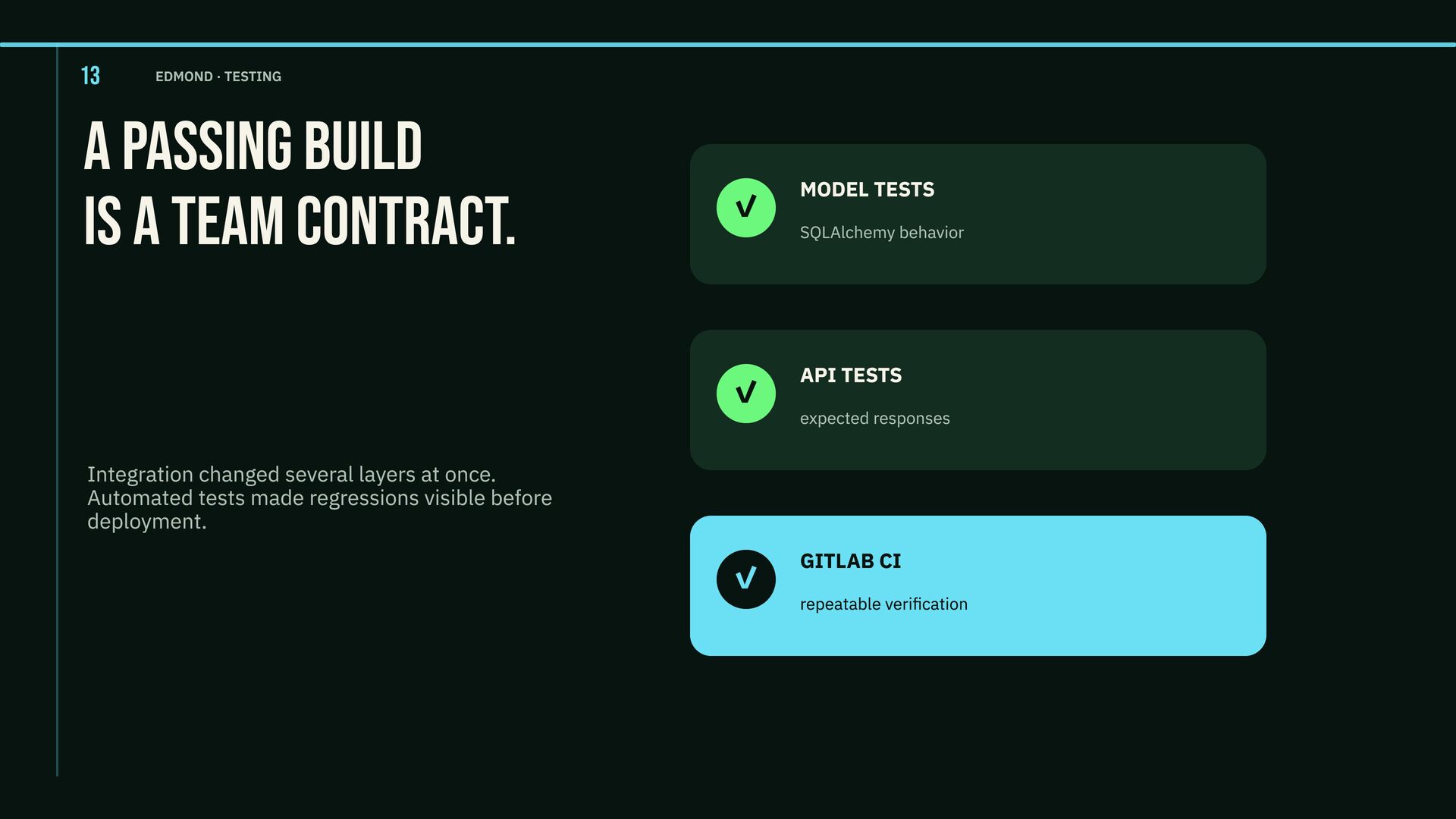

18. 13 EDMOND · TESTING A PASSING BUILD IS A TEAM CONTRACT. ✓ MODEL TESTS SQLAlchemy behavior ✓ API TESTS expected responses Integration changed several layers at once. Automated tests made regressions visible before deployment. ✓ GITLAB CI repeatable verification

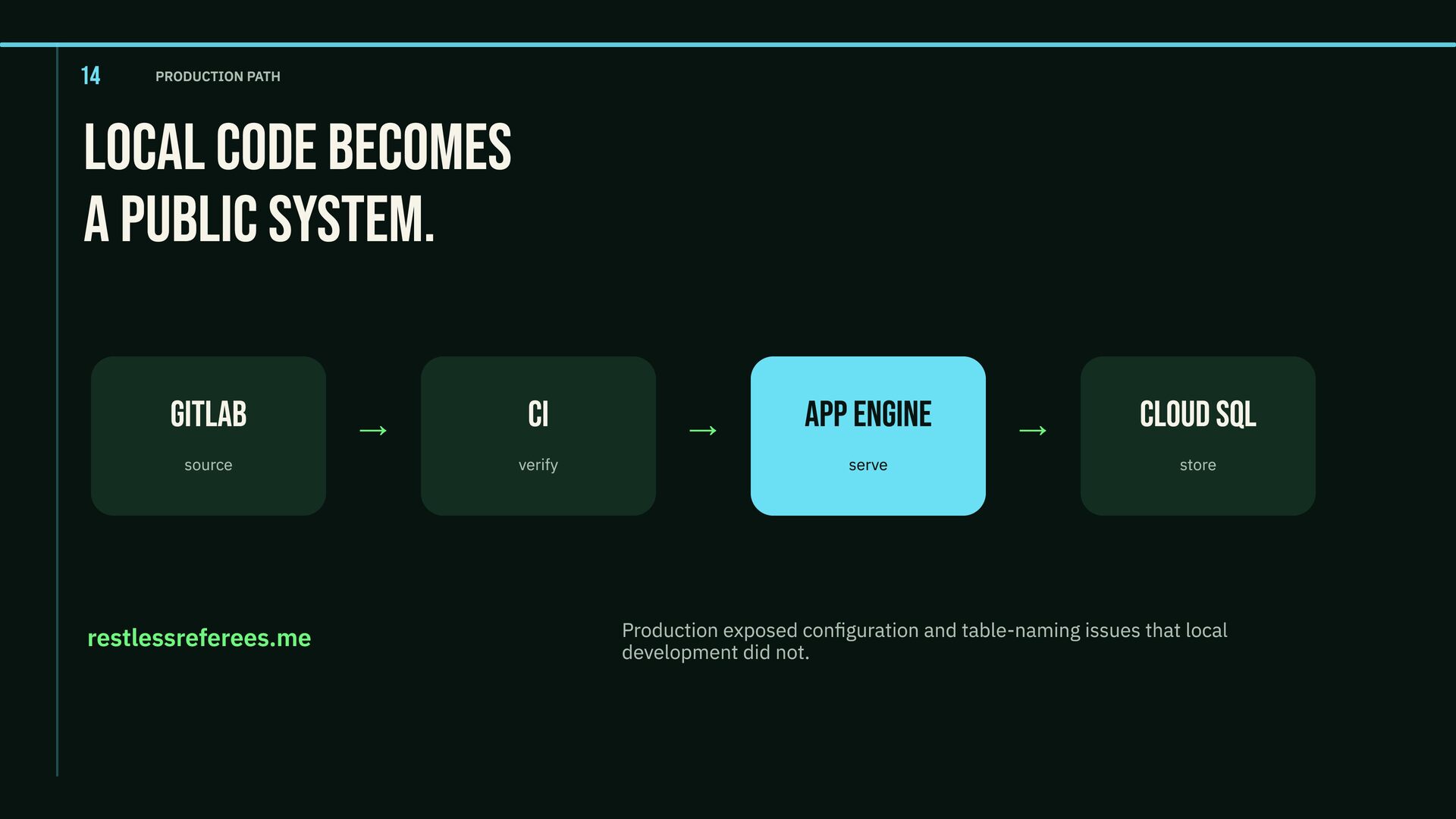

19. 14 PRODUCTION PATH LOCAL CODE BECOMES A PUBLIC SYSTEM. GITLAB source restlessreferees.me → CI verify → APP ENGINE serve → CLOUD SQL store Production exposed configuration and table-naming issues that local development did not.

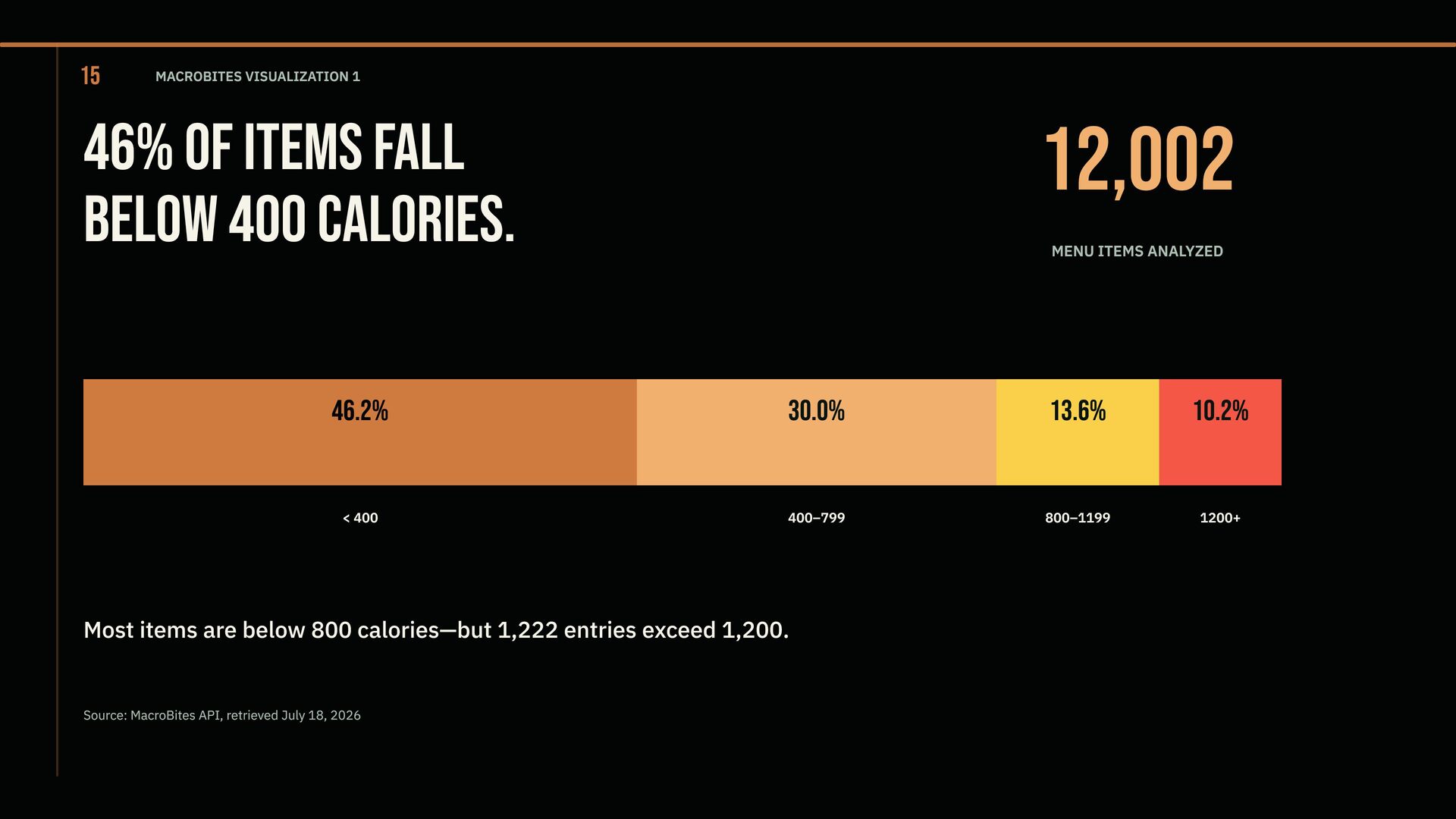

20. 15 MACROBITES VISUALIZATION 1 46% OF ITEMS FALL BELOW 400 CALORIES. 12,002 MENU ITEMS ANALYZED 46.2% 30.0% 13.6% 10.2% < 400 400–799 800–1199 1200+ Most items are below 800 calories—but 1,222 entries exceed 1,200. Source: MacroBites API, retrieved July 18, 2026

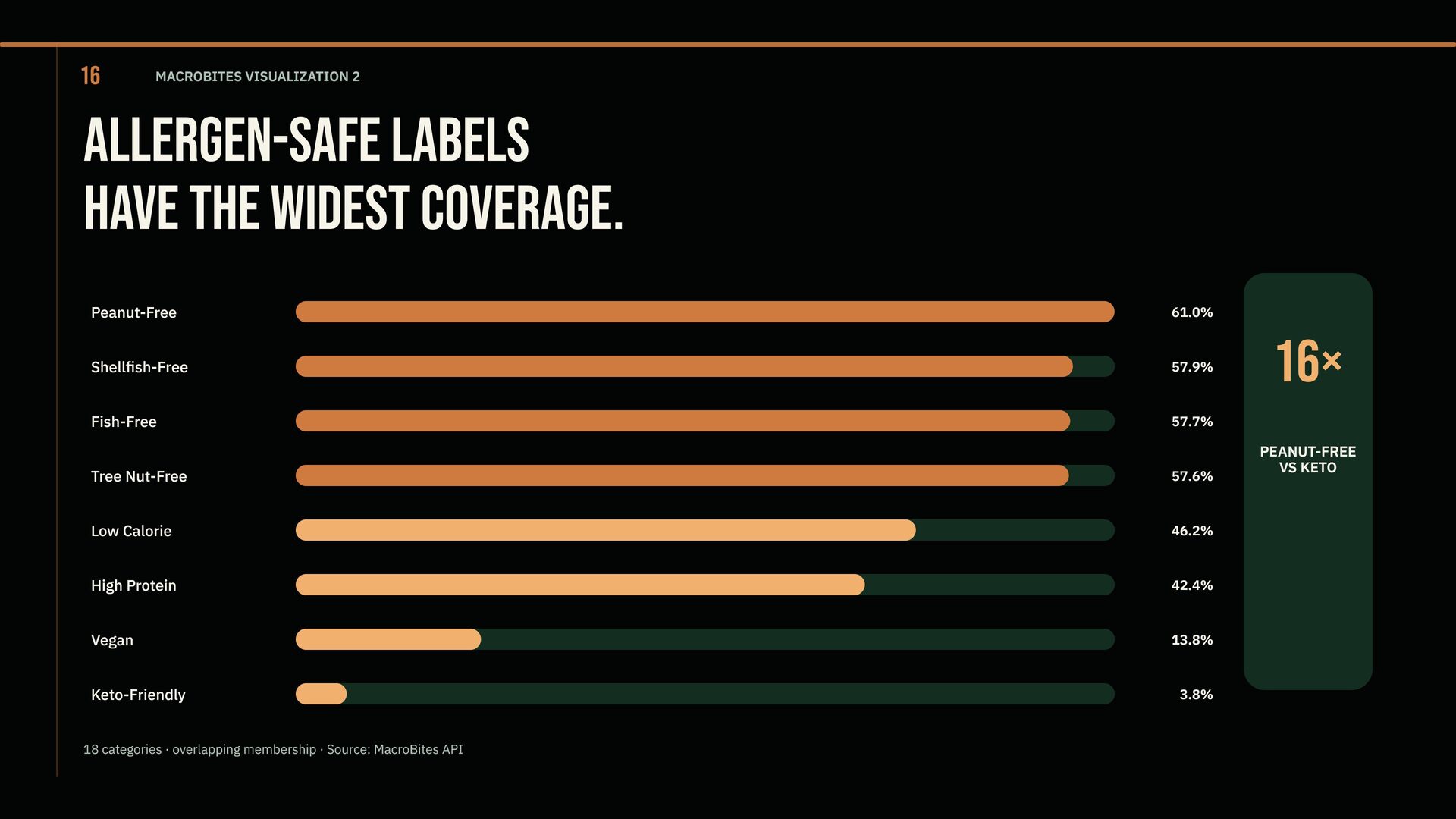

21. 16 MACROBITES VISUALIZATION 2 ALLERGEN-SAFE LABELS HAVE THE WIDEST COVERAGE. Peanut-Free 61.0% Shellfish-Free 57.9% Fish-Free 57.7% Tree Nut-Free 57.6% Low Calorie 46.2% High Protein 42.4% Vegan 13.8% Keto-Friendly 18 categories · overlapping membership · Source: MacroBites API 3.8% 16× PEANUT-FREE VS KETO

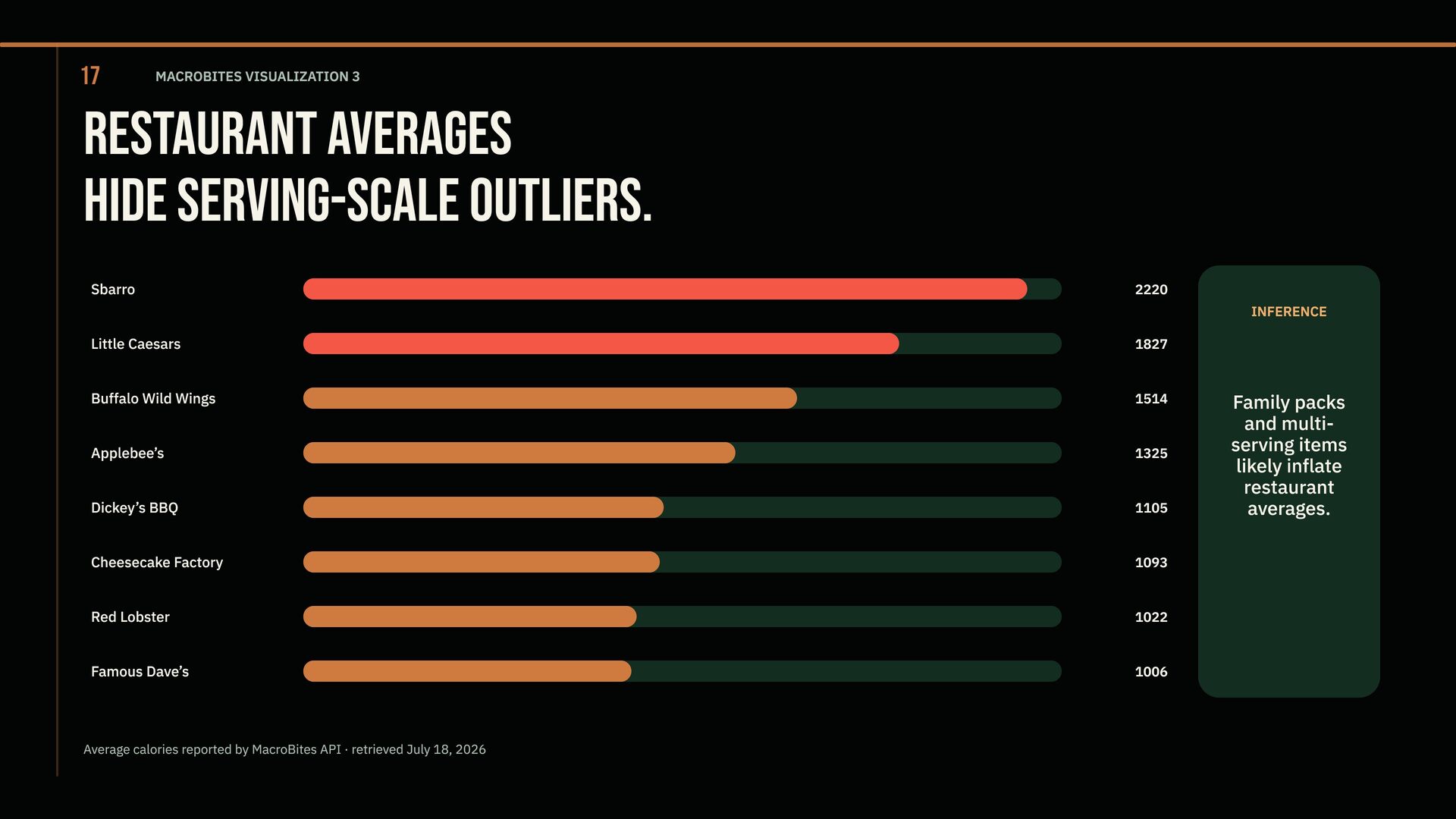

22. 17 MACROBITES VISUALIZATION 3 RESTAURANT AVERAGES HIDE SERVING-SCALE OUTLIERS. Sbarro 2220 INFERENCE Little Caesars 1827 Buffalo Wild Wings 1514 Applebee’s 1325 Dickey’s BBQ 1105 Cheesecake Factory 1093 Red Lobster 1022 Famous Dave’s 1006 Average calories reported by MacroBites API · retrieved July 18, 2026 Family packs and multiserving items likely inflate restaurant averages.
23. 18 CONSTRUCTIVE PEER CRITIQUE STRONG DISCOVERY. ONE IMPORTANT DATA CAVEAT. Specific evidence · respectful language · actionable suggestion WHAT WORKS WHAT WE LEARNED 12K items, useful categories, connected restaurant → food → category navigation The frontend recieves and changes data in the URL to send informaiton to the backend to filter and sort WHAT TO IMPROVE WHAT PUZZLES US Show serving basis and separate bundles from single-item nutrition How are inferred dietary labels validated when descriptions are ambiguous?

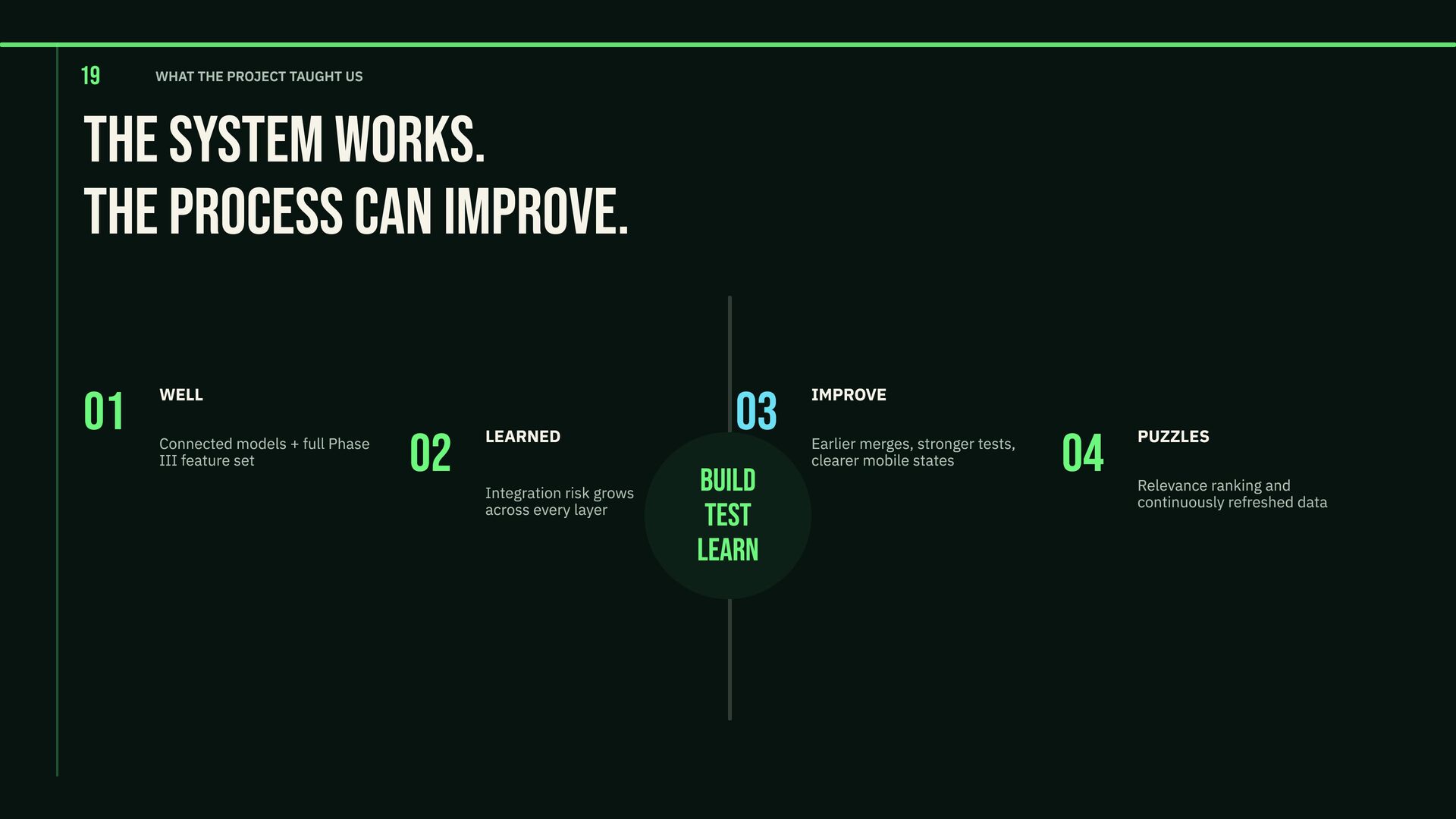

24. 19 WHAT THE PROJECT TAUGHT US THE SYSTEM WORKS. THE PROCESS CAN IMPROVE. 01 WELL Connected models + full Phase III feature set 02 LEARNED Integration risk grows across every layer 03 BUILD TEST LEARN IMPROVE Earlier merges, stronger tests, clearer mobile states 04 PUZZLES Relevance ranking and continuously refreshed data
25. FULL TIME CONNECTED DATA. EXPLORABLE SOCCER. restlessreferees.me Reliable data, a queryable backend, an understandable frontend, automated verification, and a public deployment. QUESTIONS?
