Notifications for Android Wear

How to make normal Android smartphone notifications look nice on Android Wear Smartwatches.

Transcript

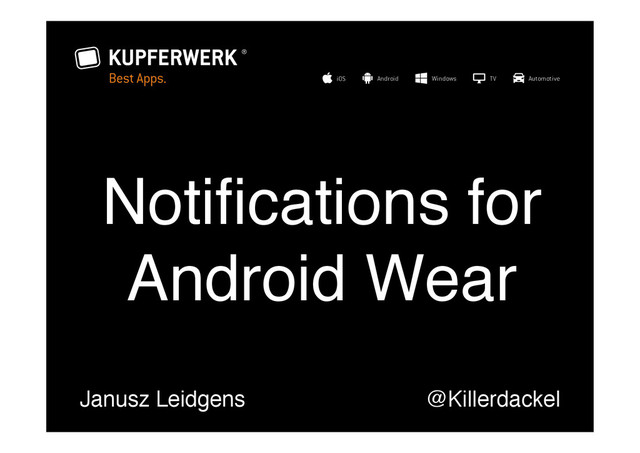

1. Notifications for Android Wear! Janusz Leidgens! @Killerdackel!
3. Android Wear! • Unser Verständnis
4. Why care for Wear Notifications?! •  Big impact •  Small effort
5. Notifications Phone vs Watch!
6. Notifications on Android! NotificationCompat.Builder builder = new NotificationCompat.Builder(this);

 builder.setContentTitle("Title");
 builder.setSmallIcon(R.drawable.ic_message);
 builder.setContentIntent(
 PendingIntent.getActivity(this, 0, new Intent(this, ActivateActivity.class), PendingIntent.FLAG_UPDATE_CURRENT));
 builder.setContentText(notificationText);
 builder.setLargeIcon(
 BitmapFactory.decodeResource(getResources(), R.drawable.large_icon));

 notificationManager.notify(messageIndex, builder.build());
7. Notifications Phone vs Watch!
8. Wear Card Order!
9. Special Wearable Notifications! NotificationCompat.Builder builder = new NotificationCompat.Builder(context); NotificationCompat.WearableExtender extender = new NotificationCompat.WearableExtender(); extender.extend(builder);
10. Nice Notifications! NotificationCompat.WearableExtender  extender  =      new  NotificationCompat.WearableExtender();     extender.setBackground(BitmapFactory.decodeResource(    getResources(),  R.drawable.notif_background));   extender.setContentIcon(R.drawable.ic_message);   extender.setHintHideIcon(true);     extender.extend(builder);! §  Android Wear cards have 400 x 400 background that should be placed into the drawable-nodpi folder!
11. The content icon silhouette is visible if wear inactive!
12. Grouping Notifications!
13. Grouping Notifications!
14. Grouping Notifications! NotificationCompat.InboxStyle inboxStyle = new NotificationCompat.InboxStyle();

 for (String notification : notifications) {
 inboxStyle.addLine(notification);
 groupIndex++;
 createStackedNotification(notificationManager,
 notification, messageIndex + groupIndex);
 }
 builder.setStyle(inboxStyle);
 builder.setGroup(GROUP_KEY);
 builder.setGroupSummary(true);
15. Grouping Notifications! private void createStackedNotification(
 NotificationManagerCompat notificationManager, String notification, int stackedId) {
 NotificationCompat.Builder stackedCardBuilder =
 new NotificationCompat.Builder(this);

 stackedCardBuilder.setContentTitle(getTitle());
 stackedCardBuilder.setSmallIcon(R.drawable.ic_message);
 stackedCardBuilder.setContentIntent(getIntent());
 stackedCardBuilder.setLargeIcon(getLargeIcon());
 stackedCardBuilder.setContentText(notification);

 stackedCardBuilder.setGroup(GROUP_KEY);

 notificationManager.notify(
 stackedId, stackedCardBuilder.build());
 }
16. Grouping Notifications! •  Notifications with a group id that are not a summary are not shown on the phone.! •  To have notifications only on the phone: setLocalOnly(true)!
17. Adding pages to notifications! NotificationCompat.Builder  baseNotification  =      generateBaseNotification(notificationText);   NotificationCompat.WearableExtender  baseExtender  =      new  NotificationCompat.WearableExtender();     NotificationCompat.Builder  shortBio  =      new  NotificationCompat.Builder(this);   shortBio.setContentText(getBioText());   NotificationCompat.WearableExtender  shortBioExtender  =      new  NotificationCompat.WearableExtender();   shortBioExtender.setBackground(getBioBackground());     shortBioExtender.extend(shortBio);   baseExtender.addPage(shortBio.build());     baseExtender.extend(baseNotification);   notificationManager.notify(messageIndex,    baseNotification.build());
18. Adding Wear only Actions! Intent  tagService  =  new  Intent(this,  TagService.class);   tagService.putExtra(INDEX,  messageIndex);   String  title  =  "Tag  for  later“;   PendingIntent  actionIntent  =  PendingIntent.getService(this,    messageId,  tagService,    PendingIntent.FLAG_UPDATE_CURRENT);     NotificationCompat.Action  phoneOnlyAction  =      new  NotificationCompat.Action(      R.drawable.tag,      title,        actionIntent);     extender.addAction(phoneOnlyAction);
19. Voice actions!
20. Voice actions! RemoteInput.Builder remoteInputBuilder =
 new RemoteInput.Builder(EXTRA_VOICE_REPLY);

 remoteInputBuilder.setLabel("Speak a note");
 remoteInputBuilder.setChoices(
 new String[]
 {"Interesting", "Share", "Read up on this"});

 NotificationCompat.Action.Builder actionBuilder =
 new NotificationCompat.Action.Builder(
 R.drawable.write_note,
 "Speak a note",
 pendingIntent);

 actionBuilder.addRemoteInput(remoteInputBuilder.build());
 extender.addAction(actionBuilder.build());
21. Reacting to voice Actions! @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 CharSequence note = getMessageText(getIntent());
 if (!TextUtils.isEmpty(note)) {
 saveNote(note);
 finish();
 } else {
 setupRegularUi();
 }
 }
22. Reacting to voice actions! private CharSequence getMessageText(Intent intent) {
 Bundle remoteInput = RemoteInput.getResultsFromIntent(intent);

 if (remoteInput != null) {
 return remoteInput.getCharSequence(
 SendNotificationService.EXTRA_VOICE_REPLY);
 }
 return null;
 }
23. Links! •  Example Projects: https://github.com/jleidgens/ NotificationTestApp •  http://developer.android.com/guide/topics/ui/notifiers/ notifications.html •  http://developer.android.com/training/wearables/notifications/ creating.html •  http://developer.android.com/training/wearables/notifications/ voice-input.html
