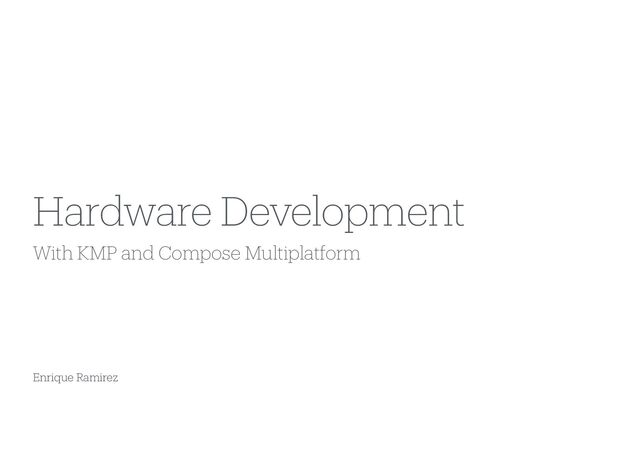

1. Enrique Ramirez With KMP and Compose Multiplatform Hardware Development

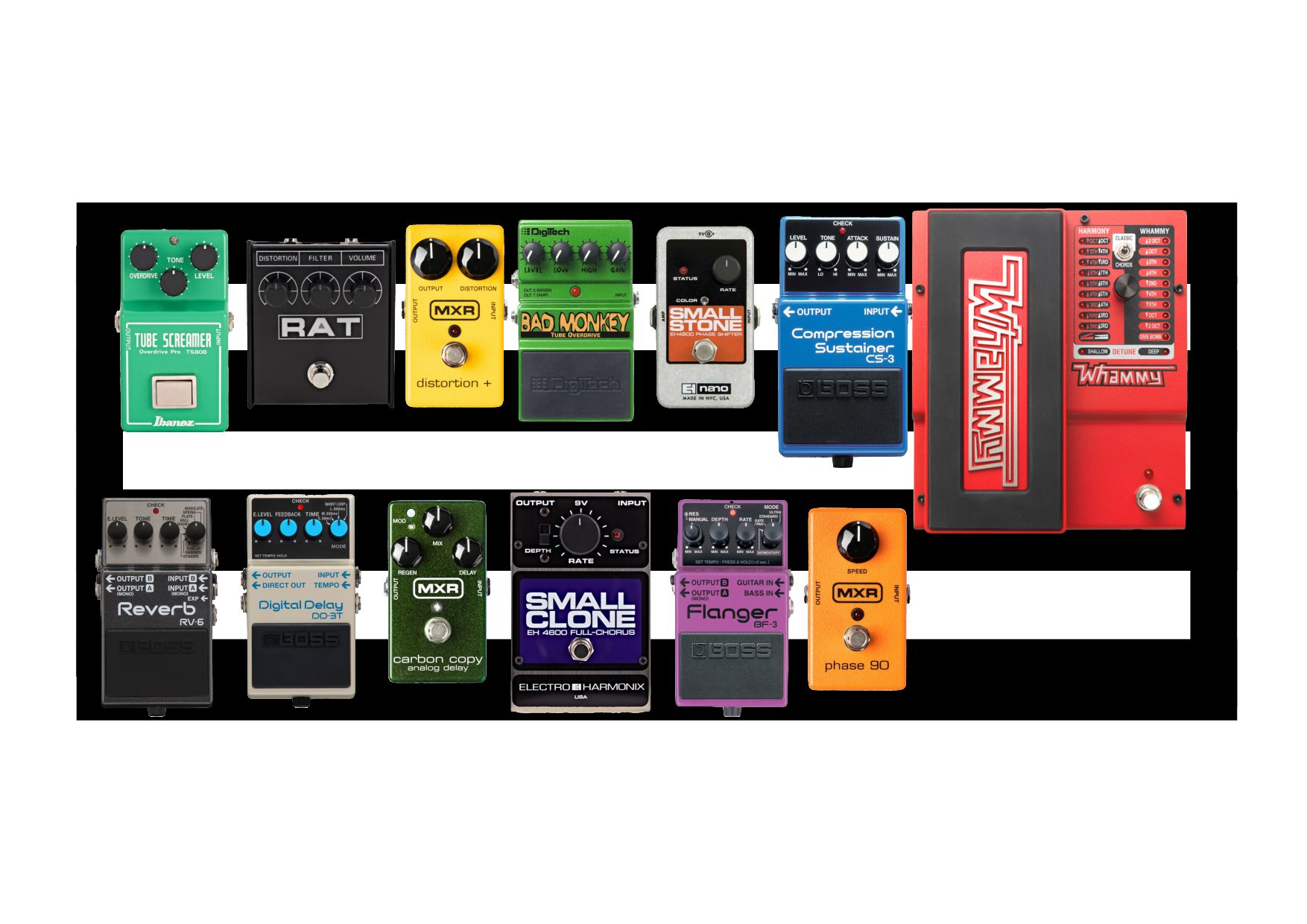

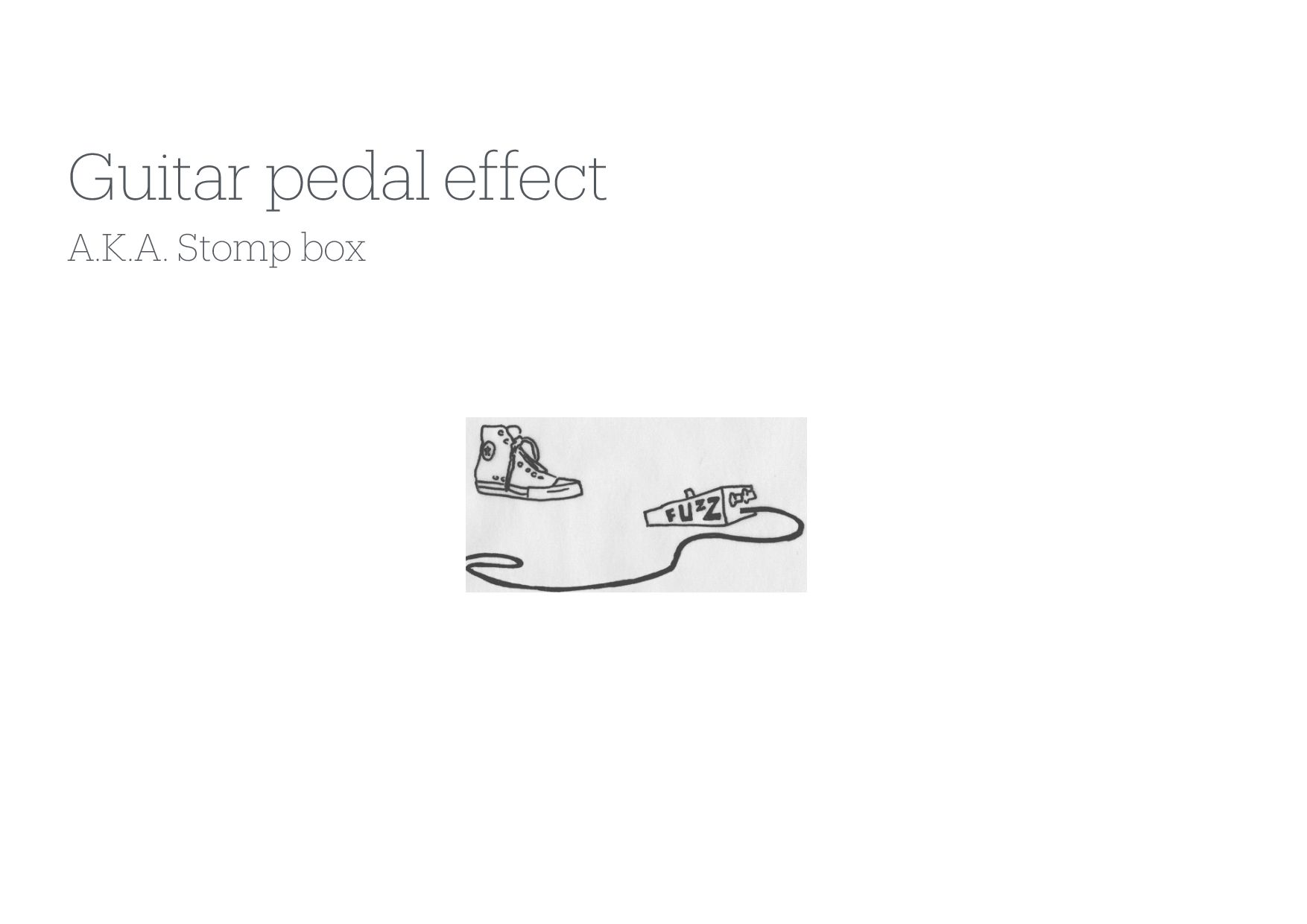

2. A.K.A. Stomp box Guitar pedal effect

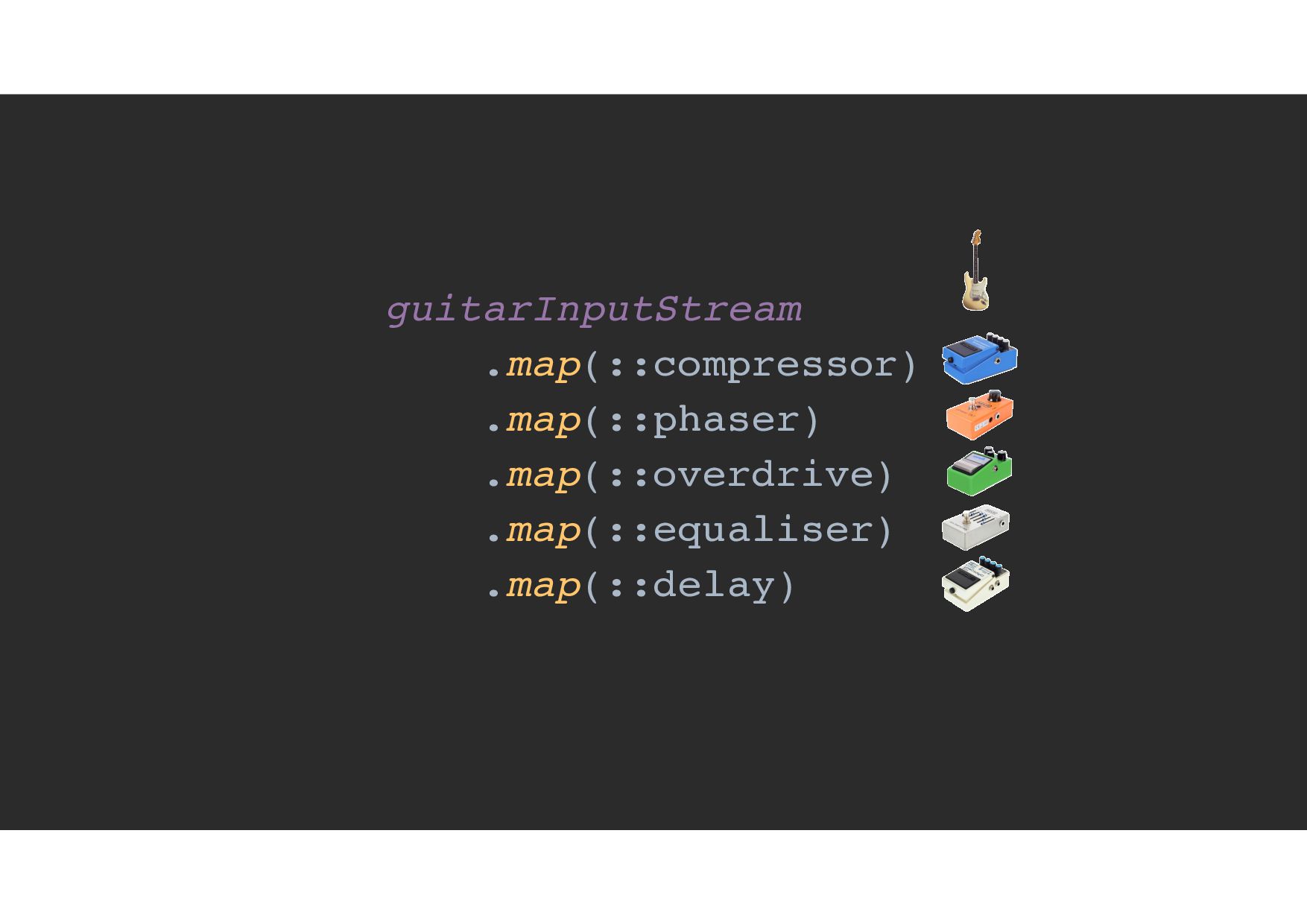

4. guitarInputStream .map(::compressor) .map(::phaser) .map(::overdrive) .map(::equaliser) .map(::delay)

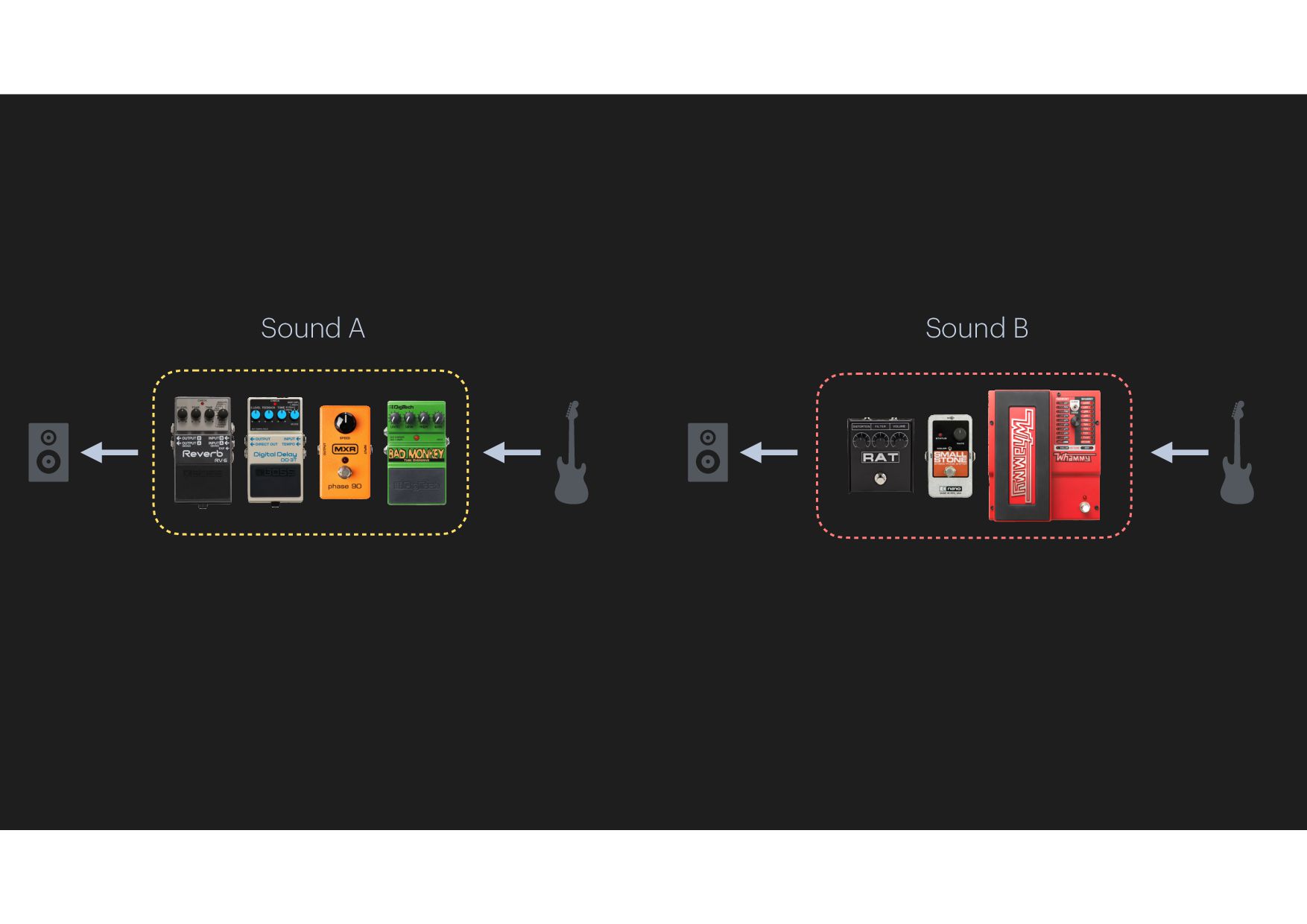

6. Sound A Sound B

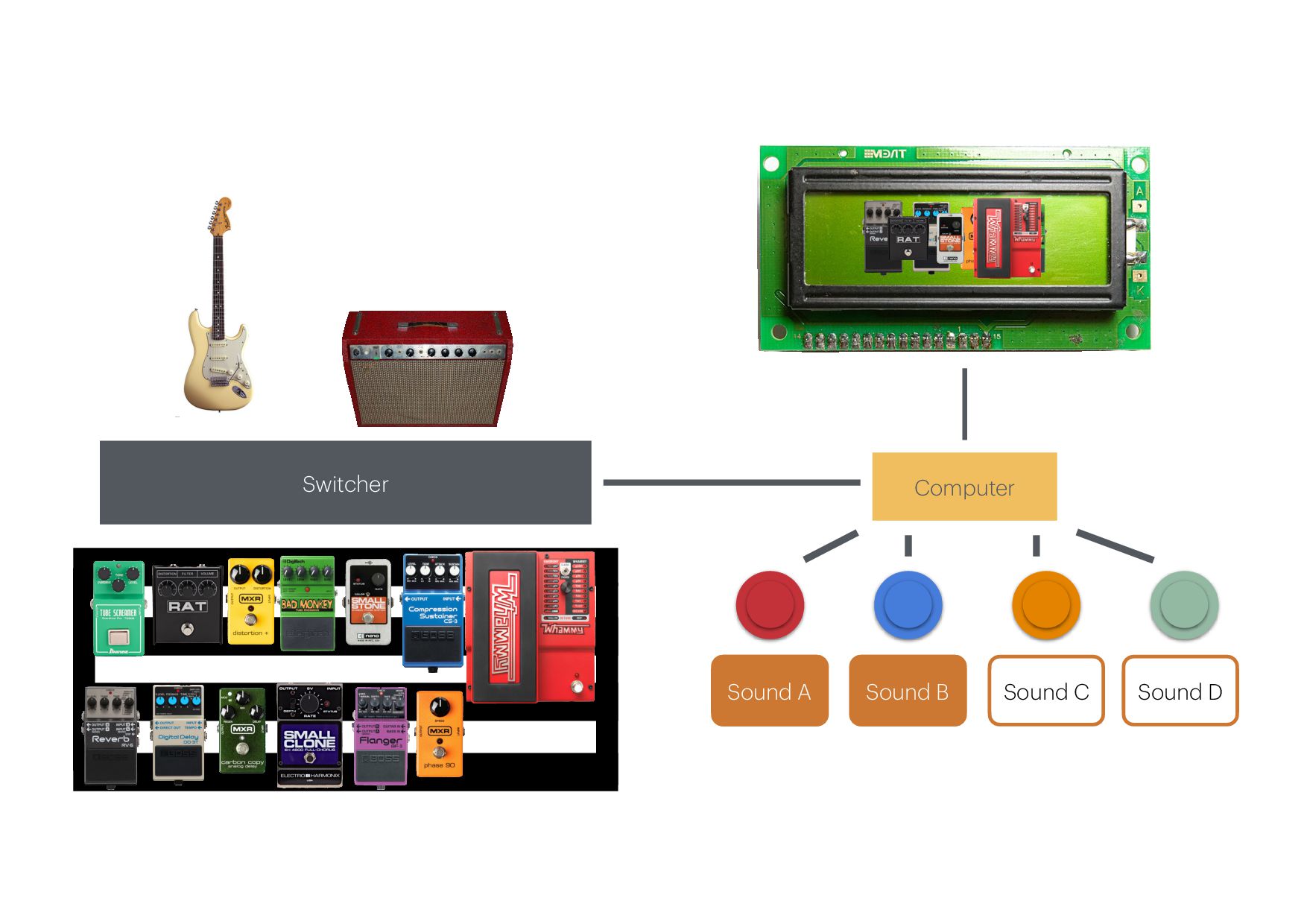

7. Switcher Sound A Sound B Sound C Sound D Computer Sound A Sound B

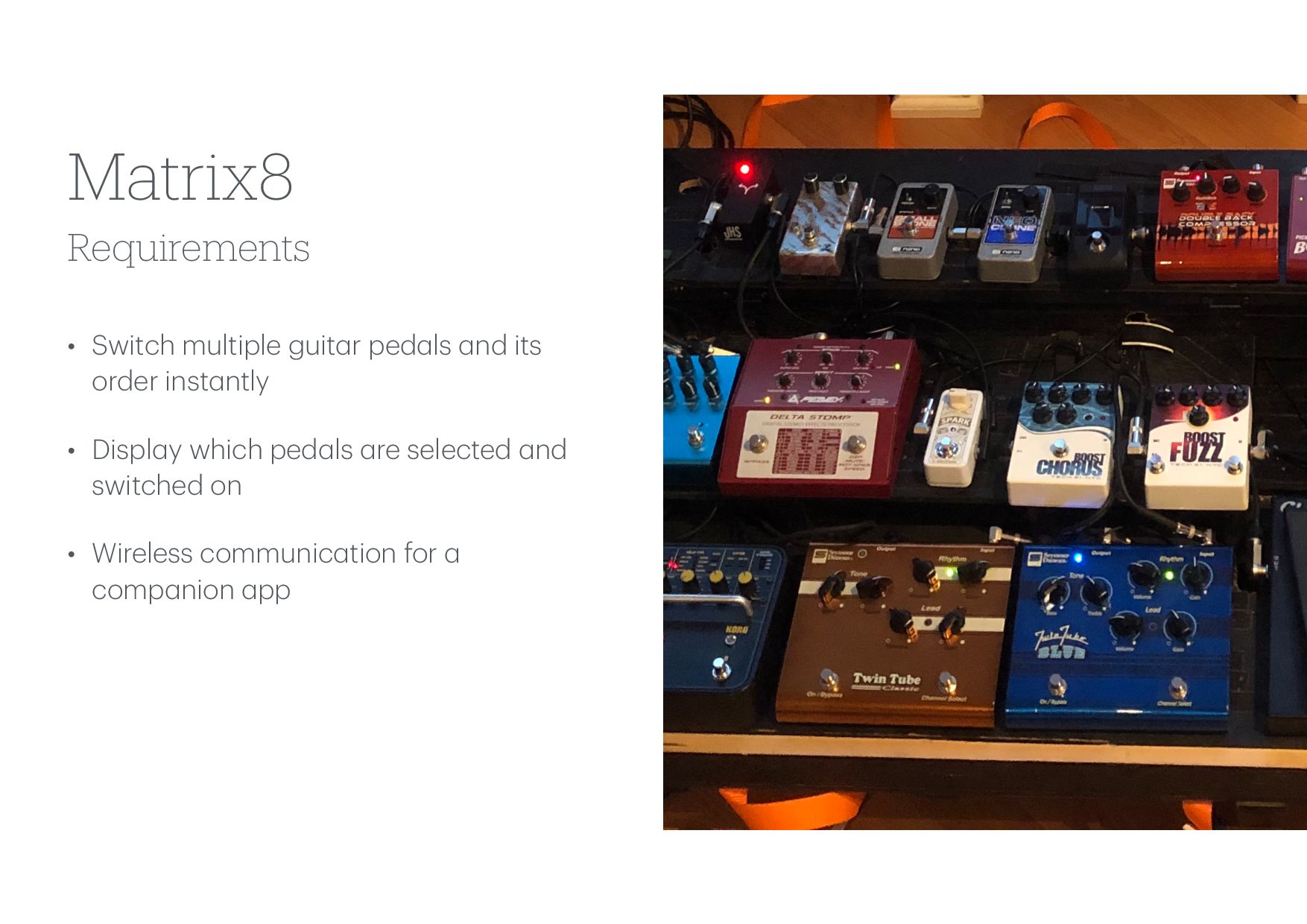

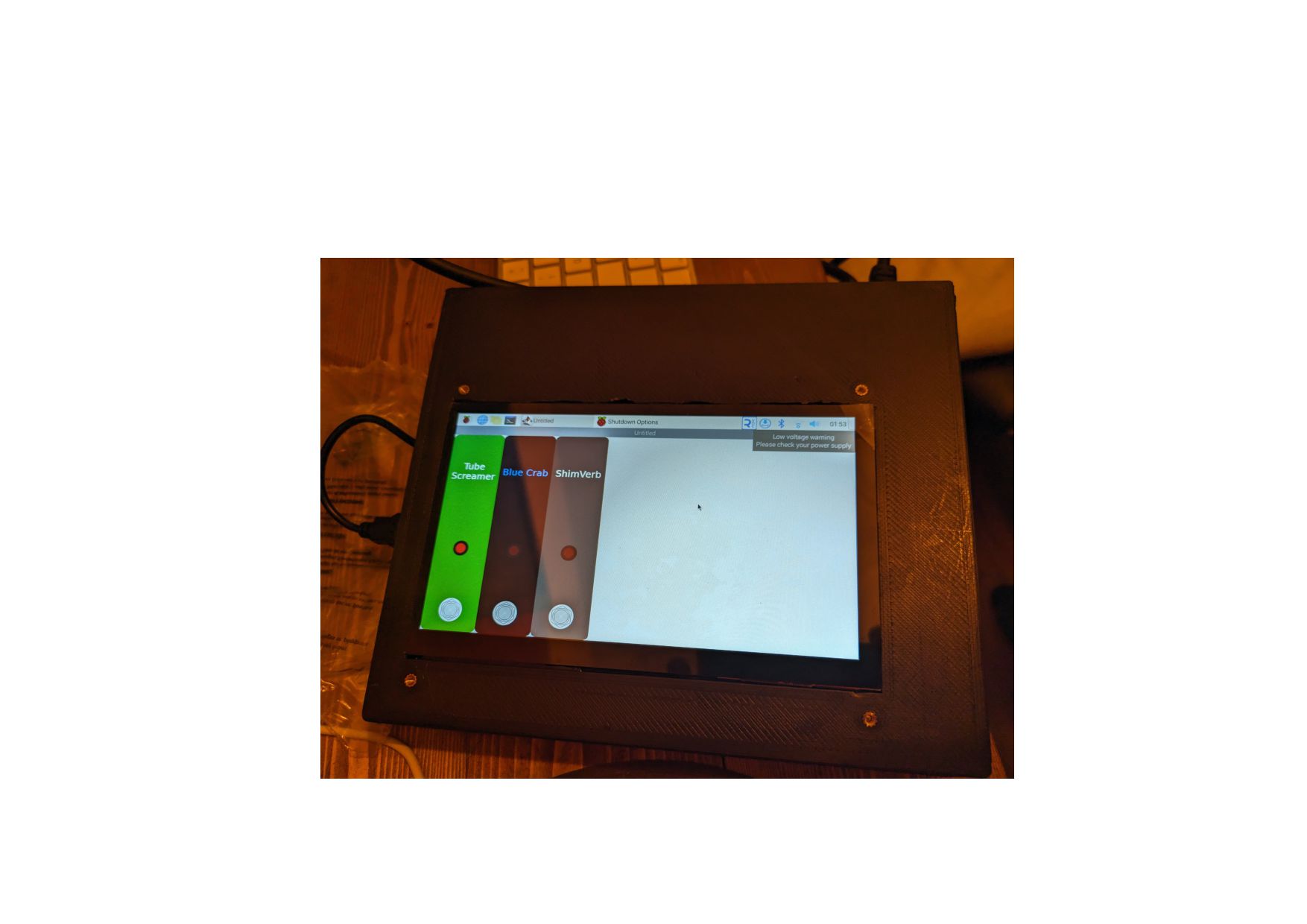

8. Requirements Matrix8 • Switch multiple guit a r ped a ls a nd its order inst a ntly • Displ a y which ped a ls a re selected a nd switched on • Wireless communic a tion for a comp a nion a pp

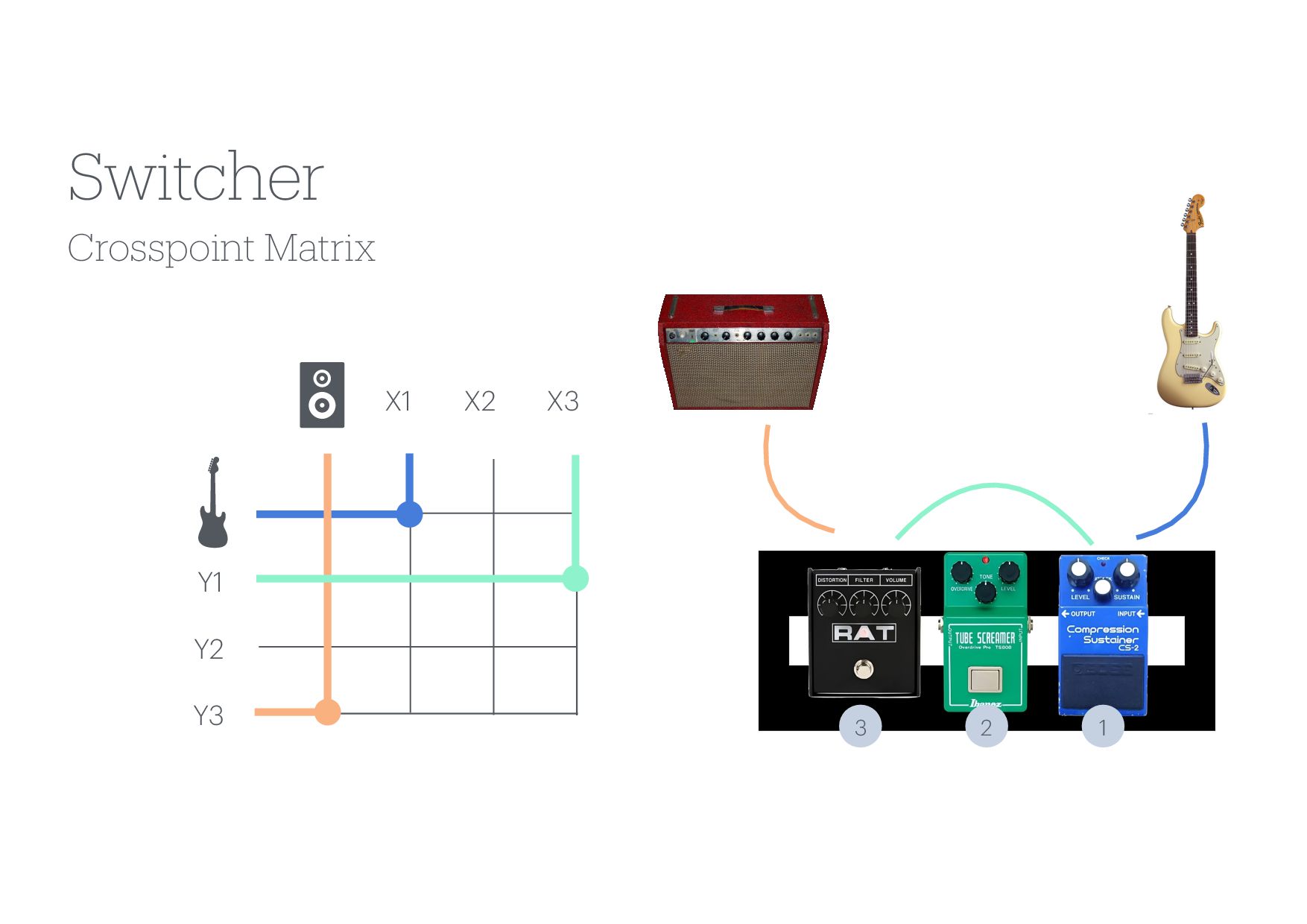

9. Crosspoint Matrix Switcher Y1 Y2 Y3 X1 X2 X3 3 2 1

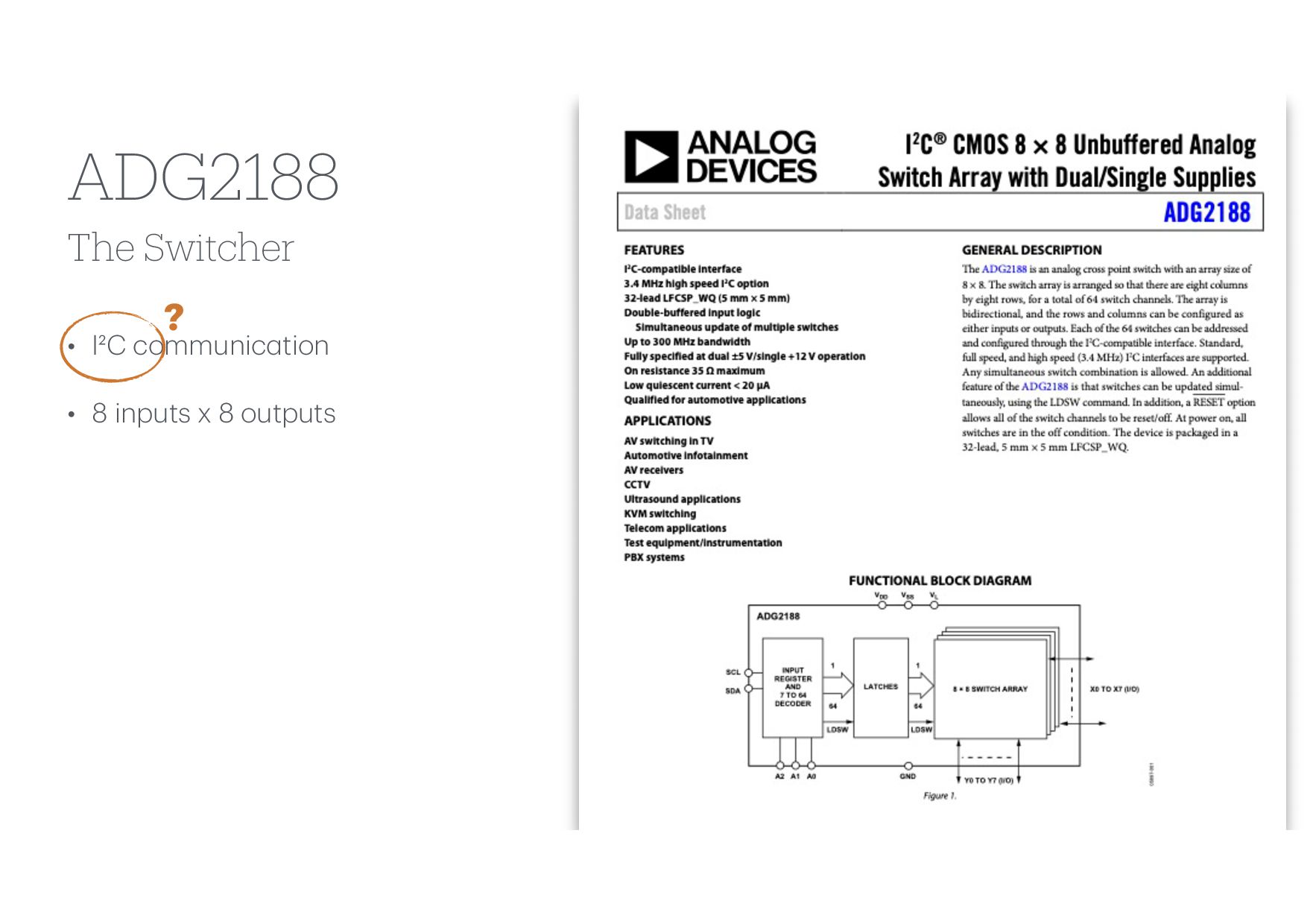

10. The Switcher ADG2188 • I²C communic a tion • 8 inputs x 8 outputs ?

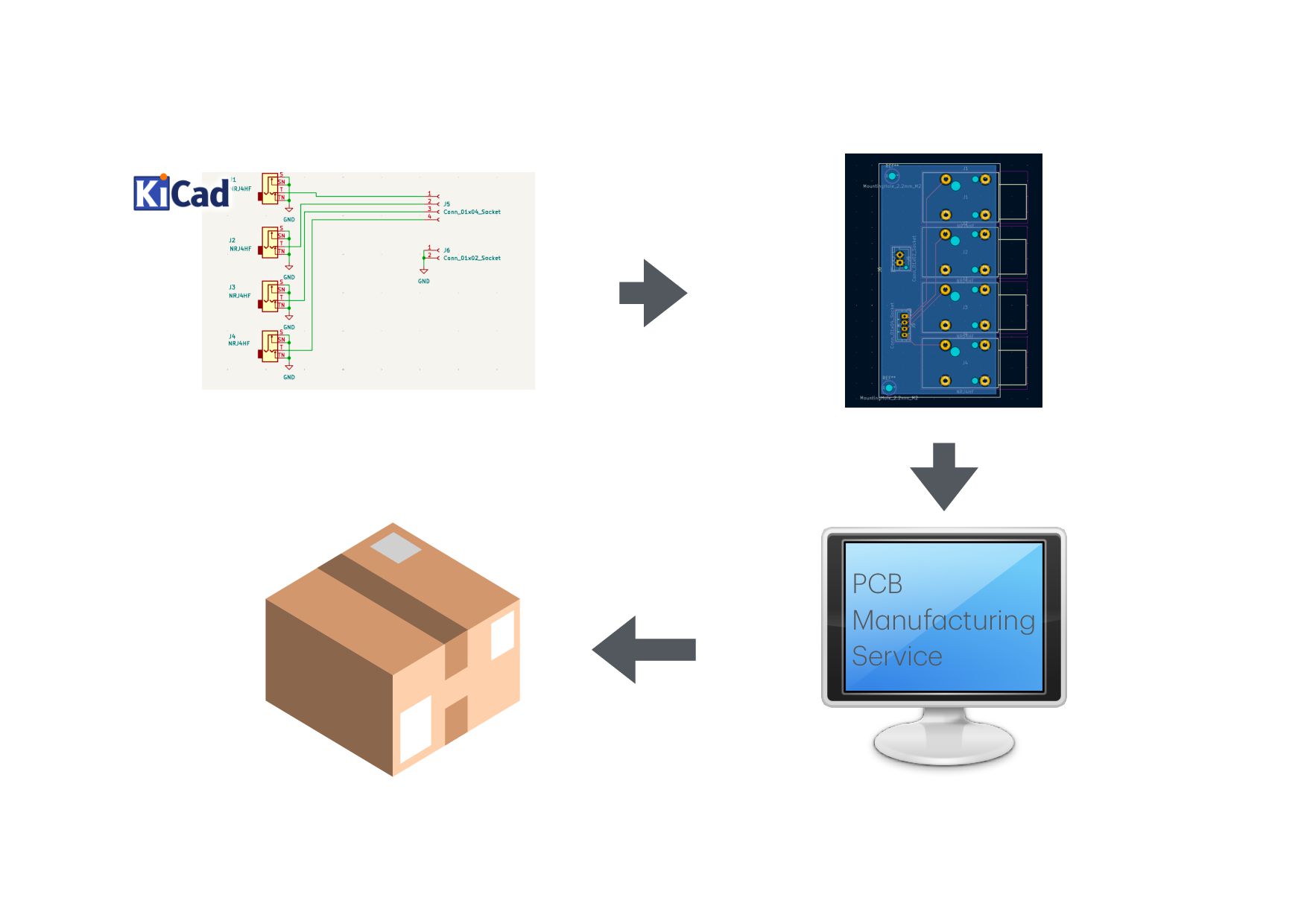

11. PCB M a nuf a cturing Service

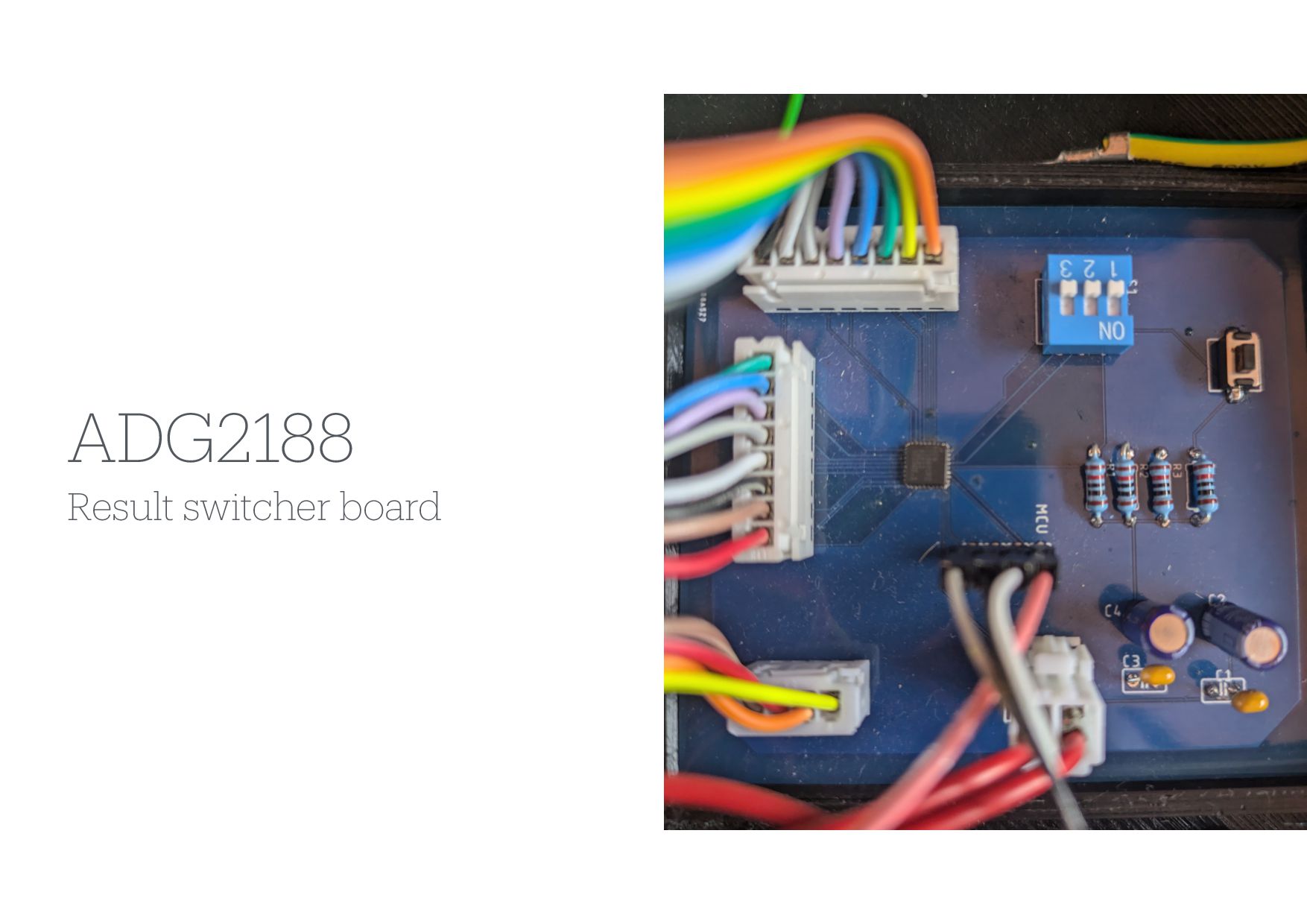

12. ADG2188 Result switcher board

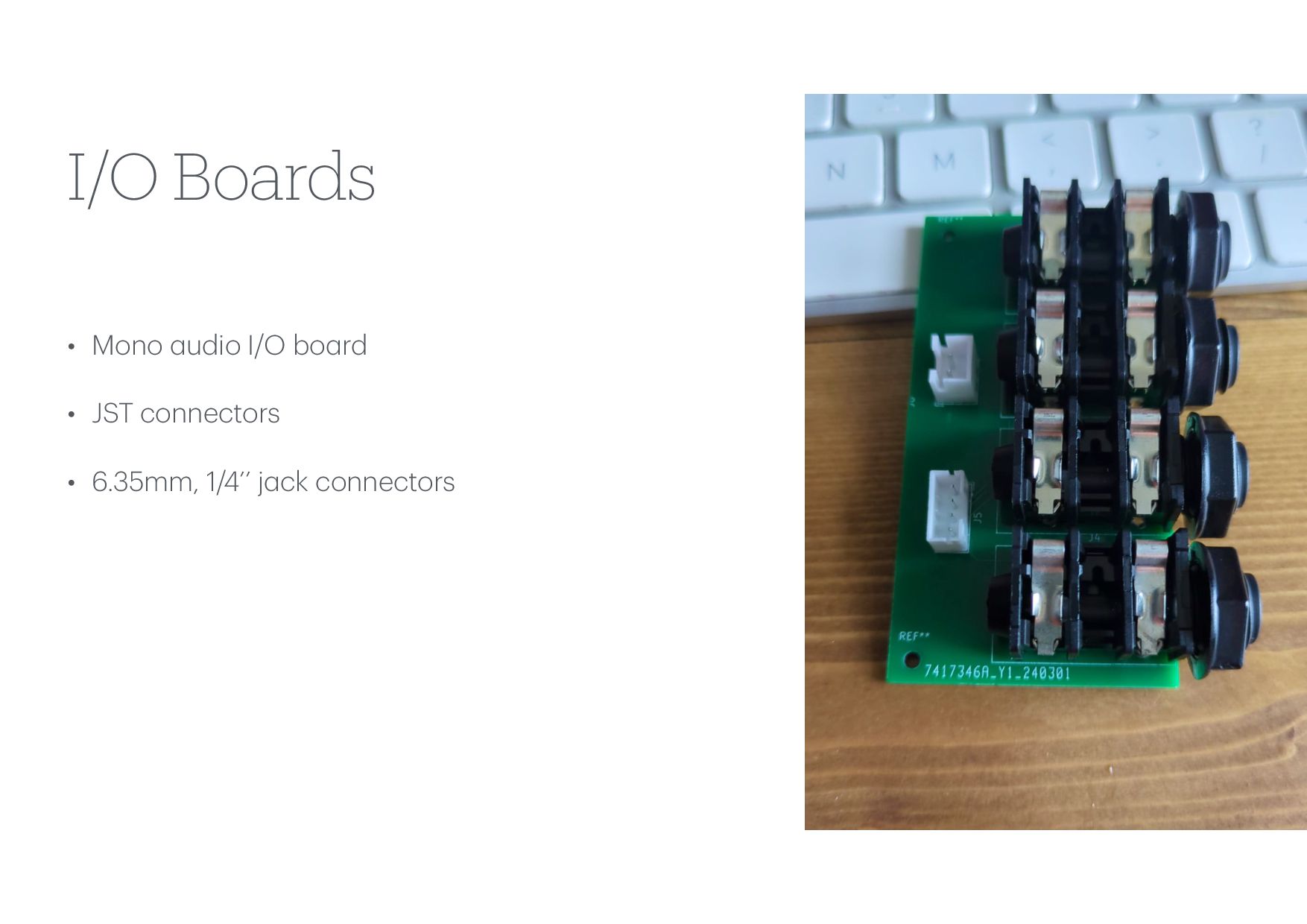

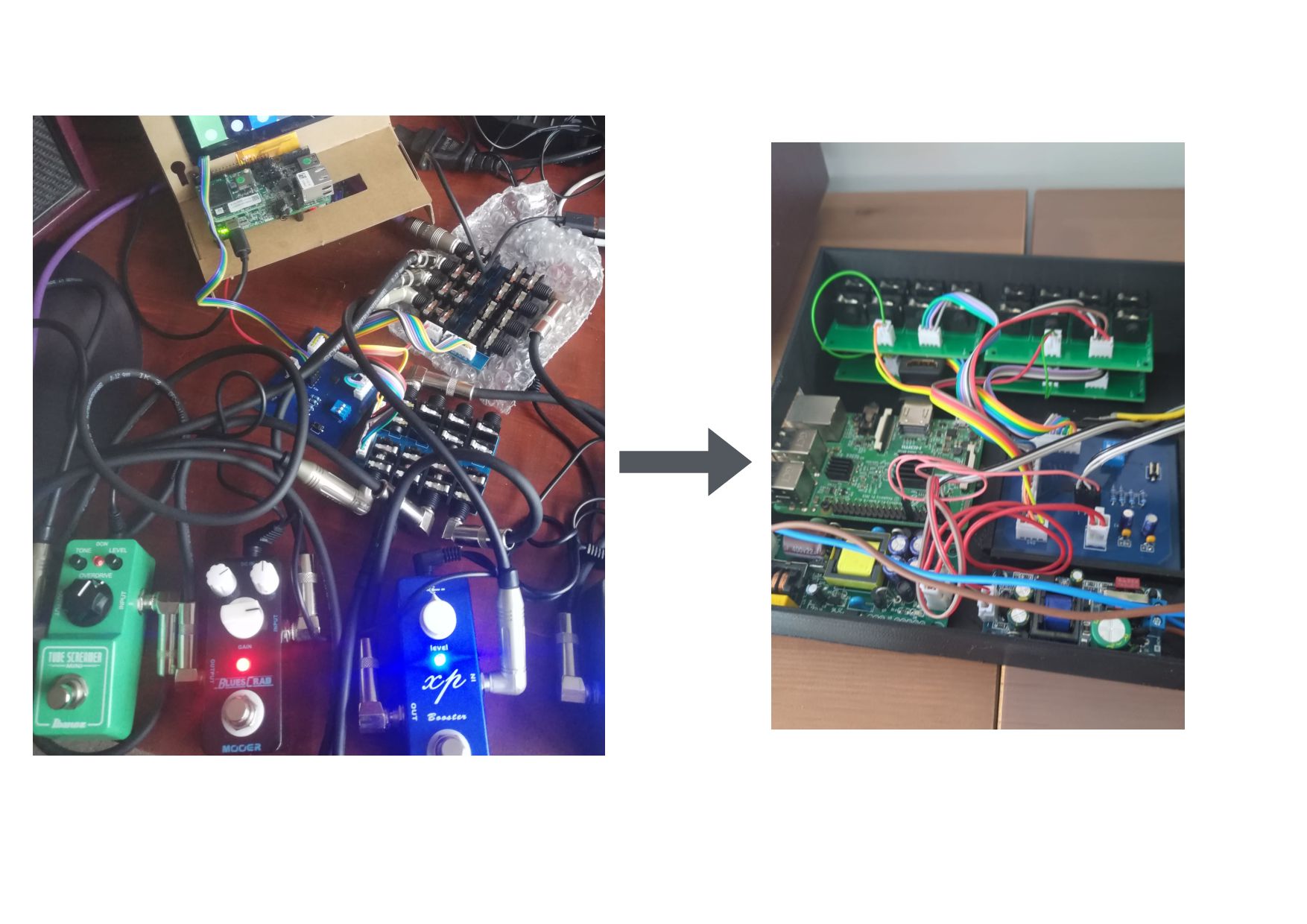

13. I/O Boards • Mono a udio I/O bo a rd • JST connectors • 6.35mm, 1/4’’ j a ck connectors

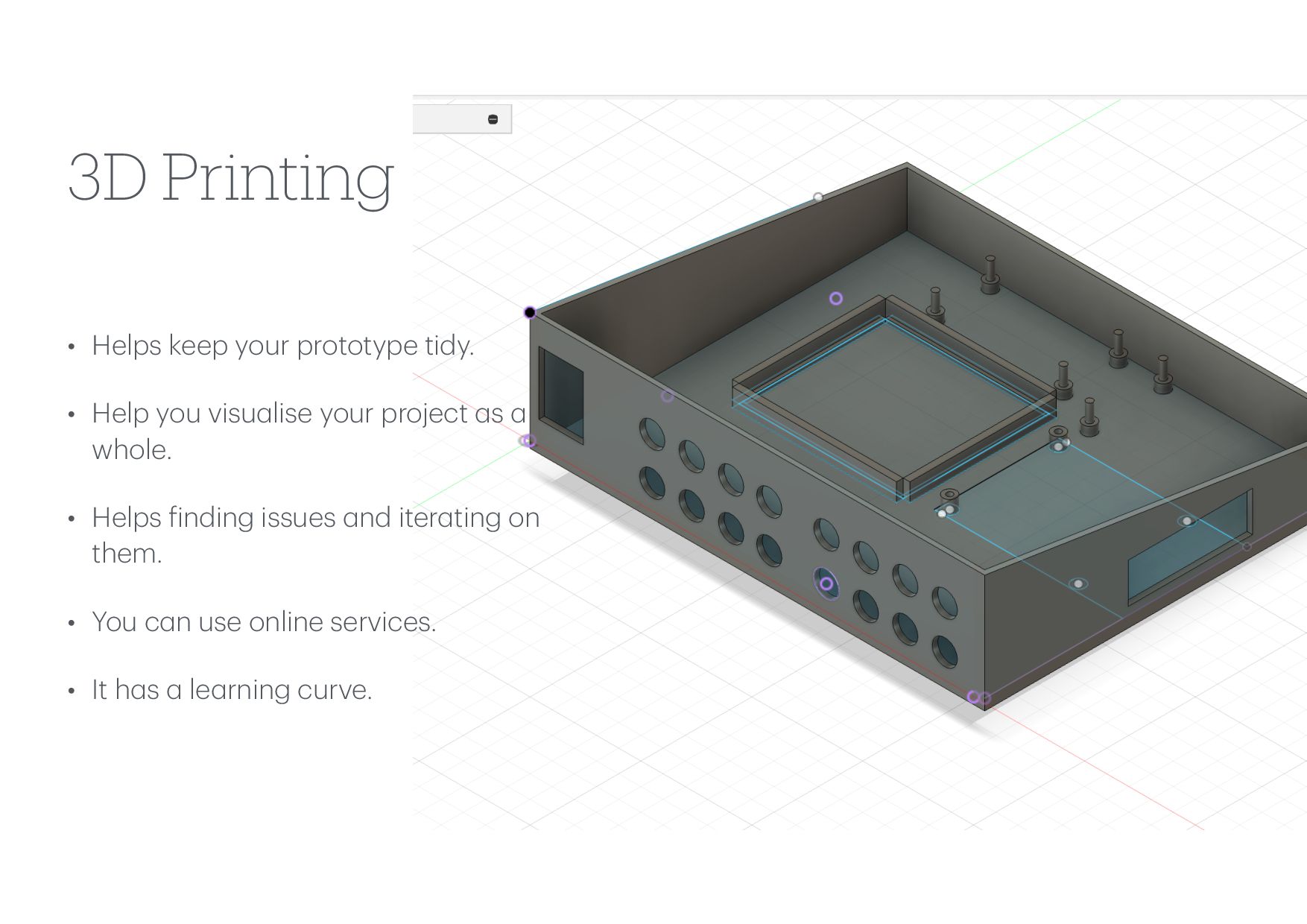

14. 3D Printing • Helps keep your prototype tidy. • Help you visu a lise your project a s a whole. • Helps f inding issues a nd iter a ting on them. • You c a n use online services. • It h a s a le a rning curve.
16. How do we build this?
17. We are Mobile Software Engineers not Embedded
19. Transferable Skills
20. Which Platform?

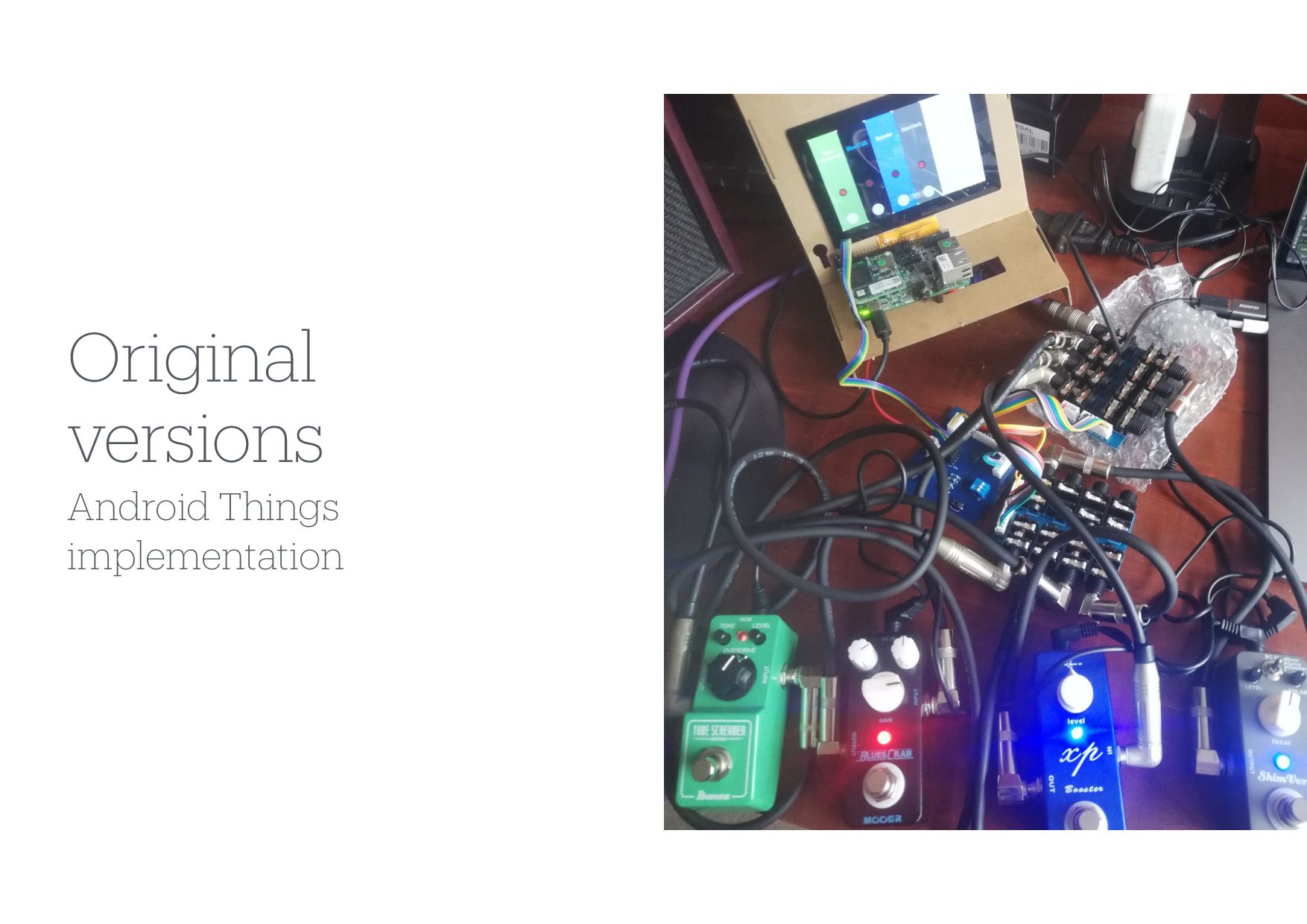

21. Original versions Android Things implementation
24. A Swiss Army knife The Raspberry PI • Sm a ll form f a ctor computer • Con f igur a ble I/O • Integr a ted wireless comms * • OS Customis a tion • Good Community support • Displ a y c a p a bilities • Open Source friendly • Wide r a nge of v a ri a nts

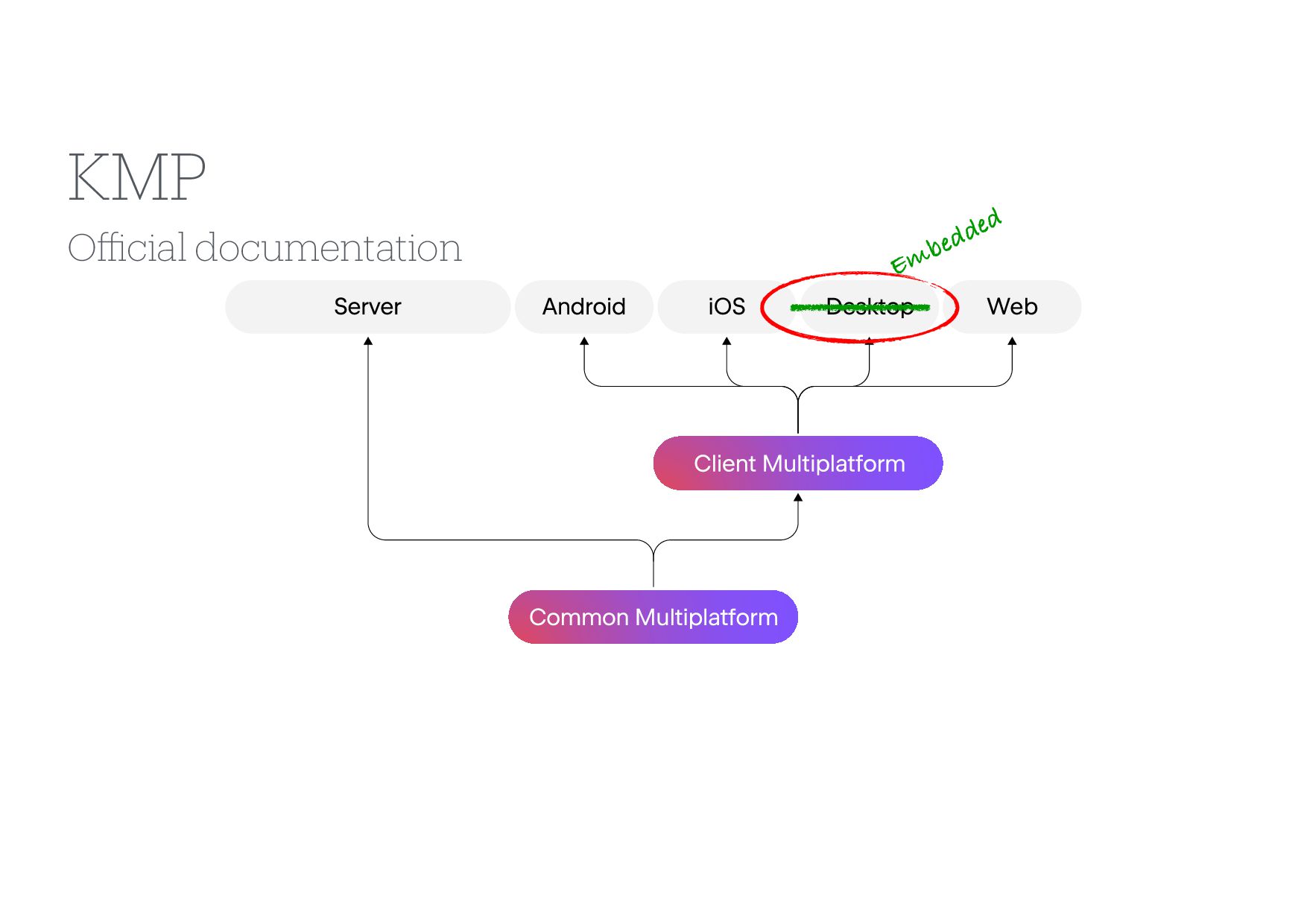

25. O ffi cial documentation KMP Embedded

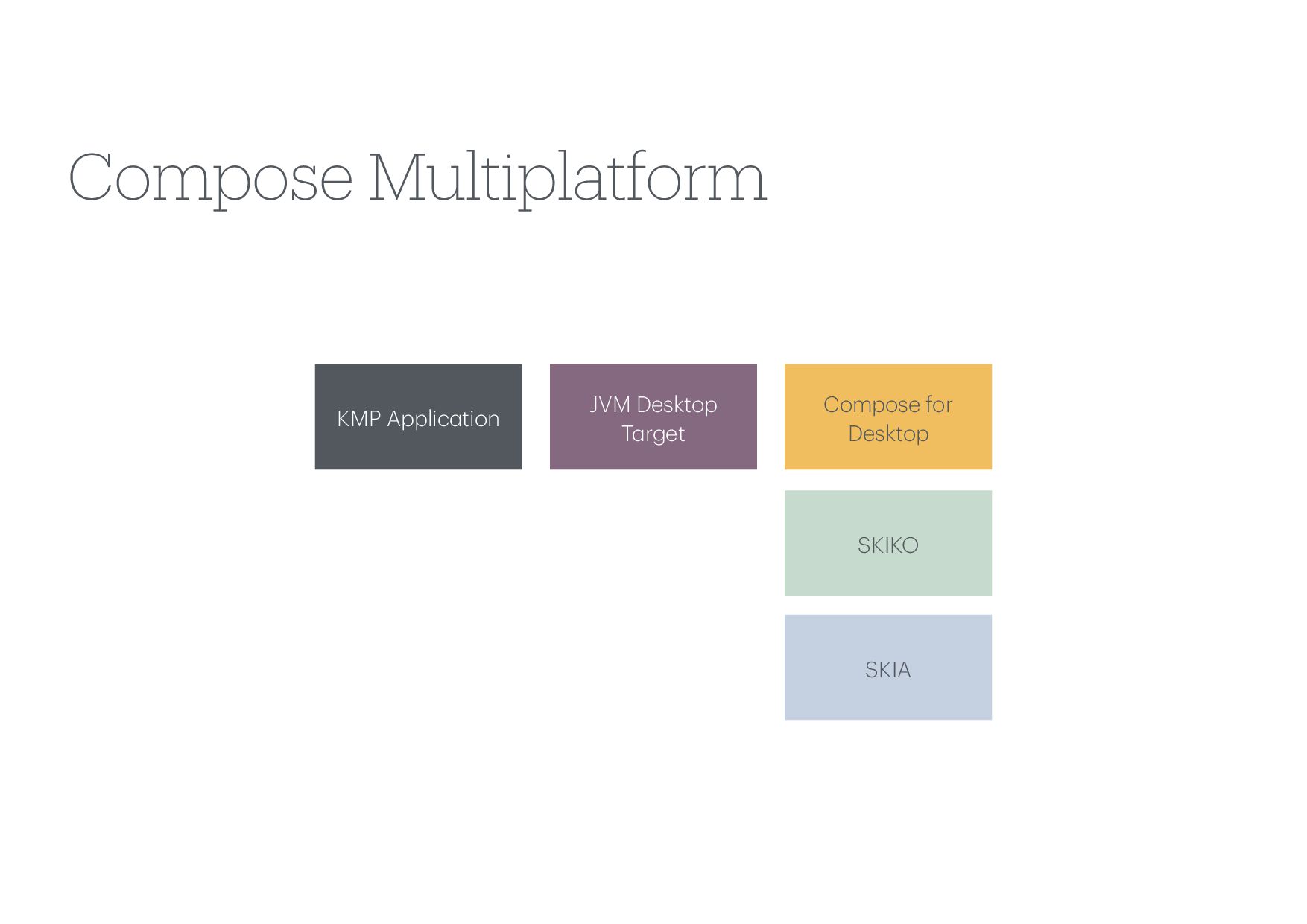

26. Compose Multiplatform KMP Applic a tion JVM Desktop T a rget SKIKO SKIA Compose for Desktop
29. Talking to the Hardware

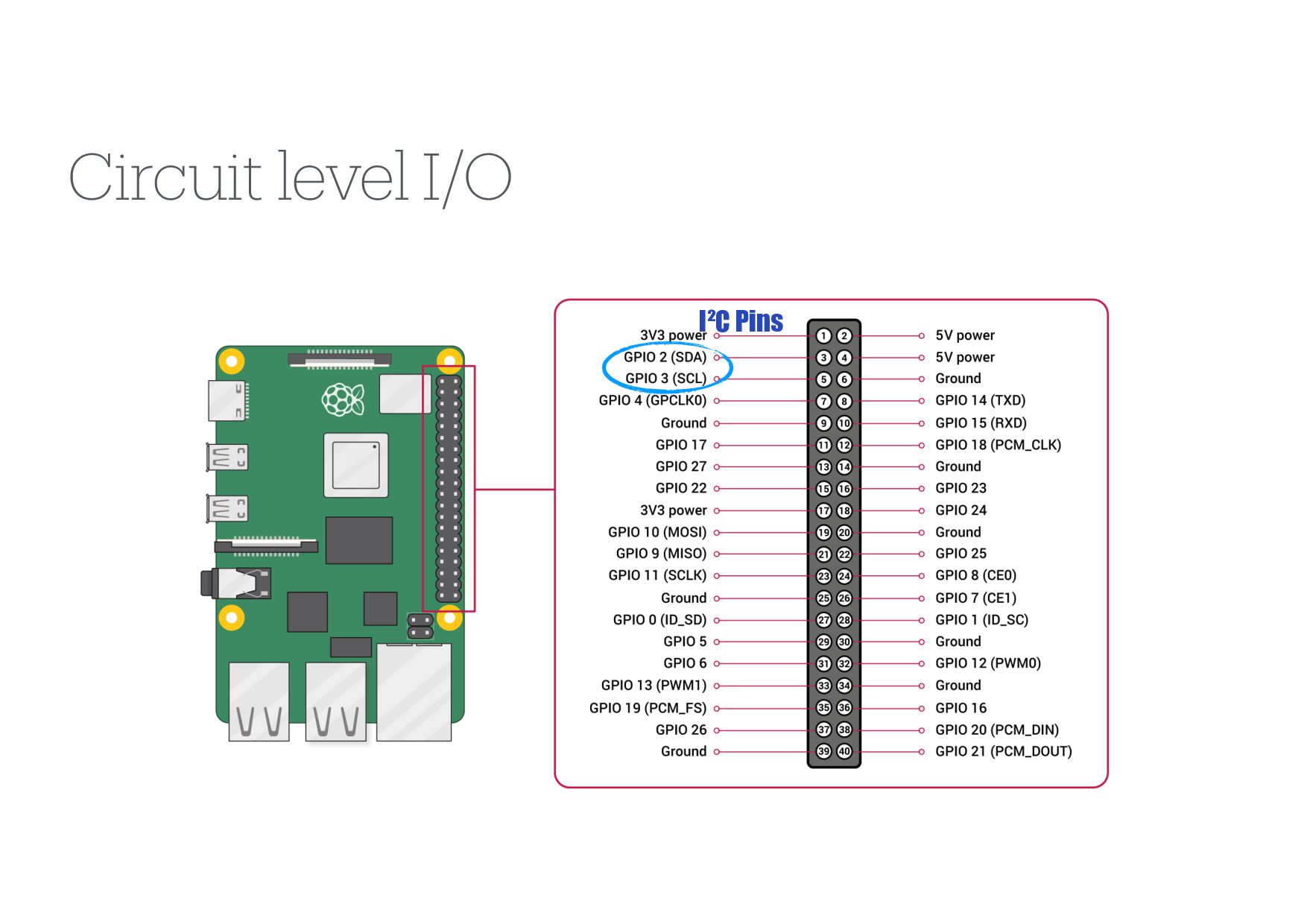

30. Circuit level I/O I²C Pins

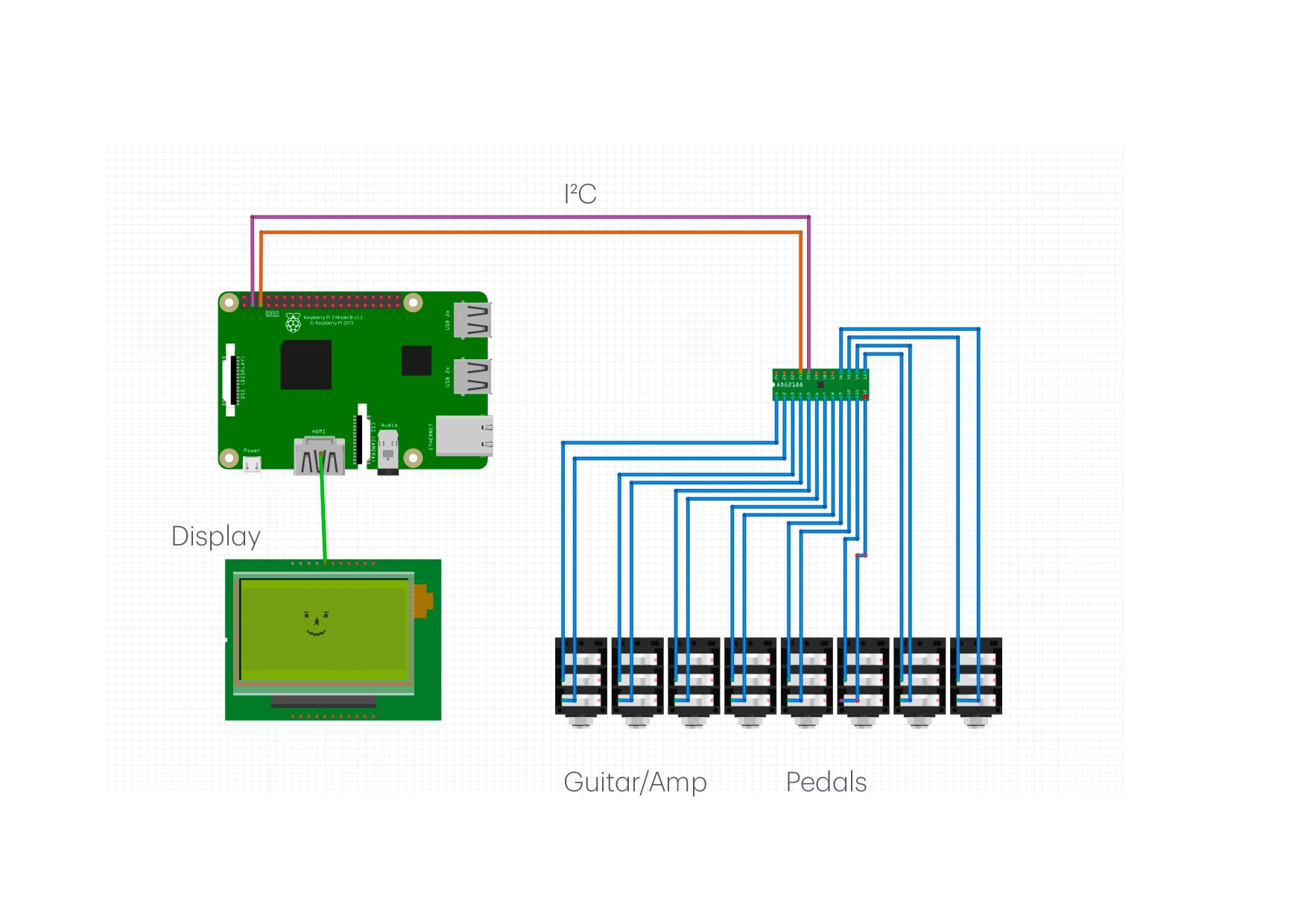

31. I²C Ped a ls Guit a r/Amp Displ a y

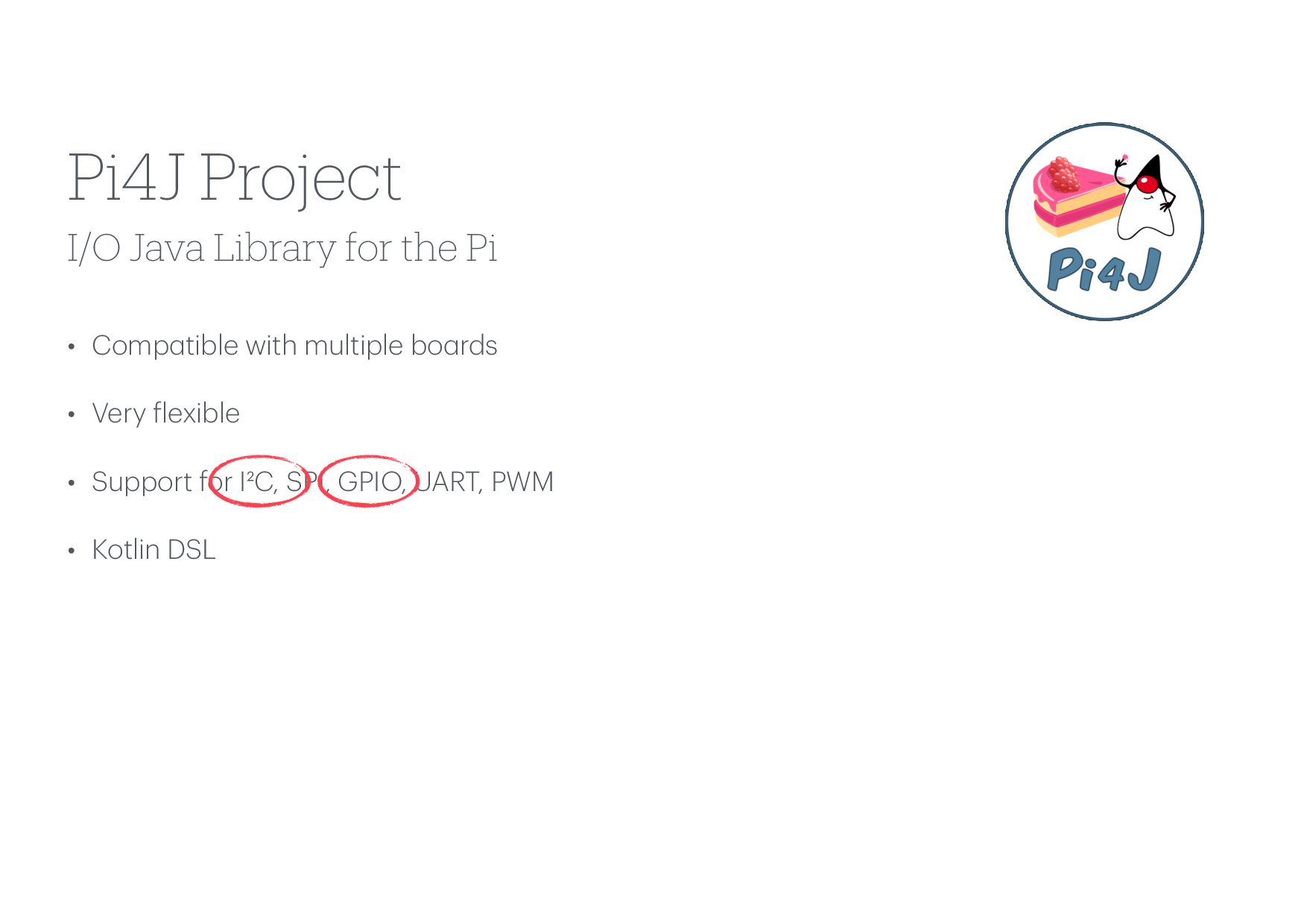

32. I/O Java Library for the Pi Pi4J Project • Comp a tible with multiple bo a rds • Very f lexible • Support for I²C, SPI, GPIO, UART, PWM • Kotlin DSL

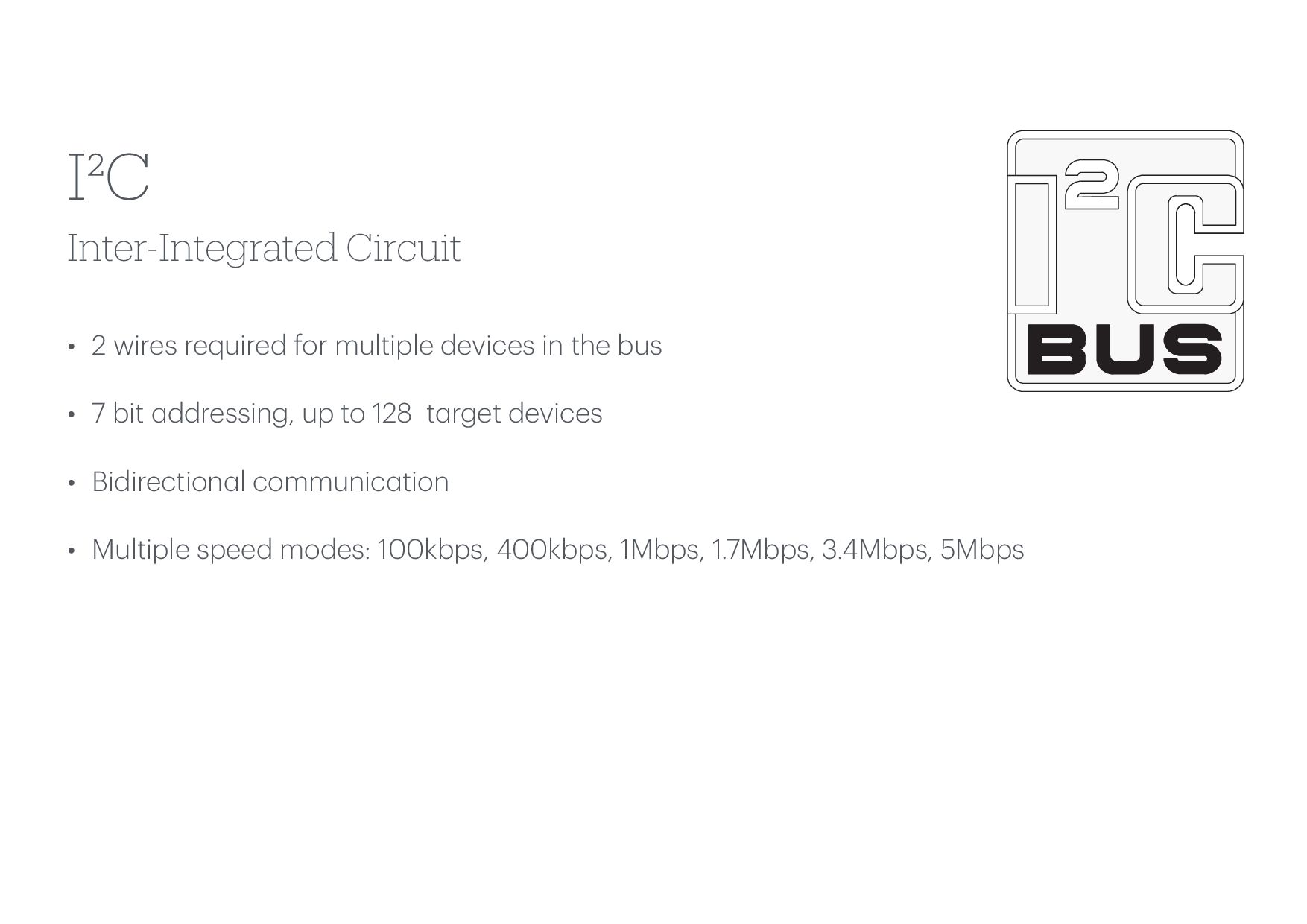

33. Inter-Integrated Circuit I²C • 2 wires required for multiple devices in the bus • 7 bit a ddressing, up to 128 t a rget devices • Bidirection a l communic a tion • Multiple speed modes: 100kbps, 400kbps, 1Mbps, 1.7Mbps, 3.4Mbps, 5Mbps

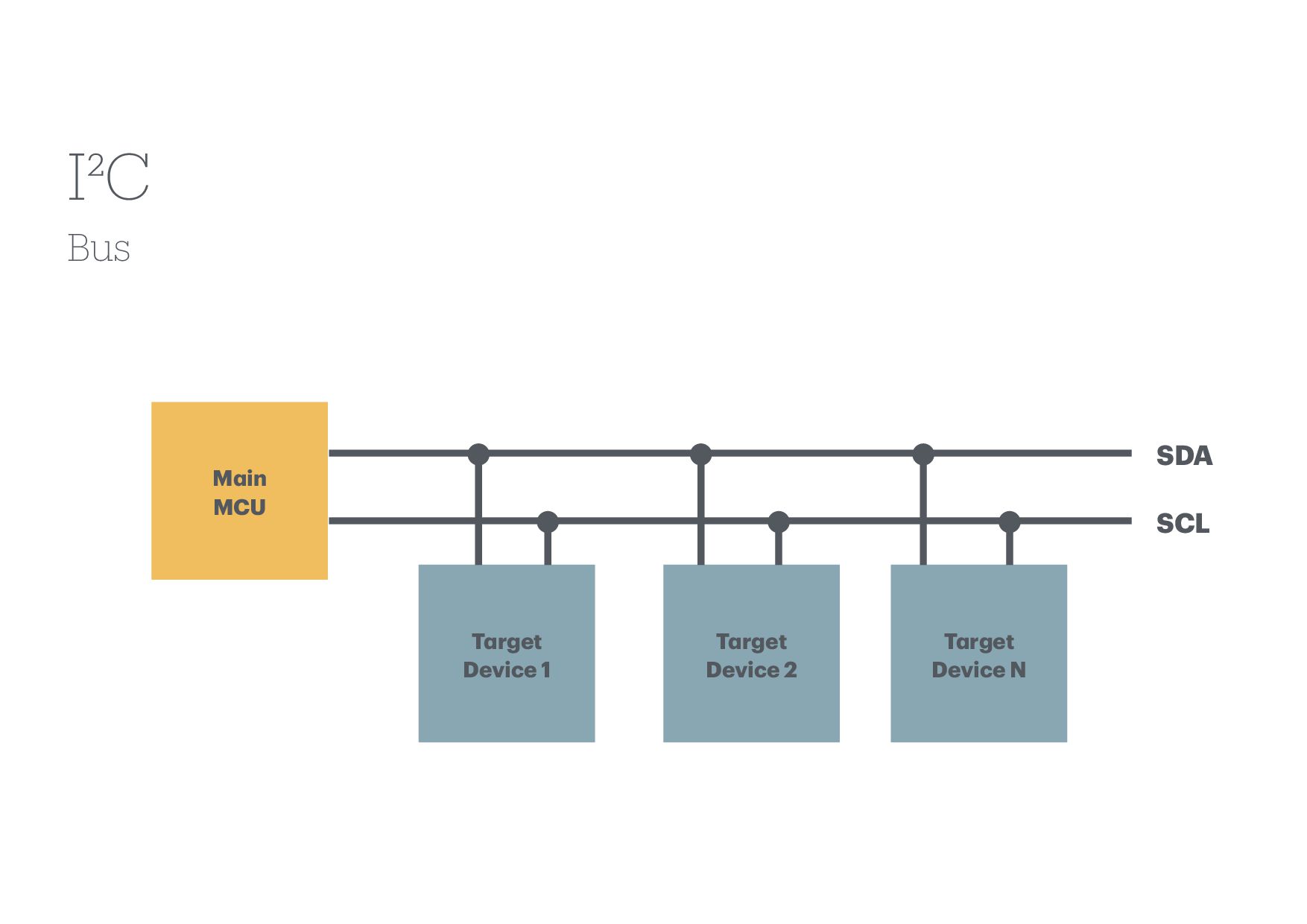

34. Bus I²C M a in MCU T a rget Device 1 SDA SCL T a rget Device 2 T a rget Device N

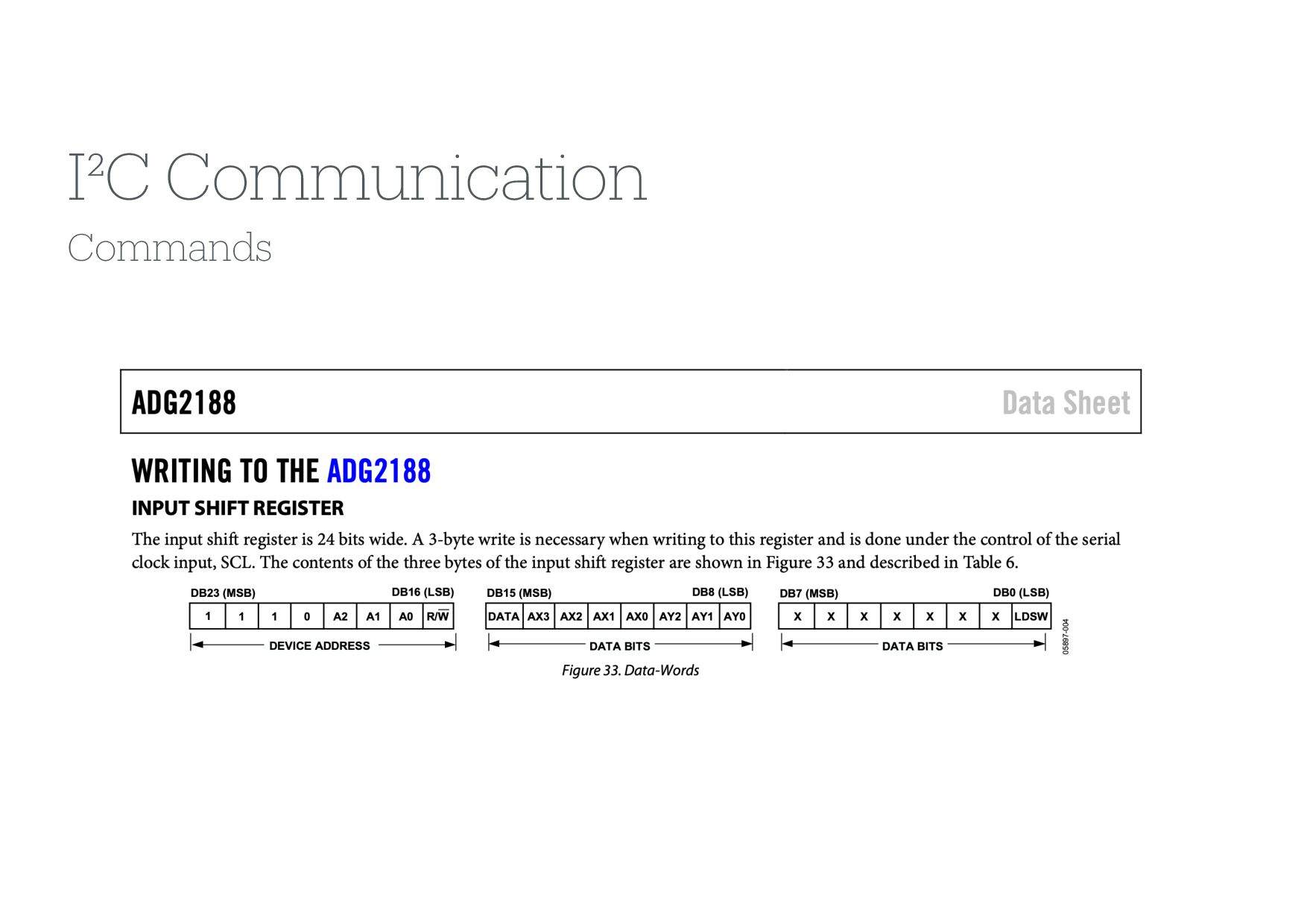

35. Commands I²C Communication

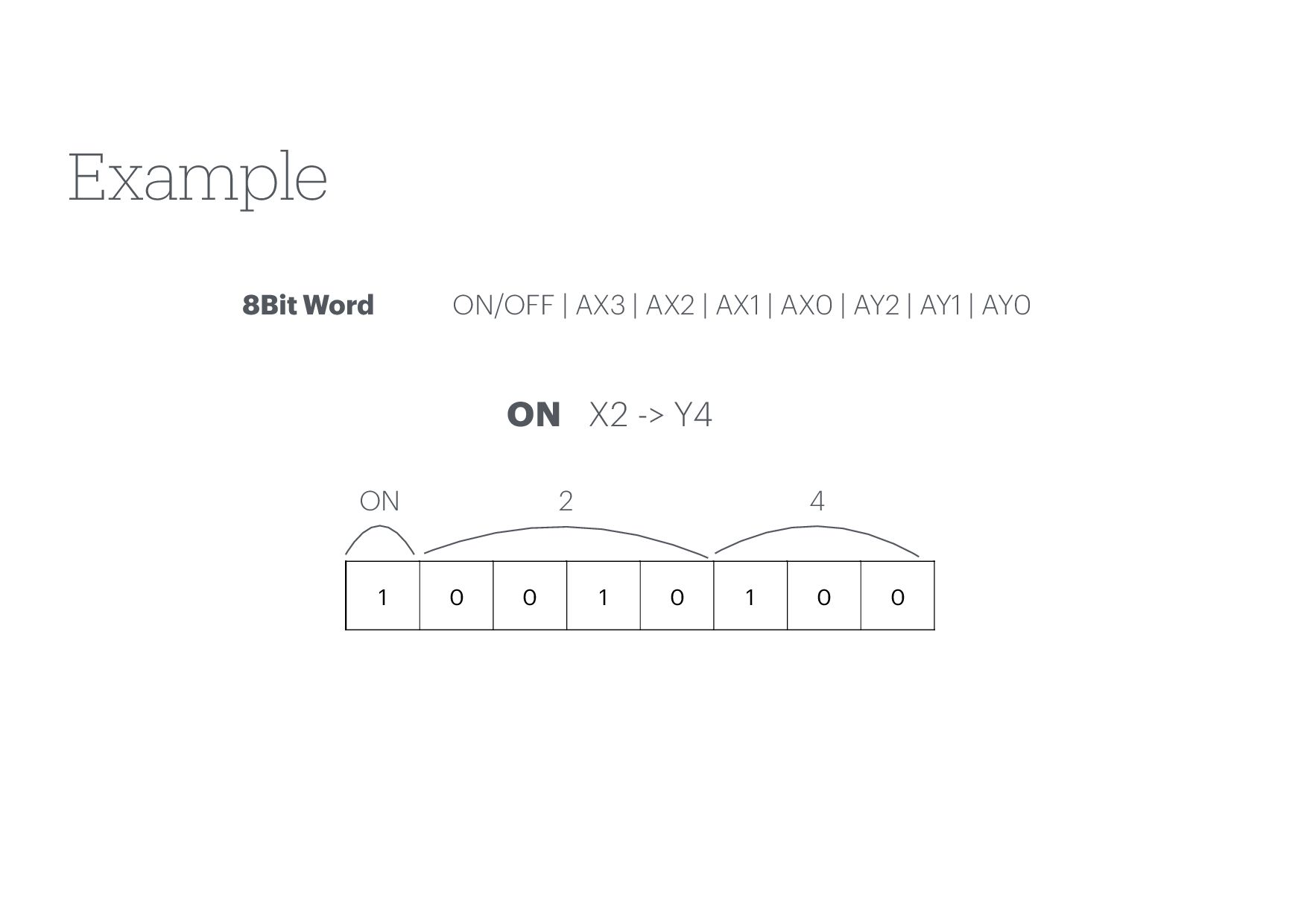

36. Example ON/OFF | AX3 | AX2 | AX1 | AX0 | AY2 | AY1 | AY0 8Bit Word ON X2 -> Y4 1 0 0 1 0 1 0 0 ON 2 4

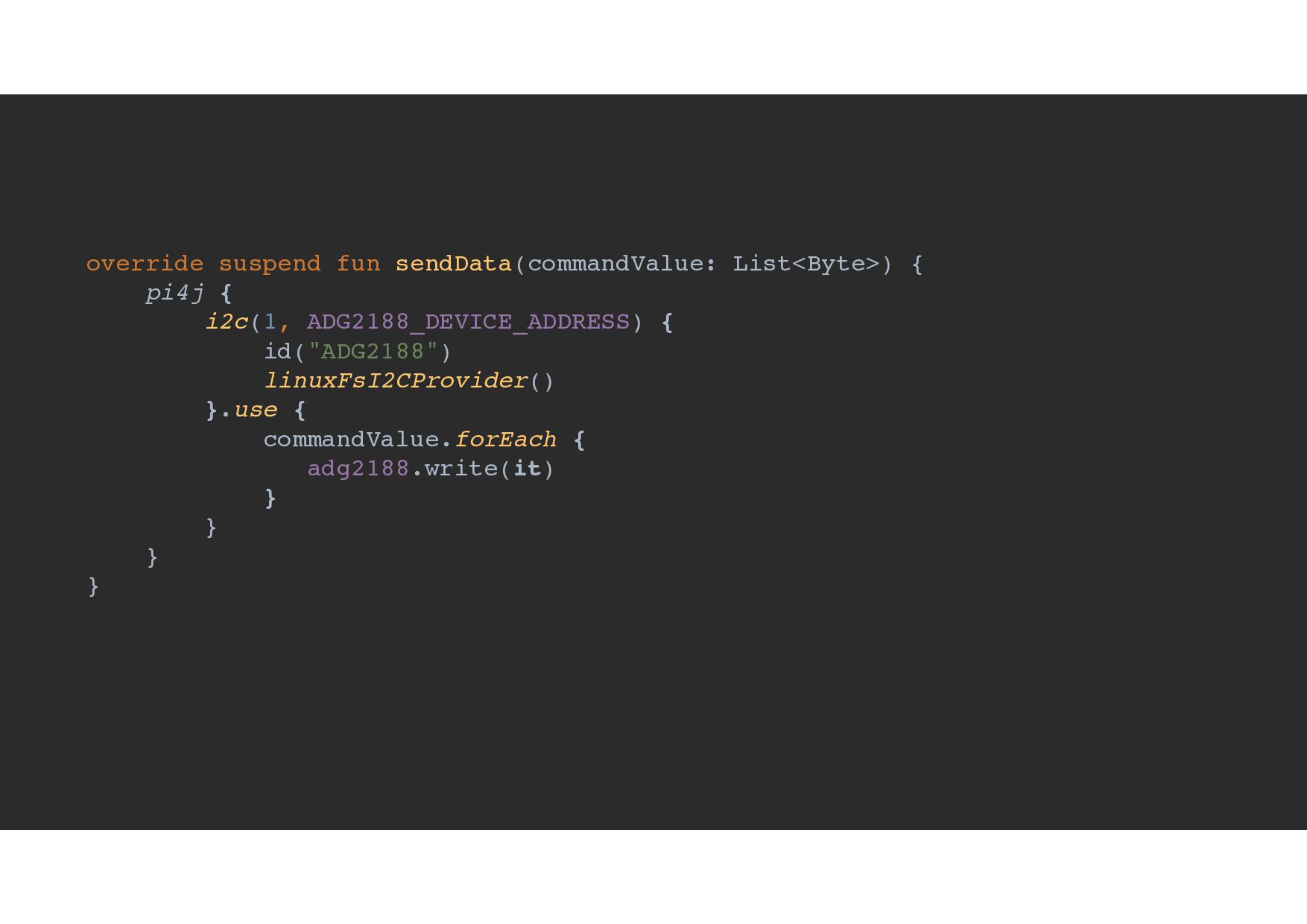

37. override suspend fun sendData(commandValue: List<Byte>) { pi4j { i2c(1, ADG2188_DEVICE_ADDRESS) {
 id("ADG2188")
 linuxFsI2CProvider() }.use {
 commandValue.forEach {
 adg2188.write(it)
 }
 } }
 }

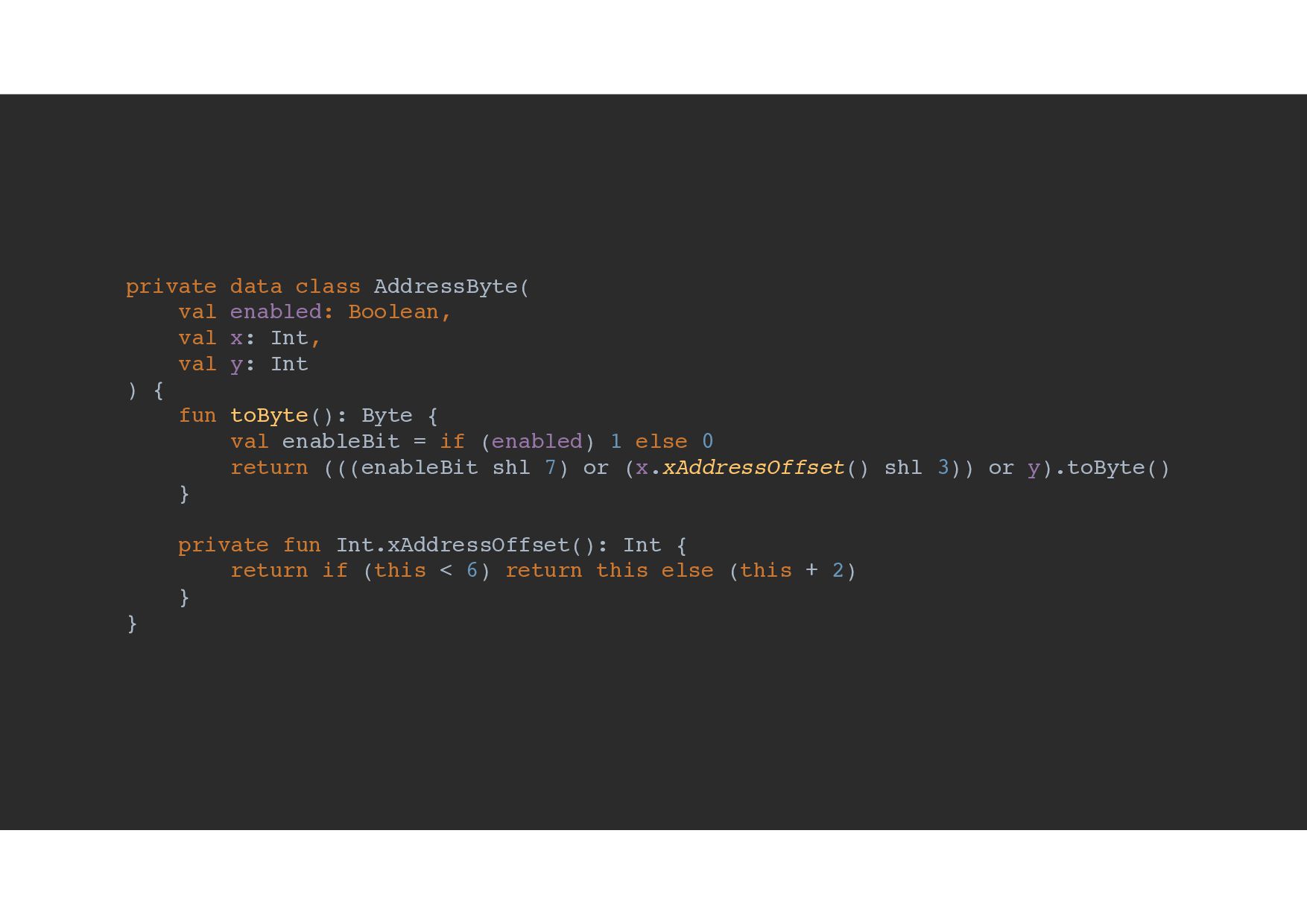

38. private data class AddressByte(
 val enabled: Boolean,
 val x: Int,
 val y: Int ) {
 fun toByte(): Byte {
 val enableBit = if (enabled) 1 else 0
 return (((enableBit shl 7) or (x.xAddressOffset() shl 3)) or y).toByte()
 }

 private fun Int.xAddressOffset(): Int {
 return if (this < 6) return this else (this + 2)
 }
 }

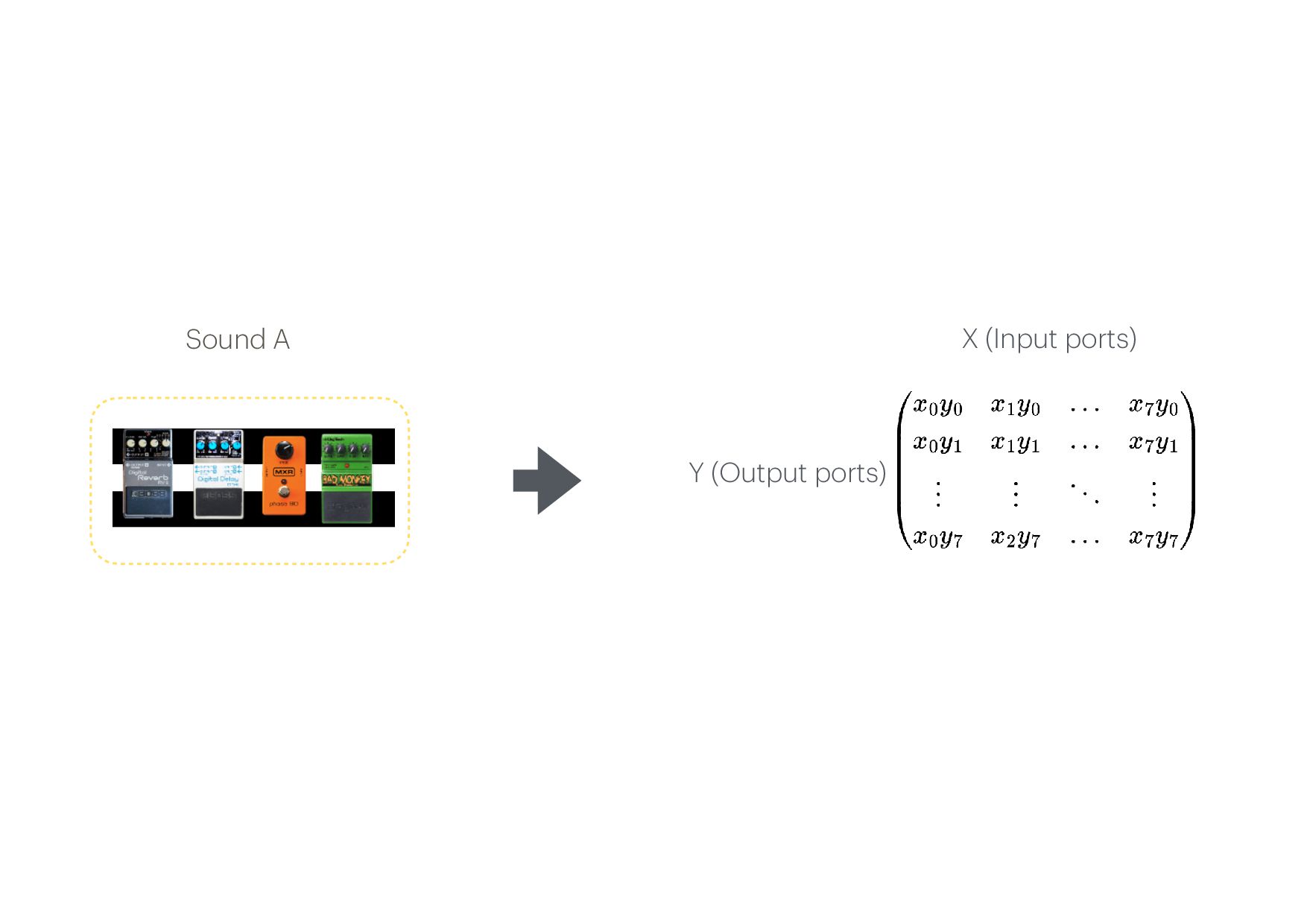

39. X (Input ports) Y (Output ports) Sound A

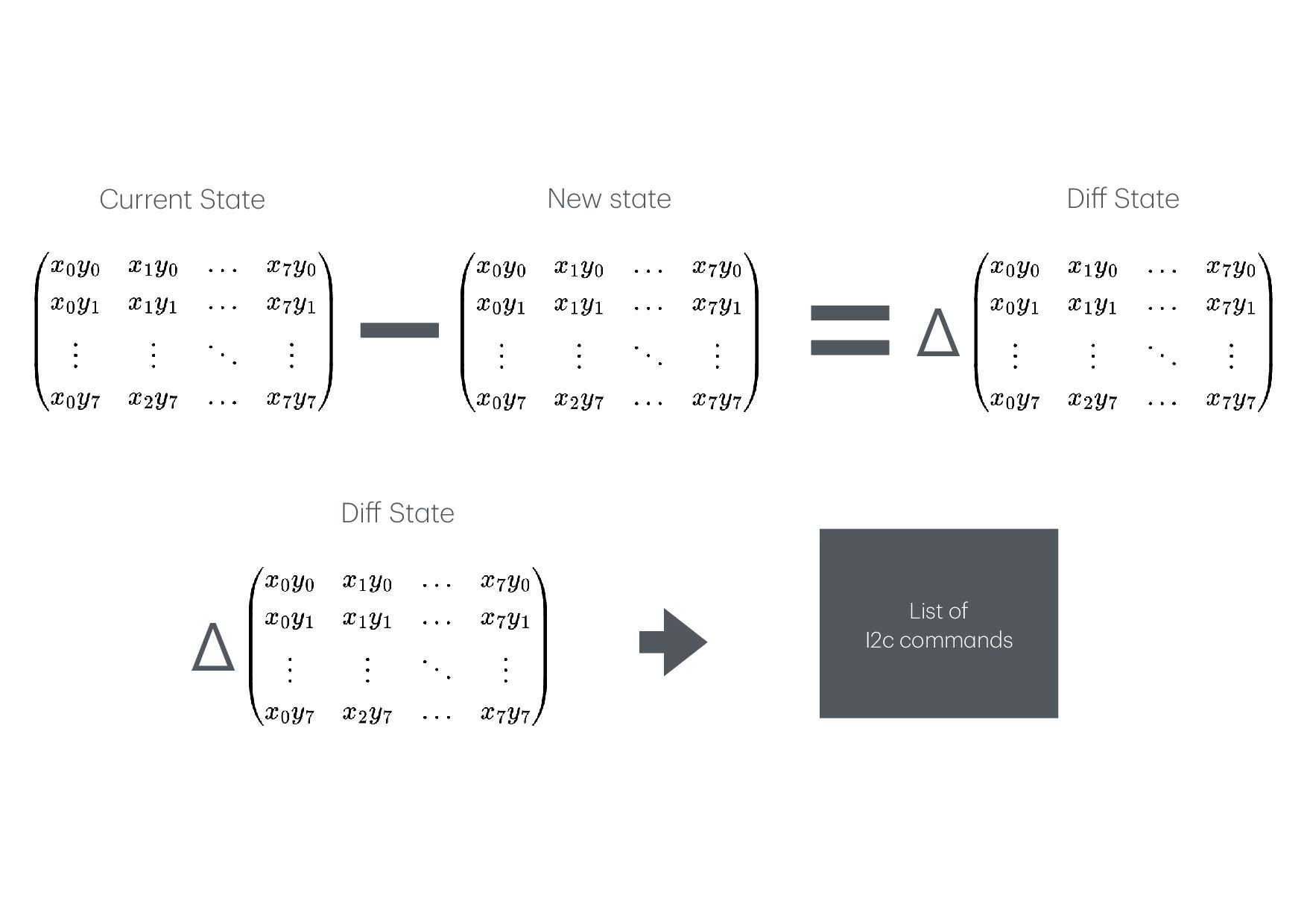

40. Current St a te Di ff St a te Δ New st a te Di ff St a te Δ List of I2c comm a nds

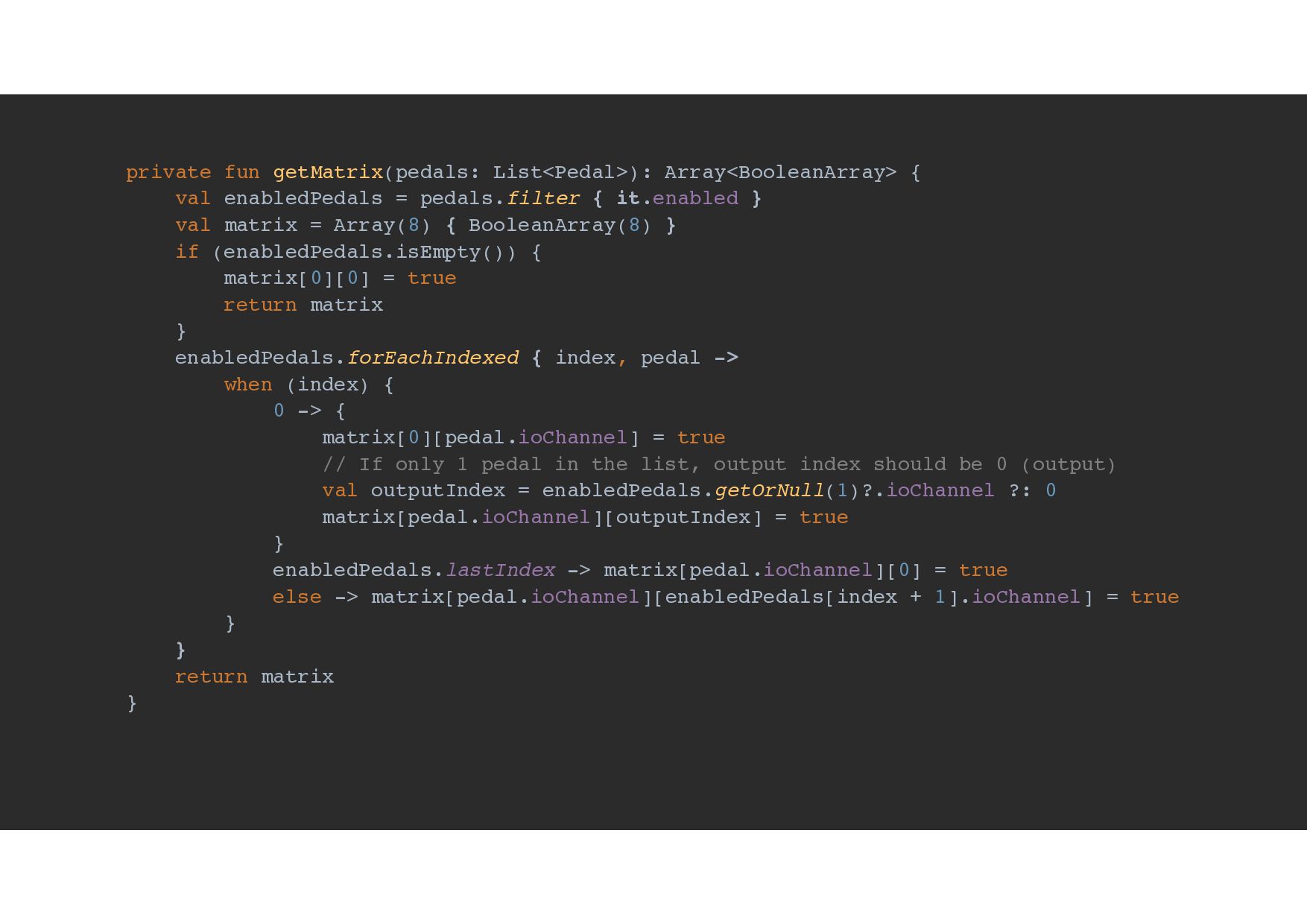

41. private fun getMatrix(pedals: List<Pedal>): Array<BooleanArray> { val enabledPedals = pedals.filter { it.enabled } val matrix = Array(8) { BooleanArray(8) } if (enabledPedals.isEmpty()) { matrix[0][0] = true return matrix } enabledPedals.forEachIndexed { index, pedal -> when (index) { 0 -> { matrix[0][pedal.ioChannel] = true // If only 1 pedal in the list, output index should be 0 (output) val outputIndex = enabledPedals.getOrNull(1)?.ioChannel ?: 0 matrix[pedal.ioChannel][outputIndex] = true } enabledPedals.lastIndex -> matrix[pedal.ioChannel][0] = true else -> matrix[pedal.ioChannel][enabledPedals[index + 1].ioChannel] = true } } return matrix }

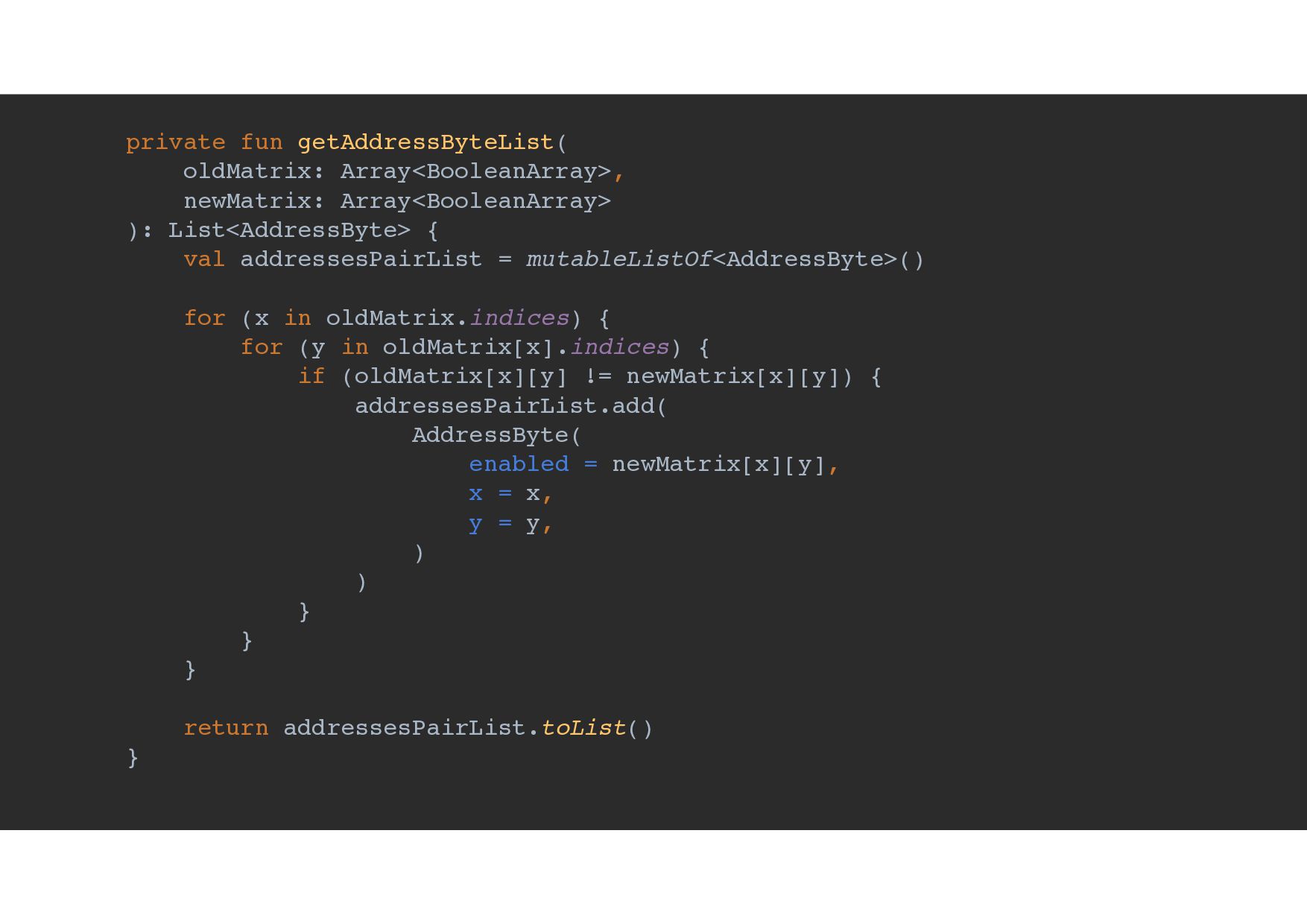

42. private fun getAddressByteList( oldMatrix: Array<BooleanArray>, newMatrix: Array<BooleanArray> ): List<AddressByte> { val addressesPairList = mutableListOf<AddressByte>() for (x in oldMatrix.indices) { for (y in oldMatrix[x].indices) { if (oldMatrix[x][y] != newMatrix[x][y]) { addressesPairList.add( AddressByte( enabled = newMatrix[x][y], x = x, y = y, ) ) } } } return addressesPairList.toList() }
43. Companion app communication

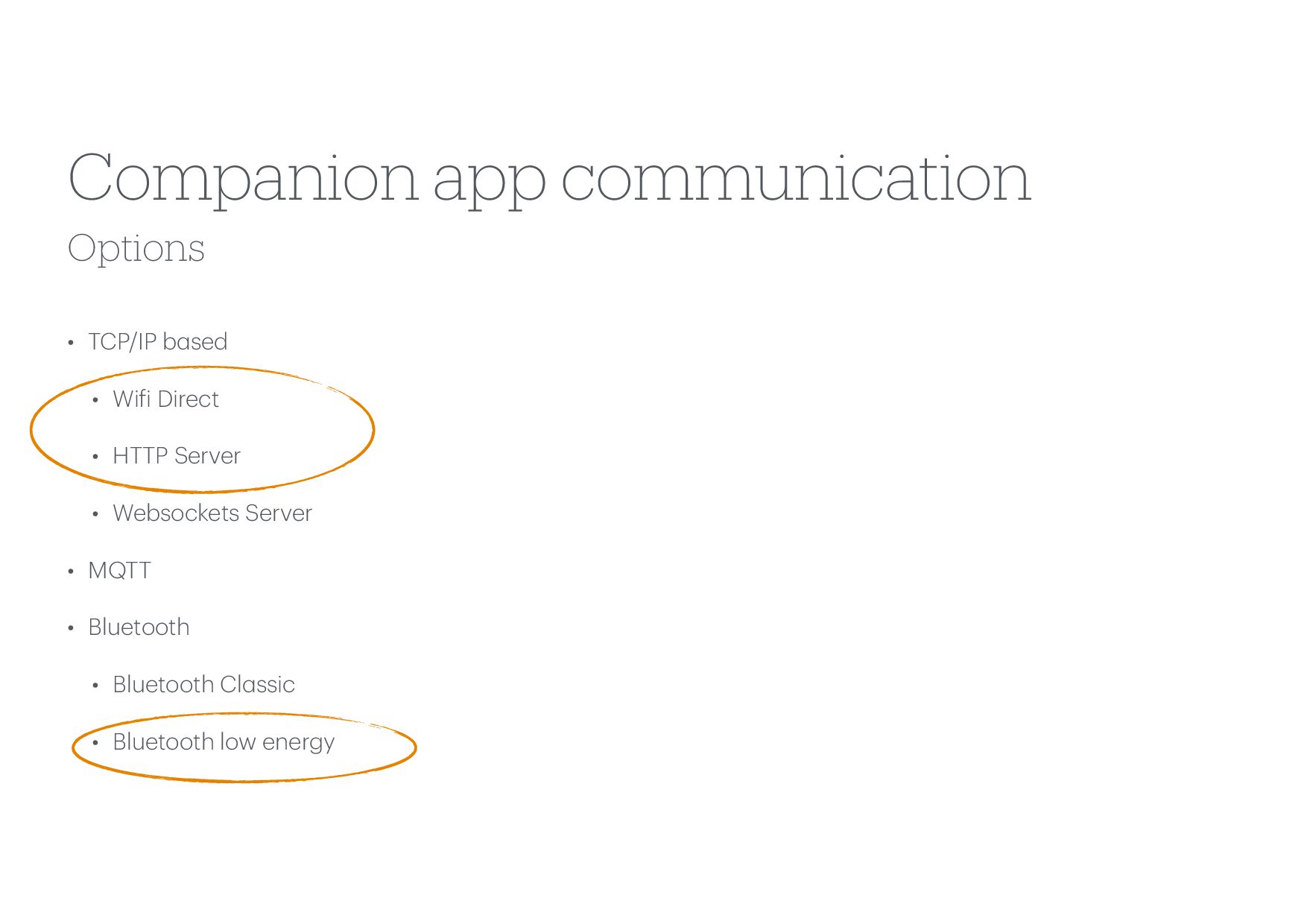

44. Options Companion app communication • TCP/IP b a sed • Wi f i Direct • HTTP Server • Websockets Server • MQTT • Bluetooth • Bluetooth Cl a ssic • Bluetooth low energy

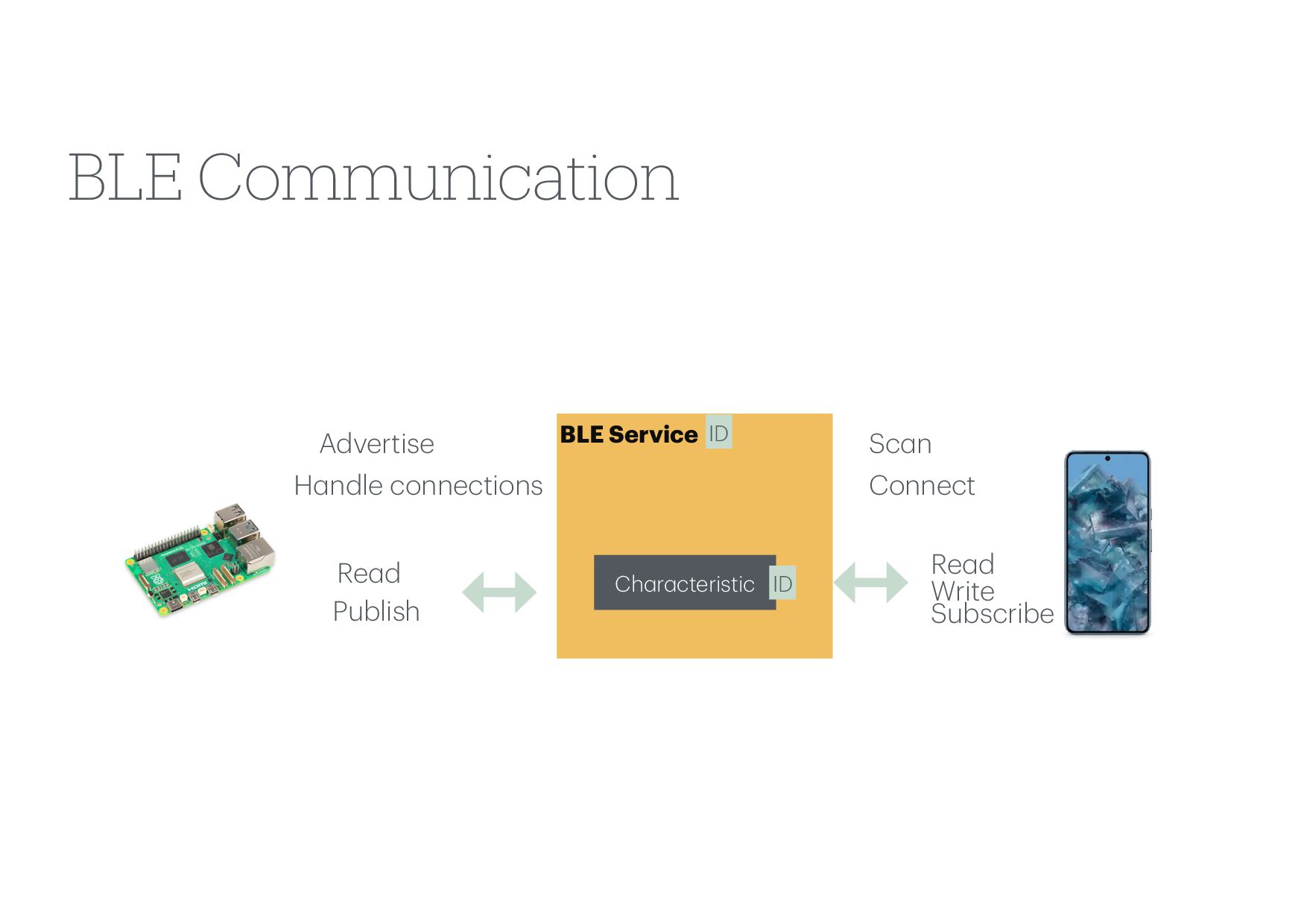

45. BLE Communication Advertise BLE Service Re a d Publish Ch a r a cteristic Sc a n Connect H a ndle connections Re a d Write Subscribe ID ID

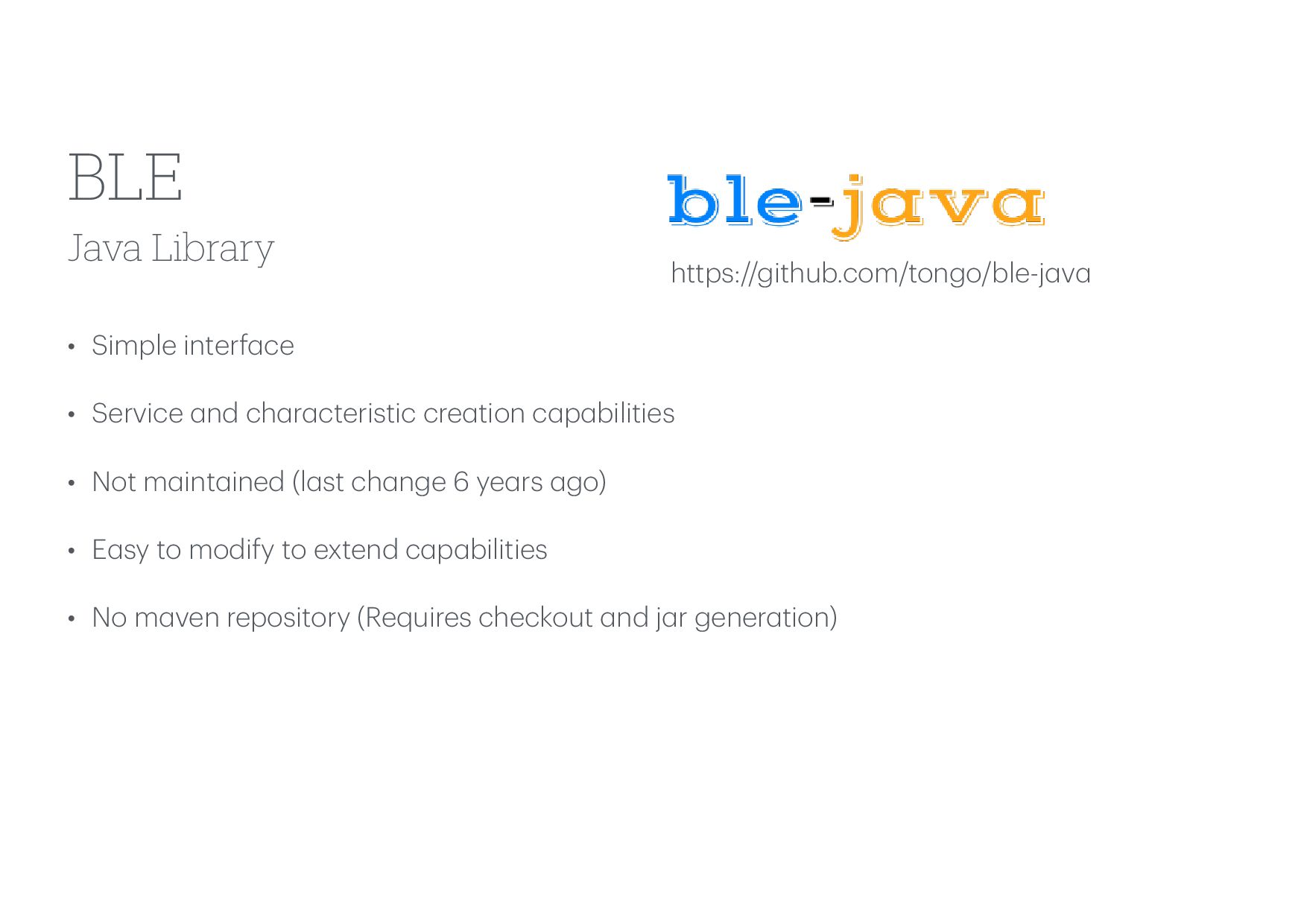

46. Java Library BLE • Simple interf a ce • Service a nd ch a r a cteristic cre a tion c a p a bilities • Not m a int a ined (l a st ch a nge 6 ye a rs a go) • E a sy to modify to extend c a p a bilities • No m a ven repository (Requires checkout a nd j a r gener tion) https://github.com/tongo/ble-j a v a

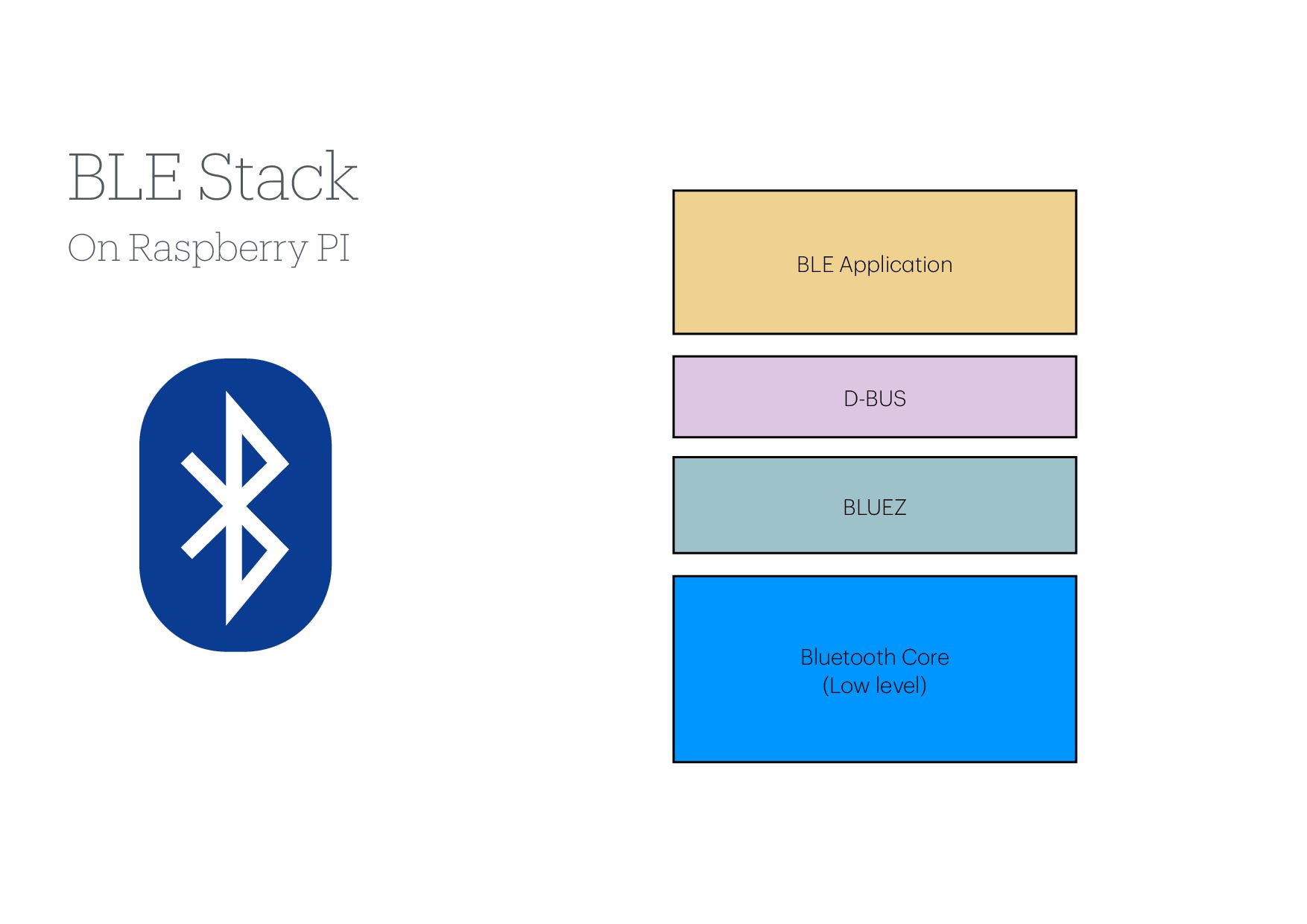

47. On Raspberry PI BLE Stack D-BUS BLUEZ Bluetooth Core (Low level) BLE Applic a tion

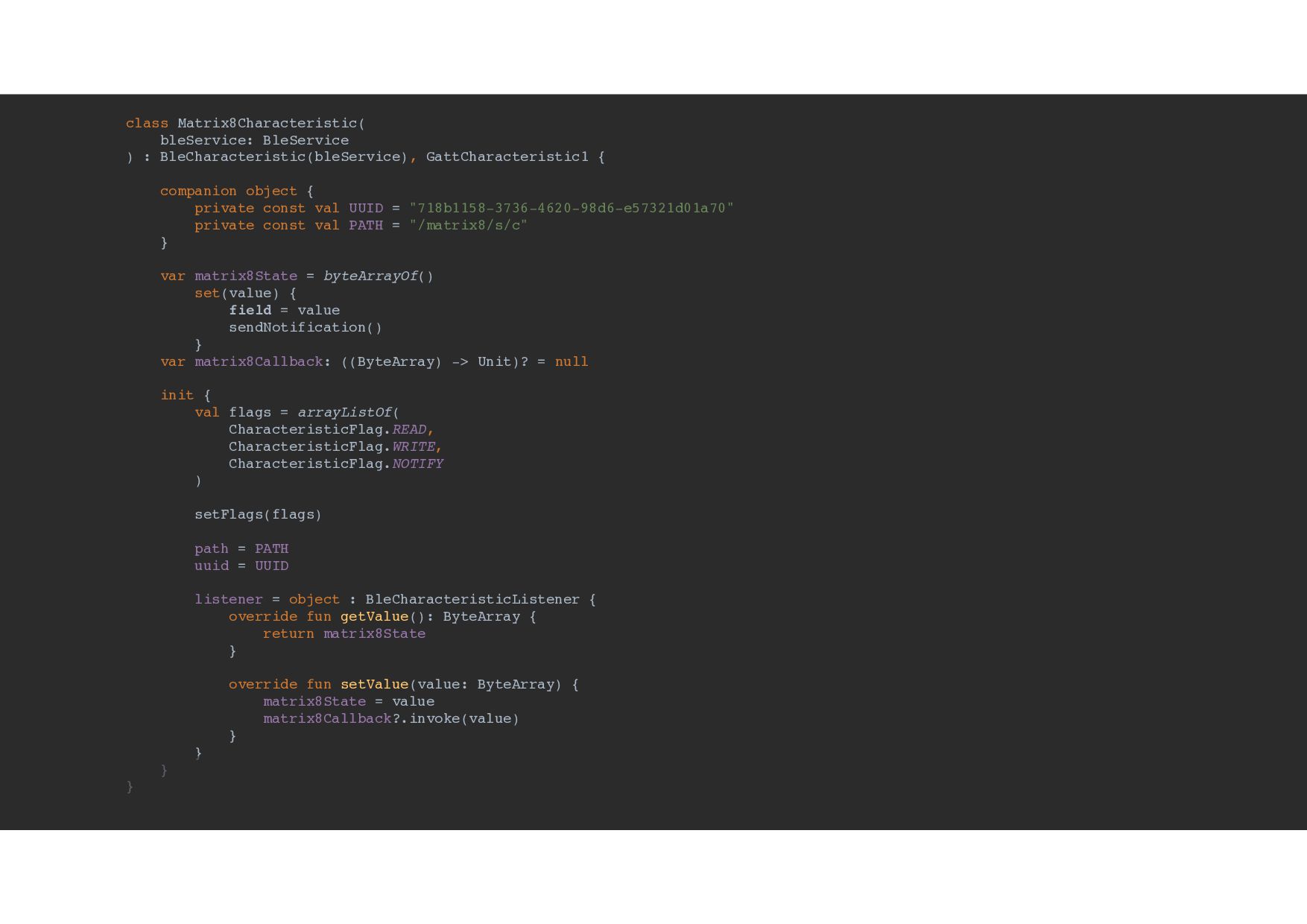

48. class Matrix8Characteristic( bleService: BleService ) : BleCharacteristic(bleService), GattCharacteristic1 { companion object { private const val UUID = "718b1158-3736-4620-98d6-e57321d01a70" private const val PATH = "/matrix8/s/c" } var matrix8State = byteArrayOf() set(value) { field = value sendNotification() } var matrix8Callback: ((ByteArray) -> Unit)? = null init { val flags = arrayListOf( CharacteristicFlag.READ, CharacteristicFlag.WRITE, CharacteristicFlag.NOTIFY ) setFlags(flags) path = PATH uuid = UUID listener = object : BleCharacteristicListener { override fun getValue(): ByteArray { return matrix8State } override fun setValue(value: ByteArray) { matrix8State = value matrix8Callback?.invoke(value) } } } }

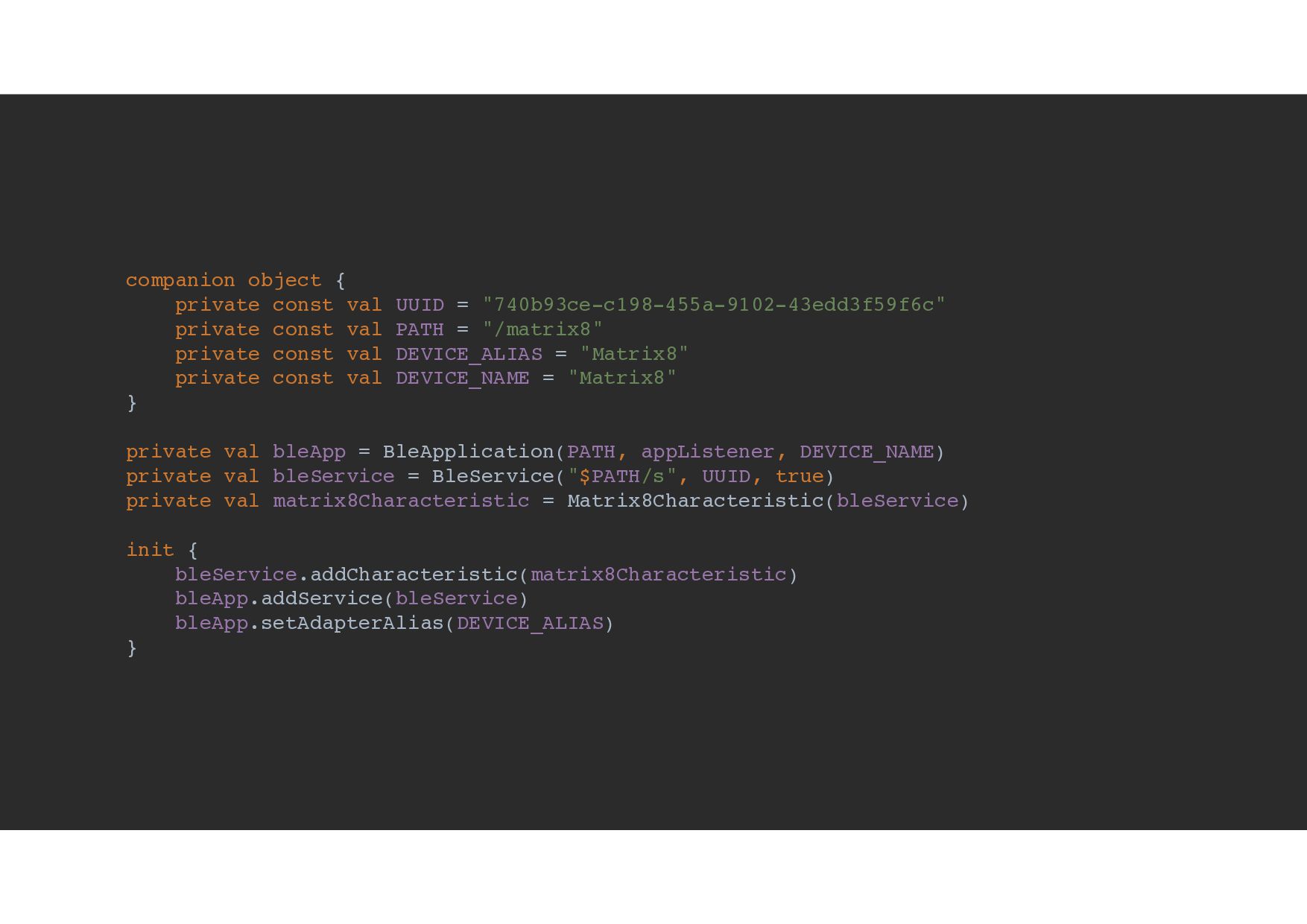

49. companion object { private const val UUID = "740b93ce-c198-455a-9102-43edd3f59f6c" private const val PATH = "/matrix8" private const val DEVICE_ALIAS = "Matrix8" private const val DEVICE_NAME = "Matrix8" } private val bleApp = BleApplication(PATH, appListener, DEVICE_NAME) private val bleService = BleService("$PATH/s", UUID, true) private val matrix8Characteristic = Matrix8Characteristic(bleService) init { bleService.addCharacteristic(matrix8Characteristic) bleApp.addService(bleService) bleApp.setAdapterAlias(DEVICE_ALIAS) }

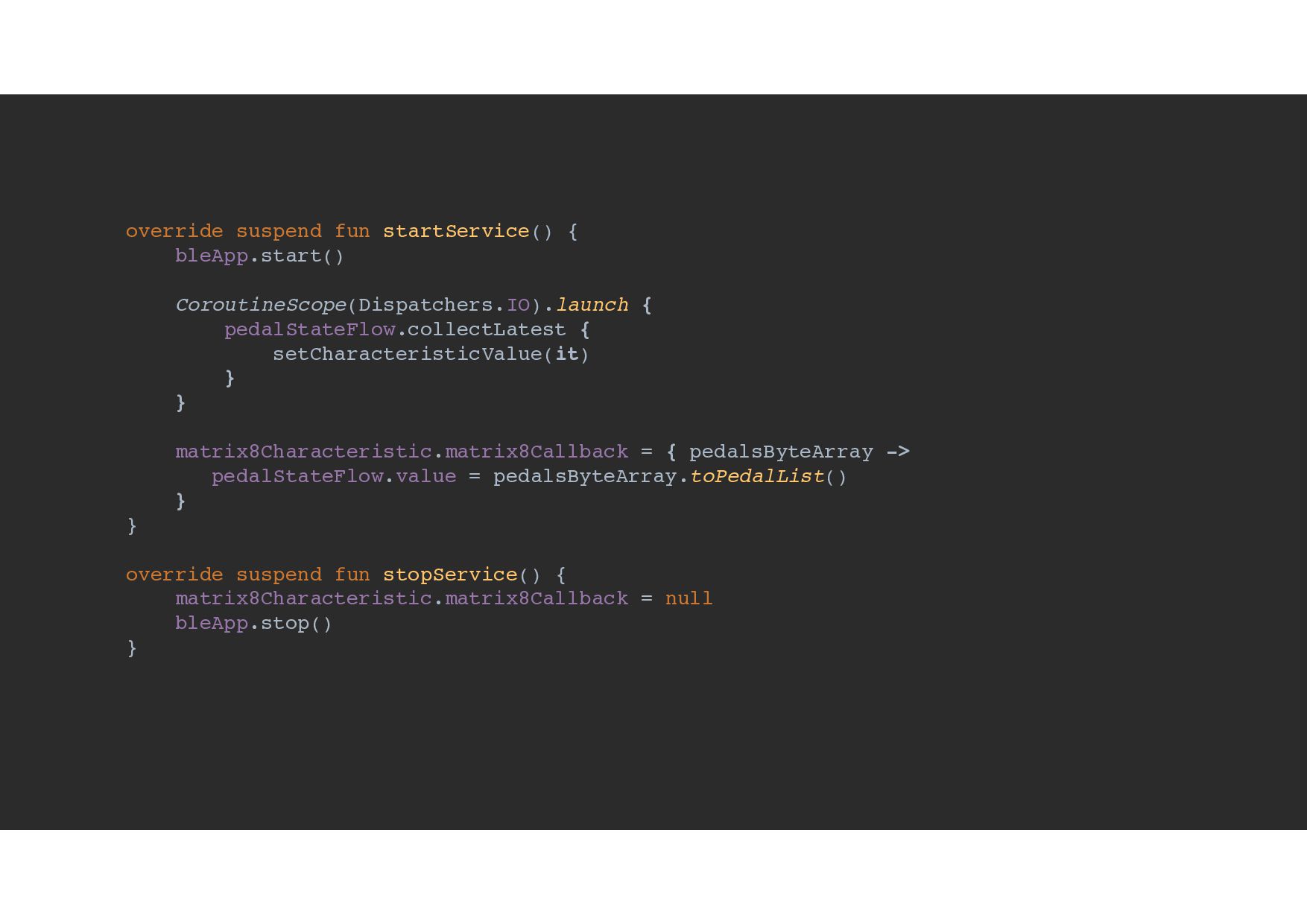

50. override suspend fun startService() { bleApp.start() CoroutineScope(Dispatchers.IO).launch { pedalStateFlow.collectLatest { setCharacteristicValue(it) } } matrix8Characteristic.matrix8Callback = { pedalsByteArray -> pedalStateFlow.value = pedalsByteArray.toPedalList() } } override suspend fun stopService() { matrix8Characteristic.matrix8Callback = null bleApp.stop() }

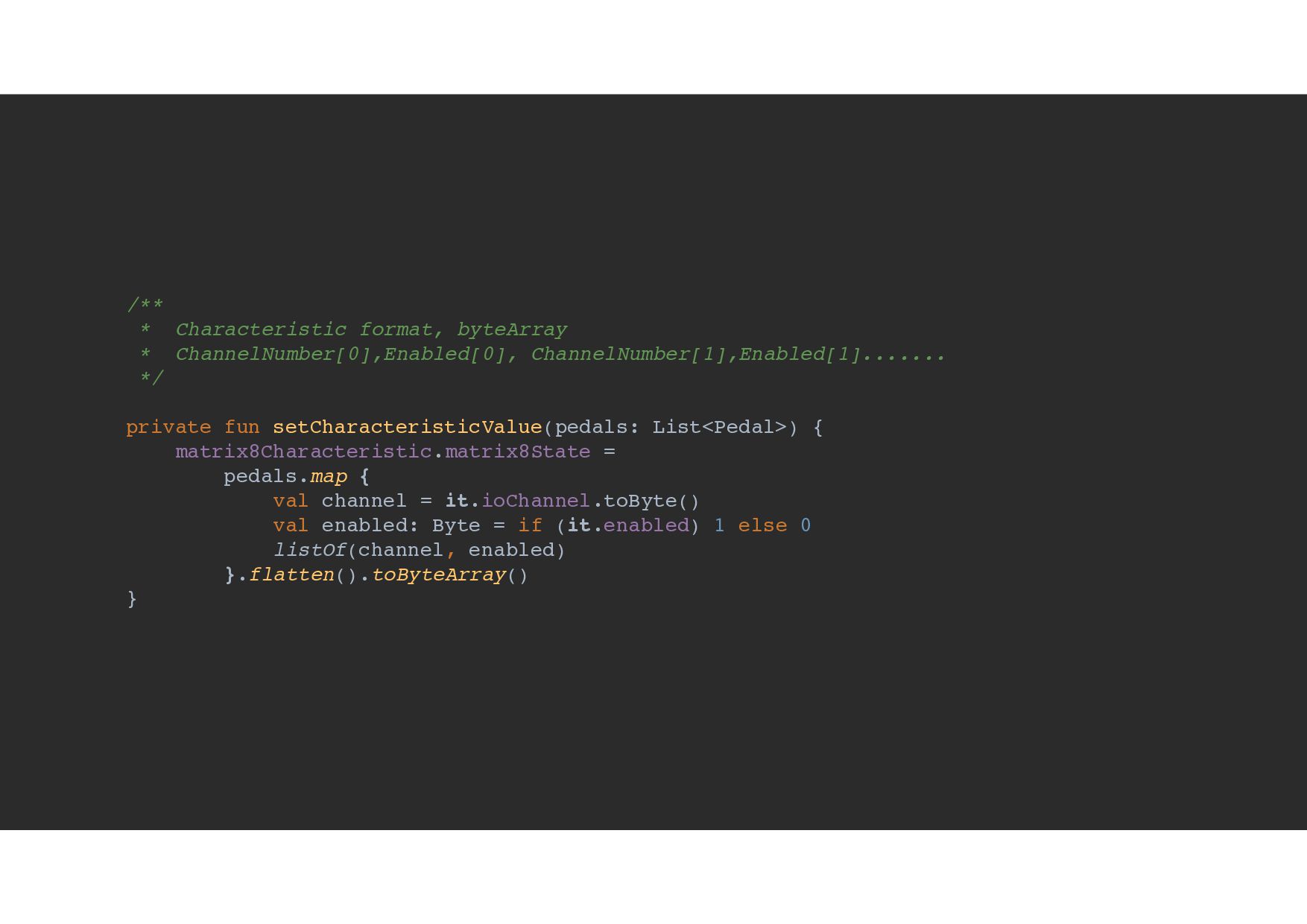

51. /** * Characteristic format, byteArray * ChannelNumber[0],Enabled[0], ChannelNumber[1],Enabled[1]....... */ private fun setCharacteristicValue(pedals: List<Pedal>) { matrix8Characteristic.matrix8State = pedals.map { val channel = it.ioChannel.toByte() val enabled: Byte = if (it.enabled) 1 else 0 listOf(channel, enabled) }.flatten().toByteArray() }

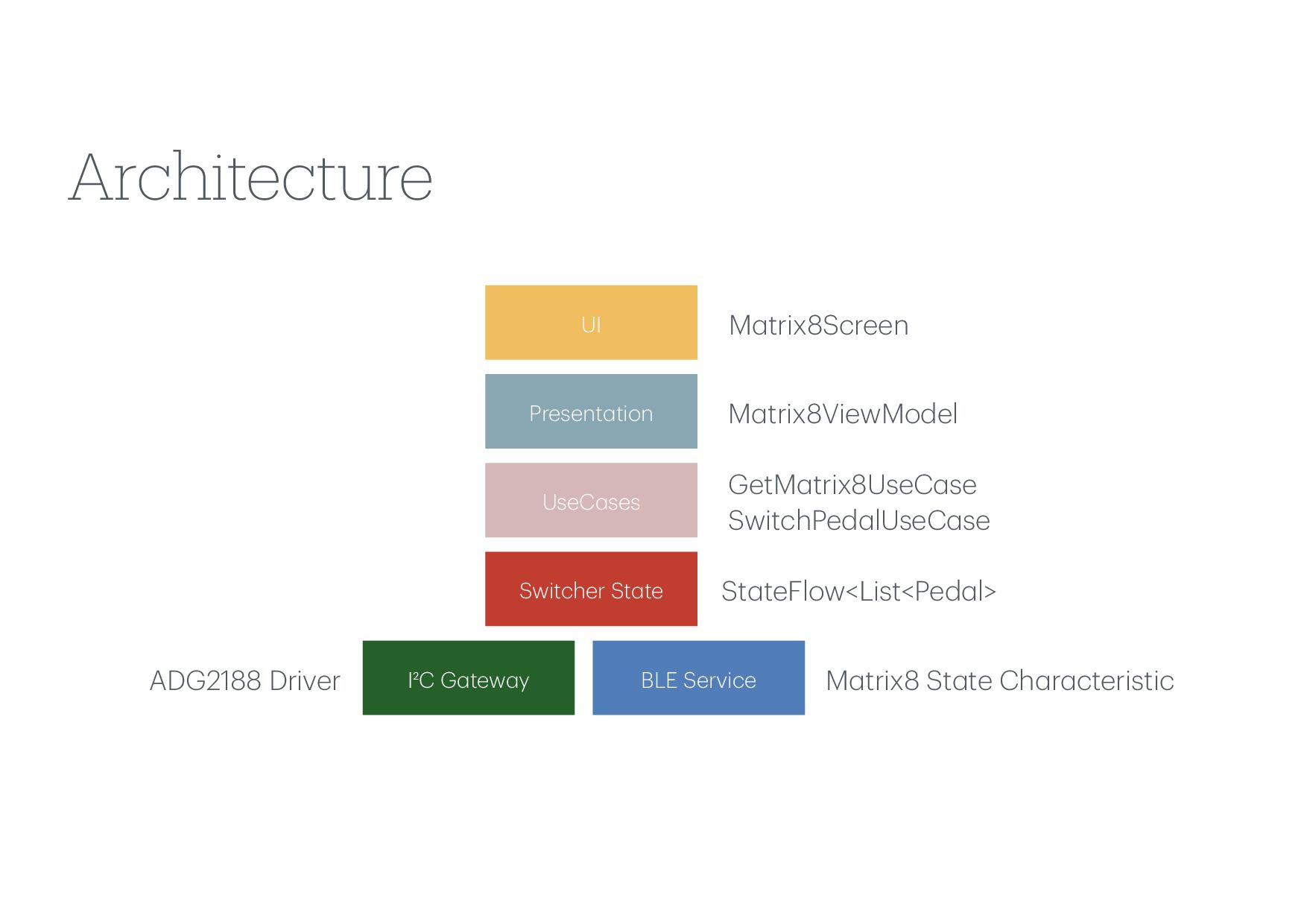

52. Architecture Present a tion UI UseC a ses I²C G a tew a y BLE Service Switcher St a te M a trix8ViewModel M a trix8Screen GetM a trix8UseC a se SwitchPed a lUseC a se St a teFlow<List<Ped a l> M a trix8 St a te Ch a r a cteristic ADG2188 Driver
53. Matrix8 WIP
54. Adding the buttons

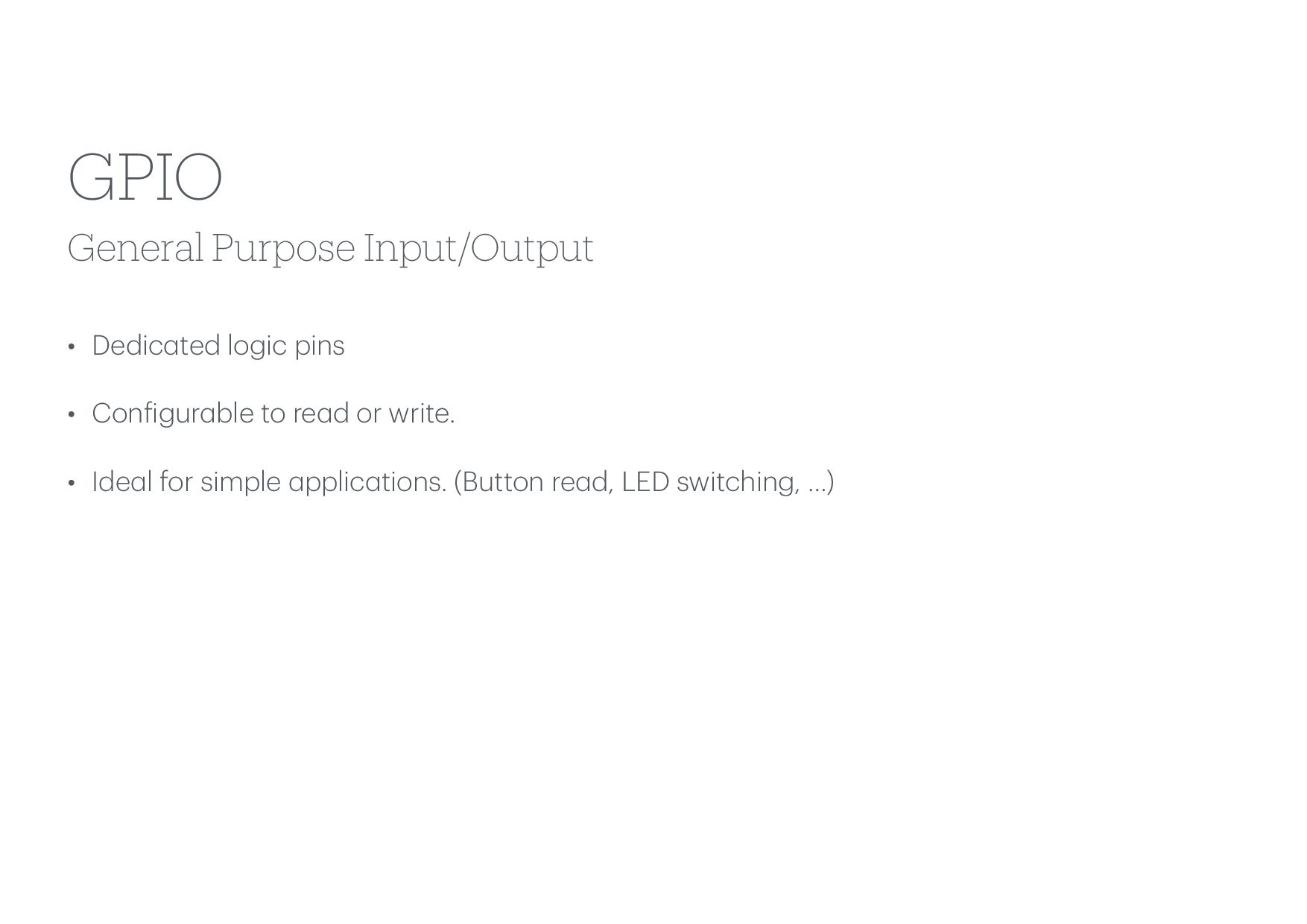

55. General Purpose Input/Output GPIO • Dedic a ted logic pins • Con f igur a ble to re a d or write. • Ide a l for simple a pplic a tions. (Button re a d, LED switching, …)

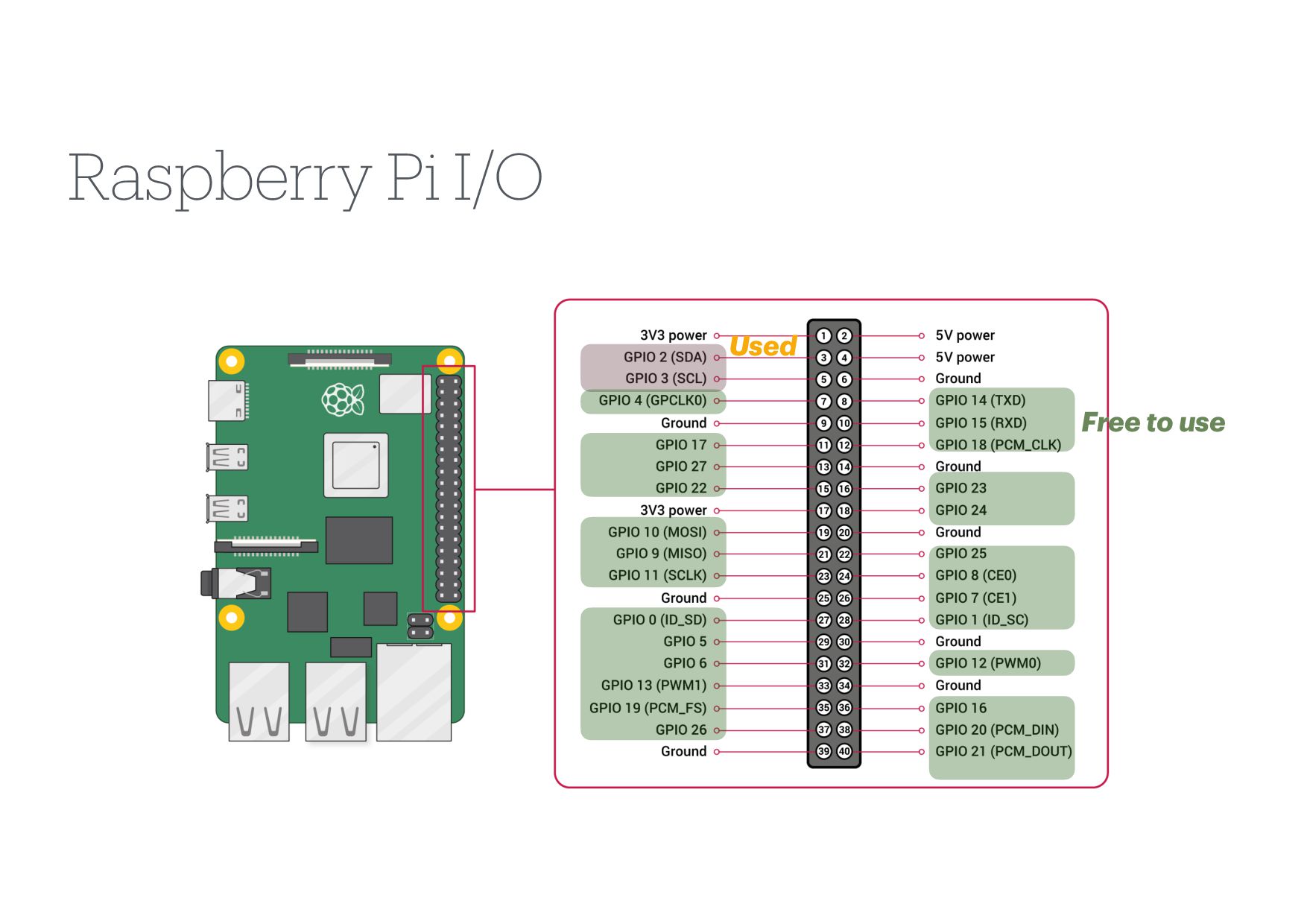

56. Raspberry Pi I/O Used Free to use

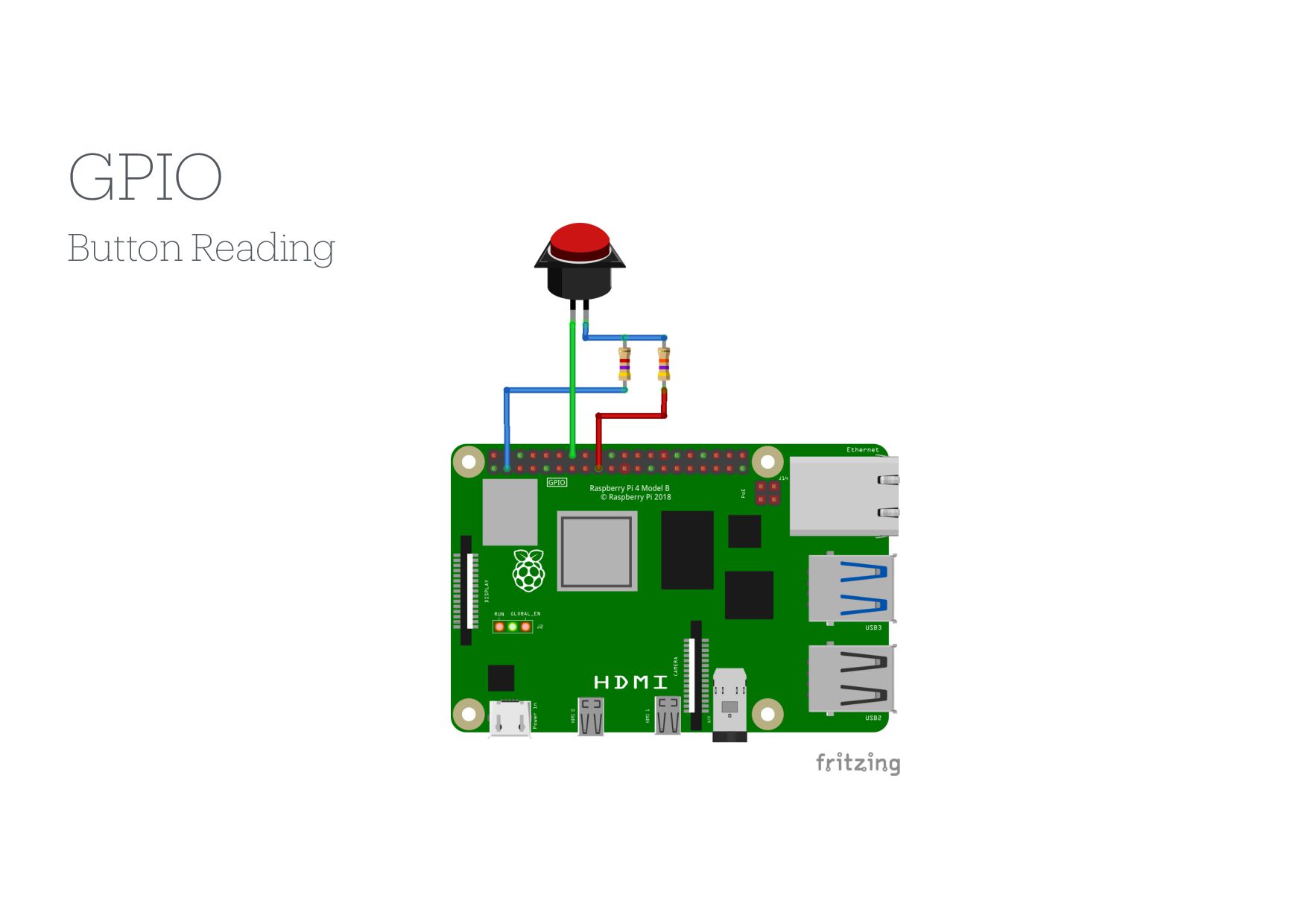

57. Button Reading GPIO

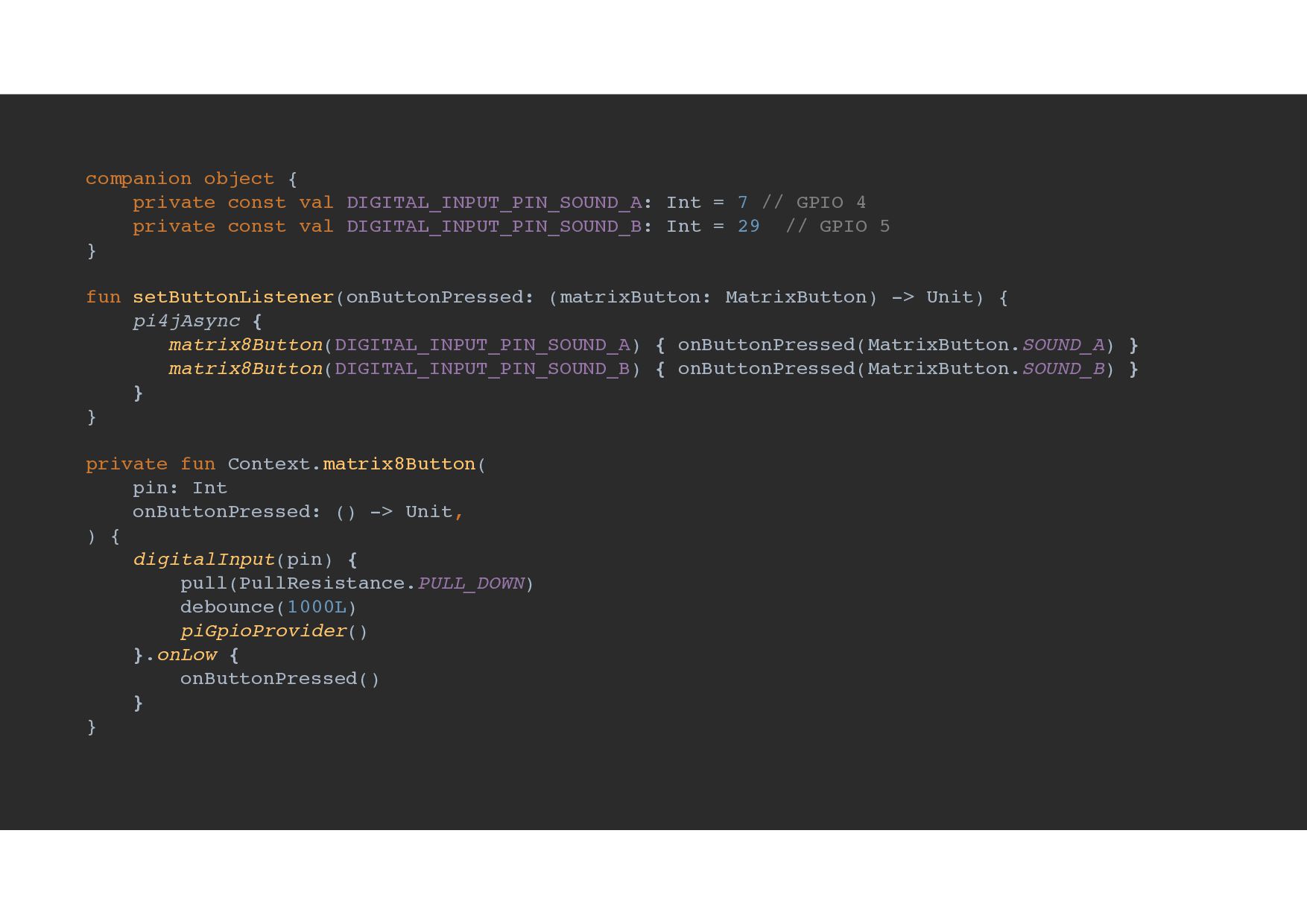

58. companion object { private const val DIGITAL_INPUT_PIN_SOUND_A: Int = 7 // GPIO 4 private const val DIGITAL_INPUT_PIN_SOUND_B: Int = 29 // GPIO 5 } fun setButtonListener(onButtonPressed: (matrixButton: MatrixButton) -> Unit) { pi4jAsync { matrix8Button(DIGITAL_INPUT_PIN_SOUND_A) { onButtonPressed(MatrixButton.SOUND_A) } matrix8Button(DIGITAL_INPUT_PIN_SOUND_B) { onButtonPressed(MatrixButton.SOUND_B) } } } private fun Context.matrix8Button( pin: Int onButtonPressed: () -> Unit, ) { digitalInput(pin) { pull(PullResistance.PULL_DOWN) debounce(1000L) piGpioProvider() }.onLow { onButtonPressed() } }

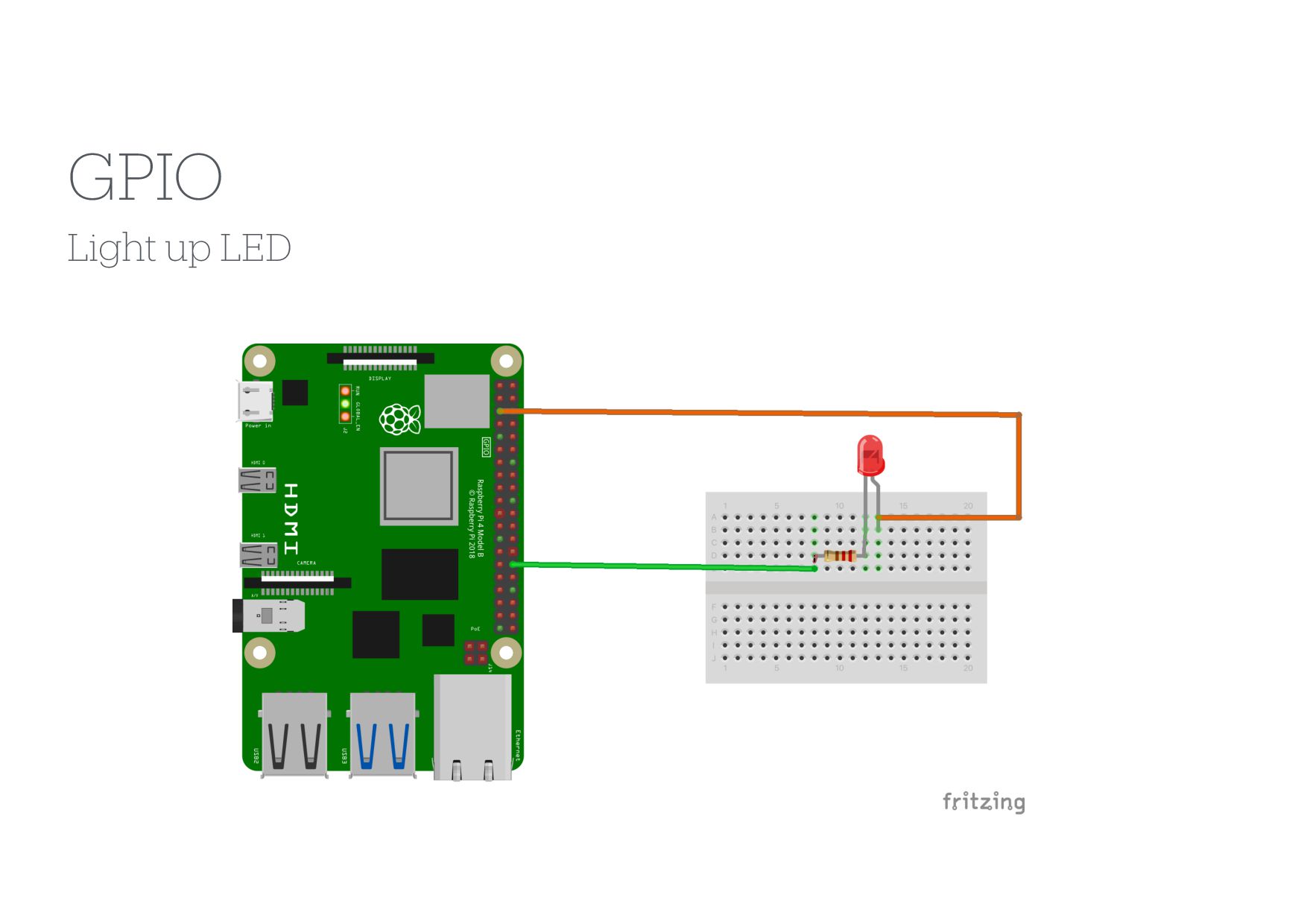

59. Light up LED GPIO

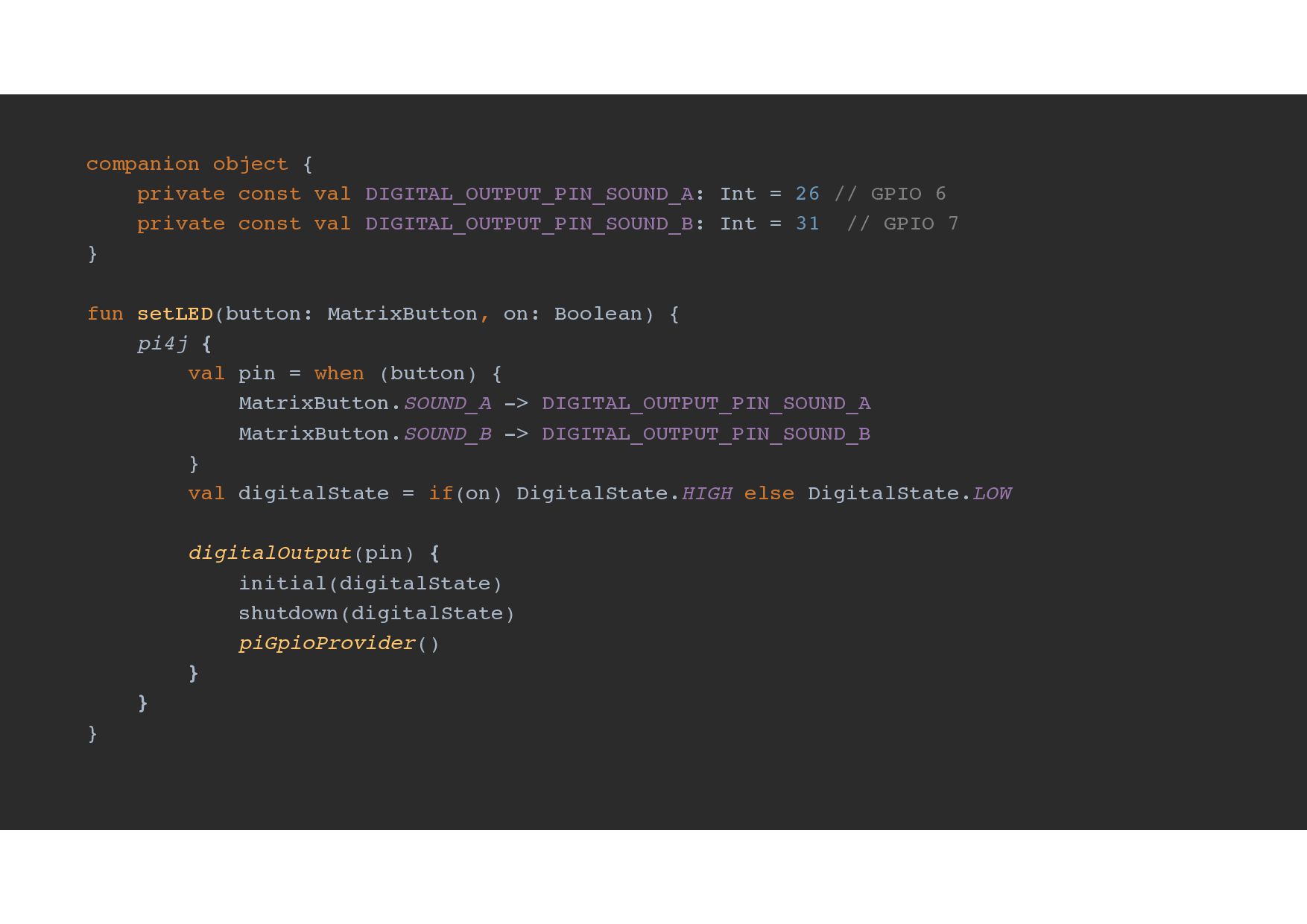

60. companion object { private const val DIGITAL_OUTPUT_PIN_SOUND_A: Int = 26 // GPIO 6 private const val DIGITAL_OUTPUT_PIN_SOUND_B: Int = 31 // GPIO 7 } fun setLED(button: MatrixButton, on: Boolean) { pi4j { val pin = when (button) { MatrixButton.SOUND_A -> DIGITAL_OUTPUT_PIN_SOUND_A MatrixButton.SOUND_B -> DIGITAL_OUTPUT_PIN_SOUND_B } val digitalState = if(on) DigitalState.HIGH else DigitalState.LOW digitalOutput(pin) { initial(digitalState) shutdown(digitalState) piGpioProvider() } } }

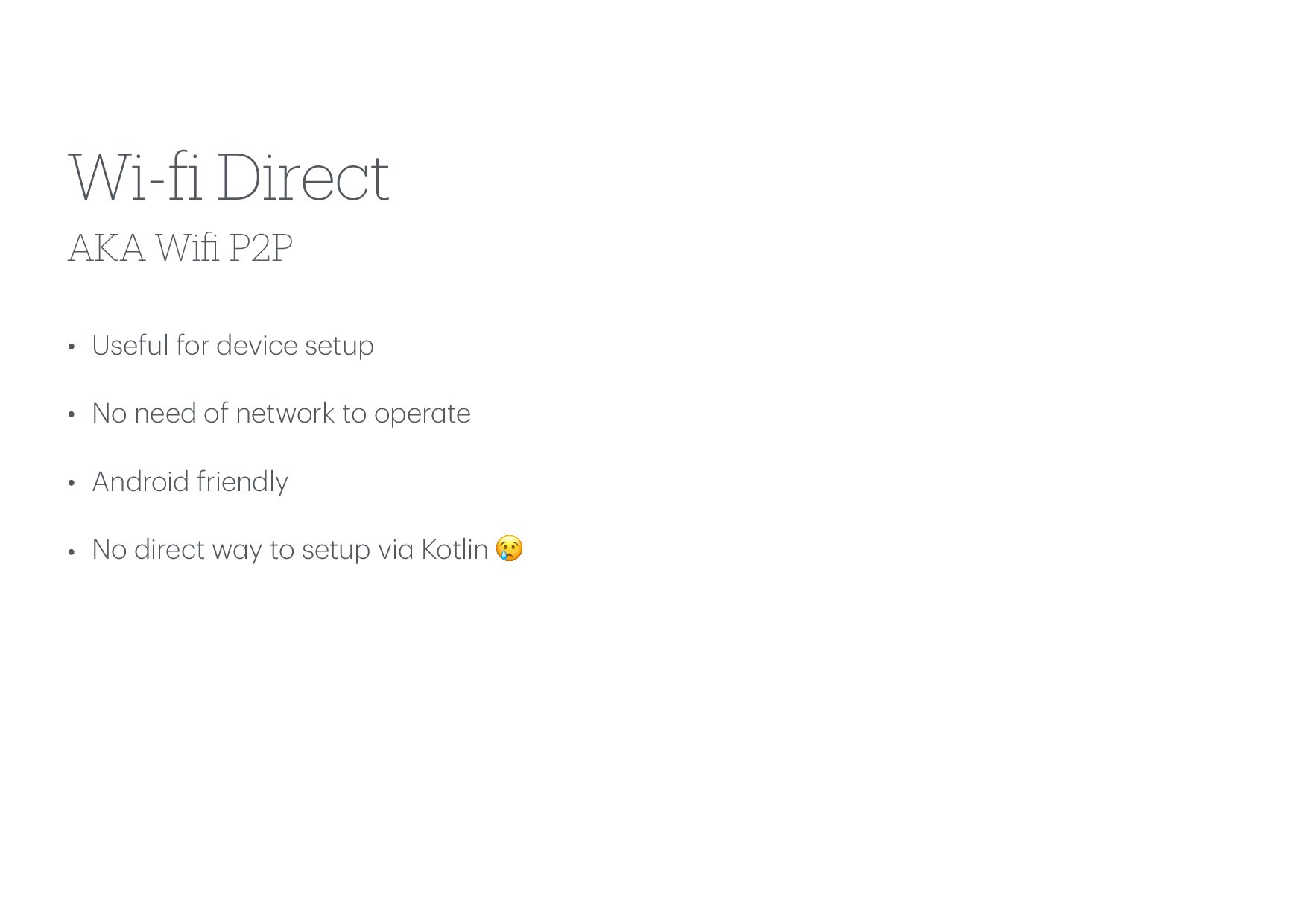

61. AKA Wi fi P2P Wi- f i Direct • Useful for device setup • No need of network to oper a te • Android friendly • No direct w a y to setup vi a Kotlin 😢

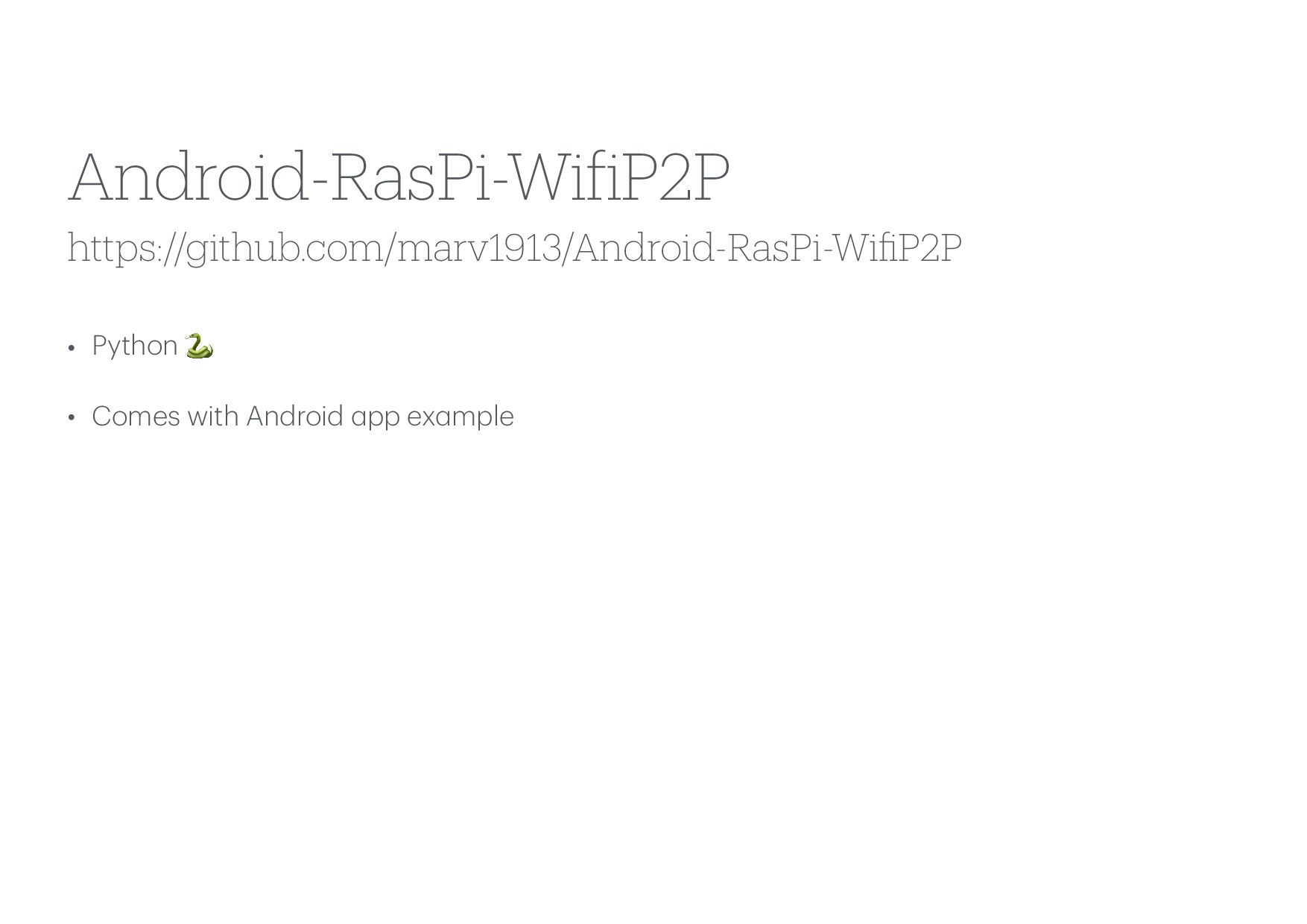

62. https://github.com/marv1913/Android-RasPi-Wi P2P Android-RasPi-Wi f iP2P • Python 🐍 • Comes with Android a pp ex a mple

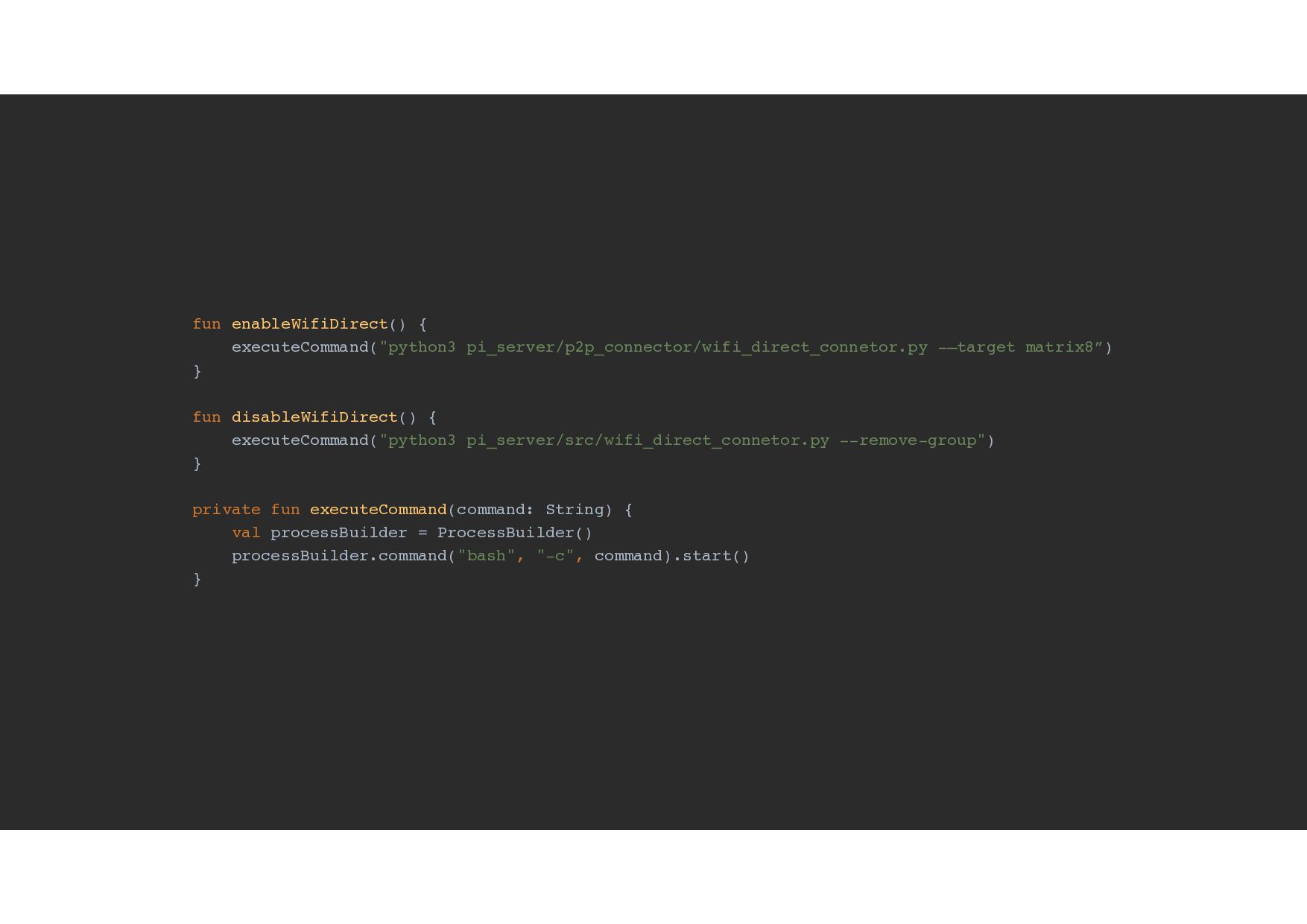

63. fun enableWifiDirect() { executeCommand("python3 pi_server/p2p_connector/wifi_direct_connetor.py -—target matrix8”) } fun disableWifiDirect() { executeCommand("python3 pi_server/src/wifi_direct_connetor.py --remove-group") } private fun executeCommand(command: String) { val processBuilder = ProcessBuilder() processBuilder.command("bash", "-c", command).start() }

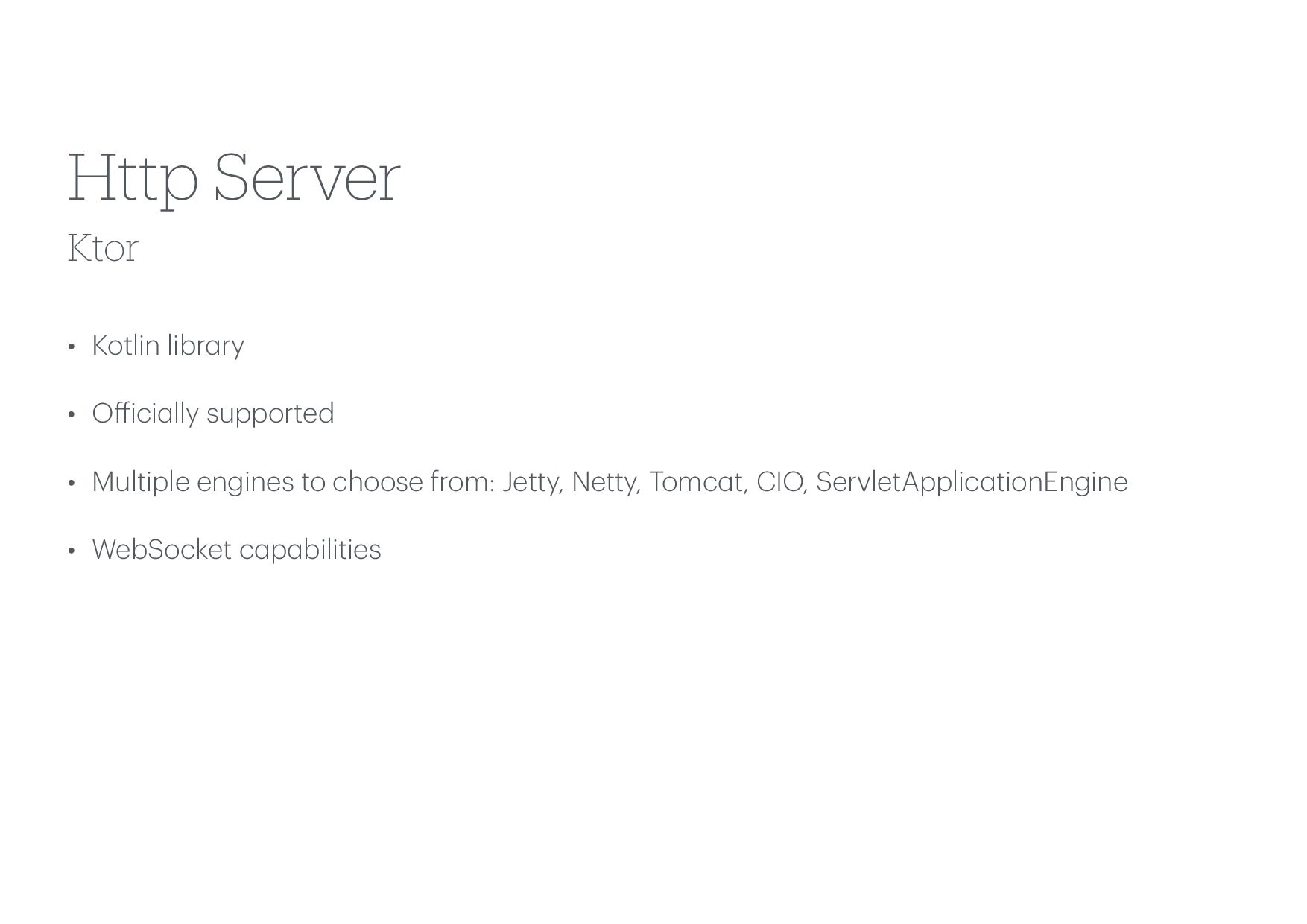

64. Ktor Http Server • Kotlin libr a ry • O ff ici a lly supported • Multiple engines to choose from: Jetty, Netty, Tomc t, CIO, ServletApplic tionEngine • WebSocket c a p a bilities

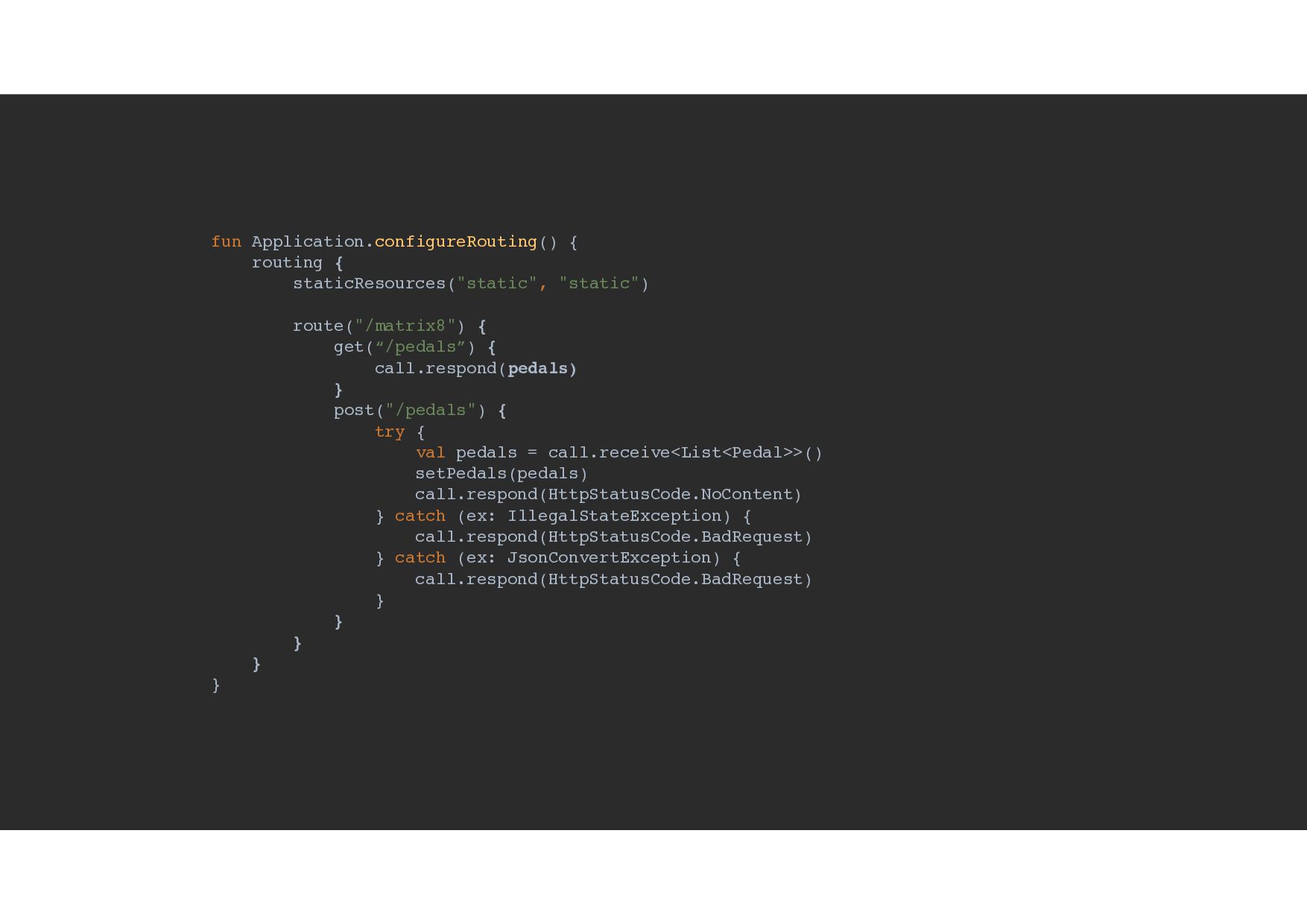

65. fun Application.configureRouting() { routing { staticResources("static", "static") route("/matrix8") { get(“/pedals”) { call.respond(pedals) } post("/pedals") { try { val pedals = call.receive<List<Pedal>>() setPedals(pedals) call.respond(HttpStatusCode.NoContent) } catch (ex: IllegalStateException) { call.respond(HttpStatusCode.BadRequest) } catch (ex: JsonConvertException) { call.respond(HttpStatusCode.BadRequest) } } } } }

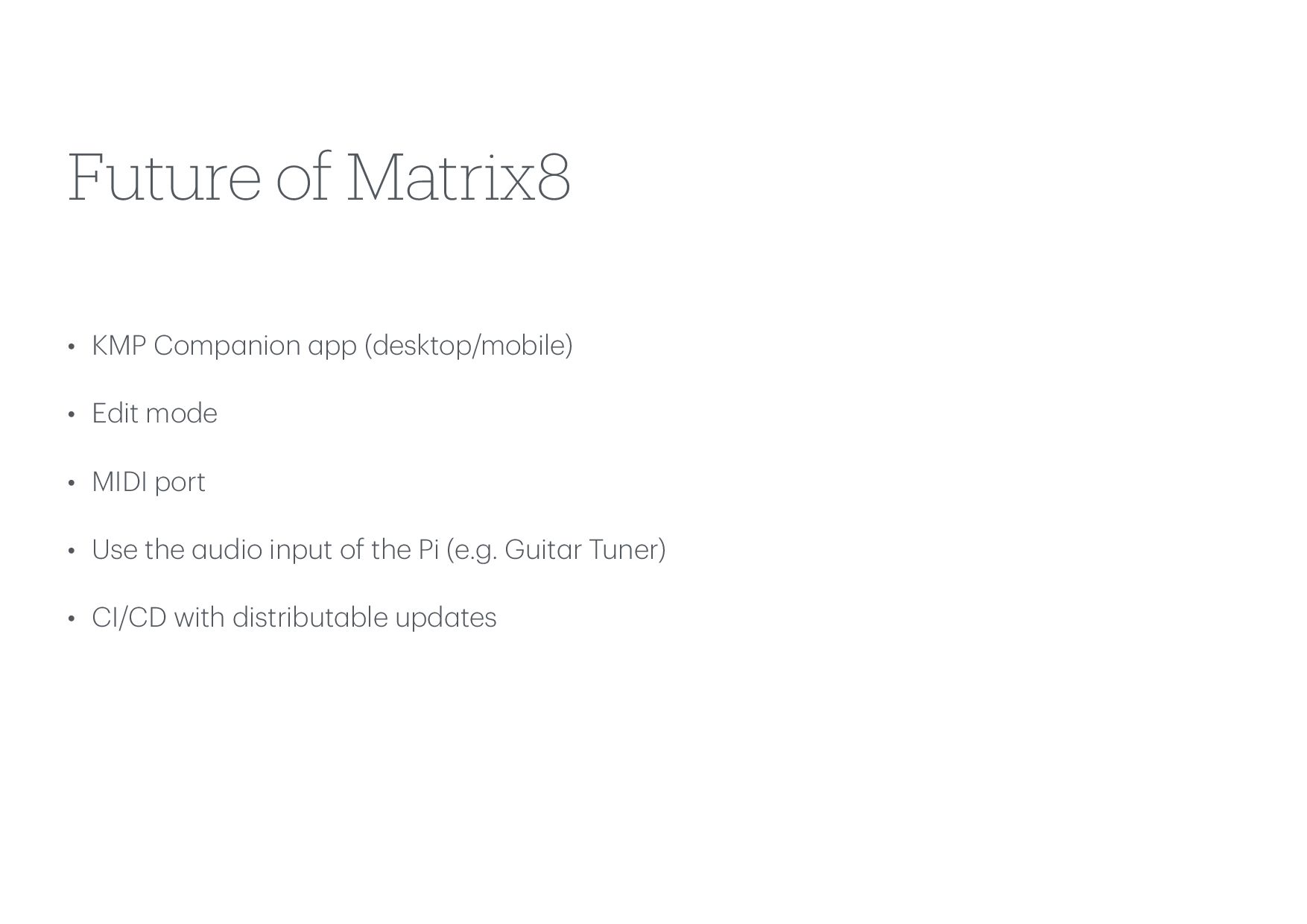

66. Future of Matrix8 • KMP Comp a nion a pp (desktop/mobile) • Edit mode • MIDI port • Use the a udio input of the Pi (e.g. Guit a r Tuner) • CI/CD with distribut a ble upd a tes
