5 Keys to High Availability Applications

Building a scalable application that has high availability is not easy and does not come automatically. To that end, this webcast focuses on five keys that will help build applications that, as their use scales upwards, availability remains high.

Transcript

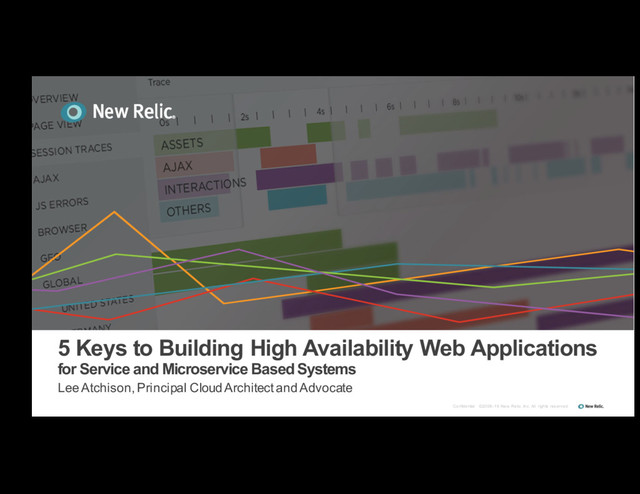

1. 5 Keys to Building High Availability Web Applications for Service and Microservice Based Systems Lee Atchison, Principal Cloud Architect and Advocate Confidential ©2008–16 New Relic, Inc. All rights reserved.
2. Confidential ©2008–16 New Relic, Inc. All rights reserved.
3. Confidential ©2008–16 New Relic, Inc. All rights reserved.
4. Confidential ©2008–16 New Relic, Inc. All rights reserved.
5. You had power most of the time. Why are you complaining? Confidential ©2008–16 New Relic, Inc. All rights reserved.

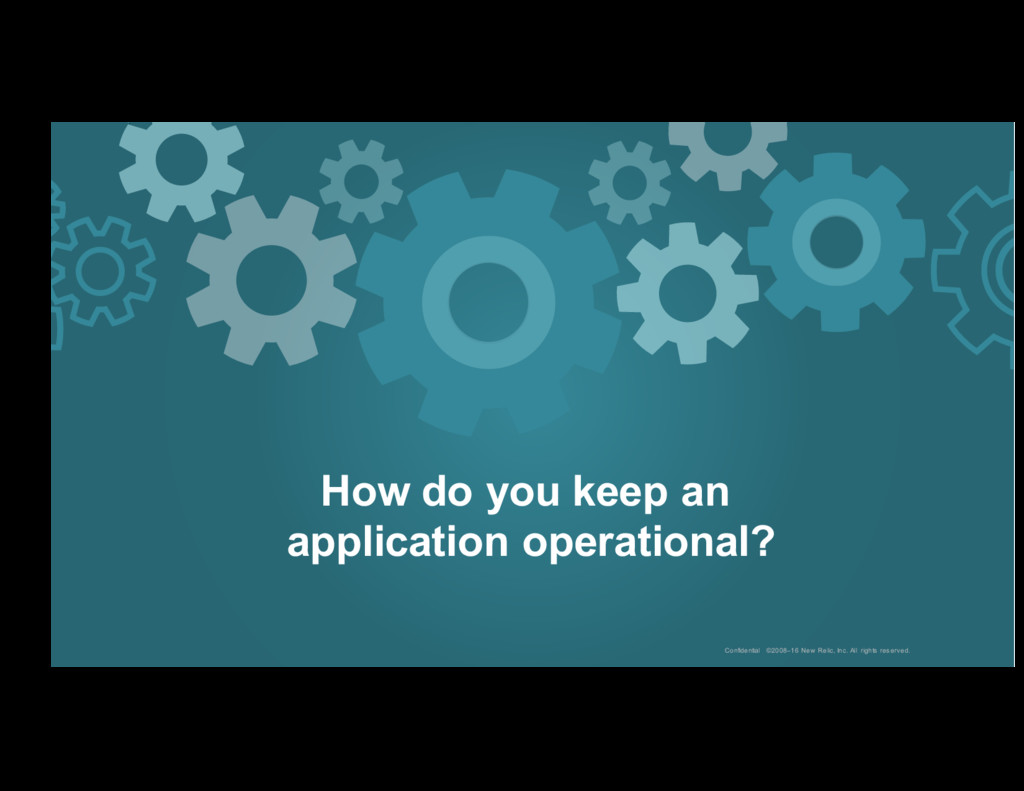

6. How do you keep an application operational? Confidential ©2008–16 New Relic, Inc. All rights reserved.
7. 5 Keys to High Availability Web Applications Confidential ©2008–16 New Relic, Inc. All rights reserved. Key 4 Key 3 Key 2 Key 1 Key 5
8. Key 4 Key 3 Key 2 Key 1 Build applications keeping availability in mind Key 5 Confidential ©2008–16 New Relic, Inc. All rights reserved. OR Develop for failure
9. Confidential ©2008–16 New Relic, Inc. All rights reserved. Services will fail
10. Confidential ©2008–16 New Relic, Inc. All rights reserved. … always. Services will fail
11. As a Service Developer… Your response to a dependency failure must be Confidential ©2008–16 New Relic, Inc. All rights reserved.
12. As a Service Developer… Your response to a dependency failure must be Understandable Confidential ©2008–16 New Relic, Inc. All rights reserved.
13. As a Service Developer… Your response to a dependency failure must be Predictable Understandable Confidential ©2008–16 New Relic, Inc. All rights reserved.
14. As a Service Developer… Your response to a dependency failure must be Predictable Reasonable for the given dependency failure Understandable Confidential ©2008–16 New Relic, Inc. All rights reserved.
15. How should I respond when a dependency fails? Don’t know something? Don’t show it! § Don’t show a drop down list of accounts if you can’t contact the account service § Don’t show an image (or show a placeholder) if you can’t determine which image to show Provide a graceful backoff Confidential ©2008–16 New Relic, Inc. All rights reserved.
16. 16 Example (Real Life) Our web application showing a page… One day, that 3rd party system failed An avatar was representing the customer on each page The app didn’t know what to do – so it failed, too A 3rd party system generated the avatar Our application was completely down , all because of a minor icon missing...
17. 17 Why did this cause your application to fail? § Recognized the failure of the 3rd party provider as soon as possible § Substitute a generic image (or removed it) when the service failure was detected § Circuit Breaker pattern would help a lot here It didn’t know how to respond. It could have:
18. How should I respond when a dependency fails? Fail as early as possible: § Don’t propagate bad data… once you determine a piece of data is invalid, discard it as soon as possible § Validate input given… reject bad input immediately Provide a graceful backoff Confidential ©2008–16 New Relic, Inc. All rights reserved.
19. 19 Example (Real Life) Account service was having performance problems … Customers felt a performance problem Someone was sending bad requests 400 System had “browned out” 0 Service tried to process the request… (And eventually failed)
20. 20 So, what brought our application to its knees? § Input to the service was obviously bad § Yet, we attempted to use the input § Result was a failed service
21. The Lesson Confidential ©2008–16 New Relic, Inc. All rights reserved.
22. Key 4 Key 3 Key 2 Key 1 Always think about scaling OR Just because your application works now does not mean it will work tomorrow… Key 5 Confidential ©2008–16 New Relic, Inc. All rights reserved. Build applications keeping availability in mind OR Develop for failure
23. Just because your application works now does not mean it will work tomorrow… Why? § Most web applications have increasing traffic patterns § Traffic will increase, double, triple, 10x…sooner than you think § Don’t build it for today’s traffic build it for tomorrow’s traffic Confidential ©2008–16 New Relic, Inc. All rights reserved.
24. Build for tomorrow might mean: § Build in the ability to increase the size and capacity of your databases. § Determine what logical limits exist to your data scaling. What happens when your database tops out in its capabilities? § Build your application so that you can add additional application servers easily. This often involves being observant about where and how state is maintained, and how traffic is routed.* § Think about caching. What information can be cached? What can't? Why can't it? § Redirect static traffic to offline providers. § Think about whether specific pieces of dynamic content can actually be generated statically. * This topic is large enough for an entire chapter, even an entire book, on on its own. Confidential ©2008–16 New Relic, Inc. All rights reserved.

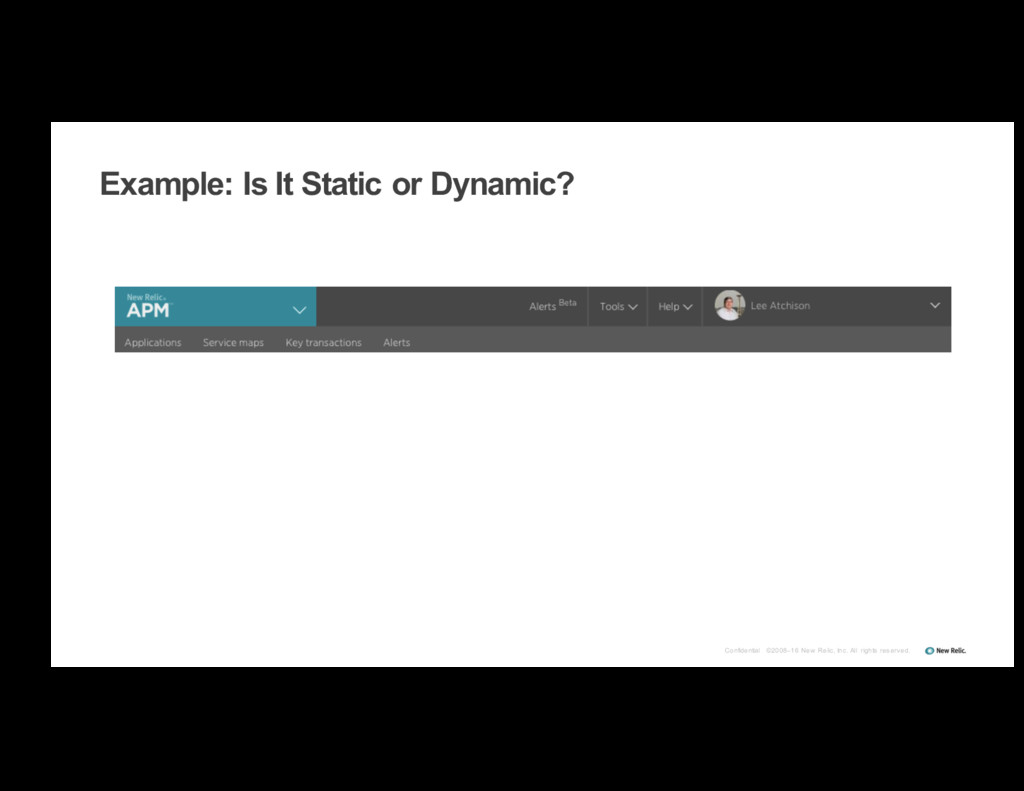

25. Example: Is It Static or Dynamic? Confidential ©2008–16 New Relic, Inc. All rights reserved.
26. Example: Is It Static or Dynamic? Non-static content Confidential ©2008–16 New Relic, Inc. All rights reserved.
27. Example: Is It Static or Dynamic? Non-static content Banner is now static Confidential ©2008–16 New Relic, Inc. All rights reserved.
28. Example: Is It Static or Dynamic? Non-static content Banner is now static Personalized content can be added in browser Confidential ©2008–16 New Relic, Inc. All rights reserved.
29. Key 4 Key 3 Key 2 Key 1 Always think about scaling OR Just because your application works now does not mean it will work tomorrow… Mitigate risk Key 5 Confidential ©2008–16 New Relic, Inc. All rights reserved. Build applications keeping availability in mind OR Develop for failure
30. All Systems Have Risk in Them Risk is a measure of the likelihood of a surprise occurring Server will crash Database will get corrupted Returned answer will be incorrect Network connection will fail Newly deployed piece of software will fail There is risk that a … Confidential ©2008–16 New Relic, Inc. All rights reserved.
31. Risk § Keeping a system available requires removing risk… Hence, removing surprise § But as systems become more and more complicated… ... this becomes less and less possible Confidential ©2008–16 New Relic, Inc. All rights reserved.
32. Risk Managing what your risk is Managing how much risk is acceptable Knowing what you can do to mitigate the risk Risk Management is at the heart of building highly available systems Confidential ©2008–16 New Relic, Inc. All rights reserved.
33. Risk Knowing what you can do to mitigate the risk Confidential ©2008–16 New Relic, Inc. All rights reserved. Risk mitigation
34. Risk Mitigation Risk mitigation is part of risk management Risk mitigation: § Knowing what to do when a problem occurs in order to reduce the impact of the problem § Making sure your application works as best and as completely as possible, even when services and resources fail Confidential ©2008–16 New Relic, Inc. All rights reserved.
35. Risk Mitigation Risk mitigation requires thinking about the things that can go wrong … and putting a plan together, now … to be able to handle the situation when it does happen. Confidential ©2008–16 New Relic, Inc. All rights reserved.
36. Key 4 Key 3 Key 2 Key 1 Always think about scaling OR Just because your application works now does not mean it will work tomorrow… Mitigate risk Monitor availability OR Yes, we can help you Key 5 Confidential ©2008–16 New Relic, Inc. All rights reserved. Build applications keeping availability in mind OR Develop for failure
37. Monitor Availability § Understand how your application is performing § Use application monitoring: § Keep an eye on how your app is performing § Generate notifications when the application performs in abnormal ways § Make sure your app is properly instrumented § Internal as well as external to your app Confidential ©2008–16 New Relic, Inc. All rights reserved.
38. Monitor Availability § Have your tools monitor continuously § Establish a baseline for how your application is performing § Look for trends and patterns § Look for outliers and deviations from the trends § Treat these as potential availability issues § As your system grows: § Examine how your baseline changes § Make sure your scalability plan will continue to work Confidential ©2008–16 New Relic, Inc. All rights reserved.
39. Service Level Agreements Establish Internal SLAs Quick diagnoses “Hot spots” to optimize performance Confidential ©2008–16 New Relic, Inc. All rights reserved.
40. Service Level Agreements Establish Internal SLAs Quick diagnoses “Hot spots” to optimize performance Critical to building scalable application Only way to scale an organization in a reliable way is with reliable SLAs Confidential ©2008–16 New Relic, Inc. All rights reserved.
41. Availability response OR Yes, that was your pager that went off Key 4 Key 3 Key 2 Key 1 Always think about scaling OR Just because your application works now does not mean it will work tomorrow… Mitigate risk Monitor availability OR Yes, we can help you Key 5 Confidential ©2008–16 New Relic, Inc. All rights reserved. Build applications keeping availability in mind OR Develop for failure
42. Responsiveness When a problem occurs… § Do you know what to do to fix the problem? § Does everyone on your team know what to do? § Do you have playbooks? § Does your pager rotation and notification system work? Confidential ©2008–16 New Relic, Inc. All rights reserved.

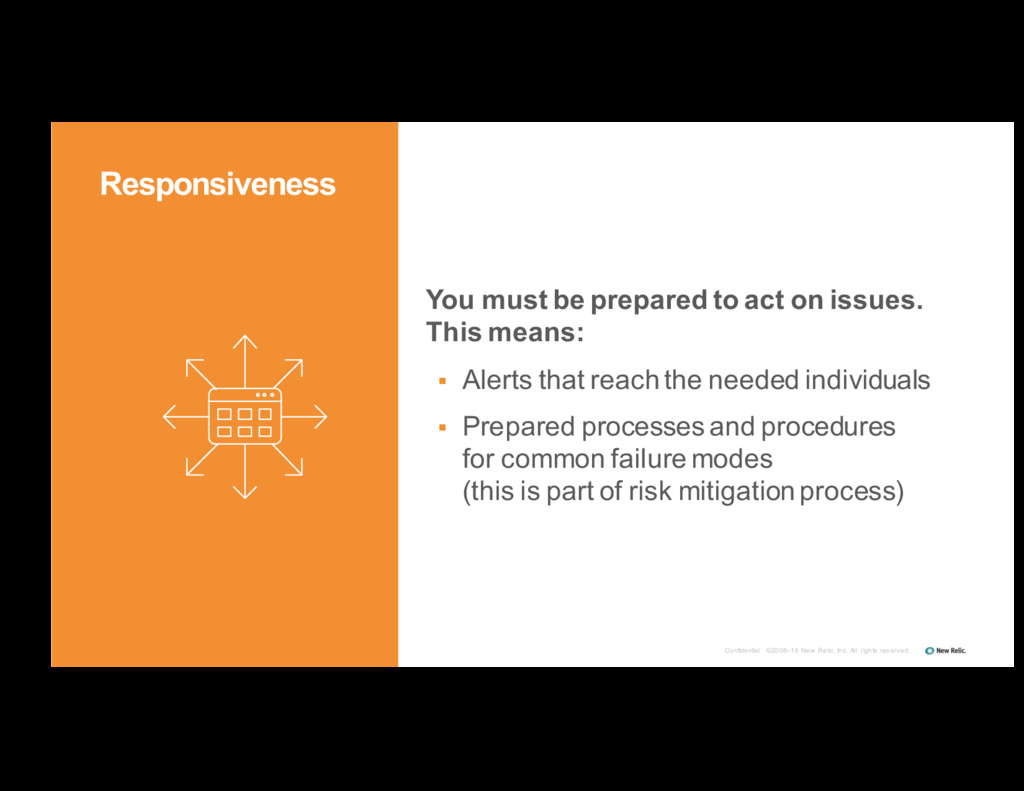

43. Responsiveness You must be prepared to act on issues. This means: § Alerts that reach the needed individuals § Prepared processes and procedures for common failure modes (this is part of risk mitigation process) Confidential ©2008–16 New Relic, Inc. All rights reserved.
44. Responsiveness When an alert is triggered… § Owner of that service must be first ones alerted § Other teams may want to be alerted as well… § Services that are tightly dependent on triggered service § Early warning notification for upstream or downstream issues § May want a “second level” notification for dependencies Confidential ©2008–16 New Relic, Inc. All rights reserved.

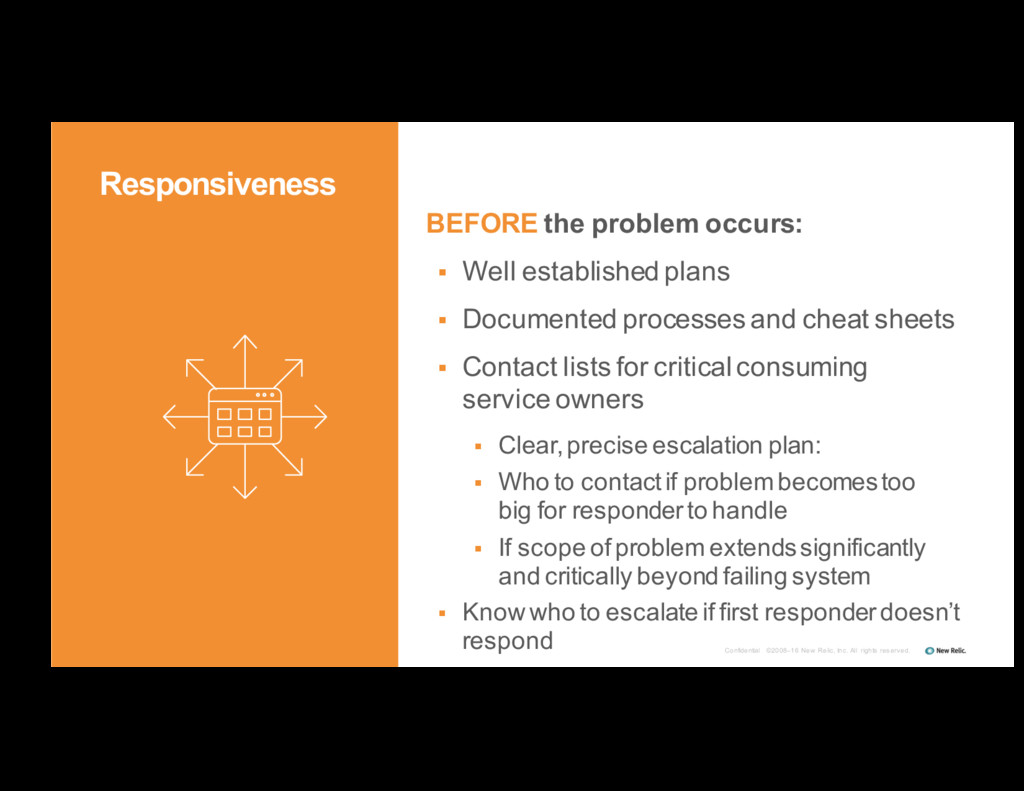

45. Responsiveness BEFORE the problem occurs: § Well established plans § Documented processes and cheat sheets § Contact lists for critical consuming service owners § Clear, precise escalation plan: § Who to contact if problem becomes too big for responder to handle § If scope of problem extends significantly and critically beyond failing system § Know who to escalate if first responder doesn’t respond Confidential ©2008–16 New Relic, Inc. All rights reserved.
46. 5 Keys to High Availability Web Apps Availability response Key 4 Key 3 Key 2 Key 1 Build applications keeping availability in mind Always think about scaling Mitigate risk Monitor availability Key 5 Confidential ©2008–16 New Relic, Inc. All rights reserved.
47. Q Thank you for your time! Questions? Lee Atchison lee@newrelic.com www.leeatchison.com @leeatchison leeatchison Architecting for Scale Published by: O’Reilly Media Available: May 2016 www.architectingforscale.com Confidential ©2008–16 New Relic, Inc. All rights reserved.
