Angular by the Push of a Button: Generating Applications with the CLI and Schematics

# Samples

- [Menu Sample](https://github.com/manfredsteyer/schematics-sample.git)
- [Great introduction in Angular Blog](https://blog.angular.io/schematics-an-introduction-dc1dfbc2a2b2)
- [Angular Schematics Tutorial/ Case Study, 5 articles so far](https://goo.gl/kGS6L5)
Angular-Crud (Generator)
- [Angular CRUD](https://www.npmjs.com/package/angular-crud)

# More: Blog and Angular Training
https://www.softwarearchitekt.at

Transcript

1. ManfredSteyer Angular by the Push of a Button: Generating Applications with the CLI and Schematics Manfred Steyer SOFTWAREarchitekt.at ManfredSteyer
2. ManfredSteyer About me… • Manfred Steyer • Blog: SOFTWAREarchitekt.at • Angular Trainings and Consultancy • Google Developer Expert (GDE) Page ▪ 4 Manfred Steyer Public: Vienna, München In-House: everywhere http://softwarearchitekt.at/workshops
3. ManfredSteyer Have you ever tried to … … setup a modern JavaScript project manually? • Compiler/ Transpiler • Package manager and packages • Build chain optimized for bundle size, performance, etc. • Testing tools including code coverage • Linting tools
4. ManfredSteyer Angular CLI
5. ManfredSteyer Using the CLI ng new my-project cd my-project ng generate component my-component
6. ManfredSteyer Vision ng new my-special-templ:my-project cd my-project ng generate my:menu-component side-menu
7. ManfredSteyer Contents • What is Schematics? • How to create custom schematics? • How to use parameters? • How to use templates? • How to scaffold whole projects?
8. ManfredSteyer What is Schematics?
9. ManfredSteyer Schematics Scaffolding Tool used by Angular CLI Schematics: The whole project Schematic: Code Generator Collection: Set of Schematics
10. ManfredSteyer Angular Labs Experimental :: Breaking Changes ahead Give it a try!
11. ManfredSteyer Nrwl Nx
12. ManfredSteyer
13. ManfredSteyer Schematics are atomic (like db transactions) A B D E C F A B D E C F Your Project Staging Area Tree Object
14. ManfredSteyer Schematics are atomic (like db transactions) A B D E C F A B D' E C F Your Project Staging Area Tree Object
15. ManfredSteyer Schematics are atomic (like db transactions) A B D E C F A B D' E C F G Your Project Staging Area Tree Object
16. ManfredSteyer Schematics are atomic (like db transactions) A B D E C F A B D' E C F G Your Project Staging Area Tree Object
17. ManfredSteyer Schematics are atomic (like db transactions) A B D' E C F G A B D' E C F G Your Project Staging Area Tree Object
18. ManfredSteyer How to Create Custom Schematics?
19. ManfredSteyer You can create a schematic … … with a schematic!
20. ManfredSteyer Scaffold Collection npm install -g @angular-devkit/schematics-cli schematics blank --name=hello-world schematics schematic --name=hello-world Contains sample schematics
21. ManfredSteyer

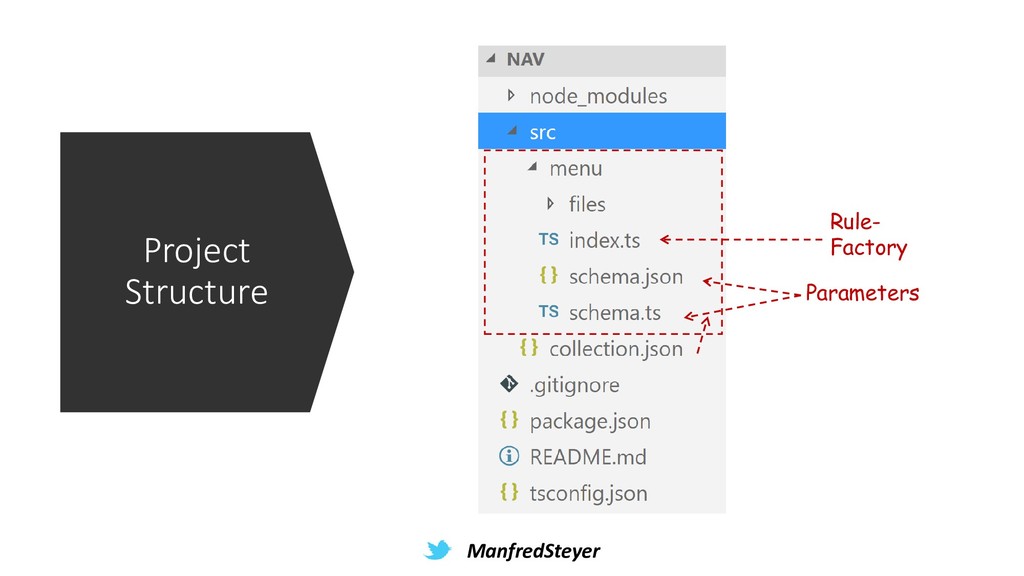

22. ManfredSteyer Project Structure Schematic Rule- Factory
23. ManfredSteyer Rule Factory export function helloWorld(options: any): Rule { […] }
24. ManfredSteyer Rule Factory export function helloWorld(options: any): Rule { return (tree: Tree, _context: SchematicContext) => { _context.logger.debug('Manfred was here!'); tree.create('hello.txt', 'Hello World!'); return tree; }; } Rule
25. ManfredSteyer Testing npm run build schematics .:hello-world
26. ManfredSteyer Testing in Demo App npm install hello-world or npm link ..\hello-world schematics hello-world:hello-world
27. ManfredSteyer Testing in Demo App npm install hello-world or npm link ..\hello-world ng generate hello-world:hello-world
28. ManfredSteyer DEMO
29. ManfredSteyer How to use Parameters?
30. ManfredSteyer Case Study
31. ManfredSteyer Result Optional
32. ManfredSteyer Execution ng g nav:menu side-menu --menu-service
33. ManfredSteyer Project Structure Parameters Rule- Factory
34. ManfredSteyer Option Class in schema.ts export interface MenuOptions { name: string; project: string; […] menuService: boolean; […] } provided by the CLI custom stuff
35. ManfredSteyer Rule Factory gets Parameter Object export default function (options: MenuOptions): Rule { return (host: Tree, context: SchematicContext) => { […] } }
36. ManfredSteyer Rule Factory gets Parameter Object export default function (options: MenuOptions): Rule { return (host: Tree, context: SchematicContext) => { […] } }
37. ManfredSteyer How to use Templates?
38. ManfredSteyer Project Structure
39. ManfredSteyer Template export interface <%= classify(name) %>Item { title: string; iconClass: string; } passed property passed function
40. ManfredSteyer Template names are templates! passed property passed property passed function
41. ManfredSteyer Rule Calling Templates export default function (options: MenuOptions): Rule { […] }
42. ManfredSteyer Rule Calling Templates export default function (options: MenuOptions): Rule { return (host: Tree, context: SchematicContext) => { […] } }
43. ManfredSteyer Rule Calling Templates export default function (options: MenuOptions): Rule { return (host: Tree, context: SchematicContext) => { const templateSource = apply(url('./files'), [ filterTemplates(options), template({...stringUtils, ...options}), move(options.sourceDir) ]); […] } } passed properties passed functions
44. ManfredSteyer Rule Calling Templates export default function (options: MenuOptions): Rule { return (host: Tree, context: SchematicContext) => { const templateSource = apply(url('./files'), [ filterTemplates(options), template({...stringUtils, ...options}), move(options.sourceDir) ]); const rule = chain([ branchAndMerge(chain([ mergeWith(templateSource), […] ])) ]); return rule(host, context); } }
45. ManfredSteyer DEMO
46. ManfredSteyer Modifying existing Code
47. ManfredSteyer Declaring Generated Components import { NgModule } from '@angular/core'; import { CommonModule } from '@angular/common'; import { SideMenuComponent } from './side-menu/side-menu.component'; @NgModule({ imports: [ CommonModule ], declarations: [ SideMenuComponent ], exports: [ SideMenuComponent ] }) export class CoreModule { }
48. ManfredSteyer Existing Rules • addDeclarationToModule • addExportToModule • …
49. ManfredSteyer Injecting Service into Component […] import { SideMenuService } from './core/side-menu/side-menu.service'; @Component({ […] }) export class AppComponent { constructor(private sideMenuService: SideMenuService) { // sideMenuService.show = true; } }
50. ManfredSteyer Custom Rule for Modifying Existing Code • String Operations • RegExp • TypeScript Compiler API
51. ManfredSteyer Custom Rule for Modifying Existing Code • String Operations • RegExp • TypeScript Compiler API
52. ManfredSteyer Code File as Syntax Tree (simplified) ClassDeclaration ClassKeyword (class) Identifier (Demo) … SyntaxList class Demo { constructor(otherDemo: Demo) {} } Subtree w/ Constructor …
53. ManfredSteyer DEMO
54. ManfredSteyer Scaffolding whole Angular Applications?
55. ManfredSteyer
56. ManfredSteyer
57. ManfredSteyer Scaffolding a CRUD Module

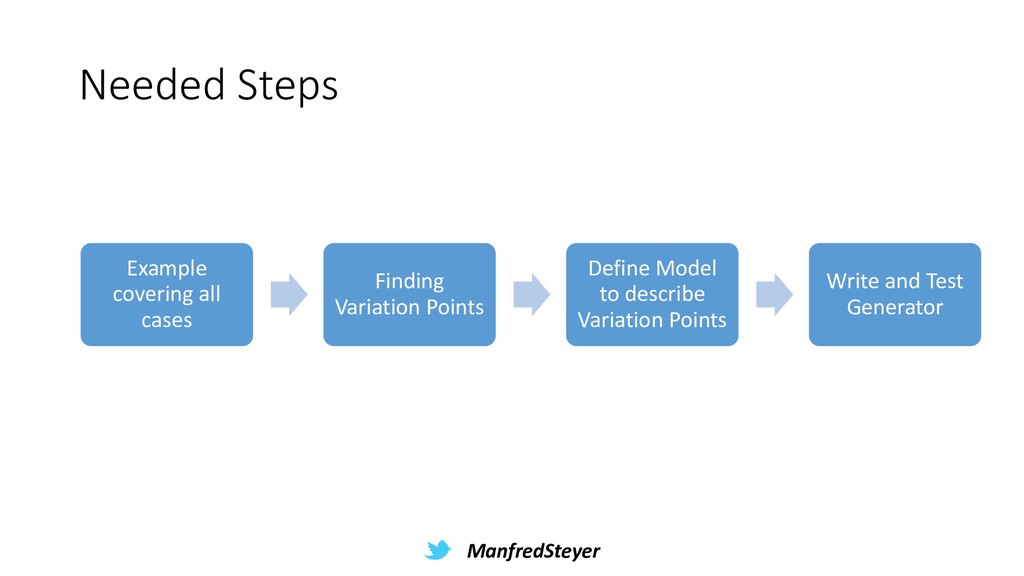

58. ManfredSteyer Needed Steps Example covering all cases Finding Variation Points Define Model to describe Variation Points Write and Test Generator
59. ManfredSteyer DEMO
60. ManfredSteyer Current State Use it as is or Fork it or Contribute!
61. ManfredSteyer Further Information • Great introduction in Angular Blog • https://blog.angular.io/schematics-an-introduction-dc1dfbc2a2b2 • My Tutorial/ Case Study (5 articles so far) • https://goo.gl/kGS6L5 • Angular-Crud (Generator) • https://www.npmjs.com/package/angular-crud
62. ManfredSteyer Conclusion Automate boring tasks! Official Solution in ng world Staging Area, Templates, Rules schema.json w/ JSON Schema Create own or tweak existing ones
63. ManfredSteyer Contact and Downloads [mail] manfred.steyer@SOFTWAREarchitekt.at [blog] SOFTWAREarchitekt.at [twitter] ManfredSteyer http://softwarearchitekt.at/workshops Slides & Examples d
