Controller Dataflow

Transcript

1. Controller Dataflow

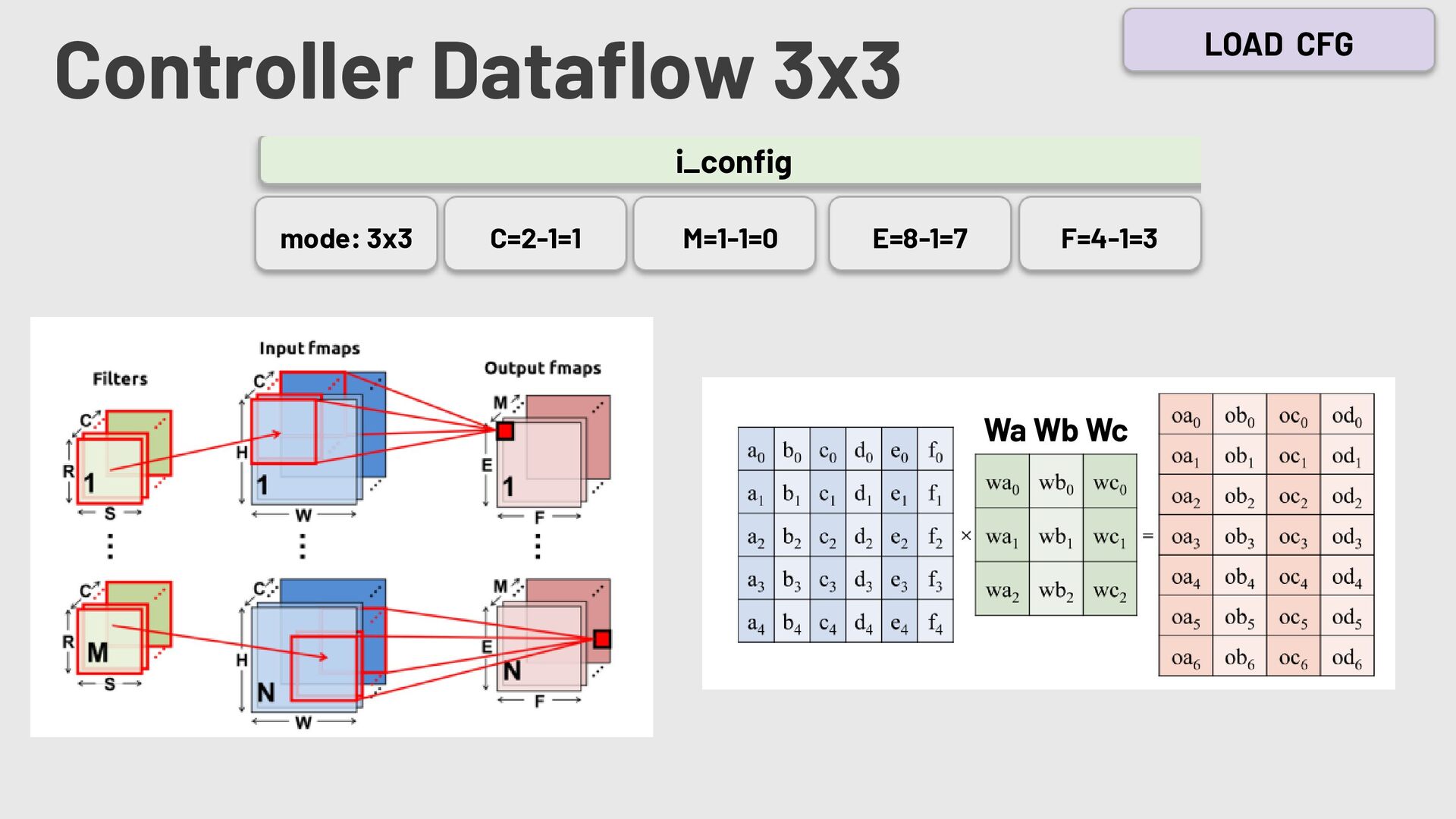

2. LOAD CFG i_config mode: 3x3 C=2-1=1 M=1-1=0 E=8-1=7 F=4-1=3 Controller Dataflow 3x3 Wa Wb Wc

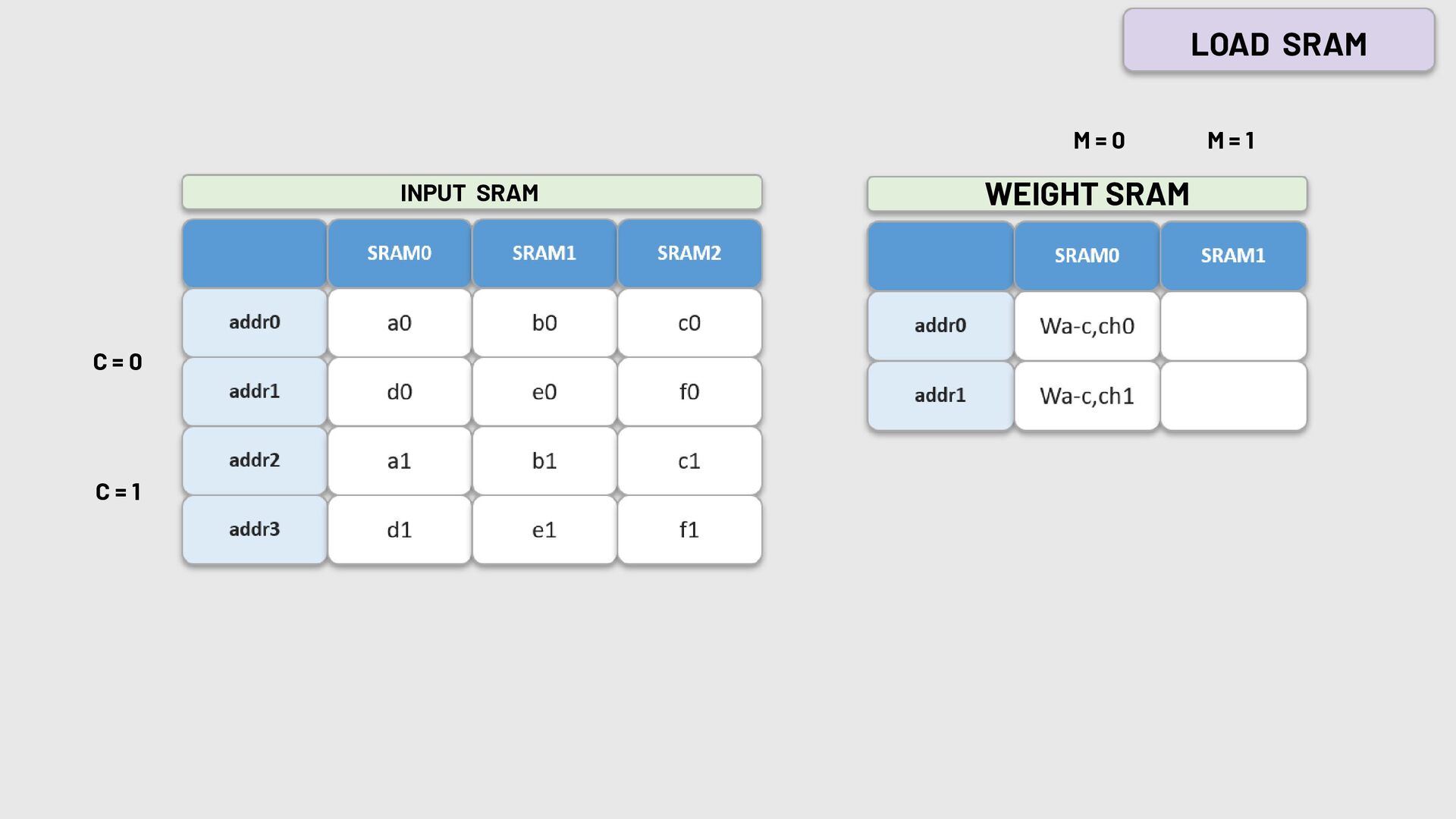

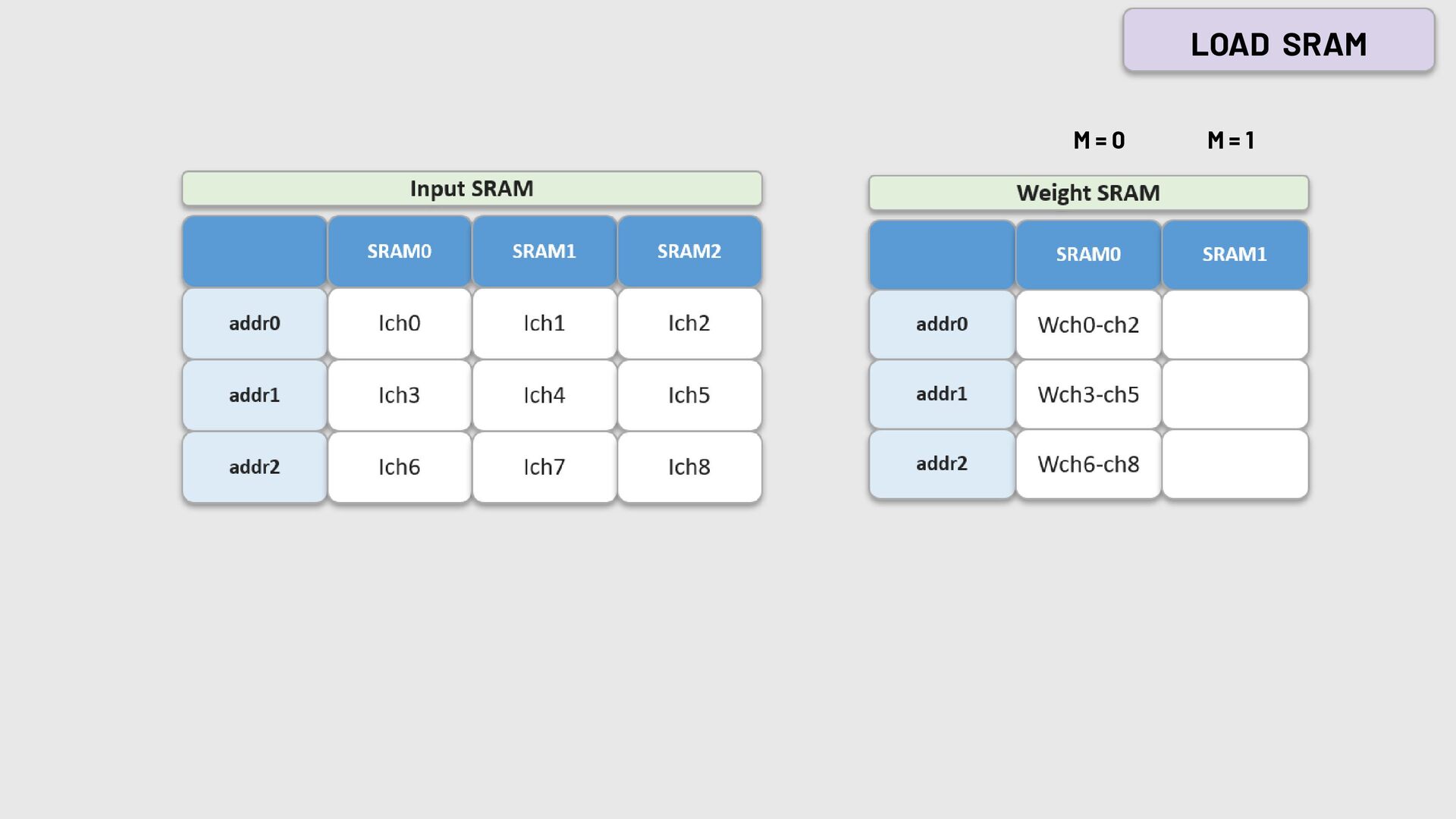

3. LOAD SRAM INPUT SRAM C = 1 C = 0 WEIGHT SRAM M = 0 M = 1

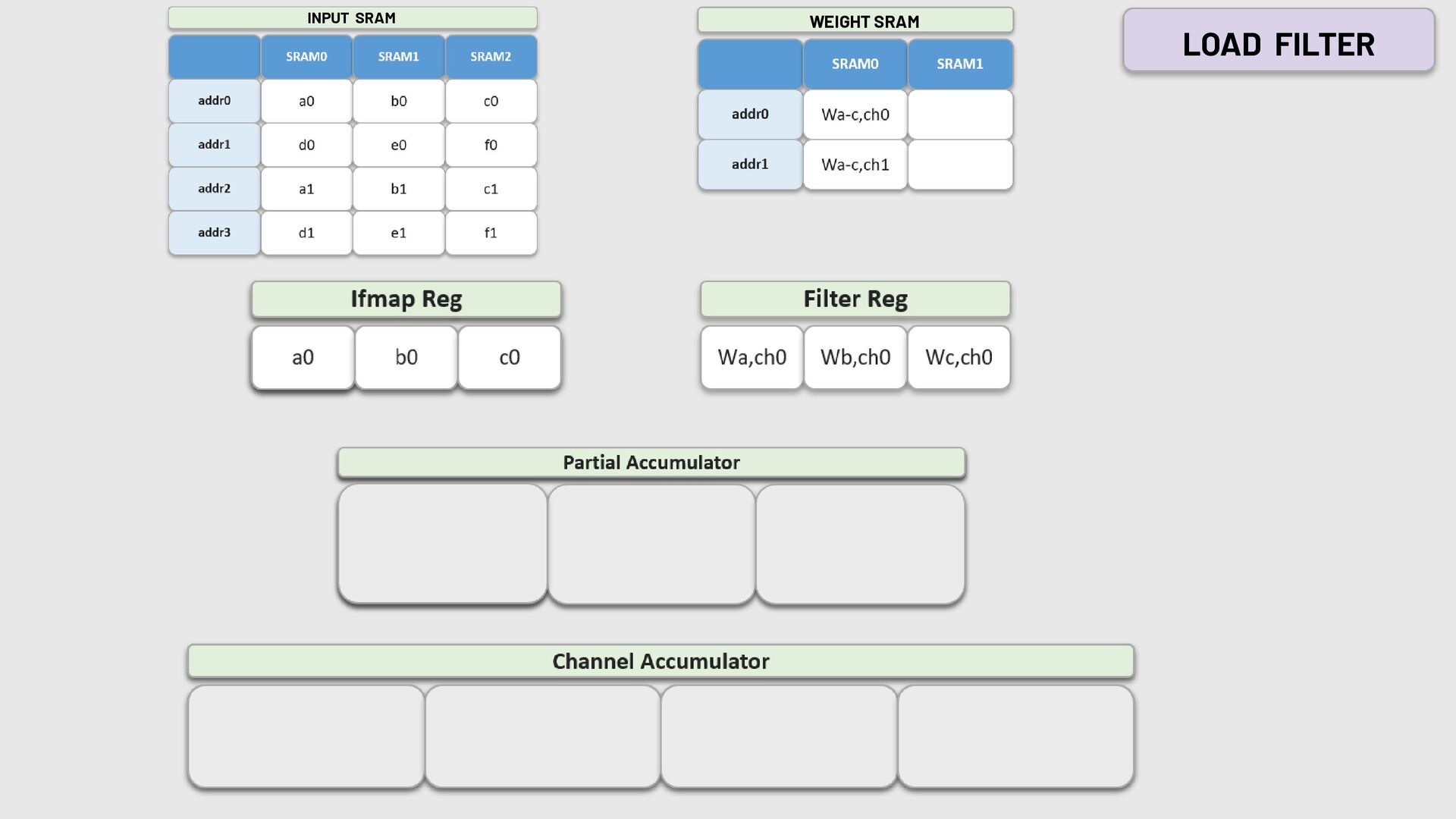

4. LOAD FILTER INPUT SRAM WEIGHT SRAM

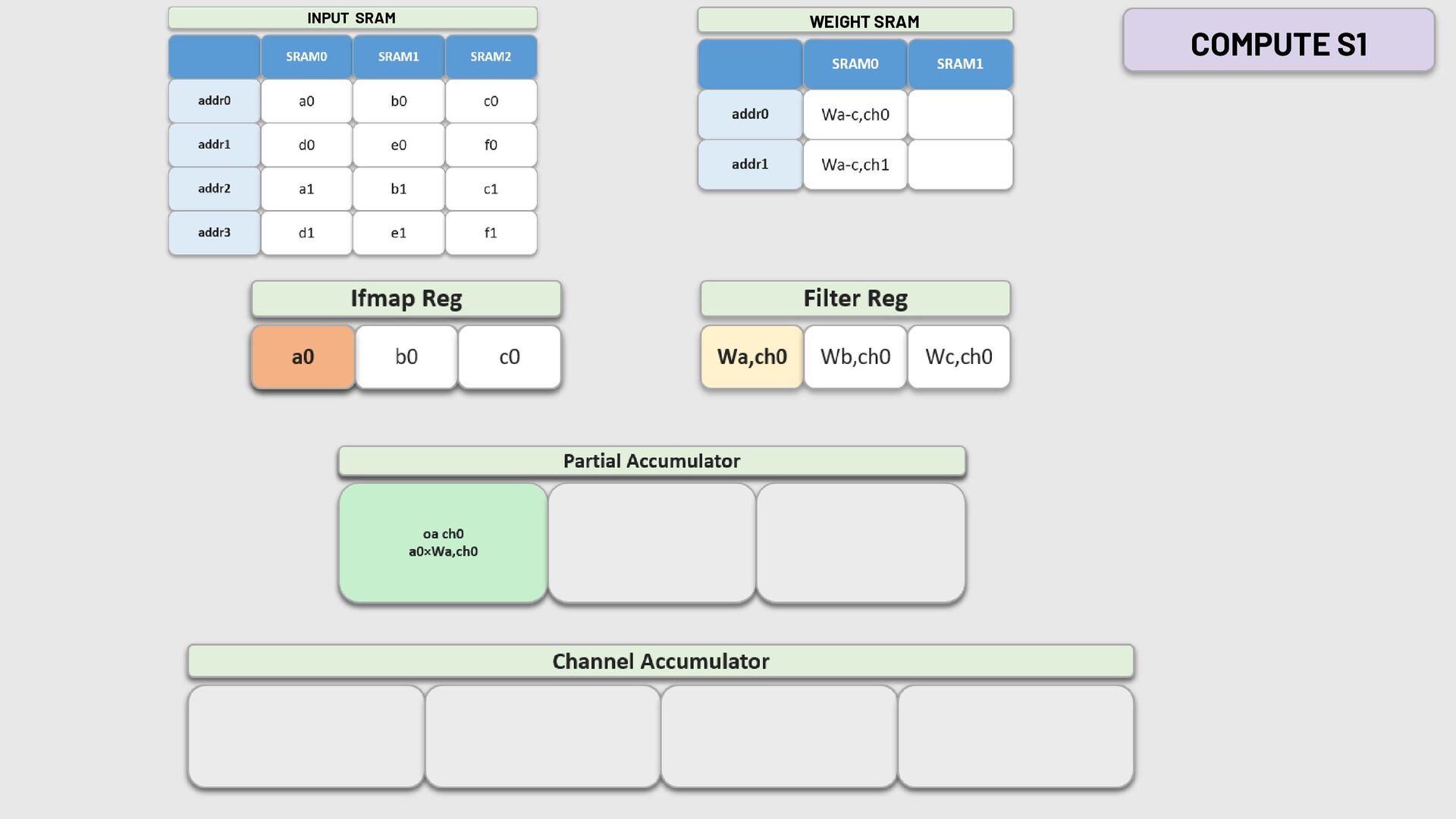

5. COMPUTE S1 INPUT SRAM WEIGHT SRAM

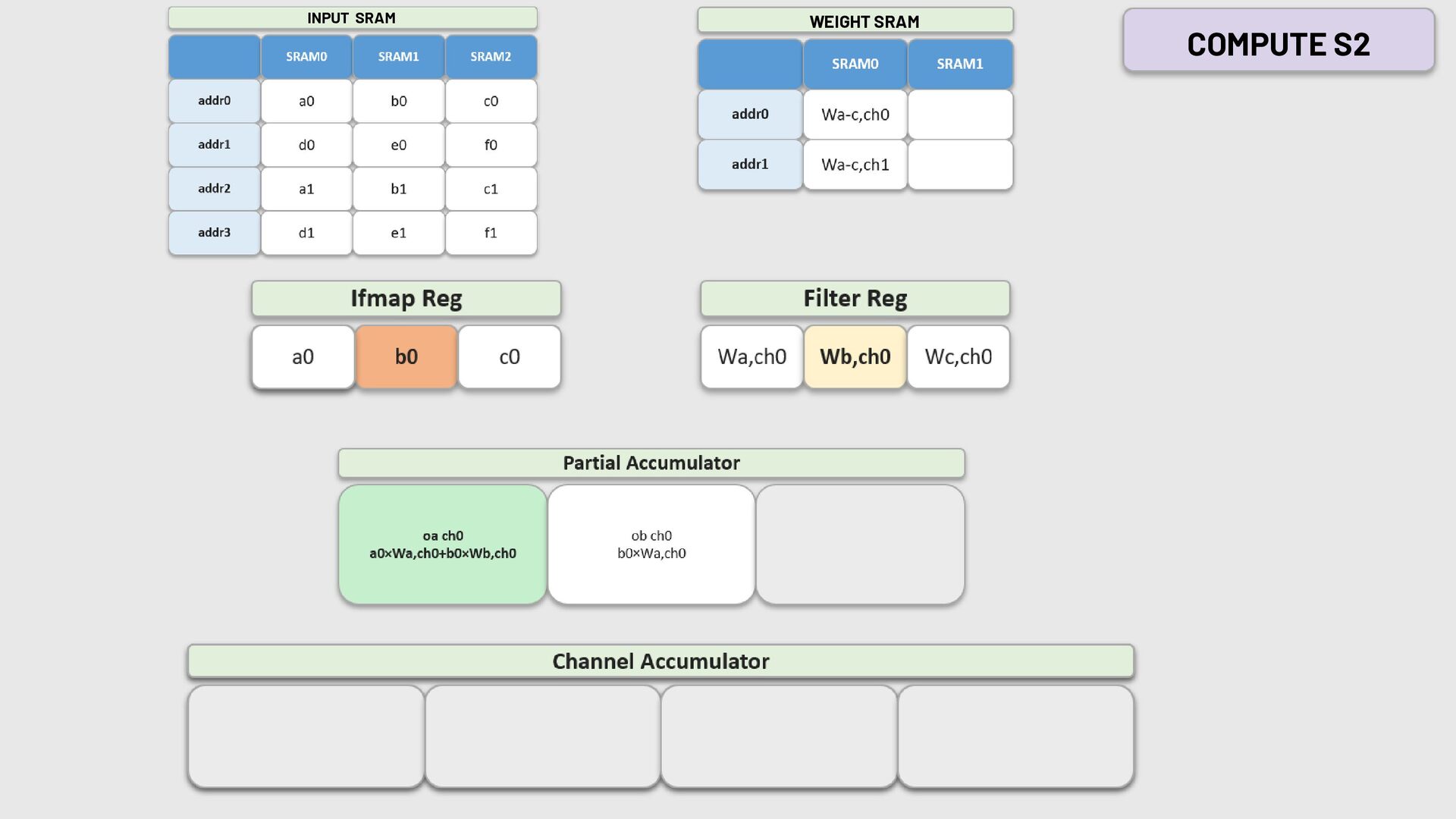

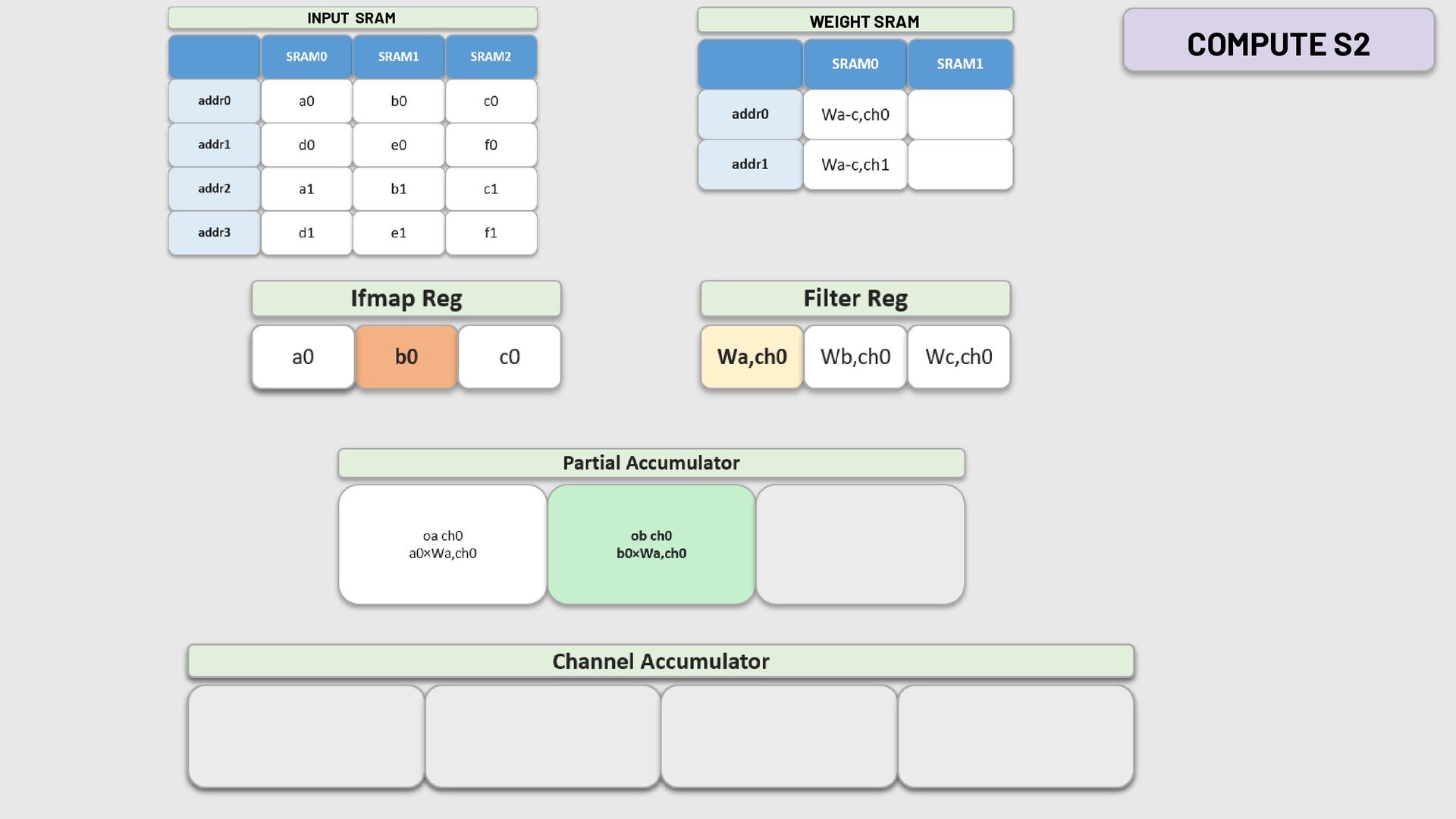

6. COMPUTE S2 INPUT SRAM WEIGHT SRAM
7. COMPUTE S2 INPUT SRAM WEIGHT SRAM

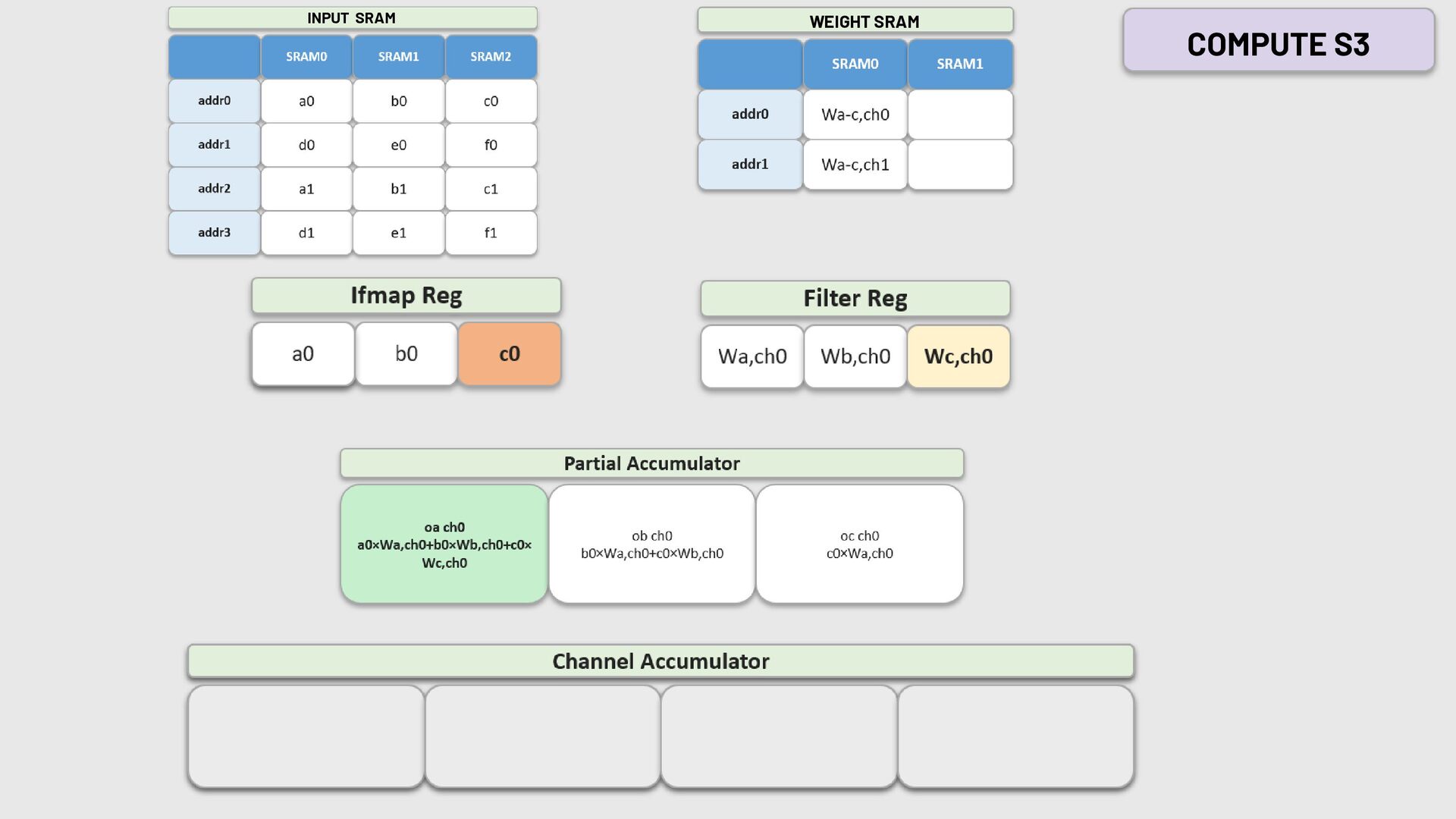

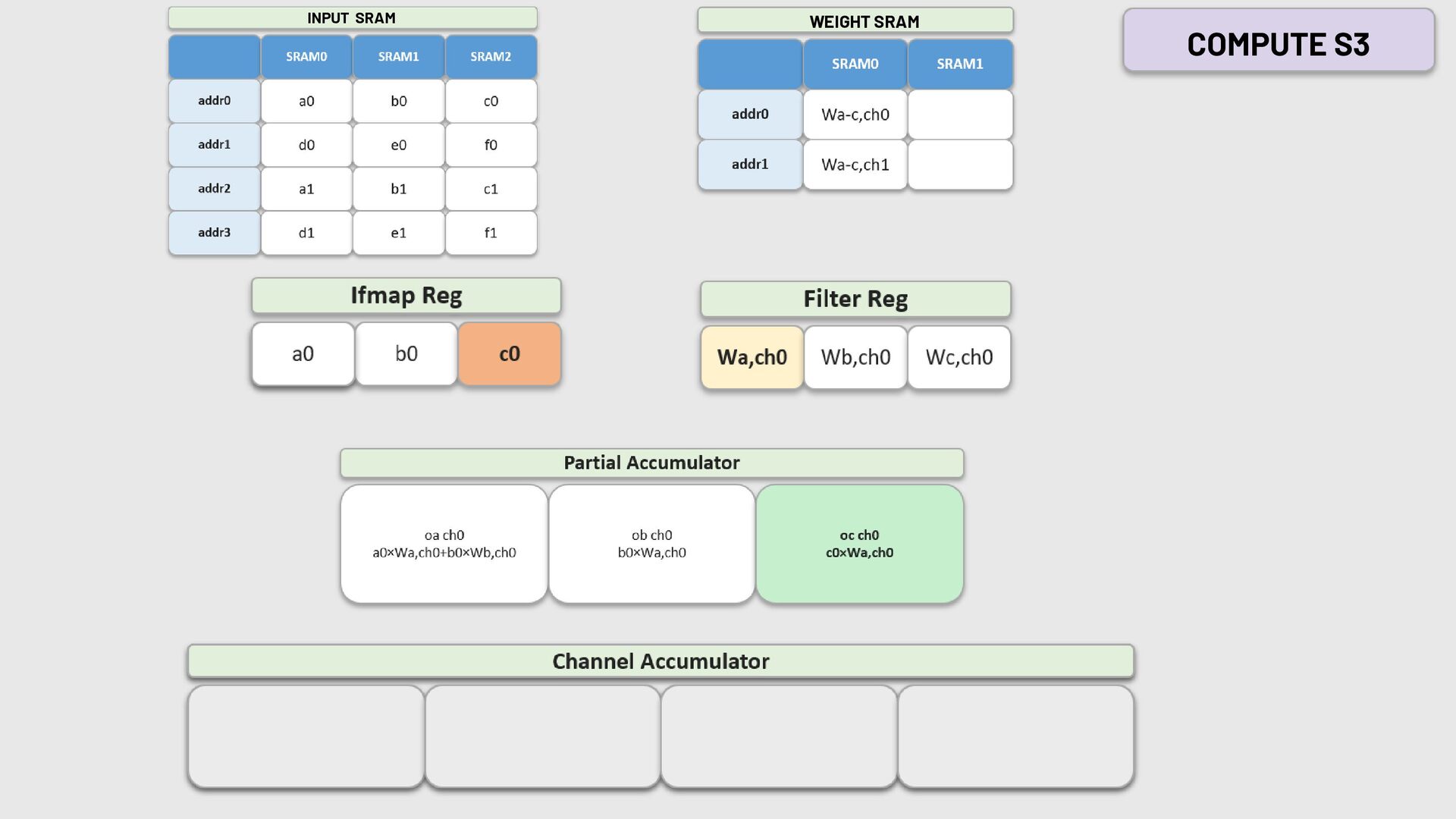

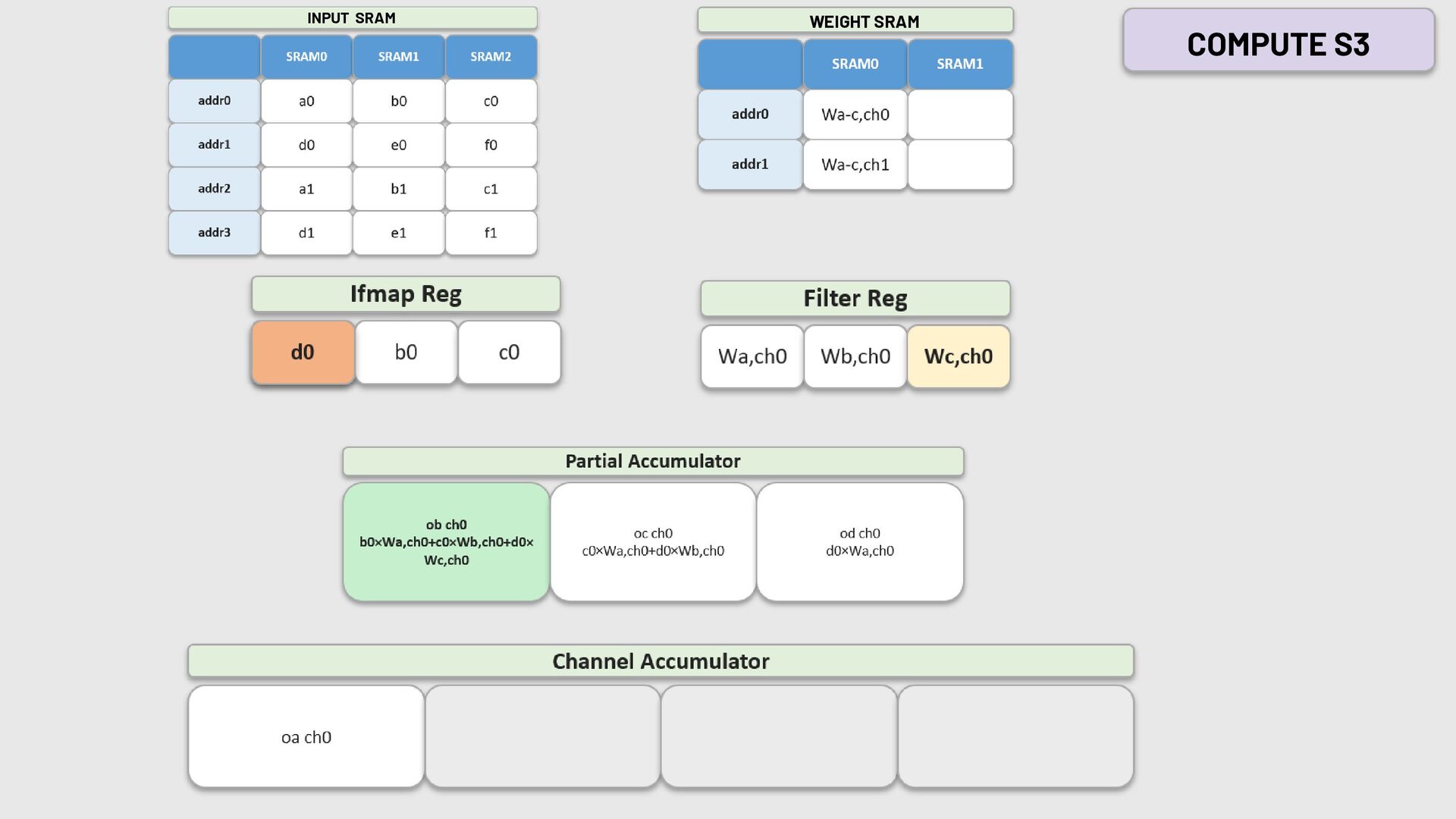

8. COMPUTE S3 INPUT SRAM WEIGHT SRAM
9. COMPUTE S3 INPUT SRAM WEIGHT SRAM

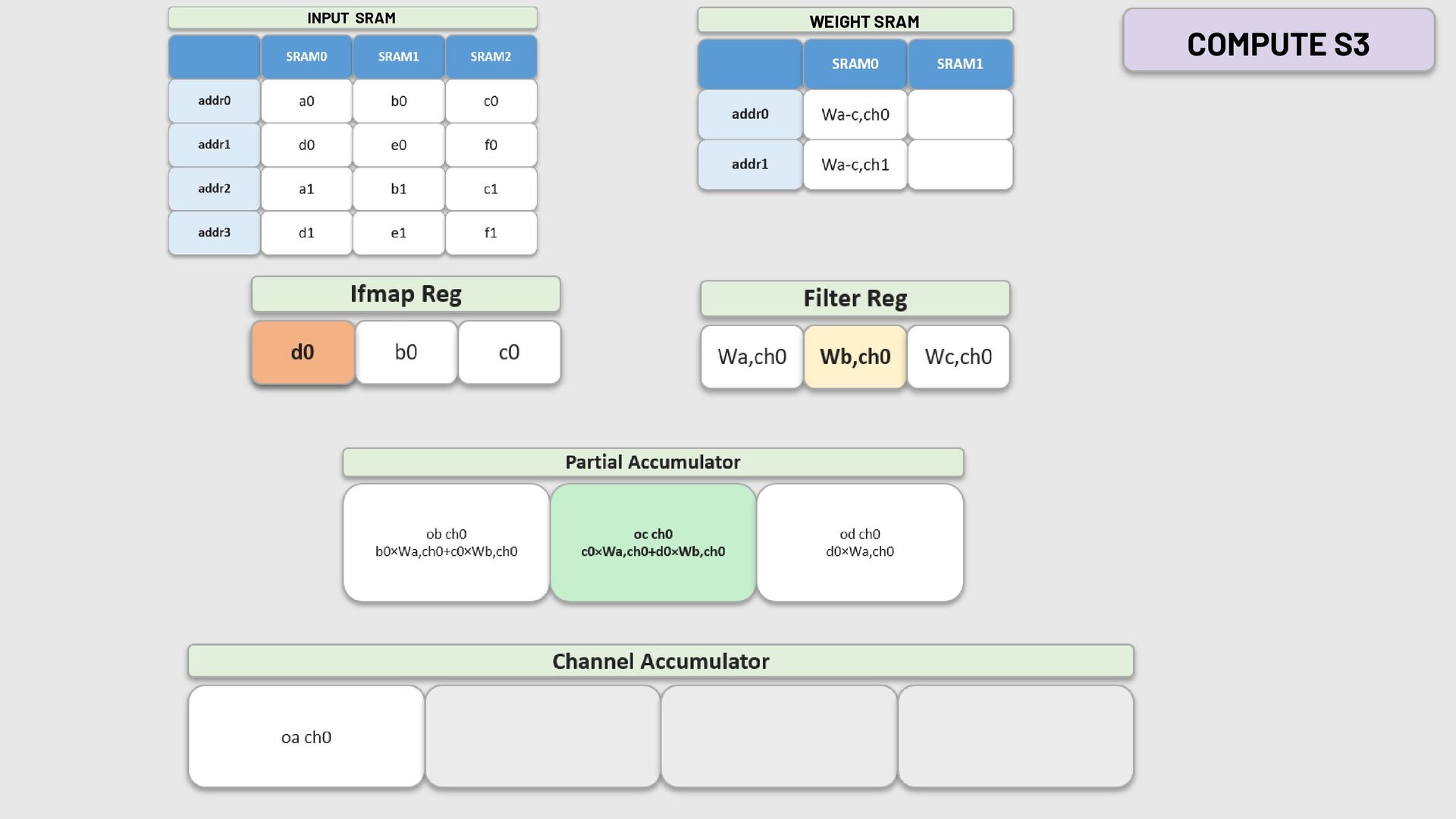

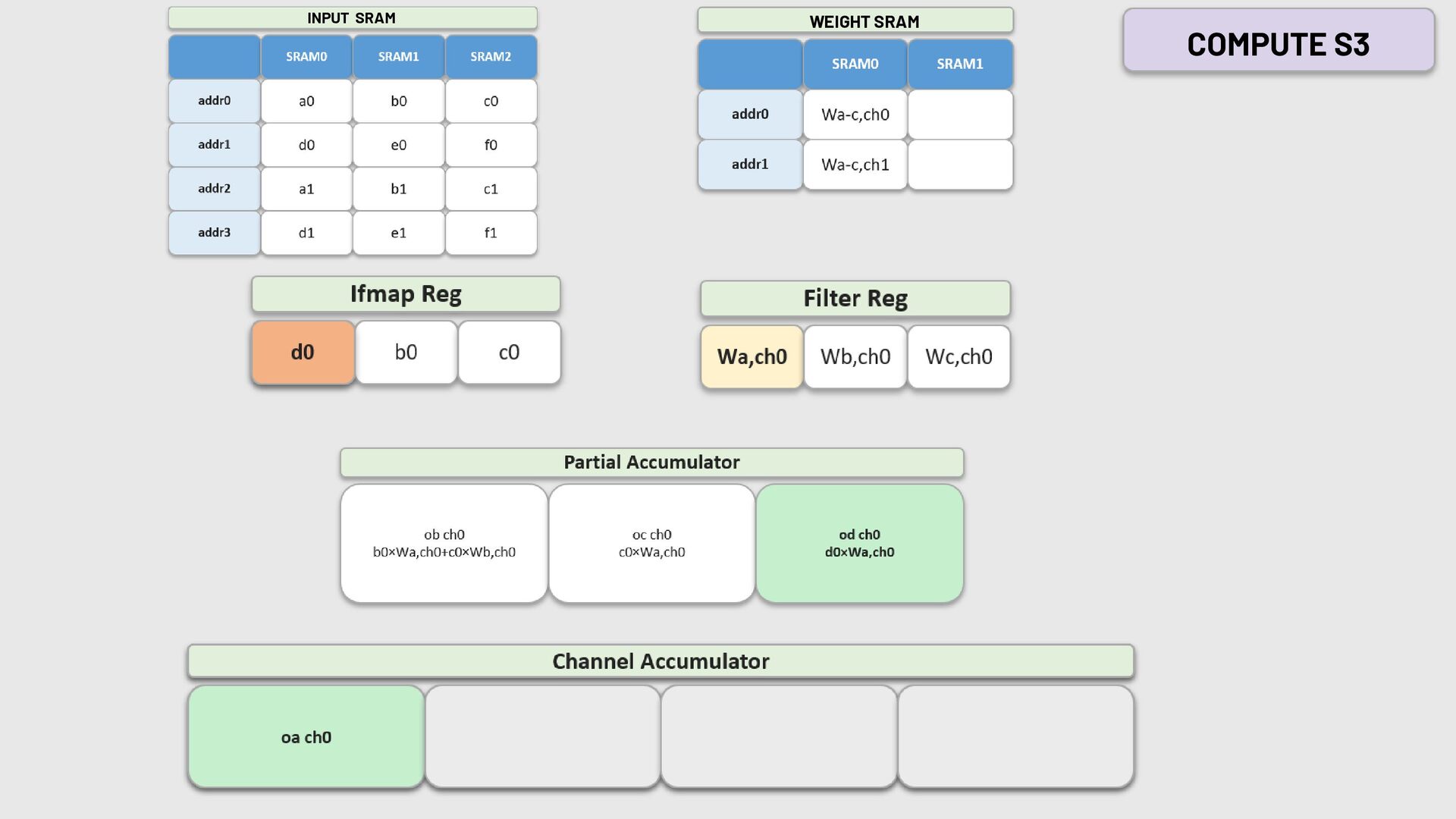

10. COMPUTE S3 INPUT SRAM WEIGHT SRAM
11. COMPUTE S3 INPUT SRAM WEIGHT SRAM
12. COMPUTE S3 INPUT SRAM WEIGHT SRAM

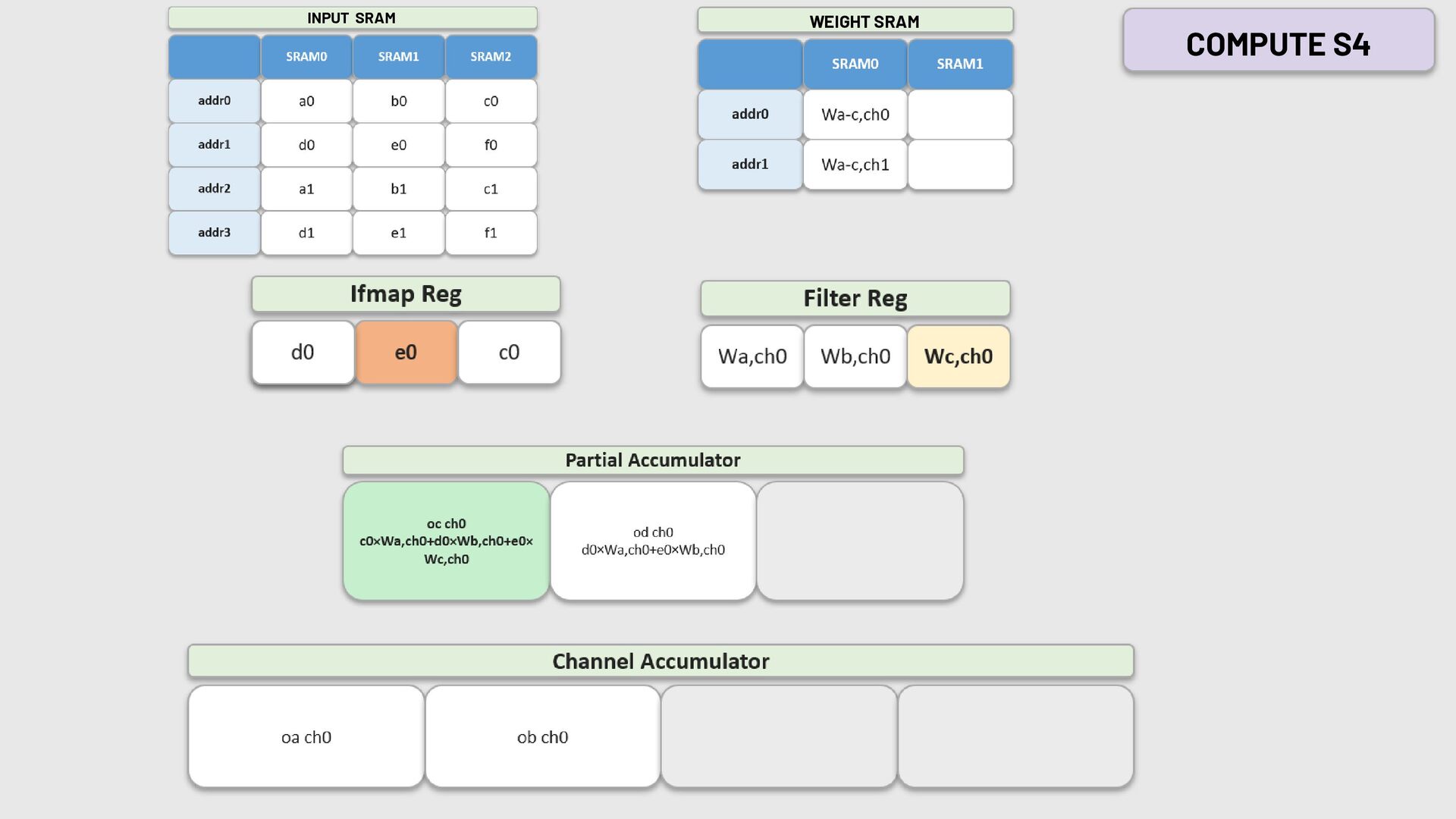

13. COMPUTE S4 INPUT SRAM WEIGHT SRAM

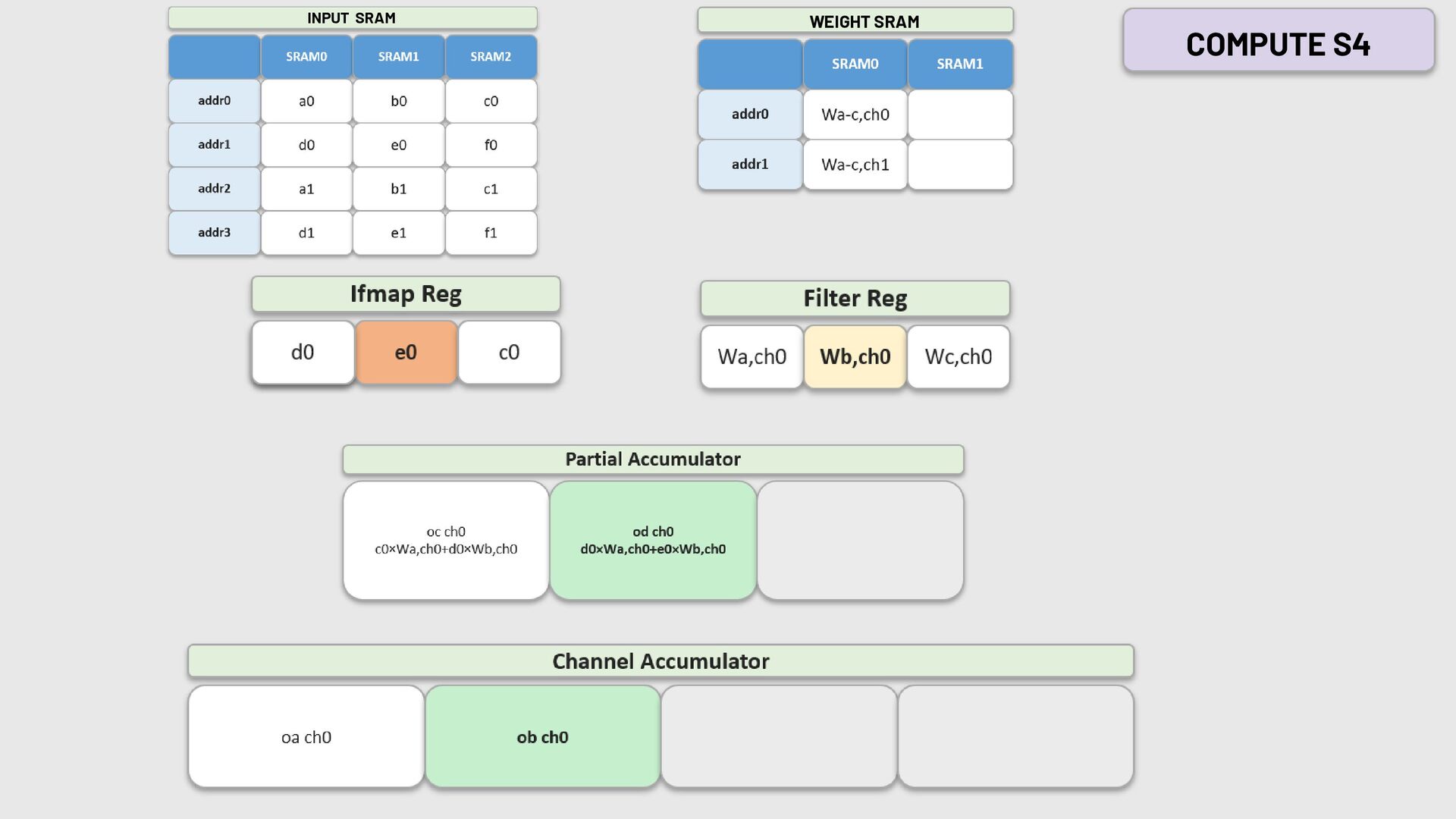

14. COMPUTE S4 INPUT SRAM WEIGHT SRAM

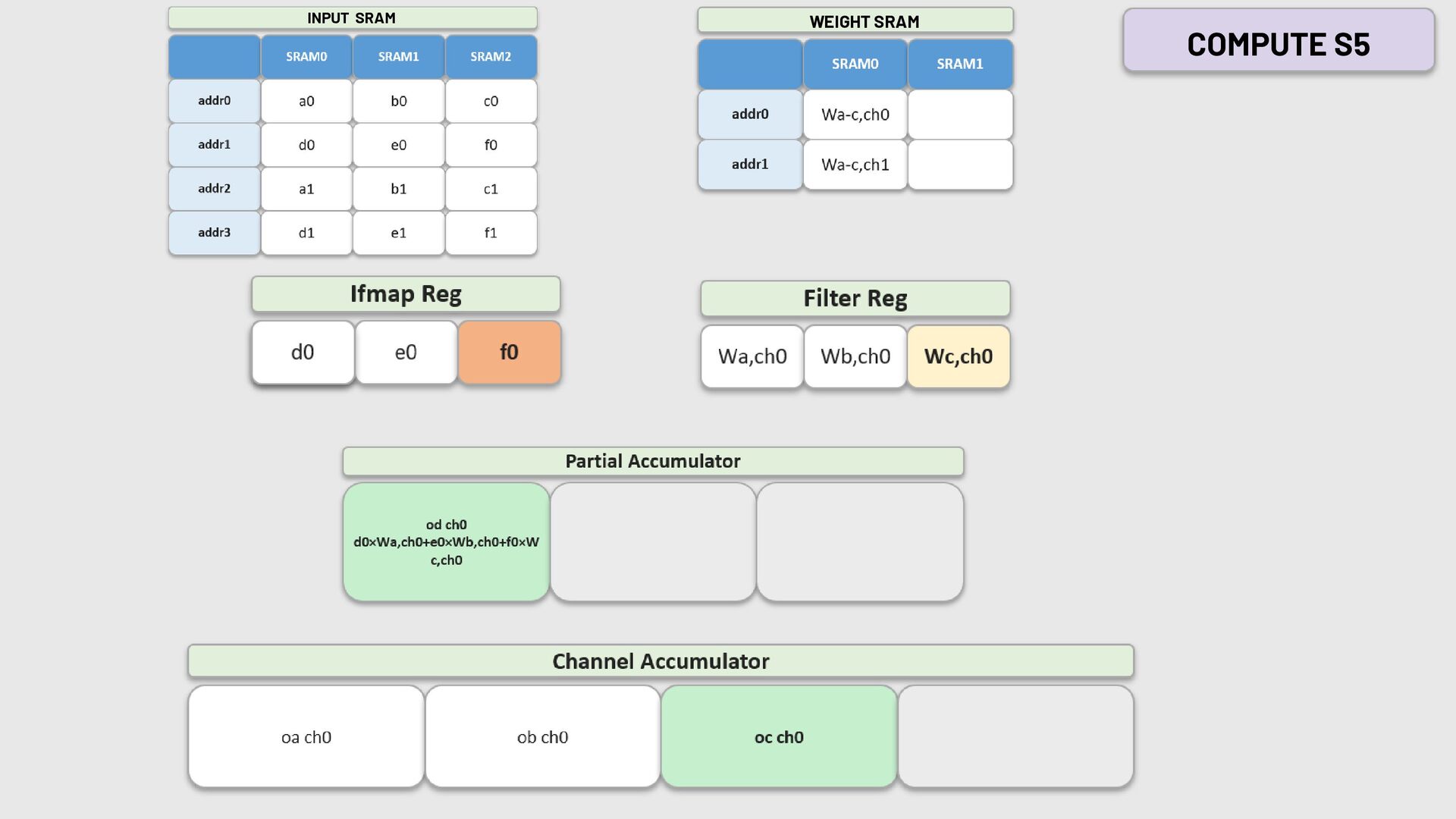

15. COMPUTE S5 INPUT SRAM WEIGHT SRAM

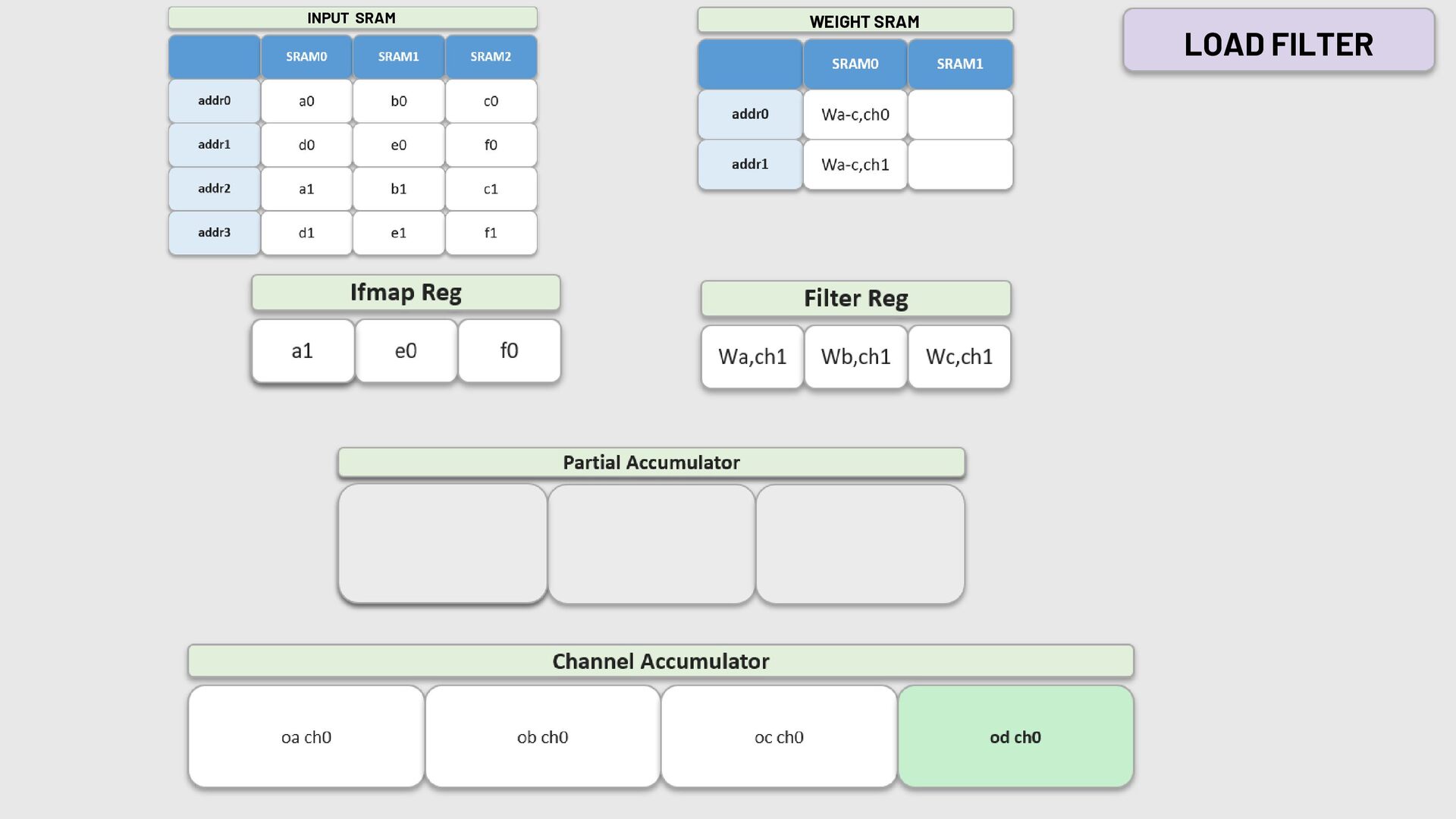

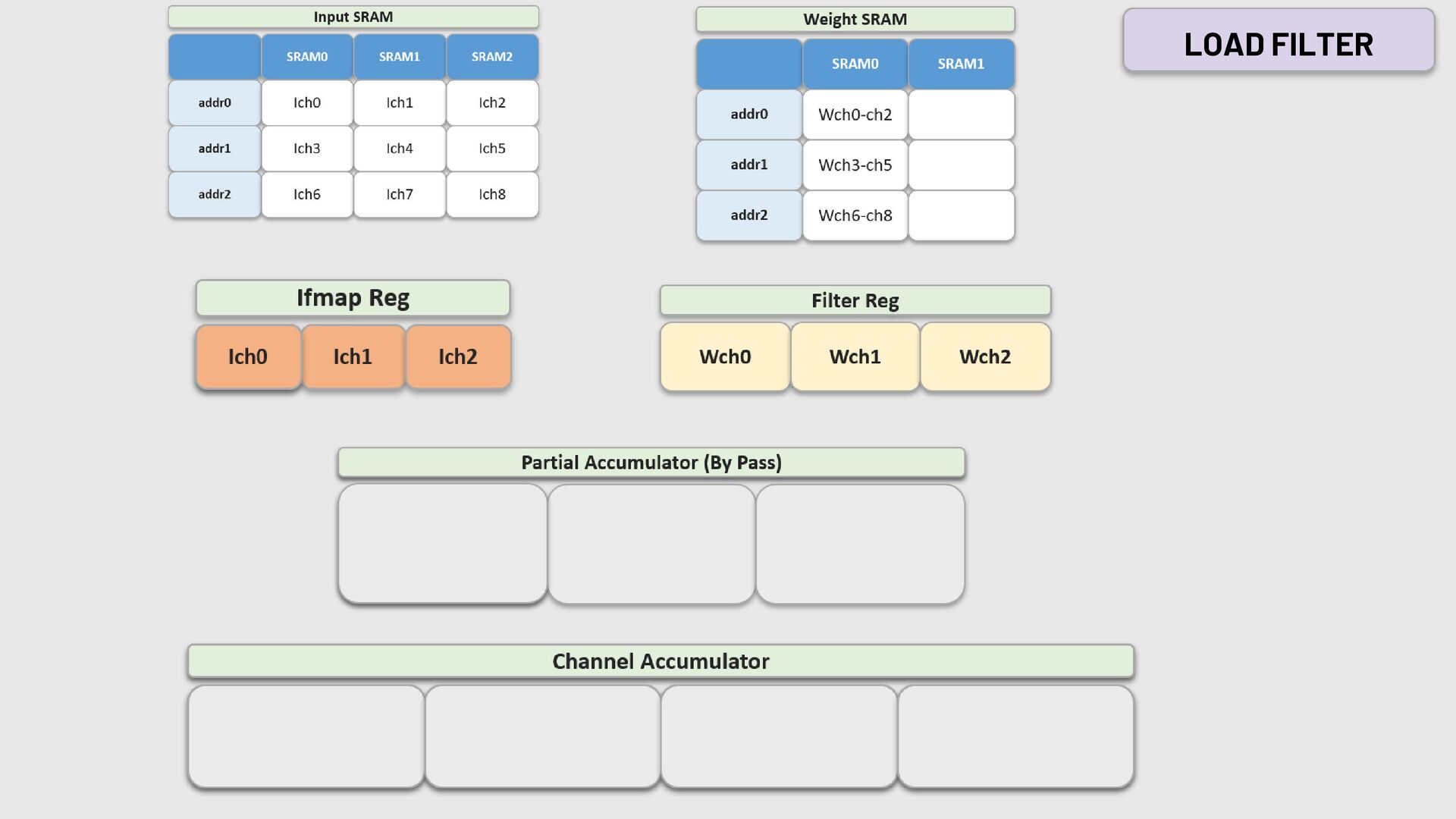

16. LOAD FILTER INPUT SRAM WEIGHT SRAM

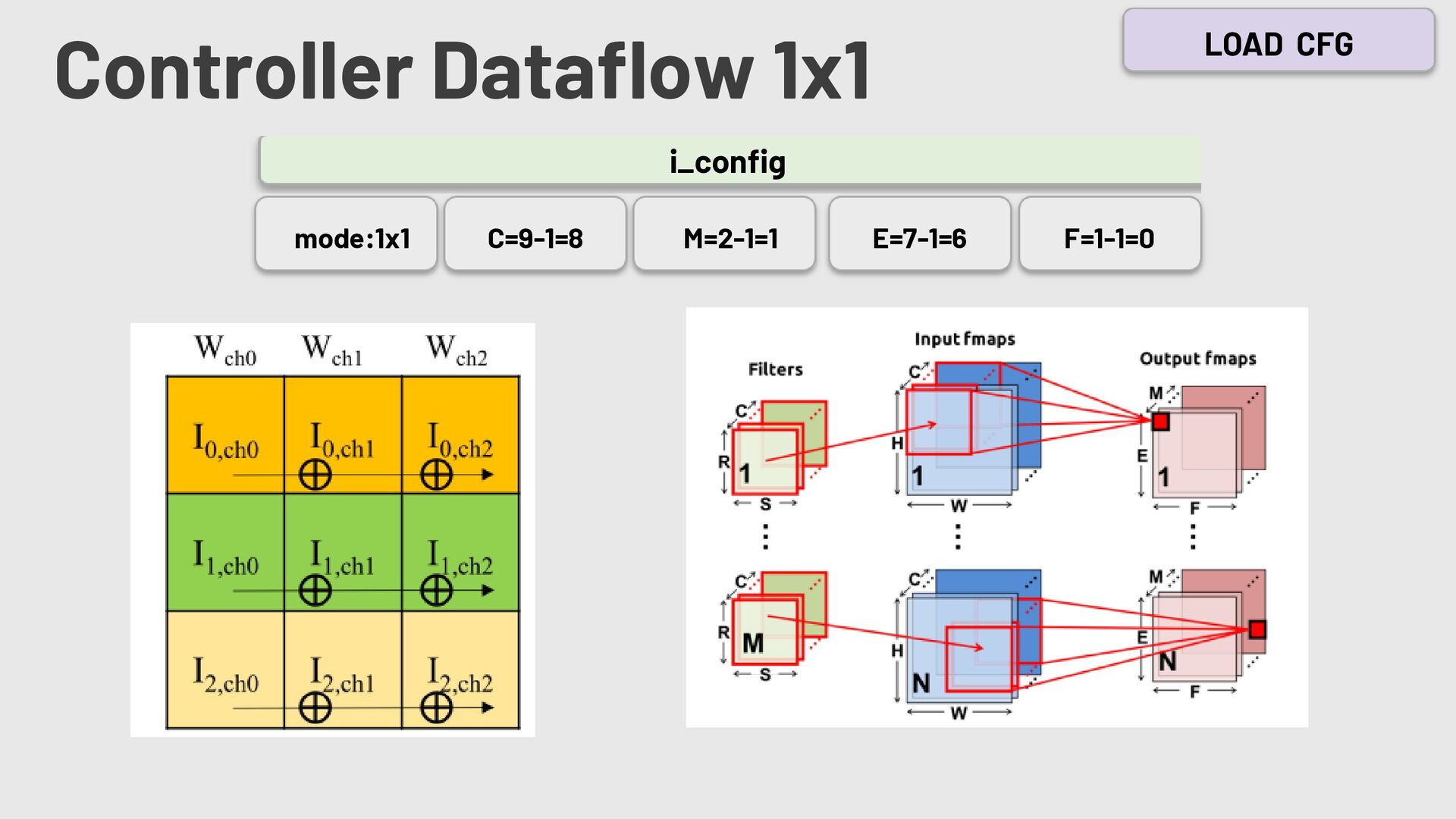

17. LOAD CFG i_config mode:1x1 C=9-1=8 M=2-1=1 E=7-1=6 F=1-1=0 Controller Dataflow 1x1
18. LOAD SRAM M = 0 M = 1
19. LOAD FILTER INPUT SRAM

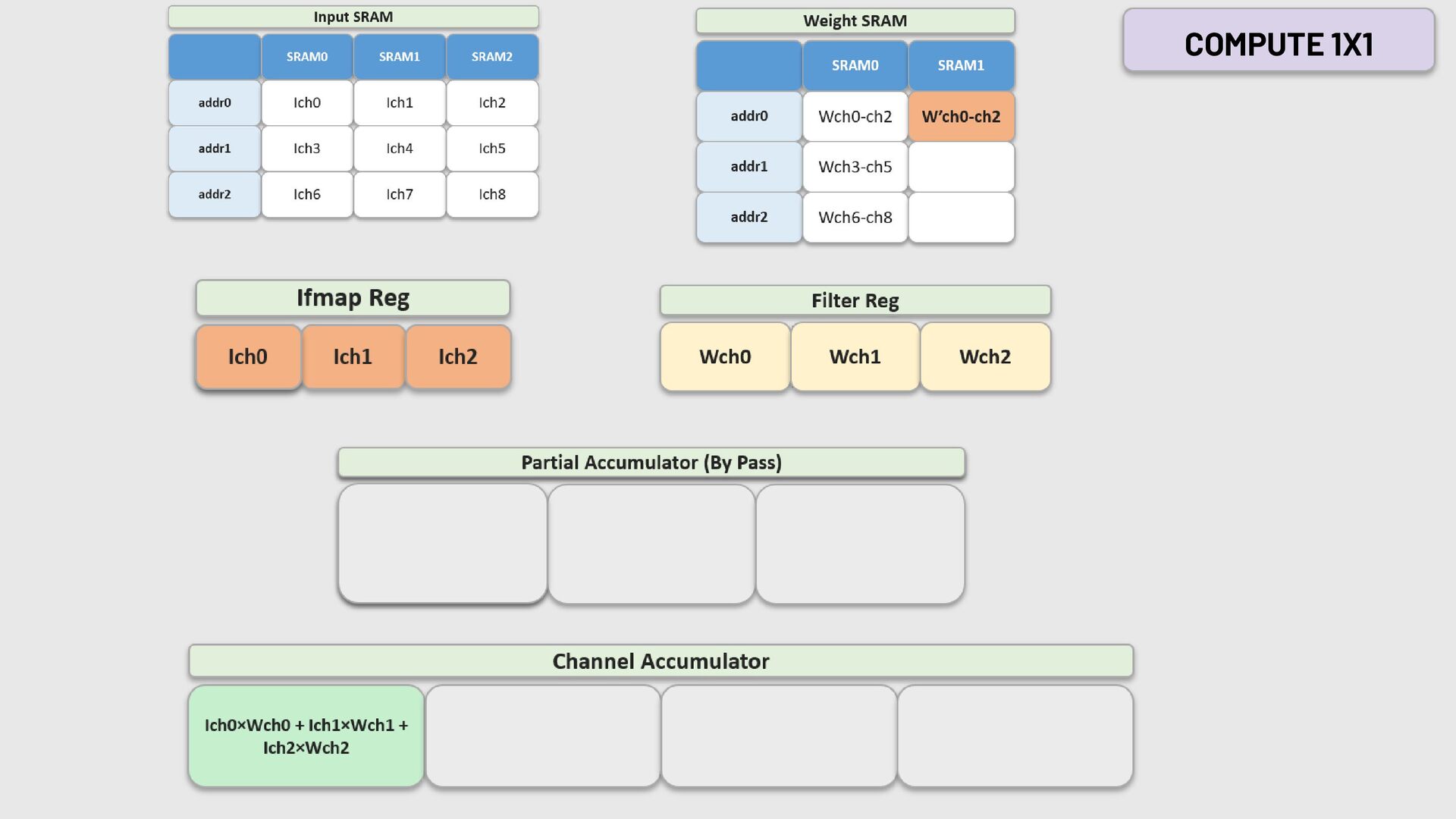

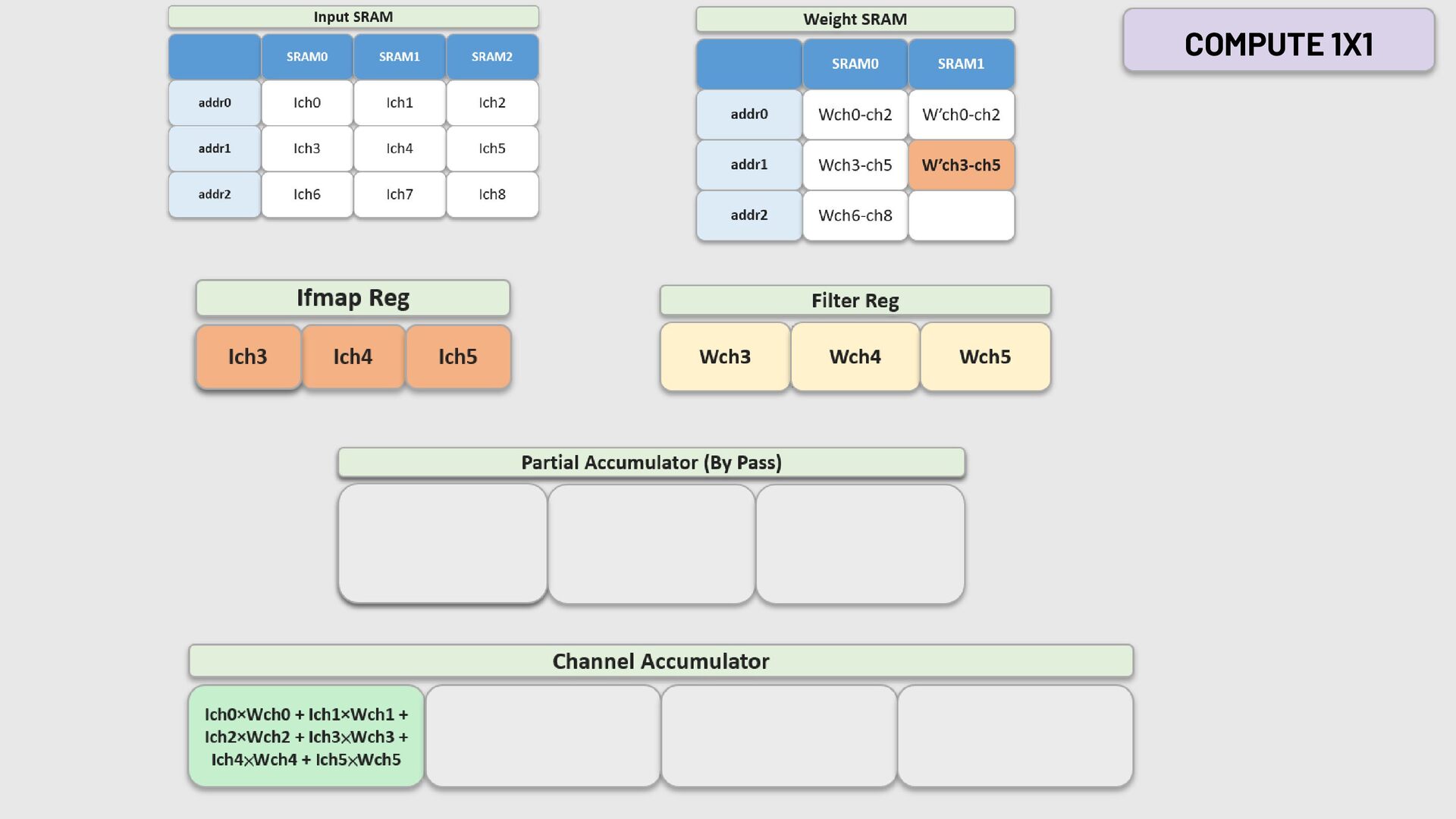

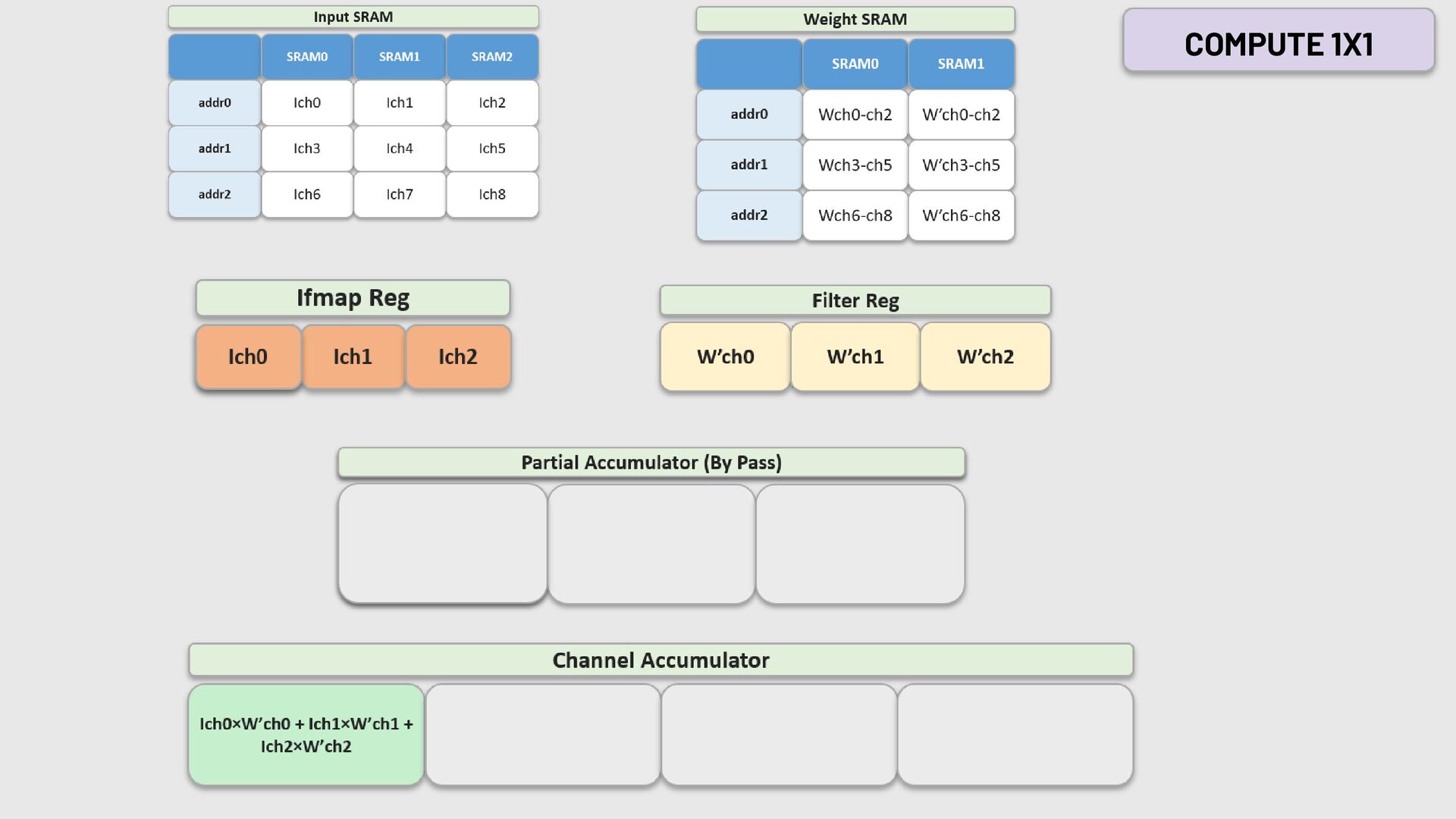

20. COMPUTE 1X1 INPUT SRAM

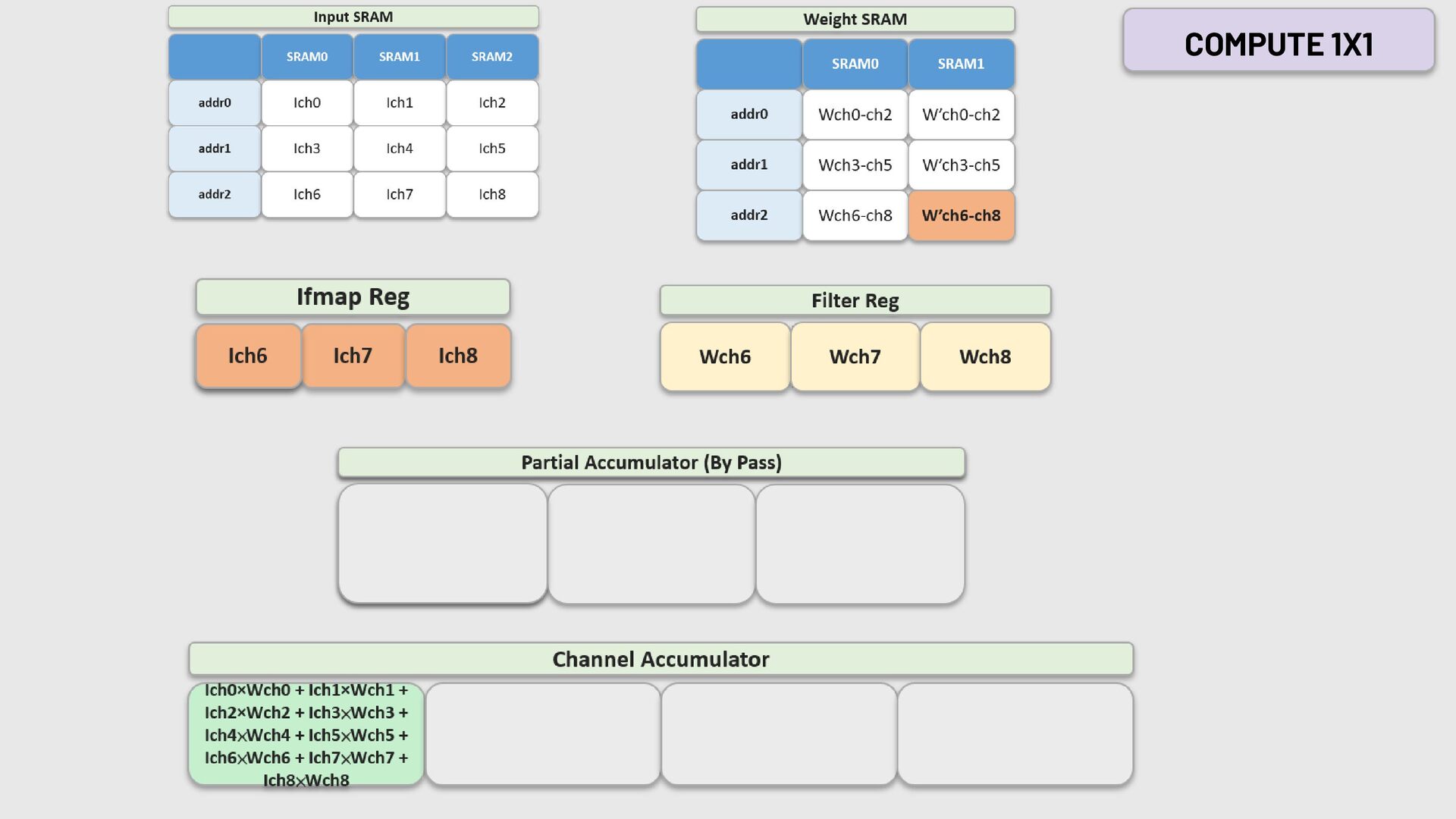

21. COMPUTE 1X1 INPUT SRAM
22. COMPUTE 1X1 INPUT SRAM
23. COMPUTE 1X1 INPUT SRAM
