Bridging Worlds - An Architectural Tale

A mature e-commerce iOS app needed in-store functionality, essentially an app inside another app.
Instead of extending the existing MVVM-C architecture, we took a leap: TCA + Controller Hierarchies for the new module, bridging it incrementally with the existing codebase. This talk walks through the six bridges we built: from project modularization and dependency sharing to state composition and flow reuse — and the lessons learned along the way.

Transcript

1. (on an e-Commerce iOS App) BRIDGING WORLDS AN ARCHITECTURAL TALE
2. In the beginning 01 There was online (shopping)

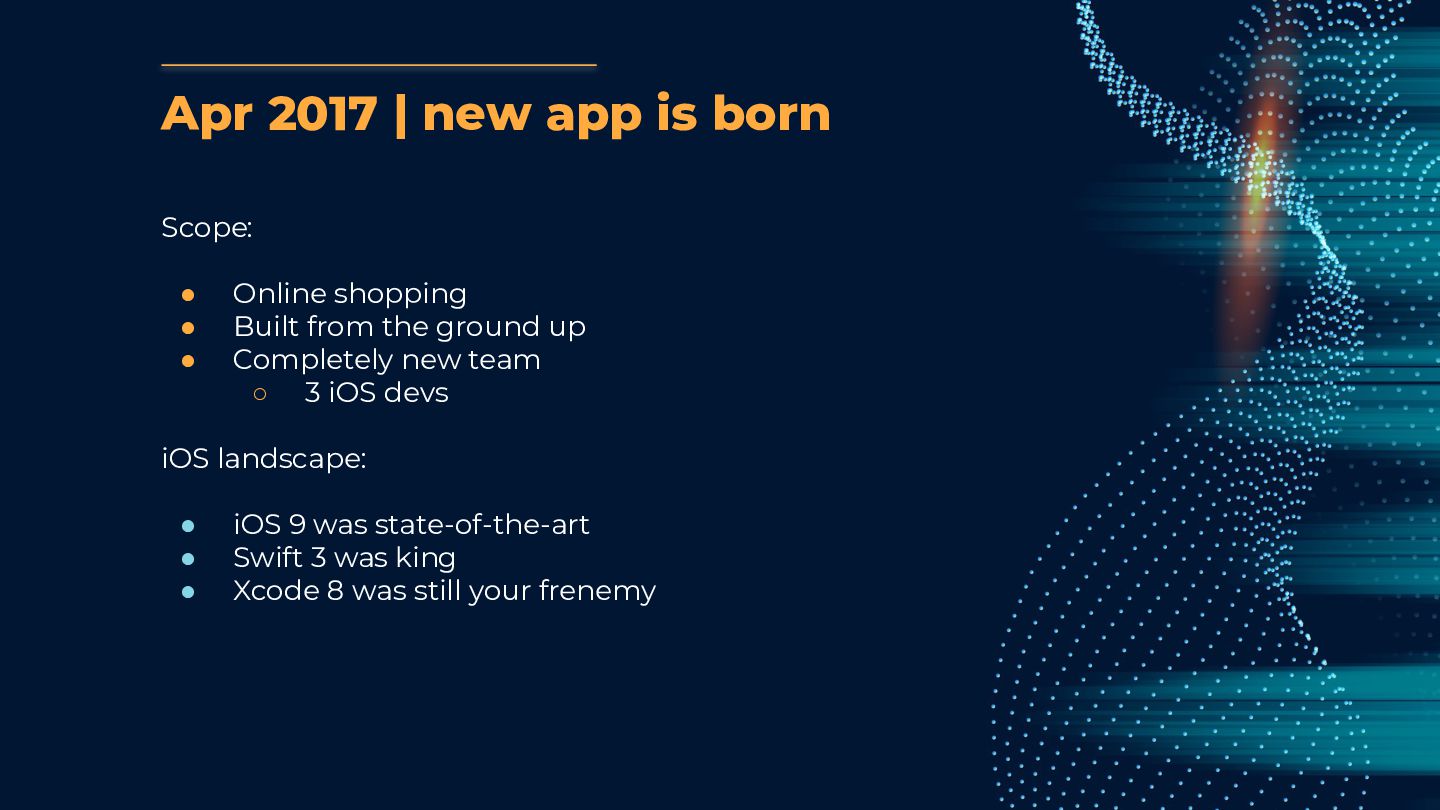

3. Apr 2017 | new app is born Scope: • Online shopping • Built from the ground up • Completely new team ◦ 3 iOS devs iOS landscape: • iOS 9 was state-of-the-art • Swift 3 was king • Xcode 8 was still your frenemy

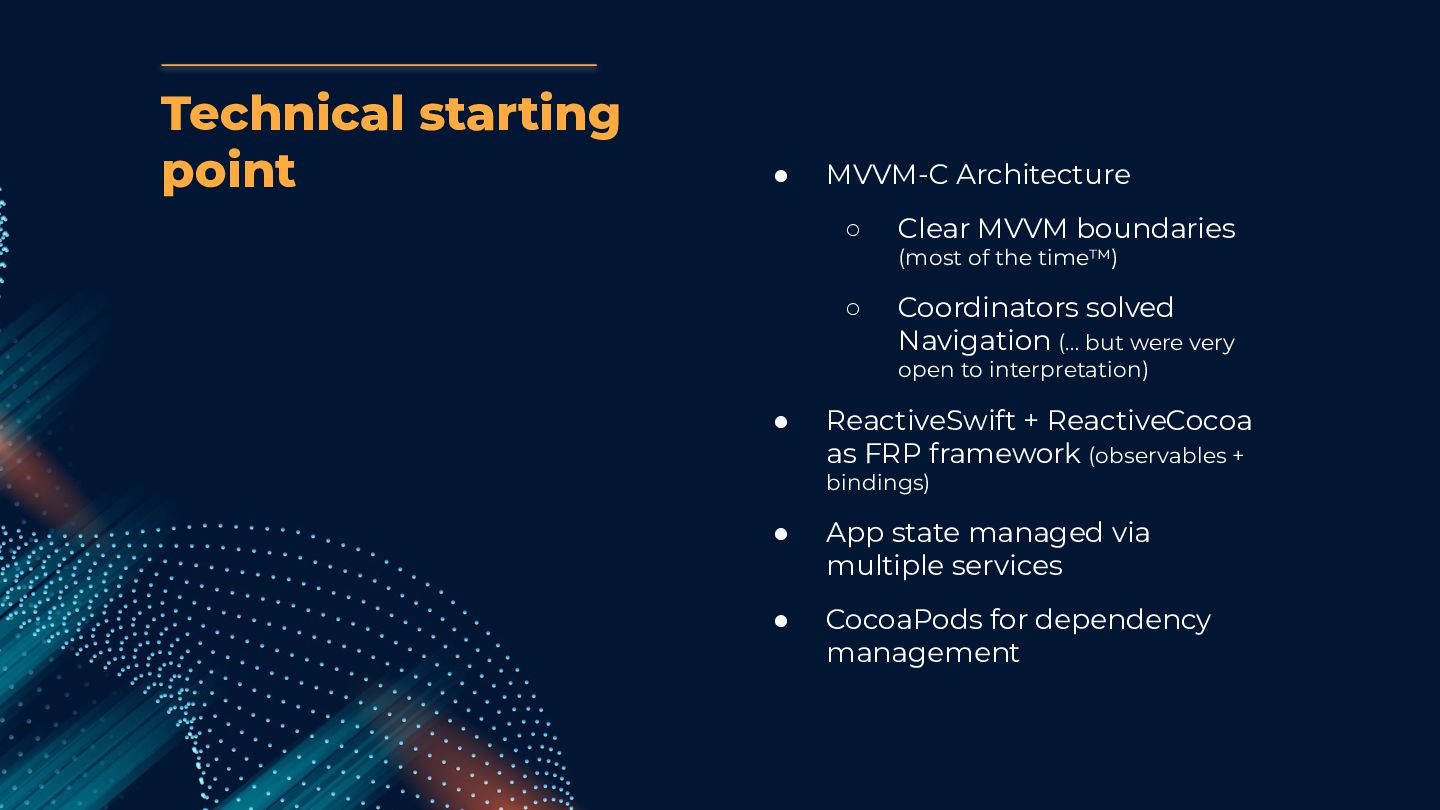

4. • MVVM-C Architecture ◦ Clear MVVM boundaries (most of the time™) ◦ Coordinators solved Navigation (... but were very open to interpretation) • ReactiveSwift + ReactiveCocoa as FRP framework (observables + bindings) • App state managed via multiple services • CocoaPods for dependency management Technical starting point

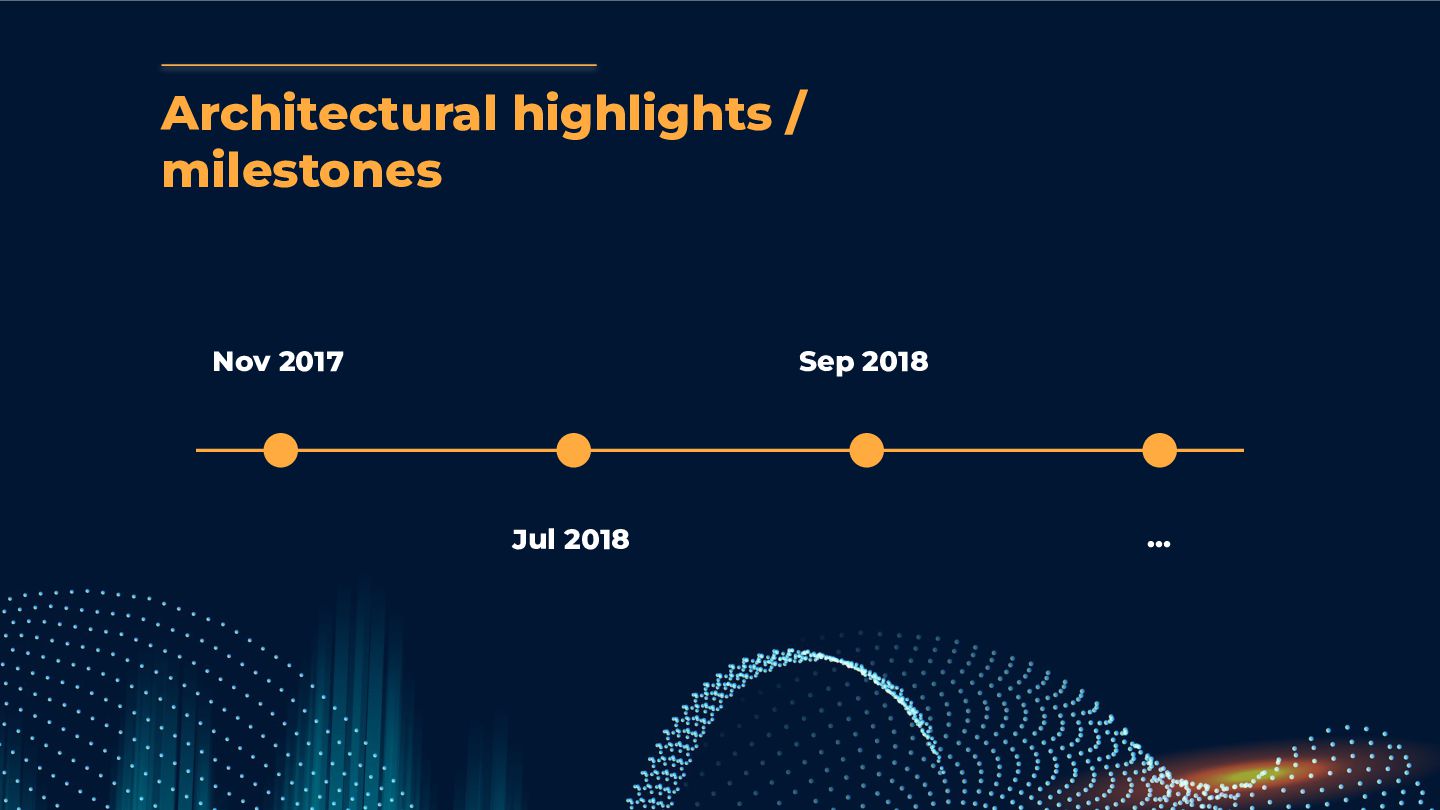

5. Architectural highlights / milestones Nov 2017 Sep 2018 Jul 2018 …

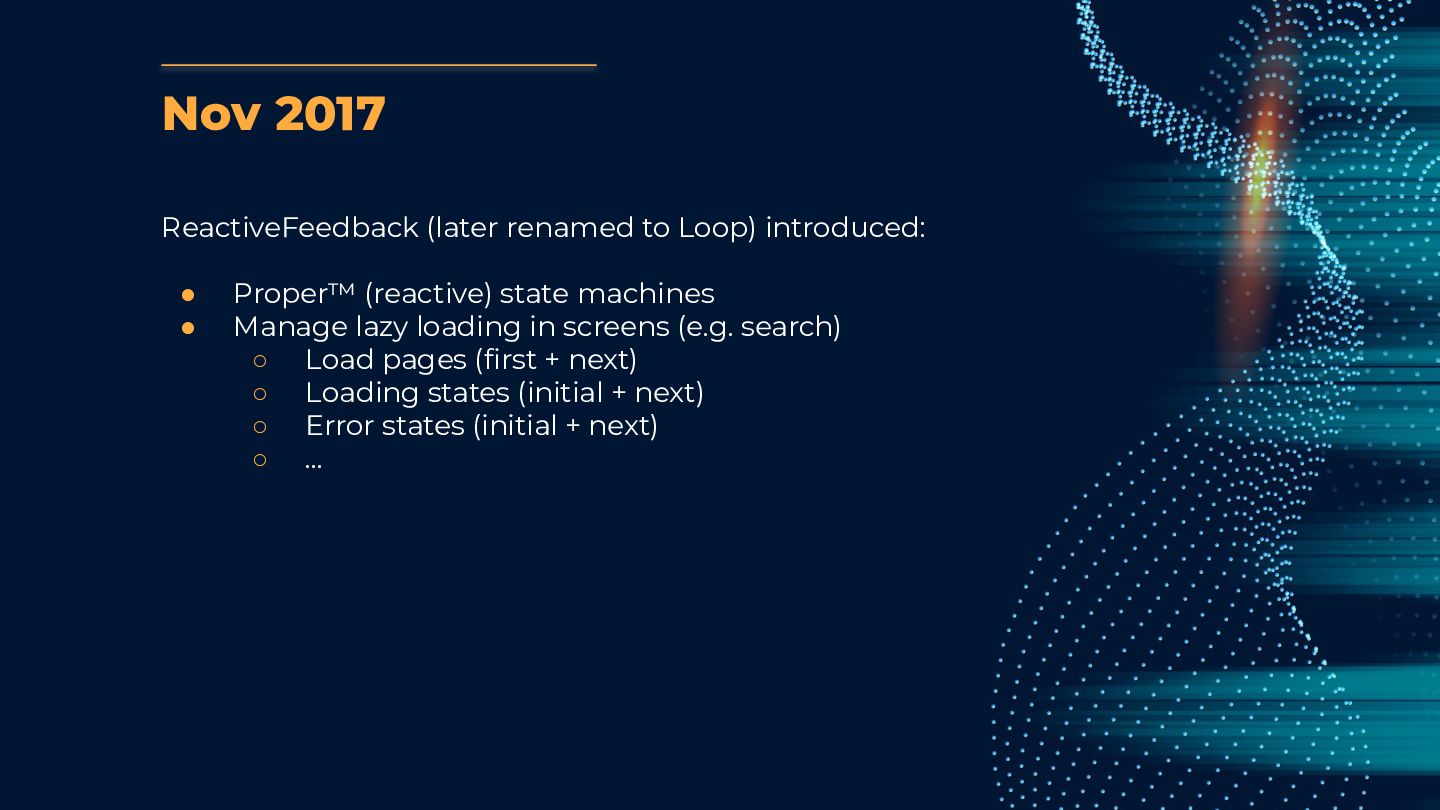

6. Nov 2017 ReactiveFeedback (later renamed to Loop) introduced: • Proper™ (reactive) state machines • Manage lazy loading in screens (e.g. search) ◦ Load pages (first + next) ◦ Loading states (initial + next) ◦ Error states (initial + next) ◦ …

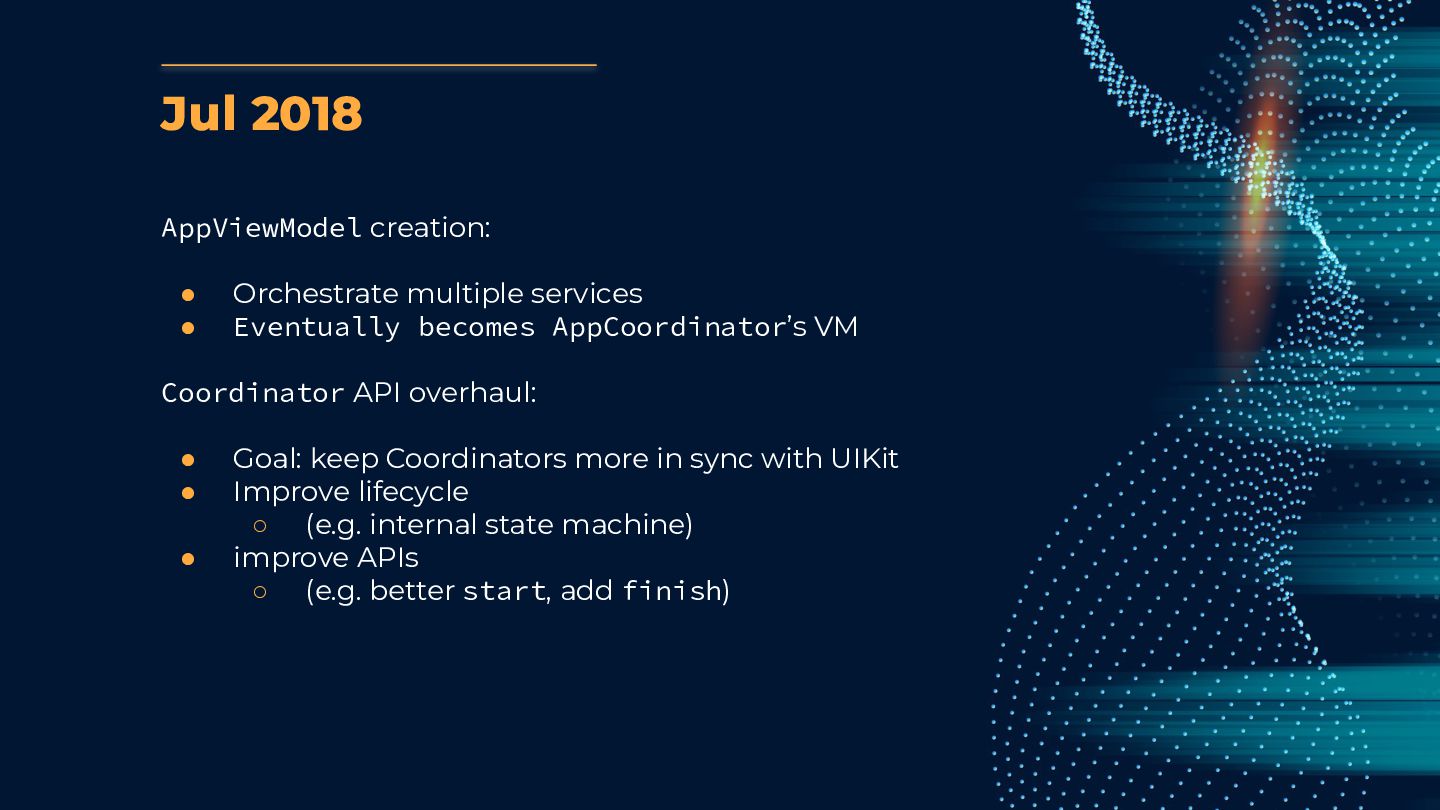

7. Jul 2018 AppViewModel creation: • Orchestrate multiple services • Eventually becomes AppCoordinator’s VM Coordinator API overhaul: • Goal: keep Coordinators more in sync with UIKit • Improve lifecycle ◦ (e.g. internal state machine) • improve APIs ◦ (e.g. better start, add finish)

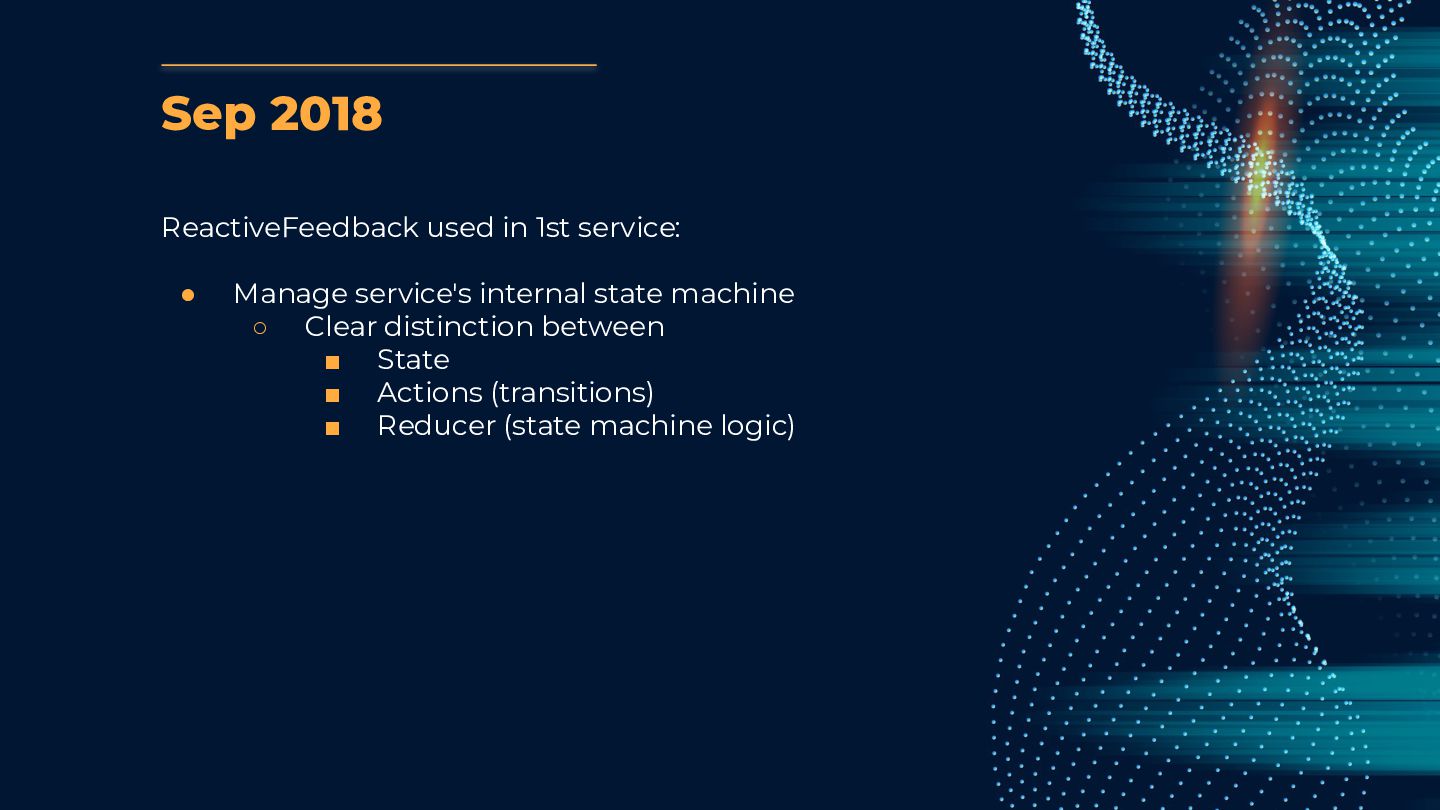

8. Sep 2018 ReactiveFeedback used in 1st service: • Manage service's internal state machine ◦ Clear distinction between ▪ State ▪ Actions (transitions) ▪ Reducer (state machine logic)

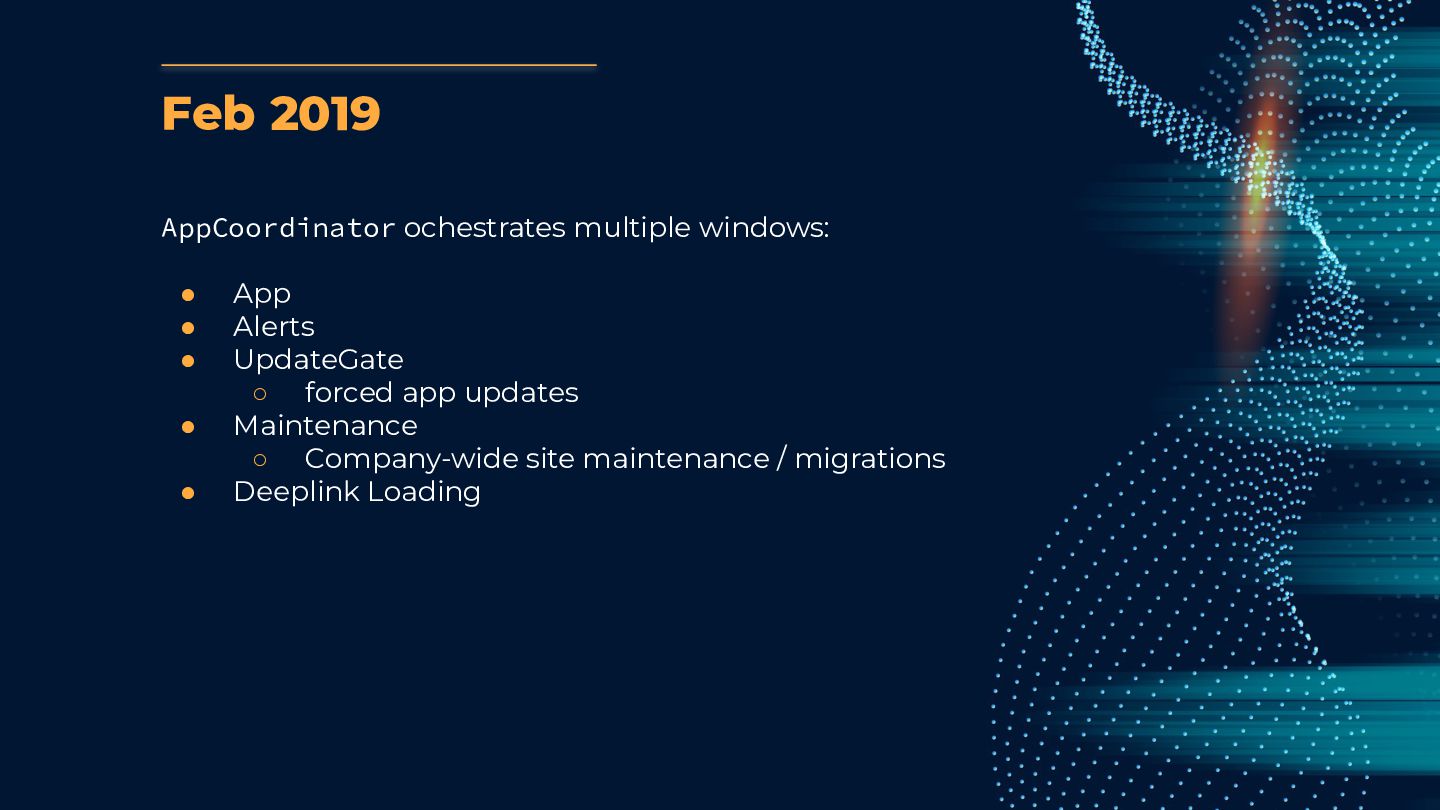

9. Feb 2019 AppCoordinator ochestrates multiple windows: • App • Alerts • UpdateGate ◦ forced app updates • Maintenance ◦ Company-wide site maintenance / migrations • Deeplink Loading

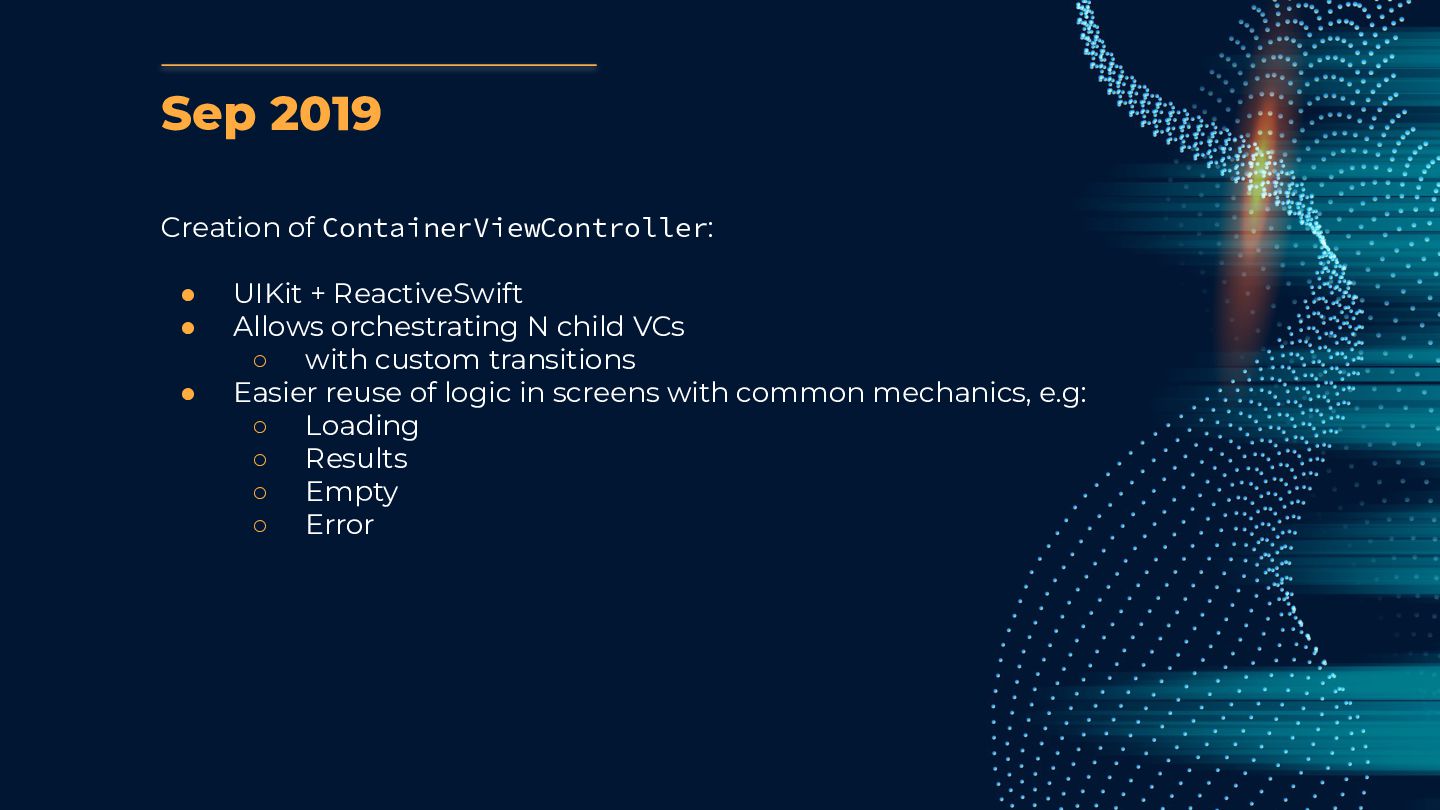

10. Sep 2019 Creation of ContainerViewController: • UIKit + ReactiveSwift • Allows orchestrating N child VCs ◦ with custom transitions • Easier reuse of logic in screens with common mechanics, e.g: ◦ Loading ◦ Results ◦ Empty ◦ Error

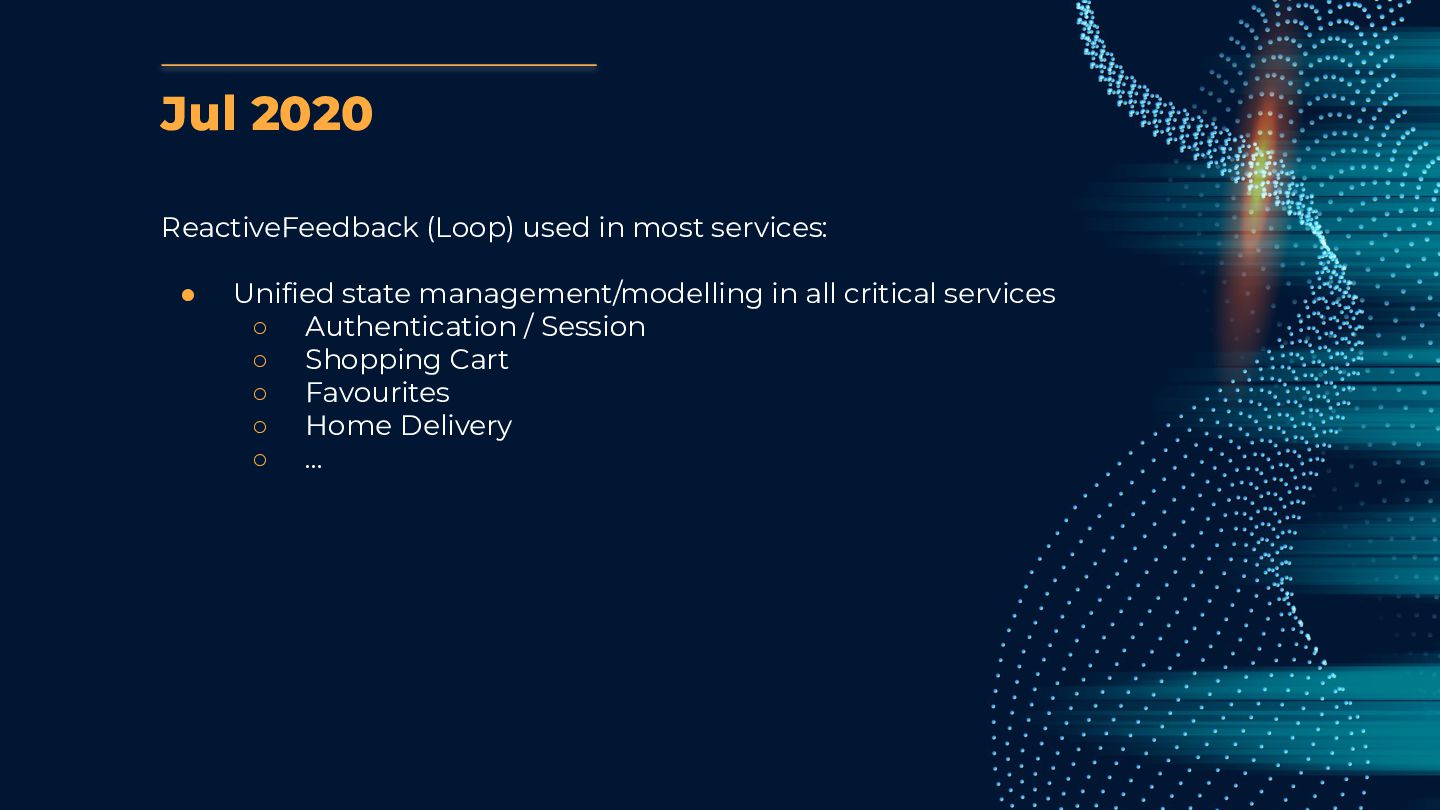

11. Jul 2020 ReactiveFeedback (Loop) used in most services: • Unified state management/modelling in all critical services ◦ Authentication / Session ◦ Shopping Cart ◦ Favourites ◦ Home Delivery ◦ …

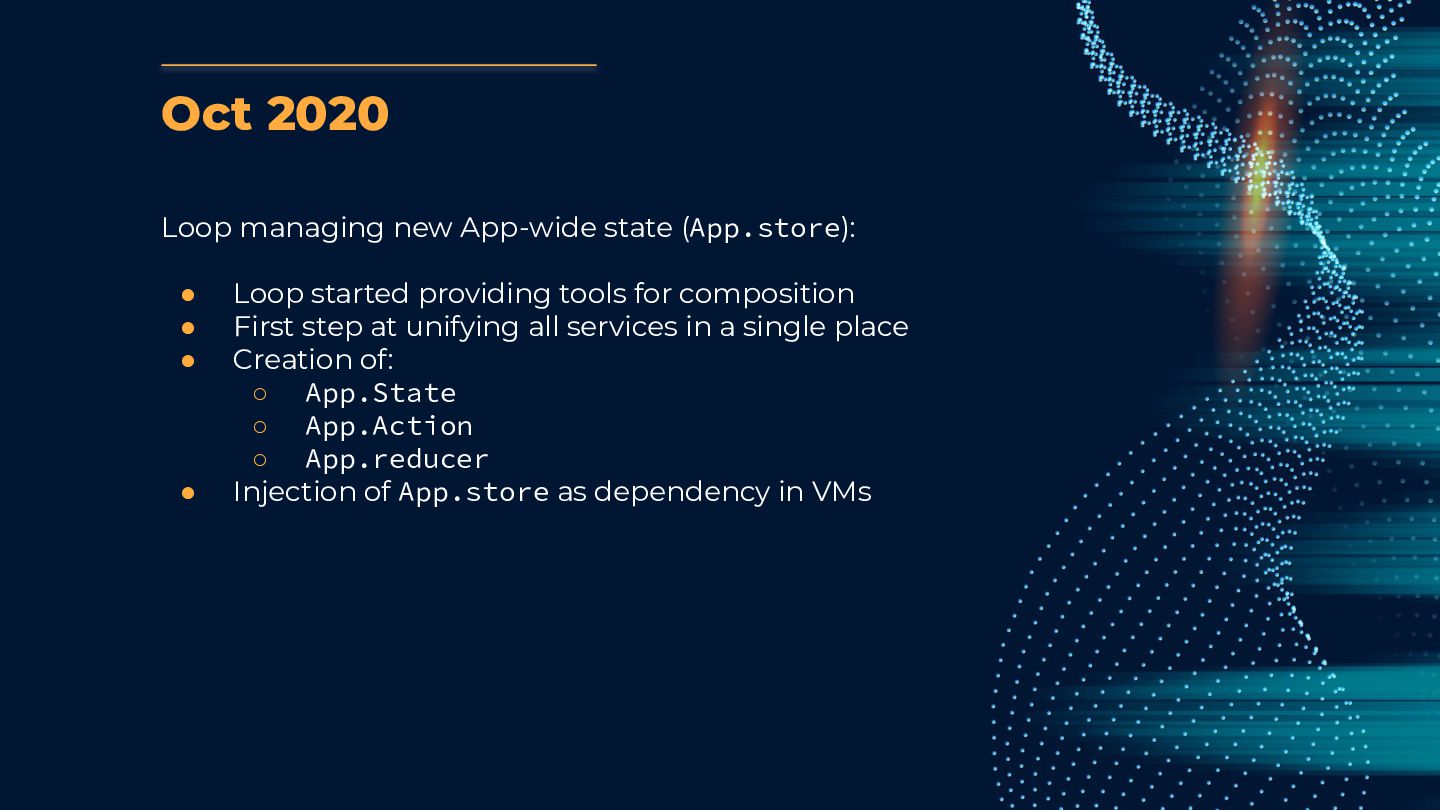

12. Oct 2020 Loop managing new App-wide state (App.store): • Loop started providing tools for composition • First step at unifying all services in a single place • Creation of: ◦ App.State ◦ App.Action ◦ App.reducer • Injection of App.store as dependency in VMs

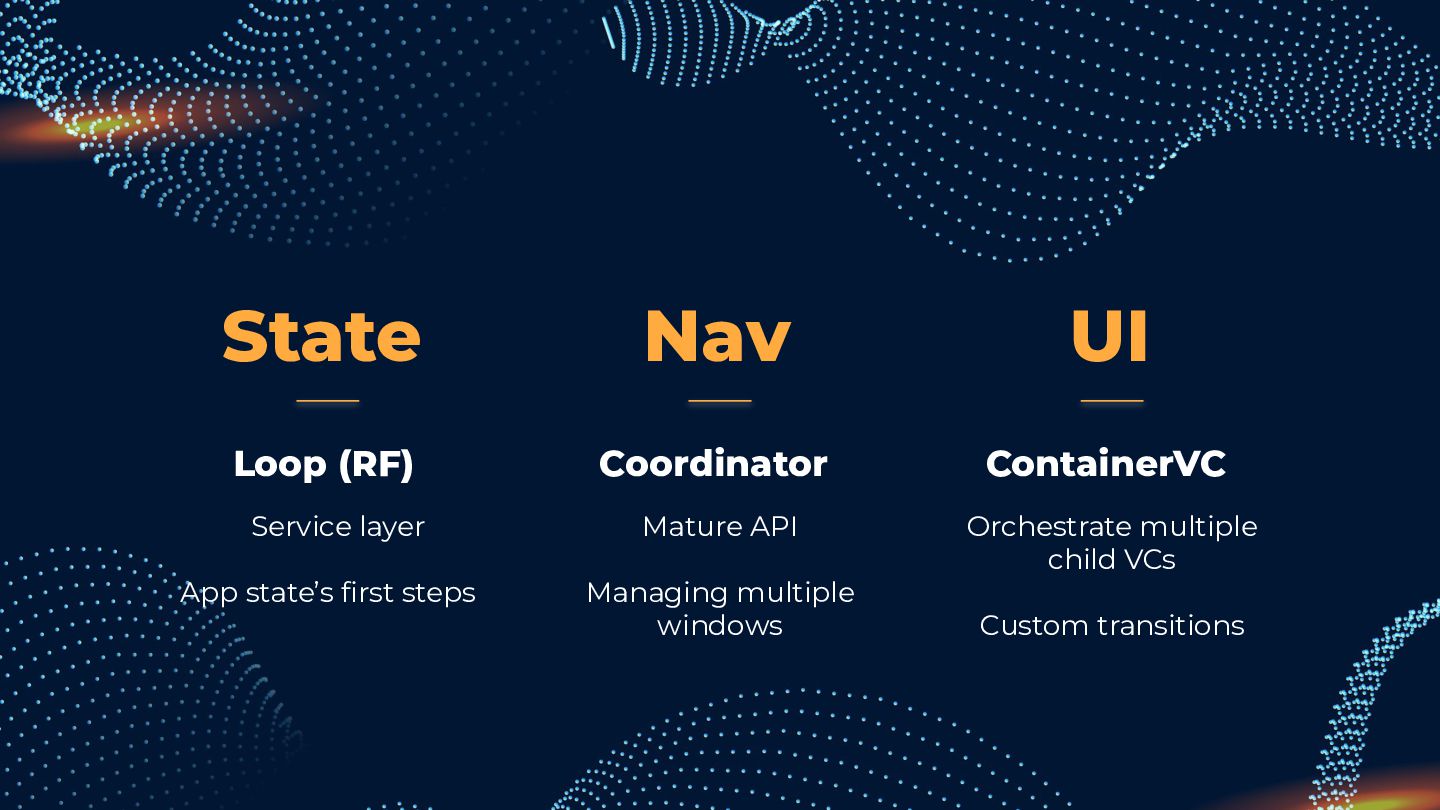

13. State Coordinator Mature API Managing multiple windows ContainerVC Orchestrate multiple child VCs Custom transitions Loop (RF) Service layer App state’s first steps Nav UI
14. In-store opportunity 02 Arises

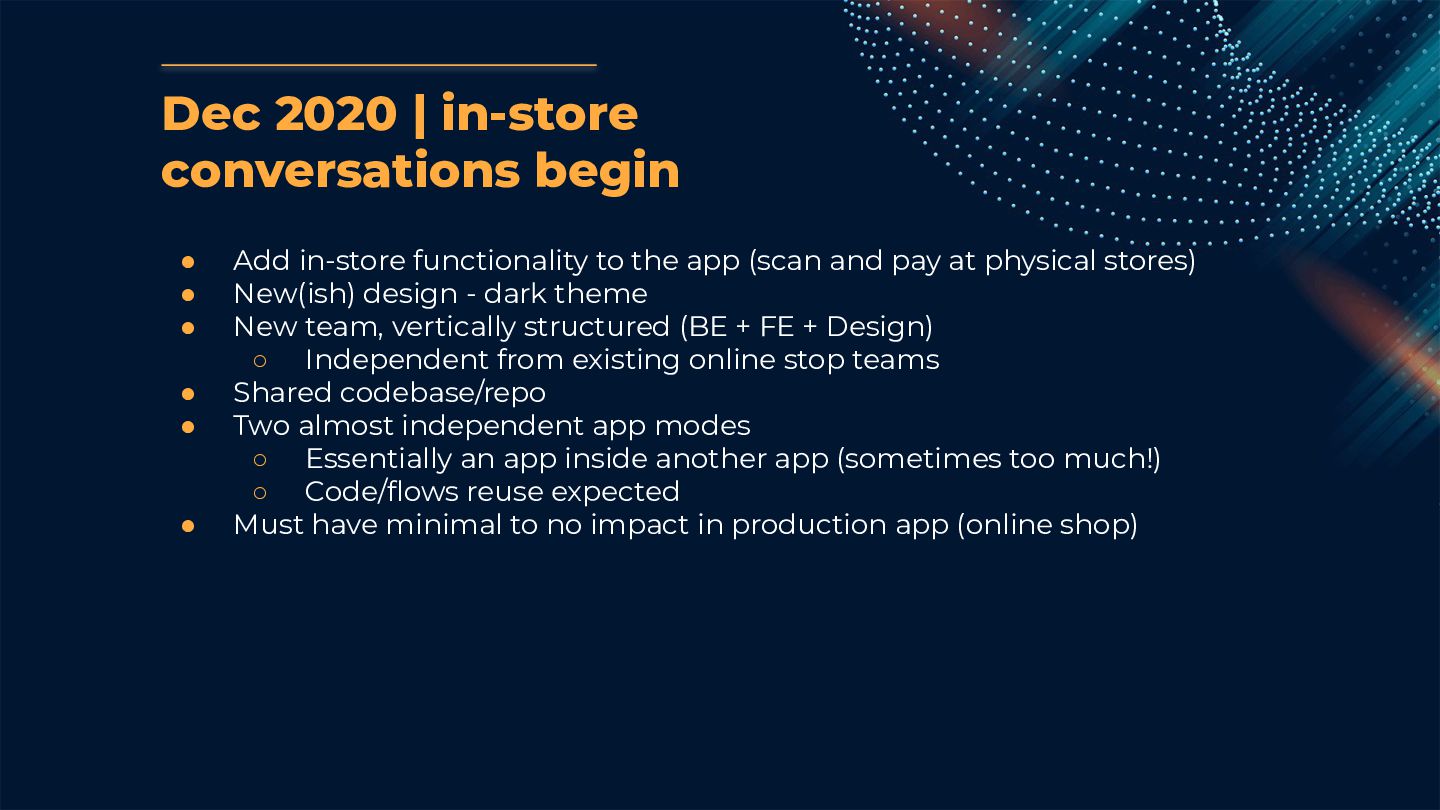

15. Dec 2020 | in-store conversations begin • Add in-store functionality to the app (scan and pay at physical stores) • New(ish) design - dark theme • New team, vertically structured (BE + FE + Design) ◦ Independent from existing online stop teams • Shared codebase/repo • Two almost independent app modes ◦ Essentially an app inside another app (sometimes too much!) ◦ Code/flows reuse expected • Must have minimal to no impact in production app (online shop)
16. HOW SHOULD WE BUILD IT? Photo by Anthony Tori on Unsplash

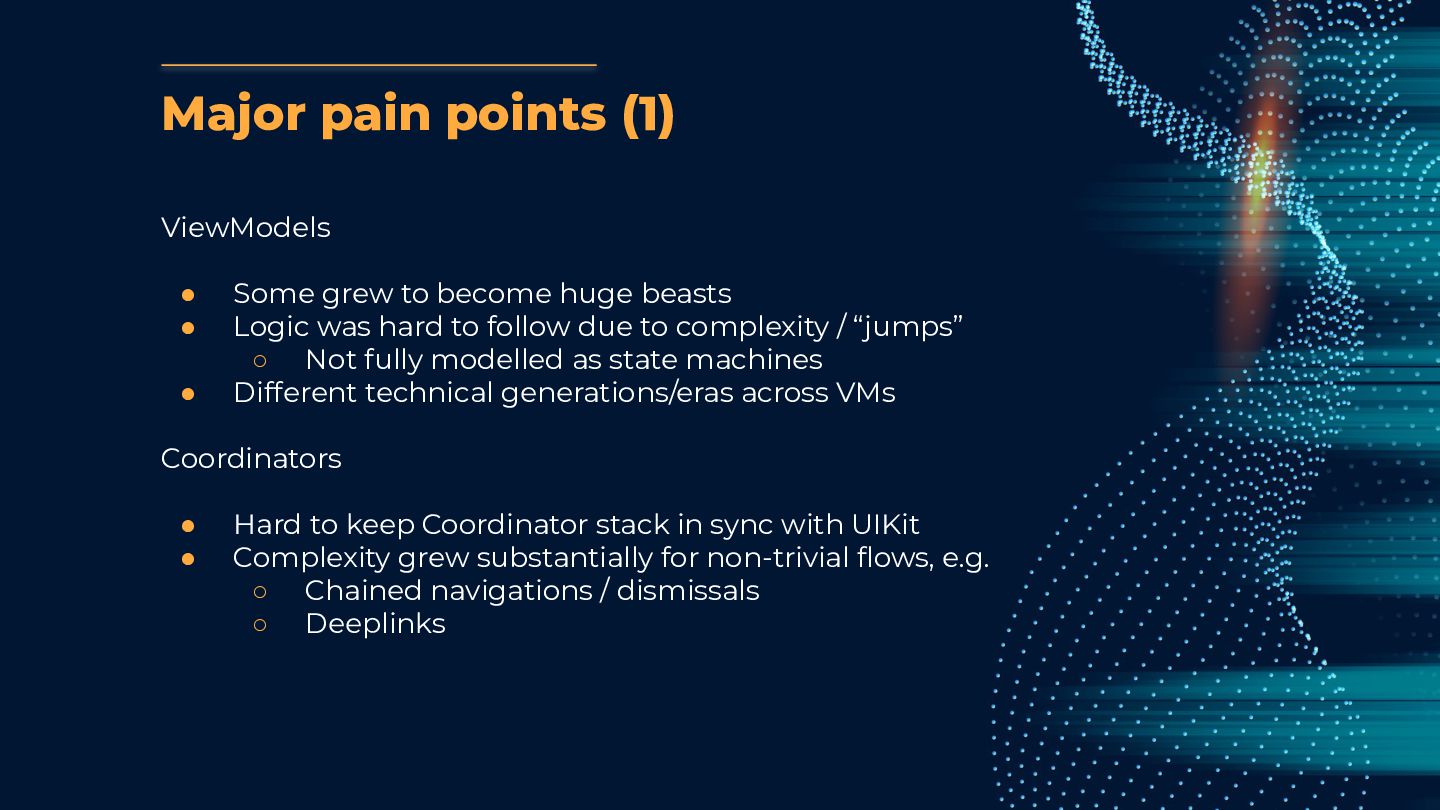

17. Major pain points (1) ViewModels • Some grew to become huge beasts • Logic was hard to follow due to complexity / “jumps” ◦ Not fully modelled as state machines • Different technical generations/eras across VMs Coordinators • Hard to keep Coordinator stack in sync with UIKit • Complexity grew substantially for non-trivial flows, e.g. ◦ Chained navigations / dismissals ◦ Deeplinks

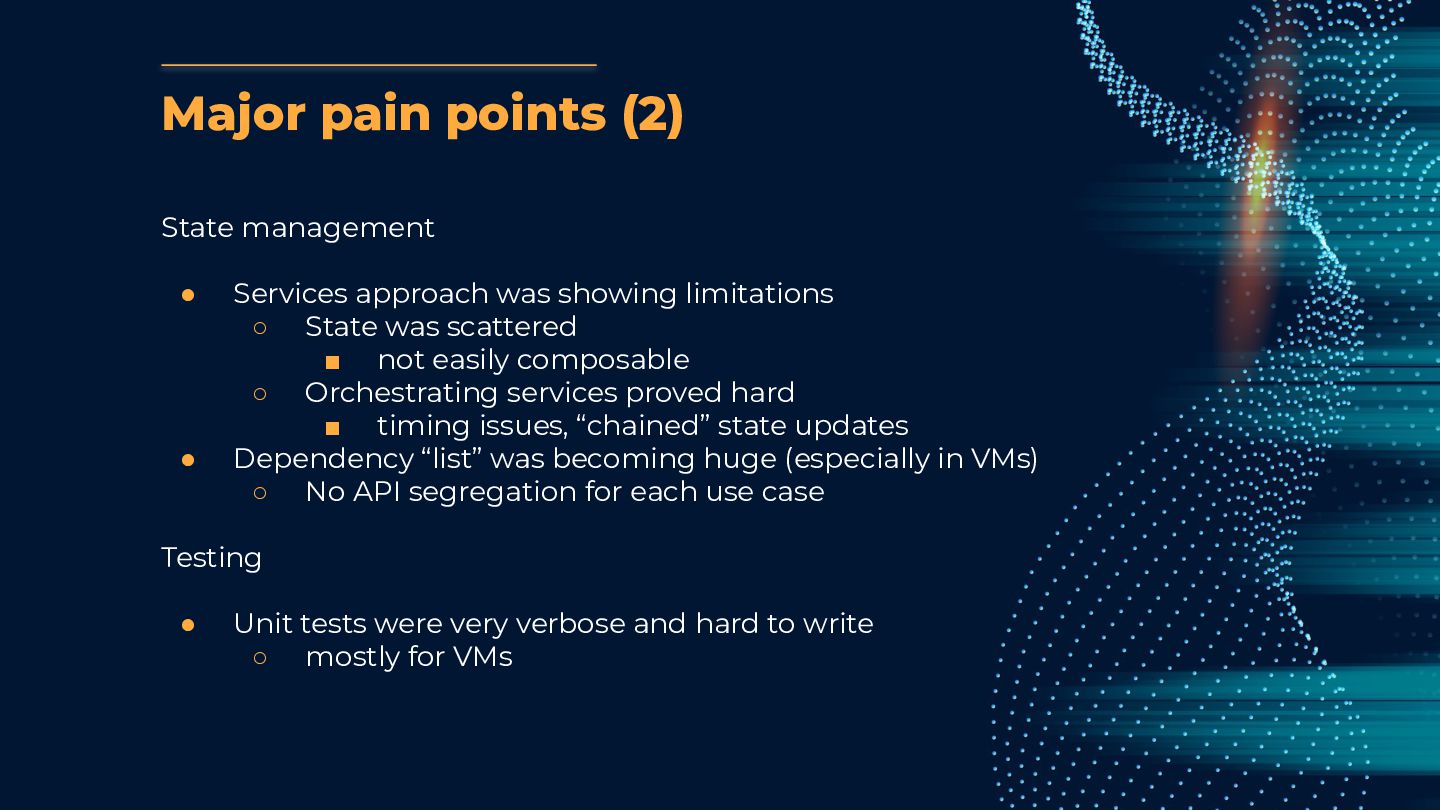

18. Major pain points (2) State management • Services approach was showing limitations ◦ State was scattered ▪ not easily composable ◦ Orchestrating services proved hard ▪ timing issues, “chained” state updates • Dependency “list” was becoming huge (especially in VMs) ◦ No API segregation for each use case Testing • Unit tests were very verbose and hard to write ◦ mostly for VMs

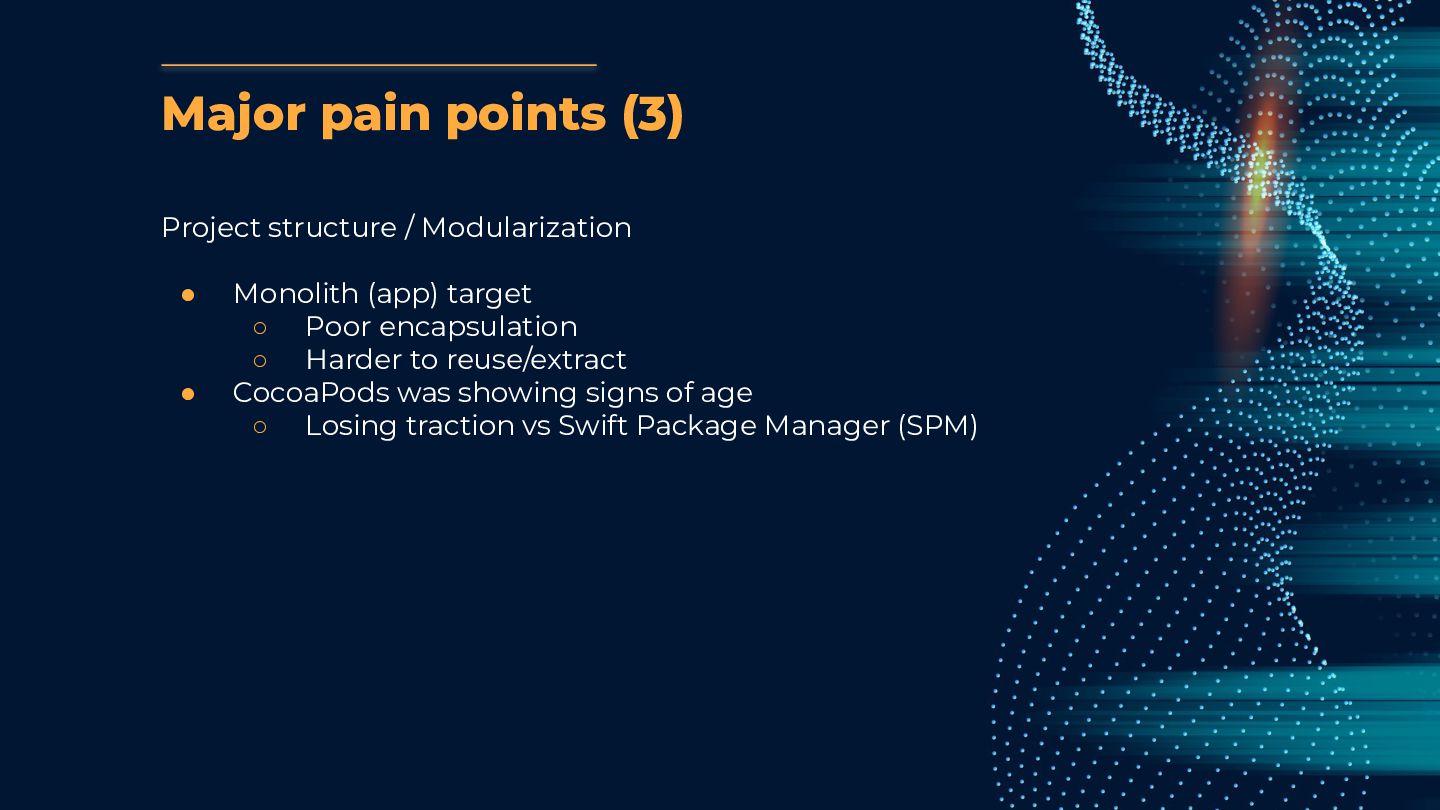

19. Major pain points (3) Project structure / Modularization • Monolith (app) target ◦ Poor encapsulation ◦ Harder to reuse/extract • CocoaPods was showing signs of age ◦ Losing traction vs Swift Package Manager (SPM)

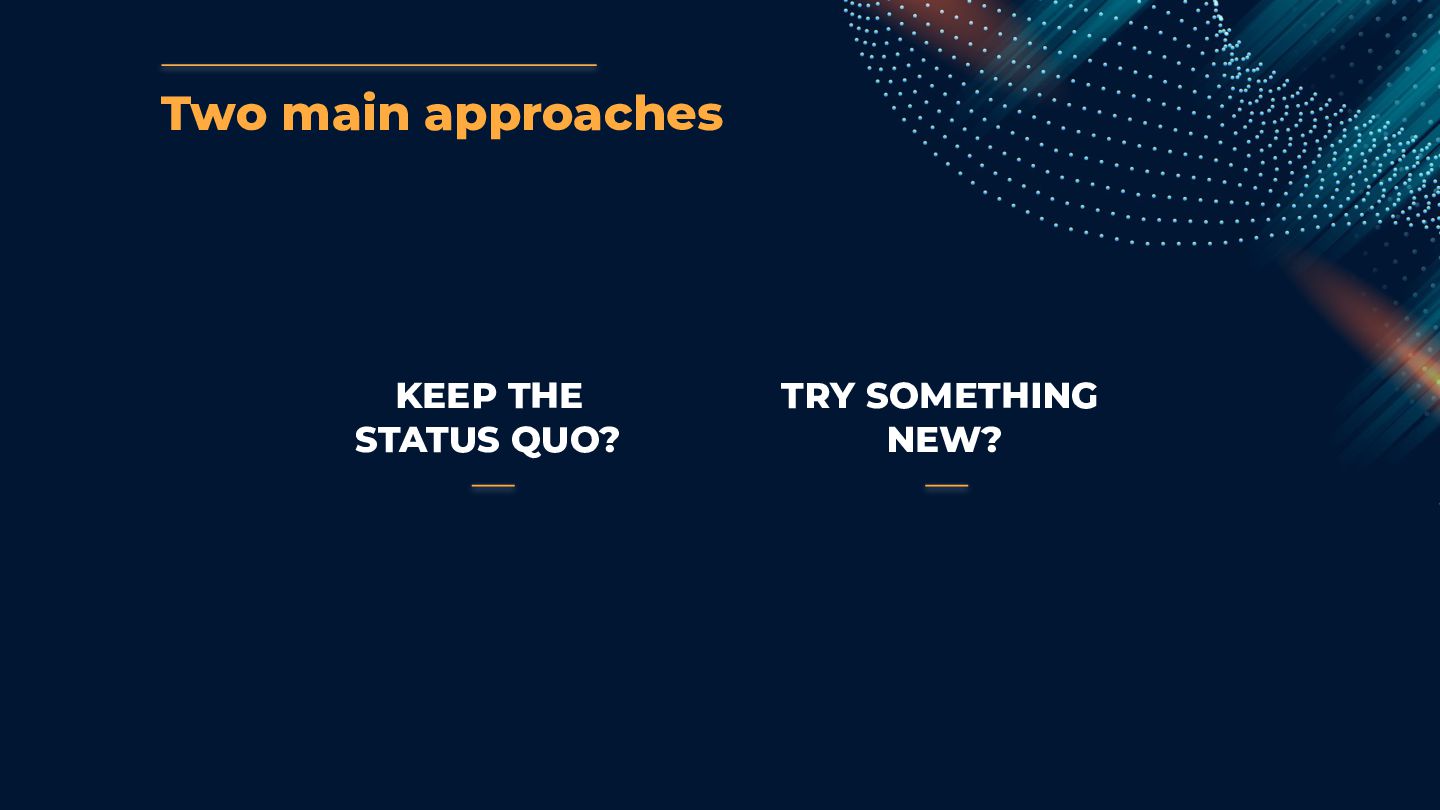

20. Two main approaches KEEP THE STATUS QUO? TRY SOMETHING NEW?
21. —Some Zen master “A famous crossroads quote that’s really deep and makes you think”
22. THE LEAP Photo by Joshua Earle on Unsplash

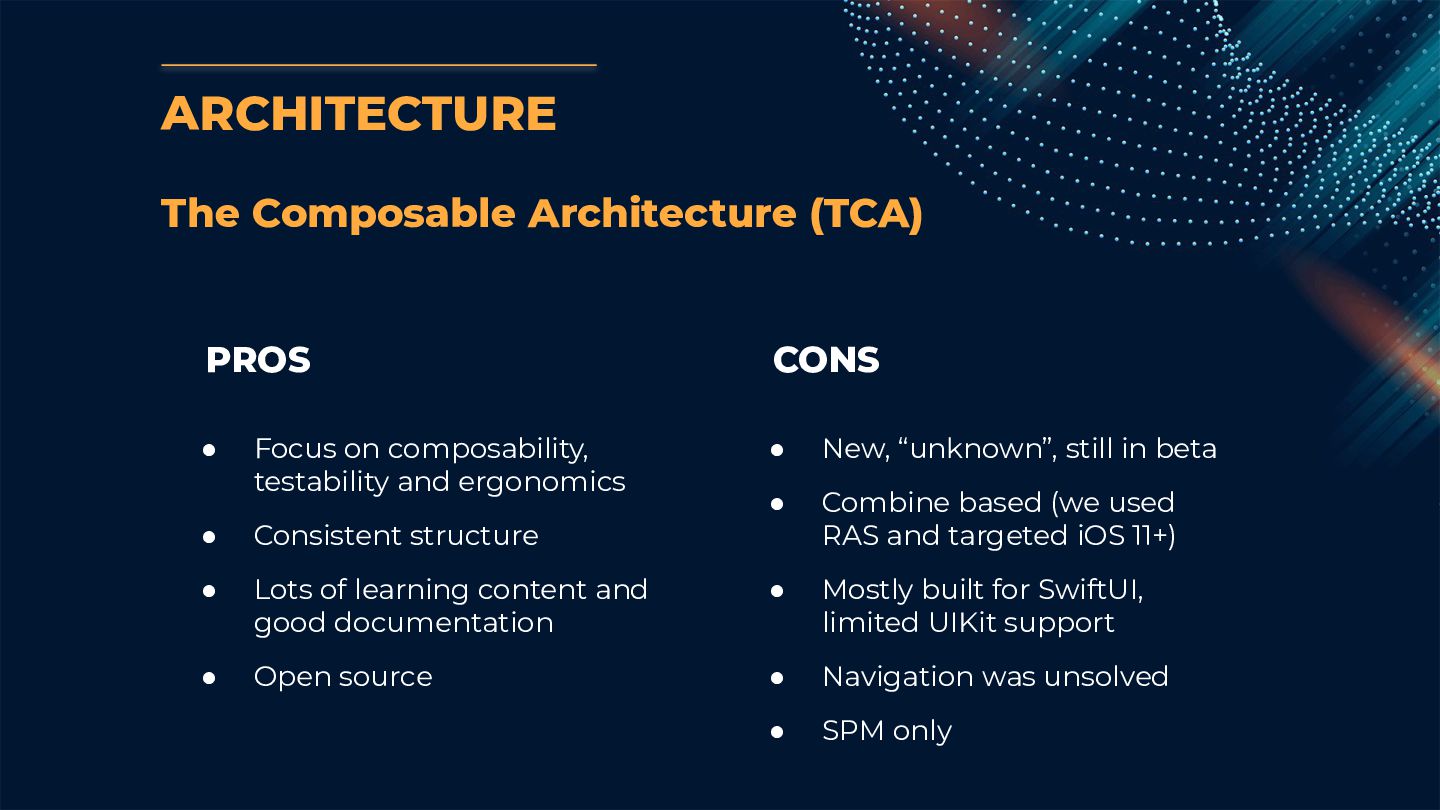

23. ARCHITECTURE The Composable Architecture (TCA) • Focus on composability, testability and ergonomics • Consistent structure • Lots of learning content and good documentation • Open source • New, “unknown”, still in beta • Combine based (we used RAS and targeted iOS 11+) • Mostly built for SwiftUI, limited UIKit support • Navigation was unsolved • SPM only PROS CONS

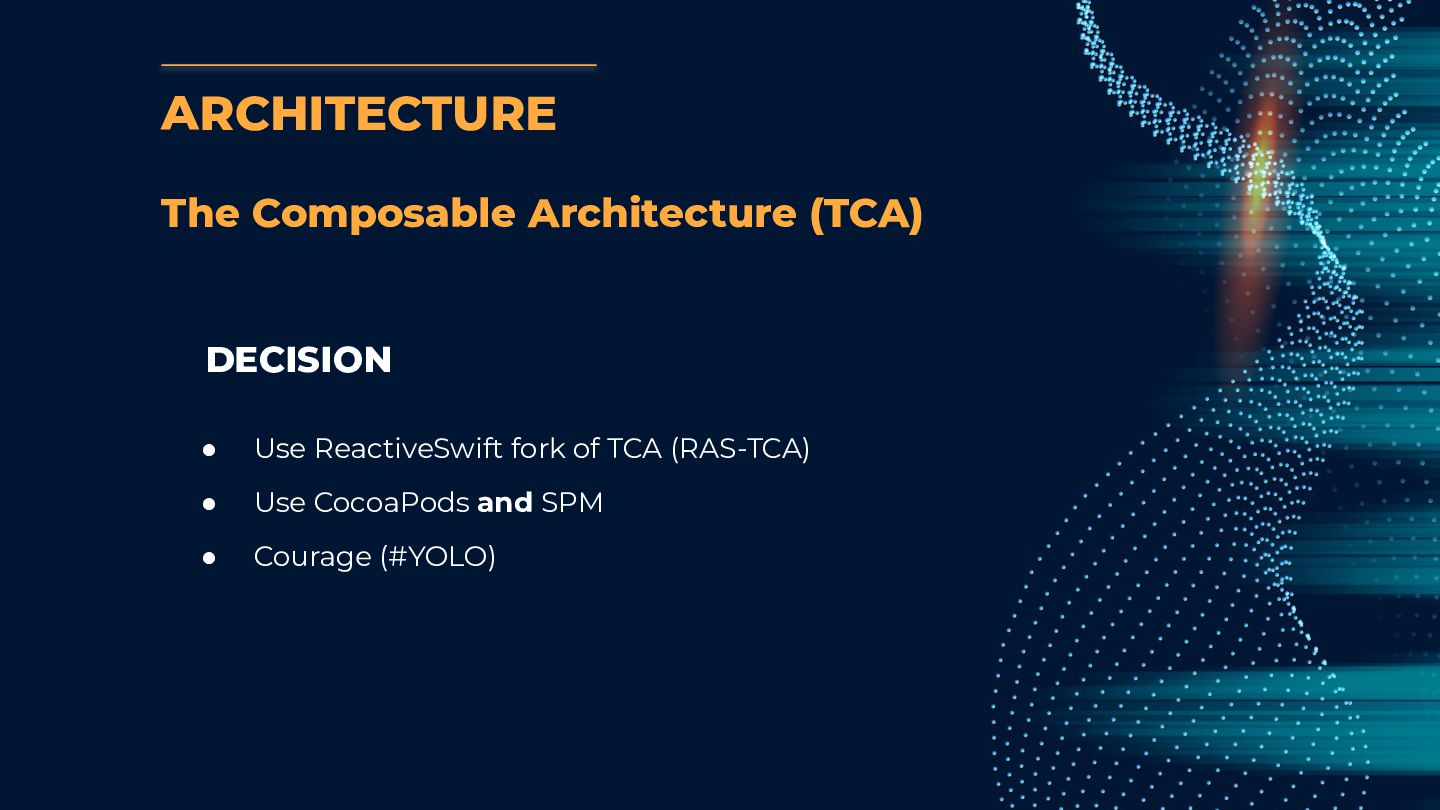

24. ARCHITECTURE The Composable Architecture (TCA) DECISION • Use ReactiveSwift fork of TCA (RAS-TCA) • Use CocoaPods and SPM • Courage (#YOLO)

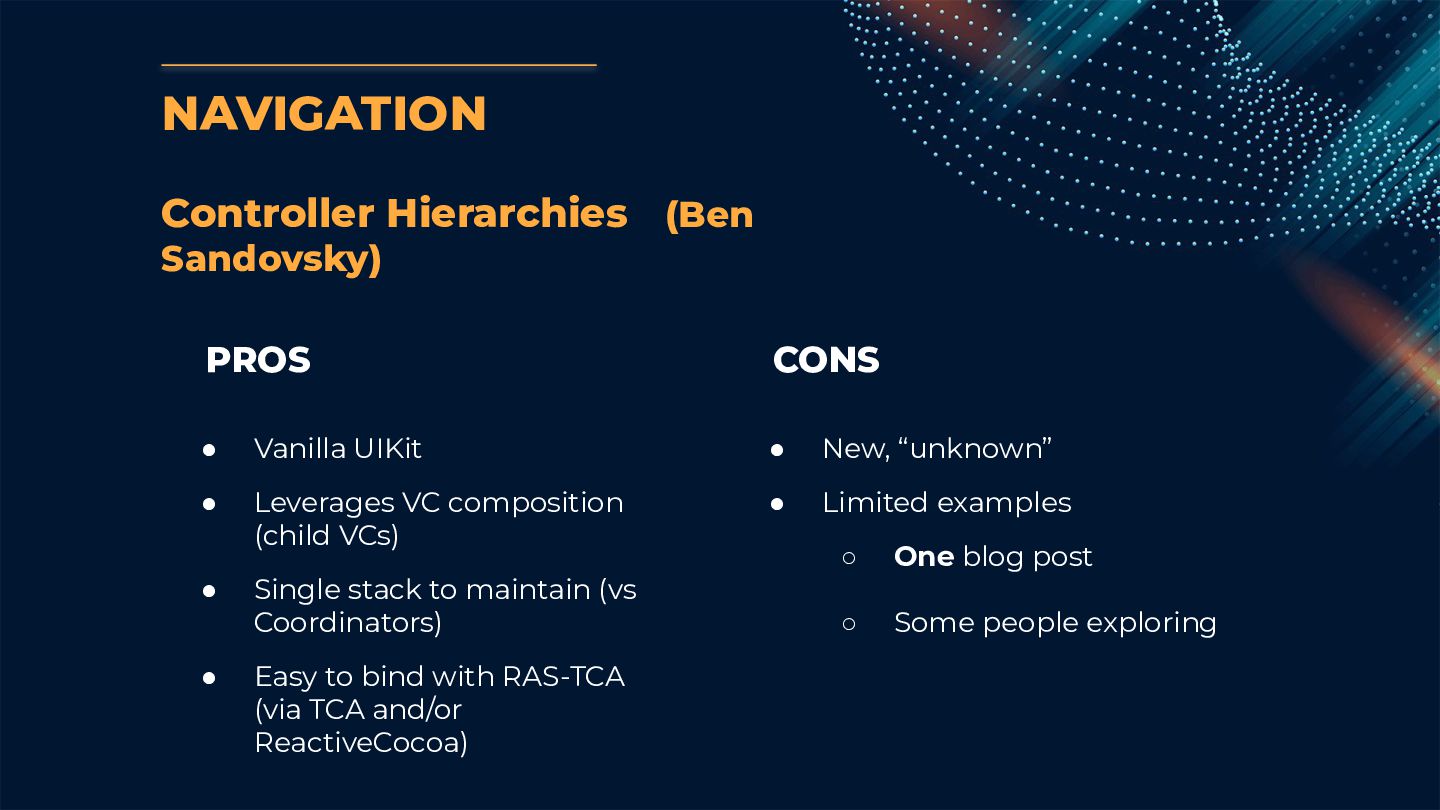

25. NAVIGATION Controller Hierarchies (Ben Sandovsky) • Vanilla UIKit • Leverages VC composition (child VCs) • Single stack to maintain (vs Coordinators) • Easy to bind with RAS-TCA (via TCA and/or ReactiveCocoa) • New, “unknown” • Limited examples ◦ One blog post ◦ Some people exploring PROS CONS

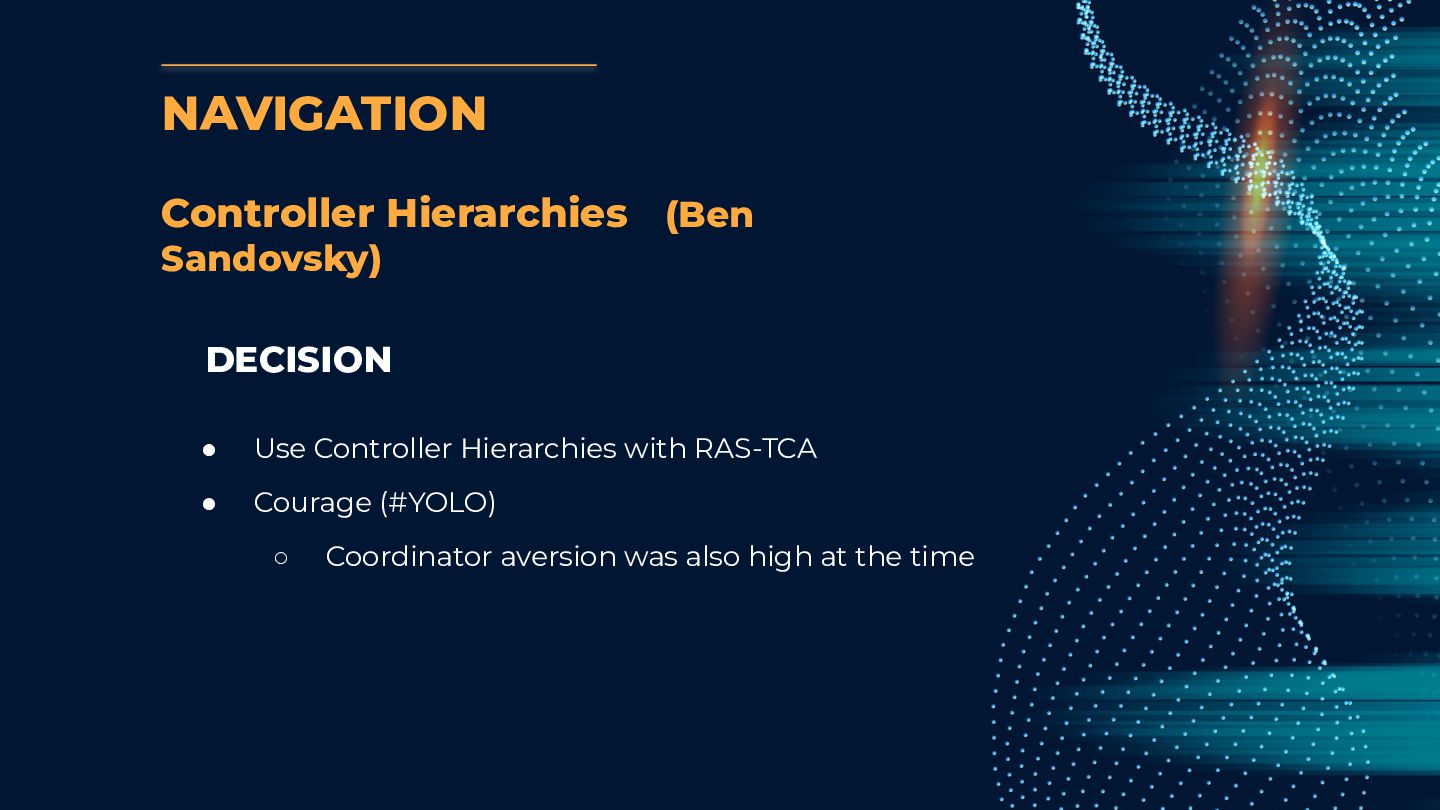

26. DECISION • Use Controller Hierarchies with RAS-TCA • Courage (#YOLO) ◦ Coordinator aversion was also high at the time NAVIGATION Controller Hierarchies (Ben Sandovsky)

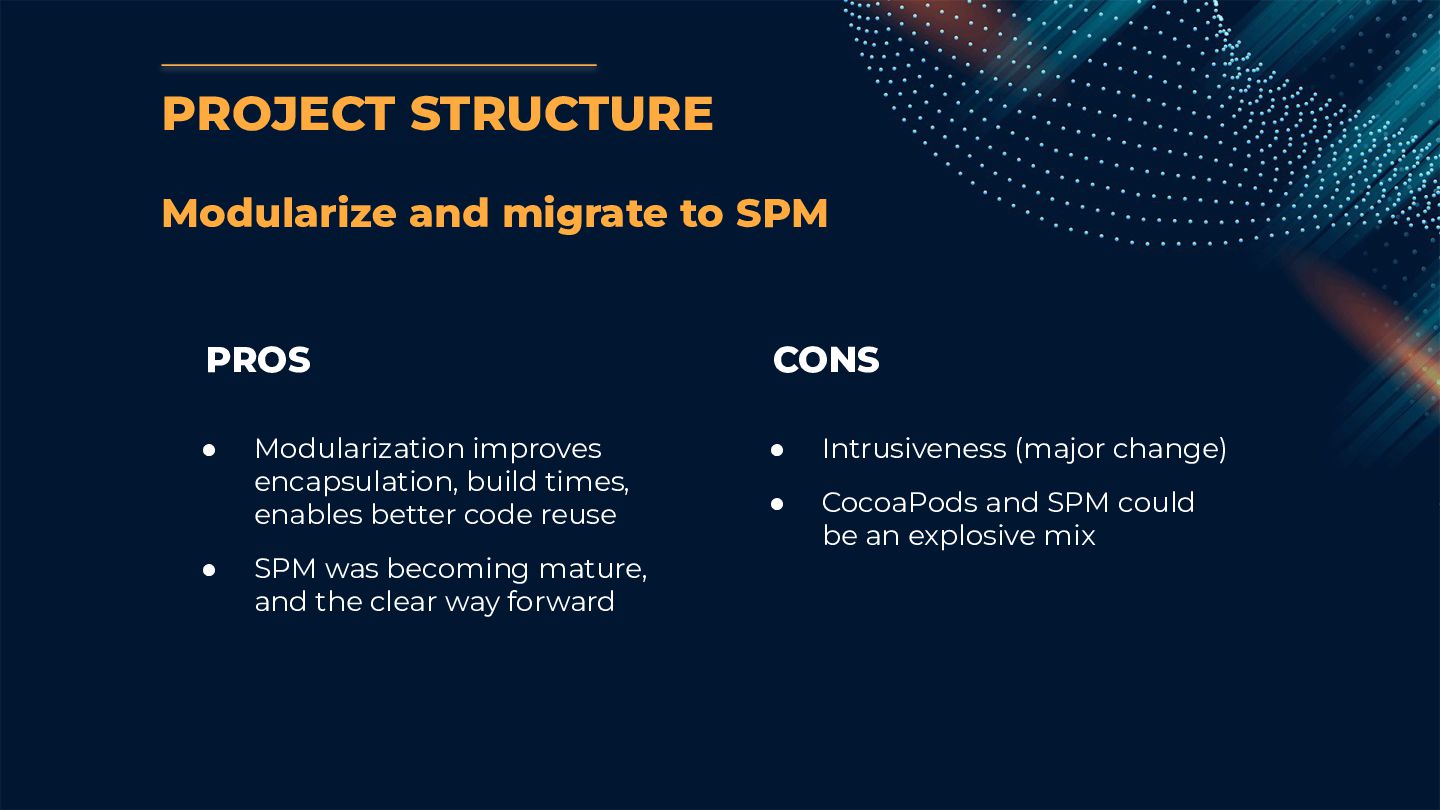

27. PROJECT STRUCTURE Modularize and migrate to SPM • Modularization improves encapsulation, build times, enables better code reuse • SPM was becoming mature, and the clear way forward • Intrusiveness (major change) • CocoaPods and SPM could be an explosive mix PROS CONS

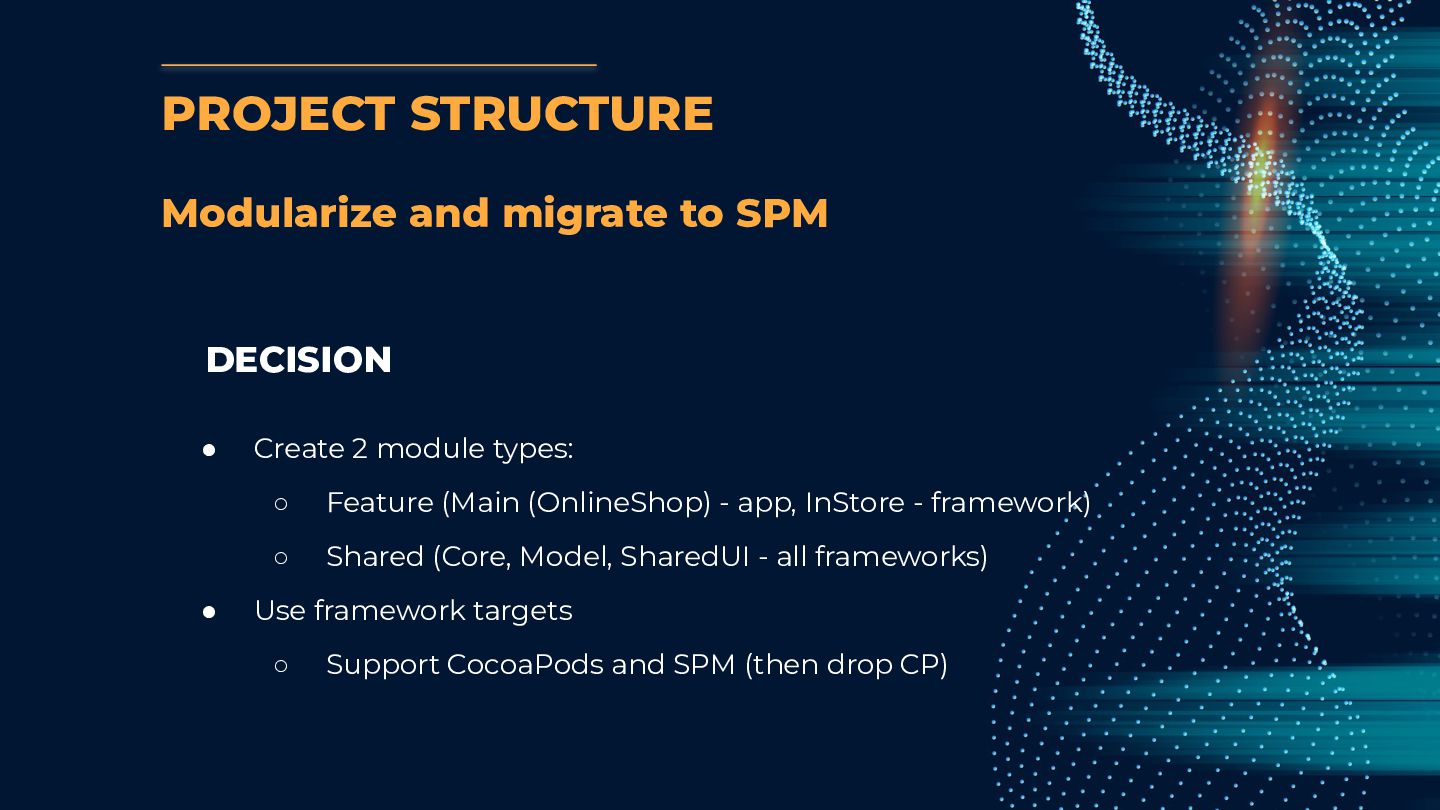

28. DECISION • Create 2 module types: ◦ Feature (Main (OnlineShop) - app, InStore - framework) ◦ Shared (Core, Model, SharedUI - all frameworks) • Use framework targets ◦ Support CocoaPods and SPM (then drop CP) PROJECT STRUCTURE Modularize and migrate to SPM

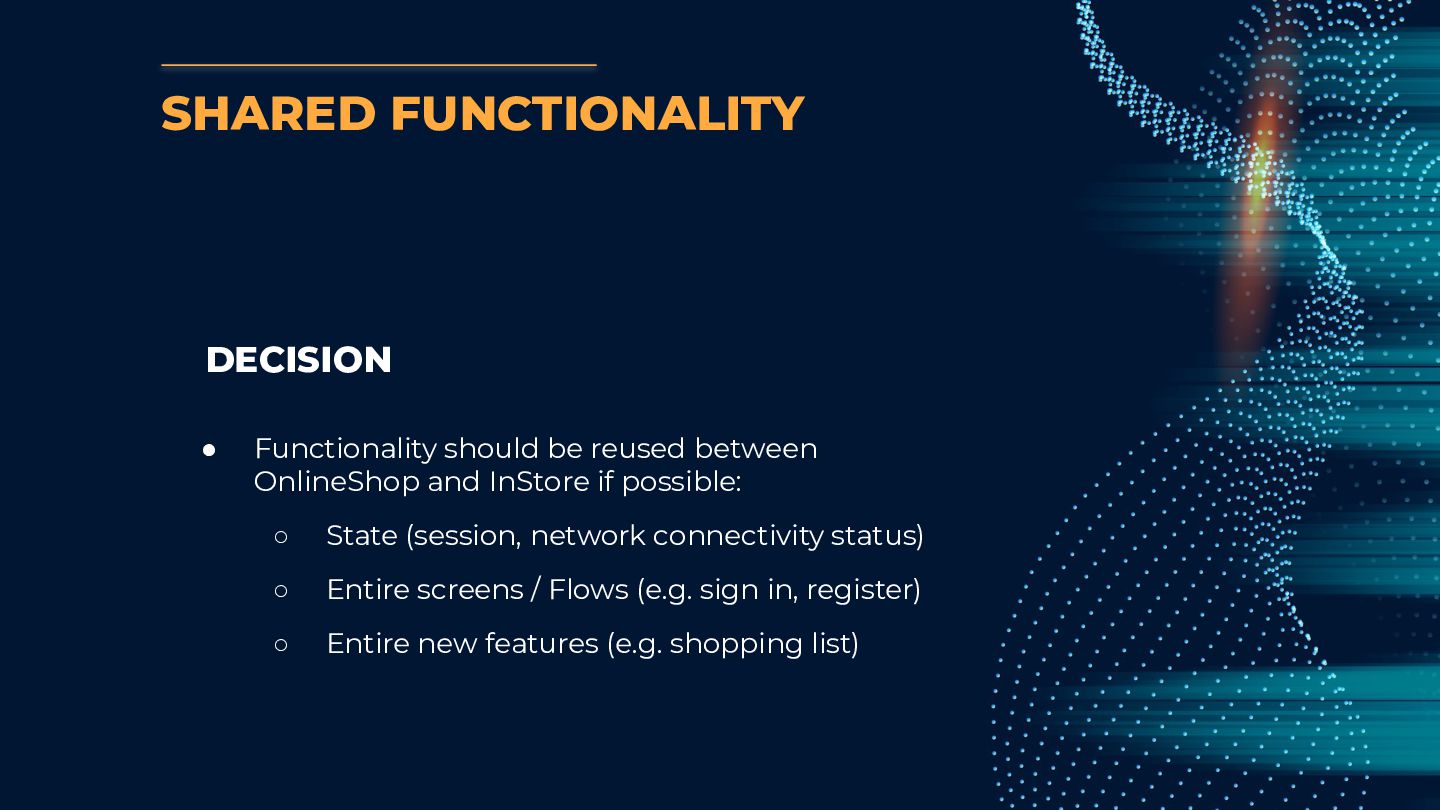

29. DECISION • Functionality should be reused between OnlineShop and InStore if possible: ◦ State (session, network connectivity status) ◦ Entire screens / Flows (e.g. sign in, register) ◦ Entire new features (e.g. shopping list) SHARED FUNCTIONALITY
30. THE VISION Photo by Greg Rakozy on Unsplash

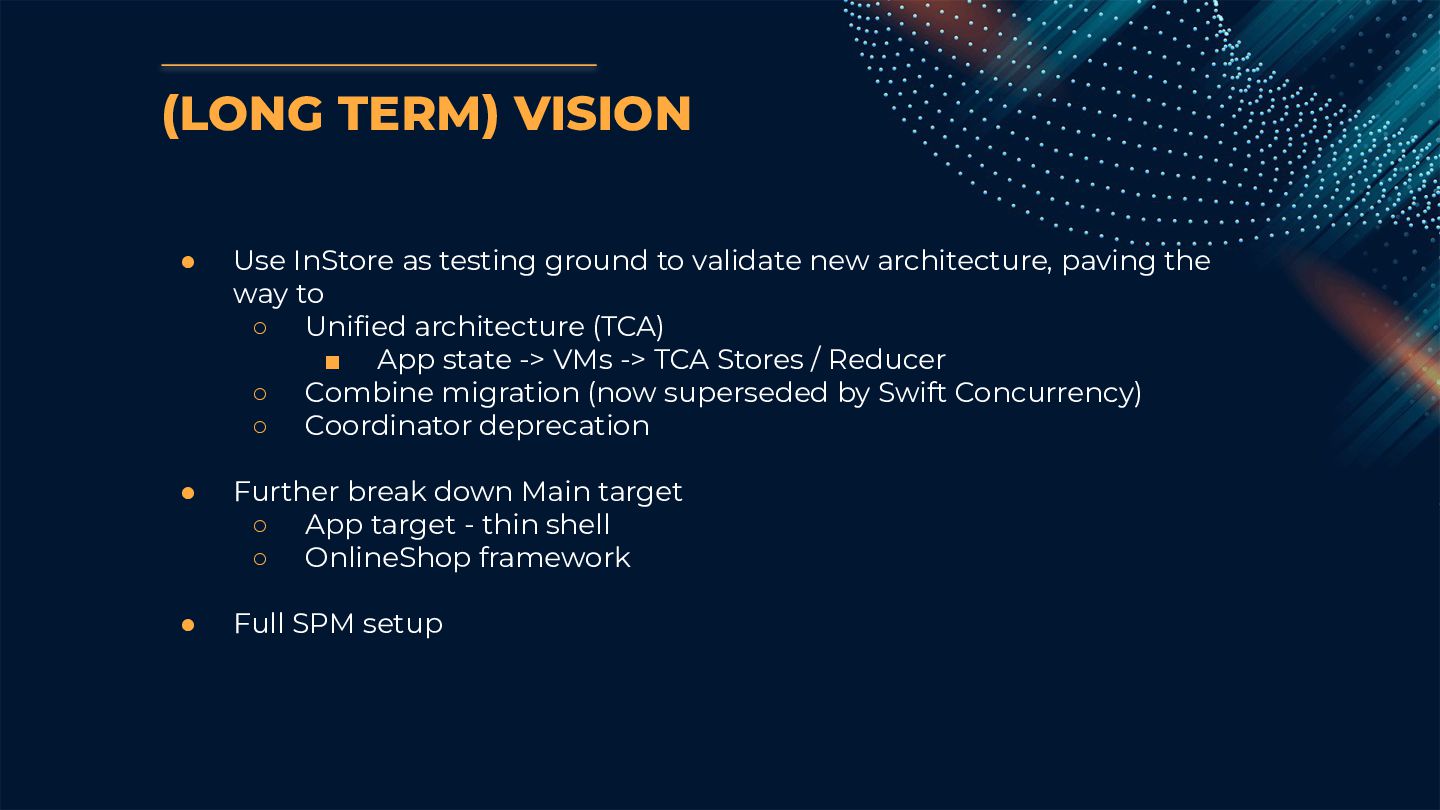

31. (LONG TERM) VISION • Use InStore as testing ground to validate new architecture, paving the way to ◦ Unified architecture (TCA) ▪ App state -> VMs -> TCA Stores / Reducer ◦ Combine migration (now superseded by Swift Concurrency) ◦ Coordinator deprecation • Further break down Main target ◦ App target - thin shell ◦ OnlineShop framework • Full SPM setup
32. The plan was laid 03 How about them bridges?
33. THE BRIDGES Photo by Shaun Darwood on Unsplash

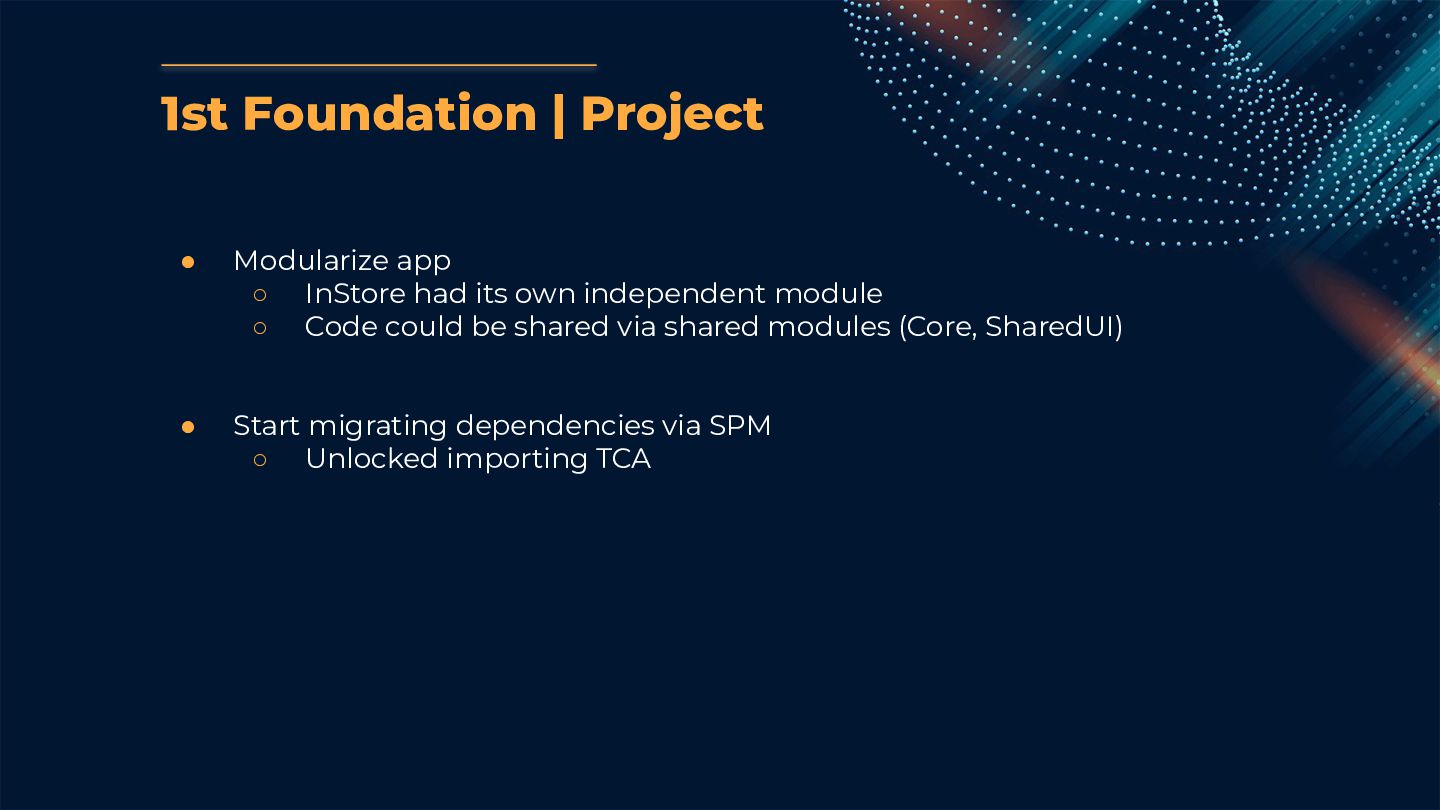

34. 1st Foundation | Project • Modularize app ◦ InStore had its own independent module ◦ Code could be shared via shared modules (Core, SharedUI) • Start migrating dependencies via SPM ◦ Unlocked importing TCA

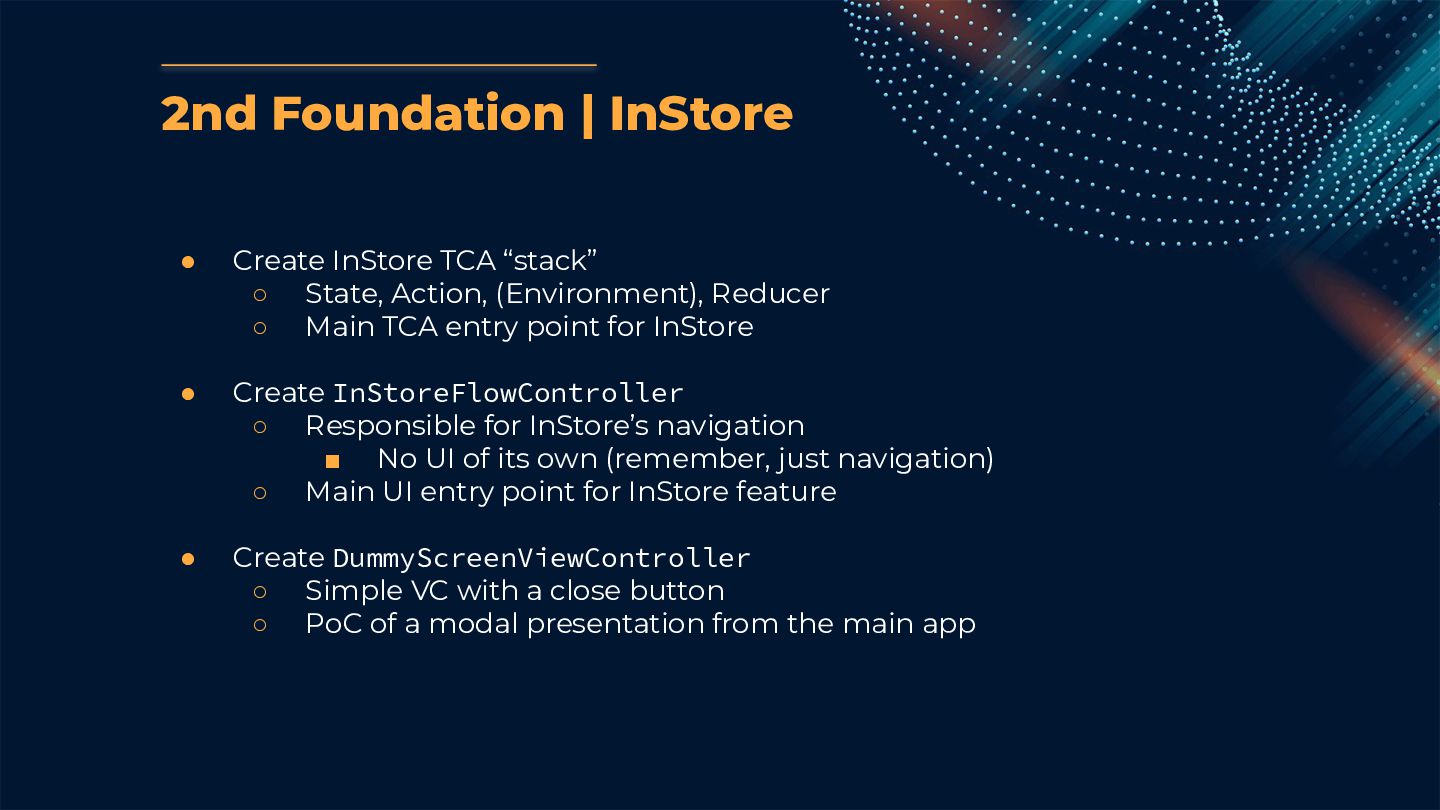

35. 2nd Foundation | InStore • Create InStore TCA “stack” ◦ State, Action, (Environment), Reducer ◦ Main TCA entry point for InStore • Create InStoreFlowController ◦ Responsible for InStore’s navigation ▪ No UI of its own (remember, just navigation) ◦ Main UI entry point for InStore feature • Create DummyScreenViewController ◦ Simple VC with a close button ◦ PoC of a modal presentation from the main app

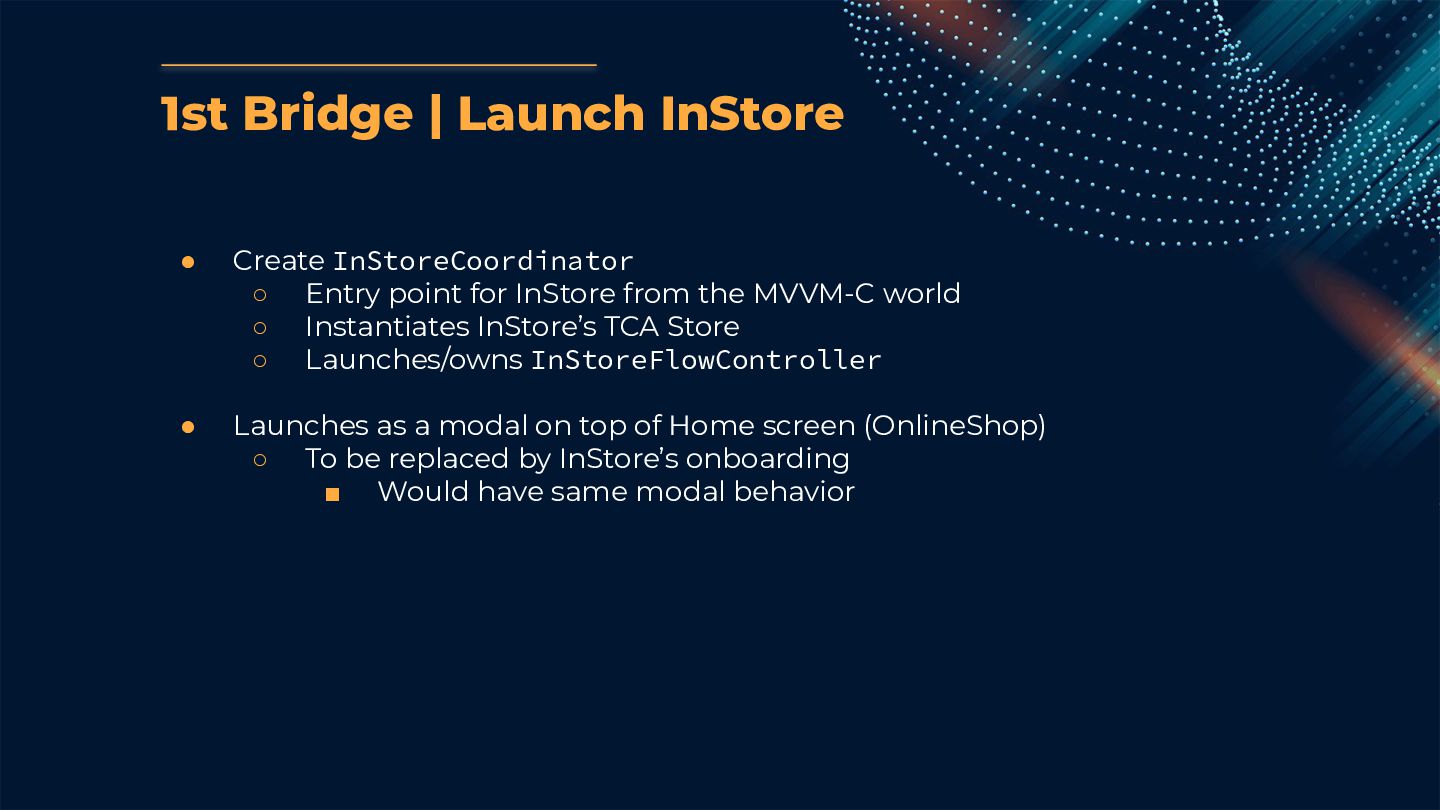

36. 1st Bridge | Launch InStore • Create InStoreCoordinator ◦ Entry point for InStore from the MVVM-C world ◦ Instantiates InStore’s TCA Store ◦ Launches/owns InStoreFlowController • Launches as a modal on top of Home screen (OnlineShop) ◦ To be replaced by InStore’s onboarding ▪ Would have same modal behavior

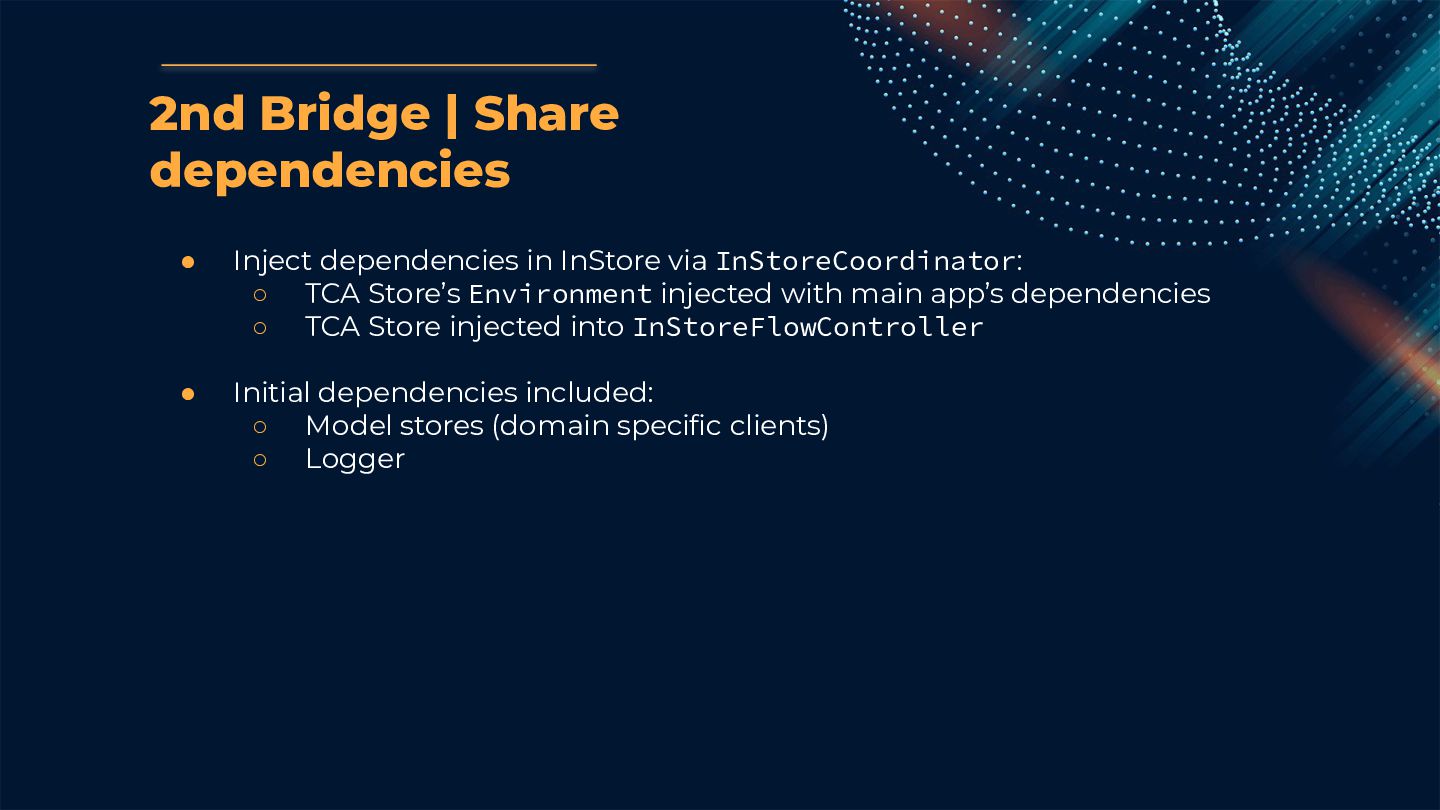

37. • Inject dependencies in InStore via InStoreCoordinator: ◦ TCA Store’s Environment injected with main app’s dependencies ◦ TCA Store injected into InStoreFlowController • Initial dependencies included: ◦ Model stores (domain specific clients) ◦ Logger 2nd Bridge | Share dependencies

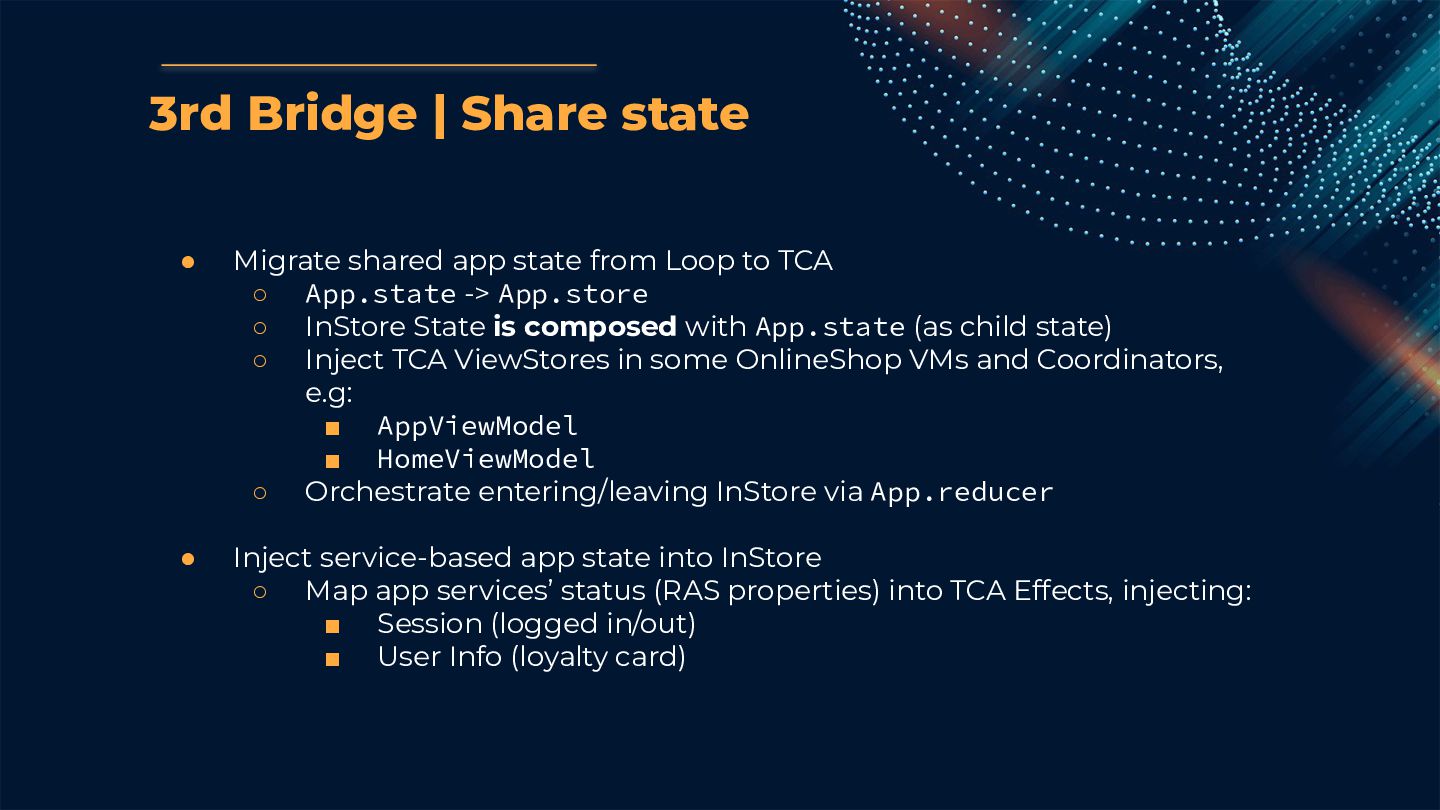

38. • Migrate shared app state from Loop to TCA ◦ App.state -> App.store ◦ InStore State is composed with App.state (as child state) ◦ Inject TCA ViewStores in some OnlineShop VMs and Coordinators, e.g: ▪ AppViewModel ▪ HomeViewModel ◦ Orchestrate entering/leaving InStore via App.reducer • Inject service-based app state into InStore ◦ Map app services’ status (RAS properties) into TCA Effects, injecting: ▪ Session (logged in/out) ▪ User Info (loyalty card) 3rd Bridge | Share state

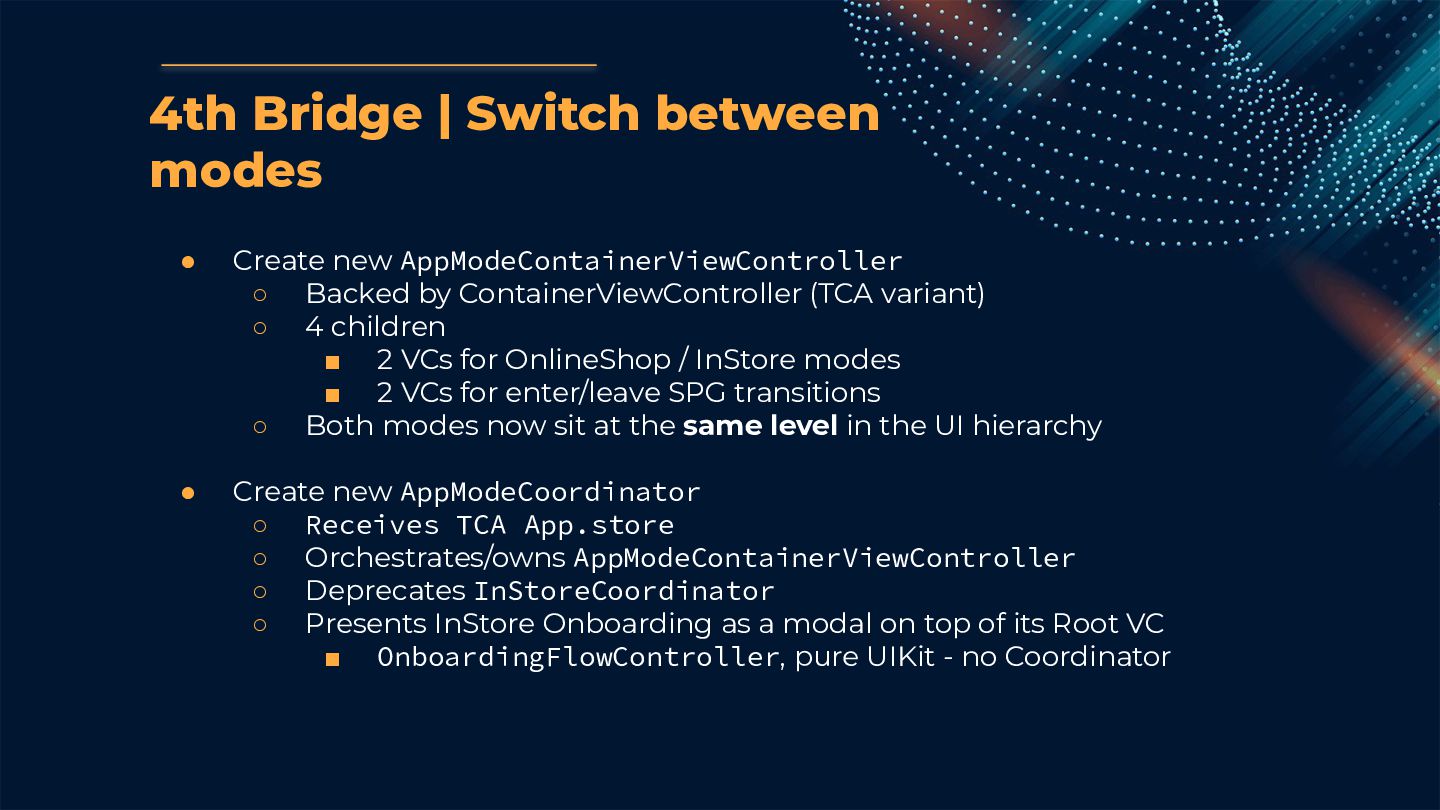

39. • Create new AppModeContainerViewController ◦ Backed by ContainerViewController (TCA variant) ◦ 4 children ▪ 2 VCs for OnlineShop / InStore modes ▪ 2 VCs for enter/leave SPG transitions ◦ Both modes now sit at the same level in the UI hierarchy • Create new AppModeCoordinator ◦ Receives TCA App.store ◦ Orchestrates/owns AppModeContainerViewController ◦ Deprecates InStoreCoordinator ◦ Presents InStore Onboarding as a modal on top of its Root VC ▪ OnboardingFlowController, pure UIKit - no Coordinator 4th Bridge | Switch between modes
40. 5th Bridge | Share flows Reuse Sign In and Register OnlineShop flows in InStore • Launch MVVM-C flows from AppModeCoordinator ◦ MVVM-C navigation triggered via TCA state observation ◦ MVVM-C navigation events mapped into TCA actions, e.g: ▪ Dismisses • Most orchestration done via TCA from App and InStore’s reducers

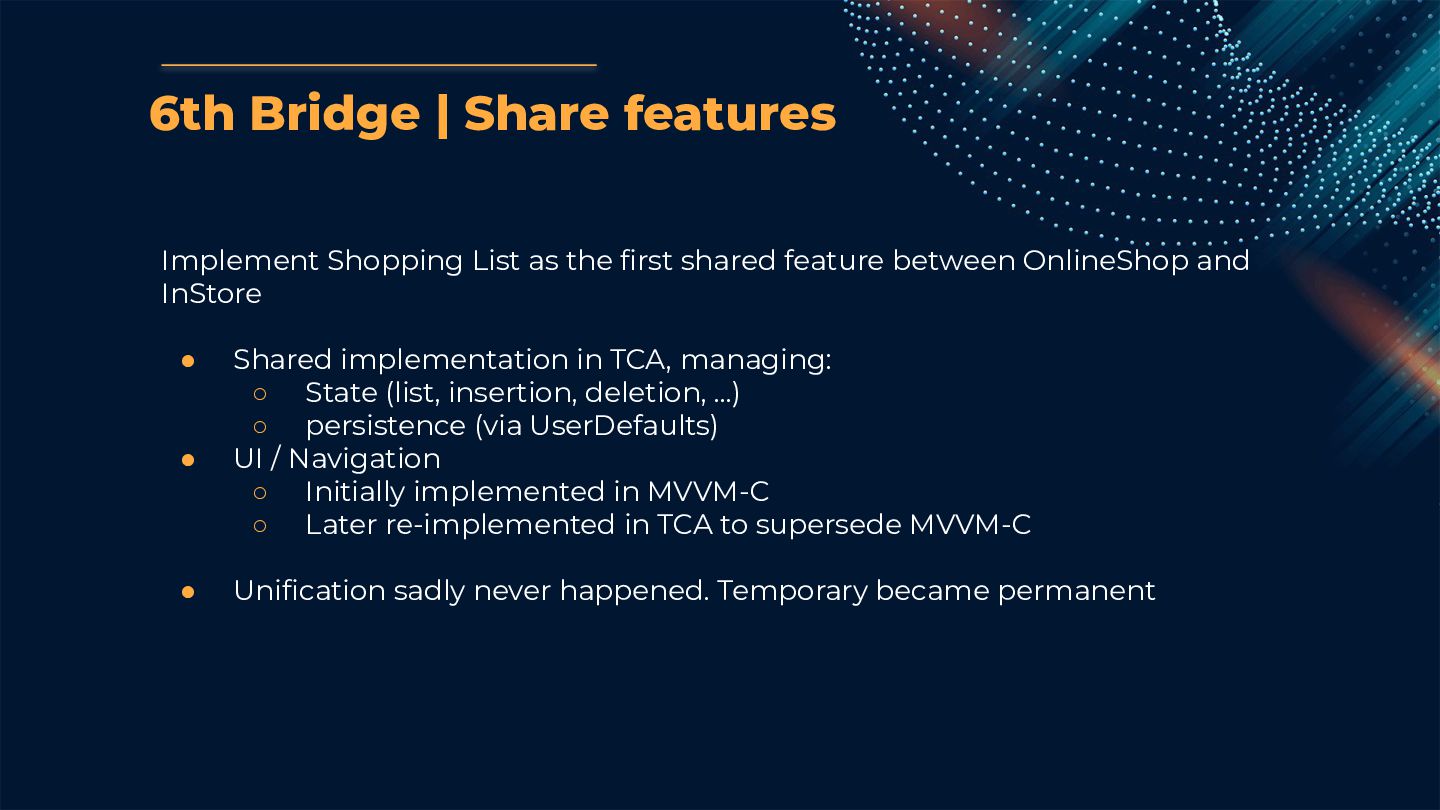

41. Implement Shopping List as the first shared feature between OnlineShop and InStore • Shared implementation in TCA, managing: ◦ State (list, insertion, deletion, …) ◦ persistence (via UserDefaults) • UI / Navigation ◦ Initially implemented in MVVM-C ◦ Later re-implemented in TCA to supersede MVVM-C • Unification sadly never happened. Temporary became permanent 6th Bridge | Share features
42. Time to reflect 04 And rest from all this bridge building thing

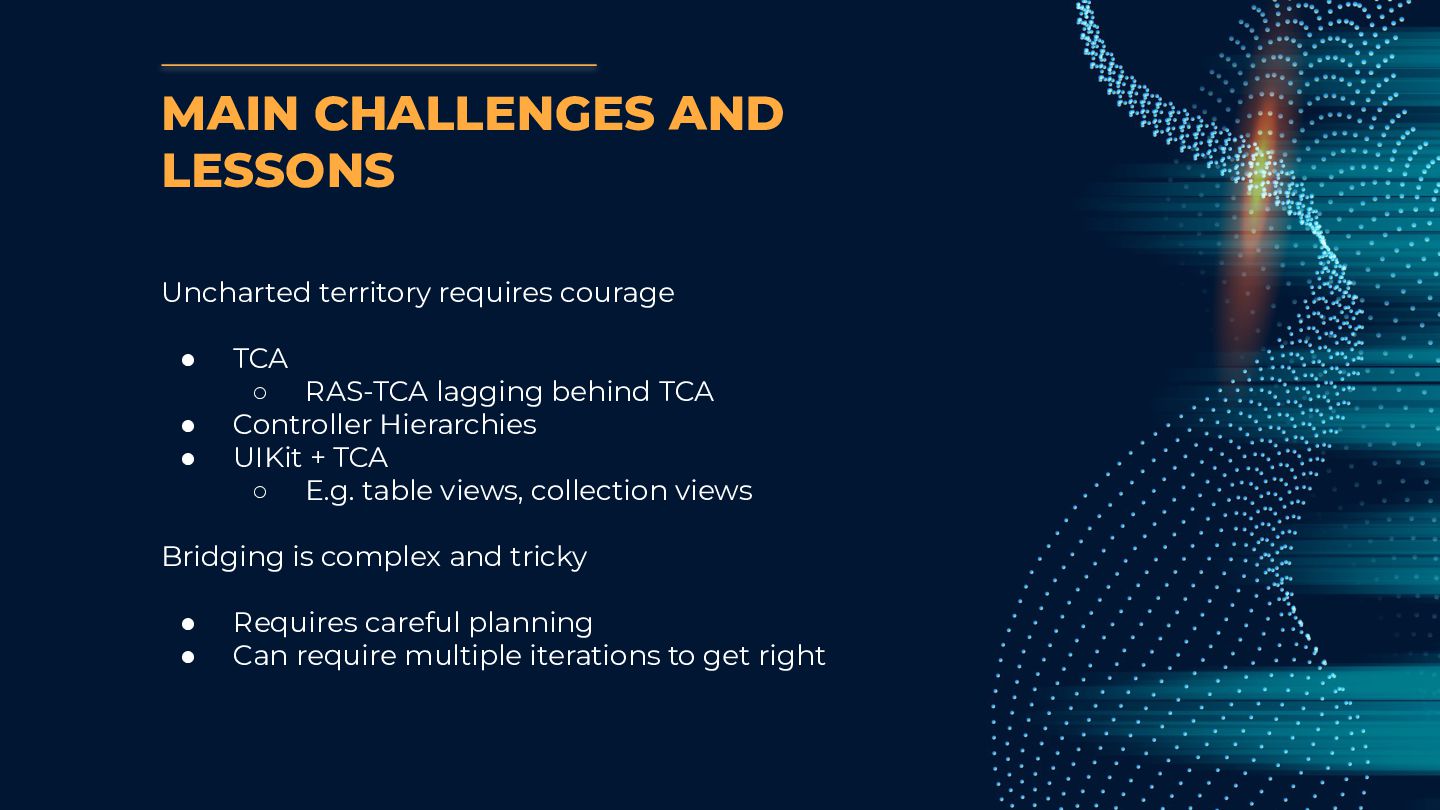

43. MAIN CHALLENGES AND LESSONS Uncharted territory requires courage • TCA ◦ RAS-TCA lagging behind TCA • Controller Hierarchies • UIKit + TCA ◦ E.g. table views, collection views Bridging is complex and tricky • Requires careful planning • Can require multiple iterations to get right

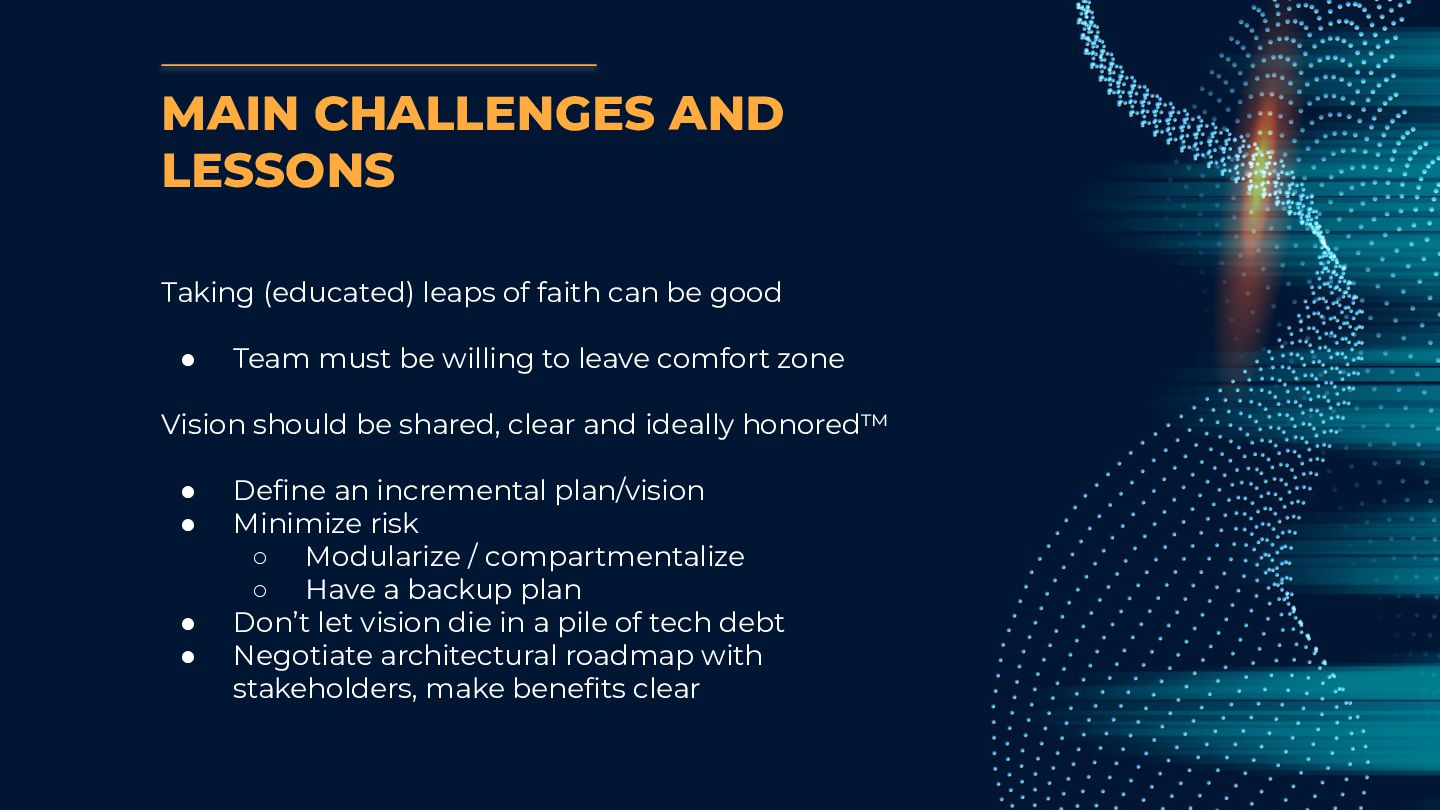

44. MAIN CHALLENGES AND LESSONS Taking (educated) leaps of faith can be good • Team must be willing to leave comfort zone Vision should be shared, clear and ideally honored™ • Define an incremental plan/vision • Minimize risk ◦ Modularize / compartmentalize ◦ Have a backup plan • Don’t let vision die in a pile of tech debt • Negotiate architectural roadmap with stakeholders, make benefits clear
45. WAS IT WORTH IT? Yes (but I’m biased)

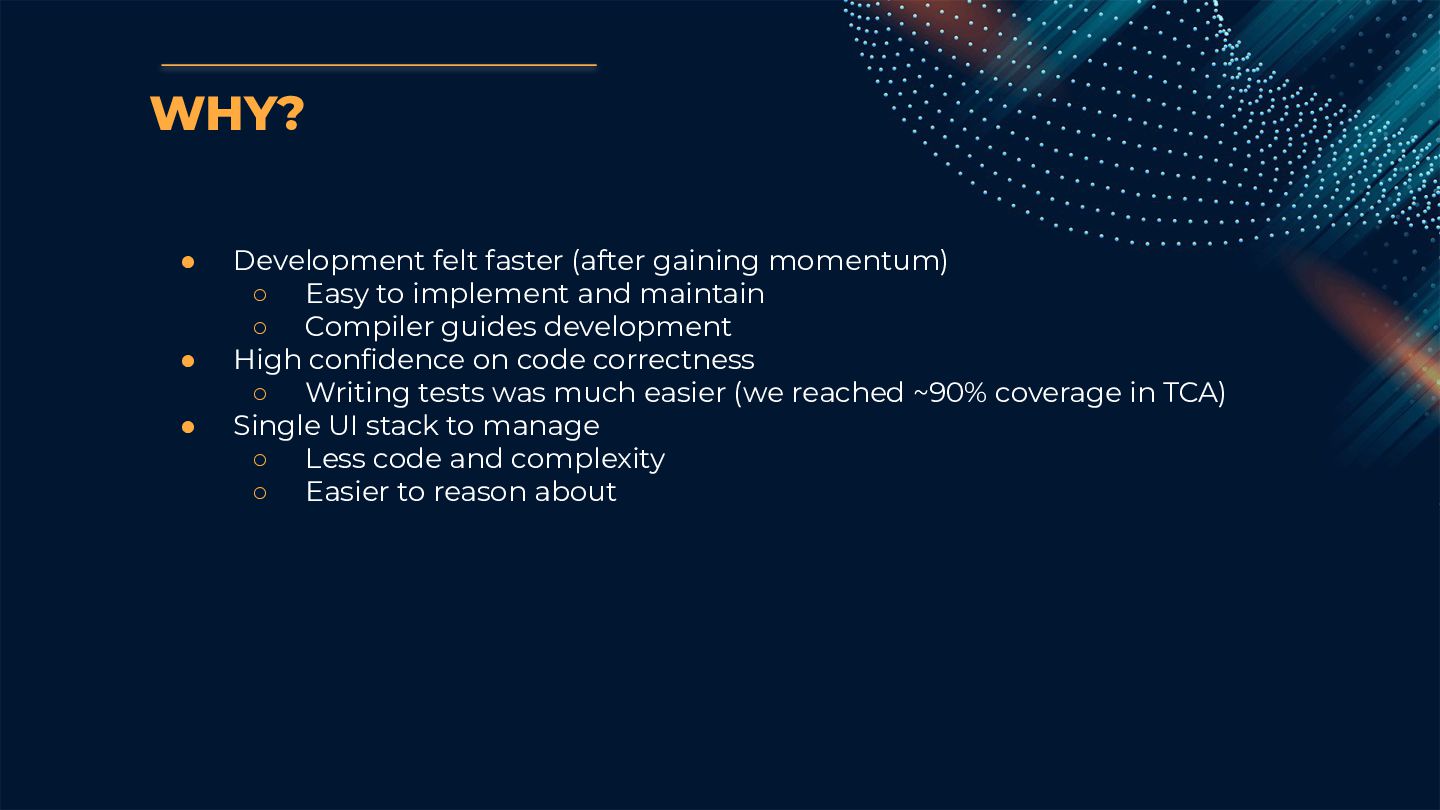

46. • Development felt faster (after gaining momentum) ◦ Easy to implement and maintain ◦ Compiler guides development • High confidence on code correctness ◦ Writing tests was much easier (we reached ~90% coverage in TCA) • Single UI stack to manage ◦ Less code and complexity ◦ Easier to reason about WHY?
47. CREDITS: This presentation template was created by Slidesgo, including icons by Flaticon, and infographics & images by Freepik. THANKS! Do you have any questions? André Pacheco Neves @p4checo Mindera | 2024
