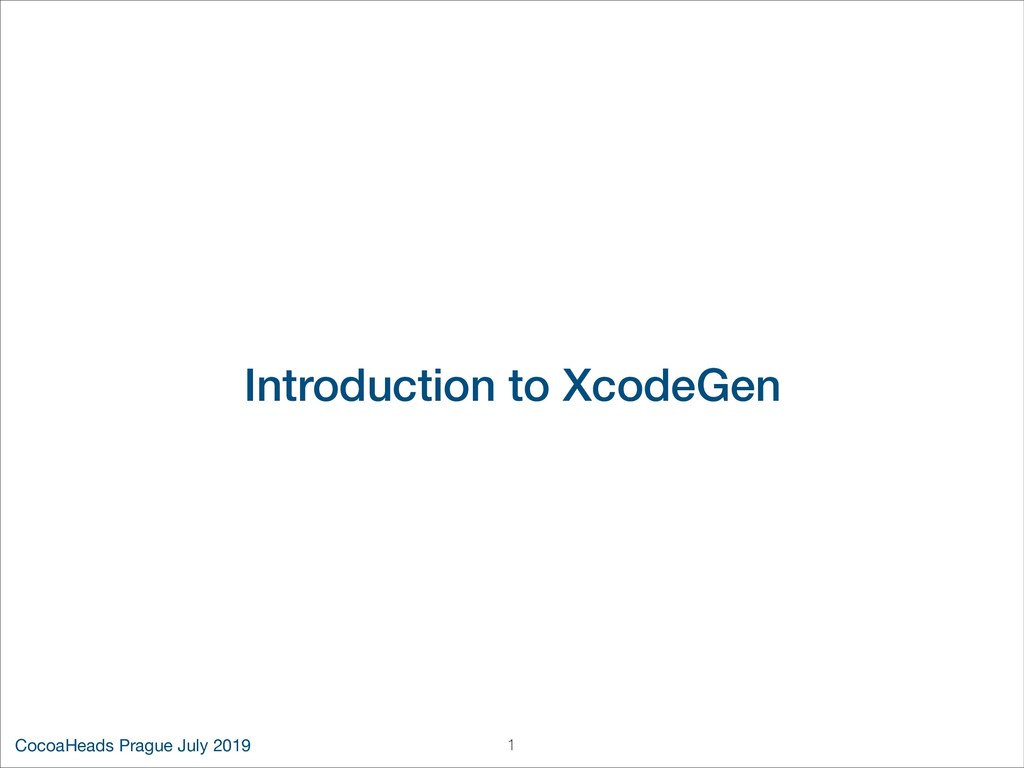

1. CocoaHeads Prague July 2019 Introduction to XcodeGen 1

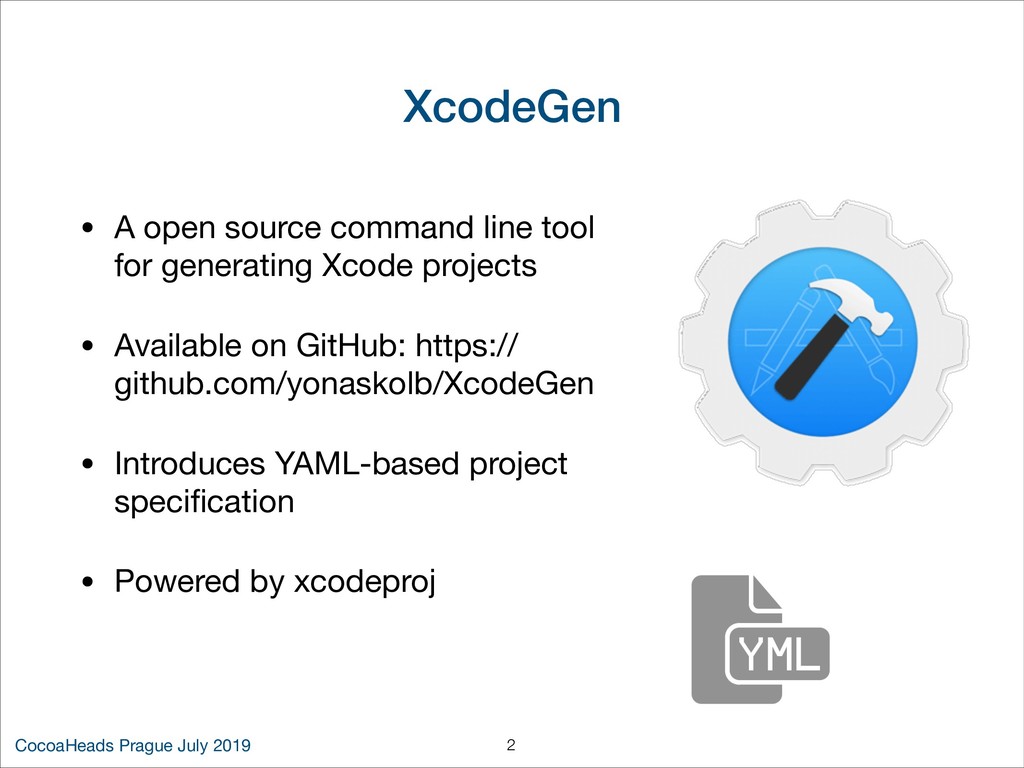

2. CocoaHeads Prague July 2019 XcodeGen • A open source command line tool for generating Xcode projects • Available on GitHub: https:// github.com/yonaskolb/XcodeGen • Introduces YAML-based project specification • Powered by xcodeproj !2

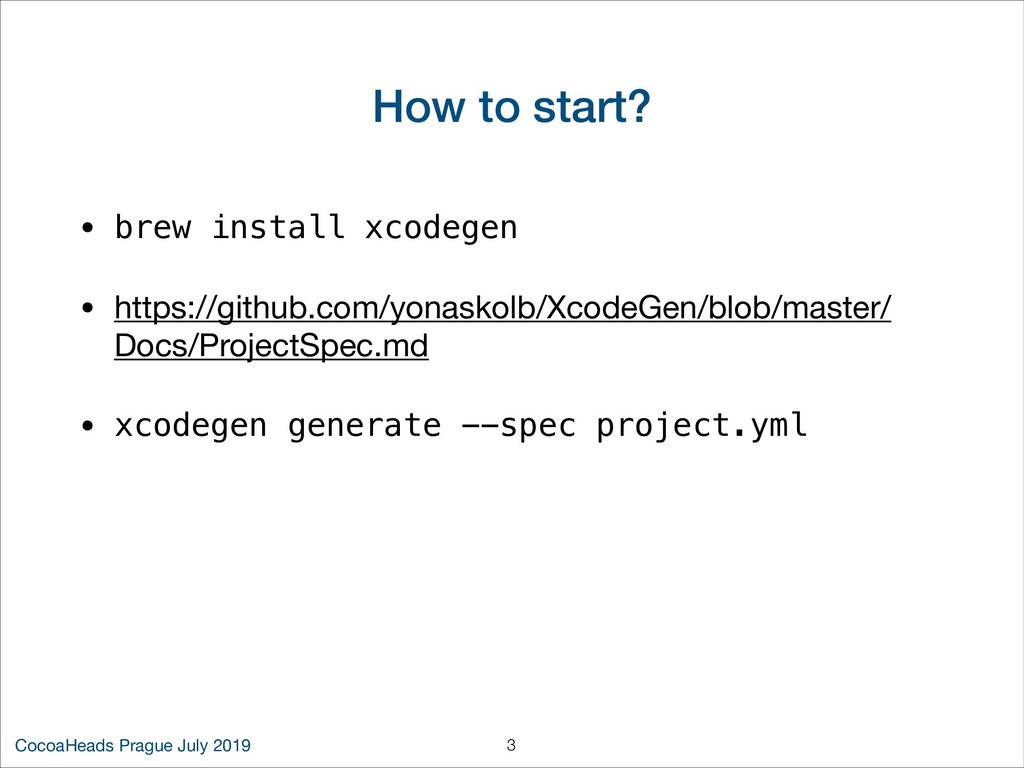

3. CocoaHeads Prague July 2019 How to start? • brew install xcodegen • https://github.com/yonaskolb/XcodeGen/blob/master/ Docs/ProjectSpec.md • xcodegen generate --spec project.yml !3

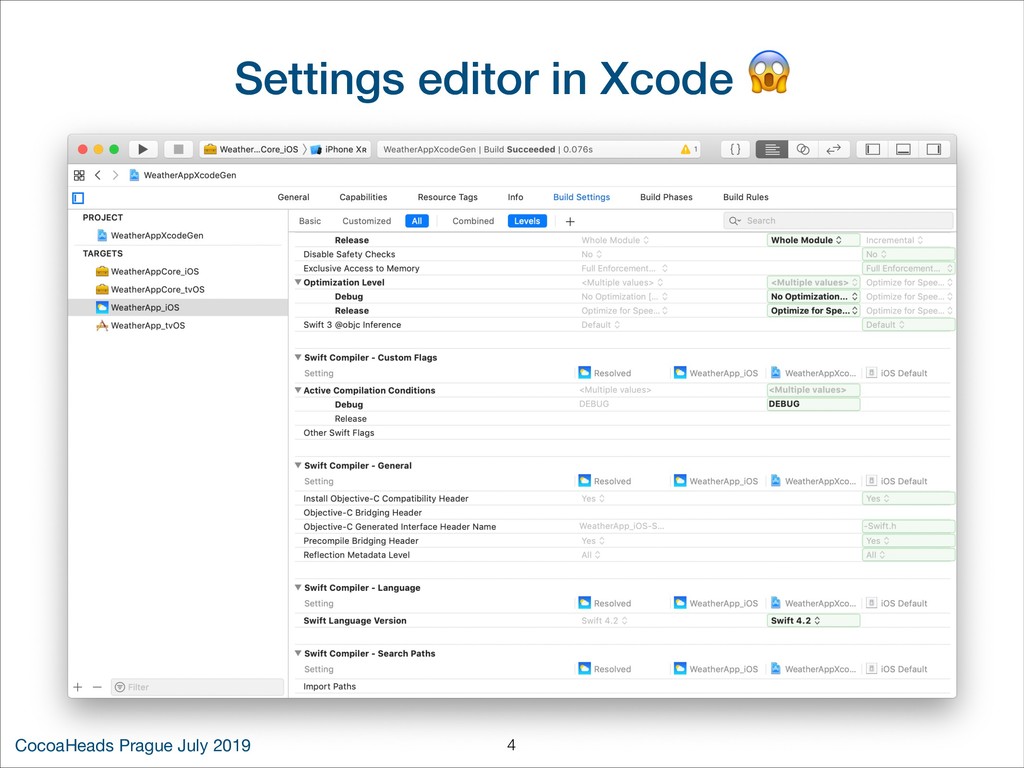

4. CocoaHeads Prague July 2019 Settings editor in Xcode !4

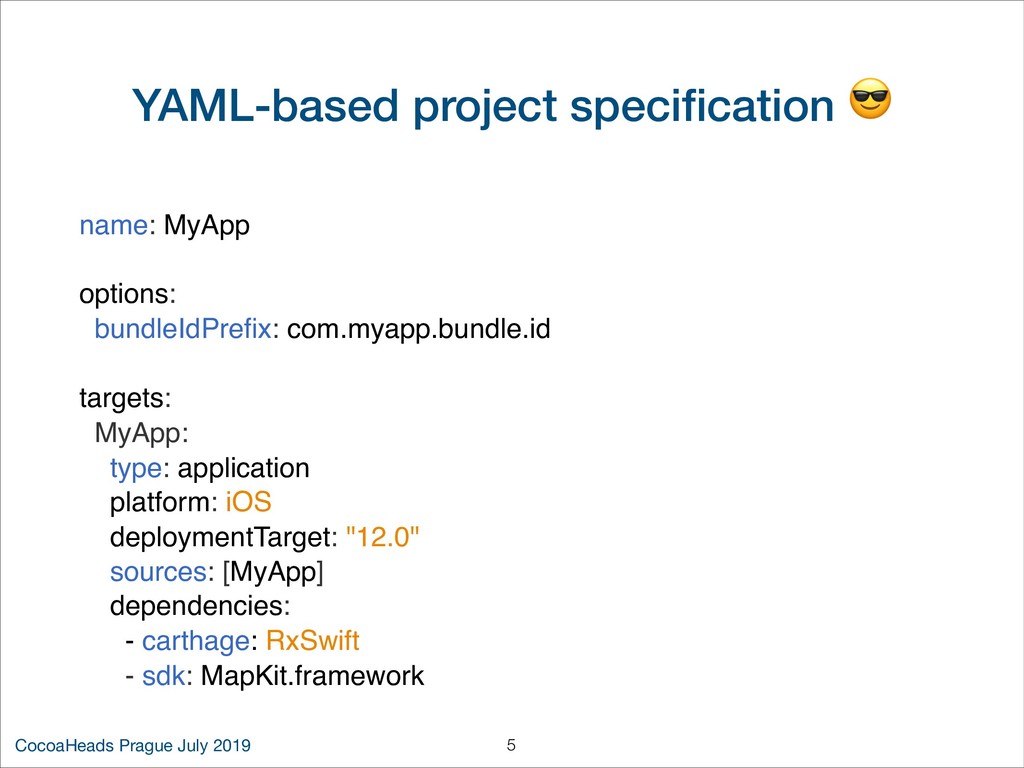

5. CocoaHeads Prague July 2019 YAML-based project specification name: MyApp options: bundleIdPrefix: com.myapp.bundle.id targets: MyApp: type: application platform: iOS deploymentTarget: "12.0" sources: [MyApp] dependencies: - carthage: RxSwift - sdk: MapKit.framework !5

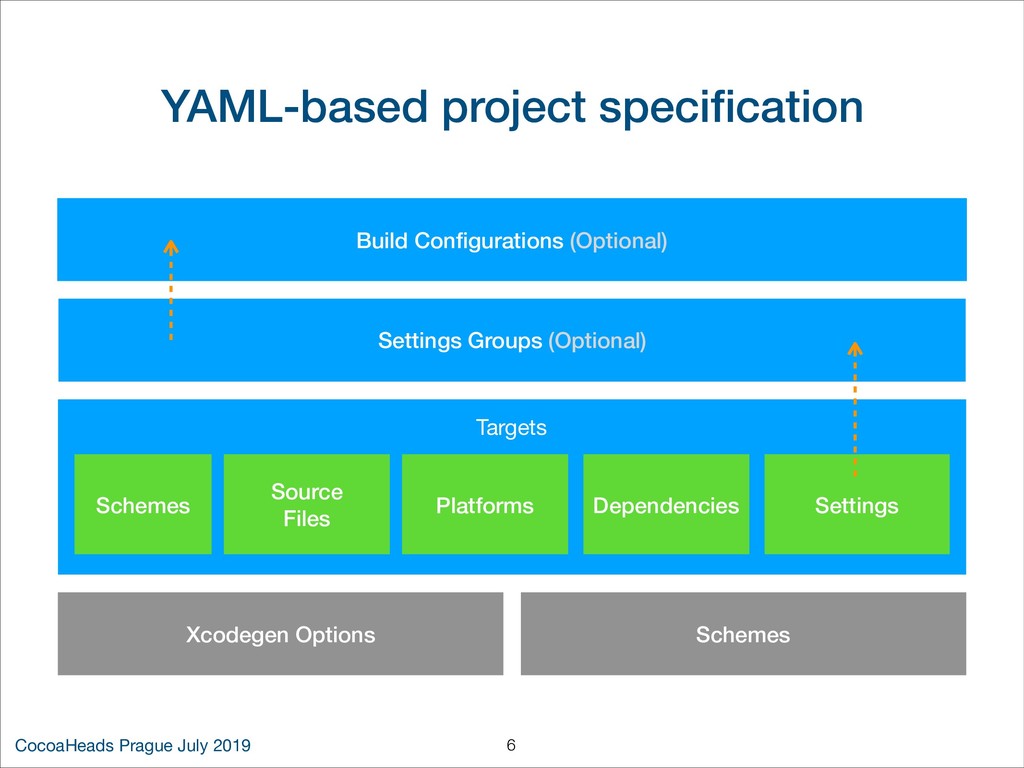

6. CocoaHeads Prague July 2019 YAML-based project specification Build Configurations (Optional) Settings Groups (Optional) Targets Schemes Dependencies Settings Source Files Platforms Xcodegen Options Schemes !6

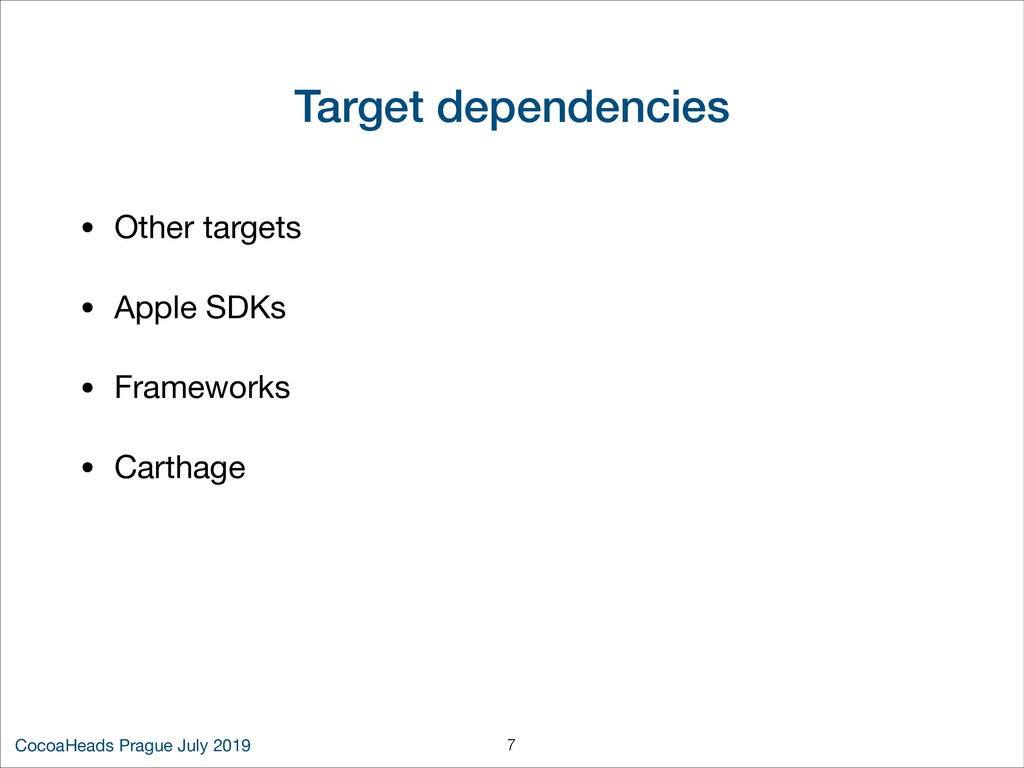

7. CocoaHeads Prague July 2019 Target dependencies • Other targets • Apple SDKs • Frameworks • Carthage !7

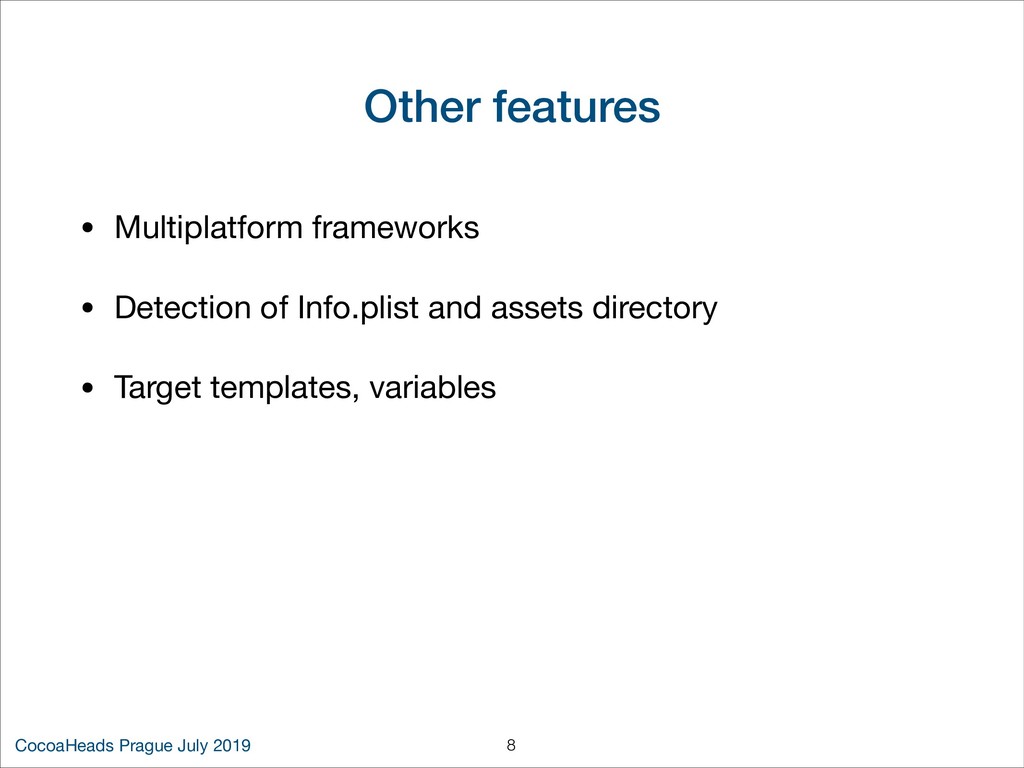

8. CocoaHeads Prague July 2019 Other features • Multiplatform frameworks • Detection of Info.plist and assets directory • Target templates, variables !8

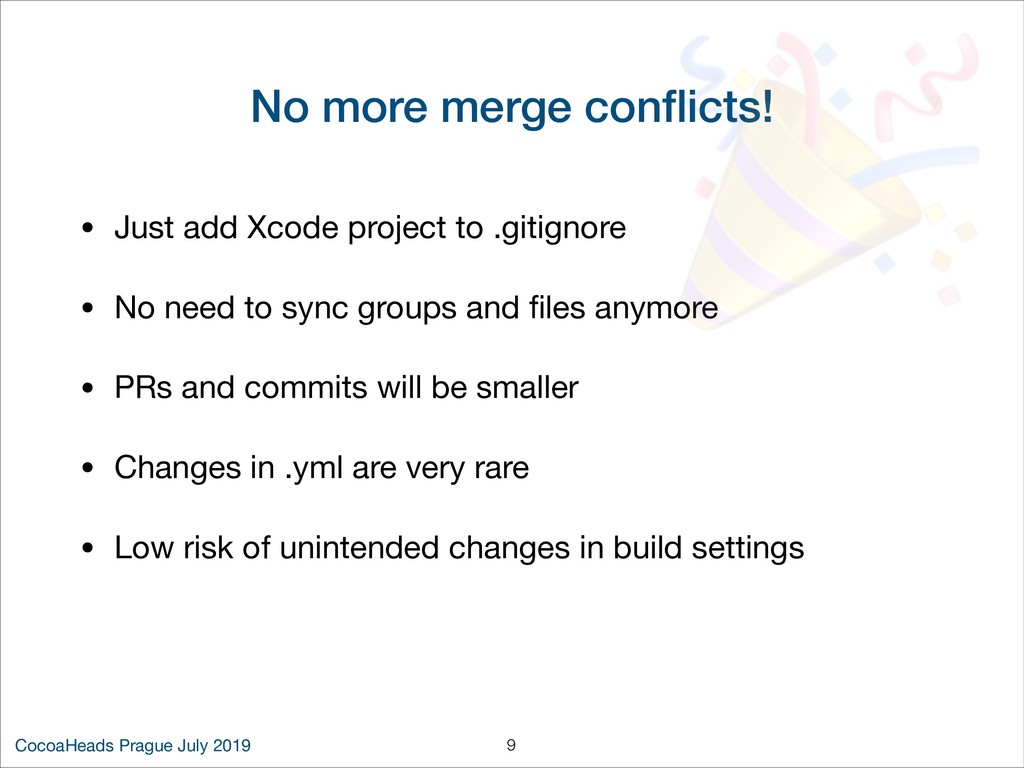

9. CocoaHeads Prague July 2019 No more merge conflicts! • Just add Xcode project to .gitignore • No need to sync groups and files anymore • PRs and commits will be smaller • Changes in .yml are very rare • Low risk of unintended changes in build settings !9

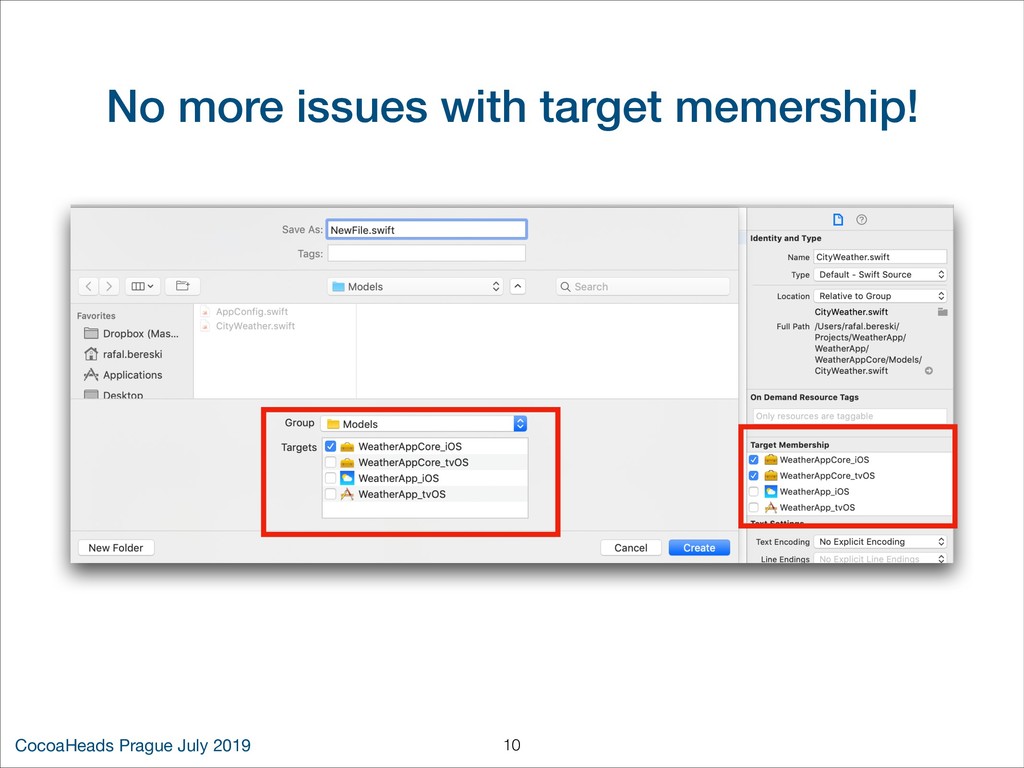

10. CocoaHeads Prague July 2019 No more issues with target memership! !10

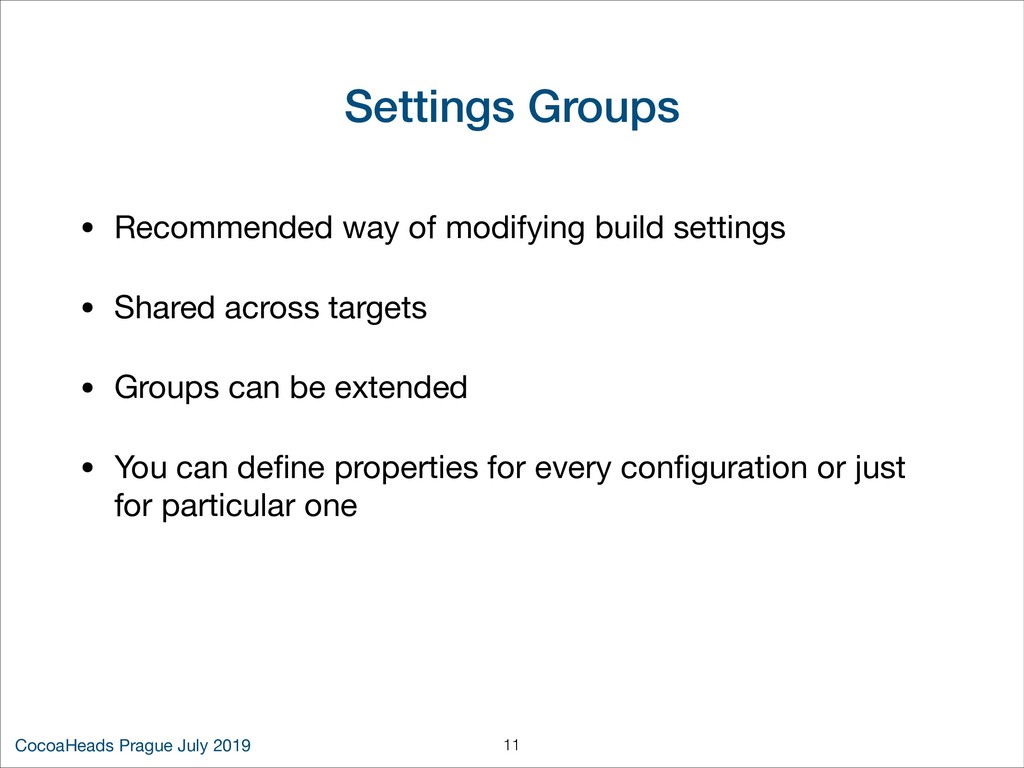

11. CocoaHeads Prague July 2019 Settings Groups • Recommended way of modifying build settings • Shared across targets • Groups can be extended • You can define properties for every configuration or just for particular one !11

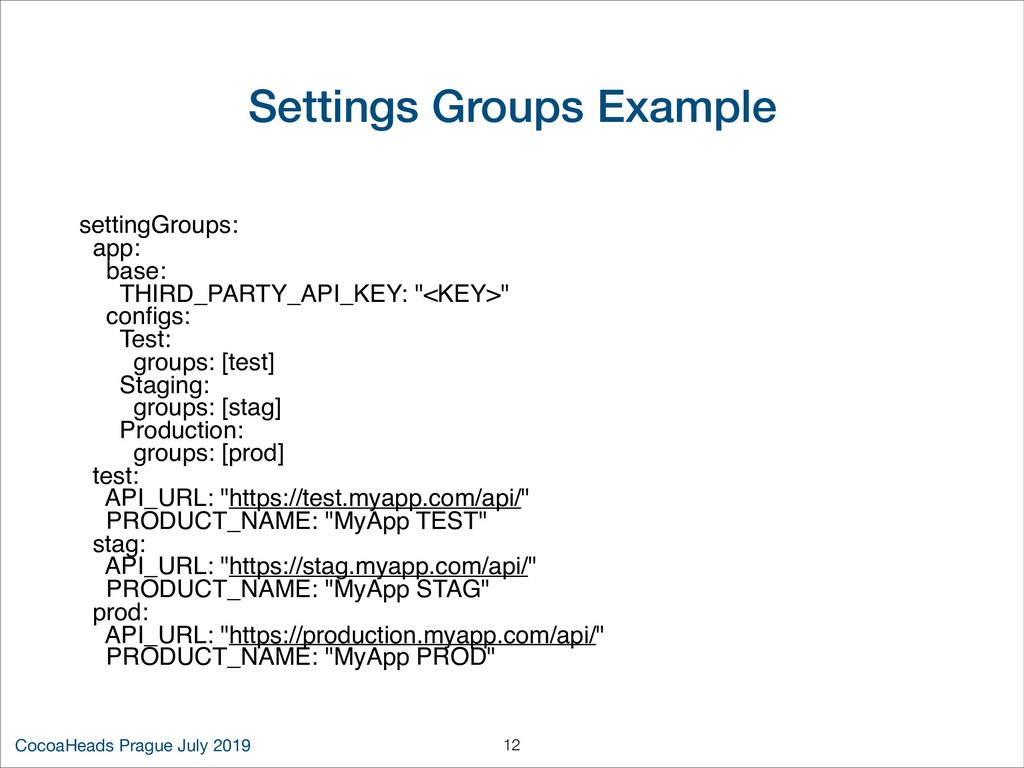

12. CocoaHeads Prague July 2019 Settings Groups Example settingGroups: app: base: THIRD_PARTY_API_KEY: "<KEY>" configs: Test: groups: [test] Staging: groups: [stag] Production: groups: [prod] test: API_URL: "https://test.myapp.com/api/" PRODUCT_NAME: "MyApp TEST" stag: API_URL: "https://stag.myapp.com/api/" PRODUCT_NAME: "MyApp STAG" prod: API_URL: "https://production.myapp.com/api/" PRODUCT_NAME: "MyApp PROD" !12

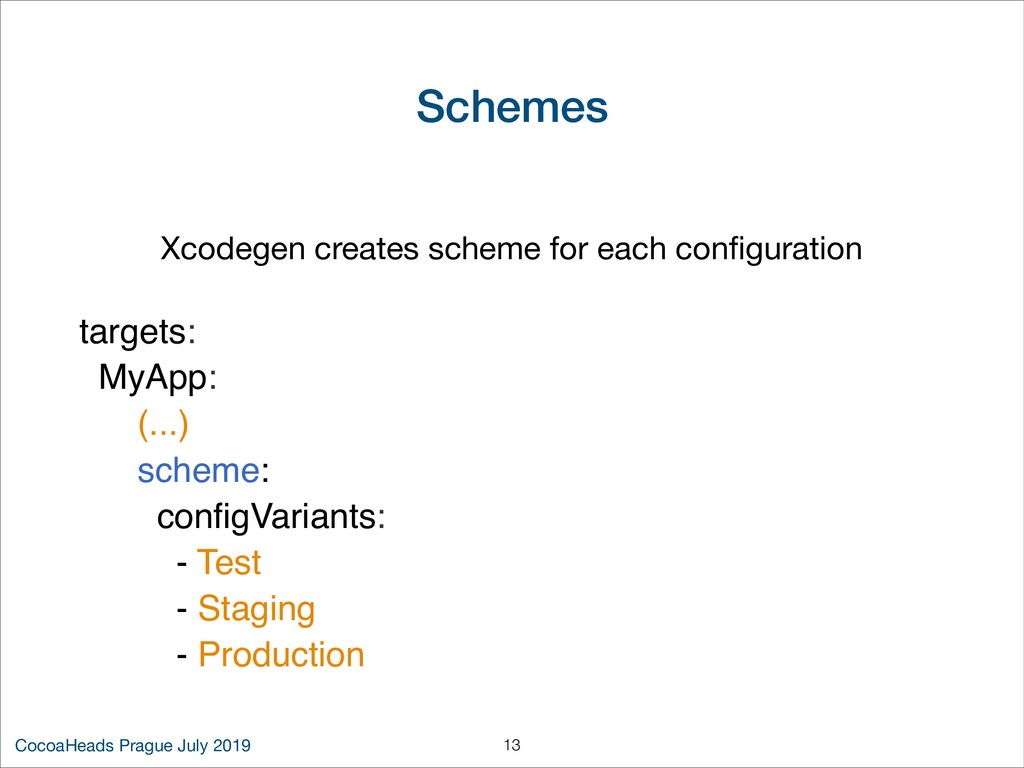

13. CocoaHeads Prague July 2019 Schemes Xcodegen creates scheme for each configuration targets: MyApp: (...) scheme: configVariants: - Test - Staging - Production !13

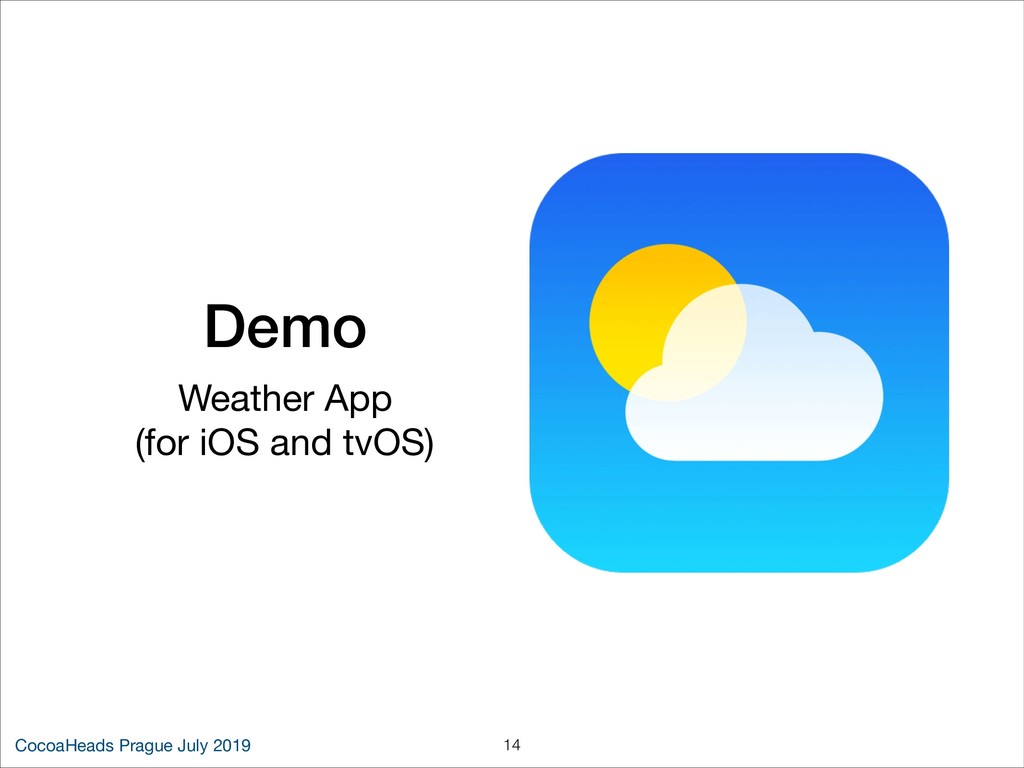

14. CocoaHeads Prague July 2019 Demo Weather App (for iOS and tvOS) !14
15. CocoaHeads Prague July 2019 Demo Weather App (for iOS and tvOS) [CZ, US, UK] !15

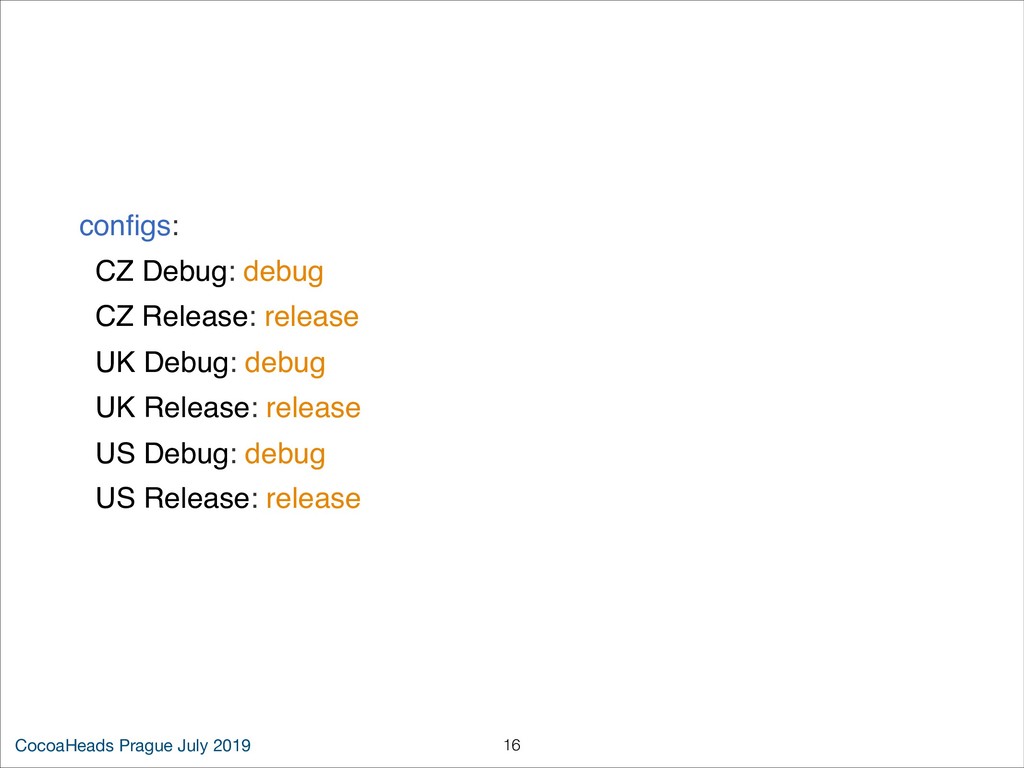

16. CocoaHeads Prague July 2019 configs: CZ Debug: debug CZ Release: release UK Debug: debug UK Release: release US Debug: debug US Release: release !16

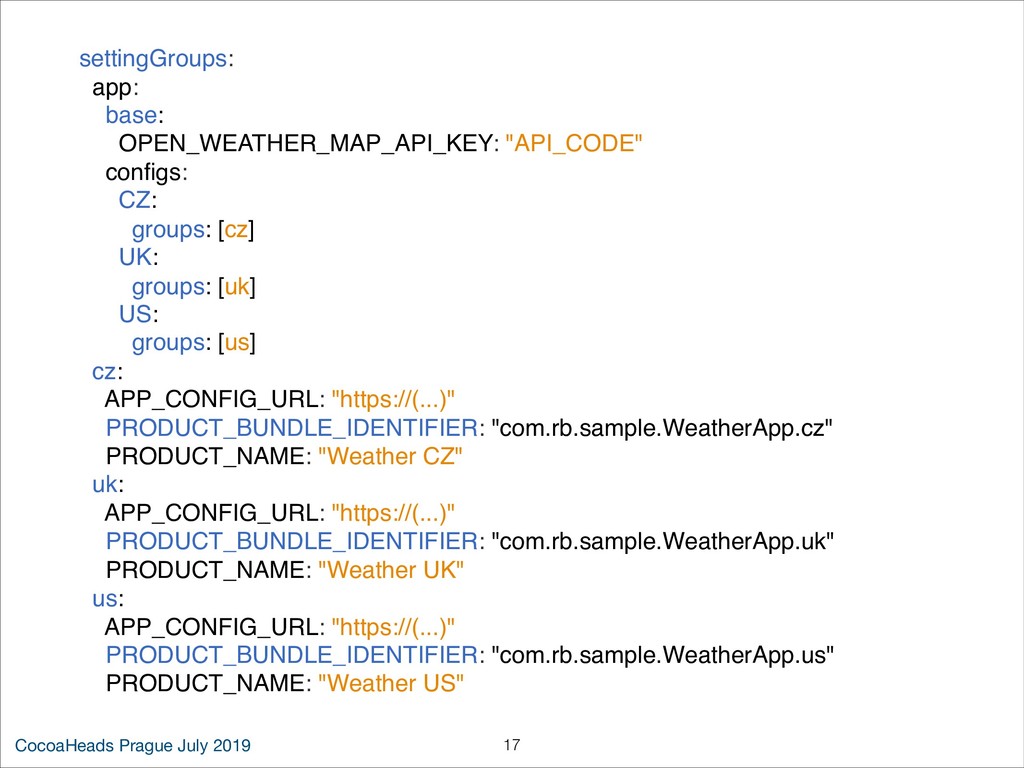

17. CocoaHeads Prague July 2019 settingGroups: app: base: OPEN_WEATHER_MAP_API_KEY: "API_CODE" configs: CZ: groups: [cz] UK: groups: [uk] US: groups: [us] cz: APP_CONFIG_URL: "https://(...)" PRODUCT_BUNDLE_IDENTIFIER: "com.rb.sample.WeatherApp.cz" PRODUCT_NAME: "Weather CZ" uk: APP_CONFIG_URL: "https://(...)" PRODUCT_BUNDLE_IDENTIFIER: "com.rb.sample.WeatherApp.uk" PRODUCT_NAME: "Weather UK" us: APP_CONFIG_URL: "https://(...)" PRODUCT_BUNDLE_IDENTIFIER: "com.rb.sample.WeatherApp.us" PRODUCT_NAME: "Weather US" !17

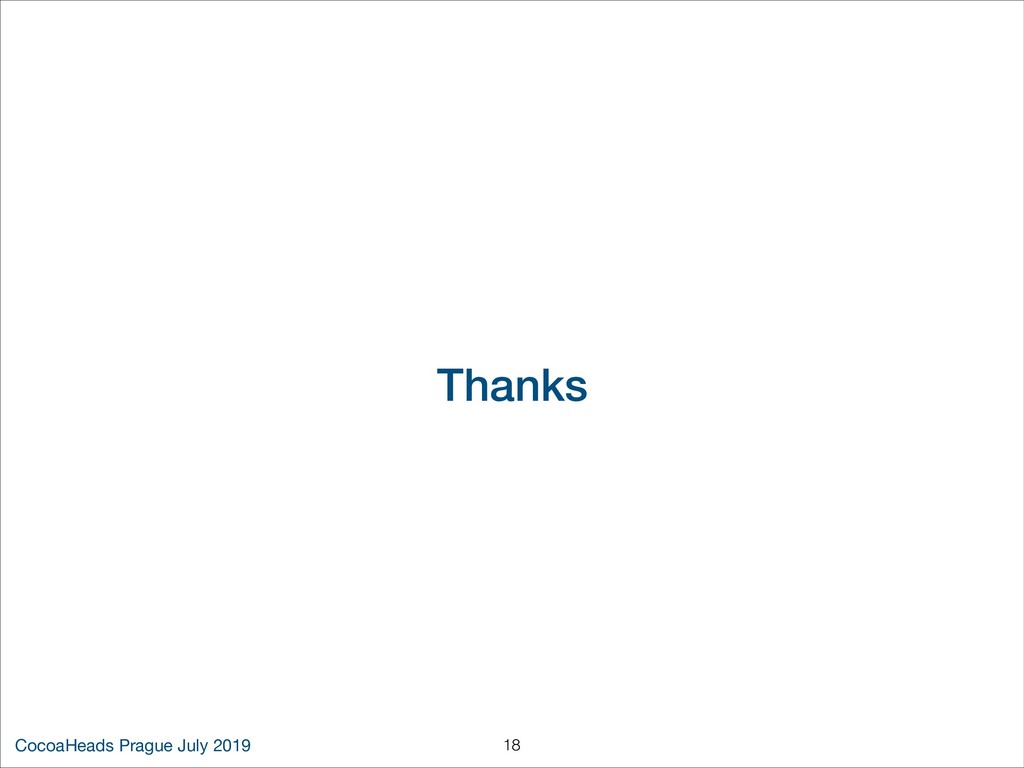

18. CocoaHeads Prague July 2019 Thanks !18
