Autoscaling Node.js on AWS

A talk on how we autoscaled a simple Node.js microservice (for event ingestion) on AWS. It hopefully shows that autoscaling isn't necessarily hard to do.

Transcript

1. Auto Scaling Node.js @rodpetrovic — LNUG Meetup — November 26th, 2014

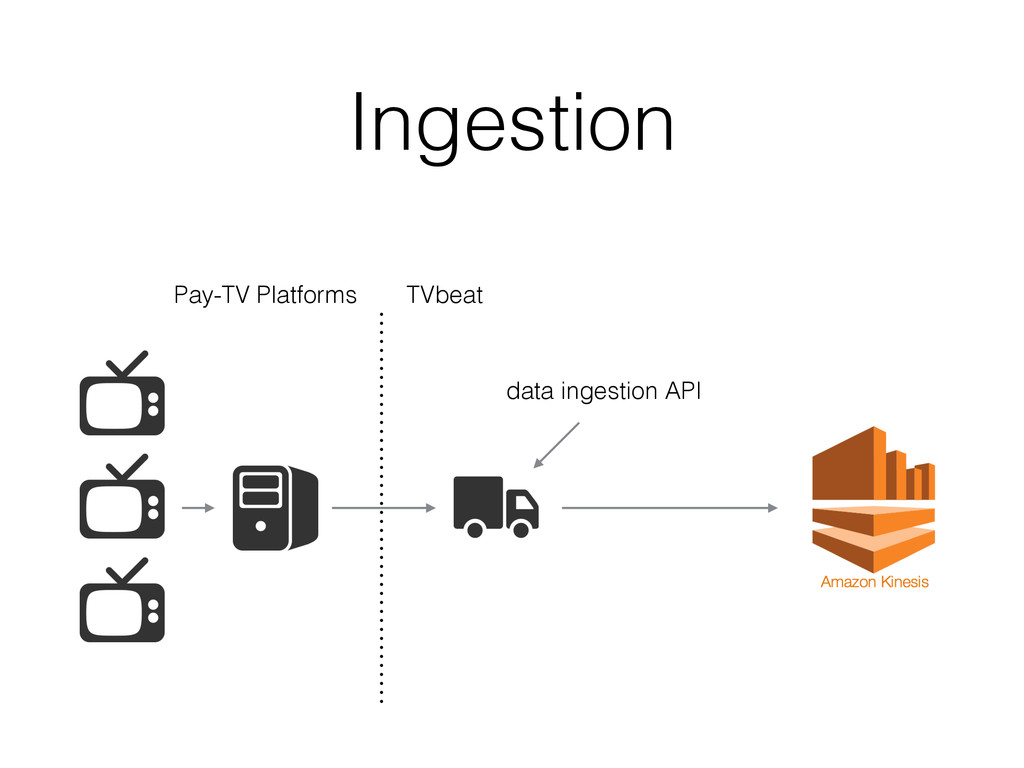

2. Ingestion TVbeat Pay-TV Platforms data ingestion API

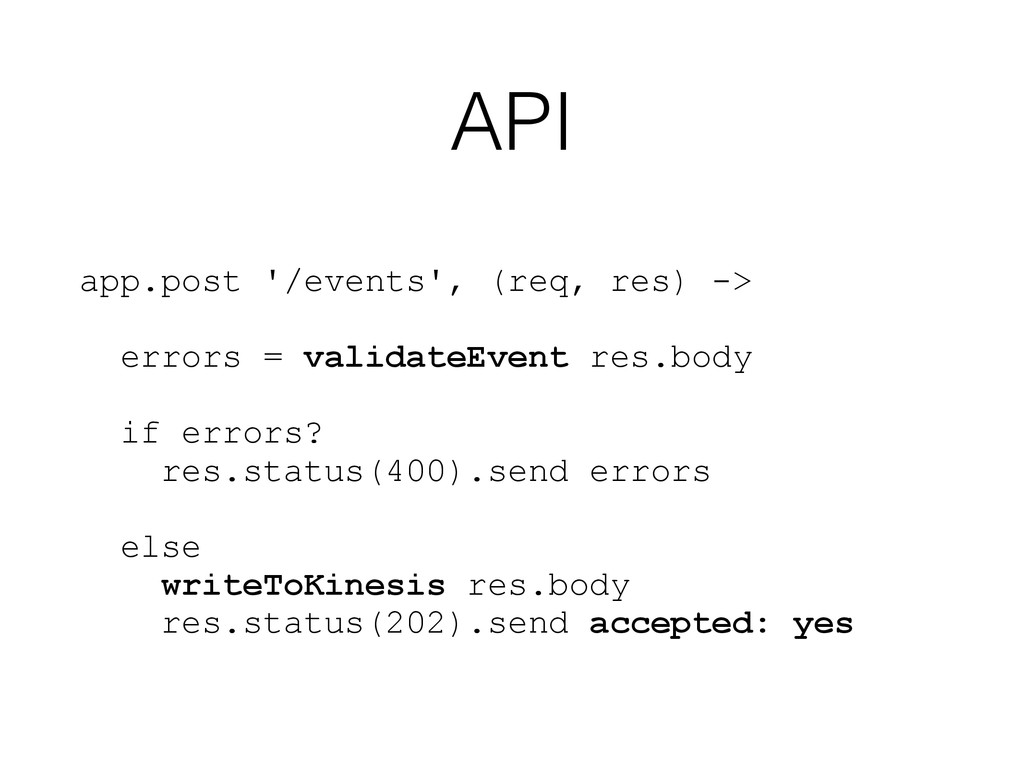

3. API app.post '/events', (req, res) ->

 errors = validateEvent res.body

 if errors?
 res.status(400).send errors

 else
 writeToKinesis res.body
 res.status(202).send accepted: yes

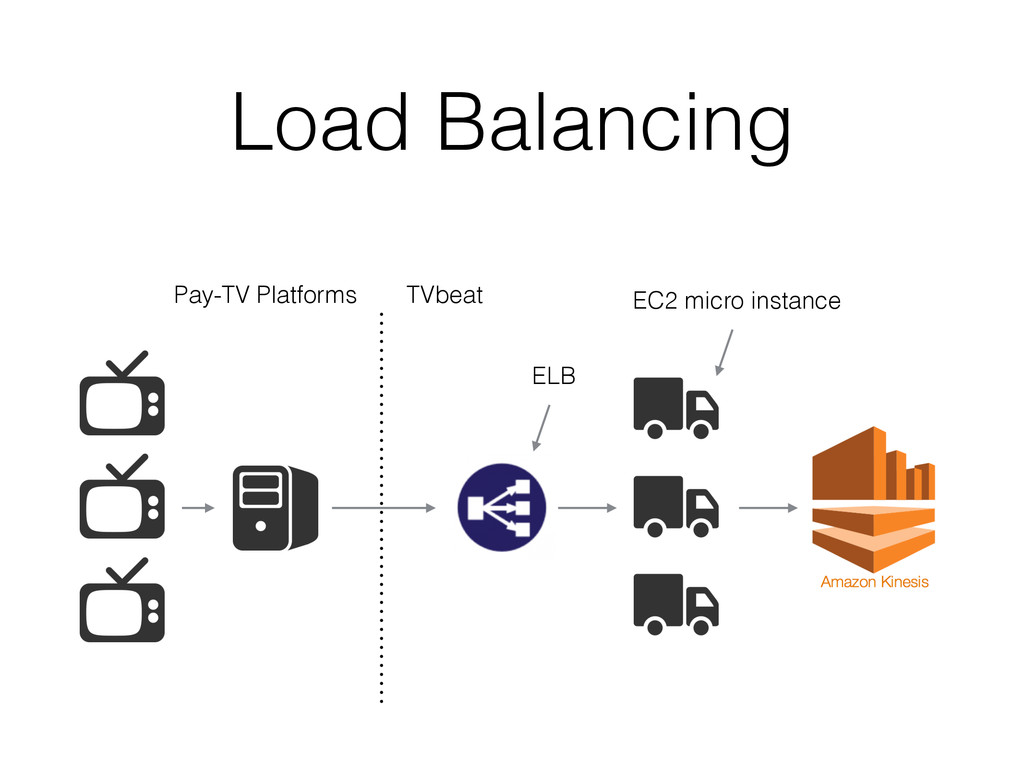

4. Load Balancing TVbeat Pay-TV Platforms ELB EC2 micro instance

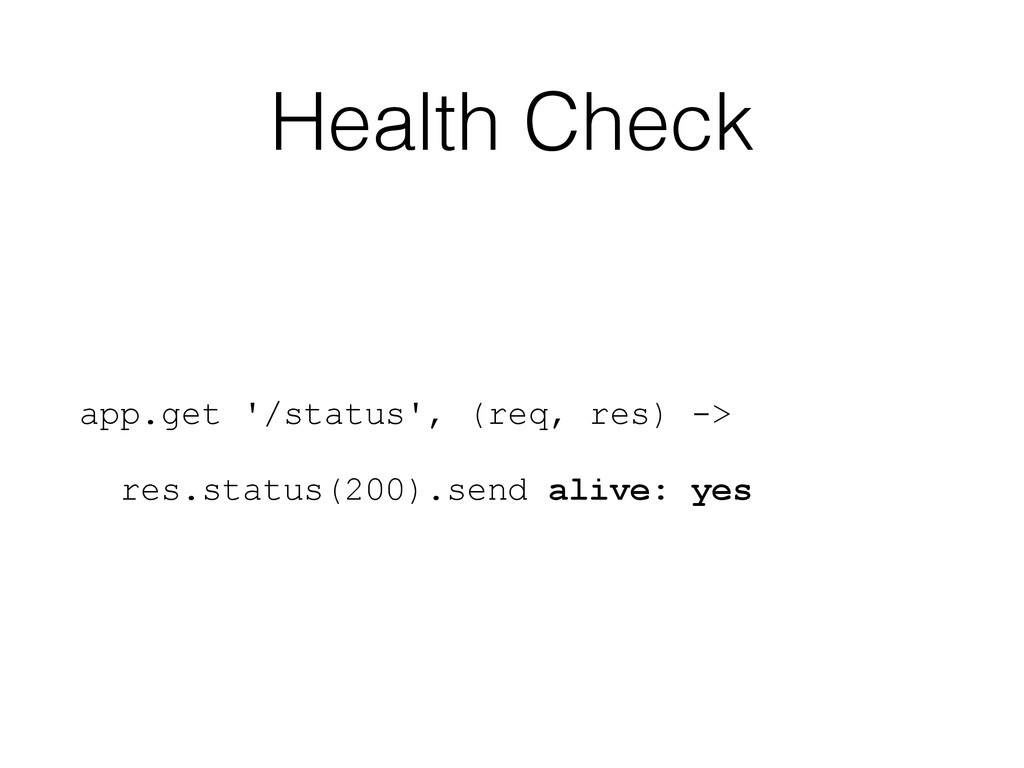

5. Health Check app.get '/status', (req, res) ->

 res.status(200).send alive: yes

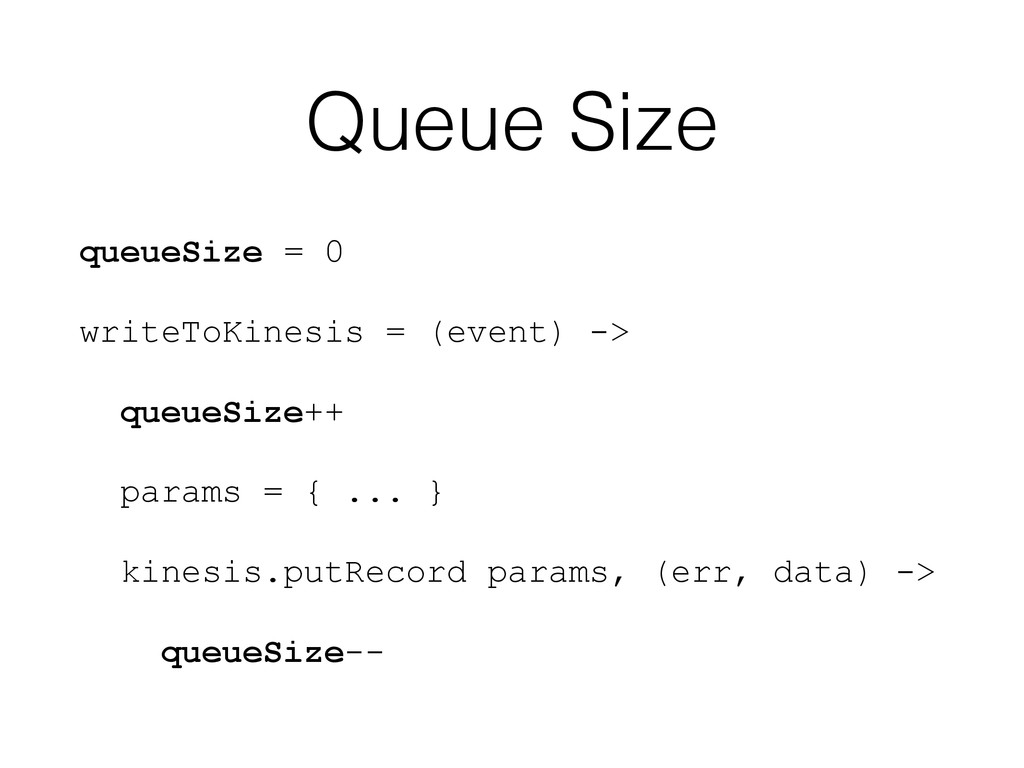

6. Queue Size queueSize = 0 writeToKinesis = (event) -> queueSize++ params = { ... } kinesis.putRecord params, (err, data) -> queueSize--

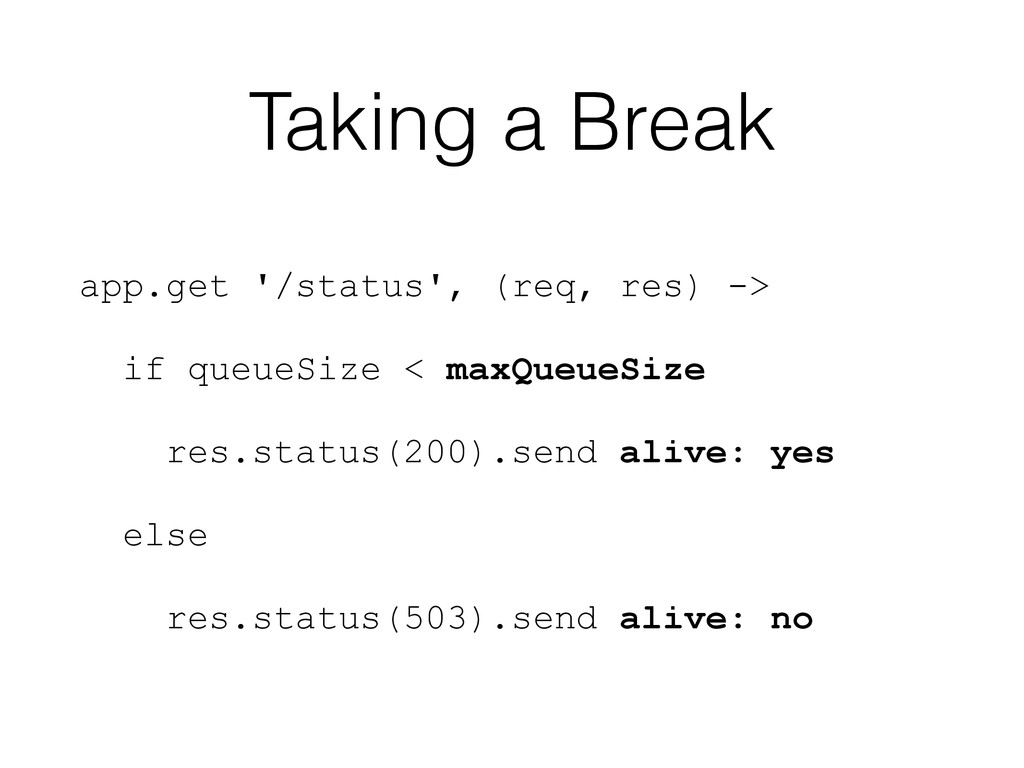

7. Taking a Break app.get '/status', (req, res) -> if queueSize < maxQueueSize res.status(200).send alive: yes else res.status(503).send alive: no

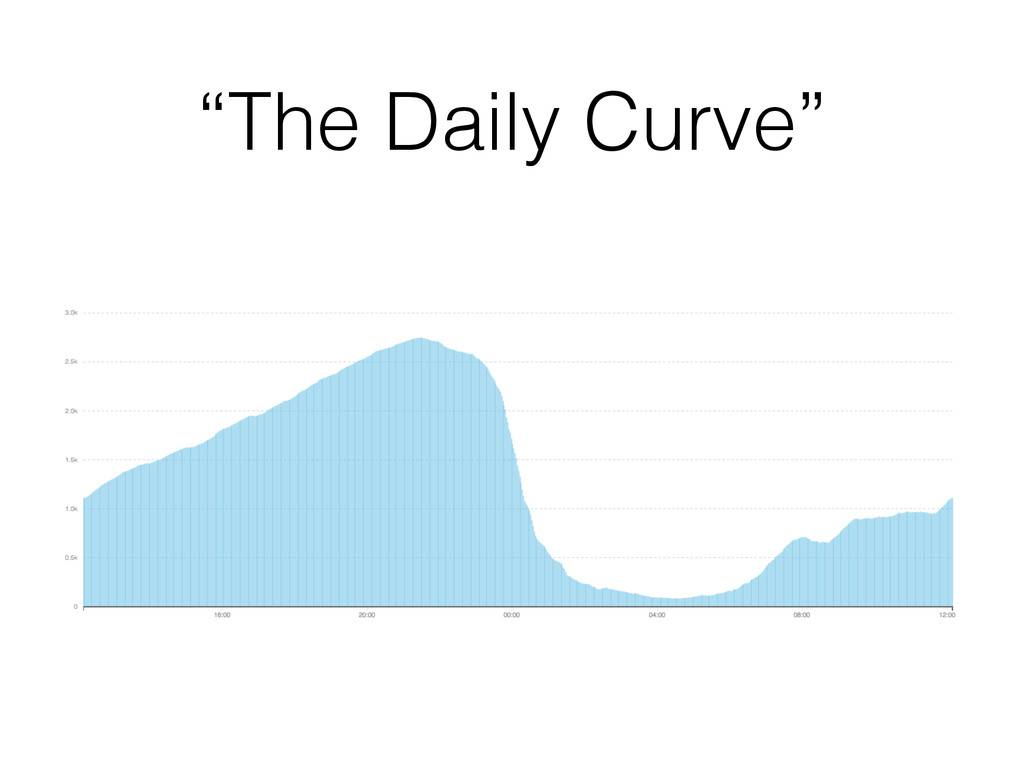

8. “The Daily Curve”

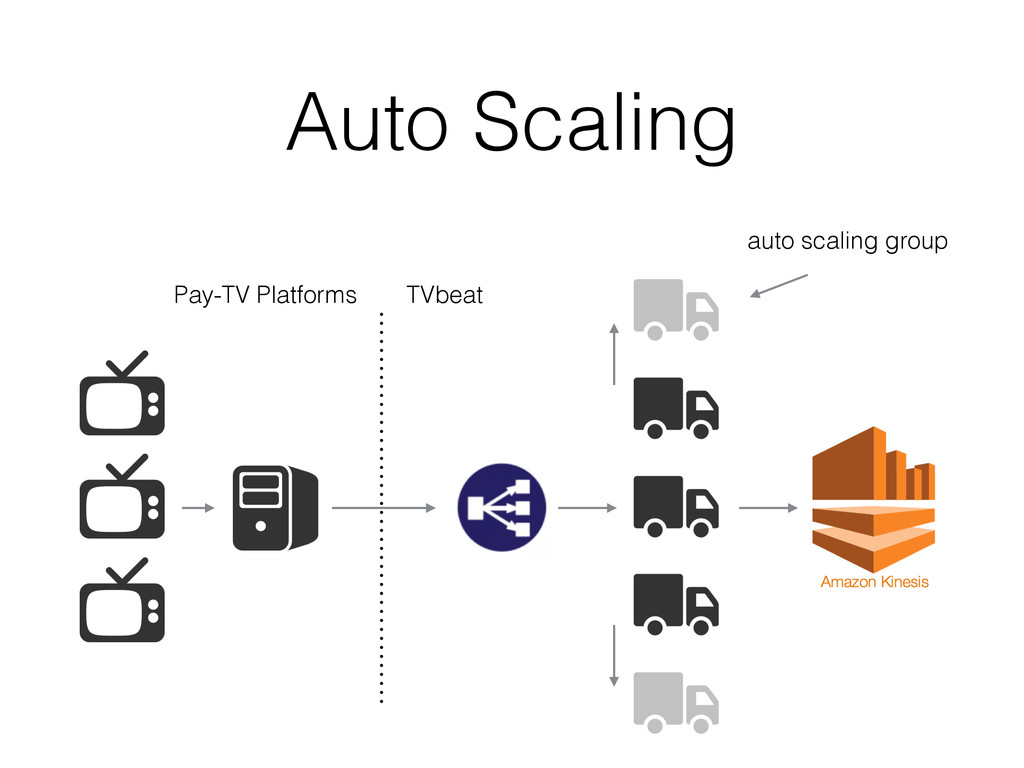

9. Auto Scaling TVbeat Pay-TV Platforms auto scaling group

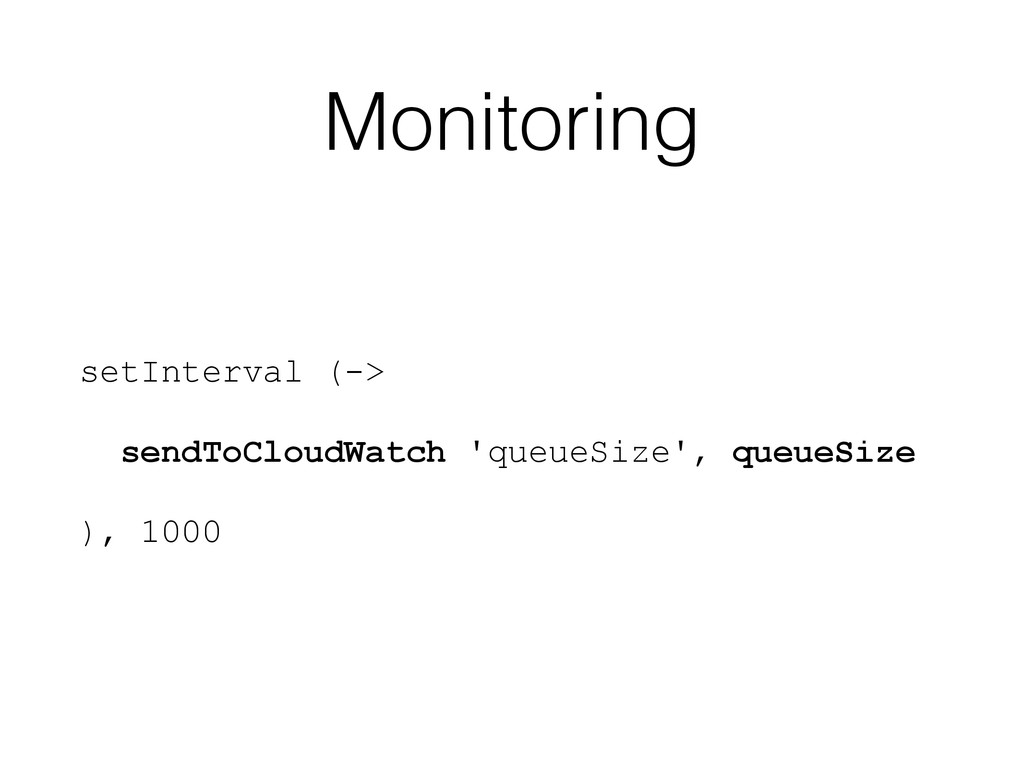

10. Monitoring setInterval (-> sendToCloudWatch 'queueSize', queueSize ), 1000

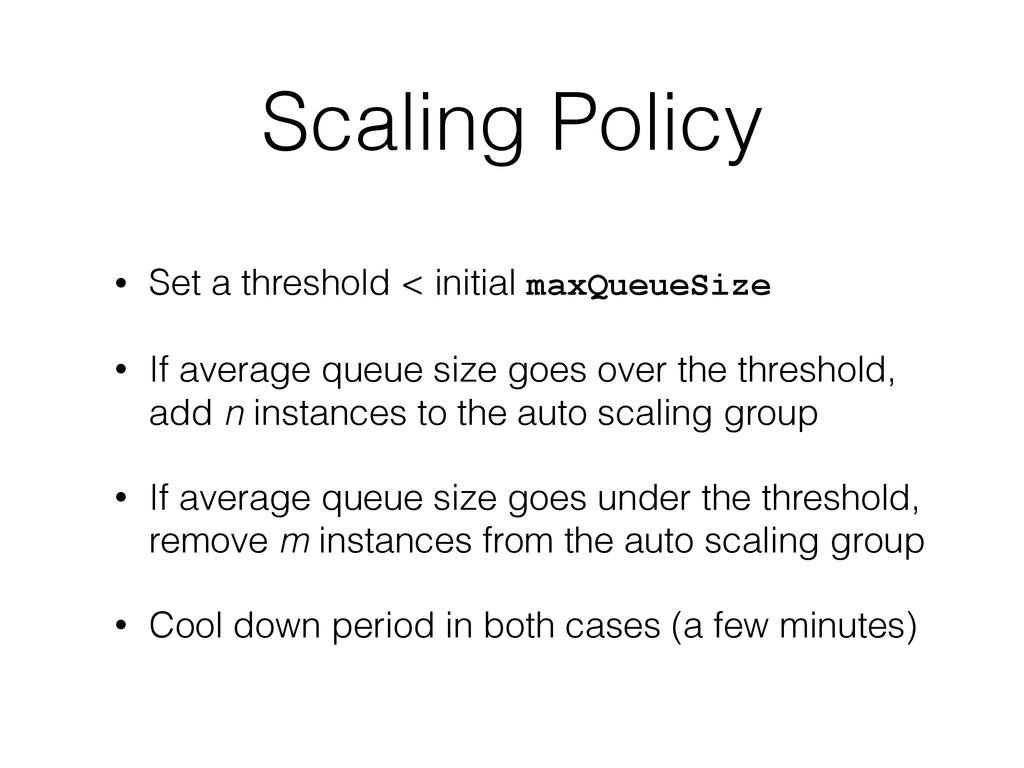

11. Scaling Policy • Set a threshold < initial maxQueueSize • If average queue size goes over the threshold, add n instances to the auto scaling group • If average queue size goes under the threshold, remove m instances from the auto scaling group • Cool down period in both cases (a few minutes)

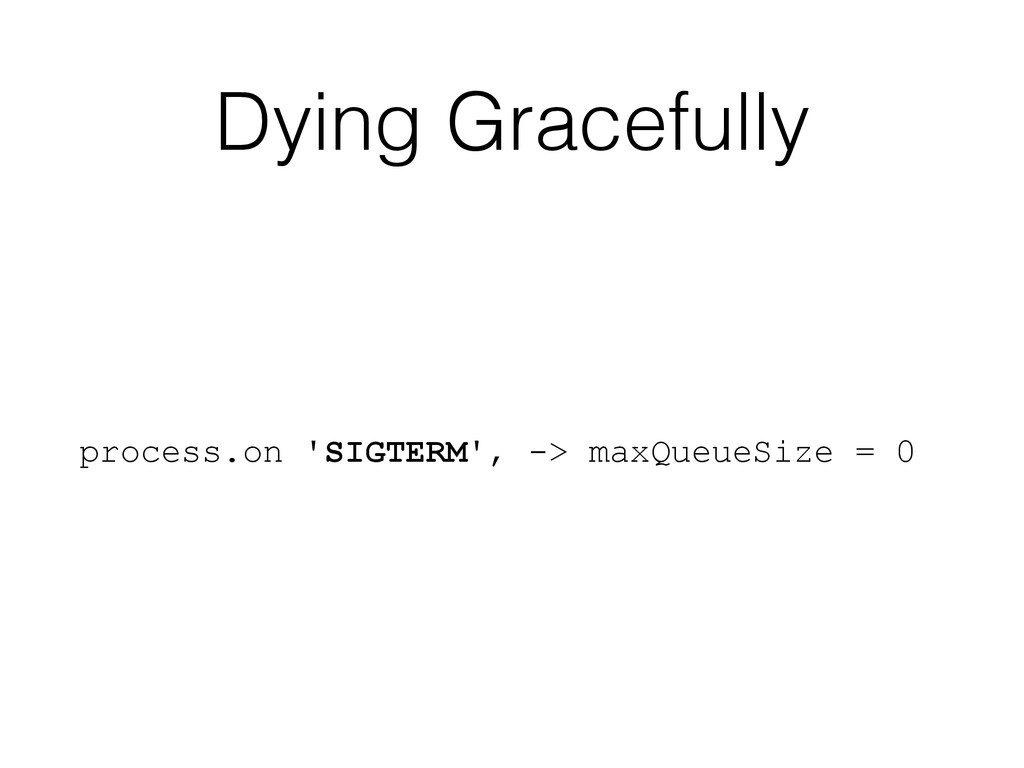

12. Dying Gracefully process.on 'SIGTERM', -> maxQueueSize = 0

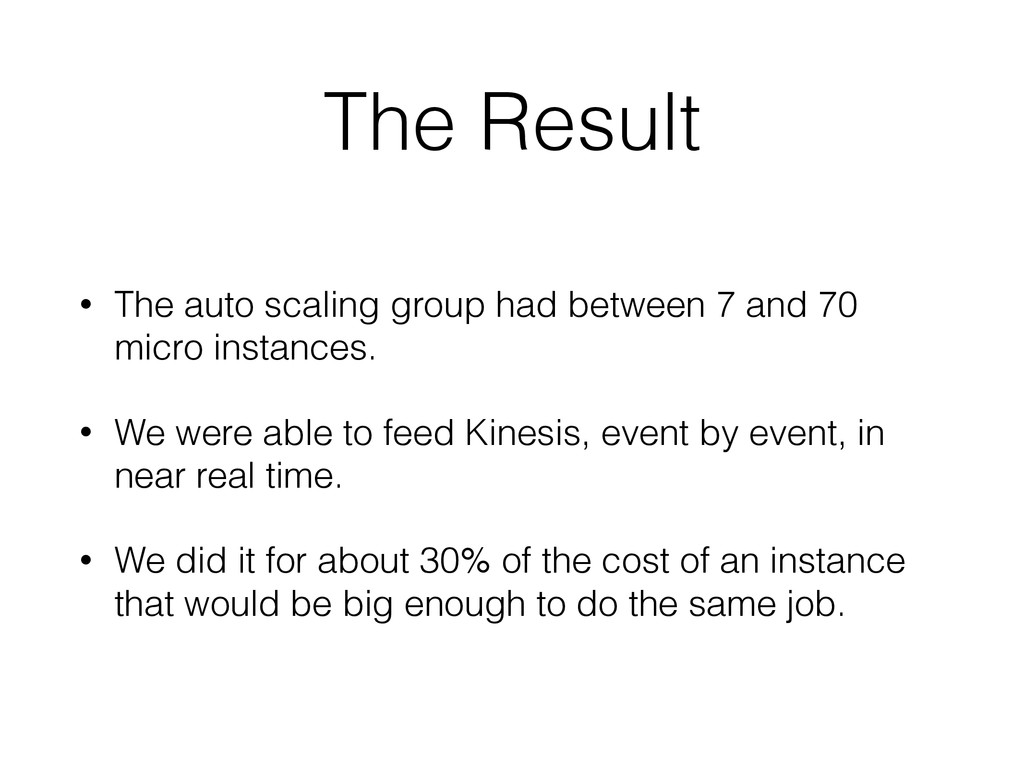

13. The Result • The auto scaling group had between 7 and 70 micro instances. • We were able to feed Kinesis, event by event, in near real time. • We did it for about 30% of the cost of an instance that would be big enough to do the same job.
14. Thanks @extraordinaire for helping me with this
15. Thank You
