1. Motion Layout Create simple animations Speaker: Oleksandr Sandul
2. Why?

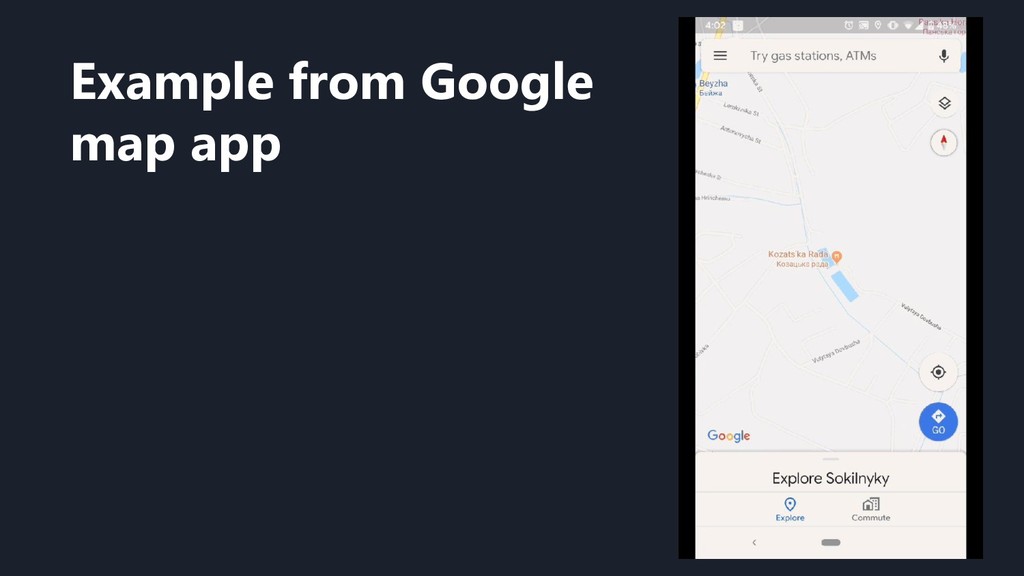

3. Example from Google map app

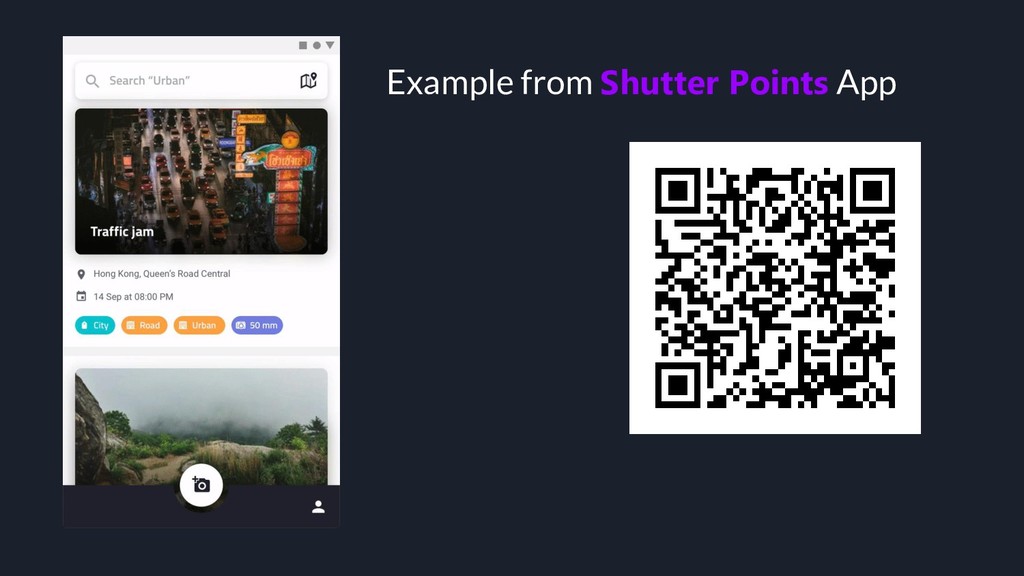

4. Example from Shutter Points App
5. Main concepts

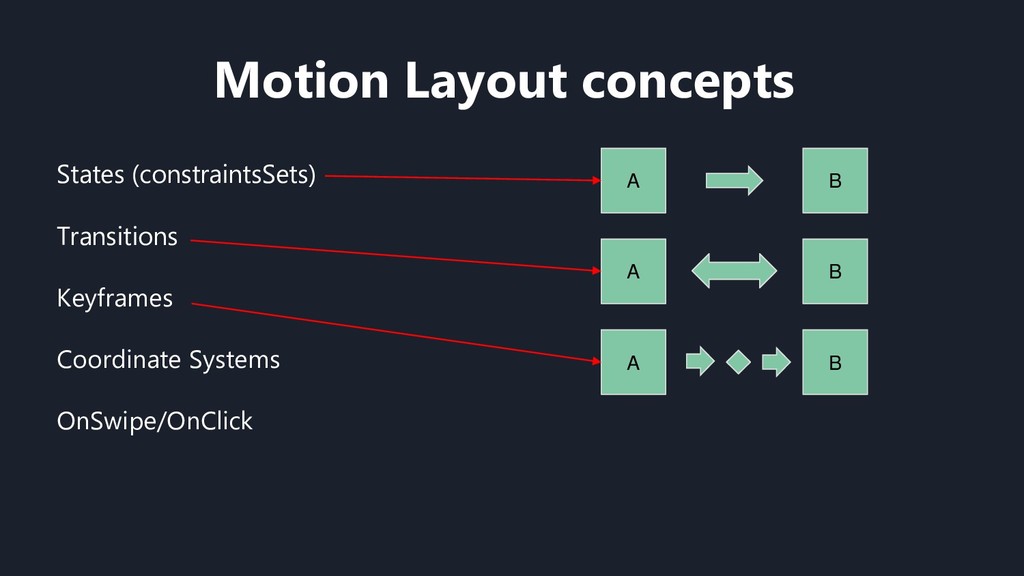

6. Motion Layout concepts States (constraintsSets) Transitions Keyframes Coordinate Systems OnSwipe/OnClick A B A B B A

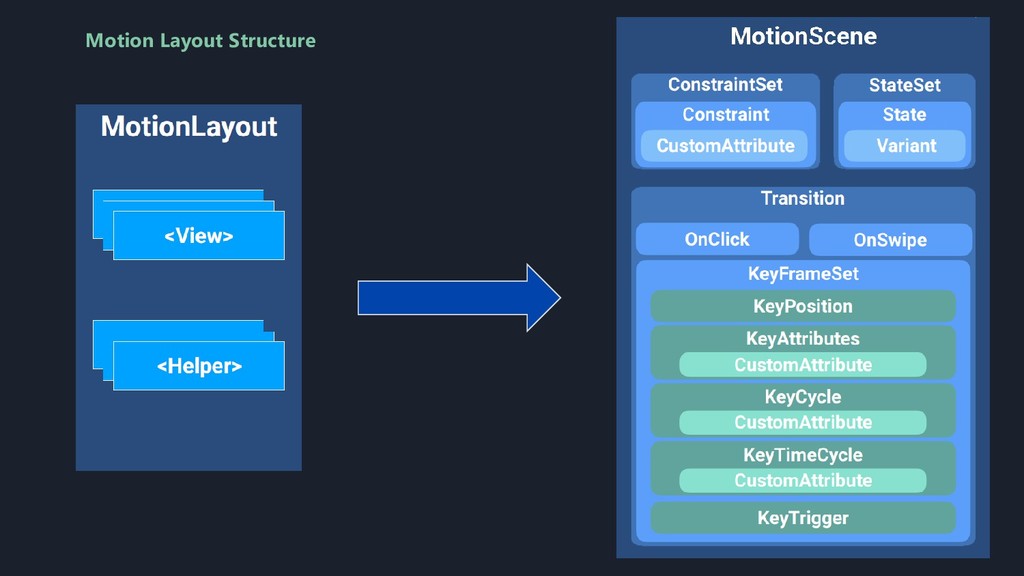

7. Motion Layout Structure
8. Add Motion Layout in project

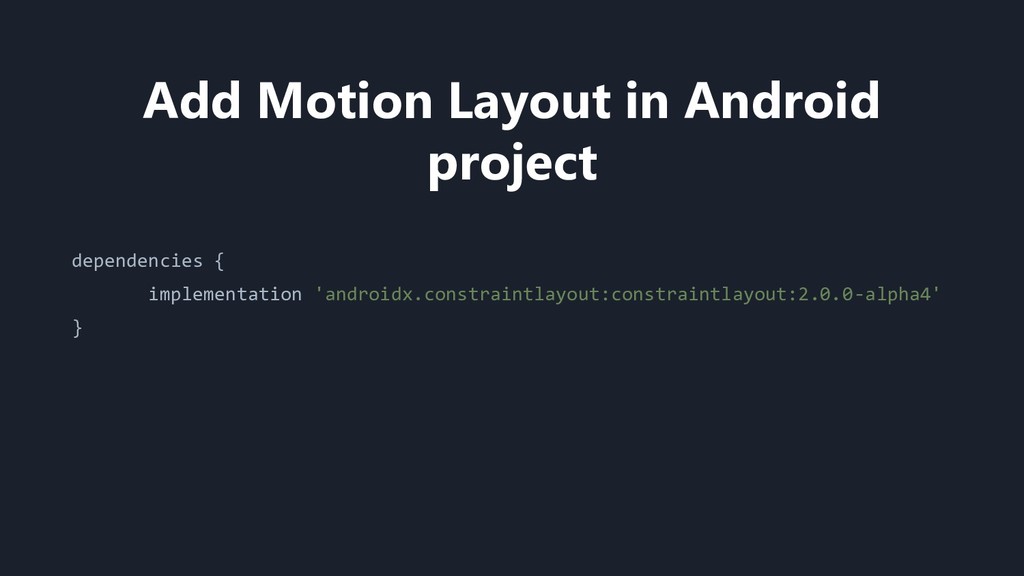

9. Add Motion Layout in Android project dependencies { implementation 'androidx.constraintlayout:constraintlayout:2.0.0-alpha4' }
10. Add in Fragment or Activity XML file

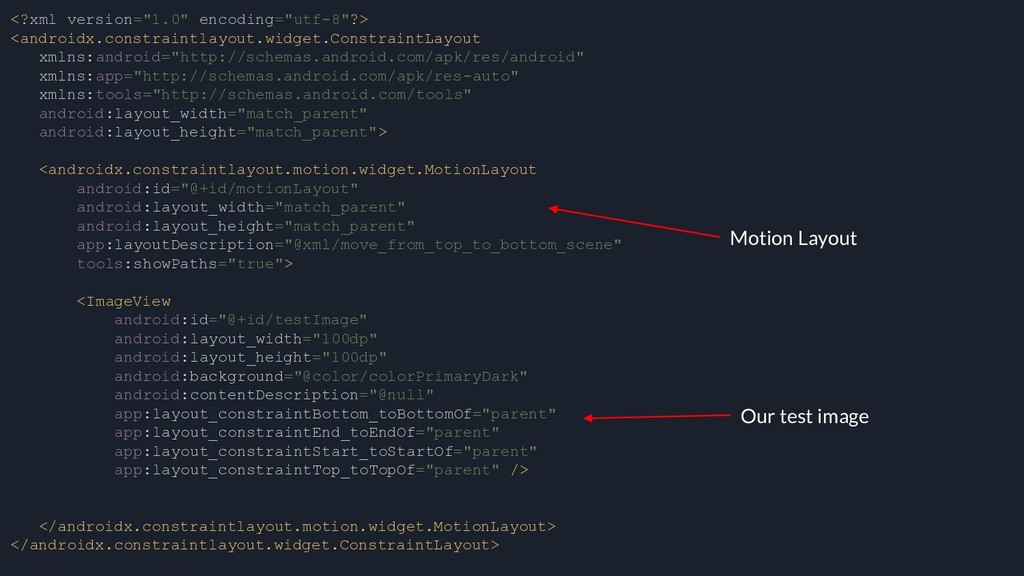

11. <?xml version="1.0" encoding="utf-8"?> <androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent"> <androidx.constraintlayout.motion.widget.MotionLayout android:id="@+id/motionLayout" android:layout_width="match_parent" android:layout_height="match_parent" app:layoutDescription="@xml/move_from_top_to_bottom_scene" tools:showPaths="true"> <ImageView android:id="@+id/testImage" android:layout_width="100dp" android:layout_height="100dp" android:background="@color/colorPrimaryDark" android:contentDescription="@null" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toTopOf="parent" /> </androidx.constraintlayout.motion.widget.MotionLayout> </androidx.constraintlayout.widget.ConstraintLayout> Our test image Motion Layout

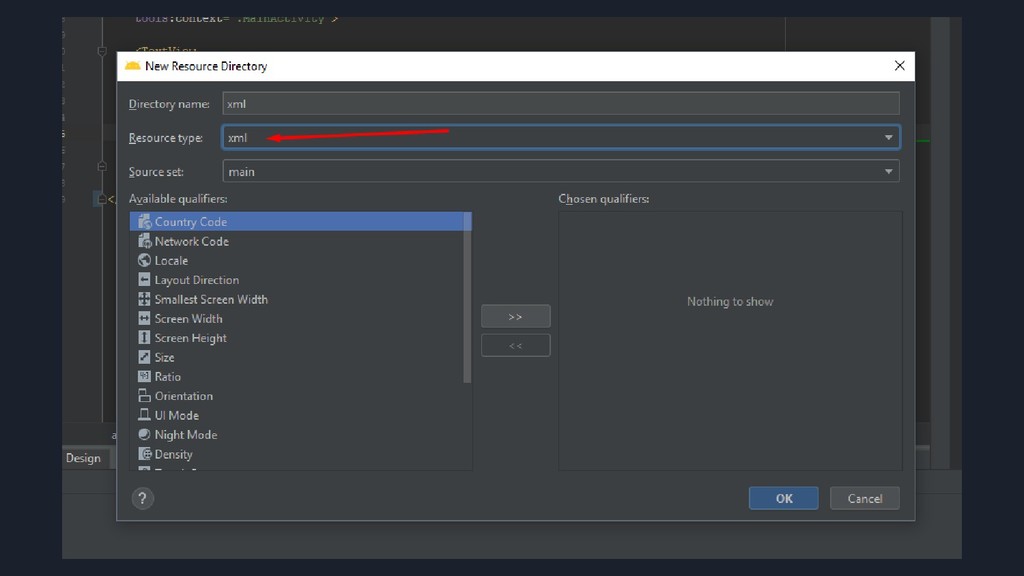

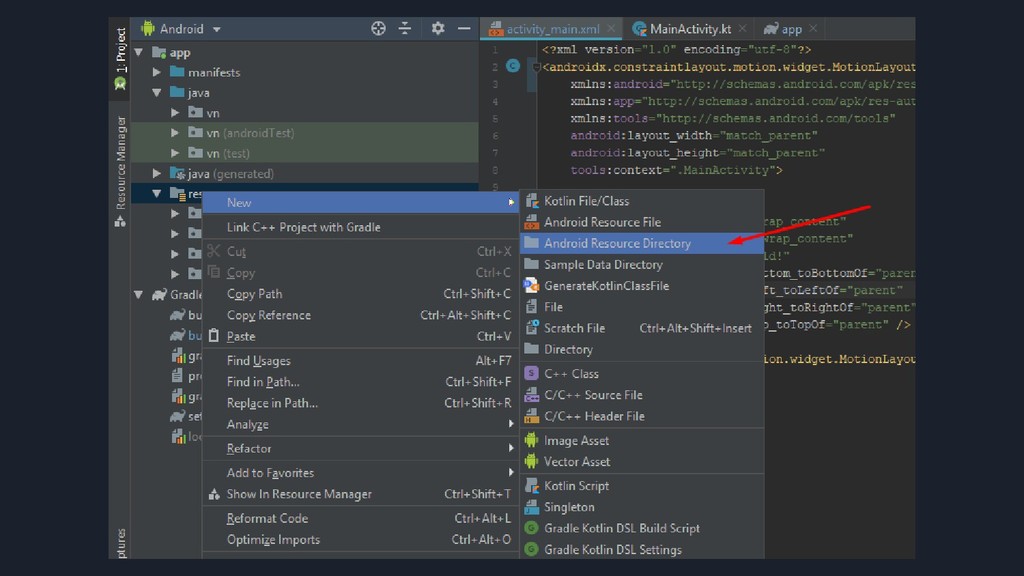

12. Create scene file

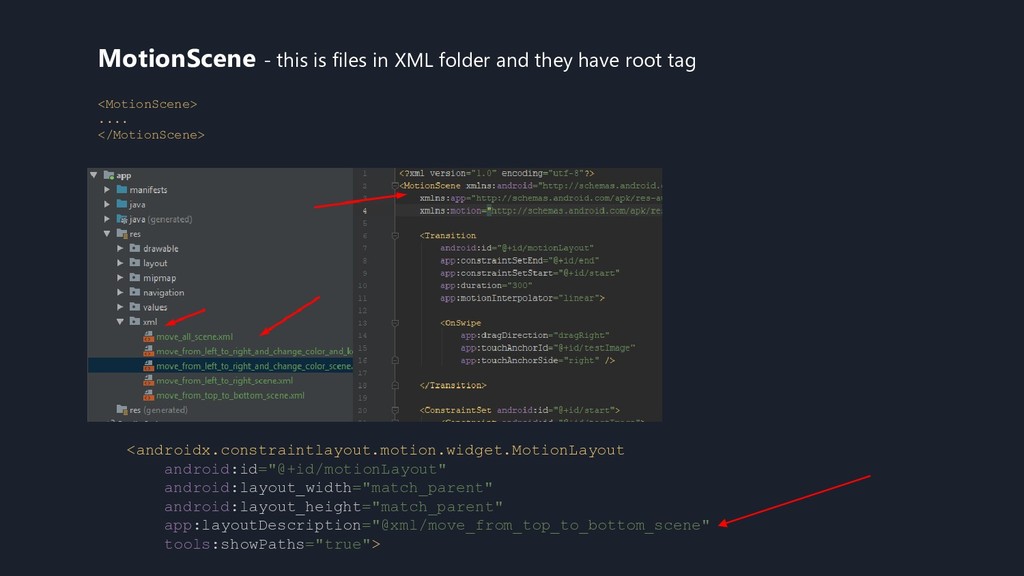

15. MotionScene - this is files in XML folder and they have root tag <MotionScene> .... </MotionScene> <androidx.constraintlayout.motion.widget.MotionLayout android:id="@+id/motionLayout" android:layout_width="match_parent" android:layout_height="match_parent" app:layoutDescription="@xml/move_from_top_to_bottom_scene" tools:showPaths="true">
16. MotionScene

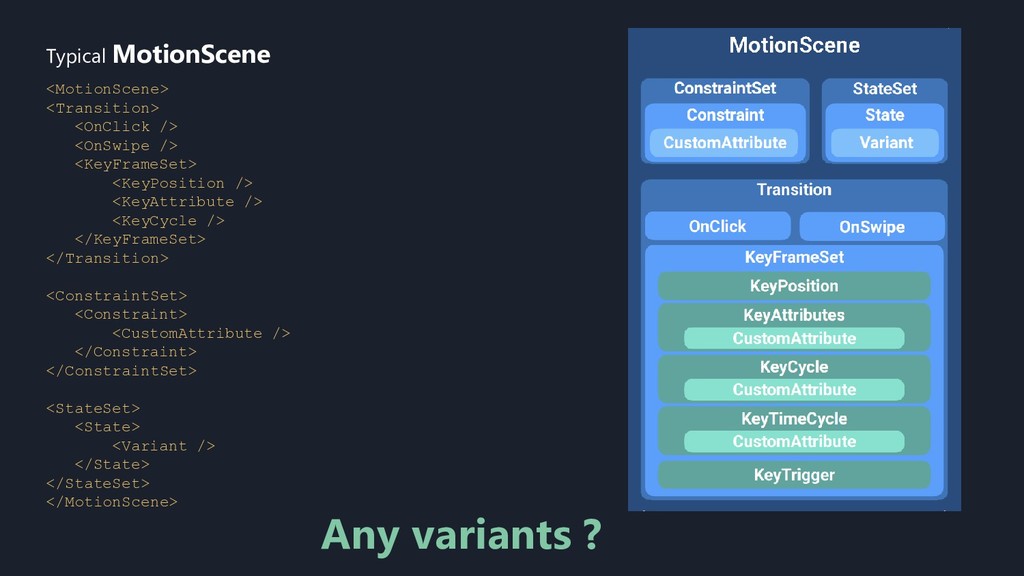

17. <MotionScene> <Transition> <OnClick /> <OnSwipe /> <KeyFrameSet> <KeyPosition /> <KeyAttribute /> <KeyCycle /> </KeyFrameSet> </Transition> <ConstraintSet> <Constraint> <CustomAttribute /> </Constraint> </ConstraintSet> <StateSet> <State> <Variant /> </State> </StateSet> </MotionScene> Typical MotionScene Any variants ?
18. First example

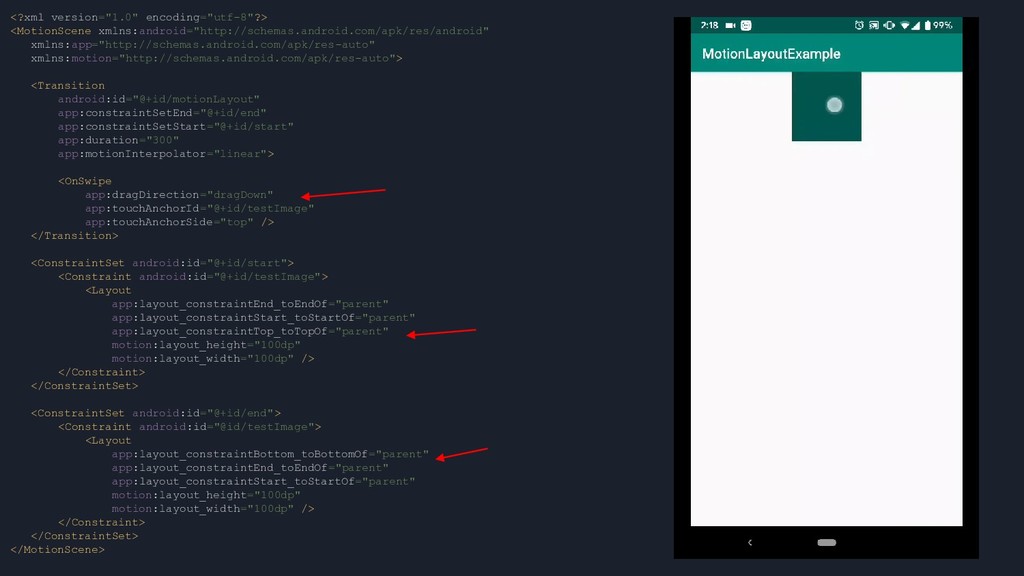

19. <?xml version="1.0" encoding="utf-8"?> <MotionScene xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:motion="http://schemas.android.com/apk/res-auto"> <Transition android:id="@+id/motionLayout" app:constraintSetEnd="@+id/end" app:constraintSetStart="@+id/start" app:duration="300" app:motionInterpolator="linear"> <OnSwipe app:dragDirection="dragDown" app:touchAnchorId="@+id/testImage" app:touchAnchorSide="top" /> </Transition> <ConstraintSet android:id="@+id/start"> <Constraint android:id="@+id/testImage"> <Layout app:layout_constraintEnd_toEndOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toTopOf="parent" motion:layout_height="100dp" motion:layout_width="100dp" /> </Constraint> </ConstraintSet> <ConstraintSet android:id="@+id/end"> <Constraint android:id="@id/testImage"> <Layout app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintStart_toStartOf="parent" motion:layout_height="100dp" motion:layout_width="100dp" /> </Constraint> </ConstraintSet> </MotionScene>
20. Second example

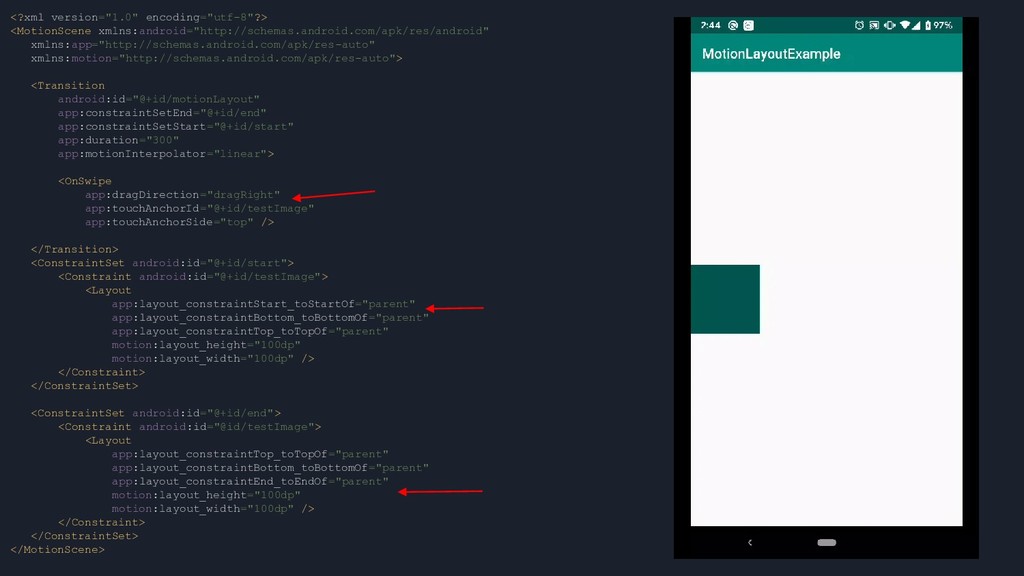

21. <?xml version="1.0" encoding="utf-8"?> <MotionScene xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:motion="http://schemas.android.com/apk/res-auto"> <Transition android:id="@+id/motionLayout" app:constraintSetEnd="@+id/end" app:constraintSetStart="@+id/start" app:duration="300" app:motionInterpolator="linear"> <OnSwipe app:dragDirection="dragRight" app:touchAnchorId="@+id/testImage" app:touchAnchorSide="top" /> </Transition> <ConstraintSet android:id="@+id/start"> <Constraint android:id="@+id/testImage"> <Layout app:layout_constraintStart_toStartOf="parent" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintTop_toTopOf="parent" motion:layout_height="100dp" motion:layout_width="100dp" /> </Constraint> </ConstraintSet> <ConstraintSet android:id="@+id/end"> <Constraint android:id="@id/testImage"> <Layout app:layout_constraintTop_toTopOf="parent" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent" motion:layout_height="100dp" motion:layout_width="100dp" /> </Constraint> </ConstraintSet> </MotionScene>

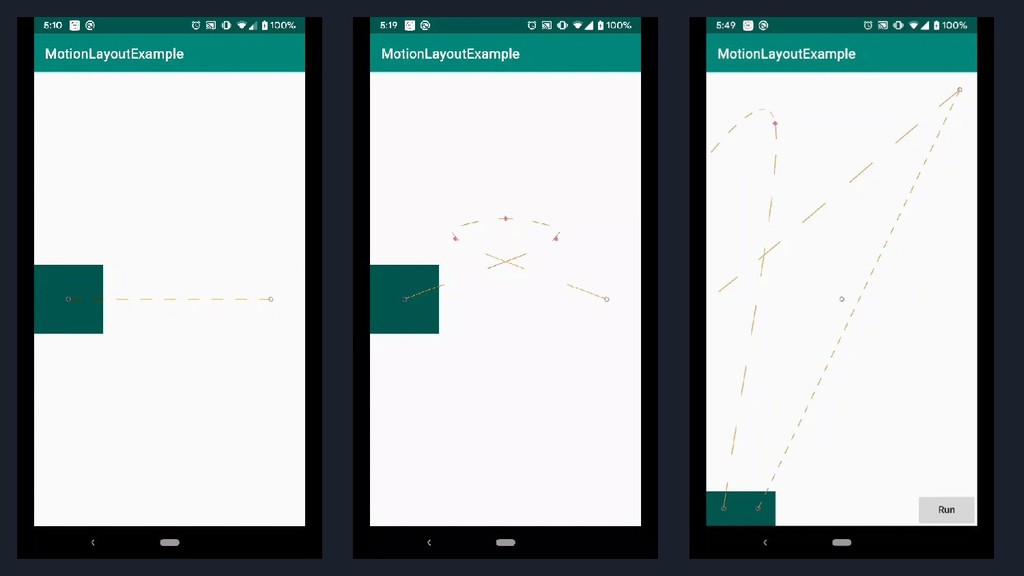

22. Give me more....

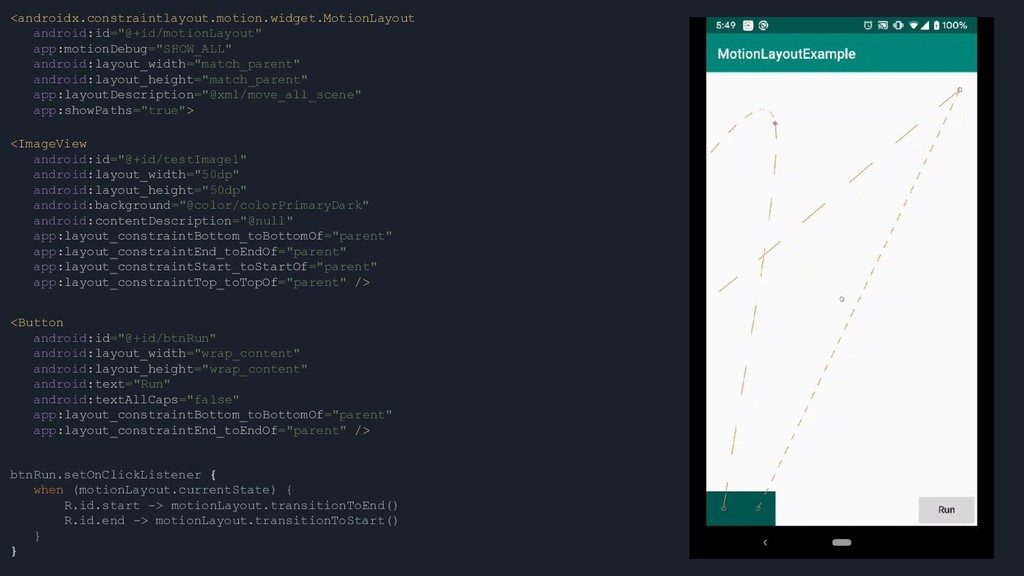

24. Third example
25. <androidx.constraintlayout.motion.widget.MotionLayout android:id="@+id/motionLayout" app:motionDebug="SHOW_ALL" android:layout_width="match_parent" android:layout_height="match_parent" app:layoutDescription="@xml/move_all_scene" app:showPaths="true"> <ImageView android:id="@+id/testImage1" android:layout_width="50dp" android:layout_height="50dp" android:background="@color/colorPrimaryDark" android:contentDescription="@null" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toTopOf="parent" /> <Button android:id="@+id/btnRun" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="Run" android:textAllCaps="false" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent" /> btnRun.setOnClickListener { when (motionLayout.currentState) { R.id.start -> motionLayout.transitionToEnd() R.id.end -> motionLayout.transitionToStart() } }

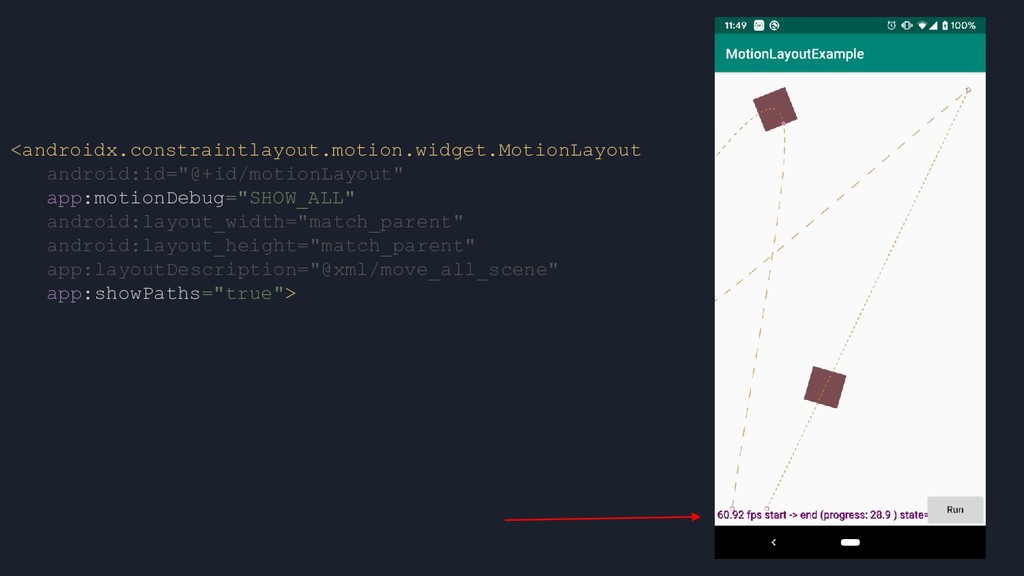

26. Debug Motion layout example
27. <androidx.constraintlayout.motion.widget.MotionLayout android:id="@+id/motionLayout" app:motionDebug="SHOW_ALL" android:layout_width="match_parent" android:layout_height="match_parent" app:layoutDescription="@xml/move_all_scene" app:showPaths="true">
28. Deep dive into MotionScene

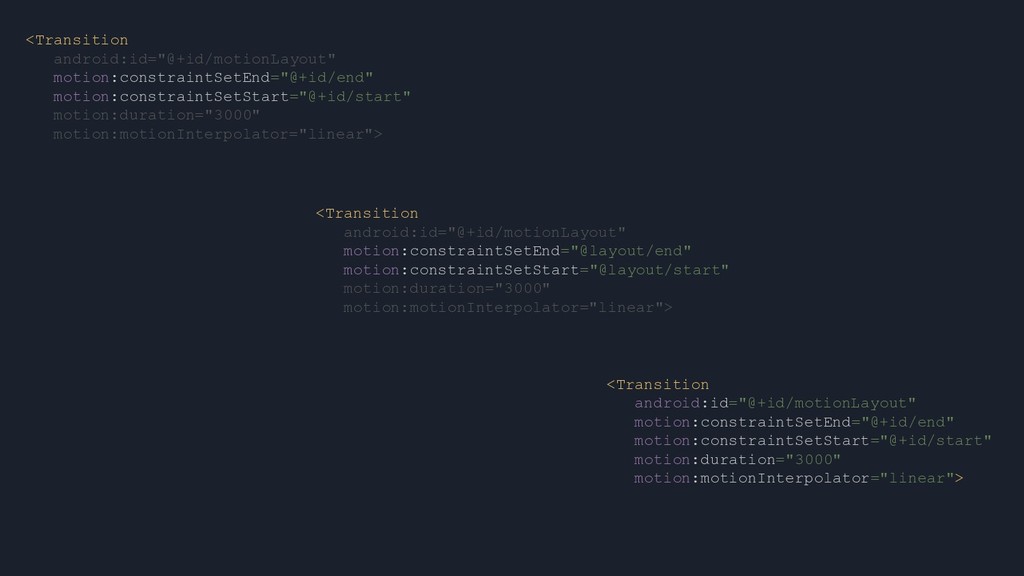

29. <Transition android:id="@+id/motionLayout" motion:constraintSetEnd="@+id/end" motion:constraintSetStart="@+id/start" motion:duration="3000" motion:motionInterpolator="linear"> <Transition android:id="@+id/motionLayout" motion:constraintSetEnd="@layout/end" motion:constraintSetStart="@layout/start" motion:duration="3000" motion:motionInterpolator="linear"> <Transition android:id="@+id/motionLayout" motion:constraintSetEnd="@+id/end" motion:constraintSetStart="@+id/start" motion:duration="3000" motion:motionInterpolator="linear">

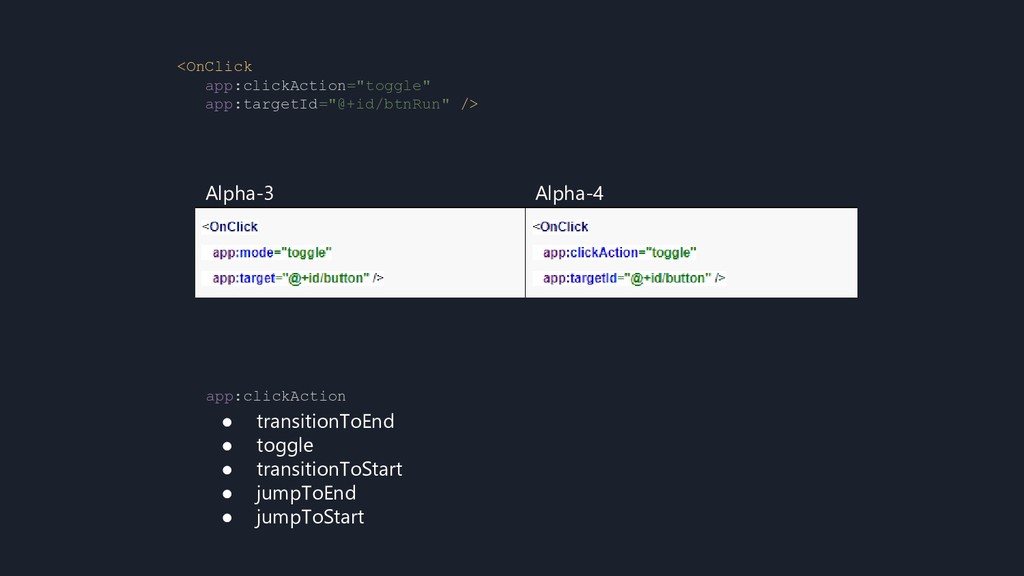

30. <OnClick app:clickAction="toggle" app:targetId="@+id/btnRun" /> Alpha-3 Alpha-4 • transitionToEnd • toggle • transitionToStart • jumpToEnd • jumpToStart app:clickAction

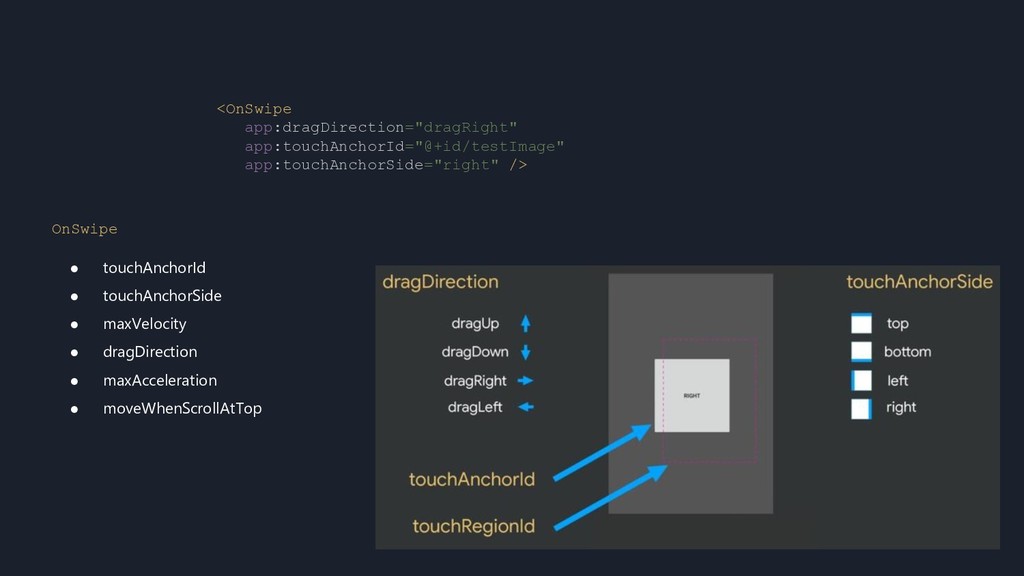

31. <OnSwipe app:dragDirection="dragRight" app:touchAnchorId="@+id/testImage" app:touchAnchorSide="right" /> • touchAnchorId • touchAnchorSide • maxVelocity • dragDirection • maxAcceleration • moveWhenScrollAtTop OnSwipe
32. KeyFrame

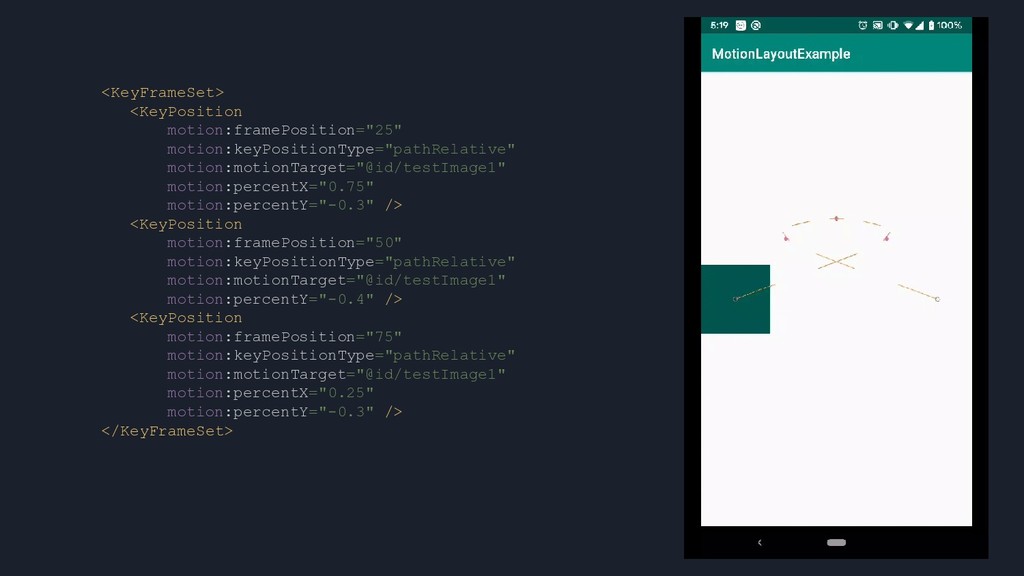

33. <KeyFrameSet> <KeyPosition motion:framePosition="25" motion:keyPositionType="pathRelative" motion:motionTarget="@id/testImage1" motion:percentX="0.75" motion:percentY="-0.3" /> <KeyPosition motion:framePosition="50" motion:keyPositionType="pathRelative" motion:motionTarget="@id/testImage1" motion:percentY="-0.4" /> <KeyPosition motion:framePosition="75" motion:keyPositionType="pathRelative" motion:motionTarget="@id/testImage1" motion:percentX="0.25" motion:percentY="-0.3" /> </KeyFrameSet>

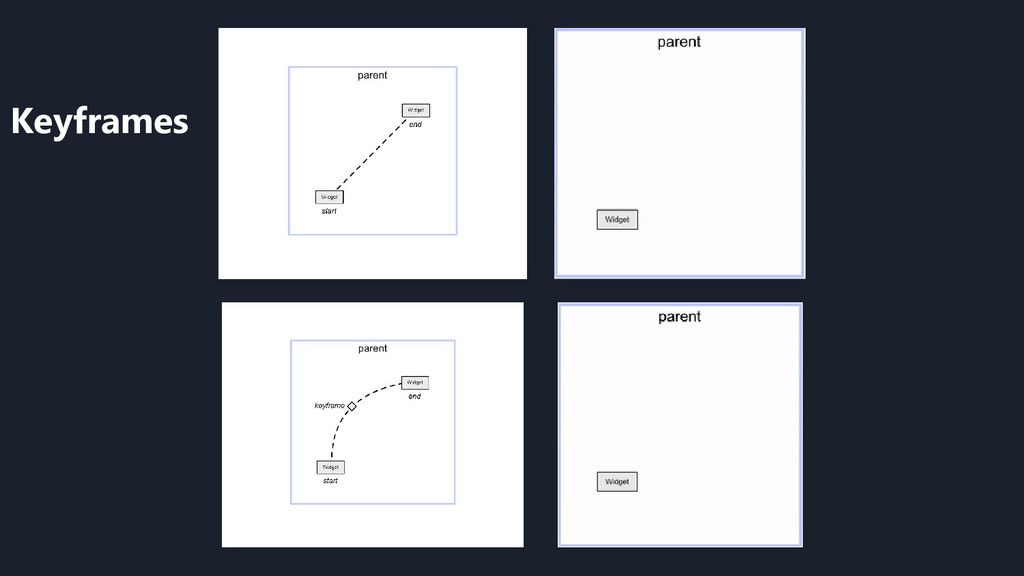

34. Keyframes

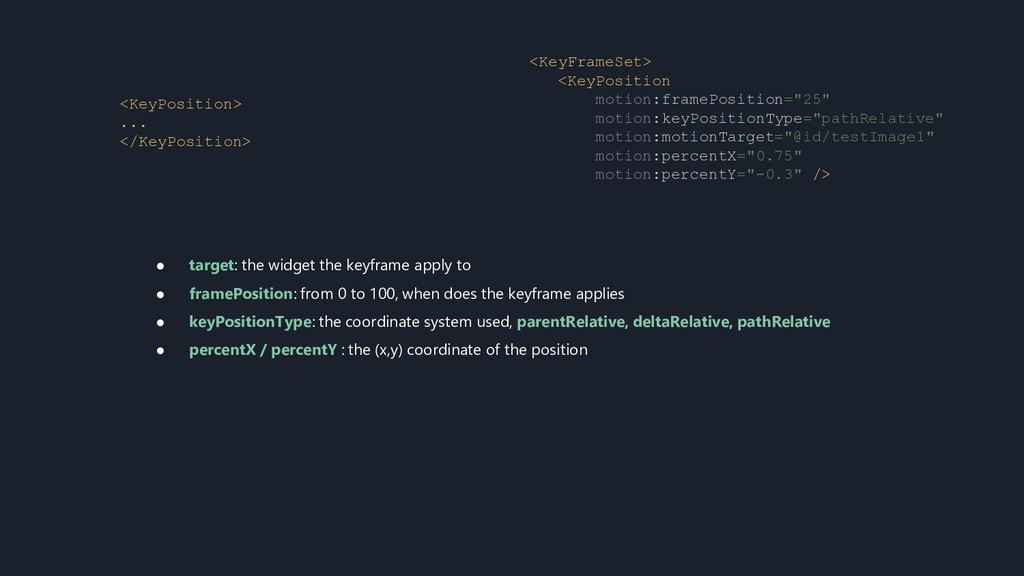

35. • target: the widget the keyframe apply to • framePosition: from 0 to 100, when does the keyframe applies • keyPositionType: the coordinate system used, parentRelative, deltaRelative, pathRelative • percentX / percentY : the (x,y) coordinate of the position <KeyPosition> ... </KeyPosition> <KeyFrameSet> <KeyPosition motion:framePosition="25" motion:keyPositionType="pathRelative" motion:motionTarget="@id/testImage1" motion:percentX="0.75" motion:percentY="-0.3" />

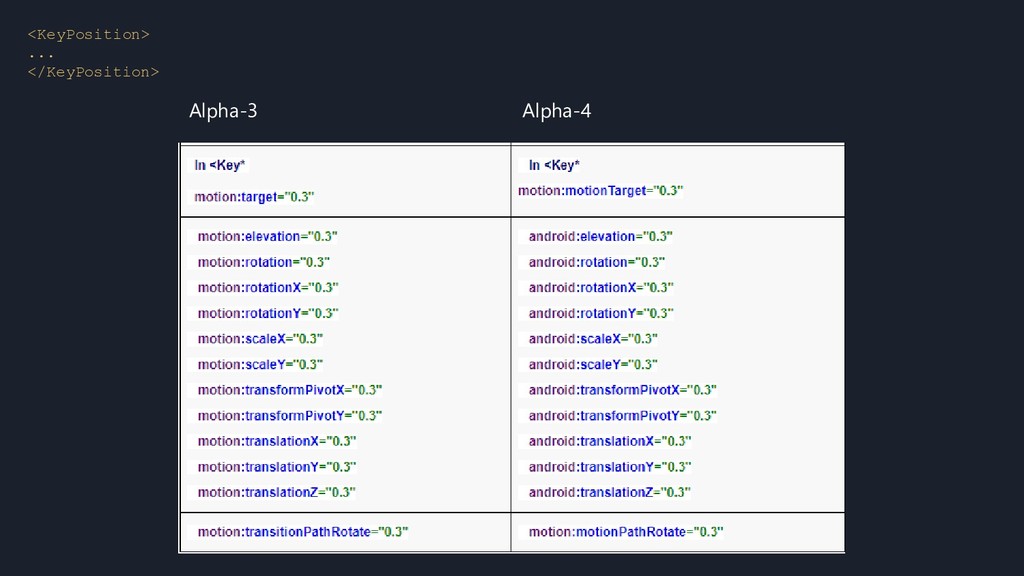

36. Alpha-3 Alpha-4 <KeyPosition> ... </KeyPosition>

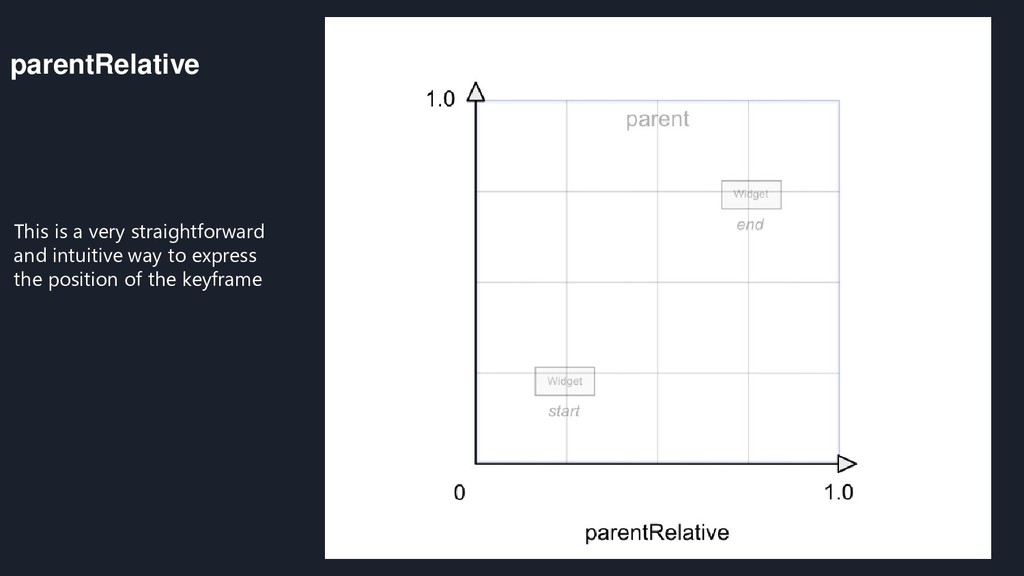

37. parentRelative This is a very straightforward and intuitive way to express the position of the keyframe

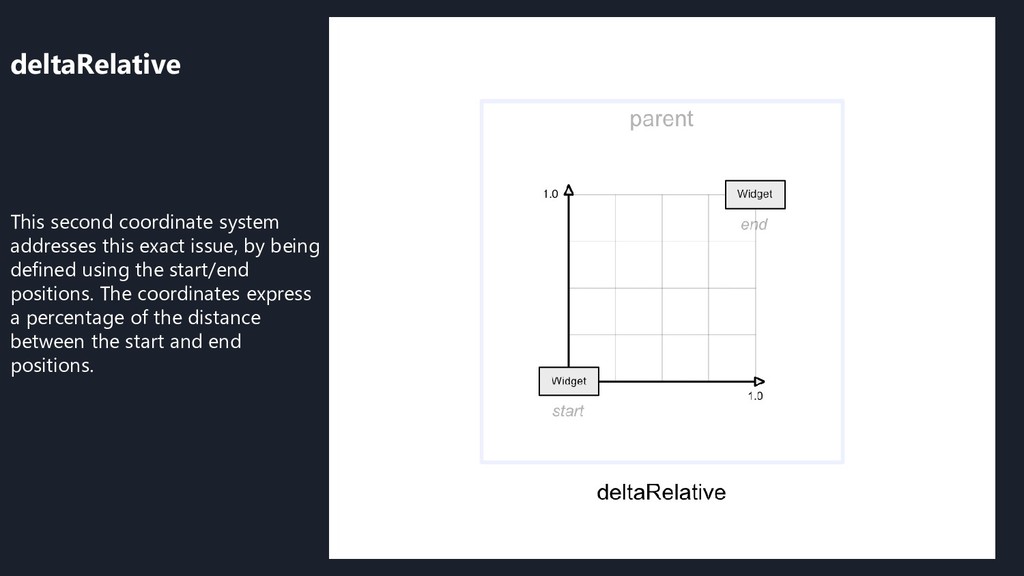

38. deltaRelative This second coordinate system addresses this exact issue, by being defined using the start/end positions. The coordinates express a percentage of the distance between the start and end positions.

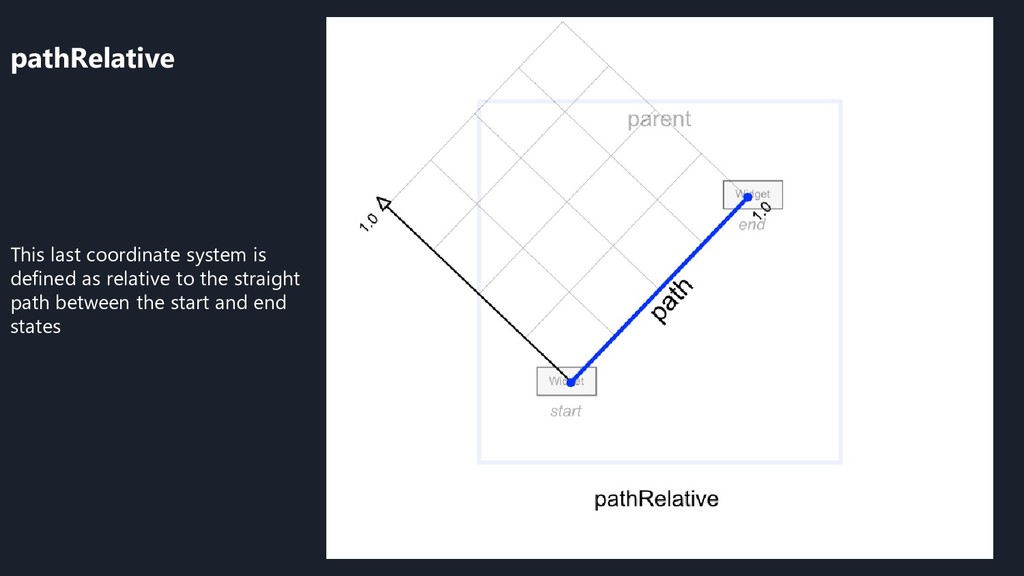

39. pathRelative This last coordinate system is defined as relative to the straight path between the start and end states

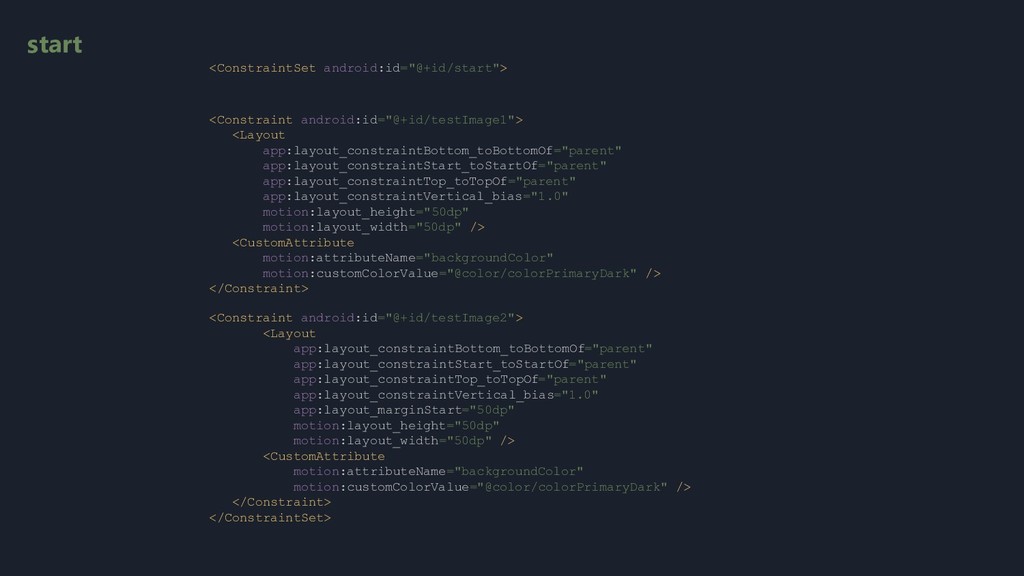

40. <ConstraintSet android:id="@+id/start"> <Constraint android:id="@+id/testImage1"> <Layout app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toTopOf="parent" app:layout_constraintVertical_bias="1.0" motion:layout_height="50dp" motion:layout_width="50dp" /> <CustomAttribute motion:attributeName="backgroundColor" motion:customColorValue="@color/colorPrimaryDark" /> </Constraint> <Constraint android:id="@+id/testImage2"> <Layout app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toTopOf="parent" app:layout_constraintVertical_bias="1.0" app:layout_marginStart="50dp" motion:layout_height="50dp" motion:layout_width="50dp" /> <CustomAttribute motion:attributeName="backgroundColor" motion:customColorValue="@color/colorPrimaryDark" /> </Constraint> </ConstraintSet> start

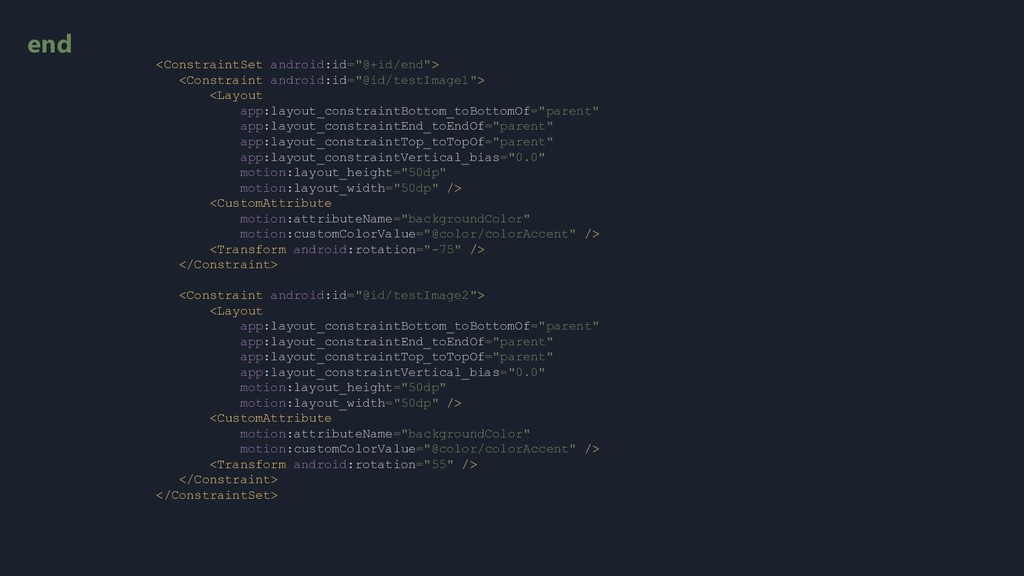

41. end <ConstraintSet android:id="@+id/end"> <Constraint android:id="@id/testImage1"> <Layout app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintTop_toTopOf="parent" app:layout_constraintVertical_bias="0.0" motion:layout_height="50dp" motion:layout_width="50dp" /> <CustomAttribute motion:attributeName="backgroundColor" motion:customColorValue="@color/colorAccent" /> <Transform android:rotation="-75" /> </Constraint> <Constraint android:id="@id/testImage2"> <Layout app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintTop_toTopOf="parent" app:layout_constraintVertical_bias="0.0" motion:layout_height="50dp" motion:layout_width="50dp" /> <CustomAttribute motion:attributeName="backgroundColor" motion:customColorValue="@color/colorAccent" /> <Transform android:rotation="55" /> </Constraint> </ConstraintSet>

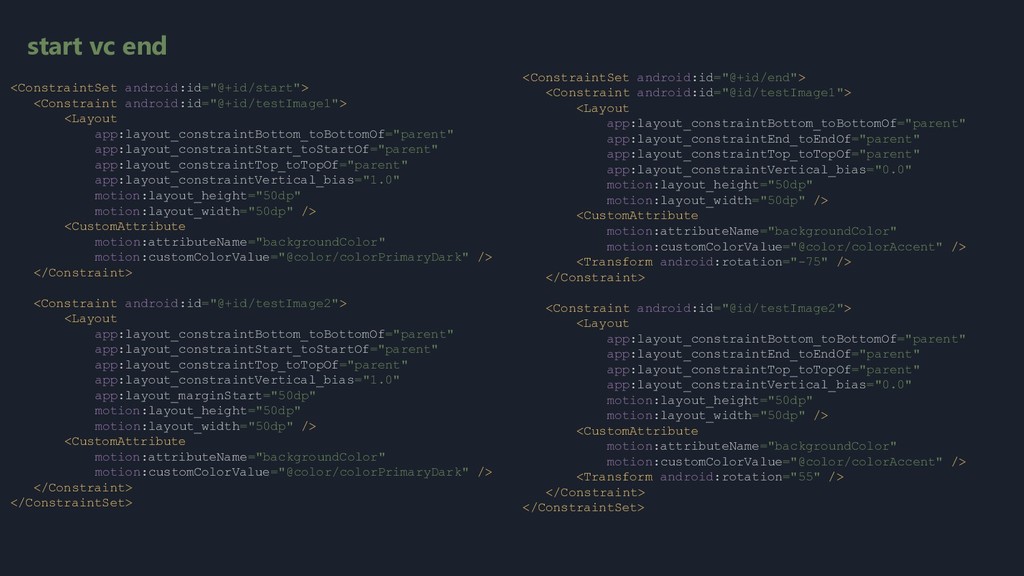

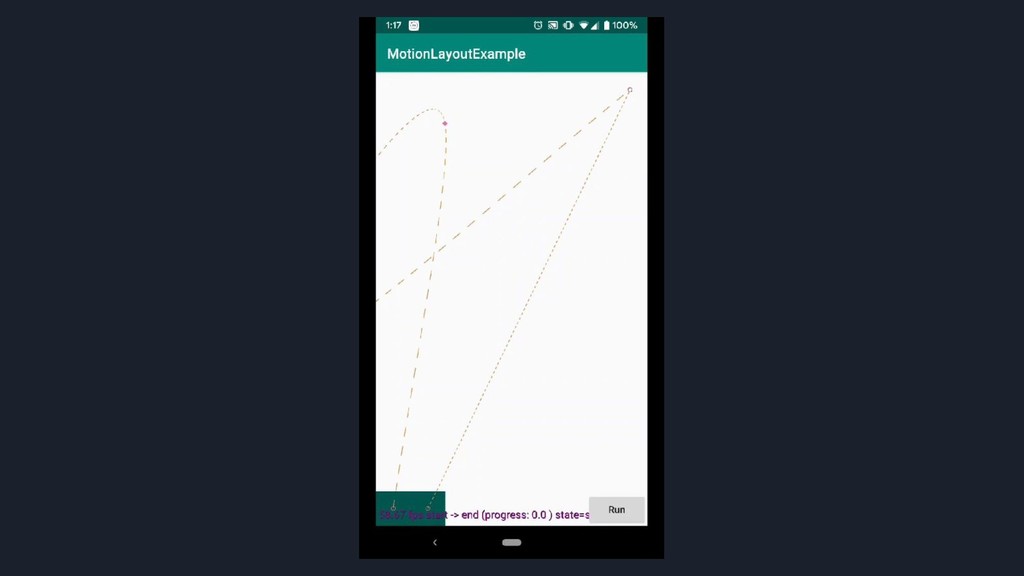

42. start vc end <ConstraintSet android:id="@+id/start"> <Constraint android:id="@+id/testImage1"> <Layout app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toTopOf="parent" app:layout_constraintVertical_bias="1.0" motion:layout_height="50dp" motion:layout_width="50dp" /> <CustomAttribute motion:attributeName="backgroundColor" motion:customColorValue="@color/colorPrimaryDark" /> </Constraint> <Constraint android:id="@+id/testImage2"> <Layout app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toTopOf="parent" app:layout_constraintVertical_bias="1.0" app:layout_marginStart="50dp" motion:layout_height="50dp" motion:layout_width="50dp" /> <CustomAttribute motion:attributeName="backgroundColor" motion:customColorValue="@color/colorPrimaryDark" /> </Constraint> </ConstraintSet> <ConstraintSet android:id="@+id/end"> <Constraint android:id="@id/testImage1"> <Layout app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintTop_toTopOf="parent" app:layout_constraintVertical_bias="0.0" motion:layout_height="50dp" motion:layout_width="50dp" /> <CustomAttribute motion:attributeName="backgroundColor" motion:customColorValue="@color/colorAccent" /> <Transform android:rotation="-75" /> </Constraint> <Constraint android:id="@id/testImage2"> <Layout app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintTop_toTopOf="parent" app:layout_constraintVertical_bias="0.0" motion:layout_height="50dp" motion:layout_width="50dp" /> <CustomAttribute motion:attributeName="backgroundColor" motion:customColorValue="@color/colorAccent" /> <Transform android:rotation="55" /> </Constraint> </ConstraintSet>
44. That's all?

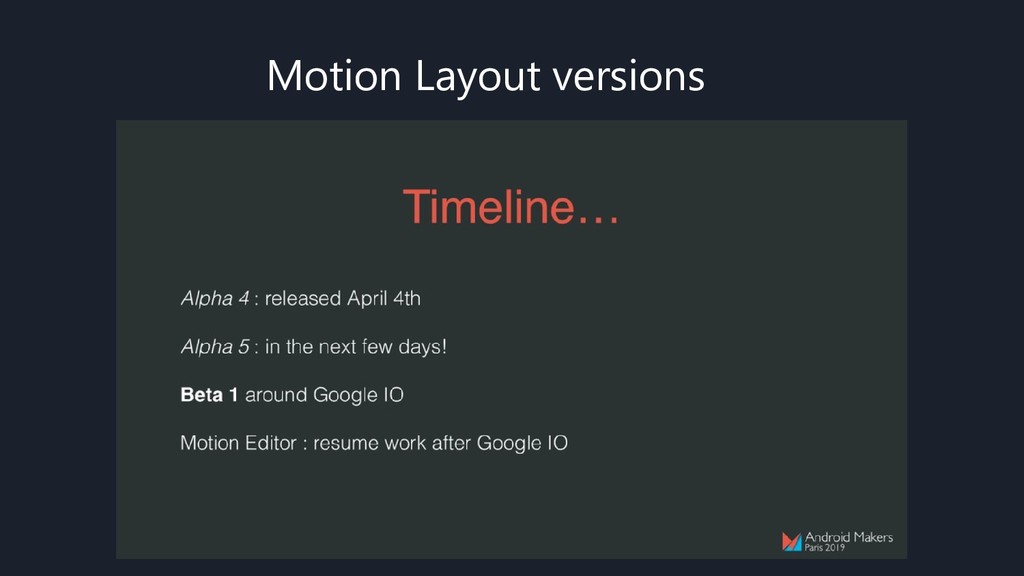

45. Motion Layout versions
46. Thanks!!!
