RESTful Web Services

An overview of RESTful Web Services.

Transcript

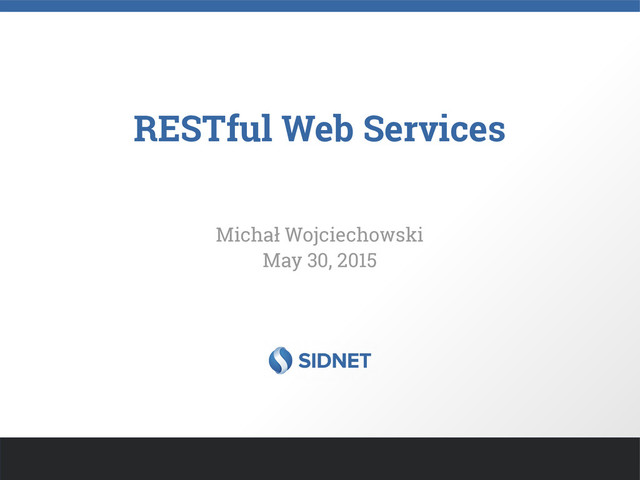

1. RESTful Web Services Michał Wojciechowski May 30, 2015
2. What REST Means REpresentational State Transfer
3. What REST Means REpresentational State Transfer We are transferring a representation of the current state of a resource/application
4. REST and HTTP • REST was developed in parallel with HTTP 1.1 • Can be used with other transfer protocols • In practice, used almost exclusively with HTTP web APIs • RESTful APIs use HTTP to the fullest: methods, headers, error codes, hypermedia
5. Architectural Constraints • Client-server • Stateless • Cacheable • Layered system • Uniform interface
6. Architectural Constraints Client-server • Separation of concerns • Servers store data • Clients provide user interface • Uniform interface between servers and clients
7. Architectural Constraints Stateless • Each request is processed independently • No client context is stored on the server • The client is responsible for keeping application state
8. Architectural Constraints Stateful design: Client Server GET /next-page Result 1, 2, 3, ... $page = 1 Client Server GET /next-page Result 4, 5, 6, ... $page = $page + 1
9. Architectural Constraints Stateless design: Client Server GET /results/?page=1 Result 1, 2, 3, ... $page = UrlParam('page') Client Server $page = UrlParam('page') GET /results/?page=2 Result 4, 5, 6, ...
10. Architectural Constraints Cacheable • Clients or intermediary servers may cache responses • Resources must be labeled as cacheable or non-cacheable (explicitly or implicitly)
11. Architectural Constraints Layered system • The client only “sees” the immediate layer with which they are communicating • Intermediary servers can be added to provide load balancing or caching
12. Architectural Constraints Uniform interface • Identification/addressability of resources • Manipulation of resources through representations • Self-descriptive messages
13. Architectural Constraints • Stateless • Cacheable • Layered system
14. Architectural Constraints • Stateless • Cacheable • Layered system Scalability It's fairly easy to just “throw more servers at it”
15. Resources • Objects of specific type • With data, relationships to other resources, and defined operations • Similar in principle to object instances in object-oriented programming • Must be uniquely identifiable (to be addressable)
16. Resources Addressability through the use of URIs: • Single resource e.g.: /invoices/2015-05-123 • Collections of resources e.g.: /invoices/
17. Resource Representations • Conceptually separate from the resources themselves • The same resource may be represented in a number of ways (e.g.: XML, JSON) • The client can request the desired representation format (e.g., using the Accept HTTP header)
18. Resource Representations Accept: text/xml XML representation: Accept: application/json JSON representation: <person> <name>Bob</name> <age>25</age> </person> { name: “Bob”, age: 25 }
19. HTTP Methods • POST Create a new resource • GET Retrieve a resource • PUT Create or replace a resource • DELETE Remove a resource
20. HTTP Methods • POST Create Create a new resource • GET Read Retrieve a resource • PUT Update Create or replace a resource • DELETE Delete Remove a resource
21. HTTP Methods • PATCH Partially replace a resource (partial PUT) • HEAD Retrieve response headers (GET sans body) • OPTIONS Determine the options associated with a resource (“what we can do”)
22. HTTP Methods • Idempotent Produces the same result, no matter how many times it is repeated. • Nullipotent (a.k.a. safe) Does not modify any resources (has no side- effects).
23. HTTP Methods • GET Retrieve a resource – nullipotent • POST Create a new resource • PUT Create or replace a resource – idempotent • DELETE Remove a resource – idempotent
24. HTTP Methods • PATCH Partially replace a resource – can be idempotent • HEAD, OPTIONS – obviously nullipotent
25. HTTP Methods – Examples • GET /invoices/2015-05-123 Retrieve the invoice numbered “2015-05-123” • PUT /invoices/2015-05-124 Create (or replace) invoice no. “2015-05-124” • DELETE /invoices/2015-05-124 Delete invoice no. “2015-05-124”
26. HTTP Methods – Examples • GET /invoices/2015-05-123 Retrieve the invoice numbered “2015-05-123” • PUT /invoices/2015-05-124 Create (or replace) invoice no. “2015-05-124” • DELETE /invoices/2015-05-124 Delete invoice no. “2015-05-124” • POST?
27. HTTP Methods – Examples • POST /invoices Create a new invoice (auto-numbered?) • GET /invoices Retrieve all invoices • PUT /invoices Replace all invoices • DELETE /invoices Delete all invoices
28. HTTP Headers • Headers should be used for metadata • Contain information about resources and about the HTTP transaction • Especially important for content negotiation and conditional requests • The “X-” prefix used to be recommended for non-standard headers – not anymore
29. HTTP Headers A few common HTTP headers: • Date Date/time when the message was sent • Last-Modified Date/time when the resource was modified • Location URI related to the resource
30. HTTP Headers – Content Negotiation • Accept Which representation formats are accepted • Accept-Encoding Which compression schemes are accepted • Content-Type The representation format of the content • Content-Encoding The compression scheme of the content
31. HTTP Headers – Conditional Requests • ETag Identifier for a specific version of a resource • If-Match / If-None-Match Process request if version identifier matches/doesn't match • If-Modified-Since / If-Unmodified-Since Process request if resource has/hasn't been modified since the specified date/time
32. HTTP Headers – Examples Request headers: • Ask for JSON representation of a resource: Accept: application/json • Retrieve the resource only if it was modified: If-Modified-Since: Sat, 30 May 2015... • Send basic HTTP authentication data: Authorization: Basic QWxhZGRpbjpv...
33. HTTP Headers – Examples Response headers: • Return the URI of a newly POSTed resource: Location: .../invoices/2015-05-125 • Return the date/time of last modification: Last-Modified: Sat, 30 May 2015... • Tell the client to authenticate: WWW-Authenticate: Basic realm="...”
34. HTTP Status Codes • RESTful APIs return sensible HTTP status codes • The meanings are not strictly defined – it's up to the API designer to choose what fits • It's not OK to always return “200 OK”
35. HTTP Status Codes • 1xx – Informational • 2xx – Success • 3xx – Redirection • 4xx – Client error • 5xx – Server error
36. HTTP Status Codes Success codes often used in RESTful APIs: • 304 Not Modified • 200 OK • 201 Created • 202 Accepted • 204 No Content
37. HTTP Status Codes Error codes often used in RESTful APIs: • 500 Internal Server Error • 503 Service Unavailable • 400 Bad Request • 401 Unauthorized • 403 Forbidden • 404 Not Found • 405 Method Not Allowed • 409 Conflict
38. HTTP Status Codes – Examples • POSTing or PUTting a new resource: 201 Created • POST or PUT with invalid data: 400 Bad Req. / 422 Unprocessable Entity • PUT on a read-only resource: 405 Method Not Allowed • Resource DELETEd: 204 No Content
39. HTTP Status Codes 418 – I'm a teapot
40. Real-life Example: GitHub API Creating a repository: POST /user/repos Response status code: 201 Created Location: .../repos/bob/Cool-Project { ”name”: ”Cool-Project”, ”description”: ”A very cool project.”, ”has_wiki”: true }
41. Real-life Example: GitHub API [ { ”sha”: ”f61aebed695e2e4...”, ... }, ... ] Listing commits on a pull request: GET /repos/bob/project/pulls/123/commits Response:
42. Real-life Example: GitHub API { "message": "Branch not found", "documentation_url": "https://..." } Trying to get a non-existing branch: GET /repos/bob/project/branches/bogus Response: 404 Not Found
43. Anti-example: Flickr API <galleries total=”3” page=”1” ...> <gallery id=”123-45678” url=”...”> <title>Party photos</title> ... </gallery> ... </galleries> Listing user's photo galleries: GET .../rest/?method=f.galleries.getList Response:
44. Anti-example: Flickr API <galleries total=”3” page=”1” ...> <gallery id=”123-45678” url=”...”> <title>Party photos</title> ... </gallery> ... </galleries> Listing user's photo galleries: GET .../rest/?method=f.galleries.getList Response: Nope
45. Anti-example: Twitter “REST” API • Adding a new tweet: POST /statuses/update.json • Retrieving user information: GET /users/show.json?screen_name=alice • Deleting a tweet: POST /statuses/destroy/789123456.json
46. Anti-example: Twitter “REST” API • Adding a new tweet: POST /statuses/update.json • Retrieving user information: GET /users/show.json?screen_name=alice • Deleting a tweet: POST /statuses/destroy/789123456.json Pffft!
47. Authentication Statelessness makes authentication a challenge: • No client context on the server means there's no concept of an authenticated client • Authentication state must be maintained elsewhere • Effectively, authentication data must be sent by the client with every request
48. Authentication • As a compromise, some APIs turn to a stateful solution • Examples: access tokens (OAuth), session cookies • Shared token/session storage is required • Trade-off in scalability
49. Authentication Stateless solutions: • Basic HTTP Authentication (oh no) • Hash-based Message Authentication Code (HMAC)
50. Authentication Basic HTTP Authentication • Username and password are sent with each request • Not encrypted/hashed (Base64-encoded) • Completely insecure unless used with HTTPS
51. Authentication Hash-based Message Authentication Code • Client and server use a shared secret (e.g. client's private API key) • Client uses the secret key to sign requests • Server verifies if the provided signature matches the contents of the request • Can be timestamped to avoid replay attacks
52. HATEOAS • Hypermedia as the Engine of Application State • Server uses hypermedia to provide information on possible operations • Client can gradually discover the API
53. HATEOAS • Hypermedia as the Engine of Application State • Server uses hypermedia to provide information on possible operations • Client can gradually discover the API • Worst acronym ever
54. HATEOAS – Example <post> <title>Hello, World!</title> <content>...</content> <link rel=”author” href=”/users/123”> <link rel=”comments” href=”/posts/2015-05-30/comments”> </post> GET /posts/2015-05-30 Response:
55. HATEOAS – Real-life Example: GitHub Link: <...users?q=waldo&page=2>; rel=”next”, <...users?q=waldo&page=7>; rel=”last” ... { “items”: [ ... ] } Find users: GET /search/users?q=waldo Response:
56. Richardson Maturity Model A way to grade an API according to the constraints of REST. • Level 0: The Swamp of POX (Plain Old XML) • Level 1: Resources • Level 2: HTTP Verbs • Level 3: Hypermedia Controls
57. Richardson Maturity Model A way to grade an API according to the constraints of REST. • Level 0: The Swamp of POX (Plain Old XML) • Level 1: Resources • Level 2: HTTP Verbs • Level 3: Hypermedia Controls Truly RESTful™
58. Questions? �
59. Thank You!
