The Canary in the Cloud

Talk at Derbycon 2014

Transcript

1. The Canary in the Cloud 1

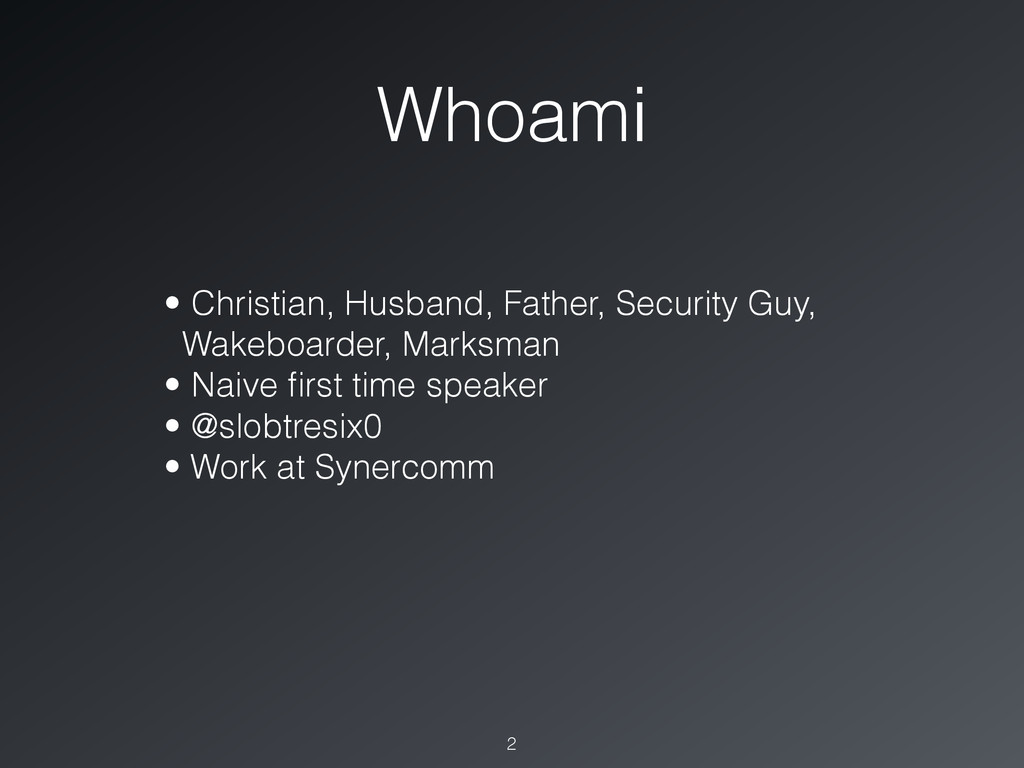

2. Whoami • Christian, Husband, Father, Security Guy, Wakeboarder, Marksman • Naive first time speaker • @slobtresix0 • Work at Synercomm 2
3. Thanks! • Derbycon staff • Attendees 3

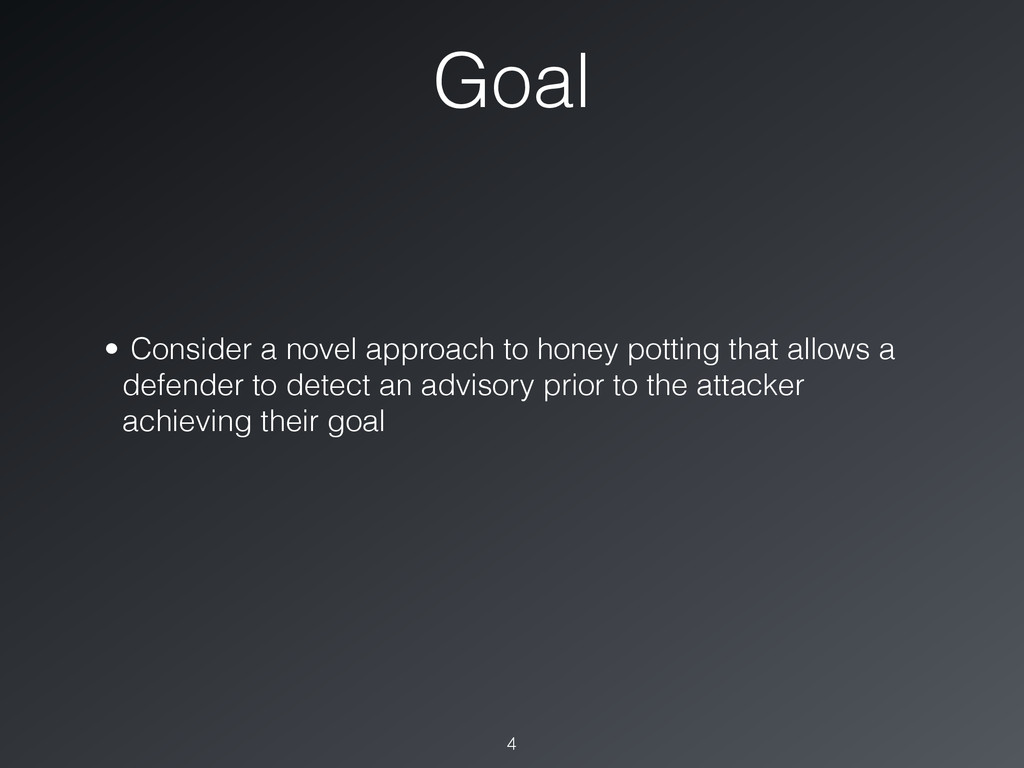

4. Goal • Consider a novel approach to honey potting that allows a defender to detect an advisory prior to the attacker achieving their goal 4
5. Overview 5 • Definition • History • Types • Canary • Cloud/Hybrid

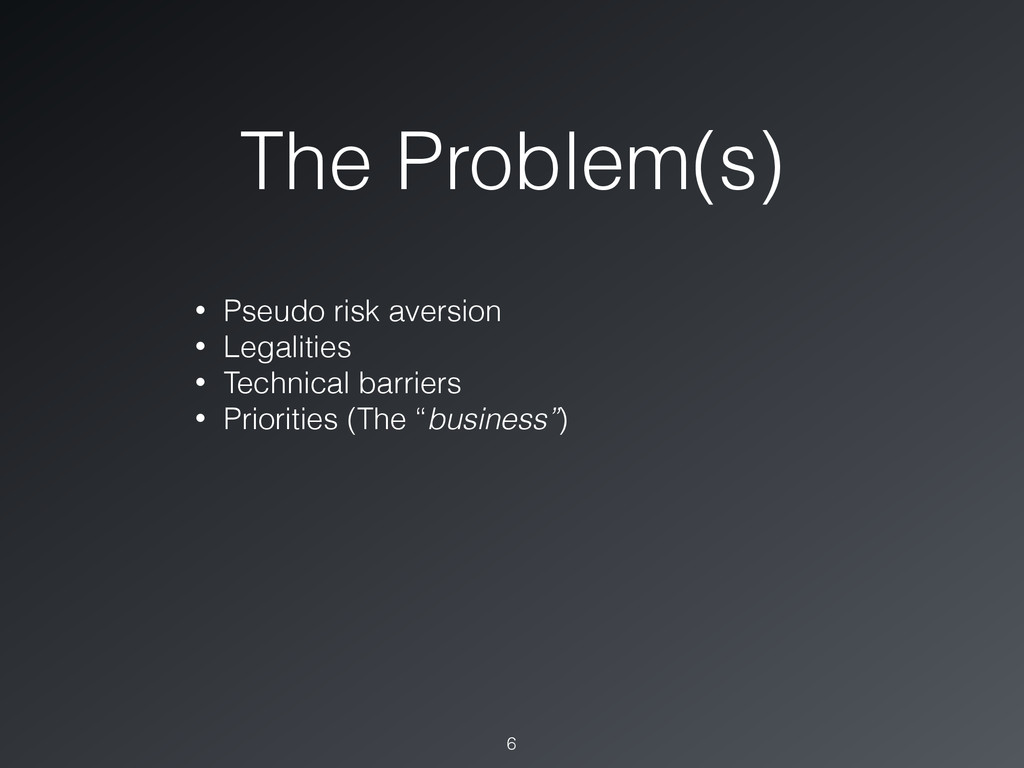

6. The Problem(s) 6 • Pseudo risk aversion • Legalities • Technical barriers • Priorities (The “business”)

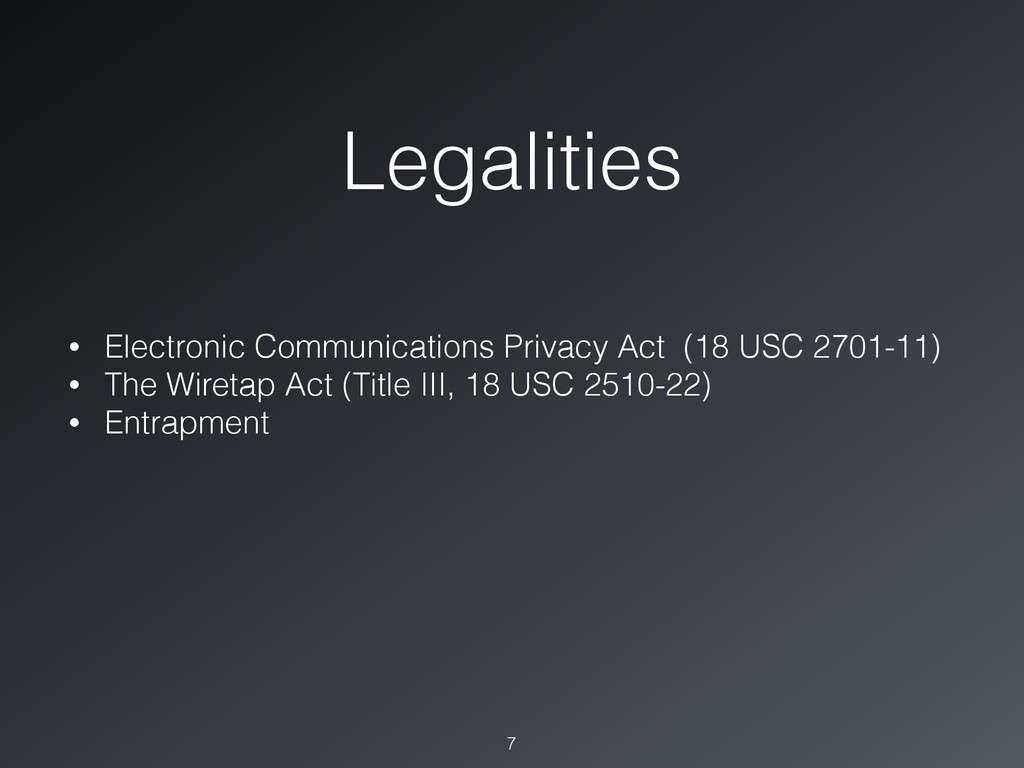

7. Legalities 7 • Electronic Communications Privacy Act (18 USC 2701-11) • The Wiretap Act (Title III, 18 USC 2510-22) • Entrapment

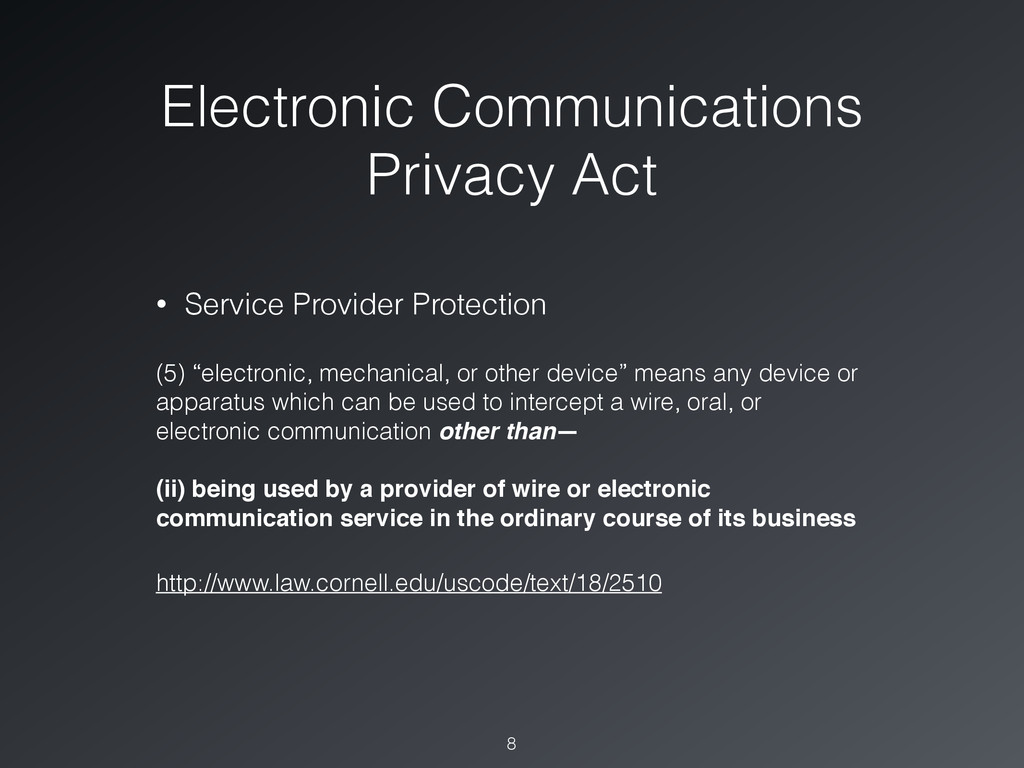

8. Electronic Communications Privacy Act 8 • Service Provider Protection ! (5) “electronic, mechanical, or other device” means any device or apparatus which can be used to intercept a wire, oral, or electronic communication other than—! ! (ii) being used by a provider of wire or electronic communication service in the ordinary course of its business ! http://www.law.cornell.edu/uscode/text/18/2510

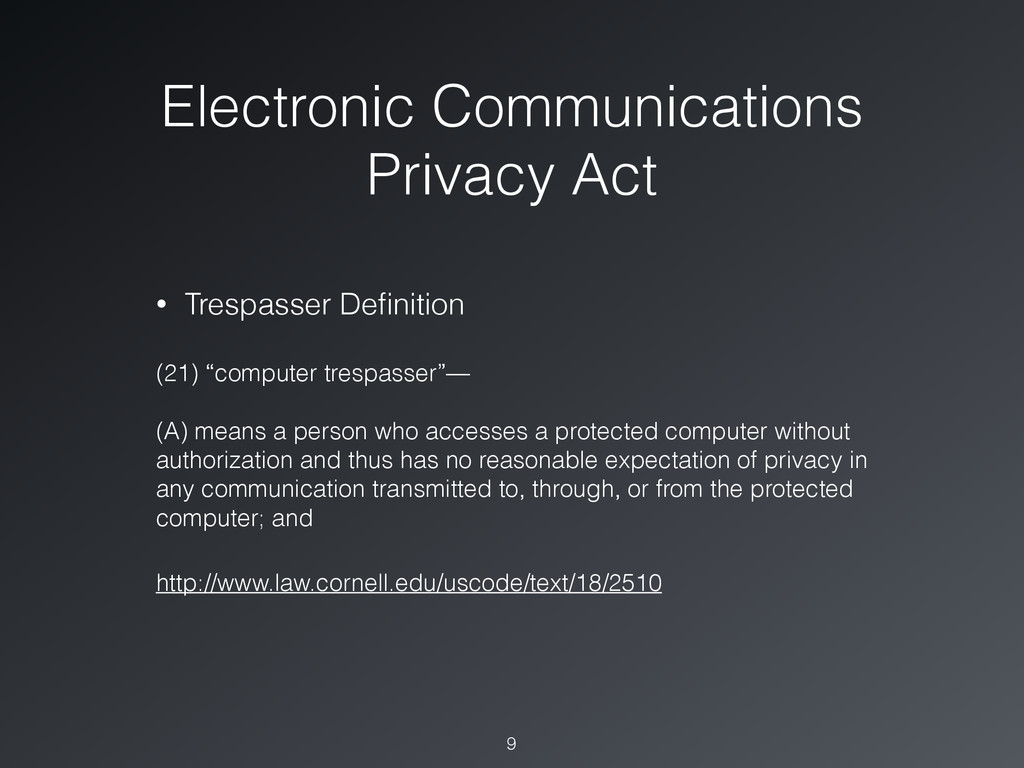

9. Electronic Communications Privacy Act 9 • Trespasser Definition ! (21) “computer trespasser”— ! (A) means a person who accesses a protected computer without authorization and thus has no reasonable expectation of privacy in any communication transmitted to, through, or from the protected computer; and ! http://www.law.cornell.edu/uscode/text/18/2510

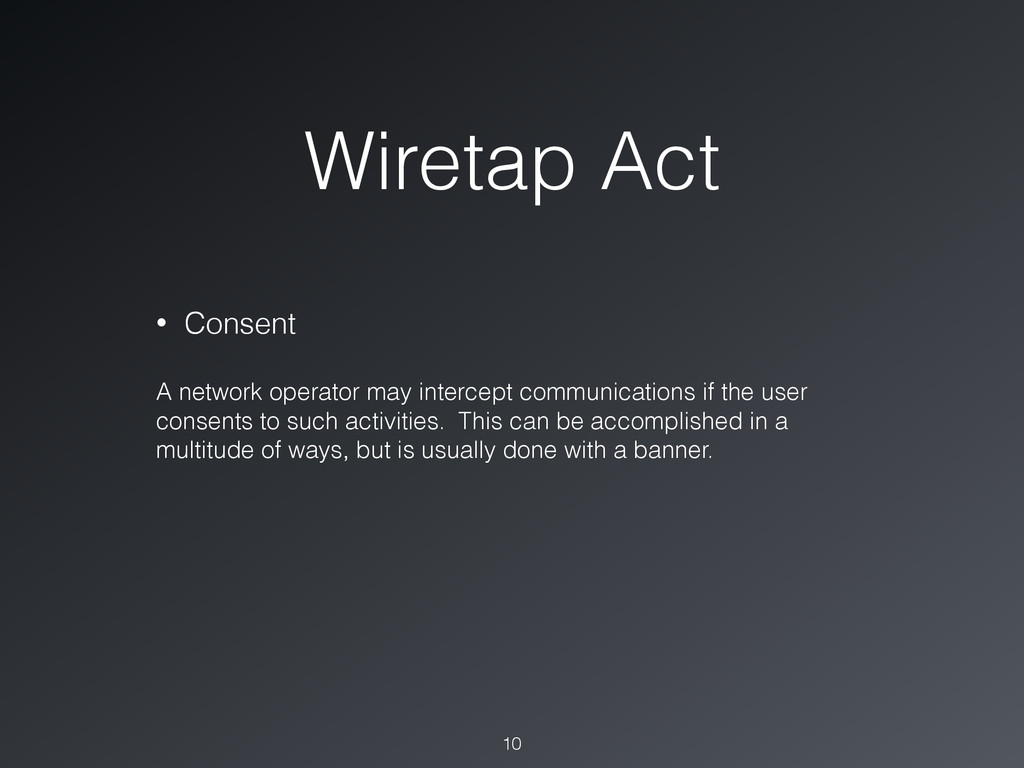

10. Wiretap Act 10 • Consent ! A network operator may intercept communications if the user consents to such activities. This can be accomplished in a multitude of ways, but is usually done with a banner.

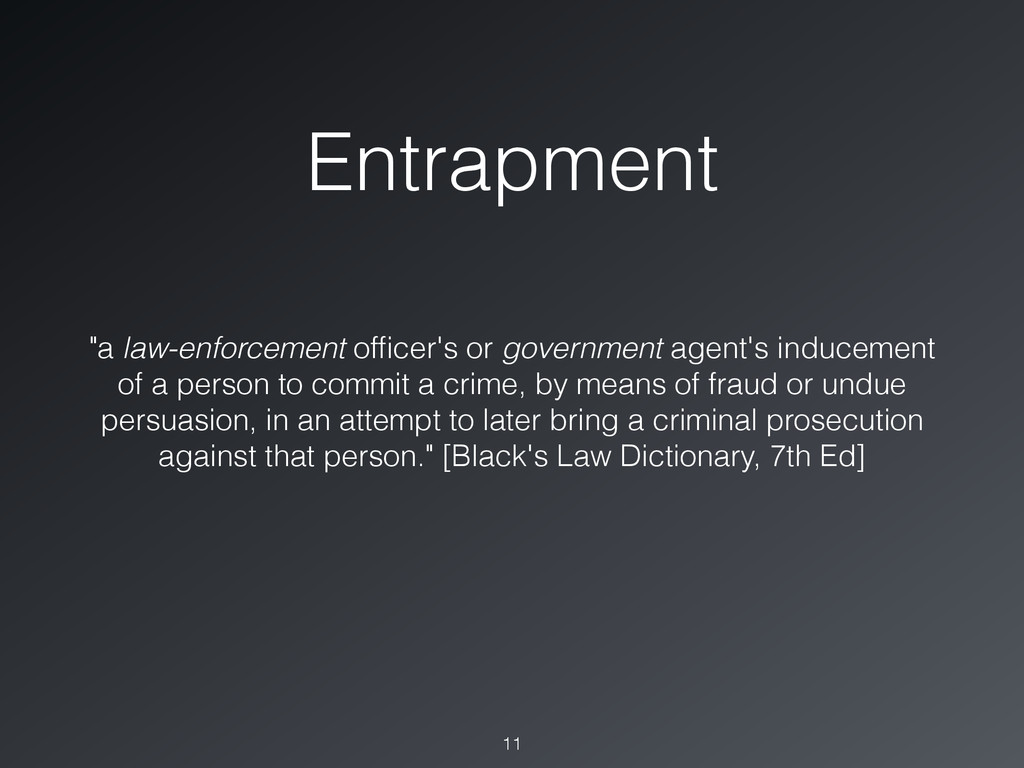

11. Entrapment 11 "a law-enforcement officer's or government agent's inducement of a person to commit a crime, by means of fraud or undue persuasion, in an attempt to later bring a criminal prosecution against that person." [Black's Law Dictionary, 7th Ed]
12. Build your battlefield 12 • Red team / Blue team paradigm fallacy • The defenders advantage

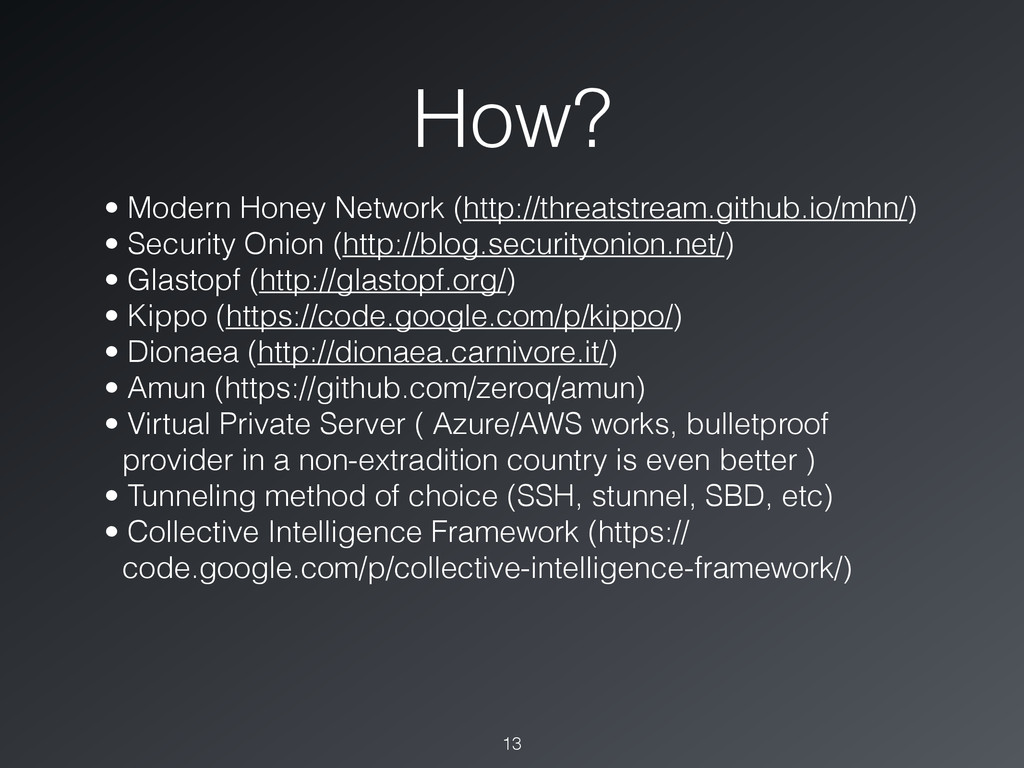

13. How? 13 • Modern Honey Network (http://threatstream.github.io/mhn/) • Security Onion (http://blog.securityonion.net/) • Glastopf (http://glastopf.org/) • Kippo (https://code.google.com/p/kippo/) • Dionaea (http://dionaea.carnivore.it/) • Amun (https://github.com/zeroq/amun) • Virtual Private Server ( Azure/AWS works, bulletproof provider in a non-extradition country is even better ) • Tunneling method of choice (SSH, stunnel, SBD, etc) • Collective Intelligence Framework (https:// code.google.com/p/collective-intelligence-framework/) ! !

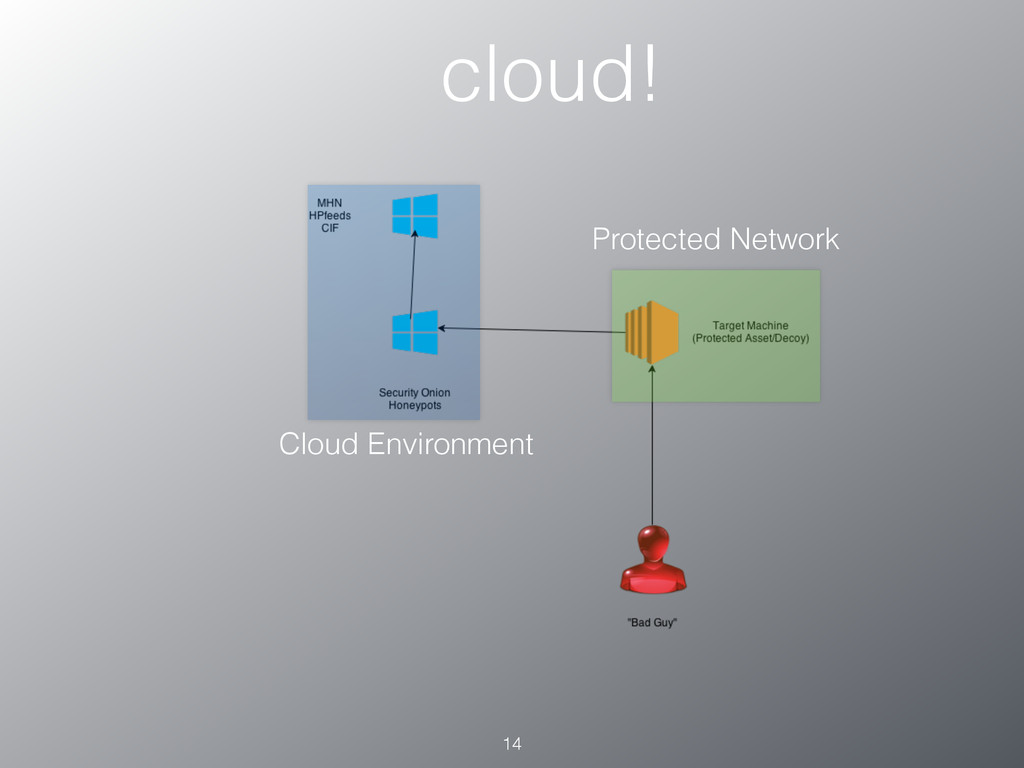

14. cloud! 14 Protected Network Cloud Environment

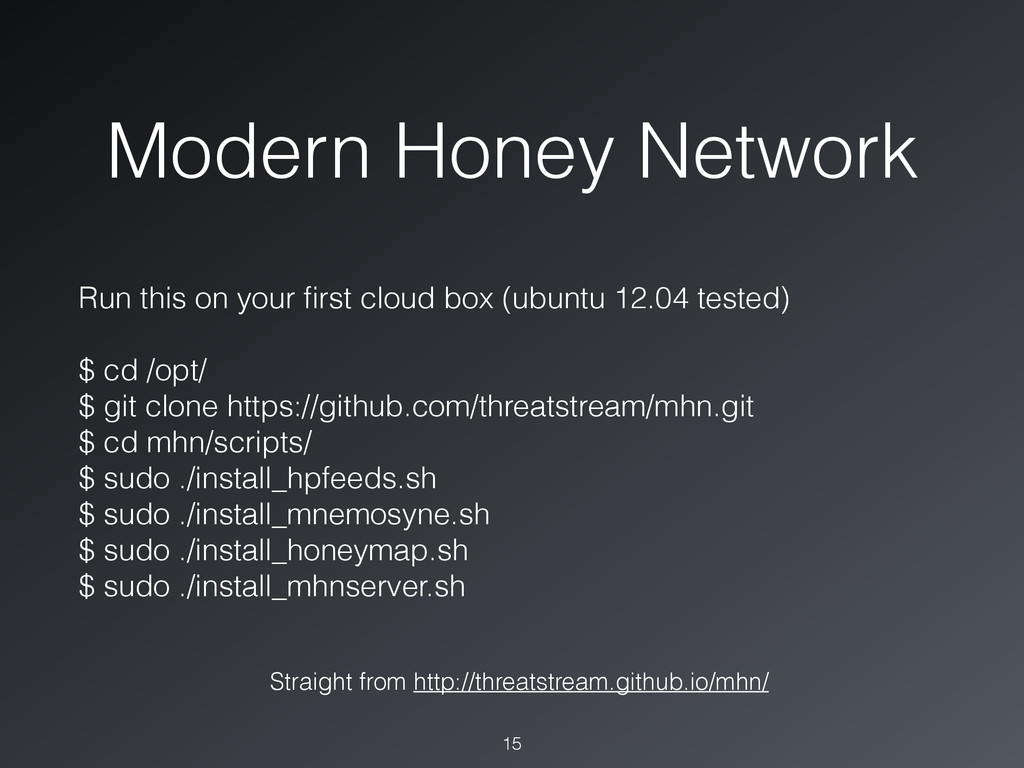

15. Modern Honey Network 15 Run this on your first cloud box (ubuntu 12.04 tested) ! $ cd /opt/ $ git clone https://github.com/threatstream/mhn.git $ cd mhn/scripts/ $ sudo ./install_hpfeeds.sh $ sudo ./install_mnemosyne.sh $ sudo ./install_honeymap.sh $ sudo ./install_mhnserver.sh Straight from http://threatstream.github.io/mhn/

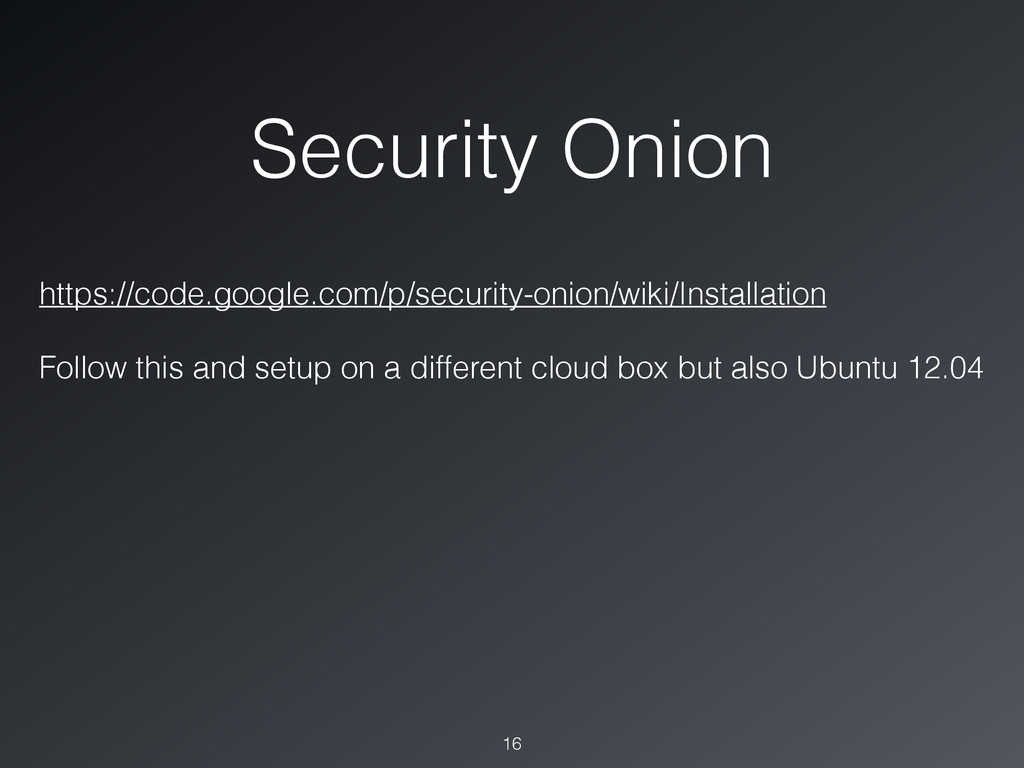

16. Security Onion 16 https://code.google.com/p/security-onion/wiki/Installation ! Follow this and setup on a different cloud box but also Ubuntu 12.04

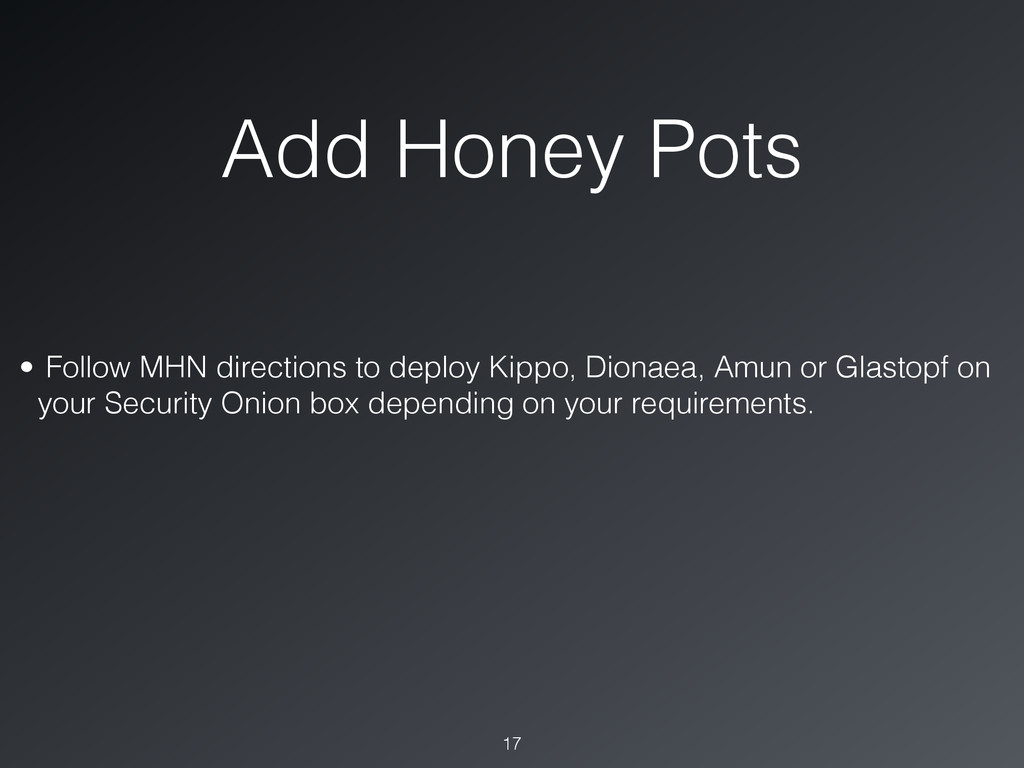

17. Add Honey Pots 17 • Follow MHN directions to deploy Kippo, Dionaea, Amun or Glastopf on your Security Onion box depending on your requirements.

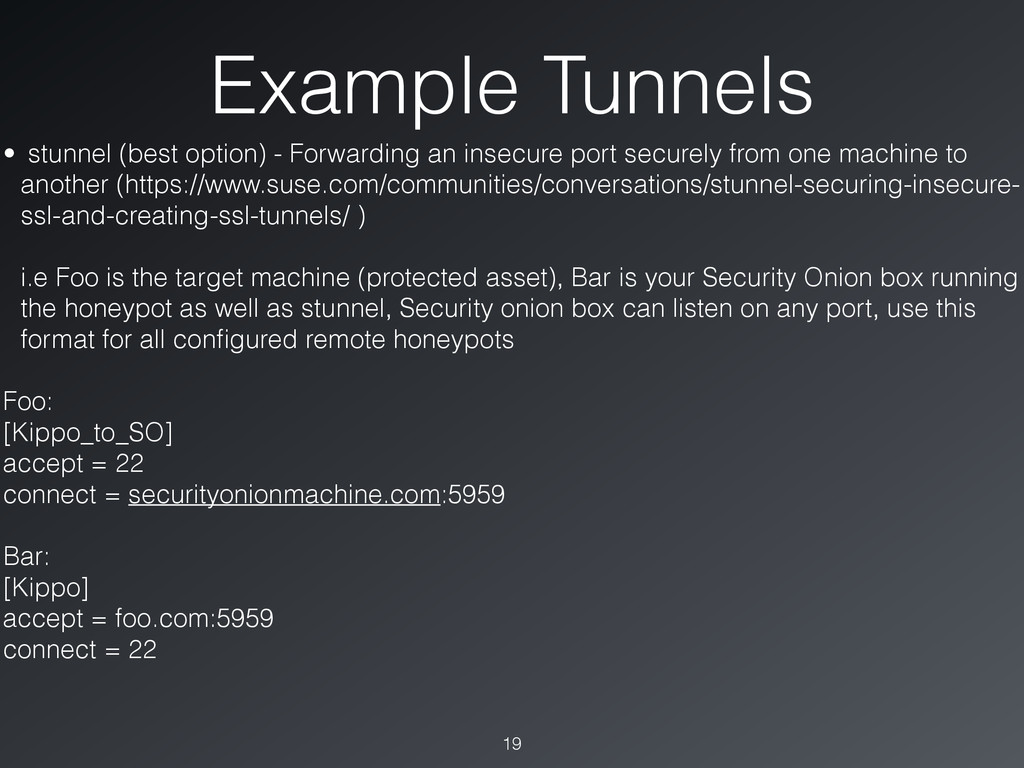

19. Example Tunnels 19 • stunnel (best option) - Forwarding an insecure port securely from one machine to another (https://www.suse.com/communities/conversations/stunnel-securing-insecure- ssl-and-creating-ssl-tunnels/ ) ! i.e Foo is the target machine (protected asset), Bar is your Security Onion box running the honeypot as well as stunnel, Security onion box can listen on any port, use this format for all configured remote honeypots ! Foo: [Kippo_to_SO] accept = 22 connect = securityonionmachine.com:5959 ! Bar: [Kippo] accept = foo.com:5959 connect = 22

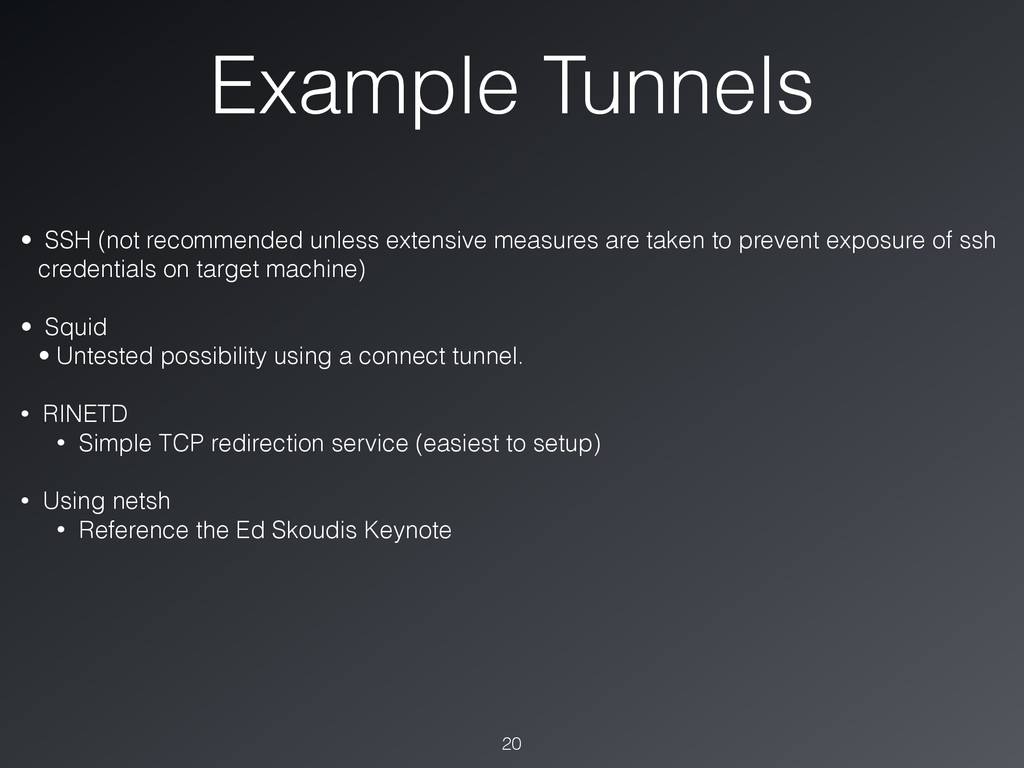

20. Example Tunnels 20 • SSH (not recommended unless extensive measures are taken to prevent exposure of ssh credentials on target machine) ! • Squid • Untested possibility using a connect tunnel. ! • RINETD • Simple TCP redirection service (easiest to setup) ! • Using netsh • Reference the Ed Skoudis Keynote

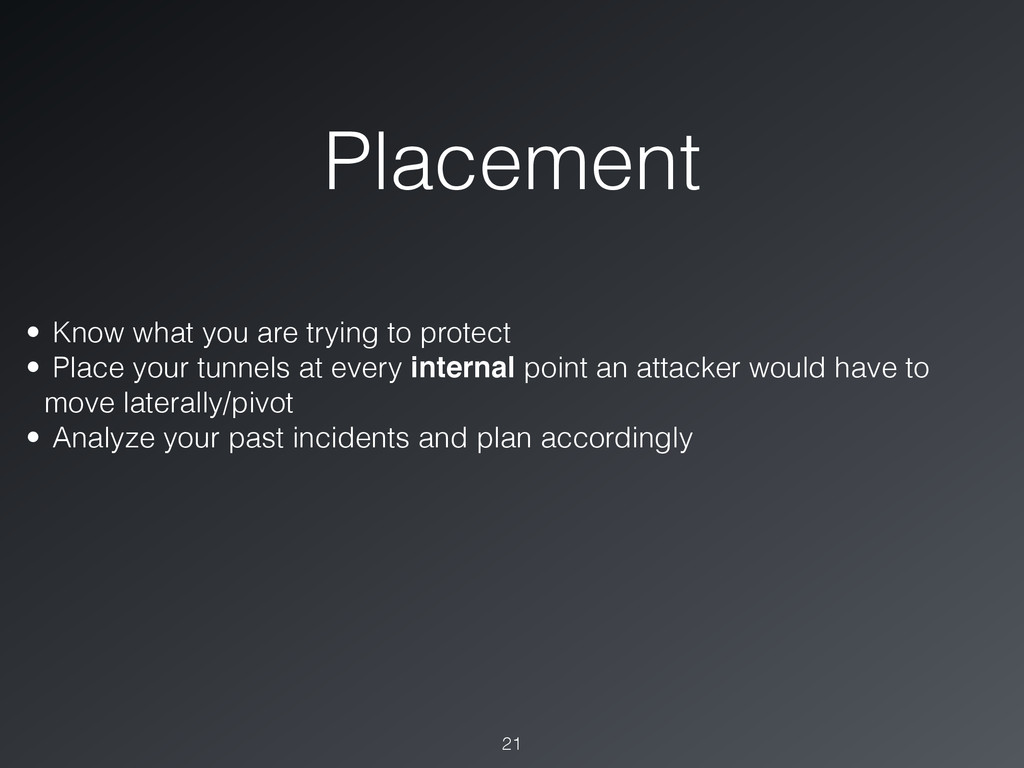

21. Placement 21 • Know what you are trying to protect • Place your tunnels at every internal point an attacker would have to move laterally/pivot • Analyze your past incidents and plan accordingly
22. Now What? 22
23. Deception 23

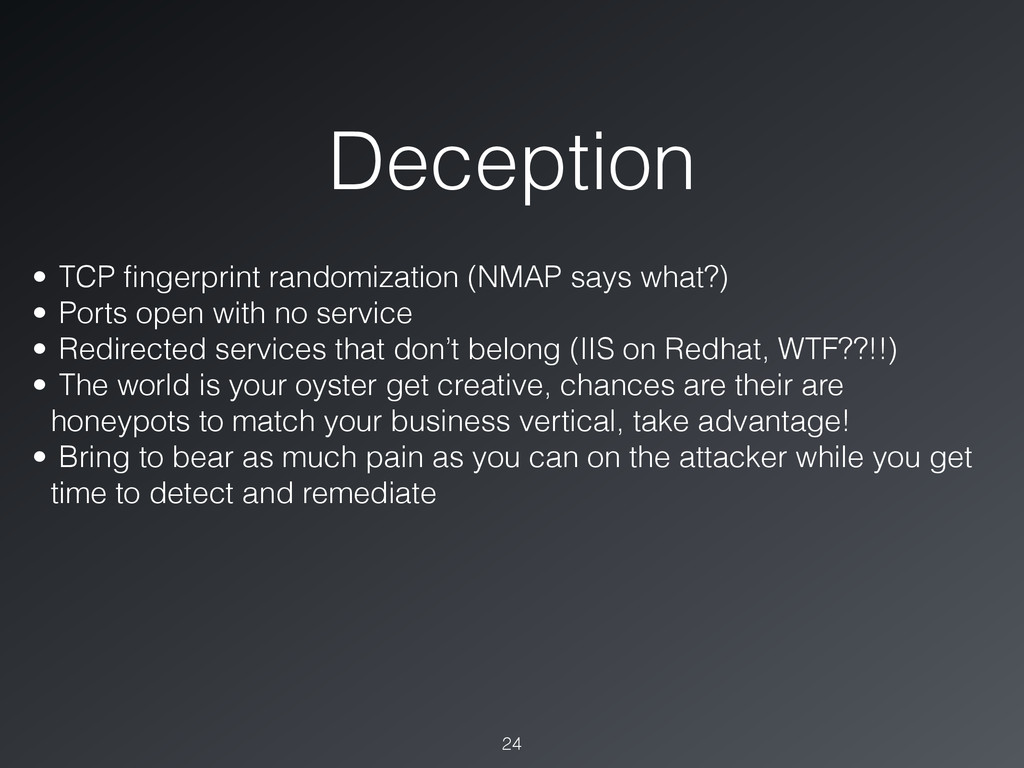

24. Deception 24 • TCP fingerprint randomization (NMAP says what?) • Ports open with no service • Redirected services that don’t belong (IIS on Redhat, WTF??!!) • The world is your oyster get creative, chances are their are honeypots to match your business vertical, take advantage! • Bring to bear as much pain as you can on the attacker while you get time to detect and remediate

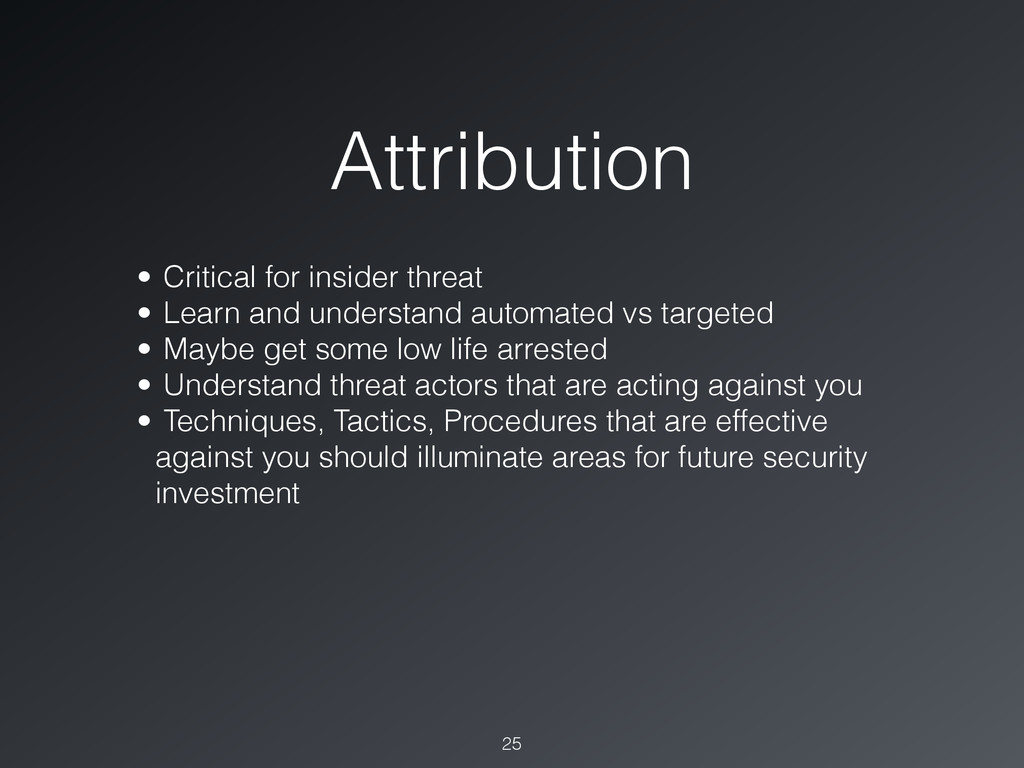

25. Attribution 25 • Critical for insider threat • Learn and understand automated vs targeted • Maybe get some low life arrested • Understand threat actors that are acting against you • Techniques, Tactics, Procedures that are effective against you should illuminate areas for future security investment

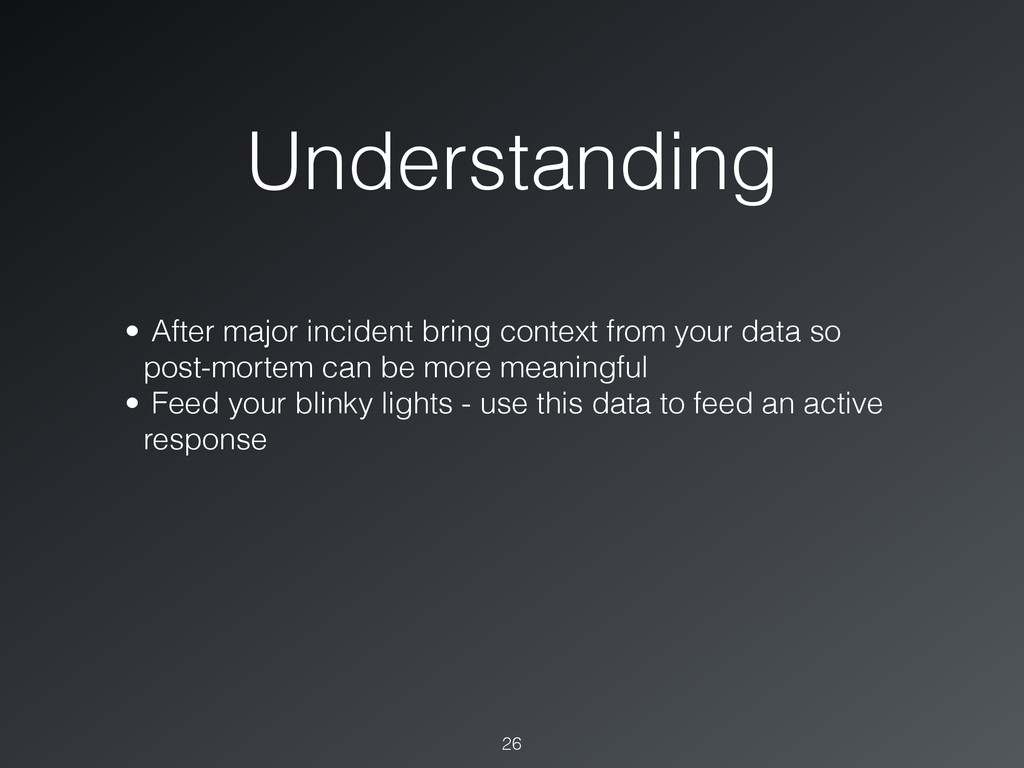

26. Understanding 26 • After major incident bring context from your data so post-mortem can be more meaningful • Feed your blinky lights - use this data to feed an active response

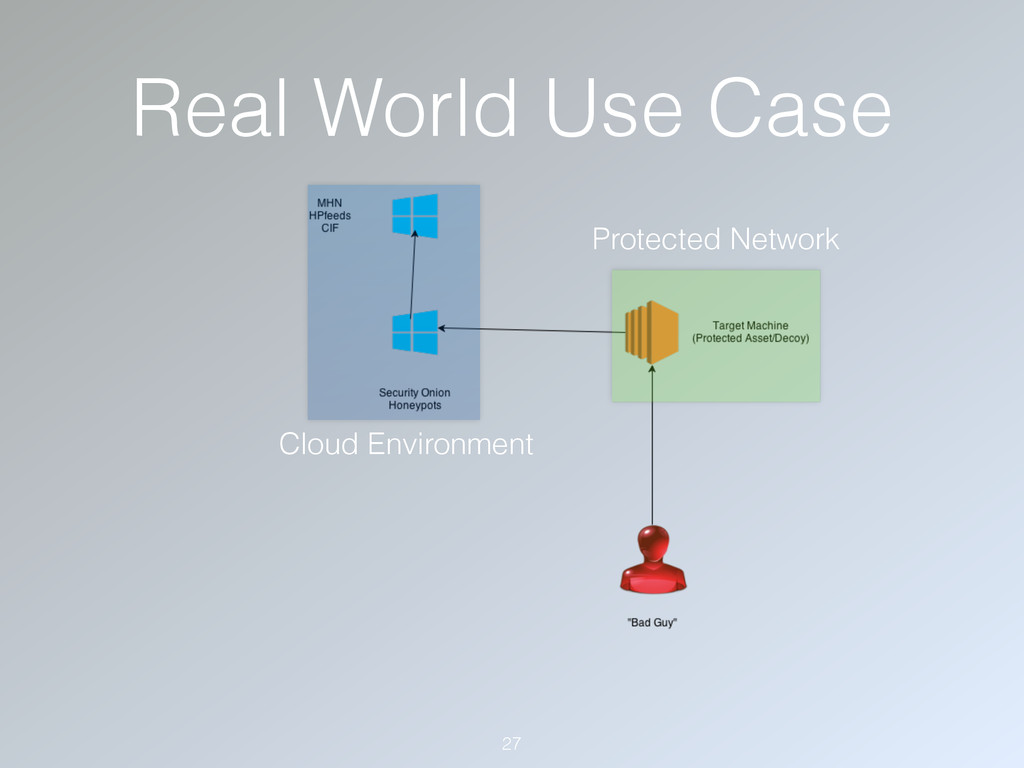

27. Real World Use Case 27 Protected Network Cloud Environment

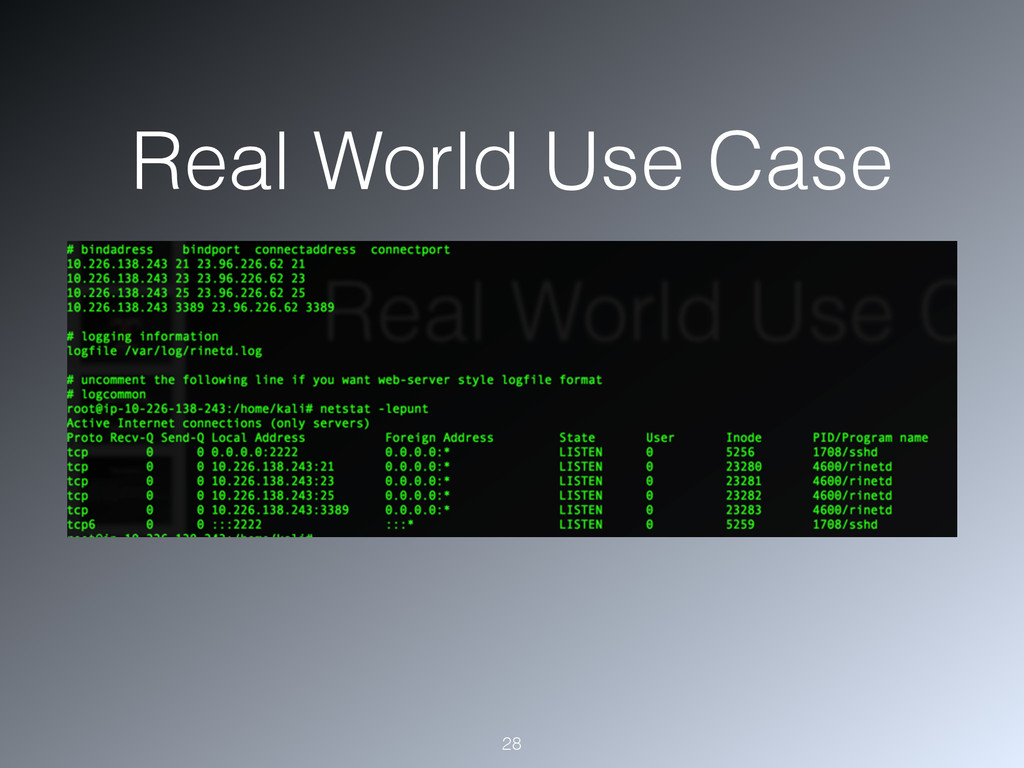

28. Real World Use Case 28

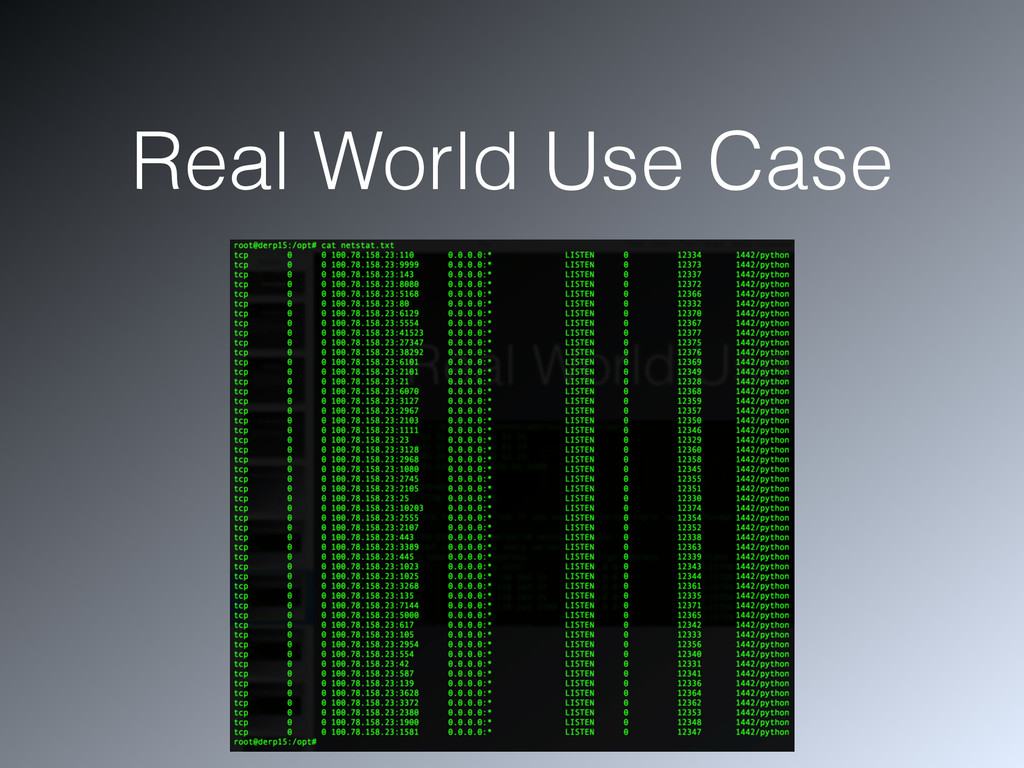

29. Real World Use Case 29

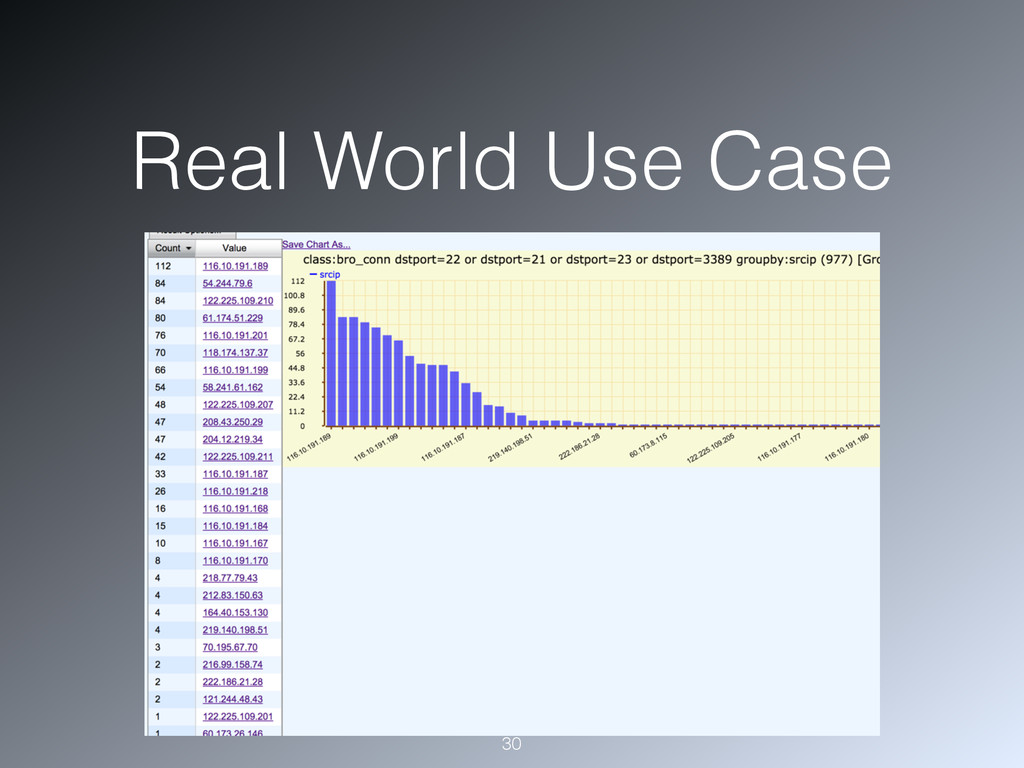

30. Real World Use Case 30

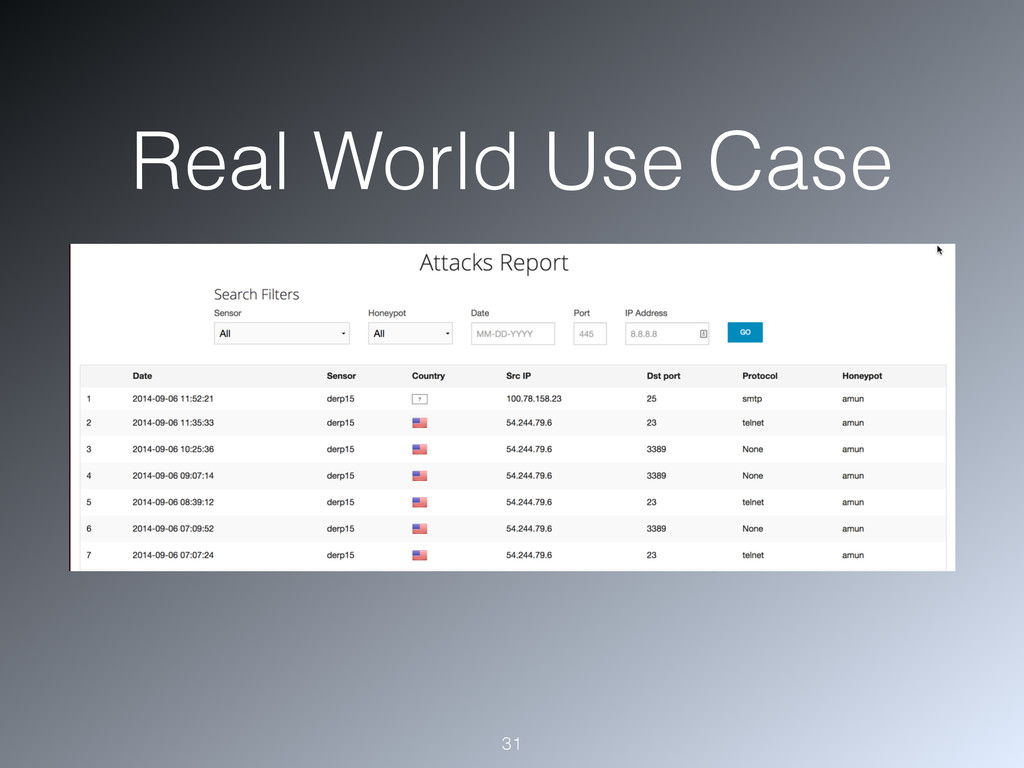

31. Real World Use Case 31

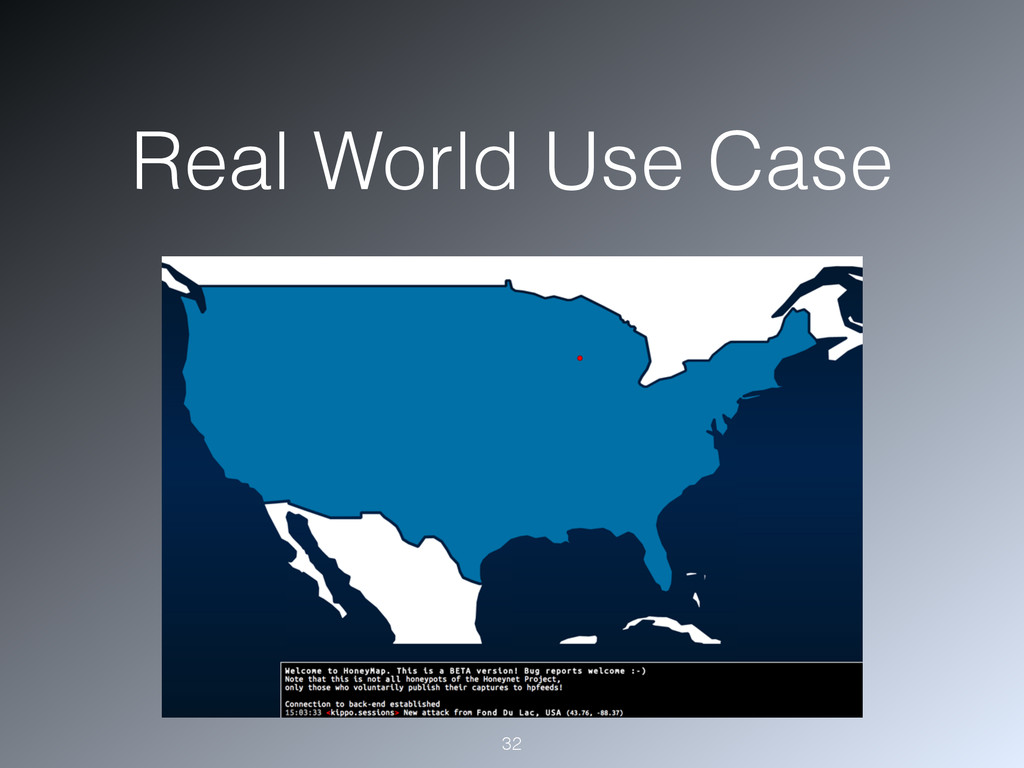

32. Real World Use Case 32

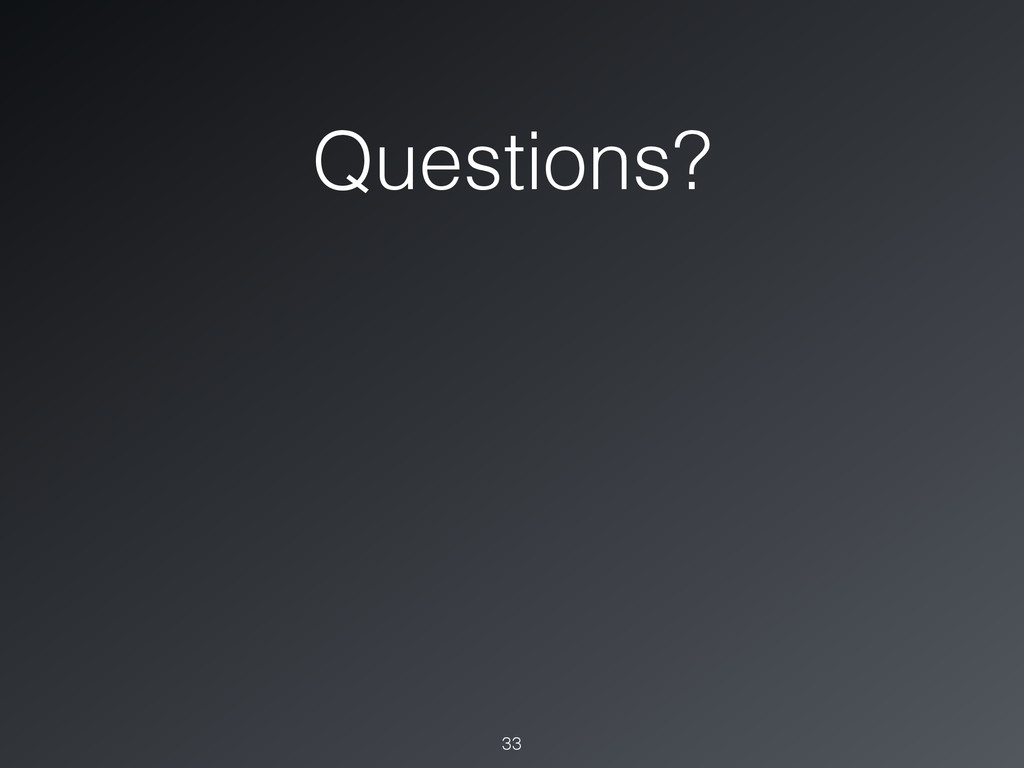

33. Questions? 33

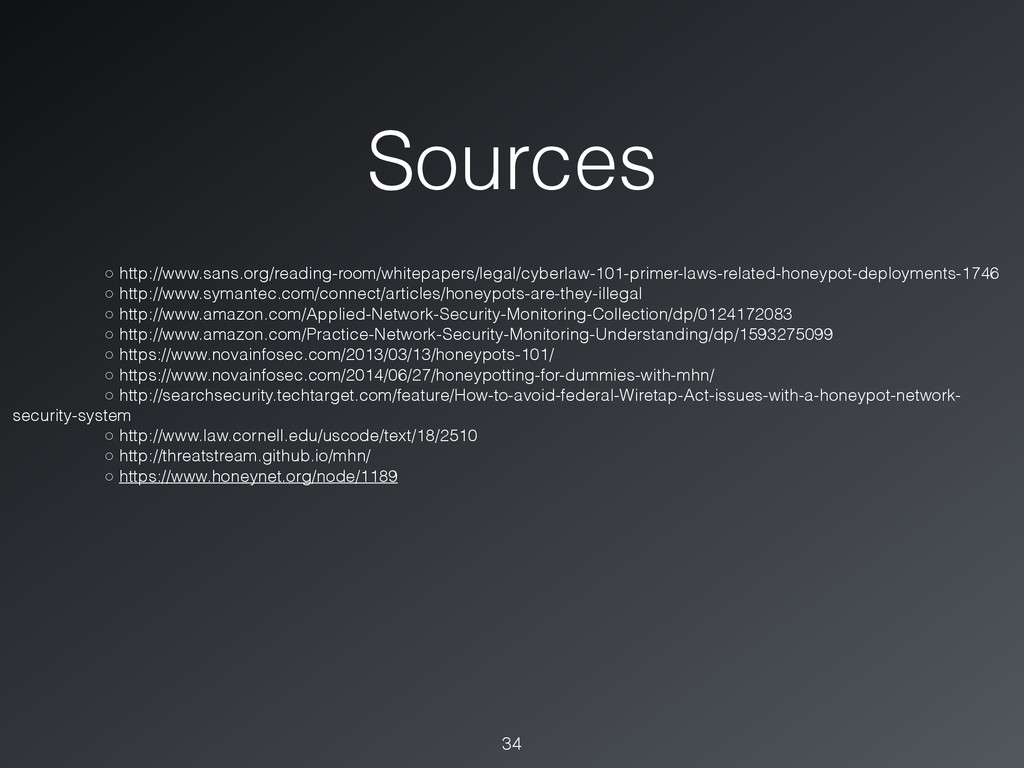

34. Sources 34 ◦ http://www.sans.org/reading-room/whitepapers/legal/cyberlaw-101-primer-laws-related-honeypot-deployments-1746 ◦ http://www.symantec.com/connect/articles/honeypots-are-they-illegal ◦ http://www.amazon.com/Applied-Network-Security-Monitoring-Collection/dp/0124172083 ◦ http://www.amazon.com/Practice-Network-Security-Monitoring-Understanding/dp/1593275099 ◦ https://www.novainfosec.com/2013/03/13/honeypots-101/ ◦ https://www.novainfosec.com/2014/06/27/honeypotting-for-dummies-with-mhn/ ◦ http://searchsecurity.techtarget.com/feature/How-to-avoid-federal-Wiretap-Act-issues-with-a-honeypot-network- security-system ◦ http://www.law.cornell.edu/uscode/text/18/2510 ◦ http://threatstream.github.io/mhn/ ◦ https://www.honeynet.org/node/1189
