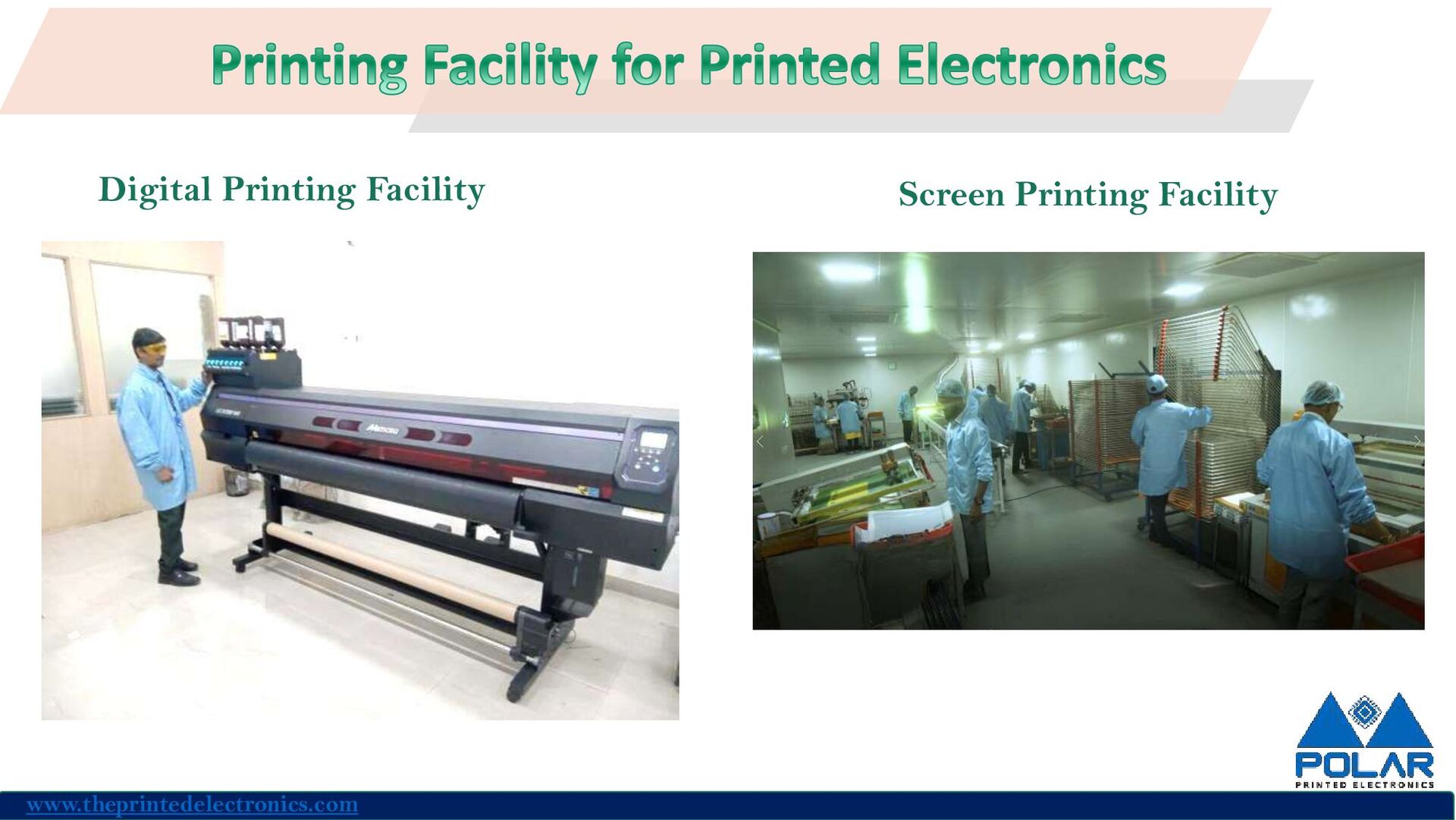

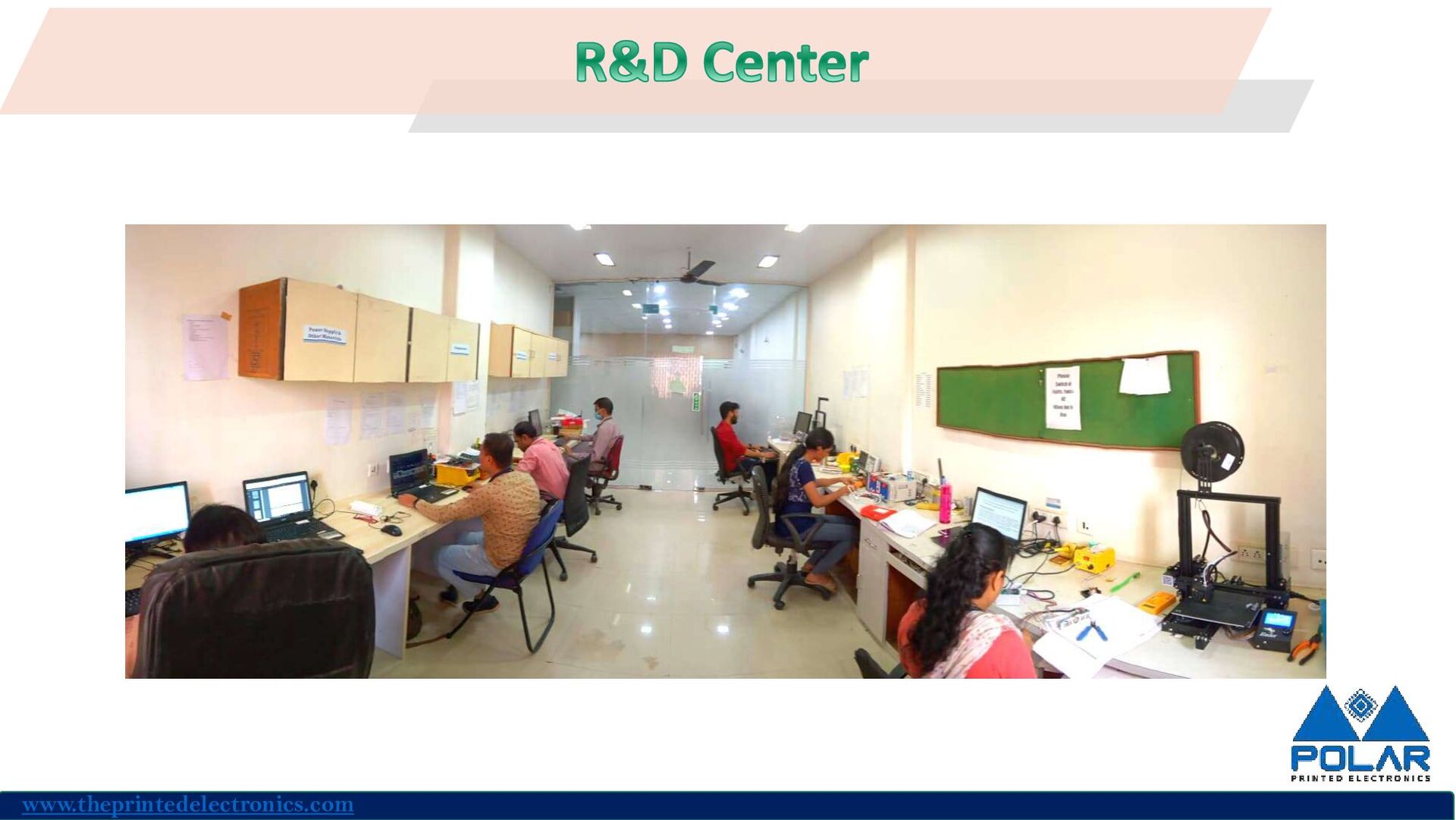

area of 20000 sq ft Climatically controlled dust free rooms 10000 class Clean Rooms Highly Advanced Equipment Automatic Roll-to-Roll Screen Printing Facility Dedicated R&D Centre, Engineering & Design Centre

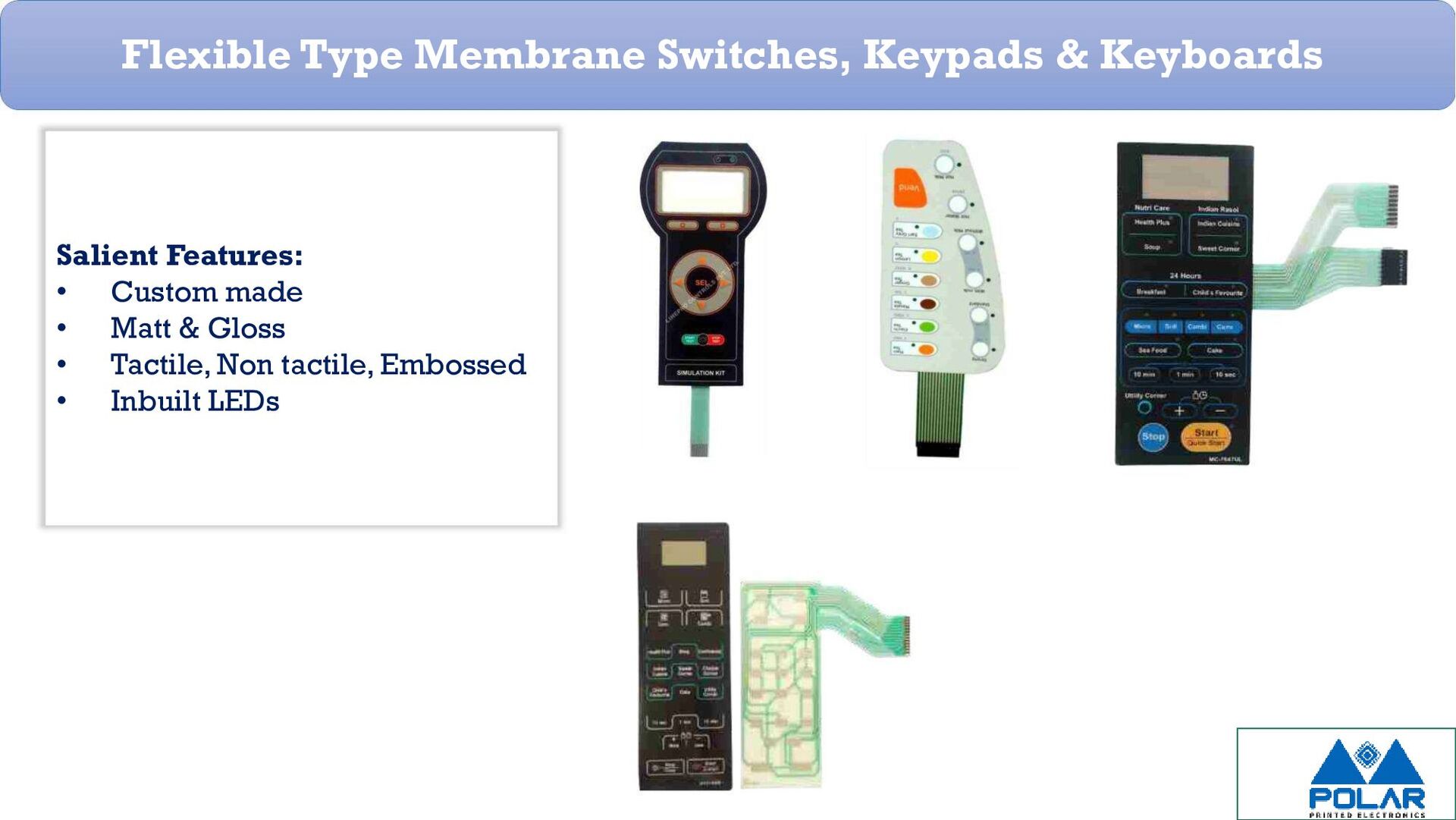

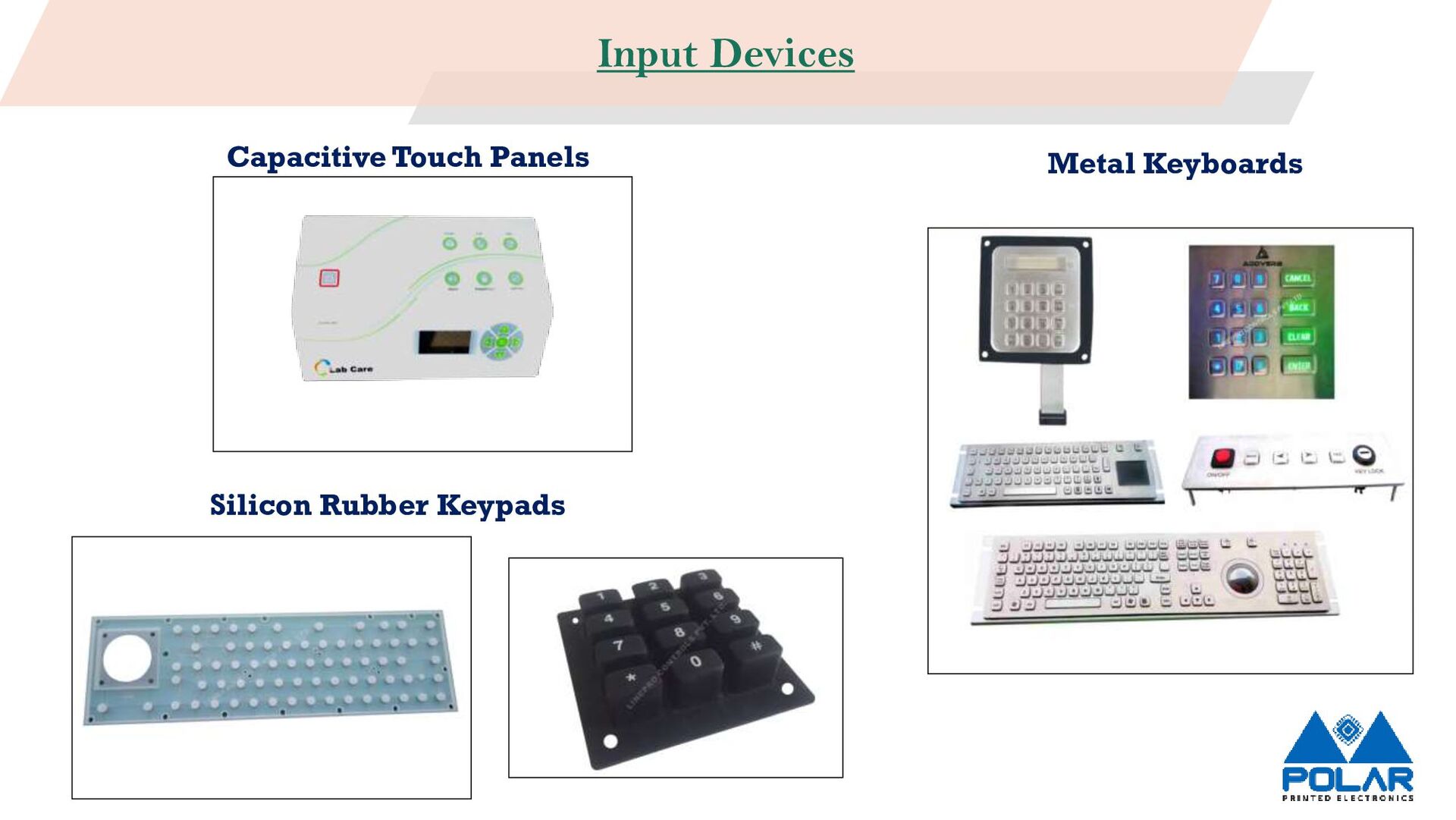

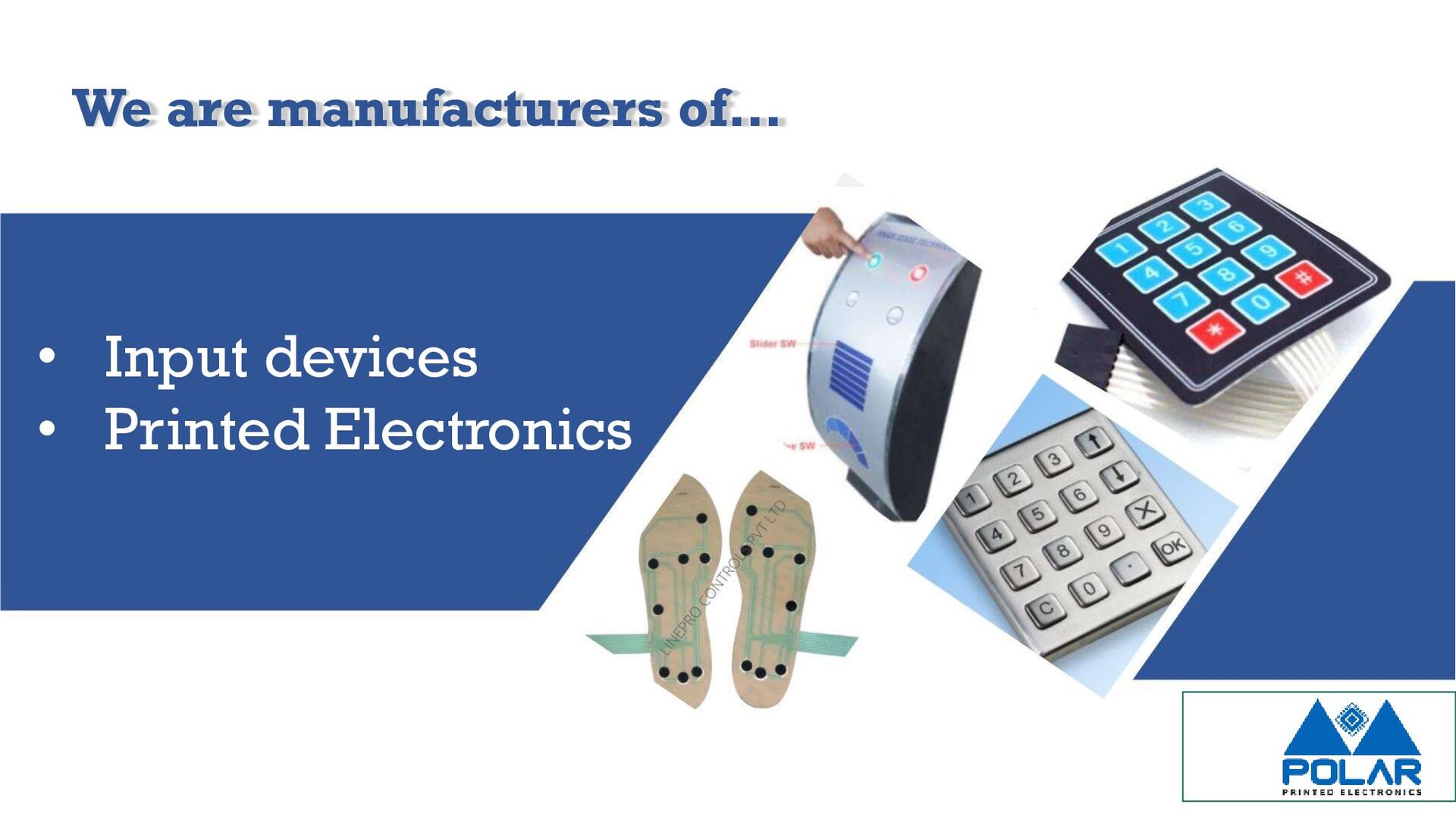

benefit with their critical strategic business decisions. Areas of coverage of Printed electronics: Flexible Printed Circuits Printed Heaters Electrochromic displays Pressure Sensors In-mold components Biomedical Sensors Printed Batteries Since 1993, we have served Automobile industry with varied solutions to meet clients’ expectations on complex applications. Input Devices • Membrane Keypads and switches • Capacitive Touch Sense • Silicone Keypads • Metal Keypads wwwtheprintedelectronics.com

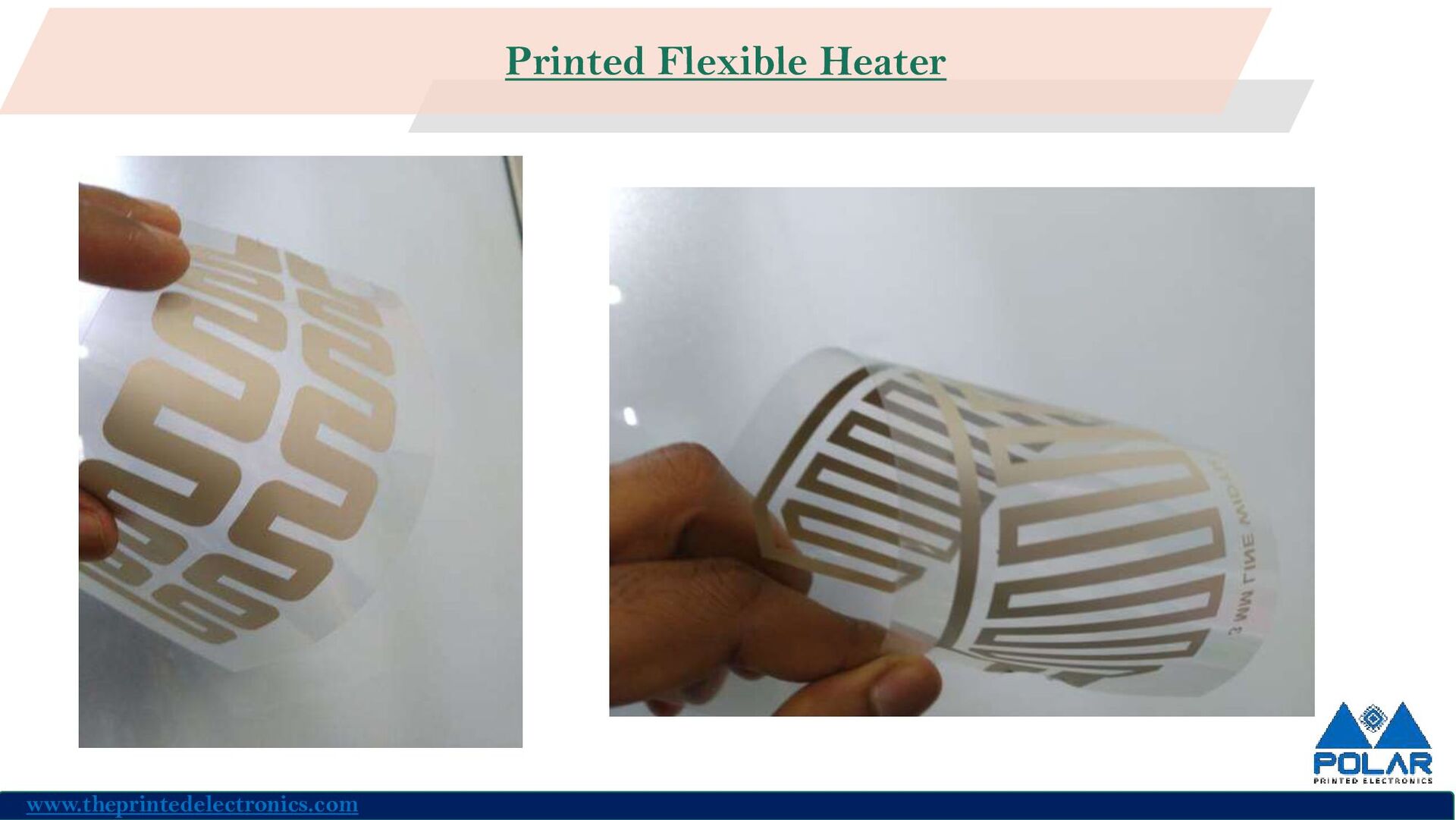

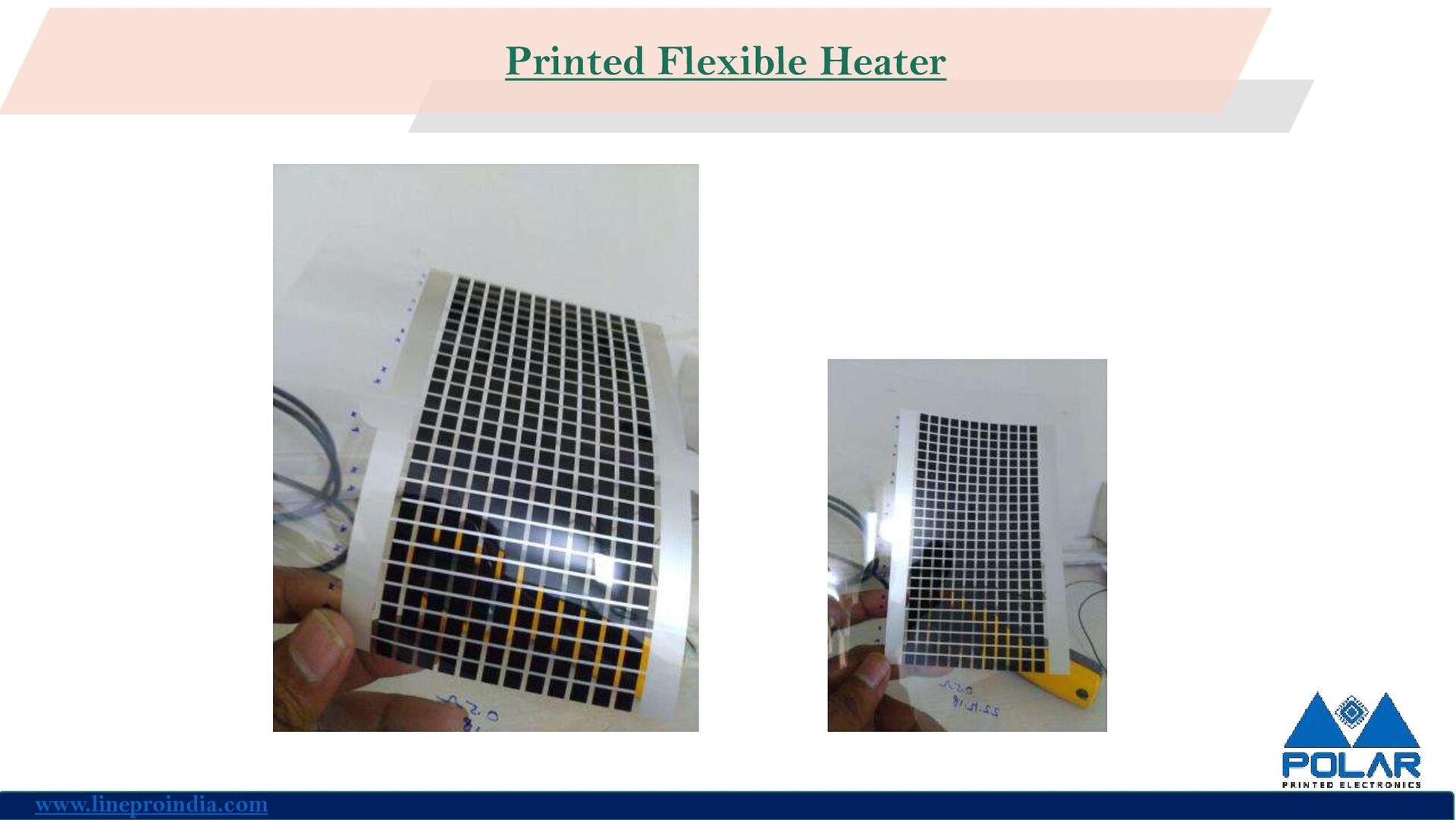

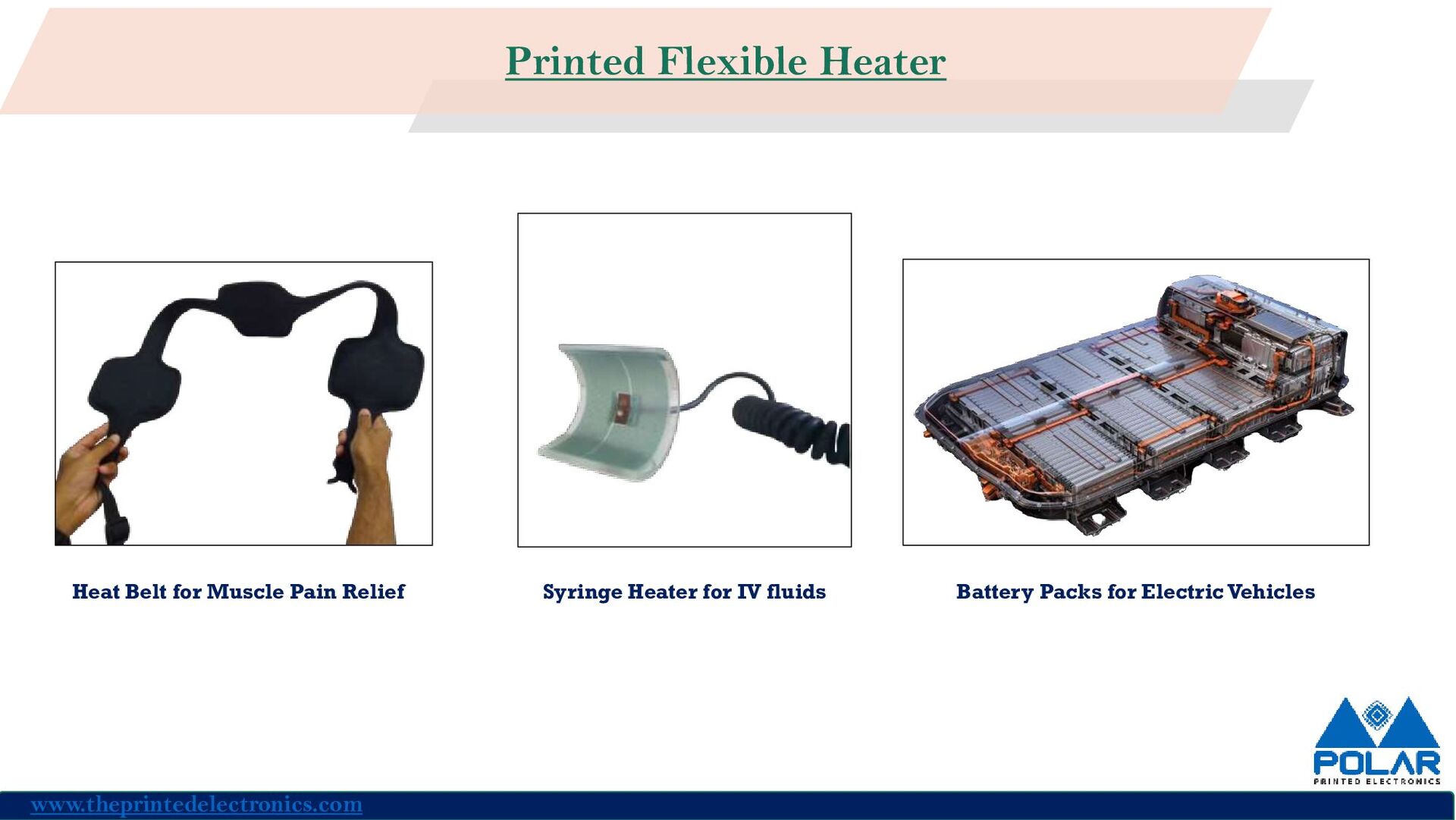

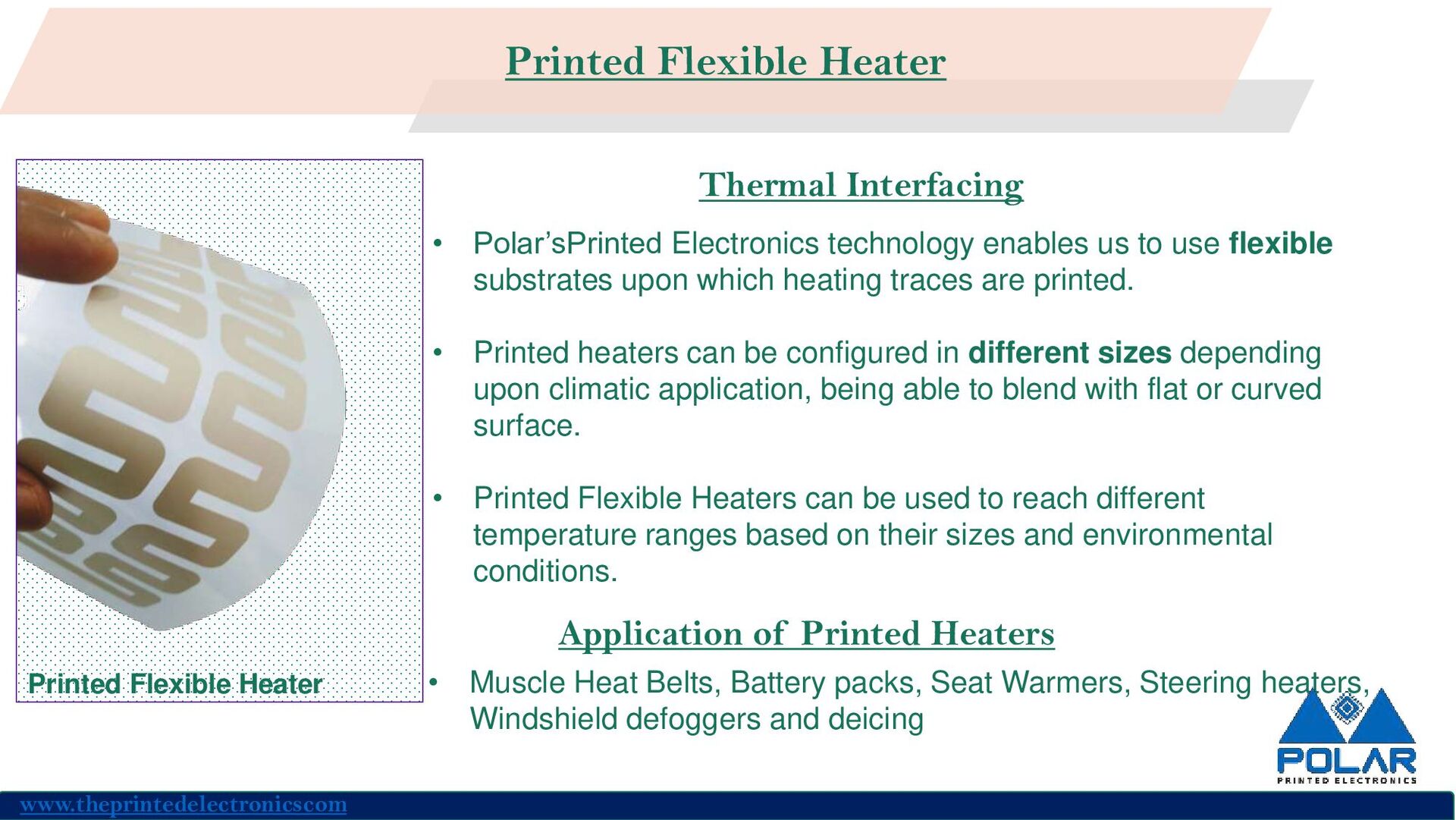

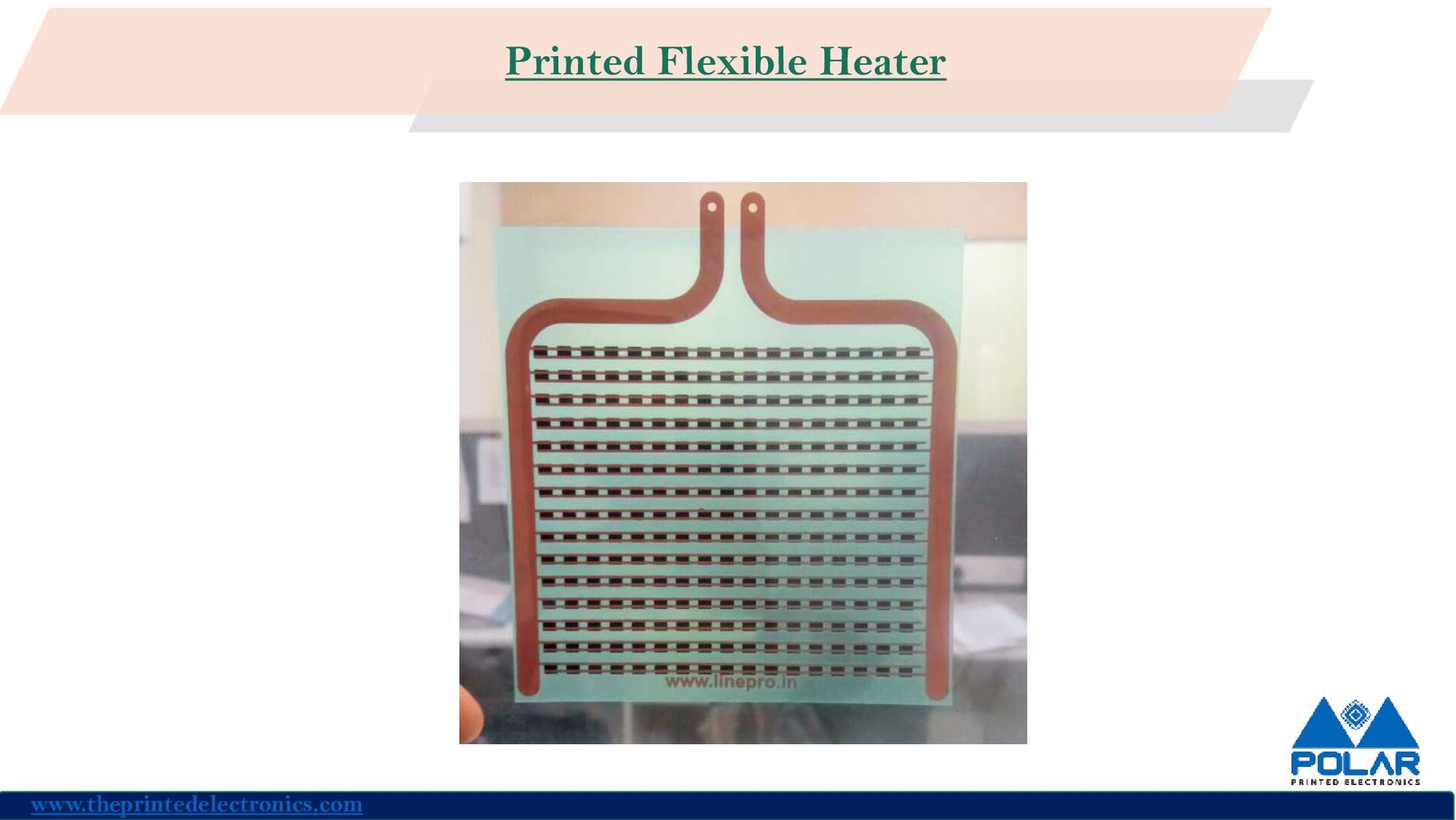

upon which heating traces are printed. • Printed heaters can be configured in different sizes depending upon climatic application, being able to blend with flat or curved surface. • Printed Flexible Heaters can be used to reach different temperature ranges based on their sizes and environmental conditions. Printed Flexible Heater Thermal Interfacing Application of Printed Heaters • Muscle Heat Belts, Battery packs, Seat Warmers, Steering heaters, Windshield defoggers and deicing www.theprintedelectronicscom Printed Flexible Heater

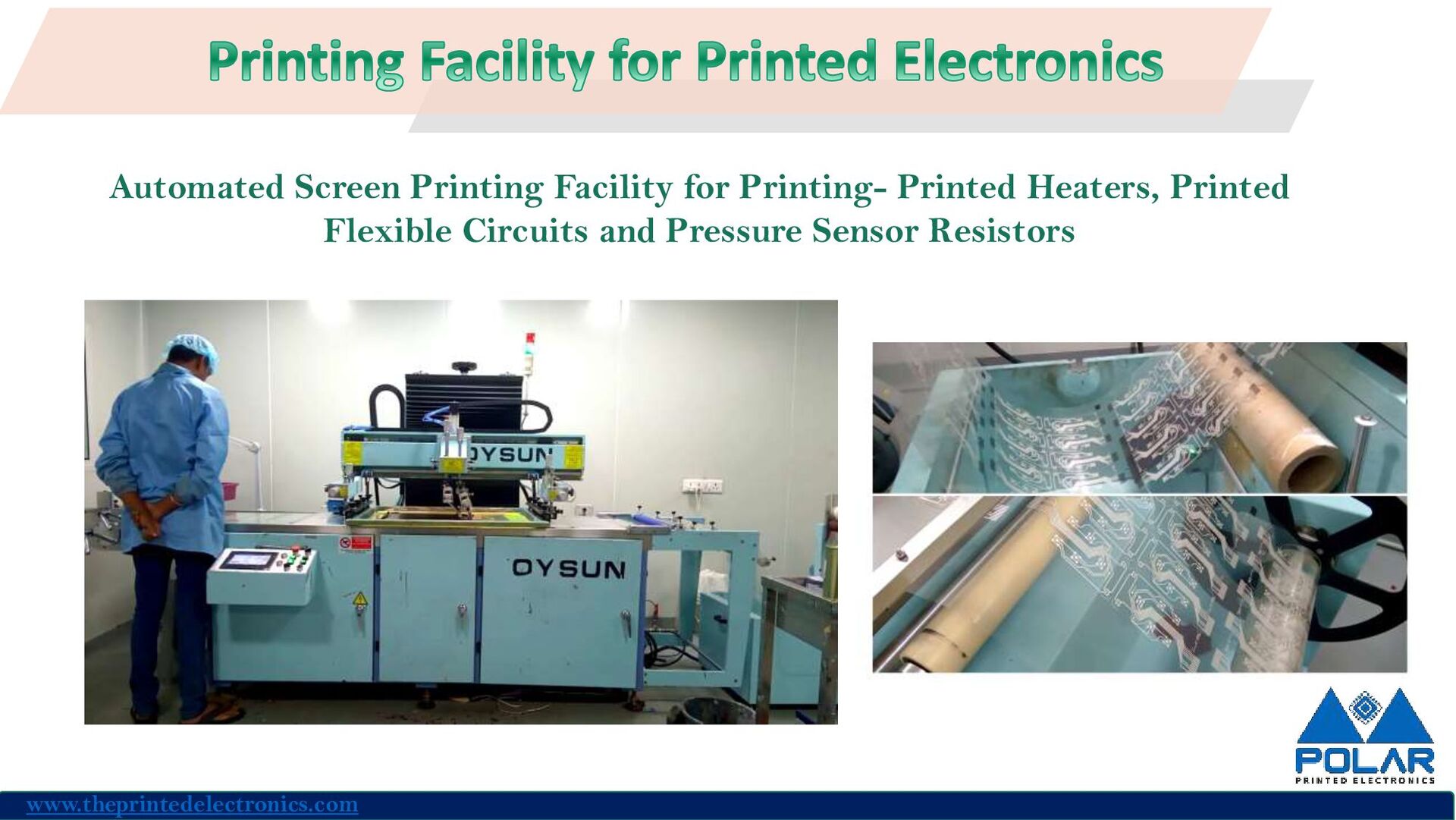

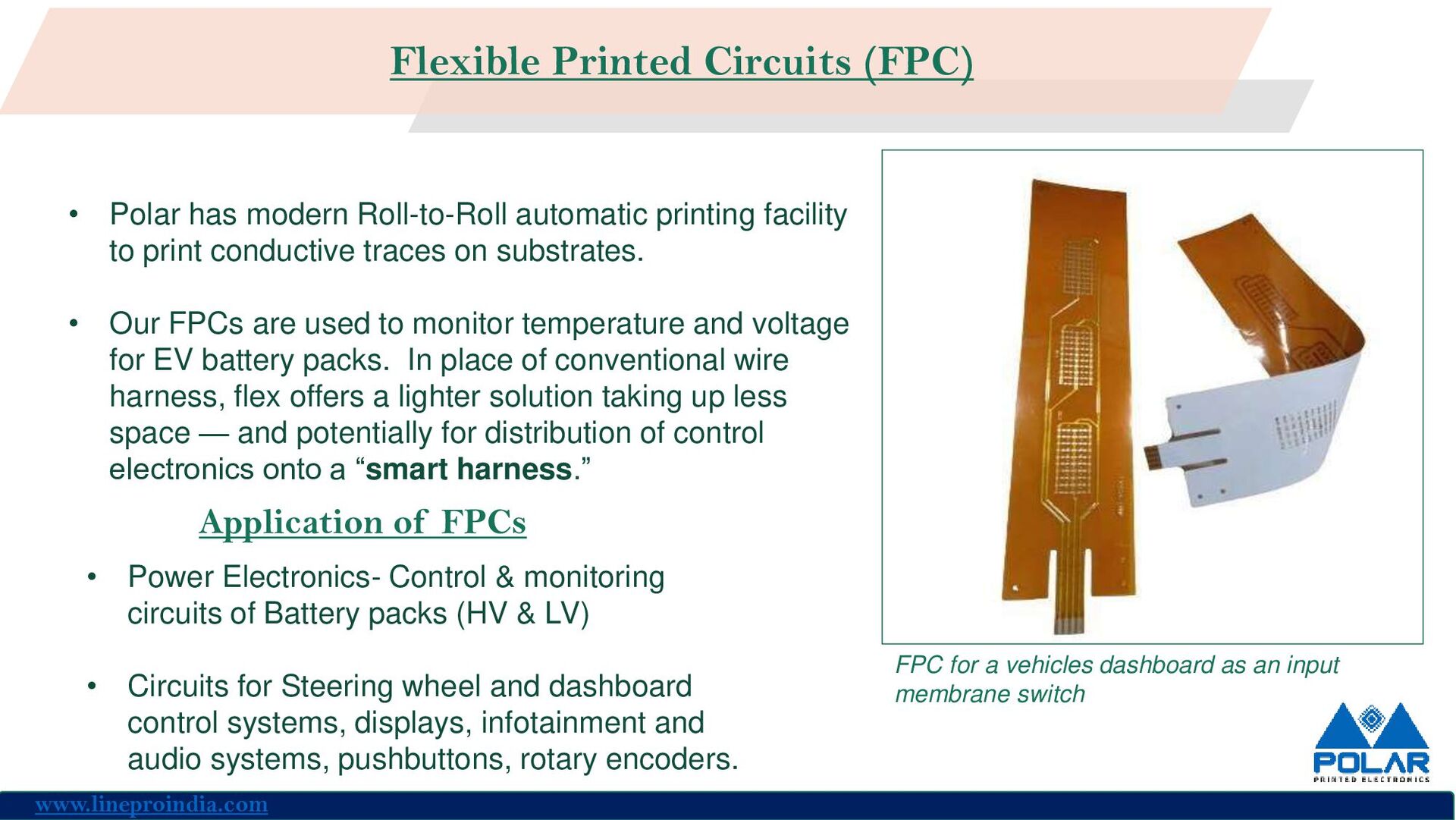

• Polar has modern Roll-to-Roll automatic printing facility to print conductive traces on substrates. • Our FPCs are used to monitor temperature and voltage for EV battery packs. In place of conventional wire harness, flex offers a lighter solution taking up less space — and potentially for distribution of control electronics onto a “smart harness.” www.lineproindia.com Application of FPCs • Power Electronics- Control & monitoring circuits of Battery packs (HV & LV) • Circuits for Steering wheel and dashboard control systems, displays, infotainment and audio systems, pushbuttons, rotary encoders. Flexible Printed Circuits (FPC)

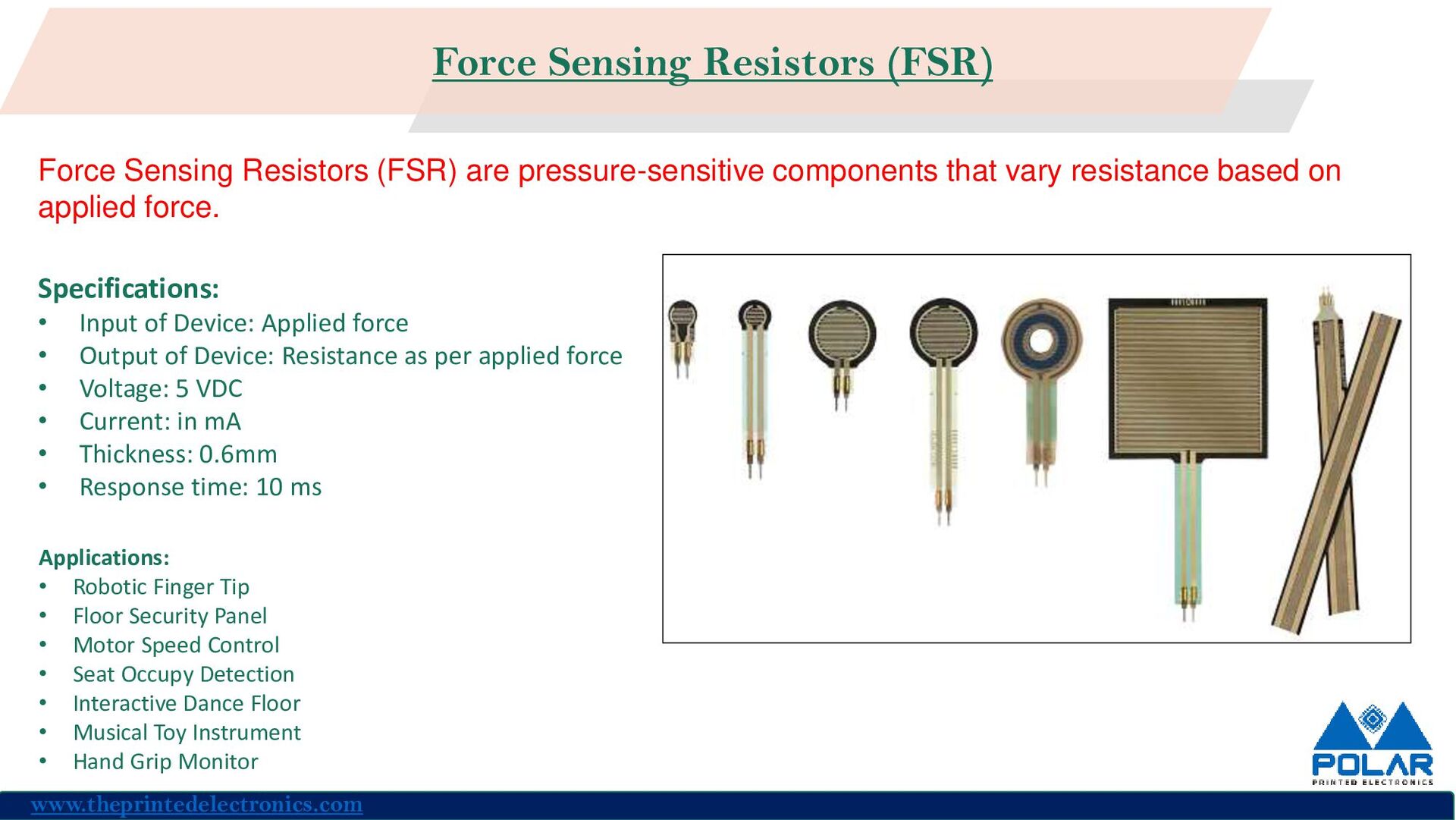

pressure-sensitive components that vary resistance based on applied force. Specifications: • Input of Device: Applied force • Output of Device: Resistance as per applied force • Voltage: 5 VDC • Current: in mA • Thickness: 0.6mm • Response time: 10 ms Applications: • Robotic Finger Tip • Floor Security Panel • Motor Speed Control • Seat Occupy Detection • Interactive Dance Floor • Musical Toy Instrument • Hand Grip Monitor

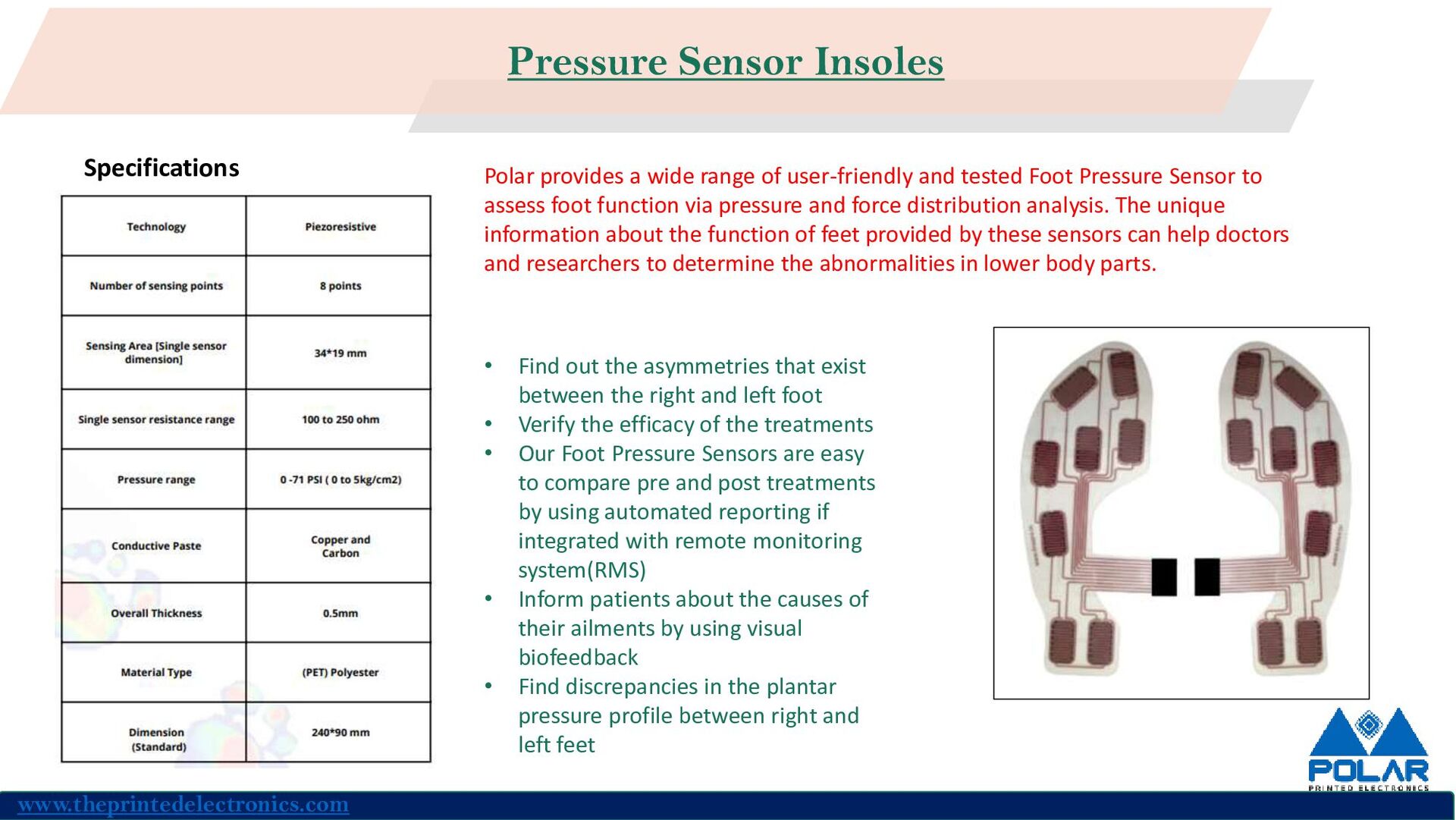

user-friendly and tested Foot Pressure Sensor to assess foot function via pressure and force distribution analysis. The unique information about the function of feet provided by these sensors can help doctors and researchers to determine the abnormalities in lower body parts. • Find out the asymmetries that exist between the right and left foot • Verify the efficacy of the treatments • Our Foot Pressure Sensors are easy to compare pre and post treatments by using automated reporting if integrated with remote monitoring system(RMS) • Inform patients about the causes of their ailments by using visual biofeedback • Find discrepancies in the plantar pressure profile between right and left feet Specifications

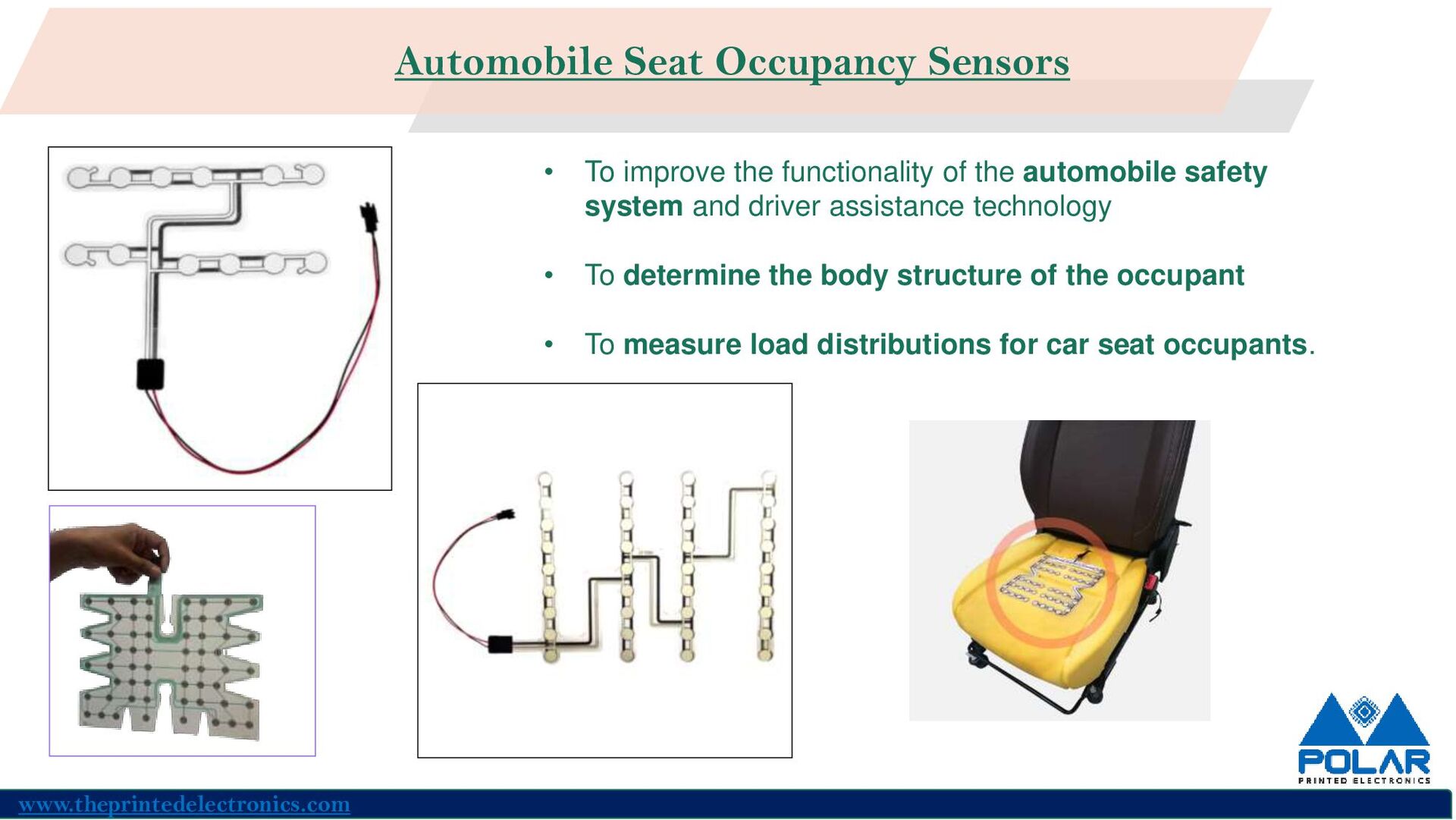

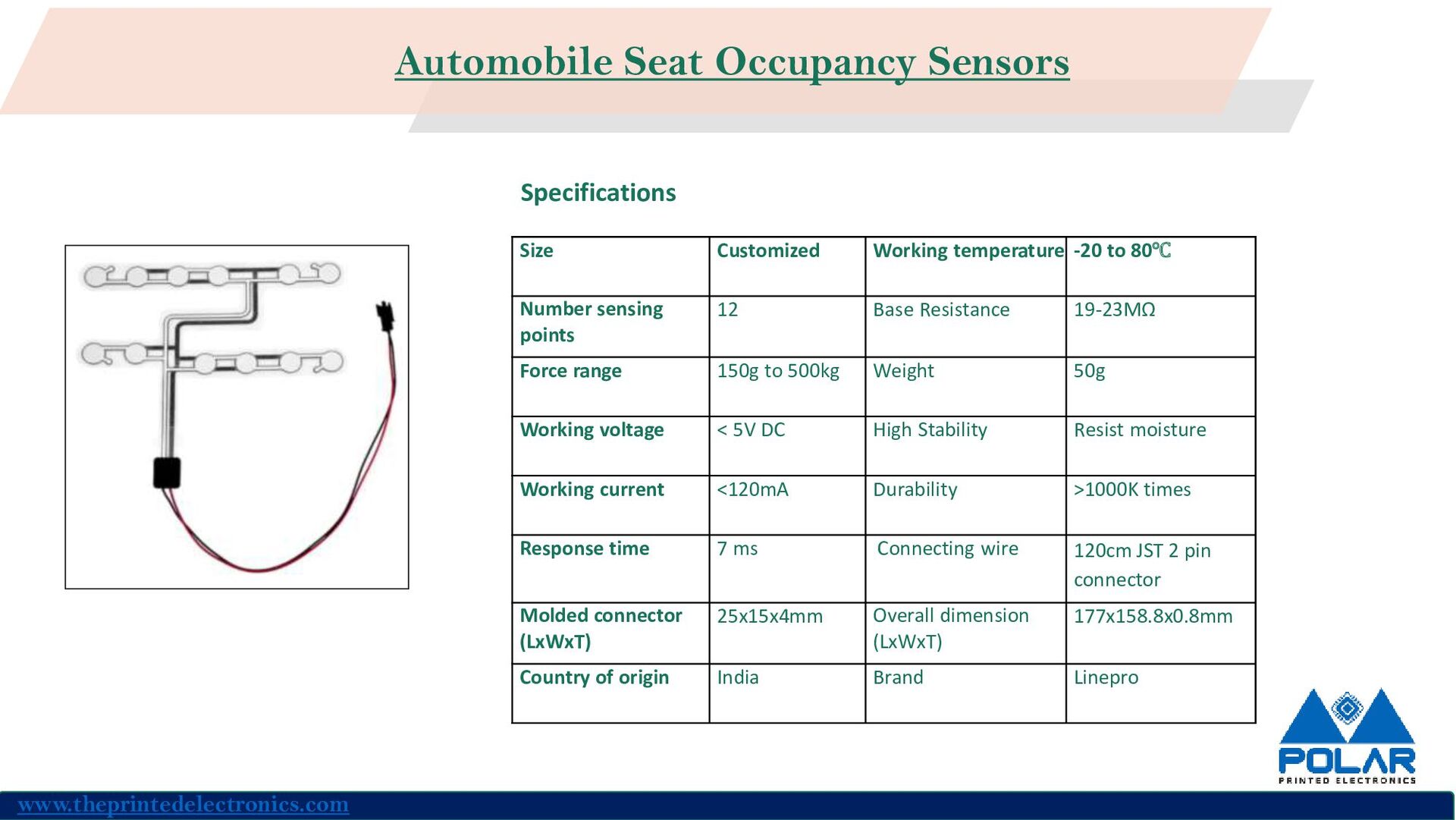

and driver assistance technology • To determine the body structure of the occupant • To measure load distributions for car seat occupants. www.theprintedelectronics.com Automobile Seat Occupancy Sensors
to 80℃ Number sensing points 12 Base Resistance 19-23MΩ Force range 150g to 500kg Weight 50g Working voltage < 5V DC High Stability Resist moisture Working current <120mA Durability >1000K times Response time 7 ms Connecting wire 120cm JST 2 pin connector Molded connector (LxWxT) 25x15x4mm Overall dimension (LxWxT) 177x158.8x0.8mm Country of origin India Brand Linepro Specifications

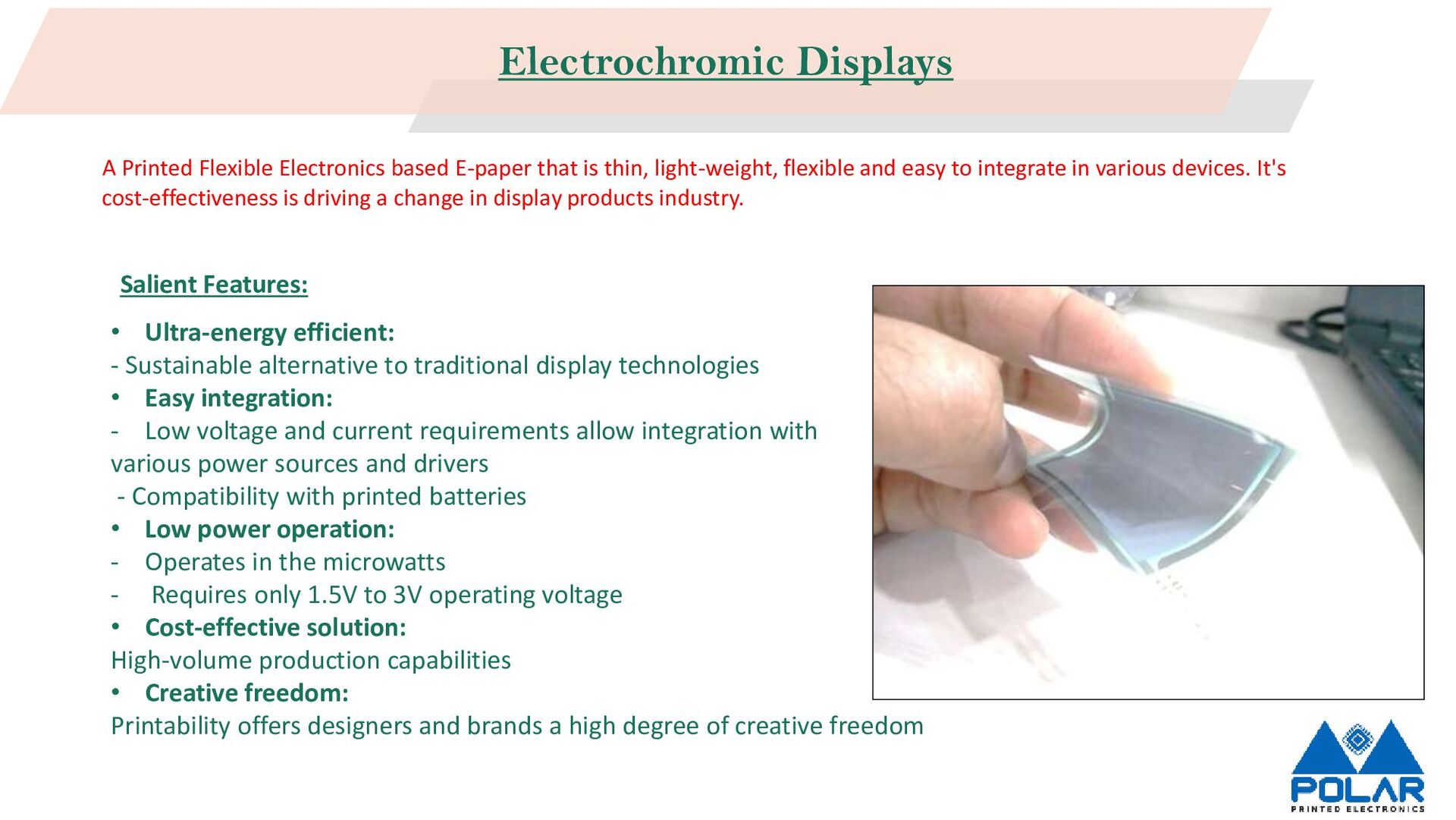

flexible and easy to integrate in various devices. It's cost-effectiveness is driving a change in display products industry. • Ultra-energy efficient: - Sustainable alternative to traditional display technologies • Easy integration: - Low voltage and current requirements allow integration with various power sources and drivers - Compatibility with printed batteries • Low power operation: - Operates in the microwatts - Requires only 1.5V to 3V operating voltage • Cost-effective solution: High-volume production capabilities • Creative freedom: Printability offers designers and brands a high degree of creative freedom Salient Features: Electrochromic Displays

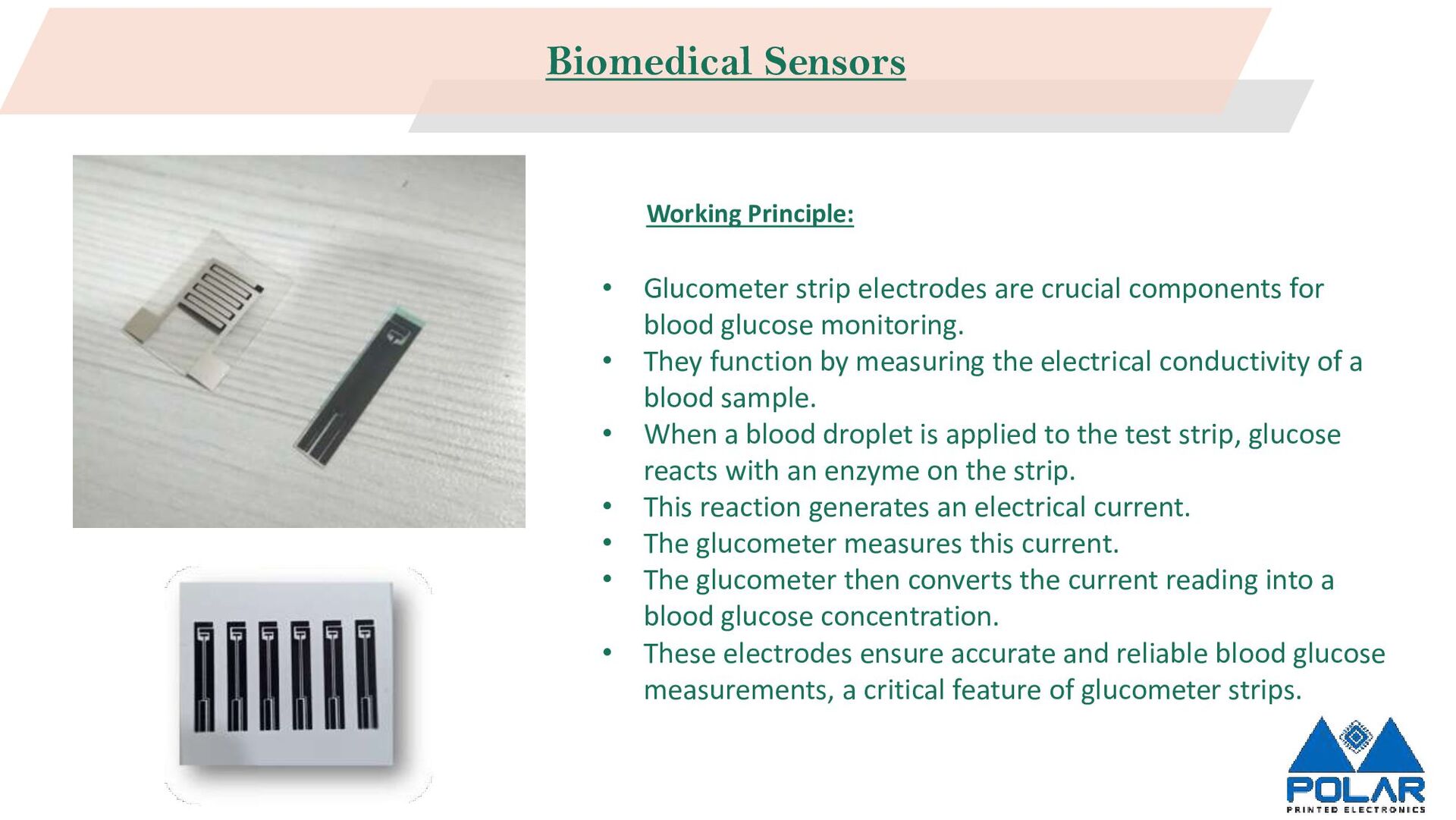

blood glucose monitoring. • They function by measuring the electrical conductivity of a blood sample. • When a blood droplet is applied to the test strip, glucose reacts with an enzyme on the strip. • This reaction generates an electrical current. • The glucometer measures this current. • The glucometer then converts the current reading into a blood glucose concentration. • These electrodes ensure accurate and reliable blood glucose measurements, a critical feature of glucometer strips. Working Principle:

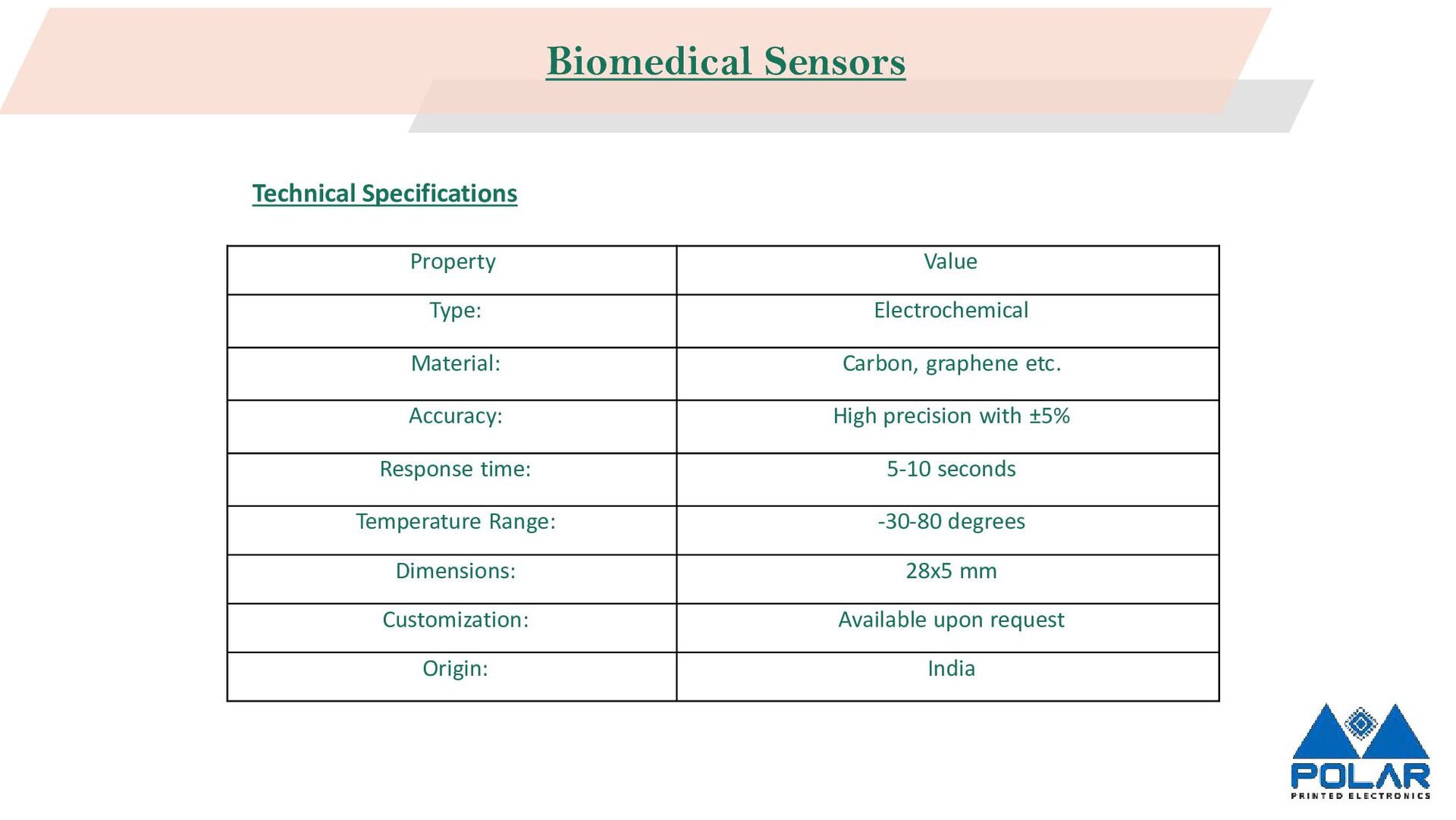

Accuracy: High precision with ±5% Response time: 5-10 seconds Temperature Range: -30-80 degrees Dimensions: 28x5 mm Customization: Available upon request Origin: India Technical Specifications

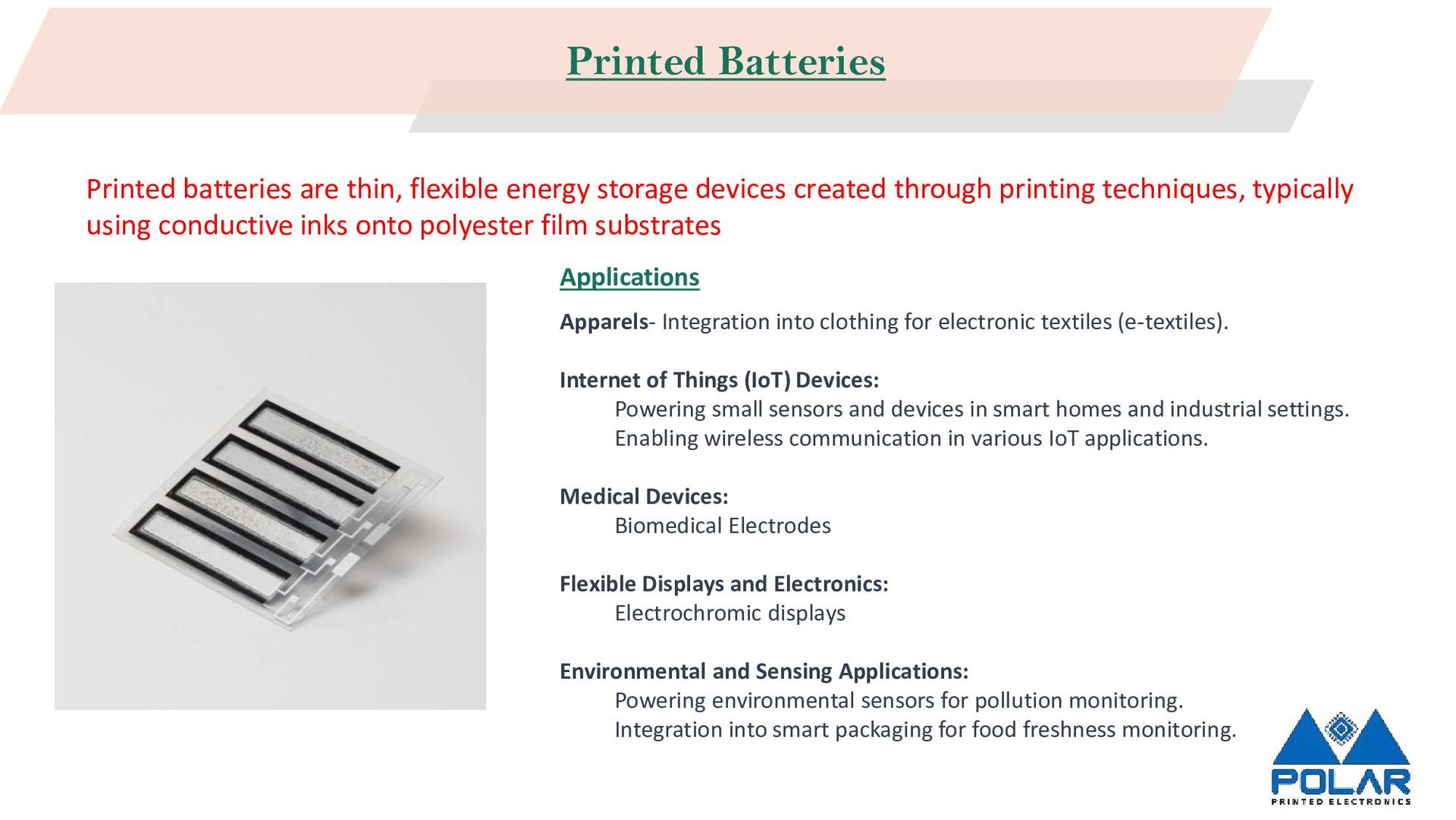

created through printing techniques, typically using conductive inks onto polyester film substrates Apparels- Integration into clothing for electronic textiles (e-textiles). Internet of Things (IoT) Devices: Powering small sensors and devices in smart homes and industrial settings. Enabling wireless communication in various IoT applications. Medical Devices: Biomedical Electrodes Flexible Displays and Electronics: Electrochromic displays Environmental and Sensing Applications: Powering environmental sensors for pollution monitoring. Integration into smart packaging for food freshness monitoring. Applications
people more resourceful Core Values • Innovative Idea & Solutions • Quest for information • Deliver Excellence • Human Respect • Teamwork An ISO Certified Organization 9001:2008
