Java Garbage Collector: Don't use the default

Explore the inner workings of Java’s Garbage Collector and learn why sticking with the default may not always be the best choice. This talk breaks down how GC works, compares different collector types, and helps you choose the right one for your application’s performance needs.

Transcript

1. Java Garbage Collector Don’t use the default Thiago Bomfim

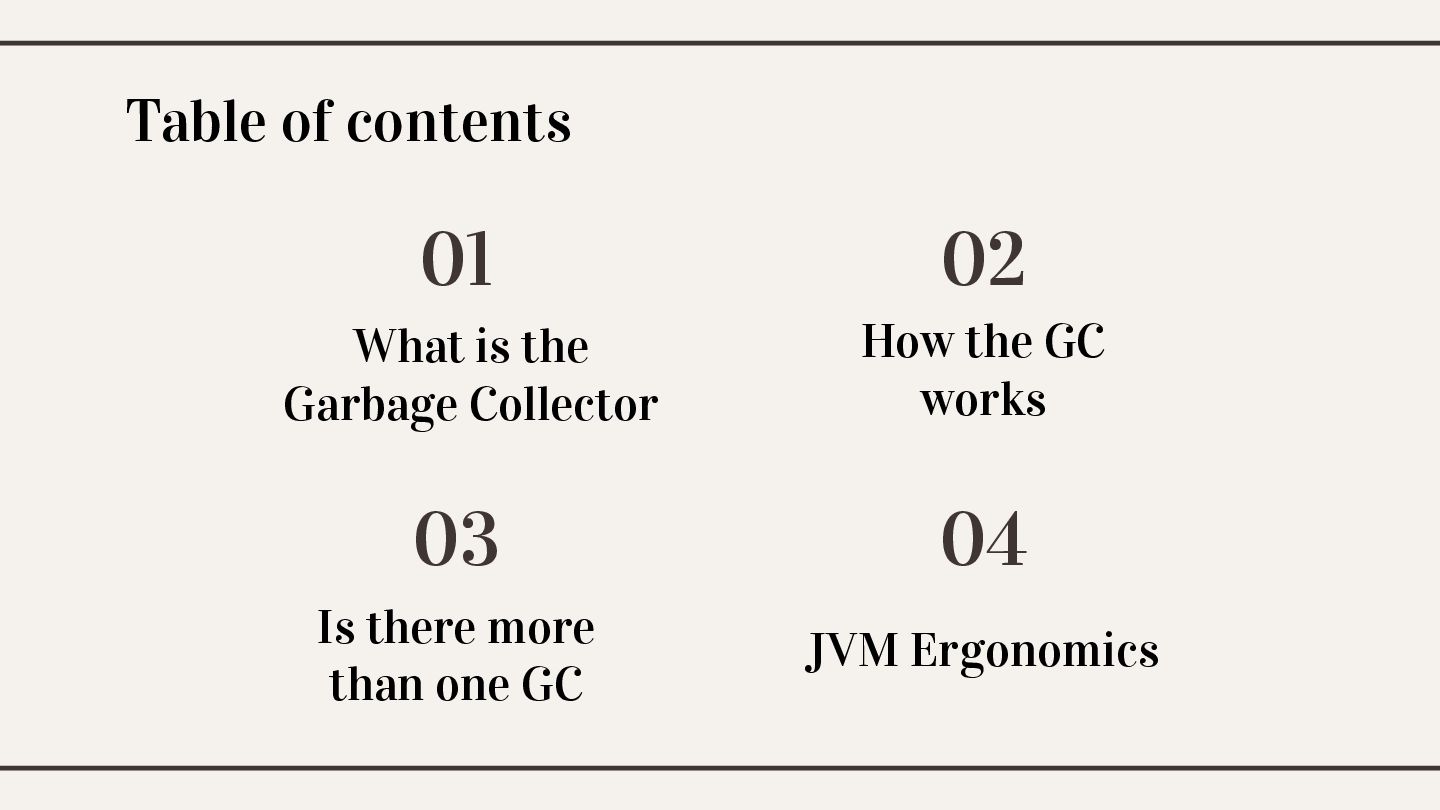

2. Table of contents What is the Garbage Collector How the GC works JVM Ergonomics Is there more than one GC 01 02 03 04
3. What is the Garbage Collector? 01
4. Memory Leak Memory Leaks are silent killers, slowly gobbling up system resources, until one day the entire application is fated.
5. Garbage Collector Garbage collector, the silent hero of memory management, silently sweeps through the realm of allocated memory, freeing the forgotten fragments, and sparing developers from the shackles of manual memory deallocation.
7. How the GC works? 02

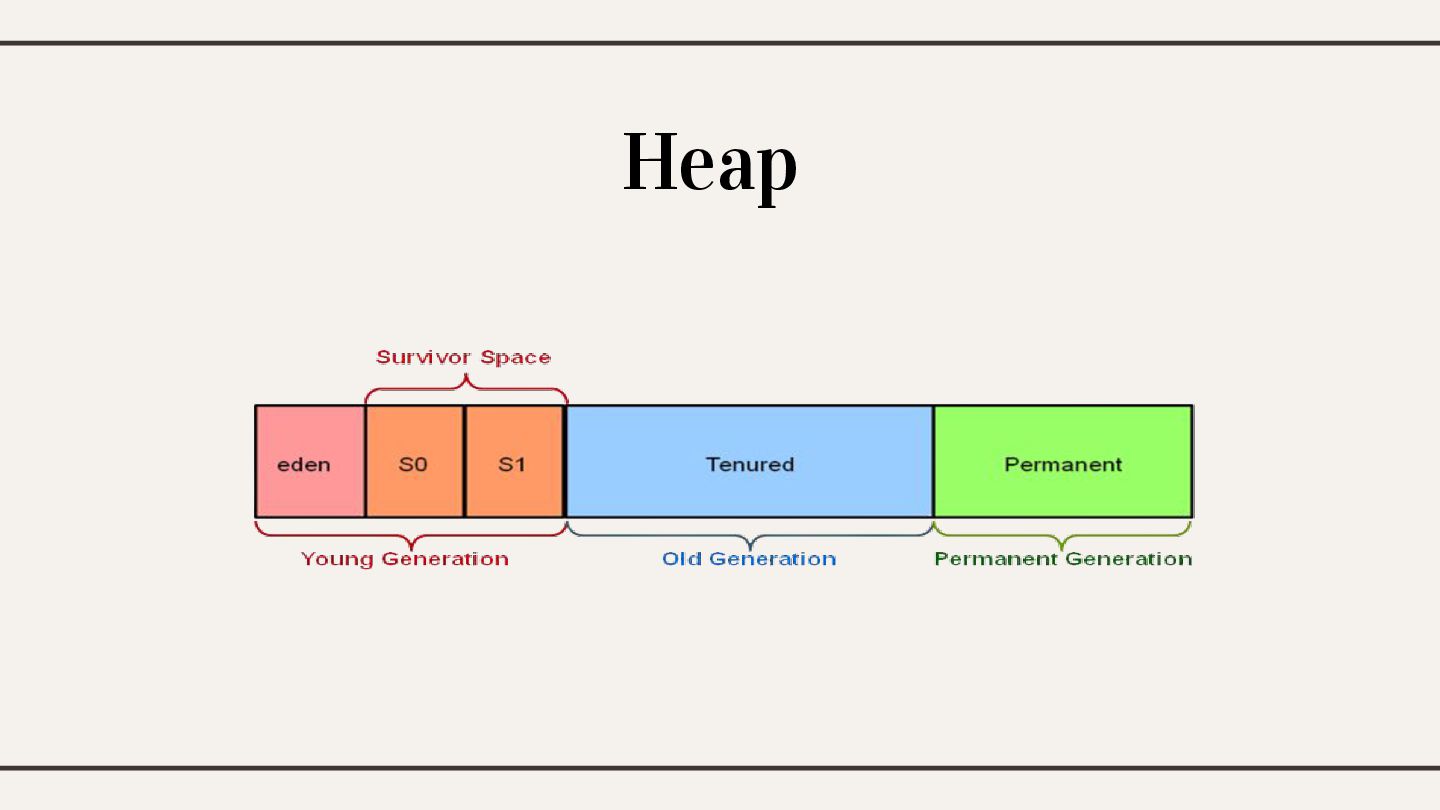

8. Heap

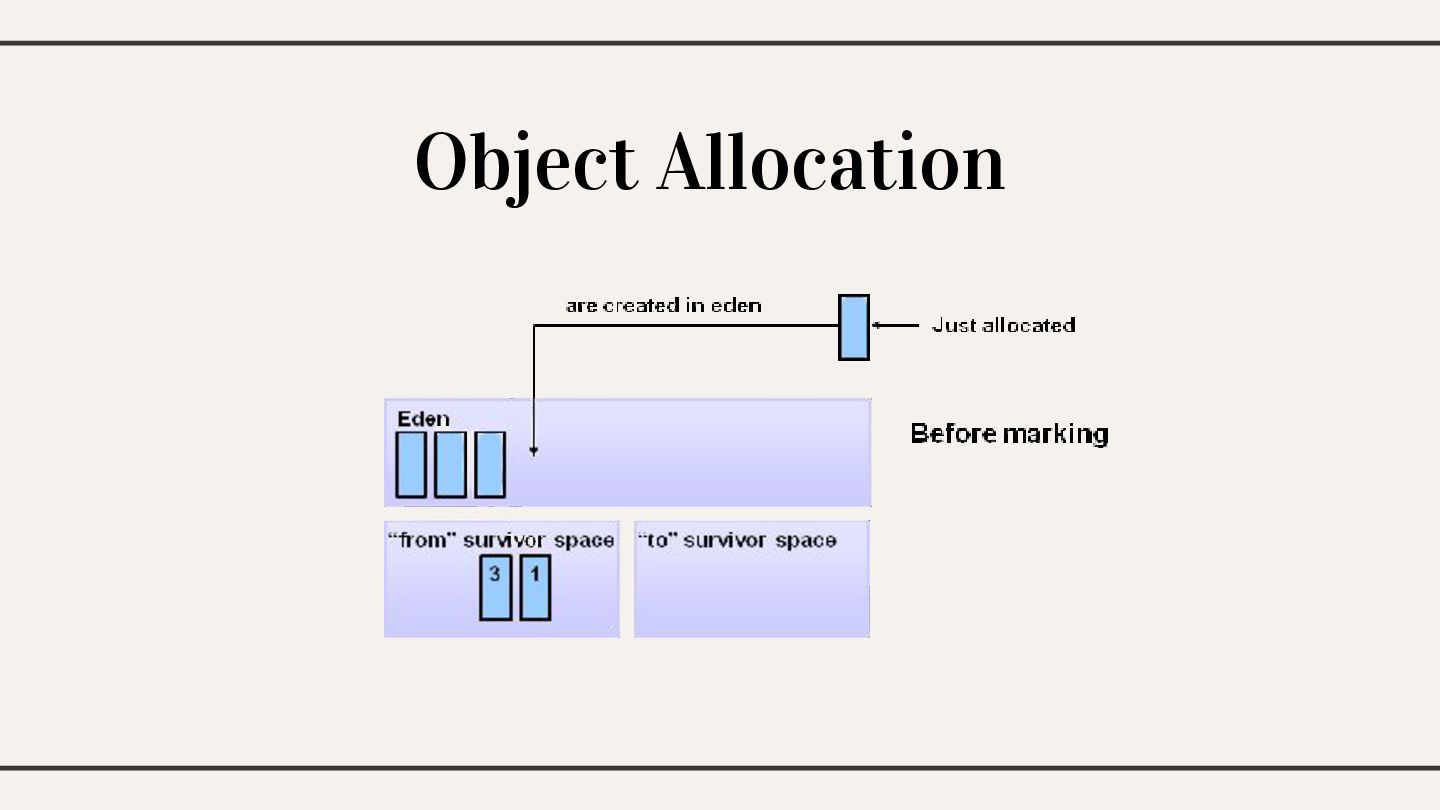

9. Object Allocation

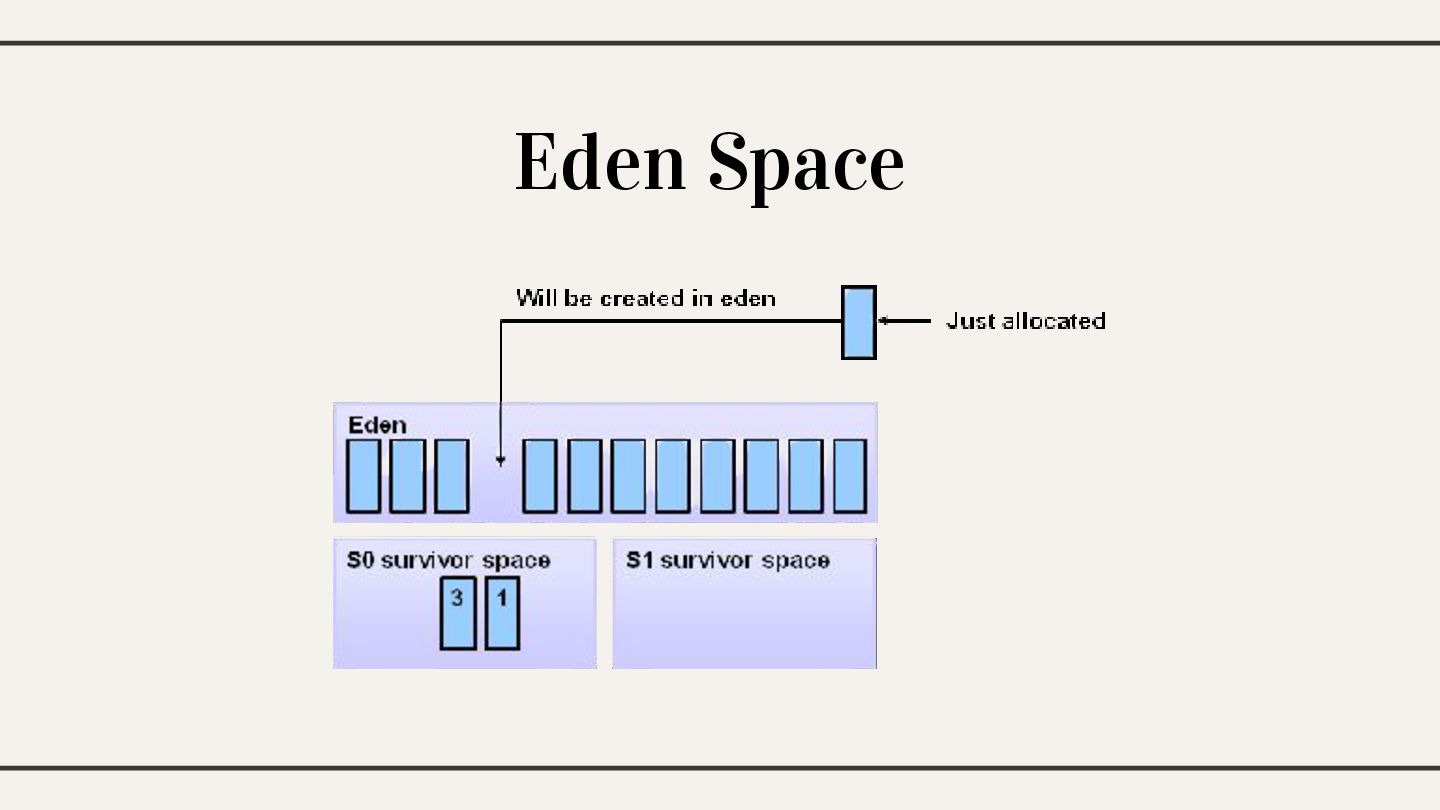

10. Eden Space

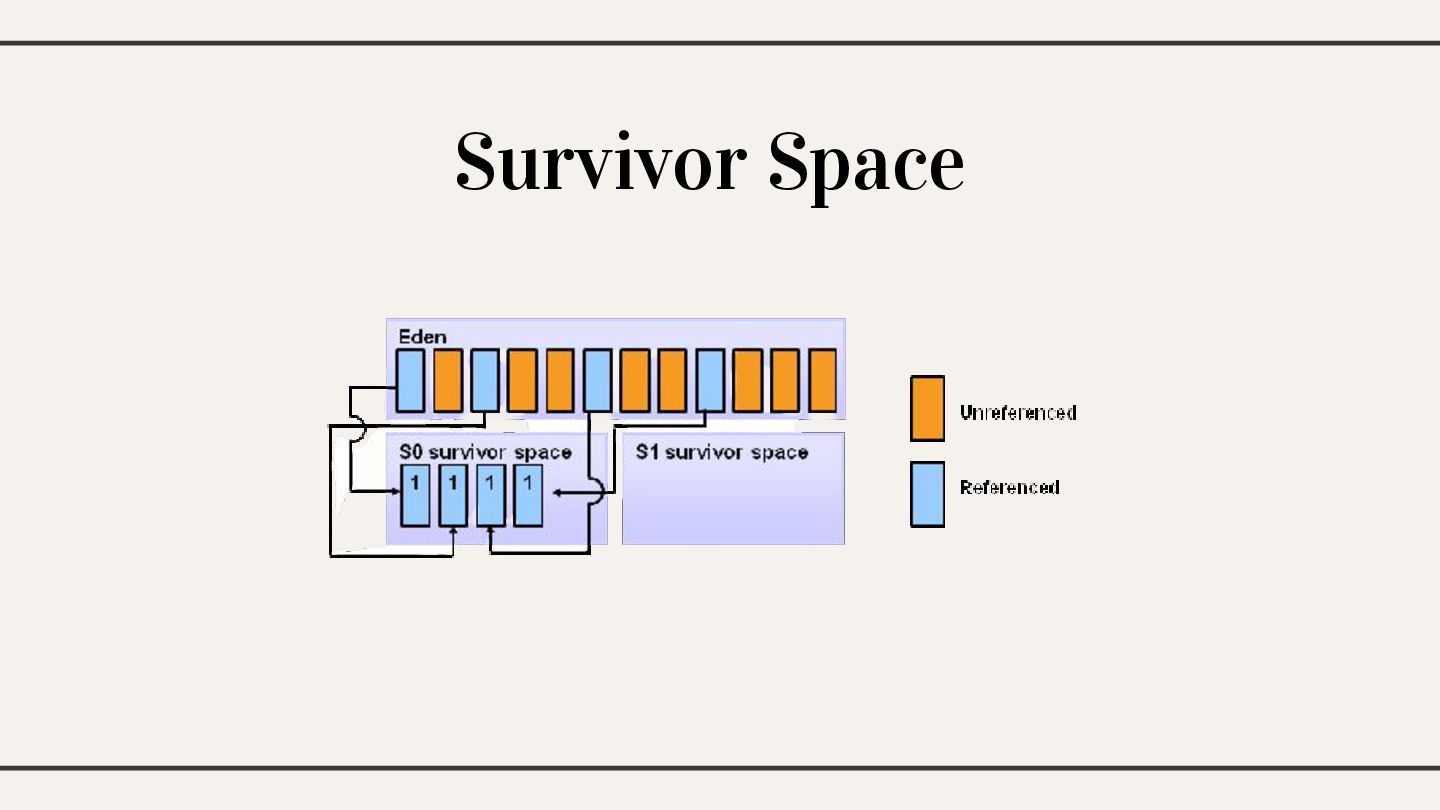

11. Survivor Space

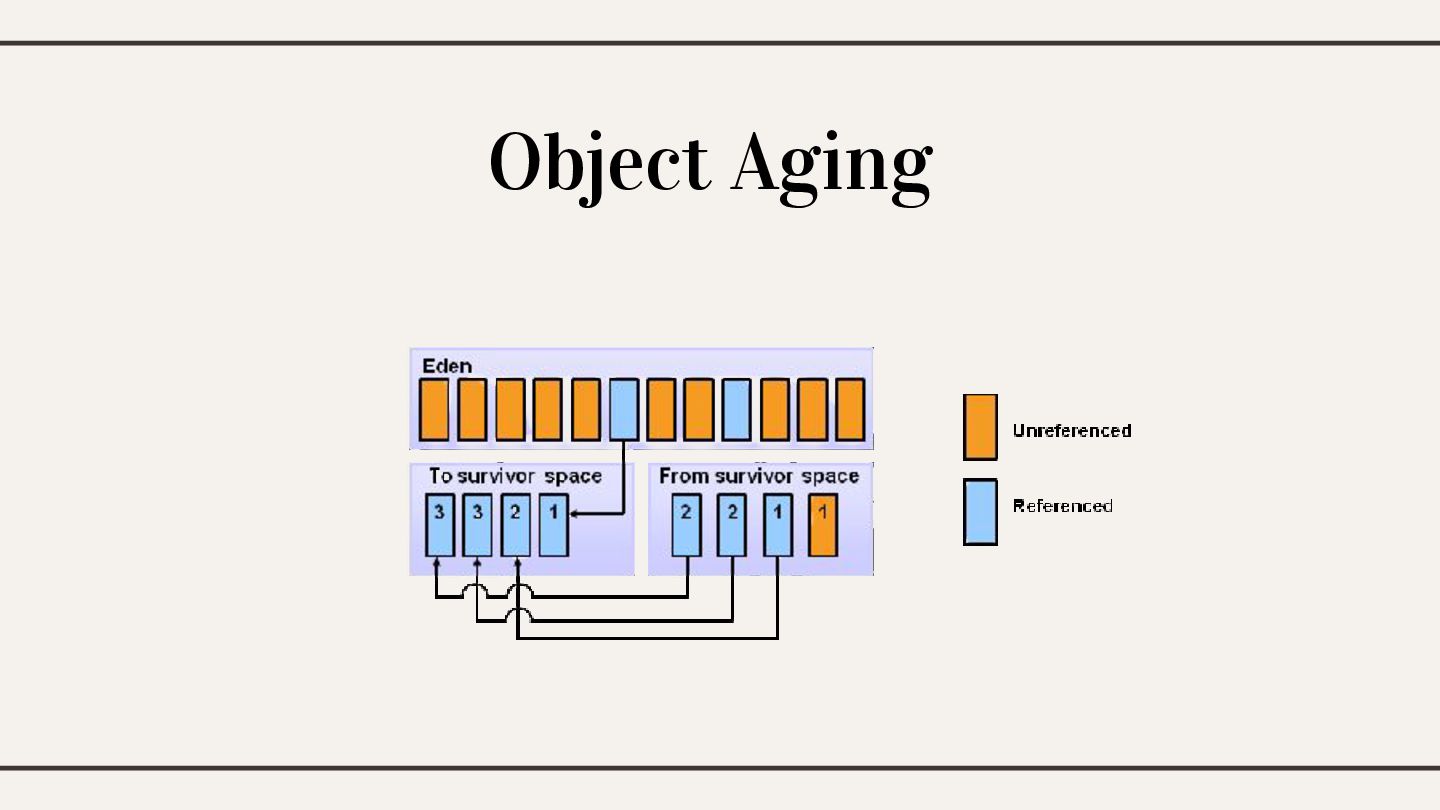

12. Object Aging

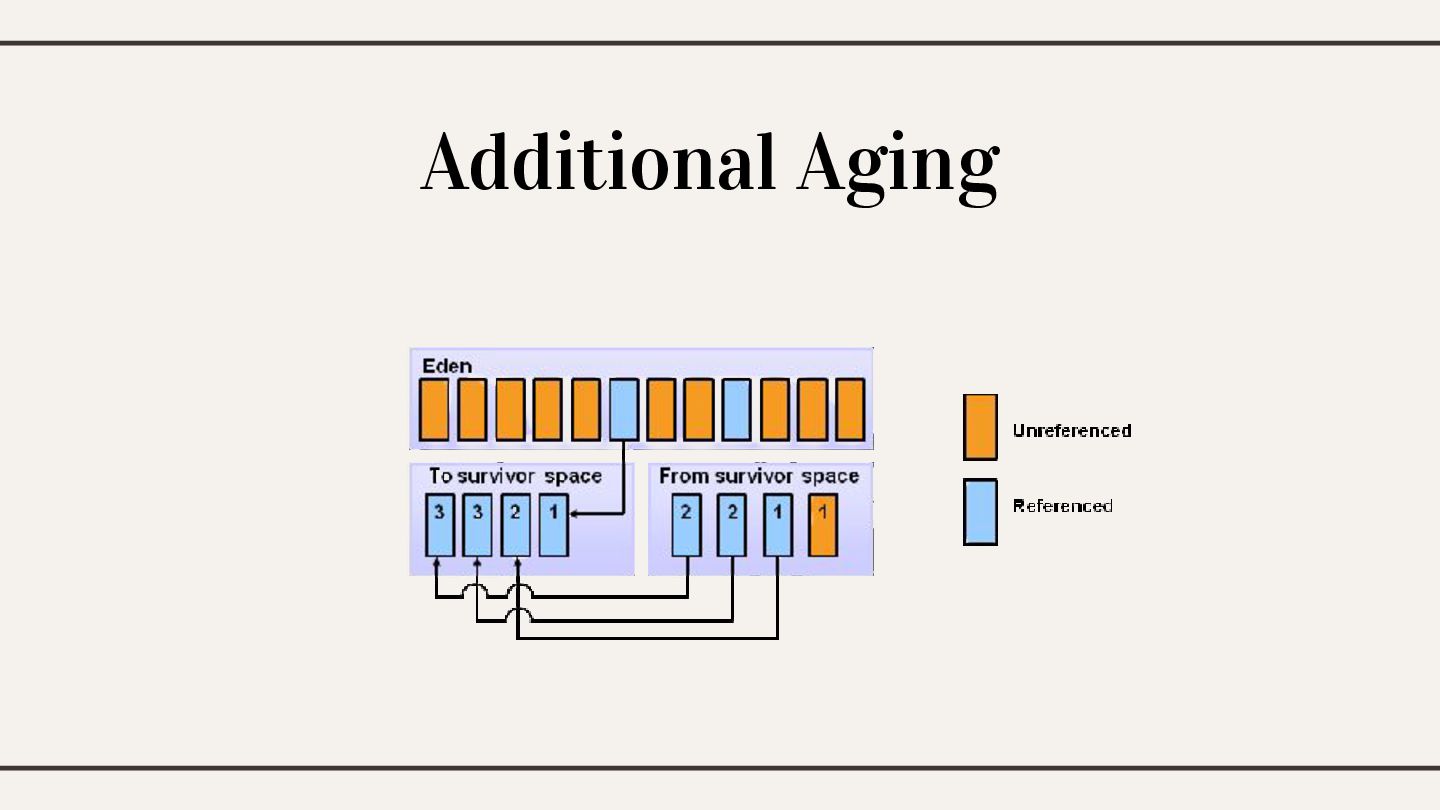

13. Additional Aging

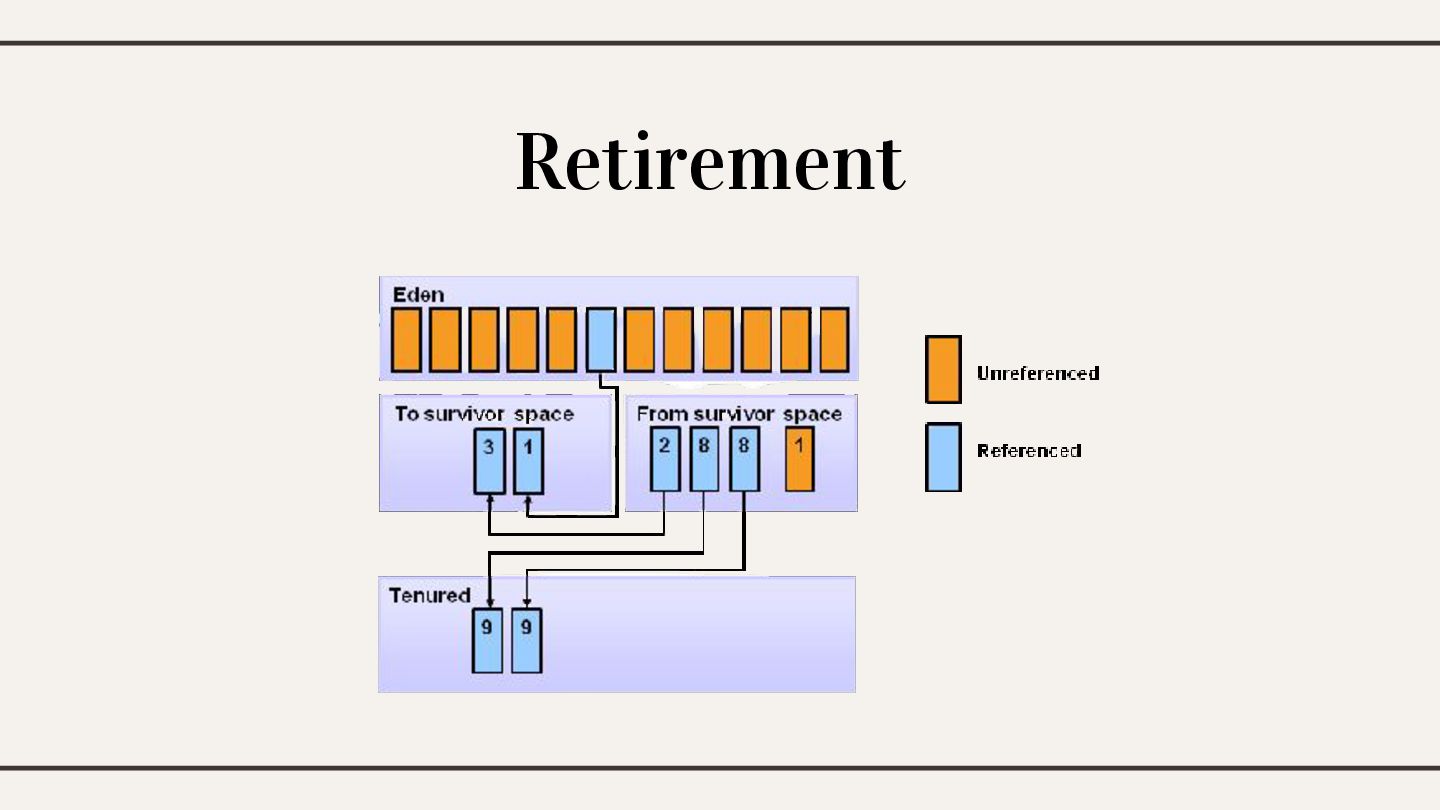

14. Retirement

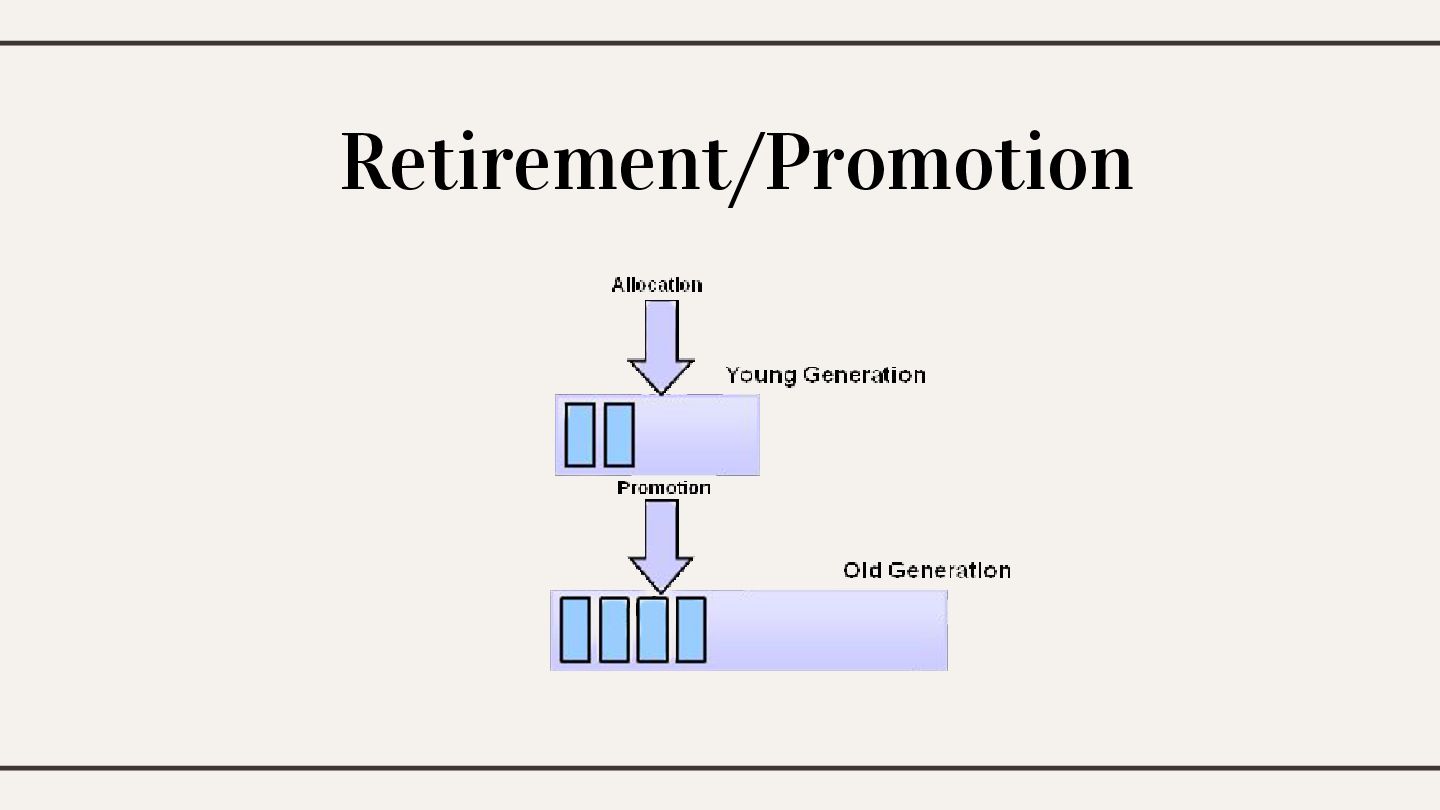

15. Retirement/Promotion

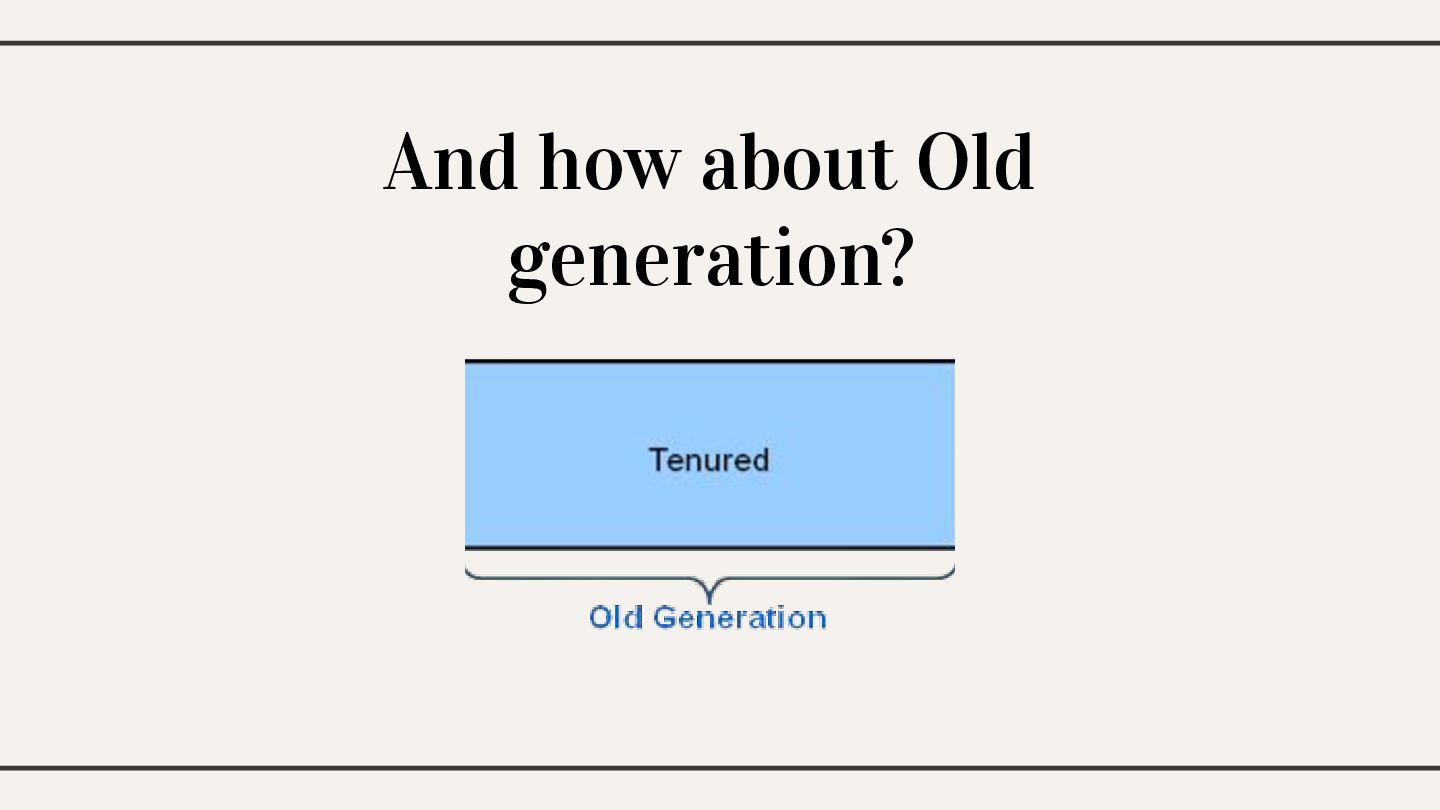

16. And how about Old generation?

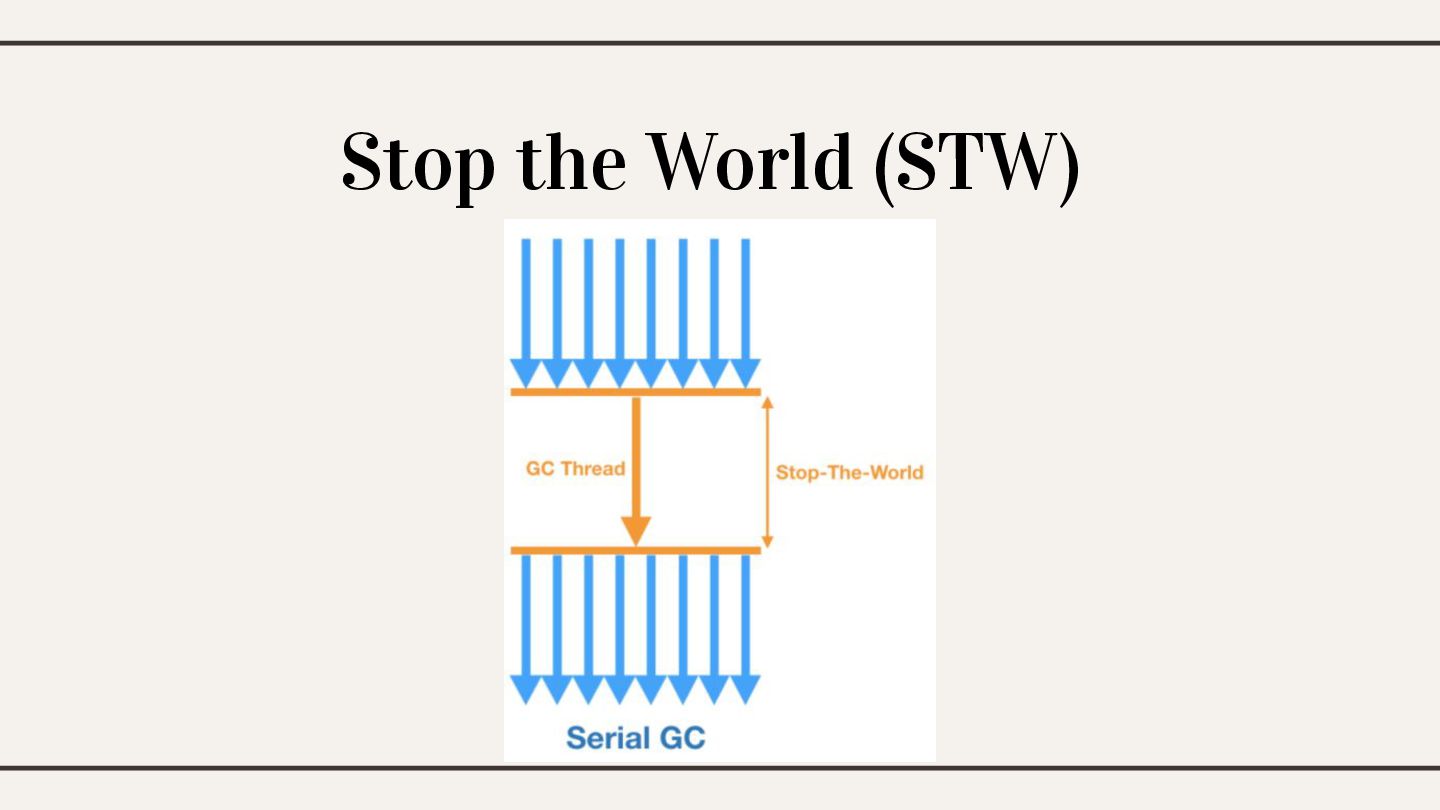

17. Stop the World (STW)
18. Latency Latency is a measure of how long a single task takes.
19. Throughput Throughput is a measure of how many tasks an application can simultaneously handle over a period of time.

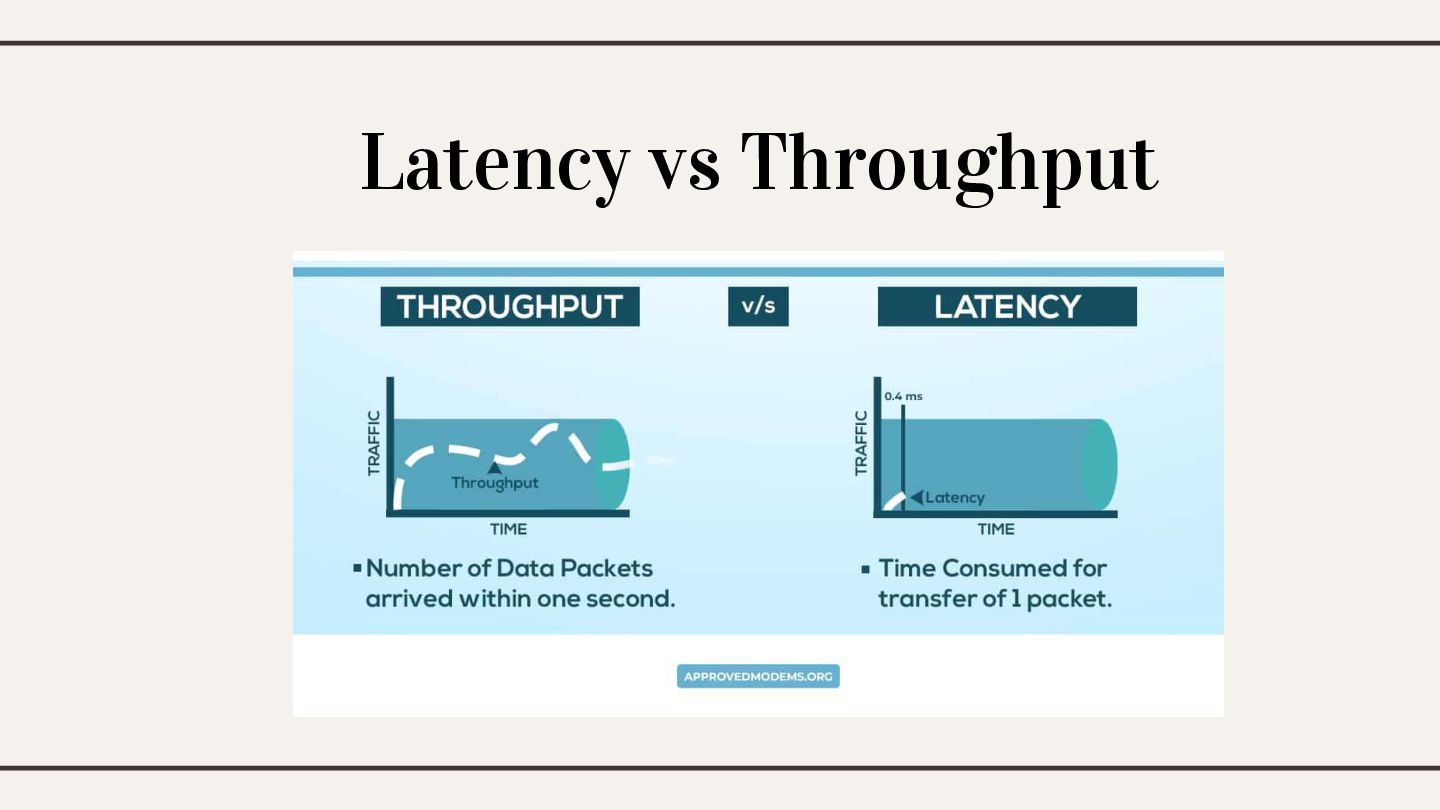

20. Latency vs Throughput

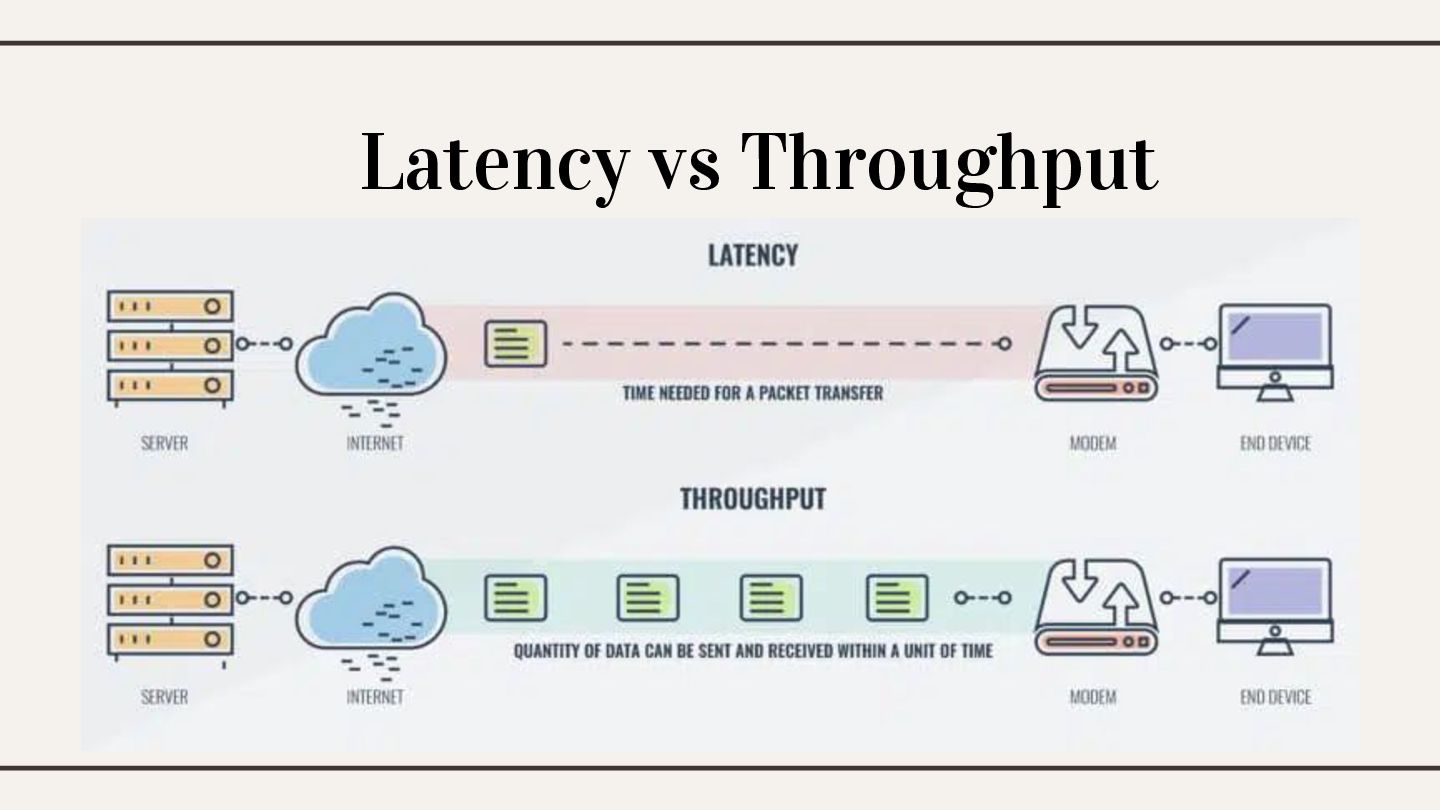

21. Latency vs Throughput

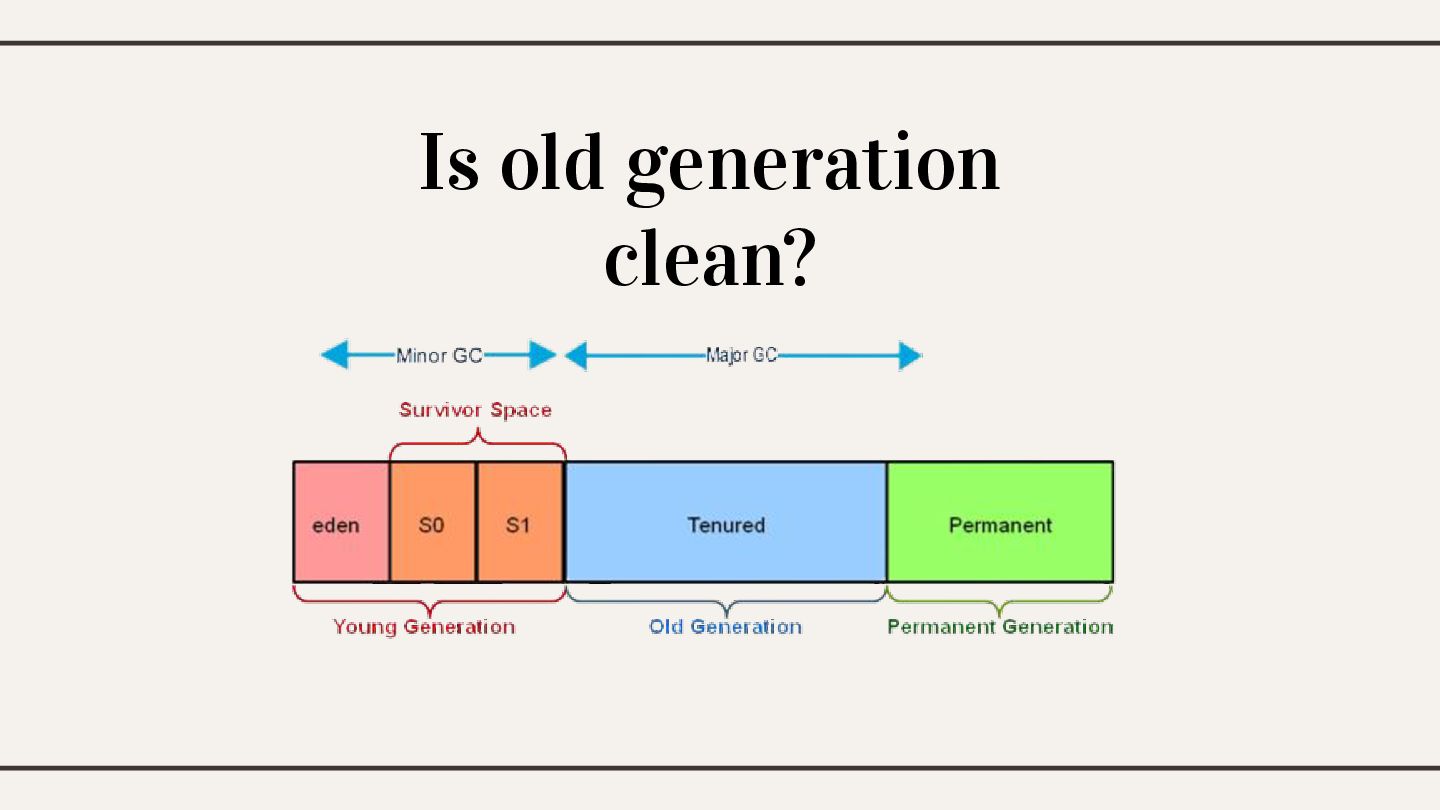

22. Is old generation clean?

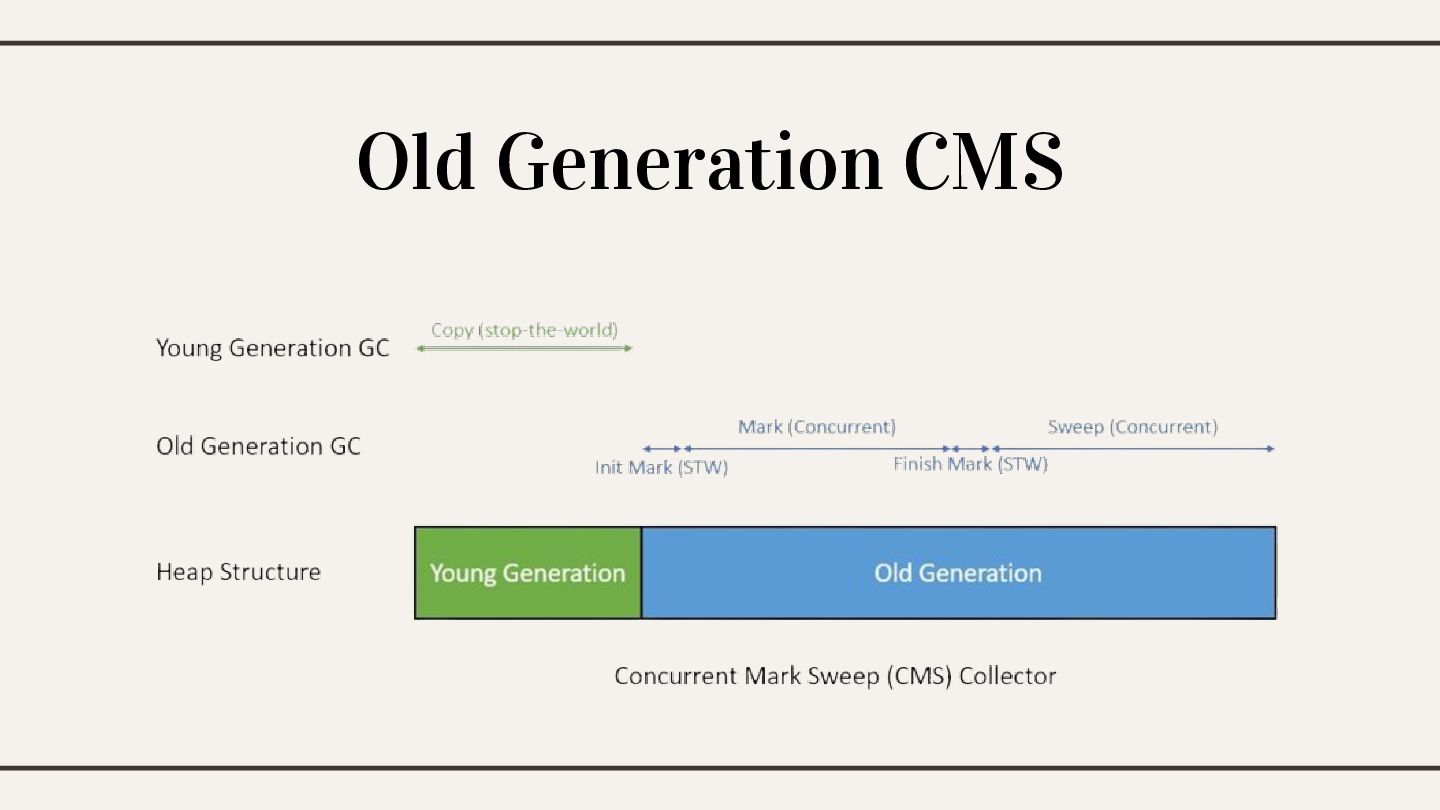

23. Old Generation CMS

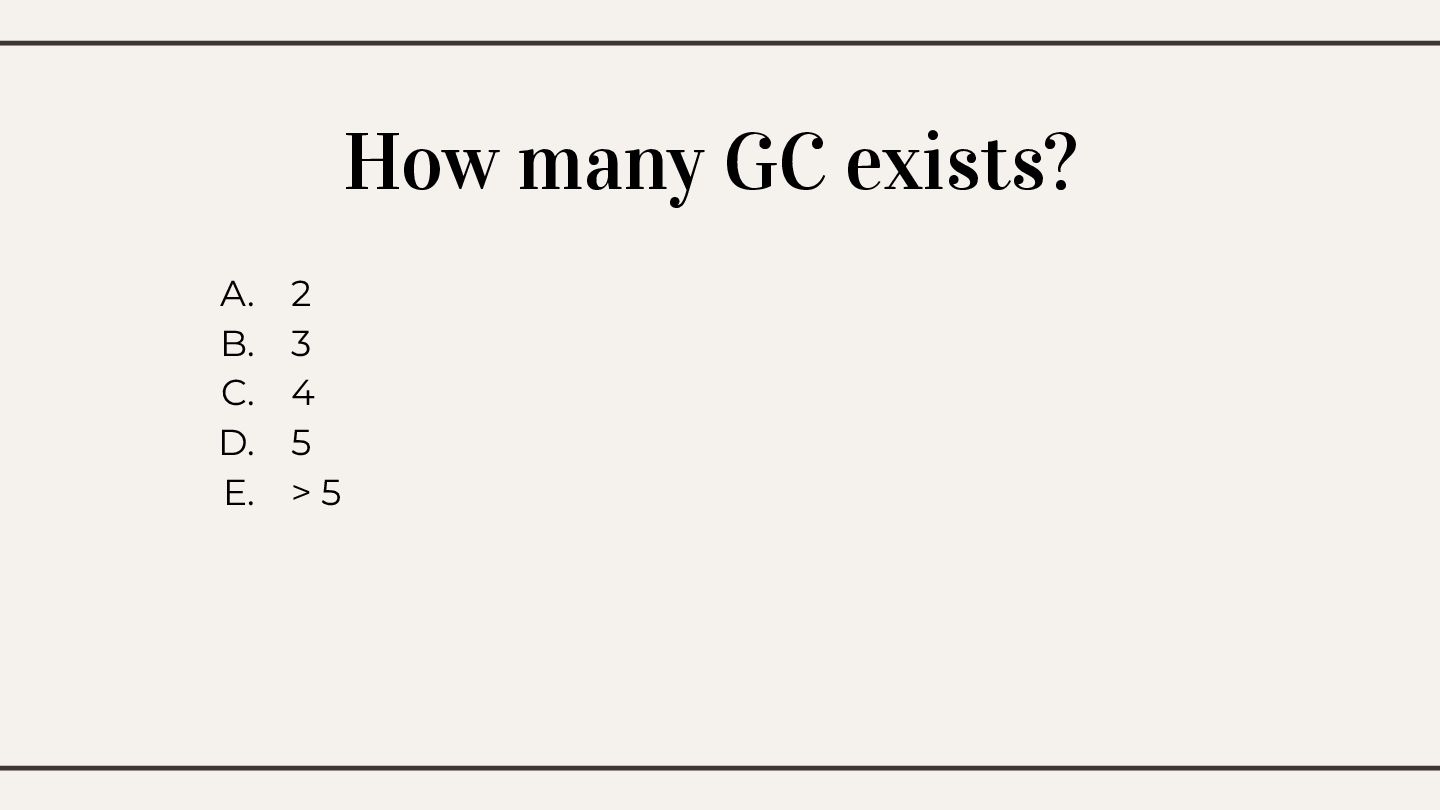

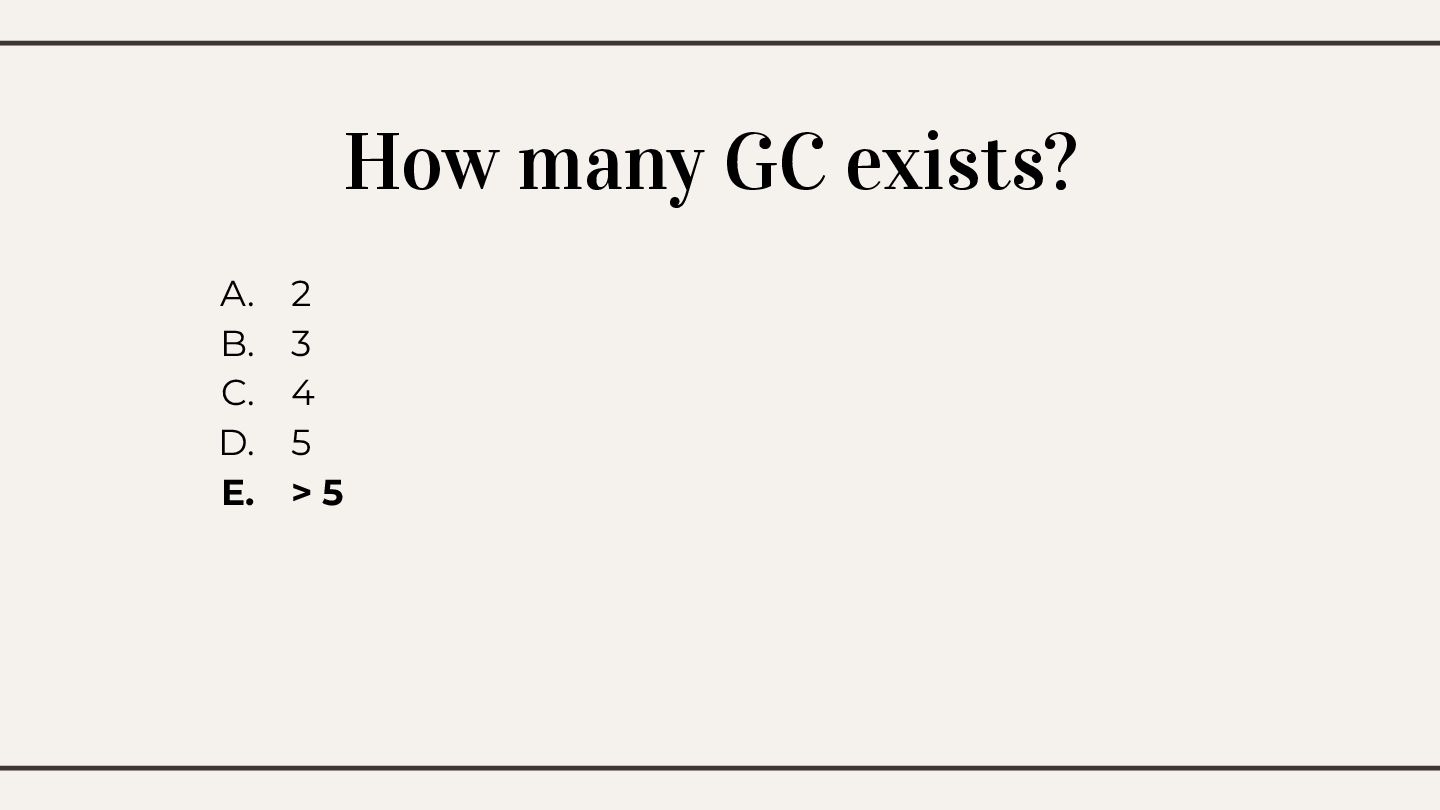

24. How many GC exists? A. 2 B. 3 C. 4 D. 5 E. > 5
25. How many GC exists? A. 2 B. 3 C. 4 D. 5 E. > 5

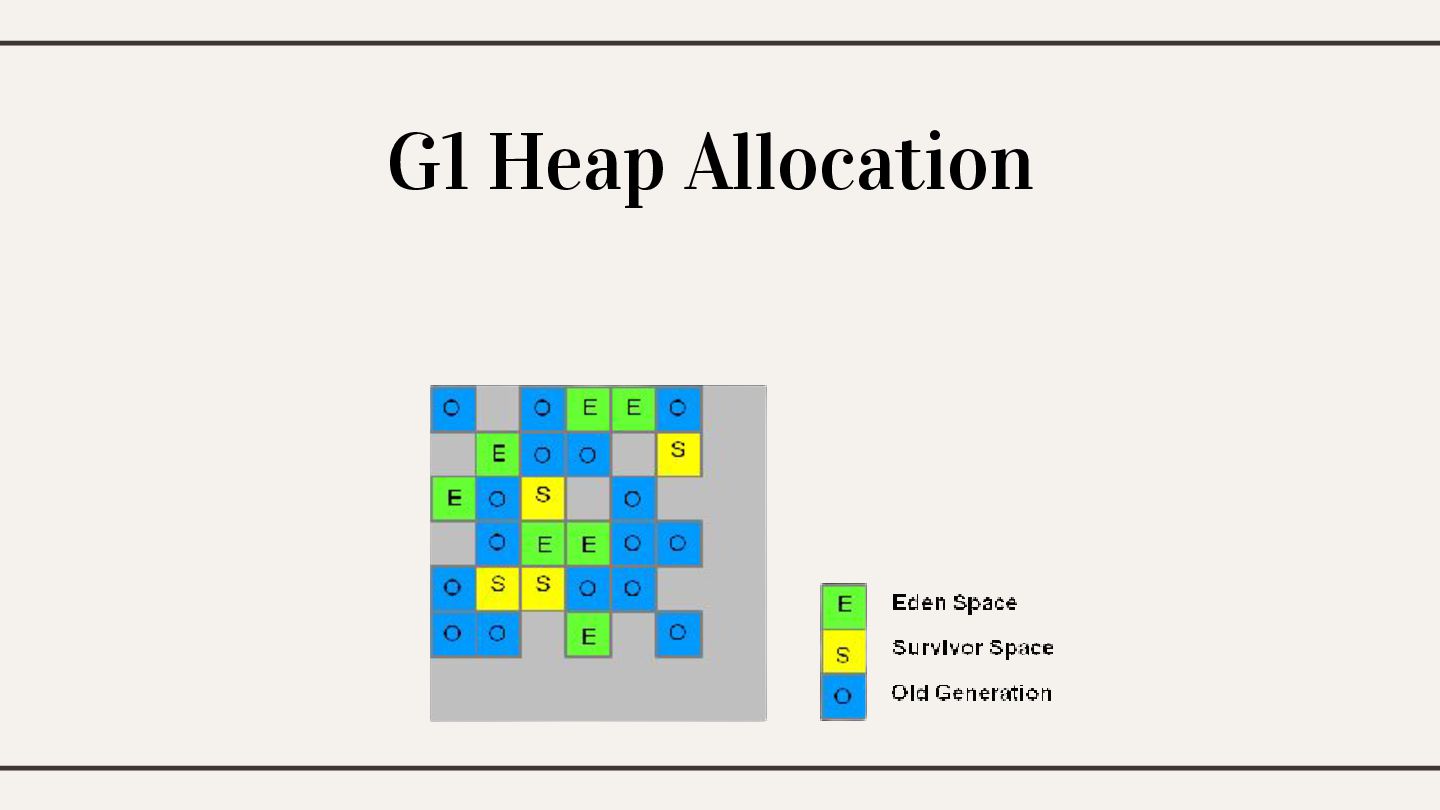

26. G1 Heap Allocation

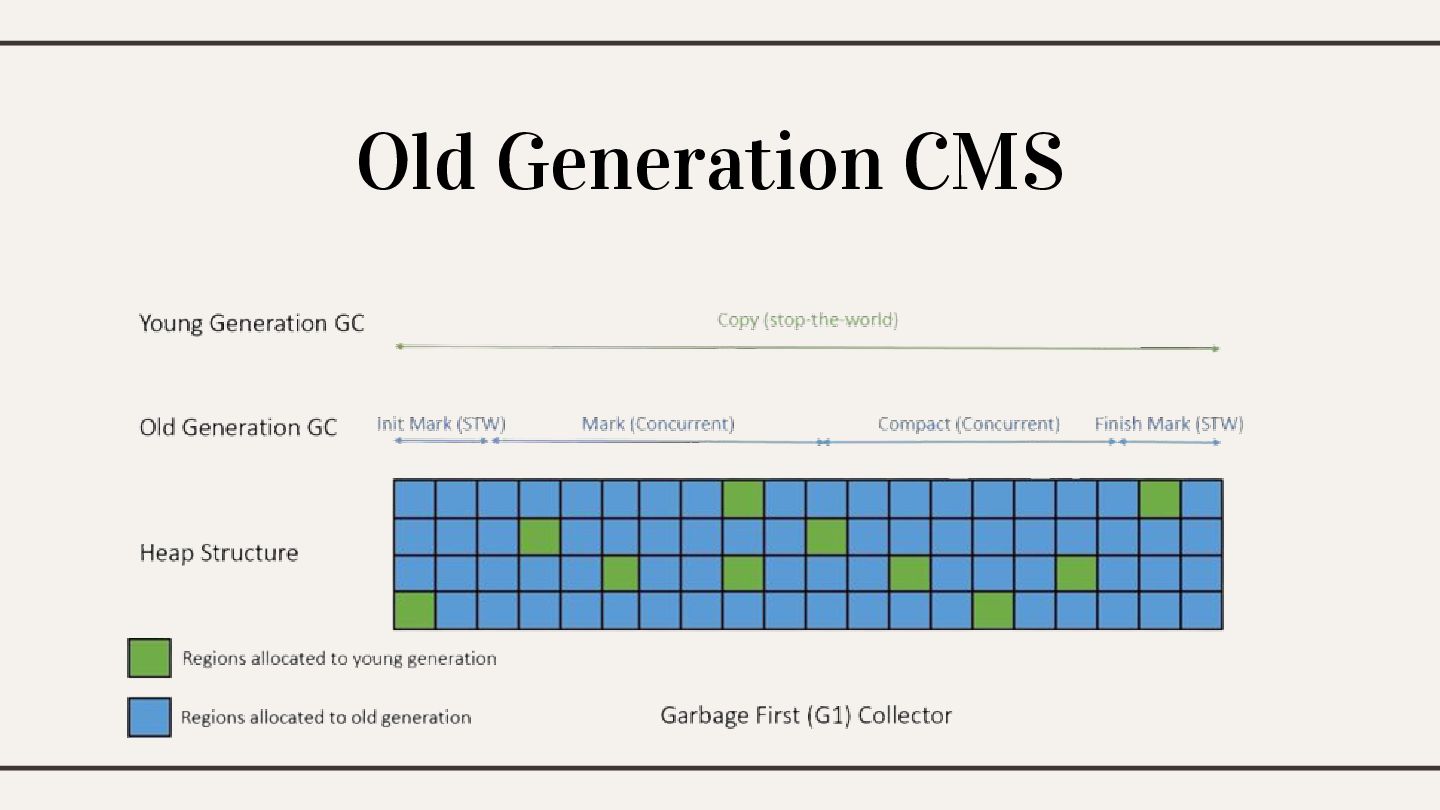

27. Old Generation CMS

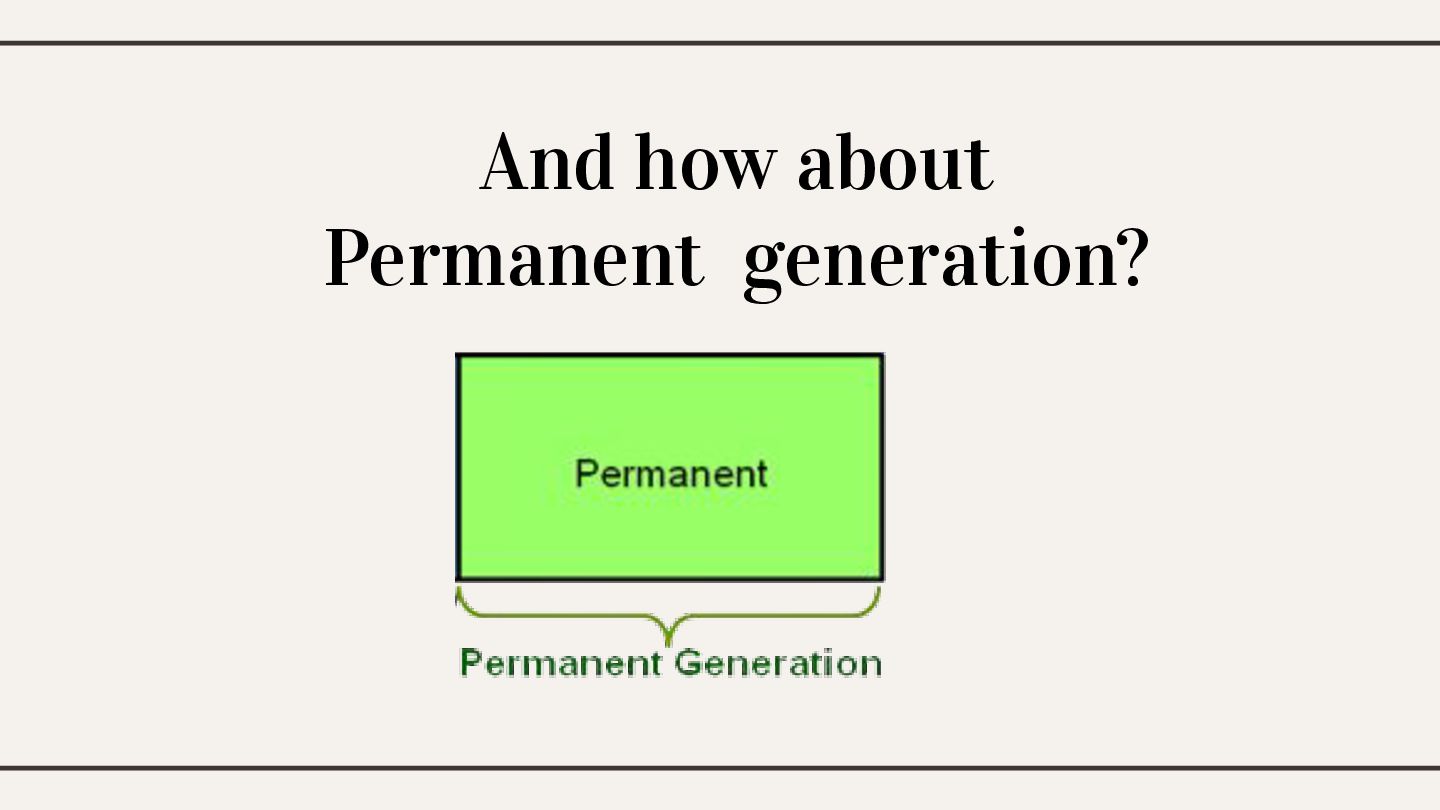

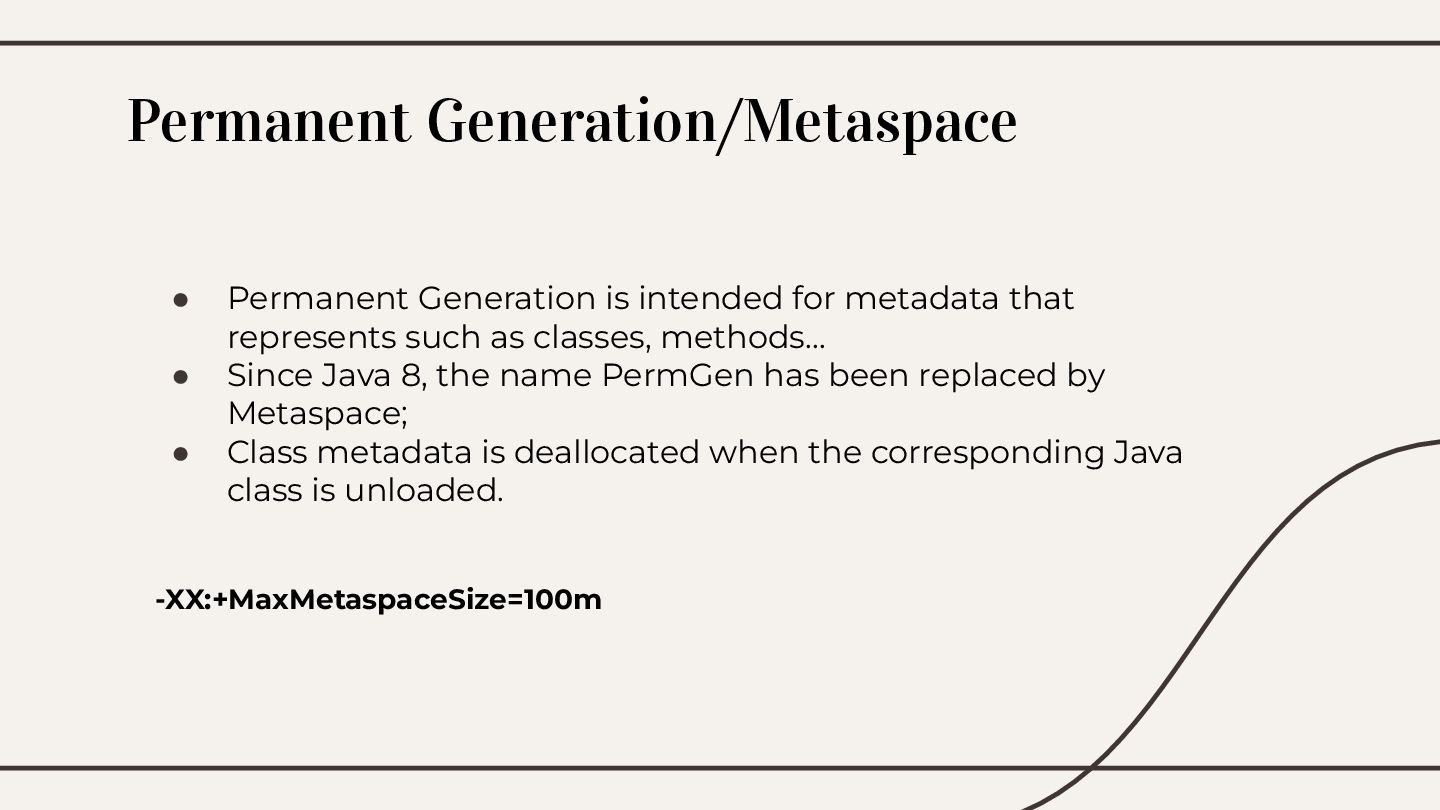

28. And how about Permanent generation?
29. • Permanent Generation is intended for metadata that represents such as classes, methods… • Since Java 8, the name PermGen has been replaced by Metaspace; • Class metadata is deallocated when the corresponding Java class is unloaded. -XX:+MaxMetaspaceSize=100m Permanent Generation/Metaspace

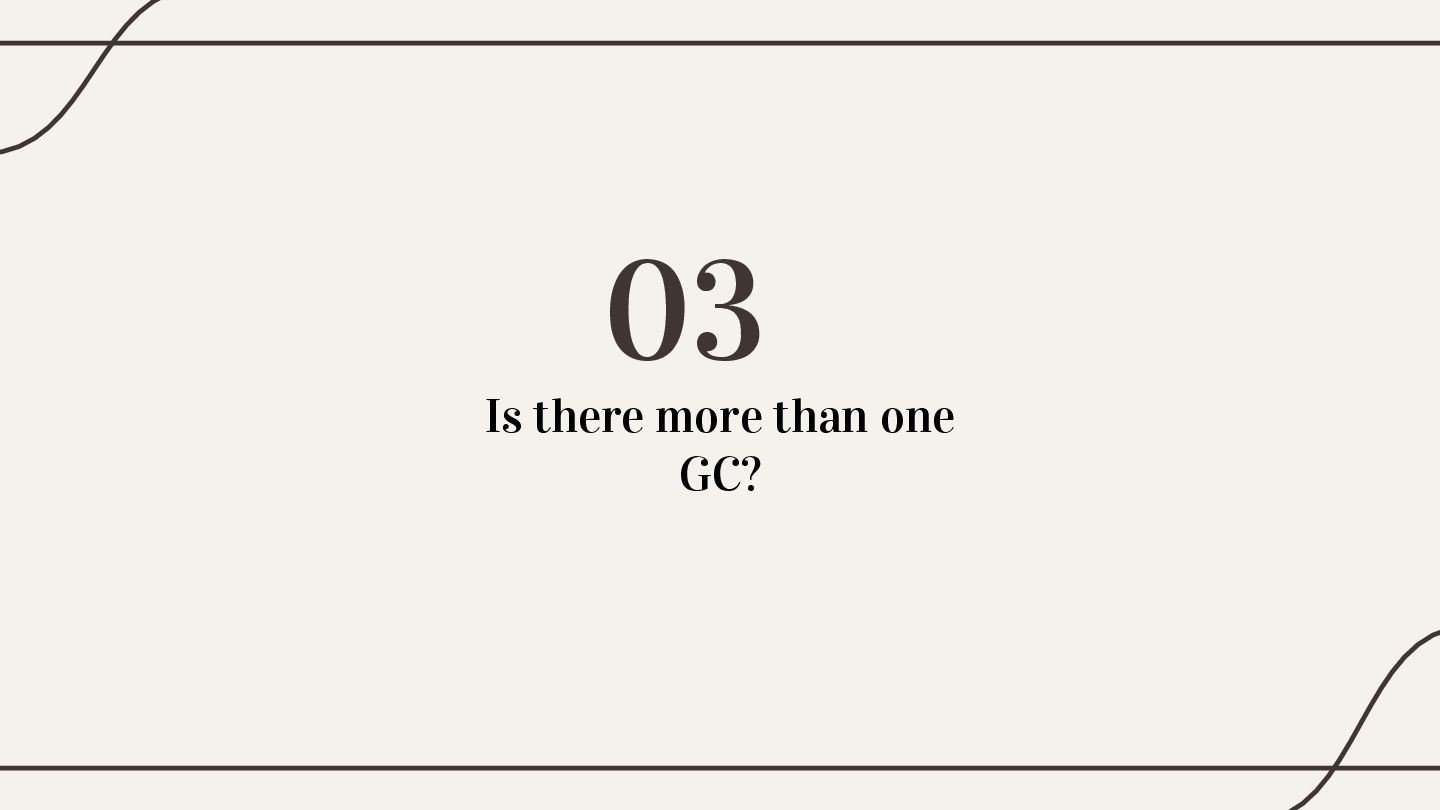

30. Is there more than one GC? 03
32. • Serial GC uses a single thread to run the GC; • Recommended for machines with 1 CPU; • Recommended for machines with up to 100MB; • Recommended for client-class machine applications; -XX:+UseSerialGC Serial GC

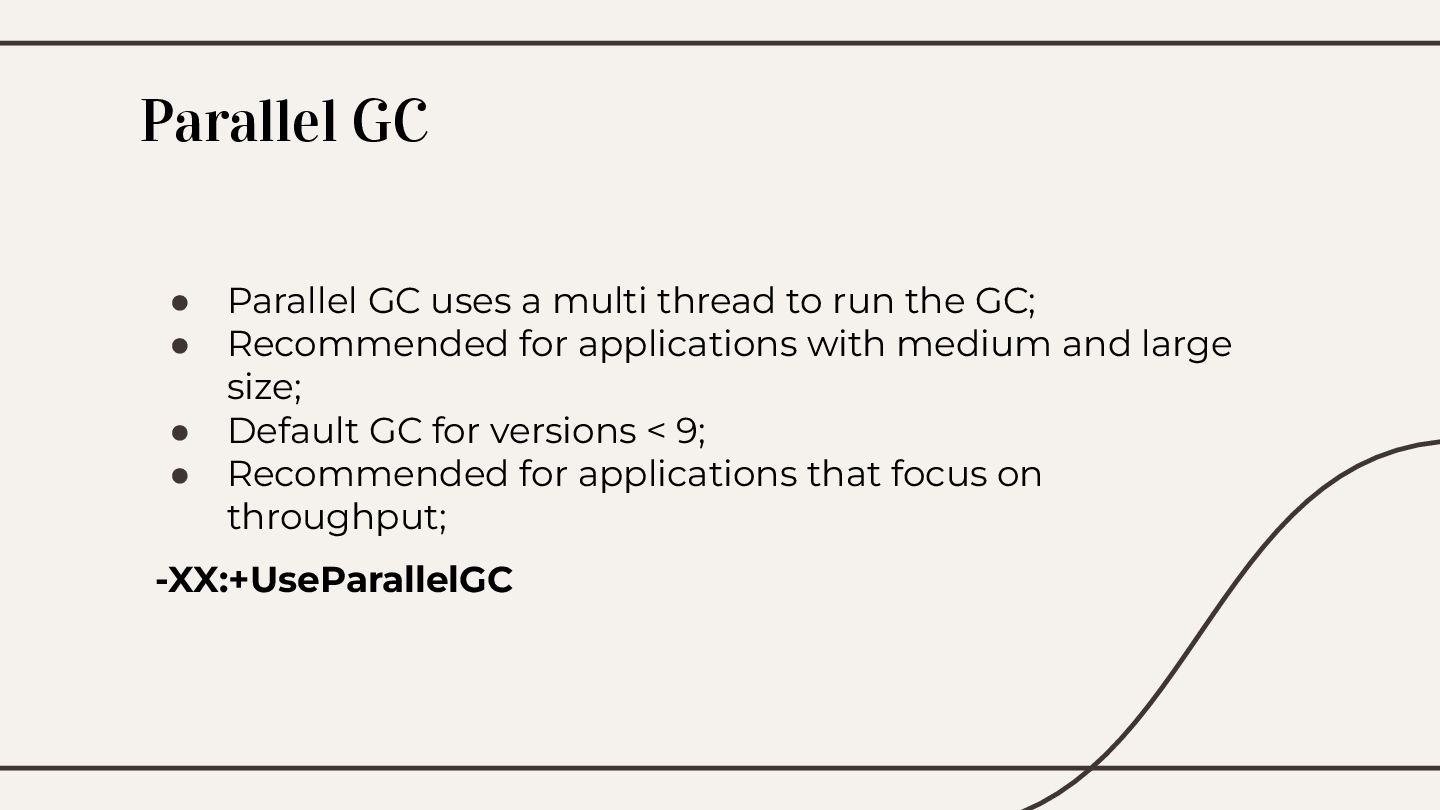

33. • Parallel GC uses a multi thread to run the GC; • Recommended for applications with medium and large size; • Default GC for versions < 9; • Recommended for applications that focus on throughput; -XX:+UseParallelGC Parallel GC

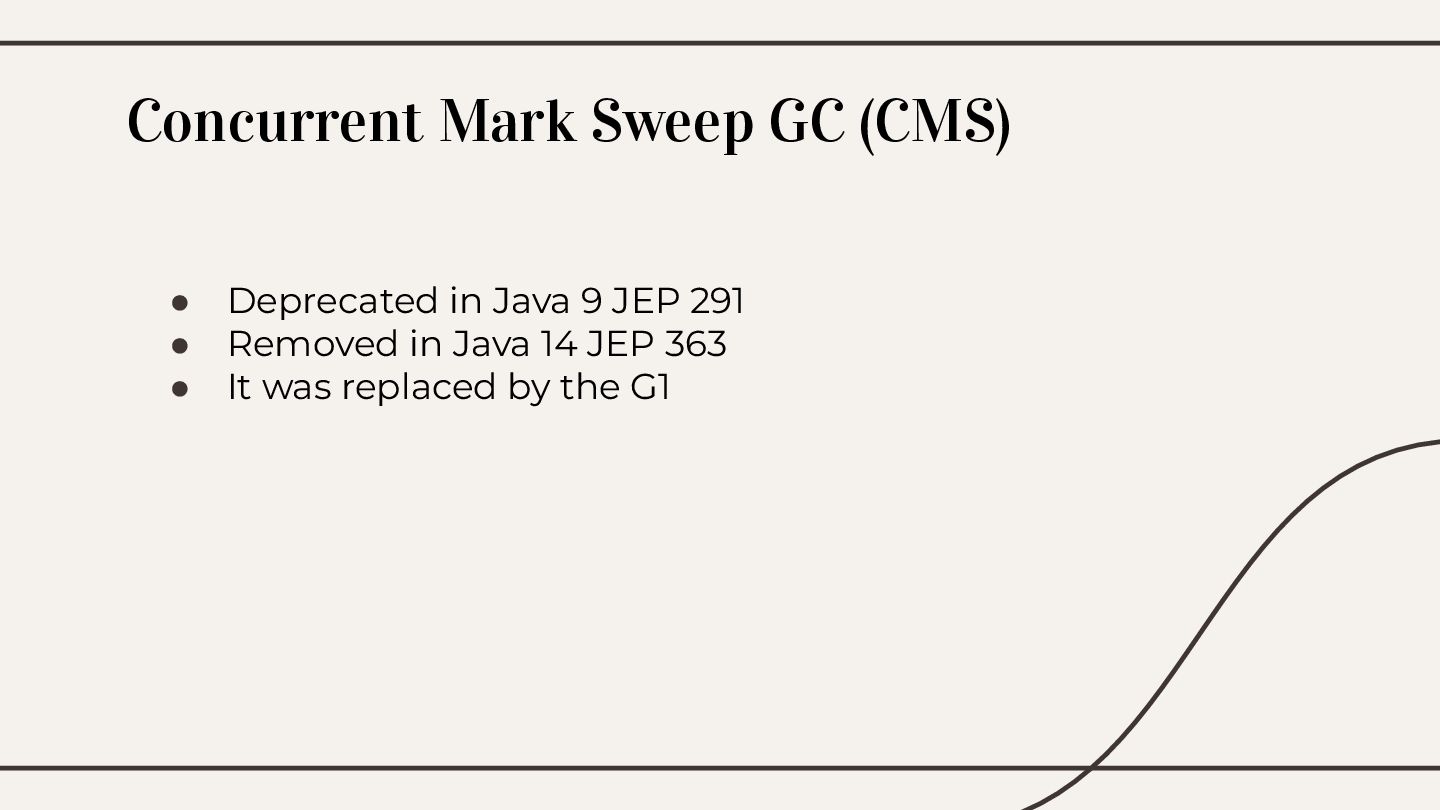

34. • Deprecated in Java 9 JEP 291 • Removed in Java 14 JEP 363 • It was replaced by the G1 Concurrent Mark Sweep GC (CMS)

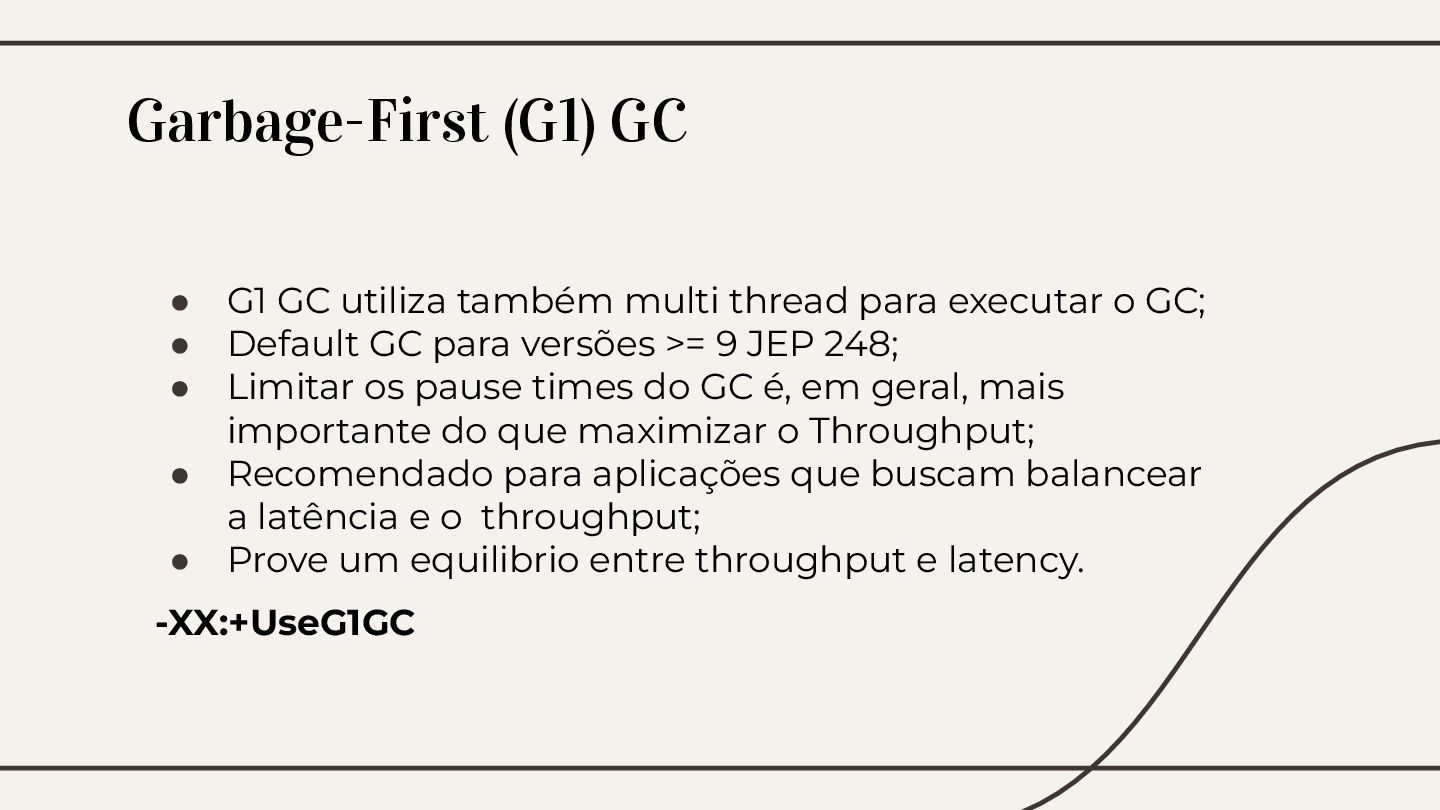

35. • G1 GC utiliza também multi thread para executar o GC; • Default GC para versões >= 9 JEP 248; • Limitar os pause times do GC é, em geral, mais importante do que maximizar o Throughput; • Recomendado para aplicações que buscam balancear a latência e o throughput; • Prove um equilibrio entre throughput e latency. -XX:+UseG1GC Garbage-First (G1) GC

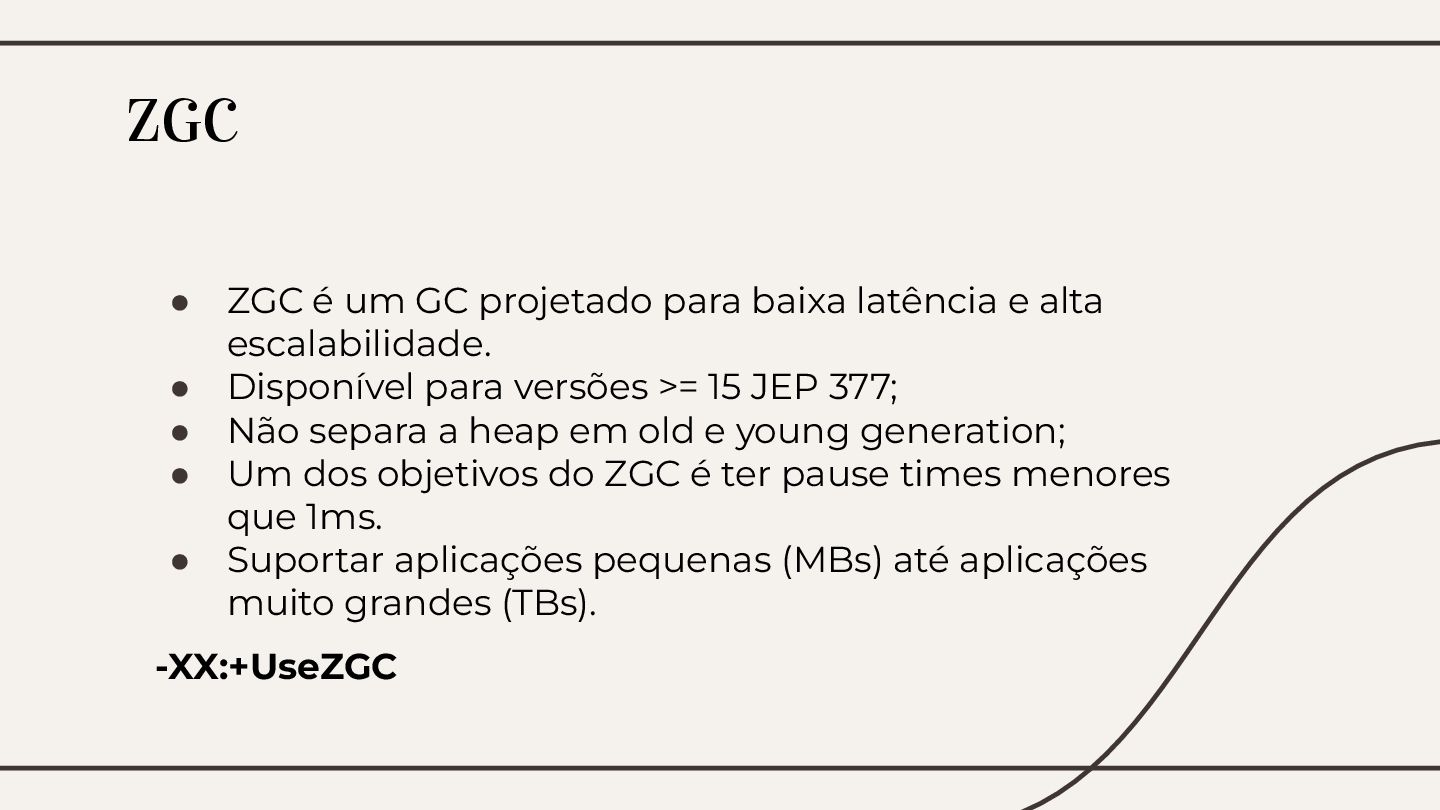

36. • ZGC é um GC projetado para baixa latência e alta escalabilidade. • Disponível para versões >= 15 JEP 377; • Não separa a heap em old e young generation; • Um dos objetivos do ZGC é ter pause times menores que 1ms. • Suportar aplicações pequenas (MBs) até aplicações muito grandes (TBs). -XX:+UseZGC ZGC
37. Java Ergonomics 04

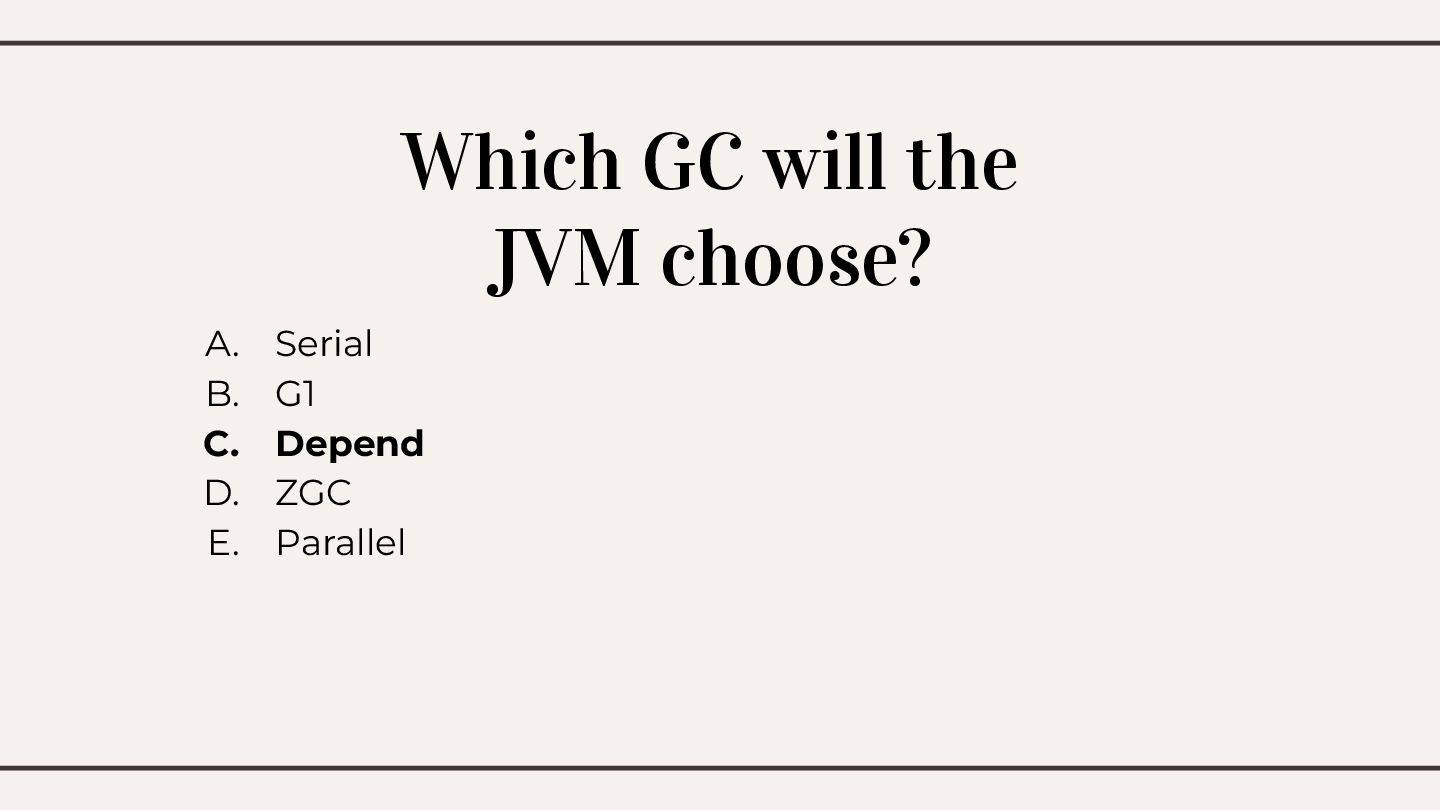

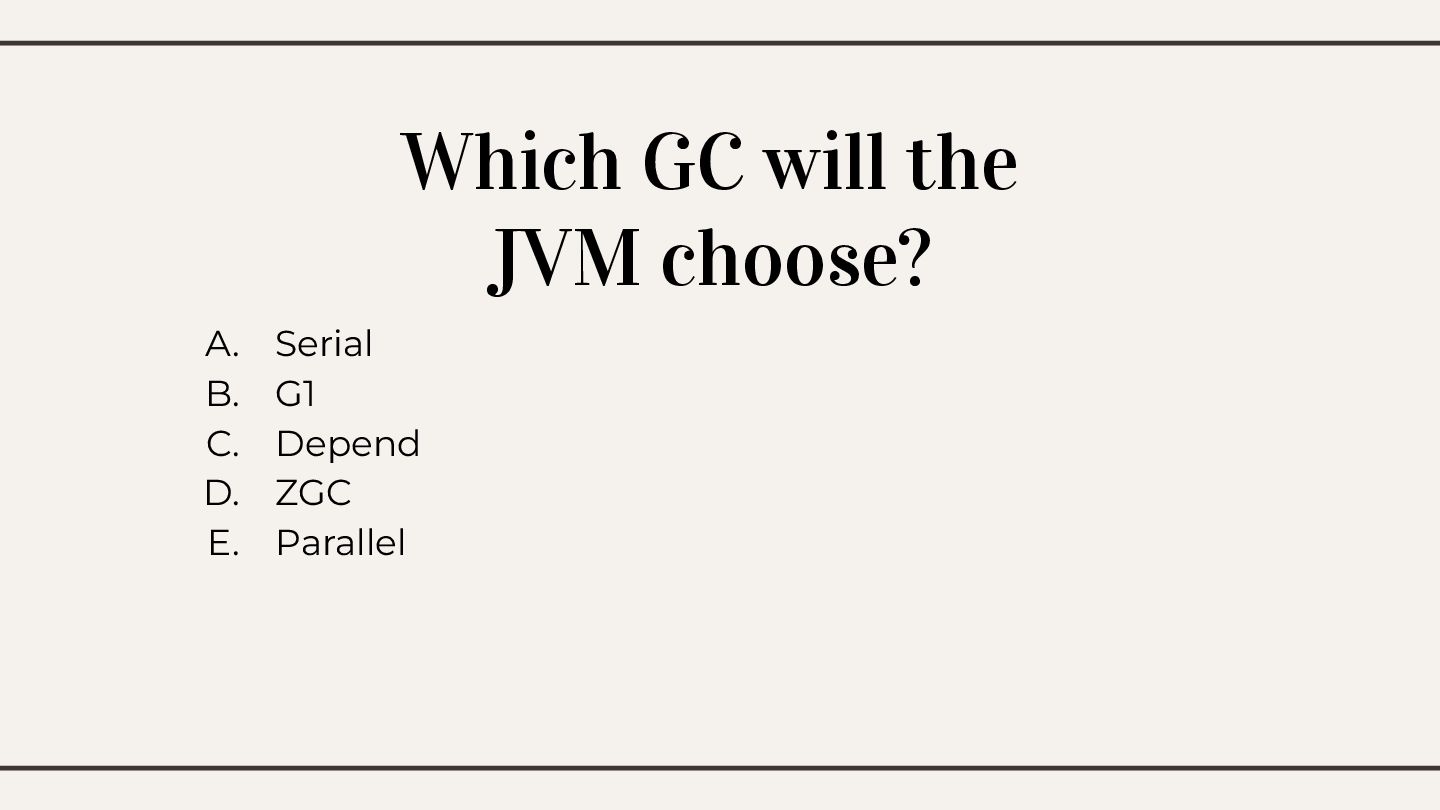

38. Which GC will the JVM choose? A. Serial B. G1 C. Depend D. ZGC E. Parallel
39. Which GC will the JVM choose? A. Serial B. G1 C. Depend D. ZGC E. Parallel

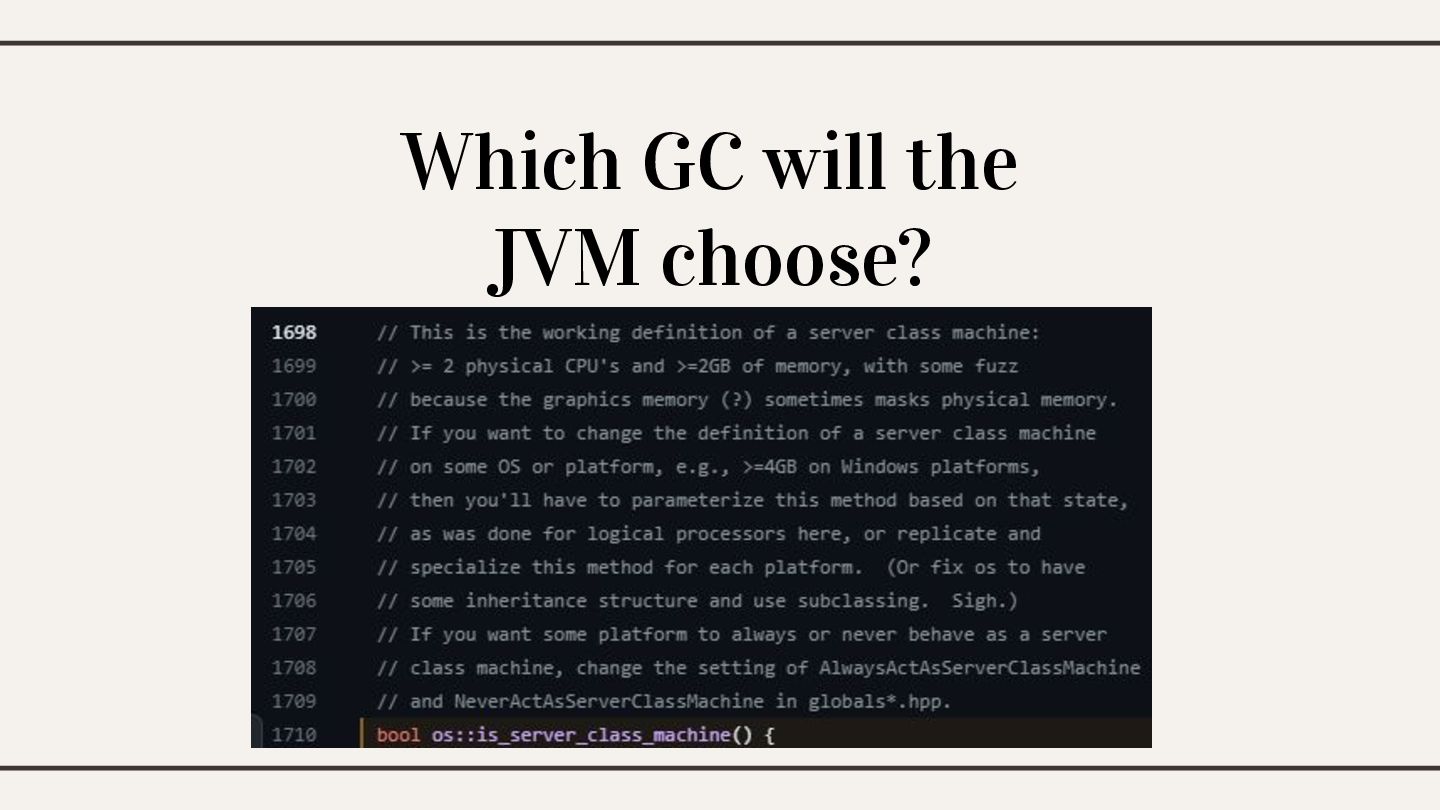

40. Which GC will the JVM choose?

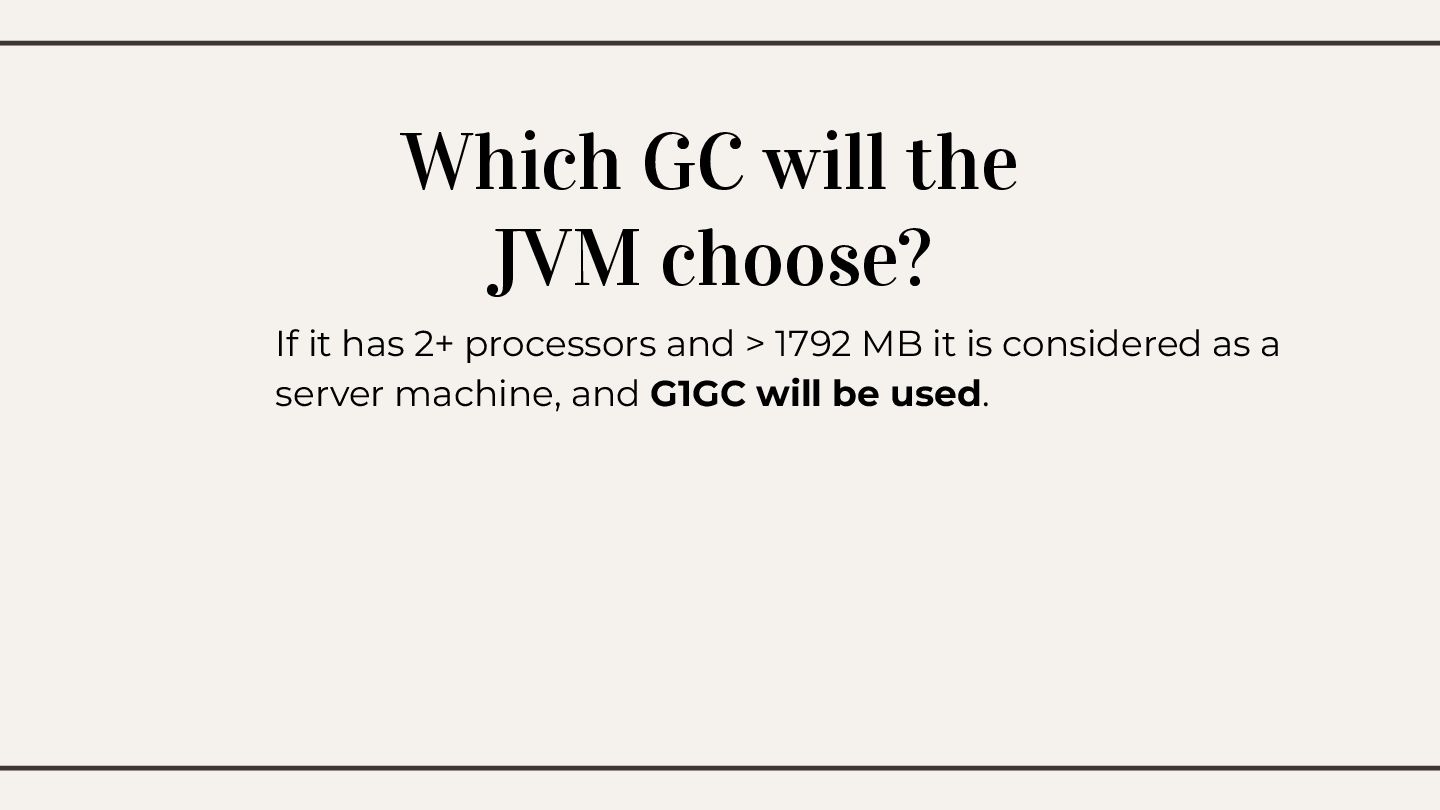

41. Which GC will the JVM choose? If it has 2+ processors and > 1792 MB it is considered as a server machine, and G1GC will be used.

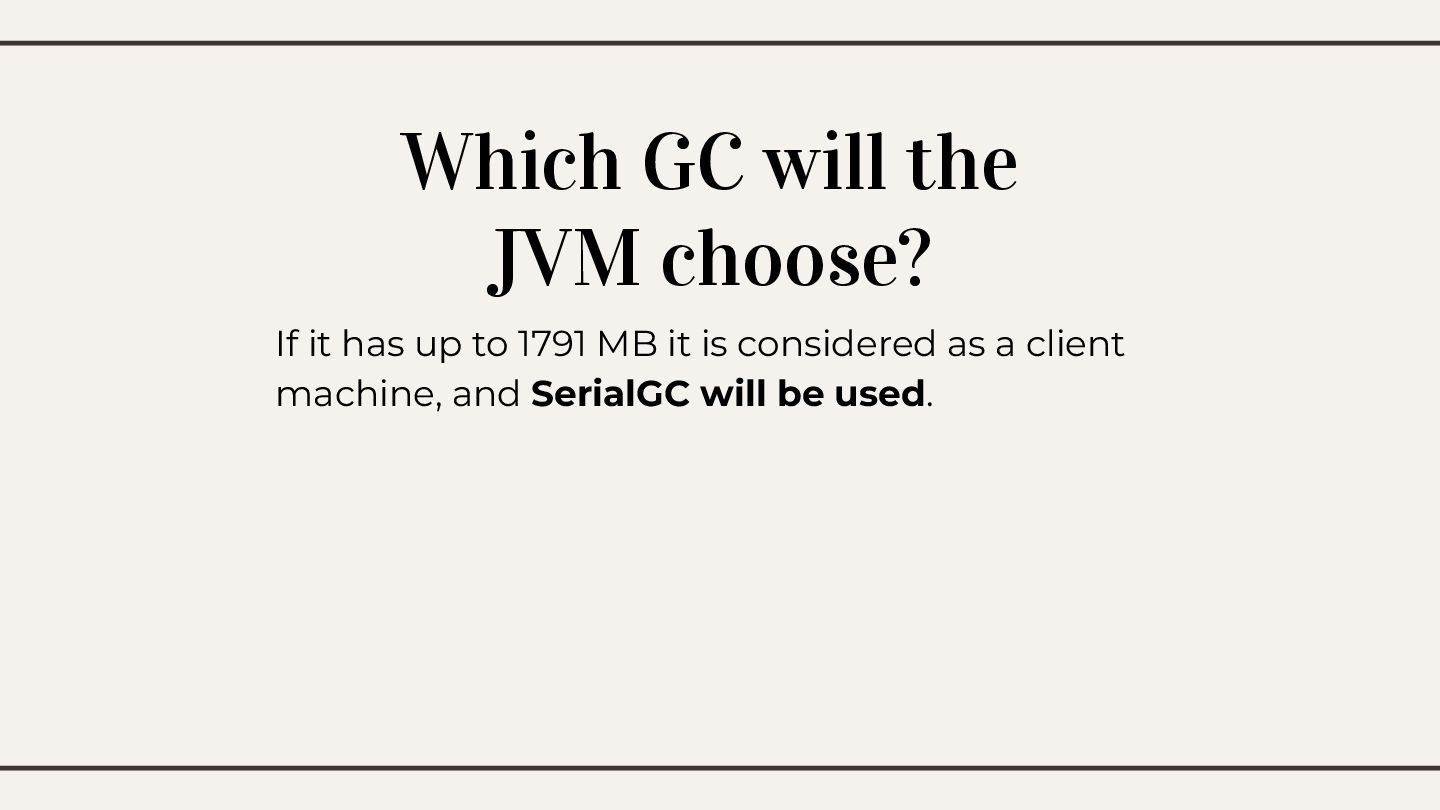

42. Which GC will the JVM choose? If it has up to 1791 MB it is considered as a client machine, and SerialGC will be used.

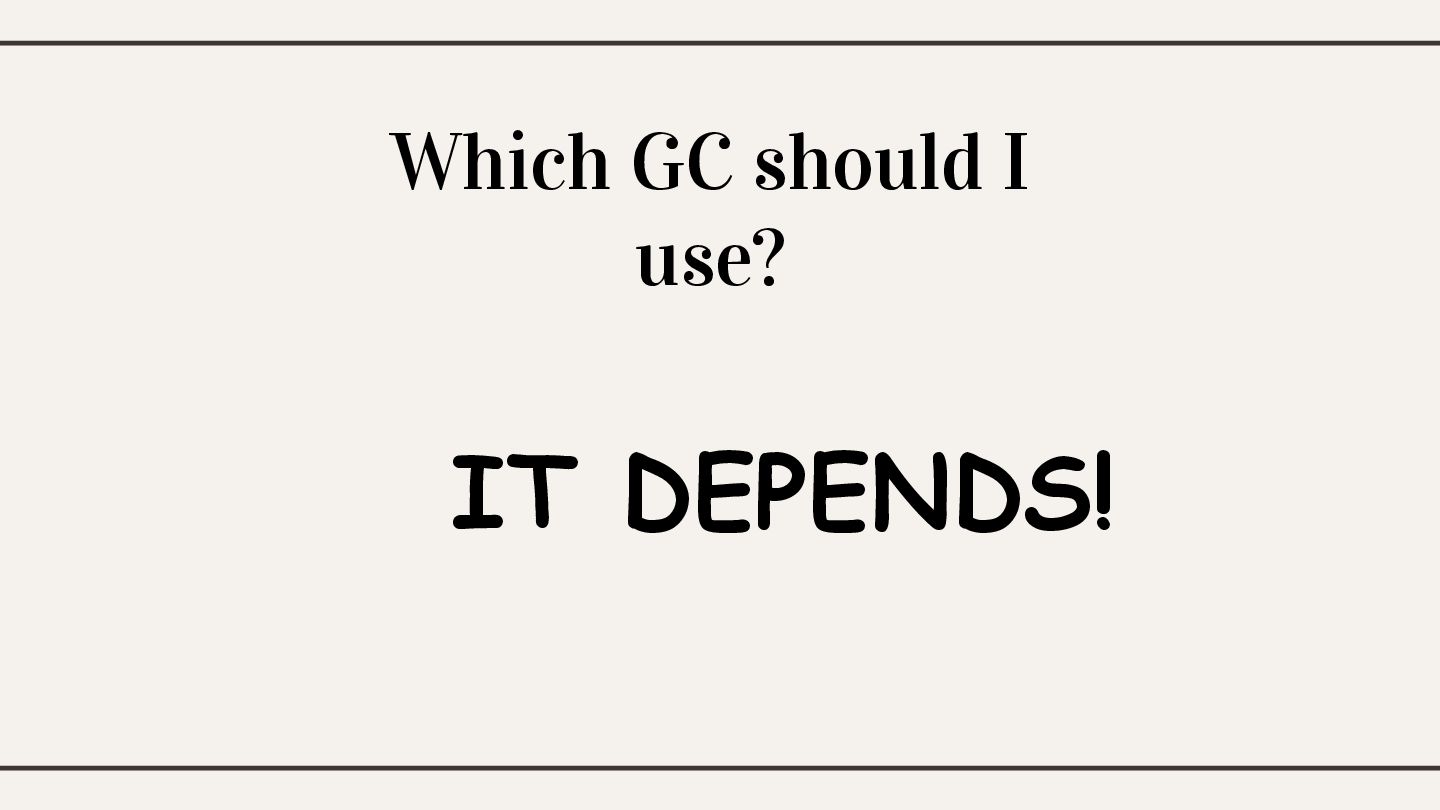

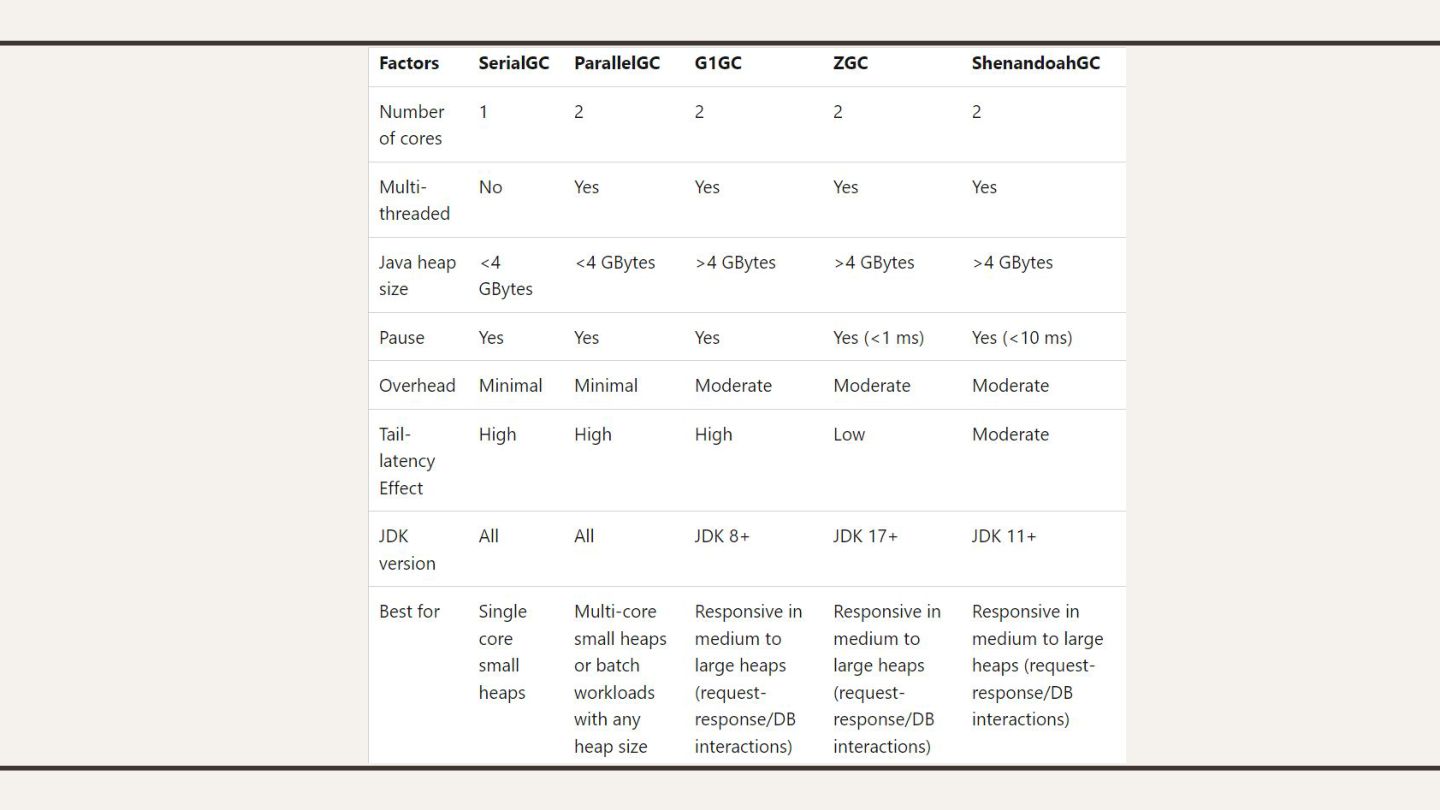

43. Which GC should I use? IT DEPENDS!

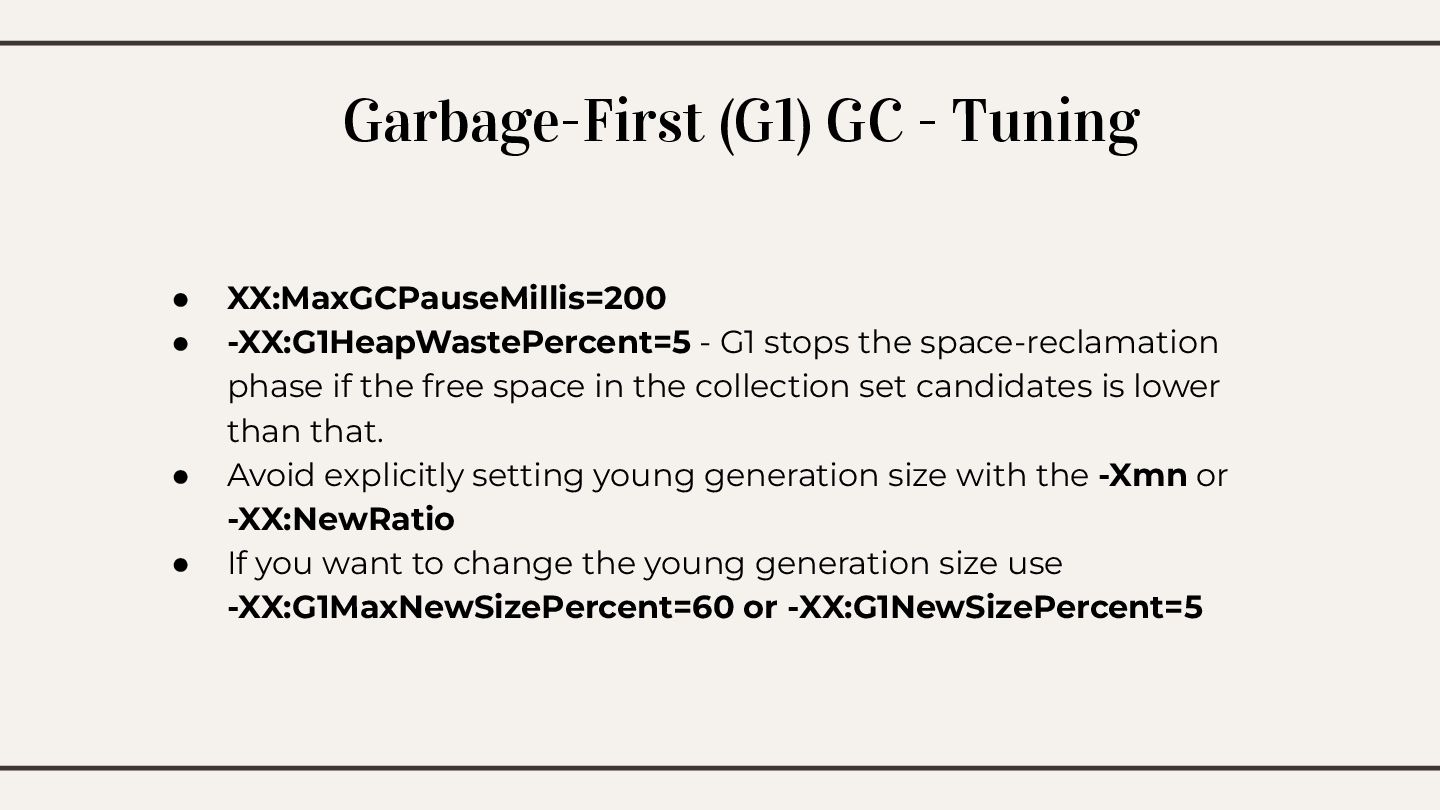

45. • XX:MaxGCPauseMillis=200 • -XX:G1HeapWastePercent=5 - G1 stops the space-reclamation phase if the free space in the collection set candidates is lower than that. • Avoid explicitly setting young generation size with the -Xmn or -XX:NewRatio • If you want to change the young generation size use -XX:G1MaxNewSizePercent=60 or -XX:G1NewSizePercent=5 Garbage-First (G1) GC - Tuning
