2. 2 2
3. 3 3

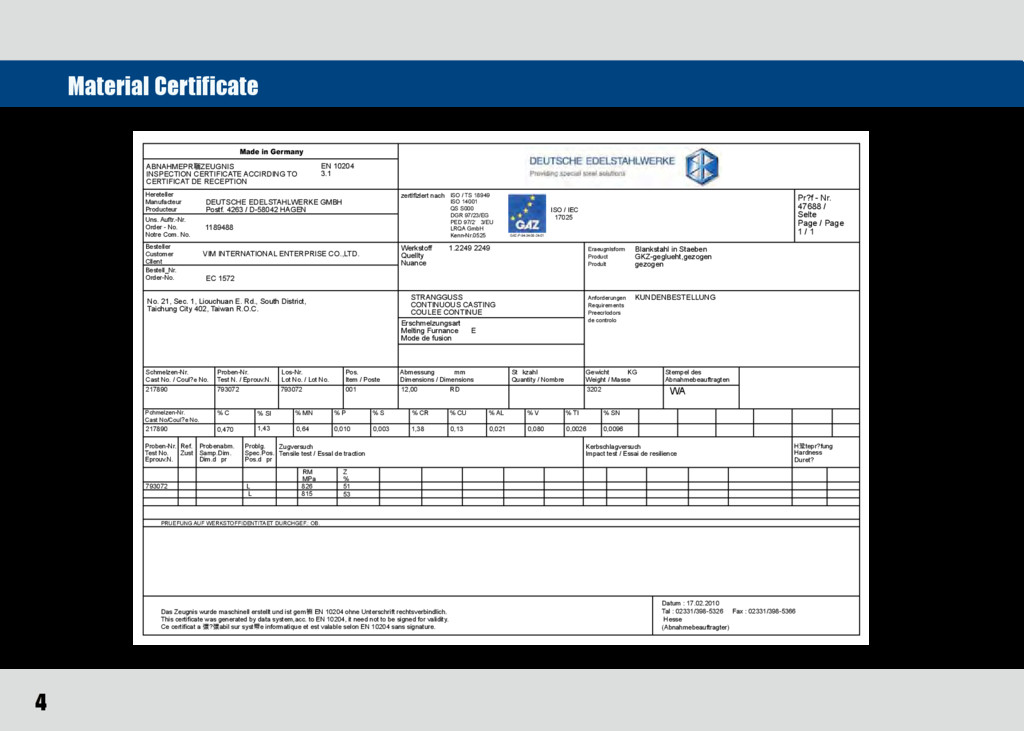

4. 4 4 Material Certificate No. 21, Sec. 1, Liouchuan E. Rd., South District, Taichung City 402, Taiwan R.O.C. Made in Germany ABNAHMEPR聏ZEUGNIS INSPECTION CERTIFICATE ACCIRDING TO CERTIFICAT DE RECEPTION EN 10204 3.1 EC 1572 STRANGGUSS CONTINUOUS CASTING COULEE CONTINUE KUNDENBESTELLUNG Blankstahl in Staeben GKZ-geglueht,gezogen Pr?f - Nr. gezogen 47688 / Selte Page / Page 1 / 1 1.2249 2249 Werkstoff Quellty zertlflzlert nach Nuance ISO / IEC 17025 GAZ-P-94-34-08-24-01 ISO / TS 18949 ISO 14001 QS S000 DGR 97/23/EG PED 97/2` 3/EU LRQA GmbH Kenn-Nr.0525 Eraeugnlsform Product Prodult Anforderungen Requirements Preecrlodors de controlo Erschmelzungsart Melting Furnance E Mode de fusion 217890 Schmelzen-Nr. Cast No. / Coul?e No. Hereteller Manufacteur Producteur Uns. Auftr.-Nr. Order - No. Notre Com. No. Besteller Customer Cllent Bestell_Nr. Order-No. Proben-Nr. Test N. / Eprouv.N. Los-Nr. Lot No. / Lot No. Pos. Item / Poste Abmessung mm Dimensions / Dimensions St kzahl Quantity / Nombre Gewicht KG Weight / Masse Stempel des Abnahmebeauftragten 217890 793072 Das Zeugnis wurde maschinell erstellt und ist gem裫 EN 10204 ohne Unterschrift rechtsverbindlich. This certificate was generated by data system,acc. to EN 10204, it need not to be signed for validity. L PRUEFUNG AUF WERKSTOFFIDENTITAET DURCHGEF.: OB. Ce certificat a 彋?彋abil sur syst幦e informatique et est valable selon EN 10204 sans signature. 826 815 51 Z % RM MPa 53 L 793072 0,470 Pchmelzen-Nr. % C % SI Cast No/Coul?e No. % MN 0,64 0,010 0,003 1,38 0,13 0,021 0,080 0,0026 0,0096 Kerbschlagversuch Impact test / Essai de resilience Datum : 17.02.2010 Tal : 02331/398-5326 Fax : 02331/398-5366 Hesse (Abnahmebeauftragter) Zugversuch Tensile test / Essal de traction Problg. Spec.Pos. Pos.d pr Ref. Zust Probenabm. Samp.Dim. Dim.d pr Proben-Nr. Test No. Eprouv.N. H跫tepr?fung Hardness Duret? % P % S % CR % CU % AL % V % TI % SN 1,43 793072 001 12,00 RD 1189488 3202 WA DEUTSCHE EDELSTAHLWERKE GMBH Postf. 4263 / D-58042 HAGEN VIM INTERNATIONAL ENTERPRISE CO.,LTD. No. 21, Sec. 1, Liouchuan E. Rd., South District, Taichung City 402, Taiwan R.O.C.
5. 5 5 VIM INTERNATIONAL ENTERPRISE CO.,LTD. Heat Treatment Inspection Report Receive Date 2012104102 Steel 2249 Delivery Date 2012104106 Sketch of Driver blade CN55 307 Customer Materials standard Case hardening Carburized depth HRC:55-57 Care harding Nitrogenation depth lieat treatment stress relieving quenching tempering sub-zero treatment Q.C report Nitrogenation depth structure Carburized depth Care liarding Case hardening HRC:55-57 Quantity ITEM 850 C 180 C Result Inspector 4XDOLW\LQVSHFWLRQUHSRUWIRUP Customer Name VIM INTERNATIONAL ENTERPRISE CO.,LTD. Product Name 1857 size Date of Receipt Material Material total weight Quantity/weight 1000 /pcs 15.6 HRC S7 2012/3/23 Picture ManagementNo. Vacuum Whole hardening Heat treatment name Hardness values HRC56 1 Carburizing depth Cryogenic/Ultracold Heat treatment after the completion of Adjust the straightness Specify the delivery at the pcs mm Back to the company plus do Test results Hardened layer Curve Table Not commissioned the inspection D I S T A N C E(mm) Not commissioned the inspection Not commissioned the inspection Corrosion Organization picture External(400x) center(400x) Manager Be ln Charge Of Detect Personnel Corrosion Organization picture Customer commissioned pieces Internal Cutting inlay Test piece external ln kind Measure Hardness 1 55.5 55.8 55.6 55.6 Shen-de,Yan Delect Person 2 3 4 5 Averega /kg /kg & 2.5 2.0 1.5 1.0 0.5 0.0 100 200 300 400 500 600 700 HV(0.2kg) 800 900 1000 No. 21, Sec. 1, Liouchuan E. Rd., South District, Taichung City 402, Taiwan R.O.C. Tel: 886-4-2373-0103 / Fax: 886-4-2373-0207 IPQC

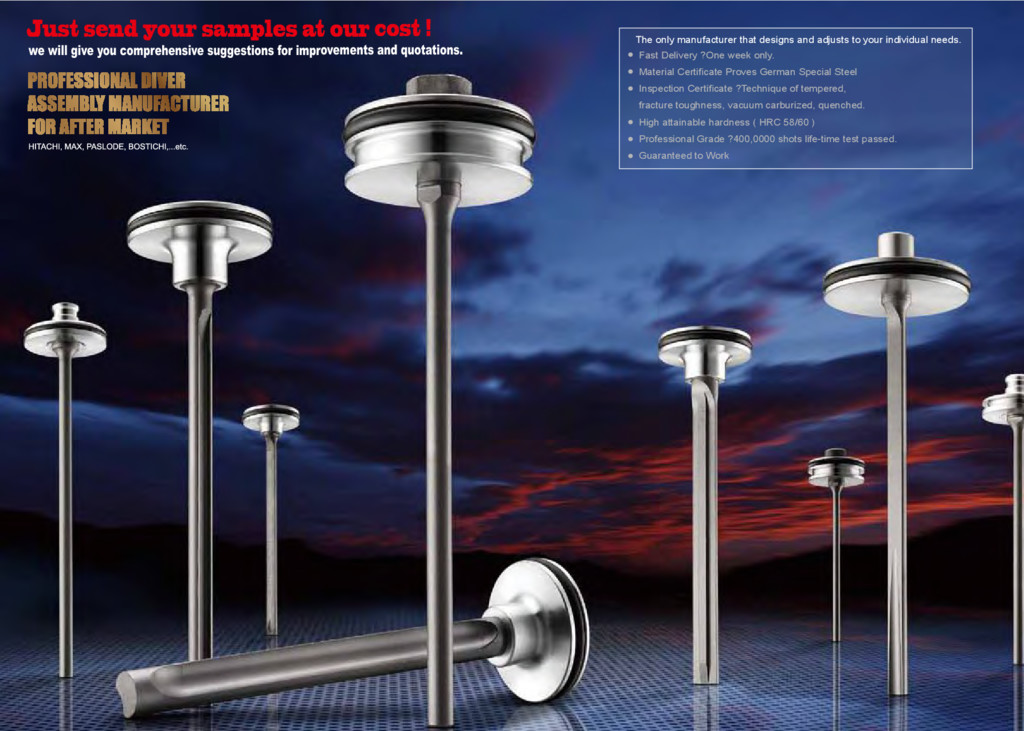

6. 6 6 Fast Delivery ?One week only. Material Certificate Proves German Special Steel Inspection Certificate ?Technique of tempered, fracture toughness, vacuum carburized, quenched. High attainable hardness ( HRC 58/60 ) Professional Grade ?400,0000 shots life-time test passed. Guaranteed to Work The only manufacturer that designs and adjusts to your individual needs. Just send your samples at our cost ! we will give you comprehensive suggestions for improvements and quotations.
7. 7 7
8. 8 8
9. 9 9
10. 10 10

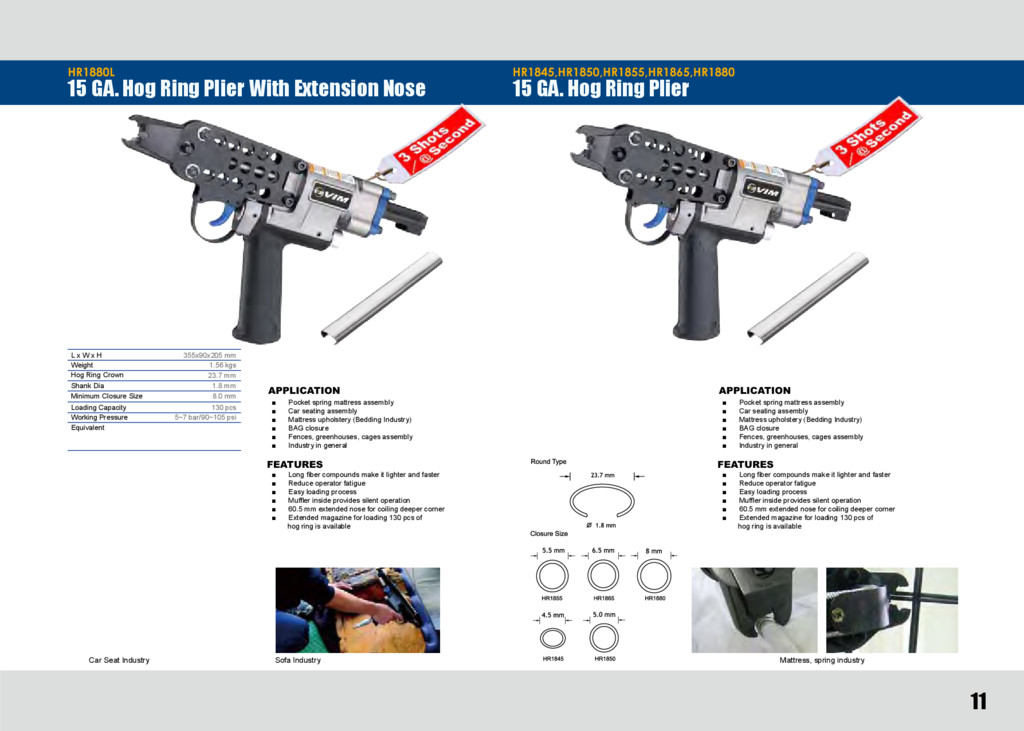

11. 11 11 Car Seat Industry Sofa Industry ▪ Pocket spring mattress assembly ▪ Car seating assembly ▪ Mattress upholstery (Bedding Industry) ▪ BAG closure ▪ Fences, greenhouses, cages assembly ▪ Industry in general APPLICATION ▪ Long fiber compounds make it lighter and faster ▪ Reduce operator fatigue ▪ Easy loading process ▪ Muffler inside provides silent operation ▪ 60.5 mm extended nose for coiling deeper corner ▪ Extended magazine for loading 130 pcs of FEATURES hog ring is available ▪ Pocket spring mattress assembly ▪ Car seating assembly ▪ Mattress upholstery (Bedding Industry) ▪ BAG closure ▪ Fences, greenhouses, cages assembly ▪ Industry in general APPLICATION ▪ Long fiber compounds make it lighter and faster ▪ Reduce operator fatigue ▪ Easy loading process ▪ Muffler inside provides silent operation ▪ 60.5 mm extended nose for coiling deeper corner ▪ Extended magazine for loading 130 pcs of FEATURES hog ring is available 15 GA. Hog Ring Plier With Extension Nose HR1880L Mattress, spring industry 15 GA. Hog Ring Plier HR1845,HR1850,HR1855,HR1865,HR1880 L x W x H 355x90x205 mm 1.56 kgs Weight 8.0 mm 23.7 mm 130 pcs Minimum Closure Size Loading Capacity Working Pressure Hog Ring Crown 1.8 mm 5~7 bar/90~105 psi Shank Dia Equivalent 6WDQOH\%RVWLWFK6SHQD[Š S4CLW,SC7C,SC7E 0(,+2Š MC-6CA, MC-6CALW 325x90x205 mm 1.54 kgs 4.5, 5.0, 5.5, 6.5, 8.0 mm 23.7 mm 130 pcs 1.8 mm 5~7 bar/90~105 psi L x W x H Weight Loading Capacity Working Pressure Hog Ring Crown Shank Dia Minimum Closure Size Equivalent 6WDQOH\%RVWLWFK6SHQD[Š S4CLW,SC7C,SC7 0(,+2Š MC-6CA, MC-6CALW Long Jaw
12. 12 FEATURES APPLICATION ▪ Long fiber compounds make it lighter and faster ▪ Reduce operator fatigue ▪ Easy loading process ▪ Muffler inside provides silent operation ▪ Extended magazine for loading 130 pcs of hog ring is available ▪ Pocket spring mattress assembly ▪ Car seating assembly ▪ Mattress upholstery (Bedding Industry) ▪ Bag closure ▪ Fences, greenhouses, cages assembly ▪ Industry in general ▪ Sofa spring assembly 16 GA. Hog Ring Plier HR1630,HR1648, L x W x H Weight Loading Capacity Working Pressure HR1630 Equivalent HR1648 Equivalent Hog Ring Crown Shank Dia 285x100x200 mm 1.56 kgs 16.9 mm 1.6 mm 3.0/4.8 mm 100 pcs 5~7 bar/90~105 psi 6WDQOH\%RVWLWFK6SHQD[Š SC760, 0(,+2Š MC-660 6WDQOH\%RVWLWFK6SHQD[Š SC761 Minimum Closure Size Pneumatic Hog Ring Plier With Pedal L x W x H 400x400x335 mm 70-90 psi 19.4 kgs 100 pcs Weight Loading Capacity Working Pressure Mattress, spring industry HR1626,HR1616 2.6 HR1616 HR1626 1.6

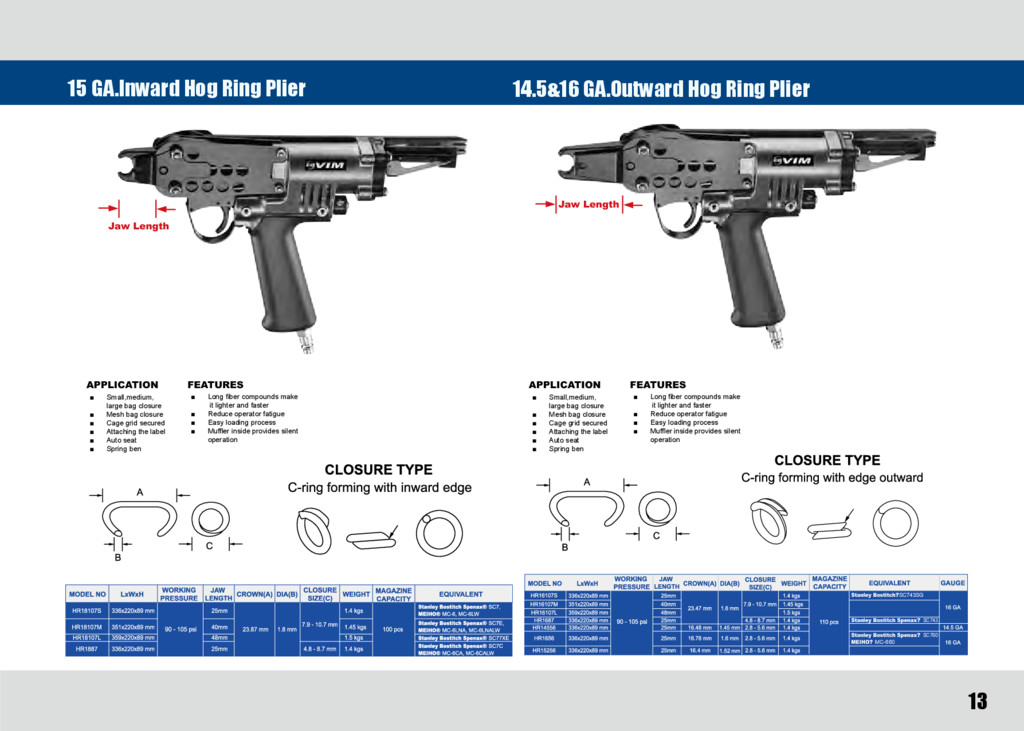

13. 13 13 15 GA.Inward Hog Ring Plier ▪ Long fiber compounds make it lighter and faster ▪ Reduce operator fatigue ▪ Easy loading process ▪ Muffler inside provides silent operation FEATURES ▪ Small,medium, large bag closure ▪ Mesh bag closure ▪ Cage grid secured ▪ Attaching the label ▪ Auto seat ▪ APPLICATION Spring ben ▪ Long fiber compounds make it lighter and faster ▪ Reduce operator fatigue ▪ Easy loading process ▪ Muffler inside provides silent operation FEATURES ▪ Small,medium, large bag closure ▪ Mesh bag closure ▪ Cage grid secured ▪ Attaching the label ▪ Auto seat ▪ APPLICATION Spring ben Jaw Length Stanley Bostitch?SC743SG Stanley Bostitch Spenax? SC743 Stanley Bostitch Spenax? SC760 MEIHO? MC-660 14.5&16 GA.Outward Hog Ring Plier Jaw Length
14. D-Ring Plier DP22 &URZQ 6KDQN'LD 0RGHO12 22 mm 6KDQN+HLJKW 11.2 mm 1.4 x 2.0 mm &ORVXUHVL]H 6.3-9.5 mm DP22 APPLICATION ¾ Furniture,Bedding ¾ Ticking(Flange)to Innerspring ¾ Novelty ¾ Components FEATURES ¾ Adjustable magazine degree that is depend on user ¾ Easy load fastener, it can save 50% load time ¾ Long Magazine, load 96 pcs nail 6.3 - 9.5 mm L x W x H 360 x 85 x 265 mm Weight 1.6 kg Load Capacity 96 pcs Equivalent Bostitch TR315 SIMES 53 SIMES 88(HR-22) 14
15. 14 14

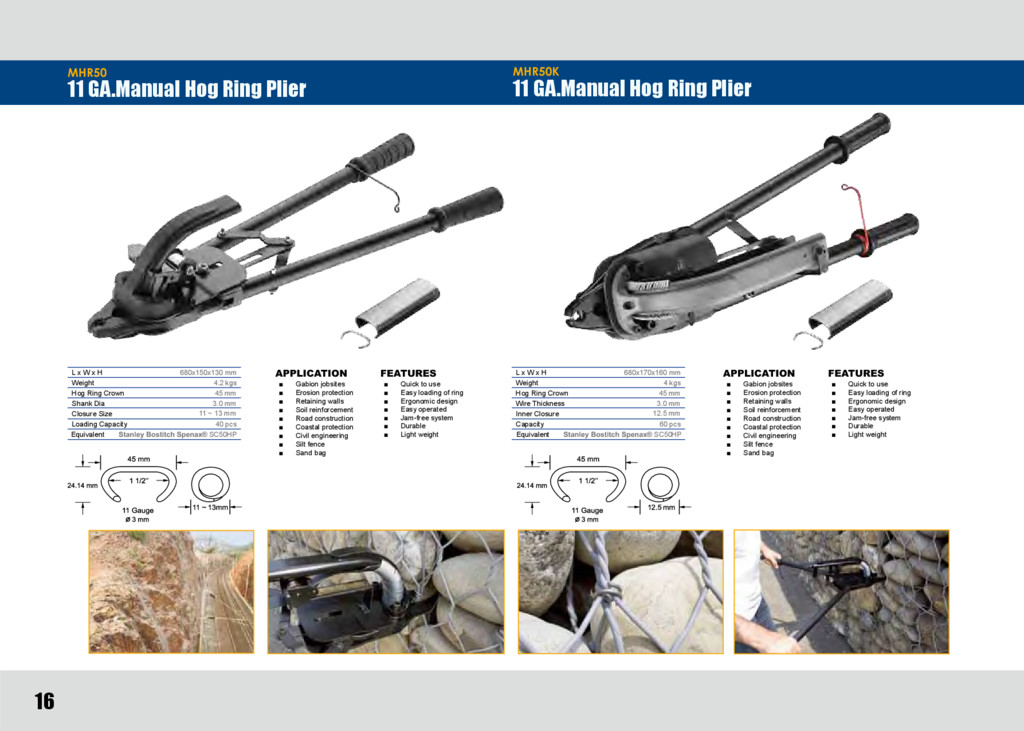

16. 16 MHR50 MHR50K 11 GA.Manual Hog Ring Plier 11 GA.Manual Hog Ring Plier ▪ Quick to use ▪ Easy loading of ring ▪ Ergonomic design ▪ Easy operated ▪ Jam-free system ▪ Durable ▪ FEATURES Light weight ▪ Quick to use ▪ Easy loading of ring ▪ Ergonomic design ▪ Easy operated ▪ Jam-free system ▪ Durable ▪ FEATURES Light weight ▪ Gabion jobsites ▪ Erosion protection ▪ Retaining walls ▪ Soil reinforcement ▪ Road construction ▪ Coastal protection ▪ Civil engineering ▪ Silt fence ▪ APPLICATION Sand bag ▪ Gabion jobsites ▪ Erosion protection ▪ Retaining walls ▪ Soil reinforcement ▪ Road construction ▪ Coastal protection ▪ Civil engineering ▪ Silt fence ▪ L x W x H APPLICATION Sand bag 680x150x130 mm 4.2 kgs 45 mm 3.0 mm 11 ~ 13 mm 40 pcs Weight Shank Dia Hog Ring Crown Closure Size Loading Capacity L x W x H 680x170x160 mm 4 kgs 45 mm 3.0 mm 12.5 mm 60 pcs Weight Wire Thickness Hog Ring Crown Inner Closure Capacity Equivalent Equivalent Stanley Bostitch Spenax® SC50HP Stanley Bostitch Spenax® SC50HP

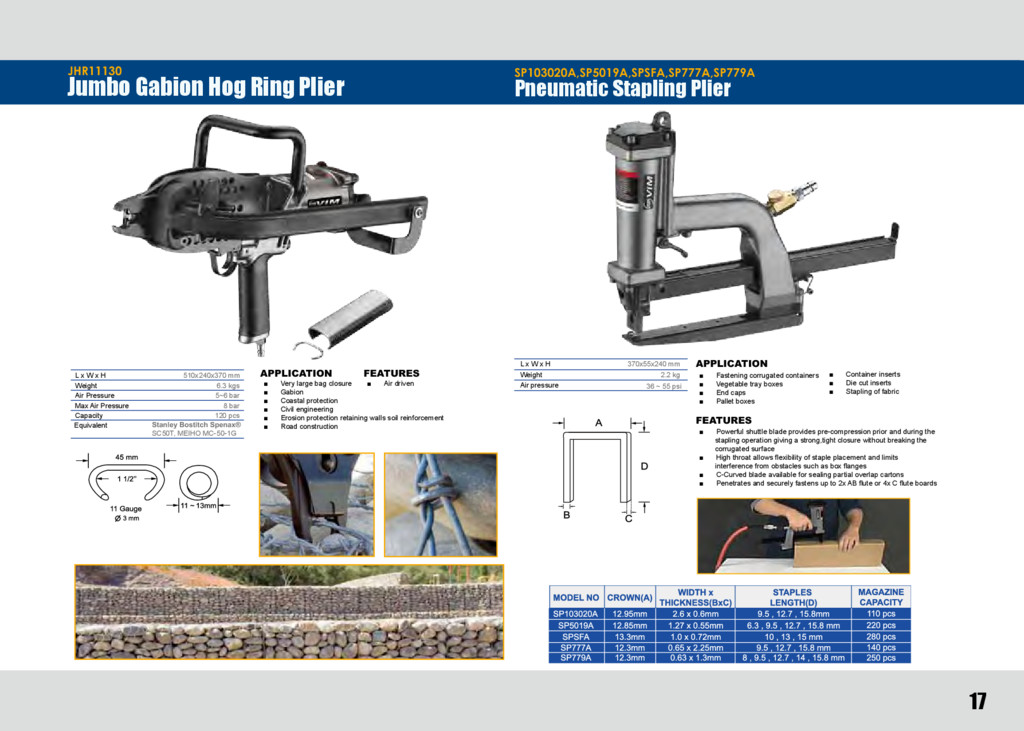

17. 17 Pneumatic Stapling Plier SP103020A,SP5019A,SPSFA,SP777A,SP779A ▪ Powerful shuttle blade provides pre-compression prior and during the stapling operation giving a strong,tight closure without breaking the corrugated surface ▪ High throat allows flexibility of staple placement and limits interference from obstacles such as box flanges ▪ C-Curved blade available for sealing partial overlap cartons ▪ FEATURES Penetrates and securely fastens up to 2x AB flute or 4x C flute boards ▪ Fastening corrugated containers ▪ Vegetable tray boxes ▪ End caps ▪ APPLICATION Pallet boxes 370x55x240 mm 2.2 kg 36 ~ 55 psi L x W x H Weight Air pressure JHR11130 Jumbo Gabion Hog Ring Plier ▪ Air driven ▪ Very large bag closure ▪ Gabion ▪ Coastal protection ▪ Civil engineering ▪ Erosion protection retaining walls soil reinforcement ▪ FEATURES Road construction APPLICATION L x W x H 510x240x370 mm 6.3 kgs 5~6 bar 8 bar 120 pcs Weight Max Air Pressure Capacity Air Pressure Equivalent Stanley Bostitch Spenax® SC50T, MEIHO MC-50-1G ▪ Container inserts ▪ Die cut inserts ▪ Stapling of fabric

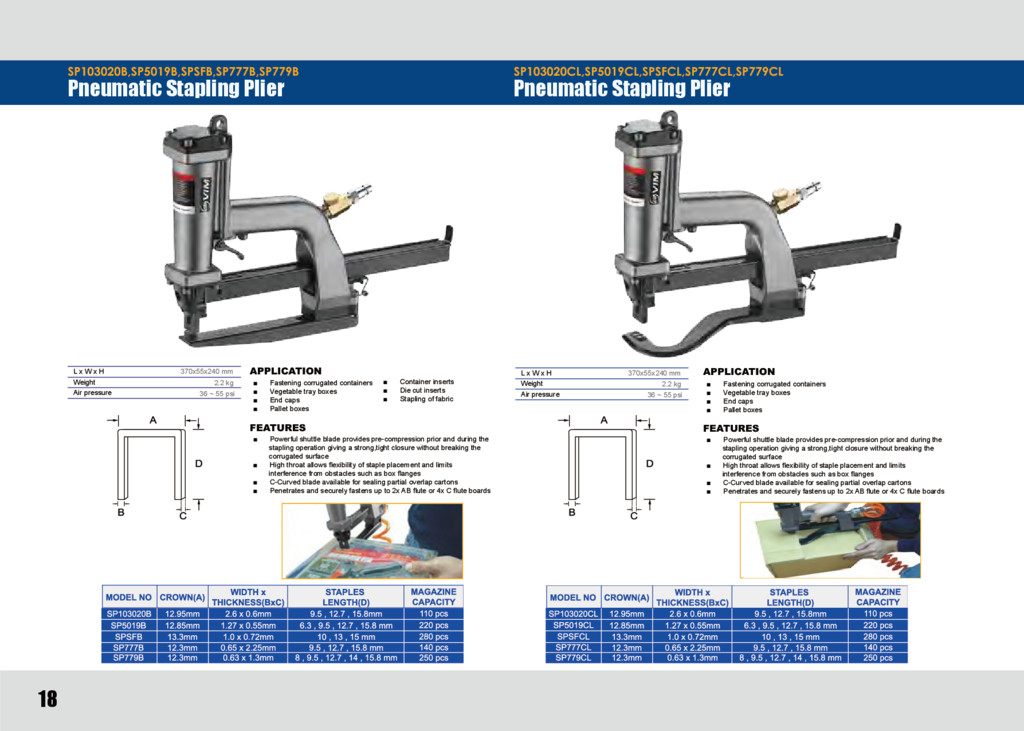

18. 18 Pneumatic Stapling Plier SP103020B,SP5019B,SPSFB,SP777B,SP779B 370x55x240 mm 2.2 kg 36 ~ 55 psi L x W x H Weight Air pressure 370x55x240 mm 2.2 kg 36 ~ 55 psi L x W x H Weight Air pressure Pneumatic Stapling Plier SP103020CL,SP5019CL,SPSFCL,SP777CL,SP779CL ▪ Powerful shuttle blade provides pre-compression prior and during the stapling operation giving a strong,tight closure without breaking the corrugated surface ▪ High throat allows flexibility of staple placement and limits interference from obstacles such as box flanges ▪ C-Curved blade available for sealing partial overlap cartons ▪ FEATURES Penetrates and securely fastens up to 2x AB flute or 4x C flute boards ▪ Fastening corrugated containers ▪ Vegetable tray boxes ▪ End caps ▪ APPLICATION Pallet boxes ▪ Container inserts ▪ Die cut inserts ▪ Stapling of fabric ▪ Powerful shuttle blade provides pre-compression prior and during the stapling operation giving a strong,tight closure without breaking the corrugated surface ▪ High throat allows flexibility of staple placement and limits interference from obstacles such as box flanges ▪ C-Curved blade available for sealing partial overlap cartons ▪ FEATURES Penetrates and securely fastens up to 2x AB flute or 4x C flute boards ▪ Fastening corrugated containers ▪ Vegetable tray boxes ▪ End caps ▪ APPLICATION Pallet boxes

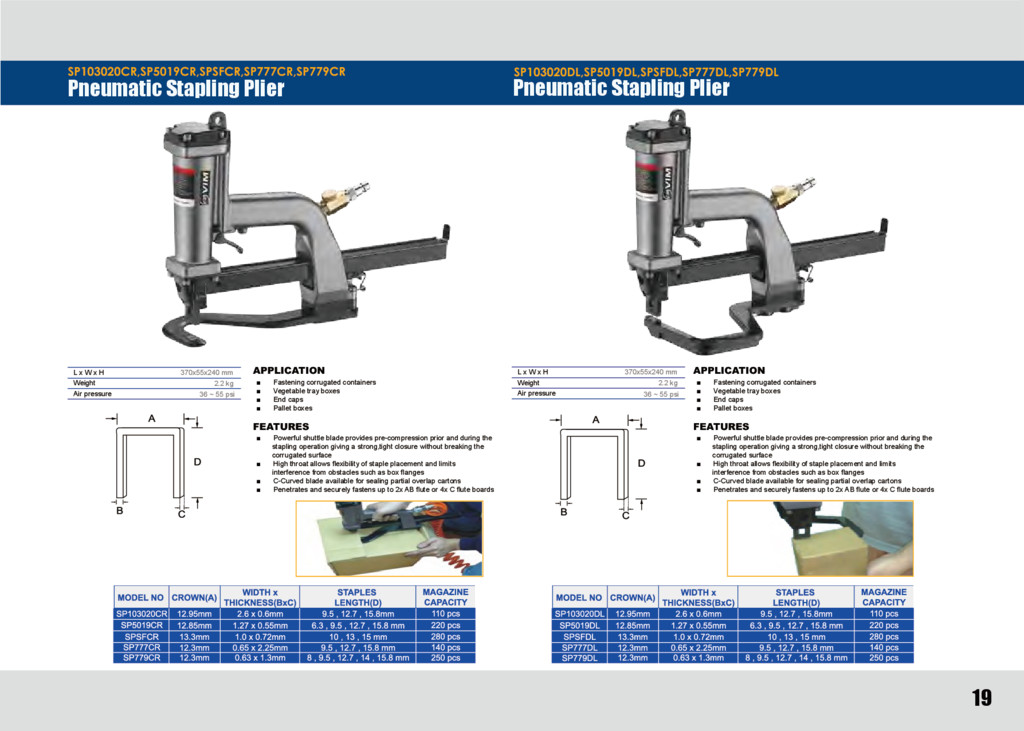

19. 19 Pneumatic Stapling Plier SP103020DL,SP5019DL,SPSFDL,SP777DL,SP779DL 370x55x240 mm 2.2 kg 36 ~ 55 psi L x W x H Weight Air pressure 370x55x240 mm 2.2 kg 36 ~ 55 psi L x W x H Weight Air pressure Pneumatic Stapling Plier SP103020CR,SP5019CR,SPSFCR,SP777CR,SP779CR ▪ Powerful shuttle blade provides pre-compression prior and during the stapling operation giving a strong,tight closure without breaking the corrugated surface ▪ High throat allows flexibility of staple placement and limits interference from obstacles such as box flanges ▪ C-Curved blade available for sealing partial overlap cartons ▪ FEATURES Penetrates and securely fastens up to 2x AB flute or 4x C flute boards ▪ Fastening corrugated containers ▪ Vegetable tray boxes ▪ End caps ▪ APPLICATION Pallet boxes ▪ Powerful shuttle blade provides pre-compression prior and during the stapling operation giving a strong,tight closure without breaking the corrugated surface ▪ High throat allows flexibility of staple placement and limits interference from obstacles such as box flanges ▪ C-Curved blade available for sealing partial overlap cartons ▪ FEATURES Penetrates and securely fastens up to 2x AB flute or 4x C flute boards ▪ Fastening corrugated containers ▪ Vegetable tray boxes ▪ End caps ▪ APPLICATION Pallet boxes

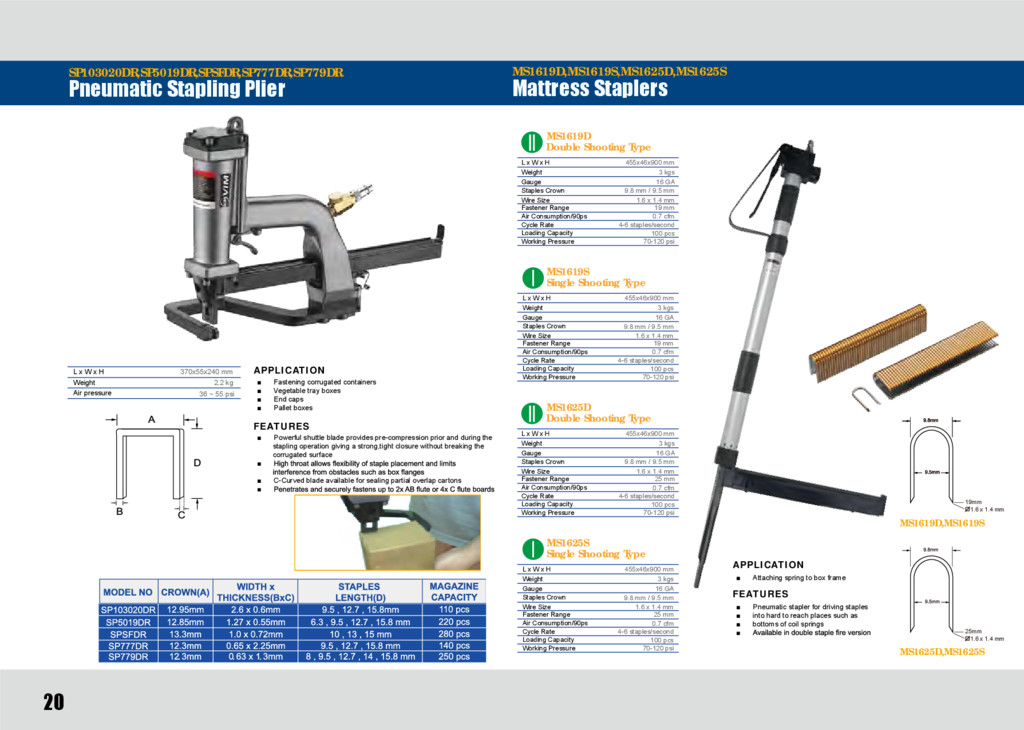

20. Pneumatic Stapling Plier SP103020DR,SP5019DR,SPSFDR,SP777DR,SP779DR 370x55x240 mm 2.2 kg 36 ~ 55 psi L x W x H Weight Air pressure Mattress Staplers MS1619D,MS1619S,MS1625D,MS1625S Double Shooting Type L x W x H 455x46x900 mm 3 kgs 1.6 x 1.4 mm 9.8 mm / 9.5 mm 16 GA 19 mm 4-6 staples/second 0.7 cfm 100 pcs 70-120 psi Weight Wire Size Staples Crown Gauge Fastener Range Cycle Rate Air Consumption/90ps Loading Capacity Working Pressure MS1619D 9.8 mm / 9.5 mm Single Shooting Type L x W x H 455x46x900 mm 3 kgs 1.6 x 1.4 mm 16 GA 19 mm 4-6 staples/second 0.7 cfm 100 pcs 70-120 psi Weight Wire Size Staples Crown Gauge Fastener Range Cycle Rate Air Consumption/90ps Loading Capacity Working Pressure MS1619S Double Shooting Type L x W x H 455x46x900 mm 3 kgs 1.6 x 1.4 mm 9.8 mm / 9.5 mm 16 GA 25 mm 4-6 staples/second 0.7 cfm 100 pcs 70-120 psi Weight Wire Size Staples Crown Gauge Fastener Range Cycle Rate Air Consumption/90ps Loading Capacity Working Pressure MS1625D 9.8 mm / 9.5 mm Single Shooting Type L x W x H 455x46x900 mm 3 kgs 1.6 x 1.4 mm 16 GA 25 mm 4-6 staples/second 0.7 cfm 100 pcs 70-120 psi Weight Wire Size Staples Crown Gauge Fastener Range Cycle Rate Air Consumption/90ps Loading Capacity Working Pressure MS1625S ▪ Pneumatic stapler for driving staples ▪ into hard to reach places such as ▪ bottoms of coil springs ▪ ▪ Attaching spring to box frame FEATURES APPLICATION MS1619D,MS1619S 19mm 1.6 x 1.4 mm MS1625D,MS1625S 25mm 1.6 x 1.4 mm ▪ Powerful shuttle blade provides pre-compression prior and during the stapling operation giving a strong,tight closure without breaking the corrugated surface ▪ ▪ C-Curved blade available for sealing partial overlap cartons ▪ FEATURES ▪ Fastening corrugated containers ▪ Vegetable tray boxes ▪ End caps ▪ Pallet boxes APPLICATION 20

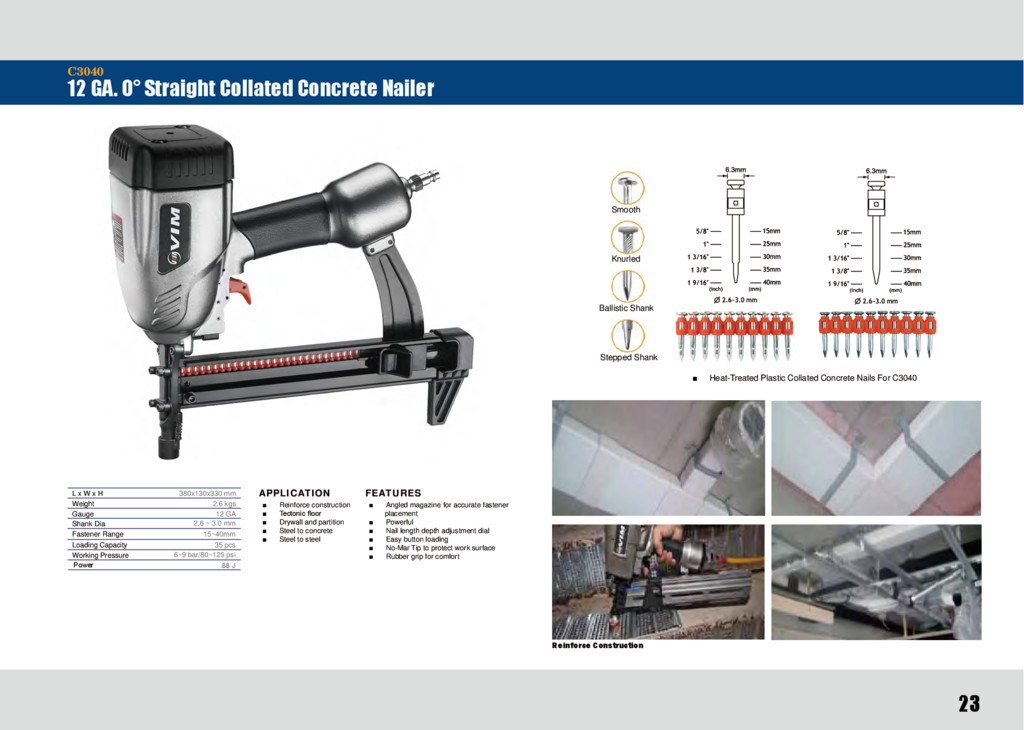

23. 12 GA. O° Straight Collated Concrete Nailer C3040 ▪ ▪ ▪ ▪ ▪ ▪ Angled magazine for accurate fastener placement ▪ Powerful ▪ Nail length depth adjustment dial ▪ Easy button loading ▪ No-Mar Tip to protect work surface ▪ FEATURES Rubber grip for comfort APPLICATION Reinforce construction Tectonic floor Drywall and partition Steel to concrete Steel to steel Reinforce Construction 2.6 kgs 12 GA 35 pcs L x W x H 380x130x330 mm 2.6 ~ 3.0 mm 15~40mm 6~9 bar/80~125 psi Weight Shank Dia Gauge Fastener Range Loading Capacity Working Pressure ▪ Heat-Treated Plastic Collated Concrete Nails For C3040 Stepped Shank Smooth Knurled Ballistic Shank 23 Power 88 J

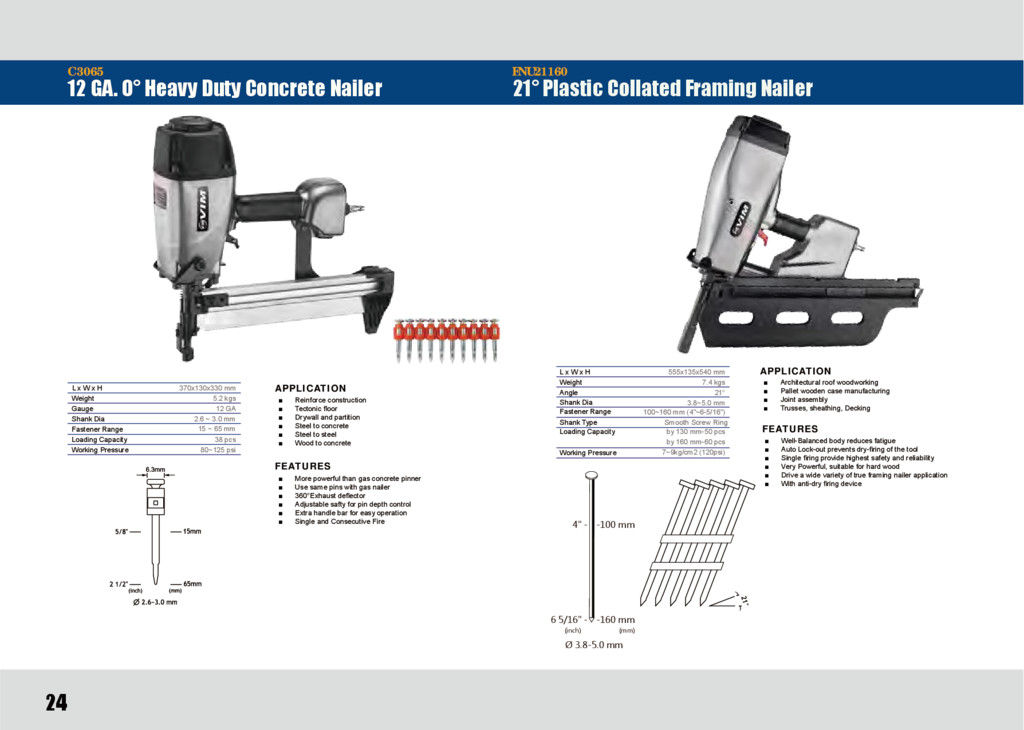

24. 24 C3065 12 GA. O° Heavy Duty Concrete Nailer ▪ More powerful than gas concrete pinner ▪ Use same pins with gas nailer ▪ 360°Exhaust deflector ▪ Adjustable safty for pin depth control ▪ Extra handle bar for easy operation ▪ Single and Consecutive Fire ▪ Reinforce construction ▪ Tectonic floor ▪ Drywall and partition ▪ Steel to concrete ▪ Steel to steel ▪ Wood to concrete FEATURES L x W x H APPLICATION 370x130x330 mm 5.2 kgs 12 GA 2.6 ~ 3.0 mm 15 ~ 65 mm 38 pcs Weight Shank Dia Gauge Fastener Range Loading Capacity Working Pressure 80~125 psi 21° Plastic Collated Framing Nailer FNU21160 ▪ Well-Balanced body reduces fatigue ▪ Auto Lock-out prevents dry-firing of the tool ▪ Single firing provide highest safety and reliability ▪ Very Powerful, suitable for hard wood ▪ Drive a wide variety of true framing nailer application ▪ With anti-dry firing device ▪ Architectural roof woodworking ▪ Pallet wooden case manufacturing ▪ Joint assembly ▪ Trusses, sheathing, Decking FEATURES L x W x H APPLICATION 555x135x540 mm 7.4 kgs 21° 3.8~5.0 mm by 130 mm-50 pcs by 160 mm-60 pcs Weight Angle Shank Dia Loading Capacity 7~9kg/cm2 (120psi) Working Pressure 100~160 mm (4"~6-5/16") Fastener Range Smooth Screw Ring Shank Type -100 mm -160 mm 6 5/16" - (inch) (mm) 4" - Ø 3.8-5.0 mm

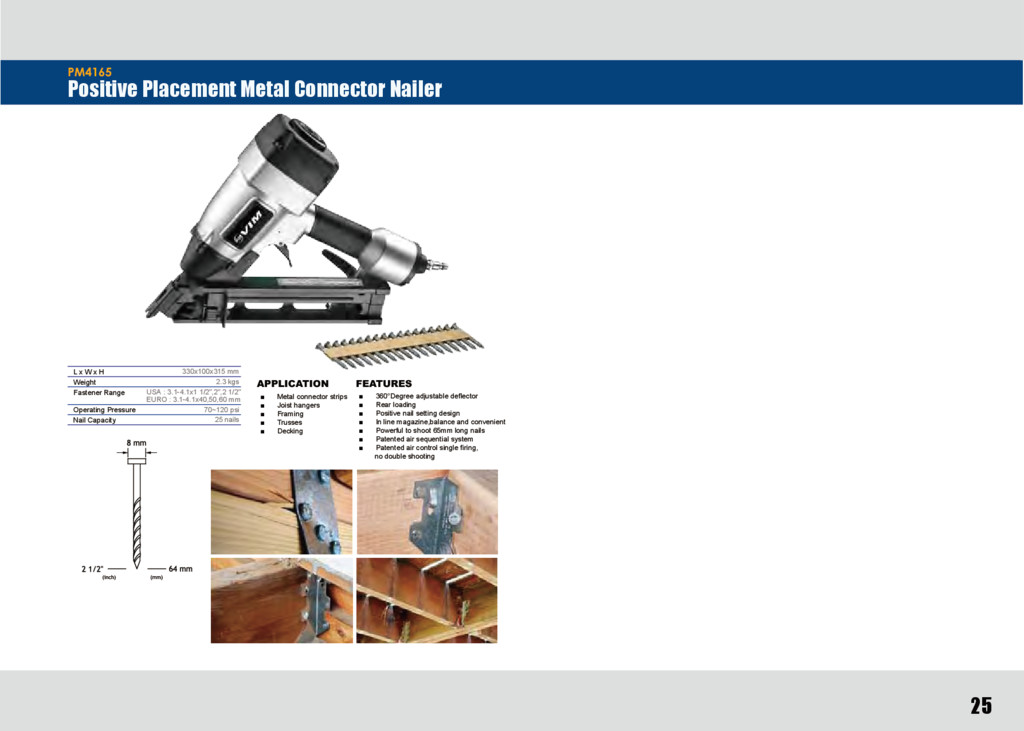

25. 25 Positive Placement Metal Connector Nailer ▪ Metal connector strips ▪ Joist hangers ▪ Framing ▪ Trusses ▪ APPLICATION Decking FEATURES ▪ 360°Degree adjustable deflector ▪ Rear loading ▪ Positive nail setting design ▪ In line magazine,balance and convenient ▪ Powerful to shoot 65mm long nails ▪ Patented air sequential system ▪ Patented air control single firing, no double shooting L x W x H Weight Fastener Range Operating Pressure Nail Capacity 330x100x315 mm 2.3 kgs USA : 3.1-4.1x1 1/2",2",2 1/2" EURO : 3.1-4.1x40,50,60 mm 70~120 psi 25 nails PM4165

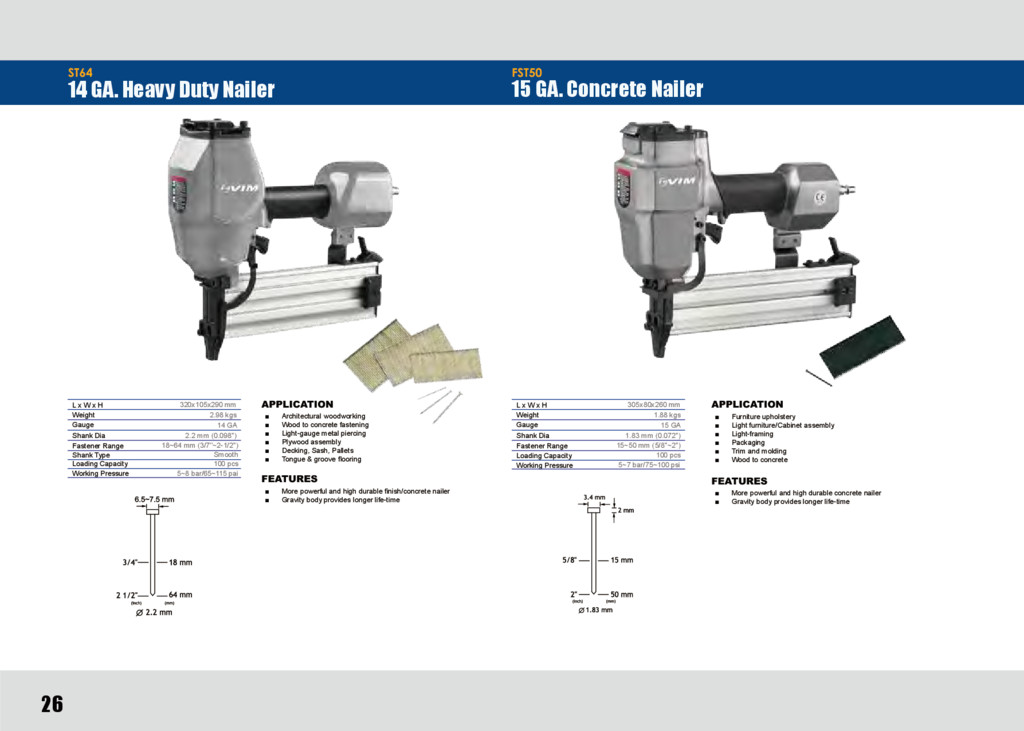

26. 26 14 GA. Heavy Duty Nailer ST64 APPLICATION FEATURES ▪ More powerful and high durable finish/concrete nailer ▪ Gravity body provides longer life-time ▪ Architectural woodworking ▪ Wood to concrete fastening ▪ Light-gauge metal piercing ▪ Plywood assembly ▪ Decking, Sash, Pallets ▪ Tongue & groove flooring L x W x H 320x105x290 mm 2.98 kgs 14 GA 2.2 mm (0.098'') 18~64 mm (3/7''~2-1/2'') Smooth 100 pcs 5~8 bar/65~115 pai Weight Gauge Shank Dia Fastener Range Shank Type Loading Capacity Working Pressure 15 GA. Concrete Nailer FST50 APPLICATION FEATURES ▪ More powerful and high durable concrete nailer ▪ Gravity body provides longer life-time L x W x H 305x80x260 mm 1.88 kgs 15 GA 1.83 mm (0.072'') 15~50 mm (5/8''~2'') 100 pcs 5~7 bar/75~100 psi Weight Gauge Shank Dia Fastener Range Loading Capacity Working Pressure ▪ Furniture upholstery ▪ Light furniture/Cabinet assembly ▪ Light-framing ▪ Packaging ▪ Trim and molding ▪ Wood to concrete

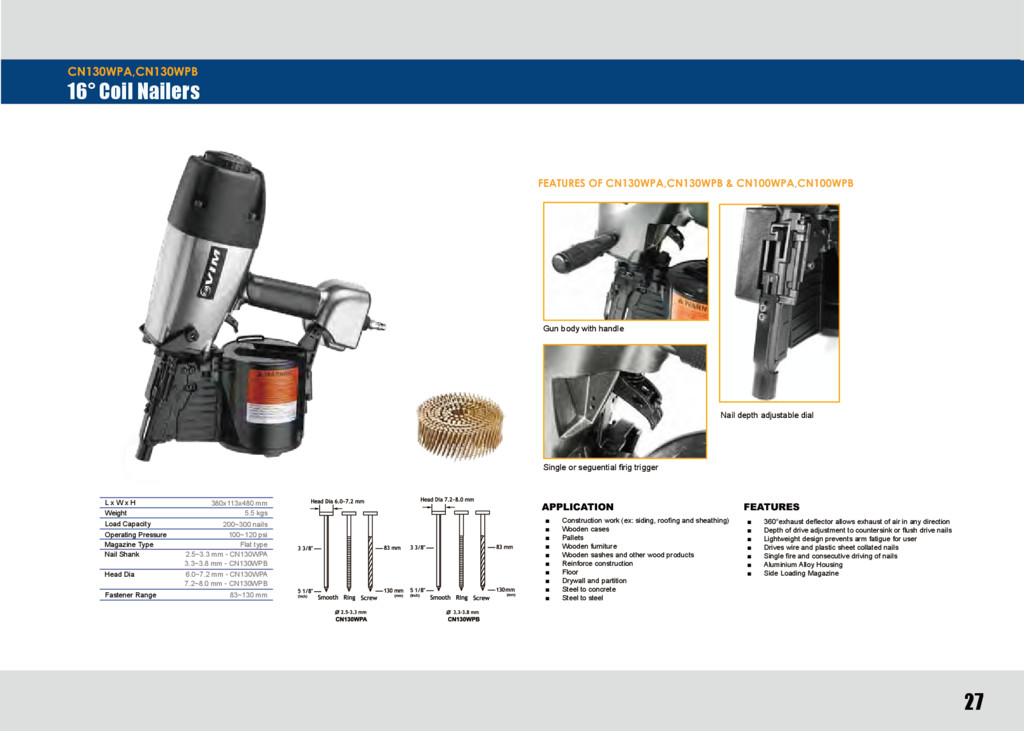

27. 27 CN130WPA,CN130WPB L x W x H 5.5 kgs 380x113x480 mm Weight Flat type 83~130 mm 2.5~3.3 mm - CN130WPA 6.0~7.2 mm - CN130WPA 3.3~3.8 mm - CN130WPB 7.2~8.0 mm - CN130WPB 100~120 psi 200~300 nails Magazine Type Fastener Range Nail Shank Head Dia Operating Pressure Load Capacity 16° Coil Nailers ▪ 360°exhaust deflector allows exhaust of air in any direction ▪ Depth of drive adjustment to countersink or flush drive nails ▪ Lightweight design prevents arm fatigue for user ▪ Drives wire and plastic sheet collated nails ▪ Single fire and consecutive driving of nails ▪ Aluminium Alloy Housing ▪ Side Loading Magazine ▪ Construction work (ex: siding, roofing and sheathing) ▪ Wooden cases ▪ Pallets ▪ Wooden furniture ▪ Wooden sashes and other wood products ▪ Reinforce construction ▪ Floor ▪ Drywall and partition ▪ Steel to concrete ▪ FEATURES Steel to steel Gun body with handle APPLICATION Nail depth adjustable dial Single or seguential firig trigger FEATURES OF CN130WPA,CN130WPB & CN100WPA,CN100WPB
28. 28 L x W x H 307x132x362 mm 3.7 kgs 300 nails 2.5~3.3 mm Weight Loading Capacity Shank Dia 6~8 kg/ cm2 2''~3-1/4(50~83mm) Operating Pressure Length (inch) 16° Wire Collated Coil Nailer CN80M ▪ Extra heavy-duty:Die casting aluminium construction ▪ Light weight and powerful ▪ Rugged magazine ▪ Drives 300 nails continuously by full-loading ▪ Multi-directional exhaust ▪ Comfortable rubber grip ▪ Equipped wiht dust cover and body protector ▪ Making and repairing pallets ▪ Crating ▪ Fencing ▪ Siding ▪ Decking ▪ Sheathing FEATURES APPLICATION All parts compactible with MAX® CN80 CN100WPA,CN100WPB ▪ Construction work (ex: siding, roofing and sheathing) ▪ Wooden cases ▪ Pallets ▪ Wooden furniture ▪ Wooden sashes and other wood products ▪ Reinforce construction ▪ Floor ▪ Drywall and partition ▪ Steel to concrete ▪ APPLICATION Steel to steel ▪ 360°exhaust deflector allows exhaust of air in any direction ▪ Depth of drive adjustment to countersink or flush drive nails ▪ Lightweight design prevents arm fatigue for user ▪ Drives wire and plastic sheet collated nails ▪ Aluminium Alloy Housing ▪ Side loading magazine ▪ FEATURES Single fire and consecutive driving of nails 16° Wire Collated Coil Nailer L x W x H 5 kgs 380x113x420 mm Weight Flat type 100~120 psi 200~300 nails Magazine Type Operating Pressure Load Capacity 2.5~3.3 mm - CN100WPA 6.0~7.2 mm - CN100WPA 3.3~3.8 mm - CN100WPB 7.0~7.5 mm - CN100WPB Nail Shank Head Dia 50~100 mm Fastener Range
29. 29 ▪ Extra heavy-duty:Die casting aluminium construction ▪ Light weight and powerful ▪ Rugged magazine ▪ Drives 300-400 nails continuously by full-loading ▪ Multi-directional exhaust ▪ Comfortable rubber grip ▪ Equipped with dust cover and body protector ▪ Making and repairing pallets ▪ Crating ▪ Fencing ▪ Siding ▪ Decking ▪ Sheathing FEATURES L x W x H APPLICATION 270x131x283 mm 2.5 kgs 16° 2.1 mm/0.083" 2.3 mm/0.092" 25~57 mm (1"~2- 1/4") Smooth Ring Screw 300~400 PCS Weight Angle Shank Dia Fastener Range Shank Type Loading Capacity 5-7kg/ cm2 (70-100psi) Working Pressure 16° Wire Collated Coil Nailer CN55M All parts compactible with MAX® CN55 306x128x315mm 3.5 kgs/7.7 ibs 16° 2.3~2.87mm (0.092"~0.113") 45-70 mm (1-3/4"~3-3/4") Smooth Ring Screw 225-300 PCS 5-7kg/ cm2 (70-100psi) L x W x H Weight Angle Shank Dia Fastener Range Shank Type Loading Capacity Working Pressure ▪ Extra heavy-duty:Die casting aluminium construction ▪ Light weight and powerful ▪ Rugged magazine ▪ Drives 225-300 nails continuously by full-loading ▪ Multi-directional exhaust ▪ Comfortable rubber grip ▪ Equipped wiht dust cover and body protector ▪ Making and repairing pallets ▪ Crating ▪ Fencing ▪ Siding ▪ Decking ▪ Sheathing FEATURES APPLICATION All parts compactible with MAX® CN70 CN70M 16° Wire Collated Coil Nailer

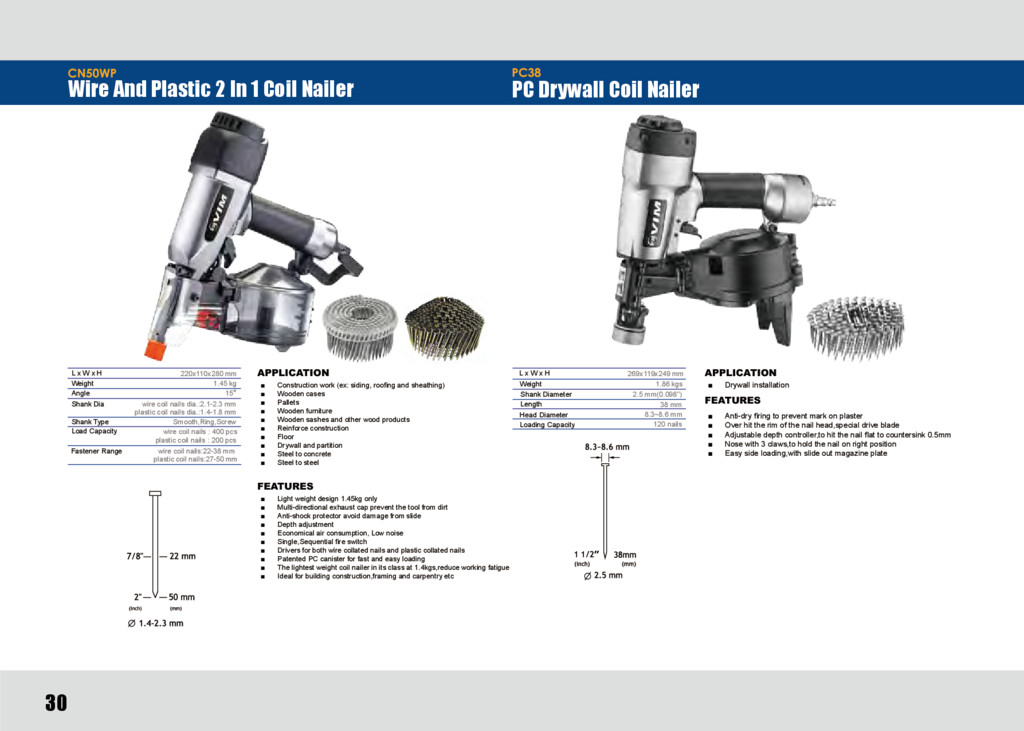

30. 30 Wire And Plastic 2 In 1 Coil Nailer CN50WP L x W x H Weight Angle Shank Dia Shank Type Load Capacity Fastener Range 15 wire coil nails dia.:2.1-2.3 mm plastic coil nails dia.:1.4-1.8 mm Smooth,Ring,Screw 220x110x280 mm 1.45 kg wire coil nails:22-38 mm plastic coil nails:27-50 mm wire coil nails : 400 pcs plastic coil nails : 200 pcs ▪ Light weight design 1.45kg only ▪ Multi-directional exhaust cap prevent the tool from dirt ▪ Anti-shock protector avoid damage from slide ▪ Depth adjustment ▪ Economical air consumption, Low noise ▪ Single,Sequential fire switch ▪ Drivers for both wire collated nails and plastic collated nails ▪ Patented PC canister for fast and easy loading ▪ The lightest weight coil nailer in its class at 1.4kgs,reduce working fatigue ▪ FEATURES Ideal for building construction,framing and carpentry etc APPLICATION ▪ Construction work (ex: siding, roofing and sheathing) ▪ Wooden cases ▪ Pallets ▪ Wooden furniture ▪ Wooden sashes and other wood products ▪ Reinforce construction ▪ Floor ▪ Drywall and partition ▪ Steel to concrete ▪ Steel to steel PC Drywall Coil Nailer PC38 FEATURES ▪ Anti-dry firing to prevent mark on plaster ▪ Over hit the rim of the nail head,special drive blade ▪ Adjustable depth controller,to hit the nail flat to countersink 0.5mm ▪ Nose with 3 claws,to hold the nail on right position ▪ Easy side loading,with slide out magazine plate ▪ L x W x H APPLICATION Drywall installation 269x119x249 mm 1.86 kgs 2.5 mm(0.098'') 120 nails 8.3~8.6 mm 38 mm Weight Loading Capacity Head Diameter Length Shank Diameter

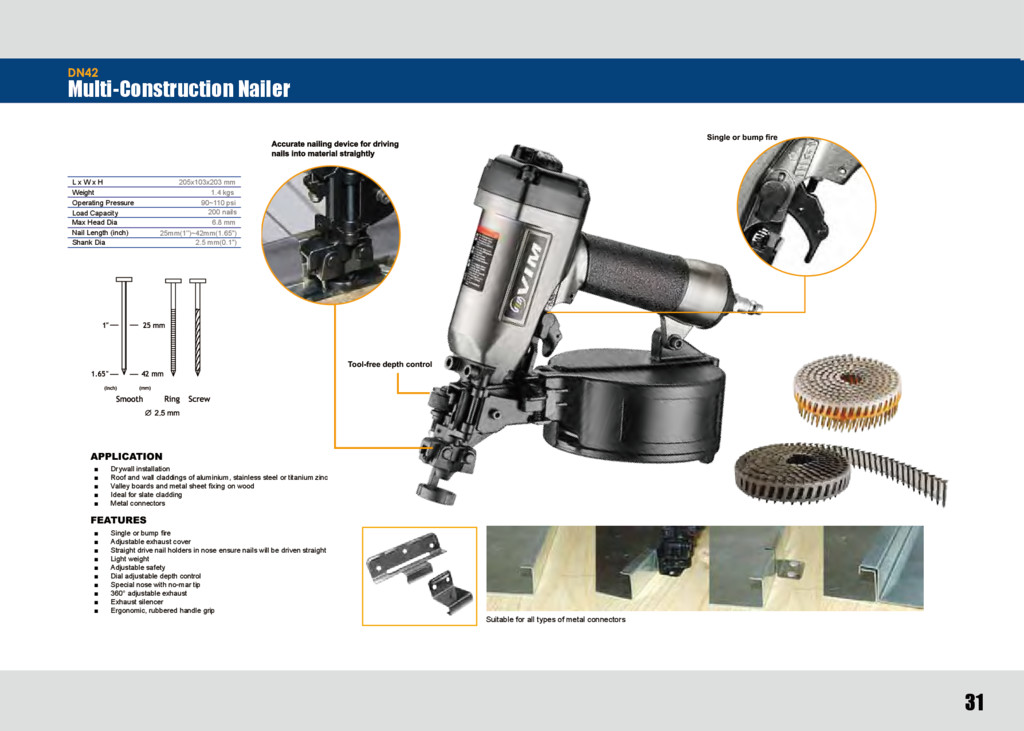

31. 31 Multi-Construction Nailer DN42 ▪ Single or bump fire ▪ Adjustable exhaust cover ▪ Straight drive nail holders in nose ensure nails will be driven straight ▪ Light weight ▪ Adjustable safety ▪ Dial adjustable depth control ▪ Special nose with no-mar tip ▪ 360° adjustable exhaust ▪ Exhaust silencer ▪ Ergonomic, rubbered handle grip ▪ Drywall installation ▪ Roof and wall claddings of aluminium, stainless steel or titanium zinc ▪ Valley boards and metal sheet fixing on wood ▪ Ideal for slate cladding ▪ APPLICATION Metal connectors L x W x H FEATURES 205x103x203 mm 1.4 kgs 200 nails 90~110 psi 6.8 mm 25mm(1'')~42mm(1.65'') 2.5 mm(0.1'') Weight Load Capacity Operating Pressure Max Head Dia Nail Length (inch) Shank Dia Tool-free depth control Single or bump fire Suitable for all types of metal connectors

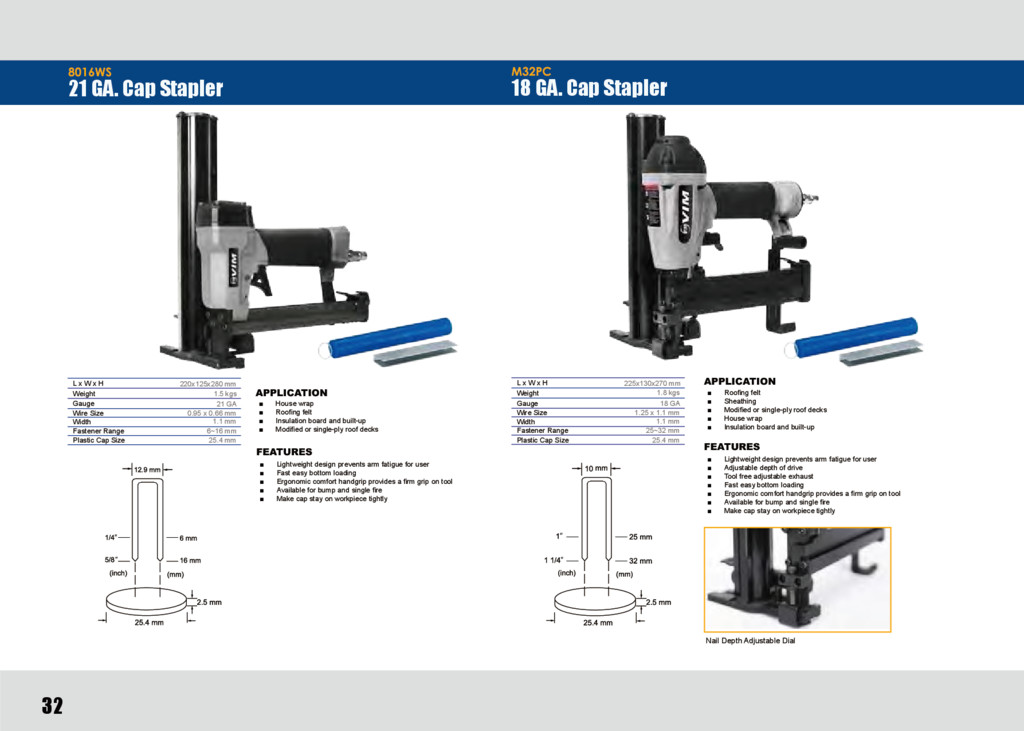

32. 32 21 GA. Cap Stapler 8016WS ▪ Lightweight design prevents arm fatigue for user ▪ Fast easy bottom loading ▪ Ergonomic comfort handgrip provides a firm grip on tool ▪ Available for bump and single fire ▪ Make cap stay on workpiece tightly ▪ House wrap ▪ Roofing felt ▪ Insulation board and built-up ▪ Modified or single-ply roof decks FEATURES APPLICATION 21 GA 1.5 kgs 220x125x280 mm L x W x H Weight Wire Size Width Gauge Fastener Range Plastic Cap Size 0.95 x 0.66 mm 1.1 mm 6~16 mm 25.4 mm 18 GA. Cap Stapler M32PC ▪ Lightweight design prevents arm fatigue for user ▪ Adjustable depth of drive ▪ Tool free adjustable exhaust ▪ Fast easy bottom loading ▪ Ergonomic comfort handgrip provides a firm grip on tool ▪ Available for bump and single fire ▪ FEATURES Make cap stay on workpiece tightly ▪ Roofing felt ▪ Sheathing ▪ Modified or single-ply roof decks ▪ House wrap ▪ APPLICATION Insulation board and built-up L x W x H Weight Wire Size Width Gauge Fastener Range 1.25 x 1.1 mm 1.1 mm 18 GA 25~32 mm 225x130x270 mm 25.4 mm 1.8 kgs Plastic Cap Size Nail Depth Adjustable Dial

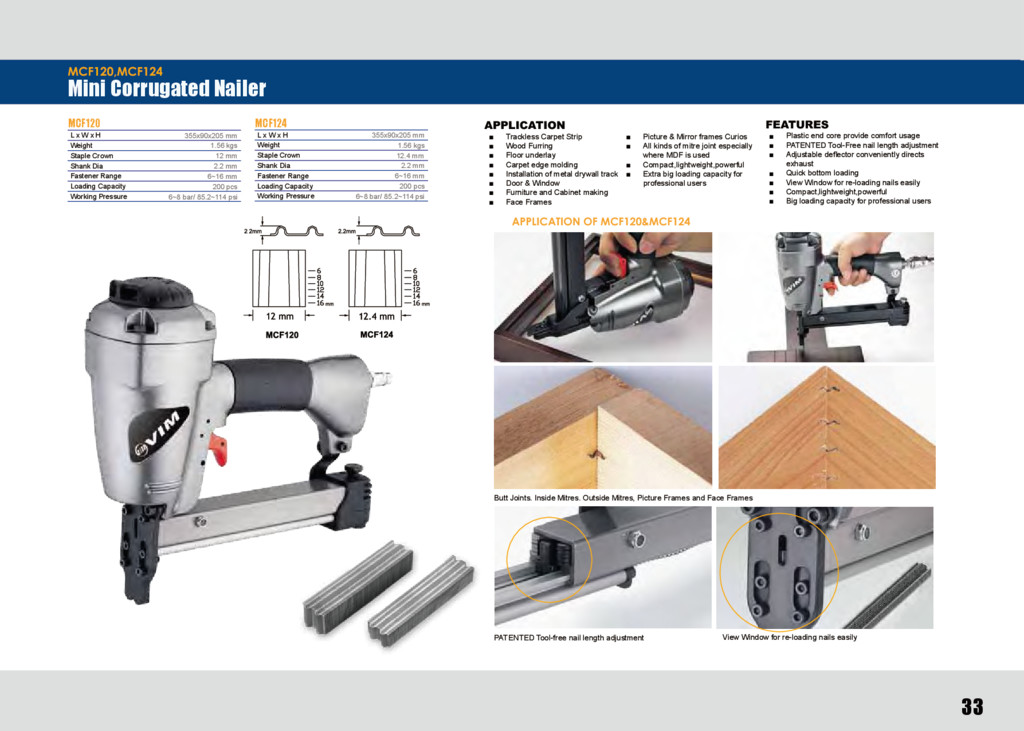

33. 33 APPLICATION OF MCF120&MCF124 PATENTED Tool-free nail length adjustment View Window for re-loading nails easily Butt Joints. Inside Mitres. Outside Mitres, Picture Frames and Face Frames Mini Corrugated Nailer MCF120,MCF124 ▪ Plastic end core provide comfort usage ▪ PATENTED Tool-Free nail length adjustment ▪ Adjustable deflector conveniently directs exhaust ▪ Quick bottom loading ▪ View Window for re-loading nails easily ▪ Compact,lightweight,powerful ▪ FEATURES Big loading capacity for professional users ▪ Trackless Carpet Strip ▪ Wood Furring ▪ Floor underlay ▪ Carpet edge molding ▪ Installation of metal drywall track ▪ Door & Window ▪ Furniture and Cabinet making ▪ Face Frames ▪ Picture & Mirror frames Curios ▪ All kinds of mitre joint especially where MDF is used ▪ Compact,lightweight,powerful ▪ Extra big loading capacity for APPLICATION professional users L x W x H 355x90x205 mm 1.56 kgs Weight 6~8 bar/ 85.2~114 psi 12 mm 6~16 mm Loading Capacity Working Pressure Staple Crown Fastener Range 2.2 mm 200 pcs Shank Dia MCF120 MCF124 L x W x H 355x90x205 mm 1.56 kgs Weight 6~8 bar/ 85.2~114 psi 12.4 mm 6~16 mm Loading Capacity Working Pressure Staple Crown Fastener Range 2.2 mm 200 pcs Shank Dia

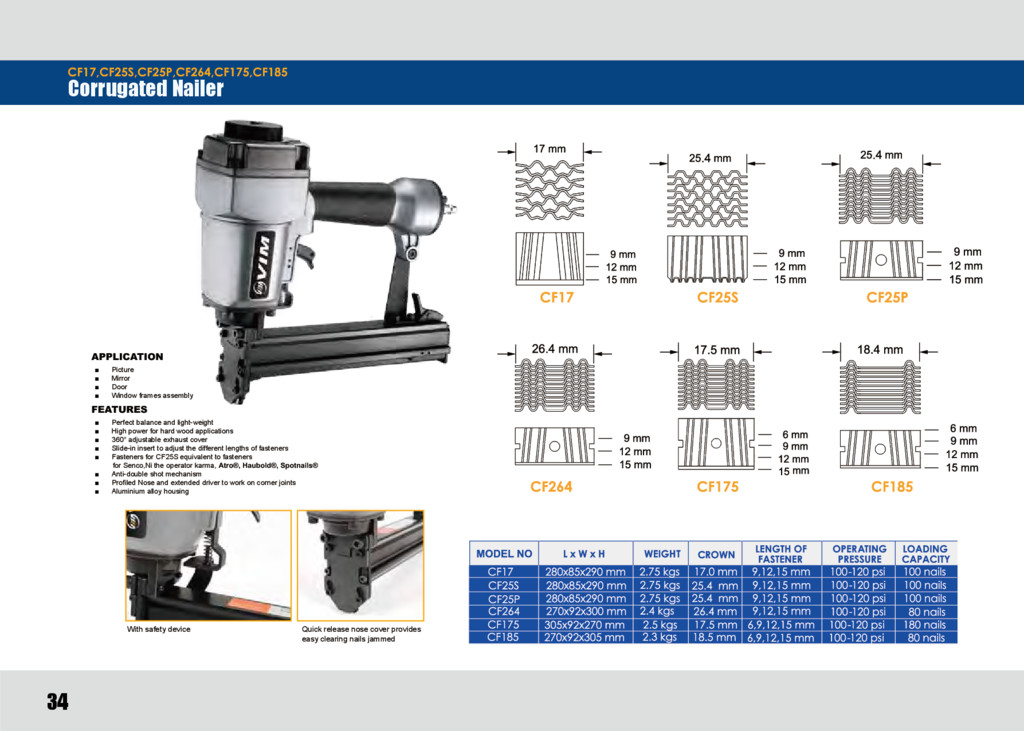

34. 34 With safety device Quick release nose cover provides easy clearing nails jammed Corrugated Nailer CF17,CF25S,CF25P,CF264,CF175,CF185 FEATURES ▪ Perfect balance and light-weight ▪ High power for hard wood applications ▪ 360° adjustable exhaust cover ▪ Slide-in insert to adjust the different lengths of fasteners ▪ Fasteners for CF25S equivalent to fasteners for Senco,Ni the operator karma, Atro®, Haubold®, Spotnails® ▪ Anti-double shot mechanism ▪ Profiled Nose and extended driver to work on corner joints ▪ APPLICATION Aluminium alloy housing ▪ Picture ▪ Mirror ▪ Door ▪ Window frames assembly
35. 35 ▪ Comfortable handle with rubber ▪ Strong and light-weight die cast housing ▪ Fast and easy down loading ▪ Lumber wrap ▪ Lumber tagging ▪ Boatbuilding ▪ Casket lining ▪ Doors metal detectors ▪ Furnitures ▪ Fiberglass layup ▪ Upholstery ▪ Insulating sheathing ▪ All applications where matal fasteners can damage tools and to avoid fasteners removal FEATURES APPLICATION 81P,82P Polymer Stapler L x W x H Weight Working Pressure 216x148x43 mm 0.9 kgs 70 - 110 pcs
36. 36 ▪ Compact tool design-Less parts. ▪ Powerful(Rapid Shooting up to16mm) ▪ The shortest fastener 3mm can be shut without tumbling ▪ Compact size ▪ Light weight ▪ One hand manual rear latch(easy loading) ▪ Rear air exhaust / anti dirt on workpiece ▪ Low air consumption(Save 30 to 40% compare with competitor) ▪ FEATURES Durable drive unit and Bumper ▪ Furniture ▪ Upholstering ▪ Automotive vinyl ▪ APPLICATION Interior ▪ Trim ▪ House decoration ▪ Carpet edge Rear Exhaust Upholstery Stapler With Single Firing STANDARD NOSE AND MAGAZINE L x W x H 216x140x38 mm 0.9 kgs 5~7 bar / 70~110 psi Weight Working Pressure Rear Exhaust Upholstery Stapler With Auto Firing ▪ Patent one hand manual rear latch(easy loading) ▪ Compact tool design-Less parts. ▪ Powerful(Rapid Shooting up to16mm) ▪ The shortest fastener 3mm can be shot without tumbling ▪ Rear air exhaust / anti dirt on workpiece ▪ Low air consumption(Save 30 to 40% compare with competitor) ▪ Durable drive unit and bumper ▪ Furniture ▪ Upholstering ▪ Automotive vinyl ▪ Interior ▪ Trim ▪ House decoration ▪ Carpet edge FEATURES APPLICATION L x W x H/STANDARD 216x140x38 mm 0.9 kgs 5~7 bar / 70~110 psi Weight Working Pressure

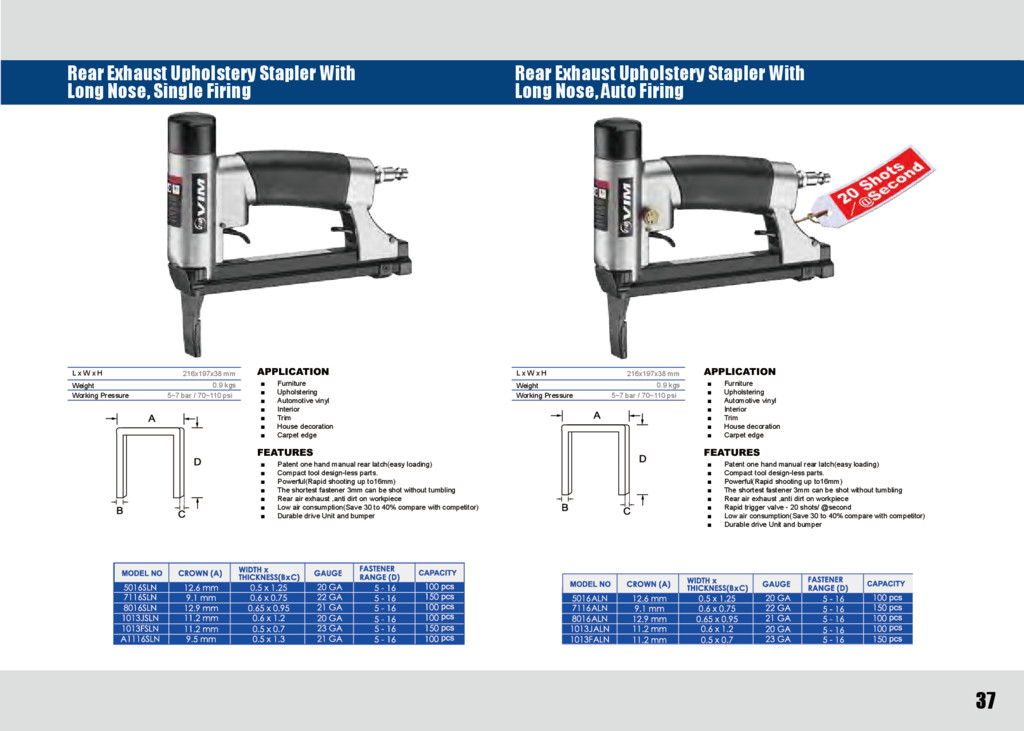

37. 37 Rear Exhaust Upholstery Stapler With Long Nose, Single Firing Rear Exhaust Upholstery Stapler With Long Nose, Auto Firing ▪ Patent one hand manual rear latch(easy loading) ▪ Compact tool design-less parts. ▪ Powerful(Rapid shooting up to16mm) ▪ The shortest fastener 3mm can be shot without tumbling ▪ Rear air exhaust ,anti dirt on workpiece ▪ Low air consumption(Save 30 to 40% compare with competitor) ▪ Durable drive Unit and bumper ▪ Patent one hand manual rear latch(easy loading) ▪ Compact tool design-less parts. ▪ Powerful(Rapid shooting up to16mm) ▪ The shortest fastener 3mm can be shot without tumbling ▪ Rear air exhaust ,anti dirt on workpiece ▪ Rapid trigger valve - 20 shots/ @second ▪ Low air consumption(Save 30 to 40% compare with competitor) ▪ Durable drive Unit and bumper ▪ Furniture ▪ Upholstering ▪ Automotive vinyl ▪ Interior ▪ Trim ▪ House decoration ▪ Carpet edge ▪ Furniture ▪ Upholstering ▪ Automotive vinyl ▪ Interior ▪ Trim ▪ House decoration ▪ Carpet edge FEATURES FEATURES APPLICATION APPLICATION L x W x H 216x197x38 mm 0.9 kgs 5~7 bar / 70~110 psi Weight Working Pressure L x W x H 216x197x38 mm 0.9 kgs 5~7 bar / 70~110 psi Weight Working Pressure

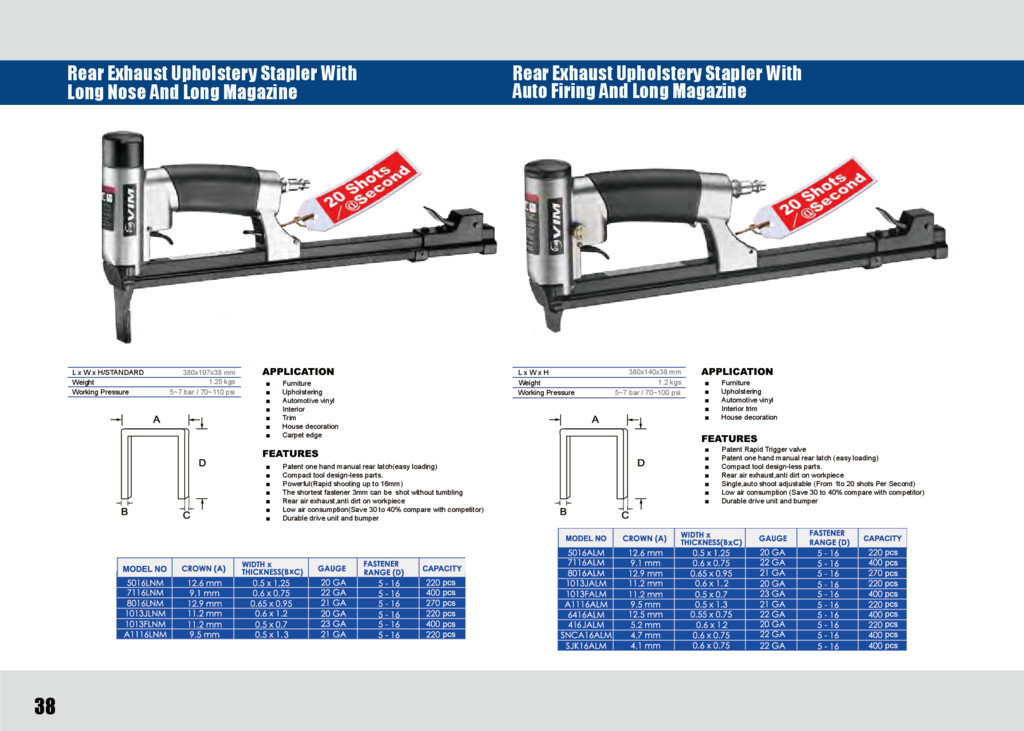

38. 38 Rear Exhaust Upholstery Stapler With Auto Firing And Long Magazine L x W x H 5~7 bar / 70~100 psi 1.2 kgs 380x140x38 mm Weight Working Pressure ▪ Patent Rapid Trigger valve ▪ Patent one hand manual rear latch (easy loading) ▪ Compact tool design-less parts. ▪ Rear air exhaust,anti dirt on workpiece ▪ Single,auto shoot adjustable (From 1to 20 shots Per Second) ▪ Low air consumption (Save 30 to 40% compare with competitor) ▪ Durable drive unit and bumper ▪ Furniture ▪ Upholstering ▪ Automotive vinyl ▪ Interior trim ▪ House decoration FEATURES APPLICATION ▪ Patent one hand manual rear latch(easy loading) ▪ Compact tool design-less parts. ▪ Powerful(Rapid shooting up to 16mm) ▪ The shortest fastener 3mm can be shot without tumbling ▪ Rear air exhaust,anti dirt on workpiece ▪ Low air consumption(Save 30 to 40% compare with competitor) ▪ Durable drive unit and bumper ▪ Furniture ▪ Upholstering ▪ Automotive vinyl ▪ Interior ▪ Trim ▪ House decoration ▪ Carpet edge FEATURES L x W x H/STANDARD APPLICATION 380x197x38 mm 1.25 kgs 5~7 bar / 70~110 psi Weight Working Pressure Rear Exhaust Upholstery Stapler With Long Nose And Long Magazine
39. 39 ▪ Compact tool design-less parts. ▪ Compact size ▪ Lightest in the world,1.2 Kgs only ▪ One hand manual rear latch for easy loading ▪ Rear air exhaust / anti dirt on workpiece ▪ Rapid trigger valve 20 shoots,second ▪ Single,auto shoot adjustable(From 1to 20) ▪ Low air consumption(Save 30 to 40% compare with competitor) ▪ Durable drive unit and Bumper ▪ Furniture ▪ Upholstering ▪ Automotive vinyl ▪ Interior trim ▪ House decoration FEATURES APPLICATION 21 GA. Rear Exhaust Stapler, Single Firing 8025 L x W x H 215x55x180 mm Weight 70~110 psi 1.2 kgs Working Pressure 0.64x0.95 mm 21 GA 12-25 mm 100 pcs 12.9 mm Staple Size Gauge Fastener Range Loading Capacity Crown ▪ Compact tool design-less parts. ▪ Compact size ▪ Lightest in the world,1.2 Kgs only ▪ One hand manual rear latch for easy loading ▪ Rear air exhaust / anti dirt on workpiece ▪ Rapid trigger valve 20 shoots,second ▪ Single,auto shoot adjustable(From 1to 20) ▪ Low air consumption(Save 30 to 40% compare with competitor) ▪ Durable drive unit and Bumper ▪ Furniture ▪ Upholstering ▪ Automotive vinyl ▪ Interior trim ▪ House decoration FEATURES APPLICATION , 21 GA. Rear Exhaust Stapler Auto Firing 8025A L x W x H 215x55x180 mm Weight 70~110 psi 1.2 kgs Working Pressure 0.64x0.95 mm 21 GA 12-25 mm 100 pcs 12.9 mm Staple Size Gauge Fastener Range Loading Capacity Crown

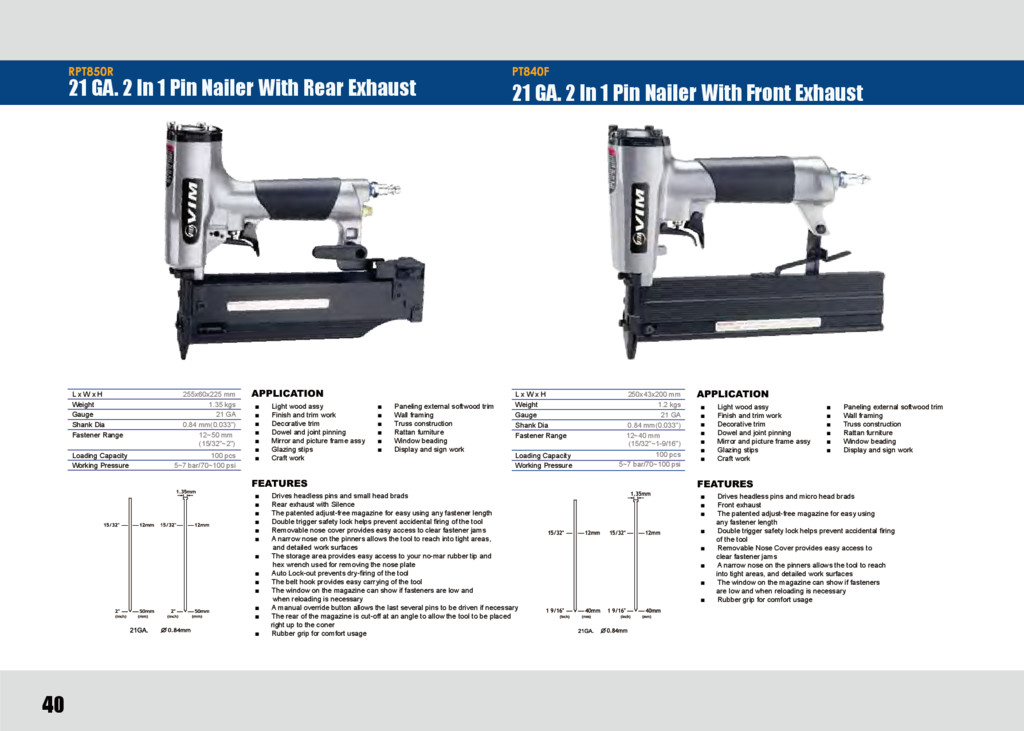

40. 40 21 GA. 2 In 1 Pin Nailer With Front Exhaust PT840F FEATURES ▪ Drives headless pins and micro head brads ▪ Front exhaust ▪ The patented adjust-free magazine for easy using any fastener length ▪ Double trigger safety lock helps prevent accidental firing of the tool ▪ Removable Nose Cover provides easy access to clear fastener jams ▪ A narrow nose on the pinners allows the tool to reach into tight areas, and detailed work surfaces ▪ The window on the magazine can show if fasteners are low and when reloading is necessary ▪ APPLICATION Rubber grip for comfort usage ▪ Light wood assy ▪ Finish and trim work ▪ Decorative trim ▪ Dowel and joint pinning ▪ Mirror and picture frame assy ▪ Glazing stips ▪ Craft work ▪ Paneling external softwood trim ▪ Wall framing ▪ Truss construction ▪ Rattan furniture ▪ Window beading ▪ Display and sign work L x W x H 250x43x200 mm 1.2 kgs 21 GA 0.84 mm(0.033") 12~40 mm (15/32"~1-9/16") 100 pcs 5~7 bar/70~100 psi Weight Gauge Shank Dia Fastener Range Loading Capacity Working Pressure 21 GA. 2 In 1 Pin Nailer With Rear Exhaust RPT850R FEATURES ▪ Drives headless pins and small head brads ▪ Rear exhaust with Silence ▪ The patented adjust-free magazine for easy using any fastener length ▪ Double trigger safety lock helps prevent accidental firing of the tool ▪ Removable nose cover provides easy access to clear fastener jams ▪ A narrow nose on the pinners allows the tool to reach into tight areas, and detailed work surfaces ▪ The storage area provides easy access to your no-mar rubber tip and hex wrench used for removing the nose plate ▪ Auto Lock-out prevents dry-firing of the tool ▪ The belt hook provides easy carrying of the tool ▪ The window on the magazine can show if fasteners are low and when reloading is necessary ▪ A manual override button allows the last several pins to be driven if necessary ▪ The rear of the magazine is cut-off at an angle to allow the tool to be placed right up to the coner ▪ APPLICATION Rubber grip for comfort usage ▪ Light wood assy ▪ Finish and trim work ▪ Decorative trim ▪ Dowel and joint pinning ▪ Mirror and picture frame assy ▪ Glazing stips ▪ Craft work ▪ Paneling external softwood trim ▪ Wall framing ▪ Truss construction ▪ Rattan furniture ▪ Window beading ▪ Display and sign work L x W x H 255x60x225 mm 1.35 kgs 21 GA 0.84 mm(0.033") 12~50 mm (15/32"~2") 100 pcs 5~7 bar/70~100 psi Weight Gauge Shank Dia Fastener Range Loading Capacity Working Pressure
41. 41 23 GA. 2 In 1 Pin Nailer With Rear Exhaust RPT650R ▪ Drives headless pins and micro head brads ▪ Rear exhaust with silence ▪ The patented adjust-free magazine for easy using any fastener length ▪ A narrow nose on the pinners allows the tool to reach into tight areas, and detailed work surfaces ▪ Removable no-mar rubber tip protect your work surface ▪ The storage area provides easy access to your no-mar rubber tip and hex wrench used for removing the nose plate ▪ Auto lock-out prevents dry-firing of the tool ▪ The belt hook provides easy carrying of the tool ▪ The window on the magazine can show if fasteners are low and when reloading is necessary ▪ A manual override button allows the last several pins to be driven if necessary ▪ The rear of the magazine is cut-off at an angle to allow the tool to be placed right up to the corner ▪ FEATURES Rubber grip for comfort usage APPLICATION ▪ Light wood assy ▪ Finish and trim work ▪ Decorative trim ▪ Dowel and joint pinning ▪ Mirror and picture frame assy ▪ Glazing stips ▪ Craft work ▪ Paneling external softwood trim ▪ Wall framing ▪ Truss construction ▪ Rattan furniture ▪ Window beading ▪ Display and sign work L x W x H 230x65x225 mm 1.24 kgs 23 GA 0.64 mm (0.025") 12~50 mm (15/32"~2") 100 pcs 5~7 bar/70~100 psi Weight Gauge Shank Dia Fastener Range Loading Capacity Working Pressure 21 GA. 2 In 1 Pin Nailer With Extended Magazine and Front Exhaust PT830FL ▪ Drives headless pins and small head brads ▪ Rear exhaust with silence ▪ Extended Magazine for loading more nails ▪ The patented adjust-free magazine for easy using any fastener length ▪ Double trigger safety lock helps prevent accidental firing of the tool ▪ Removable nose cover provides easy access to clear fastener jams ▪ A narrow nose on the pinners allows the tool to reach into tight areas, and detailed work surfaces ▪ Removable no-mar rubber tip protect your work surface ▪ The belt hook provides easy carrying of the tool ▪ The window on the magazine can show if fasteners are low and when reloading is necessary ▪ The rear of the magazine is cut-off at an angle to allow the tool to be placed right up to the corner ▪ Rubber grip for comfort usage ▪ Bigger loading capacity to save your time from reloading pins (200 pcs) ▪ FEATURES Plastic end core on magazine for easy and comfort usage APPLICATION ▪ Light wood assy ▪ Finish and trim work ▪ Decorative trim ▪ Dowel and joint pinning ▪ Mirror and picture frame assy ▪ Glazing stips ▪ Craft work ▪ Paneling external softwood trim ▪ Wall framing ▪ Truss construction ▪ Rattan furniture ▪ Window beading ▪ Display and sign work L x W x H 265x40x175 mm 1.06 kgs 21 GA 0.84 mm (0.033") 12~30 mm (15/32"~1-3/16") 140 pcs 5~7 bar/70~100 psi Weight Gauge Shank Dia Fastener Range Loading Capacity Working Pressure

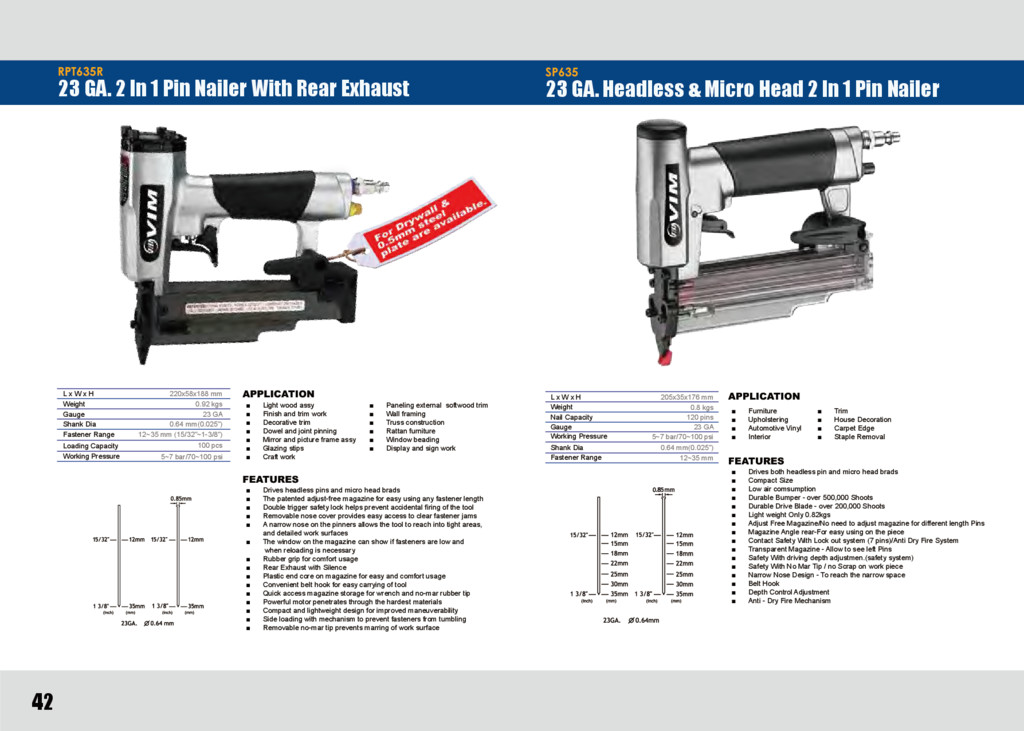

42. 42 23 GA. 2 In 1 Pin Nailer With Rear Exhaust RPT635R ▪ Drives headless pins and micro head brads ▪ The patented adjust-free magazine for easy using any fastener length ▪ Double trigger safety lock helps prevent accidental firing of the tool ▪ Removable nose cover provides easy access to clear fastener jams ▪ A narrow nose on the pinners allows the tool to reach into tight areas, and detailed work surfaces ▪ The window on the magazine can show if fasteners are low and when reloading is necessary ▪ Rubber grip for comfort usage ▪ Rear Exhaust with Silence ▪ Plastic end core on magazine for easy and comfort usage ▪ Convenient belt hook for easy carrying of tool ▪ Quick access magazine storage for wrench and no-mar rubber tip ▪ Powerful motor penetrates through the hardest materials ▪ Compact and lightweight design for improved maneuverability ▪ Side loading with mechanism to prevent fasteners from tumbling ▪ FEATURES Removable no-mar tip prevents marring of work surface APPLICATION ▪ Light wood assy ▪ Finish and trim work ▪ Decorative trim ▪ Dowel and joint pinning ▪ Mirror and picture frame assy ▪ Glazing stips ▪ Craft work ▪ Paneling external softwood trim ▪ Wall framing ▪ Truss construction ▪ Rattan furniture ▪ Window beading ▪ Display and sign work L x W x H 220x58x188 mm 0.92 kgs 0.64 mm(0.025") 23 GA 12~35 mm (15/32"~1-3/8") 100 pcs 5~7 bar/70~100 psi Weight Shank Dia Gauge Fastener Range Loading Capacity Working Pressure 23 GA. Headless & Micro Head 2 In 1 Pin Nailer SP635 ▪ Drives both headless pin and micro head brads ▪ Compact Size ▪ Low air comsumption ▪ Durable Bumper - over 500,000 Shoots ▪ Durable Drive Blade - over 200,000 Shoots ▪ Light weight Only 0.82kgs ▪ Adjust Free Magazine/No need to adjust magazine for different length Pins ▪ Magazine Angle rear-For easy using on the piece ▪ Contact Safety With Lock out system (7 pins)/Anti Dry Fire System ▪ Transparent Magazine - Allow to see left Pins ▪ Safety With driving depth adjustmen.(safety system) ▪ Safety With No Mar Tip / no Scrap on work piece ▪ Narrow Nose Design - To reach the narrow space ▪ Belt Hook ▪ ▪ FEATURES Depth Control Adjustment Anti - Dry Fire Mechanism APPLICATION ▪ Furniture ▪ Upholstering ▪ Automotive Vinyl ▪ Interior ▪ Trim ▪ House Decoration ▪ Carpet Edge ▪ Staple Removal L x W x H 205x35x176 mm 0.8 kgs 0.64 mm(0.025") 23 GA 12~35 mm 120 pins Weight Shank Dia Gauge Fastener Range Nail Capacity 5~7 bar/70~100 psi Working Pressure
43. 43 23 GA. 2 In 1 Pin Nailer RPT630F ▪ Drives headless pins and micro head brads ▪ Front exhaust ▪ The patented adjust-free magazine for easy using any fastener length ▪ Double trigger safety lock helps prevent accidental firing of the tool ▪ Removable nose cover provides easy access to clear fastener jams ▪ A narrow nose on the pinners allows the tool to reach into tight areas, and detailed work surfaces ▪ The belt hook provides easy carrying of the tool ▪ FEATURES Rubber grip for comfort usage APPLICATION ▪ Light wood assy ▪ Finish and trim work ▪ Decorative trim ▪ Dowel and joint pinning ▪ Mirror and picture frame assy ▪ Glazing stips ▪ Craft work ▪ Paneling external softwood trim ▪ Wall framing ▪ Truss construction ▪ Rattan furniture ▪ Window beading ▪ Display and sign work L x W x H 175x40x220 mm 1.02 kgs Weight 0.64 mm(0.025") 23 GA 12~30 mm (15/32"~1-3/16") 100 pcs 5~7 bar/70~100 psi Shank Dia Gauge Fastener Range Loading Capacity Working Pressure 23 GA. 2 In 1 Pin Nailer With Rear Exhaust RPT630R ▪ Drives headless pins and micro head brads ▪ Rear exhaust conveniently directs exhaust away from user and work surface ▪ The patented adjust-free magazine for easy using any fastener length ▪ Double trigger safety lock helps prevent accidental firing of the tool ▪ Removable nose cover provides easy access to clear fastener jams ▪ A narrow nose on the pinners allows the tool to reach into tight areas, and detailed work surfaces ▪ The belt hook provides easy carrying of the tool ▪ The window on the magazine can show if fasteners are low and when reloading is necessary ▪ Rear exhaust with silencer ▪ The rear of the magazine is cut-off at an angle to allow the tool to be placed right up to the coner ▪ Rubber grip for comfort usage ▪ FEATURES Drives headless pins and small head brads APPLICATION ▪ Light wood assy ▪ Finish and trim work ▪ Decorative trim ▪ Dowel and joint pinning ▪ Mirror and picture frame assy ▪ Glazing stips ▪ Craft work ▪ Paneling external softwood trim ▪ Wall framing ▪ Truss construction ▪ Rattan furniture ▪ Window beading ▪ Display and sign work L x W x H 175x40x220 mm 1.02 kgs Weight 0.64 mm(0.025") 23 GA 12~30 mm (15/32"~1-3/16") 100 pcs 5~7 bar/70~100 psi Shank Dia Gauge Fastener Range Loading Capacity Working Pressure

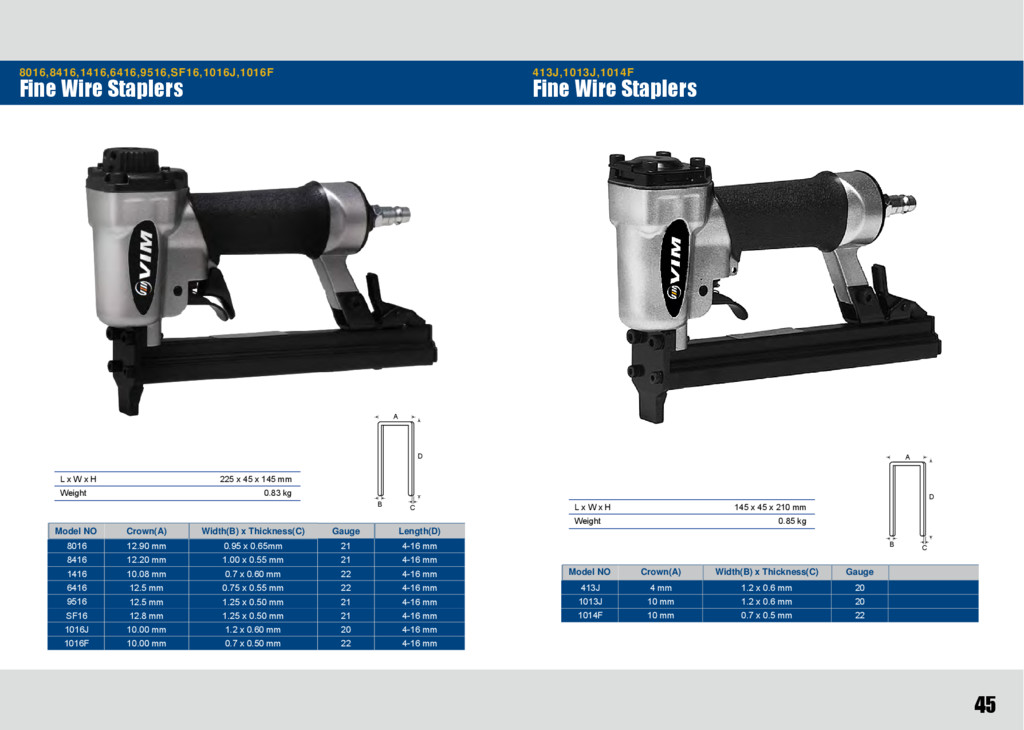

45. Fine Wire Staplers 8016,8416,1416,6416,9516,SF16,1016J,1016F L x W x H 225 x 45 x 145 mm Weight 0.83 kg Crown(A) Gauge Length(D) 12.90 mm Model NO 21 4-16 mm Width(B) x Thickness(C) 0.95 x 0.65mm 8016 8416 1416 6416 9516 12.20 mm 21 4-16 mm 1.00 x 0.55 mm 10.08 mm 22 4-16 mm 0.7 x 0.60 mm 12.5 mm 22 4-16 mm 0.75 x 0.55 mm 12.5 mm 21 4-16 mm 1.25 x 0.50 mm SF16 1016J 1016F 12.8 mm 21 4-16 mm 1.25 x 0.50 mm 10.00 mm 20 4-16 mm 1.2 x 0.60 mm 10.00 mm 22 4-16 mm 0.7 x 0.50 mm B A C D Fine Wire Staplers 413J,1013J,1014F L x W x H 145 x 45 x 210 mm Weight 0.85 kg Crown(A) Gauge 4 mm Model NO 20 Width(B) x Thickness(C) 1.2 x 0.6 mm 413J 1013J 10 mm 20 1.2 x 0.6 mm 1014F 10 mm 22 0.7 x 0.5 mm B A C D 45

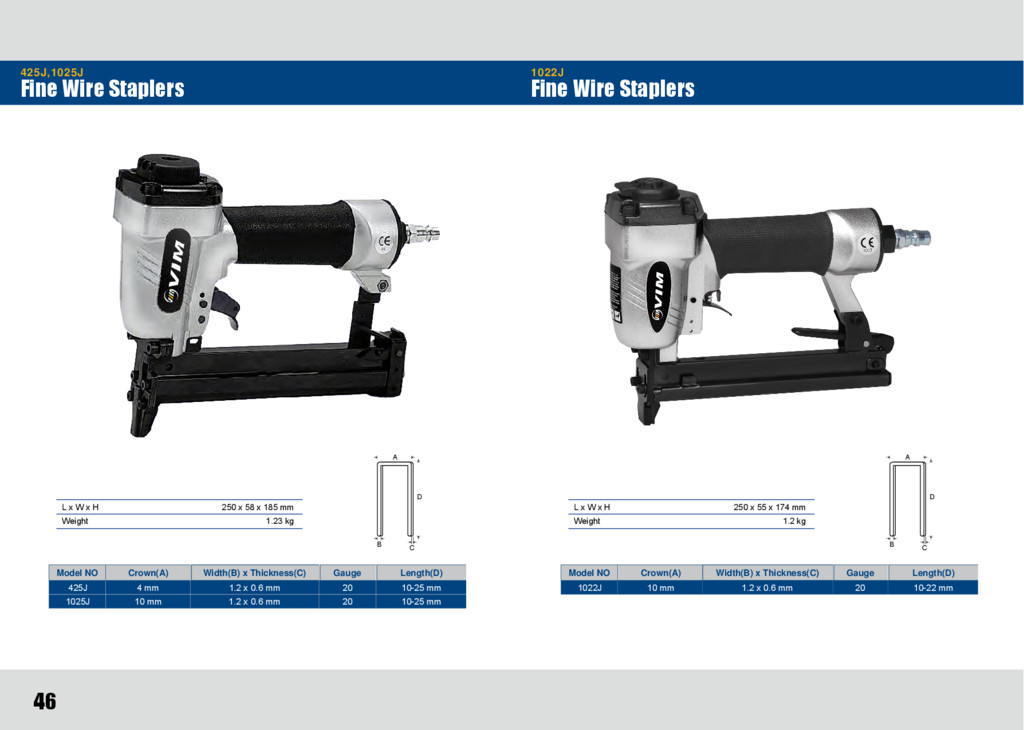

46. Fine Wire Staplers Fine Wire Staplers 1022J 425J,1025J L x W x H 250 x 58 x 185 mm Weight 1.23 kg Crown(A) Gauge Length(D) 4 mm Model NO 20 10-25 mm Width(B) x Thickness(C) 1.2 x 0.6 mm 425J 1025J 10 mm 20 10-25 mm 1.2 x 0.6 mm L x W x H 250 x 55 x 174 mm Weight 1.2 kg Crown(A) Gauge Length(D) Model NO Width(B) x Thickness(C) 1022J 10 mm 20 10-22 mm 1.2 x 0.6 mm B A C D B A C D 46

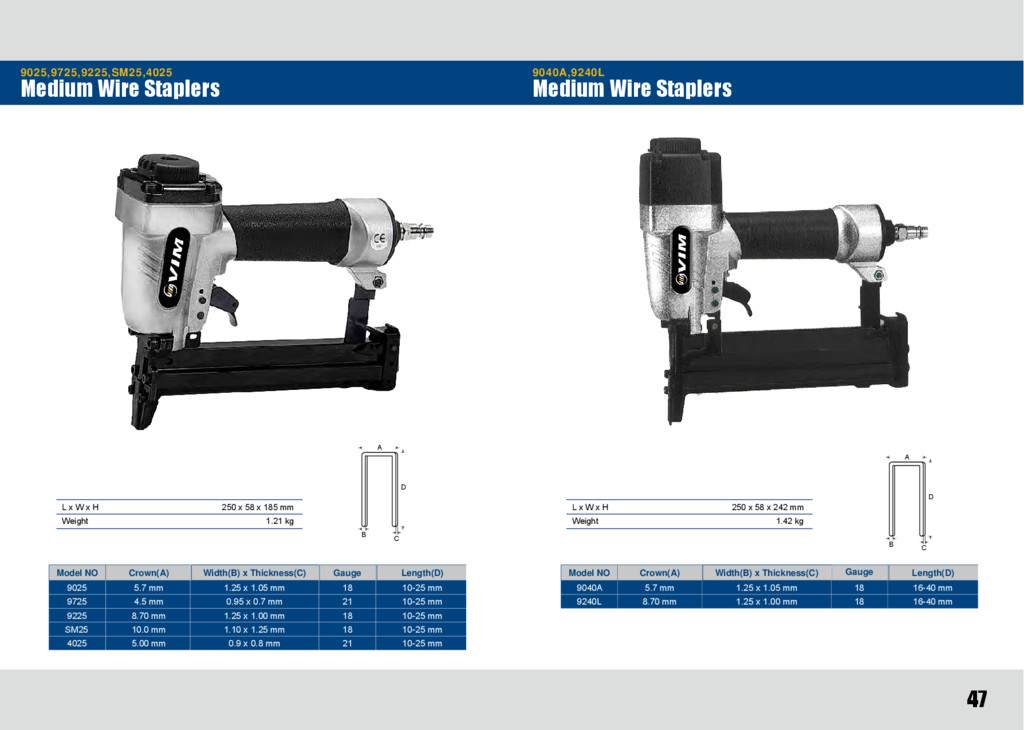

47. Medium Wire Staplers 9025,9725,9225,SM25,4025 L x W x H 250 x 58 x 185 mm Weight 1.21 kg Crown(A) Gauge Length(D) 5.7 mm Model NO 18 10-25 mm Width(B) x Thickness(C) 1.25 x 1.05 mm 9025 9725 9225 SM25 4025 4.5 mm 21 10-25 mm 0.95 x 0.7 mm 8.70 mm 18 10-25 mm 1.25 x 1.00 mm 10.0 mm 18 10-25 mm 1.10 x 1.25 mm 5.00 mm 21 10-25 mm 0.9 x 0.8 mm B A C D Medium Wire Staplers 9040A,9240L L x W x H 250 x 58 x 242 mm Weight 1.42 kg Crown(A) Gauge Length(D) 5.7 mm Model NO 18 16-40 mm Width(B) x Thickness(C) 1.25 x 1.05 mm 9040A 9240L 8.70 mm 18 16-40 mm 1.25 x 1.00 mm B A C D 47

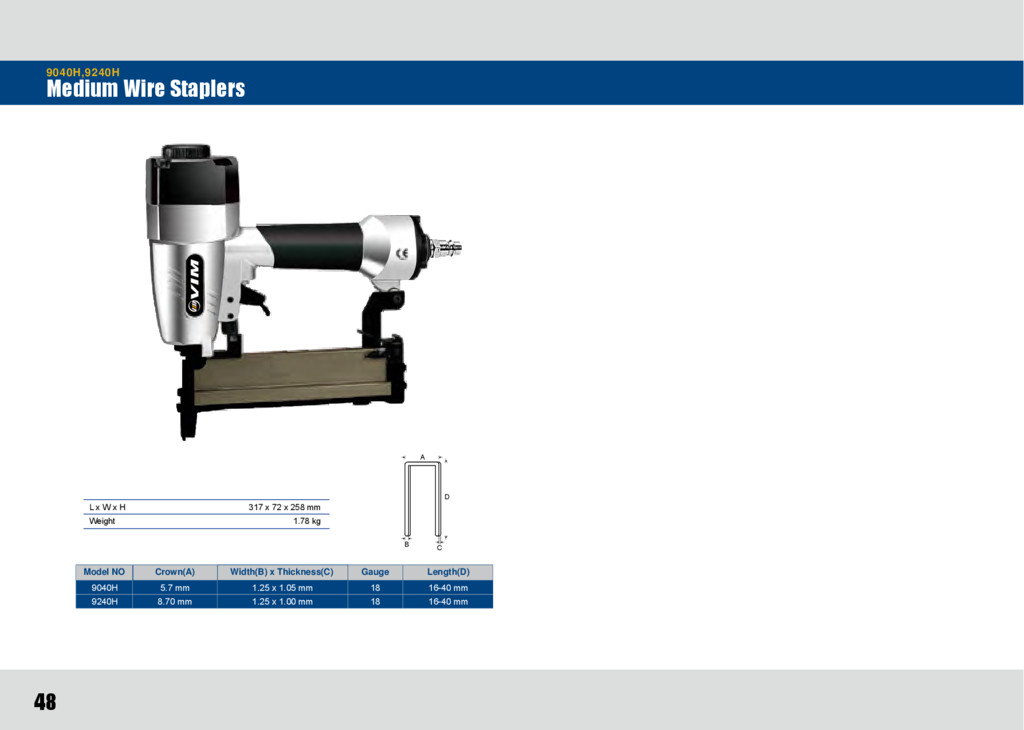

48. Medium Wire Staplers 9040H,9240H L x W x H 317 x 72 x 258 mm Weight 1.78 kg Crown(A) Gauge Length(D) Model NO Width(B) x Thickness(C) 9040H 5.7 mm 18 16-40 mm 1.25 x 1.05 mm 9240H 8.70 mm 18 16-40 mm 1.25 x 1.00 mm B A C D 48

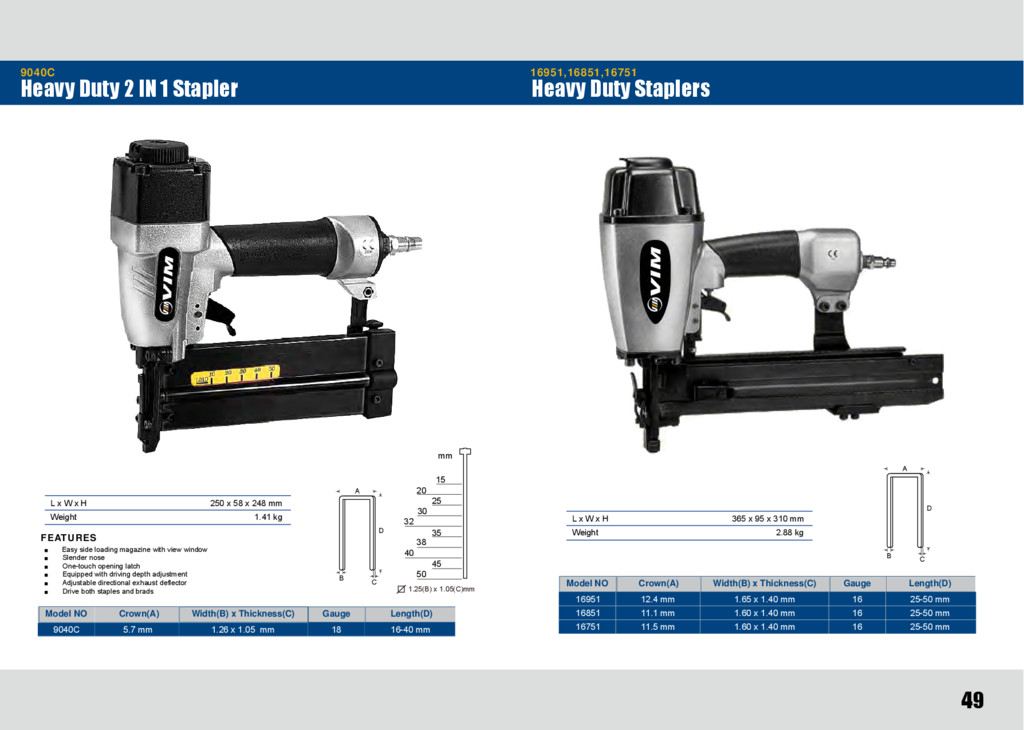

49. Heavy Duty 2 IN 1 Stapler 9040C L x W x H 250 x 58 x 248 mm Weight 1.41 kg Crown(A) Gauge Length(D) 5.7 mm Model NO 18 16-40 mm Width(B) x Thickness(C) 1.26 x 1.05 mm 9040C 20 30 32 38 40 50 mm 15 25 35 45 B A C D FEATURES ¾ Easy side loading magazine with view window ¾ Slender nose ¾ One-touch opening latch ¾ Equipped with driving depth adjustment ¾ Adjustable directional exhaust deflector ¾ Drive both staples and brads 1.25(B) x 1.05(C)mm Heavy Duty Staplers 16951,16851,16751 L x W x H 365 x 95 x 310 mm Weight 2.88 kg Crown(A) Gauge Length(D) 12.4 mm Model NO 16 25-50 mm Width(B) x Thickness(C) 1.65 x 1.40 mm 16951 16851 11.1 mm 16 25-50 mm 1.60 x 1.40 mm 16751 11.5 mm 16 25-50 mm 1.60 x 1.40 mm B A C D 49

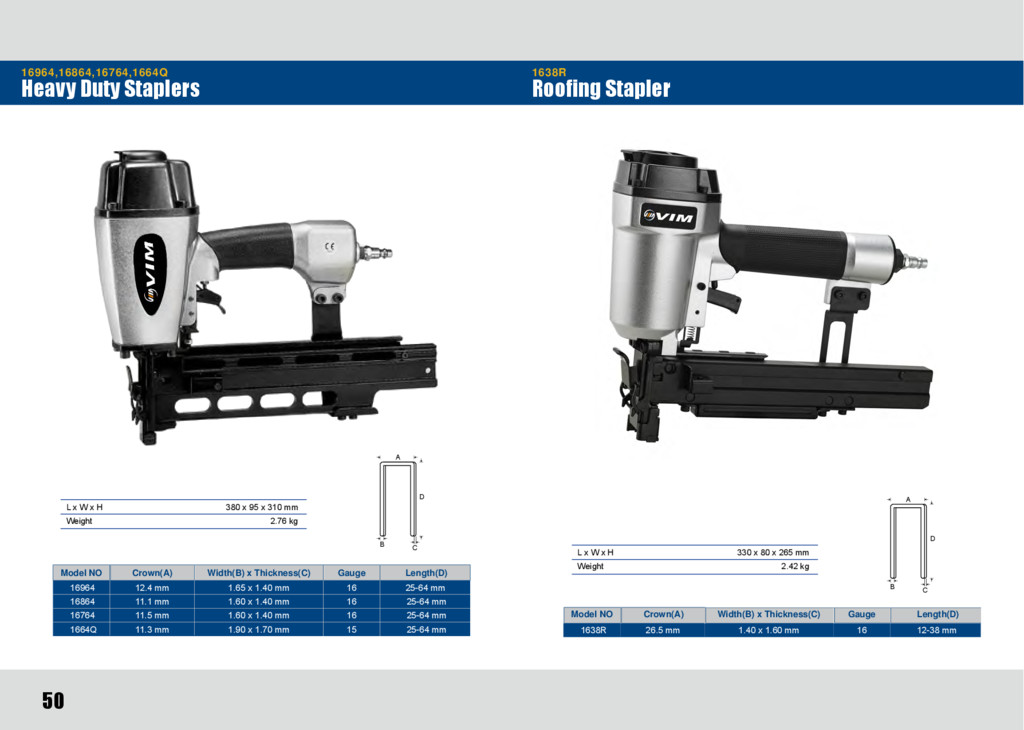

50. Heavy Duty Staplers 16964,16864,16764,1664Q L x W x H 380 x 95 x 310 mm Weight 2.76 kg Gauge Length(D) 12.4 mm Model NO 16 25-64 mm Width(B) x Thickness(C) 1.65 x 1.40 mm 16964 16864 11.1 mm 16 25-64 mm 1.60 x 1.40 mm 16764 11.5 mm 16 25-64 mm 1.60 x 1.40 mm 1664Q 11.3 mm 15 25-64 mm 1.90 x 1.70 mm Crown(A) B A C D Roofing Stapler 1638R L x W x H 330 x 80 x 265 mm Weight 2.42 kg Gauge Length(D) 26.5 mm Model NO 16 12-38 mm Width(B) x Thickness(C) 1.40 x 1.60 mm 1638R Crown(A) B A C D 50

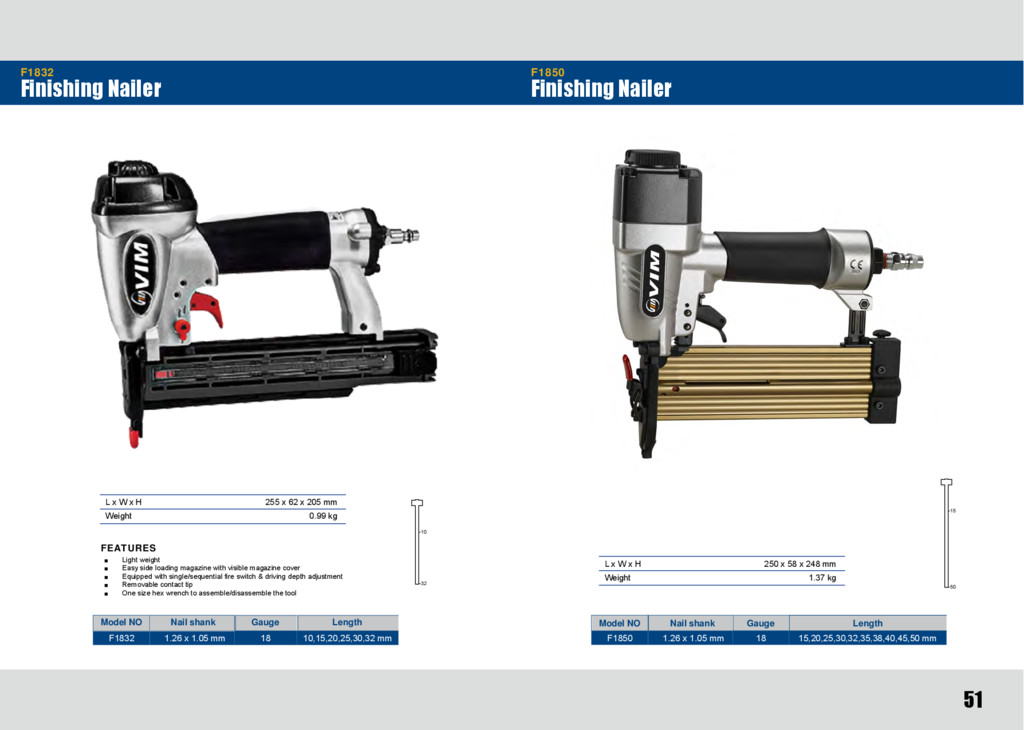

51. Finishing Nailer Finishing Nailer F1850 F1832 L x W x H 255 x 62 x 205 mm Weight 0.99 kg Nail shank Gauge Length 1.26 x 1.05 mm Model NO 18 10,15,20,25,30,32 mm F1832 -10 -32 L x W x H 250 x 58 x 248 mm Weight 1.37 kg Nail shank Gauge Length 1.26 x 1.05 mm Model NO 18 15,20,25,30,32,35,38,40,45,50 mm F1850 -15 -50 FEATURES ¾ Light weight ¾ Easy side loading magazine with visible magazine cover ¾ Equipped with single/sequential fire switch & driving depth adjustment ¾ Removable contact tip ¾ One size hex wrench to assemble/disassemble the tool 51

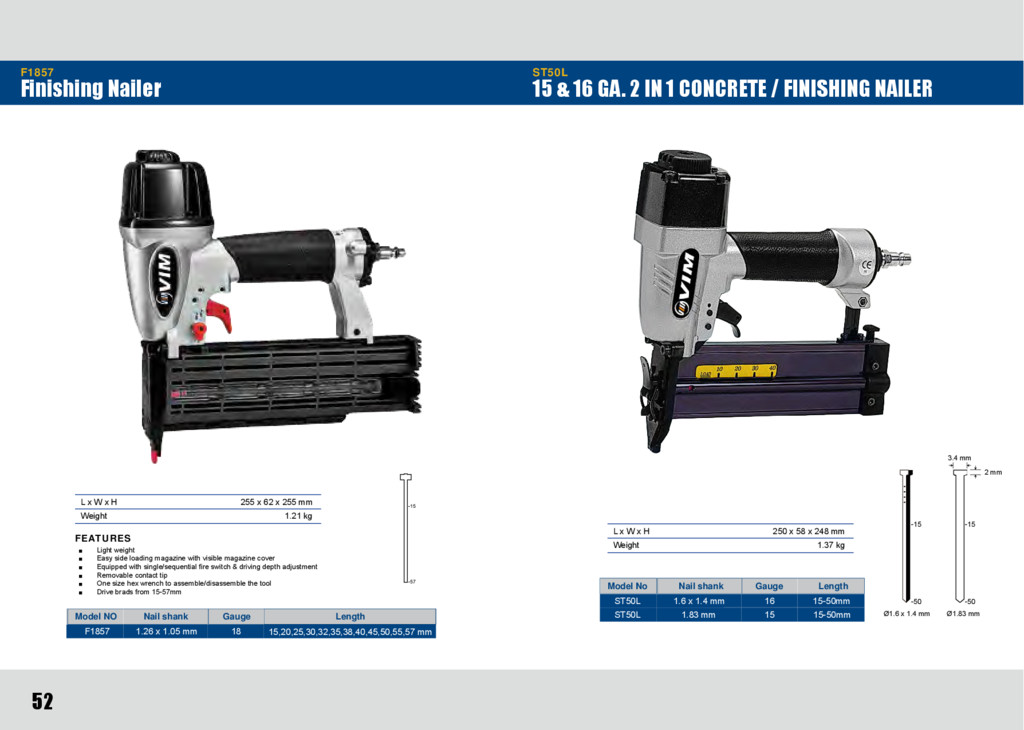

52. Finishing Nailer F1857 L x W x H 255 x 62 x 255 mm Weight 1.21 kg Nail shank Gauge Length 1.26 x 1.05 mm Model NO 18 15,20,25,30,32,35,38,40,45,50,55,57 mm F1857 -15 -57 FEATURES ¾ Light weight ¾ Easy side loading magazine with visible magazine cover ¾ Equipped with single/sequential fire switch & driving depth adjustment ¾ Removable contact tip ¾ One size hex wrench to assemble/disassemble the tool ¾ Drive brads from 15-57mm 15 & 16 GA. 2 IN 1 CONCRETE / FINISHING NAILER ST50L L x W x H 250 x 58 x 248 mm Weight 1.37 kg Nail shank Gauge Length 1.6 x 1.4 mm Model No 16 15-50mm ST50L 1.83 mm 15 15-50mm ST50L -15 -50 -15 -50 Ø1.6 x 1.4 mm Ø1.83 mm 2 mm 3.4 mm 52

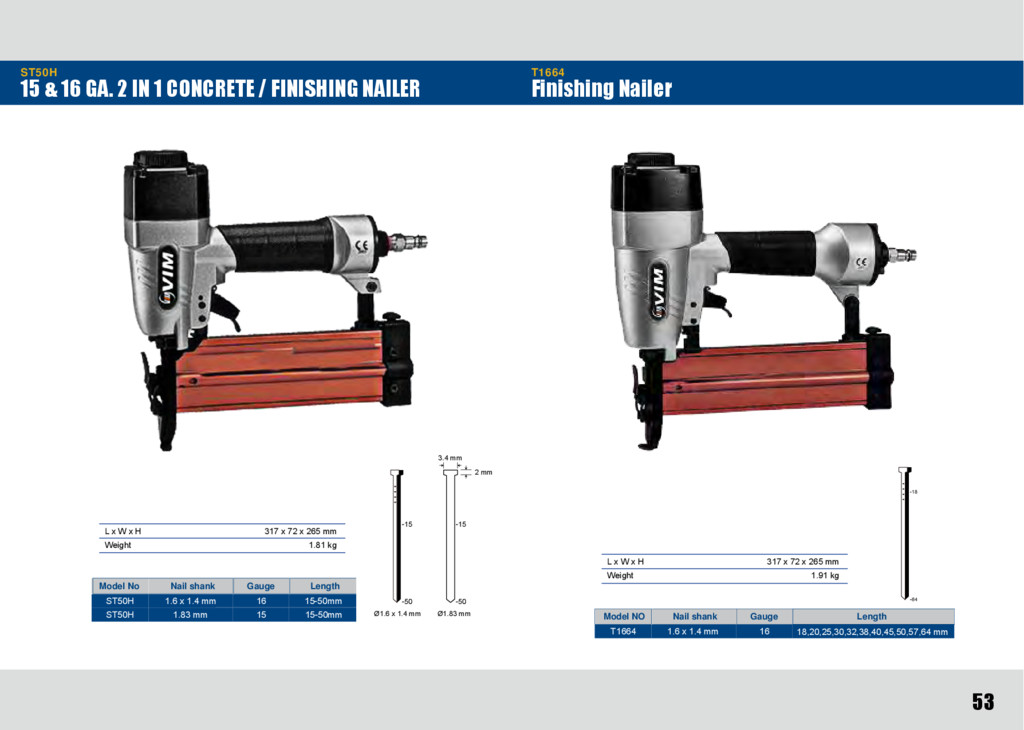

53. 15 & 16 GA. 2 IN 1 CONCRETE / FINISHING NAILER ST50H L x W x H 317 x 72 x 265 mm Weight 1.81 kg Nail shank Gauge Length 1.6 x 1.4 mm Model No 16 15-50mm ST50H 1.83 mm 15 15-50mm ST50H -15 -50 -15 -50 Ø1.6 x 1.4 mm Ø1.83 mm 2 mm 3.4 mm Finishing Nailer T1664 L x W x H 317 x 72 x 265 mm Weight 1.91 kg Nail shank Gauge Length 1.6 x 1.4 mm Model NO 16 18,20,25,30,32,38,40,45,50,57,64 mm T1664 -18 -64 53

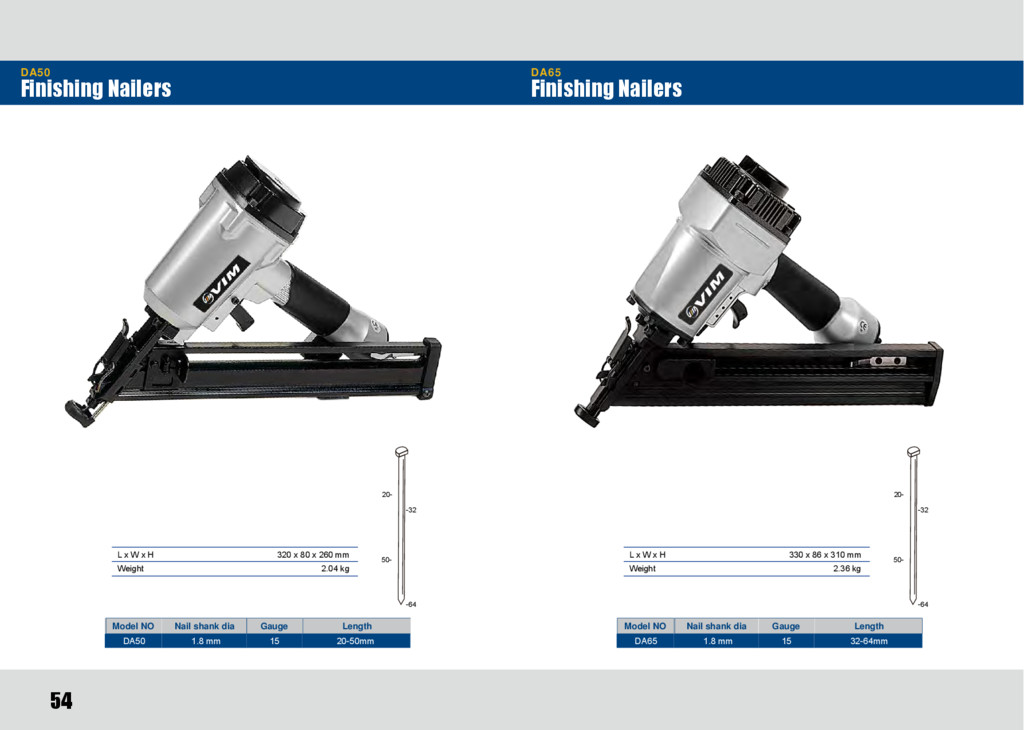

54. Finishing Nailers Finishing Nailers DA65 DA50 L x W x H 320 x 80 x 260 mm Weight 2.04 kg Nail shank dia Gauge Length 1.8 mm Model NO 15 20-50mm DA50 -32 -64 50- 20- L x W x H 330 x 86 x 310 mm Weight 2.36 kg Nail shank dia Gauge Length 1.8 mm Model NO 15 32-64mm DA65 -32 -64 50- 20- 54

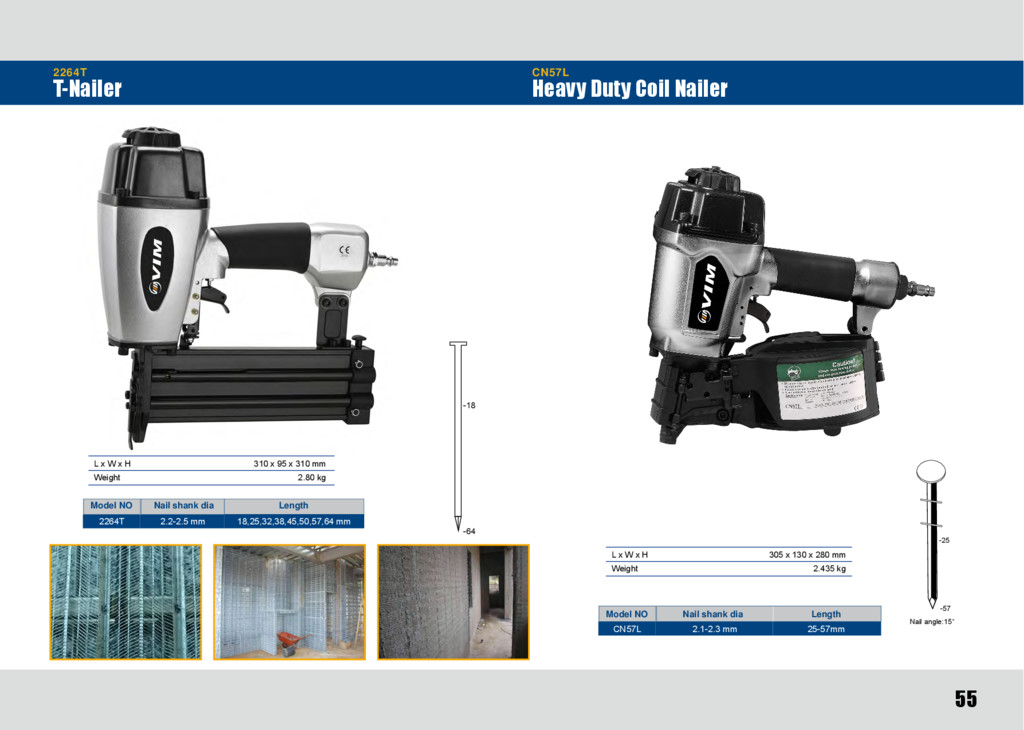

55. T-Nailer 2264T L x W x H 310 x 95 x 310 mm Weight 2.80 kg Nail shank dia 2.2-2.5 mm Model NO Length 18,25,32,38,45,50,57,64 mm 2264T -18 -64 Heavy Duty Coil Nailer CN57L L x W x H 305 x 130 x 280 mm Weight 2.435 kg Nail shank dia Length 2.1-2.3 mm Model NO 25-57mm CN57L -25 -57 Nail angle:15˚ 55

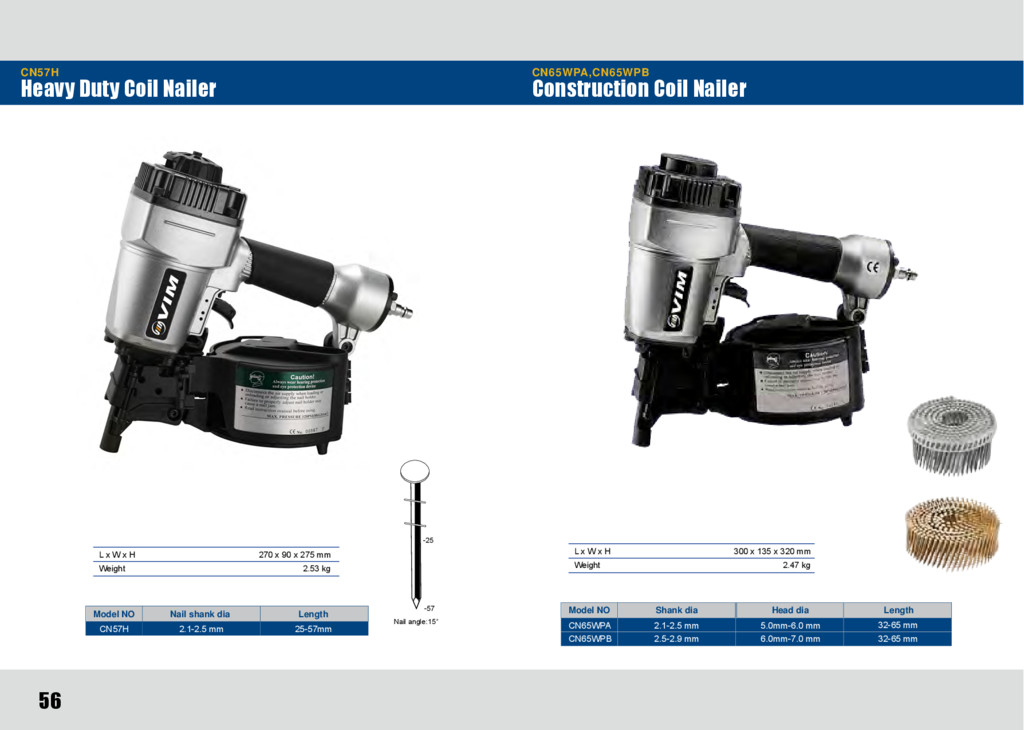

56. Heavy Duty Coil Nailer CN57H L x W x H 270 x 90 x 275 mm Weight 2.53 kg Nail shank dia Length 2.1-2.5 mm Model NO 25-57mm CN57H Construction Coil Nailer CN65WPA,CN65WPB L x W x H 300 x 135 x 320 mm Weight 2.47 kg Shank dia Head dia 2.1-2.5 mm Model NO 5.0mm-6.0 mm Length 32-65 mm 2.5-2.9 mm 6.0mm-7.0 mm 32-65 mm CN65WPA CN65WPB 56 -25 -57 Nail angle:15˚
57. Heavy Duty Coil Nailer CN70AC L x W x H 300 x 98 x 330 mm Weight 3.12 kg Nail shank dia Length 2.5-2.9 mm Model NO 45-70 mm CN70AC -45 -70 Nail angle:15˚ 57

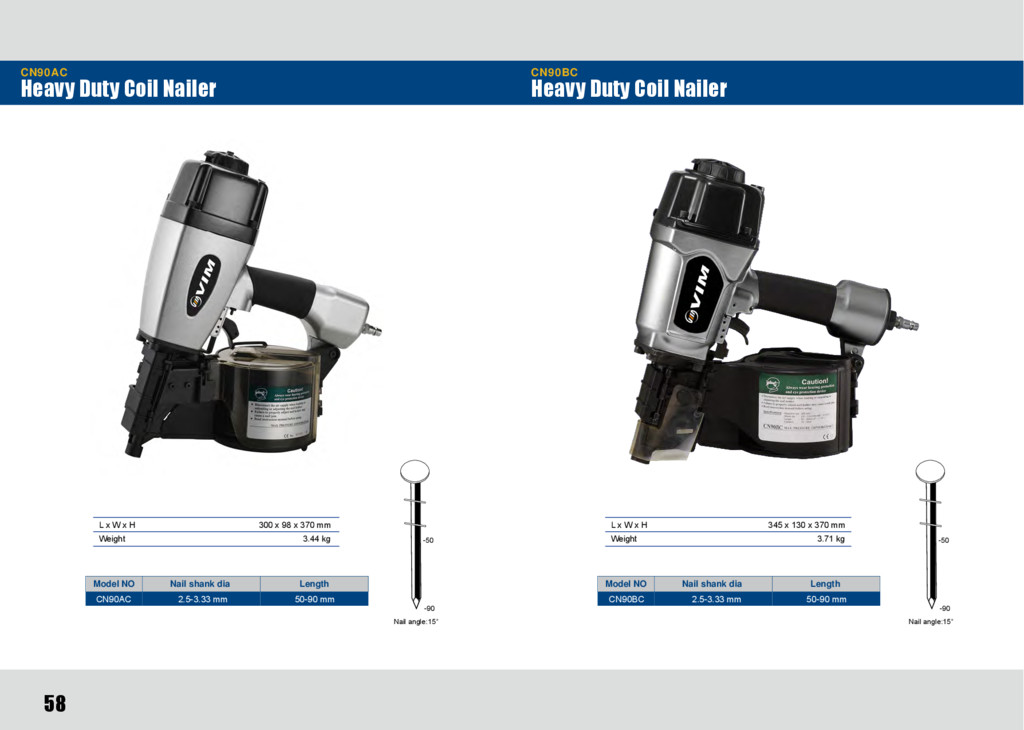

58. Heavy Duty Coil Nailer Heavy Duty Coil Nailer CN90BC CN90AC L x W x H 300 x 98 x 370 mm Weight 3.44 kg Nail shank dia Length 2.5-3.33 mm Model NO 50-90 mm CN90AC -50 -90 L x W x H 345 x 130 x 370 mm Weight 3.71 kg Nail shank dia Length 2.5-3.33 mm Model NO 50-90 mm CN90BC -50 -90 Nail angle:15˚ Nail angle:15˚ 58

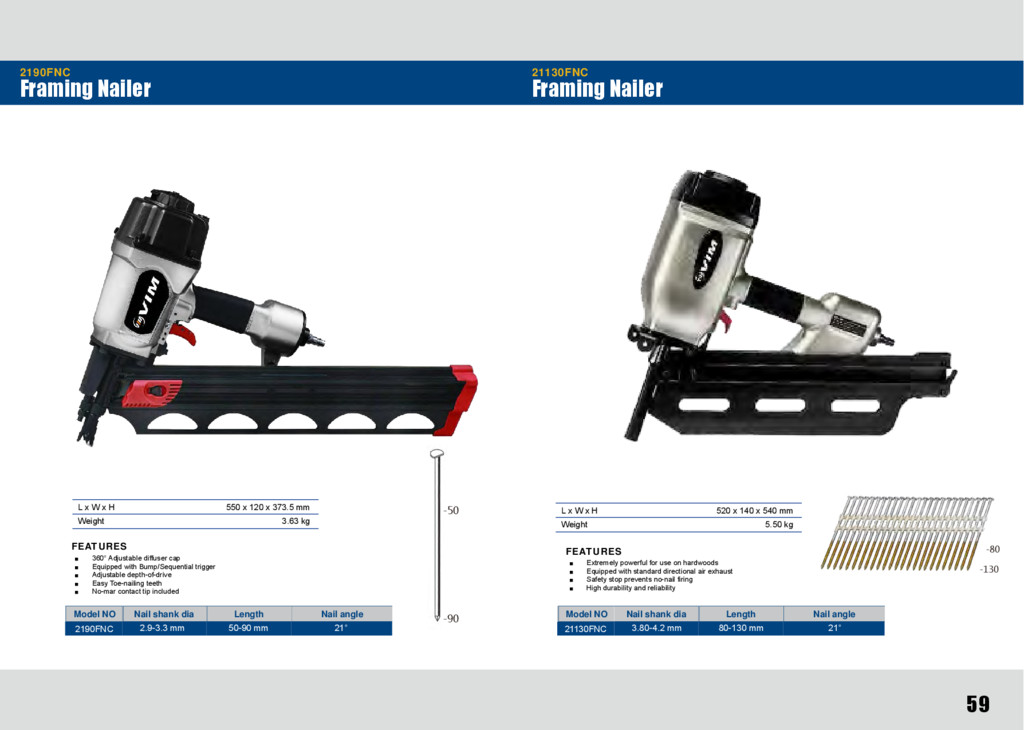

59. Framing Nailer 2190FNC Nail shank dia Nail angle Model NO 2.9-3.3 mm Length 50-90 mm 21˚ 2190FNC L x W x H 550 x 120 x 373.5 mm Weight 3.63 kg -50 -90 FEATURES ¾ 360° Adjustable diffuser cap ¾ Equipped with Bump/Sequential trigger ¾ Adjustable depth-of-drive ¾ Easy Toe-nailing teeth ¾ No-mar contact tip included Framing Nailer 21130FNC L x W x H 520 x 140 x 540 mm Weight 5.50 kg Nail shank dia Model NO 3.80-4.2 mm Length 80-130 mm 21130FNC Nail angle 21˚ -80 -130 FEATURES ¾ Extremely powerful for use on hardwoods ¾ Equipped with standard directional air exhaust ¾ Safety stop prevents no-nail firing ¾ High durability and reliability 59

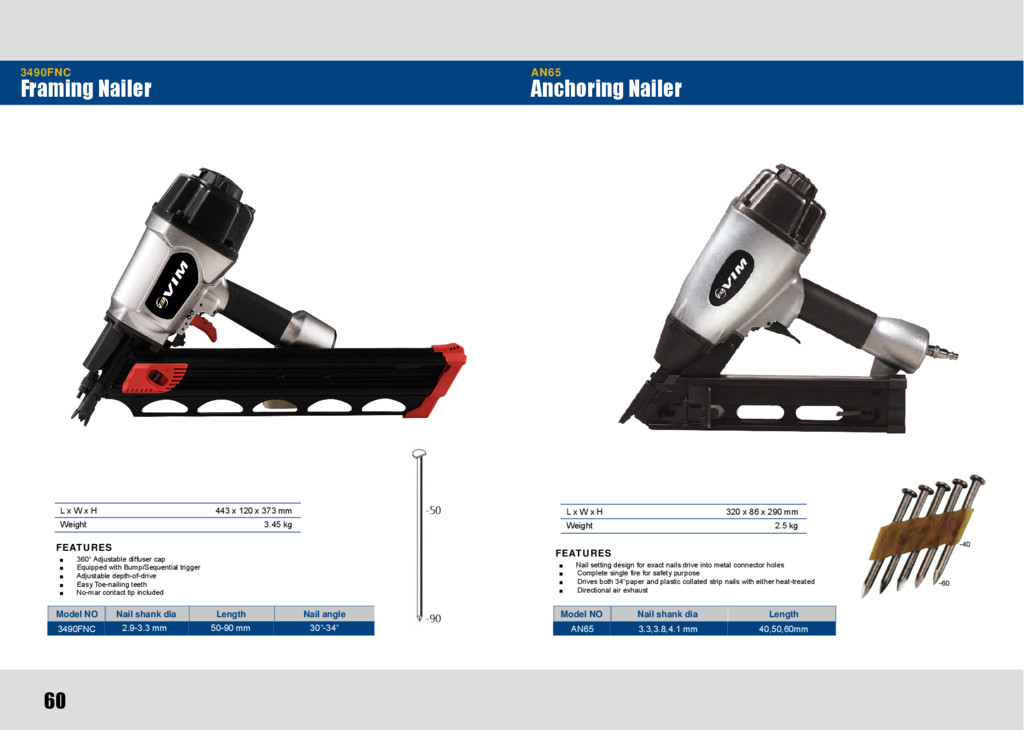

60. Framing Nailer 3490FNC Nail shank dia Nail angle Model NO 2.9-3.3 mm Length 50-90 mm 30˚-34˚ 3490FNC L x W x H 443 x 120 x 373 mm Weight 3.45 kg -50 -90 FEATURES ¾ 360° Adjustable diffuser cap ¾ Equipped with Bump/Sequential trigger ¾ Adjustable depth-of-drive ¾ Easy Toe-nailing teeth ¾ No-mar contact tip included Anchoring Nailer AN65 L x W x H 320 x 86 x 290 mm Weight 2.5 kg Nail shank dia Length 3.3,3.8,4.1 mm Model NO 40,50,60mm AN65 -60 -40 FEATURES ¾ Nail setting design for exact nails drive into metal connector holes ¾ Complete single fire for safety purpose ¾ Drives both 34°paper and plastic collated strip nails with either heat-treated ¾ Directional air exhaust 60

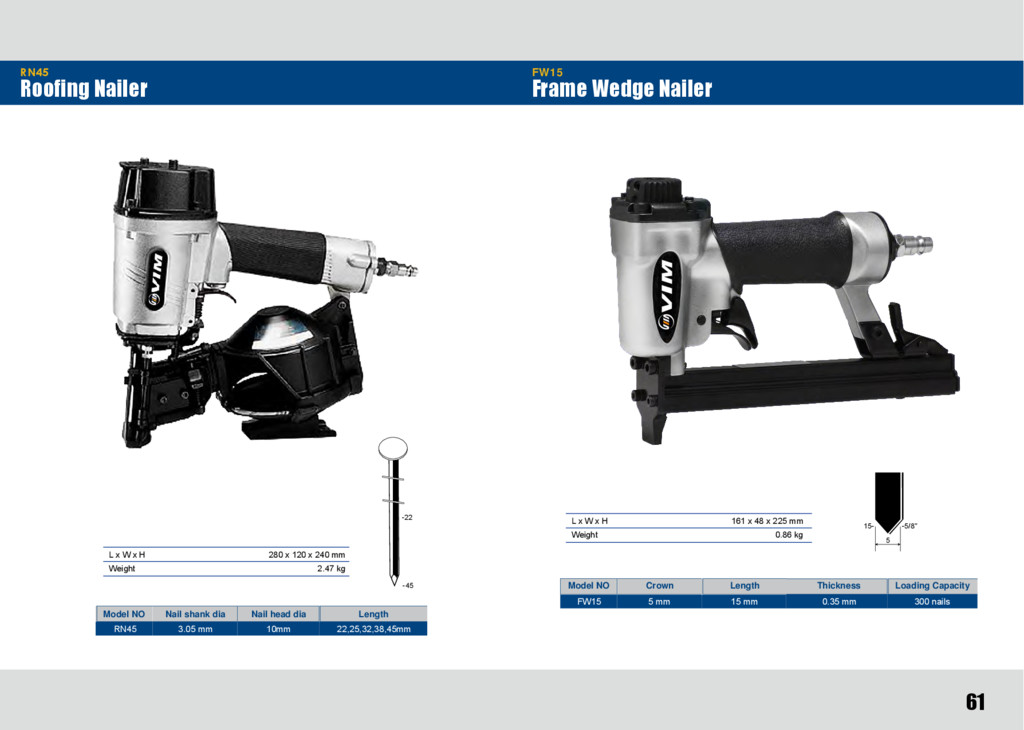

61. Roofing Nailer RN45 L x W x H 280 x 120 x 240 mm Weight 2.47 kg Nail shank dia Nail head dia Length 3.05 mm Model NO 10mm 22,25,32,38,45mm RN45 -22 -45 Frame Wedge Nailer FW15 L x W x H 161 x 48 x 225 mm Weight 0.86 kg Crown Thickness Loading Capacity 5 mm Model NO 0.35 mm 300 nails Length 15 mm FW15 5 15- -5/8" 61

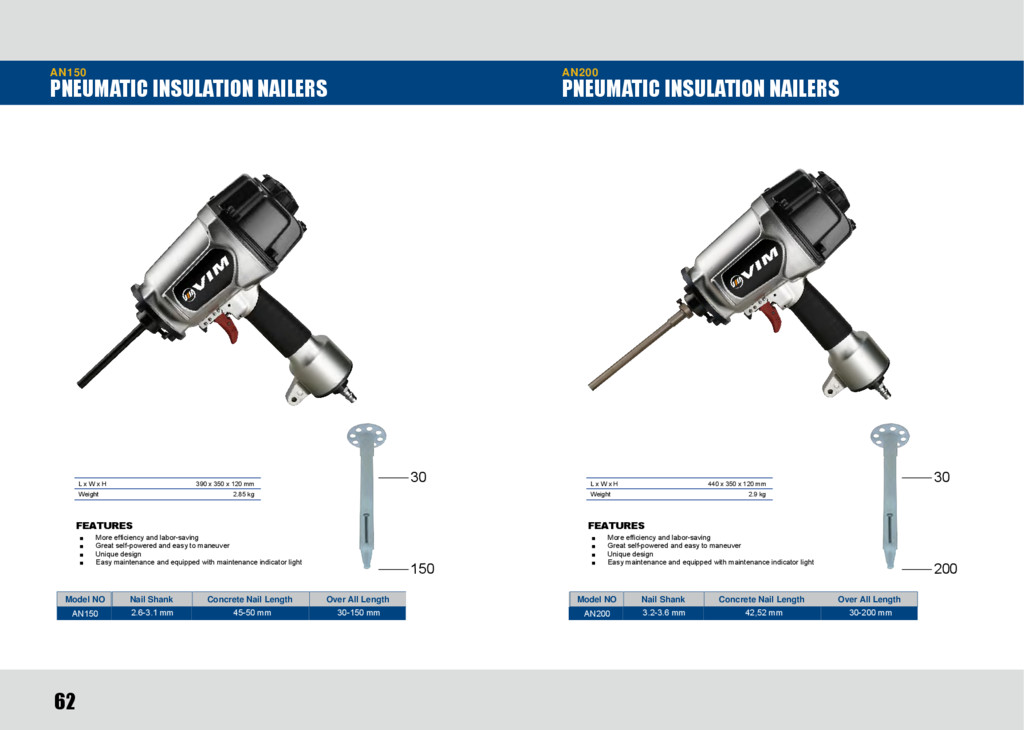

62. PNEUMATIC INSULATION NAILERS AN150 Nail Shank Over All Length Model NO 2.6-3.1 mm Concrete Nail Length 45-50 mm 30-150 mm AN150 FEATURES ¾
    More efficiency and labor-saving ¾ Great self-powered and easy to maneuver ¾ Unique design ¾ Easy maintenance and equipped with maintenance indicator light L x W x H 390 x 350 x 120 mm Weight 2.85 kg PNEUMATIC INSULATION NAILERS AN200 150 30 200 30 Nail Shank Over All Length Model NO 3.2-3.6 mm Concrete Nail Length 42,52 mm 30-200 mm AN200 FEATURES ¾
    More efficiency and labor-saving ¾ Great self-powered and easy to maneuver ¾ Unique design ¾ Easy maintenance and equipped with maintenance indicator light L x W x H 440 x 350 x 120 mm Weight 2.9 kg 62

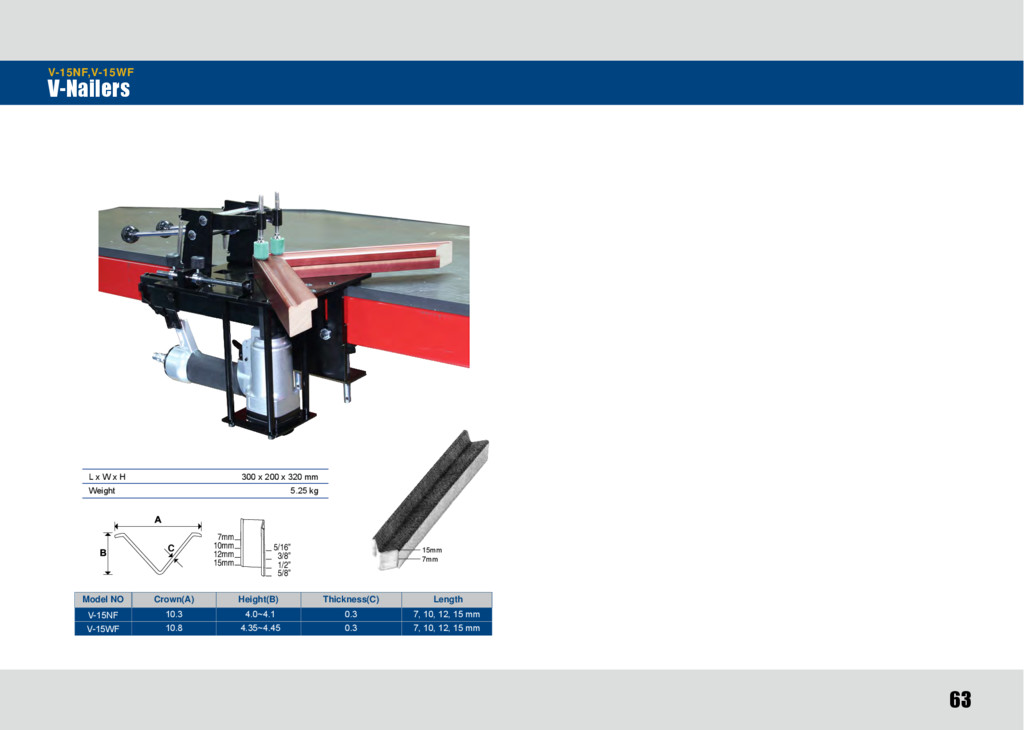

63. V-Nailers V-15NF,V-15WF L x W x H 300 x 200 x 320 mm Weight 5.25 kg Crown(A) Thickness(C) Length 10.3 Model NO 0.3 7, 10, 12, 15 mm 10.8 Height(B) 4.0~4.1 4.35~4.45 0.3 7, 10, 12, 15 mm V-15NF V-15WF C 7mm 10mm 12mm 15mm 5/16’’ 3/8’’ 1/2’’ 5/8’’ 15mm 7mm 63

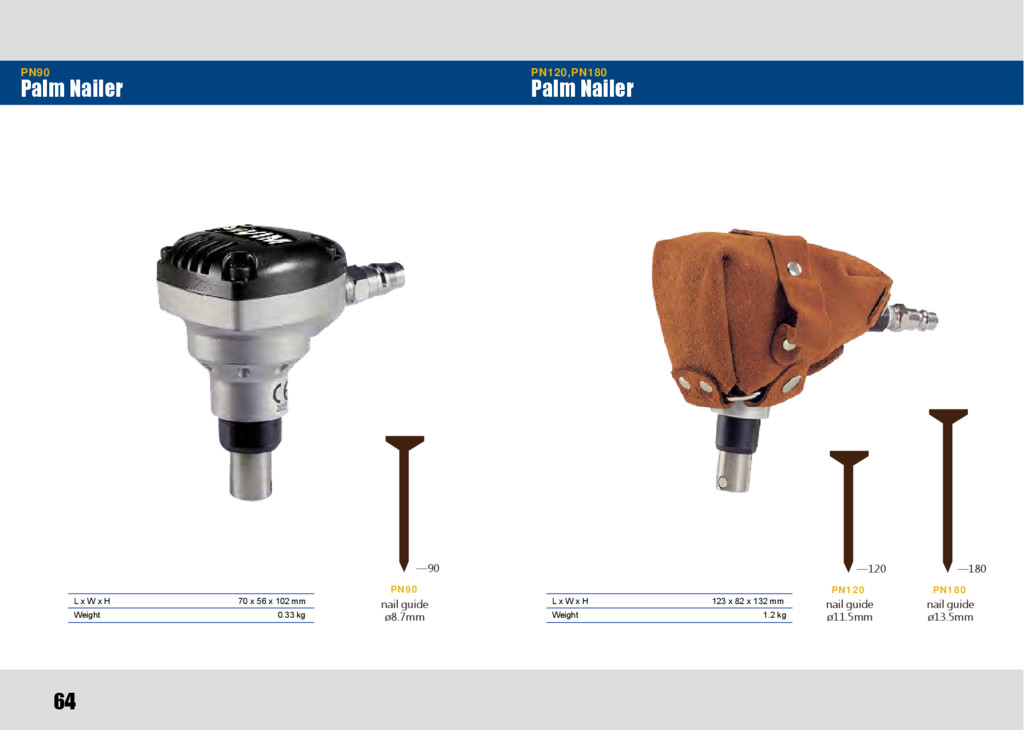

64. Palm Nailer Palm Nailer PN120,PN180 PN90 L x W x H 70 x 56 x 102 mm Weight 0.33 kg L x W x H 123 x 82 x 132 mm Weight 1.2 kg —90 —120 —180 PN90 nail guide ø8.7mm PN120 nail guide ø11.5mm PN180 nail guide ø13.5mm 64

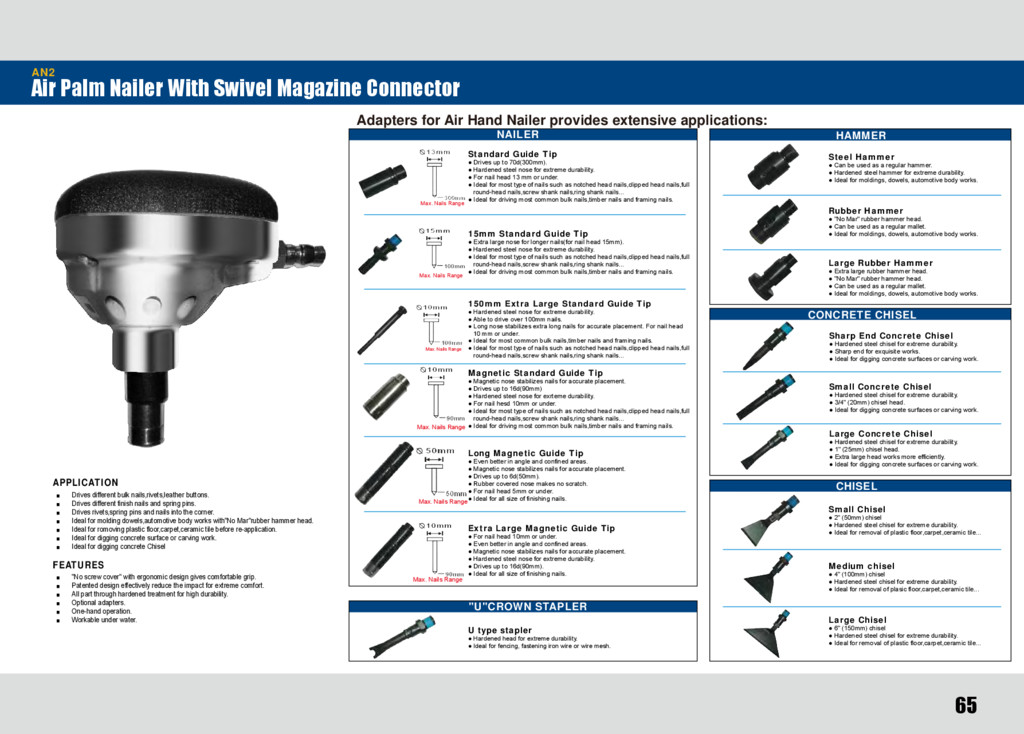

65. Air Palm Nailer With Swivel Magazine Connector AN2 APPLICATION ¾ Drives different bulk nails,rivets,leather buttons. ¾ Drives different finish nails and spring pins. ¾ Drives rivets,spring pins and nails into the corner. ¾ Ideal for molding dowels,automotive body works with"No Mar"rubber hammer head. ¾ Ideal for romoving plastic floor,carpet,ceramic tile before re-application. ¾ Ideal for digging concrete surface or carving work. ¾ Ideal for digging concrete Chisel FEATURES ¾ "No screw cover" with ergonomic design gives comfortable grip. ¾ Patented design effectively reduce the impact for extreme comfort. ¾ All part through hardened treatment for high durability. ¾ Optional adapters. ¾ One-hand operation. ¾ Workable under water. Adapters for Air Hand Nailer provides extensive applications: Max. Nails Range Max. Nails Range Max. Nails Range Max. Nails Range Max. Nails Range Standard Guide Tip • Drives up to 70d(300mm). • Hardened steel nose for extreme durability. • For nail head 13 mm or under. • Ideal for most type of nails such as notched head nails,clipped head nails,full round-head nails,screw shank nails,ring shank nails... • Ideal for driving most common bulk nails,timber nails and framing nails. 15mm Standard Guide Tip • Extra large nose for longer nails(for nail head 15mm). • Hardened steel nose for extreme durability. • Ideal for most type of nails such as notched head nails,clipped head nails,full round-head nails,screw shank nails,ring shank nails... • Ideal for driving most common bulk nails,timber nails and framing nails. 150mm Extra Large Standard Guide Tip • Hardened steel nose for extreme durability. • Able to drive over 100mm nails. • Long nose stabilizes extra long nails for accurate placement. For nail head 10 mm or under. • Ideal for most common bulk nails,timber nails and framing nails. • Ideal for most type of nails such as notched head nails,clipped head nails,full round-head nails,screw shank nails,ring shank nails... Magnetic Standard Guide Tip • Magnetic nose stabilizes nails for accurate placement. • Drives up to 16d(90mm) • Hardened steel nose for exrteme durability. • For nail hesd 10mm or under. • Ideal for most type of nails such as notched head nails,clipped head nails,full round-head nails,screw shank nails,ring shank nails... • Ideal for driving most common bulk nails,timber nails and framing nails. Long Magnetic Guide Tip • Even better in angle and confined areas. • Magnetic nose stabilizes nails for accurate placement. • Drives up to 6d(50mm). • Rubber covered nose makes no scratch. • For nail head 5mm or under. • Ideal for all size of finishing nails. Max. Nails Range Extra Large Magnetic Guide Tip • For nail head 10mm or under. • Even better in angle and confined areas. • Magnetic nose stabilizes nails for accurate placement. • Hardened steel nose for extreme durability. • Drives up to 16d(90mm). • Ideal for all size of finishing nails. NAILER Sharp End Concrete Chisel • Hardened steel chisel for extreme durability. • Sharp end for exquisite works. • Ideal for digging concrete surfaces or carving work. Small Concrete Chisel • Hardened steel chisel for extreme durability. • 3/4" (20mm) chisel head. • Ideal for digging concrete surfaces or carving work. Large Concrete Chisel • Hardened steel chisel for extreme durability. • 1" (25mm) chisel head. • Extra large head works more efficiently. • Ideal for digging concrete surfaces or carving work. CONCRETE CHISEL U type stapler • Hardened head for extreme durability. • Ideal for fencing, fastening iron wire or wire mesh. "U"CROWN STAPLER Steel Hammer • Can be used as a regular hammer. • Hardened steel hammer for extreme durability. • Ideal for moldings, dowels, automotive body works. Rubber Hammer • "No Mar" rubber hammer head. • Can be used as a regular mallet. • Ideal for moldings, dowels, automotive body works. Large Rubber Hammer • Extra large rubber hammer head. • "No Mar" rubber hammer head. • Can be used as a regular mallet. • Ideal for moldings, dowels, automotive body works. HAMMER Small Chisel • 2" (50mm) chisel • Hardened steel chisel for extreme durability. • Ideal for removal of plastic floor,carpet,ceramic tile... Medium chisel • 4" (100mm) chisel • Hardened steel chisel for extreme durability. • Ideal for removal of plasic floor,carpet,ceramic tile... Large Chisel • 6" (150mm) chisel • Hardened steel chisel for extreme durability. • Ideal for removal of plastic floor,carpet,ceramic tile... CHISEL 65
66. 21˚ Air Palm Nailer With Swivel Magazine Connector 21˚Air Palm Nailer With Swivel Magazine Connector AN4 AN3 L x W x H 13 1/5”(336 mm)x3 1/8”(82 mm)x8 4/5”(223 mm) Weight 4.04 lbs (1.84 kgs) Magazing Capacity 30 pcs plastic or paper strip collation. Nail Angle 21˚ Nail Head Dia. 0.3”~0.33”(7.5~8.3 mm) Shank Dia. 0.131”~0.162”(3.1~4.1 mm) Nail Length 1 1/2”, 1 9/16” (38,40 mm) Nail Type Full round head nails L x W x H 12 9/16”(319 mm)x3 1/5”(82 mm)x11 3/5”(295 mm) Weight 4.31 lbs (1.96 kgs) Magazing Capacity 33 pcs plastic or paper strip collation. Nail Angle 21˚ Nail Head Dia. 0.3”(7.5 mm) Shank Dia. 0.131”~0.148”(3.1~3.8 mm) Nail Length 1 1/2”, 2 1/2” (38,64 mm) Nail Type Full round head nails APPLICATION ¾ Metal connector ¾ Joist hangers ¾ Decking ¾ Fastening steel to wood ¾ Framing ¾ Trusses FEATURES ¾ U.S and Taiwan patents
    elastic washer, effectively reduce the impact from the piston avoiding from uncomfortable and wrist injurly.It can still function after a long time of overturn or accidental fall which cause the cylinder sink and airway close. ¾ Cover arc shaped by ergonomics, with no screzws in the cover for a smoother touch. The vent was place in the front and back instead of top to avoid the cause of smudge on hand. ¾ Cylinder surface through tust hard coat treatment for high durability and rust-less. ¾ Valve surface through tust hard coat treatment for high durability . ¾ 7075 piston for high abrasion resistance and stable. ¾ SKD61 driver for superior stable and firm. ¾ The unique nose piece design makes the magazine can rotate 360 degrees for easier corner working. APPLICATION ¾ Metal connector ¾ Joist hangers ¾ Decking ¾ Fastening steel to wood ¾ Framing ¾ Trusses FEATURES ¾ U.S and Taiwan patents
    elastic washer, effectively reduce the impact from the piston avoiding from uncomfortable and wrist injurly.It can still function after a long time of overturn or accidental fall which cause the cylinder sink and airway close. ¾ Cover arc shaped by ergonomics, with no screzws in the cover for a smoother touch. The vent was place in the front and back instead of top to avoid the cause of smudge on hand. ¾ Cylinder surface through tust hard coat treatment for high durability and rust-less. ¾ Valve surface through tust hard coat treatment for high durability . ¾ 7075 piston for high abrasion resistance and stable. ¾ SKD61 driver for superior stable and firm. ¾ The unique nose piece design makes the magazine can rotate 360 degrees for easier corner working. 66
67. AN7 AN6 L x W x H 13 1/5”(336 mm)x3 1/8”(82 mm)x8 4/5”(223 mm) Weight 4.04 lbs (1.84 kgs) Magazing Capacity 30 pcs plastic or paper strip collation. Nail Angle 34˚ Nail Head Dia. 0.3”~0.33”(7.5~8.3 mm) Shank Dia. 0.131”~0.162”(3.1~4.1 mm) Nail Length 1 1/2”, 1 9/16” (38,40 mm) Nail Type Full round head nails L x W x H 12 9/16”(319 mm)x3 1/5”(82 mm)x11 3/5”(295 mm) Weight 4.31 lbs (1.96 kgs) Magazing Capacity 33 pcs plastic or paper strip collation. Nail Angle 34˚ Nail Head Dia. 0.3”(7.5 mm) Shank Dia. 0.131”~0.162”(3.1~3.8 mm) Nail Length 1 1/2”, 2 1/2” (38,64 mm) Nail Type Full round head nails 34˚Air Palm Nailer With Swivel Magazine Connector 34˚Air Palm Nailer With Swivel Magazine Connector APPLICATION ¾ Metal connector ¾ Joist hangers ¾ Decking ¾ Fastening steel to wood ¾ Framing ¾ Trusses FEATURES ¾ U.S and Taiwan patents
    elastic washer, effectively reduce the impact from the piston avoiding from uncomfortable and wrist injurly.It can still function after a long time of overturn or accidental fall which cause the cylinder sink and airway close. ¾ Cover arc shaped by ergonomics, with no screzws in the cover for a smoother touch. The vent was place in the front and back instead of top to avoid the cause of smudge on hand. ¾ Cylinder surface through tust hard coat treatment for high durability and rust-less. ¾ Valve surface through tust hard coat treatment for high durability . ¾ 7075 piston for high abrasion resistance and stable. ¾ SKD61 driver for superior stable and firm. ¾ The unique nose piece design makes the magazine can rotate 360 degrees for easier corner working. APPLICATION ¾ Metal connector ¾ Joist hangers ¾ Decking ¾ Fastening steel to wood ¾ Framing ¾ Trusses FEATURES ¾ U.S and Taiwan patents
    elastic washer, effectively reduce the impact from the piston avoiding from uncomfortable and wrist injurly.It can still function after a long time of overturn or accidental fall which cause the cylinder sink and airway close. ¾ Cover arc shaped by ergonomics, with no screzws in the cover for a smoother touch. The vent was place in the front and back instead of top to avoid the cause of smudge on hand. ¾ Cylinder surface through tust hard coat treatment for high durability and rust-less. ¾ Valve surface through tust hard coat treatment for high durability . ¾ 7075 piston for high abrasion resistance and stable. ¾ SKD61 driver for superior stable and firm. ¾ The unique nose piece design makes the magazine can rotate 360 degrees for easier corner working. 67

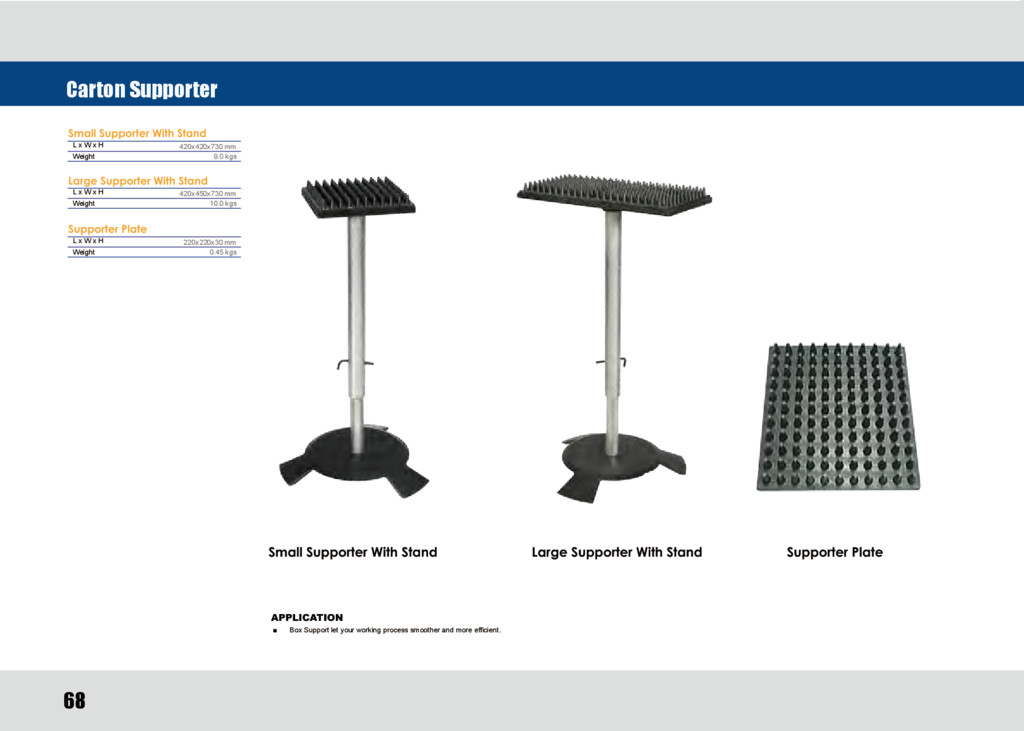

68. Carton Supporter 9.0 kgs Small Supporter With Stand L x W x H Large Supporter With Stand Weight 420x420x730 mm Small Supporter With Stand L x W x H Weight 420x450x730 mm 10.0 kgs Large Supporter With Stand L x W x H Weight 220x220x30 mm 0.45 kgs Supporter Plate Supporter Plate APPLICATION ▪ Box Support let your working process smoother and more efficient. 68

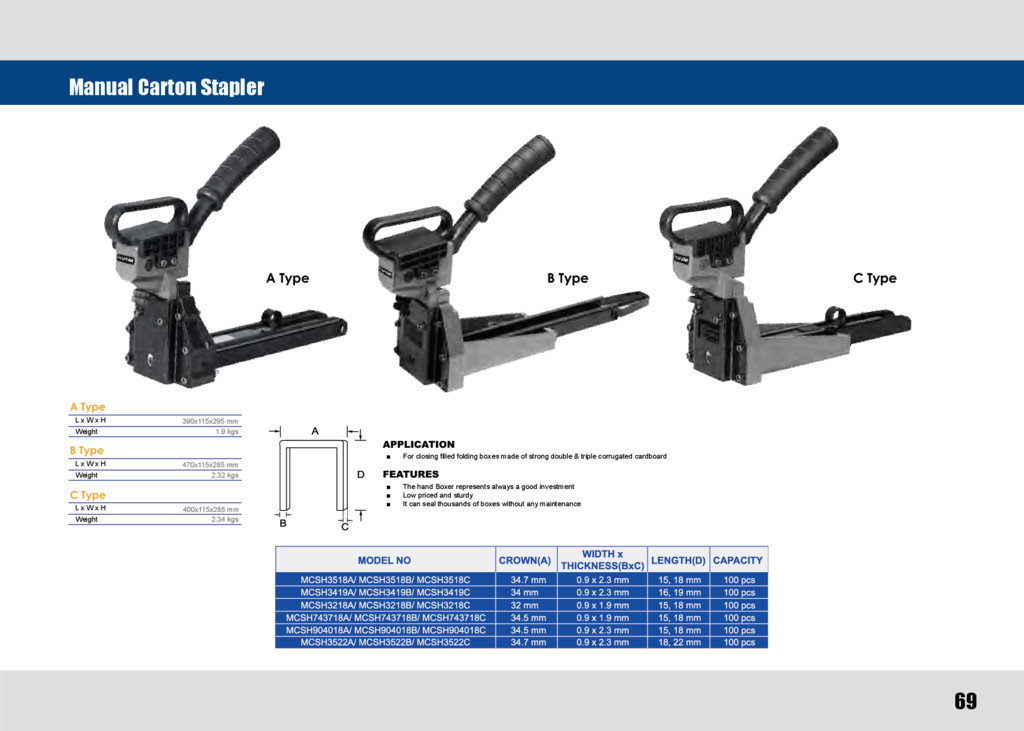

69. Manual Carton Stapler L x W x H Weight 390x115x295 mm 1.9 kgs L x W x H Weight 470x115x285 mm 2.32 kgs L x W x H Weight 400x115x285 mm 2.34 kgs A Type B Type C Type B Type C Type A Type ▪ The hand Boxer represents always a good investment ▪ Low priced and sturdy ▪ FEATURES It can seal thousands of boxes without any maintenance APPLICATION ▪ For closing filled folding boxes made of strong double & triple corrugated cardboard 69

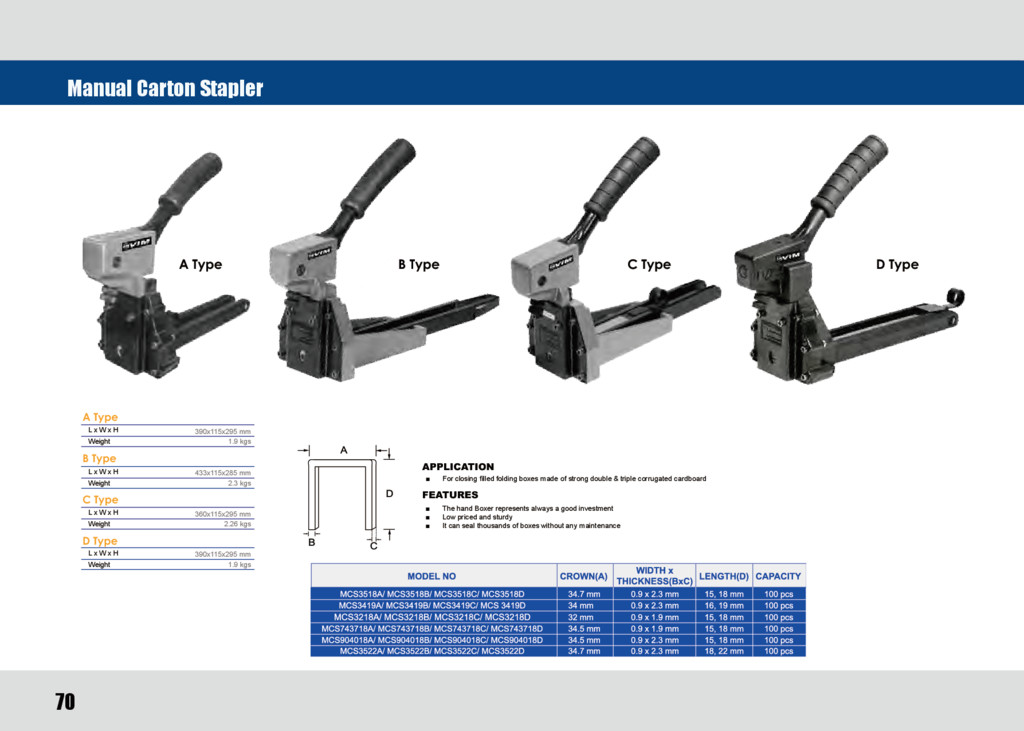

70. Manual Carton Stapler L x W x H Weight 390x115x295 mm 1.9 kgs A Type L x W x H Weight 433x115x285 mm 2.3 kgs B Type L x W x H Weight 360x115x295 mm 2.26 kgs C Type L x W x H Weight 390x115x295 mm 1.9 kgs D Type A Type C Type B Type D Type ▪ The hand Boxer represents always a good investment ▪ Low priced and sturdy ▪ FEATURES It can seal thousands of boxes without any maintenance APPLICATION ▪ For closing filled folding boxes made of strong double & triple corrugated cardboard 70
71. FEATURES ▪ Handing and light ▪ APPLICATION The stapler reduces to a minimum operator fatigue ▪ For closing filled folding boxes made of strong double & triple corrugated caredboard Pneumatic Jumbo Carton Stapler JS3222A,JS3222B A Type L x W x H Weight Working Pressure 320x115x225 mm 2.48 kgs 5~7 bar/70~100 psi A Type Working Pressure L x W x H Weight 415x115x220 mm 2.65 kgs 5~7 bar/70~100 psi B Type B Type Pneumatic Jumbo Carton Stapler JS3228,JS3235,JS3238 FEATURES APPLICATION ▪ Stapler can be adjusted to different penetration depths ▪ For closing filled folding boxes made of strong double & triple corrugated cardboard ▪ Suitable for Staples with 25mm-38mm leg length ▪ For cartons with 15mm-24mm total thickness L x W x H 360x174x335 mm 6 kgs 70-100 psi Weight Working Pressure 71

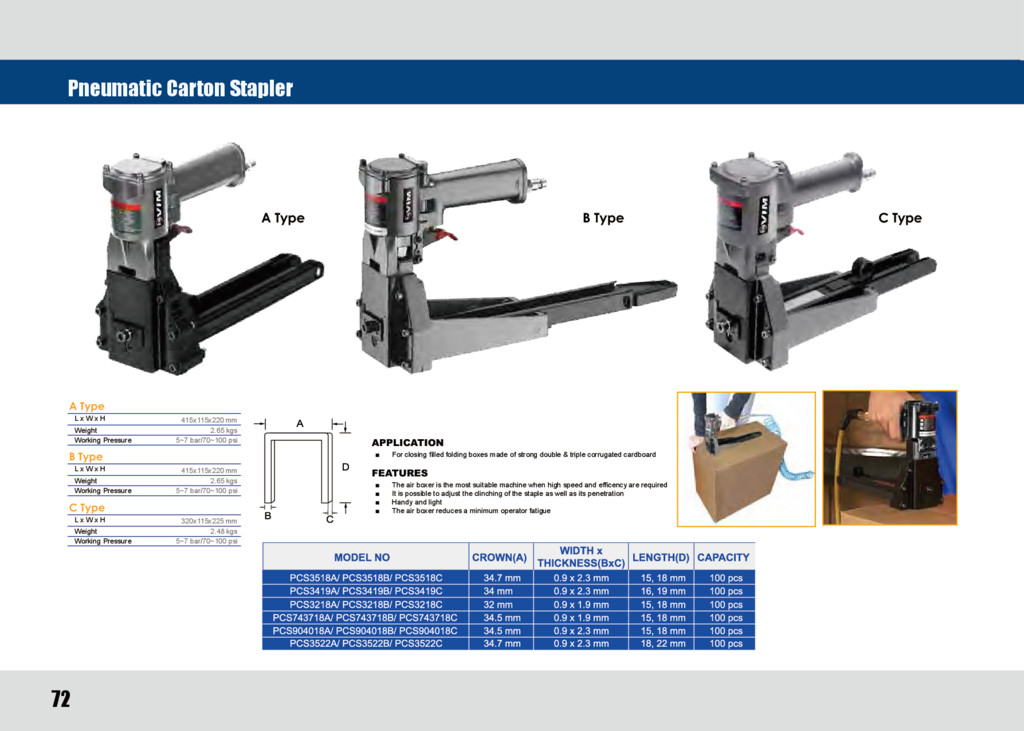

72. Pneumatic Carton Stapler L x W x H Weight Working Pressure 415x115x220 mm 2.65 kgs 5~7 bar/70~100 psi A Type Working Pressure L x W x H Weight 415x115x220 mm 2.65 kgs 5~7 bar/70~100 psi B Type Working Pressure L x W x H Weight 320x115x225 mm 2.48 kgs 5~7 bar/70~100 psi C Type B Type C Type A Type FEATURES ▪ The air boxer is the most suitable machine when high speed and efficency are required ▪ It is possible to adjust the clinching of the staple as well as its penetration ▪ Handy and light ▪ APPLICATION The air boxer reduces a minimum operator fatigue ▪ For closing filled folding boxes made of strong double & triple corrugated cardboard 72

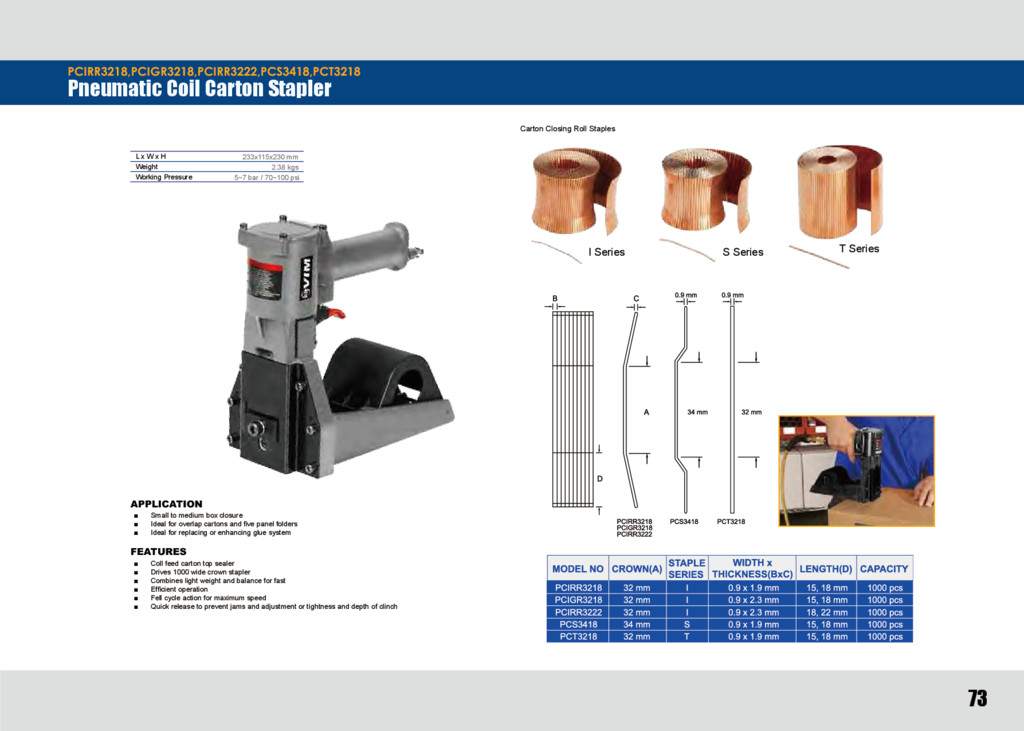

73. Pneumatic Coil Carton Stapler PCIRR3218,PCIGR3218,PCIRR3222,PCS3418,PCT3218 Carton Closing Roll Staples T Series S Series I Series L x W x H 233x115x230 mm 2.38 kgs Weight Working Pressure 5~7 bar / 70~100 psi FEATURES ▪ Coll feed carton top sealer ▪ Drives 1000 wide crown stapler ▪ Combines light weight and balance for fast ▪ Efficient operation ▪ Fell cycle action for maximum speed ▪ APPLICATION Quick release to prevent jams and adjustment or tightness and depth of clinch ▪ Small to medium box closure ▪ Ideal for overlap cartons and five panel folders ▪ Ideal for replacing or enhancing glue system 73

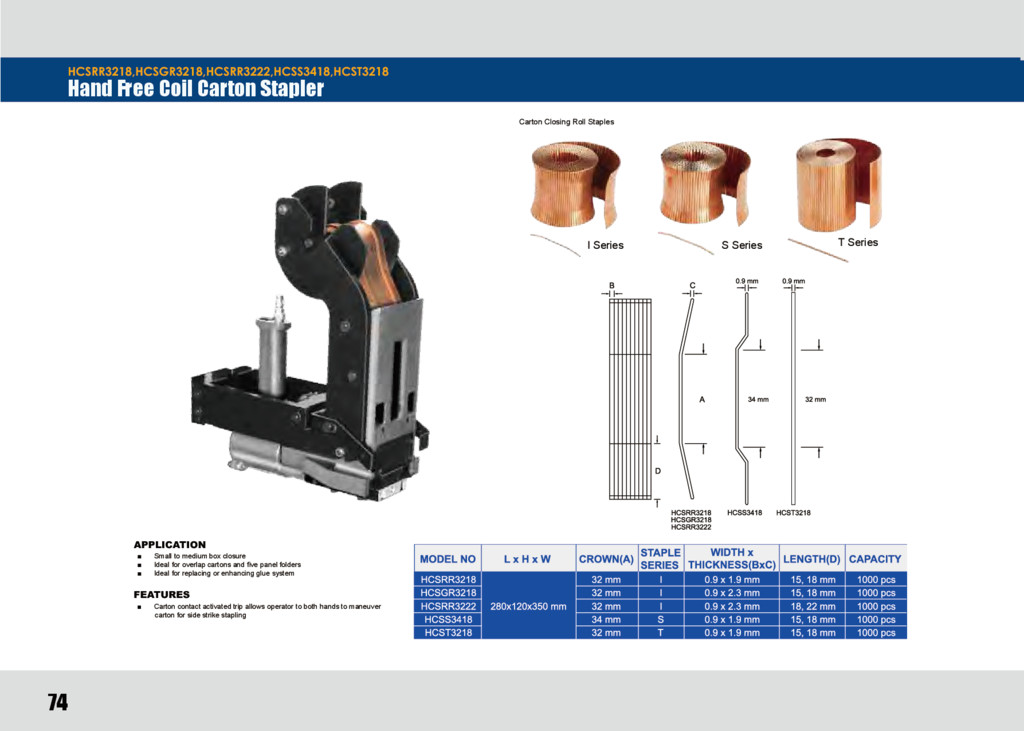

74. Hand Free Coil Carton Stapler HCSRR3218,HCSGR3218,HCSRR3222,HCSS3418,HCST3218 Carton Closing Roll Staples T Series S Series I Series FEATURES ▪ Carton contact activated trip allows operator to both hands to maneuver APPLICATION carton for side strike stapling ▪ Small to medium box closure ▪ Ideal for overlap cartons and five panel folders ▪ Ideal for replacing or enhancing glue system 74

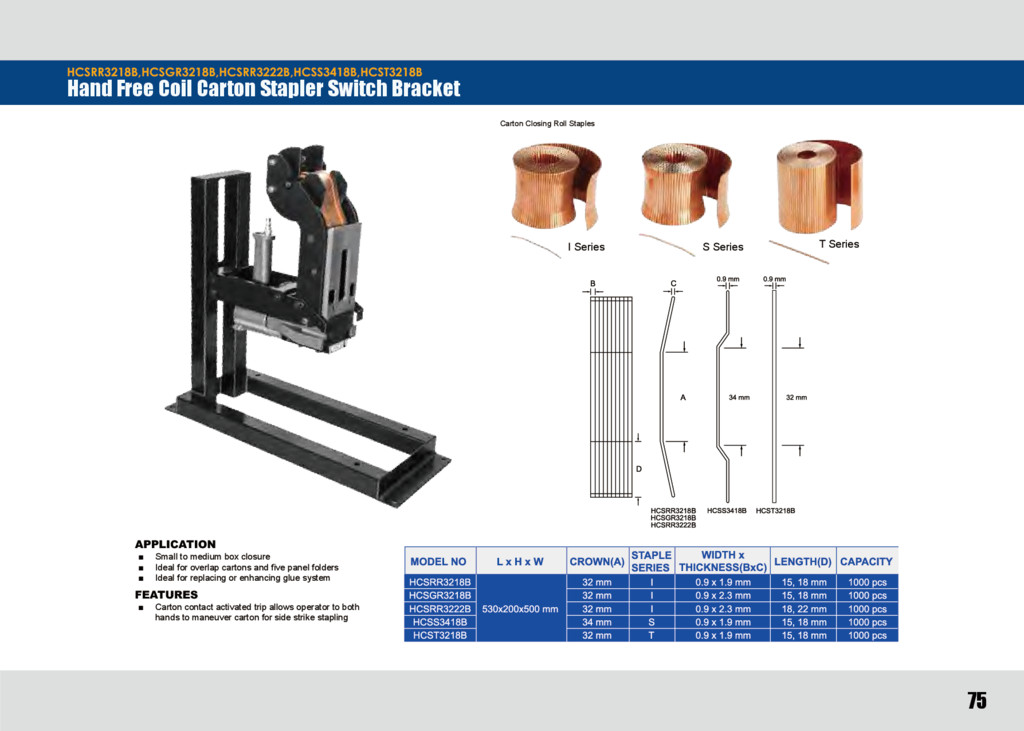

75. Hand Free Coil Carton Stapler Switch Bracket HCSRR3218B,HCSGR3218B,HCSRR3222B,HCSS3418B,HCST3218B FEATURES ▪ Carton contact activated trip allows operator to both APPLICATION hands to maneuver carton for side strike stapling ▪ Small to medium box closure ▪ Ideal for overlap cartons and five panel folders ▪ Carton Closing Roll Staples Ideal for replacing or enhancing glue system T Series S Series I Series 75

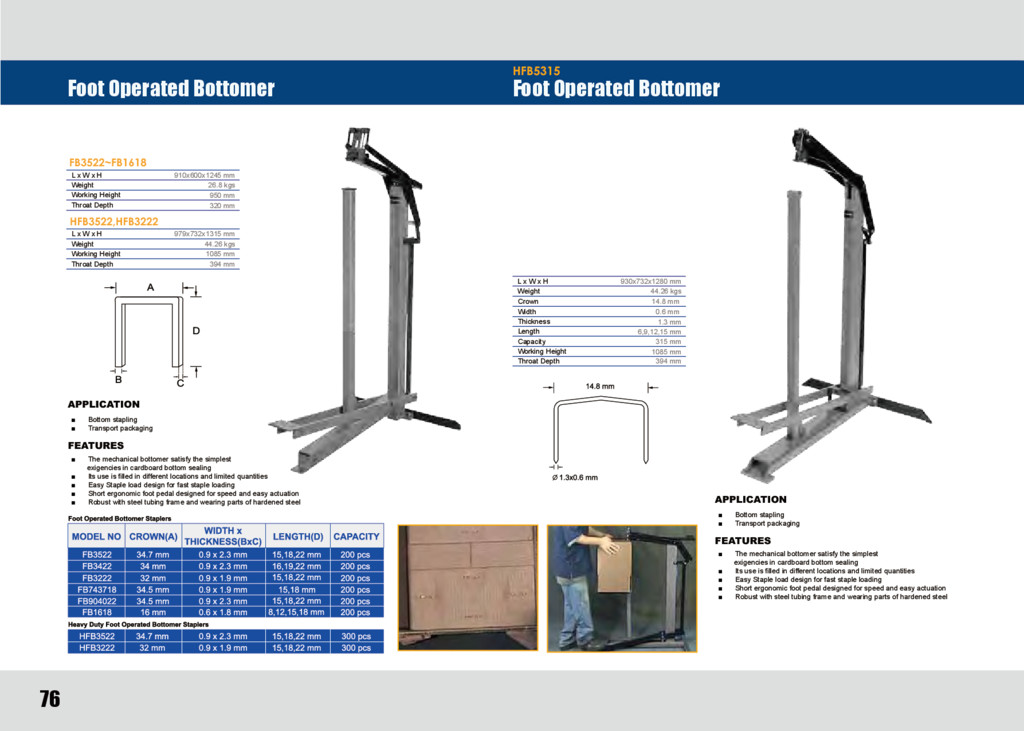

76. Foot Operated Bottomer ▪ The mechanical bottomer satisfy the simplest exigencies in cardboard bottom sealing ▪ Its use is filled in different locations and limited quantities ▪ Easy Staple load design for fast staple loading ▪ Short ergonomic foot pedal designed for speed and easy actuation ▪ FEATURES Robust with steel tubing frame and wearing parts of hardened steel ▪ Bottom stapling ▪ APPLICATION Transport packaging Foot Operated Bottomer HFB5315 L x W x H Weight 930x732x1280 mm 44.26 kgs Throat Depth 394 mm 14.8 mm 1085 mm 6,9,12,15 mm 1.3 mm Crown Working Height Length Width Capacity Thickness 0.6 mm 315 mm FB3522~FB1618 L x W x H Weight 910x600x1245 mm 26.8 kgs 950 mm 320 mm Working Height Throat Depth L x W x H Weight 979x732x1315 mm 44.26 kgs HFB3522,HFB3222 Working Height Throat Depth 1085 mm 394 mm ▪ The mechanical bottomer satisfy the simplest exigencies in cardboard bottom sealing ▪ Its use is filled in different locations and limited quantities ▪ Easy Staple load design for fast staple loading ▪ Short ergonomic foot pedal designed for speed and easy actuation ▪ FEATURES Robust with steel tubing frame and wearing parts of hardened steel ▪ Bottom stapling ▪ APPLICATION Transport packaging 76

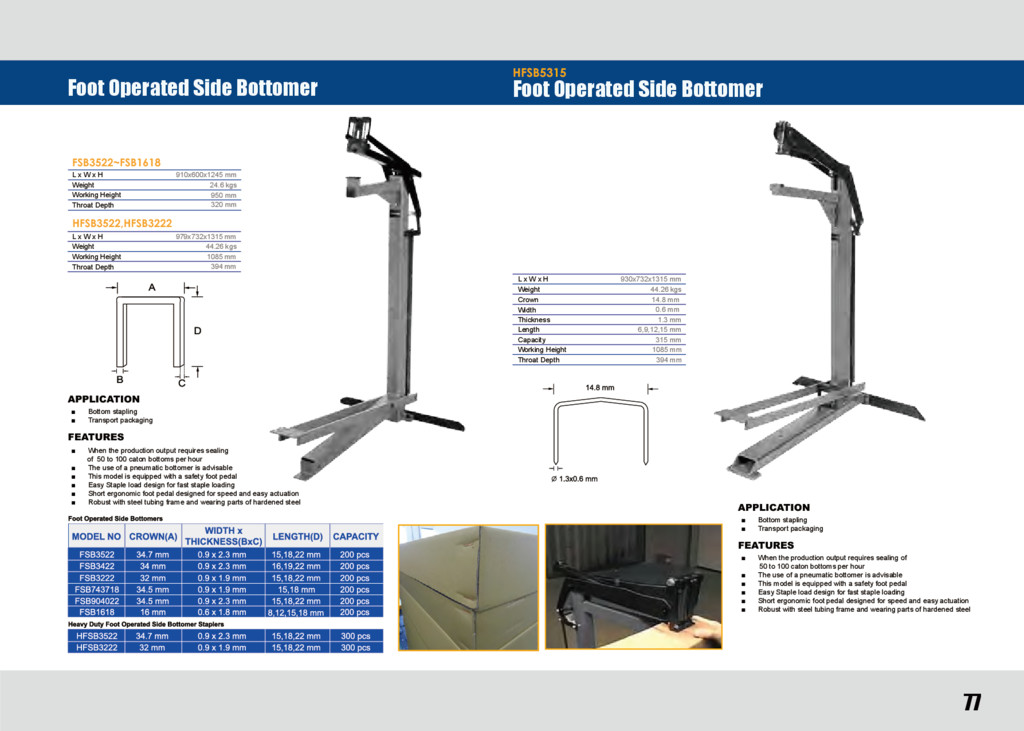

77. Foot Operated Side Bottomer L x W x H Weight 910x600x1245 mm 24.6 kgs 320 mm 950 mm FSB3522~FSB1618 Working Height Throat Depth L x W x H Weight 979x732x1315 mm 44.26 kgs HFSB3522,HFSB3222 Working Height Throat Depth 1085 mm 394 mm ▪ When the production output requires sealing of 50 to 100 caton bottoms per hour ▪ The use of a pneumatic bottomer is advisable ▪ This model is equipped with a safety foot pedal ▪ Easy Staple load design for fast staple loading ▪ Short ergonomic foot pedal designed for speed and easy actuation ▪ FEATURES Robust with steel tubing frame and wearing parts of hardened steel ▪ Bottom stapling ▪ APPLICATION Transport packaging ▪ When the production output requires sealing of 50 to 100 caton bottoms per hour ▪ The use of a pneumatic bottomer is advisable ▪ This model is equipped with a safety foot pedal ▪ Easy Staple load design for fast staple loading ▪ Short ergonomic foot pedal designed for speed and easy actuation ▪ FEATURES Robust with steel tubing frame and wearing parts of hardened steel ▪ Bottom stapling ▪ APPLICATION Transport packaging Foot Operated Side Bottomer HFSB5315 L x W x H Weight 930x732x1315 mm 44.26 kgs Working Height Throat Depth 1085 mm 394 mm 14.8 mm 6,9,12,15 mm 1.3 mm Crown Length Width Capacity Thickness 0.6 mm 315 mm 77

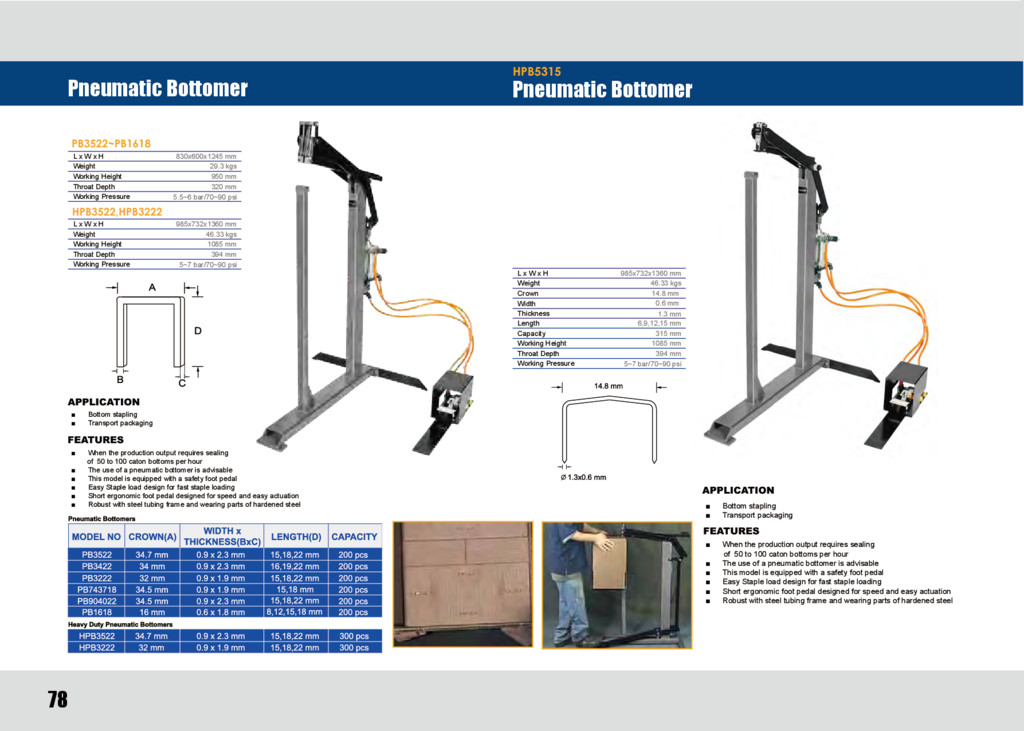

78. Pneumatic Bottomer ▪ When the production output requires sealing of 50 to 100 caton bottoms per hour ▪ The use of a pneumatic bottomer is advisable ▪ This model is equipped with a safety foot pedal ▪ Easy Staple load design for fast staple loading ▪ Short ergonomic foot pedal designed for speed and easy actuation ▪ FEATURES Robust with steel tubing frame and wearing parts of hardened steel ▪ Bottom stapling ▪ APPLICATION Transport packaging ▪ When the production output requires sealing of 50 to 100 caton bottoms per hour ▪ The use of a pneumatic bottomer is advisable ▪ This model is equipped with a safety foot pedal ▪ Easy Staple load design for fast staple loading ▪ Short ergonomic foot pedal designed for speed and easy actuation ▪ FEATURES Robust with steel tubing frame and wearing parts of hardened steel ▪ Bottom stapling ▪ APPLICATION Transport packaging HPB3522,HPB3222 L x W x H Weight 985x732x1360 mm 46.33 kgs 1085 mm 5~7 bar/70~90 psi Working Height Throat Depth Working Pressure 394 mm PB3522~PB1618 L x W x H Weight 830x600x1245 mm 29.3 kgs 950 mm 5.5~6 bar/70~90 psi Working Height Throat Depth Working Pressure 320 mm Pneumatic Bottomer HPB5315 L x W x H Weight 985x732x1360 mm 46.33 kgs 14.8 mm 1085 mm 6,9,12,15 mm 1.3 mm 5~7 bar/70~90 psi Crown Working Height Length Width Throat Depth Capacity Thickness Working Pressure 0.6 mm 394 mm 315 mm 78

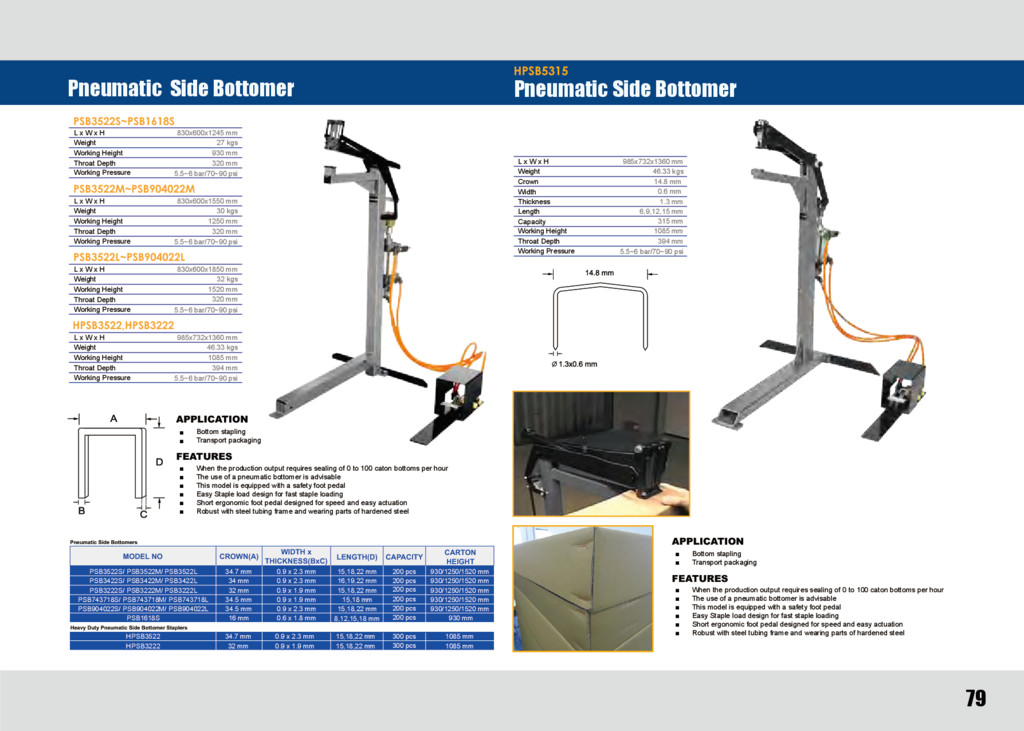

79. PSB3522S/ PSB3522M/ PSB3522L 34.7 mm 0.9 x 2.3 mm MODEL NO Heavy Duty Pneumatic Side Bottomer Staplers Pneumatic Side Bottomers CROWN(A) WIDTH x THICKNESS(BxC) PSB3422S/ PSB3422M/ PSB3422L 34 mm 0.9 x 2.3 mm 0.6 x 1.8 mm 0.6 x 1.3 mm 0.9 x 2.3 mm 0.9 x 1.9 mm PSB3222S/ PSB3222M/ PSB3222L PSB743718S/ PSB743718M/ PSB743718L PSB904022S/ PSB904022M/ PSB904022L PSB1618S 32 mm 34.5 mm 34.5 mm 16 mm 0.9 x 1.9 mm 0.9 x 1.9 mm 0.9 x 2.3 mm HPSB5315 HPSB3522 HPSB3222 14.8 mm 34.7 mm 32 mm LENGTH(D) CAPACITY CARTON HEIGHT 15,18,22 mm 15,18,22 mm 15,18,22 mm 8,12,15,18 mm 6,9,12,15 mm 15,18,22 mm 15,18,22 mm 15,18 mm 16,19,22 mm 200 pcs 930/1250/1520 mm 930/1250/1520 mm 930/1250/1520 mm 930/1250/1520 mm 930/1250/1520 mm 930 mm 1085 mm 1085 mm 1085 mm 200 pcs 200 pcs 200 pcs 200 pcs 200 pcs 315 pcs 300 pcs 300 pcs Pneumatic Side Bottomer ▪ When the production output requires sealing of 0 to 100 caton bottoms per hour ▪ The use of a pneumatic bottomer is advisable ▪ This model is equipped with a safety foot pedal ▪ Easy Staple load design for fast staple loading ▪ Short ergonomic foot pedal designed for speed and easy actuation ▪ FEATURES Robust with steel tubing frame and wearing parts of hardened steel ▪ Bottom stapling ▪ APPLICATION Transport packaging ▪ When the production output requires sealing of 0 to 100 caton bottoms per hour ▪ The use of a pneumatic bottomer is advisable ▪ This model is equipped with a safety foot pedal ▪ Easy Staple load design for fast staple loading ▪ Short ergonomic foot pedal designed for speed and easy actuation ▪ FEATURES Robust with steel tubing frame and wearing parts of hardened steel ▪ Bottom stapling ▪ APPLICATION Transport packaging HPSB3522,HPSB3222 L x W x H Weight 985x732x1360 mm 46.33 kgs 1085 mm 394 mm 5.5~6 bar/70~90 psi Working Height Throat Depth Working Pressure PSB3522S~PSB1618S L x W x H Weight 830x600x1245 mm 27 kgs 930 mm 5.5~6 bar/70~90 psi Working Height Throat Depth Working Pressure 320 mm PSB3522M~PSB904022M L x W x H Weight 830x600x1550 mm 30 kgs 1250 mm 5.5~6 bar/70~90 psi Working Height Throat Depth Working Pressure 320 mm PSB3522L~PSB904022L L x W x H Weight 830x600x1850 mm 32 kgs 1520 mm 5.5~6 bar/70~90 psi Working Height Throat Depth Working Pressure 320 mm Pneumatic Side Bottomer L x W x H Weight 985x732x1360 mm 46.33 kgs 1085 mm 394 mm 5.5~6 bar/70~90 psi Working Height Throat Depth Working Pressure 14.8 mm 6,9,12,15 mm 1.3 mm Crown Length Width Capacity Thickness 0.6 mm 315 mm HPSB5315 79

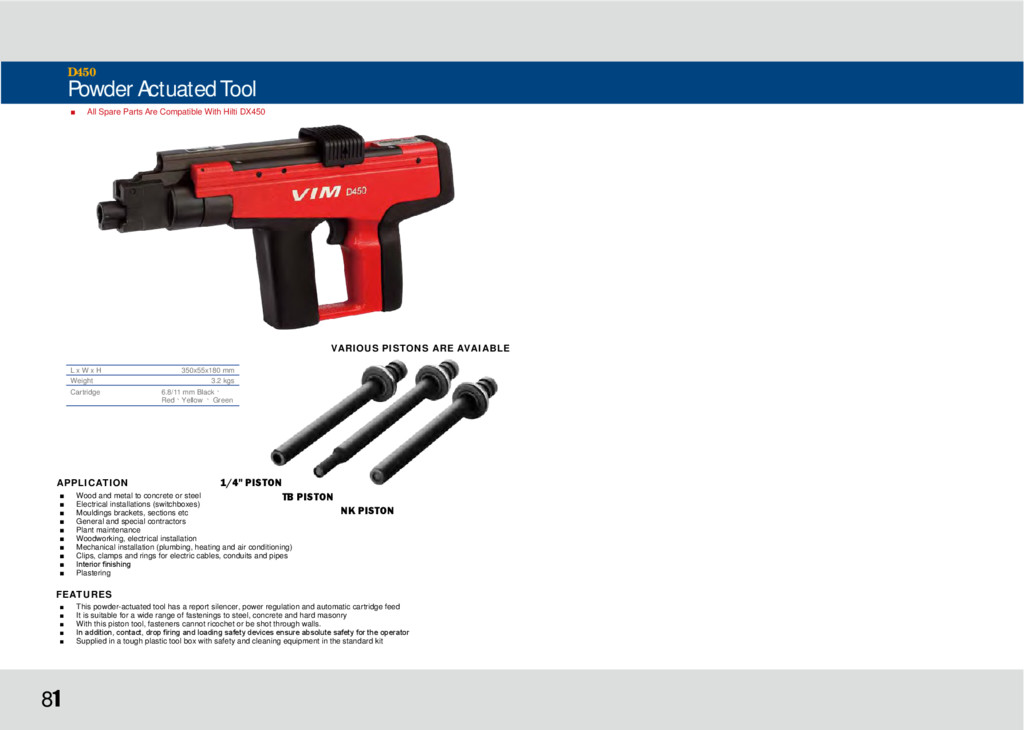

80. Powder Actuated Tool D450 L x W x H 350x55x180 mm 3.2 kgs 6.8/11 mm Blacke RedeYellow e Green Weight Cartridge ▪ Wood and metal to concrete or steel ▪ Electrical installations (switchboxes) ▪ Mouldings brackets, sections etc ▪ General and special contractors ▪ Plant maintenance ▪ Woodworking, electrical installation ▪ Mechanical installation (plumbing, heating and air conditioning) ▪ Clips, clamps and rings for electric cables, conduits and pipes ▪ Interior finishing ▪ Plastering ▪ This powder-actuated tool has a report silencer, power regulation and automatic cartridge feed ▪ It is suitable for a wide range of fastenings to steel, concrete and hard masonry ▪ With this piston tool, fasteners cannot ricochet or be shot through walls. ▪ In addition, contact, drop firing and loading safety devices ensure absolute safety for the operator ▪ FEATURES Supplied in a tough plastic tool box with safety and cleaning equipment in the standard kit APPLICATION ▪ All Spare Parts Are Compatible With Hilti DX450 VARIOUS PISTONS ARE AVAIABLE NK PISTON TB PISTON 1/4" PISTON 81

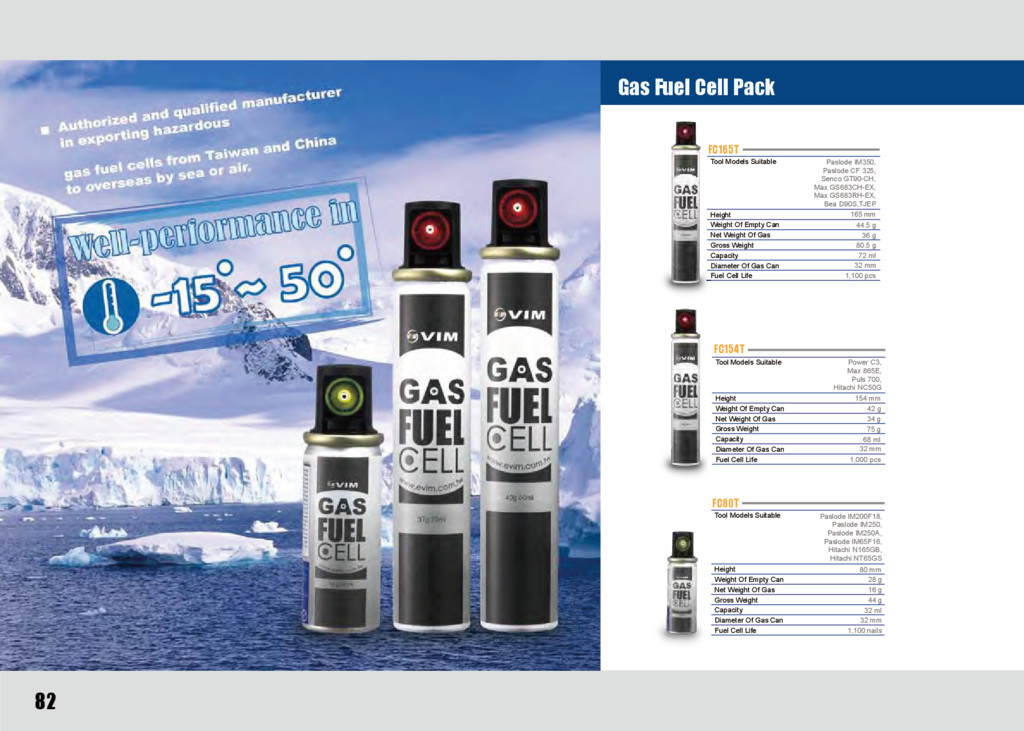

81. FC80T Tool Models Suitable 80 mm Paslode IM200F18, Paslode IM250, Paslode IM250A, Paslode IM65F16, Hitachi N165GB, Hitachi NT65GS 28 g 16 g 44 g Height Weight Of Empty Can Net Weight Of Gas Gross Weight 32 ml 32 mm 1,100 nails Capacity Diameter Of Gas Can Fuel Cell Life FC154T Tool Models Suitable Power C3, Max 865E, Puls 700, Hitachi NC50G 154 mm 42 g 34 g 75 g Height Weight Of Empty Can Net Weight Of Gas Gross Weight 68 ml 32 mm 1,000 pcs Capacity Diameter Of Gas Can Fuel Cell Life Gas Fuel Cell Pack FC165T Tool Models Suitable 44.5 g 36 g 80.5 g Height Weight Of Empty Can Net Weight Of Gas Gross Weight 72 ml 32 mm 1,100 pcs Capacity Diameter Of Gas Can Fuel Cell Life 165 mm Paslode IM350, Paslode CF 325, Senco GT90-CH, Max GS683CH-EX, Max GS683RH-EX, Bea D90S,TJEP 82

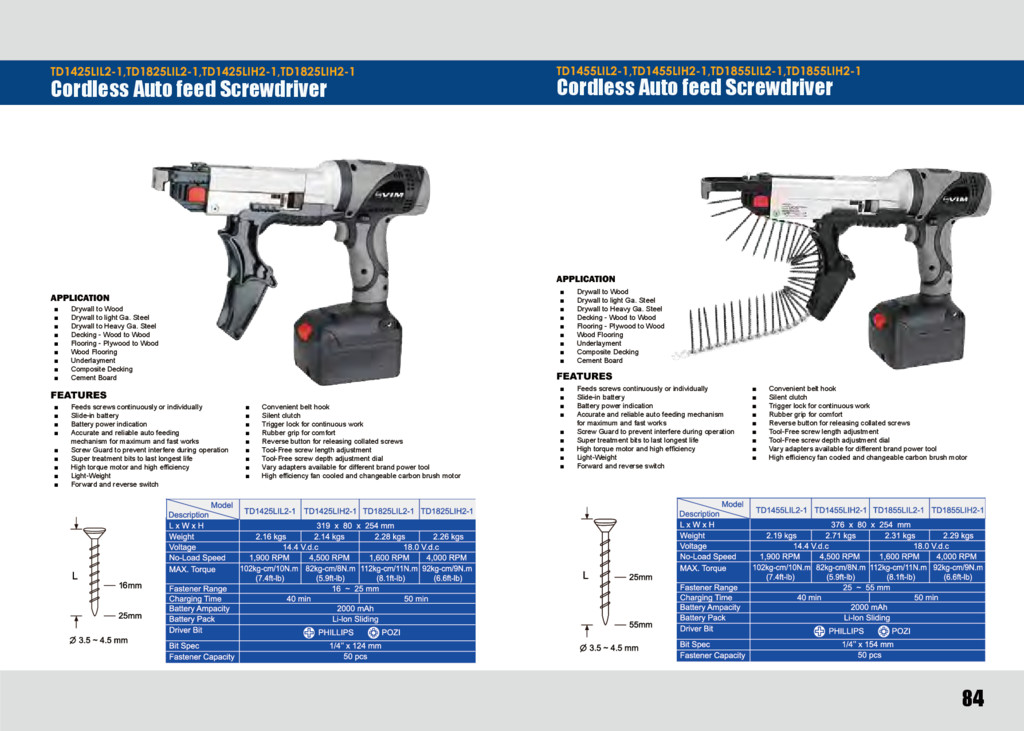

83. Cordless Auto feed Screwdriver TD1425LIL2-1,TD1825LIL2-1,TD1425LIH2-1,TD1825LIH2-1 FEATURES ▪ Feeds screws continuously or individually ▪ Slide-in battery ▪ Battery power indication ▪ Accurate and reliable auto feeding mechanism for maximum and fast works ▪ Screw Guard to prevent interfere during operation ▪ Super treatment bits to last longest life ▪ High torque motor and high efficiency ▪ Light-Weight ▪ Forward and reverse switch ▪ Convenient belt hook ▪ Silent clutch ▪ Trigger lock for continuous work ▪ Rubber grip for comfort ▪ Reverse button for releasing collated screws ▪ Tool-Free screw length adjustment ▪ Tool-Free screw depth adjustment dial ▪ Vary adapters available for different brand power tool ▪ High efficiency fan cooled and changeable carbon brush motor ▪ Drywall to Wood ▪ Drywall to light Ga. Steel ▪ Drywall to Heavy Ga. Steel ▪ Decking - Wood to Wood ▪ Flooring - Plywood to Wood ▪ Wood Flooring ▪ Underlayment ▪ Composite Decking ▪ APPLICATION Cement Board Cordless Auto feed Screwdriver TD1455LIL2-1,TD1455LIH2-1,TD1855LIL2-1,TD1855LIH2-1 FEATURES ▪ Feeds screws continuously or individually ▪ Slide-in battery ▪ Battery power indication ▪ Accurate and reliable auto feeding mechanism for maximum and fast works ▪ Screw Guard to prevent interfere during operation ▪ Super treatment bits to last longest life ▪ High torque motor and high efficiency ▪ Light-Weight ▪ Forward and reverse switch ▪ Drywall to Wood ▪ Drywall to light Ga. Steel ▪ Drywall to Heavy Ga. Steel ▪ Decking - Wood to Wood ▪ Flooring - Plywood to Wood ▪ Wood Flooring ▪ Underlayment ▪ Composite Decking ▪ APPLICATION Cement Board ▪ Convenient belt hook ▪ Silent clutch ▪ Trigger lock for continuous work ▪ Rubber grip for comfort ▪ Reverse button for releasing collated screws ▪ Tool-Free screw length adjustment ▪ Tool-Free screw depth adjustment dial ▪ Vary adapters available for different brand power tool ▪ High efficiency fan cooled and changeable carbon brush motor 84
84. 16 GA. Manual Hog Ring Plier Auto Feed A7 APPLICATION FEATURES ▪ Automatic feed ▪ One-hand operation ▪ Black coated finish ▪ Anti-slip red handles ▪ Chrome-plated magazine ▪ Durable all-steel construction ▪ Magazine capacity:50pcs ▪ Industrial packaging ▪ Furniture upholstery ▪ Netting / mech ▪ Cage repairs ▪ Arts and crafts ▪ Fence constructions ▪ Bag closure Gauge LxWxH Weight Closure size Crown Wire Dia Load Capacity 16 GA 183x93x26 mm 316 g 17.4 mm 1.52 mm 50pcs 7 mm 85 CORDLESS 2-SPEED AUTO FEED / DRYWALL SCREWDRIVER TD1825LIH3,TD1855LIH3 APPLICATION ¾ Drywall to Wood ¾ Drywall to light Ga. Steel ¾ Drywall to Heavy Ga. Steel ¾ Decking - Wood to Wood ¾ Flooring - Plywood to Wood ¾ Wood Flooring ¾ Underlayment ¾ Composite Decking ¾ Cement Board FEATURES ¾ High Torque ¾ High/ Low Speed two in one machine ¾ Quick Release Attachment ¾ Variable Speed Trigger ¾ both 25~55mm or 16~25mm fastener range are available L x W x H 407x80x262 mm 1.86 kgs 18.0 V d.c. 1/4" x 173L High Torque Mode: 0~1,800 RPM High Speed Mode: 0~5,000 RPM L: 142kg-cm/ 14 N.m/ 7.4 ft-lb H: 102kg-cm/ 10 N.m/ 10.3 ft-lb Weight Voltage BIT SPEC No-Load Speed TD1825LIH3: 16~25 mm TD1855LIH3: 25~55 mm Fastener Range Max. Torque TD1855LIH3 TD1825LIH3 16 25

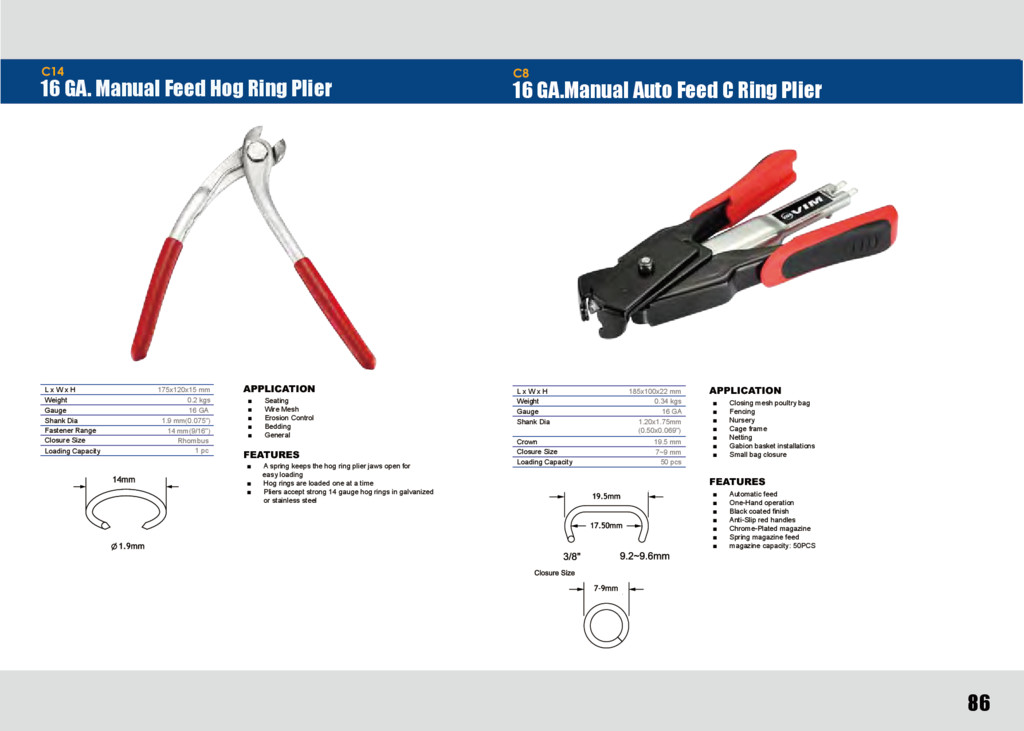

85. 16 GA. Manual Feed Hog Ring Plier C14 APPLICATION FEATURES ▪ A spring keeps the hog ring plier jaws open for easy loading ▪ Hog rings are loaded one at a time ▪ Pliers accept strong 14 gauge hog rings in galvanized or stainless steel ▪ Seating ▪ Wire Mesh ▪ Erosion Control ▪ Bedding ▪ General L x W x H 175x120x15 mm 0.2 kgs 1.9 mm(0.075") 16 GA 14 mm(9/16") 1 pc Rhombus Weight Shank Dia Gauge Fastener Range Loading Capacity Closure Size ▪ Automatic feed ▪ One-Hand operation ▪ Black coated finish ▪ Anti-Slip red handles ▪ Chrome-Plated magazine ▪ Spring magazine feed ▪ magazine capacity: 50PCS ▪ Closing mesh poultry bag ▪ Fencing ▪ Nursery ▪ Cage frame ▪ Netting ▪ Gabion basket installations ▪ APPLICATION Small bag closure FEATURES 16 GA.Manual Auto Feed C Ring Plier C8 L x W x H 185x100x22 mm 0.34 kgs 1.20x1.75mm (0.50x0.069") 16 GA 50 pcs 7~9 mm Weight Shank Dia Gauge Loading Capacity Closure Size Crown 19.5 mm 86

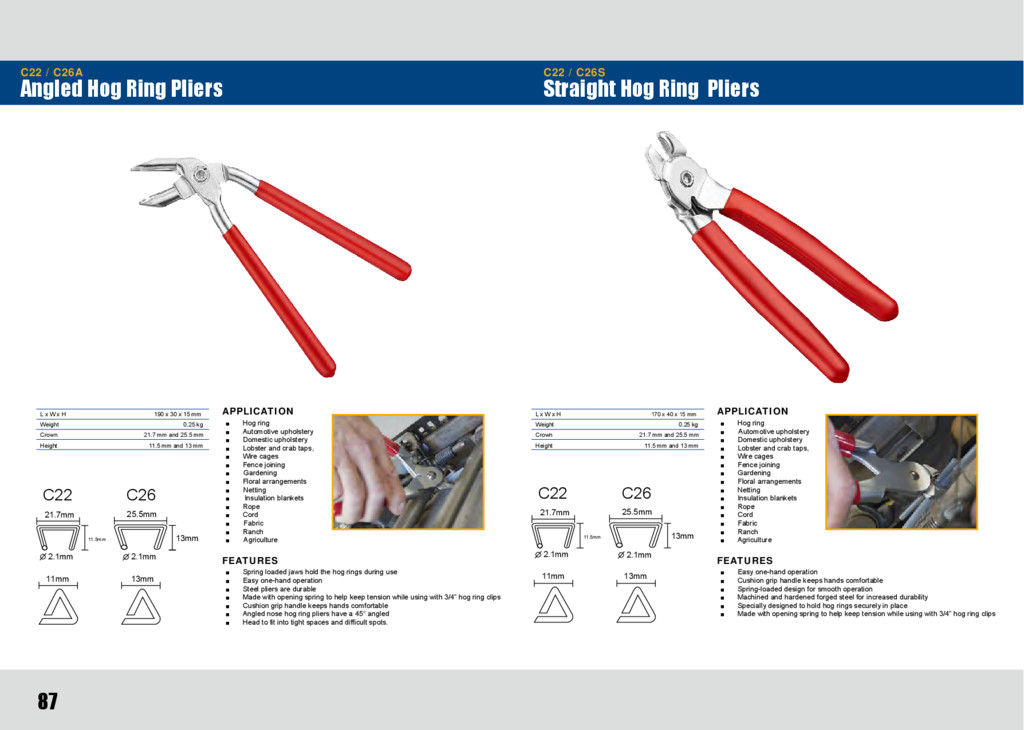

86. Angled Hog Ring Pliers Straight Hog Ring Pliers 11.5mm 13mm 21.7mm 11mm 13mm C22 C26 25.5mm 2.1mm 2.1mm C22 / C26S C22 / C26A APPLICATION ¾ Hog ring ¾ Automotive upholstery ¾ Domestic upholstery ¾ Lobster and crab taps, ¾ Wire cages ¾ Fence joining ¾ Gardening ¾ Floral arrangements ¾ Netting ¾ Insulation blankets ¾ Rope ¾ Cord ¾ Fabric ¾ Ranch ¾ Agriculture FEATURES ¾ Easy one-hand operation ¾ Cushion grip handle keeps hands comfortable ¾ Spring-loaded design for smooth operation ¾ Machined and hardened forged steel for increased durability ¾ Specially designed to hold hog rings securely in place ¾ Made with opening spring to help keep tension while using with 3/4” hog ring clips APPLICATION ¾ Hog ring ¾ Automotive upholstery ¾ Domestic upholstery ¾ Lobster and crab taps, ¾ Wire cages ¾ Fence joining ¾ Gardening ¾ Floral arrangements ¾ Netting ¾ Insulation blankets ¾ Rope ¾ Cord ¾ Fabric ¾ Ranch ¾ Agriculture FEATURES ¾ Spring loaded jaws hold the hog rings during use ¾ Easy one-hand operation ¾ Steel pliers are durable ¾ Made with opening spring to help keep tension while using with 3/4” hog ring clips ¾ Cushion grip handle keeps hands comfortable ¾ Angled nose hog ring pliers have a 45° angled ¾ Head to fit into tight spaces and difficult spots. 11.5mm 13mm 21.7mm 11mm 13mm C22 C26 25.5mm 2.1mm 2.1mm L x W x H 190 x 30 x 15 mm Weight 0.25 kg Crown 21.7 mm and 25.5 mm Height 11.5 mm and 13 mm L x W x H 170 x 40 x 15 mm Weight 0.25 kg Crown 21.7 mm and 25.5 mm Height 11.5 mm and 13 mm 87

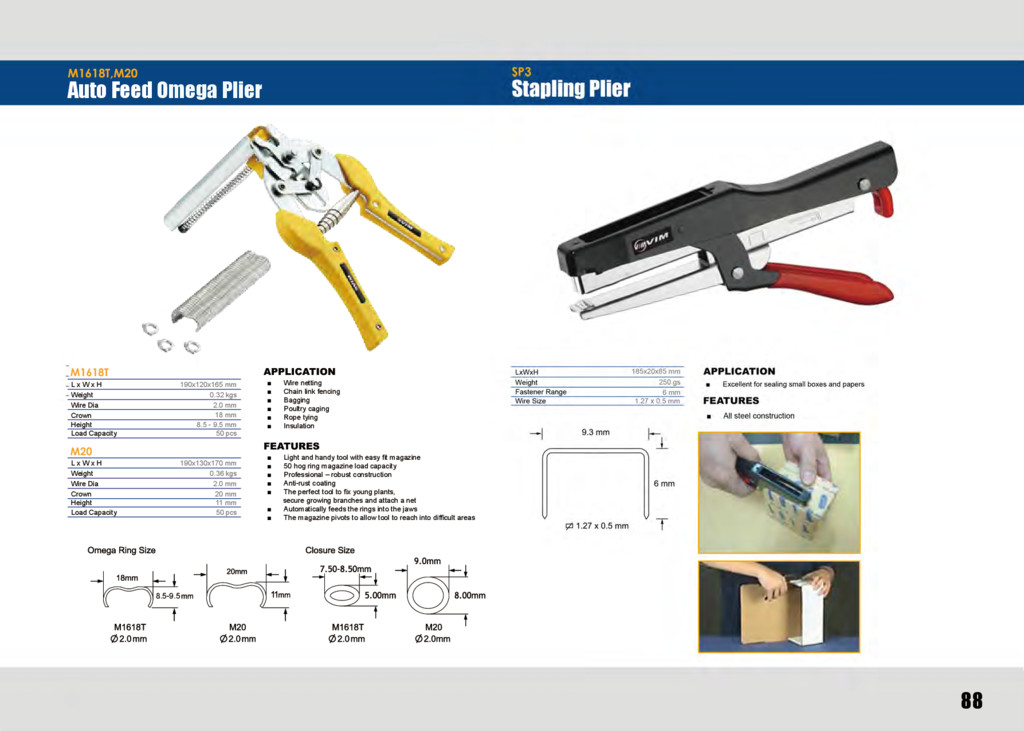

87. Auto Feed Omega Plier M1618T,M20 APPLICATION FEATURES ▪ Light and handy tool with easy fit magazine ▪ 50 hog ring magazine load capacity ▪ Professional – robust construction ▪ Anti-rust coating ▪ The perfect tool to fix young plants, secure growing branches and attach a net ▪ Automatically feeds the rings into the jaws ▪ The magazine pivots to allow tool to reach into difficult areas ▪ Wire netting ▪ Chain link fencing ▪ Bagging ▪ Poultry caging ▪ Rope tying ▪ Insulation L x W x H 190x120x165 mm 0.32 kgs 2.0 mm 18 mm Weight Wire Dia Crown 8.5 - 9.5 mm 11 mm 50 pcs Height Height Load Capacity M1618T L x W x H 190x130x170 mm 0.36 kgs 2.0 mm 20 mm Weight Wire Dia Crown 50 pcs Load Capacity M20 8.5-9.5 88
88. Heavy-Duty Stapling Plier HP73 LxWxH Weight 190x24x100 mm 460 gs 6,8,10,12 mm Fastener Range Wire Size Equivalent Equivalent 1.25 x 0.5 mm Rapid 31 Rapid class I 2 In 1 Stapling Plier P24 LxWxH Weight 180x26x86 mm 360 gs 6,8 mm Fastener Range Wire Size 0.7 x 0.4 mm, 0.5 x 0.4 mm FEATURES ▪ All steel construction ▪ APPLICATION Two different type anvil ▪ Excellent for sealing small boxes and papers FEATURES ▪ All steel construction ▪ APPLICATION Three different type anvil ▪ Excellent for sealing small boxes and papers A Type Anvil F Type Anvil A Type Anvil F Type Anvil 89
89. Portable Compressed CO2 Regulator PC093 ▪ Uses refillable liquid CO2 cylinders.It provides all the power of a traditional air compressor but fits into the palm of your hand. ▪ The pneumatic stapler suitable for use with VIM operates in a range between 20-100psi pressure. ▪ The regulator,hose and liquid CO2 cylinder,hooks onto your belt and fits any standard pneumatic tool.The enormous energy contained in liqiud CO2 gives you full power to operate your pneumatic - air powered - hand tools without the need of a traditional air compressor. ▪ Hooks to your belt and goes where you go ▪ Full power for quick fire, single shot tools such as brad nailers, pin and roofing nailers, finishing, framing, staplers, caulking and grease guns. ▪ Universal connector attaches to any standard pneumatic tools ▪ 20 oz CO2 cylinder shoots 1500 1" ( 25mm ) brad nails or 500 1" ( 25mm ) narrow crown staples. ▪ No more lugging heavy air compressors or tangled air hoses ▪ No more lengthy set-up times - sets up in under 2 minutes ▪ Complete Portable CO2 power system weighs 2.2 kgs. ▪ Environmentally friendly - reusable cylinders, quiet operation ▪ FEATURES Saving time and efforts without sacrificing quality ▪ APPLICATION Upholstery,Automotive Mechanic's Onsite And Offsite Repairs / Works. 90

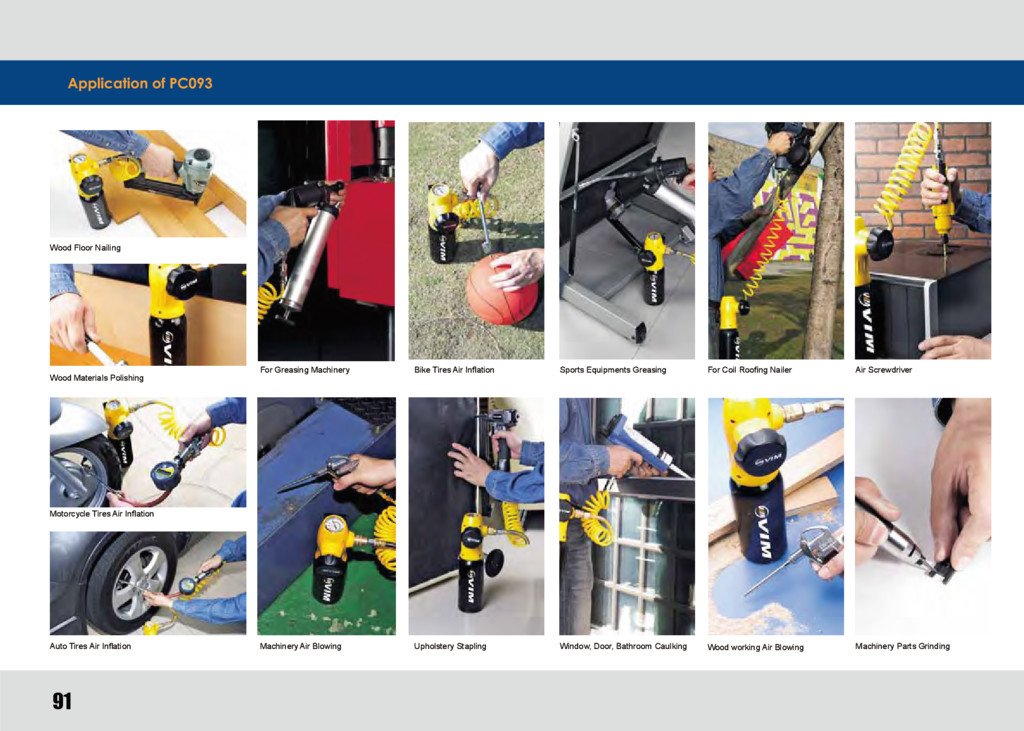

90. Application of PC093 Upholstery Stapling Sports Equipments Greasing Bike Tires Air Inflation For Coil Roofing Nailer Air Screwdriver Window, Door, Bathroom Caulking Wood working Air Blowing Machinery Parts Grinding Auto Tires Air Inflation Wood Floor Nailing Machinery Air Blowing Wood Materials Polishing For Greasing Machinery Motorcycle Tires Air Inflation 91

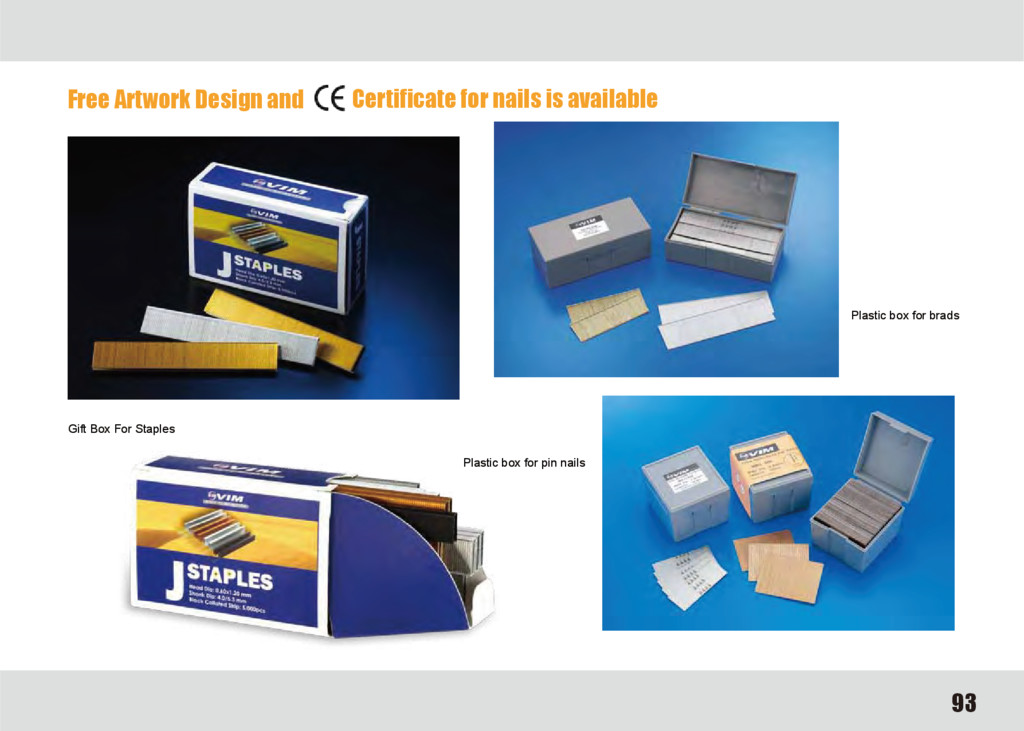

92. Gift Box For Staples Plastic box for brads Plastic box for pin nails Free Artwork Design and Certificate for nails is available 93

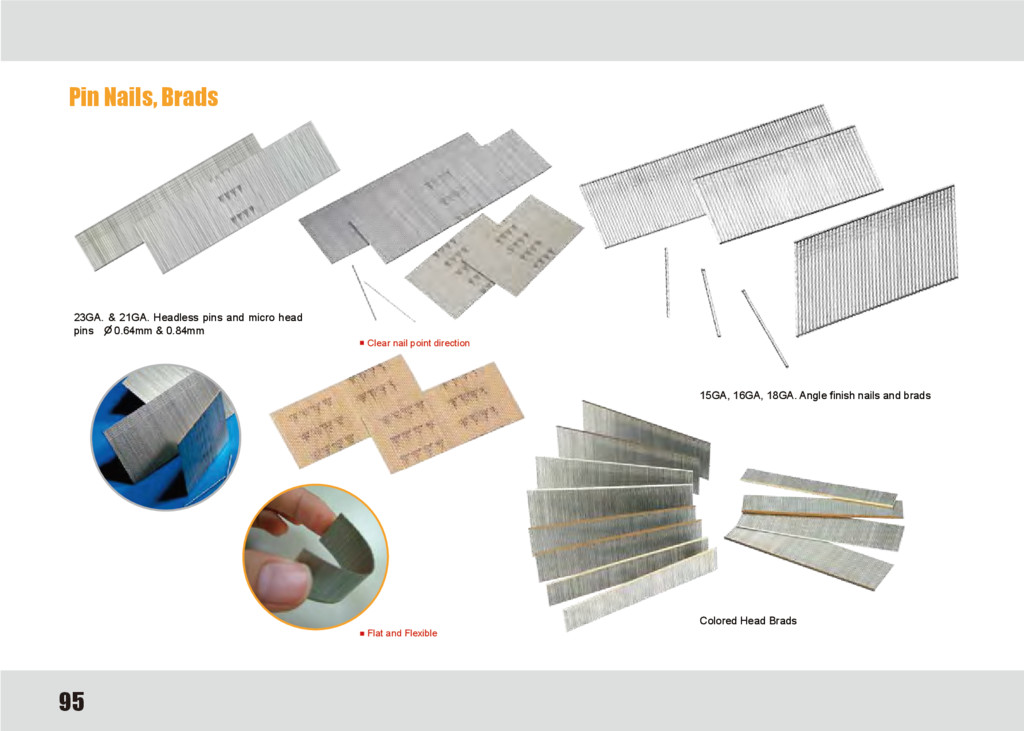

93. 95 Pin Nails, Brads 23GA. & 21GA. Headless pins and micro head pins 0.64mm & 0.84mm Clear nail point direction Flat and Flexible Colored Head Brads 15GA, 16GA, 18GA. Angle finish nails and brads
94. Staples With Different Color Coating 12-23 GA. Fine Wire / Medium Wire / Heavy Duty Staples Fine Wire Staples For Hammer Tacker & Stationery 12 - 23 GA. Staples and Special Staples U Staples Power Crown Staples Divergent Point Staples 96

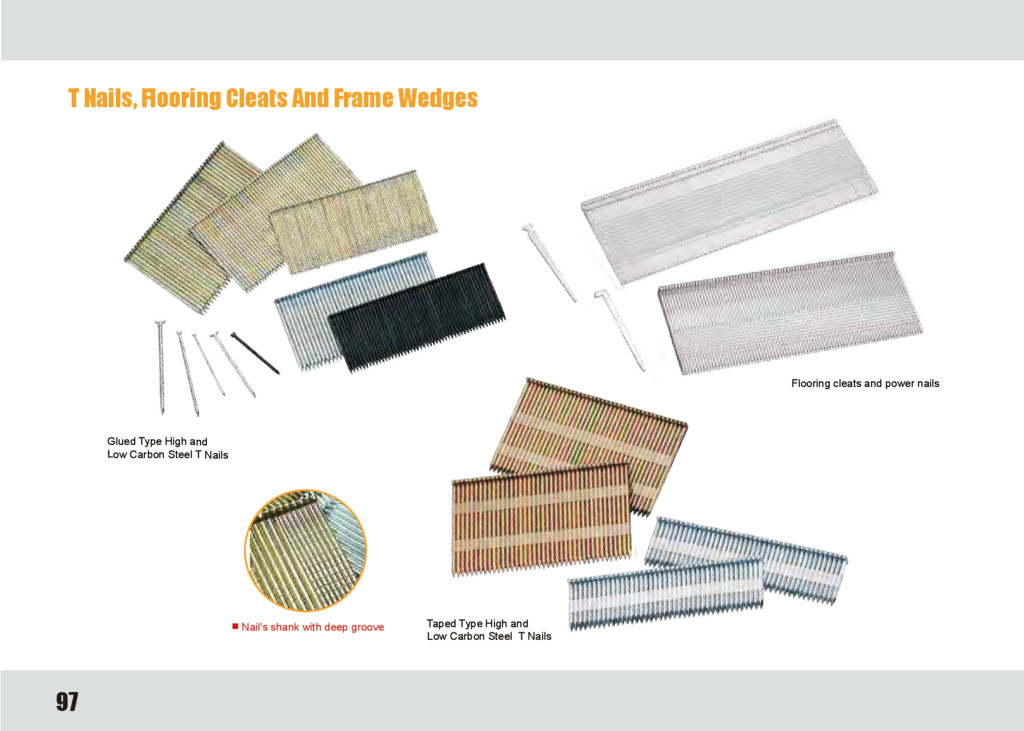

95. 97 T Nails, Flooring Cleats And Frame Wedges Glued Type High and Low Carbon Steel T Nails Nail's shank with deep groove Taped Type High and Low Carbon Steel T Nails Flooring cleats and power nails

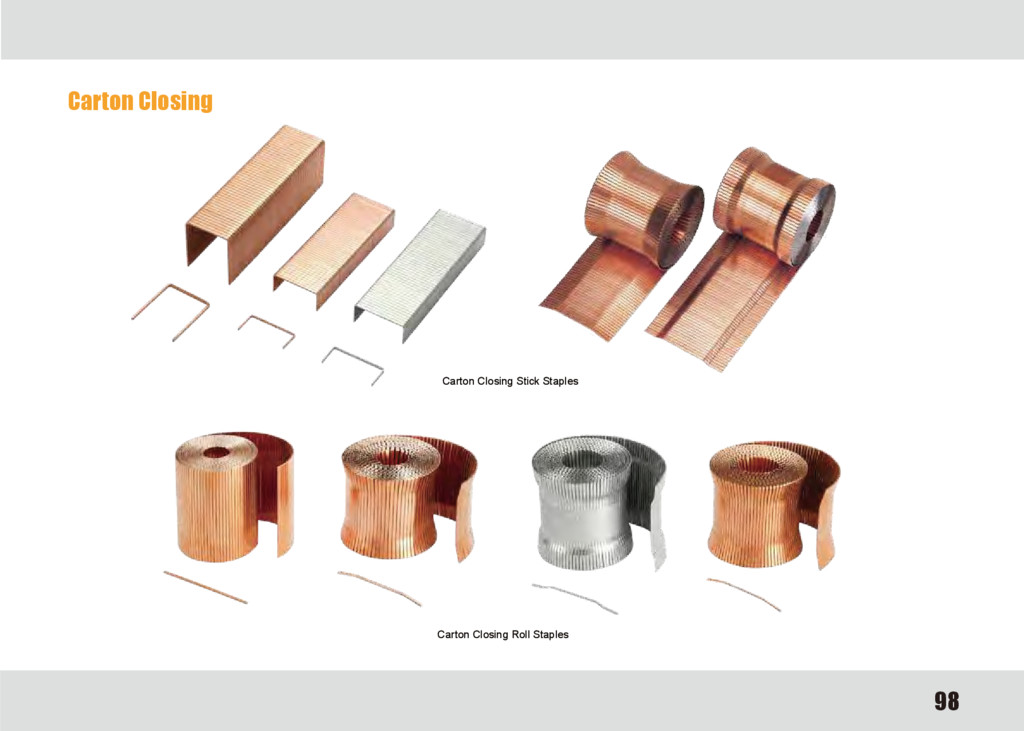

96. Carton Closing Stick Staples Carton Closing Carton Closing Roll Staples 98

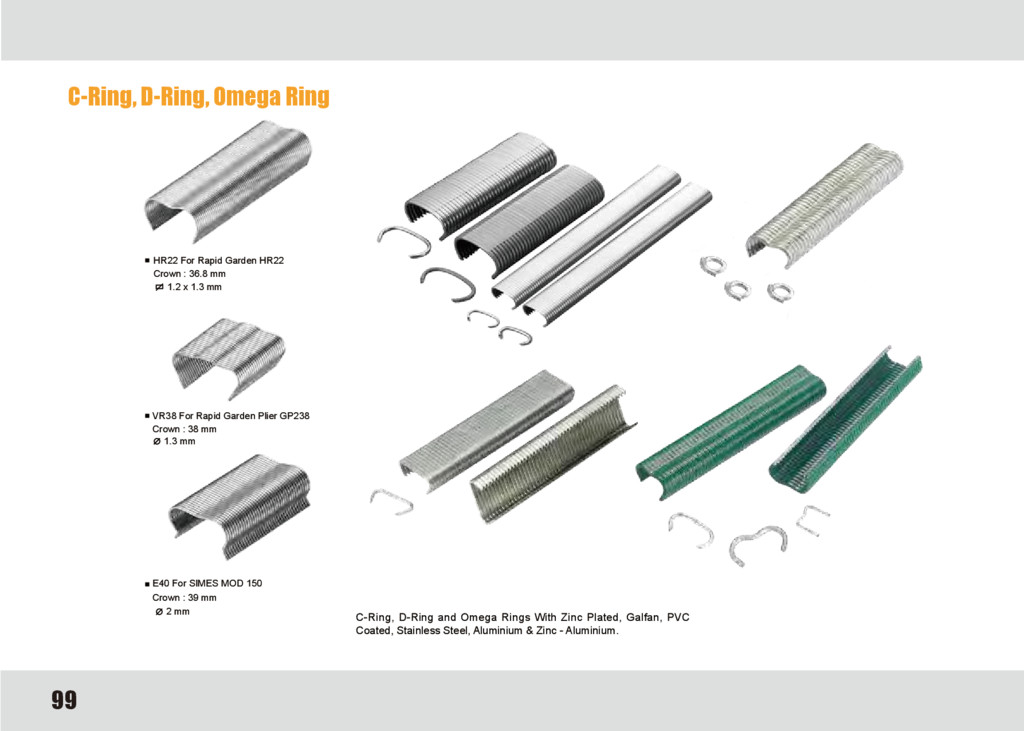

97. C-Ring, D-Ring, Omega Ring C-Ring, D-Ring and Omega Rings With Zinc Plated, Galfan, PVC Coated, Stainless Steel, Aluminium & Zinc - Aluminium. HR22 For Rapid Garden HR22 Crown : 36.8 mm 1.2 x 1.3 mm VR38 For Rapid Garden Plier GP238 Crown : 38 mm 1.3 mm E40 For SIMES MOD 150 Crown : 39 mm 2 mm 99

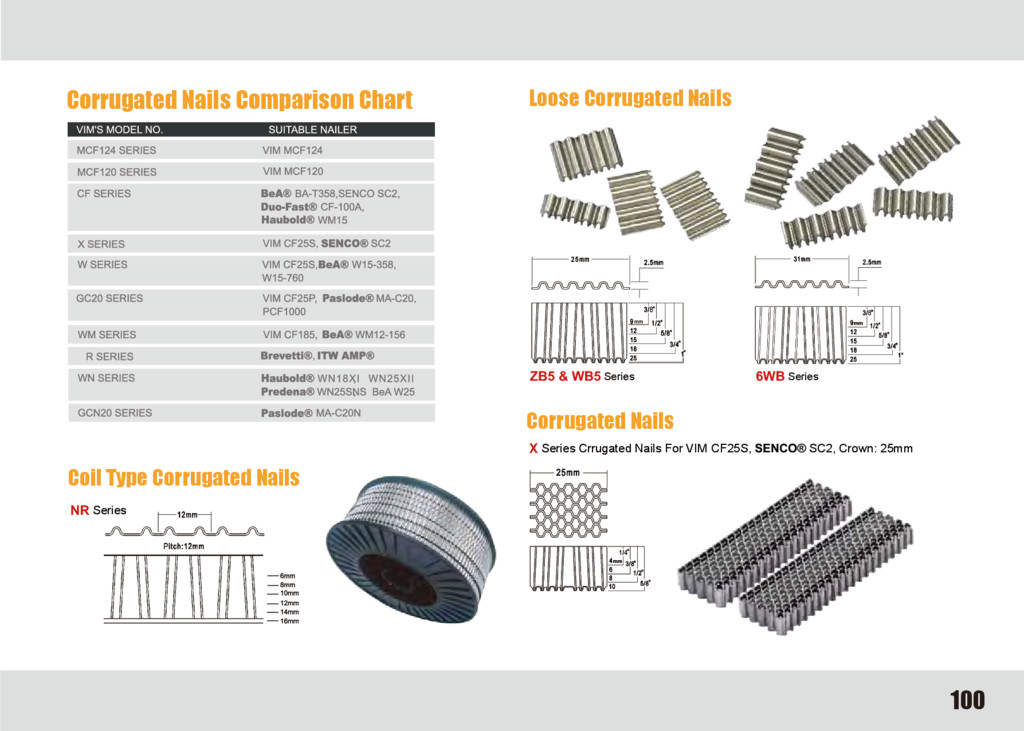

98. Corrugated Nails X Series Crrugated Nails For VIM CF25S, SENCO® SC2, Crown: 25mm Loose Corrugated Nails 6WB Series ZB5 & WB5 Series Corrugated Nails Comparison Chart Coil Type Corrugated Nails NR Series 100

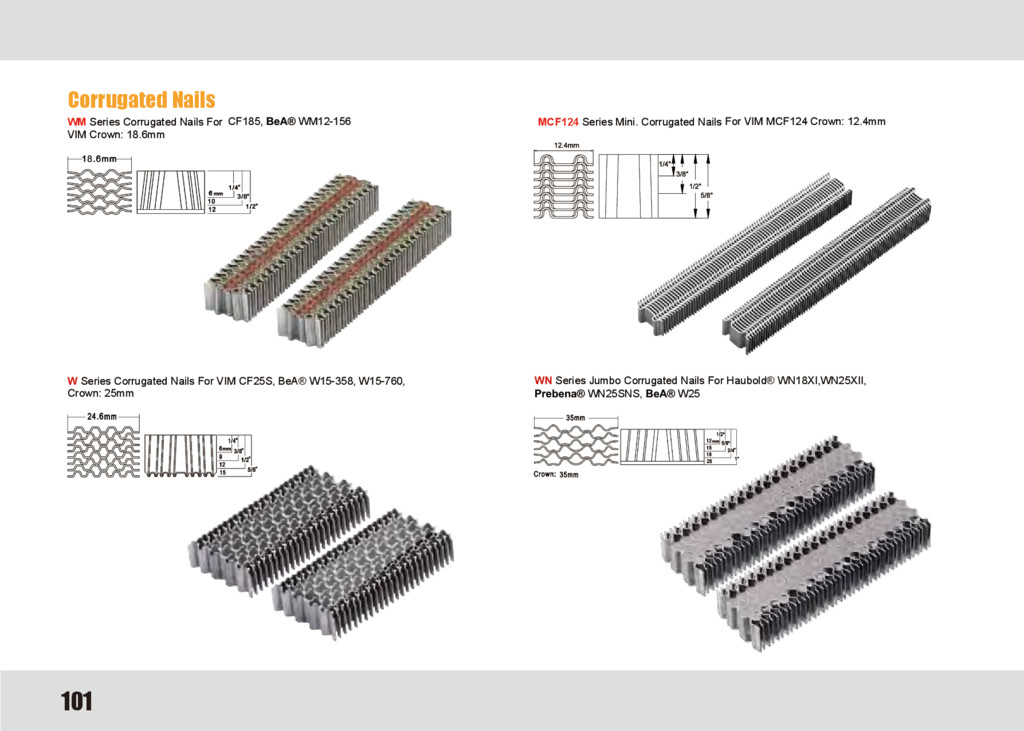

99. Corrugated Nails W Series Corrugated Nails For VIM CF25S, BeA® W15-358, W15-760, Crown: 25mm CF185, BeA® WM12-156 WM Series Corrugated Nails For VIM Crown: 18.6mm MCF124 Series Mini. Corrugated Nails For VIM MCF124 Crown: 12.4mm WN Series Jumbo Corrugated Nails For Haubold® WN18XI,WN25XII, Prebena® WN25SNS, BeA® W25 101
100. CF25P Paslode® MA-C20, PCF1000, GC20 Series Corrugated Nails For VIM Crown: 26.4 mm CF Series Corrugated Nails For BeA® BA-T358 SENCO SC2 Duo-Fast CF100A, Haubold® WM15 Crown: 25mm MCF120 Series Micro Corrugated Fasteners. For VIM MCF120 Nailer Crown: 12.0mm GCN20 Series Corrugated Nails For Paslode® MA-C20N Crown: 1/2" Corrugated Nails 102

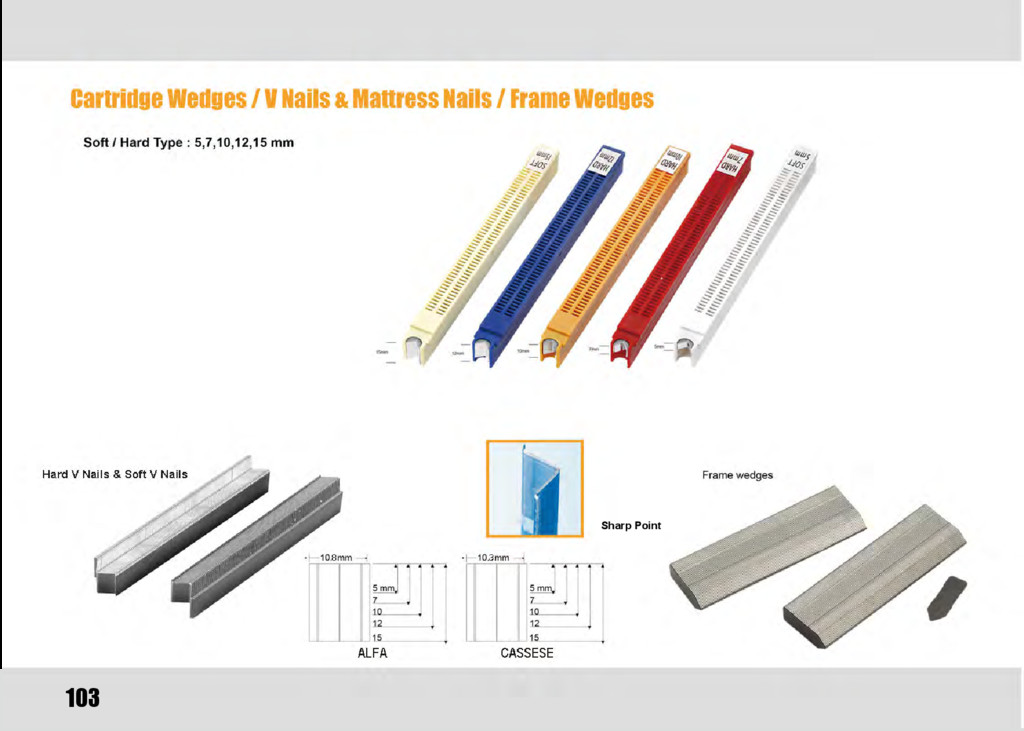

101. Sharp Point 103

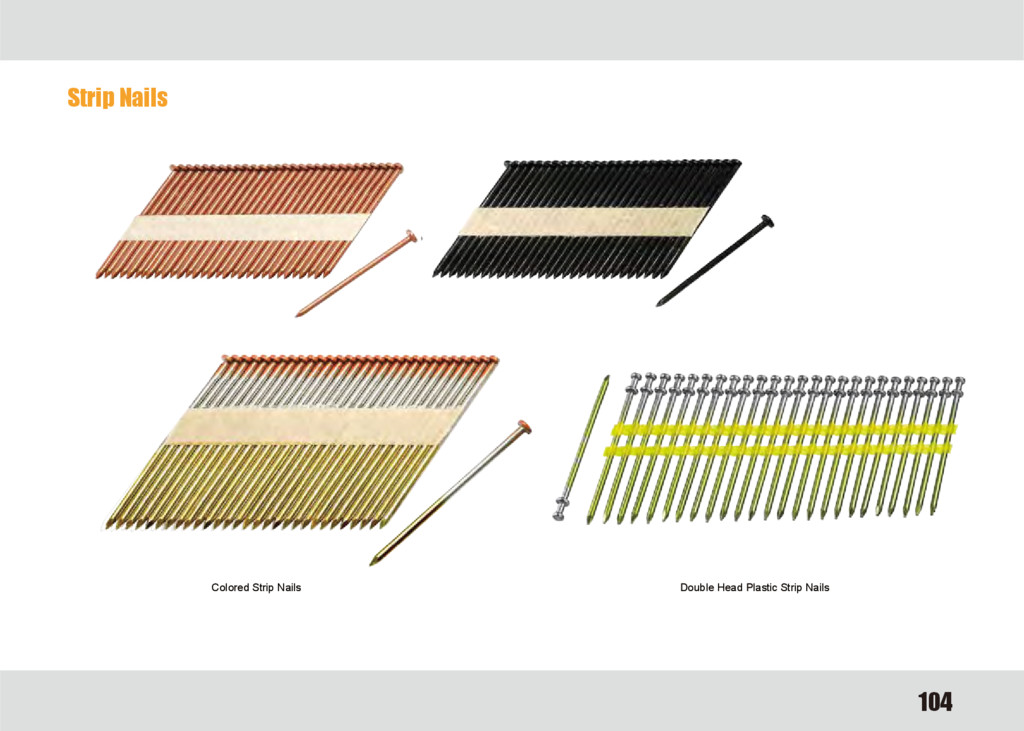

102. Strip Nails Colored Strip Nails Double Head Plastic Strip Nails 104

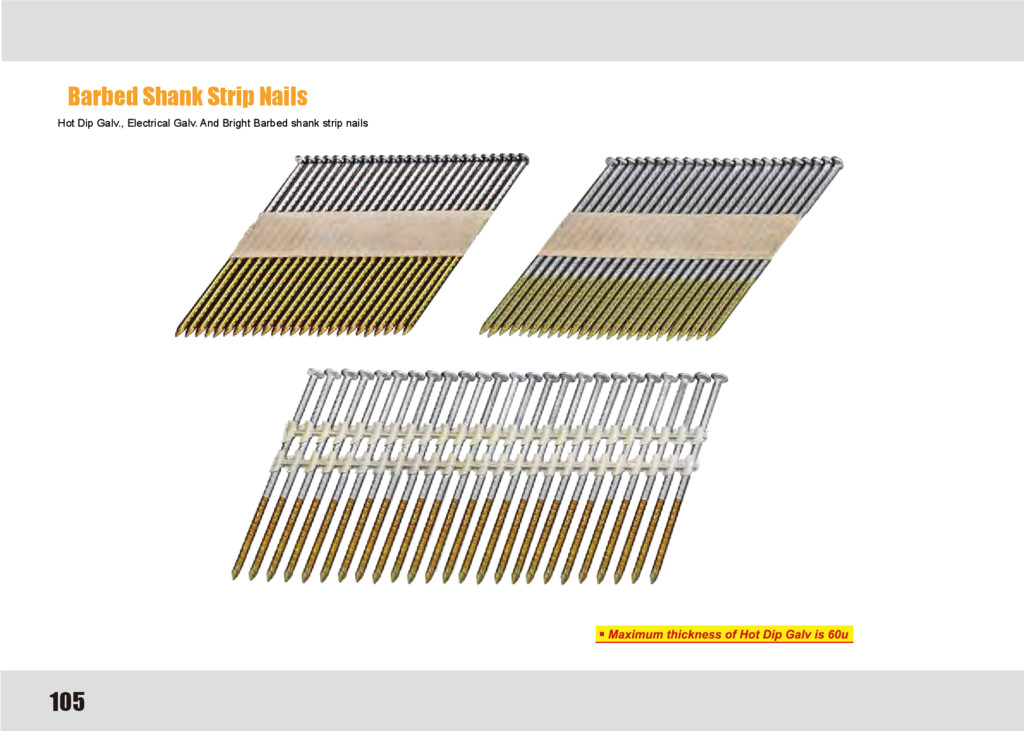

103. Hot Dip Galv., Electrical Galv. And Bright Barbed shank strip nails Barbed Shank Strip Nails 105

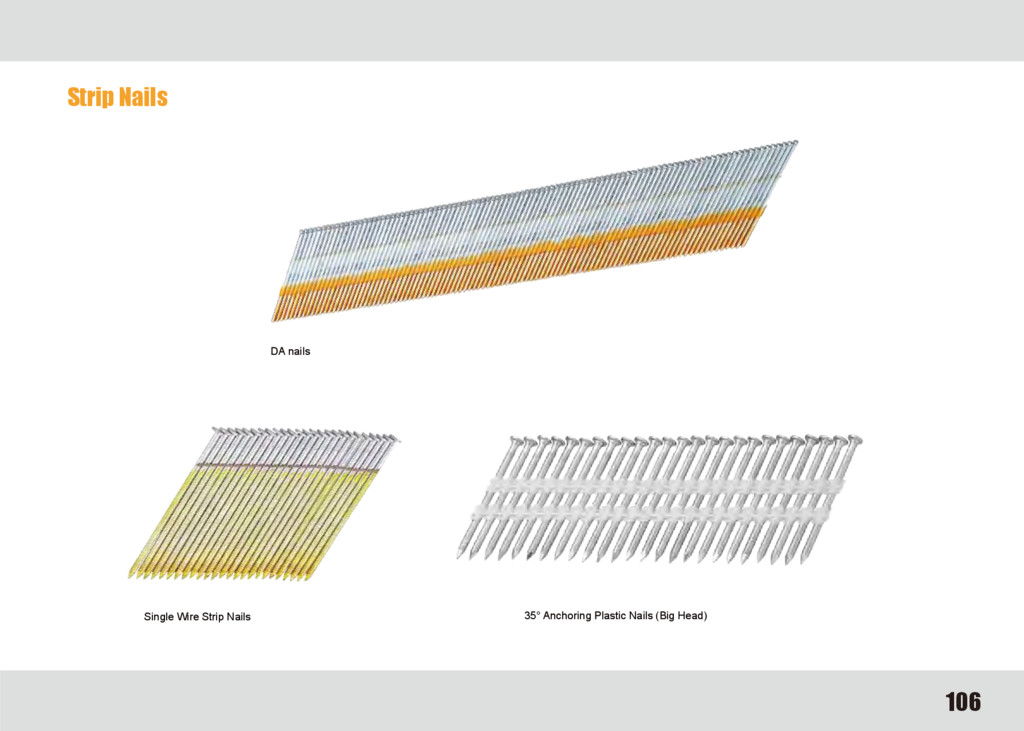

104. 106 Strip Nails DA nails 35° Anchoring Plastic Nails (Big Head) Single Wire Strip Nails

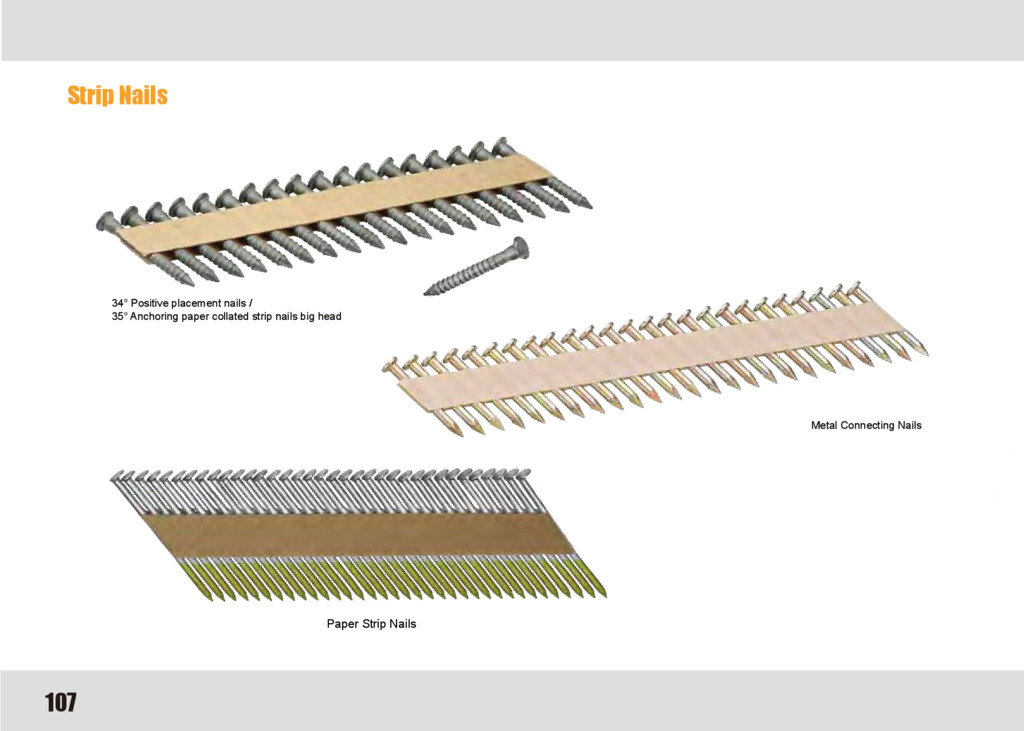

105. 34° Positive placement nails / 35° Anchoring paper collated strip nails big head Metal Connecting Nails Paper Strip Nails Strip Nails 107

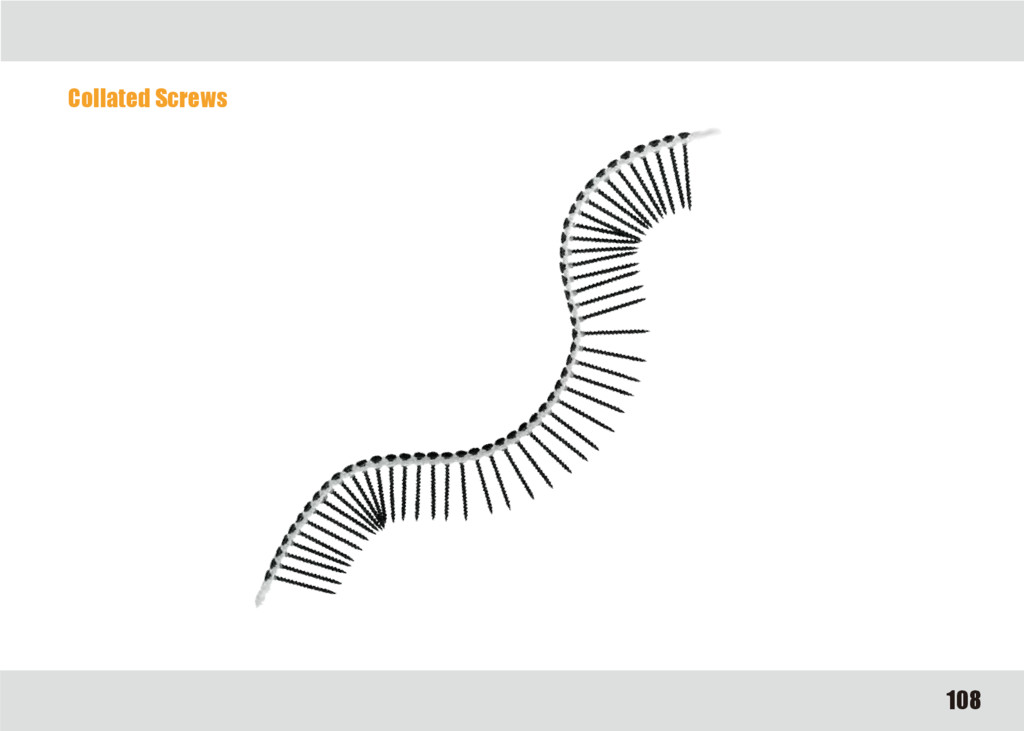

106. 108 Collated Screws

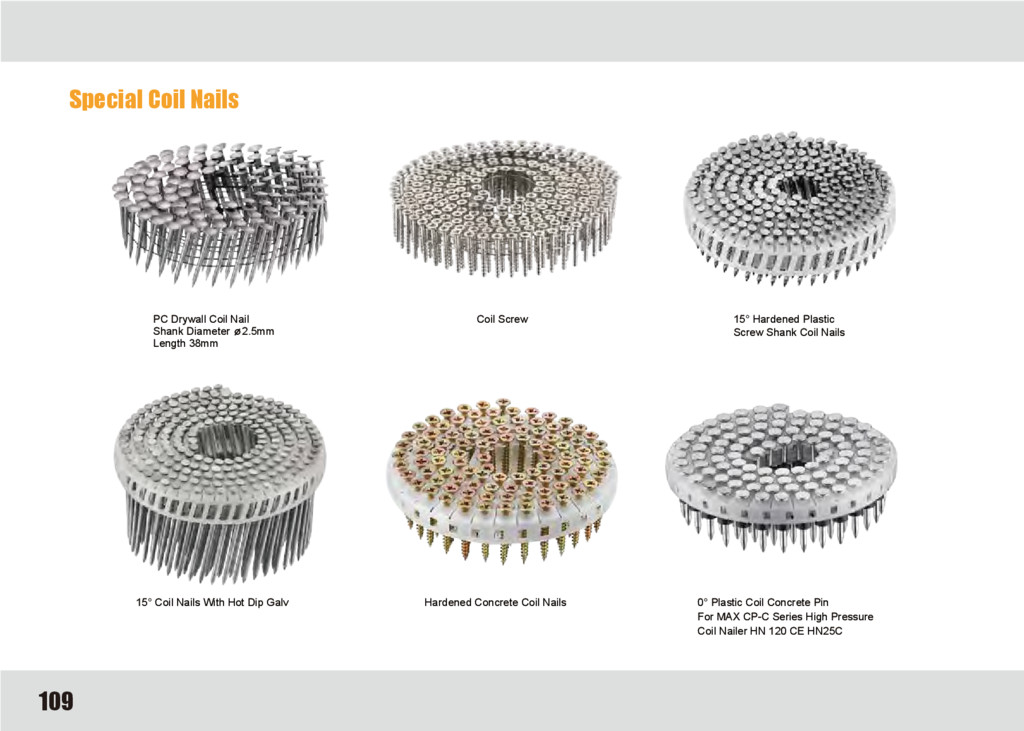

107. Special Coil Nails PC Drywall Coil Nail Shank Diameter 2.5mm Length 38mm Coil Screw 15° Hardened Plastic Screw Shank Coil Nails Hardened Concrete Coil Nails 0° Plastic Coil Concrete Pin For MAX CP-C Series High Pressure Coil Nailer HN 120 CE HN25C 15° Coil Nails With Hot Dip Galv 109

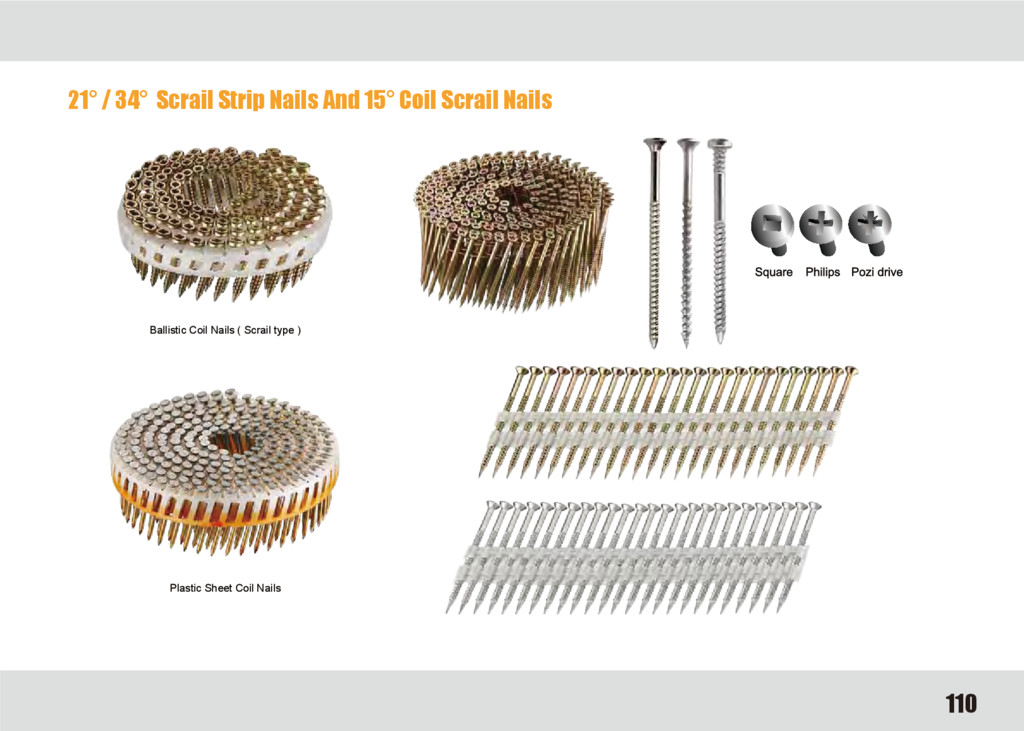

108. 21° / 34° Scrail Strip Nails And 15° Coil Scrail Nails Ballistic Coil Nails ( Scrail type ) Plastic Sheet Coil Nails 110

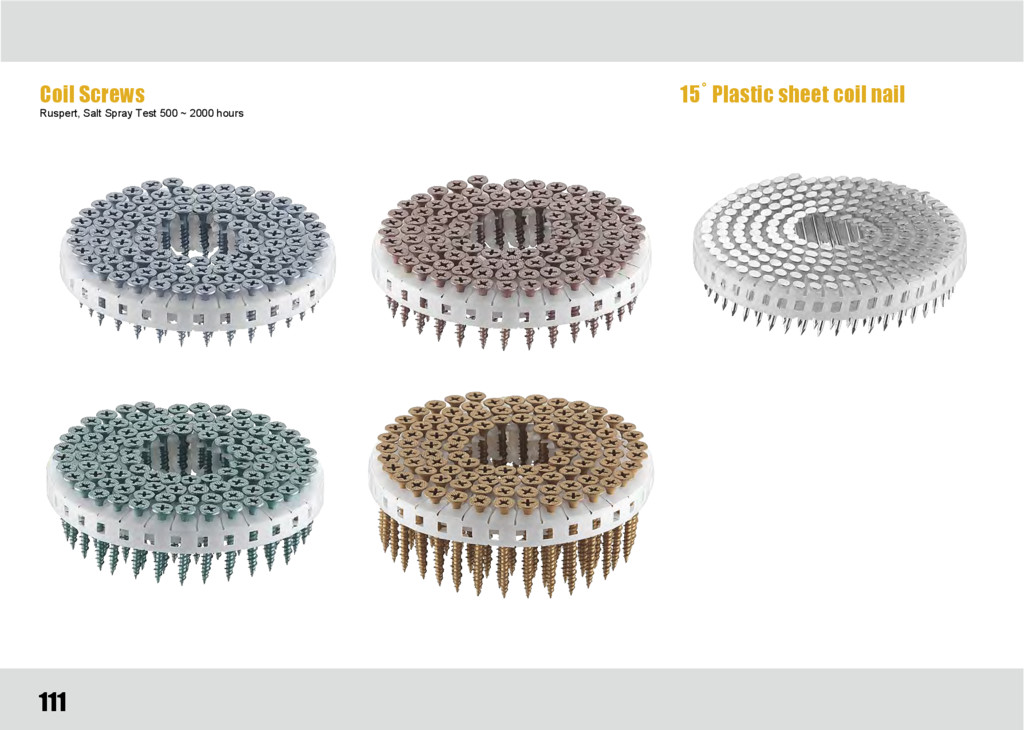

109. 111 Coil Screws 15˚ Plastic sheet coil nail Ruspert, Salt Spray Test 500 ~ 2000 hours
110. 112 21° , 34° Plastic Strip Hardened Steel Nails With Heat Treated
111. 3000PCS/@Coil Jumbo Coil Nails Plastic Sheet Coil Nails Plastic Sheet Concrete Coil Nails 2.6~3.8mm Length from 19~65mm For MAX Power Lite HN120A, MAX HN25C, HITACHI NC65AC Special Coil Nails 113

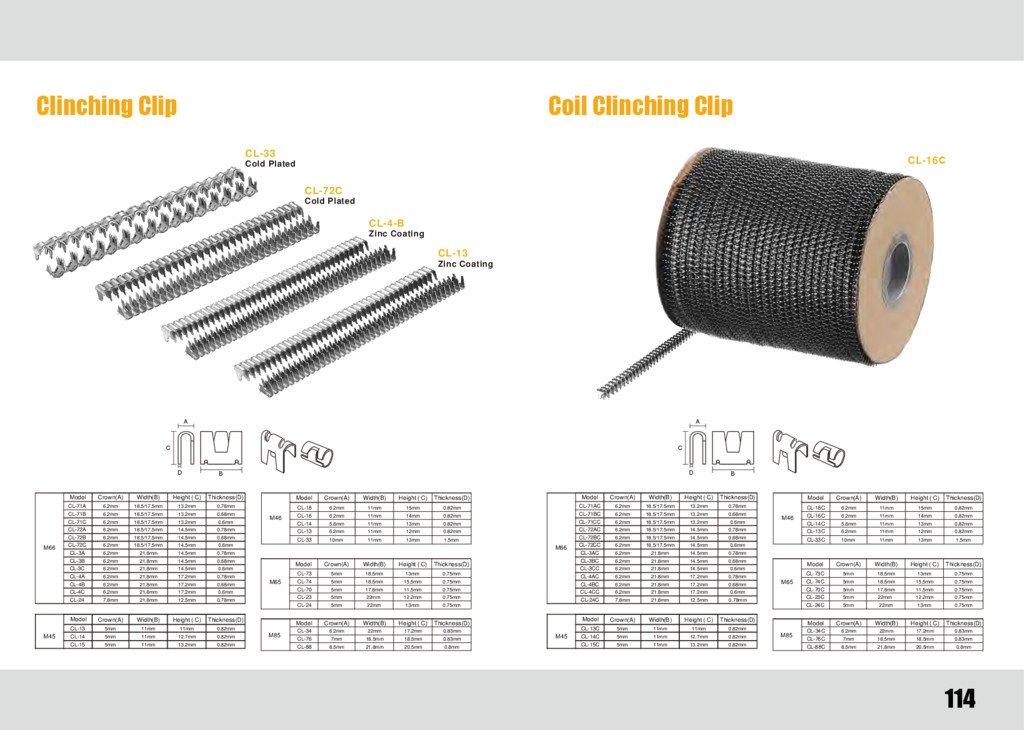

112. Clinching Clip CL-4-B Zinc Coating CL-72C Cold Plated CL-33 Cold Plated CL-13 Zinc Coating Crown(A) Model Width(B) Height ( C) Thickness(D) M66 CL-71A 6.2mm 18.5/17.5mm 13.2mm 0.78mm CL-71B 6.2mm 18.5/17.5mm 13.2mm 0.68mm CL-71C 6.2mm 18.5/17.5mm 13.2mm 0.6mm CL-72A 6.2mm 18.5/17.5mm 14.5mm 0.78mm CL-72B 6.2mm 18.5/17.5mm 14.5mm 0.68mm CL-72C 6.2mm 18.5/17.5mm 14.5mm 0.6mm CL-3A 6.2mm 21.8mm 14.5mm 0.78mm CL-3B 6.2mm 21.8mm 14.5mm 0.68mm CL-3C 6.2mm 21.8mm 14.5mm 0.6mm CL-4A 6.2mm 21.8mm 17.2mm 0.78mm CL-4B 6.2mm 21.8mm 17.2mm 0.68mm CL-4C 6.2mm 21.8mm 17.2mm 0.6mm CL-24 7.8mm 21.8mm 12.5mm 0.78mm Crown(A) Width(B) Height ( C) Thickness(D) M45 CL-13 5mm 11mm 11mm 0.82mm CL-14 5mm 11mm 12.7mm 0.82mm CL-15 5mm 11mm 13.2mm 0.82mm Model Crown(A) Model Width(B) Height ( C) Thickness(D) M46 CL-18 6.2mm 11mm 15mm 0.82mm CL-16 6.2mm 11mm 14mm 0.82mm CL-14 5.6mm 11mm 13mm 0.82mm CL-13 6.2mm 11mm 12mm 0.82mm CL-33 10mm 11mm 13mm 1.5mm Crown(A) Model Width(B) Height ( C) Thickness(D) M65 CL-73 5mm 18.5mm 13mm 0.75mm CL-74 5mm 18.5mm 15.5mm 0.75mm CL-70 5mm 17.8mm 11.5mm 0.75mm CL-23 5mm 22mm 12.2mm 0.75mm CL-24 5mm 22mm 13mm 0.75mm Crown(A) Width(B) Height ( C) Thickness(D) M85 CL-34 6.2mm 22mm 17.2mm 0.83mm CL-76 7mm 18.5mm 18.5mm 0.83mm CL-88 8.5mm 21.8mm 20.5mm 0.8mm Model A C D B Coil Clinching Clip Crown(A) Model Width(B) Height ( C) Thickness(D) M66 CL-71AC 6.2mm 18.5/17.5mm 13.2mm 0.78mm CL-71BC 6.2mm 18.5/17.5mm 13.2mm 0.68mm CL-71CC 6.2mm 18.5/17.5mm 13.2mm 0.6mm CL-72AC 6.2mm 18.5/17.5mm 14.5mm 0.78mm CL-72BC 6.2mm 18.5/17.5mm 14.5mm 0.68mm CL-72CC 6.2mm 18.5/17.5mm 14.5mm 0.6mm CL-3AC 6.2mm 21.8mm 14.5mm 0.78mm CL-3BC 6.2mm 21.8mm 14.5mm 0.68mm CL-3CC 6.2mm 21.8mm 14.5mm 0.6mm CL-4AC 6.2mm 21.8mm 17.2mm 0.78mm CL-4BC 6.2mm 21.8mm 17.2mm 0.68mm CL-4CC 6.2mm 21.8mm 17.2mm 0.6mm CL-24C 7.8mm 21.8mm 12.5mm 0.78mm Crown(A) Width(B) Height ( C) Thickness(D) M45 CL-13C 5mm 11mm 11mm 0.82mm CL-14C 5mm 11mm 12.7mm 0.82mm CL-15C 5mm 11mm 13.2mm 0.82mm Model Crown(A) Model Width(B) Height ( C) Thickness(D) M46 CL-18C 6.2mm 11mm 15mm 0.82mm CL-16C 6.2mm 11mm 14mm 0.82mm CL-14C 5.6mm 11mm 13mm 0.82mm CL-13C 6.2mm 11mm 12mm 0.82mm CL-33C 10mm 11mm 13mm 1.5mm Crown(A) Model Width(B) Height ( C) Thickness(D) M65 CL-73C 5mm 18.5mm 13mm 0.75mm CL-74C 5mm 18.5mm 15.5mm 0.75mm CL-70C 5mm 17.8mm 11.5mm 0.75mm CL-23C 5mm 22mm 12.2mm 0.75mm CL-24C 5mm 22mm 13mm 0.75mm Crown(A) Width(B) Height ( C) Thickness(D) M85 CL-34C 6.2mm 22mm 17.2mm 0.83mm CL-76C 7mm 18.5mm 18.5mm 0.83mm CL-88C 8.5mm 21.8mm 20.5mm 0.8mm Model A C D B CL-16C 114

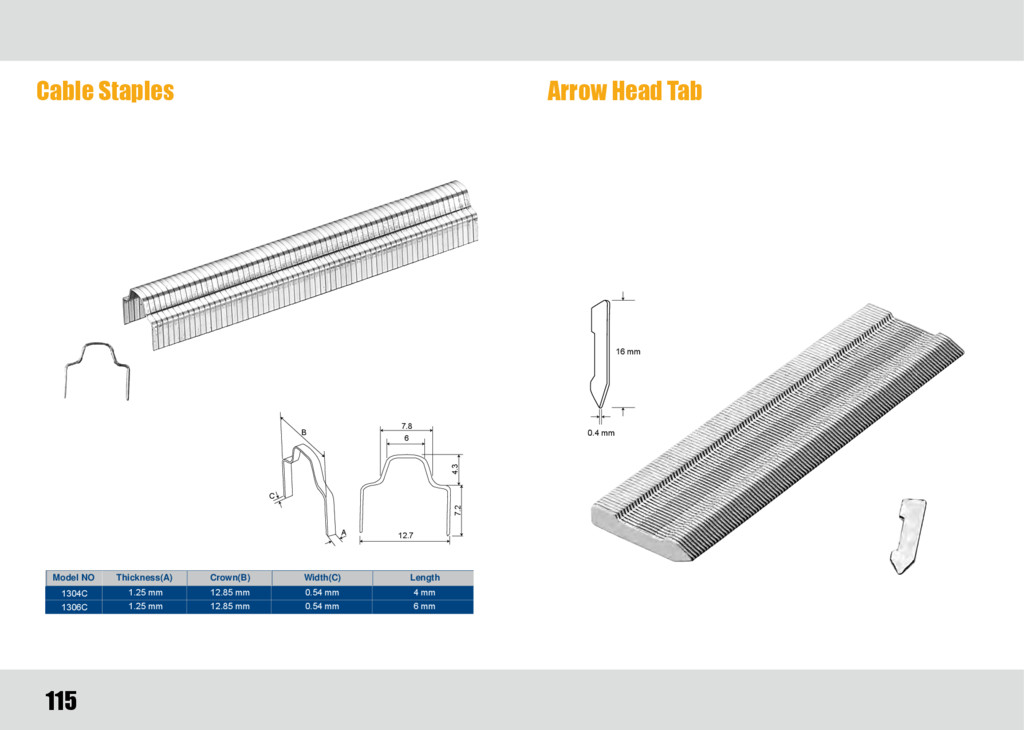

113. Cable Staples C B A 12.7 7.2 4.3 6 7.8 Thickness(A) 1.25 mm Model NO 0.54 mm Width(C) 4 mm Length 12.85 mm 1304C 1.25 mm 0.54 mm 6 mm 12.85 mm 1306C Crown(B) Arrow Head Tab 0.4 mm 16 mm 115

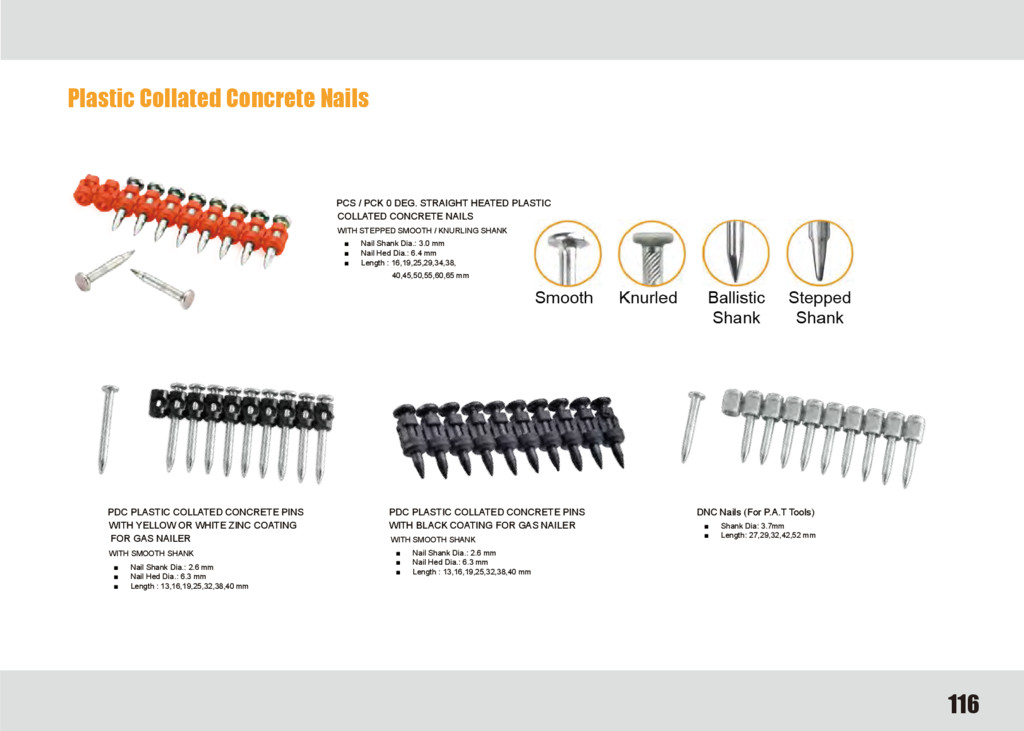

114. Plastic Collated Concrete Nails PCS / PCK 0 DEG. STRAIGHT HEATED PLASTIC COLLATED CONCRETE NAILS ▪ Nail Shank Dia.: 3.0 mm ▪ Nail Hed Dia.: 6.4 mm ▪ Length : 16,19,25,29,34,38, 40,45,50,55,60,65 mm WITH STEPPED SMOOTH / KNURLING SHANK DNC Nails (For P.A.T Tools) ▪ Shank Dia: 3.7mm ▪ PDC PLASTIC COLLATED CONCRETE PINS Length: 27,29,32,42,52 mm WITH BLACK COATING FOR GAS NAILER ▪ Nail Shank Dia.: 2.6 mm ▪ Nail Hed Dia.: 6.3 mm ▪ Length : 13,16,19,25,32,38,40 mm WITH SMOOTH SHANK PDC PLASTIC COLLATED CONCRETE PINS WITH YELLOW OR WHITE ZINC COATING FOR GAS NAILER ▪ Nail Shank Dia.: 2.6 mm ▪ Nail Hed Dia.: 6.3 mm ▪ Length : 13,16,19,25,32,38,40 mm WITH SMOOTH SHANK 116

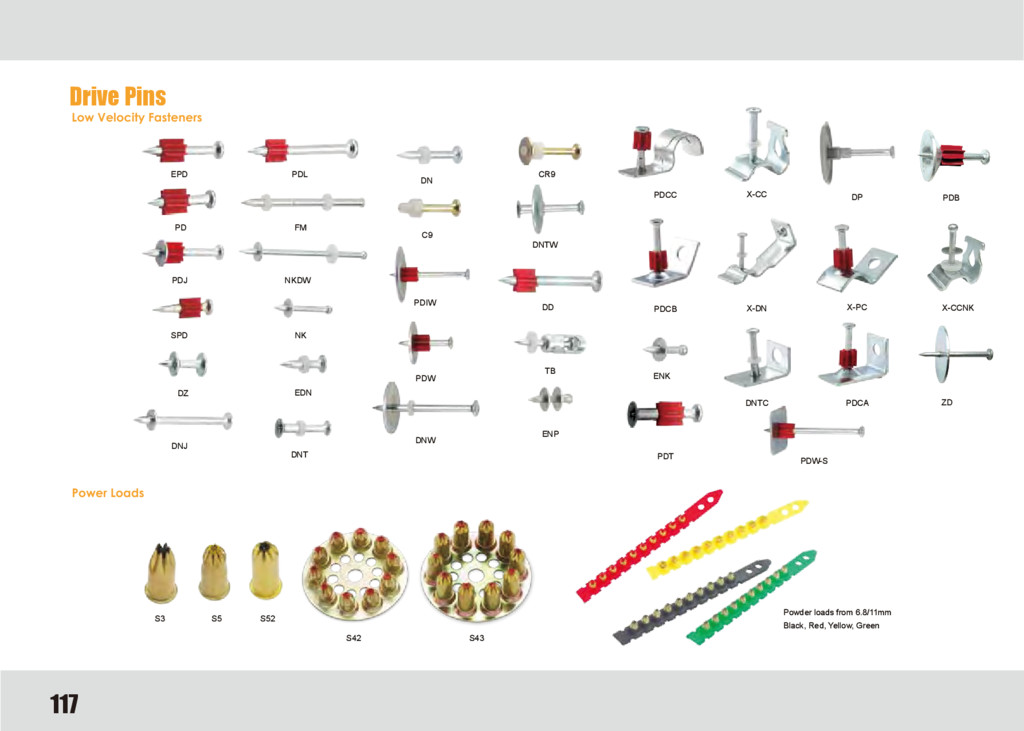

115. Drive Pins Low Velocity Fasteners DNTW PDIW CR9 EPD PD PDJ PDL FM NK NKDW SPD DZ PDCC DNJ EDN DN PDW DNW DNTC PDCA PDW-S X-CC PDCB X-PC X-DN DP DNT ENP C9 DD TB ENK PDT Power Loads S43 S42 S52 S5 S3 Powder loads from 6.8/11mm Black, Red, Yellow, Green 117 ZD X-CCNK PDB

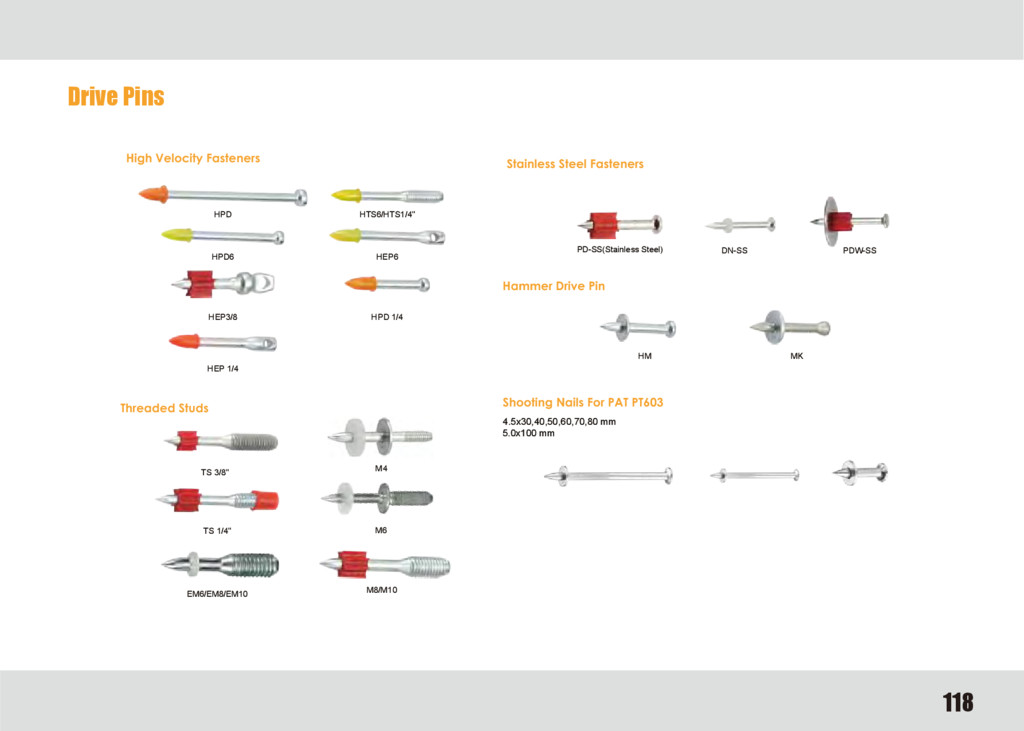

116. Drive Pins HPD HPD6 HEP6 HEP3/8 HEP 1/4 HPD 1/4 HTS6/HTS1/4" High Velocity Fasteners Stainless Steel Fasteners PDW-SS PD-SS(Stainless Steel) DN-SS HM MK Hammer Drive Pin 4.5x30,40,50,60,70,80 mm 5.0x100 mm Shooting Nails For PAT PT603 TS 3/8" EM6/EM8/EM10 M4 TS 1/4" Threaded Studs 118 M8/M10 M6
