FormFlow - Build Stunning Multistep Forms

FormFlow is a powerful Symfony Form feature designed to help developers build elegant, dynamic, and user-friendly multistep forms with minimal effort. Whether you’re collecting detailed onboarding data, processing multi-page checkout workflows, or guiding users through a complex registration journey, FormFlow gives you the structure and flexibility you need—without sacrificing maintainability or user experience.

Transcript

1. @yceruto
2. Yonel Ceruto González Software Engineer Symfony Core Member @yceruto
3. @yceruto The Long Form Problem Survey SUBMIT • Overwhelming • Loss of Focus • Confusing
4. @yceruto Multistep Form? Step 1 of 3 • Easier to Use • Improves Focus • Better UX • Reduces Errors NEXT Step 2 of 3 BACK NEXT Step 3 of 3 BACK FINISH
5. @yceruto Case Studies • Booking • Shopping • Onboarding • … 1 2 3 Flight Selection Passenger Information Payment & Confirmation BOOK
6. @yceruto Building Blocks • Data Step 1 Step 2 Step 3 • propertyA • propertyB • … • propertyF Data • propertyG • propertyH • … • propertyK • propertyV • propertyX • … • propertyZ Form 1 2 3
7. @yceruto namespace App\Form\Data; use Symfony\Component\Validator\Constraints as Assert; class CheckIn { public function __construct( public Passenger $passenger = new Passenger(), public Security $security = new Security(), public Boarding $boarding = new Boarding(), ) { } } Building Blocks • Data 1 2 3
8. @yceruto Building Blocks • Forms & Types Data Step1Type Step2Type Step3Type FormFlow FormFlowType ✨ ✨ NEXT FlowButtonType FlowNavigatorType ✨ ✨
9. @yceruto SESSION IN-MEMORY Building Blocks Step 1 Step 2 Step 3 • propertyA • propertyB • … • propertyF Data • propertyG • propertyH • … • propertyK • propertyV • propertyX • … • propertyZ DATA STORAGE FormFlow 1 2 3 • Data Storage - load() - save() - clear() ✨
10. @yceruto Building Blocks Step 1 Step 2 Step 3 Data STEP ACCESSOR currentStep = step_2 • Step Accessor - read() - write() PROPERTY PATH ✨ Step 1 Step 2 Step 3 FormFlow
11. @yceruto Step 1 Step 2 Step 3 Building Blocks • Cursor & Variables Step 1 of 3 Step 2 of 3 Step 3 of 3 NEXT BACK NEXT BACK FINISH
12. @yceruto FormFlow (Pull Request) • PoC • For Symfony 7.4
13. @yceruto namespace App\Form\Data; use Symfony\Component\Validator\Constraints as Assert; class CheckIn { public function __construct( #[Assert\Valid(groups: ['passenger'])] public Passenger $passenger = new Passenger(), #[Assert\Valid(groups: ['security'])] public Security $security = new Security(), #[Assert\Valid(groups: ['boarding'])] public Boarding $boarding = new Boarding(), public string $currentStep = 'passenger', ) { } } ←Data • Form Types • Controller • Template • UI How to build one?
14. @yceruto namespace App\Form\Type\Step; // ... class PassengerType extends AbstractType { public function buildForm(FormBuilderInterface $builder, array $options) { $builder ->add('firstName') ->add('lastName') ->add('email', EmailType::class) ->add('passportNumber') ->add('bookingReference') ->add('hasBaggage', CheckboxType::class, [ 'required' => false, ]); } public function configureOptions(OptionsResolver $resolver) { $resolver->setDefaults([ 'label' => 'Passenger', 'help' => 'Enter the passenger details and flight information.', 'data_class' => Passenger::class, ]); How to build one? ✓ Data ←Form Types • Controller • Template • UI
15. @yceruto namespace App\Form\Type; use Symfony\Component\Form\Flow\AbstractFlowType; // ... class CheckInType extends AbstractFlowType { public function buildFormFlow(FormFlowBuilderInterface $builder, array $options) { $builder->addStep('passenger', PassengerType::class); $builder->addStep('security', SecurityType::class); $builder->addStep('boarding', BoardingType::class); } public function configureOptions(OptionsResolver $resolver) { $resolver->setDefaults([ 'data_class' => CheckIn::class, 'step_property_path' => 'currentStep', ]); } How to build one? ✓ Data ←Form Types • Controller • Template • UI
16. @yceruto $builder->addStep( name: 'baggage', type: BaggageType::class, options: ['label' => 'Luggage'], skip: fn (CheckIn $data) => !$data->passenger->hasBaggage, priority: 1, ); Step 1 of 3 NEXT Step 2 of 3 BACK NEXT Step 3 of 3 BACK FINISH $builder->getStep('baggage') ->setSkip(fn (CheckIn $data) => ...) ->setPriority(1); How to build one? ✓ Data ←Form Types • Controller • Template • UI
17. @yceruto namespace App\Form\Type; use Symfony\Component\Form\Flow\AbstractFlowType; use Symfony\Component\Form\Flow\Type\FlowNavigatorType; // ... class CheckInType extends AbstractFlowType { public function buildFormFlow(FormFlowBuilderInterface $builder, array $options) { $builder->addStep('passenger', PassengerType::class); $builder->addStep('security', SecurityType::class); $builder->addStep('boarding', BoardingType::class); $builder->add('navigator', FlowNavigatorType::class); } public function configureOptions(OptionsResolver $resolver) { $resolver->setDefaults([ 'data_class' => CheckIn::class, 'step_property_path' => 'currentStep', ]); } How to build one? ✓ Data ←Form Types • Controller • Template • UI
18. @yceruto namespace Symfony\Component\Form\Flow\Type; use Symfony\Component\Form\AbstractType; use Symfony\Component\Form\Flow\Type\FlowFinishType; use Symfony\Component\Form\Flow\Type\FlowPreviousType; use Symfony\Component\Form\Flow\Type\FlowNextType; use Symfony\Component\Form\FormBuilderInterface; use Symfony\Component\OptionsResolver\OptionsResolver; class FlowNavigatorType extends AbstractType { public function buildForm(FormBuilderInterface $builder, array $options) { $builder->add(‘back', FlowPreviousType::class); $builder->add('next', FlowNextType::class); $builder->add('finish', FlowFinishType::class); } } How to build one? ✓ Data ←Form Types • Controller • Template • UI FINISH
19. @yceruto Step 1 Step 2 Step 3 NEXT BACK NEXT BACK FINISH Submit Render - Validate - Button > Handler: MoveNext() - Create FormFlow How to build one? ✓ Data ←Form Types • Controller • Template • UI
20. @yceruto Step 1 Step 2 Step 3 NEXT BACK NEXT BACK FINISH Render - Validate - Button > Handler: MoveNext() - Create FormFlow How to build one? ✓ Data ←Form Types • Controller • Template • UI Submit
21. @yceruto namespace App\Controller; use App\Form\Data\CheckIn; use App\Form\Type\CheckInType; // ... class CheckInController extends AbstractController { #[Route('/', name: 'app_check_in')] public function __invoke(Request $request): Response { $flow = $this->createForm(CheckInType::class, new CheckIn()) ->handleRequest($request); if ($flow->isSubmitted() && $flow->isValid() && $flow->isFinished()) { // Persist check-in: $flow->getData() return $this->redirectToRoute('app_check_in'); } return $this->render('check_in/flow.html.twig', [ 'form' => $flow->getStepForm(), ]); } } How to build one? ✓ Data ✓ Form Types ←Controller • Template • UI
22. @yceruto {% extends 'base.html.twig' %} {% block body %} <div class="container"> <div class="row"> <div class="col-8"> <div> {{ form(form) }} </div> </div> </div> </div> {% endblock %} How to build one? ✓ Data ✓ Form Types ✓ Controller ←Template • UI
23. @yceruto How to build one? ✓ Data ✓ Form Types ✓ Controller ✓ Template ←UI (raw)
24. @yceruto How to build one? ✓ Data ✓ Form Types ✓ Controller ✓ Template ←UI (custom) {% for step in form.vars.steps %} {% endfor %}
25. @yceruto
26. @yceruto Customization ←Type Extension • Data Storage • Step Accessor • Button namespace App\Form\Type\Extension; // ... class CheckInTypeExtension extends AbstractTypeExtension { /** * @param FormFlowBuilderInterface $builder */ public function buildForm(FormBuilderInterface $builder, array $options) { $builder->addStep('first', NewFirstStepType::class, priority: 1); if ($builder->hasStep('baggage')) { $builder->removeStep('baggage'); } $builder->addStep('last', NewLastStepType::class); } public static function getExtendedTypes(): iterable { yield CheckInType::class; } }
27. @yceruto Customization ✓ Type Extension ←Data Storage • Step Accessor • Button namespace Symfony\Component\Form\Flow\DataStorage; interface DataStorageInterface { public function save(object|array $data): void; public function load(object|array|null $default = null): object|array|null; public function clear(): void; } namespace App\Form\Type; class CheckInType extends AbstractFlowType { // ... public function configureOptions(OptionsResolver $resolver) { $resolver->setDefaults([ 'data_class' => CheckIn::class, 'data_storage' => new DoctrineEntityStorage(), ]); } }
28. @yceruto Customization ✓ Type Extension ✓ Data Storage ←Step Accessor • Button namespace Symfony\Component\Form\Flow\DataStorage; interface StepAccessorInterface { public function getStep(object|array $data, ?string $default = null): ?string; public function setStep(object|array &$data, string $step): void; } namespace App\Form\Type; class CheckInType extends AbstractFlowType { // ... public function configureOptions(OptionsResolver $resolver) { $resolver->setDefaults([ 'data_class' => CheckIn::class, 'step_accessor' => new ReflectionStepAccessor('currentStep'), ]); } }
29. @yceruto Customization ✓ Type Extension ✓ Data Storage ✓ Step Accessor ←Button FlowButtonType
30. @yceruto Customization $builder->add('previous', FlowPreviousType::class); $builder->add('next', FlowNextType::class); $builder->add('finish', FlowFinishType::class); PREVIOUS NEXT FINISH ✓ Type Extension ✓ Data Storage ✓ Step Accessor ←Button FlowButtonType
31. @yceruto Customization RESET $builder->add('reset', FlowResetType::class); BACK NEXT FINISH ✓ Type Extension ✓ Data Storage ✓ Step Accessor ←Button FlowButtonType
32. @yceruto BUTTON Type Handler Include If Clear Submission Reset Prev Next Finish reset() movePrev() moveNext() finished, reset() null canMoveBack() canMoveNext() isLastStep() true true false false Validate & Validation_groups false false true true Customization • handler • include_if • clear_submission • validate • validation_groups ←Button FlowButtonType
33. @yceruto $builder->add('skip', FlowNextType::class, [ 'clear_submission' => true, 'validate' => false, 'validation_groups' => false, ]); SKIP • handler • include_if • clear_submission • validate • validation_groups ←Button Customization FlowButtonType
34. @yceruto $builder->add('back_to', FlowPreviousType::class, [ 'validate' => false, 'validation_groups' => false, 'clear_submission' => false, ]); 1 2 3 4 $flow->submit([ 'step_4' => [ 'field' => 'value', ], 'navigator' => [ 'back_to' => 'step_2', ], ]); • handler • include_if • clear_submission • validate • validation_groups ←Button Customization PREVIOUS FlowButtonType
35. @yceruto • Inter-step ←Button Customization
36. @yceruto namespace App\Form\Type\Step; // ... class BaggageType extends AbstractType { public function buildForm(FormBuilderInterface $builder, array $options) { // ... $builder ->add('items', CollectionType::class, [ 'entry_type' => BaggageItemType::class, 'prototype' => false, 'allow_add' => true, 'allow_delete' => true, 'error_bubbling' => false, ]) ->add('add', FlowButtonType::class, [ 'validate' => false, 'validation_groups' => false, 'handler' => function (Baggage $data) { $data->items[] = new BaggageItem(); }, ]); } } • Inter-step ←Button Customization
37. @yceruto namespace App\Form\Type\Step; // ... class BaggageType extends AbstractType { public function buildForm(FormBuilderInterface $builder, array $options) { // ... $builder ->add('items', CollectionType::class, [ 'entry_type' => BaggageItemType::class, 'prototype' => false, 'allow_add' => true, 'allow_delete' => true, 'error_bubbling' => false, ]) ->add('add', FlowButtonType::class, [ 'validate' => false, 'validation_groups' => false, 'handler' => function (Baggage $data) { $data->items[] = new BaggageItem(); }, ]); } } • Inter-step ←Button Customization
38. @yceruto namespace App\Form\Type\Collection; class BaggageItemType extends AbstractType { public function buildForm(FormBuilderInterface $builder, array $options) { $builder ->add('tagNumber', null, [ 'attr' => ['placeholder' => 'Tag number'], ]) ->add('weight', NumberType::class, [ 'attr' => ['placeholder' => 'Weight (kg)'], ]) ->add('remove', FlowButtonType::class, [ 'label' => false, 'validate' => false, 'validation_groups' => false, 'attr' => ['value' => $builder->getName()], 'handler' => function (BaggageItem $data, ActionButtonInterface $button, FormFlowInterface $flow, ) { unset($flow->getData()->baggage->items[$button->getViewData()]); }, ]); } } • Inter-step ←Button Customization
39. @yceruto • Inter-step ←Button Customization namespace App\Form\Type\Collection; class BaggageItemType extends AbstractType { public function buildForm(FormBuilderInterface $builder, array $options) { $builder ->add('tagNumber', null, [ 'attr' => ['placeholder' => 'Tag number'], ]) ->add('weight', NumberType::class, [ 'attr' => ['placeholder' => 'Weight (kg)'], ]) ->add('remove', FlowButtonType::class, [ 'label' => false, 'validate' => false, 'validation_groups' => false, 'attr' => ['value' => $builder->getName()], 'handler' => function (BaggageItem $data, ActionButtonInterface $button, FormFlowInterface $flow, ) { unset($flow->getData()->baggage->items[$button->getViewData()]); }, ]); } }

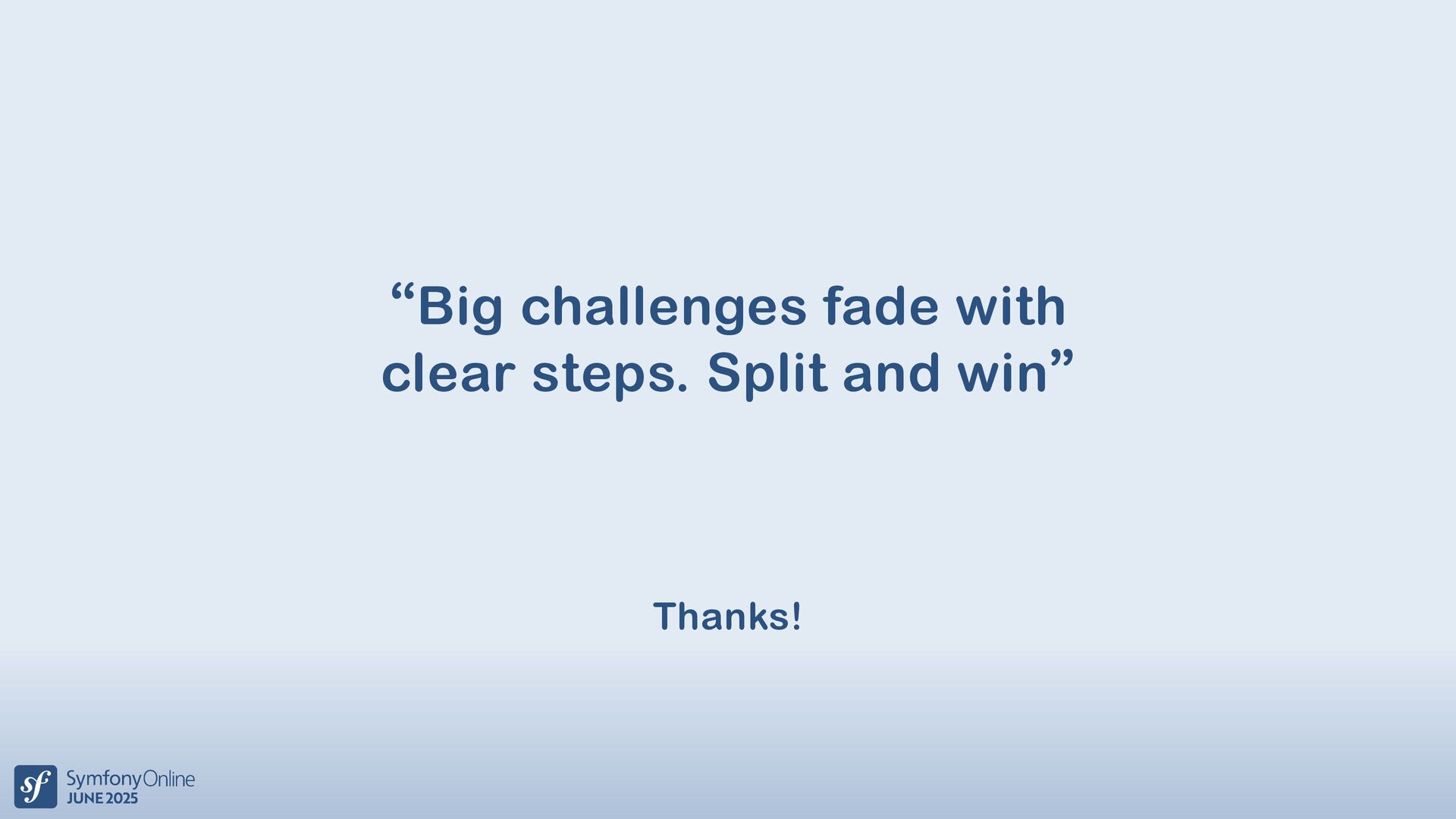

40. @yceruto “Big challenges fade with clear steps. Split and win” FormFlow Thanks!
