GitHub and the Internet of Things Automate IoT Hardware
Jamie Strusz Services Engineer @ GitHub Likes art history; takes
too many photos of her dog ! allthedoll !
Source: https://www.instagram.com/yorickthecorgi/
Stefan Stölzle Services Engineer @ GitHub Likes Hitchhiker’s Guide; looks
like Russel Crowe ! stoe !
Source: http://www. http://gde-fon.com/

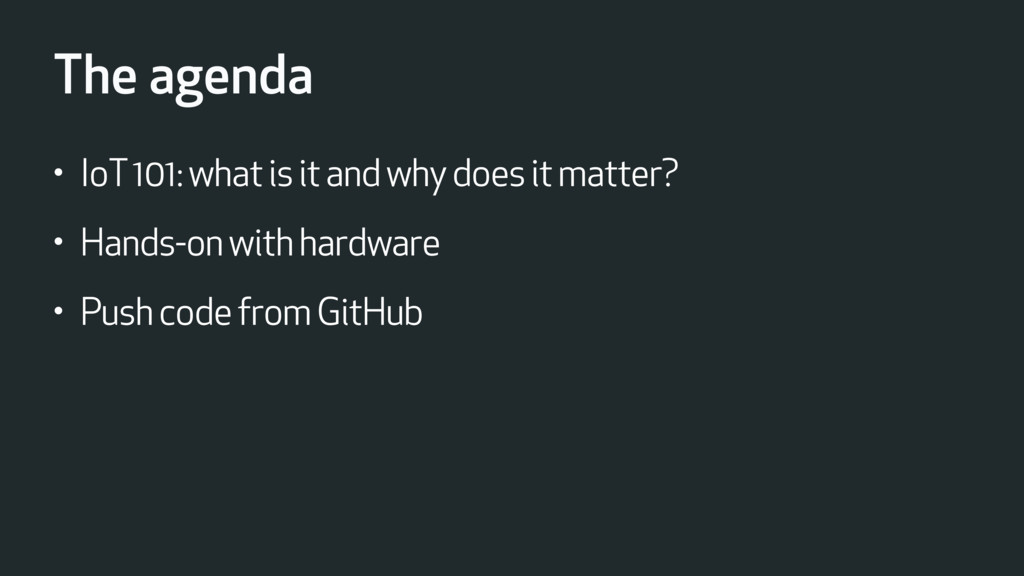

The agenda • IoT 101: what is it and why
does it matter? • Hands-on with hardware • Push code from GitHub

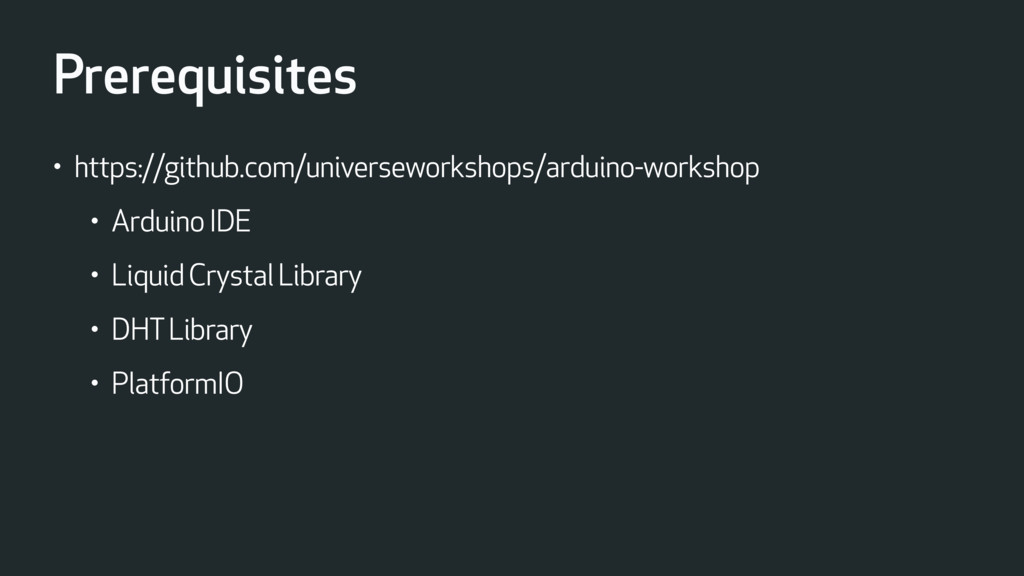

Prerequisites • https://github.com/universeworkshops/arduino-workshop • Arduino IDE • Liquid Crystal Library
• DHT Library • PlatformIO
IoT 101 What is it and why does it matter?
IoT: what is it, anyway? • The makers movement •
The Internet of Things • IoT IRL
The makers movement Source: http://reddit.com/r/shittyrobots
The Internet of Things (IoT) Source: http://giphy.com

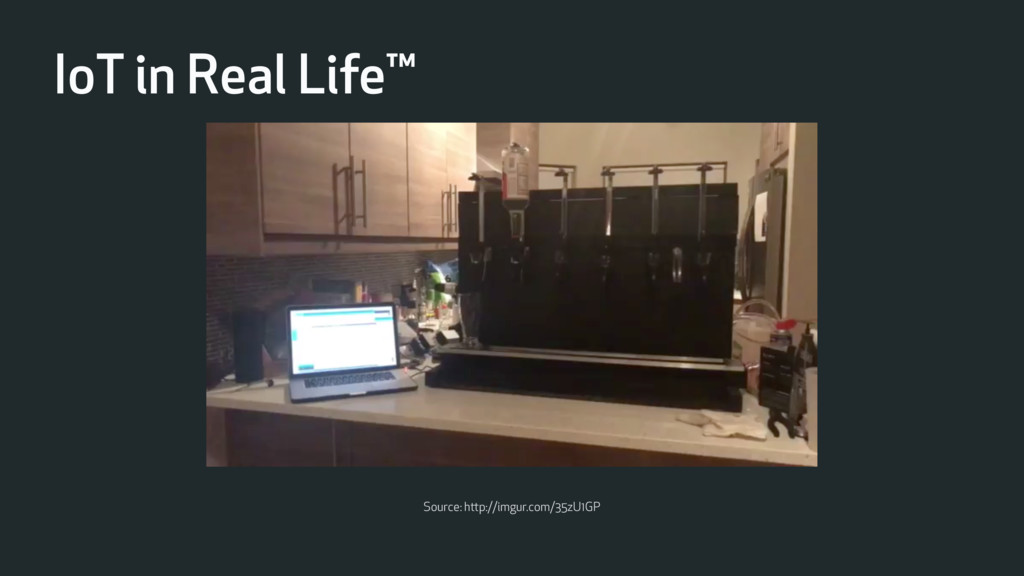

IoT in Real Life™ Source: http://imgur.com/35zU1GP
IoT in Real Life™ Source: https://dribbble.com/glebich
IoT in Real Life™ Source: http://www.signature9.com/
IoT: why does it matter? • The future is moving
towards IoT • IoT can be used across all markets • IoT is changing how we live and work • Smart City Barcelona
The future is moving towards IoT Source: http://giphy.com
IoT can be used across all markets Source: http://giphy.com
IoT can be used across all markets Source: http://giphy.com
IoT can be used across all markets Source: http://giphy.com
IoT can be used across all markets Source: http://giphy.com
IoT is changing how we live and work Source: http://giphy.com
IoT is changing how we live and work Source: http://www.starbucksmelody.com/

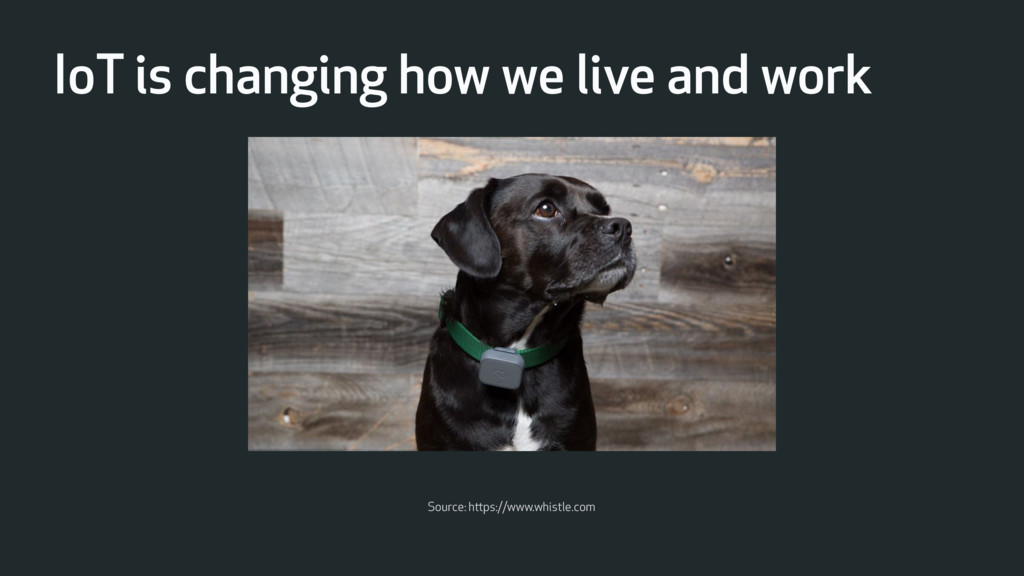

IoT is changing how we live and work Source: https://www.whistle.com
IoT is changing how we live and work Source: https://i.makeagif.com
IoT is changing how we live and work Source: https://giphy.com

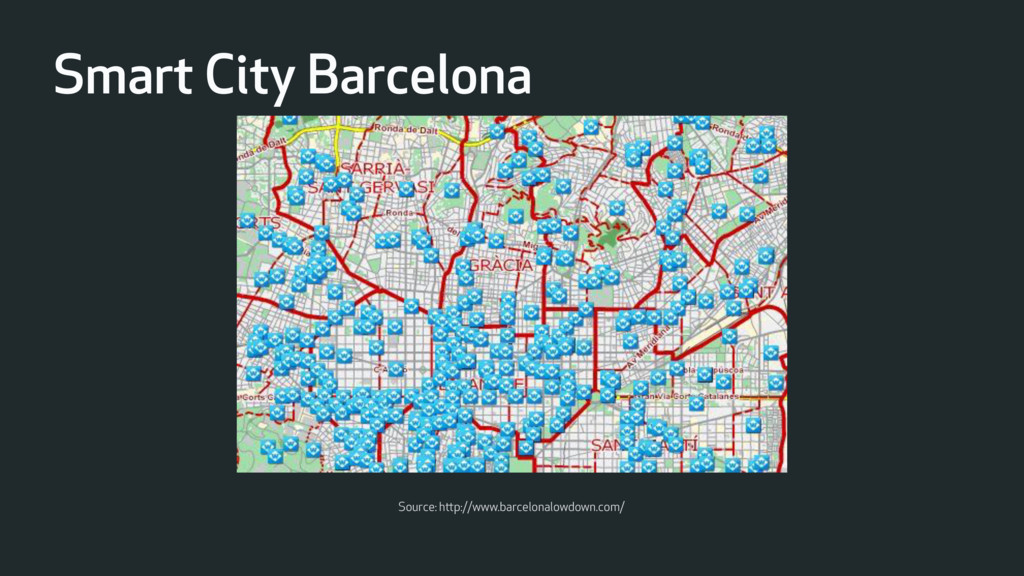

Smart City Barcelona Source: https://giphy.com
Smart City Barcelona Source: https://giphy.com
Smart City Barcelona Source: http://www.barcelonalowdown.com/
Smart City Barcelona Source: http://paulwallbank.com/2014/03/24/garbage-in-and-garbage-out/
Smart City Barcelona Source: http://ajuntament.barcelona.cat/estrategiadigital/ca

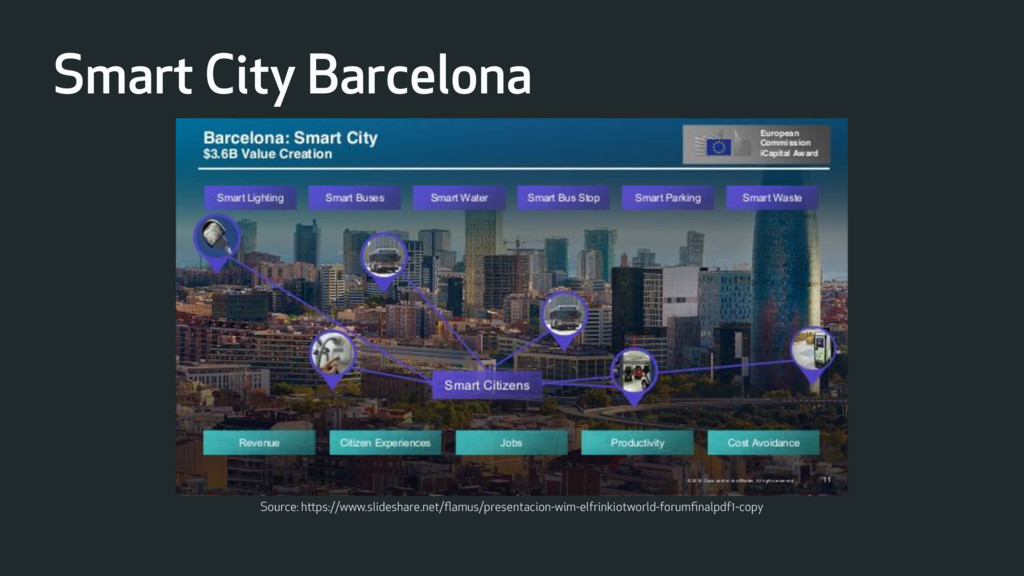

Smart City Barcelona Source: https://www.slideshare.net/paulwallbank/a-geeks-smart-city-tour-of-barcelona-how-the-iot-can-help-towns
Smart City Barcelona Source: https://cityos.io/Worlds-Best-City-Projects-for-Smart-Street-Lights

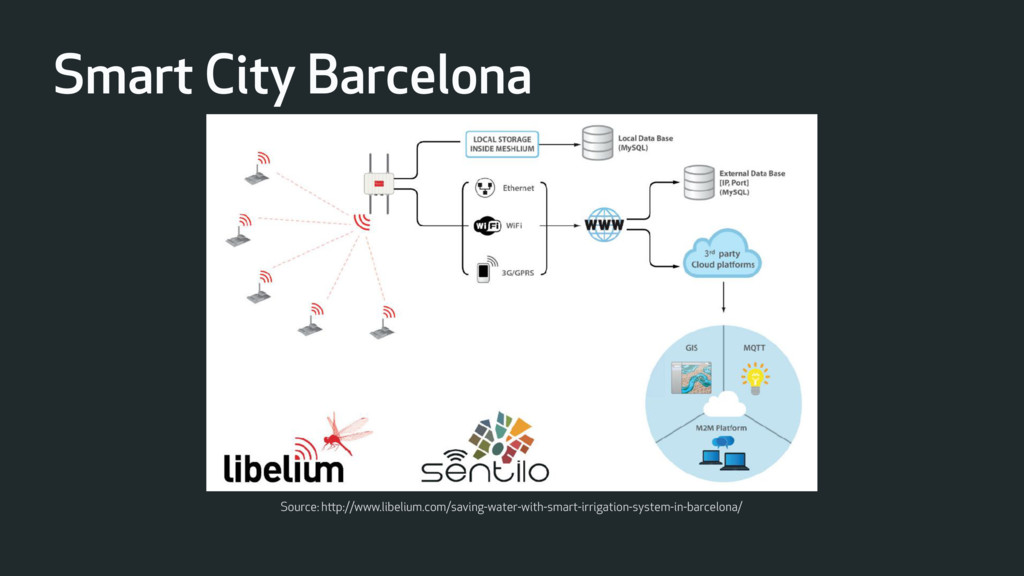

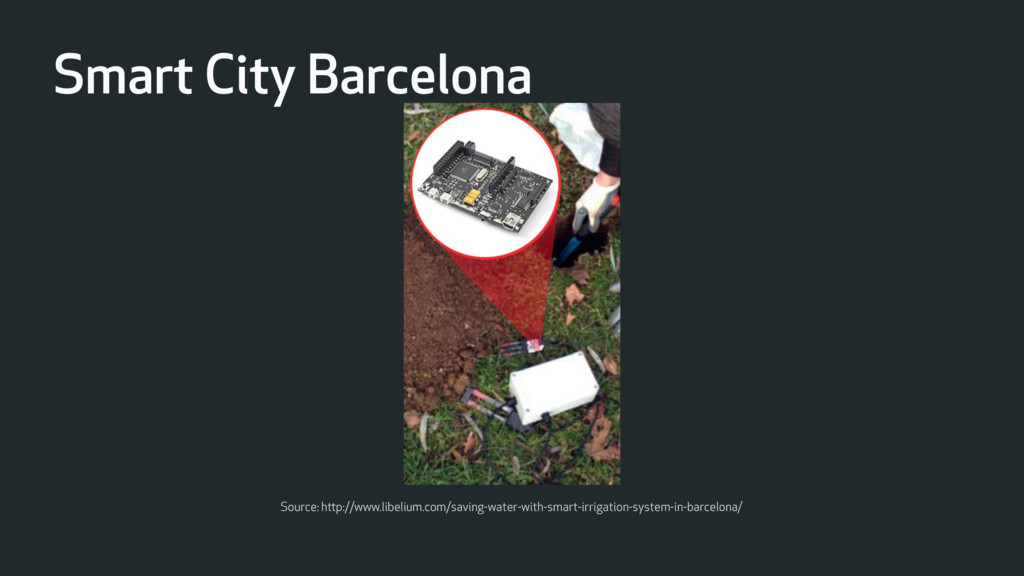

Smart City Barcelona Source: http://www.libelium.com/saving-water-with-smart-irrigation-system-in-barcelona/
Smart City Barcelona Source: http://www.libelium.com/saving-water-with-smart-irrigation-system-in-barcelona/
Smart City Barcelona Source: https://www.slideshare.net/flamus/presentacion-wim-elfrinkiotworld-forumfinalpdf1-copy
IoT Matters Source: https://giphy.com
Hands-on with Hardware
A quick note, before we get going… Source: http://giphy.com

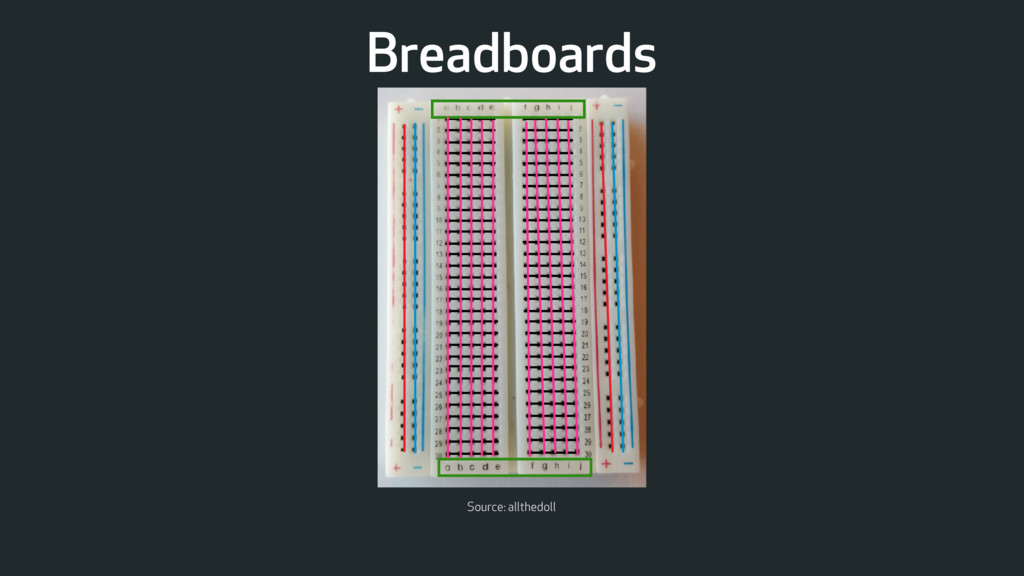

Breadboards Source: allthedoll

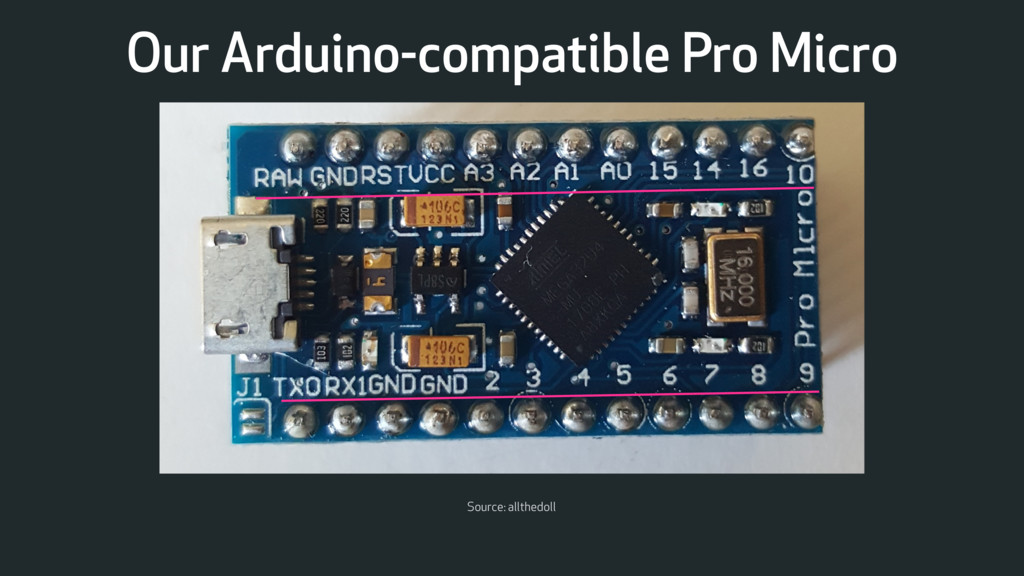

Our Arduino-compatible Pro Micro Source: allthedoll

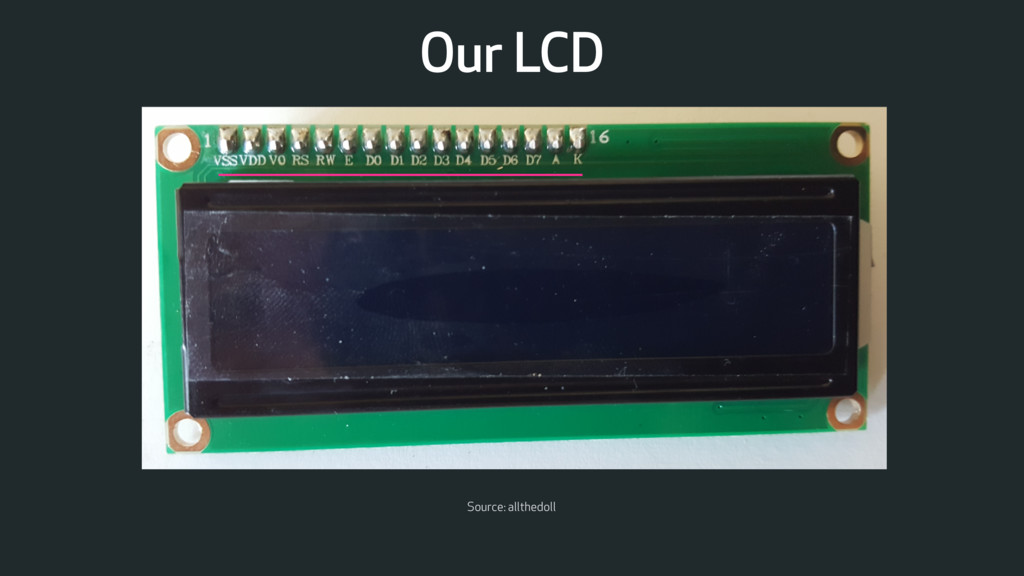

Our LCD Source: allthedoll

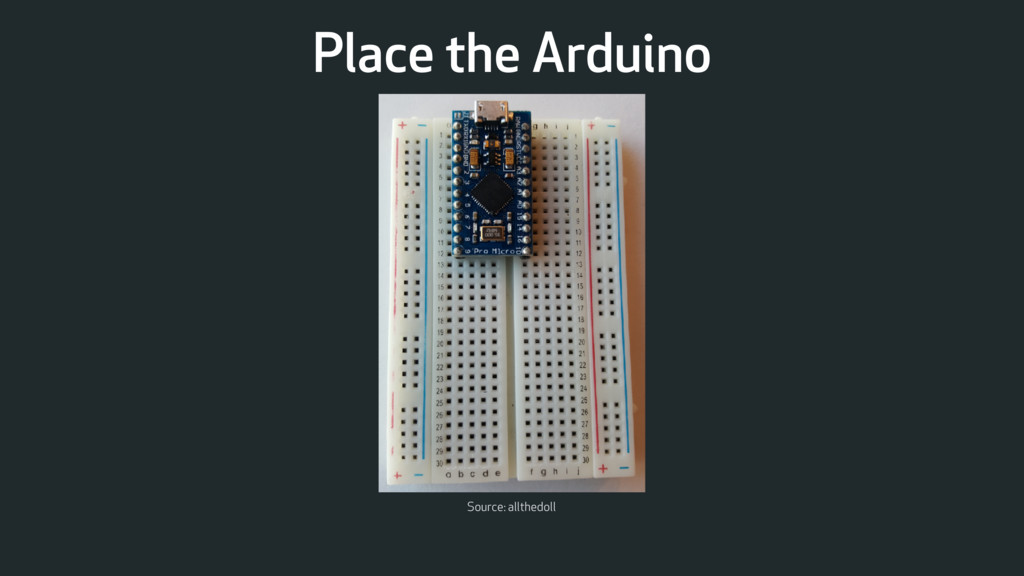

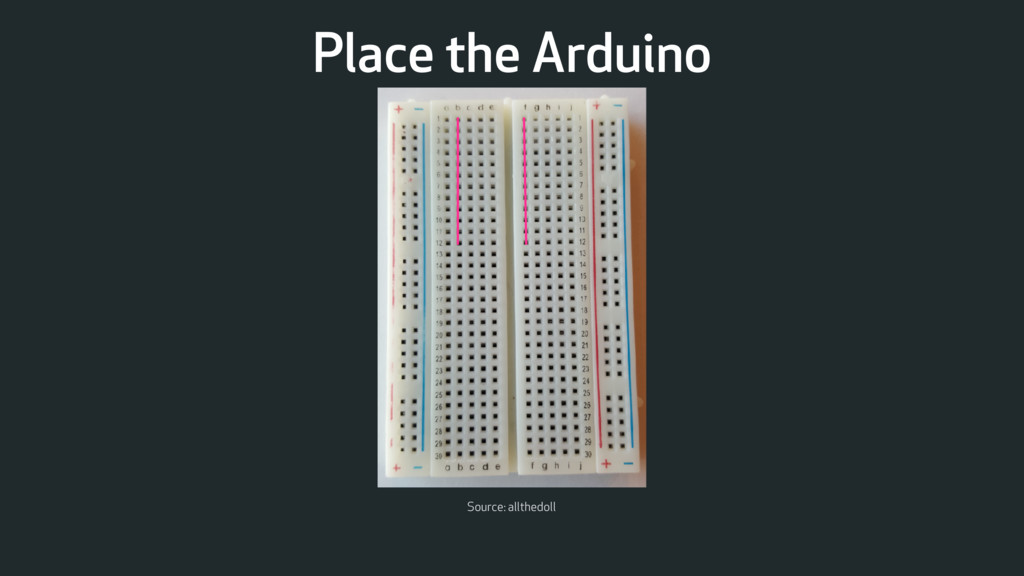

Place the Arduino Source: allthedoll
Place the Arduino Source: allthedoll

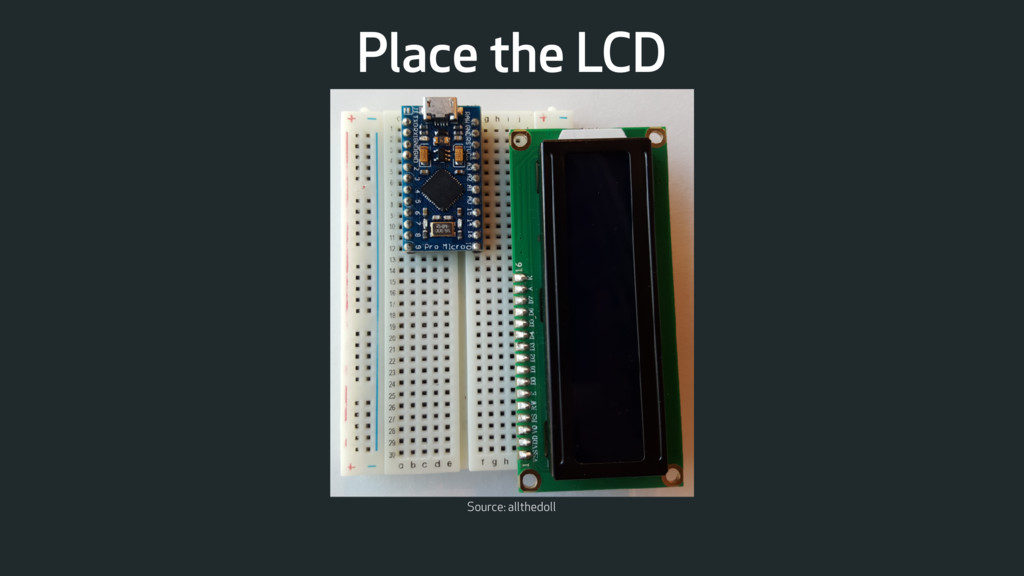

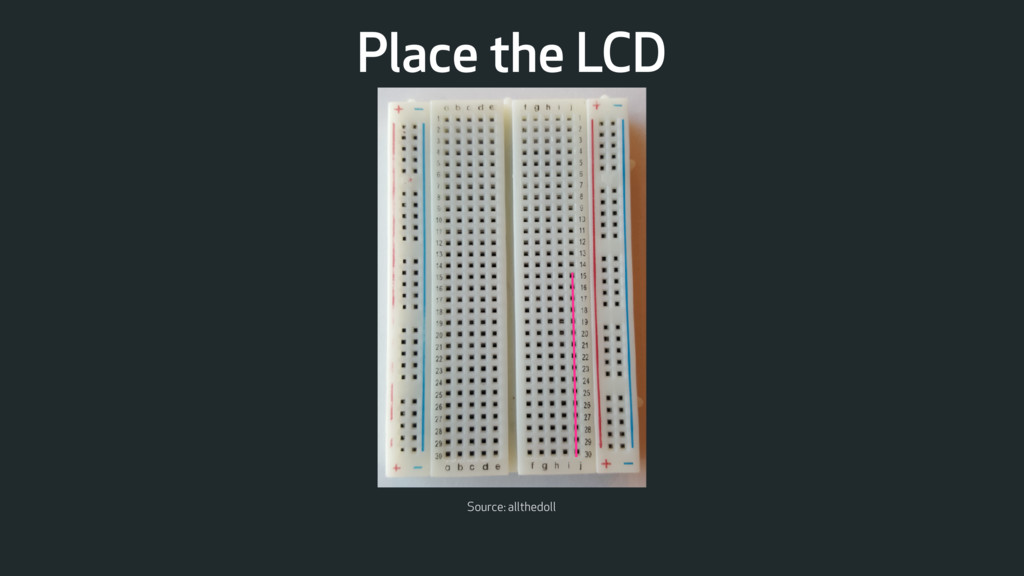

Source: allthedoll Place the LCD
Source: allthedoll Place the LCD

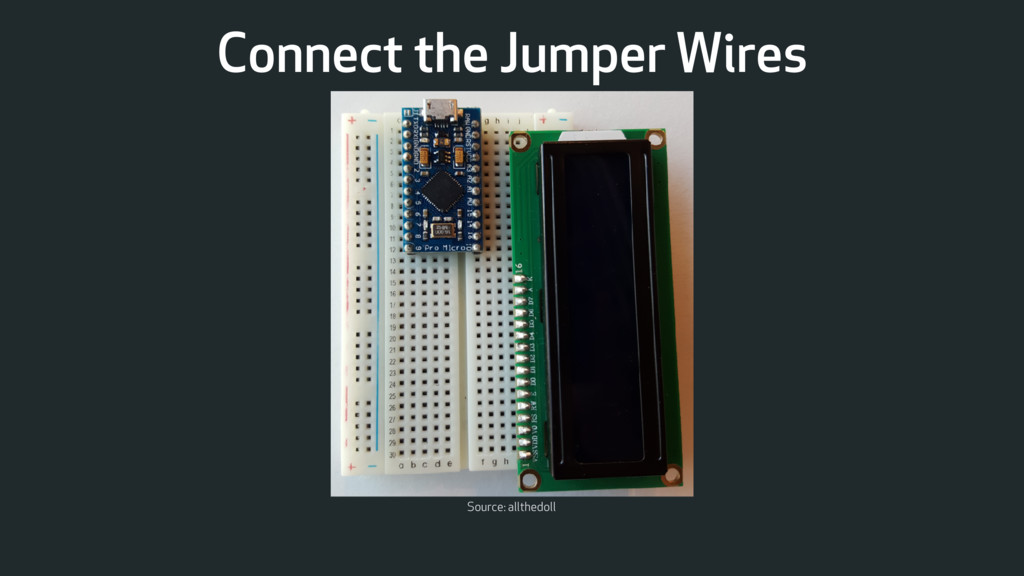

Connect the Jumper Wires Source: allthedoll

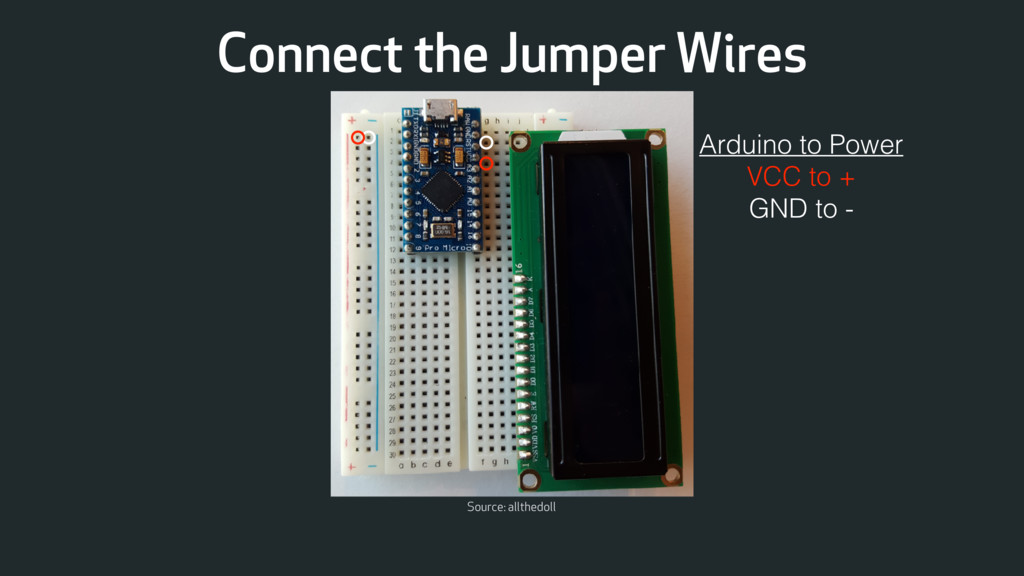

Connect the Jumper Wires Source: allthedoll Arduino to Power VCC
to + GND to -

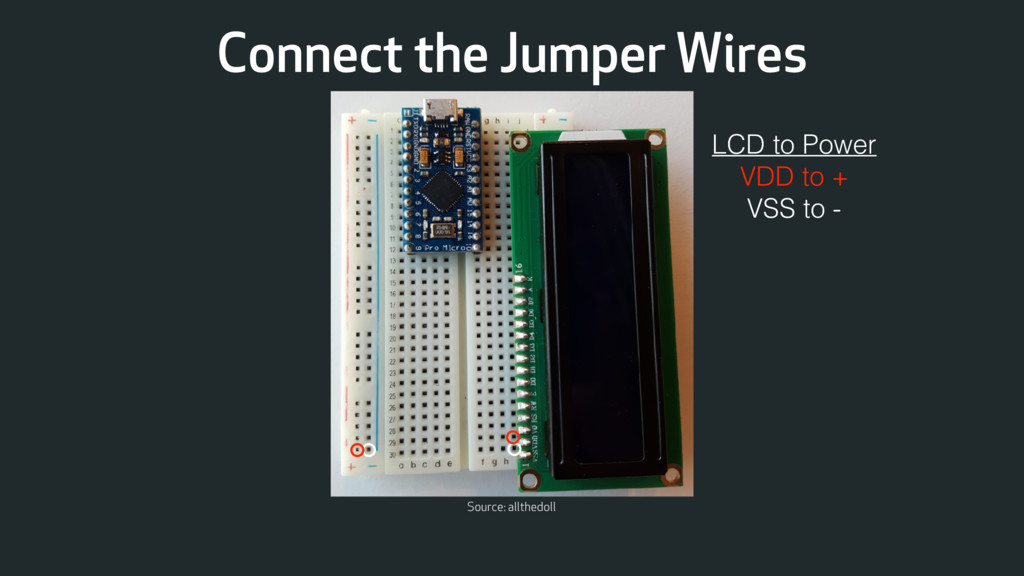

Connect the Jumper Wires Source: allthedoll LCD to Power VDD
to + VSS to -
Connect the Jumper Wires Source: allthedoll Backlight to Power K
to - A Ω +

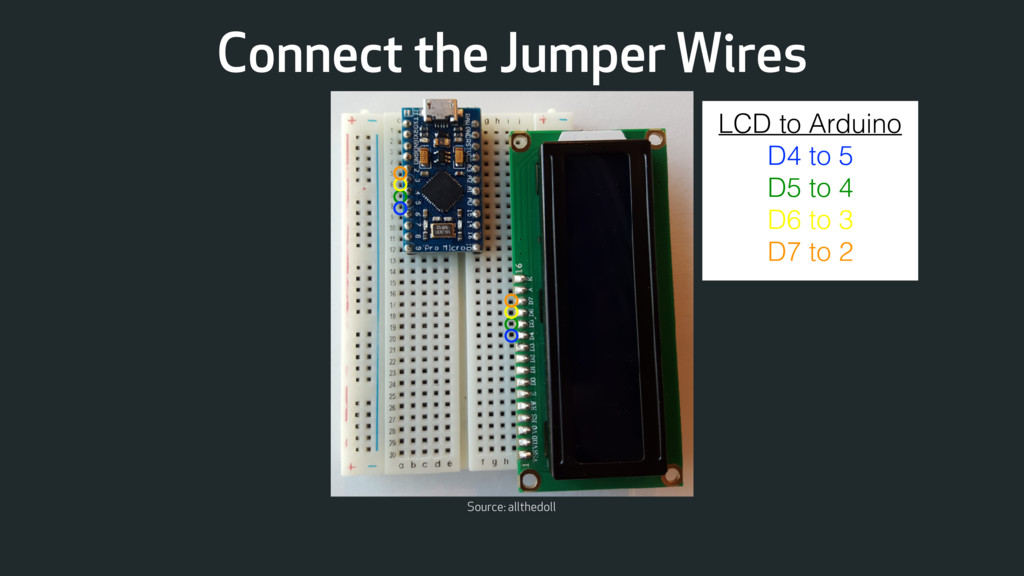

Connect the Jumper Wires Source: allthedoll LCD to Arduino D4
to 5 D5 to 4 D6 to 3 D7 to 2
Connect the Jumper Wires Source: allthedoll LCD to Arduino RS
to 14 12 E to 15 11 RW to -

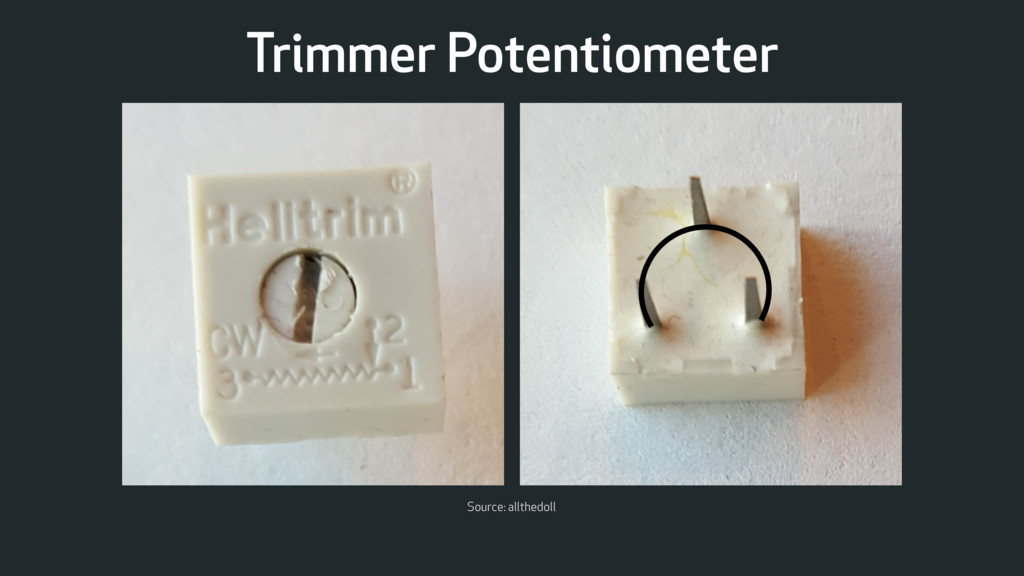

Trimmer Potentiometer Source: allthedoll

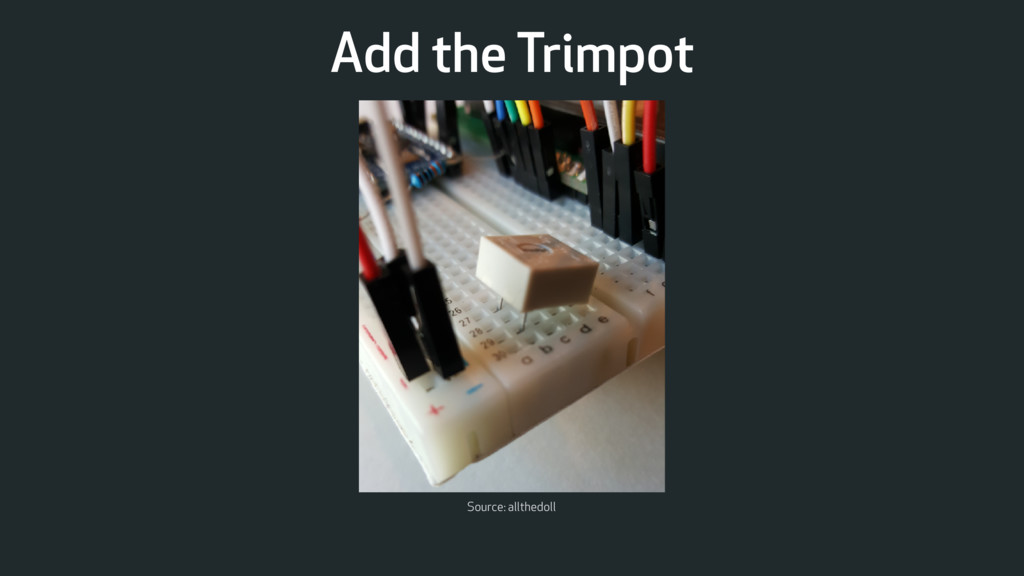

Add the Trimpot Source: allthedoll

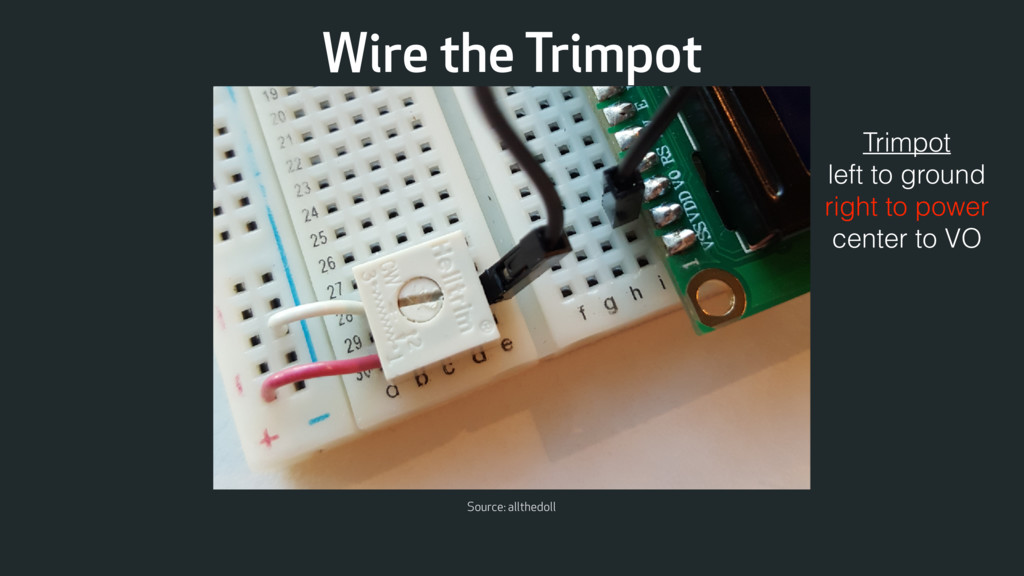

Wire the Trimpot Source: allthedoll Trimpot left to ground right
to power center to VO

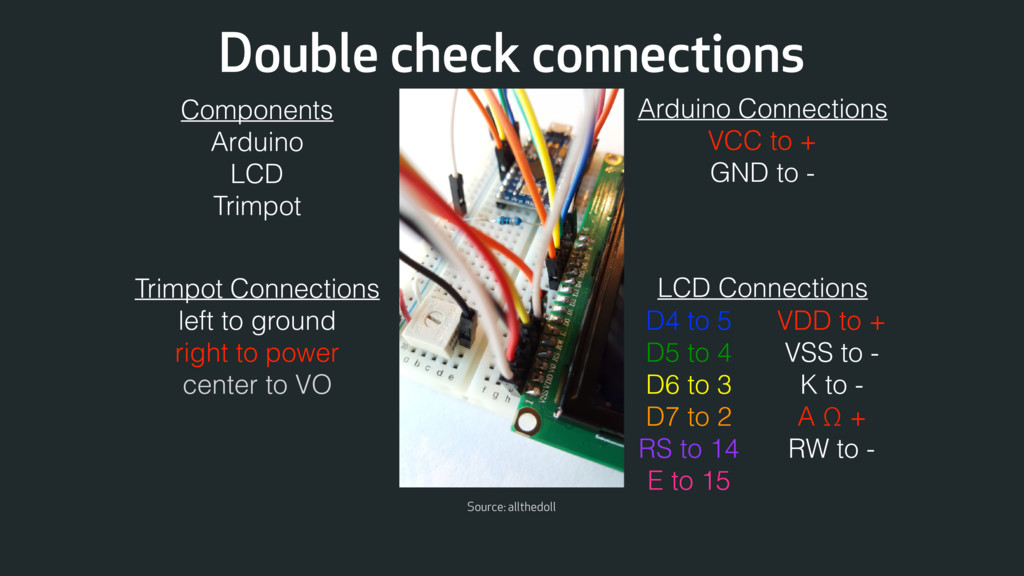

Double check connections Source: allthedoll Components Arduino LCD Trimpot Arduino
Connections VCC to + GND to - D4 to 5 D5 to 4 D6 to 3 D7 to 2 RS to 14 E to 15 VDD to + VSS to - K to - A Ω + RW to - LCD Connections Trimpot Connections left to ground right to power center to VO

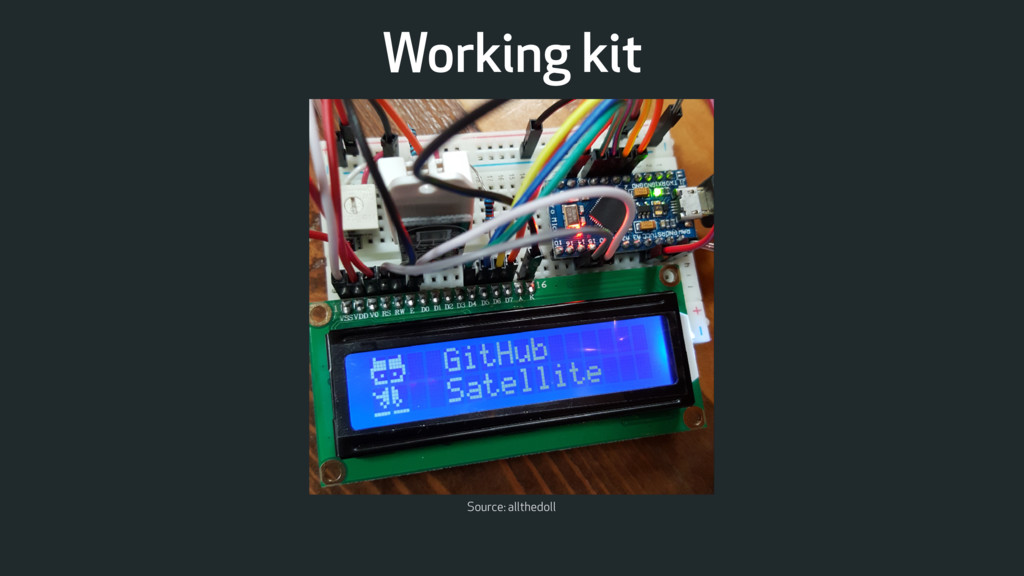

Working kit Source: allthedoll
DEMO
Weather Station Source: http://giphy.com

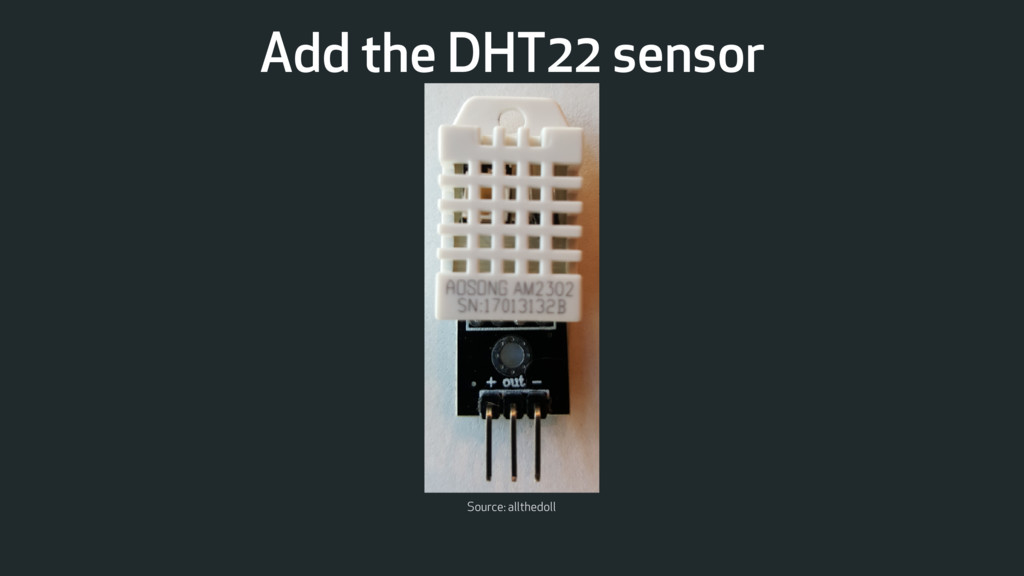

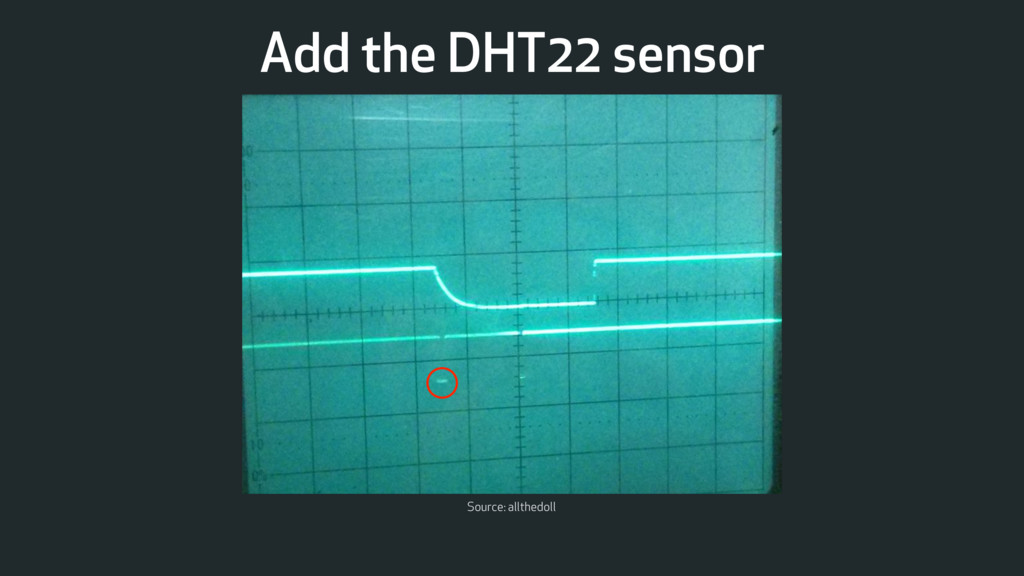

Add the DHT22 sensor Source: allthedoll

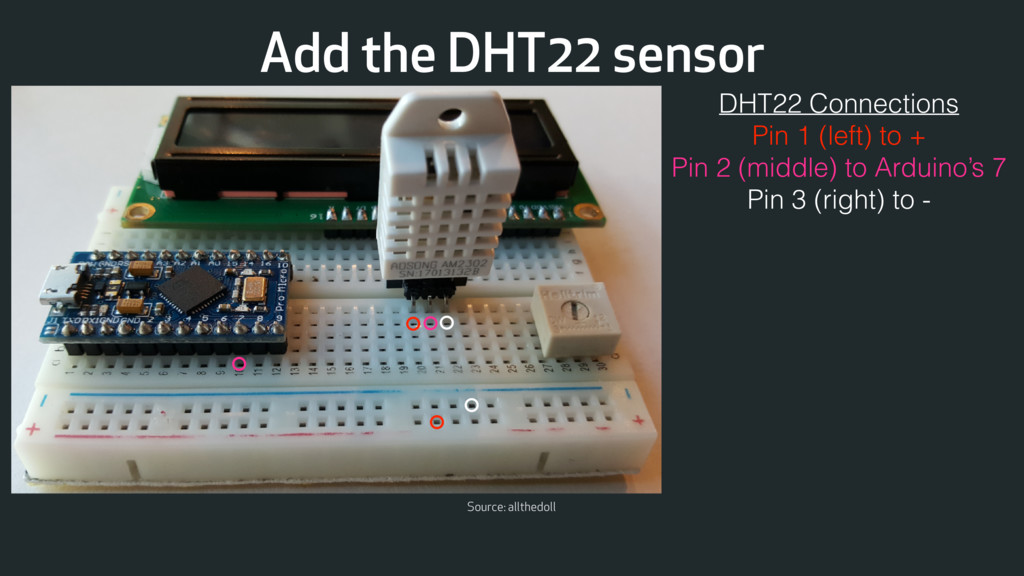

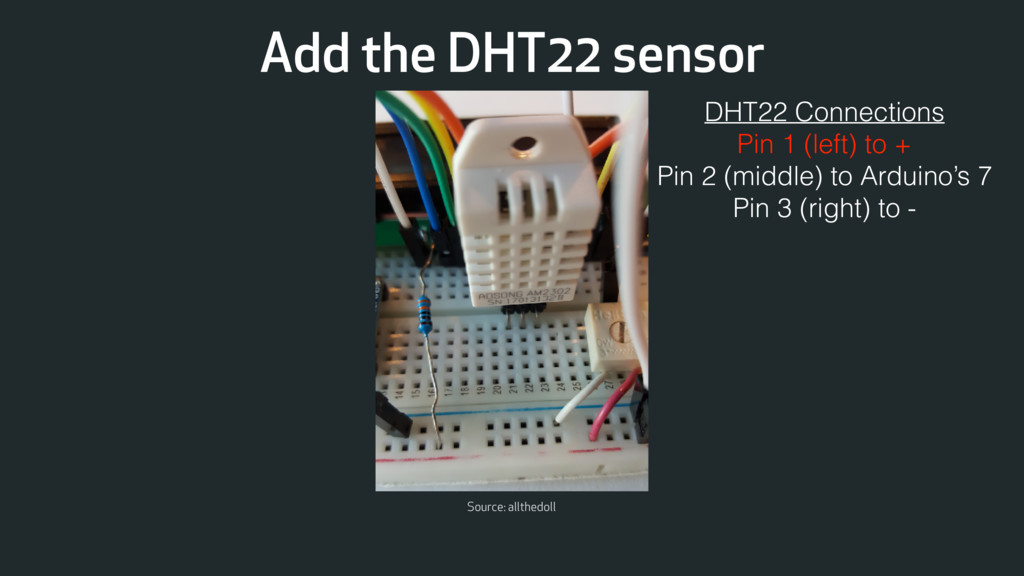

Add the DHT22 sensor Source: allthedoll DHT22 Connections Pin 1
(left) to + Pin 2 (middle) to Arduino’s 7 Pin 3 (right) to -
Add the DHT22 sensor Source: allthedoll DHT22 Connections Pin 1
(left) to + Pin 2 (middle) to Arduino’s 7 Pin 3 (right) to -
Add the DHT22 sensor Source: allthedoll

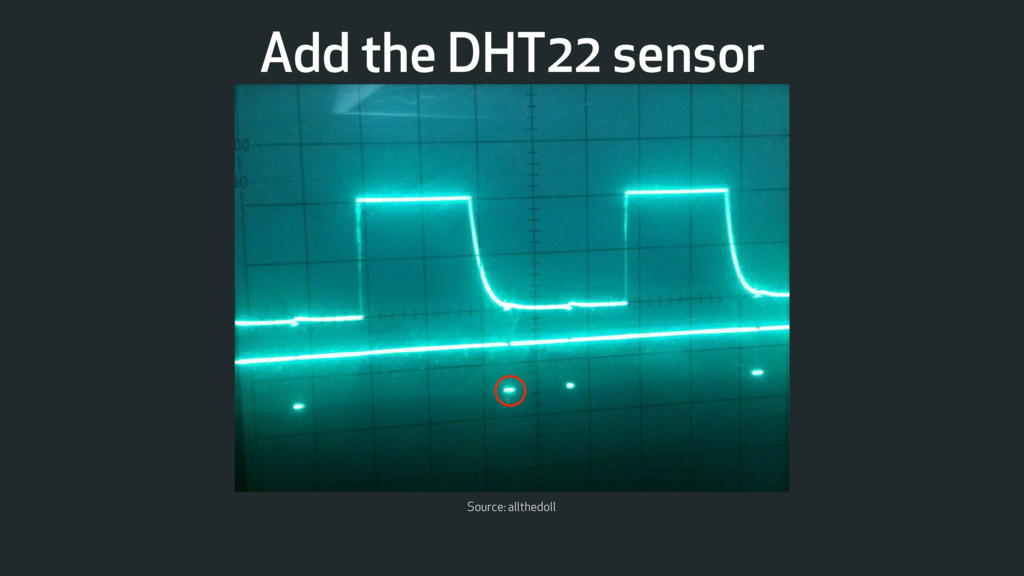

Add the DHT22 sensor Source: allthedoll
Add the DHT22 sensor Source: allthedoll

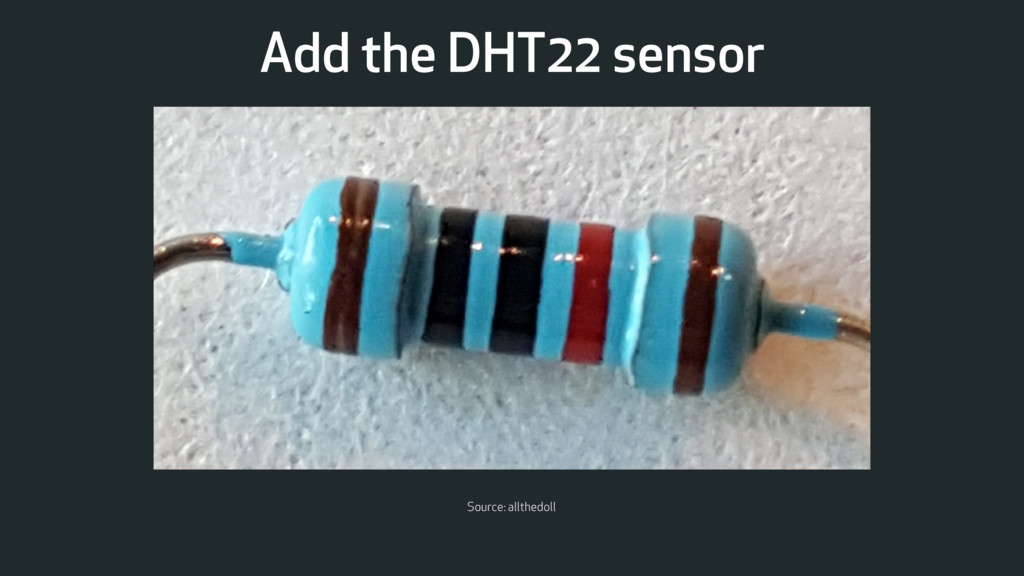

Add the DHT22 sensor Source: allthedoll DHT22 Connections Pin 1
(left) to + Pin 2 (middle) to Arduino’s 7 Pin 3 (right) to - Resistor from pin 2 to +
Push code from GitHub
DEMO
Source: http://giphy.com Thank you!
! You can find Jamie on GitHub and alltheinternet: !
allthedoll ! allthedoll " allthedoll Jamie Strusz You can find Stefan on GitHub and the Twitterverse: ! stoe ! me_stoe Stefan Stölzle
