1. Automate IoT Hardware GitHub and the Internet of Things
2. 2 Jamie Strusz Services Engineer @ GitHub Likes art; travels in a vanagon with dog and boyfriend ! allthedoll 2 !
3. 3 3 Source: https://www.instagram.com/allthedoll/ 3
4. 4 Stefan Stölzle Services Engineer @ GitHub s his Lederhos'n; often mistaken for Russel Crowe ! stoe 4 !
5. 5 Source: http://www. http://gde-fon.com/
6. The agenda: 6 BUILD IoT foundation: what is it and why does it matter? GROW Build a project and push code from GitHub.

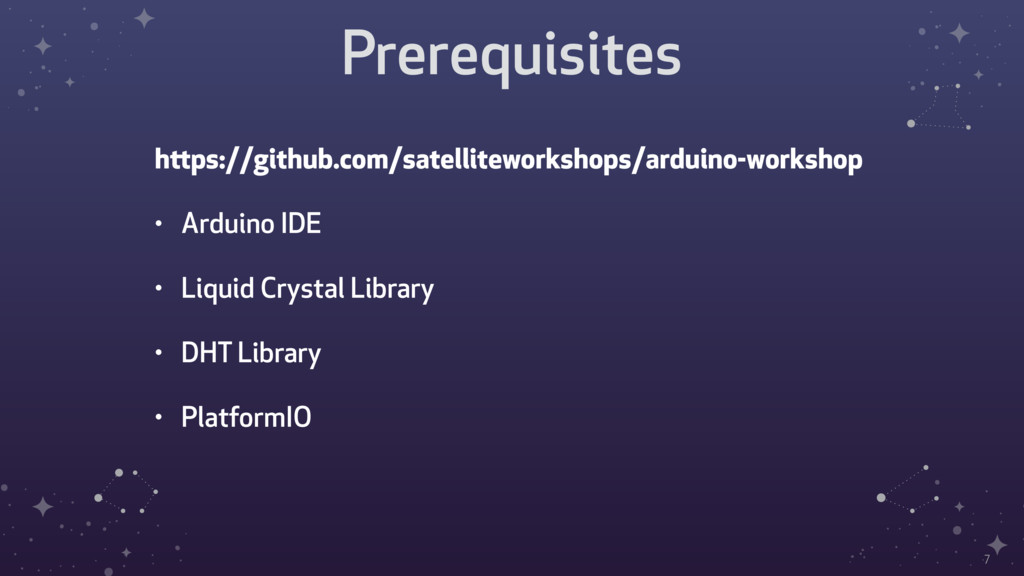

7. 7 Prerequisites https://github.com/satelliteworkshops/arduino-workshop • Arduino IDE • Liquid Crystal Library • DHT Library • PlatformIO
8. Build: IoT Foundation 8 Source: octodex.github.com

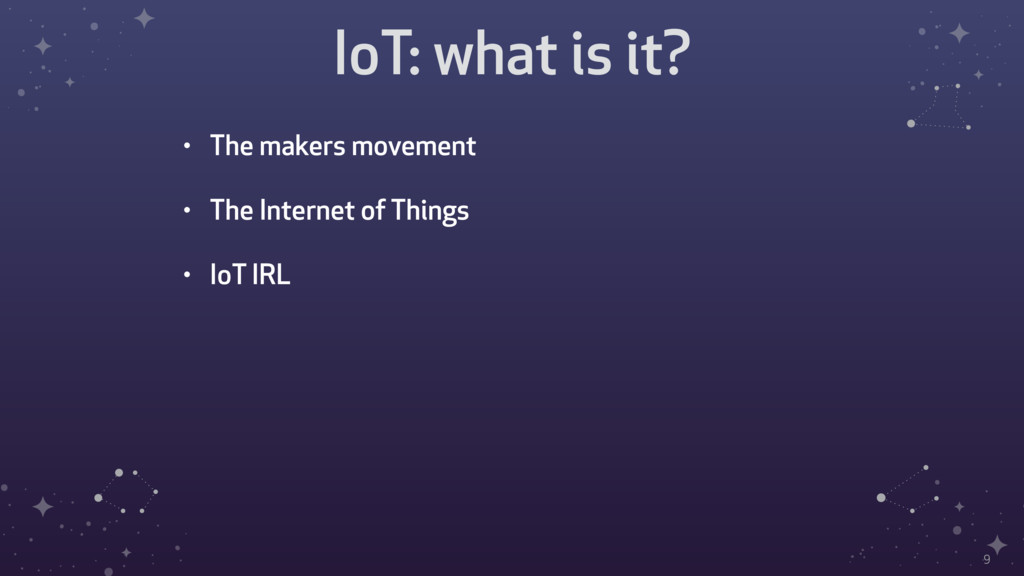

9. 9 IoT: what is it? • The makers movement • The Internet of Things • IoT IRL
10. 10 The makers movement Source: http://reddit.com/r/shittyrobots
11. 11 The Internet of Things (IoT) Source: http://giphy.com

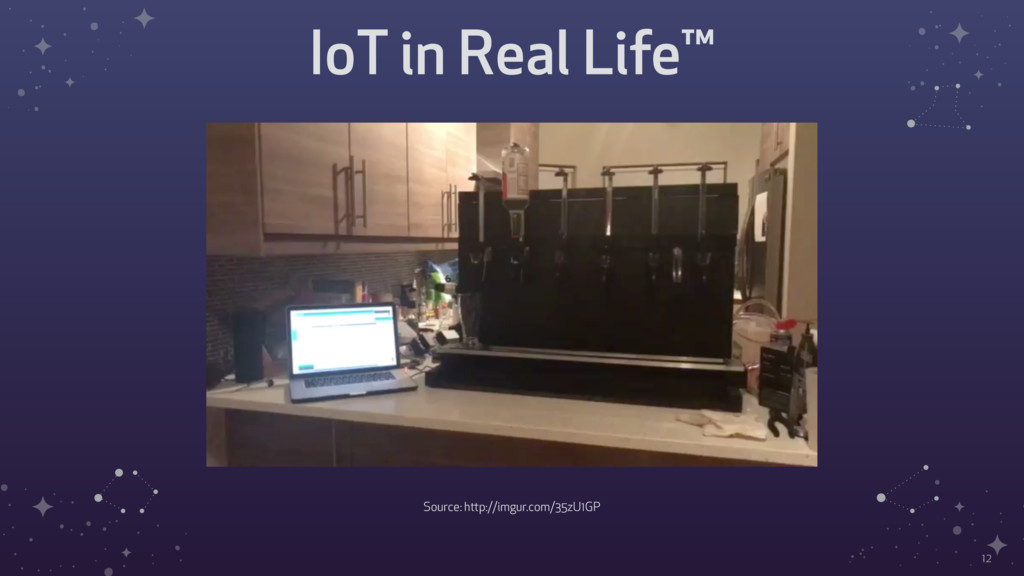

12. 12 IoT in Real Life™ Source: http://imgur.com/35zU1GP
13. 13 IoT in Real Life™ Source: https://dribbble.com/glebich
14. 14 IoT in Real Life™ Source: http://www.signature9.com/
15. 15 IoT: why does it matter? • The future is moving towards IoT • IoT can be used across all markets • IoT is changing how we live and work • Smart City Barcelona
16. 16 The future is moving towards IoT Source: http://giphy.com
17. 17 IoT can be used across all markets Source: http://giphy.com
18. 18 IoT can be used across all markets Source: http://giphy.com
19. 19 IoT can be used across all markets Source: http://giphy.com
20. 20 IoT can be used across all markets Source: http://giphy.com
21. 21 IoT is changing how we live and work Source: http://giphy.com

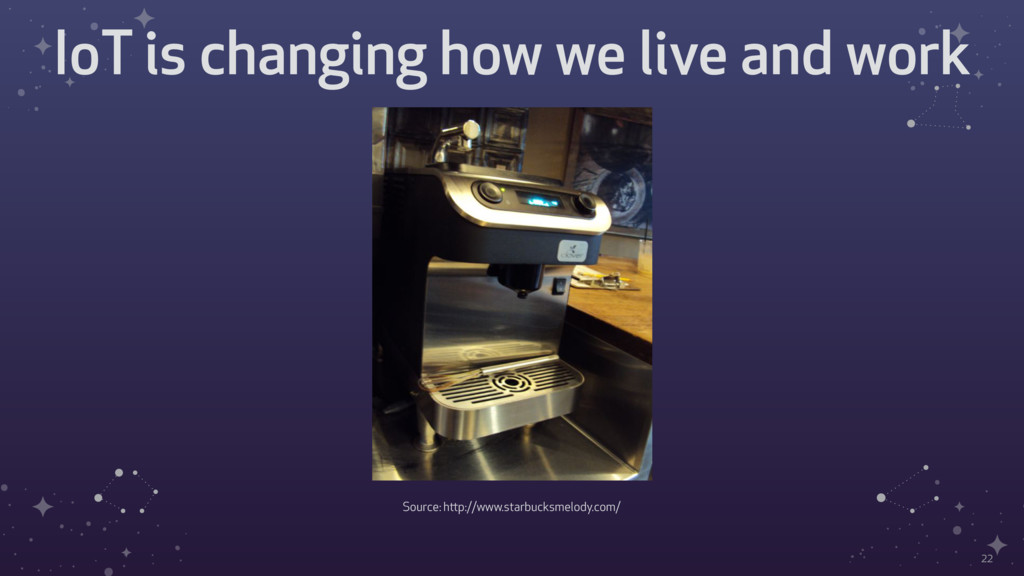

22. 22 IoT is changing how we live and work Source: http://www.starbucksmelody.com/

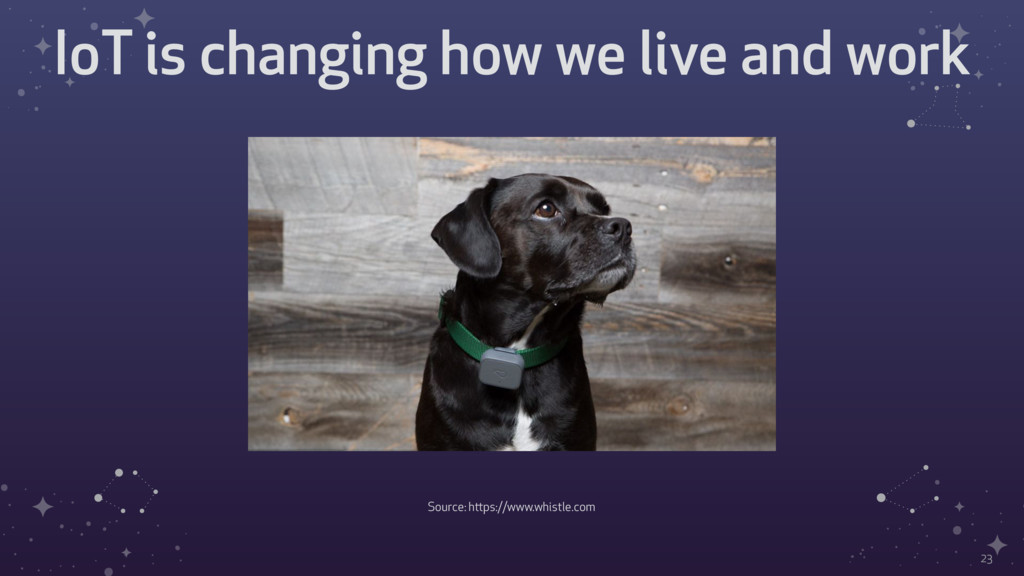

23. 23 IoT is changing how we live and work Source: https://www.whistle.com
24. 24 IoT is changing how we live and work Source: https://i.makeagif.com
25. 25 IoT is changing how we live and work Source: https://giphy.com
26. 26 Smart City Barcelona Source: https://giphy.com
27. 27 Smart City Barcelona Source: https://giphy.com
28. 28 Smart City Barcelona Source: http://www.barcelonalowdown.com/

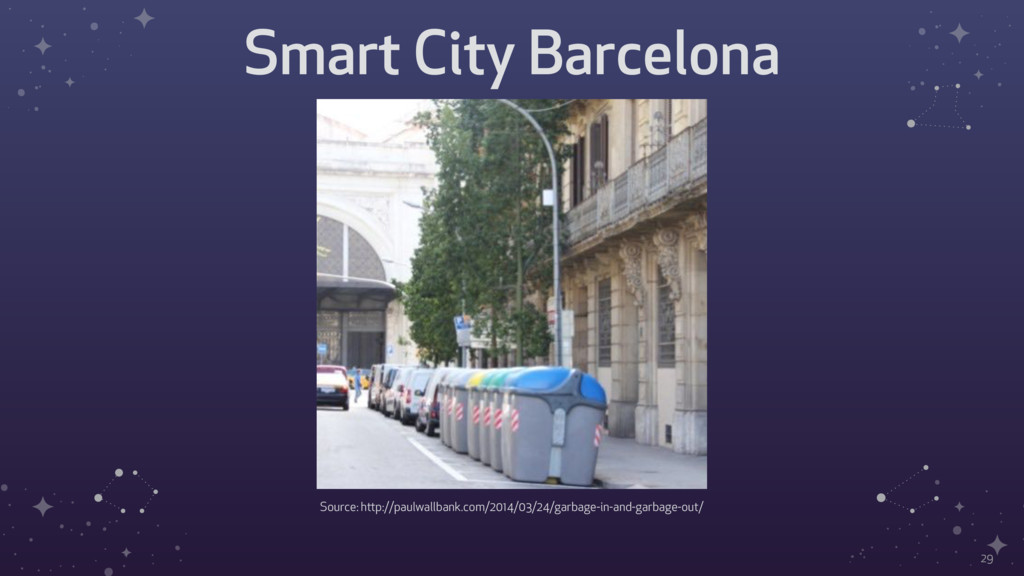

29. 29 Smart City Barcelona Source: http://paulwallbank.com/2014/03/24/garbage-in-and-garbage-out/

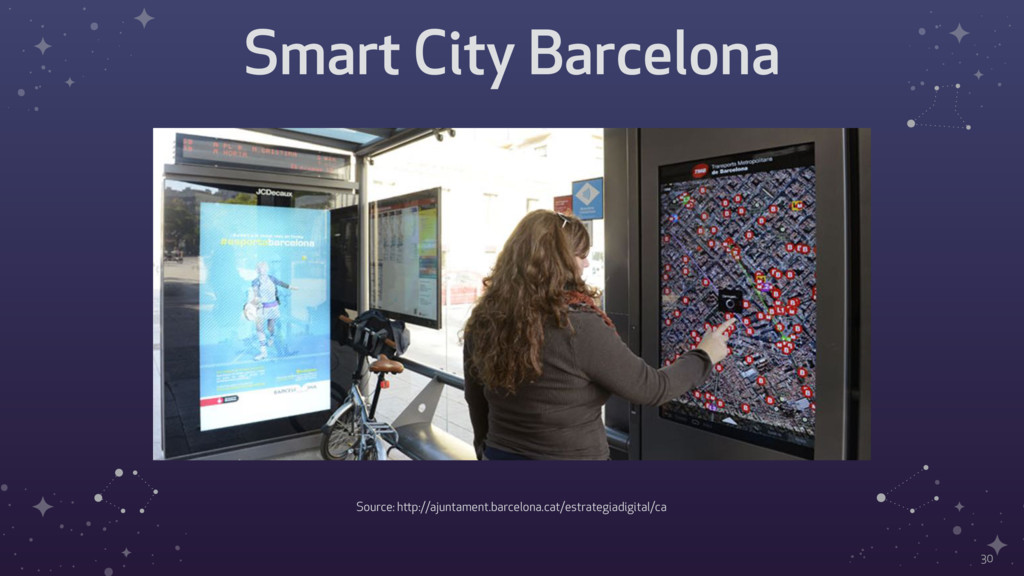

30. 30 Smart City Barcelona Source: http://ajuntament.barcelona.cat/estrategiadigital/ca
31. 31 Smart City Barcelona Source: https://www.slideshare.net/paulwallbank/a-geeks-smart-city-tour-of-barcelona-how-the-iot-can-help-towns
32. 32 Smart City Barcelona Source: https://cityos.io/Worlds-Best-City-Projects-for-Smart-Street-Lights

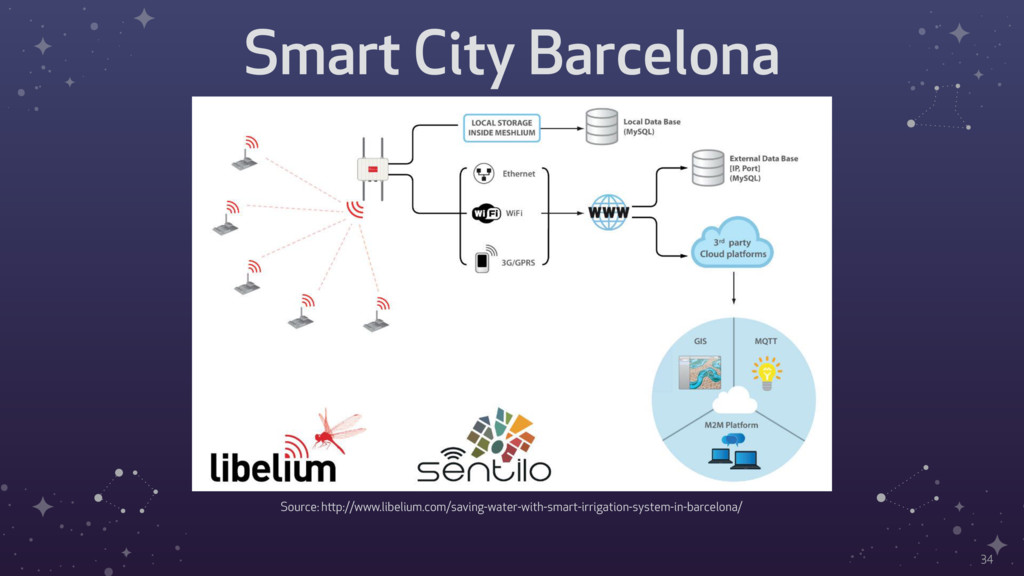

33. 33 Smart City Barcelona Source: http://www.libelium.com/saving-water-with-smart-irrigation-system-in-barcelona/
34. 34 Smart City Barcelona Source: http://www.libelium.com/saving-water-with-smart-irrigation-system-in-barcelona/

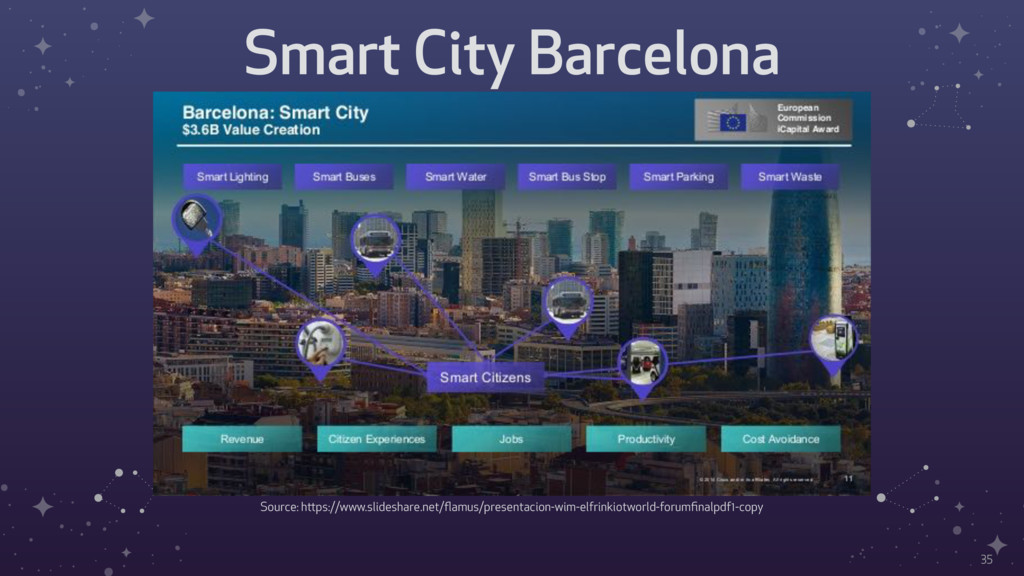

35. 35 Smart City Barcelona Source: https://www.slideshare.net/flamus/presentacion-wim-elfrinkiotworld-forumfinalpdf1-copy
36. 36 IoT Matters Source: https://giphy.com
37. Grow: Build and push. 37 Source: octodex.github.com
38. 38 A quick note, before we get going… Source: http://giphy.com

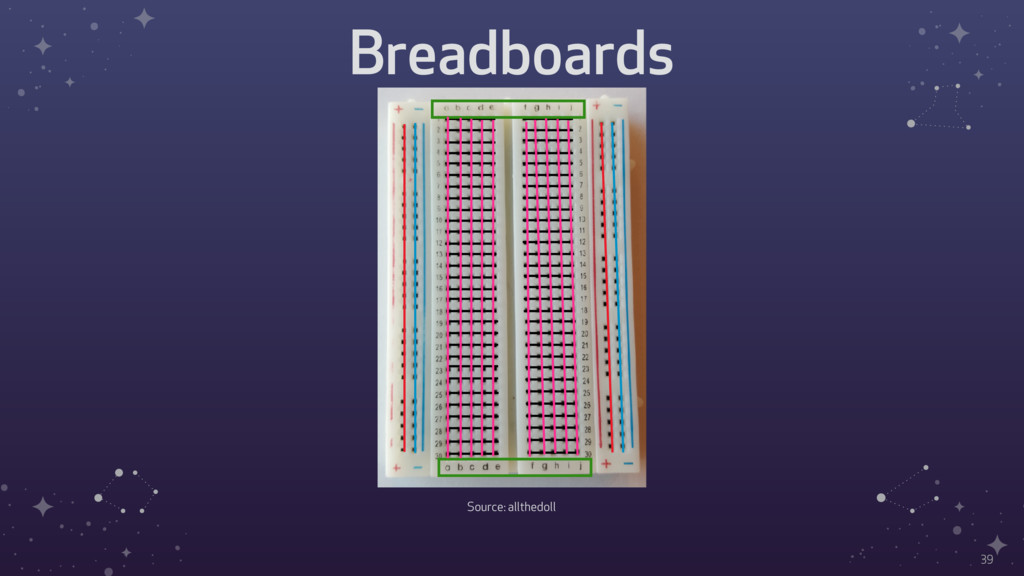

39. 39 Breadboards Source: allthedoll

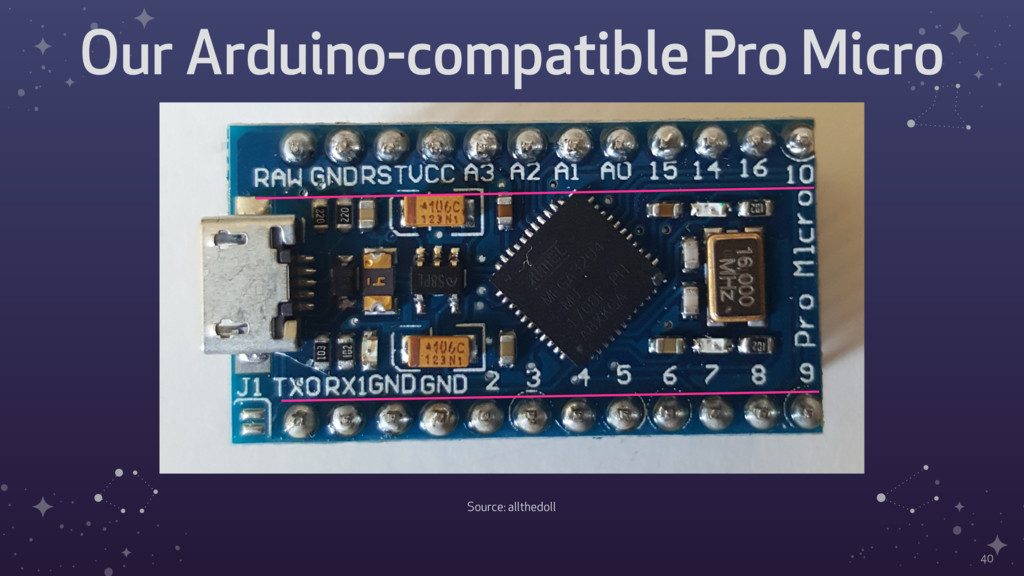

40. 40 Our Arduino-compatible Pro Micro Source: allthedoll
41. 41 Our LCD Source: allthedoll
42. 42 Place the Arduino Source: allthedoll
43. 43 Place the Arduino Source: allthedoll

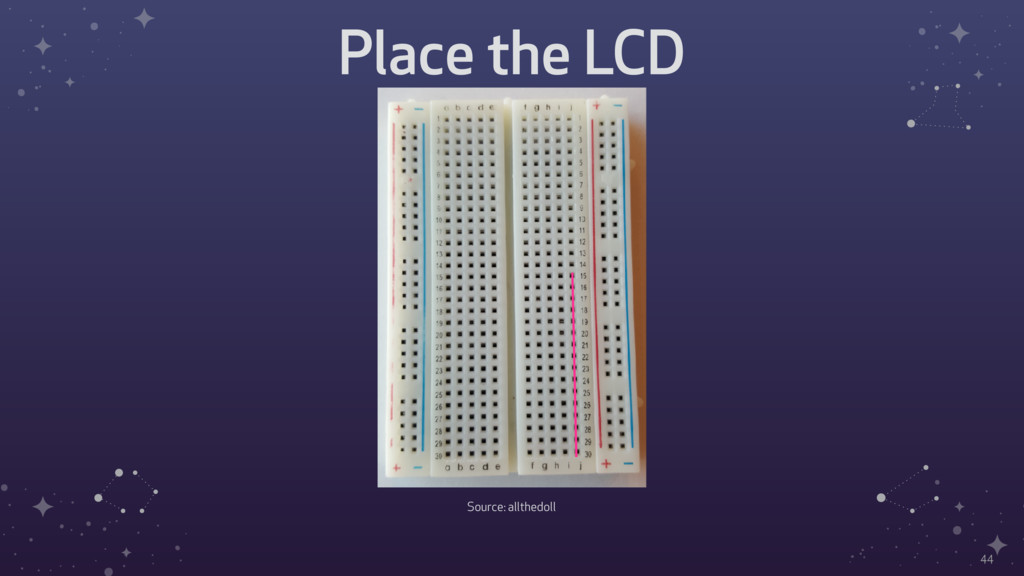

44. 44 Source: allthedoll Place the LCD

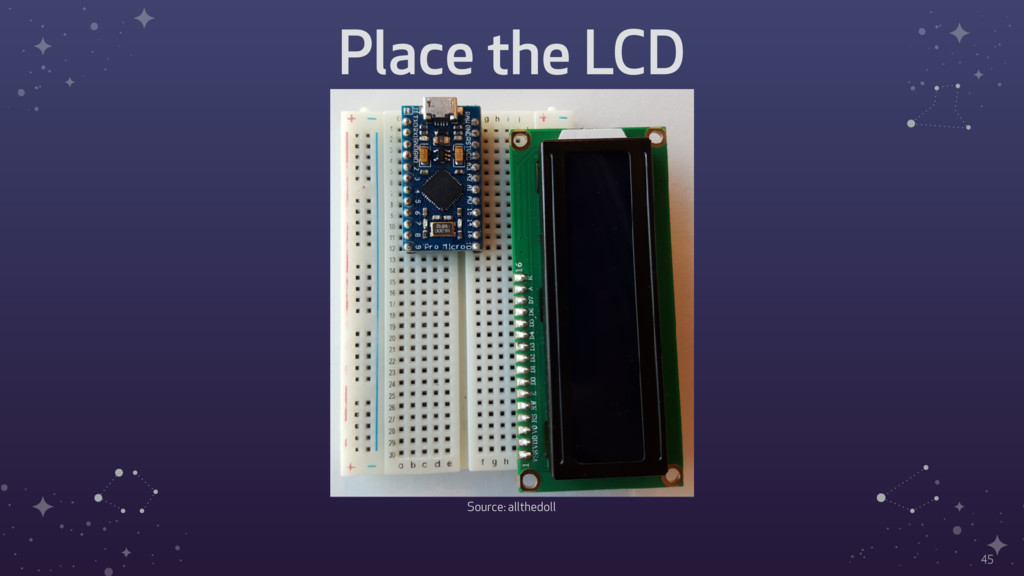

45. 45 Source: allthedoll Place the LCD
46. 46 Connect the Jumper Wires Source: allthedoll
47. 47 Connect the Jumper Wires Source: allthedoll Arduino to Power VCC to + GND to -

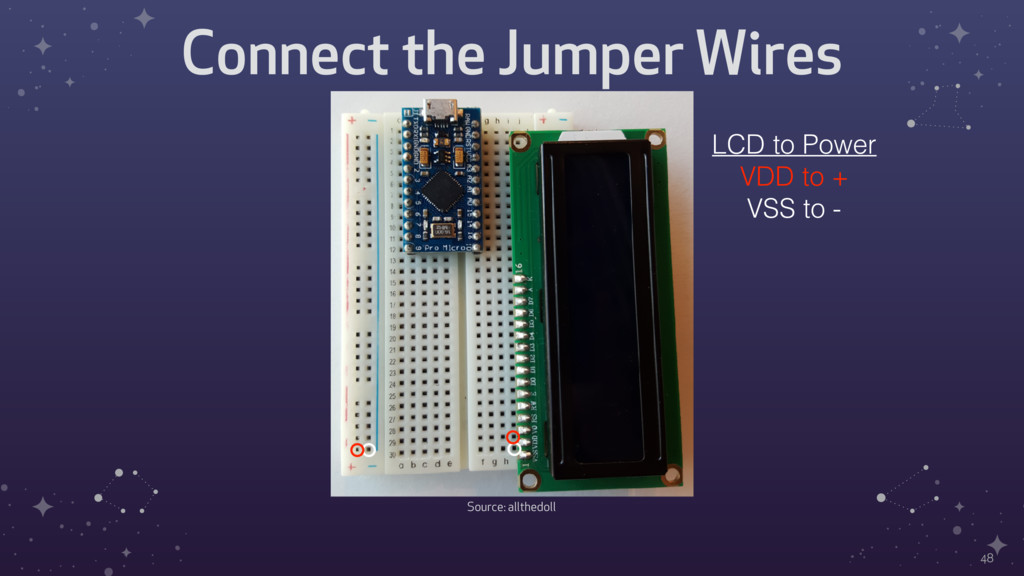

48. 48 Connect the Jumper Wires Source: allthedoll LCD to Power VDD to + VSS to -

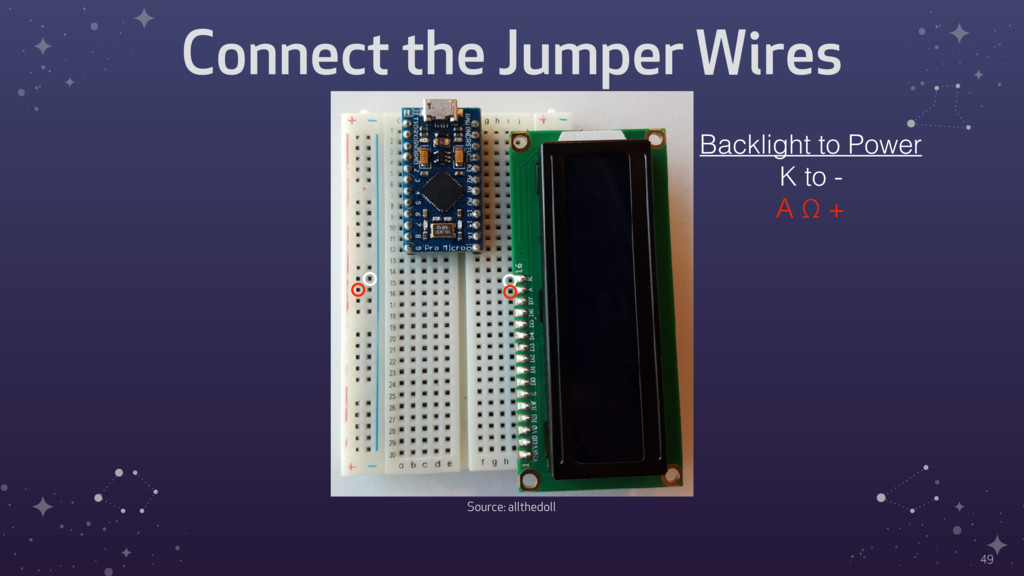

49. 49 Connect the Jumper Wires Source: allthedoll Backlight to Power K to - A Ω +
50. 50 Connect the Jumper Wires Source: allthedoll LCD to Arduino D4 to 5 D5 to 4 D6 to 3 D7 to 2
51. 51 Connect the Jumper Wires Source: allthedoll LCD to Arduino RS to 14 12 E to 15 11 RW to -
52. 52 Trimmer Potentiometer Source: allthedoll
53. 53 Add the Trimpot Source: allthedoll
54. 54 Wire the Trimpot Source: allthedoll Trimpot left to ground right to power center to VO

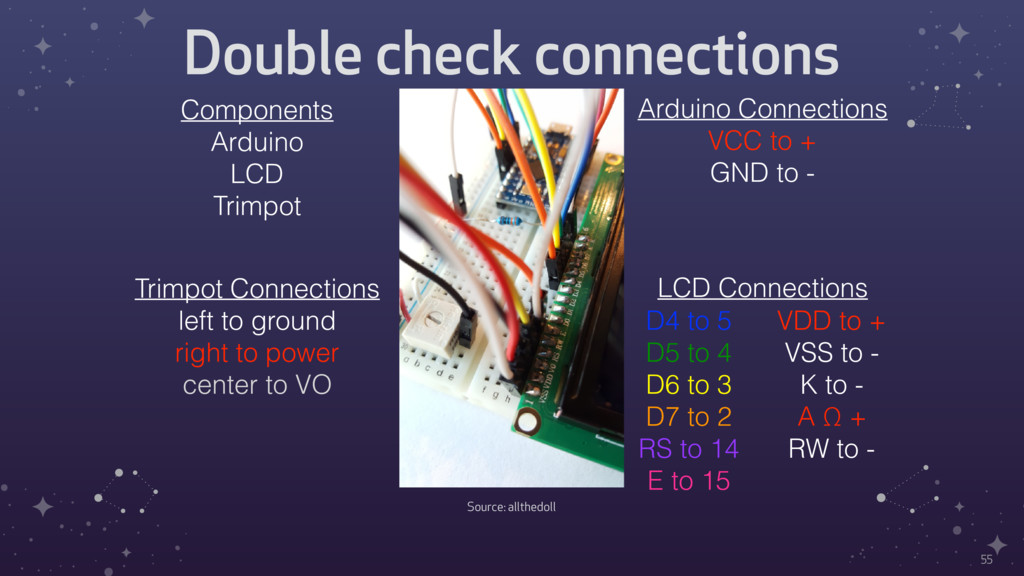

55. 55 Double check connections Source: allthedoll Components Arduino LCD Trimpot Arduino Connections VCC to + GND to - D4 to 5 D5 to 4 D6 to 3 D7 to 2 RS to 14 E to 15 VDD to + VSS to - K to - A Ω + RW to - LCD Connections Trimpot Connections left to ground right to power center to VO

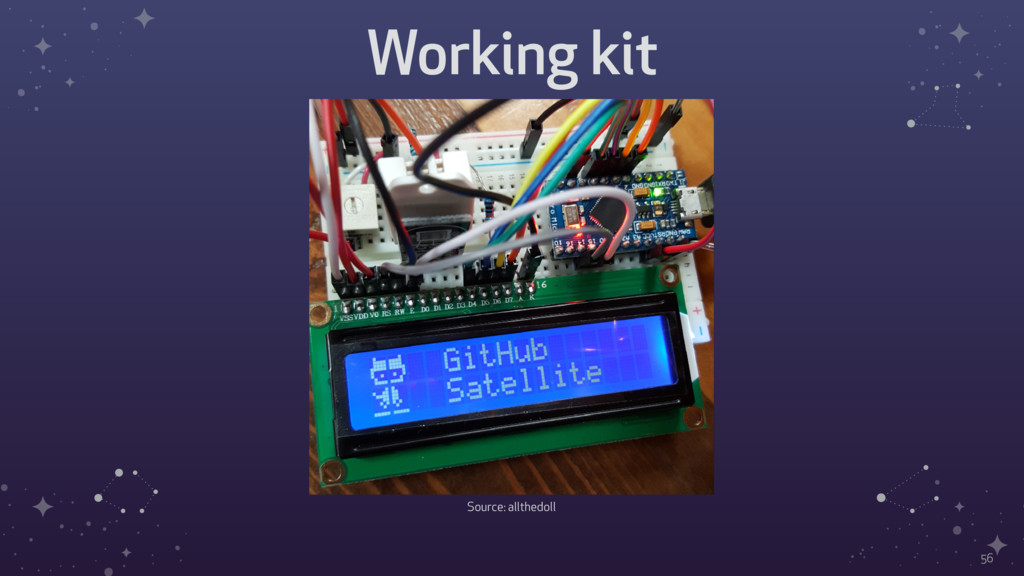

56. 56 Working kit Source: allthedoll
57. 57 DEMO
58. 58 Weather Station Source: http://giphy.com
59. 59 Add the DHT22 sensor Source: allthedoll

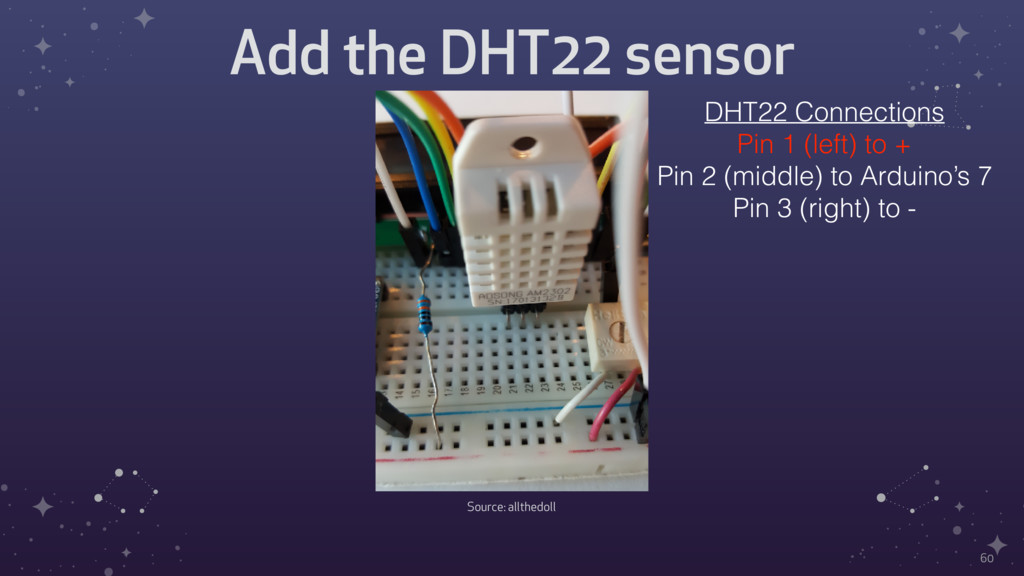

60. 60 Add the DHT22 sensor Source: allthedoll DHT22 Connections Pin 1 (left) to + Pin 2 (middle) to Arduino’s 7 Pin 3 (right) to -
61. 61 Add the DHT22 sensor Source: allthedoll DHT22 Connections Pin 1 (left) to + Pin 2 (middle) to Arduino’s 7 Pin 3 (right) to -
62. 62 Add the DHT22 sensor Source: allthedoll

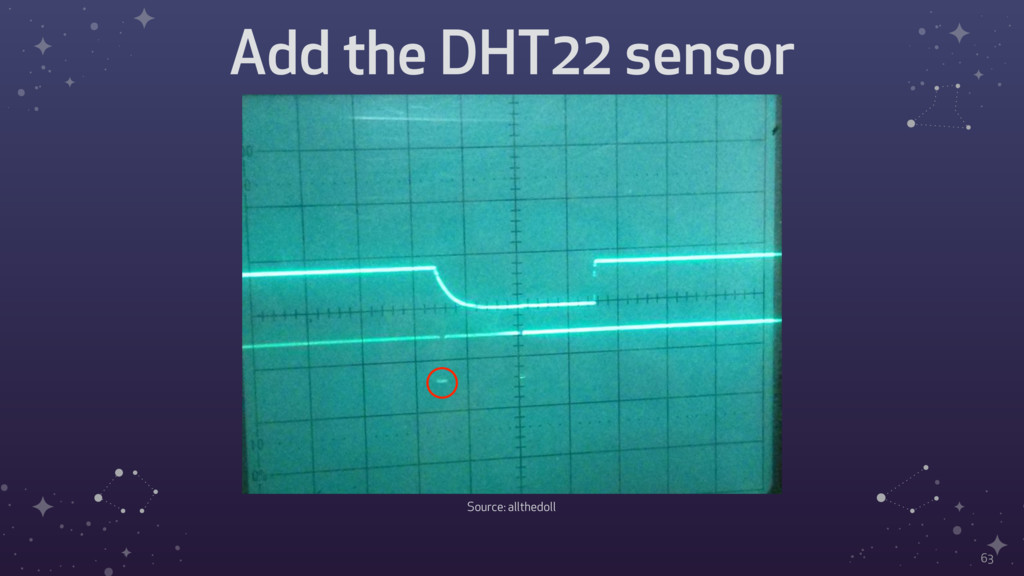

63. 63 Add the DHT22 sensor Source: allthedoll

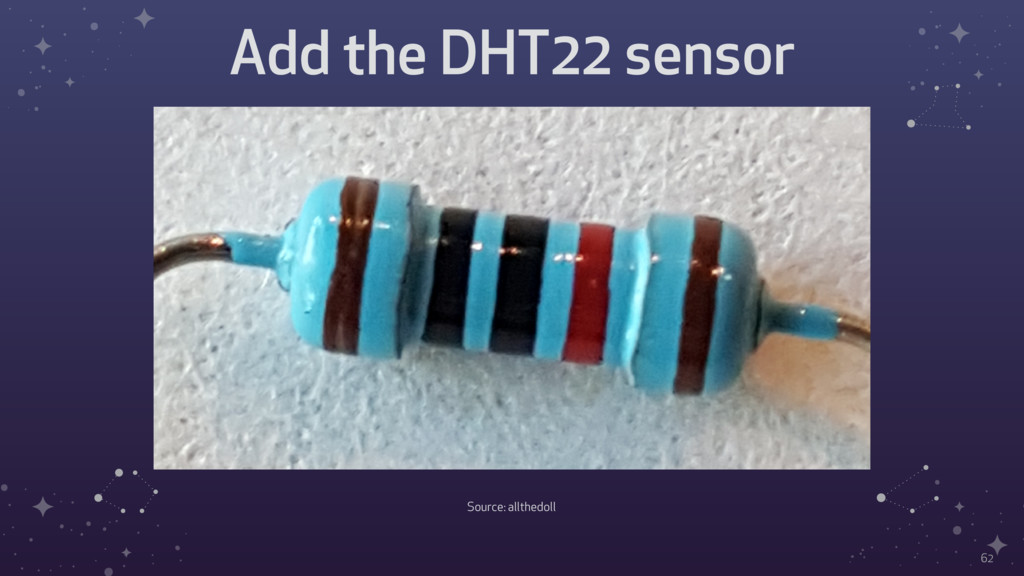

64. 64 Add the DHT22 sensor Source: allthedoll

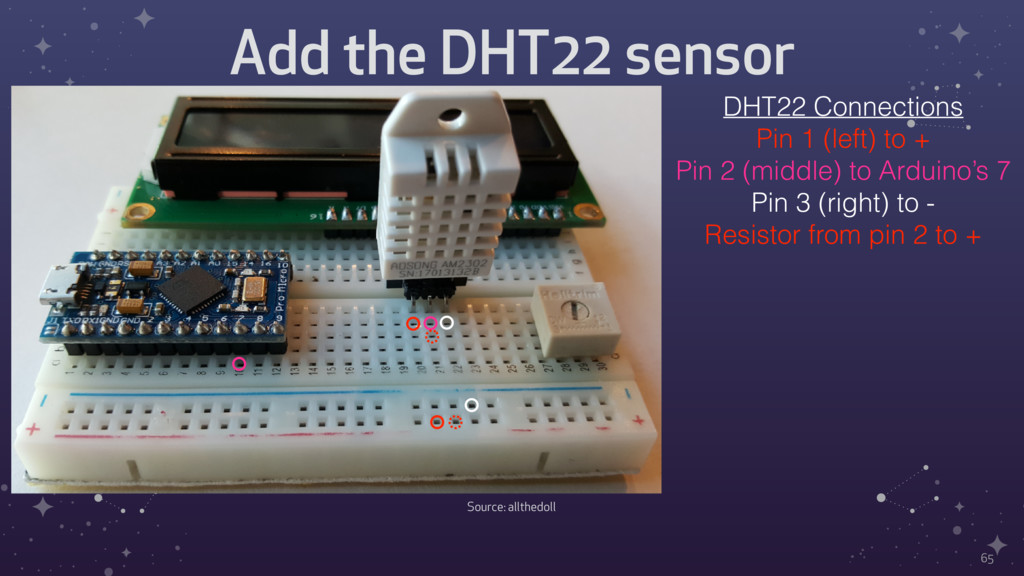

65. 65 Add the DHT22 sensor Source: allthedoll DHT22 Connections Pin 1 (left) to + Pin 2 (middle) to Arduino’s 7 Pin 3 (right) to - Resistor from pin 2 to +
66. 66 DEMO
67. 67 Thank you! Source: http://giphy.com
