Arduino Workshop
Jamie Strusz Engineer on Services Engineering @ GitHub Likes art
history; takes too many photos of her dog ! allthedoll !
Maxwell Pray Engineer on Services Tools @ GitHub Likes frites;
makes electronic music with vintage synthesizers ! synthead !
A quick note, before we get going… Source: http://giphy.com

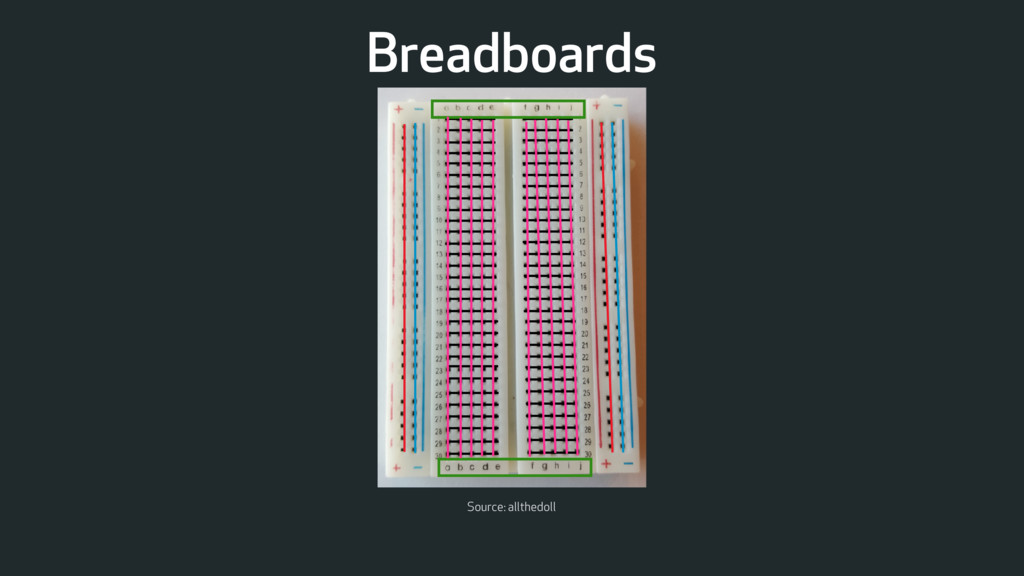

Breadboards Source: allthedoll
Our Arduino-compatible Pro Micro Source: allthedoll
Our LCD Source: allthedoll

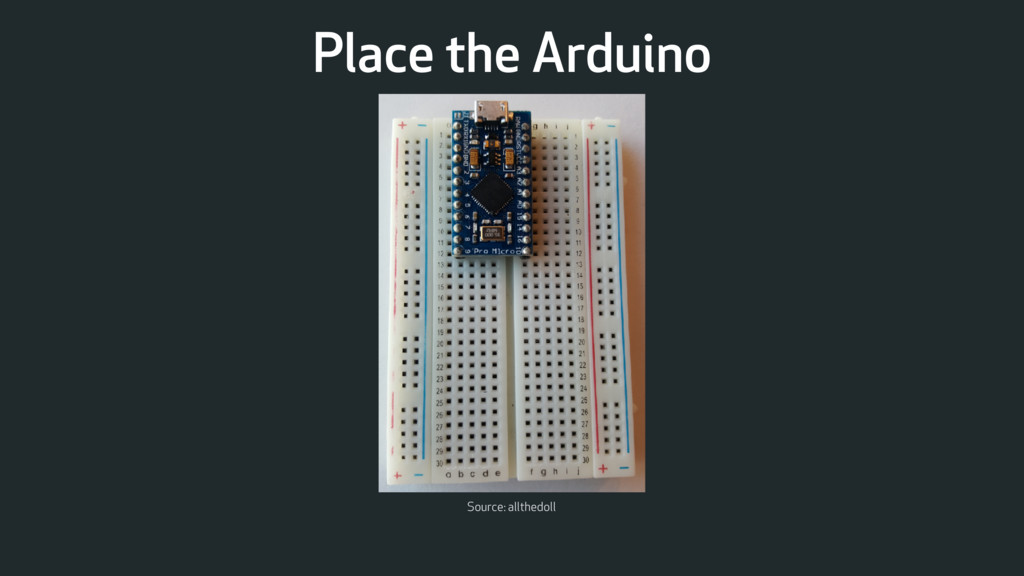

Place the Arduino Source: allthedoll
Place the Arduino Source: allthedoll

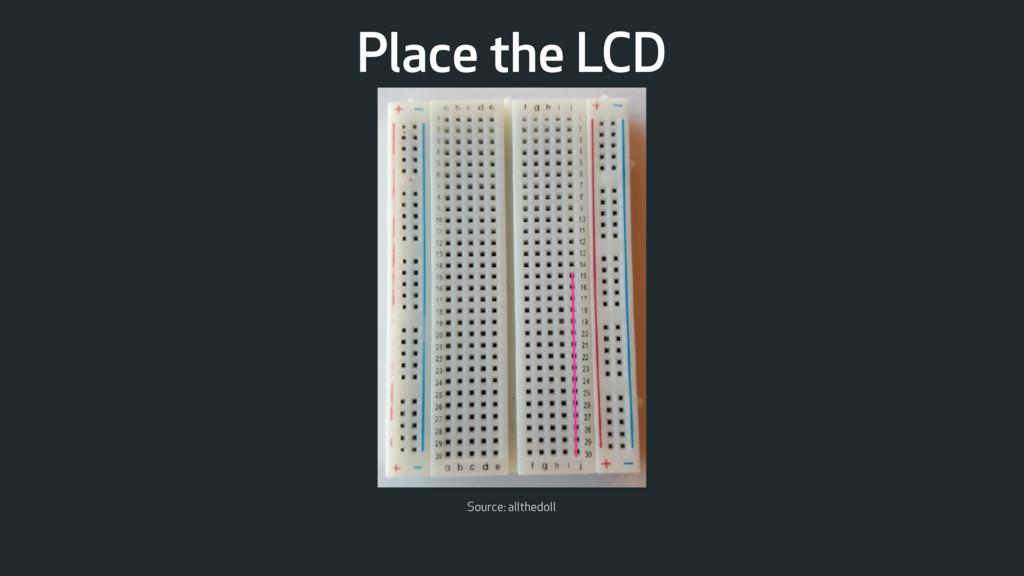

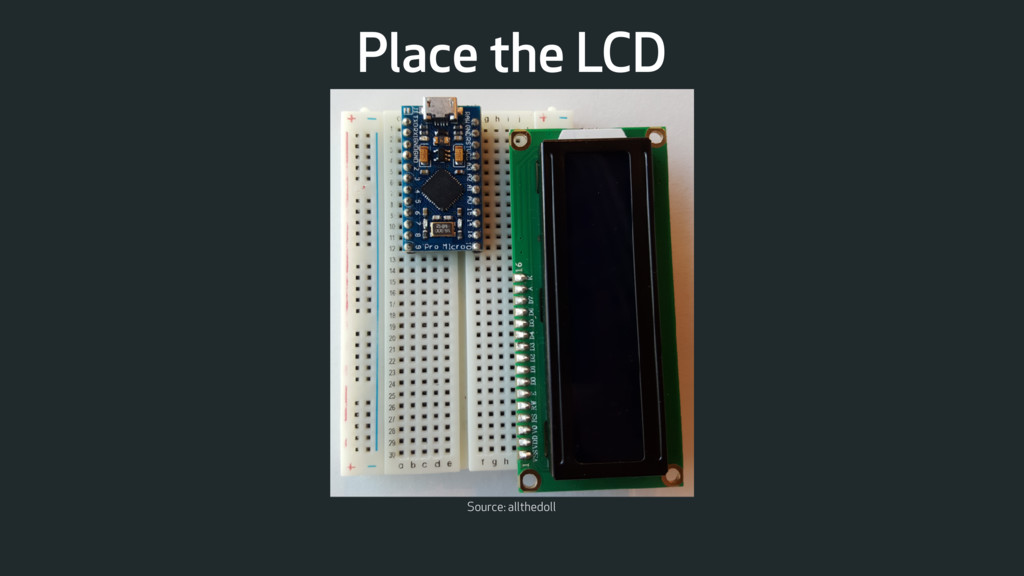

Source: allthedoll Place the LCD
Source: allthedoll Place the LCD
Connect the Jumper Wires Source: allthedoll

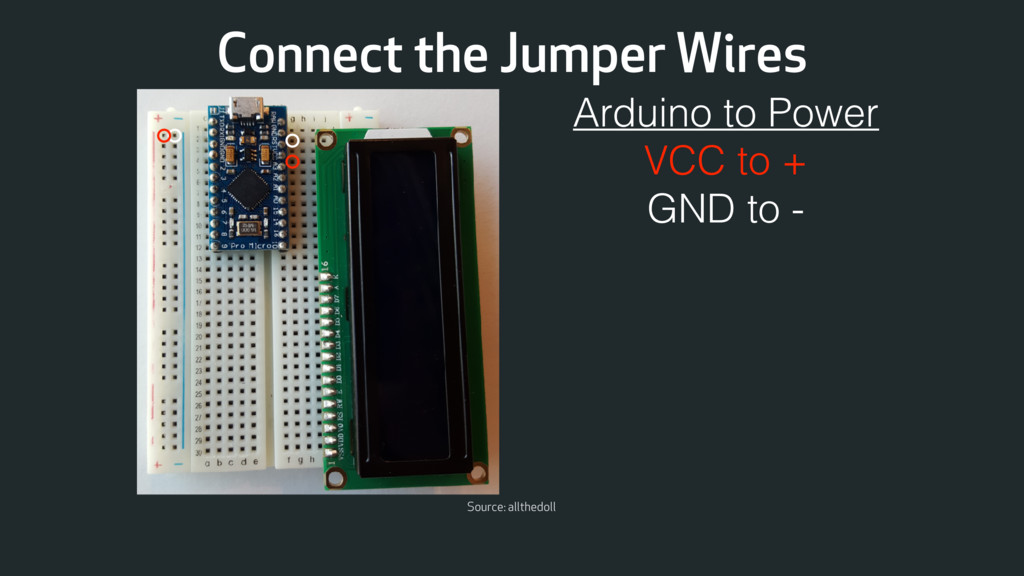

Connect the Jumper Wires Source: allthedoll Arduino to Power VCC
to + GND to -
Connect the Jumper Wires Source: allthedoll LCD to Power VDD
to + VSS to -

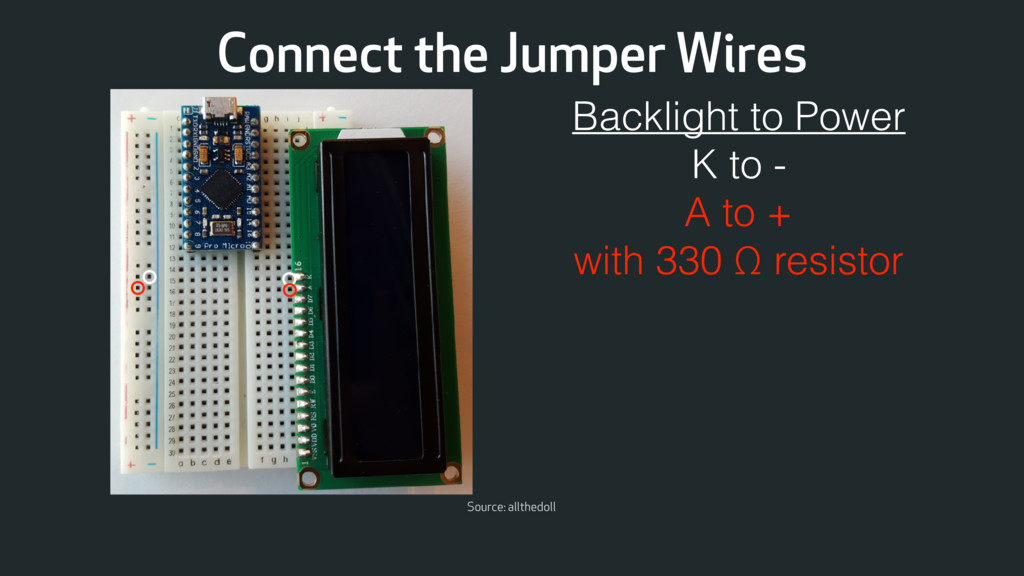

Connect the Jumper Wires Source: allthedoll Backlight to Power K
to - A to + with 330 Ω resistor

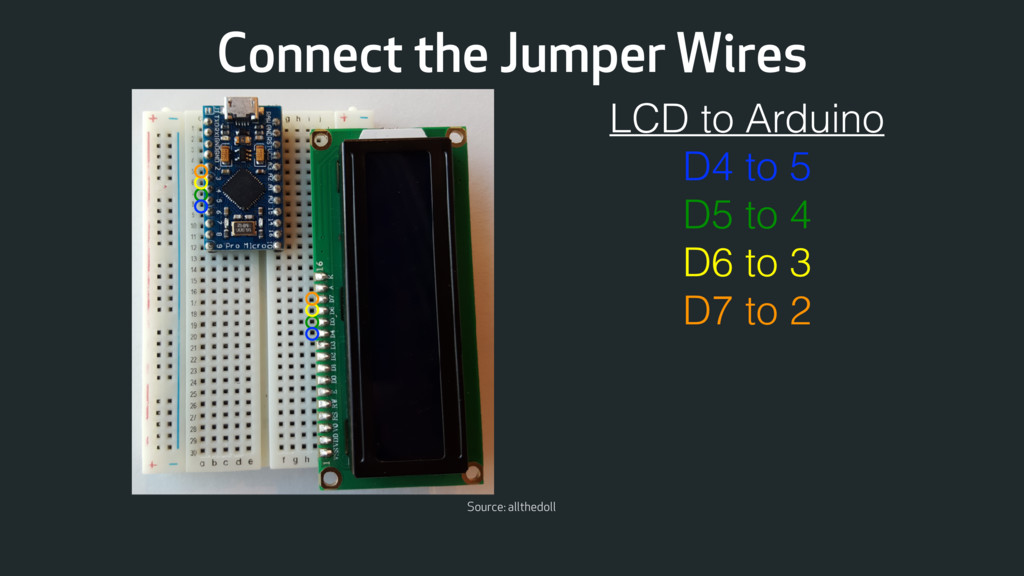

Connect the Jumper Wires Source: allthedoll LCD to Arduino D4
to 5 D5 to 4 D6 to 3 D7 to 2

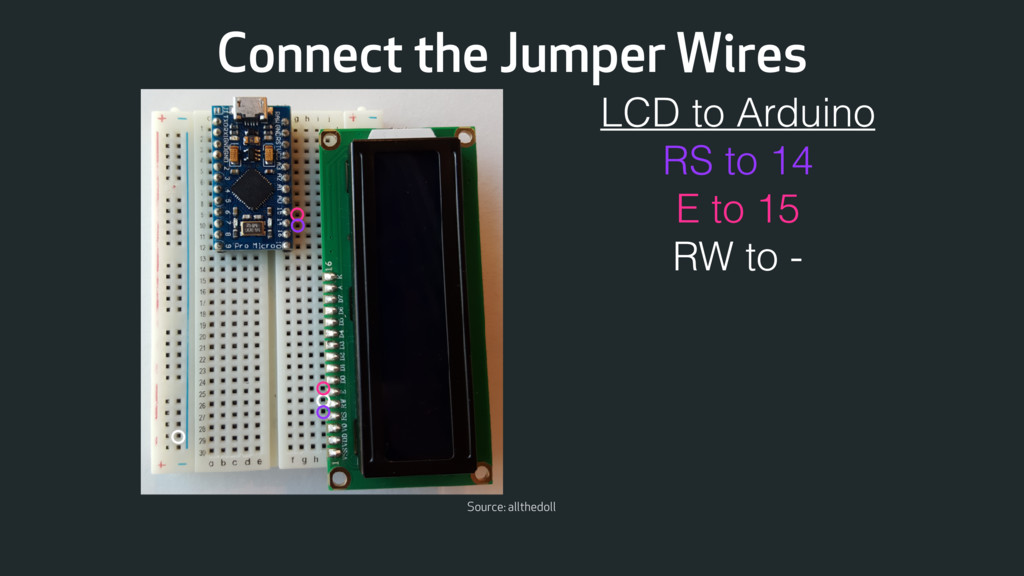

Connect the Jumper Wires Source: allthedoll LCD to Arduino RS
to 14 E to 15 RW to -

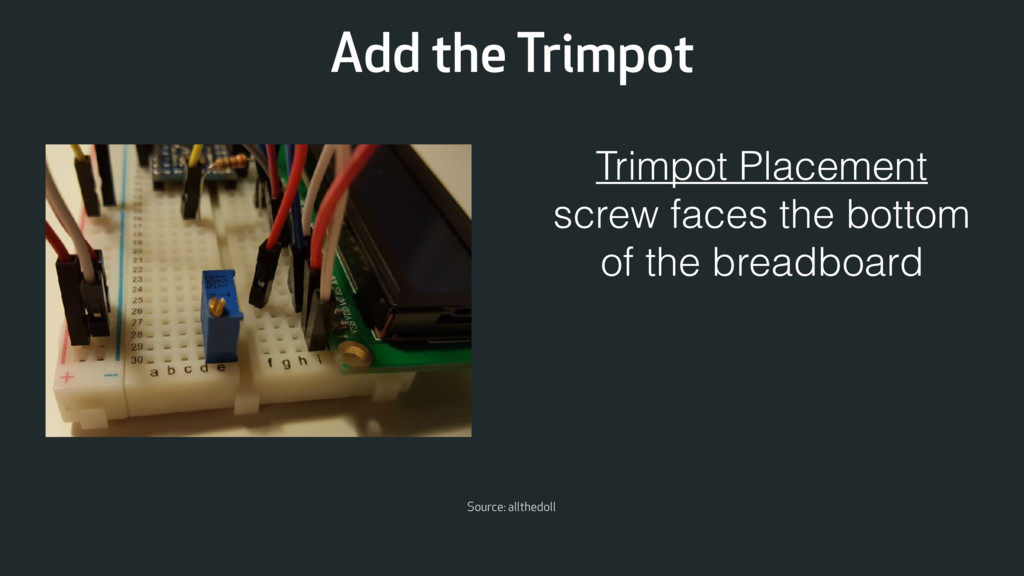

Add the Trimpot Source: allthedoll Trimpot Placement screw faces the
bottom of the breadboard
Wire the Trimpot Source: allthedoll Trimpot left to ground right
to power center to VO

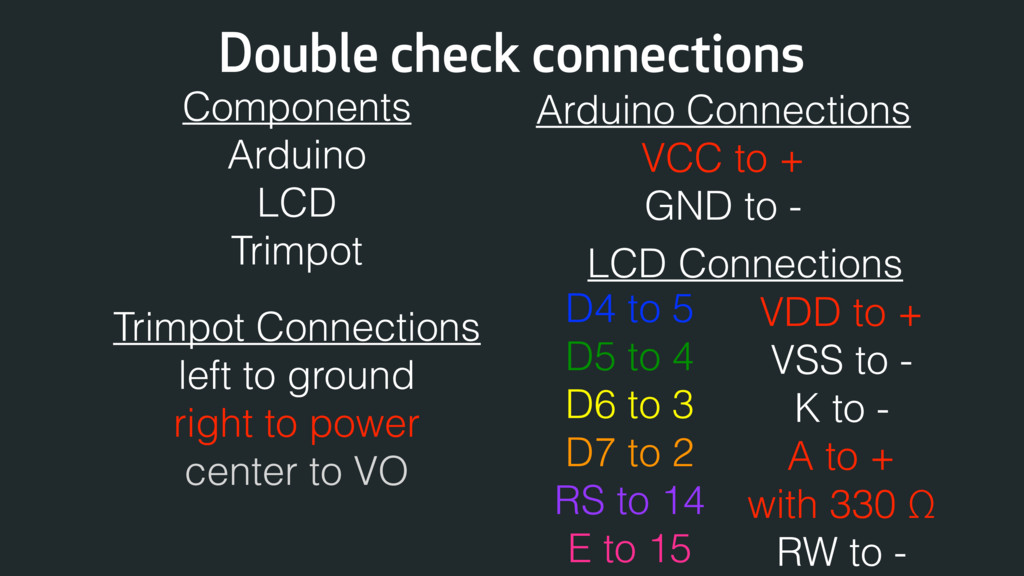

Double check connections Arduino Connections VCC to + GND to
- D4 to 5 D5 to 4 D6 to 3 D7 to 2 RS to 14 E to 15 VDD to + VSS to - K to - A to + with 330 Ω RW to - LCD Connections Components Arduino LCD Trimpot Trimpot Connections left to ground right to power center to VO

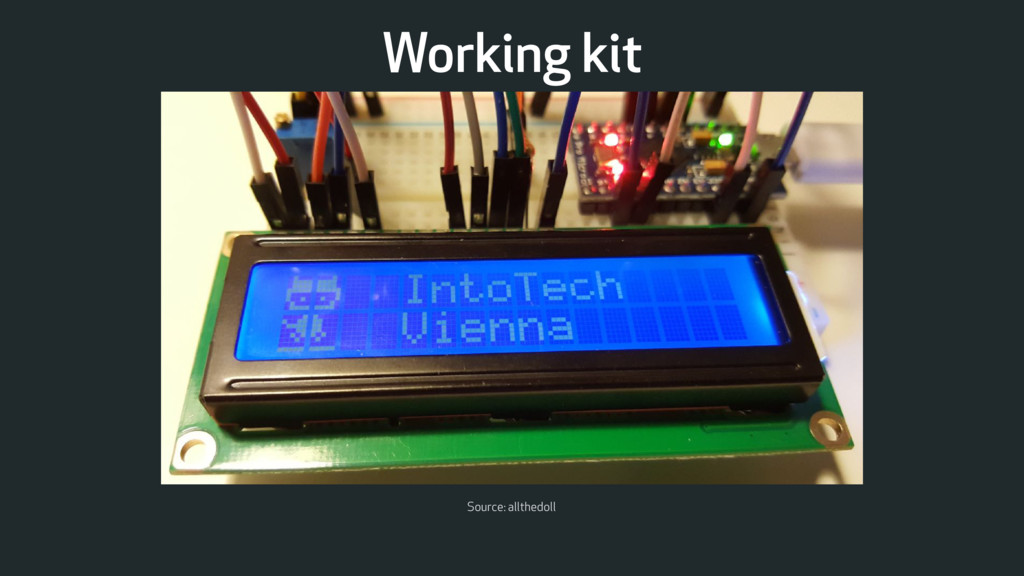

Working kit Source: allthedoll
Weather Station Source: http://giphy.com

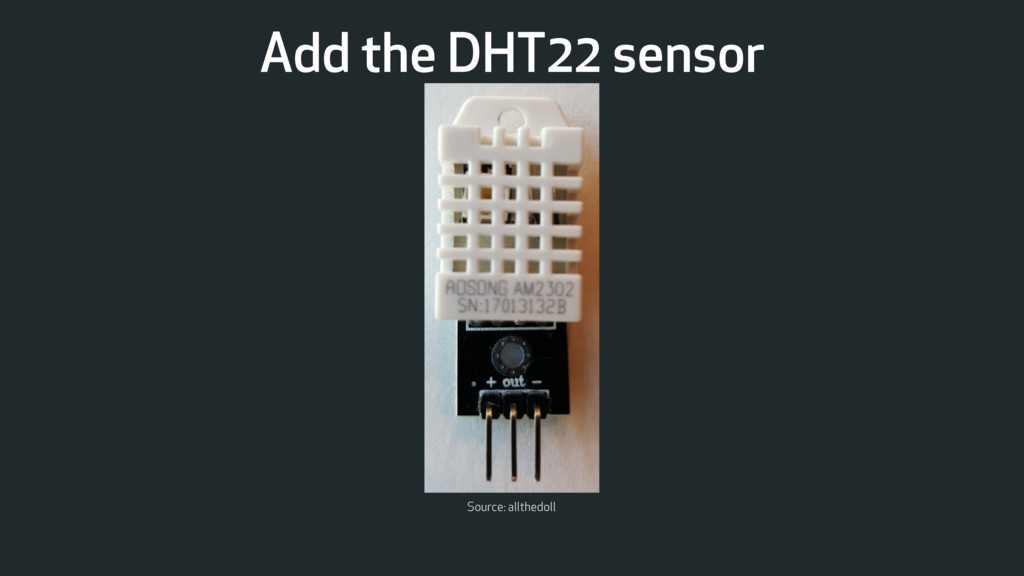

Add the DHT22 sensor Source: allthedoll

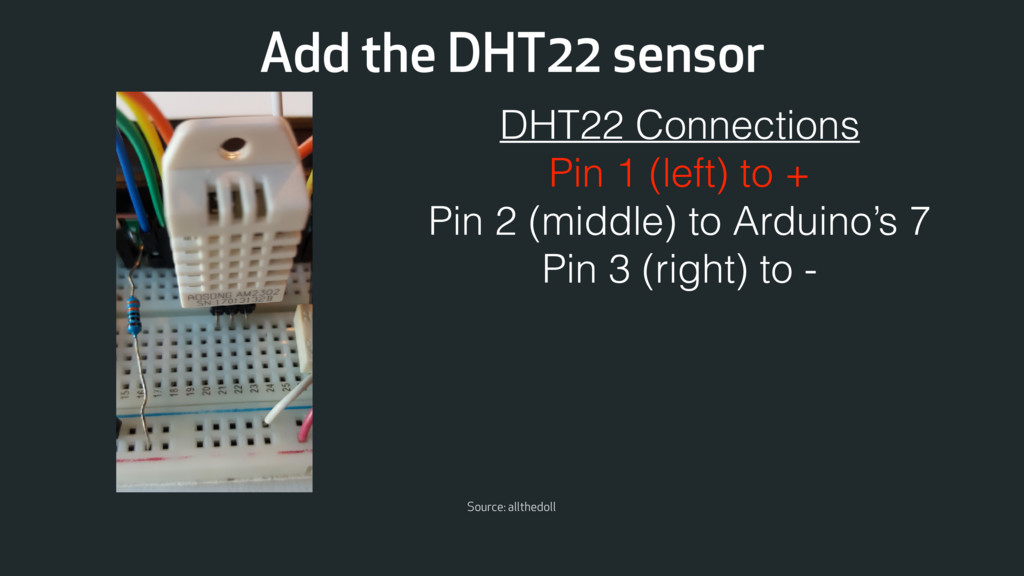

Add the DHT22 sensor Source: allthedoll DHT22 Connections Pin 1
(left) to + Pin 2 (middle) to Arduino’s 7 Pin 3 (right) to -

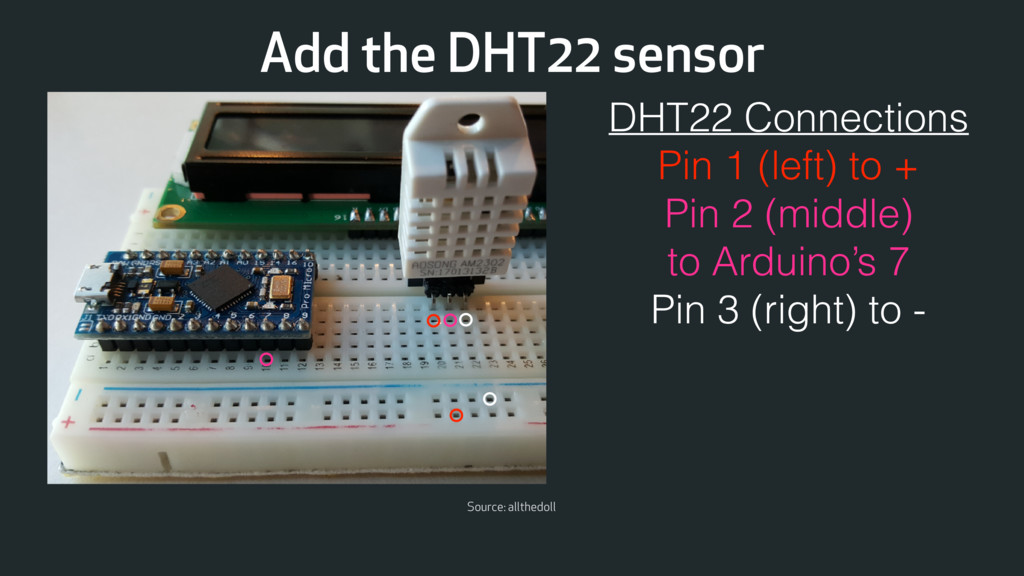

Add the DHT22 sensor Source: allthedoll DHT22 Connections Pin 1
(left) to + Pin 2 (middle) to Arduino’s 7 Pin 3 (right) to -
Add the DHT22 sensor Source: allthedoll DHT22 Connections Pin 1
(left) to + Pin 2 (middle) to Arduino’s 7 Pin 3 (right) to - Resistor from pin 2 to +
Source: http://giphy.com Thank you!
! You can find Jamie on GitHub and alltheinternet: !
allthedoll ! allthedoll " allthedoll Jamie Strusz You can find Max on GitHub and YouTube: ! synthead # synthead Maxwell Pray
