BostonRB - January 2014 - Devise - Bob Breznak

My presentation at the January 2014 BostonRB meetup. I discussed the inner workings of Devise by reviewing Rack and Warden then dove into a problem that we addressed in Devise.

Transcript

1. Devise @bobbrez
2. Rack Warden Devise Token Authentication

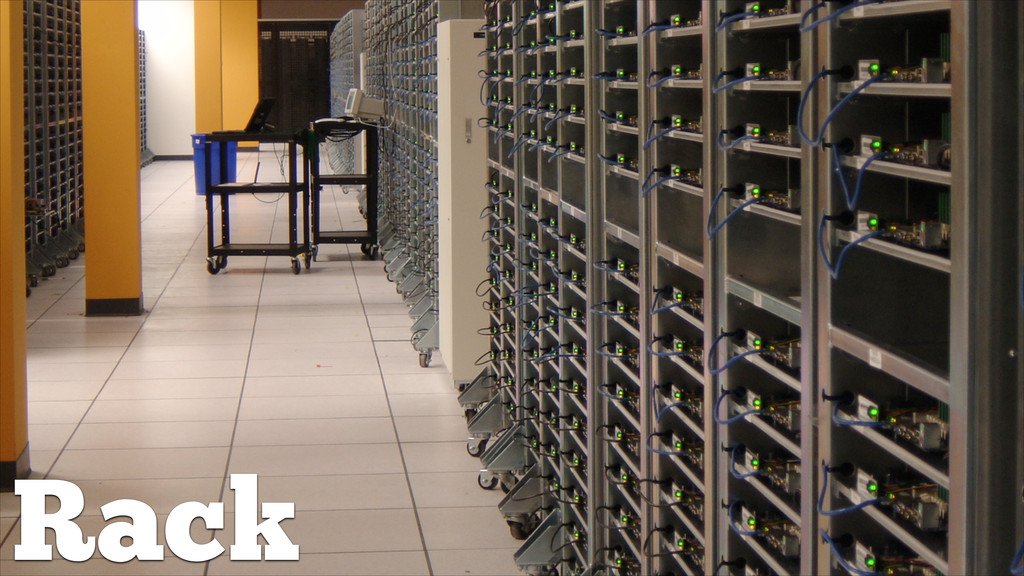

3. Rack
4. Rack Example https://github.com/bobbrez/bostonrb_rack_talk

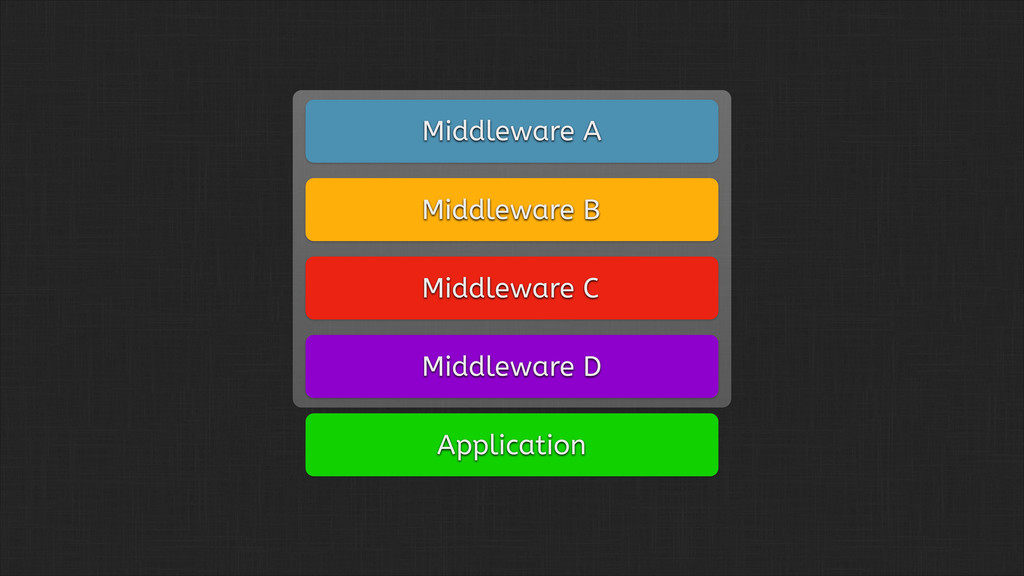

5. Application Middleware B Middleware D Middleware C Middleware A

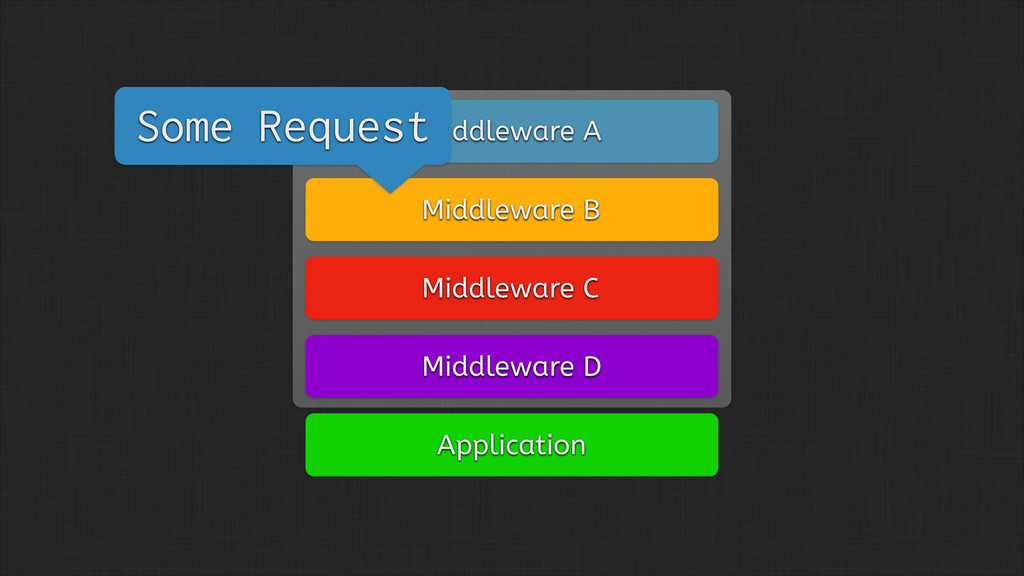

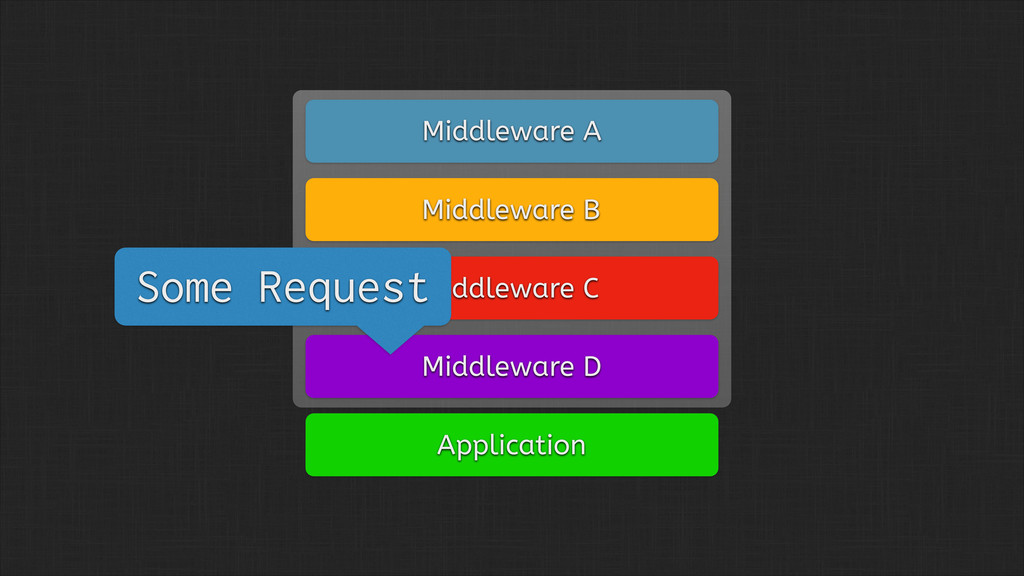

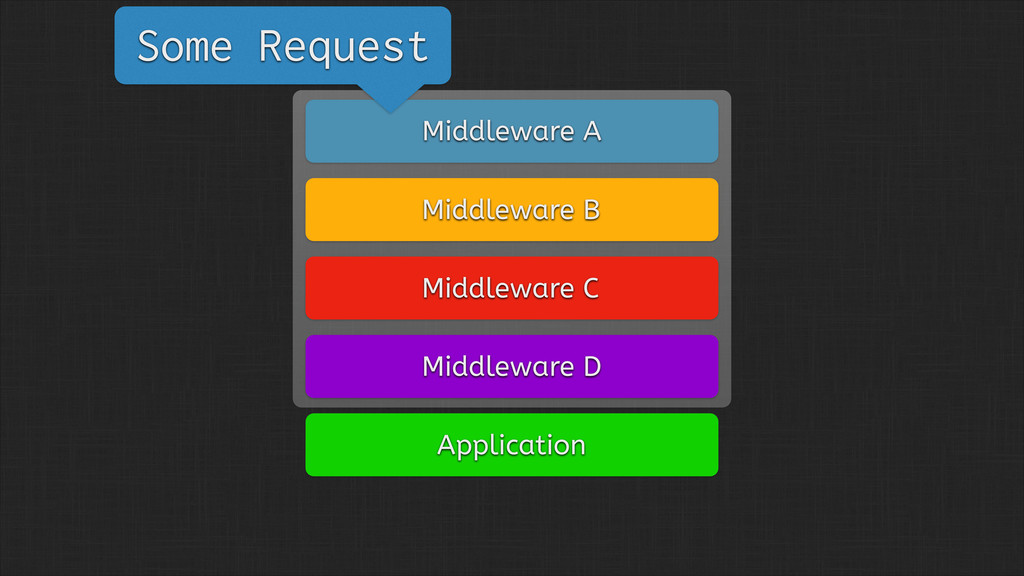

6. Application Middleware B Middleware D Middleware C Middleware A Some Request

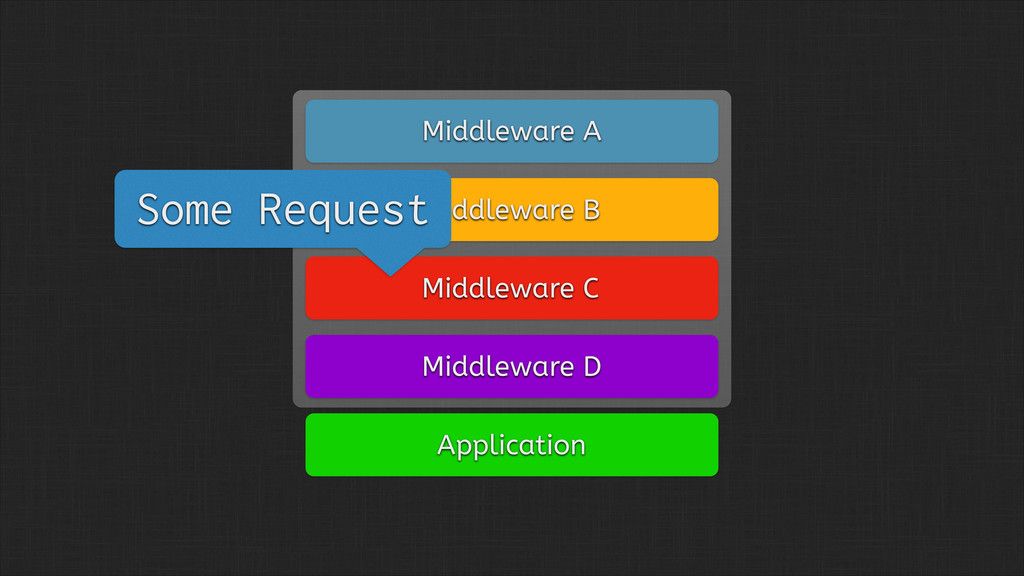

7. Application Middleware B Middleware D Middleware C Middleware A Some Request
8. Application Middleware B Middleware D Middleware C Middleware A Some Request
9. Application Middleware B Middleware D Middleware C Middleware A Some Request

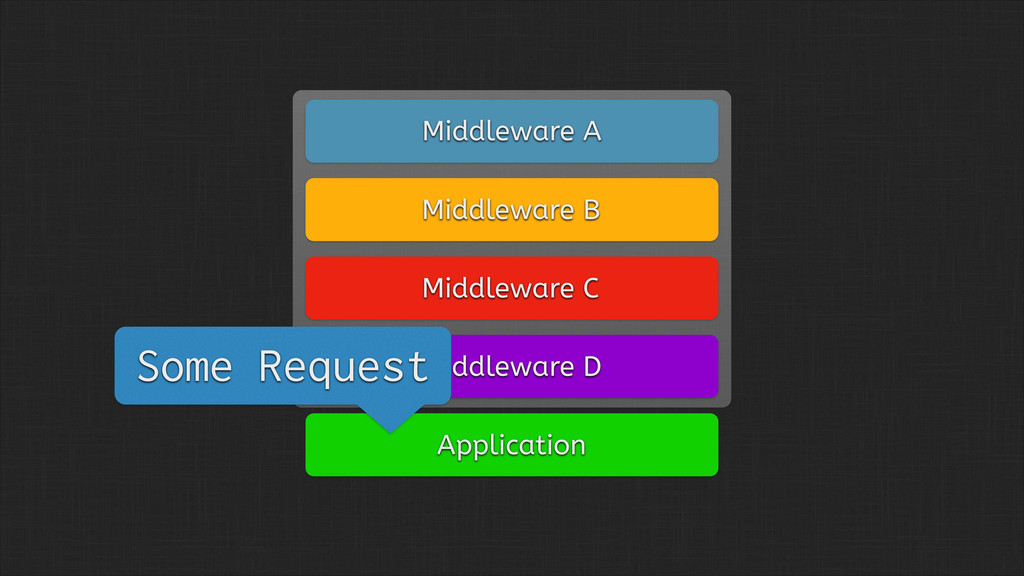

10. Application Middleware B Middleware D Middleware C Middleware A Some Request

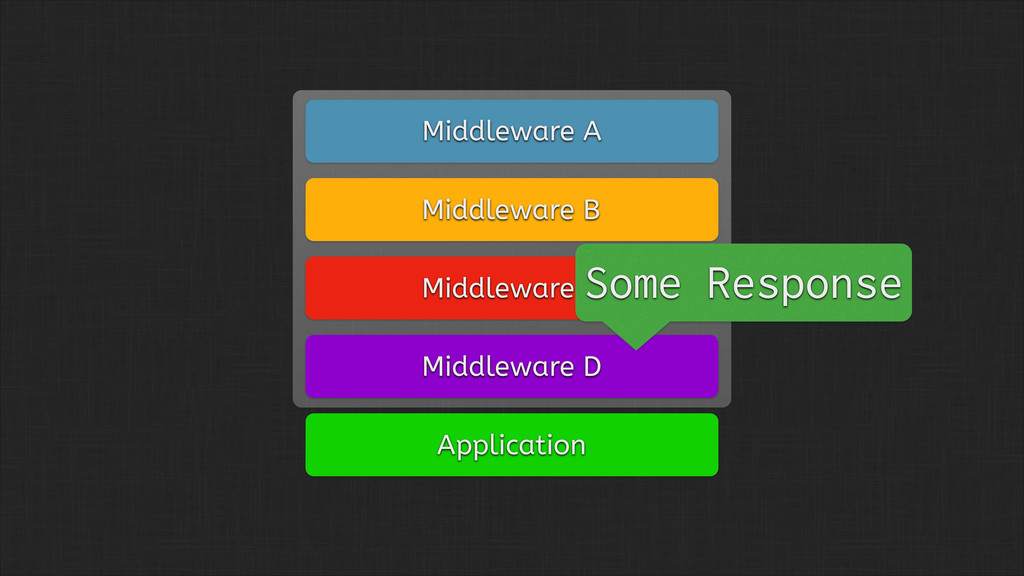

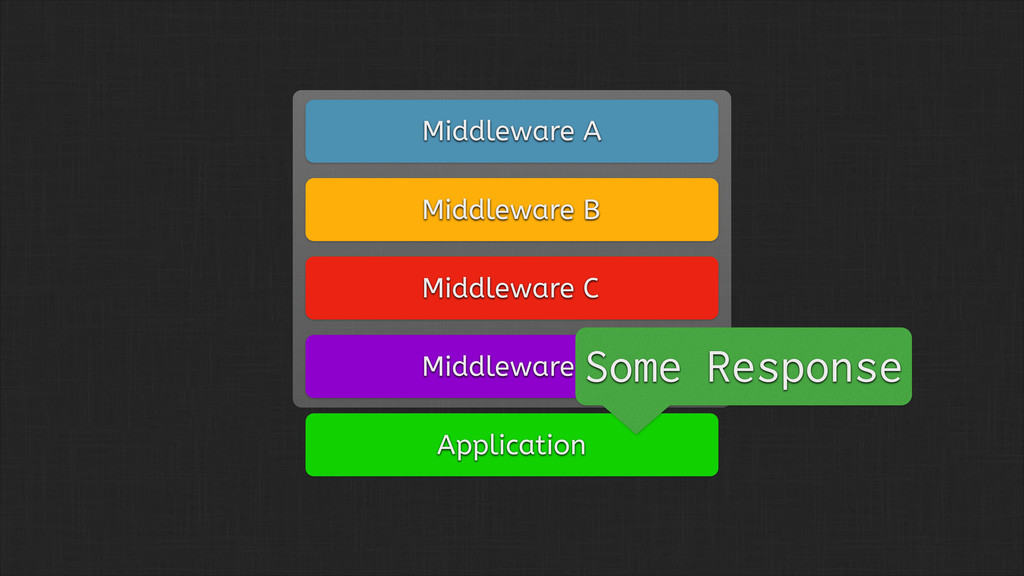

11. Application Middleware B Middleware D Middleware C Middleware A Some Response
12. Application Middleware B Middleware D Middleware C Middleware A Some Response

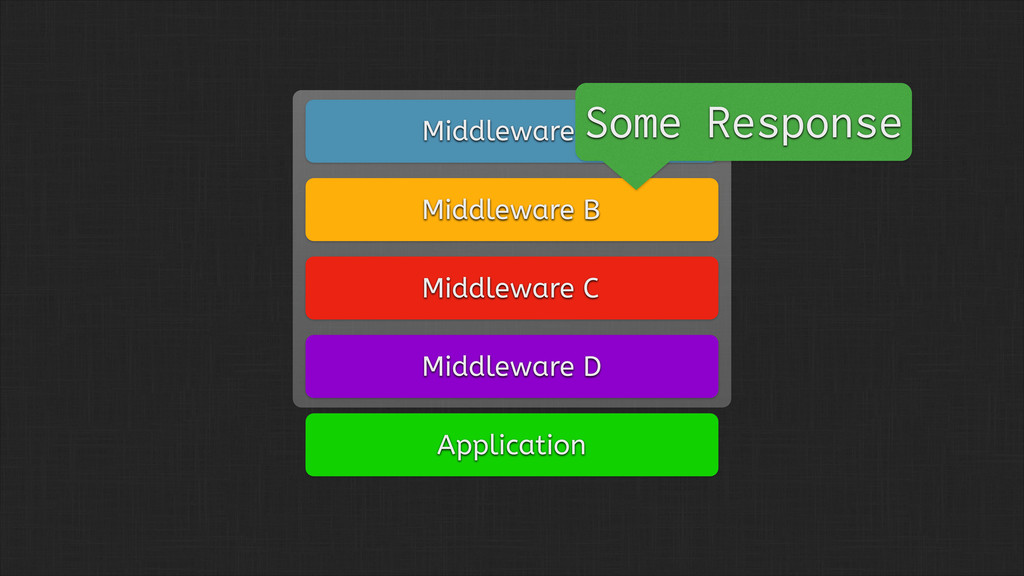

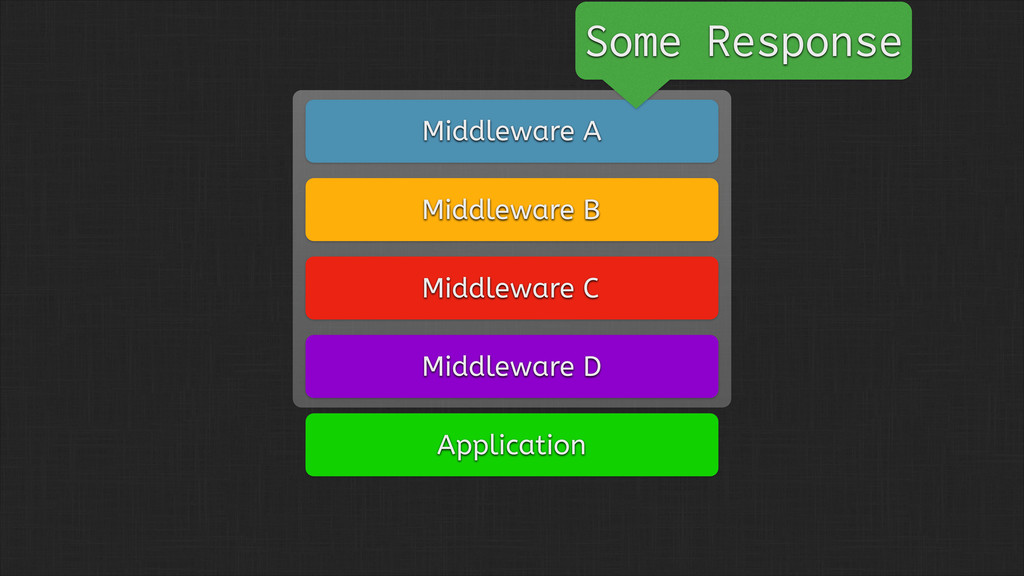

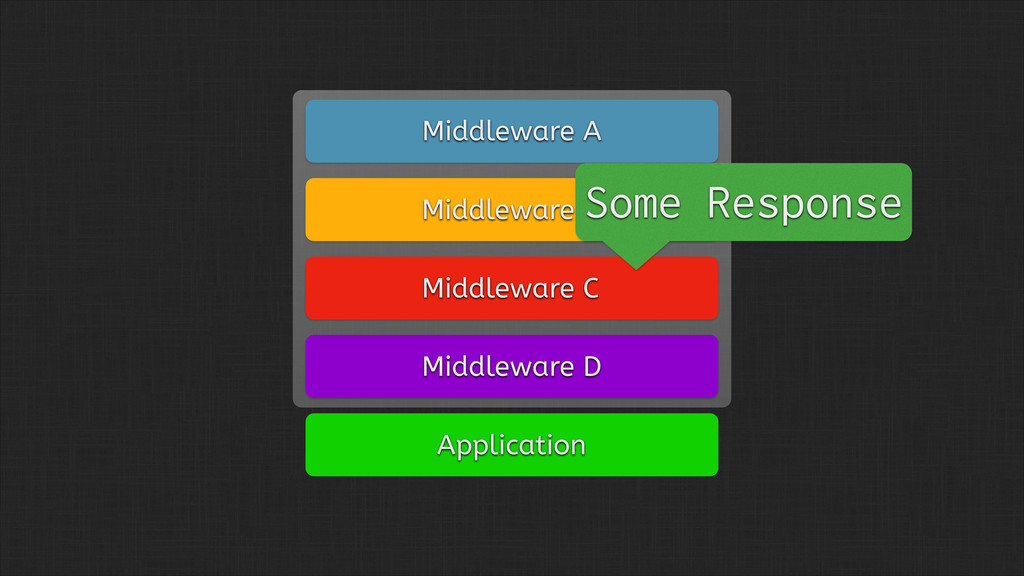

13. Application Middleware B Middleware D Middleware C Middleware A Some Response
14. Application Middleware B Middleware D Middleware C Middleware A Some Response
15. Application Middleware B Middleware D Middleware C Middleware A Some Response
16. Application Middleware B Middleware D Middleware C Middleware A
17. Application Middleware B Middleware D Middleware C Middleware A
18. Application Middleware B Middleware D Middleware C Middleware A Some Request
19. Application Middleware B Middleware D Middleware C Middleware A Some Request
20. Application Middleware B Middleware D Middleware C Middleware A Some Request

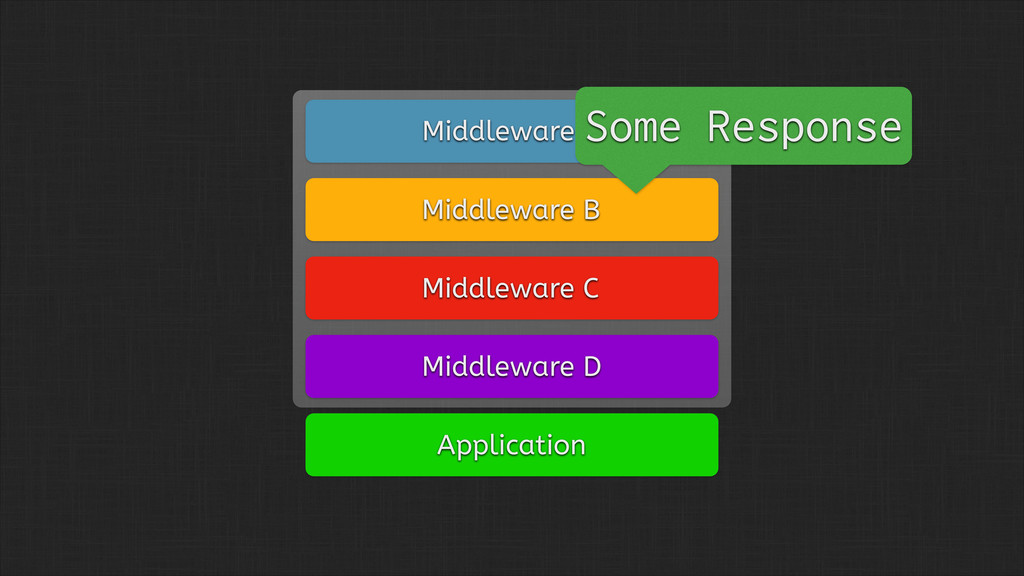

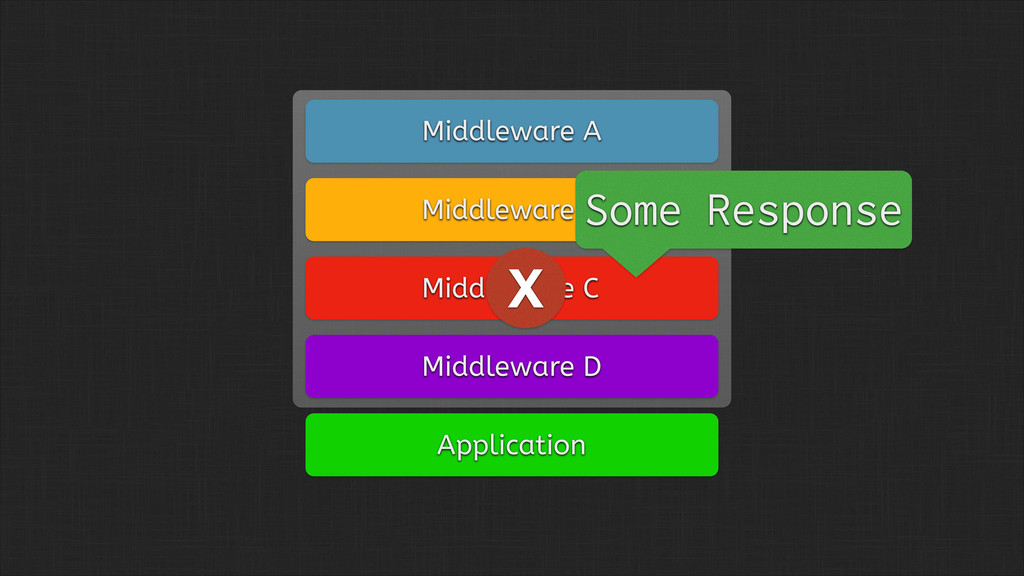

21. Application Middleware B Middleware D Middleware C Middleware A Some Response X

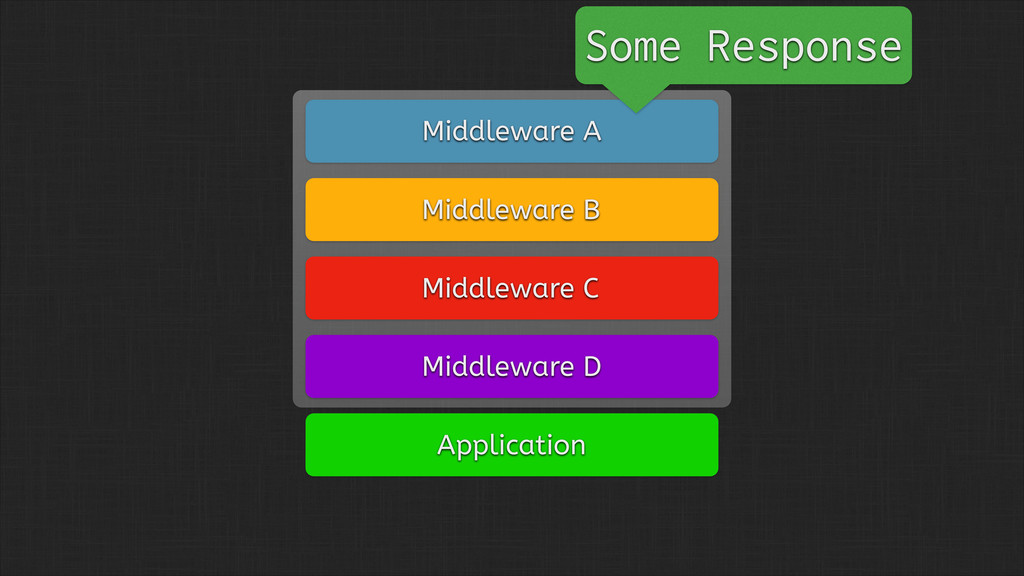

22. Application Middleware B Middleware D Middleware C Middleware A Some Response
23. Application Middleware B Middleware D Middleware C Middleware A Some Response
24. Application Middleware B Middleware D Middleware C Middleware A

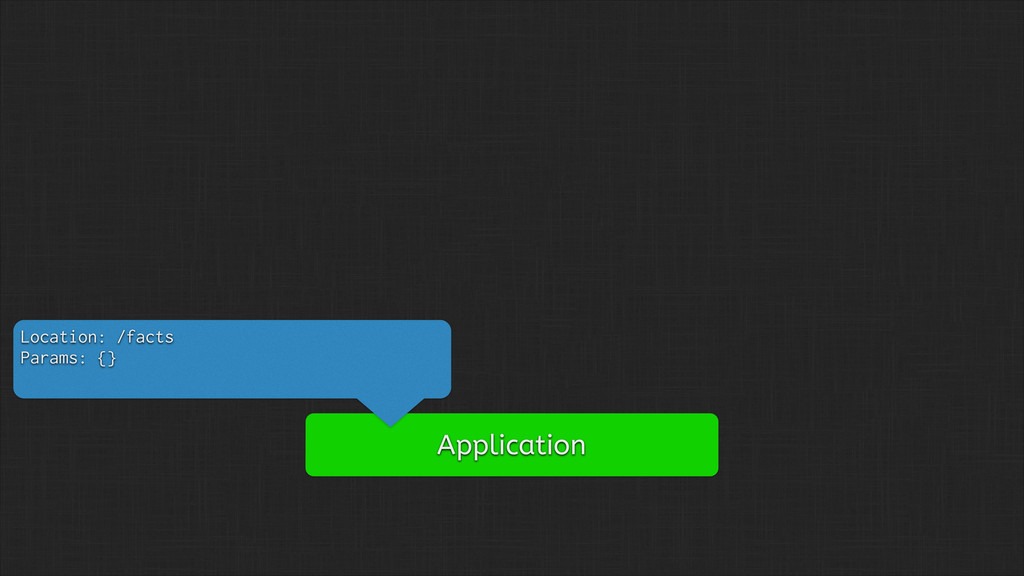

25. Application Location: /facts Params: {}
26. Application

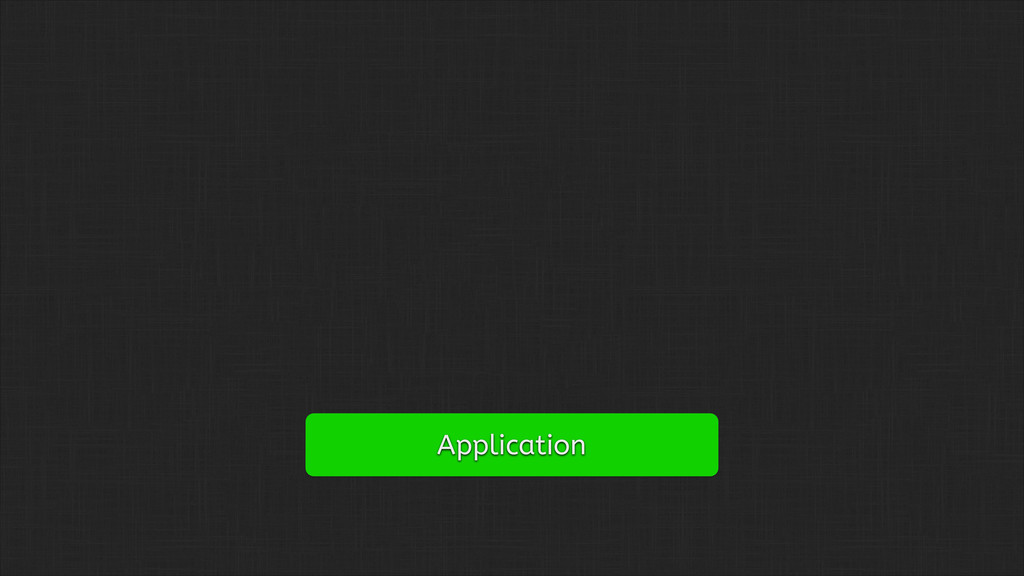

27. Application

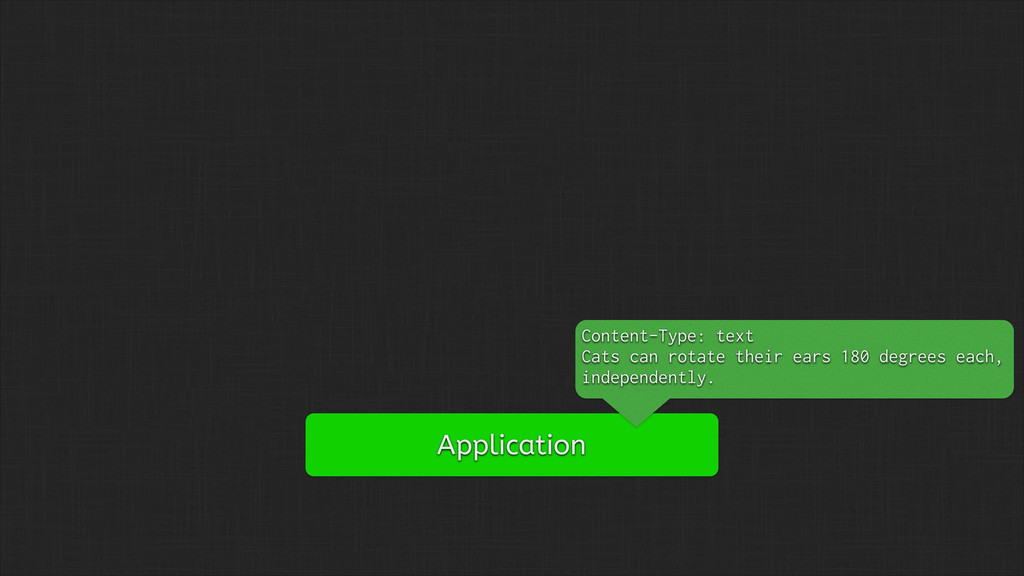

28. Application Content-Type: text Cats can rotate their ears 180 degrees each, independently.

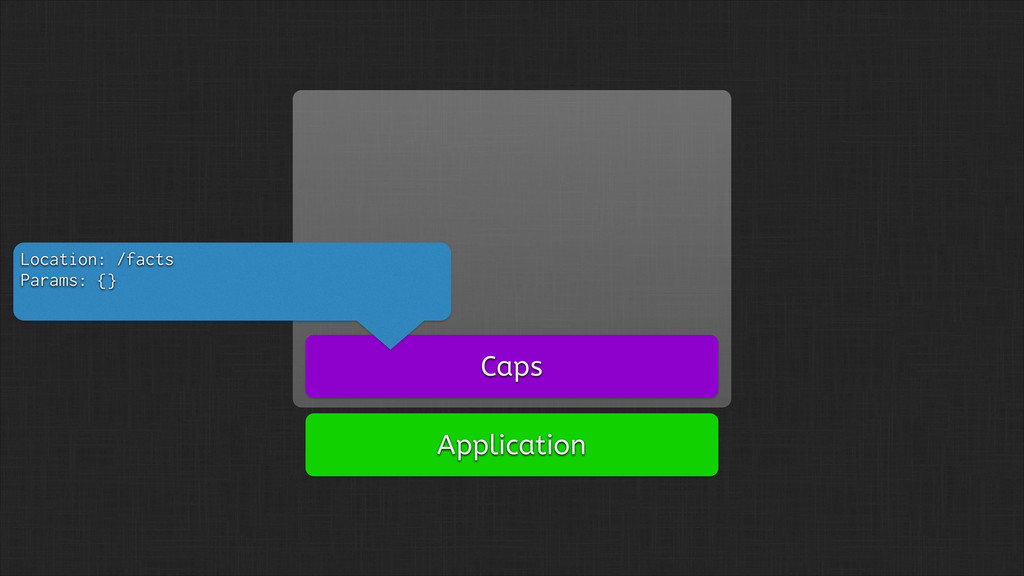

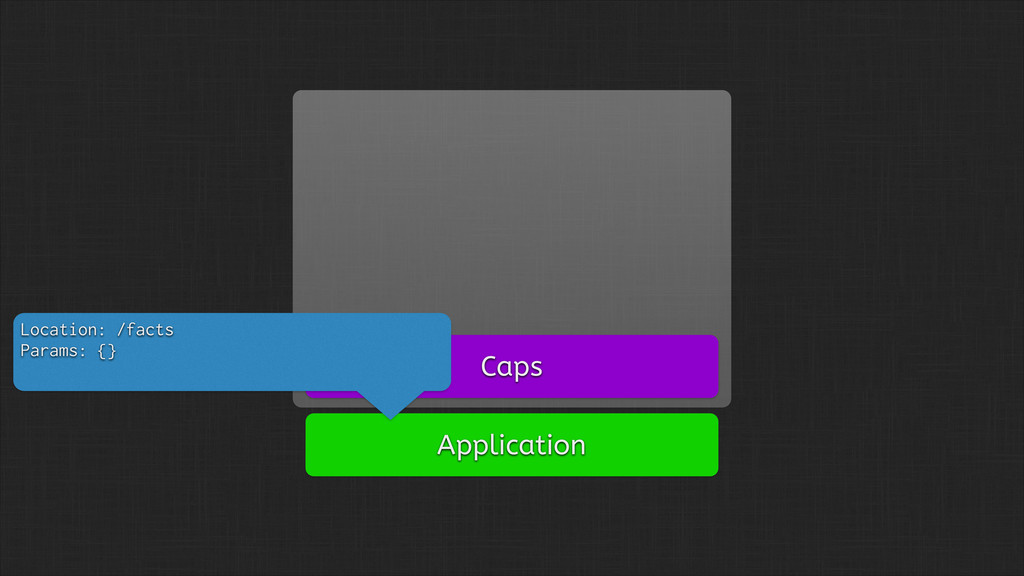

29. Application Caps Location: /facts Params: {}
30. Application Caps Location: /facts Params: {}

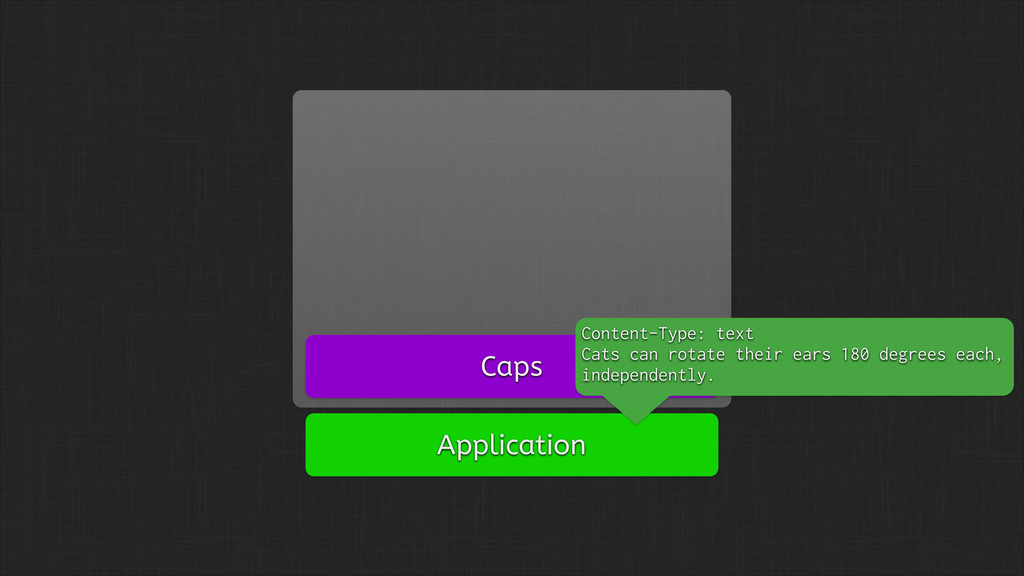

31. Application Caps Content-Type: text Cats can rotate their ears 180 degrees each, independently.
32. Application Caps Content-Type: text CATS CAN ROTATE THEIR EARS 180 DEGREES EACH, INDEPENDENTLY.

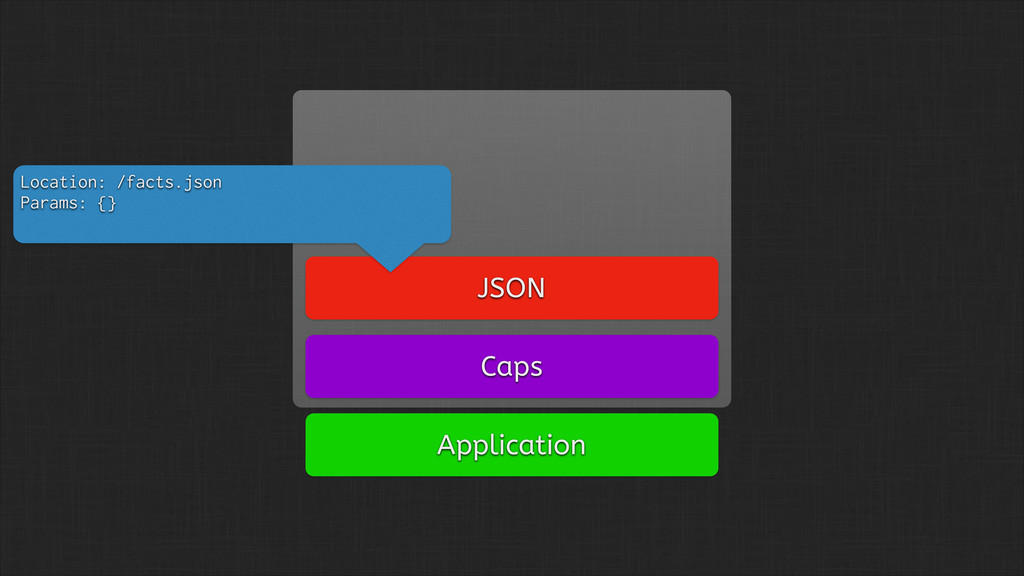

33. Application Caps JSON Location: /facts.json Params: {}

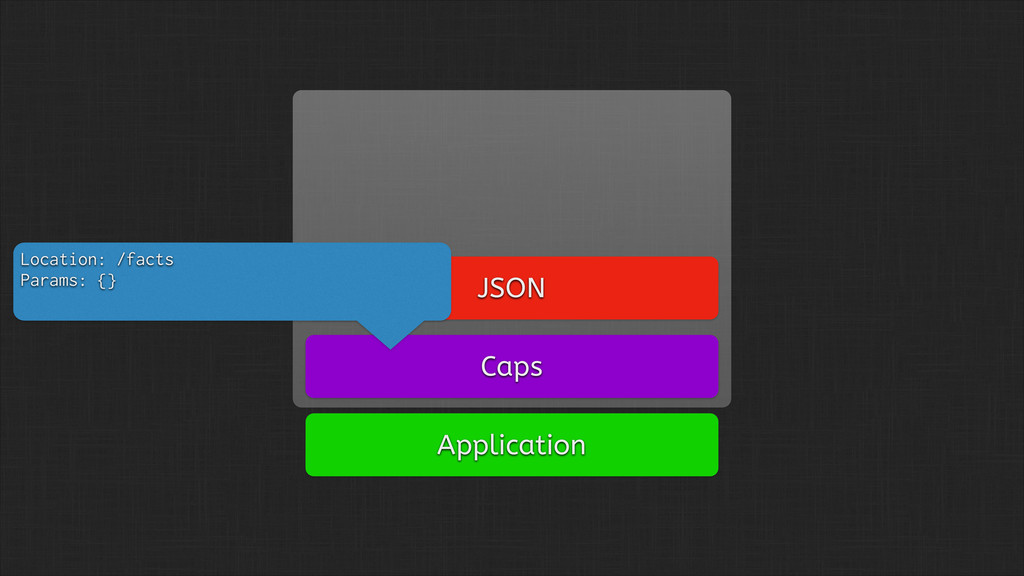

34. Application Caps JSON Location: /facts Params: {}
35. Application Caps JSON Location: /facts Params: {}
36. Application Caps JSON Content-Type: text Cats can rotate their ears 180 degrees each, independently.

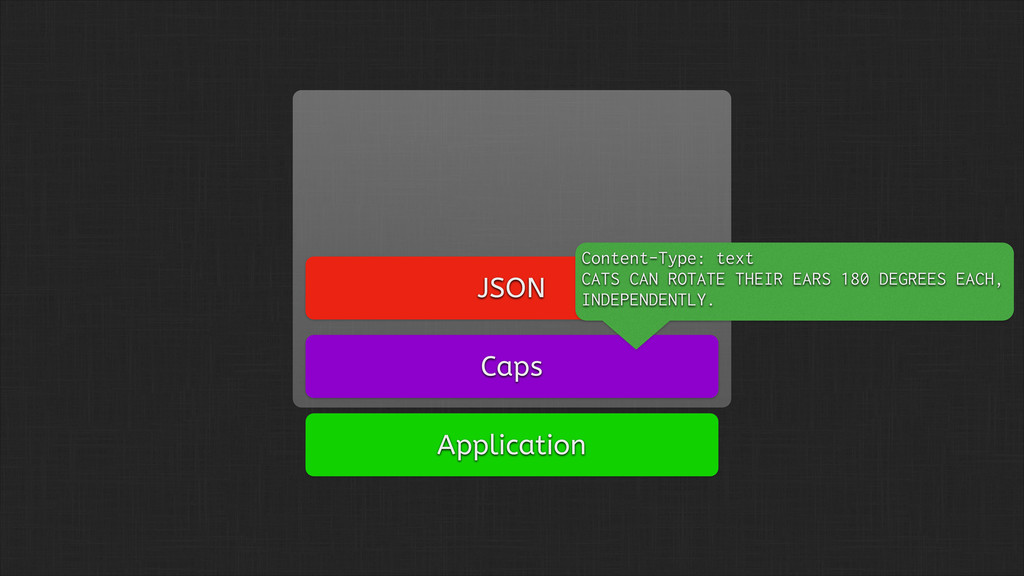

37. Application Caps JSON Content-Type: text CATS CAN ROTATE THEIR EARS 180 DEGREES EACH, INDEPENDENTLY.

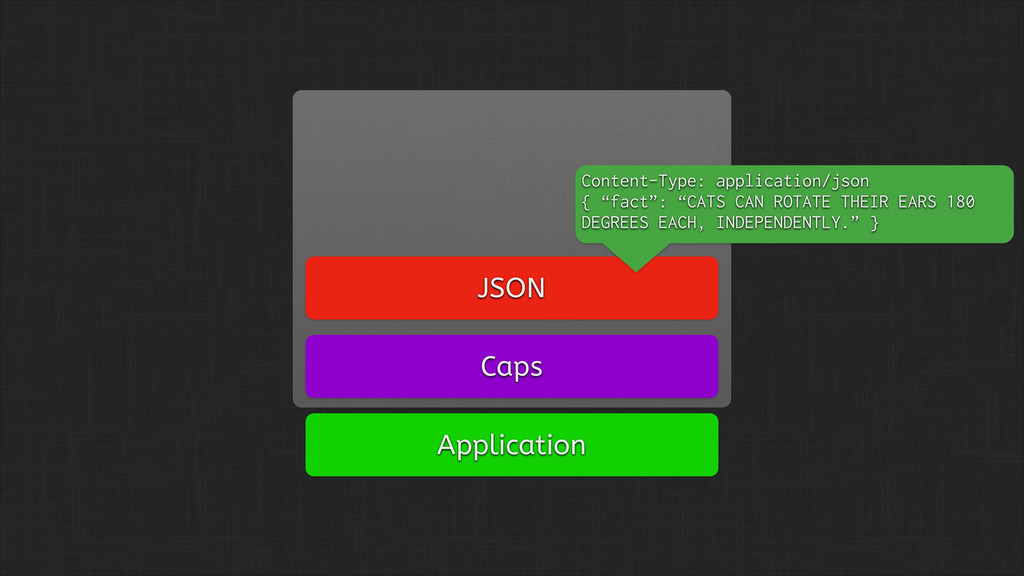

38. Application Caps JSON Content-Type: application/json { “fact”: “CATS CAN ROTATE THEIR EARS 180 DEGREES EACH, INDEPENDENTLY.” }

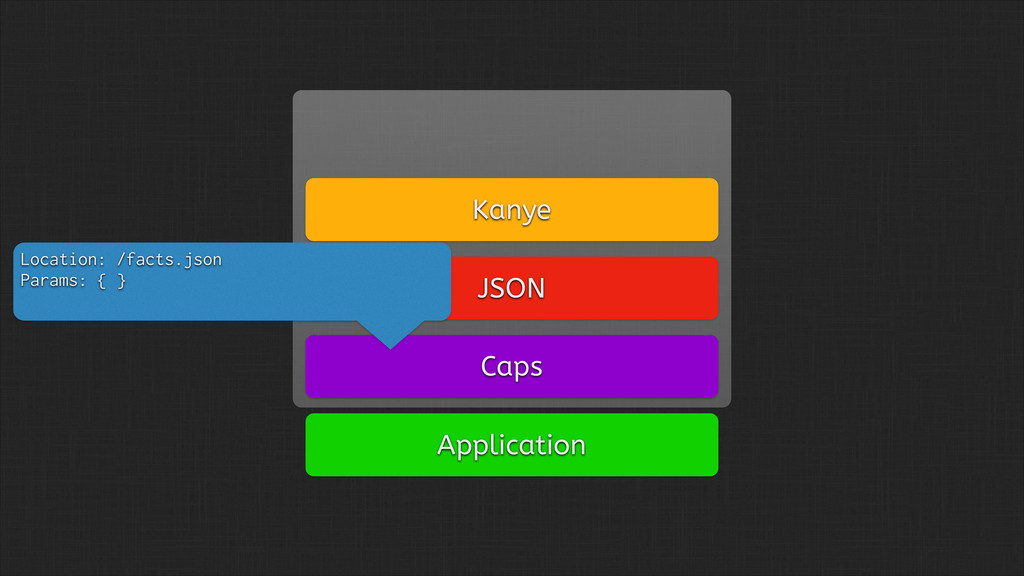

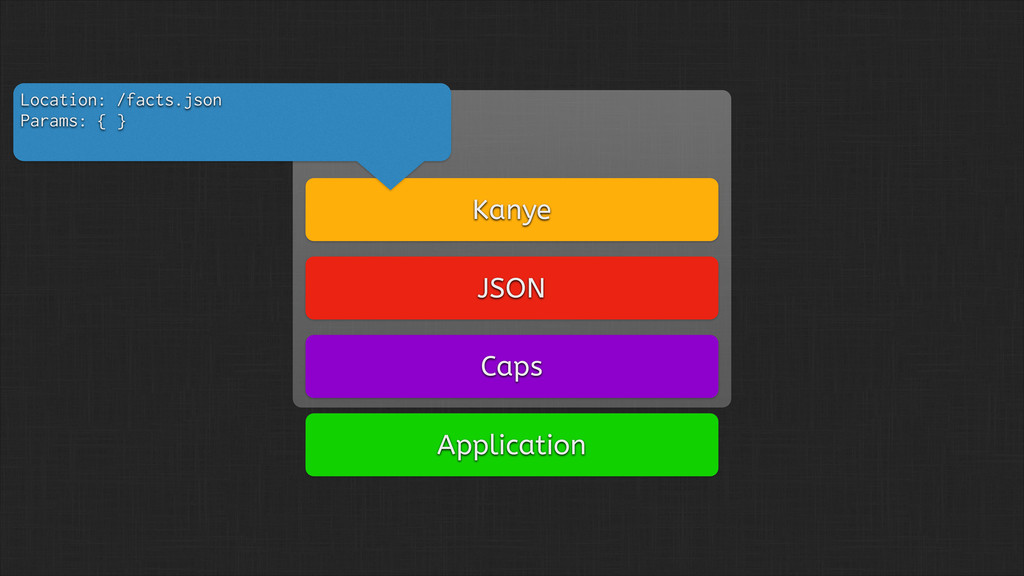

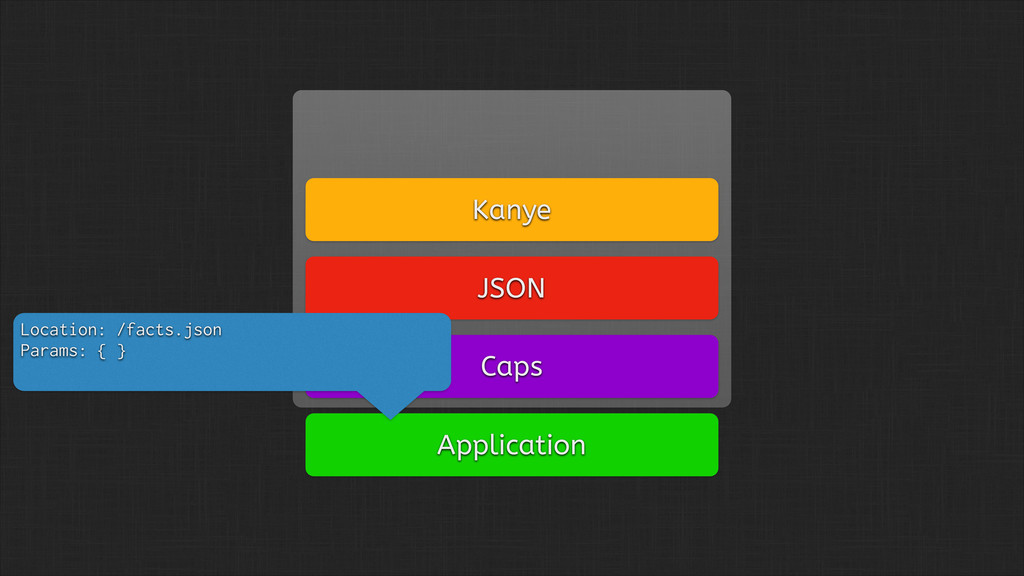

39. Application Kanye Caps JSON Location: /facts.json Params: { }

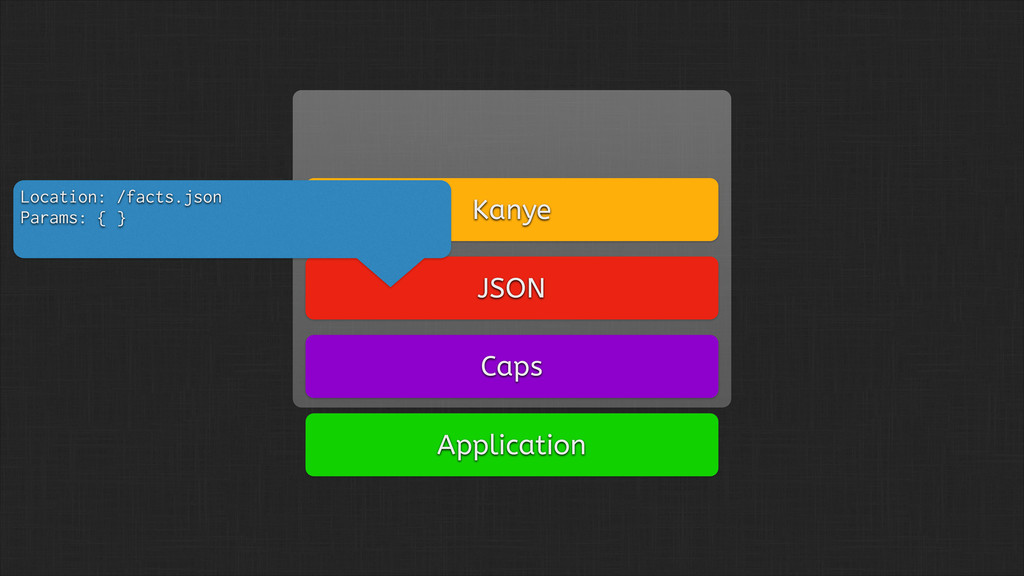

40. Application Kanye Caps JSON Location: /facts.json Params: { }
41. Application Kanye Caps JSON Location: /facts.json Params: { }
42. Application Kanye Caps JSON Location: /facts.json Params: { }

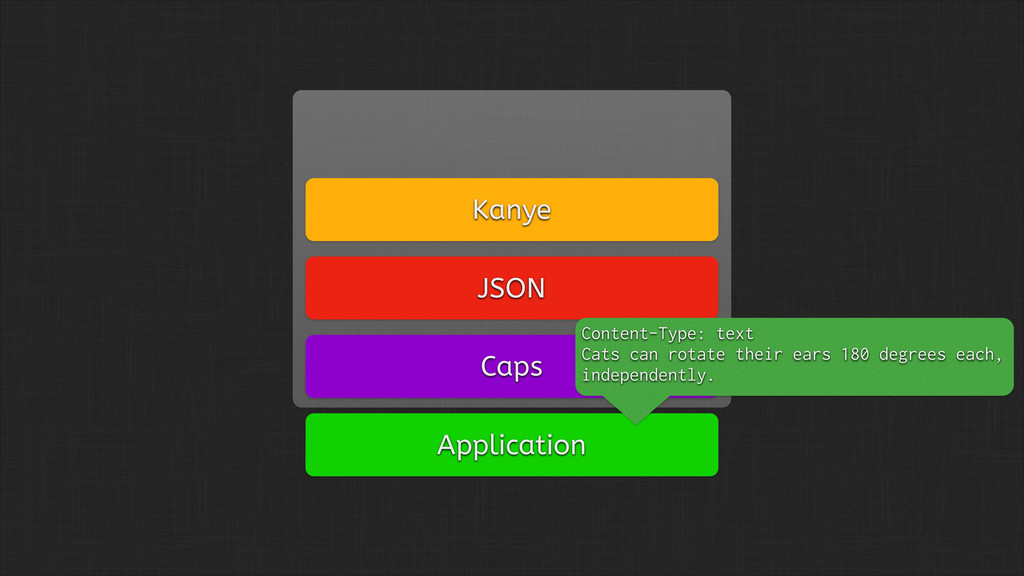

43. Application Kanye Caps JSON Content-Type: text Cats can rotate their ears 180 degrees each, independently.
44. Application Kanye Caps JSON Content-Type: text CATS CAN ROTATE THEIR EARS 180 DEGREES EACH, INDEPENDENTLY.

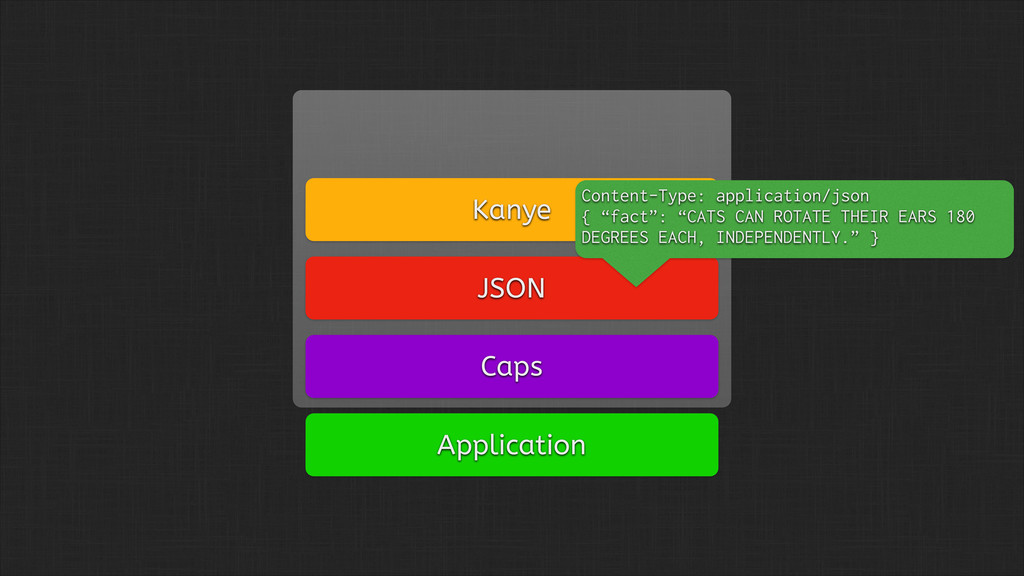

45. Application Kanye Caps JSON Content-Type: application/json { “fact”: “CATS CAN ROTATE THEIR EARS 180 DEGREES EACH, INDEPENDENTLY.” }

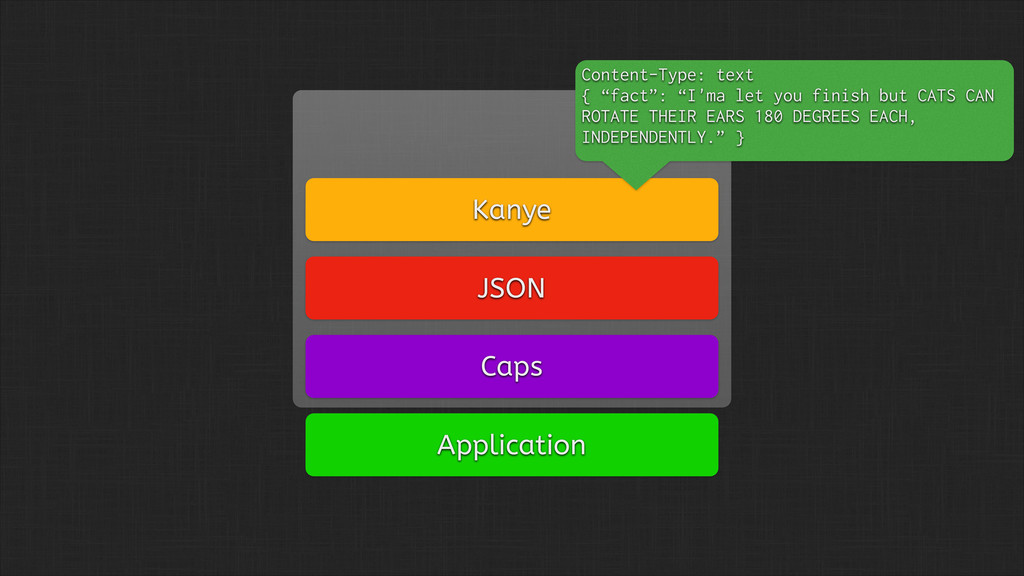

46. Application Kanye Caps JSON Content-Type: text { “fact”: “I'ma let you finish but CATS CAN ROTATE THEIR EARS 180 DEGREES EACH, INDEPENDENTLY.” }

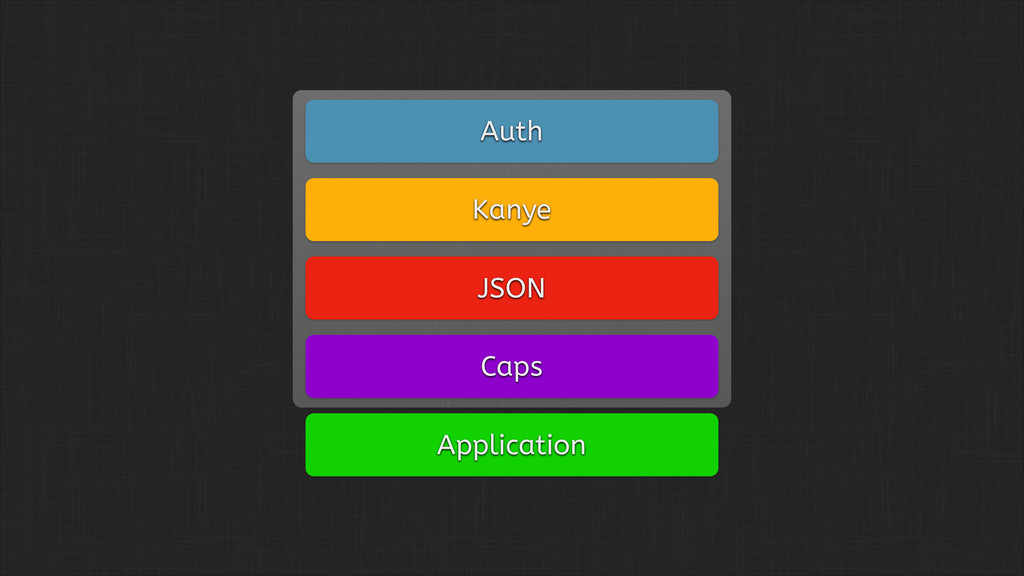

47. Application Kanye Caps JSON Auth Location: /facts/premium Params: { token: ‘12345’ }

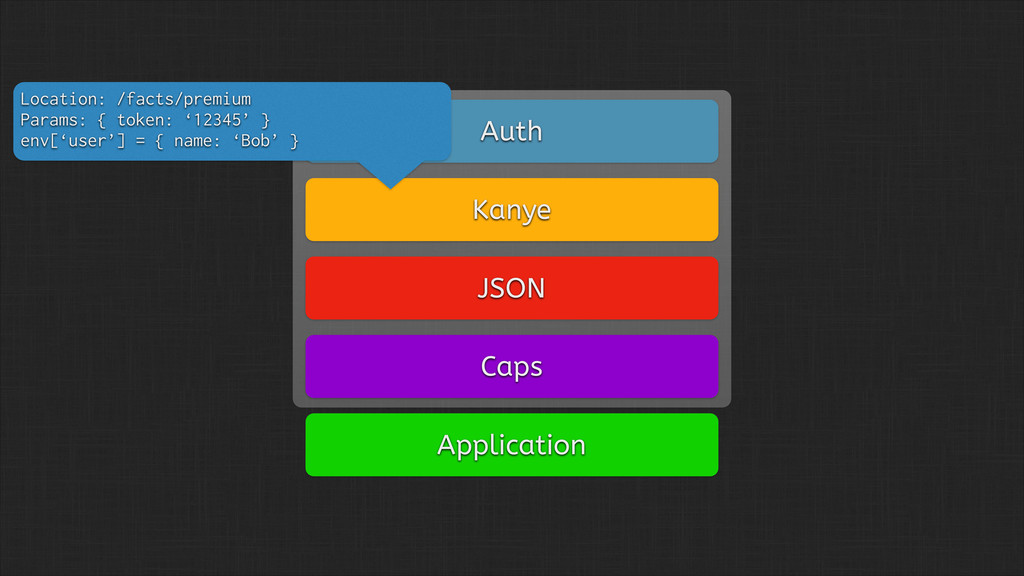

48. Application Kanye Caps JSON Auth Location: /facts/premium Params: { token: ‘12345’ } env[‘user’] = { name: ‘Bob’ }

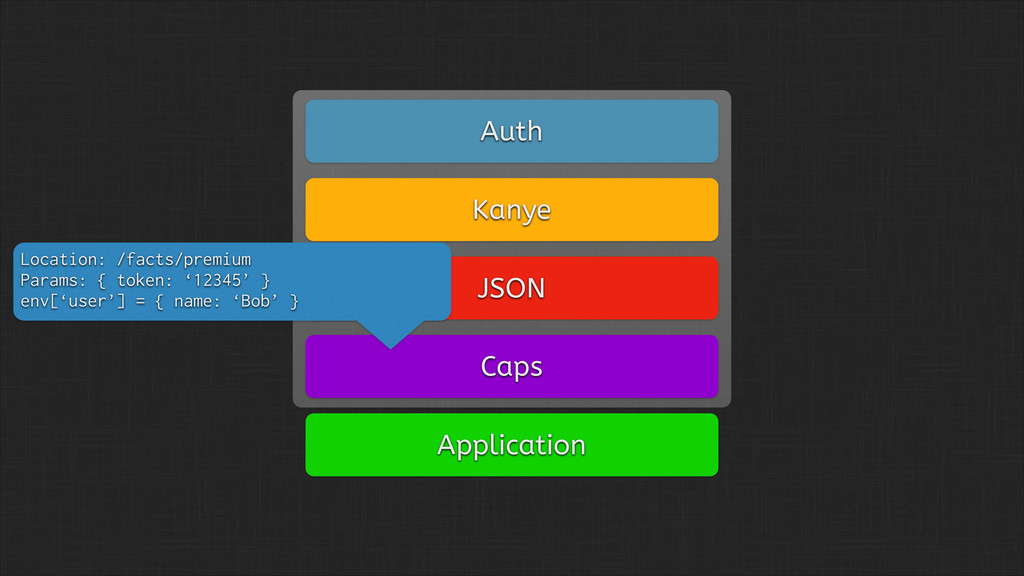

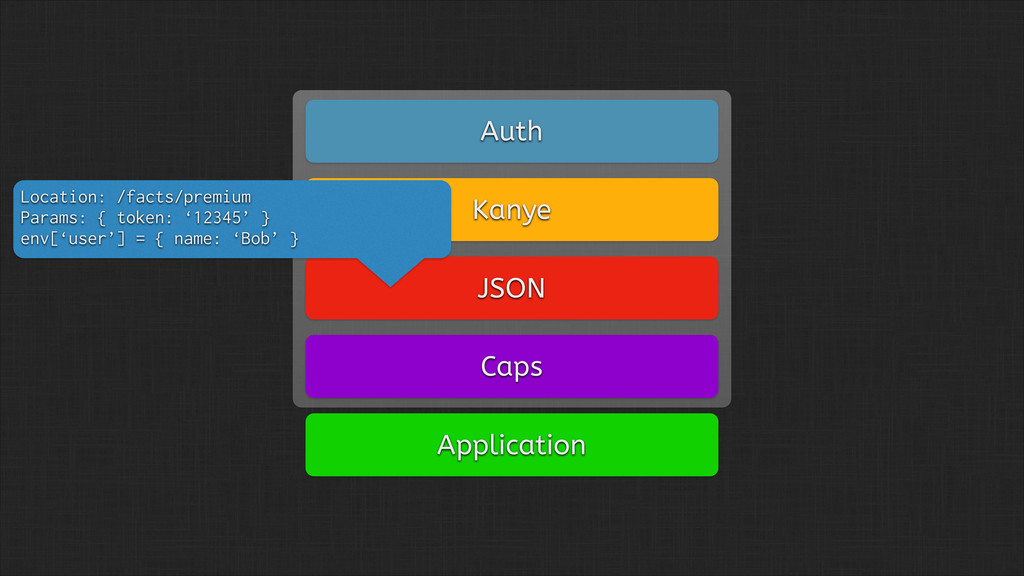

49. Application Kanye Caps JSON Auth Location: /facts/premium Params: { token: ‘12345’ } env[‘user’] = { name: ‘Bob’ }
50. Application Kanye Caps JSON Auth Location: /facts/premium Params: { token: ‘12345’ } env[‘user’] = { name: ‘Bob’ }

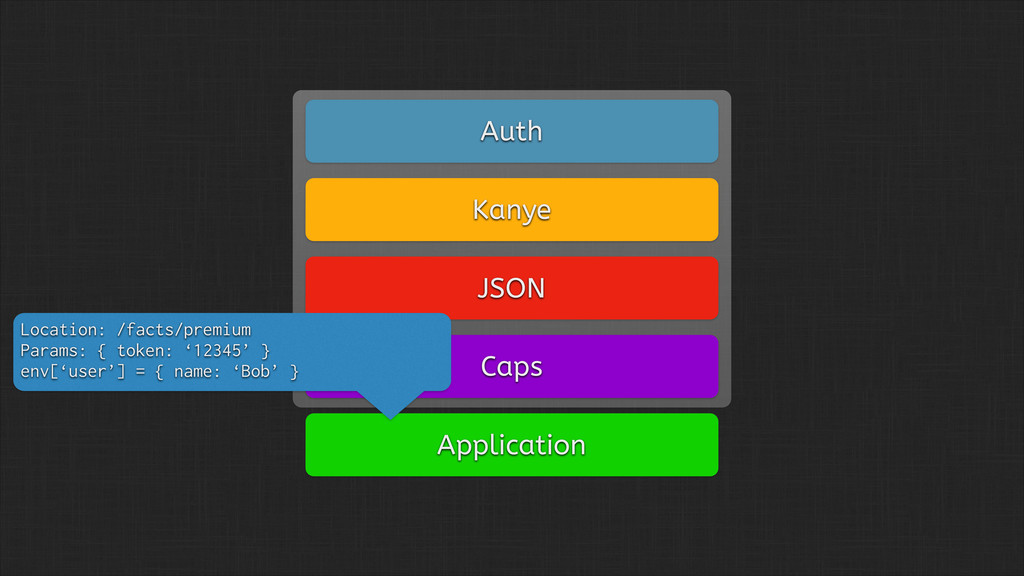

51. Application Kanye Caps JSON Auth Location: /facts/premium Params: { token: ‘12345’ } env[‘user’] = { name: ‘Bob’ }

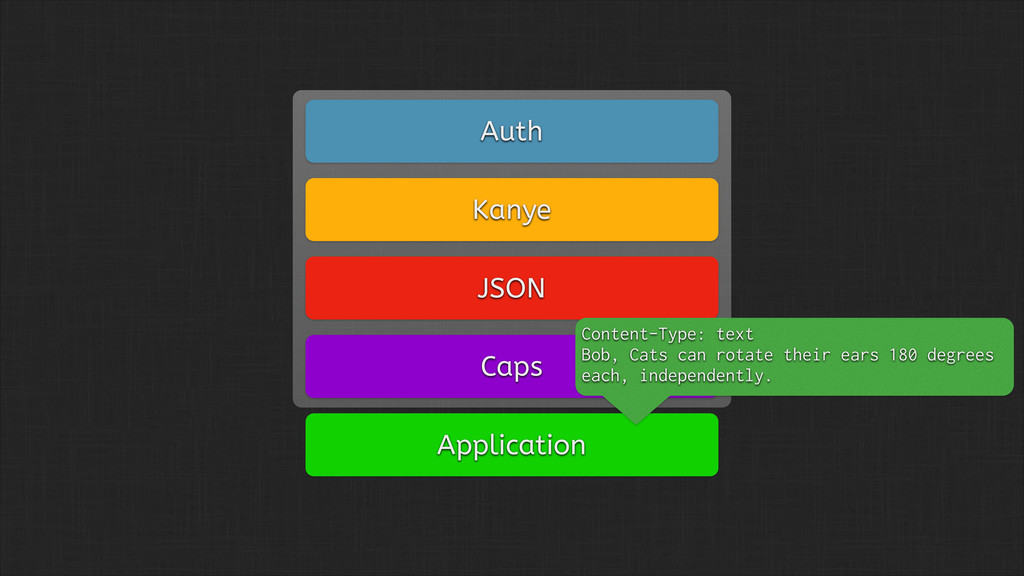

52. Application Kanye Caps JSON Auth Content-Type: text Bob, Cats can rotate their ears 180 degrees each, independently.

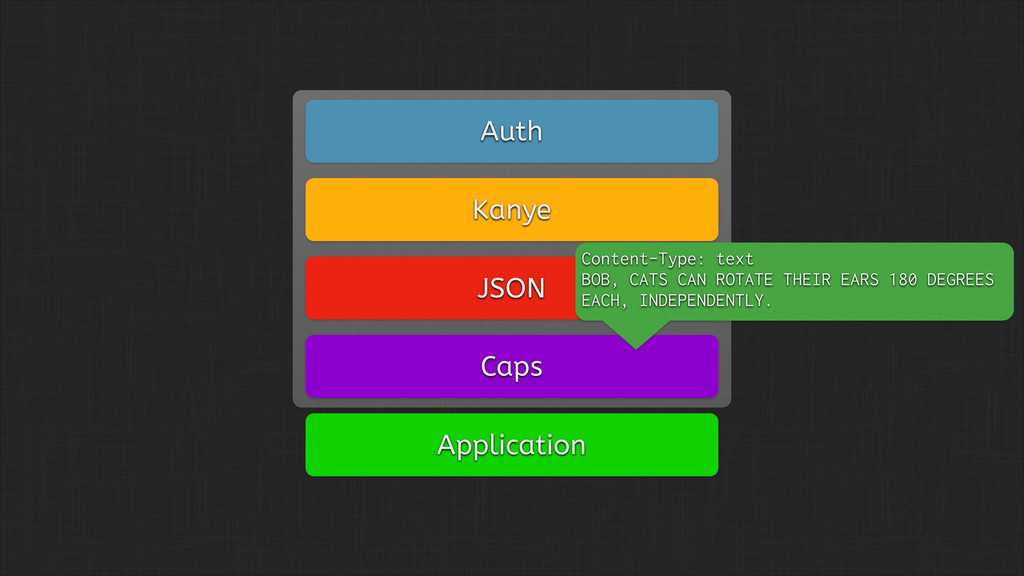

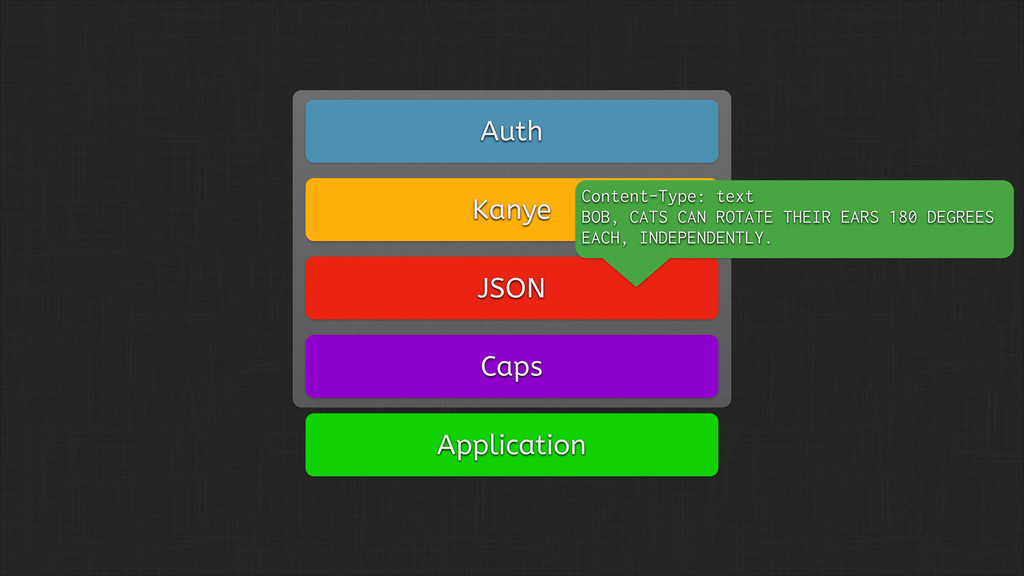

53. Application Kanye Caps JSON Auth Content-Type: text BOB, CATS CAN ROTATE THEIR EARS 180 DEGREES EACH, INDEPENDENTLY.
54. Application Kanye Caps JSON Auth Content-Type: text BOB, CATS CAN ROTATE THEIR EARS 180 DEGREES EACH, INDEPENDENTLY.

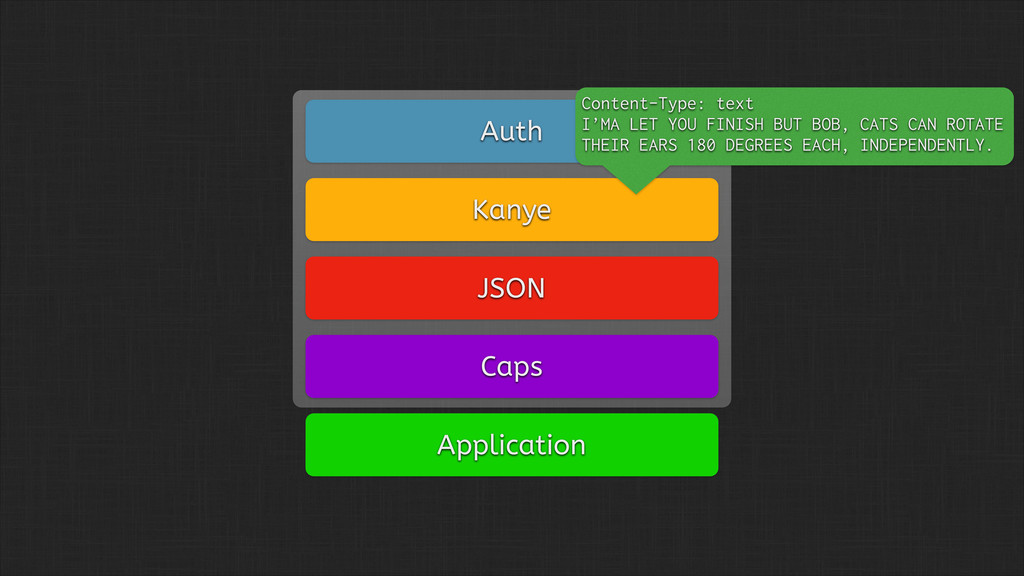

55. Application Kanye Caps JSON Auth Content-Type: text I’MA LET YOU FINISH BUT BOB, CATS CAN ROTATE THEIR EARS 180 DEGREES EACH, INDEPENDENTLY.
56. Application Kanye Caps JSON Auth Content-Type: text I’MA LET YOU FINISH BUT BOB, CATS CAN ROTATE THEIR EARS 180 DEGREES EACH, INDEPENDENTLY.

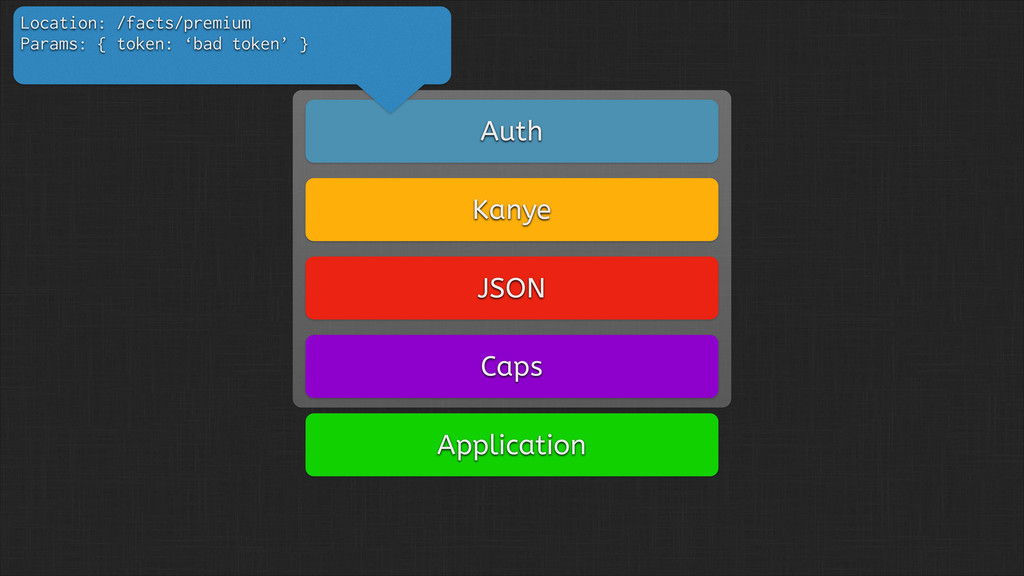

57. Application Kanye Caps JSON Auth Location: /facts/premium Params: { token: ‘bad token’ }

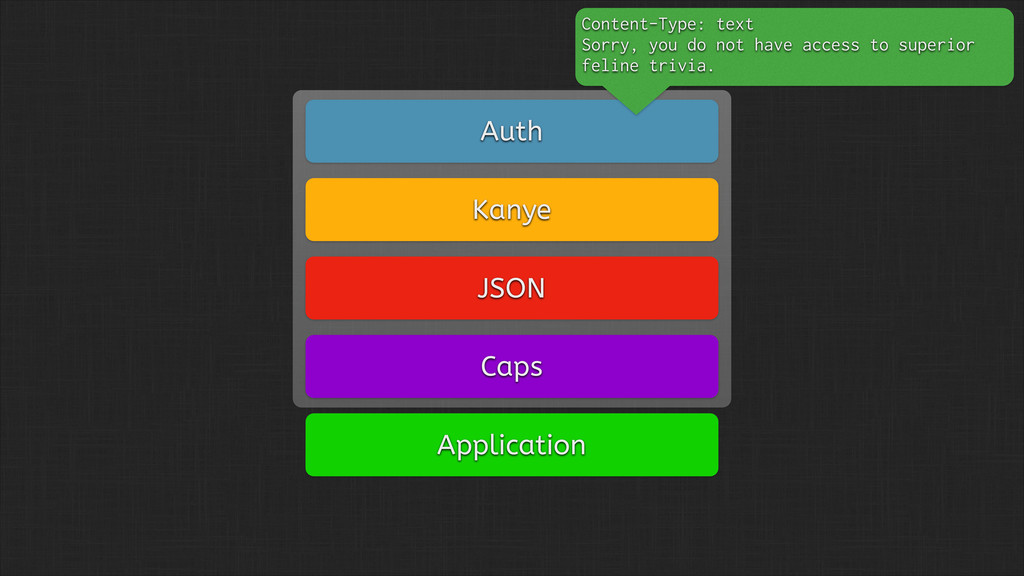

58. Application Kanye Caps JSON Auth Content-Type: text Sorry, you do not have access to superior feline trivia.
59. Warden
60. Application Auth Kanye Caps JSON

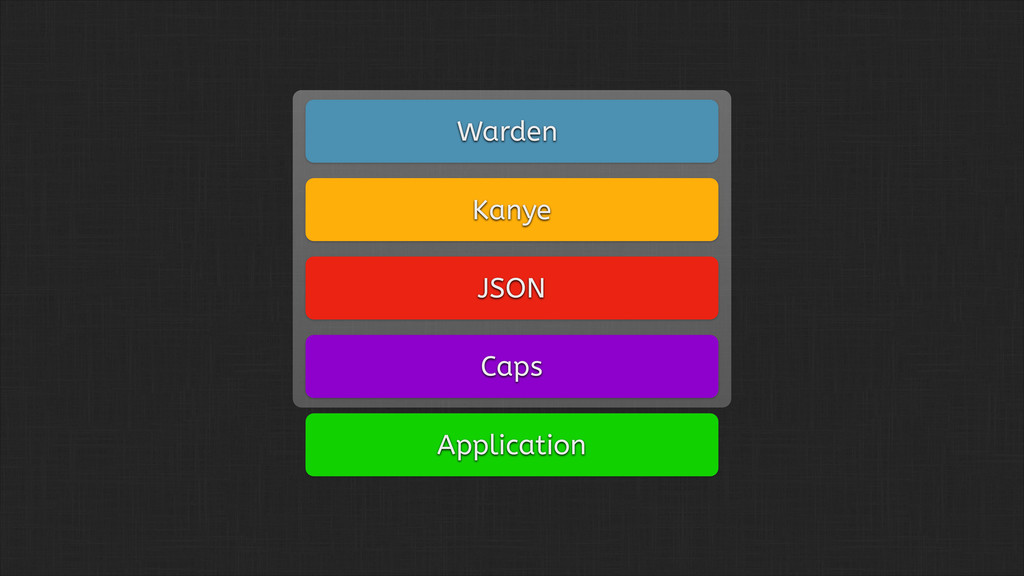

61. Application Warden Kanye Caps JSON

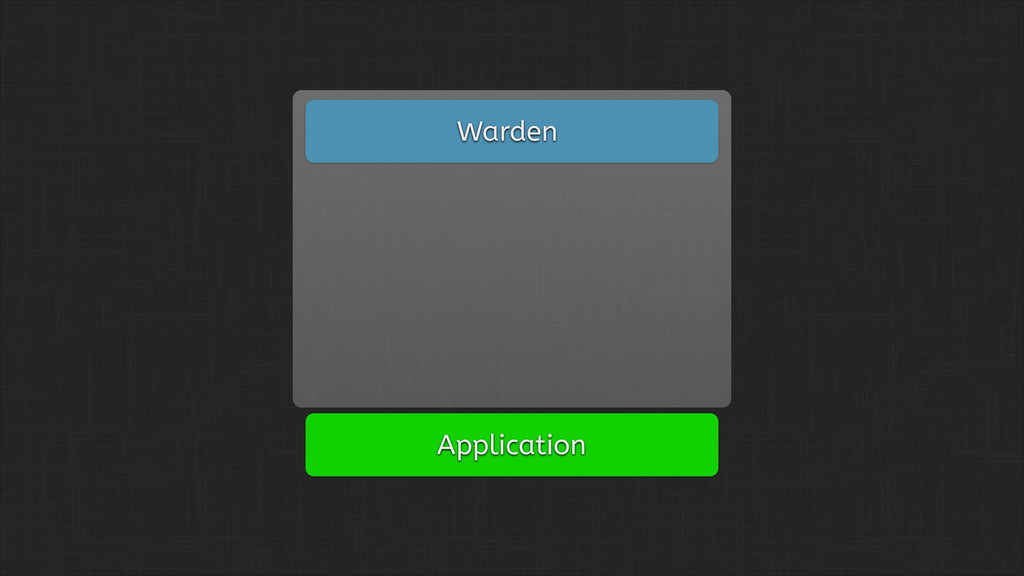

62. Application Warden

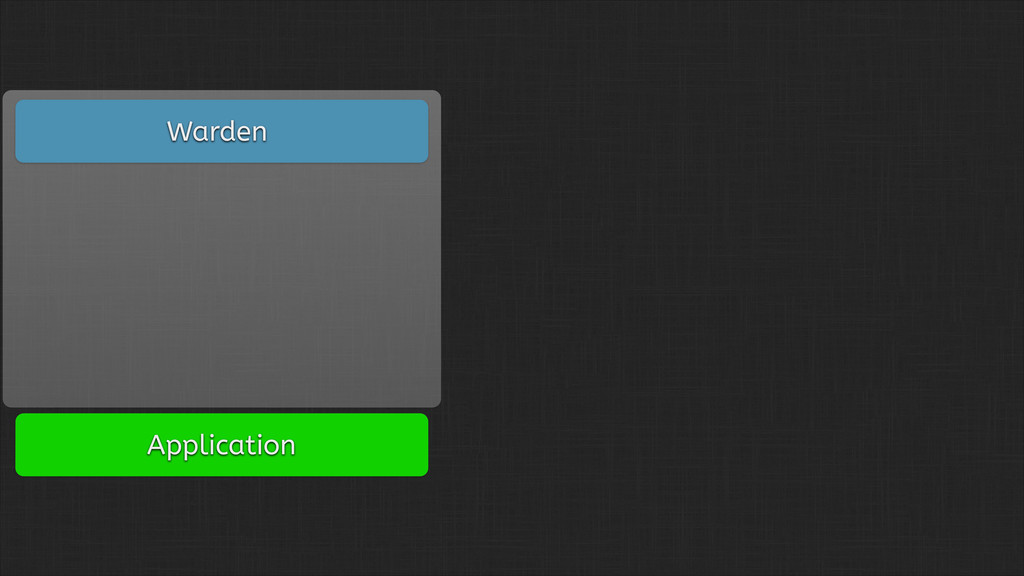

63. Application Warden

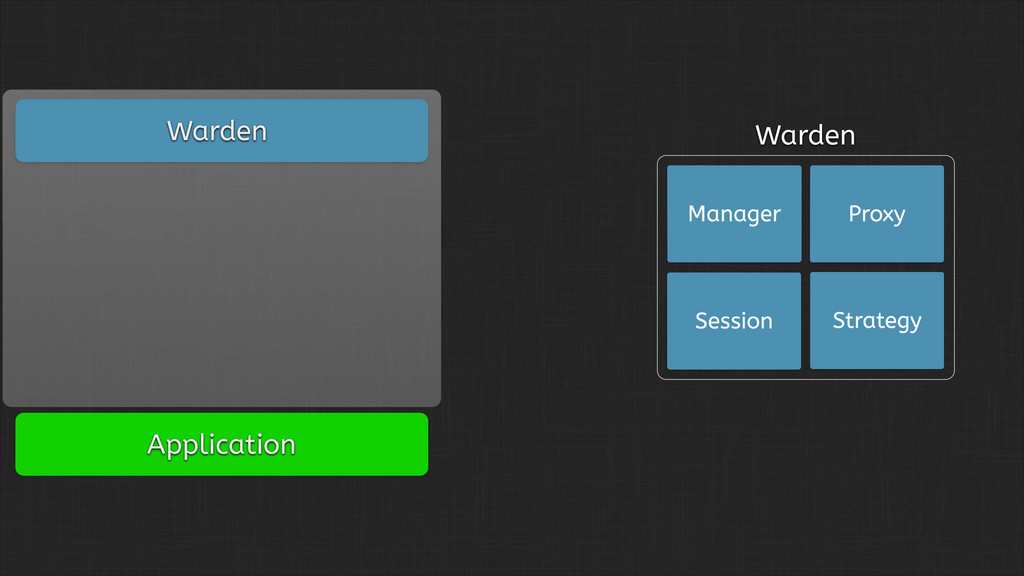

64. Application Warden Warden Manager Proxy Strategy Session
65. Application Warden Warden Manager Proxy Strategy Session Hooks in Warden Location: /facts/premium Params: { token: ‘12345’ }

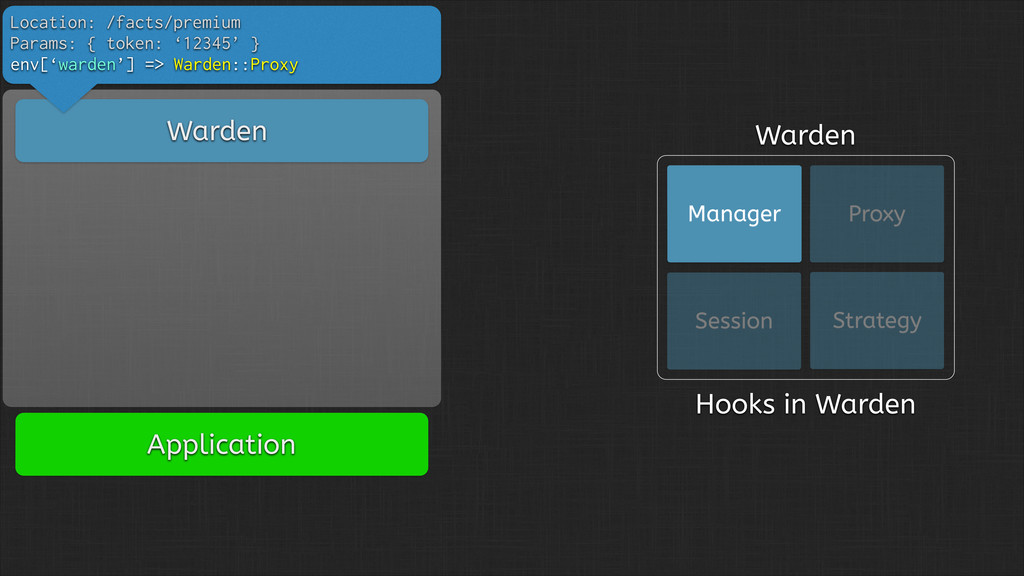

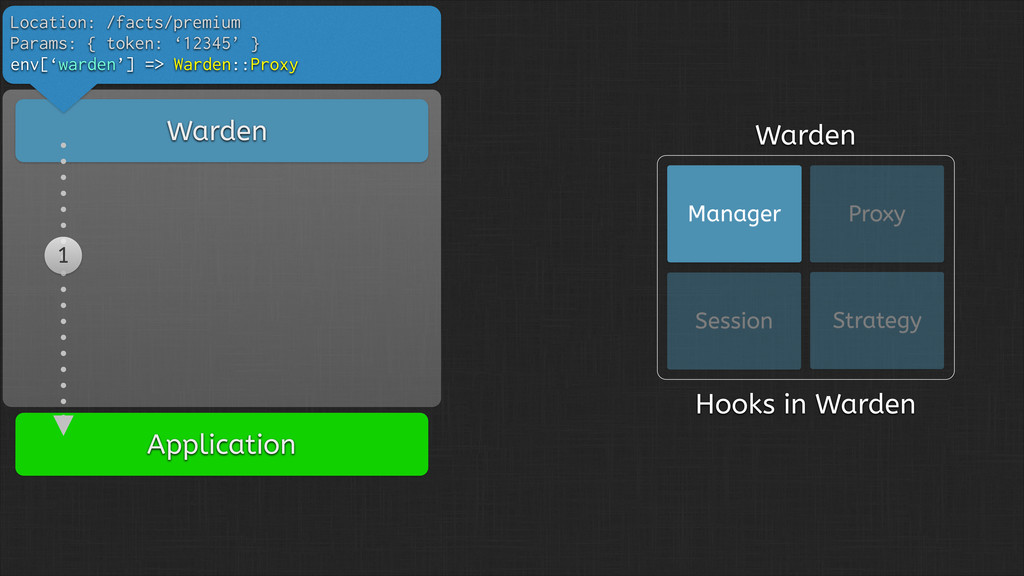

66. Application Warden Warden Manager Proxy Strategy Session Hooks in Warden Location: /facts/premium Params: { token: ‘12345’ } env[‘warden’] => Warden::Proxy
67. Application Warden Warden Manager Proxy Strategy Session Hooks in Warden Location: /facts/premium Params: { token: ‘12345’ } env[‘warden’] => Warden::Proxy 1

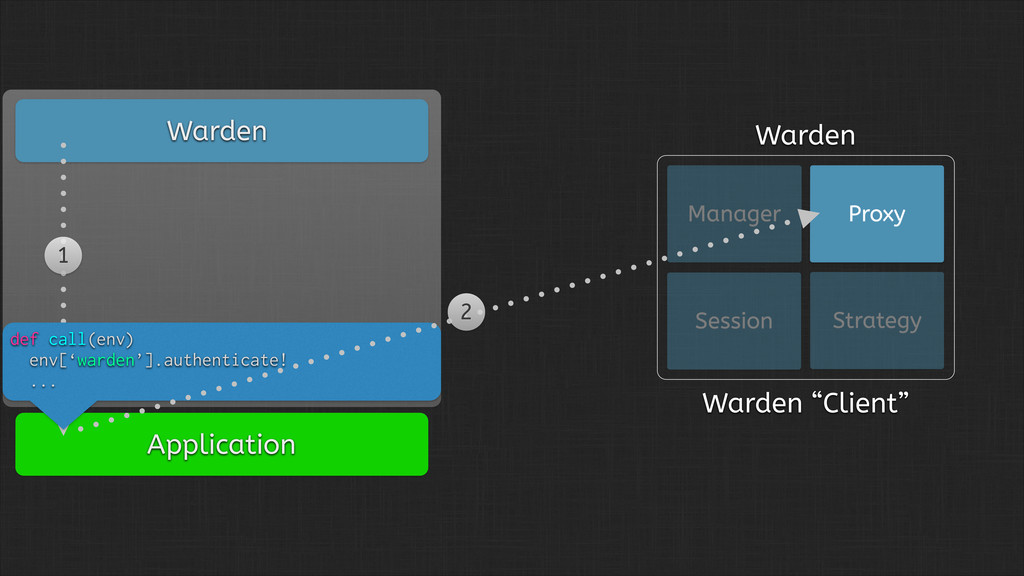

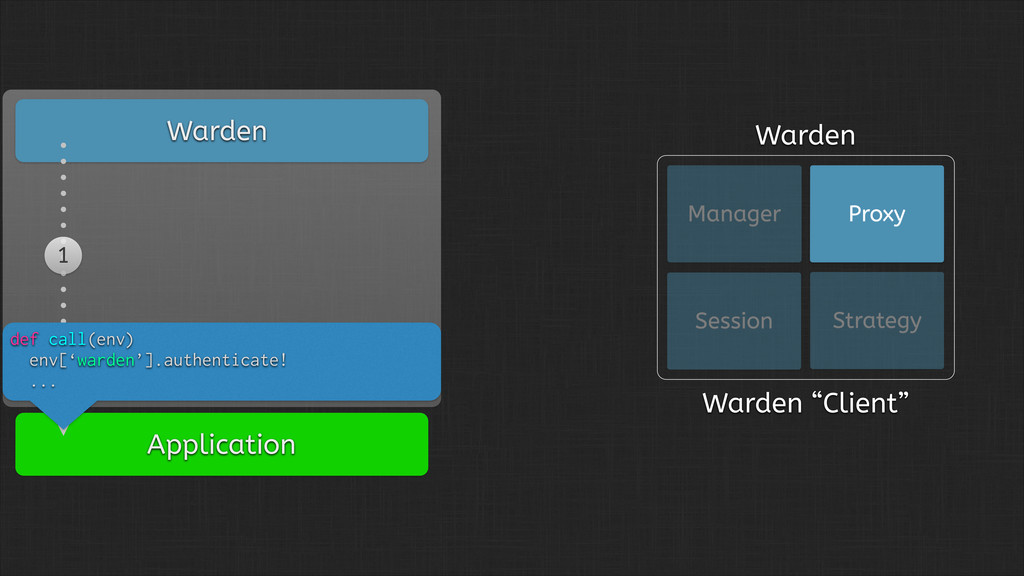

68. Application Warden Warden Manager Proxy Strategy Session Warden “Client” 1 def call(env) env[‘warden’].authenticate! ...
69. Application Warden Warden Manager Proxy Strategy Session Warden “Client” 1 def call(env) env[‘warden’].authenticate! ... 2

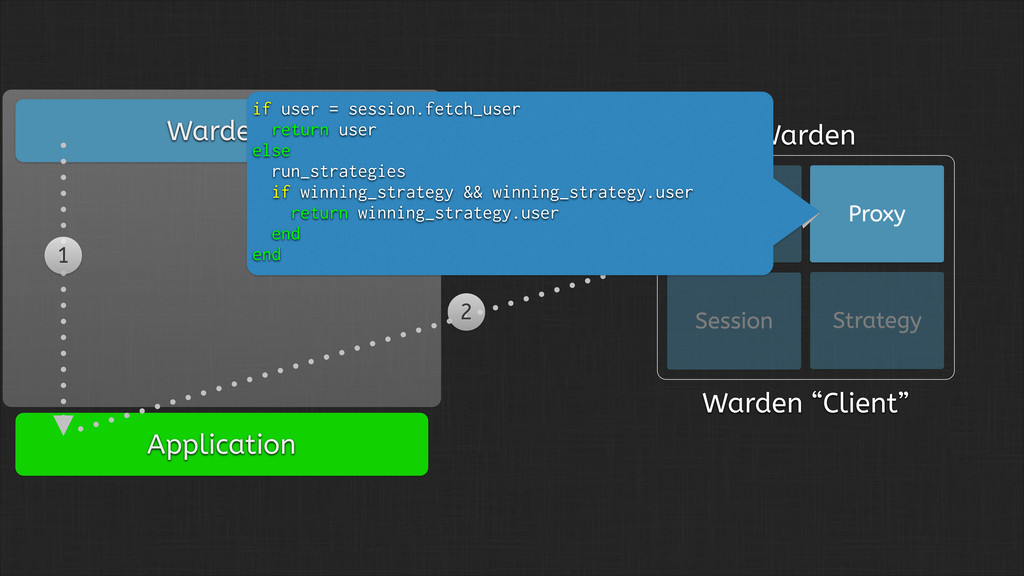

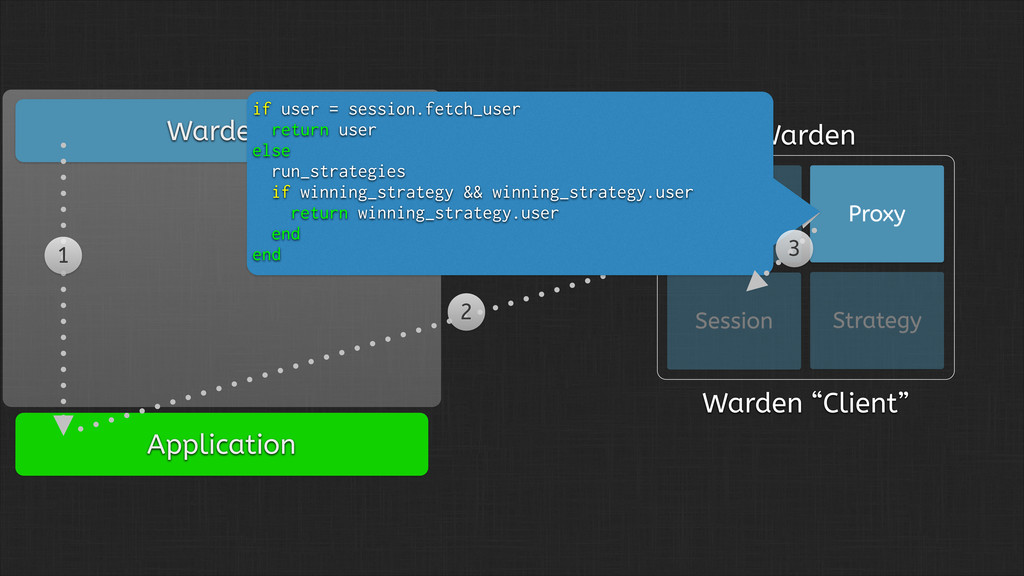

70. Application Warden Warden Manager Proxy Strategy Session Warden “Client” 2 1 if user = session.fetch_user return user else run_strategies if winning_strategy && winning_strategy.user return winning_strategy.user end end
71. Application Warden Warden Manager Proxy Strategy Session Warden “Client” 2 1 if user = session.fetch_user return user else run_strategies if winning_strategy && winning_strategy.user return winning_strategy.user end end 3

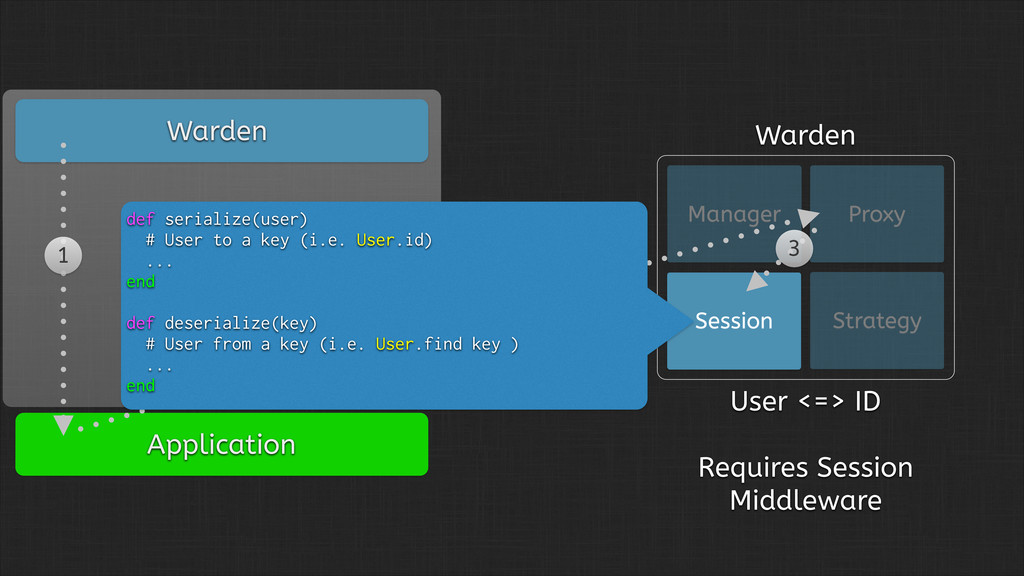

72. Application Warden Warden Manager Proxy Strategy Session User <=> ID ! Requires Session Middleware 2 1 3 def serialize(user) # User to a key (i.e. User.id) ... end ! def deserialize(key) # User from a key (i.e. User.find key ) ... end

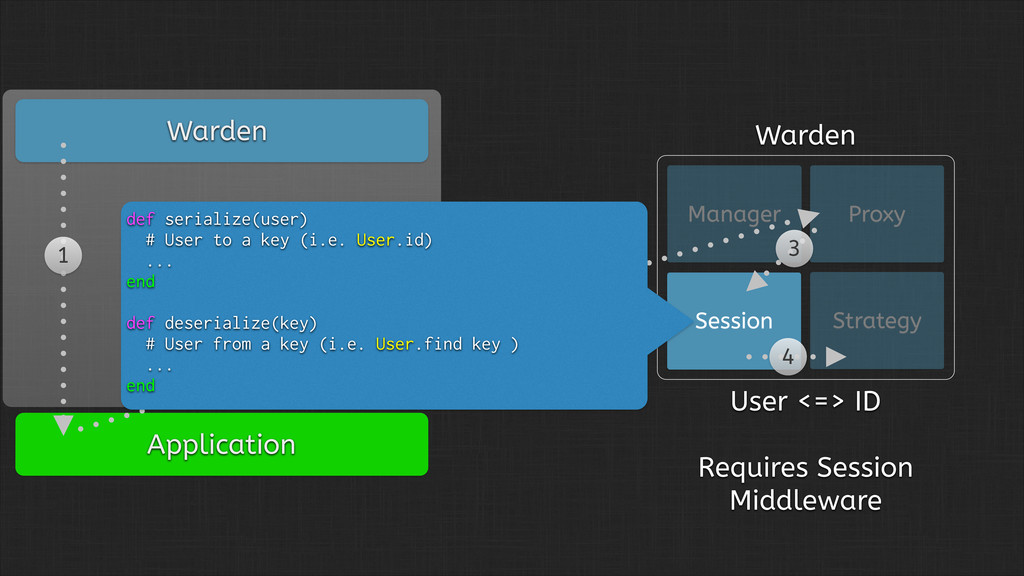

73. Application Warden Warden Manager Proxy Strategy Session User <=> ID ! Requires Session Middleware 2 1 3 4 def serialize(user) # User to a key (i.e. User.id) ... end ! def deserialize(key) # User from a key (i.e. User.find key ) ... end

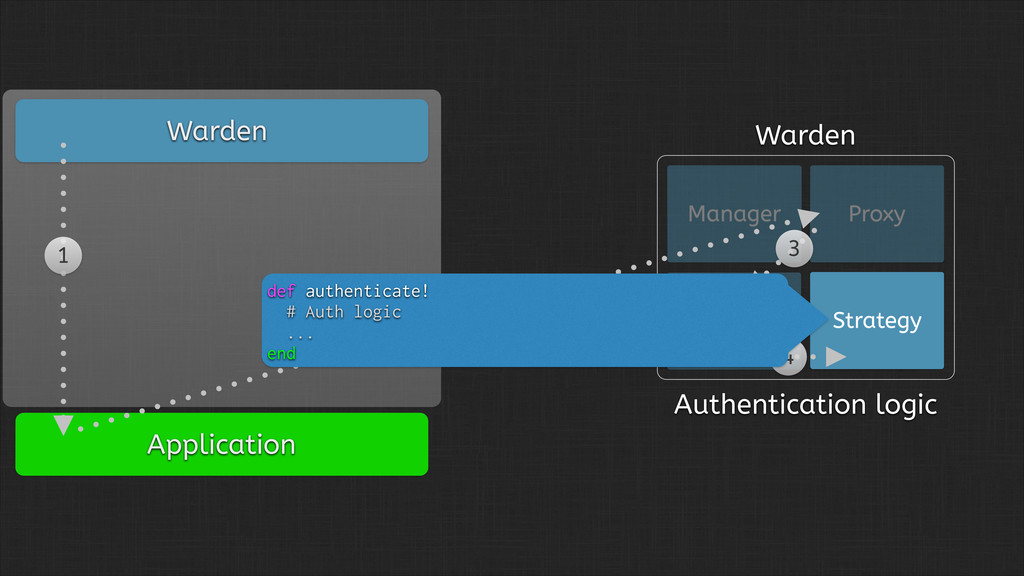

74. Application Warden Warden Manager Proxy Strategy Session Authentication logic 2 1 3 4 def authenticate! # Auth logic ... end
75. Application Warden Warden Manager Proxy Strategy Session Authentication logic 2 1 3 4 def authenticate! throw :warden end
76. Application Warden Warden Manager Proxy Strategy Session Authentication logic 2 1 3 4 def authenticate! throw :warden end 5

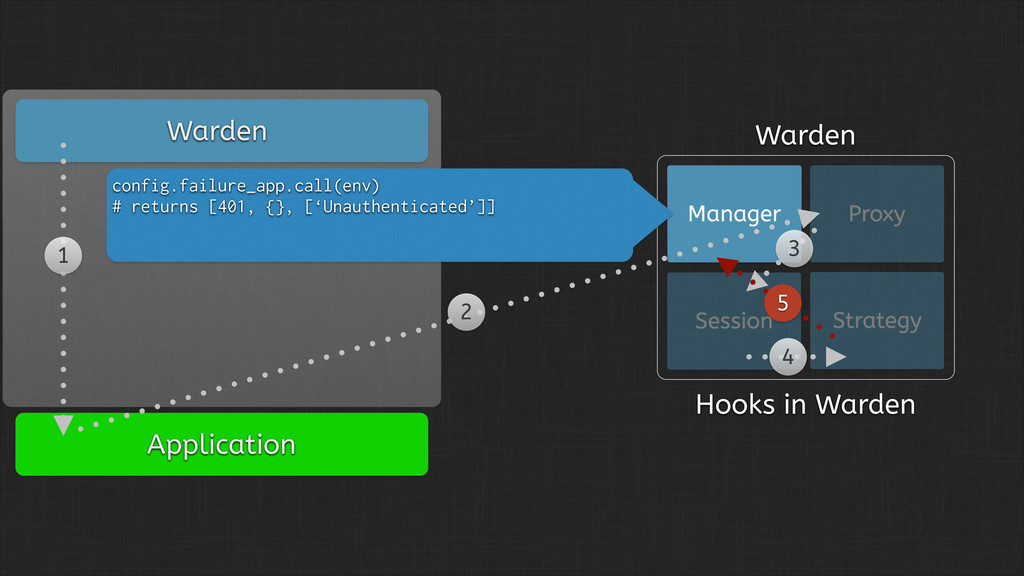

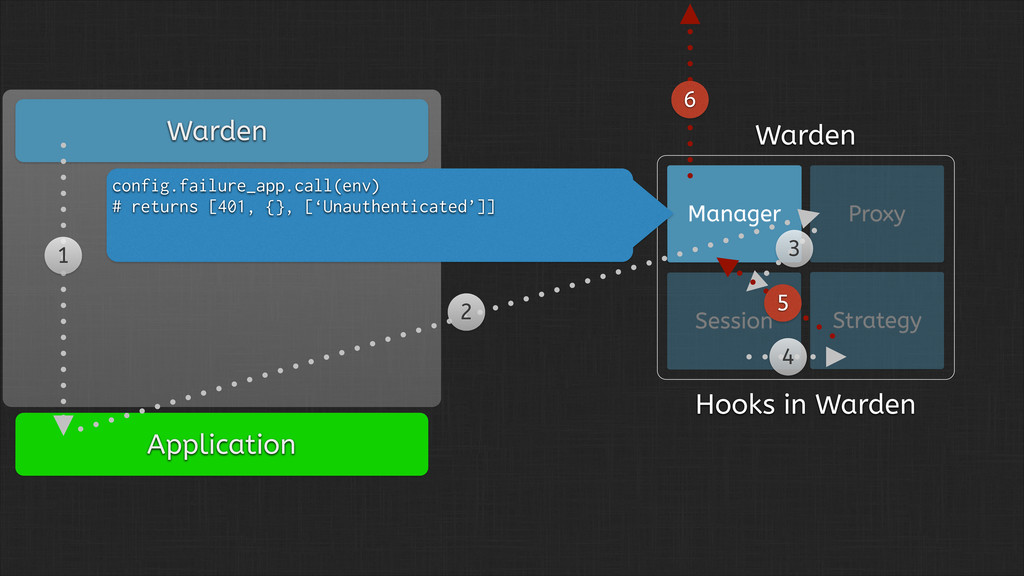

77. Application Warden Warden Manager Proxy Strategy Session Hooks in Warden 2 1 3 4 config.failure_app.call(env) # returns [401, {}, [‘Unauthenticated’]] 5
78. Application Warden Warden Manager Proxy Strategy Session Hooks in Warden 2 1 3 4 config.failure_app.call(env) # returns [401, {}, [‘Unauthenticated’]] 5 6

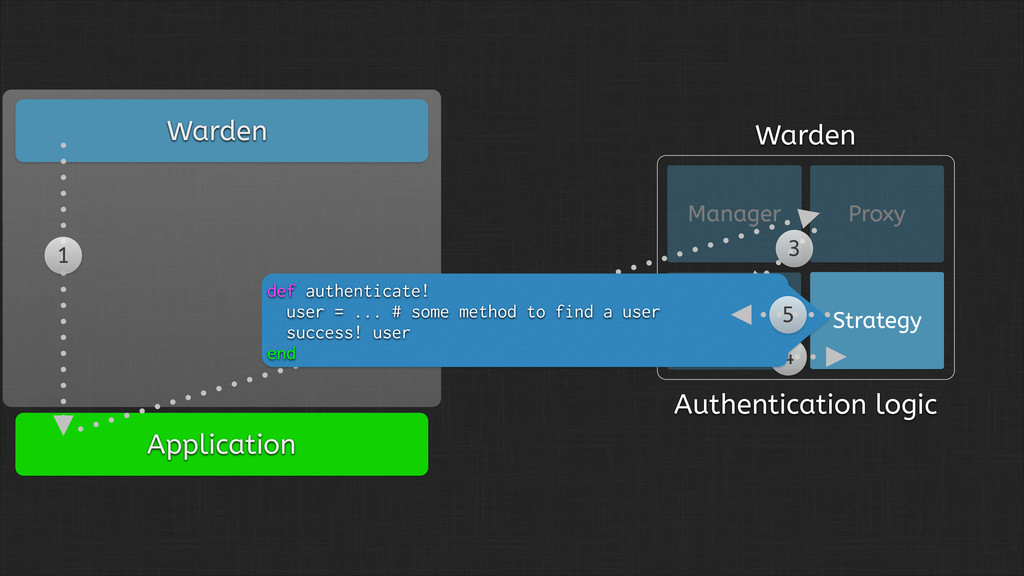

79. Application Warden Warden Manager Proxy Strategy Session Authentication logic 2 1 3 4 def authenticate! user = ... # some method to find a user success! user end
80. Application Warden Warden Manager Proxy Strategy Session Authentication logic 2 1 3 4 def authenticate! user = ... # some method to find a user success! user end 5

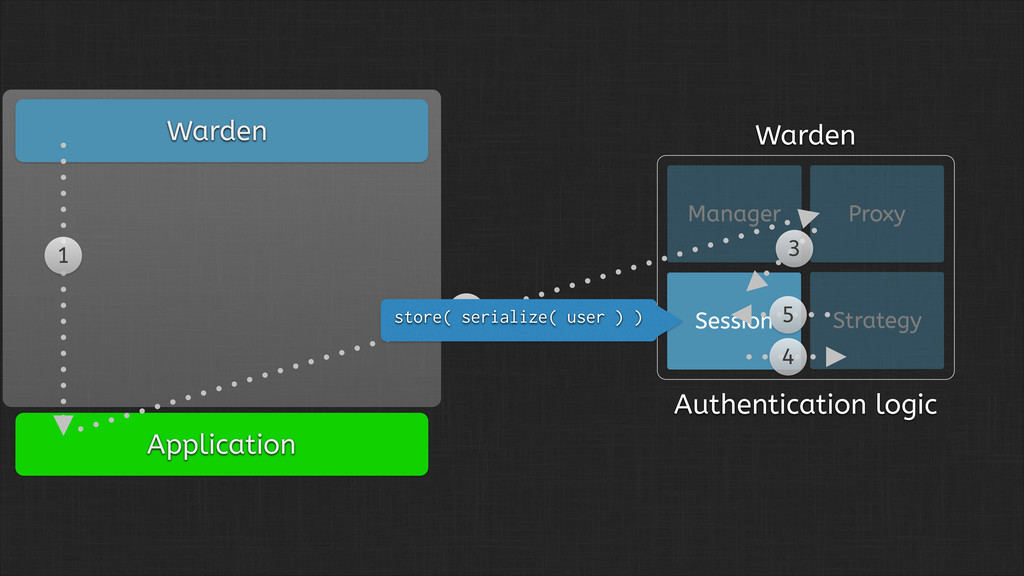

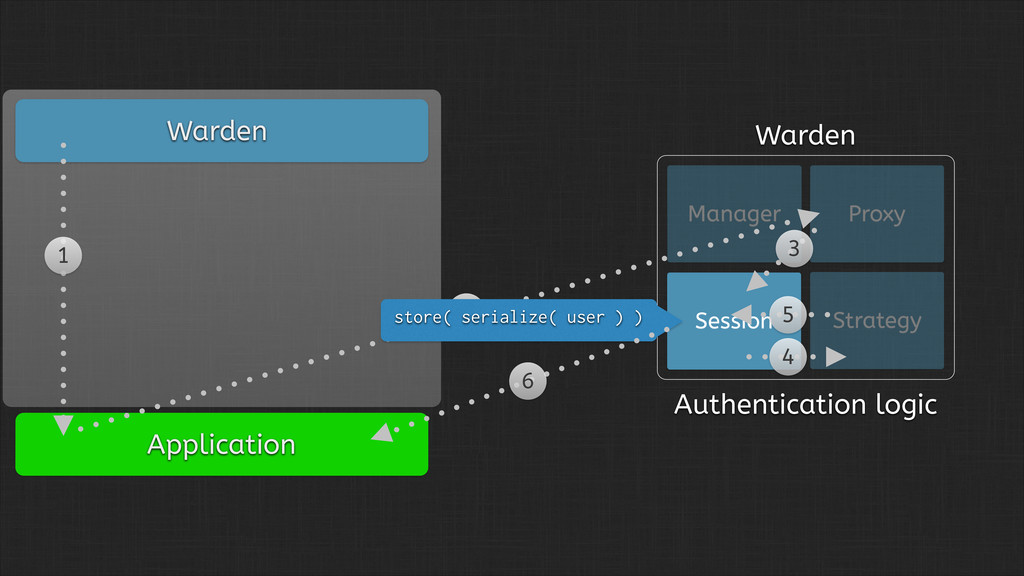

81. Application Warden Warden Manager Proxy Strategy Session Authentication logic 2 1 3 4 store( serialize( user ) ) 5
82. Application Warden Warden Manager Proxy Strategy Session Authentication logic 2 1 3 4 store( serialize( user ) ) 5 6

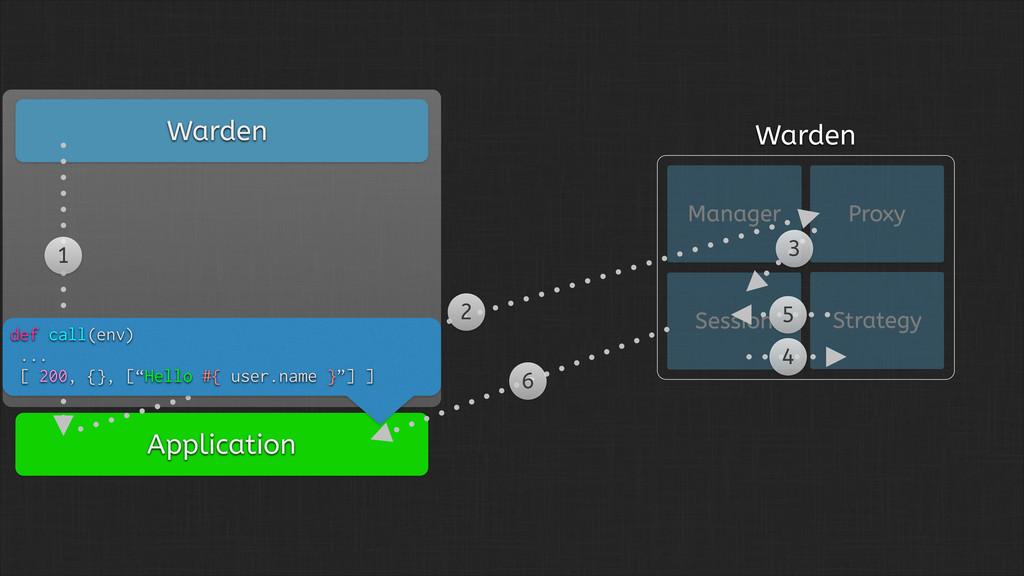

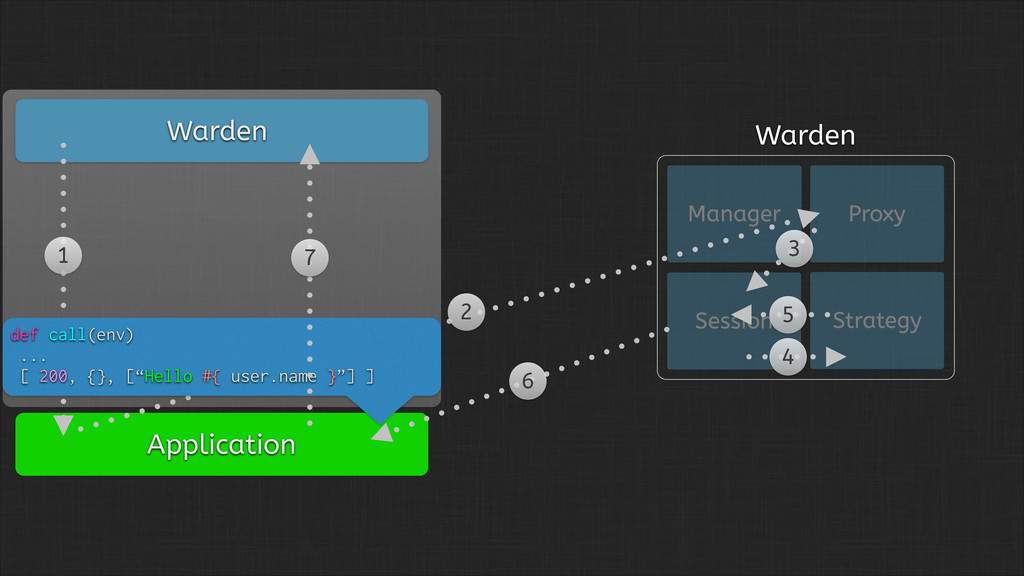

83. Application Warden Warden Manager Proxy Strategy Session 2 1 3 4 5 6 def call(env) ... [ 200, {}, [“Hello #{ user.name }”] ]

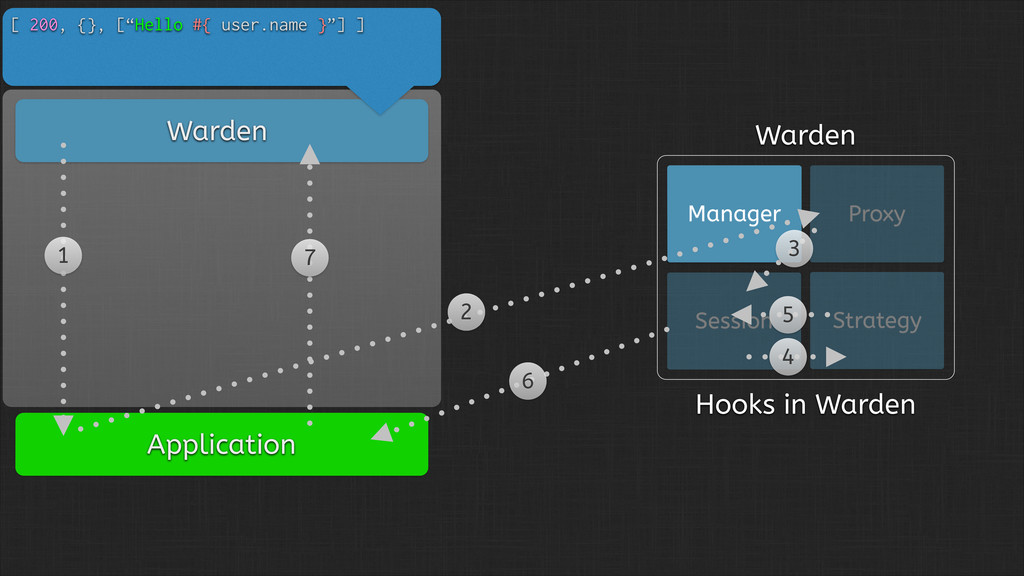

84. Application Warden Warden Manager Proxy Strategy Session 2 1 3 4 5 6 def call(env) ... [ 200, {}, [“Hello #{ user.name }”] ] 7
85. Application Warden Warden Manager Proxy Strategy Session Hooks in Warden 2 1 3 4 5 6 [ 200, {}, [“Hello #{ user.name }”] ] 7
86. Application Extra Truth Caps JSON Warden Devise
87. Warden Devise

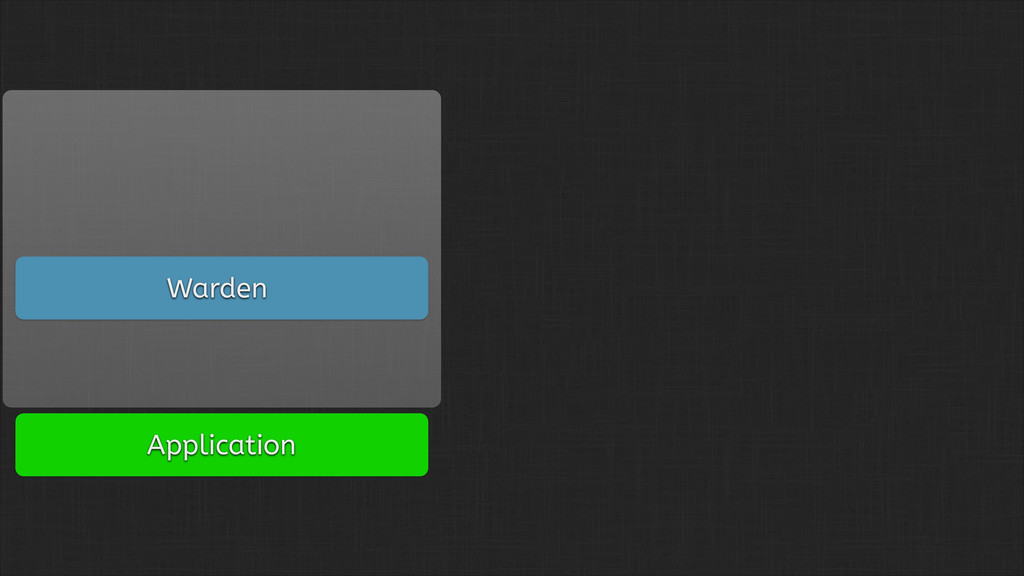

88. Application Warden

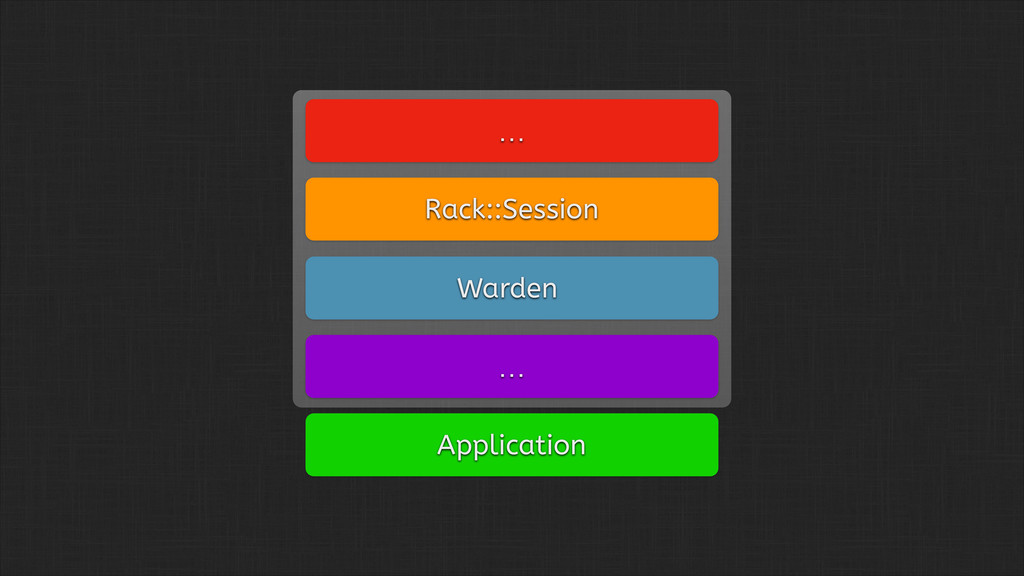

89. Application Warden … … Rack::Session

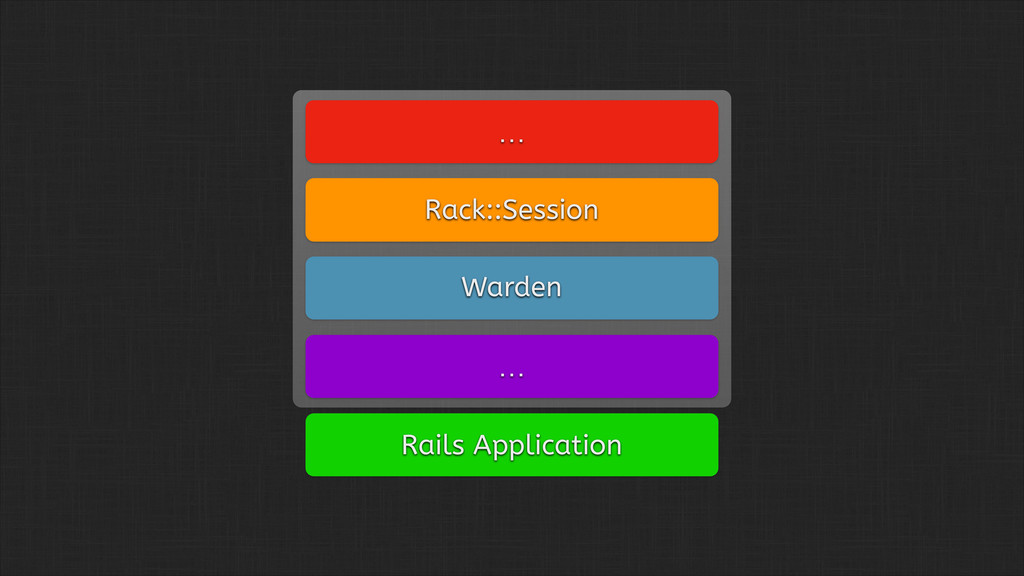

90. Rails Application … … Warden Rack::Session

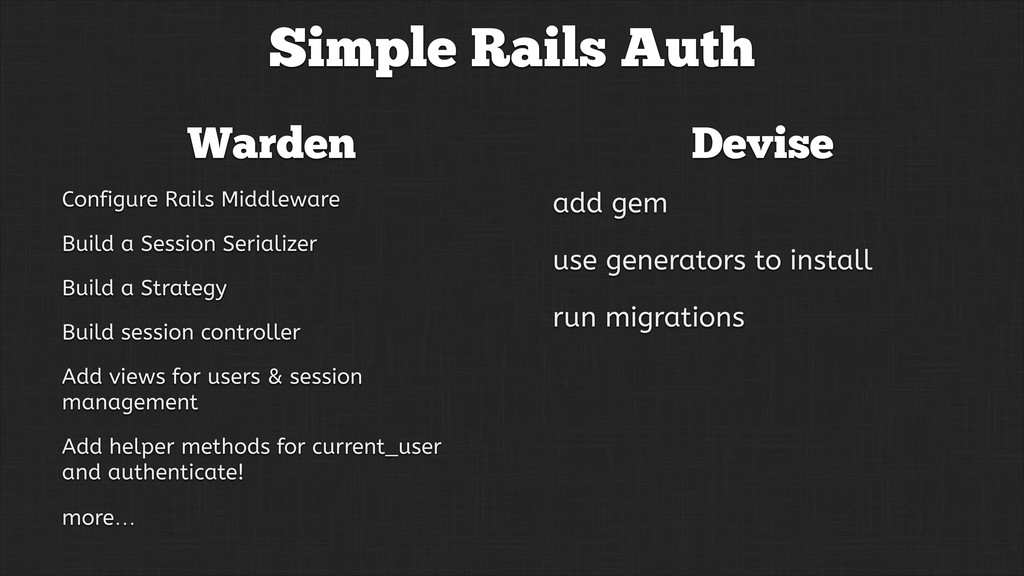

91. Simple Rails Auth Configure Rails Middleware Build a Session Serializer Build a Strategy Build session controller Add views for users & session management Add helper methods for current_user and authenticate! more… add gem use generators to install run migrations Warden Devise
92. Devise Warden + Rails + Application • Strategies • Session • Configuration • Initialization • Conventions • Generators • Controllers • Views • Mailers

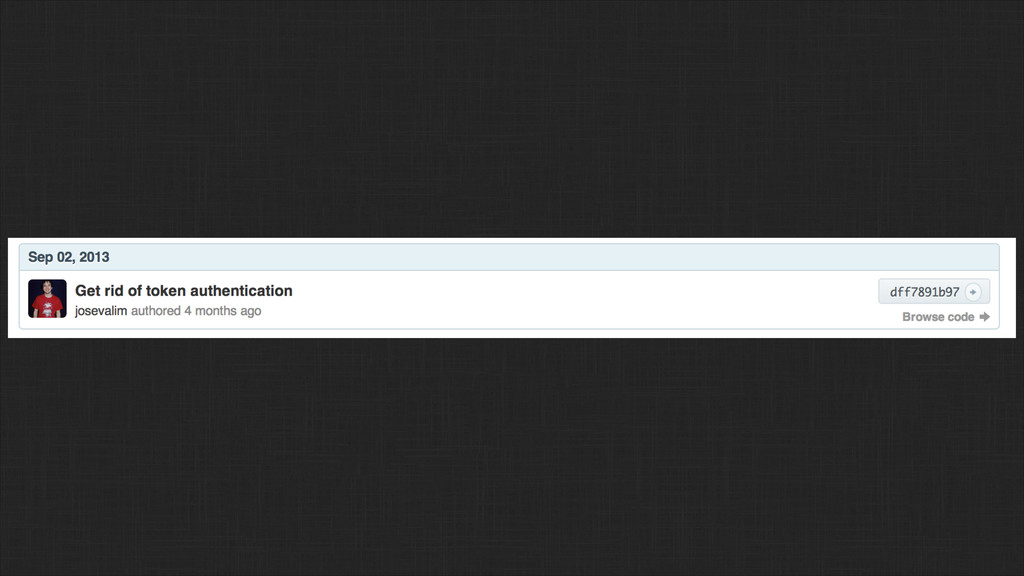

93. Token Authentication

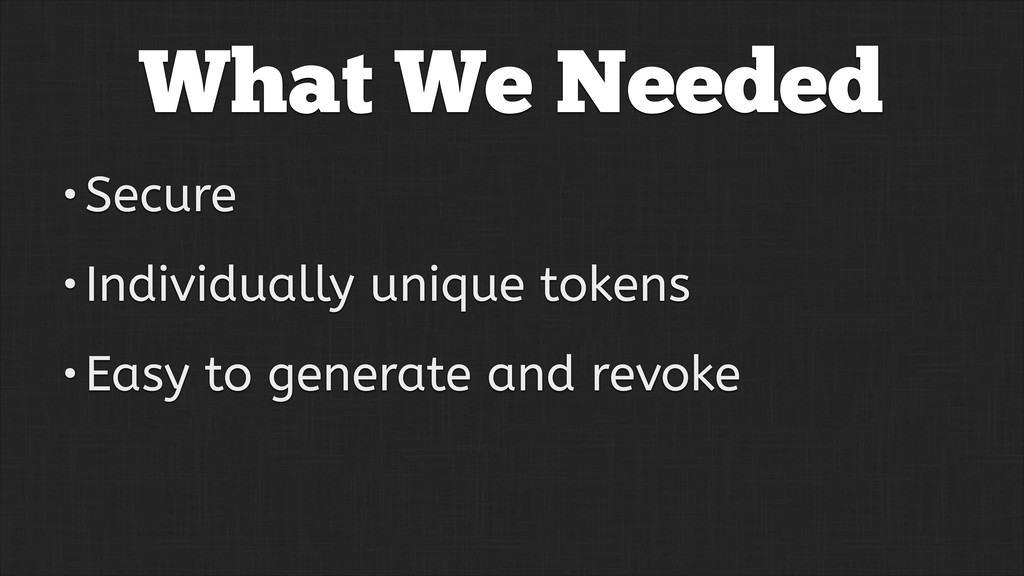

96. What We Needed • Secure • Individually unique tokens • Easy to generate and revoke

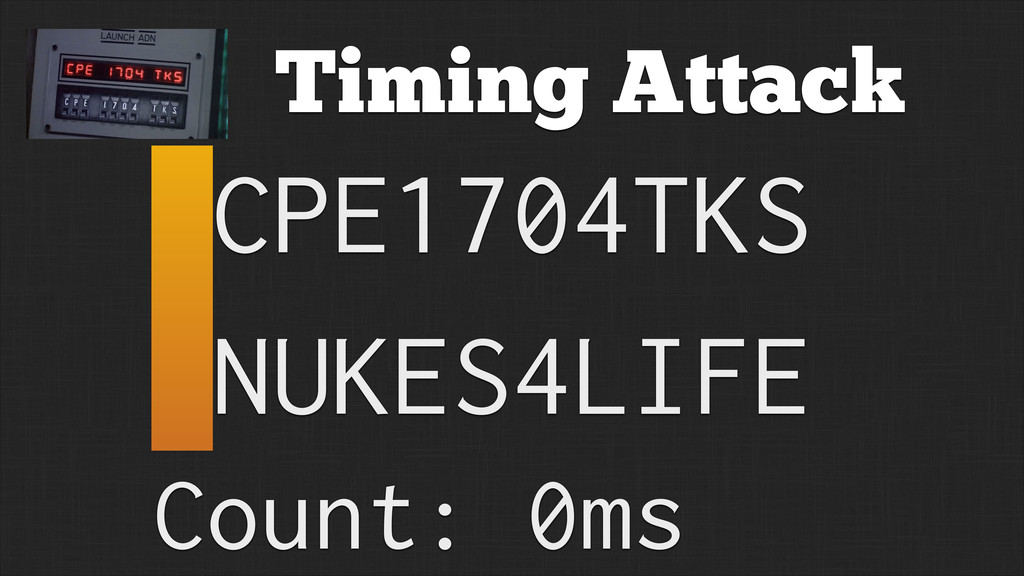

97. Timing Attack CPE1704TKS NUKES4LIFE Count: 0ms

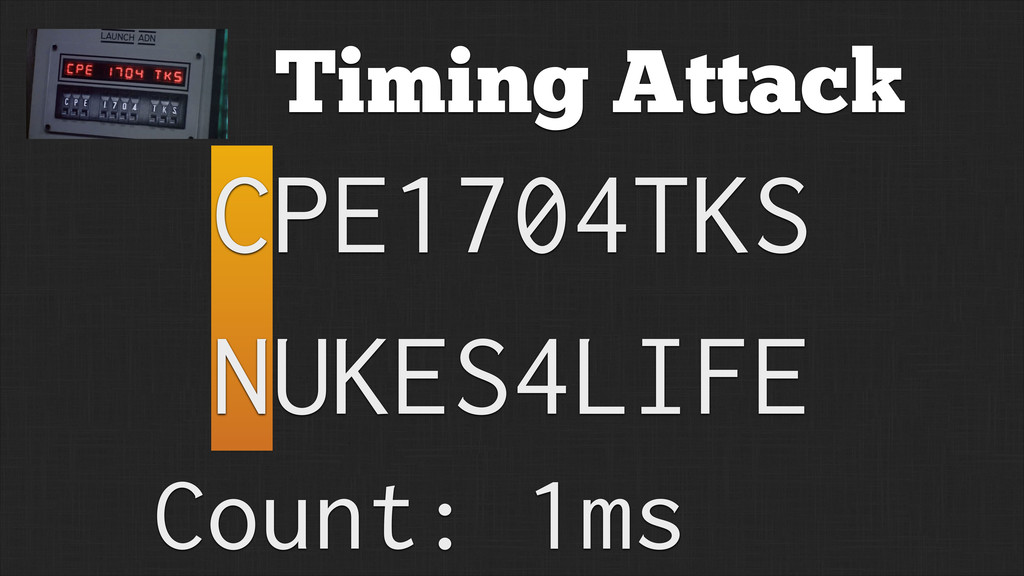

98. Timing Attack CPE1704TKS NUKES4LIFE Count: 1ms

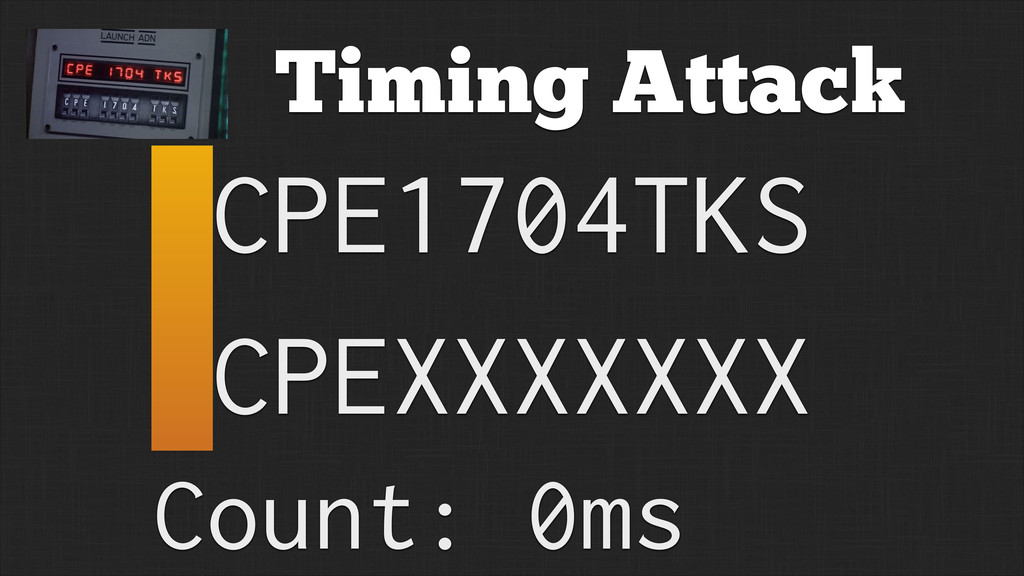

99. Timing Attack CPE1704TKS CPEXXXXXXX Count: 0ms

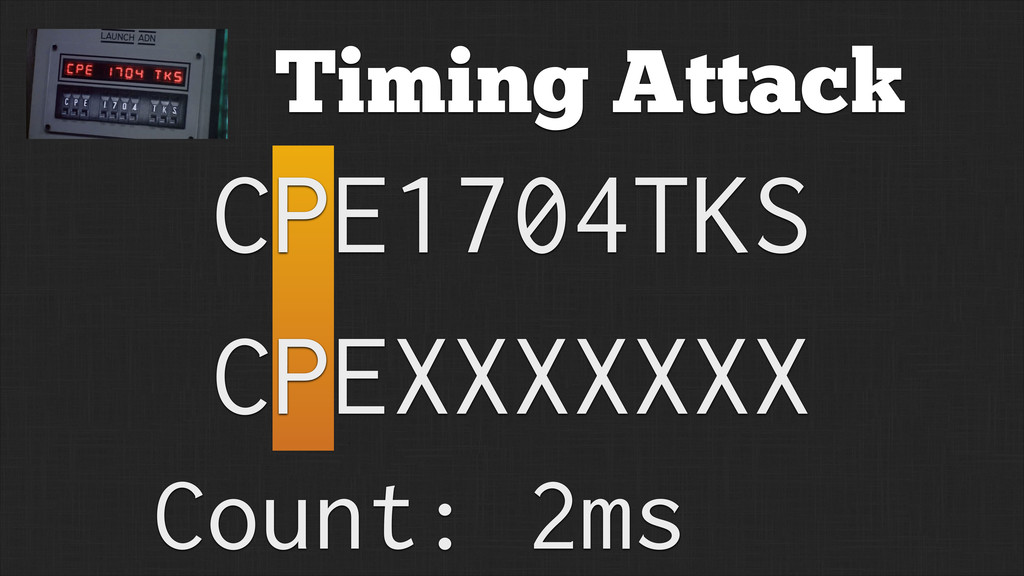

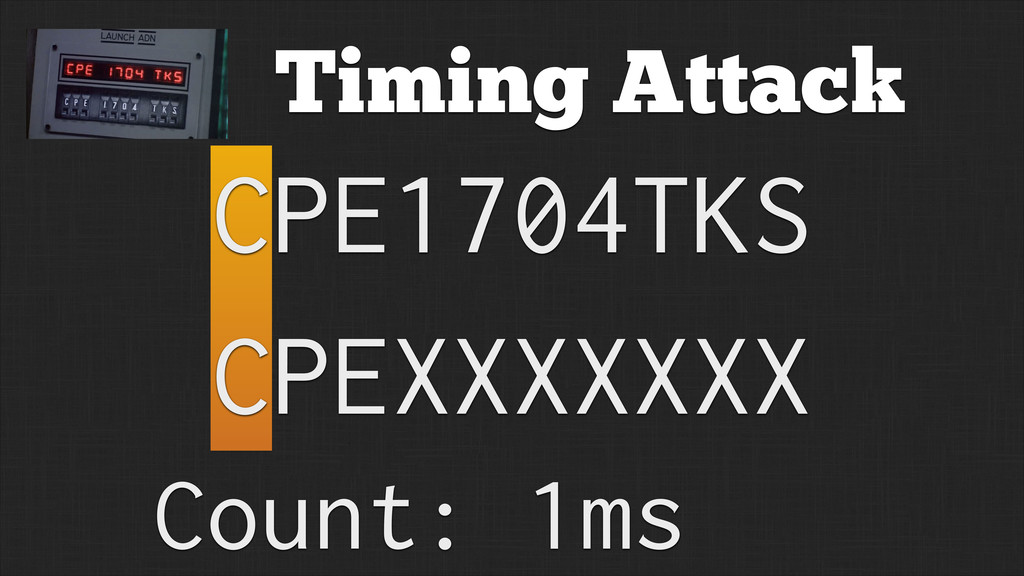

100. Timing Attack CPE1704TKS CPEXXXXXXX Count: 1ms
101. Timing Attack CPE1704TKS CPEXXXXXXX Count: 2ms

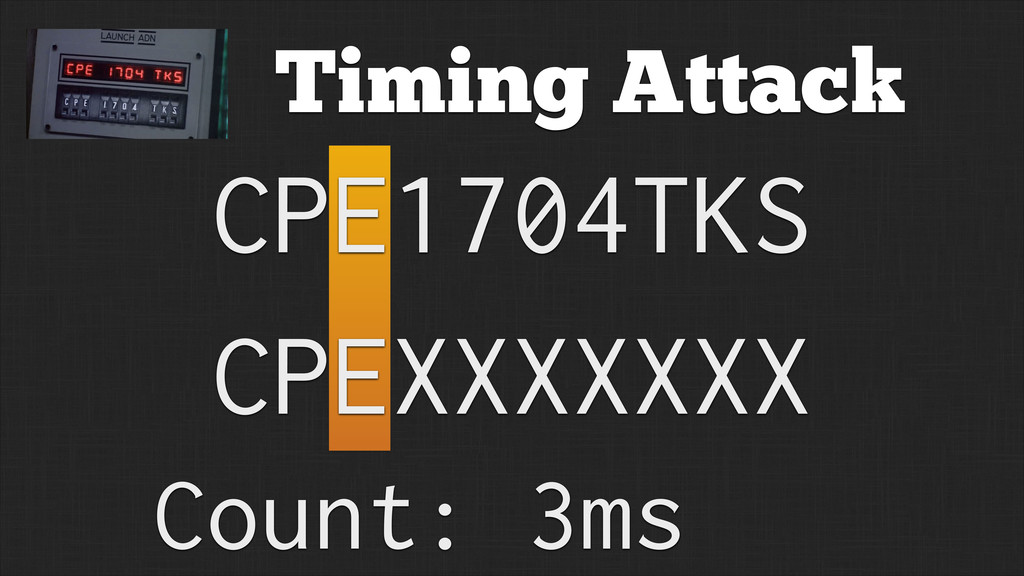

102. Timing Attack CPE1704TKS CPEXXXXXXX Count: 3ms

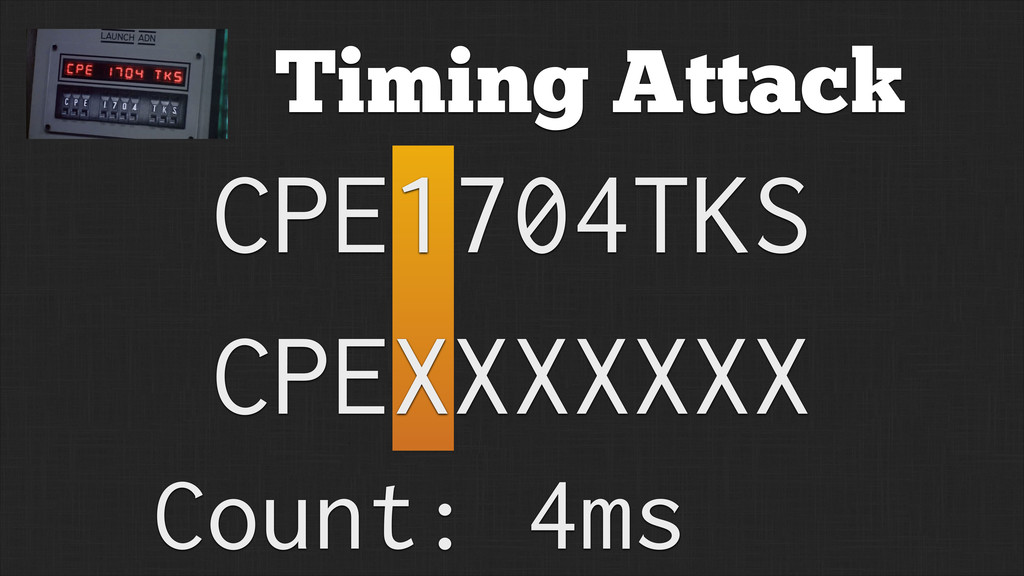

103. Timing Attack CPE1704TKS CPEXXXXXXX Count: 4ms

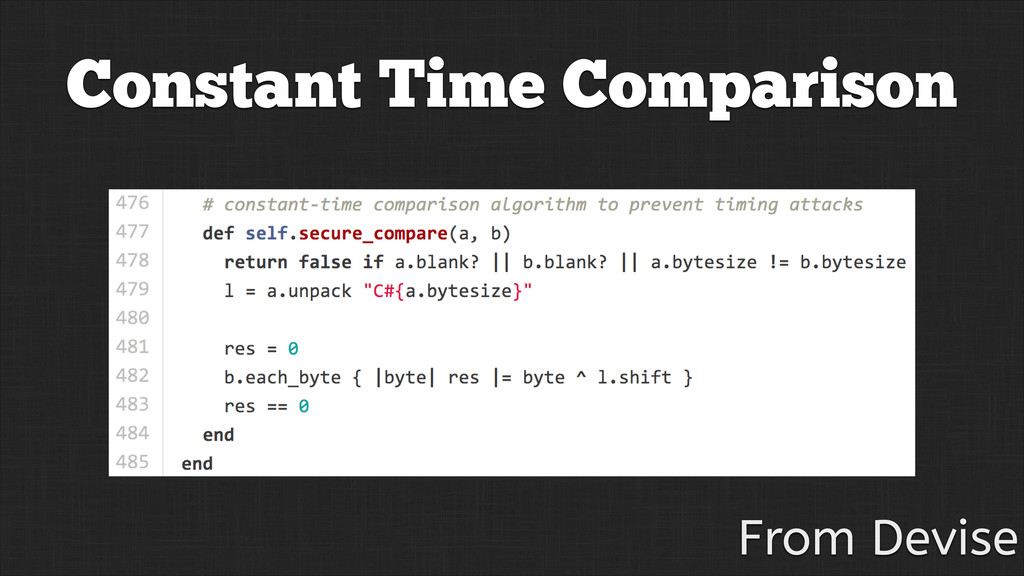

104. Constant Time Comparison From Devise

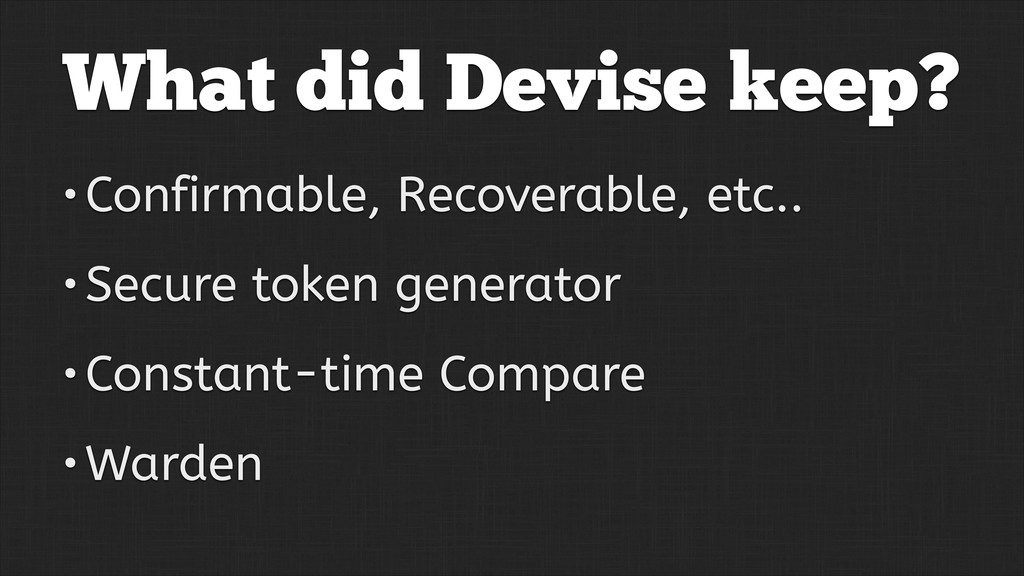

105. What did Devise keep? • Confirmable, Recoverable, etc.. • Secure token generator • Constant-time Compare • Warden

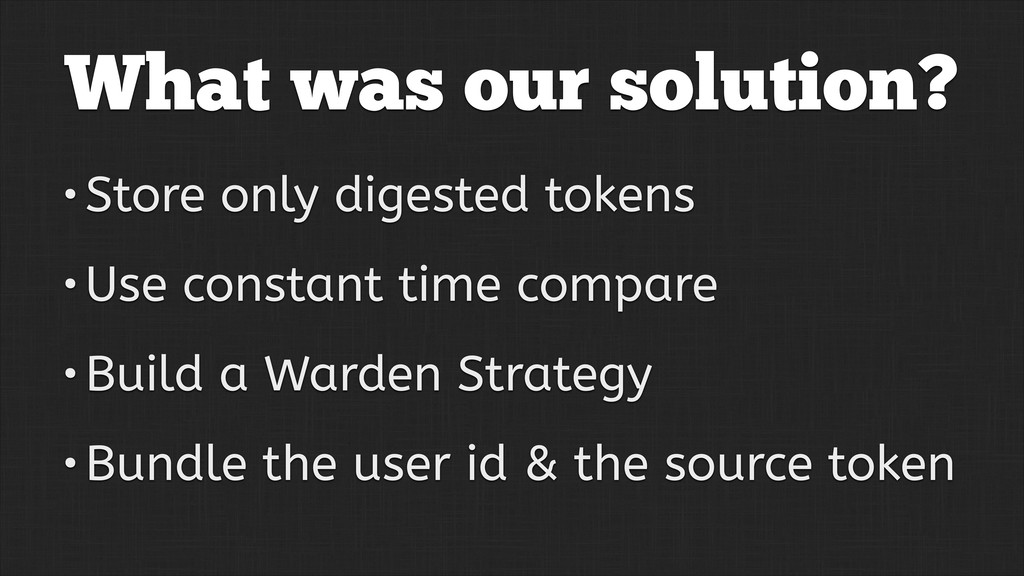

106. What was our solution? • Store only digested tokens • Use constant time compare • Build a Warden Strategy • Bundle the user id & the source token

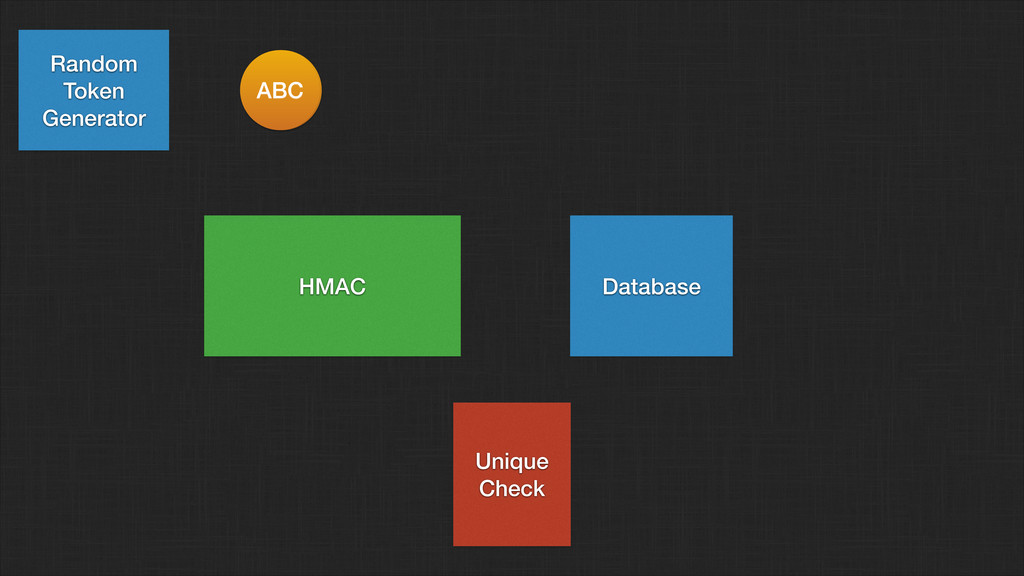

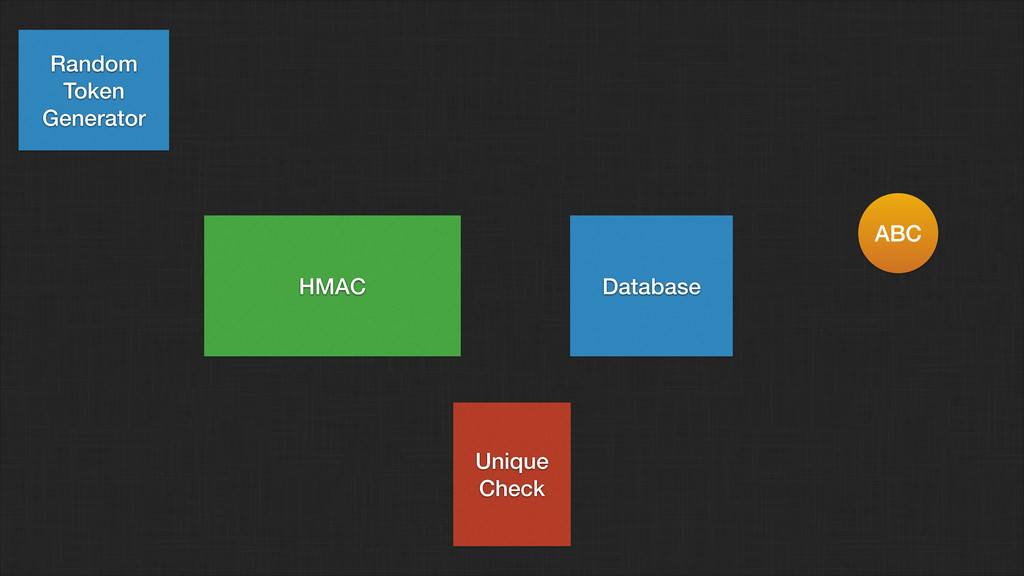

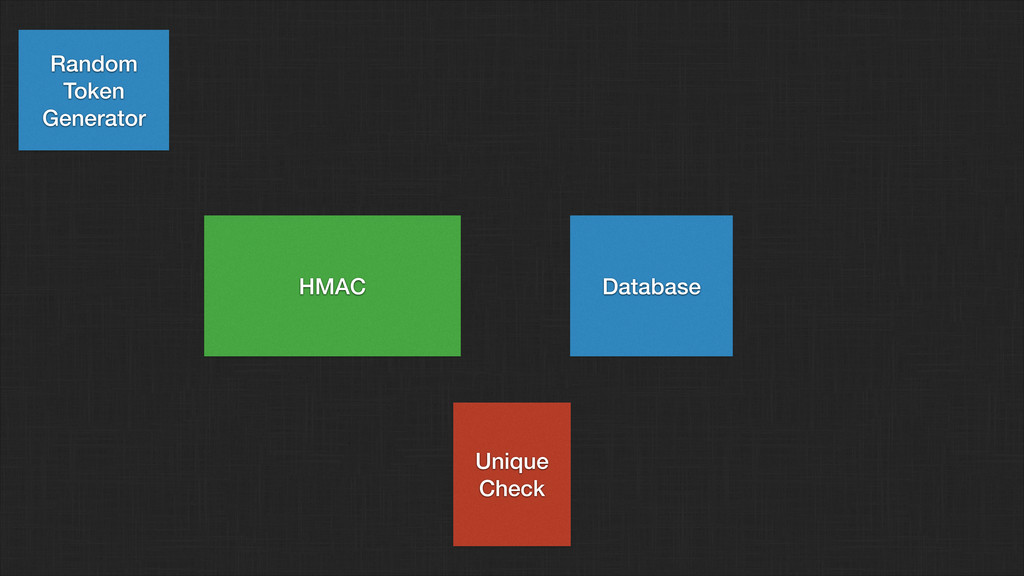

107. ABC $%Z ABC Random Token Generator Unique Check HMAC Database

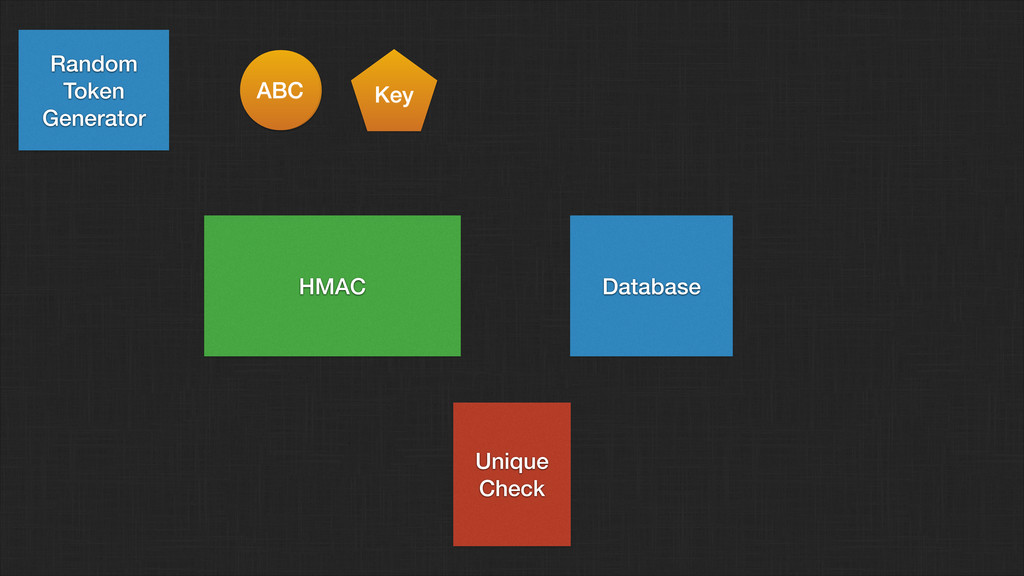

108. ABC $%Z ABC Random Token Generator Unique Check HMAC Database
109. ABC Key $%Z ABC Random Token Generator Unique Check HMAC Database

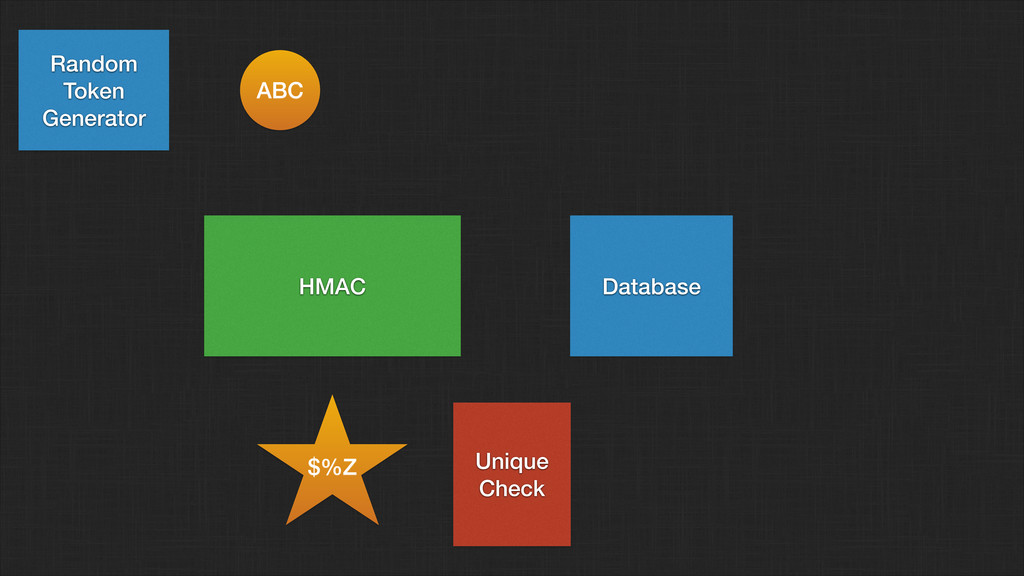

110. ABC Key $%Z ABC Random Token Generator Unique Check HMAC Database

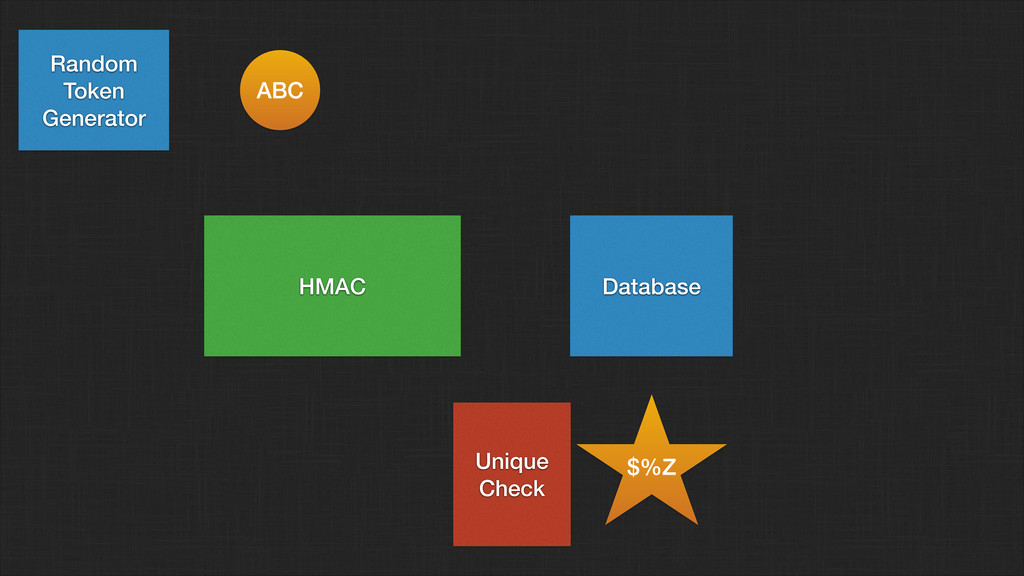

111. ABC Key $%Z ABC Random Token Generator Unique Check HMAC Database
112. ABC Key $%Z ABC Random Token Generator Unique Check HMAC Database
113. ABC Key $%Z ABC Random Token Generator Unique Check HMAC Database

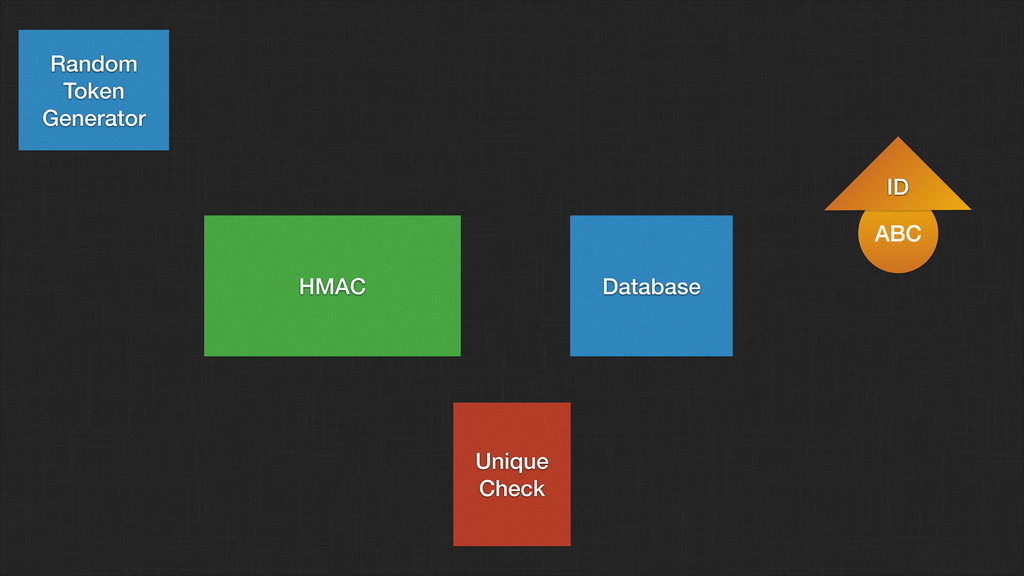

114. ABC Key $%Z ABC Random Token Generator Unique Check HMAC Database
115. ABC Key $%Z ABC ID Random Token Generator Unique Check HMAC Database

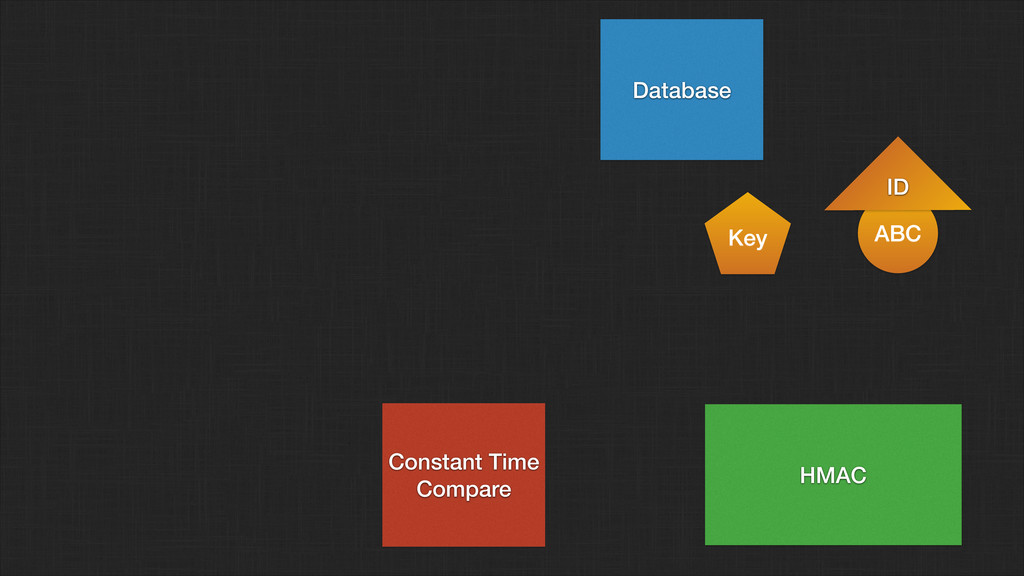

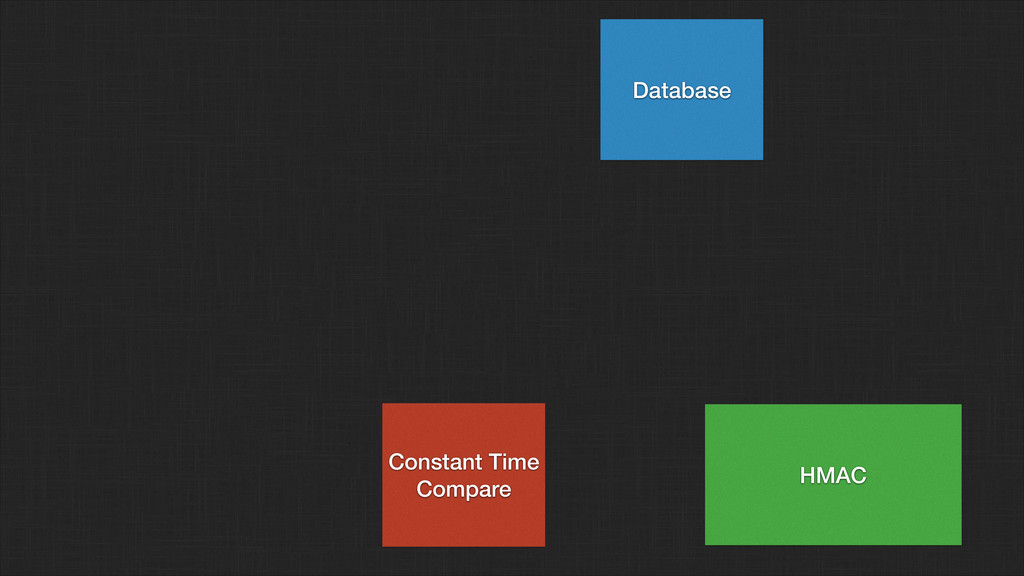

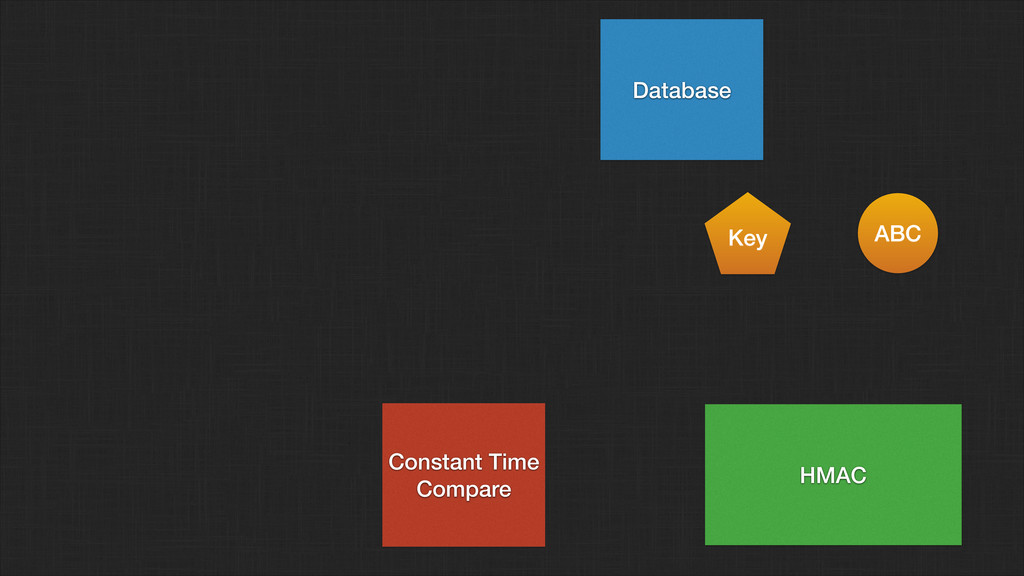

116. Key $%Z ABC ID $%Z Constant Time Compare HMAC Database

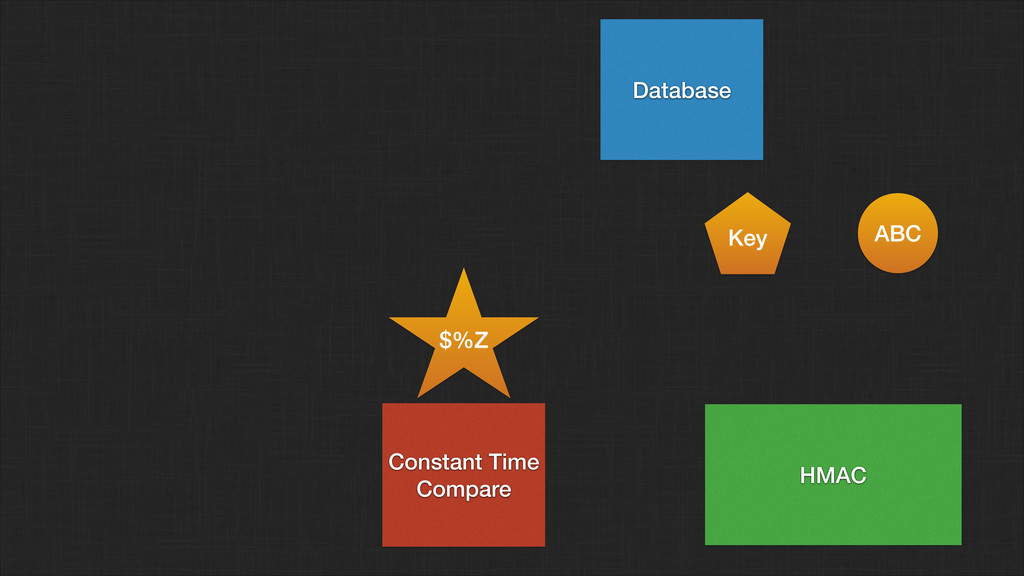

117. Key $%Z ABC ID $%Z Constant Time Compare HMAC Database

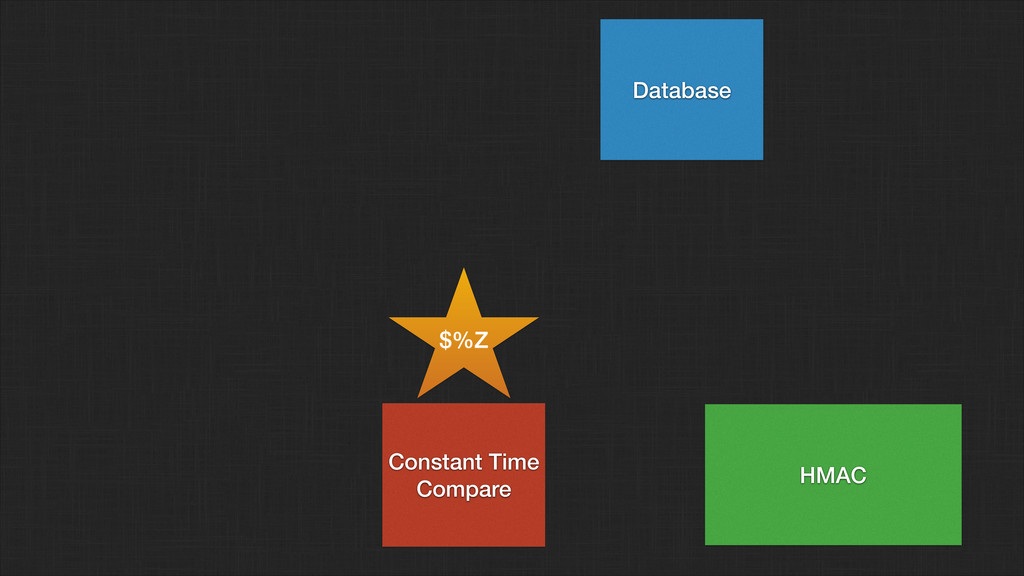

118. Key $%Z ABC ID $%Z Constant Time Compare HMAC Database
119. Key $%Z ABC ID $%Z Constant Time Compare HMAC Database
120. Key $%Z ABC ID $%Z Constant Time Compare HMAC Database

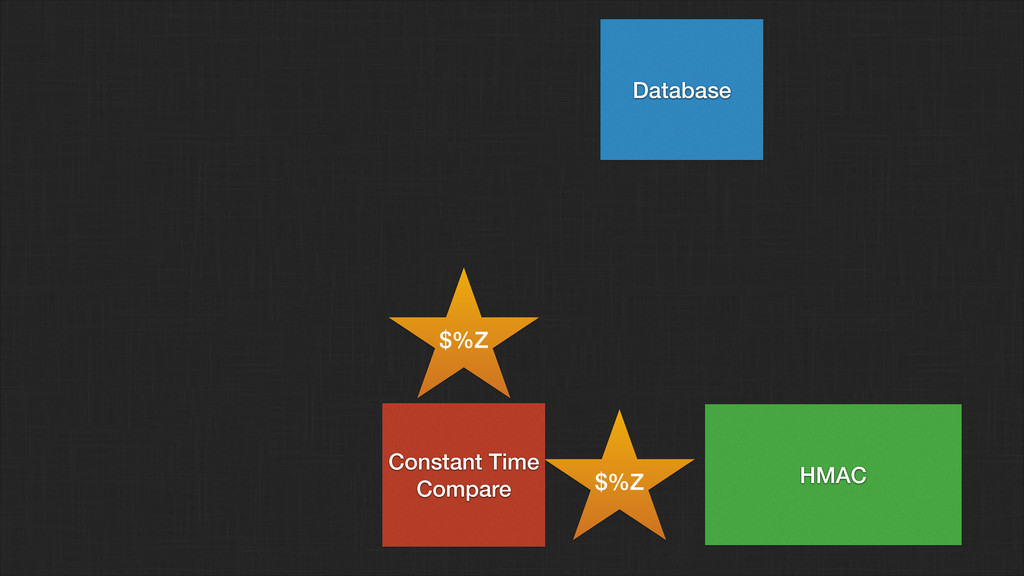

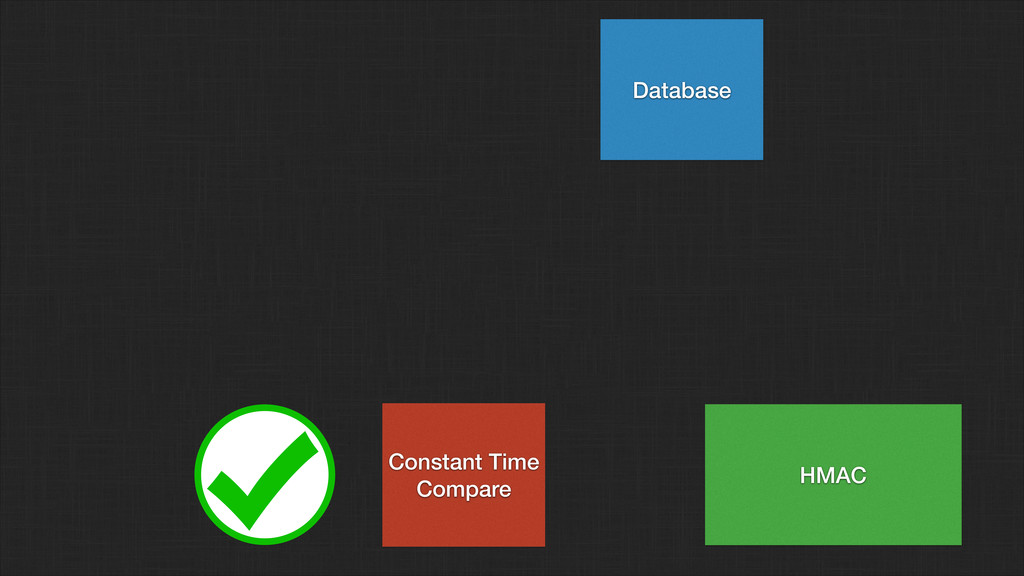

121. Key $%Z ABC ID $%Z Constant Time Compare HMAC Database
122. Key $%Z ABC ID $%Z Constant Time Compare HMAC Database
123. Let’s Build It.
124. Devise Example https://github.com/bobbrez/bostonrb_devise_talk
125. In the future… • Use ActiveSupport::MessageVerifier? • Gem-atize this? • Stay more up to date with libraries
