  1. My File read

  2. Virt user buffer physical user buffer Virt data block physical

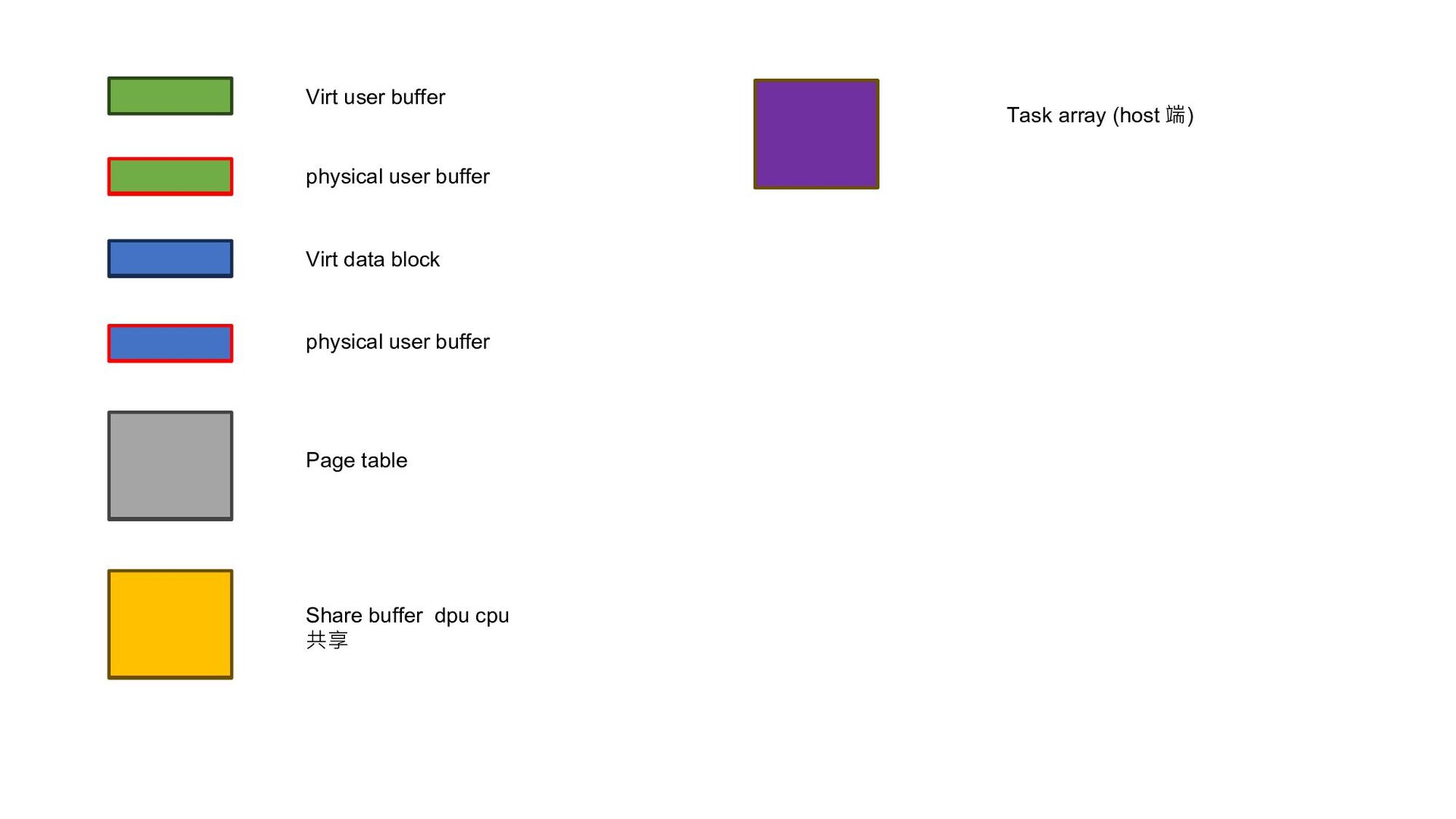

    user buffer Page table Share buffer dpu cpu 共享 Task array (host 端)

  3. Virt_buf Virt_data_block Virt_buf 為傳入的參數， 在此read operation中user buffer 的目的地vaddr Virt_data_block 為要讀data的起始virt

    addr

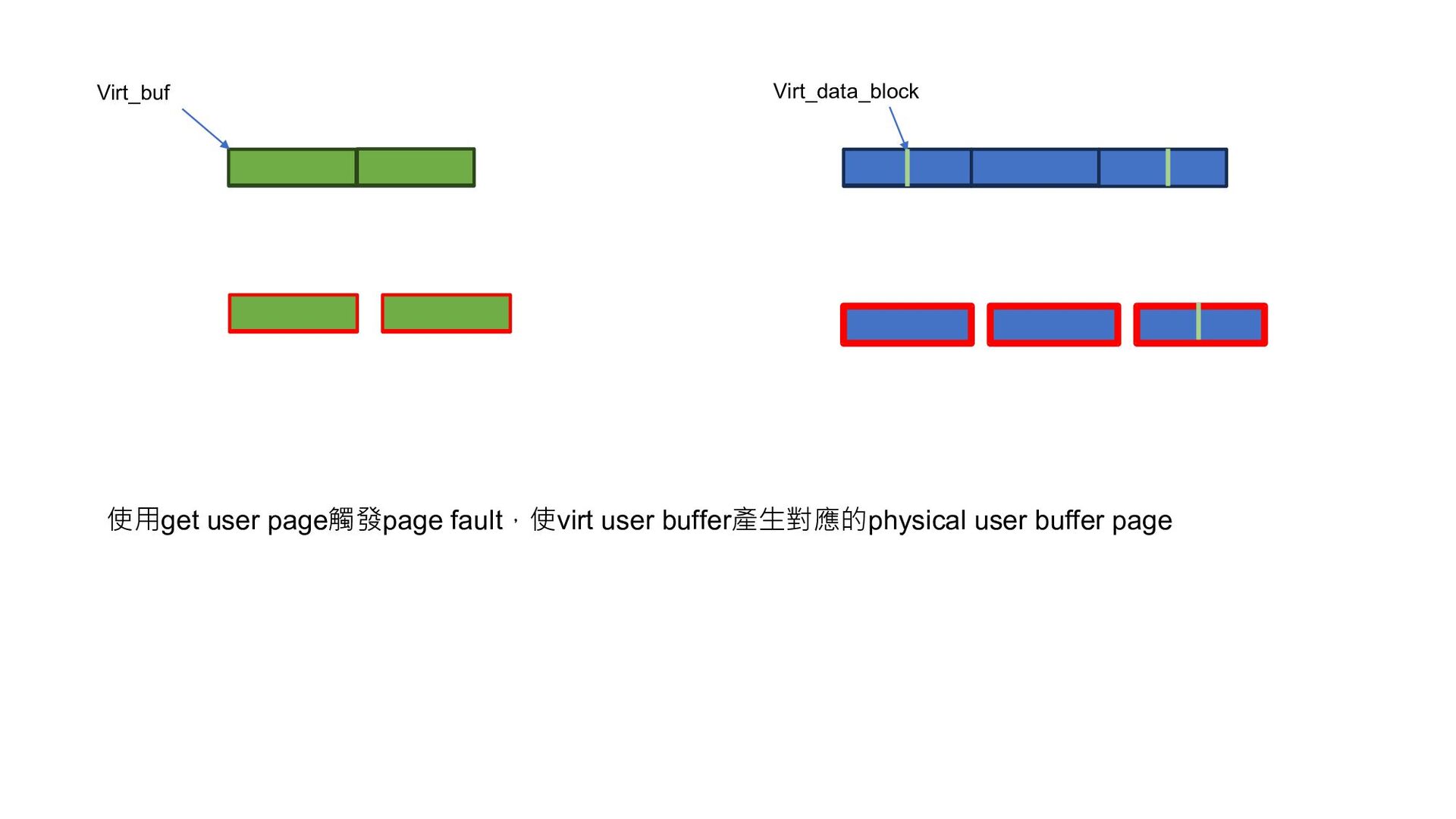

  4. Virt_buf Virt_data_block 使用get user page觸發page fault，使virt user buffer產生對應的physical user buffer

    page

  5. Virt_buf Virt_data_block Host cpu(filesystem) Virt_bufphys_buf Pgd 查表取得virt_buf對應的phys address phys_buf

  6. Virt_buf Virt_data_block Host cpu(filesystem) Virt_buf phys_buf Pgd 查表取得virt_buf對應的phys address phys_buf

    phys_buf

  7. Virt_buf Virt_data_block Host cpu(filesystem) 通過-offset的方式找到Virt_data_block 的phys address phys_data_block phys_buf phys_data_block=Virt_data_block-

    offset phys_data_block

  8. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block Src: phys_data_block Dst: phys_buf

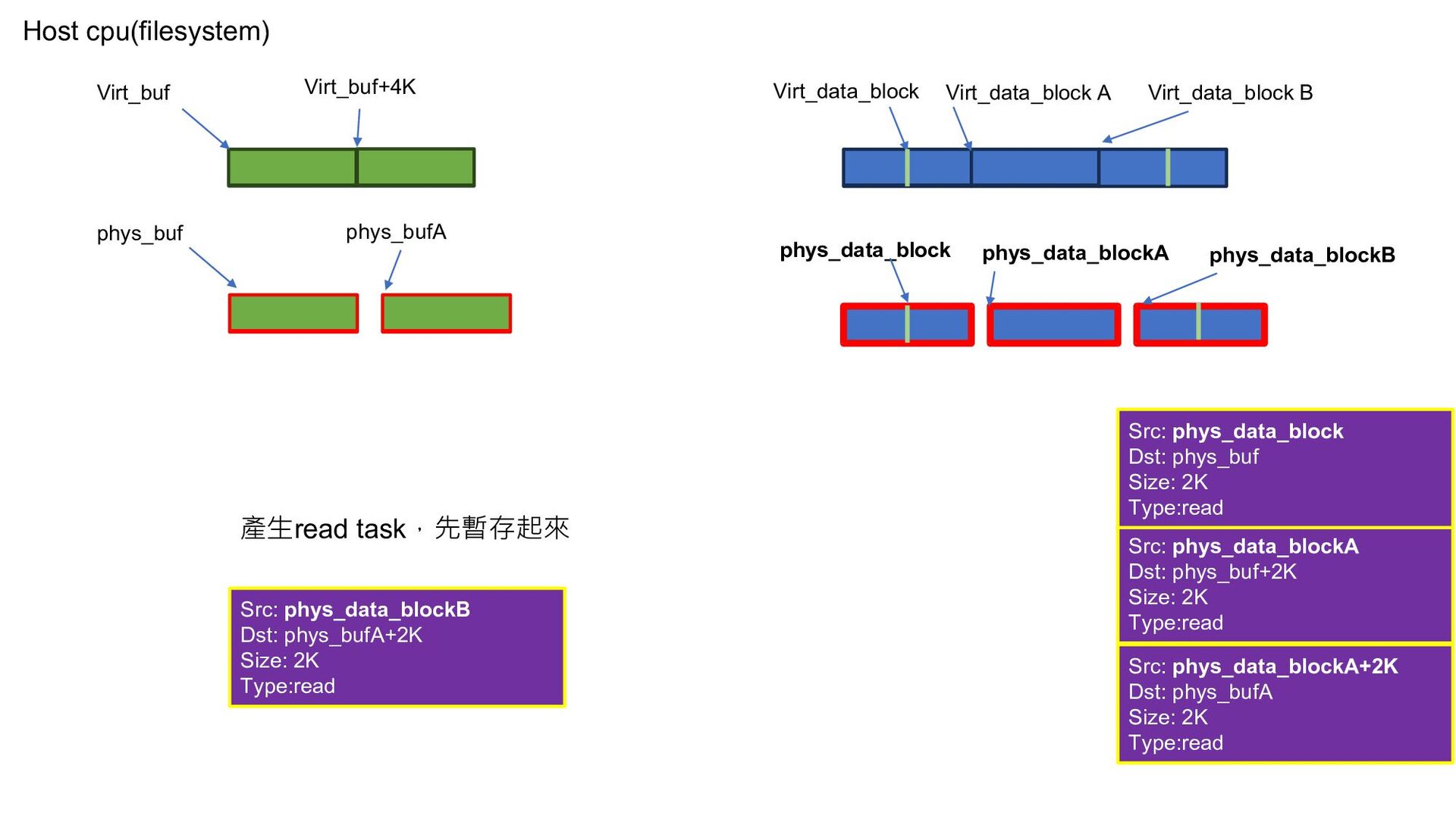

    Size: 2K Type:read 針對點的地方(2K size)的data copy，產生對應read task 產生read task ，先暫存起來

  9. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block Src: phys_data_block Dst: phys_buf

    Size: 2K Type:read 產生read task，先暫存起來

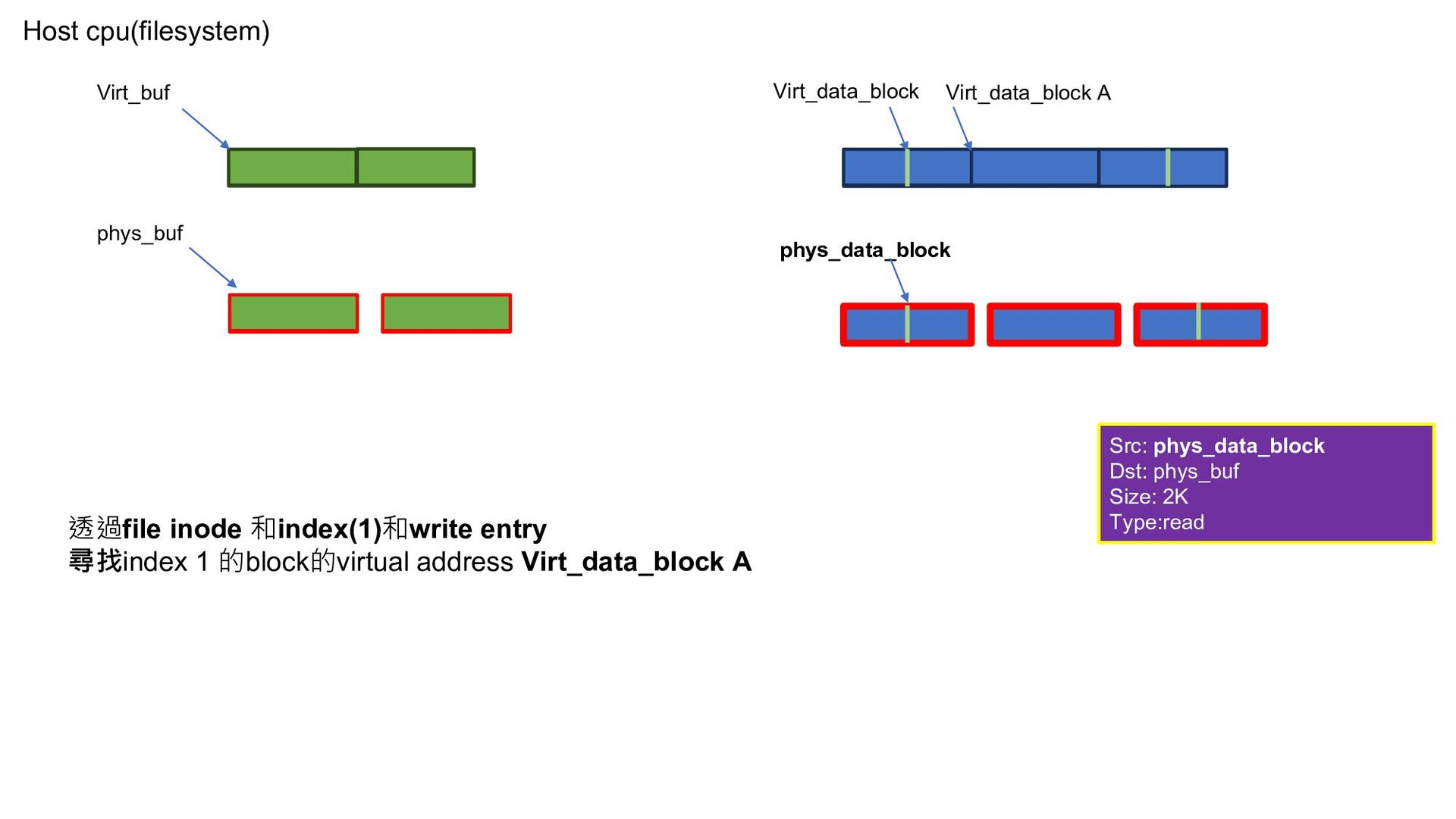

  10. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block 透過file inode 和index(1)和write entry

    尋找index 1 的block的virtual address Virt_data_block A Virt_data_block A Src: phys_data_block Dst: phys_buf Size: 2K Type:read

  11. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block phys_data_blockA=Virt_data_blockA- offset Virt_data_block A

    Src: phys_data_block Dst: phys_buf Size: 2K Type:read phys_data_blockA 通過-offset的方式找到Virt_data_blockA 的phys address phys_data_blockA

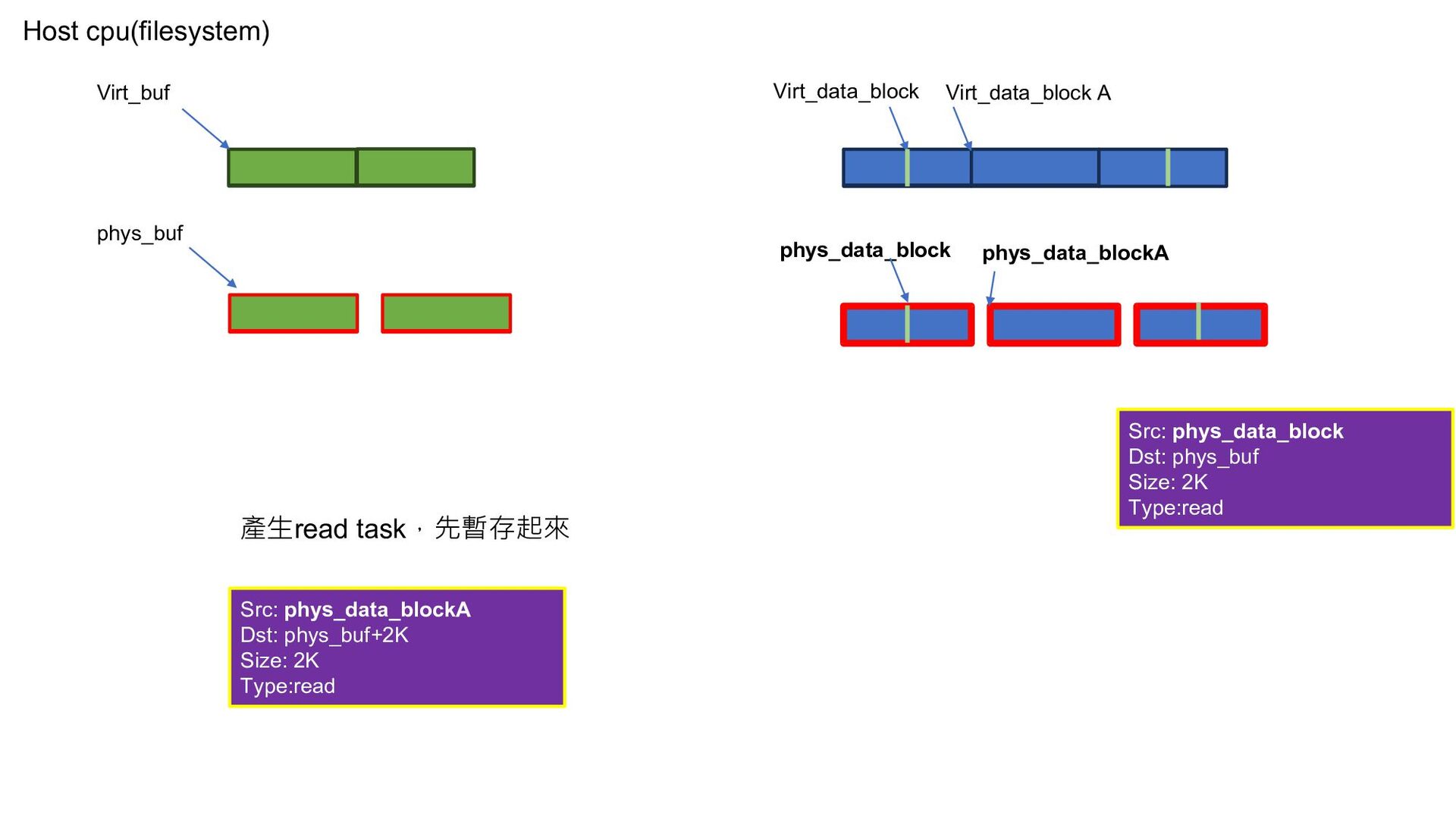

  12. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block Src: phys_data_blockA Dst: phys_buf+2K

    Size: 2K Type:read 產生read task，先暫存起來 Src: phys_data_block Dst: phys_buf Size: 2K Type:read Virt_data_block A phys_data_blockA 針對點的地方(2K size)的data copy，產生對應read task

  13. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block Src: phys_data_blockA Dst: phys_buf+2K

    Size: 2K Type:read 產生read task，先暫存起來 Src: phys_data_block Dst: phys_buf Size: 2K Type:read Virt_data_block A phys_data_blockA

  14. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block Src: phys_data_blockA Dst: phys_buf+2K

    Size: 2K Type:read Src: phys_data_block Dst: phys_buf Size: 2K Type:read Virt_data_block A phys_data_blockA Virt_buf+4K Virt_buf+4K phys_bufA Pgd 查表取得virt_buf+4K對應的phys address phys_bufA

  15. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block Src: phys_data_blockA Dst: phys_buf+2K

    Size: 2K Type:read Src: phys_data_block Dst: phys_buf Size: 2K Type:read Virt_data_block A phys_data_blockA Virt_buf+4K Virt_buf+4K phys_bufA Pgd phys_bufA 查表取得virt_buf+4K對應的phys address phys_bufA

  16. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block Src: phys_data_blockA Dst: phys_buf+2K

    Size: 2K Type:read Src: phys_data_block Dst: phys_buf Size: 2K Type:read Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read 產生read task，先暫存起來 針對點的地方(2K size)的data copy，產生對應read task

  17. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block Src: phys_data_blockA Dst: phys_buf+2K

    Size: 2K Type:read Src: phys_data_block Dst: phys_buf Size: 2K Type:read Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read 產生read task，先暫存起來

  18. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block Src: phys_data_blockA Dst: phys_buf+2K

    Size: 2K Type:read Src: phys_data_block Dst: phys_buf Size: 2K Type:read Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read 透過file inode 和index(2)和write entry 尋找index 2 的block的virtual address Virt_data_block B

  19. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block Src: phys_data_blockA Dst: phys_buf+2K

    Size: 2K Type:read Src: phys_data_block Dst: phys_buf Size: 2K Type:read Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read 透過file inode 和index(2)和write entry 尋找index 2 的block的virtual address Virt_data_block B Virt_data_block B

  20. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block Src: phys_data_blockA Dst: phys_buf+2K

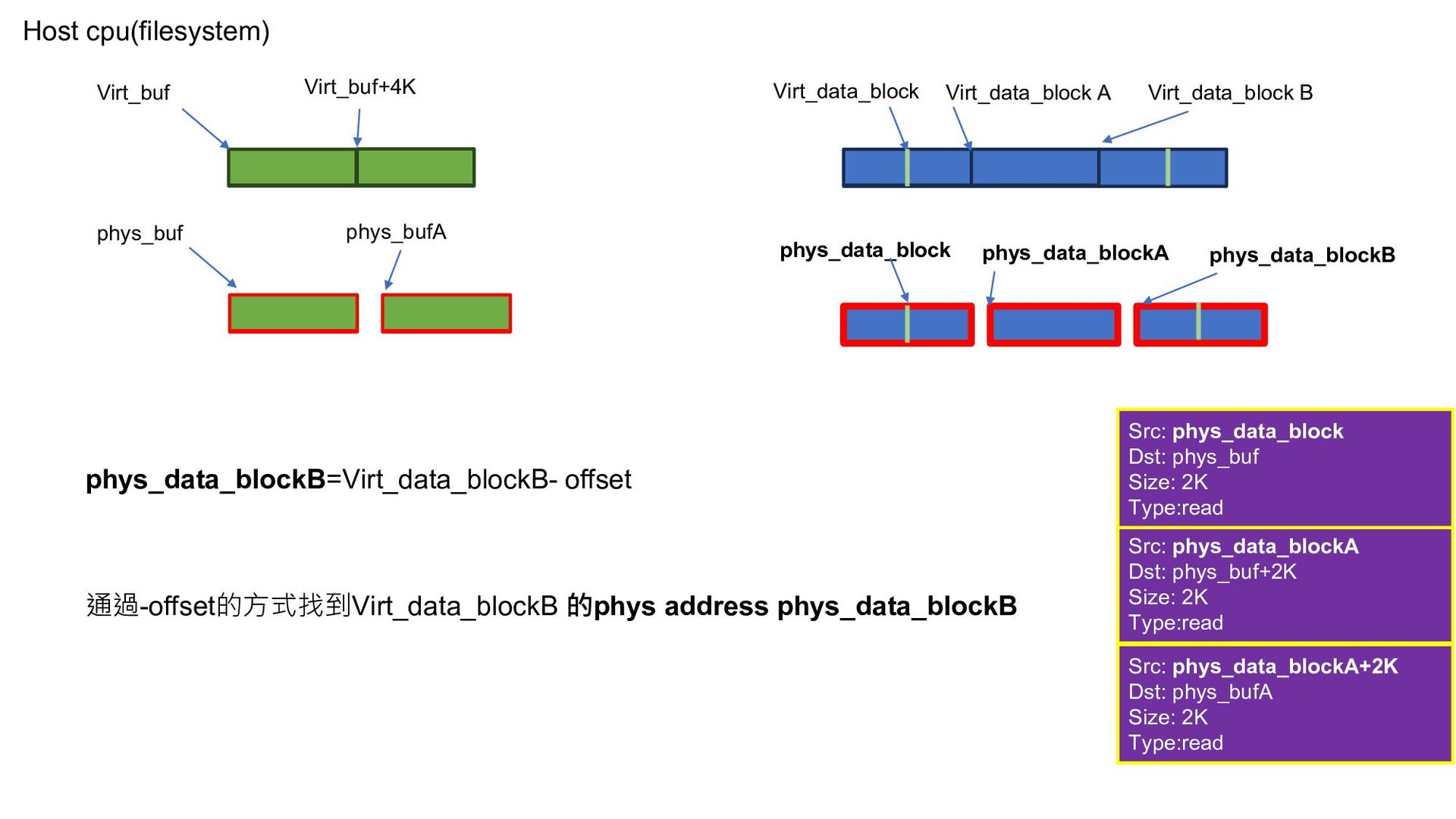

    Size: 2K Type:read Src: phys_data_block Dst: phys_buf Size: 2K Type:read Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read Virt_data_block B phys_data_blockB=Virt_data_blockB- offset 通過-offset的方式找到Virt_data_blockB 的phys address phys_data_blockB phys_data_blockB

  21. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block Src: phys_data_blockA Dst: phys_buf+2K

    Size: 2K Type:read Src: phys_data_block Dst: phys_buf Size: 2K Type:read Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read Virt_data_block B phys_data_blockB Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read 產生read task，先暫存起來 針對點的地方(2K size)的data copy，產生對應read task

  22. Virt_buf Virt_data_block Host cpu(filesystem) phys_buf phys_data_block Src: phys_data_blockA Dst: phys_buf+2K

    Size: 2K Type:read Src: phys_data_block Dst: phys_buf Size: 2K Type:read Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read Virt_data_block B phys_data_blockB Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read 產生read task，先暫存起來

  23. Pim driver(cpu) Src: phys_data_blockA Dst: phys_buf+2K Size: 2K Type:read Src:

    phys_data_block Dst: phys_buf Size: 2K Type:read Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read 將存在filesystem(host端)的task填入 dpu與cpu的shared buffer 此處應該還會判斷shared buffer是否滿，那些欄位在使用，但先暫時省略

  24. Virt_buf Virt_data_block DPU phys_buf phys_data_block Src: phys_data_blockA Dst: phys_buf+2K Size:

    2K Type:read Src: phys_data_block Dst: phys_buf Size: 2K Type:read Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read Virt_data_block B phys_data_blockB Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read Dpu根據task 1的參數執行copy

  25. Virt_buf Virt_data_block DPU phys_buf phys_data_block Src: phys_data_blockA Dst: phys_buf+2K Size:

    2K Type:read Src: phys_data_block Dst: phys_buf Size: 2K Type:read Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read Virt_data_block B phys_data_blockB Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read Dpu根據task 1的參數執行copy clflush(phys_buf, 2K); memcpy_v(phys_buf, phys_data_block, 2K);

  26. Virt_buf Virt_data_block DPU phys_buf phys_data_block Src: phys_data_blockA Dst: phys_buf+2K Size:

    2K Type:read Src: phys_data_block Dst: phys_buf Size: 2K Type:read Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read Virt_data_block B phys_data_blockB Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read Dpu根據task 1的參數執行copy clflush(phys_buf, 2K); memcpy_v(phys_buf, phys_data_block, 2K); DPU

  27. Virt_buf Virt_data_block DPU phys_buf phys_data_block Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA

    Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read Virt_data_block B phys_data_blockB Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read Dpu根據task 2的參數執行copy Src: phys_data_blockA Dst: phys_buf+2K Size: 2K Type:read

  28. Virt_buf Virt_data_block DPU phys_buf phys_data_block Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA

    Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read Virt_data_block B phys_data_blockB Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read Dpu根據task 2的參數執行copy clflush(phys_buf+2K, 2K); memcpy_v(phys_buf+2K, phys_data_blockS, 2K); Src: phys_data_blockA Dst: phys_buf+2K Size: 2K Type:read

  29. Virt_buf Virt_data_block DPU phys_buf phys_data_block Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA

    Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read Virt_data_block B phys_data_blockB Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read Dpu根據task 2的參數執行copy clflush(phys_buf+2K, 2K); memcpy_v(phys_buf+2K, phys_data_blockS, 2K); Src: phys_data_blockA Dst: phys_buf+2K Size: 2K Type:read DPU

  30. Virt_buf Virt_data_block DPU phys_buf phys_data_block Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA

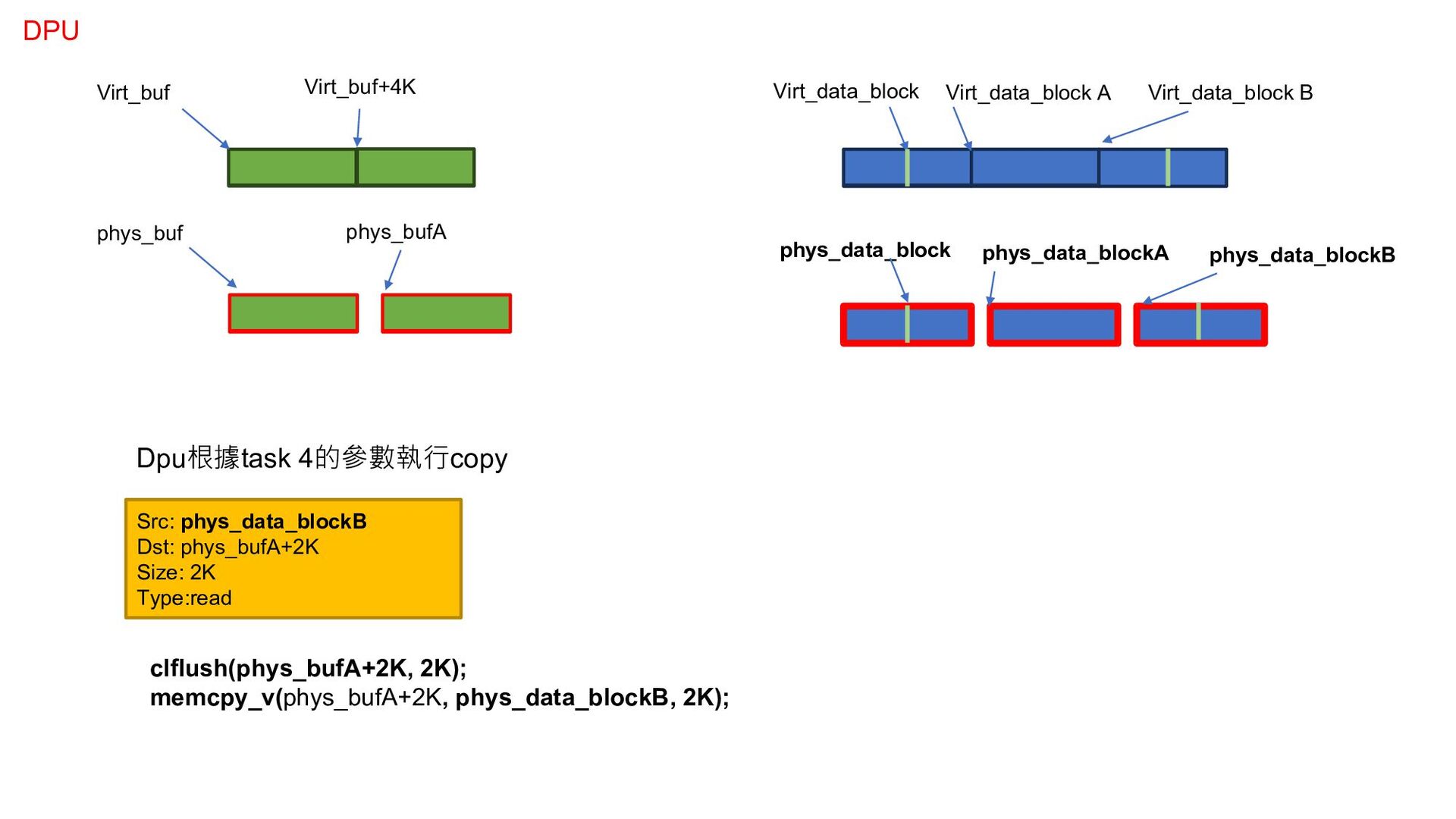

    Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read Virt_data_block B phys_data_blockB Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read Dpu根據task 3的參數執行copy

  31. Virt_buf Virt_data_block DPU phys_buf phys_data_block Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA

    Virt_data_block B phys_data_blockB Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read Dpu根據task 3的參數執行copy clflush(phys_buf+2K, 2K); memcpy_v(phys_buf+2K, phys_data_blockA, 2K); Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read

  32. Virt_buf Virt_data_block DPU phys_buf phys_data_block Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA

    Virt_data_block B phys_data_blockB Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read Dpu根據task 3的參數執行copy clflush(phys_bufA, 2K); memcpy_v(phys_bufA, phys_data_blockA, 2K); Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read DPU

  33. Virt_buf Virt_data_block DPU phys_buf phys_data_block Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA

    Virt_data_block B phys_data_blockB Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read Dpu根據task 4的參數執行copy

  34. Virt_buf Virt_data_block DPU phys_buf phys_data_block Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA

    Virt_data_block B phys_data_blockB Dpu根據task 4的參數執行copy clflush(phys_bufA+2K, 2K); memcpy_v(phys_bufA+2K, phys_data_blockB, 2K); Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read

  35. Virt_buf Virt_data_block DPU phys_buf phys_data_block Virt_data_block A phys_data_blockA Virt_buf+4K phys_bufA

    Virt_data_block B phys_data_blockB Dpu根據task 4的參數執行copy clflush(phys_bufA+2K, 2K); memcpy_v(phys_bufA+2K, phys_data_blockB, 2K); Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read DPU

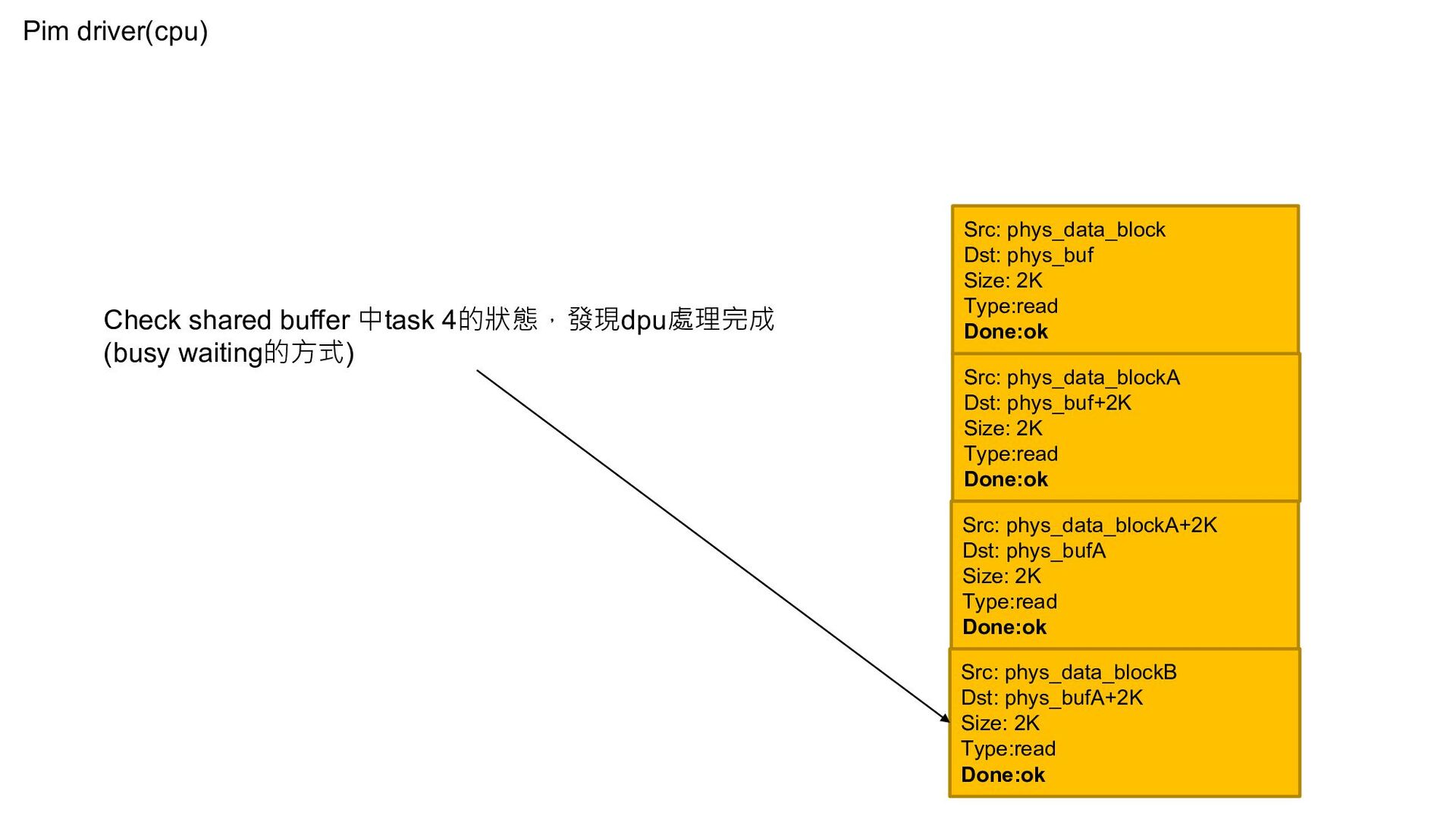

  36. Pim driver(cpu) Check shared buffer 中task 4的狀態，發現dpu處理完成 (busy waiting的方式) Src:

    phys_data_blockA Dst: phys_buf+2K Size: 2K Type:read Done:ok Src: phys_data_block Dst: phys_buf Size: 2K Type:read Done:ok Src: phys_data_blockA+2K Dst: phys_bufA Size: 2K Type:read Done:ok Src: phys_data_blockB Dst: phys_bufA+2K Size: 2K Type:read Done:ok

  37. Filesystem(cpu) • Pim driver回傳 ok，此次write operation的tasks dpu皆做完 • 此次write operation可以準備結束
