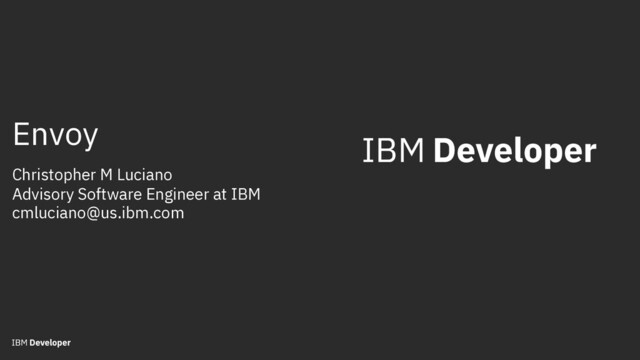

1. IBM Developer Envoy Christopher M Luciano Advisory Software Engineer at IBM cmluciano@us.ibm.com DOC ID / Month XX, 2018 / © 2018 IBM Corporation
2. IBM Developer IBM Developer Agenda • Envoy Basics • Envoy Internals • xDS APIs • Contributing to Envoy 2
3. IBM Developer Summary 3 The network should be transparent to applications. When network and application problems do occur it should be easy to determine the source of the problem. https://www.envoyproxy.io/docs/envoy/v1.7.0/intro/what_is_envoy
4. IBM Developer 4 Envoy Intelligent proxy deployed as a sidecar • Intercept & manages network traffic • Security/Identity • TLS termination • Low memory footprint • Language Agnostic
5. IBM Developer 5 Envoy’s Role in Istio Pod Pod Service 1 Service 2 Envoy Envoy
6. IBM Developer Listener 6 ▪ One to many number of listeners per Envoy process ▪ Proxies event when connection is made to listeners ▪ Configured with network or listener filters ▪ Listener binding • Freebind • Transparent ▪ TCP only (UDP soon)
7. IBM Developer Clusters 7 ▪ Collection of similar hosts for Envoy connections ▪ Determined through various service discovery systems ▪ Can be configured either from a static list or dynamic API ▪ Warmed on initial boot
8. IBM Developer Filters 8 ▪ Listener • Original Destination • TLS Inspector ▪ Network (Layer 3 & 4) • Rate limiting • Mongo • TCP Proxy ▪ HTTP • Fault injection • Router
9. IBM Developer Envoy Threading Model 9 1 Envoy process Main thread File flush threads … Worker thread Worker thread xDS Admin Process mgmt Worker thread Listeners Connections
10. IBM Developer SNI Proxy Example 10 https://github.com/IBM/envoy101/tree/ master/assets/sni-proxy-https
11. IBM Developer DEMO SNI PROXY 11 https://github.com/IBM/envoy101/blob/master/assets/sni-proxy-https/docker-compose.yaml
12. IBM Developer Double Proxy with MTLS filter_chain_match 12 https://github.com/IBM/envoy101/blob/master/assets/double-proxy-mtls/envoy_config1.yaml
13. IBM Developer Double Proxy with MTLS cluster 13 https://github.com/IBM/envoy101/blob/master/assets/double-proxy-mtls/envoy_config2.yaml
14. IBM Developer DEMO DOUBLE PROXY MTLS 14 https://github.com/IBM/envoy101/blob/master/assets/double-proxy-mtls/docker-compose.yaml
15. IBM Developer xDS APIs 15 ▪ Route Discovery Service (RDS) ▪ Endpoint Discovery Service (EDS) ▪ Cluster Discovery Service (CDS) ▪ Listener Discovery Service (LDS) ▪ Aggregated Discovery Service (ADS)
16. IBM Developer Route Discovery Service 16
17. IBM Developer Endpoint Discovery Service 17
18. IBM Developer Cluster Discover Service 18
19. IBM Developer Listener Discover Service (LDS) 19
20. IBM Developer Aggregated Discovery Service (ADS) 20 ▪ Single sequenced delivery of configuration • Istio 1.0 style ▪ Combines CDS/RDS/EDS ▪ Bidirectional stream ▪ gRPC style only
21. IBM Developer Contributing to Envoy 21 ▪ github.com/envoyproxy/envoy ▪ Bazel based build system ▪ Open issues designated with “help/wanted” • Beginner tags for “good first issues” ▪ cmluciano.blog for contribution guide
22. IBM Developer 22 Thank you cmluciano@us.ibm.com twitter.com/cmluciano_ github.com/cmluciano developer.ibm.com
