Strongly typed datasets in a weakly typed world

Strongly typed Parquet Datasets / Hive Tables are often used to exchange and preserve data in a Pandas-driven environment, where types are rather unstable. This results in multiple issues and these as well as potential solutions will be presented, together with an RFC directed to the community.

Transcript

1. 1 Strongly Typed Datasets in a Weakly Typed World Marco Neumann @crepererum PyCon.DE 2018
2. 2 For Production Data Engineering

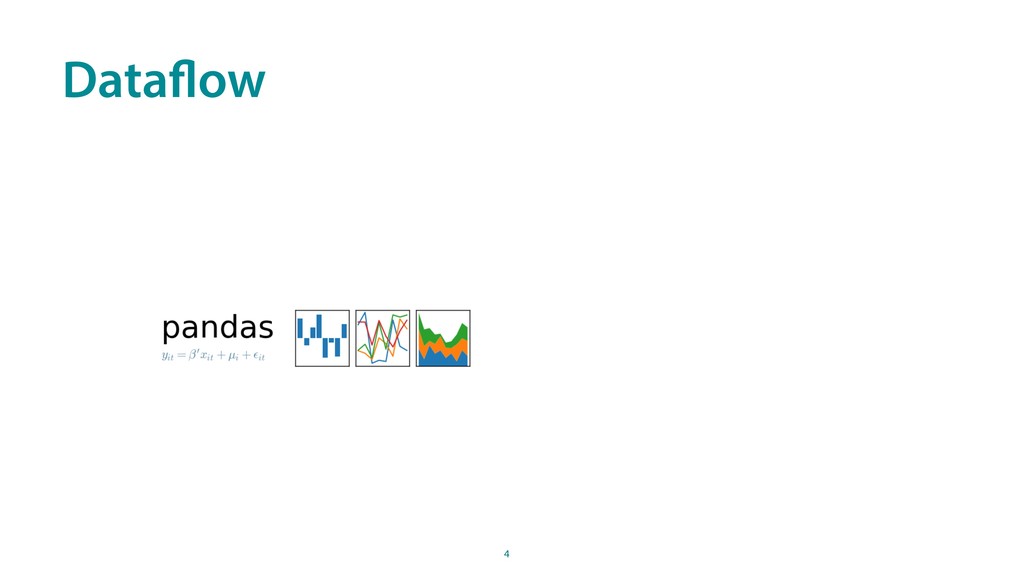

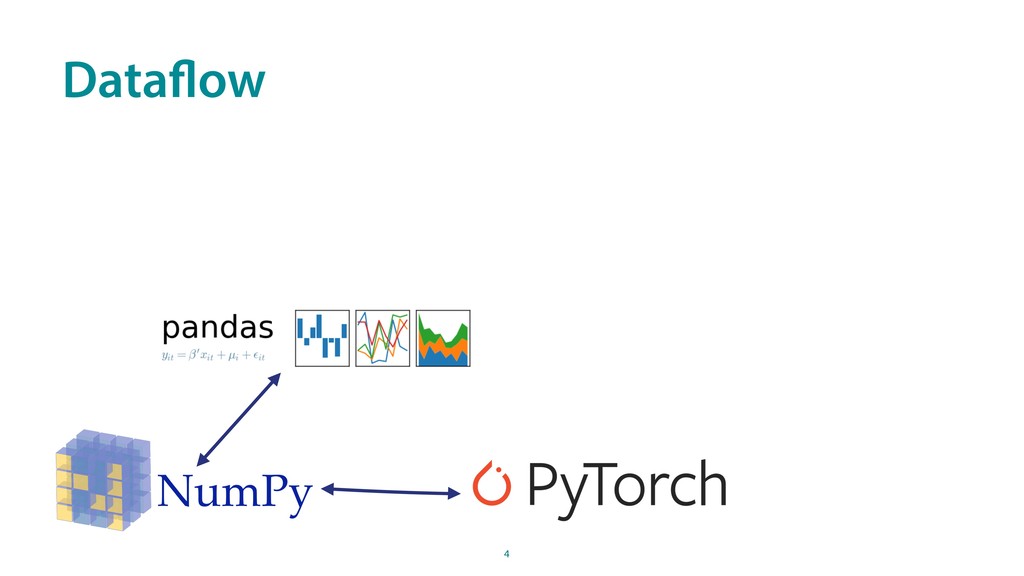

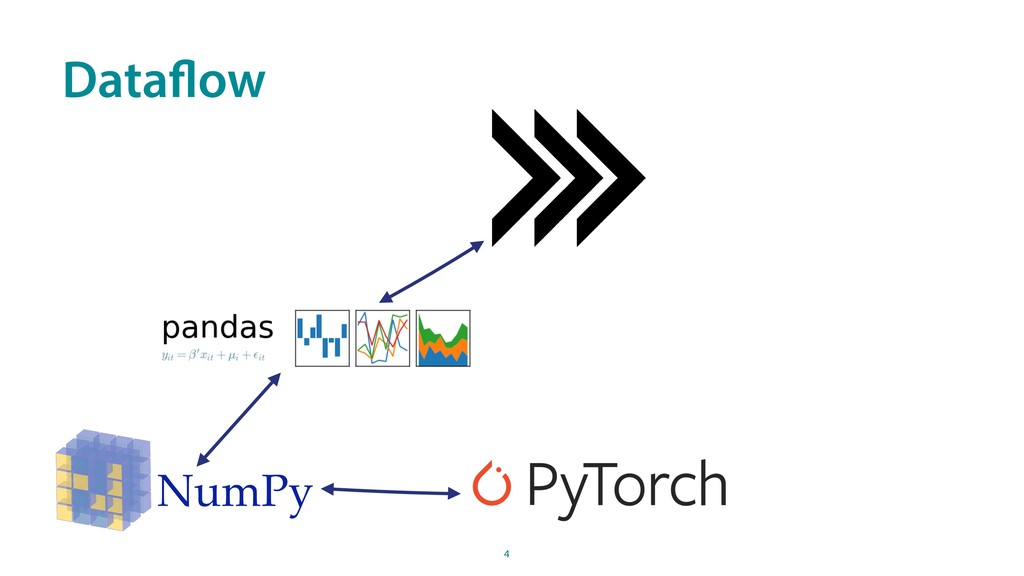

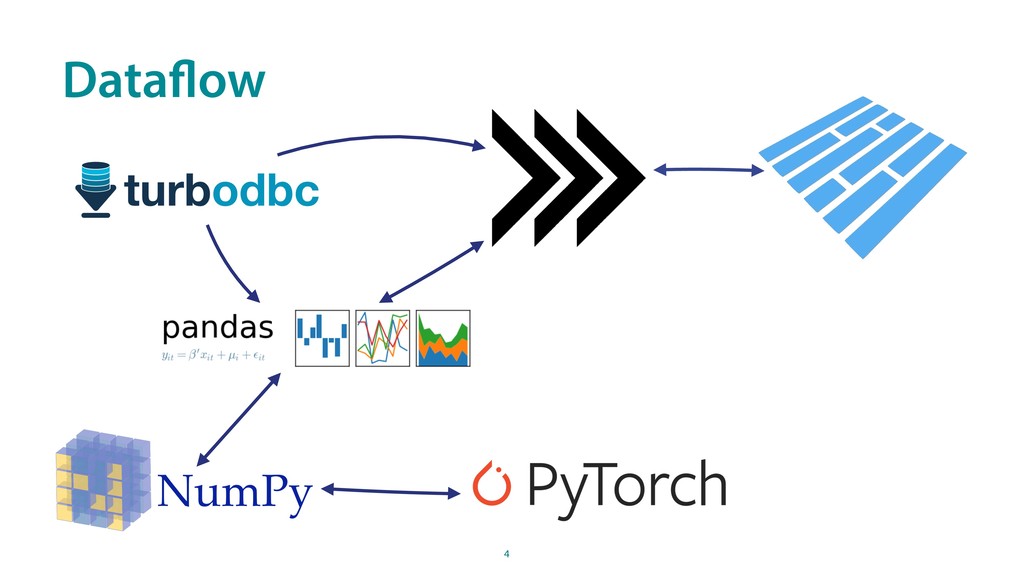

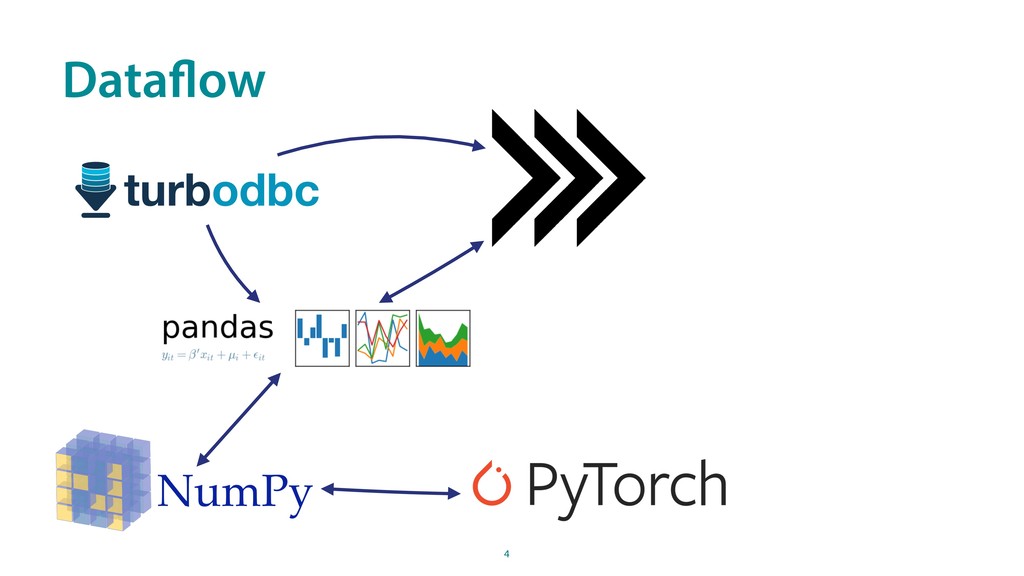

4. 4 Dataflow

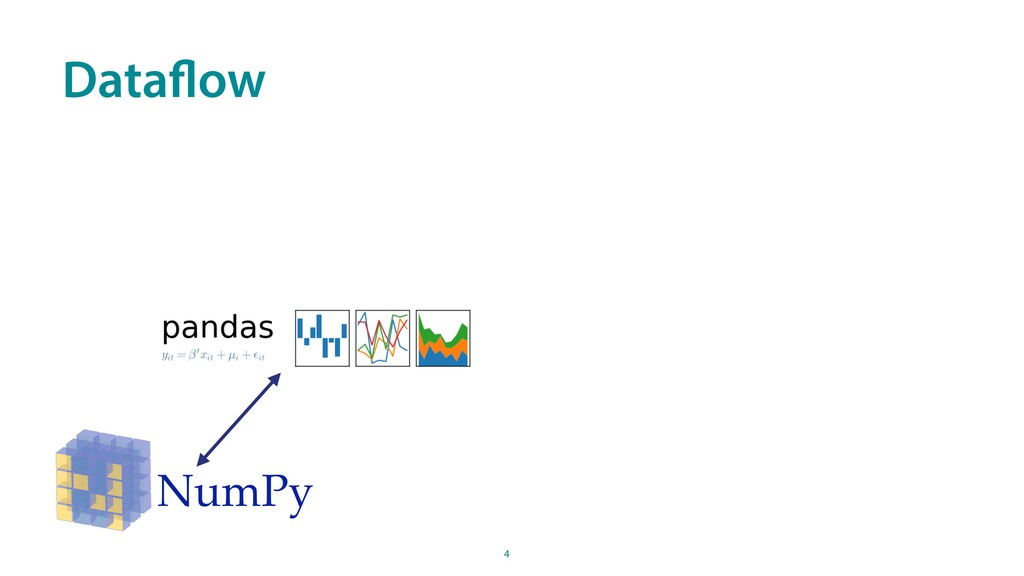

5. 4 Dataflow
6. 4 Dataflow
7. 4 Dataflow
8. 4 Dataflow
9. 4 Dataflow

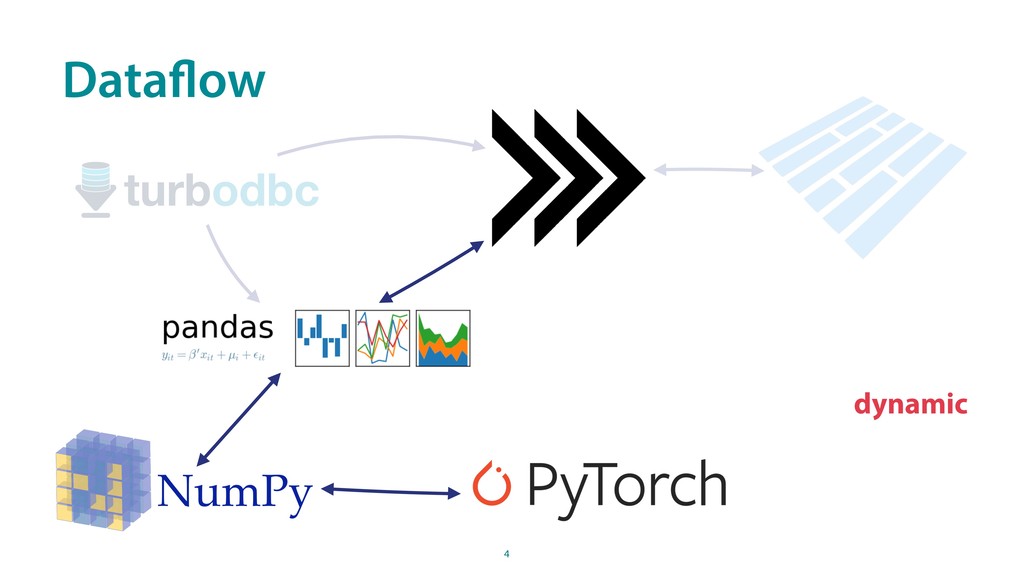

10. 4 Dataflow dynamic

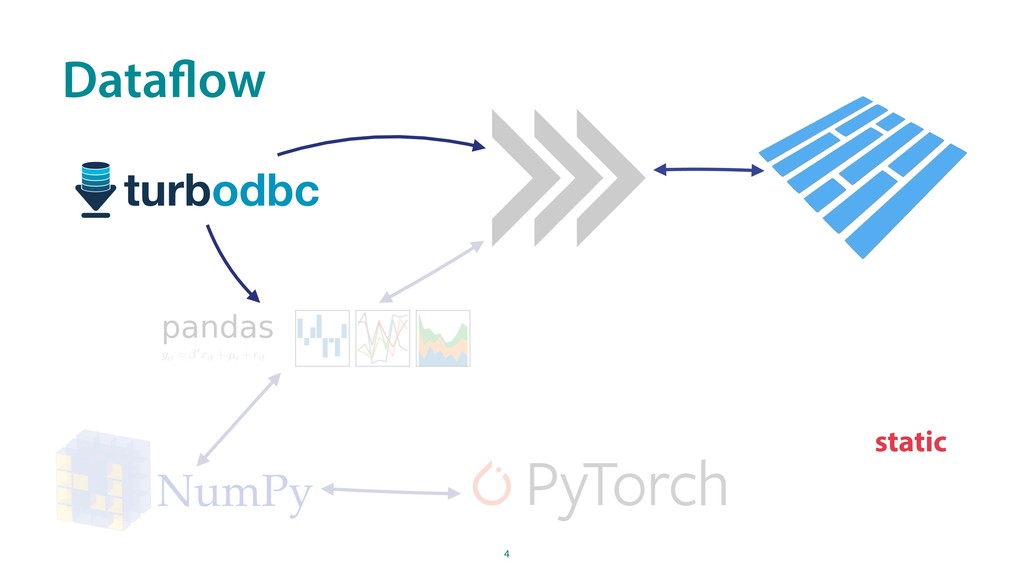

11. 4 Dataflow static

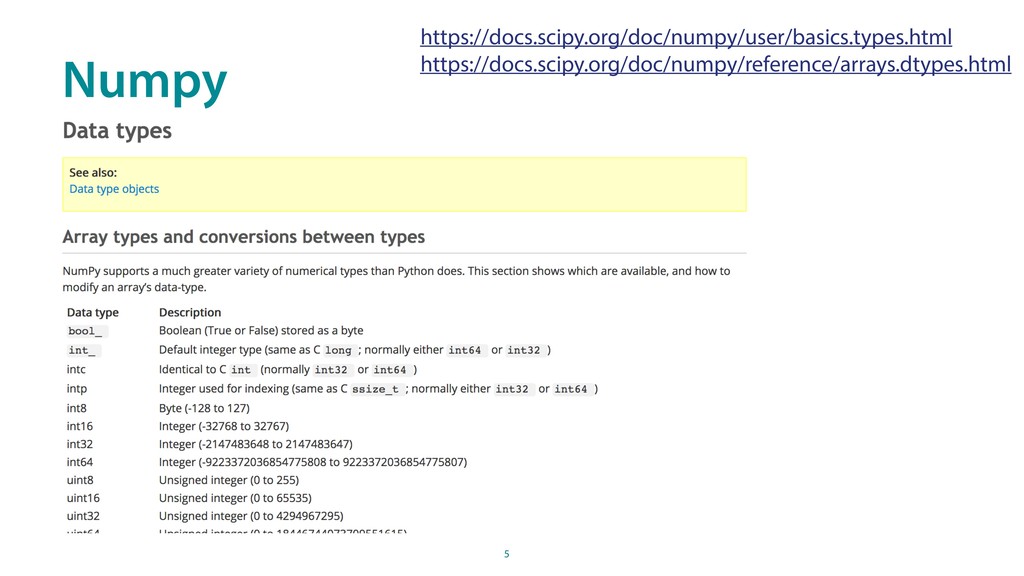

12. 5 Numpy https://docs.scipy.org/doc/numpy/user/basics.types.html https://docs.scipy.org/doc/numpy/reference/arrays.dtypes.html

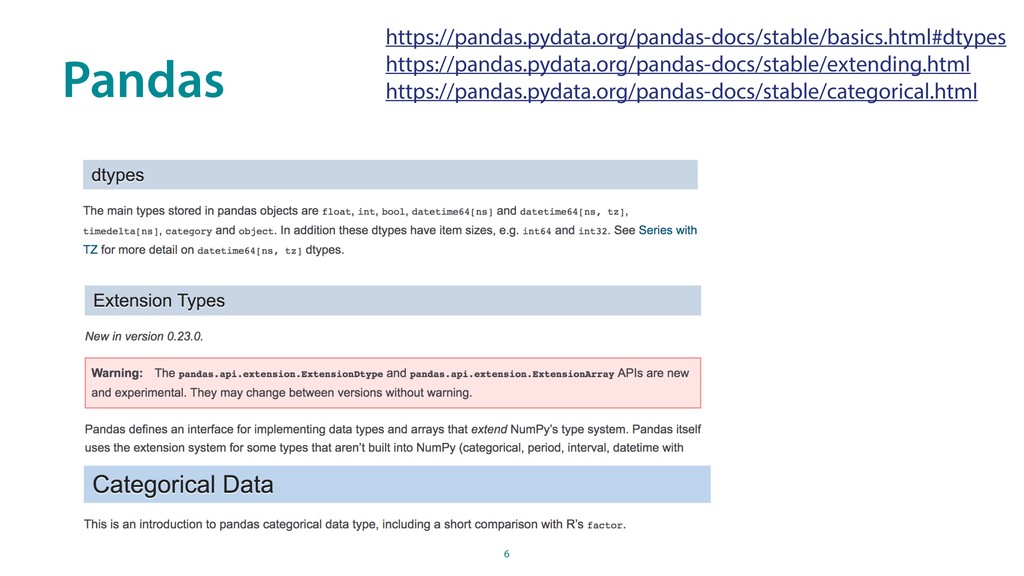

13. 6 Pandas https://pandas.pydata.org/pandas-docs/stable/basics.html#dtypes https://pandas.pydata.org/pandas-docs/stable/extending.html https://pandas.pydata.org/pandas-docs/stable/categorical.html

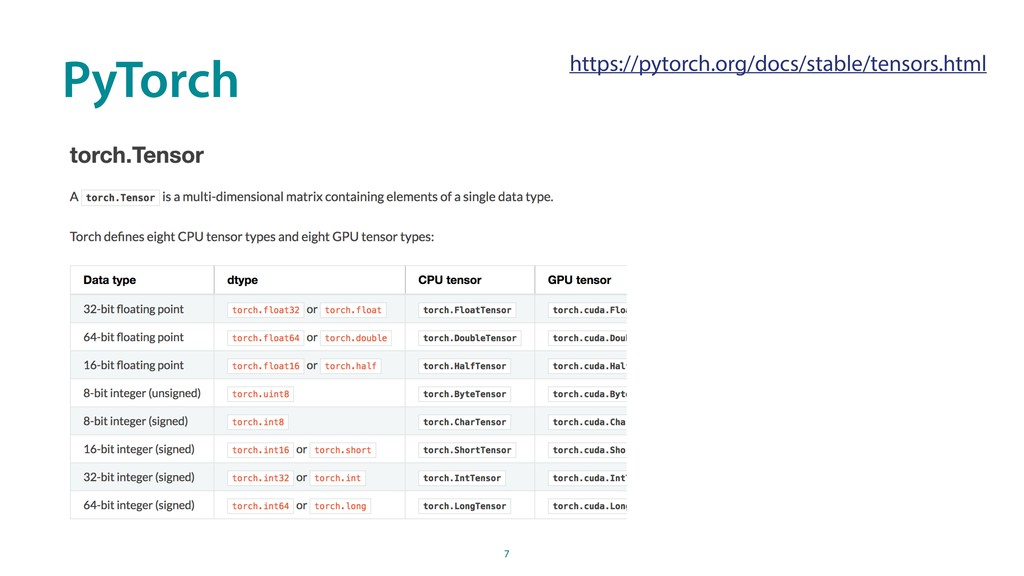

14. 7 PyTorch https://pytorch.org/docs/stable/tensors.html

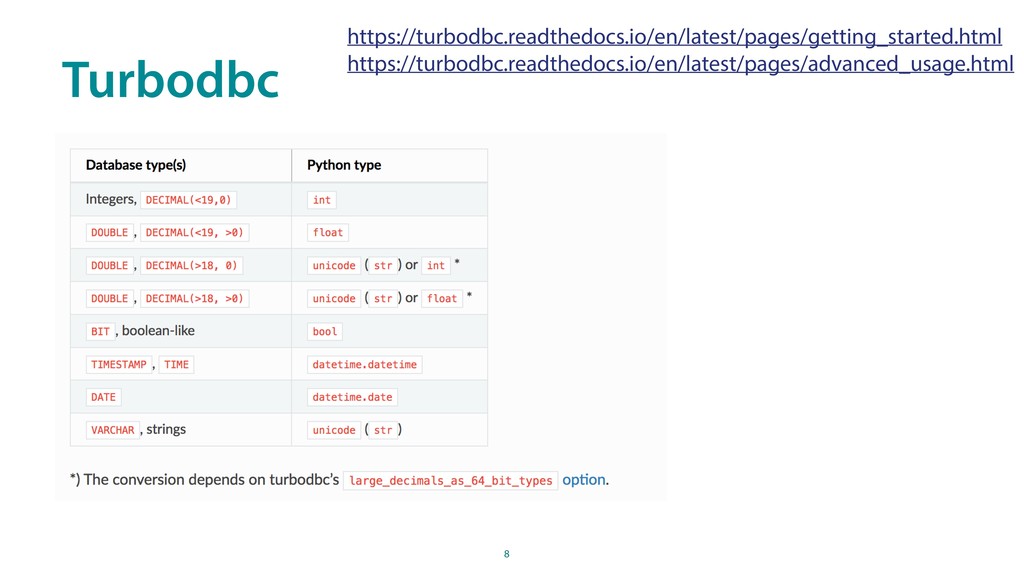

15. 8 Turbodbc https://turbodbc.readthedocs.io/en/latest/pages/getting_started.html https://turbodbc.readthedocs.io/en/latest/pages/advanced_usage.html

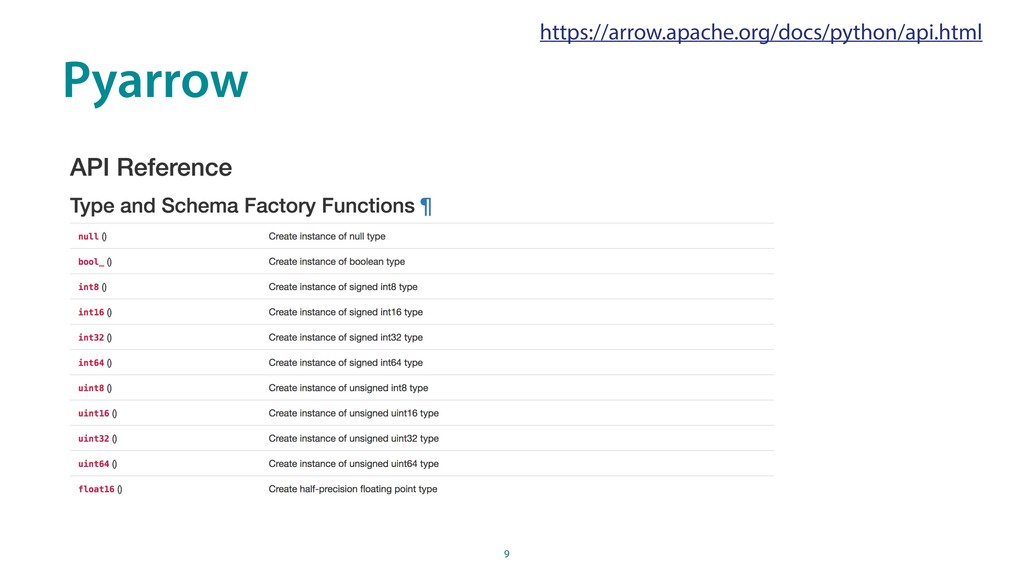

16. 9 Pyarrow https://arrow.apache.org/docs/python/api.html

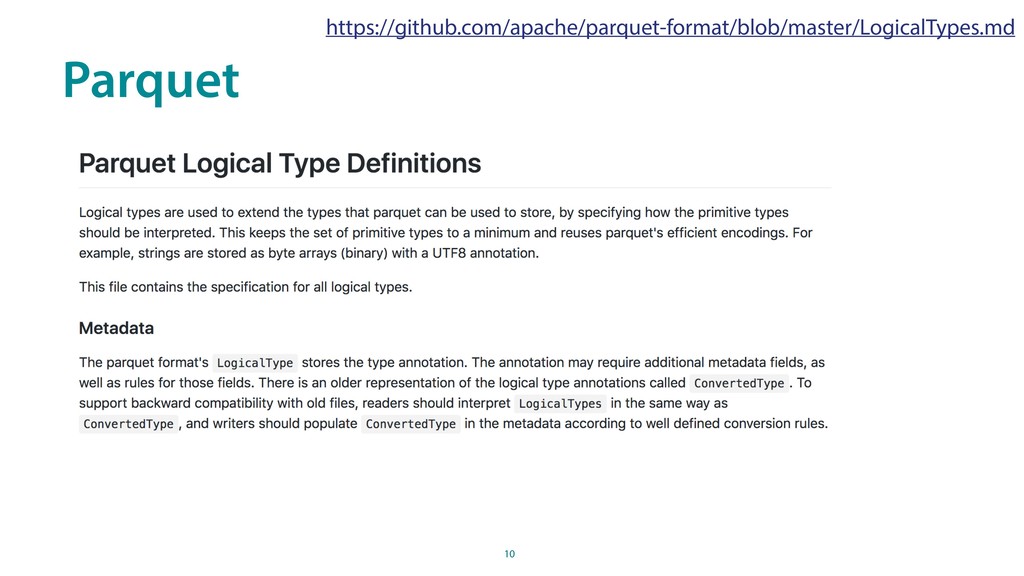

17. 10 Parquet https://github.com/apache/parquet-format/blob/master/LogicalTypes.md
18. 11 Perfect World

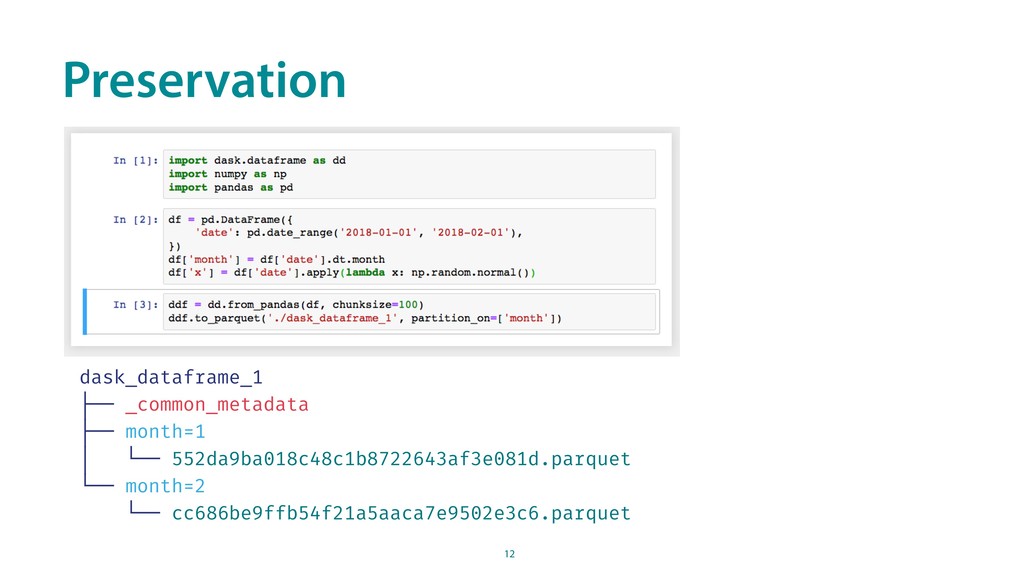

19. 12 Preservation dask_dataframe_1 ├── _common_metadata ├── month=1 │ └── 552da9ba018c48c1b8722643af3e081d.parquet └── month=2 └── cc686be9ffb54f21a5aaca7e9502e3c6.parquet

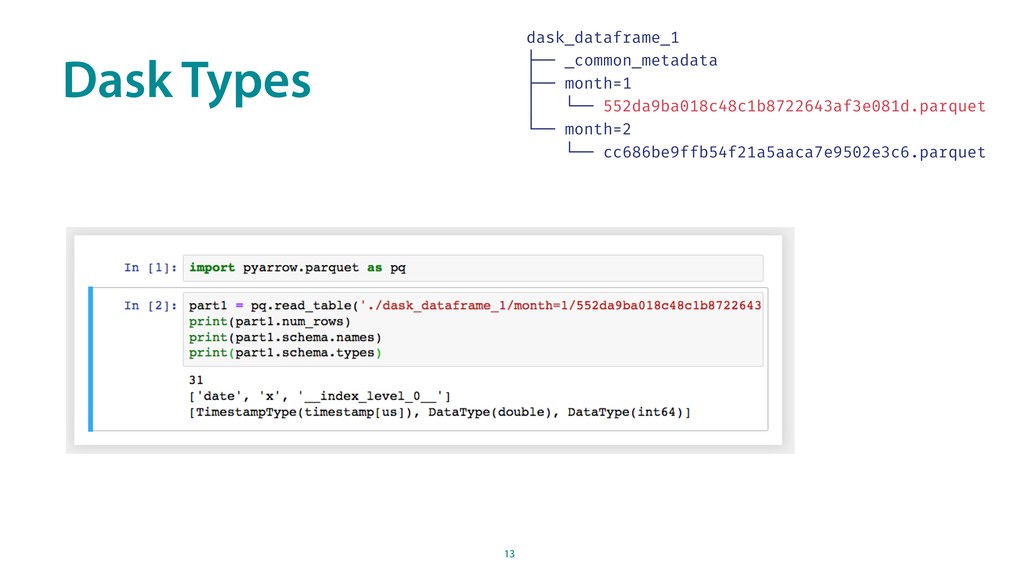

20. 13 Dask Types dask_dataframe_1 ├── _common_metadata ├── month=1 │ └── 552da9ba018c48c1b8722643af3e081d.parquet └── month=2 └── cc686be9ffb54f21a5aaca7e9502e3c6.parquet

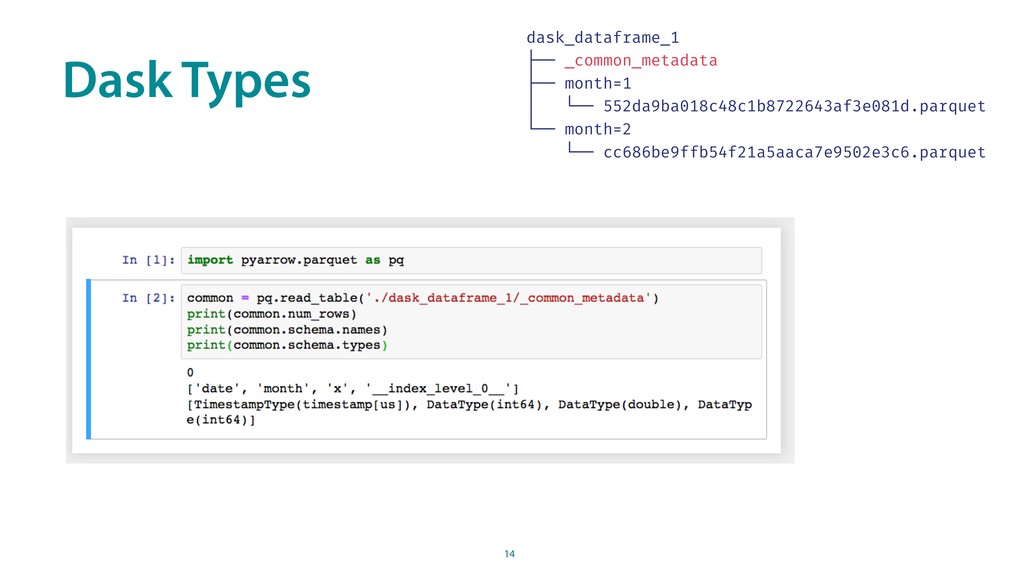

21. 14 Dask Types dask_dataframe_1 ├── _common_metadata ├── month=1 │ └── 552da9ba018c48c1b8722643af3e081d.parquet └── month=2 └── cc686be9ffb54f21a5aaca7e9502e3c6.parquet

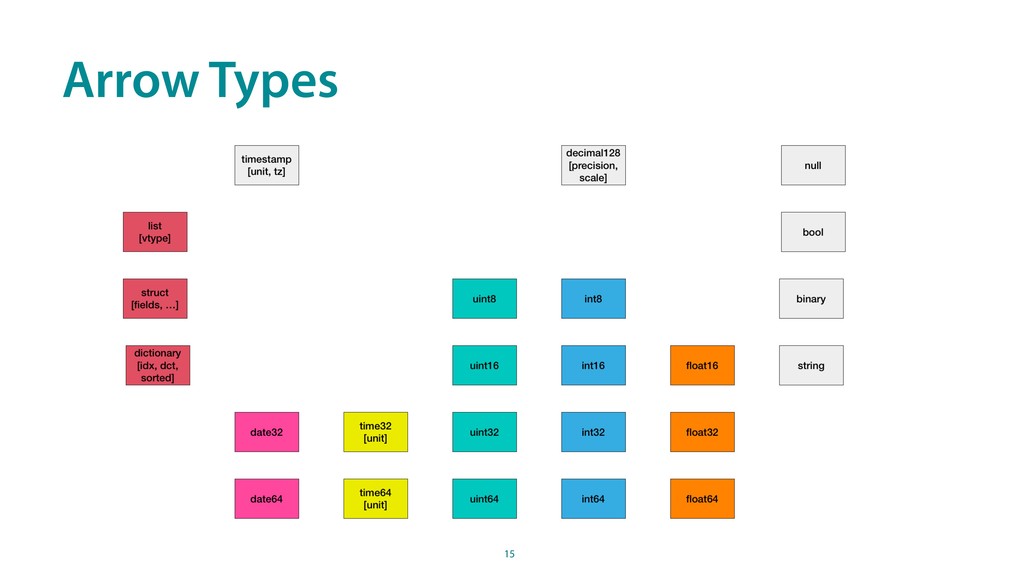

22. 15 Arrow Types
23. 16 Type Variance

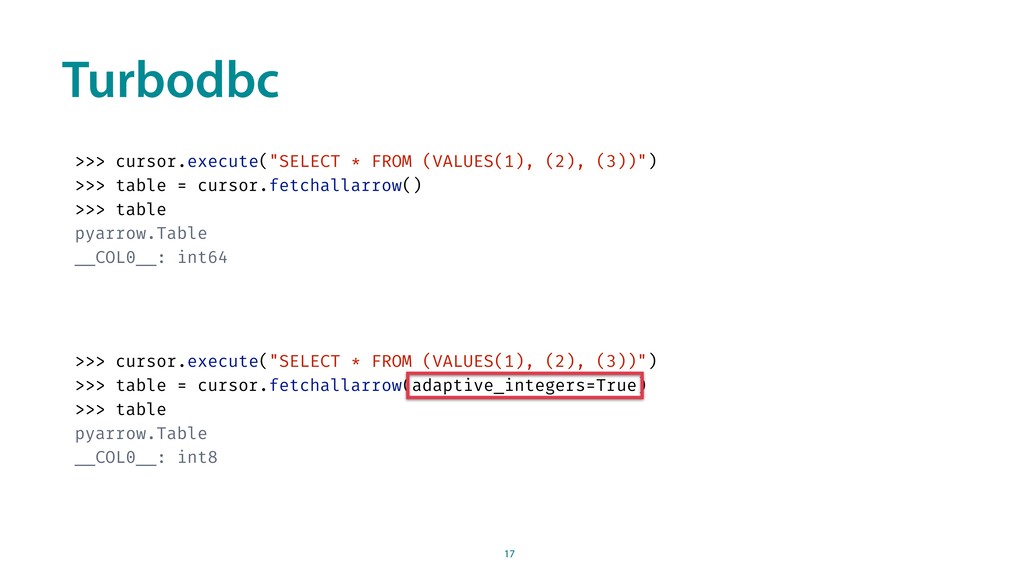

24. 17 Turbodbc >>> cursor.execute("SELECT * FROM (VALUES(1), (2), (3))") >>> table = cursor.fetchallarrow() >>> table pyarrow.Table __COL0__: int64 >>> cursor.execute("SELECT * FROM (VALUES(1), (2), (3))") >>> table = cursor.fetchallarrow(adaptive_integers=True) >>> table pyarrow.Table __COL0__: int8

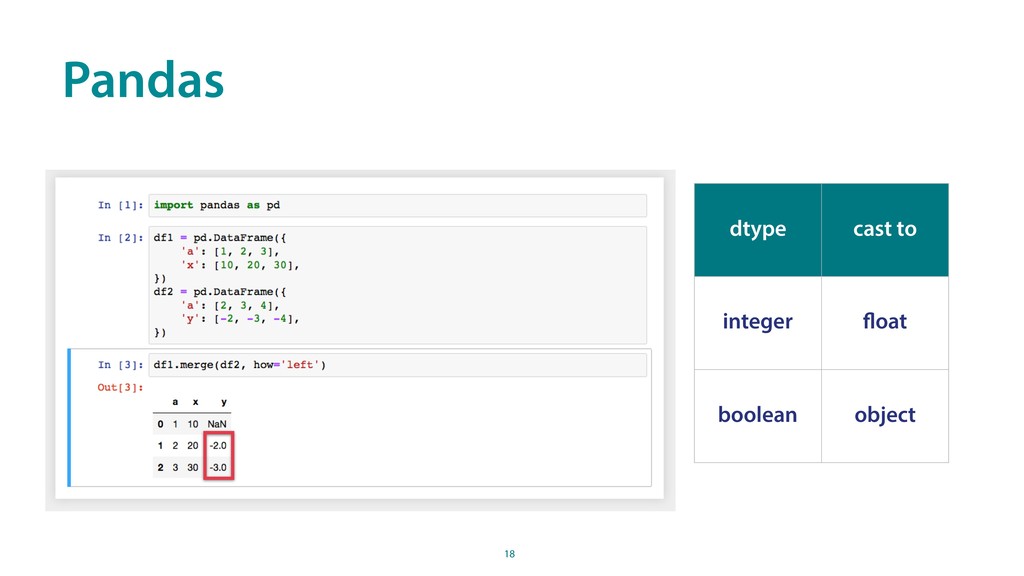

25. 18 Pandas dtype cast to integer float boolean object

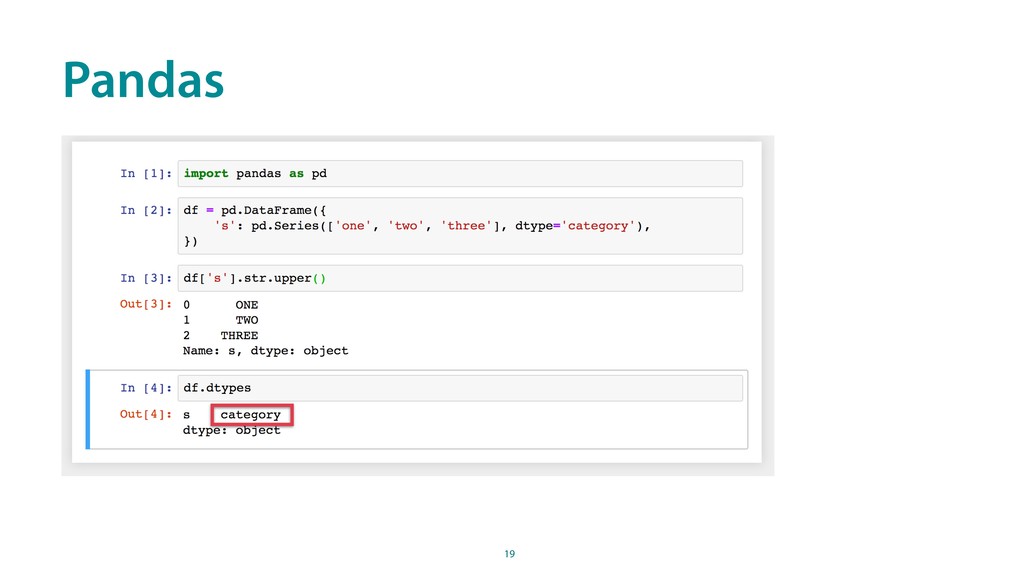

26. 19 Pandas

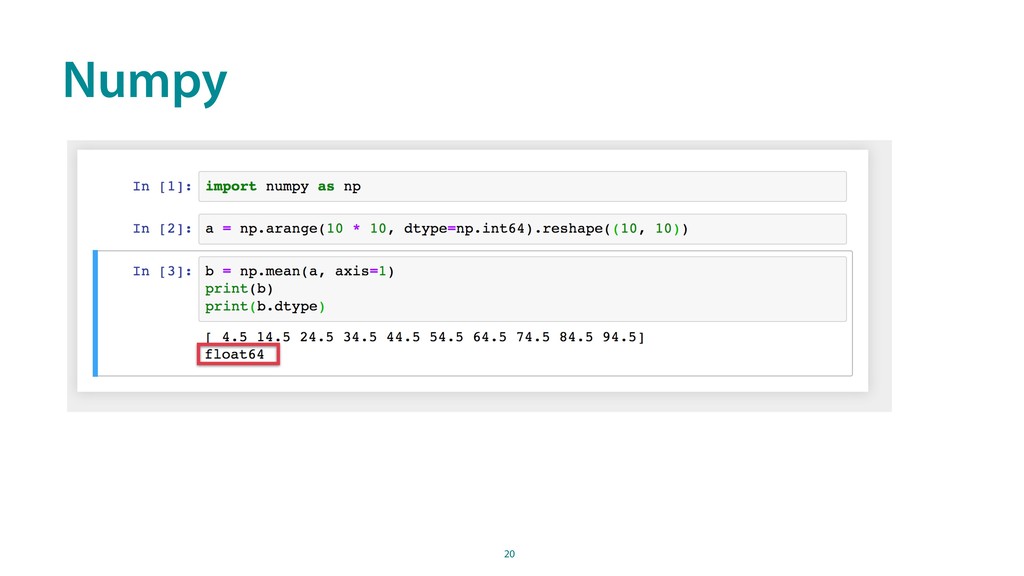

27. 20 Numpy
28. 21 Type Compatibility

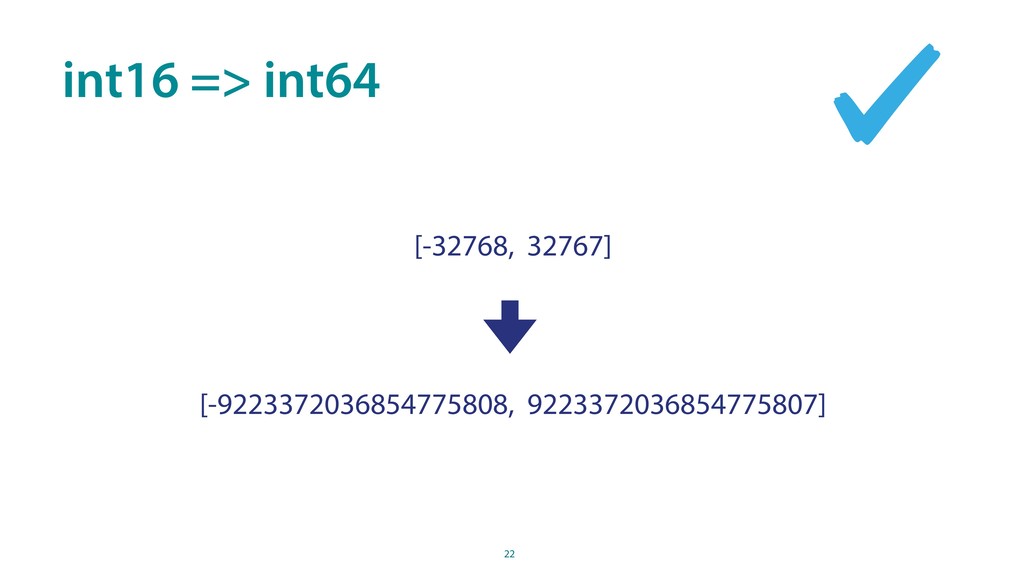

29. 22 int16 => int64 [-32768, 32767] [-9223372036854775808, 9223372036854775807]

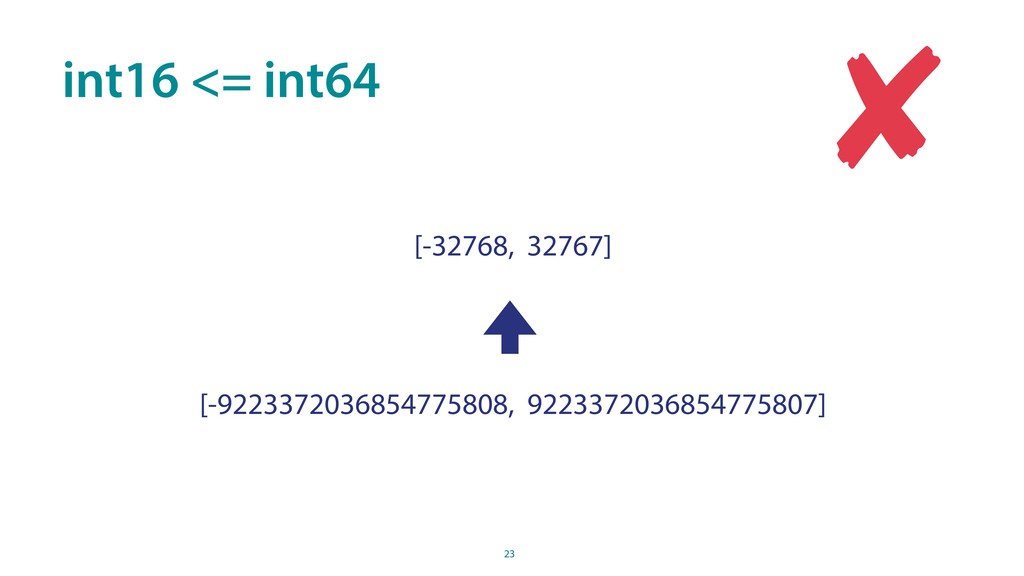

30. 23 int16 <= int64 [-32768, 32767] [-9223372036854775808, 9223372036854775807]

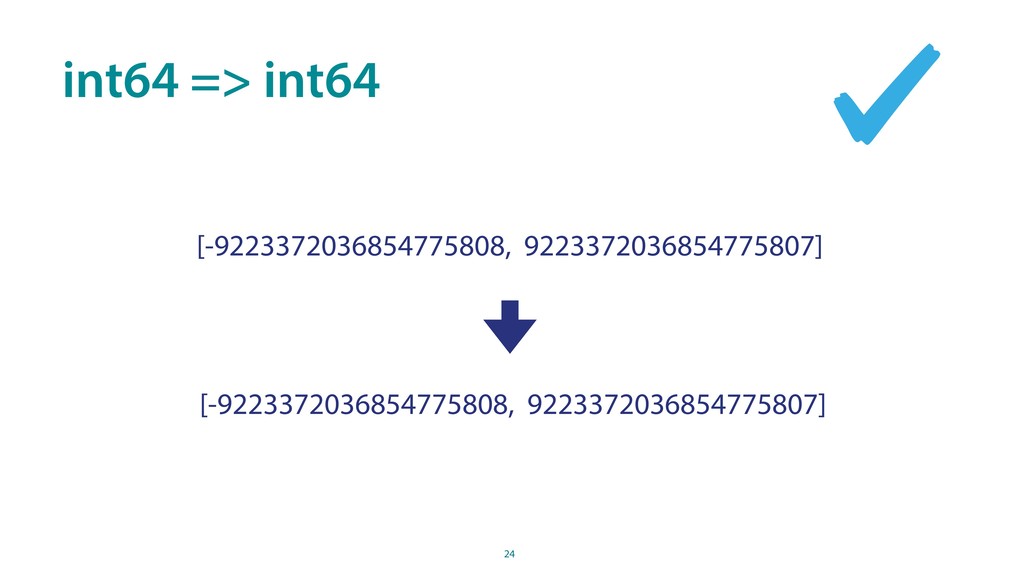

31. 24 int64 => int64 [-9223372036854775808, 9223372036854775807] [-9223372036854775808, 9223372036854775807]

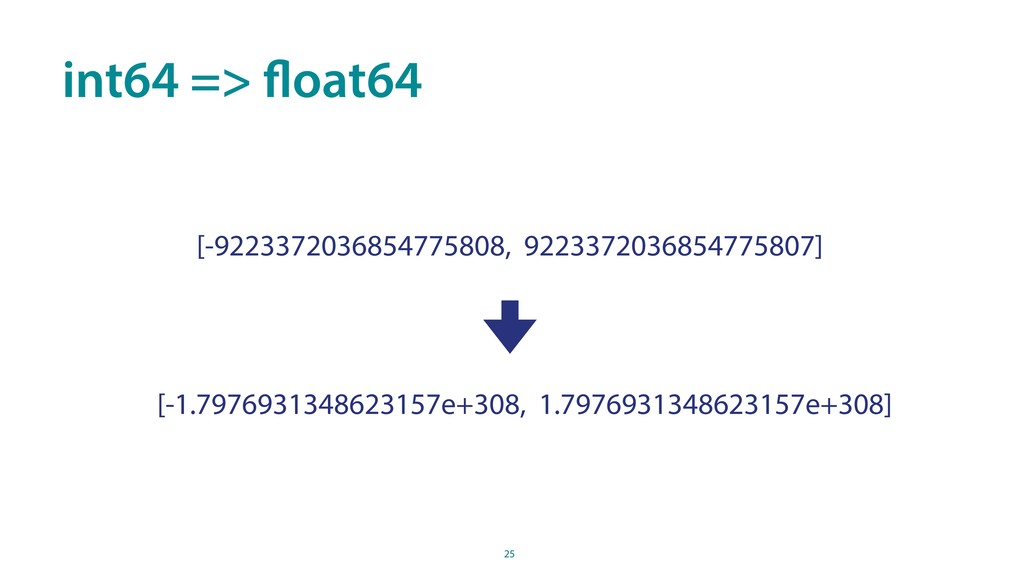

32. 25 int64 => float64 [-9223372036854775808, 9223372036854775807] [-1.7976931348623157e+308, 1.7976931348623157e+308]

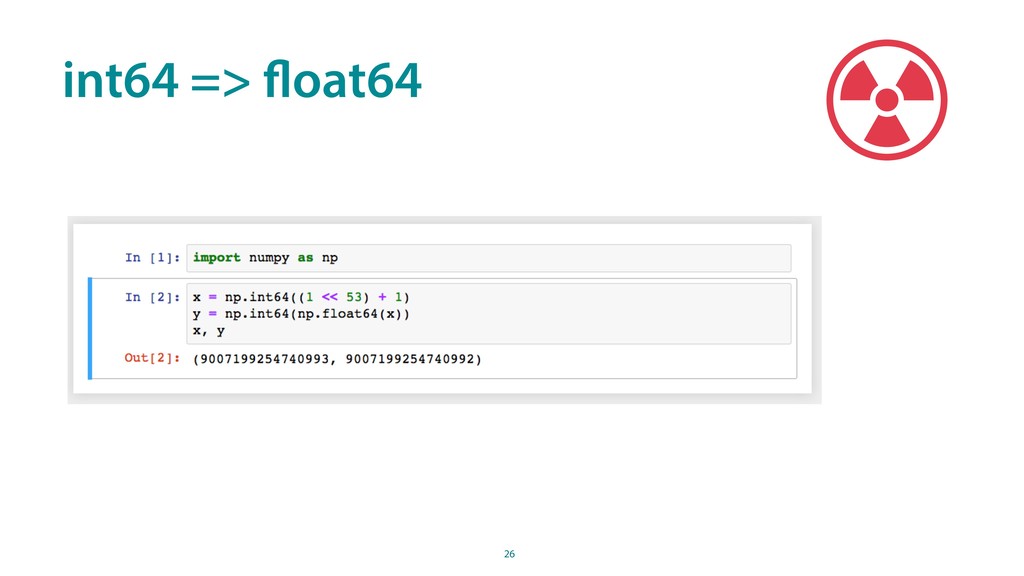

33. 26 int64 => float64
34. 26 int64 => float64

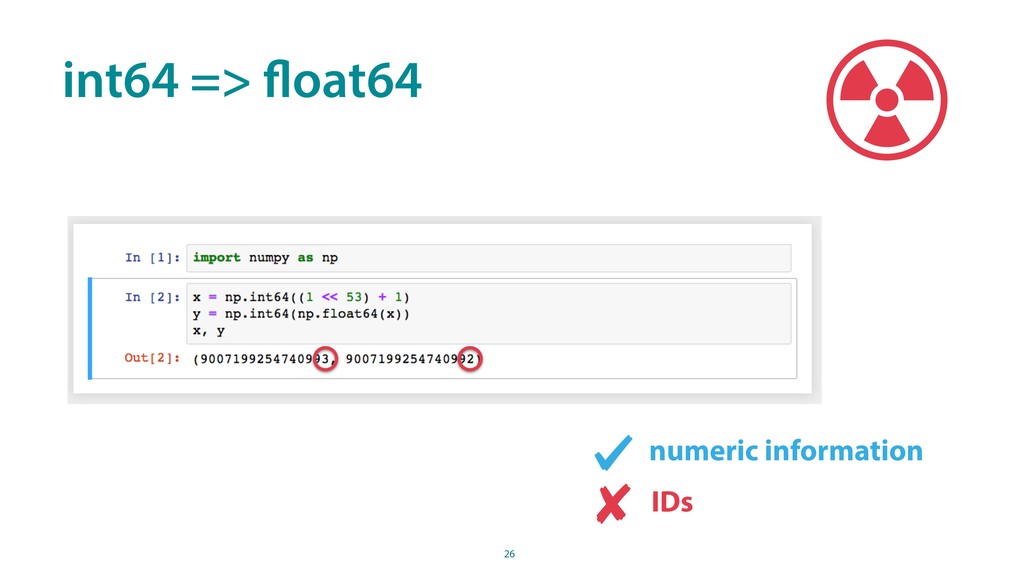

35. 26 int64 => float64 numeric information IDs

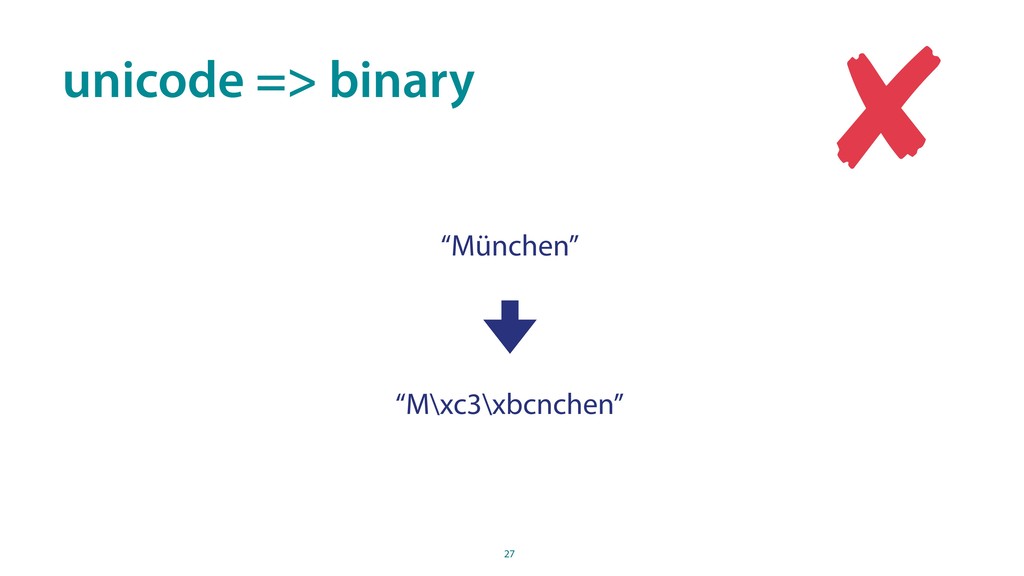

36. 27 unicode => binary “München” “M\xc3\xbcnchen”
37. 28 Type Preservation

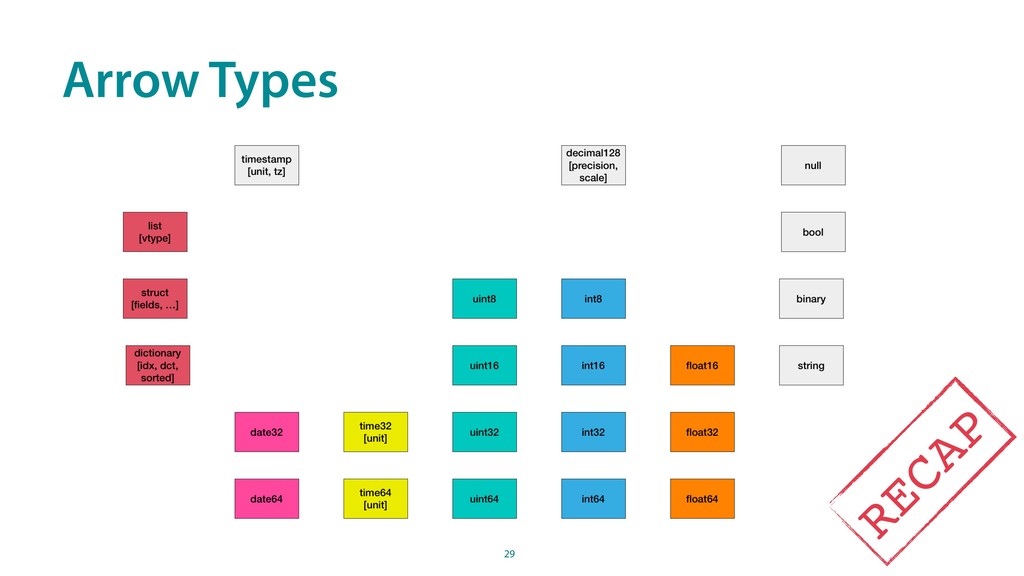

38. 29 Arrow Types RECAP

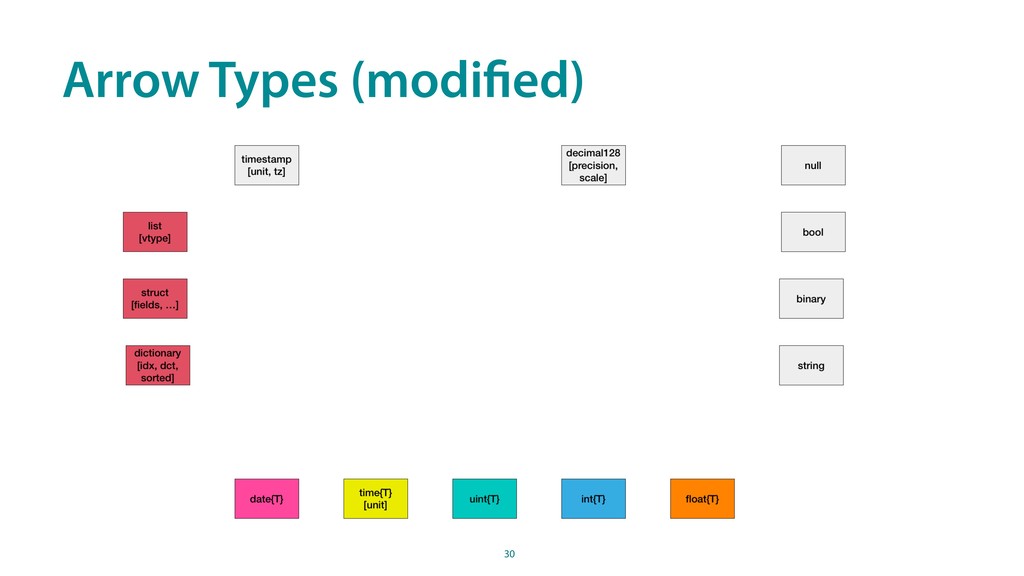

39. 30 Arrow Types (modified)

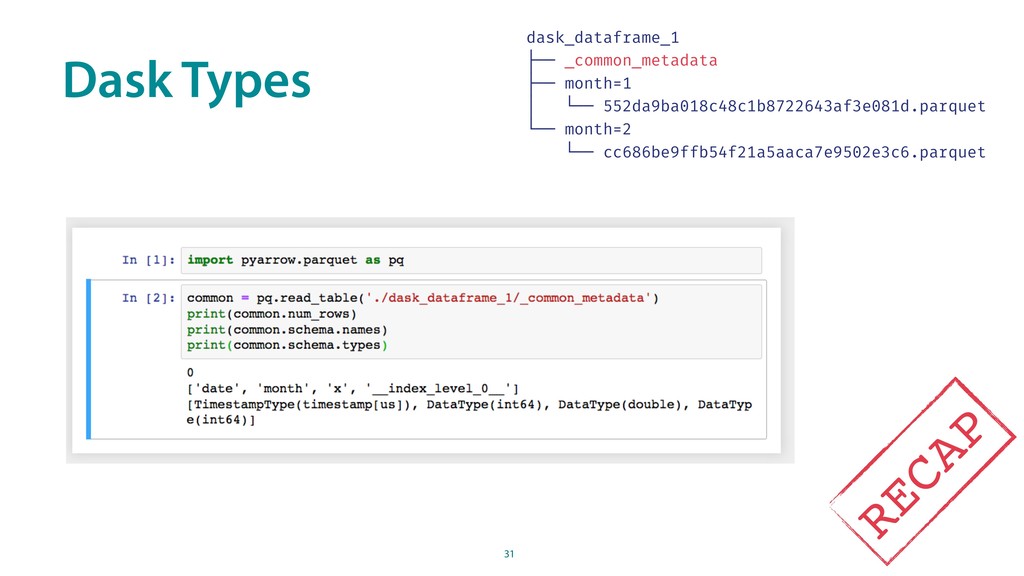

40. 31 Dask Types dask_dataframe_1 ├── _common_metadata ├── month=1 │ └── 552da9ba018c48c1b8722643af3e081d.parquet └── month=2 └── cc686be9ffb54f21a5aaca7e9502e3c6.parquet RECAP

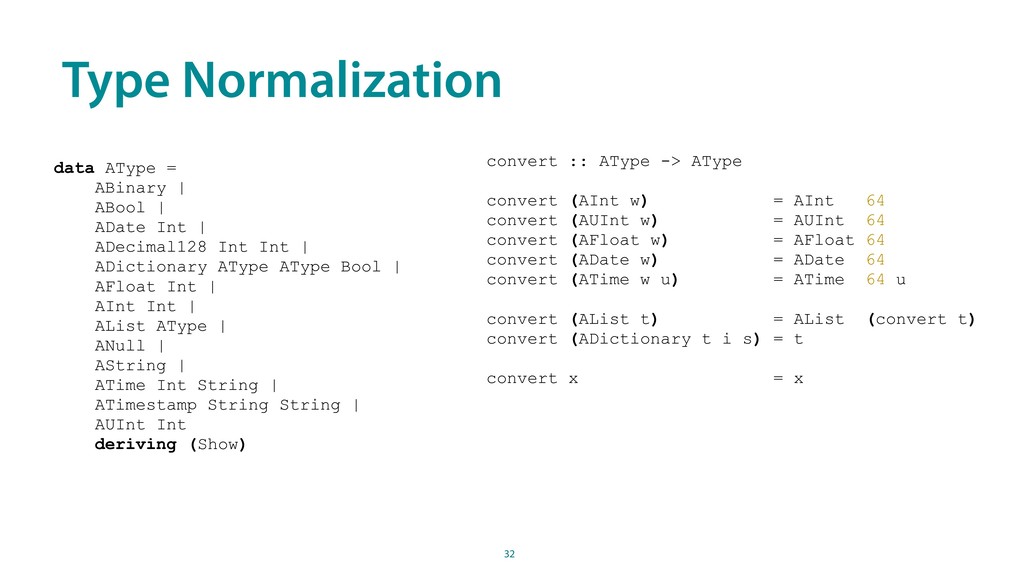

41. 32 Type Normalization data AType = ABinary | ABool | ADate Int | ADecimal128 Int Int | ADictionary AType AType Bool | AFloat Int | AInt Int | AList AType | ANull | AString | ATime Int String | ATimestamp String String | AUInt Int deriving (Show) convert :: AType -> AType convert (AInt w) = AInt 64 convert (AUInt w) = AUInt 64 convert (AFloat w) = AFloat 64 convert (ADate w) = ADate 64 convert (ATime w u) = ATime 64 u convert (AList t) = AList (convert t) convert (ADictionary t i s) = t convert x = x

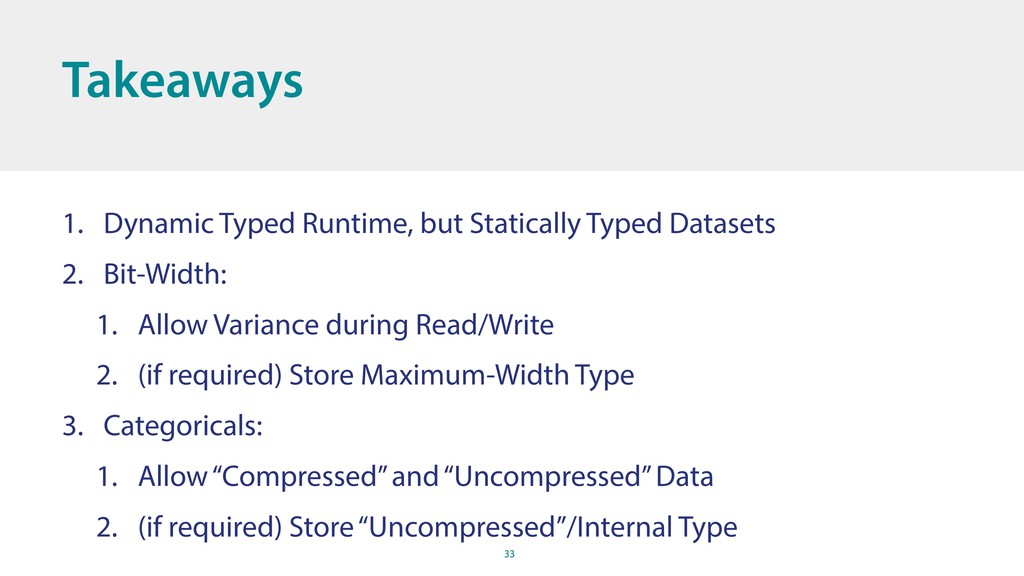

42. 33 Takeaways 1. Dynamic Typed Runtime, but Statically Typed Datasets 2. Bit-Width: 1. Allow Variance during Read/Write 2. (if required) Store Maximum-Width Type 3. Categoricals: 1. Allow “Compressed” and “Uncompressed” Data 2. (if required) Store “Uncompressed”/Internal Type
43. 34 Thank You 1. Bottles, portions, liquid and perfume HD
